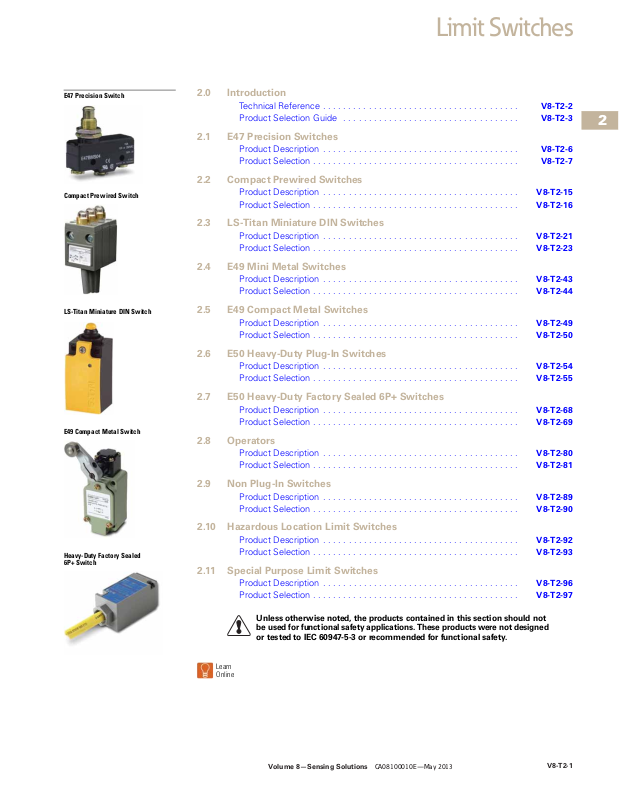

Limit Switches
E47 Precision Switch
LS-Titan Miniature DIN Switch
E49 Compact Metal Switch
Heavy-Duty Factory Sealed
6P+ Switch
Compact Prewired Switch
Learn
Online
2.0 Introduction
Technical Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-2
Product Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-3
2.1 E47 Precision Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-6
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-7
2.2 Compact Prewired Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-15
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-16
2.3 LS-Titan Miniature DIN Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-21
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-23
2.4 E49 Mini Metal Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-43
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-44
2.5 E49 Compact Metal Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-49
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-50
2.6 E50 Heavy-Duty Plug-In Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-54
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-55
2.7 E50 Heavy-Duty Factory Sealed 6P+ Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-68
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-69
2.8 Operators
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-80
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-81
2.9 Non Plug-In Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-89
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-90
2.10 Hazardous Location Limit Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-92
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-93
2.11 Special Purpose Limit Switches
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-96
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-97
Unless otherwise noted, the products contained in this section should not
be used for functional safety applications. These products were not designed
or tested to IEC 60947-5-3 or recommended for functional safety.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013
2
2
2
2
V8-T2-1
Page 2
2.0
Differential
Reset Point
Initial Position
Operating
Point
Pre-travel
Over-travel
Initial Position
Over-travel
Reset Point
Operating Point
Pre-travel
Final Position
Differential
Actuator/
Operating
Head
Switch
Body
Switch
Body
Actuator/
Operating
Head
Receptacle/
Terminals
Technical Reference
2
Limit Switches
2
2
2
2
2
2
2
2
2
Mechanical Limit Switches
2
are contact sensors widely
used for detecting the
2
presence or position of
objects in industrial
applications.
2
2
2
2
Lever Type Actuator
2
Limit Switches
Introduction
Limit Switches offer high
precision in terms of accuracy
and repeatability. This is
primarily due to the fact that
they make direct contact
with the target. When an
object contacts the limit
switch lever (or plunger)
the lever moves a pre-travel
distance to the operating
point where the contacts are
tripped. Movement of the
lever beyond this point is
called the over-travel.
Limit switches contain the
following major components.
These may be modular or part
of a single-piece switch.
Limit Switch Components
2
2
2
2
2
2
2
2
2
2
2
2
2
Refer to Sensor Learning Course, Page V8-T12-4, for a
complete description of limit switch terminology.
V8-T2-2
Volume 8—Sensing Solutions CA08100010E—May 2013
Actuator
This is the part of the switch
that contacts the target.
Typical actuators are levers
and plungers. Several styles
are available, see Sensor
Learning Course, Page
V8-T12-4, for more
information.
Switch Body
This part contains the
electrical contact mechanism.
For complete information on
electrical outputs, see Sensor
Learning Course, Page
V8-T12-4.
Te rm in al s
The terminals are the point of
connection for the wiring.
These terminals may be on
the body itself, or housed in a
removable receptacle. The
limit switch may also come
equipped with a factory
installed cable or pinconnector.
Page 3
Limit Switches
Introduction
2.0
Product Selection Guide
E47 Precision Switches
Page V8- T2 -6
Overview
Specified when accurate repeatability,
choice of operating forces and travel
characteristics and tightly controlled
action of cam or target in space restricted
areas are of prime importance. Cost
effective and compact.
Applications
Overhead, folding and elevator doors,
sliding gates, automated guided vehicles
and commercial instrumentation
Product Features
Self-contained switches or with an enclosed
cast housing for increased durability and
conduit connection
(1/2 in NPT)
High current capacity for power load
switching and motor handling capability
Screw and solder terminations
Booted enclosed version shields actuators
from debris
Mounting centers—1.0 in (25.4 mm),
#8 screw size
Technical Data and Specifications
Mechanical life: 3,000,000 operations min.
Electrical life: 500,000 operations min.
Contact ratings—
NEMA A600, R300, AC-15, DC-13
15A/20A, 125 or 250 Vac
Enclosure ratings—
Enclosed: NEMA 1
Construction—
Basic: Phenolic
Enclosed: Aluminum die cast
Compact Prewired
Switches
Page V8- T2 -15
Overview
Designed to be a versatile, slim device for
hard to fit applications where sealing
integrity is required.
Applications
Machine tool, food processing and
packaging
Product Features
Rugged aluminum alloy die cast housing
Sealed construction with enclosure ratings
of NEMA 4, 6 and 13
Prewired with 3m of 18 AWG, AWM 2517,
300V cable
Stackable ridge for ganged operation
Technical Data and Specifications
Mechanical life: 10,000,000 operations
min.
Electrical life: 200,000 operations
30 operations min.
Contact ratings—
NEMA B300
Enclosure ratings—
NEMA 4, 6 and 13; IP67, IP69K
Construction—
Aluminum alloy die cast
LS-Titan Miniature
DIN Switches E49 Mini Metal Switches
Page V8- T2 -21
Overview
Safety position switches with
insulated plastic or rugged metal
enclosures. Approved for worldwide
safety application.
Applications
Automatic vending machines, electronic
assembly machines, elevators and lifts,
injection molding, packaging and safety
applications
Product Features
Modular plug-in head and body components
Positive opening NC contacts for safety
applications
Operating heads can be rotated 90 degrees
to suit specific direction of operation
Technical Data and Specifications
Mechanical life: 8,000,000 operations
Contact ratings—
AC-15, 6A at 24V, 6A at 230/240V,
4A at 400/415V;
DC-13, 3A at 24V, 800 mA at 110V,
300 mA at 220V
Enclosure ratings—
IP66, IP67 (by model)
Construction—
Plastic or metal (by model)
Page V8-T2-43
Overview
Suitable for OEMs who require a small,
cost-effective solution but cannot sacrifice
durability and mechanical life as they would
if they chose a plastic IEC style switch.
Applications
Automatic vending machines, electronic
assembly machines, elevators and lifts,
injection molding, packaging
Product Features
Pre-wired units with custom cable lengths
available for high volume customers
“Fingerproof” terminals protect against
accidental shock
Double-spring mechanism for contact
reliability
Grounding terminal included
Captive screws on enclosure cover make
wiring hassle-free
SPDT double break
Technical Data and Specifications
Contact ratings—
5A at 250 Vac
5A at 30 Vdc
Enclosure ratings—
IP65
Construction—
Zinc alloy
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Approvals
®
Recognized
UL
®
Certified
CSA
CE
Approvals
cULus
Approvals
Safety function, IEC/EN 60947-5-1
TÜV-Rheinland certified (LSE models)
CSA certified
UL listed
CE
CCC
Volume 8—Sensing Solutions CA08100010E—May 2013
Approvals
UL Recognized
CE
2
2
2
2
2
2
V8-T2-3
Page 4
2.0
Limit Switches
Introduction
E49 Compact Metal
2
Switches
2
2
2
2
2
Page V8-T2-49
2
Overview
Designed with high mechanical strength for
2
robust environments. The rugged Aluminum
die cast construction provides reliable, oiltight, waterproof and dustproof sealing for
2
a variety of applications. Snap action 1NO1NC contacts provide flexibility in design.
2
Applications
Packaging, material handling conveyors,
2
end-of-travel and guarding operations,
baler/compactor, industrial door lifts
2
Product Features
2
Rigid die cast switch housing
Set position indicator plate for easy
2
maintenance
High mechanical strength
2
Oiltight, waterproof and dustproof
construction
2
2
2
2
Technical Data and Specifications
2
Mechanical life: 15,000,000 operations
min.
Electrical life: 500,000 operations
2
min. at full load
Contact ratings—
2
NEMA A600, R300; AC-15, DC-13
Enclosure ratings—
2
NEMA 4, 4X, 6, 6P, 12, 13; IP65, IP67
Construction—
2
Aluminum die cast
2
Approvals
cULus
2
IP67
2
2

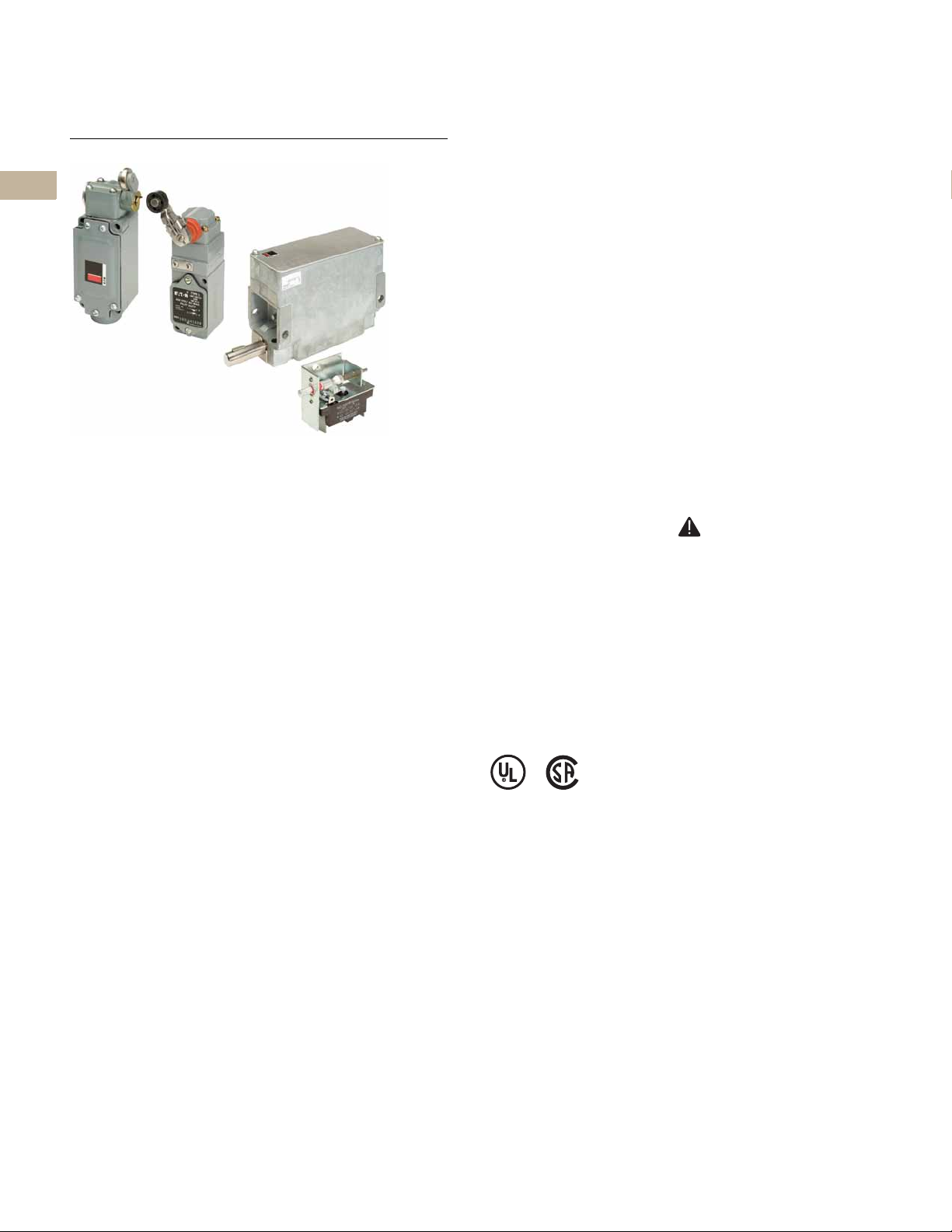

E50 Heavy-Duty Plug-In
Switches
Page V8-T2-54
Overview
Versatile in design. High reliability. Low
maintenance costs with installation ease.
BEST CHOICE for Heavy-Duty Limit Switch
applications. Withstands physical and
chemical abuse of harsh industrial
environments.
Applications
Punch presses, waste water treatment,
machine tool, automotive, retrieval
systems, industrial truck, car wash lines
Product Features
Modular operating heads, switch bodies
and receptacles are interchangeable
without field adjustment
Order as complete assemblies or
components for stocking and
manufacturing flexibility
90 degree total travel, 5 degree pre-travel
characteristics are standard features
®
gasket, boot, and seal material
Viton
offers exceptional chemical resistance
Rotary head operating mode from CW,
CCW or CW and CCW is easily changed
without tools
Technical Data and Specifications
Mechanical life: 13,000,000 operations
min.
Electrical life: 1,000,000 operations
min. at full load (single-pole)
Contact ratings—
NEMA A600, R300
Lighted versions A150, R150
6A, 120 Vac; 10A continuous
Enclosure ratings—
NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13; IP67
Construction—Zinc die cast
Approvals
UL Listed
CSA Certified
IEC 947-5-1
TUV
CE (some models)
E50 Heavy-Duty Factory
Sealed 6P+ Switches Operators
Page V8- T2 -68
Overview
Designed specifically to withstand the
penetrating properties of new cutting fluids
(coolants), acid or caustic washes, salt
spray, severe vibration, shock and
temperature fluctuations, grit and debris.
Applications
Automotive, pulp and paper, food
processing, waste management, primary
metals, machine tool (cutting, forming,
bending)
Product Features
Tamperproof, one-piece switch body
assembly, epoxy filled
Factory sealed. 6P submersible. Pre-wired
with cable, pigtail or pin connector options.
All with ground connection
Utilizes E50 modular operating heads
Special V-seal on switch body/head
connection provides hermetic barrier
against fluid ingress
LED indicating light, 24V–120 Vac/dc
neon version too
Peel off see-through painting mask over
nameplate
Technical Data and Specifications
Mechanical life: 35,000,000 operations min.
Electrical life: 1,000,000 operations
min. at full load
Contact ratings—
NEMA A600, R300
Lighted versions A150, R150
6A, 120 Vac; 10A continuous
Enclosure ratings—
NEMA 1, 2, 3, 3S, 4, 4X, 6, 6P, 13; IP67,
IP69K
Construction—Zinc die cast
Approvals
UL Listed
CSA Certified
IEC 947-5-1
TUV
CE (some models)
Page V8-T2-80
Overview
Wide variety of operator types f or rotary and
wobble style limit switches.
Applications
Used with E50, E50 6P+ and 10316
limit switches
Product Features
Rollers and rods available in metal
and nonmetal contact surfaces
Technical Data and Specifications
Varies by model
Approvals
Varies by model
2
2
V8-T2-4 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 5
Limit Switches
Introduction
2.0
Non Plug-In Switches
Page V8-T2-89
Overview
The Industrial standard for Non Plug-In
Heavy-Duty Limit Switches. Sold as
complete assembled units only.
Applications
Serving MRO and USER replacement
requirements with broad
d market coverage
Product Features
Side and top rotary, side and top push or
wobble operation
CW, CCW or CW and CCW operating modes
are field convertible
Double break-make snap action contacts,
same polarity each pole
Captive saddle clamp terminals accept up
to #12 wire
Head can be mounted in any of four discrete
positions, intervals of 90 degrees
Technical Data and Specifications
Mechanical life: 10,000,000 operations
min.
Electrical life: 500,000 operations at
full load
Contact ratings—NEMA A600, R300
6A, 120 Vac; 10A continuous
Enclosure ratings—NEMA 1, 4, 13
Construction—
Zinc die cast
Hazardous Location
Switches Special Purpose Switches
Page V8- T2 -92
Overview
Designed for severe environmental service
in locations where there exists a danger of
an internal or external explosion of
flammable gases, vapors, metal alloy or
grain dust.
Applications
Mining, metal cutting, grain storage, forest
products, petrochemical, waste and sewage
management, pharmaceutical
Product Features
Sealed and unsealed versions available
One-way gasket on sealed version keeps
liquids out, yet allows a harmless release of
gases in the event of an internal explosion
Silicon bronze housing provides excellent
corrosion resistant properties in extreme
NEMA 4X applications
Temperature build-up on limit switch
surface is dissipated by housing design and
materials used
Utilizes the operating heads and internal
switch mechanisms of the 10316
Non Plug-In line
Technical Data and Specifications
NEMA 7, Div. 1, Class I, BCD
NEMA 9, Div. 1, Class II, EFG
Contact ratings—NEMA B600
3A, 120 Vac; 5A continuous
Enclosure ratings—LX: NEMA 7, 9
CX: NEMA 1, 4, 7, 9
CB: NEMA 1, 4, 4X, 13
CBX: NEMA 1, 4, 4X, 7, 9, 13
Construction—LX, CX: Aluminum die cast
CB, CBX: Silicon bronze
Page V8- T2 -96
Overview
Variety of special function limit switch
products.
Applications
Serving MRO and USER replacement
requirements with broad market coverage
Product Features
Special function switch lines include:
Cabinet door interlocks — when plunger
is pulled out, red band indicator visually
shows that interlock is defeated
Precision switches—1NO-1NC,
2NO-2NC, or operator only. Variety of
mounting brackets available
Pneumatic time delay—ON delay and OFF
delay. Timing range—0.05 to 60 seconds
Rotating cam shaft switches
Technical Data and Specifications
See Page V8-T2-99 for more information
Enclosure ratings—
NEMA 1 or NEMA 4 versions
Construction—
Zinc die cast
PS: Phenolic
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Approvals
UL Listed
CSA Certified
Approvals
®
Listed
cUL
Approvals
UL Listed
CSA Certified (PS and J only)
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-5
2
2
2
2
2
2
Page 6
2.1

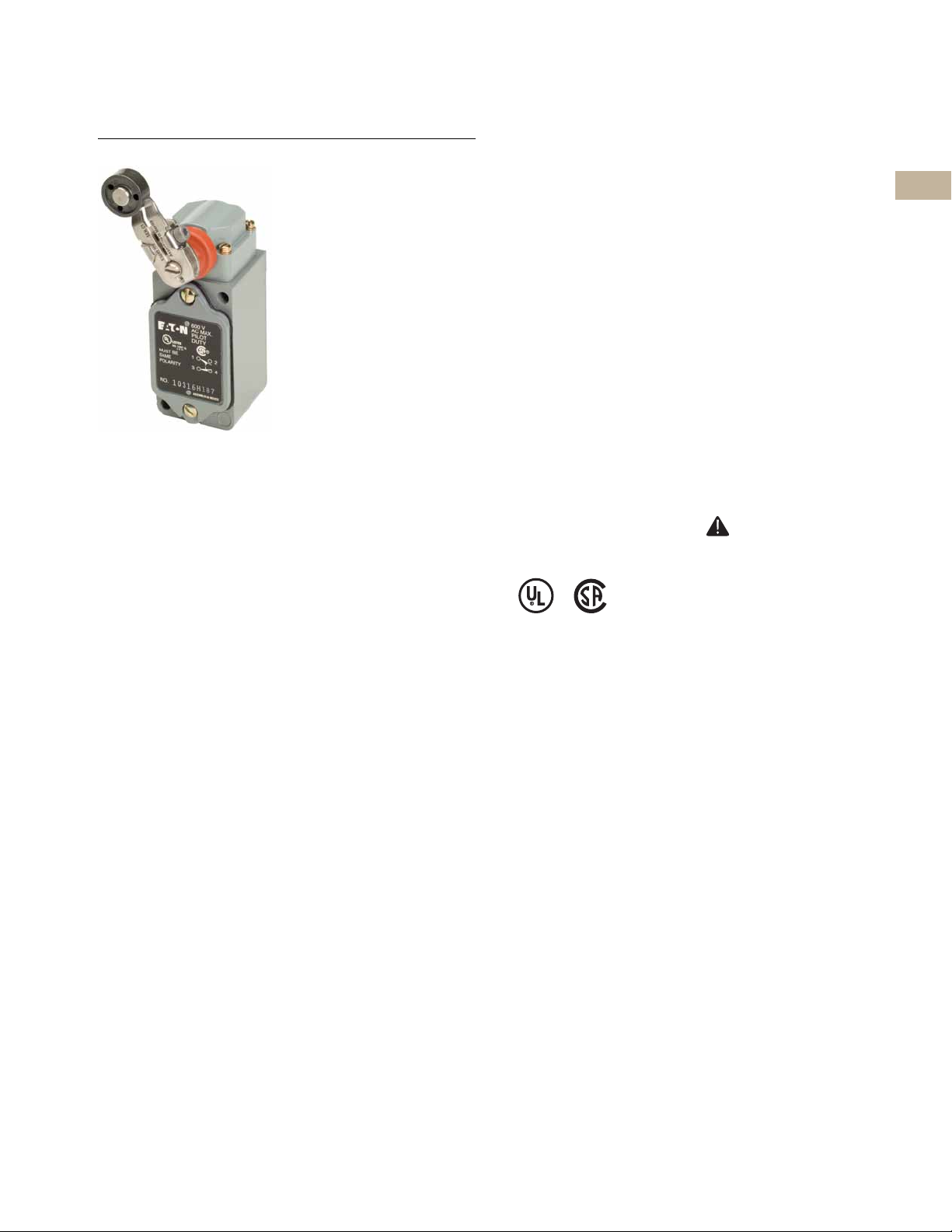

E47 Precision Switches
Drawings
Online
Limit Switches
E47 Precision Switches
2
2
2
2
2
2
2
2
2
2
2
E47 Precision Switches
Product Description
2

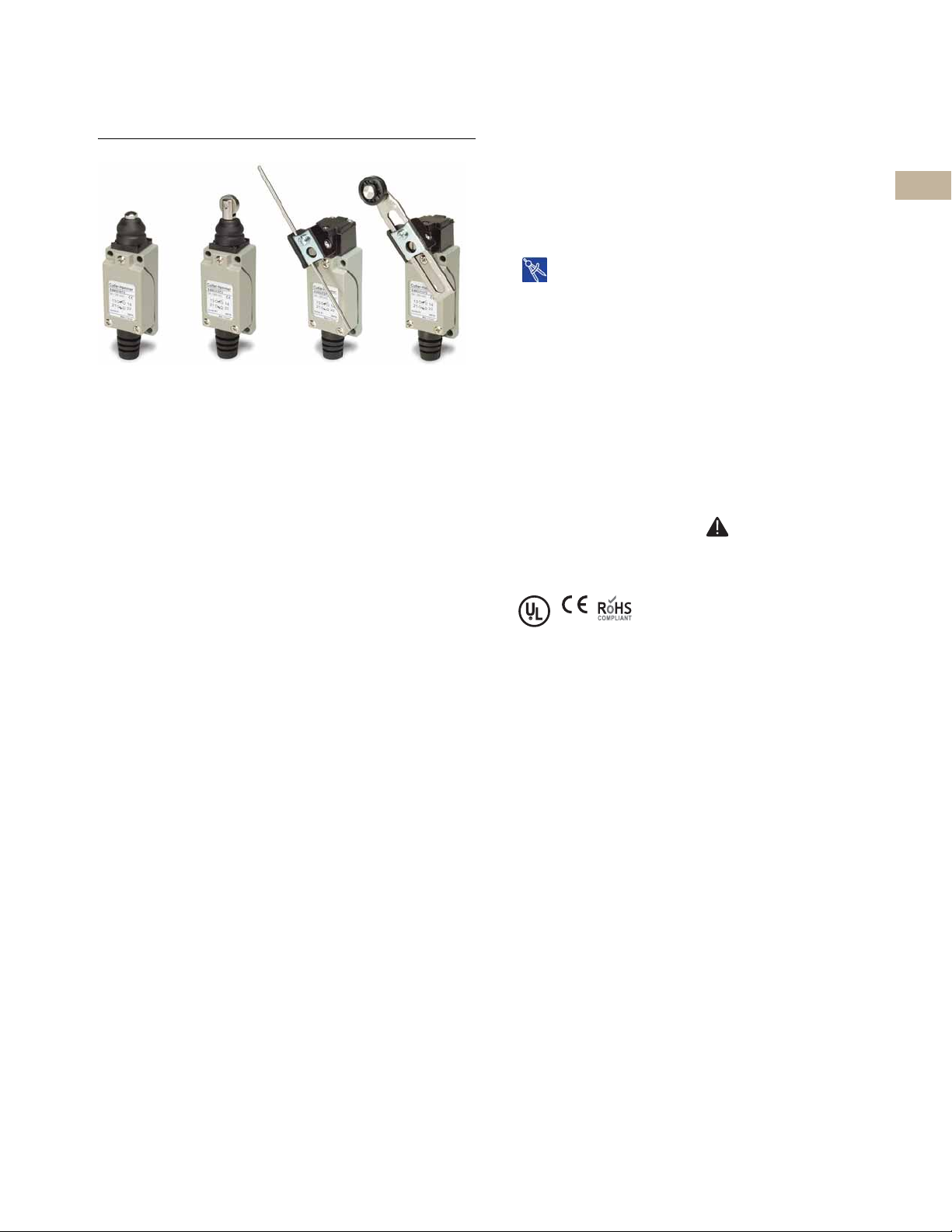

E47 Precision Switches from
Eaton’s electrical sector
2
provide high accuracy
switching at an affordable
2
price. A variety of standard
features, such as current
2
capacity, operating force,
travel characteristics and
2
actuators, lets you custom
fit the switch to your
application.
2
The switches are available
2
in their compact basic form,
or enclosed in a rugged,
metal housing.
2
2
2
2
2
2
2
2
Features
●
Compact housings are
deal for use where sp
i
i
s restricted
●
Precision, snap-action
erators provide a
op
repe
atability of electrical
and mechanical operating
haracteristics
c
●
High current capacity
to 20A) allows powe
(up
l
oad switchi
handling capability
●
Enclosed booted versions
ield actua
sh
de
bris
ng and motor
tors from
ace
ccurate
r
Contents
Description Page
E47 Precision Switches
Product Selection
Basic Switches . . . . . . . . . . . . . . . . . . . . . . V8-T2-7
Enclosed Switches. . . . . . . . . . . . . . . . . . . . V8-T2-9
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-10
Technical Data and Specifications . . . . . . . . . . V8-T2-10
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-12
Operating Characteristics
Definitions
●
OF—Operating Force
●
RF—Return Force
●
PT—Pre-Travel
●
OT—Over-Travel
●
MD—Movement
ferential
Dif
●
FP—Free Position
●
OP—Operating Position
Standards and Certifications
●
UL Recognized
●
CSA Certified
●
CE
●
RoHS
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
V8-T2-6 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 7
Limit Switches
Pin Plunger
Extended Plunger
Straight Plunger
Reversed Lever
Straight Lever
Standard Lever
Extended Straight
Plunger
E47 Precision Switches
2.1
Product Selection

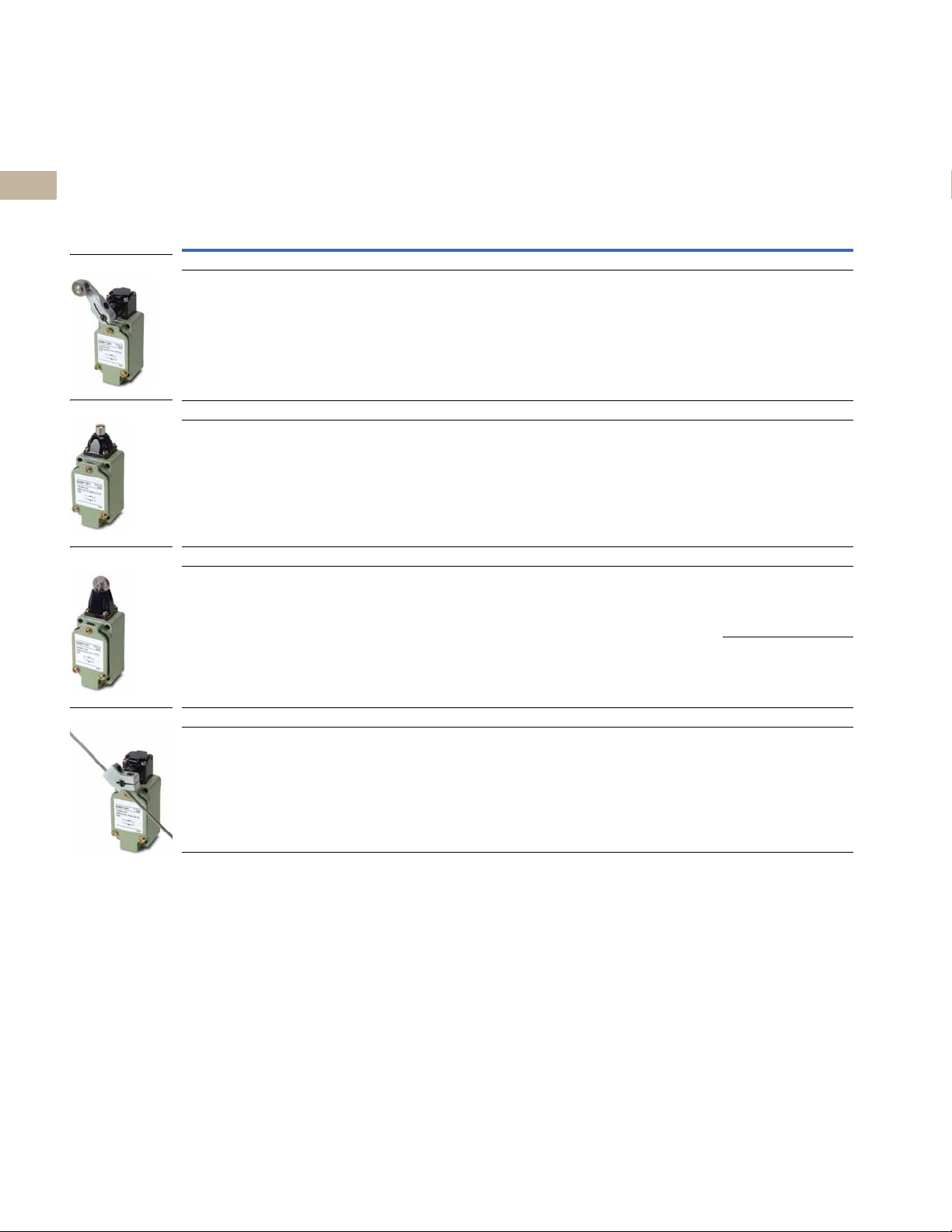

Basic Switches
E47 Precision Switches—Basic
Type Specifications
Pin Plunger
Screw terminal OF max.—12.3 oz (350g)
Solder terminal E47BML01 E47CML01
Extended Plunger
Screw terminal OF max.—12.3 oz (350g)
Solder terminal E47BML03 —
Straight Plunger
Screw terminal OF max.—12.3 oz (350g)
Solder terminal E47BML02 E47CML02
Reversed Lever
Screw terminal OF max.—5.29 oz (150g)
Solder terminal E47BML21 —
Spade terminal E47BMT21 —
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.005 in (0.13 mm)
MD max.—0.002 in (0.05 mm)
OP—0.626 in (15.9 mm)
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.063 in (1.6 mm)
MD max.—0.002 in (0.05 mm)
OP—1.11 in (28.2 mm)
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.063 in (1.6 mm)
MD max.—0.002 in (0.05 mm)
OP—0.846 in (21.5 mm)
RF max.—0.49 oz (14g)
PT max.—0.16 in (4 mm)
OT max.—0.063 in (1.6 mm)
MD max.—0.051 in (1.3 mm)
FP max.—0.81 in (20.6 mm)
OP—0.685 in (17.4 mm)
1
15A
Catalog Number
E47BMS01 E47CMS01
E47BMS03 —
E47BMS02 E47CMS02
E47BMS21 —
20A
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Straight Lever
Screw terminal OF max.—2.47 oz (70g)
Solder terminal E47BML22 —
Standard Lever
Screw terminal OF max.—3.53 oz (100g)
Solder terminal E47BML20 —
Extended Straight Plunger
Screw terminal OF max.—12.3 oz (350g)
Screw terminal (with space lugs) E47BMT04 —
Solder terminal E47BML04 E47CML04
Notes
1
OF = Operating Force; RF = Return Force; PT = Pre-Travel; OT = Over-Travel; MD = Movement Differential;
FP = Free Position; OP = Operating Position.
2
Contact Eaton’s Sensor Applications Department at 1-800-426-9184 for approval status.
RF min.—0.49 oz (14g)
PT max.—0.394 in (10 mm)
OT max.—0.220 in (5.6 mm)
MD max.—0.051 in (1.3 mm)
FP max.—1.11 in (28.2 mm)
OP—0.748 in (19 mm)
RF min.—0.99 oz (28g)
PT max.—0.197 in (5.0 mm)
OT max.—0.079 in (2.0 mm)
MD max.—0.039 in (1.0 mm)
FP max.—0.976 in (24.8 mm)
OP—0.748 in (19 mm)
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.217 in (5.5 mm)
MD max.—0.002 in (0.05 mm)
OP—0.858 in (21.8 mm)
E47BMS22 E47CMS22
E47BMS20 —
E47BMS04 E47CMS04
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-7
Page 8
2.1

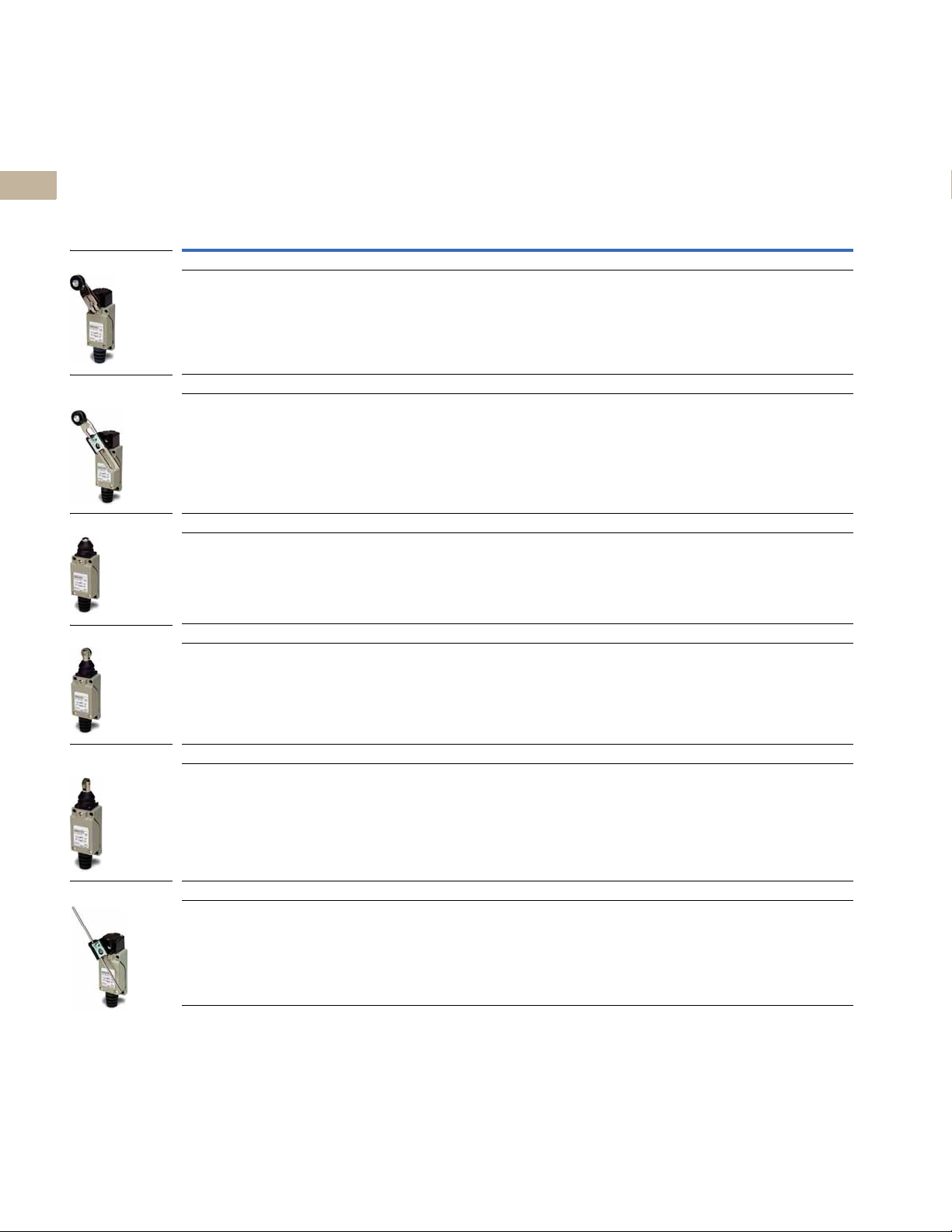

Roller Plunger
Cross Roller Plunger
Reversed Roller Lever

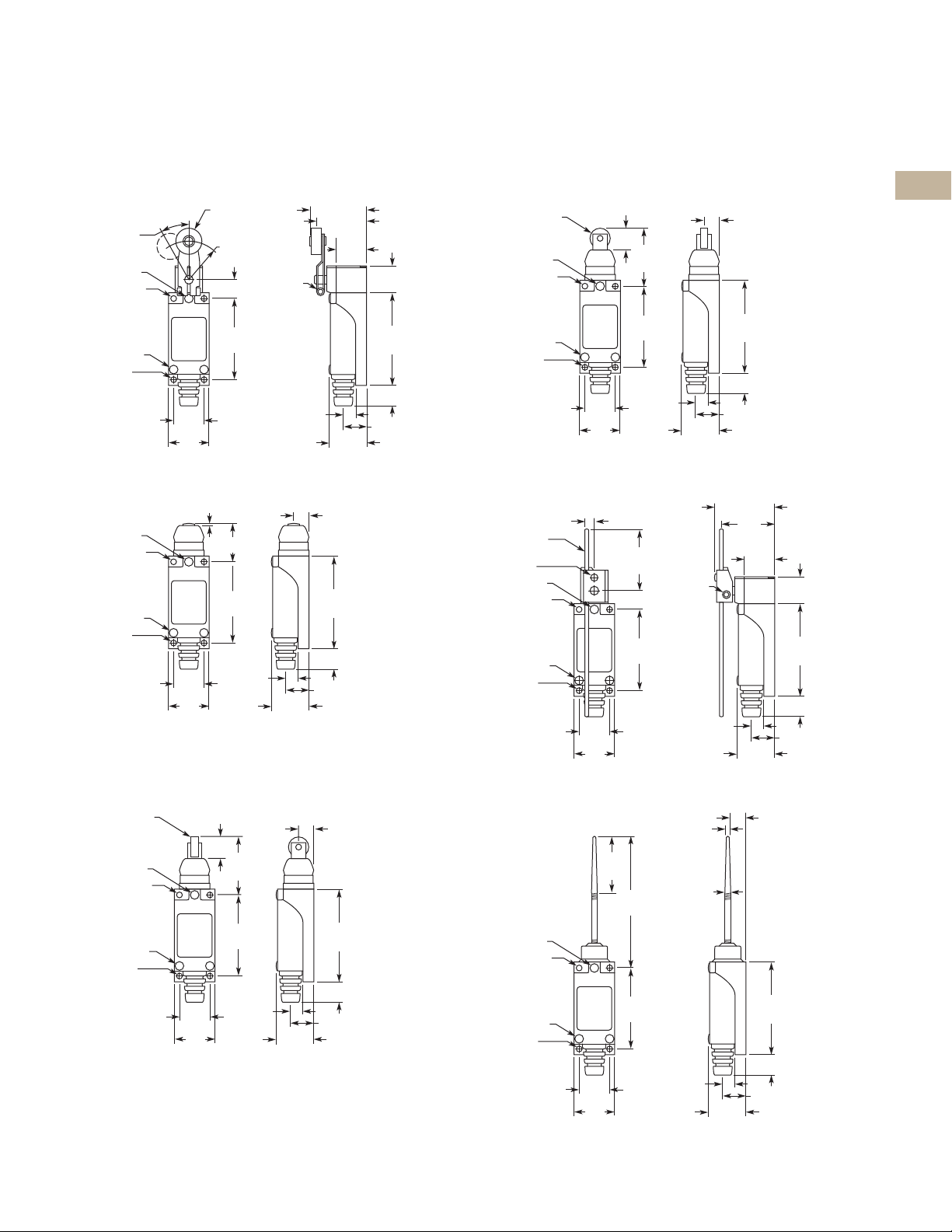

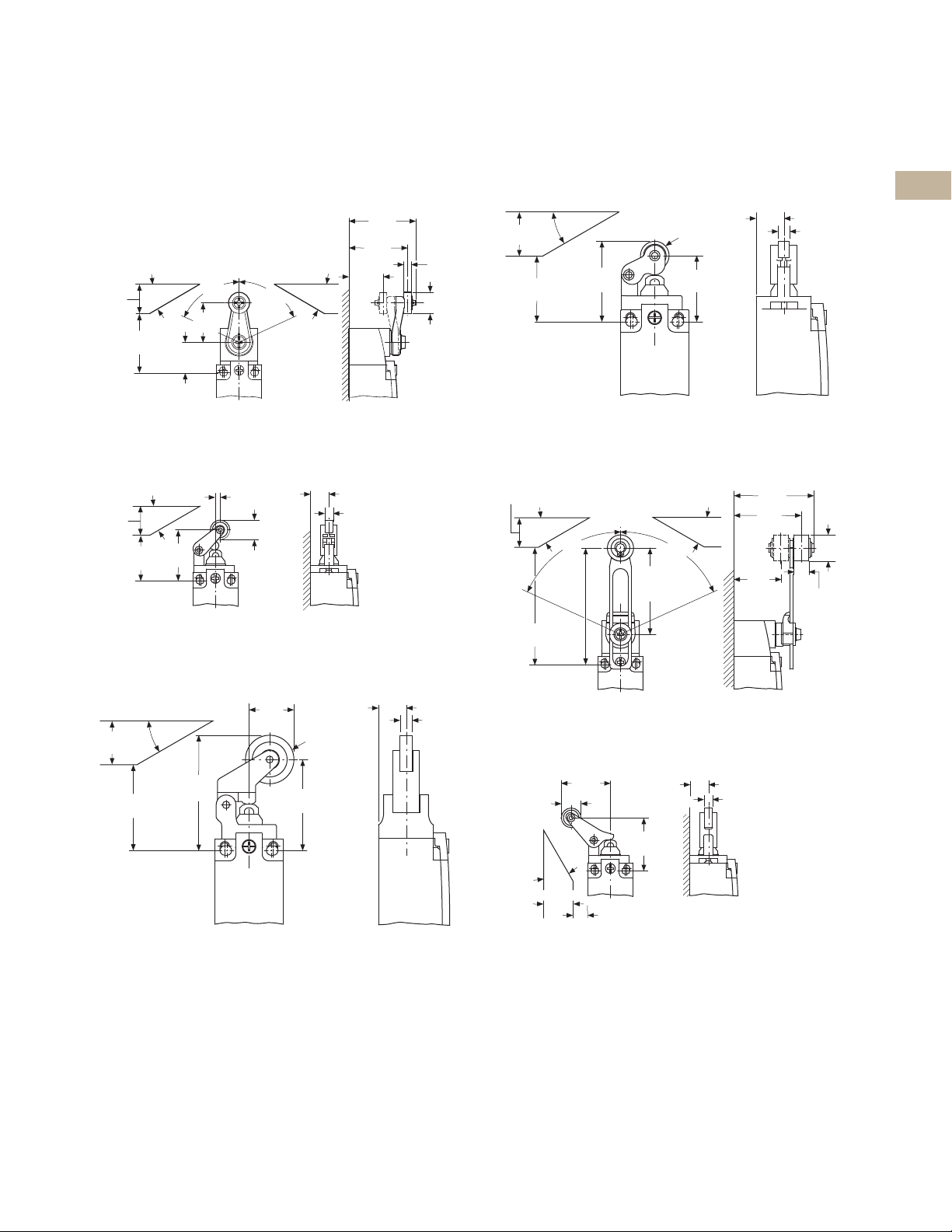

Extended Roller Lever
Roller Lever
One-Way Roller
Integral Leaf
Limit Switches
E47 Precision Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E47 Precision Switches—Basic, continued
Type Specifications
Roller Plunger
Screw terminal OF max.—12.3 oz (350g)
Solder terminal E47BML10 —
Cross Roller Plunger
Screw terminal OF max.—12.3 oz (350g)
Solder terminal E47BML11 —
Reversed Roller Lever
Screw terminal OF max.—5.29 oz (150g)
Solder terminal E47BML41 —
Extended Roller Lever
Screw terminal OF max.—5.64 oz (160g)
Solder terminal E47BML42 —
Roller Lever
Screw terminal OF max.—5.64 oz (160g)
Solder terminal E47BML30 —
Spade terminal E47BMT30 E47CMT30
One-Way Roller
Screw terminal OF max.—5.64 oz (160g)
Solder terminal E47BML31 —
Integral Leaf
Screw terminal OF max.—0.35 oz (10g)
Solder terminal E47BML23 —
Note
1
OF = Operating Force; RF = Return Force; PT = Pre-Travel; OT = Over-Travel; MD = Movement Differential;
FP = Free Position; OP = Operating Position.
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.14 in (3.6 mm)
MD max.—0.002 in (0.05 mm)
OP—1.315 in (33.4 mm)
RF max.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.14 in (3.6 mm)
MD max.—0.002 in (0.05 mm)
OP—1.315 in (33.4 mm)
RF max.—0.49 oz (14g)
PT max.—0.16 in (4 mm)
OT max.—0.063 in (1.6 mm)
MD max.—0.051 in (1.3 mm)
FP max.—1.252 in (31.8 mm)
OP—1.126 in (28.6 mm)
RF min.—0.78 oz (22g)
PT max.—0.28 in (7.1 mm)
OT max.—0.16 in (4 mm)
MD max.—0.04 in (1.02 mm)
FP max.—1.437 in (36.5 mm)
OP—1.189 in (30.2 mm)
RF min.—1.48 oz (42g)
PT max.—0.106 in (2.7 mm)
OT max.—0.094 in (2.4 mm)
MD max.—0.02 in (0.5 mm)
FP max.—1.28 in (32.5 mm)
OP—1.189 in (30.2 mm)
RF min.—1.48 oz (42g)
PT max.—0.106 in (2.7 mm)
OT max.—0.094 in (2.4 mm)
MD max.—0.02 in (0.5 mm)
FP—1.717 in (43.6 mm)
OP—1.697 in (43.1 mm)
RF min.—0.106 oz (3.0g)
PT max.—0.787 in (20.0 mm)
OT max.—0.22 in (5.6 mm)
MD max.—0.118 in (3.0 mm)
OP—0.748 in (19.0 mm)
1
15A
Catalog Number
E47BMS10 E47CMS10
E47BMS11 E47CMS11
E47BMS41 —
E47BMS42 E47CMS42
E47BMS30 E47CMS30
E47BMS31 —
E47BMS23 E47CMS23
20A
Catalog Number
V8-T2-8 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 9
Limit Switches
Adjustable Roller
Extended
Adjustable Roller
Plunger Actuator
Booted Plunger
Roller Lever
Booted Roller Lever
Roller Plunger
Booted Roller Plunger
E47 Precision Switches
2.1
Enclosed Switches
E47 Precision Switches—Basic, continued
Type Specifications
Adjustable Roller
Screw terminal OF max.—17.64 oz (500g)
Solder terminal E47BML40 —
Extended Adjustable Roller
Screw terminal OF max.—21.16 oz (600g)
Solder terminal E47BML43 —
E47 Precision Switches—Enclosed
Specifications
Plunger Actuator
OF max.—8.82–12.3 oz (250–350g)
RF min.—4.02 oz (114g)
PT max.—0.016 in (0.4 mm)
OT max.—0.217 in (5.5 mm)
MD max.—0.002 in (0.05 mm)
OP—1.504 in (38.2 mm)
Booted Plunger
OF max.—28.22 oz (800g)
RF min.—8.46 oz (240g)
PT max.—0.079 in (2.0 mm)
OT max.—0.197 in (5.0 mm)
MD max.—0.004 in (0.1 mm)
OP—1.803 in (45.8 mm)
Roller Lever
OF max.—20.1 oz (570g)
RF min.—6.0 oz (170g)
PT max.—0.157 in (4.0 mm)
OT max.—0.236 in (6.0 mm)
MD max.—0.016 in (0.4 mm)
1
RF min.—6.0 oz (170g)
PT max.—0.197 in (5.0 mm)
OT max.—0.5 in (12.7 mm)
MD max.—0.087 in (2.2 mm)
FP max.—1.752 in (44.5 mm)
OP—1.591 in (40.4 mm)
RF min.—10.58 oz (300g)
PT max.—0.118 in (3.0 mm)
OT max.—0.236 in (6.0 mm)
MD max.—0.079 in (2.0 mm)
FP max.—1.614 in (41 mm)
OP—1.591 in (40.4 mm)
1
Catalog Number
E47BLS05
23
E47CLS05
E47BLS06
23
E47CLS06
E47BLS32
23
E47CLS32
15A
Catalog Number
E47BMS40 —
E47BMS43 —
20A
Catalog Number
Specifications
Booted Roller Lever
OF max.—22.57 oz (640g)
RF min.—8.11 oz (230g)
PT max.—0.197 in (5.0 mm)
OT max.—0.236 in (6.0 mm)
MD max.—0.016 in (0.4 mm)
Roller Plunger
OF max.—8.82–12.3 oz (250–350g)
RF min.—4.02 oz (114g)
PT max.—0.02 in (0.5 mm)
OT max.—0.142 in (3.6 mm)
MD max.—0.002 in (0.05 mm)
OP—1.957 in (49.7 mm)
Booted Roller Plunger
OF max.—17.64 oz (500g)
RF min.—3.53 oz (100g)
PT max.—0.039 in (1.0 mm)
OT max.—0.138 in (3.5 mm)
MD max.—0.005 in (0.12 mm)
OP—1.957 in (49.7 mm)
1
Catalog Number
E47BLS33
E47BLS07
4
E47BLS11
E47BLS08
4
E47BLS12
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Notes
1
OF = Operating Force; RF = Return Force; PT = Pre-Travel; OT = Over-Travel; MD = Movement Differential;
FP = Free Position; OP = Operating Position.
2
Contact Eaton’s Sensor Applications Department at 1-800-426-9184 for approval status.
3
20 ampere version.
4
Cross roller unit.
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-9
2
2
2
2
2
2
Page 10
2.1
One-Way Roller
Booted One-Way
Roller
Booted Wobble
45°
90°
Limit Switches
E47 Precision Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2

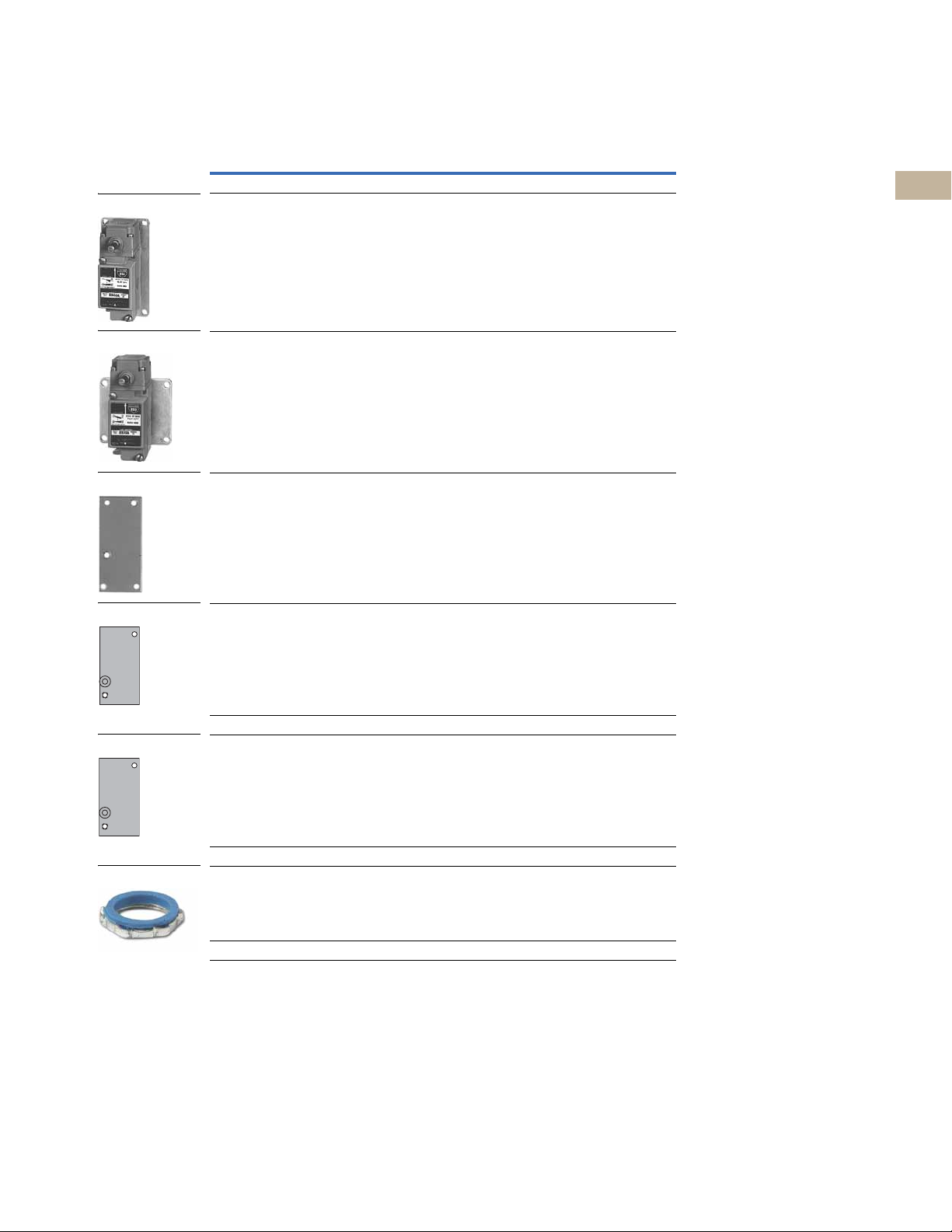

Accessories
E47 Precision Switches—
Enclosed, continued
Specifications
One-Way Roller
OF max.—20.1 oz (570g)
RF min.—6.0 oz (170g)
PT max.—0.157 in (4.0 mm)
OT max.—0.236 in (6.0 mm)
MD max.—0.016 in (0.4 mm)
Booted One-Way Roller
OF max.—22.57 oz (640g)
RF min.—8.11 oz (230g)
PT max.—0.197 in (5.0 mm)
OT max.—0.236 in (6.0 mm)
MD max.—0.016 in (0.4 mm)

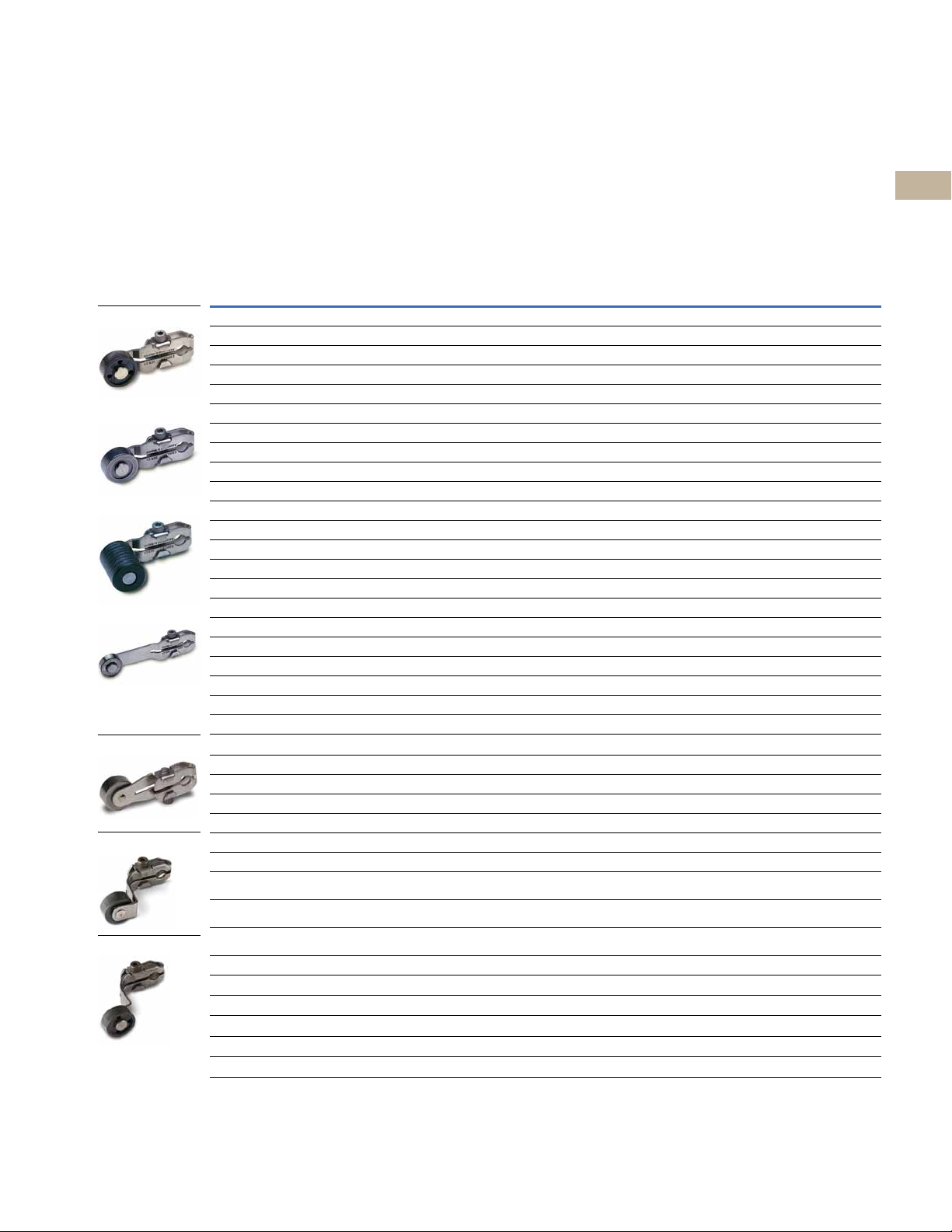

Terminal Wire Covers for Basic Switches
Description Catalog Number
Terminal wire cover with
45° conduit interface
1
Catalog Number
E47BLS34
E47BLS35
E47PA1
E47 Precision Switches—
Enclosed, continued
Specifications
Booted Wobble
OF max.—2.11 oz (60g)
RF min.—0.88 oz (25g)
PT max.—0.520 in (13.2 mm)
OT max.—0.315 in (8.0 mm)
MD max.—0.039 in (1.0 mm)
Description Catalog Number
Terminal wire cover with
90° conduit interface
1
Catalog Number
E47BLS14
E47PA2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Technical Data and Specifications
E47 Precision Switches
Description Specification
Operating speed 0.01m/second to 1m/second
Operating Frequency
Mechanical 120 operations/minute
Electrical 20 operations/minute
Mechanical life 3,000,000 operations minimum
Electrical life 500,000 operations minimum
Contact resistance 15M ohms maximum, initial
Insulation resistance 100M ohms minimum at 500 Vdc
Dielectric Strength
Between non-current carrying parts 1000 Vac, 50/60 Hz for 1 minute
Between current carrying parts and ground 2000 Vac, 50/60 Hz for 1 minute
Notes
1
OF = Operating Force; RF = Return Force; PT = Pre-Travel; OT = Over-Travel;
MD = Movement Differential; FP = Free Position; OP = Operating Position.
2
Cross roller unit.
2
V8-T2-10 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 11
Limit Switches
Solder TypeScrew Type
E47 Precision Switches
2.1
E47 Precision Switches, continued
Description Specification
Ambient Operating Temperature
Basic –13° to 176°F (–25° to 80°C)
Enclosed 5° to 176°F (–15° to 80°C)
Environmental rating enclosed, booted NEMA 1
Mounting centers 1.0 in (25.4 mm), #8 screw size
Terminal screws Bottom facing M4 x 0.7 (8–32)
Threaded bushing 15/32 in
Material of construction Mineral filled phenolic
Enclosure rating Aluminum die casting (ADC-3/A380); Seal boot: nitrile, butyl rubber (NBR)
Conduit fitting on enclosed type 1/2 in NPT
Maximum Ampere Ratings
Model
15A 125 Vac 15 3 1.5 15 5 2.5 30 max. 15 max.
20A 125 Vac 20 7.5 7.5 20 12.5 12.5 60 max. 30 max.
Rated
Voltage
250 Vac 15 2.5 1.25 15 3 1.5
500 Vac 3 1.5 0.75 2.5 1.5 0.75
8 Vdc 15 3 1.5 15 5 2.5
14 Vdc 15 3 1.5 10 5 2.5
30 Vdc 6 (2) 3 1.5 5 5 2.5
125 Vdc 0.4 0.4 0.4 0.05 0.05 0.05
250 Vdc 0.2 0.2 0.2 0.03 0.03 0.03
250 Vac 20 7.5 7.5 20 8.3 8.3
500 Vac6 445 22
8 Vdc 20 3 1.5 20 12.5 12.5
14 Vdc 20 3 1.5 15 12.5 12.5
30 Vdc 6 3 1.5 5 5 5
125 Vdc 0.5 0.5 0.5 0.05 0.05 0.05
250 Vdc 0.25 0.25 0.25 0.03 0.03 0.03
12
Non-Inductive Load (A) Inductive Load (A)
Resistive Load Lamp Load Inductive Load Motor Load Inrush Current (A)
NC and NO NC NO NC and NO NC NO NC NO
Screws with cup washers will accept 22–12 AWG (2.5 sq. mm maximum)
Maximum torque: 10 in-lbs.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Terminal Configurations
Contact Configuration—
Form C Precision Snap Action
(Spade type not shown, available on some models)
Notes
1
Inductive load has a power factor of 0.04 minimum (AC) and a time constant of 7 m/second (DC).
2
Lamp load has an inrush current of six times steady-state current.
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-11
2
2
2
2
2
2
2
2
2
2
Page 12
Limit Switches
2.1

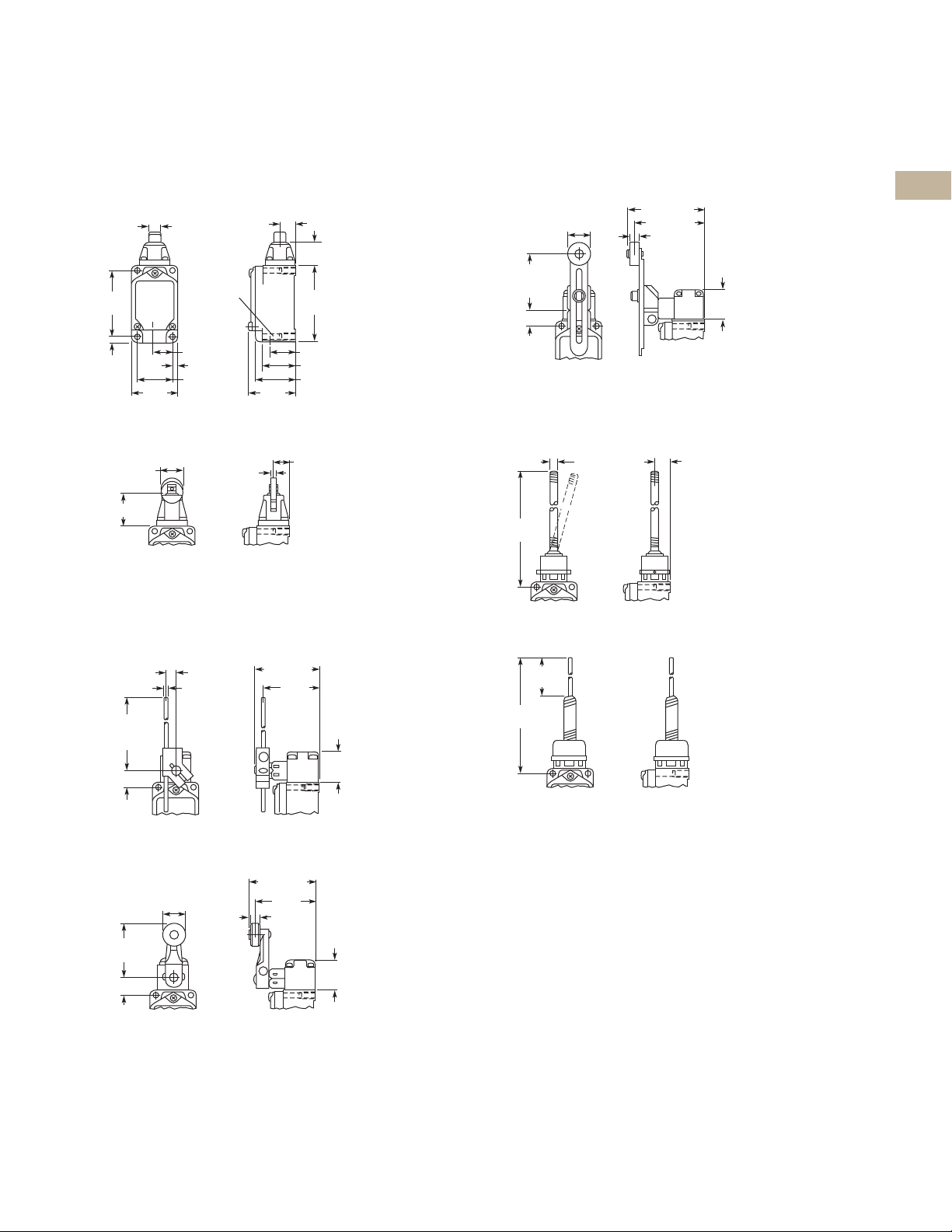

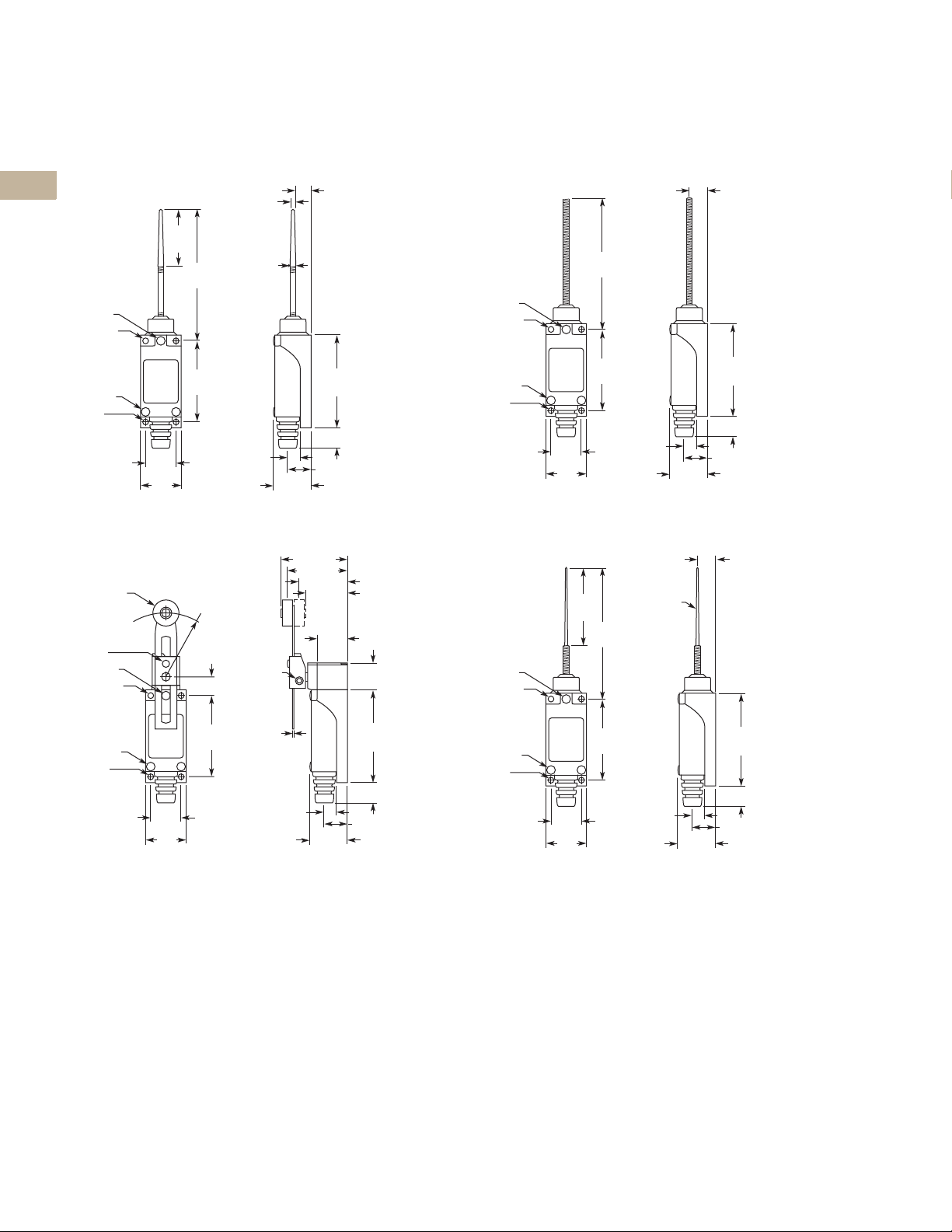

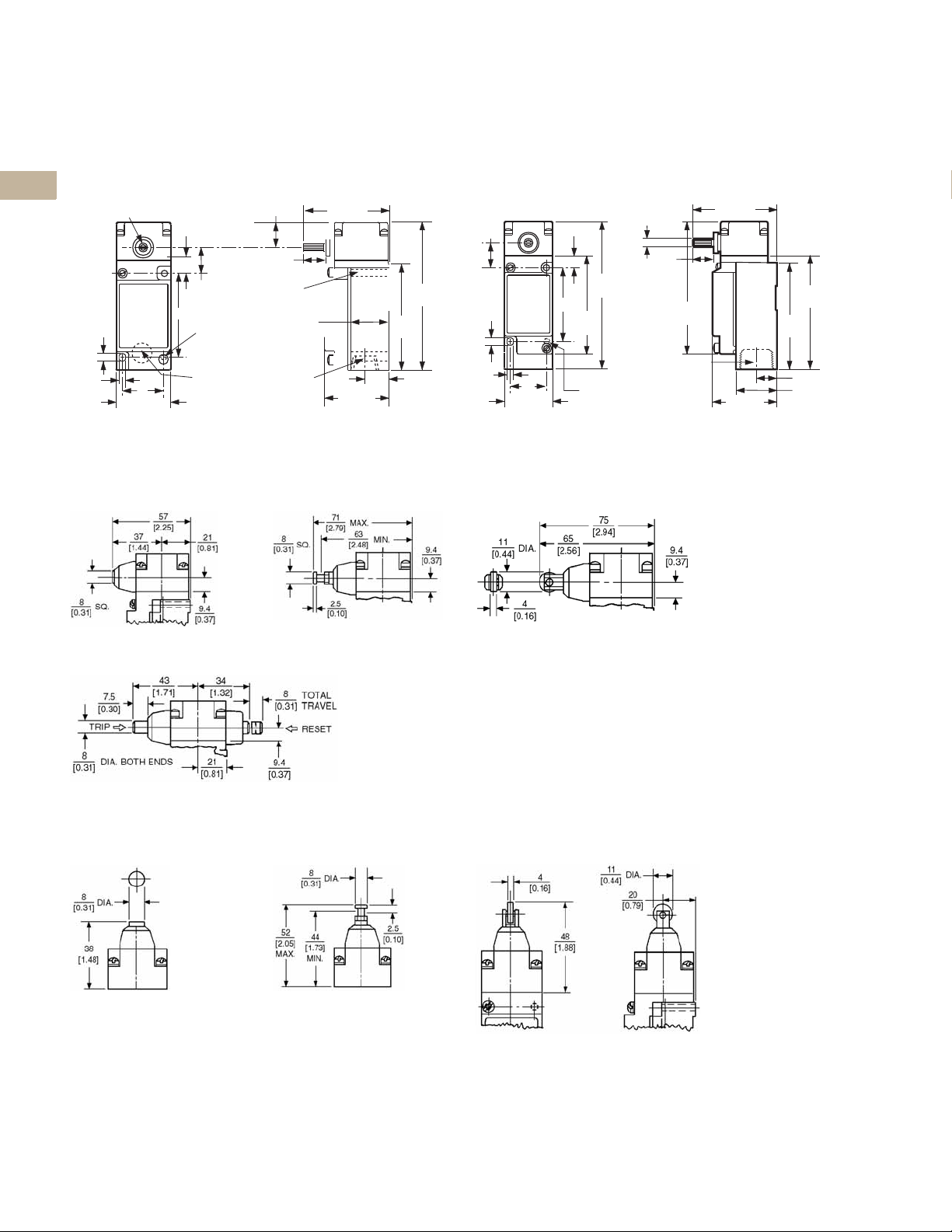

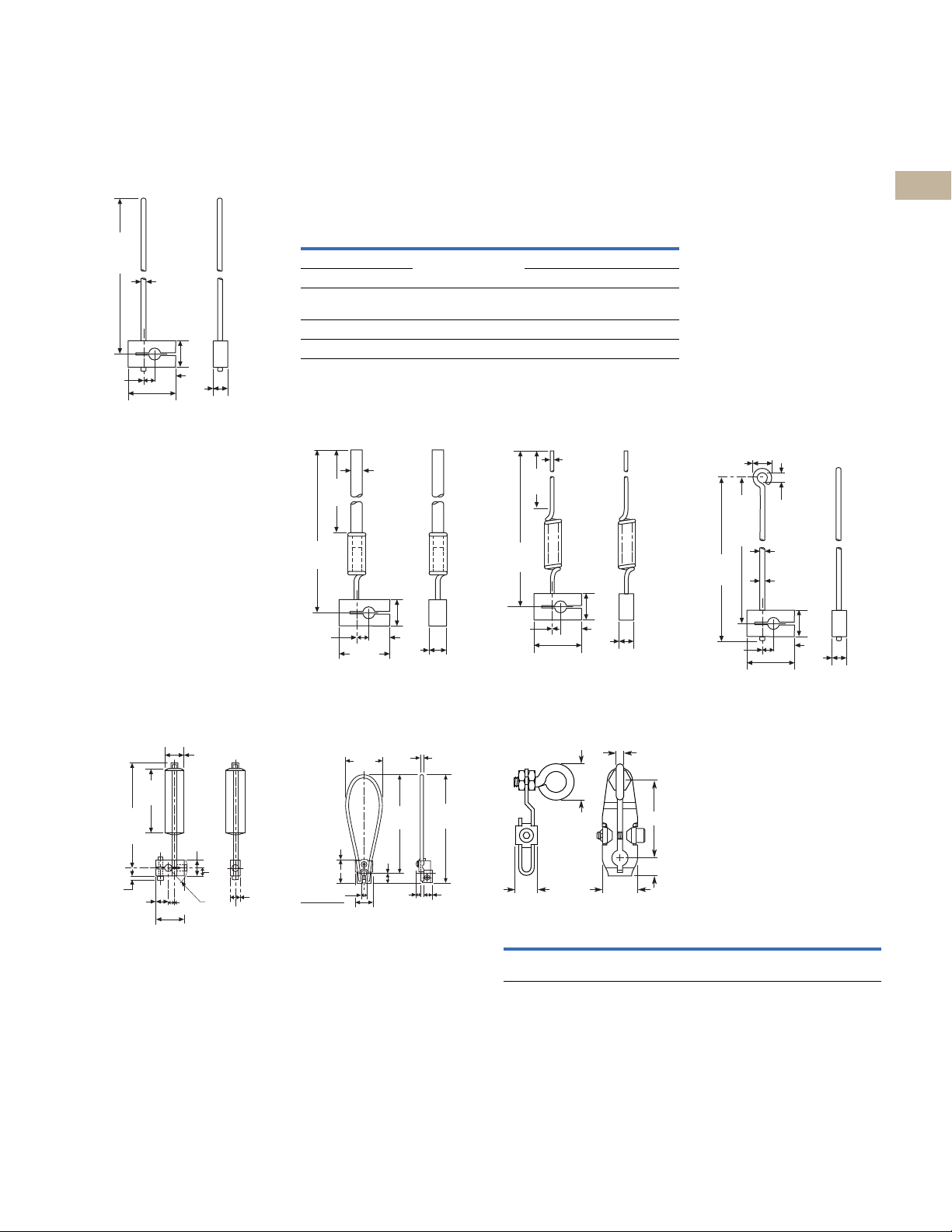

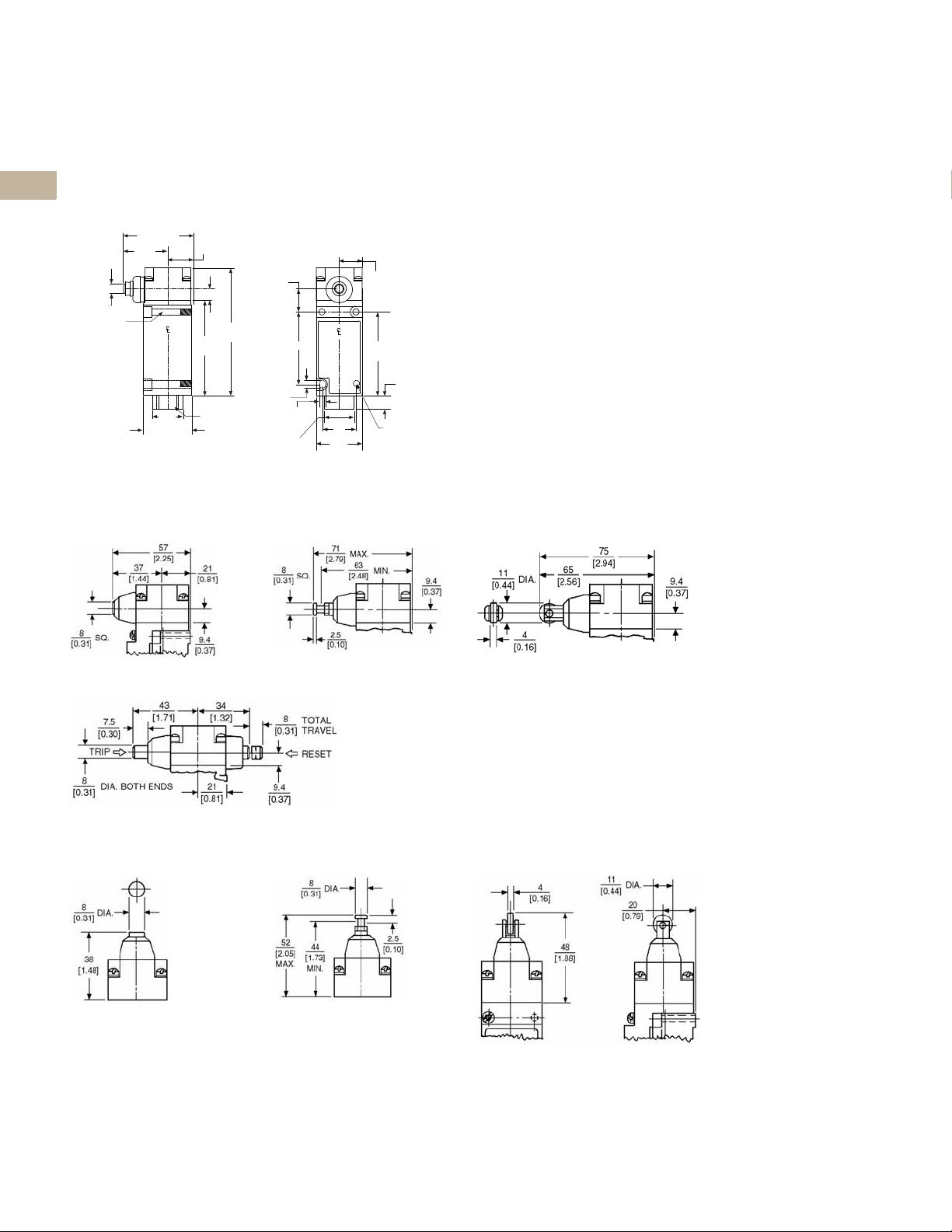

Dimensions
2
Approximate Dimensions in Inches [mm]
2
Basic Switches
Pin Plunger
2
2
2
2
2
2
Extended Plunger
2
2
2
E47 Precision Switches
Standard Lever
Extended Straight Plunger
2
2
Straight Plunger
2
2
2
2
2
Reversed Lever
2
2
2
2
2
2
Straight Lever
2
Roller Plunger
Cross Roller Plunger
Reversed Roller Lever
2
2
2
2
2
V8-T2-12 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 13
Limit Switches
E47 Precision Switches
2.1

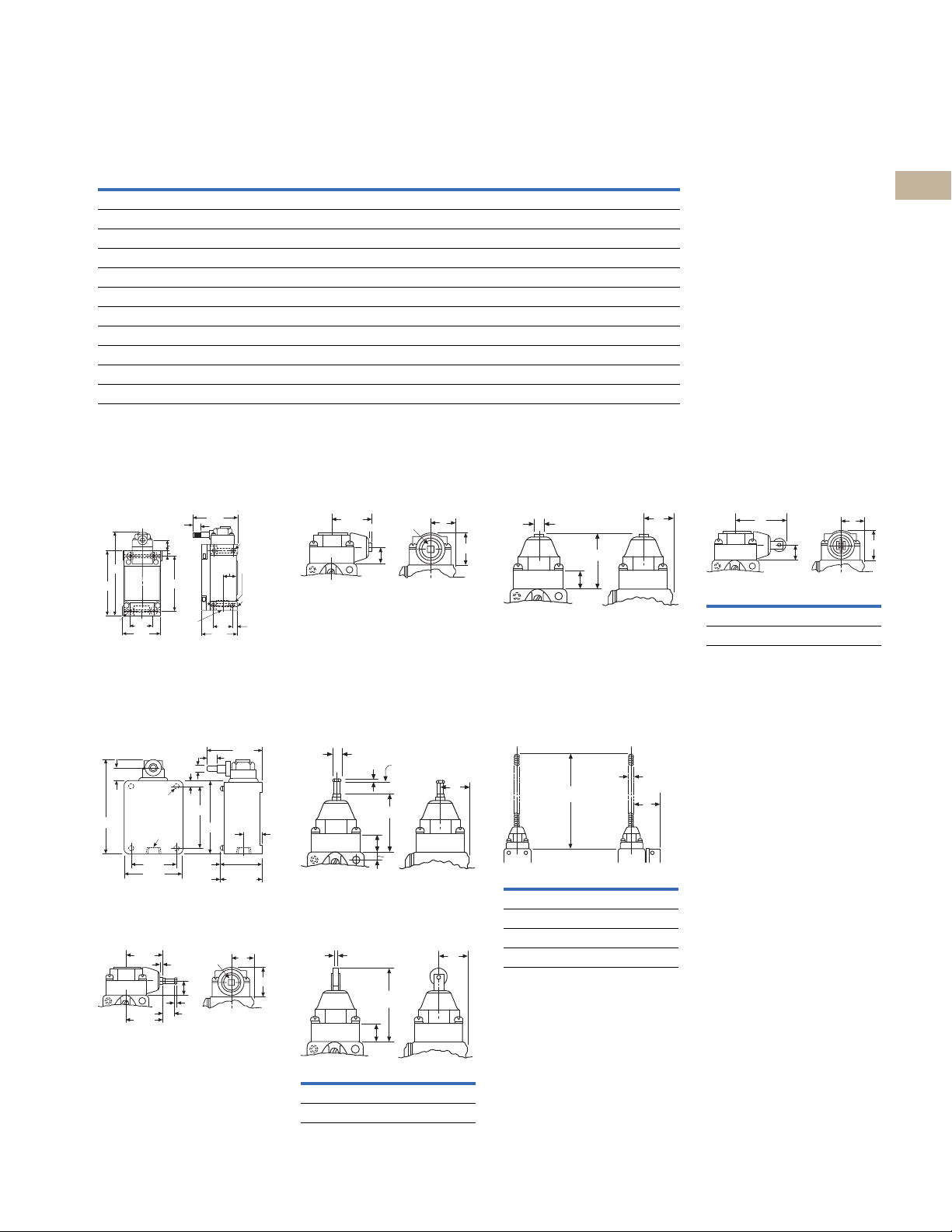

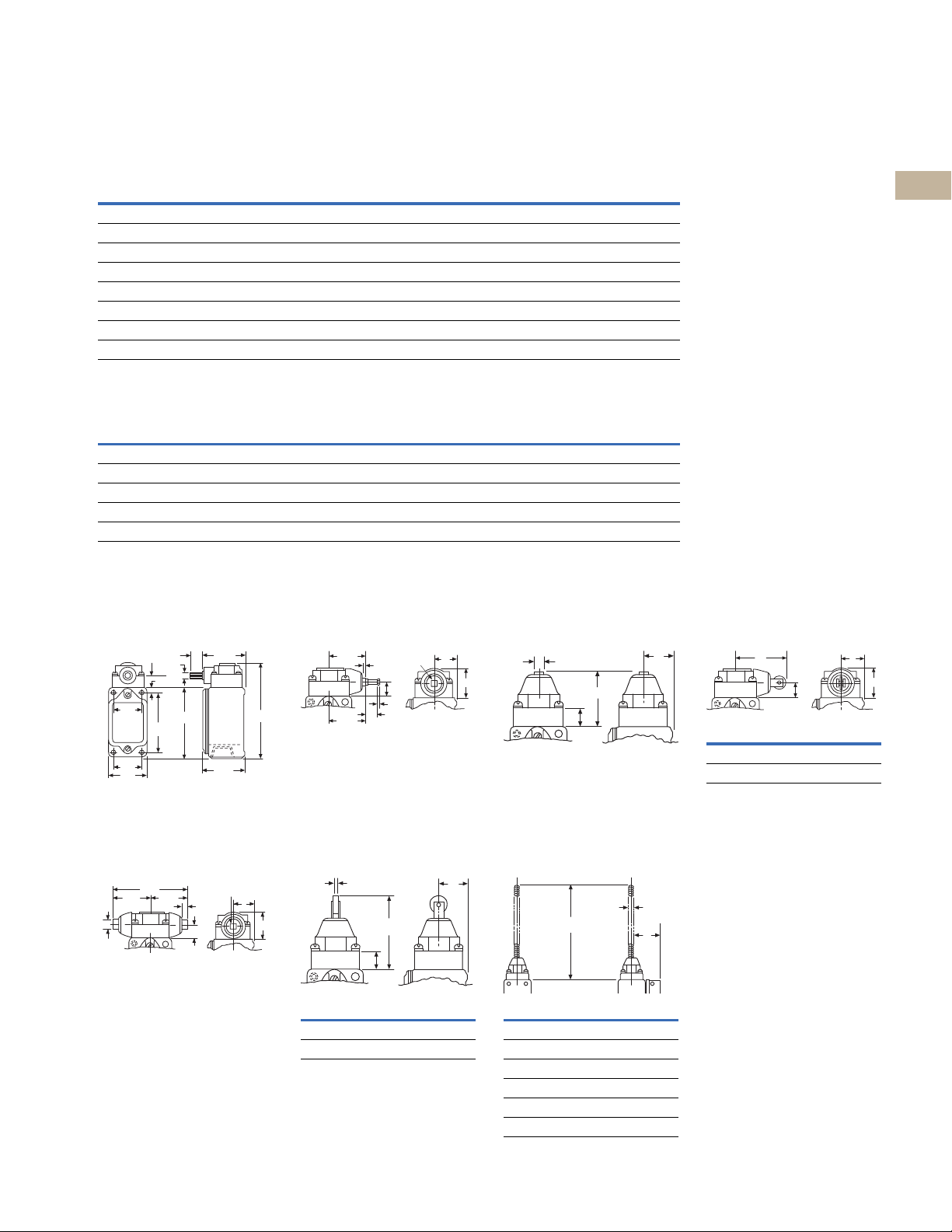

Approximate Dimensions in Inches [mm]
Extended Roller Lever
Roller Lever
One-Way Roller
Integral Leaf
Adjustable Roller
Extended Adjustable Roller
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Enclosed Switches
Plunger Actuator
Booted Plunger
Roller Lever
Booted Roller Lever
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-13
2
2
Page 14
Limit Switches
0.91
[23]
0.67
[17]
0.08
[2.1]
5.91
[150]
1.00
[25.5]
1.00 [25.4] 1.00 [25.4] 0.96 [24.5]
3.37
[85.5]
0.25 [6.5]
Dia.
PT
0.37
[9.5]
2-M4.0 x 45
21
14
12
14
53
25.4
2-ø4.2
7
21
18
25
21
12
14
14
25.4
53
A
A
BB
12
39
46
21
7
2-ø4.2
2.1
Approximate Dimensions in Inches [mm]
2
Roller Plunger
2
2
2
2
2
2
2
Booted Roller Plunger
2
2
2
E47 Precision Switches
Booted One-Way Roller
Booted Wobble
2
2
One-Way Roller
2
2
2
2
2
2

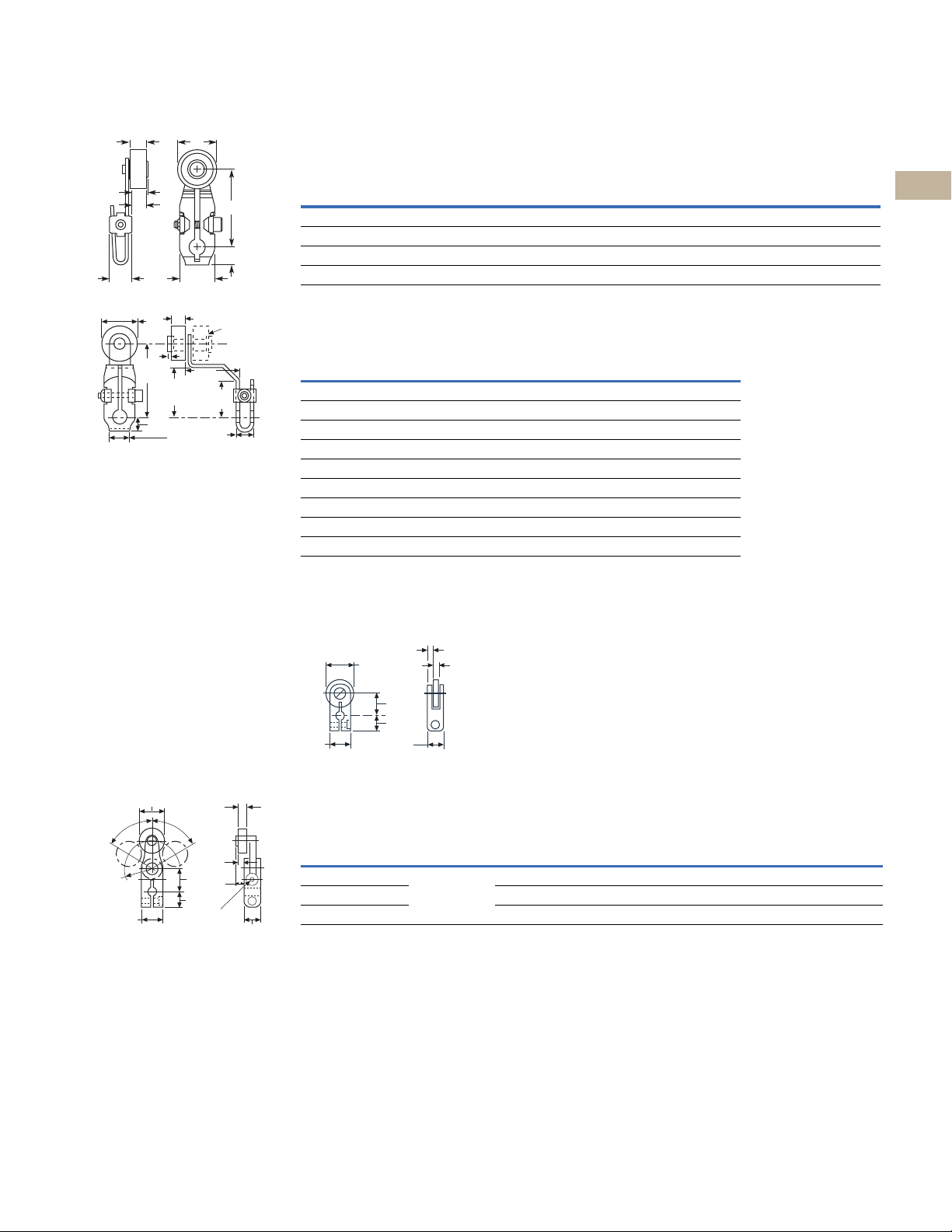

Accessories
2
Approximate Dimensions in mm
Terminal Wire Cover with 45° Conduit Interface Terminal Wire Cover with 90° Conduit Interface
2
2
2
2
2
2
2
2
2
2
V8-T2-14 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 15
Limit Switches
Compact Prewired Switches
Drawings
Online
Compact Prewired Switches
2.2
Compact Prewired Switches

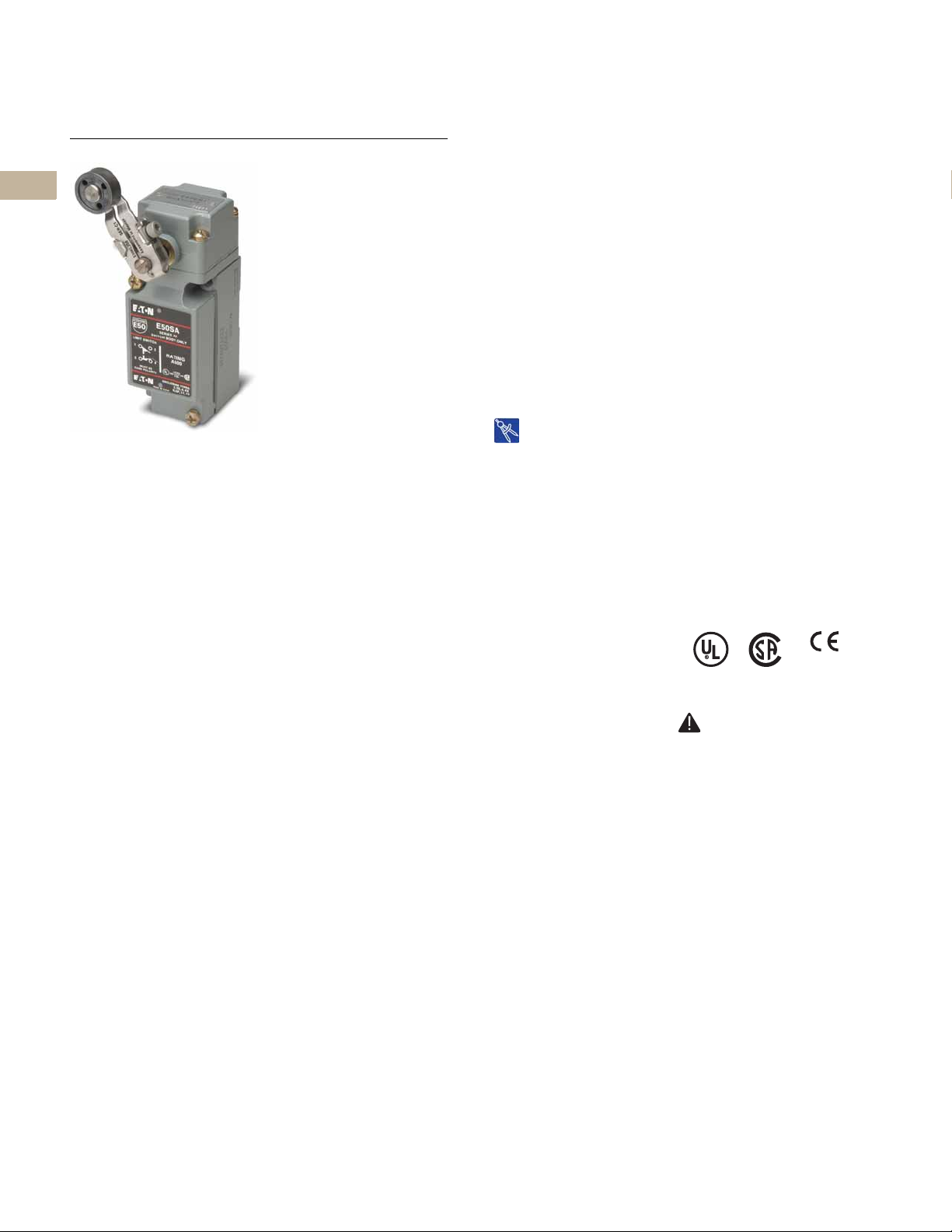

Product Description
The E47 Compact Prewired
Limit Switch by Eaton’s
electrical sector is designed
to be a versatile, slim device
for hard to fit applications
where sealing integrity is
required. The rugged die
cast aluminum alloy housing,
cable connection and switch
mechanism are encapsulated
for protection against extreme
temperature (
[
14° to 158°F
moisture, shock and
vibration. This factory wired
(3m) device has NEMA
enclosure ratings of 4, 6
and 13, making it suitable
for applications such as
machine tool, food
processing and packaging.
–10° to 70°C
]), contaminants,
®
Features
●
Rugged aluminum alloy die
cast housing
●
Sealed construction with
closure ratings of
en
4,
6 and 13
●
Prewired with 3m of
AWG, AWM 2517,
18
300V cable, or microconnector version also
ilable
ava
●
Stackable ridge for ganged
eration
op
NEMA
Contents
Description Page
Compact Prewired Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-16
Technical Data and Specifications . . . . . . . . . . V8-T2-18
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-18
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-19
Standards and Certifications
●
cULus (cable versions only)
●
UL (cable versions only)
●
NEMA 4, 6 and 13
●
IEC IP67, IP69K
●
RoHS
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-15
Page 16
2.2
Pin Plunger
Sealed Plunger
Roller Plunger
Sealed Roller Plunger
Cross Roller Plunger
Sealed Cross Roller
Plunger
Bevel Plunger
Actuator Type
Product Selection
2
2
2
2
2
2
Limit Switches
Compact Prewired Switches
Compact Prewired Switches
Operating Force
(Maximum)
Pin Plunger
42.3 oz
(1.2 kg)
Reset Force
(Minimum)
15.9 oz
(450g)
Over-Travel
(Maximum) Pre-Travel
0.118 in
(3 mm)
0.07 in
(1.8 mm)
Movement
Differential
(Maximum)
0.008 in
(0.2 mm)
Operating
Position
0.62 ± 0.04 in
(15.7 ± 1 mm)
Standard Version
Catalog Number
E47BCC05 E47BCC05P4
Connector Version
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Sealed Plunger
63.5 oz
(1.8 kg)
Roller Plunger
42.3 oz
(1.2 kg)
Sealed Roller Plunger
63.5 oz
(1.8 kg)
Cross Roller Plunger
42.3 oz
(1.2 kg)
15.9 oz
(450g)
15.9 oz
(450g)
15.9 oz
(450g)
15.9 oz
(450g)
0.118 in
(3 mm)
0.118 in
(3 mm)
0.118 in
(3 mm)
0.118 in
(3 mm)
0.07 in
(1.8 mm)
0.07 in
(1.8 mm)
0.07 in
(1.8 mm)
0.07 in
(1.8 mm)
0.008 in
(0.2 mm)
0.008 in
(0.2 mm)
0.008 in
(0.2 mm)
0.008 in
(0.2 mm)
0.99 ± 0.04 in
(24.9 ± 1 mm)
1.12 ± 0.04 in
(28.5 ± 1 mm)
1.35 ± 0.04 in
(34.3 ± 1 mm)
1.12 ± 0.04 in
(28.5 ± 1 mm)
E47BCC06 E47BCC06P4
E47BCC07 E47BCC07P4
E47BCC08 E47BCC08P4
E47BCC11 E47BCC11P4
2
2
2
2
2
2
2
2
2
2
V8-T2-16 Volume 8—Sensing Solutions CA08100010E—May 2013
Sealed Cross Roller Plunger
63.5 oz
(1.8 kg)
Bevel Plunger
42.3 oz
(1.2 kg)
15.9 oz
(450g)
15.9 oz
50g)
(4
0.118 in
(3 mm)
0.118 in
(3 mm)
0.07 in
(1.8 mm)
0.07 in
(1.8 mm)
0.008 in
(0.2 mm)
0.008 in
(0.2 mm)
1.35 ± 0.04 in
(34.3 ± 1 mm)
1.12 ± 0.04 in
(28.5 ± 1 mm)
E47BCC12 E47BCC12P4
E47BCC13 E47BCC13P4
Page 17
Limit Switches

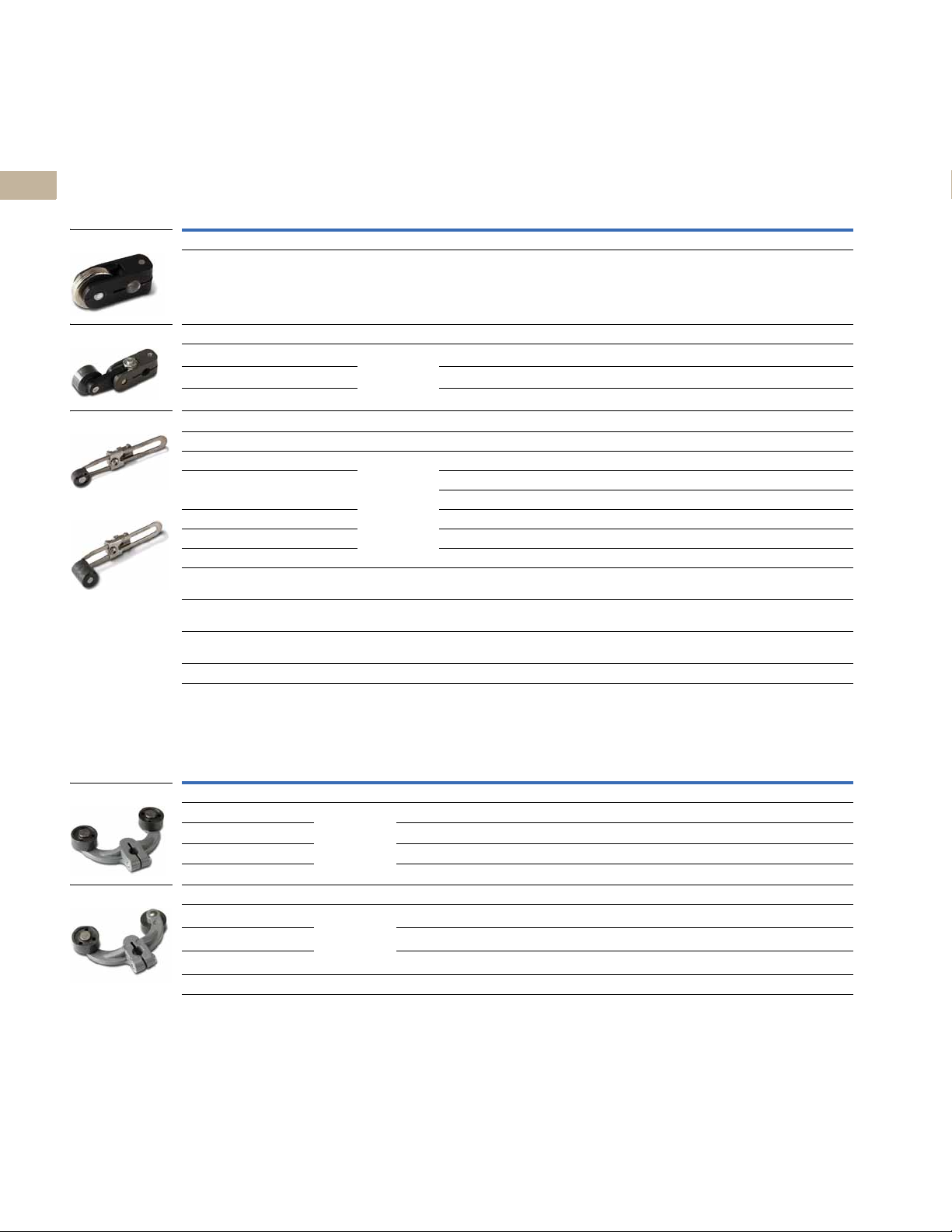

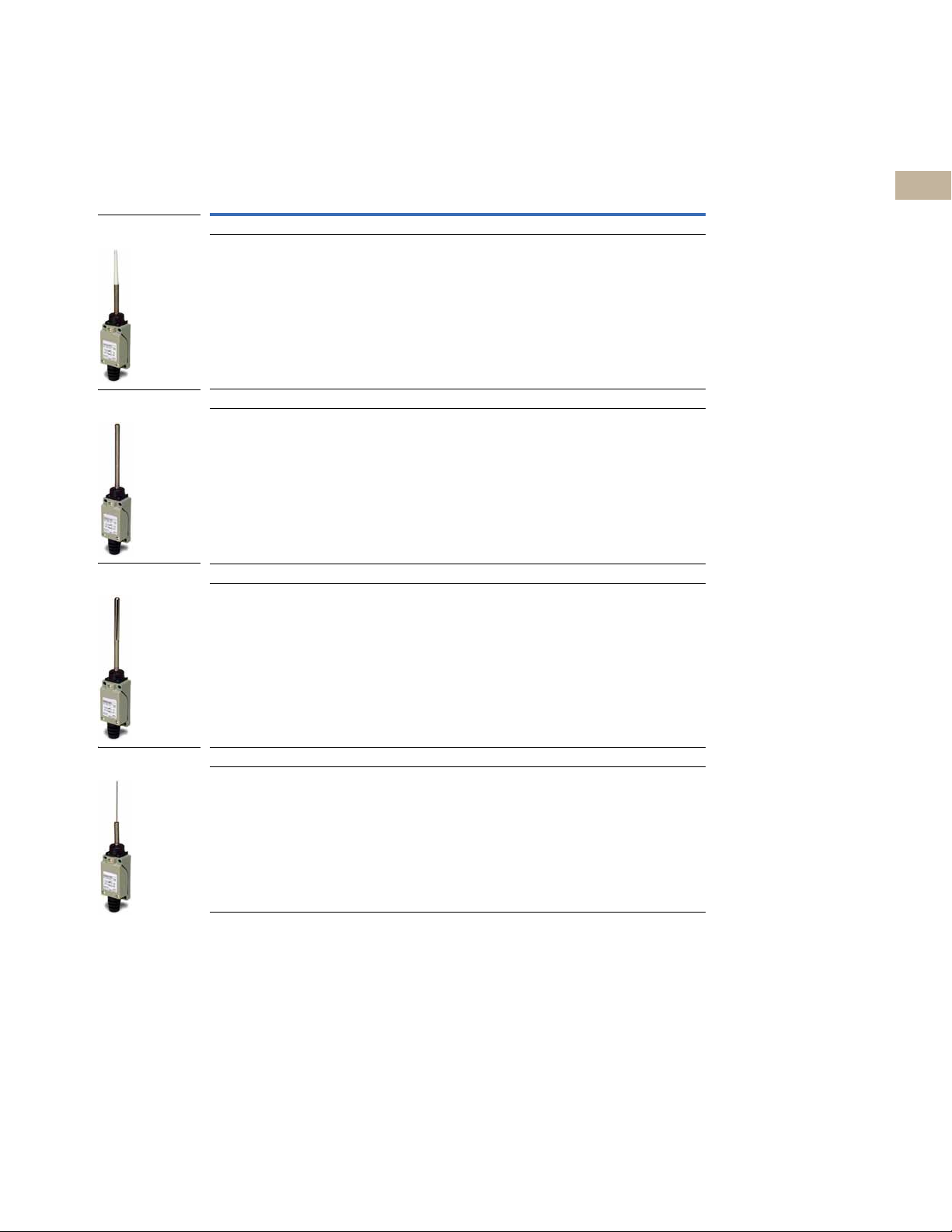

Wobble Stick
Rod Lever
Actuator Type
Roller Lever
Adjustable Level Arm
Compact Prewired Switches
2.2
Compact Prewired Switches, continued
Operating Force
(Maximum)
Roller Lever
20.5 oz
(580g)
Wobble Stick
5.3 oz
(150g)
Rod Lever
20.5 oz
(580g)
Reset Force
(Minimum)
5.3 oz
(150g)
——15° max.— — E47BCC20 E47BCC20P4
5.3 oz
(150g)
Over-Travel
(Maximum) Pre-Travel
40° 25° max. 3° — E47BCC15 E47BCC15P4
40° 25° max. 3° — — E47BCC21P4
Movement
Differential
(Maximum)
Operating
Position
Standard Version
Catalog Number
Connector Version
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable Level Arm
20.5 oz
(580g)
5.3 oz
(150g)
40° 25° max. 3° — E47BCC22 E47BCC22P4
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-17
Page 18
Limit Switches
Common
(Black)
NC (Red)
NO (Blue)
Ground
(Green)
3 4
12
Face View of Male Connector
COM 1
2 NC
4 NO
Contacts Rated
1.0A at 124 Vac
1.0A at 30 Vdc
3
2.2
Technical Data and Specifications
2
Compact Prewired Switches
2
Description Specification
Contacts 1-SPDT (Form C)
2
Mechanical life 10,000,000 operations
Electrical life 200,000 operations, 30 operation/min. at rated load
2
Operating speed 30 operations per minute maximum
2
Operating temperature range –10° to 70°C (14° to 158°F)
Storage temperature range –10° to 70°C (14° to 158°F)
2
Humidity 95% maximum non-condensing
Vibration Malfunction durability, 10 to 55 Hz 1.5 mm double amplitude
2
Shock Malfunction durability, approximately 50G
Enclosure ratings NEMA 4, 6 and 13; IEC IP67
2
Compact Prewired Switches
2
Maximum Ampere Ratings
2
Rated
2
Voltage
125 Vac55332.51.320 max.10 max.
2
250 Vac55221.50.8
8 Vdc55541.51.5
2
14 Vdc55441.51.5
30 Vdc44331.51.5
2
125 Vdc 0.4 0.4 0.4 0.4 0.05 0.05
2
250 Vdc 0.2 0.2 0.2 0.2 0.03 0.03
Non-Inductive Load (A) Inductive Load (A)
Resistive Load Inductive Load Motor Load Inrush Current (A)
NC NO NC NO NC NO NC NO
1
2

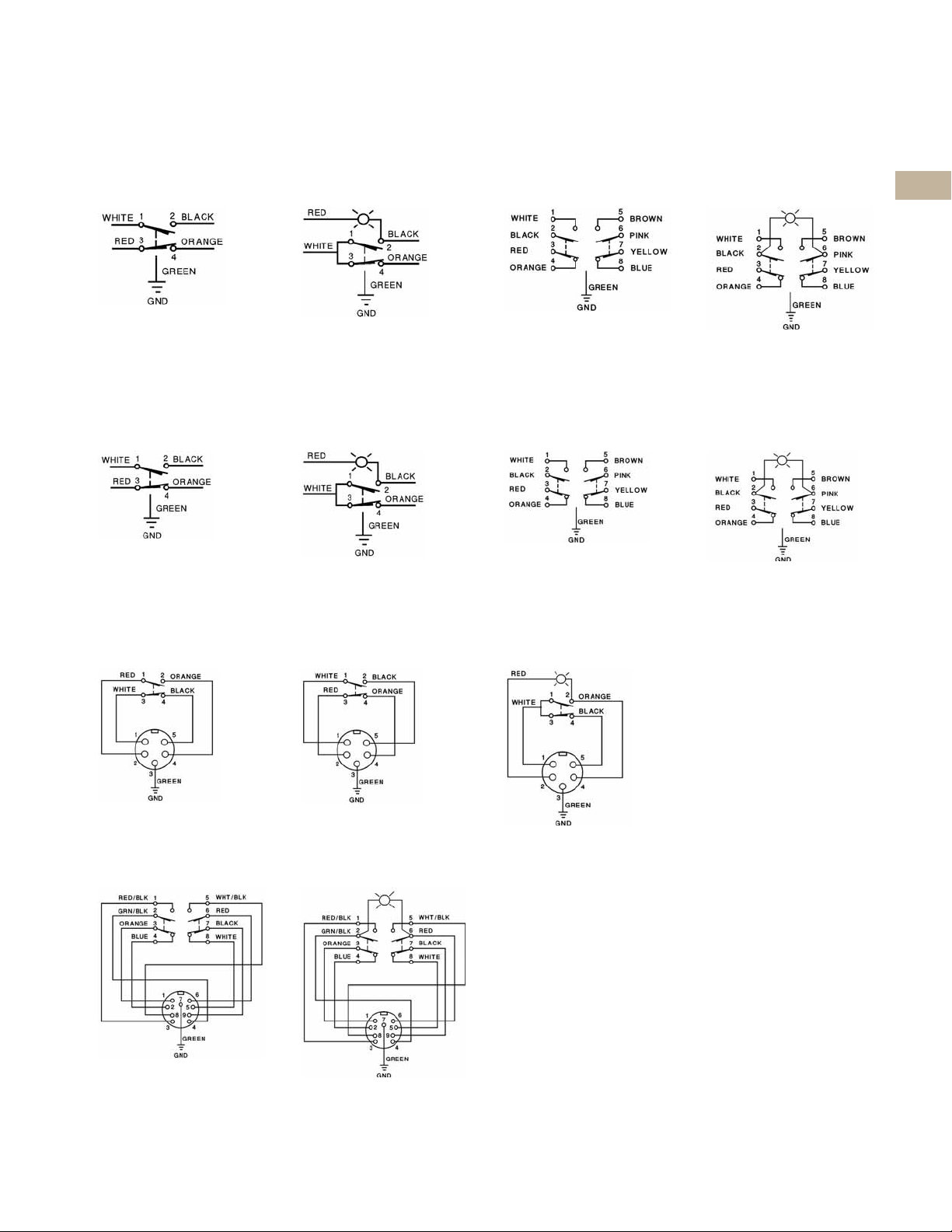

Wiring Diagram
2
Compact Prewired Switches Micro-Connector Switches
2
2
2
2
2
Note
1
2
Inductive load ratings are tested at a power factor 0.4 min. for AC power and a time constant of 7 ms max. for DC power. Inrush current for
motor load is six times the steady state current.
2
2
2
2
2
2
2
V8-T2-18 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 19
Limit Switches
40.0 [1.575]
25.0
[0.984]
54.2
[2.134]
Max
49.0
[1.929]
2.0 [0.079]
1.4
[0.055]
1.5
[0.059]
2.8
[0.110]
Correct
Setting
Postion
16.0
[0.630]
Max
Ø10 [0.397]
Stainless
Steel Plunger
34.0 [1.339]
2.0
[0.079]
23.0
[0.906]
8.0 [0.315]
7.5 [0.295]
4.5 [0.177]
2 x Ø10.2
[0.402]
Depth: 6
[0.236]
2 x Ø5.1 [Ø0.201]
OP
PT
40.0 [1.575]
49.0
[1.929]
2.0
[0.079]
1.4
[0.055]
1.5
[0.059]
16.0
[0.630]
Max
Rubber
Cap
Ø10 [0.397]
Stainless
Steel Plunger
34.0 [1.339]
2.0
[0.079]
23.0
[0.906]
8.0 [0.315]
7.5 [0.295]
4.0
[0.157]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
2 x Ø5.1 [Ø0.201]
OP
PT
63.5
[2.5]
Max.
25.0
[0.984]
40.0 [1.575]
Max
2.0 [0.079]
1.4
[0.055]
1.5
[0.059]
16.0
[0.630]
Max
2.8
[0.110]
Correct
Setting
Position
Ø12.7 [0.500] x
3.8 [0.150]
Stainless Steel
Roller
34.0 [1.339]
2.0
[0.079]
23.0
[0.906]
8.0 [0.315]
7.5 [0.295]
7.0
[0.276]
67.0
[2.638]
Max
51.5
[2.028]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
2 x Ø5.1 [Ø0.201]
OP
PT
25.0
[0.984]
40.0 [1.575]
Max
2.0
[0.079]
49.0
[1.929]
1.4
[0.055]
1.5
[0.059]
16.0
[0.630]
Max
Rubber
Cap
Ø12.7 [0.500] x
3.8 [0.150]
Stainless Steel
Roller
34.0 [1.339]
2.0
[0.079]
23.0
[0.906]
8.0 [0.315]
7.5 [0.295]
4.0
[0.157]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
2 x Ø5.1 [Ø0.201]
OP
PT
25.0
[0.984]
73.0
[2.874]
Max.
1.4 [0.055]
1.5 [0.059]
34.0 [1.339]
2.0
[0.079]
2.0 [0.079]
23.0 [0.906]
11.4 [0.45]
7.5 [0.30]
8.0
[0.31]
7.0 [0.276]
R38
[1.496]
2 x
Ø10.2 [0.402]
Depth: 6 [0.236]
40.0 [1.575]
25.0
[0.984]
Ø17.0 [0.669]
x 7.0 [0.276]
Stainless
Sintered Roller
31.5
[1.240]
16.0 [0.630]
Max
65.0
[2.559]
Max
Max
50.0 [1.969]
Max.
44.0
[1.732]
2 x Ø5.1
[Ø0.201]
102.7
[4.043]
Compact Prewired Switches
2.2
Dimensions
Approximate Dimensions in mm [in]
E47BCC05
E47BCC06
E47BCC11
25.0
[0.984]
PT
OP
67.0
[2.638]
Max
51.5
[2.028]
2.0 [0.079]
34.0 [1.339]
E47BCC12
25.0
[0.984]
PT
OP
73.0
[2.874]
Max.
49.0
[1.929]
2.0
[0.079]
40.0 [1.575]
Max
40.0 [1.575]
34.0 [1.339]
2 x Ø5.1 [Ø0.201]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
7.0
[0.276]
7.5 [0.295]
8.0 [0.315]
23.0
2.0
[0.906]
[0.079]
2 x Ø5.1 [Ø0.201]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
Ø12.7 [0.500] x
4.0
[0.157]
Stainless Steel
7.5 [0.295]
8.0 [0.315]
23.0
2.0
[0.906]
[0.079]
Ø12.7 [0.500]
x 3.8 [0.150]
Stainless
Steel Roller
1.4
[0.055]
3.8 [0.150]
Roller
1.4
[0.055]
16.0
[0.630]
Max
2.8
[0.110]
Correct
Setting
Position
1.5
[0.059]
16.0
[0.630]
Max
Rubber
Cap
1.5
[0.059]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E47BCC07
E47BCC08
E47BCC13
25.0
[0.984]
OP
67.0
[2.638]
Max
51.5
[2.028]
2.0 [0.079]
34.0 [1.339]
PT
40.0 [1.575]
2 x Ø5.1 [Ø0.201]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
7.0
[0.276]
7.5 [0.295]
23.0
[0.906]
2.0
[0.079]
Ø10 [0.397]
Stainless
Steel PLU
8.0 [0.315]
[0.055]
1.4
16.0
[0.630]
2.8
[0.110]
Correct
Setting
Position
1.5
[0.059]
E47BCC15
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-19
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Page 20
2.2
40.0 [1.575]
49.0
[1.929]
2.0
[0.079]
1.4
[0.055]
1.5
[0.059]
16.0
[0.630]
Max
Rubber
Cap
34.0 [1.339]
2.0
[0.079]
23.0
[0.906]
8.0 [0.315]
7.5 [0.295]
4.0
[0.157]
2 x Ø10.2 [0.402]
Depth: 6 [0.236]
2 x Ø5.1 [Ø0.201]
103.7
[2.5]
25.0
[0.984]
50.7
Ø1.2
5.7
18 AWG/4
UL, SJT (0)
Ø8.5 [0.335]
159.0
[6.257]
16.0
[0.630]
1.5
[0.059]
1.3
[0.051]
Ø3.0
[0.117]
25.9
[1.020]
8.0
[0.315]
2.0
[0.079]
2.0 [0.079]
34.0 [1.339]
40.0 [1.575]
25.0
[0.984]
23.0
[0.906]
18 AWG/4
UL, SJT (0)
Ø8.5 [0.335]
Approximate Dimensions in mm [in]
2
E47BCC20
2
2
2
2
2
Limit Switches
Compact Prewired Switches
E47BCC22
25.0
[0.984]
Ø17.5
[0.69]
R 25.0–89.0
[0.984–3.600]
8.0
[0.315]
51.2 [2.017]
7.0 [0.280]
16.0
[0.630]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E47BCC21
23.0
[0.906]
18 AWG/4
UL, SJT (0)
Ø 8.5 [0.335]
2.0
[0.079]
2.0 [0.079]
34.0 [1.339]
40.0 [1.575]
1.3
[0.051]
18 AWG/4
UL, SJT (0)
Ø 8.5 [0.335]
1.5
[0.059]
2
2
2
2
2
2
2
2
2
2
V8-T2-20 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 21
Limit Switches
LS-Titan Miniature DIN Switches
LS-Titan Miniature DIN Switches
2.3
LS-Titan Miniature DIN Switches
Product Description
Eaton’s LS-Titan™ limit
switch line is a complete
offering of safety position
switches designed for
worldwide application.
Economical insulated
plastic or rugged metal
enclosures and modular,
plug-in operating heads
and bodies make LS-Titan a
flexible switching solution.
A highlight of the LS-Titan
switch line is the world’s
first electronic position
switch (LSE models). These
switches feature freely
programmable operating
points that can be set
individually at any time.
Additional LSE models
provide analog outputs
proportional to the
actuator position.
LS-Titan switches are suitable
for use in safety applications
designed to protect persons
or processes.
Features
●
Modular, plug-in
stem (head a
sy
bo
dy components)
●
Positive opening NC
ntacts for safet
co
ap
plications
●
Wide variety of economical
plastic and rugged metal
versions available
●
Operating heads can
rotated 90 degrees
be
to suit specific directio
of operation
●
Unique electronic safety
sition switches (L
po
mod
els) provide anal
(0–10 Vdc or 4–20 mA)
tputs proportional
ou
act
uator position and allo
for easy configuration of
custom trip poin
a
nd
y
SE
to the
t
og
Contents
Description Page
LS-Titan Miniature DIN Switches
Product Identification . . . . . . . . . . . . . . . . . . . . V8-T2-22
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-23
LS-Titan Plastic Safety Switches . . . . . . . . . V8-T2-23
LS-Titan Plastic Electronic
Safety Position Switches . . . . . . . . . . . . . V8-T2-26
LS-Titan Metal Safety Switches . . . . . . . . . V8-T2-30
Understanding LS-Titan Electronic
Safety Position Switches . . . . . . . . . . . . . V8-T2-32
Operating Point Adjustment . . . . . . . . . . . . V8-T2-32
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-33
Technical Data and Specifications . . . . . . . . . . V8-T2-34
Contact Travel Diagrams . . . . . . . . . . . . . . . . . . V8-T2-37
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-40
2
2
2
2
2
2
2
2
2
2
2
Standards and Certifications
●
Can be ordered as
arate compon
sep
(
head and body) or as
completely assembled
tches
swi
●
Screw and Cage Clamp
standard on LSE mode
(
and
optionally availabl
on mechanical models)
nections provide larg
con
wi
ring areas for easi
n
installation
●
Approved for worldwide
lication
app
ents
®
ls
e
er
●
Safety function by positive
opening contacts pe
I
EC/EN 60947-5-1 up
Category 4 per EN 954-1
●
TÜV-Rheinland Certified
or Functional-Safet
f
(L
SE models)
●
CSA certified
●
er
UL listed
●
CE
●
CCC
r
to
y
2
2
2
2
2
2
2
2
Note: Cage Clamp is a
w
registered trademark of
Wago Kontakttechnik,
32423 Minden, Germany.
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-21
2
2
2
2
2
Page 22
2.3
Product Identification
2
Limit Switches
LS-Titan Miniature DIN Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
2
3
4
k
5
6
7
8
9
j
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Notes
1
Basic device
(see Pages V8-T2-23 to V8-T2-31)
According to EN 50047
With screw-on cover
Contacts: 1NO-1NC, 2NO, 2NC
Cage Clamp, screw terminal
As snap-action or standard-action switch
As electronic snap-action switch
(individually adjustable)
As 4–20 mA analog signal encoder
As 0–10 Vdc analog signal encoder
2
Fixing adapter (see Page V8-T2-33)
Allows mounting of M22 pushbuttons
3
Roller lever
(see Pages V8-T2-23 and V8-T2-26)
For one-sided operation with higher
operating speed
4
Angled roller lever
(see Pages V8-T2-23, V8-T2-26 and
V8-T2-30)
For actuation along the unit axis
5
Rotary lever (see Pages V8-T2-23,
V8-T2-27 and V8-T2-30)
For actuation from the side, for
pendulum movements
6
Roller plunger (see Pages V8-T2-23,
V8-T2-26 and V8-T2-30)
For actuation from the side with low
actuating force
7
Adjustable roller lever
(see Pages V8-T2-24, V8-T2-27,
V8-T2-28 and V8-T2-30)
For length adjustment as required
8
Actuating rod (see Pages V8-T2-25,
V8-T2-29 and V8-T2-31)
On conveyor belts for lightweight goods
9
Spring-rod (see Pages V8-T2-25,
V8-T2-29 and V8-T2-31)
For flexible actuation from all sides
j Actuating rod (see Pages V8-T2-25,
V8-T2-29 and V8-T2-31)
Withdrawable mechanism from front
k Pushbuttons from the M22 family; see
M22 catalog (CA04716001E) or
Operating heads can be rotated
by 90 degrees.
m22
2
V8-T2-22 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 23
Limit Switches
Plastic Safety
Switch Body
Top Push Roller
Plunger
Long Roller Lever
Short Roller Lever
Large Roller Lever
Angled Roller
Assembled Switch
Rotary Lever
13
14 24
23
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 5.5 mm
1.6
0
3.0
6.1
LS-Titan Miniature DIN Switches
2.3
Product Selection
LS-Titan Plastic Safety Switches
Plastic Safety Switches
Switch Body Catalog Number LS-S02 LS-S20A LS-S11S
Output Function 2NC with positive
Terminal Connection Screw terminal
Contact Sequence
Contact Travel Snap-action contact
= contact closed
= contact open
Operating Head Type
Head Only
Catalog Number
LS-XP LS-S02-P LS-S20A-P LS-S11S-P
LS-XL LS-S02-L LS-S20A-L LS-S11S-L
2
2
2
opening contacts
11
21
12
22
2NO with slow
make/break
1
Screw terminal
13–14
23–24
1
0 2.1 6.1
2.1
ZW = 4.5 mm
NO
NO
1NO and 1NC with
positive opening contact
Screw terminal
1
21
13
14
22
2
2
2
2
2
2
2
Assembled Switch
Catalog Number
2
2
2
2
2
2
LS-XLS LS-S02-LS LS-S20A-LS LS-S11S-LS
LS-XLB LS-S02-LB LS-S20A-LB LS-S11S-LB
LS-XLA LS-S02-LA LS-S20A-LA LS-S11S-LA
LS-XRL LS-S02-RL LS-S20A-RL LS-S11S-RL
Notes
1
Cage Clamp versions available. Contact Application Engineering.
2
For operating head dimensions, see Page V8-T2-40.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-23
Page 24
2.3
Adjustable
Roller Lever
(with 18 mm Roller)
Adjustable
Roller Lever
(with 30 mm Roller)
Adjustable
Roller Lever
(with 40 mm Roller)
Adjustable Roller
Lever (with 40 mm
Rubber Roller)
Plastic Safety
Switch Body
Assembled Switch
13
14 24
23
= contact closed
= contact open
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 5.5 mm
1.6
0
3.0
6.1
Limit Switches
LS-Titan Miniature DIN Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Plastic Safety Switches, continued
Switch Body Catalog Number LS-S02 LS-S20A LS-S11S
Output Function 2NC with positive
Terminal Connection Screw terminal
Contact Sequence
Contact Travel Snap-action contact
Operating Head Type
Head Only
Catalog Number
LS-XRLA LS-S02-RLA LS-S20A-RLA LS-S11S-RLA
LS-XRLA30 LS-S02-RLA30 LS-S20A-RLA30 LS-S11S-RLA30
2
opening contacts
1
2111
12
22
Assembled Switch
Catalog Number
2NO with slow
make/break
Screw terminal
0 2.1 6.1
13–14
23–24
2.1
ZW = 4.5 mm
1NO and 1NC with
positive opening contact
1
NO
NO
Screw terminal
1
21
13
14
22
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XRLA40 LS-S02-RLA40 LS-S20A-RLA40 LS-S11S-RLA40
LS-XRLA40R LS-S02-RLA40R LS-S20A-RLA40R LS-S11S-RLA40R
Notes
1
Cage Clamp versions available. Contact Application Engineering.
2
For operating head dimensions, see Page V8-T2-40.
2
V8-T2-24 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 25
Limit Switches
Plastic Rod Lever
Metal Rod
Spring Rod (Wobble)
3
Actuating Rod
Plastic Safety
Switch Body
Assembled Switch
13
14 24
23
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 5.5 mm
1.6
0
3.0
6.1
LS-Titan Miniature DIN Switches
2.3
Plastic Safety Switches, continued
Switch Body Catalog Number LS-S02 LS-S20A LS-S11S
Output Function 2NC with positive
Terminal Connection Screw terminal
Contact Sequence
Contact Travel Snap-action contact
= contact closed
= contact open
Operating Head Type
Head Only
Catalog Number
LS-XRR LS-S02-RR LS-S20A-RR LS-S11S-RR
LS-XRRM LS-S02-RRM LS-S20A-RRM LS-S11S-RRM
2
opening contacts
1
2111
12
22
Assembled Switch
Catalog Number
2NO with slow
make/break
Screw terminal
0 2.1 6.1
13–14
23–24
2.1
ZW = 4.5 mm
1NO and 1NC with
positive opening contact
1
NO
NO
Screw terminal
1
21
13
14
22
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XS LS-S02-S LS-S20A-S LS-S11S-S
2
2
2
2
LS-XOR LS-S02-OR LS-S20A-OR LS-S11S-OR
2
2
2
2
Notes
1
Cage Clamp versions available. Contact Application Engineering.
2
For operating head dimensions, see Page V8-T2-40.
3
Not to be used as a safety position switch. Use only in conjunction with snap-action contact.
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-25
Page 26
2.3
Plastic Electronic
Safety Position
Switch Body
Top Push Roller
Plunger
Long Roller Lever
Short Roller Lever
Large Roller Lever
Assembled Switch
Angled Roller
Q10VQ2
+U
e
electron.
= contact closed
= contact open
Q1
Q2
0.5 5.5
default=3.0
6.1
0
LS-Titan Plastic Electronic Safety Position Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Limit Switches
LS-Titan Miniature DIN Switches
Plastic Electronic Safety Position Switches
Switch Body
Catalog Number LSE-11 LSE-02 LSE-AI LSE-AU
Output Function 1NO and 1 NC 2NC Analog 4–20 mA Analog 0–10V
Terminal Connections Cage Clamp
Safety Functions
and Approvals
Contact Sequence Analog 4–20 mA Analog 0–10V
Contact Travel
Operating Head Type
Head Only
Catalog Number
LS-XP LSE-11-P LSE-02-P LSE-AI-P LSE-AU-P
These models may be used in safety-oriented circuits. Visual status
LED indication is comparable to positive opening contacts. Certified
by TÜV as a “Functional-Safety” device. Suitable for protection of
people or processes.
2
Assembled Switch
Catalog Number
1
Cage Clamp
+U
Q1
Q2
1
e
electron.
Q10VQ2
0
0.5 5.5
default=3.0
4
0
I [mA]
1
S [%]
100
Cage Clamp
U [V]
10
0100
Cage Clamp
Additional diagnostic output that registers a 0V signal in the event
of a fault. Self-test function continuously tests both outputs for
overloads, short circuits to 0V and short circuits to +U
TÜV to EN 954-1, Category 3 or 4. Suitable for protection of people
or processes.
6.1
20
1
. Certified by
e
S [%]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XL LSE-11-L LSE-02-L LSE-AI-L LSE-AU-L
LS-XLS LSE-11-LS LSE-02-LS LSE-AI-LS LSE-AU-LS
LS-XLB LSE-11-LB LSE-02-LB LSE-AI-LB LSE-AU-LB
LS-XLA LSE-11-LA LSE-02-LA LSE-AI-LA LSE-AU-LA
Notes
1
A compatible Cage Clamp tool is available as an accessory on Page V8-T2-33.
2
For operating head dimensions, see Page V8-T2-40.
2
V8-T2-26 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 27
Limit Switches
Rotary Lever
Adjustable
Roller Lever
(with 18 mm Roller)
Adjustable
Roller Lever
(With 30 mm Roller)
Plastic Electronic
Safety Position
Switch Body
Assembled Switch
Q10VQ2
+U
e
electron.
Q1
Q2
0.5 5.5
default=3.0
6.1
0
LS-Titan Miniature DIN Switches
2.3
Plastic Electronic Safety Position Switches, continued
Switch Body
Catalog Number LSE-11 LSE-02 LSE-AI LSE-AU
Output Function 1NO and 1NC 2NC Analog 4–20 mA Analog 0–10V
Terminal Connections Cage Clamp
Safety Functions
and Approvals
Contact Sequence Analog 4–20 mA Analog 0–10V
Contact Travel
= contact closed
= contact open
Operating Head Type
Head Only
Catalog Number
LS-XRL LSE-11-RL LSE-02-RL LSE-AI-RL LSE-AU-RL
These models may be used in safety-oriented circuits. Visual status
LED indication is comparable to positive opening contacts. Certified
by TÜV as a “Functional-Safety” device. Suitable for protection of
people or processes.
2
Assembled Switch
Catalog Number
1
Cage Clamp
+U
Q1
Q2
1
e
electron.
Q10VQ2
0
0.5 5.5
default=3.0
4
0
I [mA]
1
S [%]
100
Cage Clamp
U [V]
10
0100
Cage Clamp
Additional diagnostic output that registers a 0V signal in the event
of a fault. Self-test function continuously tests both outputs for
overloads, short circuits to 0V and short circuits to +U
TÜV to EN 954-1, Category 3 or 4. Suitable for protection of people
or processes.
6.1
20
1
. Certified by
e
S [%]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XRLA LSE-11-RLA LSE-02-RLA LSE-AI-RLA LSE-AU-RLA
LS-XRLA30 LSE-11-RLA30 LSE-02-RLA30 LSE-AI-RLA30 LSE-AU-RLA30
Notes
1
A compatible Cage Clamp tool is available as an accessory on Page V8-T2-33.
2
For operating head dimensions, see Page V8-T2-40.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-27
Page 28
2.3
Plastic Rod Lever
Adjustable
Roller Lever
(With 40 mm Roller)
Adjustable
Roller Lever
(With 40 mm Roller)
Plastic Electronic
Safety Position
Switch Body
Assembled Switch
Q10VQ2
+U
e
electron.
= contact closed
= contact open
Q1
Q2
0.5 5.5
default=3.0
6.1
0
Limit Switches
LS-Titan Miniature DIN Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Plastic Electronic Safety Position Switches, continued
Switch Body
Catalog Number LSE-11 LSE-02 LSE-AI LSE-AU
Output Function 1NO and 1NC 2NC Analog 4–20 mA Analog 0–10V
Terminal Connections Cage Clamp
Safety Functions
and Approvals
Contact Sequence Analog 4–20 mA Analog 0–10V
Contact Travel
Operating Head Type
Head Only
Catalog Number
LS-XRLA40 LSE-11-RLA40 LSE-02-RLA40 LSE-AI-RLA40 LSE-AU-RLA40
These models may be used in safety-oriented circuits. Visual status
LED indication is comparable to positive opening contacts. Certified
by TÜV as a “Functional-Safety” device. Suitable for protection of
people or processes.
2
Assembled Switch
Catalog Number
1
Cage Clamp
+U
Q1
Q2
1
e
electron.
Q10VQ2
0
0.5 5.5
default=3.0
4
0
I [mA]
1
S [%]
100
Cage Clamp
10
Cage Clamp
Additional diagnostic output that registers a 0V signal in the event
of a fault. Self-test function continuously tests both outputs for
overloads, short circuits to 0V and short circuits to +U
TÜV to EN 954-1, Category 3 or 4. Suitable for protection of people
or processes.
6.1
20
1
U [V]
0100
. Certified by
e
S [%]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XRLA40R LSE-11-RLA40R LSE-02-RLA40R LSE-AI-RLA40R LSE-AU-RLA40R
LS-XRR LSE-11-RR LSE-02-RR LSE-AI-RR LSE-AU-RR
2
2
Notes
1
A compatible Cage Clamp tool is available as an accessory on Page V8-T2-33.
2
For operating head dimensions, see Page V8-T2-40.
V8-T2-28 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 29
Limit Switches
Plastic Electronic
Safety Position
Switch Body
Spring Rod (Wobble)
3
Actuating Rod
Assembled Switch
Metal Rod
Q10VQ2
+U
e
electron.
Q10VQ2
+U
e
electron.
I [mA]
20
0
4
100
S [%]
10
0100
S [%]
U [V]
LS-Titan Miniature DIN Switches
2.3
Plastic Electronic Safety Position Switches, continued
Switch Body
Catalog Number LSE-11 LSE-02 LSE-AI LSE-AU
Output Function 1NO and 1NC 2NC Analog 4–20 mA Analog 0–10V
Terminal Connections Cage Clamp
Safety Functions
and Approvals
Contact Sequence Analog 4–20 mA Analog 0–10V
Contact Travel
= contact closed
= contact open
Operating Head Type
Head Only
Catalog Number
LS-XRRM LSE-11-RRM LSE-02-RRM LSE-AI-RRM LSE-AU-RRM
These models may be used in safety-oriented circuits. Visual status
LED indication is comparable to positive opening contacts. Certified
by TÜV as a “Functional-Safety” device. Suitable for protection of
people or processes.
Q1
Q2
2
Assembled Switch
Catalog Number
1
0
0.5 5.5
default=3.0
Cage Clamp
6.1
Q1
Q2
1
0
0.5 5.5
default=3.0
Cage Clamp
Additional diagnostic output that registers a 0V signal in the event
of a fault. Self-test function continuously tests both outputs for
overloads, short circuits to 0V and short circuits to +U
by TÜV to EN 954-1, Category 3 or 4. Suitable for protection of people
or processes.
6.1
1
Cage Clamp
1
. Certified
e
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LS-XS LSE-11-S LSE-02-S LSE-AI-S LSE-AU-S
2
2
2
2
2
2
LS-XOR LSE-11-OR LSE-02-OR LSE-AI-OR LSE-AU-OR
2
2
2
2
2
Notes
1
A compatible Cage Clamp tool is available as an accessory on Page V8-T2-33.
2
For operating head dimensions, see Page V8-T2-40.
3
Not to be used as a safety position switch. Use only in conjunction with snap-action contact.
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-29
Page 30
2.3
Top Push Roller
Plunger
Long Roller Lever
Angled Roller
Rotary Lever
Adjustable Roller Lever
Metal Safety
Switch Body
Assembled Switch
12
22
2111
= contact closed
= contact open
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 5.5 mm
1.6
0
3.0
6.1
LS-Titan Metal Safety Switches
2
2
2
2
Limit Switches
LS-Titan Miniature DIN Switches
Metal Safety Switches
Switch Body Catalog Number LSM-02 LSM-20A LSM-11S
Output Function 2NC with positive
opening contacts
Terminal Connection Cage Clamp Cage Clamp Cage Clamp
Contact Sequence
2NO with slow
make/break
13
23
1NO and 1NC with
positive opening contact
13
21
2
2
2
2
2
2
2
2
2
2
2
2
2
2
14 24
Contact Travel Snap-action contact
Operating Head Type
Head Only
Catalog Number
LSM-XP LSM-02-P LSM-20A-P LSM-11S-P
LSM-XL LSM-02-L LSM-20A-L LSM-11S-L
LSM-XLA LSM-02-LA LSM-20A-LA LSM-11S-LA
1
Assembled Switch
Catalog Number
0 2.1 6.1
13–14
23–24
2.1
ZW = 4.5 mm
NO
NO
14
22
2
2
2
2
2
2
2
2
2
2
2
2
V8-T2-30 Volume 8—Sensing Solutions CA08100010E—May 2013
LSM-XRL LSM-02-RL LSM-20A-RL LSM-11S-RL
LSM-XRLA LSM-02-RLA LSM-20A-RLA LSM-11S-RLA
Note
1
For operating head dimensions, see Page V8-T2-40.
Page 31

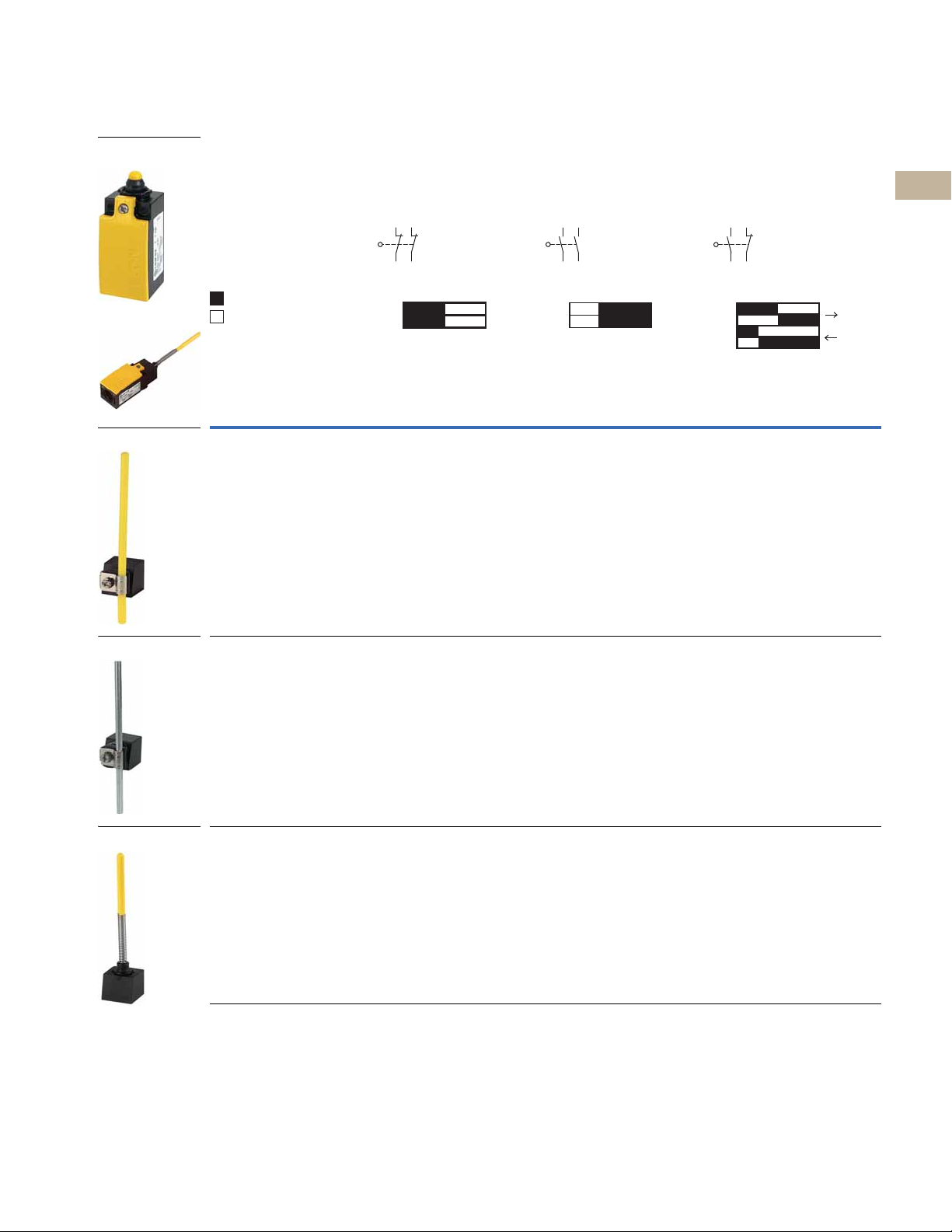

Limit Switches
Metal Safety
Switch Body
Metal Rod Lever
Spring Rod (Wobble)
Plastic Rod Lever
Assembled Switch
12
22
2111
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 5.5 mm
1.6
0
3.0
6.1
LS-Titan Miniature DIN Switches
2.3
Metal Safety Switches, continued
Switch Body Catalog Number LSM-02 LSM-20A LSM-11S
Output Function 2NC with positive
Terminal Connection Cage Clamp Cage Clamp Cage Clamp
Contact Sequence
Contact Travel Snap-action contact
= contact closed
= contact open
Operating Head Type
Head Only
Catalog Number
LSM-XRR LSM-02-RR LSM-20A-RR LSM-11S-RR
1
opening contacts
Assembled Switch
Catalog Number
2NO with slow
make/break
13
23
14 24
0 2.1 6.1
13–14
23–24
2.1
ZW = 4.5 mm
1NO and 1NC with
positive opening contact
21
13
14
22
NO
NO
2
2
2
2
2
2
2
2
2
2
2
2
2
2
LSM-XRRM LSM-02-RRM LSM-20A-RRM LSM-11S-RRM
LSM-XS LSM-02-S LSM-20A-S LSM-11S-S
Note
1
For operating head dimensions, see Page V8-T2-40.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-31
Page 32
Limit Switches
+24V
0V
LS-_
K1
R1
S4
LSE-11
S1
Q1
Q2
0V 0V 0V
+U
e
+U
e
+U
e
LSE-11
S2
Q1
Q2
R2
LSE-11
S3
Q1
Q2
2.3

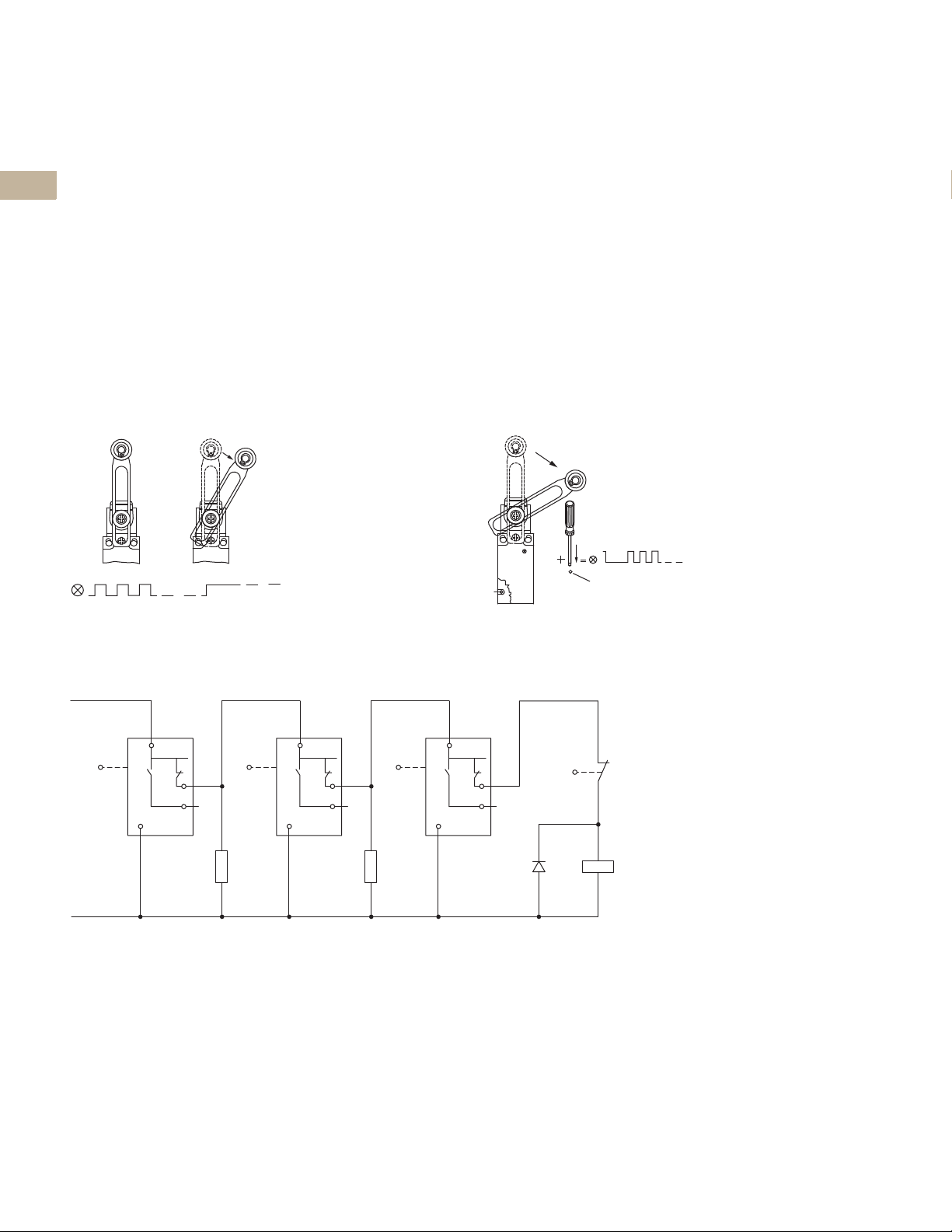

Understanding LS-Titan Electronic Safety Position Switches
2
All four LS-Titan LSE switch
bodies are safety-rated
2
products. The LSE-11 and
LSE-02 switch bodies both
2
have a freely programmable
operating point and can be
individually adjusted to suit
2
the application, and can be
changed as often as required.
2
These devices feature an
LED on the body, providing
2
simple indication during
programming and operation.
2
2
Operating Point Adjustment
LSE-11
2
2
2
LS-Titan Miniature DIN Switches
The LSE-AI (4–20 mA) and
LSE-AU (0–10V) analog
position switches take
position data and convert to
an analog current or voltage
value that can then be
continuously fed into an
automation system. These
two switches also feature
a diagnostic output for
additional data processing.
This ensures that a safe
operating state can be
monitored and evaluated at
any time. A self-test function
is also present on these
models. Outputs Q1 and Q2
are continuously tested for
overloads, short circuits to 0V
and short circuits to +U
LSE-02
adjust
x
.
e
Like the electromechanical
position switches, LS-Titan
electronic position switches
meet Category 3 or 4 of
the EN 954-1 standard for
machine safety when
configured as a redundant
system. All devices are
thus suitable for safety
applications that are used
for the protection of persons
or processes.
2
2
2
2
2
Example of LS-Titan LSE Models in a Safety-Oriented Circuit
2
2
2
2
2
2
2
2
Notes
2
LSE-11 and LSE-02—individual operating point adjustment.
LSE-11 and LSE-02 can be used in safety circuits.
2
S1 is connected to 24 Vdc
S2, S3 each switch with a delay of 0.7s
R1, R2, for example, series element M22-XLED60 (2820 ohms/0.5W)
2
2
LED
Set
Set
1 s
f
≤ 2 N
max
2
2
V8-T2-32 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 33
Limit Switches
V1-2-M20
M20
1/2 in
EMS20
LS-XTW
M12A
M12A5
M22-LS
LS-Titan Miniature DIN Switches
2.3

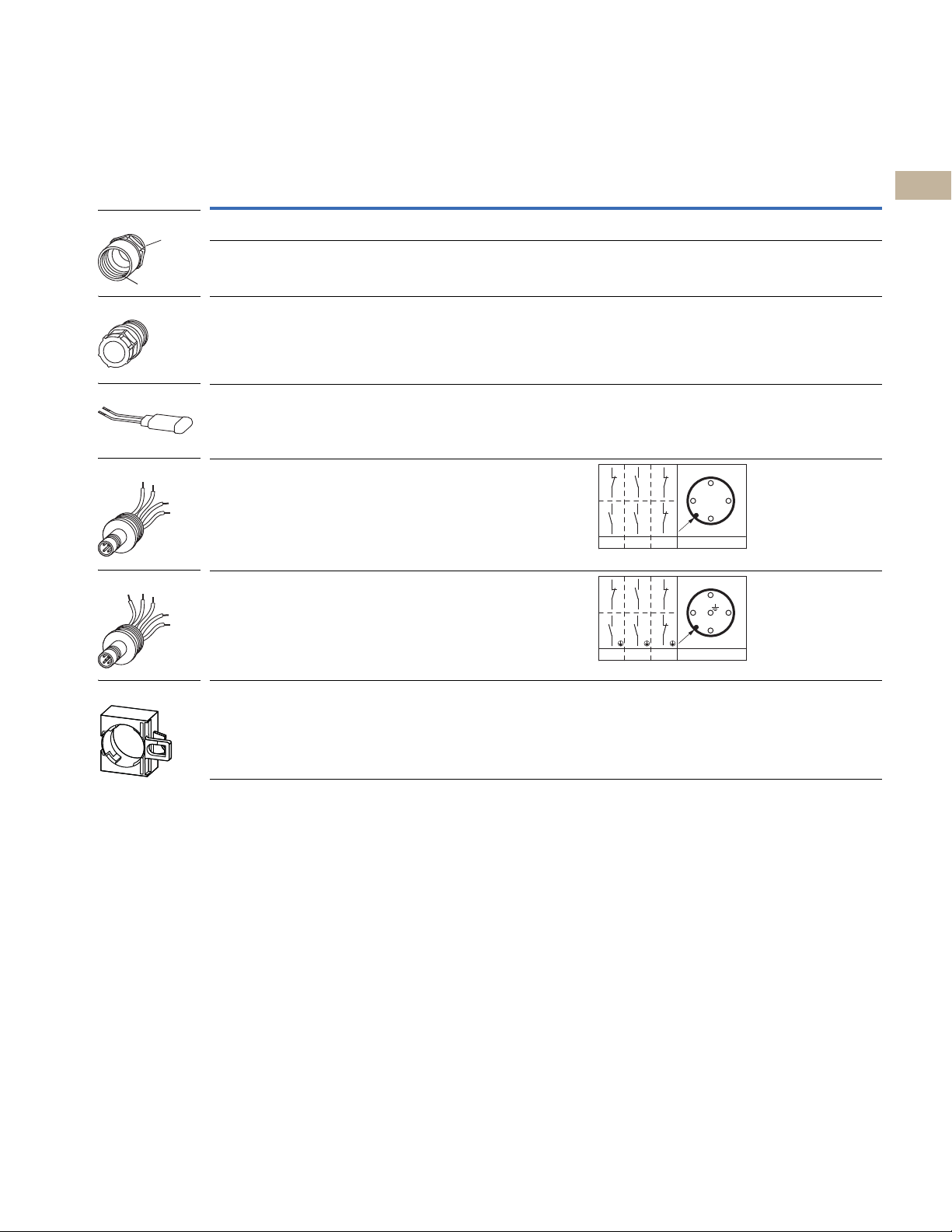

Accessories
LS-Titan Safety Switches
For Use With Description Notes Catalog Number
Any M20 screw terminal in 1/2 in. For use with
Any M20 screw terminal in 1/2 in. For use with
Any M20 diaphragm bolt. With internal push-through
Any Cage Clamp tool. — LS-XTW
LS-Titan plastic bodies (LS-_) Plug connector, 12 mm, 4-pin male connector
LS-Titan metal bodies (LSM-_) Plug connector, 12 mm, 5-pin male connector
Any Allows mounting of M22 pushbuttons.
American pipe thread, metal.
American pipe thread, molded material.
membrane. Will fit cable with an external diameter
of up to 13 mm. Rated IP65 with cable inserted.
M12x1 (M12x1). Rated IP65. Molded material.
Color coded to IEC/EN 60947-5-2.
(M12x1). Rated IP65. Molded material.
Color coded to IEC/EN 60947-5-2.
(See the M22 catalog, CA04716001E, for
a full selection of pushbuttons.)
The screw connection must be earthed.
Not total insulation.
— V1-2-M20
— EMS20
1
..-20-..
..-20-..
1
4
2
2
1
3
3
4
4
..-02-..
1
1
2
2
1
3
3
4
4
..-02-..
3
2
4
3
2
1
2
3
4
..-11-..
1
2
3
4
..-11-..
— M22-LS
V1-2-M20-NA
M12A
M12A5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-33
Page 34
Limit Switches
2.3
Technical Data and Specifications
2
LS-Titan Miniature DIN Switches—IP66, IP67 Complete Units
2
General
2
Standards IEC/EN 60947 IEC/EN 60947
2
Climatic proofing Damp heat, constant, to IEC
2
Ambient temperature °F (°C) –13° to 158°F (–25° to 70°C) –13° to 158°F (–25° to 70°C) –13° to 158°F (–25° to 70°C) –13° to 158°F (–25° to 70°C)
2
Mounting position As required As required As required As required
Protection type IP66, IP67 IP66, IP67 IP66, IP67 IP66, IP67
2
Terminal capacity of screw
terminal and Cage Clamp
2
Solid mm
Flexible with ferrules to DIN 46228 mm
2
Power Supply
2
Rated voltage U
Burden current
2
12V I
24V I
2
30V I mA N/A 19 N/A N/A
Contacts/Switching Capacity
2
Rated impulse withstand voltage U
2
Rated insulation voltage U
Overvoltage category/
2
pollution degree
Rated Operational Current
2
AC–15
24V I
2
230V/240V I
400V/415V I
2
DC-13
2
24V I
110V I
2
220V I
Note
2
1
The following applies for LSE-11 and LSE-02: ensure that the power supply operates correctly when setting the operating point.
2
LS-Titan Miniature DIN Switches
Units LS, LSM LSE-11/LSE-02 LSE-AI
EN 61000-4
60068-2-78; damp heat,
cyclical, to IEC 60068-2-30
2
2
Vdc N/A 12–30 24 (–15%/+20%) 24 (–15%/+20%)
e
mA N/A 15 N/A N/A
e
mA N/A 18 28–45 24
e
Vac 4000 N/A N/A N/A
imp
V 400 N/A N/A N/A
i
A 6 N/A N/A N/A
e
A 6 N/A N/A N/A
e
A 4 N/A N/A N/A
e
A3 0.2 N/A N/A
e
A 0.8 N/A N/A N/A
e
A 0.3 N/A N/A N/A
e
1 x (0.5–2.5) 1 x (0.5–2.5) 1 x (0.5–2.5) 1 x (0.5–2.5)
1 x (0.5–1.5) 1 x (0.5–1.5) 1 x (0.5–1.5) 1 x (0.5–1.5)
III/3 III/3 N/A N/A
Damp heat, constant, to IEC
60068-2-78; damp heat,
cyclical, to IEC 60068-2-30
1
IEC/EN 60947
EN 61000-4
Damp heat, constant, to IEC
60068-2-78; damp heat,
cyclical, to IEC 60068-2-30
LSE-AU1
IEC/EN 60947
EN 61000-4
Damp heat, constant, to IEC
60068-2-78; damp heat,
cyclical, to IEC 60068-2-30
2
2
2
2
2
2
2
2
V8-T2-34 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 35
Limit Switches
LS-Titan Miniature DIN Switches
2.3
LS-Titan Miniature DIN Switches—IP66, IP67 Complete Units. continued
Units LS, LSM LSE-11/LSE-02 LSE-AI
Burd en Current
Analog output Q1
Output voltage (max. 10 mA) Vdc N/A N/A 0–10
Output current mA N/A N/A 4–20
Fault scenario V N/A N/A 0 0
Resolution Steps N/A N/A 100 100
Step tolerance Steps N/A N/A 1 1
Shunt resistor, resistive load ohms N/A N/A <400 >1000
Digital diagnostics output Q2
(switching to + pole PNP)
Response threshold V N/A N/A Approx. U
mA N/A N/A <200 <200
Control circuit reliability
At 24 Vdc/5 mA H
At 5 Vdc/1 mA H
Supply frequency Hz Max. 400 N/A N/A N/A
Short-circuit rating to
IEC/EN 60947-5-1
Maximum fuse A gG/gL 6 N/A N/A N/A
Repetition accuracy mm ±0.02 ±0.02 ±0.02 ±0.02
Note
1
The following applies for LSE-11 and LSE-02: ensure that the power supply operates correctly when setting the operating point.
Fault probability <10–7,
F
Fault probability <10–6,
F
7
<1 fault in 10
<1 failure at 5 x 10
operations
6
operations
N/A N/A N/A
N/A N/A N/A
1
e
LSE-AU1
Approx. U
2
2
2
2
2
2
2
e
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-35
2
Page 36
Limit Switches
2.3
LS-Titan Miniature DIN Switches—IP66, IP67 Complete Units
2
Mechanical Variables
2
Lifespan
Standard-action contact Operations X 10
2
Snap-action contact Operations X 10
2
Contact temperature of roller head °C ≤100 ≤100 ≤100 ≤100
Mechanical shock resistance
2
(half-sinusoidal shock, 20 ms)
Standard-action contact g 25 N/A N/A N/A
2
Snap-action contact 9 N/A N/A N/A N/A
Basic unit g N/A 30 30 30
2
Operating frequency Operations/h ≤6000 ≤3000 ≤3000 ≤3000
Switching point N/A 0.5–5.5 mm freely adjustable N/A N/A
2
Hysteresis mm N/A 0.4 0.4 0.4
2
Contact sequence (contact closed
open Zw = positive opening clearance)
2
Actuation
Mechanical
2
Actuating force at beginning/
end of stroke
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Basic units N 1.0/8.0 3.5/8.0 3.5/8.0 3.5/8.0
LS(M)-XP N 1.0/8.0 1.0/8.0 1.0/8.0 1.0/8.0
LS(M)-XL N 1.0/8.0 1.0/8.0 1.0/8.0 1.0/8.0
LS(M)-XLA N 1.0/8.0 1.0/8.0 1.0/8.0 1.0/8.0
Actuating torque of rotary drives Nm 0.2 0.2 0.2 0.2
Maximum operating speed
with DIN cam
Basic units for angle of actuation = 0°/30° m/s 1/0.5 1/0.5 1/0.5 1/0.5
LS(M)-XRL for angle of actuation = 0° m/s 1.5 1.5 1.5 1.5
LS(M)-XRLA for angle of actuation = 30°, L = 125 mm m/s 1.5 1.5 1.5 1.5
LS(M)-XRR for angle of actuation L = 130 mm m/s 1.5 1.5 1.5 1.5
LS(M)-XL for angle of actuation = 30°/45° m/s 1 1 1 1
LS(M)-XLA for angle of actuation = 30°/45° m/s 1 1 1 1
LS(M)-XP for angle of actuation = 0°/30° m/s 1/1 1/1 1/1 1/1
Electromagnetic Compatibility (EMC)
Electrostatic discharge (IEC/EN 61000-4-2, Level 3 ESD)
Air discharge kV 8 8 8
Contact discharge kV 4 4 4
Electromagnetic fields
(IEC/EN 61000-403, RFI)
Burst pulses (IEC/EN 61000-4-4, Level 3)
Supply cables kV 2 2 2
Signal lines kV 2 2 2
High-energy pulses (surge)
(IEC/EN 61000-4-5)
Immunity to line-conducted
interference to (IEC/EN 610000-4-6)
LS-Titan Miniature DIN Switches
Units LS, LSM LSE-11/LSE-02 LSE-AI/LSE-AU LSE-AI/LSE-AU
6
8 N/A N/A N/A
6
8 3 (electronic) N/A N/A
mm N/A 0.04 0.06 0.06
V/m 10 10 10
kV 0.5 0.5 0.5
V101010
2
2
2
V8-T2-36 Volume 8—Sensing Solutions CA08100010E—May 2013

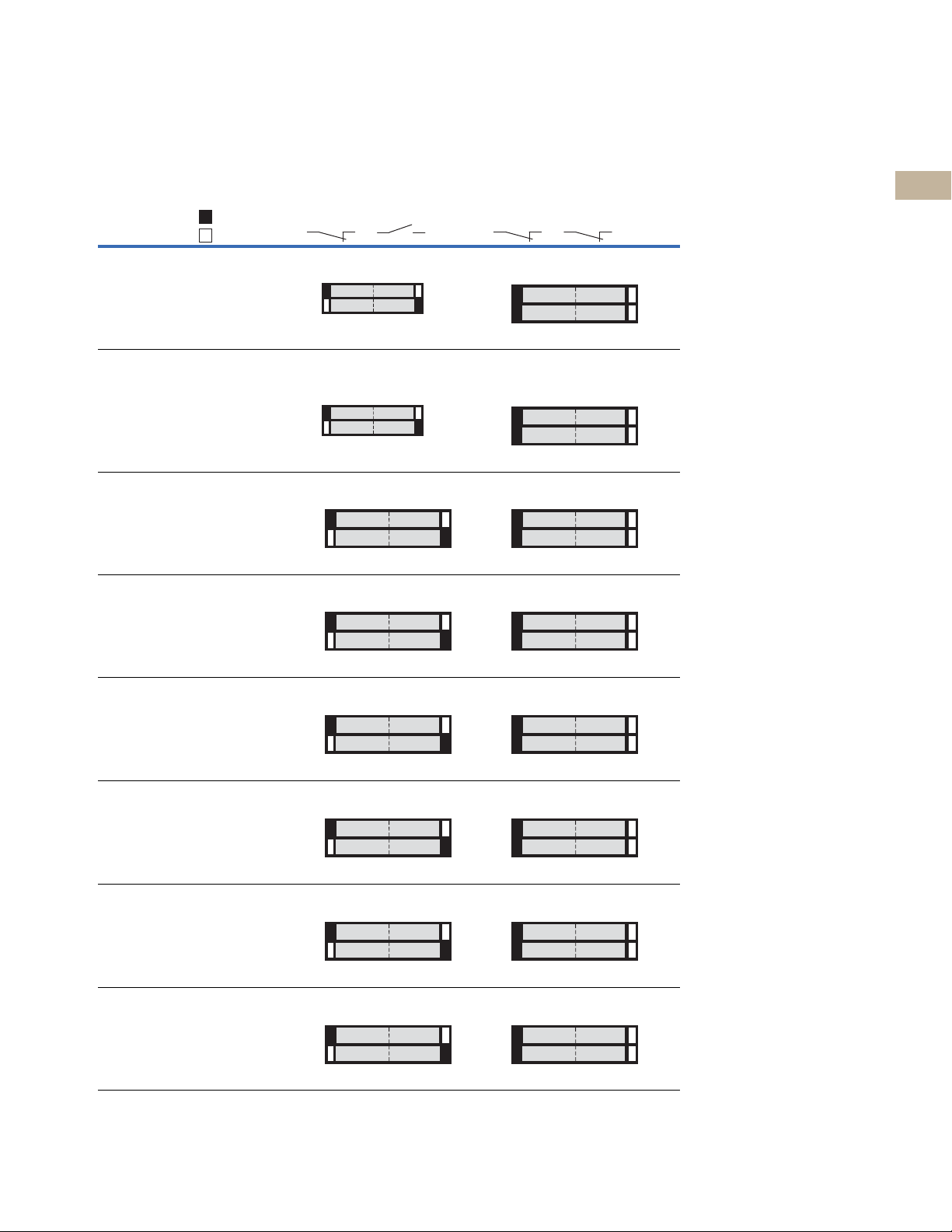

Page 37
Limit Switches
Q1
Q2
0.5 9.0
default=4.4
9.6
0
Q1
Q2
5° 60°
default=30°
65°
0°
Q1
Q2
5° 60°
default=30°
65°
0°
Q1
Q2
5° 60°
default=30°
65°
0°
Q1
Q2
3° 23°
default=13°
26°
0°
Q1
Q2
3° 23°
default=13°
26°
0°
LS-Titan Miniature DIN Switches
2.3
Contact Travel Diagrams
LSE
Contact Travel LSE-11 LSE-02
= contact closed
Description
Basic Units
Operating Heads
Roller plunger
LS-XP
LSM-XP
Roller lever
LS-XL
LSM-XL
LS-XL
LS-XLB
Angled roller lever
LS-XLA
LSM-XLA
= contact open
0
0.5 5.5
Q1
Q2
default=3.0
0
0.5 5.5
Q1
Q2
default=3.0
0.5 10
0
Q1
Q2
default=5.0
2
2
Q2Q1
Q1
Q2
2
2
6.1
0.5 5.5
0
Q1
Q2
default=3.0
6.1
2
2
2
6.1
10.8
0.5 5.5
0
Q1
Q2
default=3.0
0.5 9.0
0
Q1
Q2
default=4.4
0.5 10
0
Q1
Q2
default=5.0
6.1
9.6
10.8
2
2
2
2
2
2
2
2
2
Rotary lever
LS-XRL
LSM-XRL
Adjustable roller lever
LS-XRLA
LSM-XRLA
LS-XRLA30
LS-XRLA40
LS-XRLA40R
Actuating rod
LS-XRR
LSM-XRR
LS-XRRM
LSM-XRRM
Spring rod
LS-XS
LSM-XS
5° 60°
0°
Q1
Q2
default=30°
5° 60°
0°
Q1
Q2
default=30°
5° 60°
0°
Q1
Q2
default=30°
65°
2
2
2
2
65°
2
2
2
65°
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-37

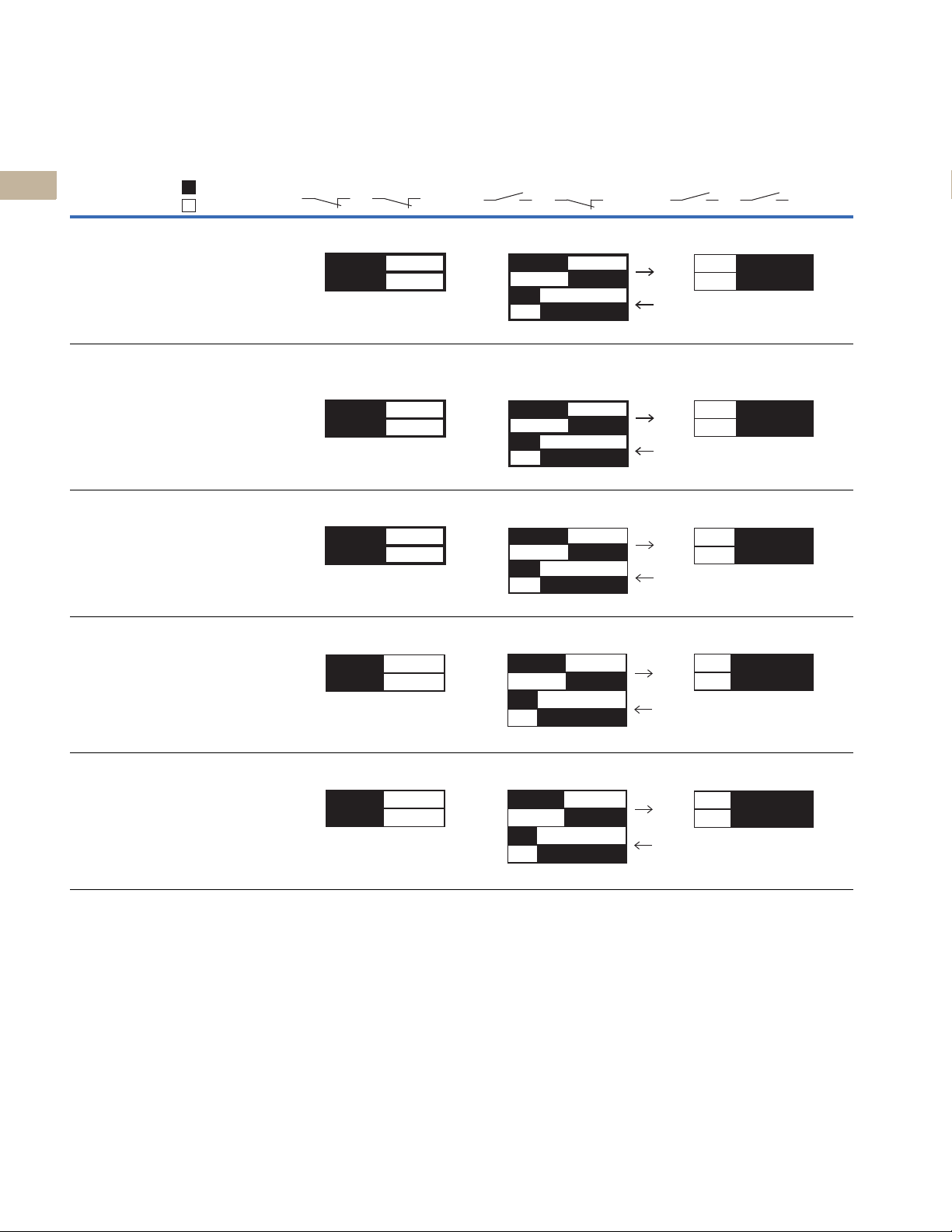

Page 38
2
= contact closed
= contact open
11
212212
NC
NC
13
212214
NC
NO
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 4.5 mm
1.6
0
3.0
6.1
NC
11–12
21–22
NC
Zw = 4.5 mm
3.0
0 3.0 6.1
13–14
13–14
21–22
21–22
Zw = 4.5 mm
1.6
0
3.0
6.1
NC
11–12
21–22
NC
Zw = 6.9 mm
4.4
0 4.4 9.6
NC
11–12
21–22
NC
3.3
3.3
0 6.9
Zw = 5.0 mm
21–22
13–14
1.7
Zw = 6.2 mm
21–22
13–14
0 3.3 6.9
NC
11–12
21–22
NC
0 6.3
6.3
13.4
Zw = 9.6 mm
2.3
LS and LSM
Limit Switches
LS-Titan Miniature DIN Switches
Contact Travel LS-02, LS-S02, LSM-02 LS-11S, LS-S11S, LSM-11S LS-20A, LS-S20A, LSM-20A
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Description
Basic Units
Operating Heads
Roller plunger
LS-XP, LSM-XP
Roller lever
LS-XL, LSM-XL
Roller lever, short
LS-XLS
21–22
13–14
21–22
13–14
NO
14
0 2.1 6.1
13–14
23–24
0 2.1 6.1
13–14
23–24
0
4.4
2.3
9.6
Zw = 8.7 mm
0 9.6
13–14
23–24
0 2.2
13–14
23–24
NO
13
24
2.1
2.1
3.3
3.3
2.2
23
NO
NO
ZW = 4.5 mm
NO
NO
ZW = 4.5 mm
NO
NO
6.9
NO
NO
2
2
Roller lever, large
LS-XLB
2
2
2
2
2
2
2
2
2
2
2
V8-T2-38 Volume 8—Sensing Solutions CA08100010E—May 2013
0 6.3 13.4
21–22
13–14
21–22
13–14
3.2
Zw = 12.0 mm
13–14
23–24
4.3
0 13.4
4.3
NO
NO
Page 39
Limit Switches
11
212212
NC
NC
13
212214
NC
NO
NC
11–12
21–22
NC
Zw = 7.6 mm
5.0
0 5.0 10.8
13–14
13–14
21–22
21–22
Zw = 9.7 mm
2.4
0
5.0
10.8
NC
11–12
21–22
NC
Zw = 47°
30°
0 30° 65°
13–14
13–14
21–22
21–22
Zw = 60°
15°
0
30°
65°
NC
11–12
21–22
NC
13°
0 13° 26°
13–14
13–14
21–22
21–22
7°
0
13°
26°
LS-Titan Miniature DIN Switches
2.3
LS and LSM, continued

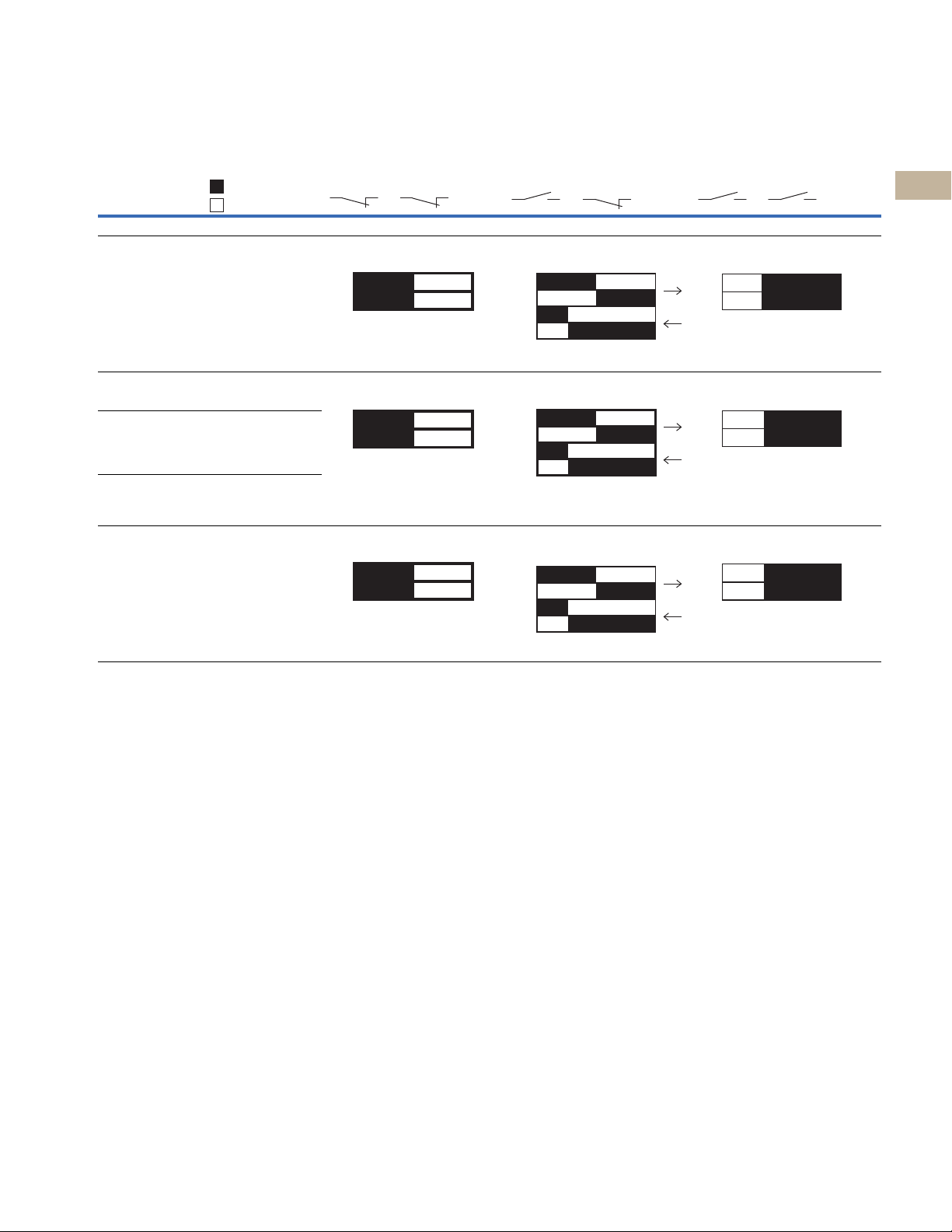

Contact Travel LS-02, LS-S02, LSM-02 LS-11S, LS-S11S, LSM-11S LS-20A, LS-S20A, LSM-20A
= contact closed
Description
Operating Heads
Angled roller lever
LS-XLA, LSM-XLA
Rotary lever
LS-XRL, LSM-XRL
Adjustable roller lever
LS-XRLA, LSM-XRLA
LS-XRLA30, LS-XRLA40
LS-XRLA40R
Actuating rod
LS-XRR, LSM-XRR
LS-XRRM, LSM-XRRM
Spring rod
LS-XS, LSM-XS
= contact open
NO
14
0 10.6
13–14
23–24
065
13–14
23–24
0 26°
13–14
23–24
NO
13
24
3.6
3.6
°
22
°
22
9°
9°
23
NO
NO
°
NO
NO
NO
NO
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-39

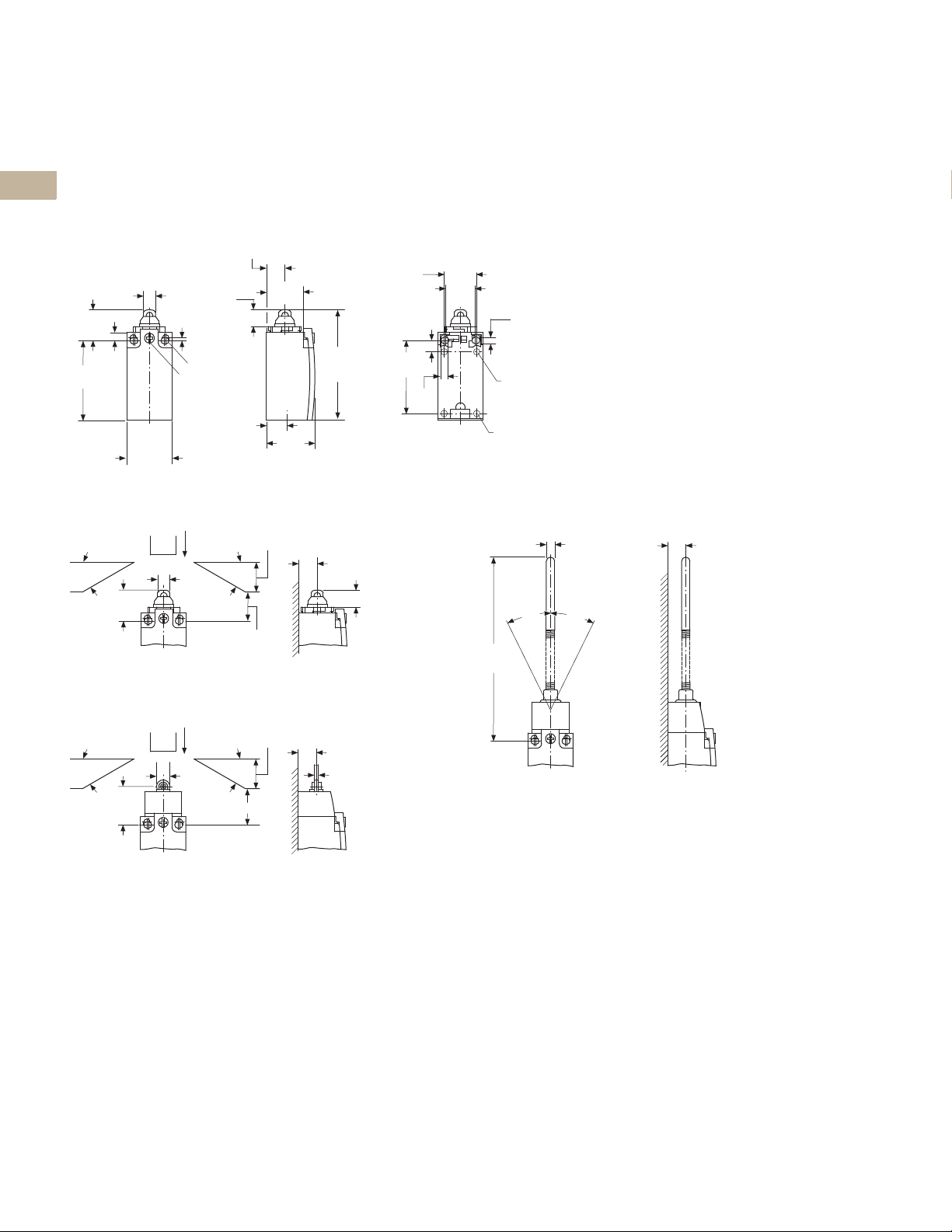

Page 40
Limit Switches
0.21
(5.3)
2.17
(55.0)
0.32
(8.2)
0.83
(21.0)
0.08
(1.95)
ø
0.46
(11.7)
0.50
(12.7)
0.98
(25.0)
1.22
(31.0)
0.55
(14.0)
1.32
(33.5)
M20
Thread
2.99
(76.0)
0.87
(22.0)
0.79
(20.0)
0.17
(4.3)
0.17
(4.3)
1.97
(50.0)
0.29
(7.3)
0.16
(4.0)
≥0.59 (15.0)
30°
0.46 (11.7)
0.83
(21.0)
0.32
(8.2)
0.50
(12.7)
30°
≥0.79 (20.0)
≥
1.00 (25.4)
30°
0.10
(2.5)
1.04
(26.5)
0.35
(9.0)
0.50
(12.7)
30°
≥0.79 (20.0)
4.96
(126.0)
0.50
(12.7)
ø0.23
(5.8)
26°
26°
2.3
Dimensions
2
Approximate Dimensions in Inches (mm)
2
Position Switches
LS-_, LSM-_, LSE-_
2
2
2
2
LS-Titan Miniature DIN Switches
2
2
2
2
2
LS-_, LSM-_, LSE-_
2
2
2
2
2
2
LS(M)-_/P
2
2
2
3
1
2
LS(M)-_/S
2
2
2
Notes
1
2
2
2
2
2
2
2
Tightening torque of cover screws: 0.8 Nm ±0.2 Nm.
2
Only with LS (insulated version).
3
Fixing screws 2 x M4 ≥30
= 1.5 Nm
M
A
V8-T2-40 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 41
Limit Switches
30°
1.82
(46.2)
1.59
(40.5)
0.94
(23.9)
1.06
(27.0)
0.83
(21.0)
0.20
(5.0)
ø0.55
(14.0)
1.57
(40.0)
≥0.79
(20.0)
30°
65°
65°
0.51 (13.0)
0.13
(3.4)
1.35
(34.4)
0.50
(12.7)
0.20
(5.0)
1.22
(31.0)
30°
≥0.79
(20.0)
2.06
(52.3)
0.80
(20.4)
0.22
(5.6)
0.50
(12.7)
1.63
(41.3)
ø0.87
(22.0)
30°
≥0.79
(20.0)
≥1.54
(39.0)
1.44
(36.5)
ø0.51
(13.0)
30°
≥0.79
(20.0)
≥1.17
(29.7)
1. 18
(30.0)
0.50
(12.7)
0.20
(5.0)
1.31
(33.2)
0.51
(13.0)
1.43
(36.3)
30°
0.50
(12.7)
0.20
(5.0)
≥0.79
(20.0)
≥0.31
(8.0)
LS-Titan Miniature DIN Switches
2.3
Approximate Dimensions in Inches (mm)
Rotary Lever
LS(M)-_/RL
Roller Lever
LS(M)-_/L
Roller Lever, Large
LS(M)-_/LB
1
Roller Lever, Short
LS(M)-_/LS
Adjustable Roller Lever
)-_/RLA
LS(M
≥0.79
(20.0)
30°
65°
2
≥1.75
(44.5)
65°
Adjustable
0.75 (19.0)
to 3.00 (76.0)
30°
(54.5)
1.83
(46.4)
1.27
(32.2)
2.14
ø0.71–1.57
(18.0–40.0)
0.39
(10.0)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Notes
1
Tightening torque of cover screws: 0.8 Nm ±0.2 Nm.
2
Setting range of 54.5 to 97.
Angled Roller Lever
LS(M)-_/XLA
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-41
2
2
2
2
2
2
2
2
2
2
2
2
2
Page 42
Limit Switches
1.81
(46.0)
1.69
(43.0)
ø0.24
(6.0)
65°
65°
ø 0.26
(6.5)
ø 0.16
(4.0)
1.22
(31.0)
4.33
(110.0)
0.50
(12.7)
≥0.24
(6.1)
2.3
Approximate Dimensions in Inches (mm)
2

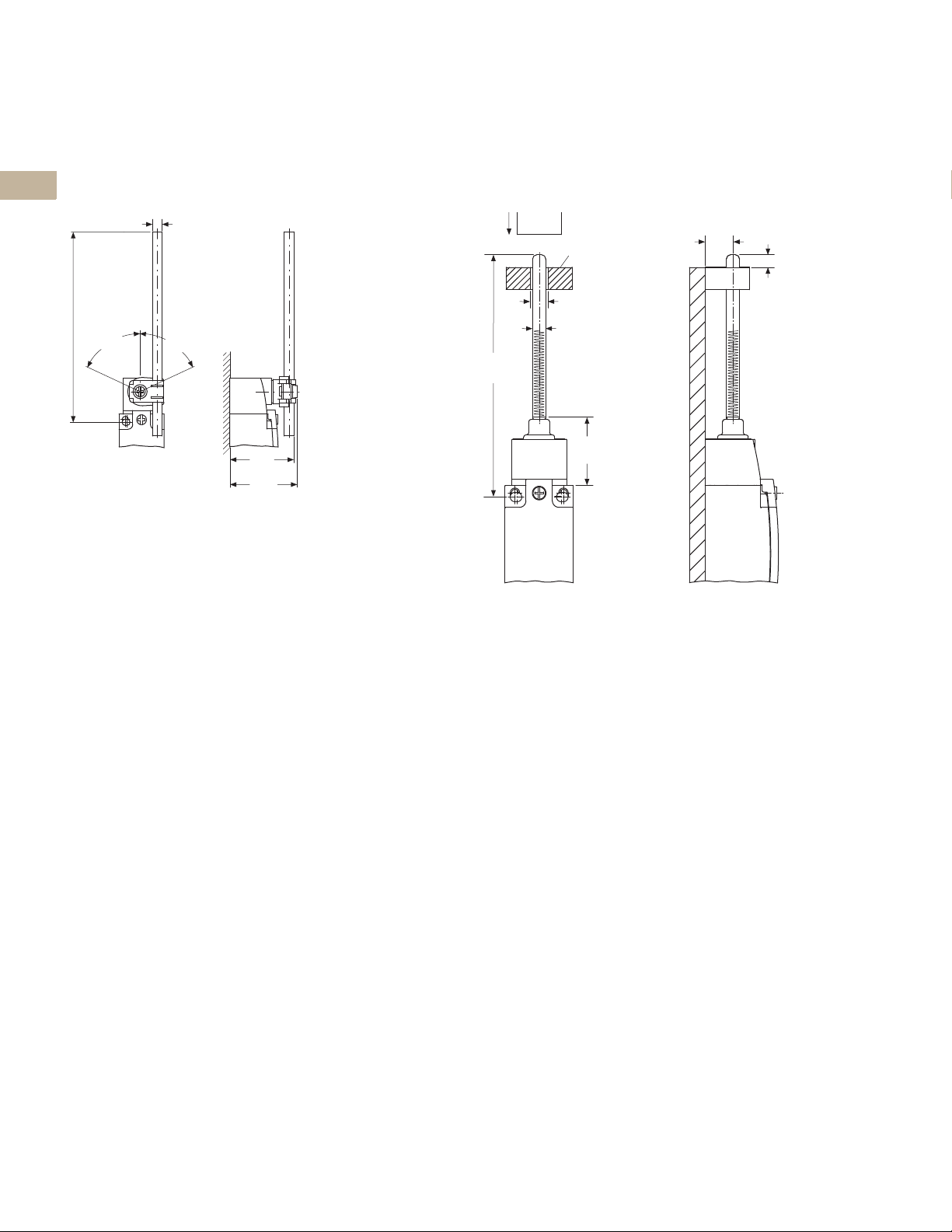

Actuating Rod
2
LS(M)-_/RR
2
LS-Titan Miniature DIN Switches
LS(M)-_/OR
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
Notes
1
LS_/RR ≤150
LS_/RRM ≤210
2
Approach direction, vertical.
3
Guide is done by customer, not included.
4
Maximum push-through.
3
4
2
2
2
2
2
2
2
2
2
2
2
2
V8-T2-42 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 43
Limit Switches
E49 Mini Metal Switches
Drawings
Online
E49 Mini Metal Switches
2.4
E49 Mini Metal Switches
Product Description
E49 Mini Metal Limit
Switches from Eaton’s
electrical sector are designed
small and tough, with
machinery OEMs in mind.
The small size, metal body
and mechanical life make this
product perfect for switching
applications in packaging,
material handling, elevators
and lifts, electronic assembly
equipment, injection molding
machinery, and auto-vending
machines. The E49 Mini
Metal is the ideal switch for
those who need a costeffective, compact solution,
but don’t want to sacrifice
durability in the process.
Features
●
Long life—rated for
0 million operations
1
●
Pre-wired units with
stom cable leng
cu
ava
ilable for high volume
customers
●
“Fingerproof” terminals
protect against accidental
shock
●
Double-spring mechanism
or contact reliability
f
●
Grounding terminal
included
●
Captive screws on
enclosure cover mak
wi
ring hassle-free
●
SPDT double break
ths
Contents
Description Page
E49 Mini Metal Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-44
Technical Data and Specifications . . . . . . . . . . V8-T2-46
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-47
2
2
2
2
2
2
2
2
2
2
2
Standards and Certifications
●
UL Recognized
●
CE
●
RoHS
e
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-43
Page 44
2.4
Adjustable Side
Rotary Lever
Top Pushbutton
Top Push Roller
Top Push Roller
(90° Roller)
Operating Head Type
Side Rotary Lever
Adjustable Rod Lever
Product Selection
2
2
2
2
2
2
2
Limit Switches
E49 Mini Metal Switches
E49 Mini Metal Switches
Assembled Unit
(Switch Body and Head)
Travel to
Operate Contacts
Side Rotary Lever
20° 12° 70° 750g 100g E49G31AP3
Travel to
Reset Contacts Total Travel
Force to
Operate Contacts
Minimum
Return Force
1NO-1NC Contacts
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable Side Rotary Lever
20° 12° 70° 750g 100g E49G31UP3
Top Pushbutton
0.06 in
(1.5 mm)
Top Push Roller
0.06 in
(1.5 mm)
Top Push Roller (90° Roller)
0.06 in
(1.5 mm)
0.04 in
(1 mm)
0.04 in
(1 mm)
0.04 in
(1 mm)
0.22 in
(5.5 mm)
0.22 in
(5.5 mm)
0.22 in
(5.5 mm)
900g 150g E49G31BP3
900g 150g E49G31CP3
900g 150g E49G31C1P3
2
2
2
2
2
2
2
2
V8-T2-44 Volume 8—Sensing Solutions CA08100010E—May 2013
Adjustable Rod Lever
20° 12° 70° 750g 100g E49G31DP3
Page 45
Limit Switches
Wobble Stick
(Nylon Coil)
Wobble Stick
(Metal Coil)
Wobble Stick
(Metal Rod)
Wobble Stick
(Whisker)
Operating Head Type
E49 Mini Metal Switches
2.4
E49 Mini Metal Switches, continued
Travel to
Operate Contacts
Wobble Stick (Nylon Coil)
1.18 in
(30 mm)
Wobble Stick (Metal Coil)
1.18 in
(30 mm)
Wobble Stick (Metal Rod)
1.18 in
(30 mm)
Travel to
Reset Contacts Total Travel
— — 150g E49G31NP3
— — 150g E49G31VP3
— — 150g E49G31MP3
Force to
Operate Contacts
Assembled Unit
(Switch Body and Head)
1NO-1NC Contacts
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Wobble Stick (Whisker)
1.18 in
(30 mm)
— — 150g E49G31XM3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-45
2
Page 46
Limit Switches
NO (4)
NC (1)
NO (3)
NC (2)
2.4
Technical Data and Specifications
2
E49 Mini Metal Switches
2
Description Specification
Operating speed 0.19 in (5 mm) to 19.7 in/s (50 cm/s)
2
Operating frequency 120 operations/min
Contact resistance 25M ohms (initial)
2
Insulation resistance 100M ohms min (at 500 Vdc)
2
Dielectric strength 1000 Vac, 50/60 Hz for one minute between non-continuous terminals
2
Vibration 10 to 55 Hz, 1.5 mm double amplitude
2
Shock Approx. 300 m/s
Ambient operating temperature 23° to 149°F (–5° to 65°C)
2
Humidity 95% RH max.
Service life Mechanical: 10,000,000 operations min.
2
2
Weight Approx. 130 to 190g
Degree of protection IEC: IP65
2
Material of construction Shaft: stainless SUS303
2
2
E49 Mini Metal Switches
1500 Vac, 50/60 Hz for one minute between current-carrying and
non-current-carrying parts and between each terminal and ground
Electrical: 500,000 operations min.
Arm: stainless SUS304
Head and body: zinc alloy
Terminal cover: PC/ABS plastic
Rubber grommet: NBR rubber
2
(approx. 30Gs)
2
Maximum Ampere Ratings
2
Rated
Voltage
2
125 Vac551.50.73321
250 Vac5510.5331.50.8
2
8 Vdc55335433
2
14 Vdc55334433
30 Vdc55334433
2
125 Vdc0.40.4——————
250 Vdc0.20.2——————
2
2
Terminal Configuration
Non-Inductive Load (A) Inductive Load (A)
Resistive Load Lamp Load
NC NO NC NO NC NO NC NO
2
Inductive Load Motor Load
1
2
2
Notes
2
1
Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).
2
Lamp load has an inrush current of ten times the steady-state current, while motor load has
2
an inrush current of six times the steady-state current.
2
2
2
2
2
V8-T2-46 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 47
Limit Switches
2.52
(64)
0.73
(18)
0.55 (14)
M4
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
0.8
(20)
1.43 (28)
1.62 (41)
1.18 ( 3 0 )
R
2.2
(56)
0.49 (12)
0.70 x 0.28
(18 x 7) Dia.
PT 20°
Max.
2.2
(56)
1.06 (27)
0.12 (3)
2.52
(64)
0.55 (14)
0.39
(10)
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
2.2
(56)
1. 5
(38)
0.59 (15)
2.52
(64)
0.55 (14)
0.39
(10)
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.50 x 0.15
(13 x 4)
Dia.
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
E49 Mini Metal Switches
2.4
Dimensions
Approximate Dimensions in Inches (mm)
E49G31AP3
E49G31BP3
E49G31CP3
0.50 x 0.15
(13 x 4)
Dia.
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
E49G31DP3
0.22 (6)
0.10 (3)
Dia.
M4
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.83
(21)
1. 1
(28)
0.83
(21)
1. 1
(28)
0.59 (15)
(38)
1.18~4.65
(30~118)
0.49 (12)
2.2
(56)
1. 5
2.2
(56)
0.30
(7)
0.98
(25)
M6
0.55 (14)
0.6 (15)
1.77 (45)
0.30
(7)
0.39
(10)
2.52
(64)
1. 41
(36)
0.8
(20)
0.98
(25)
0.73
(18)
2.52
(64)
0.55 (14)
0.6 (15)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E49G31C1P3
E49G31MP3
0.40
0.98
(25)
(10)
2.52
(64)
0.55 (14)
0.6 (15)
0.11 (3)
Dia.
1.65
(42)
3.94
(100)
M3 x 6
0.16 (4.1)
Dia.
2.2
0.83
(21)
1. 1
(28)
(56)
M3 x 23
M5
(P=0.8)
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-47
0.23 (6)
Dia.
0.30
(7)
2
2
2
2
2
2
2
2
2
2
2
Page 48
Limit Switches
0.23 (6)
Dia.
0.11 (3)
Dia.
0.40
(10)
2.2
(56)
3.94
(100)
1.65
(42)
2.52
(64)
0.55 (14)
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
2.2
(56)
L=
1.18~2.75
(30~70)
0.49 (12)
2.52
(64)
0.73
(18)
0.55 (14)
0.8
(20)
1.10 (28)
1.30 (33)
1.69 (43)
1.8 9 (4 8)
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
0.08
(2)
M4
M6
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.70 x 0.28
(18 x 7)
Dia.
0.40
(10)
2.2
(56)
3.94
(100)
2.52
(64)
0.55 (14)
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
2.2
(56)
3.94
(100)
2.05
(52)
2.52
(64)
0.55 (14)
M3 x 6
0.16 (4.1)
Dia.
M3 x 23
M5
(P=0.8)
0.40
(10)
0.04 (1)
Dia.
0.30
(7)
0.6 (15)
0.98
(25)
0.83
(21)
1. 1
(28)
2.4
Approximate Dimensions in Inches (mm)
2
E49G31NP3
2
2
2
2
2
2
2
2
2
2
E49 Mini Metal Switches
E49G31VP3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E49G31UP3
V8-T2-48 Volume 8—Sensing Solutions CA08100010E—May 2013
E49G31XM3
Page 49
Limit Switches
E49 Compact Metal Switches
Drawings
Online
E49 Compact Metal Switches
2.5

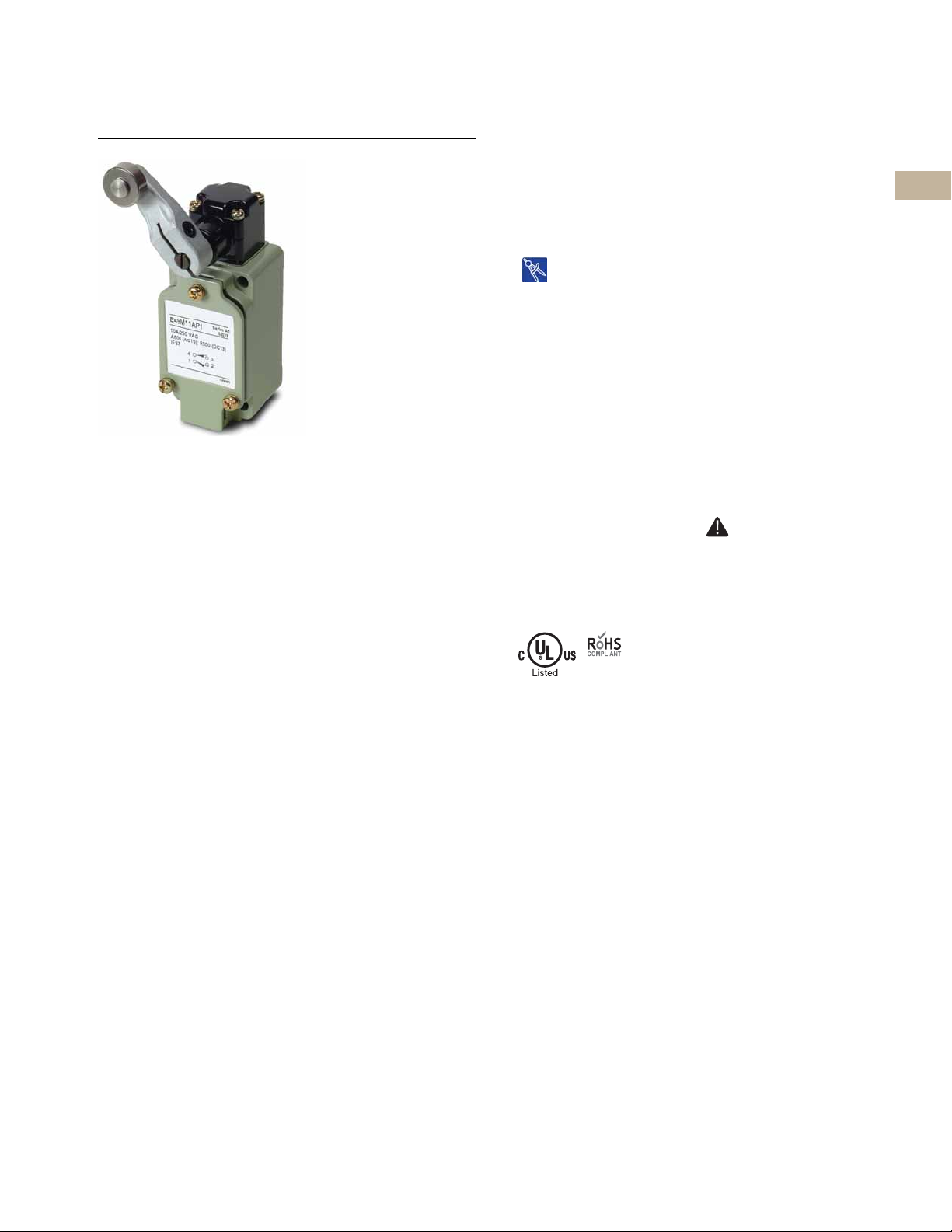

E49 Compact Metal Switches
Product Description
E49 Compact Metal Switches
by Eaton’s electrical sector
are designed with high
mechanical strength for
robust environments. The
rugged aluminum die cast
construction provides
reliable, oil-tight, waterproof
and dustproof sealing for a
variety of applications. Snap
action 1NO-1NC contacts
provide flexibility in design.
Features
●
Rigid die cast switch
using
ho
●
High mechanical strength
●
Oil-tight, waterproof and
dustproof construction
Contents
Description Page
E49 Compact Metal Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-50
Technical Data and Specifications . . . . . . . . . . V8-T2-52
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-53
Standards and Certifications
●
cULus
●
NEMA A600 (AC-15)
●
NEMA R300 (DC-13)
●
IP67
●
RoHS
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-49
Page 50
2.5
Top Push
Rod Lever
Operating Head Type
Top Push Roller
Roller Lever
Product Selection
2
2
2
2
2
2
2
2
2
2
2
Limit Switches
E49 Compact Metal Switches
E49 Compact Metal Switches
Assembled Unit
(Switch Body and Head)
Travel to
Operate Contacts
Roller Lever
20° 12° 50° 2.99 lbs 0.50 lb E49M11AP1
Top Push
0.067 in
(1.7 mm)
Travel to
Reset Contacts Total Travel
0.04 in
(1.0 mm)
— 6.02 lbs 2.01 lbs E49M11BP1
Force to Operate
Contacts (Maximum)
Minimum
Return Force
1NO-1NC Contacts
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Top Push Roller
0.067 in
(1.7 mm)
Rod Lever
20° 12° 50° 0.31 lb 0.06 lb E49M11DP1
0.04 in
(1.0 mm)
0.25 in
(6.5 mm)
6.02 lbs 2.01 lbs E49M11CP1
(as pictured)
E49M11CP2
90° Cross Roller
2
2
2
2
2
V8-T2-50 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 51
Limit Switches
Wobble
Adjustable Roller
Lever
Cat Whisker
Operating Head Type
E49 Compact Metal Switches
2.5

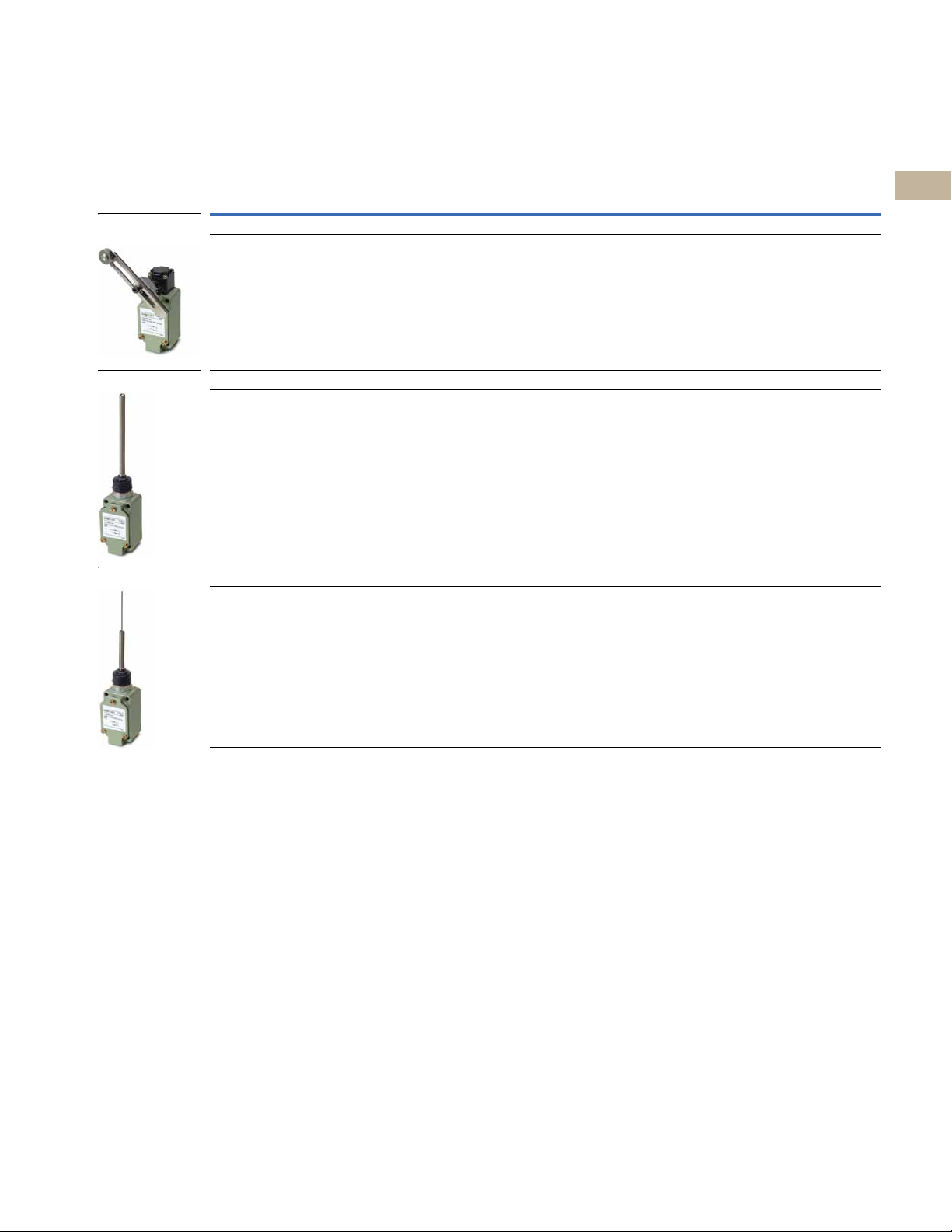

E49 Compact Metal Switches, continued
Assembled Unit
(Switch Body and Head)
Travel to
Operate Contacts
Adjustable Roller Lever
20° 12° 50° 2.99 lbs 0.50 lb E49M11UP1
Wobble
1.10 in
(28 mm)
Cat Whisker
1.10 in
(28 mm)
Travel to
Reset Contacts Total Travel
N/A N/A 0.33 lb N/A E49M11VP1
N/A N/A 0.064 lb N/A E49M11XM1
Force to Operate
Contacts (Maximum)
Minimum
Return Force
1NO-1NC Contacts
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-51
2
Page 52
Limit Switches
2.5
Technical Data and Specifications
2
E49 Compact Metal Switches
2
Description Specification
Operating speed 1 mm to 2m/sec
2
Operating frequency Mechanically: 120 operations/min.; Electronically: 30 operations/min.
Contact resistance 15M ohms max. (initial)
2
Insulation resistance 100M ohms min. (at 500 Vdc)
2
Dielectric strength 1000 Vac, 50/60 Hz for 1 minute between non-continuous terminals;
2
Vibration Malfunction durability: approx. 1000 m/sec
2
Ambient operating temperature 14° to 176°F (–10° to 80°C)
Humidity 95% RH max.
2
Service life Mechanically: 15,000,000 operations/minute;
2
2
Maximum Ampere Ratings—Isolated Contacts, No Polarity Restriction
NEMA A600 (AC-15) 50 or 60 Hz NEMA R300 (DC-13)
2
Rated
Voltage
2
24 Vac 10A 60A 6.0A 7200 VA 720 VA 24 Vdc 1.5A
2
120 Vac 10A 60A 6.0A 7200 VA 720 VA 120 Vdc 0.22A
250 Vac 10A 30A 3.0A 7200 VA 720 VA 250 Vdc 0.11A
2
480 Vac 10A 15A 1.5A 7200 VA 720 VA
600 Vac 10A 12A 1.2A 7200 VA 720 VA
2
Current Voltamperes
E49 Compact Metal Switches
2200 Vac, 50/60 Hz for 1 minute between each terminal and non-current carrying
metal part and between each terminal and ground
Malfunction durability: approx. 300/sec
Electronically: 500,000 operations/minute
2
(approx. 100 Gs);
2
(30 Gs)
Rated
Voltage CurrentContinuous Make Break Make Break
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
V8-T2-52 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 53
Limit Switches
0.35 (9.0)
Dia.
0.50 (12.7)
0.19 (4.9)
1.19 (30.2) 1.38 (35.0)
1.15 (29.2)
1.58
(40.0)
0.59 (15.1)
4-M6
Thread
2.31
(58.7)
0.20
(5.0)
0.85 (21.6)
1.63
(41.5)
2.71
(68.7)
0.78
(19.9)
0.67 (17.0)
Dia.
0.20 (5.0)
0.50 (12.7)
1.10 (28.0)
0.98 (25.0)
to
5.51 (140.0)
0.58 (14.7)
0.35 (9.0)
1.81
(46.0)
0.12 (3.0)
Dia.
2.17 (55 .0)
1. 00
(25.4)
1.84
(46.6)
0.58 (14.7)
0.69 (17.5)
Dia.
2.09
(53.0)
0.28
(7.0)
2.32 (5 9.0)
1. 00
(25.4)
E49 Compact Metal Switches
2.5
Dimensions
Approximate Dimensions in Inches (mm)
Switch Body with E49M11BP1
E49M11CP1/E49M11CP2
E49M11UP1
0.69 (17.5)
0.98 (25.0)
to
3.51 (89.0)
0.58 (14.7)
E49M11VP1
5.51
(140.0)
Dia.
0.26 (6.5)
Dia.
2.64 (67.0)
2.36 (60.0)
0.28 (7.0)
0.52
(13.1)
1. 00
(25.4)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E49M11DP1
E49M11AP1
E49M11XM1
2.03
(51.5)
5.51
(140.0)
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-53
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Page 54
2.6
E50 Heavy-Duty Plug-In Switches
Drawings
Online
Limit Switches
E50 Heavy-Duty Plug-In Switches
2
2
2
2
2
2
2
2
2
2
2
E50 Heavy-Duty Plug-In Switches
Product Description
2
E50 Modular Plug-In Limit
Switch Components from
2
Eaton’s electrical sector are
the industry standard with
2
versatility of design and
high reliability for low
2
maintenance, installation and
inventory costs. Standard
2
2
2
2
2
2
2
2
gaskets, seals and
Viton
boots and a zinc die cast
enclosure provide exceptional
chemical resistance to the
common coolants, cleansing
agents, and hydraulic fluids
found in machine tool,
automotive, waste water
treatment and other heavyduty industrial applications.
Mounting dimensions
accommodate both U.S. and
DIN standards for easy
retrofit installations. Super
bright 24–120 Vac/dc LED
indicating light versions
simplify setup and
troubleshooting operations.
2
2
2
2
Features
●
Modular, plug-in
mponents (head, bo
co
an
d receptacle) provid
application flexibility,
reduced inventory and le
do
wntime
●
Manufactured to take the
physical and
environmental abus
(including cutting fluids
and chemical
i
ndustrial environments
●
Chemical resistant Viton
gaskets, seals and boots
are st
cap
tive, posi-drive screws
●
The switches have
terminal identi
th
e nameplate for a visua
wiring checkout without
esswork. Heads
gu
swi
tch bodies can b
replaced without rewiring
s) of harsh
andard, an
d so are
fication on
e
and
e
Contents
Description Page
E50 Heavy-Duty Plug-In Switches
Product Selection
Assembled Switches—Standard . . . . . . . . . V8-T2-55
Assembled Switches—Special Purpose . . . V8-T2-58
Operating Heads . . . . . . . . . . . . . . . . . . . . . V8-T2-59
Switch Bodies . . . . . . . . . . . . . . . . . . . . . . . V8-T2-60
Receptacles . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-61
Compatible Connector Cables . . . . . . . . . . V8-T2-62
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-62
Technical Data and Specifications . . . . . . . . . . V8-T2-64
Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-65
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . V8-T2-65
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-66
●
E50 devices can be
red in sep
dy
e
ss
l
orde
com
ponents or
complete assembled
tches
swi
●
600V rating, ridge-topped
tacts and wiping action
con
assure continuity even to
logic level circuits
●
Keyed, four direction head
sitioning
po
●
Standard 5° pre-travel and
° total travel
90
●
24–120 Vac/dc LED and
20 Vac neon indicati
1
li
ghts available
●
Rotary heads are field
vertible CW, CCW,
con
bo
th, without special tools
●
Epoxy filled, pin connector
gtail pin connecto
or pi
rece
ptacles available
arate
as
ng
or
r
Standards and Certifications
●
UL Listed
●
CSA Certified
●
IEC.947.5.1
●
TUV—E9271605E02
●
CE (where shown)
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
V8-T2-54 Volume 8—Sensing Solutions CA08100010E—May 2013

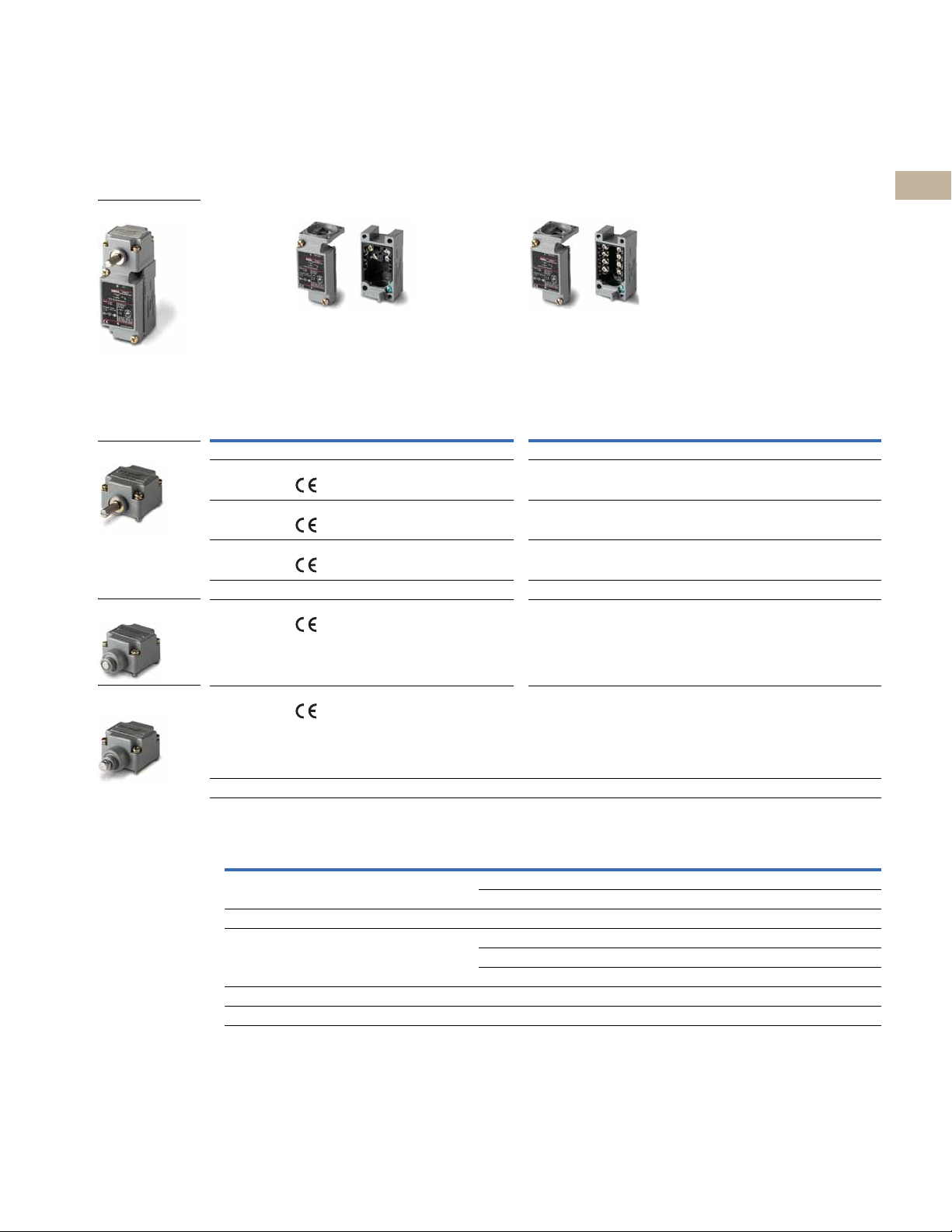

Page 55
Limit Switches
Assembled Switch
Operating Head Type
2
Side Rotary
Spring Return
Adjustable Spring
Return
E50 Heavy-Duty Plug-In Switches
2.6
Product Selection
Assembled Switches—Standard
E50 Heavy-Duty Plug-In Switches, Assembled—Standard
Indicating Light: None
Switch Body:
Receptacle:
Description
Side Rotary (requires an operating lever, see Page V8-T2-80)
Standard spring
return—E50DR1
Low force spring
return—E50DL1
Maintained twoposition—E50DM1
Side Pushbutton
Spring return—
E50DS1
Single-Pole (5 Terminal Receptacle) Two-Pole (9 Terminal Receptacle)
LED
(24–120 Vac/dc)
E50SAL
E50SA
1NO-1NC
1
E50RA E50RA E50RA E50RB E50RB E50RB E50RB E50RB
Assembled Switch (Head + Receptacle + Body)
Catalog Number
E50AR1 E50ALR1 E50ANR1 E50BR1 E50BLR1 E50BNR1 — —
3
E50AL1 E50ALL1 E50ANL1 E50BL1 E50BLL1 E50BNL1 — —
3
E50AM1 E50ALM1 E50ANM1 E50BM1 E50BLM1 E50BNM1 — —
E50AS1 E50ALS1 E50ANS1 E50BS1 E50BLS1 E50BNS1 E50CLS1 —
1NO-1NC
Neon
(120 Vac) None
E50SAN
1NO-1NC
E50SB
2NO-2NC
Assembled Switch (Head + Receptacle + Body)
Catalog Number
LED
(24–120 Vac/dc)
E50SBL
2NO-2NC
Neon
(120 Vac)
E50SBN
2NO-2NC
LED
(24–120 Vac/dc)
E50SCL
1NO-2NC —
Neon
(120 Vac)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable spring
return—E50DS2
E50AS2 E50ALS2 E50ANS2 E50BS2 E50BLS2 E50BNS2 E50BLS2 E50CNS2
2
2
2
Circuit Diagrams, see Pa ge V8- T2-65 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option
4
Mini-connector
Micro-connector 4 (with epoxy filled receptacle) Single-pole (5-pin micro-connector) CSDS5A5CY2202 A5
Cable connection (with epoxy filled receptacle) 8 ft cable length —S
Manifold mount (rear wiring entrance) —M
20 mm conduit entrance —20
2
For operating head specifications, see Page V8-T2-59.
3
CW (clockwise) and CCW (counterclockwise) operation, easily convertible to CW only or CCW only operation.
4
For a full selection of cable connectors, see Tab 10, section 10.1.
5
Refer to Page V8-T2-65 for wiring diagrams.
(with epoxy filled receptacle) Single-pole (5-pin mini-connector) CSMS5D5CY1602 P5
Two-pole (9-pin mini-connector) CSMS9D9CY1602 P9
12 ft cable length — S12
20 ft cable length — S20
Mating Cordset
Catalog Number Code Suffix
5
5
5
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-55
Page 56
2.6
Assembled Switch
Operating Head Type
2
Side Push Roller
Side Pushbutton
Spring Return
Adjustable Spring
Return
Limit Switches
E50 Heavy-Duty Plug-In Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2

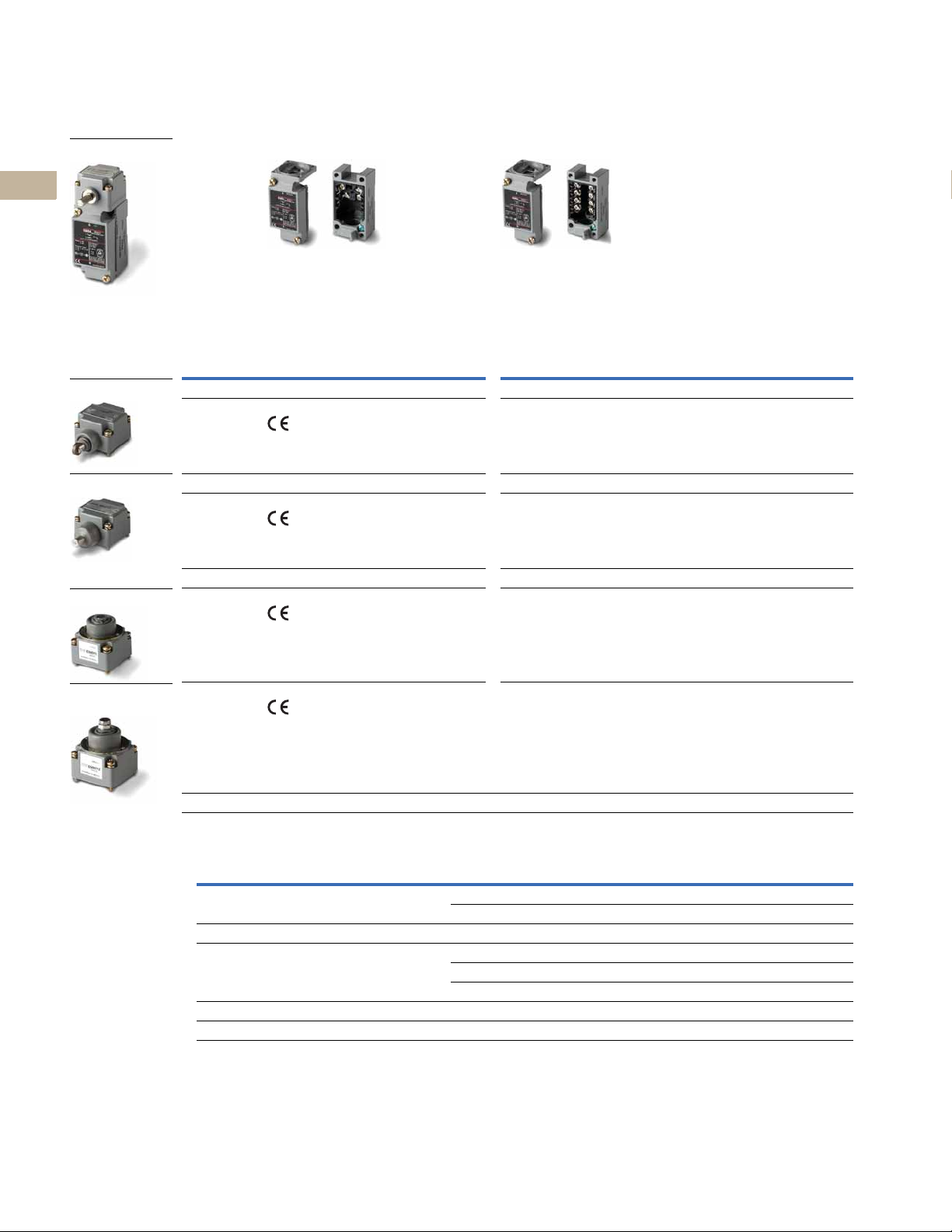

E50 Heavy-Duty Plug-In Switches, Assembled—Standard, continued
Single-Pole (5 Terminal Receptacle) Two-Pole (9 Terminal Receptacle)
Indicating Light: None
E50SA
Switch Body:
Receptacle:
Description
Side Push Roller
Spring return—
3
E50DS3
Side Pushbutton
Maintained—
E50DH1
Top Pushbutton
Spring return—
E50DT1
1NO-1NC
1
E50RA E50RA E50RA E50RB E50RB E50RB E50RB E50RB
Assembled Switch (Head + Receptacle + Body)
Catalog Number
E50AS3 E50ALS3 E50ANS3 E50BS3 E50BLS3 E50BNS3 E50BLS3 —
E50AH1 E50ALH1 E50ANH1 E50BH1 E50BLH1 E50BNH1 E50BLH1 —
E50AT1 E50ALT1 E50ANT1 E50BT1 E50BLT1 E50BNT1 E50CLT1 E50BNT1
LED
(24–120 Vac/dc)
E50SAL
1NO-1NC
Neon
(120 Vac) None
E50SAN
1NO-1NC
E50SB
2NO-2NC
Assembled Switch (Head + Receptacle + Body)
Catalog Number
LED
(24–120 Vac/dc)
E50SBL
2NO-2NC
Neon
(120 Vac)
E50SBN
2NO-2NC
LED
(24–120 Vac/dc)
E50SCL
1NO-2NC —
Neon
(120 Vac)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable spring
return—E50DT2
Circuit Diagrams, see Pa ge V8- T2-65 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option
Mini-connector
Micro-connector 4 (with epoxy filled receptacle) Single-pole (5-pin micro-connector) CSDS5A5CY2202 A5
Cable connection (with epoxy filled receptacle) 8 ft cable length —S
Manifold mount (rear wiring entrance) —M
20 mm conduit entrance —20
2
For operating head specifications, see Page V8-T2-59.
3
Roller can be converted in the field between horizontal and vertical.
4
For a full selection of cable connectors, see Tab 10, section 10.1.
5
Refer to Page V8-T2-65 for wiring diagrams.
E50AT2 E50ALT2 E50ANT2 E50BT2 E50BLT2 E50BNT2 — —
Mating Cordset
Catalog Number Code Suffix
4
(with epoxy filled receptacle) Single-pole (5-pin mini-connector) CSMS5D5CY1602 P5
Two-pole (9-pin mini-connector) CSMS9D9CY1602 P9
12 ft cable length — S12
20 ft cable length — S20
5
5
5
V8-T2-56 Volume 8—Sensing Solutions CA08100010E—May 2013

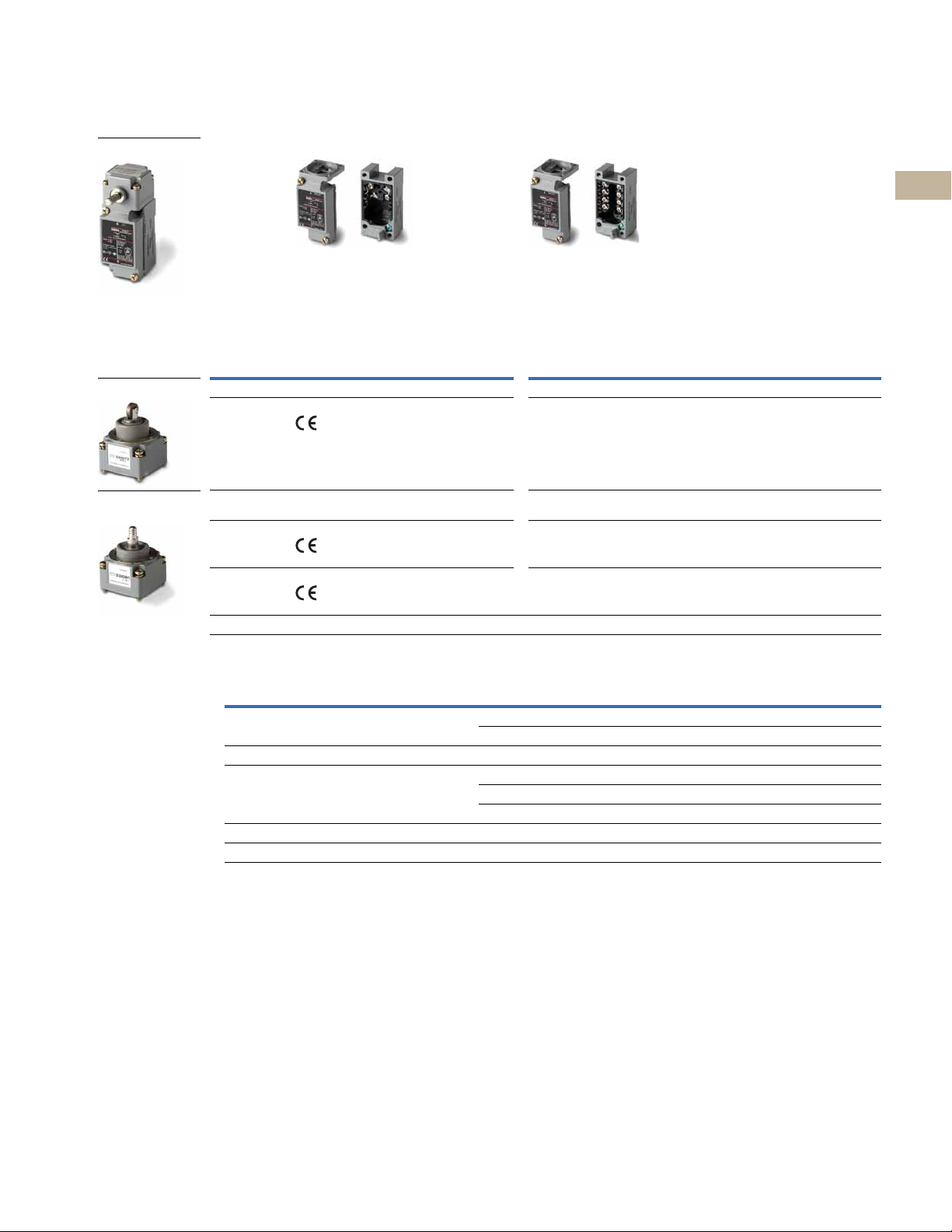

Page 57
Limit Switches
Assembled Switch
Operating Head Type
2
Top Push Roller
Wobble Head,
Spring Return
E50 Heavy-Duty Plug-In Switches
2.6
E50 Heavy-Duty Plug-In Switches, Assembled—Standard, continued
Single-Pole (5 Terminal Receptacle) Two-Pole (9 Terminal Receptacle)
LED
(24–120 Vac/dc)
E50SAL
1NO-1NC
Indicating Light: None
E50SA
Switch Body:
Receptacle:
Description
Top Push Roller
Spring return
3
E50DT3
Wobble Head, Spring Return
(requires a wobble operator, see Page V8-T2-80)
Standard duty—
E50DW1
Heavy-duty high
strength steel—
E50DW2
Circuit Diagrams, see Pa ge V8- T2-65 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option
Mini-connector
Micro-connector 4 (with epoxy filled receptacle) Single-pole (5-pin micro-connector) CSDS5A5CY2202 A5
Cable connection (with epoxy filled receptacle) 8 ft cable length —S
Manifold mount (rear wiring entrance) —M
20 mm Conduit Entrance —20
2
For operating head specifications, see Page V8-T2-59.
3
Roller can be converted in the field between horizontal and vertical.
4
For a full selection of cable connectors, see Tab 10, section 10.1.
5
Refer to Page V8-T2-65 for wiring diagrams.
1NO-1NC
1
E50RA E50RA E50RA E50RB E50RB E50RB E50RB E50RB
Assembled Switch (Head + Receptacle + Body)
Catalog Number
E50AT3 E50ALT3 E50ANT3 E50BT3 E50BLT3 E50BNT3 — —
E50AW1 E50ALW1 E50ANW1 E50BW1 E50BLW1 E50BNW1 EB50BLW1 —
E50AW2 E50ALW2 E50ANW2 E50BW2 E50BLW2 E50BNW2 E50CLW2 E50BNW2
4
(with epoxy filled receptacle) Single-pole (5-pin mini-connector) CSMS5D5CY1602 P5
Neon
(120 Vac) None
E50SAN
1NO-1NC
Two-pole (9-pin mini-connector) CSMS9D9CY1602 P9
12 ft cable length — S12
20 ft cable length — S20
E50SB
2NO-2NC
Assembled Switch (Head + Receptacle + Body)
Catalog Number
LED
(24–120 Vac/dc)
E50SBL
2NO-2NC
Neon
(120 Vac)
E50SBN
2NO-2NC
Mating Cordset
Catalog Number Code Suffix
LED
(24–120 Vac/dc)
E50SCL
1NO-2NC —
5
5
5
Neon
(120 Vac)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-57

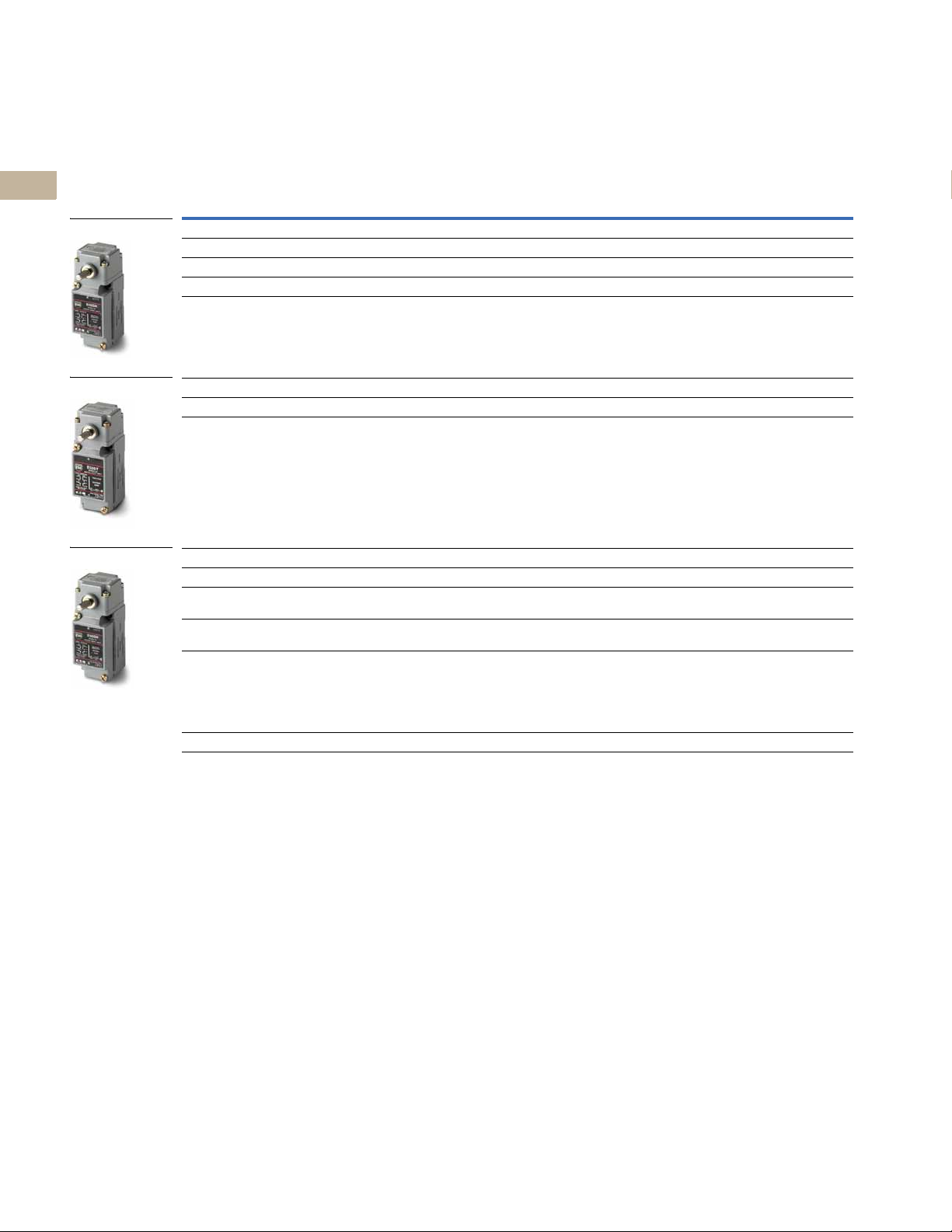

Page 58
2
Neutral Position
Two-Step
Gravity Return
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Limit Switches
2.6
Assembled Switches—Special Purpose
E50 Heavy-Duty Plug-In Switches
E50 Heavy-Duty Plug-In Switches, Assembled—Special Purpose
Operating Data—
Nominal Switches
Neutral Position (requires an operating lever, see Page V8-T2-8 0)
5° Travel E50NN1
5° Travel; stainless steel shaft E50NN1SPL
15° Travel E50N
Travel to operate contacts:
Travel to reset contacts:
Total travel:
Force to operate contacts:
Minimum return force:
Operating temperature:
Two-Step CW, CCW, or both, Convertible (requires an operating lever, see Page V8-T2-80)
— E50TD1 E50ST E50RB E50DD1
T
ravel to operate contacts:
Travel to reset contacts:
Total travel:
Force to operate contacts:
Minimum return force:
Operating temperature:
Gravity Return (requires E50KL220, E50KL226 or equivalent operating lever, see Page V8 -T2-8 0)
Without indicating light
h LED indicating light
Wit
(24–120 Vac/dc)
h neon indicating light
Wit
(120 Vac)
ravel to operate contacts:
T
Travel to reset contacts:
Total travel:
Force to operate contacts:
Minimum return force:
Operating temperature:
Circuit Diagrams, see Pa ge V8- T2-65 .
Notes
1
Add 9 suffix to the model number for low temperature –40° to 174°F (–40 to 79°C) versions.
2
Low temperature rating –40° to 174°F (–40° to 79°C)
3
Depending upon model selected.
Assembled Switch
Catalog Number
1
2
N2 E50SN
3
5° or 15°
2°
90°
1.8 in-lbs
2.5 in-oz
14° to 200°F (–10° to 94°C)
1st step 10°;
2nd step 20°
4° each
90°
3 in-lbs
4.5 in-oz
CW or CCW:
14° to 250°F (–10° to 121°C)
CW and CCW:
14° to 200°F (–10° to 94°C)
E50GG1
E50GLG1
E50GNG1
10° to 170°
8°
360°
3.0 in-oz
Gravity
14° to 200°F (–10° to 94°C)
Switch Body Only
Catalog Number
E50SN E50RB E50DN1
———
3
5° or 15°
2°
90°
1.8 in-lbs
2.5 in-oz
14° to 200°F (–10° to 94°C)
1st step 10°;
2nd step 20°
4° each
90°
3 in-lbs
4.5 in-oz
CW or CCW:
14° to 250°F (–10° to 121°C)
CW and CCW:
14° to 200°F (–10° to 94°C)
E50SG
GL E50RA
E50S
GN E50RA
E50S
10° to 170°
8°
360°
3.0 in-oz
Gravity
14° to 200°F (–10° to 94°C)
Receptacle Only
Catalog Number
E50RB E50DN2
3
5° or 15°
2°
90°
1.8 in-lbs
2.5 in-oz
14° to 200°F (–10° to 94°C)
1st step 10°;
2nd step 20°
4° each
90°
3 in-lbs
4.5 in-oz
CW or CCW:
14° to 250°F (–10° to 121°C)
CW and CCW:
14° to 200°F (–10° to 94°C)
A
E50R
10° to 170°
8°
360°
3.0 in-oz
Gravity
14° to 200°F (–10° to 94°C)
Operating Head Only
Catalog Number
5° or 15°
2°
90°
1.8 in-lbs
2.5 in-oz
14° to 200°F (–10° to 94°C)
1st step 10°;
2nd step 20°
4° each
90°
3 in-lbs
4.5 in-oz
CW or CCW:
14° to 250°F (–10° to 121°C)
CW and CCW:
14° to 200°F (–10° to 94°C)
E50DG1
E50DG1
E50DG1
10° to 170°
8°
360°
3.0 in-oz
Gravity
14° to 200°F (–10° to 94°C)
1
1
3
2
2
2
2
2
2
2
2
2
V8-T2-58 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 59
Limit Switches
Side Rotary
Spring Return
Adjustable Spring
Return
Side Push Roller
Side Pushbutton
Spring Return
Adjustable Spring
Return
E50 Heavy-Duty Plug-In Switches
2.6

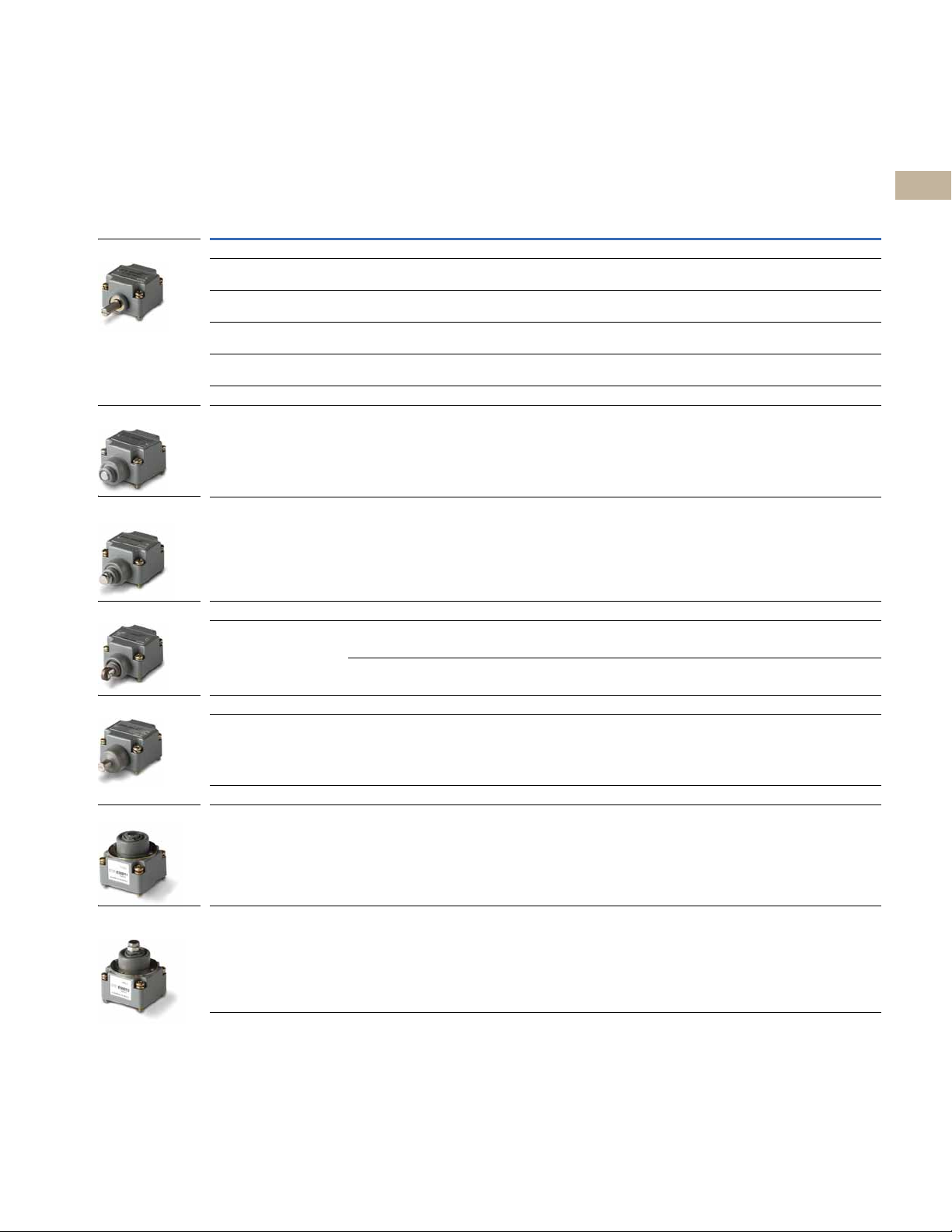

Operating Heads
E50 Heavy-Duty Plug-In Switches, Operating Heads
Travel to
Description
Side Rotary (requires an operating lever, see Page V8-T2-80)
Standard spring return
Low temperature
spring return
Low force spring return
Maintained two-position 50° 50° 90° 3 in-lbs — 14° to 200°F
Side Pushbutton
Spring return 0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
Adjustable spring return 0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
Side Push Roller
Spring return
Side Pushbutton
Maintained 0.200 in 0.130 in 0.320 in 5 lbs 5 lbs 14° to 200°F
2
2
4
Operate
Contacts
5° 2° 90° 3 in-lbs 4.5 in-oz 10° to 200°F
5° 2° 90° 3 in-lbs 4.5 in-oz –40° to 175°F
2
15° 6° 90° 1.5 in-lbs 2.5 in-oz 10° to 200°F
0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
Travel to
Reset
Contacts
Tot al
Travel
Force to
Operate
Contacts
Minimum
Return
Force
Operating Temperature
(–12° to 94°C)
(–40° to 79°C)
(–12° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
With
Pre-Wired Cable
10° to 200°F
3
(–12° to 94°C)
–31° to 175°F
(–34° to 79°C)
10° to 200°F
3
(–12° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
2
1
Catalog
NumberWithout Cable
E50DR1
3
E50DR19
E50DL1
3
E50DM1
2
2
2
2
2
2
2
E50DS1
2
2
2
E50DS2
2
2
2
E50DS3
E50DS4
5
5
2
2
2
E50DH1
2
2
Top Pushbutton
Spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Adjustable spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Notes
1
Temperature ranges below 32°F (0°C) are based on absence of freezing moisture or water.
2
CW (clockwise) and CCW (counterclockwise) operation, easily convertible to CW only or CCW only operation.
3
For CW and CCW operation. For CW only or CCW only operation, high temperature limit increases to 250°F (121°C) without cable,
and 221°F (105°C) with pre-wired cable.
4
Roller can be converted in the field between horizontal and vertical.
5
Roller shaft is 0.38 in (9.5 mm) longer on E50DS4, see Dimensions on Page V8-T2-66.
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-59
(–10° to 121°C)
(–10° to 121°C)
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
2
E50DT1
2
2
2
E50DT2
2
2
2
2
2
2
2

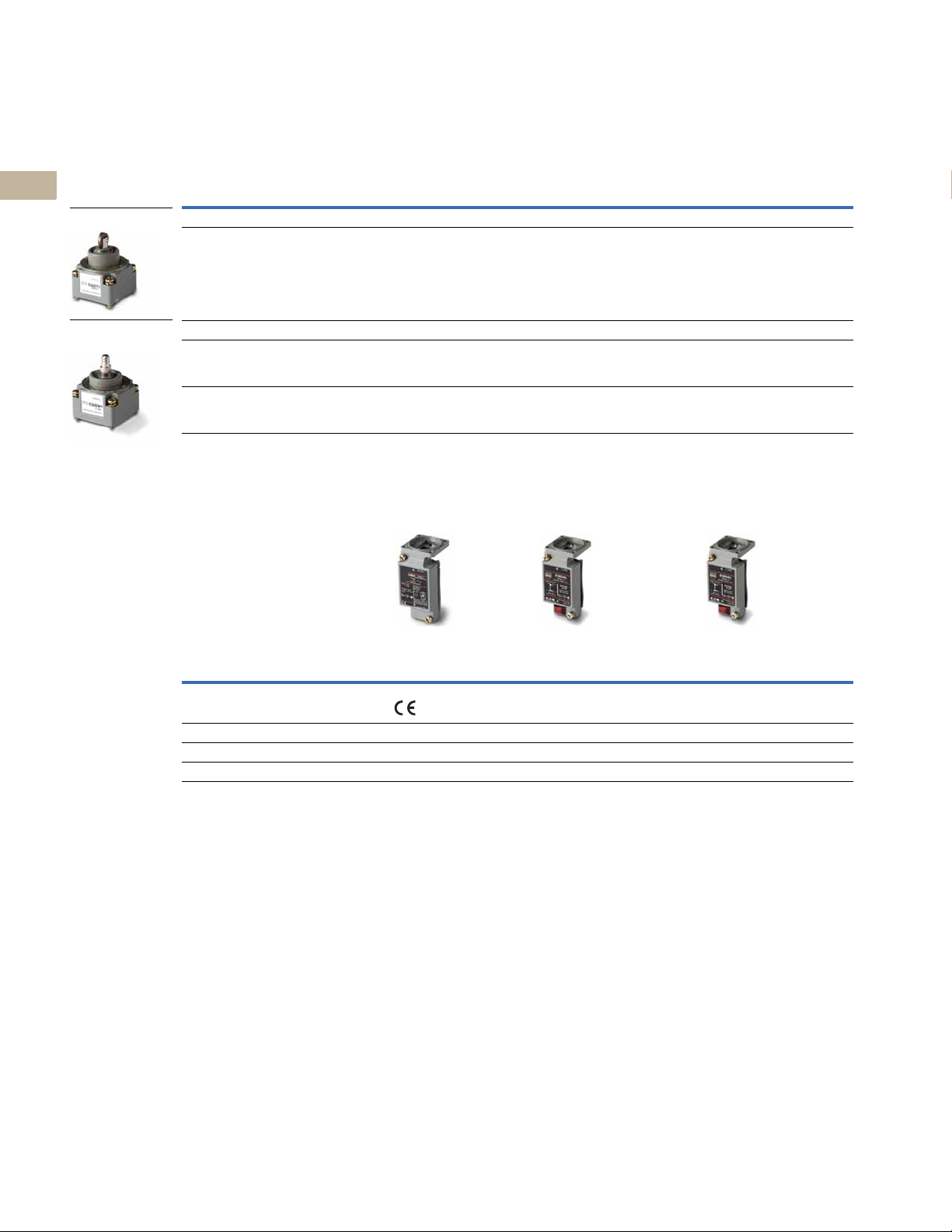

Page 60
2.6
Top Push Roller
Wobble Head,
Spring Return
Limit Switches
E50 Heavy-Duty Plug-In Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Switch Bodies
E50 Heavy-Duty Plug-In Switches, Operating Heads, continued
Travel to
Description
Top Push Roller
Spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Wobble Head, Spring Return (requires a wobble operator, see Page V8-T2-80)
Standard duty 10° 6° 15° 2 in-lbs 2.4 in-oz 14° to 250°F
Heavy-duty high strength steel 10° 6° 15° 2 in-lbs 2.4 in-oz 14° to 250°F
E50 Heavy-Duty Plug-In Switches, Switch Bodies
Operate
Contacts
Travel to
Reset
Contacts
Tot al
Travel
Force to
Operate
Contacts
Minimum
Return
Force
Operating Temperature
(–10° to 121°C)
(–10° to 121°C)
(–10° to 121°C)
1
With
Pre-wired Cable
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
Catalog
NumberWithout Cable
E50DT3
E50DW1
E50DW2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Single-Pole 1NO-1NC
Switch Body Construction
Without indicating light E50SA E50SB —
With LED indicating light 24–120 Vac/dc E50SAL
With neon indicating light 120 Vac E50SAN
Circuit Diagrams, see Pa ge V8- T2-65 .
Note
1
Indicating lights are supplied from the factory wired as shown in Circuit Diagrams on Page V8-T2-65.
However, they can be easily re-connected to terminals 1 and 2 if necessary (SPDT).
1
Catalog Number Catalog Number Catalog Number
Two-Pole 2NO-2NC
Parallel Wired Indicator Light
BL E50SCL
E50S
E50S
BN —
Two-Pole 2NC-1NO
Series Wired Indicator Light
2
2
V8-T2-60 Volume 8—Sensing Solutions CA08100010E—May 2013

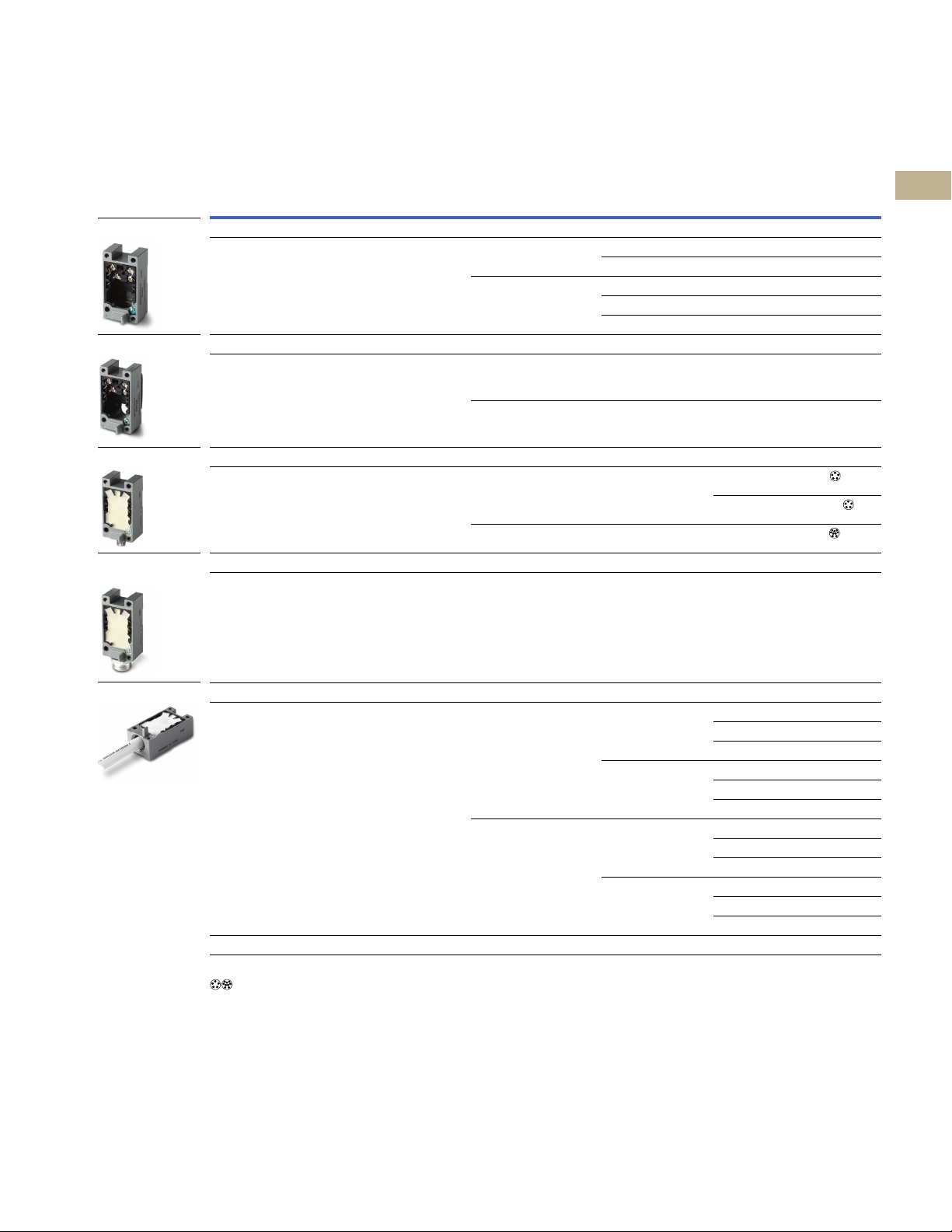

Page 61
Limit Switches
Surface Mount
Manifold Mount
Micro-Connector
Pre-Wired Cable
Mini-Connector
E50 Heavy-Duty Plug-In Switches
2.6
Receptacles
E50 Heavy-Duty Plug-In Switches, Receptacles
Description Poles
Surface Mount
Conduit entrance, front or rear mounting Single-pole (5 terminal) 1/2 NPT — E50RA
Two-pole (9 terminal) 1/2 NPT — E50RB
Manifold Mount
Rear wiring entrance instead of conduit hole,
gasket on back for oil tightness
Mini-Connector
Epoxy filled receptacle with pre-wired mini-connector.
(The -W version is a wiring scheme typically used
in automotive applications.)
Micro-Connector
Epoxy filled receptacle with M12 DC micro-connector Single-pole (5 terminal) — — E50RAA5
Single-pole (5 terminal) — — E50RAM
Two-pole (9 terminal) — — E50RBM
Single-pole (5 terminal) 5-pin mini-connector — E50RAP5
Two-pole (9 terminal) 9-pin mini-connector — E50RBP9
Conduit
Entrance
20 mm — E50RA20
3/4 NPT — E50RB34
20 mm — E50RB20
Cable
Length Catalog Number
— E50RAP5-W
2
2
2
2
2
2
2
2
2
2
2
2
2
1
2
2
Pre-Wired Cable
Epoxy filled receptacle with pre-wired 16 gauge,
yellow jacketed, type SOOW-A cable. Cable enters
through hole threaded for conduit.
Wiring Diagrams, see Page V8-T2-65.
Notes
See listing of compatible connector cables on Page V8-T2-62.
1
Model E50RAA5 is not UL listed or CSA certified.
Single-pole (5 terminal) 1/2 NPT 8 ft E50RAS
12 ft E50RAS12
20 ft E50RAS20
20 mm 8 ft E50RA20S
12 ft E50RA20S12
20 ft E50RA20S20
Two-pole (9 terminal) 1/2 NPT 8 ft E50RBS
12 ft E50RBS12
20 ft E50RBS20
20 mm 8 ft E50RB20S
12 ft E50RB20S12
20 ft E50RB20S20
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-61
2

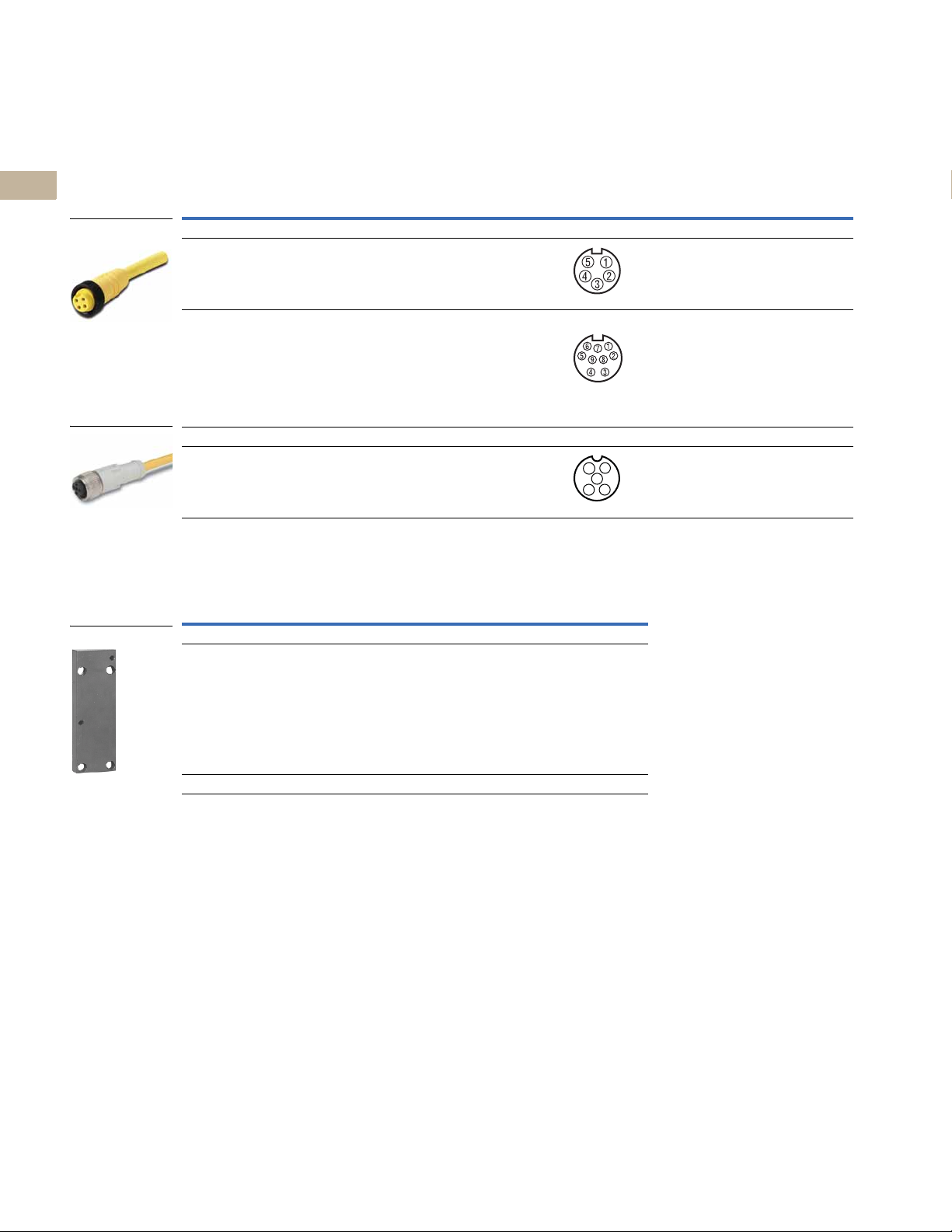

Page 62
2.6
Mini-style
Straight Female
Micro-Style
1-White
2-Red
3-Green
4-Orange
5-Black
1-Orange
2-Blue
3-Red/Black
4-Green/Black
5-White
6-Red
7-Green
8-White/Black
9-Black
E50KH7
Compatible Connector Cables
2
2
2
2
2
Limit Switches
E50 Heavy-Duty Plug-In Switches
Voltage
Style
1
Number
of Pins Gauge Length
Pin Configuration/Wire Colors
(Face View Female Shown) Catalog Number
Standard Cables
Current
Rating at 600V
Mini-Style, Straight Female
8A — 5-pin 16 AWG 6 ft (2m) CSMS5D5CY1602
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Accessories
7A — 9-pin 16 AWG 12 ft (4m) CSMS9D9CY1602
Micro-Style
4A — 5-pin,
E50 Heavy-Duty Plug-In Switch Accessories
Description Catalog Number
Adapter Plate
Allows E50 to replace Square D Type AW Surface Mounting Non Plug-In Standard Box
Limit Switch
Dimensions, see Page V8-T2-67.
Note
1
For a full selection of connector cables, see Tab 10, section 10.1.
5-wire
22 AWG 6.0 ft (2m) CSDS5A5CY2202
E50KH7
12
5
4
3
1-Brown
2-White
3-Blue
4-Black
5-Green/Yellow
2
2
2
2
2
2
2
2
2
V8-T2-62 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 63
Limit Switches
E50KH2
E50KH10
E50KH5
E50KH3
E50KH6
E50KH4
E50 Heavy-Duty Plug-In Switches
2.6
E50 Heavy-Duty Plug-In Switch Accessories, continued
Description Catalog Number
Adapter Plate, continued
1
Allows E50 to replace National Acme, Type D-1200M, Style 2 Mounting. Denison
LoxSwitch, Model L-100W, Style 2 Mounting. Square D 9007 Type T, Style B Mounting.
(Adapter plate is 1/8 in thick, with 1/4 in mounting holes.) Namco
Allows E50 to replace National Acme, Type D-1200M, Style 1 Mounting. Denison
LoxSwitch, Model L-100W, Style 1 Mounting. Square D 9007 Type T, Style C Mounting.
(Adapter plate is 1/8 in thick, with 1/4 in mounting holes.)
Allows E50 to replace Eaton’s 10316 Type LT Non Plug-In Two-Pole Limit Switch E50KH2
Allows E50 to replace Allen-Bradley 802M Sealed Limit Switch E50KH10
®
long mount.
E50KH4
E50KH5
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable Mounting Plate
This is a mounting plate only 5/16 in thick and includes the proper mounting bolts and
nuts. The slots in the plate allow a maximum horizontal adjustment of 1 in and vertical
adjustment of 1-1/4 in
Conduit Sealing Nut
1/2 in oiltight E50KH6
Dimensions, see Page V8-T2-67.
Note
1
Limit switch not included.
E50KH3
2
2
2
1
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-63
Page 64
Limit Switches
2.6
Technical Data and Specifications
2
E50 Heavy-Duty Plug-In Switches
2
Description Specification
Environmental ratings NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
2
Material of construction Zinc die cast
Switch gasket material Viton
2
Universal U.S./DIN mounting dimensions 1.
Conduit entrance 1/2 in NPT or 20 mm threading
2
Contact ratings See below
2
Contact operation Snap action over center mechanism
Contact material Fine silver
2
Maximum frequency of operation 8000 operations per hour
Mechanical life
2
Side rotary 13,000,000 operations minimum
Side or top push 10,000,000 operations minimum
2
Electrical life
Single-pole 1,000,000 operations typical at full load
2
Two-pole 100,000 operations typical at full load
Ambient temperature range—standard
2
Standard without cable 14° to 250°F (–10° to 121°C)
Standard with cable 14° to 221°F (–10° to 105°C)
2
Low temperature without cable –40° to 250°F (–40° to 121°C)
Low temperature with cable –40° to 221°F (–40° to 105°C)
2
Repeat accuracy—standard
Side operated Within 0.0012 in
2
Top operated Within 0.0003 in
2
Side rotary Within 0.0014 in
Torque requirements:
2
Switch body screws 25–30 lb-in
Operating head screws 14–18 lb-in
2
Wire size Will accept AWG #22–#12, single or stranded wire
2
Electrical Data—Maximum Contact Ratings (Same polarity each pole)
2
2
AC Volts
All Switches Except Gravity Return and Indicating Light Versions
2
NEMA A600 Rating NEMA R300
120 60 6 10 7200 720 125 0.22 1.0
2
240 30 3 10 7200 720 250 0.11 1.0
2
480 15 1.5 10 7200 720 250 0.11 1.0
600 12 1.2 10 7200 720 250 0.11 1.0
2
Switches with Indicating Lights (LED or Neon)
NEMA A150 Rating NEMA R150
2
120 60 6 10 7200 720 125 0.22 1.0
2
Gravity Return Switches—Maximum Contact Ratings
NEMA 6600 Rating—Contacts on same polarity
2
120 30 3 5 3600 360 — — —
240 15 1.5 5 3600 360 — — —
2
480 7.5 0.75 5 3600 360 — — —
600 6 0.60 5 3600 360 — — —
2
Note
1
2
Thermal rating. Valid only if switch does not have to make or break.
Current, Amperes Voltamperes
Make Break Cont.
E50 Heavy-Duty Plug-In Switches
16 in (30 mm) x 2.34 in (60 mm)
1
Make Break
DC Volts
Current, Amperes
Max. Make
or Break Cont.
1
V8-T2-64 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 65
Limit Switches
GND
Green/Yellow
Black4321Blue
BrownWhite
E50 Heavy-Duty Plug-In Switches
2.6

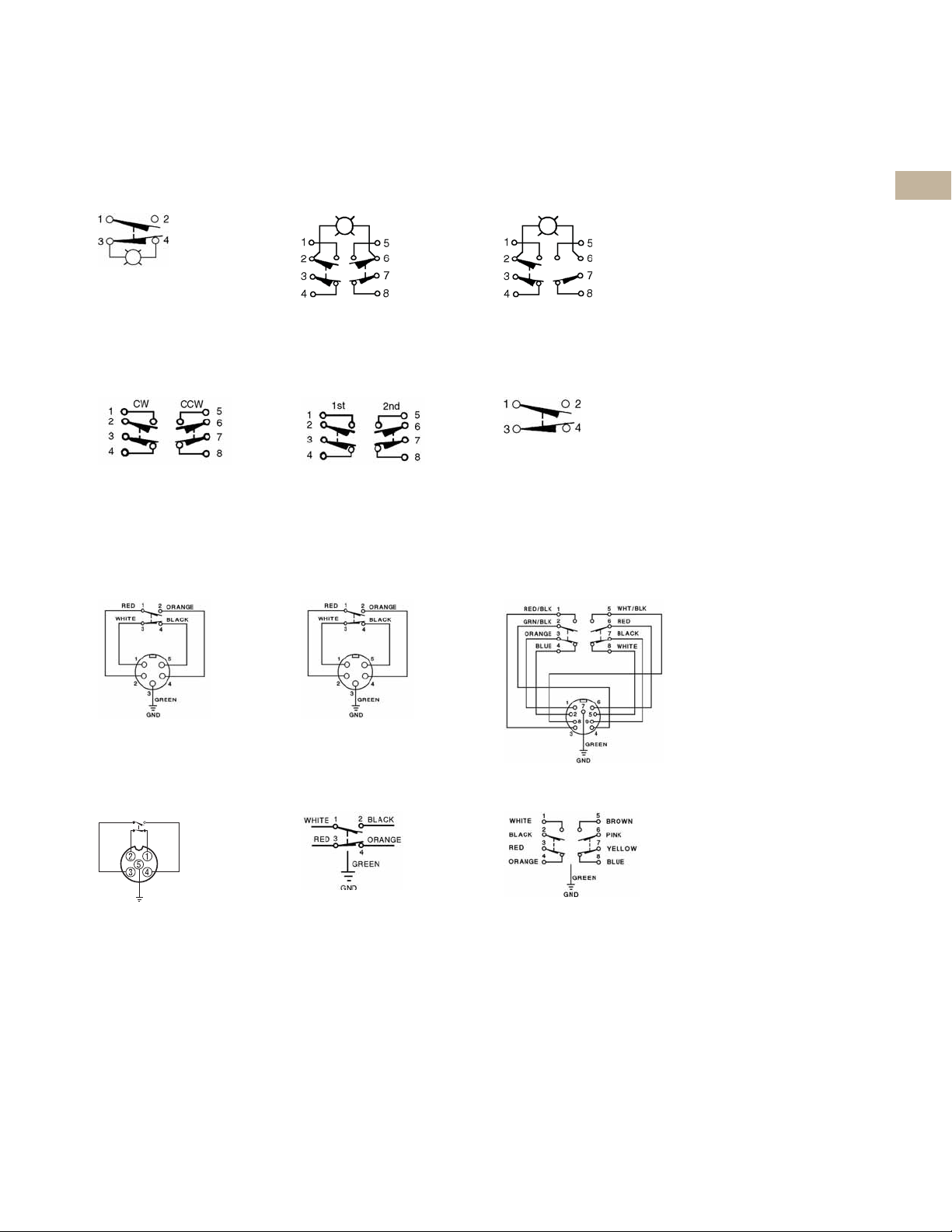

Circuit Diagrams
Standard Assembled Switches and Switch Bodies
Single-Pole 1NO-1NC
Must be same polarity.
Special Purpose Assembled Switches
Neutral Position
Same polarity, each pole.
Wiring Diagrams
Receptacles
E50RAP5
1
Two-Pole 2NO-2NC
Parallel wired indicator light.
Same polarity each pole.
Two-Step (CW, CCW, or Both)
Same polarity, each pole.
E50RAP5-W
Two-Pole 1NO-2NC
Series wired indicator light.
Same polarity each pole.
Gravity Return
Must be same polarity.
E50RBP9
2
2
2
2
2
2
2
2
2
2
2
2
2
2
E50RAA5
Note
1
The wire colors referenced on these diagrams are those internal to the switch itself.
E50RAS_
E50RBS_
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-65
Page 66
Limit Switches
2.46 (63)
3.13
(79)
4.22
(107)
1.78 (45)
0.50 (13)
Pipe Tap
0.63 (16)
Dia. 0.20 (5)
Front Mtg. Hole
0.75
(19)
[10-32] Tap
0.38 (10) Deep
Rear Mt. Holes (2)
Dia. 0.63 (16)
Hole for
Manifold Mtg.
1.54 (39)
0.20 (5)
0.24
(6)
Shaft Dia. 0.28 (7)
0.38 (10)
1.06
(27)
0.65
(16)
0.70 (18)
2.6
Dimensions
2
Approximate Dimensions in Inches (mm)
Standard
2
2
2
2
2
2
2
2
Side Push Operators
2
Approximate Dimensions in mm [in]
2
Pushbutton Adjustable Pushbutton
2
2
1
E50 Heavy-Duty Plug-In Switches
1
E50SB34
0.75
(19)
0.24
(6)
0.20
(5)
1.54 (39)
Roller
Dia. 0.27 (7)
0.38 (10)
1
(Over Knurl)
4.70
(119)
3.13
(79)
Conduit Entrance
3/4-14 NPT
[10-32] Tap
0.38 (10) Deep
Rear Mt. Holes (2)
3
Pipe Threads
2
0.63
(16)
4.22
(107)
2.68 (68)
2.05 (52)
3.40
(86)
3.61
(92)
0.65 (16)
1.31 (33)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Maintained Pushbutton
Top Push Operators
Pushbutton Adjustable Pushbutton
Wobble Operators
See Operators on Page V8-T2-80.
V8-T2-66 Volume 8—Sensing Solutions CA08100010E—May 2013
Roller
Notes
1
Can accommodate both U.S., 1.16 (29.4) x 2.34 (59.5) and DIN, 1.18 (30) x 3.26 (60),
mounting dimensions.
2
For E50DS4.
3
For E50DS3.
Page 67
Limit Switches
76
[3.00]
59.5
[2.340]
29.5
[1.160]
39
[1.54]
13.5
[0.531]
4.8
[0.19]
THICK
#10-32 UNC-2B HOLE
5.2 [0.204]
DIA.
(2 HOLES)
E50 Heavy-Duty Plug-In Switches
2.6
Accessories
Approximate Dimensions in mm [in]

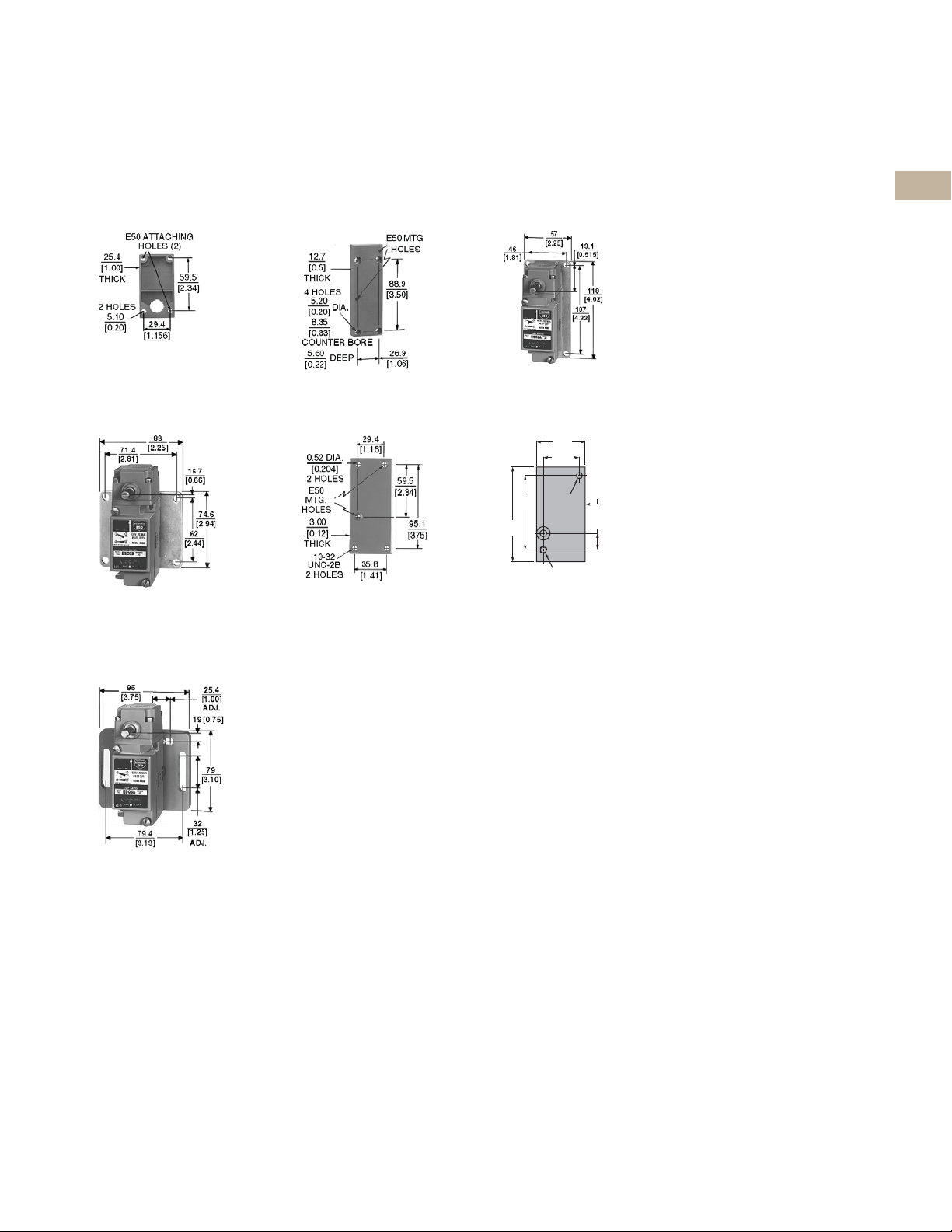

Adapter Plates
E50KH1M E50KH7
50KH5
E
50KH2
E
E50KH4
0KH1
E5
2
2
2
2
2
2
2
2
0
2
2
2
2
2
2
djustable Mounting Plate
A
E50KH3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-67
Page 68
2.7
E50 Heavy-Duty Factory Sealed 6P+ Switches
Drawings
Online
Limit Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches
2
2
2
2
2
2
2
2
2
2
2
E50 Heavy-Duty Factory Sealed 6P+ Switches

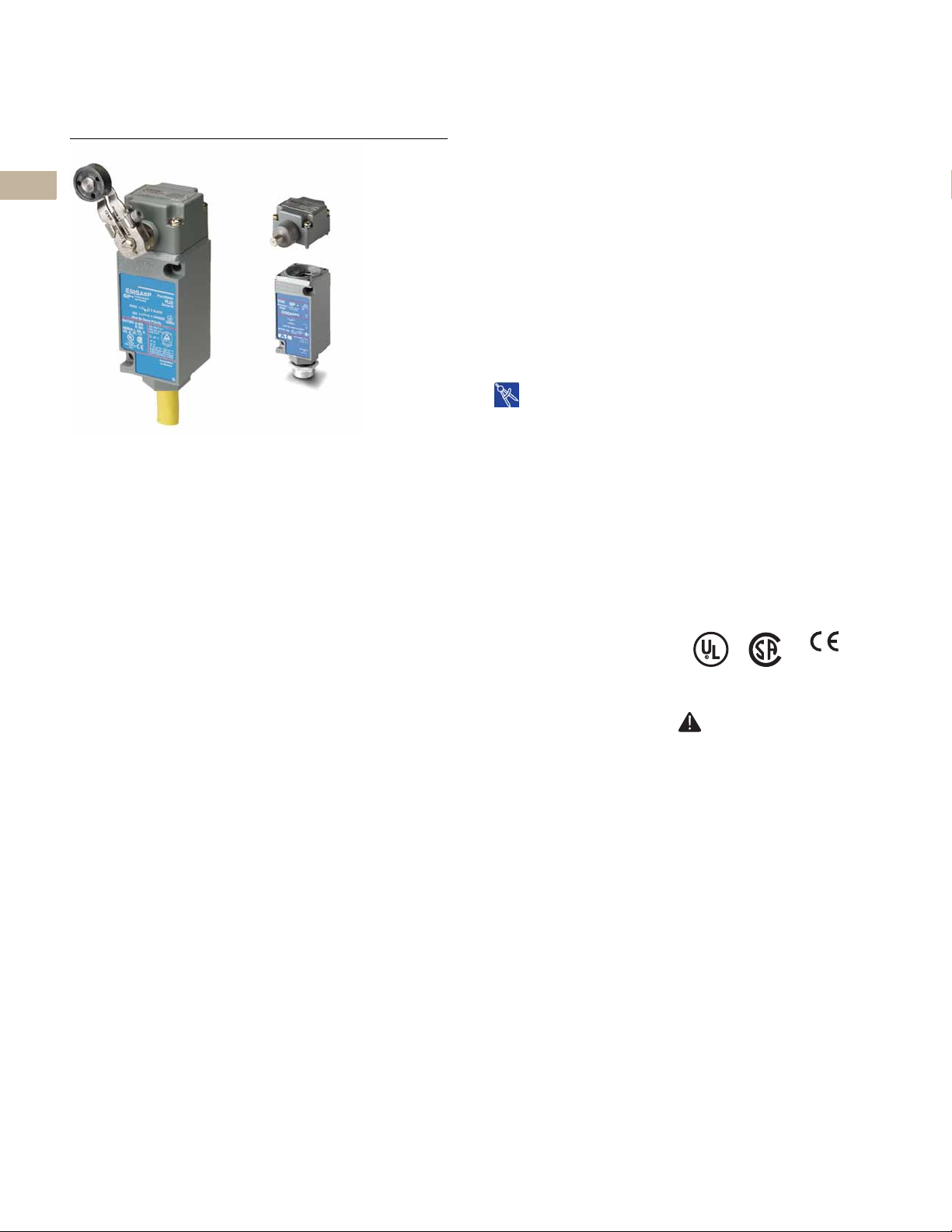

Product Description
2
E50 6P+ Limit Switches by
Eaton’s electrical sector were
2
specifically designed to
withstand the penetrating
2
properties of cutting fluids
and coolants, such as those
2
used in the automotive
industry, as well as extreme
2
shock, vibration and
temperature fluctuations. The
one-piece, epoxy filled switch
2
body is prewired at the
factory to ensure leak-proof,
2
submersible performance.
This unique construction
2
positively stops fluid from
finding its way to any and all
critical connections.
2
Our 6P+ switches can be
2
ordered in separate
components or as complete
assembled devices. They are
2
available with prewired 16
AWG cables or mini-
2
connectors. Standard and
custom cable lengths are
2
available. As part of the E50
line, the 6P+ switches use
2
the same operating heads as
the standard E50 plug-in
models to reduce the
2
components you need to
inventory.
2
Features
●
Manufactured to take the
ysical and environmental
ph
abuse (including cutti
fluids and chemicals) of
rsh industrial
ha
environments
●
Modular, plug-in
mponents (head
co
swi
tch body) provi
application flexibility,
reduced inventory and le
do
wntime
●
Chemical resistant Viton
skets, seals and b
ga
are st
andard, an
captive, posi-drive screws
●
A special tertiary seal on
the switch body preve
fl
uid from entering ev
when the operating head is
not attached
and
de
d so are
ng
oots
nts
en
Contents
Description Page
E50 Heavy-Duty Factory Sealed 6P+ Switches
Product Selection
Assembled Switches—Standard . . . . . . . . . V8-T2-69
Operating Heads . . . . . . . . . . . . . . . . . . . . . V8-T2-72
Switch Bodies . . . . . . . . . . . . . . . . . . . . . . . V8-T2-73
Compatible Connector Cables . . . . . . . . . . V8-T2-74
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-74
Technical Data and Specifications . . . . . . . . . . V8-T2-76
Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-77
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . V8-T2-77
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-78
Standards and Certifications
●
on
UL Listed
●
CSA Certified
●
IEC.947.5.1
●
TUV—E9271605E02
●
CE (where shown)
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
ss
●
600V rating, ridge-topped
tacts and wiping acti
con
ass
ure continuity even to
logic level circuits
●
Factory wired cable
eatures a 350 pound
f
pullout capacity
●
Keyed, four direction head
sitioning. Standard 5
po
pre-tra
vel and 90° total
travel
●
24–120 Vac/dc LED and
20 Vac neon indicati
1
li
ghts available
●
Rotary heads are field
vertible CW, CCW,
con
bo
th, without special tools
°
ng
or
2
2
2
V8-T2-68 Volume 8—Sensing Solutions CA08100010E—May 2013

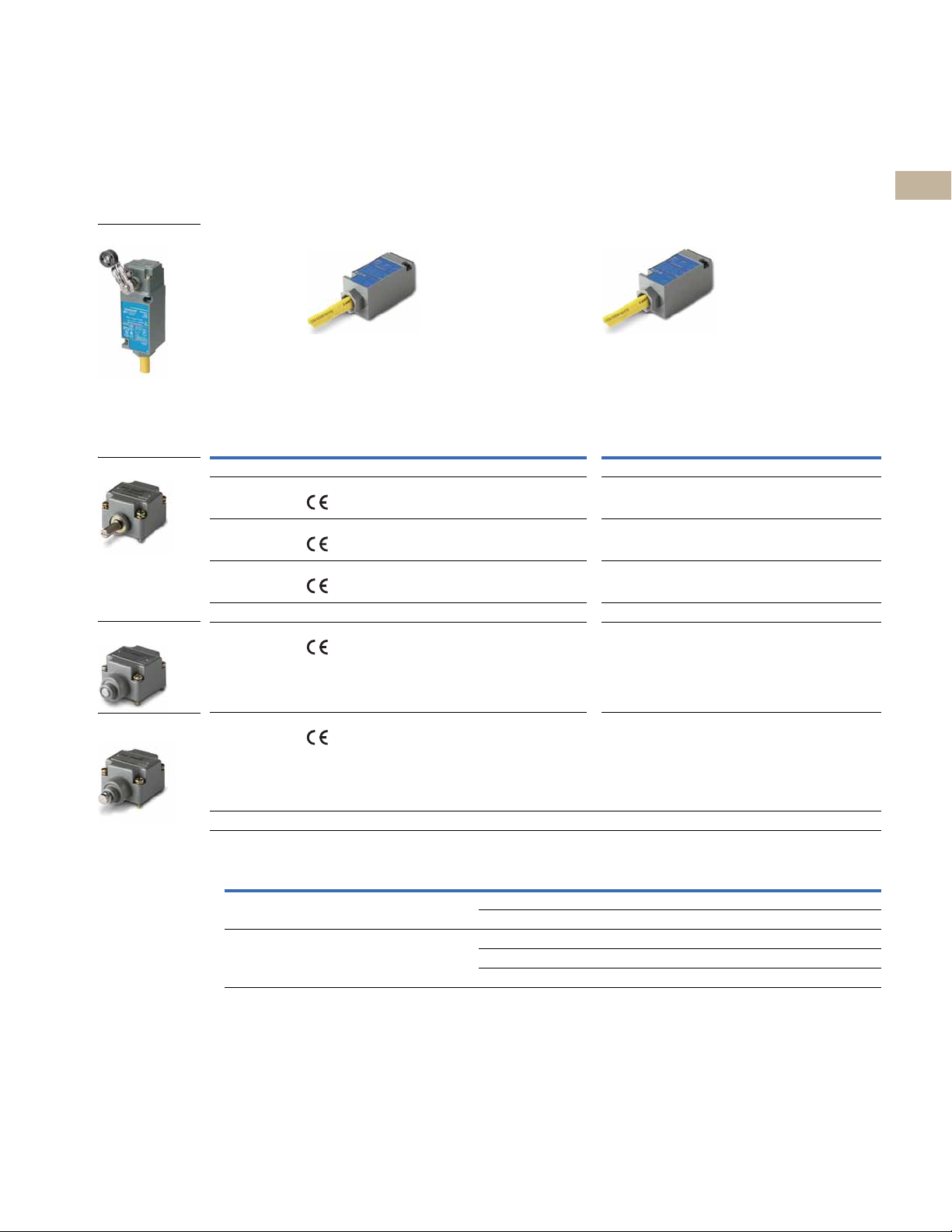

Page 69
Limit Switches
Assembled Switch
Operating Head Type
2
Side Rotary
Spring Return
Lever sold separately
Adjustable Spring
Return
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7
Product Selection
Assembled Switches—Standard
Connection is by 8 ft cable
E50 Heavy-Duty Factory Sealed 6P+ Switches, Assembled—Standard
Ind
Switch Body:
Description
Side Rotary (requires an operating lever, see Page V8-T2-80)
Standard spring
return—E50DR1
Low force spring
return—E50DL1
Maintained twoposition—E50DM1
Side Pushbutton
Spring return—
E50DS1
1
icating Light: None
.
Single-Pole
LED
(24–120 Vac/dc)
E50SA6P
1NO-1NC
Assembled Switch
Catalog Number
E50AR16P E50ALR16P E50ANR16P E50BR16P E50BLR16P E50BNR16P
3
E50AL16P E50ALL16P E50ANL16P E50BL16P E50BLL16P E50BNL16P
3
6P E50ALM16P
E50AM1
E50AS
16P E50AL
E50SAL6P
1NO-1NC
S16P E50ANS16P E50BS16P E50BLS16P E50BNS16P
Neon
(120 Vac) None
E50SAN6P
1NO-1NC
E50ANM16P E50BM16
wo-Pol
T
e
E50SB6P
2NO-2NC
Assembled Switch
Catalog Number
P E50BLM1
LED
(24–120 Vac/dc)
E50SBL6P
2NO-2NC
6P E50BNM16P
Neon
(120 Vac)
E50SBN6P
2NO-2NC
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable spring
return—E50DS2
E50AS
26P E50AL
S26P E50ANS26P E50BS2
6P E50BLS
26P E50BNS26P
2
2
2
Circuit Diagrams, see Pa ge V8- T2-77 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option Catalog Number Code Suffix
Mini-connector
Cable connection 12 ft cable length (standard) —12
2
For operating head specifications, see Page V8-T2-72.
3
CW (clockwise) and CCW (counterclockwise) operation, easily convertible to CW only or CCW only operation.
4
For a full selection of connector cables, see Tab 10, section 10.1.
4
Single-pole (5-pin mini-connector) CSMS5D5CY1602 C
Two-pole (9-pin mini-connector) CSMS9D9CY1602 C
20 ft cable length (standard) —20
Other lengths (special order) — Length in ft
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-69
Page 70
2.7
Assembled Switch
Operating Head Type
2
Side Push Roller
Lever sold separately
Side Pushbutton
Spring Return
Adjustable Spring
Return
Connection is by 8 ft cable 1.
2
2
2
2
Limit Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches

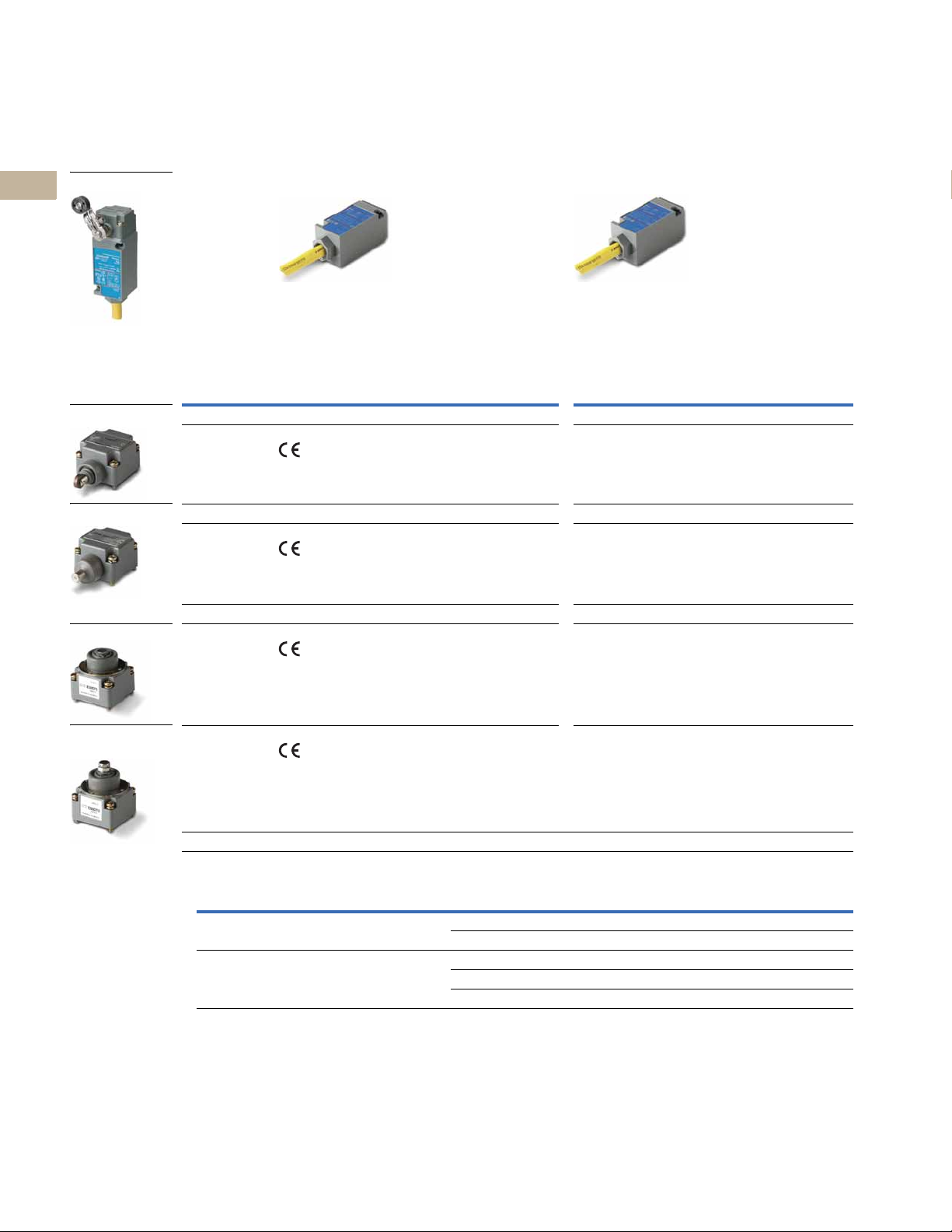

E50 Heavy-Duty Factory Sealed 6P+ Switches, Assembled—Standard, continued
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
T
Single-Pole
Ind
icating Light: None
Switch Body:
Description
Side Push Roller
Spring return—
3
E50DS3
Side Pushbutton
Maintained—
E50DH1
Top Pushbutton
Spring return—
E50DT1
Adjustable spring
return—E50DT2
E50SA6P
1NO-1NC
Assembled Switch
Catalog Number
E50AS36P E50ALS36P E50ANS36P E50BS36P E50BLS36P E50BNS36P
E50AH16
P E50ALH16P
P E50AL
E50AT16
E50AT26
P E50AL
LED
(24–120 Vac/dc)
E50SAL6P
1NO-1NC
T16P E50ANT16P E50BT16P E50BLT16P E50BNT16P
T26
P
Neon
(120 Vac) None
E50SAN6P
1NO-1NC
E50ANH16P E50BH16P E50BLH16P E50BNH16P
E50ANT2
6P
e
wo-Pol
LED
(24–120 Vac/dc)
E50SB6P
2NO-2NC
Assembled Switch
Catalog Number
E50BT26P E50BLT26P E50BNT26P
E50SBL6P
2NO-2NC
Neon
(120 Vac)
E50SBN6P
2NO-2NC
2
2
2
2
2
2
2
2
2
2
Circuit Diagrams, see Pa ge V8- T2-77 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option Catalog Number Code Suffix
Mini-connector
Cable connection 12 ft cable length (standard) —12
2
For operating head specifications, see Page V8-T2-72.
3
Roller can be converted in the field between horizontal and vertical.
4
For a full selection of connector cables, see Tab 10, section 10.1.
V8-T2-70 Volume 8—Sensing Solutions CA08100010E—May 2013
4
Single-pole (5-pin mini-connector) CSMS5D5CY1602 C
Two-pole (9-pin mini-connector) CSMS9D9CY1602 C
20 ft cable length (standard) —20
Other lengths (special order) — Length in ft
Page 71

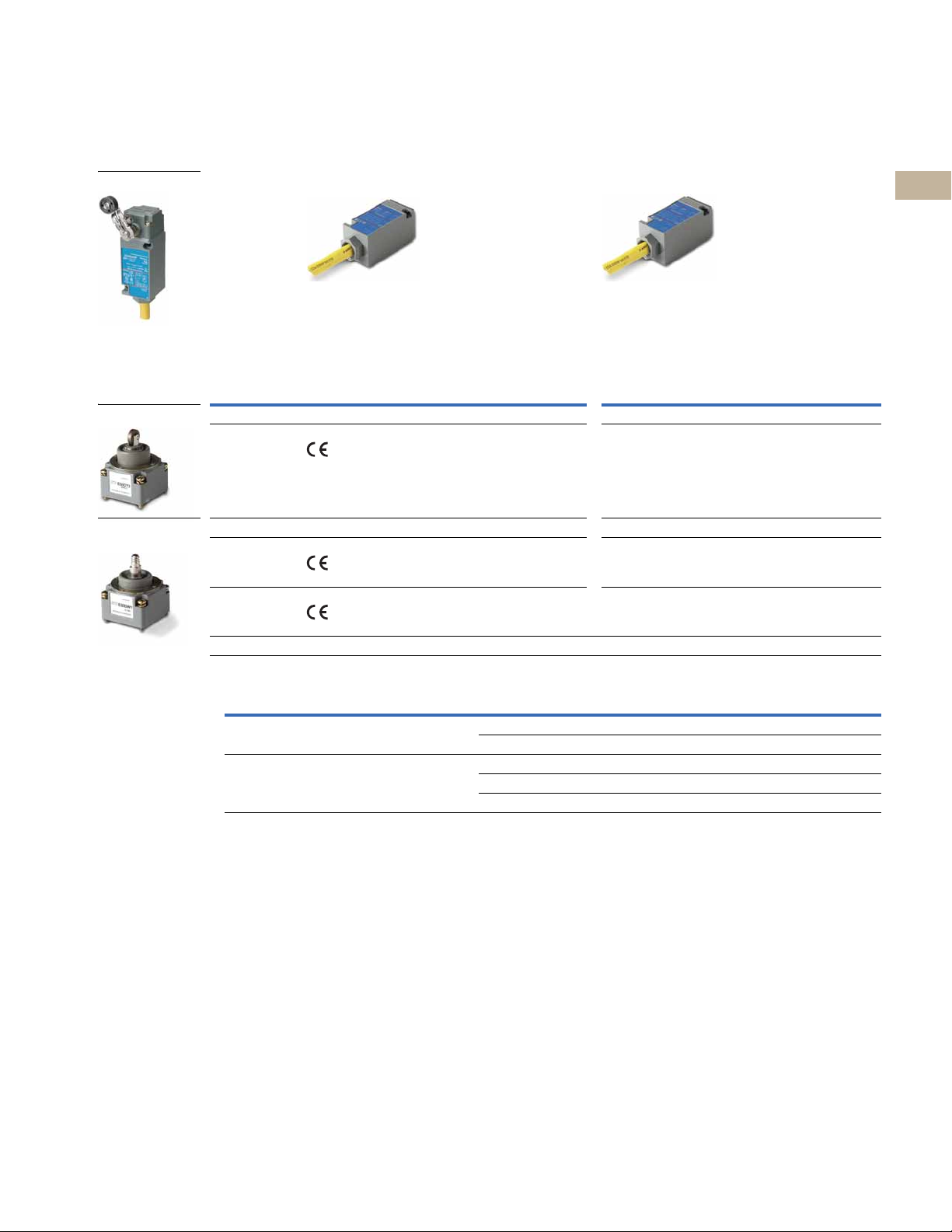

Limit Switches
Assembled Switch
Operating Head Type
2
Top Push Roller
Lever sold separately
Wobble Head,
Spring Return
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7
Connection is by 8 ft cable 1.
E50 Heavy-Duty Factory Sealed 6P+ Switches, Assembled—Standard, continued
icating Light: None
Ind
Switch Body:
Description
Top Push Roller
Spring return—
E50DT3
Wobble Head, Spring Return (requires a wobble operator, see Page V8-T2-80)
Standard duty—
E50DW1
Heavy-duty
high strength
steel— E50DW2
Circuit Diagrams, see Pa ge V8- T2-77 .
Notes
1
Connection options (add the code suffix from the table below to the end of the catalog number):
Option Catalog Number Code Suffix
Mini-connector
Cable connection 12 ft cable length (standard) —12
2
For operating head specifications, see Page V8-T2-72.
3
For a full selection of connector cables, see Tab 10, section 10.1.
Single-Pole Two-Pole
LED
(24–120 Vac/dc)
E50SA6P
1NO-1NC
Assembled Switch
Catalog Number
P E50AL
E50AT36
E50AW16P E50ALW16P E50ANW16P E50BW16P E50BLW16P E50BNW16P
E50AW26
P E50ALW26P
3
E50SAL6P
1NO-1NC
T36
P
Neon
(120 Vac) None
E50SAN6P
1NO-1NC
6P
E50ANT3
E50ANW26
Single-pole (5-pin mini-connector) CSMS5D5CY1602 C
Double-pole (9-pin mini-connector) CSMS9D9CY1602 C
20 ft cable length (standard) —20
Other lengths (special order) — Length in ft
P E50BW26P
E50SB6P
2NO-2NC
Assembled Switch
Catalog Number
E50BT36P E50BLT36P E50BNT36P
LED
(24–120 Vac/dc)
E50SBL6P
2NO-2NC
E50BLW26P E50BNW26P
Neon
(120 Vac)
E50SBN6P
2NO-2NC
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-71

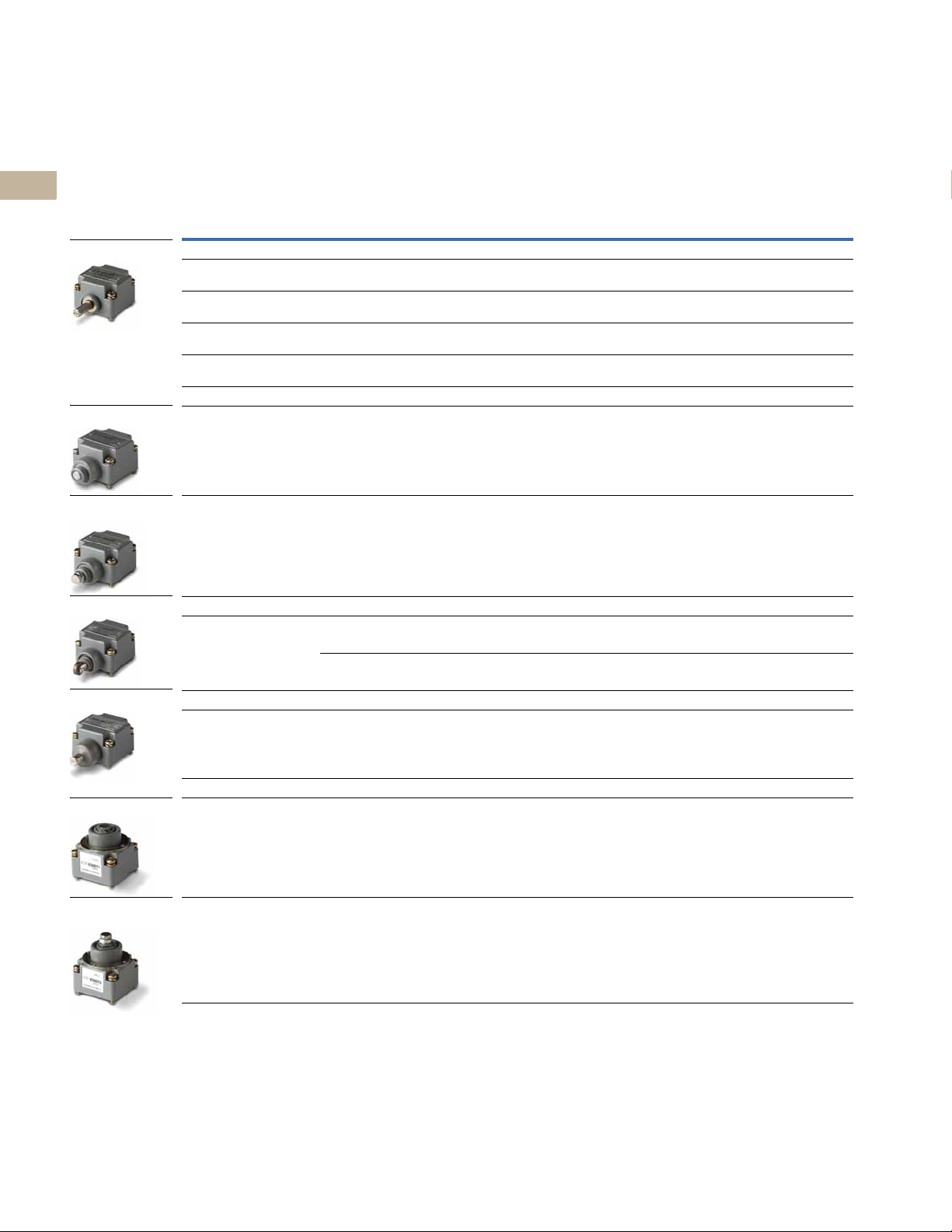

Page 72
2
Side Rotary
Spring Return
Adjustable Spring
Return
Side Push Roller
Side Pushbutton
Spring Return
Adjustable Spring
Return
2
2
2
2
2
2
2
2
2
2
2
2.7
Operating Heads
Limit Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches, Operating Heads
Travel to
Description
Side Rotary (requires an operating lever, see Page V8-T2-80)
Standard spring return
Low temperature
spring return
Low force spring return
Maintained two-position 50° 50° 90° 3 in-lbs — 14° to 200°F
Side Pushbutton
Spring return 0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
Adjustable spring return 0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
2
2
Operate
Contacts
5° 2° 90° 3 in-lbs 4.5 in-oz 10° to 200°F
5° 2° 90° 3 in-lbs 4.5 in-oz –40° to 175°F
2
15° 6° 90° 1.5 in-lbs 2.5 in-oz 10° to 200°F
Travel to
Reset
Contacts
Tot al
Travel
Force to
Operate
Contacts
Minimum
Return
Force
Operating Temperature
(–12° to 94°C)
(–40° to 79°C)
(–12° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
(–10° to 94°C)
With
Pre-wired Cable
10° to 200°F
3
(–12° to 94°C)
–31° to 175°F
(–34° to 79°C)
10° to 200°F
3
(–12° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
1
Catalog
NumberWithout Cable
E50DR1
3
E50DR19
E50DL1
3
E50DM1
E50DS1
E50DS2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Side Push Roller
Spring return
Side Pushbutton
Maintained 0.200 in 0.130 in 0.320 in 5 lbs 5 lbs 14° to 200°F
Top Pushbutton
Spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Adjustable spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Notes
1
2
3
4
5
4
Temperature ranges below 32°F (0°C) are based on absence of freezing moisture or water.
CW (clockwise) and CCW (counterclockwise) operation, easily convertible to CW only or CCW only operation.
For CW and CCW operation. For CW only or CCW only operation, high temperature limit increases to 250°F (121°C) without cable, and 221°F (105°C)
with pre-wired cable.
Roller can be converted in the field between horizontal and vertical.
Roller shaft is 0.38 in (9.5 mm) longer on E50DS4, see Dimensions on Page V8-T2-78.
0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
(–10° to 94°C)
0.065 in 0.030 in 0.250 in 4 lbs 8 oz 14° to 200°F
(–10° to 94°C)
(–10° to 94°C)
(–10° to 121°C)
(–10° to 121°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 200°F
(–10° to 94°C)
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
E50DS3
E50DS4
E50DH1
E50DT1
E50DT2
5
5
V8-T2-72 Volume 8—Sensing Solutions CA08100010E—May 2013

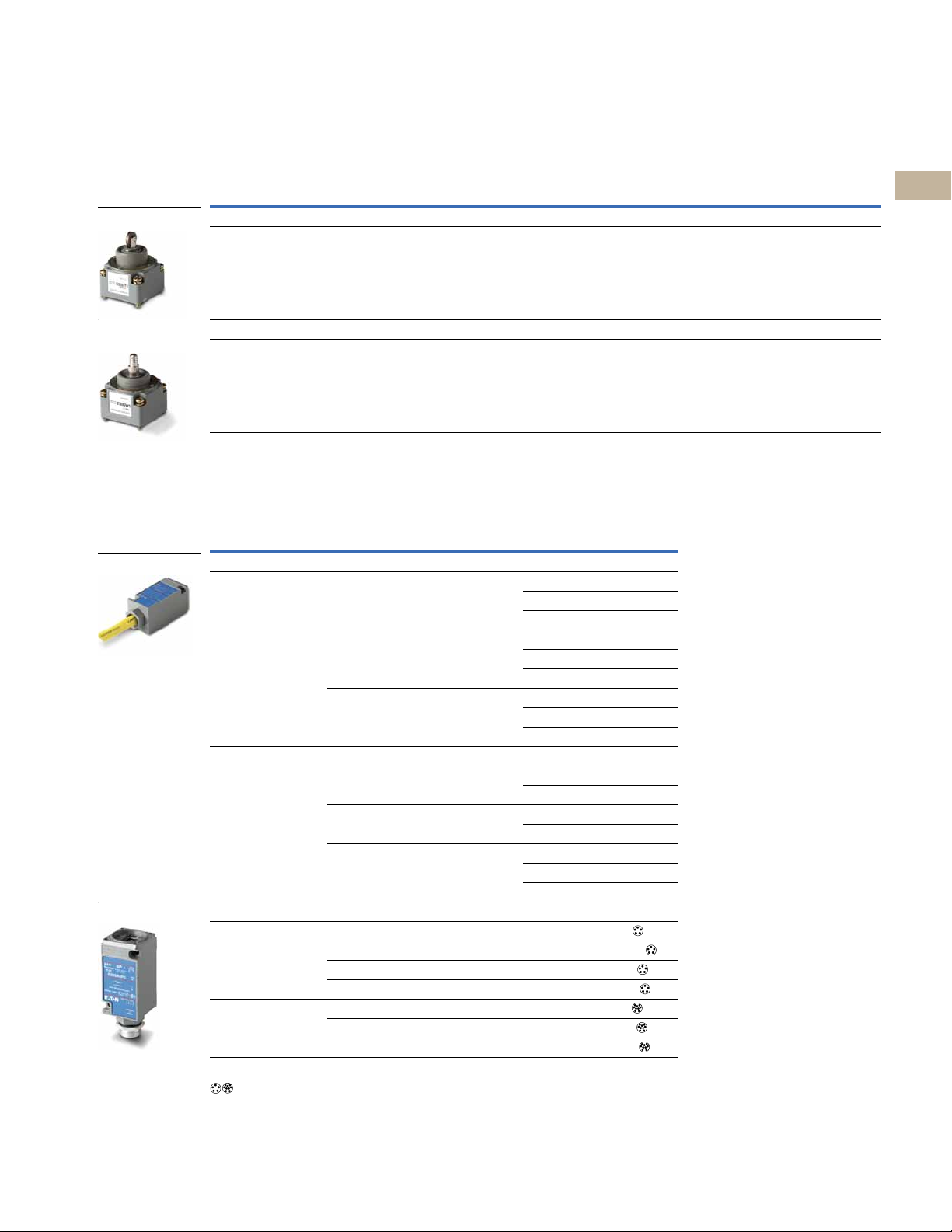

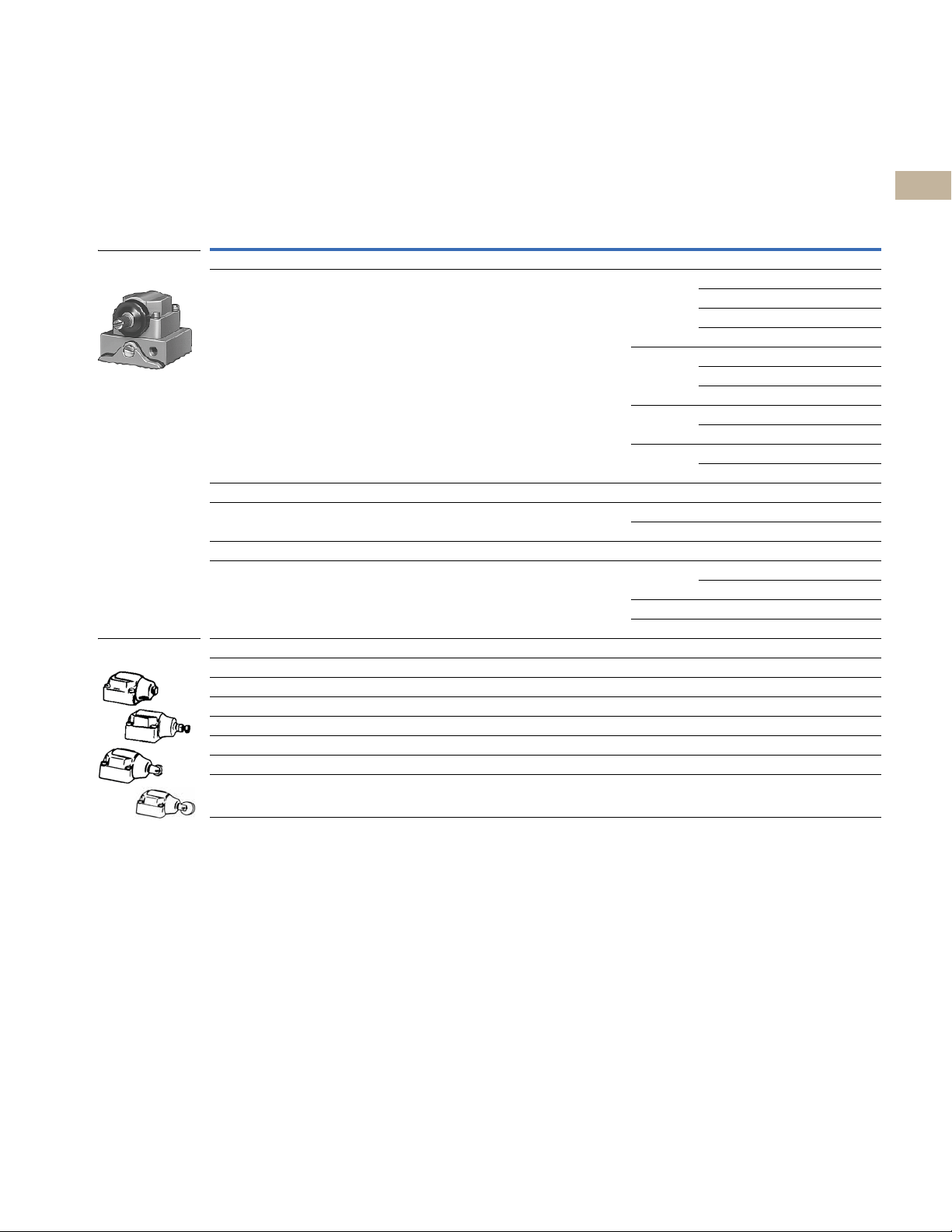

Page 73
Limit Switches
Top Push Roller
Wobble Head,
Spring Return
Pre-Wired Cable
Mini-Connector
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7
Switch Bodies
E50 Heavy-Duty Factory Sealed 6P+ Switches, Operating Heads, continued
Travel to
Description
Top Push Roller
Spring return 0.040 in 0.020 in 0.280 in 4 lbs 8 oz 14° to 250°F
Wobble Head, Spring Return (requires a wobble operator, see Page V8-T2-80)
Standard duty 10° 6° 15° 2 in-lbs 2.4 in-oz 14° to 250°F
Heavy-duty high strength steel 10° 6° 15° 2 in-lbs 2.4 in-oz 14° to 250°F
Circuit Diagrams, see Pa ge V8- T2-77 .
E50 Heavy-Duty Factory Sealed 6P+, Switch Bodies
Circuit Switch Body Construction
Pre-Wired Cable
Single-pole 1NO-1NC Without indicating light 8 ft E50SA6P
Two-pole 2NO-2NC Without indicating light 8 ft E50SB6P
Mini-Connector
Single-pole 1NO-1NC Without indicating light normal wiring — E50SA6PC
Two-pole 2NO-2NC Without indicating light — E50SB6PC
Notes
See listing of compatible connector cables on Page V8-T2-74.
1
Temperature ranges below 32°F (0°C) are based on absence of freezing moisture or water.
Operate
Contacts
With LED indicating light 24 –120 Vac/dc 8 ft E50SAL6P
With neon indicating light 120 Vac 8 ft E50SAN6P
With LED indicating light 24–120 Vac/dc 8 ft E50SBL6P
With neon indicating light 120 Vac 8 ft E50SBN6P
Without indicating light alternate wiring — E50SA6PC-W
With LED indicating light 24–120 Vac/dc — E50SAL6PC
With neon indicating light 120 Vac — E50SAN6PC
With LED indicating light 24–120 Vac/dc — E50SBL6PC
With neon indicating light 120 Vac — E50SBN6PC
Travel to
Reset
Contacts
Tot al
Travel
Force to
Operate
Contacts
Cable
Length Catalog Number
12 ft E50SA6P12
20 ft E50SA6P20
12 ft E50SAL6P12
20 ft E50SAL6P20
12 ft E50SAN6P12
20 ft E50SAN6P20
12 ft E50SB6P12
20 ft E50SB6P20
12 ft E50SBL6P12
12 ft E50SBN6P12
20 ft E50SBN6P20
Minimum
Return
Force
Operating Temperature
(–10° to 121°C)
(–10° to 121°C)
(–10° to 121°C)
1
With
Pre-Wired Cable
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
14° to 221°F
(–10° to 105°C)
Catalog
NumberWithout Cable
E50DT3
E50DW1
E50DW2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-73

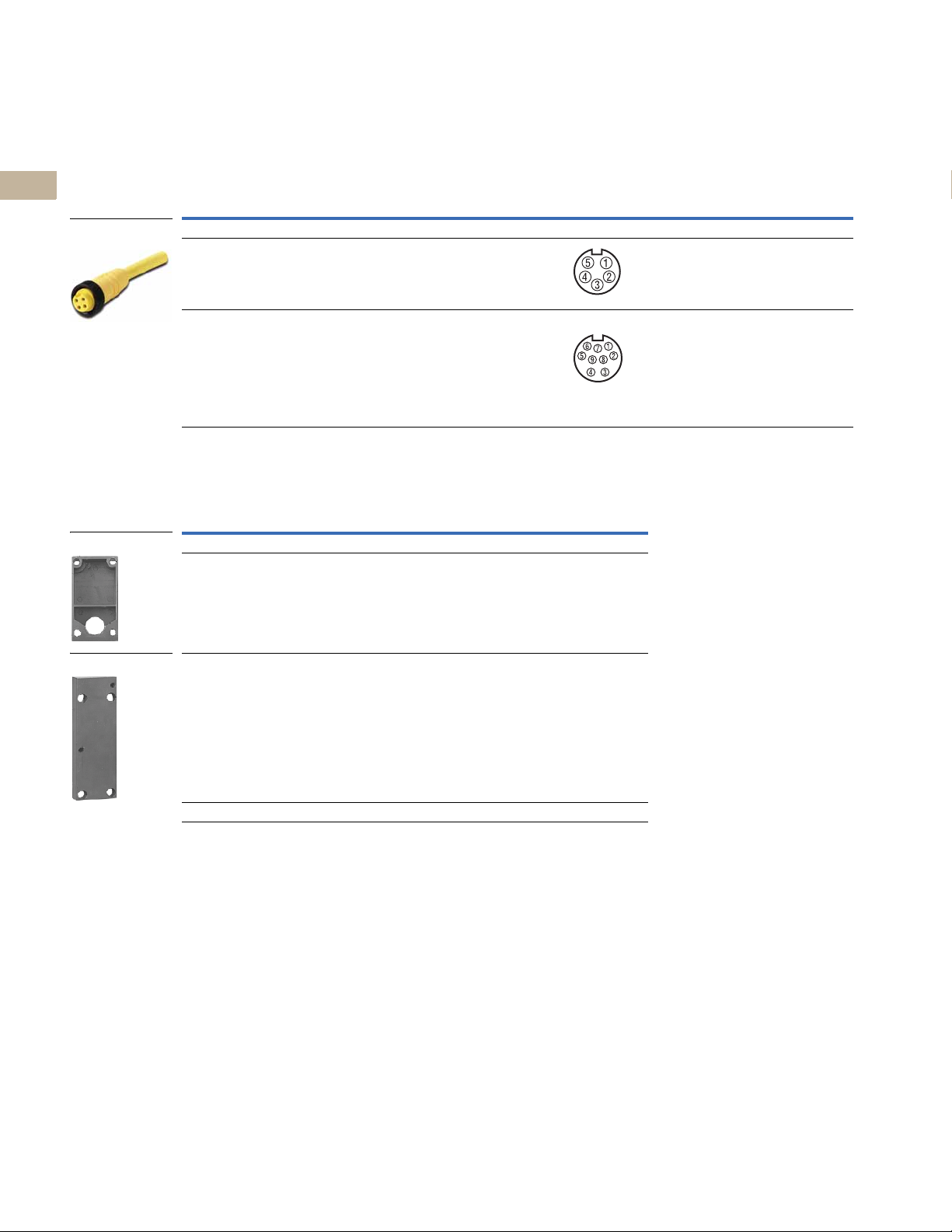

Page 74
2.7
Mini-Style,
Straight Female
1-White
2-Red
3-Green
4-Orange
5-Black
1-Orange
2-Blue
3-Red/Black
4-Green/Black
5-White
6-Red
7-Green
8-White/Black
9-Black
E50KH1M
E50KH7
Compatible Connector Cables
2
2
2
2
2
Limit Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches
Voltage
Style
1
Number
of Pins Gauge Length
Pin Configuration/Wire Colors
(Face View Female Shown) Catalog Number
Standard Cables
Current
Rating at 600V
Mini-Style, Straight Female
8A — 5-pin 16 AWG 6 ft (2m) CSMS5D5CY1602
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Accessories
7A — 9-pin 16 AWG 12 ft (4m) CSMS9D9CY1602
E50 Heavy-Duty Factory Sealed 6P+ Switch Accessories
Catalog Number
Adapter Plate
Allows E50 to replace Eaton’s 10316 Type LP Manifold Mounting Plug-In Limit Switch E50KH1M
Allows E50 to replace Square D Type AW Surface Mounting Non Plug-In Standard Box
Limit Switch
E50KH7
2
2
2
2
2
2
2
2
2
2
2
Dimensions, see Page V8-T2-78.
Note
1
For a full selection of connector cables, see Tab 10, section 10.1.
V8-T2-74 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 75
Limit Switches
E50KH2
E50KH10
E50KH5
E50KH3
E50KH6
E50KH4
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7

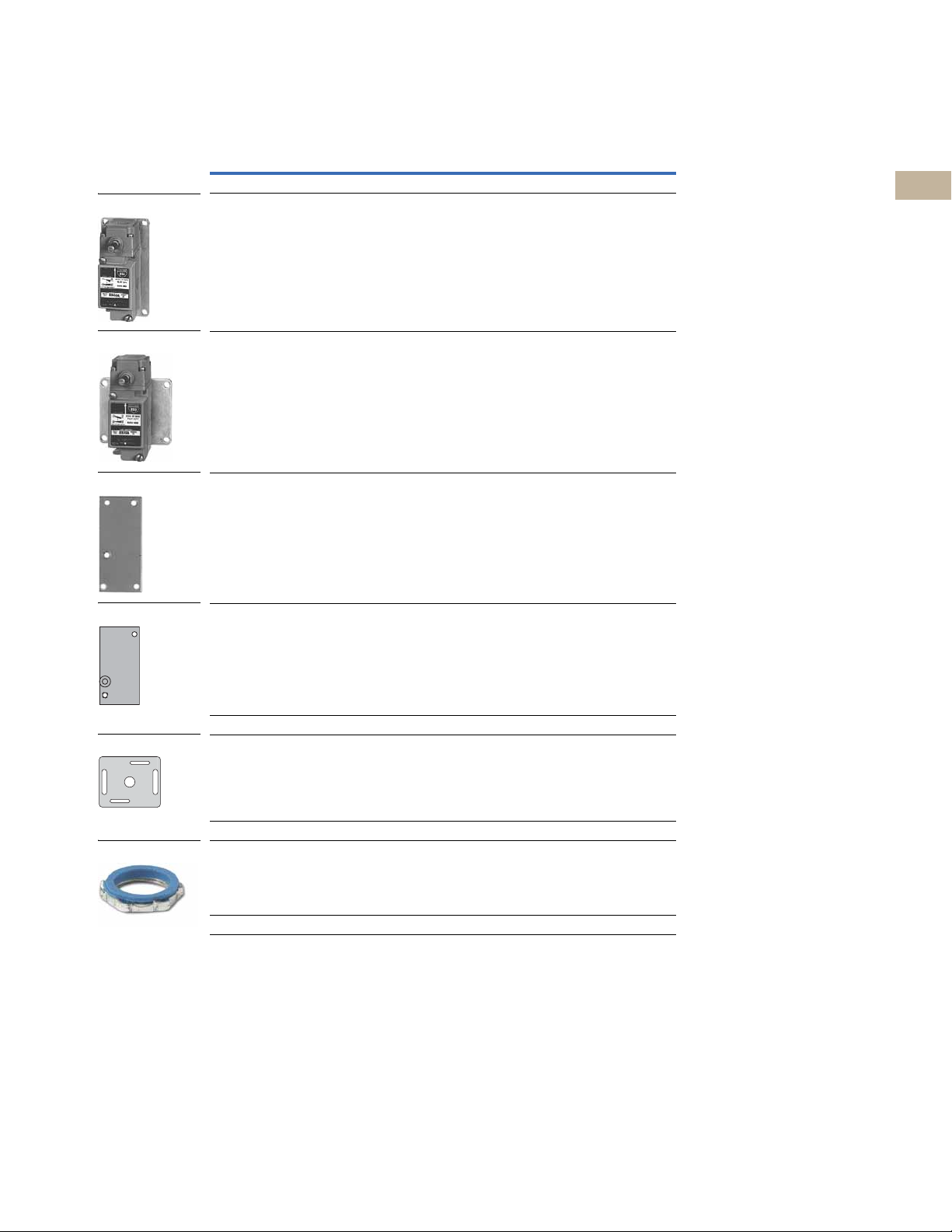

E50 Heavy-Duty Factory Sealed 6P+ Switch Accessories, continued
Catalog Number
Adapter Plate, continued
1
Allows E50 to replace National Acme, Type D-1200M, Style 2 Mounting. Denison
LoxSwitch, Model L-100W, Style 2 Mounting. Square D 9007 Type T, Style B Mounting.
(Adapter plate is 1/8 in thick, with 1/4 in mounting holes.) Namco
Allows E50 to replace National Acme, Type D-1200M, Style 1 Mounting. Denison
LoxSwitch, Model L-100W, Style 1 Mounting. Square D 9007 Type T, Style C Mounting.
(Adapter plate is 1/8 in thick, with 1/4 in mounting holes.)
Allows E50 to replace Eaton’s 10316 Type LT Non Plug-In Two-Pole Limit Switch E50KH2
Allows E50 to replace Allen-Bradley 802M Sealed Limit Switch E50KH10
®
long mount.
E50KH4
E50KH5
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable Mounting Plate
This is a mounting plate only 5/16 in thick and includes the proper mounting bolts and
nuts. The slots in the plate allow a maximum horizontal adjustment of 1 in and vertical
adjustment of 1-1/4 in
Conduit Sealing Nut
1/2 in oiltight E50KH6
Dimensions, see Page V8-T2-78.
Note
1
Limit switch not included.
E50KH3
2
2
1
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-75
Page 76
Limit Switches
2.7
Technical Data and Specifications
2
E50 Heavy-Duty Factory Sealed 6P+ Switches
2
Description Specification
Environmental ratings NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K
2
Material of construction Zinc die cast
Switch gasket material Viton
2
Universal U.S./DIN mounting dimensions 1.
Conduit entrance 1/2 in NPT or 20 mm threading
2
Contact ratings See below
2
Contact operation Snap action over center mechanism
Contact material Fine silver
2
Maximum frequency of operation 8000 operations per hour
Mechanical life
2
Side rotary 13,000,000 operations minimum
Side or top push 10,000,000 operations minimum
2
Electrical life
Single-pole 1,000,000 operations typical at full load
2
Double-pole 100,000 operations typical at full load
Ambient temperature range—standard
2
Standard without cable 14° to 250°F (–10° to 121°C)
Standard with cable 14° to 221°F (–10° to 105°C)
2
Low temperature without cable –40° to 250°F (–40° to 121°C)
Low temperature with cable –40° to 221°F (–40° to 105°C)
2
Repeat accuracy—standard
Side operated Within 0.0012 in
2
Top operated Within 0.0003 in
2
Side rotary Within 0.0014 in
Torque requirements
2
Operating head screws 14–18 lb-in
2
Electrical Data—Maximum Contact Ratings (Same polarity each pole)
2
2
AC Volts
All Switches Except Gravity Return and Indicating Light Versions
2
NEMA A600 Rating NEMA R300
120 60 6 10 7200 720 125 0.22 1.0
2
240 30 3 10 7200 720 250 0.11 1.0
2
480 15 1.5 10 7200 720 250 0.11 1.0
600 12 1.2 10 7200 720 250 0.11 1.0
2
Switches with Indicating Lights (LED or Neon)
NEMA A150 Rating NEMA R150
2
120 60 6 10 7200 720 125 0.22 1.0
2
Note
1
Thermal rating. Valid only if switch does not have to make or break.
2
Current, Amperes Voltamperes
Make Break Cont.
E50 Heavy-Duty Factory Sealed 6P+ Switches
16 in (30 mm) x 2.34 in (60 mm)
1
Make Break
DC Volts
Current, Amperes
Max. Make
or Break Cont.
1
2
2
2
2
V8-T2-76 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 77
Limit Switches
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7
Circuit Diagrams
Standard Assembled Switches
Single-Pole 1NO-1NC
Must be same polarity.
Switch Bodies
Pre-Wired Cable—
Single-Pole 1NO-1NC
E50SA6P_
1
E50SAL6P_
Two-Pole 2NO-2NC
Same polarity, each pole.
Pre-Wired Cable—
Two-Pole 2NO-2NC
E50SB6P_
E50SBL6P_
2
2
2
2
2
2
2
2
2
2
2
2
2
Wiring Diagrams
Mini-Connector—Single-Pole 1NO-1NC
E50SA6PC
Mini-Connector—Two-Pole 2NO-2NC
E50SB6PC
1
E50SA6PC-W E50SAL6PC/E50SAN6PC
E50SBL6PC/E50SBN6PC
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Note
1
The wire colors referenced on these diagrams are those internal to the switch itself.
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-77
Page 78
Limit Switches
1.58 (40.1)
Conduit Entrance
0.50 Pipe Tap
2.25 (57.0)
1.44
(37.0)
0.81
(21.0)
0.31
(8.0)
Dia. 0.20 (5.0)
Front Mtg. Hole
4.22
(107.0)
0.37 (9.4)
3.13
(79.0)
1.13
(28.7)
0.75
(19.0)
0.75
(19.0)
0.24
(6.2)
0.20
(5.2)
0.99 (25.0)
1.54
(39.0)
[10-32] Tap
0.38 (10.0) Deep
Rear Mtg. Holes (2)
2.74
(69.5)
0.45
(11.4)
2.7
Dimensions
2
Approximate Dimensions in Inches (mm)
2
Standard
6P+ Limit Switch with Rotary Operating Head
2
2
2
2
2
2
E50 Heavy-Duty Factory Sealed 6P+ Switches
1
2
2
Side Push Operators
2
Approximate Dimensions in mm [in]
Pushbutton Adjustable Pushbutton
2
2
2
2
2
Maintained Pushbutton
2
2
2
2
2
Top Push Operators
Pushbutton Adjustable Pushbutton
2
1
Roller
2
3
Roller
2
2
2
2
2
2
2
2
Wobble Operators
See Operators on Page V8-T2-80.
V8-T2-78 Volume 8—Sensing Solutions CA08100010E—May 2013
Notes
1
Can accommodate both U.S., 1.16 (29.4) x 2.34 (59.5) and DIN, 1.18 (30.0) x 3.26 (60.0),
mounting dimensions.
2
For E50DS4.
3
For E50DS3.
Page 79
Limit Switches
76
[3.00]
59.5
[2.340]
29.5
[1.160]
39
[1.54]
13.5
[0.531]
4.8
[0.19]
THICK
#10-32 UNC-2B HOLE
5.2 [0.204]
DIA.
(2 HOLES)
E50 Heavy-Duty Factory Sealed 6P+ Switches
2.7
Accessories
Approximate Dimensions in mm [in]
Adapter Plates
E50KH1M E50KH7
50KH5
E
50KH2
E
E50KH4
0KH1
E5
2
2
2
2
2
2
2
2
0
2
2
2
2
2
2
djustable Mounting Plate
A
E50KH3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-79

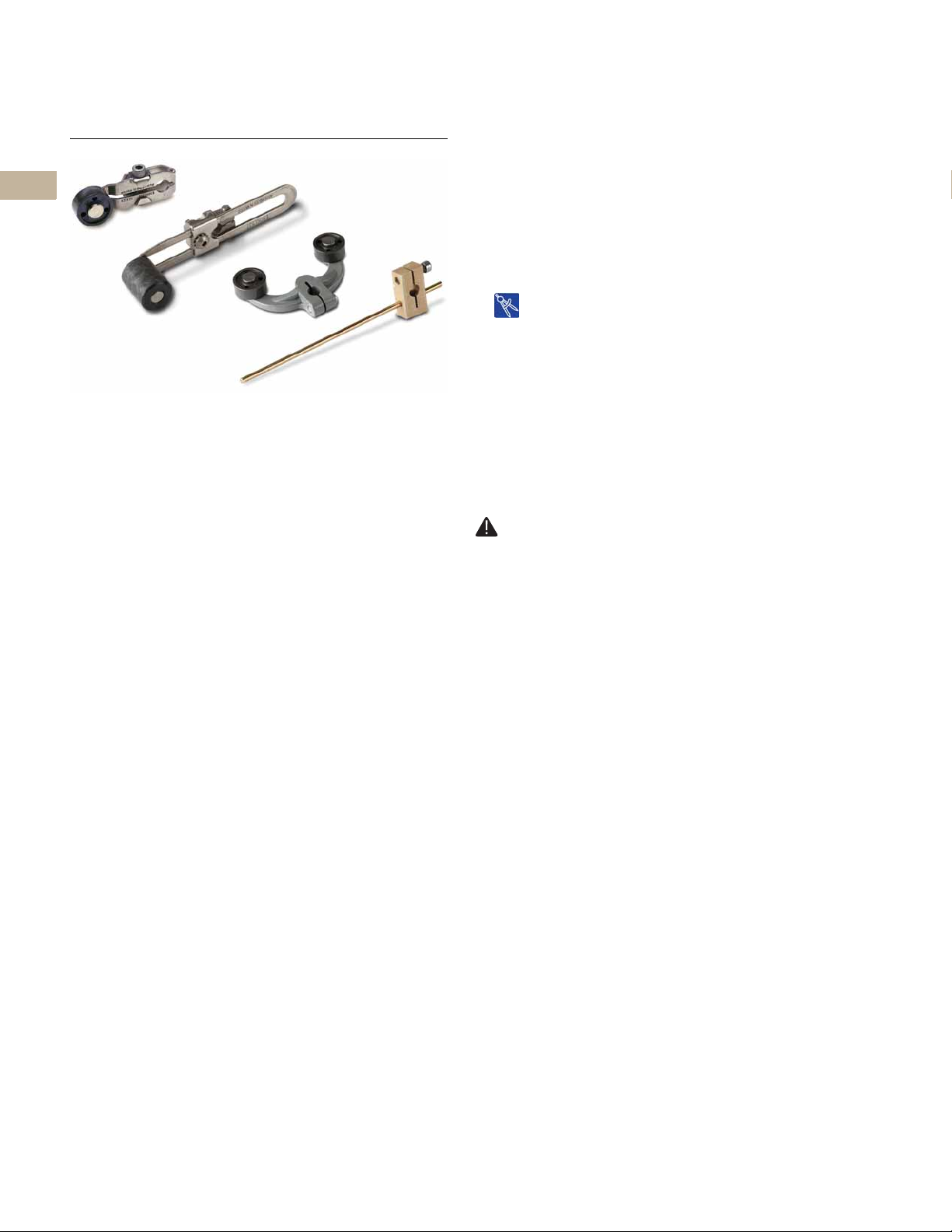

Page 80
2.8
Operators
Drawings
Online
Limit Switches
Operators
2
2
2
2
2
2
2
2
2
2
2
Operators
Product Description
2
The Operators presented
here are used with Eaton’s
2
E50 Plug-In and 6P+ limit
switches, as well as our
2
10316 rotary type limit
switches. A wide variety of
2
styles and sizes are available
to provide optimum
2
performance for nearly any
application.
2
2
2
2
2
Features
●
Wide variety of operator
ypes for rotar
t
w
obble style limit switches
●
Rollers and rods available
in metal and nonmetal
contact surfaces
y and
Contents
Description Page
Operators
Product Selection
Roller Type Operators . . . . . . . . . . . . . . . . . V8-T2-81
Rod Type Operators . . . . . . . . . . . . . . . . . . V8-T2-83
Wobble Type Operators . . . . . . . . . . . . . . . V8-T2-84
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-84
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
V8-T2-80 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 81
Limit Switches
E50KL200
E50KL355
E50KL377
E50KL554
E50KL580
E50KL24
E50KL27
Operators
2.8
Product Selection
Roller Type Operators
For rotary head switches: E50 Plug-In, E50 6P+, and 10316.
Note: Only operators with Nylatron rods or rollers should be used with explosion-proof limit switches.
Operators—Roller Type
Minimum
Roller Type
Standard Roller (Stainless Steel)
Metal 0.62 in-oz 0.88 (22.2) 0.75 (19.0) 0.32 (8.1) 0.31 (7.9) 0.20 (5.1) 0.24 (6.1) E50KL39
Metal 0.95 in-oz 1.38 (34.9) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL40
Ball bearing 0.77 in-oz 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8) E50KL531
Nylatron 0.53 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL200
Metal 1.10 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL355
Nylatron 0.96 in-oz 1.50 (38.1) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1) E50KL377
Without roller 0.32 in-oz 1.50 (38.1) — — 0.34 (8.6) — — E50KL32
Ball bearing 1.10 in-oz 2.00 (50.8) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8) E50KL552
Nylatron 0.71 in-oz 2.00 (50.8) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL546
Metal 1.50 in-oz 2.00 (50.8) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL549
Nylatron 1.45 in-oz 2.00 (50.8) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1) E50KL572
Ball bearing 1.50 in-oz 2.50 (63.5) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8) E50KL553
Nylatron 1.00 in-oz 2.50 (63.5) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL547
Metal 2.00 in-oz 2.50 (63.5) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL550
Nylatron 1.80 in-oz 2.50 (63.5) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1) E50KL573
Nylatron 1.40 in-oz 2.50 (63.5) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.11 (2.8) 0.17 (4.3) E50KL575
Ball bearing 1.80 in-oz 3.00 (76.2) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8) E50KL554
Nylatron 1.30 in-oz 3.00 (76.2) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL548
Metal 2.50 in-oz 3.00 (76.2) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3) E50KL551
Nylatron 2.30 in-oz 3.00 (76.2) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1) E50KL574
Nylatron 1.80 in-oz 3.00 (76.2) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.11 (2.8) 0.17 (4.3) E50KL576
Dimensions, see Page V8-T2-84.
Roller On Reverse Side (Stainless Steel)
Ball bearing 0.77 in-oz 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.18 (4.6) 0.24 (6.1) E50KL580
Nylatron 0.53 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.27 (6.9) 0.31 (7.9) E50KL310
Metal 1.10 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.27 (6.9) 0.31 (7.9) E50KL579
Nylatron 0.96 in-oz 1.50 (38.1) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.23 (5.8) 0.31 (7.9) E50KL536
Offset Inboard Roller (Stainless Steel)
Nylatron 0.65 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.03 (0.8) — — E50KL24
Metal 1.20 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.03 (0.8) — — E50KL25
Ball bearing 0.90 in-oz 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.04 (1.0) — — E50KL26
Offset Outboard Roller (Stainless Steel)
Nylatron 0.65 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.03 (0.8) — — E50KL27
Metal 1.20 in-oz 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.03 (0.8) — — E50KL28
Ball bearing 0.90 in-oz 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.04 (1.0) — — E50KL29
Nylatron 1.10 in-oz 1.50 (38.1) 0.75 (19.0) 1.00 (25.4) — — — E50KL30
Dimensions, see Page V8-T2-85.
Notes
1
Caution: When selecting lever, the minimum required return torque of lever should not exceed minimum
return force available in operating head as given in operating head specifications.
2
Length from the operating shaft axis to the roller axis (or to the tip for non-roller operators).
Required
Return Torque
Approximate Dimensions in Inches (mm)
1
A
Lever Length
B
2
Roller DiameterCRoller Width D E F
Catalog
Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-81
Page 82
Limit Switches
E50KL532
E50KL340
E50KL201
E50KL537
E50KL545
E50KL542
2.8
Note: Only operators with Nylatron rods or rollers should be used with explosion-proof limit switches.
2
2
2
2
2
Operators
Operators—Roller Type, continued
Minimum
Roller Type
Bantam Lever
Metal 0.45 in-oz 0.69 (17.5) 0.85 (22.0) 0.18 (4.6) — — — E50KL532
Required
Return Torque
Approximate Dimensions in Inches (mm)
1
A
Lever Length
B
2
Roller DiameterCRoller Width D E F
Catalog
Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Precision Adjustment
Nylatron 0.65 in-oz 0.69 (17.5)
Metal 1.20 in-oz 0.75 (19.0) 0.32 (8.1) 0.48 (12.2) 0.24 (6.1) 0.28 (7.1) E50KL465
Ball bearing 0.90 in-oz 0.69 (17.5) 0.25 (6.4) 0.48 (12.2) 0.16 (4.1) 0.22 (5.6) E50KL535
Dimensions, see Page V8-T2-85.
Adjustable Roller (Stainless Steel)
Ball bearing 2.50 in-oz
Nylatron 1.90 in-oz
Metal 3.40 in-oz
Nylatron 1.90 in-oz
Nylatron 3.10 in-oz
Large Nylatron 4.50 in-oz
Without roller 1.20 in-oz
Nylatron 2.50 in-oz
Dimensions, see Page V8-T2-86.
4
4
4
4
4
4
4
4
Roller length:
1.50 (38.1)
1.0 (25.4) to
3.75 (95.2)
0.5 (12.7) to
3.25 (82.6)
0.5 (12.7) to
3.75 (95.2)
1.63 (41.3) to
3.75 (95.2)
0.75 (19.0) 0.32 (8.1) 0.48 (12.2) 0.24 (6.1) 0.28 (7.1) E50KL340
3
0.69 (17.5) 0.25 (6.4) 0.23 (5.8) 0.30 (7.6) — E50KL539
5
0.75 (19.0) 0.32 (8.1) 0.29 (7.4) 0.33 (8.4) — E50KL201
0.75 (19.0) 0.32 (8.1) 0.29 (7.4) 0.33 (8.4) — E50KL201SPL
0.75 (19.0) 0.32 (8.1) 0.29 (7.4) 0.33 (8.4) — E50KL538
0.75 (19.0) 0.50 (12.7) 0.46 (11.6) 0.48 (12.2) — E50KL599
0.75 (19.0) 1.00 (25.4) 0.90 (22.9) 0.95 (24.1) — E50KL537
4.00 (102.0) 0.11 (2.8) 0.11 (2.8) 0.19 (4.8) — E50KL598
— — ———E50KL31
1.50 (38.1) 0.29 (7.4) 0.26 (6.6) 0.32 (8.1) — E50KL443
5
Operators—Roller Type, continued
Minimum
Required
Roller Type
Fork Lever—Both Rollers on One Side
Ball bearing — 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.08 (2.0) 0.14 (3.6) — — E50KL545
Nylatron — 0.75 (19.0) 0.32 (8.1) 0.16 (4.1) 0,20 (5.1) — — E50KL204
Metal — 0.75 (19.0) 0.32 (8.1) 0.16 (4.1) 0,20 (5.1) — — E50KL544
Nylatron — 0.75 (19.0) 1.00 (25.4) 0.84 (21.3) 0.88 (22.4) — — E50KL543
Fork Lever—One Roller Outside, One Inside
Ball bearing — 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.08 (2.0) 0.14 (3.6) 0.64 (16.3) 0.70 (17.8) E50KL542
Nylatron — 0.75 (19.0) 0.32 (8.1) 0.16 (4.1) 0.20 (5.1) 0.73 (18,5) 0.77 (19.6) E50KL203
Metal — 0.75 (19.0) 0.32 (8.1) 0.16 (4.1) 0.20 (5.1) 0.73 (18,5) 0.77 (19.6) E50KL541
Dimensions, see Page V8-T2-86.
Notes
1
Caution: When selecting lever, the minimum required return torque of lever should not exceed minimum
return force available in operating head as given in operating head specifications.
2
Length from the operating shaft axis to the roller axis (or to the tip for non-roller operators).
3
Maximum length dimension between operating shaft axis to roller axis for comparison.
Precision adjustable to lesser dimensions.
4
Applies when lever is extended to the maximum dimension.
5
By reassembling lever, minimum length can be reduced another 0.5 in (12.7 mm).
6
High-grade stainless steel.
Return
Torque
Approximate Dimensions in Inches (mm)
1
A
Lever Length
B
2
Roller DiameterCRoller Width D E F
G
Catalog
Number
6
V8-T2-82 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 83
Limit Switches
Nylon/Metal
Metal/Steel
Nylon/Steel
Nylon Covered Wire
Nylatron
Nylatron
Zinc-Plated Steel
Operators
2.8

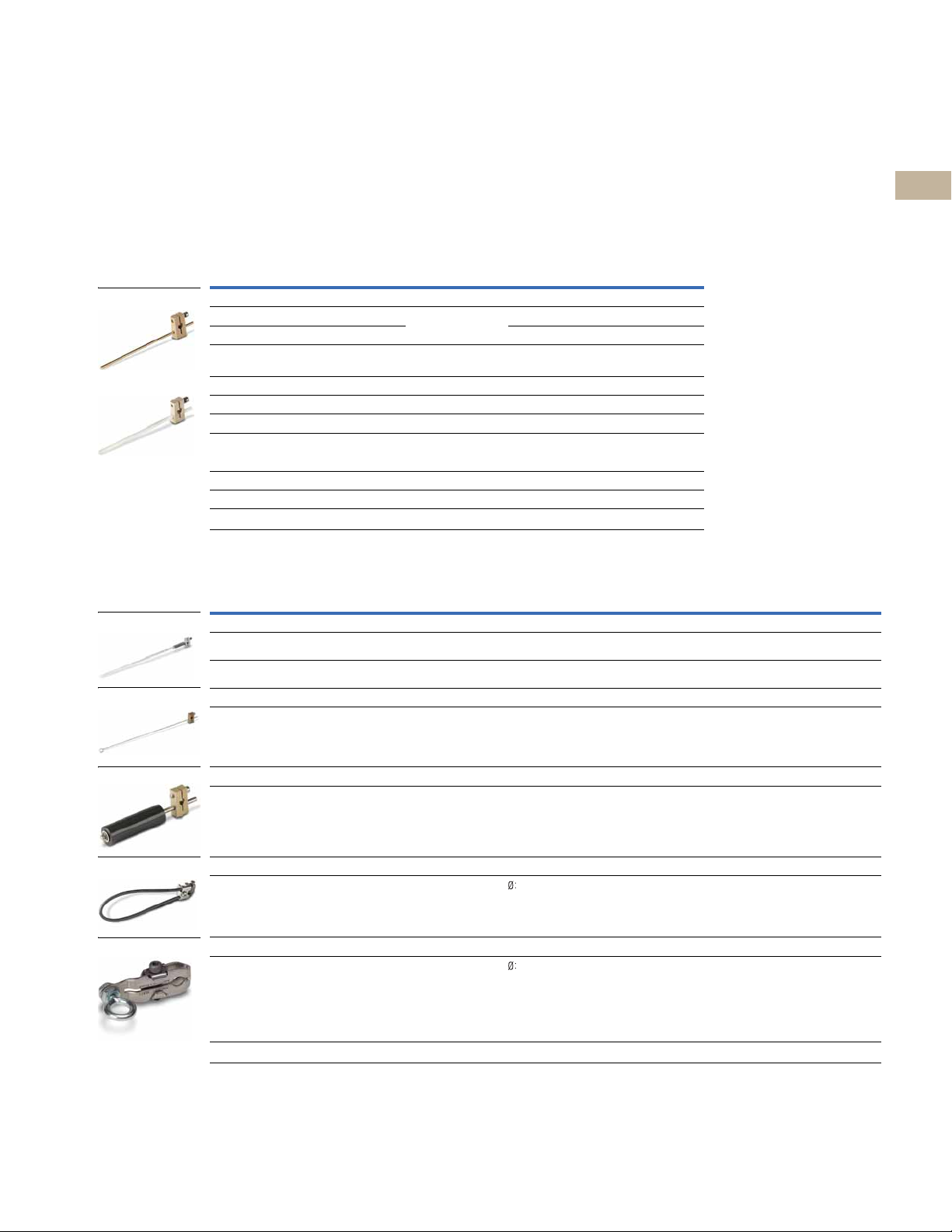

Rod Type Operators
For rotary head switches: E50 Plug-In, E50 6P+, and 10316.
Note: Only operators with Nylatron rods or rollers should be used with explosion-proof limit switches.
Operators—Rod Type
Approximate Dimensions in Inches (mm)
Minimum
Rod Type
Adjustable Rod
Nylon 0.40 in-oz
Metal 0.92 in-oz
Metal 2.20 in-oz
Stainless steel 7.00 in-oz
Bendable steel 5.00 in-oz
Clamps for Adjustable Rods (Rod not included)
Clamp for …
0.19 (4.8) diameter rods E50KL35
0.12 (3.2) diameter rods E50KL36
0.25 (6.4) diameter rods E50KL41
Dimensions, see Page V8-T2-87.
Operators—Rod Type, continued
Rod Type
Spring Rod
Nylon 3.50 in-oz — — — — E50KL556
Stainless steel 2.80 in-oz — — — — E50KL421
Adjustable Wire
Nylon covered wire 1.50 in-oz
Required
Return Torque
3
3
3
3
3
Minimum
Required
Return Torque
3
A
Rod Length
1
(Maximum)
5.50 (140.0) 0.19 (4.8) E50KL399
8.75 (222.0) Rod size (square):
9.00 (229.0) 0.19 (4.8) E50KL220
12.00 (305.0) 0.12 (3.2) E50KL226
Approximate Dimensions in Inches (mm)
A
1
Rod Length
————E50KL533
2
2
B
Rod Diameter
0.12 (3.2) E50KL202
0.12 (3.2) x 0.12 (3.2)
B
Rod Diameter C D
Catalog
Number
E50KL581
Catalog
Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Adjustable Wide Roller Lever
Nylatron 4.50 in-oz
Nylatron Loop
Nylatron 0.40 in-oz 6.00 (152.0) 0.158 (4.0) — — E50KL142
Eye Bolt
Zinc-plated steel 0.53 in-oz 150.00 (38.1) 0.1875 (4.8)
Dimensions, see Page V8-T2-87.
Notes
1
Caution: When selecting lever, the minimum required return torque of lever should not exceed minimum
return force available in operating head as given in operating head specifications.
2
Length from the operating shaft axis to tip.
3
Applies when lever is extended to the maximum dimension.
3
————E50KL37
0.52 (13.1) 0.24 (8.6) E50KL33
Loop ID: 0.375 (9.5)
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-83
2
2
2
2
2
2
2
2
2
2
2
2
Page 84
Limit Switches
E50KW2
E50KW3
E50KW4
0.44
(11)
C
A
D
F
E
B
0.67
(17 )
2.8

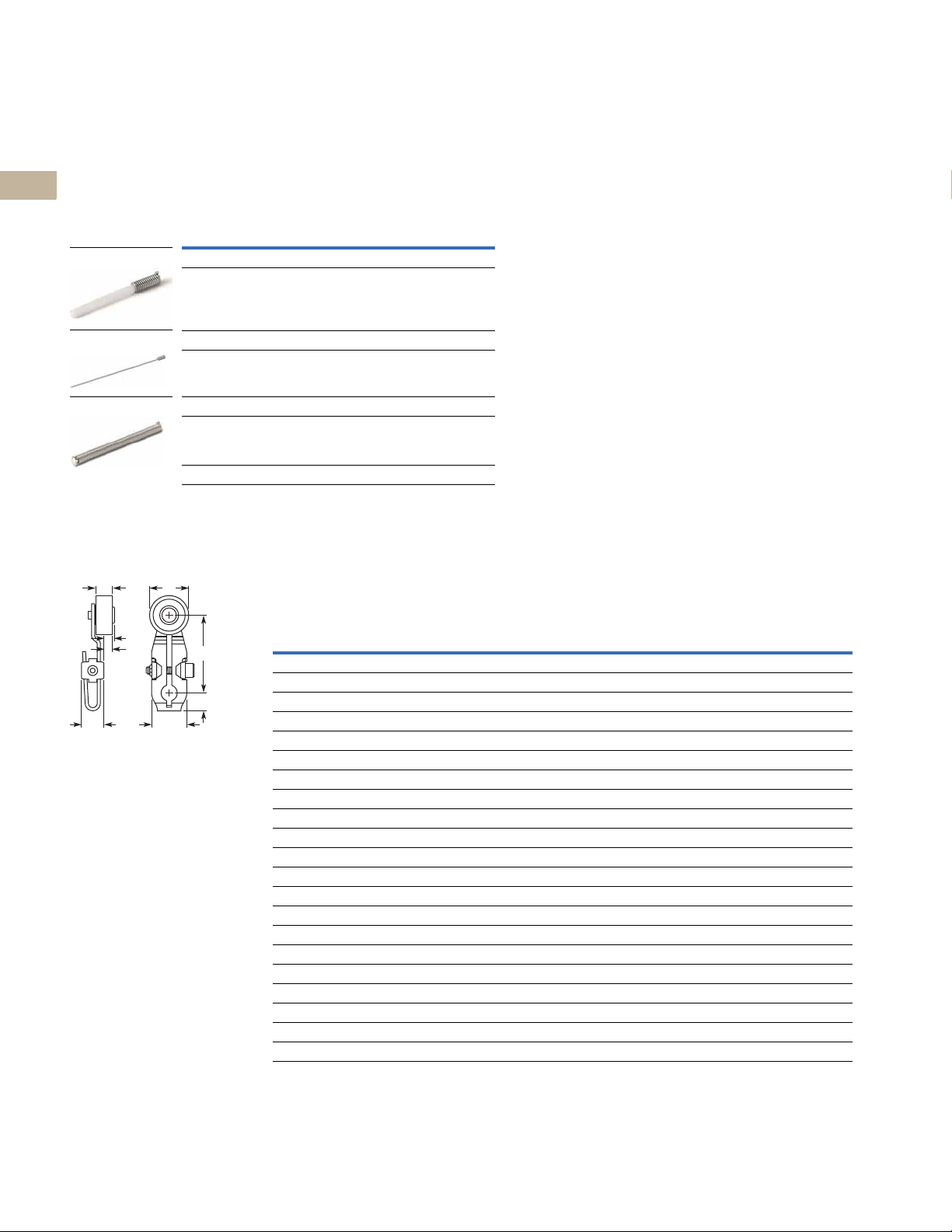

Wobble Type Operators
2
For E50DW1 and E50DWZ Operator Heads on E50 Plug-In and E50 6P+ Switches.
Note: Only operators with Nylatron rods or rollers should be used with explosion-proof limit switches.
2
Operators
2
2
2
2
2
2
2
2
2
2
Dimensions
2
Roller Type Operators
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Operators—Wobble Type
Wobble Type Catalog Number
Nylon Rod
E50KW2
Stainless Steel Rod
E50KW3
Coil Spring
E50KW4
Dimensions, see Page V8-T2-88.
Standard Roller
Approximate Dimensions in Inches (mm)
Catalog Number
E50KL39 0.88 (22.2) 0.75 (19.0) 0.32 (8.1) 0.31 (7.9) 0.20 (5.1) 0.24 (6.1)
E50KL40 1.38 (34.9) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL531 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8)
E50KL200 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL355 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL377 1.50 (38.1) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1)
E50KL32 1.50 (38.1) — — 0.34 (8.6) — —
E50KL552 2.00 (50.8) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8)
E50KL546 2.00 (50.8) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL549 2.00 (50.8) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL572 2.00 (50.8) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1)
E50KL553 2.50 (63.5) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8)
E50KL547 2.50 (63.5) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL550 2.50 (63.5) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL573 2.50 (63.5) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1)
E50KL575 2.50 (63.5) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.11 (2.8) 0.17 (4.3)
E50KL554 3.00 (76.2) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.05 (1.3) 0.11 (2.8)
E50KL548 3.00 (76.2) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL551 3.00 (76.2) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.13 (3.3) 0.17 (4.3)
E50KL574 3.00 (76.2) 0.75 (19.0) 1.00 (25.4) 0.34 (8.6) 0.83 (21.1) 0.83 (21.1)
E50KL576 3.00 (76.2) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.11 (2.8) 0.17 (4.3)
Note
1
Length from the operating shaft axis to the roller axis (or to the tip for non-roller operators).
A
Lever Length
B
1
Roller DiameterCRoller Width D E F
2
V8-T2-84 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 85
Limit Switches
0.44
(11)
A
D
C
F
E
B
0.67
(17 )
B
Dia
C
8.4
[0.33]
16
[0.64]
7. 6
[0.30]
D
38
[1.50]
26
[1.02]
24
[0.94]
20
[0.80]
Inboard
Roller
B Dia.
A
E
C
F
D
Max
60º
20R
[0.80]
16
[0.63]
12.7
[0.50]
Precision
Adjustment
Screw
Max
60º
Operators
2.8
Roller on Reverse Side
Approximate Dimensions in Inches (mm)
22
4.1
[0.16]
18
[0.69]
12
[0.48]
12.7
[0.50]
A
Lever Length
A
Lever Length
[0.18]
Catalog Number
E50KL580 1.50 (38.1) 0.69 (17.5) 0.25 (6.4) 0.34 (8.6) 0.18 (4.6) 0.24 (6.1)
E50KL310 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.27 (6.9) 0.31 (7.9)
E50KL579 1.50 (38.1) 0.75 (19.0) 0.32 (8.1) 0.34 (8.6) 0.27 (6.9) 0.31 (7.9)
E50KL536 1.50 (38.1) 1.50 (38.1) 0.28 (7.1) 0.34 (8.6) 0.23 (5.8) 0.31 (7.9)
Offset Roller
Approximate Dimensions in mm [in]
Catalog Number
Inboard
E50KL24 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 0.8 [0.03]
E50KL25 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 0.8 [0.03]
E50KL26 38.1 [1.50] 17.5 [0.69] 6.4 [0.25] 1.0 [0.04]
Outboard
E50KL27 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 0.8 [0.03]
E50KL28 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 0.8 [0.03]
E50KL29 38.1 [1.50] 17.5 [0.69] 6.4 [0.25] 1.0 [0.04]
E50KL30 38.1 [1.50] 19.0 [0.75] 25.4 [1.00] —
Bantam Lever
Approximate Dimensions
in mm [in]
[0.85]
16
[0.62]
B
1
Roller DiameterCRoller Width D E F
B
1
Roller DiameterCRoller Width D
4.6
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Precision Adjustment
Approximate Dimensions in mm [in]
Catalog Number
E50KL340 17.5 [0.69]
E50KL465 19.0 [0.75] 8.1 [0.32] 12.2 [0.48] 6.1 [0.24] 7.1 [0.28]
E50KL535 17.5 [0.69] 6.4 [0.25] 12.2 [0.48] 4.1 [0.16] 5.6 [0.22]
Notes
1
Length from the operating shaft axis to the roller axis (or to the tip for non-roller operators).
2
Maximum length dimension between operating shaft axis to the roller axis for comparison. Precision adjustable to lesser dimensions.
A
Lever Length
Roller length:
38.1 [1.50]
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-85
B
1
Roller DiameterCRoller Width D E F
19.0 [0.75] 8.1 [0.32] 12.2 [0.48] 6.1 [0.24] 7.1 [0.28]
2
2
2
2
2
2
2
2
2
2
2
2
Page 86
2.8
B Dia.
108
[4.24]
27
[1.08]11[0.42]
79
[3.12]
25.4R
[1.0]
95R
[3.75]
12.7
[0.50]
E
C
D
54
[2.12]
16
[0.62]12[0.48]
27
[1.06]
10
[0.38]
C
E
D
B
Dia.
38
[1.50]
1. 0
[0.04]
54
[2.12]
16
[0.62]12[0.48]
27
[1.06]
10
[0.38]
C
E
DFG
B
Dia.
38
[1.50)]
Limit Switches
Operators
2
2
2
2
2
2
2
2
2
2
2
2
2
2

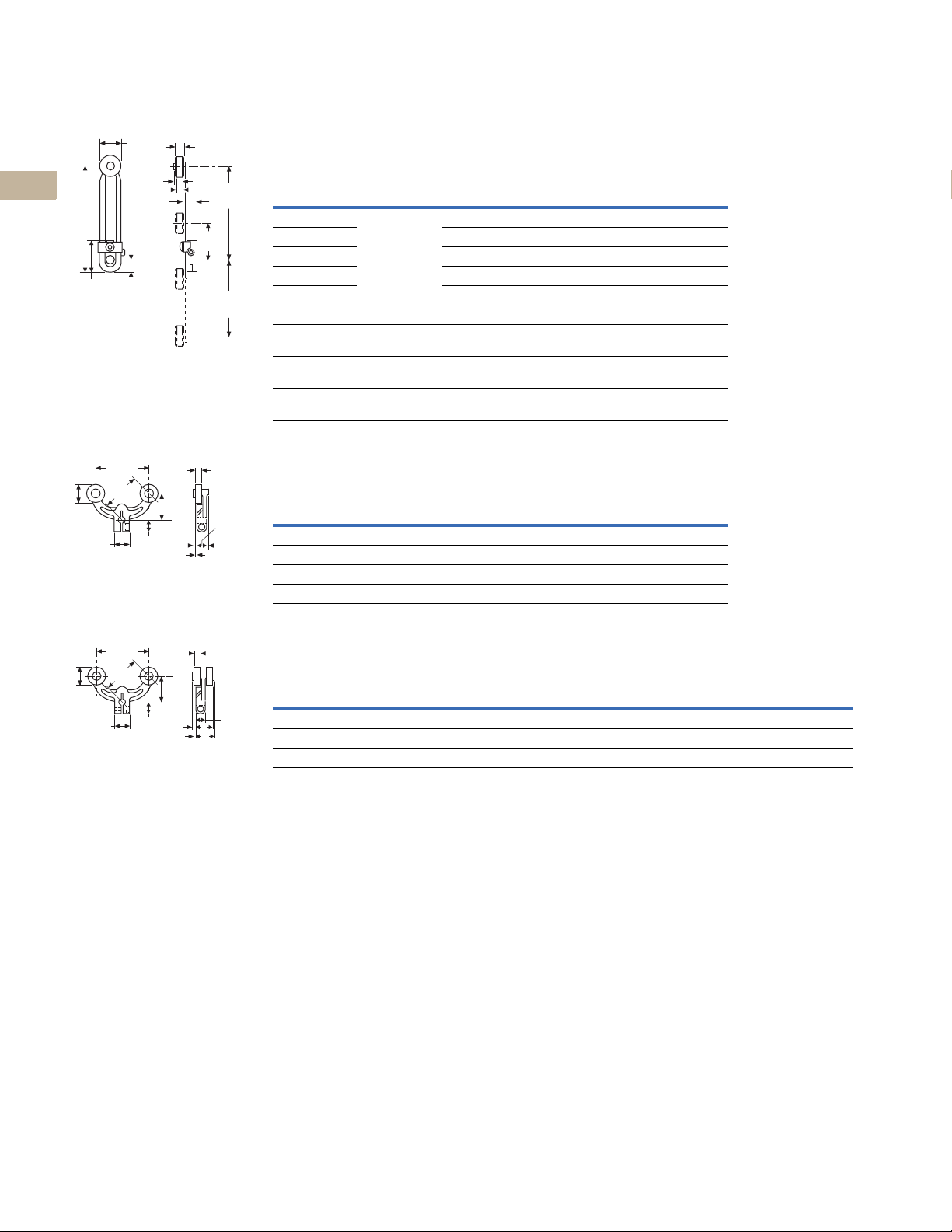

Adjustable Roller
Approximate Dimensions in mm [in]
B
Catalog NumberALever Length
E50KL539 25.4 [1.0] to
E50KL201 19.0 [0.75] 8.1 [0.32] 7.4 [0.29] 8.4 [0.33]
E50KL201SPL
E50KL538 19.0 [0.75] 8.1 [0.32] 7.4 [0.29] 8.4 [0.33]
E50KL599 19.0 [0.75] 12.7 [0.50] 11.6 [0.46] 12.2 [0.48]
E50KL537 19.0 [0.75] 25.4 [1.00] 22.9 [0.90] 24.1 [0.95]
E50KL598 12.7 [0.50] to
E50KL31 12.7 [0.50] to
E50KL443 41.3 [1.63] to
Fork Lever—Both Rollers on One Side
Approximate Dimensions in mm [in]
Catalog NumberALever Length
E50KL545 38.1 [1.50] 17.5 [0.69] 6.4 [0.25] 2.0 [0.08] 3.6 [0.14]
E50KL204 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 4.1 [0.16] 5.1 [0.20]
E50KL544 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 4.1 [0.16] 5.1 [0.20]
E50KL543 38.1 [1.50] 19.0 [0.75] 25.4 [1.00] 21.3 [0.84] 22.4 [0.88]
95.2 [3.75]
3
82.6 [3.25]
95.2 [3.75]
95.2 [3.75]
1
Roller DiameterCRoller Width D E
17.5 [0.69] 6.4 [0.25] 5.8 [0.23] 7.6 [0.30]
2
19.0 [0.75] 8.1 [0.32] 7.4 [0.29] 8.4 [0.33]
102.0 [4.00] 2.8 [0.11] 4.8 [0.19] 24.1 [0.95]
————
38.1 [1.50] 7.4 [0.29] 6.6 [0.26] 8.1 [0.32]
2
B
1
Roller DiameterCRoller Width D E
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Fork Lever—One Roller Outside, One Inside
Approximate Dimensions in mm [in]
Catalog NumberALever Length
E50KL542 38.1 [1.50] 17.5 [0.69] 6.4 [0.25] 2.0 [0.08] 3.6 [0.14] 16.3 [0.64] 17.8 [0.70]
E50KL203 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 4.1 [0.16] 5.1 [0.20] 18.5 [0.73] 19.6 [0.77]
E50KL541 38.1 [1.50] 19.0 [0.75] 8.1 [0.32] 4.1 [0.16] 5.1 [0.20] 18.5 [0.73] 19.6 [0.77]
Notes
1
Length from the operating shaft axis to the roller axis (or to the tip for non-roller operators).
2
By reassembling lever, minimum length can be reduced another 12.7 mm [0.5 in].
3
High-grade stainless steel.
V8-T2-86 Volume 8—Sensing Solutions CA08100010E—May 2013
1
B
Roller DiameterCRoller Width D E F G
Page 87
Limit Switches
6.35
[.25]
16.26
[.64]
9.65
[.38]
12.7
[.50]
28.45
[1.12]
B Dia.
A
Max.
Ext.
6.35
[.25]
247.90
[9.76]
307.85
[12.12]
6.35
[.25]
16.26
[.64]
9.65
[.38]
12.7
[.50]
28.45
[1.12]
Dia.
Nylon
6.35
[.25]
295.15
[11.62]
16.26
[.64]
9.65
[.38]
12.7
[.50]
28.45
[1.12]
228.6
[9.0]
2.29
[0.9]
Dia.
Steel
Spring Rod
6.35
[.25]
16.26
[.64]
9.65
[.38]
12.7
[.50]
28.45
[1.12]
12.7
[.50]
6.6
[.26]
3.05
[.12]
Dia.
Nylon
1.52
[.06]
Dia.
Steelcore
307.85
[12.12]
Max.
Ext.
307.85
[12.12]
19.1
[.75]
63.5
[2.50]
16.3
[.64]
8.1
[.32]
6.4
[.25]
106.4
[4.19]
Max.
4.2
[.164]
12.7
[.50]
28.4
[1.12]
9.7
[.38]
22.9R
[.90]
Dia.
0.44
[11]
A
D
C
B
0.67
[17]
Catalog
NumberARod Length
2
B
Rod Diameter
C
Rod Width D
E50KL33 38.1 [1.50] 4.8 [0.1875]
Loop ID: 9.5 [0.375]
13.1 [0.52] 8.6 [0.34]
Operators
2.8
Approximate Dimensions in Inches or mm [in]
Rod Type Operators
Adjustable Rod
Catalog Number
E50KL399 140.0 [5.50] 4.8 [0.19]
E50KL202 3.2 [0.12]
E50KL581 222.0 [8.75] Rod size (square):
E50KL220 229.0 [9.00] 4.8 [0.19]
E50KL226 305.0 [12.00] 3.2 [0.12]
Spring Rod—E50KL556 Spring Rod—E50KL421 Adjustable Wire
A
Rod Length
2
2
1
B
Rod Diameter
2
2
2
3.2 [0.12] x 3.2 [0.12]
2
2
2
2
2
2
2
2
2
djustable Wide
A
Roller Lev
Notes
1
2
Applies when lever is extended to the maximum dimension.
Length from the operating shaft axis to tip.
er Nyl
atron Loop—E50KL142 EyeBolt
31.8
[1.125]
Max.
+.05
7.16 – .00
+.002
.282 – .000
Dia.
48.3
[1.90]
4.0
Dia.
[.158]
Max.
12.7
[.50]
22.9
[.90]
152.4
[6.00]
139.7
[5.50]
5.1
[.20]
9.7
[.38]
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-87
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Page 88
Limit Switches
6.35
[.250]
124.45
[4.90]
20.60
[.81]
Dia.
2.8

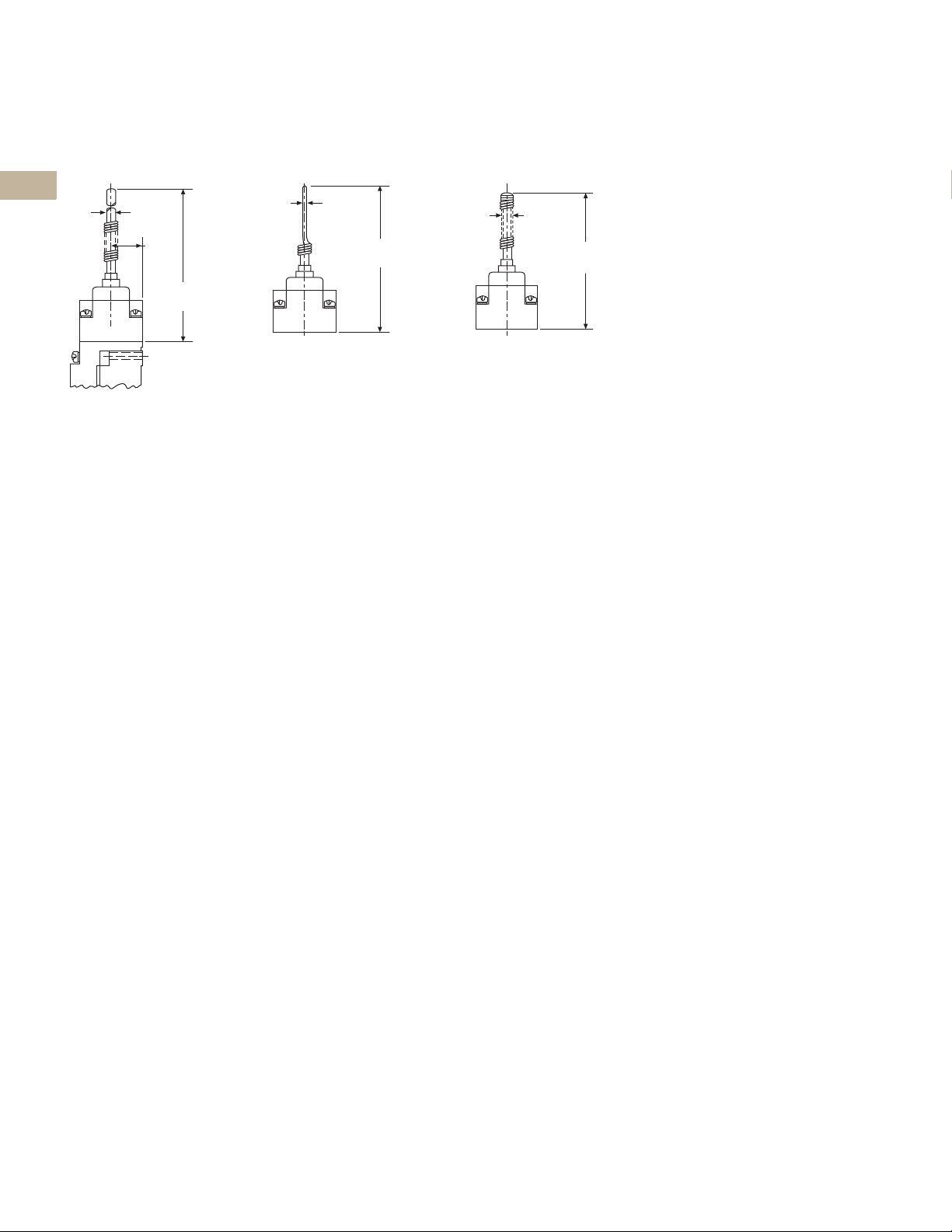

Wobble Type Operators
2
Nylon Rod Stainless Steel Rod Coil Spring
2
2
2
2
2
2
2
2
2
2
Operators
1.60
[.063]
Dia.
346.45
[13.64]
8.74
[.344]
Dia.
146.30
[5.76]
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
V8-T2-88 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 89
Limit Switches
Non Plug-In Switches
Non Plug-In Switches
2.9
Non Plug-In Switches
Product Description
10316 Type L non plug-in
limit switches by Eaton’s
electrical sector are sold
as complete assembled
devices only with a wide
array of operating head
configurations. All switches
are single-pole 1NO-1NC.
Features
●
Side and top rotary, side
d top push or wobbl
an
op
eration
●
CW, CCW or CW and CCW
operating modes are fiel
co
nvertible
●
Double break-make snap
on contacts, sam
acti
po
larity each pole
●
Captive saddle clamp
terminals a
#1
2 wire
●
Head can be mounted
n any of four di
i
po
sitions, intervals of 90°
ccept up to
screte
Contents
Description Page
Non Plug-In Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-90
Technical Data and Specifications . . . . . . . . . . V8-T2-91
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-91
2
2
2
2
2
2
2
2
2
2
2
Standards and Certifications
●
e
d
e
UL Listed
●
CSA Certified
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-89

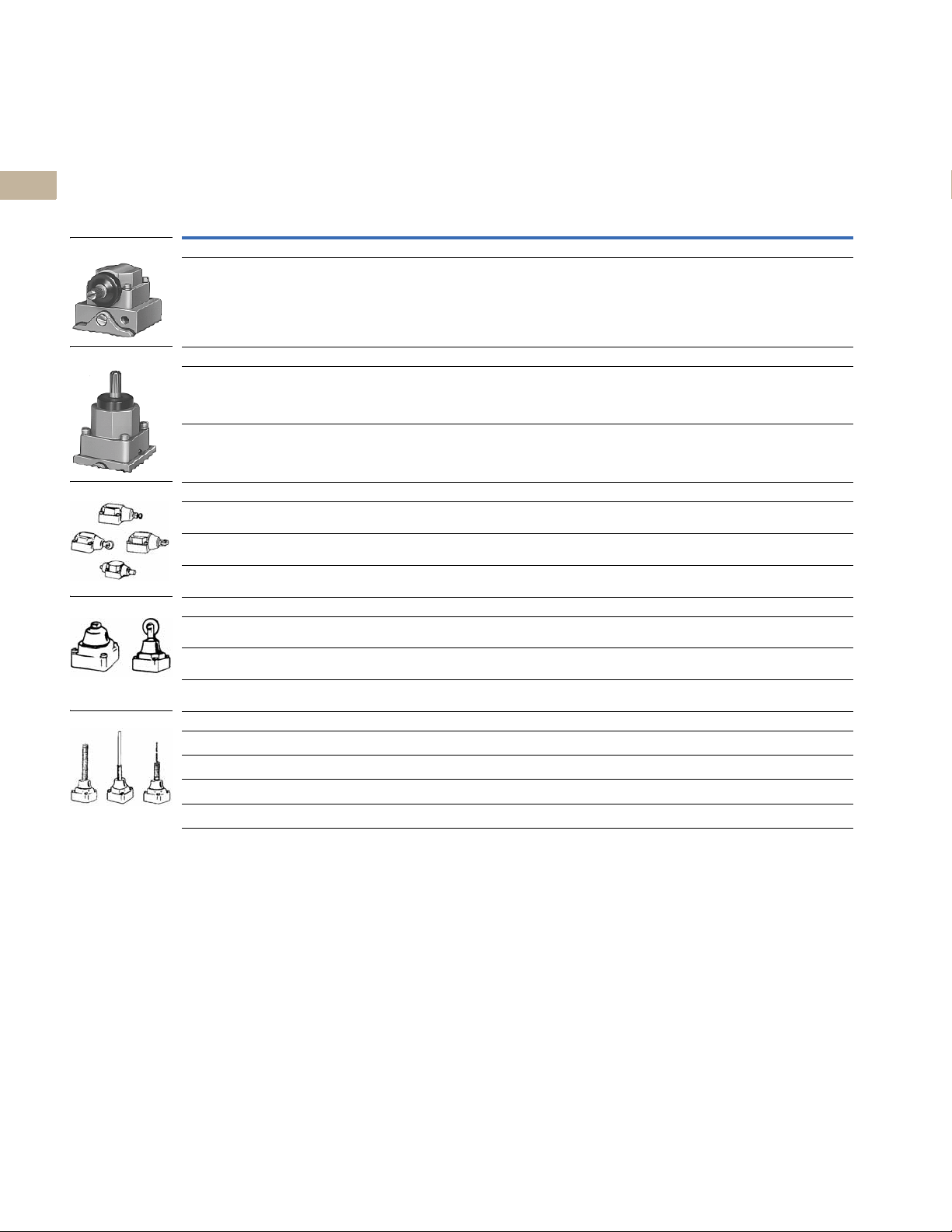

Page 90
2.9
Side Rotary Operated
Top Rotary Operated
Side Push Operated
Top Push Operated
Wobble Operated
Product Selection
2
2
2
2
2
2
Limit Switches
Non Plug-In Switches
Complete Assembled Switches Single-Pole 1NO-1NC
Operating Data—Nominal
1
Travel to Operate
Contacts
Operating Characteristics
Side Rotary Operated
Standard 10° 4° 50° 3 in-lbs 4.5 in-oz 10316H187
Travel to Reset
Contacts Total Travel
Force to Operate
Contacts
Minimum
Return Force
Catalog Number
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Top Rotary Operated
Clockwise 20° 12° 140° 1.1 in-lbs 3 in-oz 10316H700
Counterclockwise 20° 12° 140° 1.1 in-lbs 3 in-oz 10316H701
Side Push Operated
Adjustable pushbutton 0.07 in (1.8 mm) 0.03 in (0.8 mm) 0.29 in (7.4 mm) 4 lbs 8 oz 10316H621
Vertical roller—
0.44 in (11.2 mm) dia.
Horizontal roller—
0.44 in (11.2 mm) dia.
Top Push Operated
Pushbutton 0.04 in (1.0 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz 10316H281
Roller—0.44 in (11.2 mm) dia. 0.04 in (1.0 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz 10316H283
Roller—0.75 in (19.1 mm) dia. 0.04 in (1.0 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz 10316H577
Wobble Operated
Spring 10° 6° 15° 1 in-lb 2.4 in-oz 10316H299
Nylon rod 10° 6° 15° 2 in-lbs 2.4 in-oz 10316H296
Wire 10° 6° 15° 2 in-lbs 2.4 in-oz 10316H484
Cat whisker 15° 5° 30° 0.63 in-lb 1.7 in-oz 10316H341
Notes
1
For operating levers, see Page V8-T2-80.
2
For wobble operators, see Page V8-T2-80.
1
0.07 in (1.8 mm) 0.03 in (0.8 mm) 0.29 in (7.4 mm) 4 lbs 8 oz 10316H284
0.07 in (1.8 mm) 0.03 in (0.8 mm) 0.29 in (7.4 mm) 4 lbs 8 oz 10316H285
2
2
2
2
2
2
2
2
V8-T2-90 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 91
Limit Switches
0.50
Pipe Tap
3.875
1.750.50
0.50
0.28
0.25
2.84
(2) 0.203 Dia. Holes for Front Mtg.
(2) 10-32 Tapped Holes 0.375 Deep
for Rear Mtg.
2.34
1.16
1.16
1.5 5
1.78
1.44
0.09
0.5
1.56
0.31 Max.
Adjustment
0.1
1.0
0.31 Sq.
0.31 Sq.
1.59
0.50
3
0.5
A
1.0
3
2.97
1.31 1.66
0.25
0.38
Dia.
0.5
0.31
Sq.
1.0
3
A
B
C
Non Plug-In Switches
2.9
Technical Data and Specifications
Non Plug-In Switches
Description Specification
Contact rating NEMA A600, R300 double break-make snap action contacts
Electrical life 500,000 operations minimum
Mechanical life 5,000,000 operations minimum at full load
Conduit entrance 0.5 in (12.7 mm) NPT
Material of construction Zinc die cast
Enclosure rating NEMA 1, 4, 13
1
Ambient operating temperature –20° to 200°F (–29° to 93°C)
Approximate shipping weight 2 lbs
Electrical Data—Maximum Contact Ratings per Pole
Current, Amperes Volts, Amperes
AC Volts
NEMA A600, R300 Rating
120 60 6 10 7200 720 125 0.22
240 30 3 10 7200 720 250 0.11
480 15 1.5 10 7200 720 250 0.11
600 12 1.2 10 7200 720 250 0.11
Cont. Thermal
Ratings Make Break DC Volts
2
DC Current,
AmpereMake Break
Dimensions
Approximate Dimensions in Inches or Inches (mm)
Side Rotary Operated
Head with Switch
Side Pushbutton,
Adjustable Top Pushbutton Side Push, Vertical Roller
3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Side Push Maintained
ntact Top Push Roller Wobble Operators
Co
2
Dimension “A”
With 0.44 (11.2) dia. roller 1.78 (45.2)
With 0.75 (19.1) dia. roller 2.09 (53.1)
2
2
2
2
Notes
0.16
3
A
0.50
1
Ranges below 32°F (0°C) are based on
absence of freezing moisture or water.
2
Contacts must be same polarity when
both circuits are used.
3
4
Dimension from centerline of head to
mounting surface is 0.78 in (20 mm).
4
Center to mounting surface.
2
2
2
2
2
Dimension “A”
With 0.44 (11.2) dia. roller 2.03 (51.6)
With 0.75 (19.1) dia. roller 2.34 (59.4)
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-91
ABC
Wobble Spring
5.44 (138.2) 0.31 (7.9) 0.81 (20.6)
Wire Wobble Stick
12.5 (317.5) 0.08 (2.0) 0.81 (20.6)
Nylon Wobble Stick
4.5 (114.3) 0.25 (6.4) 0.81 (20.6)
2
2
2
2

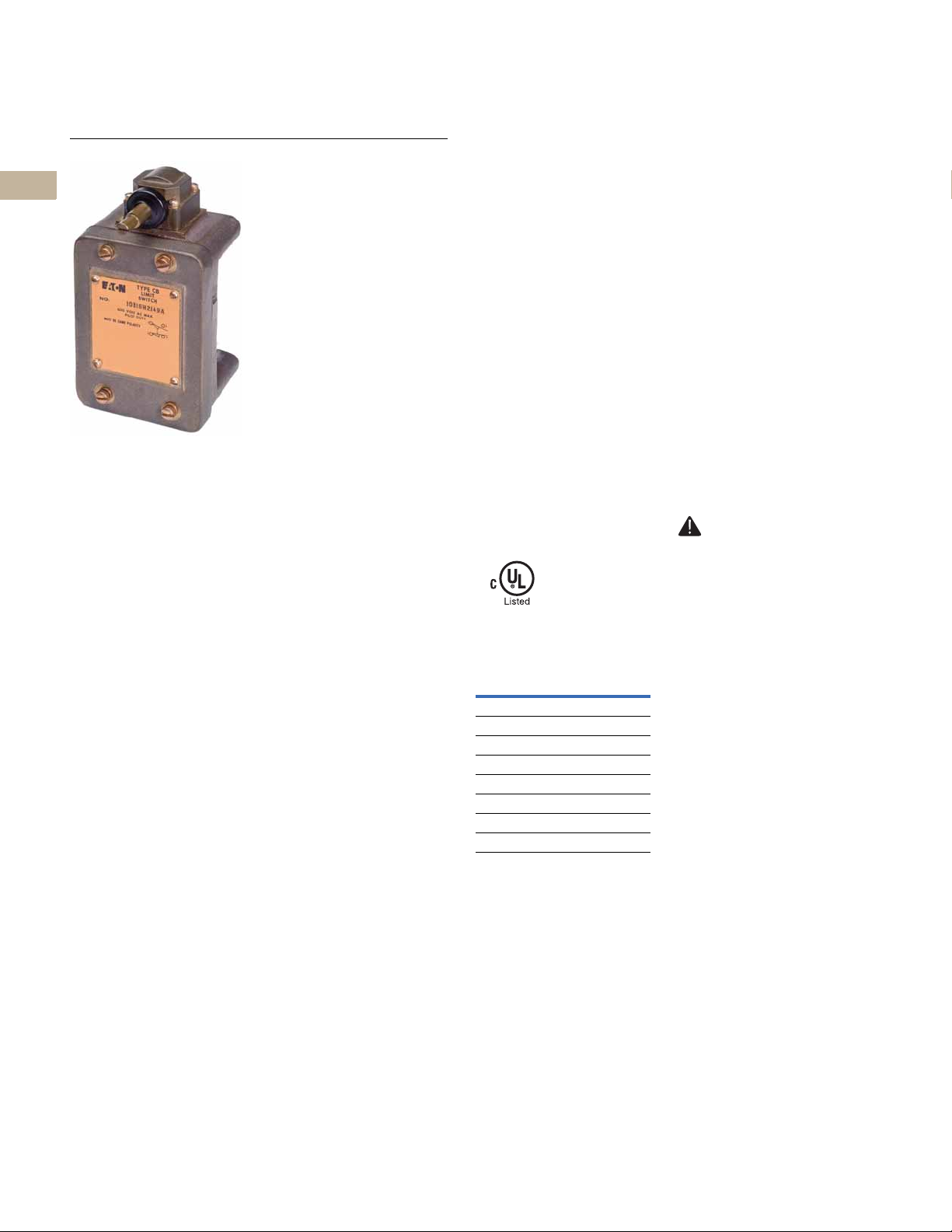

Page 92
2.10
Hazardous Location Limit Switches
Limit Switches
Hazardous Location Limit Switches
2
2
2
2
2
2
2
2
2
2
2
Hazardous Location Limit Switches
Product Description
2
Type LX, CX and CBX limit
switches by Eaton’s electrical
2
sector are designed for
extreme environmental
2
service in NEMA 7–9
locations where the danger
2
of an internal or external
explosion of flammable
2
gases, vapors, metal alloy
or grain dust exists. Type CB
provides excellent corrosion
2
resistant properties in
NEMA 4X applications.
2
Markets served include
mining, grain storage, forest
2
products, petrochemical,
pharmaceutical and waste
and sewage management.
2
2
2
2
Features
●
Sealed and unsealed
rsions available
ve
●
One-way gasket on sealed
version keeps liquids out,
yet allows a harml
release of gases in the
vent of an inte
e
ex
plosion
●
Silicon bronze housing
vides excell
pro
co
rrosion resist
properties in extreme
NEMA 4X app
●
Temperature buildup on
switch surf
limit
di
ssipated by housin
de
sign and materials used
●
Utilizes the operating
ads and internal
he
switch mechanisms of the
10316 L non plug-in line
ess
rnal
ent
ant
lications
ace is
Contents
Description Page
Hazardous Location Limit Switches
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V8-T2-93
Technical Data and Specifications . . . . . . . . . . V8-T2-94
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-91
Standards and Certifications
●
cUL
NEMA Ratings Comparison
Switch Type
LX CX CBX CB
NEMA 1, 4, 13
— ✔ ✔ ✔
NEMA 4X
g
——✔ ✔
NEMA 7 Division I, Class I, BCD
✔ ✔ ✔ —
NEMA 9 Division I, Class II, EFG
✔ ✔ ✔ —
Note
1
Not rated for explosive locations.
1
DANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
V8-T2-92 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 93
Limit Switches
Side Rotary
Operated
2
Head Type
Side Push Operated
Hazardous Location Limit Switches
2.10
Product Selection
Complete Assembled Switches with Spring Return Heads 1
Operating Data—Nominal
Travel to Operate
Contacts
Standard, 10° Pre-Travel
10° 4° 50° 3.0 in-lbs 4.5 in-oz Type LX 1NO-1NC
Narrow Differential 5° Pre-Travel
5° 2° 50° 6.0 in-lbs 4.5 in-oz Type LX 1NO-1NC
Neutral Position, 18° Pre-Travel
18° 6° 50° 1.8 in-lbs 2.5 in-oz Type LX 2NO 10316H1071
Pushbutton
0.07 in (1.8 mm) 0.03 in (0.76 mm) 0.29 in (7.4 mm) 4 lbs 8 oz Type LX 1NO and 1NC
Adjustable Pushbutton
0.07 in (1.8 mm) 0.03 in (0.76 mm) 0.29 in (7.4 mm) 4 lbs 8 oz Type LX 1NO-1NC
Vertical Roller, 0.44 in (11.2 mm) Diameter
0.07 in (1.8 mm) 0.03 in (0.76 mm) 0.29 in (7.4 mm) 4 lbs 8 oz Type LX 1NO-1NC
Vertical Roller, 0.75 in (19.1 mm) Diameter
0.07 in (1.8 mm) 0.03 in (0.76 mm) 0.29 in (7.4 mm) 4 lbs 8 oz Type LX 1NO-1NC
Travel to Reset
Contacts Total Travel
3
3
5
Force to
Operate
Contacts
Minimum
Return Force
Body
Type Contacts Catalog Number
4
2NO 10316H1039
1NO and 1NC
2NC 10316H1059
Type CX 1NO-1NC
Type CB 1NO-1NC
Type CBX 1NO-1NC
Type CX 1NO-1NC
Type CX 2NO 10316H2179
Type CBX 2NC 10316H2160
4
1NO and 1NC
2NC 10316H2178
4
2NC 10316H2140
4
2NC 10316H2159
4
4
2NC 10316H1072
4
4
4
4
4
4
10316H1002
10316H1049
10316H2200
10316H2176
10316H2149
10316H2168
10316H1146
10316H2197
10316H1213
10316H1192
10316H1007
10316H1194
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Notes
1
Contact Eaton’s Sensor Applications Engineering at 1-800-426-9184 for replacement contact blocks.
2
For operating levers, see Page V8-T2-80. Only levers with Nylatron rods or rollers should be used with explosion-proof limit switches.
3
Field convertible to clockwise only or counterclockwise only operation.
4
1NO-1NC contacts must be same polarity when both circuits are used—1NO and 1NC contacts have isolated poles and may be used on opposite polarity.
5
Neutral position switches operate one circuit in each direction.
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-93
2
2
2
2
2
2
2
2
2
2

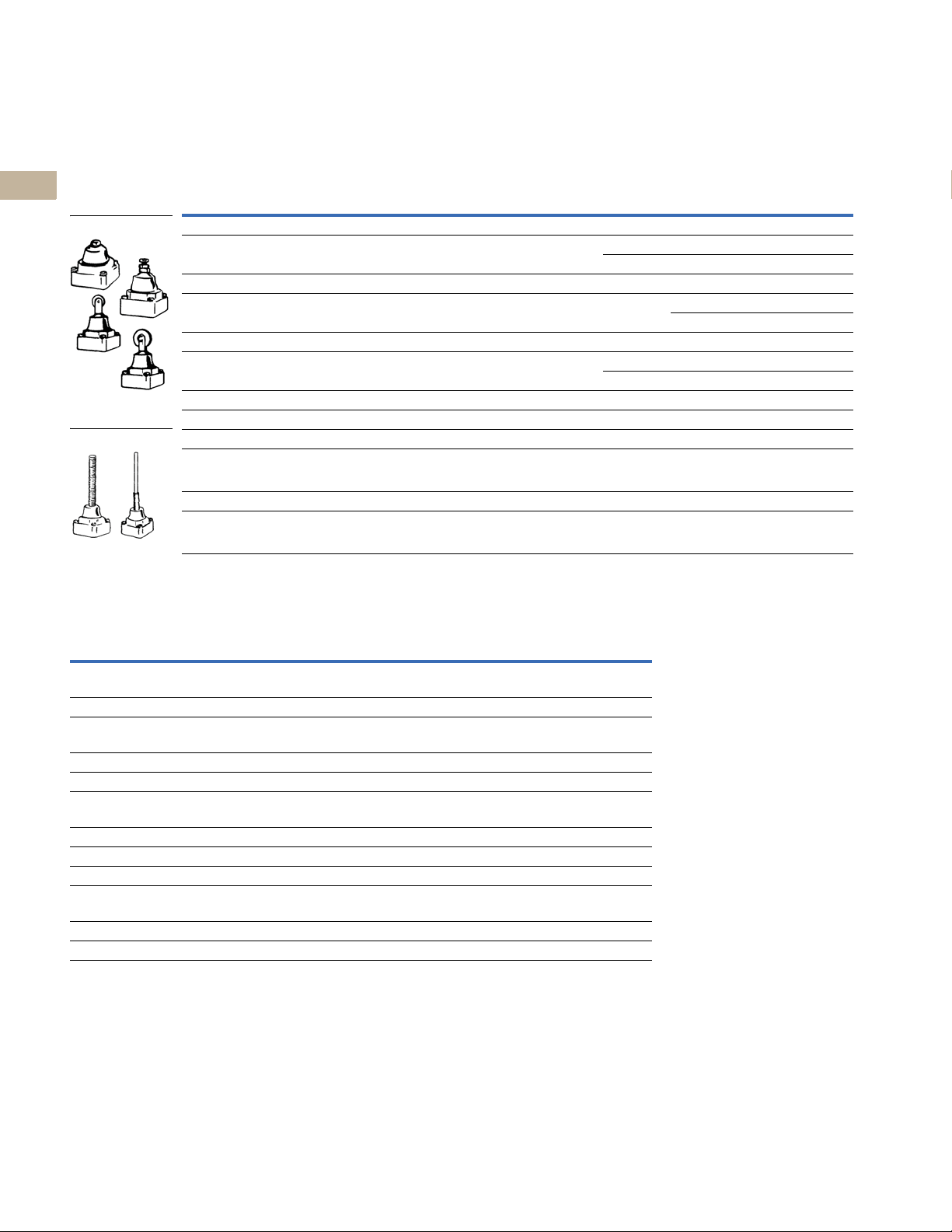

Page 94
2.10
Top Push Operated
Wobble Operated
Limit Switches
Hazardous Location Limit Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Technical Data and Specifications
2
Hazardous Location Limit Switches
Description Specification
2
Material of construction
2
2
Conduit entrance
2
Mounting Surface mount
2
Enclosure rating
2
2
Ambient operating temperature –20° to 200°F (–29° to 93°C)
2
Approximate shipping weight
2
2
Notes
1
2
2
3
2
4
5
2
Complete Assembled Switches with Spring Return Heads, continued 1
Operating Data—Nominal
5
Force to
Operate
Contacts
Minimum
Return Force
4
Body
Type Contacts Catalog Number
Type CX 1NO and 1NC
Type CBX 1NO-1NC
Travel to Operate
Contacts
Pushbutton
0.04 in (1 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz Type LX 1NO-1NC
Adjustable Pushbutton
0.04 in (1 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz Type LX 1NO-1NC
Roller, 0.44 in (11.2 mm) Diameter
0.04 in (1 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz Type LX 1NO-1NC
Roller, 0.75 in (19.1 mm) Diameter
0.04 in (1 mm) 0.02 in (0.5 mm) 0.28 in (7.1 mm) 4 lbs 8 oz Type LX 1NO-1NC
Spring
3
10°
Nylon Rod
3
10°
LX, CX Cast aluminum die cast
CB, CBX Silicon bronze
LX 1/2 in pipe tap
CB, CBX, CX 3/4 in pipe tap
LX, CX, CBX NEMA 7 Div. 1, Class I BCD; NEMA 9 Div. 1, Class II, EFG
CB, CBX NEMA 1, 4, 4X, 13
CX NEMA 1, 4, 13
LX 2 lbs
CX 2.5 lbs
CB, CBX 6 lbs
Contact Eaton’s Sensor Applications Engineering at 1-800-426-9184 for replacement contact blocks.
1NO-1NC contacts must be same polarity when both circuits are used—1NO and 1NC contacts have isolated poles and may be used on opposite polarity.
Travel with force applied at one-in (25.4 mm) radius. Applied at end of operator, travel is approximately 14.
A conduit seal-off kit is required for these switches
Ranges below 32°F (0°C) are based on absence of freezing moisture or water.
Travel to Reset
Contacts Total Travel
6° 15° 1 in-lb 2.4 in-oz Type LX 1NO-1NC
6° 15° 2 in-lbs 5.6 in-oz Type LX 1NO-1NC
4
4
2
2
1NO and 1NC
2
2
2
2
2
2
2
10316H1004
10316H2188
10316H1191
10316H1212
10316H1006
10316H2170
10316H1193
10316H1237
10316H1009
2
2
V8-T2-94 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 95
Limit Switches
5.22
0.69
0.50
2.81
0.875
0.31
3.38
1.19
2.25
0.25
1.4 4
2.25
4
0.27 Dia.
2 Holes
1/4-20
Pipe
Tap
0.31
Deep
Both
Sides
1/4-20
Pipe Tap
0.28 Deep
Both
Sides
5/16-18
Pipe Tap
0.56
Deep
Both
Sides
0.27 Dia.
2 Holes
0.50
Pipe
Tap
1.44
0.31 Sq.
0.5
1.0
0.31 Sq.
1.59
0.50
5
0.5
A
1.0
5
3.08
.325
.685
.945
3.50
2.54
2.60
3.00
2.36
5.35
4.165
.50
.277
3/4-14 Taper
Pipe Tap
0.257 Dia.
4 Mtg. Holes
Type CX
Type CBX
Type CB
1.44
0.09
0.5
1.56
0.31 Max.
Adjustment
0.1
1.0
0.31 Sq.
A
B
C
Hazardous Location Limit Switches
2.10
Electrical Data—Maximum Contact Ratings, per Pole
Current, Amperes Volt Amperes
AC Volts
1NO-1NC Switches
NEMA A600, R300 rating
120 60 6 10 7200 720 125 0.2
240 30 3 10 7200 720 250 0.1
480 15 1.5 10 7200 720 250 0.1
600 12 1.2 10 7200 720 250 0.1
All Other Switches, B600
120 30 3 5 3600 360 120 0.1
240 15 1.5 5 3600 360 240 0.05
480 7.5 0.75 5 3600 360 240 0.05
600 6 0.60 5 3600 360 240 0.05
1
Make Break
DC Volts
DC Current,
AmpereMake Break Cont.
Dimensions
Approximate Dimensions in Inches or Inches (mm)
Type LX Switch with
Side Rotary Head Side Pushbutton Head Top Pushbutton Head
5
Side Push, Vertical
Roller Head
Dimension “A”
With 0.44 (11.2) dia. roller 1.78 (45.2)
With 0.75 (19.1) dia. roller 2.09 (53.1)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Type CX, CB and CBX
itches with
Sw
Side Rotary Head
Adjustable Side
Pushbutton Head
2
Adjustable Top
shbutton Head
Pu
0.31 Sq.
0.31 Max.
0.10
Adjustment
1.69
0.50
0.25
2
Top Push Roller Head
2
0.16
A
0.50
5
Wobble Operators
3
ABC
Wobble Spring
5.44 (138.2) 0.31 (7.9) 0.94 (23.9)
Nylon Red
4.5 (114.3) 0.25 (6.4) 0.94 (23.9)
Notes
1
1NO-1NC contacts must be same
polarity when both circuits are used—
1NO and 1NC contacts have isolated
poles and may be used on opposite
polarities.
2
Dimension from centerline of head to
mounting surface is 0.78 in (20 mm).
3
Center to mounting surface.
2
2
2
2
2
2
2
2
2
2
Dimension “A”
With 0.44 (11.2) dia. roller 2.03 (51.6)
With 0.75 (19.1) dia. roller 2.34 (59.4)
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-95
Page 96
2.11
Special Purpose Limit Switches
Limit Switches
Special Purpose Limit Switches
2
2
2
2
2
2
2
2
2
2
2
Special Purpose Limit Switches
Product Description
2
Special Purpose (Type F),
Rotating Shaft (Type J),
2
Pneumatic Time Delay (Type
LP) and Precision and Cabinet
2
Door Interlock (Type PS) Limit
Switches from Eaton’s
2
electrical sector serve a
variety of special purpose
2
industrial applications for
MRO and User Replacement
requirements.
2
2
2
2
2
Features
●
UL Listed
●
CSA Certified
(PS and J only
Contents
Description Page
Special Purpose Limit Switches
Product Selection
Roller Lever Switches . . . . . . . . . . . . . . . . . V8-T2-97
Rotating Shaft Switches . . . . . . . . . . . . . . . V8-T2-97
Pneumatic Time Delay Switches . . . . . . . . V8-T2-98
Precision Switches . . . . . . . . . . . . . . . . . . . V8-T2-98
Technical Data and Specifications . . . . . . . . . . V8-T2-99
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . V8-T2-101
Standards and Certifications
Type F
●
)
UL Listed
Type J
●
UL Listed
●
CSA Certified
T
ype LP
●
UL Listed
Type PS
●
UL Recognized
●
CSA Certified
D
ANGER
THIS SENSOR IS NOT A
SAFETY DEVICE AND IS NOT
INTENDED TO BE USED AS A
SAFETY DEVICE. This sensor
is designed only to detect
and read certain data in an
electronic manner and
perform no use apart from
that, specifically no safetyrelated use. This sensor
product does not include
self-checking redundant
circuitry, and the failure of
this sensor product could
cause either an energized
or de-energized output
condition, which could result
in death, serious bodily
injury, or property damage.
2
2
2
2
2
2
2
2
2
V8-T2-96 Volume 8—Sensing Solutions CA08100010E—May 2013

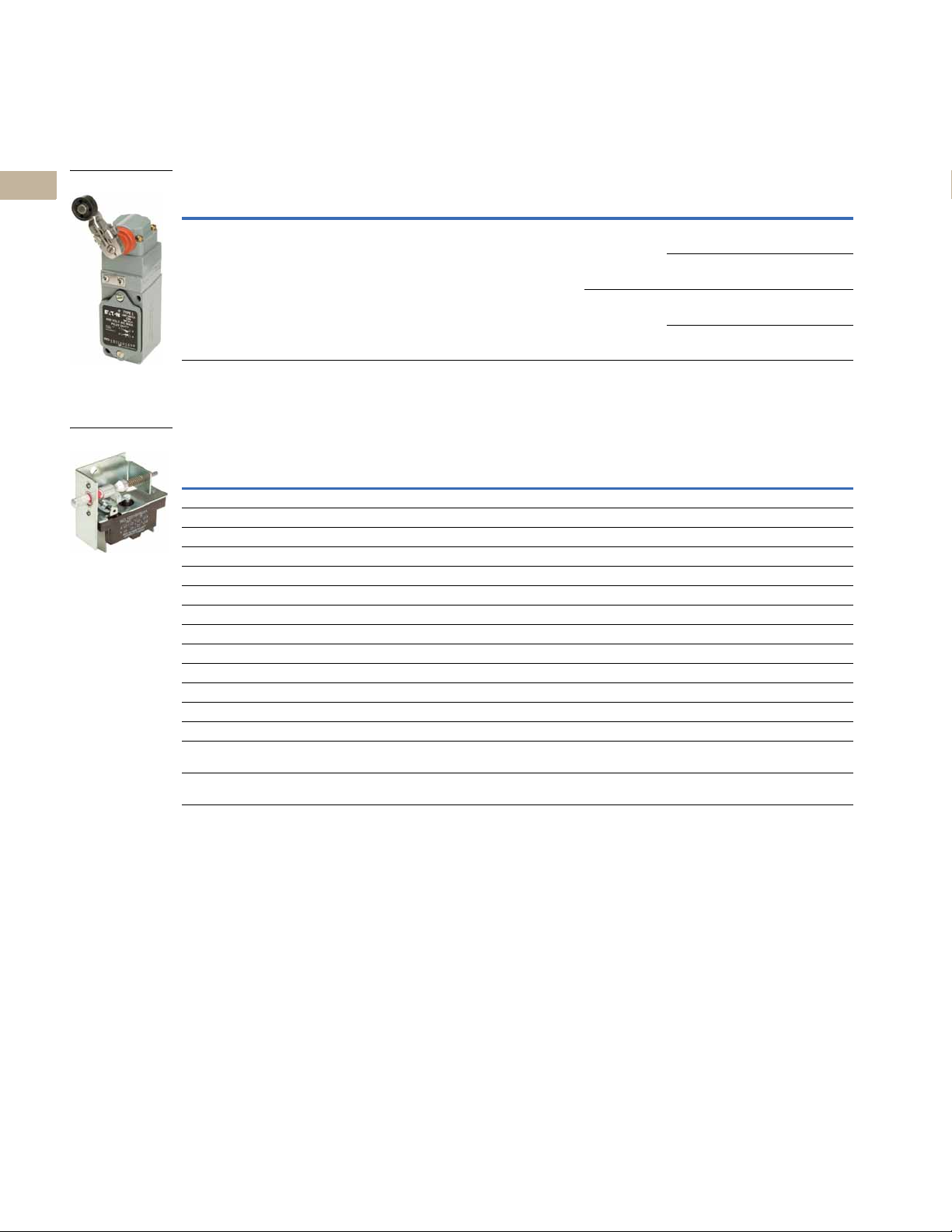

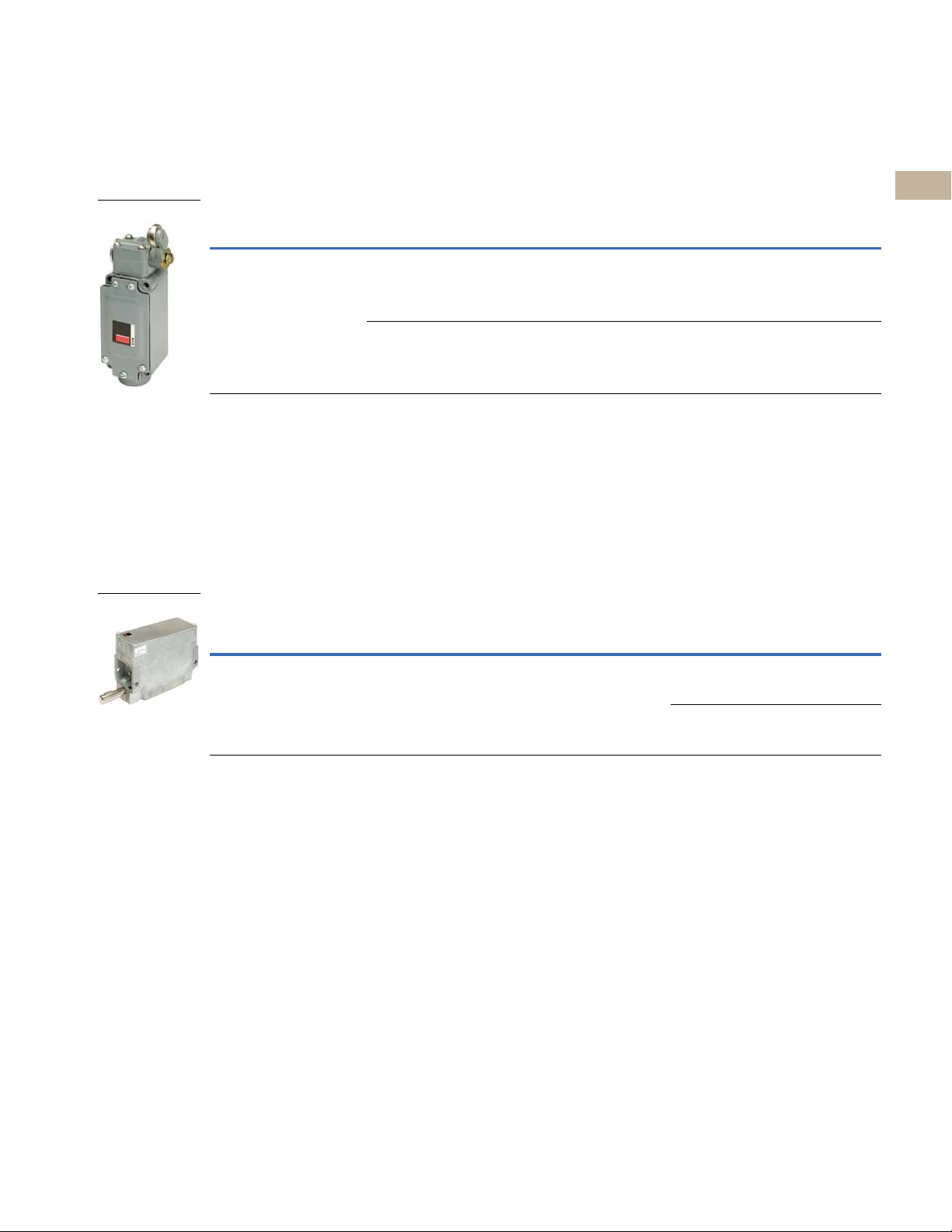

Page 97
Limit Switches
Roller Lever
Rotating Shaft
Special Purpose Limit Switches
2.11
Product Selection
Roller Lever Switches
Type F Switches
Operator Circuit
Roller lever (CW and CCW operation,
spring return)
Rotating Shaft Switches
Ty p e J
Rotating Shaft Limit Switches
allow the shaft to be rotated a
preset number of revolutions
(adjustable from 1/2 to 100
with an accuracy of 1/20 of a
turn) before the contacts will
switch. A second set of
Type J Switches
Shaft to
Cam Ratio
103:1 100 input
1
1NO-1NC 40° 35° 65° 25° 10316H18
2NO-2NC 17° 6° 60° 43° 10316H320
contacts will trip when
reaching a preset limit in the
opposite direction. These
switches are typically used in
crane and hoist applications
to provide end of travel stops
for the hook assembly.
Max. Turns to
Trip Contacts
shaft turns
Min. Turns to
Trip Contacts
1/2 input
shaft turns
Travel to Operate
Contacts
Over-Travel Before
Resetting Contacts
103 input
shaft turns max.
Travel to Reset
Contacts Total Travel Over-Travel Catalog Number
Reversal After
Tripping to
Reset Contacts Circuit
1/8 input
shaft turns min.
2NC NEMA 1 10316H50
2NO-2NC
Enclosure
2
Rating Catalog Number
3
NEMA 4 10316H54
3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Notes
1
Replacement operator head is available with part number 86-862-22.
Replacement roller lever is available with part number 24-1712.
Replacement key pin and washer for roller is available with part number 16-906.
2
For replacement NO contacts, order 17-1403; NC contacts, order 17-702.
3
10316H54 has factory set circuits, but is easily convertible to any of three circuits (2NO-2NC, 4NO or 4NC).
Full instructions enclosed with every switch.
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-97
2
2
2
2
2
2
2
2
2
2
2
2
Page 98
2.11
Pneumatic Time Delay
Cabinet Door Interlock
Pneumatic Time Delay Switches
2
2
2
2
Limit Switches
Special Purpose Limit Switches
Type LP Switches
Operator Total Travel Pre-Travel Circuit
Side rotary
(Spring return to center)
1
50° 10° 1NO-1NC ON delay CW 10316H1580
Timed
Contacts
Direction of
2
Rotation
CW and CCW 10316H1600
Catalog Number
2
2
2
2
Precision Switches
2
2
2
2
2
2
2
2
2
2
2
2
2
2
OFF delay CW 10316H1610
CW and CCW 10316H1630
Type PS Switches
Circuits—
Operator
Precision Switch Devices
Precision switch only 10316H8
Pushbutton with oiltight plunger — 10316H2006 —
Roller with oiltight plunger perpendicular to mounting holes — 10316H2012 —
Roller with oiltight plunger in line with mounting holes 10316H110 — —
6 in lever with top and right-hand mounting bracket 10316H113 — 10316H143
6 in lever with top and left-hand mounting bracket — — 10316H144
Roller lever with top and right-hand mounting bracket 10316H119 — 10316H145
Roller lever with top and left-hand mounting bracket 10316H122 — 10316H146
One way roller lever with top and right-hand mounting bracket — — 10316H147
One way roller lever with top and left-hand mounting bracket — — 10316H148
Cabinet Door Interlocks
Precision switch only 10316H828 10316H829A —
Cabinet door interlock operator with one precision switch and
with red (defeated
Cabinet door interlock operator with two each of listed precision
switches and with red (defeated
Notes
1
Requires an operating lever, see Page V8-T2-80.
2
Field convertible.
3
The plunger exposes a red band when pulled out to indicate that interlock is defeated.
3
) indicator
3
) indicator
SPDT 1NO-1NC
Catalog Number
9 10
10316H1028 10316H2042 10316H150
10316H1029 — —
Circuits—
DPDT 2NO-2NC
Catalog Number
316H2
000
Operator Only
Catalog Number
—
2
2
2
2
2
2
2
2
V8-T2-98 Volume 8—Sensing Solutions CA08100010E—May 2013
Page 99
Limit Switches
Special Purpose Limit Switches
2.11
Technical Data and Specifications
Special Purpose Limit Switches
Description Specification
Roller Lever Switches—Type F
Enclosure rating NEMA 4
Operating temperature 0° to 180°F (–18° to 82°C)
Conduit entrance 0.5 in NPT
Shipping weight 4.0 lbs
Rotating Shaft Switches—Type J
Shipping weight
NEMA 1 models 5.5 lbs
NEMA 4 models 13 lbs
Pneumatic Time Delay Switches—Type LP
Timing range 0.05 to 60 seconds
ON delay function Timing begins when lever is actuated and held
OFF delay function Timing begins when lever is released
Repeat accuracy
Operating frequency 250 operations per minute maximum
Enclosure rating NEMA 4, 13
Ambient operating temperature 32° to 150°F (0° to 65°C)
Conduit entrance 0.5 in NPT
Shipping weight 2 lbs
Note
1
To maintain operating accuracy during the timing cycle, the switch lever must be faster than the timed setting.
1
With 15 second or higher interval between timing periods: ±10% of setting maximum
With less than 15 second interval between timing periods: ±25% of setting maximum
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Volume 8—Sensing Solutions CA08100010E—May 2013 V8-T2-99
2
Page 100
Limit Switches
2.11
Type F—Maximum Ampere Ratings
2
Circuit State
2
1NO-1NCMake60302015———
2
2NO-2NCMake4020108 ———
2
2
Type J—Maximum Ampere Ratings
2
State
2
Make 60 30 15 12 2.2 1.1 —
Break 6 3 1.5 1.2 2.2 1.1 —
2
Continuous
2
Type LP— Electrical Data, Maximum Contact Ratings/Pole
2
2
All Switches 1NO-1NC
2
NEMA A600, R300 Rating
120 60 6 10 7200 720 120 0.2
2
240 30 3 10 7200 720 240 0.1
480 15 1.5 10 7200 720 240 0.1
2
600 12 1.2 10 7200 720 240 0.1
2
Break 6 3 1.5 1.2 2.2 1.1 0.40
Break 15 10 6 5 0.5 0.2 0.02
1
Special Purpose Limit Switches
AC Vol ts DC Vol ts
120 240 480 600 120 240 600
AC Vol ts DC Vol ts
120 240 480 600 120 240 600
10 10 10 10 10 10 —
Current, Amperes Volt Amperes
1
Make Break DC Volts
DC Current
AmperesAC Volts Make Break Cont.
2
Type PS—Maximum Ampere Ratings
2
Type State 120 240 480 600 120 240 600
2
Heavy-Duty 1/2 hp, 250 Vac Maximum
Single-pole Make 40 20 10 8 2.0 0.5 0.1
2
Double-pole Make 30 15 8 6 0.5 0.2 0.2
2
2
Note
1
2
Thermal rating. Valid only if switch does not have to make or break.
Break 15 10 6 5 0.5 0.2 0.02
Break 3 1.5 1 0.8 0.2 0.1 —
AC Volts Double Throw
DC Volts
2
2
2
2
2
2
2
2
V8-T2-100 Volume 8—Sensing Solutions CA08100010E—May 2013
Loading...
