Schlage Door Locks User Manual

S-SERIES

Light/Medium Commercial and Multi-Family Housing

Application

Interior light to medium use commercial doors; office
tenant spaces, laboratories; Heavy duty residential doors
and multi-family housing.

Performance Features

Handicap compliant levers.
Heat treated steel locking components for extra strength.
Independent heavy duty lever torsion springs for durability and long life.
Non-handed levers (except Flair design).
Snap-on inside rose conceals mounting screws.
Extra-strong Everest patented keys standard for Commercial customers.

SERIES

S

On our cover, the S-Series SATURN in Bright Brass.

Exploded View

Key removable lever

For quick rekeying or
cylinder replacement

6-pin Everest cylinder with
patented keys

Inside lever and chassis
Large turn-button

For ease of operation

Independent heavy duty
torsion springs

For individual lever support

Strike Box
Strike

Inside rose
Concealed mounting screws
Interlocking chassis and latchbolt

Restricts chassis from rotating
in door

¹⁄₂” (13mm) throw universal deadlatch
Fits 2 ³⁄₈” (60mm) or 2³⁄₄” (70mm)
backset, reversible RH/LH, adjustable
front for flat or beveled doors

Cylinders 4 - 5
Designs & Finishes 2
Door Handing 8
Door Preparation 1
Functions 3
How to Order 9
Interchangeable Core 4 - 5
Latches 6
Primus®High Security Cylinders 4 - 5
Specifications 1
Strikes 7

INDEX

1

SERIES

S

Door Preparation

Specifications

Handing:

Not handed, except Flair design.

Door Thickness:

1⅜" to 2"

(35 mm-51 mm)

except S40D: 1³⁄₈ to 1⁷⁄₈  (35 mm-48 mm)

Backset:

Universal backset latches standard, fit either 2⅜"

(60 mm) or 2¾" (70mm). 5" (127 mm) optional.

Fronts:

Steel. 1⅛˝ x 2¼˝

(29 mm x 57 mm)

square corner,
beveled, for 2¾˝ backset standard. For availability with
specific backsets, see page 6.

Lock Chassis:

Tubular construction. Zinc with steel cover.

Latch Bolt:

Brass, chrome plated, ½˝ (

13 mm) throw, deadlocking.

Exposed Trim:

Levers are zinc base, plated to match finish symbols.
Roses, latch faceplates and strikes are wrought brass or
bronze.

Strike:

T-strike 1

¹⁄₈˝ x 2³⁄₄˝ (29 mm x 70 mm) x 1¹⁄₈˝ (29 mm)

lip to center with box standard. Optional strikes, lip
lengths and ANSI strike box available. See page 7.

Cylinder & Keys:

Commercial: 6-pin patented Everest C123 keyway stan­dard with two nickel silver keys per lock.
Residential: 6-pin C keyway, keyed 5-pin.

Keying Options:

Interchangeable core and Primus

®

high security
cylinders. Master keying, grand master keying,
and construction keying.

Warranty:

Commercial: three-year limited.
Residential: Full mechanical lifetime.

Certifications

ANSI

Meets or exceeds A156.2 Series 4000, Grade 2
strength and operational requirements.

Federal

Meets FF-H-106C.

California State Reference Code

(Formerly Title 19, California State Fire Marshal Standard)

Neptune and Saturn designs comply; levers return to
within ½˝ of door face.

UL / cUL:

All locks listed for A label single doors, 4´ x 8´.
Letter F and UL symbol on latch front indicate listing.
UL437 Listed locking cylinder optional: specify
Primus 20-500 Series cylinder.

Designs & Finishes

625

JUPITER

Symbol: JUP
Material: Pressure cast zinc
Finishes: 605, 606, 613,
625, 626

625

NEPTUNE

Symbol: NEP
Material: Pressure cast zinc
Finishes: 605, 606, 609, 613,
625, 626

626

SATURN

Symbol: SAT
Material: Pressure cast zinc
Finishes: 605, 606, 609,
612, 613, 625, 626

605

FLAIR

Symbol: FLA
Material: Pressure cast zinc
Finishes: 605, 606,
609, 612, 613, 625, 626

Finishes

605 Bright Brass
606 Satin Brass
609 Satin Brass, Blackened
612 Satin Bronze
613 Oil Rubbed Bronze
625 Bright Chromium Plated
626 Satin Chromium Plated

2

SERIES

S

Designs available with full size interchangeable core option for
all keyed functions and finishes shown, except Saturn 609.

Matches

D-Series SPARTA

and L-Series 17

designs

Matches

D-Series RHODES

and L-Series 06

designs

Matches

D-Series ATHENS

and L-Series 07

designs

TACTILE WARNING
(KNURLING)

Symbol: 8SA
Available Saturn design
only. Outside lever is
knurled unless otherwise
specified.

3

SERIES

S

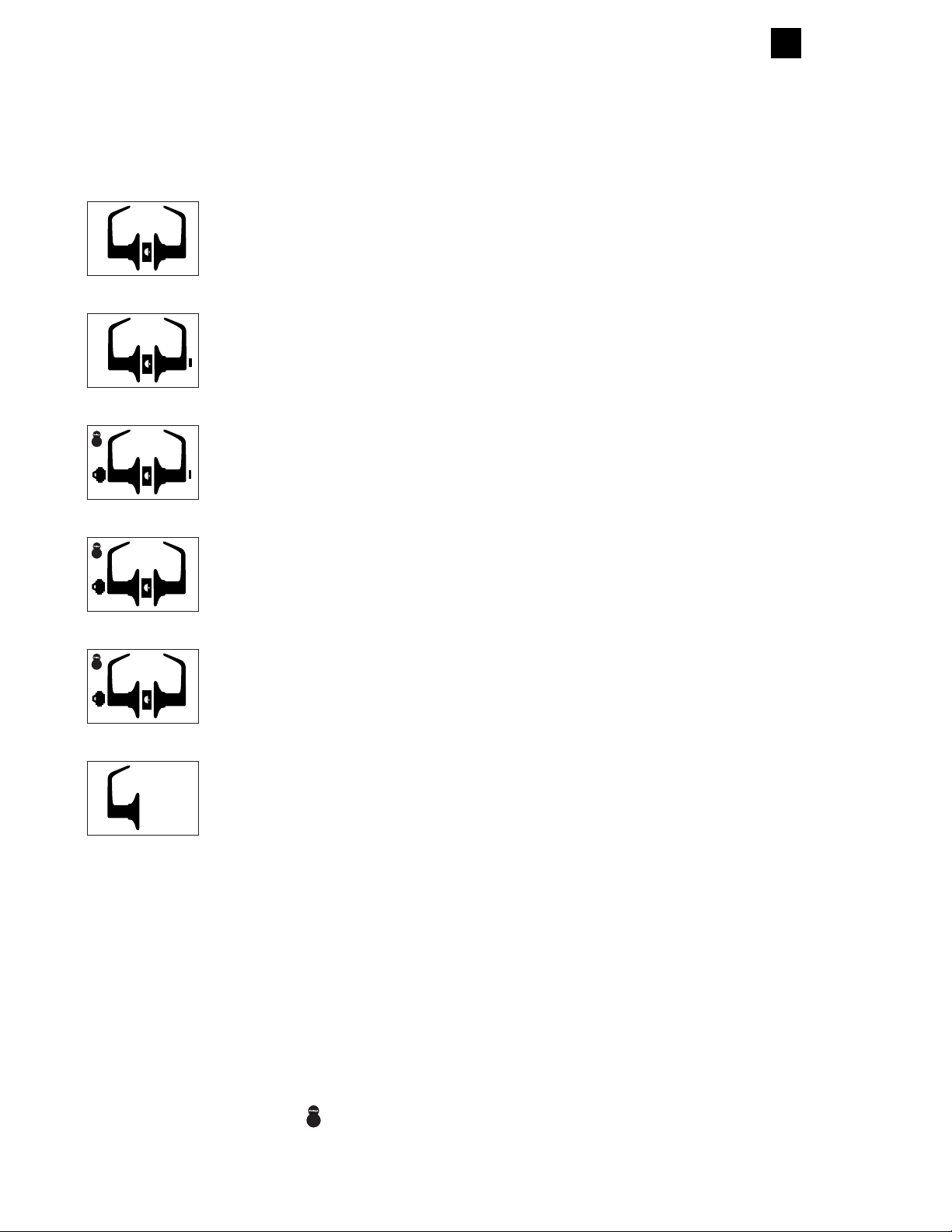

Functions

ANSI A156.2 Series 4000 Grade 2

SCHLAGE ANSI

S10D F75

S40D F76

S51PD F81

S70PD F84

S80PD F86

S170

Passage Latch

Both levers always unlocked.

Bath/Bedroom Privacy Lock

Push-button locking. Can be opened from
outside with small narrow tool. Turning
inside lever releases button.

Entrance Lock

Unlocked by key from outside when outer
lever is locked by turn-button on inside lever.
Inside lever always unlocked.

Classroom Lock

Outside lever locked and unlocked by key.
Inside lever always unlocked.

Storeroom Lock

Outside lever fixed. Entrance by key only.
Inside lever always unlocked.

Single Dummy Trim

Dummy trim for one side of door. Used for
door pull or as matching inactive trim.

Keyed functions available with full size interchangeable core option.

4

SERIES

S

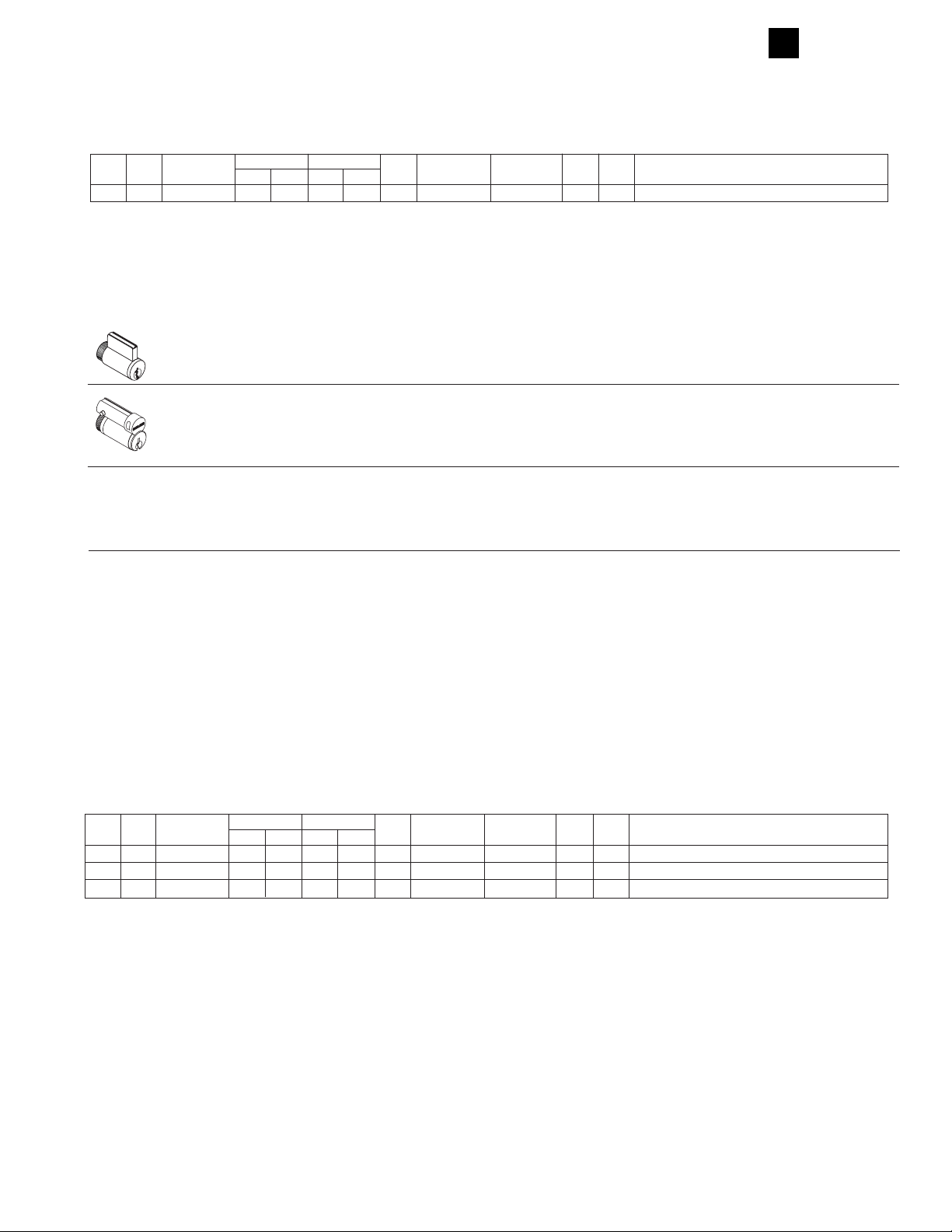

Cylinder Description

21-028 6-Pin conventional cylinder (standard)

20-752 Primus high security cylinder

20-552 Primus UL437 Listed high security cylinder

Cylinders for Keyed Levers (Bottom)

Available 606 and 626 finish only.
Everest C123 keyway standard for Commercial; C keyway standard for Residential.
Sleeve S605-192 included.

Standard Cylinders

Schlage®locks are provided with cylinders precision built to
extremely close tolerances and the highest standards of accuracy.
Using only solid brass plugs, extruded brass shells, phosphor
bronze springs, nickel silver keys and pins, ensures long life
and ease of operation.

Conventional cylinders are available in Classic keyways or
in the newly patented Everest®keyways. Specify keyway
to differentiate between Everest and Classic. Example:
C (Classic) vs. C123 (Everest).

Primus®High Security Cylinders

Primus high security cylinders are available to add patented key
control and varying degrees of geographical exclusivity to most
Schlage 6-pin key systems, whether Everest or Classic keyways.

In addition to a conventional pin tumbler mechanism, Primus
cylinders incorporate a patented finger pin and sidebar design
providing a “dual-locking” cylinder that is virtually pick-proof.
Resistance to drilling and other physical attack is optional by
specifying 20-500 Series UL437 Listed cylinders.

Classic Primus cylinders are recommended for upgrading existing
Classic key systems. Due to its extended patent life, the newly
designed Everest Primus is recommended for new key systems
and for upgrading existing Everest®key systems. Specify keyway
to differentiate between Everest and Classic. Example:
CP (Classic) vs. C123 (Everest).

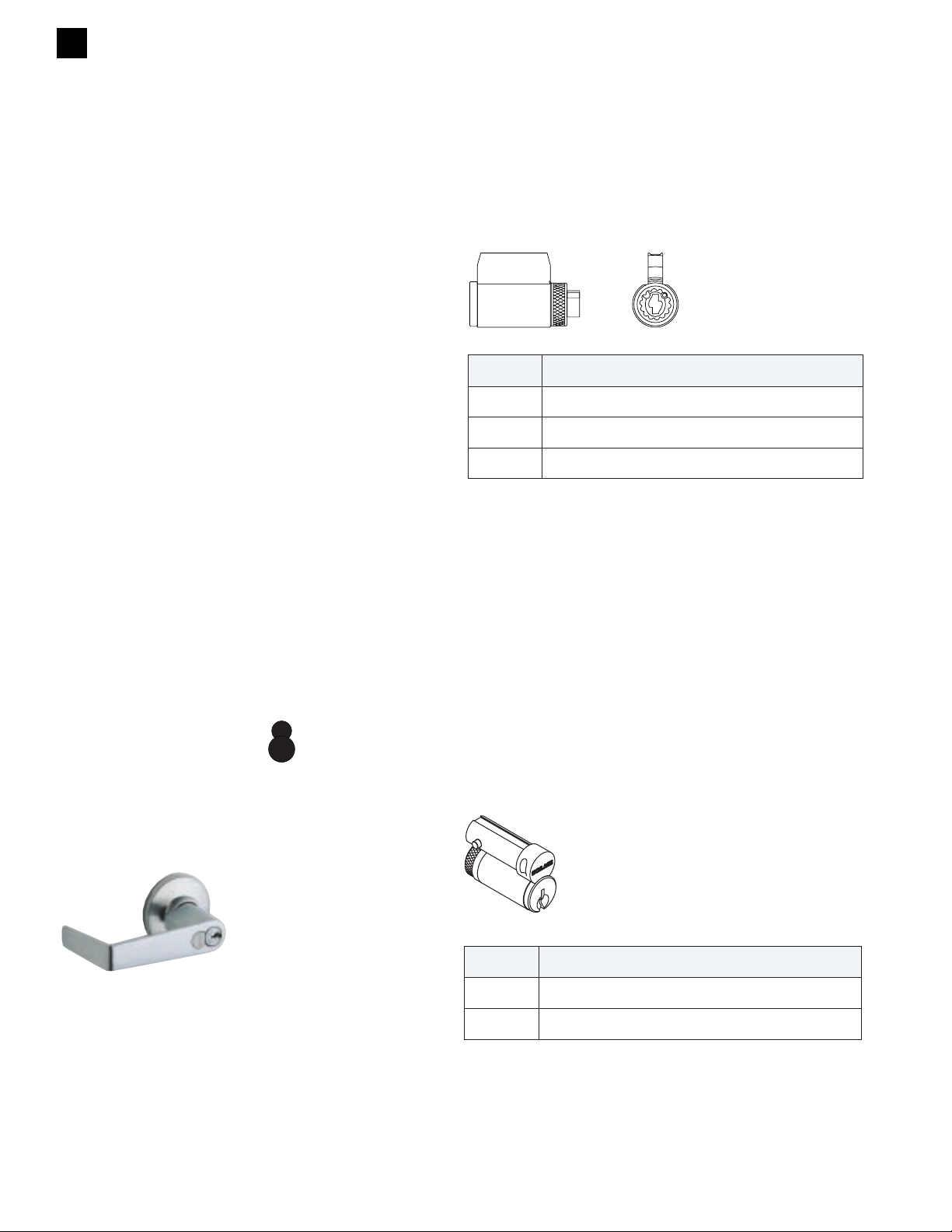

Interchangeable Core

Schlage®figure-8 interchangeable core (IC) locksets allow
immediate rekeying at the door simply by using the special
control key to replace the core in seconds.

IC locksets are available in Jupiter, Neptune and Saturn designs.

Full size interchangeable cores can be integrated into any 5 or
6-pin Schlage key system with no adverse affects on keying
capacity.

To order complete locks with full size cores, change suffix
from PD to RD. Example: S51RD. To order locks less core,
change suffix to JD. To order with full size construction core,
change suffix to TD.

SchlageSchlage

Number Description

23-030 Conventional core

20-740 Primus high security core

Full Size Interchangeable Cores (For JD Suffix Locksets)

Available 606 and 626 finish only. Everest C123 keyway standard for
Commercial; C keyway standard for Residential.

5

SERIES

S

* Specify design and finish.

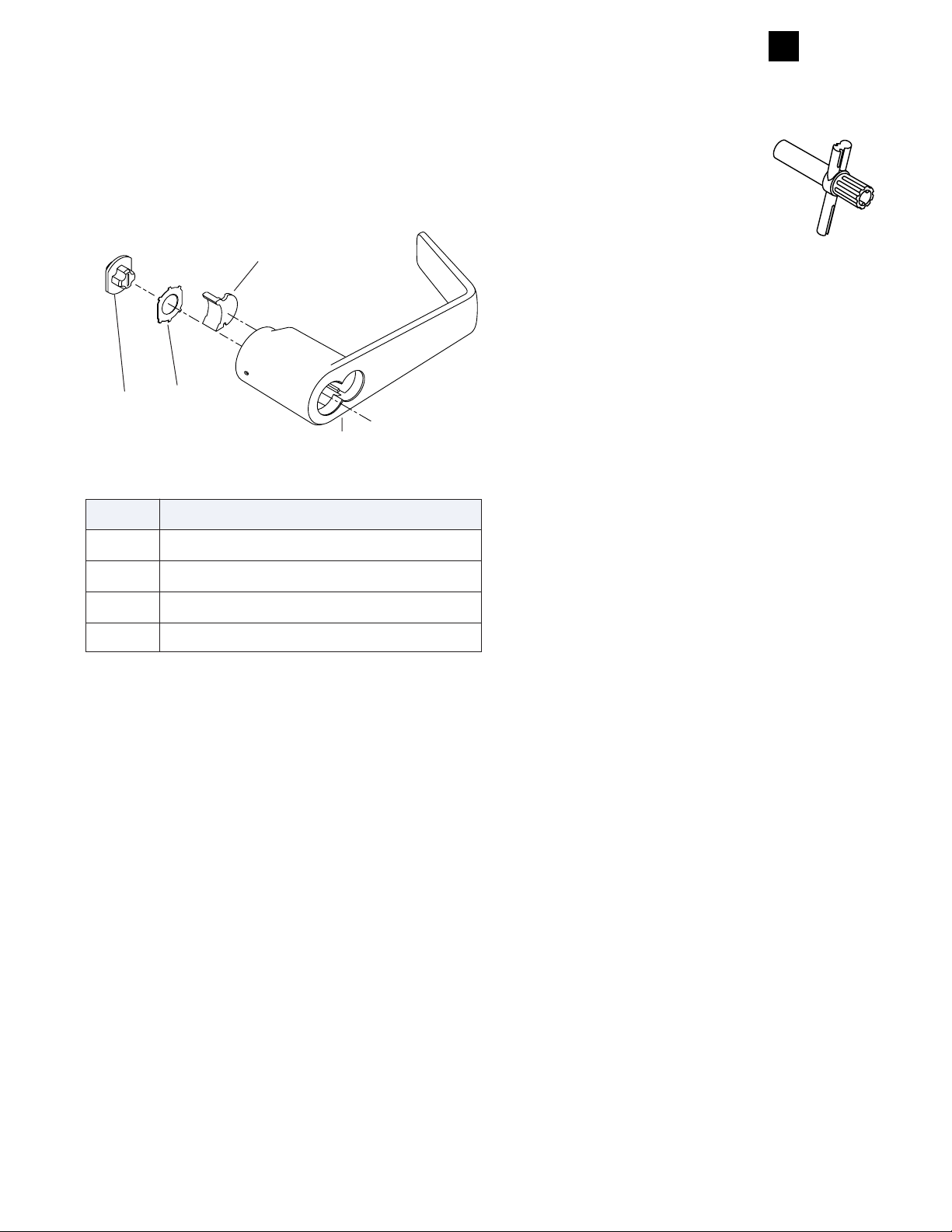

IC Conversion Kits

It is easy to convert standard S-Series locksets to accept Schlage
full size interchangeable cores by changing the knob and adding
the parts shown.

IC Installation Tool

This tool is used to install the driver
and retainer for full size IC in the
S-Series and other Schlage locksets. Its
other ends are designed to install and
remove mortise cylinder housings and
test mortise cylinder cam action for
both small format and full size inter­changeable core cylinders.

M504-413

(Order separately.)

Driver Retainer

Plug

Lever

08-030* Lever, driver, plug, retainer

08-027* Lever only

S605-241 Retainer

S605-242 Driver

Interchangeable Core Components

Number Description

6

SERIES

S

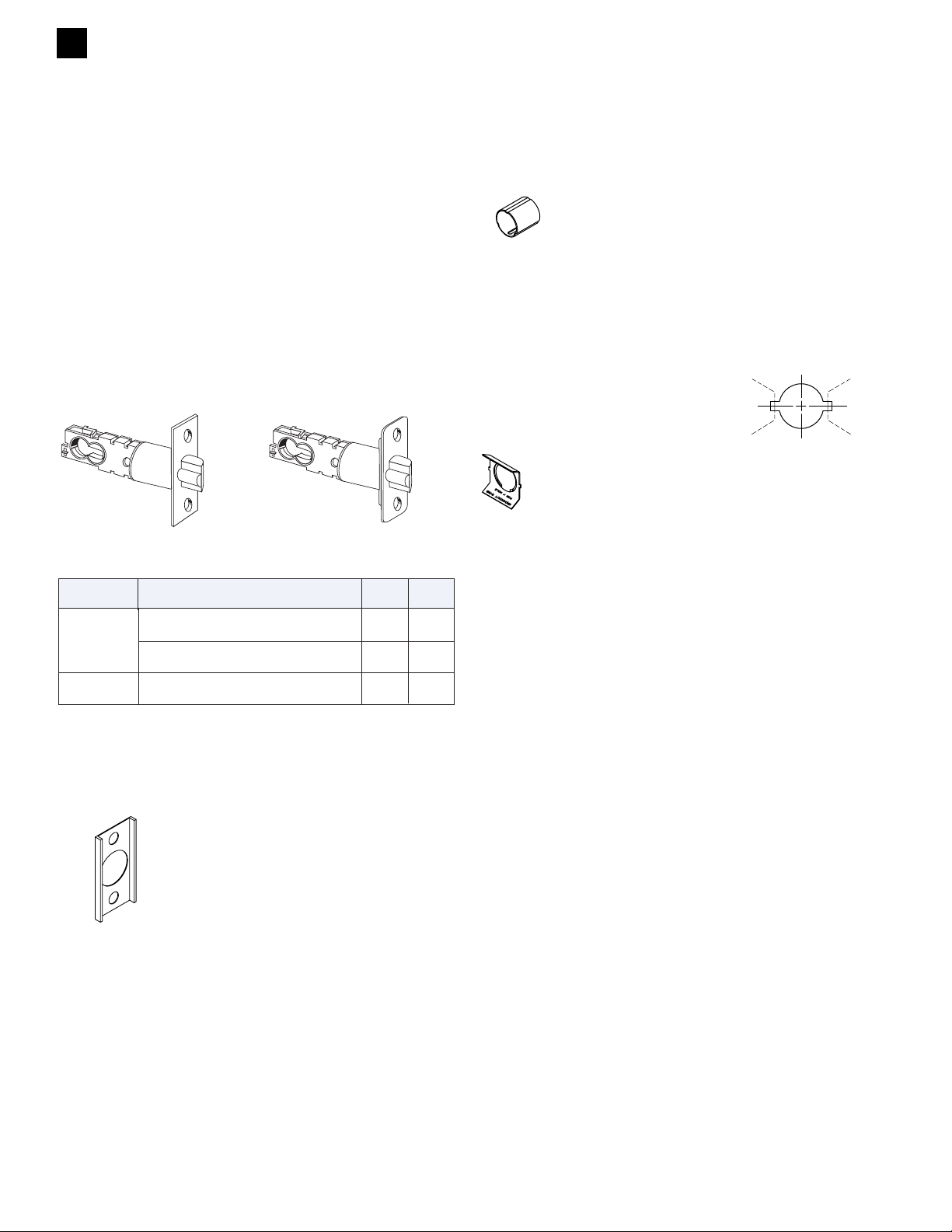

Square Corner Deadlatch

16-203

Round Corner Deadlatch

16-204

2³⁄₈”or2³⁄₄”

1” x 2¹⁄₄” Square corner* 16-203 ⁷⁄₈”

1” x 2¹⁄₄”, ¹⁄₄” Radius round corner 16-204 ⁷⁄₈”

5˝ 1” x 2¹⁄₄” Square corner* 16-132 ⁷⁄₈”

Deadlatches

Backset Faceplate Description Number

Hsg
Dia

*Latches include A501-878 faceplate adapter for 1¹⁄₈” face.

Latches

The standard universal backset deadlatch fits both 2⅜" (60 mm)
and 2¾" (70 mm) backsets. They are adjustable for flat or beveled
edge doors and have a ½" (13 mm) throw. Orders for complete
locks are provided with a G506-815 sleeve for 7/8” diameter
latches installed in doors with 1" (25 mm) edge bore.

All latches have 1 1/8” x 2 1/4” square corner fronts. Standard
latches are shown in bold type.

Note: Failure to use the below referenced latches and fire cup,
included with the lockset, will invalidate the UL Listing.

Door Reinforcement

Schlage

®

reinforcing units help prevent
the collapse of hollow metal doors when
locksets are tightly mounted.

A501-566

1³⁄₄

(44 mm) Doors

A501-565

1³⁄₈ (35 mm) Doors

Door Prep

Used to adapt 1 (25 mm) wide square front faceplates to 1⅛
(29 mm) wide door preparations. Furnished in black plastic.
Order in multiples of 100.

Used on 7/8 (22 mm) diameter latch housings in 1” (25 mm)
edge bore. Furnished standard with complete locks.

Latch Front Adapter

A501-878

Sleeve

G506-815

7

SERIES

S

Rabbeted Latch
and Strike Kit

39-030

Rabbeted Latch and Strike Kit

Rabbeted latch and strike kit finishes: 605, 626.
This kit adapts square corner latches and strikes for ¹⁄₂

(13 mm) rabbeted door and frame preparations.

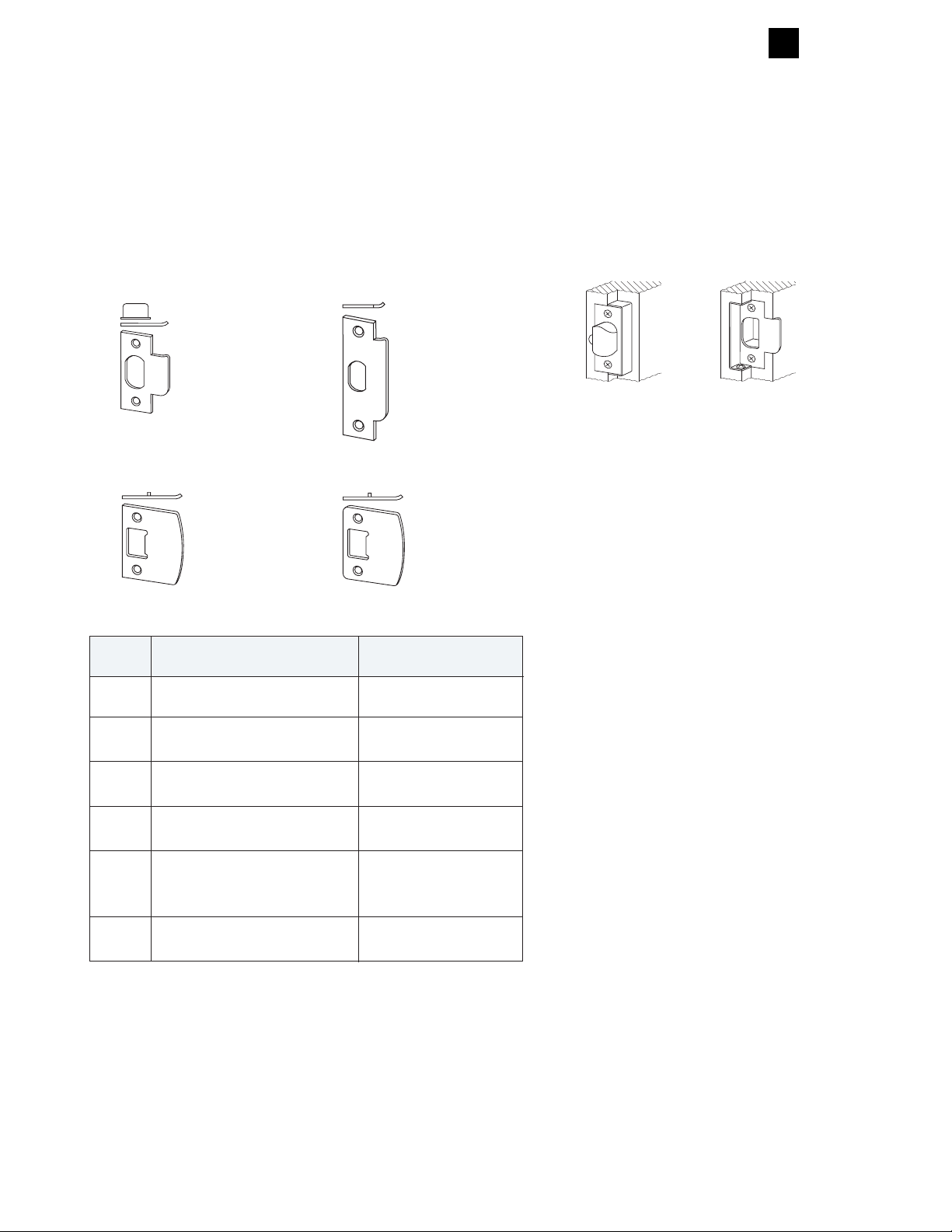

Strikes

All Schlage strikes are furnished complete with screws. The 10-001
standard S-Series strike has a 1¹⁄₈ (29 mm) lip. When ordering
separately, specify quantity, product number, finish, and lip length.
Standard strike is shown in bold type.

Number Lip Length Description

10-001

1, 1¹⁄₈ (std), 1¹⁄₄, 1¹⁄₂, 1³⁄₄, 2 1¹⁄₈ x 2³⁄₄

(29 mm x 70 mm)

(25 mm, 29mm, 32mm, 38mm, 44mm, 51mm)

Square corner, standard

10-004

1¹⁄₈ 1¹⁄₈ x 2³⁄₄ (29 mm x 70 mm)

(29 mm)

¹⁄₈ (3 mm) Radius, round cnr.

10-025

1³ ⁄₁₆,1³⁄₈ 1¹⁄₄ x 4⁷⁄₈ (32 mm x 124 mm)

(30 mm, 35 mm)

ANSI

10-026

1¹⁄₈ 1⁵⁄₈ x 2¹⁄₄

(41 mm x 57 mm)

(29 mm)

Full lip, square corner

1¹⁄₈

1⁵⁄₈ x 2¹⁄₄

(41 mm x 57 mm)

10-027

(29 mm)

Full lip, ¹⁄₄ (6 mm) radius,
round corner

K510-066 — Box, ANSI

T-Strike – Standard

10-001
1¹⁄₈ x 2³⁄₄ x ³⁄₃₂

(29 mm x 70 mm x 2mm)

ANSI Strike

10-025
1¹⁄₄ x 4⁷⁄₈ x ³⁄₃₂

(32 mm x 124 mm x 2mm)

10-026 10-027

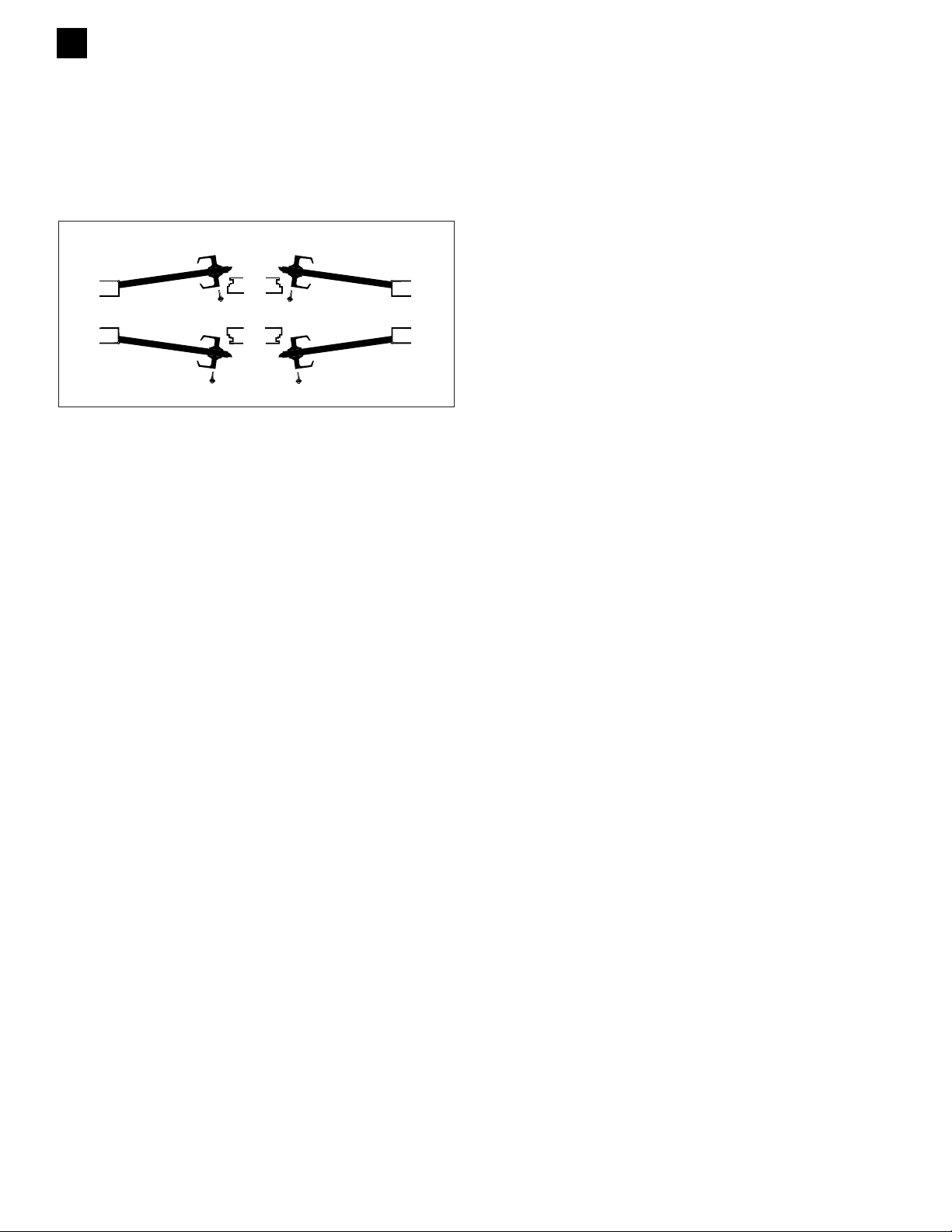

Door Handing

Hand information is necessary for Flair design and to ensure
proper finish of latchbolt and strike for split finish locks that are
to be installed on reverse bevel doors. Follow the diagram to cor­rectly determine the hand of the door.

LH
Left Hand

INSIDE

OUTSIDE

OUTSIDE

INSIDE

LRB
Left Hand
Reverse Bevel

RH

Right Hand

RRB

Right Hand

Reverse Bevel

8

SERIES

S

9

SERIES

S

Note: Schlage order forms are available at no charge by contacting your IR Security & Safety Consultant or Customer Service.

Line Outside Inside Dr

Item

Des Fin Des Fin

Thk

1 100 S51PD SAT 605 16-132 KA4
2 100 S51LD SAT 605 16-203
3 100 20-724 606 1AA-100AA

Product

Qty

Latch

Hand

Strike

Additional Details

Dim

EXAMPLE

How to Order

To order Schlage products, descriptive data should be in the same sequence as shown.

Line Outside Inside DR
Item Des Fin Des Fin Thk

12 3 45678 9 10 1112 13

Product

Qty

Latch

Hand

Strike Additional Details

Dim

1 Line item number
2 Quantity
3 Complete model number with function and cylinder type

4 / 5 Outside design / finish.
6 / 7 Inside design / finish. Leave blank if same as outside.
8 Hand
9 Latch. Leave blank for standard or specify part number for optional latch. LLL=Less Latch.
10 Strike. Leave blank for standard or specify part number for optional strike. LLL=Less Strike.
11 Door thickness,if non-standard. Example: 200 = 2.
12 Dimension for strike lip lengths. See strike page for availability of specific dimensions with specific strikes.

100 = 1
118 = 1⅛
114 = 1¼
138 = 1⅜
112 = 1½
134 = 1¾
200 = 2

13 Keying detail (e.g. key symbol, keyway, bitting) and other special requirements.

To order cylinder options, change “PD” at the end of the model number as follows:

S51PD Standard
S51LD Less standard cylinder (For Primus cylinder, specify this option and order Primus cylinder separately.)
S51JD Prepared for full size interchangeable core, less core
S51RD With full size conventional interchangeable core installed. Order control keys separately.
S51TD With full size (temporary) construction core installed. Order all keys separately.

Administrative Offices

1915 Jamboree Drive, Suite 165
Colorado Springs, CO 80920
[phone]
FAX [phone]

Commercial Customer Service

1915 Jamboree Drive, Suite 165
Colorado Springs, CO 80920
[phone]
FAX [phone]
Order Entry
FAX [phone]

International Division

Ingersoll-Rand Architectural Hardware
1076 Lakeshore Road East
Mississauga, Ontario, L5E 1E4, Canada
[phone]
FAX [phone]

Internet

http://www.schlage.com

Fax-On-Demand

[phone]

Copyright © 2003 Ingersoll-Rand MS-M/S1 Rev. 01/03 Printed in USA

IR Security & Safety Americas

111 Congressional Boulevard
STE 200
Carmel, IN 46032
800-847-1864
800-452-0663 Fax
www.irsecurityandsafety.com
