Scag SSZ User Manual

MODEL SSZ
OPERATOR’S MANUAL
THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMATION FOR YOUR SCAG MOWER. READING THIS MANUAL CAN PROVIDE YOU WITH ASSIS­TANCE IN MAINTENANCE AND ADJUST­MENT PROCEDURES TO KEEP YOUR MOWER PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER. BEFORE OPERATING YOUR MA­CHINE, PLEASE READ ALL THE INFORMA­TION ENCLOSED.
PART NUMBER 03032
WARNING:
FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all shields in place, especially the grass discharge chute. * Before performing any maintenance or service, stop the machine and remove the spark plug wire and ignition key. * If a mechanism becomes clogged, stop the engine before cleaning. * Keep hands, feet and clothing away from power-driven parts. * Read this manual completely as well as other manuals that came with your mower.
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.
This manual covers the operating instructions
and illustrated parts list for:
SSZ-18, 20, and 22CV
with a serial number of XXX70001 - XXX79999
Always use the entire serial number listed on the serial number tag when referring to this product.
Your mower was built to the highest standards in the industry. However, your mower is only as safe as you, the operator, make it. Carelessness or error on the part of the operator may result in serious bodily injury. Hazard control and accident prevention depend upon the awareness, con­cern, prudence, and proper training of the personnel involved in the operation, transport, and storage of this equipment. Make sure every operator is properly trained and thoroughly familiar with all of the controls and safety instructions before operating the equipment.
SAFETY INSTRUCTIONS
WARNING:
Do not operate mower on steep slopes. Riding lawn mowers can tip over when used on an excessive slope. To check a slope, attempt to back up with cutter deck down. If wheels slip when backing up slope, stay off the slope. If you are in doubt about hillside operation, stay off the slope.
Always back up when loading a machine on ramps or tilt bed trailers.
1. Know the controls and how to stop quickly. READ THIS OPERATORS MANUAL and instructions furnished with attachments. A replacement Operator's Manual is available from your Scag Servicing Dealer. To order, contact your dealer with the complete model number and serial number of your Scag product.
7. Disengage the power to attachments, stop the engine, and remove the key before making any repairs or adjustments.
8. Disengage the power to attachments when transporting the machine or when attachments are not being used.
9. Take all possible precautions when leaving the machine unattended including disengaging the power to attachments, lowering the attachments, setting the parking brake, and removing the key.
10. Do not stop or start suddenly when going up or down a hill. Mow up and down the face of slopes; never mow across slopes.
11. Reduce speed and be very careful when operating on slopes or making sharp turns to prevent tipping or loss of control. Be especially cautious when changing direction on slopes. If necessary to turn on a hill, always turn downhill.
2. Do not allow children to operate this machine. Do not allow adults to operate this machine without proper instruction.
3. Do not carry passengers. Never mow toward or near anyone.
4. Clear the area of objects such as wires, sticks, and rocks that can be picked up and thrown by the mower blades.
5. Disengage all attachment clutches and engage parking brake before attempting to start the engine.
6. Disengage all attachment clutches and engage the parking brake before leaving the operators position.
12. Watch for holes, rocks, roots in the terrain, and other hidden hazards. Keep away from dropoffs.
13. Watch for traffic when crossing roadways or operating near roadways.
14. When using any attachments, never directly discharge materials towards bystanders or allow anyone near mower while it is operating.
15. Handle gasoline with care - it is highly flammable.
a. Use an approved gasoline container only. b. Never remove the fuel cap while the engine is
running or hot. Allow the engine to cool for several minutes before removing the cap and adding gasoline. Never fill the fuel tank indoors. Always clean up spilled gasoline.
c. Do not run the engine indoors.
1
SAFETY INSTRUCTIONS - CONT’D
16. Keep the machine and attachments in good operating condition. Make sure all safety devices and shields are in place and operate the equipment as intended.
17. Keep all nuts, bolts, and screws tight to be sure equipment is in safe operating condition.
18. Never store the equipment with gasoline in the tank in a building where fumes may reach an open flame or spark. Allow the engine to cool before storing the machine in any enclosure.
19. To reduce fire hazard, keep the engine free of grass, leaves, or excess lubricants.
20. If the machine or attachments strike a foreign object, disengage the power to the attachments and stop the engine immediately. Wait for all moving parts to stop, then inspect for damage. Repair the damage before restarting or operating the equipment.
25. Perform only the maintenance described in this manual. If additional maintenance or major repairs are needed, contact an authorized Scag Servicing Dealer. To ensure optimum performance and safety, always purchase genuine Scag replacement parts and accessories. Never use WILL FIT replace­ment parts and accessories made by another manu­facturer. Using such parts may void the warranty.
WARNING:
Do not operate the machine while wearing sandals, tennis shoes, sneakers, or shorts. Also, do not wear loose fitting clothing which could get caught in mov­ing parts. Always wear long pants and substantial shoes.
Wearing safety glasses and safety shoes is
.
advisable.
21. Do not change the engine governor settings or overspeed the engine.
22. When using the machine with a mower: a. Mow only in daylight or good artificial light. b. Never dismount the machine to adjust the
cutting height while the engine is running.
c. Shut the engine off and remove the key before
removing the grass catcher or unclogging the chute.
d. Check the blade mounting bolts frequently for
proper tightness.
23. Disengage the power to the blades before backing up. Do not mow in reverse unless absolutely necessary and then only after careful observation of the entire area behind the mower.
24. The discharge chute must be installed and be in the down position on a side discharge mower except when the optional grass catcher or the mulching plate is completely installed. If the discharge chute clogs, shut the engine off, remove the key, and wait for all movement to stop before removing any obstruction.
CAUTION:
Stop engine and remove key from ignition before making any adjustments. Wait for all moving parts to come to a complete stop before beginning work.
Engine and drive unit can get hot during operation. Allow engine and drive components to cool before making any adjustments.
WARNING:
To prevent personal injury or equipment damage, do not operate the machine without the cutter deck properly mounted.
2
HYDRAULIC SAFETY
1. Hydraulic fluid is under high pressure. If you need service on your hydraulic system, please see your dealer.
WARNING:
Keep body and hands away from pin holes or nozzles that eject fluid under high pressure. Use paper or cardboard, not hands, to search for leaks.
Hydraulic fluid escaping under high pressure may have sufficient force to penetrate your skin and cause serious injury. If fluid is injected into your skin, a physician familiar with this form of injury must re­move it surgically within a few hours or gangrene may result.
FREE
WHEEL
POSITION
RUN
POSITION
Figure 1
DUMP VALVE
LEVER
SC200G
2. Make sure all hydraulic fluid connections are tight and all hoses and lines are in good condition before applying pressure to the system.
ADJUSTMENTS Neutral Adjustment
1. Set the machine up on jack stands so the drive wheels are free to rotate. Block the caster wheels to prevent an accident if the machine should acciden­tally fall off the jack stands.
2. Run Position: Move the dump valve lever (on Left Hand side of mower) behind the hook on the frame to close hydraulic dump valves on the pump. (See
Figure 1)
Free Wheel Position: Pull lever back and to the left, then push forward to relieve pressure. (See Figure 1)
3. Start the engine and check if one or both of the drive wheels are turning.
4. Adjust each drive wheel separately by using the turnbuckles located under the seat. Loosen the jam nut on the turnbuckle. (See Figure 2)
5. If the drive wheel is rotating forward, adjust the turnbuckle clockwise. If the drive wheel is rotating rearward, adjust the turnbuckle counterclockwise. Adjust until the drive wheel stops turning. (See
Figure 2)
JAM NUT
Adjust TURNBUCKLE
clockwise or
counterclockwise until drive
wheels stop rotating
SC201G
Figure 2
3
ADJUSTMENTS - CONT’D
ESC202G
CASTER WHEELS
25 PSI
DRIVE WHEELS
12 PSI
Neutral Adjustment Cont'd
6. Tighten the jam nut to secure the neutral position.
7. Adjust the other drive wheel if necessary.
8. Actuate the hand control levers forward and reverse. Allow the levers to self-center and check that the drive wheels remain in neutral.
NOTE: The neutral return mechanisms on the fenders are adjusted at the factory. Readjustment should not be necessary.
Figure 3
Straight Line Running Adjustment
CAUTION:
Stop engine and remove key from ignition before making any adjustments. Wait for all moving parts to come to a complete stop before beginning work.
Engine and drive unit can get hot during operation. Allow engine and drive compo­nents to cool before making any adjust­ments.
1. Before making this adjustment, check the tire pressure of the drive wheels. Tire pressure for each wheel must be equal. (See Figure 3) If the tire pressures are not equal, the machine will pull to the side with the lower tire pressure.
NOTE: Make this adjustment only on the LH pump. The RH pump has a fixed speed and cannot be adjusted.
2. Locate the turnbuckle for LH pump under the operator seat in front of the hydraulic oil tank. (See
Figure 4)
3. Loosen nut securing turnbuckle to bellcrank. (See Figure 4)
FASTER
NUT
SLOWER
BELLCRANK
TURNBUCKLE
SC203G
Figure 4
4
ADJUSTMENTS - CONT’D Straight Line Running Adj. - Cont'd
4. Adjust position of turnbuckle by moving it in mounting slot either forward to slow left wheel or backward to speed up left wheel. If unit pulls to the right, left wheel is too fast. If unit pulls to the left, left wheel is too slow.
5. Tighten nut to secure turnbuckle.
6. Readjust neutral if necessary. (See Figure 2)
3. To adjust RH blade drive belt: Adjust RH belt tension so belt moves 1/2" with 10 pounds pressure. Adjust tension by tightening or loosening J-bolt.
(See Figure 6 for SMZ-52; See Figure 7 for SMZ-61 & SMZ-48)
4. Carefully unlatch foot plate support rod and lower foot plate.
NUT
Drive Belt Replacement
"J" BOLT
Cutter Deck Drive Belts
CAUTION:
Stop engine and remove key from ignition be­fore making any adjustments. Wait for all mov­ing parts to come to a complete stop before beginning work.
1. Lift foot plate and secure with foot plate support rod.
2. To adjust cutter deck drive belt: Adjust until end of spring aligns with end of L-shaped bracket. (See
Figure 5)
BELT
NUT
"J" BOLT
WASHER
BELT
SC205G
Figure 6 - SMZ-52
BELT
WASHER
NUT
END OF L- SHAPED
WASHER
NOTE: Due to initial belt stretching, check this adjustment after the first 2 hour, 4 hour, and 8 hour intervals.
BRACKET
Figure 5
SC204G
"J" BOLT
Figure 7 - SMZ-61 & SMZ-48
5
SC206G
ADJUSTMENTS - CONT’D Drive Belt Replacement
3. Make sure the engine oil level (10W30) is at FULL on the dipstick. When performing oil changes, fill the engine to the full mark on the engine dipstick. (Approximately 2 quarts will be needed for Kohler engines) DO NOT OVERFILL.
CAUTION:
When replacing the drive system belt use ex­treme caution. The idler arm is under spring tension.
Remove the two 1/4" nuts on the belt guard and remove the guard. To remove the old belt, use a 1/2" drive breaker bar and insert it into the square hole on the idler arm. Pull the idler arm down until the belt becomes slack and can be removed easily from the idler pulley. Slowly move the idler arm up until the stop bolt rests against the hydraulic tank support. Remove the old belt and mount the new belt around the engine drive pulley and the two pump pulleys. Feed the belt up toward the idler pulley.
Pull the idler arm down so that the new belt can easily be mounted on the idler pulley. Slowly move the idler arm up until the belt is firmly engaged. Remove the breaker bar and remount the belt guard. Check to ensure that the belt is riding properly in all pulleys.
ontrol Handle Position
Hand Control Handle Position
The position of the hand control handles can be adjusted for operator comfort. Loosen the bolts holding the handle to the lever bar just enough to allow movement of the handle. Adjust to position most comfortable for operator. Retighten bolts.
4. Check the oil level (SAE 20W50) in the hydraulic reservoir. The reservoir is under the seat. The oil level should be 2" below the top of the tank. When performing oil changes, fill the reservoir until 2" below top of tank. (Approximately 4 quarts will be needed) DO NOT OVERFILL.
5. Check that all fasteners are tightened properly. Make sure all safety devices are in place and working correctly.
WARNING:
Gasoline is highly flammable. Be careful when filling tank. Do not fill tank while engine is run­ning or hot from operation. Extinguish open flames, matches, and smoking materials be­fore filling tank. Do not overfill tank. Wipe up all gasoline spills.
6. Fill the fuel tank with clean, fresh, lead-free gasoline with a minimum octane rating of 87.
7. Check the safety interlock system. With the operator on the seat, the engine must not start unless the control handles are in the neutral lock position and the cutter drive is disengaged.
!
INITIAL RUN, INSPECTION, AND OPERA TING INSTRUCTIONS
1. Check that all belts are routed correctly.
2. Check cutter blade drive belts for correct tension.
IMPORTANT: If the engine is running, the
engine must stop if the operator leaves the seat when one or both handles are in the drive position or the cutter drive is engaged.
6
INITIAL RUN, INSPECTION, AND OPERA TING INSTRUCTIONS ­CONT’D
8. To start the engine:
10. Release the parking brake. Check that the machine does not creep forward or backward. If the machine does creep, adjust the neutral control. See Neutral Adjustment instructions.
a. The operator must be sitting in the seat. b. Place control handles in neutral lock position. c. Pull mower engagement switch to off position. d. Put parking brake in engaged position. e. Adjust throttle and choke as required. f. Turn ignition key to start. Release ignition key
when engine starts. Key will return to RUN position.
9. Pull the mower engagement switch out and push it forward to engage the cutter drive belts. (See
Figure 8) Allow the belts to run for five minutes.
NOTE: For best belt life, engage the clutch at
half throttle and not under load.
NOTE: When the PTO is engaged (or possibly disengaged), a squealing sound from the under side of the machine is normal. It is caused by the electric clutch plates meshing as the mower comes up to speed.
CAUTION:
CAUTION: Stop engine and remove key from ignition before making any adjustments. Wait for all moving parts to come to a complete stop before beginning work.
Engine and drive unit can get hot during op­eration. Allow engine and drive components to cool before making any adjustments.
11. Operate the machine forward and backward. Check that all the systems function correctly. If the machine does not move, make sure the hydraulic dump valve lever near the left wheel is engaged.
(See Figure 1 page3)
To engage the parking brake, move the lever up and out into the bracket. To disengage the parking brake, pull the lever up and in, away from the bracket. (See Figure 9)
PULL UP
THEN FORWARD
TO ENGAGE
Figure 8
PULL UP AND PUSH
FORWARD TO ENGAGE
MOWER DECK ON
MOWER DECK OFF
PULL BACK
TO DISENGAGE
SC208G1
PARKING BRAKE
OFF
ON
SC209G1
Figure 9
7
INITIAL RUN, INSPECTION, AND OPERA TING INSTRUCTIONS ­CONT’D
12. Shut off the engine, remove the key from the ignition, and wait for all moving parts to stop. Recheck the cutter deck drive belts for proper tension. Correct and adjust as necessary.
Sharpen blades as shown on Figures 10 and 11.
Y
X
13. Park the machine on a level area, set the parking brake, and remove the key from the ignition to prevent engine starting.
14. Before transporting the machine, latch the seat stop cable to avoid damage to the seat.
MAINTENANCE
g
Free Wheeling
To release the drive wheels, so the machine will roll without the engine running, pull the dump valve lever back from the hook on the frame, move it to the left, and push it forward to relieve the pump pressure. The lever is on the LH side of the machine. (See Figure 1 on page
3)
Cutter Blades
DO NOT CUT IN, LEAVE ORIGINAL STARTING POINT
Figure 10
Do not sharpen (X) beyond 1/3 of blade width (Y).
ANGLE BLADE
BACK
THE EDGE OF BLADE SHOULD
BE AT A 30 DEG. ANGLE
30
Figure 11
SC210G
SC211G
WARNING:
Blade is sharp! Blade at rest can cause se­vere cuts. Rotating blade can cut fingers off. Always lift deck using handles provided.
Suggestion: Dress blade with a file. Wheel grinder may burn the blade.
Curb Climbing
8
MAINTENANCE - CONT'D
g
Curb Climbing
When driving a riding mower up and over a curb, first raise the cutter deck to the highest position. Then, drive in reverse and at an angle so that the back drive wheels go over the curb one at a time. When both drive wheels are over the curb, turn the machine so that both front caster wheels contact the curb at the same time.
(See Figure 12)
Figure 12
SC212G
9
LUBRICATION & MAINTENANCE
Break-In
8 hours (Daily)
40 hours (Weekly)
100 hours (Biweekly)
200 hours (Monthly)
Procedure Comments
X Check all hardware for proper tightness X Change engine oil and filter at 5 hours See engine manufacturer information X Check belt tension 2 hour, 4 hour, and 8 hour intervals.
X Check engine oil level Do not overfill X Remove debris from oil cooler See engine manufacturer information X Clean hydraulic pump cooling fins MORE OFTEN IF NEEDED X Remove debris from under belt cover MORE OFTEN IF NEEDED X Sharpen cutter blades MORE OFTEN IF NEEDED
- Grease spindle bearings (2 pumps of hand gun) + US Lithium MP White Grease 2125 X Clean air filter MORE OFTEN IF NEEDED X Check tire pressure Add air if necessary
X Check battery acid level Use distilled water only X Check belt tension Adjust as needed.
X Replace air filter MORE OFTEN IF NEEDED X Change engine oil See engine manufacturer information X Grease caster wheel bearings Chassis grease - Qty 2 X Grease caster wheel pivots Chassis grease - Qty 2 X Grease idler arm pivots Chassis grease - Qty 3 X Grease push arms Chassis grease - Qty 2 X Grease control levers Chassis grease - Qty 2 X Grease bell crank Chassis grease - Qty 4 X Grease height adjustment Chassis grease - Qty 1
X Check all hardware for proper tightness X Change engine oil filter See engine manufacturer information X Check hydraulic fluid reservoir level Add oil if needed (SAE 20W50) X Clean and adjust spark plugs See engine manufacturer information
Every 500 hours (Bimonthly)
Drain hydraulic system and replace fluid Use SAE 20W50 motor oil Change hydrostatic oil filter * Clean area before removing filter Adjust air gap on electric clutch Contact your Scag dealer for information
about making this adjustment
* IMPORTANT: Use only Scag Authorized part for proper filtration.
+ Compatible Greases:
Lidok EP #2 (found at industrial shops) Ronex MP (Exxon service stations) Shell Alvania (Shell service stations) Mobilux #2 (Mobil service stations) Super Lube-M EP #2 and Super Lube-M #2 (Conoco service stations)
10
TROUBLESHOOTING CUTTING CONDITIONS
CONDITION
CAUSE
CURE
Stringers - Occasional Low engine RPM Run engine at full 3600 RPM Blades of Uncut Grass Ground speed too fast Slow speed to adjust for conditions
Wet grass Cut grass after it has dried out Dull blades, incorrect sharpening Sharpen blades Deck plugged, grass accumulation Clean underside of deck
Width of Deck
SGB020
Belts slipping Adjust belt tensions
Streaking - Strips of Dull, worn blades Sharpen blades Uncut Grass in Cutting Path Incorrect blade sharpening Sharpen blades
Low engine RPM Run engine at full 3600 RPM Belt slipping Adjust belt tension Deck plugged, grass accumulation Clean underside of deck Ground speed too fast Slow speed to adjust for conditions Wet grass Cut grass after it has dried out
Width of Deck
SGB018
Bent blades Replace blades
Streaking - Strips of Not enough overlapping Increase the overlap of each Uncut Grass Between between rows pass Cutting Paths
Width
of
Deck
SGB019
Width
of
Deck
11
TROUBLESHOOTING
CONDITION
CAUSE
CURE
Uneven Cut on Flat Lift worn off of blade Replace blade Ground - Wavy High-Low Blade upside down Mount with cutting edge toward Appearance, ground Scalloped Cut, or Rough Contour Deck plugged, grass accumulation Clean underside of deck
Too much blade angle (deck pitch) Adjust pitch and level Deck mounted improperly See your authorized SCAG dealer Bent spindle area See your authorized SCAG dealer Dull blade Sharpen blade
Width of Deck
SGB020
Uneven Cut on Uneven ground May need to reduce ground speed, Uneven Ground - raise cutting height, and/or change Wavy Appearance, direction of cut High-Low Scalloped Cut, or Rough Contour
Width of Deck
SGB021
Sloping Ridge Across Tire pressures not equal Check and adjust tire pressure Width of Cutting Path
Wheels uneven Check and adjust tire pressure Deck mounted incorrectly See your authorized SCAG dealer
Width of Deck
SGB023
12
TROUBLESHOOTING
CONDITION
CAUSE
CURE
Scalping - Blades Low tire pressures Check and adjust pressures Hitting Dirt or Cutting Very Close to Ground speed too fast Slow speed to adjust for conditions the Ground
Cutting too low May need to reduce ground speed,
raise cutting height, change direction of cut, and/or change pitch and level
Rough terrain May need to reduce ground speed,
raise cutting height, and/or change direction of cut
Ground speed too fast Slow speed to adjust for conditions
Width of Deck
SGB022
Wet grass Cut grass after it has dried out
Step Cut Blades not mounted evenly Adjust pitch and level Ridge in Center of Cutting Path Bent blade Replace blade
Internal spindle failure See your authorized SCAG dealer Mounting of spindle incorrect See your authorized SCAG dealer
Width of Deck
SGB024
Slope Cut - Sloping Bent spindle mounting area See your authorized SCAG dealer Ridges Across Width of Cutting Path Internal spindle failure See your authorized SCAG dealer
Bent deck housing See your authorized SCAG dealer
Width of Deck
SGB025
13
SPECIFICATIONS FOR SCAG SSZ ZERO-TURN RIDER
MODELS:SSZ-18CV , SSZ-20CV , SSZ-22CV , ALL SSZ-L T
ENGINE
General Type: Heavy duty industrial/commercial Brand: Kohler Model: Kohler 18CV, 20CV, 22CV Command Vertical Engine Horsepower: 18HP, 20HP, 22HP @ 3600 RPM Type: 4 cycle gas, twin cylinder, vertical shaft engine Displacement: 18HP=624 cc, 20HP=624cc, 22HP=624cc Cylinders: 2 cast-iron sleeves Governor: Mechanical type governor with variable speed control set at
3600 rpm (+ 100rpm), idle set at 1400 rpm Air Cleaner: Large capacity dual element, chopper-type grass screen Exhaust: Single exhaust canister muffler Fuel Pump Group: Mechanical fuel pump with inline fuel filter, fixed jet
carburator with Smart- Choke and fuel shutdown solenoid Valve Group: Kohler-hydraulic valve lifters standard Starter/Electrical: 12 volt battery with alternator, solid state ignition with key
start Charging System: 15 amp
ENGINE DECK
Fuel Tank: 5 gallon (19.0 litres) seamless polyethylene tank with
fuel gauge gas cap Drive Wheels/Tires: 20x10.0-8 four-ply pneumatic tubeless, radius edge, offset
rims to improve operator's view
SSZ-LT=22x11.0-8 four-ply pneumatic tubeless, radius edge Parking Brake: Lever operated integral disc brake Frame: Compact tractor frame with structural steel tubing
construction
TM
DRIVE SYSTEM
Type: Hydro drive with two hydrostatic transmissions for
independent control of each drive wheel Hydrostatic Transmissions: Two Hydro-Gear Model #BDU 10L with integral
pump/motor and axle Transmission Belt Idler: Self-adjusting, self-tightening Dump Valve: Single lever, allows for movement without engine running Hydro Fluid Cooling Group: 6 qt. capacity nylon fluid reservoir, uses SAE 20W50 fluid
and 10 micron filter, fan driven off pump drive belt cools fins
on pump/motor transmission Steering/Travel Control: Twin lever fingertip steering control with individual
control to each wheel Axles: 1" heavy-duty, heat-treated flanged axle Wire Harness: 14 gauge wire Safety Group: Seat actuated engine kill, neutral interlock, mower
engagement (BBC) switch with interlock Instrument Panel: Ammeter, hour meter, key switch, throttle, fuses, manual
choke, BBC switch Forward Speed Range: 0 to 6.8 mph Reverse Speed Range: 0 to 3.5 mph
Date of Issue: September 26, 1996 Specifications Subject to Change Without Notice
14
SPECIFICATIONS FOR SCAG SSZ ZERO-TURN RIDER
MODELS:SSZ-18CV ,SSZ-20CV , SSZ-22CV, ALL SSZ-L T
CUTTER DECK SMZ 48, SMZ 52, SMZ 61
Type: Floating, adjustable, anti-scalping, hybrid design combines
out-front and belly-mount designs Construction: 10-gauge steel with 7-gauge (3/16") steel skirt True Cutting Width: 48.0" (122.0 cm), 52" (132.0 cm), 61: (155.0 cm) Cutting Height Adjustment: Hand operated lever adjustment from operator's seat, 1-3/4"
to 4-1/2" in 1/2" increments
SSZ-LT=2-1/4" to 5-1/4" in 1/2" increments Cutter Blades: .204 thick, milled edge, 5150 alloy steel
SMZ 48: Three (3) 16.5" blades
SMZ 52: Three (3) 18 blades
SMZ 61: Three (3) 21" blades Blade Engagement: Electric blade engagement clutch with control panel switch Discharge Opening: Extra wide 11.5" discharge opening with spring loaded
discharge chute Caster Wheels: 12x 3.5 with quick pin removal Spindles: Heavy duty 1-1/8" top dimension spindle shaft, cast housing,
taper roller bearing, low maintenance with top access grease
fitting and grease overfill relief poppet Spindle Pulleys: Cast-iron with easily removed taper hubs Cutter Deck Belts: B-section with Kevlar cord
ADDITIONAL SPECIFICATIONS
Seat: Thick cushion with padded with arm rests
OPTIONAL ITEMS/ATTACHMENTS
Grass Catcher: Spindle driven GC-SSZ-48 has 48 gallon capacity molded
plastic hopper. GC-SSZ-6KH has 6 HP Kohler auxillary
engine, 48 gallon capacity molded plastic hopper. Mulching Plate: Steel plate fits over discharge opening. No blade change
or removal required. Installs and removes in the field.
APPROXIMATE DIMENSIONS SMZ 48 SMZ 52 SMZ 61
Length: 72.0" 77.0" 77.0" Tracking Width: 46.0" 49.0" 49.0" Width: 59.0" 64.5" 73.5" Width (with discharge chute up): 49.0" 53.0" 62.0" Height: 48.0" 51.0" 51.0" Turning Radius: zero zero zero Weight: 790 lbs. 835 lbs. 865 lbs. Weight with GC-SSZ-48: 1060 lbs. Width with GC-SSZ-48 59.0" Length with GC-SSZ-48: 78.0" Weight with GC-SSZ-6KH: 1055 lbs. 1085 lbs. Width with GC-SSZ-6KH: 73.5" 82.5" Length with GC-SSZ-6KH: 83.0" 83.0" NOTE: SSZ-LT models have same specifications as respective models above except the height measurement. Add 1" to the height of the above specification for SSZ-LT models.
Date of Issue: September 26, 1996 Specifications Subject To Change Without Notice
15
64
11
13
6
67
12
8
48", 52" & 61" CUTTER DECKS
32
68
24
3
28
39
B
4
222366 21 17
13
27
70
26
18 18
16
20
A
24
25
15
3
34
39 35
31
45
69
37
40
38
42
3
24
25 41
43
36
20
30 71
41
65
70
49
31
32
10
25 48 46
49
47
44
B
7
20
10
5
2
24 3
14
61
62
63
4
33
A
60
9
14
52
53
54 55
12
1
50
59
51
29
25
56
58
54
57
SC214G
19
2
48", 52", & 61" CUTTER DECKS - CONT’D
Ref. Part No. Number Description
1 46852 Cutter Deck (Includes decals) X
46615 Cutter Deck (Includes decals) X 46611 Cutter Deck (Includes decals) X
2 421058 Belt Cover, Front X
421451 Belt Cover, Front X
421299 Belt Cover, Front X 3 04041-07 Flatwasher, 3/8" Special (.391 x .938 x .105)X X X 4 04029-03 Wing Nut, 3/8-16 X X X 5 48584 Anti-Scalp Wheel X X X 6 04001-79 Bolt, Hex Head 5/8-11 x 4-1/2" X X X 7 42882 Anti-Scalp Wheel Bracket X X X 8 04017-27 Bolt, Hex Serrated Flange 3/8-16 x 1" X X X 9 04040-10 Flatwasher, 5/8" (.688 x 1.75 x .134) X X X 10 04021-13 Nut, Hex Elastic Stop 5/8-11 X X X 11 46727 Discharge Chute X X
46728 Discharge Chute X 12 04001-09 Bolt, Hex Head 5/16-18 x 1" X X X 13 04021-10 Nut, Hex Elastic Stop 5/16-18 X X X 14 04017-16 Bolt, Hex Serrated Flange 5/16-18 x 3/4" X X X 15 44078 “J” Rod X
44101 “J” Rod X X 16 45037 Idler Pivot Base X X X 17 04001-46 Bolt, Hex Head 3/8-16 x 2-1/4" X X X 18 48100-05 Bushing X X X 19 481035 Nut, Special 1-1/16-18 X X X 20 04019-03 Nut, Hex Serrated Flange 5/16-18 X X X 21 46081 Idler Arm (Includes bushings &
grease fittings) X X X 22 43077 Spacer X X X 23 43028 “J” Rod X X
44078 “J” Rod X 24 04021-09 Nut, Hex Elastic Stop 3/8-16 X X X 25 48114-04 Grease Fitting X X X 26 04041-08 Flatwasher, 3/4" X X X
04041-08S Flatwasher, 3/4" Special X X X 27 04050-02 Ring, Retaining 3/4" External “E” X X X 28 48181 Pulley, Idler X X X 29 43297 Spindle Bushing, Bottom X X X 30 48924 Pulley, LH Spindle X X
48753 Pulley, LH Spindle X 31 48926 Tapered Hub, 1-1/8 Bore X X X 32 04001-01 Bolt, Hex Head 1/4-20 x 3/4" X X X 33 04001-41 Bolt, Hex Head 5/8-11 x 9-1/2" X X X 34 48087 Belt, RH Blade Drive X
48285 Belt, RH Blade Drive X
48265 Belt, RH Blade Drive X 35 04001-23 Bolt, Hex Head 3/8-16 x 4-1/2" X X X 36 48550 Pulley, Idler Cutter Engagement X X X 37 48923 Pulley, Double Groove X X
48940 Pulley, Double Groove X 38 48799 Belt, Blade Drive X
481001 Belt, Blade Drive X
48996 Belt, Blade Drive X
48 52 61
Ref. Part No. Number Description
39 04041-12 Flatwasher, 3/8" (.375 x 1.5 x .06) X X X 40 48807 Spring, Idler Tension X X X 41 48100-02 Bushing X X X 42 46750 Idler Arm (Includes bushings &
grease fittings) X X 43 45329 Idler Pivot Base X X X 44 04001-97 Bolt, Hex Head 5/8-11 x 3" X X X 45 43282 Spacer X X 46 04020-16 Nut, Hex 5/8-18 UNF X X X 47 48763 Rod End X X X 48 46460 Push Arm (Includes 25, 46, 47, and 49) X X X 49 48100-06 Bushing X X X 50 45332 Push Arm Shaft X X X 51 46631 Spindle Assembly X X X 52 43298 Spindle Shaft X X X
53 481024 Seal, Top X X X 54 481022 Bearing Assembly (1 required per spindle) X X X 55 48667 Relief Fitting, Tapered Spindle X X X 56 43294 Spindle Housing X X X 57 481025 Seal, Bottom X X X 58 43312 Spacer, Outside X X X 59 43296 Spacer, Inside X X X 60 04063-08 Key, 1/4 x 1/4 x 2" X X X 61 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4" X X X 62 43279 Spacer, Tapered Spindle X X X 63 48110 Cutter Blade, 16-1/2" Standard X
48184 Cutter Blade, 16-1/2" High Lift X 48108 Cutter Blade, 18" Standard X 48185 Cutter Blade, 18" High Lift X 48111 Cutter Blade, 21" Standard X
48304 Cutter Blade, 21" High Lift X 64 481050 Spring, Discharge Chute X X X 65 48786 Electric Clutch X X X 66 04001-108 Bolt, Hex Head 5/16-18 x 4.25" X X X 67 421616 Belt Cover, LH X
421615 Belt Cover, RH X
42889 Belt Cover, LH X
42890 Belt Cover, RH X
421292 Belt Cover, LH X
421293 Belt Cover, RH X 68 48924 Pulley, RH Spindle X X X 69 04001-109 Bolt, Hex Head 1/4-20 x 1.375 Full Thread X X X 70 * Nut, Hex 5/8-11 UNC X X X 71 04050-05 Ring, Retaining 1-1/8" External “E” X X X 72 46963 Idler Arm (Includes bushings &
grease fittings) X 73 04001-51 Bolt, Hex Head 3/8-16 X 3 3/4" X 74 04030-04 Lockwasher 3/8 X 75 43369 Nut, 3/8-16 Special W/Washer X
48 52 61
* Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.
3
CUTTER DECK CONTROLS 48", 52", & 61" DECKS
10
9
5
7
5
4
6
1
2
8
17
21
19
34
35
2
2
3
13
11 12
15
19
18
17
35
5
5
23
2
22
5
23
16
33
25
14
29 36
48" DECK
2
20
14
29
20
2
30
14
29
29
28
16
2
24
23
30
31
14
14
26
14
37
34
26
27
32
SC215G
4
CUTTER DECK CONTROLS 48", 52", & 61" DECKS - CONT’D
Ref. Part 48 52 61 No. Number Description
1 45524 Bellcrank, Lift - Right Front X X X 2 48100-05 Bushing X X X 3 45527 Lift Link X X X 4 43180 Bushing XX 5 04050-01 Retaining Ring, 5/8" External “E” X X 6 45610 Lift Arm Weldment X
45523 Lift Arm Weldment X X 7 04017-17 Bolt, Serrated Flange Hex Head 5/16-18 x 1" X X X 8 46384 Height Adjustment Lever (Includes grip) X X X 9 48093 Grip, Lever Lift X X X 10 44065 Rod, Cutter Deck Lock X X X 11 48053 Spring, Deck Lift Index X X X 12 04060-01 Roll Pin, 5/32 x 3/4" X X 13 42887 Lock, Rod Guide X X X 14 04019-04 Nut, Serrated Flange Hex 3/8-16 X X X 15 04019-03 Nut, Serrated Flange Hex 5/16-18 X X 16 48114-04 Grease Fitting X X X 17 04017-05 Bolt, Serrated Flange Hex Head 1/4-20 x 3/4" X X 18 42828 Strip, Height Adjustment X X X 19 04019-02 Nut, Serrated Flange Hex 1/4-20 X X 20 04041-08S Flatwasher, 3/4" (.766 x 1.250 x.075) X X 21 04050-02 Ring, Retaining 3/4" External “E” X X 22 04021-09 Nut, Elastic Stop 3/8-16 X X X 23 04040-09 Flatwasher, 5/8" (.656 x 1.312 x .075) X X X 24 45313 Bellcrank, Lift - Left Front X X X 25 43271 Swivel Joint - LH THD X X X 26 04004-18 Adjustment Stud X
04004-15 Adjustment Stud X X 27 04040-10 Flatwasher, 5/8" (.688 x 1.75 x .134) X X X 28 48540 Chain XX 29 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2" X X X 30 04020-09 Nut, Hex 5/8-11 X X X 31 43270 Swivel Joint - RH X X X 32 481045 Spring, Deck Lift X 32 48953 Spring, Deck Lift X X 33 45427 Bellcrank X X X 34 04063-15 Key, 3/16 x 3/16 x .75" X X X 35 48114-05 Grease Fitting X X 36 421585 Link, Deck Support X 37 04001-45 Bolt, Hex Head 3/8-16 x 2" X X X
* Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.
5
16
SHEET METAL COMPONENTS
53
51
10
21
4
15
8
50
65
5
4
10
10
6
25
25
20
19
23
10
14
17
10
25 12
25
10
9
25
27
14 33 14
25
26
23
25
(52" & 61" only)
30
29
9
64
65 32
67
66
(48" only)
35
29
22
52
7
55
57
56 56A
54
24
61
63
(52" & 61" only)
59
11
37
1
2
39
1
42
44
38
41
45
46
41
47
25 34
49
45
43
10
48
42
28
58
36
31
60
68 32
18 18A
62
3
13
3
SC216G
6
SHEET METAL COMPONENTS - CONT’D
Ref. Part No. Number Description
1 48100-08 Bushing X X X 2 48114-04 Grease Fitting X X X 3 43257 Bushing, Spring Keeper X X X 4 04062-02 Hair Pin, .08 Diameter x 1-3/16" X X X 5 04041-07 Flatwasher, 3/8" (.391 x .738 x .105) X X X 6 44062 Rod, Foot Plate Latch X X X 7 481086 Cable, Seat Stop X X X 8 421589 Foot Plate X
42764 Foot Plate X X 9 481049 Hinge X X X 10 04003-12 Bolt, Carriage 5/16-18 x 3/4" X X X 11 04001-08 Bolt, Serrated Flange Hex
Head 5/16-18 x 3/4" X X X 12 421251 Kick Plate X X X 13 48746 Neutral Return Spring X X X 14 04021-10 Nut, Elastic Stop 5/16-18 X X X 15 46505 Fender Assembly, RH (with decal) X X X 16 04001-73 Bolt, Hex Head 5/16-18 x 3-3/4" X X X 17 04003-04 Bolt, Carriage 5/16-18 x 1" X X X 18 421411 Retainer, Neutral Spring, LH X X X 18A 421412 Retainer, Neutral Spring, RH X X X 19 45405 Seat Switch Bracket X X X 20 48463 Spring X X X 21 04064-04 Clevis Pin X X X 22 04017-15 Bolt, Serrated Flange Hex
Head 5/16-18 x 1/2" X X X 23 04062-02 Hair Pin, Cotter X X X 24 48831 Seat Assembly X
48930 Seat Assembly w/Adjuster Rails X X 25 04019-03 Nut, Serrated Flange Hex 5/16-18 X X X 26 46754 Seat Base X X X 27 04021-08 Nut, Elastic Stop 1/4-20 X X X 28 04021-09 Nut, Elastic Stop 3/8-16 X X X 29 04019-02 Nut, Serrated Flange Hex 1/4-20 X X X 30 04017-06 Bolt, Serrated Flange Hex Head 1/4-20 x 1" X X X 31 04001-31 Bolt, Hex Head 3/8-16 x 2-1/2" X X X 32 04001-15 Flatwasher, 5/16" (.313 x .875 x .083) X X X 33 48686 Seat Spring X X X 34 421198 Fender Panel, LH X X X
48 52 61
Ref. Part No. Number Description
35 48566 Cable, Seat Stop X X X 36 48464 Ball Joint, Neutral X X X 37 45479 Fender , LH X X X 38 46392 Caster Wheel Yoke Assembly X X X 39 04066-01 Quick Pin X X X 40 45325 Caster Wheel Yoke X X X 41 04021-07 Nut, Elastic Stop 1/2-13 X X X 42 43041 Spacer X X X 43 04001-80 Bolt, Hex Head 1/2-13 x 6-1/2" X X X 44 48537 Wheel Assembly, Complete X X X 45 48006-07 Retainer X X X 46 48537-02 Tire Only X X X 47 48537-03 Rim Only X X X 48 43022 Sleeve X X X 49 48006-06 Roller Bearing X X X 50 48717 Seat Switch X X X 51 48704-02 Seat, Back Cushion X X X 52 48704-03 Seat, Bottom Cushion X X X 53 48704-04 Arm Pad, RH X X X 54 48704-05 Arm Pad, LH X X X 55 48522 Neutral Interlock Switch X X X 56 421253 Neutral Lock Bracket, RH X X X 56A 421252 Neutral Lock Bracket, LH X X X 57 04017-24 Bolt, Serrated Flange Hex
Head 5/16-18 x 2-3/4" X X X 58 43240 Spacer, Neutral Spring X X X 59 43258 Spacer, Neutral Lock Bracket X X X 60 04020-14 Nut, Hex 3/8-24 UNF X X X 61 48704-06 Bolt, Hex Head w/Washer, 1/4-20 x 3/4" X X X 62 04001-99 Bolt, Hex Head 3/8-24 x 6-1/2", UNF X X X 63 48931 Seat Adjustment, Track Set X X X 64 48030-09 Cable Clamp, .50 ID X X X 65 04001-09 Bolt, Hex Head 5/16-18 x 1" X X X 66 04017-16 Bolt, Serrated Flange Hex Head 5/16-18 x 1" X 67 * Bolt, Hex Head 1/4-20 x 1.25" X X X 68 * Lockwasher, 5/16" X X X 69A 46823 Main Frame Assy. X 69B 46824 Main Frame Assy. X X
48 52 61
* Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.
7
HYDRAULIC COMPONENTS
13
15
19
8
21A
18
2
1
1
2
34
41
22
17
29
39
35
40 36
20A
10
9
7
6
5
4
26
14
15
24
23
30
25
34
28
28
29
38
3
38
9
32
38
37
38
33
31
27
22
34
20
40 36
11
10
1
35
39
16
12
1
21
19
SC217G
8
HYDRAULIC COMPONENTS - CONT’D
Ref. Part 48 52 61 No. Number Description
1 04030-03 Lockwasher, 5/16" X X X 2 04040-04 Flatwasher, 5/16" (.344 x .688 x .065) X X X 3 04017-05 Bolt, Serrated Flange Hex Head 1/4-20 x 3/4" X X X 4 48790 Pump, Pulley X X X 5 48791 Tapered Hub, 15 mm Bore X X X 6 48789 Fan X X X 7 421209 Washer, Back-up X X X 8 04050-13 Snap Ring X X X 9 04017-04 Bolt, Serrated Flange Hex Head 1/4-20 x 1/2" X X X 10 04063-14 Key, 5 mm x 5 mm x 25 mm X X X 11 04001-12 Bolt, Hex Head 5/16-18 x 1-3/4" X X X 12 04001-96 Bolt, Hex Head 5/16-18 x 4-1/2" X X X 13 04001-95 Bolt, Hex Head 5/16-18 x 5" X X X 14 04001-94 Bolt, Hex Head 5/16-18 x 7-1/2" X X X 15 04020-03 Nut, Hex 5/16-18 X X X 16 04001-30 Bolt, Hex Head 3/8-16 x 4" X X X 17 48878 Spacer X X X 18 48875 Gear X X X 19 04019-04 Nut, Serrated Flange Hex Head 3/8-16 X X X 20 48784 Pump, LH (Includes spacers) X X X 20A 48785 Pump, RH (Includes spacers) X X X 21 481097 Axle, LH (Includes brake lever) X X X 21A 481224 Axle, RH (Includes brake lever) X X X 22 48350-09 Elbow, 90 Degree 9/16-18 JIC to 9/16-18 “O” Ring X X X 23 48860 Oil Tank Reservoir X X X 24 48894 Cap, Oil Reservoir X X X 25 421208 Strap, Oil Reservoir X X X 26 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" X X X 27 04021-08 Nut, Elastic Stop 1/4-20 X X X 28 48485-01 Elbow, 45 Degree 3/4-16 JIC to 3/4-16 “O” Ring X X X 29 48603-06 “O” Ring, 5/64 x 15/32 ID X X X 30 48872 Hose Assembly, Filter Inlet X X X 31 48604-02 Plug, 3/4-16 “O” Ring X X X 32 48462-02 Head, Oil Filter X X X 33 48462-01 Oil Filter, Special X X X 34 48871 Hose Assembly X X X 35 48603-04 “O” Ring, 3/32 x 3/4 ID X X X 36 48603-03 “O” Ring, 1/16 x 3/8 ID X X X 37 48810-01 1/2" T-fitting, 3/4-16 JIC to 3/4-16 “O” Ring X X X 38 48603-02 “O” Ring, 3/32 x 5/8 ID X X X 39 48572-02 Tube Union 3/4-16 JIC to 7/8-14 “O” Ring X X X 40 48350-10 Elbow, 90 Degree 9/16-18 JIC to 7/16-20 “O” Ring X X X 41 HG50267 “O” Ring X X X 42 481090 Gasket, Hydraulic Tank Cap X X X 43 481507 Filler Neck Insert X X X
* Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.
9
BDU-10L HYDRAULIC PUMP
16
10
9
12
15
30
7
3
4
2
6
5
1
Overhaul SEAL KIT
17
29
27
8
12
18
20
25
24
26
21
11
15
2
17
14
19
20
28
Ref. Part No. Number Description
1 HG2513038 Pump Shaft Kit 2 HG2003016 Wire Retaining Ring 3 HG2003043 Ball Bearing 4 HG2003018 Spacer 5 HG9008000-0128 Lip Seal (16 x 35 x 7) 6 HG2003052 Retaining Ring 7 HG2003023 Cradle Bearing 8 HG9008000-126 Lip Seal (12 x 35 x 7) 9 HG2003005 Trunnion Arm 10 HG2000015 Slot Guide 11 HG2513020 Transmission Housing Kit RH
HG2513003 Transmission Housing Kit LH 12 HG2003044 Thrust Ball Bearing Assembly 13 HG9008000-0127 Lip Seal (15 x 24 x 7) 14 HG2003032 Motor Shaft 15 HG2003017 Block Thrust Washer
22
13
23
SC226G
Ref. Part No. Number Description
16 HG2003087 Variable Swash Plate 17 HG70079 BDP-10L Block Assembly
18 HG9004800-2506 Pin ST Holder 19 HG2513006 Center Section Kit 20 HG2510027 Check Valve Kit 21 HG2510011 Charge Relief Kit 22 HG9007314-0808 Socket Head Cap Screw 23 HG2513011 Bypass Valve Kit 24 HG9004101-1340 O-Ring 25 HG2513027 Charge Pump Cover 26 HG50273 Gerotor Assembly 27 HG50095 Capscrew (6mm x 20") 28 HG2003060 Center Section Gasket 29 HG2513013 Overhaul Seal Kit 30 HG2000025 Spring Block
10
AXLE ASSEMBLY
2
16
15
14
17
19
18
20
21
22
11
BRAKE ASS'Y.
FOR
MODEL # 481097
16
8
13
31
12
5
4
36
26
35
34 33
30
31
32
29 28
27
23
28
3233
24
25
31
26
6
10
9
8
7
BRAKE ASS'Y.
FOR
MODEL # 481098
36
26
27
35
342930
23
24
25
26
SC225G
Ref. Part No. Number Description
1 HG62768 Axle Housing Assembly 2 HG44533 Hydro Mount Housing 3 HG44358 Splined 72 Tooth Final Drive Gear 4 HG62681 Axle Shaft Assembly 5 HG44366 Bolt, 1/4-20 x 2-1/2" Hex Head 6 HG44359 E-Ring .875 7 HG50263 Oil Seal, 1.25 x .625 8 HG44147 Ball Bearing, .62 ID x 1.38 x .44 9 HG44371 Washer, HT .62 ID x 1.0 OD x .05 Thick 10 HG44351 Brake Shaft (Splined) 11 HG50419 Splined Reduction Gear, 17 Tooth 12 HG50420 Splined 60 Tooth Gear 13 HG44371 Washer, HT .62 ID x 1.0 OD x .05 Thick 14 HG9001214-3700 Ball, 3/8" Diameter 15 HG50223 Gasket, Housing 16 HG44269 Pin, Spring 3/16" x 1/2" x 12" Long 17 HG23747 Mounting Spacer 18 HG44355 Bearing, Spacer 19 HG50267 O-Ring
Ref. Part No. Number Description
20 HG44232 Ball Bearing, 15mm x 35mm x 11mm 21 HG44353 Input Gear, 11 Tooth
22 HG44354 Retaining Ring 23 HG44143 Key, Hi Pro 3/16 x 5/8 24 HG44132 Puck, Brake 25 HG44134 Plate, Puck 26 HG23770 Brake Spacer 27 HG62589 Brake Yoke Assembly 28 HG44276 Bolt, 1/4-20 x 1-1/2" W/Patch 29 HG44130 Washer, 7/16 x 7/8 OD x .06 HT 30 HG44142 Nut, Castle 5/16-24 PL 31 HG44101 Pin, Cotter 32 HG44127 Pin, Brake Actuating 33 HG44094 Arm, Brake Actuator (LH Assy.) 33 HG44613 Arm, Brake Actuator (RH Assy.) 34 HG44612 Bolt, 1/4-20 x 2-1/2" 35 HG23711 Spacer, Torsion Spring 36 HG44090 Disc, Brake
11
14
TRACTION DRIVE COMPONENTS
32
54
51
60
55
61
57
59
5
5
5
4 3
58
10
13 14
31 19
9
8
5
1
13
26
25
17
16
23 2
56
22 20
12
41
49
40 52
48
43
44
42
47
44
21
41
11
50
44
46
44 45 41 13
28
18 24
15
12
53
7
30
32
6
32
36
14
34
35
27
29 33
39 38
37
SC218GA
12
TRACTION DRIVE COMPONENTS
Ref. Part No. Number Description
1 481116 Engine 18 hp Kohler CV For SSZ-18CV X
481117 Engine 20 hp Kohler CV For SSZ-20CV X X X
481118 Engine 22 hp Kohler CV For SSZ-22CV X X X 2 48058-03 Fuel Hose X X X 3 48633 Muffler Clamp X X X 4 48964 Tube, Exaust X X X 5 * Kohler Fittings, Purchase From Kohler X X X 6 48030-09 Clamp, 50 ID X X X 7 04021-09 Nut, 3/8-16 Elastic Stop X X X 8 48402-02 Extention, 3" X X X 9 48257 Pipe Cap X X X 10 04017-19 Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head X X X 11 04003-05 Bolt, 7/8-16 x 1.50" Carriage X X X 12 04019-03 Nut, Serrated Flange Hex Head 5/16-18 X X X 13 04003-12 Bolt, Carriage 5/16-18 x 3/4" X X X 14 04040-15 Flatwasher, 5/16" (.313 x .875 x .083) X X X 15 45479 Fender, LH X X X 16 421197 Battery Box X X X 17 04003-01 Bolt, Carriage 1/4-20 x 6" X X X 18 04029-01 Wing Nut, 1/4-20 X X X 19 04003-04 Bolt, Carriage 5/16-18 x 1" X X X 20 04019-02 Nut, Serrated Flange Hex 1/4-20 X X X 21 04003-02 Bolt, Carriage 1/4-20 x 3/4" X X X 22 421624 Belt Guard X X X 23 48059-01 Fuel Hose Clamp X X X 24 48661 Rubber Pad X X X 25 42392 Battery Cover X X X 26 48099 Pad, Battery Cover X X X 27 48792 Pulley X X X 28 48790 Pulley, Pump X X X 29 04063-06 Key, 1/4 x 1/4 x 1-1/2" X 30 04041-07 Flatwasher, 3/8" (.391 x .938 x .105) X X X 31 04110-01 U-Nut, 1/4-20 X X X 32 04021-10 Nut, Elastic Stop 5/16-18 X X X 33 48786 Electric Clutch X X X
48 52 61
Ref. Part No. Number Description
34 48814 Rubber Pad, Clutch Stop X X X 35 421564 Backing Plate X X X 36 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4" X X X 37 04001-101 Bolt, Hex Head 7/16-20 x 2.50 X X X 38 04030-05 Lockwasher, 7/16" X X X 39 04041-18 Flatwasher, 7/16" Special X X X 40 48181 Idler, Pulley X X X 41 04001-21 Bolt, Hex Head 3/8-16 x 1.75" X X X 42 45650 Pivot Weldment, Idler Arm X X X 43 48114-04 Grease Fitting X X X 44 04019-04 Nut, Serrated Flange Hex 3/8-16 X X X 45 48961 Spring, Pump Drive Idler X X X 46 04003-12 Bolt, Carriage 5/16-18 x 3/4 X X X 47 04019-03 Nut, Serrated Flange Hex 5/16-18 X X X 48 04050-05 Ring, Retaining 1.125 Diameter External “E” X X X 49 48100-02 Bushing, 1.125 Sintered X X X 50 46755 Idler Arm Weldment, Pump Drive X X X 51 48309 Bushing, Fuel Tank Valve X X X 52 48760 Belt, Pump Drive X X X 53 43248 Spacer, Crankshaft X X X 54 48651 Fuel Tank (Includes shut-off valve) X X X 55 48658 Fuel Tank Cap X X X 56 48308 Fuel Shut-off Valve X X X 57 42944 Fuel Tank Strap, Long X X X 58 42945 Fuel Tank Strap, Short X X X 59 48657 Rubber Pad X X X 60 46505 Fender Assembly, RH (with decal) X X X 61 04010-10 Screw, Machine 1/4-20 x 2" Phillips Head X X X 62 04017-19 Bolt, 5/16-18 x 1-1/2" Serr.Flng. Hex Head X X X 63 04003-05 Bolt, Carriage 7/8-16 x 1.50" X X X 64 04021-09 Nut, Elastic Stop 3/8-16 X X X 65 48030-09 Clamp, .50 ID X X X 66 * Kohler Fittings, Purchase From Kohler X X X
48 52 61
* Kohler hardware which should be purchased from an authorised Kohler Dealer.
13
BRAKE AND STEERING CONTROLS
20
50
24
77
23
20
18
21
17
22
54
25
26 26A
19
19
22
14
44
55
49
44
58
21
59
60
12
43
47
22
20
6 6A
16
48
9
38
15
46
42
47
20
56
62 62A
8
27
36
39
28 28A
20
27
55
13
48
55A
12
53
11
52
38
57
22
31
51
37
67
10
32
28 28A
35
30
41
40
5 5A
61
22
33
34
29 29A
45
2
1
14
73
75
77
74
7
67
68
75
76
63
66
64
57
69 69A
72
71
3
4
70
SC219G
BRAKE AND STEERING CONTROLS - CONT’D
Ref. Part No. Number Description
1 48827 Drive Wheel Assembly X 1 48958 Drive Wheel Assembly X X X 2 48827-02 Tire Only X X X 3 48321-04 Rim Only X 3 48958-03 Rim Only X X X 4 04028-01 Lug Nut, 1/2-20 X X X 5 481097 Axle, LH (Includes brake lever) X X X 5A 481098 Axle, RH (Includes brake lever) X X X 6 48784 Pump, LH X X X 6A 48785 Pump, RH X X X 7 45464 Dump Valve, Lever Weldment X X X 8 421212 Bracket, Mounting X X X 9 04062-01 Hair Pin X X X 10 04001-95 Bolt, Hex Head 5/16-18 x 5" X X X 11 * Flatwasher, 5/16" X X X 12 * Lockwasher, 5/16" X X X 13 * Nut, Hex 5/16-18 X X X 14 45462 Pump Weldment Shaft X X X 15 421203 Clamp Plate X X X 16 48829 Block, Pump Control X X X 17 48796 Bushing, Self Align X X X 18 421204 Bracket, Bearing X X X 19 * Bolt, Hex Head 3/8-16 x 1" X X X 20 * Nut, Elastic Stop 3/8-16 X X X 21 * Bolt, Hex Head 3/8-16 x 1-1/2" X X X 22 04041-07 Flatwasher, 3/8" Special X X X 23 48544 Ball Joint, LH Thread X X X 24 43246 Link, Turnbuckle X X X 25 48464 Ball Joint, RH Thread X X X 26 45895 Lever, Pump Transfer LH X X X 26A 45896 Lever, Pump Transfer RH X X X 27 48114-04 Grease Fitting X X X 28 48100-06 Bushing, LH X X X 28A 48100-05 Bushing, RH X X X 29 45897 Control Lever, LH X X X 29A 45898 Control Lever, RH X X X 30 * Bolt, Hex Head 5/16-18 x 1-1/2" X X X 31 04019-03 Nut, Serrated Flange Hex 5/16-18 X X X 32 421145 Bar Control Lever X X X 33 45437 Control Handle X X X 34 04017-27 Bolt, Serrated Flange Hex Head 3/8-16 x 1" X X X 35 48093 Grip, Control Handle X X X 36 45482 Lever Weldment, Parking Brake X X X 37 45551 Cam Weldment, Parking Brake X X X
48 52 61
Ref. Part No. Number Description
38 421262 Plate, Parking Brake X X X 39 421266 Latch, Brake X X X 40 43256 Swivel Joint X X X 41 44080 Rod, Brake X X X 42 48840 Cable Assembly, Parking Brake X X X 43 421238 Plate, Coupler X X X 44 04017-05 Bolt, Serrated Flange Hex Hd 1/4-20 x 3/4" X X X 45 * Bolt, Hex Head 3/8-16 x 4" X X X 46 04050-02 Ring, Retaining 3/4" External “E” X X X 47 04019-02 Nut, Serrated Flange Hex 1/4-20 X X X 48 04017-07 Bolt, Serrated Flange Hex
Head 1/4-20 x 1-1/4" X X X 49 04060-06 Roll Pin, 3/16 x 3/4" X X X 50 * Nut, Hex 3/8-24 X X X 51 * Bolt, Hex Head 3/8-16 x 2" X X X 52 04041-12 Flatwasher, 3/8 (.375 x 1-1/2" x 16 ga.) X X X 53 48050 Spring, Brake Lever X X X 54 * Bolt, Carriage 3/8-16 x 1-1/2" X X X 55 04019-04 Nut, Serrated Flange Hex 3/8-16 X X X 56 04017-16 Bolt, Serrated Flange Hex
Head 5/16-18 x 3/4" X X X 57 04062-02 Hair Pin, 1/16" X X X 58 * Nut, Elastic Stop 1/4-20 X X X 59 48342 Grip, Parking Brake X X X 60 * Bolt, Hex Head 5/16-18 x 1-1/2" X X X 61 04021-10 Nut, Elastic Stop 5/16-18 X X X 62 04041-08 Flatwasher, 3/4" X X X 62A 04041-08S Flatwasher, 3/4" Special X X X 63 HG44612 Bolt, 1/4-20 x 2-1/2 GR. 5 w/patch X X X 64 HG44276 Bolt, 1/4-20 x 1-1/2 GR. 5 w/patch X X X 65 04008-02 Bolt, Wheel Mounting X X X 66 HG44127 Pins, Actuating X X X 67 HG44132 Brake Puck X X X 68 HG44134 Backing Plate X X X 69 HG44093 Actuating Lever, RH X X X 69A HG44613 Actuating Lever, LH X X X 70 * Pin, Cotter X X X 71 HG44142 Nut, Castle X X X 72 HG44130 Washer, 7/16 x 7/8 OD x .06 HT X X X 73 HG44090 Disc, Brake X X X 74 HG44143 Key, Hi Pro 3/16 x 5/8 X X X 75 HG23770 Brake Spacer X X X 76 HG23711 Spacer, Torsion Spring X X X 77 HG62589 Brake Yoke Assembly X X X
48 52 61
15
41

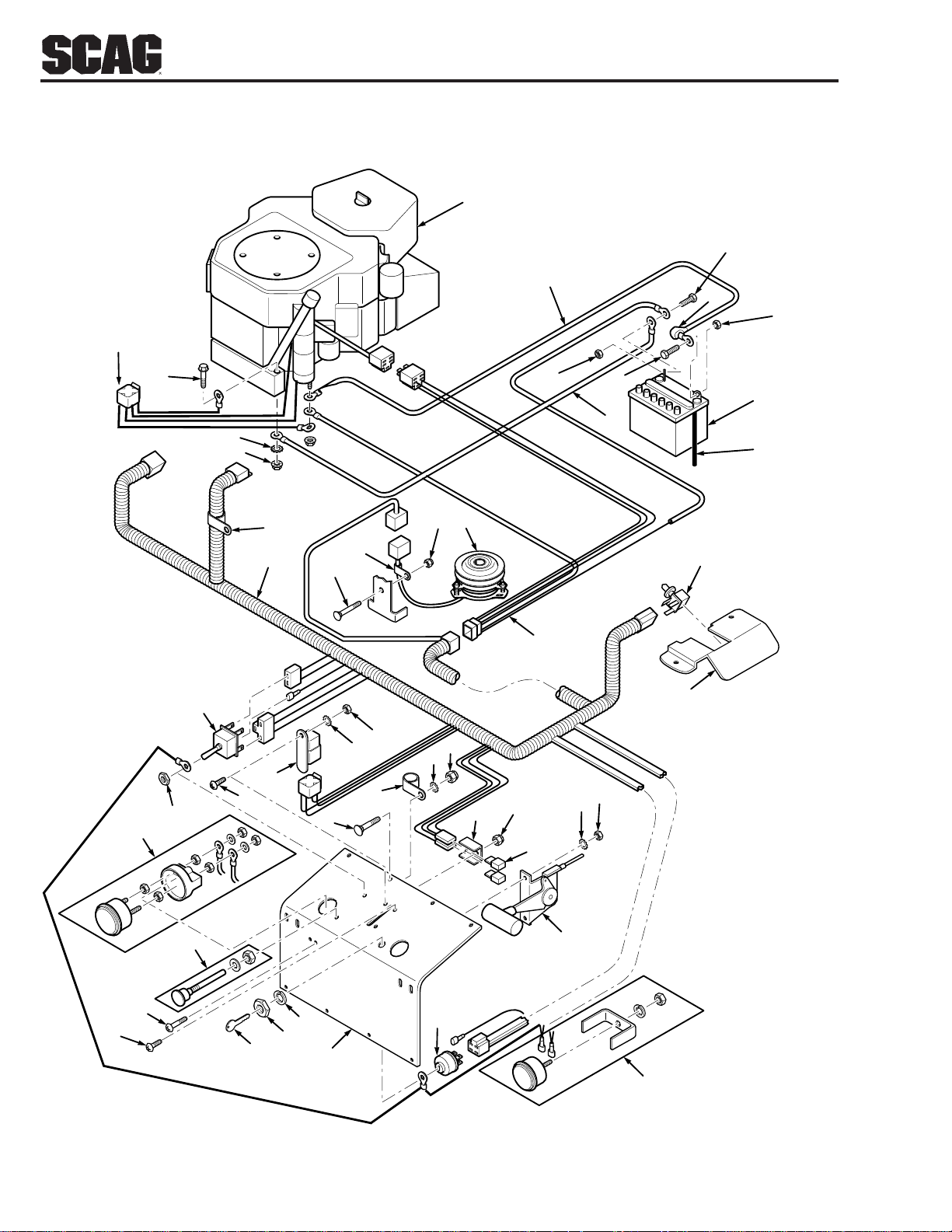

INSTRUMENT PANEL AND ELECTRICAL COMPONENTS
1
26
29
28
27
31
41
24
36
24
39
23
10
37
17
18
19
14
33
6
37
38
12
11
37
22
35
34
27
3
11
26
25
30
15
21
20 20A
12
14
13
2
32
8
9
4
7
16
5
SC220G
16
INSTRUMENT PANEL AND ELECTRICAL COMPONENTS
Ref. Part 48 52 61 No. Number Description
1 48116 Engine 18 hp Kohler CV (**) X
48970 Engine 20 hp Kohler CV (**) X X
48972 Engine 22 hp Kohler CV (**) X X 2 48780 Choke Control X X X 3 481070 Adapter X X X
Ref. Part 48 52 61 No. Number Description
4 421251 Kick Plate X X X 5 48023 Hour Meter X X X 6 48022 Ammeter X X X 7 48798 Key Switch (Includes mounting hardware) X X X 8 48017-04 Nut, Hex 5/8-32 X X X 9 48017-02 Key & Ring Assembly X X X 10 42413 Bracket, Fuse Holder X X X 11 04031-01 Lockwasher, #10 External Tooth X X X 12 04020-07 Nut, Hex #10-32 X X X 13 04010-11 Screw, Phillips Washer Head #10-32 x 1-1/2" X X X 14 04010-01 Screw, Phillips Washer Head #10-32 x 1/2" X X X 15 48015-01 Overflow Tube X X X 16 48879 Throttle Control X X X 17 481269 Wire Harness X X X 18 48787 Switch, Mower Engagement Electric Clutch X X X 19 48788 Relay X X X 20 421253 Neutral Lock Bracket, RH X X X 20A 421252 Neutral Lock Bracket, LH X X X 21 48522 Switch Neutral Lock X X X 22 04003-12 Bolt, Carriage 5/16-18 x .75" X X X 23 04021-10 Nut, Elastic Stop 5/16-18 X X X 24 04019-03 Nut, Serrated Flange Hex 5/16-18 X X X 25 48015 Battery X X X 26 04001-44 Bolt, Hex Head 1/4-20 x 1/2" X X X 27 04020-02 Nut, Hex 1/4-20 X X X 28 48126 Rubber Boot X X X 29 48029-13 Battery Cable, 25" Red X X X 30 48029-11 Battery Cable, 27" Black X X X 31 04017-19 Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" X X X 32 48017-03 Lockwasher, 5/8" Internal X X X 33 48787-01 Nut, Hex 1/2-27 X X X 34 48298 Fuse, Blade Type 20 amp X X X 35 04021-01 Nut, Elastic Stop #10-32 X X X 36 48786 Electric Clutch X X X 37 48030-09 Clamp X X X 38 04003-12 Bolt, Carriage 5/16-18 x 3/4" X X X 39 04021-10 Nut, Elastic Stop 5/16-18 X X X 40 04031-09 Lockwasher, 5/16" Internal Tooth X X X 41 481275 Wire Harness W/Relay X X X
* Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.
** Contact engine manufacturer for replacement engine.
17
BATTERY
ELECTRICAL WIRING DIAGRAM - KOHLER
ELECTRIC
CLUTCH
CLUTCH
RED
SWITCH
RED
RED
+
RED
BLUE
BLACK
BLACK
RELAY
RED
RED
LH NEUTRAL
INTERLOCK
BLACK
BLACK
GREEN
BLACK
BLACK
GREEN
RED
RED
RED
BLACK
BLACK
STARTER
BLACK
YELLOW
TO MAGNETO (WHITE)
TO ALTERNATOR (PURPLE)
BLUE/RED
GREEN
ENGINE HARNESS
CONNECTORS
BLACK
GREEN
RELAY
WHITE
PURPLE/
RED
BLACKBLACK
YELLOW
RED
BLACK
RED
GREEN
BLACK
BLACK
BLACK
BLACK
BLACK
BATTERY CABLES
GROUND TO KILL
MAGNETO
POSITIVE TO START
- CHARGE
RED
GREEN
YELLOW
BLACK
RED
GREEN
RH NEUTRAL
BLACK
INTERLOCK
GREEN
BLACK
BLACK
RED
BLACK
BLACK
BLACK
SEAT
INTERLOCK
SWITCH
YELLOW
BLACK
RED
RED
BLACK
RED
RED
KEY
FUSE
FUSE
SWITCH
YELLOW
BLACK
YELLOW
BLACK
HOURMETER AMMETER
YELLOW
INSTRUMENT PANEL
RED
RED
RED
YELLOW
SC221G
18
48556 - Size 12" x 3.25"
16
48623 - Size 12" x 3.25"
REPLACEMENT DECALS
8
13
31
12
48859 - Size 11.5" x 5.5"
HEAVY DUTY
COMMERCIAL
48072
48072
48318-48" 48319-52" 48320-61"
48404
48404
481041
19
REPLACEMENT DECALS
FOR CORRECT BELT TENSION
48873
TIGHTEN NUT UNTIL SPRING
ALIGNS WITH BRACKET EDGE
SEE OPERATORS MANUAL
PARKING BRAKE
OFF
WARNING
INSTALL BELT COVER BEFORE
OPERATING MACHINE
READ OPERATOR'S MANUAL
481039
481039
ON
481137
CAUTION
AVOID INJURY FROM BURNS. SHUT OFF ENGINE BEFORE REMOVING FUEL TANK CAP.
481137
WARNING
ROTATING BLADES AND BELTS
KEEP HANDS, FEET & CLOTHING CLEAR KEEP ALL GUARDS IN PLACE SHUT OFF ENGINE & DISENGAGE BLADE CLUTCH BEFORE SERVICING CLEAR AREA OF DEBRIS BEFORE MOWING USE CAUTION IN DIRECTING DISCHARGE KEEP BYSTANDERS, CHILDREN & PETS AWAY READ INSTRUCTION MANUAL BEFORE OPERATING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING
KIT, OR ENTIRE GRASS CATCHER INSTALLED
481040
F
FORWARD
CAUTION
N
NEUTRAL
R
REVERSE
KEEP BYSTANDERS AWAY
START
ON
START / DRIVE
PROCEDURE
ENGAGE PARKING BRAKE DISENGAGE MOWER DECK DRIVE MOVE CONTROL HANDLES TO NEUTRAL LOCK POSITION START ENGINE RELEASE PARKING BRAKE SELECT FORWARD OR REVERSE SPEED WITH HYDRO CONTROL HANDLES
OFF
48873
481040
FAST
SLOW
R
PULL UP AND PUSH
FORWARD TO ENGAGE
MOWER DECK ON
MOWER DECK OFF
PULL BACK
TO DISENGAGE
CAUTION
BEFORE OPERATING
READ OPERATINGS
MANUAL AND SAFETY
INSTRUCTIONS
481138
F
FORWARD
N
NEUTRAL
R
REVERSE
481138
20
REPLACEMENT DECALS
MANUFACTURED UNDER ONE OR MORE
OF THE FOLLOWING PATENTS:
PATENTS PENDING
4,487,006 4,885,903 4,920,733 4,967,543
4,991,382 4,998,948 4,118,617
48656
CAUTION:
SPRING TENSION ON IDLER
SEE OPERATOR'S MANUAL
BEFORE DISASSEMBLY
481042
48825 - Size 8.5" x 2"
481099
481099
48071
48656
21
SPECIFICATIONS FOR SCAG SSZ ZERO-TURN RIDER
MODELS:SSZ-18CV, SSZ-20CV, SSZ-22CV
ENGINE
General Type: Heavy duty industrial/commercial Brand: Kohler Model: Kohler 18CV, 20CV, 22CV Command Vertical Engine Horsepower: 18HP, 20HP, 22HP @ 3600 RPM Type: 4 cycle gas, twin cylinder, vertical shaft engine Displacement: 18HP=624 cc, 20HP=624cc, 22HP=624cc Cylinders: 2 cast-iron sleeves Governor: Mechanical type governor with variable speed control set at
3600 rpm (+ 100rpm), idle set at 1400 rpm Air Cleaner: Large capacity dual element, chopper-type grass screen Exhaust: Single exhaust canister muffler Fuel Pump Group: Mechanical fuel pump with inline fuel filter, fixed jet
carburator with Smart- Choke and fuel shutdown solenoid Valve Group: Kohler-hydraulic valve lifters standard Starter/Electrical: 12 volt battery with alternator, solid state ignition with key
start Charging System: 15 amp
ENGINE DECK
Fuel Tank: 5 gallon (19.0 litres) seamless polyethylene tank with
fuel gauge gas cap Drive Wheels/Tires: 20x10.0-8 four-ply pneumatic tubeless, radius edge, offset
rims to improve operator's view Parking Brake: Lever operated integral disc brake Frame: Compact tractor frame with structural steel tubing
construction
TM
DRIVE SYSTEM
Type: Hydro drive with two hydrostatic transmissions for
independent control of each drive wheel Hydrostatic Transmissions: Two Hydro-Gear Model #BDU 10L with integral
pump/motor and axle Transmission Belt Idler: Self-adjusting, self-tightening Dump Valve: Single lever, allows for movement without engine running Hydro Fluid Cooling Group: 6 qt. capacity nylon fluid reservoir, uses SAE 20W50 fluid
and 10 micron filter, fan driven off pump drive belt cools fins
on pump/motor transmission Steering/Travel Control: Twin lever fingertip steering control with individual
control to each wheel Axles: 1" heavy-duty, heat-treated flanged axle Wire Harness: 14 gauge wire Safety Group: Seat actuated engine kill, neutral interlock, mower
engagement (BBC) switch with interlock Instrument Panel: Ammeter, hour meter, key switch, throttle, fuses, manual
choke, BBC switch Forward Speed Range: 0 to 6.8 mph Reverse Speed Range: 0 to 3.5 mph
Date of Issue: November 4, 1996 Specifications Subject to Change Without Notice
22
SPECIFICATIONS FOR SCAG SSZ ZERO-TURN RIDER
MODELS:SSZ-18CV,SSZ-20CV, SSZ-22CV
CUTTER DECK SMZ 48, SMZ 52, SMZ 61
Type: Floating, adjustable, anti-scalping, hybrid design combines
out-front and belly-mount designs Construction: 10-gauge steel with 7-gauge (3/16") steel skirt True Cutting Width: 48.0" (122.0 cm), 52" (132.0 cm), 61: (155.0 cm) Cutting Height Adjustment: Hand operated lever adjustment from operator's seat, 1-3/4"
to 4-1/2" in 1/2" increments Cutter Blades: .204 thick, milled edge, 5150 alloy steel
SMZ 48: Three (3) 16.5" blades
SMZ 52: Three (3) 18 blades
SMZ 61: Three (3) 21" blades Blade Engagement: Electric blade engagement clutch with control panel switch Discharge Opening: Extra wide 11.5" discharge opening with spring loaded
discharge chute Caster Wheels: 12x 3.5 with quick pin removal Spindles: Heavy duty 1-1/8" top dimension spindle shaft, cast housing,
taper roller bearing, low maintenance with top access grease
fitting and grease overfill relief poppet Spindle Pulleys: Cast-iron with easily removed taper hubs Cutter Deck Belts: B-section with Kevlar cord
ADDITIONAL SPECIFICATIONS
Seat: Padded with arm rests
OPTIONAL ITEMS/ATTACHMENTS
Grass Catcher: Spindle driven GC-SSZ-48 has 48 gallon capacity molded
plastic hopper. GC-SSZ-5BS has 5 HP Briggs auxillary
engine, 48 gallon capacity molded plastic hopper. Mulching Plate: Steel plate fits over discharge opening. No blade change
or removal required. Installs and removes in the field.
APPROXIMATE DIMENSIONS SMZ 48 SMZ 52 SMZ 61
Length: 72.0" 77.0" 77.0" Tracking Width: 46.0" 49.0" 49.0" Width: 59.0" 64.5" 73.5" Width (with discharge chute up): 49.0" 53.0" 62.0" Height: 48.0" 51.0" 51.0" Turning Radius: zero zero zero Weight: 790 lbs. 835 lbs. 865 lbs. Weight with GC-SSZ-48: 1060 lbs. Width with GC-SSZ-48 59.0" Length with GC-SSZ-48: 78.0" Weight with GC-SSZ-5BS: 1055 lbs. 1085 lbs. Width with GC-SSZ-5BS: 73.5" 82.5" Length with GC-SSZ-5BS: 83.0" 83.0"
Date of Issue: November 4, 1996 Specifications Subject To Change Without Notice
23
LIMITED WARRANTY-COMMERCIAL EQUIPMENT
Any part of the Scag commercial mower manufactured by Scag Power Equipment and found, in the reasonable judgment of Scag, to be defective in materials or workmanship, will be repaired or replaced by an Authorized Scag Service Dealer without charge for parts and labor. This warranty is limited to the original purchaser and is not transferable. Proof of purchase will be required by the dealer to substantiate any warranty claims. All warranty work must be performed by an Authorized Scag Service Dealer. This warranty is limited to the following specified periods from the date of the original retail purchase for defects in materials or workmanship:
* Wear items including drive belts, blades, hoses and tires are warranted for 90 days. * Batteries are covered for 90 days. * Frame, deck, and structural components including oil reservoir, fittings, and oil cooler are warranted for 1 year. * Engines and electric starters are covered by the manufacturers warranty period. * Drive system components are warranted for 1 year by the component manufacturer, in conjunction with Scag Power Equipment. (Excluding fittings, hoses, cooling system, oil reservoir, drive belts). * Electric clutch components are warranted for 1 year. * Cutter Spindle Assemblies 46631 have a Limited Warranty for three years (Parts and labor 1st year; Parts only 2nd and 3rd year).
Any Scag product used for rental purposes is covered by a 90 day warranty.
The Scag mower, including any defective part must be returned to an Authorized Scag Service Dealer within the warranty period. The expense of delivering the mower to the dealer for warranty work and the expense of returning it to the owner after repair will be paid for by the owner. Scags responsibility is limited to making the required repairs and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Scag mower.
This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operators Manual. The warranty does not apply to any damage to the mower that is the result of improper maintenance, or to any mower or parts that have not been assembled or installed as specified in the Operators Manual and Assembly Manual. The warranty does not cover any mower that has been altered or modified, changing performance or durability. In addition, the warranty does not extend to repairs made necessary by normal wear, or by the use of parts or accessories which, in the reasonable judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or durability.
Scag Power Equipment reserves the right to change or improve the design of any mower without assuming any obligation to modify any mower previously manufactured.
All other implied warranties are limited in duration to the one (1) year warranty period or ninety (90) days for mowers used for rental purpose. Accordingly, any such implied warranties including merchantability, fitness for a particular purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate one year or ninety day warranty period. Scags obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts and Scag does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Scag assumes no responsibility for incidental, consequential or other damages including, but not limited to, expense for gasoline, expense of delivering the mower to an Authorized Scag Service Dealer and expense of returning it to the owner, mechanics travel time, telephone or telegram charges, rental of a like product during the time warranty repairs are being performed, travel, loss or damage to personal property, loss of revenue, loss of use of the mower, loss of time or incon­venience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
© 1997 SCAG POWER EQUIPMENT DIVISION OF METALCRAFT OF MAYVILLE, INC.
PART NO. 03032
PRINTED 10/97
PRINTED IN USA
Loading...
