2010 Saturn VUE Owner Manual M

In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Instrument Panel . . . . . . . . . . . . . . 1-2

Initial Drive Information . . . . . . . . 1-3

Vehicle Features . . . . . . . . . . . . . 1-14

Performance and

Maintenance . . . . . . . . . . . . . . . . 1-17

Keys, Doors and Windows . . . 2-1

Keys and Locks . . . . . . . . . . . . . . . 2-2

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Vehicle Security...... . . . . . . . . . . 2-9

Exterior Mirrors . . . . . . . . . . . . . . . 2-12

Interior Mirrors . . . . . . . . . . . . . . . . 2-13

Windows . . . . . . . . . . . . . . . . . . . . . 2-13

Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Seats and Restraints . . . . . . . . . 3-1

Head Restraints . . . . . . . . . . . . . . . 3-2

Front Seats . . . . . . . . . . . . . . . . . . . . 3-3

Rear Seats . . . . . . . . . . . . . . . . . . . . 3-9

Safety Belts . . . . . . . . . . . . . . . . . . 3-10

Airbag System . . . . . . . . . . . . . . . . 3-25

Child Restraints . . . . . . . . . . . . . . 3-42

Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1

Storage Compartments . . . . . . . . 4-1

Additional Storage Features . . . 4-3

Roof Rack System . . . . . . . . . . . . . 4-4

Instruments and Controls . . . . 5-1

Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2

Warning Lights, Gages, and

Indicators . . . . . . . . . . . . . . . . . . . . 5-9

Information Displays . . . . . . . . . . 5-25

Vehicle Messages . . . . . . . . . . . . 5-31

Vehicle Personalization . . . . . . . 5-39

Universal Remote System . . . . 5-45

Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1

Exterior Lighting . . . . . . . . . . . . . . . 6-1

Interior Lighting . . . . . . . . . . . . . . . . 6-5

Lighting Features . . . . . . . . . . . . . . 6-5

Infotainment System . . . . . . . . . 7-1

Introduction . . . . . . . . . . . . . . . . . . . . 7-1

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Audio Players . . . . . . . . . . . . . . . . 7-11

Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-18

Climate Controls . . . . . . . . . . . . . 8-1

Climate Control Systems . . . . . . 8-1

Air Vents.... . . . . . . . . . . . . . . . . . . . 8-9

Maintenance . . . . . . . . . . . . . . . . . . . 8-9

Driving and Operating . . . . . . . . 9-1

Driving Information . . . . . . . . . . . . . 9-2

Starting and Operating . . . . . . . 9-27

Engine Exhaust . . . . . . . . . . . . . . 9-34

Automatic Transmission . . . . . . 9-35

Drive Systems . . . . . . . . . . . . . . . . 9-38

Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-38

Ride Control Systems . . . . . . . . 9-40

Cruise Control . . . . . . . . . . . . . . . . 9-42

Object Detection Systems . . . . 9-44

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-47

Towing . . . . . . . . . . . . . . . . . . . . . . . 9-52

Conversions and Add-Ons . . . 9-61

2010 Saturn VUE Owner Manual M

Vehicle Care . . . . . . . . . . . . . . . . . 10-1

General Information . . . . . . . . . . 10-2

Vehicle Checks . . . . . . . . . . . . . . . 10-4

Headlamp Aiming . . . . . . . . . . . 10-30

Bulb Replacement . . . . . . . . . . 10-33

Electrical System . . . . . . . . . . . . 10-37

Wheels and Tires . . . . . . . . . . . 10-43

Jump Starting . . . . . . . . . . . . . . . 10-74

Towing . . . . . . . . . . . . . . . . . . . . . . 10-78

Appearance Care . . . . . . . . . . . 10-82

Service and Maintenance . . . 11-1

General Information . . . . . . . . . . 11-1

Scheduled Maintenance . . . . . . 11-2

Recommended Fluids,

Lubricants, and Parts . . . . . . . 11-7

Maintenance Records . . . . . . . 11-10

Technical Data . . . . . . . . . . . . . . . 12-1

Vehicle Identification . . . . . . . . . 12-1

Vehicle Data . . . . . . . . . . . . . . . . . . 12-2

Customer Information . . . . . . . 13-1

Customer Information . . . . . . . . 13-1

Reporting Safety Defects . . . . 13-13

Vehicle Data Recording and

Privacy. . . . . . . . . . . . . . . . . . . . 13-15

Index . . . . . . . . . . . . . . . . . . . . . i-1

Introduction iii

SATURN, the SATURN Emblem, and the name VUE are registered trademarks of Saturn Corporation. GENERAL MOTORS and GM are registered trademarks of General Motors Corporation.

This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.

Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name "General Motors of Canada Limited" for Saturn Corporation wherever it appears in this manual.

Keep this manual in the vehicle for quick reference.

Canadian Vehicle Owners

Propriétaires Canadiens

A French language copy of this manual can be obtained from your dealer/retailer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com

Litho in the U.S.A. Part No. 25951286 A First Printing

iv Introduction

Using this Manual

To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

Danger, Warnings, and Cautions

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning or Caution indicates a hazard that could result in injury or death.

{

WARNING

These mean there is something that could hurt you or other people.

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.

A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.”

Symbols

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gage, or indicator.

M : This symbol is shown when

you need to see your owner manual for additional instructions or information.

* : This symbol is shown when

you need to see a service manual for additional instructions or information.

Introduction v

Vehicle Symbol Chart

Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index.

9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls

or OnStar

$ : Brake System Warning Light " : Charging System

I : Cruise Control

B : Engine Coolant Temperature

O : Exterior Lamps

# : Fog Lamps

. : Fuel Gage

+ : Fuses

i : Headlamp High/Low-Beam

Changer

j : LATCH System Child

Restraints

* : Malfunction Indicator Lamp : : Oil Pressure

} : Power

/ : Remote Vehicle Start

> : Safety Belt Reminders

7 : Tire Pressure Monitor F : Traction Control M : Windshield Washer Fluid

vi Introduction

2 NOTES

In Brief 1-1

In Brief

Instrument Panel

Instrument Panel . . . . . . . . . . . . . . 1-2

Initial Drive Information

Initial Drive Information . . . . . . . . 1-3

Remote Keyless Entry (RKE)

System . . . . . . . . . . . . . . . . . . . . . . 1-3

Remote Vehicle Start . . . . . . . . . 1-4

Door Locks . . . . . . . . . . . . . . . . . . . 1-5

Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Windows . . . . . . . . . . . . . . . . . . . . . . 1-5

Seat Adjustment . . . . . . . . . . . . . . 1-6

Heated Seats . . . . . . . . . . . . . . . . . 1-8

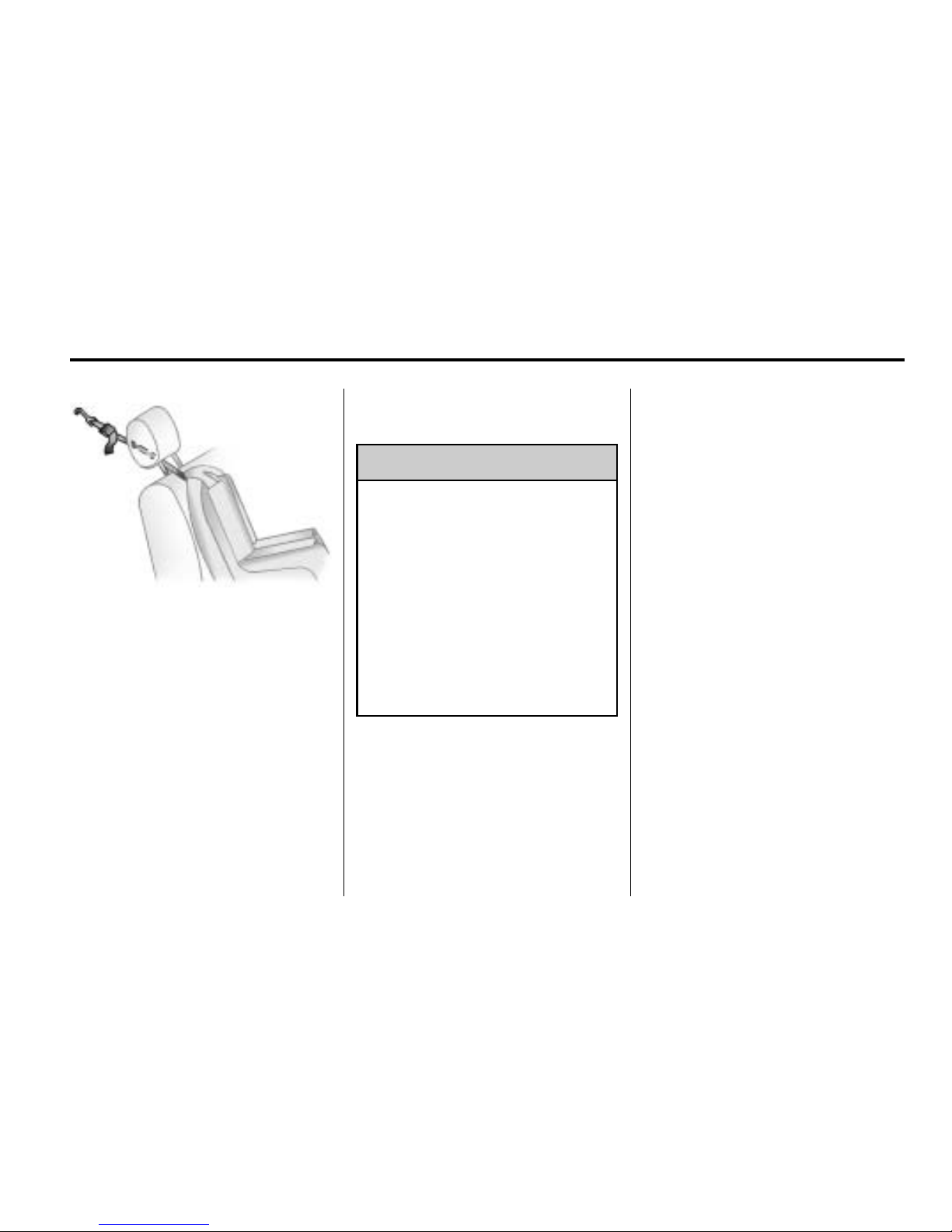

Head Restraint Adjustment . . . . 1-8

Safety Belt . . . . . . . . . . . . . . . . . . . . 1-9

Sensing System for

Passenger Airbag . . . . . . . . . . . 1-9

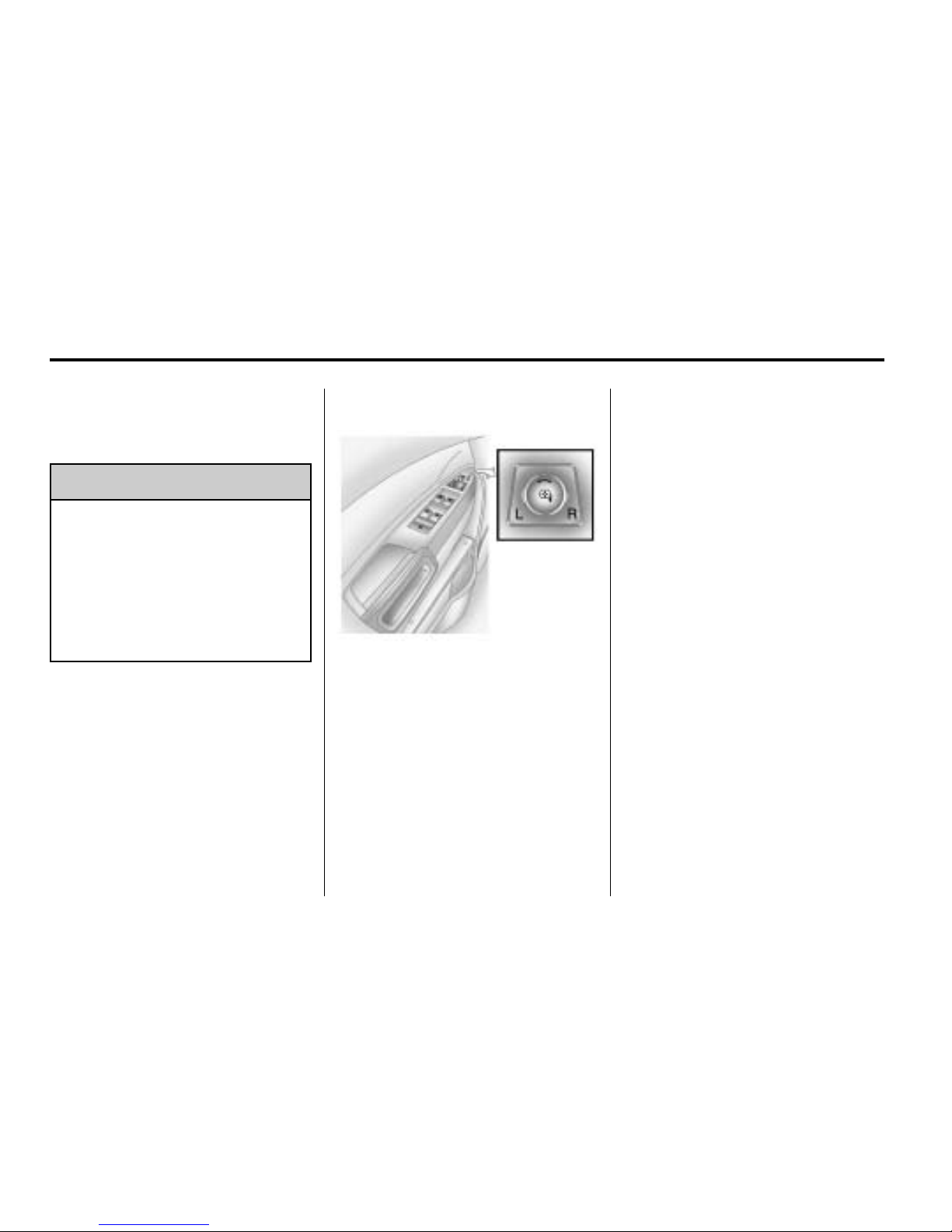

Mirror Adjustment . . . . . . . . . . . . 1-10

Steering Wheel

Adjustment . . . . . . . . . . . . . . . . . 1-10

Interior Lighting . . . . . . . . . . . . . . 1-11

Exterior Lighting . . . . . . . . . . . . . 1-11

Windshield Wiper/Washer . . . . 1-12

Climate Controls . . . . . . . . . . . . . 1-13

Vehicle Features

Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-14

Satellite Radio . . . . . . . . . . . . . . . 1-15

Portable Audio Devices . . . . . . 1-15

Bluetooth

. . . . . . . . . . . . . . . . . . . 1-15

Steering Wheel Controls . . . . . 1-16

Navigation System . . . . . . . . . . . 1-16

Cruise Control . . . . . . . . . . . . . . . 1-16

Power Outlets . . . . . . . . . . . . . . . 1-17

Sunroof . . . . . . . . . . . . . . . . . . . . . . 1-17

Performance and Maintenance

Traction Control

System (TCS) . . . . . . . . . . . . . . 1-17

StabiliTrak

. . . . . . . . . . . . . . . . . . 1-18

Tire Pressure Monitor . . . . . . . . 1-18

Engine Oil Life System . . . . . . 1-19

Driving for Better Fuel

Economy . . . . . . . . . . . . . . . . . . . 1-19

Roadside Assistance

Program . . . . . . . . . . . . . . . . . . . . 1-20

OnStar

. . . . . . . . . . . . . . . . . . . . . 1-20

1-2 In Brief

Instrument Panel

In Brief 1-3

A. Air Vents on page 8‑9.

B. Instrument Panel Illumination

Control on page 6‑5.

C. Turn and Lane-Change Signals

on page 6‑4

D. Instrument Cluster

page 5‑10

E. Windshield Wiper/Washer

page 5‑3

F. AM-FM Radio on page 7‑4.

G. Auxiliary Input Jack. See

Auxiliary Devices on page 7‑17.

H. Exterior Lamp Controls

page 6‑1

I. Driver Information Center (DIC)

Buttons. See Driver Information Center (DIC) on page 5‑25.

J. Instrument Panel Storage

page 4‑1

K. Hood Release. See Hood

page 10‑5

L. Cruise Control on page 9‑42.

M. Steering Wheel Adjustment

page 5‑2

N. Horn on page 5‑3.

O. Steering Wheel Controls

page 5‑3

P. Rear Window Wiper/Washer

page 5‑5

Q. Traction Control System (TCS)

on page 9‑40

R. Shift Lever. See Automatic

Transmission on page 9‑35.

S. Climate Control Systems

page 8‑1

or Automatic Climate

Control System

on page 8‑5

(If Equipped).

T. Hazard Warning Flashers

page 6‑3

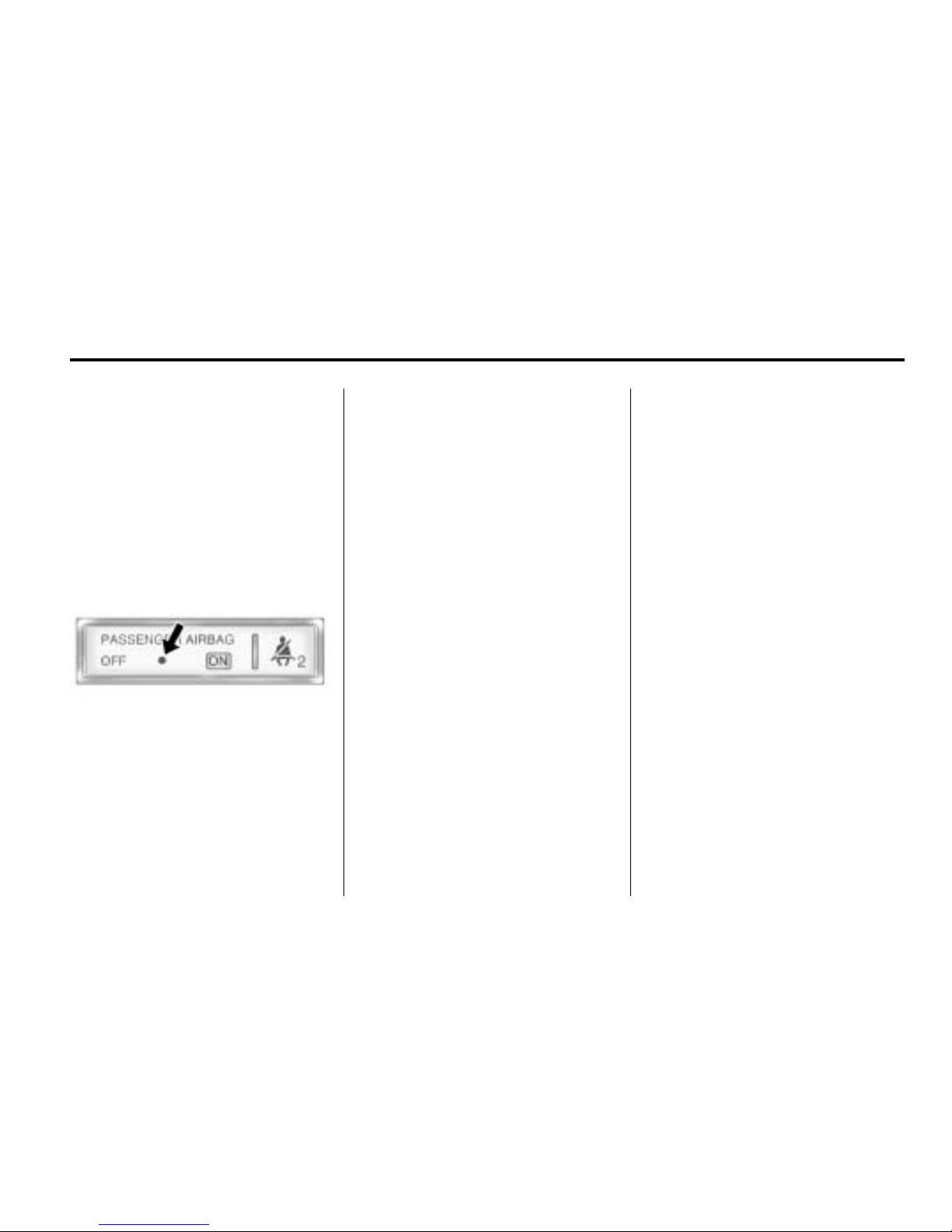

U. Passenger Airbag Status

Indicator. See Passenger Sensing System on page 3‑34.

V. Passenger Safety Belt

Reminder. See Safety Belt Reminders on page 5‑12.

W. Glove Box on page 4‑1.

Initial Drive Information

This section provides a brief overview about some of the important features that may or may not be on your specific vehicle.

For more detailed information, refer to each of the features which can be found later in this owner manual.

Remote Keyless Entry (RKE) System

The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle.

1-4 In Brief

Remote Start Not Shown

Press

K to unlock the driver door.

Press

K again within five seconds

to unlock all remaining doors.

Press

Q to lock all doors, including

the liftgate.

Lock and unlock feedback can be personalized.

Press

L and release to locate the

vehicle.

Press

L and hold to sound the

panic alarm.

Press

L again to cancel the panic

alarm.

See Remote Keyless Entry (RKE) System Operation on page 2‑3.

Remote Vehicle Start

Starting the Vehicle

With this feature the engine can be started from outside of the vehicle.

1. Aim the RKE transmitter at the vehicle.

2. Press

Q .

3. Immediately after completing Step 2, press and hold

/ until

the parking lamps flash.

When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.

The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once.

Canceling a Remote Start

To cancel a remote start:

Aim the RKE transmitter at the vehicle and press and hold

until the parking lamps turn off.

Turn on the hazard warning flashers.

Turn the ignition switch on and then off.

See Remote Vehicle Start

page 2‑4

In Brief 1-5

Door Locks

To lock or unlock a door, use the key from the outside or the door lock from the inside.

See Door Locks on page 2‑6.

Power Door Locks

T : The power door lock switches

are located on the driver door.

To unlock the doors, press the right side of the switch.

To lock the doors, remove the ignition key and press the left side of the switch.

See Power Door Locks

page 2‑6

Liftgate

To lock or unlock the liftgate, if the vehicle has this feature, press

Q or

K twice on the Remote Keyless

Entry (RKE) transmitter or press the power door lock switch.

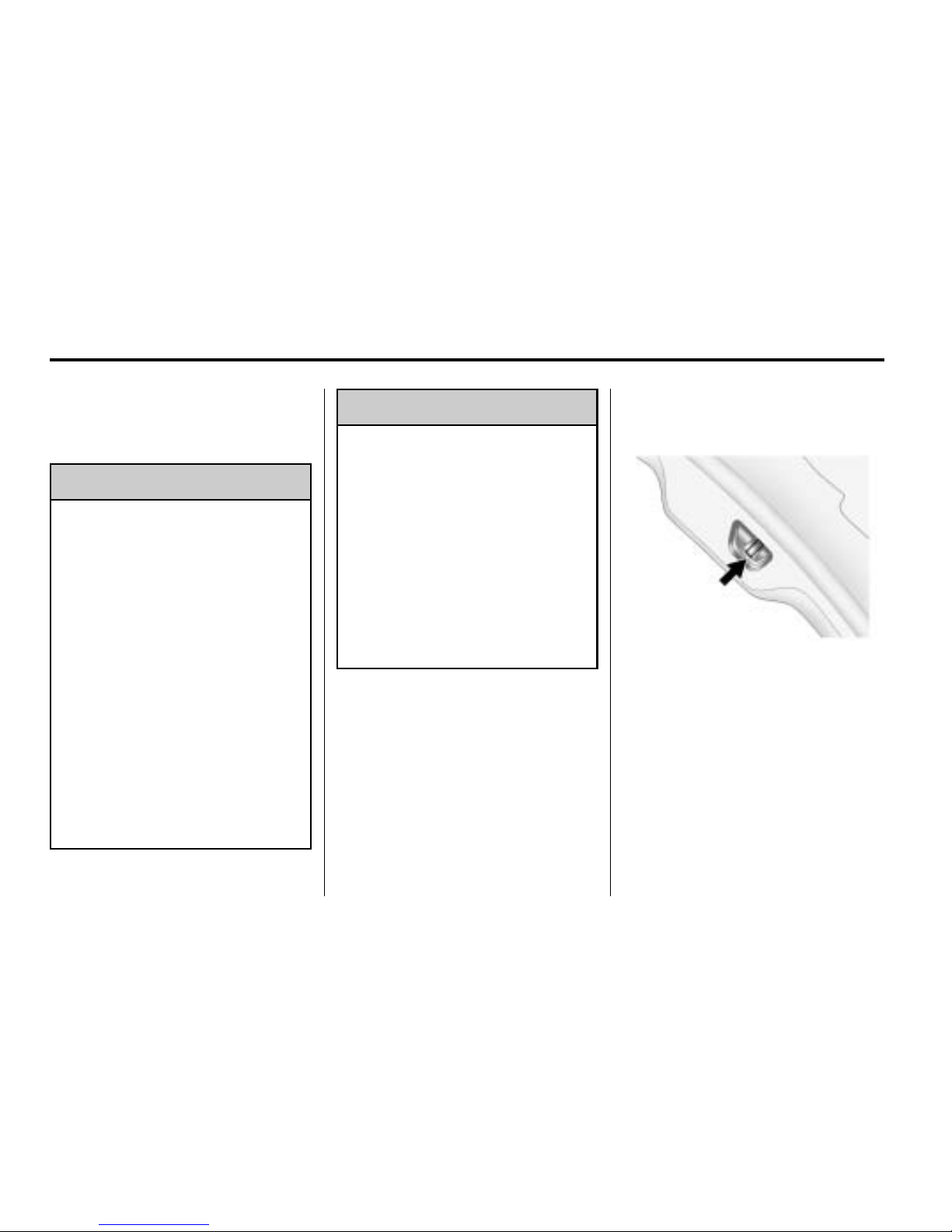

To open the liftgate, press the touchpad on the underside of the liftgate handle and pull up.

To close the liftgate, pull down using the handle and close until it latches.

See Liftgate on page 2‑8.

Windows

All window switches are located on the driver door. Each passenger door has a switch that controls only that window.

Press the front of the switch to open the window. Pull the switch up to close it.

The power windows operate when the ignition is in ON/RUN or ACC/ACCESSORY, or while in Retained Accessory Power (RAP). See Retained Accessory Power

(RAP)

on page 9‑29

See Power Windows on page 2‑14.

1-6 In Brief

Seat Adjustment

Manual Seats

To move a manual seat forward or rearward:

1. Lift the bar to unlock the seat.

2. Slide the seat to the desired position and release the bar.

Try to move the seat with your body to be sure the seat is locked in place.

See Seat Adjustment on page 3‑3.

Power Seats

This vehicle may have power seats.

To adjust the seat location, move the control forward or rearward.

To raise or lower the front or rear part of the seat cushion, move the front or rear of the control up or down.

See Power Seat Adjustment

page 3‑4

In Brief 1-7

Seat Height Adjuster

On vehicles with this feature, move the lever upward repeatedly to raise the seat.

Move the lever downward repeatedly to lower the seat.

See Seat Adjustment on page 3‑3.

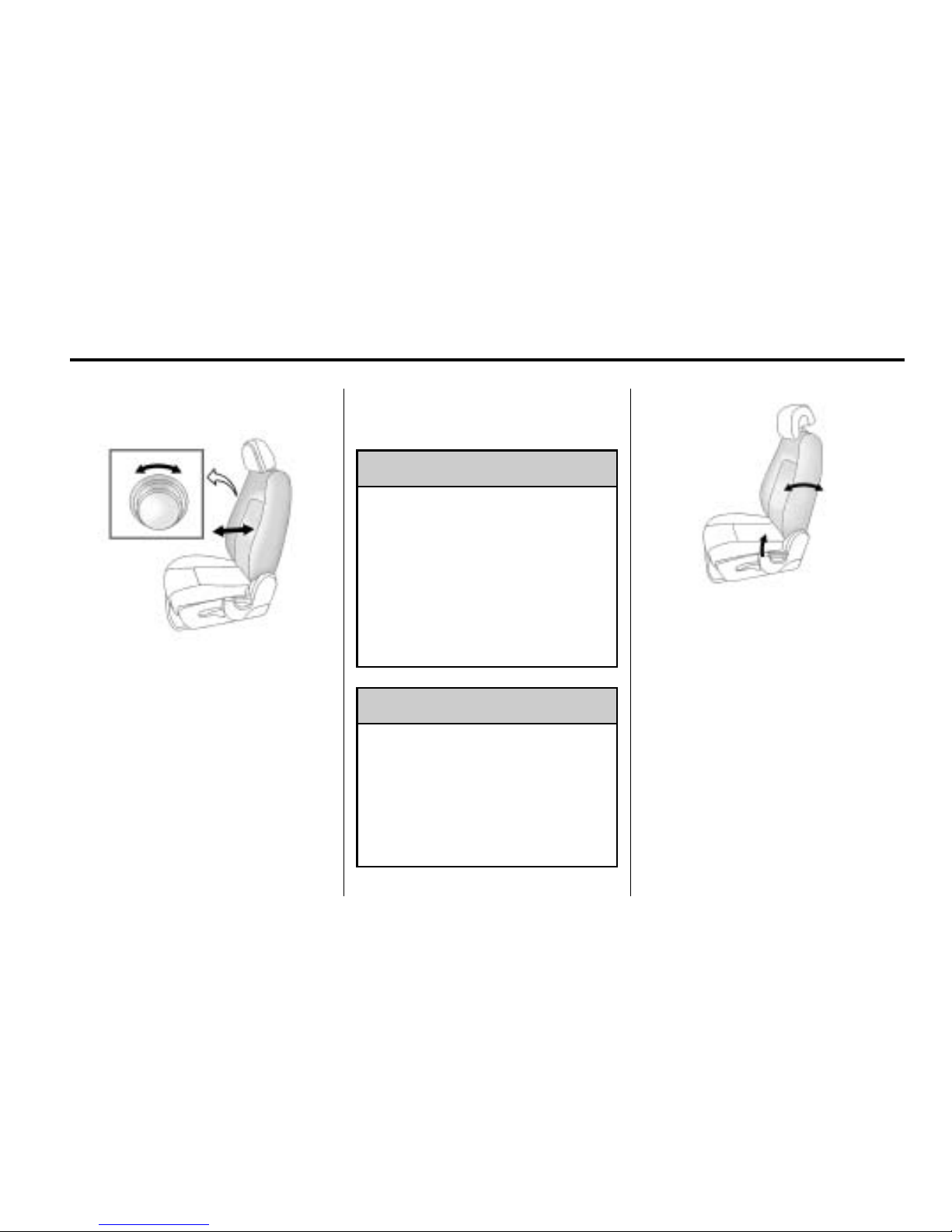

Reclining Seatbacks — Manual

On seats with manual reclining seatbacks, use the lever located on the outboard side of the seat.

To recline the seatback:

1. Lift the recline lever.

2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

See Reclining Seatbacks

page 3‑5

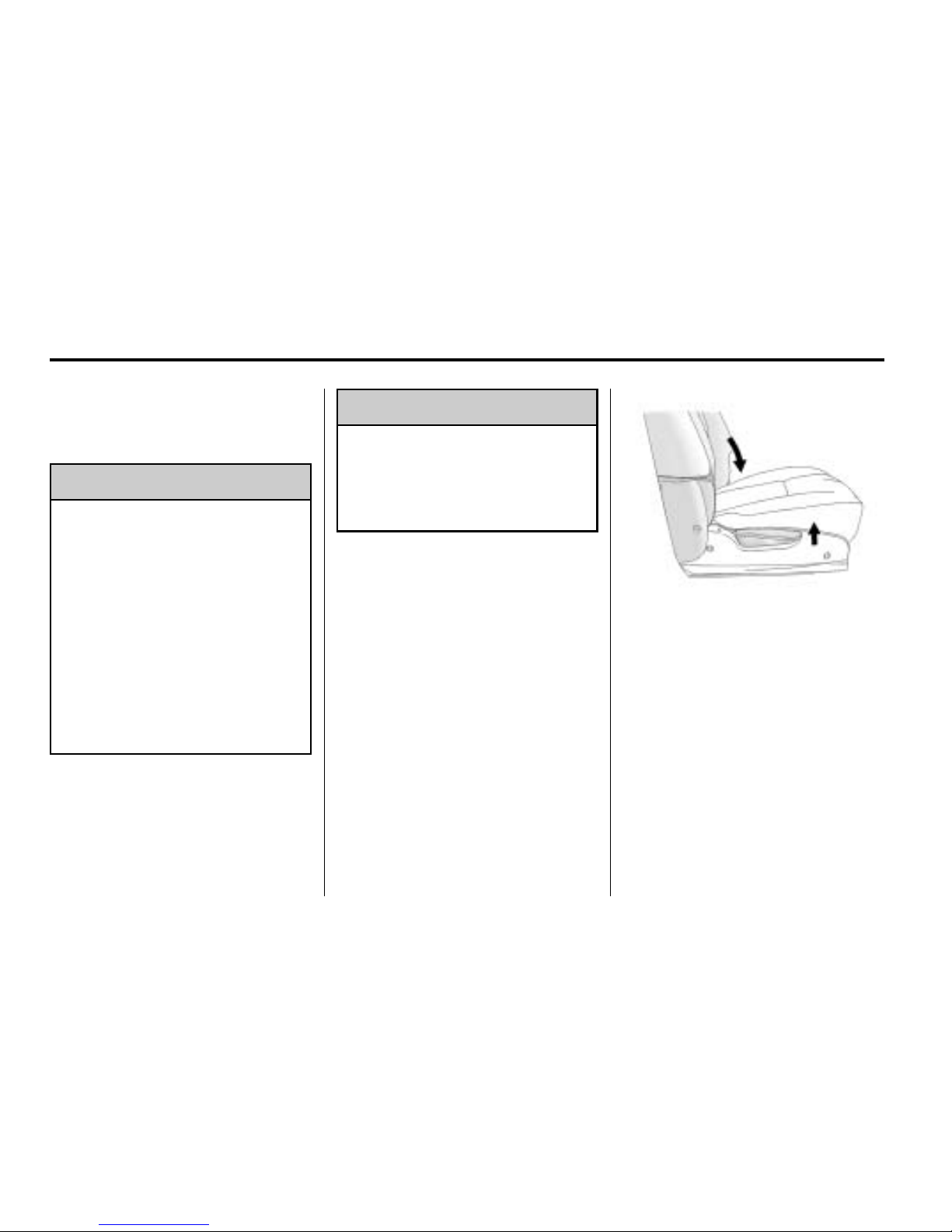

Reclining Seatbacks — Power

On seats with power reclining seatbacks, the control is located on the outboard side of the seat.

To recline the seatback, tilt the top of the control rearward.

To return the seatback to an upright position, tilt the top of the control forward.

See Reclining Seatbacks

page 3‑5

1-8 In Brief

Lumbar Adjustment

If the vehicle has this feature, the knob is located on the inboard side of the driver seatback.

Turn the knob clockwise or counterclockwise to increase or decrease the lumbar support.

Second Row Seats

The rear seatbacks can be folded down to increase cargo space.

For detailed instructions, see Rear Seats on page 3‑9.

Heated Seats

On vehicles with heated front seats, the controls are located on the center console. The engine must be running to operate the heated seats.

M : Press this button to turn on the

heated seat.

Continue to press the button to cycle through the temperature settings.

High = three indicator lights.

Medium = two indicator lights.

Low = one indicator light.

Off = no indicator lights.

The passenger seat may take longer to heat up.

Head Restraint Adjustment

Do not drive until the head restraints for all occupants are installed and adjusted properly.

For more information see Head Restraints on page 3‑2.

In Brief 1-9

Safety Belt

Refer to the following sections for important information on how to use safety belts properly.

Safety Belts on page 3‑10.

How to Wear Safety Belts Properly on page 3‑13.

Lap-Shoulder Belt on page 3‑19.

Lower Anchors and Tethers for Children (LATCH System)

page 3‑50

Sensing System for Passenger Airbag

United States

Canada

The passenger sensing system will turn off the right front passenger frontal airbag and the seat‐mounted side impact airbag under certain conditions. The driver airbags, and roof‐rail airbags are not affected by the passenger sensing system. See

Passenger Airbag Status Indicator on page 5‑14

for more information.

The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.

1-10 In Brief

Mirror Adjustment

Exterior Mirrors

Controls for the outside power mirrors are located on the driver door.

1. Turn the knob to choose the left (L) or the (R) right mirror.

2. Adjust each mirror so that you can see the side of your vehicle and the area behind your vehicle.

3. Return the control to the center position so the mirror cannot be moved.

The mirrors can be manually folded inward toward the vehicle. Return to the original position to use correctly.

See Power Mirrors on page 2‑12.

Interior Mirrors

If the vehicle has the manual rearview mirror, it can be adjusted by holding the mirror in the center to move it for a clearer view behind the vehicle. Reduce the glare of headlamps from behind by turning the lever for daytime or nighttime use.

See Manual Rearview Mirror

page 2‑13

Steering Wheel Adjustment

The lever is located on the left side of the steering column.

To adjust the steering wheel:

1. Hold the steering wheel and pull the lever down.

2. Move the steering wheel up or down to a comfortable position.

3. Pull the lever up firmly to lock the steering wheel in place.

In Brief 1-11

See Steering Wheel Adjustment

page 5‑2

Interior Lighting

Dome Lamp

* : Press this button on the

overhead console to keep the dome lamps and other interior lamps turned off while any door is open. Press this button again to return it to the out position and the lamps automatically come on when any door is opened.

+ : Press this button to turn the

dome lamps on and off while the doors are closed.

Reading Lamps

The reading lamps are located on the overhead console.

To turn the reading lamps on or off, press the button located next to each lamp.

For more information on interior lamps, see:

Dome Lamps on page 6‑5.

Instrument Panel Illumination Control on page 6‑5.

Exterior Lighting

The exterior lamp control is on the instrument panel to the left of the steering wheel.

9 : Turns off the exterior lamps.

The knob returns to the AUTO position after it is released.

AUTO: Automatically turns the exterior lamps on and off, depending on outside lighting.

; : Turns on the parking lamps, instrument panel lights, and other exterior lamps.

2 : Turns on the headlamps,

instrument panel lights, and other exterior lamps.

For more information, see:

Exterior Lamp Controls

page 6‑1

Daytime Running Lamps (DRL) on page 6‑2

Automatic Headlamp System

page 6‑3

1-12 In Brief

Windshield Wiper/Washer

The windshield wiper lever is on the right side of the steering column.

8: Single wipe, briefly move the lever down. The lever returns to its starting position when released. For several wipes, hold the lever down.

9: Turns the windshield wipers off.

&: Sets a delay between wipes.

Move the switch on top of the lever left for less frequent wipes or right for more frequent wipes.

a : Slow wipes. 1 : Fast wipes.

Windshield Washer

Pull the windshield wiper lever to spray windshield washer fluid and activate the wipers.

See Windshield Wiper/Washer

page 5‑3

In Brief 1-13

Climate Controls

The heating, cooling, and ventilation for the vehicle can be controlled by this system. Vehicles with automatic climate control automatically maintain the desired temperature inside the vehicle.

United States version shown, Canada version similar.

A. Fan Control

B. Temperature Control

C. Air Delivery Mode Control

D. Air Conditioning

E. Outside Air

F. Air Recirculation

G. Rear Window Defogger

See Climate Control Systems

page 8‑1

and Automatic Climate

Control System on page 8‑5.

1-14 In Brief

Vehicle Features

Radio(s)

O (Power/Volume): Press to turn

the system on and off.

Turn to increase or decrease the volume.

BAND: Press to switch between AM, FM, or XM™, if equipped.

f : Select radio stations. © ¨ : Seek or scan stations.

4 (Information) (XM Satellite

Radio Service, MP3, and RDS Features): Press to display

additional text information related to

the current FM-RDS or XM station; or CD, MP3 or WMA song. If information is available during XM, CD, MP3 or WMA playback, the song title information displays on the top line of the display and artist information displays on the bottom line. When information is not available, "NO INFO" displays.

For more information about these and other radio features, see Operation on page 7‑2.

Storing a Favorite Station

A maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations.

See AM-FM Radio on page 7‑4.

In Brief 1-15

Setting the Clock

To set the time and date:

1. Turn the ignition key to ACC/ ACCESSORY or ON/RUN.

Press

O to turn the radio on.

2. Press

H and the HR, MIN, MM,

DD, YYYY (hour, minute, month, day, and year) displays.

3. Press the softkey located below any one of the tabs that you want to change.

4. Turn

f clockwise or

counterclockwise to increase or decrease the time or date.

For detailed instructions on setting the clock for the vehicle's specific audio system, see Clock

page 5‑8

Satellite Radio

Vehicles with an XM™ Satellite Radio tuner and a valid XM Satellite Radio subscription can receive XM programming.

XM Satellite Radio Service

XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. A fee is required to receive the XM service.

For more information refer to:

www.xmradio.com or call 1-800-929-2100 (U.S.).

www.xmradio.ca or call 1-877-438-9677 (Canada).

See Satellite Radio on page 7‑6.

Portable Audio Devices

This vehicle may have a 3.5 mm (1/8 in) auxiliary input, located on the radio faceplate. External devices such as iPod

, MP3 players, etc. can be connected to the 3.5 mm (1/8 in) auxiliary input using a

3.5 mm (1/8 in) input jack cable.

See Auxiliary Devices

page 7‑17

Bluetooth

The in-vehicle Bluetooth system allows users with a Bluetooth-enabled cell phone to make and receive hands-free calls using the vehicle’s audio system, microphone and controls.

The Bluetooth-enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions.

See Bluetooth on page 7‑18.

1-16 In Brief

Steering Wheel Controls

Some audio controls can be adjusted at the steering wheel. They include the following:

+ / − : Press and release to go to the next or the previous preset radio station or CD track.

K : Press to reject an incoming

call, or to end a call.

v + v − : Move the thumbwheel

up or down to increase or to decrease the volume.

J 0 : Press and release to mute

the system. Press it again to turn the sound back on.

Press and hold longer than two seconds to interact with the OnStar

or Bluetooth systems.

For more information, see Steering Wheel Controls on page 5‑3.

Navigation System

The vehicle's navigation system provides detailed maps of most major freeways and roads throughout the United States and Canada. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POI), such as banks, airports, restaurants, and more.

See the vehicle's Navigation System manual for more information.

Cruise Control

The cruise control buttons are on the left side of the steering wheel.

E : Press to turn the cruise control

system on and off. An indicator light comes on.

RES+: Move the thumbwheel up to resume a set speed or to accelerate to a higher speed.

−SET: Press the thumbwheel to set a speed or move the thumbwheel down to decrease the speed.

See Cruise Control on page 9‑42.

In Brief 1-17

Power Outlets

The accessory power outlets can be used to connect electrical equipment, such as a cellular phone.

The accessory power outlets are located on the rear of the center storage console and in the rear cargo compartment. There may be a power outlet located inside the instrument panel storage area below the climate controls.

See Power Outlets on page 5‑8.

Sunroof

The sunroof switch is located between the sun visors.

To operate the sunroof, the ignition must be in ON/RUN, ACC/ACCESSORY, or in Retained Accessory (RAP). See Retained

Accessory Power (RAP)

page 9‑29

Slide and release the switch rearward to express open the sunroof. Slide the switch forward or rearward to stop movement.

Open/Close: The sunshade opens automatically with the sunroof or can be manually operated.

Slide and hold the switch forward to close the sunroof.

Vent Open/Close: Press and hold the switch to vent; pull and hold the switch to close the sunroof.

Performance and Maintenance

Traction Control System (TCS)

The traction control system limits wheel spin. The system turns on automatically every time the vehicle is started.

To turn off traction control, press and release the

5 button

located on the Instrument panel.

g illuminates and the appropriate

DIC message displays. See Vehicle Messages on page 5‑31.

Press the button again to turn traction control back on.

For more information, see Traction

Control System (TCS)

page 9‑40

1-18 In Brief

StabiliTrak

The StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. The system turns on automatically every time the vehicle is started.

To turn off both Traction Control and StabiliTrak, press and hold

5 until F illuminates and the

appropriate DIC message displays. See Vehicle Messages

on page 5‑31

Press the button again to turn on both systems.

For more information, see StabiliTrak System on page 9‑41.

Tire Pressure Monitor

This vehicle may have a Tire Pressure Monitor System (TPMS).

The Tire Pressure Monitor System alerts you when a significant reduction in pressure occurs in one or more of your vehicle’s tires by illuminating the low tire pressure warning light on the instrument cluster. The warning light will remain on until the tire pressure is corrected. The proper tire pressures for your vehicle are listed on the Tire and Loading Information label located on the driver side center pillar (B pillar). See Vehicle Load Limits on page 9‑22.

You may notice during cooler conditions that the low tire pressure warning light will appear when the vehicle is first started and then turn off as you drive. This may be an early indicator that your tire pressures are getting low and the tires need to be inflated to the proper pressure.

Note: The Tire Pressure Monitor System can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures.

See Tire Pressure Monitor System

on page 10‑52

and Tire Pressure

Monitor Operation on page 10‑54.

In Brief 1-19

Engine Oil Life System

The engine oil life system calculates engine oil life based on vehicle use and turns on the change engine oil light when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.

Resetting the Oil Life System

1. Press the DIC vehicle information button to display OIL LIFE REMAINING on the DIC.

2. Press the DIC Set/Reset button for during 5 seconds to reset the oil life at 100%.

Be careful not to reset the oil life display accidentally at any time other than after the oil is changed. It cannot be reset accurately until the next oil change.

The oil life system can also be reset as follows:

1. Turn the ignition key to ON/RUN with the engine off.

2. Fully press and release the accelerator pedal three times within five seconds.

If the change engine oil light is not on, the system is reset.

See Engine Oil Life System

page 10‑10

Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

Avoid fast starts and accelerate smoothly.

Brake gradually and avoid abrupt stops.

Avoid idling the engine for long periods of time.

When road and weather conditions are appropriate, use cruise control, if equipped.

Always follow posted speed limits or drive more slowly when conditions require.

Keep vehicle tires properly inflated.

Combine several trips into a single trip.

Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size.

Follow recommended scheduled maintenance.

1-20 In Brief

Roadside Assistance Program

U.S.: 1-800-553-6000

TTY Users: 1-888-889-2438

Canada: 1-800-268-6800

As the owner of a new Saturn, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements.

Roadside Assistance and OnStar

If you have a current OnStar subscription, press the OnStar button and the current GPS location will be sent to an OnStar Advisor who will assess your problem, contact Roadside Assistance, and relay exact location to get you the help you need.

Online Owner Center

The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges and more.

www.gmownercenter.com/saturn (U.S.) or www.gm.ca (Canada).

OnStar

OnStar®uses several innovative technologies and live advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services.

Automatic Crash Response

In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help.

How OnStar Service Works

Q : This blue button connects you

to a specially trained OnStar advisor to verify your account information and to answer questions.

] : Push this red emergency

button to get priority help from specially trained OnStar emergency advisors.

X : Push this button for hands‐free,

voice‐activated calling and to give voice commands for turn‐by‐turn navigation.

In Brief 1-21

Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn‐by‐Turn Navigation and Hands‐Free Calling are available on most vehicles. Not all OnStar services are available on all vehicles. For more information see the OnStar Owner's Guide or visit www.onstar.com (U.S.) or www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR (1‐888‐466‐7827) or TTY

1‐877‐248‐2080, or press

Q to

speak with an OnStar advisor 24 hours a day, 7 days a week.

For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box.

OnStar service is subject to the OnStar terms and conditions included in the OnStar Subscriber Information.

OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service. Not all services are available everywhere, particularly in remote or enclosed areas, or at all times.

The OnStar system can record and transmit vehicle information. This information is automatically sent to

an OnStar call center when

Q is

pressed,

] is pressed, or if the

airbags or ACR system deploy. This information usually includes the vehicle's GPS location and, in the event of a crash, additional

information regarding the crash that the vehicle was involved in (e.g. the direction from which the vehicle was hit). When the virtual advisor feature of OnStar hands-free calling is used, the vehicle also sends OnStar the vehicle's GPS location so they can provide services where it is located.

Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available.

The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service at any particular time or place. Some examples are damage to important parts of the vehicle in a crash, hills, tall buildings, tunnels, weather or wireless phone network congestion.

1-22 In Brief

OnStar Steering Wheel Controls

This vehicle may have a Talk/Mute button that can be used to interact with OnStar hands-free calling. See Steering Wheel Controls

page 5‑3

for more information.

On some vehicles, the mute button can be used to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information.

Your Responsibility

Increase the volume of the radio if the OnStar advisor cannot be heard.

If the light next to the OnStar buttons is red, the system may not

be functioning properly. Press

and request a vehicle diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated.

Press

Q to confirm that the OnStar

equipment is active.

Keys, Doors and Windows 2-1

Keys, Doors and Windows

Keys and Locks

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Remote Keyless Entry (RKE)

System . . . . . . . . . . . . . . . . . . . . . . 2-2

Remote Keyless Entry (RKE)

System Operation . . . . . . . . . . . 2-3

Remote Vehicle Start . . . . . . . . . 2-4

Door Locks . . . . . . . . . . . . . . . . . . . 2-6

Power Door Locks . . . . . . . . . . . . 2-6

Delayed Locking . . . . . . . . . . . . . . 2-7

Automatic Door Locks . . . . . . . . . 2-7

Lockout Protection . . . . . . . . . . . . 2-7

Safety Locks . . . . . . . . . . . . . . . . . . 2-7

Doors

Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Vehicle Security

Vehicle Security . . . . . . . . . . . . . . . 2-9

Anti-Theft Alarm System . . . . . . 2-9

Immobilizer . . . . . . . . . . . . . . . . . . 2-10

Immobilizer Operation . . . . . . . 2-10

Exterior Mirrors

Convex Mirrors . . . . . . . . . . . . . . 2-12

Power Mirrors . . . . . . . . . . . . . . . . 2-12

Heated Mirrors . . . . . . . . . . . . . . . 2-12

Interior Mirrors

Manual Rearview Mirror . . . . . . 2-13

Windows

Windows . . . . . . . . . . . . . . . . . . . . . 2-13

Power Windows . . . . . . . . . . . . . 2-14

Sun Visors . . . . . . . . . . . . . . . . . . . 2-15

Roof

Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-15

2-2 Keys, Doors and Windows

Keys and Locks

Keys

{

WARNING

Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.

The two keys can be used for the ignition and all locks.

The key code is stamped on the key number plate and can be used to make new keys at any dealer/ retailer. Store this information in a safe place outside the vehicle.

Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys.

If you are locked out of the vehicle, contact Roadside Assistance. See

Roadside Assistance Program

page 13‑6

for more information.

Remote Keyless Entry (RKE) System

See Radio Frequency Statement

page 13‑16

for information regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry and Science Canada.

Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.

If there is a decrease in the RKE operating range:

Check the distance. The transmitter may be too far from the vehicle.

Check the location. Other vehicles or objects may be blocking the signal.

Keys, Doors and Windows 2-3

Check the transmitter's battery. See “Battery Replacement” later in this section.

If the transmitter is still not working correctly, see your dealer/retailer or a qualified technician for service.

Remote Keyless Entry (RKE) System Operation

The Remote Keyless Entry (RKE) transmitter functions work up to 195 feet (60 m) away from the vehicle.

There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2‑2.

Without Remote Start Shown

(With Remote Start Similar)

/ (Remote Vehicle Start): For

vehicles with this feature, this button is used to operate the remote start feature. See Remote Vehicle Start

on page 2‑4

for additional

information.

Q (Lock): Press to lock all the

doors, including the liftgate. The vehicle's lamps may flash and the horn may sound. See “Remote Door Lock” under Vehicle Personalization

on page 5‑39

for more information.

K (Unlock): Press once to unlock

the driver door. If

K is pressed

again within five seconds, all remaining doors unlock. The interior lamps come on and stay on for 20 seconds or until the ignition is turned on. The exterior lamps may flash when unlocking the vehicle. See “Remote Door Unlock” under

Vehicle Personalization

page 5‑39

for more information.

L (Vehicle Locator/Panic

Alarm): Press and release to locate the vehicle. The turn signal lamps flash and the horn sounds

three times. Press and hold

L to

activate the panic alarm. The turn signal lamps flash and the horn sounds repeatedly for 30 seconds. The alarm turns off when the ignition is turned to ON/RUN or

when

L is pressed again. The

ignition must be in LOCK/OFF for the panic alarm to work.

2-4 Keys, Doors and Windows

Programming Transmitters to the Vehicle

Only RKE transmitters programmed to the vehicle will work. If a transmitter is lost or stolen, a replacement can be purchased and programmed through your dealer/retailer. When the replacement transmitter is programmed to the vehicle, all remaining transmitters must also be programmed. Any lost or stolen transmitters no longer work once the new transmitter is programmed. Each vehicle can have up to eight transmitters programmed to it. See “Relearn Remote Key” under

Driver Information Center (DIC)

page 5‑25

Battery Replacement

Replace the battery if the REPLACE REMOTE KEY FOB BATTERY message displays on the Driver Information Center (DIC). See “REPLACE REMOTE KEY FOB BATTERY” under Key and Lock Messages on page 5‑35.

Notice: When replacing the battery, do not touch any of the circuitry on the transmitter. Static from your body could damage the transmitter.

To replace the battery:

1. Separate the transmitter with a flat, thin object inserted into the notch on the side.

2. Remove the old battery. Do not use a metal object.

3. Insert the new battery, positive side facing down. Replace with a CR2032 or equivalent battery.

4. Reassemble the transmitter.

Remote Vehicle Start

This vehicle may have a remote starting feature that starts the engine from outside of the vehicle.

/ (Remote Start): This button is located on the RKE transmitter if the vehicle has remote start.

Laws in some communities may restrict the use of remote starters. For example, some laws may require a person using the remote start to have the vehicle in view when doing so. Check local regulations for any requirements on remote starting of vehicles.

Do not use the remote start feature if the vehicle is low on fuel. The vehicle could run out of fuel.

Keys, Doors and Windows 2-5

If the vehicle has the remote start feature, the RKE transmitter functions have an increased range of operation. However, the range may be less while the vehicle is running.

There are other conditions which can affect the performance of the transmitter, see Remote Keyless

Entry (RKE) System

on page 2‑2

for additional information.

Starting the Engine Using Remote Start

To start the vehicle:

1. Aim the RKE transmitter at the vehicle.

2. Press

Q on the RKE transmitter.

3. Immediately after completing Step 2, press and hold

/ until

the parking lamps flash. If the vehicle's lights can not be seen,

press and hold

/ for at least

four seconds.

When the vehicle starts the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system will operate at the same setting as when the vehicle was last turned off.

After entering the vehicle during a remote start, insert and turn the key to the ON/RUN position to drive the vehicle. If the vehicle has the Rear Vision Camera (RVC), the display located on the inside rearview mirror will remain on for about four seconds. See Rear Vision

Camera (RVC)

on page 9‑44

for

more information.

If the vehicle is left running it automatically shuts off after 10 minutes unless a time extension has been done.

Extending Engine Run Time

To extend the engine run time by 10 minutes, repeat Steps 1 though 3 while the engine is still running. The engine run time can only be extended if it is the first remote start

since the vehicle has been driven. Remote start can be extended one time.

If the remote start procedure is used again before the first 10 minute time frame has ended, the first 10 minutes will immediately expire and the second 10 minute time frame will start.

For example, if the lock button and then the remote start buttons are pressed again after the vehicle has been running for five minutes, 10 minutes are added, allowing the engine to run for a total of 15 minutes.

A maximum of two remote starts or remote start attempts are allowed between ignition cycles.

After the vehicle's engine has been started two times using the remote start button, the ignition must be turned on and then back off before the remote start procedure can be used again.

2-6 Keys, Doors and Windows

Shutting the Engine Off After a Remote Start

To manually shut off a remote start:

Aim the RKE transmitter at the vehicle and press

/ until the

parking lamps turn off.

Turn on the hazard warning flashers.

Turn the ignition switch on and then off.

Conditions in Which the Remote Start Will Not Work

The vehicle cannot be started using the remote start feature if the key is in the ignition, the hood is open, or if there is an emission control system malfunction.

The engine turns off during a remote start if the coolant temperature gets too high or if the oil pressure gets low.

Door Locks

{

WARNING

Unlocked doors can be dangerous.

Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the doors should be locked whenever the vehicle is driven.

Young children who get into unlocked vehicles may be unable to get out. A child can be overcome by extreme heat and can suffer permanent

(Continued)

WARNING (Continued)

injuries or even death from heat stroke. Always lock the vehicle whenever leaving it.

Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can help prevent this from happening.

To lock or unlock a door, use the key from the outside or the door lock from the inside.

Power Door Locks

: The power door lock switches

are located on the driver door.

Press the right side of the switch to unlock the doors.

Remove the ignition key and press the left side of the switch to lock all of the doors.

Keys, Doors and Windows 2-7

Delayed Locking

A chime will sound to indicate a door or liftgate is open when you try to lock the doors with the power door lock switch. The doors will not lock, and the theft‐deterrent system will not arm until all the doors are closed and five seconds have passed.

Automatic Door Locks

Automatic Door Lock

The doors are programmed to automatically lock when the shift lever is moved into a forward gear.

The automatic door lock feature cannot be disabled.

Automatic Door Unlock

The doors will automatically unlock when the shift lever is moved into (P) Park.

Lockout Protection

When the power door lock switch is pressed with the key in the ignition, and any door is open, all the doors lock and the driver door unlocks. When doors are closed with the key in the ignition, the horn will sound as a reminder.

If the doors are locked with the Remote Keyless Entry (RKE) transmitter, and the key is in the ignition, a chime sounds and all except the driver door lock.

The lockout protection feature can be overridden by holding the power door lock switch for three seconds.

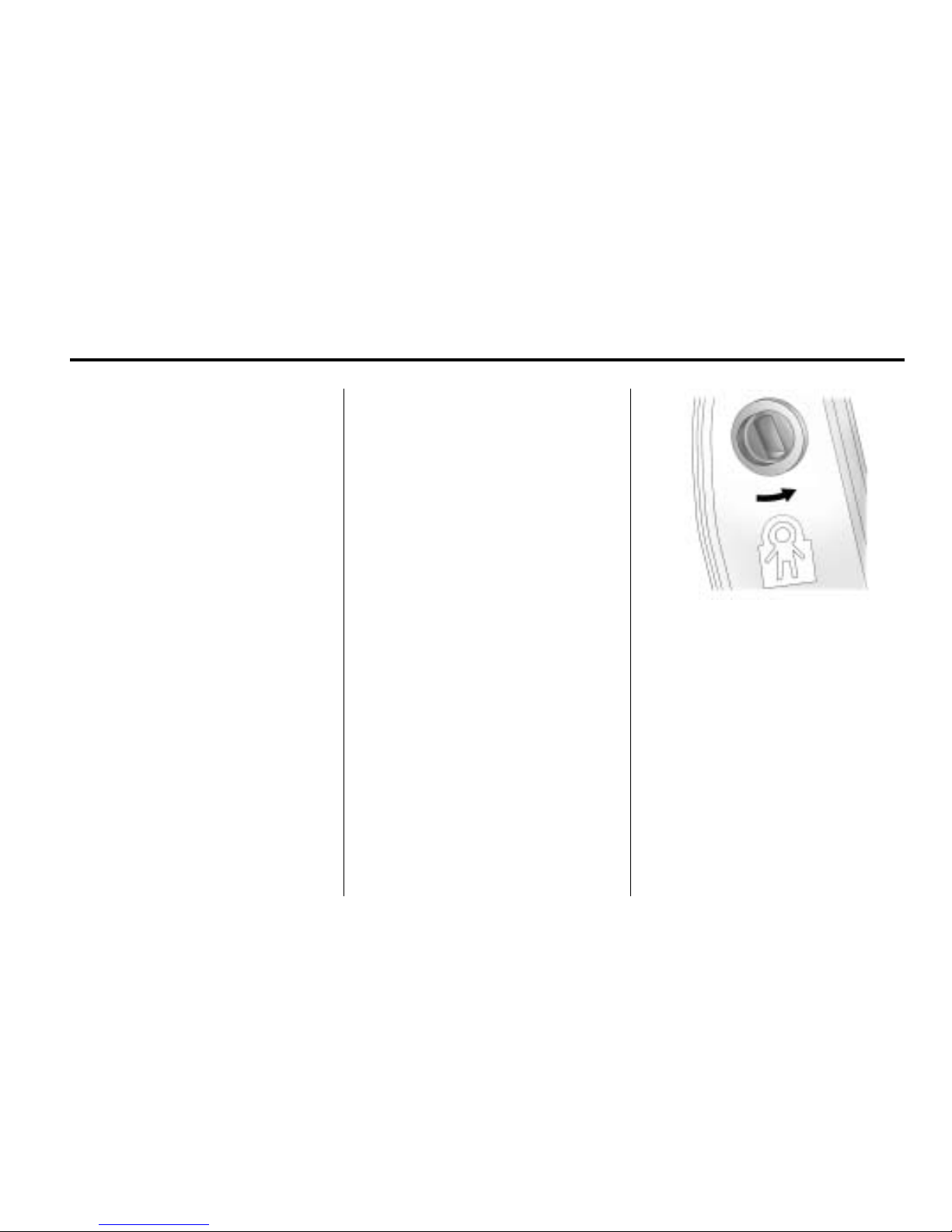

Safety Locks

The vehicle has rear door security locks to prevent passengers from opening the rear doors from the inside.

Open the rear doors to access the security locks on the inside edge of each door.

To set the locks, insert a key into the slot and turn it to the horizontal position. The door can only be opened from the outside with the door unlocked. To return the door to normal operation, turn the slot to the vertical position.

2-8 Keys, Doors and Windows

Doors

Liftgate

{

WARNING

Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death.

If the vehicle must be driven with the liftgate, or trunk/hatch open:

Close all of the windows.

Fully open the air outlets on or under the instrument panel.

(Continued)

WARNING (Continued)

Adjust the Climate Control system to a setting that brings in only outside air and set the fan speed to the highest setting. See Climate Control System in the Index.

If the vehicle is equipped with a power liftgate, disable the power liftgate function.

For more information about carbon monoxide, see Engine Exhaust on page 9‑34.

To lock or unlock the liftgate, if the vehicle has this feature, press

Q or

K twice on the Remote Keyless

Entry (RKE) transmitter or press the power door lock switch.

To open the liftgate, press the touchpad on the underside of the liftgate handle and pull up.

To close the liftgate, pull down using the handle and close until it latches.

Liftgate Operation with Loss of Power

To open the liftgate if the vehicle's battery is disconnected or the voltage is low, access the release lever. Remove the interior trim cover on the inside of the liftgate. Use a tool to push the lever on the latch until the liftgate releases.

Keys, Doors and Windows 2-9

Vehicle Security

Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal.

Anti-Theft Alarm System

Your vehicle may have a content theft-deterrent alarm system.

United States shown,

Canada similar

The security light is located near the center of the instrument panel.

To arm the theft-deterrent system, press

Q on the RKE transmitter

when all doors and the hood (vehicles started with the remote start feature only) are closed. The security light will come on solid for approximately 30 seconds and then

flashes slowly. If

Q on the RKE

transmitter is pressed a second time, the theft-deterrent system will activate immediately, bypassing the 30 second delay. The content theft deterrent alarm is not armed until the security light flashes slowly.

If any door, liftgate or the hood (vehicles started with the remote start feature only) are opened

without using the key or pressing

on the RKE transmitter, the exterior lamps flash and the horn will sound

for about 30 seconds. If

Q or K on

the RKE transmitter is not pressed,

the alarm sounds and periodically repeats. If the system does not operate as described above, see your dealer/retailer for service.

The theft-deterrent system also activates if you lock the doors with a key.

To avoid setting off the alarm by accident, always unlock a door with the RKE transmitter or a key. Unlocking a door any other way will set off the alarm if the system has been armed.

If you set off the alarm by accident, turn off the alarm by pressing

Q or

K on the RKE transmitter or by

placing the key in the ignition and turning it to START.

2-10 Keys, Doors and Windows

Testing the Alarm

To test the alarm:

1. From inside the vehicle, lower the driver window and open the driver door.

2. Get out of the vehicle, close the door and activate the system by locking the doors with the RKE transmitter.

3. Wait for the security light to flash slowly.

4. Then reach in through the window, unlock the door with the manual door lock and open the door. This should set off the alarm.

If the alarm does not sound when it should, but the vehicle's headlamps flash, check to see if the horn works. The horn fuse may be blown. To replace the fuse, see Fuses and Circuit Breakers on page 10‑37.

If the alarm does not sound or the vehicle's headlamps do not flash, see your dealer/retailer for service.

Immobilizer

See Radio Frequency Statement

page 13‑16

for information regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry and Science Canada.

Immobilizer Operation

This vehicle has PASS-Key®III+ (Personalized Automotive Security System) theft-deterrent system. PASS-Key

III+ is a passive

theft-deterrent system.

The system is automatically armed when the key is removed from the ignition.

You do not have to manually arm or disarm the system.

The security light comes on if there is a problem with arming or disarming the theft-deterrent system.

When the PASS-Key

III+ system senses that someone is using the wrong key, it prevents the vehicle from starting. Anyone using a trial-and-error method to start the vehicle will be discouraged because of the high number of electrical key codes.

When trying to start the vehicle if the engine does not start and the security light on the instrument panel cluster comes on, there may be a problem with your theft-deterrent system. Turn the ignition off and try again.

Keys, Doors and Windows 2-11

If the engine still does not start, and the key appears to be not damaged, wait about five minutes and try another ignition key and check the fuse. See Fuses and Circuit

Breakers

on page 10‑37

. If the engine still does not start with the other key, the vehicle needs service. If the vehicle does start, the first key may be faulty. See your dealer/ retailer who can service the PASS-Key

III+ to have a new key made. In an emergency, contact Roadside Assistance. See Roadside Assistance Program on page 13‑6.

It is possible for the PASS-Key

III+ decoder to “learn” the transponder value of a new or replacement key. Up to 10 keys may be programmed for the vehicle. The following procedure is for programming

additional keys only. If all the currently programmed keys are lost or do not operate, you must see your dealer/retailer or a locksmith who can service PASS-Key

III+ to have keys made and programmed to the system.

See your dealer/retailer or a locksmith who can service PASS-Key

III+ to get a new key blank that is cut exactly as the ignition key that operates the system.

To program the new key:

1. Verify that the new key has a

stamped on it.

2. Insert the already programmed

key in the ignition and start the engine. If the engine does not start, see your dealer/retailer for service.

3. After the engine has started, turn the key to LOCK/OFF, and remove the key.

4. Insert the key to be programmed and turn it to the ON/RUN position within five seconds of the original key being turned to the LOCK/OFF position.

The security light turns off once the key has been programmed.

5. Repeat Steps 1 through 4 if additional keys are to be programmed.

If the PASS-Key

III+ key is lost or damaged, see your dealer/retailer or a locksmith to have a new key made.

Do not leave the key or device that disarms or deactivates the theft deterrent system in the vehicle.

2-12 Keys, Doors and Windows

Exterior Mirrors

Convex Mirrors

{

WARNING

A convex mirror can make things, like other vehicles, look farther away than they really are. If you cut too sharply into the right lane, you could hit a vehicle on the right. Check the inside mirror or glance over your shoulder before changing lanes.

The passenger side mirror is convex shaped. A convex mirror's surface is curved so more can be seen from the driver seat.

Power Mirrors

Controls for the outside power mirrors are located on the driver door.

To adjust the power mirrors:

1. Turn the knob to choose the left (L) or the (R) right mirror.

2. Adjust each mirror so that you can see the side of your vehicle and the area behind your vehicle.

3. Return the control to the center position so the mirror cannot be moved.

Heated Mirrors

For vehicles with outside heated mirrors:

= (Rear Window Defogger):

Press to heat the outside rearview mirrors. See “Rear Window Defogger” under Automatic Climate

Control System

on page 8‑5

for

more information.

Keys, Doors and Windows 2-13

Interior Mirrors

Manual Rearview Mirror

Vehicles with OnStar

have three additional control buttons for the OnStar

system. See your dealer/ retailer for more information about OnStar

and how to subscribe to it. See the OnStar

owner guide for more information about the services OnStar

provides.

Your vehicle may also have a Rear Vision Camera. See Rear Vision

Camera (RVC)

on page 9‑44

for

more information.

Windows

{

WARNING

Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.

2-14 Keys, Doors and Windows

Power Windows

{

WARNING

Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window. Do not leave keys in a vehicle with children.

When there are children in the rear seat use the window lockout button to prevent unintentional operation of the windows.

The window switches for all doors are located on the driver door. Each passenger door has a switch that controls only that window.

Press the front of the switch to open the window. Pull the switch up to close it.

The power windows operate when the ignition is in ON/RUN or ACC/ACCESSORY, or while in Retained Accessory Power (RAP). See Retained Accessory Power

(RAP)

on page 9‑29

Express-Down Window

The driver window switch has an express-down feature that lowers the window without holding the switch. Press the switch part way and the window will open a small amount. Press the switch down all the way and release it and the window lowers all the way.

To stop the window while it is lowering, press and release the switch.

Keys, Doors and Windows 2-15

Window Lockout

o (Window Lockout): The vehicle has a lockout feature to prevent rear seat passengers from operating the windows. Press the lockout button, located with the power window switches, to turn the feature on and off.

Sun Visors

To block out glare, swing the sun visor down, or detach the driver sun visor from the center mount and slide it along the rod from side-to-side.

On a visor with a mirror, lift the cover to use it.

Roof

Sunroof

The sunroof switch is located between the sun visors.

To operate the sunroof, the ignition must be in ON/RUN, ACC/ACCESSORY, or in Retained Accessory Power (RAP). See Retained Accessory Power (RAP) on page 9‑29.

Open/Close: Slide and release the switch rearward to express open the sunroof. Slide the switch forward or rearward to stop movement.

The sun shade opens automatically with the sunroof or can be manually operated. The sunshade cannot be closed with the sunroof open.

Slide and hold the switch forward to close the sunroof. The sunshade must be closed manually.

Vent Open/Close: Press and hold the switch to vent the sunroof. Pull and hold the switch to close it. The sunshade must be manually operated when the sunroof is in the vent position.

2-16 Keys, Doors and Windows

2 NOTES

Seats and Restraints 3-1

Seats and Restraints

Head Restraints

Head Restraints . . . . . . . . . . . . . . . 3-2

Active Head Restraints . . . . . . . . 3-3

Front Seats

Seat Adjustment . . . . . . . . . . . . . . 3-3

Power Seat Adjustment . . . . . . . 3-4

Lumbar Adjustment . . . . . . . . . . . 3-5

Reclining Seatbacks . . . . . . . . . . 3-5

Heated Front Seats . . . . . . . . . . . 3-7

Folding Seatback . . . . . . . . . . . . . 3-8

Rear Seats

Rear Seats . . . . . . . . . . . . . . . . . . . . 3-9

Safety Belts

Safety Belts . . . . . . . . . . . . . . . . . . 3-10

How to Wear Safety Belts

Properly . . . . . . . . . . . . . . . . . . . . 3-13

Lap-Shoulder Belt . . . . . . . . . . . 3-19

Safety Belt Use During

Pregnancy . . . . . . . . . . . . . . . . . . 3-23

Safety Belt Extender . . . . . . . . . 3-23

Safety System Check . . . . . . . . 3-23

Safety Belt Care . . . . . . . . . . . . . 3-24

Replacing Safety Belt System

Parts After a Crash . . . . . . . . . 3-24

Airbag System

Airbag System . . . . . . . . . . . . . . . 3-25

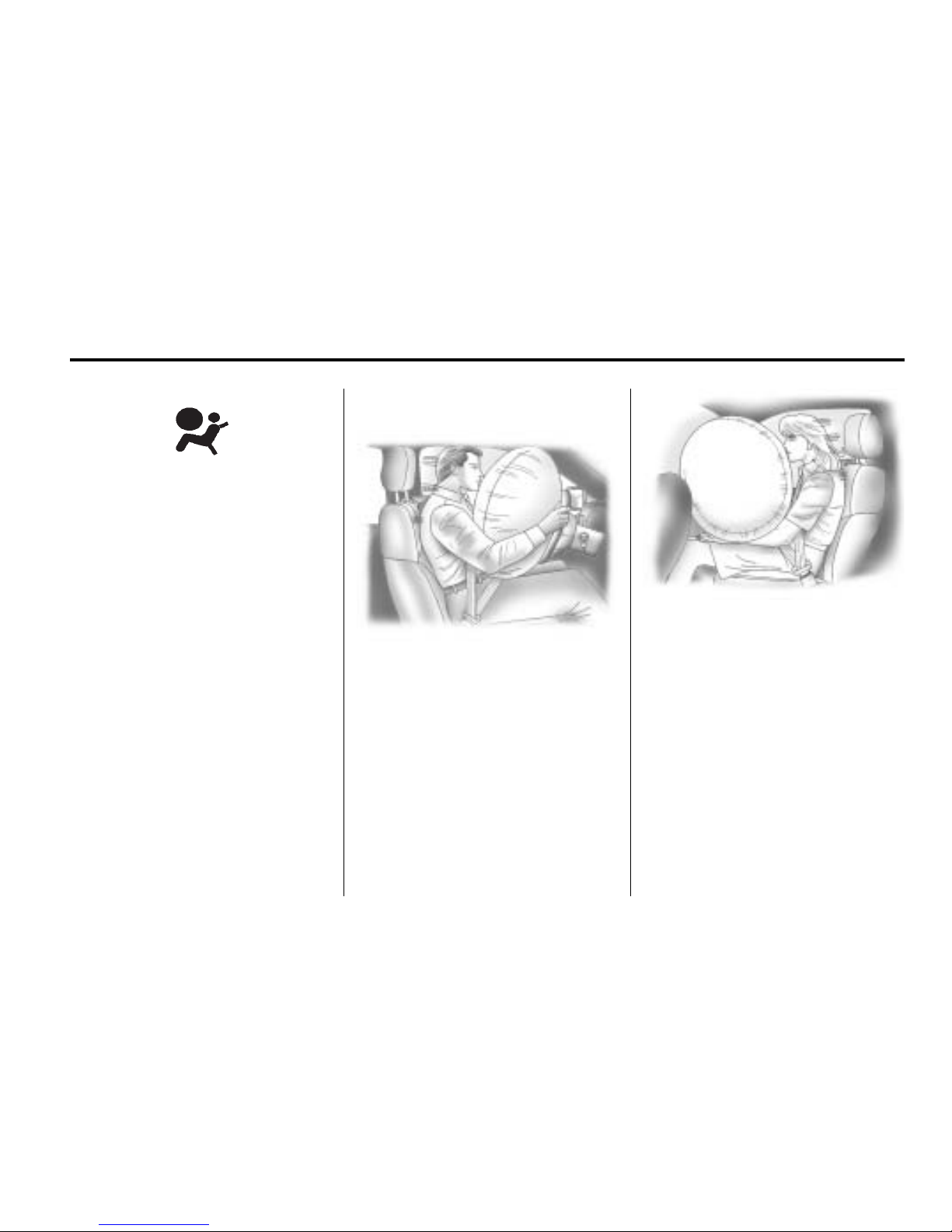

Where Are the Airbags? . . . . . 3-27

When Should an Airbag

Inflate? . . . . . . . . . . . . . . . . . . . . . 3-29

What Makes an Airbag

Inflate? . . . . . . . . . . . . . . . . . . . . . 3-31

How Does an Airbag

Restrain? . . . . . . . . . . . . . . . . . . . 3-31

What Will You See After an

Airbag Inflates? . . . . . . . . . . . . 3-32

Passenger Sensing

System . . . . . . . . . . . . . . . . . . . . . 3-34

Servicing the Airbag-Equipped

Vehicle . . . . . . . . . . . . . . . . . . . . . 3-39

Adding Equipment to the

Airbag-Equipped Vehicle . . . 3-40

Airbag System Check . . . . . . . . 3-41

Replacing Airbag System

Parts After a Crash . . . . . . . . . 3-41

Child Restraints

Older Children . . . . . . . . . . . . . . . 3-42

Infants and Young

Children . . . . . . . . . . . . . . . . . . . . 3-44

Child Restraint Systems . . . . . 3-47

Where to Put the Restraint . . . 3-48 Lower Anchors and Tethers

for Children (LATCH

System) . . . . . . . . . . . . . . . . . . . . 3-50

Replacing LATCH System

Parts After a Crash . . . . . . . . . 3-55

Securing Child Restraints

(Rear Seat Position) . . . . . . . . 3-56

Securing Child Restraints

(Front Seat Position) . . . . . . . 3-58

3-2 Seats and Restraints

Head Restraints

The front seats have adjustable head restraints in the outboard seating positions.

{

WARNING

With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/ spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chance of a neck injury in a crash.

Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down.

Push down on the head restraint after the button is released to make sure that it is locked in place.

The rear seats have head rests that adjust the same as the head restraints.

The head restraints and head rests are not designed to be removed.

Seats and Restraints 3-3

Active Head Restraints

This vehicle has an active head restraint system in the front outboard seating positions. The active head restraints automatically tilt forward to reduce the risk of neck injury if the vehicle is hit from behind.

Front Seats

Seat Adjustment

{

WARNING

You can lose control of the vehicle if you try to adjust a manual driver's seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. Adjust the driver's seat only when the vehicle is not moving.

To move a manual seat forward or rearward:

1. Lift the bar to unlock the seat.

2. Slide the seat to the desired position and release the bar.

Try to move the seat with your body to be sure the seat is locked in place.

3-4 Seats and Restraints

Seat Height Adjuster

If the vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat near the front of the seat cushion.

To raise the seat, move the lever upward repeatedly until the seat is at the desired height. To lower the seat, move the lever downward repeatedly until the seat is at the desired height.

Power Seat Adjustment

This vehicle may have power seats.

To adjust the seat location, move the control forward or rearward.

To raise or lower the front or rear part of the seat cushion, move the front or rear of the control up or down.

Seats and Restraints 3-5

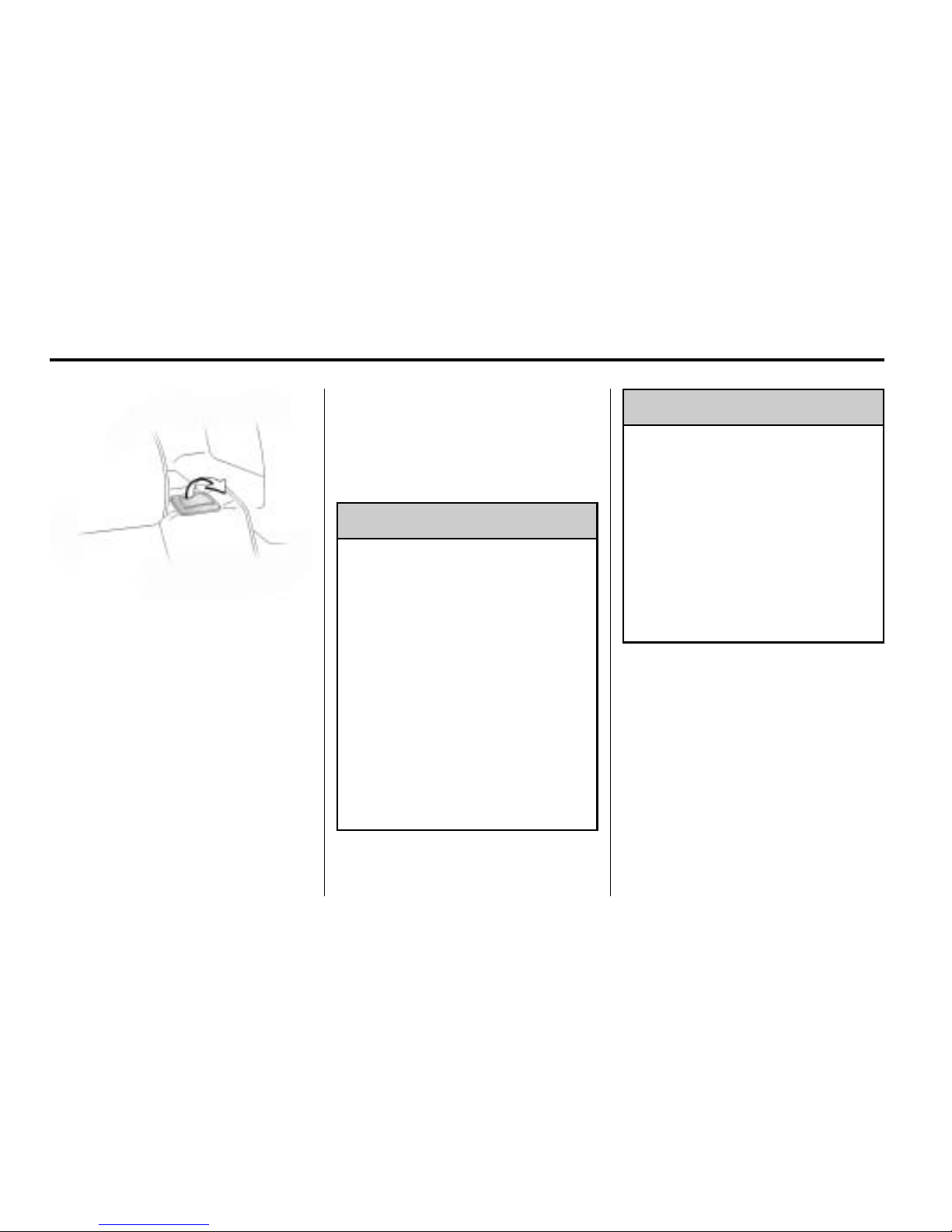

Lumbar Adjustment

If the vehicle has this feature, the knob is located on the inboard side of the driver seatback.

Turn the knob clockwise to increase lumbar support and counterclockwise to decrease it.

Reclining Seatbacks

Manual Reclining Seatbacks

{

WARNING

{

WARNING

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked.

On seats with manual reclining seatbacks, the lever used to operate them is located on the outboard side of the seat.

3-6 Seats and Restraints

To recline the seatback:

1. Lift the recline lever.

2. Move the seatback to the desired position, then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

To return the seatback to an upright position:

1. Lift the lever fully without applying pressure to the seatback and the seatback returns to the upright position.

2. Push and pull on the seatback to make sure it is locked.

Power Reclining Seatbacks

If the seats have power reclining seatbacks, the control used to recline them is located on the outboard side of the seat.

To recline the seatback, tilt the top of the control rearward.

To bring the seatback forward, tilt the top of the control forward.

{

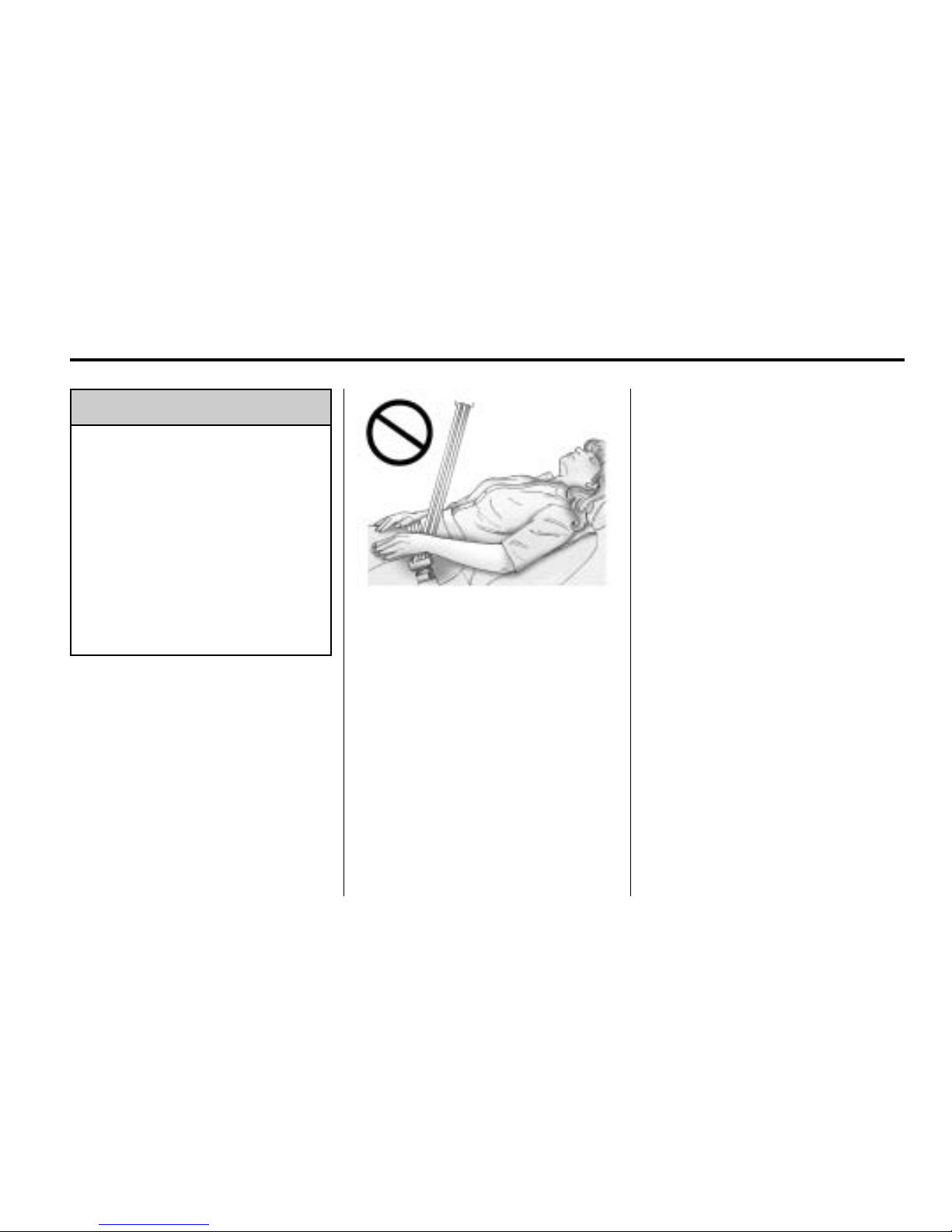

WARNING

Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this.

The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.

(Continued)

Seats and Restraints 3-7

WARNING (Continued)

The lap belt cannot do its job either. In a crash the belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your safety belt properly.

Do not have a seatback reclined if the vehicle is moving.

Heated Front Seats

On vehicles with heated front seats, the controls are located on the center console. The engine must be running to operate the heated seats.

M (Heated Seat): Press this button

to turn on the heated seat.

Continue to press the button to cycle through the temperature settings.

High = three indicator lights.

Medium = two indicator lights.

Low = one indicator light.

Off = no indicator lights.

The passenger seat may take longer to heat up.

3-8 Seats and Restraints

Folding Seatback

The front passenger seatback may fold flat.

{

WARNING

If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inflating airbag might force that object toward a person. This could cause severe injury or even death. Secure objects away from the area in which an airbag would inflate. For more information, see

Where Are the Airbags?

page 3‑27

and Vehicle Load

Limits on page 9‑22.

{

WARNING

Things you put on this seatback can strike and injure people in a sudden stop or turn, or in a crash. Remove or secure all items before driving.

To fold the seatback:

1. Lower the head restraint all the way.

2. Lift the bar under the front of the seat to unlock it. Slide the seat as far back as it will go and release the bar. Try to move the seat back and forth to make sure it is locked into place.

3. Lift the recliner lever, located on the outboard side of the seat, up fully and fold the seatback forward until it disengages.

4. Continue to fold the seat forward into the folded position.

5. Pull up on the seatback to be sure it is locked.

Seats and Restraints 3-9

To raise the seatback:

1. Lift the recliner lever, located on the outboard side of the seat, up fully and push up on the seatback.

2. Continue raising the seatback until the seatback re-engages.

{

WARNING

3. Push and pull on the seatback to make sure it is locked in place.

The recliner lever is also used to recline the seatback while a passenger is seated. See Seat Adjustment on page 3‑3.

Rear Seats

The rear split bench seatbacks can be folded forward, upright, or partially reclined, independent of the other seatback position.

{

WARNING

{

WARNING

A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash. The person wearing the belt could be seriously injured. After raising the rear seatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

To fold the seatback down:

Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.

1. Unbuckle all three safety belts and put the front seatback in an upright position.

3-10 Seats and Restraints

2. Lift the lever located on the top of the seatback to release the seatback and fold the seatback forward.

To recline the seatback:

1. Lift and hold the lever located on top of the seatback.

2. Tilt the seatback rearward, then release the lever.

Safety Belts

This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts.

{

WARNING

Do not let anyone ride where a safety belt cannot be worn properly. In a crash, if you or your passenger(s) are not wearing safety belts, the injuries can be much worse. You can hit things inside the vehicle harder or be ejected from the vehicle. You and your passenger(s) can be seriously injured or killed. In the same crash, you might not be, if you are buckled up. Always fasten your safety belt, and check that your passenger(s) are restrained properly too.

{

WARNING

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

This vehicle has indicators as a reminder to buckle the safety belts. See Safety Belt Reminders

page 5‑12

for additional

information.

Seats and Restraints 3-11

In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why:

You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one.

A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive. But most crashes are in between. In many of them, people who buckle up can survive and sometimes walk away. Without safety belts they could have been badly hurt or killed.

After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter ... a lot!

Why Safety Belts Work

When you ride in or on anything, you go as fast as it goes.

Take the simplest vehicle. Suppose it is just a seat on wheels.

Put someone on it.

Get it up to speed. Then stop the vehicle. The rider does not stop.

3-12 Seats and Restraints

The person keeps going until stopped by something. In a real vehicle, it could be the windshield...

or the instrument panel...

or the safety belts!

With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.

Questions and Answers About Safety Belts

Q: Will I be trapped in the vehicle

after a crash if I am wearing a safety belt?

A: You could be — whether you are

wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted. And you can unbuckle a safety belt, even if you are upside down.

Seats and Restraints 3-13

Q: If my vehicle has airbags, why

should I have to wear safety belts?

A: Airbags are supplemental

systems only; so they work with safety belts — not instead of them. Whether or not an airbag is provided, all occupants still have to buckle up to get the most protection. That is true not only in frontal collisions, but especially in side and other collisions.

Q: If I am a good driver, and I

never drive far from home, why should I wear safety belts?

A: You may be an excellent driver,

but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.

Most accidents occur within 40 km (25 miles) of home. And the greatest number of serious injuries and deaths occur at speeds of less than 65 km/h (40 mph).

Safety belts are for everyone.

How to Wear Safety Belts Properly

This section is only for people of adult size.

Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children

page 3‑42

or Infants and Young

Children

on page 3‑44

. Follow those rules for everyone's protection.

It is very important for all occupants to buckle up. Statistics show that unbelted people are hurt more often in crashes than those who are wearing safety belts.

Occupants who are not buckled up can be thrown out of the vehicle in a crash. And they can strike others in the vehicle who are wearing safety belts.

3-14 Seats and Restraints

First, before you or your passenger(s) wear a safety belt, there is important information you should know.

Sit up straight and always keep your feet on the floor in front of you. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this

applies force to the strong pelvic bones and you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force on your abdomen. This could cause serious or even fatal injuries. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

The shoulder belt locks if there is a sudden stop or crash.

Q: What is wrong with this?

A: The shoulder belt is too loose.

It will not give as much protection this way.

Seats and Restraints 3-15

{

WARNING

You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit snugly against your body.

Q: What is wrong with this?

A: The lap belt is too loose. It will

not give nearly as much protection this way.

{

WARNING

You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen. This could cause serious or even fatal injuries. The lap belt should be worn low and snug on the hips, just touching the thighs.

3-16 Seats and Restraints

Q: What is wrong with this?

A: The belt is buckled in the wrong

buckle.

{

WARNING

You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones. This could cause serious internal injuries. Always buckle your belt into the buckle nearest you.

Q: What is wrong with this?

A: The belt is over an armrest.

Seats and Restraints 3-17

{

WARNING

You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries. Be sure the belt goes under the armrests.

Q: What is wrong with this?

A: The shoulder belt is worn under

the arm. It should be worn over the shoulder at all times.

{

WARNING

You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which are not as strong as shoulder bones. You could also severely injure internal organs like your liver or spleen. The shoulder belt should go over the shoulder and across the chest.

3-18 Seats and Restraints

Q: What is wrong with this?

A: The belt is behind the body.

{

WARNING

You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury. You might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.

Q: What is wrong with this?

A: The belt is twisted across

the body.

{

WARNING

You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to fix it.

Seats and Restraints 3-19

Lap-Shoulder Belt

All seating positions in the vehicle have a lap-shoulder belt.

The following instructions explain how to wear a lap-shoulder belt properly.

1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see “Seats” in the Index.

2. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.

If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged. If this happens, let the belt go back all the way and start again.

Engaging the child restraint locking feature in the right front seating position may affect the passenger sensing system. See

Passenger Sensing System

page 3‑34

for more information.

3. Push the latch plate into the buckle until it clicks.

Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 3‑23.

Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.

3-20 Seats and Restraints

4. If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See “Shoulder Belt Height Adjuster” later in this section for instructions on use and important safety information.

5. To make the lap part tight, pull up on the shoulder belt.

It may be necessary to pull the stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.

To unlatch the belt, push the button on the buckle. The belt should return to its stowed position. Slide the latch plate up the safety belt webbing when the safety belt is not in use. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.

Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle.

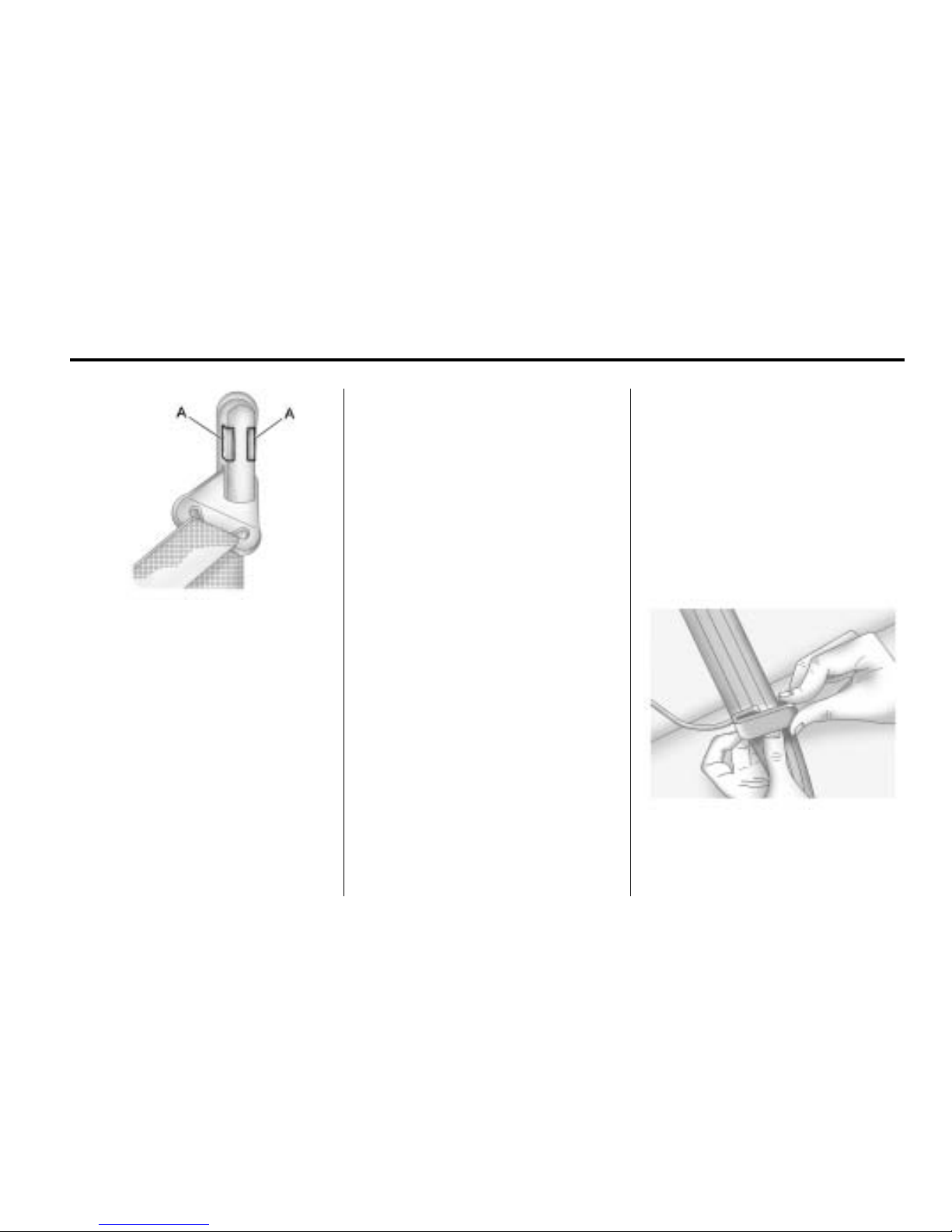

Shoulder Belt Height Adjuster

The vehicle has a shoulder belt height adjuster for the driver and right front passenger seating positions.

Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off of the shoulder. Improper shoulder belt height adjustment could reduce the effectiveness of the safety belt in a crash.

Seats and Restraints 3-21

Squeeze the release buttons (A) together and move the height adjuster up or down to the desired position.

After the adjuster is set to the desired position, try to move it up or down without squeezing the release buttons to make sure it has locked into position.

Safety Belt Pretensioners

This vehicle has safety belt pretensioners for the front outboard occupants. Although the safety belt pretensioners cannot be seen, they are part of the safety belt assembly.

They can help tighten the safety belts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the threshold conditions for pretensioner activation are met. And, for vehicles with side impact airbags, safety belt pretensioners can help tighten the safety belts in a side crash or a rollover event.

Pretensioners work only once. If the pretensioners activate in a crash, they will need to be replaced, and probably other new parts for the vehicle's safety belt system. See

Replacing Safety Belt System Parts After a Crash on page 3‑24.

Rear Safety Belt Comfort Guides

This vehicle may have rear shoulder belt comfort guides. If not, they are available through your dealer/ retailer. The guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When

installed and properly adjusted, the comfort guide positions the shoulder belt away from the neck and head.

There is one guide, if equipped, for each outboard passenger position in the rear seat. Here is how to install a comfort guide to the safety belt:

1. Remove the guide from its storage location, which is a pocket on the side of the seat.

2. Place the guide over the belt and insert the two edges of the belt into the slots of the guide.

3-22 Seats and Restraints

3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be under the belt and the guide on top.

{

WARNING

A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

4. Buckle, position, and release the safety belt as described previously in this section. Make sure that the shoulder belt crosses the shoulder.

To remove and store the comfort guide, squeeze the belt edges together so that the safety belt can be removed from the guide. Store the comfort guide in its storage location, which is a pocket on the side of the seat.

Seats and Restraints 3-23

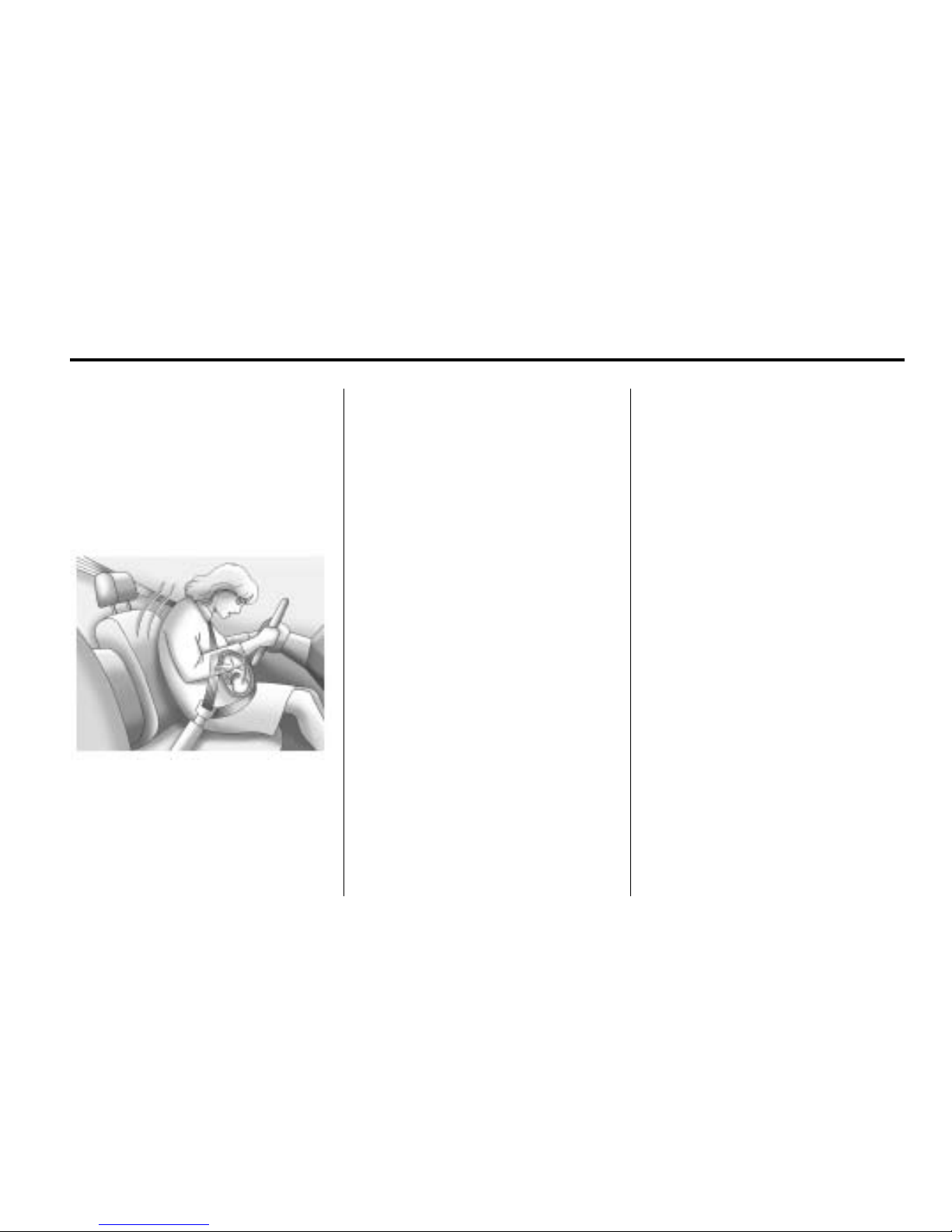

Safety Belt Use During Pregnancy

Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts.

A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.

The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.

Safety Belt Extender

If the vehicle's safety belt will fasten around you, you should use it.

But if a safety belt is not long enough, your dealer/retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you. To help avoid personal injury, do not let someone else use it, and use it only for the seat it is made to fit. The extender has been designed for adults. Never use it for securing child seats. To wear it, attach it to the regular safety belt. For more information, see the instruction sheet that comes with the extender.

Safety System Check

Now and then, check that the safety belt reminder light, safety belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job. See your dealer/ retailer to have it repaired. Torn or frayed safety belts may not protect you in a crash. They can rip apart under impact forces. If a belt is torn or frayed, get a new one right away.

Make sure the safety belt reminder light is working. See Safety Belt

Reminders

on page 5‑12

for more

information.

Keep safety belts clean and dry. See Safety Belt Care

page 3‑24

3-24 Seats and Restraints

Safety Belt Care

Keep belts clean and dry.

{

WARNING

Do not bleach or dye safety belts. It may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.

Replacing Safety Belt System Parts After a Crash

{

WARNING

A crash can damage the safety belt system in the vehicle. A damaged safety belt system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure the safety belt systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

After a minor crash, replacement of safety belts may not be necessary. But the safety belt assemblies that were used during any crash may have been stressed or damaged. See your dealer/retailer to have the safety belt assemblies inspected or replaced.

New parts and repairs may be necessary even if the safety belt system was not being used at the time of the crash.

Have the safety belt pretensioners checked if the vehicle has been in a crash, or if the airbag readiness light stays on after you start the vehicle or while you are driving. See Airbag Readiness Light on page 5‑13.

Seats and Restraints 3-25

Airbag System

The vehicle has the following airbags:

A frontal airbag for the driver.

A frontal airbag for the right front passenger.

A seat-mounted side impact airbag for the driver.

A seat-mounted side impact airbag for the right front passenger.

A roof-rail airbag for the driver and the passenger seated directly behind the driver.

A roof-rail airbag for the right front passenger and the passenger seated directly behind the right front passenger.

All of the airbags in the vehicle will have the word AIRBAG embossed in the trim or on an attached label near the deployment opening.

For frontal airbags, the word AIRBAG will appear on the middle part of the steering wheel for the driver and on the instrument panel for the right front passenger.

With seat-mounted side impact airbags, the word AIRBAG will appear on the side of the seatback closest to the door.

With roof-rail airbags, the word AIRBAG will appear along the headliner or trim.

Even if you do not have a right front passenger seat in the vehicle there is still an active frontal airbag in the right side of the instrument panel. Do not place cargo in front of this airbag.

{

WARNING

Be sure that cargo is not near an airbag. In a crash, an inflating airbag might force that object toward a person. This could cause severe injury or even death. Secure objects away from the area in which an airbag would inflate. For more information, see

Where Are the Airbags?

page 3‑27

and Vehicle Load

Limits on page 9‑22.

Airbags are designed to supplement the protection provided by safety belts. Even though today's airbags are also designed to help reduce the risk of injury from the force of an inflating bag, all airbags must inflate very quickly to do their job.

3-26 Seats and Restraints

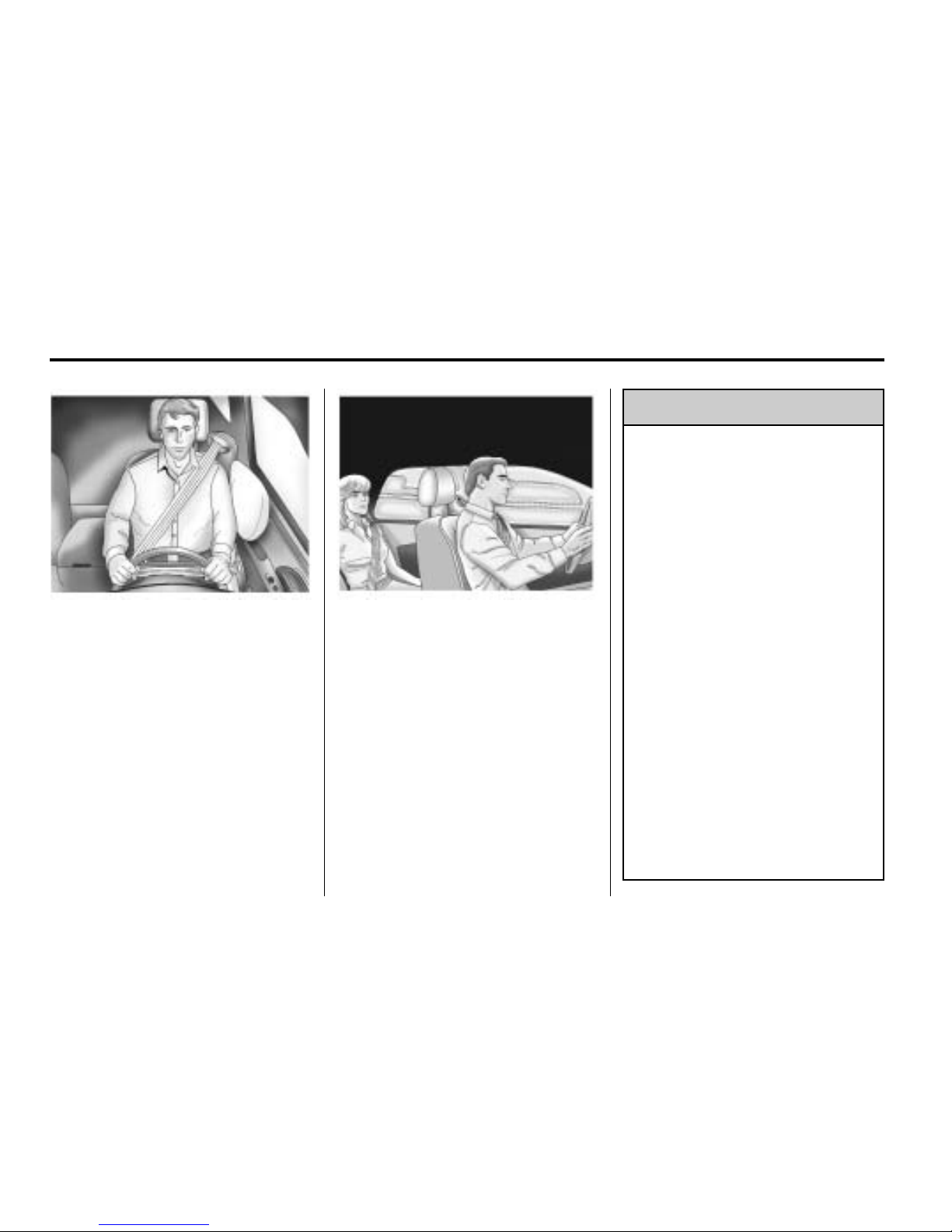

Here are the most important things to know about the airbag system:

{

WARNING

You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Airbags are designed to work with safety belts, but do not replace them. Also, airbags are not designed to deploy in every crash. In some crashes safety belts are your only restraint. See When Should an Airbag Inflate? on page 3‑29.

Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it. Airbags are “supplemental restraints” to the safety belts. Everyone in your vehicle should wear a safety belt properly — whether or not there is an airbag for that person.

{

WARNING

Airbags inflate with great force, faster than the blink of an eye. Anyone who is up against, or very close to, any airbag when it inflates can be seriously injured or killed. Do not sit unnecessarily close to the airbag, as you would be if you were sitting on the edge of your seat or leaning forward. Safety belts help keep you in position before and during a crash. Always wear your safety belt, even with airbags. The driver should sit as far back as possible while still maintaining control of the vehicle.

Occupants should not lean on or sleep against the door or side windows in seating positions with seat-mounted side impact airbags and/or roof-rail airbags.

{

WARNING

Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle's safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide. Always secure children properly in your vehicle. To read how, see Older

Children

on page 3‑42

or Infants

and Young Children

page 3‑44

Seats and Restraints 3-27

There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol.

The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag

Readiness Light

on page 5‑13

for

more information.

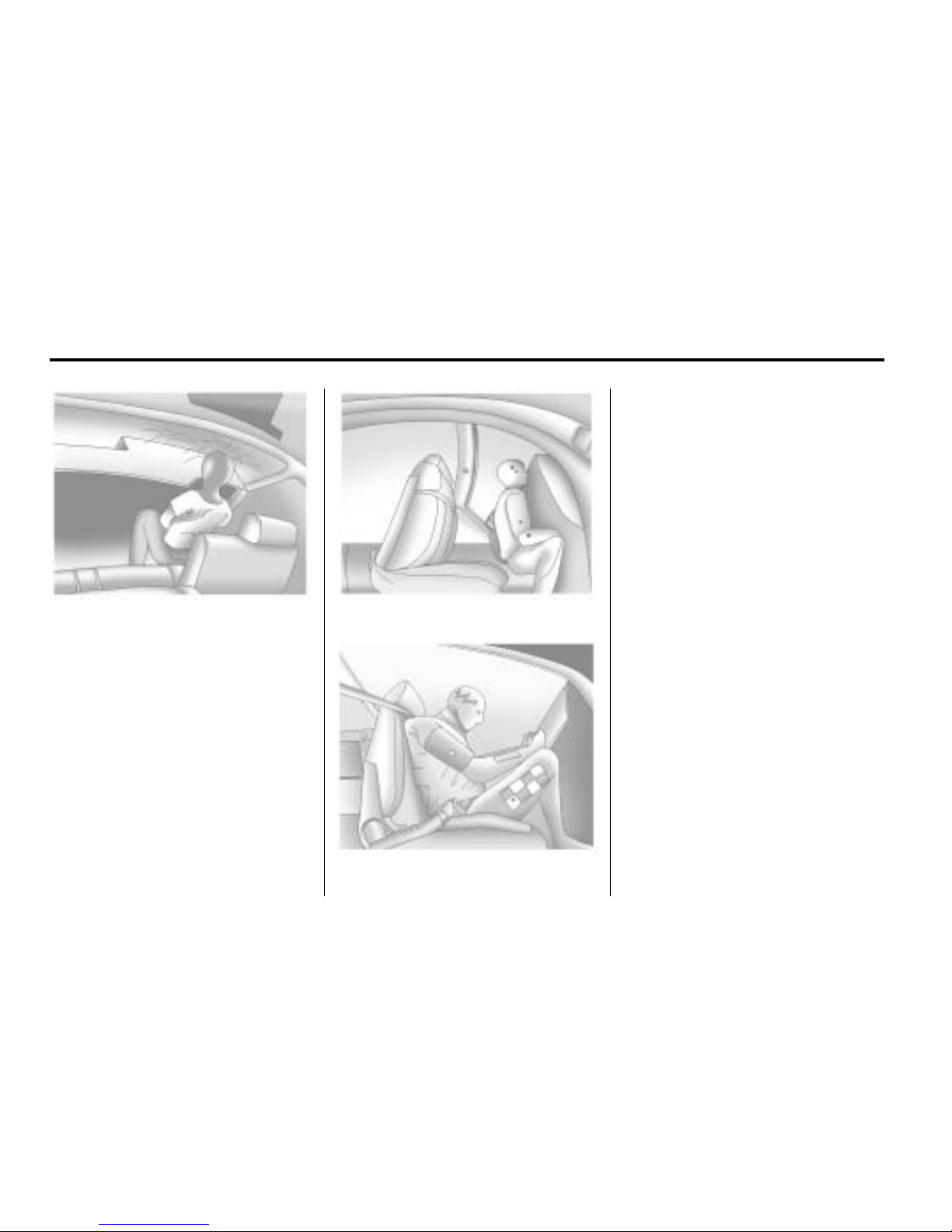

Where Are the Airbags?

The driver frontal airbag is in the middle of the steering wheel.

The right front passenger frontal airbag is in the instrument panel on the passenger side.

3-28 Seats and Restraints

Driver Side shown, Passenger

Side similar

The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.

Driver Side shown, Passenger

Side similar

The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows.

{

WARNING

If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.

Do not use seat accessories that block the inflation path of a seat-mounted side impact airbag.

Never secure anything to the roof of a vehicle with roof-rail airbags by routing a rope or tie down through any door or window opening. If you do, the path of an inflating roof-rail airbag will be blocked.

Seats and Restraints 3-29

When Should an Airbag Inflate?

Frontal airbags are designed to inflate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver's or right front passenger's head and chest. However, they are only designed to inflate if the impact exceeds a predetermined deployment threshold. Deployment thresholds are used to predict how severe a crash is likely to be in time for the airbags to inflate and help restrain the occupants.

Whether the frontal airbags will or should deploy is not based on how fast your vehicle is traveling. It depends largely on what you hit, the direction of the impact, and how quickly your vehicle slows down.

Frontal airbags may inflate at different crash speeds. For example:

If the vehicle hits a stationary object, the airbags could inflate at a different crash speed than if the vehicle hits a moving object.

If the vehicle hits an object that deforms, the airbags could inflate at a different crash speed than if the vehicle hits an object that does not deform.

If the vehicle hits a narrow object (like a pole), the airbags could inflate at a different crash speed than if the vehicle hits a wide object (like a wall).

If the vehicle goes into an object at an angle, the airbags could inflate at a different crash speed than if the vehicle goes straight into the object.

Thresholds can also vary with specific vehicle design.

Frontal airbags are not intended to inflate during vehicle rollovers, rear impacts, or in many side impacts.

3-30 Seats and Restraints

In addition, the vehicle has dual-stage frontal airbags. Dual-stage airbags adjust the restraint according to crash severity. The vehicle has electronic frontal sensors, which help the sensing system distinguish between a moderate frontal impact and a more severe frontal impact. For moderate frontal impacts, dual-stage airbags inflate at a level less than full deployment. For more severe frontal impacts, full deployment occurs.

The vehicle has seat-mounted side impact and roof-rail airbags. See

Airbag System

on page 3‑25

. Seat-mounted side impact and roof-rail airbags are intended to inflate in moderate to severe side crashes. In addition, these roof-rail airbags are intended to inflate

during a rollover or in a severe frontal impact. Seat-mounted side impact and roof-rail airbags will inflate if the crash severity is above the system's designed threshold level. The threshold level can vary with specific vehicle design.

Seat-mounted side impact airbags are not intended to inflate in frontal impacts, near-frontal impacts, rollovers, or rear impacts. Roof-rail airbags are not intended to inflate in rear impacts. A seat-mounted side impact airbag is intended to deploy on the side of the vehicle that is struck. Both roof-rail airbags will

deploy when either side of the vehicle is struck, or if the sensing system predicts that the vehicle is about to roll over, or in a severe frontal impact.

In any particular crash, no one can say whether an airbag should have inflated simply because of the damage to a vehicle or because of what the repair costs were. For frontal airbags, inflation is determined by what the vehicle hits, the angle of the impact, and how quickly the vehicle slows down. For seat-mounted side impact and roof-rail airbags, deployment is determined by the location and severity of the side impact. In a rollover event, roof-rail airbag deployment is determined by the direction of the roll.

Seats and Restraints 3-31

What Makes an Airbag Inflate?

In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inflator. Gas from the inflator fills the airbag causing the bag to break out of the cover and deploy. The inflator, the airbag, and related hardware are all part of the airbag module.

Frontal airbag modules are located inside the steering wheel and instrument panel. For vehicles with seat-mounted side impact airbags, there are airbag modules in the side of the front seatbacks closest to the door. For vehicles with roof-rail airbags, there are airbag modules in the ceiling of the vehicle, near the side windows that have occupant seating positions.

How Does an Airbag Restrain?

In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle.

Airbags supplement the protection provided by safety belts. Frontal airbags distribute the force of the impact more evenly over the occupant's upper body, stopping the occupant more gradually. Seat‐mounted side impact and roof-rail airbags distribute the force of the impact more evenly over the occupant's upper body.

Rollover capable roof-rail airbags are designed to help contain the head and chest of occupants in the outboard seating positions in the first and second rows. The rollover capable roof-rail airbags are designed to help reduce the risk of full or partial ejection in rollover events, although no system can prevent all such ejections.

But airbags would not help in many types of collisions, primarily because the occupant's motion is not toward those airbags. See When

Should an Airbag Inflate?

page 3‑29

for more information.

Airbags should never be regarded as anything more than a supplement to safety belts.

3-32 Seats and Restraints

What Will You See After an Airbag Inflates?

After the frontal airbags and seat-mounted side impact airbags inflate, they quickly deflate, so quickly that some people may not even realize an airbag inflated. Roof-rail airbags may still be at least partially inflated for some time after they deploy. Some components of the airbag module may be hot for several minutes. For location of the airbag modules, see What Makes an Airbag Inflate? on page 3‑31.

The parts of the airbag that come into contact with you may be warm, but not too hot to touch. There may be some smoke and dust coming from the vents in the deflated airbags. Airbag inflation does not prevent the driver from seeing out of the windshield or being able to steer the vehicle, nor does it prevent people from leaving the vehicle.

{

WARNING

When an airbag inflates, there may be dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble. To avoid this, everyone in the vehicle should get out as soon as it is safe to do so. If you have breathing problems but cannot get out of the vehicle after an

(Continued)

WARNING (Continued)

airbag inflates, then get fresh air by opening a window or a door. If you experience breathing problems following an airbag deployment, you should seek medical attention.

The vehicle has a feature that may automatically unlock the doors, turn on the interior lamps and hazard warning flashers, and shut off the fuel system after the airbags inflate.

Seats and Restraints 3-33

You can lock the doors, turn off the interior lamps and hazard warning flashers by using the controls for those features. You must first, however, turn the ignition key to the following ignition switch positions:

1. Turn the ignition key to LOCK/OFF.

2. Turn the ignition key to ON/RUN.

{

WARNING

A crash severe enough to inflate the airbags may have also damaged important functions in the vehicle, such as the fuel system, brake and steering systems, etc. Even if the vehicle appears to be drivable after a moderate crash, there may be concealed damage that could make it difficult to safely operate the vehicle.

Use caution if you should attempt to restart the engine after a crash has occurred.

In many crashes severe enough to inflate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag.

Airbags are designed to inflate only once. After an airbag inflates, you will need some new parts for the airbag system. If you do not get them, the airbag system will not be there to help protect you in another crash. A new system will include airbag modules and possibly other parts. The service manual for your vehicle covers the need to replace other parts.

The vehicle has a crash sensing and diagnostic module which records information after a crash. See Vehicle Data

Recording and Privacy

page 13‑15

and Event Data

Recorders on page 13‑15.

Let only qualified technicians work on the airbag systems. Improper service can mean that an airbag system will not work properly. See your dealer/retailer for service.

3-34 Seats and Restraints

Passenger Sensing System

The vehicle has a passenger sensing system for the right front passenger position. The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.

United States

Canada

The words ON and OFF, or the symbol for on and off, are visible during the system check. If you are using remote start, if equipped, to

start the vehicle from a distance, you may not see the system check. When the system check is complete, either the word ON or OFF, or the symbol for on or off, will be visible. See Passenger Airbag Status Indicator on page 5‑14.

The passenger sensing system turns off the right front passenger frontal airbag and seat-mounted side impact airbag under certain conditions. The driver airbags and the roof-rail airbags are not affected by the passenger sensing system.

The passenger sensing system works with sensors that are part of the right front passenger seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger frontal airbag and seat‐ mounted side impact airbag should be enabled (may inflate) or not.

According to accident statistics, children are safer when properly secured in a rear seat in a correct child restraint for their weight and size.

We recommend that children be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; a child riding in a forward-facing child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts.

Seats and Restraints 3-35

A label on the sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

{

WARNING

A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates. This is because the back of the rear-facing child restraint would be very close to the inflating airbag. A child in a forward-facing child restraint can be seriously injured or killed if the right front passenger airbag inflates and the passenger seat is in a forward position.

(Continued)

WARNING (Continued)

Even if the passenger sensing system has turned off the right front passenger frontal airbag and seat-mounted side impact airbag (if equipped), no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though the airbag(s) are off.

(Continued)

WARNING (Continued)

Secure rear-facing child restraints in a rear seat, even if the airbag(s) are off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

If the vehicle does not have a rear seat that will accommodate a rear‐facing child restraint, a rear‐facing child restraint should not be installed in the vehicle, even if the airbag is off.

3-36 Seats and Restraints

The passenger sensing system is designed to turn off the right front passenger airbag and seat‐mounted side impact airbag if:

The right front passenger seat is unoccupied.

The system determines that an infant is present in a rear-facing infant seat.

The system determines that a small child is present in a child restraint.

The system determines that a small child is present in a booster seat.

A right front passenger takes his/her weight off of the seat for a period of time.

The right front passenger seat is occupied by a smaller person, such as a child who has outgrown child restraints.

Or, if there is a critical problem with the airbag system or the passenger sensing system.

When the passenger sensing system has turned off the right front passenger frontal airbag and seat‐mounted side impact airbag, the off indicator will light and stay lit to remind you that the airbags are off. See Passenger Airbag Status Indicator on page 5‑14.

The passenger sensing system is designed to turn on (may inflate) the right front passenger frontal airbag and seat‐mounted side impact airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger seat.

When the passenger sensing system has allowed the airbags to be enabled, the on indicator will light and stay lit to remind you that the airbags are active.

For some children who have outgrown child restraints, and for very small adults, the passenger sensing system may or may not turn off the right front passenger frontal airbag and seat-mounted side

impact airbag, depending upon the person’s seating posture and body build. Everyone in the vehicle who has outgrown child restraints should wear a safety belt properly — whether or not there is an airbag for that person.

{

WARNING

If the airbag readiness light ever comes on and stays on, it means that something may be wrong with the airbag system. To help avoid injury to yourself or others, have the vehicle serviced right away. See Airbag Readiness

Light

on page 5‑13

for more information, including important safety information.

Seats and Restraints 3-37

If the On Indicator is Lit for a Child Restraint

If a child restraint has been installed and the on indicator is lit:

1. Turn the vehicle off.

2. Remove the child restraint from the vehicle.

3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.

4. Reinstall the child restraint following the directions provided by the child restraint manufacturer and refer to

Securing Child Restraints (Rear Seat Position)

on page 3‑56

Securing Child Restraints (Front Seat Position) on page 3‑58.

5. If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, turn the vehicle off. Then slightly recline the vehicle seatback and adjust the seat cushion, if adjustable, to make sure that the vehicle seatback is not pushing the child restraint into the seat cushion.

Also make sure the child restraint is not trapped under the vehicle head restraint. If this happens, adjust the head restraint. See Head Restraints

on page 3‑2

6. Restart the vehicle.

If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle, and check with your dealer/retailer.

If no rear seat is available, do not install a child restraint in this vehicle.

3-38 Seats and Restraints

If the Off Indicator is Lit for an Adult-Size Occupant

If a person of adult-size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, use the following steps to allow the system to detect that person and

enable the right front passenger frontal airbag and seat-mounted side impact airbag:

1. Turn the vehicle off.

2. Remove any additional material from the seat, such as blankets, cushions, seat covers, seat heaters, or seat massagers.

3. Place the seatback in the fully upright position.

4. Have the person sit upright in the seat, centered on the seat cushion, with legs comfortably extended.

5. Restart the vehicle and have the person remain in this position for two to three minutes after the on indicator is lit.

Additional Factors Affecting System Operation

Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.

If the shoulder portion of the belt is pulled out all the way, the child restraint locking feature will be engaged. This may unintentionally cause the passenger sensing system to turn the airbag(s) off for some adult size occupants. If this happens, let the belt go back all the way and start again.

Seats and Restraints 3-39

A thick layer of additional material, such as a blanket or cushion, or aftermarket equipment such as seat covers, seat heaters, and seat massagers can affect how well the passenger sensing system operates. We recommend that you not use seat covers or other aftermarket equipment except when approved by GM for your specific vehicle. See Adding Equipment to

the Airbag-Equipped Vehicle

page 3‑40

for more information about modifications that can affect how the system operates.

{

WARNING

Stowing of articles under the passenger seat or between the passenger seat cushion and seatback may interfere with the proper operation of the passenger sensing system.

Servicing the Airbag-Equipped Vehicle

Airbags affect how the vehicle should be serviced. There are parts of the airbag system in several places around the vehicle. Your dealer/retailer and the service manual have information about servicing the vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 13‑12.

{

WARNING

For up to 10 seconds after the ignition is turned off and the battery is disconnected, an airbag can still inflate during improper service. You can be injured if you are close to an airbag when it inflates. Avoid yellow connectors. They are probably part of the airbag system. Be sure to follow proper service procedures, and make sure the person performing work for you is qualified to do so.

3-40 Seats and Restraints

Adding Equipment to the Airbag-Equipped Vehicle

Q: Is there anything I might add

to or change about the vehicle that could keep the airbags from working properly?

A: Yes. If you add things that

change the vehicle's frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly. Changing or moving any parts of the front seats, safety belts, the airbag sensing and diagnostic module, steering wheel, instrument panel, roof-rail airbag modules, ceiling headliner or pillar garnish trim, overhead console, front sensors, side impact sensors, rollover sensor module, or airbag wiring can affect the operation of the airbag system.

In addition, the vehicle has a passenger sensing system for the right front passenger position, which includes sensors

that are part of the passenger seat. The passenger sensing system may not operate properly if the original seat trim is replaced with non-GM covers, upholstery or trim, or with GM covers, upholstery or trim designed for a different vehicle. Any object, such as an aftermarket seat heater or a comfort enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing system. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensing system from properly turning off the passenger airbag(s). See

Passenger Sensing System

page 3‑34

If you have questions, call Customer Assistance. The phone numbers and addresses for Customer Assistance are in

Step Two of the Customer Satisfaction Procedure in this manual.

If the vehicle has rollover roof-rail airbags, see Different

Size Tires and Wheels

page 10‑61

for additional

important information.

Q: Because I have a disability,

I have to get my vehicle modified. How can I find out whether this will affect my airbag system?

A: If you have questions, call

Customer Assistance. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual.

In addition, your dealer/retailer and the service manual have information about the location of the airbag sensors, sensing and diagnostic module and airbag wiring.

Seats and Restraints 3-41

Airbag System Check

The airbag system does not need regularly scheduled maintenance or replacement. Make sure the airbag readiness light is working. See

Airbag Readiness Light

page 5‑13

for more information.

Notice: If an airbag covering is damaged, opened, or broken, the airbag may not work properly. Do not open or break the airbag coverings. If there are any opened or broken airbag covers, have the airbag covering and/or airbag module replaced. For the location of the airbag modules, see What Makes an Airbag

Inflate?

on page 3‑31

. See your

dealer/retailer for service.

Replacing Airbag System Parts After a Crash

{

WARNING

A crash can damage the airbag systems in your vehicle. A damaged airbag system may not work properly and may not protect you and your passenger(s) in a crash, resulting in serious injury or even death. To help make sure your airbag systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.

If an airbag inflates, you will need to replace airbag system parts. See your dealer/retailer for service.

If the airbag readiness light stays on after the vehicle is started or comes on when you are driving, the airbag system may not work properly. Have the vehicle serviced right away. See

Airbag Readiness Light

page 5‑13

for more information.

3-42 Seats and Restraints

Child Restraints

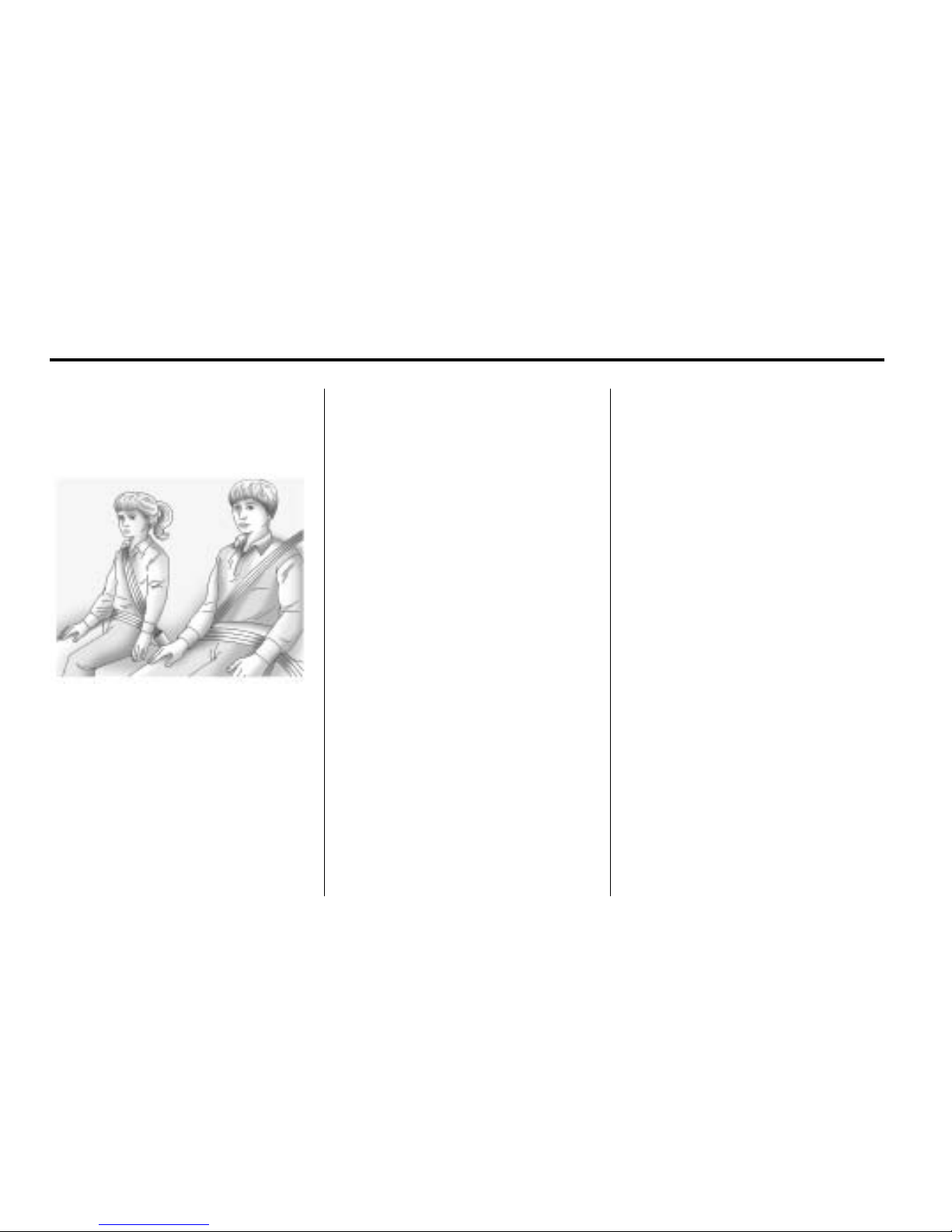

Older Children

Older children who have outgrown booster seats should wear the vehicle's safety belts.

The manufacturer's instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below fit test:

Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue. If no, return to the booster seat.

Buckle the lap-shoulder belt. Does the shoulder belt rest on the shoulder? If yes, continue. If no, try using the rear safety belt comfort guide. See “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt

page 3‑19

for more information. If the shoulder belt still does not rest on the shoulder, then return to the booster seat.

Does the lap belt fit low and snug on the hips, touching the thighs? If yes, continue. If no, return to the booster seat.

Can proper safety belt fit be maintained for the length of the trip? If yes, continue. If no, return to the booster seat.

Q: What is the proper way to

wear safety belts?

A: An older child should wear a

lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs. This applies belt force to the child's pelvic bones in a crash. It should never be worn over the abdomen, which could cause severe or even fatal internal injuries in a crash.

Also see “Rear Safety Belt Comfort Guides” under Lap-Shoulder Belt

page 3‑19

Seats and Restraints 3-43

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position.

In a crash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

{

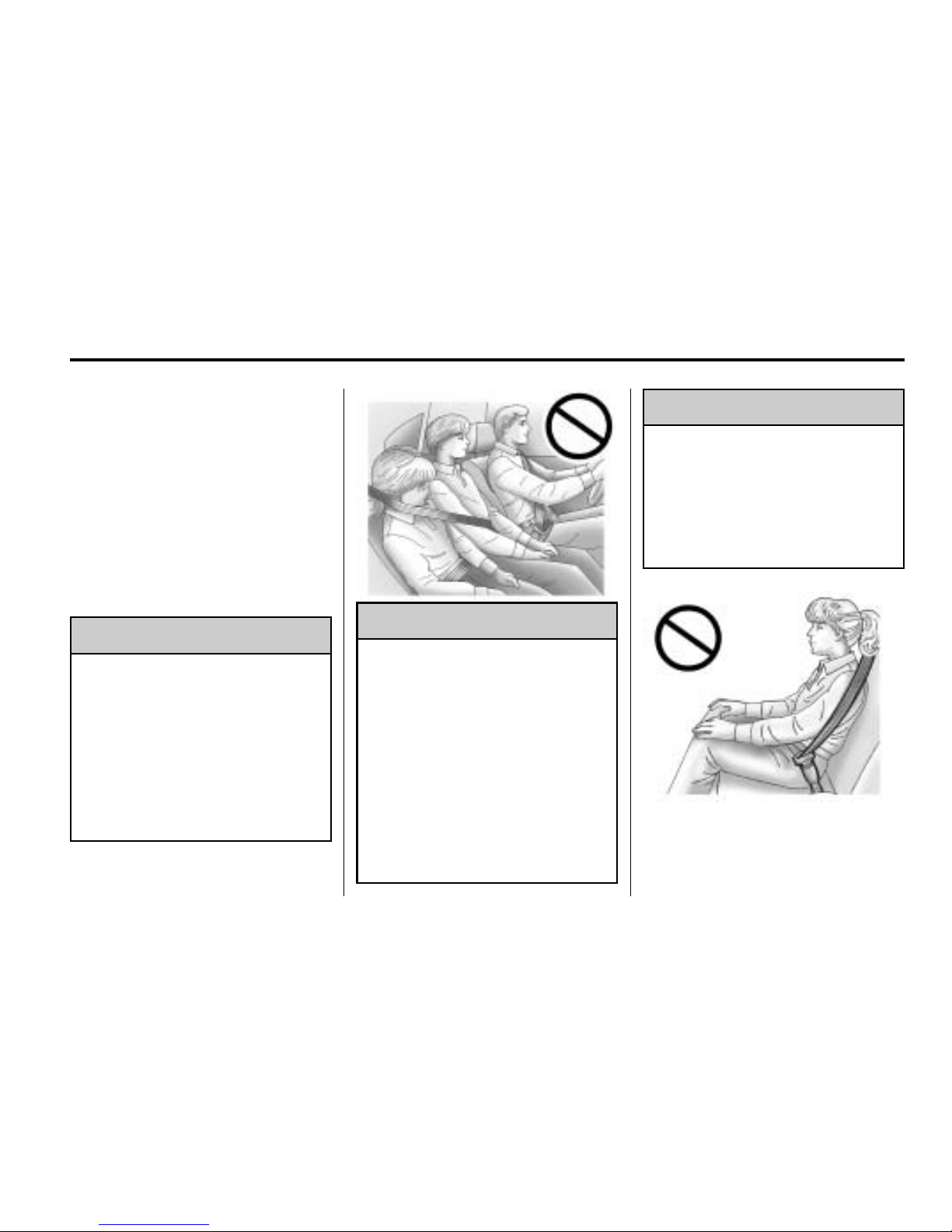

WARNING

Never do this.

Never allow two children to wear the same safety belt. The safety belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A safety belt must be used by only one person at a time.

{

WARNING

Never do this.

Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt. The child could move too far forward increasing the chance of head and neck injury. The child

(Continued)

WARNING (Continued)

might also slide under the lap belt. The belt force would then be applied right on the abdomen. That could cause serious or fatal injuries. The shoulder belt should go over the shoulder and across the chest.

3-44 Seats and Restraints

Infants and Young Children

Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.

{

WARNING

Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Never leave children unattended in a vehicle and never allow children to play with the safety belts.

Airbags plus lap‐shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle's safety belt system nor its airbag system is designed for them. Every time infants and young children ride in vehicles, they should have the protection provided by appropriate child restraints.

Children who are not restrained properly can strike other people, or can be thrown out of the vehicle.

{

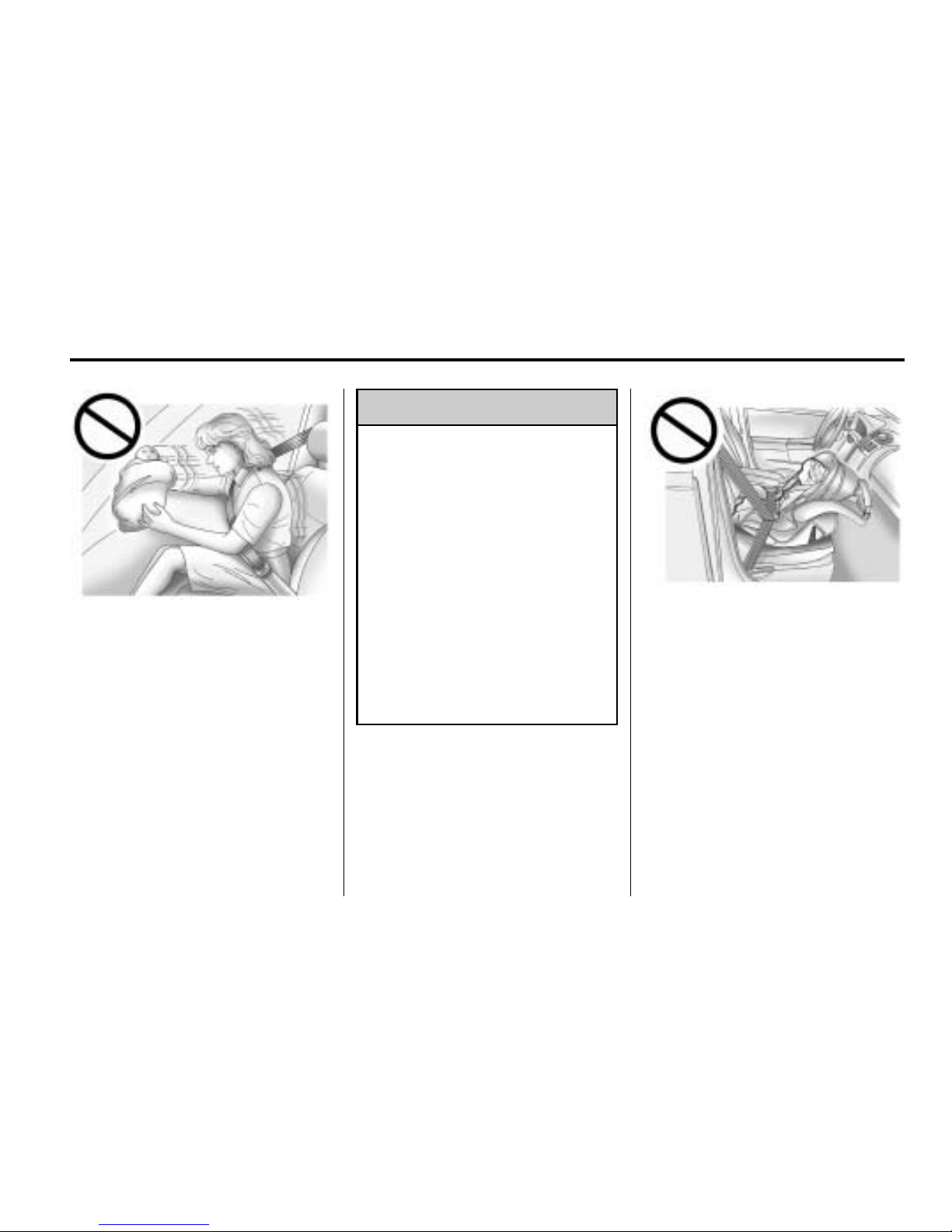

WARNING

Never do this.

Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person's arms. An infant should be secured in an appropriate restraint.

Seats and Restraints 3-45

{

WARNING

Never do this.

Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint in a rear seat. It is also better to secure a forward-facing child restraint in a rear seat. If you must secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go.

3-46 Seats and Restraints

Q: What are the different types of

add-on child restraints?

A: Add-on child restraints, which

are purchased by the vehicle's owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child's weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.

For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.

The restraint manufacturer's instructions that come with the restraint state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs.

{

WARNING

To reduce the risk of neck and head injury during a crash, infants need complete support. This is because an infant's neck is not fully developed and its head weighs so much compared with the rest of its body. In a crash, an infant in a rear-facing child restraint settles into the restraint, so the crash forces can be distributed across the strongest part of an infant's body, the back and shoulders. Infants should always be secured in rear-facing child restraints.

{

WARNING

A young child's hip bones are still so small that the vehicle's regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child's abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure. This alone could cause serious or fatal injuries. To reduce the risk of serious or fatal injuries during a crash, young children should always be secured in appropriate child restraints.

Seats and Restraints 3-47

Child Restraint Systems

(A) Rear-Facing Infant Seat

A rear-facing infant seat (A) provides restraint with the seating surface against the back of the infant.

The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint.

(B) Forward-Facing Child Seat

A forward-facing child seat (B) provides restraint for the child's body with the harness.

A booster seat (C) is a child restraint designed to improve the fit of the vehicle's safety belt system. A booster seat can also help a child to see out the window.

3-48 Seats and Restraints

Securing an Add-On Child Restraint in the Vehicle

{

WARNING

A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Secure the child restraint properly in the vehicle using the vehicle's safety belt or LATCH system, following the instructions that came with that child restraint and the instructions in this manual.

To help reduce the chance of injury, the child restraint must be secured in the vehicle. Child restraint systems must be secured in vehicle seats by lap belts or the lap belt portion of a lap-shoulder belt, or by

the LATCH system. See Lower

Anchors and Tethers for Children (LATCH System)

on page 3‑50

for more information. Children can be endangered in a crash if the child restraint is not properly secured in the vehicle.

When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.

Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in the vehicle — even when no child is in it.

Securing the Child Within the Child Restraint

{

WARNING

A child can be seriously injured or killed in a crash if the child is not properly secured in the child restraint. Secure the child properly following the instructions that came with that child restraint.

Where to Put the Restraint

According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position.

We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint; a child riding in a forward-facing

Seats and Restraints 3-49

child seat; an older child riding in a booster seat; and children, who are large enough, using safety belts.

A label on the sun visor says, “Never put a rear-facing child restraint in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.

{

WARNING

(Continued)

WARNING (Continued)

Even if the passenger sensing system has turned off the right front passenger frontal airbag, no system is fail-safe. No one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.

Secure rear-facing child restraints in a rear seat, even if the airbag is off. If you secure a forward-facing child restraint in the right front seat, always move the front passenger seat as far back as it will go. It is better to secure the child restraint in a rear seat.

See Passenger Sensing System

on page 3‑34

for additional

information.

If the vehicle does not have a rear seat that will accommodate a rear-facing child restraint, a rear-facing child restraint should not be installed in the vehicle, even if the airbag is off.

When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle.

Wherever a child restraint is installed, be sure to secure the child restraint properly.

3-50 Seats and Restraints

Lower Anchors and Tethers for Children (LATCH System)

The LATCH system holds a child restraint during driving or in a crash. This system is designed to make installation of a child restraint easier. The LATCH system uses anchors in the vehicle and attachments on the child restraint that are made for use with the LATCH system.

Make sure that a LATCH-compatible child restraint is properly installed using the anchors, or use the vehicle's safety belts to secure the restraint, following the instructions that came with that restraint, and also the instructions in this manual. When installing a child restraint with a top tether, you must also use either the lower anchors or the safety belts to properly secure the child restraint. A child restraint must never be installed using only the top tether and anchor.

In order to use the LATCH system in your vehicle, you need a child restraint that has LATCH attachments. The child restraint manufacturer will provide you with instructions on how to use the child restraint and its attachments. The following explains how to attach a child restraint with these attachments in your vehicle.

Not all vehicle seating positions or child restraints have lower anchors and attachments or top tether anchors and attachments.

Lower Anchors

Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH

seating position that will accommodate a child restraint with lower attachments (B).

Top Tether Anchor

A top tether (A, C) anchors the top of the child restraint to the vehicle. A top tether anchor is built into the vehicle. The top tether attachment (B) on the child restraint connects to the top tether anchor in the vehicle in order to reduce the forward movement and rotation of the child restraint during driving or in a crash.

Seats and Restraints 3-51

Your child restraint may have a single tether (A) or a dual tether (C). Either will have a single attachment (B) to secure the top tether to the anchor.

Some child restraints that have top tethers are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached. Be sure to read and follow the instructions for your child restraint.

If the child restraint does not have a top tether, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available.

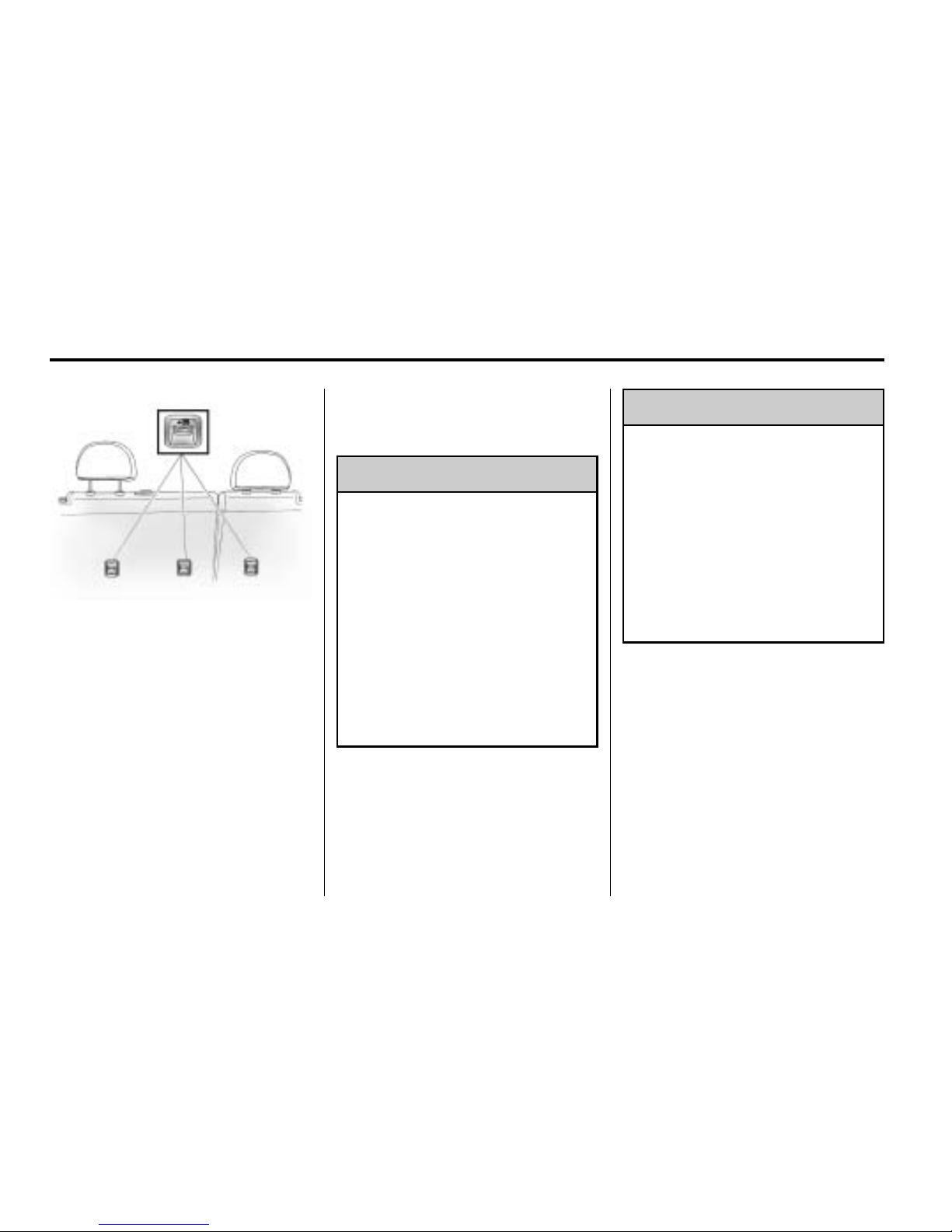

Lower Anchor and Top Tether Anchor Locations

Rear Seat

i (Top Tether Anchor): Seating

positions with top tether anchors.

j (Lower Anchor): Seating

positions with two lower anchors.

To assist you in locating the lower anchors, each seating position with lower anchors has two labels, near the crease between the seatback and the seat cushion.

To assist you in locating the top tether anchors, the top tether anchor symbol is located near the top tether anchors.

The top tether anchors are located on the back of the rear seatback. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.

3-52 Seats and Restraints

Do not secure a child restraint in a position without a top tether anchor if a national or local law requires that the top tether be attached, or if the instructions that come with the child restraint say that the top tether must be attached.

Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the

Restraint

on page 3‑48

for

additional information.

Securing a Child Restraint Designed for the LATCH System

{

WARNING

If a LATCH-type child restraint is not attached to anchors, the child restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Install a LATCH-type child restraint properly using the anchors, or use the vehicle's safety belts to secure the restraint, following the instructions that came with the child restraint and the instructions in this manual.

{

WARNING

Do not attach more than one child restraint to a single anchor. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash. A child or others could be injured. To reduce the risk of serious or fatal injuries during a crash, attach only one child restraint per anchor.

Seats and Restraints 3-53

{

WARNING

Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Buckle any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.

Notice: Do not let the LATCH attachments rub against the vehicle’s safety belts. This may damage these parts. If necessary, move buckled safety belts to avoid rubbing the LATCH attachments.

Do not fold the empty rear seat with a safety belt buckled. This could damage the safety belt or the seat. Unbuckle and return the safety belt to its stowed position, before folding the seat.

1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.

1.1. Find the lower anchors for

the desired seating position.

1.2. Put the child restraint on the seat.

1.3. Attach and tighten the lower attachments on the child restraint to the lower anchors.

2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if equipped.

3-54 Seats and Restraints

Refer to the child restraint instructions and the following steps:

2.1. Find the top tether anchor.

2.2. Route, attach, and tighten the top tether according to your child restraint instructions and the following instructions:

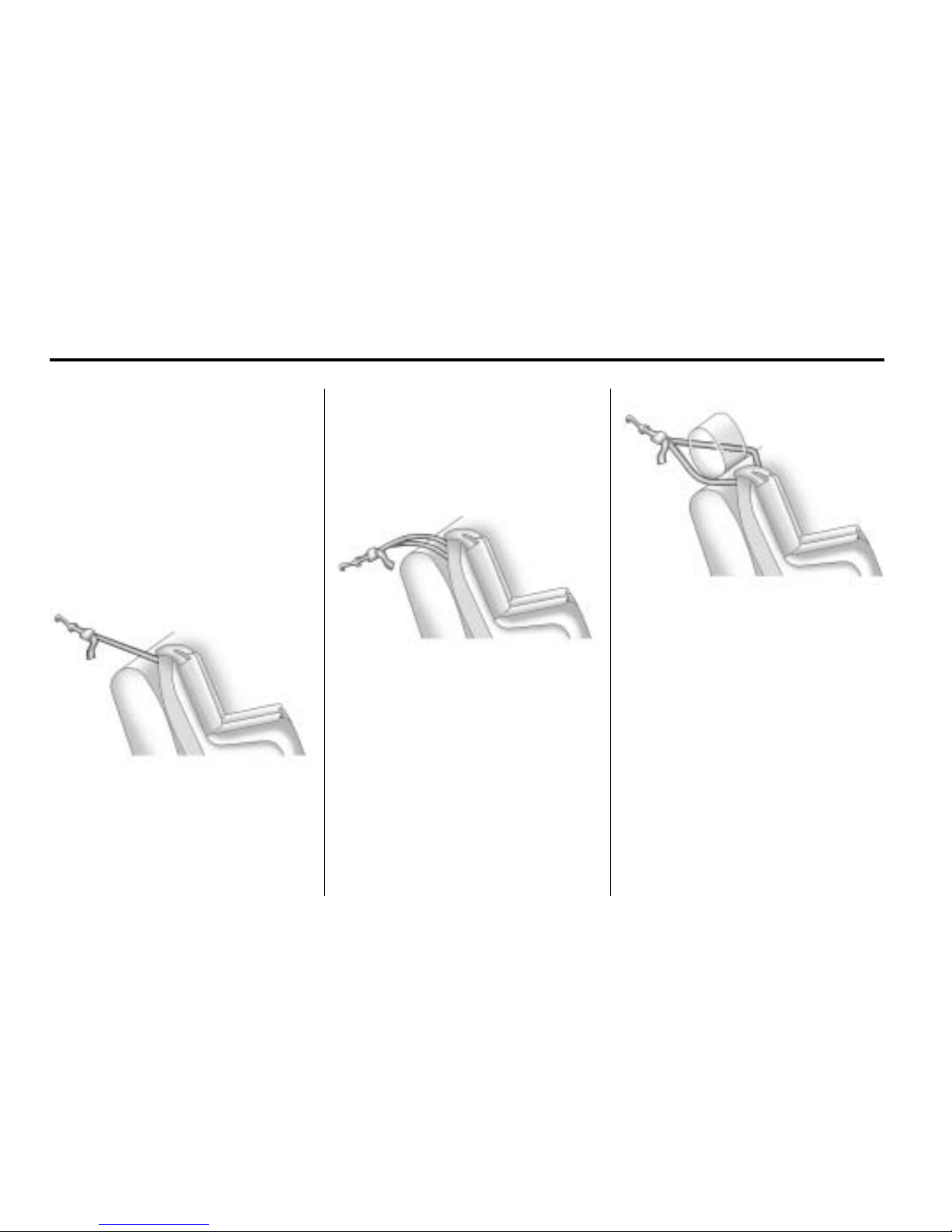

If the position you are using does not have a headrest or head restraint and you

are using a single tether, route the tether over the seatback.

If the position you are using does not have a headrest or head restraint and you are using a dual tether, route the tether over the seatback.

If the position you are using has an adjustable headrest or head restraint and you are using a dual tether, route the tether around the headrest or head restraint .

Seats and Restraints 3-55

If the position you are using has an adjustable headrest or head restraint and you are using a single tether, raise the headrest or head restraint and route the tether under the headrest or head restraint and in between the headrest or head restraint posts.

3. Push and pull the child restraint in different directions to be sure it is secure.

Replacing LATCH System Parts After a Crash

{

WARNING

A crash can damage the LATCH system in the vehicle. A damaged LATCH system may not properly secure the child restraint, resulting in serious injury or even death in a crash. To help make sure the LATCH system is working properly after a crash, see your dealer/retailer to have the system inspected and any necessary replacements made as soon as possible.

If the vehicle has the LATCH system and it was being used during a crash, new LATCH system parts may be needed.

New parts and repairs may be necessary even if the LATCH system was not being used at the time of the crash.

3-56 Seats and Restraints

Securing Child Restraints (Rear Seat Position)

When securing a child restraint in a rear seating position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle.

If the child restraint has the LATCH system, see Lower Anchors and

Tethers for Children (LATCH System)

on page 3‑50

for how and where to install the child restraint using LATCH. If a child restraint is secured in the vehicle using a safety belt and it uses a top tether, see Lower Anchors and Tethers for

Children (LATCH System)

page 3‑50

for top tether anchor

locations.

Do not secure a child seat in a position without a top tether anchor if a national or local law requires that the top tether be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.

In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.

If the child restraint does not have the LATCH system, you will be using the safety belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say.

If more than one child restraint needs to be installed in the rear seat, be sure to read Where to Put the Restraint on page 3‑48.

1. Put the child restraint on the seat.

2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle's safety belt through or around the restraint. The child restraint instructions will show you how.

3. Push the latch plate into the buckle until it clicks.

Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.

Saturn VUE 2010,2010 VUE Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
