Section 1 Overview

Overview .........................................................1-2

Navigation System Overview ............................1-2

Getting Started ...............................................1-4

Cleaning the Video Screen .............................1-12

1-1

Overview

Navigation System Overview

Screen shown with Map Disc Inserted

1-2

A. Map DVD Slot. See “Installing the Map DVD” under

Maps on page 2-4 for more information.

B. FULL MAP Touch Screen Button. See “NAV” under

“Hard Keys” under Using the Navigation System on page 2-2 for more information.

C. No GPS Symbol. See Symbols on page 2-7 for more

information.

O (Power/Volume) Knob. See Navigation Audio

System on page 3-2 for more information.

E. North Up/Heading Up Symbol. See Symbols on

page 2-7 for more information.

F. NAV (Navigation) Key. See “Hard Keys” under Using

the Navigation System on page 2-2 for more

information.

G. DEST (Destination) Key. See Destination on

page 2-13 for more information.

H. RPT (Repeat) Key. See “Hard Keys” under Using

the Navigation System on page 2-2 for more information.

I. FAV (Favorite) Key. See “Storing Radio Station

Presets” under Navigation Audio System on page 3-2 for more information.

J. Map Scale. See “Map Scales” under Maps on

page 2-4 for more information.

0 (Zoom In) Touch Screen Button. See “Map

Scales” under Maps on page 2-4 for more information.

L. Mark Touch Screen Button. See “Adding

Destinations to the Address Book” under Destination on page 2-13 for more information.

M. CD/DVD Slot. See CD Player on page 3-10 or DVD

Player on page 3-16 for more information.

N. Source (AM, FM, XM, CD, etc.) Touch Screen

Button. See Navigation Audio System on page 3-2 for more information.

Z (CD/DVD Eject) Key. See “Hard Keys” under

Using the Navigation System on page 2-2 for more information.

P. Auxiliary Jack. See Auxiliary Devices on page 3-22

for more information.

Q. Clock Touch Screen Button. See “Setting the Clock”

under Conﬁgure Menu on page 2-27 for more information.

f (Tune/Sound) Knob. See Navigation Audio

System on page 3-2 for more information.

S. AUDIO Key. See Navigation Audio System on

page 3-2 for more information.

T. MENU Key. See Conﬁgure Menu on page 2-27 for

more information.

1-3

U. ¨ SEEK Key (Next). See Navigation Audio System

on page 3-2 for more information.

System on page 3-2 for more information.

1 (Zoom Out) Touch Screen Button. See “Map

Scales” under Maps on page 2-4 for more information.

X. POI (Point of Interest) Touch Screen Button. See

“Displaying Points of Interest (POI) on the Map Screen” under Symbols on page 2-7 for more information.

Getting Started

Read this manual thoroughly to become familiar with how the navigation system operates.

The navigation system includes navigation and audio functions.

While entering the vehicle or when turning the vehicle off, some DVD Map Disc noise is normal.

Keeping your eyes on the road and your mind on the drive is important for safe driving. The navigation system has built-in features intended to help keep your eyes on the road and mind on the drive. Some features may be disabled while driving. Note that these functions will be grayed-out. A grayed-out function indicates it is not available when the vehicle is moving.

1-4

All functions are available when the vehicle is parked. Do the following before driving:

• Become familiar with the navigation system

operation, hard keys on the faceplate, and touch-sensitive screen buttons of the navigation system.

• Set up the audio by presetting favorite stations,

setting the tone, and adjusting the speakers.

• Set up the navigation features before beginning

driving, such as entering an address or a preset destination.

• Set up your phone numbers in advance so they can

be called easily with the press of a single button or a single voice command (for navigation systems equipped with phone capability).

{ CAUTION:

Taking your eyes off the road too long or too often while using the navigation system could cause a crash resulting in injury or death to you or others. Focus your attention on driving.

{ CAUTION:

Avoid looking too long or too often at the moving map on the navigation screen. This could cause a crash and you or others can be injured or killed. Use the turn-by-turn voice guidance directions whenever possible.

system uses limited information, you must always evaluate whether following the system’s directions is safe and legal for the current conditions.

When the navigation system is turned on, a screen may appear with the information below, and you must read and acknowledge the information it contains.

{ CAUTION:

Use the navigation system to:

• Plan a route.

• Select a destination using various methods and

choices.

• Follow turn-by-turn route and map guidance with

voice prompts, only if permitted by traffic laws, controls, and conditions.

You should always be alert and obey traffic and roadway laws and instructions, regardless of the guidance from the navigation system. Because the navigation system uses street map information that does not include all traffic restrictions or the latest road changes, it may suggest using a road that is now closed for construction or a turn that is prohibited by signs at the intersection. Because the

Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others.

To help avoid a crash in which you or others could be killed:

• Always concentrate on your driving ﬁrst by keeping

your eyes and mind on the road, and your hands on the wheel.

• Follow system directions only if permitted by traffic

laws, controls, and conditions.

• Before using this system, read the owner’s manual

and learn how it operates.

• Some system controls cannot be used the when

vehicle is moving.

1-5

After you acknowledge the start up information you will be able to access the NAV (navigation) and DEST (destination) functions. Once accessed, you can enter or delete information in the navigation system or access other functions. See instructions later in this section.

Every ﬁfty times the vehicle is started and the navigation system is turned on, the Caution screen appears. After reading the caution, select OK to load the map DVD information. If OK is not selected, all hard keys except for NAV (Navigation) and DEST (Destination) can be accessed. You can also press the NAV hard key to have this Caution screen appear.

When getting started, set the navigation system to your preference or delete information you may have entered using various options.

Language

For vehicles with a Driver Information Center (DIC), see “DIC Vehicle Customization” in the Index of the vehicle’s owner manual to change the language of the navigation screens.

For vehicles without a Driver Information Center (DIC), the radio can be used to change the language of the navigation screens:

1. Press the O (power) knob to turn the system on.

2. Press the MENU hard key and select the Display screen button.

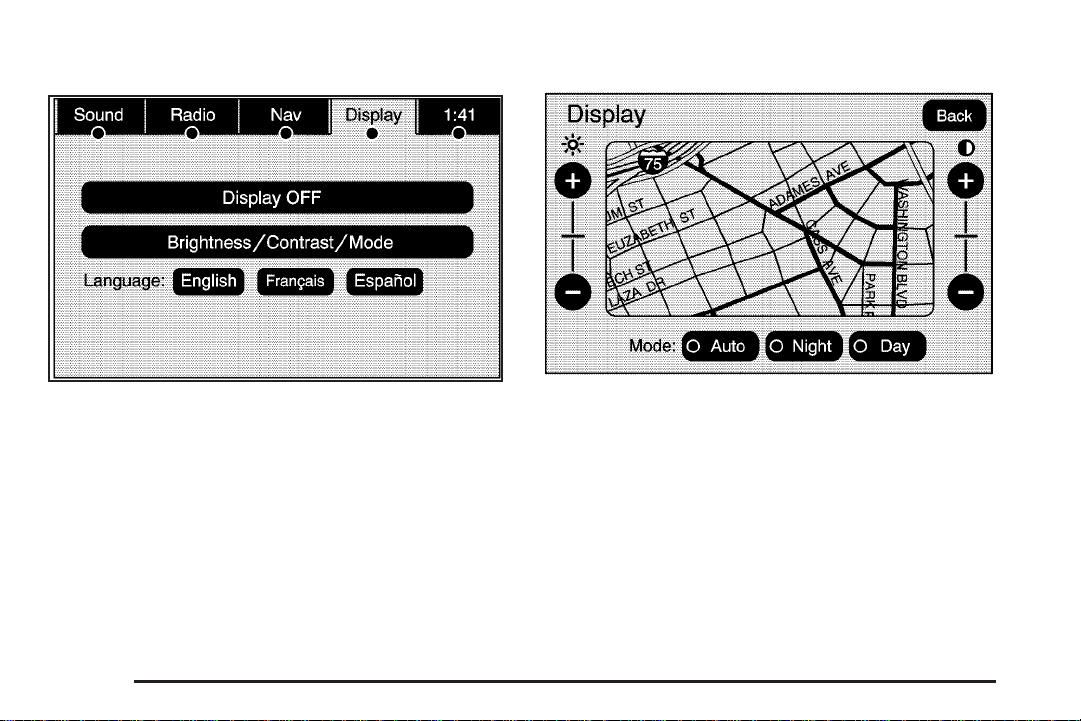

3. Select the language; English, Francais, Espanol.

English/Metric Units

To change the navigation screens from English or metric, see “DIC Operation and Displays” in the Index of the vehicle’s owner manual.

1-6

Limit Features While Driving

The navigation system may have this feature. Touch the Limit Features While Driving screen button to

turn on and off the ability to limit functions while driving. When this screen button is highlighted, the following functions are limited while driving:

• Music Navigator Scrolling

• Radio Category Scrolling

• Navigation Menu Scrolling and some functions

See “Category” under Navigation Audio System on

page 3-2 for more information. See “From Map” under Destination on page 2-13 for more information.

Some functions remain limited regardless of the setting.

Storing Radio Station Presets

To set preset radio stations:

1. Press

2. Press the AUDIO hard key and select the desired

3. Use the f (tune) knob or the SEEK arrows to go to

4. Press and hold one of the ﬁve preset screen buttons,

5. Repeat the steps for each preset.

See “Storing Radio Station Presets” under Navigation Audio System on page 3-2 for more information.

O to turn the system on.

band (AM, FM1, FM2, XM1, or XM2 (if equipped)).

the desired station. at the bottom of the screen, until a beep is heard or

see the station displayed on the selected preset button.

Deleting Personal Information

This navigation system can record and store personal information such as names and addresses. It is recommended that stored personal information is deleted when disposing the vehicle. See “Edit Address Book — Edit/View” under Conﬁgure Menu on page 2-27 for deleting information from the address book.

Setting the Clock

1. Press O to turn the system on.

2. Press the MENU key to enter the conﬁgure menu options, then press the MENU key repeatedly until the time is selected or select the time screen button.

3. Press the Set screen button.

4. Press the Hours and Minutes − (minus) and + (plus) signs to decrease or to increase the time.

See “Setting the Clock” under Conﬁgure Menu on page 2-27 for more information.

1-7

Entering a Destination by Using Address, Point of Interest, Previous Destination, or the Map Method and Storing Preset Destinations

Entering an Address

To enter a destination by entering the city name ﬁrst:

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See “Installing the Map

4. A caution may appear. Select the OK screen button

5. Press the DEST hard key. If guidance is already

6. Select the

7. Select the state/province screen button, if needed,

O to turn the system on.

DVD” under Maps on page 2-4 for more information. to proceed.

active, or if an entry is in place, you will have to select either the “Add Stopover” button or the “ADD” buttons above or below the entry, depending on where you would like to place the next waypoint.

2 Address Entry screen button.

to change the current state or province.

• Enter the name or enter the two-letter

abbreviation. A list displays.

• Select the List screen button and select the state

or province.

8. Select the City name button and start entering the city name.

• If ﬁve or less names are available, a list displays.

• If more than ﬁve are available, the List screen

button has a number in it that represents the number of available cities. Select this button to view the list and select a city.

9. Once a city has been selected, the Street name category is automatically selected for entry.

Do not enter directional information or street type. Use the space symbol screen button (

between street or city names. For example, the street name N. Royal Oak Rd. should be entered as

royal

U oak. Use the backspace ( V ) screen

button if an incorrect character has been entered.

U )

• If ﬁve or less streets are available for the selected

city, the system displays the list of streets.

• If more than ﬁve streets are available the system

displays the alpha keyboard. Start entering the street name. If ﬁve or less names are available, a list displays. If more than ﬁve are available, the List screen button has a number in it that represents the number of available streets. Select this button to view the list and select a street.

1-8

10. Once a street has been selected, select the House # screen button to enter the house number. The system displays the house number range that is available for the street.

11. Select the Go screen button. A map screen, with the destination marked appears.

12. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

13. Select the Start Guidance screen button. The fastest route will automatically begin if the car starts moving forward.

See “Address Entry” under Destination on page 2-13 for more information.

Entering a Point of Interest (POI)

To set a destination by entering a Point of Interest (POI):

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See “Installing the Map

4. A caution may appear. Select the OK screen button

O to turn the system on.

DVD” under Maps on page 2-4 for more information.

to proceed.

5. Press the DEST hard key. If guidance is already active, or if an entry is in place, you will have to select either the “Add Stopover” button or the “ADD” buttons above or below the entry, depending on where you would like to place the next waypoint.

6. Select the

7. Select the state/province screen button, if needed, to change the current state or province.

i Point of Interest screen button.

• Enter the name or enter the two-letter

abbreviation. A list displays.

• Select the List screen button and select the state

or province.

8. Enter the speciﬁc title of the POI in the POI name space (i.e. Washington Monument).

• If ﬁve or less names are available, a list displays.

• If more than ﬁve are available, the List screen

button has a number in it, it represents the number of available POIs. Select this button to view the list.

9. Select the Go screen button next to the POI. A map screen, with the destination marked appears.

1-9

10. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

11. Select the Start Guidance screen button. The fastest route will automatically begin if the car starts moving forward.

See “Point of Interest (POI)” under Destination on page 2-13 for more information.

Entering Previous Destination

Choose from a list of recent destinations with this method:

1. Press the “DEST” hardkey. Press the “Previous Destination” button to show a list of previous destinations. This list is empty at ﬁrst when the radio is new or is erased when the battery is disconnected.

2. Touch your selection. You may not be able to scroll down the list while the vehicle is in motion, depending on the settings. See “Limit Features While Driving” later in this manual.

3. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

4. Select the Start Guidance screen button. The fastest route will automatically begin if the car starts moving forward.

Map Method

1. Touch the screen where you want to go. The system shows the location, and possibly an address as well. You can scroll out to a larger view by ﬁrst using the + (plus) or − (minus) buttons at the lower left and right of the map to select an appropriate viewing range.

2. Press the “GO” button that appears when you are ready to begin routing.

3. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

4. Select the Start Guidance screen button. The fastest route will automatically begin if the car starts moving forward.

Storing Preset Destinations

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See “Installing the Map

4. A caution may appear. Select the OK screen button

5. Press the DEST hard key.

O to turn the system on.

DVD” under Maps on page 2-4 for more information. to proceed.

Enter a destination. See Destination on page 2-13 for more information on how to enter a destination.

1-10

6. Select the Map screen button after entering the destination.

7. Select the Mark screen button from the map. The address book screen appears. Five preset destinations can be stored, but you must set them from the Address Book screen. There are other ways to get to the Address Book as well.

8. Select the Name screen button. An alpha-keyboard displays. Enter the name. If you have stored the location with a name automatically assigned by the system, use the “BACKSPACE” button (not “BACK”) to erase the letters and begin typing your preferred title for this destination. For example, choosing a destination by address and storing it to the Address Book will store the actual address, which may not be easy to display in a short Preset button that has 8 digits, so name it something shorter.

9. Press and hold one of the screen buttons at the bottom of the screen until the name appears in the screen button on the display. A beep may be heard.

The name appears in that preset destination screen button and is now available to select from the Destination Entry screen. See “Using Your Stored Preset Destinations” next in this section to select it as a destination.

See “Adding or Changing Preset Destinations” under Destination on page 2-13 for more information on how to add preset destinations.

Using Your Stored Preset Destinations

These destinations are available for selection while driving.

1. If the radio is on with a map disc inserted, skip to Step 5.

2. Press

3. Insert the DVD map disc. See “Installing the Map

4. A caution may appear. Select the OK screen button

5. Press the DEST hard key.

6. Select one of the available preset destination

O to turn the system on.

DVD” under Maps on page 2-4 for more information.

to proceed.

screen buttons. A map screen, with the destination marked, appears and the system immediately begins to route to that destination.

The preset destination buttons overwrite and provides guidance to the selected destination even if the guidance is in place. Pressing a preset destination cancels the current route and then, routes to the single preset destination.

If more waypoints or stops are desired after the preset is used, follow the adding stopover method to load a total of four additional waypoints.

1-11

7. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

8. Select the Start Guidance screen button. The fastest route will automatically begin if the car starts moving forward.

See “Preset Destination” under Destination on page 2-13 for more information.

Canceling Guidance

Guidance is canceled once you arrive at your ﬁnal destination. To cancel guidance prior to arrival at the ﬁnal destination:

1. Press the DEST hard key.

2. Select the Cancel Guidance screen button.

3. A pop-up conﬁrmation appears. Select OK to cancel guidance or Cancel to cancel the request.

Guidance Volume

To adjust the volume of voice guidance prompts:

1. Press the MENU hard key to enter the menu options, then press the MENU key repeatedly until Nav is selected or select the Nav screen button.

2. Select the Voice Prompt screen button.

3. Select the On screen button if voice guidance is not on.

4. Select the + (plus) or – (minus) screen buttons to increase or to decrease the volume of the voice prompts. The system responds with the adjusted voice level.

See “Voice Prompt” under Conﬁgure Menu on page 2-27 for more information.

Turning the navigation prompt also changes the volume.

O (volume) knob during a voice or

Cleaning the Video Screen

Use a soft clean cotton cloth dampened with clean water.

1-12

Section 2 Features and Controls

Features and Controls ......................................2-2

Using the Navigation System ...........................2-2

Maps ............................................................2-4

Symbols ........................................................2-7

Destination ..................................................2-13

Conﬁgure Menu ............................................2-27

Global Positioning System (GPS) ....................2-38

Vehicle Positioning ........................................2-39

Problems with Route Guidance .......................2-40

If the System Needs Service ..........................2-40

Ordering Map DVDs ......................................2-41

Database Coverage Explanations ....................2-41

2-1

Features and Controls

Using the Navigation System

This section includes basic information to operate the navigation system.

Use the hard keys and the touch-sensitive screen buttons on the navigation screen to operate the system. See Navigation System Overview on page 1-2 for more information.

Once the vehicle is moving, some functions become disabled to reduce driver distractions.

Hard Key Operation

(Power/Volume): Press to turn the system on

and off.

• Turn O to increase or decrease the volume to the

audio system.

• Press and hold O for more than two seconds to

turn off the navigation system, the Rear Seat Entertainment (RSE), and Rear Seat Audio (RSA). If the vehicle has not been turned off, the RSE

and the RSA can be turned back on by pressing and continues playback of the last active source.

f (Tune/Speaker Adjustment): Press to access the

Sound screen to adjust bass, midrange, treble, and equalization.

• Turn f to go to the next or previous radio station.

See Navigation Audio System on page 3-2 for more information.

Z (CD/DVD Eject): Press to eject CDs and DVDs.

NAV (Navigation): Press to view the vehicle’s current position on the map screen.

• Press NAV multiple times to cycle through Full Map

and the tab that displays the current audio source (AM, FM, CD, etc.). Full Map displays the screen in full map view.

• Select the audio tab to split the screen between the

map screen and the current audio source screen menu. See “Audio” under Navigation Audio System on page 3-2 for more information.

DEST (Destination): Press to access the Destination Entry screen to plan a destination. See Destination on page 2-13 for more information.

RPT (Navigation Repeat): Press to repeat the last voice guidance prompt.

2-2

FAV (Favorite): Press to access the preset stations. See “Storing Radio Station Presets” under Navigation Audio System on page 3-2 for more information.

AUDIO: Press to access the full Audio screen to change AM, FM, XM™ Satellite Radio Service (if equipped), CD, DVD, if equipped, and auxiliary input. See “Audio” under Navigation Audio System on page 3-2 for more information.

MENU: Press to adjust features for sound, radio, navigation, the display, and for adjusting the time. See Conﬁgure Menu on page 2-27 for more information.

¨SEEK / ©SEEK: Press either arrow to seek

and scan radio stations, to seek tracks on a CD, or to seek chapters on a DVD, if equipped. See Navigation

Audio System on page 3-2, CD Player on page 3-10,or DVD Player on page 3-16 for more information.

Touch-Sensitive Screen Buttons

These buttons are located on the screen. When selected, a beep sounds. Screen buttons are highlighted when a feature is available.

Alpha-Numeric Keyboard

Letters of the alphabet, symbols, punctuation, and numbers, when available, display on the navigation screen as an alpha or numeric keyboard. The alpha keyboard displays when the system requires entry of a city or street name.

All characters are touch-sensitive screen buttons. Touch a character to select it.

A-Y (Accent Alphabet): Select to get letters with accent symbols. This button may toggle to A-Z.

A-Z (Alphabet): Select to get letters from the alphabet. This button may toggle to A-Y.

0-9 (Numbers): Select to get numbers and punctuation marks.

U (Space): Select to enter a space between

characters or the words of a name. Backspace: Select if an incorrect character has been

entered. To make name selections easier, the system only

highlights the characters that can follow the last one entered. For example, if a Z is entered, a T may not be available for selection.

If a name does not display after entry, it may need to be entered differently or the map DVD disc may not contain that information. See Database Coverage Explanations on page 2-41 for more information.

2-3

Maps

This section includes basic information about the map database.

Map Coverage

The maps are stored on a DVD. The United States, Canada, Puerto Rico, and the U.S. Virgin Islands are contained on one disc.

Refer to the “Navigation System Map Disc” manual for a detailed explanation of map coverage and detailed city lists in each region. This manual is in the map DVD case when the vehicle is delivered from the factory.

Installing the DVD Map Disc

Your dealer/retailer may have installed the map DVD. If the map DVD was not installed, do the following to load it:

Read the following steps completely.

1. Turn the ignition on. The vehicle must be in P (Park) to perform this operation.

2. Press

3. Press the NAV hard key.

4. Touch the Insert Map Disc screen button. The screen

5. Load the map DVD partway into the slot. The system

O (power) to turn the navigation system on.

opens to access the map DVD slot. pulls it in.

The screen cannot be closed until a double beep is heard.

Notice: Pressing directly on the navigation screen may cause damage. Repairs would not be covered by the vehicle’s warranty. Do not press directly on the navigation screen.

6. To close the screen, slightly push up on the two outer corners until the screen is in position. Then push the screen in by pushing on the four outer corners until a click is heard.

7. Set the search area. See “Setting the Search Area” earlier in this section.

2-4

Ejecting the DVD Map Disc

The navigation portion of the system cannot be used if the DVD map disc is not loaded.

1. Press the MENU key to enter the Menu options, then press the MENU key repeatedly until Nav is selected or touch the Nav screen button.

2. Touch the Map Database Information screen button.

3. Touch the Eject Map Disc screen button. The screen tilts, exposing the map DVD slot.

4. Press the eject button, located next to the DVD map disc slot, and the disc ejects. Pull the disc out.

The screen cannot be closed until a double beep is heard.

Notice: Pressing directly on the navigation screen may cause damage. Repairs would not be covered by the vehicle’s warranty. Do not press directly on the navigation screen.

5. To close the screen, slightly push up on the two outer corners until the screen is in position. Then push the screen in by pushing on the four outer corners until a click is heard.

Handling the DVD Map Disc

To properly handle the DVD map disc:

• Handle the disc very carefully to avoid

contamination or ﬂaws. Signals may not read out properly if the disc gets contaminated or ﬂawed.

• Do not use photographic record cleaner, solvents,

or other cleaners if the disc gets soiled. Use a soft cloth to gently wipe it out from the center of the disc to the outside.

• Do not use the disc to rest on while writing or

drawing with any writing utensil. Do not attach a seal to the disc.

• Do not keep the disc in direct sunlight, high

temperatures, or humidity.

• After using the disc, place it back into the

original case.

2-5

Map Adjustments

The scale of view on the map can be adjusted. While driving, the map scrolls automatically based on the direction of travel.

Map Scales

/ 1 (Zoom In/Zoom Out): Touch the zoom in or out screen buttons or the scale on the bar to change the level of map detail. The scale appears on the screen once the zoom in or zoom out screen buttons are selected.

• The system adjusts the map accordingly. The scale

of a map can range from 1/32 mi. (50 m) to 256 mi. (400 km).

• See “Driver Information Center, DIC Controls and

Displays” in the Index of your vehicle’s owner manual to change between English or metric.

Scrolling the Map

Touch anywhere on the map screen and the scroll symbol appears. Use this feature to scroll across the map.

• Move your ﬁnger in any direction on the map screen

and the map continues to scroll in that direction.

− If scrolling while the vehicle is in P (Park), the system initially scrolls at a slower rate. The scroll speed increases if you continue touching the map screen.

− If scrolling while the vehicle is in motion, there is one scroll speed and the distance is limited. Keep touching the map screen to scroll for a longer distance.

• Press the NAV (Navigation) key to return to the

current vehicle location on the map if the vehicle icon disappears from the screen.

• Use the scroll feature on the map to set a destination.

See “From Map” under Destination on page 2-13 for more information.

• Press the GO screen button to calculate the route

from the current position to the destination mark, while scrolling on the map without a planned route.

2-6

Symbols

The following symbols are the most common symbols that appear on a map screen.

The vehicle is shown as this symbol. It indicates the current position and the direction the vehicle is traveling on the map.

The distance to destination symbol indicates the distance to the ﬁnal destination.

The waypoint symbol displays on the map after a stopover has been added to the route.

The waypoint symbols are numbered one through three, depending on how many stopovers have been set.

This symbol appears when the time to the destination is not available or while you are scrolling on the map.

2-7

The distance and time to destination symbol indicates the distance and the estimated time remaining to the ﬁnal destination, depending on the option selected.

The straight line to distance symbol indicates the straight-line distance to the destination.

This symbol appears before driving begins on the route or if on a road where navigation guidance cannot be given.

The north up symbol indicates the map with North Up, known as North Up mode.

While in North Up mode, the vehicle icon follows the north direction on the map regardless of which direction the vehicle is traveling. Select this screen symbol to switch between North Up, Heading Up, and 3–D view modes.

The heading up symbol indicates that the vehicle is traveling up on the map and is known as Heading Up mode.

The shaded triangle indicates the North direction. While in Heading Up mode the direction at the top of the screen and the way the vehicle icon is heading indicates the direction the vehicle is traveling. Select this screen symbol to switch between Heading Up, North Up, and 3–D view modes.

Three-dimensional (3–D) view mode changes the appearance of the map display to a road level view.

2-8

The No GPS symbol appears when the vehicle is acquiring or not receiving a Global Positioning System (GPS) satellite signal.

See Global Positioning System (GPS) on page 2-38 for more information.

Displaying Points of Interest (POI) on the Map Screen

Select the POI screen button to display or delete POI icons from the map.

Select the Mark screen button to store the location on the screen in your address book.

The system automatically stores the point in the address book. See “Adding Destinations to the Address Book” under Destination on page 2-13 for more information.

Displaying POI icons on the map indicates where POIs (e.g. restaurants, gas stations, etc.) are located. This screen appears after selecting the POI screen button.

2-9

1. Select one of the POI categories to display or to delete POI icons from the map screen. Once a category has been selected the POI icon displays at the top of the screen.

2. Select up to ﬁve categories to display on the map screen. When a category is selected those POI icons display on the map.

3. Press the POI screen button again to add more POI icons.

More: Select to view more POI categories.

2-10

POI Close to: Once a category has been selected, touch this button to display the list of available POIs for the selected POI category. The list provides the POI icon, the name, the direction, and the distance to the POI from the vehicle’s current position.

1. Use the scroll arrows to move up and down the list.

2. Use the sorting screen buttons: Dist (distance), Icon, Name, and on Route as needed.

3. Select Go, next to the desired POI, to make this POI a destination or a stopover.

4. Select a POI name to receive information about the POI. From this screen select: Address Book, Go, Map, or Call (if the OnStar there are Hands-Free Calling minutes available).

Address Book: Press to add this POI to the address book. See “Nav” under Conﬁgure Menu on page 2-27 for information on editing address book entries.

Go: Select to make this POI a destination or a stopover. Map: Select to display the map showing the location

of the POI. Call: Select Call to dial the phone number for the POI

using the OnStar Hands-Free system. The Call button is only available if:

account is active and if

• OnStar Hands-Free Calling is activated and calling

minutes are available.

• A paired Bluetooth phone is connected. For more

information, see OnStar and Bluetooth in the index of the vehicle’s owner manual.

OK: Select to display the map screen. Show POI: Select to display or remove the POI icons

from the map screen.

List all Categories: Select to list all POIs sorted alphabetically.

Delete: To delete a speciﬁc POI category, select the category.

Clear All: Select this screen button to clear all selected POI categories.

Driving on a Route

When a destination has been routed while driving on route, the map screen automatically displays the next maneuver.

The pop-up displays the next maneuver direction and how many miles or kilometers the vehicle is from it.

2-11

When you are approximately 1/4 mi (400 m) from the next maneuver in city driving, the screen displays the name and a detailed view of the next maneuver. On the freeway, these details appear at 1 mi (1200 m) from the maneuver.

3–D Lane Guidance

Some major metropolitan areas may include a 3–D lane guidance feature for highway exits and junctions. This feature gives a more detailed representation of the exits and junctions on the route. Cities that include this feature are New York, Los Angeles, Chicago, Detroit, and San Francisco, and may also include Philadelphia, Washington D.C., and other major highway junctions.

2-12

Dual Mode

Destination

This dual screen symbol displays when the screen is in dual mode.

Dual mode displays the route (map) on half of the screen and a maneuver or turn list on the other half. Press this button to switch between dual screen and full screen which displays the entire route.

Auto Reroute

When the destination is set and you are off the planned route, the system automatically plans a new route and begins to reroute. The new route is highlighted on the screen.

To Use the destination feature on the navigation system:

1. Press the DEST key to access the Destination Entry screen.

2. Select one of ﬁve destination options from this screen.

2-13

Address Entry

2 Address Entry: Enter an address by providing

the system with a city name or a street name.

Enter the city name ﬁrst:

1. Press the DEST hard key.

2. Select the

3. Select the state/province screen button, if the current state or province needs to change.

4. Enter the name or enter the two-letter abbreviation. A list displays. The List screen button could also be selected, then select the state or province.

2 Address Entry screen button.

5. Select the City name button.

• Enter the City Name or select the Last 5 Cities

screen button. The Last 5 Cities screen displays a list of the last ﬁve city names that had been entered.

• Select a city from the list and it appears in the

City name area.

6. If using the alpha keyboard, ﬁnish entering the city name. If four or less names are available, a list displays. If more than four are available, a number appears in the List screen button. This number represents the number of available cities.

• Select this button to view the list.

• Select a city.

7. Once a city has been selected the Street name category is automatically selected for entry. Start entering the street name. If ﬁve or less names are available, a list displays. If more than ﬁve are available, a number appears in the List screen button. This number represents the number of available streets.

• Select this number to view the list.

• Select a street name.

2-14

8. Once a street has been selected, select the House # screen button to enter the house number. The system displays the house number range that is available for the street. Select a house number. There is also a Cross Street screen option at this point.

9. Select the Go screen button. The map screen displays with the destination marked.

10. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

11. Select the Start Guidance screen button. The route can now be started.

See “Getting Started on Your Route” later in this section for more information.

To enter a destination by entering the street name ﬁrst:

1. Press the DEST hard key.

2. Select the

3. Select the state/province screen button, if the current state or province needs to change.

4. Enter the name or enter the two-letter abbreviation. A list displays. The List screen button could also be selected, then select the state or province.

2 Address Entry screen button.

5. Select the Street screen button. Enter the street name. The Last 5 Streets screen displays a list of the last ﬁve street names that had been entered.

• Select a street from the list and it appears in the

Street name area.

6. If using the alpha keyboard, ﬁnish entering the street name. If ﬁve or less names are available, a list displays. If more than ﬁve are available, a number appears in the List screen button. This represents the number of available streets.

• Select this button to view the list.

• Select a street.

7. Once a street has been selected, select the House # screen button to enter the house number. The system displays the house number range that is available for the street. Select the house number.

8. Select the Go screen button. The map screen displays with the destination marked.

9. Once the house number is selected, the city name automatically populates. If there is more than one city available for selection, a list of cities displays. Select the city.

10. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

2-15

11. Select the Start Guidance screen button. The route can now be started.

See “Getting Started on Your Route” later in this section for more information.

To enter a destination by entering a cross street:

1. Press the DEST hard key.

2. Select the

3. Select the state/province screen button, if needed, to change the current state or province.

4. Enter the name or enter the two-letter abbreviation. A list displays. The List screen button could also be selected, then select the state or province.

5. Select the City or Street screen button. The Last 5 Cities or Streets screen button displays

a list of the last ﬁve city or street names that had been entered. Select a city or street from the list and it appears in the City or Street name area.

If using the alpha keyboard, ﬁnish entering the city or street name. If ﬁve or less names are available, a list displays. If more than ﬁve are available, a number appears in the List screen button. This represents the number of available cities or streets.

2 Address Entry screen button.

• Select this button to view the list

• Select a city or street.

6. Once a city and a street have been selected, touch the Cross Street screen button and start entering the cross street name. If ﬁve or less names are available, a list displays. If more than ﬁve are available, a number appears in the List screen button. This represents the number of available streets.

• Select this button to view the list.

• Select a street.

7. Select the Go screen button. The map screen displays with the destination marked.

8. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

9. Select the Start Guidance screen button. The route can now be started.

See “Getting Started on Your Route” later in this section for more information.

2-16

Point of Interest (POI)

The Point of Interest (POI) destination entry method lets you select a destination from the POI list.

i Point of Interest: Select this screen button to

access the POI (Point of Interest) screen. From this screen you have two options to select/enter a destination:

• Enter the name using the alpha keyboard.

• Select a category from the category list.

To use the point of interest destination entry method by entering the name:

1. Press the DEST hard key.

2. Select the

3. Select the state/province screen button, if needed, to change the current state or province.

4. Enter the name or enter the two-letter abbreviation. A list displays. The List screen button could also be selected, then select the state or province.

5. Enter the POI name. If four or less names are available, a list displays. If

more than four are available, a number appears in the List screen button. This represents the number of available POIs. Select this button to view the list.

6. Select the Go screen button next to the POI. The map screen displays with the destination marked.

7. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

8. Select the Start Guidance screen button. The route can now be started.

See “Getting Started on Your Route” later in this section for more information.

i Point of Interest screen button.

2-17

To use the point of interest destination entry method by selecting a category:

1. Press the DEST hard key.

2. Select the

3. Select the Browse POI Categories screen button to view the list of POI categories.

4. Select a category, and then a sub-category. The system displays available POI names in the selected sub-category.

i Point of Interest screen button.

• Select the POI, or once the Browse POI

Categories button is selected, a List All Categories screen button displays.

• Select this button to view a list of all categories.

• Select one of the categories and a list of all

locations for the selected category for a particular area displays.

• Select the location.

5. Select the Go screen button next to the POI. The map screen displays with the destination marked.

6. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

7. Select the Start Guidance screen button. The route is now ready to be started.

See “Getting Started on Your Route” later in this section for more information.

2-18

Address Book

The address book entry method lets you select a destination by selecting an address that has been stored in your address book.

g Address Book: Select this screen button to

access the Address Book screen. From this screen, select an address that already exists as the destination.

To use the address book entry method:

1. Press the DEST hard key.

2. Select the A list of your address book addresses display. Use

the arrows on the left side of the screen to scroll through the list.

3. Select the Go screen button next to the destination. The map screen displays with the destination marked displays.

4. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

5. Select the Start Guidance screen button. The route can now be started.

See “Getting Started on Your Route” later in this section for more information.

See “Adding Destinations to the Address Book” later in this section.

g Address Book screen button.

OnStar®Destination Download

The Destination download lets an OnStar subscriber ask the OnStar call center to download a destination. OnStar will send address information and location coordinates of the destination into the navigation system.

OnStar Download Screen

2-19

Using Destination Download

If the map disc is not installed and the radio receives a destination download, a message displays showing that the map disc is required or it accepts the download so that it can be added to the address book.

If the navigation radio screen is turned off before a download, the system automatically turns the screen on and displays a download conﬁrmation message. The radio remains on after the download.

The navigation system displays Searching – Please Wait as the address is searched within the map database.

If the system is unable to locate the address, the Destination Not Found screen below displays. Some screen buttons, such as Map and Go, grays out. The Call button grays out when there is no phone number available and while connected to OnStar.

If the address is not found within the map database, the system may use latitude and longitude coordinates to locate the destination. In this case, “Using Coordinates” displays on the downloaded screen.

2-20

Destination Not Found Screen

Route Guidance Not Active

If an OnStar destination is downloaded while route guidance is not active, the navigation system displays a pop-up screen and does the following screen functions:

• Select Go, the navigation system starts route

calculation to the destination(s) received.

• Select Map, the navigation system displays the

Destination Map Screen.

• Select Call, the navigation system initiates a call

with Bluetooth Phone (if available) or OnStar Personal Call.

• Select Add To Address Book, the navigation system

copies the downloaded destination to the address book and display the new address book entry. The destination saves this download even if it is only partial information such as a phone number.

• Select Back, the navigation system cancels

the OnStar destination download and returns to the previous screen. The downloaded address is not added to the previous destinations.

Route Guidance Active

If an OnStar destination is downloaded while route guidance is already active, the system displays a pop-up screen and does the following screen function:

• Select Go, the navigation system adds the

downloaded destination before the next waypoint of the existing route (closest to the current vehicle position). If all waypoints are in use before Go is selected, the furthest waypoint (ﬁnal destination) is automatically deleted.

• All other buttons on the pop-up screen operate as

described under Route Guidance Not Active.

Previous Destinations

Previously downloaded OnStar destinations are saved under Previous Destinations in the navigation system where they can be accessed or saved to the address book.

2-21

Map Destination Screen Functions

If the map screen is used to show destination, it has map screen capabilities such as Go, Mark, Zoom, Scroll, etc. The address is shown at the top of the screen.

Destination Map Screen

Getting Started on Your Route

Once a destination has been entered, there are several functions that can be performed. Press the DEST hard key to access the Route screen.

2-22

Turn List

Turn List: Select to view the list of turn maneuvers for

the entire route and to avoid turns on the route.

r / q (Scroll Arrows): Select the up and down

arrow to scroll through the list of maneuvers. Avoid: Select this screen button, next to the adjacent

street name, to avoid the maneuver. The map screen displays. The route recalculates

without that maneuver.

Route Preview: Select to preview the entire route in either direction.

t (Reverse Skip): Select to go back to the start point

or previous stopover.

q / r (Reverse Scroll): Select to scroll to the start

point or previous stopover. The to a fast reverse screen button.

t button changes

j (Pause): Select to pause the route preview, while in

reverse or fast forward scroll.

2-23

r / [ (Fast Forward Scroll): Select to scroll to the

next stopover or to the ﬁnal destination. The changes to a fast speed fast forward.

u button

u (Fast Forward Skip): Select to go to the next

stopover or to the ﬁnal destination.

Detour

Detour: Select this button from the Route screen, then

select to detour 1 mile, 3 miles, or 5 miles (1 km, 3 km, 5 km) around the current route. You may also select to detour the whole route if necessary. This option is only available while you are driving on your current planned route.

Voice Volume

Select this button from the Route screen to turn voice guidance on or off and to change the volume of voice prompts. See “Nav” under Conﬁgure Menu on page 2-27 for more information.

Add Stopover

Add Stopover: Select this button from the Route

screen. This feature lets you add up to three stopovers to the current route, between your start point and ﬁnal destination. Once a stopover has been added, the points can be edited or deleted.

2-24

To add a stopover:

1. Press the DEST hard key.

2. Select the Add or Add Stopover screen button. This button only appears if a route has been calculated.

3. Using the desired method of entering a destination, enter the stopover. See “Destination” previously for more information.

4. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

5. Select the Start Guidance screen button. The route can now be started.

6. To add the second and third stopovers, press the DEST hard key, then select the Add screen button, where the next stopover should display on the route.

7. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

8. Select the Start Guidance screen button. The route can now be started.

To delete a stopover from the current route:

Delete a Stopover From the Current Route

1. Press the DEST hard key.

2. Select the Delete screen button for a stopover to be deleted.

3. The system displays a pop-up conﬁrmation message. Select OK to delete the stopover; select Cancel to cancel this operation.

4. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route.

5. Select the Start Guidance screen button. The route can now be started.

Suspend Guidance

Select this button from the Route screen to put the current route on hold.

Resume Guidance

Select this button from the Route screen to resume guidance on the current route.

Cancel Guidance

Select this button from the Route screen to cancel the current route.

2-25

Adding Destinations to the Address Book

There are two ways to add a destination to the address book:

• To add the current ﬁnal destination to the address

book, select the Mark screen button from the map screen. The system automatically saves the ﬁnal destination information in the address book.

• Select the Add to Address Book screen button when

available on POI information screens, Destination Entry screens, or POI screens. The system automatically saves this information in the address book.

See “Nav” under Conﬁgure Menu on page 2-27 for information on editing address book entries.

Adding or Changing Preset Destinations

This feature lets you add or change one of ﬁve preset destinations. When a destination has been added as a preset destination, it is available to be selected from the Destination Entry screen. See “Preset Destination” previously for information on how to select a preset destination as a ﬁnal destination.

To store the current ﬁnal destination as a preset destination:

1. Select the Mark screen button from the map screen to add the current ﬁnal destination. The Address Book screen appears.

2. Select the Name screen button. An alpha-keyboard displays. Enter the name.

3. Press and hold one of the buttons at the bottom of the screen until the name appears in that preset destination screen button. It is now available to select from the Destination Entry screen.

To store an address book entry as a preset destination:

1. Press the MENU hard key, then press the MENU key repeatedly until Nav is selected, or select the Nav screen button.

2. Select the Edit/View screen button.

3. Select the address book entry to be stored as the preset destination. Select the Name screen button to add a name, if needed.

4. Press and hold one of the buttons at the bottom of the screen until the name appears in that preset destination screen button. It is now available to select from the Destination Entry screen.

2-26

Conﬁgure Menu

Sound

Press the MENU key to enter the menu options, then press the MENU key repeatedly until Sound is selected or select the Sound screen button. To make speaker and equalization adjustments. See Navigation Audio System on page 3-2 for more information.

Radio

Press the MENU key to enter the menu options, then press the MENU key repeatedly until Radio is selected or select the Radio screen button, to make changes for radio information displayed, preset pages, XM™ categories, and automatic volume control. See Navigation Audio System on page 3-2 for more information.

Base shown; Uplevel similar

Press the MENU hard key to adjust several of the system’s features and preferences. The last selected menu screen is the screen that displays; Sound, Radio, Nav (navigation), Display, or Time.

Traffic Options

Read the following Options descriptions to understand how the XM NavTraffic™ operates.

2-27

XM NavTraffic™ (USA and Canada)

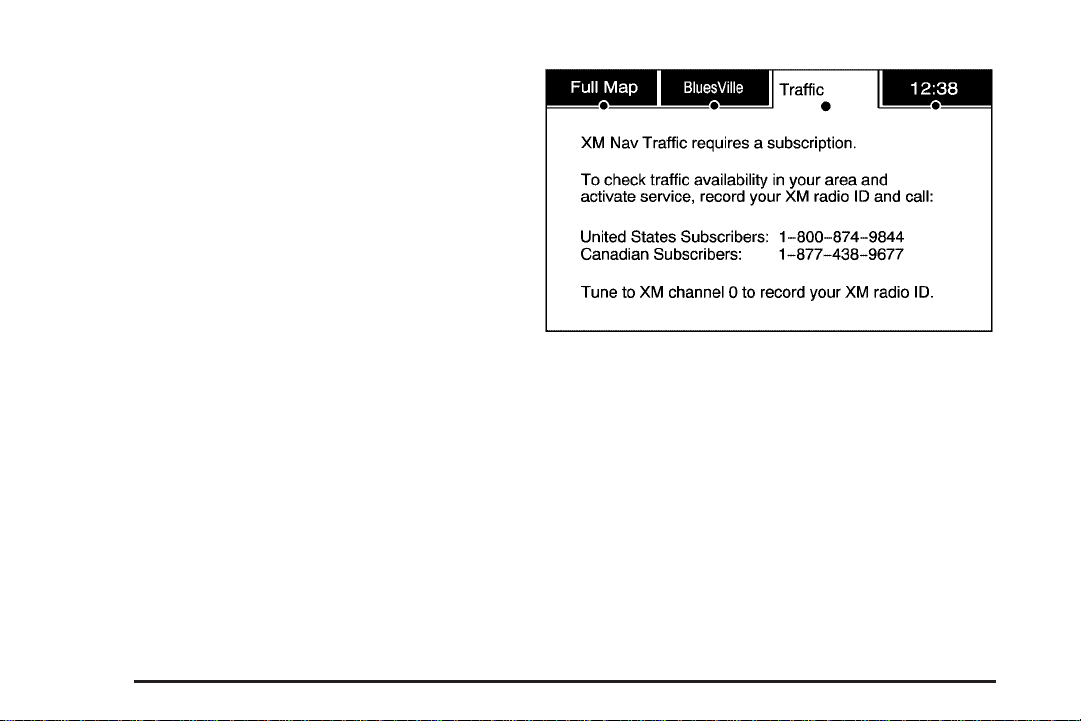

Your vehicle’s navigation system may have an XM NavTraffic receiver. XM NavTraffic is a subscription service provided via XM™ Satellite Radio. XM NavTraffic provides real-time traffic information fully integrated to the navigation system to display current traffic conditions for a driver’s chosen route. XM NavTraffic allows drivers to make the most informed, timesaving routing decisions.

If the Traffic touch screen button is pressed or if the traffic display in the Navigation Setup Menu is attempted to be turned on without a subscription, a warning screen displays indicating that XM traffic is not activated.

Three types of traffic information for major roadways are displayed on the navigation system:

• Unscheduled traffic incident data, such as accidents

and disabled vehicles

• Scheduled traffic incident data, such as road

construction and road closures

• Traffic ﬂow information (rate of speed data)

Traffic information is delivered to the vehicle by the XM™ Radio satellites. XM NavTraffic makes it possible for the navigation system to provide continuously updated traffic information personalized for a driver’s needs.

2-28

XM NavTraffic currently broadcasts the traffic information for many markets nationally, and the service may be available in more cities in the future. Visit xmnavtraffic.com for more details on local coverage.

A service fee is required in order to receive the XM NavTraffic service.

Turning XM NavTraffic™ On and Off

To turn traffic on or off:

1. Press the Menu hard key, then press the Menu key repeatedly until Nav is selected or press the Nav screen button.

2. Touch the Traffic Options button.

3. Touch the Traffic button. This button is highlighted when it is active.

Selecting Alert for Approaching Traffic Events enables the system to show a pop-up screen that notiﬁes of possible traffic issues ahead.

When this feature is highlighted, while traveling on a route, you are able to view and avoid accidents that are on the route.

Traffic Icon

The Traffic Icon appears on the Traffic Tab, next to the word Traffic, when traffic is found in the local area.

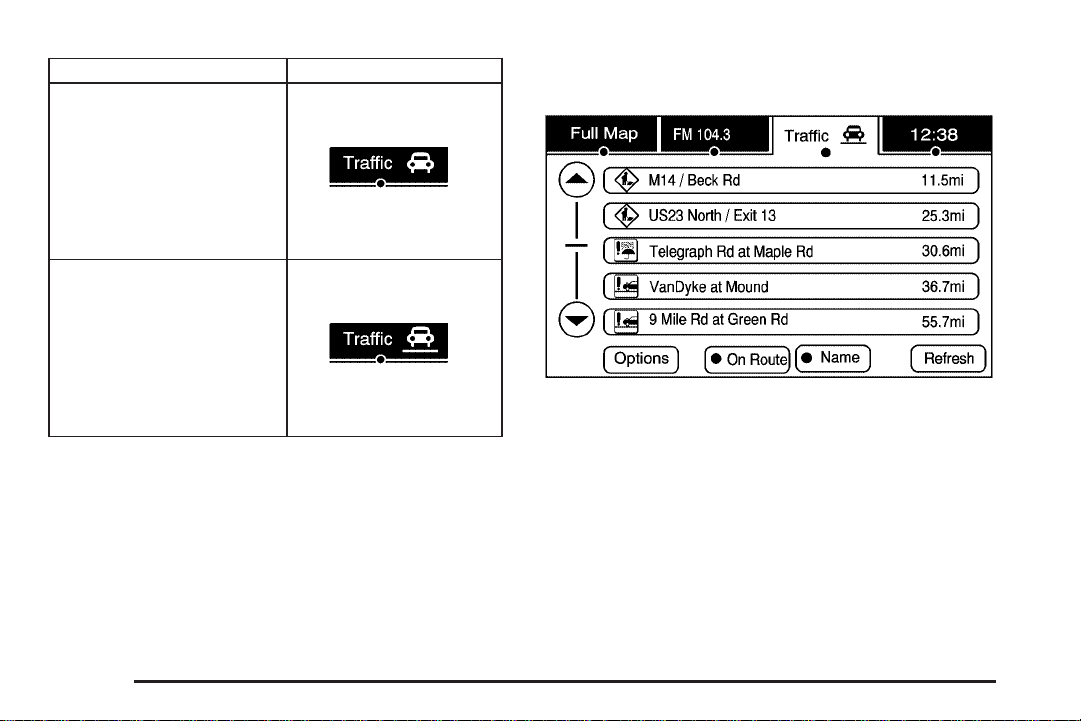

The Traffic Icon has three different condition displays. These are:

Condition Traffic Status Icon

• No XM NavTraffic™

subscription.

• No Traffic is found in

the local area.

• The Traffic Feature is

turned off.

2-29

Condition Traffic Status Icon

Traffic events are in the area, but none are on route.

Traffic events are on route.

Locations and Information of Traffic Conditions

The system may take some time to sort the information. The list of traffic conditions display in the order of distance from the vehicle, for up to approximately 150 mi (240 km). If traveling on a planned route, the list can be ﬁltered to see traffic conditions along the planned route. Not all traffic conditions may be listed.

To view the traffic condition location and information on the map:

1. Press the NAV key, then press the NAV key repeatedly until Traffic is selected, or touch the Traffic screen button. A list of traffic conditions may display with the direction and how far away the traffic conditions are from the vehicle’s current position.

2-30

2. Select a traffic condition to get more detailed information of the event.

Options

Select the Options screen button. A Traffic Options menu displays. Select the desired traffic related option.

Traffic: Select to enable or disable the traffic function. Show Traffic ICONS: Select to display traffic icons

on the map screen. This function allows selection of the traffic information that is displayed.

Traffic Flow Status — This touch screen button is used to enable or disable the green, yellow, red and orange arrows shown beside the roads and used to show the traffic ﬂow or extent of a traffic event.

• Black indicates a closed road segment

• Red indicates signiﬁcantly impaired traffic ﬂow with

average speed between 25 and 45 mph.

2-31

• Yellow indicates slightly impaired traffic ﬂow with

average speed between 25 and 45 mph.

• Green indicates normal traffic ﬂow with average

speed above 45 mph.

• Orange indicates construction.

Traffic ﬂow data arrows display on the map when scaled up to eight miles.

Closed Road, Traffic Delays, Incidents, and Advisories — These four touch screen buttons are used to select the traffic event ICONS that appear on the map screens.

Alert for Approaching Traffic Events: WhenOn,ifan approaching traffic event is within the alert range, one of two traffic alert pop-up screens display:

• With no route planned, while on expressways,

Approaching Traffic Event without Avoid screen displays.

• With route planned, Traffic Event on Route screen

displays.

If the Alert for Approaching Traffic Events is Off, the alert pop-up screen does not display.

On-Route

Select the On Route touch screen button to display all events ahead on the current active route. If no traffic events have been reported on route, No Traffic Events Reported On route displays.

2-32

Name

Select the Name touch screen button to display traffic events in the order of distance. The closest event is shown ﬁrst.

Avoid

When a route is active, the Avoid button is used to route around the listed traffic event. After calculating a new route, the navigation system shows a new route on the full map screen. The Avoid button is grayed out if the traffic event is not on route or no route is active.

Refresh

Select the Refresh touch screen button to update the screen with all of the latest traffic events, miles, etc.

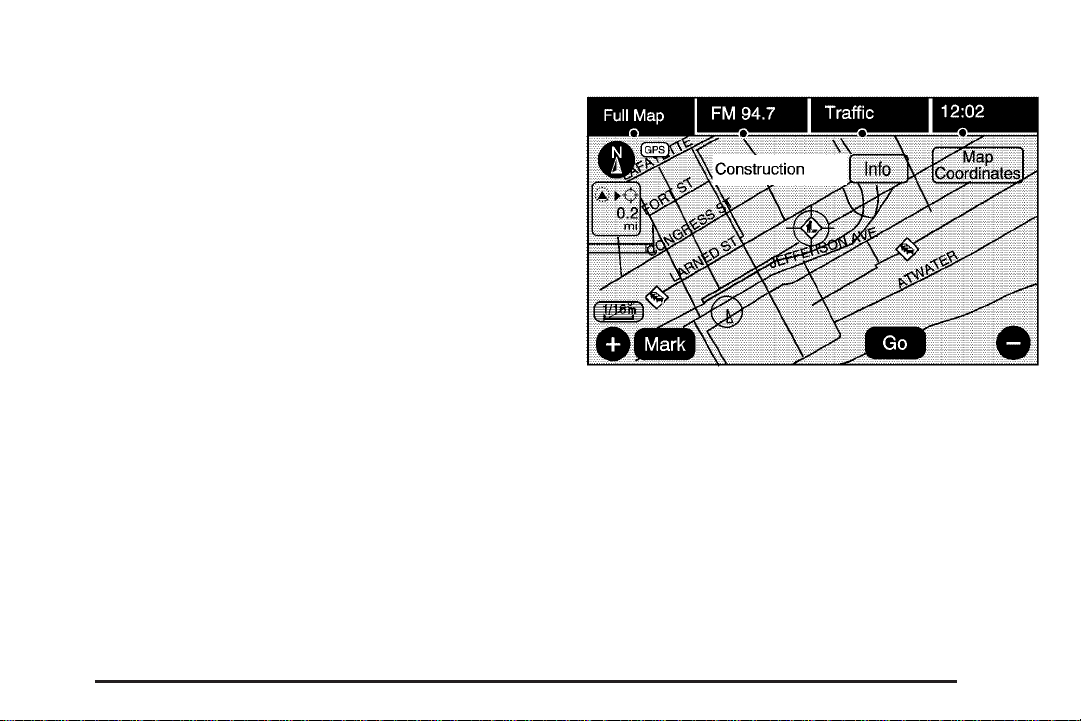

Scrolling to Traffic Events on the Map

While scrolling the map, traffic condition icons may appear. To receive information about the traffic condition, place the cross hairs over the traffic condition icon. After selecting the INFO (information) screen button, the type of traffic condition, the street name, and a description of the traffic condition displays. See “Scrolling the Map” under Maps on page 2-4 for more information.

2-33

Traffic Event Display Categories

The following are traffic condition categories and symbols that can appear on the display:

Category 1, Road Closure:

q (Road Closed): Road and/or ramps closed.

Category 2, Traffic Delayed:

o (Stopped Traffic): Traffic stopped, stop and go

traffic, delayed and congested traffic.

Category 3, Incidents:

p (Alert): Object in the roadway, disabled vehicle, or

dangerous road conditions.

t (Accident): Roadway obstructed due to accident. s (Road Works): Delayed traffic due to construction.

Category 4, Advisories:

j / r (Road Condition): Delayed or stopped traffic,

lane blocked or closed due to a road condition.

k (Weather): Heavy rain, snow, or fog weather

condition.

m (Parking): Available parking area. l (Information): Special event, general information, or

warning.

Detailed Traffic Event Screens

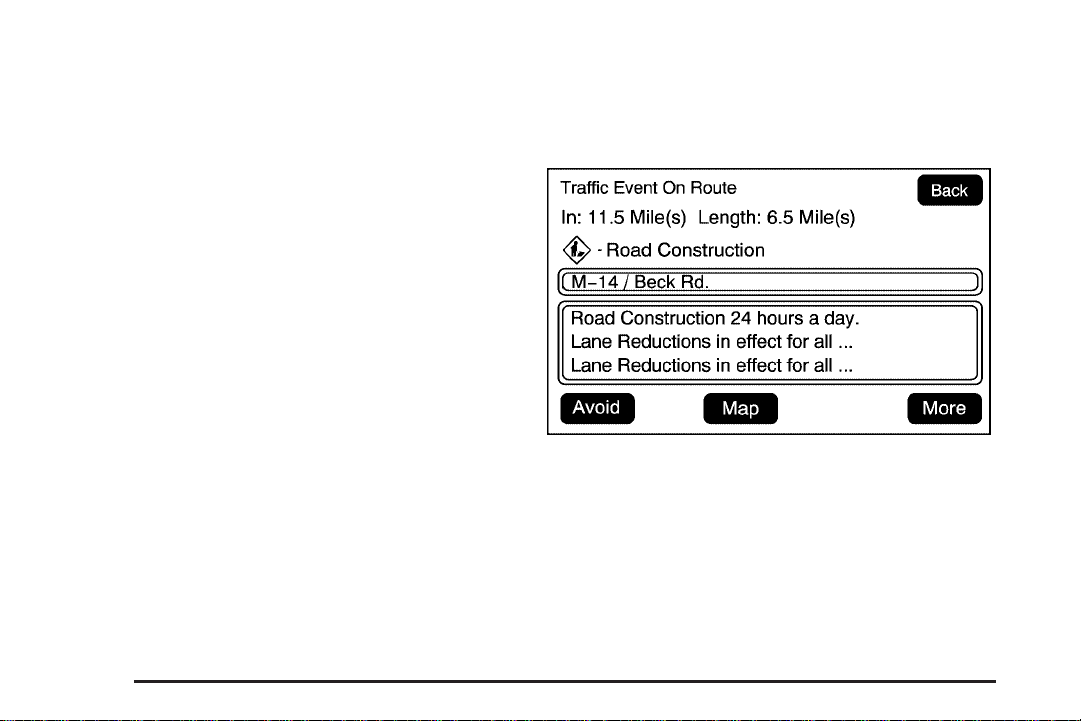

There are three different types of detailed traffic event screens. Each screen is a variance of the one shown on the Traffic Event Screen.

Traffic Event Screen

The Traffic Event screen is used when the traffic event is not being approached on the expressway or on a route. This screen may display if:

• Scrolling to an event on the map and then

pressing INFO.

• Selecting a traffic event listed on the Traffic Event

List screen.

2-34

Back, Map, More, and Avoid

These buttons have common functions across all three Detailed Traffic Event screens.

Back: Press to return to the screen used to display the selected detailed traffic event.

Map: Press to show the related traffic event on the map. If selected, the Map Traffic Event Icon screen displays.

Map Traffic Event Icon with Back Screen

Scroll to the new traffic ICON, and the INFO button displays for that traffic event. Press INFO and the detailed traffic event screen displays. Press the NAV hard key to go back to the Full Map screen.

More: Press to display more of the traffic event description, if the whole event does not ﬁt in the given display.

Avoid: This button is used to avoid the location of an event on the route. If selected, a new route is calculated and the related traffic event is avoided. After the new route has been calculated, the navigation system goes to the full map screen and shows the new route.

Traffic Voice Prompts

The traffic voice prompts are part of the current navigation voice prompts. If the navigation voice prompts are turned off, all traffic prompts are also turned off.

If the voice prompts are on, whenever an Alert for Approaching Traffic or Alert if Better route Available is displayed, the system gives the related voice prompt. The content of the voice prompt depends on actual traffic event data.

The RPT (Repeat) hard key is for navigation traffic maneuvers only. It is not used to repeat traffic prompts. During a traffic voice prompt, if RPT is pressed, the current prompt playback cancels.

Anything that cancels the Alert for Approaching Traffic, also cancels the related voice prompt.

Traffic prompts are disabled during OnStar Recognition activity.

or Voice

2-35

Display

Brightness/Contrast/Mode

VUE shown

Press the MENU key to enter the menu options, then press the MENU key repeatedly until Display is selected, or select the Display screen button.

Display Off

Select this button to turn the display off. Press the Nav, Dest, Fav, or Menu hard key or the

to view the display.

2-36

f (tone) button

Select this screen button to change the brightness, contrast, and mode of the display.

](Brightness): Select and hold the + (plus)

or − (minus) to increase or decrease the brightness of the screen.

_ (Contrast): Select and hold the + (plus) or − (minus)

to increase or decrease the contrast of the screen.

Auto (Automatic): Select this screen button so the system can automatically adjust the screen background depending on exterior lighting conditions.

Night: Select to make the map background darker. Day: Select to make the map background brighter.

Rear Vision Camera Options (Acadia, Enclave, OUTLOOK, and Traverse Only)

The vehicle may be equipped with a Rear Vision Camera system and/or a Rear Park Assist to enhance awareness of what is behind your vehicle. These systems engage only when the transmission shift position is in R (Reverse). See “Rear Vision Camera” and/or “Park Assist” in the index of the vehicle’s owner manual for more information.

VIDEO (for camera) and AUDIO (Park Assist) screen buttons may display. Touch either screen button to turn these features on or off. Both features are defaulted to on.

Eject Map Disc

This screen option is available when the map disc has to be ejected for replacement. The map disc should only be access when updating with an annual update or when and if a map disc read error displays during normal use. See “Ejecting the DVD Map Disc” earlier in this section for more information.

Language

Saturn VUE and VUE Two-Mode Hybrid Only — Select the English, Francais or Espanol screen buttons to change the language of the navigation screens.

If the vehicle has a DIC, see “DIC Vehicle Customization” in the Index of the vehicle’s owner manual to change the language of the navigation screens.

Setting the Clock

Press the MENU key to enter the menu options, then press the MENU key repeatedly until the time is selected, or select the time screen button, then press the Set screen button.

Hours: Select and hold the − (minus) or + (plus) to decrease or increase the hours.

Minutes: Select and hold the − (minus) or + (plus) to decrease or increase the minutes.

12/24 Format: Select the 12 screen button for standard time; select the 24 screen button for military time.

2-37

Global Positioning System (GPS)

The navigation system determines the position of the vehicle by using satellite signals, various vehicle signals, and map data.

At times, other interferences such as the satellite condition, road conﬁguration, the condition of the vehicle and/or other circumstances can interfere with the navigation system’s ability to determine the accurate position of the vehicle.

The GPS shows the current position of the vehicle using signals sent by the GPS Satellites of the United States Department of Defense. When the vehicle is not receiving signals from the satellites, a symbol appears on the map screen. Refer to Symbols on page 2-7.

This system may not be available or interferences may occur if any of the following is true:

• Signals are obstructed by tall buildings, trees, large

trucks, or a tunnel.

• Objects are located on the rear shelf of the vehicle.

• Satellites are being repaired or improved.

• After-market glass tinting has been applied to the

vehicle’s rear windshield.

Notice: Do not apply after-market glass tinting to the vehicle’s windows. Glass tinting interferes with the system’s ability to receive GPS signals and causes the system to malfunction. The window might have to be replaced to correct the problem. This would not be covered by the warranty.

For more information if the GPS is not functioning properly, see If the System Needs Service on page 2-40 and Problems with Route Guidance on page 2-40.

2-38

Vehicle Positioning

At times, the position of the vehicle on the map may be inaccurate due to one or more of the following reasons:

• The road system has changed.

• The vehicle is driving on slippery road surfaces such

as in sand, gravel, and/or snow.

• The vehicle is traveling on winding roads.

• The vehicle is on a long straight road.

• The vehicle is approaching a tall building or a large

vehicle.

• The surface streets run parallel to a freeway.

• The vehicle has just been transferred by a vehicle

carrier or a ferry.

• The current position calibration is set incorrectly.

• The vehicle is traveling at high speed.

• The vehicle changes directions more than once, or

when the vehicle is turning on a turn table in a parking lot.

• The vehicle is entering and/or exiting a parking lot,

garage, or a lot with a roof.

• The GPS signal is not received.

• A roof carrier is installed on your vehicle.

• The vehicle is being driven with tire chains.

• The tires are replaced.

• The tire pressure for your tires is incorrect.

• The tires are worn.

• The ﬁrst time the map DVD is inserted.

• The battery is disconnected for several days.

• The vehicle is driving in heavy traffic where driving is

at low speeds, and the vehicle is stopped and started repeatedly.

If problems are experienced with the navigation system, see your dealer/retailer.

2-39

Problems with Route Guidance

Inappropriate route guidance could occur under one or more of the following conditions:

• You have not turned onto the road indicated.

• Route guidance may not be available when using

automatic rerouting for the next right or left turn.

• The route may not be changed when using

automatic rerouting.

• There is no route guidance when turning at an

intersection.

• Plural names of places may be announced

occasionally.

• It may take a long time to operate automatic

rerouting during high-speed driving.

• Automatic rerouting may display a route returning to

the set stopover if traveling to a destination without passing through a set stopover.

• The route prohibits the entry of a vehicle due to a

regulation by time or season or any other regulation which may be given.

• Some routes may not be searched.

• The route to the destination may not be shown if

there are new roads, if roads have recently changed, or if certain roads are not listed on the map DVD. See Ordering Map DVDs on page 2-41.

If the System Needs Service

If the navigation system needs service and the steps listed here have been followed but there are still problems, see your dealer/retailer for assistance.

2-40

Ordering Map DVDs

The map DVD in the vehicle is the most up-to-date information available when the vehicle was produced. The map DVD is updated periodically, provided that the map information has changed.

For any questions about the operation of the navigation system or the update process, contact the GM Nav Disc Center toll-free phone number, 1-877-NAV-DISC (1-877-628-3472) or go to the center’s website, gmnavdisc.com. For any updates or replacements, call the GM Nav Disc Center or order a new disc online. Have the Vehicle Identiﬁcation Number (VIN) available when ordering to ensure the correct and most up-to-date DVD map disc for the vehicle is sent. See “Vehicle Identiﬁcation Number (VIN)” in the Index of the vehicle’s owner manual for more information.

After receiving the updated disc, replace the old disc in the navigation system. See “Installing the DVD Map Disc” and “Ejecting the DVD Map Disc” under Maps on page 2-4. Dispose of the old disc to avoid confusion about which disc is the most current.

Database Coverage Explanations

Coverage area depends upon the map detail available. Some areas have greater map detail than others. The navigation system works only as well as the information provided on the map disc. See Ordering Map DVDs on page 2-41 on how to obtain updated map information.

2-41

✍ NOTES

2-42

Section 3 Navigation Audio System

Navigation Audio System ..................................3-2

CD Player ...................................................3-10

DVD Player .................................................3-16

Care of Your CDs and DVDs .........................3-21

Auxiliary Devices ..........................................3-22

3-1

Navigation Audio System

Notice: Before adding any sound equipment to the vehicle, such as an audio system, CD player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer/ retailer. Also, check federal rules covering mobile radio and telephone units. If sound equipment can be added, it is very important to do it properly. Added sound equipment can interfere with the operation of the vehicle’s engine, radio, or other systems, and even damage them. The vehicle’s systems can interfere with the operation of sound equipment that has been added.

Notice: The chime signals related to safety belts, parking brake, and other functions of the vehicle operate through the navigation system. If that equipment is replaced or additional equipment is added to the vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with the vehicle before installing it. See “Accessories and Modiﬁcations” in the Index of the vehicle’s owner manual.

Playing the Radio

(Power/Volume):

• Press to turn the audio system on and off.

• Turn to increase or to decrease the volume.

• Press and hold for more than two seconds to turn

off the navigation system, the Rear Seat Entertainment (RSE) video screen, and Rear Seat Audio (RSA). If the vehicle has not been turned off, the RSE and the RSA can be turned back on by pressing this knob. The last active source resumes playing.

f (Tuning Knob):

• Turn to go to the next or previous frequency.

• Press to go to the Sound menu.

AUDIO:

• Press to display the audio screen.

• Press to switch between AM, FM, or XM

(if equipped), DISC, or AUX (Auxiliary), or select the screen button. See CD Player on page 3-10,

DVD Player on page 3-16,orAuxiliary Devices on page 3-22 for more information.

3-2

Finding a Station

There are three ways to ﬁnd/change stations:

• If viewing a full map screen, use the ¨©SEEK

keys and changed from the full map screen.

AM source shown, other sources similar

• If viewing a full map screen, select the source

screen (AM, FM, XM, CD, etc.) button. The display splits between the audio screen and the map screen. All station-changing functions can be performed from this screen.

f knob. Preset stations cannot be

FM source shown, other sources similar

• If you do not want to view a split screen or you are

not on a map screen, press the AUDIO hard key to enter the audio menu.

AM/FM/XM: Select the source (AM, FM, or XM, if equipped) screen button or press the AUDIO key repeatedly until the desired source is selected.

3-3

FM source shown, other sources similar

Category:

1. Select the screen button, located in the middle of the screen, to receive a list of all of the selected band stations in the area.

2. Use the up and down arrow screen buttons to scroll the frequencies.

3. Select the desired frequency.

XM lists also contain a category to select and the stations or channels that pertain to the category. For XM, select the left and right arrow screen buttons to change categories. The station information displays.

See “Radio Menu” later in this section to add and remove XM categories from the category list. When listening to XM stations, all of the categories can be selected when using the right and left arrow screen buttons on the main audio screen. Categories cannot be selected from the category list screen when they have been removed.

FM lists may also contain a category to select if stations in the area support Radio Data Systems (RDS).

2 Refresh List: Select this screen button to refresh

the list of stations. When viewing a map screen the name of the station or

channel displays in the top center tab.

¨SEEK / ©SEEK: To seek stations, press the right

or left arrow keys to go to the next or previous station.

To scan stations, press and hold either arrow for more than two seconds. The radio goes to a station, plays for a few seconds, then goes on to the next station. To stop scanning, press either arrow again.

3-4

Storing Radio Station Presets

This feature allows up to 30 preset stations to be stored. You can mix AM, FM, and XM (if equipped). To store presets:

1. Press

2. If viewing a map screen, select the source screen

3. Select the band.

4. Seek, scan, or tune to the desired station, to select

5. Press and hold one of the preset screen buttons for

6. Repeat the steps for each preset.

O to turn the system on.

button, press the AUDIO key, or press the FAV (favorite) key.

the station.

more than two seconds or until a beep is heard.

Sound Menu

Base shown; Uplevel similar

SOUND: Press this key or press the MENU key to

access the Sound menu to adjust the treble, midrange, bass, fade, balance, and equalization.

3-5

Setting the Tone

TREBLE: Select and hold the plus (+) or minus (−) sign

to increase or decrease the treble. If a station is weak or noisy, decrease the treble.

MID (Midrange): Select and hold the plus (+) or minus (−) sign to increase or decrease the midrange.

BASS: Select and hold the plus (+) or minus (−) sign to increase or decrease the bass.

Adjusting the Speakers

L/R (Left/Right) (Balance): To adjust the balance

between the left and the right speakers, select and hold the L or R screen buttons.

Front/Rear (Fade): To adjust the fade between the front and the rear speakers, select and hold the Front or Rear screen buttons.

Automatic Equalization

With automatic equalization customized equalization settings designed for Rock, Pop, Country, Classical, and Talk can be selected. Select one of the equalization screen buttons to hear the change in sound.

Custom: Select this screen button to adjust the bass, treble, and midrange settings as desired.

The system saves separate settings for each source. Talk: The Acadia and Enclave has only an equalization

setting for Talk. Select Talk to adjust the tone settings to an automatic

preset for talk radio.

Rear Seat Audio (RSA)

With this feature, if the Rear Seat Audio (RSA) system has been turned on, it can be turned off by selecting the Rear Seat Audio Off screen button. See “Rear Seat Audio (RSA)” in the Index of your vehicles owner manual.

3-6

Radio Menu

Press the MENU key to enter the conﬁgure menu screen, then press it repeatedly until Radio is selected, or select the Radio screen button to make changes for radio information displayed, number of preset pages, XM categories, if equipped, and automatic volume control.

Limit Features While Driving

Touch the Limit Features While Driving screen button to turn on and off the ability to limit functions while driving. When this screen button is highlighted, the following functions will be limited while driving:

• Music Navigator Scrolling

• Radio Category Scrolling

• Navigation Menu Scrolling and some functions

See “Category” earlier in this section for more information. See “From Map” under Destination on page 2-13 for more information.

Number of Preset Pages

Select the Number of Preset Pages screen button to change the number of preset pages, 1 through 6. Each preset page can contain ﬁve preset stations. Select the desired numbered screen button.

3-7

Automatic Volume Control

Automatic Volume Control: With automatic volume

control, the audio system adjusts automatically to make up for road and wind noise while driving.

To use Automatic Volume Control:

1. Set the volume at the desired level.

2. Press the MENU key to enter the menu screen, then press it repeatedly until Radio is selected, or touch the Radio screen button.

3. Press the Automatic Volume Control screen button.

4. Touch the LOW, MEDIUM, or HIGH screen buttons. Each higher setting allows for more compensation at faster vehicle speeds.

Then, as the vehicle is being driven, automatic volume control automatically increases the volume, as necessary, to overcome noise at any speed. The volume level should always sound consistent while driving. To turn automatic volume control off, touch the OFF screen button.

Remove/Add XM Categories

1. Select the Remove/Add XM Categories screen button to remove or add XM categories when selecting from the category list screen. The list of XM categories appear on the screen.

2. Use the up and down arrow screen buttons to scroll through the list. The categories to remove highlights and the categories to add are dark in color.

3. Select the category that you would like to add or remove.

4. Select the Restore All Categories screen button to add all categories that have been removed.

3-8

Radio Data System (RDS)

The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can:

• Receive announcements concerning local and

national emergencies

• Display messages from radio stations

This system relies on receiving speciﬁc information from these stations and only work when the information is available. In rare cases, a radio station may broadcast incorrect information that can cause the radio features to work improperly. If this happens, contact the radio station.

The RDS system is always on. When information is broadcast from the FM station you are listening to, the station name or call letters display on the audio screen. RDS may provide a program type (PTY) for current programming and the name of the program being broadcast.

XM™ Satellite Radio Service

XM™ is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM™ Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. During the trial or when you subscribe, you will get unlimited access to XM™ Radio Online for when you are not in the vehicle. A service fee is required to receive the XM™ service. For more information, contact XM™ at xmradio.com or call 1-800-929-2100 in the U.S. and xmradio.ca or call 1-877-438-9677 in Canada.

When XM™ is active, the channel name and number, song title, and artist displays on the screen.

XM™ Radio Messages

See “XM™ Radio Messages” in the vehicle’s owner manual” for a list of possible XM messages.

3-9

CD Player

The player can be used for CDs with conventional CD audio, MP3, or WMA compressed ﬁles and may have the capability to play DVD audio and DVD video. See DVD Player on page 3-16 for more information about DVD audio and video.

With the ignition on, insert a CD partway into the slot, label side up. The player pulls it in and the CD should begin playing. The navigation system can be used while playing a CD.

When a CD is inserted, the CD tab displays. If an equalization setting is selected for the CD, it is activated each time a CD is played.

If the ignition or radio is turned off with a CD in the player, it stays in the player. When the ignition or radio is turned on, the CD starts playing where it stopped, if it was the last selected audio source.

As each new track starts to play, the track number displays.

If an error displays, see “CD Messages” later in this section.

If viewing a map screen, select the CD screen button or the NAV hard key. The display splits between the audio screen and the map screen. If you do not want to view a split screen or you are not on a map screen, press the AUDIO key, then press it repeatedly until CD is selected or select the CD screen button.

Playing an Audio CD

j / r (Pause/Play):

1. Select to pause the CD. This button then changes to the play button.

2. Select the play button to play the CD.

Random:

1. Select to hear the tracks in random, rather than sequential, order.

2. Select Random again to turn off random play.

3-10

r (Rewind):

1. Select and hold to rewind quickly through a track selection. Sound is heard at a muted or a reduced volume.

2. Release this button to stop rewinding. The display shows the elapsed time of the track.

[ (Forward):

1. Select and hold to fast forward quickly through a track selection. Sound is heard at a muted or a reduced volume.

2. Release this button to stop fast forwarding. The display shows the elapsed time of the track.

¨SEEK / ©SEEK:

1. To seek tracks, press the up arrow to go to the next track.

2. Press the down arrow to go to the start of the current track, if more than eight seconds have played.

3. If either arrow is pressed more than once, the player continues moving backward or forward through the CD. The sound mutes while seeking.

f (Tuning Knob):

1. Turn counterclockwise one notch to go to the start of the current track, turn it again to go to the previous track.

2. Turn clockwise to go to the next track.

While playing an audio CD the rear seat operator can power on the RSE video screen and use the remote control to navigate through the tracks on the CD.

Using a Compressed Audio CD/DVD

Compressed Audio CD/DVD Format

There are guidelines that must be met, when creating an MP3, WMA, or mixed disc. If the guidelines are not met when recording a burned disc, the disc may not play. The guidelines are:

• ID3 tag information is displayed by the radio if it is

available. The radio supports ID3 tag information v1.0, v1.1, and v2.0. The radio displays a ﬁlename, song name, artist name, album name, and directory name.

• Maximum 32 characters, including spaces, in a ﬁle

or folder name.

• The recommended maximum number of folders is

100 with a maximum hierarchy of three folders.

3-11

• Create a folder structure that makes it easy to ﬁnd

songs while driving. Organize songs by albums using one folder for each album.

• All playlist ﬁles (.m3u or .pls) must be removed from

disc contents. Playlists are not supported.

• It is recommended that there is a maximum of

192 ﬁles on a CD-R(W) disc.

• It is recommended that there is a maximum of

200 ﬁles on a DVD+R(W) disc.

• The ﬁles can be recorded on a CD-R(W) or

DVD+R(W).

• Copy protected WMA ﬁles are not supported.

Scanning Compressed Audio Disc

Scanning a compressed audio disc categorizes and allows sorting of songs by folder artist or album.

• Select center folder/artist/album button to initiate

scanning mode. The radio plays and a progress bar displays.

• Background scanning occurs with the radio on and

the compressed audio disc inserted but not being played.

• Only the ﬁrst 200 songs appears in the compressed

audio music navigator.

• Scanning time varies depending on the number of

ﬁles and folders on the disc.

Root Directory

The root directory is treated as a folder. If the root directory has compressed audio ﬁles, the directory is displayed as ROOT. All ﬁles contained directly under the root directory is accessed prior to any root directory folders.

Empty Directory or Folder

If a root directory or a folder exists somewhere in the ﬁle structure that contains only folders/subfolders and no compressed ﬁles directly beneath them, the player advances to the next folder in the ﬁle structure that contains compressed audio ﬁles and the empty folder is displayed or numbered.

No Folder

When the disc contains only compressed ﬁles, the ﬁles are located under the root folder. The next and previous folder functions have no function on a disc that was recorded without folders. When displaying the name of the folder the radio displays ROOT.

3-12

Order of Play

Tracks are played in the following order:

• The radio does not support playlist ﬁles.

• Order of play differs depending if the compressed

audio disc is fully scanned or unscanned. See “Scanning Compressed Audio Disc” previously in this section.

• When playing an unscanned disc, the next and

previous screen buttons may be required to switch away from the current folder when quickly seeking rather than allowing the last song of a folder to play to completion.

• Play begins from the ﬁrst track under the root

directory. When all tracks from the root directory have been played, play continues from ﬁles according to their numerical listing. After playing the last track from the last folder, play begins again at the ﬁrst track of the ﬁrst folder or root directory.

• A scanned compressed audio disc in artist/album

modes only play songs within the current category. The next and previous screen buttons change to different artists or albums.

When play enters a new folder, the display does not automatically show the new folder name. The new track name displays.

File System and Naming

The song name that displays is the name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name.

Track names longer than 32 characters or four pages are shortened. The display does not show parts of words on the last page of text and the extension of the ﬁlename does not display.

Playing a Compressed Audio Disc

As stated earlier in this section, the player can be used for CDs with conventional CD audio, MP3, or WMA compressed ﬁles. Read the information under “CD Player” for more information on playing an audio disc.

3-13

j / r (Pause/Play):

1. Select to pause the CD. This button then changes to the play button.

2. Select the play button to play the CD.

Random:

1. Select to hear the tracks in random, rather than sequential, order.

2. Select Random again to turn off random play.

r (Rewind):

1. Select and hold to rewind quickly through a track selection. Sound is heard at a muted or reduced volume.

2. Release to stop rewinding. The display shows the elapsed time of the track.

[ (Forward):

1. Select and hold to fast forward quickly through a track selection. Sound is heard at a muted or reduced volume.

2. Release to stop fast forwarding. The display shows the elapsed time of the track.

qr(Folder/Artist/Album):

1. Select the left or right arrow to go to the previous or next folder, artist, or album on the disc.

2. Select the middle screen button, with the folder, artist, or album name, to sort the compressed audio ﬁle by folder, artist, or album. It may take a few minutes for the system to sort the compressed audio ﬁles. See “Scanning Compressed Audio Disc” previously in this section.

3-14

¨SEEK / ©SEEK:

1. Press the up arrow to go to the next track.

2. Press the down arrow to go to the start of the current track, if more than eight seconds have played.

3. If either arrow is pressed more than once, the player continues moving backward or forward through the CD. The sound mutes while seeking.

f (Tuning Knob):

1. Turn counterclockwise one notch to go to the start of the current track, turn it again to go to the previous track.

2. Turn clockwise to go to the next track.

Vehicles with Rear Seat Audio (RSA) can use RSA to change tracks/chapters. Vehicles with RSE can use the remote control to change tracks/chapters.

CD Messages

If Disc Read Error displays and/or the CD comes out, it could be for one of the following reasons:

• A disc was inserted with an invalid or unknown

format.

• The map DVD disc was installed into the CD slot.

See “Installing the Map DVD” under Maps on page 2-4.

• It is very hot. When the temperature returns to

normal, the CD should play.

• The vehicle is being driven on a very rough

road. When the road becomes smoother, the CD should play.

• The CD is dirty, scratched, wet, or upside down.

• The air is very humid. If so, wait about an hour and

try again.

• There may have been a problem while burning

the CD.

• The label may be caught in the CD player.

If any error occurs repeatedly or if an error cannot be corrected, contact your dealer/retailer.

3-15

DVD Player

The player can be used for DVD audio and DVD video. With this feature, movies/pictures do not appear on the

navigation screen, unless the vehicle is in P (Park). It operates on the Rear Seat Entertainment (RSE) screen while the vehicle is moving. The RSE video screen starts play of the DVD when a DVD is inserted into the navigation system. The DVD player can be controlled by the buttons on the navigation system, the Rear Seat Audio (RSA) system, and the remote control. The DVD player can also be used for the rear seat passengers with the radio off. The rear seat passengers can power on the video screen and use the remote control to navigate the disc. See “Rear Seat Entertainment System” in the Index of your vehicle’s owner manual for more information.

The DVD player is only compatible with DVDs of the appropriate region code that is printed on the jacket of most DVDs.

The DVD slot is compatible with most audio CDs, CD-R, CD-RW, DVD-Video, DVD-Audio, DVD+R/RW single layer media along with MP3 and WMA formats. DVD-R, DVD-RW, and DVD+R dual layer media is not supported.

If an error displays, see “DVD Messages” later in this section.

Navigation DVD Radio with Bose

Surround Sound System (Acadia and Enclave Only)

If the vehicle has a Rear Seat Entertainment (RSE) system, it has a radio capable of playing both CD and DVD discs. See “Rear Seat Entertainment” in the Index of the vehicle’s owner manual.

The CD/DVD player is the top slot on the radio faceplate. The player is capable of reading the DTS programmed DVD-Audio or DVD-Video media. DTS and DTS 2.0 are trademarks of Digital Theater Systems, Inc. AC-3 is Dolby Digital Surround technology.

The system is optimized to use 5.1 audio surround sound before stereo tracks. Stereo modes are typically available if manually selected. Press the Options button, then the Audio button or DVD main or top menu.

3-16

Playing a DVD

There are three ways to play a DVD:

• Once a DVD is inserted, the system automatically

starts play of the DVD up to the DVD top menu. The

r (play) button must be pressed to start the

movie from the DVD’s menu screen.

• If you are on a map screen, select the DVD

screen button.

• Press the AUDIO hard key, then select the DVD

screen button.

• The r (play) button must be pressed for the movie

to resume play when the vehicle has been turned OFF and then back ON.

When a DVD is loaded, the rear seat passengers can power on the RSE video screen and use the remote control to navigate through the DVD.

O (Power/Volume):

1. Press to turn the system on and off.

2. Turn to increase or decrease the volume of the audio system.

3. Press and hold for more than two seconds to turn off the navigation system, RSE video screen, and RSA. If the vehicle has not been tuned off, the RSE and the RSA can be turned back on by pressing this knob and continues play of the last active source.

DVD Menu Options

Once a DVD starts to play, the menu options and cursor screen buttons automatically appear. To display the menu Options screen button while a DVD is playing, touch anywhere on the screen.

Options: Select this screen button to view the menu option screen buttons. Menu options are available when they are highlighted. Some menu options are only available when the DVD is not playing.

Cursor: Select this screen button to access the cursor menu. The arrows and other cursor options let you navigate the DVD menu options. The cursor menu options are only available if a DVD has a menu. Use the cursor menu to start a DVD video from the disc main menu.

q, Q, r, R (Arrow Buttons): Use these arrow

buttons to move around the DVD menu.

Enter: Select to choose the highlighted option. Return: Select to go back to the previous DVD menu. Back: Select to go back to the main DVD display

screen. Move: Select to move the cursor buttons back and

forth from the bottom-right corner to the top-left corner of the screen.

3-17

j / r (Pause/Play):

1. Select to pause the DVD. This button then changes to the play button.

2. Select the play button to play the DVD.

3. Select this button in a DVD disc main menu to start the DVD.

c (Stop):

1. Select to stop play of the DVD.

2. Select the play button to continue playing the DVD from where the DVD was stopped.

3. Select this button twice to return to the beginning of the DVD.

r (Rewind):

1. Select and release to rewind through the scene, chapters, and titles.

2. Select again to increase the rewinding speed.

3. Select the play button to stop rewinding. This button may not work when the DVD is playing the copyright information or the previews.

[ (Forward):

1. Select and release to advance rapidly through the scene, chapters, and titles.

2. Select again to increase the fast forwarding speed.

3. Select the play button to stop fast forwarding. This button may not work when the DVD is playing the copyright information or the previews.

Hide Options: Select this screen button to remove all menu options from the display, except Options and Cursor.

Top Menu: Select to display the ﬁrst menu of the DVD. This is not available on all DVDs.

Menu: Select to display the DVD menu of the current area of the DVD that is playing. This button is not available for DVD audio.

3-18

Audio:

1. Select to display the audio options.

2. Select the audio options that best improve sound quality. This is not available on all DVDs or when the DVD is stopped. This button may not be available for some DVD audio discs. Acadia only, see “Fading With a Bose later in this section.

Subtitle: Select to play the video with subtitles. This is not available on all DVDs or when the DVD is stopped. This button is not available for DVD audio.

Angle:

1. Select to adjust the viewing angle of the DVD.

2. Repeatedly select this button to toggle through the angles. This is not available on all DVDs or when the DVD is stopped. This button is not available for DVD audio.

Surround Sound System”

q (Previous Scene): Select to go to the previous

scene. This button does not work when the DVD is stopped. This button is not available for DVD video.

r (Next Scene): Select to go to the next scene. This

button does not work when the DVD is stopped. This button is not available for DVD video.

Search:

1. Select to display the search screen.

2. Select Title or Chapter Search for DVD video and Group or Track for DVD audio. The keyboard allows you to type in the title/chapter/group/track number that you would like to watch or listen to. This button does not work when the DVD is stopped.

Setup: Select to display the DVD Setup screen. This button is only available when the DVD is not playing. The DVD Setup screen allows you to change the brightness, contrast, and the viewing aspect on the monitor.

! (Brightness): Select the up or down screen arrows

to increase or decrease the brightness of the navigation screen.

_ (Contrast): Select the up or down screen arrows to

increase or decrease the contrast of the navigation screen.

Monitor: From the DVD Setup screen, select to adjust the aspect ratio of the DVD on the navigation screen. This is not available on all DVDs. This button is not available for DVD audio.

Select e to close the screen in from the left and right sides.

3-19

Select J to ﬁll the screen on the left and right sides. Select d to ﬁll the screen on the top and bottom.

SEEK

¨(Next Track/Chapter): Press this hard key to

go to the next track or chapter if the time elapsed is greater than 10 seconds. This button may not work when the DVD is playing the copyright information or the previews.

1. Press this hard key to return to the start of the current track or chapter.

2. Press again to go to the previous track or chapter. This button may not work when the DVD is playing the copyright information or the previews.

f (Tuning Knob):

1. Turn counterclockwise one notch to go to the start of the current chapter/track, turn it again to go to the previous chapter/track.

2. Turn clockwise to go to the next chapter/track.

Fading With a Bose®Surround Sound System (Acadia and Enclave Only)

If the Rear Seat Audio (RSA) is turned on, the radio disables fade and mutes the rear speakers.

The following methods allow for switching surround sound into a 2 channel stereo mode:

• Select a stereo or 2 channel mode using the

DVD-Video top menu. Most commercial DVD-Video top menus contain audio conﬁguration settings.

• While the movie is playing, select OPTIONS to

show all available DVD options, then select the Audio touch key to switch between the multiple audio sources on the DVD.

• Fade the radio two steps to the rear. When returning

to the center area, the surround track will turn on again if it was on before the rear speakers were faded.

Select the AUDIO buttons to change current DVD audio track.

Some DVD-Video discs only contain Dolby Digital 5.1 (AC-3) or DTS 5.1 audio tracks and may not allow conversions into stereo modes.

See “Adjusting the Speakers” under Navigation Audio System on page 3-2 for more information.

3-20

DVD Messages

If Disc Read Error appears on the display and/or the DVD comes out, it could be for one of the following reasons:

• A disc was inserted with an invalid or unknown

format.

• The disc is not from a correct region.

• The map DVD disc was installed into the DVD

audio/video slot. See “Installing the Map DVD” under Maps on page 2-4.

• It is very hot. When the temperature returns to

normal, the DVD should play.

• The vehicle is being driven on a very rough road.

When the road becomes smoother, the DVD should play.

• The DVD is dirty, scratched, wet, or upside down.

• The air is very humid. If so, wait about an hour and

try again.

• There may have been a problem while burning

the DVD.

• The label may be caught in the DVD player.

If the DVD is not playing correctly, for any other reason, try a known good DVD.

If any error occurs repeatedly or if an error cannot be corrected, contact your dealer/retailer.

Care of Your CDs and DVDs

If playing recorded media such as a CD or DVD, the sound quality may be reduced due to CD or DVD quality, the method of recording, the quality of the music that has been recorded, recording speed, max media recording speed, and the way the CD or DVD has been handled. There may be an increase in skipping, difficulty in ﬁnding tracks, and/or difficulty in loading and ejecting. If these problems occur, check the bottom surface of the CD or DVD. If the surface is damaged, such as cracked, broken, or scratched, it will not play properly. If the surface is soiled, see “Care of Your CDs and DVDs” in the Index of the vehicle’s owner manual.

If there is no apparent damage, try a known good CD or DVD.

Notice: If a label is added to a CD or DVD, or more than one CD or DVD is inserted into the slot at a time, or an attempt is made to play scratched or damaged CDs or DVDs, the player could be damaged. While using the CD or DVD player, use only CDs or DVDs in good condition without any label, load one CD or DVD at a time, and keep the player and the loading slot free of foreign materials, liquids, and debris.

Do not add any label to a CD or DVD, it could get caught in the player. If a CD or DVD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD or DVD with a soft marker.

3-21

Auxiliary Devices

The vehicle may have a Rear Entertainment System (RSE). The RSE has audio adapters that lets you connect auxiliary devices. The audio can be heard through the speakers or through the wireless or wired headphones. See “Audio/Video Jacks” under “Rear Seat Entertainment System” in the Index of the vehicle’s owner manual for more information.

Drivers are encouraged to set up any auxiliary device while the vehicle is in P (Park). See “Defensive Driving” in the Index of the vehicle’s owner manual for more information on driver distraction.

To switch the RSE system to use an auxiliary device:

1. Connect the auxiliary device to the RSE system.

2. Press the AUDIO key. Then press it repeatedly until AUX (auxiliary) is selected, or select the AUX screen button. A front auxiliary device must be connected before the front auxiliary device can be selected. The rear auxiliary device can be selected by pressing the REAR AUX button.

The rear auxiliary device system requires all video and audio inputs to be connected to ensure proper audio ﬁdelity of the rear auxiliary device.

The rear seat passengers can also use the remote control to change the functions of the RSE. See “Rear Seat Entertainment System” in the Index of the vehicle’s owner manual for more information.

3-22

Section 4 Voice Recognition

Voice Recognition ............................................4-2

4-1

Voice Recognition

The navigation system’s voice recognition allows for hands-free operation of navigation and audio system features. Voice recognition can be used when the ignition is on or in ACC/ACCESSORY or when Retained Accessory Power (RAP) is active.

The radio commands feature only works if the map DVD is inserted. Bluetooth work without the map DVD inserted. See Bluetooth and OnStar®in the index of the vehicle’s owner manual.

The system may not hear you or may hear the incorrect word with the windows open or the convertible top down due to background noise.

To use radio voice recognition:

1. Push and hold the SRCE button on the steering wheel controls, if equipped, or the AUDIO button on the radio faceplate. A beep will be heard and the audio system mutes.

2. Clearly state one of the commands listed on the following pages. For example, say “Radio Select FM” or just say, “Radio FM”.

3. The system tells you the command being implemented. For example, the system says “Radio Select FM” and changes the audio system to the FM source.

and OnStar®functions will

You may end voice recognition by not speaking any commands or by pressing the SRCE again. After about ﬁve seconds of silence, the system automatically cancels voice recognition.

At times, the system may not understand a spoken command. If this happens, try again. If a spoken command is not available, the system provides feedback based on availability.

While using voice recognition, make sure to keep interior noise levels to a minimum. Otherwise, the system might not recognize voice commands.

The system recognizes commands spoken in English, Spanish, or French depending on the global language setting in the vehicle. See the vehicle’s owner manual for details about changing languages.

Voice Recognition Commands

The following list shows all of the voice commands available for the navigation system with a brief description of each. The commands are listed with the optional words in brackets. To use the voice commands, refer to the instructions listed previously.

4-2

Voice Tag Commands

The following are voice tag commands that can be accessed by clearly stating the commands exactly as they are written. There can be up to 40 voice tag entries for destinations.

Navigation go to [destination], navigation select:

These commands instruct the system to select a destination saved under the stored voice tag. The system prompts for a destination name then waits for the name to be stated.

If you are not currently driving on a route, the system automatically creates the voice tag destination as the ﬁnal destination. If you are currently driving on a route, the system automatically creates the voice tag destination as a stopover. Up to three stopovers can be created.

Storing Voice Tags

From the address book entry information page, press the Add Voice tag screen button. The system responds “Name Please?” and you will have four seconds to record a name. The system asks for conﬁrmation of the name before saving it as a voice tag.

Navigation Help

Navigation Help: This command instructs the system

to assist with navigation commands.

Display Commands

To set the display mode: Display [set] day [mode]: Sets the display to

daytime mode. Display [set] night [mode]: Sets the display to

night mode. Display [set] auto [mode]: Sets the display to

automatic mode. The system changes between day and night mode automatically.

System help: This command instructs the system to assist with display commands.

Radio Commands

The following are radio commands can be accessed by clearly stating the commands exactly as written.

Radio [band] [select] AM, radio [band] [select] FM, radio [band] [select] XM, radio [band] [select] satellite: Instructs the system to go to either the AM,

FM, or XM™ (if equipped).

Radio [select] (frequency) AM, radio [select] (frequency) FM: Instructs the system to go to a speciﬁc

frequency on either AM or FM.

4-3

Radio [select] (channel) XM, radio [select] (channel) satellite: Instructs the system to go to a speciﬁc

channel on the XM™ band (if equipped). Radio help: This command instructs the system to

assist with radio commands.

CD Commands

The following are CD, MP3, and DVD commands that can be accessed by clearly stating the commands exactly as written.

CD, DVD, Disc: Selects a CD, DVD, or disc that is currently loaded.

CD, DVD, Disc, [select] track (one, two, three, etc.):

Instructs the system to select a speciﬁc track number (may not be available during DVD movie play).

CD, DVD, Disc select next folder: Selects the next folder on the MP3 or audio DVD.

CD, DVD, Disc select previous folder: Selects the previous folder on the MP3 or audio DVD.

CD help, DVD help, Disc help: Instructs the system to assist with CD and DVD commands.

Auxiliary Commands

The following auxiliary commands can be accessed by clearly stating the commands exactly as written. The commands are available when the auxiliary source is available.

Aux, Auxiliary: Selects the auxiliary device, when a device is connected.

OnStar®Command

OnStar®: Instructs the system to connect to OnStar.

The OnStar voice recognition system must be entered. Refer to your OnStar information.

owner guide for more

Voice Help

Voice help: Provides a description of help commands

that can be used.

4-4

Adding Destinations to the Address Book ........... 2-26

Adding or Changing Preset Destinations ............. 2-26

Alpha-Numeric Keyboard ................................... 2-3

Audio System

Radio .......................................................... 3-2

Auto Reroute .................................................. 2-13

Auxiliary Devices ............................................ 3-22

Canadian Owners ............................................... iii

Canceling Guidance ........................................ 1-12

Care

CDs and DVDs ........................................... 3-21

Care of Your CDs and DVDs ............................ 3-21

CD Messages ................................................ 3-15

CD Player ...................................................... 3-10

CDs

Care .......................................................... 3-21

Cleaning the Video Screen ............................... 1-12

Conﬁgure Menu .............................................. 2-27

Database Coverage Explanations ...................... 2-41

Deleting Personal Information ............................. 1-7

Destination ..................................................... 2-13

Display .......................................................... 2-36

Driving on a Route .......................................... 2-11

DVD Menu Options ......................................... 3-17

DVD Messages .............................................. 3-21

DVD Player .................................................... 3-16

DVDs

Care .......................................................... 3-21

Ejecting the DVD Map Disc ............................... 2-5

English/Metric Units .......................................... 1-6

Entering a Destination by Using Address, Point of

Interest, Previous Destination, or the Map

Method and Storing Preset Destinations ............. 1-8

Fading With a Bose®Surround Sound System

(Acadia and Enclave Only) ............................ 3-20

Finding a Station .............................................. 3-3

Language ........................................................ 1-6

Limit Features While Driving ............................... 1-7

Getting Started, Navigation ................................ 1-4

Getting Started on Your Route .......................... 2-22

Global Positioning System (GPS) ...................... 2-38

Guidance Volume ........................................... 1-12

Handling the DVD Map Disc .............................. 2-5

Hard Key Operation .......................................... 2-2

Installing the DVD Map Disc .............................. 2-4

Map Adjustments .............................................. 2-6

Map Coverage ................................................. 2-4

Map Scales ..................................................... 2-6

Maps .............................................................. 2-4

Conﬁgure ................................................... 2-27

Navigation

Getting Started ............................................. 1-4

System Overview .......................................... 1-2

Using the System .......................................... 2-2

Navigation DVD Radio with Bose

Sound System (Acadia and Enclave Only) ...... 3-16

Surround

OnStar®Destination Download .......................... 2-19

Ordering

Map DVDs ................................................. 2-41

Overview, Navigation System ............................. 1-2

Owners, Canadian .............................................. iii

Playing a DVD ............................................... 3-17

Playing the Radio ............................................. 3-2

Problems with Route Guidance ......................... 2-40

Propriétaires Canadiens ....................................... iii

Radio ............................................................ 2-27

Radio Data System (RDS) ................................. 3-9

Radio Menu ..................................................... 3-7

Scrolling the Map ............................................. 2-6

Setting the Clock ...................................... 1-7, 2-37

Sound ........................................................... 2-27

Sound Menu .................................................... 3-5

Storing Radio Station Presets ...................... 1-7, 3-5

Symbols .......................................................... 2-7

System Needs Service, If ................................. 2-40

Touch-Sensitive Screen Buttons .......................... 2-3

Traffic Options ................................................ 2-27

Using a Compressed Audio CD/DVD ................. 3-11

Using Destination Download ............................. 2-20

Using Your Stored Preset Destinations ............... 1-11

Vehicle Positioning .......................................... 2-39

Video Screen, Cleaning ................................... 1-12

Voice Recognition ............................................. 4-2

Voice Recognition Commands ............................ 4-2

XM NavTraffic™ (USA and Canada) .................. 2-28

XM™ Satellite Radio Service .............................. 3-9

Saturn VUE 2009 Navigation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview .........................................................1-2

Overview

Navigation System Overview

Getting Started

Cleaning the Video Screen

Features and Controls ......................................2-2

Features and Controls

Using the Navigation System

Maps

Symbols

Destination

Global Positioning System (GPS)

Vehicle Positioning

Problems with Route Guidance

If the System Needs Service

Ordering Map DVDs

Database Coverage Explanations

Navigation Audio System ..................................3-2

Navigation Audio System

CD Player

DVD Player

Care of Your CDs and DVDs

Auxiliary Devices

Voice Recognition ............................................4-2

Voice Recognition
