Saturn ST-FP8060 User manual

ST-FP8060

FOOD PROCESSOR

КУХОННЫЙ КОМБАЙН

КУХОННИЙ КОМБАЙН

FOOD PROCESSOR

Dear Buyer! We congratulate you on having bought the device under trade name «Saturn». We are sure that our devices will become faithful and reliable assistance in your housekeeping.

Before using your machine

· Before plugging in

Make sure your electricity supply is the same as the one shown on the underside of your machine.

· Read these instructions carefully and retain for future reference.

· Remove all packaging and any labels.

Safety

· The blades and discs are very sharp, handle with care.

Always hold the knife blade by the finger grip and at

the top, away from the cutting edge, both when handling and cleaning.

· Do not lift or carry the processor by the handle - or the handle may break resulting in injury.

· Always remove the knife blade before pouring contents from the bowl.

· Keep hands and utensils out of the processor bowl and liquidiser jug whilst

connected to the power supply.

· Switch off and unplug:

○ before fitting or removing parts. ○ after use. ○ before cleaning.

· Never use your fingers to push food down the feed tube. Always use the pusher supplied.

· Before removing the lid from the bowl or liquidiser/mill from the power unit:

○ Switch off. ○ Wait until the attachment/blades have completely stopped. ○ Be careful not to unscrew the liquidiser jug or mill from the blade unit.

· Allow all liquids to cool to room temperature before placing them in the liquidiser.

· Do not use the lid to operate the processor, always use the on/off speed control.

· This machine will be damaged and may cause injury if the interlock mechanism is subjected to excessive force.

· Never use an unauthorised attachment.

· Never leave the machine on unattended.

· Never use a damaged machine, if break, please get it repaired in the

designated maintain place.

· Never let the power unit, cord or plug get wet.

· Don’ t let the wire hang over the edge of a table or worktop or touch hot

surfaces.

· Do not exceed the maximum capacities stated.

· This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

· Only use the appliance for its intended domestic use.

Before using for the first time

1 Remove all packaging. Take care of the knife blades as they are very sharp. These covers should be discarded as they are to

protect the blade during manufacture and transit only.

2 Wash the parts see “cleaning”.

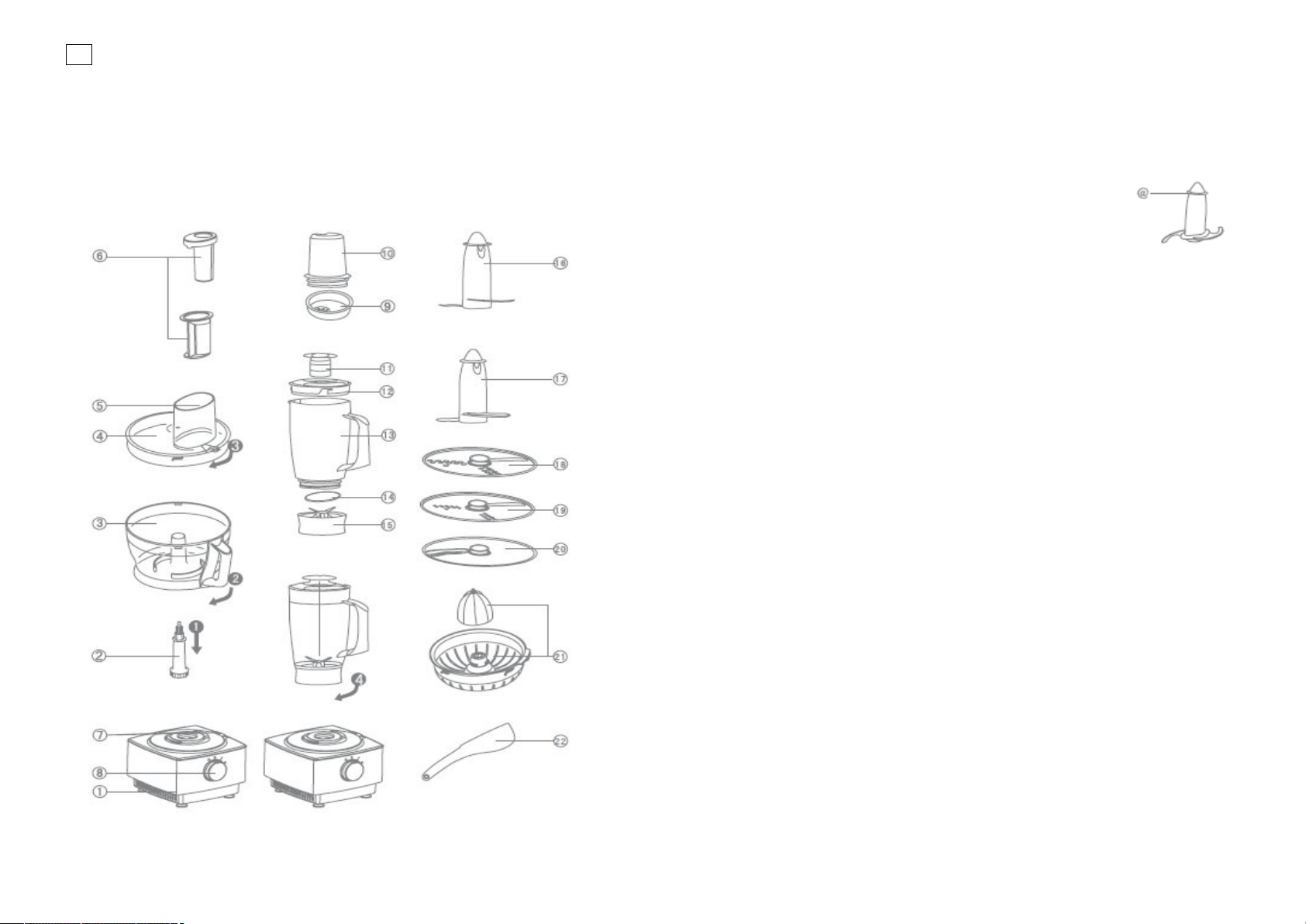

Key

Processor

1 Power unit 2 Drive shaft 3 Bowl 4 Lid 5 Feed tube 6 Pushers 7 Safety interlock 8 Speed control

Liquidiser

9 Sprinkler lid 10 Jar 11 Blending cap 12 Lid 13 Jug 14 Sealing ring 15 Blade unit

Attachments

16 Knife blade 17 Dough tool 18 Thick slicing/coarse shredding disc 19 Thin slicing/fine shredding disc 20 Grater for potato pancakes 21 Geared citrus press 22 Spatula

Choosing a speed for all functions

Tool/Attachment Function Speed Maximum

capacities

Grind meat

Knife Blade

Dough tool Dough making 2 500g flour 280

Cut vegetables Make stuffing: cut meat and vegetables both (need to put meat first)

1-2

500g meat

ml water

Discs-slicing/

shredding/

chipping

Mixing components make jam, milk shake, soup 1-2 1200 ml

Citrus Press components

mill components for spices,coffee beans etc.

Slicing/shredding/chipping food and vegetables such as carrots, cheese

Citrus fruits juicing 1

milling

1-2

To use your food processor

1 Fit the detachable shaft onto the power unit [1]. 2 Then fit the bowl. Place the handle towards the back and turn clockwise until it locks [2]. 3 Fit an attachment over the drive shaft.

• Always fit the bowl and attachment onto the machine before adding ingredients. 4 Fit the lid [3] ensuring the top of the drive shaft locates into the centre of the lid.

• Do not use the lid to operate the processor, always use the on/off control.

5 Switch on and select a speed.

• The processor won't work if the bowl and lid are fitted incorrectly.

• Use the pulse(p) for short bursts. The pulse will operate for as long as the control is held in position. 6 Reverse the above procedure to remove the lid, attachments and bowl.

• Always switch off before removing the lid.

Important

• When adding almond essence or flavouring to mixtures avoid contact with the plastic as this may result in permanent marking.

To use your liquidiser

1 Fit the sealing ring (14) into the blade unit (15) ensuring the seal is located correctly. Leaking will occur if the seal is damaged or not fitted correctly. 2 Screw the jug onto the blade unit. 3 Put your ingredients into the jug. 4 Put the blending cap in the lid, then turn. 5 Turn the lid in a clockwise direction to lock onto the jug. 6 Place the liquidiser onto the power unit and turn to lock [4]. 7 Select a speed or use the pulse control.

• Allow all liquids to cool to room temperature before placing them in the liquidiser.

Hints

• When making mayonnaise, put all the ingredients, except the oil into the liquidiser. Then with the machine running, pour the oil into the lip and let it run through.

• Thick mixtures, e.g. pates and dips, may need scraping down. If it's difficult to process, add more liquid.

• When crushing ice use the pulse in short bursts.

• To ensure the long life of your liquidiser, never run it for longer than 30 seconds. Switch off as soon as you've got the right consistency.

• Don't process spices - they may damage the plastic.

• The machine won't work if the liquidiser is fitted incorrectly.

• Don't put dry ingredients into the liquidiser before switching on. If necessary, cut them into pieces; remove the filler cap; then with the machine running, drop them through one by one.

• Don't use the liquidiser as a storage container. Keep it empty before and after use.

• Never blend more than 1.2 litres - less for frothy liquids like milkshakes.

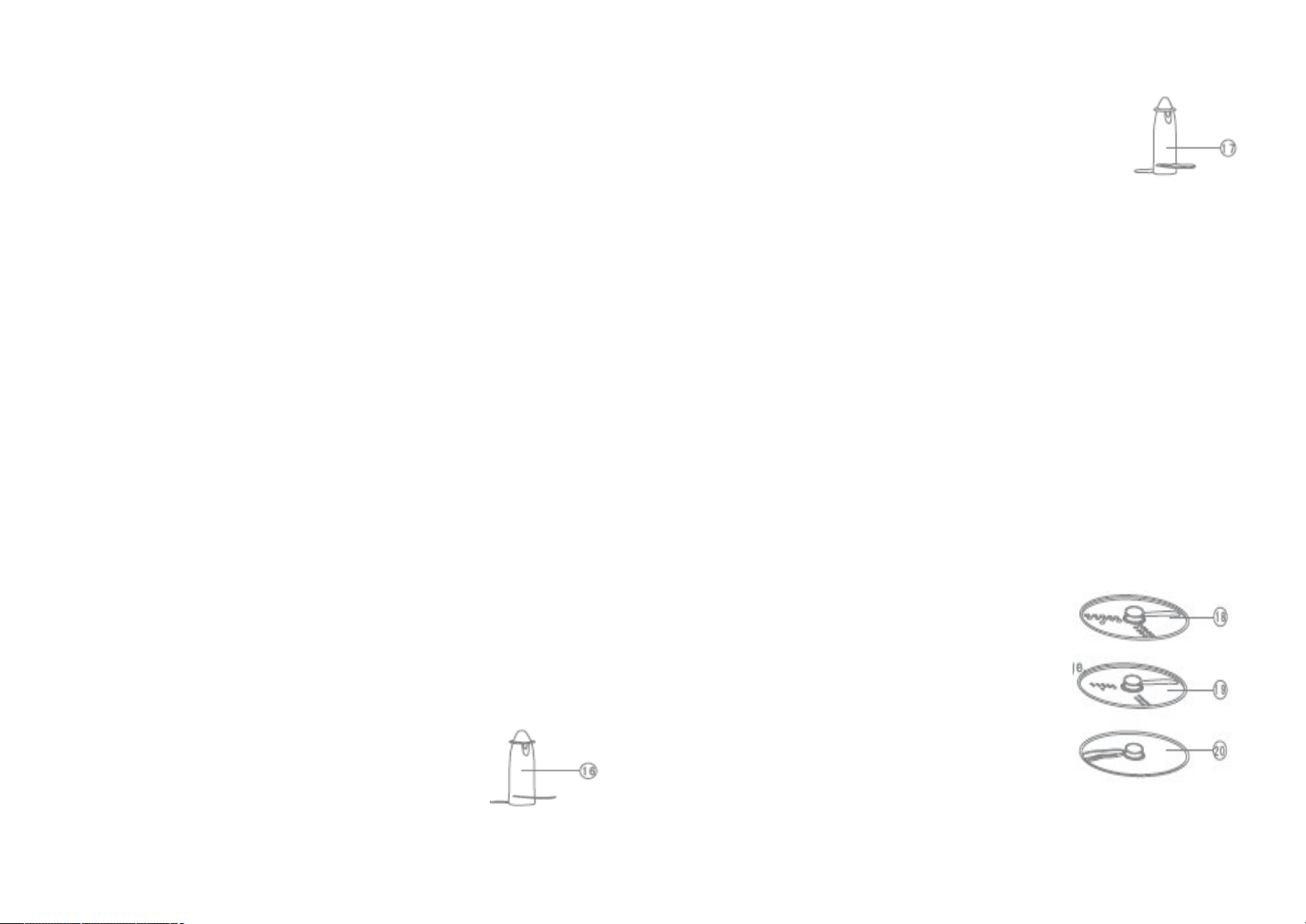

Using the attachments knife blade (16) / dough tool (17)

The knife blade is the most versatile of all the attachments. The length of the processing time will determine the texture achieved. For coarser textures use the pulse control.

Use the knife blade for cake and pastry making, chopping raw and cooked meat, vegetables, nuts, pate, dips, pureeing soups and to also make crumbs from biscuits and bread. It can also be used for yeasted dough mixes if the dough tool is not supplied. Use the dough tool for yeasted mixes.

Hints knife blade

• Cut food such as meat, bread, vegetables into cubes approximately 2cm / ¾ in. before processing.

• Biscuits should be broken into pieces and added down the feed tube whilst the machine is running.

• When making pastry use fat straight from the fridge cut into 2cm/3/4 in. cubes.

• Take care not to over-process.

Dough tool

1 Place the dry ingredients in the bowl and add the liquid down the feed tube whilst the machine is running. Process until a smooth elastic ball of dough is formed this will take 30-90 secs. 2 Re-knead by hand only. Re - kneading in the bowl is not recommended as it may cause the processor to become unstable.

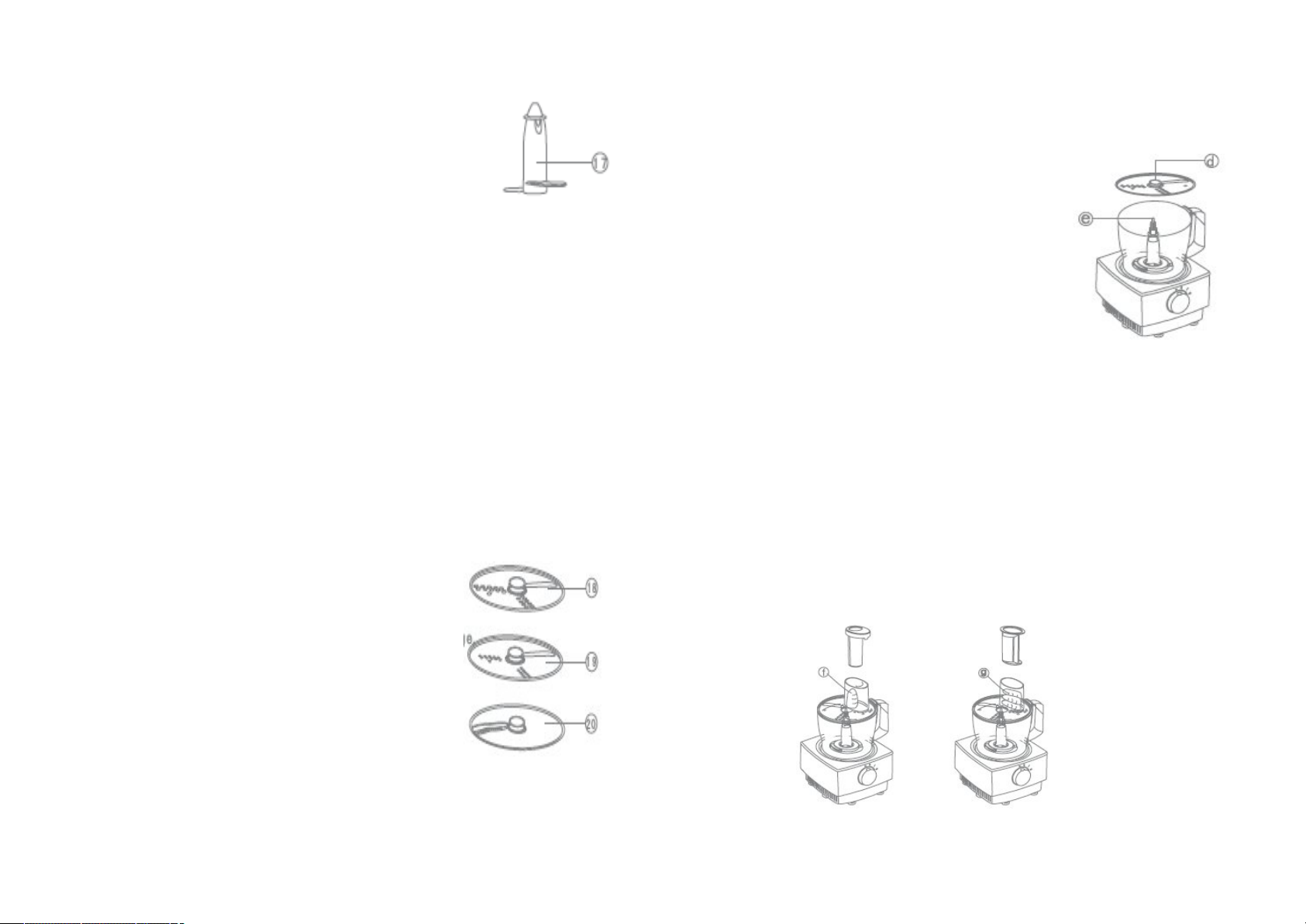

Slicing/shredding discs (18), (19), (20)

reversible slicing/shredding discs. thick (18) thin (19).

1 Use the shredding side for cheese, carrots, potatoes and foods of a similar texture. 2 Use the slicing side for cheese, carrots, potatoes, cabbage, cucumber, courgette, beetroot and onions.

Grater for potato pancakes (20)

Use to cut: potatoes for potato pancakes; firm ingredients for salads, garnishes, casseroles and stir fries (e.g. carrot, swede, courgette, cucumber).

Safety

• Never remove the lid until the cutting disc has completely stopped.

• Handle the cutting discs with care - they are extremely sharp.

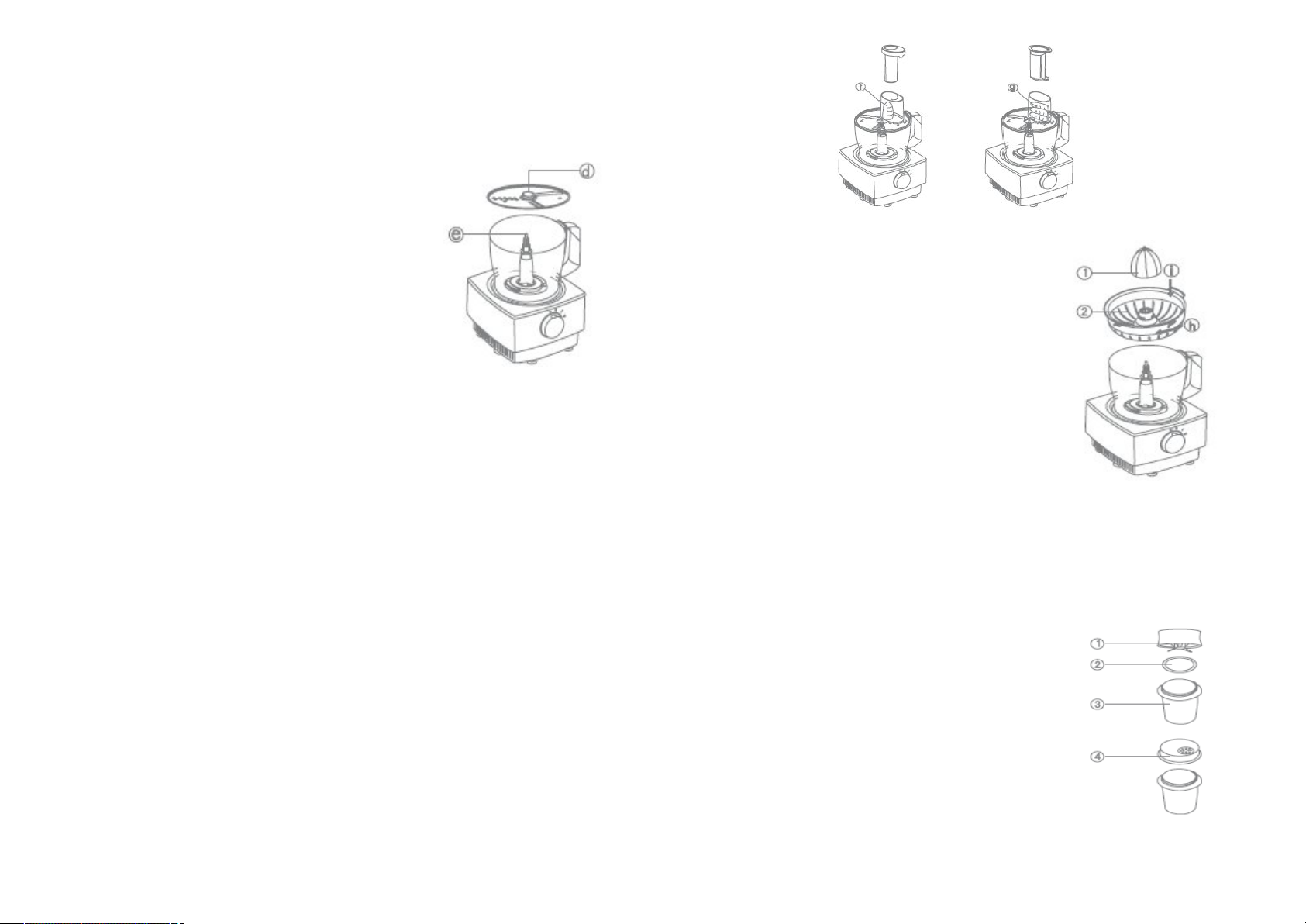

To use the cutting discs

1) Fit the drive shaft and bowl onto the power unit.

2) Holding by the centre grip [d], place the disc onto the drive shaft with the appropriate side uppermost [е].

3) Fit the lid.

4) Choose which size feed tube you want to use. The pusher contains a smaller feed tube for processing individual items or thin ingredients. To use the small feed tube - first put the large pusher inside the feed tube. To use the large feed tube - use both pushers together.

5) Put the food in the feed tube.

6) Switch on and push down evenly with the pusher never put your fingers in the feed Tube.

Hints

• Use fresh ingredients.

• Don't cut food too small. Fill the width of the large feed tube fairly full. This prevents the food from slipping sideways during processing. Alternatively use the small feed tube.

• When using the chipper disc, place ingredients horizontally.

• When slicing or shredding: food placed upright comes out shorter than food placed horizontally [g].

• There will always be a small amount of waste on the plate or in the bowl after processing.

Citrus press (21)

Use the citrus press to squeeze the juice from citrus fruits (e.g. oranges, lemons, limes and grapefruits). Cone (1) Sieve (2)

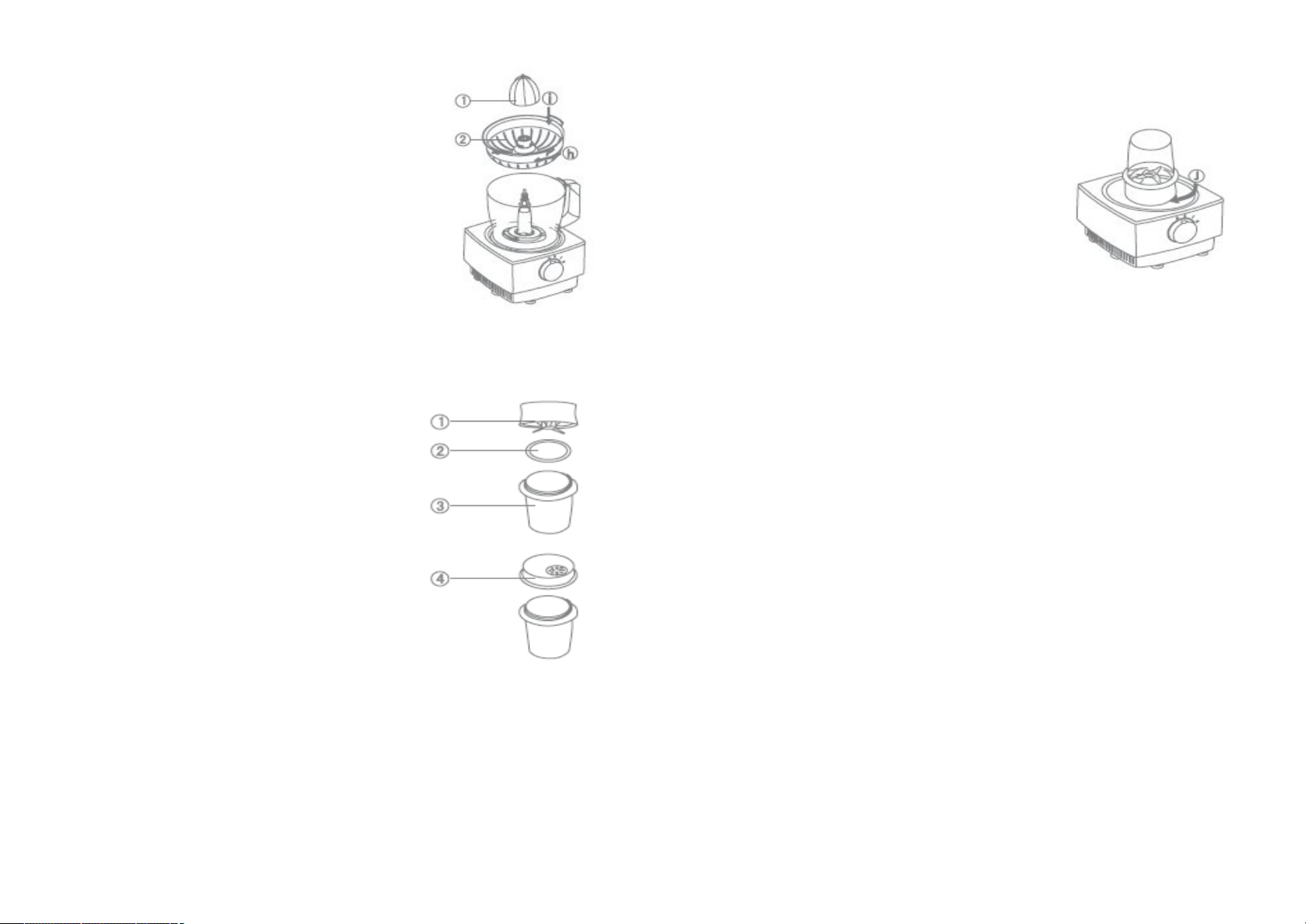

To use the citrus press

1 Fit the drive shaft and bowl onto the power unit. 2 Fit the sieve into the bowl - ensuring the sieve handle is locked into position directly over the bowl handle [h]. 3 Place the cone over the drive shaft turning until it drops all the way down [i]. 4 Cut the fruit in half. Then switch on and press the fruit onto the cone.

• The citrus press will not operate if the sieve is not locked correctly.

Mill (10)

Use the mill for milling herbs, nuts and coffee beans. (1) blade unit (2) sealing ring (3) jar (4) sprinkler lid

Safety

• Never fit the blade unit to your machine without the jar fitted.

• Never unscrew the jar while the mill is fitted to your machine.

• Don't touch the sharp blades. Keep the blade unit away from children.

• Never remove the mill until the blades have completely stopped.

Important

• To ensure long life of your mill, never run for longer than 30 seconds. Switch off as soon as you've got the right consistency.

• Don't process spices - they may damage the plastic.

• The machine won't work if the mill is fitted incorrectly.

• Use for dry ingredients only.

To use your mill

1 Put your ingredients into the jar. Fill it no more than half full. 2 Fit the sealing ring into the blade unit. 3 Turn the blade unit upside down. Lower it into the jar, blades down. 4 Screw the blade unit onto the jar until it is finger tight. 5 Place the mill onto the power unit and turn to lock [j]. 6 Switch on to maximum speed or use the pulse control. 7 After milling, you can replace the blade unit with the sprinkler lid and shake out your food. 8 The sprinkler lid is not airtight.

Hints

Herbs are best milled when clean and dry.

Care & cleaning

1 Always switch off and unplug before cleaning. 2 Handle the blades and cutting discs with care - they are extremely sharp. 3 Some foods may discolour the plastic. This is perfectly normal and won't harm the plastic or affect the flavour of your food. Rub with a cloth dipped in vegetable oil to remove the discolouration.

All other parts

• Wash by hand, then dry.

• Alternatively they can be washed on the top rack of your dishwasher. A short low temperature programme is recommended.

Customer care

If the cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Circuit diagram

Technical parameters

Rated voltage 220~230V Rated power 800W Rating frequency 50~60Hz Rotation speed 18000 / Minute

Set

FOOD PROCESSOR……………1 INSTRUCTION MANUAL……..1 WARRANTY BOOK……………1 PACKAGE………………………1

Power unit

Wipe with a damp cloth, then dry. Ensure that the interlock area is clear of food debris.

Liquidiser/mill

1 Empty the jug/jar before unscrewing it from the blade unit. 2 Wash the jug/jar by hand. 3 Remove and wash the seals. 4 Don't touch the sharp blades, brush them clean using hot soapy water, then rinse thoroughly under the tap. Don't immerse the blade unit in water. 5 Leave to dry upside down.

ENVIRONMENT FRIENDLY DISPOSAL Environment friendly disposal:

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

The manufacturer reserves the right to change the specification and design of goods.
