EZ Manual XL4xxe
Electric Checks and Adjustments
Electric Checks and Adjustment chart
Cutter sensor adjustment
Ribbon Clutch Adjustment
Print Head Balance Adjustment
Print Head Position Adjustment
Barcode SATO International Pte Ltd
home | next
2
Barcode SATO International Pte Ltd
Electric Checks
and Adjustments
This explains how to check DC power supply, I-Mark
sensor level, Gap/center hole sensor level, ribbon sensor
level, side hole sensor level, R-corner hole sensor level
and jump hole sensor level. Ensure printer power is OFF.
Then remove the VR cover on the back of the printer and
perform the following steps.
Additional equipment required
TP Test Module
Digital Multimeter
STEPS
1 Attach the connector from the TP Test Module to the
test port on the MAIN PCB. Note correct positioning
of connector. Nibs on the connector are placed down
on the PCB in the forward position.
2 Attach the ground probe of the Digital Multimeter to
the TP Test Module ground pin (GND PIN).
3 Attach positive probe of the Multimeter to the +SIG
PIN on the TP Test Module terminal.
4 Turn printer power on and rotate the dial to a dial
POS on the TP Test Module. Record the values from
the Multimeter.
5 Confirm voltages are correct. If not, then replace
parts or adjustment sensor level. Refer to Check and
Adjustment chart.
6 After p erforming test, put the VR cover b ack to
the printer.
Cable to PCB
Ground PIN
SIG PIN Dial
TP Test Module
< previous | home | next >
EZ Manual: XL4xxe
Cable to TP Test Module
3
Barcode SATO International Pte Ltd
Electric Checks and Adjustments
Chart 1
< previous | home | next >
EZ Manual: XL4xxe
VR (Adjustment Level) on Main PCB
VR1 Tag Center Hole And Label Gap Sensor Level Adjustment
VR2 I-Mark Sensor Level Fine Adjustment
VR3 Ribbon Sensor Level Adjustment
VR4 Print Position Adjustment (Use Factory)
VR5 Side Hole Sensor Level Adjustment
VR6 R Corner Hole Sensor Level
VR7 Jump Hole Sensor Level Adjustment
VR8 I-Mark Sensor Level Adjustment
VR9 Tag Center Hole And Label Gap Sensor Level Fine Adjustment
VR10 R Corner Threshold Level Adjustment
VR11 Jump Hole Sensor Threshold Level Adjustment
VR12 Side Hole Sensor Threshold Level Adjustment
TP (check level) on main PCB
TP1 Side Hole Sensor Threshold Level Adjustment
TP2 R Corner Threshold Level Adjustment
TP3 Jump Hole Sensor Threshold Level
TP4 GND
VR3 VR8 VR9
VR4 VR2 VR1
VR11 VR10 VR12
TP4 TP3 TP2 TP1
VR5 VR6 VR7
B6 B5 B4 B3 B2 B1
A6 A5 A4 A3 A2 A1
Connector PIN No.
Potentiometers are located on MAIN PCB.
< previous | home | next >
EZ Manual: XL4xxe 4
Barcode SATO International Pte Ltd
Electric Checks and Adjustments
Chart 2
TP TEST POINT CHART
Dial test point Comment Voltage Voltage Range Check pin on TP Test Module and Main PCB Adjustment to VR
0 +5.0 VDC +4.8V to +5.2V CH3A(+5.0V) - CH1A(GND) N/A
1
DC power Supply
+2.0 VDC +1.9V to +2.1V CH4A(+2.0V) - CH1A(GND) N/A
2 +3.3 VDC +3.1V to +3.5V CH5A(+3.3V) - CH1A(GND) N/A
3 +24.0 VDC +23.5V to +24.5V CH6A(+24.0V) - CH1A(GND) N/A
VR8 and VR2
4 I-Mark Sensor Level CH1B(+8.4V) - CH1A(GND)
5 CH2B - CH1A(GND) VR1 and VR9 (Fine adjustment)
Low level (Set the no eye-mark point
in the sensor’s) = Less than +0.5V
High level (Set the eye-mark in the sensor’s)
= Low level plus more than +0.9V
High level (with eye-mark point) - Low level
(without eye-mark point) = +0.9V
Low level (Set the label backing liner or centre
hole tag in the sensor’s)
= Less than +0.5V
High level (Set the label and tag in the
sensor’s) = Low level plus more than +0.1V
High level (printing point) -
Low level (gap point) = +1.0V
(VR2 is used for adjusting the
light reception flow. If there is
difference between the high and
low level, adjust VR2 to allow
some level difference.)
Gap/Tag Center
Hole Sensor Level
6 Ribbon sensor CH3B - CH1A(GND) VR3
level adjustment
7 Side hole CH4B - CH1A(GND) VR5
sensor level
N/A Side hole slice level
TP1 - TP4(GND) VR12
< previous | home | next >
EZ Manual: XL4xxe 5
Barcode SATO International Pte Ltd
Electric Checks and Adjustments
Chart 3 continued
TP TEST POINT CHART
Dial test point Comment Voltage Voltage Range Check pin on TP Test Module and Main PCB Adjustment to VR
Low level (Set the ribbon without
slit point) : Less than +0.5V
High level (with slit point) - Low level
(without slit point) +2.0V
Low level (Set the side hole in
the sensor’s) : Less than +0.5V
High level (Set the tag in the
sensor’s) : Low level plus more than +0.2V
High level (printing point) - Low level
(side hole point) : +2.0V
Middle of level between high
and low levels
8 R corner hole CH5B - CH1A(GND) VR6
sensor level
N/A R corner TP2 - TP4(GND) VR10
slice level
N/A Jump hole CH6B - CH1A(GND) VR7
sensor level
N/A Jump hole TP3 - TP4(GND) VR11
slice level
< previous | home | next >
EZ Manual: XL4xxe 6
Barcode SATO International Pte Ltd
Electric Checks and Adjustments
Chart 4 continued
TP TEST POINT CHART
Dial test point Comment Voltage Voltage Range Check pin on TP Test Module and Main PCB Adjustment to VR
Low level (Set the R corner in the sensor’s)
: Less than +0.5V
High level (Set the tag in the sensor’s)
: Low level plusmore than +2.0V
(High level on printing point) - (Low level
on R corner point) > +2.0V
Middle of level between high
and low levels
Low level (Set the jumphole in the sensor’s)
: Less than +0.5V and more than +0.2V
High level (Set the tag in the sensor’s)
: Low level plus more than +2.0V
High level (printing point) - Low level
(R corner point) +2.0V
Middle of level between high
and low levels
< previous | home | next >
EZ Manual: XL4xxe 7
Barcode SATO International Pte Ltd
Electric Checks and Adjustments
Chart 5
Potentiometers are located on FRONT PANEL
Adjustment VR Function
VR1 Print (Print darkness)
VR2 Cut Position
VR3 Print Position
VR4 Display (LCD Darkness)
< previous | home | next >
EZ Manual: XL4xxe 8
Barcode SATO International Pte Ltd
Cut sensor type VR & Check PIN & Sensor Selector Switch
VR 1
Center-Hole (+) HO (–) SG
Other Tag Position (Right side)
VR 2
I-Mark (+) IM (–) SG
Other Tag position (Right side)
VR 3
R-Corner (+) HO (–) SG
R-Corner Tag position (left side)
Cutter Sensor
Adjustment
VR1 Center-Hole
VR3 R-CornerVR2 I-Mark
SW : If you use R-Corner tag, you must
be set SW.
Other Tags R-Corner Tags
< previous | home | next >
EZ Manual: XL4xxe 9
Barcode SATO International Pte Ltd

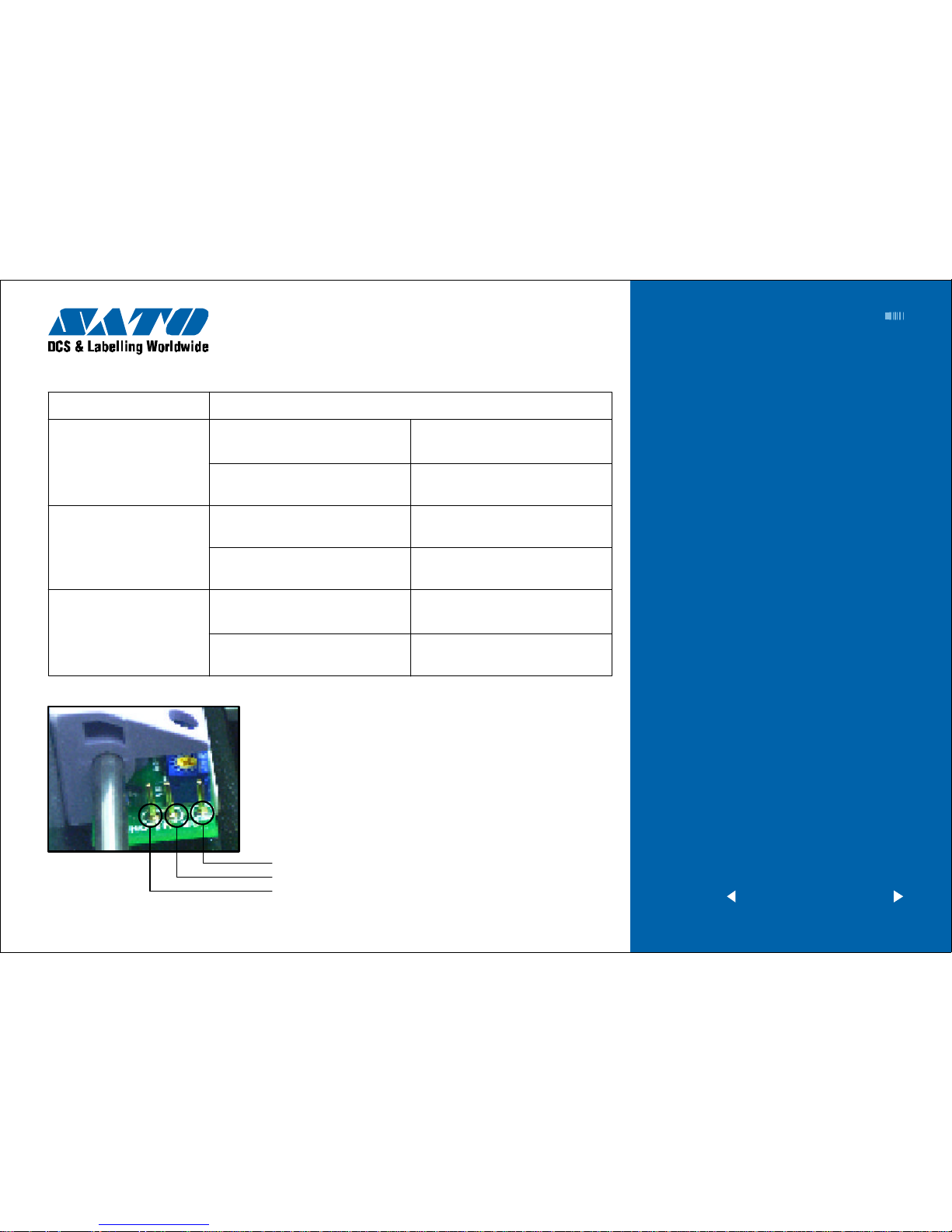

Cutter Sensor
Adjustment continued
Cut sensor type Sensor Level Voltage
High level (Position a TAG in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0Volts
Center Hole
Low level (Position a Center Hole : Less than (+) 0.5Volts
in the sensor’s field of view.)
High level (Position a I-Mark in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0 volts
I-Mark
Low level (Position a NON I-Mark : Less than (+) 0.5Volts
in the sensor’s field of view.)
High level (Position a TAG in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0Volts
R-Corner
Low level (Position a R-Corner in the : Less than (+) 0.5Volts
sensor’s field of view.)
GND
I-Mark
Center-Hole
< previous | home | next >
EZ Manual: XL4xxe
Barcode SATO International Pte Ltd
Ribbon Clutch
Adjustment
Excessive ribbon unwind and rewind tension will result in
variable motion and could be the cause of print quality
problems. Ensure the ribbon rewind and unwind tensions
are within specifications or adjustment of either clutch is
necessary.
STEPS
1 Switch the printer OFF and disconnect the power
cable.
2 Open the top and front access door. Remove the
ribbon and label stock if installed.
3 Attach string to an empty ribbon core and place
on the Ribbon Spindle. Wind the string tightly around
the ribbon core in single layer and in clockwise direction.
Attach the end of the string to the tension guage.
4 Gradually lift the tension gauge, pull the string and
unwind it from the core. Once the spindle starts to
move, the gauge should indicate 500 to 700 grams of
tension for ribbon rewind, and 400 and 500 grams of
tension for ribbon unwind. Refer to picture in next page.
5 To adjust the clutch, loosen the locking screw and
move the adjust nut CW for more tension and CCW
for less tension. Tighten the locking screw and repeat
steps 3 and 4 until the correct tension is achieved.
10
3
1
2
4
Required equipment
1 Empty Ribbon Core and String
2 12mm Wrench
3 2kg Tension Gauge
4 “+” Screwdriver (JIS No.2 equivalent)
< previous | home | next >
EZ Manual: XL4xxe
Barcode SATO International Pte Ltd
Ribbon Clutch
Adjustment continued
11
500g - 700g
Rewind
400g - 500g
Unwind
Locking Screw is Inside Adjust Nut
Adjust Nut
< previous | home | next >
EZ Manual: XL4xxe
Barcode SATO International Pte Ltd
Print Balance
Adjustment
12
Major Adjustment
Required equipment
“+” Screwdriver (JIS No.2 equivalent)
To adjust the print head presser and to ensure consistent
print quality across labels, perform the following steps:
STEP
1 Loosen the set screw.
2 Turn the adjust screw to adjust.
3 If the print is dark at front side, turn the adjust screw
to clockwise.
4 If the print is dark at basic frame side, turn the adjust
screw to anticlockwise.
5 Finish adjust, then fix the set screw.
Adjust screw
Graduation Set Screw
< previous | home | next >
EZ Manual: XL4xxe
Barcode SATO International Pte Ltd
Print Head Position
Adjustment
13
Major Adjustment
Required equipment
“+” Screwdriver (JIS No.2 equivalent)
“–” Screwdriver
STEP
1 Loosen the two set screws on the adjustment plate.
2 Turn the head mounting screw.
3 Adjust the head position by moving the head adjustment
plate back or forth using the “–” screwdriver.
4 After the adjustment, tighten the set screws and the
head mounting screw.
Set Screw
Adjust Screw
