INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
VCC-6592P
VCC-6594P
About this manual
• Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
• This manual gives basic connections and operating instructions for 2
PAL models (VCC-6592P, 6594P).
Über diese Bedienungsanleitung
• Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der Kamera
zuerst diese Bedienungsanleitung sorgfältig durch und bewahren Sie
sie zum späteren Nachschlagen auf.
• In dieser Anleitung finden Sie die Anschlüsse und die Grundbedienung
für 2 PAL-Modelle (VCC-6592P und 6594P)
A propos de ce manuel
• Avant d’installer et d’utiliser la caméra, veuillez lire ce manuel
attentivement. Gardez-le à portée de main pour toute référence
ultérieure.
• Ce manuel couvre les branchements et instructions pour l’utilisation
de base pour 2 modèles de format PAL (VCC-6592P et 6594P).
2 PA LVCC-6592P, 6594P
1AC6P1P2424-L53H2, H4/XE (0901KPS-DSP)
Sanyo Electric Co, Ltd.
Printed in Japan
Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments. If you
need help with installation and/or settings, please consult your dealer.
• Built-in interline transfer method 1/3" CCD, approx. 470,000
picture elements
• Equipped with a DSP (Digital Signal Processor) function
• Horizontal resolution, more than 520 TV lines
• High sensitivity, minimum required illumination is 0.3 lux (F1.2,
AGC HI position)
• Two types of backlight compensation functions (multi-spot
photometry and center focus photometry)
• Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device.
• 100% solid state components giving excellent immunity to shock
and vibration
• Not subject to interference from magnetic or electrostatic fields
• Power supply: 24 V AC operation (VCC-6594P)
12 V DC operation (VCC-6592P)
English 1
PRECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from the
unit, or if it seems not to function correctly. Disconnect the power
cord immediately, and consult your dealer (or a Sanyo Authorized
Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For internal settings and repairs, consult your dealer (or a
Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside
the camera. If used with a foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power cord
immediately, and consult your dealer (or a Sanyo Authorized Service
Centre). Be careful to protect the camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to strong
shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, audio speakers the magnetic field they generate will
distort the image.
Protect from humidity and dust
To prevent damages to the camera, do not install it where there is
greasy smoke or steam, where the dampness may get too high, or
where there is a lot of dust.
Protect from high temperatures
Do not install close to stoves, or other heat generating devices, such
as spotlights, etc., or where it could be subject to direct sunlight, as
that could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10˚C and
50˚C.
(no condensation)
Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with a
soft detergent solution and wrung dry, then wipe dry with dry
soft cloth.
• Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling.
Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or rubber
material comes in contact with the cabinet for a long period of
time, as that may cause damage or paint peeling.
ENGLISH
2 English
PARTS NAMES
(VCC-6592P)
1
2
(VCC-6594P)
1
6
English 3
3
3
1
2
4
1 Video output connector (VIDEO OUT: BNC type)
Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
2 Power input terminal
4
5
• VCC-6592P: 12 V DC input terminal (12 V DC, GND)
• VCC-6594P: 24 V AC input terminal (AC 24 V, AC 24 V, GND)
3 Y/C OUT connector (4 pin)
Separate Y (luminance) and C (chroma) signals are output from this terminal.
A better picture quality is obtained if the monitor or VCR is connected to this connector.
1 Y signal ground2 C signal ground
3 Y signal: 1.0 Vp-p, 75 ohms, unbalanced, negative sync
4 C signal: 0.3 Vp-p, 75 ohms, unbalanced
4 Power indicator (POWER)
Comes on when the power to the camera is on.
5 External sync composite video signal input connector
4
2
(VBS IN: BNC type)
Connect to this connector the synchronizing signal output from a synchronizing signal device or the composite
signal of a video distributor.
6 Line phase adjustment volume (LINE PHASE) (VCC-6594P only)
When using two cameras or more, the image on the monitor may roll vertically when switching sources. This
rolling can be minimized by turning this volume.
PARTS NAMES
2
1
8
9
3
2
7
F
1
1 Shorter screws: M3 x 4
2 Longer screws: M3 x 6
3 Camera mounting screw
hole: 1/4"-20 UNC

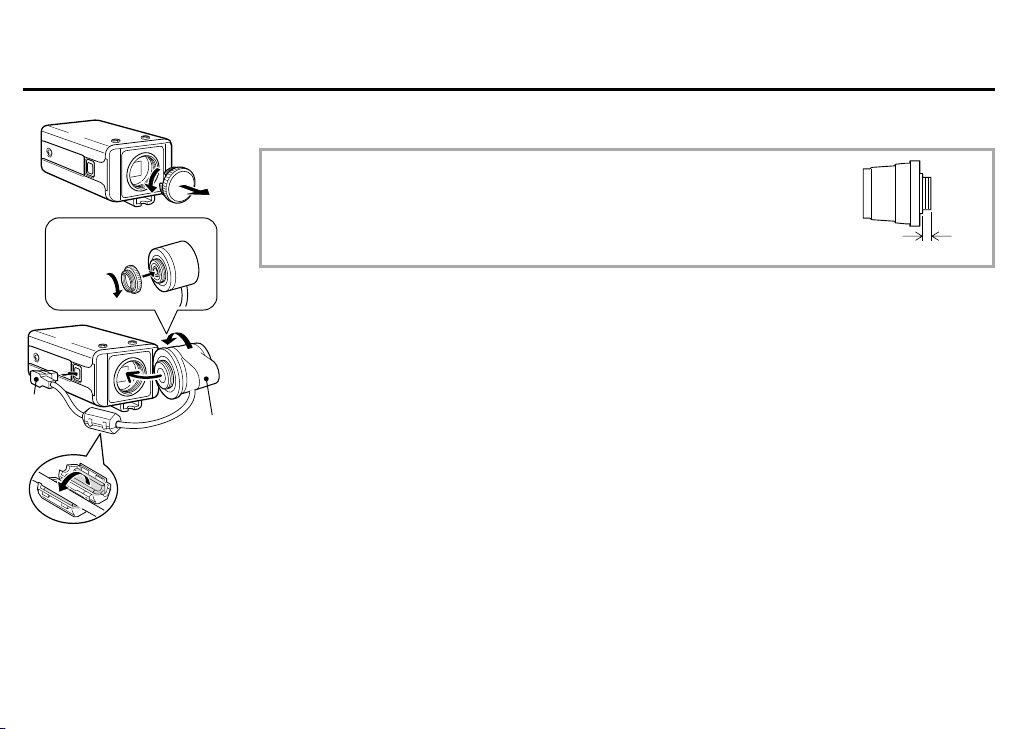

7 Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold separately).
8 Flange-back adjustment screw (FLANGE BACK ADJ.)
9 Flange-back lock screw (FLANGE BACK LOCK)
F Camera installation bracket
The bracket can be fixed at the top or bottom of the camera. When fixing the bracket, be sure to use the
longer screws and install the shorter screws on the opposite side to seal the openings.
CAUTION:
When installing the camera support, select a location that can support the total weight of the
camera and accessories.
4 English
PARTS NAMES
H
G
G Lens iris output connector (LENS)
This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type lens.
H Camera setup section (under the cover)
These settings are for when using a 1/3 inch CS mount DC (without EE internal amplifier) type lens. However,
if due to installation conditions or environment the settings may need to be modified for best results (see
"SETTINGS"). To access the controls, remove the cover fixing screw, then remove the cover.
NOTE: When using a 1/2 or 2/3 inch C mount VIDEO (with EE internal amplifier) auto-iris type lens, set the
A.I. LENS switch to the VIDEO position.
English 5
