Multimedia Projector

MODEL PLC-XU58

PLC-XU56 PLC-XU51 PLC-SU51

Owner’s Manual

Features and Design

◆ Compact Design

This projector is designed compact in size and weight. It is easy to carry and work anywhere you wish to use.

◆ Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems, Component video, S-video and RGB scart.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (See page 28)

◆ Digital Zoom (for Computer)

The digital zoom function expands (to approx. 16 times of screen size) or compresses the image size, allowing you to focus on crucial information at a presentation. (See page 34.)

◆

Power Management

The Power management function reduces power consumption and maintains the lamp life. (See page 45.)

◆ User’s Logo

A projected image can be captured and used for the starting display of the projector with the Capture function. You can also display the captured image in an interval during your presentation instead of blackout image with the No show function. (See page 25 and 44.)

◆ Selectable Lamp Mode

Brightness of the projection lamp can be selected in the Setting menu. (See page 45.)

◆

Blackboard Function

Blackboard✳ can be used as a projection screen.

✳ The board color is limited to Green.

(See page 32 and 38.)

◆ Film Function

The Film function reproduces pictures faithful to the original film quality from 3-2 pull-down video contents. (See page 40.)

◆ PIN Code Lock Function

The PIN code lock function prevents others except users from using the projector. (See page 20 and 47.)

◆ Multilanguage Menu Display

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese. (See page 42.)

◆

Switchable Interface Terminal

The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (See page 44.)

◆

Auto Setup Function

For quick and easy setup of the projector, Auto Setup function is provided. Vertical auto keystone correction and Auto PC adjustment is performed with just pressing one button. (See page 24 and 42.)

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

Features and Design . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . . . . .5

Air Circulation 6

Installing the Projector in Proper Position 6

Moving the Projector 6

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7

Part Names and Functions . . . . . . . . . . . . . .8

Front 8

Back 8

Bottom 8

Rear Terminal 9

Top Control 10

Remote Control 11

Laser Pointer Function 12

Pointer Function 12

Wireless Mouse Operation 13

Operating Range 13

Remote Control Code 14

Remote Control Battery Installation 14

Installation . . . . . . . . . . . . . . . . . . . . . . . . . .15

Positioning the Projector 15

Adjustable Feet 15

Connecting the AC Power Cord 16

Connecting to a Computer 17

Connecting to Video Equipment 18

Connecting to Component Video Equipment 19

Basic Operation . . . . . . . . . . . . . . . . . . . . . .20

Turning On the Projector 20

Turning Off the Projector 21

How to Operate the On-Screen Menu 22

Menu Bar 23

Zoom and Focus Adjustment 24

Auto Setup Function 24

Keystone Adjustment 25

Picture Freeze Function 25

No Show Function 25

P-Timer Function 26

Sound Adjustment 26

Computer Input . . . . . . . . . . . . . . . . . . . . .27

Input Source Selection 27

Computer System Selection 28

Auto PC Adjustment 29

Manual PC Adjustment 30

Image Level Selection 32

Image Level Adjustment 33

Screen Size Adjustment 34

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .35

Input Source Selection (Video, S-Video) 35

Input Source Selection

(Component, RGB Scart 21-Pin)

Video System Selection 37

Image Level Selection 38

Image Level Adjustment 39

Screen Size Adjustment 41

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Setting 42

Maintenance and Cleaning . . . . . . . . . . . . .49

Warning Indicator 49

Cleaning the Air Filters 50

Attaching the Lens Cover 50

Cleaning the Projection Lens 51

Cleaning the Projector Cabinet 51

Lamp Replacement 52

Lamp Replace Counter 53

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Troubleshooting 54

Menu Tree 56

Indicators and Projector Condition 58

Compatible Computer Specifications 59

Technical Specifications 60

Optional Parts 61

Configurations of Terminals 62

PIN Code Number Memo 63

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

To the Owner

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

–Install the projector in a proper position. If not, it may

result in a fire hazard.

– Provide appropriate space on the top, sides and rear of the

projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat buildup can reduce the service life of your projector, and can also be dangerous.

– Do not put any flammable object or spray can near the

projector, hot air is exhausted from the ventilation holes.

– If the projector is not to be used for an extended time,

unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP

REAR

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne puet être utillisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

0.7'(20cm)

1.5'(50cm) 1.5'(50cm)

1.5'(50cm)

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u

ze niet weggooien maar inleveren als KCA.

Safety Instructions

USE CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

–Do not drop or bump a projector, otherwise damages or

malfunctions may result. – When carrying a projector, use a suitable carrying case. – Do not transport a projector by using a courier or transport

service in an unsuitable transport case. This may cause

damage to a projector. To transport a projector through a

courier or transport service, consult your dealer for their

information.

Moving the Projector

CAUTION

Carrying Bag (supplied) is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to protect an appliance from external forces. Do not transport a projector through a courier or transport services with this bag, otherwise the projector can be damaged. When handling a projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

When moving the projector, replace the Lens Cover and retract Adjustable Feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the case (carrying bag) supplied with the projector.

Do not tilt the projector more than 20 degrees from side to side.

Do not point the projector up to

project an image.

Do not point the projector down to

project an image.

Do not put the projector on either

side to project an image.

Install the projector properly. Improper Installation may reduce

the lamp life and cause a fire hazard.

Installing the Projector in Proper Position

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable objects near the vent. – Keep the exhaust vent at least 3’(1m) away from any

objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic part. This area will become hot while the projector is being used.

– Do not put anything on the cabinet. The materials put on

the cabinet will not only get damaged but also cause fire hazard by heat.

Cooling fans are provided to cool down the projector. This projector monitors internal temperature and control the running speed of the cooling fans.

Air Circulation

Air Intake Vent

Air Intake VentExhaust Vent

(Hot air exhaust)

20˚

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral

Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC Power Cord Requirement

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers : PLC-XU58, PLC-XU56, PLC-XU51, PLC-SU51 Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : (818)998-7322

Compliance

ASA

GROUND

Bottom

Back

q Power Cord Connector w Infrared Remote Receiver e Zoom Lever r Focus Ring t Projection Lens y Lens Cover (See page 50 for attaching.) u Air Intake Vent

i Top Controls and Indicators o Air Intake Vent !0 Terminals and Connectors !1 Speaker

!2 Lamp Cover !3 Air Intake Vent (back and bottom) !4 Air Filter !5 Adjustable Feet

!6 Exhaust Vent

!2 !4!3

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

q w e r t y u

Front

Part Names and Functions

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

Rear Terminal

w e

t y

o i u

i S-VIDEO

Connect the S-VIDEO output from video equipment to this jack. (p18)

e AUDIO IN

Connect the audio output from video equipment connected to r or i to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p18)

y AUDIO IN COMPUTER/ COMPONENT

Connect the audio output (stereo) from a computer or video equipment connected to q or o to this jack. (p 17, 19)

VIDEO

Connect the composite video output from video equipment to VIDEO jack. (p18)

o COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT

This terminal is switchable and can be used for input from a computer, video equipment (Component or RGB Scart) or output to the other monitor. Optional cables are required when using this terminal as component input or RGB Scart 21-Pin Video input. (p61) Set the terminal up as either Computer input or Monitor output properly. (Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1 DVII terminal.) (p17, 19, 44)

u AUDIO OUT(VARIABLE)

Connect an external audio amplifier to this jack. (p17- 19) This terminal outputs sound from AUDIO IN terminal (e or y).

t USB (Series B)

When operating the connected computer with the remote control, connect USB port of your computer to this connector with a USB cable. (p17)

w SERVICE PORT

This jack is used to service this projector.

✽

Part Names and Functions

✽

Do not press this button. This button is used for optional accessories.

q COMPUTER IN 1 DVI-I

Connect output signal from a computer (Digital/Analog DVI-I type) or Multi Card Imager (optional) to this terminal. (p17)

COMPUTER IN 1

DVI - I

RESET

COMPUTER IN 2 /

MCI

COMPONENT IN /

MONITOR OUT

AUDIO IN

R VIDEOL

SERVICE PORT

(MONO)

S-VIDEO

USB

COMPUTER / COMPONENT

AUDIO IN

AUDIO OUT

(VARIABLE)

Part Names and Functions

ON - OFF

POWER

AUTO SET UP

INPUT

WARNING

LAMP

REPLACE

SELECT

–

q w e

t y

o i u

u LAMP REPLACE indicator

Turns yellow when the life of the projection lamp draws to an end. (p52, 58)

y WARNING indicator

Lights red when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (p49, 58)

e POWER ON–OFF button

Turns the projector on or off. (p20, 21)

POWER indicator

Blinks red until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (p21, 58)

w INPUT button

Selects input source. (p27, 36 )

o MENU button

Opens or closes the On-Screen Menu. (p22)

i POINT (

eedd

7 8 ) button

Selects an item or adjusts value in the On-Screen Menu. These are also used to pan the image in the Digital zoom +/– mode. (p34) Point

7 8 button are used as VOLUME +/– button.

(p26)

r SELECT button

Executes the item selected. It is also used to expand/ compress the image in Digital zoom +/– mode. (p34)

q AUTO SETUP button

Corrects vertical keystone distortion and adjusts computer display parameters including Fine sync., Total dots and Picture position. (p24, 42)

Top Control

Part Names and Functions

Remote Control

w e r

t y

!0 !1

!6 !7

!2 !3

@2 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for power saving when it is not used. Slide this switch to "RESET" to initialize the remote control code or switch Spotlight and Pointer back to Laser pointer. (p12, 14)

w SIGNAL EMISSION indicator

This indicator lights red while the laser beam is being emitted from the laser light window or a signal is being sent from the remote control to the projector.

e AUTO PC button

Operates the Auto PC adjustment function. (p29)

r D.ZOOM button

Selects the Digital zoom +/– mode and resize the image. (p34)

MUTE button

Mutes sound. (p26)

i POINT (

eedd

7 8) button

Selects an item or adjusts value in the On-Screen Menu. These are also used to pan the image in the Digital zoom +/- mode. (p34) Point 7 8 button are also used as VOLUME +/- buttons. (p26)

!0 MENU button

Opens or closes the On-Screen Menu. (p22)

!3 LASER button

Operates the Laser pointer function. Laser beam is emitted while pressing this button within 1 minute. When using this laser pointer for more than 1 minute, release the LASER button and press it again. This button is also used as a switching button to activate the Pointer function of the projector. (p12)

!4 POWER ON-OFF button

Turns the projector on or off. (p20, 21)

!5 NO SHOW button

Turns the picture into black image. (p25)

t FREEZE button

Freezes the projected picture. (p25)

y IMAGE button

Selects image levels.(p32, 38)

!2 SELECT button

Executes the item selected, or to expand or compress image in the Digital zoom +/mode. (p34)

P-TIMER button

Operates P-Timer function. (p26)

u PAGE UP/DOWN button

Turns pages; the Up button to the previous page and the Down button to the next page for an image from a computer. Connect the projector and your computer with a USB cable before use. (See page 17.)

!9 R-CLICK button

Acts as right click for wireless mouse operation. (p13)

q L-CLICK button

Acts as left click for wireless mouse operation. (p13)

@1 VIDEO button

Selects input source (VIDEO). (p35)

!1 KEYSTONE button

Corrects keystone distortion. (p25, 42)

o PRESENTATION POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation. (p12)

AUTO SET button

Corrects vertical keystone distortion and adjusts PC display parameters. (p24, 42)

@0 COMPUTER button

Selects input source (COMPUTER 1 or COMPUTER 2). (p27, 36)

Part Names and Functions

Spotlight

Pointer Function

Pointer

✔Note:

You can choose the size of Spotlight (Large, Middle, and Small) and the pattern of Pointer (Arrow, Finger, and Dot) in the Setting Menu. See “Pointer” on page 46.

This remote control emits a laser beam from the laser light window. With the LASER button pressed, laser light goes on. The signal emission indicator lights red and laser is emitted with red light. With the LASER button pressed for more than 1 minute or released, the light goes off. The laser emitted is a class II laser. Do not look into the laser light window or shine the laser beam on yourself or other people. Below are the caution labels for laser beam.

CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in

hazardous radiation exposure. Do not look into the laser light window while laser is emitted, otherwise eye damage may result.

Laser Light Window

These caution labels are put on the remote control.

Signal Emission Indicator

Laser Pointer Function

You can move Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image.

With pressing the MENU button, hold down the NO SHOW button for more than 7 seconds so that the Pointer function will be available. (The Laser pointer has switched to the Pointer.)

While pressing the MENU button, hold down the NO SHOW button for more than 7 seconds.

Press the LASER button on the remote control toward the projector. Spotlight or Pointer is displayed on the screen with the LASER button lighting green. Then move the Spotlight or Pointer with the PRESENTATION POINTER button. If the LASER button does not light green and still emits laser beam, try the procedure above until the LASER button lights green.

To clear the Spotlight or Pointer out the screen, press the LASER button toward the projector and see if the LASER button lighting turns off. To switch back to the Laser pointer again, hold down the NO SHOW button with pressing the MENU button for more than 7 seconds or slide the RESET/ON/ALL-OFF switch to "RESET". (p11)

After the Laser pointer has switched to the Pointer, use the LASER button as the Pointer function ON-OFF switch. Press the LASER button toward the projector and see if it lights green.

NO SHOW button

MENU button

LASER button

PRESENTATION POINTER button

Part Names and Functions

The remote control can be used as a wireless mouse for your computer. Before operating the wireless mouse, connect your computer and the projector with the supplied USB cable. (See page 17 for connection.) When the Pointer function is used, the wireless mouse is not available.

Move the pointer on the screen with this button.

PRESENTATION POINTER button

R-CLICK button

L-CLICK button

Acts as right click while the projector and a computer are connected with a USB cable.

Acts as left click while the projector and a computer are connected with a USB cable.

Point the remote control toward the projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector.

16.4’ (5 m)

60°

Operating Range

Wireless Mouse Operation

Remote control

Part Names and Functions

To insure safe operation, please observe the following precautions :

● Use (2) AA, UM3 or LR6 type alkaline batteries.

● Replace two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture, or heat.

● Do not drop the remote control.

● If a battery has leaked on remote control, carefully wipe case clean and install new batteries.

● Risk of explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

Press the lid downward and slide it.

Remove the battery compartment lid.

Slide the batteries into the compartment.

Replace the compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

12 3

Remote Control Battery Installation

This projector has eight different remote control codes (Code 1-Code 8). Switching remote control codes prevents remote control interference when operating several projectors or video equipment at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in Setting on page 46.

With holding down the MENU button, press the IMAGE button. The code switches sequentially for one pressing the IMAGE button. (See the list below.)

To initialize the remote control code, slide the RESET/ON/ALL-OFF switch to RESET, and then to ON. The initial code is Code 1. (p11)

While pressing the MENU button, press the IMAGE button number of times corresponding to the remote control code.

Remote Control Code

Number of Times of

Pressing IMAGE Button

Code 1 1

Code 2 2

Code 3 3

Code 4 4

Code 5 5

Code 6 6

Code 7 7

Code 8 8

MENU button

IMAGE button

Remote Control Code

Installation

Projection angle can be adjusted up to 11.8 degrees with the adjustable feet.

Lift the front of the projector and pull upward the feet lock latches on both sides of the projector.

Adjustable Feet

Feet Lock Latches

Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to adjust the position and tilt.

To retract the adjustable feet, lift the front of the projector and pull and undo the feet lock latches. Keystone distortion of the projected image can be adjusted automatically with Auto Setup function or manually with the remote control or the menu operation. (p24, 25, and 42)

Adjustable Feet

✔Note:

• The brightness in a room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

• The values shown above are approximate and may vary from the actual size.

Positioning the Projector

Installation

25.3' (7.7m)

16.4' (5.0m)

12.5' (3.8m)

8.2' (2.5m)

Max. Zoom

Min. Zoom

A : B = 9 : 1

Screen Size

(W x H) mm

4 : 3 aspect ratio

Zoom (min)

40”

Zoom (max)

813 x 610

4.9' (1.5m)

3.3' (1.0m)

100”

2032 x 1524

12.8' (3.9m)

8.2' (2.5m)

150”

3048 x 2286

19.3' (5.9m)

12.5' (3.8m)

195”

3962 x 2972

25.3' (7.7m)

16.4' (5.0m)

300”

6096 x 4572

––-––

25.3' (7.7m)

(Inch Diagonal)

3.3' (1.0m)

This projector is designed to project on a flat projection surface and can be focused from 3.3’(1.0m) - 25.3’(7.7m). Refer to the figure and the table below for the screen size and the distance between the projector and the screen.

(Center)

150”

195”

127”

300”

195”

100”

97”

40”

64”

NOTE ON THE POWER CORD

AC power cord must meet requirement of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer.

Installation

To power cord connector on your projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power being supplied. Connect the projector with all peripheral equipment before turning the projector on. (See page 17-19 for connection.)

CAUTION

For safety, unplug AC power cord when the projector is not in use. When this projector is connected to an outlet with AC power cord, it is in Stand-by mode and consumes a little electric power.

Connecting the AC Power Cord

Connect AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC outlet.

(200 - 240 V AC)

To the AC outlet.

(200 - 240 V AC)

Installation

Connecting to a Computer

Cables used for connection

• VGA Cable (HDB 15 pin) ✽

• DVI-VGA Cable (HDB 15 pin)

• USB Cable

• Audio Cables (Mini Plug: stereo)

✽

(✽ = Not supplied with this projector.)

External Audio Equipment

VGA cable ✽

USB cable

Audio cable (stereo) ✽

Audio cable ✽ (stereo)

Monitor Output

USB port

Audio Output

COMPUTER IN 1 DVI-I

USB

COMPUTER/ COMPONENT AUDIO IN

AUDIO OUT (stereo)

Audio Input

This terminal is switchable. Set up the terminal as either Computer input or Monitor output. (See Page 44.)

VGA cable ✽

Monitor Input

COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

✔Note:

When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

DVI-VGA cable

Monitor Output

COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT

COMPUTER IN 1

DVI - I

RESET

COMPUTER IN 2 /

MCI

COMPONENT IN /

MONITOR OUT

ONON

AUDIO IN

R VIDEOL

SERVICE PORT

(MONO)

S-VIDEO

USB

COMPUTER / COMPONENT

AUDIO IN

AUDIO OUT

(VARIABLE)

Installation

Connecting to Video Equipment

Cables used for connection

• Video and Audio Cable (RCA x 3) ✽

• S-VIDEO Cable ✽

• Audio Cable (Mini Plug: stereo) ✽ (✽ = Not supplied with this projector.)

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

✔Note:

• If both the S-VIDEO jack and the VIDEO jack are connected at the same time when AUTO is chosen in the Input Menu, the S-VIDEO jack will override the signal from the VIDEO jack.

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

External Audio Equipment

Audio cable ✽

(stereo)

VIDEOS-VIDEO

S-Video cable ✽

Video and audio cable✽

Composite Video and

Audio Output

S-Video Output

AUDIO IN

Audio Input

AUDIO OUT (stereo)

(R)

(L)

(R) (L) (Video)

COMPUTER IN 1

DVI - I

COMPUTER IN 2 /

MCI

COMPONENT IN /

MONITOR OUT

(MONO)

S-VIDEO

AUDIO IN

R VIDEOL

SERVICE PORT

RESET

USB

COMPUTER /

COMPUTER

COMPONENT

/ COMPONENT

AUDIO IN

AUDIO OUT

(VARIABLE)

Installation

Connecting to Component Video Equipment

COMPUTER IN 1

DVI - I

MONITOR OUT

S-VIDEO

COMPUTER IN 2 / COMPONENT IN /

COMPUTER / COMPONENT

AUDIO IN

R VIDEOL

USB

SERVICE PORT

RESET

(MONO)

(VARIABLE)

AUDIO OUT

S-VIDEO

COMPUTER

/ COMPONENT

AUDIO IN

R VIDEOL

USB

SERVICE PORT

(MONO)

AUDIO OUT

(VARIABLE)

COMPUTER IN 1

DVI - I

MONITOR OUT

COMPUTER IN 2 / COMPONENT IN /

RESET

MCI

Cables used for connection

• Audio Cables (Mini Plug (stereo) x 2 or RCA x 2) ✽

• Scart-VGA Cable ✽

• Component-VGA Cable ✽ (✽ = Not supplied with this projector.)

Note:

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

✔Note:

• Input sound to the COMPUTER/COMPONENT AUDIO IN terminal when using the COMPUTER IN 2/COMPONENT IN/MONITOR OUT terminal as input.

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

External Audio Equipment

COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT

COMPUTER/ COMPONENT AUDIO IN

Audio cable ✽ (stereo)

Audio Input

Component Video Output

(Y, Pb/Cb, Pr/Cr)

RGB Scart 21-pin Output Audio Output

Scart-VGA cable ✽ Component-VGA

cable✽

AUDIO OUT (stereo)

Connect the projector's AC power cord into an AC outlet. The POWER indicator blinks red in a moment and lights red.

Press the POWER ON-OFF button on the top control or on the remote control. The POWER indicator turns green lighting and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

The preparation display disappears after 20 seconds.

After the count-down, the input source that was selected last and the Lamp mode status icon (see page 45) appear on the screen.

If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

(See page 45 for Lamp mode.)

Selected Input Source and Lamp Mode

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

Lamp mode

What is PIN code?

PIN code is a security code using Personal Identification Number that allows the person who knows it to operate the projector. Setting PIN code prevents others except the specific users from operating the projector.

A PIN code consists of a four-digit number. Refer to PIN Code Lock function in Setting on page 47 for locking operation of the projector with your PIN code.

Pointer

After the OK icon disappears, you can operate the projector.

PIN code Input Dialog Box

Tu r ning On the Projector

Basic Operation

Enter a PIN code

button, then return to "PIN code". Enter the correct number again. Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can start to operate the projector.

If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Set a new PIN code with special care, write it down in column on page 63 of this manual, and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

Basic Operation

Press the POWER ON-OFF button on the top control or on the remote control, and a message "Power off?" appears on the screen.

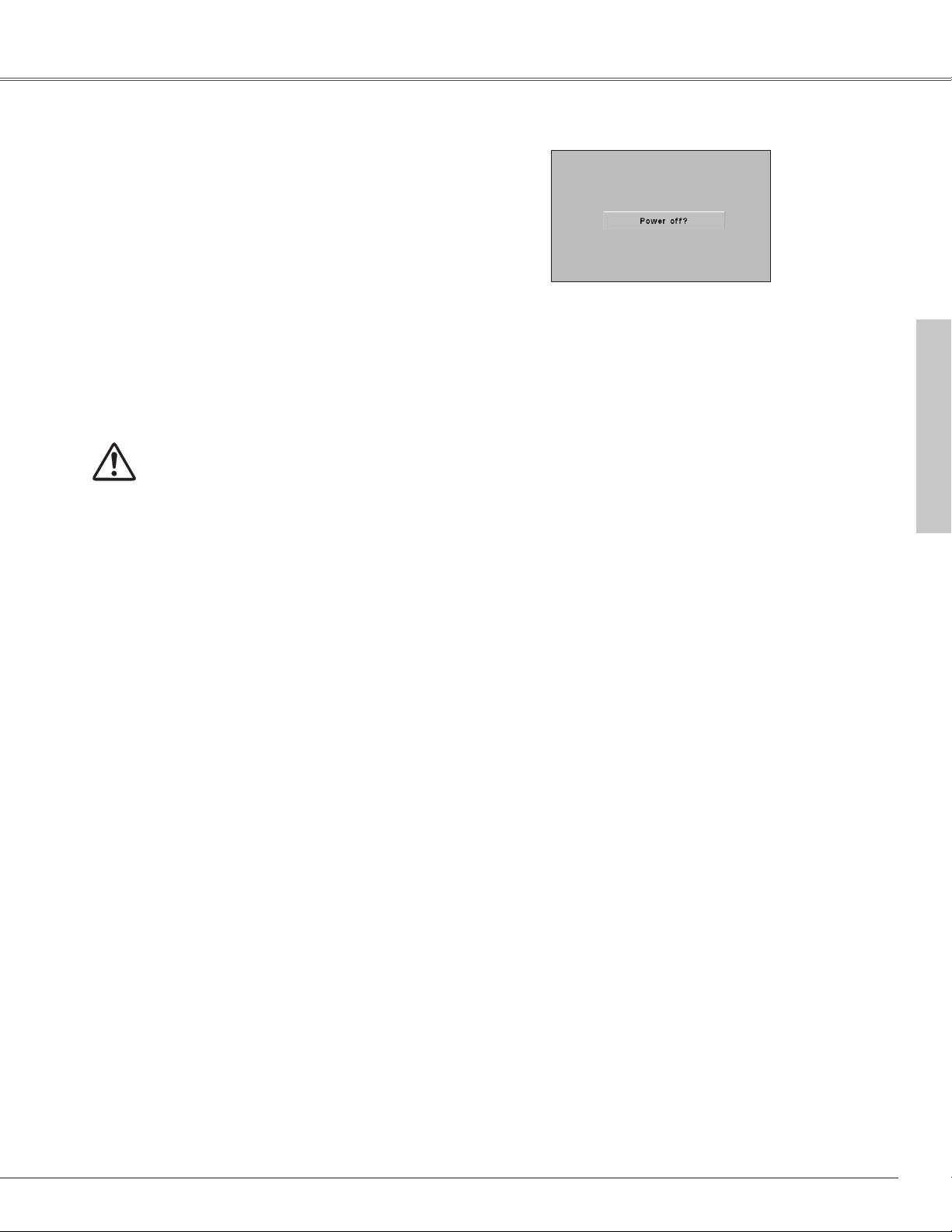

Press the POWER ON-OFF button again to turn off the projector. The POWER indicator starts to blink red, and it continues while the cooling fans are operating for about 90 seconds. (About 120 seconds when the fan mode is L2. See page 48.)

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF. DO NOT DISCONNECT AC POWER CORD WHILE COOLING FANS ARE RUNNING OR BEFORE POWER INDICATOR LIGHTS RED. OTHERWISE IT WILL RESULT IN SHORTENING LAMP LIFE.

When the projector has cooled down enough to be turned on again, the POWER indicator lights red. Then you can disconnect the AC power cord.

The message disappears after 4 seconds.

✔Note:

• The projector cannot be turned on during the cooling period with the POWER indicator blinking red. You can turn it on again after the POWER indicator lights red.

• When the On start function is on, this projector is turned on automatically by connecting the AC power cord to an AC outlet. (See page 45 for the On start function.)

• Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and give it a rest about an hour in every 24 hours.

• This projector monitors internal temperature and automatically controls the running speed of the cooling fans.

• If the WARNING indicator blinks or lights red, see “Warning Indicator” on page 49.

Tu r ning Off the Projector

Basic Operation

Top Control

Menu bar Pointer

(red frame)

Menu icon

Item data

Press the Point

7 8 buttons

to adjust value.

SELECT

button

Pointer (red frame)

Press the Point d button to move the pointer.

Item

How to Operate the On-Screen Menu

MENU button

SELECT button

POINT button

(outer ring)

On-Screen Menu

Quit to exit this menu.

The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedure.

Press the Point 7 8 buttons to select a Menu icon to adjust. Press the Point ed buttons to select an item to adjust.

Press the SELECT button to show the item data. Press the Point 7 8 buttons to adjust the data. Refer to the following pages for respective adjustment.

Press the MENU button to display the On-Screen Menu.

✔Note:

The selected item is not in effective until the SELECT button is pressed.

SELECT button

POINT button

Remote Control

MENU button

ON - OFF

INPUT

–

UTO SET UP

SELECT

POWER

WARNING

LAMP

REPLACE

Basic Operation

Menu Bar

PC System Menu

Used to select computer system. (p28)

Image Adjust Menu

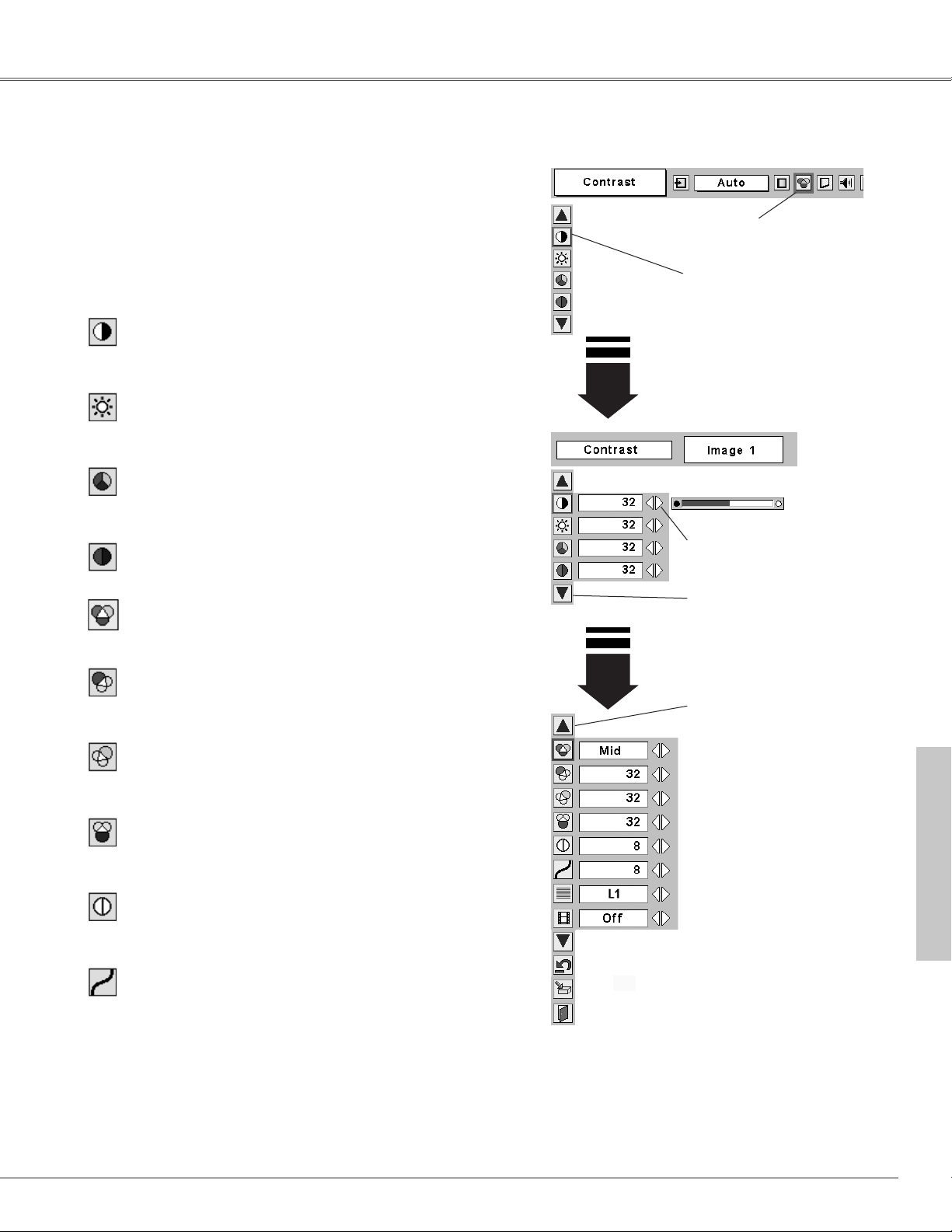

Used to adjust computer image. [Contrast / Brightness

/ Color

temp. /

White balance (R/G/B) /

Sharpness /

Gamma]

(p33)

Setting Menu

Used to change settings of the projector or reset lamp replace counter. (p42-48)

Sound Menu

Used to adjust volume or mute sound. (p26)

Image Select Menu

Used to select an image level among Dynamic, Standard, Real, Blackboard(Green), and Image 1 ~ 4. (p32)

For computer source

AV System Menu

Used to select system of selected video source. (p37)

Image Adjust Menu

Used to adjust picture image.

[Contrast / Brightness

/ Color / Tint

Color temp. / White balance (R/G/B) /

Sharpness /

Gamma / Progressive /

Film]

(p39-40)

For video source

Same function as menu for computer source.

Input Menu

Used to select input source either Video or Computer. (p35-36)

PC Adjust Menu

Used to adjust parameters to match with input signal format. (p29-31)

Image Select Menu

Used to select an image level among Dynamic, Standard, Cinema, Blackboard(Green) and Image 1 ~ 4. (p38)

Screen Menu

Used to set size of image to Normal or Wide. (p41)

Guide Window

Shows the selected Menu of the OnScreen Menu.

Same function as menu for computer source.

Input Menu

Used to select input source either Computer or Video. (p27)

Screen Menu

Used to adjust size of image. [Normal / True / Wide / Digital zoom +/–] (p34)

Basic Operation

Rotate the Zoom Lever to zoom in and out. Rotate the Focus Ring to adjust the projected picture focus.

Zoom Lever

Focus Ring

Auto Setup Function

Auto Set Up function is provided to automatically correct Keystone distortion according to the projector's tilt and adjust the computer display parameters (Fine sync, Total dots and Picture position) by just pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. The operational setup for the Auto Setup can be changed in the Setting menu. Refer to p42 on setting of the Auto Setup function.

✔Note:.

• Auto Keystone corrects vertical distortion only, not correct horizontal distortion.

•Auto Keystone cannot work when Ceiling feature is On in the Setting menu. (p44)

• Perfect correction of the image distortion cannot be ensured with the Auto Setup function. If the distortion cannot be corrected properly by pressing the AUTO SETUP/ AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the Setting menu. (p25, 42)

A P

Top Control

AUTO SETUP button

AUTO SET button

Remote Control

Zoom and Focus Adjustment

ON - OFF

INPUT

–

AUTO SET UP

SELECT

POWER

WAR

Basic Operation

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel FREEZE, press the FREEZE button again or press any other button. (p11)

If a projected picture still has keystone distortion after pressing the AUTO SETUP button on the top control or the AUTO SET on the remote control, correct the image manually as follows:

• The arrows are white when there is no correction.

• The arrows disappear at the maximum correction.

• The direction of the arrow being corrected turns red.

• If you press the KEYSTONE button on the top control or on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled.

Press the KEYSTONE button on the remote control or select Keystone in the Setting Menu (p42). The keystone dialog box appears.

Correct keystone distortion by pressing the Point

eedd

button. Keystone adjustment can be memorized. (p42)

Reduce the upper width with Point

button.

Reduce the lower width with Point

button.

Reduce the left part with Point 7 button.

Reduce the right part with Point 8 button.

Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo item in the Setting Menu (p44), the screen changes each time you press the NO SHOW button as follows.

The message disappears after 4 seconds.

black out ➜ the captured image ➜ normal ➜

• • • • •

No Show Function

Picture Freeze Function

Keystone Adjustment

Basic Operation

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 buttons to move the red frame

pointer to the Sound Menu icon.

Volume

Press the VOLUME (+/–) button on the top control or on the remote control to adjust volume. The volume dialog box appears on the screen for a few seconds. (+) button to turn up the volume and (–) button to turn down the volume.

Mute

Press the MUTE button on the remote control to cut off sound. To restore sound to its previous level, press the MUTE button again or press the VOLUME (+/–) button.

Press the Point 8 button to turn up the volume, and press the Point

7 button to turn down the volume.

Press the Point 7 8 buttons to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press the Point

7 8 buttons again.

Press the Point ddbutton to move the red frame pointer to the item that you want to select, and then press the SELECT button.

indicates approximate level of volume.

closes the Sound Menu.

Direct Operation

Volume

Mute

indicates approximate level of volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

Sound Menu

Sound Menu icon

Sound Adjustment

Menu Operation

Press the P-TIMER button on the remote control. The timer display “00 : 00” appears on the screen and the timer starts to count time (00 : 00 ~ 59 : 59). To stop the P-Timer, press the P-TIMER button. And then, press the P-TIMER button again to cancel the P-Timer function.

P-Timer Function

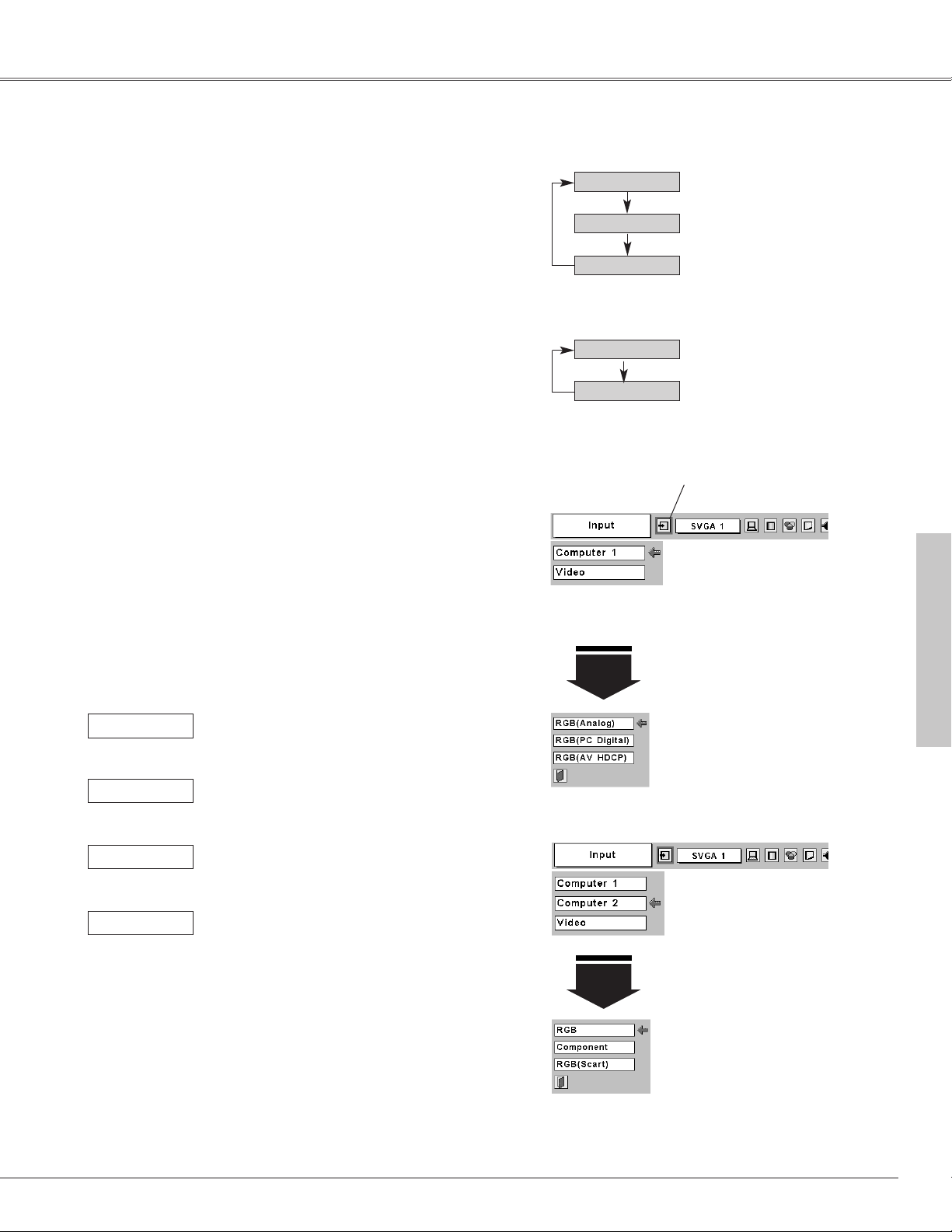

Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Input Menu icon.

Computer

Input Menu

Press the Point

button to move the red arrow pointer to either Computer 1 or Computer 2, and then press the SELECT button.

After the Source Select Menu appears for Computer 1, move the pointer to RGB and then press the SELECT button.

Input Menu

Computer 1

Video

Computer 2

COMPUTER button

Computer 1

Computer 2

When the input source is analog coming from a computer through the DVI terminal, select RGB (Analog).

RGB (Analog)

INPUT button

Input Source Selection

Direct Operation

Menu Operation

Computer Input

✔Note:

• Computer 2 is not displayed when the COMPUTER IN 2/COMPONENT IN/ MONITOR OUT terminal is set as Monitor out. (p44)

• HDCP (High-bandwidth Digital Content Protection) is a system for protecting digital entertainment content delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Input Menu icon

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

✳ See Note on the bottom of this page.

✳

Move the pointer to RGB(Analog), RGB (PC Digital), or RGB(AV HDCP) and press the SELECT button.

Source Select Menu

Move the pointer to RGB and press the SELECT button.

Source Select Menu

Computer

When the input source is digital coming from a computer through the DVI terminal, select RGB (PC Digital)

RGB (PC Digital)

When the input source is analog coming from a computer through the COMPUTER IN 2/COMPONENT IN/MONITOR OUT terminal, select RGB.

RGB

When the input source compatible with HDCP is coming from video equipment through the DVI terminal, select RGB (AV HDCP).

RGB (AV HDCP)

✳ See Note on the bottom of this page.

Computer Input

The Auto PC Adjustment function operates to adjust the projector.

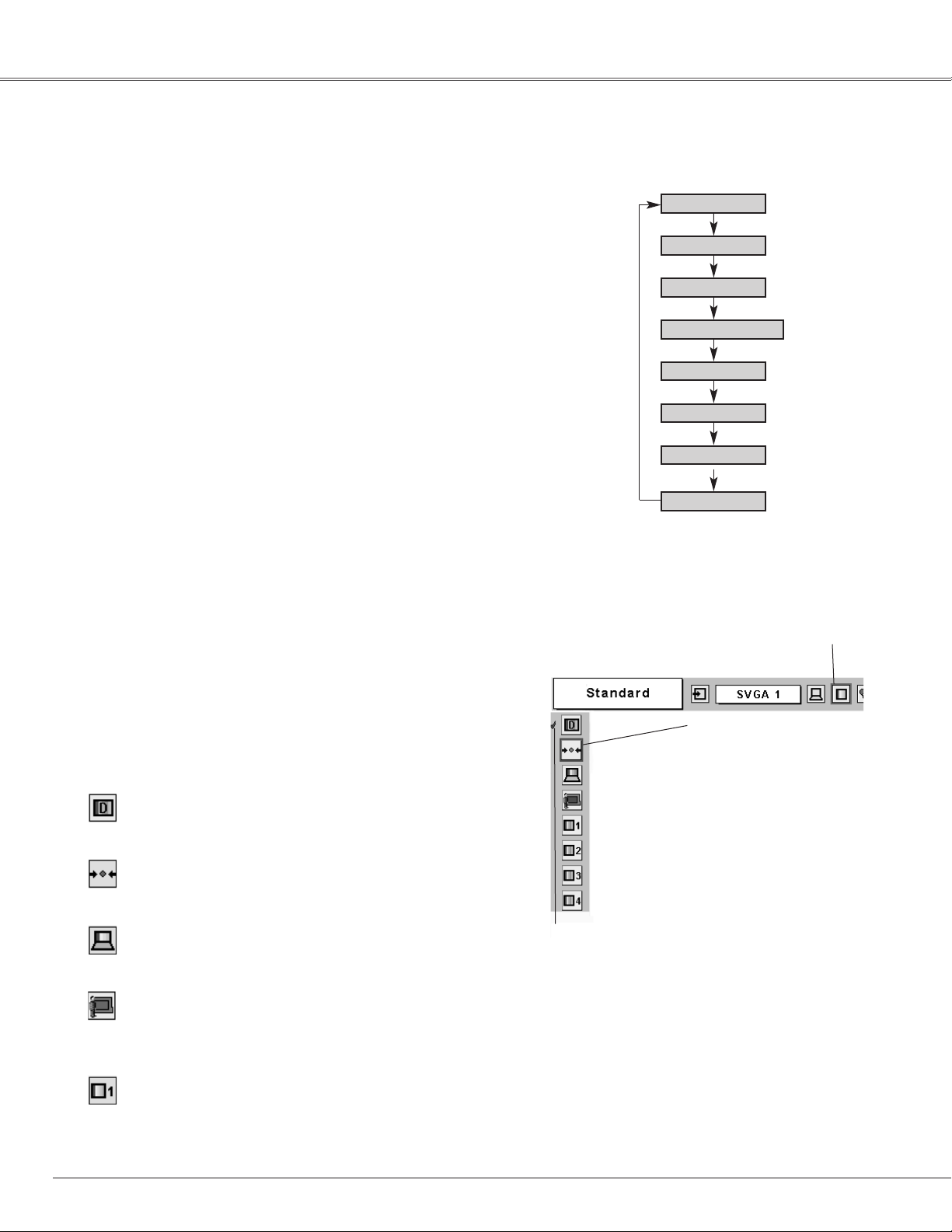

PC System Menu

The PC System Menu icon displays the system being selected.

Systems on this dialog box can be selected.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 buttons to move the red frame

pointer to the PC System Menu icon.

Press the Point

button to move the red arrow pointer to

the system that you want to set, and then press the

SELECT

button.

PC System Menu

Custom Mode (1~5) set in the PC Adjust Menu. (p30, 31)

PC system can also be selected manually.

Computer System Selection

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA or SXGA with its Multi-scan system and Auto PC Adjustment. If Computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional setting. (Signal formats provided in this projector is shown on page 59 )

When the projector cannot recognize connected signal conforming to PC Systems provided in this projector, Auto PC Adjustment function works to display proper images and the message “Auto” is displayed on the PC System menu box. When the image is not projected properly, manual adjustment is required. (p30, 31)

There is no signal input from computer. Check the connection of your computer and the projector. (See " Troubleshooting" p54)

Auto

-----

✔Note:

The projector may display one of the following messages.

User preset system manually adjusted in PC Adjust menu. Adjustment data can be stored in Mode 1 - 5. (p30, 31)

Mode 1

PC Systems provided in the projector. The projector chooses a proper system and displays it.

SVGA 1

Selecting Computer System Manually

*Mode 1 and SVGA 1 are examples.

Computer Input

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows.

Move the red frame pointer to the Auto PC Adj. icon and press the SELECT button.

PC Adjust Menu

PC Adjust Menu icon

To store adjustment parameters

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in the PC System Menu (p28). See “Store” on page 31.

✔Note:

• Fine sync, Total dots and Picture Position of some computers can not be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (p30, 31)

• The Auto PC Adj. cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i, or 1080i is selected in the PC System Menu(p28), or when the signal is coming from DVI-terminal.

Auto PC Adjustment

Press the MENU button to display the On-Screen Menu. Press the Point

7 8 button to move the red frame pointer to

PC Adjust Menu icon.

Press the Point d button to move the red frame pointer to Auto PC Adj. icon and then press the SELECT button twice. This Auto PC Adjustment can be also executed by pressing the Auto PC button on the remote control unit.

Auto PC Adj.

Computer Input

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the PC Adjust Menu icon.

Press the Point ddbutton to move the red frame pointer to the item that you want to adjust and then press the SELECT button. An adjustment dialog box will appear. Press the Point

7 8 button to adjust value.

Move the red frame pointer to an item and press the SELECT button.

PC Adjust Menu

PC Adjust Menu icon

Eliminates flicker from the image displayed. Press the Point 7 8 button to adjust value. (From 0 to 31)

Fine sync

Adjusts the number of total dots in one horizontal period. Press the Point

7 8 button and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press the Point 7 8 button to adjust the position.

Horizontal

Adjusts vertical picture position. Press the Point 7 8 button to adjust the position.

Vertical

Press the SELECT button to show H-Freq. and V-Freq. of the connected computer.

Current mode

Adjusts clamp level. When the image has dark bars, try this adjustment.

Clamp

Press the SELECT button at this icon to adjust the other items.

Press the Point 7 8 button to adjust the value.

Shows status (Stored / Free) of the selected Mode.

Selected Mode

Press the SELECT button at the Current mode icon to show the information of the connected computer.

Current mode

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. It allows you to recall the setting for a specific computer.

Computer Input

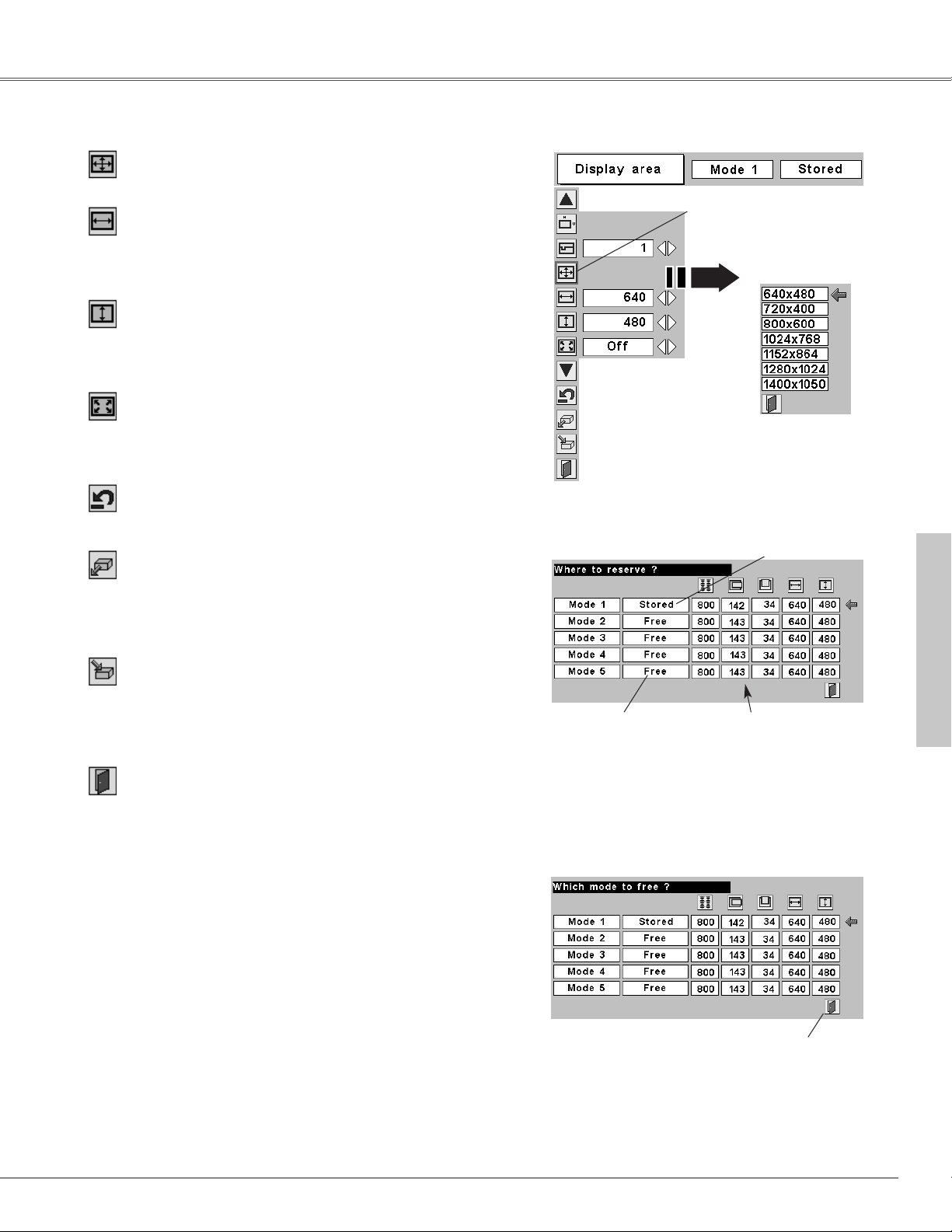

Select the resolution at the Display area dialog box.

Display area

Adjusts the horizontal area displayed by this projector. Press the Point

7 8 button to decrease/increase value and then press the

SELECT button.

Display area H

Adjusts the vertical area displayed by this projector. Press the Point

7 8 button to decrease/increase value and then press the

SELECT button.

Display area V

With this function on, SXGA image is fully displayed at 4 : 3 aspect ratio. It is displayed at 5 : 4 aspect ratio with this function off.

Full screen

Reset

Store

Exits the PC Adjust Menu.

Quit

To store adjustment data, move the red frame pointer to the Store icon and then press the SELECT button. Move the red arrow pointer to any of Mode 1 to 5 in which you want to store and then press the SELECT button.

Resets all adjustment to their previous levels.

Mode free

Vacant Mode

shows values of “Total dots,” “Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

closes this dialog box.

To store adjustment data

To clear adjustment data

To clear adjustment data previously set, move the red frame pointer to the Mode free icon and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

Display area

Press the SELECT button at the Display area icon and the Display area dialog box appears.

✔Note:

Auto PC Adj., Display area, Display area (H/V), and Full screen cannot be selected when “480i”, “575i”, “480p”, “575p”, “720p”, “1035i”, or “1080i” is selected in the PC System Menu (p28).

This Mode has parameters being stored.

Computer Input

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Image Select Menu icon.

Press the Point ddbutton to move the red frame pointer to the level that you want to set and then press the SELECT button.

Move the red frame pointer to the level and press the SELECT button.

The level being selected.

Image Select Menu

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

Picture level suitable for the image projected on a blackboard (Green). See above for further description.

Blackboard(Green)

Image Select Menu icon

Select an image level among Dynamic, Standard, Real, Blackboard(Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

IMAGE button

Dynamic

Real

Image 1

Image 2

Image 3

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

Standard

Real

Image 1~4

Image Level Selection

Direct Operation

Menu Operation

Image 4

User preset image in the Image Adjust Menu (p33).

Image 1~4

Blackboard(Green)

Picture level suitable for the image projected on a blackboard (Green). This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Blackboard

(Green)

Picture level suitable for viewing picture in a bright room.

Dynamic

Picture level suitable for viewing picture in a bright room.

Dynamic

User preset image in the Image Adjust Menu (p33).

Standard

Computer Input

Press the Point 7 8 button to adjust value.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Image Adjust Menu icon.

Press the Point ddbutton to move the red frame pointer to the item that you want to adjust, and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point

7 8 button.

Move the red frame pointer to the item to be selected and then press the SELECT button.

Image Adjust Menu

Press the Point 7 button to decrease contrast and the Point 8 button to increase contrast. (From 0 to 63.)

Press the Point 7 button to adjust image darker and the Point 8 button to adjust image brighter. (From 0 to 63.)

Contrast

Brightness

Press the Point 7 8 button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Image Level Menu Move the red frame pointer to any of Image 1 to 4 where you want to set and then press the SELECT button.

Store icon Press the SELECT button at this icon to store the adjustment.

Image Adjust Menu icon

Press the Point 7 button to lighten red tone and the Point 8 button to deepen red tone. (From 0 to 63.)

White balance (Red)

Press the Point 7 button to lighten green tone and the Point 8 button to deepen green tone. (From 0 to 63.)

White balance (Green)

Press the Point 7 button to lighten blue tone and the Point 8 button to deepen blue tone. (From 0 to 63.)

White balance (Blue)

Selected Image level

Press the Point 7 button or the Point 8 button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

Color temp.

Press the Point 7 button to soften the image and the Point 8 button to sharpen the image. (From 0 to 15.)

Sharpness

Image Level Adjustment

Resets all adjustment to their previous levels.

Reset

Store

Closes the Image Adjust Menu.

Quit

To store the image data adjusted manually, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image 1 to 4 where you want to set and then press the SELECT button.

Computer Input

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Screen Menu icon.

Move the red frame to the function and press the SELECT button.

Press the Point ddbutton and move the red frame pointer to the function that you want to select and then press the SELECT button.

✔Note:

• This Screen Menu cannot be operated when “720p(HDTV)”, “1035i (HDTV)”, or “1080i (HDTV)” is selected in the PC System Menu (p28).

• The True and Digital zoom +/– cannot be selected when “480i”, “575i”, “480p”, or “575p” is selected in the PC System Menu (p28).

• This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting to the projector.

• The image data in other than XGA (1024 x 768 for PLCXU58/ PLC-XU56/PLC-XU51) or SVGA (800 x 600 for PLCSU51) is modified to fit the screen size in initial mode.

• The panning function may not operate properly if the computer system prepared in the PC Adjust Menu is used.

• When Auto setup function is "On" and used any of the Auto setup function, Dizital zoom +/- function will be canceled then the screen will go back to the normal size.

• When selecting VGA, SVGA or SXGA in the Computer System Selection (p28) with adjusting Keystone function uppermost in the upward direction, the Digital zoom - function may not work.

Screen Menu

Screen Menu icon

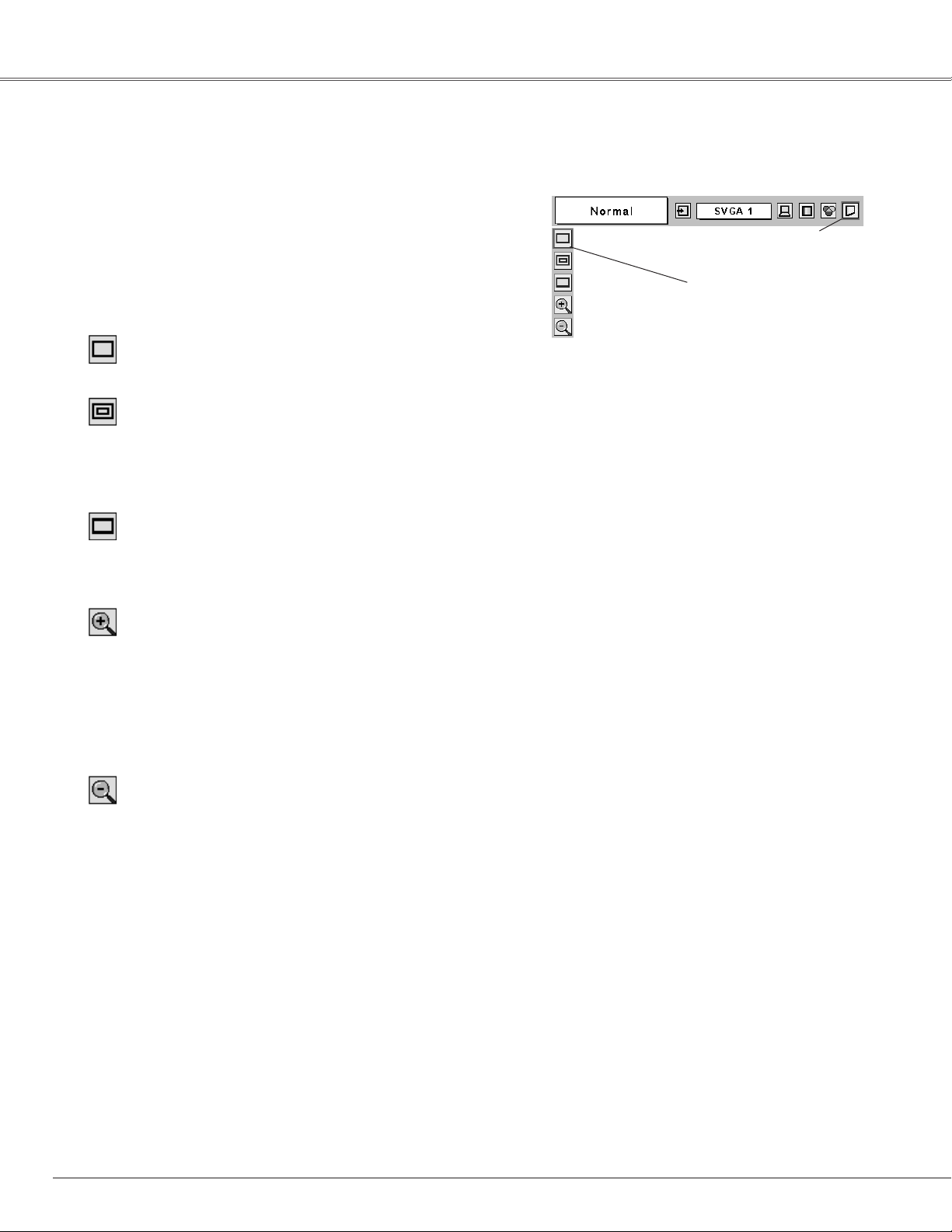

Screen Size Adjustment

When the Digital zoom + is selected, the On-Screen Menu disappears and the message “D. Zoom +” is displayed. Press the SELECT button to expand the image size. And press the Point

eedd

7 8 button to pan the image. The Panning function can work

only when the image is larger than the screen size. A projected image can be also expanded by pressing the D.ZOOM ▲ button on the remote control.

To exit the Digital zoom +/– mode, press any button except the D.ZOOM ▲/▼ button, SELECT, and Point button.

Wide

Digital zoom +

Provides image to fit screen size.

Normal

True

When Digital zoom – is selected, the On-Screen Menu disappears and the message “D. Zoom –” is displayed. Press the SELECT button to compress image size. A projected image can be also compressed by pressing the D.ZOOM ▼ button on the remote control.

Digital zoom –

Provides image in its original size. When the original image size is larger than the screen size (1024 x 768 for PLC-XU58/ PLC-XU56/ PLC-XU51, 800 x 600 for PLC-SU51), this projector enters “Digital zoom +” mode automatically.

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

To return to the normal screen select Normal from the Screen menu.

Choose Video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Input Menu icon.

Press the Point ddbutton to move the red arrow pointer to Video and then press the SELECT button. The Source Select Menu will appear.

Move the pointer to Video and press the SELECT button.

VIDEO

Move the pointer to the source that you want to select and press the SELECT button.

Source Select Menu (VIDEO)

Input Menu

Move the pointer to the source that you want to select and then press the SELECT button.

When selecting Auto, the projector automatically detects incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order:

1st S-Video

2nd Video The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack.

Auto

When video input signal is connected to the VIDEO jack, select Video.

Video

When video input signal is connected to the S-VIDEO jack, select S-Video.

S-Video

INPUT button

Video

Computer 2

Computer 1

VIDEO button

Video

Input Source Selection (Video, S-Video)

Direct Operation

Menu Operation

✔Note:

When Monitor out is selected at the Terminal item in the Setting Menu, Computer 2 is not displayed. (p44)

✳ See Note on the bottom of this page.

✳

Input Menu icon

Video Input

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Input Menu icon.

Press the Point ddbutton to move the red arrow pointer to Computer 2, and then press the SELECT button. The Source Select Menu will appear.

Move the pointer to the correct input source and then press the SELECT button.

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

Move the pointer to Component or RGB (Scart) and press the SELECT button.

Source Select Menu

Input Menu

Input Menu icon

Computer 1

Video

Computer 2

COMPUTER button

Computer 1

Computer 2

INPUT button

Input Source Selection (Component, RGB Scart 21-Pin)

Direct Operation

Menu Operation

When the input source is coming from video equipment connected to the COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT terminal with a Component-VGA Cable, select Component.

Component

When the input source is coming from video equipment connected to the COMPUTER IN 2/ COMPONENT IN/ MONITOR OUT terminal with a Scart-VGA Cable, select RGB (Scart).

RGB (Scart)

✔Note:

• Component-VGA Cable and Scart-VGA Cable are optionally supplied. See page 61 for order.

• Computer 2 is not displayed when the COMPUTER IN 2/COMPONENT IN/ MONITOR OUT terminal is set as Monitor out. (p44)

Choose Computer 2 by pressing the INPUT button on the top control or press the COMPUTER button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

✳ See Note on the bottom of this page.

✳

Computer

Video Input

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the AV System Menu icon.

Video System Selection

AV System Menu (Video or S-Video)

AV System Menu (Component)

Press the Point ddbutton to move the red arrow pointer to the system that you want to select and then press the SELECT button.

If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the pointer to a system and press the SELECT button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

The projector automatically detects incoming video signal, and adjusts itself to optimize its performance.

If the projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

Video or S-Video

Component

The projector automatically detects incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually.

Auto

AV System Menu icon This box indicates the system being selected.

Move the pointer to a system and press the SELECT button.

AV System Menu icon This box indicates the system being selected.

✔Note:

The AV System Menu cannot be selected when selecting RGB(Scart).

Video Input

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Image Select Menu icon.

Press the Point ddbutton to move the red frame pointer to the level that you want to set and then press the SELECT button.

Move the red frame pointer to a level and press the SELECT button.

The level being selected.

Image Select Menu

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

Blackboard(Green)

User preset image in the Image Adjust Menu (p39, 40).

Image1~4

Image Select Menu icon

Select a desired image level among Dynamic, Standard, Cinema, Blackboard (Green), Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the remote control.

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

Blackboard(Green)

User preset image in the Image Adjust Menu (p39, 40).

Image 1~4

IMAGE button

Dynamic

Cinema

Image 1

Image 2

Image 3

Image 4

Image Level Selection

Direct Operation

Menu Operation

Picture level suitable for the image projected on a Blackboard (Green). See above for further description.

Blackboard

(Green)

Picture level suitable for viewing picture in a bright room.

Dynamic

Picture level suitable for viewing picture in a bright room.

Dynamic

Standard

Video Input

Press the Point 7 8 button to adjust value.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Image Adjust Menu icon.

Press the Point ddbutton to move the red frame pointer to the item that you want to adjust and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point

7 8 button.

Move the red frame pointer to the item to be selected and then press the SELECT button.

Image Adjust Menu

Press the Point 7 button to decrease contrast and the Point 8 button to increase contrast. (From 0 to 63.)

Press the Point 7 button to adjust image darker and the Point 8 button to adjust image brighter. (From 0 to 63.)

Contrast

Brightness

Press the Point 7 8 button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press the SELECT button at this icon to display other items.

Image Adjust Menu icon

Press the Point 7 button to lighten color and the Point 8 button to deepen color. (From 0 to 63.)

Press the Point 7 8 button to obtain proper color. (From 0 to 63.)

Color

Tint

Press the Point 7 button to soften the image and the Point 8 button to sharpen the image. (From 0 to 15.)

Sharpness

Press the Point 7 button to lighten red tone and the Point 8 button to deepen red tone. (From 0 to 63.)

White balance (Red)

Press the Point 7 button to lighten green tone and the Point 8 button to deepen green tone. (From 0 to 63.)

White balance (Green)

Press the Point 7 button to lighten blue tone and the Point 8 button to deepen blue tone. (From 0 to 63.)

White balance (Blue)

Press the SELECT button at this icon to display previous items.

✔Note:

The Tint cannot be adjusted when the video system is PAL, SECAM, PAL-M, or PAL-N.

Image Level Adjustment

Press the Point 7 8 button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

Color temp.

Video Input

To store the adjustment data, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image Level 1 to 4 and then press the SELECT button.

Image Level Menu Move the red frame pointer to an image icon to be set and then press the SELECT button.

Resets all adjustment to their previous figure.

Reset

Store

Closes the Image Adjust Menu.

Quit

Interlaced video signal can be displayed in a progressive picture.

Off . . . .Not activated.

L1 . . . . .Select “L1” for an active picture.

L2 . . . . .Select “L2” for a still picture.

Progressive

This function is effective on 3-2 pulldown video sources. With this function On, the projector reproduces pictures faithful to the original film quality.

Film

✔Note:

• Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is selected. (p37)

• Film can only be activated in any state shown below.

1. When selecting NTSC, NTSC4.43 PAL-M or 480i in the AV System Menu (p37).

2. When selecting Auto and signal is NTSC, NTSC4.43, PAL-M(Composite) or

480i(Comopnent) in the AV System Menu (p37).

• 3-2 Pulldown or Telecine transfer is the process of changing images from film mode to video mode. While film runs at 24 frames per second (fps), NTSC television signals (or video) have a run rate of 30fps so the 24 fps film needs to be speeded up to 30fps and transferred using a proper field pattern to get the best film-like images.

Store icon

Video Input

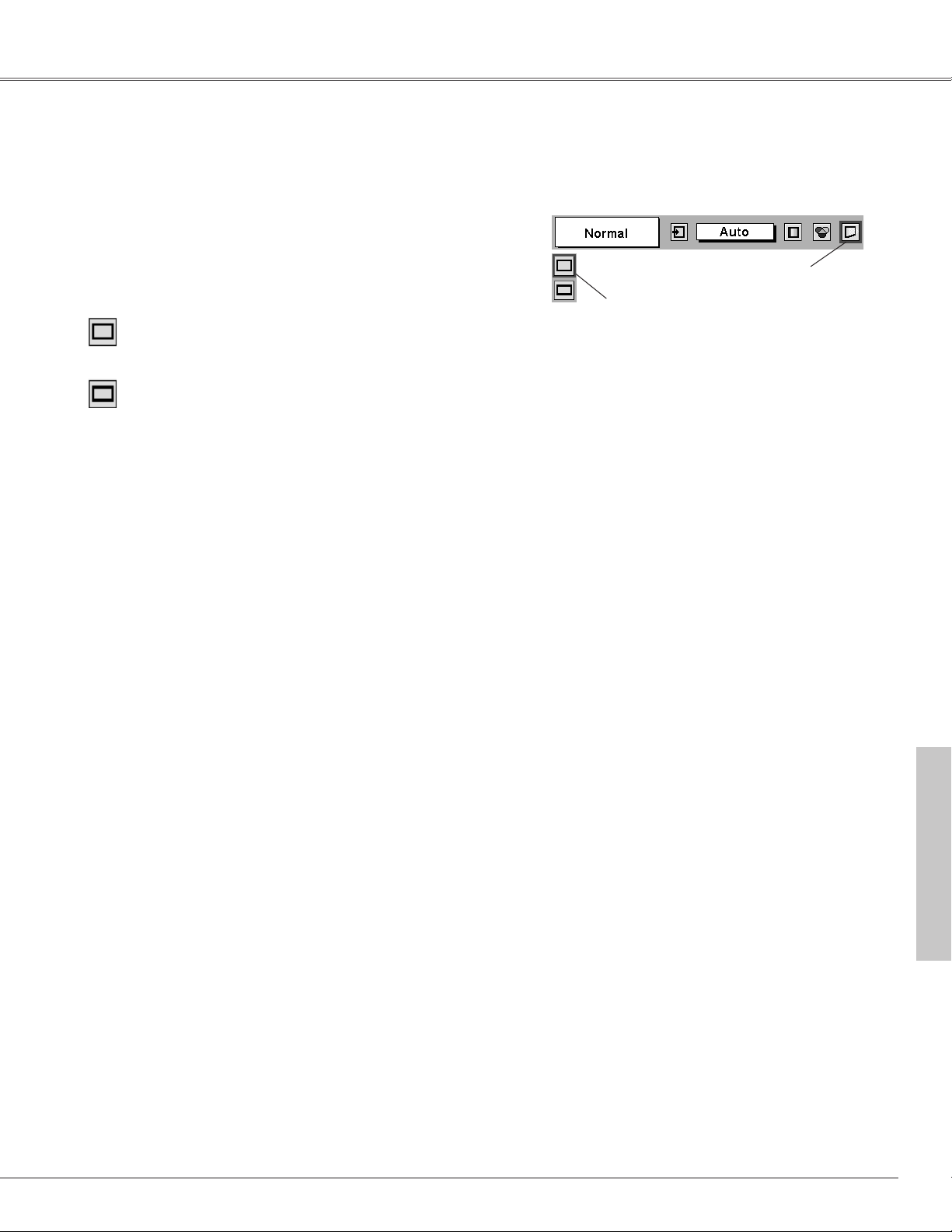

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the On-Screen Menu will appear. Press the Point

7 8 button to move the red frame

pointer to the Screen Menu icon.

Press the Point ddbutton and move the red frame pointer to the function that you want to select and then press the SELECT button.

Move the red frame to a function and press the SELECT button.

Screen Menu

Screen Menu icon

Provides image at a wide screen ratio of 16 : 9.

Wide

Provides image at a normal video aspect ratio of 4 : 3.

Normal

Screen Size Adjustment

✔Note:

Screen Menu cannot be operated when “720p”, “1035i”, or “1080i” is selected in the AV System Menu (p37).

Video Input

Keystone

Press the MENU button to display the On-Screen Menu. Press the Point

7 8 button to move the red frame pointer to

the Setting Menu icon.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

Set the red frame pointer to the item and press the SELECT button.

Press the Point ddbutton to move the red frame pointer to the item that you want to set and then press the

SELECT

button. The Setting dialog box appears.

When pressing the SELECT button at Language, the Language Menu appears.

Setting Menu (Language)

Setting Menu icon

This function corrects distortion of a projected image. Select either Store or Reset with the Point

7 8 button, and then press

the Select button. The keystone dialog box appears. Adjust keystone with the Point

eedd

7 8 button.

Store . . . . stores the keystone adjustment even if the AC

power cord is disconnected.

Reset . . . . .resets the keystone adjustment when the AC power

cord is disconnected.

Setting

This projector has Setting menu that allows you to set up the other various functions described as follows;

Auto Setup

This function enables Auto Keystone correction and Auto PC adjustment by pressing the AUTO SETUP button on the top control or the AUTO SET button on the remote control. Settings for those functions can be altered as follows:

Auto PC Adj.

On . . . . . . .enables Auto PC Adjustment when pressing the

AUTO SET button on the remote control or the AUTO SETUP button on the top control.

Off . . . . . . .disables Auto PC Adjustment.

Auto Keystone

Auto . . . . . . always works and corrects keystone distortion

according to the projector's tilt.

Manual . . . .works only when pressing the AUTO SET button on

the remote control or the AUTO SETUP button on the top control.

Off . . . . . . .disables Auto Keystone.

Auto Setup

✔Note:

• Auto PC Adj. and Auto Keystone cannot be set "Off" at the same time.

• Auto Keystone corrects vertical distortion only, not correct horizontal distortion.

• The Auto Keystone cannot work when Ceiling feature is On in the Setting menu. (p44)

• Perfect correction of the image distortion cannot be ensured with the Auto Setup function. If the distortion is not corrected properly by pressing the AUTO SETUP/ AUTO SET button, adjust manually by pressing the KEYSTONE button on the remote control or selecting Keystone in the Setting menu. (See p25 or Keystone feature below.)

Select Auto setup and this box appears. Choose desired setting for Auto keystone and Auto PC adj. with the Point 7 8 button.

Setting

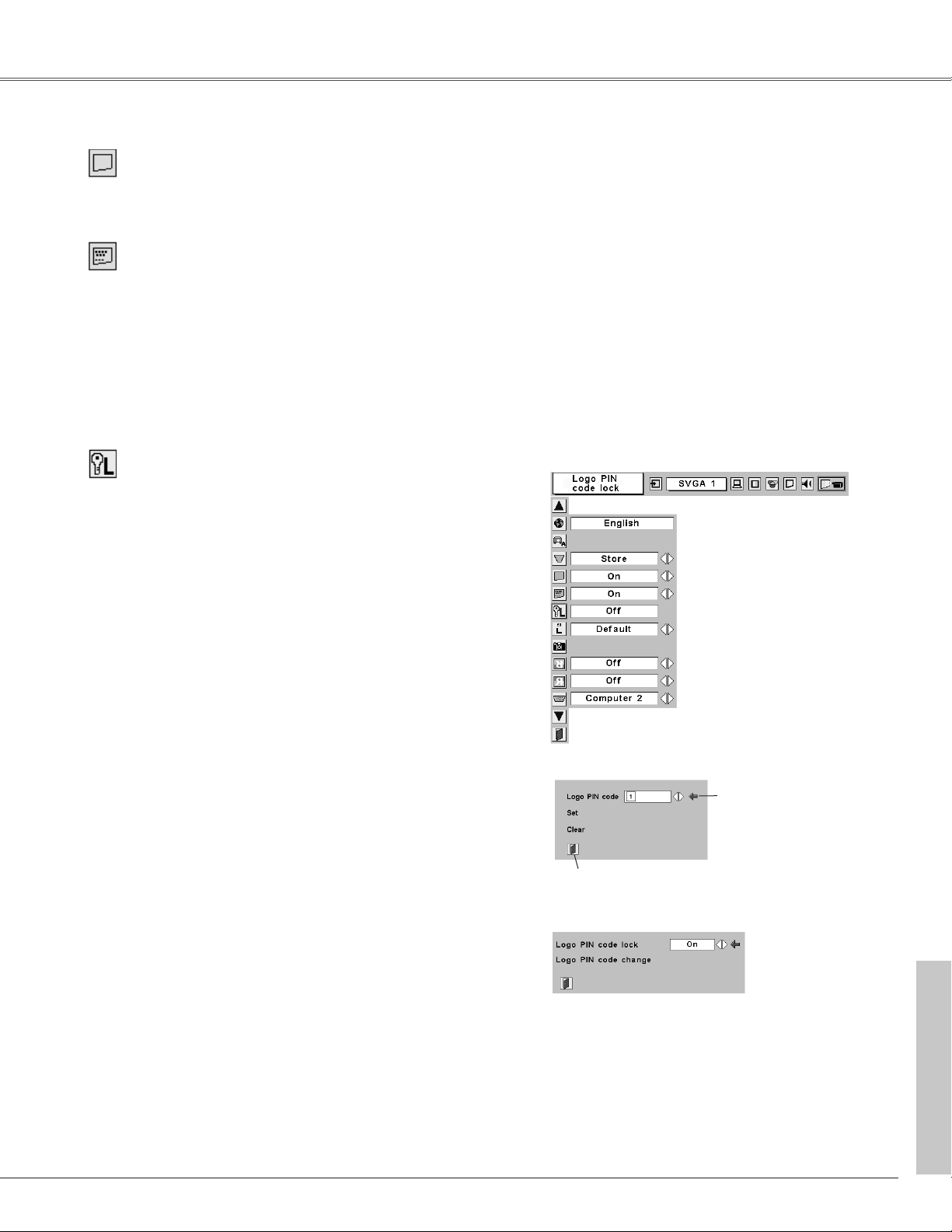

Logo PIN Code Lock Dialog Box

Quit

Pointer

Enter a Logo PIN code

Select a number by pressing the Point 7 8 button and fix the number with the SELECT button. The number will change to "✳". If you fixed a wrong number, move the pointer to "Set" or "Clear" once by pressing the Point ddbutton, then return to "Logo PIN code". Enter the correct number again.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the Logo PIN code lock setting.

If you entered a wrong Logo PIN code, "Logo PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct Logo PIN code all over again.

After a correct Logo PIN code is entered, the following dialog box will appear.

Select On/Off by pressing the Point 7 8 button or change the Logo PIN code.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit number. Select "Logo PIN code change" with the Point ddbutton and press the SELECT button. Set a new Logo PIN code.

Be sure to note the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN Code Lock function on page 47.

Logo PIN Code Lock

This function prevents an unauthorized person from changing the Logo setting.

Off . . . . .the Logo setting can be changed freely from the

Logo menu. (p44)

On . . . . . .the Logo setting cannot be changed without the

Logo PIN code.

If you want to change the Logo PIN Code Lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set "4321" at the factory.

Logo PIN Code Lock

Display

This function decides whether to display On-Screen Displays.

On . . . . . . . shows all the On-Screen Displays.

Off . . . . . . . does not show On-Screen Displays except;

● On-Screen Menu

● “Power off?” message

● P-Timer

● “No signal” message

● ”Wait a moment!” message

Blue back

When this function is “On,” the projector produces a blue image while input signal is not detected.

Setting

Terminal

The COMPUTER IN 2/COMPONENT IN/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output. (See page 9) Select Computer 2 or Monitor Out with the Point 78 button.

Computer 2 . . . . .computer input

Monitor Out . . . . .monitor out

Terminal item is not available when selecting Computer 2 to the input source. Change the input source to the others (Computer1 or Video) so that the Terminal item will be available. (p27, 35, 36)

Ceiling

Rear

Ceiling

When this function is “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Capture

This function enables you to capture the image being projected and use it for a starting-up display or interval of presentations. After capturing the projected image, go to the Logo function and set it to “User”. Then the captured image can be displayed when turning on the projector next time or pressing the NO SHOW button. (p25) To capture the image, select [Yes]. To cancel the Capture function, select [No].

✔Note:

• Before capturing an image, select Standard in the Image Select Menu to capture a proper image. (See page 32, 38.)

• A signal from a computer can be captured up to XGA(1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.

• When capturing the image that has been adjusted by the Keystone function, the adjustment data is automatically reset and the projector captures an image without keystone adjustment.

• When the Logo PIN code lock function is On, the Logo and Capture menu cannot be selected.

Select [Yes] to capture the projected image.

Select [Yes] to stop capturing.

Capture

Logo

This function decides what to be displayed on the starting-up display as follows:

User . . . . . .the image you captured

Default . . . .the factory-set logo

Off . . . . . . .count-down only

Setting

Lamp mode

This function allows you to change brightness of the screen.

···· normal brightness

···· brightness according with the input signal

···· lower brightness reduces the lamp power consumption and extends the lamp life.

Power management

Time left until Lamp off

Press the SELECT button at Power management and this box appears. Choose one of three settings with the Point 7 8 button, and go to the timer with the Point

eedd

button and

set time with the Point 7 8 button.

Power management

For reducing power consumption as well as maintaining the lamp life, the Power Management function turns off the projection lamp when the input signal is interrupted and no button is pressed for 30 seconds or more.

If the input signal is interrupted and no button is pressed for 30 seconds or more, the timer display with the message "No signal" appears on the screen. The count-down of the set time will get started. The count-down time can be set between 1 and 30 minutes.

When the count-down time has been elapsed, the lamp will be turned off to cool itself down. The POWER indicator is blinking red during this cooling-off period. The next operation depends on the setting as follows :

Ready . . . . . .When the lamp has been fully cooled down, the

POWER indicator changes to green blinking. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control unit is pressed.

Shutdown . . .When the lamp has been fully cooled down, the

power will be turned off.

Off . . . . . . . . .The Power Management function is canceled.

On start

When this function is “On,” the projector is automatically turned on just by connecting the AC power cord to a wall outlet.

✔Note:

Be sure to turn the projector off properly (see “Turning Off the Projector” on page 19). If the projector is turned off in the incorrect sequence, such as disconnecting the AC power cord before completing the cool down etc., the On start function does not operate properly.

Standby mode

Press the SELECT button at this icon to display other items.

Standby mode

This function is available when using Multi Card Imager optionally supplied, and it reduces standby energy when selecting Eco.

Eco ···· reduces standby energy. Normal ···· consumes normal standby energy.

Setting

Select Spotlight or Pointer with the Point

eedd

button and press the SELECT button. Then select size or pattern with the Point 7 8 button.

Pointer

You can emphasize a part of the projected image with this function. Choose either Spotlight or Pointer with the Point ed button and press the SELECT button. Then select one of three different sizes (Large, Middle, and Small) of Spotlight or a pointer of three different patterns (Arrow, Finger, and Dot) of Pointer. (See page 12 for operation.)

Pointer

Key lock

This function locks operation of the top control and remote control. It is useful to prevent operation by an unauthorized person.

···· not locked.

···· locks operation of the top control. To unlock, use the remote control.

···· locks operation of the remote control. To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby, disconnect the AC power cord from the AC outlet, and then with pressing the SELECT button, reinsert the AC power cord. This will cancel the top control lock.

Key lock

Select Key lock and this box appears. Choose one of these with the Point

eedd

button and select [Yes] to activate it.

Remote control

This projector provides eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. For example operating the projector in “Code 7”, both the projector and the remote control must be switched to “Code 7”.

To change the code for the projector;

Select a remote control code in this Setting Menu.

To change the code for the remote control;

While holding down the MENU button, press the IMAGE button number of times corresponding to the remote control code for the projector. (See page 14 for details.)

Remote control

USB

This projector is equipped with the USB port for interactive operation between the projector and computer. Selects either of the followings as needed.

···· When using the remote control as the wireless mouse for a computer connected to the projector with a USB cable. (p13, 17)

···· When controlling the projector with a computer.

This item is provided for future use. Unavailable now.

When pressing the SELECT button at Remote control, the remote control code menu appears.

Setting

The PIN code can be changed to your desired four-digit number. Select "PIN code change" with the Point ddbutton, and press the SELECT button. The New PIN code input dialog box will appear.

Select a number with the Point 7 8 button and fix the number with the SELECT button. Repeat it to complete entering a fourdigit number. When the four-digit number is fixed, the pointer will automatically move to "Set". Then press the SELECT button.

To Change the PIN Code

Change the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box will appear.

The input numbers are being displayed for confirmation.

Select Off, On1, or On2 with the Point 7 8 button and then "Quit" with the Point

button and press the SELECT button to

close the dialog box.

To Change the PIN Code Lock setting

Change the PIN Code Lock setting

Select a desired setting with the Point 7 8 button.

CAUTION: WHEN YOU HAVE CHANGED PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 63, AND KEEP IT SECURELY. SHOULD THE PIN CODE BE LOST OR FORGOTTEN, THE PROJECTOR CAN NO LONGER BE OPERATED.

PIN code lock

This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options.

Off

...............the projector is unlocked with the PIN code.

On1

.............requires to enter the PIN code every time turning on

the projector.

On2

...........requires to enter the PIN code to operate the

projector once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without the PIN code.

Whenever to change the PIN Code Lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. "1234" is set as the initial PIN code at the factory.

PIN code lock

When the projector is locked with the PIN code, the PIN code lock mark appears on the menu bar.

Enter a PIN code

Quit

Pointer

The input numbers change to “✳” for security.

Enter a PIN code

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can change the following PIN code lock settings.

If you entered a wrong PIN code, "PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter a correct PIN code all over again.

When the pointer automatically move to "Set", press the SELECT button.

Setting

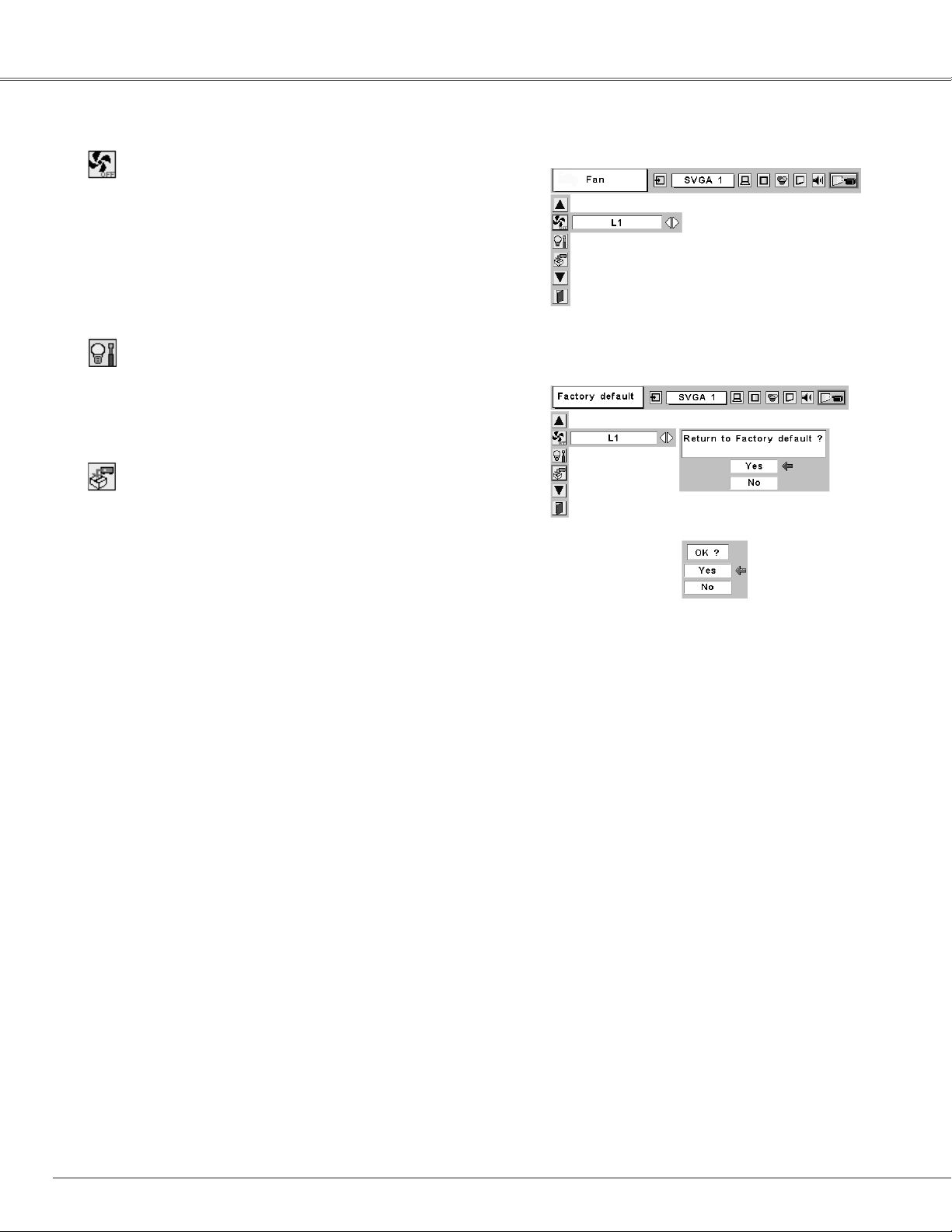

This function is used to reset the lamp replace counter. When replacing the projection lamp, reset the lamp replace counter by using this function. See page 53 for operation.

Lamp counter reset

Factory default

This function returns all setting values except for the user logo, PIN code lock, logo PIN code lock and the lamp counter to the factory default settings.

Select Factory default and this box appears. Select [Yes] , and the next box appears.

Factory default

Select [Yes] to activate it.

This function provides you the following alternatives in the cooling fans operation after turning off the projector. (p21)

L1 . . . . . . . .normal operation

L2 . . . . . .slower operation than the normal (L1) , but takes

longer to cool down the projector. In this mode, cooling time after turning off the projector will be extended longer than in the normal mode.

Fan

Maintenance & Cleaning

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

WARNING blinking red

TOP CONTROL

Warning Indicator

The projector is shut down and the WARNING indicator is blinking red.

When the temperature inside the projector exceeds the normal temperature, the projector is automatically shut down to protect the inside of the projector. The POWER indicator is blinking and the projector is being cooled down. When the temperature inside the projector returns to normal, the POWER indicator lights red and the projector can be turned on.

✔Note:

After the temperature inside the projector returns to normal, the WARNING indicator still continues to blink. When the projector is turned on again, the WARNING indicator stops blinking.

Then check the matters below:

–Did you provide appropriate space for the projector to be

ventilated? Check the installing condition to see if ventilation slots are not blocked.

– Is the projector not installed near the ventilation duct of air-

conditioning equipment which may be hot? Install the projector away from the ventilation duct of air-conditioning equipment.

– Are the air filters clean? Clean the air filters periodically. (p50)

WARNING lights red

TOP CONTROL

The projector is shut down and the WARNING indicator lights red.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside and the WARNING indicator lights red. In this case, disconnect the AC power cord and reconnect it, and then turn the projector on once again for check. If the projector is still turned off and the WARNING indicator lights red, disconnect the AC power cord and contact the service station for check and repair.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER THE ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Maintenance and Cleaning

WARNING

LAMP

REPLACE

ECT

WARNING

LAMP

ECT

REPLACE

Maintenance and Cleaning

Air Filter Pull up and remove.

Turn off the projector, and disconnect the AC power cord from the AC outlet.

Turn the projector upside down and remove the air filters by pulling the latches upward.

Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the air filters following the steps below.

Clean the air filters with a brush or rinse them softly.

When cleaning the air filters by rinsing, dry them well. Replace the air filters properly. Make sure that the air filters are fully inserted.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the LCD panel and the projection mirror degrading picture quality. Do not put small parts into the air intake vents. It may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector. This condition may degrade the quality of a projected image.

When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

When moving this projector or while not using it over an extended period of time, replace the lens cover.

Pass the string through a hole of the lens cover.

Turn the projector upside down.

Lens Cover

String for the lens cover

Secure it to the hole with a screw.

Hole

Attaching the Lens Cover

Cleaning the Air Filters

Attach the string with lens cover to a hole on the bottom of the projector and secure it with a screw.

Maintenance & Cleaning

Maintenance and Cleaning

Disconnect the AC power cord before cleaning.

When the projector is not in use, replace the lens cover.

Follow these steps to clean the projection lens.

Cleaning the Projector Cabinet

Disconnect the AC power cord before cleaning.

Softly wipe the projector body with a soft, dry cleaning cloth. When it is heavily soiled, use a small amount of mild detergent and finish with a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.

Follow these steps to clean the projector cabinet.

When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches.

Softly wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use lens cleaning paper or a commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.

Cleaning the Projection Lens

Maintenance and Cleaning

When the life of the projection lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the lamp with a new one promptly.

Follow these steps to replace the lamp.

Lamp

Lamp Cover

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

●

Model No. of your projector : PLC-XU58/ PLC-XU56/ PLC-XU51/PLC-SU51

● Replacement Lamp Type No. : POA-LMP55 (for PLC-XU58/PLC-XU51)

(Service Parts No. 610 309 2706)

POA-LMP65 (for PLC-XU56/PLC-SU51)

(Service Parts No. 610 307 7925)

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

Allow a projector to cool, for at least 45 minutes before you open the Lamp cover. The inside of the projector can become very hot.

This indicator lights yellow when the life of the projection lamp draws to an end.

Top Control

CAUTION

Screw

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

Loosen 2 screws of the lamp with a screwdriver and pull out the lamp by grasping the handle.

Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is set properly. Replace the lamp cover and tighten the screw.

Loosen the screw with a screwdriver, and remove the lamp cover.

Connect the AC power cord to the projector and turn on the projector.

Reset the Lamp replace counter.

See “Lamp Replace Counter” on the next page .

Lamp Replacement

Handle

Screw

CAUTION

SELECT

POWER

WARNING

REPLACE

LAMP

Maintenance & Cleaning

Maintenance and Cleaning

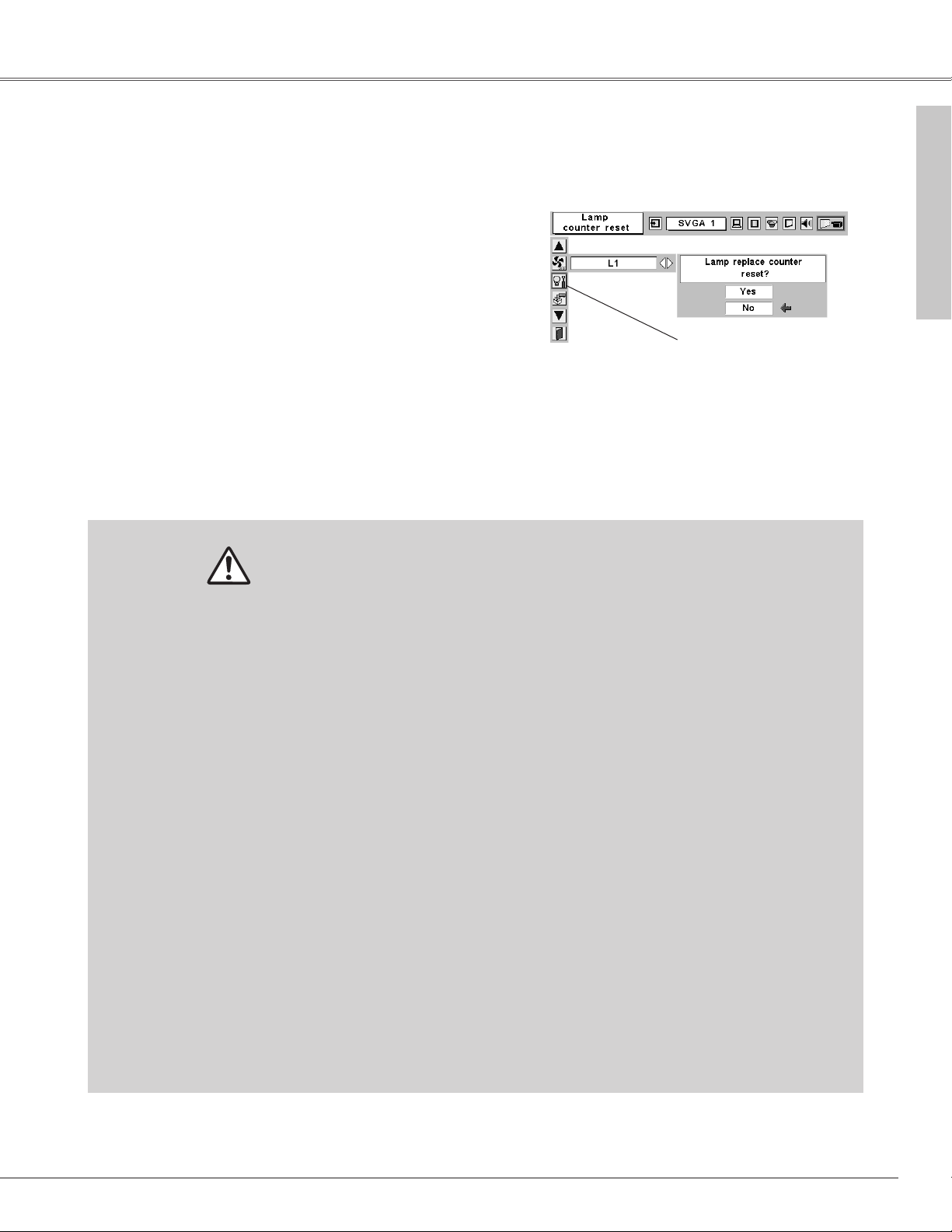

Be sure to reset the lamp replace counter after the lamp is replaced. When the lamp replace counter is reset, the LAMP REPLACE indicator stops lighting.

Move the pointer to Lamp counter reset and then press the SELECT button. The message “Lamp replace counter Reset?” is displayed.

Turn the projector on, press the MENU button and the OnScreen Menu will appear. Press the Point

7 8 button to

move the red frame pointer to the Setting Menu icon.

Press the Point ddbutton to move the red frame pointer to the Lamp counter reset item and then press the SELECT button. The message "Lamp replace counter Reset?" is displayed. Move the pointer to [Yes] and then press the SELECT button.

Another confirmation dialog box appears and select [Yes] to reset the Lamp replace counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp life may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the Lamp Replacement section of this manual. ) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Lamp Replace Counter

✔Note:

Do not reset the Lamp replace counter without implementation of lamp replacement. Be sure to reset the Lamp replace counter only after replacing the lamp.

Tr oubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

– Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer"

and “Connecting to Video Equipment” on page17-19. – Make sure all equipment is connected to AC outlet and the power is turned on. – When you operate the projector with a computer and it does not project an image, restart the computer.

Appendix

Problem: – Solutions

No power – Plug the power cord of the projector into the AC outlet.

– See if the POWER indicator lights red. –Wait 90-120 seconds after the projector is turned OFF when turning the

projector back on. The projector can be turned on after the POWER indicator turns red. (See “Turning Off the Projector” on page 21.)

– Check the WARNING indicator. If the WARNING indicator lights red, the

projector cannot be turned on. (See "Warning Indicator" on page 49.) – Check the projection lamp. (See page 52.) – Unlock Key lock for the projector in the Setting Menu. (See page 46.)

Image is out of focus. – Adjust focus of the projector. (See page 24.)

– Provide proper distance between the projector and the projection

screen. (See page 15.) – Check the projection lens to see if it needs cleaning. (See page 51.) – Moving the projector from a cool to a warm place may result in moisture

condensation on the projection lens. In such cases, leave the projector

OFF and wait until condensation disappears.

No image – Check the connection between your computer or video equipment

and the projector. (See page 17–19) – See if the input signal is correctly output from your computer. Some

laptop computers may need to change the setting for monitor output when

connecting to a projector. See your computer’s instruction manual for the

setting. – It takes about 20 seconds to display an image after turning on the projector. – See if the selected system is corresponding with your computer or video

equipment. (See page 28 and 37) – Select correct input source once again through menu operation.

(See page 27, 35 and 36) – Make sure the temperature is not out of the specified Operating

Temperature (41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)) .

Image is Left/Right reversed. – Check the Ceiling / Rear item. (See “Setting” on page 44.) Image is Top/Bottom reversed. – Check the Ceiling item. (See “Setting” on page 44.)

No sound – Check audio cable connection from audio input source.

– Adjust the audio source. – Press the Volume (+) button. (See page 26.) – Press the Mute button. (See page 26.)

Appendix

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Appendix

The CE Mark is a Directive conformity mark of the European Community (EC).

Some displays are not seen – Check the Display item. (See “Setting” on page 43.) during the Operation.

PIN code dialog box appears at start-up. – PIN code lock is being set. Input a PIN code (1234 or numbers you have

set). (See “PIN code lock” on page 20 and 47.)

Computer 2 cannot be selected. – Select Computer 2 at the Terminal item in the Setting Menu. (See “Setting”

on page 44.)

The Terminal item cannot be selected. – The Terminal item in the Setting Menu cannot be selected after Computer 2

is selected. Select other input source such as Computer 1 or Video with the

INPUT button on the top control, the COMPUTER button or the VIDEO

button on the remote control so that the Terminal item can be selected.

The Remote Control does not work. – Check the batteries.

– Make sure no obstruction is between the projector and remote control. –Make sure you are not too far from the projector when using the remote

control. Maximum operating range is 16.4’ (5m). –Make sure the code of the remote control is conformed to the projector.

(See page 14 and 46.) – Unlock Key lock for the remote control in the Setting Menu. (See page 46.)

Wireless Mouse function does not work. – Make sure your computer is connected to the projector with a USB cable.

(See page 17.) – Check cable connection between the projector and your computer.

(See page 17.)

WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist

after following all operating instructions,

contact the dealer where you purchased the projector or the

service center.

Give the model number and explain about the problem. We will advise you how to obtain service.

Appendix

Menu Tree

System (1)

MODE 1 MODE 2 SVGA 1

- - - -

Auto PC Adj. Fine sync. Total dots Horizontal Vertical

Display area

Display area - H Display area - V Full screen Reset

Store

Quit

Dynamic

Real Blackboard(Green) Image 1 Image 2 Image 3

Image Adjust

Contrast Brightness Color Temp

Red Green Blue

Gamma

Store

Quit

Normal True Wide Digital zoom + Digital zoom –

0 - 31

On / Off

0 - 63 0 - 63

Computer Input

PC Adjust

640 x 480 720 x 400 800 x 600 1024 x 768 1152 x 864 1280 x 1024 1400 x 1050

Mode 1 Mode 2 Mode 3 Mode 4 Mode 5

Image Select

High

0 - 63 0 - 63 0 - 63

0 - 15

Image 1 Image 2 Image 3 Image 4

Screen

Quit

Yes / No

Quit

✽Systems displayed in the System Menu vary

depending on an input signal.

Mid

Reset

Yes / No

Low

XLow

Sharpness 0 - 15

Computer Input / Video Input

Image 4

Sound

Volume Mute Quit

On / Off

Sound

0 - 63

Input

Computer 2

RGB

Go to System (1)

Video

Auto

Go to System (3)

Computer 1

Video

Go to System (3)

✽N/A

- - - not applicable

RGB( Analog )

RGB( PC Digital )

Go to System (1)

N/A

Component

RGB( Scart )

Go to System (2)

N/A

S-Video

RGB( AV HDCP )

Standard

Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Quit

Mode free

H-sync freq. V-sync freq. Quit

Clamp

Current mode

Appendix

Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N

Video Input

Auto 1080i 1035i 720p 575p 480p 575i 480i

Dynamic

Cinema Blackboard(Green) Image 1 Image 2 Image 3

Quit

Normal Wide

0 - 63 0 - 63 0 - 63 0 - 63

Off

Setting

Image Select

System (2)

System (3)

Image Adjust

Contrast Brightness Color Tint

Red Green Blue Sharpness

Reset Store

Gamma Progressive

0 - 63 0 - 63 0 - 63 0 - 15 0 - 15

Image 1 Image 2 Image 3 Image 4

Screen

Yes / No

Quit

HighColor Temp Mid Low XLow

L1 L2

Image 4

Film

On/ Off

Language

Setting

English German French Italian Spanish Portuguese Dutch Swedish

Chinese Korean Japanese

Store / Reset On / Off On / Off

Off

On / Off On / Off

Off

On / Off Normal

Code 1 - 8

Yes / No

Keystone Blue back Display

Logo

Ceiling Rear

Power management

On start Lamp mode

Remote control

Quit

Russian

Computer 2Terminal Monitor out

Yes/NoCapture

Ready Shut down

SpotlightPointer Pointer

Auto

Yes / NoLamp counter reset

OffKey lock Projector Remote Control

User Default

Timer(1-30 Min) Quit

Quit

OffPIN code lock On1 On2 PIN code change Quit

Off

Logo PIN code lock

On PIN code change Quit

Eco

Factory default

Mouse / Projector

USB

L1 / L2Fan

Quit

Standard

Auto PC adj.Auto setup

Eco / NormalStandby mode

Auto keystone

Appendix

Quit

Appendix

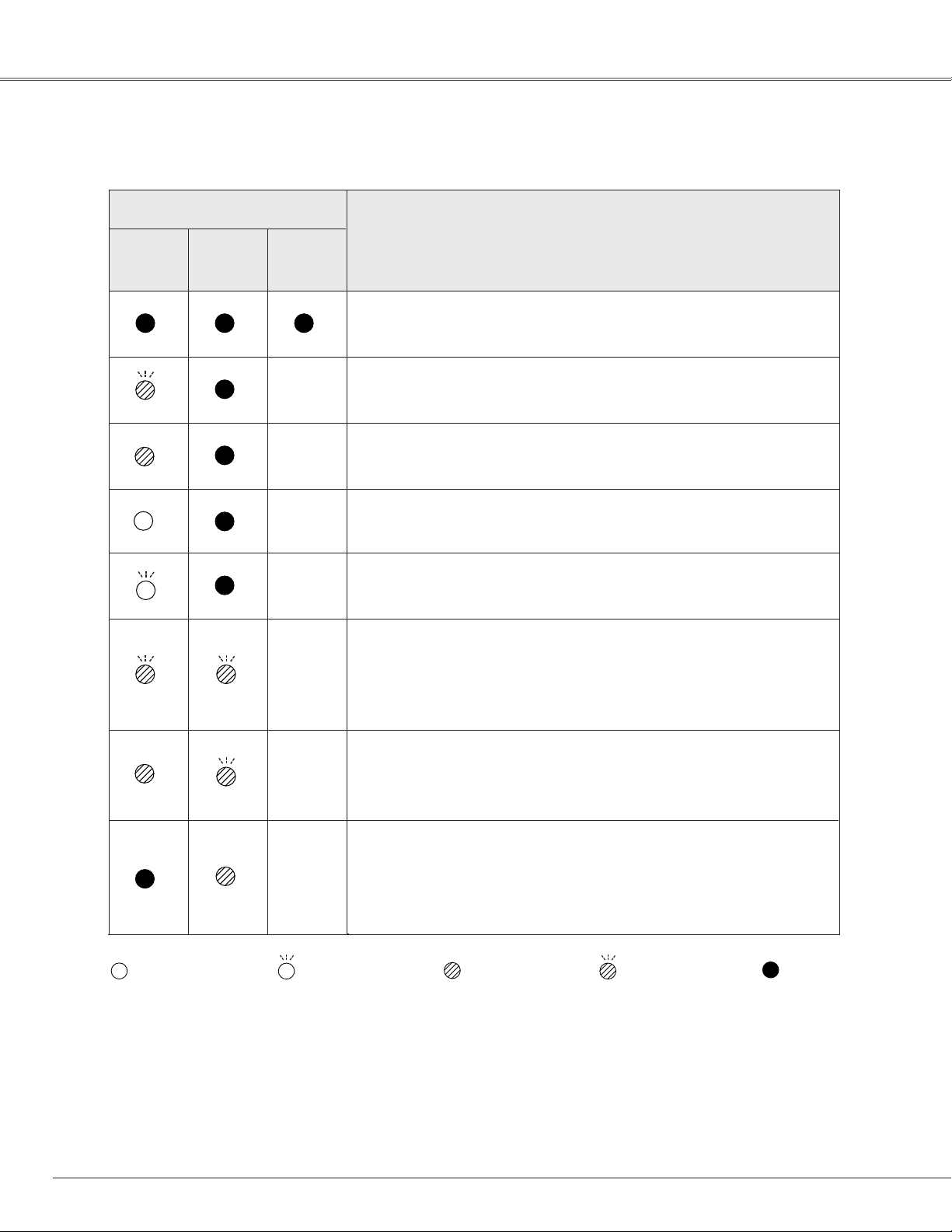

Check the indicators for projector condition.

• • • lights green. • • • lights red.

• • • off

• • • blinks green.

✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights

yellow, replace the projection lamp with a new one promptly. Reset the Lamp replace counter after replacement of the lamp. See page 52 and 53.

The projector is OFF. (The AC power cord is unplugged.)

The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator lights red and the projector can be turned on. (The WARNING . indicator keeps blinking.) Check and clean the air filters.

Projector Condition

The projector is ready to be turned on with the POWER ON-OFF button.

POWER

red/green

Indicators

LAMP

REPLACE

yellow

WARNING

red

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

✽

The projector is operating normally.

The projector is in the Power management mode.

✽

The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops blinking. Check and clean the air filters.

Indicators and Projector Condition

• • • blinks red.

Appendix

Compatible Computer Specifications

PLC-XU58/PLC-XU56/PLC-XU51 can basically accept the signal from all computers with the V, H-Frequency mentioned below and less than 140 MHz of Dot Clock. PLC-SU51 can basically accept the signal from all computers with the V, H-Frequency mentioned below and less than 100 MHz of Dot Clock.

These modes are not available on PLC-SU51.

When an input signal is digital from DVI terminal, refer to the chart below.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

640 x 480 31.47 59.88 720 x 400 31.47 70.09 640 x 400 31.47 70.09 640 x 480 37.86 74.38 640 x 480 37.86 72.81 640 x 480 37.50 75.00

640 x 480 34.97 66.60 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

800 x 600 35.156 56.25

800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 8 1024 x 768 XGA 9

1024 x 768

63.48 79.35

36.00

87.17

(Interlace)

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

XGA 5 1024 x 768 60.31 74.92

640 x 480 43.269 85.00

––––––––

15.734

60.00

(Interlace)

––––––––

15.625

50.00

(Interlace)

SVGA 10 800 x 600 32.70 51.09

XGA 10 1024 x 768

62.04 77.07

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

1280 x 960

75.00

75.08

1280 x 1024

80.00

75.08

XGA 11 1024 x 768

XGA 12 1024 x 768 XGA 13 1024 x 768 XGA 14 1024 x 768

61.00 75.70

XGA 15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

47.00 58.30

58.03 72.00

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

1280 x 1024 1280 x 1024

64.20 70.40

1280 x 1024

62.50 58.60

1280 x 1024

63.90 60.00

1280 x 1024

63.34

59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

SXGA 12 1152 x 900

81.13 76.107

SXGA 13 1280 x 1024

63.98 60.02

SXGA 14 1280 x 1024

61.20 65.20

71.40 75.60

50.00

86.00

(Interlace)

––––––––

50.00

94.00

(Interlace)

45.00 60.00

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18 1280 x 1024

63.37 60.01

76.9 7 72.00

61.85 66.00

46.43

86.70

(Interlace)

SXGA 19 1280 x 1024 63.79 60.18

––––––––

33.75

60.00

(Interlace)

1400 x 1050 63.90 60.00

––––––––

33.75

60.00

(Interlace)

––––––––

28.125

50.00

(Interlace)

––––––––

31.47 59.88

––––––––

31.25

50.00

SVGA 1 SVGA 2

480i

VGA 1 VGA 2 VGA 3 VGA 4 VGA 5 VGA 6

MAC LC13

MAC 13

VGA 7

575i

SXGA 3 SXGA 4 SXGA 5 SXGA 6 SXGA 7

MAC MAC

SXGA 21

SXGA 15

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

640 x 480 31.47 59.94

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

D-SVGA

800 x 600

37.879 60.32

D-XGA 1024 x 768 43.363 60.00

D-720p

––––––––

45.00 60.00

D-1035i

––––––––

33.75

60.00

(Interlace)

––––––––

33.75

––––––––

28.125

50.00

(Interlace)

D-480p

––––––––

31.47 59.94

D-575p

––––––––

31.25

50.00

60.00

(Interlace)

D-SXGA 2 60.276 58.069

31.65 29.80D-SXGA 3

1280 x 1024 1280 x 1024

63.98 60.02D-SXGA 1 1280 x 1024

480p 575p

720p 1035i

1080i 1080i

D-1080i D-1080i

76.97

Appendix

Te c hnical Specifications

Mechanical Information

Projector Type Multi-media Projector

Dimensions (W x H x D) 11.73" x 2.8" x 8.58" (298mm x 71mm x 218mm) (Not including adjustable feet)

Net Weight 6.2 lbs (2.8kgs)

Feet Adjustment 0˚ to 11.8˚

Panel Resolution PLC-XU58/PLC-XU56/XU51 PLC-SU51

LCD Panel System 0.8" TFT Active Matrix type, 3 panels

Panel Resolution 1,024 x 768 dots 800 x 600 dots

Number of Pixels 2,359,296 (1,024 x 768 x 3 panels) 1,440,000 (800 x 600 x 3 panels)

Signal Compatibility PLC-XU58/PLC-XU56/XU51 PLC-SU51

Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N

High Definition TV Signal

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Scanning Frequency

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 40" to 300"

Projection Lens F 1.7 ~ 2.5 lens with f 20.0 mm ~ 30.0 mm with manual zoom and focus

Throw Distance 3.3' ~ 25.3' (1.0m ~ 7.7m)

Projection Lamp 200W

Interface

Video Input Jack RCA Type x 1

S-Video Input Jack Mini DIN 4 pin x 1

Audio Input Jacks RCA Type x 2 Computer Input 1 Terminal DVI-I Terminal (Digital / Analog) (HDCP Compatible)

Computer Input 2/ Component Input / Monitor

Anlaog RGB (Mini D-sub 15 pin) Terminal X 1 (In / Out switchable)

Output Terminal

Computer/ Component Audio Input Jacks

Mini Jack (stereo) x 1

Service Port Connector Mini DIN 8 pin x 1

USB Connector USB Series B receptacle x 1

Audio Output Jack Mini Jack (stereo) x 1 (Variable)

Audio

Internal Audio Amp 1.0W RMS

Built-in Speaker 1 speaker, ø1.1" (28mm)

Power

Voltage and Power Consumption AC 100 ~ 120 V (3.6 A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)

AC 200 ~ 240 V (1.8 A Max. Ampere), 50 / 60 Hz (Continental Europe and The U.K.)

Operating Environment

Operating Temperature 41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

Storage Temperature 14 ˚F ~ 140 ˚F (-10˚C ~ 60 ˚C)

Remote Control

Battery AA, UM3 or LR6 Type x 2

Operating Range

16.4’ (5m) / ±30˚

Dimensions 2.0” x 1.0” x 7.1” (50mm x 27mm x 181mm)

Net Weight 0.34 lbs (154 g) (including batteries)

Appendix

Model No.

DVI Cable : KA-DV20

COMPONENT-VGA Cable : POA-CA-COMPVGA

SCART-VGA Cable : POA-CA-SCART

Multi Card Imager Box : POA-BOX20

Compact Flash Card : POA-CFC20

Wired LAN Card : POA-WDC20

Wireless LAN Card : POA-WLC20

When using the Wired or Wireless LAN Card, set the following model name in the PJ Controller operation.

The parts listed below are optionally available. When ordering those parts, give the item name and Model No. to the sales dealer.

Optional Parts

(This cable is used for RGB Scart 21-Pin Video output of video equipment.)

Accessories

Owner's Manual

AC Power Cord

Remote Control and Batteries

DVI-VGA Cable

USB Cable

Lens Cover with String and Screw

Soft Carrying Bag

PIN Code Label

● The specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of

the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

● The On-Screen Menu and figures in this manual may differ slightly from the product.

Model Name: 08-4-1

Terminal : Mini DIN 8-PIN

SERVICE PORT CONNECTOR

Appendix

COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : Analog RGB (Mini D-sub 15 pin)

Vcc

- Data

+ Data

Ground

1 2 3 4

USB CONNECTOR (Series B)

Configurations of Terminals

R X D

-----

GND

RTS / CTS

T X D

GND GND

Serial 1 2 3 4 5 6 7 8

Red (R/Cr) Input / Output

Ground (Horiz.sync.)

Green (G/Y) Input / Output

-----

Blue (B/Cb) Input / Output

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

-----

Horiz. sync. Input/Output (Composite H/V sync.)

Ground (Vert.sync.)

-----

Ground / -----

Vert. sync.

-----

14 15

Pixelworks ICs used.

Analog Red Input

Analog Ground (R/G/B)

Analog Green Input

Analog Horiz. sync

Analog Blue Input

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data Analog Vert. sync

6 7 8

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

DVI-I TERMINAL (DIGITAL/ANALOG)

Terminal : DVI-I

9 678

8 7 6

Appendix

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.

PIN Code Number Memo

Factory default set No: 1 2 3 4*

Factory default set No: 4 3 2 1*

*Should the four-digit number be

changed, the factory set number will be invalid.

Put the label below (supplied) on in a prominent place of the projector's body while it is locked with a PIN code.

While the projector is locked with the PIN code...

PIN Code Lock No.

Logo PIN Code Lock No.

Printed in Japan Part No. 610 314 6645 (1AA6P1P4532-- MT7A)

SANYO Electric Co., Ltd.

Sanyo PLC-XU51, PLC-XU58, PLC-SU51 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features and Design

Table of Contents

To the Owner

Safety Instructions

Moving the Projector

Air Circulation

Compliance

Bottom

Back

Front

Part Names and Functions

Rear Terminal

Top Control

Remote Control

Pointer Function

Laser Pointer Function

Operating Range

Wireless Mouse Operation

Remote Control Code

Installation

Adjustable Feet

Positioning the Projector

Connecting the AC Power Cord

Connecting to a Computer

Connecting to Video Equipment

Tu r ning On the Projector

Basic Operation

Tu r ning Off the Projector

Menu Bar

Auto Setup Function

Zoom and Focus Adjustment

No Show Function

Picture Freeze Function

Keystone Adjustment

Sound Adjustment

P-Timer Function

Input Source Selection

Computer Input

Computer System Selection

Auto PC Adjustment

Manual PC Adjustment

Image Level Selection

Image Level Adjustment

Screen Size Adjustment

Video Input

Video System Selection

Image Level Selection

Image Level Adjustment

Screen Size Adjustment

Setting

Setting

Warning Indicator

Maintenance and Cleaning

Attaching the Lens Cover

Cleaning the Air Filters

Cleaning the Projector Cabinet

Cleaning the Projection Lens

Lamp Replacement

Lamp Replace Counter

Tr oubleshooting

Appendix

Menu Tree

Te c hnical Specifications

Optional Parts

Configurations of Terminals

PIN Code Number Memo
