Sanyo PLC-XT30 User guide

Multimedia Projector

MODEL

PLC-XT25/PLC-XT25L

*

*

PLC-XT21/PLC-XT21L

*

PLC-XT20/PLC-XT20L
PLC-XT25K/PLC-XT20K

PLC-XT30/PLC-XT30L*

(*Models without lens.)

Owner’s Manual

2

Features and Design

◆ Compact Design

This projector is designed compact in size and
weight. It is easy to carry and installed anywhere you
wish to use.

◆ Functionally Rich

This projector has many useful functions such as lens
shifting, ceiling and rear projection, 360-degree
projection, variety of lens options, etc.

◆ Multi-use Remote Control

Use the remote control as wired and wireless, or as a
PC wireless mouse. Eight remote control codes and
selectable pointer shapes are also available.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform
to almost all computer output signals quickly (p.38).
Up to UXGA resolution can be accepted.

◆ Useful Functions for Presentation

Digital zoom function allows you to focus on the
crucial information during a presentation (pp.15, 51).

◆ Security Function

The Security function helps you to ensure security of
the projector. With the Key lock function, you can
lock the operation on the top control or remote
control (p.59). PIN code lock functions prevents
unauthorized use of the projector (pp.59–61).

◆ Lamp Control

Brightness of the projection lamp can be selected
(p.54).

◆

Power Management

The Power management function reduces power
consumption and maintains lamp life (p.58).

◆ Multilanguage Menu Display

Operation menu is available in 12 languages; English,
German, French, Italian, Spanish, Portuguese, Dutch,
Swedish, Russian, Chinese, Korean, and Japanese
(p.54).

◆ Network-capable

Through an optional Network Manager, you can
operate and control the projector.

◆ Logo Function

The Logo function allows you to customize the
screen logo (pp.55–56). You can capture an image for
the screen logo and use it for the starting-up display
or between presentations.

◆

Helpful Maintenance Functions

Lamp and filter maintenance functions provide for
better and proper maintenance of the projector.

◆

Multiple Interface Terminals

The projector has several interface terminals that can
support various types of equipment and signals
(pp.11–12).

✔Notes:

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

3

Table of Contents

Tr ademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.

Features and Design . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . .5

Air Circulation 6

Installing the Projector in Proper Directions 7

Moving the Projector 8

Cautions in Handling the Projector 8

Compliance . . . . . . . . . . . . . . . . . . . . . . .9

Part Names and Functions . . . . . . . . . .10

Front 10

Back 10

Bottom 10

Rear Terminal 11

Top Control 13

Remote Control 14

Laser Pointer Function 16

Pointer Function 16

Wireless Mouse Operation 17

Remote Control Code 17

Remote Control Battery Installation 18

Remote Control Receivers and Operating Range 18

Adjustable Feet 18

Installation . . . . . . . . . . . . . . . . . . . . . . .19

Lens Installation 19

Positioning the Projector 20

Moving the Lens 20

Connecting the AC Power Cord 21

Connecting to a Computer

(Digital and Analog RGB) 22

Connecting to Video Equipment (Video, S-Video) 23

Connecting to Video Equipment
(Component and RGB Scart) 24

Basic Operation . . . . . . . . . . . . . . . . . . .25

Turning On the Projector 25

Turning Off the Projector 26

How to Operate the On-Screen Menu 27

Menu Bar 28

Operating with Projector Control 29

Sound Adjustment 30

Operating with Remote Control 31

Input Selection . . . . . . . . . . . . . . . . . . .33

Input 34

Input Source Selection 35

Video System Selection 36

Computer Adjustment . . . . . . . . . . . . .37

Computer System Selection 38

Auto PC Adjustment 39

Manual PC Adjustment 40

Image Mode Selection . . . . . . . . . . . . .43

Image Mode Selection 44

Image Adjustment . . . . . . . . . . . . . . . . .45

Image Adjustment 46

Screen Adjustment . . . . . . . . . . . . . . . .49

Screen Adjustment 50

Screen Size Adjustment (Computer Signals) 51

Screen Size Adjustment
(Video, Component Signals) 52

Setting . . . . . . . . . . . . . . . . . . . . . . . . . .53

Setting 54

Maintenance and Filter Cleaning . . . . .63

Cleaning the Filter 64

Resetting the Filter Counter 64

Lamp Replacement 65

Resetting the Lamp Counter 66

Warning Indicator 67

Cleaning the Projection Lens 68

Cleaning the Projector Cabinet 68

Appendix . . . . . . . . . . . . . . . . . . . . . . . .69

Troubleshooting 69

Menu Tree 71

Indicators and Projector Condition 73

Compatible Computer Specifications 75

Technical Specifications 77

Optional Parts 78

PJ Link Notice 79

Configurations of Terminals 80

PIN Code Number Memo 81

Dimensions 82

4

To the Owner

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE EXCEPT
LAMP REPLACEMENT. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL
WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before installing and operating the projector, read this
manual thoroughly.
The projector provides many convenient features and
functions. Operating the projector properly enables you
to manage those features and maintains it in good
condition for many years to come.
Improper operation may result in not only shortening
the product life, but also malfunctions, fire hazard, or
other accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections
and try the solutions in the “Troubleshooting” section in
the back of this booklet. If the problem still persists,
contact the dealer where you purchased the projector or
the service center.

Safety Precaution

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as much as
possible, otherwise eye damage could result. Be
especially careful that children do not stare directly into
the beam.

– Install the projector in a proper position. Otherwise it

may result in fire hazard.

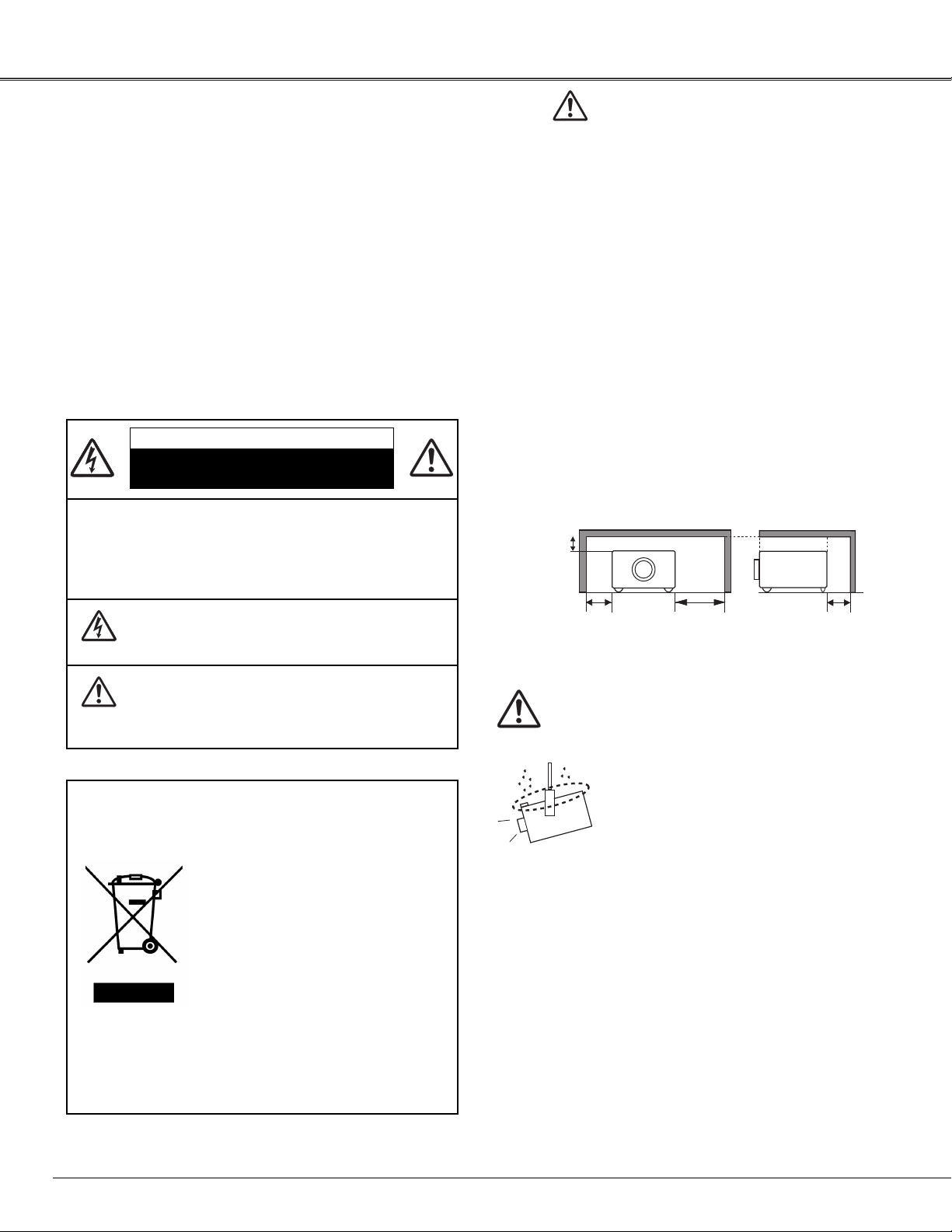

– Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air
circulation and cooling of the unit. The dimension
shown here indicate the minimum space required. If the
projector is to be built into a compartment or similarly
enclosed, these minimum distances must be
maintained.

– Do not cover the ventilation slot on the projector. Heat

build-up can reduce the service life of your projector,
and can also be dangerous.

– If the projector is unused for an extended time, unplug

the projector from the power outlet.

SIDE and TOP REAR

CAUTION

Not for use in a computer room as defined in the
Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle
que définie dans la norme ANSI/NFPA 75 Standard for
Protection of Electronic Computer/Data Processing
Equipment

NOTE: This symbol and recycle system are applied only to EU

countries and not applied to the countries in the other
area of the world.

Your SANYO product is designed and
manufactured with high quality
materials and components which can be
recycled and reused.

This symbol means that electrical and
electronic equipment, at their end-of­life, should be disposed of separately
from your household waste.

Please dispose of this equipment at
your local community waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the
ceiling, clean air intake vents, filters, or
top of the projector periodically with a
vacuum cleaner. If you leave the projector
unclean for a long time, the cooling fans
can be clogged with dust, and it may
cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR
SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT
A BREAKDOWN OR A DISASTER. IF THE PROJECTOR
COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY
BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR
LATER USE.

0.7' (20 cm)

1.5' (50 cm)

3' (1 m)

1.5' (50 cm

5

Safety Instructions

All the safety and operating instructions should be read
before the product is operated.

Read all of the instructions given here and retain them for
later use. Unplug this projector from AC power supply
before cleaning. Do not use liquid or aerosol cleaners.
Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the
projector.

For added protection to the projector during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the
manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or
table. The projector may fall, causing serious injury to a
child or adult, and serious damage to the projector. Use
only with a cart or stand recommended by the
manufacturer, or sold with the projector. Wall or shelf
mounting should follow the manufacturer’s instructions,
and should use a mounting kit approved by the
manufacturers.

An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.

Slots and openings in the side and bottom of the cabinet
are provided for ventilation, to ensure reliable operation of
the equipment and to protect it from overheating.

The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked
by placing the projector on a bed, sofa, rug, or other
similar surface. This projector should never be placed near
or over a radiator or heat register.

This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of air­conditioning equipment.

This projector should be operated only from the type of
power source indicated on the marking label. If you are
not sure of the type of power supplied, consult your
authorized dealer or local power company.

Do not overload wall outlets and extension cords as this
can result in fire or electric shock. Do not allow anything
to rest on the power cord. Do not locate this projector
where the cord may be damaged by persons walking on
it.

Do not attempt to service this projector yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.

Unplug this projector from wall outlet and refer servicing
to qualified service personnel under the following
conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls
that are covered by the operating instructions as
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the projector to normal
operation.

e. If the projector has been dropped or the cabinet has

been damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.

Upon completion of any service or repairs to this
projector, ask the service technician to perform routine
safety checks to determine that the projector is in safe
operating condition.

6

Safety Instructions

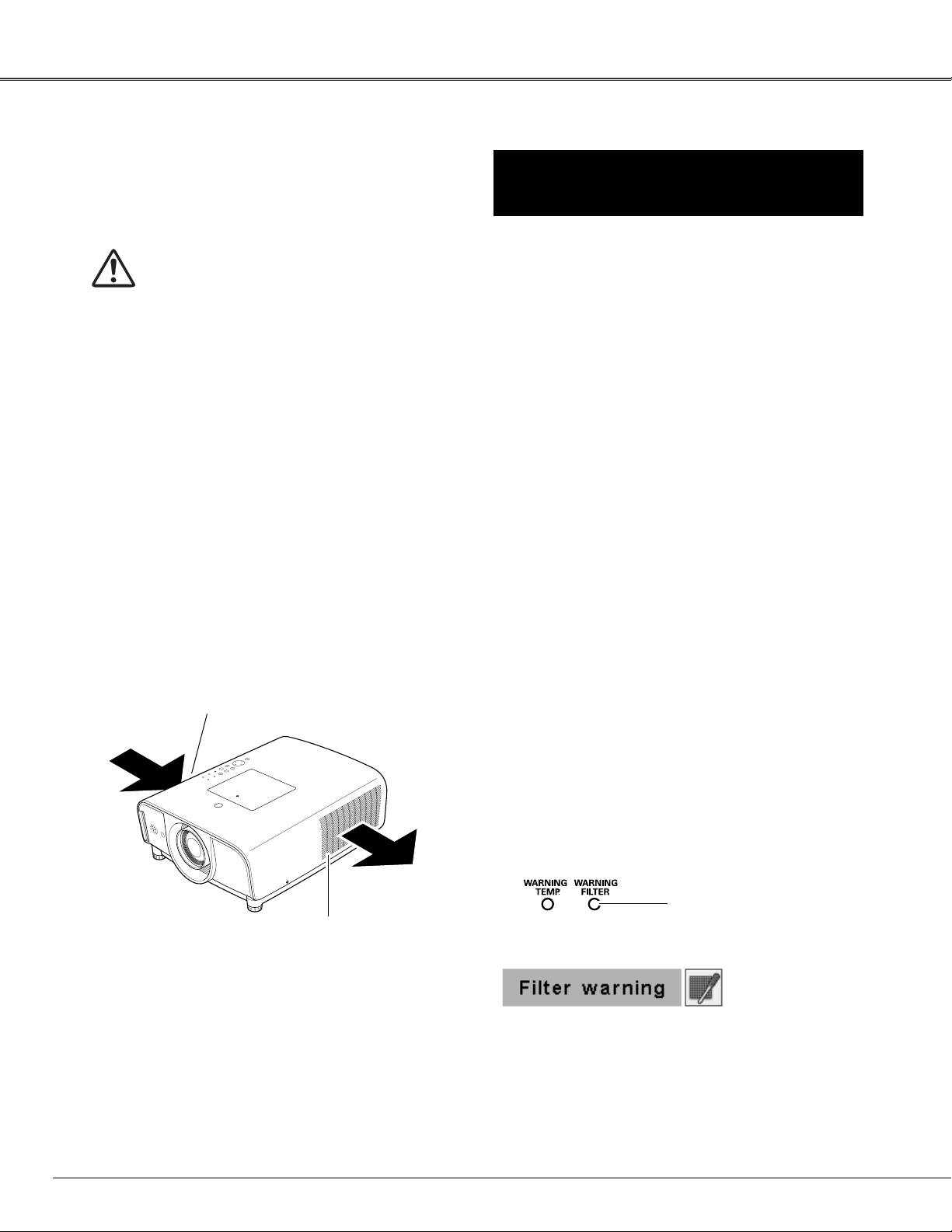

Openings in the cabinet are provided for ventilation.
To ensure reliable operation of the product and to
protect it from overheating, these openings must not
be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can near

the projector, hot air is exhausted from the air
vents.

– Keep the exhaust vent at least 3’ (1 m) away from

any objects.

– Do not touch peripheral parts of the exhaust vent,

especially screws and metallic parts. These areas
will become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on

the cabinet will not only get damaged but also may
cause fire hazard by heat.

Cooling fans are provided to cool down the projector.
The fans’ running speed is changed according to the
temperature inside the projector.

Air Circulation

Exhaust Vent
(Hot air exhaust)

Air Intake Vent

Air flow

The projector uses a lamp which generates significant
heat. The cooling fans and air vents are provided to
dissipate the heat by drawing air into the housing and
the filter is located in the intake vents to prevent dust
from getting inside of the projector.

In order to care for the projector appropriately, regular
cleaning is required. Remove any dirt or dust that has
accumulated on the projector and on or in the filter.

If the projector detects that the filter is clogged, a
“Filter warning” icon (red) will appear on the screen
and “WARNING FILTER” indicator on the top panel
will blink (see below). Stop using the projector
immediately and clean or replace the filter.

Blocking the air vents and leaving the projector
uncleaned for a long time may not only damage the
projector and may require costly repairs but may also
cause accidents or fire.

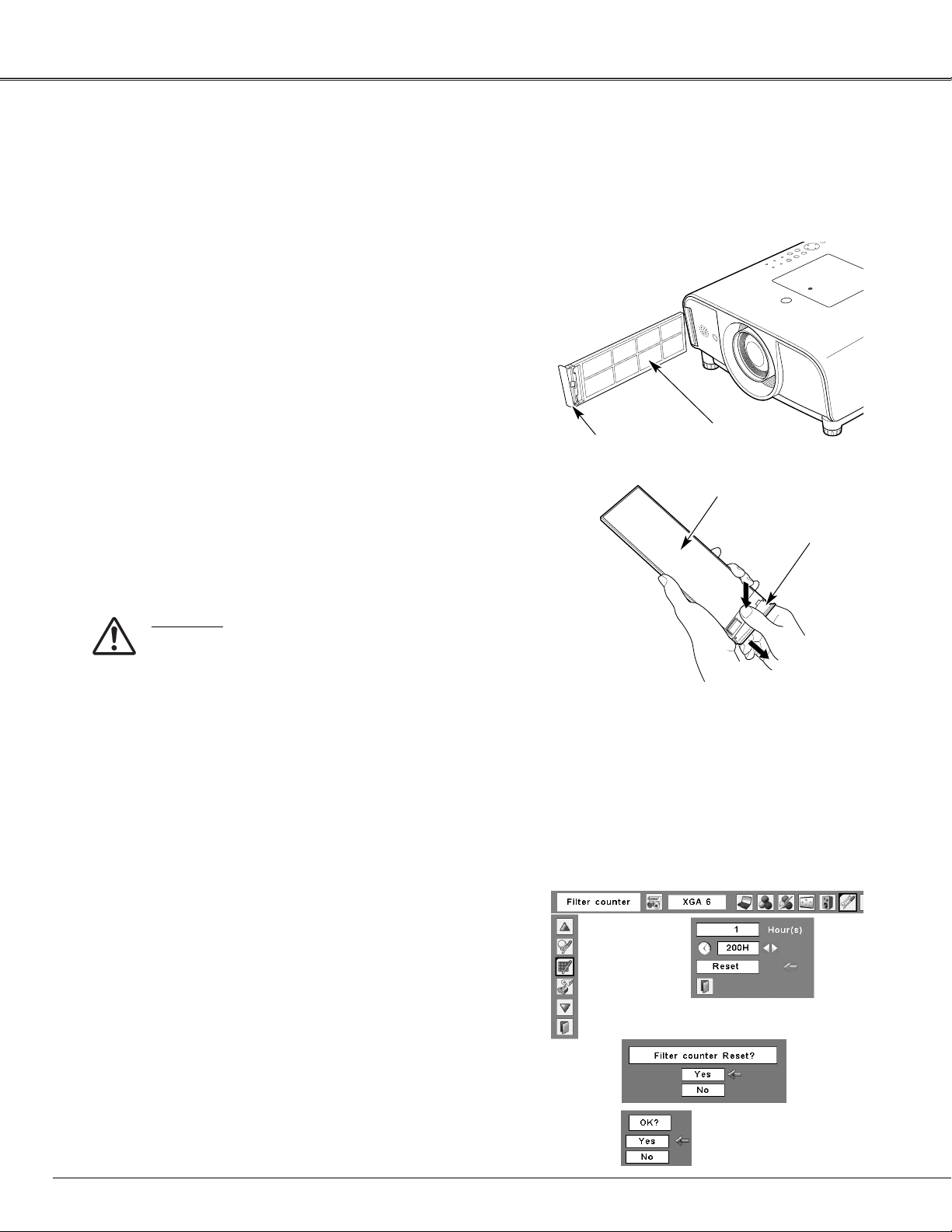

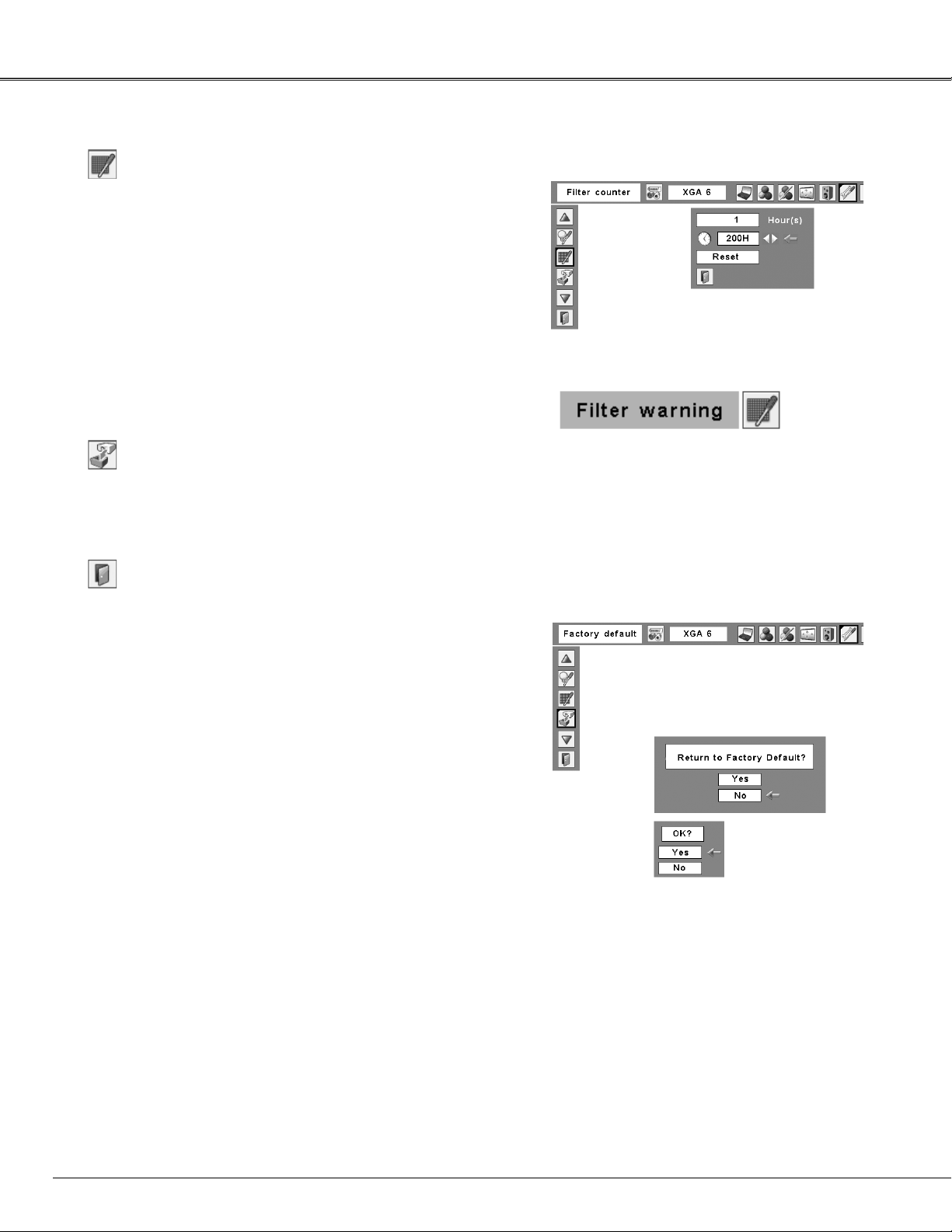

For maintenance of the filter, refer to “Filter counter”
on page 62 and “Maintenance and Filter Cleaning” on
pages 63–64.

Damages to the projector caused by using an
uncleaned filter or improper maintenance will void
the warranty on the projector.

IMPORTANT!

Clean the Filter Regularly!!

Filter warning icon (red) appears on the screen
when the projector detects filter clogging.

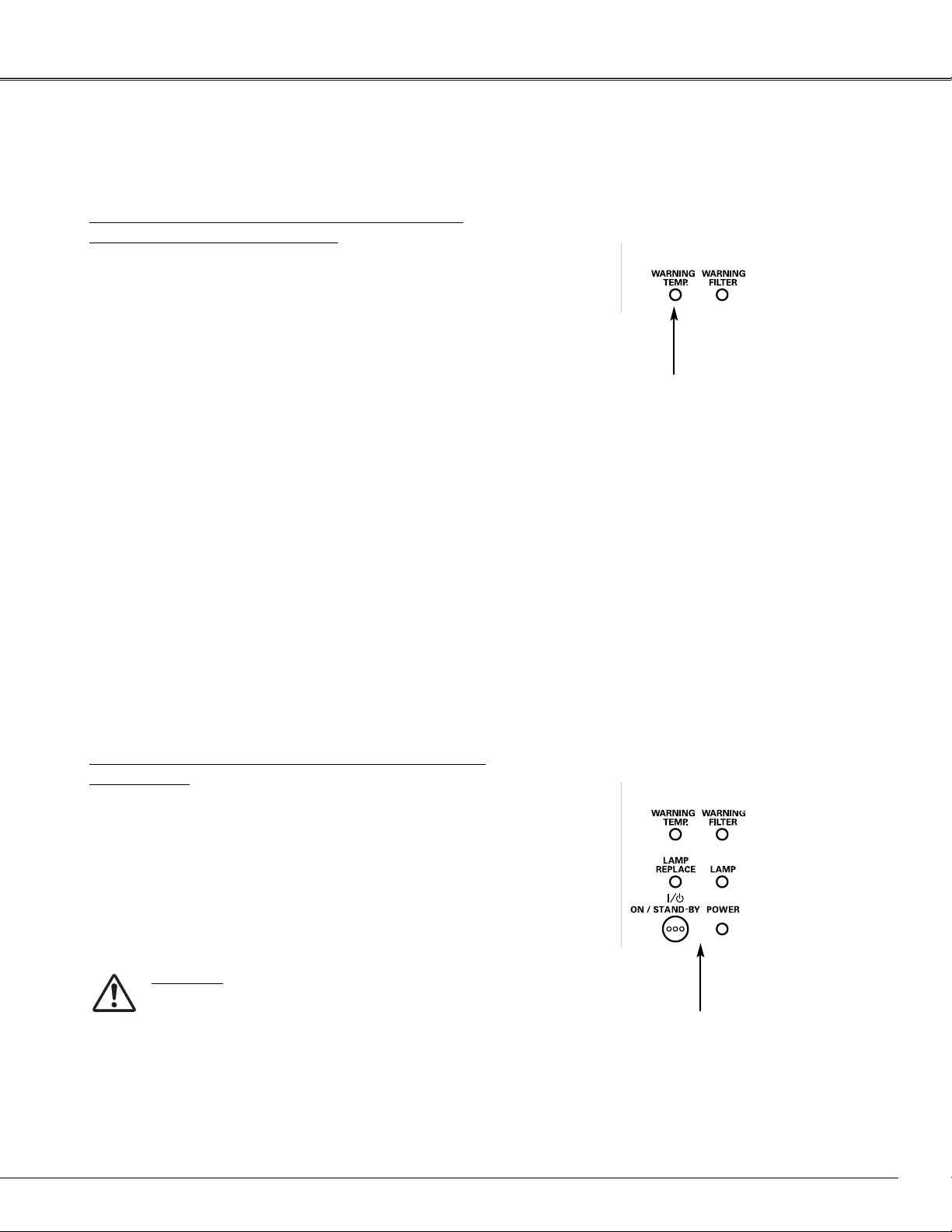

Top Control

WARNING FILTER
indicator

7

Safety Instructions

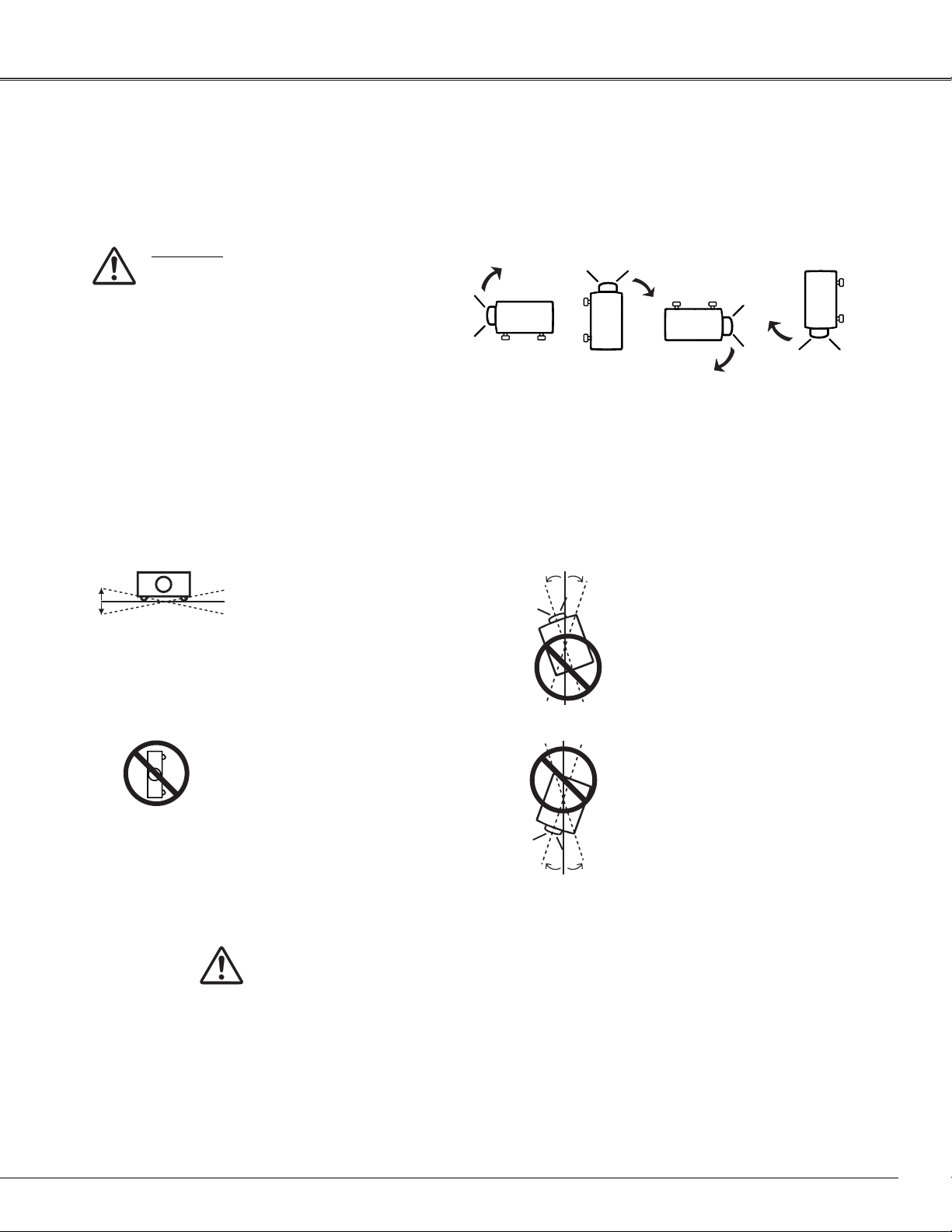

Do not tilt the projector more than
10 degrees from side to side.

In upward projection, do
not tilt the projector over
10 degrees right and left.

Do not put the projector on either
side to project an image.

In downward projection, do
not tilt the projector over
10 degrees right and left.

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in
severe accident or fire hazard.
This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen
as shown in the figure below.

Bottom

Downward

(Usual)

Front

Downward

Bottom

Upward

Front

Upward

Installing the Projector in Proper Directions

Avoid positioning the projector as described below when installing.

Positioning Precautions

CAUTION

Make sure that the Fan control settings
are set properly when setting up the
projector with upward/downward
inclination of over 20 degrees to the
horizontal plane. Set the Fan control
function in the Setting menu (see page

59).

CAUTION ON CEILING MOUNTING

For ceiling mounting, you need the ceiling mount kit designed for this
porjector. When not mounted properly, the projector may fall, causing
hazards or injury. For details, consult your dealer. The warranty on this
projector does not cover any damage caused by use of any non­recommened ceiling mount kit or installation of the ceiling mount kit in
an improper location.

10˚

10˚

10˚ 10˚

10˚

10˚

8

Safety Instructions

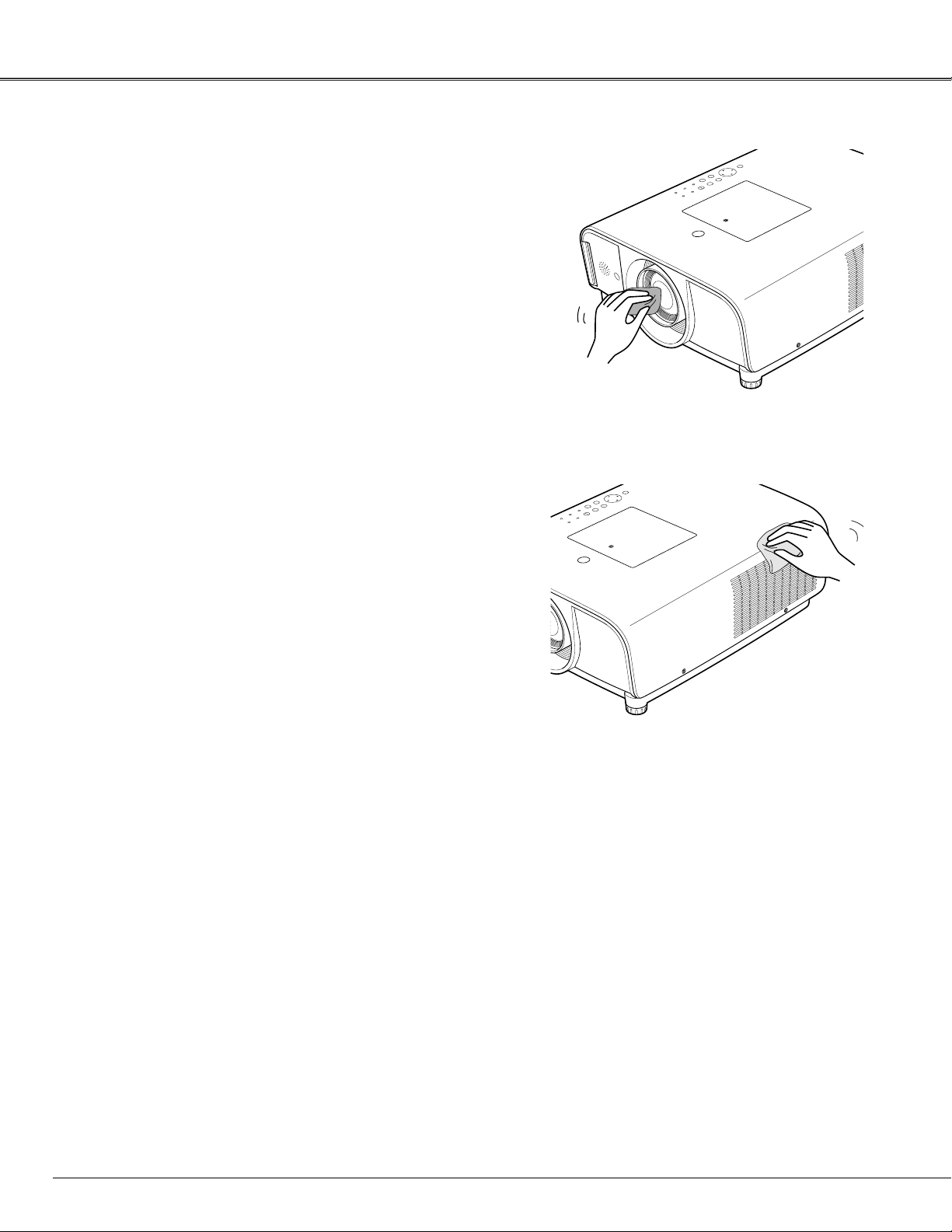

Use the hand grip when moving the projector.

Replace the lens cap and retract the adjustable feet to
prevent damage to the lens and cabinet when carrying.

When the projector is not in use for an extended period, put
it into a suitable case to protect the projector.

CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, otherwise damages

or malfunctions may result.

– When carrying the projector, use a suitable carrying

case.

– Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This
may cause damage to the projector. For information
about transporting the projector by courier or any other
transport service, consult your dealer.

– Do not put the projector in a case before it is cooled

enough.

Cautions in Handling the Projector

Do not hold the lens when lifting or moving the projector.
Doing so may cause damage to the lens and the projector.

Care must be taken when handling the projector; do not
drop, bump, subject it to strong forces, or put other things
on the cabinet.

Do not hold the lens and the peripheral part.

CAUTION

This projector has a motorized lens. Please note
the followings when using the projector.

● Do not touch the lens while it is moving as this
could cause injury to the fingers.

● Never allow children to touch the lens.

Moving the Projector

Compliance

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes
or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s)
Trade Name : Sanyo
Responsible party : SANYO FISHER COMPANY
Address : 21605 Plummer Street, Chatsworth, California 91311 U.S.A.

Telephone No. : [phone]

: PLC-XT30, PLC-XT30L, PLC-XT25, PLC-XT25L, PLC-XT21, PLC-XT21L, PLC-XT20, PLC-XT20L

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories
(UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug
will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert
the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the
plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus

ASA

. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required,
ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from
the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should
be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth
Blue ································· Neutral

Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E
or by the safety earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

GROUND

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

9

10

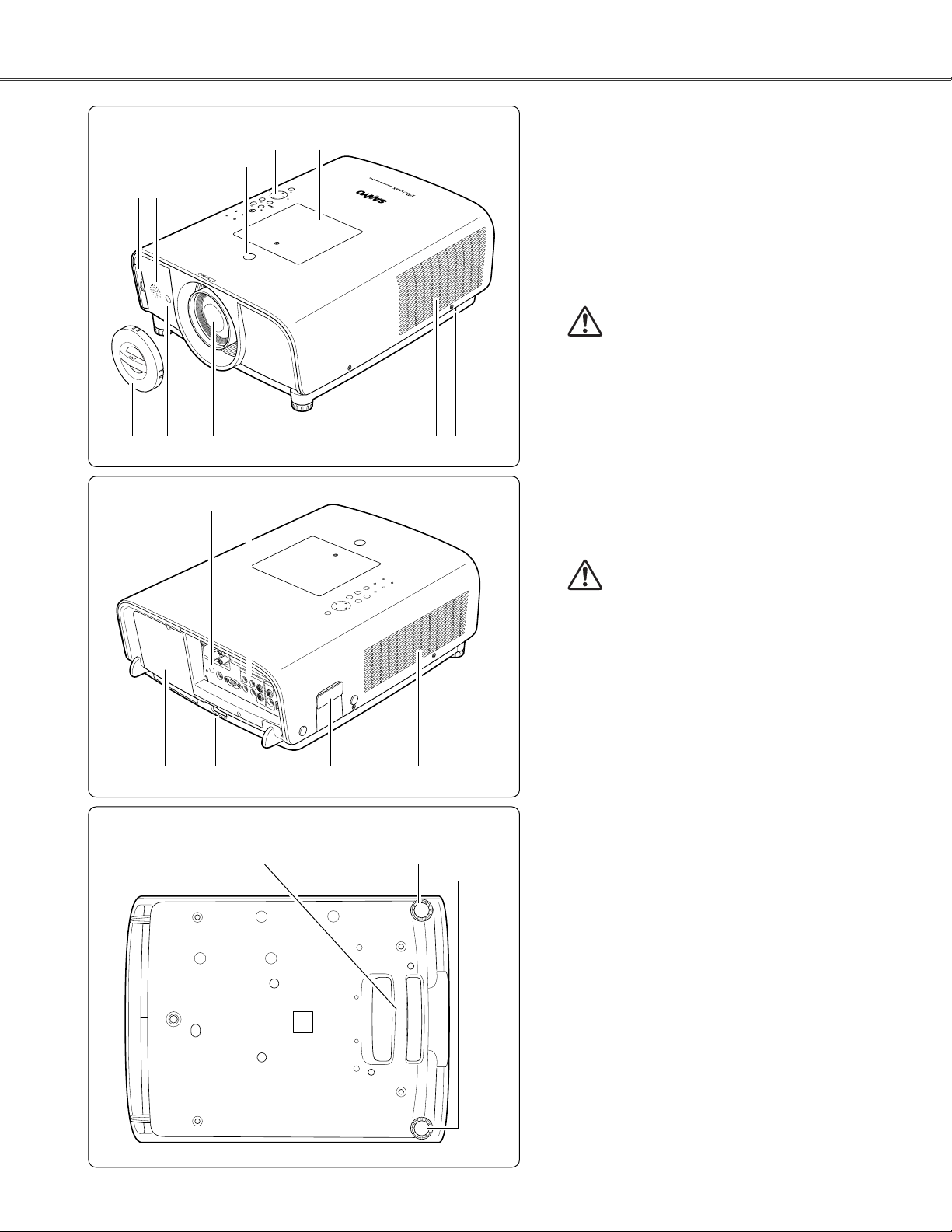

Bottom

Back

q Filter
w Speaker
e Lens Release Button

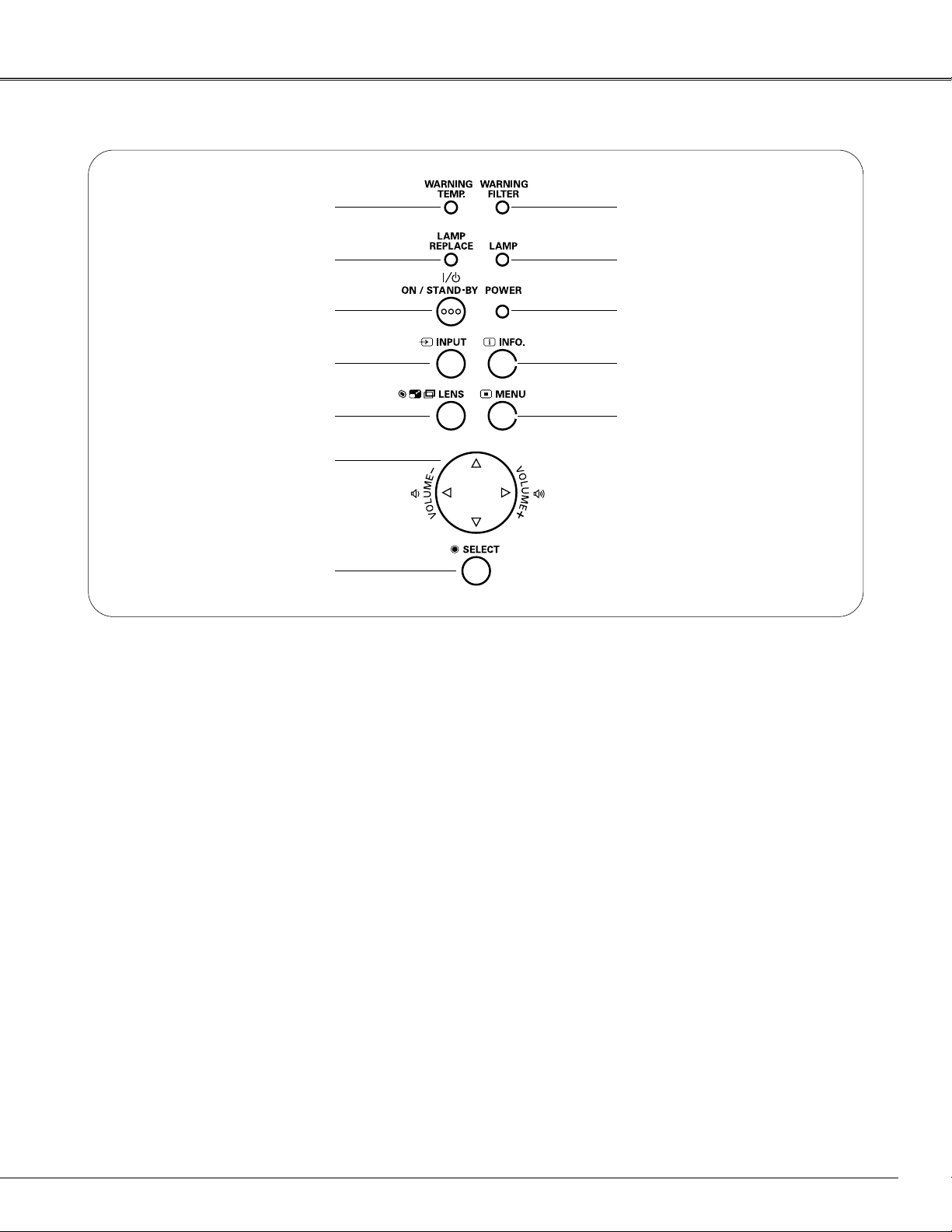

r Top Controls and Indicators
t Maintenance Cover

WARNING: FOR MAINTENANCE USE

ONLY. DO NOT OPEN.

y Lens Cap

(for PLC-XT25/XT25K/XT21/XT20/XT20K)

!7

!4 !6!5

!2

!3

CAUTION

Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.

u

e

r t

y

Front

!0

o

q w

i

✽

o

!1 Infrared Remote Receiver (Back)
!2 Terminals and Connectors
!3 Lamp Cover
!4 Power Cord Connector
!5 Optional Parts Attachment
!6 Air Intake Vent
!7 Hand Grip

CAUTION

Do not turn on the projector with the lens
cap attached. High temperature from light
beam may damage the lens cap and result
in fire hazard.

u Infrared Remote Receiver (Front)
i Projection Lens

(for PLC-XT25/XT25K/XT21/XT20/XT20K)

o Adjustable Feet
!0 Exhaust Vent

✽ Kensington Security Slot

This slot is for a Kensington lock used to deter
theft of the projector.

*Kensington is a registered trademark of ACCO Brands

Corporation.

!1

Part Names and Functions

11

Part Names and Functions

Rear Terminal

q w e

r

t

yi u

t USB CONNECTOR (Series B)

Use this connector when controlling a computer
with the remote control of the projector. Connect
the USB terminal of your computer to this
connector with the supplied USB cable (p.22).

y S-VIDEO INPUT JACK

Connect the S-VIDEO output signal from video
equipment to this jack (p.23).

i AUDIO 2 JACK

Connect the audio output (stereo) signal from a
computer or video equipment connected to q to
this jack (pp.22–24).

o AUDIO 1 JACK

Connect the audio output (stereo) signal from a
computer or video equipment connected to w or

e to this jack (pp.22, 24).

r VIDEO INPUT JACK

Connect the composite video output signal from
video equipment to this jack (p.23).

u AUDIO 3 JACKS (L(MONO)/R)

Connect the audio output signal from video
equipment connected to r or y to these jacks
(p.23). For a mono audio signal (a single audio
jack), connect it to the L (MONO) jack.

q 5 BNC INPUT JACKS

Connect the component or composite video output
signal from video equipment to VIDEO/Y, Cb/Pb,
and Cr/Pr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks
(pp.22–24).

w COMPUTER INPUT TERMINAL (ANALOG)

Connect the computer (or RGB scart) output signal
to this terminal (pp.22, 24).

e COMPUTER INPUT TERMINAL (DIGITAL)

Connect the computer output signal (Digital DVI-D
type) to this terminal. The HD (HDCP compatible)
signal can also be connected (pp.22, 24).

o

12

Part Names and Functions

!0 R/C JACK

When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).

!2 MONITOR OUTPUT TERMINAL (ANALOG)

This terminal outputs the video signal from
computer to external video equipment (pp.22, 24).

✽ RESET button

A built-in micro processor which controls this unit may
occasionally malfunction and need to be reset. This can be
done by pressing the RESET button with a pen, which will
shut down and restart the unit. Do not use the RESET
function excessively.

Rear Terminal

!0!1!2!3!4

✽

!1 AUDIO MONITOR OUTPUT JACK (VARIABLE)

This jack outputs the audio signal from computer
or video equipment to external audio equipment
(pp.22–24).

!3 CONTROL PORT CONNECTOR

When controlling the projector from a computer,
connect the computer to this connector with a
control cable.

!4 INFRARED REMOTE RECEIVER (Back)

The infrared remote receiver is also located in the
front (pp.10, 18).

13

Part Names and Functions

q

w

e

t

u

i

o

w LAMP REPLACE indicator

Lights yellow when the projection lamp reaches its
end of life (pp.65, 74).

q WARNING TEMP. indicator

Blinks red when the internal temperature of the
projector exceeds the operating range (pp.67, 73).

e ON/STAND-BY button

Turn the projector on or off (pp.25–26).

r INPUT button

Select an input source (pp.34–35).

!1 INFO. button

Display the input source information (p.29).

y POINT ed7 8 (VOLUME +/–) buttons

– Select an item or adjust the value in the On-

Screen Menu (p.27).
– Pan the image in Digital zoom + mode (p.51).
– Adjust the volume level (Point

7 8 buttons)

(p.30).

u SELECT button

– Execute the selected item (p.27).
– Expand or compress the image in the Digital zoom

mode (p.51).

Top Control

r

y

!0

!1

!2

t LENS button

Enter the focus, zoom, and lens shift adjustment
mode (p.29).

i WARNING FILTER indicator

– Blinks orange indicating the filter needs cleaning.
– Lights orange when clogging of the filter is

detected, urging immediate cleaning.

o LAMP indicator

Lights red during operations.

!0 POWER indicator

– Lights when in stand-by mode and during

operations.
– Blinks during the cooling-off period.
– Blinks in the Power management mode (p.58).

!2 MENU button

Open or close the On-Screen Menu (p.27).

✔Note:

•All five indicators on the top control blinks when the
projector detects an abnormal condition.

14

Part Names and Functions

o

t

y

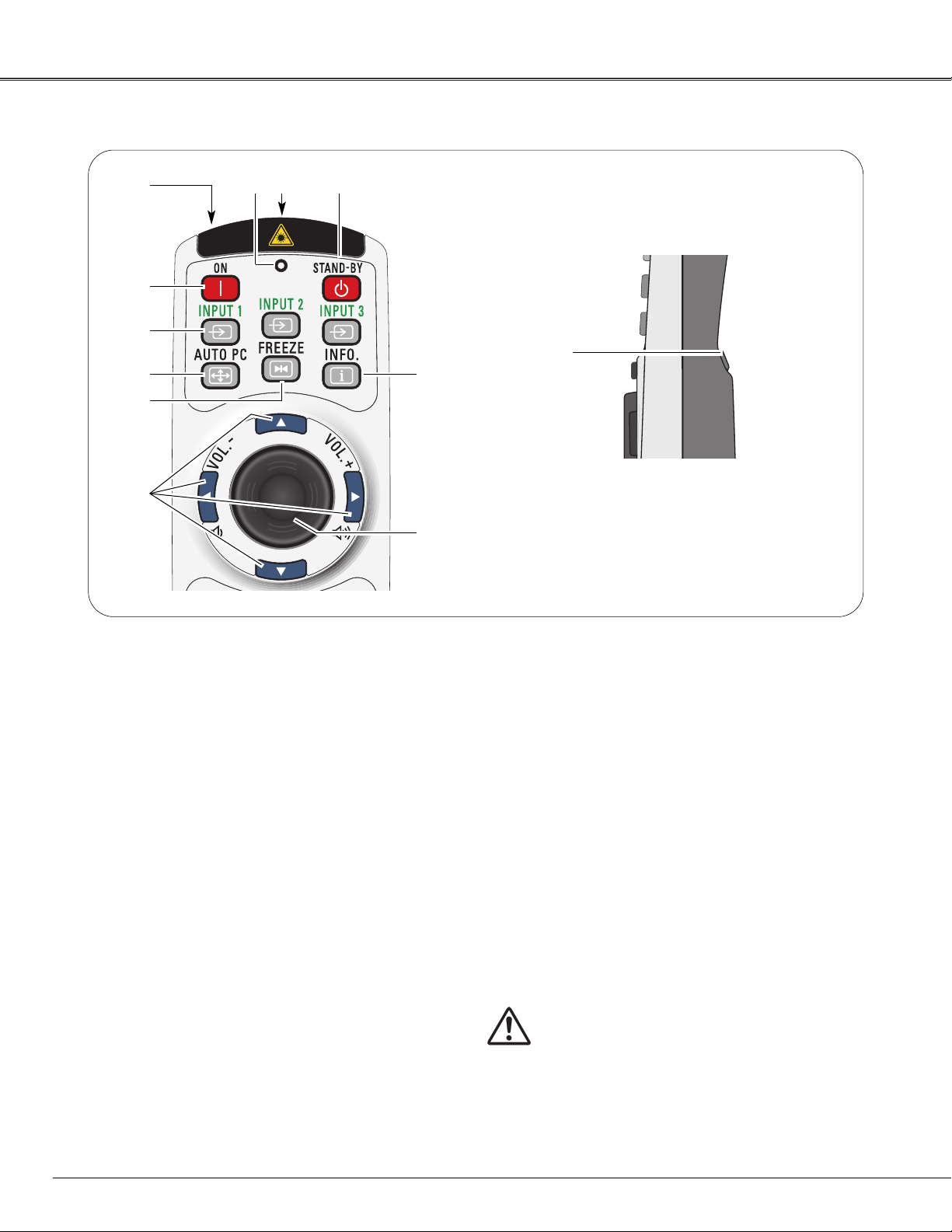

q STAND-BY button

Turn the projector off (p.26).

t ON button

Turn the projector on (p.25).

y INPUT 1 – 3 buttons

Select an input source (INPUT 1 – INPUT 3)
(pp.34–35).

u AUTO PC button

Automatically adjusts the computer image to its
optimum setting (pp.31, 39).

i FREEZE button

Freeze the picture on the screen (p.31).

o POINT ed 7 8 ( VOLUME + / – ) buttons

– Select an item or adjust the value in the On-

Screen Menu (p.27).

– Pan the image in Digital zoom + mode (p.51).
– Adjust the volume level (with Point 7 8 buttons)

(p.30).

r

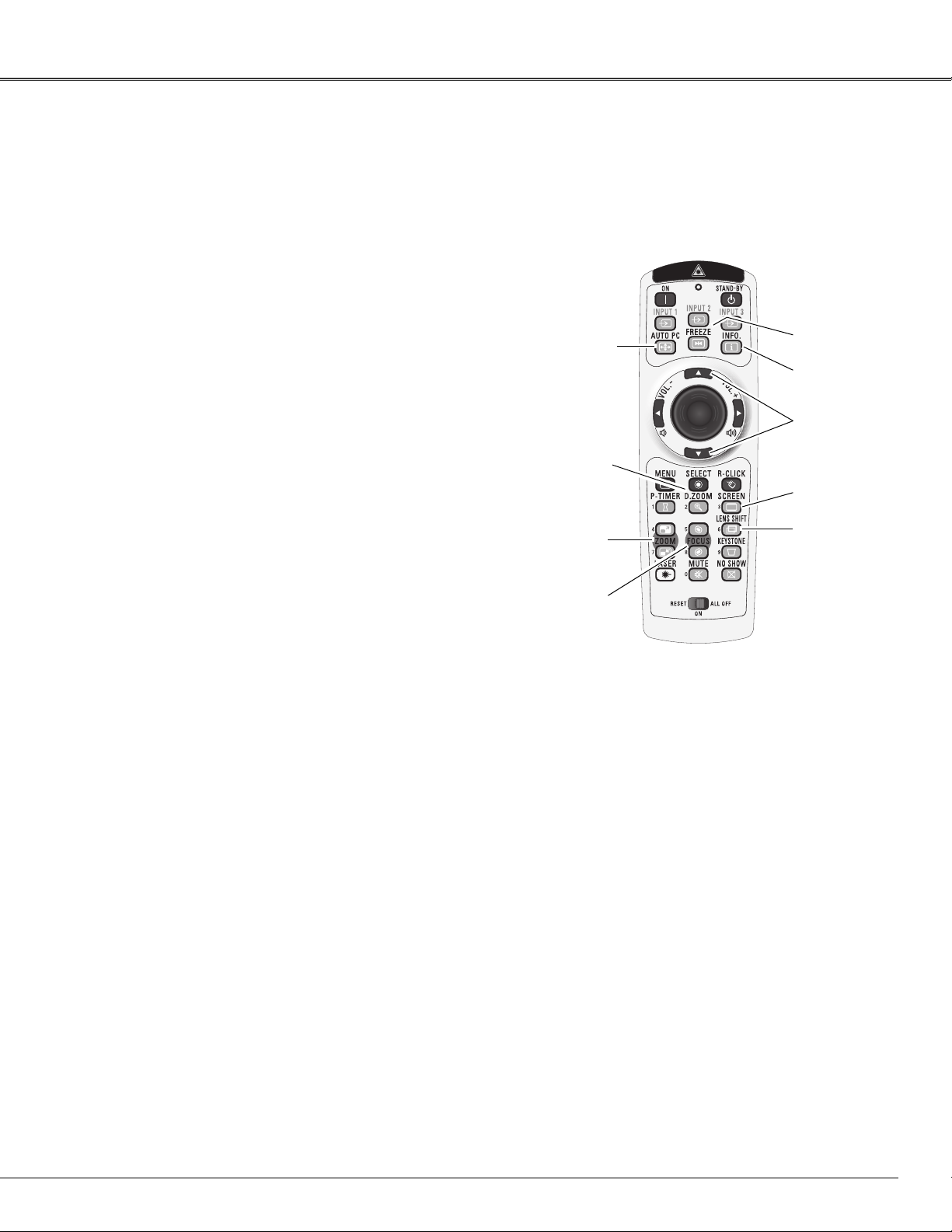

Remote Control

!0

u

i

!1

q

!2 L-CLICK button

Acts as the left mouse button for wireless mouse
operation (p.17).

e SIGNAL EMISSION indicator

Lights red while the laser beam is being emitted
from the laser light window or a signal is being sent
from the remote control to the projector (p.16).

!0 PRESENTATION POINTER button

Move a pointer of the projector or a pointer for
wireless mouse operation (pp.16–17).

To ensure safe operation, observe the
following precautions:

– Do not bend, drop, or expose the remote control to

moisture or heat.

– For cleaning,

use a soft dry cloth. Do not apply benzene,

thinner, splay, or any other chemical materials.

e

!2

w WIRED REMOTE jack

Connect the remote control cable (not supplied) to
this jack when using as a wired remote control.

!1 INFO. button

Display the input source information (p.29).

w

r LASER LIGHT window

A laser beam is emitted from here (p.16).

15

Part Names and Functions

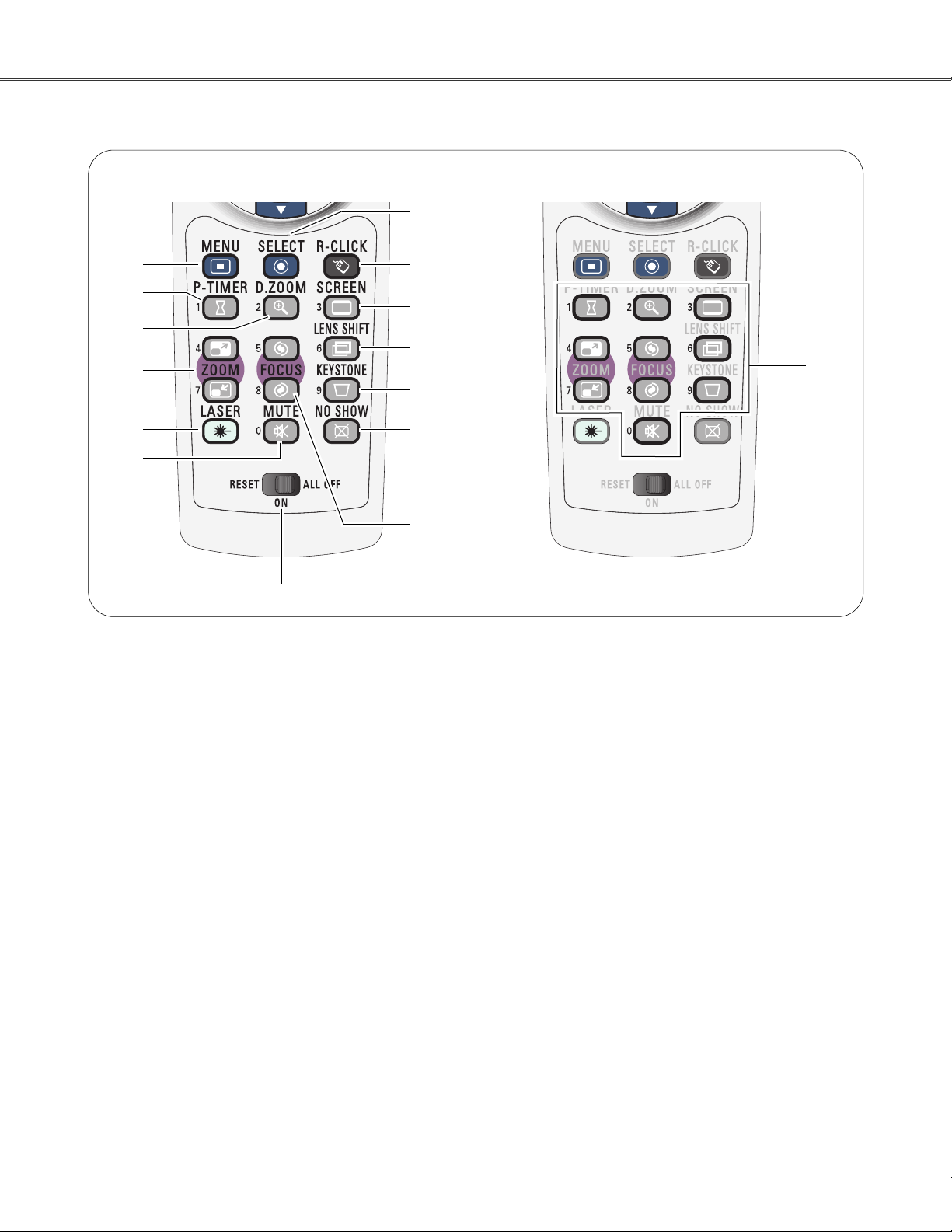

Remote Control

!9

!5

!3

!4

!8

!6

!7

@0

!3 MENU button

Open or close the On-Screen Menu (p.27).

!6 ZOOM ed buttons

Zoom in and out the images (p.31).

!5 D.ZOOM button

Select the Digital zoom +/- mode and resize the
image (p.51).

@0 FOCUS button

Adjust the focus (p.31).

!8 MUTE button

Mute the sound (p.30).

!4 P-TIMER button

Operate the P-timer function (p.32).

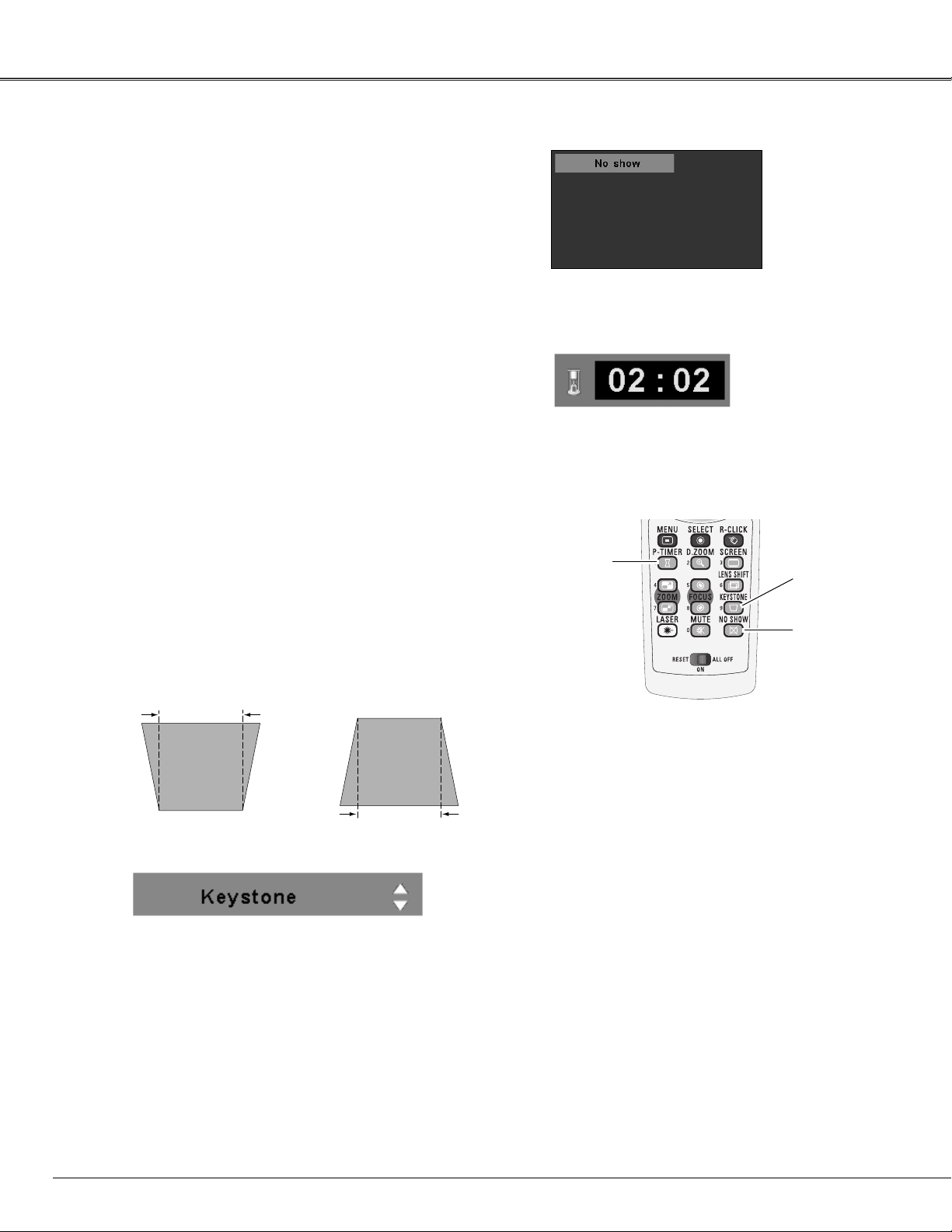

@1 NO SHOW button

Temporarily turn off the image on the screen (p.32).

@2 KEYSTONE button

Correct keystone distortion (p.32).

@6 SELECT button

– Execute the selected item (p.27).
– Expand or compress the image in the Digital

zoom mode (p.51).

!7 LASER button

– Operate the Laser pointer function. Laser beam

is emitted while pressing this button for one
minute. When using the laser pointer for more
than one minute, release the LASER button and
press it again (p.16).

– Display the Pointer on the screen (p.16).

!9 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to
“ON.” Set it to “ALL OFF” for power saving when
it is not in use. Slide this switch to “RESET” to
initialize the remote control code or switch the
Spotlight and Pointer to the Laser pointer function
(pp.16–17).

@5 R-CLICK button

Acts as the right mouse button for wireless mouse
operation (p.17).

@3 LENS SHIFT button

Select the Lens Shift function (p.31).

@4 SCREEN button

Select the screen size (p.31).

@6

@7

@7 NUMBER buttons

Act as number buttons. Use these buttons when
setting the remote control codes (p.17) or when
entering the PIN code numbers (pp. 25, 56–57,
60–61).

@3

@2

@1

@4

@5

For PIN code
and remote
control code.

16

Part Names and Functions

Spotlight

Pointer Function

Pointer

✔Note:

•You can choose the size of Spotlight (Large/Middle/Small) and the
pattern of Pointer (Arrow/Finger/Dot) in the Setting Menu. See
“Pointer” on page 54.

This remote control emits a laser beam from the laser light window. Press the LASER button to activate the
laser pointer. The signal emission indicator lights red and the red laser beam is emitted. If the LASER button is
pressed for more than one minute or if it is released, the laser light goes off.
The laser emitted is a Class II laser. Do not look into the laser light window or point the laser beam at yourself
or other people. The following is the caution label for the laser beam.
CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure. Never look directly into the laser light window while a laser
is emitted, otherwise eye damage may result.

Laser Light Window

The caution label is put on the remote control.

Signal Emission Indicator

Laser Pointer Function

You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the
projected image.

Press and hold the MENU and NO SHOW buttons for
more than 10 seconds to activate the Pointer function.
(The Laser pointer has switched to the Pointer function.)

1

Press and hold the MENU
and NO SHOW buttons for
more than 10 seconds.

Press the LASER button on the remote control pointing
toward the projector. The Spotlight or Pointer is
displayed on the screen with the LASER button lighting
green. Then move the Spotlight or Pointer with the
PRESENTATION POINTER button. If the LASER button
does not light green and continues to emit a laser
beam, try the abovementioned procedure until the
LASER button lights green.

2

To clear the Spotlight or Pointer out the screen, press
the LASER button pointing toward the projector and see
if the LASER button lighting is turned off.
To switch to the Laser pointer again, press and hold the
NO SHOW and MENU buttons for more than 10
seconds or slide the RESET/ON/ALL-OFF switch to
“RESET” and then to “ON”.
When you reset the Pointer function, the remote control
code will be reset, as well.

3

After the Laser pointer has switched to
the Pointer, use the LASER button as
the Pointer function ON-OFF switch.
Press the LASER button pointing
toward the projector and see if it lights
green.

LASER button

PRESENTATION POINTER
button

MENU button

NO SHOW button

RESET/ON/ALL OFF
Switch

17

Part Names and Functions

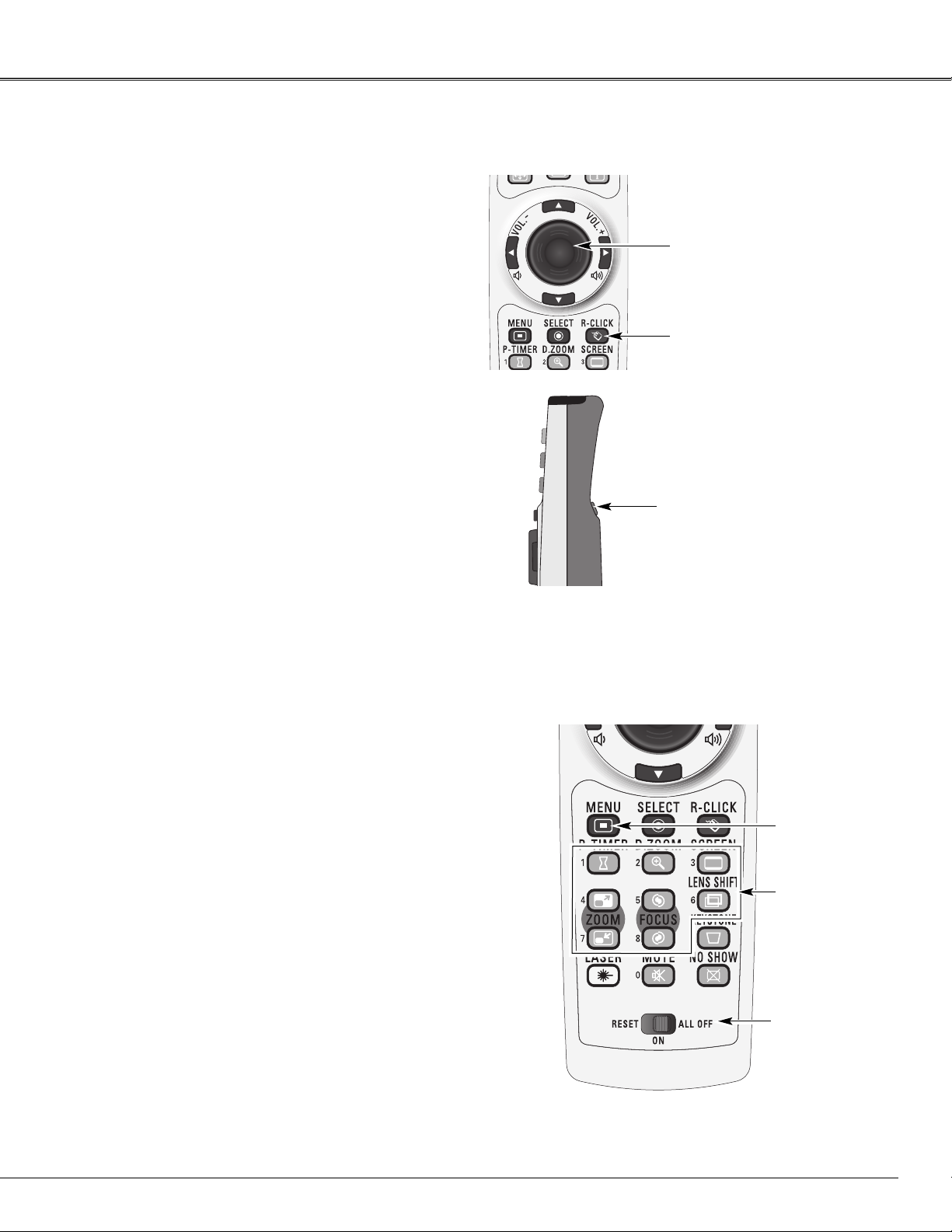

The remote control can be used as a wireless mouse for your computer.

Move the pointer on the screen
with this button.

PRESENTATION POINTER
button

R-CLICK button

Acts as right (click) mouse
button while the projector and a
computer are connected with a
USB cable.

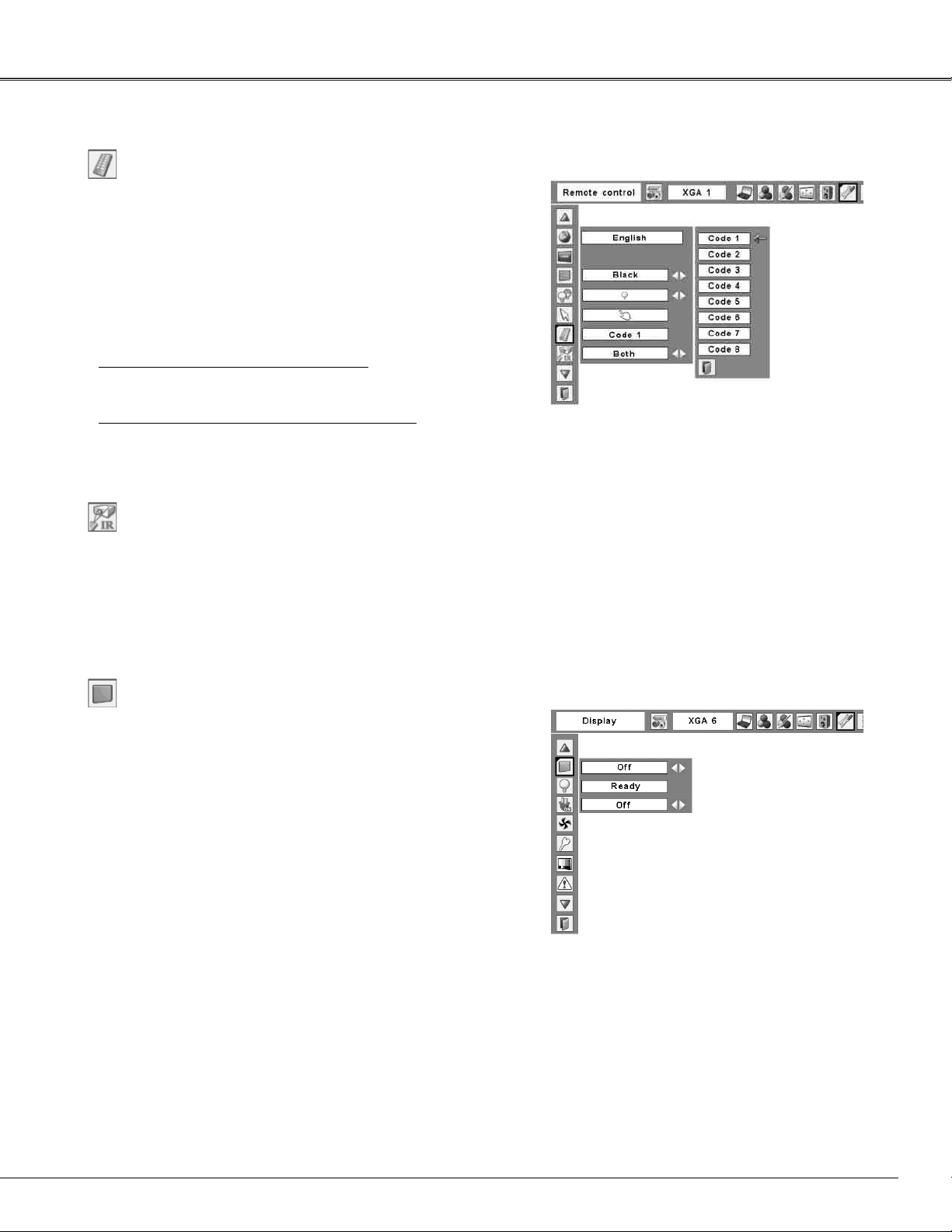

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote
control codes prevents interference from other remote controls when several projectors or video equipment
next to each other are operated at the same time. Change the remote control code for the projector first before
changing that for the remote control. See “Remote control” in the Setting Menu on page 57.

Press and hold the MENU and a number button (1–8)
for more than five seconds to switch between the
codes.

1

To initialize the remote control code, slide the RESET/
ON/ALL-OFF switch to “RESET,” and then to “ON.”
The initial code is set to Code 1.

2

Press and hold the MENU and a number button
(1–8) that corresponds to the remote control code
for more than five seconds to switch between
the codes.

MENU button

Remote Control Code

Wireless Mouse Operation

Number buttons

RESET/ON/ALL OFF
Switch

Before operating the wireless mouse, connect
your computer and the projector with the
supplied USB cable. (See page 22 for
connection.)
When the Pointer function is used, the
wireless mouse is not available.

1

When a USB cable is connected to the
computer and the projector, turn on the
projector first, then the computer. If you turn
on the computer first, the wireless mouse
function may not operate properly.

2

L-CLICK button

Acts as left (click) mouse
button while the projector
and a computer are
connected with a USB
cable.

18

Projection angle can be adjusted up to 5.0 degrees with the
adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper
height; to raise the projector, rotate the both feet clockwise.

To lower the projector or to retract the adjustable feet,
rotate the both feet counterclockwise.

To correct keystone distortion, press the KEYSTONE button
on the remote control or select Keystone from the menu
(see pages 15, 32, 50).

Adjustable Feet

Adjustable Feet

Part Names and Functions

To insure safe operation, please observe the following precautions :

● Use two (2) AAA or LR03 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.

● Risk of an explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

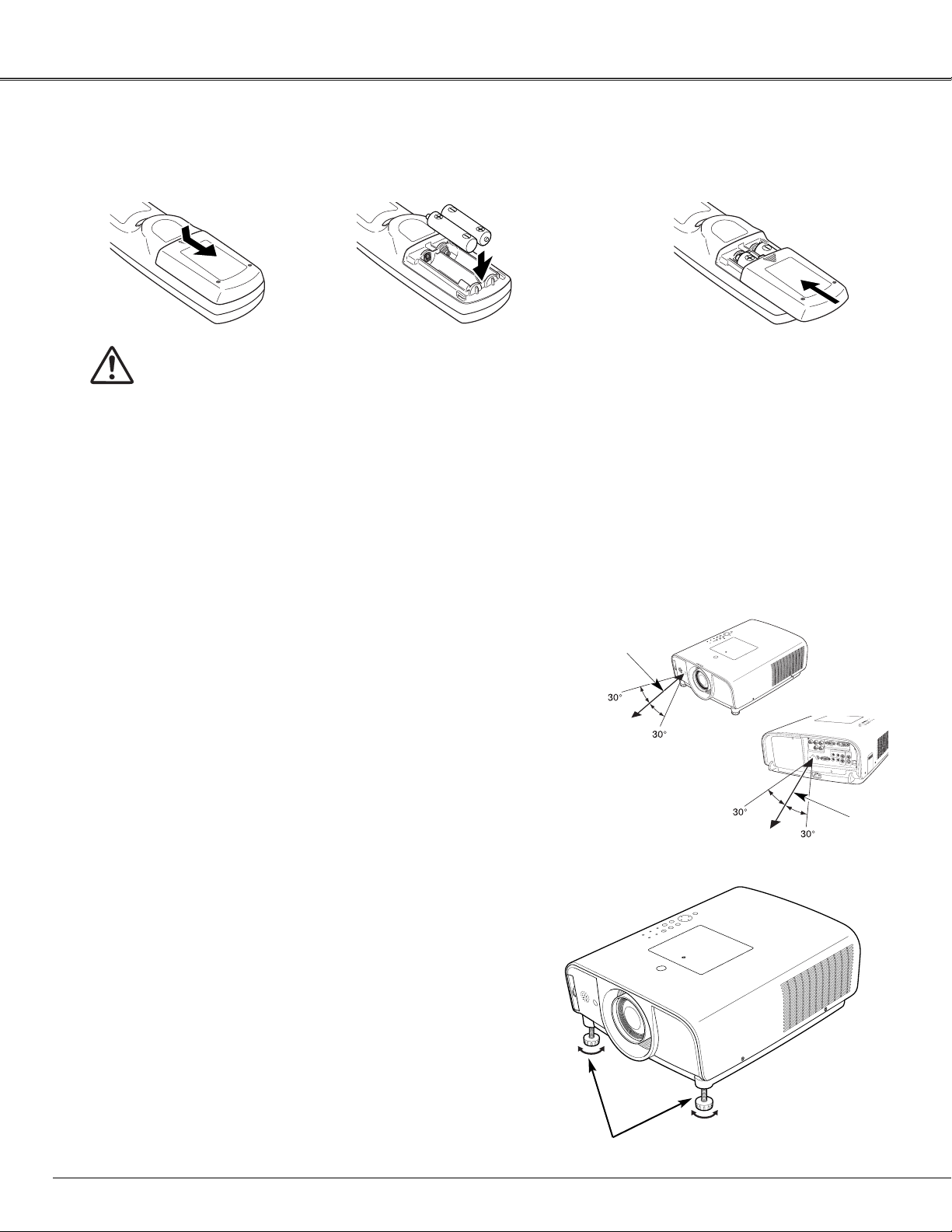

Press the lid
downward and slide it.

Open the battery
compartment lid.

Install new batteries
into the compartment.

Replace the
compartment lid.

Two AAA size batteries

For correct polarity (+ and –),
be sure battery terminals are
in contact with pins in the
compartment.

12 3

Point the remote control toward the projector (to Infrared
Remote Receivers) when pressing the buttons. Maximum
operating range for the remote control is about 16.4’ (5 m)
and 60 degrees in front and rear of the projector.

Infrared Remote Receivers are provided both in front and
back of the projector. You can conveniently use both of the
receivers (see pages 10, 57).

Remote Control Receivers and Operating Range

Remote Control Battery Installation

16.4’
(5 m)

16.4’
(5 m)

✔Notes:

•When hanging the projector from the ceiling, select the Infrared
Remote Receiver which is located farther away from the
fluorescent light. (see page 57)

19

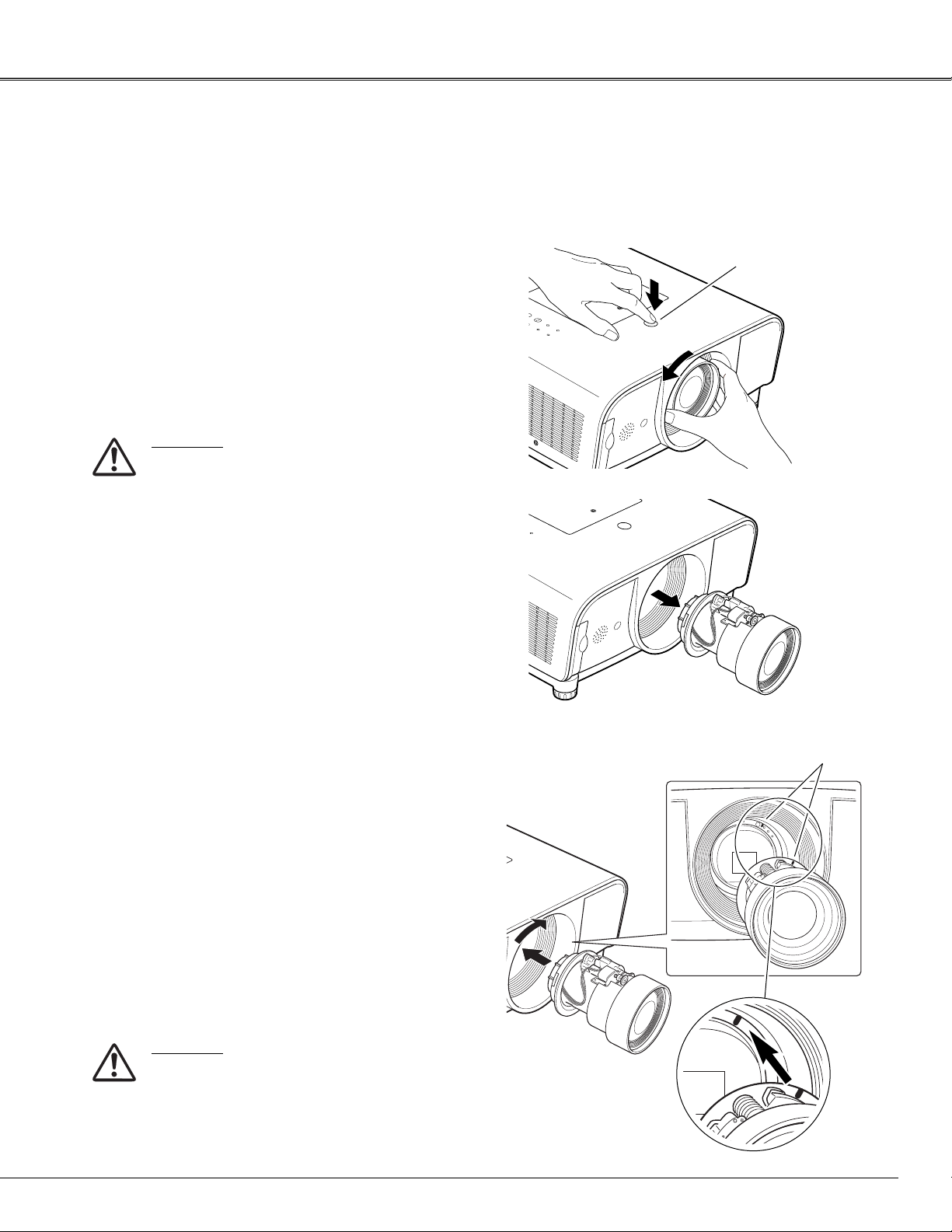

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the
sales dealer for detailed information of the optional lens specifications.

Fit the lens to the projector by aligning the red dot
on the lens with the red dot of the projector.

Remove the lens mount cover.

1

2

Attaching the lens to the projector

Slowly turn the lens clockwise until it clicks. Make
sure that the lens is fully inserted to the projector.

3

Red dots

CAUTION

Do not press the lens release button when
attaching the lens.

Lens Installation

Installation

While pressing the Lens release button on the top
of the cabinet, turn the lens counterclockwise
until it stops and pull it out slowly from the
projector.

Shift the lens to the center position by using the
Lens shift function (see page 29).

1

2

Removing the lens

Lens Release button

CAUTION

Be careful when handling the lens. Do not
drop.

Installation

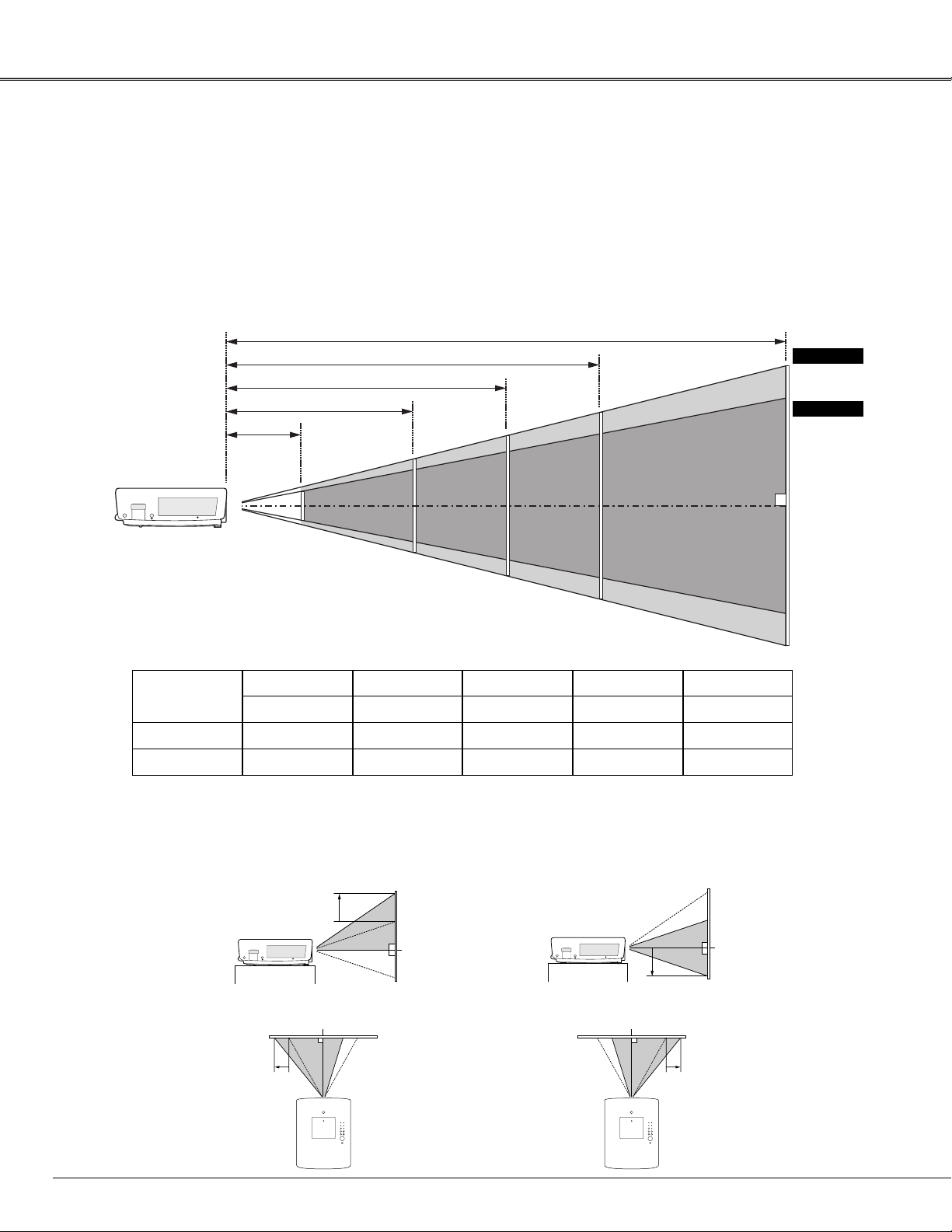

Positioning the Projector (for PLC-XT30/PLC-XT25/XT25K/XT21/XT20/XT20K)

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.

Notes:

✔

•The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain
the best image.

•All measurements are approximate and may vary from the actual sizes.

Screen Size

(W x H) mm

4:3 aspect ratio

Zoom (min.)

Zoom (max.)

3.9' (1.2m)

610 x 457

3.9’ (1.2 m)

–––––

10.8' (3.3m)

30”

30”

22.0' (6.7m)

16.4' (5.0m)

100”

78”

100”

2032 x 1524

14.1’ (4.3 m)

10.8’ (3.3 m)

32.8' (10.0m)

150”

116 ”

150”

3048 x 2286

21.3’ (6.5 m)

16.4’ (5.0 m)

200”

155”

200”

4064 x 3048

28.5’ (8.7 m)

22.0’ (6.7 m)

(Inch Diagonal)

300”

230”

300”

6096 x 4572

–––––

32.8’ (10.0 m)

Max. Zoom

Min. Zoom

(Center)

20

Moving the Lens

For details about the Lens shift function, refer to “Lens Shift Adjustment” on page 29. The amount of lens shift
range varies depending on the lens. The figures below are for PLC-XT25/XT25K/XT21/XT20/XT20K.

50%

50%

uppermost downmost

15% 15%

leftmost rightmost

21

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied the AC power cord does not match your AC outlet, contact your sales dealer.

To power cord
connector on your
projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental EuropeFor the U.S.A. and Canada

This projector uses nominal input voltages of 100–120 V or
200–240 V AC and it automatically selects the correct input
voltage. It is designed to work with single-phase power
systems having a grounded neutral conductor. To reduce the
risk of electrical shock, do not plug into any other type of
power system.
If you are not sure of the type of power being supplied,
consult your authorized dealer or service station.
Connect the projector with all peripheral equipment before
turning the projector on.

CAUTION

For safety, unplug the AC power cord when the projector
is not in use. When the projector is connected to an outlet
with the AC power cord, it is in stand-by mode and
consumes a little electric power.

Connecting the AC Power Cord

Connect the AC power cord (supplied) to the
projector.
The AC outlet must be near this equipment
and must be easily accessible.

For the U.K.

To the AC outlet.

(200–240 V AC)

To the AC outlet.

(200–240 V AC)

Installation

22

Installation

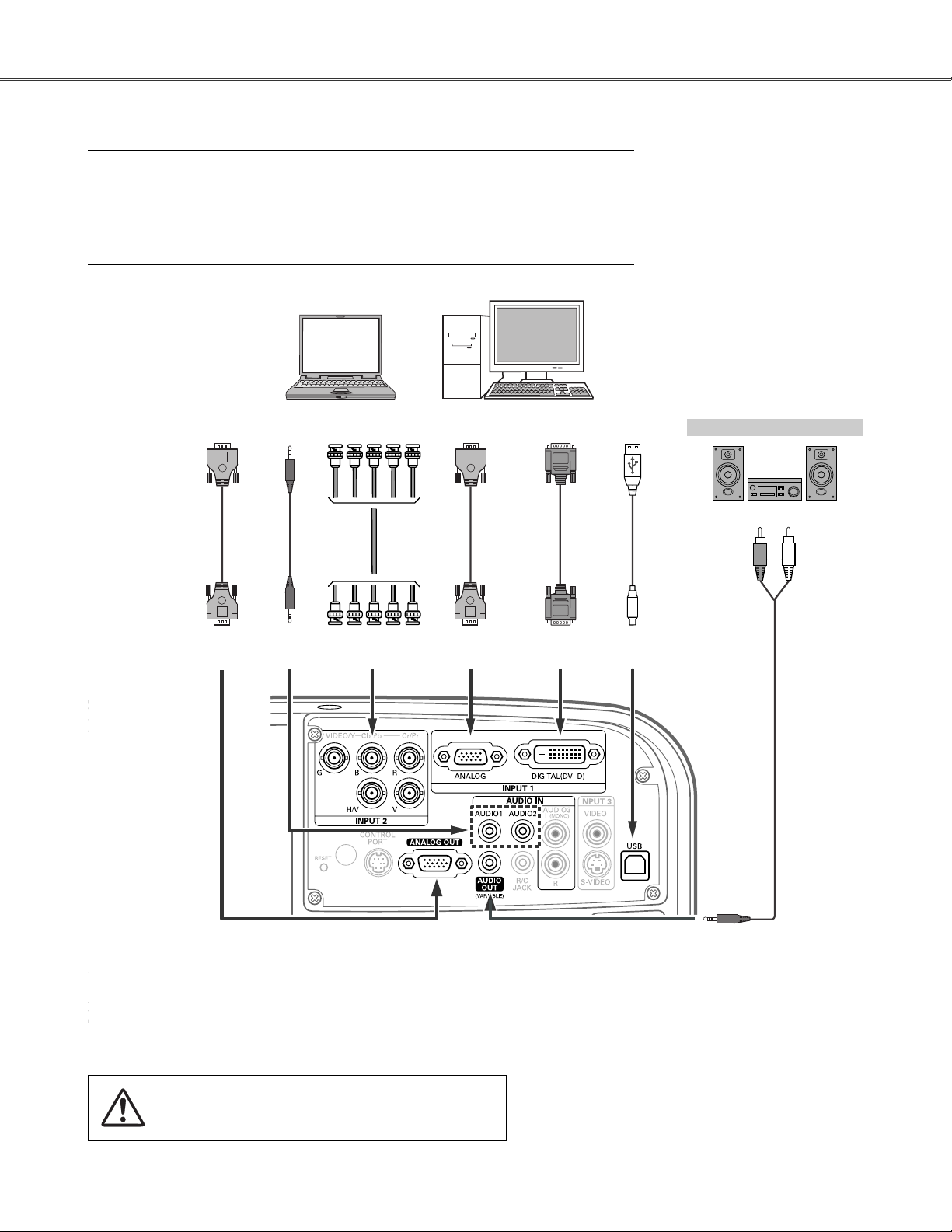

Connecting to a Computer (Digital and Analog RGB)

Cables used for connection

• VGA Cable (HDB 15 pin)* • USB Cable

• DVI-Digital Cable • Audio Cables (Mini Plug [stereo] x 2)

• BNC Cable
(*One cable is supplied; other cables are not supplied with the projector.)

External Audio Equipment

DVI-Digital
cable

USB
cable

Audio
cable
(stereo)

Audio cable
(stereo)

USB port

Audio

Output

USB

AUDIO OUT
(stereo)

Audio Input

Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.

✔Notes:

•When the AUDIO OUT is plugged-in, the projector’s built-in
speaker is not available.

•USB cable connection is needed when operating the computer with
the remote control.

•See page 78 for ordering optional cables.

Monitor

Output

DIGITAL

(DVI-D)

VGA
cable

Monitor

Output

Monitor Output

BNC
cable

ANALOG

IN

Monitor

Input

VGA
cable

ANALOG

OUT

G B R H/V V

AUDIO

IN

23

Installation

Connecting to Video Equipment (Video, S-Video)

Cables used for connection

• Video Cables (RCA x 1) • Audio Cables (Mini Plug [stereo] x 2)

• S-VIDEO Cable • BNC Cable

• Audio Cable (RCA x 2)
(Cables are not supplied with the projector.)

External Audio Equipment

Audio cable
(stereo)

VIDEO S-VIDEO

S-video
cable

Video and
audio cable

Composite Video and Audio Output

S-video
Output

AUDIO IN

Audio Input

AUDIO OUT
(stereo)

(R) (L) (Video)

Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.

AUDIO INVIDEO

(R) (L)

✔Notes:

•When the AUDIO OUT is plugged-in, the projector’s built-in
speaker is not available.

•The S-VIDEO jack connection overrides the VIDEO jack connection
when selecting AUTO in the Input Menu (p.35).

•See page 78 for ordering optional cables.

BNC
cable

Audio
cable
(stereo)

24

Installation

Connecting to Video Equipment (Component and RGB Scart)

Cables used for connection

• Audio Cables (Mini Plug [stereo] x 2)

• Scart-VGA Cable

• BNC Cable

• DVI-Digital Cable
(Cables are not supplied with the projector.)

External Audio Equipment

Audio cable
(stereo)

Audio Input

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Audio

Output

AUDIO OUT
(stereo)

Audio
cable
(stereo)

AUDIO

IN

Y Cb/Pb Cr/Pr

ANALOG

IN

Scart-VGA
cable

BNC
cable

DVI-Digital
cable

RGB Scart

21-pin Output

Digital Output

(HDCP

compatible)

DIGITAL

(DVI-D)

Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.

✔Notes:

•When the AUDIO OUT is plugged-in, the projector’s built-in
speaker is not available.

•See page 78 for ordering optional cables.

25

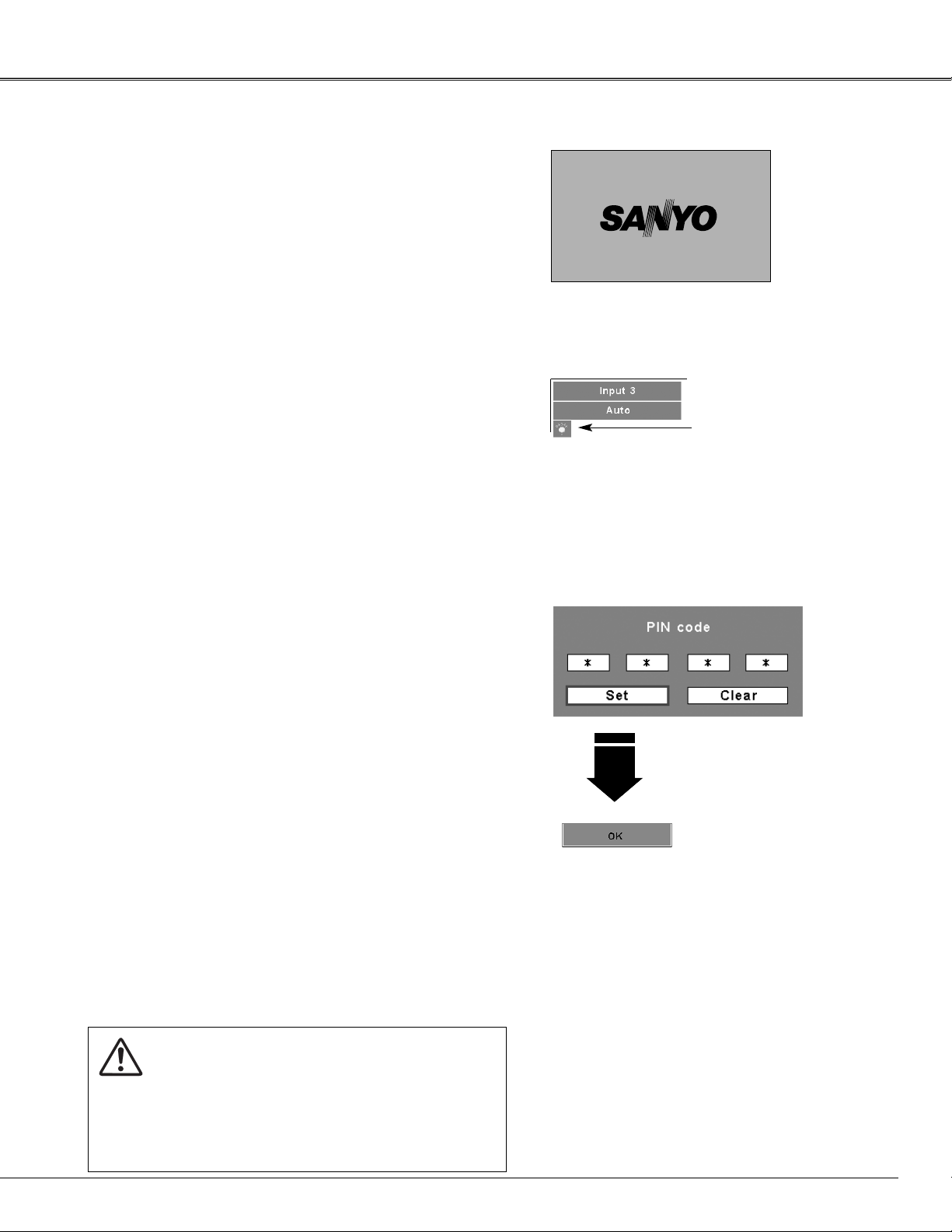

Connect the projector’s AC power cord into an AC
outlet. The POWER indicator lights green.

Press the ON/STAND-BY button on the top control or
the ON button on the remote control. The LAMP
indicator lights red and the cooling fans start to operate.
The preparation display appears on the screen and the
count down starts.

2

3

1

16

The preparation display will disappear
after 30 seconds.

4

After the countdown, the input source that was
selected the last time and the lamp control status icon
(see page 54) appear on the screen.

If the projector is locked with a PIN code, PIN code
input dialog box will appear. Enter the PIN code as
instructed below.

Selected Input Source and Lamp Control

Complete peripheral connections (with a computer,
VCR, etc.) before turning on the projector.

Lamp control status

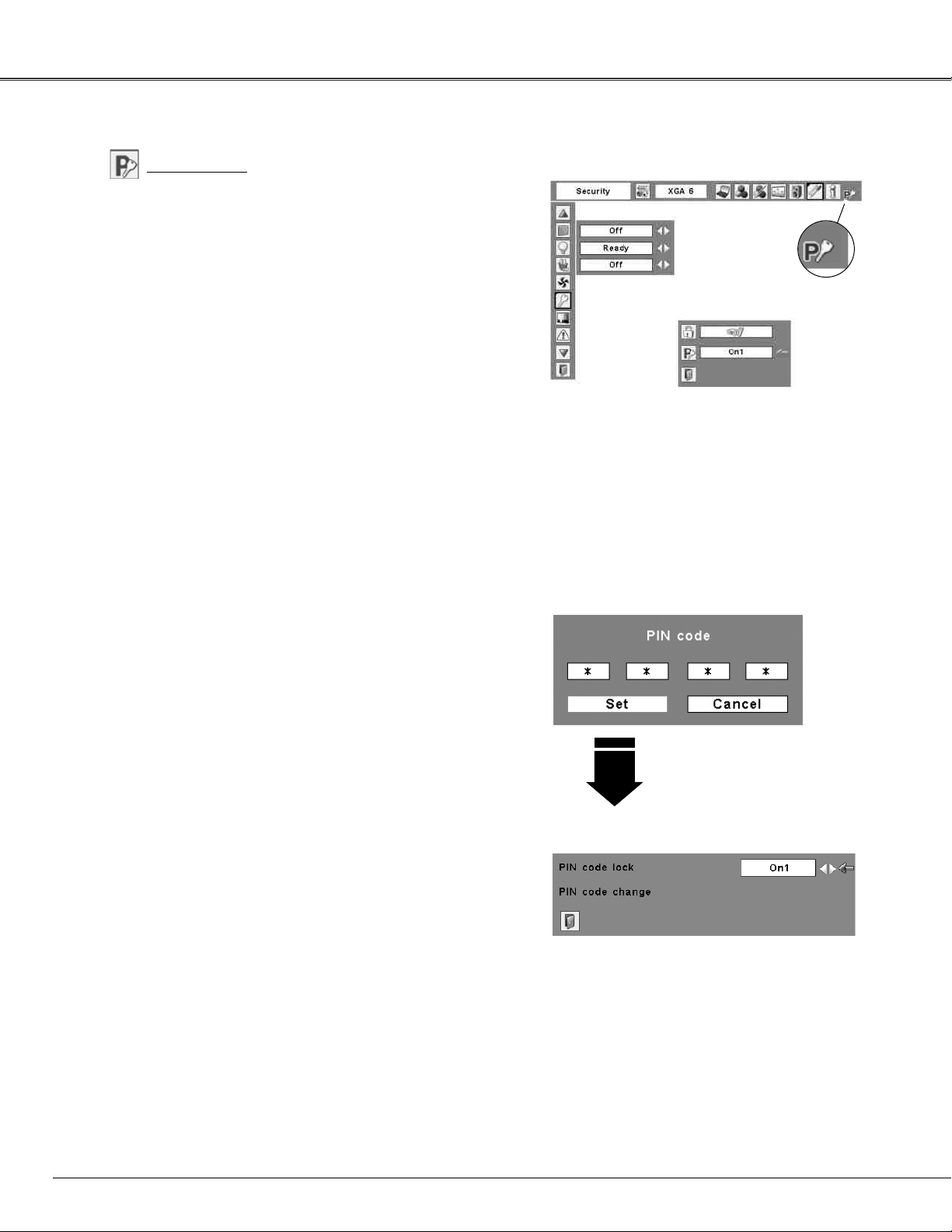

What is PIN code?

PIN (Personal Identification Number) code is a security code
that allows the person who knows it to operate the
projector. Setting a PIN code prevents unauthorized use of
the projector.

A PIN code consists of a four-digit number. Refer to the PIN
code lock function in the Setting Menu on pages 60–61 for
locking operation of the projector with your PIN code.

After the OK icon disappears,
you can operate the projector.

PIN Code Input Dialog Box

Tu r ning On the Projector

Basic Operation

Enter a PIN code

Use the Point ed buttons or Number buttons on the remote
control to enter a number. Press the Point 8 button to fix the
number and move the red frame pointer to the next box. The
number changes to “✳.” If you fixed an incorrect number,
use the Point 7 button to move the pointer to the number
you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to
“Set.” Press the SELECT button so that you can start to
operate the projector.

If you entered an incorrect PIN code, “PIN code” and the
number (✳✳✳✳) will turn red for a moment. Enter the correct
PIN code all over again.

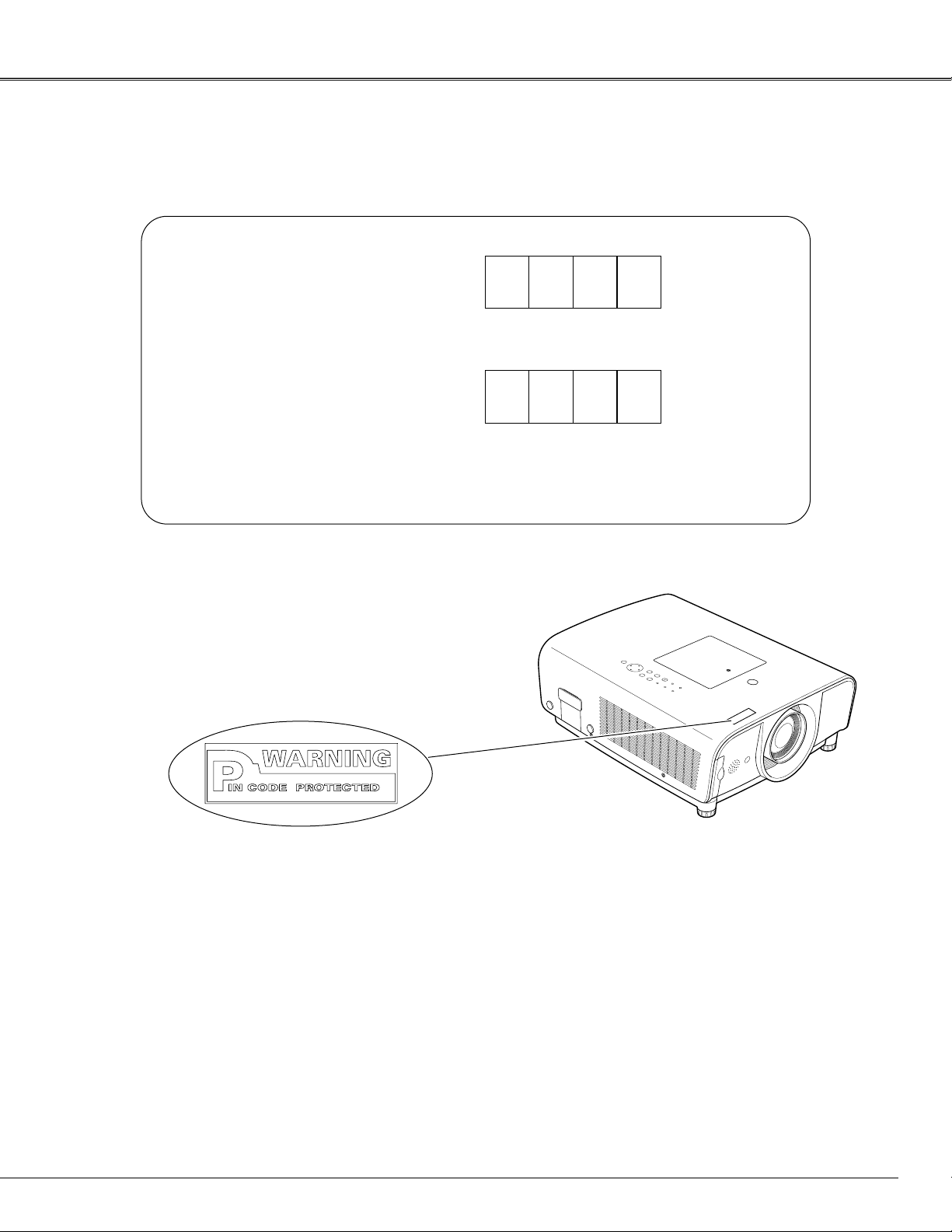

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no
longer be started. Take a special care in setting a
new PIN code; write down the number in a
column on page 81 of this manual and keep it at
hand. Should the PIN code be missing or
forgotten, consult your dealer or service center.

✔Notes:

•When the Logo select function is set to “Off,”
the logo will not be shown on the screen (p.55).

•When the “Countdown off” or “Off” is selected
in the Display function, the countdown will not
be shown on the screen (p.57).

•During the countdown period, all operations are
invalid.

•If the correct PIN code number is not entered
within three minutes after the PIN code dialog
box appeared, the projector will be turned off
automatically.

•The “1234” is set as the initial PIN code at the
factory.

See page 54 for the Lamp control status.

✔Note:

•The Filter warning and Lamp replacement icons
may appear on the screen depending on the
usage state of the projector.

26

Basic Operation

Press the ON/STAND-BY button on the top control or
the STAND-BY button on the remote control, and
“Power off?” appears on the screen.

Press the ON/STAND-BY button or the STAND-BY
button on the remote control again to turn off the
projector. The LAMP indicator turns off and the POWER
indicator starts to blink green. After the projector is
turned off, the cooling fans operates for 90 seconds.
During the POWER indicator is blinking, you cannot turn
on the projector.

1

2

TO MAINTAIN LIFE OF THE LAMP, ONCE YOU
TURN THE PROJECTOR ON, WAIT AT LEAST FIVE
MINUTES BEFORE TURNING IT OFF.
DO NOT UNPLUG THE AC POWER CORD WHILE
THE COOLING FANS ARE RUNNING OR BEFORE
THE POWER INDICATOR STOPS BLINKING.
OTHERWISE IT WILL RESULT IN SHORTENING
THE LAMP LIFE.

3

When the projector has cooled down enough, the
POWER indicator stops blinking and you can turn on
the projector. After it is cooled down completely,
unplug the AC power cord.

“Power off?” disappears after 4 seconds.

✔Notes:

•When the On start function is set to “On,” the projector will be
turned on automatically by connecting the AC power cord to an AC
outlet (p.58).

•The running speed of cooling fans is changed according to the
temperature inside the projector.

•Do not put the projector in a case before the projector is cooled
enough.

•If the WARNING TEMP. indicator blinks or all the five indicators on
the top panel blink, see “Warning Indicators” on page 67.

•While the POWER indicator is blinking, the lamp is being cooled
down and the projector cannot be turned on. Wait until the
POWER indicator stops blinking to turn on the projector again.

Tu r ning Off the Projector

DO NOT OPERATE THE PROJECTOR
CONTINOUSLY WITHOUT REST. CONTINUOUS
USE MAY RESULT IN SHORTENING THE LAMP
LIFE. TURN OFF THE PROJECTOR AND LET
STAND FOR ABOUT AN HOUR IN EVERY 24
HOURS.

27

Basic Operation

Top Control

Menu bar Pointer

(red frame )

Menu icon

Item data

Press the Point

7 8

buttons to adjust the
value.

SELECT

button

Pointer (red frame )

Press the Point

ed buttons

to move the pointer.

Item

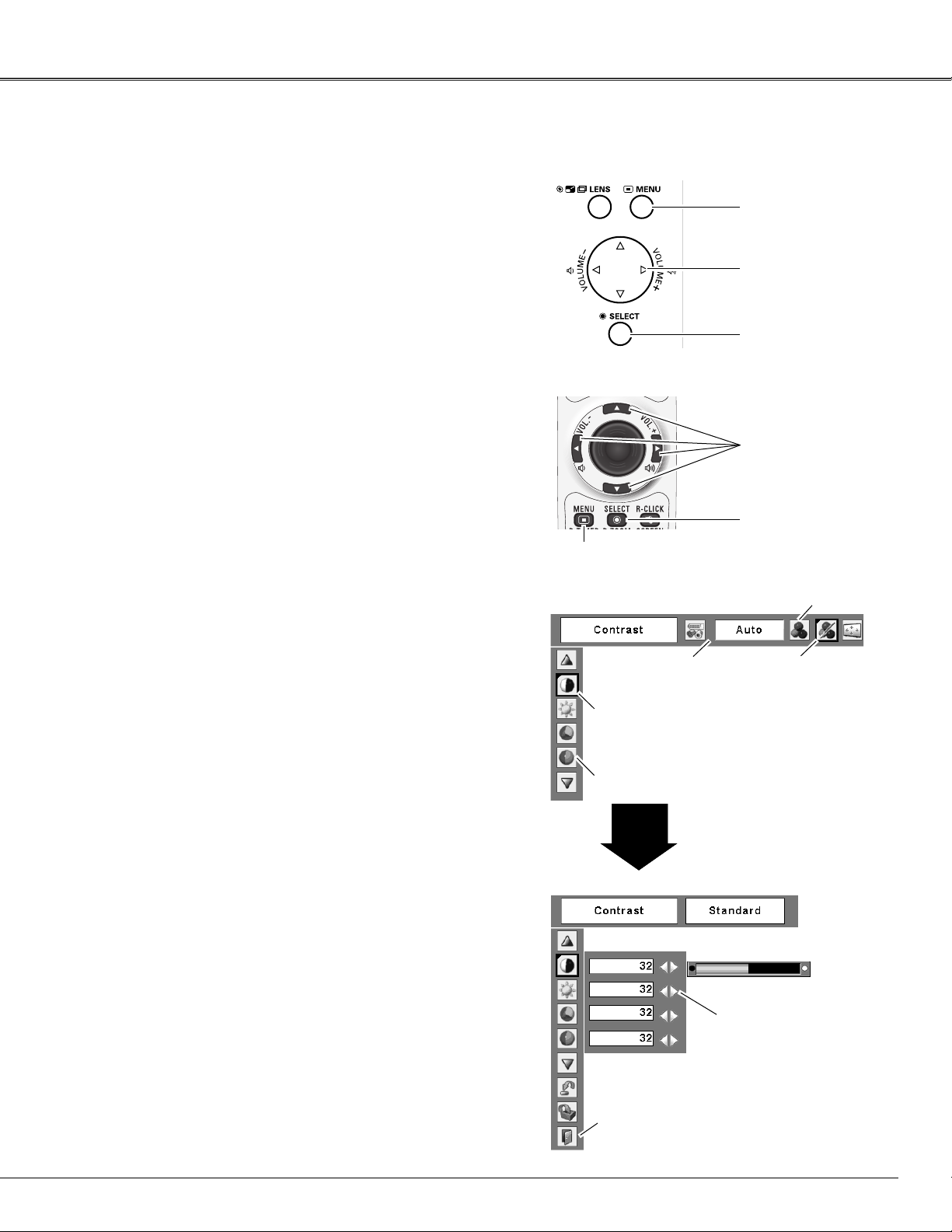

How to Operate the On-Screen Menu

MENU button

SELECT button

POINT buttons

On-Screen Menu

Quit

Exit this menu.

The projector can be adjusted or set via the On-Screen
Menu. For each adjustment and setting procedure, refer to
the respective sections in this manual.

Use the Point

7 8 buttons to select a Menu icon. Use

the Point ed buttons to select an item to in the
selected menu.

Press the SELECT button to show the item data. Use
the Point

7 8 buttons to adjust the values.

To close the On-Screen Menu, press the MENU
button again.

Press the MENU button on the top control or the
remote control to display the On-Screen Menu.

✔Note:

•The selected item is not active until the SELECT button is pressed.

1

2

3

Remote Control

POINT buttons

SELECT button

MENU button

28

Basic Operation

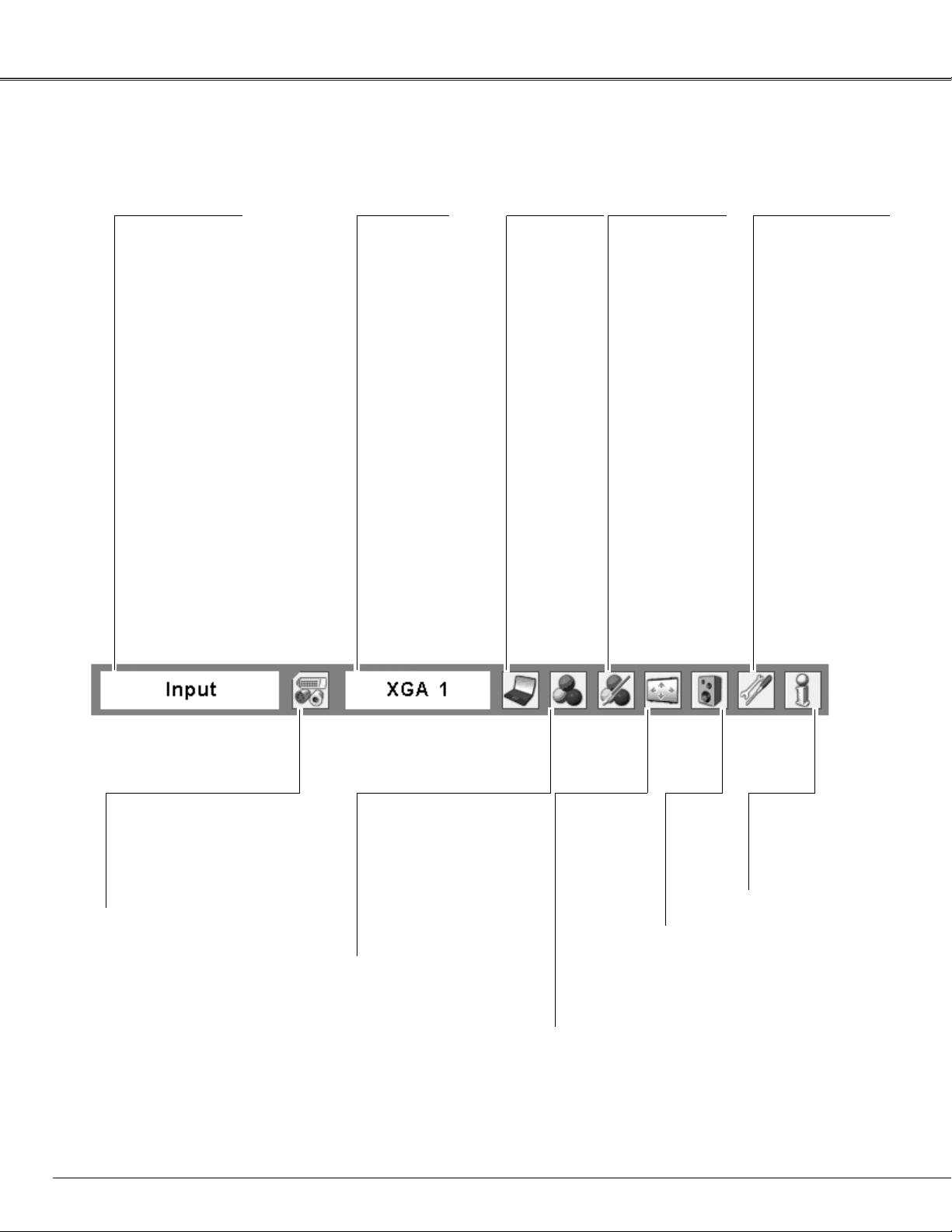

Menu Bar

System

Select a
computer or
video system
mode (pp.36,

38).

Image Adjust

Adjust the picture
image (pp.45–48).
– Contrast
– Brightness
– <Color>
– <Tint>
– Color temp.
– White balance

(R/G/B)
– Sharpness
– Gamma
– <Noise reduction>
– <Progressive>
– Reset
– Store
– Quit

Setting Menu

Set the projector’s
operating
configurations
(pp.53–62).
– Language
– Logo
– Background
– Lamp control
– Pointer
– Remote Control
– RC sensor
– Display
– Power management
– On start
– Fan control
– Security
– Test pattern
– Warning log
– Lamp counter
– Filter counter
– Factory default
– Quit

Adjust the
volume or
mute the
sound
(p.30).


Select an image
mode (pp.43–44).
– Dynamic
– Standard
– [Real]
– <Cinema>
– Image 1–4

[PC Adjust]

Adjust
parameters to
match with an
input signal
format
(pp.39–41)

Guide Window

Show the selected
Menu of the On­Screen Menu.

Input

Select either
Computer or Video
for input source
(pp.33–35).

Screen

Adjust the
screen
(pp.49–52).
– Keystone
– Ceiling
– Rear
– Normal
– [True]
– Wide
– [

Full screen]

– [Digital zoom +/–]

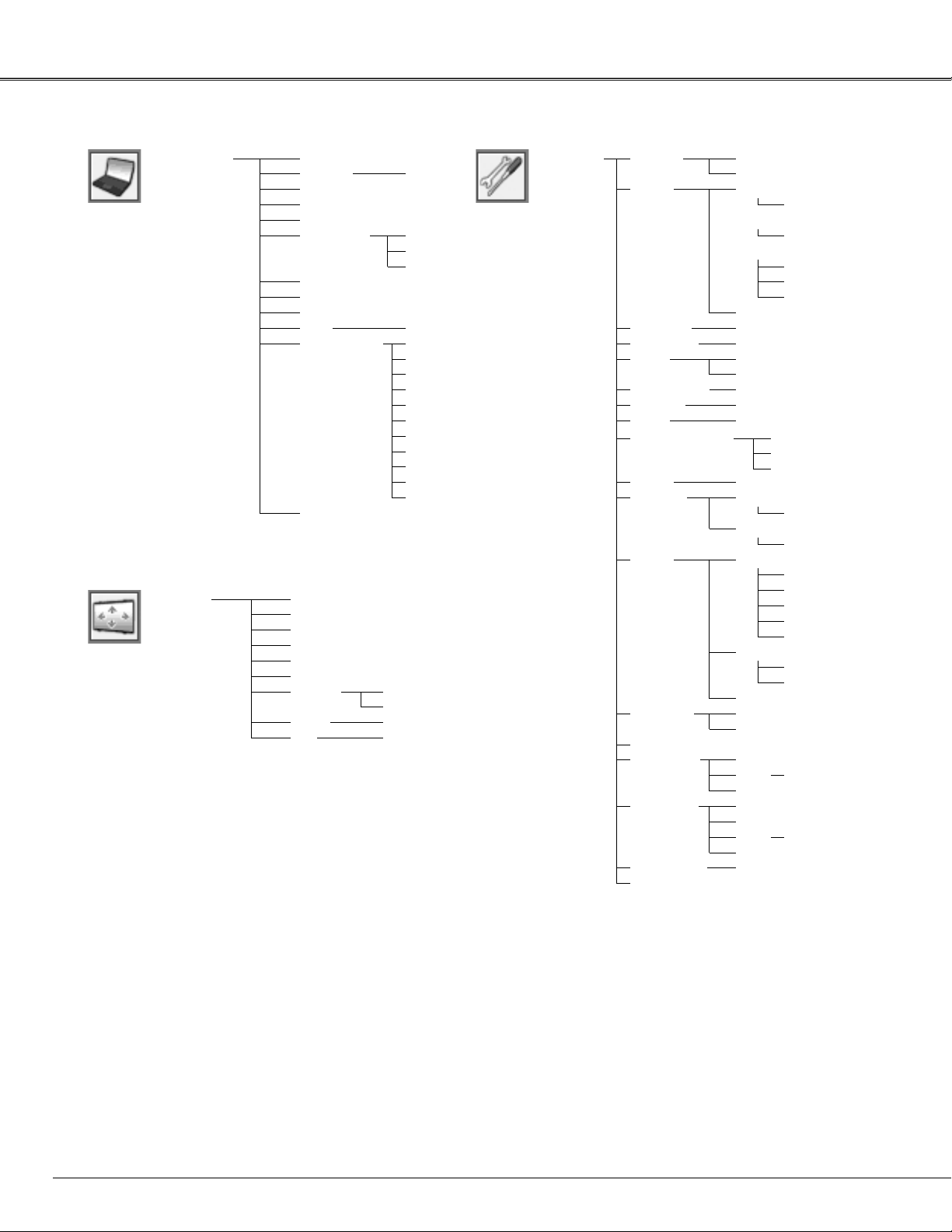

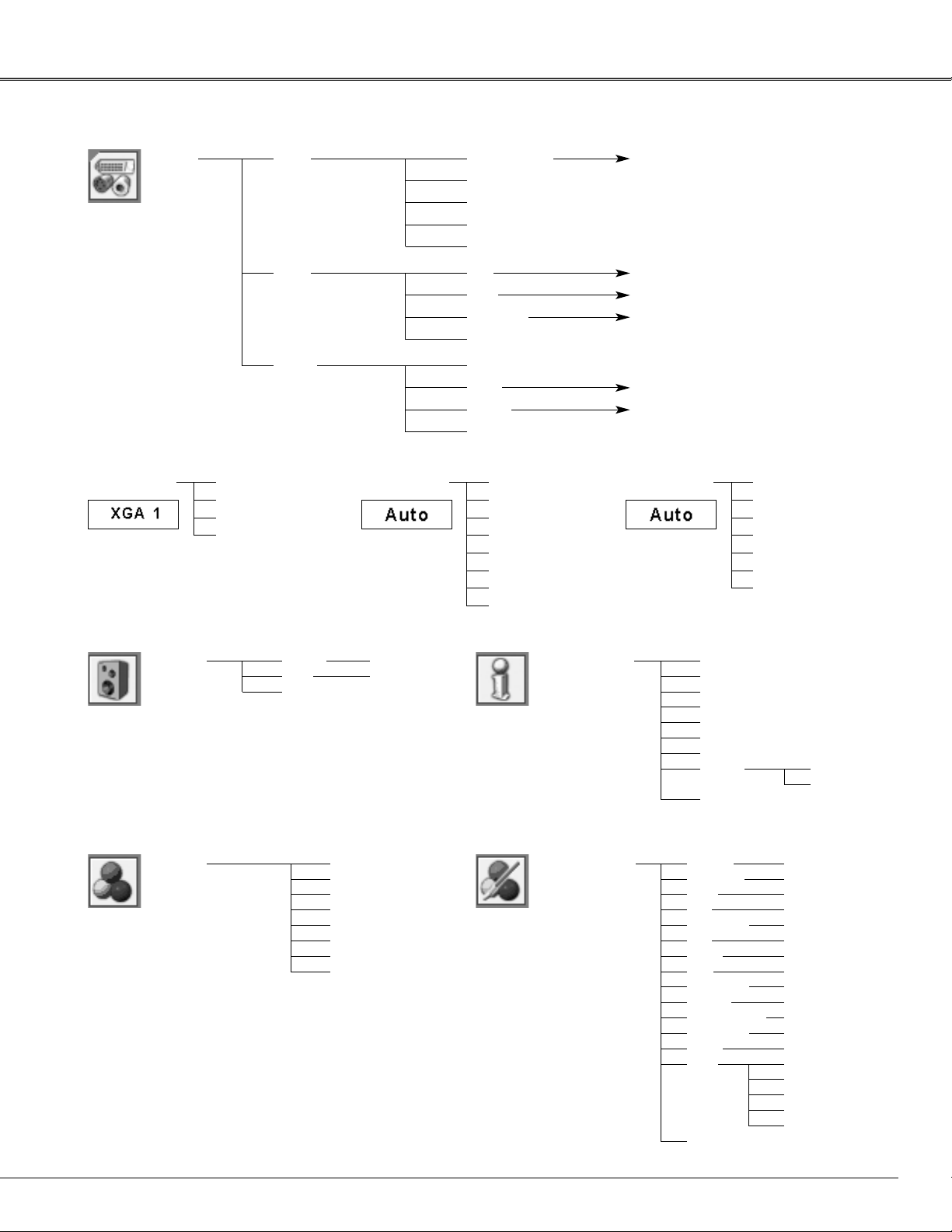

For detailed functions of each menu, see “Menu Tree” on pages 71–72.
*The menu bar displays changes depending on the input signals.

Sound

Display the
input source
information
(p.29).

Information

Note: [For PC input only.]

<For AV input only.>

29

Basic Operation

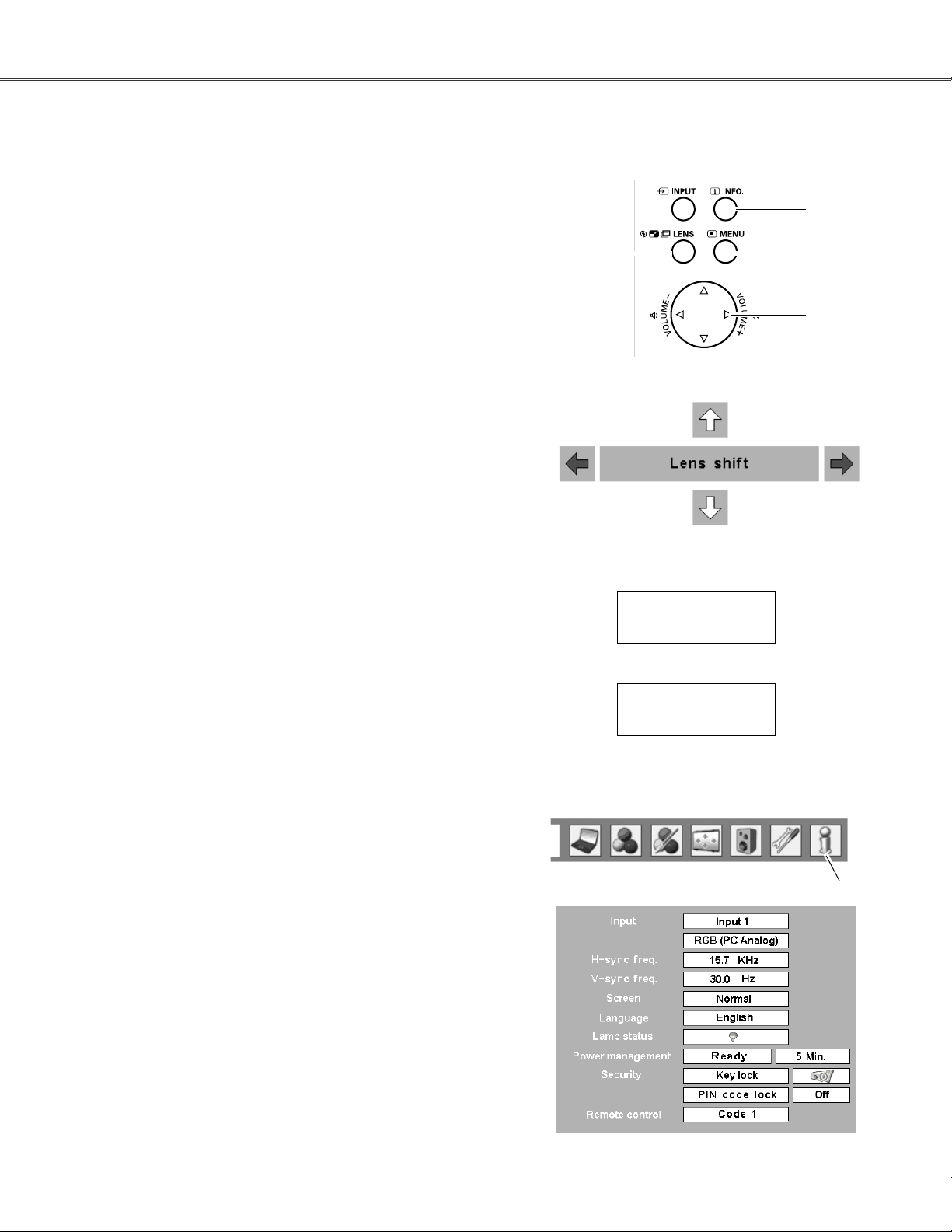

The following lens operation can be made with the Lens
button on the top control.

Press the Lens button to enter each lens operation mode.
The selected adjustment display appears on the screen.

Operating with Projector Control

Display “Lens shift” on the screen. Use the Point ed7 8
buttons to position the screen to the desired point
without having picture distortion.
The screen can be moved up or down to 50 percent, or
sideways up to 15 percent from the central axis of the
lens shift.

Lens Shift Adjustment

✔Note:

•The arrow disappears at the maximum lens shift in each
direction.

Display “Zoom” on the screen. Use the Point ed buttons
to zoom in and out the image.

Zoom Adjustment

Display “Focus” on the screen. Use the Point ed buttons
to adjust focus of the image.

Focus Adjustment

Information display can be used to confirm the current
operating condition of the projector and the signal being
projected through the projector.

Press the INFO. button on the top control or remote control
to display the information window on the screen. To hide
the information window, press the INFO. button again or
Point 7 8 buttons.

The information window can also be selected from the
menu.

Top Control

MENU
button

LENS
button

POINT
buttons

INFO.
button

Lens Operation

Information

Information Menu

Information Menu

ZOOM

FOCUS

* The H- and V-sync freq. values described in this figure

may be different from the actual values.

30

Basic Operation

1

2

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Sound Menu icon.

Press the VOLUME+/– buttons on the top control or on the
remote control to adjust the volume. The volume dialog box
appears on the screen for a few seconds.

Press the MUTE button on the remote control to temporarily
turn off the sound. To turn the sound back on, press the
MUTE button again or press the VOLUME +/– buttons. The
Mute function is also effective for the AUDIO OUT jack.

Press the Point 7 8 buttons to switch the mute function
On/Off. When the sound is turned off, “On” is displayed.
Press the Point 7 8 buttons again to turn the sound back
on.

Use the Point ed buttons to move the red frame
pointer to the desired item, and then press the SELECT
button.

Approximate level of
the volume.

Exit the Sound Menu.

Approximate level
of the volume.

Press the MUTE button to set the Mute function
On or Off. The dialog box disappears after 4
seconds.

Sound Menu

Sound Menu icon

Volume

Remote Control

VOL + button

VOL – button

MUTE button

Volume

Mute

Press the Point 8 button to turn up the volume; press the
Point 7 button to turn down the volume.

Mute

VOLUME +/– buttons

Direct Operation

Menu Operation

Sound Adjustment

Top Control

Volume Dialog Box

31

Basic Operation

Remote Control

Operating with Remote Control

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons
enables you to make the desired operation quickly without calling up the On-Screen Menu.

Press the FREEZE button on the remote control to freeze
the picture on the screen. To cancel the Freeze function,
press the FREEZE button again or press any other button.

FREEZE button

Press the AUTO PC button on the remote control to operate
the Auto PC Adj. function. The computer screen adjustment
can be done easily by pressing this button. See page 39 for
details.

AUTO PC button

Press the D.ZOOM buttons on the remote control to enter
to the Digital zoom +/– mode. See page 51 for details.

D.ZOOM button

D.ZOOM
button

INFO. button

POINT ed
buttons

FREEZE button

AUTO PC
button

Press the SCREEN buttons on the remote control to select
the desired screen size. The selected screen size symbol
appears on the screen for 4 seconds. See pages 51–52 for
details.

SCREEN button

SCREEN button

Press the ZOOM buttons on the remote control to zoom in
and out the image.

ZOOM buttons

ZOOM
buttons

See page 29 for details.

INFO. button

Press the FOCUS buttons on the remote control to adjust
focus of the image.

FOCUS buttons

FOCUS
buttons

LENS SHIFT
button

See page 29 for details.

LENS SHIFT button

✔Note:

•See the next page for the description of other
buttons.

32

Basic Operation

Press the NO SHOW button on the remote control to black
out the image. To restore to normal, press the NO SHOW
button again or press any other button.

“No show” disappears after 4 seconds.

NO SHOW button

Press the P-TIMER button on the remote control. The P­Timer display “00:00” appears on the screen and the
countdown starts (00:00–59:59).
To stop the countdown, press the P-TIMER button. To cancel
the P-Timer function, press the P-TIMER button again.

P-TIMER button

P-Timer display

✔Note:

•See the previous page for the description of
other buttons.

Remote Control

NO SHOW
button

P-TIMER
button

Press the KEYSTONE button on the remote control. The
“Keystone” appears on the screen.

Use the Point ed buttons to correct keystone distortion.
The keystone adjustment can be stored (see page 50).

• The white arrows indicate that there is no correction.

•A red arrow indicates the direction of correction.

• An arrow disappears at the maximum correction.

• If you press the KEYSTONE button on the remote
control once more while the keystone dialog box is
being displayed, the keystone adjustment will be
canceled.

Reduce the upper width
with the Point

e button.

Reduce the lower width
with the Point

d button.

KEYSTONE button

KEYSTONE
button

33

Input Selection

Select the input signal of equipment connected to the projector.

This projector has three input options (INPUT 1, INPUT 2, and INPUT 3) and they are
categorized by different signal type. Select an input source with the INPUT button
on the top control or the INPUT 1–3 buttons on the remote control, or by On-Screen
Menu.

34

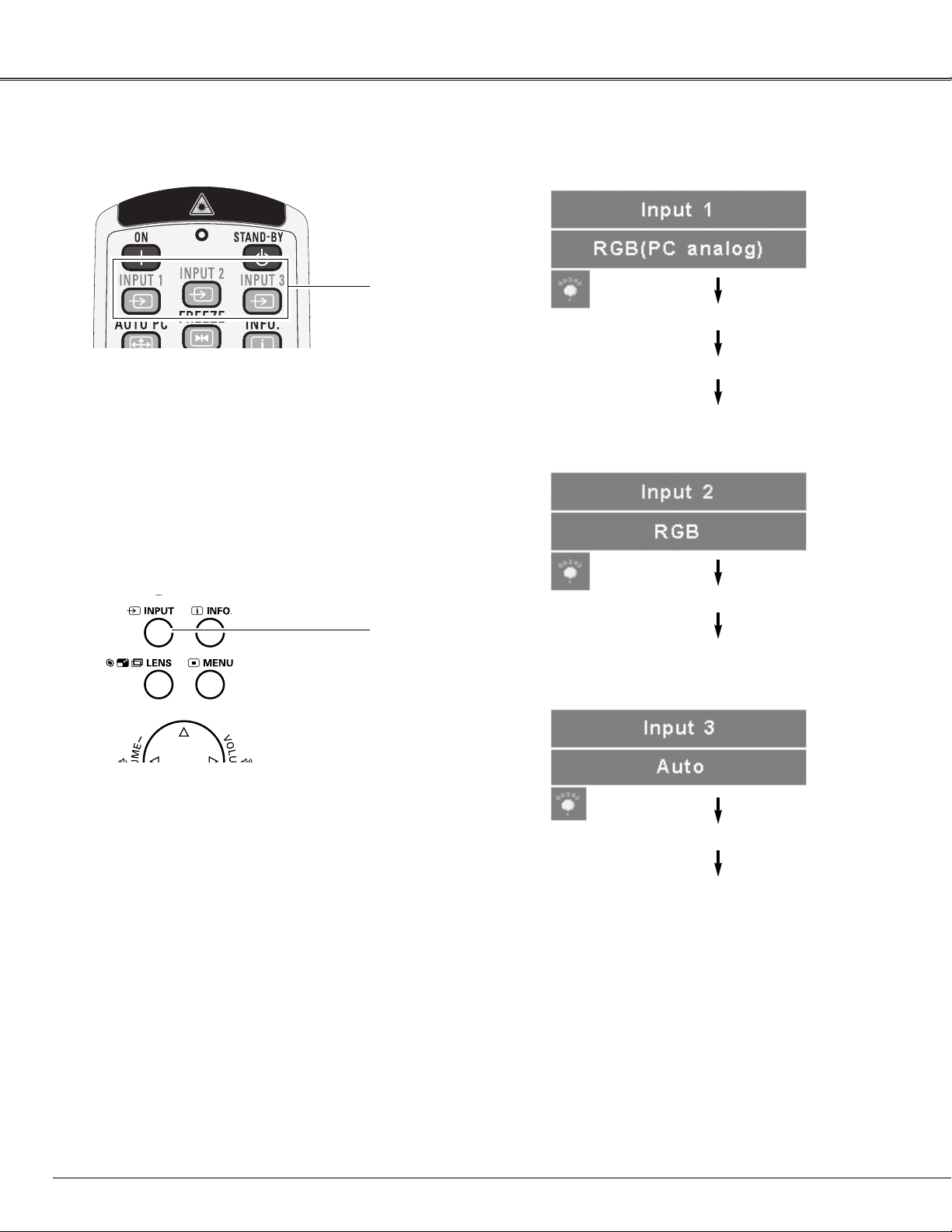

Input Selection

Remote Control

INPUT buttons

Top Control

Input

Press the INPUT 1, INPUT 2, or INPUT 3 buttons on the
remote control. The input source appears on the screen as
you press each button. Select the connected input source.

Remote Control Operation

INPUT button

Press the INPUT button on the top control. It switches to
INPUT 1, INPUT 2, and INPUT 3 as you press the INPUT
button.

Before using the INPUT button on the top control, you must
select a correct input source by On-Screen Menu and the
latest input source will be displayed.

Top Control Operation

RGB (Scart)

RGB (PC digital)

RGB (AV HDCP)

Video

Component

Video

S-video

Remote Control button operation

35

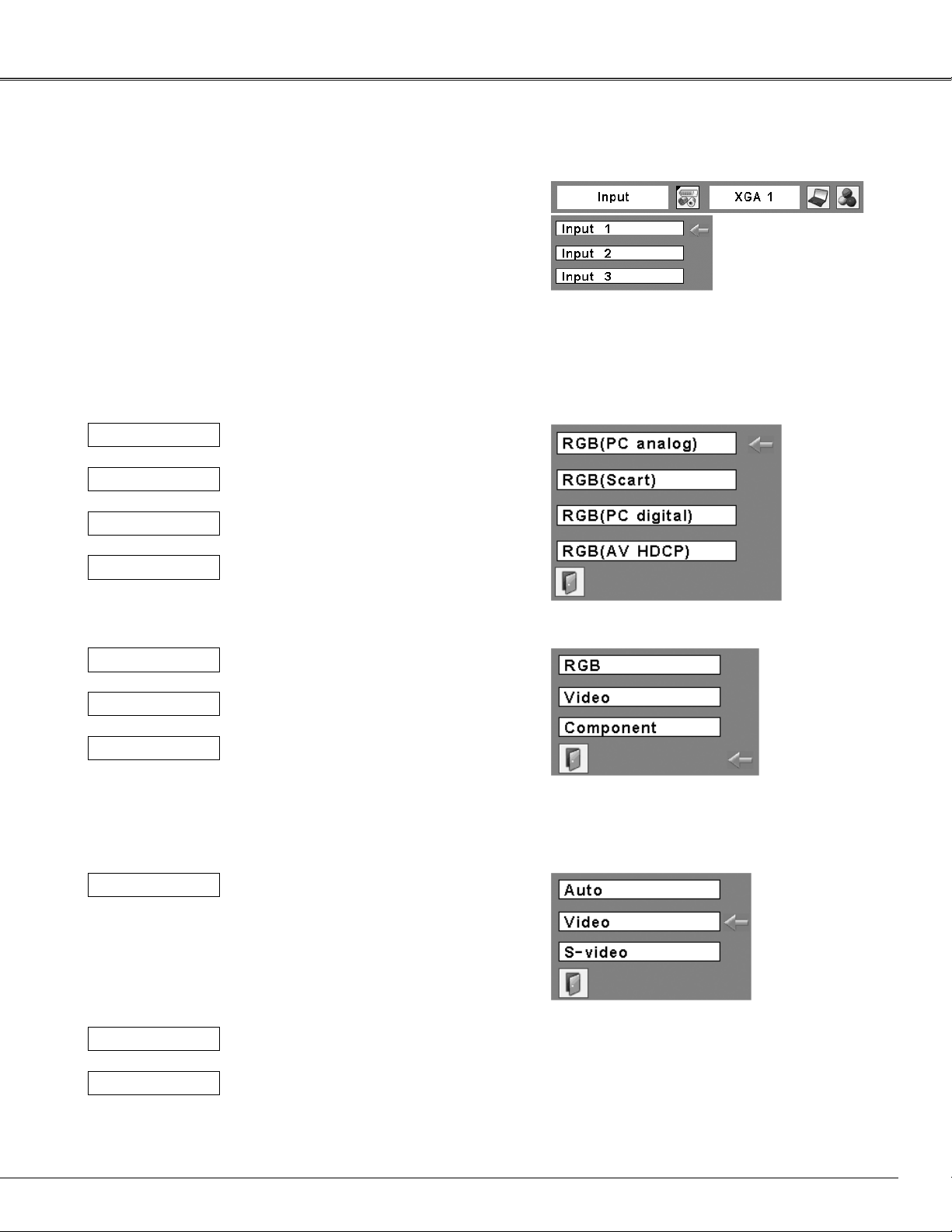

Input Selection

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Input Menu icon.

1

Use the Point ed buttons to move the red arrow
pointer to the desired input and then press the
SELECT button. The signal format menu appears.

2

Use the Point ed buttons to select the desired signal
format and then press the SELECT button.

3

Menu Operation

When the RGB PC (analog) signal is
connected

RGB (PC analog)

INPUT 1

When the RGB PC (digital) signal is
connected.

RGB (PC digital)

When the HDCP video signal is
connected.

RGB (AV HDCP)

When the RGB PC signal is connected.

RGB

INPUT 2

When the RGB video signal is
connected.

Video

When the component signal is
connected.

Component*

Auto

INPUT 3

When the video signal is connected.

Video*

When the S-video signal is connected.

S-video*

When selecting Auto, the projector
automatically detects an incoming video
signal and adjusts itself to optimize its
performance. The projector selects the
connection in the following order:

1. S-video

2. Video

Input Source Selection

*If the projector cannot reproduce proper video image, select a

system manually (see “Video System Selection” on page 36).

*If the projector cannot reproduce proper video image, select a

system manually (see “Video System Selection” on page 36).

When the RGB PC (scart) signal is
connected

RGB (Scart)

Input Menu

36

Input Selection

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the AV System Menu icon.

1

Video System Selection

AV System Menu (Video or S-Video)

AV System Menu (Component)

Use the Point ed buttons to move the red arrow
pointer to the desired system and then press the
SELECT button.

2

If the projector cannot reproduce proper video image, select
a specific broadcast signal format from among PAL,
SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the pointer to the
desired system and press
the SELECT button.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

The projector automatically detects an incoming video
signal, and adjusts itself to optimize its performance.

If the projector cannot reproduce proper video image, select
a specific component video signal format from among 480i,
575i, 480p, 575p, 720p, 1035i, and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

Video or S-Video

Component

The projector automatically detects an incoming video
system, and adjusts itself to optimize its performance.
When Video System is PAL-M or PAL-N, select the system
manually.

Auto

AV System Menu icon

The selected system is
displayed.

Move the pointer to the
desired system and press
the SELECT button.

AV System Menu icon

The selected system is
displayed.

✔Note:

•The AV System Menu cannot be selected when selecting RGB
(Scart).

37

Computer Adjustment

Adjust the computer screen.

This projector has various types of signal formats to automatically tunes to most
computers. With these signal formats in the projector and the Auto PC Adjustment
function, no special setting is required and you can enjoy the images in computers
just by connecting the computer to the projector.
If you need to adjust the computer screen, adjust the setting by following this
chapter. You can also store the adjusted parameters in the projector and call them up
later when needed. Maximum 10 memory areas (Mode 1–10) are available.

*Some adjustments may not available with the digital video signals (AV HDCP) input.

HELPFUL HINTS!

We frequently receive inquiries about computer connections. If the computer screen
is not displayed properly, check the following matters once again.

● Is your computer cable connected to the projector’s INPUT 1 or INPUT 2
terminals properly?

● Are the projector’s input terminal and the connected computer signal selected
properly with the INPUT 1 or INPUT 2 buttons on the remote control or by the
On-Screen Menu?

● Is the signal correctly output from your computer? Many of the laptop computers
need to change the setting for monitor output when connecting to the projector.

38

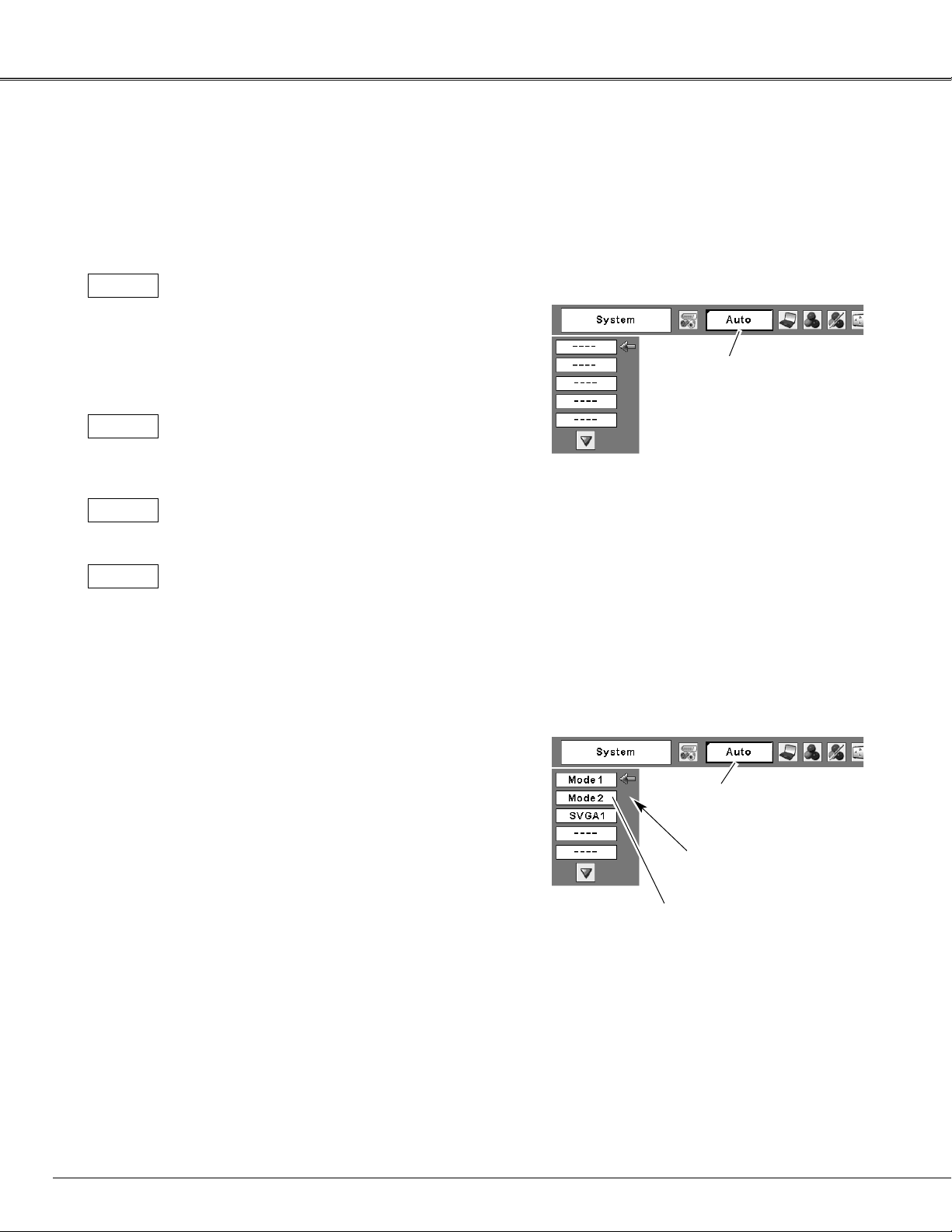

Computer Adjustment

The Auto PC Adjustment
function operates to adjust
the projector.

PC System Menu

The PC System Menu icon

Selected system is
displayed.

Systems in this dialog box
can be selected.

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the PC System Menu icon.

Use the Point ed buttons to move the red arrow
pointer to the desired system and then press the
SELECT button.

1

2

Custom Mode (1–10) set in the
PC Adjust Menu (pp.40–41).

PC system can also be selected manually.

Computer System Selection

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or
UXGA with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this
projector automatically detects the signal format and tunes to project a proper image without any additional
settings. (Signal formats provided in this projector are shown on pages 75–76.)

One of the following messages may appear when:

The projector cannot recognize the connected
signal conforming to the provided PC Systems.
The “Auto” is displayed on the System Menu
box and the Auto PC Adjustment function works
to display proper images. If the image is not
projected properly, a manual adjustment is
required (pp.40–41).

There is no signal input from the computer.
Check the connection between your computer
and the projector. (See “Troubleshooting” on
page 69.)

Auto

-----

The preset system is manually adjusted in the
PC Adjust Menu. The adjusted data can be
stored in Mode 1–10 (pp.40–41).

Mode 1

PC Systems provided in this projector is chosen.
The projector chooses a proper system provided
in the projector and displays it.

SVGA 1

Selecting Computer System Manually

*Mode 1 and SVGA 1 are examples.

PC System Menu

39

Computer Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical
positions to conform to your computer.

Move the red frame pointer to Auto
PC Adj. and press the SELECT button.

“Please wait...” appears while the
Auto PC adjustment is in process.

PC Adjust Menu

PC Adjust Menu icon

To store adjustment parameters

The adjusted parameters from the Auto PC Adjustment can
be stored in the projector. Once the parameters are stored,
the setting can be done just by selecting a Mode (1–10) in
the PC System Menu (see page 38). See also “Store” on
page 41.

✔Notes:

•Fine sync, Total dots, Horizontal and Vertical position of some
computers cannot be fully adjusted with the Auto PC Adjustment
function. When the image is not provided properly with this
operation, manual adjustments are required (pp.40–41).

•The Auto PC Adjustment cannot be operated when 480i, 575i,
480p, 575p, 720p,1035i, or 1080i is selected in the PC System
Menu (p.38), or when the signal is coming from the DVI-terminal.

Auto PC Adjustment

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the PC Adjust Menu icon.

1

2

Use the Point ed buttons to move the red frame
pointer to Auto PC Adj. and then press the SELECT
button twice.

Auto PC Adj.

The Auto PC adjustment function can be operated directly
by pressing the AUTO PC button on the remote control.

AUTO PC button

Direct Operation

Menu Operation

Remote Control

40

Computer Adjustment

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the PC Adjust Menu icon.

1

2

Use the Point ed buttons to move the red frame
pointer to the desired item and then press the SELECT
button to display the adjustment dialog box. Use the
Point 7 8 buttons to adjust the setting value.

Move the red frame pointer
to the desired item and
press the SELECT button.

PC Adjust Menu

PC Adjust Menu icon

Use the Point 7 8 buttons to adjust the value, eliminating a
flicker from the image displayed (from 0 to 31).

Fine sync

Use the Point 7 8 buttons to adjust the number of total
dots in one horizontal period to match your PC image.

Total dots

Use the Point 7 8 buttons to adjust the horizontal picture
position.

Horizontal

Use the Point 7 8 buttons to adjust the vertical picture
position.

Vertical

Press the SELECT button to show H-sync freq. and V-sync
freq. of the connected computer.

Current mode

Use the Point 7 8 buttons to adjust the clamp level. When
the image has dark bars, try this adjustment.

Clamp

Press the SELECT button
here to adjust other items.

Use the Point

7 8 buttons

to adjust the value.

Status (Stored/Free) of the
selected Mode.

Selected Mode

Press the SELECT button at
Current mode to show the
information of the connected
computer.

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector.
Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The
projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to
recall the setting for a specific computer.

41

Computer Adjustment

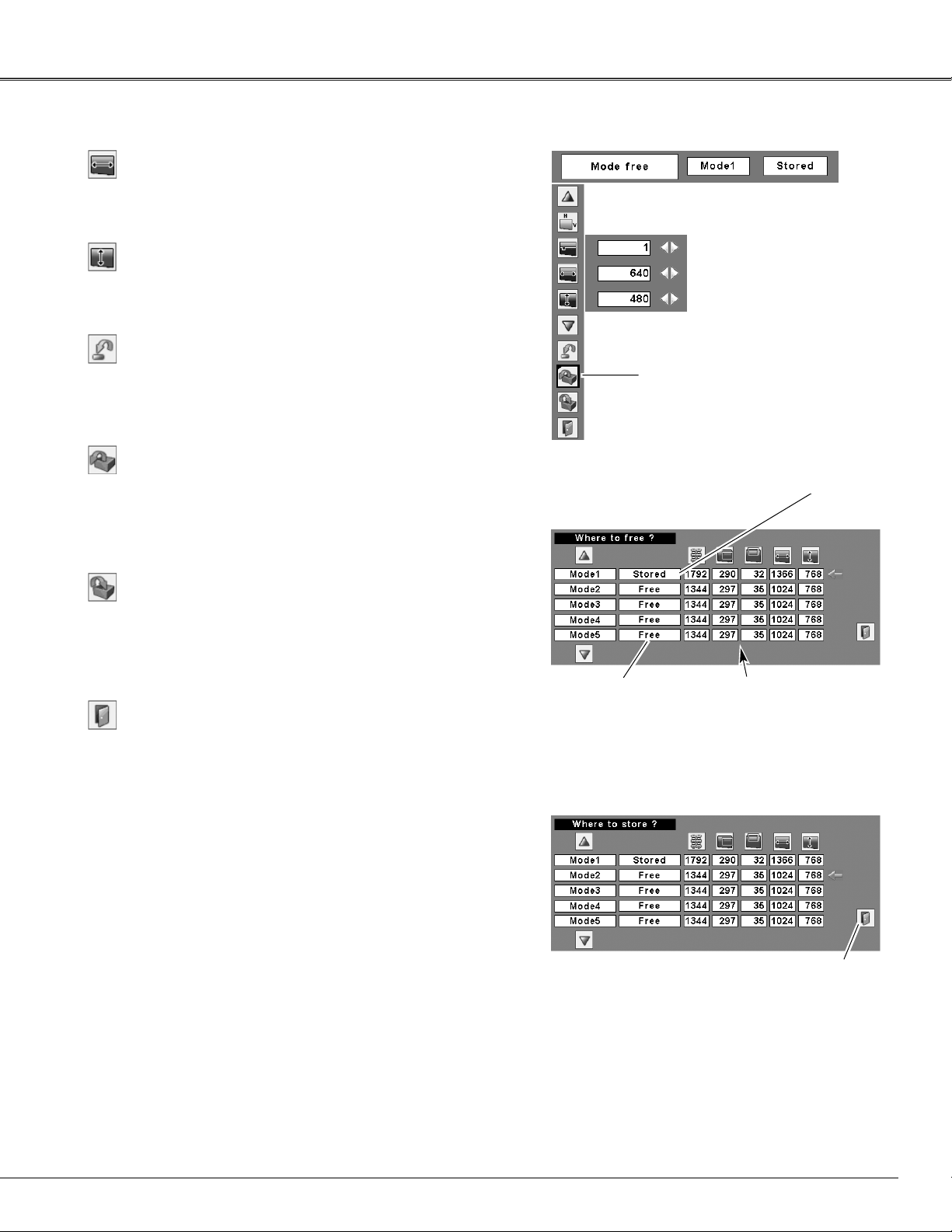

Use the Point 7 8 buttons to adjust the horizontal area
displayed by this projector.

Display area H

Use the Point 7 8 buttons to adjust the vertical area
displayed by this projector.

Display area V

Reset

Store

Exit the PC Adjust Menu.

Quit

To store the adjusted data, select Store and then press the
SELECT button. Move the red arrow pointer to one of the
Modes 1 to 10 in which you want to store, and then press
the SELECT button.

To reset the adjusted data, select Reset and press the
SELECT button. A confirmation box appears and then select
[Yes]. All adjustments will return to their previous figures.

Mode free

Vacant Values of “Total dots,”

“Horizontal,” “Vertical,”
“Display area H,” and
“Display area V.”

Close this dialog box.

To clear the stored data, select Mode free and then press
the SELECT button. Move the red arrow pointer to the
Mode that you want to clear and then press the SELECT
button.

✔Notes:

•Display area (H/V) cannot be selected when 480i, 575i, 480p,
575p, 720p, 1035i, or 1080i is selected in the PC System Menu
(p.38).

•PC Adjust Menu cannot be selected when Input 1[RGB (PC digital)]
is selected in the Input Menu (p.35).

Move the red frame pointer to
the desired item and press the
SELECT button.

To clear the adjusted data

This Mode has
stored parameters.

To store the adjusted data

42

Computer Adjustment

MEMO

43

You can choose an image mode in accordance with each projected image such as
presentation screen, movies, etc.

You can also adjust image parameters in the Image Adjust Menu and save them as
Image 1–4. The four image modes with respect to each input source are stored.

Select Image Mode with the On-Screen Menu.

*Depending on the projected image, some image modes will not be available.

Image Mode Selection

44

Image Mode Selection

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Image Menu icon.

1

2

Use the Point ed buttons to move the red frame
pointer to the desired image mode and then press the
SELECT button.

Move the red frame pointer to
the desired image mode and
press the SELECT button.

The selected image mode is check marked.

Image Menu

Normal picture mode preset on the projector.

Standard

Picture mode with improved halftone for graphics.

(This icon is displayed with the computer signal.)

Real

Picture mode adjusted with fine tone.

(This icon is displayed with the video signal.)

Cinema

Image Menu icon

Image Mode Selection

For viewing with the user preset image mode in the Image
Adjust Menu (see page 48). This Image memory is provided
in each computer, component, and video input source.

Image 1–4

For viewing pictures in a bright room.

Dynamic

This will change to Cinema
mode icon with the video
signal input.

45

Image Adjustment

You can adjust the following image parameters.

Contrast
Brightness
Color*
Tint*
Color Temperature
White balance (Red)
White balance (Green)
White balance (Blue)
Sharpness
Gamma
Noise reduction*

This function can reduce noise interference on the screen. Certain images may be
inapplicable.

Progressive*

An interlaced video signal can be displayed in progressive mode reproducing highly
detailed images.

The adjusted parameters are stored and called up later when needed. Maximum of
four user image modes (Image 1–Image 4) are available and they can be called up in
the Image Menu (see “Image Mode Selection” on pages 43–44).

*Not available depending on the signals.

46

Image Adjustment

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Image Adjust Menu icon.

1

2

Use the Point ed buttons to move the red frame
pointer to the desired item and then press the SELECT
button to display the adjustment dialog box. Use the
Point 7 8 buttons to adjust the setting value.

Press the Point 7 button to decrease the contrast; press
the Point 8 button to increase the contrast (from 0 to 63).

Press the Point 7 button to decrease the brightness; press
the Point 8 button to increase the brightness (from 0 to 63).

Contrast

Brightness

Press the Point 7 button to lighten red tone; press the
Point 8 button to deepen red tone (from 0 to 63).

White balance (Red)

Press the Point 7 button to lighten green tone; press the
Point 8 button to deepen green tone (from 0 to 63).

White balance (Green)

Press the Point 7 button to lighten blue tone; press the
Point 8 button to deepen blue tone (from 0 to 63).

White balance (Blue)

Use the Point 7 8 buttons to select the desired Color temp.
level (High, Mid, Low, or XLow).

Color temp.

Image Adjustment

✔Notes:

•When the White balance Red, Green, or Blue is adjusted, the Color
temp. level will change to “Adj.”.

•Tint cannot be selected when the video system is PAL, SECAM,
PAL-M, or PAL-N (p.36).

•Each input signal has different On-Screen Menu display.

Press the Point 7 button decrease the intensity of the
color; press the Point 8 button increase the intensity of the
color (from 0 to 63).

Press the Point 7 8 buttons to adjust the tint value to get a
proper color balance (from 0 to 63).

Color

Tint

*The figure below shows for video signal input.

Use the Point 7 8 buttons to
adjust the setting value.

Move the red frame
pointer to the desired
item and then press
the SELECT button.

Image Adjust Menu

Press the SELECT button
at this item to display other
items.

Image Adjust Menu icon

Press the SELECT button
here to display the previous
items.

47

Image Adjustment

Use the Point 7 8 buttons to adjust the gamma value to
obtain a better balance of contrast (from 0 to 15).

Gamma

Press the Point 7 button to decrease the sharpness of the
image; press the Point 8 button to increase the sharpness
of the image (from 0 to 15).

Sharpness

✔Notes:

•Noise reduction and Progressive cannot be selected when 480p,
575p, 720p, 1035i, or 1080i is selected (p.36).

•Reset and Store icons will be displayed when more than one
adjustment is made.

An interlaced video signal can be displayed in progressive
mode. Select one of the following options.

Off.......... Disabled.

L1........... For an active picture.

L2........... For a still picture.

Film ........ For watching a film. With this function, the

projector reproduces pictures faithful to the
original film quality.

Progressive

Noise reduction

Noise interference on the screen can be reduced. Select
one of the following options to get smoother images.

Off.......... Disabled.

L1........... Lower reduction

L2........... Higher reduction

48

Image Adjustment

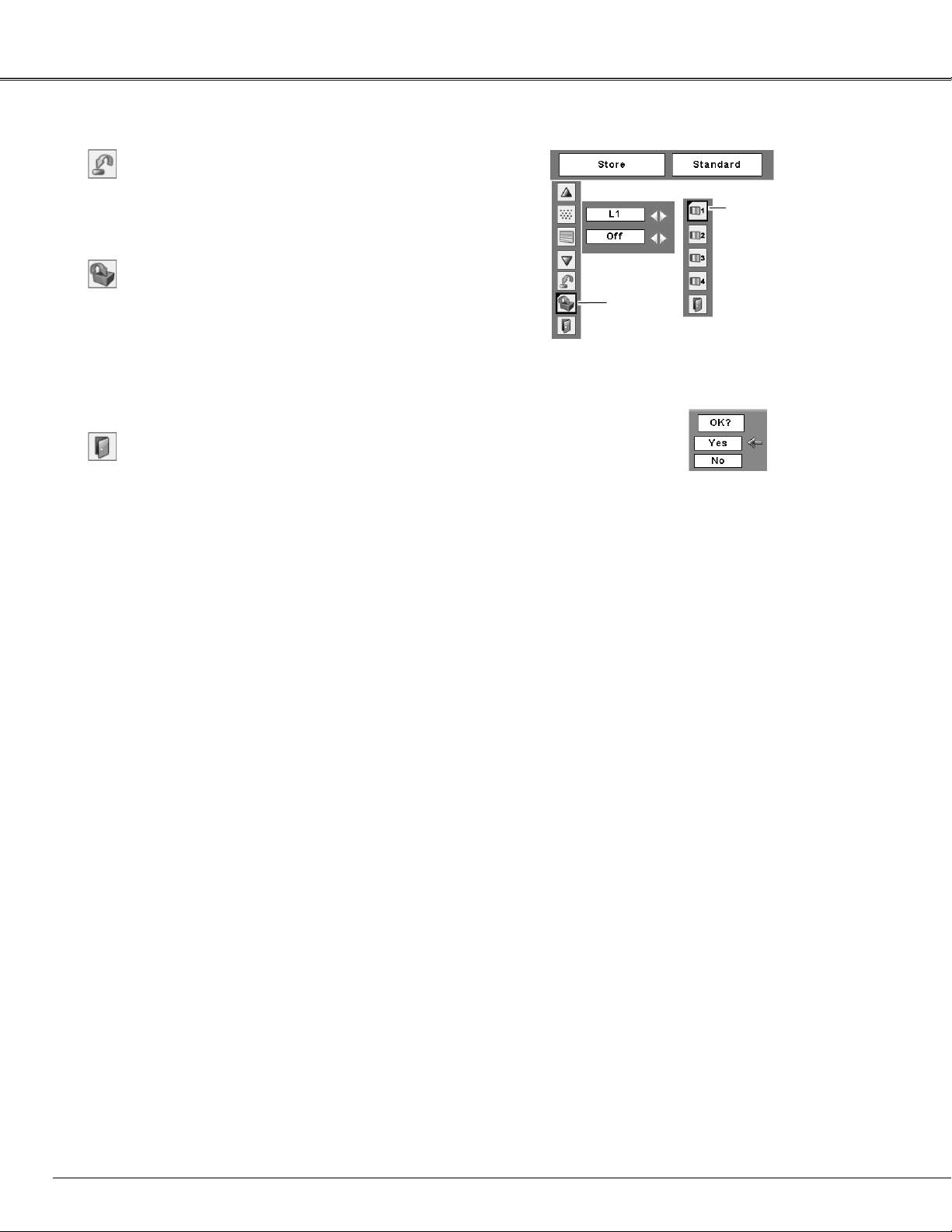

To store the adjusted data, select Store and press the
SELECT button. Use the Point ed buttons to select one
from Image 1 to 4 and press the SELECT button. A
confirmation box appears and then select [Yes]. Stored data
can be called up by selecting an “Image (1–4)” in the Image
Mode Selection on page 44.

To reset the adjusted data, select Reset and press the
SELECT button. A confirmation box appears and then select
[Yes]. All adjustments will return to their previous figures.

Reset

Store

Exit the Image Adjust Menu.

Quit

Image Mode Menu
Move the red frame
pointer to an image
item to be set and
then press the
SELECT button.

Store icon

A confirmation box
appears and then
select [Yes].

49

Screen Adjustment

You can change or adjust the appearance of the image as well as the image
orientation with the following options.

Screen size --------------------- Select a screen size conforming to the input signal

source.

Digital zoom -------------------- Zoom up and down the images.

(Only available with the computer signals.)
Keystone ------------------------ Correct Keystone distortion.
Ceiling ----------------------------- Set when projecting from the ceiling.
Rear -------------------------------- Set when projecting from the rear of the screen.

50

Screen Adjustment

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Screen Menu icon.

1

Use the Point ed buttons to move the red frame
pointer to the desired function and then press the
SELECT button.

2

Screen Adjustment

Move the red frame pointer
to the desired function and
press the SELECT button.

Screen Menu

Screen Menu icon

Keystone

This function is used to store or reset the keystone
correction when the AC power cord is unplugged. Use the
Point 7 8 buttons to switch between each option.

Store ........ Keep the keystone correction even when the

AC power cord is unplugged.

Reset ....... Release the keystone correction when the AC

power cord is unplugged.

To correct keystone distortion, press the SELECT button.
The “Keystone” appears on the screen. Use the Point ed
buttons to correct keystone distortion. (p.32)

Keystone

Use the Point 7 8
buttons to select
Store or Reset.

Ceiling

Rear

Ceiling

When this function is set to “On,” the picture is top/bottom
and left/right reversed. This function is used to project the
image from a ceiling-mounted projector.

Rear

When this function is set to “On,” the picture is left/right
reversed. This function is used to project the image from
the rear of the screen.

51

Screen Adjustment

Select Digital zoom +. The On-Screen Menu disappears and
“D. zoom +”appears. Press the SELECT button to expand
the image size. Use the Point ed7 8 buttons to pan the
image. The Panning function can work only when the image
is larger than the screen size.
You can also enter the Digital zoom + mode by pressing the
D.ZOOM button on the remote control.

To exit the Digital zoom +/– mode, press any button except
the D.ZOOM, SELECT, and Point buttons.

To return to the previous screen size, select a screen size
from the Screen Menu or select an input source from the
Input Menu (p.35) again, or adjust the screen size with the
D.ZOOM buttons on the remote control.

Digital zoom +

Select Digital zoom –. The On-Screen Menu disappears and
“D. zoom –” appears. Press the SELECT button to compress
image size.
You can also enter the Digital zoom - mode by pressing the
D.ZOOM button on the remote control.

Digital zoom –

For zooming in and out the images

Wide

Provide the image to fit the screen size.

Normal

True

Provide the image in its original size. When the original
image size is larger than the screen size (1024 x 768), the
projector enters to the panning mode automatically. Use the
Point ed7 8 buttons to pan the image. When adjusted,
the arrows will turn red. When reached to the correction
limits, the arrows will disappear.

Provide the image to fit the wide video aspect ratio (16:9)
by expanding the image width uniformly. This function can
be used for providing a squeezed video signal at 16:9.

Full screen

Provide the full screen image.

✔Notes:

•The projector cannot display any resolution higher
than 1600 x 1200. If your computer’s screen
resolution is higher than that, lower the resolution
before connecting to the projector.

•The image data other than 1024 x 768 is
modified to fit the screen size in initial mode.

•True, Full screen, and Digital zoom +/– cannot be
selected when 480i, 575i, 480p, or 575p is
selected in the PC System Menu (p.38).

•The panning function may not be operated
properly if the stored Mode in the PC Adjust
Menu is used (pp.39–41).

•The minimum compression ratio can be limited
depending on the input signal or when the
Keystone function is working.

•Digital zoom +/– cannot be selected when Full
screen or True is selected.

•The Screen Menu cannot be operated when
720p, 1035i, or 1080i is selected in the PC
System Menu (p.38).

Screen Size Adjustment (Computer Signals)

Select the desired screen size that conforms to the input signal source.

Move the red frame pointer
to the desired function and
press the SELECT button.

Screen Menu

Screen Menu icon

52

Screen Adjustment

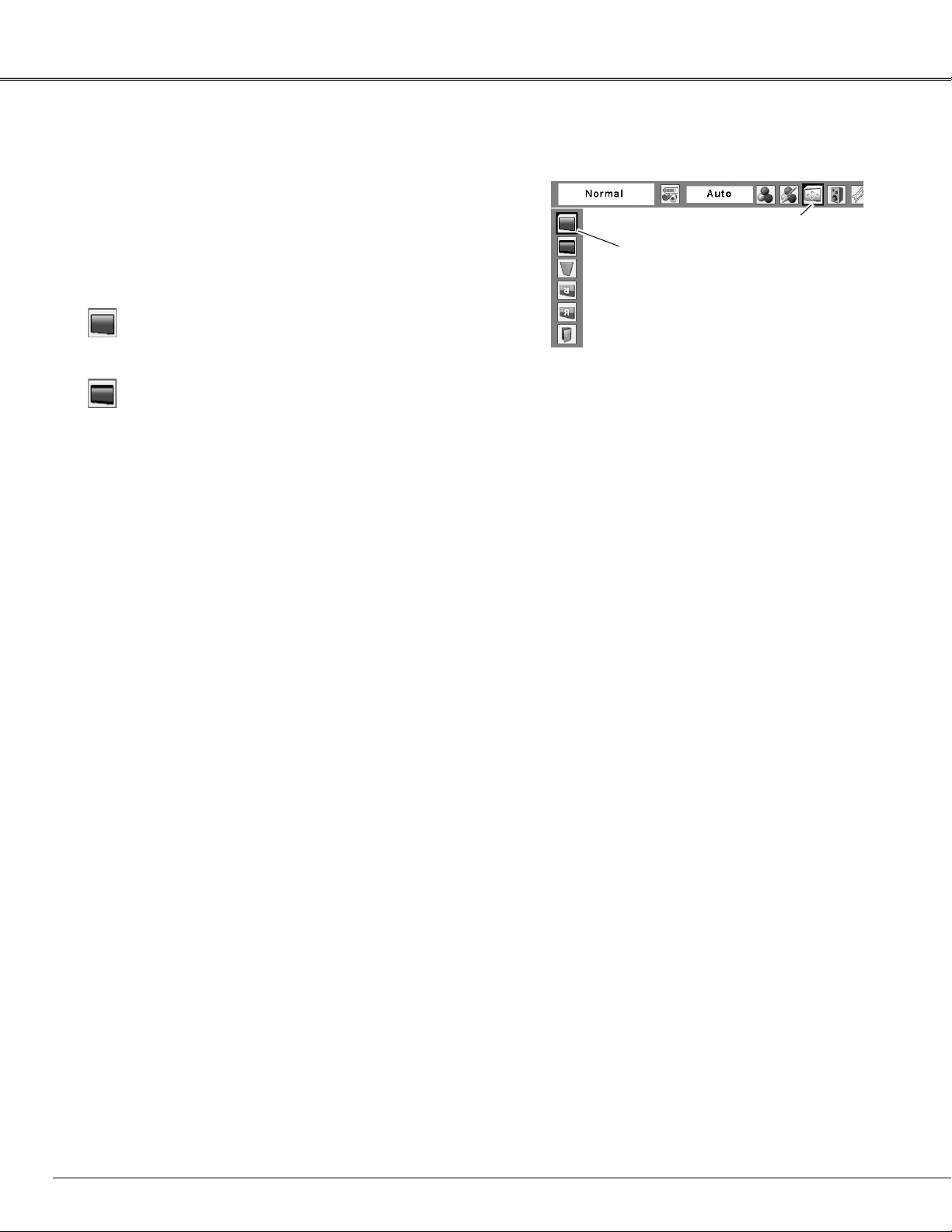

Screen Size Adjustment (Video, Component Signals)

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Screen Menu icon.

1

Use the Point ed buttons to move the red frame
pointer to the desired function and then press the
SELECT button.

2

Provide the image at the 4:3 normal video aspect ratio.

Normal

Wide

Provide the image at the 16:9 wide screen ratio.

✔Note:

•The Screen Menu cannot be operated when 720p, 1035i, or
1080i is selected in the AV System Menu (p.36).

Move the red frame pointer
to the desired function and
press the SELECT button.

Screen Menu

Screen Menu icon

53

Setting

The following setting options are available:

Language ------------------------ Select the language of the On-Screen Menu.
Background --------------------- Select the background image for no signal input.
Lamp control ------------------- Select the brightness of the lamp.
Pointer ---------------------------- Select the pointer shape.
Logo -------------------------------- Customize the screen logo
Remote control---------------- Select the remote control code.
RC Sensor ----------------------- Select the location of infrared remote receiver.
Display----------------------------- Select the screen display option
Power management-------- Set the Power management function
On start --------------------------- Turn on the projector automatically when the AC cord is connected.

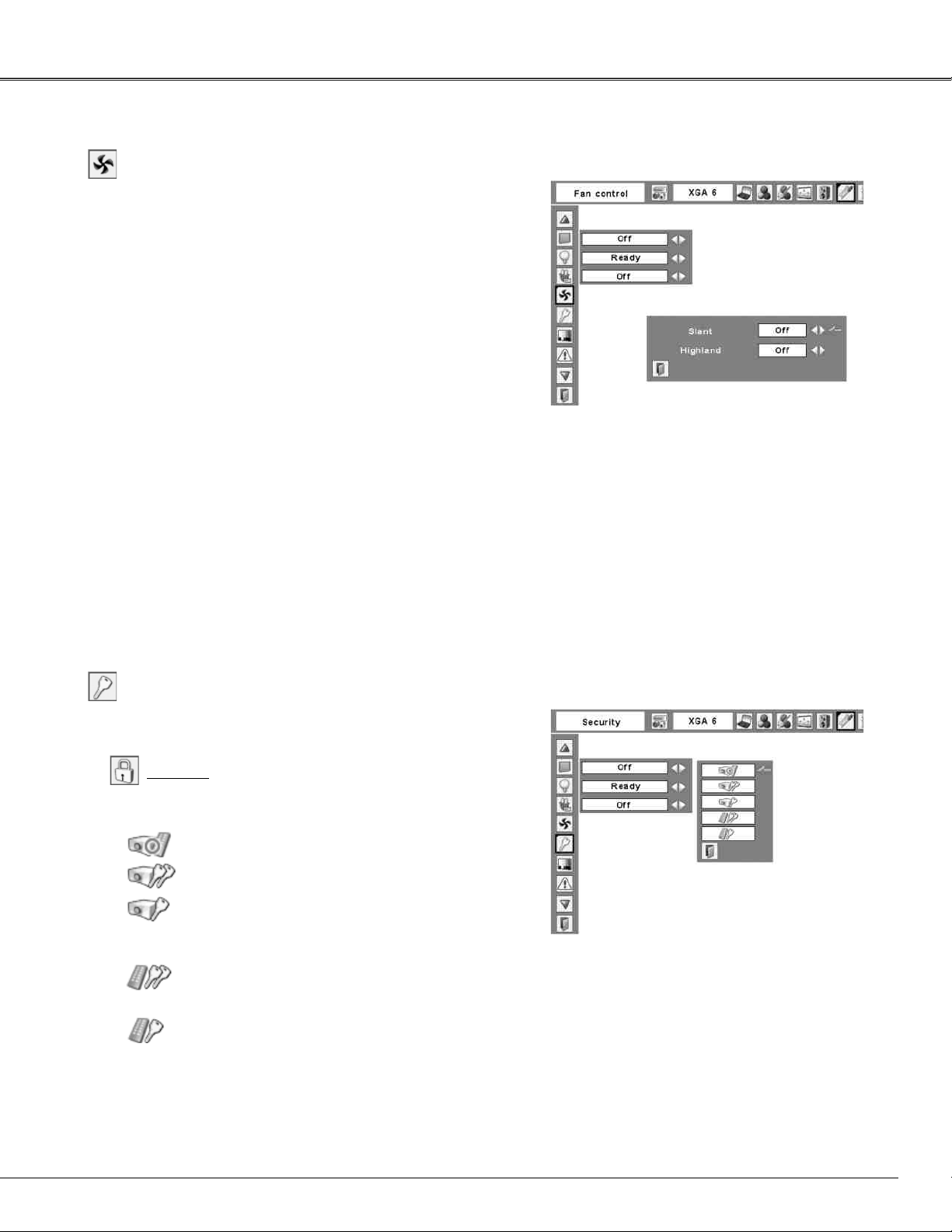

Fan control----------------------- Set the cooling fans’ operation
Security --------------------------- Set the Security function
Test pattern--------------------- Convenient test patters are provided.
Warning log --------------------- Check the records of operation failures.

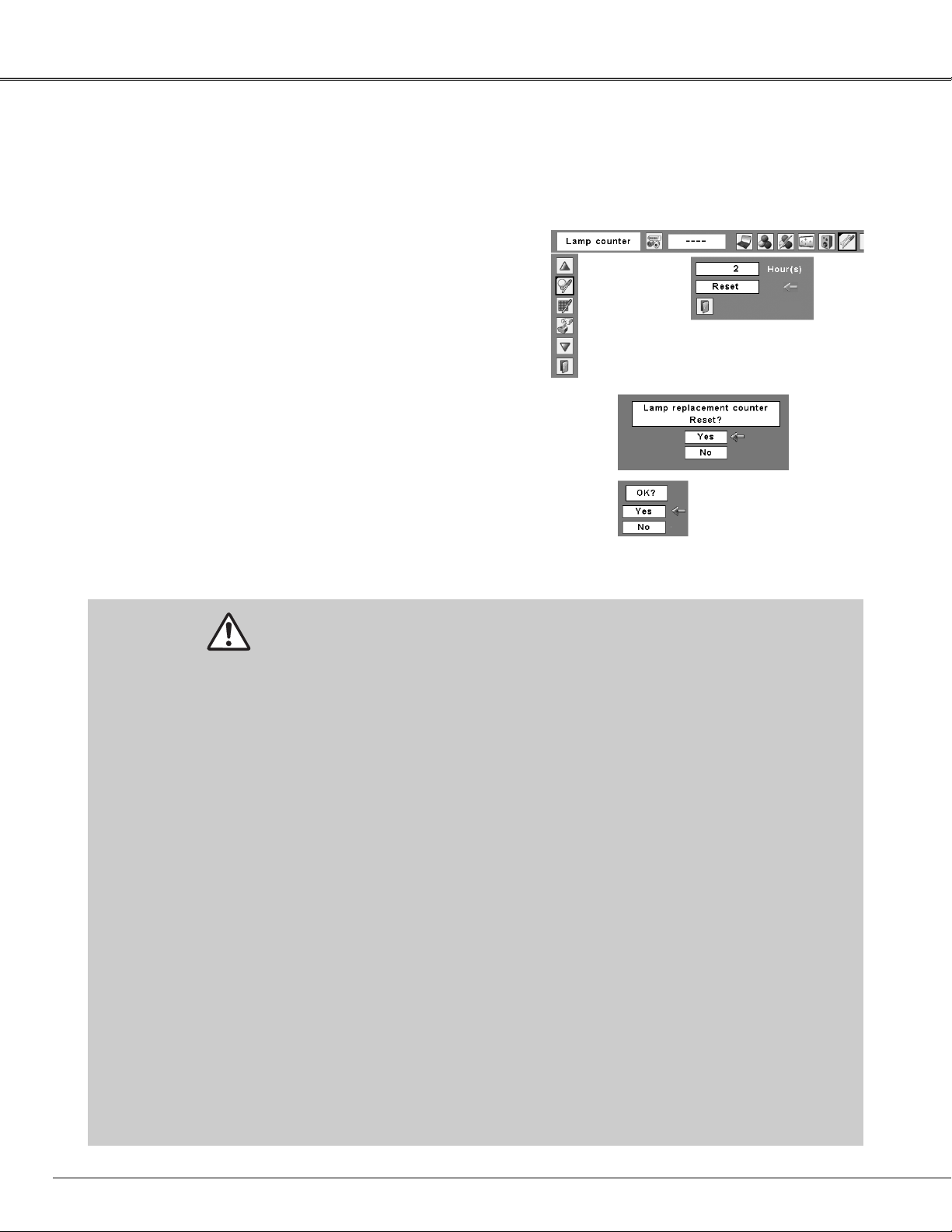

Lamp counter ------------------ Check the lamp time and reset the lamp counter
Filter counter ------------------- Set the filter cleaning timing
Factory default----------------- Set back to the factory default settings.

54

Press the MENU button to display the On-Screen
Menu. Use the Point

7 8 buttons to move the red

frame pointer to the Setting Menu icon.

1

2

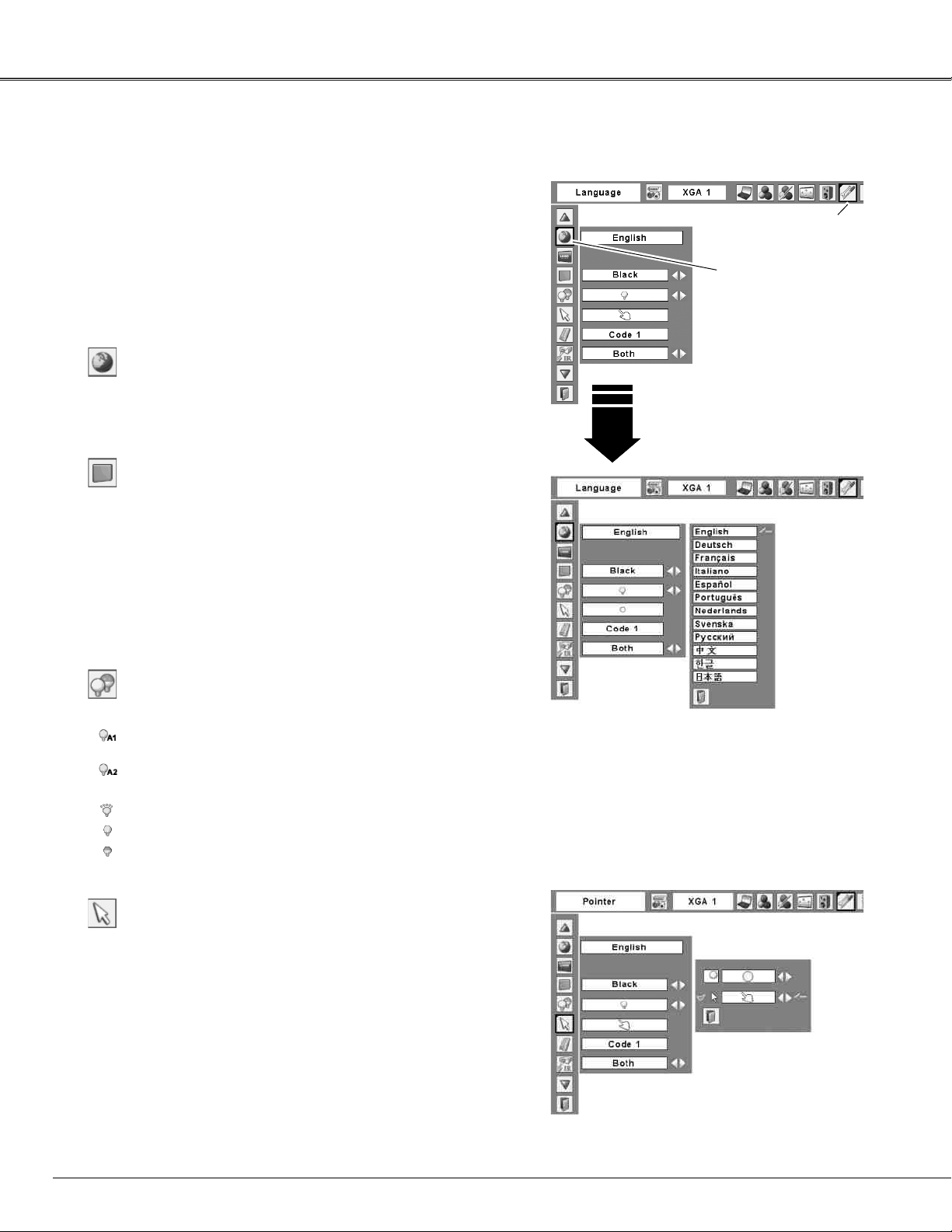

Language

The language used in the On-Screen Menu is available in
English, German, French, Italian, Spanish, Portuguese,
Dutch, Swedish, Russian, Chinese, Korean, and Japanese.

Use the Point ed buttons to move the red frame
pointer to the desired item and then press the SELECT
button. The Setting dialog box appears.

Press the SELECT
button at Language,
then the Language
Menu appears.

Setting Menu (Language)

Setting Menu icon

Setting

Setting

This projector has a Setting menu that allows you to set up
the other various functions described below.

Background

The selected background screen will be displayed when no
input signal is detected.

Blue........ Project a blue background

User ....... Project an image selected in the Logo setting.

Black ...... Project a black background

✔Note:

•When no captured image is set, the “User” options is not available.

Lamp control

This function allows you to change brightness of the screen.

Auto 1 ........ The brightness according to the input

signal (between Normal and Eco mode).

Auto 2 ........ The brightness according to the input

signal (between High and Eco mode).

High ........... Brighter than the Normal mode.

Normal ...... Normal brightness

Eco............. Lower brightness reduces the lamp lower

consumption and extends the lamp life.

Pointer

You can emphasize a part of the projected image with this
function. Use the Point ed buttons to choose either
Spotlight or Pointer and press the SELECT button. Then use
the Point 7 8 buttons to select a size of the Spotlight
(Large, Middle, or Small) or a pattern of the Pointer (Arrow,
Finger, or Dot). (See page 16 for operation.)

Pointer

Use the Point ed buttons
to choose either Spotlight
or Pointer, and then use
the Point

7 8 buttons to

switch between the
options.

55

Setting

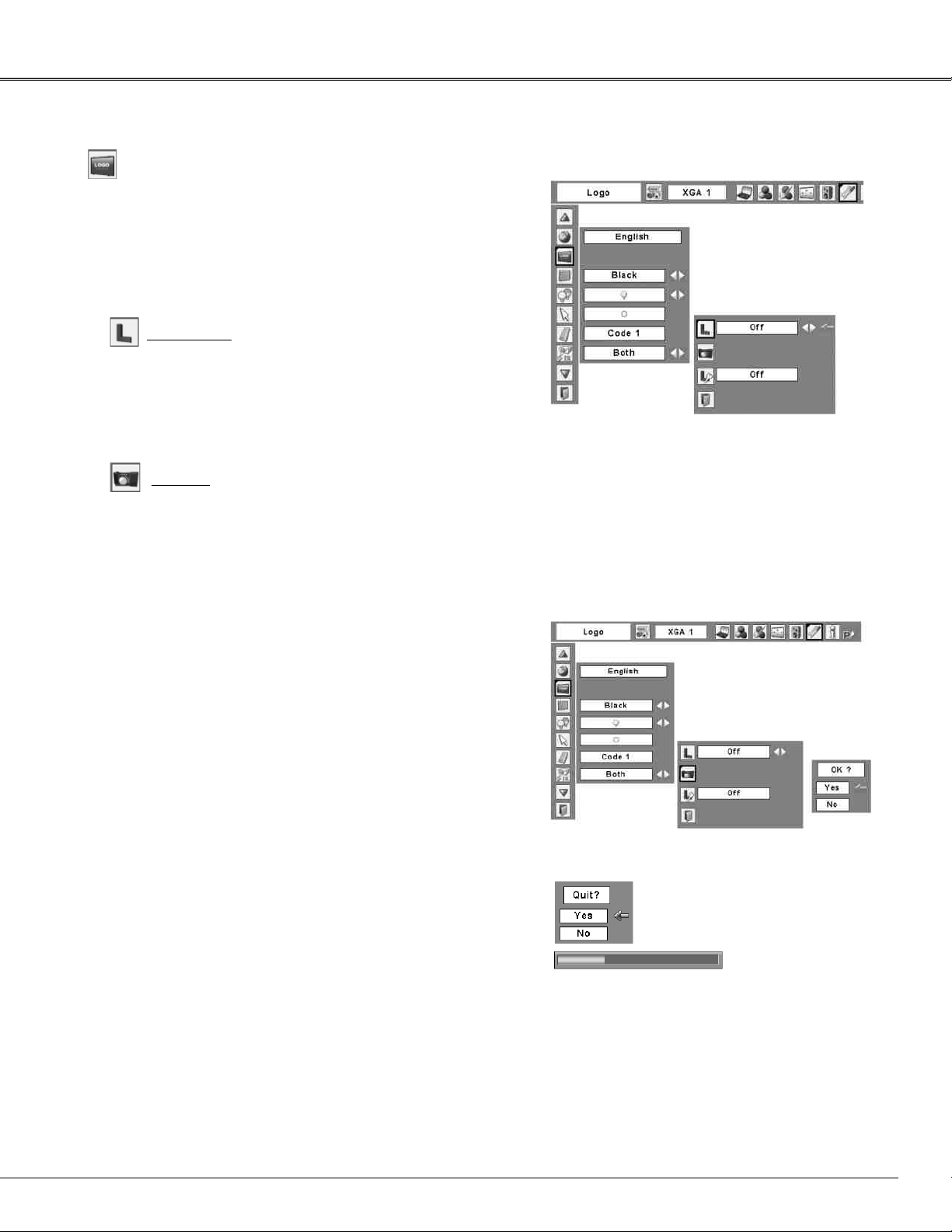

Capture

This function enables you to capture an image being
projected to use it for a starting-up display or interval of
presentations.

Select Capture and press the SELECT button.
A confirmation box appears and select [Yes] to capture
the projected image.

After capturing the projected image, go to the Logo select
function and set it to “User”. Then the captured image
will be displayed the next time you turn on the projector
or when you press the NO SHOW button (see page 32).

To cancel the Capture function, select [No].

Select [Yes] to capture
the projected image.

Select [Yes] to
stop capturing.

Capture

Logo select

This function decides on the starting-up display from
among following options.

User ......... Show the image you captured

Default ..... Show the factory-set logo

Off............ Show the countdown display only

Logo (Logo and Logo PIN code lock settings)

This function allows you to customize the screen logo with
Logo select, Capture, and Logo PIN code lock functions.

Logo

✔Note:

•When “On” is selected in the Logo PIN code lock function, Logo
select and Capture functions cannot be selected.

✔Notes:

•Before capturing an image, select “Standard” in the Image
Menu to capture a proper image (p.44).

•A signal from a computer can be captured up to XGA (1024 x

768). A signal from video equipment can be captured except
for 720p, 1035i, and 1080i.

•When capturing the image that has been adjusted by the
Keystone function, the adjusted data is automatically reset and
the projector captures an image without keystone correction.

•When the Logo PIN code lock function is set to “On,” the
Capture function cannot be selected.

•When starting to capture a new image, the previously stored
image is cleared even if you cancel the capturing.

56

Setting

This function prevents an unauthorized person from
changing the screen logo.

Off............ The screen logo can be changed freely from

the Logo Menu (p.55).

On ............ The screen logo cannot be changed without

a Logo PIN code.

If you want to change the Logo PIN code lock setting,
press the SELECT button and the Logo PIN code dialog
box appears. Enter a Logo PIN code by following the
steps below. The initial Logo PIN code is set to “4321”
at the factory.

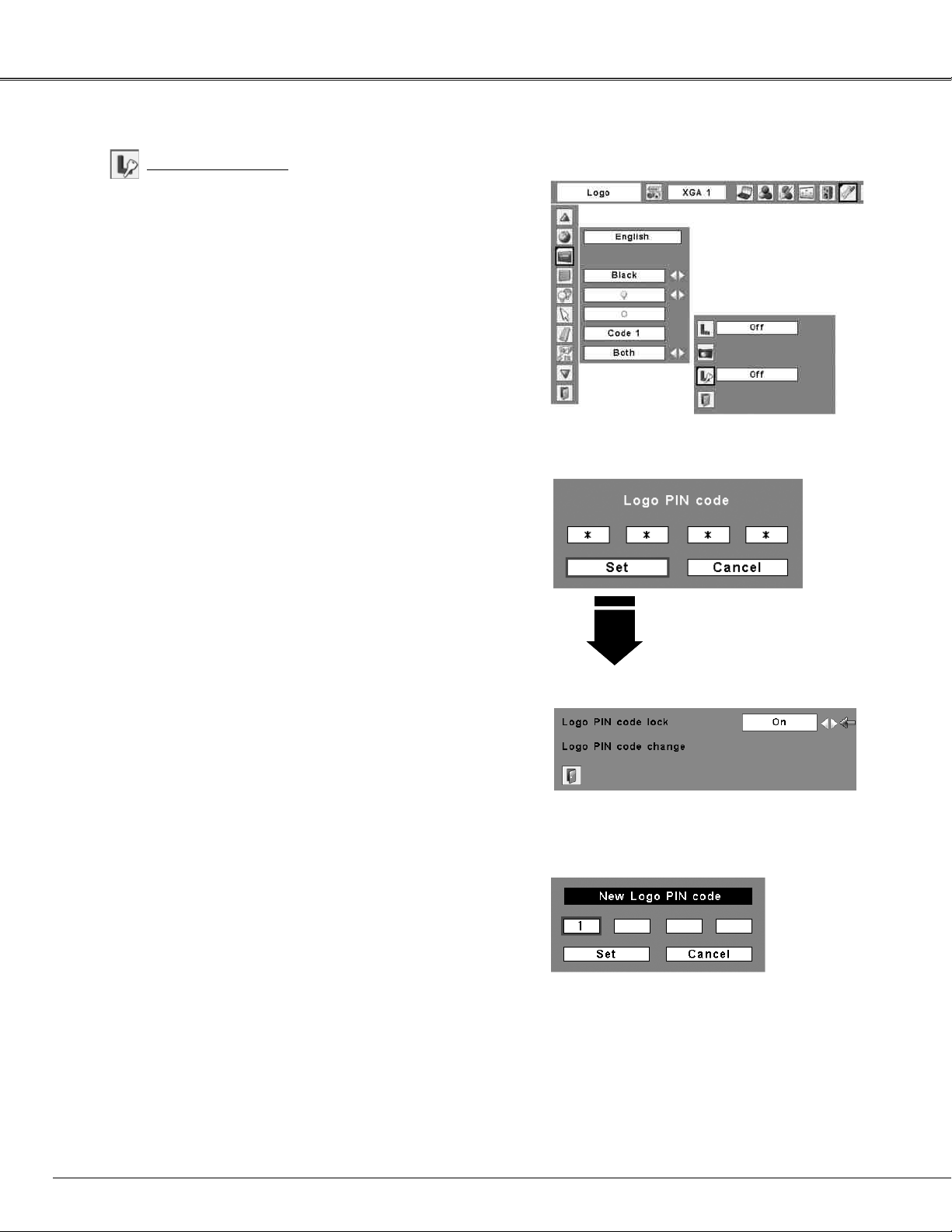

Logo PIN code lock

Enter a Logo PIN code

Enter a Logo PIN code

Use the Point ed buttons or Number buttons on the
remote control to enter a number. Press the Point 8
button to fix the number and move the red frame pointer
to the next box. The number changes to “✳.” If you fixed
an incorrect number, use the Point 7 button to move the
pointer to the number you want to correct, and then enter
the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to
“Set.” Press the SELECT button so that you can start to
operate the projector.

If you entered an incorrect Logo PIN code, “Logo PIN
code” and the number (✳✳✳✳) will turn red for a moment.
Enter the correct Logo PIN code all over again.

After a correct Logo PIN code
is entered, the following
dialog box appears.

Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit
number. Press the Point d button to select “Logo PIN
code change” and then press the SELECT button. The
New Logo PIN code input dialog box appears. Set a new
Logo PIN code.

Be sure to note the new Logo PIN code and keep it at
hand. If you lost the number, you could no longer change
the Logo PIN code setting. For details on PIN code
setting, refer to “PIN code lock” on pages 60–61.

CAUTION:
WHEN YOU HAVE CHANGED THE LOGO
PIN CODE, WRITE DOWN THE NEW PIN
CODE IN COLUMN OF THE LOGO PIN
CODE NO. MEMO ON PAGE 81, AND
KEEP IT SECURELY. SHOULD THE LOGO
PIN CODE BE LOST OR FORGOTTEN, THE
LOGO PIN CODE SETTING CAN NO
LONGER BE CHANGED.

Logo PIN code lock

Use the Point 7 8 button to switch On/Off, and then
press the Point d button to move the pointer to “Quit.”
Press the SELECT button to close the dialog box.

Change the Logo PIN code lock setting

Change the Logo PIN code lock setting

Change the Logo PIN code

Use the Point 7 8 buttons to
switch On/Off.

57

Setting

Remote control

Remote control

The eight different remote control codes (Code 1–Code 8)
are assigned to the projector; the factory-set, initial code
(Code 1) and the other seven codes (Code 2 to Code 8).

The same code should set on both the projector and the
remote control. For example, operating the projector in
“Code 7”, the remote control code also must be switched
to “Code 7”.

To change the code for the projector

Select a remote control code in this Setting Menu.

To change the code for the remote control:

Press and hold the MENU button and a number button
(1–8) on the remote control for more than five seconds to
switch between the codes. (See page 17 for details.)

RC sensor

Select a location of the infrared remote receiver of the
remote control. See “Remote Control Operating Range” on
page 18 for details.

Both ....... Activate both the front and back receiver.

Front ...... Activate only the front receiver.

Back ....... Activate only the back receiver.

Display

This function decides whether to display On-Screen Displays.

On ............................ Show all the On-Screen displays. Use

this function when you want to
project images after the lamp
becomes bright enough. The factory
default setting is in this option.

Countdown Off ........ Show the input image instead of the

countdown when turning on the
projector. Use this function when you
want to project the image as early as
possible even when the lamp is not
bright enough.

Off ............................ Hide the On-Screen Displays except;

●On-Screen Menu

●“Power off?” (p.26)

●“No signal” for Power management

(p.58)

●“Please wait ...”

●Arrows for the True function

in the Screen Menu (p.51)

●“Filter warning” icon (red) (p.74)

Display

Use the Point 7 8 buttons to
switch between the options.

58

Setting

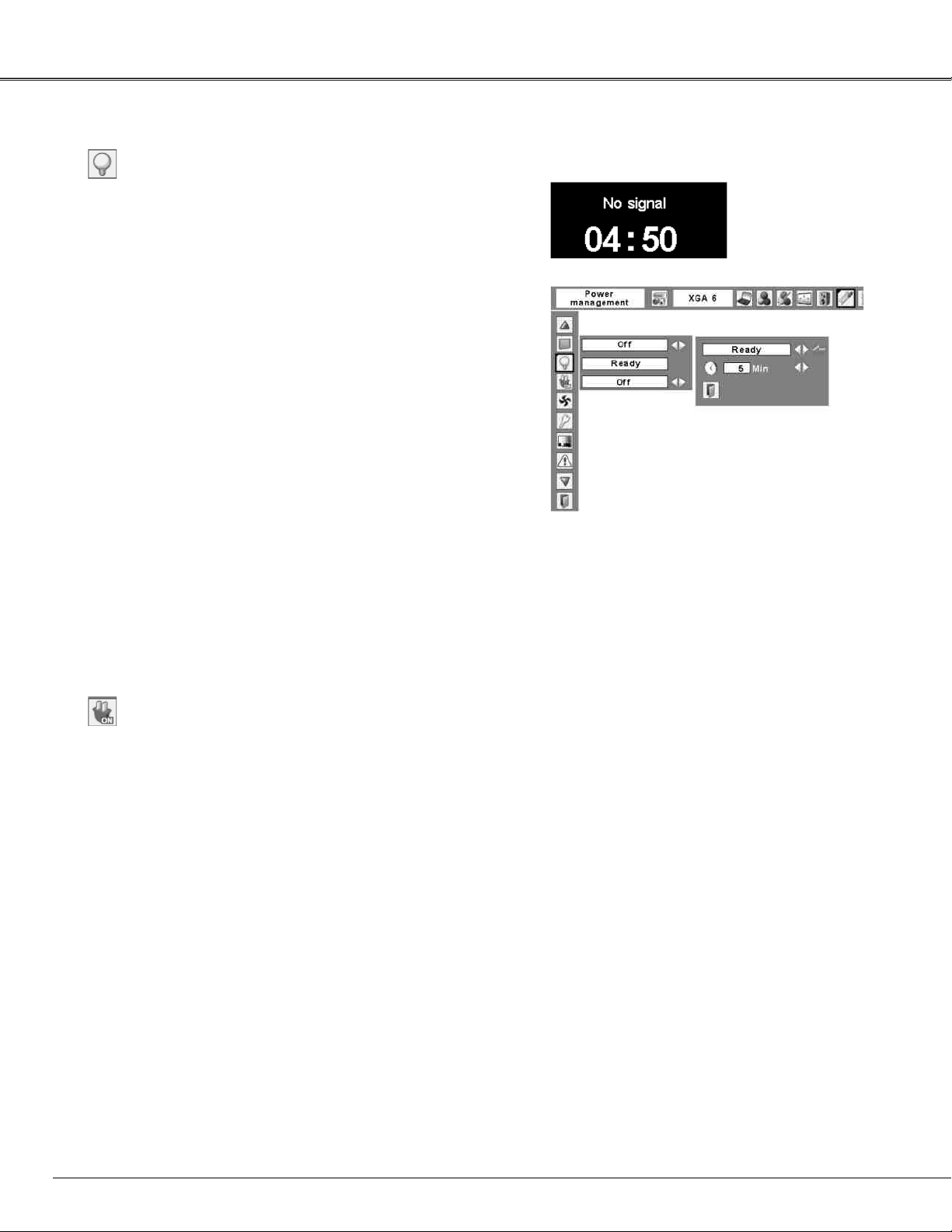

Power management

Time left before the lamp is off.

Press the SELECT button at
Power management and this
dialog box appears. Use the
Point

7 8 buttons to choose

one of the three options.
Press the Point

d button to

select the timer, and then
use the Point

7 8 buttons to

set timer.

Power management

For reducing power consumption as well as maintaining the
lamp life, the Power management function turns off the
projection lamp when the projector is not used for a certain
period.

If the input signal is interrupted and no button is pressed for
more than 30 seconds, the timer display with “No signal”
appears. It starts the countdown until the lamp is turned off.
The countdown time can be set between 1–30 minutes.
Use the Point 7 8 buttons to set the countdown timer.

Select one of the following options:

Ready ................. When the lamp has been fully cooled

down, the POWER indicator changes to
fast blinking. In this condition, the
projection lamp can be turned on if the
input signal is reconnected or any button
on the top control or remote control is
pressed.

Shut down.......... When the lamp has been fully cooled

down, the power will be turned off.

Off...................... Power management function is off.

On start

When this function is set to “On,” the projector will be
automatically turned on just by connecting the AC power
cord to a wall outlet.

✔Note:

•Be sure to turn off the projector properly (see “Turning Off the
Projector” on page 26). If the projector is turned off in the incorrect
sequence, the On start function does not work properly.

✔Note:

•Factory default is “Ready: 5 min.”

59

Setting

Fan control

This function is used to set the cooling fans’ operation to the
projector’s setting environment. Set this function properly in
accordance with the projector’s installation method.
Otherwise, the cooling fans will not work properly and that
causes malfunctions of the projector and decreases the lamp
life.

Slant

Select the projector’s installation condition from the following
options:

Off............ When using the projector within the range of the

upward/ downward inclination of 20 degrees to
the horizontal plane.

L1............. When using the projector within the range of the

upward inclination of over 20 degrees to the
horizontal plane.

L2............. When using the projector with downward

inclination of over 20 degrees to the horizontal
plane.

Highland

Set this function according to the ground elevation under
which you use the projector. When using the projector in high
altitudes (about 1,200 meters or more above the sea level)
where the fans have less cooling effect, set this function to
“On.”

Fan control

Key lock

Select Key lock. Use the
Point

ed buttons to choose

one of the options and select
[Yes] to activate it.

Security (Key lock and PIN code lock settings)

This function allows you to use the Key lock and PIN code
lock function to set the security for the projector operation.

Key lock

This function locks the top control and remote control
buttons to prevent operation by unauthorized persons.

...... Unlocked

...... Lock all the top control buttons

...... Lock the top control buttons except for the

ON/STAND-BY, INPUT, and INFO. buttons.
To unlock, use the remote control.

...... Lock all the remote control buttons. To

unlock, use the top control.

...... Lock the remote control buttons except

for the ON, STAND-BY, INPUT 1–3, AUTO
PC, FREEZE, and INFO. buttons.

If the top control accidentally becomes locked and you do
not have the remote control nearby or there is something
wrong with your remote control, contact the dealer where
you purchased the projector or the service center.

Press the SELECT button at Fan
control and this dialog box appears.
Use the Point

ed buttons to choose

Slant or Highland. Use the Point

7 8

buttons to switch between the
options.

60

Change the PIN code lock setting

Use the Point 7 8 buttons to
switch between the options.

Use the Point 7 8 button to select Off, On1, or On2 and
then move the pointer to “Quit” with the Point d button.
Press the SELECT button to close the dialog box.

Change the PIN code lock setting

Enter a PIN code

Use the Point ed buttons or Number buttons on the
remote control to enter a number. Press the Point 8
button to fix the number and move the red frame pointer
to the next box. The number changes to “✳.” If you fixed
an incorrect number, use the Point 7 button to move the
pointer to the number you want to correct, and then enter
the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to
“Set.” Press the SELECT button so that you can start to
operate the projector.

If you entered an incorrect PIN code, “PIN code” and the
number (✳✳✳✳) will turn red for a moment. Enter the
correct PIN code all over again.

Setting

PIN code lock

This function prevents the projector from being operated
by unauthorized persons and provides the following
setting options for security.

Off............ Unlocked.

On1 .......... Enter the PIN code every time turning on

the projector.

On2 .......... Enter the PIN code to operate the projector

once the power cord is disconnected; as
long as the AC power cord is connected,
the projector can be operated without a PIN
code.

Whenever you change the PIN code lock setting or the
PIN code (the four-digit number), you are required to
enter the PIN code. The “1234” is set as the initial PIN
code at the factory.

If you want to change the PIN code lock setting, Press
the SELECT button and the PIN code dialog box appears.
Enter a PIN code by following the steps below.

PIN code lock

When the projector is locked
with a PIN code, the PIN code
lock symbol appears on the
menu bar.

Enter a PIN code

After a correct PIN code is
entered, the following dialog
box appears.

61

Setting

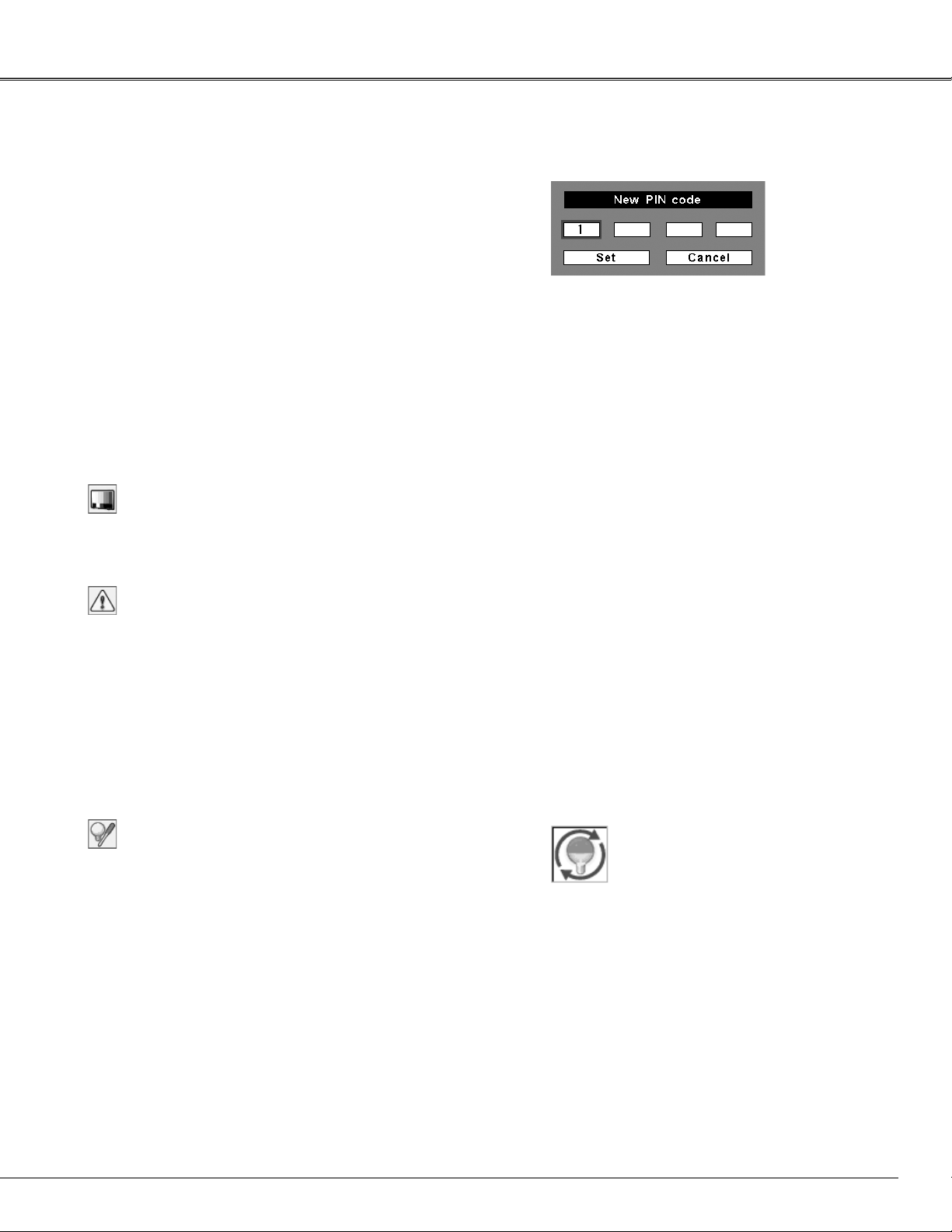

The PIN code can be changed to your desired four-digit
number. Press the Point d buttons to select “PIN code
change” and press the SELECT button. The New PIN
code input dialog box appears. Set a new PIN code.

Change the PIN code

Change the PIN code

CAUTION:
WHEN YOU HAVE CHANGED THE PIN
CODE, WRITE DOWN THE NEW PIN
CODE IN COLUMN OF THE PIN CODE NO.
MEMO ON PAGE 81, AND KEEP IT
SECURELY. IF YOU FORGET YOUR PIN
CODE, THE PROJECTOR CAN NO
LONGER BE STARTED.

Test pattern

Various test pattern are available for use when setting up
the projector.

Warning log

This function records anomalous operations while the
projector is in operation and use it when diagnosing faults.
Up to 10 warning logs are displayed with the latest warning
message at the top of the list, followed by previous warning
messages in chronological order.

This function is used to reset the lamp counter.

When the lamp life is left less than 100 hours, the Lamp
replacement icon appears on the screen, indicating that the
end of lamp life is approaching.

When replacing the projection lamp, reset the lamp counter.
See page 66 for operation.

Lamp counter

✔Note:

•When the Factory default function is executed, all the warning log
records will be deleted.

This icon appears on the screen when the end of
lamp life is approaching.

62

Setting

Factory default

This function returns all setting values except for the user
logo, PIN code lock, Logo PIN code lock, lamp counter, and
filter counter to the factory default settings.

Exit the Setting Menu.

Quit

Select Factory default and this
box appears. Select [Yes], and
the next box appears.

Select [Yes] to
activate it.

Factory default

This function is used to set a frequency for the filter cleaning.

When the projector reached a specified time between
cleanings, a Filter warning icon (yellow) appears on the
screen and the WARNING FILTER indicator lights orange,
notifying the cleaning is necessary. After cleaning the filter,
be sure to select RESET and set the timer. The WARNING
FILTER indicator and Filter warning icon will not turn off until
the filter counter is reset.

For details about resetting the timer, refer to “Resetting the
Filter Counter” on page 64.

Filter counter

Filter counter

Use the Point 7 8 buttons to set
the timer. Select from (Off/100H/
200H/300H) depending on the
use environment.

Filter warning icon (yellow) appears on the screen
at a set time.

✔Note:

•The Filter warning icon (yellow) will not appear
when the Display function is set to “Off” (p.57),
during “Freeze” (p.31), or “No show” (p.32).

63

Maintenance and Filter Cleaning

In order to care for the projector appropriately, regular maintenance is required. The
instructions described here will help minimize the need for optical cleaning, reduce
the likelihood of costly repairs, and maximize lamp life.

The projector uses a lamp which generates significant heat and thus requires a large
amount of air to be drawn through the filter to cool the units. When the filter starts
to clog, not enough air will be drawn into the projector housing.

Remove any dirt or dust on surface of the projector and on the filter regularly and
keep them clean

RECOMMENDATION
We recommend avoiding dusty/smoky environments when you operate the
projector. Usage in these environments may cause poor image quality.

IMPORTANT NOTICE ON MAINTENANCE OF THE FILTER

MAINTAIN THE FILTER by using the Filter counter function in the menu.

Clean the filter regularly. The frequency of cleaning the filter depends on the
environment in which you use the projector If you use the projector in an office or
home every day, we recommend that you clean the filter once a week (or about
every 200 hours). See “Filter counter” in the Setting Menu for details.

If the projector detects that the filter is clogged, a “Filter warning” icon (red) will
appear on the screen and “WARNING FILTER” indicator on the top panel will
blink. Stop using the projector immediately and clean or replace the filter.

After cleaning or replacing the filter, make sure to reset the filter counter. The
Filter warning icon and WARNING FILTER indicator will not turn off until the filter
is cleaned or replaced.

See “WARNING FILTER indicator” on page 74.

64

Maintenance and Filter Cleaning

Turn off the projector, and unplug the AC power cord
from the AC outlet.

First, clean up the dust on the projector and around the
air vents.

1

2

Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes
clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and
adversely affect the life of the projector. If a “Filter warning” icon (yellow or red) appears on the screen and the
WARNING FILTER indicator lights or blinks, clean the filter immediately. Clean the filter by following the steps
below.

Pull out the filter cover from the projector and then
remove the filter.

3

Reinstall the filter into the projector properly.

5

CAUTION

Do not operate the projector with the filter
removed. Dust may accumulate on the optical
elements degrading picture quality.
Do not put anything into the air vents. Doing so
may result in malfunction of the projector.

Gently clean the filter by using a brush or blower.

WARNING: Do not wash the filter with water and
any other liquid matter. Otherwise the filter may
be damaged.

4

Reset the filter counter in the Setting Menu. See
“Resetting the Filter Counter” below.

6

Press and hold the
filter cover and pull
out the filter.

Filter cover

Filter

Filter

Filter cover

Be sure to reset the Filter counter after cleaning or replacing the filter.

Press the MENU button to display the On-Screen
Menu. Use the Point 7 8 buttons to move the red
frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame
pointer to Filter counter and then press the SELECT
button. A dialog box appears showing the total
accumulated time of the filter use, a timer setting
option, and the reset option. Select Reset and the
“Filter counter Reset?” appears. Select [Yes] to
continue.

1

2

Resetting the Filter Counter

Filter counter

NOTE: If the filter is heavily clogged and unable

to clean, replace it with a new one.
Consult your dealer for details.

Replacement Filter Part No.: 910-330-7184

Select Reset and the “Filter
counter Reset?” appears.

Select [Yes],
then another
confirmation
box appears.

Select [Yes] again to reset
the Filter counter.

Another confirmation dialog box appears, select [Yes]
to reset the Filter counter.

3

Cleaning the Filter

65

Maintenance and Filter Cleaning

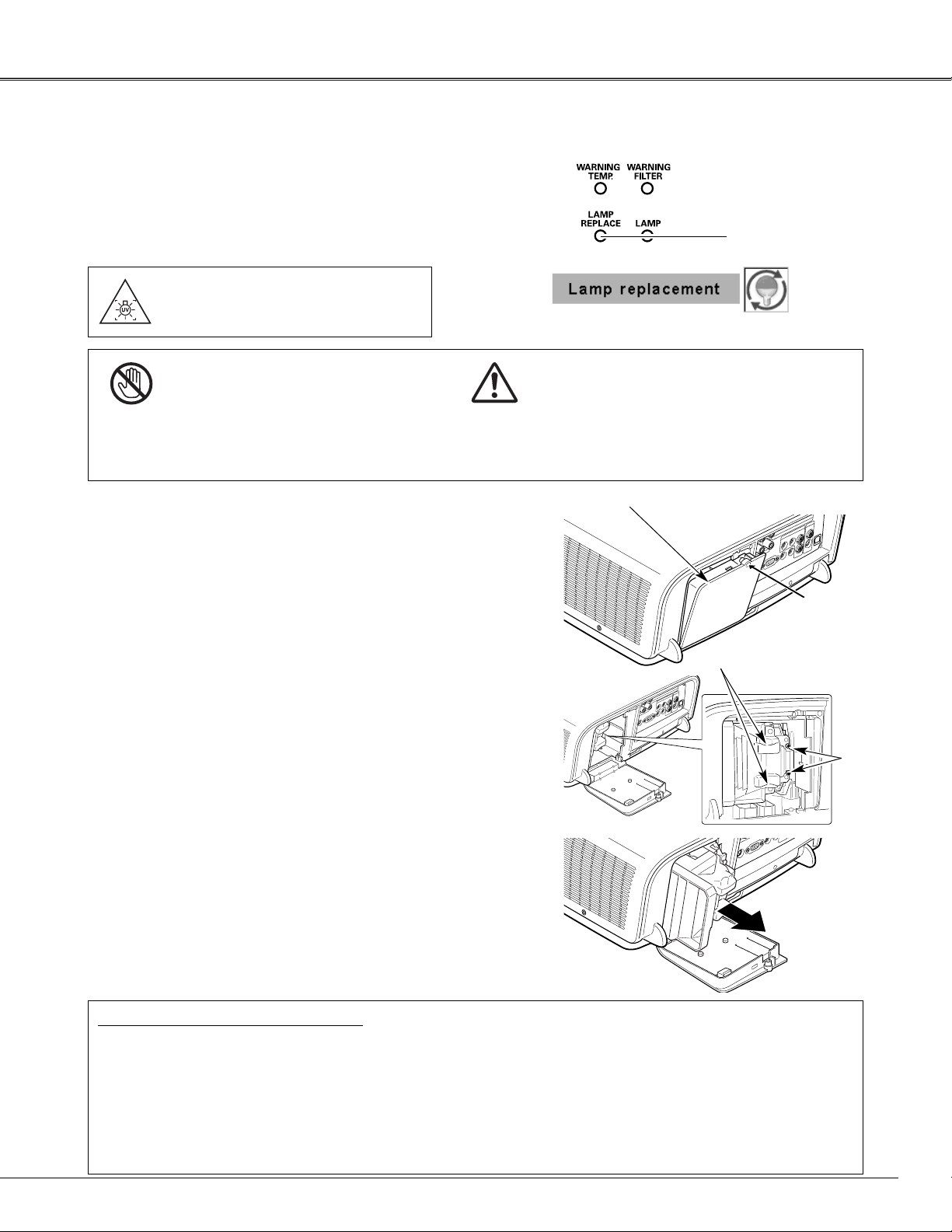

When the projection lamp of the projector reaches its end
of life, the Lamp replacement icon appears on the screen
and LAMP REPLACE indicator lights yellow. Replace the
lamp with a new one promptly. The timing when the LAMP
REPLACE indicator should light is depending on the lamp
mode.

Follow these steps to replace the lamp.

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering, give the following information to the dealer.

● Model No. of your projector : PLC-XT25, PLC-XT25L, PLC-XT25K,

PLC-XT21, PLC-XT21L, PLC-XT20, PLC-XT20L
PLC-XT20K

● Replacement Lamp Type No. : POA-LMP105 (Service Parts No. 610 330 7329)

For continued safety, replace with a lamp of the same
type lamp. Do not drop the lamp or touch the glass
bulb! The glass can shatter and may cause injury.

Allow a projector to cool for at least 45 minutes
before you open the Lamp cover. The inside of
the projector can become very hot.

CAUTION

Turn off the projector and unplug the AC power cord.
Let the projector cool for at least 45 minutes.

Remove the two (2) screws that secure the lamp. Lift
the lamp out of the projector by using the handle.

1

3

Replace the lamp with a new one and secure the two
(2) screws. Make sure that the lamp is set properly.
Put the lamp cover back and secure it with the screw.

4

Remove the screw that secures the lamp cover, and
then open the lamp cover.

2

Connect the AC power cord to the projector and turn
on the projector.

6

Reset the lamp counter.

See “Resetting the Lamp Counter” on the next page.

5

Lamp Replacement

CAUTION

Screw

Lamp replacement icon

WARNING:

TURN OFF THE UV LAMP BEFORE
OPENING THE LAMP COVER

Top Control

Handle

Screws

LAMP REPLACE
indicator

Lamp cover

66

Maintenance and Filter Cleaning

Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP
REPLACE indicator stops lighting and the Lamp replacement icon disappears.

Press the MENU button to display the On-Screen
Menu. Use the Point

7 8 buttons to move the red

frame pointer to the Setting Menu icon.

Use the Point ed buttons to move the red frame
pointer to Lamp counter and then press the SELECT
button. A dialog box appears showing the total
accumulated time of the lamp usage and the reset
option. Select Reset and the “Lamp replacement
counter Reset?” appears. Select [Yes] to continue.

1

2

Another confirmation dialog box appears, select [Yes]
to reset the Lamp counter.

3

This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee

of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time
than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
(Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of
the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who are
familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who
are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.

LAMP HANDLING PRECAUTIONS

Resetting the Lamp Counter

✔Note:

•Do not reset the Lamp counter without implementing lamp
replacement. Be sure to reset the Lamp counter only after replacing
the lamp.

Select [Yes],
then another
confirmation
box appears.

Select [Yes] again to reset
the Lamp counter.

Select Reset and the “Lamp
replacement counter Reset?”
appears.

Lamp counter

67

The WARNING indicators show the state of the function which protects the projector. Check the state of the
WARNING indicators and the POWER indicator to take proper maintenance.

Warning Indicators

The projector is shut down and the WARNING
TEMP. indicator is blinking r

ed.

When the temperature inside the projector reaches a
certain level, the projector will be automatically shut down
to protect the inside of the projector. The POWER indicator
is blinking while the projector is being cooled down. When
the projector has cooled down enough (to its normal
operating temperature), it can be turned on again by
pressing the ON/STAND-BY button.

✔Note:

•The WARNING TEMP. indicator continues to blink even after the
temperature inside the projector returns to normal. When the
projector is turned on again, the WARNING TEMP. indicator stops
blinking.

Then check the matters below:

– Did you provide appropriate space for the projector to be

ventilated? Check the installing condition to see if the air
vents of the projector are not blocked.

– Has the projector been installed near an Air-Conditioning/

Heating Duct or Vent? Move the installation of the
projector away from the duct or vent.

– Is the filter clean? Clean the filter periodically or replace it

with a new one.

The pr

ojector is shut down and all five indicat

ors

are blinking.

When the projector detects an abnormal condition, it will be
automatically shut down to protect the inside of the
projector and all five indicators on the top panel blink. In this
case, unplug the AC power cord and plug it, and then turn
on the projector once again to verify operation. If the
projector cannot be turned on and these indicators are still
blinking, unplug the AC power cord and contact the service
station.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC
POWER CORD CONNECTED UNDER AN
ABNORMAL CONDITION. IT MAY RESULT IN
FIRE OR ELECTRIC SHOCK.

Maintenance and Filter Cleaning

WARNING TEMP.
blinking red

Top Control

All five indicators
are blinking

Top Control

68

Maintenance and Filter Cleaning

Unplug the AC power cord before cleaning.

Gently wipe the projection lens with a cleaning cloth that
contains a small amount of non-abrasive camera lens cleaner,
or use a lens cleaning paper or commercially available air
blower to clean the lens.

Avoid using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might scratch
the surface of the lens.

When the projector is not in use, replace the lens cap.

Cleaning the Projector Cabinet

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning
cloth. When the cabinet is heavily soiled, use a small
amount of mild detergent and finish with a soft dry cleaning
cloth. Avoid using an excessive amount of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might scratch
the surface of the cabinet.

When the projector is not in use, put the projector in an
appropriate carrying case to protect it from dust and
scratches.

Cleaning the Projection Lens

69

Tr oubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

–Make sure you have properly connected the projector to peripheral equipment as described on pages 22–24.
–Make sure all equipment is connected to AC outlet and the power is turned on.
–When the projector does not project an image from the connected computer, restart the computer.

Appendix

Problem: – Solutions

No power – Plug the power cord of the projector into the AC outlet.

– See if the POWER indicator is lit.
– Wait 90 seconds after the projector is turned off when turning the

projector back on. The projector can be turned on after the POWER
indicator stops blinking. See on page 26.

– Check the WARNING TEMP. indicator. If the WARNING TEMP.

indicator is blinking, the projector cannot be turned on. See page 67.
– Check the projection lamp. See page 65.
– Unlock the Key lock function for the projector. See page 59.

Image is out of focus. – Adjust focus of the projector. See pages 29, 31.

– Provide proper distance between the projector and projection screen

See page 20.
– Check the projection lens to see if it needs cleaning. See page 68.
– Moving the projector from a cool to warm place may result in moisture

condensation on the projection lens. In such cases, leave the projector

off and wait until condensation evaporates.

No image – Check the connection between your computer or video equipment and

the projector. See pages 22–24.
– See if the input signal is correctly output from your computer. Some

laptop computers may need to change the setting for monitor output

when connecting to the projector See your computer’s instruction

manual for the setting.
– It takes about 30 seconds to display an image after turning on the

projector.
– See if the selected system is corresponding with your computer or

video equipment. See pages 36, 38.
– Select correct input source once again through menu operation. See

page 35.
– Make sure the temperature is not out of the specified Operating

Temperature (41 ˚F–95 ˚F [5 ˚C–35 ˚C]).

Image is Left/Right reversed. – Check the Ceiling/Rear function. See page 50.
Image is Top/Bottom reversed. – Check the Ceiling function. See page 50.

No sound – Check the audio cable connection from audio input source.

– Adjust the audio source.
– Press the Volume + button. See page 30.
– Press the Mute button. See page 30.

70

This symbol on the nameplate means the product
is Listed by Underwriters Laboratories Inc. It is
designed and manufactured to meet rigid U.L.
safety standards against risk of fire, casualty and
electrical hazards.

Appendix

The CE Mark is a Directive
conformity mark of the European
Community (EC).

Some displays are not seen – Check the Display function. See page 57.
during the operation.

PIN code dialog box appears – PIN code lock is being set. Enter a PIN code (the “1234” or numbers
at start-up. you have set). See pages 25, 60–61.

The Remote Control does – Check the batteries.
not work. – Make sure no obstruction is between the projector and remote control.

– Make sure you are not too far from the projector when using the

remote control. Maximum operating range is 16.4’ (5 m).
– Make sure that the remote control code conforms to the projector’s

code. See page 57.
– Unlock the Key lock function for the remote control. See page 59.

WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the
projector or the service center. Specify the model number and explain about the problem. We will advise you
how to obtain service.

Pixelworks ICs used.

71

Appendix

Menu Tree

Dynamic

Real
Cinema*
Image 1
Image 2
Image 3


Volume
Mute
Quit

On/Off

Sound

0–63

Input

Input 3 Auto

Go to System (3)

Go to System (3)

Video

Go to System (1)

S-video

Standard

Quit

Input 1

Go to System (3)Video

Go to System (1)Input 2 RGB

Go to System (2)Component

Image 4

RGB (PC Analog)

RGB (Scart)

RGB (PC Digital)

RGB (AV HDCP)

Quit

Quit

SYSTEM

(3)

SYSTEM

(1)

- - - -

Mode 1

Mode 2

XGA 1

SECAM

NTSC

Auto

PAL

PAL-M

PAL-N

NTSC4.43

SYSTEM

(2)

1035i

720p

Auto

1080i

480p

575i

575p

480i

Input
H-sync freq.
V-sync freq.

PIN code lock

Information

Key lock

Screen
Language
Lamp status
Power management
Security

Remote control code

Quit

0–63
0–63

Off/L1/L2/Film

Image Adjust

Contrast
Brightness
Color
Tint

Red
Green
Blue
Sharpness

Reset
Store

Gamma

Progressive

0–63
0–63
0–63
0–15
0–15

Image 1

Yes / No

Quit

Off/L1/L2Noise reduction

0–63
0–63

Image 2
Image 3
Image 4

Color temp. High/Mid/Low/XLow

✔Note:

•The Menu display varies depending on the input signal.

72

Appendix

Language

Setting

12 languages provided

Blue/User/Black

Off/Ready/Shutdown

Auto 1/Auto 2/High/Normal/Eco

Code 1–Code 8

Background

Power management

Lamp control

Remote control

Timer (1–30 Min)
Quit

Quit

Capture

Logo PIN code change

Logo PIN code lock

Quit

Spotlight/PointerPointer
Quit

Quit

Auto PC adj.

Total dots
Horizontal
Vertical

Display area H
Display area V
Reset

PC Adjust

Yes/No

Clamp

Current mode

Mode free/Store

Quit

Fine sync 0–31

Mode 1

H-sync freq.
V-sync freq.
Quit

Normal
True
Wide

Digital zoom –

Full screen

Screen

Digital zoom +

Rear

Keystone

Ceiling

Reset

Store

On/Off

On/Off

Logo selectLogo

Off/Default/User

Yes/No

On/Off

Both/Front/BackRC sensor
On/Countdown off/Off Display

On/OffOn start

Highland

SlantFan control

Off/L1/L2

On/Off

Projector (all)

PIN code change

PIN code lock

Quit

Key lockSecurity

Off

Projector (part)

Off/On 1/On 2

Remote control (all)
Remote control (part)

8 test patterns providedTest pattern
Quit

Warning log

Hour(s)Lamp counter

Quit

Yes/No

Hour(s)Filter counter

Quit

Yes/No

Off/100H/200H/300H

Reset

Reset

Yes/NoFactory default

Quit

✔Note:

•The Menu display varies depending on the input signal.

Mode 3
Mode 4
Mode 5

Quit

Mode 2

Mode 8
Mode 9
Mode 10

Mode 6
Mode 7

73

Appendix

Check the indicators for the projector condition.

• • • lighting

• • • off• • • blinking

Indicators and Projector Condition

The projector is off. (The AC power cord is unplugged.)

The projector is in stand-by mode. Press the ON/STAND-BY button
to turn on the projector.

The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled down
enough and the temperature returns to normal, the POWER indicator
stops blinking and the projector can be turned on. (The WARNING
TEMP. indicator keeps blinking.) Check and clean the filter.

Projector Condition

The projector is preparing for stand-by or the projection lamp is
being cooled down. The projector cannot be turned on until cooling
is completed and the POWER indicator stops blinking.

POWER

green

Indicators

WARNING

TEMP.

red

LAMP

red

The projector detects an abnormal condition and cannot be turned
on. Unplug the AC power cord and plug it again to turn on the
projector. If the projector is turned off again, unplug the AC power
cord and contact the dealer or the service center. Do not leave the
projector on. It may cause an electric shock or a fire hazard.

The projector is operating normally.

The projector has been cooled down enough and the temperature
returns to normal. When turning on the projector, the WARNING
TEMP. indicator stops blinking. Check and clean the filter.

WARNING TEMP. indicator

The projector is in the Power management mode.

POWER, LAMP,
WARNING TEMP.,
WARNING FILTER, and
LAMP REPLACE
indicators are blinking all
together.

74

Appendix

– –

– –

WARNING

FILTER

orange

*When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this indicator lights

yellow, replace the projection lamp with a new one promptly. Reset the lamp counter after replacing the lamp. See pages
65–66.

The filter is clogged. Stop using the projector immediately and clean
or replace the filter (see below).

Projector Condition

POWER

green

Indicators

WARNING FILTER indicator

The Filter counter reached a set time. Clean or replace the filter as
soon as possible.

The lamp cannot light up. (The projector is preparing for stand-by or
the projection lamp is being cooled down. The projector cannot be
turned on until cooling is completed.)

The lamp cannot light up. (The lamp has been cooled down enough
and the projector is in stand-by mode and ready to be turned on with
the ON/STAND-BY button.)

Projector Condition

POWER

green

Indicators

LAMP

REPLACE

yellow

LAMP

red

LAMP REPLACE indicator

The lamp has been used overtime. Replace the lamp immediately
and then reset the lamp counter. The indicator will be turned off
after resetting the counter.

If filter clogging is detected during operations, the Filter
warning icon (red) appears on the screen and the
WARNING FILTER indicator blinks orange, urging you to
clean or replace the filter. Stop using the projector
immediately and clean or replace the filter. The
WARNING FILTER indicator and Filter warning icon will
not be turned off until the filter is cleaned or replaced by
a new one.

Filter warning icon (red) appears on the screen
when the projector detects filter clogging.

✔Note:

•The Filter warning icon (red) will not appear
during “Freeze” (p.31), or “No show” (p.32).

Filter warning red icon

Filter warning yellow icon

LAMP

red

75

Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned
below and less than 140 MHz of Dot Clock.

PC Adjustment is limited when selecting these modes.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08

SXGA 1

1152 x 864

64.20 70.40

SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 10 1024 x 768
XGA 11

1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768

62.04 77.07

XGA 14 1024 x 768

61.00 75.70

XGA 15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

58.03 72.00

SXGA 4 1280 x 1024

63.48 79.35

36.00

87.17

(Interlace)

63.34 59.98
SXGA 5 1280 x 1024
SXGA 6 1280 x 1024
SXGA 7 1280 x 1024

63.74 60.01

71.69 67.19

SXGA 10 1280 x 960

81.13 76.107

60.00 60.00

XGA 1 1024 x 768

XGA 4 1024 x 768

48.36 60.00

XGA 6 1024 x 768
XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

SXGA 8 1280 x 1024
SXGA 9 1280 x 1024

63.98 60.02

79.976 75.025

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

575p

768 x 575

31.25 50.00

480p 640 x 480 31.47 59.88

SXGA 12 1152 x 900 71.40 75.60

SXGA 11 1152 x 900 61.20 65.20

SVGA 10 800 x 600 32.70 51.09

SXGA 13 1280 x 1024 50.00

86.00

(Interlace)

SXGA 2

1280 x 1024 62.50 58.60

SXGA 3 1280 x 1024 63.90 60.00

XGA 2 1024 x 768 68.677 84.997
XGA 3 1024 x 768 60.023 75.03

SXGA 18 1280 x 1024 46.43

86.70

(Interlace)

SXGA 19

1280 x 1024

63.79 60.18

SXGA 14 1280 x 1024
SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900

50.00

94.00

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

1080i

1920 x 1080 33.75

60.00

(Interlace)

720p 1280 x 720

1035i 1920 x 1035

45.00 60.00

33.75

60.00

(Interlace)

50.00

(Interlace)

SXGA+ 1

1400 x 1050 63.97 60.19

MAC21 1152 x 870 68.68 75.06

UXGA 4 1600 x 1200 93.75 75.00

WXGA 2 1360 x 768
WXGA 3 1376 x 768
WXGA 4 1360 x 768

UXGA 1 1600 x 1200

47.70 60.00

UXGA 2 1600 x 1200

48.36 60.00

UXGA 3 1600 x 1200

56.16 72.00

75.00 60.00

81.25 65.00

WXGA 1

1366 x 768

87.5 70.00

48.36

60.00

SXGA+ 2

1400 x 1050

65.35 60.12

SXGA+ 3

1400 x 1050 65.12 59.90

SXGA 20

1280 x 1024 91.146 85.024

575i

––––––––

15.734

60.00

(Interlace)

480i

––––––––

15.625

50.00

(Interlace)

WXGA 7 1280 x 768
WXGA 8 1280 x 768

60.289 74.893

68.633 84.837

WXGA 6

1280 x 768 47.776 59.87

UXGA 5 1600 x 1200 106.25 85.00

1080i

1920 x 1080 28.125

76

Appendix

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(KHz)

V-Freq.

(Hz)

D-VGA 640 x 480 31.47 59.94
D-480p 640 x 480 31.47 59.88
D-575p 768 x 575 31.25 50.00

D-SVGA 800 x 600 37.879 60.32

D-SXGA 1

1280 x 1024

63.98 60.02

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(KHz)

V-Freq.

(Hz)

D-720p 1280 x 720 45.00 60.00
D-1035i 1920 x 1035
D-1080i 1920 x 1080
D-1080i 1920 x 1080

33.75

60.00

(Interlace)

33.75

60.00

(Interlace)

28.125

50.00

(Interlace)

D-XGA 1024 x 768 43.363 60.00

D-SXGA 2

1280 x 1024 60.276 58.069

D-SXGA 3 1280 x 1024 31.65 29.8

When an input signal is digital from the DVI terminal, refer to the chart below.
PC Adjust Menu cannot be selected when Input 1 [RGB (PC digital)] is selected in the Input Menu.

✔Notes:

•When the input signal is D-SXGA 1 and D-SXGA+1, images may not be displayed properly depending on computers

•Specifications are subject to change without notice..

D-WXGA 1 1366 x 768 48.36 60.00
D-WXGA 2 1360 x 768 47.70 60.00
D-WXGA 3 1376 x 768 48.36 60.00
D-WXGA 4 1360 x 768 56.16 72.00
D-WXGA 5 1366 x 768 46.50 50.00
D-WXGA 6 1280 x 768 47.776 59.87
D-WXGA 7 1280 x 768 60.289 74.893
D-WXGA 8 1280 x 768 68.633 84.837

D-SXGA+ 1

1400 x 1050

63.97 60.19

77

Appendix

Te c hnical Specifications

Mechanical Information

Projector Type Multi-media Projector

Dimensions (W x H x D) 13.7” x 6.46” x.17.48” (348.1 mm x 164 mm x 444 mm) (Not including adjustable feet)

Net Weight 19.2 lbs (8.7 kg)

Feet Adjustment 0˚ to 5.0˚

Panel Resolution

LCD Panel System 1.0” TFT Active Matrix type, 3 panels

Panel Resolution 1,024 x 768 dots

Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)

Signal Compatibility

Color System

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 50 Hz–100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 30” to 300” (PLC-XT25/PLC-XT25K/PLC-XT21/PLC-XT20/PLC-XT20K)

Throw Distance 3.9’–32.8’ (1.2 m–10.0 m)

Projection Lens F=1.7 to 2.1, f=33 to 43 mm with motor zoom and focus

Projection Lamp 300 W

Interface

Input 1 Digital (DVI-D) x 1, Analog (Mini D-sub 15 pin) x 1

Input 2 BNC Type x 5 (G or Video/Y, B or Cb-Pb, R or Cr-Pr, HV and V)

Input 3 RCA Type x 1, Mini DIN 4 pin x 1

AUDIO IN Audio 1 (Mini Type stereo), Audio 2 (Mini Type stereo), Audio 3 (RCA Type) x 2

Analog Out

Mini D-sub 15 pin x 1

Audio Out

Audio (Mini Type stereo) x 1

R/C Jack Mini Type (Wired Remote) x 1

Control Port Mini DIN 8 pin x 1

USB Connector USB Series B x 1

Option PJ-Net Organizer Terminal x 1

Audio

Internal Audio Amp 1.0 W RMS

Built-in Speaker 1 speaker, ø1.1” (28 mm)

Power

Voltage and Power Consumption AC 100–120 V (4.6A Max. Ampere), 50/60 Hz (The U.S.A and Canada)

AC 200–240 V (2.3A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)

Operating Environment

Operating Temperature 41˚F–95˚F (5˚C–35˚C)

Storage Temperature 14˚F–140˚F (-10˚C–60˚C)

Remote Control

Battery AAA or LR03 Type x 2

Operating Range 16.4’ (5 m/±30˚)

Dimensions 1.8” (W) x 1.0” (H) x 5.7” (D) (45 mm x 25 mm x 145 mm)

Net Weight 3.5 oz (99 g) (including batteries)

Laser Pointer

Class IILaser (Max. Output: 1 m W/Wave length: 640–660 nm)

Appendix

Accessories

Owner’s Manual (CD-ROM)

Quick Reference Guide

AC Power Cord

Remote Control and Batteries

VGA Cable

USB Cable

Lens Cap (for PLC-XT30/PLC-XT25/XT25K/XT21/XT20/XT20K)

Lens Mount Cover (for PLC-XT30L/PLC-XT25L/XT21LXT20L)

PIN Code Label

● The specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny

fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model
No. to the sales dealer.

Model No.

Long Zoom Lens : LNS-T11

Short Fixed Lens : LNS-W11

Long Zoom Lens : LNS-T10

Short Zoom Lens : LNS-W10

Control Cable : POA-MCSRL

Remote Control Cable : POA-CA-RC30

PJ-Net Organizer Plus

PJ-Net Organizer Plus

II

IIC

: POA-PN03

: POA-PN03C

78

79

Appendix

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information
System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified
conformance with PJLink Standard Class 1.

Projector Input

Video

RGB (Scart)

RGB (PC Analog)

Component

RGB

Auto

PJLink Input

VIDEO 1

RGB 2

RGB 1

VIDEO 2

RGB 3

Video

S-video

VIDEO 4

VIDEO 5

VIDEO 3

Input 2

Input 3

PJLink is a registered trademark of JBMIA and pending trademark in some countries.

PJ Link Notice

Parameter

21

12

11

22

13

24

25

23

RGB (PC Digital) DIGITAL 1 31

RGB (AV HDCP) DIGITAL 2 32

Input 1

Network NETWORK 1 51

Input 4

80

Appendix

Te r minal : Mini DIN 8-PIN

CONTROL PORT CONNECTOR

Vcc

- Data

+ Data

Ground

1
2
3
4

R X D

-----

-----

GND

RTS/CTS

GND
GND

1
2
3
4

5
6
7
8

INPUT 1/ANALOG OUT

Te r minal: Analog RGB (Mini D-sub 15 pin)

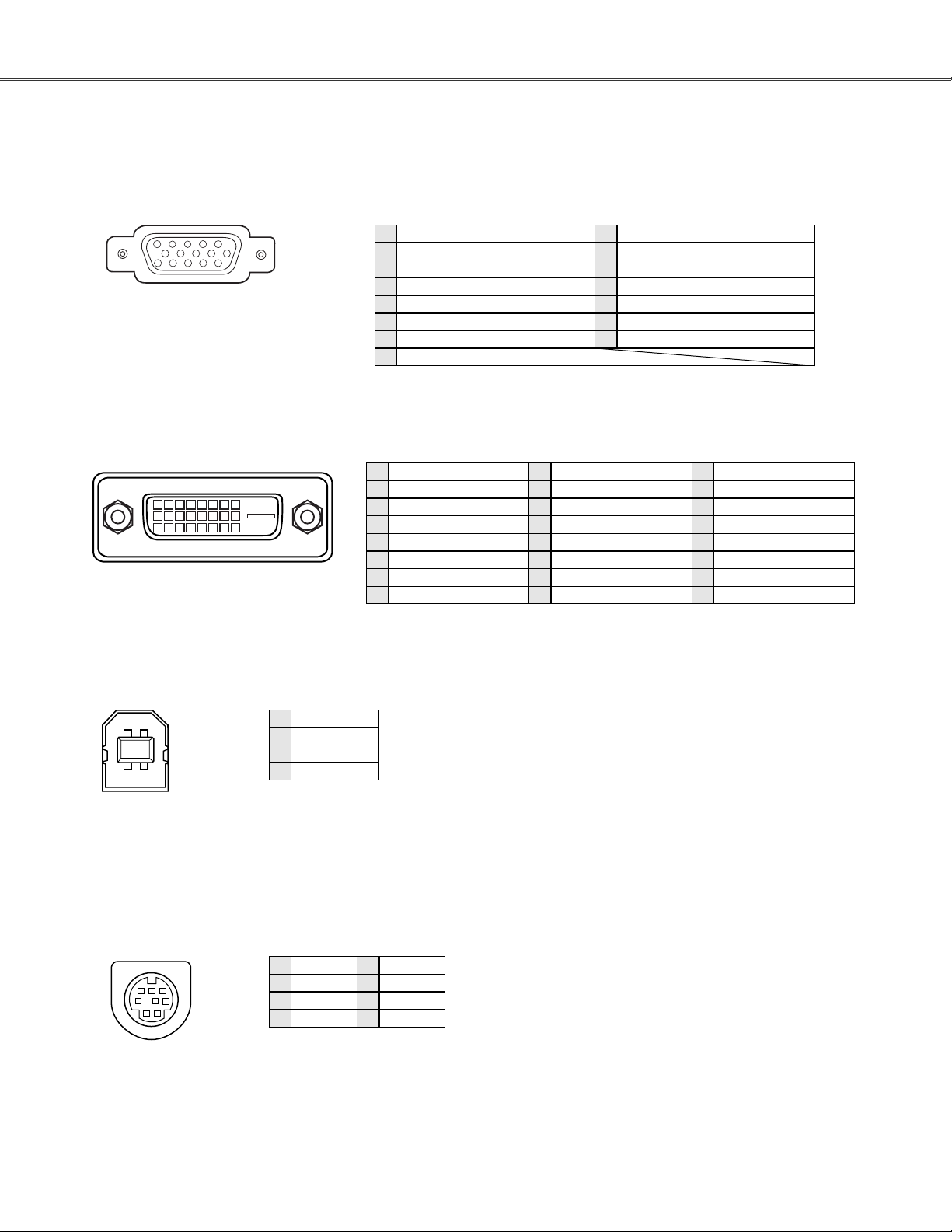

Configurations of Terminals

Red (R/Cr) Input/Output

Ground (Horiz.sync.)

Green (G/Y) Input/Output

-----

Blue (B/Cb) Input/Output

Ground (Red)
Ground (Green)
Ground (Blue)

1

5

2

4

3

6
7
8

Horiz. sync. Input (Composite H/V sync.)

Ground (Vert.sync.)
Ground/ -----

Vert. sync.

9

13

10

12

11

14
15

T X D

USB CONNECTOR (Series B)

DVI-D TERMINAL (DIGITAL)

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock
DDC Data
Analog Vert. sync

1

5

2

4

3

6
7
8

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power
Ground (for +5V)
Hot Plug Detect

9

13

10

12

11

14
15
16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock–

17

21

18

20

19

22
23
24

+5V Power/ -----

DDC Data/ -----

DDC Clock/ -----

2

5

10

15

1

2

9

10

17

18

1

34

9 678

12

11

14

13

3

4

5

6

7

11

12

19

20

8

13

14

15

16

21

22

23

24

2

1

34

8 7 6

5

2

3

4

1

81

Appendix

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or
lost the number and unable to operate the projector, contact the service station.

PIN Code Number Memo

Factory default set No: 1 2 3 4*

Factory default set No: 4 3 2 1*

*Should the four-digit number be changed, the

factory set number will be invalid.

While the projector is locked with the PIN code...

Put the label below (supplied) on in a prominent place of the
projector’s body while it is locked with a PIN code.

PIN Code Lock No.

Logo PIN Code Lock No.

82

Appendix

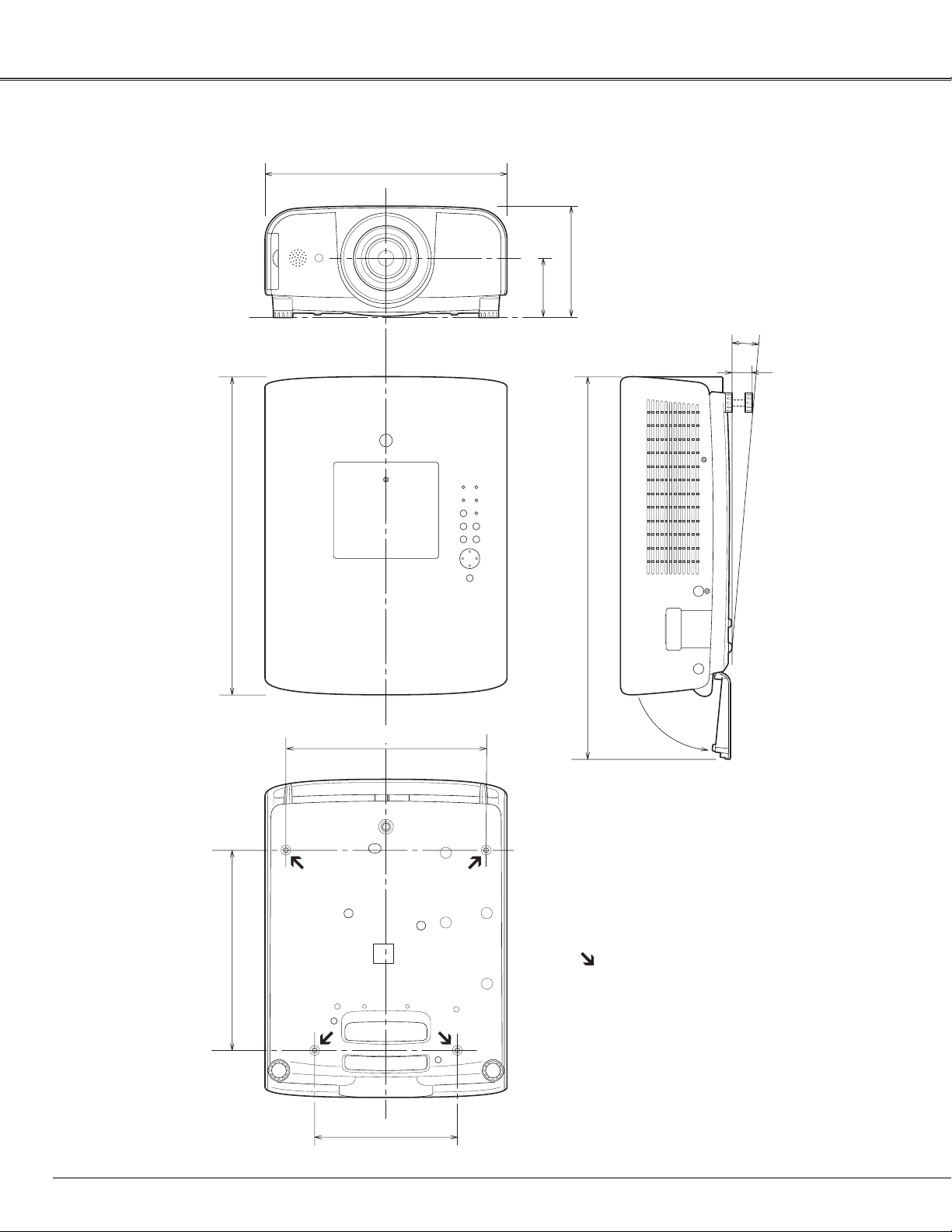

Dimensions

Unit: inch (mm)

17.48 (444)

13.7 (348.1)

6.46 (164)

3.40 (86.4)

5º MAX

1.65 (41.9)

21.09 (535.7)

10.85 (275.5)

11.10 (282)

Screw Holes for Ceiling Mount
Screw: M6
Depth: 0.393 (10.0)

7.87 (200)

SANYO Electric Co., Ltd.

MZ7A-B
