Sanyo PLC-XT25 User Manual

Multimedia Projector

MODEL PLC-XT25/PLC-XT20

PLC-XT25L

/PLC-XT20L

(*Models without lens)

Owner’s Manual

Features and Design

◆ Compact Design

This projector is designed compact in size and weight. It is easy to carry and installed anywhere you wish to use.

◆ Functionally Rich

This projector has many usuful functions such as lens shifting, ceiling and rear projection, 360-degree projection, variety of lens options, etc.

◆ Multi-use Remote Control

Use the remote control as wired and wireless, or as a PC wireless mouse. Eight remote control codes and selectable pointer shapes are also available.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (p.39) Up to UXGA resolution can be accepted.

◆ Useful Functions for Presentation

- Digital zoom function allows you to focus on the crucial information during a presentation. (pp.15, 51)

◆ Security Function

The Security function helps you to ensure the security. With the Key lock function, you can lock the operation on the top control or remote control. (p.52) PIN code lock functions prevents unauthorized use of the projector. (pp.59–61)

◆ Lamp Control

Brightness of the projection lamp can be selected. (p.54)

◆

Power Management

The Power management function reduces power consumption and maintains lamp life. (p.58)

◆ Multilanguage Menu Display

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, and Japanese. (p.54)

◆ Network-capable

Through an optional Network Manager, you can operate and control the projector.

◆ Logo Function

The Logo function allows you to customize the screen logo. (pp.55–56) You can capture an image for the screen logo and use it for the starting-up display or between presentations.

◆

Helpful Maintenance Functions

Lamp and filter maintenance functions provide for better and proper maintenance of the projector.

◆

Multiple Interface Terminals

The projector has several interface terminals that can support various types of equipment and signals. (pp.11–12)

✔Notes:

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

Table of Contents

Tr ademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

Features and Design . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . .5

Air Circulation 6

Installing the Projector in Proper Directions 7

Moving the Projector 8

Cautions in Handling the Projector 8

Compliance . . . . . . . . . . . . . . . . . . . . . . .9

Part Names and Functions . . . . . . . . . .10

Front 10

Back 10

Bottom 10

Rear Terminal 11

Top Control 13

Remote Control 14

Laser Pointer Function 16

Pointer Function 16

Wireless Mouse Operation 17

Remote Control Code 17

Remote Control Battery Installation 18

Remote Control Receiver and Operating Range 18

Adjustable Feet 18

Installation . . . . . . . . . . . . . . . . . . . . . . .19

Lens Installation 19

Positioning the Projector 20

Lens Shift 20

Connecting the AC Power Cord 21

Connecting to a Computer

(Digital and Analog RGB) 22

Connecting to Video Equipment (Video, S-Video) 23

Connecting to Video Equipment (Component and RGB Scart) 24

Basic Operation . . . . . . . . . . . . . . . . . . .25

Turning On the Projector 25

Turning Off the Projector 26

How to Operate the On-Screen Menu 27

Menu Bar 28

Operating with Projector Control 29

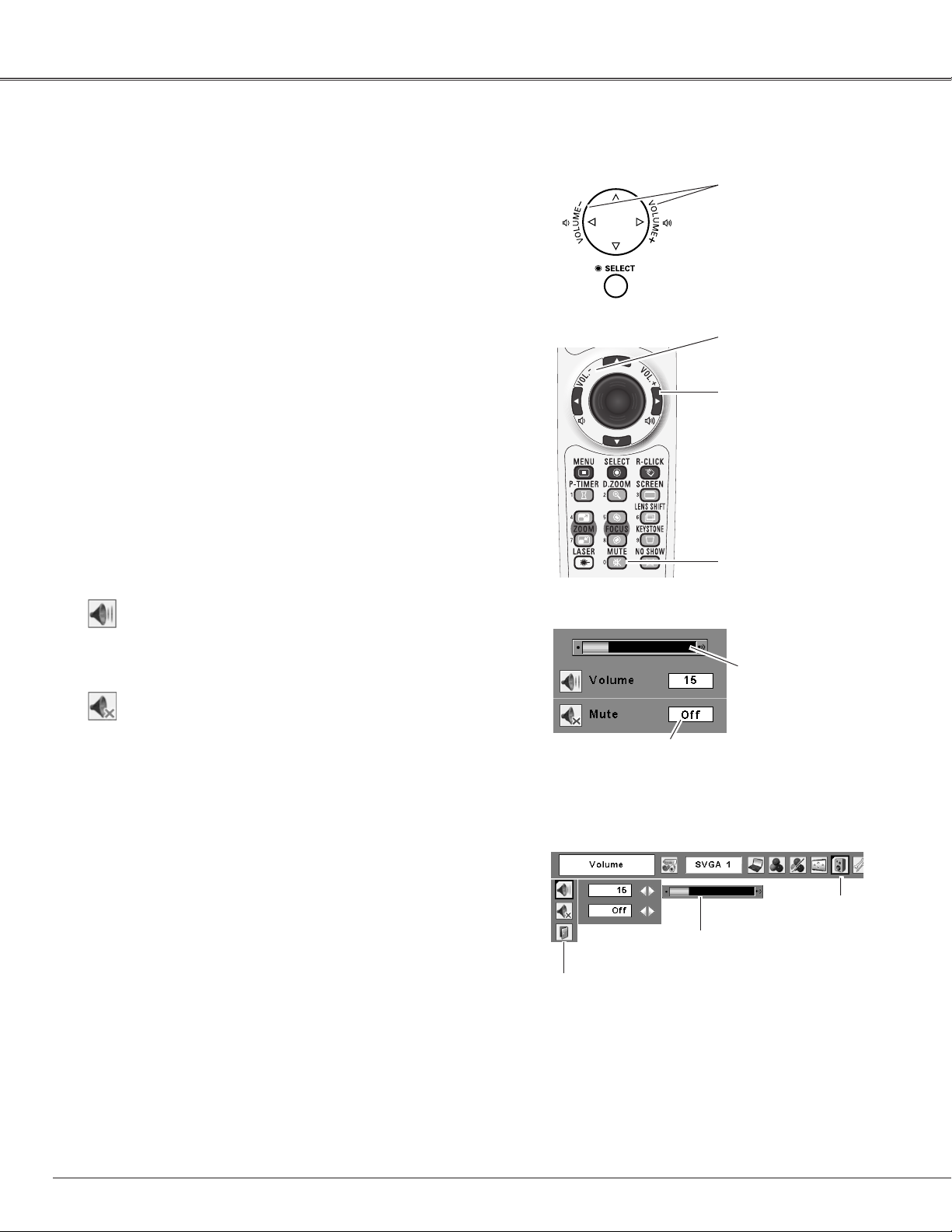

Sound Adjustment 30

Operating with Remote Control 31

Input Selection . . . . . . . . . . . . . . . . . . .33

Input 34

Input Source Selection 35

Video System Selection 36

Computer Adjustment . . . . . . . . . . . . .37

Computer System Selection 38

Auto PC Adjustment 39

Manual PC Adjustment 40

Image Mode Selection . . . . . . . . . . . . .43

Image Mode Selection 44

Image Adjustment . . . . . . . . . . . . . . . . .45

Image Adjustment 46

Screen Adjustment . . . . . . . . . . . . . . . .49

Screen Adjustment 50

Screen Size Adjustment (Computer Signals) 51

Screen Size Adjustment (Video, Component Signals) 52

Setting . . . . . . . . . . . . . . . . . . . . . . . . . .53

Setting 54

Maintenance and Filter Cleaning . . . . .63

Cleaning the Filter 64

Resetting the Filter Counter 64

Lamp Replacement 65

Resetting the Lamp Counter 66

Warning Indicator 67

Cleaning the Projection Lens 68

Cleaning the Projector Cabinet 68

Appendix . . . . . . . . . . . . . . . . . . . . . . . .69

Troubleshooting 69

Menu Tree 71

Indicators and Projector Condition 73

Compatible Computer Specifications 75

Technical Specifications 77

Optional Parts 78

PJ Link Notice 79

Configurations of Terminals 80

PIN Code Number Memo 81

Dimensions 82

To the Owner

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as much as possible, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. Otherwise it

may result in fire hazard.

– Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimension shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

– Do not cover the ventilation slot on the projector. Heat

build-up can reduce the service life of your projector, and can also be dangerous.

– If the projector is unused for an extended time, unplug

the projector from the power outlet.

SIDE and TOP REAR

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

NOTE: This symbol and recycle system are applied only to EU

countries and not applied to the countries in the other area of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-oflife, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean air intake vents, filters, or top of the projector periodically with a vacuum cleaner. If you leave the projector unclean for a long time, the cooling fans can be clogged with dust, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

0.7' (20 cm)

1.5' (50 cm)

3' (1 m)

1.5' (50 cm

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has

been damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Safety Instructions

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable object or spray can near

the projector, hot air is exhausted from the ventilation holes.

– Keep the exhaust vent at least 3’ (1 m) away from

any objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic part. This area will become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on

the cabinet will not only get damaged but also cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector.

Air Circulation

Exhaust Vent (Hot air exhaust)

Air Intake Vent

Air flow

The projector uses a lamp which generates an intense heat. The cooling fans and air vents are provided to dissipate the heart and the filter is located in the intake vent to prevent dust from getting inside of the projector.

In order to use the projector for many years to come, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector and filter. For maintenance of the filter, refer to the Filter counter function on page 64.

Blocking up the air vents and leaving the projector uncleaned for a long time will not only damage the projector but also cause accidents or fire, or may require costly repairs.

Follow the instructions described in this manual for cleaning and maintenance of the filter.

Using unclearned filter for an extended period of time or accidental breakage caused by improper maintenance are not covered by the warranty.

IMPORTANT!

Clean the Filter Regularly!!

Safety Instructions

Do not tilt the projector more than 10 degrees from side to side.

In upward projection, do not tilt the projector over 10 degrees right and left.

Do not put the projector on either side to project an image.

In downward projection, do not tilt the projector over 10 degrees right and left.

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture upward, downward, or backward, perpendicular to the plane of the screen as shown in the figure below.

Bottom

Downward

(Usual)

Front

Downward

Bottom

Upward

Front

Upward

Installing the Projector in Proper Directions

Avoid positioning the projector as described below when installing.

Positioning Precautions

CAUTION

Make sure that the Fan control settings are set properly when setting up the projector.with upward/downward inclination of over 20 degrees to the horizontal plane. Set the Fan control function in the Setting menu (see page

59).

10˚

10˚ 10˚

10˚

Safety Instructions

Use the hand grip when moving the projector.

Replace the lens cap and retract the adjustable feet to prevent damage to the lens and cabinet when carrying.

When the projector is not in use for an extended period, put it into a suitable case to protect the projector.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, otherwise damages

or malfunctions may result.

– When carrying the projector, use a suitable carrying

case.

– Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

– Do not put the projector in a case before it is cooled

enough.

Cautions in Handling the Projector

Do not hold the lens when lifting or moving the projector. Doing so may cause damage to the lens and the projector.

Care must be taken when handling the projector; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

Do not hold the lens and the peripheral part.

CAUTION

This projector has a motorized lens. Please note the followings when using the projector.

● Do not touch the lens while it is moving as this could cause injury to the fingers.

● Never allow children to touch the lens.

Moving the Projector

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus

. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral

Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC Power Cord Requirement

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number(s) : PLC-XT25, PLC-XT20, PLC-XT25L, PLC-XT20L Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311 U.S.A.

Telephone No. : (818)998-7322

Compliance

ASA

GROUND

Bottom

Back

q Filter w Speaker e Lens Release Button r Top Controls and Indicators t Maintenance Cover

WARNING: FOR MAINTENANCE USE

ONLY. DO NOT OPEN.

y Lens Cap

!4 !6!5

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

r t

Front

q w

✽

!1 Infrared Remote Receiver (Back) !2 Terminals and Connectors !3 Lamp Cover !4 Power Cord Connector !5 Optional Parts Attachment !6 Air Intake Vent !7 Hand Grip

CAUTION

Do not turn on the projector with the lens cap attached. High temperature from light beam may damage the lens cap and result in fire hazard.

u Infrared Remote Receiver (Front) i Projection Lens o Adjustable Feet !0 Exhaust Vent

✽ Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

*Kensington is a registered trademark of ACCO Brands

Corporation.

Part Names and Functions

Rear Terminal

q w e

yi u

t USB CONNECTOR (Series B)

Use this connector when controlling a computer with the remote control of the projector. Connect the USB terminal of your computer to this connector with the supplied USB cable. (See page

22.)

y S-VIDEO INPUT JACK

Connect the S-VIDEO output signal from video equipment to this jack. (See page 23.)

i AUDIO 2 JACK

Connect the audio output (stereo) signal from a computer or video equipment to this jack. (See pages 22–24.)

o AUDIO 1 JACK

Connect the audio output (stereo) signal from a computer or video equipment to this jack. (See pages 22, 24.)

r VIDEO INPUT JACK

Connect the composite video output signal from video equipment to this jack. (See page 23.)

u AUDIO 3 JACKS (L/R)

Connect the audio output signal from video equipment to these jacks. (See page 23.) For a mono audio signal (a single audio jack), connect to the AUDIO-L (Mono) input jack.

q 5 BNC INPUT JACKS

Connect the component or composite video output signal from video equipment to VIDEO/Y, Cb/Pb, and Cr/Pr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz. Sync, and Vert. Sync.]) to G, B, R, H/V, and V jacks. (See pages 22, 24.)

w COMPUTER INPUT TERMINAL (ANALOG)

Connect the computer (or RGB scart) output signal to this terminal. (See pages 22, 24.)

e COMPUTER INPUT TERMINAL (DIGITAL)

Connect the computer output signal (Digital DVI-D type) to this terminal. The HD (HDCP compatible) signal can also be connected. (See pages 22, 24.)

Part Names and Functions

!0 R/C JACK

When using the wired remote control, connect the wired remote control to this jack with a remote control cable (optional).

!2 MONITOR OUTPUT TERMINAL (ANALOG)

This terminal outputs the video signal from computer to external video equipment. (See page

✽ RESET button

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

Rear Terminal

!0!1!2!3!4

✽

!1 AUDIO MONITOR OUTPUT JACK

This jack outputs the audio signal from computer or video equipment to external audio equipment. (See page

!3 CONTROL PORT CONNECTOR

When controlling a computer with the remote control of the projector, connect the mouse port of your computer to this connector. (See page 13.)

!4 Infrared Remote Reciever (Back)

The infrared remote reciever is also located in the front. (See page .)

Part Names and Functions

w LAMP REPLACE indicator

Lights yellow when the projection lamp reaches its end of life (pp.58, 64).

q WARNING TEMP. indicator

Blinks red when the internal temperature of the projector exceeds the operating range (pp.55, 64).

e ON/STAND-BY button

Turn the projector on or off (pp.18–19).

r INPUT button

Select an input source (pp.29, 30, 39–40).

!1 INFO. button

Display the input source information (p.40).

y POINT ed7 8 (VOLUME +/–) buttons

– Select an item or adjust the value in the On-

Screen Menu (p.23). – Pan the image in Digital zoom + mode (p.38). – Adjust the volume level (Point

7 8 buttons)

(p.26).

u SELECT button

– Execute the selected item (p.23). – Expand or compress the image in the Digital zoom

mode (p.38).

Top Control

t LENS button

Enter the focus, zoom, and lens shift adjustment mode (pp.58, 64).

i WARNING FILTER indicator

– Blinks orange indicating the filter needs cleaning. – Lights orange when clogging of the filter is

detected, urging immediate cleaning.

o LAMP indicator

Lights red during operations.

!0 POWER indicator

– Lights when in stand-by mode and during

operations. – Blinks during the cooling-off period. – Blinks in the Power management mode (p.37).

!2 MENU button

Open or close the On-Screen Menu (p.40).

✔Note:

•All five indicators on the top control blinks when the projector detects an abnormal condition.

Part Names and Functions

q STAND-BY button

Turn the projector off (p. 22).

t ON button

Turn the projector on (p.39).

y INPUT 1 – 3 buttons

Select a input source (INPUT 1 – INPUT 3) (pp.29, 30,

40).

u AUTO PC button

Automatically adjusts the computer image to its optimum setting (pp.27, 32, 46).

i FREEZE button

Freeze the picture on the screen (p.27).

o Point ed 7 8 ( VOLUME

+ / –

)

buttons

– Select an item or adjust the value in the On-Screen

Menu (p.23).

– Pan the image in Digital zoom + mode (p.38). – Adjust the volume level (with Point

7 8 buttons) (p.26).

Remote Control

!2 L-CLICK button

Acts as left mouse button for wireless mouse operation (p.14).

w SIGNAL EMISSION indicator

Lights red while the laser beam is being emitted from the laser light window or a signal is being sent from the remote control to the projector.

!0 PRESENTATION POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation (pp.13.14).

To ensure safe operation, observe the following precautions:

– Do not bend, drop, or expose the remote control to

moisture or heat.

– For cleaning,

use a soft dry cloth. Do not apply benzene,

thinner, splay, or any other chemical materials.

w WIRED REMOTE jack

Connect the remote control cable (not supplied) to this jack when using as a wired remote control.

!1 INFO. button

Display the input source information.

r LASER LIGHT window

A laser beam is emitted from here.

Part Names and Functions

Remote Control

!3 MENU button

Open or close the On-Screen Menu (p.23).

!6 ZOOM ed buttons

Zoom in and out the images (pp.27, 38).

!5 D.ZOOM buttons

Select the Digital zoom +/- mode and resize the image (p.).

@0 FOCUS button

Adjust the focus (pp.28, 35, 42).

MUTE button

Mute the sound (p. 26).

P-TIMER button

Operate the P-timer function (p.28).

NO SHOW button

Temporarily turn off the image on the screen (p.28).

KEYSTONE button

Correct the keystone distortion (pp.25, 27, 47).

@6 SELECT button

– Execute the selected item (p.23). – Expand or compress the image in the Digital zoom

mode (p.38).

!7 LASER button

– Operate the Laser pointer function. Laser beam is

emitted while pressing this button within one minute. When using this laser pointer for more than one minute, release the LASER button and press it again (p.13).

– Display the Pointer on the screen (p.13).

!9 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for power saving when it is not in use. Slide this switch to “RESET” to initialize the remote control code or switch the Spotlight and Pointer to the Laser pointer function (pp.12 – 13).

@5 R-CLICK button

Acts as right mouse button for wireless mouse operation (p.14).

LENS SHIFT button

Select the Lens Shift function (p.25).

@4 Screen button

Select the screen size (p.14).

@7 Number buttons

Act as number buttons. Use these buttons when setting the remote control codes (p.12) or when entering the PIN code numbers (p.).

For PIN code and remote control code.

Part Names and Functions

Spotlight

Pointer Function

Pointer

✔Note:

•You can choose the size of Spotlight (Large/Middle/Small) and the pattern of Pointer (Arrow/Finger/Dot) in the Setting Menu. See “Pointer” on page 51.

This remote control emits a laser beam from the laser light window. Press the LASER button to activate the laser pointer. The signal emission indicator lights red and the red laser beam is emitted. If the LASER button is pressed for more than one minute or if it is released, the laser light goes off. The laser emitted is a Class II laser. Do not look into the laser light window or point the laser beam at yourself or other people. The following is the caution label for the laser beam. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure. Never look directly into the laser light window while a laser is emitted, otherwise eye damage may result.

Laser Light Window

The caution label is put on the remote control.

Signal Emission Indicator

Laser Pointer Function

You can move the Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image.

Press and hold the MENU and NO SHOW buttons for more than 10 seconds to activate the Pointer function. (The Laser pointer has switched to the Pointer function.)

Press and hold the MENU and NO SHOW buttons for more than 10 seconds.

Press the LASER button on the remote control pointing toward the projector. The Spotlight or Pointer is displayed on the screen with the LASER button lighting green. Then move the Spotlight or Pointer with the PRESENTATION POINTER button. If the LASER button does not light green and continues to emit a laser beam, try the forementioned procedure until the LASER button lights green.

To clear the Spotlight or Pointer out the screen, press the LASER button pointing toward the projector and see if the LASER button lighting is turned off. To switch to the Laser pointer again, press and hold the NO SHOW and MENU buttons for more than 10 seconds or slide the RESET/ON/ALL-OFF switch to “RESET” and then to “ON” (p.11). When you reset the Pointer function, the remote control code will be reset, as well.

After the Laser pointer has switched to the Pointer, use the LASER button as the Pointer function ON-OFF switch. Press the LASER button pointing toward the projector and see if it lights green.

LASER button

PRESENTATION POINTER button

MENU button

NO SHOW button

Part Names and Functions

The remote control can be used as a wireless mouse for your computer. Before operating the wireless mouse, connect your computer and the projector with the supplied USB cable. (See page 18 for connection.) When the Pointer function is used, the wireless mouse is not available.

Move the pointer on the screen with this button.

PRESENTATION POINTER button

R-CLICK button

L-CLICK button

Acts as right (click) mouse button while the projector and a computer are connected with a USB cable.

Acts as left (click) mouse button while the projector and a computer are connected with a USB cable.

This eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 51.

Press and hold the MENU and the number buttons (1 –

8) for more than five seconds to switch between the code.

To initialize the remote control code, slide the RESET/ ON/ALL-OFF switch to “RESET,” and then to “ON.” The initial code is set to Code 1.

Press and hold the MENU and a number button (1–8) that corresponds to the remote control codes for more than five seconds to switch between the code.

MENU button

Remote Control Code

Wireless Mouse Operation

Number buttons

RESET/ON/ALL OFF Switch

Projection angle can be adjusted up to 5.0 degrees with the adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper height; to raise the feet, rotate the both feet clockwise.

To lower or to retract the adjustable feet, rotate the both feet counterclockwise.

To correct keystone distortion, press the KEYSTONE button on the remote control or select Keystone from the menu.

Adjustable Feet

Part Names and Functions

To insure safe operation, please observe the following precautions :

● Use two (2) AAA or LR03 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked on the remote control, carefully wipe the case clean and install new

batteries.

● Risk of an explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

Press the lid downward and slide it.

Open the battery compartment lid.

Install new batteries into the compartment.

Replace the compartment lid.

Two AAA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

12 3

Point the remote control toward the projector (to an Infrared Remote Receiver) when pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front and rear of the projector.

Infrared Remote Receivers are provided both in front and back of the projector. You can conveniently use both of them (see pages 9, 14).

16.4’ (5 m)

60°

Remote Control Receiver and Operating Range

Remote Control Battery Installation

60°

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the sales dealer for detailed information of the optional lens specifications.

Fit the lens to the projector by aligning the red dot on the lens with the red dot of the projector.

Remove the lens cover.

Attaching the lens to the projector

Slowly turn the lens clockwise until it clicks. Make sure that the lens is fully inserted to the projector.

While pressing the Lens release button on the top of the cabinet, turn the lens counterclockwise until it stops and pull it out slowly from the projector.

Shift the lens to the center position by using the Lens shift function (see page ).

Removing the lens

Lens Release button

Red dot

CAUTION

Do not press the lens release button when attaching the lens.

CAUTION

Be carefull when handling the lens. Do not drop.

Lens Installation

Installation

✔Notes:

•The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

•All measurements are approximate and may vary from the actual sizes.

Installation

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.

Max. Zoom

Min. Zoom

Screen Size

(W x H) mm

4:3 aspect ratio

Zoom (min.)

30”

Zoom (max.)

610 x 457

3.9’ (1.2 m)

–––––

100”

2032 x 1524

14.1’ (4.3 m)

10.8’ (3.3 m)

150”

3048 x 2286

21.3’ (6.5 m)

16.4’ (5.0 m)

200”

4064 x 3048

28.5’ (8.7 m)

22.0’ (6.7 m)

300”

6096 x 4572

–––––

32.8’ (10.0 m)

(Inch Diagonal)

(Center)

15% 15%

50%

uppermost downmost

leftmost rightmost

Moving the Lens

For details about the Lens shift function, refer to “Lens Shift Adjustment” on page 29.

Positioning the Projector

3.9' (1.2m)

10.8' (3.3m)

30”

22.0' (6.7m)

16.4' (5.0m)

100”

78”

32.8' (10.0m)

150”

116”

200”

155

300”

230”

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied the AC power cord does not match your AC outlet, contact your sales dealer.

To power cord connector on your projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental EuropeFor the U.S.A. and Canada

This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning the projector on.

CAUTION

For safety, unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with the AC power cord, it is in stand-by mode and consumes a little electric power.

Connecting the AC Power Cord

Connect the AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC outlet.

(200–240 V AC)

To the AC outlet.

(200–240 V AC)

Installation

Connecting to a Computer (Digital and Analog RGB)

Cables used for connection

• VGA Cable (HDB 15 pin)* • USB Cable

• DVI-Digital Cable • Audio Cables (Mini Plug [stereo] x 2)

• BNC Cable (*One cable is supplied; other cables are not suppled with the projector.)

External Audio Equipment

DVI-VGA cable

USB cable

Audio cable (stereo)

USB port

Audio Output

USB

AUDIO OUT (stereo)

Audio Input

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

✔Notes:

•When connecting the AUDIO OUT to external audio equipment, the projector’s built-in speaker is disconnected.

•USB cable connection is needed when operating the computer with the remote control.

•See p67 for ordering optional parts.

Monitor

Output

DIGITAL

(DVI-D)

VGA cable

Monitor

Output

Monitor Output

BNC cable

ANALOG

Monitor

Output

VGA cable

ANALOG

OUT

G B R H/V V

AUDIO

Installation

Connecting to Video Equipment (Video, S-Video)

Cables used for connection

• Video Cables (RCA x 1 or RCA x 3) • Audio Cables (Mini Plug [stereo] x 2

• S-VIDEO Cable • BNC Cable

• Audio Cable (RCA x 2) (Cables are not supplied with the projector.)

External Audio Equipment

Audio cable (stereo)

VIDEO S-VIDEO

S-video cable

Video and audio cable

Composite Video and Audio Output

S-video

Output

AUDIO IN

Audio Input

AUDIO OUT (stereo)

(R) (L) (Video)

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

AUDIO INVIDEO

(R) (L)

✔Notes:

•When connecting the AUDIO OUT to external audio equipment, the projector’s built-in speaker is disconnected.

•The S-VIDEO jack connection overrides the VIDEO jack connection when selecting AUTO in the Input Menu. (p. )

•See page 67 for ordering optional parts.

BNC cable

Audio cable (stereo)

Installation

Connecting to Video Equipment (Component and RGB Scart)

Cables used for connection

• Audio Cables (Mini Plug [stereo] x 2)

• Scart-VGA Cable

• BNC Cable (Cables are not supplied with the projector.)

External Audio Equipment

Audio cable (stereo)

Audio Input

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

RGB Scart

21-pin Input

Audio

Output

Scart-VGA cable

AUDIO OUT (stereo)

Audio cable (stereo)

AUDIO

ANALOG

OUT

Y Cb/Pb Cr/Pr

ANALOG

Scart-VGA cable

BNC cable

DVI-VGA cable

RGB Scart

21-pin Output

Digital Output

(HDCP

compatible)

DIGITAL

(DVI-D)

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

✔Notes:

•When connecting the AUDIO OUT to external audio equipment, the projector’s built-in speaker is disconnected.

•See page 67 for ordering optional parts.

Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights green.

Press the ON/STAND-BY button on the top control or the ON button on the remote control. The LAMP indicator lights red and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

The preparation display will disappear after 30 seconds.

After the countdown, the input source that was selected the last time and the lamp control status icon (see page 51) appear on the screen.

If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed below.

Selected Input Source and Lamp Control

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

Lamp control status

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 52–53 for locking operation of the projector with your PIN code.

After the OK icon disappears, you can operate the projector.

PIN Code Input Dialog Box

Tu r ning On the Projector

Basic Operation

Enter a PIN code

Use the Point ed buttons or Number buttons on the remote control to enter a number. Press the Point 8 button to fix the number and move the red frame pointer to the next box. The number changes to “✳.” If you fixed an incorrect number, use the Point 7 button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to “Set.” Press the SELECT button so that you can start to operate the projector.

If you entered an incorrect PIN code, “PIN code” and the number (✳✳✳✳) will turn red for a moment. Enter the correct PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 70 of this manual and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

✔Notes:

•When the Logo select function is set to off, the logo will not be shown on the screen (p.48).

•When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen (p.47).

•During the countdown period, all operations are invalid.

•If the correct PIN code number is not entered for three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

•“1234” is set as the initial PIN code at the factory.

See page 51 for the Lamp control status.

✔Note:

•The Filter warning and Lamp replacement icons may appears on the screen depending on the usage state of the projector.

+ 58 hidden pages
