Page 1

Multimedia Projector

MODEL PLC-XP57L

Owner’s Manual

✽ Projection lens is optional.

Page 2

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER’S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintain it in better condition for a considerable time. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as much as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. If not, it may result

in a fire hazard.

– Provide appropriate space on the top, sides and rear of the

projector cabinet for allowing air circulation and cooling the projector. Minimum clearances must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slots on the projector. Heat buildup can reduce the service life of your projector, and can also be dangerous.

– If the projector is not to be used for an extended time,

unplug the projector from the power outlet.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.

NOTE: This symbol and recycle system are applied only to EU countries

and not applied to the countries in the other area of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean the air intake vents, air filters, and top of the projector periodically with a vacuum cleaner. If you leave the projector unclean for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

TO THE OWNER

SIDE and TOP REAR

3.3' (1 m)

Page 3

SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Page 4

COMPLIANCE

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number : PLC-XP57L Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311, U.S.A.

Telephone No. : (818)998-7322

ASA

GROUND

Page 5

NAME OF EACH PART OF PROJECTOR 7 SETTING-UP PROJECTOR 8

CONNECTING AC POWER CORD 8 LENS INSTALLATION 9 ADJUSTABLE FEET 10 INSTALLING PROJECTOR IN PROPER POSITION 10 MOVING PROJECTOR 11

TERMINALS OF PROJECTOR 12 CONNECTING TO COMPUTERS 13 CONNECTING TO VIDEO EQUIPMENT 14

REMOTE CONTROL OPERATION 15

LASER POINTER FUNCTION 15 REMOTE CONTROL BATTERIES INSTALLATION 16

TOP CONTROLS AND INDICATORS 17 ON-SCREEN MENU 18

HOW TO OPERATE ON-SCREEN MENU 18 FLOW OF ON-SCREEN MENU OPERATION 18 MENU BAR 19

TURNING ON/OFF PROJECTOR 20

TURNING ON THE PROJECTOR 20 TURNING OFF THE PROJECTOR 21

ADJUSTING SCREEN 22

ZOOM ADJUSTMENT 22 FOCUS ADJUSTMENT 22 LENS SHIFT ADJUSTMENT 22 KEYSTONE CORRECTION 22 PICTURE FREEZE FUNCTION 23 NO SHOW FUNCTION 23 P-TIMER FUNCTION 23

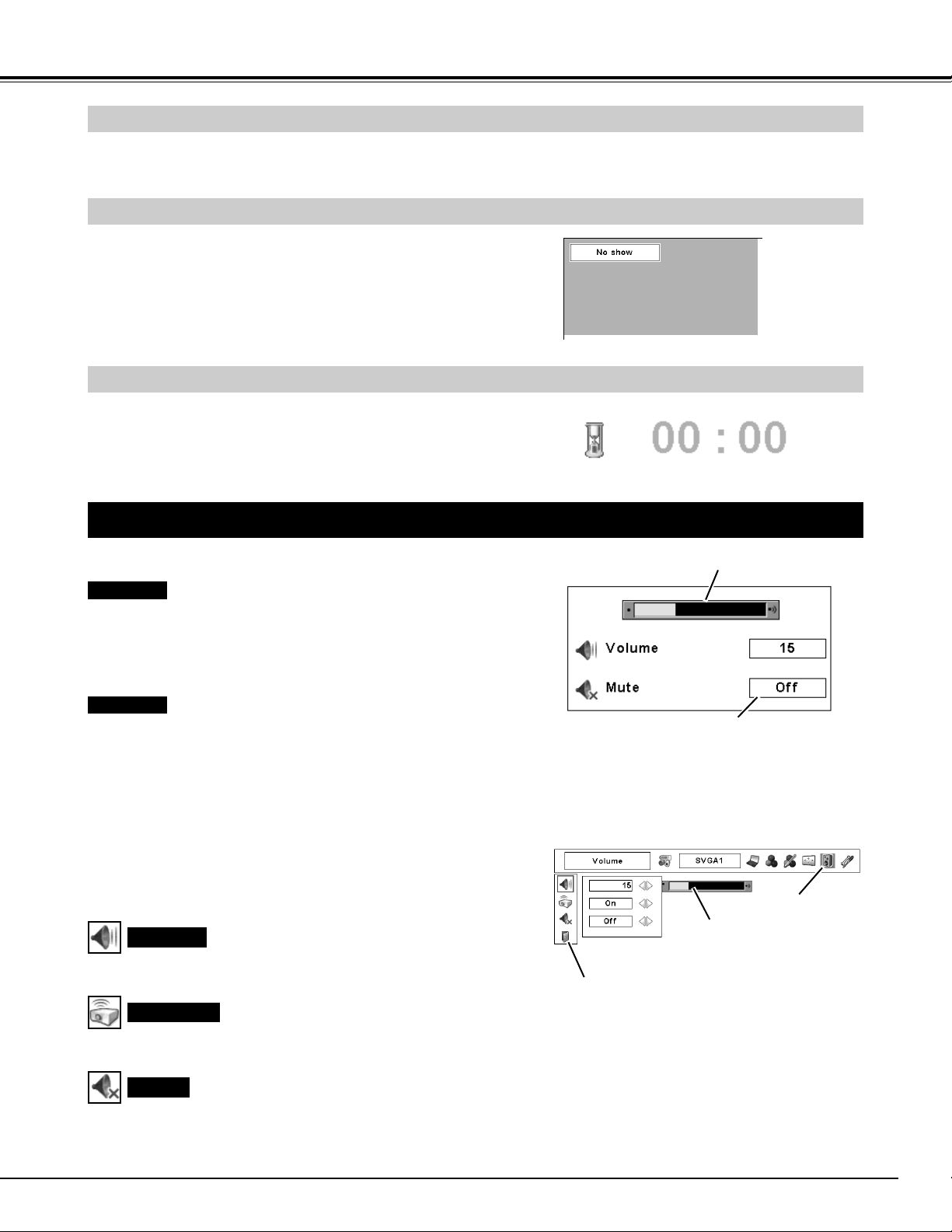

SOUND ADJUSTMENT 23

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

SELECTING INPUT SOURCE 24 SELECTING COMPUTER SYSTEM 25 PC ADJUSTMENT 26

AUTO PC ADJUSTMENT 26 MANUAL PC ADJUSTMENT 27

PICTURE IMAGE SELECT 29

IMAGE LEVEL SELECT 29

PICTURE SCREEN ADJUSTMENT 30

PICTURE SCREEN SELECT 30

SELECTING INPUT SOURCE 31 SELECTING VIDEO SYSTEM 32 PICTURE IMAGE SELECT 33

IMAGE LEVEL SELECT 33

PICTURE SCREEN ADJUSTMENT 34

PICTURE SCREEN SELECT 34

SETTING MENU 38

WIRELESS MOUSE 45 MAINTENANCE 46

WARNING TEMP. INDICATOR 46 AIR FILTERS CARE AND CLEANING 47 CLEANING PROJECTION LENS 47

LAMP REPLACEMENT 48

LAMP REPLACE COUNTER 49

TROUBLESHOOTING 50

MENU TREE 52 COMPATIBLE COMPUTER SPECIFICATIONS 54 INDICATORS AND PROJECTOR CONDITION 55

TECHNICAL SPECIFICATIONS 57

CONFIGURATIONS OF TERMINALS 58 OPTIONAL PARTS 59 LENS REPLACEMENT 59 PJ LINK NOTICE 59 PIN CODE NUMBER MEMO 60 DIMENSIONS 61

PICTURE IMAGE ADJUSTMENTS 35

FEATURES AND DESIGN 6

PREPARATION 7

CONNECTING PROJECTOR 12

BEFORE OPERATION 15

BASIC OPERATION 20

COMPUTER INPUT 24

VIDEO INPUT 31

PICTURE IMAGE 35

SETTING 38

APPENDIX 45

Page 6

FEATURES AND DESIGN

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals such as:

● Computers IBM-compatible or Macintosh computer up to 1600 x 1200 resolution.

● 6 Color Systems NTSC, PAL, SECAM, NTSC 4.43, PAL-M, or PALN color system can be connected.

● Component Video Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i, or 1080i, can be connected.

● S-Video S-Video signal, such as a S-VHS VCR output signal, can be connected.

◆ High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer with more than XGA (1024 x 768) is compressed into 1024 x 768 dots. This projector cannot display image of over 1920 x 1080 dots. When resolution of your computer is over 1920 x 1080, lower the resolution for a computer output.

◆ Multi-Scan System

This projector has the Multi-Scan System to conform to almost all computer output signals quickly. There is no need for a troublesome manual adjustment of frequency and other settings.

◆ Keystone Correction

Positioning of the projector may result in distorted image being displayed in a trapezoid shape. Keystone function solves this problem by digitally altering the projection to produce undistorted images.

◆ Multilanguage Menu Display

Operation menu is available in 12 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

◆ One-Touch Auto PC Adjustment

Incoming computer video signals are recognized and the best adjustment is automatically set by the Auto PC Adjustment function. No complicated setup is necessary and the projection is always precise.

◆ Digital Zoom (for Computer)

Digital Zoom function adjusts image size to approx. 1/4–49 times of an original image size, allowing you to focus on a crucial information at the presentation.

◆ Compact Design

This projector is extremely compact in size and weight. It is designed to carry and work anywhere you wish to use.

◆ Power Management

Power management function is provided to reduce power consumption when the projector is not in use. The Power management function operates to turn the projection lamp off when the projector detects a signal interruption or when no button is pressed for a certain period. The projection lamp is automatically turned on again when the projector detects a signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Digital Visual Interface

This projector is equipped with the DVI 24-pin terminal for connecting DVI output from a computer.

◆ Motor-driven Lens Shift

Projection lens can be moved up and down with the motor-driven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can also be adjusted with a motordriven operation.

◆ PJ-Net Organizer (Optional)

PJ-Net Organizer enables the projector to display the image of the computer screen and the image data stored in the computer via a network. The projector can also be controlled and maintained through a web browser.

◆ Wireless Mouse

Remote control supplied with this projector has the Wireless Mouse function for a connected computer. This function enables you to operate both projector and computer with the remote control only.

◆ Laser Pointer Function

Remote control supplied with this projector includes the Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

Page 7

PREPARATION

NAME OF EACH PART OF PROJECTOR

BOTTOM OF CABINET

BACK OF CABINET

FRONT OF CABINET

LAMP COVER

ADJUSTABLE FEET

AND

FEET LOCK LATCHES

This projector is equipped with cooling fans for protecting from overheating. Pay attention to the following matters to ensure proper ventilation and avoid a possible risk of fire and malfunction.

● Do not cover the vent slots.

● Keep this side clear of any objects. Obstructions may block

cooling the air.

AIR INTAKE VENTS

PROJECTION LENS

✽

SPEAKERS

INFRARED

REMOTE RECEIVER

POWER CORD

CONNECTOR

EXHAUST VENT

TERMINALS

AND CONNECTORS

TOP CONTROLS

AND INDICATORS

INFRARED

REMOTE RECEIVER

CARRYING

HANDLE

AIR INTAKE

VENT

When attaching the PJ-Net Organizer (optional) to the projector, remove the these parts. Refer to the owner's manual of the optional PJ-Net organizer.

Do not turn on the projector with the lens cap attached. High temperature from light beam may damage the lens cap and result in fire hazard.

CAUTION

HOT AIR EXHAUSTED !

Air blown from the exhaust vent is hot. When using or installing the projector, the following precautions should be taken.

● Do not put a flammable object near this vent.

● Keep the rear grills at least 3.3’ (1 m) away

from any object, especially from heatsensitive objects.

● Do not touch this area, especially screws and metallic parts. This area will become hot when the projector is in use.

This projector detects internal temperature and automatically controls operating power of the cooling fans.

✽ optional

Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

* Kensington is a registered

trademark of ACCO Brands Corporation.

Page 8

NOTE ON POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and a proper AC power cord must be used. If the supplied AC power cord does not match your AC outlet, contact your sales dealer.

SETTING-UP PROJECTOR

PREPARATION

To POWER CORD CONNECTOR on your projector.

Projector side AC Outlet side

Ground

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning it on. (See pages 12–14 for connection.)

CAUTION

For safety, unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with AC power cord, an appliance is in stand-by mode and consumes a little electric power.

CONNECTING AC POWER CORD

Connect AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC Outlet.

(200–240 V AC)

To the AC Outlet.

(200–240 V AC)

Page 9

PREPARATION

Before setting up the projector, install a projection lens on the projector.

1. Before installation, check the area where the projector is used and prepare a suitable lens. For the specifications of a projection lens, contact sales dealer where you purchased the projector.

2. For installation, refer to the installation manual of the optional lens.

LENS INSTALLATION

NOTE:

• When installing the lens, remove the cover cap of the projector.

COVER CAP

Page 10

PREPARATION

ADJUSTABLE FEET

INSTALLING PROJECTOR IN PROPER POSITION

Install the projector properly. Improper installation may reduce the lamp life and cause a fire hazard.

Do not tilt the projector more than 10 degrees from side to side.

Do not put the projector on either side to project an image.

NO SIDEWAYS

ADJUSTABLE FEET FEET LOCK

LATCHES

Projection angle can be adjusted up to 10.5 degrees with the ADJUSTABLE FEET.

Lift the front of the projector and pull the FEET LOCK LATCHES in each side of the projector.

Release the FEET LOCK LATCHES to lock the ADJUSTABLE FEET and rotate the ADJUSTABLE FEET to a proper height, and tilt.

To retract the ADJUSTABLE FEET, lift the front of the projector and pull and undo the FEET LOCK LATCHES.

Keystone distortion of the projected image can be corrected by the Menu Operation. (See pages 22, 38.)

When projecting vertically (up or down), keep the projector’s tilt within 10 degrees. Tilting more than 10 degrees in either direction may affect the projector life.

10˚ 10˚

10˚

20˚

Page 11

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR

● Do not drop or bump the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a suitable carrying case.

● Do not transport the projector by courier or any other transport service in an unsuitable transport case.

This may cause damage to the projector. To transport the projector by courier or any other transport service, consult your dealer for the best way.

MOVING PROJECTOR

Use the Carrying Handle when moving the projector.

Replace the lens cap and retract the ADJUSTABLE FEET when moving the projector to prevent damages to the lens and cabinet.

When this projector is not in use for an extended period, put it into a suitable case (not supplied with this projector).

Page 12

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

When controlling a computer with the remote control of this projector, connect the mouse port of your personal computer to this connector. (See page 13.)

Connect S-VIDEO output from video equipment to this jack. (See page 14.)

Connect an audio output from video equipment to these jacks. (See page 14.)

CONTROL PORT CONNECTOR

COMPUTER AUDIO INPUT 1/

AUDIO MONITOR OUTPUT

JACK

AUDIO INPUT JACKS

VIDEO INPUT JACKS

S-VIDEO INPUT JACK

Connect composite video output from video equipment to VIDEO/Y jack or connect component video outputs to VIDEO/Y, Cb/Pb and Cr/Pr jacks. (See page 14.)

This terminal is switchable and can be used as Computer Input or Monitor Output. Set up the terminal as either Computer Input or Monitor Output properly before using this terminal. (See pages 13–14, 24.)

Note: This terminal outputs from the

5 BNC type computer input on INPUT 2 jacks only.

COMPUTER INPUT/MONITOR

OUTPUT TERMINAL (ANALOG)

This projector has input and output terminals on its back for connecting computers and video equipment. Refer to the figures on pages 12–14 and connect properly.

This projector uses a micro processor to control the unit, and only occasionally, this micro processor may malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

RESET BUTTON

When controlling a computer with the remote control of this projector, connect USB terminal of your personal computer to this terminal. (See page 13.)

USB CONNECTOR (Series B)

Connect component video output (Y, Cb, Cr or Y, Pb, Pr) from video equipment to VIDEO/Y, Cb/Pb and Cr/Pr jacks or connect computer output {5 BNC Type (Green, Blue, Red, Horiz. Sync, and Vert. Sync.)} from computer to G, B, R, H/V, and V jacks. (See pages 13, 14.)

5 BNC INPUT JACKS

When using the Wired/Wireless remote control as wired, connect the Wired remote control to this jack with a remote control cable (optional).

R/C JACK

Connect an audio output (stereo) from a computer to this jack. (See page 13.)

COMPUTER AUDIO

INPUT 2 JACK

Connect a computer output (Digital DVI-D type) to this terminal. The HD (HDCP Compatible) signal can also be connected. (See page 13.)

COMPUTER INPUT

TERMINAL (DIGITAL)

This terminal is switchable and can be used as Computer Audio Input 1 or Audio Monitor Output (variable). Set up the terminal as either Computer Audio Input 1 or Audio Monitor Output properly before using this terminal. (See pages 13, 24.)

Note: This terminal does not

output audio from INPUT 3.

Page 13

CONNECTING PROJECTOR

CONNECTING TO COMPUTERS

IBM-compatible computer or Macintosh computer (VGA/SVGA/XGA/SXGA/SXGA+/WXGA/UXGA )

VGA Cable

Monitor Output

Desktop type Laptop type

Control Cable for Serial Port

Terminal

Serial port PS/2 portAudio Output

CONTROL

PORT

COMPUTER

AUDIO IN 1 or 2

COMPUTER IN ANALOG

Use one of these control cables corresponding to the terminal of your computer.

ADB port

Cables used for connection (✽ = Cables or adapters not supplied with this projector.)

Control Cable for PS/2 Port ✽

Control Cable for ADB Port ✽

Audio Cable

✽

(stereo)

USB port

• VGA Cable (HDB 15 pin)

• DVI-Digital Cable (for Single Link T.M.D.S.)

✽

• BNC Cable ✽

• Control Cable for Serial Port

• Control Cable for PS2 Port ✽, or ADB Port ✽

• USB Cable

• Audio Cables (Mini Plug [stereo] x 2)

✽

Terminals

of the Projector

Terminal

DVI Cable

✽

Monitor Output

USB

COMPUTER IN DIGITAL

USB Cable

BNC Cable

✽

Audio Speakers

(stereo)

Audio Amplifier

Audio Cable (stereo) ✽

Audio Input

AUDIO OUT

External Audio Equipment

Monitor Output

Monitor Input

NOTE: This terminal is switchable. Set up the terminal as either Computer input or Monitor output before using this terminal.(See page 24.)

NOTE: This terminal is switchable. Set up the terminal as either Computer Audio Input 1 or Audio Monitor Output (variable) before using this terminal. (See page 24.)

NOTE:

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables. Turn a projector and peripheral equipment on before computer is switched on.

INPUT 1

ANALOG IN/OUT

AUDIO 1

IN/OUT

GBRH/V V

VIDEO/Y Cb/Pb Cr/Pr

DIGITAL(DVI-D)

RESET

USB

AUDIO 2

INPUT 2

R–AUDIO–L

INPUT 3

R/C JACK

CONTROL PORT

S–VIDEO

(

)

MONO

Page 14

CONNECTING PROJECTOR

CONNECTING TO VIDEO EQUIPMENT

Video Source (Example)

Video Cassette Recorder Video Disc Player

S-VIDEO Cable ✽

Terminals

of the Projector

S-VIDEO

Output

Cables used for connection (✽ = Cables not supplied with this projector.)

Audio Cable (RCA x 2) ✽

AUDIO IN S-VIDEO

Y - Cb/Pb - Cr/Pr

VIDEO

Component video output equipment.

(such as DVD players or high-definition TV sources.)

Composite

Video Output

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Component Video

Output

(Y, Cb/Pb, Cr/Pr)

Y - Cb/Pb - Cr/Pr

Video Cables (RCA x 1 or

RCA x 3) ✽

BNC Cable ✽

Audio Output

Composite

Video Output

VIDEO

• Video Cable (RCA x 1 or RCA x 3) ✽

• BNC Cable ✽

• S-VIDEO Cable ✽

• Audio Cable (RCA x 2) ✽

• Audio Cable (Mini Plug [stereo]) ✽

• Scart Cable ✽

Audio Speakers

(stereo)

Audio Amplifier

Audio Cable (stereo) ✽

Audio Input

AUDIO OUT

External Audio Equipment

RGB Scart

21-pin Output

Scart Cable ✽

COMPUTER IN ANALOG

NOTE: This terminal is switchable. Set up the terminal as either Computer input or Monitor output before using this terminal.(See page 24.

)

NOTE:

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Audio Cable

✽

(stereo)

Audio Output

AUDIO IN

Page 15

BEFORE OPERATION

FOCUS BUTTON

Used to adjust focus. (p.22)

AUTO PC ADJ. BUTTON

Use to operate the AUTO PC Adjustment function. (p.26)

KEYSTONE BUTTON

Used to correct keystone distortion. (pp.22, 38)

IMAGE BUTTON

Used to select the image level. (pp.29, 33)

REMOTE CONTROL OPERATION

ALL OFF SWITCH

Left Side

When using the remote control, turn this switch to “ON.” And turn it to “ALL OFF” when it is not in use.

This remote control emits laser beam from the Laser Light Window when used as a Laser Pointer. When the LASER button is pressed, the laser light goes on. When the LASER button is being pressed for more than one minute or it is released, the light goes off. The LASER POINTER INDICATOR lights RED and LASER is emitted with RED light to indicate the laser beam is being emitted. The Laser emitted is the Cass II laser. Do not look into the Laser Light Window or shine laser beam onto yourself or other people. The three marks shown below are caution labels for the laser beam. CAUTION: Use of controls, adjustments, or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

LASER POINTER FUNCTION

POWER ON-OFF BUTTON

Used to turn the projector on or off. (p.20, 21)

LASER BUTTON

Used to operate the Laser Pointer function. The laser beam is emitted when pressing this button for one minute. When using the Laser Pointer for more than one minute, release this button and press it again.

Used as a PC mouse in Wireless Mouse Operation. (p.45)

MOUSE POINTER

Used as a PC mouse in Wireless Mouse Operation. (p.45)

RIGHT CLICK BUTTON

Lights red while the laser beam is emitted from the Laser Light Window. Lights green when dragged to the “ON” position. (p.45)

LASER POINTER

(DRAG ON) INDICATOR

LENS SHIFT BUTTON

Used to select the Lens Shift function. (p.22)

MUTE BUTTON

Used to mute the sound. (p.23)

DRAG ON/OFF BUTTON

Used to select the DRAG ON/OFF position. (p.45)

Used as a PC mouse in Wireless Mouse Operation. Press this button and the mouse pointer button to drag the selected screen object. (p.45)

LEFT CLICK BUTTON

INSIDE THE BATTERY COMPARTMENT BOX

This Remote Control provides the DIP switches into the battery compartment box. Slide the SW4 (LASER ON/OFF switch) to the “OFF” position. The Laser Pointer function is not operated. Set the Switches 1–3 as shown in table below depending on the Code No. that you want to select as the remote control code. (See page 41.)

WIRED REMOTE JACK

When using as a Wired Remote Control, connect a remote control cable (not supplied) to this jack. Battery installation is required when using as a Wired Remote Control.

LASER LIGHT WINDOW

These caution labels are put on the remote control.

LASER POINTER INDICATOR

DIP SWITCH SETTING

SW4 ........ LASER ON/OFF

SW1 SW2 SW3 Code No.

ON ON OFF OFF ON ON OFF OFF OFF

Code 1ON ON Code 1ON Code 2ON OFF Code 3ON ON Code 4ON OFF Code 5OFF ON Code 6OFF OFF Code 7OFF ON Code 8OFF

321

Page 16

BEFORE OPERATION

To insure safe operation, please observe following precautions:

● Use two (2) AA or LR6 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with an used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture, or heat.

● Do not drop the remote control.

● If a battery has leaked on the remote control, carefully wipe the case clean and install new batteries.

● Danger of explosion if battery is incorrectly replaced.

● Dispose of used batteries according to batteries manufacturers instructions and local rules.

Press the lid downward and slide it.

Open the battery compartment lid.

Install new batteries into the compartment.

Replace the compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

REMOTE CONTROL BATTERIES INSTALLATION

1 2 3

Used to operate the PTIMER function. (p.23)

P-TIMER BUTTON

Used to adjust zoom. (p.22)

ZOOM BUTTON

NO SHOW BUTTON

Used to turn the picture into a black image. (p.23)

D.ZOOM BUTTON

Used to select the DIGITAL ZOOM +/– mode and resize the image. (p.30)

FREEZE BUTTON

Used to freeze the picture. (p.23)

MENU BUTTON

Used to select the MENU Operation. (pp.18, 19)

INPUT 1 BUTTON

Used to select an input source (INPUT 1). (p.24)

SELECT BUTTON

Used to execute the selected item, or expand/ compress the image in the DIGITAL ZOOM +/- mode. (p.30)

POINT (VOLUME +/-)

BUTTONS

Used to select an item or adjust a value in On-Screen Menu. They are also used to pan the image in the DIGITAL ZOOM +/- mode. (p.30) The POINT LEFT/ RIGHT buttons are also used as VOLUME +/- buttons. (p.23)

INPUT 2 BUTTON

Used to select an input source (INPUT 2). (pp.25, 31)

INPUT 3 BUTTON

Used to select an input source (INPUT 3). (p.31)

Operating Range

Point the remote control toward the projector (a Receiver Window) when pressing any button. Maximum operating range for the remote control is about 16.4’ (5 m) and 60° in front and rear of the projector.

16.4’ (5 m)

60°

16.4’ (5 m)

60°

NETWORK BUTTON

Used to select a network input (optional).

COLOR MANAGEMENT

BUTTON

Used to operate the Color management function. (pp.35–36)

Page 17

BEFORE OPERATION

TOP CONTROLS AND INDICATORS

Used to open or close the On-Screen Menu. (pp.18, 19)

MENU BUTTON

IMAGE BUTTON

READY INDICATOR

SELECT BUTTON

POWER ON–OFF BUTTON

INPUT BUTTON

WARNING TEMP. INDICATOR

LAMP INDICATOR

POINT (VOLUME + / – ) BUTTONS

LAMP REPLACE INDICATOR

Used to select the image level. (pp.29, 33)

Lights green when the projector is ready to be turned on. And it blinks green in the Power management mode. (pp.40, 46, 55–56)

Becomes dim when the projector is turned on. And it becomes bright when the projector is in stand-by mode. (pp.20, 21, 55-56)

Turns to yellow when the projection lamp reaches its end of life. Blinks yellow when the lamp cannot light up. (pp.48, 55–56)

Blinks red when the internal temperature of the projector is too high. (pp.46, 55–56)

Used to select an input source. (pp.24, 31)

Used to select an item or adjust a value in On-Screen Menu. They are also used to pan the image in the DIGITAL ZOOM +/– mode. (p.30) The POINT LEFT/RIGHT buttons are also used as VOLUME +/– buttons. (p.23)

Used to execute the selected item. It is also used to expand/compress the image in the DIGITAL ZOOM mode. (p.30)

Used to turn the projector on or off. (pp.20, 21)

Used to adjust zoom. (p.22)

FOCUS BUTTON

Used to adjust focus. (p.22)

ZOOM BUTTON

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.

LENS SHIFT BUTTON

Used to select the Lens Shift function. (p.22)

AUTO PC ADJ. BUTTON

Used to operate the Auto PC Adjustment function. (p.26)

Page 18

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

You can control and adjust this projector with On-Screen Menu. Refer to the relevant pages to operate each adjustment.

2. MOVING POINTER

3. SELECT ITEM

Move the pointer (✽ see below) or adjust a value of an item by pressing the POINT buttons on the top control or on the remote control.

Select an item or set the selected function by pressing the SELECT button.

ON-SCREEN MENU

✽ The Pointer is an icon in the On-Screen Menu for selecting

an item. See figures in “FLOW OF ON-SCREEN MENU OPERATION” below.

Used to select the item.

SELECT BUTTON

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

MENU BAR MENU ICON

SELECT

BUTTON

1. DISPLAY MENU

Press the MENU button to display the On-Screen Menu.

FLOW OF ON-SCREEN MENU OPERATION

Display ON-SCREEN MENU

Press the MENU button to display the On-Screen Menu (a MENU BAR). A red frame is a POINTER.

Move the POINTER (red frame) to a MENU ICON that you want to select by pressing the POINT RIGHT/LEFT buttons.

Adjust the ITEM DATA by pressing the POINT RIGHT/LEFT buttons. Refer to the relevant pages for details of respective adjustments.

Press the POINT UP/DOWN buttons and move the POINTER (red frame or red arrow) to an ITEM that you want to adjust, and then press the SELECT button to show the ITEM DATA.

Select Menu to be adjusted

Control or adjust items through ON-SCREEN MENU

POINTER (red frame) Press the POINT UP/DOWN buttons to move the POINTER.

POINTER

(red frame)

ITEM

ITEM DATA Press the POINT LEFT/RIGHT buttons to adjust a value or set a function.

MENU BUTTON

Used to select the item.

SELECT BUTTON

Used to move the Pointer UP/DOWN/ RIGHT/LEFT.

POINT BUTTONS

REMOTE CONTROL

MENU BUTTON

Page 19

BEFORE OPERATION

MENU BAR

FOR PC SOURCE

Press the MENU button when connecting to the PC input source.

FOR VIDEO SOURCE

Press the MENU button when connecting to the VIDEO input source.

Same function as menu for PC source.

GUIDE WINDOW

Shows the selected item of On-Screen Menu.

PC SYSTEM MENU

Used to select a computer system. (See pages 24–25.)

IMAGE SELECT MENU

Used to select an image level among Standard, Real, and Image 1–10. (See page 29.)

SCREEN MENU

Used to adjust the size of an image. [Normal/True/Wide/ Full/Digital zoom +/–] (See page 30.)

SETTING MENU

Used to change settings of the projector or reset the Lamp replacement counter. (See pages 38–44.)

SOUND MENU

Used to adjust the volume, switch the Builtin SP. On/Off, or mute the sound. (See page 23.)

IMAGE ADJUST MENU

Used to adjust the computer image. [Contrast/ Brightness/Color/Tint/Color management/Auto picture control/Color temp./White balance (R/G/B)/Sharpness/ Gamma/Noise reduction/ Progressive] (See pages 35–37.)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format. (See pages 26–28.)

INPUT MENU

Used to select an input source (Input 1, Input 2, or Input 3). (See page 24.)

INPUT MENU

Used to select an input source (Input 1, Input 2, or Input 3). (See page 31.)

IMAGE SELECT MENU

Used to select an image level among Standard, Cinema, and Image 1–10. (See page 33.)

SCREEN MENU

Used to adjust the size of image to Normal or Wide. (See page 34.)

IMAGE ADJUST MENU

Used to adjust the picture image. [Contrast/Brightness/ Color/Tint/Color management/ Auto picture control/Color temp./White balance (R/G/B)/ Sharpness/Gamma/Noise reduction/Progressive] (See pages 35–37.)

AV SYSTEM MENU

Used to select the system of selected video source. (See page 32.)

Page 20

BASIC OPERATION

TURNING ON THE PROJECTOR

TURNING ON / OFF PROJECTOR

Connect the projector’s AC power cord into an AC outlet. The LAMP indicator lights RED, and the READY indicator lights GREEN.

Press the POWER ON-OFF button on the top control or on the remote control. The LAMP indicator dims, and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.

The preparation display disappears after 30 seconds.

After the countdown, the input source that was selected the last time and the Lamp control status icon (see page 41) appear on the screen.

If the projector is locked with a PIN code, a PIN code Input Dialog Box appears. Enter a PIN code as instructed below.

Selected Input Source and Lamp control

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in SETTING Menu on page 43 for locking operation of the projector with your PIN code.

Pointer

PIN code Input Dialog Box

To Enter a PIN code

Select a number by pressing the POINT LEFT/RIGHT button and fix the number with the SELECT button. The number changes to “✳.” If you fixed a wrong number, move the pointer to “Set” or “Clear” once by pressing the POINT DOWN button, then return to “PIN code.” Enter the correct number.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer automatically moves to “Set.” Press the SELECT button so that you can start to operate the projector.

If you entered a wrong PIN code, “PIN code” and the number (✳✳✳✳) turn red and disappear. Enter a PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take special care in setting a new PIN code; write down the number in a column on page 60 of this manual and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

After the OK icon disappears, you can operate the projector.

Lamp control status

Page 21

BASIC OPERATION

Press the POWER ON-OFF button on the top control or on the remote control, and “Power off?” appears on the screen.

Press the POWER ON-OFF button again to turn off the projector. The LAMP indicator lights bright and the READY indicator turns off. After the projector is turned off, the cooling fans operate (for 90 seconds). During this “cooling down” period, the projector cannot be turned on.

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF. DO NOT UNPLUG THE AC POWER CORD WHILE COOLING FANS ARE RUNNING OR BEFORE THE READY INDICATOR LIGHTS GREEN AGAIN. OTHERWISE IT WILL RESULT IN SHORTENING THE LAMP LIFE.

When the projector has cooled down, the READY indicator lights GREEN again and you can turn projector on. After cooling down completely, unplug the AC power cord.

“Power off?” disappears after 4 seconds.

Note:

• The projector cannot be turned on during the cooling period with the READY indicator turned off. You can turn it on again after the READY indicator becomes GREEN again.

• When the On start function is “On,” this projector is turned on automatically by connecting the AC power cord to an AC outlet. (See page 41 for the On start function.)

• Continuous use may result in shortening the lamp life. Turn off the projector and rest it for about an hour in every 24 hours.

• The running speed of cooling fans is changed according to the temperature inside the projector.

• If the WARNING TEMP indicator blinks RED, see “WARNING TEMP INDICATOR” on page 46.

TURNING OFF THE PROJECTOR

Page 22

BASIC OPERATION

ADJUSTING SCREEN

“Zoom” disappears after 4 seconds.

“Focus” disappears after 4 seconds.

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

Press the ZOOM button on the top control or ZOOM ▲/▼ buttons on the remote control. “Zoom” appears on the screen.

Press the ZOOM ▲ button or POINT UP button to make the image larger, and press the ZOOM ▼ button or POINT DOWN button to make the image smaller.

Press the FOCUS button on the top control or FOCUS ▲/▼ buttons on the remote control. “Focus” appears on the screen.

Adjust the focus of image by pressing the FOCUS ▲/▼ buttons or POINT UP/DOWN buttons.

LENS SHIFT ADJUSTMENT

Press the LENS SHIFT button on the top control or LENS SHIFT ▲/▼ buttons on the remote control. “Lens shift” appears on the screen.

Press the POINT UP button or LENS SHIFT ▲ button to move the image up, press the POINT DOWN or LENS SHIFT ▼ button to move the image down.

KEYSTONE CORRECTION

Press the KEYSTONE button on the remote control or select Keystone in the SETTING Menu. (See page 38.) The Keystone dialog box appears.

Correct keystone distortion by pressing the POINT UP/DOWN/LEFT/RIGHT buttons. Press the POINT UP button to reduce the upper part of the image; press the POINT DOWN button to reduce the lower part. Press the POINT LEFT button to reduce the left part; press the POINT RIGHT button to reduce the right part.

Reduce the upper width with POINT UP button.

Reduce the lower width with POINT DOWN button.

If a projected picture has keystone distortion, correct the image with the Keystone function.

Reduce the left part with POINT LEFT button.

Reduce the right part with POINT RIGHT button.

• Arrows are white when no correction.

• Arrow(s) in the corrected direction turn(s) red.

• Arrow(s) disappear(s) at the maximum correction.

• If you press the KEYSTONE button on the remote control once more while the Keystone dialog box is being displayed, the Keystone function is canceled.

• “Keystone” disappears after 10 seconds.

NOTE:

• Focus adjustment may not function properly if the image is corrected by the Keystone function.

“Lens shift” disappears after 4 seconds.

Page 23

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the FREEZE function, press the FREEZE button again or press any other button.

Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button.

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

“No show” disappears after 4 seconds.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the SOUND Menu icon.

Volume

Press the VOLUME (+/–) buttons on the top control or on the remote control to adjust the volume. A Volume dialog box appears on the screen for a few seconds. Press the VOLUME (+) button to increase the volume; press the VOLUME (–) button to decrease the volume.

Mute

Press the MUTE button on the remote control to turn off the sound. To restore the sound to its previous level, press the MUTE button again or press the Volume (+/–) buttons.

To increase the volume, press the POINT RIGHT button; to decrease the volume, press the POINT LEFT button.

Press the POINT UP/DOWN buttons to move the red frame pointer to the desired item, and then press the SELECT button.

SOUND ADJUSTMENT

DIRECT OPERATION

MENU OPERATION

Volume

Indicates an approximate level of the volume.

Press the MUTE button to set the Mute function On or Off.

The Volume dialog box disappears after 4 seconds.

SOUND MENU

Press the POINT LEFT/RIGHT buttons to turn off the sound. The Dialog box display is changed to “On” and the sound is turned off. To restore the sound to its previous level, press the POINT LEFT/RIGHT buttons again.

Mute

BASIC OPERATION

Closes the SOUND Menu

Indicates an approximate level of the volume.

SOUND Menu icon

Press the P-TIMER button on the remote control. A Timer display “00 : 00” appears on the screen and starts to count time (00 : 00–59 : 59). To stop the P-TIMER, press the P-TIMER button. Press the PTIMER button again to cancel the P-TIMER function.

P-TIMER FUNCTION

Built-in SP.

Press the POINT LEFT/RIGHT buttons to switch the built-in speaker On or Off.

Page 24

SELECTING INPUT SOURCE

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the INPUT Menu icon.

Press the POINT UP/DOWN buttons to move the red arrow pointer to Input 1 and then press the SELECT button. A Source Select Menu appears.

Input 1

INPUT MENU

Move the pointer to a source that you want to select and then press the SELECT button.

When your computer is connected to INPUT 1 (DIGITAL) terminal, select RGB (PC digital).

RGB (AV HDCP)

When your computer is connected to the INPUT 1 (ANALOG) terminal, select RGB (PC analog).

Move the pointer (red arrow) to a source and press the SELECT button.

Source Select Menu

RGB (PC digital)

RGB (Scart)

When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

If a HDCP-compatible signal source is connected to the INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).

RGB (PC analog)

COMPUTER INPUT

NOTE:

• INPUT SOURCE changes if the INPUT 1 button on the remote control is pressed.

• HDCP (High-bandwidth Digital Content Protection) is a system for protecting digital entertainment content which is delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.

Select an INPUT source by pressing the INPUT button on the top control or the INPUT 1, INPUT 2, or INPUT 3 buttons on the remote control. If the projector cannot reproduce proper image, select a correct input source with the MENU OPERATION (see below).

INPUT button

Input 1

✽ Input 1 is not displayed when the Input 1 is used as

Monitor out.

NOTE:

• Input 1 terminal is switchable and can be used as Computer Input or Monitor Output.

✽

Monitor out

If the INPUT 1 ANALOG terminal is being used as a MONITOR OUT terminal, select Monitor out.

Input 2

Input 3

DIRECT OPERATION

MENU OPERATION

INPUT Menu icon

Move the pointer (red arrow) to Input 1 and press the SELECT button.

Page 25

COMPUTER INPUT

SELECTING COMPUTER SYSTEM

This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA, or UXGA (refer to “COMPATIBLE COMPUTER SPECIFICATIONS” on pages 54–55). When Computer is selected, this projector automatically detects the incoming signal and projects proper image without any additional setting. (Some computers need to be set manually.)

The projector displays one of these: Auto, -----, Mode 1–10, or the system provided in the projector.

When the projector cannot recognize a connected signal as PC system provided in this projector, the Auto PC Adjustment function operates to adjust the projector and “Auto” is displayed on the SYSTEM Menu icon. When the image is not provided properly, a manual adjustment is required. (See pages 27–28.)

There is no signal input from the computer. Make sure the connection of a computer and the projector is set correctly. (See “TROUBLESHOOTING” on page 50.)

Auto

-----

PC SYSTEM Menu icon Displays system being selected.

PC SYSTEM MENU

SELECTING COMPUTER SYSTEM MANUALLY

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the PC SYSTEM Menu icon.

Press the POINT UP/DOWN buttons to move the red arrow pointer to the desired system, and then press SELECT button.

PC SYSTEM MENU

This projector automatically selects PC system among those provided in this projector, however, PC system can be also selected manually.

AUTOMATIC MULTI-SCAN SYSTEM

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the INPUT Menu icon.

Press the POINT UP/DOWN buttons and a red-arrow icon appears. Move the arrow to “RGB,” and then press the SELECT button.

When connecting a computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync, and Vert. Sync.)] from a computer to G, B, R, H/HV, and V jacks:

WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )

INPUT MENU

Press the POINT UP/DOWN buttons to move the red arrow pointer to Input 2 and then press SELECT button. A Source Select Menu appears.

The User preset adjustment in MANUAL PC ADJUSTMENT. The Adjusted data can be stored in the Mode 1–10.

Mode 1

PC systems provided in this projector. The projector chooses proper system and displays it.

SVGA 1

✽ Mode 1 and SVGA 1 are examples.

NOTE:

• INPUT SOURCE changes if the INPUT 2 button on the remote control is pressed.

INPUT Menu icon

Move the pointer (red arrow) to Input 2 and press the SELECT button.

Input 2

Move the pointer (red arrow) to RGB and press the SELECT button.

Source Select Menu

PC SYSTEM Menu icon Displays system being selected.

Systems in this dialog box can be selected.

Custom Mode (1–10) set in PC ADJUST Menu. (pp.27–28)

Page 26

COMPUTER INPUT

PC ADJUSTMENT

AUTO PC ADJUSTMENT

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Auto PC Adjustment function can be operated as follows.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the PC ADJUST Menu icon.

Press the POINT UP/DOWN buttons to move the red frame pointer to the AUTO PC adj. icon and then press the SELECT button. This Auto PC Adjustment can be also executed by pressing the AUTO PC ADJ. button on the top control or on the remote control.

PC ADJUST MENU

Auto PC adj.

To store the adjusted parameters.

The system parameters from Auto PC Adjustment can be memorized in this projector. Once the parameters are stored, the setting can be done just by selecting Mode in PC SYSTEM Menu (p.25). See MANUAL PC ADJUSTMENT on pages 27–28.

NOTE:

• Fine sync, Total dots, and Picture Positions of some computers can not be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this function, manual adjustments are required. (See pages 27–28.)

• Auto PC Adjustment function cannot be operated in Digital Signal Input on the DVI terminal and “480p,” “575p,” “480i,” “575i,” “720p (HDTV),” “1035i (HDTV),” or “1080i (HDTV)” is selected on the PC SYSTEM Menu.

PC ADJUST Menu icon

Move the red frame pointer to the Auto PC adj. icon and press the SELECT button.

Page 27

COMPUTER INPUT

MANUAL PC ADJUSTMENT

This projector can automatically tune to display signals from most personal computers currently distributed. However, some computers employ special signal formats which may not be tuned by the Multi-Scan system of this projector. If this happens, the projector cannot reproduce proper image and it may be recognized as a flickering; non-synchronized; non-centered; or skewed picture. Manual PC Adjustment of this projector enables you to precisely adjust several parameters to match with those special signal formats. This projector has 10 independent memory areas to store those parameters manually adjusted, which allows you to recall setting for a specific computer whenever you use it.

Note: The PC ADJUST Menu cannot be operated when the digital signal input on the DVI terminal is selected

on PC SYSTEM Menu. (p.25)

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the PC ADJUST Menu icon.

Press the POINT UP/DOWN buttons to move the red frame pointer to the desired item, and then press the SELECT button. An Adjustment dialog box appears. Press the POINT LEFT/RIGHT buttons to adjust the value.

Eliminate a flicker from the display. Press the POINT LEFT/RIGHT buttons to adjust the value (from 0 to 31).

Fine sync

Adjust the number of total dots in one horizontal period. Press the POINT LEFT/RIGHT buttons to adjust the number to match your PC image.

Total dots

Press the POINT LEFT/RIGHT buttons to adjust the horizontal picture position.

Position H

Press the POINT LEFT/RIGHT buttons to adjust the vertical picture position.

Position V

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Current mode

Adjusts the clamp level. When the image has a dark bars, try this adjustment.

Clamp

Press the SELECT button at the Current mode icon to show information of the computer connected.

Current mode

PC ADJUST MENU

Adjusts the horizontal area displayed by this projector. Press the POINT LEFT/RIGHT buttons to decrease/increase the value.

Display area H

Adjusts the vertical area displayed by this projector. Press the POINT LEFT/RIGHT buttons to decrease/increase the value.

Display area V

PC ADJUST Menu icon

Move the red frame pointer to an item and press the SELECT button.

Press the POINT LEFT/RIGHT buttons to adjust the value.

Press the SELECT button at this icon to adjust “Clamp,” “Display area H,” or “Display area V.”

Selected Mode

Shows status (Stored/Free) of the selected Mode.

Press the SELECT button at this icon to display the previous items.

Page 28

COMPUTER INPUT

Exit the PC ADJUST Menu.

To store the adjusted parameters, move the red frame pointer to the Store icon and then press the SELECT button. Move the red arrow pointer to any of the Mode 1 to 10 in which you want to store the parameters and then press the SELECT button.

To reset the adjusted parameters, select Reset and press the SELECT button. A confirmation box appears. Select [Yes]. All the adjustments return to their previous figures.

To store adjustment data.

To clear adjustment data.

To clear adjusted parameters previously set, move the red frame pointer to the Mode free icon and then press the SELECT button. Move the red arrow pointer to a Mode that you want to clear and then press the SELECT button.

Reset

Mode free

Store

Quit

This Mode has parameters being stored.

Vacant

Shows the values of “Total dots,” “Position H,” “Position V,” “Display area H,” and “Display area V.”

Close this dialog box.

A confirmation box appears and then select [Yes].

Page 29

COMPUTER INPUT

PICTURE IMAGE SELECT

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the IMAGE SELECT Menu icon.

Press the POINT UP/DOWN buttons to move the red frame pointer to the desired level and then press the SELECT button.

IMAGE SELECT MENU

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset picture adjustment in the IMAGE ADJUST Menu. (pp.35–37)

IMAGE 1–10

IMAGE LEVEL SELECT

Select an image level from among Standard, Real, and Image 1 to Image 10 by pressing the IMAGE button on the top control or on the remote control.

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset picture adjustment in the IMAGE ADJUST Menu. (pp.35–37)

Standard

Real

IMAGE 1–10

IMAGE button

Standard

Real

Image 1

Image 10

DIRECT OPERATION

MENU OPERATION

IMAGE SELECT Menu icon

Move the red frame pointer to a level and press the SELECT button.

Page 30

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the SCREEN Menu icon.

When the Digital zoom + is selected, the On-Screen Menu disappears and “D. Zoom +” appears. Press the SELECT button to expand the image size. Press the POINT UP/DOWN/LEFT/RIGHT buttons to pan the image. The Panning function can work only when the image is larger than the screen size. The projected image can be also expanded by pressing the D.ZOOM ▲ button on the remote control.

Press the POINT UP/DOWN buttons and move the red frame pointer to the desired function and then press the SELECT button.

Digital zoom +

NOTE:

• True, Full, and Digital zoom +/– cannot be operated when “480i,” “575i,” “480p,” or “575p” is selected on the PC SYSTEM Menu. (p.25)

• The Screen Menu cannot be operated when “720p (HDTV),” “1035i (HDTV),” or “1080i (HDTV)” is selected on the PC SYSTEM Menu. (p.25)

• This projector cannot display any resolution higher than 1600 x 1200. If your computer’s screen resolution is higher than 1600 x 1200, lower the resolution before connecting the projector.

• The image data other than XGA (1024 x 768) is modified to fit the screen size in initial mode.

• The Panning function may not operate properly if the computer system prepared on the PC ADJUST Menu is used.

Normal

SCREEN MENU

When the Digital zoom – is selected, the On-Screen Menu disappears and “D. Zoom –” appears. Press the SELECT button to compress the image size. The projected image can be also compressed by pressing the D.ZOOM ▼ button on the remote control.

To cancel the Digital Zoom +/– mode, press any button except D.ZOOM ▲/▼, SELECT, POINT, and LASER buttons.

Digital zoom –

Provides the image to fit the screen size.

COMPUTER INPUT

Wide

True

Provides image in its original size.

Provides the image to fit the wide video aspect ratio (16:9) by expanding the image width uniformly. This function can be used to provide the squeezed video signal at 16:9.

Full

Provides the full screen image.

PICTURE SCREEN SELECT

SCREEN Menu icon

Move the red frame pointer to a function and press the SELECT button.

Page 31

When the video input signal is connected to the YPb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the INPUT Menu icon.

Move the pointer to a source that you want to select and then press the SELECT button.

When the video input signal is connected to the VIDEO jack, select Video.

When the video input signal is connected to the SVIDEO jack, select S-Video.

When connecting to video equipment, select a type of Video source in the Source Select (Video) Menu.

WHEN SELECTING INPUT 3 (AV TERMINALS )

WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )

INPUT MENU

Press the POINT UP/DOWN buttons to move the red arrow pointer to Input 3 and then press the SELECT button. A Source Select Menu appears.

When the video input signal is connected to the YPb/Cb-Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

When the video input signal is connected to the VIDEO jack, select Video.

When connecting to video equipment, select a type of Video source in the Source Select Menu.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the INPUT Menu icon.

Move the pointer to a source that you want to select and then press the SELECT button.

Press the POINT UP/DOWN buttons to move the red arrow pointer to Input 2 and then press the SELECT button. A Source Select Menu appears.

VIDEO INPUT

SELECTING INPUT SOURCE

NOTE:

• INPUT SOURCE changes if the INPUT 2 button on the remote control is pressed.

Video

Y, Pb/Cb, Pr/Cr

Video

Y, Pb/Cb, Pr/Cr

S-Video

NOTE:

• INPUT SOURCE changes if the INPUT 3 button on the remote control is pressed.

DIRECT OPERATION

MENU OPERATION

INPUT Menu icon

Move the pointer (red arrow) to Input 2 and press the SELECT button.

Input 2

Move the pointer (red arrow) to Video or Y, Pb/Cb, Pr/Cr and press the SELECT button.

Source Select Menu

INPUT MENU

INPUT Menu icon

Move the pointer (red arrow) to Input 3 and press the SELECT button.

Input 3

Move the pointer (red arrow) to a source and press the SELECT button.

Source Select Menu

INPUT button

Input 1

Input 2

Input 3

✽ Input 1 is not displayed when the Input 1 is used as

Monitor out.

Page 32

VIDEO INPUT

AV SYSTEM MENU (VIDEO OR S-VIDEO)

AV SYSTEM MENU (COMPONENT VIDEO)

SELECTING VIDEO SYSTEM

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the AV SYSTEM Menu icon.

Press the POINT UP/DOWN buttons to move the red arrow pointer to the desired system and then press the SELECT button.

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. When the Video System is 1035i or 1080i, select the system manually.

If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

VIDEO JACK OR S-VIDEO JACK

Y, Pb/Cb, Pr/Cr JACKS

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance.

Auto

AV SYSTEM Menu icon This box indicates system being selected.

Move the pointer (red arrow) to system and press the SELECT button.

AV SYSTEM Menu icon This box indicates system being selected.

Move the pointer (red arrow) to system and press the SELECT button.

Page 33

VIDEO INPUT

PICTURE IMAGE SELECT

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the IMAGE SELECT Menu icon.

Press the POINT UP/DOWN buttons to move the red frame pointer to the desired level and then press the SELECT button.

IMAGE SELECT MENU

IMAGE LEVEL SELECT

Select an image level from among Standard, Cinema, Image 1 to Image 10 by pressing the IMAGE button on the top control or on the remote control.

Move the red frame pointer to a level and press the SELECT button.

IMAGE SELECT Menu icon

Normal picture level preset on this projector.

Picture level adjusted for picture with fine tone.

User preset picture adjustment in the IMAGE ADJUST Menu. (pp.35–37)

Standard

Cinema

IMAGE 1–10

IMAGE button

Standard

Cinema

Image 1

Image 10

Normal picture level preset on this projector.

Standard

Picture level adjusted for picture with fine tone.

Cinema

User preset picture adjustment in the IMAGE ADJUST Menu. (pp.35–37)

IMAGE 1–10

DIRECT OPERATION

MENU OPERATION

Page 34

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to customize the image size.

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the SCREEN Menu icon.

Press the POINT DOWN button and move the red frame pointer to the desired function and then press the SELECT button.

NOTE:

• SCREEN Menu can not be operated when “720p,” “1035i,” or “1080i” is selected on AV SYSTEM Menu (p.32).

SCREEN MENU

VIDEO INPUT

Provides image at the wide screen ratio of 16:9.

Wide

Provides image at the normal video aspect ratio of 4:3.

Normal

PICTURE SCREEN SELECT

Move the red frame pointer to a function and press the SELECT button.

SCREEN Menu icon

Page 35

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the IMAGE ADJUST Menu icon.

Press the POINT UP/DOWN buttons to move the red frame pointer to the desired item and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing POINT LEFT/RIGHT buttons.

IMAGE ADJUST MENU

Press the POINT LEFT button to decrease contrast; press the POINT RIGHT button to increase the contrast (from 0 to 63).

Press the POINT LEFT button to decrease the brightness; press the POINT RIGHT button to increase the brightness (from 0 to 63).

Contrast

Brightness

Press the POINT LEFT button decrease the intensity of the color; press the POINT RIGHT button to increase the intensity of the color (from 0 to 63).

Press the POINT LEFT/RIGHT buttons to adjust the tint value to obtain proper color balance (from 0 to 63).

Color

Tint

Color Management

The Color management function can be used to adjust the LEVEL, PHASE, and GAMMA of the selected display colors (except for black, white, and gray) on the screen and replace these colors with other colors if required. You can store up to eight (8) color management data.

Press the POINT UP/DOWN buttons to move the red frame pointer to Color management, and then press the SELECT button. The image being projected freezes, and the COLOR MANAGEMENT POINTER appears.

Use the POINT UP/DOWN/LEFT/RIGHT buttons to move the pointer to a spot where you want to adjust the color and then press the SELECT button. The COLOR SELECTION window appears, and the color in the center of the pointer is selected and you can adjust the color.

Use the POINT UP/DOWN/LEFT/RIGHT buttons to adjust the LEVEL and PHASE of the color, and then press the SELECT button to confirm the setting. Then use the POINT UP/DOWN buttons to adjust the GAMMA for the color and press the SELECT button to accept the setting. After adjusting, press the SELECT button to go to the COLOR MANAGEMENT LIST.

NOTE:

Press the COLOR M. button on the remote control to display the COLOR MANAGEMENT POINTER. If you would like to check or readjust the color management setting that has already been made, press the COLOR M. button on the remote control once more to display the COLOR MANAGEMENT LIST.

COLOR MANAGEMENT POINTER

POINTER MODE

PICTURE IMAGE ADJUSTMENTS

PICTURE IMAGE

Move the red frame pointer to item to be selected and then press SELECT button.

IMAGE ADJUST Menu icon

Press the POINT LEFT/RIGHT buttons to adjust the value.

COLOR SELECTION MODE

Go to the COLOR MANAGEMENT LIST.

LIST

Page 36

PICTURE IMAGE

Auto picture control

Press the POINT LEFT/RIGHT buttons to select the desired Auto picture control position (Off, L1 or L2).

Off . . . . Auto picture control OFF position.

L1 . . . . . Auto picture control LEVEL 1 position.

L2 . . . . . Auto picture control LEVEL 2 position.

Clear the check mark if you do not want to apply the adjusted color data; select the check mark and then press the SELECT button. The check make disappears.

Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the top control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.)

Return to the IMAGE ADJUST Menu. But any settings that have been changed will not be stored. To store the changed settings, be sure to select “LIST” and go to the COLOR MANAGEMENT LIST.

NOTE:

If you press the COLOR M. button on the remote control, the display returns to the normal projection screen, but any settings that have been changed will not be stored. To store the changed settings, be sure to select “MENU” to return to the IMAGE ADJUST Menu and store the settings.

LIST MODE

Return to the COLOR SELECTION mode so that you can readjust the setting for the color in that line. (This option is not available if the check mark is cleared.)

Select the DEL box if you want to delete the adjusted data. Press the SELECT button and a confirmation box appears and then select [Yes]

Delete all the data in the list. Press the SELECT button and a confirmation box appears and then select [Yes].

The same function as stated above.

Level and phase adjustment palette.

Gamma adjustment palette.

Color temp.

Press either the POINT LEFT/RIGHT buttons to select the desired Color temp. level (XLow, Low, Mid or High).

COLOR M.

COLOR PALETTE

DEL

ALL DEL

COLOR M.

LIST COLOR M. MENU

COLOR PALETTE

DEL

ALL DEL MENU COLOR M.

COLOR SELECTION MODE

LIST MODE

COLOR SELECTION MODE (continued)

In the COLOR MANAGEMENT LIST, the adjusted color data are check marked. You can decide whether or not to apply the adjusted color data in the list to the projected image (see below).

The same function as stated above.

Page 37

Press the POINT LEFT/RIGHT buttons to adjust the gamma value to obtain better balance of contrast (from 0 to 15).

Gamma

Press the POINT LEFT button to decrease the sharpness of the image; press the POINT RIGHT button to increase the sharpness of the image (from 0 to 31).

Sharpness

Press the POINT LEFT button to lighten blue tone; press the POINT RIGHT button to deepen blue tone (from 0 to 63).

White balance (Blue)

An interlaced video signal can be displayed in progressive. Press the POINT LEFT/RIGHT buttons to change the progressive scan mode.

Off . . . . Progressive scan mode is “Off.”

On . . . . Progressive scan mode is “On.”

Film . . . Select for watching a film. With this function, the

projector reproduces pictures faithful to the original film quality.

Noise interference on the screen can be reduced. Press the POINT LEFT/RIGHT buttons to change the noise reduction mode.

Off . . . . Noise reduction mode is “Off”

L1 . . . . . For lower reduction

L2 . . . . . For higher reduction

Noise reduction

Progressive

Image Level Menu Move the red frame pointer to any of Image 1 to 10 where you want to set and then press the SELECT button.

Store icon Press the SELECT button at this icon to store the adjustment.

PICTURE IMAGE

Press the POINT LEFT button to lighten red tone; press the POINT RIGHT button to deepen red tone (from 0 to 63).

White balance (Red)

Press the POINT LEFT button to lighten green tone; press the POINT RIGHT button to deepen green tone (from 0 to 63).

White balance (Green)

Exit the IMAGE ADJUST Menu.

To store the manually preset image, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu appears. Move the red arrow pointer to any of the Image 1 to 10 in which you want to set and press the SELECT button.

To reset the adjusted parameters, select Reset and press the SELECT button. A confirmation box appears. Select [Yes]. All the adjustments return to their previous figures.

Reset

Store

Quit

Press the SELECT button at this icon to display other items.

Press the SELECT button at this icon to display the previous items.

Press the POINT LEFT/RIGHT buttons to adjust the value.

NOTE:

• The Film mode in the Progressive function cannot be selected when the video signal format is 1080i or 1035i.

Page 38

Keystone

Press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the Setting Menu icon.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

Press the POINT DOWN button to move the red frame pointer to the desired item that and then press the

SELECT button.

The Setting dialog box appears.

When pressing the SELECT button at Language, the Language Menu appears.

SETTING MENU (LANGUAGE)

This function corrects distortion of a projected image. Select either Store or Reset with the POINT LEFT/RIGHT buttons, and then press the Select button. The Keystone dialog box appears. Correct keystone with the POINT UP/DOWN/LEFT/RIGHT buttons. (p.22)

Store . . . stores the keystone correction even if the AC power

cord is unplugged.

Reset . . resets the keystone correction when the AC power cord

is unplugged.

This projector has Setting menu that allows you to set up the other various functions described as follows:

Display

This function decides whether to display On-Screen Displays.

On . . . . . . . . . . . . shows all the On-Screen Display.

Count-down Off . . hide the Count-down Display.

Off . . . . . . . . . . . . hide the On-Screen Display except:

● On-Screen Menu

● “Power off?” (p.21)

● P-TIMER (p.23)

● ”Please wait....”

● Color management operation screen

(pp.35–36)

● “No signal” for Power management (p.40)

Background

Three background settings are available in this projector. Select one of the following options when no input source is connected to the projector or no input signal is coming from the connected equipment.

Blue . . . blue colored background User . . . the image you captured Black . . black colored background

SETTING MENU

SETTING

Set the red frame pointer to the item and press the SELECT button.

SETTING Menu icon

Page 39

SETTING

This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions.

Logo PIN Code Lock Dialog Box

Quit

Pointer

After a correct Logo PIN code is entered, the following dialog box appears.

Select On/Off by pressing the POINT LEFT/RIGHT buttons or change the Logo PIN code.

Logo

This function prevents an unauthorized person from changing the Logo setting.

Off . . . . the Logo setting can be changed freely from the Logo

function.

On . . . . the Logo setting cannot be changed without a Logo

PIN code.

If you want to change the Logo PIN code lock setting, enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to “4321” at the factory.

NOTE:

• Before capturing an image, select Standard in the IMAGE SELECT Menu to

capture proper image. (See pages 29, 33.)

•A signal from a computer can be captured up to XGA (1024 X 768).

• Certain signals may not be captured properly.

• When capturing the image that has been adjusted by the Keystone function,

the adjusted data is automatically reset and the projector captures an image without keystone correction.

• When starting to capture a new image, the previously stored image is cleared

even if you cancel the capturing.

• Once you exit the Logo Menu after setting the Logo lock to "On," you are

required to enter the PIN code every attempting to change the Logo setting.

Select [Yes] to capture the projected image.

This function decides the start-up display as follows:

User . . . the image you captured Default . the factory-set logo

Off . . . . count-down only

This function enables you to capture the image being projected and use it for a starting-up display. After capturing the projected image, go to the Logo select function and set it to “User.” Then the captured image will be displayed when turning on the projector the next time. To capture the image, select [Yes]. To cancel the Capture function, select [No].

Capture

Logo PIN code lock

To Enter a Logo PIN code

Select a number by pressing the POINT LEFT/RIGHT buttons and fix the number with the SELECT button. The number changes to “✳.” If you fixed a wrong number, move the pointer to “Set” or “Clear” once by pressing the POINT DOWN button, then return to “Logo PIN code.” Enter the correct number.

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer automatically moves to “Set.” Press the SELECT button so that you can change the Logo PIN code lock setting.

If you entered a wrong Logo PIN code, “Logo PIN code” and the number (✳✳✳✳) turn red and disappear. Enter a Logo PIN code all over again.

To Change the Logo PIN code

Logo PIN code can be changed to your desired four-digit number. Select “Logo PIN code change” with the POINT DOWN button and press the SELECT button. Set a new Logo PIN code.

Be sure to write down the new Logo PIN code and keep it at hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on the PIN code setting, refer to the relevant instructions of the PIN code lock function on page 43.

Select [Yes] to stop capturing.

Logo select

Logo

Page 40

SETTING

Ceiling

Rear

Ceiling

When this function is “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceilingmounted projector.

Rear

When this function is “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Power management

Time left until lamp off

Press the SELECT button at Power management and this box appears. Choose one of three settings with the POINT LEFT/RIGHT buttons, and go to the timer with the POINT DOWN button and set time with the POINT LEFT/RIGHT buttons.

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not used for a certain period.

If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with “No signal” appears on the screen to start the countdown. The countdown time can be set between 1 and 30 minutes.

Select one of the following operations:

Ready . . . . . When the lamp has been fully cooled down, the

READY indicator starts blinking. In this condition, the projection lamp is turned on if the input signal is reconnected or any button on the top control or remote control is pressed.

Shutdown . . When the lamp has been fully cooled down, the

power is turned off.

Off . . . . . . . The Power Management function is off.

Simple menu

When this function is “On,” the value adjustment bar in the picture IMAGE ADJUSTMENT Menu is displayed on the bottom left of the screen.

Anamorphic

When this function is “On,” the screen image is forcibly changed to the 4:3 image, even if the input signal is HDTV.

Menu position

This function is used to adjust the On-Screen Menu display position. When the SELECT button is pressed, the adjustment screen is displayed (arrows appear). Use the POINT UP/DOWN/ LEFT/RIGHT button(s) to adjust the position. After making the adjustment, press the SELECT button to return to the Menu screen.

Power management

Page 41

Lamp control

This function allows you to change the brightness of the screen.

. . . . brightness according to the input signal.

. . . . normal brightness.

. . . . lower brightness reduces the lamp power consumption

and extends the lamp life.

On start

When this function is “On,” the projector is automatically turned on just by connecting the AC power cord to an AC outlet.

NOTE:

• Be sure to turn the projector off properly (see “TURNING OFF THE PROJECTOR” on page 21). If the projector is turned off in the incorrect sequence, such as unplugging the AC power cord before completing the cool-down etc., the On start function does not operate properly.

SETTING

Remote control

The eight different remote control codes (Code 1–8) are assigned to this projector: the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. For example, when operating the projector in “Code 7”, the code for both the projector and the remote control must be switched to “Code 7.”

To change the code of the projector:

Select from Code 1 to Code 8 in the SETTING Menu.

To change the code of the remote control:

Set the DIP switches 1–3 inside the battery compartment of the remote control. (See page 15.)

Remote control

When pressing the SELECT button at Remote control, the Remote control code menu appears.

Page 42

SETTING

This Projector has a USB port for interactive operation between the projector and computers. Set the mode by following the steps below.

Wireless Mouse mode

Select “ ” when controlling a computer with the remote control of this projector.

Projector mode:

“” Not used.

USB

Security

This function locks operation of the top control and remote control. It helps to prevent operation by an unauthorized person.

. . . . unlocked.

. . . . locks operation of the top control.

To unlock, use the remote control.

. . . . locks operation of the remote control.

To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the remote control nearby, unplug the AC power cord from the AC outlet, and then hold down the SELECT button and reinsert the AC power cord. This will cancel the top control lock.

Key lock

Security

Select Key lock and this box appears. Choose one of the alternatives with the POINT UP/DOWN buttons and select [Yes] to activate it.

Page 43

SETTING

The PIN code can be changed to your desired four-digit number. Select “PIN code change” with the POINT DOWN button, and press the SELECT button. A New PIN code input dialog box appears.

Select a number with the POINT LEFT/RIGHT buttons and fix the number with the SELECT button. Repeat it to complete entering a four-digit number. When the four-digit number is fixed, the pointer automatically moves to “Set.” Then press the SELECT button.

To Change the PIN Code

Change the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box appears.

The input numbers are being displayed for confirmation.

Select “Off,” “On1,” or “On2” with the POINT LEFT/RIGHT buttons and then go to “Quit” with the POINT DOWN button. Press the SELECT button to close the dialog box.

To Change the PIN Code Lock setting

Changing the PIN code lock setting

Select a desired setting with the POINT LEFT/RIGHT buttons.

CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN A NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 60, AND KEEP IT SECURELY. SHOULD THE PIN CODE BE LOST OR FORGOTTEN, THE PROJECTOR CAN NO LONGER BE OPERATED.

PIN code lock

This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options.

Off . . . . the projector is not locked with the PIN code.

On1 . . . requires to enter the PIN code every time turning on

the projector.

On2 . . . requires to enter the PIN code to operate the projector

once the power cord is disconnected; as long as the AC power cord is connected, the projector can be operated without a PIN code.

Whenever you change the PIN Code Lock setting or the PIN code (the four-digit number), you are required to enter the PIN code. “1234” is set as the initial PIN code at the factory.

PIN code lock

When the projector is locked with the PIN code, the PIN code lock mark appears on the menu bar.

Entering a PIN code

Quit

Pointer

The input numbers change to “✳” for security.

When the pointer automatically moves to “Set,” press the SELECT button.

To Enter a Logo PIN code

Repeat this step to complete entering a four-digit number.

When the four-digit number is fixed, the pointer automatically moves to “Set.” Press the SELECT button so that you can change the PIN code lock settings.

If you entered a wrong PIN code, “PIN code” and the number (✳✳✳✳) turn red and disappear. Enter a Logo PIN code all over again.

Page 44

This function is used to reset the Lamp replacement counter. When replacing the projection lamp, reset the Lamp replacement counter with this function. See page 49 for operation.

Lamp counter

Factory default

This function returns all setting values except for the User logo, Key lock, PIN code lock, Logo PIN code lock, and the Lamp counter to the factory default settings.

Factory default

SETTING

Quit

Exit the SETTING Menu.

Select Factory default and this box appears. Select [Yes], and the next box appears.

Select [Yes] to activate it.

Page 45

WIRELESS MOUSE

INSTALLATION

Remote control is not only able to operate this projector but also functions as a wireless mouse for most personal computers. The MOUSE POINTER, DRAG ON/OFF button, and two CLICK buttons are used for wireless mouse operation. The Wireless mouse function is available only when the PC mouse pointer is displayed on the screen.

Connect the mouse port (or USB port) of your computer to the CONTROL PORT (or USB connector) of this projector with the Control cable (or USB cable). (See pages 12–13 for connection.)

Turn on the projector first, and then turn your computer on. If the computer is switched on first, the Wireless mouse function may not work properly.

To use the remote control as a wireless mouse for a computer, installation of a mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed on your computer and that the mouse port (or USB port) of the computer is activated.

OPERATING WIRELESS MOUSE

When controlling the PC mouse pointer, use the MOUSE POINTER, DRAG ON/OFF button, LEFT CLICK button, and RIGHT CLICK button on the remote control.

Used to move the PC mouse pointer. The pointer moves to the direction you are pressing.

MOUSE POINTER

This button has the same function as the left button in a PC mouse. To drag a selected screen object, hold down this button and press the MOUSE POINTER.

LEFT CLICK button

This button has the same function as the right button in a PC mouse.

RIGHT CLICK button

Note: When your computer has no mouse port,

connect the Serial port of your computer to the Control port of the projector with the Control cable for Serial port (supplied).

MOUSE POINTER (Moves the pointer)

LEFT CLICK button (left button of the mouse)

RIGHT CLICK button (right button of the mouse)

DRAG ON/OFF button

Use this button and the MOUSE POINTER to drag a selected screen object. Press and release the DRAG ON/OFF button, then the DRAG ON INDICATOR lights green and the remote control is in Drag mode. Use the MOUSE POINTER to drag an screen object. Press and release the DRAG ON/OFF button again or press any other button to drop the object.

DRAG ON/OFF button

DRAG ON INDICATOR

APPENDIX

Page 46

MAINTENANCE

WARNING TEMP. INDICATOR

The Warning Temp. indicator blinks red to let you know the internal temperature of the projector exceeds a normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator goes out. (The Warning Temp. indicator continues blinking.) After the cooling-off period, the Ready indicator lights on again and the projector can be turned on by pressing the POWER ON-OFF button on the top control or the remote control. When you turn on the projector, the Warning Temp. indicator goes out.

If the Warning Temp. indicator is still blinking, check the following matters:

– The ventilation slots of the projector may be blocked. In such a case,

reposition the projector so that the ventilation slots are not obstructed.

–The air filters may be clogged with dust particles. Clean them by

following the section “AIR FILTER CARE AND CLEANING” on the next page.

– If the WARNING TEMP. indicator remains on after performing above

checks, the cooling fans or internal circuits may be malfunctioning. Contact the service station.

TOP CONTROL

When both of the Warning Temp. and Ready indicators are blinking:

Warning Temp. Indicator

Ready Indicator

When the projector detects an internal problem, it shuts down automatically and both the Warning Temp. and Ready indicators start blinking. In this condition, the projector cannot be turned on even if you press the POWER ON-OFF button on the top control or remote control. If this happens, unplug and reconnect the AC power cord, and then turn on the projector again to check the operation. If the projector shuts down again or cannot to be turned on, internal checking and repair is required. Unplug the AC power cord and contact the service station.

APPENDIX

Page 47

CLEANING PROJECTION LENS

Apply a non-abrasive camera lens cleaner to a dry soft cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents ,or other harsh chemicals might scratch the surface of the lens.

When the projector is not in use, put the lens cap.

Gently wipe with the cleaning cloth over the projection lens.

Follow these steps to clean the projection lens:

AIR FILTERS CARE AND CLEANING

AIR FILTERS Pull up and remove.

Turn off the projector and unplug the AC power cord from an AC outlet.

Turn over projector and remove the air filters by pulling the latches upward.

Air filters help prevent dust from accumulating on the optical elements inside the projector. To whatever extent the air filters become clogged with dust particles, the cooling fans’ effectiveness is reduced, which may result in an internal heat build-up and adversely affect the life of the projector. Therefore, for appropriate care and use of the projector, regular cleaning of the air filters is necessary. How often the air filters should be cleaned really depends upon the environment in which the projector is being operated. As a rough guide, under a normally clean operating environment, the air filters should be cleaned approximately every 200 hours of use. However, if the projector is being operated in a somewhat dusty or smoky environment, the air filters should be cleaned more often; for consistently good projector operation and performance, timely cleaning of the air filters is a very important factor. When appropriate, clean the air filters following the steps below.

Clean the air filters with a brush or rinse them softly. When rinsing the air filters, dry them well.

Replace the air filters properly. Make sure that the air filters are fully inserted to the projector.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the LCD Panel and projection mirror degrading the picture quality. Do not put anything into the air intake vents. It may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause a poor image quality.

When using the projector under dusty or smoky conditions, dust may accumulate on a lens, liquid crystal panels, or optical elements inside the projector. Such condition may degrade the quality of the projected image. When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

Turn off the projector and unplug the AC power cord from an AC outlet.

APPENDIX

NOTE: If the dust cannot be removed by

cleaning, it is probably time to replace the air filters with new ones. Please consult your dealer.

Air Filter (A) Parts No. 610 303 8773 Air Filter (B) Parts No. 610 303 8780

Page 48

APPENDIX

Turn off the projector and unplug the AC power cord. Allow the projector to cool for at least 45 minutes.

Loosen the two (2) screws with a screwdriver and pull out the lamp assembly by using the built in handle.

Replace the lamp assembly with a new one and tighten the two (2) screws. Make sure that the lamp assembly is set properly. Put back the lamp cover and tighten the two (2) screws.

Loosen the two (2) screws with a screwdriver and open the lamp cover.

Connect the AC power cord to the projector and turn on the projector.

Follow these steps to replace lamp assembly.

Reset the Lamp replacement counter (refer to”LAMP REPLACE COUNTER” on the next page).

LAMP ASSEMBLY

HANDLE

LAMP COVER

NOTE:

• Do not reset the Lamp replacement counter when the projection lamp is not replaced.

LAMP REPLACEMENT

When the projection lamp of this projector reaches its end of life, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the projection lamp with a new one promptly.

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

● Model No. of your projector : PLC-XP57L

● Replacement Lamp Type No. : POA-LMP101

(Service Parts No. 610 328 7362)

For continued safety, replace with a lamp assembly of the same type. Do not drop the lamp assembly or touch a glass bulb! The glass can shatter and may cause injury.

Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the projector can become very hot.

This indicator lights yellow when the projection lamp reaches its end of life. Replace the projection lamp with a new one promptly.

TOP CONTROL

CAUTION

Page 49

APPENDIX

LAMP REPLACE COUNTER

Be sure to reset the Lamp replacement counter after the lamp assembly is replaced. When the Lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting.

NOTE:

• Do not reset the Lamp replacement counter until after the projection lamp is replaced.

Turn the projector on and press the MENU button to display the On-Screen Menu. Press the POINT LEFT/RIGHT buttons to move the red frame pointer to the SETTING Menu icon

Press the POINT UP/DOWN buttons to move the red frame pointer to Lamp counter and then press the SELECT button. The next box appears.

Another confirmation dialog box appears and select [Yes] to reset the Lamp replacement counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow carefully the instructions in the LAMP REPLACEMENT section of this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Lamp counter

Select Lamp counter and this box appears. Select [Reset], and the next box appears.

Select [Yes] again to reset the lamp counter.

Select [Yes], and then another confirmation box appears.

Press the POINT UP/DOWN buttons to select Reset and then press the SELECT button. The “Lamp replacement counter reset?” appears. Move the pointer to [Yes] and then press the SELECT button.

Page 50

APPENDIX

TROUBLESHOOTING

Before calling your dealer or service center for assistance, check the items below once again.

1. Make sure you have connected the projector to your computer or video equipment as described in “CONNECTING PROJECTOR” on pages 12–14.

2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.

3. Make sure that all power is switched on.

4. If the projector still does not produce an image, restart your computer.

5. If an image still does not appear, disconnect the projector from your computer and check your computer monitor’s display. A problem may be noticed with your graphics controller rather than with the projector. (When you reconnect the projector, be sure to turn the computer and monitor off before you turn on the projector. Turn on equipment in the order of the projector and computer.)

6. If a problem still persists, check the following solutions.

No power.

● Plug the power cord of the projector into an AC outlet.

● Make sure the READY indicator lights.

● Wait 90 seconds after the projector is turned off to restart the projector.

NOTE: After pressing the POWER ON-OFF button to “OFF”, make sure the projector works

as follows:

1. LAMP indicator lights bright and the READY indicator turns off.

2. After 90 seconds, the READY indicator lights green again and the projector may be turned on by pressing the POWER ON-OFF button.

● Check the WARNING TEMP. and READY indicators. If both indicators blink, the projector cannot be turned on. (See “TURNING ON/OFF PROJECTOR” on pages 20–21.)

● Check the projection lamp. (See page 48.)

Image is out of focus.

● Adjust the focus of the projector.

● Make sure the projection screen is at least 4.6’ (1.4 m) away from the projector.

● Check the projection lens to see if it needs cleaning.

NOTE: Moving the projector from a cool to a warm place may result in moisture

condensation on the projection lens. If this happens, leave the projector off and wait until condensation evaporates.

Picture is left/right reversed.

● Check the Ceiling/Rear function. (See page 40.)

Problem: Try these Solutions

Picture is top/bottom reversed.

● Check the Ceiling function. (See page 40.)

Some displays are not seen during operations.

● Check the Display function.(See page 38.)

No image.

● Check the connection between your computer or video equipment and the projector.

● When turning the projector on, it takes about 30 seconds to display the image.

● Check the system you selected is corresponding to your computer or video equipment.

● Make sure the temperature is not out of specified operating temperature (41˚F–95˚F

[5˚C–35˚C]).

No sound.

● Check the audio cable connection from an audio input source.

● Adjust the audio source.

● Press the VOLUME (+) button.

● Press the MUTE button.

Page 51

APPENDIX

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open the cabinet.

You can usually correct operating problems by yourself. If the projector fails to work properly, see “TROUBLESHOOTING” on pages 50–51 and try “Solutions” to correct failures.

If you find that service is necessary after following all operating instructions, contact the Sanyo Service Station or a store where you purchased the unit. Specify the model number and explain about the problem. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty, and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

Pixelworks ICs used.

Remote control does not work.

● Check the batteries.

● Check if the ALL-OFF switch on the remote control is set to “ON.”

● Make sure there is no obstruction in between the Infrared remote receiver of the projector

and the remote control.

● Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4’ (5 m).

● Check the remote control code in the remote control. (See page 41.)

Problem: Try these Solutions

Wireless mouse function does not work.

● Check the cable connection between the projector and your computer.

● Check the mouse setting on your computer.

● Turn the projector on before turning on a computer.

Page 52

APPENDIX

Computer Input

MENU TREE

Input

RGB (PC analog) Go to System

(1)

Input 1

Y, Pb/Cb, Pr/Cr

Computer Input/Video Input

RGB (Scart)

RGB (PC digital)

RGB (AV HDCP)

Monitor out

Video

RGB

Go to System

(2)

Go to System

(3)

Go to System

(1)

Go to System

(2)

Video

Y, Pb/Cb, Pr/Cr

S-Video

Go to System

(3)

Go to System

(2)

System

(1)

Input 2

Input 3

Mode 1

Mode 2

SVGA 1

SVGA 2

SVGA 3

Image Select

Standard

Real

Image 1

Image 10

Screen

Normal

True

Wide

Full

Digital zoom +

Digital zoom -

PC Adjust

Auto PC adj.

Fine sync.

Total dots

Position H

Position V

Current mode

Clamp

Display area - H

Display area - V

Reset

Mode free

Store

Quit

0–31

Yes/No

Mode 1

Mode 2

Mode 3

Mode 4

Mode 5

Mode 6

Mode 7

Mode 8

Mode 9

Mode 10

Quit

✽ System displayed in the System Menu varies depending on the input signal.

Page 53

APPENDIX

Video Input

System

(2)

Auto

PAL

SECAM

NTSC

NTSC 4.43

PAL-M

PAL-N

System

(3)

Auto

1080i

1035i

720p

575p

480p

575i

480i

Image Select

Standard

Cinema

Image 1

Image 10

Screen

Normal

Wide

Computer Input/Vide Input

Image Adjust

Contrast

Brightness

Color

Tint

Color management

Auto picture control

Color temp.

Store

0–63

Off/L1/L2

Mid

Low

XLow

0–63

0–31

0–15

Off/L1/L2

Off/On/Film

Yes/No

0–63

Color

Gamma

List

Color M.

All Del

Color M.

High

Red

Green

Blue

Sharpness

Gamma

Noise reduction

Progressive

Reset

Image 10

Quit

Image 1

Quit

Sound

Volume

Built-in SP.

Mute

Quit

Computer Input/Vide Input

Setting

Language

Anamorphic

German

Chinese

Japanese

Quit

Store/Reset

Blue/User/Black

Off/Countdown Off/On

Logo select

Capture

Logo PIN code lock

Quit

On/Off

English

Italian

French

Spanish

Portuguese

Dutch

Swedish

Russian

Korean

Keystone

Display

Logo

Ceiling

Rear

On/Off

Menu position

On/Off

Power management

0–63

On/Off

Background

On/Off

Logo PIN code change

Quit

Simple menu

Ready

Off

Shut down

1–30 Min.

Quit

On/Off

Auto/Normal/Eco

On start

Lamp control

Code 1Remote Control

Code 8

Quit

MouseUSB

Projector

Key lock

Security Off

Projector

Remote Control

Quit

PIN code lock Off/On1/On2

PIN code change

Quit

Yes/NoLamp counter

Yes/NoFactory default

Quit

Page 54

APPENDIX

COMPATIBLE COMPUTER SPECIFICATIONS

––––––––

(Interlace)

1024 x 768

(Interlace)

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

VGA 1

640 x 480 31.47 59.88 VGA 2 720 x 400 31.47 70.09 VGA 3 640 x 400 31.47 70.09 VGA 4 640 x 480 37.86 74.38 VGA 5 640 x 480 37.86 72.81 VGA 6 640 x 480 37.50 75.00

MAC LC13

640 x 480 34.97 66.60

MAC 13 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

MAC 19 1024 x 768 60.24 75.08

MAC 21

1152 x 870

68.68 75.06

45.00 60.00

SVGA 1 800 x 600 35.156 56.25 SVGA 2 800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 11 1024 x 768

XGA 13 1024 x 768 XGA 14 1024 x 768

61.00 75.70

XGA15 1024 x 768

46.90 58.20

XGA 8 1024 x 768

47.00 58.30

XGA 9

1024 x 768

(Interlace)

58.03 72.00

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

63.48 79.35

SXGA 3 1280 x 1024

36.00 87.17

SXGA 4

1280 x 1024

64.20 70.40

SXGA 5 1280 x 1024

62.50 58.60

SXGA 6 1280 x 1024

63.90 60.00

SXGA 7

1280 x 1024

63.34 59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11

1152 x 900

71.69 67.19

SXGA 12

1152 x 900

81.13 76.107

SXGA 13

1280 x 1024

(Interlace)

63.98 60.02

SXGA 14

1280 x 1024

(Interlace)

61.20 65.20

71.40 75.60

50.00 86.00

720p

––––––––

(Progressive)

50.00 94.00

37.50 50.00

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

SXGA 15 1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18

1280 x 1024

(Interlace)

63.37 60.01

76.97 72.00

61.85 66.00

46.43

86.70

SXGA 19

1280 x 1024 63.79 60.18

XGA 5 1024 x 768 60.31 74.92

VGA 7 640 x 480 43.269 85.00

575i

––––––––

(Interlace)

15.625

50.00

480i

––––––––

(Interlace)

15.734 60.00

1080i

––––––––

(Interlace)

33.75 60.00

1035i

––––––––

(Interlace)

33.75 60.00

SVGA 10 800 x 600 32.70 51.09

SXGA 20

1280 x 1024 91.146 85.024

480p

––––––––

(Progressive)

31.47 59.88

XGA 10 1024 x 768 62.04 77.07

1080i

28.125

50.00

SXGA+ 1

1400 x 1050 63.97 60.19

SXGA+ 2

1400 x 1050 65.35 60.12

WXGA 3

1376 x 768 48.36 60.00

WXGA 4

1360 x 768 56.16 72.00

XGA 12

35.522 86.96

575p

––––––––

(Progressive)

31.25 50.00

SXGA+ 3

1400 x 1050 65.12 59.90

WXGA 1 1366 x 768 48.36 60.00 WXGA 2 1360 x 768 47.70 60.00

MAC

1280 x 960 75.00 75.08

MAC

1280 x 1024 80.00 75.08

Basically this projector can accept a signal from all computers with V-, H-Frequency mentioned below, and less than 140 MHz of Dot Clock.

720p

––––––––

(Progressive)

UXGA3 1600 x 1200 87.50 70.00 UXGA4 1600 x 1200 93.75 75.00

UXGA1

1600 x 1200 75.00 60.00

UXGA2

1600 x 1200 81.25 65.00

SXGA 21 1400 x 1050 63.90 60.00

Page 55

APPENDIX

NOTE: Specifications are subject to change without notice.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

640 x 480 31.47 59.94

D-480p

720 x 480

(

Progressive

)

31.47 59.88

D-575p

768 x 575

(

Progressive

)

31.25 50.00

D-SVGA

800 x 600 37.879 60.32

D-XGA

1024 x 768 43.363 60.00

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-WXGA1

1366 x 768

48.36

60.00

D-WXGA5

1368 x 768

46.50 50.00

D-1035i

1920 x 1035

(Interlace)

33.75 60.00

D-1080i

1920 x 1080

(

Interlace

)

33.75 60.00

D-1080i

1920 x 1080

(Interlace)

28.125 50.00

D-WXGA2

1360 x 768

47.70

60.00

D-WXGA3

1376 x 768 48.36

60.00

D-720p

1280 x 720

(

Progressive

)

37.50 50.00

D-720p

1280 x 720

(

Progressive

)

45.00 60.00

D-SXGA1

1280 x 1024

63.98 60.02

D-SXGA2

1280 x 1024

60.276 58.069

When a input signal is digital from DVI terminal, refer to the chart below.

D-1080psf/30

1920 x 1080 33.75

60.00

D-1080psf/25

1920 x 1080

28.125

50.00

D-1080psf/24

1920 x 1080 27.00

48.00

D-SXGA+ 1

1400 x 1050

63.97 60.19

INDICATORS AND PROJECTOR CONDITION

Check the indicators for projector condition.

✳

Depending on the condition of signals and the type and length of cables, these signals may not be properly viewed.

✳

✳ ✳

• • • on • • • dim • • • off• • • blinking

The projector is OFF. (The AC power cord is unplugged.)

The projector is ready to be turned on with the POWER ONOFF button.

The Warning Temp. indicator blinks red to let you know the internal temperature of the projector exceeds a normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator goes out. When the projector is cooled down enough and the temperature returns to normal, the READY indicator lights green and the projector can be turned on again. (The WARNING TEMP. indicator keeps blinking.) Check and clean the air filters.

Projector Condition

The projector is operating normally.

The projector is cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING TEMP. indicator stops blinking. Check and clean the air filters.

LAMP

REPLACE

yellow

Indicators

READY

green

LAMP

red

WARNING

TEMP.

red

✽

Page 56

APPENDIX

• • • on • • • dim • • • off• • • blinking

*When the projection lamp reaches its end of life, the LAMP REPLACE indicator lights yellow. When this indicator

lights yellow, replace the projection lamp with a new one promptly. Reset the Lamp replacement counter after replacing the lamp.

The projector is in cooling mode. It cannot be turned on until the READY indicator lights green.

Projector Condition

LAMP

REPLACE

yellow

Indicators

READY

green

LAMP

red

WARNING

TEMP.

red

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

The projector is in the Power management mode.

✽

The temperature inside the projector is abnormally high.

The lamp cannot light up. (The projector is preparing for stand-by or the projection lamp is in cooling mode. The projector cannot be turned on until the cooling process is completed.)

The lamp cannot light up. (The lamp has been cooled down enough and the projector is in stand-by mode and ready to be turned on with the POWER ON-OFF button.)

✽

The projection lamp reaches its end of life. Replace the lamp and then reset the Lamp replacement counter. The indicator is turned off.

Page 57

APPENDIX

Owner’s Manual (CD-ROM) Quick Reference Guide AC Power Cord Wireless/Wired Remote Control Transmitter and Batteries VGA Cable USB Cable Control Cable for Serial Port Lens Attachment Lens Replacement And Installation Manual PIN Code Label

Multi-media Projector

Accessories

● Specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are

effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

● Each projector has its own characteristics. When projecting with several projectors on the same screen or side by side, you may recognize different white balance and color uniformity on each projector.

TECHNICAL SPECIFICATIONS

1.3” TFT Active Matrix type, 3 panels

17.4 lbs (7.9 kg)

12.6” x 6.6” x 16.8” (319 mm x 168 mm x 429.5 mm)

1024 x 768 dots

2,359,296 (1024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

Up and Down

800 TV lines (HDTV)

41˚F–95˚F (5˚C–35˚C)

14˚F–140˚F (-10˚C–60˚C)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency

Horizontal Resolution

Operating Temperature Storage Temperature

LCD Panel System

300 watt type

Projection Lamp

Power Source : AA or LR6 ALKALINE Type x 2 Operating Range : 16.4’ (5 m) / ± 30˚ Dimensions : 2.0” x 1.4” x 7.6” (50 mm x 36 mm x 193 mm) Net Weight : 0.35 lbs (160 g) (including batteries) Laser Pointer : Class II Laser

(Max. Output: 1mW/Wave length: 650±20nm)

Remote Control Transmitter

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

High Definition TV Signal

H-sync. 15 kHz–100 kHz, V-sync. 48–100 Hz

Motorized Lens Shift

DVI Terminal (Digital) HDCP Compatible, HDB 15-pin Terminal (Analog) and Stereo Mini Type Jack (Audio)

Input 1 Jacks

BNC Type x 5 (G or VIDEO/Y, B or Cb/Pb, R or Cr/Pr, H/V, and V), Stereo Mini Type Jack (Audio)

Input 2 Jacks

RCA Type x 3 (VIDEO/Y, Cb/Pb and Cr/Pr), RCA Type x 2 (Audio R and L) and DIN 4-pin (S-Video)

Input 3 Jacks

DIN 8-pin (Control port), USB port (Series B receptacle), Wired Remote Jack and PJ-Net Organizer Connector

Other Jacks

AC 100–120 V (5.7 A Max. Ampere), 50/60 Hz (The U.S.A and Canada) AC 200–240 V (2.7 A Max. Ampere), 50/60 Hz

(Continental Europe and The U.K.)

Voltage and Power Consumption

INT. SP. Stereo (R and L), 3 watt RMS (T.H.D. 10%)

Built-in Speakers

0˚ to 10.5˚

Feet Adjustment

Page 58

CONFIGURATIONS OF TERMINALS

COMPUTER INPUT-1 TERMINALS (ANALOG)

Terminal: HDB15-PIN

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert. sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Terminal: Mini DIN 8-PIN

CONTROL PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS/CTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial ADB 1 2 3 4 5 6 7 8

COMPUTER INPUT-1 TERMINAL (DIGITAL)

Terminal: DVI 24-pin

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data No Connect

6 7 8

Pin Configuration

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

APPENDIX

Vcc

- Data

+ Data

Ground

1 2 3 4

USB CONNECTOR (Series B)

Pin Configuration

9 678

5 13 21

8 7 6

Page 59

APPENDIX

OPTIONAL PARTS

The parts listed below are optionally supplied. When ordering those parts, specify the item name and its Type No. to the sales dealer.

● HDB 15 pin-SCART 21 pin Cable Type No. : POA-CA-SCART

● Standard Zoom Lens Type No. : LNS-S30

● Long Zoom Lens Type No. : LNS-T31A

● Ultra Long Zoom Lens Type No. : LNS-T32

● Short Zoom Lens Type No. : LNS-W31A

● Short Fixed Lens Type No. : LNS-W32

● Remote Control Cable Type No. : POA-CA-RC30

● PJ-Net Organizer Type No. : POA-PN03

● External Air Filter Kit Type No. : POA-FBOX-130

LENS REPLACEMENT

The lens of this projector can be replaced with other optional lens. This feature enables you to use the projector for wide variety of uses. For installation and replacement of the lens, always contact the sales dealer. The projector lens must be installed or replaced by well-trained sales or service engineers. Do not attempt to install and replace the lens by yourself as it may cause injury.

After installing the lens, attach the lens cap to the lens when setting up the projector. Do not hold the lens when carrying or lifting the projector. It may cause serious damage to the projector.

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). The projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

PJLink is a registered trademark of JBMIA.

PJ LINK NOTICE

SANYO Projector Input

RGB (AV HDCP)

RGB (PC analog)

RGB (PC digital)

RGB (Scart)

Video

Y, Pb/Cb, Pr/Cr

RGB

PJLink Input

DIGITAL 2

RGB 1

DIGITAL 1

RGB 2

VIDEO 1

VIDEO 2

Video

Y, Pb/Cb, Pr/Cr

VIDEO 3

VIDEO 4

RGB 3

VIDEO 5

S-video

Input1

Input2

Input3

Parameter

To the sales and service engineers:

Referring to the attached lens replacement and installation manual, replace or install the lens properly.

Page 60

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to use the projector, contact the service station.

Factory default set No: 1 2 3 4*

Factory default set No: 4 3 2 1*

* Should the four-digit number be

changed, the factory set number will be invalid.

Put on the label below (supplied) in a prominent place of the projector’s body while it is locked with a PIN code.

While the projector is locked with the PIN code...

PIN Code Lock No.

Logo PIN Code Lock No.

PIN CODE NUMBER MEMO

APPENDIX

Page 61

DIMENSIONS

APPENDIX

Unit : inch (mm)

2.39 (60.6)

10.5°

12.6 (319.0)

5.59 (142.0)

6.61 (168.0)

3.60 (91.5)

16.8 (429.5)

Screw Holes for Ceiling Mount Screw: M6 Depth: 0.393 (10.0)

5.57 (141.5)

5.28 (134.0)

9.06 (230.0)

4.55 (115.5)

3.74 (95.0)

4.61 (117.0)

4.49 (114.0)

5.79 (147.0)

Page 62

1AA6P1P5225-- KE6A

SANYO Electric Co., Ltd.

Sanyo PLC-XP57L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TO THE OWNER

SAFETY INSTRUCTIONS

COMPLIANCE

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

NAME OF EACH PART OF PROJECTOR

SETTING-UP PROJECTOR

CONNECTING AC POWER CORD

LENS INSTALLATION

ADJUSTABLE FEET

INSTALLING PROJECTOR IN PROPER POSITION

MOVING PROJECTOR

CONNECTING PROJECTOR

TERMINALS OF PROJECTOR

CONNECTING TO COMPUTERS

CONNECTING TO VIDEO EQUIPMENT

BEFORE OPERATION

REMOTE CONTROL OPERATION

LASER POINTER FUNCTION

REMOTE CONTROL BATTERIES INSTALLATION

TOP CONTROLS AND INDICATORS

HOW TO OPERATE ON-SCREEN MENU

ON-SCREEN MENU

FLOW OF ON-SCREEN MENU OPERATION

MENU BAR

BASIC OPERATION

TURNING ON THE PROJECTOR

TURNING ON / OFF PROJECTOR

TURNING OFF THE PROJECTOR

ADJUSTING SCREEN

ZOOM ADJUSTMENT

FOCUS ADJUSTMENT

LENS SHIFT ADJUSTMENT

KEYSTONE CORRECTION

NO SHOW FUNCTION

PICTURE FREEZE FUNCTION

SOUND ADJUSTMENT

P-TIMER FUNCTION

SELECTING INPUT SOURCE

COMPUTER INPUT

SELECTING COMPUTER SYSTEM

PC ADJUSTMENT

AUTO PC ADJUSTMENT

MANUAL PC ADJUSTMENT

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT

PICTURE SCREEN ADJUSTMENT

PICTURE SCREEN SELECT

VIDEO INPUT

SELECTING INPUT SOURCE

SELECTING VIDEO SYSTEM

PICTURE IMAGE SELECT

IMAGE LEVEL SELECT

PICTURE SCREEN ADJUSTMENT

PICTURE SCREEN SELECT

PICTURE IMAGE ADJUSTMENTS

PICTURE IMAGE

SETTING MENU

SETTING

WIRELESS MOUSE

APPENDIX

MAINTENANCE

WARNING TEMP. INDICATOR

CLEANING PROJECTION LENS

AIR FILTERS CARE AND CLEANING

LAMP REPLACEMENT

LAMP REPLACE COUNTER

TROUBLESHOOTING

MENU TREE

COMPATIBLE COMPUTER SPECIFICATIONS

INDICATORS AND PROJECTOR CONDITION

TECHNICAL SPECIFICATIONS

CONFIGURATIONS OF TERMINALS

OPTIONAL PARTS

LENS REPLACEMENT
