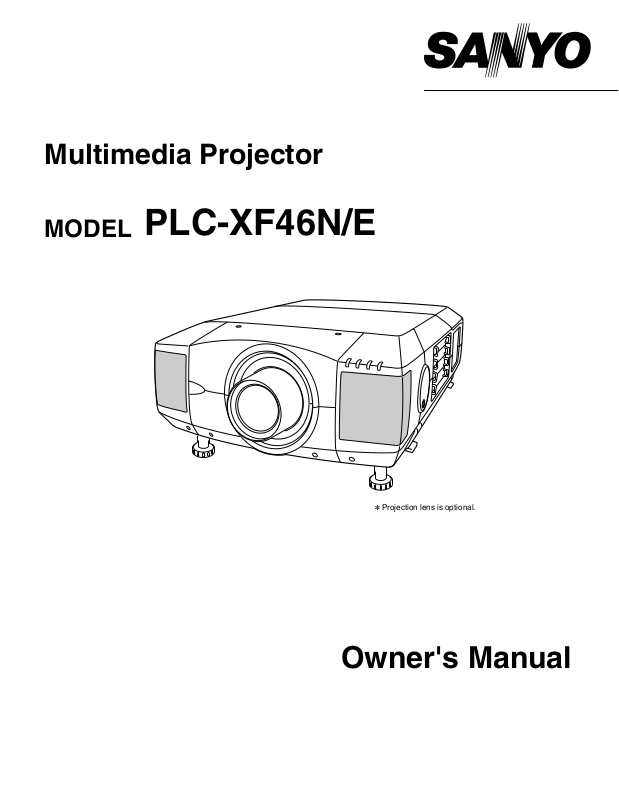

Sanyo PLC-XF46 User Manual
Multimedia Projector
MODEL PLC-XF46N/E
Projection lens is optional.
Owner's Manual
TO THE OWNER
Before operating this projector, read this manual thoroughly and operate the projector properly.
This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintain it in better condition for a considerable time.
Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER’S MANUAL WITH THIS UNIT.
NOTE: This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world.
Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/recycling centre.
In the European Union there are separate collection systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
–This projector produces intense light from the projection lens. Do not stare directly into the lens as much as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.
–Install the projector in a proper position. If not, it may result in a fire hazard.
–Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum clearances must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also
be dangerous.
SIDE and TOP REAR
3.3' (1m)
3.3' (1m) |
3.3' (1m) |
3.3' (1m) |
–If the projector is not to be used for an extended time, unplug the projector from the power outlet.
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the ceiling, clean the air intake vents, air filters, and top of the projector periodically with a vacuum cleaner. If you leave the projector without cleaning for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.
2
SAFETY INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.
This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.
This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:
a.When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the projector.
c.If the projector has been exposed to rain or water.
d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
e.If the projector has been dropped or the cabinet has been damaged.
f.When the projector exhibits a distinct change in performance-this indicates a need for service.
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.
Voor de klanten in Nederland
Bij dit product zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.
3
COMPLIANCES
Federal Communication Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.
CAUTION!
This is a Class A equipment. This equipment can cause interference in residential areas; in this case, the operator can be asked to take adequate countermeasures.
AC POWER CORD REQUIREMENT
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada :
AC Power Cord used in the United States and Canada is listed by the Underwriters
Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure
that the plug will fit into the power outlet. Do not try to defeat this safety feature. GROUND Should you be unable to insert the plug into the outlet, contact your electrician.
AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
The Wires in this mains lead are coloured in accordance with the following code: Green-and-yellow ············ Earth
Blue ································· Neutral Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol
or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
4
TABLE OF CONTENTS
FEATURES AND DESIGN |
6 |
PREPARATION |
7 |
NAME OF EACH PART OF PROJECTOR |
7 |
SETTING-UP PROJECTOR |
8 |
CONNECTING AC POWER CORD |
8 |
LENS INSTALLATION |
9 |
POSITIONING PROJECTOR |
9 |
LENS SHIFT ADJUSTMENT |
9 |
PICTURE LEVEL AND TILT ADJUSTMENT |
10 |
INSTALLING PROJECTOR IN PROPER POSITION |
10 |
MOVING PROJECTOR |
|
CONNECTING PROJECTOR |
|
TERMINALS OF PROJECTOR |
12 |
CONNECTING TO COMPUTER |
15 |
CONNECTING TO VIDEO EQUIPMENT |
16 |
BEFORE OPERATION |
17 |
SIDE CONTROLS AND INDICATORS |
17 |
OPERATION OF REMOTE CONTROL |
19 |
REMOTE CONTROL BATTERIES INSTALLATION |
20 |
OPERATING ON-SCREEN MENU |
21 |
HOW TO OPERATE ON-SCREEN MENU |
|
FLOW OF ON-SCREEN MENU OPERATION |
21 |
MENU BAR |
22 |
BASIC OPERATION |
23 |
TURNING ON / OFF PROJECTOR |
|
TURNING ON PROJECTOR |
23 |
TURNING OFF PROJECTOR |
23 |
ADJUSTING SCREEN |
24 |
ZOOM ADJUSTMENT |
24 |
FOCUS ADJUSTMENT |
24 |
LENS SHIFT ADJUSTMENT |
24 |
KEYSTONE ADJUSTMENT |
24 |
PICTURE FREEZE FUNCTION |
25 |
NO SHOW FUNCTION |
25 |
P-TIMER FUNCTION |
25 |
COMPUTER INPUT |
26 |
SELECTING INPUT SOURCE |
26 |
SELECTING COMPUTER SYSTEM |
26 |
PC ADJUSTMENT |
28 |
AUTO PC ADJUSTMENT |
28 |
MANUAL PC ADJUSTMENT |
29 |
PICTURE IMAGE ADJUSTMENT |
31 |
IMAGE LEVEL SELECT |
31 |
IMAGE LEVEL ADJUSTMENT |
32 |
PICTURE SCREEN ADJUSTMENT |
33 |
|
34 |
|
34 |
|
35 |
|
36 |
IMAGE LEVEL SELECT |
36 |
IMAGE LEVEL ADJUSTMENT |
37 |
PICTURE SCREEN ADJUSTMENT |
38 |
SETTING |
39 |
SETTING MENU |
39 |
|
42 |
MAINTENANCE |
42 |
WARNING TEMP. INDICATOR |
42 |
|
47 |
MENU TREE |
48 |
INDICATORS AND PROJECTOR CONDITION |
50 |
COMPATIBLE COMPUTER SPECIFICATIONS |
51 |
TECHNICAL SPECIFICATIONS |
53 |
CONFIGURATIONS OF TERMINALS |
54 |
DIMENSIONS |
55 |
TRADEMARKS
●Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.
●IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.
●Windows and PowerPoint are registered trademarks of Microsoft Corporation.
●Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.
5
FEATURES AND DESIGN
This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
Compatibility
This projector widely accepts various video and computer input signals including;
●Computers
IBM-compatible or Macintosh computer up to 1600 x 1200 resolution.
●6 Color Systems
NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL- N color system can be connected.
●Component Video
Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i, 1080i-50 or 1080i60, can be connected.
●S-Video
S-Video signal, such as a S-VHS VCR output signal, can be connected.
High Resolution Image
This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. Resolution from a computer between XGA (1024 x 768) and UXGA (1600 x 1200) is compressed into 1024 x 768 dots. This projector cannot display image of over 1600 x 1200 dots. When resolution of your computer is over than 1600 x 1200, reset a computer output for lower resolution.
Motor-driven Lens Shift
Projection lens can be moved up, down left and right with motor-driven lens shift function. This function makes it easy to provide projected image where you want.
Zoom and focus can be also adjusted with motor-driven operation.
Power Management
Power Management function is provided to reduce power consumption while a projector is not in use.
This Power Management function operates to turn Projection Lamp off when a projector detects signal interruption and any button is not pressed over 5 minutes. Projection Lamp is automatically turned on again when a projector detects signal or any operation button is pressed.
This projector is shipped with this function ON.
Digital Visual Interface
This projector is equipped with DVI 29-pin terminal for connecting DVI output from a computer.
Multi Versatile Platform
This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment.
Multi-Scan System
This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.
One-Touch Auto PC Adjustment
Incoming computer video signals are recognized and best adjustment is automatically set by Auto PC Adjustment. No complicated setup is necessary and projection is always precise.
Progressive Scan Function
This function converts interlace video signals into progressive scan signals and provide fine picture quality.
Digital Zoom (for Computer)
Digital Zoom function adjusts image size to approx. 1/4 ~ 49 times of original image size, allowing you to focus on crucial information at a presentation.
Selectable Terminal Slots
4-built-in Terminal Slots enable you to arrange any combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.
Multilanguage Menu Display
Operation menu is displayed in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean or Japanese.
Network board (Optional)
Network board is an optional product to control and set up a projector via the network cable by accessing to the connected projector using the web browser on your computer. It can be controlled and set up the projector remotely. Contact the sales dealer where you purchased this projector for optional parts.
Keystone Correction
Positioning height of a projector may result in distorted image being displayed in a trapezoid shape. Keystone Correction solves this problem by digitally altering projection to produce undistorted images.
6
PREPARATION
NAME OF EACH PART OF PROJECTOR
FRONT OF CABINET
INFRARED
REMOTE RECEIVER
PROJECTION LENS
LENS CAP
CAUTION
Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard.
BACK OF CABINET
EXHAUST VENT
HOT AIR EXHAUSTED !
Air blown from exhaust vent is hot. When using or installing a projector, following precautions should be taken.
●Do not put a flammable object near this vent.
●Keep rear grills at least 3.3’ (1m) away from any object, especially heat-sensitive object.
●Do not touch this area, especially screws and metallic parts. This area will become hot while a projector is used.
This projector detects internal temperature and automatically controls operating power of Cooling Fans.
BOTTOM OF CABINET
AIR INTAKE VENTS
This projector is equipped with cooling fans for protection from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.
●Do not cover vent slots.
●Keep bottom clear of any objects. Obstructions may block cooling air.
POWER CORD
CONNECTOR
MAIN ON / OFF
SWITCH
CARRYING HANDLE
LEVEL AND TILT ADJUST HANDLE
INFRARED
REMOTE RECEIVER
LAMP COVER
AIR FILTER
ADJUSTABLE FEET
ADJUSTABLE FEET
7
PREPARATION
SETTING-UP PROJECTOR
CONNECTING AC POWER CORD
This projector uses nominal input voltages of 120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with singlephase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system.
Consult your authorized dealer or service station if you are not sure of type of power supply being in use. Connect a projector with peripheral equipment before turning a projector on. (Refer to pages 13 ~ 16 for connection.)
Connect AC Power Cord (supplied) to a projector.
AC outlet must be near this equipment and must be easily accessible.
NOTE ON POWER CORD
AC Power Cord must meet requirement of country where you use a projector.
Confirm AC plug type with chart below and proper AC power cord must be used.
If supplied AC Power Cord does not match AC outlet, contact your sales dealer.
Projector side |
|
AC Outlet side |
|
|
|
For the U.S.A. and Canada |
For Continental Europe |
For the U.K. |
|
|
Ground |
|
|
|
To POWER CORD |
To the AC Outlet. |
|
To the AC Outlet. |
|
To the AC Outlet. |
(200 - 240 V AC) |
|||
CONNECTOR on a |
(120 V AC) |
|||
projector. |
|
(200 - 240 V AC) |
|
8
PREPARATION
LENS INSTALLATION
Before setting up a projector, install Projection Lens on a Projector.
1.Before installation, check where a projector is used and prepare suitable lens. For specifications of Projection Lens, refer to manual separately attached or contact sales dealer where you purchased a projector.
2.For installation, refer to installation manual supplied to a Projector.
When moving or setting up a projector, be sure to replace a Lens Cap to protect a surface. And be careful not to hold or subject a lens to strong forces. It may damage lens, cabinet, or mechanical parts.
POSITIONING PROJECTOR
This projector is designed to project on a flat projection |
SCREEN |
|
surface. |
||
|
||
ROOM LIGHT |
|
|
Brightness in room has a great influence on picture |
|
|
quality. It is recommended to limit ambient lighting in |
|
|
order to provide best image. |
|
VENTILATION
This projector is equipped with cooling fan to protect it from overheating. Pay attention to following to ensure proper ventilation and avoid a possible risk of fire and malfunction.
● Do not cover vents with papers or other materials.
● Keep rear grill at least 3.3 feet (1 m) away from any |
|
object. |
|
● Make sure that there are no objects under a projector. |
|
An object under a projector may prevent a projector |
|
from taking cooling air through bottom vent. |
EXHAUST VENT |
AIR INTAKE VENT |
|
(BOTTOM SIDE) |
(REAR SIDE) |
LENS SHIFT ADJUSTMENT
Projection lens can be moved up, down, left and right with motor-driven lens shift function. This function makes it easy to provide projected image where you want.
Use LENS SHIFT button and
POINT UP/DOWN button to move image up or down. (Refer to page 24.)
Use LENS SHIFT button and POINT LEFT/RIGHT button to move image left or right.
(Refer to page 24.)
MOVED UP OR DOWN |
MOVED LEFT OR RIGHT |
|
9
PREPARATION
PICTURE LEVEL AND TILT ADJUSTMENT
Picture tilt and projection angle can be adjusted with handles on both sides of a projector. Projection angle can be adjusted to 5.7 degrees upper way.
1 |
Press knob on handle. Handle pop out. |
|
|
2 |
Turn handles (right and left) until picture is projected on |
|
|
|
proper position. Adjust height of rear adjustable feet by |
|
rotating them until projector properly stabled on table. |
3 |
Press knob and retract handle. |
|
REAR ADJUSTABLE
FEET. (Refer to P7).
LEVEL AND TILT
ADJUST HANDLE
KNOB
ADJUSTABLE
FEET
Height of front feet can be adjusted by turning handles.
INSTALLING PROJECTOR IN PROPER POSITION
Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.
10˚
Do not tilt the projector more than 10 degrees above and below.
10˚
Do not point the projector up to project an image.
NO UPWARD
Do not point the projector down to project an image.
NO DOWNWARD
Do not put the projector on either side to project an image.
NO SIDEWAYS
10
PREPARATION
MOVING PROJECTOR
|
For safety, be sure to hold Carrying Handles |
|
on both sides by 2 or more people when |
|
moving a projector. Moving it unproperly may |
|
result in damage of cabinet or person's |
|
injury. |
|
Replace lens cap and retract feet to prevent |
|
damage to lens and cabinet. |
|
|
1 |
Pull up lock buttons on each side of carrying handles |
|
and release locks. |
2 |
Pull carrying handles out fully until it's locked (with a |
|
click). Move a projector by holding two handles by 2 or |
|
more people. |
3 |
To retract carrying handles, pull up lock buttons and |
|
release lock of handles and press handles fully in until |
it's locked.
CARRYING
HANDLE
LOCK BUTTONS
Pull up lock buttons to release lock.
CAUTION IN CARRYING OR TRANSPORTING A PROJECTOR
●Do not drop or bump a projector, otherwise damages or malfunctions may result.
●When carrying a projector, use a suitable carrying case.
●Do not transport a projector by using a courier or transport service in an unsuitable transport case. This may cause damage to a projector. To transport a projector through a courier or transport service, consult your dealer and best case should be applied.
11
CONNECTING PROJECTOR
TERMINALS OF PROJECTOR
This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector.
4 TERMINAL SLOTS (Factory set)
SERIAL PORT IN |
|
DVI |
|
|
AUDIO |
L |
CONTROL PORT |
|
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
(MONO) |
||
SERIAL PORT OUT |
R/Pr |
G/Y B/Pb H/HV |
V |
AUDIO |
CONTROL PORT |
|||
|
|
R |
L |
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
(MONO) |
||
R/C JACK |
USB |
VIDEO/Y |
C |
S-VIDEO |
|
AUDIO |
|
|
|
|
R |
L |
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
(MONO) |
||
AUDIO OUT |
|
|
|
|
AUDIO |
CONTROL PORT |
||
R |
L |
|
ANALOG RGB |
|
|
|||
|
|
|
R |
L |
|
|||
INPUT/OUTPUT |
RESET |
|
|
|
|
|
||
TERMINALS |
(MONO) |
|
|
|
|
(MONO) |
||
|
|
|
|
|
|
|||
INPUT 4 INPUT 3 INPUT 2 INPUT 1
DVI Terminal
5 BNC Terminal
AV Terminal
HDB 15-PIN
Terminal
REPLACEMENT OF TERMINAL
NOTE; When replacement of terminal board, MAIN ON/OFF switch should be OFF position.
1
2
Remove 2 Screws on terminal.
Pull out terminal by holding handle.
3 |
Replace terminal. Insert terminal along Guide to fit Plug |
|
|
into Socket. |
|
4 |
Tighten screws to secure terminal. |
Screws |
NOTES ON ORDERING OR USING |
Guide |
|
OPTIONAL INTERFACE BOARD |
Socket |
|
|
|
|
When ordering or using Optional Interface Board (Terminal Board), contact your sales dealer. When contacting the sales dealer, tell the Optional Control Number (Op.cont.No.) in the menu that is located under Language Select Menu. (See page 39.)
Figure shows HDB 15-PIN terminal.
Plug
12
CONNECTING PROJECTOR
INPUT/OUTPUT TERMINALS AND JACKS
INPUT 2 |
INPUT 1 |
INPUT 1, 2, 3, 4 |
5 BNC INPUT JACKS |
|
DVI INPUT TERMINAL |
|
Connect component video output (Cr, Y, |
Connect computer output |
||
Cb or Pr, Y, Pb) from video equipment to |
(Digital/Analog DVI-I type) to |
||
R/Pr, G/Y and B/Pb jacks or connect |
this terminal. |
||
computer output [5 BNC Type (Red, |
(Refer to P15.) |
||
Green, Blue, Horiz. Sync and Vert. HD (HDCP Compatible) signal
Sync.)] from computer to R/Pr, G/Y, |
can also be connected. |
B/Pb, H/HV and V jacks. (Refer to P15, |
(Refer to P16.) |
16.) |
|
SERIAL PORT IN |
|
|
|
|
|
AUDIO |
CONTROL PORT |
||
|
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
|
(MONO) |
||
SERIAL PORT OUT |
R/Pr |
G/Y |
B/Pb |
H/HV |
V |
AUDIO |
CONTROL PORT |
||
|
|
R |
L |
|
|||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(MONO) |
|
|
R/C JACK |
USB |
VIDEO/Y |
C |
|
S-VIDEO |
|
AUDIO |
|
|
|
|
|
R |
L |
|
||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(MONO) |
|
|
AUDIO OUT |
|
|
|
|
|
A |
CONTROL PORT |
||
R |
L |
|
ANALOG RGB |
|
|
||||
|
|
|
R |
L |
|
||||
|
RESET |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
(MONO) |
|
|
|
|
|
(MONO) |
|
|
|
|
|
|
|
|
|
|
||
INPUT 3 |
INPUT 4 |
AUDIO INPUT JACKS
Connect audio output from computer or video equipment to these jacks. (Refer to P15, 16.)
INPUT 1 |
|
|
|
|
|
|
|
|
|
INPUT 2 |
|
|
|
|
|
|
|
INPUT 1, 2, 4 |
|
3 |
||||
|
|
|
||
|
|
CONTROL PORT CONNECTORS |
||
INPUT |
|
|
||
|
|
|
||
|
|
|
The port is not functioning |
|
|
|
|
in this model. |
|
INPUT 4 |
|
|||
|
|
|
INPUT 3
AV INPUT (VIDEO/Y, C) JACKS |
|
HDB 15-PIN INPUT TERMINAL |
|
|
|
Connect composite video output from |
Connect computer output |
|
video equipment to VIDEO/Y jack or |
(Analog HDB 15-pin type) to |
|
connect Separate Y/C video outputs to |
this terminal. |
|
VIDEO/Y and C jacks. (Refer to P16.) |
(Refer to P15.) |
|
S-VIDEO INPUT JACK
Connect S-VIDEO output from video equipment to this jack. (Refer to P16.)
13
CONNECTING PROJECTOR
SERIAL PORT
IN TERMINAL
If you control a projector by computer, you must connect a cable (not provided) from your computer to this terminal.
USB PORT (Series B)
This port is used to service this projector.
Connect USB port of computer to this port.
SERIAL PORT
OUT TERMINAL
This terminal outputs signal from SERIAL PORT IN. More than two projectors can be controlled with one computer by connecting SERIAL PORT IN. of another projector to this terminal.
SERIAL PORT IN
SERIAL PORT OUT
R/C JACK
AUDIO OUT
R
L
RESET
(MONO)
R/C JACK
When using Wired / Wireless Remote Control Unit as Wired Remote Control, Connect Wired Remote Control Unit to this jack with Remote Control Cable (supplied).
(Refer to page 19.)
|
|
DVI |
|
|
AUDIO |
CONTROL PORT |
|
|
|
|
|
|
R |
L |
|
1 |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
(MONO) |
INPUT |
|
|
|
|
|
|
|
|
||
R/Pr |
G/Y |
B/Pb |
H/HV |
V |
|
AUDIO |
CONTROL PORT |
2 |
R |
L |
|
||||||
|
|
|
|
|
|
INPUT |
||
|
|
|
|
|
|
(MONO) |
||
|
|
|
|
|
|
|
||
VIDEO/Y |
C |
|
S-VIDEO |
|
AUDIO |
|
3 |
|
|
|
|
R |
L |
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
INPUT |
||
|
|
|
|
|
|
(MONO) |
||
|
|
|
|
|
|
|
||
|
ANALOG RGB |
|
|
|
AUDIO |
CONTROL PORT |
|
|
|
|
|
R |
L |
|
4 |
||
|
|
|
|
|
|
|||
|
|
|
|
|
|
(MONO) |
INPUT |
|
|
|
|
|
|
|
|
||
RESET BUTTON
This projector uses a micro processor to control unit. Occasionally, micro processor may malfunction and need to be reset. This can be done by pressing RESET button with a pen, which will shut down and restart unit. Do not use RESET function excessively.
AUDIO OUTPUT JACKS
Connect an external audio amplifier to these jacks.
(Refer to P15, 16.)
14
CONNECTING PROJECTOR
CONNECTING TO COMPUTER
Cables used for connection
•VGA Cable (HDB 15 pin)
•DVI Cable
•BNC Cable (BNC x 5)
•Audio Cables (RCA x 2)
( = Cables are not supplied with this projector.)
NOTE :
When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.
IBM-compatible computers or Macintosh computers (VGA / SVGA / XGA / SXGA/WXGA/UXGA)
|
|
Desktop type |
Laptop type |
Monitor Output |
Monitor Output |
Monitor Output |
Audio Output |
DVI Cable |
Audio Cable |
BNC Cable |
(stereo) |
VGA Cable |
|
Terminals of
a Projector
SERIAL PORT IN |
|
|
DVI |
|
|
AUDIO |
L |
CONTROL PORT |
|
|
|
|
|
|
|
|
R |
|
|
|
|
|
|
|
|
|
(MONO) |
||
SERIAL PORT OUT |
R/Pr |
G/Y |
B/Pb |
H/HV |
V |
AUDIO |
CONTROL PORT |
||
|
|
R |
L |
|
|||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(MONO) |
||
R/C JACK |
USB |
VIDEO/Y |
C |
|
S-VIDEO |
|
AUDIO |
|
|
|
|
|
R |
L |
|
||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(MONO) |
||
AUDIO OUT |
|
|
|
|
|
AUDIO |
CONTROL PORT |
||
R |
L |
|
ANALOG RGB |
|
|
||||
|
|
|
R |
L |
|
||||
|
RESET |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
(MONO) |
|
|
|
|
|
(MONO) |
||
|
|
|
|
|
|
|
|||
INPUT 4 INPUT 3 INPUT 2 INPUT 1
AUDIO OUT
Audio Cable
(stereo)
Audio Input
External Audio Equipment
Audio Amplifier |
|
|
Audio Speaker |
|
|
|
|
|
(stereo) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15
CONNECTING PROJECTOR
CONNECTING TO VIDEO EQUIPMENT
Cables used for connection
• Video Cable (BNC x 1, BNC x 2 or BNC x 3) |
• DVI Cable |
• HDB 15 pin-Scart 21 pin Cable |
• DVI-VGA Adapter |
• S-VIDEO Cable |
• Audio Cable (RCA x 2) |
( = Cables are not supplied with this projector.)
Video Source (example) |
|
|
Component video output equipment. |
Video Cassette Recorder |
Video Disc Player |
(such as DVD player or |
|
high-definition TV source.) |
|||
Composite |
Separate Y/C |
Component Video Output |
|
Video Output |
Video Output |
Pr/Cr |
Y Pb/Cb |
|
|
||
|
Y |
C |
|
Digital Output |
RGB Scart |
S-VIDEO |
Audio Output |
(HDCP compatible) |
21-pin Output |
Output |
|
|
|
R |
L |
|
|
HDB 15 pin- |
|
|
|
SCART 21 pin |
|
Video |
DVI Cable |
Cable |
DVI-VGA |
|
|||
Cable |
|
|
Adapter |
Video |
|
|
|
Cable |
|
|
|
VIDEO |
Y-C |
Pr/Cr-Y-Pb/Cb |
|
|
DVI |
|
|||||
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
S-VIDEO
Cable
Audio Cable
(Stereo)
S-VIDEO |
AV AUDIO IN |
SERIAL PORT IN |
|
|
DVI |
|
|
|
SERIAL PORT OUT |
R/Pr |
G/Y |
B/Pb |
H/HV |
V |
|
|
|
|||||
R/C JACK |
USB |
VIDEO/Y |
C |
|
S-VIDEO |
|
AUDIO OUT |
|
|
|
|
|
|
R |
L |
|
ANALOG RGB |
|
|
|
|
RESET |
|
|
|
|
|
(MONO)
AUDIO OUT
Audio Cable
(Stereo)
Audio Input
External Audio Equipment
Audio Amplifier Audio Speaker (stereo)
AUDIO |
CONTROL PORT |
|
|
|
R |
L |
|
1 |
|
|
(MONO) |
INPUT |
|
|
|
|
|
||
|
AUDIO |
CONTROL PORT |
2 |
|
R |
L |
|
|
|
|
INPUT |
|
||
|
(MONO) |
|
||
|
|
|
||
AUDIO |
|
3 |
|
|
R |
L |
|
|
|
|
INPUT |
|
||
|
(MONO) |
Terminals of |
||
|
|
|||
R |
AUDIO |
CONTROL PORT |
4 |
a Projector |
L |
|
|
||
|
(MONO) |
INPUT |
|
|
|
|
|
||
NOTE :
When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. Turn a projector and peripheral equipment on before computer is switched on.
16
BEFORE OPERATION
SIDE CONTROLS AND INDICATORS
REAR
INDICATORS
SIDE CONTROLS
FRONT
INDICATORS
|
SIDE CONTROLS |
|
|
|
|
ZOOM BUTTONS |
|
FOCUS BUTTONS |
Used to adjust zoom. |
|
Used to adjust focus. (P24) |
(P24) |
|
|
ZOOM |
FOCUS |
ON-OFF |
POWER ON–OFF BUTTON
Used to turn a projector on or off. (P23)
MENU BUTTON
Used to open or close MENU operation. (P21, 22)
SELECT BUTTON |
|
LENS SHIFT INPUT 1/2 |
|
MENU |
|
||
Used to execute item |
|
|
|
selected. It is also used to |
|
|
|
expand image in DIGITAL |
SELECT |
INPUT 3/4 |
|
ZOOM mode. (P33) |
|||
|
|||
AUTO PC ADJ. BUTTON |
|
|
|
Use to operate AUTO PC |
|
|
|
Adjustment function. (P28) |
|
|
|
AUTO PC ADJ. |
|
IMAGE |
POINT BUTTONS
Used to select an item or adjust value in MENU. It is also used to pan image in DIGITAL ZOOM mode. (P33)
LENS SHIFT BUTTON
Used to select LENS SHIFT function. (P24)
INPUT 1/2 BUTTON
Used to select input source either INPUT 1 or INPUT 2. (P26, 34)
INPUT 3/4 BUTTON
Used to select input source either INPUT 3 or INPUT 4. (P26, 34)
IMAGE BUTTON
Used to select image level. (P31, 36)
17
BEFORE OPERATION
INDICATORS
FRONT INDICATORS
LAMP
READY
WARNING
LAMP TEMP.
REPLACE
LAMP REPLACE INDICATOR
This LAMP REPLACE indicator lights yellow when any of Projection Lamps is nearing its end, and flashes when any of them becomes out. Check which lamp needs to be replaced on Lamp Status Display.
(P42-44, 50)
WARNING TEMP. INDICATOR |
|
READY INDICATOR |
|
LAMP INDICATOR |
|
This indicator flashes red |
This indicator lights green |
|
This indicator is dim when a |
||
when internal projector |
when a projector is ready to |
|
projector is turned on. And |
||
temperature is too high. |
be turned on. |
And it |
|
bright when a projector is in |
|
(P42, 50) |
flashes green in |
Power |
|
stand-by mode. (P50) |
|
|
|
Management mode. |
|
|
|
|
|
(P40, 42, 50) |
|
|
|
LAMP
READY
WARNING
TEMP.
LAMP
REPLACE
REAR INDICATORS
18
BEFORE OPERATION
OPERATION OF REMOTE CONTROL
LIGHT BUTTON
Lights the buttons on the remote control for about 10 seconds.
MENU BUTTON
Used to select MENU operation. (P21, 22)
POINT (UP / DOWN / LEFT / RIGHT)
BUTTONS
Used to select an item or adjust value in ON-SCREEN MENU. They are also used to pan image in DIGITAL ZOOM +/– mode. (P33)
LENS SHIFT BUTTON
Used to select LENS
SHIFT function. (P24)
ZOOM BUTTONS
Used to adjust zoom. (P24)
FREEZE BUTTON
Used to freeze picture. (P25)
P-TIMER BUTTON
Used to operate P-TIMER function. (P25)
WIRED REMOTE JACK
AUTO PC ADJ. BUTTON
Used to operate AUTO PC Adjustment function. (P28)
When using as Wired Remote Control, connect Remote Control Cable (supplied) to this jack.
Battery installation is required when using as Wired Remote Control.
POWER ON-OFF BUTTON
Used to turn projector on or off. (P23)
NO SHOW BUTTON
Used to turn picture into black image. (P25)
SELECT BUTTON
Used to execute item selected. It is also used to expand / compress image in DIGITAL ZOOM mode. (P33)
IMAGE ADJ. BUTTON
Used to adjust image level. (P37-38)
FOCUS BUTTON
Used to adjust focus. (P24)
INPUT 1, 2, 3, 4 BUTTONS
Used to select input source. (P26, 34)
D.ZOOM BUTTON
Used to select DIGITAL ZOOM +/– mode and resize image. (P33)
KEYSTONE BUTTON
Used to correct keystone distortion. (P24, 39)
IMAGE SEL. BUTTON
Used to select image level. (P31, 36)
19
BEFORE OPERATION
REMOTE CONTROL BATTERIES INSTALLATION
1 |
2 |
3 |
compartment lid. |
|
Pull up lid and remove it.
Two AA size batteries
For correct polarity (+ and
–), be sure battery terminals are in contact with pins in compartment.
To insure safe operation, please observe following precautions :
●Use (2) AA or R06 type alkaline batteries.
●Replace two batteries at same time.
●Do not use a new battery with an used battery.
●Avoid contact with water or liquid.
●Do not expose Remote Control Unit to moisture, or heat.
●Do not drop Remote Control Unit.
●If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.
●Danger of explosion if battery is incorrectly replaced.
●Dispose of used batteries according to batteries manufacturers instructions and local rules.
Operating Range
Point Remote Control Unit toward projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for Remote Control Unit is about 16.4’ (5m) and 60° in front and rear of a projector.
60°
16.4’ (5 m)
16.4’ (5 m)
60°
20
Loading...
