Owner's Manual

PLC-XF12N/12NL

Multimedia Projector

MODEL

PLC-XF12E/12EL PLC-XF12B/12BL

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Trouble-shooting” section of the end of this booklet. If the problem still persists, contact the sales dealer where you purchased the projector or the service center.

TO THE OWNER

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

● This projector produces intense light from the projection lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

● This projector should be set in the way indicated. If not, it may result in a fire hazard.

● Take appropriate space on the top, sides and rear of the projector

cabinet for allowing air circulation and cooling the projector. Minimum distance should be taken. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

● Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes.

● The Remote Control Unit, supplied to this projector, emits the laser beam as the Laser Pointer function from the Laser Light Window while pressing the LASER button. Do not look into the Laser Light Window or shine the laser beam on yourself or other people. Eye damage may result.

● If the projector is not to be used for an extended time, unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP

REAR

20cm

50cm 50cm

SAFETY PRECAUTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

COMPLIANCES

Federal Communication Commission Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral

Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

GROUND

ASA

FEATURES AND DESIGN 6

BEFORE OPERATION 23

COMPUTER MODE 36

VIDEO MODE 44

SETTING 48

APPENDIX 50

PREPARATION 7

NAME OF EACH PART OF THE PROJECTOR 7 SETTING-UP THE PROJECTOR 8

CONNECTING THE AC POWER CORD 8 POSITIONING THE PROJECTOR 9 PICTURE LEVEL AND TILT ADJUSTMENT 10 MOVING THE PROJECTOR 10

CONNECTING THE PROJECTOR

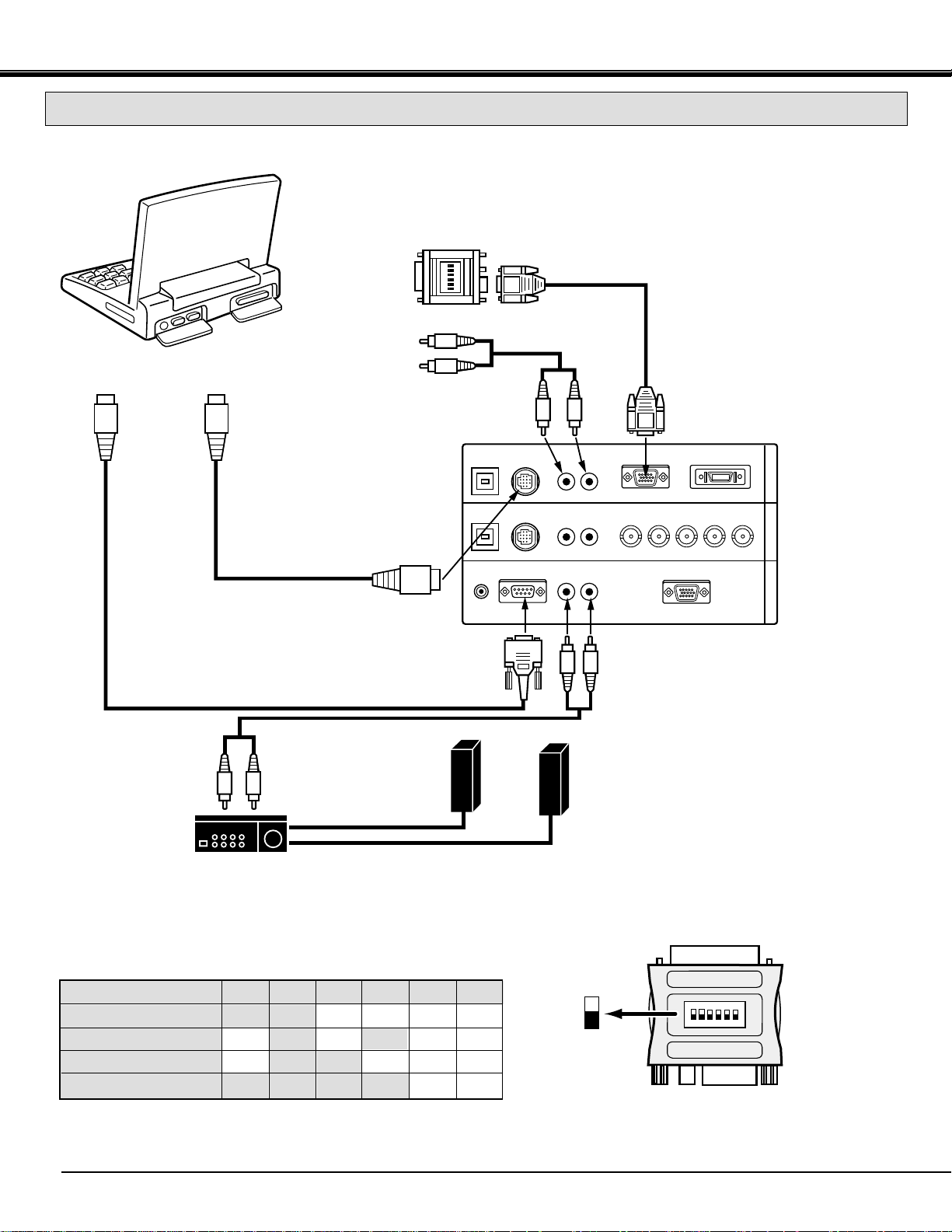

TERMINAL OF THE PROJECTOR 11 CONNECTING THE COMPUTER 13 CONNECTING THE VIDEO EQUIPMENT 21

CONTROLS AND INDICATORS 23 OPERATION OF THE REMOTE CONTROL 25

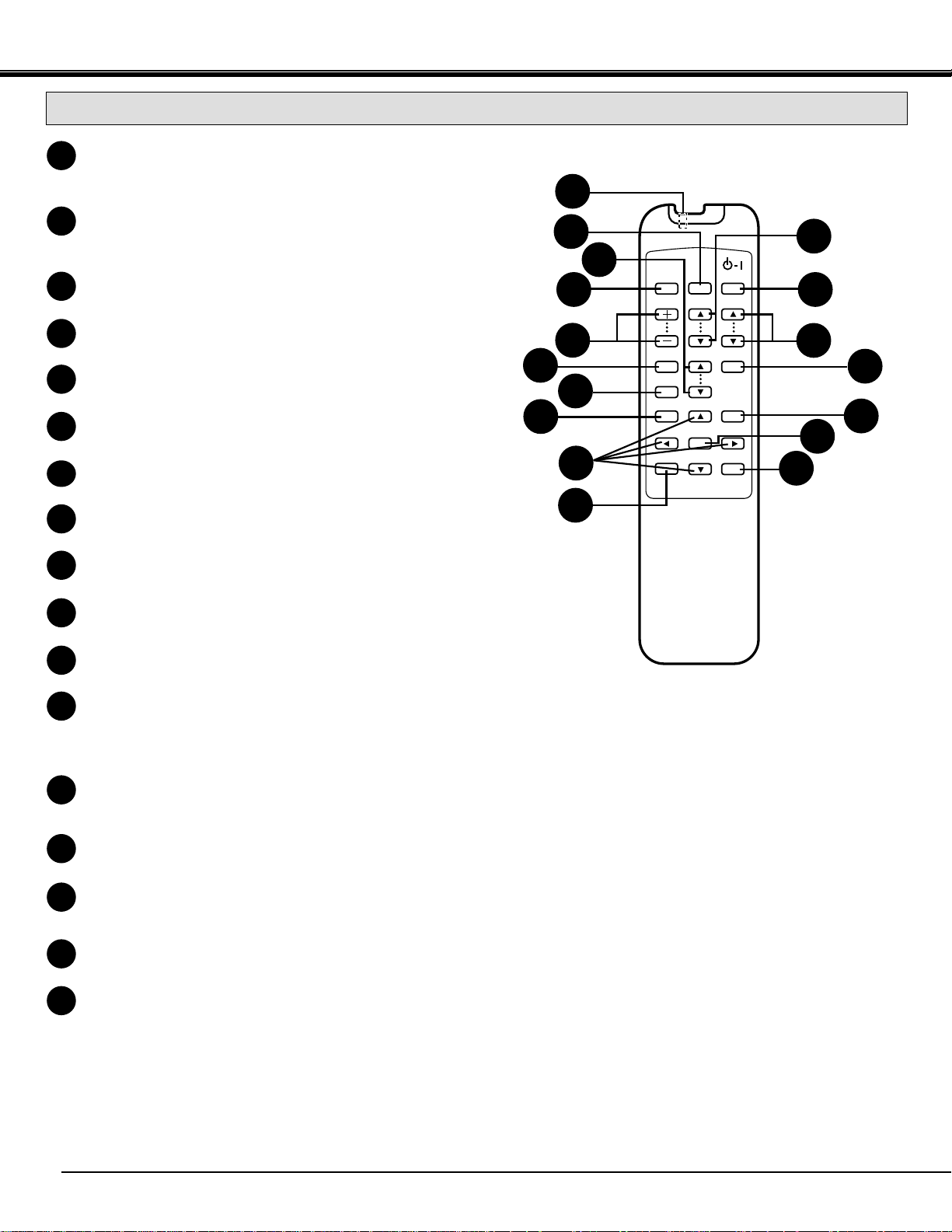

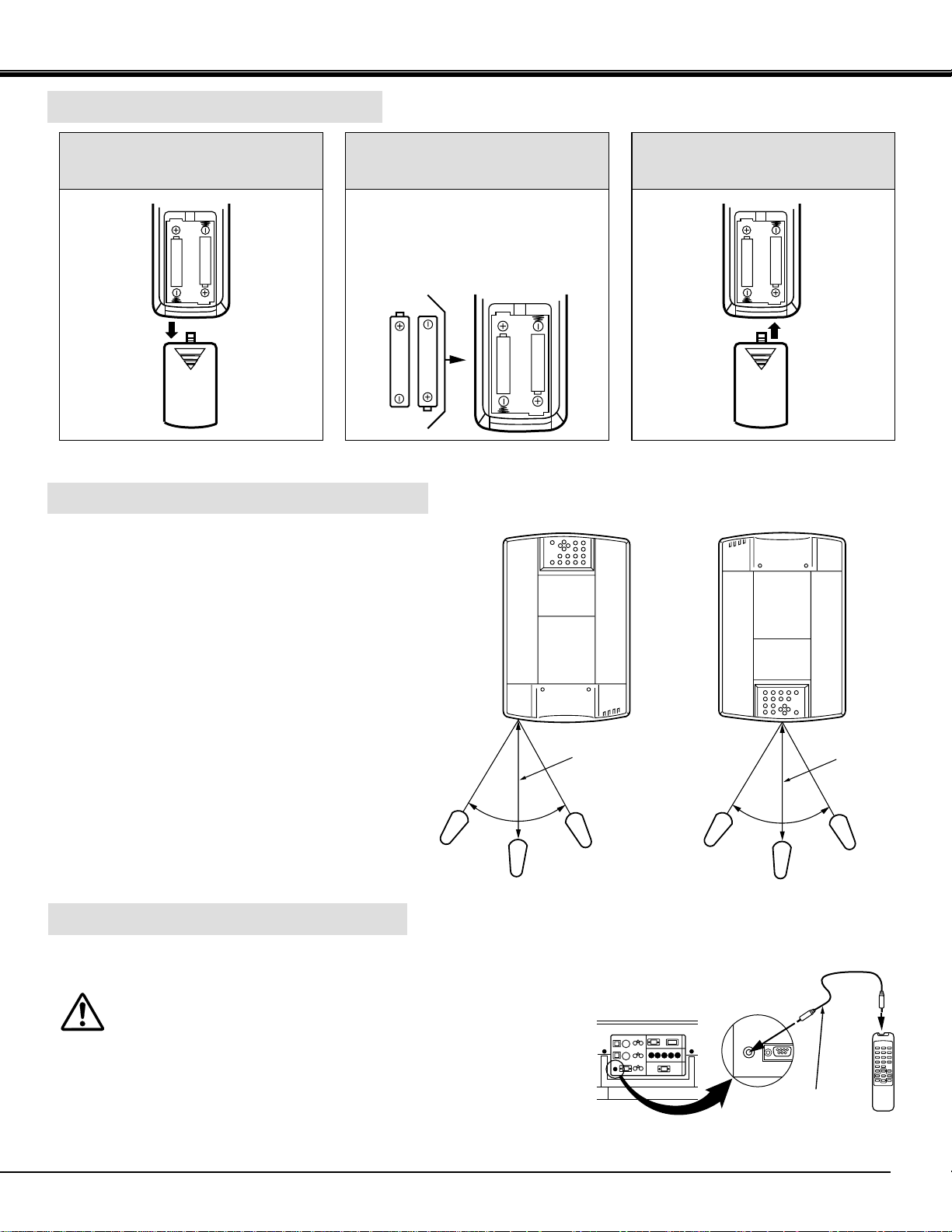

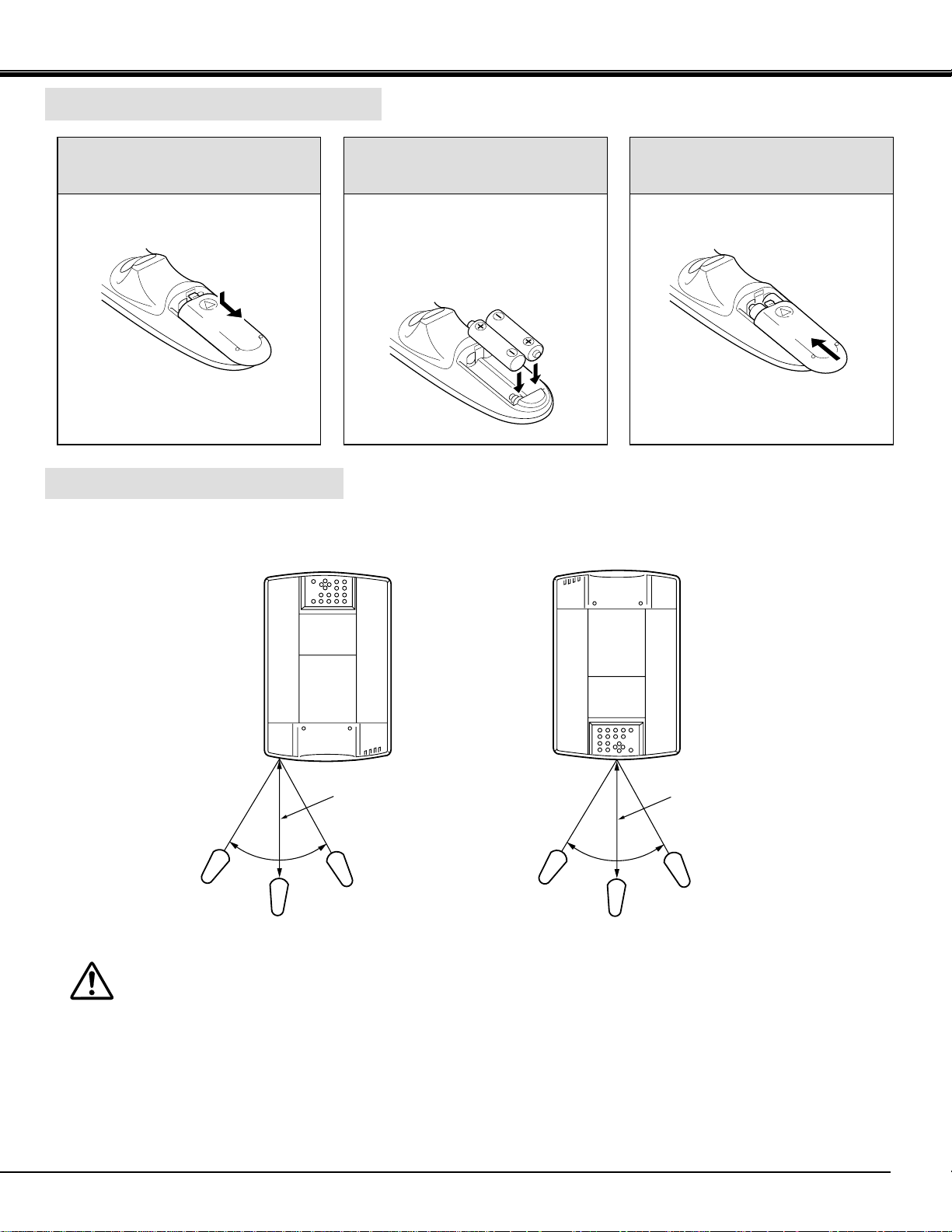

WIRELESS REMOTE CONTROL UNIT 25 WIRELESS/WIRED REMOTE CONTROL UNIT 28

OPERATING ON-SCREEN MENU 30

HOW TO OPERATE ON-SCREEN MENU 30 FLOW OF ON-SCREEN MENU 30 MENU BAR 31

SELECTING COMPUTER MODE 36 SELECTING COMPUTER SYSTEM 36

COMPATIBLE COMPUTER SPECIFICATIONS 37

PC ADJUSTMENT 38 PICTURE IMAGE ADJUSTMENT 40

NORMAL FUNCTION 41

AUTO IMAGE ADJUSTMENT 41 PICTURE POSITION ADJUSTMENT 42 PICTURE SCREEN ADJUSTMENT 43

SELECTING VIDEO MODE 44 SELECTING VIDEO SOURCE 44 SELECTING COLOR SYSTEM 45 PICTURE IMAGE ADJUSTMENT 46

NORMAL FUNCTION 47

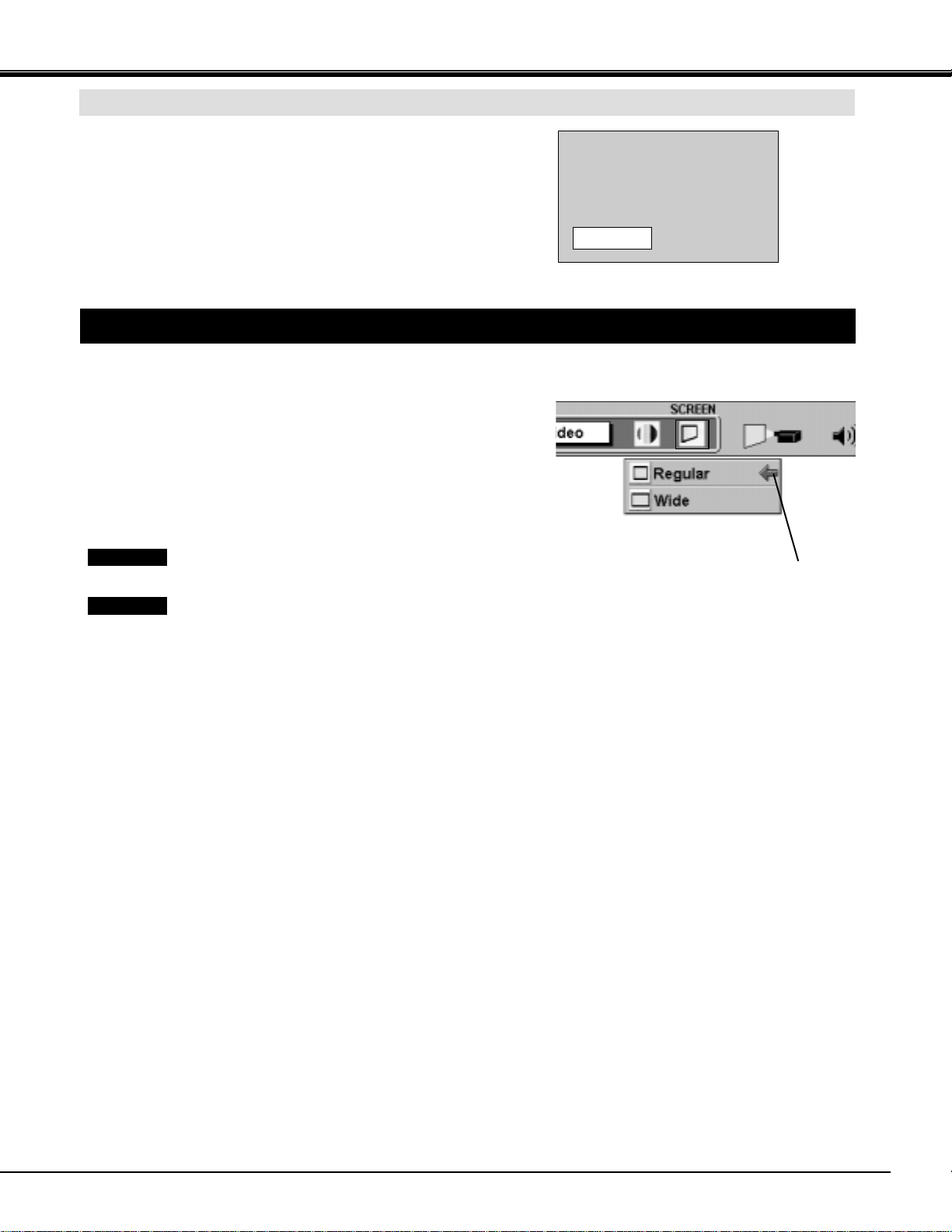

PICTURE SCREEN ADJUSTMENT 47

SETTING MENU 48 SETTING LANGUAGE 49

OPERATING WIRELESS MOUSE 50 MAINTENANCE 51

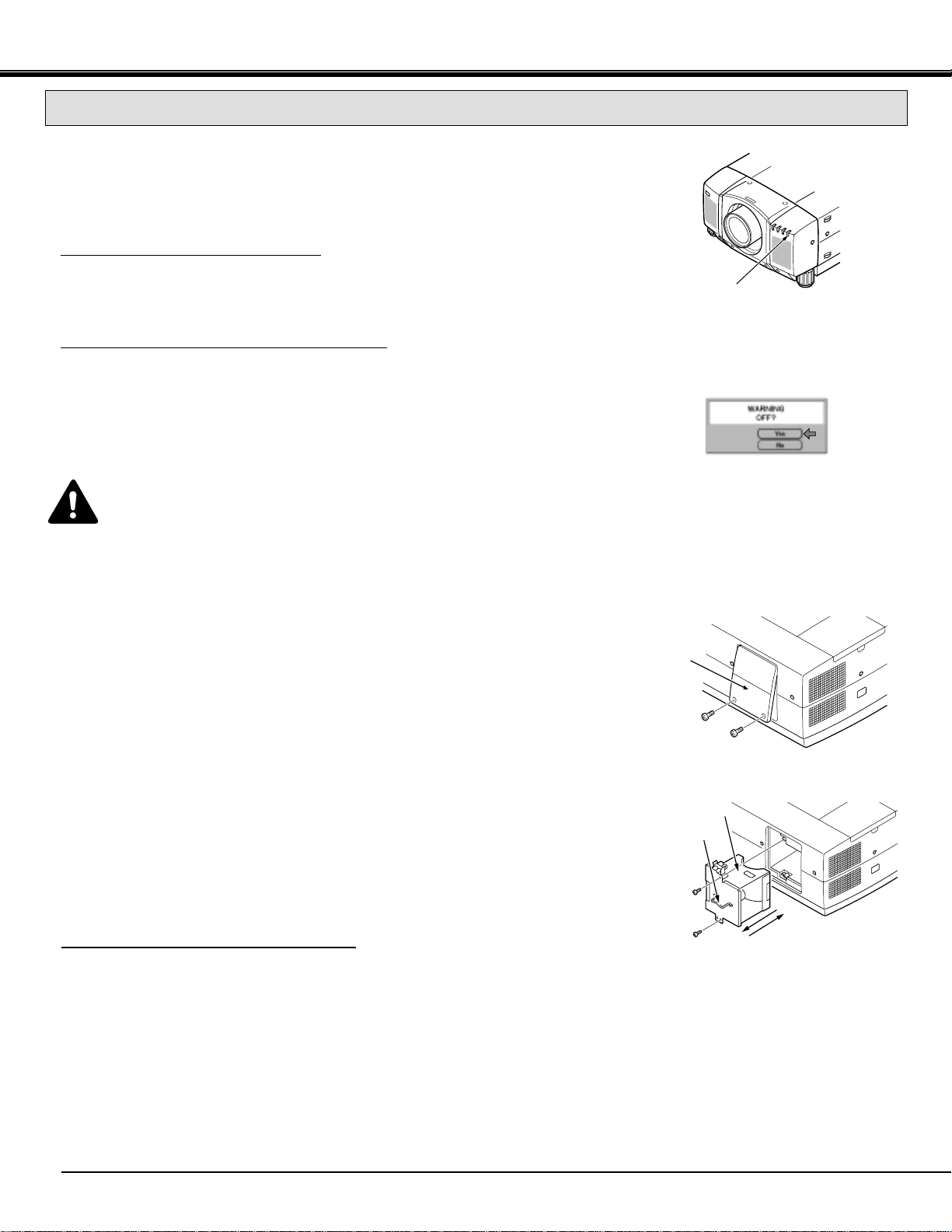

TEMPERATURE WARNING INDICATOR 51 AIR FILTER CARE AND CLEANING 51 LAMP REPLACEMENT 52 CLEANING THE PROJECTION LENS 53

TROUBLESHOOTING 53 TECHNICAL SPECIFICATIONS 55

BASIC OPERATION 32

TURNING ON / OFF THE PROJECTOR 32

TO TURN ON THE PROJECTOR 32 TO TURN OFF THE PROJECTOR 32

ADJUSTING THE IMAGE 33

ZOOM ADJUSTMENT 33 FOCUS ADJUSTMENT 33 LENS SHIFT FUNCTION 33 DIGITAL ZOOM FUNCTION 33 NORMAL PICTURE FUNCTION 33 FREEZE PICTURE FUNCTION 34 NO SHOW FUNCTION 34 P-TIMER FUNCTION 34 AUTO IMAGE ADJUSTMENT 34 CURSOR FUNCTION 34

SOUND ADJUSTMENT 35

DIRECT OPERATION 35 MENU OPERATION 35

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its

respective corporation.

FEATURES AND DESIGN

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. The projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

This projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible and Macintosh computers up to 1280 x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PALN color system can be connected.

● S-Video

S-Video signals, such as a S-VHS VCR output signals, can be connected.

◆ High Resolution Image

This projector provides 1024 x 768 dots resolution for computer input and 800 horizontal TV lines. The resolution from the computer between 1024 x 768 and 1280 x 1024 is compressed into 1024 x 768 dots. This projector cannot display image of over 1280 x 1024 dots. When the resolution of your computer is over than 1280 x 1024, reset the computer output for lower resolution.

◆ Multi-Scan System

This projector has Multi-Scan System to conform to almost all computer output signals quickly. There is no need for troublesome manual adjustment of frequency and other settings.

◆ Multilanguage Menu Display

Operation menu is displayed in; English, Deutsch, Français, Italiano, Español, or Japanese.

◆ One-Touch Auto Imaging

Incoming computer video signals are recognized and the best setting is automatically selected by the Auto Image adjustment. No complicated setup is necessary and projection is always precise.

◆ Digital Zoom (Computer Mode only)

The Digital Zoom magnifies the image up to 16 times, allowing you to focus on crucial information at a presentation.

◆ Power Management

Power Management function is provided to reduce power consumption while the projector is not in use. This Power Management function operates to turn the Projection Lamp off when the projector detects signal interruption and any button is not pressed over 5 minutes. The Projection Lamp is automatically turned on again when the projector detects the signal or any operation button is pressed. This projector is shipped with this function ON.

◆ Wireless Mouse

The Wireless Remote Control Unit supplied with this projector has Wireless Mouse function for the connected computer. This function enables you to operate both projector and computer with this Wireless Remote Control Unit only.

◆ Motor-driven Lens Shift

The projection lens can be moved up and down with the motor-driven lens shift function. This function makes it easy to provide the projected image where you want. The zoom and focus can be also adjusted with motordriven operation.

◆ Laser Pointer Function

The Wireless Remote Control Unit supplied with this projector includes the Laser Pointer function. This function helps you to make a smart presentation on a projected screen.

The projector comes with the parts listed below. Check to find all the parts are included. If any parts are missing, contact an authorized dealer or service station.

● Owner's Manual.

● AC Power Cord.

● Wireless Remote Control Unit.

● Wireless/Wired Remote Control Unit.

● Remote Control Cable.

● Batteries for Remote Control Units.

● VGA Cable.

● Mouse Cable for PS/2 port.

● Mouse Cable for serial port.

● Mouse Cable for ADB port.

● VGA/MAC Adapter.

● Protective Dust Cover

● Lens Cover.

◆ Accessories

PREPARATION

LAMP COVER

PROJECTION LENS

SPEAKERS

INFRARED

REMOTE RECEIVER

REMOVABLE LENS COVER

FRONT OF THE PROJECTOR

NAME OF EACH PART OF THE PROJECTOR

HOT AIR EXHAUSTED !

Air blown from the exhaust vent is hot. Observe the following when handling your projector or choosing a location to install it.

● Keep heat-sensitive objects away from the exhaust port.

● If you set the projector on top of a metallic surface, the surface will become hot because of the hot air exhaust. Be careful when handling.

● Do not touch the cabinet near to the exhaust vent area, and especially screws and metallic parts. These parts will become hot while the projector is used.

This projector detects the internal temperature and automatically controls the operating power of the Cooling Fans.

AIR INTAKE VENT

POWER CORD

CONNECTOR

EXHAUST VENT

MAIN ON / OFF

SWITCH

INFRARED

REMOTE RECEIVER

CARRYING HANDLE

ADJUSTABLE FEET

REAR OF THE PROJECTOR

BOTTOM OF THE PROJECTOR

AIR INTAKE

VENT

PREPARATION

SETTING-UP THE PROJECTOR

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. The projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power supply being in use. Connect the projector with the peripheral equipment before turning the projector on. (Refer to pages 13 ~ 22 for connection.)

CONNECTING THE AC POWER CORD

Connect the AC Power Cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

To the POWER CORD CONNECTOR on the projector.

Projector side AC Outlet side

Ground

NOTE ON THE POWER CORD

The AC Power Cord must meet the requirement of the country where you use the projector. Confirm the AC plug type with the chart below and the proper AC power cord must be used. If the supplied AC Power Cord does not match the AC outlet, contact your sales dealer.

To the AC Outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

For the U.K.

To the AC Outlet.

(200 - 240 V AC)

To the AC Outlet.

(200 - 240 V AC)

PREPARATION

200" 154"

26.9' (8.2 m)

600" 462"

80.7' (24.6 m)

40"

77"

115"

154"

231"

308"

462"

600"

100"

150"

200"

300"

400"

POSITIONING THE PROJECTOR

ROOM LIGHT

● This projector is basically designed to project on a flat projection surface.

● This projector can be focused from 4.9' (1.5 m) ~ 80.7' (24.6 m).

● Refer to the figure below as an example when positioning the projector to the screen.

The projector should be placed in a room with limited light. Picture quality will be directly affected by lightning conditions.

Minimum Zoom

Maximum Zoom

DISTANCE

Screen Size

Max. Zoom Min. Zoom

Distance

40"

4.9' (1.5 m)

100"

77"

13.1' (4.0 m)

150" 115"

20' (6.1 m)

300" 231"

40' (12.2 m)

400" 308"

53.8' (16.4 m)

THIS PROJECTOR SHOULD BE SET IN THE WAY INDICATED. NEVER HANG THE PROJECTOR, OR FALL DOWN ON ITS SIDE. IT MAY RESULT IN FIRE HAZARD.

This projector is equipped with a cooling fan to protect it from overheating. Pay attention to the following to ensure the ventilation and avoid a possible risk of fire and malfunction.

● Do not cover the vents with papers or other materials.

●

Keep the rear grill at least 3.3' (1m) away from any object.

● Make sure that there are no objects under the projector. An object under the projector may prevent the projector from taking the cooling air through the bottom vent.

VENTILATION

AIR INTAKE VENT (BOTTOM SIDE)

EXHAUST VENT (REAR SIDE)

PREPARATION

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a suitable carrying case.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This

may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer and best case should be applied.

Use the carry handle when moving the projector. Replace the lens cover and rotate the adjustable feet fully clockwise.

MOVING THE PROJECTOR

760 mm 760 mm

100" SCREEN

Picture tilt and projection angle can be adjusted by twisting ADJUSTABLE FEET. Projection angle can be adjusted up to 4 degrees by rotating Adjustable Feet.

MOVE THE PROJECTED IMAGE POSITION Adjust the projected image position (maximum 760mm

downward or upward on the 100" screen) by using lens shift function. (See page 33.)

DOWN

ADJUSTABLE FEET

PICTURE LEVEL AND TILT ADJUSTMENT

CONNECTING THE PROJECTOR

SIDE OF THE PROJECTOR (CONNECT THE COMPUTER)

COMPUTER INPUT-1 TERMINAL (ANALOG HDB 15-PIN)

Used to connect a computer to the projector.

COMPUTER INPUT-1 TERMINAL (DIGITAL MDR 20-PIN)

Used to connect a computer to the projector.

COMPUTER INPUT-2 JACKS (BNC TYPE x 5)

Used to connect a computer to the projector.

MONITOR OUTPUT TERMINAL (ANALOG HDB 15-PIN)

Used to connect a monitor to the projector.

COMPUTER AUDIO INPUT-1 JACKS (R and L)

Used to connect an audio output from the computer to the projector.

COMPUTER AUDIO INPUT-2 JACKS (R and L)

Used to connect an audio output from the computer to the projector.

AUDIO MONITOR OUTPUT JACKS (R and L)

Used to connect an audio input from audio equipment to the projector.

CONTROL PORT-1 CONNECTOR

Used to connect a mouse cable to the projector.

CONTROL PORT-2 CONNECTOR

Used to connect a mouse cable to the projector.

USB PORT-1 CONNECTOR

Used to connect a computer to the projector.

USB PORT-2 CONNECTOR

Used to connect a computer to the projector.

SERIAL PORT TERMINAL (DB9)

Used to connect a computer to the projector.

WIRED REMOTE JACK

When using the wired remote control, connect the remote cable to this jack.

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

6 5



1 2

3 4

8 9

10 11

12 13

TERMINAL OF THE PROJECTOR

CONNECTING THE PROJECTOR

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

(MONO)

AUDIO

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

(MONO)

AUDIO

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

AUDIO

VIDEO IN-1VIDEO IN-2MONITOR OUT

SIDE OF THE PROJECTOR (CONNECT THE VIDEO EQUIPMENT)

VIDEO INPUT JACKS-1 (BNC TYPE x 3)

Used to connect a video source to the projector.

S-VIDEO INPUT JACK-1

Used to connect a S-VHS video source to the projector.

AUDIO INPUT JACKS-1 (R and L)

Used to connect an audio source to the projector.

VIDEO INPUT JACKS-2 (BNC TYPE x 3)

Used to connect a video source to the projector.

S-VIDEO INPUT JACK-2

Used to connect a S-VHS video source to the projector.

14 15 16

17 18

AUDIO INPUT JACKS-2 (R and L)

Used to connect an audio source to the projector.

VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)

Permits video connection to a monitor.

VIDEO MONITOR (S-VIDEO) OUTPUT JACK

Permits S-VHS video connection to a monitor.

AUDIO MONITOR OUTPUT JACKS (R and L)

Permits audio connection to a monitor.

19 20 21 22

CONNECTING THE PROJECTOR

––––––––

ADB

–––––––– –––––––– –––––––– –––––––– –––––––– ––––––––

GND

–––––––– –––––––– ––––––––

Serial Port

ADB Port

1 2 3 4 5 6 7 8

9 10 11 12

PS/2 Port

T x D

–––––––– –––––––– –––––––– –––––––– ––––––––

READY

––––––––

GND

–––––––– –––––––– ––––––––

––––––––

CLK

DATA

–––––––– –––––––– –––––––– –––––––– ––––––––

GND

–––––––– –––––––– ––––––––

CONNECTING THE COMPUTER

Personal computers can be connected to the HDB15-pin (VGA) terminal on the projector.

● Connect the computer to these terminals using the VGA cable and VGA/MAC adapter (provided). CAUTION: For projectors, the VGA cable provided is designed to reduce RFI (Radio Frequency Interference) emissions.

For regulatory compliance reasons, this cable must be used and must not be replaced by any other cable.

Digital output signal from the computer can be connected to the DIGITAL terminal (MDR 20-pin). When using this input, Graphic Accelerator Board designed for this projector should be installed into your computer and set-up the computer configuration following instruction included in the Graphic Accelerator Board package. Refer to DIGITAL INPUT CONNECTION on page 16 and 18.

Personal computers can be connected to the computer input (Red, Green, Blue, Horiz. Sync. and Vert. Sync.) on the projector.

● Connect the computer to these jacks using the BNC cables (not provided).

● Connect audio outputs from your computer to these jacks using the audio cable (not provided).

● When the computer is operated by projector's remote control unit, connect three different type of cables (provided)

between projector control port and computer mouse port or serial port.

■ CONTROL PORT

CONTROL PORT CABLE REMOVAL HINT

Disconnect control port cable with following steps.

1. Hold the portion (A) of the connector with one hand.

2. Pull the portion (B) arrow direction and remove connector.

CONNECTING TO THE COMPUTER INPUT 1 TERMINAL (ANALOG HDB 15-PIN)

CONNECTING TO THE COMPUTER INPUT 1 TERMINAL (DIGITAL MDR 20-PIN)

CONNECTING TO THE COMPUTER INPUT 2 JACKS (BNC x 5)

CONNECTING TO THE COMPUTER AUDIO INPUT JACKS (1 and 2)

CONNECTING TO THE MULTI-POLE 12-PIN (CONTROL PORT) CONNECTORS (1 and 2)

COMPUTER TYPE

IBM Compatible computer with PS/2 mouse port. IBM Compatible computer with serial port. Apple Macintosh computer with ADB mouse port.

CABLE

Mouse Cable for PS/2 port. Mouse Cable for Serial port. Mouse Cable for ADB port.

CONNECTING THE PROJECTOR

These jacks will contain the audio information of the selected program source being viewed on the screen (Computer 1, Computer 2, Video 1 or Video 2). If you have selected program source Computer 2 the audio signal connected to the Computer 2 audio input jack will be available at the audio monitor output jacks. Use RCA type audio for connection.

● If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right and left jacks.

● If the audio input of the audio equipment is monaural, connect it to the left jack.

Vcc

- Data

+ Data

Ground

1 2 3 4

This terminal output the information of the selected computer source being viewed on the screen (Computer 1 or Computer 2). When video source ("Video 1" or "Video 2") is selected, this terminal outputs Computer 1 input information.

An external monitor can be connected to the HDB15-pin (VGA) terminal on the projector.

● Connect the monitor to this terminal using the VGA cable (not provided).

––––––––

R x D T x D

––––––––

Ground

–––––––– –––––––– –––––––– ––––––––

1 2 3 4 5 6 7 8 9

■ SERIAL PORT DB9-PIN

TERMINAL

■ USB PORT

Pin No./Signal

1 Red input 2 Green input 3 Blue input 4 Sense 2 5 Ground (Horiz.sync.) 6 Ground (Red) 7 Ground (Green) 8 Ground (Blue)

Pin No./Signal

9 Non Connect 10 Ground (Vert. sync.) 11 Sense 0 12 Sense 1 13 Horiz. sync 14 Vert. sync 15 Reserved

HDB 15-PIN TERMINAL

CONNECTING TO THE MONITOR OUTPUT TERMINAL (ANALOG HDB 15-PIN)

CONNECTING TO THE AUDIO MONITOR OUTPUT (VARIABLE) JACKS

CONNECTING TO THE SERIAL PORT (DB 9-PIN) TERMINAL

CONNECTING TO THE USB PORT CONNECTORS (1 and 2)

● If you control the projector by computer, you must connect a cable (not provided) from your computer to this terminal.

This port is used to control the projector with the computer. It is also used to control the computer with the Remote control of this projector. (Refer to P49, 50.) Connect the USB port of the computer to this port.

54321

109876

15 14 13 12 11

12345

6789

CONNECTING THE PROJECTOR

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

COMPUTER OUTPUT (HDB15-PIN TYPE)

COMPUTER

MONITOR CABLE (NOT PROVIDED)

COMPUTER OUTPUT (BNC TYPE x 5)

SERIAL PORT INPUT

AUDIO CABLE (NOT PROVIDED)

COMPUTER AUDIO INPUT 1 or 2

CONTROL PORT OUTPUT 1 or 2

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

PS/2 PORT INPUT

VGA CABLE (PROVIDED)

L R

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER OUT

MONITOR OUTPUT

BNC CABLE x 5 (NOT PROVIDED)

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

COMPUTER AUDIO OUTPUT

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

COMPUTER INPUT 1 (ANALOG)

CONNECTING AN IBM-COMPATIBLE DESKTOP COMPUTER

COMPUTER INPUT 2

CONNECTING AN IBM-COMPATIBLE DESKTOP COMPUTER

(DIGITAL INPUT CONNECTION)

CONNECTING THE PROJECTOR

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

COMPUTER

MONITOR CABLE (NOT PROVIDED)

SERIAL PORT INPUT

AUDIO CABLE (NOT PROVIDED)

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

PS/2 PORT INPUT

L R

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER OUT

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

COMPUTER AUDIO OUTPUT

COMPUTER INPUT 1 (DIGITAL)

DIGITAL FLAT PANEL CABLE (NOT PROVIDED)

GRAPHIC ACCELERATOR BOARD

DIGITAL OUTPUT

ANALOG OUTPUT

INSTALL (PLUG) INTO PCI BUS SLOT

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

Before using with digital connection, install (Plug in) Graphic Accelerator Board into PCI bus slot of the computer and set up the computer following instructions in the Graphic Accelerator Board package.

NOTE: This connection need optionally sold Graphic Accelerator Board.

For this information, contact to your authorized dealer.

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

SERIAL PORT OUTPUT

COMPUTER

COMPUTER OUTPUT (DB15-PIN TYPE)

SERIAL PORT INPUT

PS/2 PORT INPUT

AUDIO CABLE (NOT PROVIDED)

VGA CABLE (PROVIDED)

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

AUDIO INPUT

SPEAKER OUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

CONNECTING AN IBM-COMPATIBLE LAPTOP COMPUTER

COMPUTER INPUT 1 (ANALOG)

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

CONNECTING THE PROJECTOR

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

Before using with digital connection, install (Plug in) Graphic Accelerator PC card into card bus slot of the computer and set up the computer following instructions in the Graphic Accelerator PC card package.

SERIAL PORT OUTPUT

COMPUTER

SERIAL PORT INPUT

PS/2 PORT INPUT

AUDIO CABLE (NOT PROVIDED)

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

AUDIO INPUT

SPEAKER OUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

COMPUTER INPUT 1 (DIGITAL)

DIGITAL FLAT PANEL CABLE (PROVIDED)

CONNECTING AN IBM-COMPATIBLE LAPTOP COMPUTER

(DIGITAL INPUT CONNECTION)

GRAPHIC ACCELERATOR PC CARD

DIGITAL OUTPUT

ANALOG OUTPUT

INSTALL (PLUG) INTO PC CARD BUS SLOT

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

NOTE: This connection need optionally sold Graphic Accelerator PC card.

For this information, contact to your authorized dealer.

CONNECTING THE PROJECTOR

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

123456

CONTROL PORT OUTPUT 1 or 2

COMPUTER

MONITOR CABLE (NOT PROVIDED)

COMPUTER OUTPUT (BNC TYPE x 5)

BNC CABLE x 5 (NOT PROVIDED)

COMPUTER OUTPUT

COMPUTER AUDIO OUTPUT1 or 2

AUDIO CABLE (NOT PROVIDED)

MOUSE CABLE FOR ADB PORT (PROVIDED)

COMPUTER INPUT 2

VGA/MAC ADAPTER (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

AUDIO INPUT

SPEAKER OUT

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

COMPUTER INPUT 1 (ANALOG)

CONNECTING A MACINTOSH DESKTOP COMPUTER

VGA CABLE (PROVIDED)

COMPUTER AUDIO OUTPUT

MONITOR OUTPUT

OFF

VGA/MAC ADAPTER

SW1 ~ SW6

Set the dip switches as shown in the table below depending on the RESOLUTION MODE that you want to use before you turn on the projector and computer.

ADB PORT INPUT

SW1

ON OFF OFF

RESOLUTION MODE 13" MODE (640

480)

16" MODE (832

624)

19" MODE (1024

768)

21" MODE (1152

870)

SW6

OFF OFF OFF OFF

SW5

OFF OFF OFF OFF

SW4

OFF

SW3

OFF OFF

ON ON

SW2

ON ON ON ON

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

CONNECTING THE PROJECTOR

USB 1 AUDIO 1

ANALOG

ANALOG RGB

COMPUTER OUT

COMPUTER IN-2 COMPUTER IN-1

RGB H V

(MONO)

CONTROL PORT 1

USB 2

R/C JACK SERIAL PORT

AUDIO 2

AUDIO OUT

CONTROL PORT 2

DIGITAL

123456

COMPUTER

ADB PORT INPUT

VGA/MAC ADAPTER (PROVIDED)

AUDIO CABLE (NOT PROVIDED)

VGA CABLE (PROVIDED)

MOUSE CABLE FOR ADB PORT (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER

OUT

COMPUTER OUTPUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

SERIAL PORT CABLE (NOT PROVIDED)

COMPUTER AUDIO OUTPUT

COMPUTER INPUT 1 (ANALOG)

CONNECTING A MACINTOSH POWERBOOK COMPUTER

NOTE: The Macintosh PowerBook requires the use of the PowerBook Video

Adapter shipped with the PowerBook.

SERIAL PORT OUTPUT

OFF

VGA/MAC ADAPTER

SW1 ~ SW6

Set the dip switches as shown in the table below depending on the RESOLUTION MODE that you want to use before you turn on the projector and computer.

SW1

ON OFF OFF

RESOLUTION MODE 13" MODE (640

480)

16" MODE (832

624)

19" MODE (1024

768)

21" MODE (1152

870)

SW6

OFF OFF OFF OFF

SW5 OFF OFF OFF OFF

SW4

OFF

SW3 OFF OFF

ON ON

SW2

ON ON ON ON

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched on.

CONNECTING THE PROJECTOR

Connect to the video outputs of a VCR, video disc player, DVD player, video camera, satellite TV tuner or other AV equipment. Connect video output from AV equipment to these jacks using the BNC cables.

The video input can be connected 3 types of signals; “COMPOSITE VIDEO", "Y/C SEPARATE VIDEO" and COMPONENT VIDEO {Y, Cb (B-Y), Cr (R-Y)}. Set VIDEO SOURCE of each video input (VIDEO IN-1 or VIDEO IN-2) to input video matter. (Refer to "VIDEO SOURCE SELECT" operation on page 44).

The Video input includes an extra video input jack marked S-VIDEO to allow connection to an S-VHS format VCR that has separate Y/C video signals. The S-VIDEO jack has priority over the VIDEO jack.

Connect to the audio outputs of a VCR, video disc player, DVD player, video camera, satellite TV tuner or other AV equipment. Use RCA type audio cable for connection.

● If the audio signal from the AV equipment is stereo, be sure to connect the right and left channels to the respective right and left audio input jacks.

● If the external audio signal is monaural, connect it to the left jack.

These jacks will contain the video information of the selected program source being viewed on the screen (Video 1 or Video 2). If you have selected program source Video 2 the video signal connected to the Video 2 video input jack will be available at the video monitor output jacks. If you select program source "Computer 1" or "Computer 2, the video signal connected to the Video 1 video input jack will be available at the video monitor output jacks. Use BNC cable for connection.

The Video monitor output includes an extra video input jack marked S-VIDEO to allow connection to an S-VHS format VCR that has separate Y/C video signals. The S-VIDEO jack has priority over the VIDEO jack.

These jacks will contain the audio information of the selected program source being viewed on the screen (Video 1 or Video 2). If you have selected program source Video 2 the audio signal connected to the Video 2 audio input jack will be available at the audio monitor output jacks. If you select program source "Computer 1" or "Computer 2", the audio signal connected to the Video 1 audio input jack will be available at the audio monitor output jacks. Use RCA type audio cable for connection.

● If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right and left jacks.

● If the audio input of the audio equipment is monaural, connect it to the left jack.

CONNECTING THE VIDEO EQUIPMENT

CONNECTING TO THE VIDEO INPUT JACKS (1 and 2) BNC TYPE x 3

CONNECTING S-VHS VIDEO INPUT JACKS (1 and 2)

CONNECTING TO THE AUDIO MONITOR OUTPUT JACKS

CONNECTING TO THE S-VHS VIDEO MONITOR OUTPUT JACK

CONNECTING TO THE VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)

CONNECTING TO THE AUDIO INPUT JACKS (1 and 2)

CONNECTING THE PROJECTOR

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

(MONO)

AUDIO

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

(MONO)

AUDIO

VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

(MONO)

AUDIO

VIDEO IN-1VIDEO IN-2MONITOR OUT

VIDEO EQUIPMENT

Video Cassette Recorder

DVD Player Video Disc Player

Satellite TV Tuner

MONITOR

AUDIO INPUT

AUDIO OUTPUT

S-VIDEO OUTPUT

S-VIDEO INPUT

SPEAKERS

AUDIO AMP.

Video Camera

Y OUTPUT (BNC)

VIDEO OUTPUT (BNC)

C OUTPUT (BNC)

Cb (B-Y) OUTPUT (BNC)

Cr (R-Y) OUTPUT (BNC)

Y INPUT (BNC)

VIDEO INPUT (BNC)

C INPUT (BNC)

Cb (B-Y) INPUT (BNC)

Cr (R-Y) INPUT (BNC)

CONNECTING THE VIDEO EQUIPMENT

NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be

disconnected from AC outlet. Turn the projector on before the peripheral equipment is switched on.

CONNECTING THE PROJECTOR

BEFORE OPERATION

MENUMODE

AUTO IMAGE NORMAL SELECT

VOLUME ZOOM FOCUS LENS SHIFT ON-OFF

TOP CONTROLS

FRONT INDICATORS

TOP CONTROLS

READY

LAMP

REPLACE

WARNING

TEMP.

2 3 4

CONTROLS AND INDICATORS

BEFORE OPERATION

1 2 3 4

8 9

11 12

13 14

LAMP REPLACEMENT INDICATOR

Light is orange when the Lamp life draws to an end.

TEMPERATURE WARNING INDICATOR

Flashes red when internal projector temperature is too high.

READY INDICATOR

Light is green when projector lamp is ready to be turned on.

LAMP POWER INDICATOR

Light is dim when the projector is on. Light is brightened when the projector is in stand-by mode.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTONS

Used to operate power zoom lens.

FOCUS BUTTONS

Used to operate power focus system.

LENS SHIFT BUTTONS

Used to operate power lens shift.

POWER ON/OFF BUTTON

Used to turn the projector on or off.

MODE BUTTON

Used to select source. (Computer 1, Computer 2, Video 1 or Video 2 Input)

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE adjustment.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT buttons and the SELECT button to make adjustments to the projector's setting in MENU operation.

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory.

POINT UP/DOWN/LEFT/RIGHT BUTTONS

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing these buttons (UP, DOWN, LEFT or RIGHT).

SELECT BUTTON

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

LASER POINTER button

This remote control emits a laser beam light as the Laser Pointer from the Laser Light Window. When the LASER POINTER button is pressed, laser light goes on: when the button is released, light goes off. Laser light is emitted with the RED light indicating that the laser beam is being emitted.

The laser emitted is a class laser; therefore, do not look into the laser light window or shine the laser beam on yourself or other people. The three marks to the right are the caution labels for the laser beam.

CAUTION-use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

P-TIMER

AUTO IM

AGE

MUTE

VOLUME

COMPUTER

FOCUS

ZOOM

ON-OFF

LENS SHIFT

VIDEO

D.ZOOM

This remote control unit is not only able to operate the projector but also usable as a wireless mouse for a PC. One pointing pad and two click buttons are used for wireless mouse operation. Wireless mouse is usable when PC mouse pointer is displayed on the screen. When the menu or indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

NOTE: To use the unit as a PC wireless mouse, connect the projector to the

PC with the attached cable. Signals from the projector are transmitted to the PC, enabling the remote control unit of the projector to be used as a PC wireless mouse. (Refer to "CONNECTING THE PROJECTOR" in pages 15 to 20 for the connection.)

FRONT

SIDE

WIRELESS REMOTE CONTROL UNIT

LASER LIGHT WINDOW

LASER POINTER button

BASIC OPERATION

7 8 9

10 11 12

14 15

COMPUTER SELECT BUTTON

Used to select computer mode. (Computer 1 or Computer 2 Input)

VIDEO SELECT BUTTON

Used to select video mode. (Video 1 or Video 2 Input)

POWER ON/OFF BUTTON

Used to turn the projector on or off.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTON

Used to select power zoom lens adjust.

P-TIMER BUTTON

Used to operate the P-TIMER function.

FOCUS BUTTON

Used to select focus adjust.

FREEZE/NO SHOW BUTTON

Used to freeze on-screen image or change the screen into black image.

SOUND MUTE BUTTON

Used to mute sound.

LENS SHIFT BUTTON

Used to select power lens shift.

CURSOR BUTTON

Used to display CURSOR on the screen.

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE adjustment.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT button and the SELECT (REAR CLICK) button to make adjustments to the projector's setting in MENU operation.

NORMAL BUTTON

Use to reset to normal picture adjustment preset by factory.

POINTING PAD (POINT UP/DOWN/LEFT/RIGHT BUTTON) When in use as a remote for the projector

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing the pad upward, downward, leftward or rightward. Used to operate power zoom lens, power focus system or power lens shift by pressing the pad either upward or downward.

When in use as a wireless mouse

Used to move the pointer. The pointer is moved according to the direction you are pressing.

LASER BUTTON

When this button is pressed, laser light goes on; when the button is released, light goes off.

FRONT CLICK BUTTON When in use as a remote for the projector

Used to compress the image in D.ZOOM mode.

When in use as a wireless mouse

This button has the same function as the right button in a PC mouse.

DIGITAL ZOOM BUTTON

Used to select digital zoom function.

SELECT (REAR CLICK) BUTTON When in use as a remote for the projector.

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

When in use as a wireless mouse

This button has the same function as the left button in a PC mouse.

16 17

18 19

Remote Control Battery Installation

Using the Remote Control Unit

16.4' (5 m)

60°

Remove the battery compartment lid.

Slide the batteries into the

compartment. 3

Replace the compartment lid.

Note : For correct polarity (+ and -

terminal), be sure the battery terminals are in contact with the pins in the compartment.

Point the remote control toward the projector (Receiver window) whenever pressing the buttons. Maximum operating range

for the remote control is about 16.4' (5m) and 60° front and rear of the projector.

16.4' (5 m)

To insure safe operation, please observe the following precautions :

● Use (2) AA type alkaline batteries.

● Change two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control,

carefully wipe the case clean and load new batteries.

BEFORE OPERATION

WIRED REMOTE JACK

When using the wired remote control, connect the remote cable to this jack.

COMPUTER SELECT BUTTON

Used to select computer mode. (Computer 1 or Computer 2 Input)

VIDEO SELECT BUTTON

Used to select video mode. (Video 1 or Video 2 Input)

POWER ON/OFF BUTTON

Used to turn projector on or off.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTONS

Used to operate power zoom lens.

FOCUS BUTTONS

Used to operate power focus system.

SOUND MUTE BUTTON

Used to mute sound.

LENS SHIFT BUTTONS

Used to operate power lens shift.

P-TIMER BUTTON

Used to operate the P-TIMER function.

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE adjustment.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT buttons and the SELECT button to make adjustments to the projector's setting in MENU operation.

POINT UP/DOWN/LEFT/RIGHT BUTTONS

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing these buttons (UP, DOWN, LEFT or RIGHT).

FREEZE/NO SHOW BUTTON

Used to freeze on-screen image or change the screen into black image.

SELECT BUTTON

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

DIGITAL ZOOM BUTTON

Use to select digital zoom function.

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory.

COMPUTER

VOLUME ZOOM FOCUS

P-TIMERMUTE LENS SHIFT

NO SHOW

AUTO IMAGE

FREEZE/

NORMAL

SELECT

ON-OFF

VIDEO

13 16

D.ZOOM

3 4 5 6 7

8 9

14 15

WIRELESS/WIRED REMOTE CONTROL UNIT

BEFORE OPERATION

60°

R/C JACK

SERIAL PORT

Connect a remote control cable to R/C jacks located on the wireless/wired remote control unit and the side of the projector.

60°

The remote control unit can be used as wireless or wired remote control.

WIRED REMOTE CABLE

Remove the battery

compartment lid. 2

Slide the batteries into the compartment.

Replace the compartment lid.

Note : For correct polarity (+ and -

terminal), be sure the battery terminals are in contact with the pins in the compartment.

Point the remote control toward the projector (Receiver window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4' (5m) and 60° front and rear of the projector.

To insure safe operation, please observe the following precautions :

● Use (2) AA type alkaline batteries.

● Change two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control,

carefully wipe the case clean and load new batteries.

Remote Control Battery Installation

Using the Remote Control Unit (wireless)

Using the Remote Control Unit (wired)

16.4' (5 m)

OPEN OPEN

BEFORE OPERATION

HOW TO OPERATE ON-SCREEN MENU

FLOW OF ON-SCREEN MENU

Display ON-SCREEN MENU

Press MENU button to display the ON-SCREEN MENU (MENU BAR). The red frame is the POINTER.

Select the ITEM by pressing SELECT (REAR CLICK) button. The dialog box of the ITEM appears.

Move the POINTER (red frame) to the ITEM ICON that you want to select by pressing POINT RIGHT / LEFT buttons.

Move the POINTER to the ITEM that you want to adjust and adjust the ITEM by pressing SELECT (REAR CLICK) button. Refer to the following pages for details of respective adjustments.

Move the POINTER downward by pressing POINT DOWN button. (The shape of the POINTER becomes an arrow.)

Select the Item

Control and adjust through ON-SCREEN MENU

2 3

You can control and adjust this projector through the ON-SCREEN MENU. Refer to the following pages to operate each adjustment in the ON-SCREEN MENU.

1 MOVING THE POINTER

2 SELECT THE ITEM

Move the pointer (see the NOTE below) by pressing POINT button(s) on the TOP CONTROL or on the REMOTE CONTROL.

Select the item by pressing SELECT (REAR CLICK) button.

OPERATING ON-SCREEN MENU

NOTE : Pointer is the icon on the ON-SCREEN Menu to

select the item. See the figures on the section "FLOW OF ON-SCREEN MENU" below.

SELECT BUTTON

POINT DOWN

BUTTON

MENU BAR

POINTER (red frame)

ITEM ICON

POINTER (red frame)

POINTER

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

TOP CONTROL

Used to select the item.

SELECT BUTTON

Used to select the item.

SELECT BUTTON

WIRELESS REMOTE CONTROL

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTON

FREEZE/ NO SHOW

NORMAL

SELECT

D.ZOOM

Used to move the Pointer UP/ DOWN/ RIGHT/ LEFT.

POINT BUTTONS

WIRELESS/WIRED REMOTE CONTROL

Used to select the item.

SELECT BUTTON

NORMAL SELECT

BEFORE OPERATION

MENU BAR

SYSTEM MENU

Used to select a computer system. (Refer to P36)

IMAGE MENU

Used to adjust the computer image. [Fine sync / Total dots / White Balance / Contrast / Brightness / Sharpness] (Refer to P40)

PC ADJUST MENU

Used to adjust the parameters to match with the input signal format. (Refer to P38, 39)

SETTING MENU

Used to set the Display Menu and reset Lamp Replacement Monitor Timer. (Refer to P48, 49)

MODE MENU

Used to select the Computer input mode. (Refer to P36)

POSITION MENU

Used to adjust the position of the image. (Refer to P42)

SCREEN MENU

Used to adjust the size of the image. (Refer to P43)

AUTO IMAGE MENU

Used to adjust Fine sync, Total dots, and Picture Position automatically. (Refer to P41)

MENU BAR IN COMPUTER MODE

Press MENU BUTTON while in Computer mode.

SYSTEM MENU

Used to select a color system of the selected video source. (Refer to P45)

IMAGE MENU

Used to adjust the picture image. [Color / Tint / White Balance / Contrast / Brightness/ Sharpness (Refer to P46)

SCREEN MENU

Used to set the size of the image either Regular or Wide. (Refer to P47)

MENU BAR IN VIDEO MODE

Press MENU BUTTON while in Video mode.

Same function as the Computer Mode.

MODE MENU

Used to select the Video input. (Refer to P44)

VIDEO SOURCE MENU

Used to select a video source among [(Video), (Y,C) and (Y, Cb, Cr)]. (Refer to P44)

LANGUAGE MENU

Used to select the language used in the Menu. (Refer to P49)

SOUND MENU

Used to adjust or mute the Volume. (Refer to P35)

Connect the projector to a source (Computer, VCR, Video Camera, Video Disc Player, etc.) using the appropriate terminals on the side of the projector (See "CONNECTING THE PROJECTOR" section on pages 13-22).

Connect the projector's AC power cord into a wall outlet and turn the MAIN ON/OFF switch (located on the side of the projector) to the ON position. The LAMP POWER indicator will light RED, the READY indicator will light GREEN.

Press the POWER ON/OFF button on the remote control unit or on the projector to ON. The LAMP POWER indicator light will dim and the cooling fans will operate. The wait display appears on the screen and the count-down starts (30-29-28-...1). The signal from the source appears after 30 seconds.

TO TURN ON THE PROJECTOR

TO TURN OFF THE PROJECTOR

Press the POWER ON/OFF button on the remote control unit or on the projector. The "Power off ?'' appears on the screen. Press again the POWER ON/OFF button to turn OFF the projector. The LAMP POWER indicator will light bright and READY indicator will turn off. The cooling fans will operate for 90 seconds after the projector is turned off. (During this "cooling down" period, the projector cannot be turned on.) The READY indicator will light green again and the projector may be turned on by pressing the POWER ON/OFF button. To power down completely, turn the MAIN ON/OFF switch (located on the side of the projector) to the OFF position.

TURNING ON/OFF THE PROJECTOR

BASIC OPERATION

When the TEMPERATURE WARNING indicator flashes red, the projector is automatically turned off. Wait at least 5 minutes before turning the projector on again.

When the TEMPERATURE WARNING indicator continues to flash, follow procedures below:

1. Turn the MAIN ON / OFF SWITCH to OFF and disconnect the AC power cord from the AC outlet.

2. Check the air filters for dust accumulation.

3. Clean the Air Filter. (See "AIR FILTER CARE AND CLEANING" section on page 51.)

4. Turn the Projector on again. If the TEMPERATURE WARNING indicator should still continue to flash, contact the sales dealer where you purchased this projector

or service center.

NOTE: The Cooling Fan may work for cooling while the projector is turned off. When the Cooling Fan is

working, TEMPERATURE WARNING INDICATOR flashes red.

When the Power Management function is ON, the Projector detects the signal interruption and turns the Projection Lamp off automatically. Refer to “Power Management” on page 48.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

The normal picture image level is factory preset on the projector and can be restored anytime by pressing the NORMAL button on the projector or on the remote control unit. The "Normal" display will be displayed on the screen for a few seconds.

Press the D. ZOOM button on the wireless remote control unit. The "D.zoom" and the magnifying-glass icon is displayed to indicate Digital zoom mode. Digital zoom mode can be adjust the image size or pan the image. To expand the image size, press SELECT (REAR CLICK) button. The image is magnified by degrees (Expand function). To compress the image size, press FRONT CLICK button. The size of image is reduced by degrees (Compress function). To pan the image, press POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) button(s). The image move to the direction indicated (Panning function) See the page 43 for more detail.

BASIC OPERATION

ADJUSTING THE IMAGE

Use Top control and Wireless/Wired remote control unit.

Press the ZOOM (▲) or (▼) button to obtain your desired picture size. For a larger picture, press (▲) and for a smaller picture, press (▼).

Use Wireless remote control unit.

Press the ZOOM button and press POINT UP/DOWN button(s) to obtain your desired picture size. The Zoom display will be displayed on the screen for a few seconds. For a larger picture, press (UP) and for a smaller picture, press (DOWN).

FOCUS ADJUSTMENT

ZOOM ADJUSTMENT

LENS SHIFT FUNCTION

Use Top control and Wireless/Wired remote control unit.

Press the FOCUS (▲) or (▼) button for a sharper, crisper picture.

Use Wireless remote control unit.

Press the FOCUS button and press POINT UP/DOWN button(s) to obtain a sharper, crisper picture. The Focus display will be displayed on the screen for a few seconds.

Use Top control and Wireless/Wired remote control unit.

Press the LENS SHIFT (▲) or (▼) button to obtain your desired screen position.

Use Wireless remote control unit.

Press the LENS SHIFT button and press POINT UP/DOWN button(s) to obtain your desired screen position. The Lens shift display will be displayed on the screen for a few seconds.

D. zoom

NORMAL PICTURE FUNCTION

DIGITAL ZOOM FUNCTION

Press the FREEZE/NO SHOW button (on the remote control unit) is twice. The

screen will change into black image and the "No show" is displayed on the screen

for a few seconds.

This function is cancelled when the FREEZE/NO SHOW button is pressed again

or any other function button is pressed.

BASIC OPERATION

NO SHOW FUNCTION

P-TIMER FUNCTION

FREEZE PICTURE FUNCTION

AUTO IMAGE ADGUSTMENT

CURSOR FUNCTION

Press the FREEZE/NO SHOW button on the remote control unit, and the picture will remain on-screen. This function is

cancelled when the FREEZE/NO SHOW button is pressed again or any other button is pressed.

NOTE: Your computer or video equipment is not affected by this function, and will continue to run.

Press the P-TIMER button on the remote control unit. The timer display "00:00" appears on the screen and the timer starts to count the time (00:00 to 59:59).

Press again the P-TIMER button to stop the timer. Then press the P-TIMER button to cancel the P-TIMER function.

Press the AUTO IMAGE button on the projector or on the remote control unit. The item(s) indicated "ON" in the AUTO IMAGE ADJUSTMENT are adjusted automatically.

If all the items in AUTO IMAGE ADJUSTMENT are "OFF", AUTO IMAGE SETTING display appears. If you wish to operate the AUTO IMAGE ADJUSTMENT, perform the steps 1 - 3 of "AUTO IMAGE ADJUSTMENT" section on page 41.

Press the CURSOR button on the wireless remote control unit. The CURSOR is displayed on the screen. Press POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) button(s) to control CURSOR. The CURSOR is moved according to the direction you are pressing. Press CURSOR button again, and CURSOR disappears.

Sound Volume Adjustment

Press the VOLUME (+/–) button(s) on the Top Control or on the Remote Control Unit to adjust the volume. The Volume dialog box appears on the screen for a few seconds. (+) button to increase the volume, and (–) button decreasing.

Sound Mute Setting

Press the MUTE button on the Remote Control Unit to cut off the sound. To restore the sound to its previous level, press the MUTE button again or press Volume (+/–) button(s).

Indicates the roughly level of the volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

SOUND ADJUSTMENT

DIRECT OPERATION

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SOUND and press the SELECT (REAR CLICK) button. Another dialog box SOUND ADJUST Menu will appear.

Move the arrow to ▲ or ▼ of "Volume" by pressing the POINT UP/ DOWN buttons. To increase the volume, point the arrow to ▲ and then press the SELECT (REAR CLICK) button. To decrease the volume point the arrow to ▼ and then press the SELECT (REAR CLICK) button.

To cut off the audio sound, point the arrow to "Mute" and then press the SELECT (REAR CLICK) button. The Mute display is changed On from Off and the sound is cut off. To restore the sound to its previous volume level, set the Mute to Off.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to select by pressing the POINT UP/DOWN buttons.

Move the arrow to ▲

or ▼

and press the SELECT (REAR CLICK) button.

Indicate the roughly level of the item.

Move the arrow to the item and then press the SELECT (REAR CLICK) button.

Close the Sound Menu.

MENU OPERATION

Volume

Mute

To adjust the Treble sound, point the arrow to ▲ or ▼ of "Treble" and then press the SELECT (REAR CLICK) button.

Treble

To adjust the Bass sound, point the arrow to ▲ or ▼ of "Bass" and then press the SELECT (REAR CLICK) button.

Bass

Built-in SP.

To disconnect the built-in speaker, point the arrow to Built-in SP. and then press the SELECT (REAR CLICK) button. The Built-in SP. display is changed Off from On and Internal speaker is disconnected.

BASIC OPERATION

COMPUTER button

SELECTING COMPUTER MODE

MENU OPERATION

When selecting the Computer Mode, the Current Mode display appears to show the information of the computer being selected.

CURRENT MODE DISPLAY

Computer 1

Computer 2

SELECTING COMPUTER SYSTEM

AUTOMATIC MULTI-SCAN SYSTEM

This projector automatically tunes to most different types of computers based on VGA, SVGA, XGA or SXGA (refer to “COMPATIBLE COMPUTER SPECIFICATION” on page 37). When selecting Computer, this projector automatically tunes to the incoming signal and projects the proper image without any special settings. (Setting of the Computer System may be required when connecting some computers.)

Note : The projector may display one of the following messages.

The projector cannot discriminate or detect the input signal from the computer. Adjust and set the computer system manually. (Refer to page 38.)

There is no signal input from the computer. Make sure the connection of the computer and the projector is set correctly. (Refer to TROUBLESHOOTING on page 53.)

Go to PC adj.

No signal

SELECT COMPUTER SYSTEM MANUALLY

To set the Computer system manually, select the mode on the ON-SCREEN MENU.

Display the SYSTEM being selected.

SYSTEM BOX

The system being selected.

The systems on this dialog box can be selected.

Close the SYSTEM Menu.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT (REAR CLICK) button. Another dialog box COMPUTER SYSTEM Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the system that you want to set, and then press

SELECT (REAR CLICK) button.

DIRECT OPERATION

Press the MODE button on the projector or the COMPUTER button on the remote control unit to select Computer 1, Computer 2 Input. The "Computer 1", or "Computer 2" display will appear on the screen for a few seconds.

When this mark is displayed as black, more computer system modes will be available. Move the arrow to this mark and then press the SELECT (REAR CLICK) button, and the other modes will be displayed.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Computer and press the SELECT (REAR CLICK) button.

Another dialog box COMPUTER MODE

Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the mode either Computer 1 or Computer 2, and then press the SELECT (REAR CLICK) button.

MODE button

Computer 1

Computer 2

Video 1

Providing the information of the computer detected by the projector.

COMPUTER MODE

Video 2

If the incoming signal is digital, the "D-VGA", "D-SVGA", "D-XGA" or "D-SXGA" display appears.

COMPUTER MODE

Specifications are subject to change without notice. NOTE: Basically this projector can accept the signal from all computers with the above mentioned V, H-Frequency and

less than 220 MHz of Dot Clock.

ON-SCREEN DISPLAY

RESOLUTION

H-Freq. (kHz)

V-Freq. (Hz)

COMPATIBLE COMPUTER SPECIFICATIONS

1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 960 1152 x 900 1152 x 900 1280 x 1024

1280 x 1024

1280 x 1024 1280 x 1024 1152 x 900 1280 x 1024

1280 x 1024 1280 x 1024 1152 x 870 1280 x 960 1280 x 1024 768 x 576

640 x 480 1280 x 720

1920 x 1035 1920 x 1080

47.00

58.03

60.24

64.20

62.50

63.90

63.34

63.74

71.69

81.13

63.98

79.976

60.00

61.20

71.40

50.00

63.37

76.97

61.85

46.43

63.79

91.146

68.68

75.00

80.00

15.625

15.734

45.00

33.75

58.30

72.00

75.08

70.40

58.60

60.00

59.98

60.01

67.19

76.107

60.02

75.025

60.00

65.20

75.60

86.00

(Interlace)

94.00

(Interlace)

60.01

72.00

66.00

86.70

(Interlace)

60.18

85.024

75.06

75.08

50.00

(Interlace)

60.00

(Interlace)

60.00

(Interlace)

60.00

(Interlace)

ON-SCREEN DISPLAY

RESOLUTION

H-Freq. (kHz)

V-Freq. (Hz)

VGA1 VGA2 VGA3 VGA4 VGA5 VGA6 VGA7 MAC LC13 MAC13 SVGA1 SVGA2 SVGA3 SVGA4 SVGA5 SVGA6 SVGA7 SVGA8 SVGA9 SVGA10 SVGA11 MAC16 XGA1 XGA2 XGA3 XGA4 XGA5 XGA6 XGA7 XGA8 XGA9

XGA10 XGA11 XGA12

XGA13

640 x 480 720 x 400 640 x 400 640 x 480 640 x 480 640 x 480 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600 800 x 600

832 x 624 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768

1024 x 768 1024 x 768 1024 x 768

1024 x 768

31.47

37.86

37.50

43.269

34.97

35.00

35.156

37.88

46.875

53.674

48.08

37.90

34.50

38.00

38.60

32.70

38.00

49.72

48.36

68.677

60.023

56.47

60.31

48.50

44.00

63.48

36.00

62.04

61.00

35.522

46.90

59.88

70.09

74.38

72.81

75.00

85.00

66.60

66.67

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

51.09

60.51

74.55

60.00

84.997

75.03

70.07

74.92

60.02

54.58

79.35

87.17

(Interlace)

77.07

75.70

86.96

(Interlace)

58.20

XGA14 XGA15 MAC19 SXGA1 SXGA2 SXGA3 SXGA4 SXGA5 SXGA6 SXGA7 SXGA8 SXGA9 SXGA10 SXGA11 SXGA12 SXGA13

SXGA14

SXGA15 SXGA16 SXGA17 SXGA18

SXGA19 SXGA20 MAC21 MAC MAC RGB

RGB HDTV720p

HDTV1035i HDTV1080i

COMPUTER MODE

PC ADJUSTMENT

This Projector can automatically tune to the display signals from most personal computers currently distributed. However, some computers employ special signal formats which are different from the standard ones and may not be tuned by the Multi-Scan system of this projector. If this happens, the projector cannot reproduce a proper image and the image may be recognized as a flickering picture, a non-synchronized picture, a non-centered picture or a skewed picture. This projector has a PC ADJUSTMENT function to enable you to precisely adjust several parameters to match with those special signal formats. This projector has 8 independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Note : This PC ADJUSTMENT function will be skipped when the incoming signal is digital.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT RIGHT/LEFT button to select PC ADJUST and press the SELECT (REAR CLICK) button. Another dialog box “Where to reserve” Menu will appear.

In this dialog box, you can store the parameter into the area from “Mode 1” to “Mode 8.” When memorizing the new computer parameter, select the Mode with the message “Free” by pressing the POINT UP/DOWN button and the SELECT (REAR CLICK) button. To change the parameters of the Mode previously set, select the Mode with “Stored.”

When the Mode is selected, Parameter adjustment dialog box appears. Move the arrow to the item that you want to change by pressing the POINT UP/DOWN button, and adjust each item by pressing the SELECT (REAR CLICK) button to match with your computer.

Move the arrow to “Stored” and press the SELECT (REAR CLICK) button. The parameter is memorized in the selected Mode.

This Mode has parameters being stored.

Close the PC ADJUSTMENT Menu.

The Vacant Mode.

Manual set Computer Mode (1 to 8).

Move the arrow to ▲ or ▼ and press SELECT (REAR CLICK) button.

To activate the Mode manually adjusted in this PC ADJUSTMENT Menu, select the Mode at the SYSTEM SELECT Menu. (Refer to page 36.)

The number of the total vertical lines. Adjust the number to match the image of your personal computer.

Total lines

Recalls the parameter data that was previously adjusted.

Reset

Stores the parameters in the memory.

Stored

Clears the parameter data previously set.

Mode free

Closes the PC ADJUST Menu.

Quit

The number of the total dots in one horizontal period. Adjust the number to match the image of your computer.

Total dots

Adjustment of the horizontal or vertical picture position. When the image is not centered on the screen, adjust each of those items.

Horizontal / Vertical

Adjustment of the clamp level. When the image has a dark bar(s), try this adjustment.

Clamp

Adjustment of the area displayed with this projector. Select the resolution at the Display area dialog box, or adjust the number at the column of “H” or “V” to match the resolution of the image.

Display area

Adjustment of the horizontal height or vertical width of the image.

Horizontal Scale / Vertical Scale

Each of the keys operates as follow.

Press the SELECT (REAR CLICK) button at this column to adjust “Clamp,” “Fine sync,”

“Display area,” “Horiz. scale” or “Vert. scale” .

Adjust the picture as necessary to eliminate flicker from the display.

Fine sync

NOTE : The Display area, the Horiz. scale and the Vert. scale

cannot be adjusted when “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P24 and 25).

Point the arrow at the Display area and press the SELECT (REAR CLICK) button. The Display area dialog box appears.

COMPUTER MODE

640 X 480

720 X 400 800 X 600 1024 X 768

1152 X 864

1280 X 1024

COMPUTER MODE

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select IMAGE and press the SELECT (REAR CLICK) button. Another dialog box PICTURE IMAGE ADJUSTMENT Menu will appear.

Adjust the picture as necessary to eliminate flicker from the display. (From 0 to 127.)

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

Point to ▼ to decrease contrast, and select ▲ to increase contrast. (From 0 to 63.)

Point to ▼ to adjust the image darker, and select ▲ to adjust brighter. (From 0 to 63.)

Close the PICTURE IMAGE ADJUSTMENT Menu.

Move the arrow to ▲ or ▼ and press SELECT (REAR CLICK) button.

Recalls the data previously adjusted.

Reset

Stores the adjusted data in the memory.

Stored

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Quit

Move the arrow to the color that you want to adjust. Point to ▼ to lighten the color and select ▲ to deepen the color. (From 0 to 63.)

Each of the keys operates as follow.

Fine sync

Total dots

White balance (Red / Green / Blue)

Contrast

Brightness

Point to ▼ to soften the image, and select ▲ to sharpen the image. (From 0 to 31.)

Sharpness

PICTURE IMAGE ADJUSTMENTS

NOTE : This menu cannot be operated when the

incoming signal is digital or “RGB,” “HDTV720p,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P36 and 37).

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT (REAR CLICK) button.

COMPUTER MODE

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The “Normal” display will be displayed on the screen for a few seconds.

NORMAL FUNCTION

Normal

The Auto Image adjustment is provided to automatically adjust Fine sync., Total dots, and Picture Position for most computers.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select AUTO IMAGE and press the SELECT (REAR CLICK) button. Another dialog box AUTO IMAGE Menu will appear.

Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN button. Change the setting On or Off by pressing the SELECT (REAR CLICK) button.

Move the arrow to “Go!” and press the SELECT (REAR CLICK) button to start the Auto Image adjustment. This adjustment can be executed by pressing AUTO IMAGE button on the Projector or on the Remote Control Unit.

NOTE : This menu cannot be operated when the incoming signal is digital or “RGB,” “HDTV720p,” “HDTV1035i” or

“HDTV1080i” is selected on the SYSTEM MENU (P36 and 37).

The Fine sync., Total dots, and Picture Position of some computers may not be fully adjusted with the Auto Image ADJUSTMENT. In that case, manual adjustment is required to make fine image. (Refer to page 40 to adjust "Fine sync." or "Total dots" and page 42 to adjust Picture Position.)

Terminates the PICTURE IMAGE ADJUSTMENT Menu.

Move the arrow to the item and then press the SELECT (REAR CLICK) button.

Starts the adjustment on the item set to "On".

Adjust the picture as necessary to eliminate flicker from the display. This item can be adjusted manually. (Refer to page 40.)

The number of the total dots in one horizontal period. This item can be adjusted manually. (Refer to page 40.)

Adjustment of the position of the image. This item can be adjusted manually. (Refer to page 42.)

Fine sync

Total dots

Position

Stores the On/Off setting of each item.

Stored

Starts the Auto Image Adjustment.

Go!

Closes the AUTO IMAGE ADJUSTMENT Menu.

Quit

AUTO IMAGE ADJUSTMENT

PICTURE POSITION ADJUSTMENT

The position of the image can be adjusted vertically and horizontally through PICTURE POSITION ADJUSTMENT.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select POSITION and press the SELECT (REAR CLICK) button. The PICTURE POSITION dialog box will appear.

Select the arrow to the direction (described as , , or ) that you want to adjust by pressing the POINT UP/DOWN/ LEFT/RIGHT buttons, and then press the SELECT (REAR CLICK) button.

Select the arrow to the direction (described as

, , or ),and then press the SELECT (REAR CLICK) button.

Each of the keys operates as follow.

Recalls the setting data previously set.

Reset

Stores the setting data in the memory.

Stored

Closes the PICTURE POSITION Menu.

Quit

COMPUTER MODE

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SCREEN and press the SELECT (REAR CLICK) button. Another dialog box PICTURE SCREEN Menu will appear.

To adjust the image size or pan the image, select Digital zoom in the dialog box. The ON-SCREEN menu and SCREEN ADJUST menu disappears, and the magnifying glass icon and the message “D. Zoom” is displayed. This projector also enters Digital Zoom mode by pressing the Select (REAR CLICK) and FRONT CLICK buttons on the Wireless Remote Control Unit.

Refer to the following for operation.

Expand function

To expand the image size, press the SELECT (REAR CLICK) button. The image is magnified by degrees.

Compress function

To compress the image size, press the FRONT CLICK button. The size of image is reduced by degrees.

Panning function

To pan the image, press the POINT UP/DOWN/LEFT/RIGHT buttons. Panning function can work only when the image is larger than the screen size.

To cancel Digital Zoom mode, press any button except SELECT (REAR CLICK), FRONT CLICK, or POINT button. To adjust the image to 1024 x 768, press NORMAL button.

To make the image into its original size, select True in the dialog box. When the original image size is larger than the screen size (1024 x

768), the image can be panned by pressing the POINT UP/DOWN/LEFT/RIGHT buttons.

Move the arrow to the function and press the SELECT (REAR CLICK) button.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT (REAR CLICK) button.

True

Digital Zoom

NOTE

● The True and the Digital Zoom cannot be operated when “RGB,” “HDTV1035i” or “HDTV1080i” is selected on the SYSTEM MENU (P36 and 37).

● This projector cannot display any resolution higher than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting the projector.

● The image data in other than 1024 x 768 is modified to fit the screen size in the initial mode.

● The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is used.

SELECTING VIDEO MODE

This projector automatically detects the signal from the VIDEO INPUT JACK(s) or the S-VIDEO INPUT JACK. When those jacks are connected at the same time, select the type of Video source in VIDEO SOURCE Menu.

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select VIDEO SOURCE and press the SELECT (REAR CLICK) button. Another dialog box VIDEO SOURCE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the source that you want to select, and then press the

SELECT (REAR CLICK) button.

This box indicates the Video source being selected.

SELECTING VIDEO SOURCE

VIDEO MODE

VIDEO button

Video 1

Video 2

DIRECT OPERATION

Press the MODE button on the projector or the VIDEO button on the remote control unit to select Video 1, Video 2 Input. The "Video 1", or "Video 2" display will appear on the screen for a few seconds.

MODE button

Computer 1

Computer 2

Video 1

Video 2

MENU OPERATION

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select Computer and press the SELECT (REAR CLICK) button.

Another dialog box VIDEO MODE

Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the mode either Video 1 or Video 2, and then press the SELECT (REAR CLICK) button.

Video

Y, C

When connect the separate Y/C video output from the video equipment to the VIDEO/Y and C jacks, select "Y,C" in VIDEO SOURCE Menu.

When connect the composite video output from the video equipment to the VIDEO/Y jack, select "Video" in VIDEO SOURCE Menu.

Y, Cb, Cr

When connect the component video output from the video equipment to the VIDEO/Y, C/Cb (B-Y) and Cr (RY) jacks, select "Y, Cb, Cr" in VIDEO SOURCE Menu.

VIDEO MODE

SELECTING COLOR SYSTEM

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SYSTEM and press the SELECT (REAR CLICK) button. Another dialog box VIDEO SYSTEM Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to "Auto", and then press the

SELECT

(REAR CLICK) button.

The projector automatically detects the incoming Video system, and adjusts itself to optimize its performance. When the Video System is PAL-M or PAL-N, select the system manually.

If the projector cannot reproduce the proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the arrow to the Mode and press the SELECT (REAR CLICK) button.

This box indicates the system being selected.

Auto

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

VIDEO SIGNAL FROM VIDEO JACK OR S-VIDEO JACK

VIDEO MODE

PICTURE IMAGE ADJUSTMENT

Each of the keys operates as follow.

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Point to ▼ button to lighten the image, and select ▲ to deepen the image. (From 0 to 63.)

Point to ▼ button to increase purple, and select ▲ to increase green. (From 0 to 63.)

Point to ▼ button to decrease contrast, and select ▲ to increase contrast. (From 0 to 63.)

Point to ▼ button to darken the image, and select ▲ to brighten the image. (From 0 to 63.)

Recalls the data previously adjusted.

Reset

Stores the data in the memory.

Stored

Closes the PICTURE IMAGE ADJUSTMENT Menu.

Quit

Point to ▼ button to soften the image, and select ▲ to sharpen the image. (From 0 to 31.)

Color

Tint

Contrast

Brightness

Sharpness

Move the arrow to the color that you want to adjust. Point to ▼ to lighten the color and select ▲ to deepen the color. (From 0 to 63.)

White balance (Red / Green / Blue)

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the function that you want to select and then press SELECT (REAR CLICK) button.

Move the arrow to ▲ or ▼ and press SELECT (REAR CLICK) button.

VIDEO MODE

The normal picture level is preset on this projector at the factory and can be restored anytime you press the NORMAL button (located on the Top Control or on the Remote Control Unit). The "Normal" display will be displayed on the screen for a few seconds.

NORMAL FUNCTION

PICTURE SCREEN ADJUSTMENT

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the screen size that you want to set, and then press the

SELECT (REAR CLICK) button.

Normal Video Image size with 4 x 3 aspect ratio.

Resizes the image for wide screen size with 16 x 9 aspect ratio.

Move the pointer to the function and press the SELECT (REAR CLICK) button.

Regular

Wide

Normal

SETTING MENU

Press the MENU button and the ON-SCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT (REAR CLICK) button. Another dialog box SETTING Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the item that you want to set, and then press the

SELECT (REAR CLICK) button to set it "On" or "Off" or press the POINT LEFT/RIGHT button to adjust the value.

Blue back

When this function is “On,” this projector will produce a blue image instead of the video noise on the screen when the input source is unplugged or turned off.

Display

This function decides whether to display the On-Screen Displays.

On ···shows all the On-Screen Displays. Off ···· sets the On-Screen Displays disappeared except;

● ON SCREEN MENU

● “Power off?” message

● P-TIMER

Set the Pointer to the item and press the SELECT (REAR CLICK) button.

This function turns the Projection Lamp off when the projector detects signal interruption and the projector is not used for a certain period in order to reduce power consumption and maintain the Lamplife. (This projector is shipped with this function ON.)

Power Management function operates to turn the Projection Lamp off when the input signal is interrupted and the projector is not operated over 5 minutes. This function operates as follows;

1. When the signal is interrupted, “No signal” and the counting down (5 minutes) display appears.

2. When the Projection Lamp turned off, the READY indicator turns off. The Cooling Fans operate for 90 seconds after the Projection Lamp is turned off. (During this "Cooling Down" period, the Lamp cannot be turned on.)

3. When the Lamp has cooled down, the READY indicator flashes and the Lamp can be turned on again (Power Management mode). In this Power Management mode, the Projection Lamp is automatically turned on when the input signal connected or the projector is operated with any button on the Top Control or on the Remote Control.

Power management

Time left until Lamp off.

Reverse T/B

When this function is “On,” the top / bottom reversed picture is provided to project the image from a ceiling mounted projector.

Reverse L/R

When this function is “On,” the left / right reversed picture is provided to project the image to a rear projection screen.

Reverse T/B function

Reverse L/R function

Split wipe

Turn this function “On” in the SETTING menu. The picture will change into next one by sliding black image side ways like drawing the black curtains when the input source is turned into another one.

SETTING

SELECTING LANGUAGE

Press the MENU button and the ON-SCREEN MENU will appear. Press POINT LEFT/RIGHT buttons to select LANGUAGE and press the SELECT (REAR CLICK) button. Another dialog box LANGUAGE Menu will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to the language that you want to set, and then press the

SELECT (REAR CLICK) button.

The language used in the ON-SCREEN MENU is selectable from among English, German, French, Italian, Spanish and Japanese.

Move the Pointer to the language that you want to set, and then press the SELECT (REAR CLICK) button.

Remote control

This projector has two different remote transmit codes; the factory-set normal code (Mode 1) and the secondary code (Mode 2). This switching function prevents the remote control operation mixture (jam) when operating several projectors or video equipment together. When operating the projector in “Mode 2” both projector and Remote Control must be switched to “Mode 2”.

To change the code of the projector;

Set the Remote control in the SETTING menu to “Mode 2”.

To change the code of the Remote Control;

Press both the MENU and the NORMAL buttons on the Remote Control together for over 10 seconds. After changing the code, make sure the Remote Control operates properly.

To return to the normal code (Mode 1), operate both projector and Remote Control in the ways above again.

USB

Projector mode

Select " " when controlling the projector with the computer. NOTE: Before you control the projector by computer, install USB driver (optionally sold parts) and set up the computer

following instruction in the USB driver package. Contact your authorized dealer.

This Projector is equipped with USB port for interactive operation between the projector and the computer. Set the mode following steps below.

Wireless Mouse mode

Select " " when controlling the computer with the Remote Control of this projector.

Lamp replacement monitor timer

Be sure to reset the Lamp Replacement Monitor Timer when the Lamp Assembly is replaced. When the Lamp Replacement Monitor Timer is reset, the LAMP REPLACEMENT indicator stops lighting.

Turn the projector on, and press the MENU button and the ONSCREEN MENU will appear. Press the POINT LEFT/RIGHT buttons to select SETTING and press the SELECT (REAR CLICK) button. Another dialog box SETTING MENU will appear.

Press the POINT DOWN button and a red-arrow icon will appear. Move the arrow to “Lamp age” and then press the

SELECT (REAR

CLICK) button.

NOTE; Do not reset the Lamp Replacement Monitor Timer, except after

the lamp is replaced.

Select [Yes] to reset the Timer.

Move the arrow to replaced lamp number and then press the

SELECT (REAR CLICK) button. The message "Lamp replace monitor Reset?" is displayed.

OPERATING WIRELESS MOUSE

INSTALLATION

The Wireless Remote Control Unit is not only able to operate the projector but also usable as a wireless mouse for most Personal Computers. The POINT buttons and the two CLICK buttons are used for the wireless mouse operation. The wireless mouse is available only when PC mouse pointer is displayed on the screen. When the menu or the indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

Connect the mouse port of your computer to the Control Port of the projector with the Control Cable. (Refer to page 15 to 20 for connection.)

Turn the projector on first, and then turn on your computer. When the computer is switched on first, the Wireless Mouse may not work properly.

1 2

To use the Wireless Remote Control Unit as the Wireless Mouse for a Personal Computer, installation of the mouse driver (not supplied) is required. Make sure that the mouse driver is properly installed in your computer. And make sure that the mouse port of the computer connected to Control Port is activated.

OPERATING WIRELESS MOUSE

When controlling the pointer of the computer, operate the Wireless Mouse with POINT button, SELECT (REAR CLICK) button, and FRONT CLICK button on the Wireless Remote Control Unit.

Used to move the pointer. The pointer is moved corresponding with the direction you are pressing.

POINT button

This button has the same function as the left button in a PC mouse.

SELECT (REAR CLICK) button

This button has the same function as the right button in a PC mouse. Pressing this button does not affect any operation when in Menu mode.

FRONT CLICK button

Note : When the computer has no

mouse port, connect the Serial Port of the computer to Control Port of the projector with the Control Cable for Serial Port.

POINT button (Move the pointer)

SELECT (REAR LICK) button (left button of the mouse)

FRONT CLICK button (right button of the mouse)

APPENDIX

USB Terminal can be also used as control port for wireless mouse operation. Connect the USB terminal of the computer to USB terminal of this projector with the USB cable (not supplied). In this operation, selecting Wireless Mouse Mode on SETTING Menu is required. (Refer to P49).

USING USB TERMINAL

APPENDIX

RECOMMENDATION

TO ENJOY PICTURE IMAGE, USE THE PROJECTOR IN THE CLEAN ENVIRONMENT. USAGE IN THE CLEAN ENVIRONMENT IS RECOMMENDED.

When used under the dusty or smoky conditions, dust may accumulate on the liquid crystal panel and lens inside it, and may resultantly be projected on the screen together with the picture. When the above symptoms are noticed contact the place where your authorized dealer or service station for the cleaning.

TEMPERATURE WARNING INDICATOR

AIR FILTER COVER

AIR FILTER

SPONGE

AIR FILTER COVER

The TEMPERATURE WARNING INDICATOR flashes red when the internal temperature of the projector exceeds the normal temperature. Possible causes for the temperature warning may be :

1. Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are not obstructed.

2. Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the Air Filter Care and Cleaning section below.

3. If temperature warning indicator remains on after performing the checks listed above, cooling fan/internal circuits may be malfunctioning. Request service from an authorized dealer or service station.

MAINTENANCE

TEMPERATURE WARNING INDICATOR

AIR FILTER CARE AND CLEANING

The removable air filter prevents dust from accumulating on the surface of the projection lens and projection mirror. Should the air filter become clogged with dust particles, it will reduce the cooling fan's effectiveness and may result in internal heat build up and reduce the life of the projector.

To clean the air filter, follow the cleaning procedures below:

1. Turn the POWER ON/OFF button OFF.

2. Remove the air filter cover.

3. Remove the air filter and sponge from the filter cover.

4. Clean the air filter with a vacuum cleaner.

5. Replace the air filter and sponge. Make sure that air filter cover is fully inserted.

Do not clean with water. Doing so may damage the air filter. Do not operate the projector with air filter removed.

Follow these steps to replace the lamp assembly.

1. Turn off the projector and allow the projector to cool thoroughly.

2. Disconnect the AC cord from the projector.

3. Remove 2 screws with a screwdriver and remove the lamp cover.

4. Remove 2 screws with a screwdriver and pull out the lamp assembly by

grasping the handle.

5. Replace the lamp assembly.

6. Tighten 4 screws to secure the lamp cover to the lamp assembly.

7. Connect the detachable AC cord to the projector.

8. Reset the lamp replacement monitor timer.

(See "LAMP REPLACEMENT MONITOR TIMER" section on page 49.)

NOTE: Do not reset the LAMP REPLACEMENT MONITOR TIMER, except

after the lamp is replaced.

● For continued safety, replace with a lamp assembly of the same type.

● Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the

projector can become very hot.

● Do not drop the lamp module or touch the glass bulb ! The glass can shatter and cause injury.

LAMP REPLACEMENT INDICATOR

LAMP ASSEMBLY

HANDLE

LAMP COVER

LAMP REPLACEMENT

WHEN THE PROJECTION LAMP OF THIS PROJECTOR DRAWS TO AN END, THE LAMP REPLACEMENT INDICATOR LIGHTS YELLOW AND THE WARNING MESSAGE "LAMP REPLACEMENT" APPEARS AS THE RIGHT FIGURE. WHEN THE WARNING MESSAGE IS DISPLAYED, THE PROJECTION LAMP SHOULD BE REPLACED.

To terminate the warning message.

Replace the Projection Lamp and reset the LAMP REPLACEMENT MONITOR TIMER (See "LAMP REPLACEMENT MONITOR TIMER" section on page 49.), and the warning message is terminated.

To erase the warning message in a moment.

To erase the warning message for a moment, move the arrow to "YES" by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON. This procedure is temporary measure, and the warning massage appears again when the projector is turned on next time.

LAMP REPLACEMENT

ORDER REPLACEMENT LAMP

Replacement Lamp can be ordered through your dealer. When ordering the Lamp, give the following information to the dealer.

● Model No. of your projector : PLC-XF12N/PLC-XF12NL/PLC-XF12E/PLC-XF12EL/PLC-XF12B/PLC-XF12BL

● Replacement Lamp Type No. : POA-LMP26

(Service Parts No. 610 285 7450)

APPENDIX

Problem:

No power.

Image is out of focus.

Try these Solutions:

● Plug the projector into an AC outlet.

● Turn the MAIN ON/OFF switch to ON.

● Press the POWER ON/OFF switch to ON.

● Be sure the READY INDICATOR light is ON.

● Wait 90 seconds after the projector is turned OFF before turning the projector

back on.

NOTE: After pressing the POWER ON/OFF button to OFF. The projector functions

as indicated.

1. The LAMP POWER indicator will light and the READY indicator will turn off.

2. After 90 seconds, the READY indicator will light green again and the projector may be turned on by pressing the POWER ON/OFF button.

● Check temperature warning indicator. If the indicator flashes red, the projector cannot be turned on.

(See "BASIC OPERATION" section on page 32).

● Check the projection lamp.

● Replace the lamp cover. (Check the interlock switch inside of the lamp cover.)

● Adjust the focus.

● Make sure the projection screen is at least 4.9' (1.5 m) from the projector.

● Check the projection lens to see if it needs cleaning.

NOTE: Moving the projector from a cool temperature location to a warm

temperature location may result in moisture condensation on the lens. In such an event, leave the projector OFF and wait until condensation disappears.

Before calling your dealer or service station for assistance, check the matters below once again.

1. Make sure you have connected the projector to your equipment as described in section "CONNECTING THE PROJECTOR" on pages 11 ~ 22.

2. Check cable connections. Verify that all computer, video and power cords are properly connected.

3. Verify that power is switched on.

4. If the projector still does not display an image, re-start the computer.

5. If the image still does not display, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector. Power the equipment back up in order of: Projector and computer)

6. If the problem still exists, check the following chart.

TROUBLESHOOTING

Follow these steps to clean the projection lens:

1. Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

2. Lightly wipe the cleaning cloth over the lens.

3. When you don't use the projector, replace the lens cover.

CLEANING THE PROJECTION LENS

APPENDIX

No sound.

Problem:

Check Reverse L/R feature. (See "SETTING" section on pages 48 ~ 49).

Picture is L/R Reversed.

Check Reverse T/B feature. (See "SETTING" section on pages 48 ~ 49).

Picture is T/B inverted.

Check Display feature. (See "SETTING" section on pages 48 ~ 49).

Some displays are not seen during the operation.

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press the VOLUME (+) button.

● Press the MUTE button.

● Check the batteries.

● Make sure nothing is blocking between the remote control sensor and remote

control unit.

● Make sure you are not too far from the projector when using the remote control unit. {Maximum operate range 16.4 ' (5 m)}.

● Check the transmitted signal mode from the remote control unit. (See "SETTING" section on pages 48 ~ 49).

Remote control unit doesn't work.

● Check the cable connection between the projector and the computer.

● Check the mouse setting on your computer.

● Turn on the projector before you turn on the computer.

Wireless mouse function does not work.

Try these Solutions:

SERVICE

WARNING: High voltages are used to operate this projector. Do not attempt to open the cabinet.

You can often correct operating problems yourself. If the projector fails to work properly, see "TROUBLESHOOTING" section on page 53, 54. To correct the failure, try the "Solutions".

If after following all operating instructions, you find that service is necessary, contact the Sanyo Service Station or the store where you purchased the unit. Give the model number and explain the difficulty. We will advise you how to obtain service.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

The CE Mark is a Directive conformity mark of the European Community (EC).

APPENDIX

TECHNICAL SPECIFICATIONS

Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Number of Pixels Color System Scanning Frequency Projection Image Size (Diagonal)

Horizontal Resolution Projection Lens Motorized Lens Shift Throw Distance Projection Lamp AV Input Jacks

Computer Audio Input Jack

Video Monitor Output Jack

Audio Monitor Output Jacks Computer Input 1 Jack

Computer Input 2 Jack

Other Jack Built-in Speaker

Image Elevation Adjustment

Voltage and Power Consumption

Operating Temperature Storage Temperature

Remote Control Transmitters

Multi-media Projector

15.4" (390 mm) x 9.6" (245 mm) x 23" (585 mm)

39.2 Ibs (17.8 kg)

1.8" TFT Active Matrix type x 3 panels 2,359,296 {786,432 (1,024 x 768) x 3} 6 color system (PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N) H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 120 Hz Adjustable from 40" to 600"

800 TV lines F2.0 ~ 2.3 lens with f=75.7 mm ~ 97.5 mm Motor zoom and focus ± 760 mm on 100" screen

4.9' (1.5 m) ~ 80.7' (24.6 m) 440 watt type

BNC Type {Video/Y, C/Cb (B-Y), Cr (R-Y)} x 2 sets, RCA Type (Audio R and L) x 2 sets and DIN 4 pin (S-Video) x 2 sets

RCA Type (R and L) x 2 sets

Computer Output Jack Computer Audio Output Jack

HDB 15-pin Terminal RCA Type (R and L) x 1 set

BNC Type {Video/Y, C/Cb (B-Y),Cr (R-Y)} x 1 set and DIN 4 pin (S-Video) x 1 set

RCA Type (R and L) x 1 set

BNC Type (R, G, B, H and V), Multi-pole 12-pin (Control port) and USB port

MDR 20-pin Terminal (Digital), HDB 15-pin Terminal (Analog), Multi-pole 12-pin (Control port) and USB port

Wired Remote Jack and Serial port (DB 9) INT. SP. Stereo (R and L), 3 watt RMS (T.H.D.10%)

Up to 4°

AC 100 ~ 120 V (7.8A Max. Ampere), 50/60 Hz (The U.S.A and Canada) AC 200 ~ 240 V (3.6A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)

41°F ~ 95°F (5°C ~ 35°C) 14°F ~ 140°F (–10°C ~ 60°C) Wireless Remote Control with Laser Beam (Class Laser)

Max. Output 1mW/Wave Length 660 ± 20nm, batteries (2) AA type. Wireless/Wired Remote Control, batteries (2) AA type.

APPENDIX

● The specifications are subject to change without notice.

SANYO Electric Co., Ltd

Printed in Japan Part No. 610 289 9580 (1AA6P1P2649-- PE6AB)

Sanyo PLC-XF12N/12NL, PLC-XF12E/12EL, PLC-XF12B/12BL User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY PRECAUTIONS

COMPLIANCES

TABLE OF CONTENTS

FEATURES AND DESIGN

PREPARATION

VENTILATION

MOVING THE PROJECTOR

PICTURE LEVEL AND TILT ADJUSTMENT

CONNECTING THE PROJECTOR

TERMINAL OF THE PROJECTOR

CONNECTING THE COMPUTER

BEFORE OPERATION

OPERATION OF THE REMOTE CONTROL

OPERATING ON-SCREEN MENU

TURNING ON/OFF THE PROJECTOR

BASIC OPERATION

ADJUSTING THE IMAGE

FOCUS ADJUSTMENT

ZOOM ADJUSTMENT

LENS SHIFT FUNCTION

NORMAL PICTURE FUNCTION

NO SHOW FUNCTION

P-TIMER FUNCTION

FREEZE PICTURE FUNCTION

CURSOR FUNCTION

SOUND ADJUSTMENT

SELECTING COMPUTER MODE

SELECTING COMPUTER SYSTEM

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

PC ADJUSTMENT

PICTURE IMAGE ADJUSTMENTS

AUTO IMAGE ADJUSTMENT

PICTURE POSITION ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

SELECTING VIDEO MODE

SELECTING VIDEO SOURCE

VIDEO MODE

SELECTING COLOR SYSTEM

PICTURE IMAGE ADJUSTMENT

PICTURE SCREEN ADJUSTMENT

SETTING

SELECTING LANGUAGE

OPERATING WIRELESS MOUSE

APPENDIX

TEMPERATURE WARNING INDICATOR

MAINTENANCE

AIR FILTER CARE AND CLEANING

LAMP REPLACEMENT

TROUBLESHOOTING

CLEANING THE PROJECTION LENS

TECHNICAL SPECIFICATIONS
