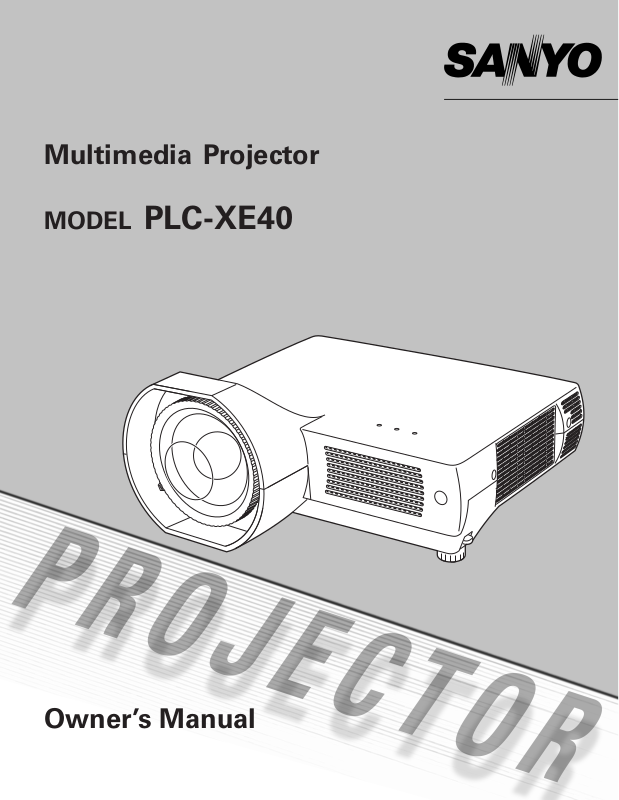

Page 1
Multimedia Projector
MODEL PLC-XE40
Owner’s Manual
Page 2
2
Features and Design
◆ Large Screen in Limited Space
- Short focus lens allows you to project large images
from short distance. (p. 14)
◆ Antitheft Alarm Function
This projector is equipped with an Antitheft alarm
function which sounds when a vibration is detected.
(pp. 48, 50 - 52)
◆ Security Features
- The projector cannot be operated without remote
control. Keep the remote control securely at hand
to minimize the risk of theft.
- Easily identifiable orange cabinet for security.
- The PIN cord lock guards the projector from an
unauthorized user. (pp. 19, 47, 48).
◆ Logo Function
The Logo function allows you to customize the
screen logo. The Logo page identifies the owner of
the projector. (pp. 43, 44)
◆ Compact Design
This projector is designed to be compact in size and
weight. It is easy to carry and work anywhere you
want to use.
◆ Simple Computer System Setting
The projector has a Multi-scan system to conform to
almost all computer output signals quickly. (p. 27)
◆ Compatibility
The projector widely accepts various video and
computer input signals including; Computers, 6 Color
systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, or
PAL-N), Component video, S-Video and RGB scart.
◆ Quick Termination
The AC power cord can be unplugged immediately
after turning off the projector without waiting for the
projector to cool down. (p. 20)
◆ Digital Zoom (for Computer)
The digital zoom function allows you to focus on crucial
information during a presentation. You can expand the
images approx. 16 times the screen size and compress
them to approx. half of the screen size. (p. 34)
◆ Blackboard Function
A blackboard✳ can be used as a projection screen.
(pp. 31, 38)
✳ The board color is limited to Green.
◆ Multilanguage Menu Display
The Operation menu is available in 16 languages;
English, German, French, Italian, Spanish,
Portuguese, Dutch, Swedish, Finnish, Polish,
Hungarian, Romanian, Russian, Chinese, Korean, or
Japanese. (p. 42)
◆ Switchable Interface Terminal
The projector provides a switchable interface
terminal. You can user the terminal as computer
input or monitor output conveniently. (p45)
◆ Power Management
The Power management function reduces power
consumption and maintains lamp life. (p. 45)
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use.
This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display
(LCD) technology.
✔
Note:
•
The On-Screen Menu and figures in this manual may differ slightly from the product.
•
The contents of this manual are subject to change without notice.
You can turn on or operate the projector ONLY
via the remote control. Make sure not to lose
the remote control.
Page 3
3
Table of Contents
Tr ademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective
corporation.
Features and Design . . . . . . . . . . . . . . . . . . .2
Ta ble of Contents . . . . . . . . . . . . . . . . . . . . . .3
To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Instructions . . . . . . . . . . . . . . . . . . . .5
Air Circulation 6
Installing the Projector in Proper Position 6
Moving the Projector 6
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7
Part Names and Functions . . . . . . . . . . . . . .8
Front 8
Back 8
Bottom 8
Rear Terminal 9
Top Control 10
Antitheft Alarm Setting Buttons 11
Remote Control 12
Remote Control Battery Installation 13
Operating Range 13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . .14
Positioning the Projector 14
Adjustable Feet 14
Connecting the AC Power Cord 15
Connecting to a Computer 16
Connecting to Video Equipment 17
Connecting to Component Video Equipment 18
Basic Operation . . . . . . . . . . . . . . . . . . . . . .19
Turning On the Projector 19
Turning Off the Projector 20
How to Operate the On-Screen Menu 21
Menu Bar 22
Focus Adjustment 23
Keystone Correction 23
Sound Adjustment 24
Remote Control Operation 24
Computer Input . . . . . . . . . . . . . . . . . . . . .26
Input Source Selection 26
Computer System Selection 27
Auto PC Adjustment 28
Manual PC Adjustment 29
Image Level Selection 31
Image Level Adjustment 32
Screen Size Adjustment 33
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .35
Input Source Selection (Video, S-Video) 35
Input Source Selection
(Component, RGB Scart 21-pin) 36
Video System Selection 37
Image Level Selection 38
Image Level Adjustment 39
Screen Size Adjustment 41
Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Setting 42
Antitheft Alarm function . . . . . . . . . . . . . . .50
How to Use the Antitheft Alarm Function 50
Maintenance and Cleaning . . . . . . . . . . . . .53
Warning Indicator 53
Cleaning the Air Filters 54
Attaching the Lens Cover 54
Cleaning the Projection Lens 55
Cleaning the Projector Cabinet 55
Lamp Replacement 56
Lamp Replacement Counter 57
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Troubleshooting 58
Menu Tree 60
Indicators and Projector Condition 62
Compatible Computer Specifications 63
Technical Specifications 64
Optional Parts 65
Configurations of Terminals 66
PIN Code Label 67
Page 4
4
To the Owner
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE EXCEPT LAMP REPLACEMENT.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS
VOLTAGE CONSTITUTING A RISK OF ELECTRIC
SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE
IMPORTANT OPERATING AND MAINTENANCE
INSTRUCTIONS IN THE OWNER'S MANUAL WITH
THIS UNIT.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Before operating this projector, read this manual thoroughly
and operate the projector properly.
This projector provides many convenient features and
functions. Operating the projector properly enables you to
manage those features and maintains it in better condition for
a considerable time.
Improper operation may result in not only shortening the
product-life, but also malfunctions, fire hazard, or other
accidents.
If your projector seems to operate improperly, read this
manual again, check operations and cable connections and try
the solutions in the “Troubleshooting” section in the end of
this booklet. If the problem still persists, contact the dealer
where you purchased the projector or the service center.
Safety Precaution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
– This projector produces intense light from the projection
lens. Do not stare directly into the lens as much as
possible. Eye damage could result. Be especially careful
that children do not stare directly into the beam.
– Install the projector in a proper position. If not, it may
result in a fire hazard.
– Provide appropriate space on the top, sides and rear of the
projector cabinet for allowing air circulation and cooling the
projector. Minimum clearance must be maintained. If the
projector is to be built into a compartment or similarly
enclosed, the minimum distances must be maintained. Do
not cover the ventilation slot on the projector. Heat buildup can reduce the service life of your projector, and can
also be dangerous.
– If the projector is not to be used for an extended time,
unplug the projector from the power outlet.
SIDE and TOP
REAR
CAUTION
Not for use in a computer room as defined in the Standard for
the Protection of Electronic Computer/Data Processing
Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que
définie dans la norme ANSI/NFPA 75 Standard for Protection
of Electronic Computer/Data Processing Equipment
NOTE: This symbol and recycle system are applied only
to EU countries and not applied to the countries in the
other area of the world.
Your SANYO product is designed and
manufactured with high quality
materials and components which can be
recycled and reused.
This symbol means that electrical and
electronic equipment, at their end-oflife, should be disposed of separately
from your household waste.
Please dispose of this equipment at your local community
waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
Please help us to conserve the environment we live in!
CAUTION ON HANGING FROM THE CEILING
When hanging the projector from the
ceiling, clean air intake vents, air filters, or top of the projector periodically with a vacuum cleaner. If you leave
the projector without cleaning for a
long time, the dust will block the operation of the cooling function, and it
may cause a breakdown or a disaster.
DO NOT SET THE PROJECTOR IN GREASY, WET, OR
SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE
PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.
READ AND KEEP THIS OWNER'S MANUAL FOR LATER
USE.
0.7'(20cm)
1.5'(50cm)
3'(1m)
1.5'(50cm)
Page 5
5
Safety Instructions
All the safety and operating instructions should be read before
the product is operated.
Read all of the instructions given here and retain them for later
use. Unplug this projector from AC power supply before
cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm,
or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet. This will prevent damage
due to lightning and power line surges.
Do not expose this unit to rain or use near water... for
example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the
manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table.
The projector may fall, causing serious injury to a child or
adult, and serious damage to the projector. Use only with a
cart or stand recommended by the manufacturer, or sold with
the projector. Wall or shelf mounting should follow the
manufacturer's instructions, and should use a mounting kit
approved by the manufacturers.
An appliance and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
Slots and openings in the back and bottom of the cabinet are
provided for ventilation, to ensure reliable operation of the
equipment and to protect it from overheating.
The openings should never be covered with cloth or other
materials, and the bottom opening should not be blocked by
placing the projector on a bed, sofa, rug, or other similar
surface. This projector should never be placed near or over a
radiator or heat register.
This projector should not be placed in a built-in installation
such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through
cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of airconditioning equipment.
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supplied, consult your authorized dealer or
local power company.
Do not overload wall outlets and extension cords as this can
result in fire or electric shock. Do not allow anything to rest
on the power cord. Do not locate this projector where the
cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service
personnel.
Unplug this projector from wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the projector.
c. If the projector has been exposed to rain or water.
d. If the projector does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the projector to normal operation.
e. If the projector has been dropped or the cabinet has been
damaged.
f. When the projector exhibits a distinct change in
performance-this indicates a need for service.
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer that have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or injury to persons.
Upon completion of any service or repairs to this projector,
ask the service technician to perform routine safety checks to
determine that the projector is in safe operating condition.
Voor de klanten in Nederland
Bij dit produkt zijn batterijen
geleverd.
Wanneer deze leeg zijn, moet u
ze niet weggooien maar inleveren
als KCA.
NL
Page 6
6
Safety Instructions
USE CAUTION IN CARRYING OR
TRANSPORTING THE PROJECTOR
– Do not drop or bump the projector, otherwise
damages or malfunctions may result.
– When carrying the projector, use a suitable carrying
case.
– Do not transport the projector by using a courier or
transport service in an unsuitable transport case. This
may cause damage to the projector. To transport the
projector through a courier or transport service, consult
your dealer for their information.
–
Do not put the projector in a case before the projector
is cooled enough.
Moving the Projector
When moving the projector, replace the lens cover and
retract the adjustable feet to prevent damage to the
lens and cabinet. When the projector is not in use for
an extended period, put it into a suitable case to protect
the projector.
When handling the projector, do not drop, bump,
subject it to strong forces or put other things on the
cabinet.
Do not tilt the projector more than
20 degrees from side to side.
Do not point the projector up to
project an image.
Do not point the projector down
to project an image.
Do not put the projector on either
side to project an image.
Install the projector properly. Improper Installation may
reduce the lamp life and cause a fire hazard.
Installing the Projector
in Proper Position
Openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to
protect it from overheating, and these openings must
not be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When
using or installing the projector, the following
precautions should be taken.
– Do not put any flammable object or spray can near the
projector, hot air is exhausted from the ventilation
holes.
–Keep the exhaust vent at least 3’(1m) away from any
objects.
–Do not touch a peripheral part of the exhaust vent,
especially screws and metallic part. This area will
become hot while the projector is being used.
–Do not put anything on the cabinet. The materials put
on the cabinet will not only get damaged but also
cause fire hazard by heat.
Cooling fans are provided to cool down the projector.
The fans' running speed is changed according to the
temperature inside the projector.
Air Circulation
Air Intake
Vent
Exhaust Vent
(Hot air exhaust)
Exhaust Vent
(Hot air exhaust)
Air Intake
Vent
20˚
20˚
Page 7
7
AC Power Cord for the United Kingdom :
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the
fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is
detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible
on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed.
The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)
WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET
OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth
Blue ································· Neutral
Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in
your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety
earth symbol or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING : THIS APPARATUS MUST BE EARTHED.
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
AC Power Cord Requirement
Compliance
ASA
Page 8
8
Bottom
Back
q Antitheft alarm setting buttons
w Focus Lever
e Projection Lens
r Lens Cover
(See p. 54 for attaching)
t
u
!6
!2 !4
!0
!1
CAUTION
Hot air is exhausted from the exhaust
vent. Do not put heat-sensitive objects
near this side.
e
y
r
t
Front
Part Names and Functions
o
i
!5
CAUTION
Do not turn on the projector with putting
the lens cover on. The light beam may
damage lens cover and result in fire
hazard.
Attach the lens cover while the projector
is not in use to avoid scratching the lens
surface.
y Infrared Remote Receiver
u Indicators
i Speaker
o Air Intake Vent
!0 Power Cord Connector
!1 Terminals and Connectors
!2 Lamp Cover
!3 Air Intake Vents
!4 Air Filters
!5 Battery Compartment
(For Antitheft alarm function)
!6 Adjustable Feet
w
q
t Exhaust Vents
!3
✽
✽ Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
For more information, visit
http://www.kensington.com.
*Kensington is a registered trademark of ACCO
Brands Corporation.
Page 9
9
Part Names and Functions
RESET button
A built-in micro processor which controls this unit may
occasionally malfunction and need to be reset. Press the
RESET button with a pen, then the projector shuts down and
restarts. Do not use the RESET function excessively.
Rear Terminal
q w e r t y
i
u
t S-VIDEO IN
Connect the S-VIDEO output from video
equipment to this jack. (p. 17)
y AUDIO IN
Connect the audio output from video equipment
connected to t or o to this jack. (When the audio
output is monaural, connect it to L (MONO) jack.)
(p. 17)
i COMPUTER/ COMPONENT AUDIO IN
Connect the audio output (stereo) from a computer
or video equipment connected to e or r to this
jack. (p 16, 18)
o VIDEO IN
Connect the composite video output from video
equipment to VIDEO jack. (p. 17)
r COMPUTER IN 2 / MONITOR OUT
This terminal is switchable and can be used for
input from a computer or output to the other
monitor.
Set the terminal up as either Computer input or
Monitor output properly. (Used for Monitor out,
this terminal outputs only incoming signal from
COMPUTER IN 1 / COMPONENT IN terminal.)
(pp. 16, 45)
u AUDIO OUT(VARIABLE)
Connect an external audio amplifier to this jack.
(pp. 16- 18)
This terminal outputs sound from AUDIO IN
terminal (y or i).
q USB (Series B)
In order to operate the computer with the remote
control during a presentation, connect the USB
port of the computer to the projector with a USB
cable. (p. 16)
w SERVICE PORT
This jack is used to service the projector.
✽
✽
e COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output, or component video output to
this terminal. (pp. 16, 18)
When the cable is of the longer variety, it is
advisable to use this terminal and not COMPUTER
IN 2 / MONITOR OUT.
o
Part Names & Functions
RESET
USB
SERVICE PORT
COMPUTER IN
/ COMPONENT IN
COMPUTER IN
1
MONITOR OUT
2 /
VIDEO IN
S-VIDEO IN
R
(MONO)
L
AUDIO OUT
COMPUTER /
COMPONENT
AUDIO IN
(VARIABLE)
Page 10
10
Part Names and Functions
REPLACE
POWER WARNING
LAMP
q
w
e
e LAMP REPLACE indicator
Turn yellow when the life of the projection lamp draws to an
end. (pp. 56, 62)
w WARNING indicator
Emit a red light when the projector detects abnormal condition.
This also blinks red when the internal temperature of the
projector exceeds the operating range. (pp. 53, 62)
q POWER indicator
It turns red when the projector is in the stand-by mode.
It remains green while the projector is under operation.
(pp. 19, 20, 62)
Top Control
Page 11
11
Part Names and Functions
Part Names & Functions
q
e
w
w Button 1-3
Used for Antitheft alarm setting.
e ALARM indicator
Blinks red to indicate the battery condition or key operation.
q F button
Used for Antitheft alarm setting.
Antitheft Alarm Setting Buttons
These buttons are used for Antitheft alarm function. (pp. 50-52)
Page 12
12
Part Names and Functions
To ensure safe operation, please observe the following
precautions :
– Do not bend, drop the remote control or expose the
remote control to moisture or heat.
– For cleaning, use soft dry cloth. Do not apply benzene,
thinner, splay or any chemical material.
t
e
!0
i
!4
r
!5
!3
q POWER ON-OFF button
Turn the projector on or off. (pp. 19, 20)
w VIDEO button
Select VIDEO input source. (pp. 24, 35)
e COMPUTER button
Select COMPUTER input source. (pp. 24, 26, 36)
r MENU button
Open or close the On-Screen Menu. (p. 21)
i PAGE ed buttons
Scroll back and forth pages on the screen when giving a
presentation. Connect the projector and your computer
with a USB cable to use these buttons. (pp. 9, 16)
!1
u D.ZOOM ed buttons
Zoom in and out the image. (pp. 25, 34)
!5 AUTO PC button
Automatically adjust the computer image to its optimum setting.
(pp. 25, 28)
!4 IMAGE button
Select the image level. (pp. 25, 31, 38)
o FREEZE button
Freeze the picture. (p. 24)
!2
MUTE button
Mute the sound. (p 24)
!3
P-TIMER button
Operate the P-timer function. (p. 25)
!0
NO SHOW button
Temporarily turn off the image on the screen. (p. 25)
!6
KEYSTONE button
Correct the keystone distortion. (pp. 23, 42)
t Point ed 7 8 ( VOLUME
+ / –
)
buttons
– Select an item or adjust the value in the On-Screen Menu. (p. 21)
– Pan the image in Digital zoom + mode. (p. 34)
– Adjust the volume level. (Point 7 8 buttons) (p. 24)
y SELECT button
– Execute the selected item. (p. 21)
– Expand or compress the image in Digital zoom mode. (p. 34)
qw
Remote Control
y
u
o
!6
!2
!1 LAMP CONTROL button
Select the lamp mode. (pp. 25, 46)
You can turn on or operate the
projector ONLY via the remote
control.
Make sure not to lose the remote
control.
Page 13
13
Part Names and Functions
1
2
3
To insure safe operation, please observe the following precautions:
● Use (2) AA or LR6 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contact with water or liquid.
● Do not expose the remote control to moisture or heat.
● Do not drop the remote control.
● If the battery has leaked on the remote control, carefully wipe the case clean and install new
batteries.
● Risk of explosion if a battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions.
Open the battery
compartment lid.
Install new batteries into
the compartment.
Replace the
compartment lid.
Two AA size batteries
For correct polarity (+
and –), be sure battery
terminals are in contact
with pins in the
compartment.
Point the remote control toward the projector
(Infrared Remote Receiver) when pressing any
button. Maximum operating range for the
remote control is about 16.4’ (5m) and 60° in
front of the projector.
Operating Range
Remote Control Battery Installation
16.4’
(5 m)
Part Names & Functions
30°
30°
Page 14
14
✔
Note:
• This projector is not equipped with optical zoom. To adjust the screen size, change the throw distance.
• The brightness in the room has a great influence on picture quality.
It is recommended to limit the ambient lighting in order to get the best image.
• The values below are approximate and may vary from the actual sizes.
3.38' (1.03m)
3.28' (1.00m)
2.92' (0.89m)
2.66' (0.81m)
A : B = 10 : 1.2
Screen Size
(W x H) mm
4 : 3 aspect ratio
Throw distance
60”
1219 x 914
2.49' (0.76m)
64”
1300 x 975
2.66' (0.81m)
70”
1422 x 1067
2.92' (0.89m)
78”
1585 x 1189
3.28' (1.00m)
80”
1626 x 1219
3.38' (1.03m)
(Inch Diagonal)
2.49' (0.76m)
For projector positioning, see the figures below.
The projector should be set horizontally to the flat screen.
(Center)
Projection angle can be adjusted up to 10.0 degrees with
the adjustable feet.
Lift the front of the projector and pull upward the feet
lock latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable
feet and rotate the adjustable feet to adjust the
position and tilt.
2
To retract the adjustable feet, lift the front of the
projector and pull and undo the feet lock latches.
Keystone distortion of the projected image can be
corrected by menu operation. (pp. 23, 42)
3
Adjustable Feet
Positioning the Projector
Installation
60”
64”
70”
78”
80”
A
B
Page 15
15
NOTE ON THE POWER CORD
AC power cord must meet requirement of the country where you use the projector.
Confirm the AC plug type with the chart below and proper AC power cord must be used.
If supplied AC power cord does not match your AC outlet, contact your sales dealer.
To power cord
connector on your
projector.
Projector side AC outlet side
Ground
To the AC outlet.
(120 V AC)
For Continental Europe
For the U.S.A. and Canada
This projector uses nominal input voltages of 100-120 V or
200-240 V AC. This projector automatically selects the
correct input voltage. It is designed to work with singlephase power systems having a grounded neutral conductor.
To reduce the risk of electrical shock, do not plug into any
other type of power system.
Consult your authorized dealer or service station if you are
not sure of the type of power being supplied.
Connect the projector with all peripheral equipment before
turning the projector on. (See pp. 16-18 for connection)
CAUTION
For safety, unplug the AC power cord when the projector
is not in use. When this projector is connected to an
outlet with the AC power cord, it is in Stand-by mode and
consumes a little electric power.
Connecting the AC Power Cord
Connect the AC power cord (supplied) to the
projector.
The AC outlet must be near this equipment and
must be easily accessible.
For the U.K.
To the AC outlet.
(200 - 240 V AC)
To the AC outlet.
(200 - 240 V AC)
Installation
Installation
Page 16
16
Installation
Connecting to a Computer
Cables used for connection
• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)
•USB Cable
• Audio Cables (Mini Plug: stereo)
(Not all the cables are suppled with this projector.)
External Audio Equipment
VGA cable USB cable
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
or
Monitor Input
USB portAudio Output
USB
COMPUTER/
COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 2/
MONITOR OUT
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting the
cables.
✔
Note:
• Input sound to the COMPUTER / COMPONENT AUDIO IN
terminal when using the COMPUTER IN 1 / COMPONENT IN and
the COMPUTER IN 2/MONITOR OUT terminal as input.
• When connecting the AUDIO OUT to external audio equipment,
the projector's built-in speaker is disconnected.
• When the cable is
of the longer variety
, it is advisable to use the
COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN
2 / MONITOR OUT.
• See p. 65 for ordering optional parts.
Monitor Output
COMPUTER IN 1/
COMPONENT IN
VGA cable
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output. (See p. 45.)
RESET
USB
SERVICE PORT
COMPUTER IN
/ COMPONENT IN
(VARIABLE)
AUDIO OUT
VIDEO IN
S-VIDEO IN
(MONO)
R
L
AUDIO IN
COMPUTER
COMPONENT
/
COMPUTER IN
2 /
1
MONITOR OUT
ONON
Page 17
17
Installation
Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
(Not all the cables are suppled with this projector.)
✔
Note:
• When connecting AUDIO OUT to external audio equipment, the
projector's built-in speaker is disconnected.
• See p. 65 for ordering optional parts.
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable Video and audio cable
Composite Video and Audio OutputS-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L) (Video)
(Video)
Unplug the power cords of both the projector and
external equipment from the AC outlet before connecting
the cables.
Installation
COMPUTER IN
MONITOR OUT
2 /
VIDEO IN
S-VIDEO IN
RESET
USB
SERVICE PORT
COMPUTER IN
/ COMPONENT IN
1
(MONO)
R
L
(VARIABLE)
AUDIO OUT
COMPUTER
COMPONENT
AUDIO IN
/
Page 18
18
Installation
Connecting to Component Video Equipment
S-VIDEO IN
MONITOR OUT
COMPUTER IN
2 /
COMPUTER
/
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
COMPUTER IN
1
/ COMPONENT IN
USB
SERVICE PORT
RESET
Cables used for connection
• Audio Cables (Mini Plug :stereo)
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Not all the cables are suppled with this projector.)
✔
Note:
• When connecting AUDIO OUT to external audio equipment, the
projector's built-in speaker is disconnected.
• See p. 65 for ordering optional parts.
External Audio Equipment
COMPUTER IN 1/ COMPONENT IN
COMPUTER/
COMPONENT
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21pin Output
Audio Output
Scart-VGA
cable
Component-VGA
cable
AUDIO OUT
(stereo)
Component
cable
Unplug the power cords of both the projector and
external equipment from the AC outlet before connecting
the cables.
Page 19
19
Connect the projector's AC power cord into an AC
outlet. The POWER indicator becomes red.
Press the POWER ON-OFF button on the remote
control. The POWER indicator becomes green and the
cooling fans start to operate. The preparation display
appears on the screen and the count down starts.
2
3
1
16
The preparation display disappears after 30
seconds.
4
After the countdown, the input source that was
selected last and the Lamp mode status icon (see p.
46) appear on the screen.
If the projector is locked with a PIN code, PIN code
Input Dialog Box appear. Enter the PIN code as
instructed below.
(See p. 46 for Lamp mode)
Selected Input Source and Lamp Mode
Complete peripheral connections (with a computer,
VCR, etc.) before turning on the projector.
Lamp mode
Pointer
After the OK icon
disappears, you can
operate the projector.
PIN Code Input Dialog Box
Tu r ning On the Projector
Basic Operation
Enter a PIN code
Installation
Select a number by pressing the Point 7 8 buttons and fix
the number with the SELECT button. The number changes
to "✳". If you fixed an incorrect number, move the pointer
to "Set" or "Clear" once by pressing the Point d button, then
return to "PIN code". Enter the correct number again.
Repeat this step to complete entering a four-digit number.
"1234" is set as the initial PIN code at the factory.
When the four-digit number is fixed, the pointer is
automatically move to "Set". Press the SELECT button so
that you can start to operate the projector.
If you entered an incorrect PIN code, "PIN code" and the
number (✳✳✳✳) turn red and disappear. Enter the correct
PIN code all over again.
What is PIN code?
PIN code is a security code using Personal Identification
Number that allows the person who knows it to operate the
projector. Setting PIN code prevents others except the
specific users from operating the projector.
A PIN code consists of a four-digit number. Refer to PIN
code lock function in Setting on pp. 47, 48 for locking
operation of the projector with your PIN code.
✔
Note:
• When the Logo select function is "Off", the logo
is not shown on the screen. (p. 43)
• When the "Countdown off" or "Off" is selected in
the Display function, the countdown is not shown
on the screen. (p. 42)
• During the countdown period, all operations are
invalid.
• If the correct PIN code number is not entered for
3 minutes after the PIN code dialog box
appeared, the projector is turned off
automatically.
CAUTION ON HANDLING PIN CODE
If you forget your PIN code, the projector can no
longer be started. Set a new PIN code with special
care, take a memo and keep it at hand. Should the
PIN code be missing or forgotten, consult your
dealer or service center.
Page 20
20
Basic Operation
Press the POWER ON-OFF button on the remote
control, and "Power off?" appears on the screen.
Press the POWER ON-OFF button again to turn off the
projector. The POWER indicator starts to blink red, and
the cooling fans keep operating. (You can select the
level of fan quietness and rotation speed. See p. 49.)
At this time you can disconnect the AC power cord
even if the fans are still running.
1
2
TO MAINTAIN THE LIFE OF THE LAMP, ONCE
YOU TURN THE PROJECTOR ON, WAIT AT
LEAST 5 MINUTES BEFORE TURNING IT OFF.
3
When the projector has cooled down enough to be
turned on again, the POWER indicator becomes red.
The message disappears after 4 seconds.
✔
Note:
• When the On start function is "On", this projector is turned on
automatically by connecting the AC power cord to an AC outlet.
(p. 46)
• Do not operate the projector continuously without rest. Continuous
use may result in shortening the lamp life. Turn off the projector
and give it a rest about an hour in every 24 hours.
• The running speed of cooling fans is changed according to the
temperature inside the projector.
• Do not put the projector in a case before the projector is cooled
enough.
• If the WARNING indicator blinks or emits a red light, see "Warning
Indicator" on p. 53.
• While the POWER indicator is blinking, lamp is being cooled down
and the projector cannot be turned on. Wait until the POWER
indicator becomes red to be turned on again.
Tu r ning Off the Projector
Page 21
21
Basic Operation
Menu bar
Pointer
(red framed )
Menu icon
Item data
Press the Point 7 8
buttons to adjust
the value.
SELECT
button
Pointer (red framed )
Press the Point ed
buttons to move the
pointer.
Item
How to Operate the On-Screen Menu
On-Screen Menu
Quit
Exit this menu.
The projector can be adjusted or set via the On-Screen
Menu. Refer to the following pages regarding each
adjustment and setting procedure.
Press the Point
7 8 buttons to select a Menu icon.
Press the Point ed buttons to select an item.
Press the SELECT button to show the item data. To
adjust the data, press the Point
7 8 buttons. Refer to
the following pages for each adjustment.
To close the On-Screen Menu, press the MENU
button again .
Press the MENU button to display the On-Screen
Menu.
✔
Note:
• The selected item is not active until the SELECT button is pressed.
1
2
3
SELECT button
POINT buttons
Remote Control
MENU button
Basic Operation
Page 22
22
Basic Operation
Menu Bar
PC System Menu
Used to select
computer
system. (p. 27)
Image Adjust Menu
Used to adjust
computer image among
Contrast,Brightness,
Color temp., White
balance (R/G/B),
Sharpness, Gamma.
(pp. 32, 33)
Setting Menu
Used to set the
projector's
operating
configurations.
(pp. 42-49)
Sound Menu
Used to adjust
the volume or
mute the sound.
(p. 24)
Image Select Menu
Used to select an image
level among Dynamic,
Standard, Real,
Blackboard(Green), and
Image 1 ~ 4. (p. 31)
For computer source
AV System Menu
Used to select
system of
selected video
source. (p. 37)
Image Adjust Menu
Used to adjust picture image
among Contrast, Brightness,
Color, Tint, Color temp., White
balance (R/G/B), Sharpness,
Gamma, Noise reduction,
Progressive . (pp. 39-40)
For video source
Same function as
computer menu.
Input Menu
Used to select
input source
either Video or
Computer.
(pp. 35, 36)
PC Adjust Menu
Used to adjust
parameters to
match with
input signal
format.
(pp. 28-30)
Image Select Menu
Used to select an image
level among Dynamic,
Standard, Cinema,
Blackboard(Green) and
Image 1 ~ 4. (p. 38)
Screen Menu
Used to set size
of image to
Normal, Wide, or
Custom. (p. 41)
Guide Window
Show the selected
Menu of the OnScreen Menu.
Same function as
menu for computer
source.
Input Menu
Used to select
input source
either Computer
or Video. (p. 26)
Screen Menu
Used to adjust size of
image among
Normal, True, Wide,
Full screen, Custom,
Digital zoom +/–.
(pp. 33, 34)
For detailed functions, see Menu Tree on pp. 60, 61.
Page 23
23
Basic Operation
Adjust lens focus with the Focus lever.
Focus Lever
• The arrows are white when there is no correction.
• The direction of the arrow which are being corrected
turns red.
• The arrows disappear at the maximum correction.
• If you press the KEYSTONE button on the remote
control once more while the keystone dialog box is
being displayed, the keystone adjustment is canceled.
• The adjustable range can be limited depending on the
input signal.
• The projected picture may fluctuate momently
depending on the keystone adjustment.
If a projected picture has keystone distortion, correct the
image with Keystone adjustment.
Press the KEYSTONE button on the remote control. The
keystone dialog box appears.
Correct keystone distortion by pressing the Point ed
buttons. Keystone adjustment can be memorized. (p. 42)
Reduce the upper width
with the Point e button.
Reduce the lower width
with the Point d button.
Keystone Correction
Remote Control
KEYSTONE button
POINT ed buttons
Focus Adjustment
Basic Operation
Page 24
24
Basic Operation
Remote Control
Remote Control Operation
Use the remote control for some frequently used operations.
Just pressing one of the buttons enables you to make the operation easily and you do not have to call up the
On-Screen Menu.
COMPUTER /VIDEO
button
✔Note:
• See the next page for the other buttons.
Press the FREEZE button to freeze the picture on the
screen. To cancel the Freeze function, press the FREEZE
button again or press any other button.
FREEZE button
Press the COMPUTER or VIDEO button to select the input
source.
For more detail, see pp. 26, 35, 36.
COMPUTER / VIDEO button
FREEZE button
1
2
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Sound Menu icon.
Press the VOLUME+/– buttons on the remote control to
adjust the volume. The volume dialog box appears on the
screen for a few seconds.
Press the MUTE button on the remote control to cut off the
sound. To restore the sound to its previous level, press the
MUTE button again or press the VOLUME+/– buttons.
Mute function is also effective for AUDIO OUT jack.
Press the Point 7 8 buttons to cut off the sound. Dialog
box display is changed to “On” and the sound is cut off. To
restore the sound to its previous level, press the Point 7 8
buttons again.
Press the Point ed buttons to move the red framed
pointer to the item that you want to select, and then
press the SELECT button.
Approximate level of
the volume.
Exit the Sound Menu.
Approximate level
of the volume.
Press the MUTE button to set the Mute function
On or Off. The display disappears after 4
seconds.
Sound Menu
Sound Menu
icon
Volume
Remote Control
VOLUME+ button
VOLUME- button
MUTE button
Volume
Mute
Press the Point 8 button to turn up the volume, and press
the Point 7 button to turn down the volume.
Mute
Direct Operation
Menu Operation
Sound Adjustment
Page 25
25
Basic Operation
Remote Control
D.ZOOM
buttons
NO SHOW
button
AUTO PC
button
✔Note:
• See the previous page for the other buttons.
KEYSTONE button
(See p. 23)
POINT ed
buttons
black out ➜ the captured image ➜ normal ➜
• • • • •
Press the NO SHOW button to black out the image. To
restore to normal, press the NO SHOW button again or
press any other button. When a projected image is
captured and set as “User” in the Logo selection (p. 43),
the screen changes each time you press the NO SHOW
button as follows.
The message disappears after 4 seconds.
NO SHOW button
Press the AUTO PC button to operate the Auto PC function.
For more detail, see p. 28.
AUTO PC button
Press the D.ZOOM buttons to zoom in and zoom out the
images.
For more detail, see p. 34.
D.ZOOM buttons
Press the P-TIMER button. The timer display “00 : 00”
appears on the screen and the timer starts to count time
(00 : 00 ~ 59 : 59).
To stop the P-Timer, press the P-TIMER button. Press the
P-TIMER button again, then the P-timer display disappears.
P-TIMER button
LAMP CONTROL button
P-Timer display
Press the IMAGE button to select an image level of the
screen.
For more detail, see pp. 31, 38.
IMAGE button
LAMP CONTROL
button
P-TIMER button
IMAGE button
VOLUME
+/- buttons
(See p. 24)
Press the LAMP CONTROL button to select the lamp mode
for changing the brightness of the screen.
Normal ....Normal brightness
Auto ........Brightness according with the input signal
Eco ..........Lower brightness reduces the lamp power
consumption and extends the
lamp life.
For detail, see p. 23.
KEYSTONE button
Basic Operation
Page 26
26
Select either Computer 1 or Computer 2 by pressing the
COMPUTER button on the remote control.
Before using COMPUTER button, select the correct input
source through Menu operation as described below.
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Input Menu icon.
1
Computer
1
Input Menu
Press the Point ed buttons to move the red arrow
pointer to either Computer 1 or Computer 2, and then
press the SELECT button.
2
After the Source Select Menu appeared for Computer
1, move the pointer to RGB and then press the
SELECT button.
3
Input Menu
COMPUTER button
Computer 1
Computer 2
Input Source Selection
Direct Operation
Menu Operation
Computer Input
Move the pointer (red
arrow) to Computer 1
and press the SELECT
button.
Input Menu icon
Move the pointer (red arrow)
to Computer 2 and press the
SELECT button.
Move the pointer to RGB
and press the SELECT
button.
Source Select Menu
Remote Control
COMPUTER button
✔
Note:
• Computer 2 is not displayed when the COMPUTER IN
2/MONITOR OUT terminal is set as Monitor out. (p. 45)
• Computer 2 (COMPUTER IN 2 / MONITOR OUT) can accept only
RGB signal.
Page 27
27
Computer Input
The Auto PC Adjustment
function operates to adjust
the projector.
PC System Menu
The PC System Menu icon
Selected system is
displayed.
Systems on this dialog box
can be selected.
Press the MENU button to display the On-Screen
Menu. Press the Point
7 8 buttons to move the red
framed pointer to the PC System Menu icon.
Press the Point ed buttons to move the red arrow
pointer to the system that you want to set, and then
press the SELECT button.
1
2
PC System Menu
Custom Mode (1~5) set in the
PC Adjust Menu. (pp. 28, 30)
PC system can also be selected manually.
Computer System Selection
This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or
UXGA with its Multi-scan system and Auto PC Adjustment. If Computer is selected as a signal source, this
projector automatically detects the signal format and tunes to project a proper image without any additional
setting. (Signal formats provided in this projector is shown on p. 63 )
One of the following messages may appear when:
The projector cannot recognize the connected
signal conforming to the provided PC Systems.
"Auto" is displayed on the PC System Menu icon
and the Auto PC Adjustment function works to
display proper images. If the image is not
projected properly, adjust manually. (pp. 29, 30)
There is no signal input from computer. Check
the connection between your computer and the
projector. (See " Troubleshooting" p. 58)
Auto
-----
The preset system is manually adjusted in the
PC Adjust Menu. The adjusted data can be
stored in Mode 1~5. (pp. 29, 30)
Mode 1
PC Systems provided in this projector is
selected. The projector selects a proper system
provided in the projector and displays it.
SVGA 1
Selecting Computer System Manually
*Mode 1 and SVGA 1 are examples.
Computer Input
Page 28
28
Computer Input
Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to
conform to your computer. Auto PC Adjustment function can be operated as follows.
Move the red framed
pointer to the Auto PC Adj.
item and press the SELECT
button.
"Please wait..." appears
while Auto PC adjustment
is in process.
PC Adjust Menu
PC Adjust Menu icon
To store adjustment parameters
Adjustment parameters from Auto PC Adjustment can be
memorized in this projector. Once parameters are
memorized, the setting can be done just by selecting Mode
in the PC System Menu (p. 27). See “Store” on p. 30.
✔
Note:
• Fine sync, Total dots, Horizontal, and Vertical of some computers
cannot be fully adjusted with this Auto PC Adjustment function.
When the image is not provided properly with this operation,
manual adjustments are required. (pp. 29, 30)
• The Auto PC Adjustment cannot be operated when 480i, 575i,
480p, 575p, 720p,1035i, or 1080i is selected in the PC System
Menu(p. 27)
Auto PC Adjustment
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to "PC Adjust Menu".
1
2
Press the Point ed buttons to move the red framed
pointer to "Auto PC Adj." and then press the SELECT
button twice.
Auto PC Adj.
Menu Operation
The Auto PC adjustment function can be operated directly by
pressing the AUTO PC button on the remote control.
Remote Control
AUTO PC button
Direct Operation
Page 29
29
Computer Input
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the PC Adjust Menu icon.
1
2
Press the Point ed buttons to move the red framed
pointer to the item that you want to adjust and then
press the SELECT button to display the adjustment
dialog box. Press the Point
7 8 buttons to adjust the
value.
Move the red framed
pointer to an item and
press the SELECT button.
PC Adjust Menu
PC Adjust Menu icon
Cut out flicker from the image displayed. Press the Point 7
8 buttons to adjust the value. (From 0 to 31)
Fine sync
Adjust the number of total dots in one horizontal period.
Press the Point 7 8 buttons to adjust number to match your
PC image.
Total dots
Press the Point 7 8 buttons to adjust the horizontal picture
position.
Horizontal
Press the Point 7 8 buttons to adjust the vertical picture
position.
Vertical
Press the SELECT button to show H-sync freq. and V-sync
freq. of the connected computer.
Current mode
Adjust clamp level. When the image has dark bars, try this
adjustment.
Clamp
Press the SELECT button
at this item to adjust other
items.
Press the Point
7 8buttons
to adjust the value.
Status (Stored / Free) of the
selected Mode.
Selected Mode
Press the SELECT button at
"Current mode" to show the
information of the connected
computer.
Manual PC Adjustment
Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector.
Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The
projector has 5 independent memory areas to memorize those parameters which are manually adjusted. You
can recall the setting for a specific computer.
Computer Input
Page 30
30
Computer Input
Adjust the horizontal area displayed by this projector. Press
the Point
7 8 buttons to decrease/increase the value.
Display area H
Adjust the vertical area displayed by this projector. Press
the Point 7 8 buttons to decrease/increase the value.
Display area V
Reset
Store
Exit the PC Adjust Menu.
Quit
To store adjusted data, move the red framed pointer to the
"Store" and then press the SELECT button. Move the red
arrow pointer to any of Mode 1 to 5 in which you want to
store and then press the SELECT button.
To reset the adjusted data, select Reset and press the
SELECT button. The confirmation box appears and then
select "Yes". All adjustments return to their previous
figures.
Mode free
Vacant Mode
Values of “Total dots,”
“Horizontal,” “Vertical,”
“Display area H,” and
“Display area V.”
Close this dialog box.
To store adjusted data
To clear adjusted data
To clear the stored data, move the red framed pointer to the
"Mode free" and then press the SELECT button. Move the
red arrow pointer to the Mode that you want to clear and
then press the SELECT button.
✔
Note:
• Display area (H/V) cannot be selected when 480i, 575i, 480p,
575p, 720p, 1035i, or 1080i is selected in the PC System Menu
(p. 27).
This Mode has
stored parameters .
Move the red framed
pointer to an item and
press the SELECT button.
Page 31
31
Computer Input
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Image Select Menu icon.
1
2
Press the Point ed buttons to move the red framed
pointer to the level that you want to set and then press
the SELECT button.
Move the red framed pointer
to the level and press the
SELECT button.
The level being selected.
Image Select Menu
Normal picture level preset on this projector.
Standard
Picture level with improved halftone for graphics.
Real
Picture level suitable for the image projected on a
blackboard. See above for further description.
Blackboard(Green)
Image Select Menu icon
Select an image level among Dynamic, Standard, Real,
Blackboard(Green), Image 1, Image 2, Image 3, and Image 4
by pressing the IMAGE button on the remote control.
IMAGE button
Dynamic
Real
Image 1
Image 2
Image 3
Normal picture level preset on this projector.
Picture level with improved halftone for graphics.
Standard
Real
Image 1~4
Image Level Selection
Direct Operation
Menu Operation
Image 4
User preset image in the Image Adjust Menu (p. 33).
Image 1~4
Blackboard(Green)
Picture level suitable for the image projected on a
blackboard.
This mode enhances the image projected on a blackboard.
This mode is mainly effective on a green colored board, not
truly effective on a black colored board.
Blackboard
(Green)
Picture level suitable for viewing picture in a bright room.
Dynamic
Picture level suitable for viewing picture in a bright room.
Dynamic
User preset image in the Image Adjust Menu (p. 33).
Standard
Remote Control
button
Computer Input
Page 32
32
Computer Input
Press the Point 7 8 buttons
to adjust the value.
Press the MENU button to display the On-Screen
Menu. Press the Point
7 8 buttons to move the red
framed pointer to the Image Adjust Menu icon.
1
2
Press the Point ed buttons to move the red framed
pointer to the item that you want to adjust, and then
press the SELECT button. The level of each item is
displayed. Adjust each level by pressing the Point 7 8
buttons.
Move the red framed
pointer to the item to be
selected and then press
the SELECT button.
Image Adjust Menu
Press the Point 7 button to decrease the contrast and the
Point 8 button to increase contrast. (From 0 to 63.)
Press the Point 7 button to adjust the image darker and the
Point 8 button to adjust the image brighter. (From 0 to 63.)
Contrast
Brightness
Image Adjust Menu icon
Press the Point 7 button to lighten the red tone and the
Point 8 button to deepen the red tone. (From 0 to 63.)
White balance (Red)
Press the Point 7 button to lighten the green tone and the
Point 8 button to deepen the green tone. (From 0 to 63.)
White balance (Green)
Press the Point 7 button to lighten the blue tone and the
Point 8 button to deepen the blue tone. (From 0 to 63.)
White balance (Blue)
Selected Image level
Press the Point 7 button or the Point 8 button for Color
temp. level that you want to select. (XLow, Low, Mid, or
High)
Color temp.
Image Level Adjustment
✔
Note:
• After adjusting any of the White balance Red,
Green or Blue, the Color temp changes to "Adj.".
Press the Point 7 8 buttons to get better balance of
contrast. (From 0 to 15.)
Gamma
Press the Point 7 button to soften the image and the Point
8 button to sharpen the image. (From 0 to 15.)
Sharpness
To reset the adjusted data, select Reset and press the
SELECT button. The confirmation box appears and then
select "Yes". All adjustments return to their previous
figures.
Reset
Page 33
33
Computer Input
Store
Exit the Image Adjust Menu.
Quit
To store the adjusted data, select Store and press the
SELECT button. Select a level from Image 1 to 4 with the
Point ed buttons and press the SELECT button. The
confirmation box appears and then select "Yes".
Stored data can be called up by selecting "Image" in the
Image Level Selection on p. 31.
Move the red framed
pointer to any of
Image 1 to 4 where
you want to set and
then press the
SELECT button.
The confirmation
box appears, then
select "Yes".
Store item
Press the SELECT button
at this item to store the
adjusted data.
This projector has the picture screen resize function, which enables you to customize the image size.
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Screen Menu icon.
1
Move the red
framed pointer to the
function and press the
SELECT button.
Press the Point ed buttons and move the red framed
pointer to the function that you want to select and
then press the SELECT button.
2
Screen Menu
Screen Menu icon
Screen Size Adjustment
Wide
Provide the image to fit the screen size.
Normal
True
Provide the image in its original size. When the original
image size is larger than the screen size (1024 x 768), this
projector enters panning mode automatically. Pan the
image with Point ed7 8 buttons. When adjusted, the
arrows turn red. When reached to the correction limit, the
arrows disappear.
Provide the image to fit wide video aspect ratio (16 : 9) by
expanding the image width uniformly. This function can be
used for providing a squeezed video signal at 16 : 9.
Full screen
Provide the full screen image.
✔
Note:
• This projector cannot display any resolution
higher than 1600 X 1200. If your computer’s
screen resolution is higher than it, reset the
resolution to the lower before connecting to the
projector.
•The image data in other than 1024 x 768 is
modified to fit the screen size in initial mode.
• True, Full screen, and Digital zoom +/– cannot
be selected when 480i, 575i, 480p, or 575p is
selected in the PC System Menu (p. 27).
Computer Input
Page 34
34
Computer Input
When the Digital zoom + is selected, the On-Screen Menu
disappears and “D. zoom +” is displayed. Press the
SELECT button to expand the image size. And press the
Point
ed7 8 buttons to pan the image. The Panning
function can work only when the image is larger than the
screen size.
A projected image can be also expanded by pressing the
D.ZOOM
▲ button on the remote control.
To exit the Digital zoom +/– mode, press any button except
the D.ZOOM
▲▼ buttons, SELECT, and Point button.
Digital zoom +
When Digital zoom – is selected, the On-Screen Menu
disappears and “D. zoom –”is displayed. Press the SELECT
button to compress image size.
A projected image can be also compressed by pressing the
D.ZOOM ▼ button on the remote control.
Digital zoom –
To return to the previous screen size, select a screen size in
the Screen Size Adjustment or select an input source from
the Input Source Selection (p. 26) again, or adjust the screen
size with the D.ZOOM ▲▼ buttons.
Remote Control
D.ZOOM + button
POINT buttons
SELECT button
D.ZOOM - button
For zooming in and out the images
✔
Note:
• The panning function may not operate properly
if the stored Mode in the PC Adjust Menu is
used. (p. 30)
• The minimum compression ratio can be limited
depending on the input signal or when the
Keystone function is working.
• True, Full screen, and Digital zoom +/– cannot
be selected when 480i, 575i, 480p, or 575p is
selected in the PC System Menu (p. 27)
• Digital zoom +/- cannot be selected when Full
screen or True is selected.
Adjust the screen scale and position manually.
Press the SELECT button at Custom icon. "Custom" is
displayed on the screen for a few seconds and then
"Aspect" box appears.
Scale H / V .......Adjust the Horizontal / Vertical screen
scale.
H&V..................When selecting "On", the aspect ratio is
fixed. "Scale V" becomes gray and
unselectable. Adjust "Scale H", then the
screen scale is automatically modified
based on the aspect ratio.
Position H / V ...Adjust the Horizontal / Vertical screen
position.
Common ........Save the adjusted scale. Press the
SELECT button at "Common" to display
the confirmation box. To save the scale,
press the SELECT button at "Yes".
When "Custom" is selected, the saved
scale is used.
Reset ............Reset "Common" data. Press the
SELECT button at "Reset" to display the
confirmation box. To reset, press the
SELECT button at "Yes".
Custom
✔
Note:
•When no signal is detected, Normal is set
automatically and "Aspect" screen disappears.
•
The adjustable range of Scale H/V and Position
H/V can be limited depending on the input
signal.
Press the SELECT button at
"Common" or "Reset", to
display confirmation box.
Page 35
35
Select Video by pressing the VIDEO button on the remote
control.
Before using VIDEO button, select the correct input source
through menu operation as described below.
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Input Menu icon.
Press the Point ed buttons to move the red arrow
pointer to Video and then press the SELECT button to
display the Source Select Menu .
1
2
Move the pointer to
Video and press the
SELECT button.
VIDEO
Move the pointer to the
source that you want to
select and press the
SELECT button.
Source Select Menu (VIDEO)
Input Menu
Move the pointer to the source that you want to select
and then press the SELECT button.
3
When selecting Auto, the projector
automatically detects incoming video signal, and
adjusts itself to optimize its performance. The
projector selects connection in the following
order:
1. S-Video
2. Video
Auto
When video input signal is connected to the
VIDEO jack, select Video.
Video
When video input signal is connected to the SVIDEO jack, select S-Video.
S-Video
Input Source Selection (Video, S-Video)
Direct Operation
Menu Operation
Input Menu icon
Video Input
Remote Control
VIDEO button
Computer Input
Page 36
36
Video Input
Select Computer 1 by pressing the COMPUTER button on
the remote control.
Before using COMPUTER button, select the correct input
source through Menu operation as described below.
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Input Menu icon.
1
Computer
1
Input Menu
Press the Point ed buttons to move the red arrow
pointer to Computer 1 and then press the SELECT
button.
2
After the Source Select Menu appeared for Computer
1, move the pointer to Component or RGB(Scart) and
then press the SELECT button.
3
COMPUTER button
Computer 1
Computer 2
Input Source Selection (Component, RGB Scart 21-pin)
Direct Operation
Menu Operation
Move the pointer (red
arrow) to Computer 1
and press the SELECT
button.
Input Menu icon
Move the pointer to
Component or RGB(Scart)
and press the SELECT
button.
Source Select Menu
Remote Control
COMPUTER button
When the input source is coming from
video equipment connected to the
COMPUTER IN 1 / COMPONENT IN
terminal with a Component-VGA Cable,
select Component.
Component
When the input source is coming from
video equipment connected to the
COMPUTER IN 1 / COMPONENT IN
terminal with a Scart-VGA Cable, select
RGB (Scart).
RGB (Scart)
✔
Note:
• Computer 2 is not displayed when the COMPUTER IN
2/MONITOR OUT terminal is set as Monitor out. (p. 45)
• Computer 2 (COMPUTER IN 2 / MONITOR OUT) can accept only
RGB signal.
Page 37
37
Video Input
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the AV System Menu icon.
1
Video System Selection
AV System Menu (Video or S-Video)
AV System Menu (Component)
Press the Point ed buttons to move the red arrow
pointer to the system that you want to select and then
press the SELECT button.
2
If the projector cannot reproduce proper video image, it is
necessary to select a specific broadcast signal format
among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PALN.
Move the pointer to a
system and press the
SELECT button.
PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N
The projector automatically detects incoming video signal,
and adjusts itself to optimize its performance.
If the projector cannot reproduce a proper video image, it is
necessary to select a specific component video signal
format among 480i, 575i, 480p, 575p, 720p, 1035i, and
1080i.
Auto
COMPONENT VIDEO SIGNAL FORMAT
Video or S-Video
Component
The projector automatically detects incoming video system,
and adjusts itself to optimize its performance.
When Video System is PAL-M or PAL-N, select system
manually.
Auto
AV System Menu icon
Selected system is
displayed.
Move the pointer to a
system and press the
SELECT button.
AV System Menu icon
Selected system is
displayed.
✔
Note:
•
The AV System Menu cannot be selected when selecting
RGB(Scart).
Video Input
Page 38
38
Video Input
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Image Select Menu icon.
1
2
Press the Point ed buttons to move the red framed
pointer to the level that you want to set and then press
the SELECT button.
Move the red framed pointer to a
level and press the SELECT
button.
The level being selected.
Image Select Menu
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
Blackboard(Green)
User preset image in the Image Adjust Menu (pp. 39, 40).
Image1~4
Image Select
Menu icon
Select an image level among Dynamic, Standard, Cinema,
Blackboard (Green), Image 1, Image 2, Image 3, and Image
4 by pressing the IMAGE button on the remote control.
Normal picture level preset on this projector.
Standard
Picture level adjusted for the picture with fine tone.
Cinema
Blackboard(Green)
User preset image in the Image Adjust Menu (pp. 39, 40).
Image 1~4
IMAGE button
Dynamic
Cinema
Image 1
Image 2
Image 3
Image 4
Image Level Selection
Direct Operation
Menu Operation
Picture level suitable for the image projected on a
blackboard.
This mode enhances the image projected on a blackboard.
This mode is mainly effective on a green colored board, not
truly effective on a black colored board.
Picture level suitable for the image projected on a
Blackboard. See above for further description.
Blackboard
(Green)
Picture level suitable for viewing picture in a bright room.
Dynamic
Picture level suitable for viewing picture in a bright room.
Dynamic
Standard
Remote Control
button
Page 39
39
Video Input
Press the Point 7 8
buttons to adjust the value.
Press the MENU button to display the On-Screen
Menu. Press the Point
7 8 buttons to move the red
framed pointer to the Image Adjust Menu icon.
1
2
Press the Point ed buttons to move the red framed
pointer to the item that you want to adjust and then
press the SELECT button. The level of each item is
displayed. Adjust each level by pressing the Point 7
8buttons.
Move the red framed
pointer to the item you
want to adjust and then
press the SELECT button.
Image Adjust Menu
Press the Point 7 button to decrease the contrast and the
Point 8 button to increase contrast. (From 0 to 63.)
Press the Point 7 button to adjust the image darker and the
Point 8 button to adjust the image brighter. (From 0 to 63.)
Contrast
Brightness
Press the SELECT button
at this item to display other
items.
Image Adjust Menu icon
Press the Point 7 button to lighten the color and the Point
8 button to deepen the color. (From 0 to 63.)
Press the Point 7 8 buttons to get a proper color. (From 0
to 63.)
Color
Tint
Press the Point 7 button to lighten the red tone and the
Point 8 button to deepen the red tone. (From 0 to 63.)
White balance (Red)
Press the Point 7 button to lighten the green tone and the
Point 8 button to deepen the green tone. (From 0 to 63.)
White balance (Green)
Press the Point 7 button to lighten the blue tone and the
Point 8 button to deepen the blue tone. (From 0 to 63.)
White balance (Blue)
Press the SELECT
button at this item to
display previous items.
✔
Note:
• The Tint cannot be selected when the video system is PAL, SECAM,
PAL-M, or PAL-N.
• After adjusting any of the White balance Red, Green or Blue, the
Color temp. is changed to "Adj.".
Image Level Adjustment
Press the Point 7 8 buttons for Color temp. level that you
want to select. (XLow, Low, Mid, or High)
Color temp.
Video Input
Page 40
40
Video Input
To store the adjusted data, select "Store" and press the
SELECT button. Select a level from Image 1 to 4 with the
Point ed buttons and press the SELECT button. The
confirmation box appears and then select "Yes".
Stored data can be called up by selecting "Image" in the
Image Level Selection on p. 38.
Image Level Menu
Move the red framed pointer
to an image item to be set and
then press the SELECT button.
To reset the adjusted data, select "Reset" and press the
SELECT button. The confirmation box appears and then
select "Yes". All adjustments return to their previous
figures.
Reset
Store
Exit the Image Adjust Menu.
Quit
✔
Note:
• Noise reduction and Progressive cannot be selected when 480p,
575p, 720p, 1035i, or 1080i is selected. (p. 37)
Store
item
Interlaced video signal can be displayed in a progressive
picture. Select one of the following.
Off...........Disabled.
L1............Select “L1” for an active picture.
L2............Select “L2” for a still picture.
Film........Select “Film” for watching a film. With this
function, the projector reproduces pictures
faithful to the original film quality.
Progressive
Noise reduction
Noise interference on the screen can be reduced. Select
one of the following to get smoother images.
Off...........disabled.
L1............lower reduction
L2............higher reduction
The confirmation box
appears and then
select "Yes".
Press the Point 7 8 buttons to get better balance of
contrast. (From 0 to 15.)
Gamma
Press the Point 7 button to soften the image and the Point
8 button to sharpen the image. (From 0 to 15.)
Sharpness
Page 41
41
Video Input
This projector has the picture screen resize function, which enables you to customize the image size.
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Screen Menu icon.
Press the Point ed buttons and move the red framed
pointer to the function that you want to select and
then press the SELECT button.
1
2
Move the red framed pointer to a
function and press the SELECT
button.
Screen Menu
Screen Menu icon
Provide the image at a wide screen ratio of 16 : 9.
Wide
Provide the image at a normal video aspect ratio of 4 : 3.
Normal
Screen Size Adjustment
Video Input
Adjust the screen scale and position manually.
Press the SELECT button at Custom icon. "Custom" is
displayed on the screen for a few seconds and then
"Aspect" box appears.
Scale H / V .......Adjust the Horizontal / Vertical screen
scale.
H&V..................When selecting "On", the aspect ratio is
fixed. "Scale V" becomes gray and
unselectable. Adjust "Scale H", then the
screen scale is automatically modified
based on the aspect ratio.
Position H / V ...Adjust the Horizontal / Vertical screen
position.
Common ........Save the adjusted scale. Press the
SELECT button at "Common" to display
the confirmation box. To save the scale,
press the SELECT button at "Yes".
When "Custom" is selected, the saved
scale is used.
Reset ............Reset "Common" data. Press the
SELECT button at "Reset" to display the
confirmation box. To reset, press the
SELECT button at "Yes".
Custom
✔
Note:
• Wide is not available when 720p, 1035i, or 1080i is selected in
the AV System Menu (p. 37).
• When no signal is detected, Normal is set automatically and
"Aspect" screen disappears.
•
The adjustable range of Scale H/V and Position H/V can be limited
depending on the input signal.
Press the SELECT button at
"Common" or "Reset", to
display the confirmation box.
Page 42
42
Display
Blue back
Press the Point 7 8 buttons to switch on/off. When this
function is “On,” a blue image is displayed while the input
signal is not detected.
Keystone
Press the MENU button to display the On-Screen
Menu. Press the Point 7 8 buttons to move the red
framed pointer to the Setting Menu icon.
1
2
Language
The language used in the On-Screen Menu is available in
English, German, French, Italian, Spanish, Portuguese,
Dutch, Swedish, Finnish, Polish, Hungarian, Romanian,
Russian, Chinese, Korean, or Japanese.
Set the red framed
pointer to the item
and press the
SELECT button.
Press the Point ed buttons to move the red framed
pointer to the item that you want to set and then press
the SELECT button. The Setting dialog box appears.
SELECT
button
Press the SELECT button at
Language item, the
Language Menu appears.
Setting Menu (Language)
Setting Menu
icon
This function corrects distortion of a projected image.
Select either Store or Reset with the Point 7 8 buttons, and
then press the SELECT button. The keystone dialog box
appears. Correct keystone with the Point ed buttons.
(p. 23)
Store .........Store the keystone correction even when the
AC power cord is unplugged.
Reset........Reset the keystone correction when the AC
power cord is unplugged.
Setting
Setting
This projector has Setting menu that allows you to set up
the other various functions described as follows;
Press the SELECT
button at this item to
display the other
languages.
Press the Point 7 8 buttons to switch on/off. This function
decides to display On-Screen Displays.
On .........................Display all the On-Screen Displays. Use
this function when you want to project
images after the lamp becomes bright
enough. This mode is set as a default..
Countdown off......Display the input image instead of the
countdown when turning on the
projector. Use this function when you
want to project the image as early as
possible even when the lamp is not
bright enough.
Off ...................Do not show On-Screen Displays.
except;
● On-Screen Menu
● “Power off?"
● P-Timer
● “No signal” for Power management item (p. 45)
● ”Please wait...”
● White arrows for panning mode (pp. 33, 34)
Press the SELECT
button at this item to
close the dialog box.
Page 43
43
Setting
Capture
This function enables you to capture the image being
projected and use it for a start-up display or interval of
presentations.
After capturing the projected image, go to the Logo
select function and set it to “User”. Then the captured
image is displayed when turning on the projector next
time or pressing the NO SHOW button. (p. 25)
To capture the image, select "Yes". To cancel the
Capture function, select "No".
✔
Note:
• Before capturing an image, select "Standard" in the Image
Select Menu to capture a proper image. (pp. 31, 38.)
• A signal from a computer can be captured up to XGA(1024 x
768). A signal from video equipment can be captured except
for 720p, 1035i, and 1080i.
• When capturing the image that has been adjusted by the
Keystone function, the adjusted data is automatically reset and
the projector captures an image without keystone adjustment.
• When the Logo PIN code lock function is "On", Capture menu
cannot be selected.
• When starting to capture a new image, the previously stored
image is cleared even if you cancel the capturing.
Select "Yes" to capture
the projected image.
Select "Yes" to
stop capturing.
Capture
Logo select
This function decides the start-up display as follows:
User ..........The image you captured
Default ......The factory-set logo
Off.............Countdown only
Logo (Logo and Logo PIN code lock settings)
This function allows you to customize the screen logo with
Logo select, Capture, and Logo PIN code lock functions.
Logo select
✔
Note:
• When "On" is selected in Logo PIN code lock function, Logo select
and Capture functions cannot be selected.
Setting
Page 44
44
Logo PIN code lock Dialog Box
Quit
Pointer
Enter a Logo PIN code
Select a number by pressing the Point 7 8 buttons and
fix the number with the SELECT button. The number
changes to "✳". If you fixed an incorrect number, move
the pointer to "Set" or "Clear" once by pressing the Point
d button, then return to "Logo PIN code". Enter the
correct number again.
Repeat this step to complete entering a four-digit
number.
When the four-digit number is fixed, the pointer
automatically moves to "Set". Press the SELECT button
so that you can change the Logo PIN code lock setting.
If you entered an incorrect Logo PIN code, "Logo PIN
code", the numbers (✳✳✳✳) turn red and disappear.
Enter a correct Logo PIN code all over again.
After a correct Logo PIN code is entered, the
following dialog box appears.
Select On/Off by pressing the Point
7 8
buttons or change the Logo PIN code.
Change the Logo PIN code
Logo PIN code can be changed to your desired four-digit
number. Select "Logo PIN code change" with the Point
d button and press the SELECT button. Set a new Logo
PIN code.
Be sure to note the new Logo PIN code and keep it at
hand. If you lost the number, you could no longer
change the Logo PIN code setting. For details on PIN
code setting, refer to relevant instructions of the PIN
code lock function on pp. 47, 48.
Logo PIN code lock
This function prevents an unauthorized person from
changing the screen logo.
Off .......the screen logo can be changed freely from
the Logo select menu. (p. 43)
On .......the screen logo cannot be changed without
the Logo PIN code.
If you want to change the Logo PIN code lock setting,
enter a Logo PIN code along the following steps. The
initial Logo PIN code is set "4321" at the factory.
Logo PIN code lock
Setting
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO PIN CODE,
TAKE A MEMO AND KEEP IT SECURELY. SHOULD
THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE
PROJECTOR CAN NO LONGER BE OPERATED.
Page 45
45
Setting
Ceiling
Rear
Ceiling
When this function is “On,” the picture is top/bottom and
left/right reversed. This function is used to project the
image from a ceiling mounting the projector.
Rear
When this function is “On,” the picture is left/right
reversed. This function is used to project the image to a
rear projection screen.
Terminal
The COMPUTER IN 2/MONITOR OUT terminal on the back
of the projector is switchable for computer input or monitor
output. (p. 9) Select Computer 2 or Monitor Out with the
Point 7 8 buttons.
Computer 2 . . . .computer input
Monitor Out . . .monitor out
Terminal function is not available when selecting Computer
2 to the input source. Change the input source to the
others (Computer1 or Video) so that the Terminal function is
available. (pp. 26, 35, 36)
Power management
Time left before Lamp is off.
Press the SELECT button
at Power management and
this box appears. Select
one of three settings with
the Point
7 8 buttons, and
go to the timer with the
Point ed buttons and set
time with the Point
7 8
buttons.
Power management
For reducing power consumption as well as maintaining the
lamp life, the Power management function turns off the
projection lamp when the input signal is interrupted and no
button is pressed for a certain period.
When the input signal is interrupted and no button is
pressed for 30 seconds or more, the timer display with "No
signal" appears. The countdown starts to turn off the lamp.
Select one of the operations.
Ready . . . . . . . When the lamp has been fully cooled
down, the POWER indicator changes to
green blinking. In this condition, the
projection lamp is turned on if the input
signal is reconnected or any button on the
remote control is pressed.
Shut down. . . When the lamp has been fully cooled
down, the power is turned off.
Off. . . . . . . . . . Power management function is off.
Then set the countdown timer with the Point 7 8
buttons.
Setting
Page 46
46
Setting
On start
When this function is “On”, the projector is automatically
turned on just by connecting the AC power cord to an
outlet.
✔
Note:
• Be sure to turn the projector off properly (see “Turning Off the
Projector” on p. 20). If the projector is turned off in the incorrect
sequence, the On start function does not operate properly.
Lamp control
Remote control
This projector provides two different remote control codes;
the factory-set, initial code (Code 1) and the secondary code
(Code 2). This switching function prevents remote control
interference when operating several projectors or video
equipment at the same time.
When operating the projector in “Code 2”, both the
projector and the remote control must be switched to
“Code 2”.
To change the code for the projector;
Select either “Code 1” or “Code 2” in this Setting Menu.
To change the code for the remote control;
Press and hold both the MENU and IMAGE buttons
together for 10 seconds or more. After changing the code,
make sure the remote control operates properly.
Remote control
Press and hold
MENU and
IMAGE buttons
for 10 seconds or
more.
You can change the brightness of the screen.
Normal ....Normal brightness
Auto ........Brightness according with the input signal
Eco ..........Lower brightness reduces the lamp power
consumption and extends the
lamp life.
On start
✔
Note:
• When different codes are set on the projector and on the remote
control, any operation cannot be made. In that case, switch the
code on the remote control to fit the code on the projector.
• When the batteries of the remote control are replaced, the remote
control code automatically returns to the initial code (Code 1).
Page 47
47
Setting
Security (Alarm and PIN code lock settings)
This function allows you to use PIN code lock and Alarm
function to set the security for the projector operation.
PIN code lock
This function prevents the projector from being operated
by an unauthorized person and provides the following
settings for security options.
Off........The projector is not locked with the PIN code.
On1 .....Require to enter the PIN code every time
turning on the projector.
On2......Require to enter the PIN code to operate the
projector once the power cord is disconnected;
as long as the AC power cord is connected, the
projector can be operated without the PIN
code.
Whenever to change the PIN code lock setting or the
PIN code (the four-digit number), you are required to
enter the PIN code. "1234" is set as the initial PIN code
at the factory.
When the projector is locked
with the PIN code, the PIN
code lock mark appears on the
menu bar.
PIN code lock
Setting
Select Off, On1, or On2 with the Point 7 8 buttons and
then move the red framed pointer to "Quit" with the
Point d button. Press the SELECT button to close the
dialog box.
To Change the PIN code lock setting
Enter a PIN code
Select a number by pressing the Point 7 8 buttons and
fix the number with the SELECT button. The number
changes to "✳". If you fixed an incorrect number, move
the pointer to "Set" or "Clear" once by pressing the Point
d button, then return to "PIN code". Enter the correct
number again.
Repeat this step to complete entering a four-digit
number.
When the four-digit number is fixed, the pointer
automatically moves to "Set". Press the SELECT button
so that you can change the following PIN code lock
settings.
If you entered an incorrect PIN code, "PIN code" and the
number (✳✳✳✳) turn red and disappear. Enter a correct
PIN code all over again.
Enter a PIN code
Pointer
The input numbers change
to “✳” for security.
When the pointer
automatically moves to "Set",
press the SELECT button.
Quit
Page 48
48
Setting
The PIN code can be changed to your desired four-digit
number.
Select "PIN code change" with the Point d button, and
press the SELECT button to display the New PIN code
input dialog box.
Select a number with the Point 7 8 buttons and fix the
number with the SELECT button. Repeat it to complete
entering a four-digit number. When the four-digit
number is fixed, the pointer automatically moves to
"Set". Then press the SELECT button.
To Change the PIN code
Change the PIN code
Select PIN code change and
press the SELECT button.
The New PIN code input
dialog box appears.
The entered numbers are
displayed for confirmation.
Change the PIN code lock setting
Select a desired
setting with the
Point
7 8 buttons.
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE, TAKE
A MEMO AND KEEP IT SECURELY. IF YOU FORGET
YOUR PIN CODE, THE PROJECTOR CAN NO
LONGER BE STARTED.
Alarm
Make some settings for the Antitheft alarm function.
(pp. 50-52)
Press the SELECT button at Alarm icon to display the
Alarm setting box.
When the Antitheft alarm function is set, "On" is
displayed. When the function is released, "Off" is
displayed. See p. 50 to set or release this function.
Select Alarm volume, Sensitivity or Ringing time with
the Point ed buttons, and set each item with the Point
7 8 buttons.
Alarm volume
Small
Medium
Large
Sensitivity
Low ..................Less sensitive
Medium ...........Normal sensitivity
High .................Highly sensitive (default setting)
Ringing time
10 seconds ......Default setting.
Ring about 10 seconds.
60 seconds ......Ring about 60 seconds.
Long time.........Ring until the end of the battery life.
Alarm
When Antitheft alarm is
"On", the battery is not
installed or coming to the
end or its life, Alarm icon
becomes gray and cannot
be selected.
Press the SELECT button at the Alarm
icon to display the Alarm setting box.
✔
Note:
• The Alarm icon becomes gray and cannot be
selected when the Antitheft alarm function is
"On", a battery is not installed, or the battery is
coming to the end of its life.
• While the Alarm icon is selected, the Antitheft
alarm setting buttons on the side panel cannot
be operated.
• When selecting "Long time" in Ringing time, the
length of alarm ringing time differs depending on
the battery life.
Set Sensitivity or
Ringing time with
the Point 7 8
buttons.
Page 49
49
This function is used to reset the lamp replacement
counter. When replacing the projection lamp, reset the
lamp replacement counter by using this function. See p. 57
for operation.
Lamp counter
Factory default
This function returns all setting values except for the user
logo, PIN code lock, Logo PIN code lock and the lamp
counter to the factory default settings.
Select Factory default and
this box appears. Select
"Yes" , and the next box
appears.
Factory default
Select "Yes" to
activate it.
This function provides the following alternatives in the
cooling fans' operation after turning off the projector. (p. 20)
L1 . . . . . . .Normal operation
L2 . . . . .Slower and lower-sound than the normal
operation (L1), but it takes longer to cool the
projector down.
Fan
Setting
Exit the Setting Menu.
Quit
Setting
Page 50
50
How to Use the Antitheft Alarm Function
Antitheft Alarm Function
The Antitheft alarm function is to prevent the projector from being stolen. With this function on, the alarm rings
when an unauthorized person tries to move the projector.
Press the F button twice to turn the alarm function on. The
ALARM indicator blinks for a few seconds and the projector
enters the warning mode.
While the Antitheft alarm function is on, the projector emits
a low-pitched sound when detecting a vibration.
When the projector does not detect a vibration for a few
seconds after the sound, it goes back to the warning mode.
When the projector detects more vibrations after the lowpitched sound, the alarm starts ringing.
Set the alarm
Release the alarm setting
✔
Note:
• This function is not a guarantee against stealing.
• The alarm does not ring while the AC power cord is connected
even if the projector detects vibrations.
• Pressing the button is always accompanied by a sound. If any
sound is not produced after pressing the button, you need to press
it again.
Side Control
ALARM
indicator
F button
button 1, 2, 3
Set and release the Antitheft alarm function
✔
Note:
• You can test the alarming sound without setting the alarm. Press
and hold the F button then the alarm starts ringing. The length of
the ringing time is what you set on the "Ringing time". (p. 48)
• If you want to stop the alarm while it is ringing, insert the AC
power cord or press the F button and enter the four-digit PIN code.
Before operating the Antitheft alarm function, install a
battery in the projector. (see p. 52 for installation)
Install a battery
1
Press the F button and enter the four-digit PIN code
within about 10 seconds. (The default PIN code is
"1111".) When the alarm is released, you hear highpitched confirmation sound.
When entering an incorrect PIN code, you hear lowpitched sound. If you enter an incorrect PIN code 3
times, the alarm starts ringing.
Page 51
51
Antitheft Alarm Function
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE, WRITE
DOWN THE NEW PIN CODE AND KEEP IT SECURELY.
IF YOU FORGET YOUR PIN CODE, SOME SETTINGS OF
THE ALARM FUNCTION CAN NO LONGER BE
CHANGED.
Change the PIN code
Press the F button and enter the four-digit PIN code
within about 10 seconds. The ALARM indicator blinks
red for a few seconds and high-pitched confirmation
sound is made.
Settings
Reset the settings
Select Factory default in the Setting menu to reset the
settings for the Antitheft alarm function.
Side Control
Antitheft Alarm Function
1
2
While the indicator is blinking, enter new PIN code
then you will hear the high-pitched confirmation sound
and the ALARM indicator is off.
When typing an incorrect PIN code, you will hear lowpitched sound. If you enter incorrect PIN codes 3
times, the alarm starts ringing.
A PIN code for Antitheft alarm function is the
combination of 1, 2, or 3. Enter the PIN code with the
button 1, 2, and 3. The default PIN code is set as
"1111".
✔
Note:
• This is effective only when the Antitheft alarm setting is released.
• You can make some more detailed settings. (p. 48)
ALARM
indicator
F button
button 1, 2, 3
Page 52
52
Antitheft Alarm Function
How to install the battery
To use the Antitheft alarm function, you need to install a
battery. (Use a CR2 3V lithium battery.)
To install the battery, remove the screw and open the
battery cover on the bottom of the projector.
When the battery is installed properly, the ALARM indicator
blinks for about 10 seconds.
After placing the battery, put the cover back and secure it
with the screw.
When the life of the battery draws to an end, the ALARM
indicator flashes and warning sound is made at some
intervals.
Replace the battery with following the procedures above.
✔
Note:
• Even after changing the battery, the PIN code you have changed
and settings you have made are effective.
• When changing the battery, set the Antitheft alarm function off.
Otherwise the alarm starts ringing when you try to open the battery
cover.
Loosen the screw and
open the battery cover.
Install the battery then replace the
battery cover and secure it with the
screw.
Screw
To insure safe operation, please observe the following precautions:
● Do not keep the battery mixing with wire or metal products to avoid causing a short.
● Keep the battery away from babies and children to prevent them from swallowing it.
● Do not charge the battery.
● Do not disassemble, or apply pressure to transform the battery.
● Avoid contact with water or liquid.
● Do not expose to moisture or heat.
● If the battery has leaked, carefully wipe the battery compartment clean and install new battery.
● Do not replace the battery with an incorrect type or in an incorrect direction.
● Dispose of used battery after insulating the battery with putting insulating tape on either or both
sides on the top/bottom of the battery.
● Dispose of used battery with following local regulations.
Page 53
53
The WARNING indicator shows the state of the function which protects the projector. Check the state of the
WARNING indicator and the POWER indicator to take proper maintenance.
Top Control
Warning Indicator
The projector is shut down and the WARNING
indicator is blinking red.
When the temperature inside the projector reaches a
certain level, the projector is automatically shut down to
avoid overheating. The POWER indicator is blinking while
the projector is being cooled down. When the projector has
cooled down enough (to its normal operating temperature),
it can be turned on again by pressing the POWER ON-OFF
button.
✔
Note:
• After the temperature inside the projector returns to normal, the
WARNING indicator still continues to blink. When the projector is
turned on again, the WARNING indicator stops blinking.
Then check the matters below:
– Did you provide appropriate space for the projector to be
ventilated? Check the installing condition to see if
ventilation slots are not blocked.
– Is the projector not installed near the ventilation duct of
air-conditioning equipment which may be hot? Install the
projector away from the ventilation duct of airconditioning equipment.
– Are the air filters clean? Clean the air filters periodically.
(p. 54)
WARNING
emit a red light
Top Control
The projector is shut down and the WARNING
indicator emits a red light.
When the projector detects an abnormal condition, it is
automatically shut down to protect the inside and the
WARNING indicator is red. In this case, disconnect the AC
power cord and reconnect it, and then turn the projector on
once again for check. If the projector cannot be turned on
and the WARNING indicator emits a red light, disconnect
the AC power cord and contact the service station for check
and repair.
CAUTION
DO NOT LEAVE THE PROJECTOR WITH THE AC
POWER CORD CONNECTED UNDER THE
ABNORMAL CONDITION. IT MAY RESULT IN
FIRE OR ELECTRIC SHOCK.
Maintenance and Cleaning
WARNING
blinking red
Maintenance & Cleaning
POWER WARNING
LAMP
REPLACE
POWER WARNING
LAMP
REPLACE
Page 54
54
Maintenance and Cleaning
Turn off the projector, and disconnect the AC power
cord from the AC outlet.
Turn over the projector and remove the air filters by
pulling the latches upward.
1
2
Air filters prevent dust from accumulating on the optical elements inside the projector. Should the air filters
become clogged with dust particles, it reduces cooling fans’ effectiveness and may result in internal heat build
up and adversely affect the life of the projector. Clean the air filters following the steps below.
Clean the air filters with a brush or rinse them softly.
3
When cleaning the air filters by rinsing, dry them well.
Replace the air filters properly. Make sure that the air
filters are fully inserted.
4
CAUTION
Do not operate the projector with the air filters
removed. Dust may accumulate on the optical
elements degrading picture quality.
Do not put small parts into the air intake vents. It
may result in malfunction of the projector.
RECOMMENDATION
We recommend avoiding dusty/smoky environments
when operating the projector. Usage in these
environments may cause poor image quality.
When using the projector under dusty or smoky conditions,
dust may accumulate on a lens, LCD panels, or optical
elements inside the projector. This condition may degrade
the quality of a projected image.
When the symptoms above are noticed, contact your
authorized dealer or service station for proper cleaning.
✔
Note:
• When reinserting this air filter, be sure that the
slit part is facing the outer side.
Air filters
Pull up and remove.
Attaching the Lens Cover
When moving the projector or the projector is not in use,
replace the lens cover.
1
2
Thread the string through the hole on the lens cover
and then tie a knot.
Thread the other end of the string through the hole on
the bottom of the projector. Then pass the lens cover
through the resulting loop and pull it to tighten the
knot.
2
1
Cleaning the Air Filters
Page 55
55
Maintenance and Cleaning
Disconnect the AC power cord before cleaning.
When the projector is not in use, replace the lens
cover.
1
3
2
Cleaning the Projector Cabinet
Disconnect the AC power cord before cleaning.
1
Gently wipe the projector body with a soft, dry
cleaning cloth. When it is heavily soiled, use a small
amount of mild detergent and finish with the cleaning
cloth. Avoid excessive use of cleaner. Abrasive
cleaners, solvents, or other harsh chemicals might
scratch the surface.
2
Follow these steps to clean the projector cabinet.
When the projector is not in use, put the projector in
an appropriate case to avoid dust and being scratched.
3
First, remove the dust with a blower.
Then gently wipe the lens surface. Use a lens
cleaning paper moistened with methyl alcohol
(methanol). Avoid excessive use of cleaner.
Do not use abrasive cleaners, solvents, or other harsh
chemical cleaners not to damage the lens.
Cleaning the Projection Lens
Maintenance & Cleaning
CAUTION
This projector is equipped with a plastic lens.
Do not rub with hard fiber cloth or do not hit the lens with something hard to prevent the lens from scratching.
Do not use chemical cleaner (liquid and solid) avoid deteriorating the lens.
Page 56
56
Maintenance and Cleaning
Follow these steps to replace the lamp.
Lamp
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following
information to the dealer.
●
Model No. of your projector : PLC-XE40
● Replacement Lamp Type No. : POA-LMP90
(Service Parts No. 610 323 0726)
For continued safety, replace with a lamp of the
same type. Do not drop a lamp or touch a glass
bulb! The glass can shatter and may cause injury.
Allow a projector to cool, for at least 45 minutes
before you open the Lamp cover. The inside of
the projector can become very hot.
CAUTION
Screw
Turn off the projector and disconnect the AC power
cord. Allow the projector to cool for at least 45
minutes.
Remove 2 screws of the lamp with a screwdriver and
pull out the lamp by grasping the handle.
1
3
Replace the lamp with a new one and tighten the 2
screws back into position. Make sure that the lamp is
set properly. Replace the lamp cover and tighten the
screw.
4
Remove the screw with a screwdriver, and remove
the lamp cover.
2
Connect the AC power cord to the projector and turn
on the projector.
6
Reset the lamp replacement counter.
See “Lamp Replacement Counter” on the next page .
5
Handle
Screw
CAUTION
Screw
Lamp Cover
When the life of the projection lamp of this projector draws
to an end, the LAMP REPLACE indicator emits a yellow
light. If this indicator lights yellow, replace the lamp with a
new one promptly.
Top Control
Lamp Replacement
WARNING:
TURN OFF THE UV LAMP BEFORE
OPENING THE LAMP COVER
This indicator is yellow when
the life of the projection lamp
draws to an end.
POWER WARNING
LAMP
REPLACE
Page 57
57
Maintenance and Cleaning
Be sure to reset the Lamp replacement counter after the lamp is replaced. When the Lamp replacement
counter is reset, the LAMP REPLACE indicator stops lighting.
Turn the projector on, press the MENU button to
display the On-Screen Menu. Press the Point 7 8
buttons to move the red framed pointer to the Setting
Menu icon.
Press the Point ed buttons to move the red framed
pointer to the Lamp counter function and then press
the SELECT button. The first dialog box appears and
shows the total accumulated time of the lamp usage
and the reset option. If you select "Reset", a "Lamp
replacement counter Reset?" appears. Select "Yes" to
continue.
1
2
Another confirmation dialog box appears, select "Yes"
to reset the Lamp replacement counter.
3
This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a fire hazard.
● Lamp life may differ from lamp to lamp and according to the environment of use. There is no
guarantee of the same life for each lamp. Some lamps may fail or terminate their life in a shorter
period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights
up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down.
( Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of
the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its
lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in
which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an
authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check
carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out
from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one
should check the inside of the projector except those who are authorized trained technicians and who are
familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those
who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
LAMP HANDLING PRECAUTIONS
Lamp Replacement Counter
✔
Note:
• Do not reset the Lamp replacement counter without
implementation of lamp replacement. Be sure to reset the Lamp
replacement counter only after replacing the lamp.
Select "Yes",
then another
confirmation box
appears.
Select "Yes" again
to reset the lamp counter.
To reset the lamp counter,
move the pointer to Reset
and then press the SELECT
button.
“Lamp replacement
counter Reset?” dialog box
is displayed.
Maintenance & Cleaning
Page 58
58
Tr oubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
–Make sure you have properly connected the projector to peripheral equipment as described on pp.16-18.
–Make sure all equipment is connected to AC outlet and the power is turned on.
–When you operate the projector with a computer and it does not project an image, restart the computer.
Appendix
Problem: – Solutions
No power – Plug the power cord of the projector into the AC outlet.
– See if the POWER indicator lights red.
– Wait 90-120 seconds after the projector is turned off when turning
the projector back on. The projector can be turned on after the
POWER indicator turns red. (See on p. 20)
– Check the WARNING indicator. If the WARNING indicator lights red,
the projector cannot be turned on. (See on p. 53)
– Check the projection lamp. (See p. 56)
Image is out of focus. – Adjust focus of the projector. (See p. 23)
– Provide proper distance between the projector and the projection
screen. (See p. 14)
– Check the projection lens to see if it needs cleaning. (See p. 55)
– Moving the projector from a cool to a warm place may result in
moisture condensation on the projection lens. In such cases, leave
the projector off and wait until condensation evaporates.
No image – Check the connection between your computer or video equipment
and the projector. (See pp. 16–18)
– See if the input signal is correctly output from your computer. Some
laptop computers may need to change the setting for monitor output
when connecting to a projector. See your computer’s instruction
manual for the setting.
– It takes about 30 seconds to display an image after turning on the
projector.See if the selected system is corresponding with your
computer or video equipment. (See pp. 27 and 37)
– Select correct input source once again through menu operation.
(See pp. 26 ,35 and 36)
– Make sure the temperature is not out of the specified Operating
Temperature (41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)) .
Image is Left/Right reversed. – Check the Ceiling / Rear function. (See p. 45)
Image is Top/Bottom reversed. – Check the Ceiling function. (See p. 45)
No sound – Check audio cable connection from audio input source.
– Adjust the audio source.
– Press the Volume+ button. (See p. 24)
– Press the Mute button. (See p. 24)
Page 59
59
Appendix
The CE Mark is a Directive
conformity mark of the European
Community (EC).
Some displays are not seen –Check the Display function. (See p. 42)
during the operation.
PIN code dialog box appears at start-up. –PIN code lock is being set. Enter a PIN code (1234 or
numbers you have set). (See p. 19, 47, 48)
Computer 2 cannot be selected. –Select Computer 2 at the Terminal function. (See p. 45)
The Terminal function cannot be selected. –The Terminal function cannot be selected after Computer 2 is
selected. Select other input source such as Computer 1 or
Video with the COMPUTER button or the VIDEO button on
the remote control so that the Terminal function can be
selected.
The Remote Control does not work. –Check the batteries.
–Make sure no obstruction is between the projector and the
remote control.
–Make sure you are not too far from the projector when using
the remote control. Maximum operating range is 16.4’ (5m).
–Make sure the code of the remote control is conformed to
the projector. (See p. 46)
Cooling fans are still running after –This is normal condition. Fans keep running for a certain time
the AC plug is disconnected. even after disconnecting the AC plug.
WARNING :
High voltages are used to operate this projector. Do not attempt to open the cabinet.
If problems still persist
after following all operating instructions,
contact the dealer where you purchased the
projector or the service center.
Give the model number and explain about the problem. We will advise you
how to obtain service.
Pixelworks ICs used.
Appendix
Page 60
60
Appendix
Menu Tree
Mode 1
Mode 2
SVGA 1
- - - -
Computer Input
✽Systems displayed in the System Menu vary
depending on an input signal.
Computer Input / Video Input
Sound
Volume
Mute
Quit
On / Off
Sound
0 - 63
Input
Computer 2
Video Auto
Go to System (3)
Go to System (3)
Video
Go to System (3)
✽N/A - - - not applicable
Go to System (1)
Go to System (2)
N/A
S-Video
RGB( Scart )
Quit
Quit
System (1)
RGBComputer 1
Component
Auto PC Adj.
Total dots
Horizontal
Vertical
Display area H
Display area V
Reset
Dynamic
Real
Blackboard(Green)
Image 1
Image 2
Image 3
Image Adjust
Contrast
Brightness
Color temp.
Red
Gamma
Store
Quit
Normal
True
Wide
Full screen
Digital zoom +
0 - 63
0 - 63
PC Adjust
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Image Select
High
0 - 63
0 - 15
Image 1
Image 2
Image 3
Image 4
Screen
Quit
Yes / No
Reset Yes / No
Sharpness 0 - 15
Image 4
Standard
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Quit
H-sync freq.
V-sync freq.
Quit
Clamp
Current mode
Digital zoom –
Green
Blue
0 - 63
0 - 63
Store
Mode free
Quit
Mid
Low
XLow
Quit
Adj.
Fine sync.
0 - 31
Custom
Scale H / V
H&V
Position H / V
Common
Reset
Quit
Yes / No
Yes / No
On / Off
Page 61
61
Appendix
Auto
PAL
SECAM
NTSC
NTSC 4.43
PAL-M
PAL-N
Video Input
Auto
1080i
1035i
720p
575p
480p
575i
480i
Dynamic
Cinema
Blackboard(Green)
Image 1
Image 2
Image 3
Setting
Image Select
System (2)
System (3)
Image 4
Language
Setting
English
German
French
Italian
Spanish
Portuguese
Dutch
Swedish
Chinese
Korean
Japanese
On / Off
On / Countdown off / Off
Logo select
On / Off
On / Off
Off
On / Off
Normal / Auto / Eco
Code 1 / Code 2
Keystone
Blue back
Display
Logo
Ceiling
Rear
Power management
On start
Lamp control
Remote control
Quit
Russian
Ready
Shut down
Quit
Timer(1-30 Min)
Quit
Factory default
L1 / L2Fan
Quit
Standard
Finnish
Hungarian
Romanian
Polish
Yes / No
Store / Reset
Quit
Off
User
Capture
Yes / No
Off
On
PIN code change
Logo PIN code lock
Logo PIN code entry
Quit
PIN code lock entry
On / Off
PIN code change
Quit
Alarm
Default
Sensitivity
Ringing time
Quit
Off
On
Computer 2 /Monitor outTerminal
Reset
Quit
Appendix
PIN code lock
Security
Quit
Normal
Wide
0 - 63
0 - 63
Off
Image Adjust
Contrast
Brightness
Color
Tint
Red
Green
Blue
Sharpness
Reset
Store
Gamma
Progressive
0 - 63
0 - 63
0 - 63
0 - 15
0 - 15
Image 1
Screen
Yes / No
Quit
Color temp.
OffNoise reduction
L1
L2
High
Mid
Low
XLow
0 - 63
0 - 63
Image 2
Image 3
Image 4
L2
L1
Adj.
Film
Custom
Scale H / V
H&V
Position H / V
Common
Reset
Quit
Yes / No
Yes / No
On / Off
Alarm volume
Lamp counter Hour(s)
Small / Medium / Large
Low / Medium / Large
10seconds / 60seconds
/ Long time
Page 62
62
Appendix
Check the indicators for projector condition.
• • • green. • • • red • • • off
• • • blinks green.
✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow.
When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp
replacement counter after replacement of the lamp. See pp. 56 and 57.
Indicators and Projector Condition
• • • blinks red.
The projector is off. (The AC power cord is unplugged.)
The projector is preparing for stand-by or the projection lamp is
being cooled down. The projector cannot be turned on until cooling
is completed.
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled down
enough and the temperature returns to normal, the POWER
indicator emits a red light and the projector can be turned on. (The
WARNING indicator keeps blinking.) Check and clean the air filters.
Projector Condition
The projector is ready to be turned on with the POWER ON-OFF
button.
POWER
red/green
Indicators
LAMP
REPLACE
yellow
WARNING
red
The projector detects an abnormal condition and cannot be turned
on. Unplug the AC power cord and plug it again to turn on the
projector. If the projector is turned off again, disconnect the AC
power cord and contact the dealer or the service center for service
and checkup. Do not leave the projector on. It may cause an
electric shock or a fire hazard.
✽
✽
✽
✽
✽
The projector is operating normally.
The projector is in the Power management mode.
✽
✽
The projector has been cooled down enough and the temperature
returns to normal. When turning on the projector, the WARNING
indicator stops blinking. Check and clean the air filters.
Page 63
63
Appendix
Compatible Computer Specifications
Basically this projector can accept the signal from all computers with the V, H-Frequency below mentioned
and less than 140 MHz of Dot Clock.
When selecting these modes, PC adjustment can be limited.
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
VGA 1 640 x 480 31.47 59.88
VGA 2 720 x 400 31.47 70.09
VGA 3 640 x 400 31.47 70.09
VGA 4 640 x 480 37.86 74.38
VGA 5 640 x 480 37.86 72.81
VGA 6 640 x 480 37.50 75.00
MAC LC13
640 x 480 34.97 66.60
MAC 13 640 x 480 35.00 66.67
MAC 16 832 x 624 49.72 74.55
MAC 19 1024 x 768 60.24 75.08
SXGA 1
1152 x 864
64.20 70.40
SVGA 1 800 x 600 35.156 56.25
SVGA 2 800 x 600 37.88 60.32
SVGA 3 800 x 600 46.875 75.00
SVGA 4 800 x 600 53.674 85.06
SVGA 5 800 x 600 48.08 72.19
SVGA 6 800 x 600 37.90 61.03
SVGA 7 800 x 600 34.50 55.38
SVGA 8 800 x 600 38.00 60.51
SVGA 9 800 x 600 38.60 60.31
SVGA 11 800 x 600 38.00 60.51
ON-SCREEN
DISPLAY
RESOLUTION
H-Freq.
(kHz)
V-Freq.
(Hz)
XGA 10 1024 x 768
XGA 11 1024 x 768
XGA 12 1024 x 768
XGA 13 1024 x 768
62.04 77.07
XGA 14 1024 x 768
61.00 75.70
XGA 15 1024 x 768
35.522
86.96
(Interlace)
46.90 58.20
XGA 8 1024 x 768
47.00 58.30
XGA 9
1024 x 768
58.03 72.00
SXGA 4 1280 x 1024
63.48 79.35
36.00
87.17
(Interlace)
63.34 59.98
SXGA 5 1280 x 1024
SXGA 6 1280 x 1024
SXGA 7 1280 x 1024
63.74 60.01
71.69 67.19
SXGA 10 1280 x 960
81.13 76.107
60.00 60.00
XGA 1 1024 x 768
XGA 4 1024 x 768
48.36 60.00
XGA 6 1024 x 768
XGA 7 1024 x 768
56.476 70.07
48.50 60.02
44.00 54.58
SXGA 8 1280 x 1024
SXGA 9 1280 x 1024
63.98 60.02
79.976 75.025
XGA 5 1024 x 768 60.31 74.92
VGA 7 640 x 480 43.269 85.00
575i
––––––––
15.625
50.00
(Interlace)
480i
––––––––
15.734
60.00
(Interlace)
SXGA 12 1152 x 900 71.40 75.60
SXGA 11 1152 x 900 61.20 65.20
SVGA 10 800 x 600 32.70 51.09
SXGA 13 1280 x 1024 50.00
86.00
(Interlace)
SXGA 2
1280 x 1024 62.50 58.60
SXGA 3 1280 x 1024 63.90 60.00
XGA 2 1024 x 768 68.677 84.997
XGA 3 1024 x 768 60.023 75.03
SXGA 18 1280 x 1024 46.43
86.70
(Interlace)
SXGA 19
1280 x 1024
63.79 60.18
SXGA 14 1280 x 1024
SXGA 15 1280 x 1024
SXGA 16 1280 x 1024
SXGA 17 1152 x 900
50.00
94.00
(Interlace)
63.37 60.01
76.97 72.00
61.85 66.00
MAC 1280 x 960 75.00 75.08
MAC 1280 x 1024
480p
––––––––
575p
––––––––
80.00 75.08
31.47 59.88
1080i
––––––––
31.25 50.00
33.75
60.00
(Interlace)
720p
––––––––
1035i
––––––––
45.00 60.00
33.75
60.00
(Interlace)
1080i
––––––––
28.125
50.00
(Interlace)
SXGA 21
1400 x 1050 63.979 60.190
MAC21 1152 x 870 68.68 75.06
UXGA 4 1600 x 1200 93.75 75.00
WXGA 2 1360 x 768
WXGA 3
1376 x 768
WXGA 4 1360 x 768
UXGA 1 1600 x 1200
47.70 60.00
UXGA 2 1600 x 1200
48.36 60.00
UXGA 3 1600 x 1200
56.16 72.00
75.00 60.00
81.25 65.00
WXGA 1
1366 x 768
87.5 70.00
48.36
60.00
SXGA 22
1400 x 1050
65.346 60.116
SXGA 23
1400 x 1050 65.121 59.902
SXGA 20
1280 x 1024 91.146 85.024
Appendix
Page 64
64
Appendix
Te c hnical Specifications
Mechanical Information
Projector Type Multi-media Projector
Dimensions (W x H x D) 10.50" x 4.86" x 9.58" (320mm x 148mm x 292mm) (Not including adjustable feet)
Net Weight 7.3 lb (3.3kg)
Feet Adjustment 0˚ to 10.0˚
Panel Resolution
LCD Panel System 0.6" TFT Active Matrix type, 3 panels
Panel Resolution 1,024 x 768 dots
Number of Pixels 2,359,296 (1,024 x 768 x 3 panels)
Signal Compatibility
Color System
PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N
High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i
Scanning Frequency H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz
Optical Information
Projection Image Size (Diagonal) Adjustable from 60" to 80"
Projection Lens F 1.85 lens with f 8.1 mm with manual focus
Throw Distance 2.49’ - 3.38’ (0.76m - 1.03m)
Projection Lamp 200W
Interface
Video Input Jack RCA Type x 1
S-Video Input Jack Mini DIN 4 pin x 1
Audio Input Jacks RCA Type x 2
Computer Input 1 / Component Input Terminal Analog RGB (Mini D-sub 15 pin) Terminal X 1
Computer Input 2 / Monitor Output Terminal
Analog RGB (Mini D-sub 15 pin) Terminal X 1 (In / Out switchable)
Computer/ Component Audio Input Jack
Mini Jack (stereo) x 1
Service Port Connector Mini DIN 8 pin x 1
USB Connector USB Series B receptacle x 1
Audio Output Jack Mini Jack (stereo) x 1 (Variable)
Audio
Internal Audio Amp 1.0W RMS
Built-in Speaker 1 speaker, ø1.1" (28mm)
Power
Voltage and Power Consumption AC 100 ~ 120 V (2.9A Max. Ampere), 50 / 60 Hz (The U.S.A and Canada)
AC 200 ~ 240 V (1.4 A Max. Ampere), 50 / 60 Hz (Continental Europe and The U.K.)
Operating Environment
Operating Temperature 41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)
Storage Temperature 14 ˚F ~ 140 ˚F (-10˚C ~ 60 ˚C)
Remote Control
Battery AA or LR6 1.5V ALKALINE TYPE x 2
Operating Range 16.4’ (5m) / ±30˚
Dimensions 1.9”(W) x 0.87”(H) x 5.7”(D) (49mm x 22mm x 145.3mm)
Net Weight 3.53 oz (100 g) (including batteries)
Antitheft Alarm
Battery CR2 3V LITHIUM BATTERY x 1
Page 65
65
Appendix
Model No.
COMPONENT-VGA Cable : POA-CA-COMPVGA
SCART-VGA Cable : POA-CA-SCART
Mini D-sub Extension Cable : KA-MC-DB10
The parts listed below are optionally available. When ordering those parts, give the item name and Model No.
to the sales dealer.
Optional Parts
Accessories
Owner's Manual (CD-ROM)
Quick Reference Guide
AC Power Cord
Remote Control and Batteries
Battery for Antitheft alarm function
VGA Cable
Lens Cover with String
PIN Code Label
Alarm Label
● The specifications are subject to change without notice.
● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a
tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.
Appendix
Page 66
66
Appendix
Terminal : Mini DIN 8-PIN
SERVICE PORT CONNECTOR
Vcc
- Data
+ Data
Ground
1
2
3
4
USB CONNECTOR (Series B)
R X D
-----
-----
GND
RTS / CTS
GND
GND
Serial
1
2
3
4
5
6
7
8
COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG)
Terminal : Analog RGB (Mini D-sub 15 pin)
Configurations of Terminals
Red (R/Cr) Input / Output
Ground (Horiz.sync.)
Green (G/Y) Input / Output
-----
Blue (B/Cb) Input / Output
Ground (Red)
Ground (Green)
Ground (Blue)
1
5
2
4
3
6
7
8
-----
Horiz. sync. Input/Output (Composite H/V sync.)
Ground (Vert.sync.)
-----
Ground / -----
Vert. sync.
-----
9
13
10
12
11
14
15
T X D
2
5
10
15
1
34
9 678
12
11
14
13
8 7 6
5
2
3
4
1
2
1
34
Page 67
67
Appendix
PIN Code Label
Put the label below (supplied) on in a prominent place of the
projector's body while it is locked with a PIN code.
While the projector is locked with the PIN code...
Appendix
Put the label below (supplied) on in a prominent place of the
projector's body while the Antitheft alarm function is set.
While the Antitheft alarm function is set...
Page 68
Part No. 610 330 0191 (1AA6P1P5190-- LK6A)
SANYO Electric Co., Ltd.
Loading...
