Multimedia Projector

MODEL PLC-WXL46A

Network Supported

Refer to the owner’s manual

* below for details about network

function.

■ Network Set-up and Operation

■ PJ Network Manager

Owner’s Manual

Features and Desi�n

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

 Lar�e Screen in Limited SpaceLar�e Screen in Limited Space

Short focus lens allows you to project large images

from short distance. (p.13)

 Security Features

The Security function helps you to ensure security of

the projector. With the Key lock function, you can

lock the operation on the top control or remote

control (p.47).

The PIN code lock guards the projector from an unauthorized user. (pp.18, 47-48)

Lo�o Function

The Logo function allows you to customize the screen logo. The Logo page identifies the owner of the projector. (pp.42, 43)

Closed Caption

This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels. (p.50)

Simple Computer System Settin�

The projector has a Multi-scan system to conform to almost all computer output signals quickly. (p.26)

Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, or PAL-N), Component video, S-video and RGB scart.

LAN Network Function

This projector is loaded with the Wired function. You

can manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.”

Di�ital Zoom (for Computer)

The digital zoom function allows you to focus on crucial information during a presentation. You can expand the images approx. 16 times the screen size and compress them to approximately a quarter of the screen size. (p.33)

Blackboard Function

A blackboard can be used as a projection screen. (pp.30, 37)

*The board color is limited to Green.

Colorboard Function

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

Multilan�ua�e Menu Display

The Operation menu is available in 16 languages: English, G erm an, F ren ch, Ital ian , Spanis h, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, and Japanese. (p.41)

Switchable Interface Terminal

The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p.44)

Power Mana�ement

The Power management function reduces power consumption and maintains lamp life. (p.45)

Input Search Function

Input signal can be searched automatically. (p.44)

Quick Termination

The AC power cord can be unplugged immediately after turning off the projector without waiting for the projector to cool down. (p.19)

Note:

• The On-Screen Menu and figures in this manual may differ slightly from the product.

• The contents of this manual are subject to change without notice.

Features and Desi�n . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3

To the Owner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . 5

Air Circulation 6

Installing the Projector in Proper Position 6

Moving the Projector 6

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Part Names and Functions . . . . . . . . . . . . . . . . . 8

Front 8

Back 8

Bottom 8

Rear Terminal 9

Top Control 10

Remote Control 11

Remote Control Battery Installation 12

Operating Range 12

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Positioning the Projector 13

Adjustable Feet 13

Connecting to a Computer 14

Connecting to Video Equipment 15

Connecting to Component Video Equipment 16

Connecting the AC Power Cord 17

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . 18

Turning On the Projector 18

Turning Off the Projector 19

How to Operate the On-Screen Menu 20

Menu Bar 21

Focus Adjustment 22

Keystone Correction 22

Sound Adjustment 23

Remote Control Operation 23

Computer Input . . . . . . . . . . . . . . . . . . . . . . . . . 25

Input Source Selection 25

Computer System Selection 26

Auto PC Adjustment 27

Manual PC Adjustment 28

Image Level Selection 30

Image Level Adjustment 31

Screen Size Adjustment 32

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Input Source Selection (Video, S-video) 34

Input Source Selection (Component, RGB

Scart 21-pin) 35

Video System Selection 36

Image Level Selection 37

Image Level Adjustment 38

Screen Size Adjustment 40

Settin� . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Setting 41

Maintenance and Cleanin� . . . . . . . . . . . . . . . . 51

Warning Indicator 51

Cleaning the Air Filters 52

Resetting the Filter Counter 52

Attaching the Lens Cover 53

Cleaning the Projection Lens 53

Cleaning the Projector Cabinet 53

Lamp Replacement 54

Lamp Replacement Counter 55

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Troubleshooting 56

Menu Tree 59

Indicators and Projector Condition 61

Compatible Computer Specifications 62

Technical Specifications 64

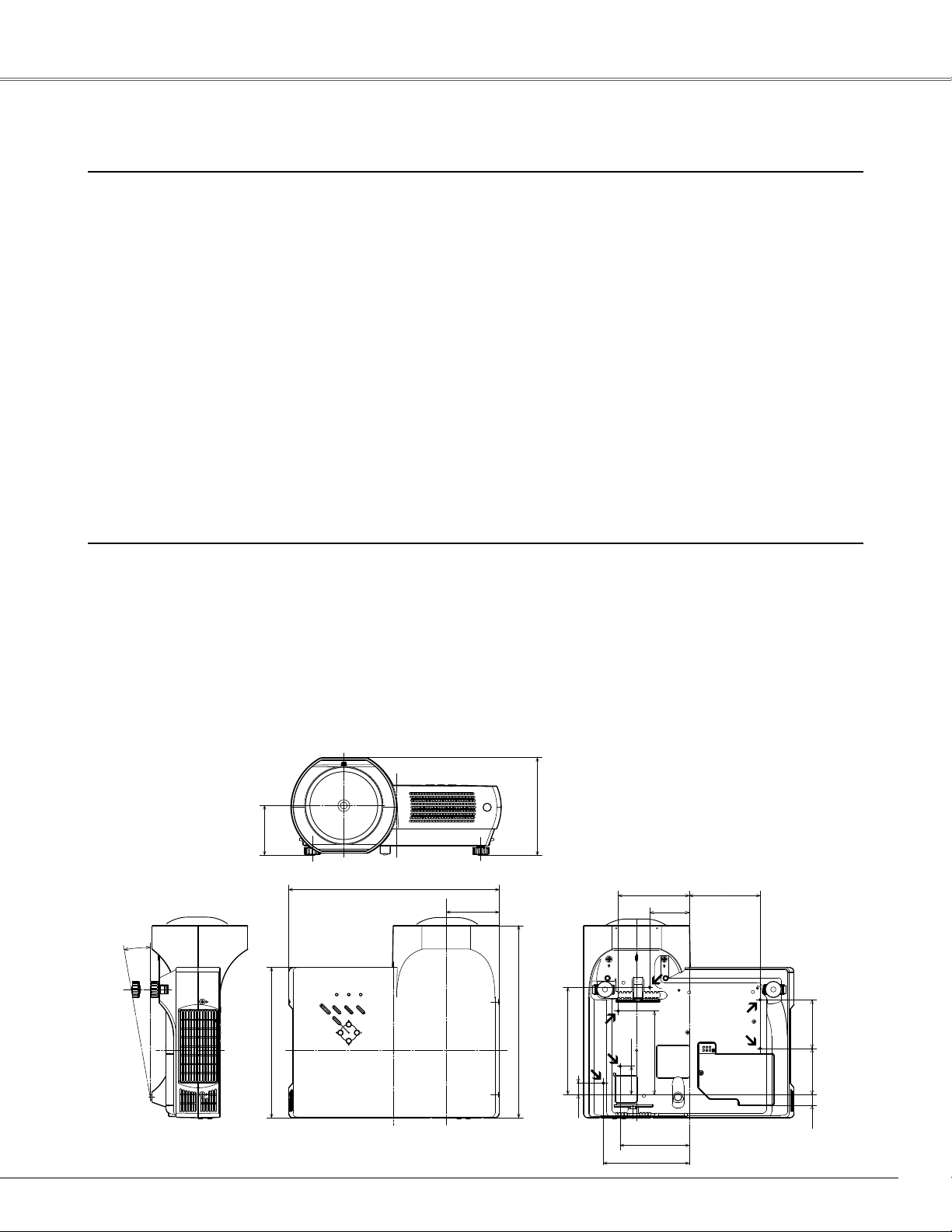

Dimensions 65

PJ Link Notice 66

Configurations of Terminals 67

PIN Code Number Memo 68

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

To the Owner

Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintain it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section on pages 56~58 of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic

equipment, batteries and accumulators, at their end-oflife, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead

In the European Union there are separate collection systems for used electrical and electronic equipment,

batteries and accumulators.

Please, dispose of them correctly at your local

community waste collection/recycling centre.

Please, help us to conserve the environment

we live in!

Safety Precaution

WARNING: ● THIS APPARATUS MUST BE EARTHED.

● TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This proj ector produ ces intense li ght from the

projection lens. Avoid staring directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. Otherwise it

may result in fire hazard.

– Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimensions shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

– Do not cover the ventilation slot on the projector. Heat

build-up can reduce the service life of your projector, and can also be dangerous.

SIDE and TOP REAR

– If the projector is unused for an extended time, unplug

the projector from the power outlet. – Do not project the same image for a long time. The afterimage may remain on the LCD panels by the characteristic of panel.

CAUTION

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR DISASTER. IF TH E PROJEC TOR C O MES I N CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.

READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE.

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An a ppl ian ce an d cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may c a use t he appl ian ce and car t combination to overturn.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls that

are covered by the operating instructions as improper

adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the projector to normal operation. e. If the projector has been dropped or the cabinet has been

damaged. f. When the projector exhibits a distinct change in performance

this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

NOTE FOR CUSTOMERS IN THE US

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

Safety Instructions

Air Circulation

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When us ing or installing the p rojector, t he following precautions should be taken. – Do not put any flammable objects or spray can

near the projector. Hot air is exhausted from the air vents.

– Keep the exhaust vent at least 3’ (1 m) away from

any objects.

– Do not touch a peripheral part of the exhaust vent,

especially screws and metallic part. This area will become hot while the projector is being used.

– Do not put anything on the projector. Objects put on

the cabinet will not only get damaged but also may

cause fire hazard by heat. Cooling fans are provided to cool down the projector. The fan’s running speed is changed according to the temperature inside the projector.

Installin� the Projector in Proper Position

Install the projector properly. Improper Installation may reduce the lamp life and cause fire hazard.

Do not roll the projector more than 20 degrees from side to side.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

Do not pitch the projector more than 20 degrees backward and forward.

Exhaust Vent (Hot air exhaust)

Air Intake Vent

CAUTION

Choose the running speed of cooling fans in the fan control setting according to the altitude in which the projector is being used (p.49). Failure to do so may affect the projector life.

Movin� the Projector

When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a suitable case. Handle the projector carefully; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

CAUTION IN CARRYING OR

TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, other wise

damages or malfunctions may result.

– When carrying the projector, use a suitable carrying

case.

– Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

– Do not put the projector in a case before it is cooled

enough.

Compliance

ASA

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number : PLC-WXL46A Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311 Telephone No. : (818)998-7322

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kin�dom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

or coloured green or green-and-yellow.

WARNING: THIS APPARATUS MUST BE EARTHED.

. If the

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

Part Names and Functions

Front

①

②

③

④

⑤

① Focus Lever ② Projection Lens ③ Lens Cover

(See p. 53 for attachin�)

CAUTION

Do not turn on the projector with putting the lens cover on. The light beam may damage lens cover and result in fire hazard. Attach the lens cover while the projector is not in use to avoid scratching the lens surface.

④ Exhaust Vents

Back

④

Bottom

⑥

⑪ ⑫

⑦

⑧

⑨

⑩



CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

⑤ Infrared Remote Receiver ⑥ Top controls and Indicators ⑦ Speaker ⑧ Air Intake Vent ⑨ Power Cord Connector ⑩ Terminals and Connectors ⑪ Lamp Cover ⑫ Air Filters ⑬ Adjustable Feet

 Kensin�ton Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

*Kensington is a registered trademark of ACCO

Brands Corporation.

⑬

Rear Terminal

S-VIDEO IN

MONITOR OUT

COMPUTER IN

2 /

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

Part Names and Functions

① ② ③ ④ ⑤ ⑥

① COMPUTER IN 1/COMPONENT IN

Connect output signal from a computer, RGB scart 21-pin video output, or component video output to this terminal (pp.14, 16). When the cable is of the longer variety, it is advisable to use this terminal and not COMPUTER IN 2/MONITOR OUT.

② SERVICE PORT

When controlling the projector from a computer, connect the computer to this connector with a control cable.

③ LAN Connection Terminal

Connect the LAN cable (Refer to the owner's

manual of "Network Set-up and Operation".).

④ COMPUTER IN 2/MONITOR OUT

This terminal is switchable and can be used for input from a computer or output to the other monitor. Set the terminal up as either Computer input or Monitor output properly. [Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1/COMPONENT IN terminal (pp. 14, 44)].

⑦

⑨

⑥ AUDIO IN

⑧

Connect the audio output from video equipment connected to ⑤ or ⑨ to this jack. [When the audio

output is monaural, connect it to L (MONO) jack (p.15).

⑦ AUDIO OUT (VARIABLE)

Connect an external audio amplifier to this jack (pp.14 - 16). This terminal outputs sound from AUDIO IN

terminal (⑥ or ⑧).

⑧ COMPUTER/COMPONENT AUDIO IN

Connect the audio output (stereo) from a computer or video equipment connected to ① or ④ to this

jack (pp.14, 16).

⑨ VIDEO IN

Connect the composite video output from video equipment to VIDEO jack (p.15).

⑤ S-VIDEO IN

Connect the S-VIDEO output from video equipment to this jack (p.15).

Part Names and Functions

Top Control

②

①

① SELECT button

–Execute the selected item (p.20).

–Expand or compress the image in Digital zoom

mode (p.33).

② ON–OFF button

Turn the projector on or off (pp.18-19).

③ MENU button

Open or close the On-Screen Menu (p.20).

③

⑤ ⑦

④ ⑥

⑧

⑨

⑥ WARNING indicator

–Lights red light when the projector detects an

abnormal condition.

–Blinks red when the internal temperature of the

projector exceeds the operating range(pp.51, 61).

⑦ LAMP REPLACE indicator

Turn yellow when the life of the projection lamp

draws to an end (pp.54, 61).

④ POWER indicator

–Lights red when the projector is in stand-by mode.

–Lights green during operations.

–Blinks green in the Power management mode (pp.45, 61).

⑤ INPUT button

Select input source (pp.25, 34, 35).

⑧ KEYSTONE button

Correct the keystone distortion (pp.22, 41).

⑨ POINT (▲▼◄►) buttons

–Select an item or adjust the value in the On-

Screen Menu (p.20).

–Pan the image in Digital zoom + mode (p.33).

–Adjust the volume level (Point ◄► buttons)

(p.23).

Remote Control

③

④

Part Names and Functions

① POWER ON/STAND-BY button

①②

⑮

Turn the projector on or off (pp.18, 19).

② VIDEO button

Select VIDEO input port (pp.23, 34).

③ COMPUTER button

Select COMPUTER input port (pp.23, 25, 35).

④ MENU button

Open or close the On-Screen Menu (p.20).

⑤ Point ▲▼◄► (VOLUME + / –) buttons

– Select an item or adjust the value in the On-Screen Menu.

(p.20)

– Pan the image in Digital zoom + mode (p.33).

– Adjust the volume level (Point ◄► buttons) (p.23).

⑤

⑥

⑦

⑧

⑨

⑩

⑭

⑬

⑫

⑪

⑥ SELECT button

– Execute the selected item (p.20). – Expand or compress the image in Digital zoom mode.

(p.33)

⑦ D.ZOOM ▲▼ buttons

Zoom in and out the images (pp.24, 33).

⑧ FREEZE button

Freeze the picture (p.23).

⑨ NO SHOW button

Temporarily turn off the image on the screen (p.24).

⑩ LAMP CONTROL button

Select the lamp mode (pp.24, 46).

⑪ MUTE button

Mute the sound (p.23).

⑫ P-TIMER button

Operate the P-timer function (p.24).

⑬ IMAGE button

Select the image level (pp.24, 30, 37).

⑭ AUTO PC button

Automatically adjust the computer image to its optimum setting (pp.24, 27).

⑮ KEYSTONE button

Correct the keystone distortion (pp.22, 41).

To ensure safe operation, observe the following precautions: – Do not bend, drop, or expose the remote control to moisture

or heat.

– For cleaning, use a soft dry cloth. Do not apply benzene,

thinner, spray, or any other chemicals.

30°

Part Names and Functions

Remote Control Battery Installation

Open the battery

1 2 3

compartment lid.

To ensure safe operation, please observe the following precautions:

● Use two (2) AA or LR6 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid matter.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.

● Risk of explosion if a battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

Install new batteries into the compartment.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

Replace the compartment lid.

Operatin� Ran�e

Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front of the projector.

16.4’ (5 m)

1212

50”

80”

110”

Installation

Positionin� the Projector

For the projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen.

Note:

•This projector is not equipped with an optical zoom. To adjust the screen size, change the throw distance.

• The brightness in the room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image.

•All measurements are approximate and may vary from the actual sizes.

3.927’ (119.7 cm)

2.826’ (86.1 cm)

1.726’ (52.6 cm)

Screen Size (W x H) mm

16:10aspect ratio

Throw distance 1.726’ (52.6 cm) 2.826’ (86.1 cm) 3.927’(119.7 cm)

50” 80” 110”

1077 x 673 1723 x 1077 2369 x 1481

0.623’ (19.0 cm) 0.846’ (25.8 cm) 1.069’ (32.6 cm)

(Inch Diagonal)

Adjustable Feet

Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.

Lift the front of the projector and pull the feet lock latches

on both sides of the projector upward.

Release the feet lock latches to lock the adjustable feet

and rotate the adjustable feet to adjust the position and tilt.

To retract the adjustable feet, lift the front of the projector

and pull and undo the feet lock latches. Keystone distortion of the projected image can be corrected by remote control operation or menu operation (pp.22, 41).

Adjustable Feet

Feet Lock Latches

S-VIDEOIN

MONITOR OUT

COMPUTERIN

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

SERVICE PORT

S-VIDEO IN

AUDIO IN

VIDEO IN

(MONO)

Installation

Connectin� to a Computer

Cables used for connection

• VGA Cables (Mini D-sub 15 pin)*

• Audio Cables (Mini Plug: stereo) (*One cable is supplied; other cables are not supplied with the projector.)

Audio Output

Audio cable (stereo)

Monitor Output

VGA cable

COMPUTER IN 1/ COMPONENT IN

Monitor Output

Monitor Input

VGA cable

COMPUTER IN 2/ MONITOR OUT

This terminal is switchable. Set up the terminal as either Computer input or Monitor output (see page 44).

External Audio Equipment

Audio Input

Audio cable (stereo)

AUDIO OUT (stereo)

COMPUTER/ COMPONENT AUDIO IN

Note:

• Input sound to the COMPUTER/COMPONENT AUDIO IN terminal when using the COMPUTER IN 1/COMPONENT IN and the COMPUTER IN 2/MONITOR OUT terminal as input.

• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

• When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1/COMPONENT IN and not the COMPUTER IN 2 /MONITOR OUT.

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

S-VIDEO IN

MONITOR OUT

COMPUTERIN

2 /

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

Connectin� to Video Equipment

Cables used for connection

• Video and Audio Cable (RCA x 3)

• S-VIDEO Cable

• Audio Cable (Mini Plug: stereo) (Cables are not supplied with the projector.)

Installation

Composite Video and Audio OutputS-Video Output

(R) (L) (Video)

S-Video cable Video and Audio cable

S-VIDEO

(R) (L)

AUDIO IN

Note:

• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

• The S-VIDEO jack connection overrides the VIDEO jack connection when “Auto” is selected in the Input Menu (p.34).

External Audio Equipment

Audio Input

(Video) VIDEO

Audio cable (stereo)

AUDIO OUT (stereo)

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

S-VID EO IN

MONITOR OUT

COMPUTER IN

2 /

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

Installation

Connectin� to Component Video Equipment

Cables used for connection

• Audio Cables (Mini Plug: stereo)

• Scart-VGA Cable

• Component Cable

• Component-VGA Cable (Cables are not supplied with the projector.)

Audio Output

Audio cable

(stereo)

RGB Scart 21pin Output

Component Video Output (Y, Pb/Cb, Pr/Cr)

Component cable

Scart-VGA cable

Component-VGA cable

COMPUTER IN 1/COMPONENT IN

External Audio Equipment

Audio Input

Audio cable (stereo)

AUDIO OUT (stereo)

COMPUTER/ COMPONENT AUDIO IN

Note:

When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.

Connectin� the AC Power Cord

This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning it on.

Installation

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

Note:

Unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with the AC power cord, it is in stand-by mode and consumes a little electric power.

Connect the AC power cord (supplied) to the projector.

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If the supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side AC outlet side

For Continental EuropeFor the U.S.A. and Canada For the U.K.

Ground

To power cord connector on your projector.

To the AC outlet.

(120 V AC)

To the AC outlet.

(200–240 V AC)

To the AC outlet.

(200–240 V AC)

Video

PIN code

Basic Operation

Turnin� On the Projector

Complete peripheral connections (with a computer,

VCR, etc.) before turning on the projector.

Connect the projector’s AC power cord into an AC

outlet. The POWER indicator turns red. Open the lens cover.

Press the POWER ON/STAND-BY button on the

remote control. The POWER indicator becomes green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

After the countdown, the input source that was

selected the last time and the Lamp control status icon (see page 46) will appear on the screen. If the projector is locked with a PIN code, a PIN code Input Dialog Box appears. Enter the PIN code as instructed below.

Enter a PIN code

Select a number by pressing the Point ▲▼ buttons, and then press the Point ► button to fix the number and move

the pointer. The number changes to "". If you fixed an incorrect number, move the pointer to the number you want

to correct by pressing the Point ► button, and then select the correct number by pressing the Point ▲▼buttons.

The preparation display disappears after 30 seconds.

Selected Input Source and Lamp Control

Lamp control status

See page 46 for the Lamp control.

Note:

The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.

PIN Code Input Dialo� Box

Repeat this step to complete entering a four-digit number. "1234" is set as the initial PIN code at the factory.

After entering the four-digit number, move the pointer to

"Set" by pressing the Point ► button. Press the SELECT

button so that you can start to operate the projector.

If you entered an incorrect PIN code, "PIN code" and the number () turns red. Enter the correct PIN code all over again.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting the PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 47–48 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING THE PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 68 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

After the OK icon disappears, you can operate the projector.

Note:

• When the Input Search function is set on On1 or On2, the input signal will be searched automatically (p.44).

• When the Logo select function is "Off,” the logo will not be displayed on the screen (p.42).

• When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen (p.41).

• During the countdown period, all operations are invalid.

• If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

• The “1234” is set as the initial PIN code at the factory.

Power off?

Turnin� Off the Projector

Press the POWER ON/STAND-BY button on the

remote control, and “Power off?” appears on the screen.

Press the POWER ON/STAND-BY button again to turn

off the projector. The POWER indicator starts to blink red, and the cooling fans keep running. (You can select the level of the fans’ quietness and running speed. See page 49.) At this time you can unplug the AC power cord even if the fans are still running.

When the projector has cooled down enough to be

turned on again, the POWER indicator stops blinking.

TO MAINTAIN THE LAMP LIFE, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.

Basic Operation

“Power off” disappears after 4 seconds.

Note:

• When the On start function is “On,” this projector is turned on automatically by connecting the AC power cord to an AC outlet (p. 46).

• The running speed of cooling fans is changed according to the temperature inside the projector.

• Do not put the projector in a case before the projector is cooled enough.

• If the WARNING indicator blinks or emits a red light, see “Warning Indicator” on page 51.

• While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.

• The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.

• The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.

Basic Operation

How to Operate the On-Screen Menu

The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual.

Press the MENU button on the top control or on the

remote control to display the On-Screen Menu.

Use the Point ◄► buttons to select a Menu icon; use

the Point ▲▼ buttons to select an item.

Press the SELECT button to show the item data. To

adjust the data, use the Point ◄► buttons. Refer

to the relevant pages for more details about each adjustment.

To close the On-Screen Menu, press the MENU button again.

Note:

The selected item is not active until the SELECT button is

pressed.

Top Control

SELECT button

Remote Control

SELECT button

On-Screen Menu

MENU button

POINT buttons

MENU button POINT buttons

Menu icon

Press the SELECT button here to display previous items.

Press the SELECT button here to display next items.

Menu bar

Pointer (red frame)

Press the Point ▲▼ buttons to move the pointer.

Item

SELECT

button

Quit

Exit this menu.

Pointer (red frame)

Item data

Press the Point ◄► buttons to adjust the value.

Menu Bar

For detailed functions, see Menu Tree on pages 59-60.

For computer source

⑤③ ⑧④① ② ⑥ ⑦

Basic Operation

⑨

⑩

① Guide Window

Shows the selected Menu of the On-Screen Menu.

②

Input Menu

Used to select the input source, Computer or Video (p.25).

③ PC System Menu

Used to select the computer system (p.26).

④ PC Adjust Menu

Used to adjust parameters to match with input signal format (pp.27–29).

⑤ Ima�e Select Menu

Used to select an image level from Dynamic, Standard, Real, Blackboard (Green), Colorboard and Image 1–4 (p.30).

⑥ Ima�e Adjust Menu

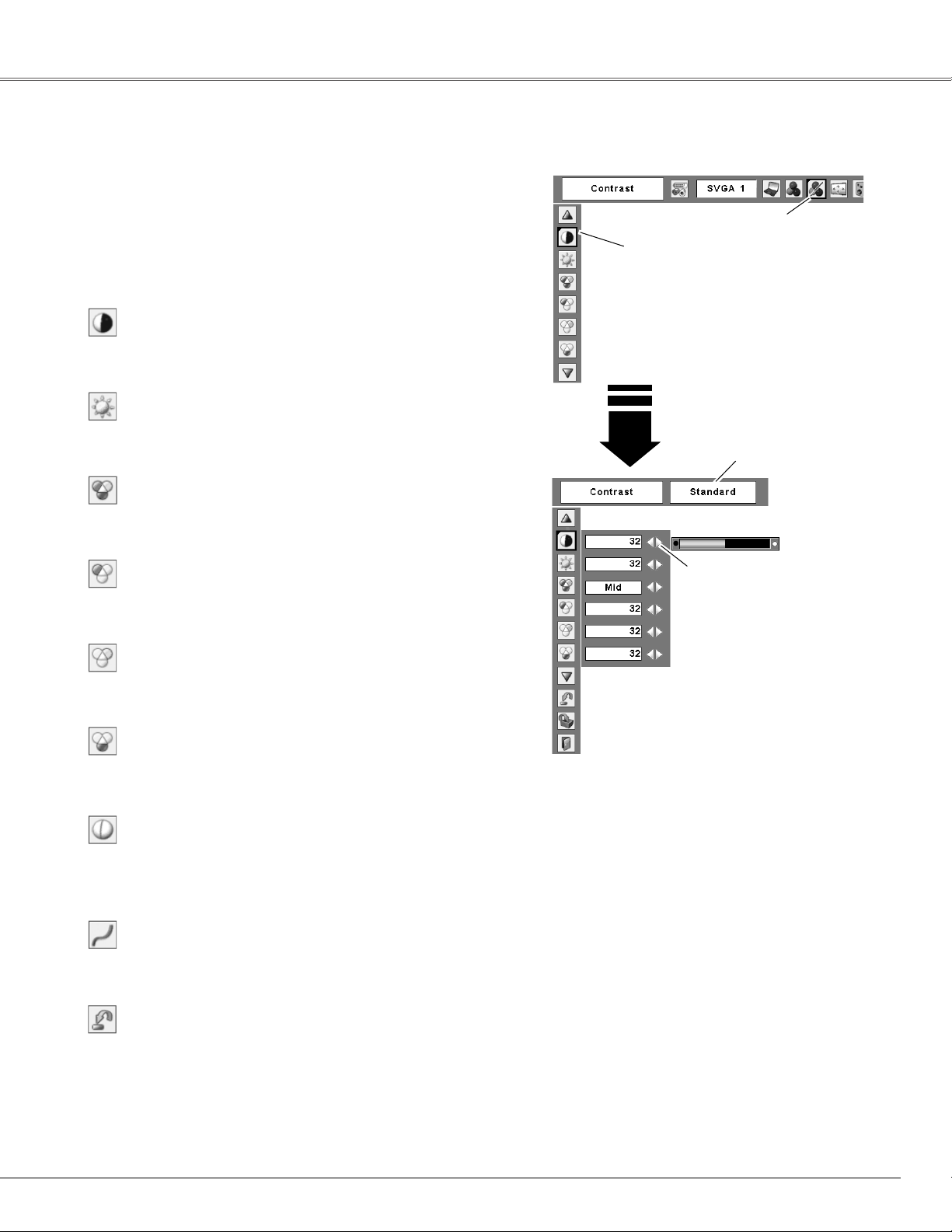

Used to adjust the computer image from Contrast, Brightness, Color temp., White balance (R/G/B), Sharpness, and Gamma (pp.31–32).

For video source

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

⑦ Screen Menu

Used to adjust the size of image from Normal, True, Full, Custom, and Digital zoom +/– (pp.32–

33).

⑧ Sound Menu

Used to adjust the volume or mute the sound (p.23).

⑨ Settin� Menu

Used to set the projector’s operating configurations (pp.41–50).

⑩ Wired settin� Menu

See owner’s manual “Network Set-up and Operation”.

Note:

Items will be same as the items in video source when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected.

⑨

① Guide Window

Shows the selected Menu of the On-Screen Menu.

②

Input Menu

Used to select input source, Video or Computer (pp.34–35).

③

AV System Menu

Used to select the system of selected video source (p.36).

④ Ima�e Select Menu

Used to select an image level from Dynamic, Standard, Cinema, Blackboard (Green), Colorboard and Image 1–4 (p.37).

⑤ Ima�e Adjust Menu

Used to adjust the picture image from Contrast, Brightness, Color, Tint, Color temp., White balance (R/G/B), Sharpness, Gamma, Noise reduction, and Progressive (pp.38–39).

⑥ Screen Menu

Used to set the size of image to Normal, Full, Zoom, Wide, Natural wide, or Custom (p.40).

⑦ Sound Menu

Used to adjust the volume or mute the sound (p.23).

⑧ Settin� Menu

Used to set the projector’s operating configurations (pp.41–50).

⑨ Wired settin� Menu

See owner’s manual “Network Set-up and Operation”.

Basic Operation

Focus Adjustment

Adjust the lens focus with the focus lever.

Keystone Correction

If a projected picture has keystone distortion, correct the image with the Keystone function.

Focus Lever

Press the KEYSTONE button on the top control or on the remote control. The keystone dialog box appears. Correct

keystone distortion with the Point ▲▼ buttons. Keystone

adjustment can be stored (p.41).

Reduce the upper width

with the Point ▲ button.

Reduce the lower width

with the Point ▼ button.

•The arrows are white when there is no correction.

•The direction of the arrow which are being corrected turns red.

•The arrows disappear at the maximum correction.

•If you press the KEYSTONE button on the remote control once more while the keystone dialog box is being displayed, the keystone adjustment is canceled.

•The adjustable range can be limited depending on the input signal.

•The projected picture may fluctuate momently depending on the keystone adjustment.

•“Keystone” disappears after 4 seconds.

Top Control

KEYSTONE button

POINT▲▼ buttons

Remote Control

KEYSTONE button

POINT▲▼ buttons

Volume

Mute

Sound Adjustment

Basic Operation

Direct Operation

Volume

Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds.

Mute

Press the MUTE button on the remote control to turn off the sound. To restore the sound to its previous level, press the MUTE button again or press the VOLUME+/– buttons. Mute function is also effective for AUDIO OUT jack.

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Sound Menu icon.

Press the Point ▲▼ buttons to move the red frame

pointer to the desired item, and then press the SELECT button.

Volume

Top Control

VOLUME+/- button

Remote Control

VOLUME- button

VOLUME+ button

MUTE button

Approximate level of the volume.

Press the MUTE button to set the Mute function On or Off. The display disappears after 4 seconds.

Press the Point ► button to turn up the volume; press the Point ◄ button to turn down the volume.

Mute

Press the Point ◄► buttons to switch the mute function

On/Off. When the sound is turned off, “On” is displayed.

Press the Point ◄► buttons again to turn the sound back

on.

Sound Menu

Sound Menu icon

Approximate level of the volume.

Exit the Sound Menu.

Remote Control Operation

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.

Remote Control

COMPUTER/VIDEO button

Press the COMPUTER or VIDEO button to select an input source. See pages 25, 34–35 for more details.

FREEZE button

Press the FREEZE button to freeze the picture on the screen. To cancel the Freeze function, press the FREEZE button again or press any other button.

Note:

See the next page for the description of other buttons.

COMPUTER/VIDEO button

FREEZE button

No show

Basic Operation

AUTO PC button

Press the AUTO PC button to operate the Auto PC function. See page 27 for more details.

D.ZOOM buttons

Press the D.ZOOM buttons to zoom in and zoom out the images. See page 33 for more details.

NO SHOW button

Press the NO SHOW button to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as “User” in the Logo selection (p.42), the screen changes each time you press the NO SHOW button as follows.

black out → the captured image → normal →

• • • • •

KEYSTONE button

For details, see page 22.

IMAGE button

Press the IMAGE button to select an image level of the screen. See pages 30, 37 for more details.

Remote Control

VOLUME +/buttons

(See page 23.)

AUTO PC button

D.ZOOM buttons

NO SHOW button

KEYSTONE button

(See page 22.)

POINT ▲▼ buttons

IMAGE button

P-TIMER button

LAMP CONTROL button

Note:

See the previous page for the description of other buttons.

“No show” disappears after 4 seconds.

P-TIMER button

Press the P-TIMER button. The timer display “00:00” appears on the screen and the timer starts to count time (00:00–59:59). To stop the P-Timer, press the P-TIMER button. Press the P-TIMER button again, then the P-timer display disappears.

LAMP CONTROL button

Press the LAMP CONTROL button to select the lamp mode to change the brightness of the screen.

Normal … Normal brightness Eco …… Lower brightness reduces the lamp power consumption and extends the lamp life.

P-Timer display

Computer Input

Input Source Selection

Direct Operation

Select either Computer 1 or Computer 2 by pressing the INPUT button on the top control or the COMPUTER button on the remote control. Before using INPUT or COMPUTER button, select the correct input source through Menu operation as described below.

Top Control

Remote Control

*See Notes at the bottom of this page.

INPUT button

Computer 1

Computer 2

COMPUTER button

Computer 1

Computer 2

Video

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Input Menu icon.

Use the Point ▲▼ buttons to move the red arrow

pointer to either Computer 1 or Computer 2, and then press the SELECT button.

After the Source Select Menu appeared for Computer

1, move the pointer to RGB and then press the SELECT button.

Note:

• Computer 2 is not displayed when the COMPUTER IN 2/ MONITOR OUT terminal is set as Monitor out (p.44).

• Computer 2 (COMPUTER IN 2/MONITOR OUT) can accept only the RGB signal.

• When the Input Search function is set On1 or On2, the

input signal will be searched automatically (p.44)

Input Menu icon

Input Menu

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

Source Select Menu

Move the pointer to RGB and press the SELECT button.

Input Menu

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

Computer Input

Computer System Selection

The projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, WXGA, or UXGA with its Multi-scan system and Auto PC Adjustment. If computer is selected as a signal source, the projector automatically detects the signal format and tunes to project proper images without any additional setting. (Signal formats provided in this projector is shown on page 62.)

One of the following messages may appear when:

Auto

The projector cannot recognize the connected signal conforming to the provided PC Systems. “Auto” is displayed on the PC System Menu icon and the Auto PC Adjustment function works to display proper images. If images are not projected properly, adjust manually. (pp.28–29)

PC System Menu

The Auto PC Adjustment function operates to adjust the projector.

-----

Mode 1

SVGA 1

*Mode 1 and SVGA 1 are examples.

Selectin� Computer System Manually

PC system can also be selected manually.

There is no signal input from computer. Check the connection between your computer and the projector. (See “Troubleshooting” on page 56.)

The preset system is manually adjusted in the PC Adjust Menu. The adjusted data can be stored in Mode 1–5 (pp.28–29).

A PC System provided in the projector is selected. The projector selects a proper system provided in the projector and displays it.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the PC System Menu icon.

Use the Point ▲▼ buttons to move the red arrow

pointer to the desired system, and then press the SELECT button.

PC System Menu

The PC System Menu icon The selected system is displayed.

Available system selection.

Custom Mode (1–5) set in the PC Adjust Menu (pp.28-29).

Computer Input

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical positions to conform to your computer.

Direct Operation

The Auto PC adjustment function can be operated directly with the AUTO PC button on the remote control.

Menu Operation

Auto PC adj.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to PC Adjust Menu.

Use the Point ▲▼ buttons to move the red frame

pointer to Auto PC adj. and then press the SELECT button twice.

To store the adjusted parameters

The system parameters adjusted in the Auto PC Adjustment can be stored in the projector. Once parameters are stored, the setting can be done just by selecting a Mode in the PC System Menu (p.26). See “Store” on page 29, for details.

Remote Control

AUTO PC button

PC Adjust Menu

PC Adjust Menu icon

Move the red frame pointer to the Auto PC adj. item and press the SELECT button.

“Please wait...” appears while Auto PC adjustment is in process.

Note:

• Fine sync, Total dots, Horizontal, and Vertical positions of some computers cannot be fully adjusted with this Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required (pp.28–29).

• The Auto PC Adjustment cannot be operated when 480i, 575i, 480p, 575p, 720p,1035i, or 1080i is selected in the PC System Menu (p.26).

Computer Input

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas (Mode 1–5) to store those parameters manually adjusted, which allows you to recall the setting for a specific computer.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the PC Adjust Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the desired item and then press the SELECT button to display the adjustment dialog box. Press the

Point ◄► buttons to adjust the value.

Fine sync

Use the Point ◄► buttons to adjust the value to cut off

flicker from the image displayed (from 0 to 31).

Total dots

Use the Point ◄► buttons to adjust the number of total dots

in one horizontal period to match your PC image.

Horizontal

Use the Point ◄► buttons to adjust the horizontal picture

position.

Vertical

PC Adjust Menu

Move the red frame pointer to the desired item and press the SELECT button.

PC Adjust Menu icon

Status (Stored/Free) of the selected Mode.

Selected Mode

Use the Point ◄► buttons to adjust the value.

Use the Point ◄► buttons to adjust the vertical picture

position.

Current mode

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Use the Point ◄► buttons to adjust the clamp level. When

the image has dark bars, try this adjustment.

Press the SELECT button here to move on to other items.

Press the SELECT button at “Current mode” to show the information of the connected computer.

Display area H

Use the Point ◄► buttons to adjust the horizontal area

displayed by this projector.

Display area V

Use the Point ◄► buttons to adjust the vertical area

displayed by this projector.

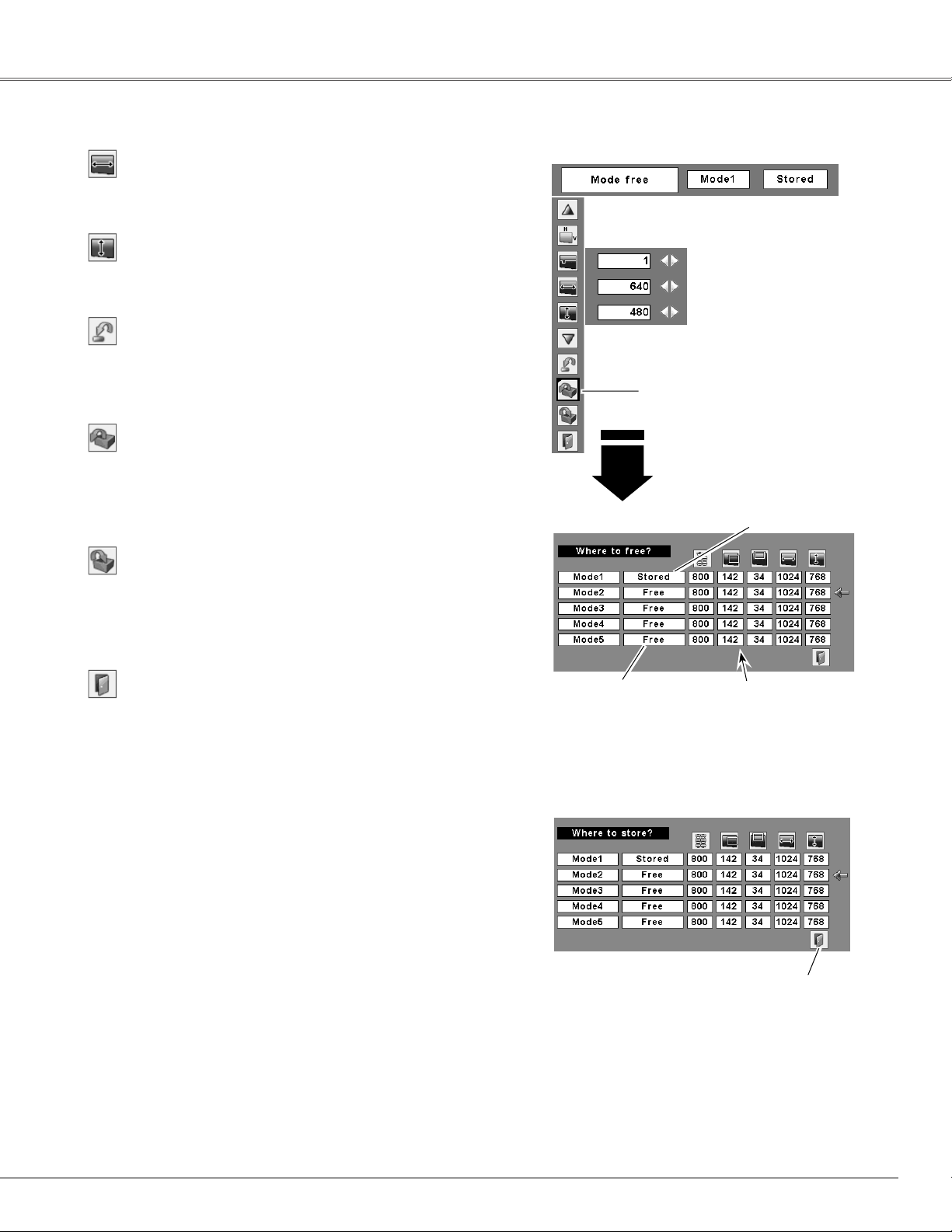

Reset

Computer Input

To reset the adjusted data, select “Reset” and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

Mode free

To clear the stored data, select “Mode free” and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

Store

To store the adjusted data, select “Store” and then press the SELECT button. Move the red arrow pointer to one of the Mode 1 to 5 in which you want to store, and then press the SELECT button.

Quit

Exit the PC Adjust Menu.

Note:

Display area (H/V) cannot be selected when 480i, 575i,

480p, 575p, 720p, 1035i, or 1080i is selected in the PC System Menu (p.26).

Move the red frame pointer to an item and press the SELECT button.

To clear adjusted data

Vacant Mode

To store adjusted data

T h i s M od e h a s stored parameters.

Values of “Total dots,” “Horizontal,” “Vertical,” “Display area H,” and “Display area V.”

Close this dialog box.

Computer Input

Ima�e Level Selection

Direct Operation

Select an image level from among Dynamic, Standard, Real, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3, and Image 4 with the IMAGE button on the remote control.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on the projector.

Real

Picture level with improved halftone for graphics.

Blackboard (Green)

For viewing the image projected on a blackboard. This mode assists to enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Colorboard

Ima�e 1–4

User preset image in the Image Adjust Menu (pp.31-32).

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Image Select Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the desired level and then press the SELECT button.

Dynamic

For viewing pictures in a bright room.

Remote Control

IMAGE button

Ima�e Select Menu

Move the red frame pointer to the desired level and press the SELECT button.

IMAGE button

Dynamic

Standard

Real

Blackboard(Green)

Colorboard

Ima�e 1

Ima�e 2

Ima�e 3

Ima�e 4

Image Select Menu icon

Standard

Normal picture level preset on this projector.

Real

Picture level with improved halftone for graphics.

Blackboard(Green)

For viewing the image projected on a blackboard. See above for further description.

Colorboard

Ima�e 1–4

User preset image in the Image Adjust Menu (pp.31-32).

The image level being selected.

Ima�e Level Adjustment

Computer Input

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Image Adjust Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the desired item, and then press the SELECT button. The level of each item is displayed.

Use the Point ◄►buttons to adjust each level.

Contrast

Press the Point ◄ button to decrease the contrast; press the Point ► button to increase the contrast (from 0 to 63).

Bri�htness

Press the Point ◄ button to decrease the brightness; press the Point ► button to increase the brightness (from 0 to 63).

Color temp.

Use the Point ◄► buttons to select the desired Color temp.

level (XLow, Low, Mid, or High).

White balance (Red)

Press the Point ◄ button to lighten the red tone; press the Point ► button to deepen the red tone (from 0 to 63).

Ima�e Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the desired item and then press the SELECT button.

Selected Image level

Use the Point ◄► buttons to adjust the value.

White balance (Green)

Press the Point ◄ button to lighten the green tone; press the Point ► button to deepen the green tone (from 0 to 63).

White balance (Blue)

Press the Point ◄ button to lighten the blue tone; press the Point ► button to deepen the blue tone (from 0 to 63).

Sharpness

Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness

of the image (from 0 to 15).

Gamma

Use the Point ◄► buttons to adjust the gamma value to get

better balance of contrast (from 0 to 15).

Reset

To reset the adjusted data, select “Reset” and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

Note:

After adjusting the White balance Red,

Green, or Blue, the Color temp. level will change to “Adj.”.

Computer Input

Store

To store the adjusted data, select “Store” and press the SELECT button. The Image Level Menu appears. Use the

Point ▲▼ buttons to choose one of the four image level and

press the SELECT button. A confirmation box appears and then select “Yes.” The stored data can be called up by selecting “Image” in the Image Level Selection on page 30.

Move the red frame pointer to the desired image level (from Image 1 to 4) and then press the SELECT button.

Quit

Exit the Image Adjust Menu.

Store item Press the SELECT button at this item to store the adjusted data.

A confirmation box appears, then select “Yes.”

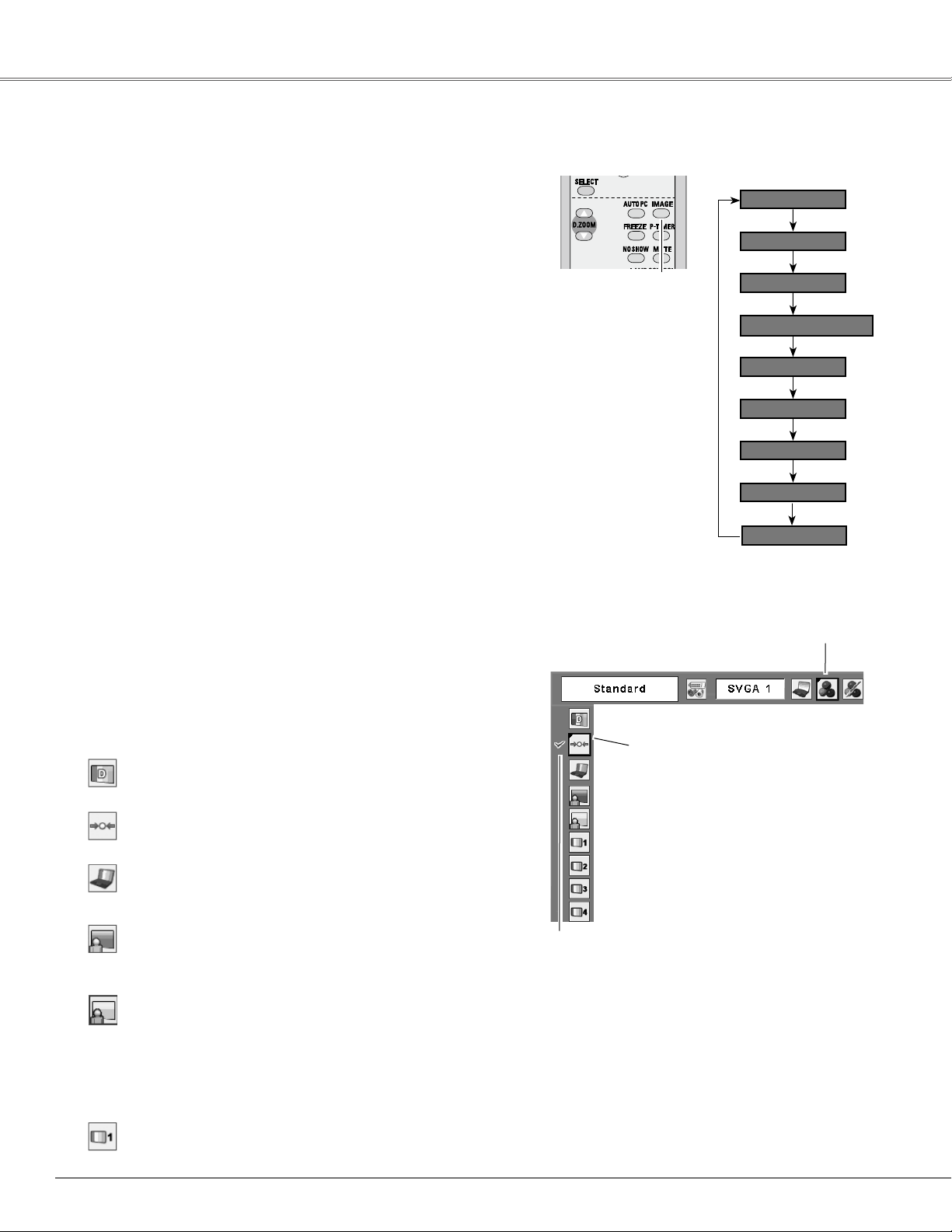

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Screen Menu icon.

Use the Point ▲▼ buttons and move the red frame

pointer to the desired function and then press the SELECT button.

Normal

Provide the image to fit the screen size while maintaining the aspect ratio of input signal.

True

Provide the image in its original size. When the original image size is larger than the screen size (1280 x 800), the projector automatically switches to the panning mode.

Use the Point ◄► ▲▼ buttons to pan the image. When

adjusted, the arrows turn red. When reached to the correction limit, the arrows disappear.

Full

Provide the full screen image.

Screen Menu

Screen Menu icon

Move the red frame pointer to the function and press the SELECT button.

Note:

• This projector cannot display any resolution higher than 1920 x 1200. If your computer’s resolution is higher than that, lower the resolution before connecting to the projector.

• The image data other than 1280 x 800 is modified to fit the screen size in initial mode.

• True and D.Zoom+/- are not available when the 4:3 or 16:9 function is selected in the Screen aspect (p.44).

• The items will be same as the items in video source when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected in the PC system Menu (p.26).

Custom

Adjust the screen scale and position manually with this function. Press the SELECT button at Custom and the “Custom” is displayed on the screen for a few seconds and then the Aspect dialog box appears.

Scale H/V……… Adjust the Horizontal/Vertical screen scale. H&V …………… When set to “On,” the aspect ratio is fixed.

“Scale V” appears dimmed and becomes unavailable. Adjust “Scale H,” then the screen scale is automatically modified based on the aspect ratio.

Position H/V…… Adjust the Horizontal/Vertical screen

position.

Common……… Save the adjusted scale to all the inputs.

Press the SELECT button at Common to display a confirmation box. To save the scale, press the SELECT button at “Yes.” When Custom is selected, the saved scale is used.

Reset………… Reset the all adjusted values. Press

the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at “Yes.”

For zoomin� in and out the ima�es

Computer Input

Press the SELECT button at Common or Reset, to display a confirmation box.

Note:

• When no signal is detected, “Normal” is set automatically and the Aspect dialog box disappears.

• The adjustable range for Scale H/V and Position H/V is limited depending on the input signal.

• When “Custom” is selected , “Digital zoom

-” is invalid.

Remote Control

POINT buttons

Di�ital zoom +

When Digital zoom + is selected, the On-Screen Menu disappears and “D. zoom +” is displayed. Press the SELECT button to expand the image size. Use the Point

▲▼◄►buttons to pan the image. The Panning function

can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the

D.ZOOM ▲ button on the remote control.

Di�ital zoom –

When Digital zoom – is selected, the On-Screen Menu disappears and “D. zoom –” is displayed. Press the SELECT button to compress image size. The projected image can be also compressed by pressing

the D.ZOOM ▼ button on the remote control.

To exit the Digital zoom +/– mode, press any button except

the D.ZOOM ▲▼, SELECT, and Point buttons.

To return to the previous screen size, select a screen size in the Screen Size Adjustment or select an input source from the Input Source Selection (p.25) again, or adjust the screen

size with the D.ZOOM ▲▼ buttons.

SELECT button

D.ZOOM + button

D.ZOOM - button

Note:

• The minimum compression ratio can be limited depending on the input signal or when the Keystone function is working or when the custom is selected for the screen size.

• The items will be same as the items in video source when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected in the PC system Menu (p.26).

• Digital zoom +/– cannot be selected when Full or True is selected.

• When “Custom” is selected , “Digital zoom

-” is invalid.

• True and D.Zoom+/- are not available when the 4:3 or 16:9 function is selected in the Screen aspect (p.44).

Video Input

Input Source Selection (Video, S-video)

Direct Operation

Select Video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Before using INPUT or VIDEO button, select the correct input source through menu operation as described below.

Menu Operation

Use the MENU button to display the On-Screen Menu.

Press the Point ◄► buttons to move the red frame

pointer to the Input Menu icon.

Top Control

*See Notes at the bottom of this page.

Remote Control

Input Menu

INPUT button

Computer 1

Computer 2

VIDEO button

Video

Input Menu icon

Video

Use the Point ▲▼ buttons to move the red arrow

pointer to Video and then press the SELECT button to display the Source Select Menu .

Move the pointer to the desired source and then press

the SELECT button.

Auto

Video

S-video

Note:

• Computer 2 is not displayed when the COMPUTER IN 2/MONITOR OUT terminal is set as Monitor out (p.44).

•When the Input Search function is set On1 or On2, the

input signal will be searched automatically (p.44).

When selecting “Auto,” the projector automatically detects the incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order:

1. S-video

2. Video

When the video input signal is connected to the VIDEO jack, select Video.

When the video input signal is connected to the S-VIDEO jack, select S-video.

Move the pointer to Video and press the SELECT button.

VIDEO

Source Select Menu (VIDEO)

Move the pointer to the desired source and press the SELECT button.

Input Source Selection (Component, RGB Scart 21-pin)

Video Input

Direct Operation

Select Computer 1 by pressing the INPUT button on the top control or COMPUTER button on the remote control. Before using INPUT or COMPUTER button, select the correct input source through Menu operation as described below.

Menu Operation

Use the MENU button to display the On-Screen Menu.

Press the Point ◄► buttons to move the red frame

pointer to the Input Menu icon.

Use the Point ▲▼ buttons to move the red arrow

pointer to Computer 1 and then press the SELECT button.

After the Source Select Menu appeared for Computer

1, move the pointer to Component or RGB (Scart) and then press the SELECT button.

Component

When the input source is coming from video equipment connected to the COMPUTER IN 1/COMPONENT IN terminal with a Component-VGA Cable (not supplied), select Component.

Top Control

Remote Control

*See Note at the bottom of this page.

Input Menu

Computer

Input Menu icon

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Source Select Menu

Move the pointer to Component or RGB (Scart) and press the SELECT button.

INPUT button

Computer 1

Computer 2

Video

COMPUTER button

Computer 1

Computer 2

RGB (Scart)

Note:

• Computer 2 is not displayed when the COMPUTER IN 2/

MONITOR OUT terminal is set as Monitor out (p.44).

• Computer 2 (COMPUTER IN 2/MONITOR OUT) can

accept only RGB signal.

• When the Input Search function is set On1 or On2, the

input signal will be searched automatically (p.44)

When the input source is coming from video equipment connected to the COMPUTER IN 1/COMPONENT IN terminal with a Scart-VGA Cable (not supplied), select RGB (Scart).

Video Input

Video System Selection

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the AV System Menu icon.

Use the Point ▲▼ buttons to move the red arrow

pointer to the desired system and then press the SELECT button.

Video or S-video

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually.

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Component

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

AV System Menu (Video or S-video)

AV System Menu icon The selected system is displayed.

Move the pointer to the desired system and press the SELECT button.

AV System Menu (Component)

AV System Menu icon The selected system is displayed.

Move the pointer to the desired system and press the SELECT button.

Note:

The AV System Menu cannot be selected when selecting RGB (Scart).

Ima�e Level Selection

Video Input

Direct Operation

Select an image level from among Dynamic, Standard, Cinema, Blackboard (Green), Colorboard, Image 1, Image 2, Image 3, and Image 4 with the IMAGE button on the remote control.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on this projector.

Cinema

Picture level adjusted for the picture with fine tone.

Blackboard (Green)

Colorboard

Ima�e 1–4

User preset image in the Image Adjust Menu (pp. 38-39).

Menu Operation

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Image Select Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the desired level and then press the SELECT button.

Dynamic

For viewing pictures in a bright room.

Remote Control

IMAGE button

Ima�e Select Menu

Move the red frame pointer to the desired image level and press the SELECT button.

IMAGE button

Dynamic

Standard

Cinema

Blackboard(Green)

Colorboard

Ima�e 1

Ima�e 2

Ima�e 3

Ima�e 4

Image Select Menu icon

Standard

Normal picture level preset on this projector.

Cinema

Picture level with improved halftone for graphics.

Blackboard(Green)

For viewing the image projected on a blackboard. See above for further description.

Colorboard

Ima�e 1–4

User preset image in the Image Adjust Menu (pp. 38-39).

The image level being selected.

Video Input

Ima�e Level Adjustment

Press the MENU button to display the On-Screen Menu.

Use the Point ◄► buttons to move the red frame

pointer to the Image Adjust Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the desired item and then press the SELECT button. The level of each item is displayed. Adjust each

level by pressing the Point ◄► buttons.

Contrast

Press the Point ◄ button to decrease the contrast; press the Point ► button to increase the contrast (from 0 to 63).

Bri�htness

Press the Point ◄ button to decrease the brightness; press the Point ► button to increase the brightness (from 0 to 63).

Color

Press the Point ◄ button to decrease the intensity of the color; press the Point ► button to increase the intensity of

the color (from 0 to 63).

Tint

Use the Point ◄► buttons to adjust the tint value to get a

proper color balance (from 0 to 63).

Ima�e Adjust Menu

Image Adjust Menu icon

Move the red frame pointer to the desired item and then press the SELECT button.

Use the Point ◄► buttons to adjust the value.

Press the SELECT button here to display other items.

Color temp.

Use the Point ◄► buttons to select the desired Color temp.

level (XLow, Low, Mid, or High).

White balance (Red)

Press the Point ◄ button to lighten the red tone; press the Point ► button to deepen the red tone (from 0 to 63).

White balance (Green)

Press the Point ◄ button to lighten the green tone; press the Point ► button to deepen the green tone (from 0 to 63).

White balance (Blue)

Press the Point ◄ button to lighten the blue tone; press the Point ► button to deepen the blue tone (from 0 to 63).

Note:

• The Tint cannot be selected when the video system is

PAL, SECAM, PAL-M, or PAL-N.

• After adjusting the White balance Red, Green or Blue, the

Color temp. level will change to “Adj.”.

Press the SELECT button here to display previous items.

Sharpness

Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness

of the image (from 0 to 15).

Gamma

Use the Point ◄► buttons to adjust the gamma value to get

better balance of contrast (from 0 to 15).

Noise reduction

Noise interference on the screen can be reduced. Select one of the following options to get smoother images.

Off……… Disabled. L1 ……… Lower reduction L2 ……… Higher reduction

Pro�ressive

Video Input

An interlaced video signal can be displayed in a progressive picture. Select one of the following options.

Off………Disabled. L1……… For an active picture. L2……… For a still picture. Film…… For watching a film. With this function, the

projector reproduces pictures faithful to the original film quality.

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select “Yes.” All adjustments return to their previous figures.

Store

To store the adjusted data, select Store and press the SELECT button. Select a level from Image 1 to 4 with

the Point ▲▼ buttons and press the SELECT button. A

confirmation box appears and then select “Yes.” Stored data can be called up by selecting “Image” in the Image Level Selection on page 37.

Quit

Store item

Image Level Menu Move the red frame pointer to an image item to be set and then press the SELECT button.

A confirmation box appears and then select “Yes.”

Exit the Image Adjust Menu.

Note:

Noise reduction and Progressive cannot be selected when 480p, 575p, 720p, 1035i, or 1080i is selected (p.36).

Video Input

Screen Size Adjustment

This projector has the picture screen resize function, which enables you to customize the image size.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Screen Menu icon.

Use the Point ▲▼ buttons and move the red frame

pointer to the desired function and then press the SELECT button.

Normal

Provide the image to fit the screen size while maintaining the aspect ratio of input signal.

Full

Provide the full screen image.

Zoom

Pan the horizontal direction of the image and cut the vertical direction of the image to fit the screen size (16:9).Only for 4:3 video aspect ratio signals.

Wide

Provide the image at a wide screen ratio of 16:9.

Natural wide

Screen Menu

Screen Menu icon

Move the red frame pointer to the desired function and press the SELECT button.

Modify the 4:3 aspect ratio image to fit the screen size(16:9 aspect ratio) by stretching the image to make it look natural.

Custom

Adjust the screen scale and position manually. Press the SELECT button at Custom icon. “Custom” is displayed on the screen for a few seconds and then the Aspect dialog box appears.

Scale H/V……… Adjust the Horizontal/Vertical screen scale. H&V …………… When selecting “On,” the aspect ratio

is fixed. “Scale V” appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the aspect ratio.

Position H/V…… Adjust the Horizontal/Vertical screen

position.

Common ……… Save the adjusted scale to all the inputs.

Press the SELECT button at Common to display the confirmation box. To save the scale, press the SELECT button at “Yes.” When Custom is selected, the saved scale is used.

Reset ………… Reset the all adjusted values. Press the

SELECT button at Reset to display the confirmation box. To reset, press the SELECT button at “Yes.”

Press the SELECT button at Common or Reset, to display the confirmation box.

Note:

• Zoom, Wide and Natural wide are not available when 720p, 1035i, or 1080i is selected in the AV System Menu (p.36).

• When no signal is detected, Normal is set automatically and Aspect dialog box disappears.

•The adjustable range of Scale H/V and

Position H/V can be limited depending on the input signal.

• Zoom, Natural wide and Wide are not

available when the 4:3 or 16:9 function is selected in the Screen aspect(p.44).

Settin�

This projector has Setting menu that allows you to set up the other various functions described as follows:

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red

frame pointer to the Setting Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to the item that you want to set and then press the SELECT button. The Setting dialog box appears.

Lan�ua�e

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, or Japanese.

Keystone

This function corrects distortion of a projected image.

Select either Store or Reset with the Point ◄► buttons,

and then press the SELECT button. The keystone dialog

box appears. Correct keystone with the Point ▲▼ buttons

(p.22).

Store…… Store the keystone correction even when the

AC power cord is unplugged.

Reset…… Reset the keystone correction when the AC

power cord is unplugged.

Settin� Menu (Lan�ua�e)

Set the red framed pointer to the item and press the SELECT button.

Press the SELECT button at Language item, the

SELECT

button

Language Menu appears.

Setting Menu icon

Blue back

Press the Point ◄► buttons to switch on/off. When this

function is “On,” a blue image is displayed while the input signal is not detected.

Display

Press the Point ◄► buttons to switch on/off. This function

decides to display the On-Screen Displays.

On ………………… Display all the On-Screen Displays.

Use this function when you want to project images after the lamp becomes bright enough. This mode is set as a default.

Countdown off… Display the input image instead of

the countdown when turning on the projector. Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Off………………… Do not show the On-Screen Displays.

except:

● On-Screen Menu

● “Power off?”

● P-Timer

● “No signal” for Power management item (p.45)

● ”Please wait...”

● Arrows for panning mode (pp.32–33)

Press the SELECT button at this item to display the other languages.

Press the SELECT button at this item to close the dialog box.

Settin�

Lo�o (Lo�o and Lo�o PIN code lock settin�s)

This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions.

Note:

When “On” is selected in Logo PIN code lock function,

Logo select and Capture functions cannot be selected.

Lo�o select

This function decides the start-up display as follows:

User………The image you captured Default……The factory-set logo Off…………Countdown only

Capture

This function enables you to capture the image being projected and use it for a start-up display or interval of presentations. After capturing the projected image, go to the Logo select function and set it to “User.” Then the captured image is displayed when the projector is turned on next time or the NO SHOW button is pressed (p 24). To capture the image, select “Yes.” To cancel the Capture function, select “No.”

Lo�o select

Capture

Note:

• Before capturing an image, select "Standard" in the Image Select Menu to capture a proper image (pp.30,

37).

• A signal from a computer can be captured up to WXGA(1280 x 800). A signal from video equipment can be captured except for 720p, 1035i, and 1080i.

• When you capture the image that has been adjusted by the Keystone or the Custom function, the adjusted data is automatically reset and the projector captures an image without keystone or custom adjustment.

• When the Logo PIN code lock function is “On,” Capture menu cannot be selected.

• When you start to capture a new image, the previously stored image is cleared even if you cancel the capturing.

• “User” cannot be selected when the image is not captured.

Select "Yes" to capture the projected image.

Select "Yes" to stop capturing.

Settin�

Lo�o PIN code lock

This function prevents an unauthorized person from changing the screen logo.

Off…… the screen logo can be changed freely from

the Logo select menu (p.42).

On…… the screen logo cannot be changed without

the Logo PIN code.

If you want to change the Logo PIN code lock setting, enter a Logo PIN code along the following steps. The initial Logo PIN code is set “4321” at the factory.

Enter a Lo�o PIN code

Select a number by pressing the Point ▲▼ buttons. And then press the Point ► button to fix the number

and move the pointer. The number changes to "". If you fixed an incorrect number, move the pointer to the

number you want to correct by pressing the Point ◄

button, and then select the correct number by pressing

the Point ▲▼ buttons.

Repeat this step to complete entering a four-digit number.

Lo�o PIN code lock

Lo�o PIN code lock Dialo� Box

After a correct Logo PIN code is entered, the following dialog box appears.

After entering the four-digit number, move the pointer to

"Set" by pressing the Point ► button. Press the SELECT

button so that you can change the following Logo PIN code lock settings.

If you entered an incorrect PIN code, "Logo PIN code" and the number () turns red. Enter a correct Logo PIN code all over again.

Chan�e the Lo�o PIN code

Logo PIN code can be changed to your desired four-digit number. Select “Logo PIN code change” with the Point

▼ button and press the SELECT button. Set a new Logo

PIN code.

Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting. For details on PIN code setting, refer to relevant instructions of the PIN code lock function on pages 47–48.

CAUTION: WHEN YOU HAVE CHANGED THE LOGO PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE LOGO PIN CODE NO. MEMO ON PAGE 68, AND KEEP IT SECURELY. SHOULD THE LOGO PIN CODE BE LOST OR FORGOTTEN, THE LOGO PIN CODE SETTING CAN NO LONGER BE CHANGED.

Select On/Off by pressing the Point ◄► buttons

or change the Logo PIN code. Select Logo PIN code change by pressing the

Point ▼ button.

Settin�

Ceilin�

When this function is set to “On”, the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to “On”, the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Screen aspect

This function is used to project the image to a 4:3 or 16:9 projection screen.

4:3 ..... Set to a 4:3 projection screen.

16:9 ..... Set to a 16:9 projection screen.

16:10 ....16:10 is the aspect of the LCD panel. The orignal

Screen Menu is available.

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer input or monitor output (p.9). Select Computer 2 or Monitor Out with the

Point ◄► buttons.

Ceilin�

Rear

Note:

• When the 4:3 or 16:9 function is selected, True and D.Zoom+/- are not available in the PC screen (pp.32-33).

• When the 4:3 or 16:9 function is selected, Zoom, Natural wide and Wide are not available in the AV screen (p.40).

Computer 2……computer input Monitor Out……monitor out

Terminal function is not available when Computer 2 to the input source is selected. Change the input source to the others (Computer1 or Video) so that the Terminal function is available (pp.25, 34–35).

Input search

This function detects the input signal automatically. When

finding a signal, the search will stop. Use the Point ◄►

buttons to select one of the following.

Off …… Input search does not work. On1 …… Input search works under the situation below.

• When the COMPUTER button or VIDEO button on the remote control is pressed.

On2 …… Input search works under the situation below.

• When the projector is turned on with pressing the POWER ON/STAND-BY button on the remote control. (After the countdown)

• When the COMPUTER button or VIDEO button on the remote control is pressed.

•When the current input signal is missed. 

 If the No show or Freeze function is active, cancel it

to activate the Input search. It is not available when On-Screen menu is displayed.

Note:

• While Input search is set On1 or On2, the status of Input and Lamp are displayed every time the signal is switched.

• Only the input source selected at the last time can be detected.

• If COMPUTER/VIDEO button on the remote control is pressed during Input search is in progress, Input search will stop.

Standby mode

This function is available when operating the projector via network.

Network........ Supply the power to the network function even

after turning off the projector You can turn on/ off the projector via network, modify network environment, and receive an e-mail about projector status while the projector is powered off.

Eco............. Select “Eco” when you do not use the projector

via network. The projector’s network function will stop when turning off the projector.

Refer to the owner’s manual “Network Set-up and Operation”.

Note:

When selecting Network, the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off.

Settin�

Power mana�ement

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the input signal is interrupted and no button is pressed for a certain period. When the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with “No signal” appears. The countdown starts to turn off the lamp.

Select one of the operations.

Ready……… When the lamp has been fully cooled

down, the POWER indicator changes to green blinking. In this condition, the projection lamp is turned on if the input signal is reconnected or any button on the remote control is pressed.

Shut down… When the lamp has been fully cooled down,

the power is turned off.

Off………… Power management function is off.

Then set the countdown timer with the Point ◄► buttons.

Power mana�ement

Time left before Lamp is off.

Press the SELECT button at Power management and this box appears. Select one of three settings with

the Point ◄► buttons, and

go to the timer with the

Point ▲▼ buttons and set time with the Point ◄►

buttons.

Note:

Factory default is “Ready: 5 min.”

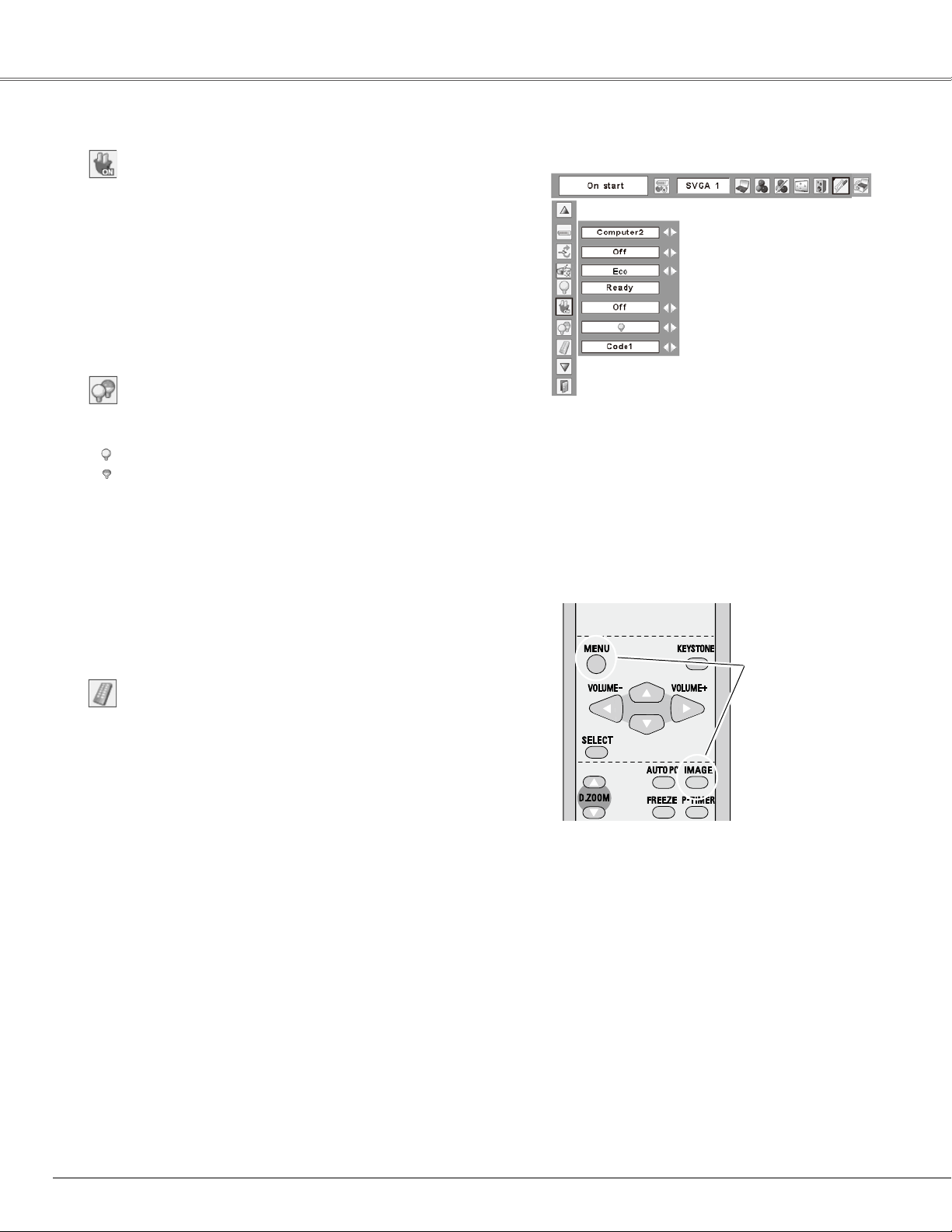

Settin�

On start

When this function is set to “On,” the projector is automatically turned on just by connecting the AC power cord to an outlet.

Note:

Be sure to turn the projector off properly (see “Turning Off the Projector” on page 19). If the projector is turned off in the incorrect sequence, the On start function does not operate properly.

Lamp control

You can change the brightness of the screen.

Normal … Normal brightness Eco …… Lower brightness reduces the lamp power consumption and extends the lamp life.

Note:

Lamp mode cannot be changed for a while after turning on the projector. Lamp needs some time to stabilize after the power is turned on. Stored lamp mode will be active after the lamp is stabilized.

On start

Remote control

This projector provides two different remote control codes; the factory-set, initial code (Code 1) and the secondary code (Code 2). This switching function prevents remote control interference when several projectors or video equipment are operated at the same time. When the projector is operated in “Code 2,” both the projector and the remote control must be switched to “Code

2.”

To chan�e the code for the projector:

Select either “Code 1” or “Code 2” in this Setting Menu.

To chan�e the code for the remote control:

Press and hold both the MENU and IMAGE buttons together for more than 5 seconds. After changing the code, make sure the remote control operates properly.

Note:

• When different codes are set on the projector and on the remote control, any operation cannot be made. In that case, switch the code on the remote control to fit the code on the projector.

• If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.

Press and hold MENU and IMAGE buttons for more than 5 seconds.

Security (Key lock and PIN code lock settin�s)

This function allows you to use Key lock and PIN code lock function to set the security for the projector operation.

Key lock

This function locks operation of the top control or the remote control. It is useful to prevent operation by an unauthorized person.

……not locked.

……lock the operation of the top control. To unlock, use the remote control.

……lock the operation of the remote control. To unlock, use the top control.

If the top control accidentally becomes locked and you do not have the romote control or there is something wrong with your remote control, contact the dealer where you purchased the projector or the service center.

Settin�

Key lock

Select Key lock. Choose one of the alternatives with the Point ▲▼ buttons and select [Yes] to activate it.

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.

Off…… The projector is not locked with the PIN code. On1…… Requires to enter a PIN code every time

turning on the projector.

On2…… Requires to enter a PIN code to operate the

projector once the power cord is unplugged; as long as the AC power cord is connected, the projector can be operated without a PIN code.

Whenever you change the PIN code lock setting or the PIN code (a four-digit number), you are required to enter the PIN code. “1234” is set as the initial PIN code at the factory.

PIN code lock

When the projector is locked with the PIN code, the PIN code lock symbol appears on the menu bar.

Settin�

Enter a PIN code

Select a number by pressing the Point ▲▼ buttons. And then press the Point ◄► button to fix the number

and move the pointer. The number changes to "". If you fixed an incorrect number, move the pointer to the

number you want to correct by pressing the Point ◄►

button, and then select the correct number by pressing

the Point ▲▼ buttons.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer

to "Set" by pressing the Point ◄► button. Press the

SELECT button so that you can change the following PIN code lock settings. If you entered an incorrect PIN code, "PIN code" and the number () turns red. Enter a correct PIN code all over again.

Chan�e the PIN code lock settin�

Select Off, On1, or On2 with the Point ◄► buttons and

then move the red arrow pointer to “Quit” with the Point

▼ button. Press the SELECT button to close the dialog

box.

Enter a PIN code

The input numbers change to “” for security reasons.

Move the pointer to "Set" by

pressing the Point ► button.

And then press the SELECT button.

Chan�e the PIN code lock settin�

Select a desired setting with the Point ◄► buttons.

Chan�e the PIN code

The PIN code can be changed to your desired four-digit number. Select "PIN code change" with the Point ▼ button, and press the SELECT button to display the New PIN code input dialog box.

Select a number by pressing the Point ▲▼ buttons. And then press the Point ► button to fix the number and

move the pointer. Repeat it to complete entering a fourdigit number. After entering the four-digit number, move

the pointer to "Set" by pressing the Point ► button. Then

press the SELECT button.

CAUTION: WHEN YOU HAVE CHANGED THE PIN CODE, WRITE DOWN THE NEW PIN CODE IN COLUMN OF THE PIN CODE NO. MEMO ON PAGE 68, AND KEEP IT SECURELY. IF YOU FORGET YOUR PIN CODE, THE PROJECTOR CAN NO LONGER BE STARTED.

Chan�e the PIN code

Select PIN code change and press the SELECT button. The New PIN code input dialog box appears.

The input numbers are being displayed for confirmation.

Fan

Settin�

This function provides the following options in the cooling fans’ operation after turning off the projector (p.19).

L1 …… Normal operation L2 …… Slower and lower-sound than the normal

operation (L1), but it takes longer to cool down the projector.

Fan control

Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.

Off ............ N ormal speed. Set this func tio n to “Off”

when using the projector in non-high altitude environment.

On 1 ......... Faster than Off mode. Select this mode when

using the projector in high altitudes (about 1,200 meters or more above the sea level) where the fans have less cooling effect.

On 2 ......... Faster than On 1 mode. Select this mode

when using the projector in higher altitudes than above where the fans have lesser cooling effect.

Lamp counter

This function is used to reset the lamp replacement counter. When replacing the projection lamp, reset the lamp replacement counter by using this function. See page 55 for operation.

Filter counter

Note:

Setting “Fan control” to On1 or On2 affects L2 operation in “Fan.”

Note:

• Fan noise becomes louder in On 1 and On2.

• Failure to set the running speed of cooling fans properly may affect the projector life.

Lamp replacement icon

This icon appears on the screen when the end of lamp life is reached.

Note: This icon also appears at turning on and selecting input source.

This function is used to set a frequency for the filter cleaning. When the projector reached a specified time between cleanings, a Filter warning icon appears on the screen, notifying the cleaning is necessary. After cleaning the filter, be sure to select RESET and set the timer. The Filter warning icon will not turn off until the filter counter is reset.

For details about resetting the timer, refer to “Resetting the Filter Counter” on page 52.

Filter counter

Use the Point ◄► buttons to set the timer. Select from (Of f/1 00H / 2 00H / 300H) depending on the use environment.

Fi�.1 Filter warning icon

Filter warning icon appears on the screen at a set time.

Note:

This icon also appears at turning on.

Fi�.2 Filter warning icon

Note:

• At selecting input source, the icon (Fig.2) will appear.

• The Filter warning icons (Fig.1 and Fig.2) will not appear when the Display function is set to “Off” (p.41), during “Freeze”(p.23), or "No show" (p.24).

Settin�

Warnin� lo�

This function records anomalous operations while the projector is in operation and use it when diagnosing faults. Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

Note:

When the Factory default function is executed, all the warning log records will be deleted.

Closed Caption

Closed Caption is a function that displays the audio portion of a TV program as text on the screen.If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ◄► buttons to select Off, CC1, CC2, CC3 or CC4. If the closed caption is not clear, you can change the text from Color to White.

 Note: The Closed Caption is available only under the situation below.

• When the input signal is NTSC of composite and S-video, and the system is set according to the signal or set on "Auto".

• The system must be set on NTSC or Auto in Video System Selection. (p.36)

• The icon of Closed Caption is displayed in gray

while it is not available.

• The closed caption is unavailable when On-Screen

menu and P-Timer are displayed.

Factory default

Closed Caption

Factory default

Factory Default

This function returns all setting values except for the user logo, PIN code lock, Logo PIN code lock, the lamp counter and the filter counter to the factory default settings.

Quit

Exit the Setting Menu.

Select Factory default and this box appears. Select “Yes,” and the next box appears.

Select “Yes” to activate it.

Maintenance and Cleanin�

Warnin� Indicator

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

The projector is shut down and the WARNING indicator is blinkin� red.

When the temperature inside the projector reaches a certain level, the projector is automatically shut down to avoid overheating. The POWER indicator is blinking while the projector is being cooled down. When the projector has cooled down enough (to its normal operating temperature), it can be turned on again by pressing the POWER ON/ STAND-BY button.

Note:

The WARNING indicator continues to blink even after the temperature inside the projector returns to normal. When the projector is turned on again, the WARNING indicator stops blinking.

Then check the matters below:

– Did you provide appropriate space for the projector to

be ventilated? Check the installing condition to see if ventilation slots are not blocked.

– Has the projector been installed near an Air-Conditioning/

Heating Duct or Vent? Move the installation of the projector away from the duct or vent.

– Are the air filters clean? Clean the air filters periodically.

(p.52)

Top Control

WARNING blinking red

The projector is shut down and the WARNING indicator li�hts red.

When the projector detects an abnormal condition, it is automatically shut down to protect the inside of the projector and the WARNING indicator lights red. In this case, unplug the AC power cord and plug it, and then turn on the projector once again to verify operation. If the projector cannot be turned on and the WARNING indicator lights red, unplug the AC power cord and contact the service station.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Top Control

WARNING emit a red light

Maintenance and Cleanin�

Cleanin� the Air Filters

Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, they will reduce cooling fans’ effectiveness and may result in a buildup of internal heat and adversely affect the life of the projector. Clean the air filters by following the steps below.

Turn off the projector, and unplug the AC power cord

from the AC outlet.

Turn over the projector and remove the air filters by

pulling the latches upward.

Clean the air filters with a brush or rinse them softly.

When rinsing the air filters, dry them well.

Replace the air filters properly. Make sure that the air

filters are fully inserted.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the optical elements degrading picture quality. Do not put anything into the air intake vents. Otherwise it may result in malfunction of the projector.

RECOMMENDATION

We recommend avoidin� dusty/smoky environments when you operate the projector. Usa�e in these environments may cause poor ima�e quality.

When you use the projector under dusty or smoky conditions, dust may accumulate on the lens, LCD panels, or optical elements inside the projector degrading the quality of a projected image. When the symptoms above are noticed, contact your authorized dealer or service station for proper cleaning.

Air filters Pull up and remove.

Note:

When reinserting the air filters, be sure that the slit part is facing the outer side.

Resettin� the Filter Counter

Be sure to reset the Filter counter after cleaning or replacing the filters.

Press the MENU button to display the On-Screen

Menu. Use the Point ◄► buttons to move the red frame pointer to the Setting Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to Filter counter and then press the SELECT bu tton. A dialo g box appears showing th e total accumulated time of the filter use, a timer setting option, and the reset option. Select Reset and the “Fil ter counter Rese t?” appears. Sel ect [Yes] to continue.

Another confirmation dialog box appears, select [Yes]

to reset the Filter counter.

Filter counter

Select Reset and the “Filter counter Reset?” appears.

Select [Yes], then another confirmation box appears.

Select [Yes] again to reset the Filter counter.

Attachin� the Lens Cover

When moving the projector or while it is not in use, replace the lens cover.

Thread the string through the hole on the lens cover

and then tie a knot in the string to secure it in place.

Thread the other end of the string through the hole on

the bottom of the projector. Then pass the lens cover through the resulting loop of the string and pull it to tighten the knot.

Cleanin� the Projection Lens

Maintenance and Cleanin�

CAUTION

This projector is equipped with a plastic lens. Do not rub the lens with a hard fiber cloth or hit it with something hard to prevent the lens from scratching. Do not use a chemical cleaner (liquid and solid) to avoid deteriorating the lens.

Unplug the AC power cord before cleaning.

First, remove the dust with a blower. Then gently wipe the lens surface. Use a lens cleaning paper moistened with methyl alcohol (methanol). Avoid excessive use of cleaner. Do not use abrasive cleaners, solvents, or other harsh chemical cleaners to avoid damages the lens.

When the projector is not in use, replace the lens cover.

Cleanin� the Projector Cabinet

Unplug the AC power cord before cleaning.

Gently wipe the projector body with a soft dry cleaning cloth. When it is heavily soiled, use a small amount of mild detergent and finish with the cleaning cloth. Avoid excessive use of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface of the cabinet.

When the projector is not in use, put the projector in an appropriate case to avoid dust and being scratched.

Maintenance and Cleanin�

Lamp Replacement

When the projection lamp of the projector reaches the end of its life, the LAMP REPLACE indicator emits a yellow light. If this indicator lights yellow, replace the lamp with a new one promptly.

WARNING: TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER

CAUTION

Allow the projector to cool for at least 45 minutes before you open the Lamp cover. The inside of the projector can become very hot.

Follow these steps to replace the lamp.

Turn off the projector and unplug the AC power cord.

Let the projector cool for at least 45 minutes.

Top Control

Lamp replacement icon

Note:

The Lamp replacement icon will not appear when the Display function is set to “Off” (p.41), during “Freeze” (p.23), or “No show” (p.24).

This indicator turns yellow when the projection lamp reaches the end

of its life.

CAUTION

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

Lamp Cover

Screw

Turn the projector over. Remove the screw that

secures the lamp cover, and then open the lamp cover.

Loosen the two screws that secure the lamp. Lift the

lamp out of the projector by using the built in handle.

Replace the lamp with a new one and secure it with the

two screws. Make sure that the lamp is set properly. Put the lamp cover back and secure it with the screw.

Connect the AC power cord to the projector and turn

on the projector.

Reset the lamp replacement counter.

See “Lamp Replacement Counter” on the next page.

Lamp

Screw

Handle

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

●Model No. of your projector : PLC-WXL46A

●Replacement Lamp Type No. : POA-LMP106POA-LMP106

(Service Parts No. 610 332 3855)

Maintenance and Cleanin�

Lamp Replacement Counter

Be sure to reset the Lamp replacement counter after the lamp is replaced. When the Lamp replacement counter is reset, the LAMP REPLACE indicator stops lighting.

Turn the projector on and press the MENU button

to display the On-Screen Menu. Use the Point ◄► buttons to move the red frame pointer to the Setting Menu icon.

Use the Point ▲▼ buttons to move the red frame

pointer to Lamp counter and then press the SELECT button. The first dialog box appears showing the total accumulated lamp time and reset option. If you select Reset, “Lamp replacement counter Reset?” appears. Select “Yes” to continue.

Another confirmation dialog box appears, and select

“Yes” to reset the Lamp replacement counter.

Note:

Do not reset the Lamp replacement counter without implementing lamp replacement. Be sure to reset the Lamp replacement counter only after replacing the lamp.

Lamp counter

To reset the lamp counter, move the pointer to Reset and then press the SELECT button. the “Lamp replacement counter Reset?” dialog box appears.

Select “Yes,” then another confirmation box appears.

Select “Yes” again to reset the lamp counter.

LAMP HANDLING PRECAUTIONS

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp life may differ from lamp to lamp and according to the environment of use. There is no guarantee

of the same life for each lamp. Some lamps may fail or terminate their life in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights up,

replace the lamp with a new one IMMEDIATELY after the projector has cooled down.

　 (Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of(Follow carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of

the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock, or degradation as a result of hours of use, as it

comes to the end of life. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

Appendix

Troubleshootin�

Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – Make sure all equipment is connected to the AC outlet and the power is turned on. – When you operate the projector with a computer and it does not project an image, restart the computer.

Problem:

No power

PIN code dialo� box appears at start-up

The initial display is not shown.

The initial display is not same with the default one.

Input si�nal switches automatically. (or does not switch automatically)

No ima�e

– Solutions

– Plug the power cord of the projector into the AC outlet. – See if the POWER indicator lights red. – Wait until the POWER indicator stops blinking to turn on the

projector again. The projector can be turned on after the POWER indicator turns red (see page 19).

– Check the WARNING indicator. If the WARNING indicator lights

red, the projector cannot be turned on (see on page 51).

– Check the projection lamp (see page 54).

– PIN code lock is being set. Enter a PIN code; the “1234” or

numbers you have set (see pages 18, 47–48).

– Make sure "Off" or "Countdown Off" are not chosen at Display

function (see page 41).

– Make sure "User" or "Off" are not chosen at Logo function (see

page 42).

– Make sure Input search function is adjusted properly (see page

44).

– Check the connection between your computer or video equipment

and the projector (see pages 14-16)

– See if the input signal is correctly output from your computer. Some

laptop computers may need to be changed the setting for monitor output when connected to the projector. See your computer’s instruction manual for the setting

– It takes about 30 seconds to display an image after turning on the

projector.

– See if the selected system is corresponding with your computer or

video equipment (see pages 26, 36)

– Select correct input source once again through menu operation

(see pages 25 ,34–35).

– Make sure the temperature is not out of the specified operating

temperature (41 ˚F–95 ˚F [5 ˚C–35 ˚C]).

– When "No Show" is operating, the image can not be displayed.

Press the NO SHOW button or any other button on the remote control.

Ima�e is out of focus.

– Adjust focus of the projector (see page 22). – Provide proper distance between the projector and the projection

screen (see page 13). – Check the projection lens to see if it needs cleaning (see page 53). – Moving the projector from a cool to warm place may result in

moisture condensation on the projection lens. If this occurs, leave

the projector off and wait until condensation evaporates. – Projecting from the excessive slant angel to the screen may cause

keystone distortion and partial imperfect focus.

Picture is not bri�ht enou�h.

The color is stran�e.

Appendix

– Check if "Contrast" or "Brightness" are adjusted properly (see Check if "Contrast" or "Brightness" are adjusted properly (seeCheck if "Contrast" or "Brightness" are adjusted properly (see(see

pages 31, 38)., 38).38).. – Check if "Image level" is selected properly (see pages 30, 37). Check if "Image level" is selected properly (see pages 30, 37).Check if "Image level" is selected properly (see pages 30, 37).(see pages 30, 37)., 37).37).. – Check the LAMP REPLACE indicator. If it lights, the end of lamp Check the LAMP REPLACE indicator. If it lights, the end of lampCheck the LAMP REPLACE indicator. If it lights, the end of lamp

life is approaching. Replace the lamp with a new one promptly

(see pages 54-55, 61)., 61).61).. – Check the Lamp control function (see pages 24, 46). Check the Lamp control function (see pages 24, 46).Check the Lamp control function (see pages 24, 46).(see pages 24, 46).

– Check the Input signal, color system, video system, or computer

system mode. – Adjust the Image level properly (see pages 31, 38)., 38).38).

Ima�e is Left/Ri�ht reversed. Ima�e is Top/Bottom reversed.

The ima�e is distorted or runs off.

No sound

Some displays are not seen durin� the operation.

Auto PC adjustment function does not work.

The settin� does not remain after turnin� off power.

Power mana�ement function does not work.

– Check the Ceiling/Rear function (see page 44). – Check the Ceiling function (see page 44).

– Check the PC Adjustment menu or Screen menu and adjust them Check the PC Adjustment menu or Screen menu and adjust themCheck the PC Adjustment menu or Screen menu and adjust them

(see pages 26-29, 32-33, 40).

– Check the audio cable connection from audio input source. – Adjust the audio source. – Press the Volume + button (see page 23). – Press the Mute button (see page 23).

– When the AUDIO OUT is plugged in, the projector's built-inWhen the AUDIO OUT is plugged in, the projector's built-in

speaker is not available. – Is the image projected? You will hear the sound only when the

image is projected.

– Check the Display function (see page 41).

– Check the Input signal. Auto PC Adjustment function can not work Check the Input signal. Auto PC Adjustment function can not workCheck the Input signal. Auto PC Adjustment function can not work

when 480p, 575p, 720p, 480i, 575i, 1035i, or 1080i is selected (see

page 27).

– Make sure you selected “Store” after adjusting settings. Some Make sure you selected “Store” after adjusting settings. SomeMake sure you selected “Store” after adjusting settings. Some

settings cannot be stored if not registered with “Store.”

– Power management function cannot work while "Freeze" or "NoPower management function cannot work while "Freeze" or "No

Show" function is running..

Ima�e disappears automatically

Capture function does not work. – Check the connection and the Input signal to see if there is signal.Check the connection and the Input signal to see if there is signal.

The Remote Control does not work.

The top control does not work

– Check the power management function in the Setting. The powerCheck the power management function in the Setting. The power

management is set to “On” at the factory.

– Check the batteries. – Make sure no obstruction is between the projector and the remote

control. – Make sure you are not too far from the projector when using the

remote control. Maximum operating range is 16.4’ (5 m). – Make sure the code of the remote control is conformed to that of

the projector (see page 46). – Unlock the Key lock function for the remote control (see page 47).

– Unlock the Key lock function for the top control of the projector

(see page 47).

Appendix

Indicator blinks or li�hts.

Computer 2 cannot be selected. – Select Computer 2 in the Terminal function (see page 44).Select Computer 2 in the Terminal function (see page 44).

The terminal function cannot be selected.

The exclamation mark appears on the screen.

Unable to unlock the Lo�o PIN code lock or Security PIN code lock.

– Check the status of the projector with referring to "indicators andCheck the status of the projector with referring to "indicators and

Projector Condition" (see page 61).

– The Terminal function cannot be selected after Computer 2 isThe Terminal function cannot be selected after Computer 2 is

selected. Select other input source such as Computer 1 or Video with the COMPUTER button or the VIDEO button on the remote control so that the Terminal function can be selected.

– Your operation is invalid. Operate correctly.Your operation is invalid. Operate correctly.

– Contact the dealer where you purchased the projector or theContact the dealer where you purchased the projector or the

service center.

WARNING : Hi�h volta�es are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

The CE Mark is a Directive conformity mark of the European Community (EC).

Pixelworks ICs used.

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Menu Tree

Computer Input/Video Input

Appendix

Input

Sound

Computer Input

System (1)

RGBComputer 1

Component

RGB( Scart )

Quit

Computer 2

Video Auto

Volume

Mute

Quit

Mode 1 Mode 2 SVGA 1

- - - -

Systems displayed in the System Menu vary

depending on an input signal.

Go to System (1)

Video

S-video

Quit

0 - 63

On / Off

Go to System (1)

Go to System (2)

Go to System (3)

PC Adjust

Ima�e Select

Auto PC adj. Fine sync Total dots Horizontal Vertical Current mode Clamp

Display area H Display area V Reset Mode free

Store

Quit

Dynamic Standard Real Blackboard (Green) Colorboard Image 1

Image 2 Image 3 Image 4

0 - 31

H-sync freq. V-sync freq. Quit

Yes / No Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Quit Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Quit

Ima�e Adjust

Screen

Contrast Brightness Color temp.

Red Green Blue Sharpness 0 - 15 Gamma Reset Yes / No Store

Quit

Normal True

Full Custom Scale H / V

H&V Position H / V Common Reset

Quit Digital zoom + Digital zoom –

0 - 63 0 - 63 XLow Low Mid High Adj. 0 - 63 0 - 63 0 - 63

0 - 15

Image 1 Image 2 Image 3 Image 4 Quit

On / Off

Yes / No Yes / No

Appendix

Video Input

Ima�e Select

Ima�e Adjust

Screen

System (2)

System (3)

Settin�

Auto 1080i 1035i 720p 575p 480p 575i 480i

Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N

Dynamic Standard Cinema Blackboard (Green) Colorboard Image 1 Image 2 Image 3 Image 4

Contrast Brightness Color Tint Color temp.

Red Green Blue Sharpness Gamma

Progressive

Reset Store

Quit

Normal Full Zoom Wide Natural wide Custom Scale H / V

0 - 63 0 - 63 0 - 63 0 - 63 XLow Low Mid High Adj. 0 - 63 0 - 63 0 - 63 0 - 15 0 - 15 OffNoise reduction L1 L2 Off L1 L2 Film Yes / No Image 1 Image 2 Image 3 Image 4 Quit

H&V Position H / V Common Reset

Quit

Settin�

On / Off

Yes / No Yes / No

Language

Quit

Keystone Blue back Display Logo

Ceiling

Rear

Input Search

Standby mode

Power management

On start

Lamp control

Remote control

Security

Fan

Lamp counter Hour(s)

Filter counter

Warning log

Closed caption

Factory default

Quit

L1 / L2

Store / Reset On / Off Off / Countdown off / On Logo select

Capture

Logo PIN code lock

Quit On / Off

On / Off 4:3 / 16:9 / 16:10Screen aspect

Computer 2 / Monitor outTerminal

Off / On1 / On2

Eco / Network

Off Ready Shut down Timer(1-30 Min) Quit

On / Off

Normal / Eco

Code 1 / Code 2

Key lock

PIN code lock

Quit

Off / On1 / On2Fan control

Reset Quit

Hour(s) Off / 100H / 200H / 300H

Reset Quit

Off / CC1 / CC2 / CC3 / CC4

Color / White

Quit

Yes / No

16 languages provided.

Off Default User

Yes / No

On / Off Logo PIN code change Quit

Off / On1 / On2 PIN code change Quit

Yes / No

Indicators and Projector Condition

Check the indicators for projector condition.

Indicators

Appendix

POWER

red/�reen

WARNING

red

LAMP

REPLACE

yellow



Projector Condition

The projector is off. (The AC power cord is unplugged.)

The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.

The projector is ready to be turned on with the POWER ON/STAND-BY button.

The projector is operating normally.

The projector is in the Power management mode.

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator lights red and the projector can be turned on. (The WARNING indicator keeps blinking.) Check and clean the air filters.

The projector has been cooled down enough and the temperature



• • • green.

• • • blinks green.

When the projection lamp reaches the end of its life, the LAMP REPLACE indicator lights yellow.



When this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp replacement counter after replacing the lamp. See pages 54-55.

returns to normal. When turning on the projector, the WARNING indicator stops blinking. Check and clean the air filters.

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

• • • red • • • off

• • • blinks red.

Appendix

Compatible Computer Specifications

Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock.

When selecting these modes, Screen, Auto PC adjustment and PC adjustment can be limited.

ON-SCREEN

DISPLAY

VGA1 640x480 31.47 59.88 VGA2 720x400 31.47 70.09 VGA3 640x400 31.47 70.09 VGA4 640x480 37.86 74.38 VGA5 640x480 37.86 72.81 VGA6 640x480 37.50 75.00 VGA7 640x480 43.269 85.00

MAC LC13 640x480 34.97 66.60

MAC 13 640x480 35.00 66.67

480p 640x480 31.47 59.88 575p 768x575 31.25 50.00

575i 768x576 15.625

480i 640x480 15.734

SVGA1 800x600 35.156 56.25 SVGA2 800x600 37.88 60.32 SVGA3 800x600 46.875 75.00 SVGA4 800x600 53.674 85.06 SVGA5 800x600 48.08 72.19 SVGA6 800x600 37.90 61.03 SVGA7 800x600 34.50 55.38 SVGA8 800x600 38.00 60.51

SVGA9 800x600 38.60 60.31 SVGA10 800x600 32.70 51.09 SVGA11 800x600 38.00 60.51

MAC16 832x624 49.72 74.55

XGA1 1024x768 48.36 60.00 XGA2 1024x768 68.677 84.997 XGA3 1024x768 60.023 75.03 XGA4 1024x768 56.476 70.07 XGA5 1024x768 60.31 74.92 XGA6 1024x768 48.50 60.02 XGA7 1024x768 44.00 54.58 XGA8 1024x768 63.48 79.35

XGA9 1024x768 36.00

XGA10 1024x768 62.04 77.07

XGA11 1024x768 61.00 75.70

XGA12 1024x768 35.522

XGA13 1024x768 46.90 58.20

XGA14 1024x768 47.00 58.30

XGA15 1024x768 58.03 72.00

MAC19 1024x768 60.24 75.08

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

50.00

(Interlace)

60.00

(Interlace)

87.17

(Interlace)

86.96

(Interlace)

ON-SCREEN

DISPLAY

SXGA1 1152x864 64.20 70.40 SXGA2 1280x1024 62.50 58.60 SXGA3 1280x1024 63.90 60.00 SXGA4 1280x1024 63.34 59.98 SXGA5 1280x1024 63.74 60.01 SXGA6 1280x1024 71.69 67.19 SXGA7 1280x1024 81.13 76.107 SXGA8 1280x1024 63.98 60.02

SXGA9 1280x1024 79.976 75.025 SXGA10 1280x960 60.00 60.00 SXGA11 1152x900 61.20 65.20 SXGA12 1152x900 71.40 75.60

SXGA13 1280x1024 50.00

SXGA14 1280x1024 50.00

SXGA15 1280x1024 63.37 60.01 SXGA16 1280x1024 76.97 72.00 SXGA17 1152x900 61.85 66.00

SXGA18 1280x1024 46.43

SXGA19 1280x1024 63.79 60.18 SXGA20 1280x1024 91.146 85.024

SXGA+ 1 1400x1050 63.979 60.190 SXGA+ 2 1400x1050 65.346 60.116 SXGA+ 3 1400x1050 65.121 59.902

MAC21 1152x870 68.68 75.06

MAC 1280x960 75.00 75.08

MAC 1280x1024 80.00 75.08 WXGA1 1366x768 48.36 60.00 WXGA2 1360x768 47.70 60.00 WXGA3 1376x768 48.36 60.00 WXGA4 1360x768 56.16 72.00 WXGA6 1280x768 47.776 59.870 WXGA7 1280x768 60.289 74.893 WXGA8 1280x768 68.633 84.837 WXGA9 1280x800 49.600 60.050

WXGA10 1280x800 41.20 50.00

WXGA 11 1280x800 49.702 59.810 WUXGA 1 1920 x 1200 74.556 59.885 WUXGA 2 1920 x 1200 74.038 59.950

WSXGA+ 1 1680 x 1050 65.290 59.954

WXGA+ 1 1440 x 900 55.935 59.887 WXGA+ 2 1440 x 900 74.918 60.000

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

86.00

(Interlace)

94.00

(Interlace)

86.70

(Interlace)

Appendix

ON-SCREEN

DISPLAY

UXGA1 1600x1200 75.00 60.00 UXGA2 1600x1200 81.25 65.00 UXGA3 1600x1200 87.5 70.00 UXGA4 1600x1200 93.75 75.00

720p 1280x720 37.50 50.00

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

ON-SCREEN

DISPLAY

720p 1280x720 45.00 60.00

1035i 1920x1035 33.75

1080i 1920x1080 33.75

1080i 1920x1080 28.125

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

60.00

(Interlace)

60.00

(Interlace)

50.00

(Interlace)

Appendix

Technical Specifications

Mechanical Information

Projector Type Multi-media Projector Dimensions (W x H x D) 12.59" x 5.73" x 11.85" (319.9 mm x 145.5 x 300.9 mm) (Not including protrusions) Net Weight 7.5 lbs (3.4 kg) Feet Adjustment 0˚ to 10.0˚

Panel Resolution

LCD Panel System 0.59” TFT Active Matrix type, 3 panels Panel Resolution 1,280 x 800 dots Number of Pixels 3,072,000 (1,280 x 800 x 3 panels)

Si�nal Compatibility

Color System High Definition TV Signal 480i, 480p, 575i, 575p, 720p, 1035i, and 1080i Scanning Frequency H-sync. 15–100 kHz, V-sync. 50–100 Hz

Optical Information

Projection Image Size (Diagonal) Adjustable from 50” to 110” Projection Lens F 1.8 lens with f 6.6 mm with manual focus Throw Distance 1.77' - 3.94' (0.53 m - 1.20 m) Projection Lamp 200 W

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

Interface

Video Input Jack RCA Type x 1 S-Video Input Jack Mini DIN 4 pin x 1 Audio Input Jacks RCA Type x 2 Computer Input 1 / Component Input Terminal Analog RGB (Mini D-sub 15 pin) Terminal x 1 Computer Input 2 / Monitor Output Terminal Computer/ Component Audio Input Jack Service Port Connector Mini DIN 8 pin x 1 LAN Connection Terminal RJ45 Audio Output Jack Mini Jack (stereo) x 1 (Variable)

Analog RGB (Mini D-sub 15 pin) Terminal x 1 (In/Out switchable) Mini Jack (stereo) x 1

Audio

Internal Audio Amp 1.0 W RMS Built-in Speaker 1 speaker, ø1.1” (28 mm)

Power

Voltage and Power Consumption AC 100–120 V (3.3 A Max. Ampere), 50/60 Hz (The U.S.A and Canada)

AC 200–240 V (1.8 A Max. Ampere), 50/60 Hz (Continental Europe and The U.K.)

Operatin� Environment

Operating Temperature 41˚F–95˚F (5˚C–35˚C) Storage Temperature 14˚F–140˚F (-10˚C–60˚C)

Remote Control

Battery AA or LR6 1.5V ALKALINE TYPE x 2 Operating Range 16.4’ (5 m)/±30˚ Dimensions 1.9” (W) x 0.87” (H) x 5.7” (D) (49 mm x 22 mm x 145.3 mm) Net Weight 3.53 oz (100 g) (including batteries)

Appendix

3.0 (75.1)

5.9 (148)

3.1 (80)

12.6 (320)

MAX

10.0

11.5 (292)

9.0 (228.6)

4.3 (108)

2.4 (60)

4.3 (108)

3.4 (105)

5.1 (130.6)

2.8 (70)

2.9 (74)

0.7 (17.5)

1.7 (43)

5.0 (127)

6.4 (163)

0.6 (16.2)

Screw Holes for Ceiling Mount Screw: M4 Depth: 0.472 (12.0)

Accessories

Owner’s Manual(CD-ROM) Network Application (CD-ROM) Quick Reference Guide AC Power Cord Remote Control and Batteries VGA Cable Lens Cover with String PIN Code Label

● The specifications are subject to change without notice.

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are

effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Optional Parts

The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. Model No.

COMPONENT~VGA Cable : POA-CA-COMPVGA

SCART~VGA Cable : POA-CA-SCART

VGA-Cable (10 m) : KA-MC-DB10

Dimensions

Unit: inch (mm)

Appendix

PJ Link Notice

This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1.

For PJ Link password, see page 21 on the owner’s manual “Network Set-up and Operation.”

Projector Input

Computer1

Computer2

Video

PJLink Input

RGB

Component

RGB (Scart)

RGB RGB 4

Auto

Video

S-video

RGB 1

RGB 2

RGB 3

VIDEO 1

VIDEO 2

VIDEO 3

Parameter

PJLink is a registered trademark of JBMIA and pending trademark in some countries.

9 678

Confi�urations of Terminals

345

876

8 7 6 5 4 3 2 1

COMPUTER INPUT/COMPONENT INPUT/MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : Analo� RGB (Mini D-sub 15 pin)

Appendix

SERVICE PORT CONNECTOR

Terminal : Mini DIN 8-PIN

Serial

R X D

-----

3 4

GND

RTS / CTS

T X D

GND GND

Red (R/Cr) Input / Output

Green (G/Y) Input / Output

Blue (B/Cb) Input / Output

3 4

Ground (Horiz.sync.)

Ground (Red)

Ground (Green)

Ground (Blue)

-----

----/

-----

+5V Power

Ground (Vert.sync.)

Ground /

DDC data

Horiz. sync. Input/Output (Composite H/V sync.)

Vert. sync.

DDC clock

LAN TERMINAL

TX +

TX –

2 3

RX +

5 6 7 8

-----

RX –

-----

----------

Appendix

PIN Code Number Memo

Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station.

PIN Code Lock No.

Factory default set No: 1 2 3 4*

Lo�o PIN Code Lock No.

Factory default set No: 4 3 2 1*

While the projector is locked with the PIN code...

Put the label below (supplied) to a prominent place of the projector’s body while it is locked with a PIN code.

KM5AE

SANYO Electric Co., Ltd.

Sanyo PLC-WXL46A Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

To the Owner

Air Circulation

Compliance

Part Names and Functions

Front

Back

Bottom

Rear Terminal

Top Control

Remote Control

Remote Control Battery Installation

Installation

Adjustable Feet

Basic Operation

How to Operate the On-Screen Menu

Menu Bar

Focus Adjustment

Keystone Correction

Sound Adjustment

Remote Control Operation

Computer Input

Input Source Selection

Computer System Selection

Auto PC Adjustment

Manual PC Adjustment

Screen Size Adjustment

Video Input

Input Source Selection (Video, S-video)

Input Source Selection (Component, RGB Scart 21-pin)

Video System Selection

Screen Size Adjustment

Lamp Replacement

Lamp Replacement Counter

Appendix

Menu Tree

Indicators and Projector Condition

Compatible Computer Specifications

Technical Specifications

Dimensions

PJ Link Notice

PIN Code Number Memo
