Multimedia Projector

MODEL PLC-WM5500

PLC-WM5500L



Projection lens is optional.



Network Supported

Refer to the Owner's Manual below for details about network function.

□ Network Set-up and Operation

Owner’s Manual

Features and Design

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.

♦ Functionally Rich

This projector has many useful functions such as lens shifting, ceiling and rear projection, perpendicular omnidirectional projection, variety of lens options, etc.

♦ Multi-use Remote Control

Use the remote control as wired and wireless, or as a PC wireless mouse. Eight remote control codes and selectable pointer shapes are also available.

♦ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.36). Supported resolution up to WUXGA.

♦ Useful Functions for Presentation

Digital zoom function allows you to focus on the crucial information during a presentation (pp.29,

43).

♦ Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the side control or remote control (p.61). PIN code lock function prevents unauthorized use of the projector (pp.61-62).

♦ Power Management

The Power management function reduces power consumption and maintains lamp life (p.59).

♦ Multilanguage Menu Display

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, and Japanese (p.51).

♦ Logo Function

The Logo function allows you to customize the screen logo (pp.52-54). You can capture an image for the screen logo and use it for the starting-up display or between presentations.

♦ Motor-driven Lens Shift

Projection lens can be moved up, down, right and left with the motor-driven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can also be adjusted with a motor-driven operation. (p.17)

♦ Multiple Interface Terminals

The projector has several interface terminals that can support various types of equipment and signals (p.11).

♦ Shutter Function

The projector is equipped with the shutter that provides complete blackness when the projected image is not needed with keeping the projector on. The shutter management function allows you to set the timer. It prevents from keeping the projector on when the shutter is closed for a long time. (p.63)

♦ Automatic Filter Replacement Function

The projector monitors the condition of the filter and replaces a filter automatically when it detects the clogging.

♦ Pointer Function

Remote control pointer function. This function helps you to make a smart presentation on a projected screen.

♦ Picture in Picture Function

This projector is capable of projecting two images simultaneously by using either built-in P in P mode or P by P mode (pp.55-56).

♦

Corner Correction

With the "Horizontal and vertical keystone correction function" and "Corner keystone correction function" of this projector, you can correct the keystone distortion even when projecting from the diagonal to the screen. (pp.31, 44, 50)

♦ Network-capable

- Through an optional PJ-Net Organizer, you can project an image on a computer as well as operate and manage the projector via network.

- This projector is loaded with the Wired LAN network function. You can operate and manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.”

Note:

• The On-Screen Menu and figures in this manual may differ slightly from the product.

• The contents of this manual are subject to change without notice.

Features and Design . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . 3

To The Owner . . . . . . . . . . . . . . . . . . . . . 4

Safety Instructions. . . . . . . . . . . . . . . . . 5

Air Circulation 6 Installing the Projector in Proper Directions 7 Moving the Projector 8 Cautions in Handling the Projector 8

Compliance. . . . . . . . . . . . . . . . . . . . . . . 9

Part Names and Functions . . . . . . . . . 10

Front 10 Back 10 Bottom 10 Rear Terminal 11 Side Control and Indicators 12 Remote Control 13 Remote Control Battery Installation 15 Remote Control Receivers and Operating Range 15 Wired Remote Control Transmitter 15 Remote Control Code 16 Adjustable Feet 16

Installation. . . . . . . . . . . . . . . . . . . . . . . 17

Positioning the Projector 17 Lens Shift Adjustment 17 Lens Installation 18 Connecting to a Computer (Digital and Analog RGB) 19 Connecting to Video Equipment (Video, S-video, HDMI) 20 Connecting for Audio Signal 21 Connecting the AC Power Cord 22

Basic Operation . . . . . . . . . . . . . . . . . . 23

Turning On the Projector 23 Turning Off the Projector 24 How to Operate the On-Screen Menu 25 Menu Bar 26 Operating with Projector Control 27 Sound Adjustment 28 Operating with Remote Control 29 Keystone Correction 31 Pointer Function 32

Wireless Mouse Operation 32

Input Selection . . . . . . . . . . . . . . . . . . . 33

Direct Operation 33 Computer Input Source Selection 34 Video Input Source Selection 35

Computer Input. . . . . . . . . . . . . . . . . . . 36

Computer System Selection 36 Auto PC Adjustment 37 Manual PC Adjustment 38 Image Level Selection 40 Image Adjustment 41 Screen Size Adjustment 42

Video Input . . . . . . . . . . . . . . . . . . . . . . 45

Video System Selection 45 Image Level Selection 46 Image Adjustment 47 Screen Size Adjustment 49

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Setting 51

Maintenance and Care . . . . . . . . . . . . . 66

Filter Instructions 66 Replacing the Filter Cartridge 67 Resetting the Filter Counter 68 Resetting the Scroll Counter 68 Lamp Replacement 69 Cleaning the Projection Lens 71 Cleaning the Projector Cabinet 71 Warning Indicators 72

Appendix. . . . . . . . . . . . . . . . . . . . . . . . 73

Troubleshooting 73 Menu Tree 76 Indicators and Projector Condition 79 Compatible Computer Specifications 82 Technical Specifications 84 Optional Parts 85 Lens Replacement 85 PJ Link Notice 85 Configurations of Terminals 86 PIN Code Number Memo 87 Dimensions 88 List of Picture in Picture 89 Serial Control Interface 89

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

To The Owner

0.7’(20cm)

1.5’(50cm) 3’(1m) 3’(1m)

Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: ● THIS APPARATUS MUST BE EARTHED.

● TO REDUCE THE RISK OF FIRE OR

– This projector produces intense light from the projection

lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. Otherwise it may

result in a fire hazard.

– Allowing the proper amount of space on the top, sides,

and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The diagrams shown here indicates the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

– Do not cover the ventilation slots on the projector. Heat

build-up can reduce the service life of your projector, and can also be dangerous.

Safety Precaution

ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

SIDE and TOP REAR

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

FOR EU USERS

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world. Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused. The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note: If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators. Please, dispose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

– If the projector is unused for an extended time, unplug the

projector from the power outlet.

– Do not project the same image for a long time. The

afterimage may remain on the LCD panels by the characteristic of panel.

CAUTION ON HANGING FROM THE CEILING

DO NOT SET THE PROjECTOR IN GREASy, WET, OR SMOKy CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROjECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAy BECOME DETERIORATED.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment, ANSI/NFPA 75.

READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE.

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm,

or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Slots and openings in the back and side of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

NOTE FOR CUSTOMERS IN THE US

Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

Safety Instructions

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. – Do not put any flammable object or spray can near the

projector, hot air is exhausted from the air vents.

– Keep the exhaust vent at least 3’ (1 m) away from any

objects.

– Do not touch peripheral parts of the exhaust vent,

especially screws and metallic parts. These areas will become hot while the projector is being used.

– Do not put anything on the cabinet. Objects put on the

cabinet will not only get damaged but also may cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector.

Air Circulation

IMPORTANT!

Filter Maintenance!!

The projector uses a lamp which generates significant heat. The cooling fans and air vents are provided to dissipate the heat by drawing air into the housing and the filter is located in the intake vents to prevent dust from getting inside of the projector.

In order to care for the projector appropriately, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector.

If the projector reaches a time set in the timer setting, a Filter replacement icon (Fig. 1) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below), indicating that the filter replacement is necessary.

If the projector detects that the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig. 2) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below). Stop using the projector immediately and replace the filter cartridge.

Air Intake Vent

Exhaust Vent (Hot air exhaust)

Air flow

Blocking the air vents and leaving the projector uncleaned for a long time may not only damage the projector and may require costly repairs but may also cause accidents or fire.

For maintenance of the filter, refer to “Filter counter” on page 65 and “Maintenance and Care” on pages 66-68.

Damages to the projector caused by using an uncleaned filter or improper maintenance will void the warranty on the projector.

Top Panel

Fig. 1 Filter replacement icon

WARNING FILTER indicator

Fig. 2 Filter cartridge

replacement icon

10˚

10° 10°

10°

Safety Instructions

Installing the Projector in Proper Directions

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane. When installing the projector in downwardly inclined position, install the projector bottom side up.

Note:

To inverse or reverse the image, set the ceiling function to On. (pp. 44, 50)

Positioning Precautions

Avoid positioning the projector as described below when installing.

Do not tilt the projector more than 10 degrees from side to side.

Do not put the projector on either side to project an image.

In upward projection, do not tilt the projector over 10 degrees right and left.

In downward projection, do not tilt the projector over 10 degrees right and left.

CAUTION ON CEILING MOUNTING

For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount kit or installation of the ceiling mount kit in an improper location.

Safety Instructions

Notes on protector Remove the protector on the lens before use, and keep it for later use. For

transportation, press and hold the LENS button or LENS SHIFT button for more than 5 seconds to return the lens to the central position, and then attach the protector to protect the lens.(Only for PLC-WM5500).

Use the handle grip when moving the projector.

Retract the adjustable feet to prevent damage to the lens and cabinet when carrying.

When this projector is not in use for an extended period, put it into a suitable case to protect the projector.

Moving the Projector

Protector

CAUTION IN CARRyING OR TRANSPORTING THE PROjECTOR

– Do not drop or bump the projector, otherwise damages or malfunctions may result. – When carrying the projector, use a suitable carrying case. – Do not transport the projector by courier or any other transport service in an unsuitable transport case. This

may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

– Do not put the projector in a case before it is cooled enough.

Cautions in Handling the Projector

Do not hold the lens or the lens compartment tube when lifting or moving the projector. Doing so may cause damage to the lens and the projector.

Care must be taken when handling the projector; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

CAUTION

Projection lens is a motorized lens. Please note the followings when using the projector.

● Do not touch the lens while it is moving as this could cause injury to the fingers.

● Never allow children to touch the lens.

Do not hold the lens and the peripheral part.

ASA

GROUND

Compliance

Federal Communications Commission Notice

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such

changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : PLC-WM5500, PLC-WM5500L

Trade Name : Sanyo Responsible party : SANYO NORTH AMERICA CORPORATION Address : 21605 Plummer Street, Chatsworth, California 91311, U.S.A.

Telephone No. : (818)998-7322

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

AC Power Cord used in the United States and Canada is listed by the Underwriters

Laboratories (UL) and certified by the Canadian Standard Association (CSA).

AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the

plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of

the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers

are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET

OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············· Earth Blue ································· Neutral Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying

the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter

E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPARATUS MUST BE EARTHED.

. If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILy ACCESSIBLE.

Part Names and Functions

Front

Back

①

②

③

① Lens Release Button ② Indicators

③ Lamp Cover ④ Speaker ⑤ Lens Cap

(for PLC-WM5500)

⑥ Projection Lens

(for PLC-WM5500)

⑦ Lens Mount Cover

(for PLC-WM5500L)

⑧ Infrared Remote Receiver (Front & Top) ⑨ Side Controls ⑩ Exhaust Vent

④

⑩

⑥ ⑧⑤

⑦

⑪

⑫

⑩⑨

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

⑬

⑪ Infrared Remote Receiver (Back) ⑫ Terminals and Connectors

⑬ Filter Cover & Air Intake Vent ⑭ Power Cord Connector

⑮ Rear Cover (Optional Parts Attachment)

Bottom

⑱

⑭

⑮

⑰

⑯ Hand Grip ⑰ Security Chain Hook

⑰

⑯

⑱

Note:

This is not a handle for carrying the projector. Do not carry the projector with this hook.

⑱ Adjustable Feet

Rear Terminal

Part Names and Functions

②

①

① INFRARED REMOTE RECEIVER (Back)

The infrared remote receiver is also located in the front and top

(pp.10, 15).

② LAN CONNECTION TERMINAL Connect the LAN cable (refer to the owner’s manual of “Network

Set-up and Operation”).

③ CONTROL PORT CONNECTOR

When controlling the projector with RS-232C, connect the

control equipment to this connector with the serial control cable. (p.19)

④ ANALOG OUT TERMINAL This terminal can be used to output the incoming analog RGB

signal from INPUT 1-3 terminal to the other monitor (pp.19-20).

③

④ ⑤ ⑧

⑩

⑪ ⑬

⑨ 5 BNC INPUT jACKS

Connect the component or composite video

output signal from video equipment to VIDEO/ Y, Pb/Cb, and Pr/Cr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz. Sync, and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.19-20).

⑩ S-VIDEO INPUT jACK Connect the S-VIDEO output signal from video

equipment to this jack (p.20).

⑪ VIDEO INPUT jACK Connect the component or the composite video

output signal from video equipment to these jacks (p.20).

⑥ ⑦

⑭⑫⑨



⑮

⑤ COMPUTER INPUT TERMINAL (ANALOG)

Connect the computer (or RGB scart) output signal to this

terminal (pp.19-20).

⑥ AUDIO OUTPUT jACK (VARIABLE)

This jack outputs the audio signal from computer or video or

HDMI equipment to external audio equipment (p.21).

⑦ R/C jACK When using the wired remote control, connect the wired remote

control to this jack with a remote control cable (not supplied) (p.15).

⑧ HDMI TERMINAL Connect the HDMI signal (including sound signal) from video

equipment or the DVI signal from computer to this terminal (pp.19,

20).

is registered trademarks of HDMI

Licensing, LLC.

 Kensington Security Slot This slot is for a Kensington lock used to deter theft of the projector. *Kensington is a registered trademark of ACCO Brands

Corporation.

⑫ AUDIO 3 jACKS (L(MONO)/R) Connect the audio output signal from video

equipment connected to ⑩ or ⑪ to this jack. For a monaural audio signal (a single audio jack), connect it to the L (MONO) jack (p.21).

⑬ AUDIO 1 jACK Connect the audio output (stereo) signal from a

computer or video equipment (p.21).

⑭ AUDIO 2 jACK Connect the audio output (stereo) signal from a

computer or video equipment (p.21).

⑮ USB CONNECTOR (Series B) Use this connector when controlling a computer

with the remote control of the projector. Connect the USB terminal of your computer to this connector with a USB cable (p.19).

Part Names and Functions

Side Control and Indicators

Side Control

①

②

③

④

⑤

① ON/STAND-By button

Turn the projector on or off (pp.23-24).

② MENU button

Open or close the On-Screen Menu (p.25).

③ SELECT button

– Execute the selected item (p.25). – Expand or compress the image in the Digital

zoom mode (p.43).

④

SHUTTER button

Close and open up the built-in shutter. (p.27)

⑦

⑥

Indicators (on the top panel)

⑧

⑨

⑩

⑪

⑫

⑬

⑧ POWER indicator

– Light green while the projector is in stand-by mode. – Light green during operations. – Blink green in the Power management mode (p.59).

⑨ LAMP indicator

Light red during operations.

⑩ WARNING TEMP. indicator

Blink red when the internal temperature of the

projector exceeds the operating range (pp.72, 79-80).

⑤ Point ▲▼◄► ( VOLUME – / + ) buttons

– Select an item or adjust the value in the On-

Screen Menu (p.25).

– Pan the image in Digital zoom + mode (p.43).

– Adjust the volume level (with Point ◄► buttons)

(p.28).

⑥ LENS button

Enter the focus, zoom, and lens shift adjustment

mode (p.27).

⑦ INPUT button

Select an input source (pp.33-35).

⑪ WARNING FILTER indicator

– Blink slow when the filter is being scrolled

(pp.66, 79).

– Blink fast when the filter scroll is not working

properly or the filter cartridge is not installed (pp.66, 81).

– Light orange when the clogging of the filter is

detected or the filter counter reaches a time set in the timer setting, urging immediate filter/ filter cartridge replacement (pp.65, 66,

81).

⑫

SHUTTER

Light blue when the shutter is closed (p.79).

⑬ LAMP REPLACE indicator

Light orange when the projection lamp reaches

its end of life (pp.69, 80).

indicator

Remote Control

Part Names and Functions



 













⑬

⑭

⑫

⑪



① STAND-By button

Turn the projector off (p.24).

② WIRED REMOTE jack

Connect the remote control cable (not supplied) to

this jack when using as a wired remote control.

③ SIGNAL EMISSION indicator

Light red while a signal is being sent from the

remote control to the projector.

④ ON button

Turn the projector on (p.23).

⑤ AUTO PC button

Automatically adjust the computer image to its

optimum setting (pp.29, 37).

⑥ INPUT button

Select a signal (pp.33-35).

⑦ MENU button

Open or close the On-Screen Menu (p.25).

⑧ SCREEN button

Select the screen size (p.29).

⑨ POINT ▲▼◄►( VOLUME – / +, MUTE) buttons

– Select an item or adjust the value in the On-

Screen Menu (p.25). – Pan the image in Digital zoom + mode (p.43). – Adjust the volume level (with Point ◄► buttons)

or mute the sound (with Point ▼ button.) (p.28).

⑩ MOUSE POINTER button

Move a pointer of the projector or a pointer for

wireless mouse operation (p.32).

⑪ SELECT button

– Execute the selected item (p.25). – Expand or compress the image in the Digital

zoom mode (p.43).

⑫

SHUTTER button

Close and open up the built-in shutter (pp.27, 29).

⑬ INFO. button

Display the input source information (p.29).

⑭ L-CLICK button

Act as the left mouse button for wireless mouse

operation (p.32).

To ensure safe operation, observe the following precautions:

– Do not bend, drop, or expose the remote control to moisture or heat. – For cleaning, use a soft dry cloth. Do not apply

benzene, thinner, spray, or any other chemical materials.

Part Names and Functions

Remote Control

⑮

⑯

⑰

⑱

⑲

⑳

⑮ D.ZOOM button

㉗

㉖

㉕

㉔

㉓

㉒

㉑

Select the Digital zoom +/- mode and resize the

image (p.43).

⑯ INPUT 1- 3 buttons

Select an input source (INPUT 1 – INPUT 3) (pp.33-35).

⑰ KEySTONE button

Correct keystone distortion (pp.31, 44, 50).

⑱ ZOOM ▲▼ buttons

Zoom in and out the images (p.29).

⑲ PIP button

Operate the Picture in Picture function. (pp.30,55-56)

㉘

For PIN code and remote control code.

㉒ FILTER button

Scroll the filter (p.30).

㉓ LENS SHIFT button

Select the Lens Shift function (p.29).

㉔ FREEZE button

Freeze the picture on the screen (p.30).

㉕ P-TIMER button

Operate the P-timer function (pp.30, 60).

㉖ R-CLICK button

Act as the right mouse button for wireless mouse

operation (p.32).

⑳ RESET/ON/ALL-OFF switch

When using the remote control, set this switch to

“ON”. Set it to “ALL OFF” for power saving when it is not in use. Slide this switch to “RESET” to initialize the remote control code. (p.16)

㉑ FOCUS buttons

Adjust the focus (p.29).

㉗ POINTER button

Act as the On-Off switch for the Pointer (pp.30, 32,

60).

㉘ NUMBER buttons

Act as number buttons. Use these buttons when

setting the remote control codes (p.16) or when entering the PIN code numbers (pp. 23, 54, 62).

Part Names and Functions

Remote Control Battery Installation

Open the battery compartment lid.

1 2 3

Press the lid downward and slide it.

To ensure safe operation, please observe the following precautions :

● Use two (2) AAA or LR03 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked on the remote control, carefully wipe the case clean and install new

batteries.

● Risk of an explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions or your local disposal rule or guidelines.

Install new batteries into the compartment.

Two AAA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

Remote Control Receivers and Operating Range

Point the remote control toward the projector (to Infrared Remote Receivers) when pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front, back and top of the projector.

Replace the compartment lid.

16.4’ (5 m)

Infrared Remote Receivers are provided in front, back and top of of the projector. You can conveniently use all of the receivers (pp. 10, 11, 59).

Note:

When hanging the projector from the ceiling, select the Infrared

Remote Receiver which is located farther away from the fluorescent light (p.59).

Wired Remote Control Transmitter

The remote control can be used as a wired remote control. Wired remote control helps you use the remote control outside of the operating range (16.4’/ 5 m). Connect the remote control and the projector with the remote control cable (sold separately). Connected with the remote control cable, the remote control does not emit wireless signal.

16.4’ (5 m)

Part Names and Functions

Remote Control Code

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 58.

Press and hold the MENU and a number button (1–8) for

more than five seconds to switch between the codes.

To initialize the remote control code, slide the RESET/ ON/

ALL-OFF switch to “RESET”, and then to “ON”. The initial

code is set to Code 1.

MENU button

Adjustable Feet

Projection angle can be adjusted up to 4.0 degrees with the adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise.

To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.

To correct keystone distortion, press the KEYSTONE button on the remote control or select Keystone from the menu (see pages 14, 31, 44, 50).

Number buttons (1-8)

RESET/ON/ALL

OFF Switch

Press and hold the MENU and a number button (1-8) that corresponds to the remote control code for more than five seconds to switch between the codes.

Adjustable Feet

Installation

100”

47.2’(14.4 m)

35.4’(10.8 m)

23.6’ (7.2 m)

11.8’ (3.6 m)

200”

300”

400”

250”

188”

125”

63”

40”

Max. Zoom

Min. Zoom

Screen Size

(W x H) mm

16:10 aspect ratio

Zoom (min.)

40”

Zoom (max.)

862 x 538

4.5'(1.4 m)

7.9'(2.4 m)

100”

2154 x 1346

11.8’ (3.6 m)

19.7' (6.0 m)

200”

4308 x 2692

23.6’ (7.2 m)

40.0' (12.2 m)

300”

6462 x 4039

35.4’(10.8 m)

60.0' (18.3 m)

400”

8616 x 5385

47.2’(14.4 m)

80.1' (24.4 m)

(Inch Diagonal)

(Center)

80.1' (24.4 m)

400”

4.5'(1.4 m)

60%

10%

Positioning the Projector

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. (for PLC-WM5500)

Note:

• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

• All measurements are approximate and may vary from the actual sizes.

Lens Shift Adjustment

Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This function makes the positioning of images easy on the screen. (See page 27)

The display position can be shifted upward up to 60% elevation of the display.

When the lens is shifted to top.

The display position can be shifted to the left in up to 10% width of the display.

When the lens is shifted to leftmost.

The display position can be shifted downward up to 60% low level of the display.

When the lens is shifted to bottom.

The display position can be shifted to the right in up to 10% width of the display.

When the lens is shifted to rightmost.

Lens shift adjustable range

Lens shift center position

Shift range

Installation

Lens Installation

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the sales dealer for detailed information of the optional lens specifications.

Removing the lens

Shift the lens to the center position by using the Lens

shift function (p.27). Turn off the projector and unplug the AC power cord.

While pressing the Lens release button on the top

of the cabinet, turn the lens counterclockwise until it stops and pull it out slowly from the projector.

CAUTION

Be careful when handling the lens. Do not drop.

Lens release button

Attaching the lens to the projector

Remove the lens mount cover.

Fit the lens to the projector by aligning the red dot on

the lens with the red dot of the projector. Slowly turn the lens clockwise until it clicks. Make sure

that the lens is fully inserted to the projector.

CAUTION

Do not press the lens release button when attaching the lens.

NOTES ON LENS INSTALLATION

● Do not touch or remove any parts except the lens and related parts. It may result in

malfunctions, electrical shock, fire hazard or other accidents.

● Before installing or replacing the lens, check that the Model No. of the Projection Lens

matches to the projector.

● For details of the lens and installation, contact the sales dealer where you purchased the

projector.

Red dots

Connecting to a Computer (Digital and Analog RGB)

Installation

Cables used for connection (

• VGA Cable (One cable is supplied.)

• HDMI-DVI cable 

• BNC cable 

Monitor Output

BNC

cable

Serial Cross

Serial out

cable



= Cables not supplied with this projector.)

• Serial Cross cable 

• USB cable 

Monitor Input

VGA

cable

Monitor Output

•

VGA

cable

DVI Output

HDMI-DVI

cable

USB port

USB

cable

G B R H/V V

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

CONTROL PORT

HDMIANALOG INANALOG OUT

See the next page for the signals that can output to the ANALOG

•

OUT terminal.

USB

Installation

Connecting to Video Equipment (Video, S-video, HDMI)

Cables used for connection ( = Cables not supplied with this projector.)

• Video cable (RCA x 1 or RCA x 3)

• BNC cable (BNC x 1 or BNC x 3)

• S-video cable

• Scart-VGA cable

• HDMI cable

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.



Analog Out Signal Table



Input 1

Input 2 5 BNC

Input 3

Network

Input Terminal Monitor Out Cable

D-sub15 HDMI

RCA S-video Video

RGB (PC analog) YES RGB (SCART) NO HDMI NO RGB YES Video YES Y, Pb/Cb, Pr/Cr YES Y, Pb/Cb, Pr/Cr YES S-video NO Video YES



A cable with one end D-sub 15 and the other end (Black

  



box) compatible with each equipment is necessary.

Component Composite Video

Video Output

(Y, Pb/Cb, Cr/Pr)

BNC cable

Video Y - Pb/Cb - Pr/Cr

Component

Video Output

RCA cable

Y - Pb/Cb - Pr/Cr

Composite Video

Video

S-video

Output

Refer to the Analog Out Signal Table (above).

S-video cable

ANALOG OUT S-VIDEO

RGB Scart 21-pin Output

Scart-

cable

ANALOG IN

HDMI Output

VGA

HDMI

HDMI cable

Connecting for Audio Signal

Cables used for connection ( = Cables not supplied with this projector.)

• Audio cable



External Audio Equipment

Audio Output

(R) (L)

Audio Input

Installation

Audio cable (stereo)

AUDIO IN 1/2

Audio cable

Audio cable (stereo)

(R) (L)

AUDIO OUT (stereo)

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Installation

Connecting the AC Power Cord

This projector uses nominal input voltages of 100–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service center. Connect the projector with all peripheral equipment before turning on the projector.

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

Note:

Unplug the AC power cord when the projector is not in use. When

the projector is connected to an outlet with AC power cord, it is in stand-by mode and consumes a little electric power.

Connect the AC power cord (supplied) to the projector.

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If the supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side AC Outlet side

For Continental Europe

To the AC Outlet.

(200–240 V AC)

To POWER CORD CONNECTOR on your projector.

For the U.S.A. and Canada

Ground

To the AC Outlet.

(120 V AC)

For the U.K.

Ground

To the AC Outlet.

(200–240 V AC)

Basic Operation

Turning On the Projector

Complete peripheral connections (with a computer, VCR, etc.)

before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The

LAMP indicator lights red and the POWER indicator lights green.

Press the ON/STAND-BY button on the side control or the ON

button on the remote control. The LAMP indicator dims and the cooling fans start to operate. The preparation display appears on the screen and the countdown starts.

After the countdown, the input source that was selected the last

time and the Lamp control status icon (see page 57) appear on the screen.

If the projector is locked with a PIN code, PIN code input dialog box will appear.

Note:

• When the Logo select function is set to Off, the logo will not be shown on the screen (p.52).

• When Countdown off or Off is selected in the Display function, the countdown will not be shown on the screen (p.52).

• When the Input button function is set to Mode 3, the input signal will be searched automatically (p.51).

• If you press the ON/STAND-BY button on the side control or the remote control during the countdown period, you can skip the countdown and go to the normal operations. In this case, however, the brightness of the image needs some time to stabilize after turning on the projector. The display may flicker after turning on the lamp for the characteristics of the lamp. This is normal operation and not a malfunction.

The preparation display will disappear after 30 seconds.

Selected Input Source and Lamp control

Input 1 RGB(PC analog)

Lamp control status

(See page 57 for Lamp control status.)

Note:

• The Lamp replacement icon and the Filter replacement or the Filter cartridge replacement icon may appear on the screen depending on the usage state of the projector.

• When the filter cartridge replacement icon keeps appearing on the screen at turning on the projector for some time and no action is taken to replace the filter cartridge, the projector will be automatically shut down in 3 minutes after turning on to protect the projector. (pp. 66-68, 81)

• When the Picture in Picture function is set to User 1- 5, User 1-5, Input source, Lamp control status, Lamp replacement icon and Filter warning icon will appear on the screen for 10 seconds.

Enter a PIN code

Use the Point ▲▼ buttons on the side control or Number buttons on

the remote control to enter a number.

When using side control

Use the Point ▲▼ buttons on the side control to select a number. Press the Point ► button to fix the number and move the red

frame pointer to the next box. The number changes to . Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to “Set”. Press the SELECT button so that you can start to operate the projector.

When using remote control

Press the Number buttons on the remote control to enter a number (p.14). When you complete entering a four-digit number, the pointer moves to “Set”. Press the SELECT button so that you can start to operate the projector.

If you fixed an incorrect number, use the Point ◄ button to move

the pointer to the number you want to correct, and then enter the correct number.

If you entered an incorrect PIN code, “PIN code” and the number () will turn red for a moment. Enter the correct PIN code all over again.

PIN Code Input Dialog Box

After the OK icon disappears, you can operate the projector.

Note:

• If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

• The "1234" is set as the initial PIN code at the factory.

Basic Operation

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 61-62 for locking operation of the projector with your PIN code.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 87 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

Turning Off the Projector

Press the ON/STAND-BY button on the side control or the

STAND-BY button on the remote control, and Power off? appears on the screen.

Press the ON/STAND-BY button on the side control or the

STAND-BY button on the remote control again to turn off the projector. The LAMP indicator lights bright and the POWER indicator turns off. After the projector is turned off, the cooling fans operate for 90 seconds. You cannot turn on the projector during this cooling down period.

When the projector has cooled down enough, the POWER

indicator lights green and then you can turn on the projector. To unplug the AC power cord, wait until the projector is completely cooled down.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST FIVE MINUTES BEFORE TURNING IT OFF. DO NOT UNPLUG THE AC POWER CORD WHILE COOLING FANS ARE RUNNING OR BEFORE THE POWER INDICATOR LIGHTS GREEN AGAIN. OTHERWISE IT WILL RESULT IN SHORTENING OF THE LAMP LIFE.

DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.

Power off? disappears after 4 seconds.

Note:

• When the Direct On function is set to On, the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.60).

• The running speed of cooling fans is changed according to the temperature inside the projector.

• Do not put the projector in a case before the projector is cooled enough.

• If the WARNING TEMP. indicator blinks red, see “Warning Indicators” on page 72.

• The projector cannot be turned on during the cooling period with the POWER indicator turned off. You can turn it on again after the POWER indicator becomes green again.

Dynamic

How to Operate the On-Screen Menu

Basic Operation

The projector can be adjusted or set via the On-Screen Menu. The menu has a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

Press the MENU button on the side control or the remote

control to display the On-Screen Menu.

Use the Point ▲▼ buttons to highlight or select a main menu

item. Press the Point ► or the SELECT button to access the

submenu items. (The selected item is highlighted in orange.)

Use the Point ▲▼ buttons to select the desired submenu item

and press the SELECT button to set or access the selected item.

Use the Point ▲▼◄► buttons to adjust the setting or switch

between each option and press the SELECT button to activate it and return to the submenu.

Side Control

MENU button

SELECT button

POINT buttons

Remote Control

MENU button

POINT buttons

SELECT button

Press the Point ◄ button to return to the main menu. Press

the MENU button to exit the On-Screen Menu.

On-Screen Menu

Point

►

or SELECT

button

The currently set item is marked.

The selected item is highlighted in orange.

Basic Operation

Menu Bar

For detailed functions of each menu, see “Menu Tree” on pages 76-78.

Main Menu

















Sub-Menu





 Input

Used to select an input source (Input 1, Input 2, Input 3 or Network) (p.33). Note: Network will be not displayed when optional PJ-Net Organizer is not attached.

 PC adjust

Used to adjust the parameters to match with the input signal format (pp.37-39).

 Image select

For computer source, used to select an image level among Dynamic, Standard, Real, and Image 1-10 (p.40). For Video source, used to select an image level among Dynamic, Standard, Natural, Cinema, and Image 1-10 (p.46).



Image adjust

For computer source, used to adjust the computer image. [Contrast/Brightness/Color temp./White balance (R/G/B)/

Offset(R/G/B)/Sharpness/Gamma/Reset/Store] (pp.41-42).

For video or HDMI source, used to adjust the video image. [Contrast/Brightness/Color/Tint/Color temp./White

balance (R/G/B)/Offset (R/G/B)/Sharpness/Gamma/Noise Reduction/Progressive/Reset/Store] (pp.47-48).



Screen

For computer source, used to adjust the size of the image. [Normal/Full/Wide(16:9)/Zoom/True/Custom/Custom adj./

Digital zoom +/-/Keystone/Ceiling/Rear/Screen aspect/Reset] (pp.42-44).

For video or HDMI source, used to adjust the size of the image. [Normal/Full/Wide(16:9)/Zoom/Natural Wide/Custom/

Custom adj./Keystone/Ceiling/Rear/Screen aspect/Reset] (pp. 49-50).

 Sound

Used to adjust the volume or mute the sound (p.28).



Setting

Used to set the projector’s operating configurations (pp.51-65).

 Information

Display the input source information: Input, H-sync freq., V-sync freq., Screen, Language, Lamp status, Lamp counter,

Filter counter, Power management, Key lock, PIN code lock, Shutter management, Simple mode, Remote control, and SERIAL NO. (p.29).

 Network

See the owner’s manual of “Network Set-up and Operation”.

 Guide

The key operation is displayed.

Zoom

Operating with Projector Control

Basic Operation

Lens Operation

The following lens operation can be made with the Lens button on the side control.

Press the LENS button to enter each lens operation mode. The selected adjustment display appears on the screen.

Zoom → Focus → Lens Shift →

Zoom Adjustment

Display Zoom on the screen. Use the Point ▲▼ buttons to zoom in and out the image.

Focus Adjustment

Display Focus on the screen. Use the Point ▲▼ buttons to adjust focus of the image.

Lens Shift Adjustment

Display Lens shift on the screen. Use the Point ▲▼◄► buttons to position the screen to the desired point without having picture distortion. The screen can be moved up or down to 60 percent, or sideways up to 10 percent from the central axis of the lens shift. Press and hold the LENS button for more than 5 seconds to return to the central position.

• • • • •

Side Control

SHUTTER button

LENS button

POINT buttons

Note:

• The arrow disappears at the maximum lens shift in each direction.

• The arrows turn red when the lens shift comes to the center position of the screen.

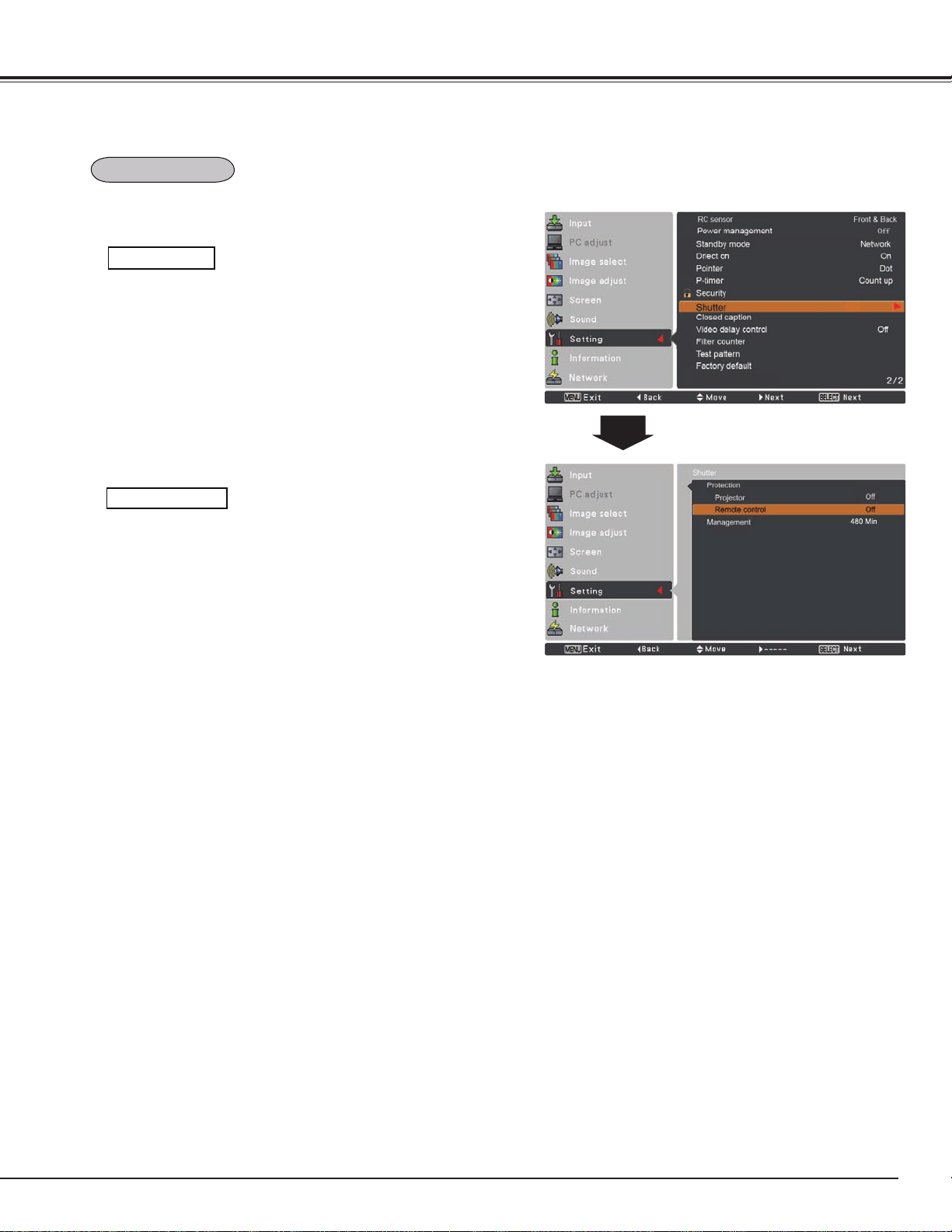

Shutter Function

Shutter function allows you to completely block out light to the screen. Press the SHUTTER button to close the shutter inside the projector. To open up the shutter, press the SHUTTER button again. Refer to p.63 for detail of setting for the Shutter function.

Note:

• The SHUTTER button on the side control and the remote control cannot be effective when Shutter Protection is On in the Setting menu. (p.63)

• The SHUTTER indicator on the projector's top lights blue when the shutter is closed. (pp.12, 79)

• The projector will shut down automatically when the set time on shutter management has passed. (p.63)

• The Power management function does not work when the shutter is closed. (p.59)



Basic Operation

Volume 33

Built-in SP On Mute Off

Sound Adjustment

Direct Operation

Volume

Press the VOLUME+/– buttons on the side control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds.

Mute

Press the MUTE (Point ▼) button on the remote control to select

On to temporarily turn off the sound. To turn the sound back on,

press the MUTE (Point ▼) button again to select Off or press the VOLUME +/– buttons.

Menu Operation

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Sound. Press the Point ► or

the SELECT button to access the submenu items.

Use the Point ▲▼ buttons to select the desired submenu item

and press the SELECT button to access the selected item.

Side Control

Remote Control

Volume Dialog Box

VOLUME +/– buttons

VOLUME – button

VOLUME + button

MUTE (Point ▼) button

Approximate level of the volume.

Volume

Press the Point ► button to turn up the volume; press the Point ◄

button to turn down the volume.

Built-in SP

Press the Point ▲▼ buttons to switch the Built-in SP function On/ Off. When the Built-in SP sound is turned off, Off is displayed.

Mute

Press the SELECT button to switch the mute function On/Off. When the sound is turned off, On is displayed. Press the VOLUME +/– buttons again to turn the sound back on.

Note:

Sound function can not be operated via the remote control or

the Screen Menu, when Nework is selected in Input Menu.

Press the Point ▼ button to set the Mute function On or Off. The dialog box disappears after 4 seconds.

Sound Menu

Basic Operation

Operating with Remote Control

Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu.

AUTO PC button

Press the AUTO PC button on the remote control to operate the Auto PC adj. function. The computer screen adjustment can be done easily by pressing this button. See page 37 for details.

SCREEN button

Press the SCREEN button on the remote control to select the desired screen size. The selected screen size symbol appears on the screen for 4 seconds. See pages 42 to 44 and 49 to 50 for details. Press and hold the SCREEN button for more than 5 seconds to return all the screen size adjustment setting to the factory default setting.

SHUTTER button

See page 27 for details.

D.ZOOM button

Press the D.ZOOM button on the remote control to enter to the Digital zoom +/– mode. See page 43 for details.

LENS SHIFT button

See page 27 for details.

Remote Control

AUTO PC button

SCREEN button

D.ZOOM button

ZOOM buttons

Note:

See the next page for the description of other

buttons.

INFO. button SHUTTER

button

LENS SHIFT button

FOCUS buttons

ZOOM buttons

Press the ZOOM buttons on the remote control to zoom in and out the image.

FOCUS buttons

Press the FOCUS buttons on the remote control to adjust focus of the image.

INFO. button

Information display can be used to confirm the current operating condition of the projector and the signal being projected through the projector. Press the INFO. button on the remote control to display the information window on the screen. To hide the information window, press the INFO. button again. The information window can also be selected from the menu.

Note:

• The H-sync freq. and V-sync freq. values described in the figure may be different from the actual values.

• SERIAL NO. is used to service the projector.

Information Menu

Basic Operation

MOUSE POINTER button

Move the pointer on the screen with this button.

POINTER button

Press POINTER button on the remote control to display the Pointer on the screen.

P-TIMER button

Press the P-TIMER button on the remote control to operate the Count up/Count down function. Refer to p.60 for detail of Setting for the P-timer function.

To stop the count time, press the P-TIMER button. To cancel the P-timer function, press and hold the P-TIMER button for a few seconds.

FREEZE button

Press the FREEZE button on the remote control to freeze the picture on the screen and Audio mute. To cancel the FREEZE function, press the FREEZE button again or press any other button.

Fig.1 will appear when the Freeze function is working.

Fig.1

Remote Control

MOUSE POINTER button

POINTER button P-TIMER button

FREEZE button

FILTER button

PIP button

Note:

See the previous page for the description of other buttons.

FILTER button

Press and hold the FILTER button for more than five seconds to operate electrically operated filter to replace the filter.

Note:

• The filter cannot be rewound.

• When the filter is replaced, the total accumulated time of the filter use is automatically set to 0.

Main picture

PIP button

Press the PIP button on the remote control several times until the desired mode of Picture in Picture appears. Each user mode (User 1-5) appears only when it has stored data. Press and hold the PIP button for more than 3 seconds to display the setting dialog box of Picture in Picture. See pages 55-56 for details of Picture in Picture function.

Main picture

User 1 of PIP (example)

Sub picture

User 2 of PIP (example)

Sub picture

Keystone

Keystone Correction

Keystone

Basic Operation

If a projected picture still has keystone distortion after pressing the AUTO PC button on the remote control, correct the image manually as follows: Press the KEYSTONE button on the remote control to switch the Standard (for Vertical/Horizontal) /Corner correction adjustment. The Standard or Corner correction adjustment dialog box appears. Use the Point ▲▼◄► buttons to correct the Standard or Corner distortion. The Standard or Corner correction adjustment can be stored (see pages 44, 50).

Standard

Reduce the lower width with the Point ▼ button.

Reduce the right part with Point ► button.

Reduce the upper width with the Point ▲ button.

Reduce the left part with Point ◄ button.

Corner correction

Press the KEYSTONE button on the remote control to switch Corner correction adjustment, press the SELECT button on the remote control to select the corner you want to adjust.

Reduce the top left corner part with the Point ►▼ buttons.

Reduce the top right corner part with the Point ◄▼ buttons.

Press the SELECT button

Remote Control

POINT ▲▼◄►buttons

KEySTONE button

Note:

• The white arrows indicate that there is no correction.

• A red arrow indicates the direction of correction.

• An arrow disappears at the maximum correction.

• If you press and hold the KEYSTONE button for more than 3 seconds while the Standard or Corner

correction dialog box is being displayed, the Standard or Corner correction adjustment will be released.

• The Corner pattern can be set to Off, Red, White or Blue in the Corner pattern function. See "Keystone"

on pages 44, 50.

• The adjustable range is limited depending on the input signal.

• Standard and Corner correction functions cannot be adjusted at the same time. If one of the fuctions is adjusted, and then the other one will be reset automatically.

The top left corner adjustment as an example:

Press the Point ▼

button

Press the SELECT button

Reduce the bottom left corner part with the Point ►▲ buttons.

Reduce the bottom right corner part with the Point ◄▲ buttons.

Press the SELECT button

Press the Point ► button

Basic Operation



Pointer Function

You can move the Pointer of the projector with the remote control to emphasize a part of the projected image.

Press the POINTER button to activate the Pointer function.

Use the MOUSE POINTER button to move the Pointer.

To cancel the Pointer function, press the POINTER button

again or press any other button.

Dot

Arrow

Finger

Note:

You can choose the pattern of Pointer (Dot/Arrow/Finger) in the

Setting Menu (p.60)

Wireless Mouse Operation

The remote control can be used as a wireless mouse for your computer.

Before operating the wireless mouse, connect your computer

and the projector with a USB cable (p.19). When the Pointer function is used, the wireless mouse is not available.

When a USB cable is connected to the computer and the

projector, turn on the projector first, then the computer. If you turn on the computer first, the wireless mouse function may not operate properly.

MOUSE POINTER button

POINTER button

MOUSE POINTER button

Move the pointer on the screen with this button.

R-CLICK button

Acts as right (click) mouse button while the projector and a computer are connected with a USB cable.

L-CLICK button

Acts as left (click) mouse button while the projector and a computer are connected with a USB cable.

Input Selection

Direct Operation

Side Control/Remote Control Operation

Side Control

INPUT button*

* Only the Input button function is set Mode 1 in the Setting menu, the INPUT button is used for switching input source.

(p.51)

The input source changes each time you press the INPUT button on the side control or the remote control as follows:

Input 1→ Input 2→ Input 3 → ...

Before using the INPUT button on the side control or the remote control, you must select a correct input source by OnScreen Menu and the latest input source will be displayed.

Remote Control

Remote Control Operation

Press the INPUT 1, INPUT 2, or INPUT 3 button on the remote control. The input source appears on the screen as you press each button. Select the connected input source.

INPUT 1 button

Input 1

RGB (PC analog)

RGB (Scart)

HDMI

INPUT 3 button

Input 3

Video

y,Pb/Cb,Pr/Cr

S-video

INPUT 2 button

Input 2

Video

y,Pb/Cb,Pr/Cr

RGB

Remote Control

INPUT 1/2/3 buttons

Input Selection

Input 1

RGB(PC analog)

RGB(Scart) HDMI

Y,Pb/Cb,Pr/Cr

Computer Input Source Selection

Menu Operation

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Input and then press the

Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired input and

then press the Point ► button to access the submenu items.

Use the Point ▲▼ buttons to select the desired source and

then press the SELECT button.

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )

RGB(PC analog)

INPUT MENU

When your computer is connected to the INPUT 1 (ANALOG) terminal, select RGB (PC analog).

Note:

Input source changes if the INPUT 1 button on the remote control is

pressed.

WHEN SELECTING INPUT 2 (5 BNC INPUT jACKS )

When connecting the computer output [5 BNC Type (Green, Blue, Red, Horiz. Sync, and Vert. Sync.)] from the computer to G, B, R, H/HV, and V jacks:

RGB

When your computer is connected to the INPUT 2 (5 BNC INPUT JACKS) terminal, select RGB.

INPUT 1 MENU

INPUT 2 MENU

Video Input Source Selection

Menu Operation

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Input and then press the

Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired input and

then press the Point ► button to access the submenu items.

Use the Point ▲▼ buttons to select the desired source and

then press the SELECT button.

WHEN SELECTING INPUT 1 (COMPUTER INPUT TERMINALS )

When connecting to video equipment, select the type of Video source in the Source Select Menu.

Input Selection

INPUT 1 MENU

RGB(Scart)

When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

HDMI

When the video signal is connected to the HDMI terminal, select HDMI.

WHEN SELECTING INPUT 2 (5 BNC INPUT jACKS )

When connecting to video equipment, select the type of Video source in the Source Select Menu.

Video

y,Pb/Cb,Pr/Cr

When the video input signal is connected to the VIDEO jack, select Video.

When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, select

y,Pb/Cb,Pr/Cr

Note:

• When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, Y,Pb/Cb,Pr/Cr takes precedence of RGB.

• Y,Pb/Cb,Pr/Cr input can accept the component signal and the analog RGB signal. When analog RGB signal is not recognized in Y,Pb/Cb,Pr/ Cr input source, set to RGB input manually.

INPUT 2 MENU

INPUT 3 MENU

WHEN SELECTING INPUT 3 (AV TERMINALS )

When connecting to video equipment, select the type of Video source in the Source Select Menu.

Video

y,Pb/Cb,Pr/Cr

S-video

When the video input signal is connected to the VIDEO jack, select Video.

When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks, select

When the video input signal is connected to the S-VIDEO jack, select S-video.

y,Pb/Cb,Pr/Cr

Computer Input

Computer System Selection

Automatic Multi-Scan System

This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 82-83)

One of the following messages may appear when:

Auto

-----

Mode 1

SVGA 1

*Mode 1 and SVGA 1 are examples.

The projector cannot recognize the connected signal conforming to the provided PC Systems. Auto is displayed on the System Menu box and the Auto PC adjustment function works to display proper images. If the image is not projected properly, a manual adjustment is required (pp.38-39).

There is no signal input from the computer. Check the connection between your computer and the projector. (See “Troubleshooting” on pp.73-75.)

The preset system is manually adjusted in the PC adjust Menu. The adjusted data can be stored in Mode 1-10 (pp.38-39).

PC Systems provided in this projector is chosen. The projector chooses a proper system provided in the projector and displays it.

Selecting Computer System Manually

PC System Menu

The PC System Menu Selected system is displayed.

PC system can also be selected manually.

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Input and then press the Point

► or the SELECT button.

Use the Point ▲▼ buttons to select Systerm and then press

the Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired system and

then press the SELECT button.

PC System Menu

Systems in this dialog box can be selected.

Customized Mode (1-10) set in the PC adjust Menu (pp.38-39).

Computer Input

Auto PC adj. Fine sync Total dots 1366 Position H 0 Position V 0 Current mode Clamp 0 Display area H 1024 Display area V 768 Reset Mode free Store

Auto PC Adjustment

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Position H and Position V to conform to your computer.

Direct Operation

The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control.

Menu Operation

Auto PC adj.

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select PC adjust and then press

the Point ► or the SELECT button.

Use the Point ▲▼ buttons to select Auto PC adj. and then

press the SELECT button.

Remote Control

AUTO PC button

PC adjust Menu

To store the adjusted parameters.

The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting Mode in PC SYSTEM Menu (p.36). See “Manual PC Adjustment” on pages 38-39.

Note:

• Fine sync, Total dots, Position H and Position V of certain computers cannot be fully adjusted with the Auto PC Adjustment function. When the image is not provided properly with this operation, manual adjustments are required. (pp.38-39)

• The Auto PC adjustment cannot be operated when 480i, 575i, 480p, 575p, 720p, 1035i, 1080i or 1080p is selected in the PC System Menu (p.36), or when the signal is coming from the HDMI terminal.

• Depending on the condition of signals and the type and length of cables, the signals may not be properly viewed.

Use the Point ▲▼ buttons to select Auto PC adj. and press the SELECT button. Please wait... appears while the Auto PC

adjustment is in process.

Computer Input

Auto PC adj. Fine sync Total dots 1366 Position H 0 Position V 0 Current mode Clamp 0 Display area H 1024 Display area V 768 Reset Mode free Store

Manual PC Adjustment

Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select PC adjust and then press the

Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired item and then

press the SELECT button to display the adjustment dialog box.

Use the Point ◄► buttons to adjust the setting value.

Fine sync

Use the Point ◄► buttons to adjust the value, eliminating a flicker from the image displayed (from 0 to 31).

Total dots

Use the Point ◄► buttons to adjust the number of total dots in one horizontal period to match your PC image.

Position H

Use the Point ◄► buttons to adjust the horizontal picture position.

PC adjust Menu

Position V

Use the Point ◄► buttons to adjust the vertical picture position.

Current mode

Press the SELECT button to show H-sync freq. and V-sync freq. of the connected computer.

Clamp

Use the Point ◄► buttons to adjust the clamp level. When the image has dark bars, try this adjustment.

Display area H

Use the Point ◄► buttons to adjust the horizontal area displayed by this projector.

Use the Point ◄► buttons to adjusts the vertical area displayed by this projector.

Display area V

Mode 1

Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Mode 7 Mode 8 Mode 9 Mode 10

0 0

Total dots 1344 Position H 255 Position V 34 Display area H 1024 Display area V 768

Where to free?

store?

Store

Total dots Position H Position V Display area H Display area V

Mode 1 Mode 2 Mode 3

Mode 4

Mode 5 Mode 6 Mode 7 Mode 8 Mode 9 Mode 10

Free

Total dots 1344 Position H 255 Position V 34 Display area H 1024 Display area V 768

Where to store?

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures.

Mode free

To clear the stored data, select Mode free and then press the Point ► or the SELECT button. Move the highlight to the Mode that you want to clear and then press the SELECT button.

Store

To store the adjusted data, select Store and then press the Point

► or the SELECT button. Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the SELECT button.

Computer Input

Mode free

This mode has stored parameters.

Note:

• Display area (H/V) cannot be selected when 480i, 575i,

• When input computer signal to the projector, PC adjust function

480p, 575p, 720p, 1035i , 1080i or 1080p is selected in the PC System Menu (p.36).

will become available.

Values of Total dots, Position H, Position V, Display area H and Display area V.

Store

Press the MENU button to close this dialog box.

Press the SELECT button to clear the stored data.

Vacant

Press the SELECT button to store the data.

Computer Input

Menu Operation

Press the MENU button to display the On-Screen Menu.

Use the Point ▲▼ buttons to select Image select and then press the Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired item

and then press the SELECT button.

Dynamic

For viewing pictures in a bright room.

Image Level Selection

Image select Menu

Standard

Normal picture level preset on the projector.

Real

Picture level with improved halftone for graphics.

Image 1–10

User preset picture adjustment in the Image adjust Menu. (pp.41-

42)

Contrast 32 Brightness 32 Color temp. High Red 28 Green 32 Blue 35 Offset Sharpness 8 Gamma 8 Reset Store

Image Adjustment

Computer Input

Press the MENU button to display the On-Screen Menu.

Use the Point ▲▼ buttons to select Image adjust and then press the Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired item

and then press the SELECT button to display the adjustment dialog box. Use the Point ◄► buttons to adjust the setting value.

Contrast

Press the Point ◄ button to decrease the contrast; press the Point ► button to increase the contrast (from 0 to 63).

Brightness

Press the Point ◄ button to decrease the brightness; press the Point ► button to increase the brightness (from 0 to 63).

Color temp.

Use the Point ◄► buttons to select the desired Color temp. level

(XLow, Low, Mid or High).

White balance (Red)

Image adjust Menu

Selected Image mode

Press the Point ◄ button to lighten red tone; press the Point ►

button to deepen red tone (from 0 to 63).

White balance (Green)

Press the Point ◄ button to lighten green tone; press the Point ►

button to deepen green tone (from 0 to 63).

White balance (Blue)

Press the Point ◄ button to lighten blue tone; press the Point ►

button to deepen blue tone (from 0 to 63).

Offset(Red/Green/Blue)

Press the Point ◄ button to lighten red/green/blue tone of the black level of an image; press the Point ► button to deepen red/green/

blue tone of the black level of an image.

Sharpness

Press the Point ◄ button to decrease the sharpness of the image; press the Point ► button to increase the sharpness of the image

(from 0 to 31).

Gamma

Use the Point ◄► buttons to adjust the gamma value to obtain a

better balance of contrast (from 0 to 15).

Use the Point ◄► buttons to adjust the setting value.

Note:

When White balance Red, Green or Blue is adjusted, Color temp. will change to Adj..

Computer Input

Reset

To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures.

Store

To store the adjusted data, select Store and press the Point ► or

the SELECT button. Use the Point ▲▼ buttons to select one from

Image 1 to 10 and press the SELECT button. A confirmation box appears and then select yes. Stored data can be called up by selecting an Image (1-10) in the Image Mode Selection on page 40.

Screen Size Adjustment

Select the desired screen size that conforms to the input signal source.

Store

A confirmation box appears and then select yes.

SCREEN MENU

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Screen and then press the

Point ► or the SELECT button.

Use the Point ▲▼ buttons select the desired item and then

press the SELECT button.

Normal

Provide the image within a screen size keeping its original aspect ratio.

Full

Provide the image to fit full screen size.

Wide (16:9)

Provide the image at the 16:9 wide screen ratio.

Zoom

Scale the image proportionally to fit the entire screen. Either side of image may go over the screen.

True

Provide the image in its original size. When the original image size is larger than the screen size (1280 x 800), the projector enters to

the panning mode automatically. Use the Point ▲▼◄► buttons

to pan the image. When adjusted, the arrows will turn red. When reached to the correction limits, the arrows will disappear.

Custom

Provide the last stored aspect screen image.

Note:

• The projector cannot display any resolution higher than 1920 x 1200. If your computer’s screen resolution is higher than 1920 x 1200, lower the resolution before connecting the projector.

• The image data other than 1280x 800 is modified to fit the screen size in initial mode.

• Full, Wide(16:9), Zoom, True and Digital zoom +/– cannot be selected when no signal is detected in the PC System Menu. (p.36)

Computer Input

Custom adj.

Adjust the screen scale and position manually with this function. Press the Point ►button or the SELECT button at Custom adj. and Custom adj. is displayed on the screen, you can use the Point

▲▼ buttons to choose the item you want to adjust.

Scale H/V ............. Adjust the Horizontal/Vertical screen scale.

H&V ...................... When set to On, the aspect ratio is fixed.

Scale V appears dimmed and becomes unavailable. Adjust Scale H, then the screen scale is automatically modified based on the

aspect ratio.

Position H/V ........ Adjust the Horizontal/Vertical screen position.

Common .............. Save the adjusted scale to all the inputs.

Press the SELECT button at Common to

display a confirmation box. To save the scale,

press the SELECT button at yes. When

Custom is selected, the saved scale is used.

Reset ................... Reset the all adjusted values. Press the

SELECT button at Reset to display a

confirmation box. To reset, press the SELECT

button at yes.

Digital zoom +

Custom adj.

Note:

• When no signal is detected, Normal is set automatically and the Aspect dialog box disappears.

• The adjustable range for Scale H/V and Position H/V is limited depending on the input signal.

Select Digital zoom +. The On-Screen Menu disappears and D. zoom + appears. Press the SELECT button to expand the image size. Use

the Point ▲▼◄► buttons to pan the image. The Panning function can

work only when the image is larger than the screen size. You can also enter the Digital zoom + mode by pressing the D.ZOOM button on the remote control.

Digital zoom -

Select Digital zoom – . The On-Screen Menu disappears and D. zoom – appears. Press the SELECT button to compress image size.

The projected image can be also compressed by pressing the D.ZOOM button on the remote control.

You can also enter the Digital zoom - mode by pressing the D.ZOOM button on the remote control.

To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu (see pages 33-35) again or adjust the screen size with the D.ZOOM button.

Note:

• The panning function may not operate properly if the stored Mode in the PC adjust Menu is used (p.39).

• The minimum compression ratio is limited depending on the input signal, when the Keystone function is working or when the custom is selected for the screen size.

• True and Digital zoom +/– cannot be selected when 480i, 575i, 480p or 575p is selected in the PC System Menu (p.36).

• Digital zoom +/- cannot be selected when True is selected.

• Digital zoom – cannot be operated when Custom is selected.

Computer Input

Keystone

This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust.

Standard

Adjust the Horizontal/Vertical keystone distortion of the projected image.

Corner correction

Adjust the corner distortion of the projected image.

Corner pattern

Choose a Corner pattern mode among Red, White, Blue, and Off.

Store

Store .......Keep the keystone correction even when the AC

power cord is unplugged.

Reset .......Release the keystone correction when the AC

power cord is unplugged.

Keystone

Press the KEYSTONE button on the remote control to switch the Standard (for Vertical/Horizontal) /Corner correction adjustment. The Standard or Corner correction adjustment dialog box appears. Use the Point ▲▼◄► buttons to correct the Standard or Corner distortion. (p.31)

Ceiling

When this function is set to On, the picture will be top/bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector.

Rear

When this function is set to On, the picture will be left/right reversed. This function is used to project the image from rear of the screen.

Screen aspect

This function is used to project the image to a 4:3 or 16:9 projection screen.

Default (16:10) ....16:10 is the aspect of the LCD panel. The

orignal Screen Menu is available.

16:9 ..... Set to a 16:9 projection screen.

4:3 ..... Set to a 4:3 projection screen.

Reset

This function returns all adjusted values to the factory default settings. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at yes.

Ceiling

Rear

Note:

- Natural wide cannot be selected when 720p, 1035i, 1080i or 1080p is selected on AV System Menu (p.45).

- When the 16:9 function is selected, Wide(16:9) is not available in the PC and AV screen (pp.42-44, 49).

- When the 4:3 function is selected, Natural wide is not available in the AV screen (p.49).

Video Input

Video System Selection

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Input and then press the Point

► or the SELECT button.

Use the Point ▲▼ buttons to select System and then press the

Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired system and

then press the SELECT button.

Video jack or S-video jack

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select the system manually.

AV System Menu (Video or S-video)

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among PAL, SECAM, NTSC,

NTSC 4.43, PAL-M, and PAL-N.

y, Pb/Cb, Pr/Cr jacks

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. When the Video System is 1035i, 1080i or 1080p, select the system manually.

y, Pb/Cb, Pr/Cr SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i,

480p, 575p, 720p, 1035i, 1080i, and 1080p.

AV System Menu (y, Pb/Cb, Pr/Cr)

Note:

The AV System Menu cannot be selected when selecting RGB (Scart).

Video Input

Menu Operation

Press the MENU button to display the On-Screen Menu. Use

the Point ▲▼ buttons to select Image select and then press

the Point ► or the SELECT button.

Use the Point ▲▼ buttons to select the desired item and

then press the SELECT button.

Dynamic

For viewing pictures in a bright room.

Standard

Normal picture level preset on the projector.
