Multimedia Projector
MODEL PLC-WXE45
Network Supported
□Wired LAN 100-Base-TX/10-Base-T
*Refer to the owner’s manual below for details about network function.
■ Network Set-up and Operation
Owner’s Manual
This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.
Large Screen in Limited Space
Short focus lens allows you to project large images from short distance. (p.13)
Antitheft Alarm Function
This projector is equipped with an Antitheft alarm function which sounds when a vibration is detected.
(pp.48, 51-53)
Security Features
The projector cannot be operated without remote control. Keep the remote control securely at hand to minimize the risk of theft.
Easily identifiable orange cabinet for security.
The PIN code lock guards the projector from an unauthorized user. (pp.18, 47-48)

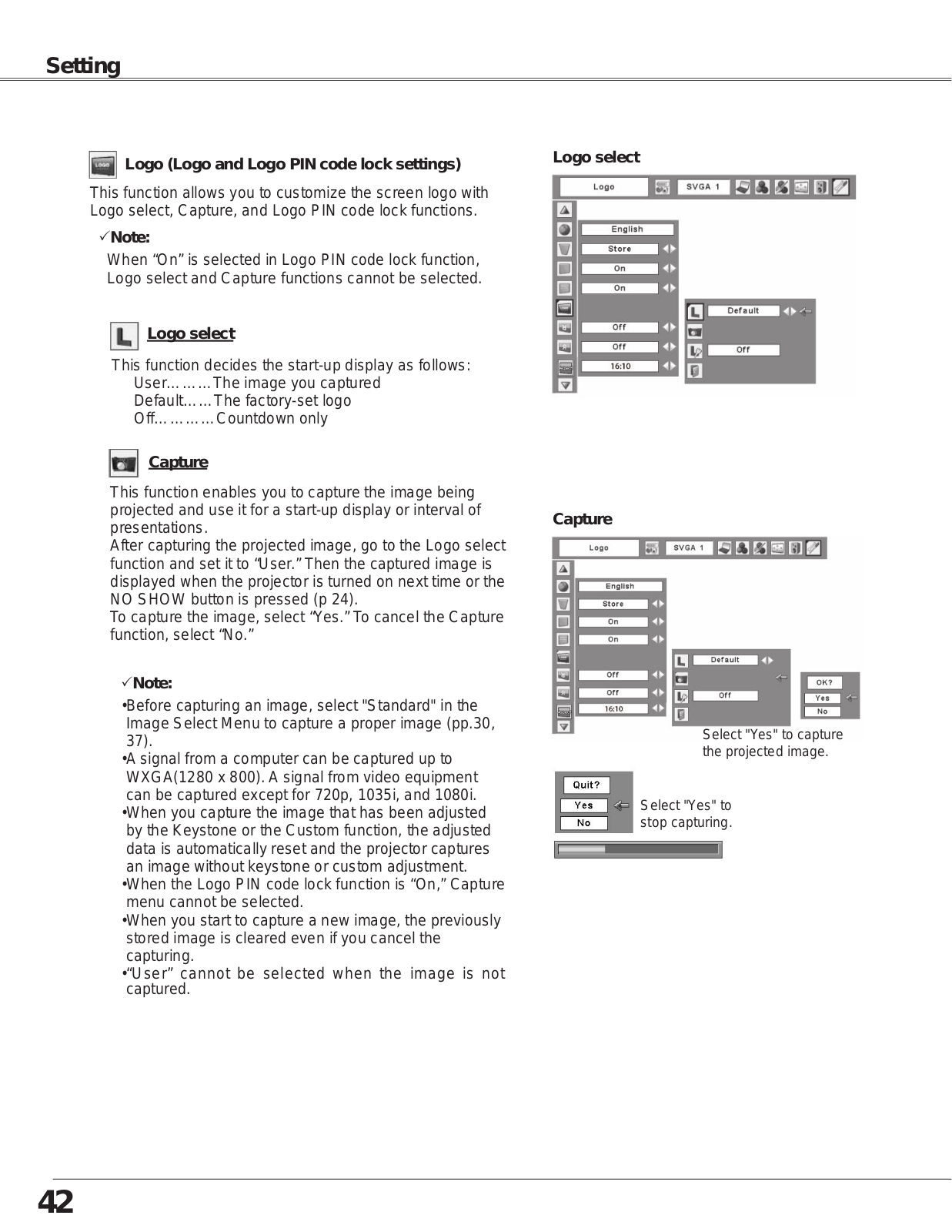

Logo Function
The Logo function allows you to customize the screen logo. The Logo page identifies the owner of the projector. (pp.42, 43)
Closed Caption
This is a printed version of the program sound or other information displayed on the screen. You can turn on the feature and switch the channels. (p.50)
Simple Computer System Setting
The projector has a Multi-scan system to conform to almost all computer output signals quickly. (p.26)
Compatibility
The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, or PAL-N), Component video, S-video and RGB scart.
LAN Network Function
This projector is loaded with the Wired function. You can manage the projector via network. For details, refer to the owner’s manual “Network Set-up and Operation.”
Note:
•The On-Screen Menu and figures in this manual may differ slightly from the product.
•The contents of this manual are subject to change without notice.
Quick Termination
The AC power cord can be unplugged immediately after turning off the projector without waiting for the projector to cool down. (p.19)
Digital Zoom (for Computer)
The digital zoom function allows you to focus on crucial information during a presentation. You can expand the images approx. 16 times the screen size and compress them to approximately a quarter of the screen size. (p.33)
Blackboard Function
A blackboard can be used as a projection screen. (pp.30, 37)
*The board color is limited to Green.
Colorboard Function
At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.
Multilanguage Menu Display
The Operation menu is available in 16 languages: English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, and Japanese. (p.41)
Switchable Interface Terminal
The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p.44)
Power Management
The Power management function reduces power consumption and maintains lamp life. (p.45)
Input Search Function
Input signal can be searched automatically. (p.44)
You can turn on or operate the projector ONLY via the remote control.
Make sure not to lose the remote control.
Features and Design . . . . . . . |
. 2 |
Auto PC Adjustment |
|
27 |
|
Table of Contents . . . . . . . . |
. 3 |
Manual PC Adjustment |
|
28 |
|
To the Owner . . . . . . . . . . |
. 4 |
Image Level Selection |
|
30 |
|
Image Level Adjustment |
|
31 |
|||
Safety Instructions . . . . . . . . |
5 |
|
|||
Screen Size Adjustment |
|
32 |
|||
Air Circulation |
6 |
|
|||
Video Input . . . . . . . . . . . |
34 |
||||
Installing the Projector in Proper Position |
6 |
||||

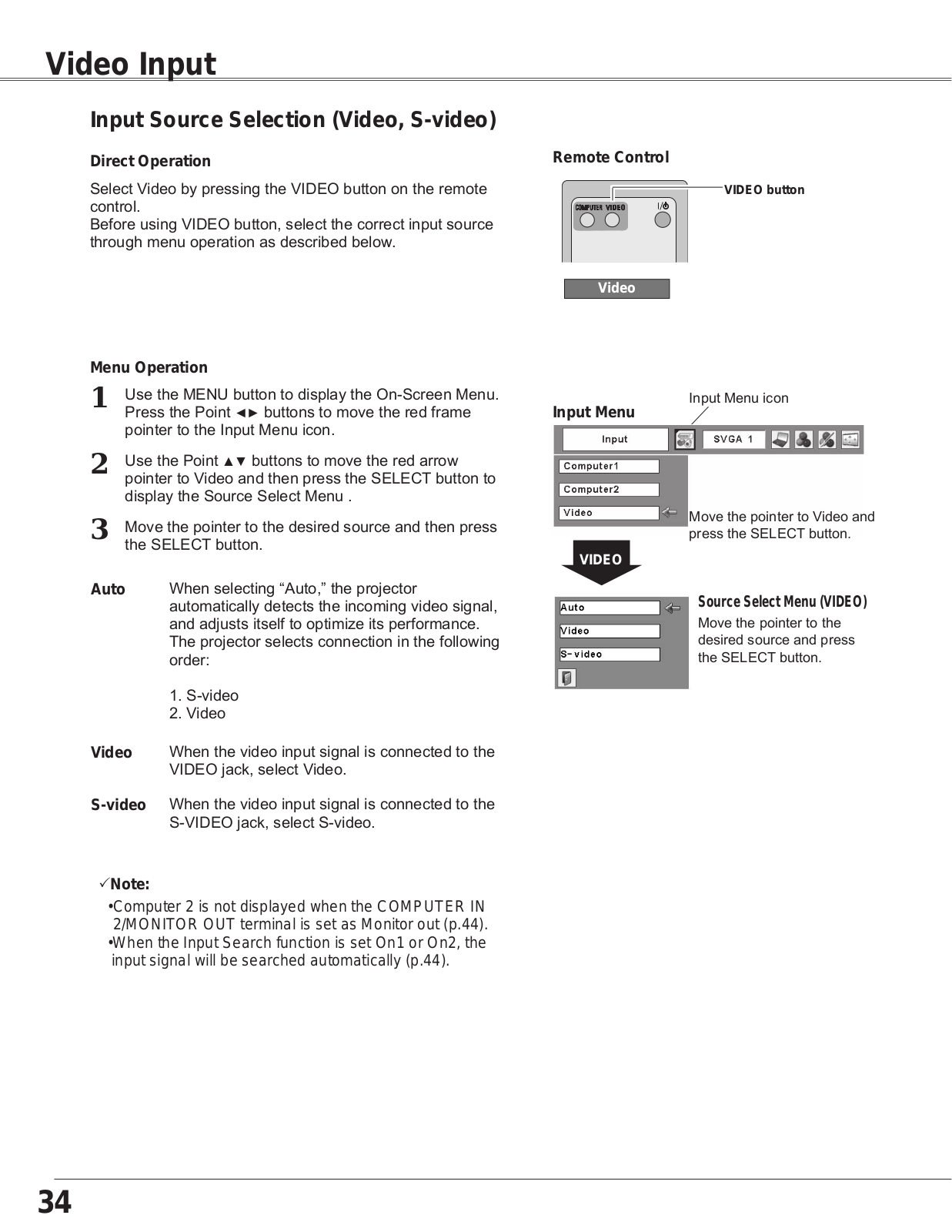

Input Source Selection (Video, S-video) |
34 |
||||
Moving the Projector |
6 |
||||
Input Source Selection (Component, RGB |
|
||||
Compliance . . . . . . . . . . . |
7 |
|
|||
Scart 21-pin) |
|
35 |
|||
Part Names and Functions . . . . . |
8 |
|
|||
Video System Selection |
|
36 |
|||
Front |
8 |
Image Level Selection |
|
37 |
|
Back |
8 |
|
|||
Image Level Adjustment |
|
38 |
|||
Bottom |
8 |
|
|||
Screen Size Adjustment |
|
40 |
|||
Rear Terminal |
9 |
|
|||
Setting . . . . . . . . . . . . |
. 41 |
||||
Top Panel |
10 |
||||
Setting |
|
41 |
|||
Antitheft Alarm Setting Buttons |
10 |
|
|||
Antitheft Alarm Function . . . . . |
51 |
||||
Remote Control |
11 |
||||
How to Use the Antitheft Alarm Function |
51 |
||||
Remote Control Battery Installation |
12 |
||||
Maintenance and Cleaning . . . . |
. 54 |
||||
Operating Range |
12 |
||||
Installation . . . . . . . . . . . |
13 |
Warning Indicator |
|
54 |
|
Cleaning the Air Filters |
|
55 |
|||
Positioning the Projector |
13 |
|
|||
Resetting the Filter Counter |
|
55 |
|||
Adjustable Feet |
13 |
|
|||
Attaching the Lens Cover |
|
56 |
|||
Connecting to a Computer |
14 |
|
|||
Cleaning the Projection Lens |
|
56 |
|||
Connecting to Video Equipment |
15 |
|
|||
Cleaning the Projector Cabinet |
|
56 |
|||
Connecting to Component Video Equipment |
16 |
|
|||
Lamp Replacement |
|
57 |
|||
Connecting the AC Power Cord |
17 |
|
|||
Lamp Replacement Counter |
|
58 |
|||
Basic Operation . . . . . . . . . |
18 |
|
|||
Appendix . . . . . . . . |
. . . . 59 |
||||
Turning On the Projector |
18 |
||||
Troubleshooting |
|
59 |
|||
Turning Off the Projector |
19 |
|
|||
Menu Tree |
|
62 |
|||
How to Operate the On-Screen Menu |
20 |
|
|||
Indicators and Projector Condition |
|
64 |
|||
Menu Bar |
21 |
|
|||

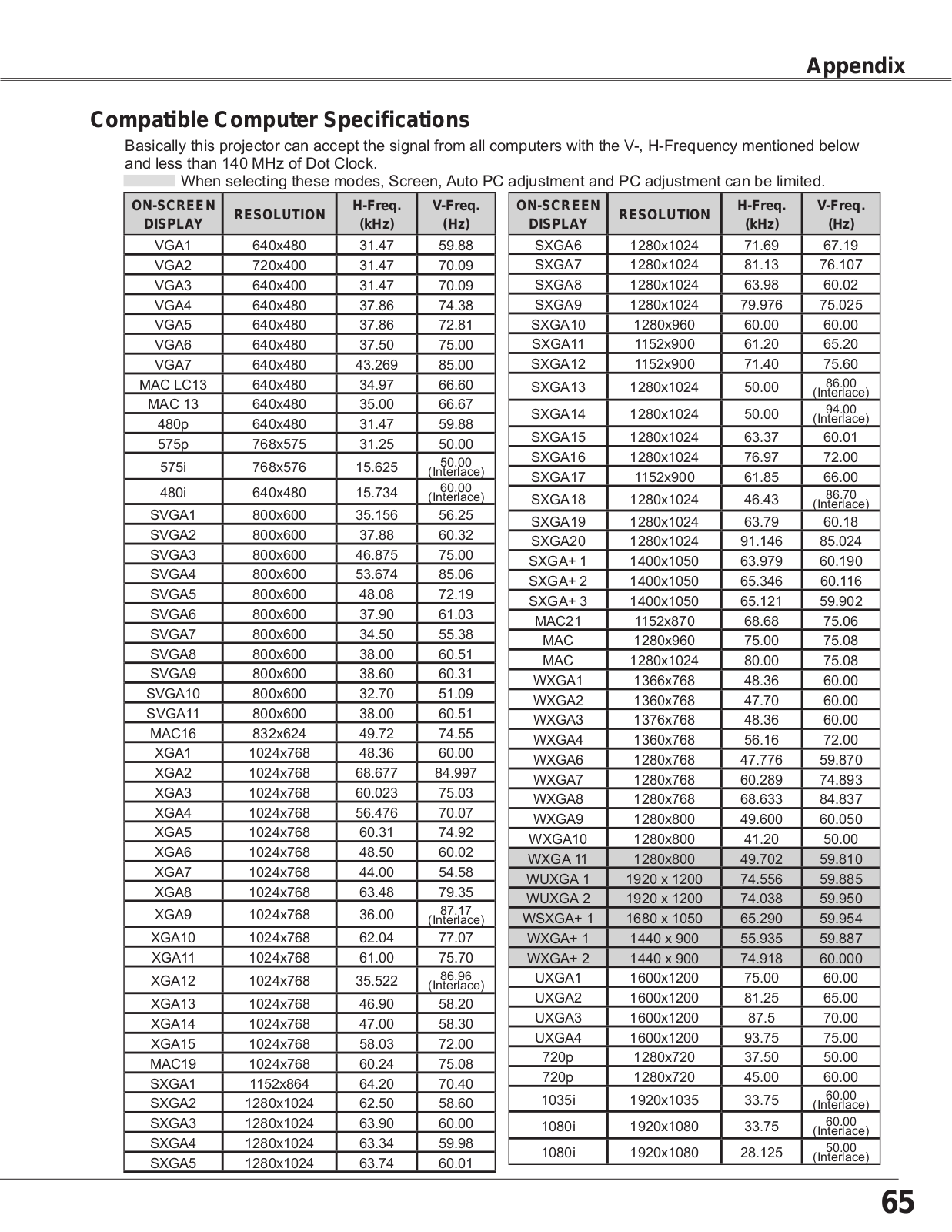

Compatible Computer Specifications |
65 |
||||
Focus Adjustment |
22 |
||||
Technical Specifications |
|
66 |
|||
Keystone Correction |
22 |
|
|||
Optional Parts |
67 |
||||
Sound Adjustment |
23 |
||||
Dimensions |
|
67 |
|||
Remote Control Operation |
23 |
|
|||
PJ Link Notice |
68 |
||||
Computer Input . . . . . . . . . |
25 |
||||
Configurations of Terminals |
|
69 |
|||
Input Source Selection |
25 |
|
|||
PIN Code Number Memo |
|
70 |
|||
Computer System Selection |
26 |
|
|||
|
|
|
Trademarks
Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.
Before installing and operating the projector, read this manual thoroughly.
The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintain it in good condition for many years to come.
Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.
If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section on pages 59~61 of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.
The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.
Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
The symbol mark means that electrical and electronic
equipment, batteries and accumulators, at their end-oflife, should be disposed of separately from your household waste.
Note:
If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead
In the European Union there are separate collection systems for used electrical and electronic equipment,
batteries and accumulators.
Please, dispose of them correctly at your local community waste collection/recycling centre. Please, help us to conserve the environment we live in!
Safety Precaution
WARNING: ● THIS APPARATUS MUST BE EARTHED.
●TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
– This projector produces intense light from the projection lens. Avoid staring directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.
– Install the projector in a proper position. Otherwise it may result in fire hazard.
– Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The dimensions shown here indicate the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.
– Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.
|
|
|
SIDE and TOP |
|
REAR |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
– If the projector is unused for an extended time, unplug the projector from the power outlet.
–Do not project the same image for a long time. The afterimage may remain on the LCD panels by the characteristic of panel.
CAUTION
DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.
CAUTION
Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.
READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE.
All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Follow all warnings and instructions marked on the projector.
For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.
Do not expose this unit to rain or use near water... for example,
in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.
Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.
The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.
This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.
Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.
Do not install the projector near the ventilation duct of airconditioning equipment.
This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.
Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:
a.When the power cord or plug is damaged or frayed.
b.If liquid has been spilled into the projector.
c.If the projector has been exposed to rain or water.
d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.
e.If the projector has been dropped or the cabinet has been damaged.
f.When the projector exhibits a distinct change in performance this indicates a need for service.
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.
NOTE FOR CUSTOMERS IN THE US
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.
Safety Instructions
Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.
CAUTION
Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.
– Do not put any flammable objects or spray can near the projector. Hot air is exhausted from the air vents.
– Keep the exhaust vent at least 3’ (1 m) away from any objects.
– Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used.
– Do not put anything on the projector. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.
Cooling fans are provided to cool down the projector. The fan’s running speed is changed according to the temperature inside the projector.
Exhaust Vent (Hot air exhaust)
Exhaust Vent |
Air Intake |
(Hot air exhaust) |
Vent |
Air Intake
Vent
Installing the Projector in Proper
Position
Install the projector properly. Improper Installation may reduce the lamp life and cause fire hazard.
Do not roll the projector more than 20 degrees from side to side.
Do not point the projector up to project an image.
Do not point the projector down to project an image.
Do not put the projector on either side to project an image.
Do not pitch the projector more than 20 degrees backward and forward.
CAUTION
Choose the running speed of cooling fans in the fan control setting according to the altitude in which the projector is being used (p.49). Failure to do so may affect the projector life.
When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a suitable case.
Handle the projector carefully; do not drop, bump, subject it to strong forces, or put other things on the cabinet.
CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR
– Do not drop or bump the projector, otherwise damages or malfunctions may result.
– When carrying the projector, use a suitable carrying case.
– Do not transport the projector by courier or any other transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.
– Do not put the projector in a case before it is cooled enough.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number |
: PLC-WXE45 |
Trade Name |
: Sanyo |
Responsible party |
: SANYO FISHER COMPANY |
Address |
: 21605 Plummer Street, Chatsworth, California 91311 |
Telephone No. |
: (818)998-7322 |
AC Power Cord Requirement
The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.
AC Power Cord for the United States and Canada:
AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).
AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.
AC Power Cord for the United Kingdom:
This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.
If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.
WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
The Wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow ············ Earth Blue ································· Neutral Brown ······························ Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the
safety earth symbol |
|
|
or coloured green or green-and-yellow. |
|
|
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
WARNING: THIS APPARATUS MUST BE EARTHED.
THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.
Back |
|
|
|
|
|
|
|
Antitheft alarm setting buttonsFocus Lever
Projection Lens
Lens Cover
(See p. 56 for attaching)
CAUTION
Do not turn on the projector with putting the lens cover on. The light beam may damage lens cover and result in fire hazard.
Attach the lens cover while the projector is not in use to avoid scratching the lens surface.
Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.
Infrared Remote Receiver
Indicators
Speaker
Air Intake Vent
Power Cord Connector
Terminals and Connectors
Lamp Cover
Air Filters
Battery Compartment
(For Antitheft alarm function)
Adjustable Feet
Kensington Security Slot
This slot is for a Kensington lock used to deter theft of the projector.
*Kensington is a registered trademark of ACCO Brands Corporation.
Part Names and Functions
|
|
|
|
|
|
|
|
|
|
|
|
(VARIABLE) |
|
COMPUTER IN 2 / |
R |
AUDIO OUT |
|
|
|
||
MONITOR OUT |
|
|
|
VIDEO IN |
L |
COMPUTER / |
|
S-VIDEO IN |
(MONO) |
COMPONENT |
|
AUDIO IN |
|||
|
|
|
COMPUTER IN 1/COMPONENT IN
Connect output signal from a computer, RGB scart 21-pin video output, or component video output to this terminal (pp.14, 16).
When the cable is of the longer variety, it is advisable to use this terminal and not COMPUTER IN 2/MONITOR OUT.
SERVICE PORT
When controlling the projector from a computer, connect the computer to this connector with a control cable.
LAN Connection Terminal
Connect the LAN cable (Refer to the owner's manual of "Network Set-up and Operation".).
COMPUTER IN 2/MONITOR OUT
This terminal is switchable and can be used for input from a computer or output to the other monitor.
Set the terminal up as either Computer input or Monitor output properly. [Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1/COMPONENT IN terminal (pp. 14, 44)].
S-VIDEO IN
Connect the S-VIDEO output from video equipment to this jack (p.15).
AUDIO IN
Connect the audio output from video equipment
connected to or to this jack. [When the audio output is monaural, connect it to L (MONO) jack (p.15).
AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack (pp.14 - 16).
This terminal outputs sound from AUDIO IN terminal ( or ).
COMPUTER/COMPONENT AUDIO IN
Connect the audio output (stereo) from a computer
or video equipment connected to or to this jack (pp.14, 16).
VIDEO IN
Connect the composite video output from video equipment to VIDEO jack (p.15).
Part Names and Functions
|
|
|
|
|
|
POWER indicator |
|
|
|
|
|
|
It turns red when the projector is in the stand-by |
|
|
|
|
|
|
mode. |
|
|
|
|
|
|
It remains green while the projector is under |
|
|
|
|
|
|
operation. |
|
|
|
|
|
(pp. 18, 64) |
|
|
|
|
|
|
|
WARNING indicator |
|
|
|
|
|
|
Emit a red light when the projector detects |
|
|
|
|
|
|
abnormal condition. This also blinks red |
|
|
|
|
|
|
when the internal temperature of the projector |
|
|
|
|
|
|
exceeds the operating range. (pp. 54, 64) |
|
|
|
|
|
|
LAMP REPLACE indicator |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Turn yellow when the life of the projection lamp |
|
|
|
|
|
|
draws to an end. (pp. 57, 64) |
These buttons are used for Antitheft alarm function. (pp. 51-53)
F button
Used for Antitheft alarm setting.
Buttons 1-3
Used for Antitheft alarm setting.
ALARM indicator
Blinks red to indicate the battery condition or
key operation.
10
Part Names and Functions
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
You can turn on or operate the projector ONLY via the remote control.
Make sure not to lose the remote control.
POWER ON/STAND-BY button
Turn the projector on or off (pp.18, 19).
VIDEO button
Select VIDEO input port (pp.23, 34).
COMPUTER button
Select COMPUTER input port (pp.23, 25, 35).
MENU button
Open or close the On-Screen Menu (p.20).
Point ▲▼◄► (VOLUME + / –) buttons
– Select an item or adjust the value in the On-Screen Menu. (p.20)
– Pan the image in Digital zoom + mode (p.33).
– Adjust the volume level (Point ◄► buttons) (p.23).
SELECT button
– Execute the selected item (p.20).
– Expand or compress the image in Digital zoom mode. (p.33)
D.ZOOM ▲▼ buttons
Zoom in and out the images (pp.24, 33).
FREEZE button
Freeze the picture (p.23).
NO SHOW button
Temporarily turn off the image on the screen (p.24).
LAMP CONTROL button
Select the lamp mode (pp.24, 46).
MUTE button
Mute the sound (p.23).
P-TIMER button
Operate the P-timer function (p.24).
IMAGE button
Select the image level (pp.24, 30, 37).
AUTO PC button
Automatically adjust the computer image to its optimum setting (pp.24, 27).
KEYSTONE button
Correct the keystone distortion (pp.22, 41).
To ensure safe operation, observe the following precautions: – Do not bend, drop, or expose the remote control to moisture
or heat.
– For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any other chemicals.
11
Part Names and Functions
1 |
Open the battery |
2 |
Install new batteries into |
3 |
Replace the |
|
compartment lid. |
|
the compartment. |
|
compartment lid. |
Two AA size batteries
For correct polarity (+ and
–), be sure battery terminals
are in contact with pins in the compartment.
To ensure safe operation, please observe the following precautions: ● Use two (2) AA or LR6 type alkaline batteries.
●Always replace batteries in sets.
●Do not use a new battery with a used battery.
●Avoid contact with water or liquid matter.
●Do not expose the remote control to moisture or heat.
●Do not drop the remote control.
●If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.
●Risk of explosion if a battery is replaced by an incorrect type.
●Dispose of used batteries according to the instructions.
Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front of the projector.
30º
30º 16.4’ (5 m)
12
For the projector positioning, see the figures below.
The projector should be set perpendicularly to the plane of the screen.
Note:
•This projector is not equipped with an optical zoom. To adjust the screen size, change the throw distance. •The brightness in the room has a great influence on picture quality. It is recommended to limit the ambient lighting in order to get the best image.
•All measurements are approximate and may vary from the actual sizes.
3.927’ (119.7 cm)
(Inch Diagonal)
2.826’ (86.1 cm) |
|
|
|
110” |
||
|
|
|
|
|
|
|
1.726’ (52.6 cm) |
|
|
|
|
||
80” |
||||||
|
|
50”
A
|
|
|
|
|
|
|
|
|
|
|
|
Screen Size |
50” |
80” |
110” |
|
|
(W x H) mm |
|
|
|
|
|
1077 x 673 |
1723 x 1077 |
2369 x 1481 |
|
|
|
16:10aspect ratio |
|
|
|||
|
|
|
|
|
|
Throw distance |
1.726’ (52.6 cm) |
2.826’ (86.1 cm) |
3.927’(119.7 cm) |
|
|
|
|
|
|
|
|
A |
0.623’ (19.0 cm) |
0.846’ (25.8 cm) |
1.069’ (32.6 cm) |
|
|
|
|
|
|
|
|
Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.
1 |
Lift the front of the projector and pull the feet lock latches |
2 |
on both sides of the projector upward. |
Release the feet lock latches to lock the adjustable feet |
|
|
and rotate the adjustable feet to adjust the position and |
|
tilt. |
3 |
To retract the adjustable feet, lift the front of the projector |
and pull and undo the feet lock latches. Keystone distortion of the projected image can be
corrected by remote control operation or menu operation (pp.22, 41).
Feet Lock Latches
Adjustable Feet
13
Installation
Cables used for connection
•VGA Cables (Mini D-sub 15 pin)*
•Audio Cables (Mini Plug: stereo)
(*One cable is supplied; other cables are not supplied with the projector.)
Audio Output |
Monitor Output |
Monitor Output |
|
|
|
|
|
|
|
|
|
|||||||||||
|
or |
External Audio Equipment |
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
Monitor Input |
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VGA cable |
VGA cable |
Audio Input |
|
Audio cable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
(stereo) |
|
|
|
|
|
|
|
|
|
|
|
|
Audio cable |
||
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
COMPUTER IN 1/ |
COMPUTER IN 2/ |
||||||||||||||
(stereo) |
|||||||||||||||
COMPONENT IN |
MONITOR OUT |
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
This terminal is switchable. Set up the |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
terminal as either Computer input or |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Monitor output (see page 44). |
|
|
|
|
(VARIABLE) |
|
MONITOR OUT |
RR |
AUDIO OUT |
AUDIO OUT |
COMPUTERIN2/ |
|
|
|
SERVICE PORT |
|
|
(stereo) |
|
L |
COMPUTER/ |
|
VIDEOVIDEOININ |
|
||
(MONO)L |
COMPONENT |
|
|
SS--VIDEOVIDEOININ |
(MONO) |
|
|
|
AUDIOAUDIO |
|
|
COMPUTER/ |
|
|
|
COMPONENT |
|
|
|
AUDIO IN |
|
|
|
Note:
•Input sound to the COMPUTER/COMPONENT AUDIO IN terminal when using the COMPUTER IN 1/COMPONENT IN and the COMPUTER IN 2/MONITOR OUT terminal as input.
•When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.
•When the cable is of the longer variety, it is advisable to use the COMPUTER IN 1/COMPONENT IN and not the COMPUTER IN 2 /MONITOR OUT.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.
14
Installation
Cables used for connection
•Video and Audio Cable (RCA x 3)
•S-VIDEO Cable
•Audio Cable (Mini Plug: stereo)
(Cables are not supplied with the projector.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S-Video Output |
|
Composite Video and Audio Output |
|||||||||||||||
|
|
|
|
|
|
|
|
|
(R) (L) |
(Video) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
External Audio Equipment
S-Video cable |
Video and audio cable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Audio Input
S-VIDEO |
(R) (L) |
(Video) |
|
AUDIO IN |
VIDEO |
Audio cable (stereo)
|
|
(VARIABLE) |
|
COMPUTER IN 2 / |
R |
AUDIO OUT |
|
|
|
||
MONITOR OUT |
|
|
|
VIDEO IN |
L |
COMPUTER / |
|
S-VIDEO IN |
(MONO) |
COMPONENT |
|
AUDIO IN |
|||
|
AUDIO OUT (stereo)
Note:
• When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.
• The S-VIDEO jack connection overrides the VIDEO jack connection when “Auto” is selected in the Input Menu (p.34).
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.
15
Installation
Cables used for connection
•Audio Cables (Mini Plug: stereo)
•Scart-VGA Cable
•Component Cable
•Component-VGA Cable
(Cables are not supplied with the projector.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Audio Output |
|
RGB Scart 21- |
Component Video Output |
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
pin Output |
(Y, Pb/Cb, Pr/Cr) |
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Component |
External Audio Equipment |
|
cable |
||
|
Audio cable |
Scart-VGA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
(stereo) |
cable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Component-VGA |
Audio Input |
cable |
|
COMPUTER IN 1/COMPONENT IN
|
|
|
Audio cable |
|
|
|
|
(stereo) |
|
|
|
|
(VARIABLE) |
|
COMPUTER IN 2 / |
|
R |
AUDIO OUT |
AUDIO OUT |
|
|
|||
|
|
|
|
|
MONITOR OUT |
|
|
|
(stereo) |
|
|
|
|
|
|
VIDEO IN L |
COMPUTER / |
|
|
|
S-VIDEO IN |
(MONO) |
COMPONENT |
|
|
AUDIO |
|
||
|
|
|
COMPUTER/
COMPONENT
AUDIO IN
Note:
When the AUDIO OUT is plugged-in, the projector’s built-in speaker is not available.
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting the cables.
16
This projector uses nominal input voltages of 100–120 V or 200–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.
If you are not sure of the type of power being supplied, consult your authorized dealer or service station. Connect the projector with all peripheral equipment before turning it on.
CAUTION
The AC outlet must be near this equipment and must be easily accessible.
Note:
Unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with the AC power cord, it is in stand-by mode and consumes a little electric power.
Installation
Connect the AC power cord (supplied) to the projector.
NOTE ON THE POWER CORD
AC power cord must meet the requirements of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If the supplied AC power cord does not match your AC outlet, contact your sales dealer.
Projector side |
AC outlet side |
|
||
|
For the U.S.A. and Canada |
For Continental Europe |
For the U.K. |
|
|
Ground |
|
|
|
To power cord |
To the AC outlet. |
|
To the AC outlet. |
|
connector on your |
To the AC outlet. |
|||
(120 V AC) |
(200–240 V AC) |
|||
projector. |
(200–240 V AC) |
|||
|
|
17
1 |
Complete peripheral connections (with a computer, |
|
VCR, etc.) before turning on the projector. |
2 |
Connect the projector’s AC power cord into an AC |
|
outlet. The POWER indicator turns red. Open the lens |
|
cover. |
3 |
Press the POWER ON/STAND-BY button on the |
|
remote control. The POWER indicator becomes green |
|
and the cooling fans start to operate. The preparation |
|
display appears on the screen and the count down |
|
starts. |
4 |
After the countdown, the input source that was |
selected the last time and the Lamp mode status icon (see page 46) will appear on the screen.
If the projector is locked with a PIN code, a PIN code Input Dialog Box appears. Enter the PIN code as instructed below.
Enter a PIN code
Select a number by pressing the Point ▲▼ buttons, and then press the Point ► button to fix the number and move the pointer. The number changes to "". If you fixed an incorrect number, move the pointer to the number you want to correct by pressing the Point ◄ button, and then select the correct number by pressing the Point ▲▼buttons.
Repeat this step to complete entering a four-digit number. "1234" is set as the initial PIN code at the factory.
After entering the four-digit number, move the pointer to "Set" by pressing the Point ► button. Press the SELECT button so that you can start to operate the projector.
If you entered an incorrect PIN code, "PIN code" and the number () turns red. Enter the correct PIN code all over again.
What is PIN code?
PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting the PIN code prevents unauthorized use of the projector.
A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 47–48 for locking operation of the projector with your PIN code.
CAUTION ON HANDLING THE PIN CODE
If you forget your PIN code, the projector can no longer be started. Take a special care in setting a new PIN code; write down the number in a column on page 70 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.
16
The preparation display disappears after 30 seconds.
Selected Input Source and Lamp Mode
Video
Lamp mode status
See page 46 for the Lamp mode.
Note:
The Filter warning and Lamp replacement icons may appear on the screen depending on the usage state of the projector.
PIN Code Input Dialog Box
PIN code
PIN code
OK
Note:
After the OK icon disappears, you can operate the projector.
•When the Input Search function is set on On1 or On2, the input signal will be searched automatically (p.44).
•When the Logo select function is "Off,” the logo will not be displayed on the screen (p.42).
•When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen (p.41).
•During the countdown period, all operations are invalid.
•If the PIN code number is not entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.
•The “1234” is set as the initial PIN code at the factory.
18
Basic Operation
1 |
Press the POWER ON/STAND-BY button on the |
|
remote control, and “Power off?” appears on the |
|
screen. |
2 |
Press the POWER ON/STAND-BY button again to turn |
|
off the projector. The POWER indicator starts to blink |
|
red, and the cooling fans keep running. (You can select |
|
the level of the fans’ quietness and running speed. See |
|
page 49.) At this time you can unplug the AC power |
|
cord even if the fans are still running. |
3 |
When the projector has cooled down enough to be |
|
turned on again, the POWER indicator stops blinking. |
TO MAINTAIN THE LAMP LIFE, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.
DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. TURN OFF THE PROJECTOR AND LET STAND FOR ABOUT AN HOUR IN EVERY 24 HOURS.
Note:
•When the On start function is “On,” this projector is turned on automatically by connecting the AC power cord to an AC outlet (p. 46).
•The running speed of cooling fans is changed according to the temperature inside the projector.
•Do not put the projector in a case before the projector is cooled enough.
•If the WARNING indicator blinks or emits a red light, see “Warning Indicator” on page 54.
•While the POWER indicator is blinking, the lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator stops blinking to turn on the projector again.
•The fan rotation will terminate directly if the AC power cord is unplugged immediately after the projector is turned off.
•The projector can be turned on after the POWER indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.
Power off?
“Power off” disappears after 4 seconds.
19
Basic Operation
The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual.
1 |
Press the MENU button on the remote control to |
|
display the On-Screen Menu. |
2 |
Use the Point ◄► buttons to select a Menu icon; use |
|
the Point ▲▼ buttons to select an item. |
3 |
Press the SELECT button to show the item data. To |
adjust the data, use the Point ◄► buttons. Refer to the relevant pages for more details about each adjustment.
To close the On-Screen Menu, press the MENU button again.
Note:
The selected item is not active until the SELECT button is pressed.
Press the SELECT button here to display previous items.
Press the SELECT button here to display next items.
Remote Control |
MENU button |
|
|
|
POINT buttons |
SELECT button
On-Screen Menu
Menu bar
Pointer (red frame)
Press the Point ▲▼ buttons to move the pointer.
Item
SELECT button
Menu icon
Pointer (red frame)
Item data
Press the Point ◄► buttons to adjust the value.
Quit
Exit this menu.
20
Basic Operation
For detailed functions, see Menu Tree on pages 62-63.
For computer source
|
|
|
|
Guide Window
Shows the selected Menu of the On-Screen Menu.
Input Menu
Used to select the input source, Computer or Video (p.25).
PC System Menu
Used to select the computer system (p.26).
PC Adjust Menu
Used to adjust parameters to match with input signal format (pp.27–29).
Image Select Menu
Used to select an image level from Dynamic, Standard, Real, Blackboard (Green), Colorboard and Image 1–4 (p.30).
Image Adjust Menu
Used to adjust the computer image from Contrast, Brightness, Color temp., White balance (R/G/B), Sharpness, and Gamma (pp.31–32).
For video source
|
|
|
|
Guide Window
Shows the selected Menu of the On-Screen Menu.
Input Menu
Used to select input source, Video or Computer (pp.34–35).
AV System Menu
Used to select the system of selected video source (p.36).
Image Select Menu
Used to select an image level from Dynamic, Standard, Cinema, Blackboard (Green), Colorboard and Image 1–4 (p.37).
Image Adjust Menu
Used to adjust the picture image from Contrast, Brightness, Color, Tint, Color temp., White balance (R/G/B), Sharpness, Gamma, Noise reduction, and Progressive (pp.38–39).
Screen Menu
Used to adjust the size of image from Normal, True, Full, Custom, and Digital zoom +/– (pp.32– 33).
Sound Menu
Used to adjust the volume or mute the sound (p.23).
Setting Menu
Used to set the projector’s operating configurations (pp.41–50).
Wired Menu
See owner’s manual “Network Set-up and Operation”.
Note:
Items will be same as the items in video source when 480i, 575i, 480p, 575p, 720p, 1035i or 1080i is selected.
Screen Menu
Used to set the size of image to Normal, Full, Zoom, Wide, Natural wide, or Custom (p.40).
Sound Menu
Used to adjust the volume or mute the sound (p.23).
Setting Menu
Used to set the projector’s operating configurations (pp.41–50).
Wired Menu
See owner’s manual “Network Set-up and Operation”.
21
Basic Operation
Adjust the lens focus with the focus lever.
Focus Lever
If a projected picture has keystone distortion, correct the image with the Keystone function.
Press the KEYSTONE button on the remote control. The keystone dialog box appears. Correct keystone distortion with the Point ▲▼ buttons. Keystone adjustment can be stored (p.41).
Reduce the upper width |
Reduce the lower width |
||||||||
with the Point ▲ button. |
with the Point ▼ button. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•The arrows are white when there is no correction. •The direction of the arrow which are being corrected turns red.
•The arrows disappear at the maximum correction. •If you press the KEYSTONE button on the remote control once more while the keystone dialog box is
being displayed, the keystone adjustment is canceled. •The adjustable range can be limited depending on the input signal.
•The projected picture may fluctuate momently depending on the keystone adjustment. •“Keystone” disappears after 4 seconds.
Remote Control
KEYSTONE button
POINT▲▼ buttons
22
