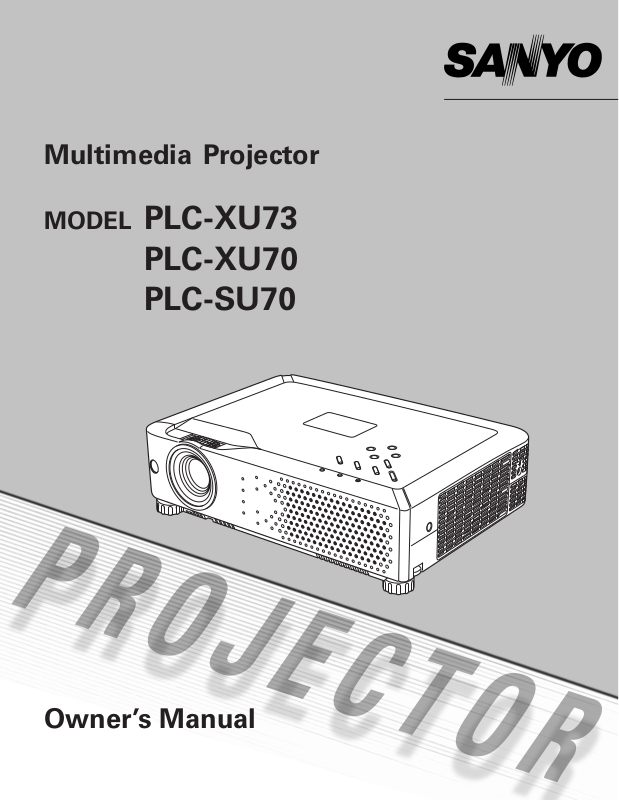

Sanyo PLC-SU70 User Manual

Owner’s Manual

Multimedia Projector

MODEL PLC-XU73

PLC-XU70 PLC-SU70

Features and Design

◆ Compact Design

This projector is designed compact in size and weight. It is easy to carry and work anywhere you wish to use.

◆ Compatibility

The projector widely accepts various video and computer input signals including; Computers, 6 Color systems (PAL, SECAM, NTSC, NTSC4.43, PAL-M, PAL-N), Component video, S-Video and RGB scart.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (p26)

◆ Quick Termination

The AC cord can be plugged out right after turning off the projector. (p19)

◆ Digital Zoom (for Computer)

The digital zoom function expands (to approx. 16 times of screen size) or compresses (to approx. half of the screen size) the image size, allowing you to focus on crucial information during a presentation. (p33)

◆

Noise reduction function

The Noise reduction function helps you to reduce the contained noise on the screen to get smoother images. (p39)

◆ Blackboard Function

Blackboard✳ can be used as a projection screen.

✳ The board color is limited to Green. (p30, 37)

◆ Multilanguage Menu Display

Operation menu is available in 16 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Finnish, Polish, Hungarian, Romanian, Russian, Chinese, Korean, or Japanese. (p41)

◆ Logo Function

The Logo function allows you to customize the screen logo with the Logo functions. (p42, 43) You can capture an image for the screen logo, choose a logo between provided and captured.

◆

Switchable Interface Terminal

The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (p44)

◆

Power Management

The Power management function reduces power consumption and maintains the lamp life. (p44)

◆ Lamp Control

Brightness of the projection lamp can be selected. (p45)

◆ Security Function

The Security function helps you to ensure the security with the Key lock (p46) and the PIN code lock (p18, 46, 47) functions. You can lock the operation on the projector and the remote control. Also you can prevent unauthorized persons from using the projector.

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

✔

Note:

•

The On-Screen Menu and figures in this manual may differ slightly from the product.

•

The contents of this manual are subject to change without notice.

Tr ademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

Features and Design . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . .3

To the Owner . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety Instructions . . . . . . . . . . . . . . . . . . . .5

Air Circulation 6

Installing the Projector in Proper Position 6

Moving the Projector 6

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . .7

Part Names and Functions . . . . . . . . . . . . . .8

Front 8

Back 8

Bottom 8

Rear Terminal 9

Top Control 10

Remote Control 11

Remote Control Battery Installation 12

Operating Range 12

Installation . . . . . . . . . . . . . . . . . . . . . . . . . .13

Positioning the Projector 13

Adjustable Feet 13

Connecting the AC Power Cord 14

Connecting to a Computer 15

Connecting to Video Equipment 16

Connecting to Component Video Equipment 17

Basic Operation . . . . . . . . . . . . . . . . . . . . . .18

Turning On the Projector 18

Turning Off the Projector 19

How to Operate the On-Screen Menu 20

Menu Bar 21

Zoom and Focus Adjustment 22

Keystone Correction 22

Sound Adjustment 23

Remote Control Operation 23

Computer Input . . . . . . . . . . . . . . . . . . . . .25

Input Source Selection 25

Computer System Selection 26

Auto PC Adjustment 27

Manual PC Adjustment 28

Image Level Selection 30

Image Level Adjustment 31

Screen Size Adjustment 32

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . .34

Input Source Selection (Video, S-Video) 34

Input Source Selection

(Component, RGB Scart 21-pin) 35

Video System Selection 36

Image Level Selection 37

Image Level Adjustment 38

Screen Size Adjustment 40

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Setting 41

Maintenance and Cleaning . . . . . . . . . . . . .49

Warning Indicator 49

Cleaning the Air Filters 50

Attaching the Lens Cover 50

Cleaning the Projection Lens 51

Cleaning the Projector Cabinet 51

Lamp Replacement 52

Lamp Replacement Counter 53

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Troubleshooting 54

Menu Tree 56

Indicators and Projector Condition 58

Compatible Computer Specifications 59

Technical Specifications 60

Optional Parts 61

Configurations of Terminals 62

PIN Code Number Memo 63

To the Owner

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for

a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as much as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

–Install the projector in a proper position. If not, it may

result in a fire hazard.

– Provide appropriate space on the top, sides and rear of the

projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat buildup can reduce the service life of your projector, and can also be dangerous.

– If the projector is not to be used for an extended time,

unplug the projector from the power outlet.

SIDE and TOP

REAR

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

NOTE: This symbol mark and recycle system are applied only

to EU countries and not applied to the countries in the other area of the world.

Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-oflife, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean air intake vents, air filters, or top of the projector periodically with a vacuum cleaner. If you leave the projector without cleaning for a long time, the dust will block the operation of the cooling function, and it may cause a breakdown or a disaster.

DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

0.7'(20cm)

1.5'(50cm)

3'(1m)

1.5'(50cm)

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u

ze niet weggooien maar inleveren als KCA.

Safety Instructions

USE CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

–Do not drop or bump the projector, otherwise damages or malfunctions may result. –When carrying the projector, use a suitable carrying case. –Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer for their information. –

Do not put the projector in a case before the projector

is cooled enough.

Moving the Projector

When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a suitable case to protect the projector. When handling the projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

Do not tilt the projector more than 20 degrees from side to side.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

Install the projector properly. Improper Installation may reduce the lamp life and cause a fire hazard.

Installing the Projector

in Proper Position

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

– Do not put any flammable object or spray can near

the projector, hot air is exhausted from the ventilation holes. – Keep the exhaust vent at least 3’(1m) away from any objects. – Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used. – Do not put anything on the cabinet. The materials put on the cabinet will not only get damaged but also cause fire hazard by heat. Cooling fans are provided to cool down the projector. The fans' running speed is changed according to the temperature inside the projector.

Air Circulation

Air Intake

Vent

Exhaust Vent (Hot air exhaust)

Exhaust Vent

Exhaust Vent (Hot air exhaust)

Air Intake

Vent

20˚

AC Power Cord for the United Kingdom :

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.

The Wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow ············ Earth Blue ································· Neutral

Brown ······························ Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING : THIS APPARATUS MUST BE EARTHED.

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC Power Cord Requirement

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Numbers : PLC-XU73, PLC-XU70, PLC-SU70 Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : (818)998-7322

Compliance

ASA

GROUND

Bottom

Back

q Infrared Remote Receiver w Zoom Ring e Projection Lens r Focus Ring t Lens Cover

(See page 50 for attaching.)

y Top Controls and Indicators u Speaker i Air Intake Vent o Power Cord Connector !0 Terminals and Connectors

!1 Lamp Cover !2 Air Intake Vents (back and bottom) !3 Air Filters !4 Adjustable Feet

!5 Exhaust Vents

!1!3!2

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

q w e r t !5

Front

Part Names and Functions

RESET button

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

Rear Terminal

q w e r t y

t S-VIDEO IN

Connect the S-VIDEO output from video equipment to this jack. (p16)

y AUDIO IN

Connect the audio output from video equipment connected to t or o to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p16)

i COMPUTER/ COMPONENT AUDIO IN

Connect the audio output (stereo) from a computer or video equipment connected to e or r to this jack. (p 15, 17)

o VIDEO IN

Connect the composite video output from video equipment to VIDEO jack. (p16)

r COMPUTER IN 2 / MONITOR OUT

This terminal is switchable and can be used for input from a computer and video equipment (component or RGB scart 21-pin) or output to the other monitor. Set the terminal up as either Computer input or Monitor output properly. (Used for Monitor out, this terminal outputs only incoming signal from COMPUTER IN 1 / COMPONENT IN terminal.) (p15, 17, 44)

u AUDIO OUT(VARIABLE)

Connect an external audio amplifier to this jack. (p15- 17) This terminal outputs sound from AUDIO IN terminal (y or i).

q USB (Series B)

In order to operate the computer with the remote control during a presentation, connect the USB port of the computer to the projector with a USB cable.(p15)

w SERVICE PORT

This jack is used to service the projector.

✽

e COMPUTER IN 1 / COMPONENT IN

Connect output signal from a computer, RGB scart 21-pin video output, or component video output to this terminal. (p15, 17) When the cable is of the longer variety, it is advisable to use this terminal and not COMPUTER IN 2 / MONITOR OUT.

Part Names and Functions

RESET

USB

SERVICE PORT

COMPUTER IN / COMPONENT IN

COMPUTER IN

MONITOR OUT

2 /

VIDEO IN

S-VIDEO IN

(MONO)

AUDIO OUT

COMPUTER / COMPONENT

AUDIO IN

(VARIABLE)

Part Names and Functions

OFF

POWER

KEYSTONE

INPUT

WARNING

LAMP REPLACE

- VOLUME

+ VOLUME

SELECT

u LAMP REPLACE indicator

Turn yellow when the life of the projection lamp draws to an end. (p52, 58)

y WARNING indicator

Emit a red light when the projector detects abnormal condition. This also blinks red when the internal temperature of the projector exceeds the operating range. (p49, 58)

w POWER ON–OFF button

Turn the projector on or off. (p18, 19)

r POWER indicator

Emit a red light until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (p18, 19, 58)

t INPUT button

Select input source. (p25, 34, 35)

e MENU button

Open or close the On-Screen Menu. (p20)

o POINT (ed7 8 ) buttons

– Select an item or adjust the value in the On-

Screen Menu. (p20)

– Pan the image in Digital zoom + mode. (p33) – Adjust the volume level. (Point 7 8 buttons)

(p23)

q SELECT button

– Execute the selected item. (p20) – Expand or compress the image in Digital zoom

mode. (p33)

i KEYSTONE button

Correct the keystone distortion. (p22, 41)

Top Control

Part Names and Functions

To ensure safe operation, please observe the following precautions : – Do not bend, drop the remote control or expose the

remote control to moisture or heat.

– For cleaning, use soft dry cloth. Do not apply benzene,

thinner, splay or any chemical material.

q POWER ON-OFF button

Turn the projector on or off. (p18, 19)

w VIDEO button

Select VIDEO input source. (p23, 34)

e COMPUTER button

Select COMPUTER input source. (p23, 25, 35)

r MENU button

Open or close the On-Screen Menu. (p20)

i PAGE ed buttons

Scroll back and forth pages on the screen when giving a presentation. Connect the projector and your computer with a USB cable to use these buttons. (p9, 15)

u D.ZOOM ed buttons

Zoom in and out the images. (p24, 33)

!5 AUTO PC button

Automatically adjust the computer image to its optimum setting. (p24, 27)

!4 IMAGE button

Select the image level. (p24, 30, 37)

o FREEZE button

Freeze the picture. (p23)

MUTE button

Mute the sound. (p 23)

P-TIMER button

Operate the P-timer function. (p24)

NO SHOW button

Temporarily turn off the image on the screen. (p24)

KEYSTONE button

Correct the keystone distortion. (p22, 41)

t Point ed 7 8 ( VOLUME

+ / –

)

buttons

– Select an item or adjust the value in the On-Screen Menu. (p20) – Pan the image in Digital zoom + mode. (p33) – Adjust the volume level. (Point 7 8 buttons) (p23)

y SELECT button

– Execute the selected item. (p20) – Expand or compress the image in Digital zoom mode. (p33)

Remote Control

!1 LAMP CONTROL button

Select the lamp mode. (p24, 45)

Part Names and Functions

To insure safe operation, please observe the following precautions:

● Use (2) AA or LR6 type alkaline batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked on the remote control, carefully wipe the case clean and install new

batteries.

● Risk of explosion if a battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

Open the battery compartment lid.

Install new batteries into the compartment.

Replace the compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

Point the remote control toward the projector (Infrared Remote Receiver) when pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector.

Operating Range

Remote Control Battery Installation

16.4’ (5 m)

30°

✔

Note:

• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

• The values shown below are approximate and may vary from the actual sizes.

Positioning the Projector

Installation

43.3' (13.2m)

23.9' (7.3m)

18.0' (5.5m)

11.8' (3.6m)

Max. Zoom

Min. Zoom

A : B = 10 : 1

Screen Size (W x H) mm

4 : 3 aspect ratio

Zoom (min)

40”

Zoom (max)

813 x 610

5.6' (1.7m)

4.6' (1.4m)

100”

2032 x 1524

14.4' (4.4m)

11.8' (3.6m)

150”

3048 x 2286

21.7' (6.6m)

18.0' (5.5m)

200”

4064 x 3048

28.9' (8.8m)

23.9' (7.3m)

300”

6096 x 4572

43.3' (13.2m)

36.1' (11.0m)

(Inch Diagonal)

4.6' (1.4m)

For projector positioning, see the figures below. The projector should be set horizontally to the flat screen.

(Center)

Installation

33"

Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.

Lift the front of the projector and pull upward the feet lock latches on both sides of the projector.

Adjustable Feet

Feet Lock Latches

Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to adjust the position and tilt.

To retract the adjustable feet, lift the front of the projector and pull and undo the feet lock latches. Keystone distortion of the projected image can be corrected by menu operation. (p22, 41)

Adjustable Feet

100

150

126

200

166

300

250

NOTE ON THE POWER CORD

AC power cord must meet requirement of the country where you use the projector. Confirm the AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer.

To power cord connector on your projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with singlephase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power being supplied. Connect the projector with all peripheral equipment before turning the projector on. (See page 15-17 for connection.)

CAUTION

For safety, unplug the AC power cord when the projector is not in use. When this projector is connected to an outlet with the AC power cord, it is in Stand-by mode and consumes a little electric power.

Connecting the AC Power Cord

Connect the AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC outlet.

(200 - 240 V AC)

To the AC outlet.

(200 - 240 V AC)

Installation

Connecting to a Computer

Cables used for connection

• VGA Cables (Mini D-sub 15 pin) (Only one cable is supplied.)

•USB Cable ✽

• Audio Cables (Mini Plug: stereo) ✽ (✽ = Not supplied with this projector.)

External Audio Equipment

VGA cable USB cable ✽

Audio cable (stereo) ✽

Audio cable ✽ (stereo)

Monitor Output

Monitor Input

USB portAudio Output

USB

COMPUTER/ COMPONENT AUDIO IN

AUDIO OUT (stereo)

Audio Input

COMPUTER IN 2/

MONITOR OUT

When connecting the cable, the power cords of both the projector and the

external equipment should be disconnected from AC outlet.

✔

Note:

• Input sound to the COMPUTER / COMPONENT AUDIO IN terminal when using the COMPUTER IN 1 / COMPONENT IN and the COMPUTER IN 2/MONITOR OUT terminal as input.

• When connecting the AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

• When the cable is

of the longer variety

, it is advisable to use the COMPUTER IN 1 / COMPONENT IN and not the COMPUTER IN 2 / MONITOR OUT.

• See p61 for ordering optional parts.

Monitor Output

COMPUTER IN 1/ COMPONENT IN

VGA cable

This terminal is switchable. Set up the terminal as either Computer input or Monitor output. (See Page 44.)

Installation

RESET

USB

SERVICE PORT

COMPUTER IN / COMPONENT IN

COMPUTER IN

2 /

MONITOR OUT

VIDEO IN

S-VIDEO IN

(MONO)

AUDIO IN

(VARIABLE)

AUDIO OUT

COMPUTER COMPONENT

ONON

Installation

Connecting to Video Equipment

Cables used for connection

• Video and Audio Cable (RCA x 3) ✽

• S-VIDEO Cable ✽

• Audio Cable (Mini Plug: stereo) ✽ (✽ = Not supplied with this projector.)

✔

Note:

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

• See p61 for ordering optional parts.

External Audio Equipment

Audio cable ✽

(stereo)

VIDEO

S-VIDEO

S-Video cable ✽ Video and audio cable✽

Composite Video and Audio OutputS-Video Output

AUDIO IN

Audio Input

AUDIO OUT (stereo)

(R) (L)

(R) (L) (Video)

(Video)

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

2 /

VIDEO IN

S-VIDEO IN

RESET

USB

SERVICE PORT

COMPUTER IN / COMPONENT IN

COMPUTER IN

MONITOR OUT

(MONO)

AUDIO IN

(VARIABLE)

AUDIO OUT

COMPUTER COMPONENT

Installation

Connecting to Component Video Equipment

S-VIDEO IN

MONITOR OUT

COMPUTER IN

2 /

COMPUTER

COMPONENT

AUDIO IN

VIDEO IN

(MONO)

(VARIABLE)

AUDIO OUT

COMPUTER IN

/ COMPONENT IN

USB

SERVICE PORT

RESET

Cables used for connection

• Audio Cables (Mini Plug :stereo) ✽

• Scart-VGA Cable ✽

• Component Cable ✽

• Component-VGA Cable ✽ (✽ = Not supplied with this projector.)

✔

Note:

• When connecting AUDIO OUT to external audio equipment, the projector's built-in speaker is disconnected.

• See p61 for ordering optional parts.

External Audio Equipment

COMPUTER IN 1/ COMPONENT IN

COMPUTER/ COMPONENT AUDIO IN

Audio cable ✽ (stereo)

Audio Input

Component Video Output

(Y, Pb/Cb, Pr/Cr)

RGB Scart 21-

pin Output

Audio Output

Scart-VGA cable ✽

Component-VGA cable✽

AUDIO OUT (stereo)

Component cable✽

Installation

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Connect the projector's AC power cord into an AC outlet. The POWER indicator will be red.

Press the POWER ON-OFF button on the top control or on the remote control. The POWER indicator will become green and the cooling fans will start to operate. The preparation display will appear on the screen and the count down will start.

The preparation display will disappear after 30 seconds.

After the countdown, the input source that was selected last and the Lamp mode status icon (see page 45) will appear on the screen.

If the projector is locked with a PIN code, PIN code Input Dialog Box will appear. Enter the PIN code as instructed below.

(See page 45 for Lamp mode.)

Selected Input Source and Lamp Mode

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

Lamp mode

What is PIN code?

PIN code is a security code using Personal Identification Number that allows the person who knows it to operate the projector. Setting PIN code prevents others except the specific users from operating the projector.

A PIN code consists of a four-digit number. Refer to PIN code lock function in Setting on page 46, 47 for locking operation of the projector with your PIN code.

Pointer

After the OK icon disappears, you can operate the projector.

PIN Code Input Dialog Box

Tu r ning On the Projector

Basic Operation

Enter a PIN code

Select a number by pressing the Point 7 8 buttons and fix the number with the SELECT button. The number will change to "✳". If you fixed an incorrect number, move the pointer to "Set" or "Clear" once by pressing the Point d button, then return to "PIN code". Enter the correct number again. Repeat this step to complete entering a four-digit number. "1234" is set as the initial PIN code at the factory.

When the four-digit number is fixed, the pointer will automatically move to "Set". Press the SELECT button so that you can start to operate the projector.

If you entered an incorrect PIN code, "PIN code" and the number (✳✳✳✳) will turn red and disappear. Enter the correct PIN code all over again.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Set a new PIN code with special care, write it down in column on page 63 of this manual, and keep it at hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

✔Note:

• When the Logo select function is off, the logo will not be shown on the screen. (p42)

• When the "Countdown off" or "Off" is selected in the Display function, the countdown will not be shown on the screen. (p41)

• During the countdown period, all operations are

invalid.

• If the correct PIN code number is not input for 3

minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

Basic Operation

Press the POWER ON-OFF button on the top control or on the remote control, and a message "Power off?" will appear on the screen.

Press the POWER ON-OFF button again to turn off the projector. The POWER indicator will start to blink red, and the cooling fans will keep operating. (You can select the level of fun quietness and rotation speed. See page 48.) At this time you can disconnect the AC power cord even if the fans are still running.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU TURN THE PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

When the projector has cooled down enough to be turned on again, the POWER indicator will be red.

The message will disappear after 4 seconds.

✔Note:

• When the On start function is on, this projector will be turned on automatically by connecting the AC power cord to an AC outlet. (p45)

• Do not operate the projector continuously without rest. Continuous use may result in shortening the lamp life. Turn off the projector and give it a rest about an hour in every 24 hours.

• The running speed of cooling fans is changed according to the temperature inside the projector.

• Do not put the projector in a case before the projector is cooled enough.

• If the WARNING indicator blinks or emits a red light, see "Warning Indicator" on page 49.

• While the POWER indicator is blinking, lamp is being cooled down and the projector cannot be turned on. Wait until the POWER indicator becomes red to be turned on again.

• For assisting the cooling fans' operation, the projector is equipped with a large capacitor. While the projector is operating, the capacitor charges electricity. When disconnecting the AC plug from AC outlet, cooling fans start to run about 1 minutes until the capacitor is discharged.

Tu r ning Off the Projector

Basic Operation

OLU

Top Control

Menu bar

Pointer (red framed )

Menu icon

Item data

Press the Point 7 8 buttons to adjust the value.

SELECT

button

Pointer (red framed )

Press the Point ed buttons to move the pointer.

Item

How to Operate the On-Screen Menu

MENU button

SELECT button

POINT button

(outer ring)

On-Screen Menu

Quit

Exit this menu.

The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages regarding each adjustment and setting procedures.

Press the Point

7 8 buttons to select a Menu icon to

adjust and press the Point ed buttons to select an item to adjust.

Press the SELECT button to show the item data. To adjust the data, press the Point

7 8 buttons. Refer to

the following pages for each adjustment.

To close the On-Screen Menu, press the MENU button again .

Press the MENU button to display the On-Screen Menu.

✔Note:

The selected item is not active until the SELECT button is pressed.

SELECT button

POINT buttons

Remote Control

MENU button

POWER

WARNING

INPUT

OFF

SELECT

- VOLUME

LAMP RE

KEYSTO

+ V

+ 44 hidden pages
