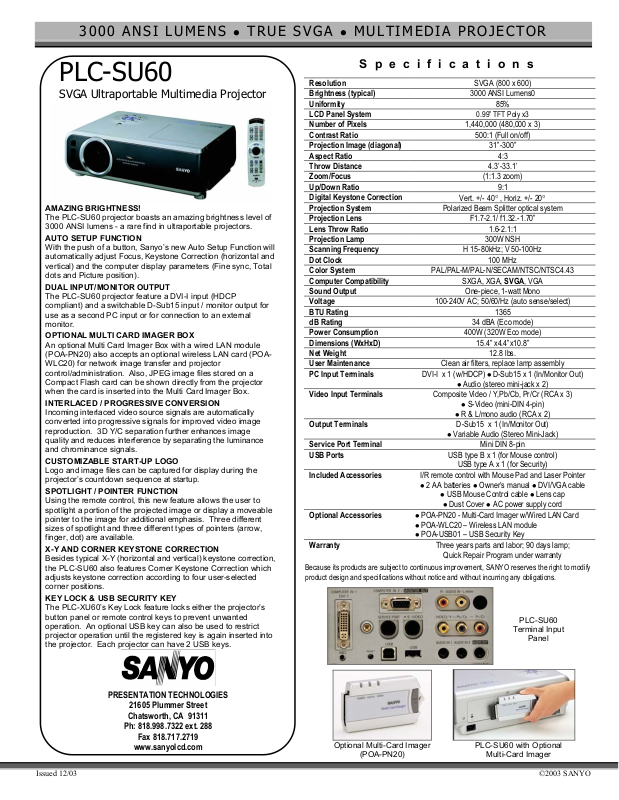

Sanyo PLC-SU60 Product Sheet

3000 ANSI LUMENS z TRUE SVGA z MULTIMEDIA PROJECTOR

PLC-SU60

SVGA Ultraportable Multimedia Projector

AMAZING BRIGHTNESS!

The PLC-SU60 projector boasts an amazing brightness level of 3000 ANSI lumens - a rare find in ultraportable projectors.

AUTO SETUP FUNCTION

With the push of a button, Sanyo’s new Auto Setup Function will
automatically adjust Focus, Keystone Correction (horizontal and
vertical) and the computer display parameters (Fine sync, Total
dots and Picture position).

DUAL INPUT/MONITOR OUTPUT

The PLC-SU60 projector feature a DVI-I input (HDCP compliant) and a switchable D-Sub15 input / monitor output for use as a second PC input or for connection to an external monitor.

OPTIONAL MULTI CARD IMAGER BOX

An optional Multi Card Imager Box with a wired LAN module
(POA-PN20) also accepts an optional wireless LAN card (POA­WLC20) for network image transfer and projector
control/administration. Also, JPEG image files stored on a
Compact Flash card can be shown directly from the projector
when the card is inserted into the Multi Card Imager Box.

INTERLACED / PROGRESSIVE CONVERSION

Incoming interlaced video source signals are automatically
converted into progressive signals for improved video image
reproduction. 3D Y/C separation further enhances image
quality and reduces interference by separating the luminance
and chrominance signals.

CUSTOMIZABLE START-UP LOGO
Logo and image files can be captured for display during the
projector’s countdown sequence at startup.

SPOTLIGHT / POINTER FUNCTION

Using the remote control, this new feature allows the user to
spotlight a portion of the projected image or display a moveable
pointer to the image for additional emphasis. Three different
sizes of spotlight and three different types of pointers (arrow,
finger, dot) are available.

X-Y AND CORNER KEYSTONE CORRECTION

Besides typical X-Y (horizontal and vertical) keystone correction,
the PLC-SU60 also features Corner Keystone Correction which
adjusts keystone correction according to four user-selected
corner positions.

KEY LOCK & USB SECURITY KEY

The PLC-XU60’s Key Lock feature locks either the projector’s
button panel or remote control keys to prevent unwanted
operation. An optional USB key can also be used to restrict
projector operation until the registered key is again inserted into
the projector. Each projector can have 2 USB keys.

Specifications

Resolution SVGA (800 x 600) Brightness (typical) 3000 ANSI Lumens0 Uniformity 85% LCD Panel System Number of Pixels 1,440,000 (480,000 x 3) Contrast Ratio 500:1 (Full on/off) Projection Image (diagonal) 31”-300” Aspect Ratio 4:3 Throw Distance 4.3’-33.1’ Zoom/Focus (1:1.3 zoom) Up/Down Ratio 9:1 Digital Keystone Correction Projection System Polarized Beam Splitter optical system Projection Lens F1.7-2.1/ f1.32.-1.70” Lens Throw Ratio 1.6-2.1:1 Projection Lamp 300W NSH Scanning Frequency H 15-80kHz; V 50-100Hz Dot Clock 100 MHz Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 Computer Compatibility SXGA, XGA, SVGA, VGA Sound Output One-piece, 1-watt Mono Voltage 100-240V AC; 50/60/Hz (auto sense/select) BTU Rating 1365 dB Rating 34 dBA (Eco mode) Power Consumption 400W (320W Eco mode) Dimensions (WxHxD) 15.4” x4.4”x10.8” Net Weight 12.8 lbs. User Maintenance Clean air filters, replace lamp assembly PC Input Terminals DVI-I x 1 (w/HDCP) z D-Sub15 x 1 (In/Monitor Out)

Video Input Terminals Composite Video / Y,Pb/Cb, Pr/Cr (RCA x 3)

Output Terminals D-Sub15 x 1 (In/Monitor Out)

Service Port Terminal Mini DIN 8-pin
USB Ports USB type B x 1 (for Mouse control)

Included Accessories I/R remote control with Mouse Pad and Laser Pointer

z 2 AA batteries z Owner’s manual z DVI/VGA cable

z USB Mouse Control cable z Lens cap

z Dust Cover z AC power supply cord

Optional Accessories z POA-PN20 - Multi-Card Imager w/Wired LAN Card

z POA-WLC20 – Wireless LAN module
z POA-USB01 – USB Security Key

Warranty Three years parts and labor; 90 days lamp;

Quick Repair Program under warranty

Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.

0.99” TFT Poly x3

Vert. +/- 40° , Horiz. +/- 20°

z Audio (stereo mini-jack x 2)

z S-Video (mini-DIN 4-pin)

z R & L/mono audio (RCA x 2)

z Variable Audio (Stereo Mini-Jack)

USB type A x 1 (for Security)

PLC-SU60

Terminal Input

Panel

PRESENTATION TECHNOLOGIES

21605 Plummer Street

Chatsworth, CA 91311

Ph: 818.998.7322 ext. 288

Fax [phone]

www.sanyolcd.com

Issued 12/03 ©2003 SANYO

Optional Multi-Card Imager PLC-SU60 with Optional
(POA-PN20) Multi-Card Imager
