Multimedia Projector

MODEL PLC-XU60

PLC-SU60

Owner’s Manual

Table of Contents

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM, VGA, XGA, and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows and PowerPoint are registered trademarks of Microsoft Corporation.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective

corporation.

Features and Design 8

Basic Operation 19

Computer Input 25

Video Input 33

Setting 39

Appendix 47

Part Names and Functions 9

Front 9 Back 9 Bottom 9 Terminal 10 Top 11 Remote Control 12 Laser Pointer Function 13 Pointer Function 13 Remote Control Code 14 Wireless Mouse Operation 14 Remote Control Operating Range 15 Remote Control Batteries Installation 15

Installation 16

Positioning the Projector 16 Adjustable Feet 16 Connecting to a Computer 17 Connecting to Video Equipment 18

Turning On the Projector 19 Turning Off the Projector 19 Zoom Adjustment 20 Focus Adjustment 20 Keystone Adjustment 20 Auto Set Up Function 21 Picture Freeze Function 21 No Show Function 22 P-Timer Function 22 Sound Adjustment 22 On-Screen Menu 23 Menu Bar 24

Input Source Selection 25 Computer System Selection 26 Computer Adjustment (Auto) 27 Computer Adjustment (Manual) 28 Image Level Selection 30 Image Level Adjustment 31 Screen Size Adjustment 32

Input Source Selection {Video, S-Video and (Y, Pb/Cb, Pr/Cr)} 33 Input Source Selection (RGB Scart 21-Pin) 34 Video System Selection 35 Image Level Selection 36 Image Level Adjustment 37 Screen Size Adjustment 38

Setting 39

Troubleshooting 47 Indicators and Projector Condition 49 Menu Tree 50 Compatible Computer Specifications 52 Technical Specifications 53 Configurations of Terminals 54 Optional Parts 55 Attaching the Lens Cover 56 USB Key Lock Function 57

Table of Contents 2

To the Owner 3

Safety Instructions 4

Compliance 6

Installing the Projector in Proper Position 5 Air Circulation 5 Moving the Projector 5

Connecting the AC Power Cord 7

Maintenance and Cleaning 43

Warning Indicator 43 Cleaning the Air Filters 44 Cleaning the Projection Lens 44 Cleaning the Projector Cabinet 44 Lamp Replacement 45 Lamp Replace Counter 46

To the Owner

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE OWNER'S MANUAL WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section at the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

– This projector produces intense light from the projection

lens. Do not stare directly into the lens as possible. Eye damage could result. Be especially careful that children do not stare directly into the beam.

– Install the projector in a proper position. If not, it may

result in a fire hazard.

– Provide appropriate space on the top, sides and rear of the

projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the ventilation slot on the projector. Heat buildup can reduce the service life of your projector, and can also be dangerous.

– The remote control, supplied to this projector, emits a laser

beam as the Laser pointer function from laser light window while pressing the LASER button (for 1 minute / Signal Emission indicator lights red to indicate laser emission). Do not look into the laser light window or shine the laser beam on a mirror, yourself or other people. Eye damage may result.

– Do not put any flammable object or spray can near the

projector, hot air is exhausted from the ventilation holes.

– If the projector is not to be used for an extended time,

unplug the projector from the power outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

SIDE and TOP REAR

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

Ne puet être utillisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment

20cm

50cm 50cm

50cm

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

Voor de klanten in Nederland

Bij dit product zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA.

Safety Instructions

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or bump the projector, otherwise damages or malfunctions may result.

● When carrying the projector, use a suitable carrying case.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause

damage to the projector. To transport the projector through a courier or transport service, consult your dealer for best way.

Moving the Projector

When moving the projector, replace the lens cover and retract the adjustable feet to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into the protective dust cover supplied with the projector. The protective dust cover is intended for protection from dust and scratches on the surface of a cabinet, and it is not designed to protect the projector from external forces. Do not transport the projector through a courier or transport services with this bag. The projector can be damaged. When handling the projector, do not drop, bump, subject it to strong forces or put other things on the cabinet.

Installing the Projector in Proper Position

Install the projector properly. Improper installation may reduce the lamp lifetime and cause a fire hazard.

Do not tilt the projector more than 20 degrees above and below.

Do not point the projector up to project an image.

Do not point the projector down to project an image.

Do not put the projector on either side to project an image.

NO UPWARDNO DOWNWARD

NO SIDEWAYS

Air Circulation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

● Do not put any flammable objects near the vent.

● Keep the exhaust vent at least 3.3’(1m) away from any objects.

● Do not touch a peripheral part of the exhaust vent, especially screws and metallic

part. This area will become hot while the projector is being used.

● Do not put anything on the cabinet. The materials put on the cabinet will not only get damaged but also cause fire hazard by heat.

Cooling fans are provided to cool down the projector. This projector monitors internal temperature and control the running speed of the cooling fans.

Air Intake Vent Air Intake Vent

Exhaust Vent (Hot air exhaust)

20˚

Compliance

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada :

AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA). AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician.

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE.

AC POWER CORD REQUIREMENT

Federal Communication Commission Notice

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules. Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or

modifications should be made, you could be required to stop operation of the equipment.

Model Numbers : PLC-XU60, PLC-SU60 Trade Name : Sanyo Responsible party : SANYO FISHER COMPANY Address : 21605 Plummer Street, Chatsworth, California 91311

Telephone No. : (818)998-7322

GROUND

NOTE ON THE POWER CORD

AC power cord must meet requirement of the country where you use a projector. Confirm an AC plug type with the chart below and proper AC power cord must be used. If supplied AC power cord does not match your AC outlet, contact your sales dealer.

Compliance

To power cord connector on your projector.

Projector side AC outlet side

Ground

To the AC outlet.

(120 V AC)

For Continental Europe

For the U.S.A. and Canada

This projector uses nominal input voltages of 100-120 V or 200-240 V AC. This projector automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure of the type of power being supplied. Connect the projector with all peripheral equipment before turning the projector on. (See page 17-18 for connection.)

CAUTION

For safety, unplug AC power cord when the projector is not in use. When this projector is connected to an outlet with AC power cord, it is in Stand-by mode and consumes a little electric power.

Connecting the AC Power Cord

Connect AC power cord (supplied) to the projector. The AC outlet must be near this equipment and must be easily accessible.

For the U.K.

To the AC outlet.

(200 - 240 V AC)

To the AC outlet.

(200 - 240 V AC)

Features and Design

This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology.

◆ Compatibility

The projector widely accepts various video and computer input signals including;

● Computers

IBM-compatible or Macintosh computer up to 1280 x 1024 resolution.

● 6 Color Systems

NTSC, PAL, SECAM, NTSC 4.43, PAL-M or PAL-N color system can be connected.

● Component Video

Component video signal, such as a DVD player output high definition TV signals including 480i, 480p, 575i, 575p, 720p, 1035i or 1080i, can be connected.

● S-Video

S-Video signal, such as a S-VHS VCR output signal, can be connected.

● RGB Scart

RGB Scart signal can be connected.

◆ Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly. (See page

26.)

◆ Compact Design

This projector is extremely compact in size and weight. It is designed to be carried and work anywhere you wish to use.

◆ Keystone Adjustment

Keystone distortion can be corrected screen image. The keystone correction function enables you to use the projector where you wish to use. (See page 20, 21 and

39.)

◆ Multilanguage Menu Display

Operation menu is available in; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese. (See page 39.)

◆ Digital Zoom (for Computer)

The digital zoom function expands (to approx. 16 times of screen size) or compress the image size, allowing you to focus on crucial information at a presentation. (See page 32.)

◆ Wireless Mouse

The remote control supplied with this projector has wireless mouse function for a connected computer. This function enables you to operate both the projector and the connected computer with the remote control. (See page 14.)

◆ Power Management

The Power management function reduces power consumption and maintain the lamp life. (See page 41.)

◆ Digital Visual Interface

The projector is equipped with DVI 29-pin terminal for connecting DVI output from a computer or video equipment. You can also enjoy digital entertainment content protected by HDCP technology. (See page 25 for HDCP.)

◆ Switchable Interface Terminal

The projector provides a switchable interface terminal. You can use the terminal as computer input or monitor output conveniently. (See page 40.)

◆ Pointer Function

The projector has a convenient function which displays Spotlight or Pointer controlled by the remote control on a projected image. The remote control also has the Laser pointer function. These functions will make your important presentation more effective. (See page 13,

41.)

◆ Interlace Progressive Conversion

High-quality picture is available with this technology which converts interlace signal into progressive signal. (See page 37.)

◆ User’s Logo

A projected image can be captured and used for the starting display of the projector with the Capture function. You can also display the captured image in an interval during your presentation instead of blackout image with the No show function. (See page 22, 40.)

◆ Multi Card Imager (optional)

The projector can be operated through wired/wireless LAN by attaching the Multi Card Imager that is optionally supplied. The Multi Card Imager is also used as a viewer. Contact the dealer where you purchased the projector for the Multi Card Imager.

◆ Lamp Mode

Brightness of the projection lamp can be changed by setting. The projector has the function to adjust the brightness according to an input signal for the best suited image. (See page 41.)

◆ Auto Set Up Function

The projector employs Auto Set Up button for easy setup of the projected image in terms of Focus, Keystone, and some computer display parameters. You can obtain the optimum projected image just through the one-button operation. (See page 21, 39.)

Part Names and Functions

Bottom

Back

Front

q Infrared Remote Receiver w Auto Set Up Sensor

e r

q Adjustable Feets w Air Filters e Air Intake Vents

CAUTION

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

q Power Cord Connector w Terminals and Indicators e Air Intake Vent r Infrared Remote Receiver t Speaker y Air Intake Vent u Carrying Handle

Use carry handle when moving the projector. Replace lens cover and retract adjustable feet to prevent damage to the lens and lens and cabinet.

Moving the projector

Read screen condition in Auto Set Up operation. Do not cover or dirt this sensor face. See page 21. Remove the protection sheet on the sensor when you install the projector. With this sheet attached, the Auto Set Up operation may not work properly.

e Lens Cover (See page 56 for attaching.) r Projection Lens t Top Controls and Indicators y Lamp Cover u Exhaust Vent

Part Names and Functions

A built-in micro processor which controls this unit may occasionally malfunction and need to be reset. This can be done by pressing the RESET button with a pen, which will shut down and restart the unit. Do not use the RESET function excessively.

q COMPUTER IN 1 DVI-I

Connect computer output (Digital/Analog DVI-I type) or Multi Card Imager (optional) to this terminal. (p17, 18)

Terminal

q w e r t

y u i o

i S-VIDEO

Connect the S-VIDEO output from video equipment to this jack. (p18)

r AUDIO IN

Connect the audio output from video equipment connected to t or i to this jack. (When the audio output is monaural, connect it to L (MONO) jack.) (p18)

o AUDIO IN 1 and 2

Connect the audio output (stereo) from a computer or video equipment connected to

q or e to these jacks. (p17, 18)

e COMPUTER IN 2 / MONITOR OUT

This terminal is switchable and can be used as computer input, RGB Scart 21-Pin Video input, or monitor output. Set the terminal up as either Computer input or Monitor output properly before using this terminal. An optional cable is required when using this terminal as RGB Scart 21-Pin Video input. (p17, 18) (This terminal outputs analog signal from COMPUTER IN 1 DVI-I terminal only when using as Monitor out.)

!0 AUDIO OUT (VARIABLE)

Connect an external audio amplifier to this jack. (p17, 18) This terminal outputs sound from AUDIO IN terminal

r or o.

t VIDEO

Connect the composite video output from video equipment to VIDEO/Y jack or connect component video output from video equipment to VIDEO/Y, Pb/Cb and Pr/Cr jacks. (p18)

w SERVICE PORT

This jack is used to service this projector.

Do not press this button. This button is used for optional accessories.

!00

y USB (Series B)

When operating the connected computer with the remote control, connect USB port of your computer to this connector with a USB cable. (p17)

u USB (Series A)

Connect the Projector USB key (Optional accessories). (p57)

COMPUTER IN 1

DVI - I

MCI

RESET

COMPUTER IN 2 /

SERVICE PORT

USB

MONITOR OUT

S - VIDEO

USB

R - AUDIO IN - L

VIDEO /Y – Pb/Cb – Pr/Cr

AUDIO IN 1 AUDIO IN 2

(MONO)

AUDIO OUT

(VARIABLE)

Part Names and Functions

This projector has control buttons and indicators on its top.

To p

q w

i LAMP REPLACE indicator

Turns yellow when the life of the projection lamp draws to an end. (p45, 49)

u WARNING indicator

Lights red when the projector detects abnormal condition. This also flashes red when the internal temperature of the projector exceeds the operating range. (p43, 49)

q POWER ON–OFF button

Turns the projector on or off. (p19)

POWER indicator

Flashes red until the projector gets ready to be turned on. It turns red when the projector is in the stand-by mode. It remains green while the projector is under operation. (p49)

!2 INPUT button

Selects input source. (p25, 33)

!0 MENU button

Opens or closes the On-Screen Menu. (p23)

o POINT (Up/Down/Left/Right ) button

Selects an item or adjusts value in the On-Screen Menu. These are also used to pan the image in the Digital zoom +/– mode. (p32) Point Left/Right button are used as VOLUME +/– button. (p22)

!1 SELECT button

Executes the item selected. It is also used to expand / compress the image in Digital zoom +/– mode. (p32)

!0 !1 !2

w AUTO SET UP button

Operate AUTO SET UP function. (p21)

e ZOOM/FOCUS button

Select ZOOM or FOCUS function. (p20)

r IMAGE button

Select image level. (p30, 36)

t AUTO PC ADJ. button

Operates the AUTO PC Adjustment function. (p27)

Part Names and Functions

Remote Control

w e r

t y

!0 !1

!7 !8

@5 RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for energy saving when it is not used. Slide this switch to the "RESET" to initialize the remote control code. (p14)

w SIGNAL EMISSION indicator

This indicator lights red while the laser beam is being emitted from the laser light window or a signal is being sent from the remote control to the projector.

e AUTO PC button

Operates the Auto PC adjustment function. (p27)

r D.ZOOM buttons

Selects the Digital zoom +/– mode and resize the image. (p32)

MUTE button

Mutes sound. (p22)

i POINT (UP/DOWN/LEFT/RIGHT) buttons

Selects an item or adjusts value in the On-Screen Menu. These are also used to pan the image in the Digital zoom +/- mode. (p32) Point Left/Right button are also used as VOLUME +/- button. (p22)

!0 MENU button

Opens or closes the On-Screen Menu. (p23)

@4 LASER button

Operates the Laser pointer function. Laser beam is emitted while pressing this button within 1 minute. When using this laser pointer for more than 1 minute, release the LASER button and press it again. This button is also used as a switching button to activate the Pointer function of the projector. (p13)

!5 POWER ON-OFF button

Turns the projector on or off. (p19)

!6 NO SHOW button

Turns the picture into black image. (p22)

t FREEZE button

Freezes the projected picture. (p21)

y IMAGE button

Selects image levels.(p30, 36)

!2 SELECT button

Executes the item selected, or to expand or compress image in the Digital zoom +/mode. (p32)

@1 @2 @3 COMPUTER 1, COMPUTER 2, VIDEO buttons

Selects input source (COMPUTER 1, COMPUTER 2 or VIDEO). (p25, 33)

P-TIMER button

Operates P-Timer function. (p22)

u PAGE UP/DOWN buttons

Turns pages; the Up button to the previous page and the Down button to the next page for an image from a computer. Connect the projector and your computer with a USB cable before use. (p17)

@0 R-CLICK button

Acts as right click for wireless mouse operation. (p14)

q L-CLICK button

Acts as left click for wireless mouse operation. (p14)

!1 KEYSTONE button

Corrects keystone distortion. (p20, 21, 39)

o PRESENTATION POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation. (p13, 14)

!3 ZOOM buttons

Adjust zoom. (p20)

!4 FOCUS buttons

Adjust focus. (p20)

!9 AUTO SET UP button

Operate AUTO SET UP function. (p21)

▲

KE YSTONE

▲▲▲

ZOOM

AUTO PC ON

OFF

FREEZED.ZOOM NO SHOW


P-TIMER

AUTO SET

MUT EPAGE

▲

R-CLICK

SELECT

COMPUTER 1LASER

COMPUTER 2

VIDEO

FOCUS

▲

ONRESET ALL OFF

▲

Part Names and Functions

You can move Spotlight or Pointer of the projector with the remote control to emphasize a part of the projected image. (See “Pointer” on page 41 for changing the patterns and sizes.)

While pressing the MENU button, hold down the NO SHOW button for more than 7 seconds so that the Pointer function can be available. (The Laser pointer function has switched to the Pointer function.)

Spotlight

While pressing the MENU button, hold down the NO SHOW button for more than 7 seconds.

Press the LASER button on the remote control toward the projector and see if the LASER button lights green, and Spotlight or Pointer is displayed on the screen. Then you can move Spotlight or Pointer with the PRESENTATION POINTER button. If the LASER button does not light green and still emits laser beam, the Laser pointer function has not switched to the Pointer function yet. Try these steps until the LASER button lights green.

Pointer Function

To clear Spotlight or Pointer displayed on the screen, press the LASER button toward the projector and see if the LASER button turns off. To use the Laser pointer function once again, while pressing the MENU button, hold down the NO SHOW button for more than 7 seconds.

After the Laser pointer function has switched to the Pointer function, the LASER button is used as the Pointer function ON-OFF switch instead of the Laser pointer function. Press the LASER button toward the projector and see if it lights green.

Pointer

This remote control emits a laser beam as Laser pointer function from the laser light window. When the LASER button is pressed, laser light goes on. When the LASER button is being pressed for more than 1 minute or the LASER button is released, light goes off. The signal emission indicator lights red and laser is emitted with red light to indicate laser beam is being emitted. The laser emitted is a class

II laser; therefore, do not look into the laser light window or shine the laser beam on yourself or

other people. The marks below are caution labels for laser beam. CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in

hazardous radiation exposure. Do not look into the laser light window while laser is emitting, otherwise eye damage may result.

Laser Light Window

These caution labels are put on the remote control.

Signal Emission Indicator

Laser Pointer Function

NO SHOW button

MENU button

LASER button

PRESENTATION POINTER button

NOTE

● You can choose the size of Spotlight (Large, Middle, and Small) and the

pattern of Pointer (Arrow, Finger, and Dot) in the Setting Menu. See “Pointer” on page 41.

▲

KE YSTONE

▲

KE YSTONE

AUTO PC ON

FREEZED.ZOOM NO SHOW

▲


AUTO SET

▲

SELECT

AUTO PC ON

FREEZED.ZOOM NO SHOW

▲


AUTO SET

▲

SELECT

▲

P-TIMER

MUMUTEPAGE

R-CLICK

COMPUTER 1LASER

P-TIMER

MUMUTEPAGE

R-CLICK

COMPUTER 1LASER

COMPUTER 2

OFF

▲

OFF

▲

Part Names and Functions

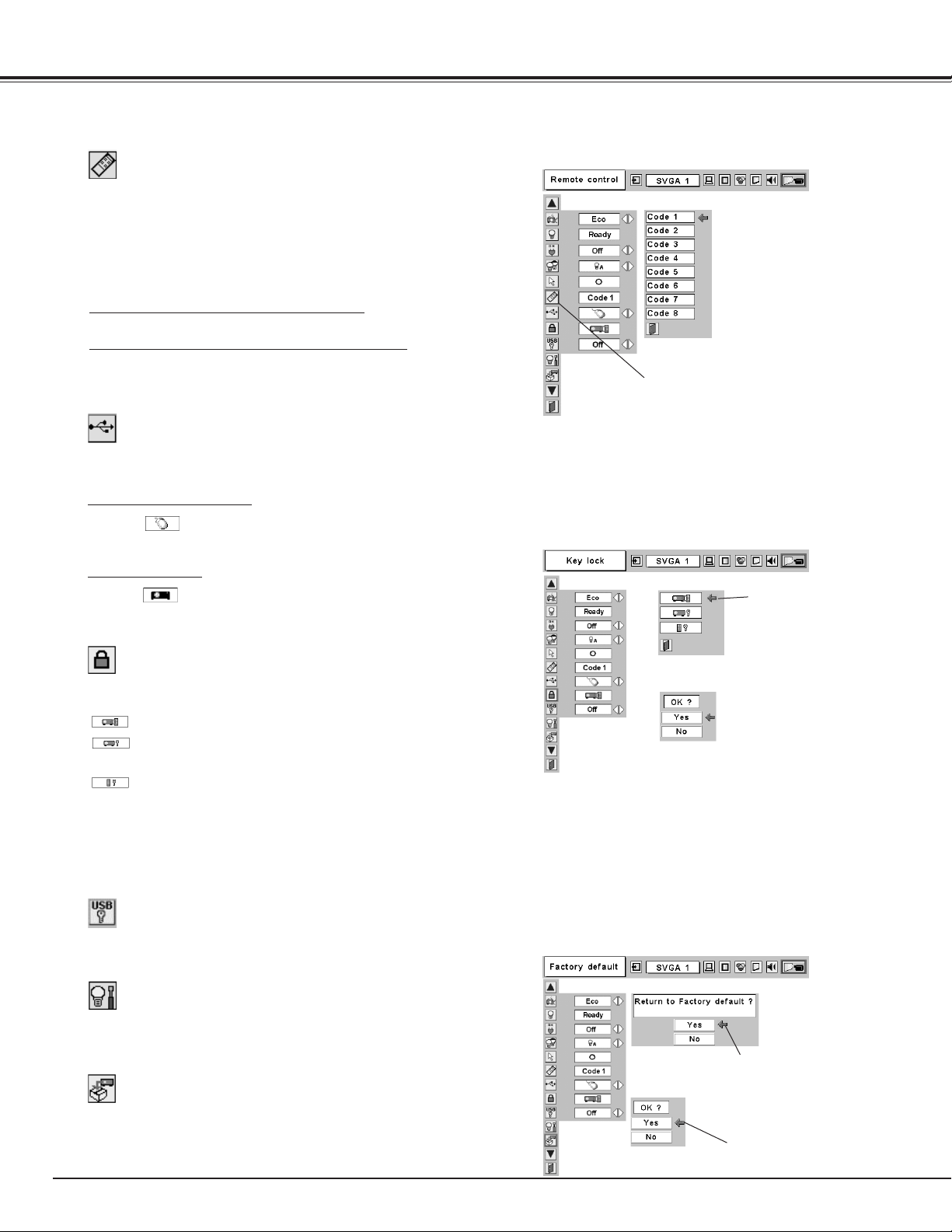

This projector has eight different remote control codes (Code 1-Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. (Change the remote control code for the projector first before changing that for the remote control. See “Remote control” on page 42.)

While pressing the MENU button, press the IMAGE button number of times corresponding to each remote control code number. Each time you press the IMAGE button, the code is changed sequentially. (See the list below.)

To initialize the remote control code for the remote control, slide the RESET/ON/ALL-OFF switch to the RESET, and then to the ON. The initial code is Code 1.

Remote Control Code

ALL OFF

ASER

FOCUS

YSTONE

IMER

While pressing the MENU button, press the IMAGE button number of times corresponding to the remote control code for the projector.

Remote Control Code

Number of Times of

Pressing IMAGE Button

Code 1 1

Code 2 2

Code 3 3

Code 4 4

Code 5 5

Code 6 6

Code 7 7

Code 8 8

MENU button

IMAGE button

The remote control can be used as a wireless mouse for your computer. Before operating the wireless mouse, connect your computer and the projector with the supplied USB cable. (See page 17 for connection.) When the Pointer function is used, the wireless mouse is not available.

Wireless Mouse Operation

MUTEPAGE

FREEZED.ZOOM NO SHOW


AUTO SET

P-TIMER

AUTO PC ON

OFF

Move the pointer on the screen with this button.

PRESENTATION POINTER button

R-CLICK button

L-CLICK button

Acts as right click while the projector and a computer are connected with a USB

cable.

Acts as left click while the projector and a computer are connected with a USB

cable.

▲

KE YSTONE

▲▲▲

ZOOM

AUTO PC ON-OFF

FREEZED.ZOOM NO SHOW

▲


AUTO SET

▲

SELECT

FOCUS

ONRESET ALL OFF

▲

P-TIMER

MUMUTEPAGE

R-CLICK

COMPUTER 1LASER

COMPUTER 2

VIDEO

▲

SELECT

▲

R-CLICK

COMPUTER 1LASER

COMPUTER 2

▲

KE YSTONE

▲ ▲

Part Names and Functions

To insure safe operation, please observe the following precautions :

● Use (2) AA, UM3 or R06 type alkaline batteries.

● Replace two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid.

● Do not expose the remote control to moisture, or heat.

● Do not drop the remote control.

● If a battery has leaked on remote control, carefully wipe case clean and install new batteries.

● Risk of explosion if battery is replaced by an incorrect type.

● Dispose of used batteries according to the instructions.

Press the lid downward and slide it.

Remove the battery compartment lid.

Slide the batteries into the compartment.

Replace the compartment lid.

Two AA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

12 3

Point the remote control toward the projector (Infrared Remote Receiver) whenever pressing any button. Maximum operating range for the remote control is about 16.4’ (5m) and 60° in front of the projector.

16.4’ (5 m)

60°

Remote Control Batteries Installation

Remote Control Operating Range

60°

16.4’ (5 m)

Installation

Projection angle can be adjusted up to 10.3 degrees with the adjustable feet.

Lift the front of the projector and pull the feet lock latches on both sides of the projector.

Adjustable Feet

Feet Lock Latches

Release the feet lock latches to lock the adjustable feet and rotate the adjustable feet to adjust the position and tilt.

To retract the adjustable feet, lift the front of the projector and pull and undo the feet lock latches. Keystone distortion of the projected image can be adjusted by menu operation. (p20, 21, 39)

CAUTION

Tilt the projector within the adjustable range in order not to shorten the life of the lamp. Proper angle should be taken. See page 5.

Positioning the Projector

Adjustable Feet

33.1' (10.1m)

25.3' (7.7m)

16.4' (5.0m)

10.8' (3.3m)

Max. Zoom

Min. Zoom

A : B = 9 : 1

Screen Size (W x H) mm

4 : 3 aspect ratio

Zoom (min)

40”

Zoom (max)

813 x 610

5.6' (1.7m)

4.3' (1.3m)

100”

2032 x 1524

14.4' (4.4m)

10.8' (3.3m)

150”

3048 x 2286

21.7' (6.6m)

16.4' (5.0m)

231”

4694 x 3520

33.1' (10.1m)

25.3' (7.7m)

300”

6096 x 4572

––-––

33.1' (10.1m)

(Inch Diagonal)

4.3' (1.3m)

NOTE

● The brightness in a room has a great influence on picture quality. It is

recommended to limit ambient lighting in order to provide the best image.

● The values shown are approximate and may vary from the actual size.

This projector is designed to project on a flat projection surface and can be focused from 4.3’(1.3m) - 33.1’(10.1m). Refer to the figure and the table below for the screen size and the distance between the projector and the screen.

(Center)

300”

150”

100”

40”

115”

77”

31”

231”

178”

231”

Installation

Connecting to a Computer

IBM-compatible computer or Macintosh computer (VGA / SVGA / XGA / SXGA)

DVI-VGA Cable

Monitor Output

Desktop type Laptop type

Audio Speaker

(stereo)

Audio Amplifier

Audio Cable

(stereo)

✽

Audio Output

Audio Input

AUDIO OUT

COMPUTER

AUDIO IN

Cables used for connection (✽ = These accessories are not supplied with this projector.)

Audio Cable

✽

(stereo)

NOTE :

When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

USB port

MAC Adapter ✽

Set slide switches according to the chart below.

• VGA Cable (HDB 15 pin) ✽

• DVI-VGA Cable (HDB 15 pin)

• DVI-Digital Cable (for Single Link T.M.D.S.)

✽

• USB Cable

• MAC Adapter (When connecting to Macintosh computer) ✽

• Audio Cables ( Mini Plug (stereo) x 2) ✽

External Audio Equipment

Terminals

of the Projector

VGA Cable

✽

Monitor Output

Monitor Input

USB

COMPUTER IN 2 /

MONITOR OUT

Set switches as shown in the table below depending on RESOLUTION MODE that you want to use before you turn on projector and computer.

◆

MAC ADAPTER (Not supplied)

USB Cable

COMPUTER IN 1 DVI-I

DVI Cable ✽

Monitor Output

COMPUTER IN 1 DVI-I

NOTE

● This terminal is switchable. Set the terminal up as either Computer input or Monitor output before using this terminal. (See Page

40.)

COMPUTER IN 1

DVI - I

MCI

COMPUTER IN 2 /

RESET

SERVICE PORT

USB

MONITOR OUT

S - VIDEO

USB

R - AUDIO IN - L

VIDEO/ Y – Pb/Cb – Pr/Cr

AUDIO IN 1 AUDIO IN 2

(MONO)

AUDIO OUT

(VARIABLE)

13" MODE (640 x 480) 16" MODE (832 x 624) 19" MODE (1024 x 768)

ON ON

OFF OFF

ON ON

OFF

34 56

OFF OFF OFF

OFF OFF OFF OFF

ON ON ONON

OFF OFF OFF

OFF OFFON ON21" MODE (1152 x 870)

2 3 4 5 6

DIP

Installation

Connecting to Video Equipment

Video Source (example)

Video Cassette Recorder

Video Disc Player

S-VIDEO Cable

✽

Audio Amplifier

Audio Speaker

(stereo)

Audio Cable (Stereo)

✽

Terminals

of the Projector

S-VIDEO

Output

Audio Input

• Video Cable (RCA x 1) ✽

• Video Cable (RCA x 3) ✽

• S-VIDEO Cable ✽

• Audio Cables (Mini Plug (stereo) x 2 or RCA x 2) ✽

• Scart-VGA Cable ✽

NOTE : When connecting the cable, the power cords of both the projector and the external equipment should be disconnected from AC outlet.

Audio Output

Audio Cable (Stereo) ✽

External Audio Equipment

AUDIO IN

S-VIDEO

VIDEO

AUDIO OUT

Component video output equipment.

(such as DVD player or high-definition TV source.)

Component Video Output

(Y, Pb/Cb, Pr/Cr)

Composite

Video Output

Video Cable (RCA x 1) ✽

Scart-VGA

Cable ✽

RGB Scart

21-pin Output

Cables used for connection (✽ = These accessories are not supplied with this projector.)

Video Cable (RCA x 3)

✽

Audio Cable (RCA x 2) ✽

Audio Output

(R, L)

AUDIO IN

COMPUTER IN 2 /

MONITOR OUT

NOTE

● The Y, Pb/Cb, Pr/Cr jacks has priority over the S-VIDEO jack under the condition of connecting both the Y, Pb/Cb, Pr/Cr jacks and the S-VIDEO jack when selecting AUTO in the Input Menu.

● The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack when selecting AUTO in the Input Menu.

● Select COMPUTER 2 in the Setting Menu when the COMPUTER IN 2/MONITOR OUT terminal is used as RGB Scart 21-Pin video input . (See “Terminal” on page 40.)

COMPUTER IN 1 DVI-I

Digital Video Output

COMPUTER IN 1

DVI - I

MCI

COMPUTER IN 2 /

MONITOR OUT

SERVICE PORT

USB

RESET

R - AUDIO IN - L

S - VIDEO

VIDEO/ Y – Pb/Cb – Pr/Cr

AUDIO IN 1 AUDIO IN 2

USB

(MONO)

AUDIO OUT

(VARIABLE)

Basic Operation

Connect the projector's AC power cord into an AC outlet. The POWER indicator flashes red in a moment and turns on red.

Press the POWER ON-OFF button on the top control or on the remote control. The POWER indicator turns green, and the cooling fans start to operate. The preparation display appears on the screen and the count down starts. (A captured image can be used as the preparation display. See “Capture” on page 40.)

Press the POWER ON-OFF button on the top control or on the remote control, and a message "Power off?" appears on the screen.

Press the POWER ON-OFF button again to turn off the projector. The POWER indicator starts to flash red, and it continues while the cooling fans are operating (for about 90 seconds).

TO MAINTAIN THE LIFE OF LAMP, ONCE YOU TURN PROJECTOR ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF. DO NOT DISCONNECT AC POWER CORD WHILE COOLING FANS ARE RUNNING OR BEFORE POWER INDICATOR LIGHTS RED. OTHERWISE IT WILL RESULT IN SHORTENING LAMP LIFE.

When the projector has cooled down enough to be turned on again, the POWER indicator lights red. Then you can disconnect the AC power cord.

The preparation display disappears after 30 seconds.

The message disappears after 4 seconds.

After the count-down, the input source that was selected last and the Lamp mode status icon appear on the screen.

(See page 41 for Lamp mode.)

Selected Input Source and Lamp Mode

Turning On the Projector

Turning Off the Projector

NOTE

● The projector cannot be turned on during the cooling period with the

POWER indicator flashing red. You can turn it on again after the POWER indicator lights red.

● When the On start function is on, this projector is turned on automatically by

connecting the AC power cord to an AC outlet. (See page 41 for the On start function.)

● Do not use the projector for more than 24 hours continuously. Turn off the

projector at least once in 24 hours and give it a rest. Continuous use may result in shortening the lamp lifetime.

● This projector monitors internal temperature and automatically controls the

running speed of the cooling fans.

● If the WARNING indicator flashes or lights red, see “Warning Indicator” on

page 43.

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

Lamp mode

If a projected picture has keystone distortion, correct the image with KEYSTONE adjustment.

Basic Operation

• The arrows are white when there is no correction.

• The direction of the arrow being corrected turns red.

• The arrows disappear at the maximum correction.

• If you press the KEYSTONE button on the remote control once more

while the keystone adjustment icon is being displayed, the keystone adjustment will be canceled.

Keystone Adjustment

Zoom Adjustment

Focus Adjustment

Reduce the upper width with Point Up button.

Reduce the lower width with Point Down button.

Reduce the left part with Point Left button.

Reduce the right part with Point Right button.

Press the KEYSTONE button on the remote control or select Keystone in the Setting Menu (p39). The keystone dialog box appears. Press the Point UP/DOWN button to move the red arrow pointer to H-V and then press the SELECT button. The keystone adjustment icon appears.

Correct keystone distortion by pressing the Point Up/Down/Left/Right button. Press the Point Up button to reduce the upper part of the image, and press the Point Down button to reduce the lower part. Press the Point Left button to reduce the left part, and press the Point Right button to reduce the right part. Keystone adjustment can be memorized. (p39)

Message disappears after 4 seconds.

Zoom

Focus

Press ZOOM/FOCUS button on Top Control or ZOOM ▲/▼ button on Remote Control Unit. The message “Zoom” is displayed.

Press ZOOM ▲ button or POINT UP button to make image larger, and press ZOOM

▼ button or POINT DOWN button to

make image smaller.

Press ZOOM/FOCUS button on Top Control or FOCUS ▲/▼ button on Remote Control Unit. The message “Focus” is displayed.

Adjust focus of image by pressing FOCUS ▲/▼ button or POINT UP/DOWN button(s) .

Message disappears after 4 seconds.

Keystone correction (H-V)

Basic Operation

Press the FREEZE button on the remote control to freeze the picture on the screen. To cancel the FREEZE function, press the FREEZE button again or press any other button.

Picture Freeze Function

FREEZE button

Press the Point UP/DOWN button to move the red arrow pointer to Corner and then press the SELECT button. The mark will appear on the screen. Move the projector, align the mark with the center of the desired screen and press the SELECT button. An arrow will appear on the upper left corner of the screen.

Keystone correction (Corner)

Please set the projector to take a lead in a screen and push select.

• The screen will not be corrected when points that exceed the correction limit are selected.

• If you select Corner and press the SELECT button, the keystone adjustment by H-V keystone correction will be canceled.

Auto Set Up Function

Use the POINT UP/DOWN/LEFT/RIGHT button to set the upper left positioning and press the SELECT button. Perform the same procedure for the upper right, lower right and lower left positioning and press the SELECT button. The message “OK?” will appear on the screen. Selecting YES and pressing the SELECT button will correct the alignment as per the 4 points set on the screen.

Note:

• Do not put any obstruction between the Auto Set Up sensor on the projector and the screen, otherwise the Auto Set Up

function may not work properly. Do not dirt face of the Auto Set Up sensor on the projector.

• When adjusting Keystone with Auto Set Up button, set screen zoom maximum as Keystone cannot be properly corrected

under minimum zoom screen.

Auto Set Up function enables you to automatically adjust Focus, Keystone and the computer display parameters (Fine sync, Total dots and Picture position) by just pressing the Auto Set Up button on the top control or on the remote control.

Auto Set Up function operates as follows: By pressing Auto Set Up button, preparation display is projected on screen. The Auto Set Up sensor on the projector's front panel will scan the projected image and automatically adjust Focus, Keystone and computer display parameters (when computer signal is selected for input) to obtain an optimum screen. The preparation display will disappear after the adjustment is completed.

Auto Set Up operation parameter can be selected in Setting of the main menu. (Refer to Auto set up in Setting on page 39.) If the optimum screen is not obtained, adjust insufficient matters manually.

AUTO PC ON

▲

FREEZED.ZOOM NO SHOW

▲

AUTO SET

▲


OFF

P-TIMER

MUTEPAGE

Basic Operation

Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When a projected image is captured and set as “User” in the Logo item in the Setting Menu (p40), the screen changes each time you press the NO SHOW button as follows.

The message disappears after 4 seconds.

Press the P-TIMER button on the remote control. The timer display “00 : 00” appears on the screen and the timer starts to count time (00 : 00 ~ 59 : 59). To stop the P-Timer, press the P-TIMER button. And then, press the P-TIMER button again to cancel the P-Timer function.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Sound Menu icon.

Volume

Press the VOLUME (+/–) button on the top control or on the remote control to adjust volume. The volume dialog box appears on the screen for a few seconds. (+) button to turn up the volume and (–) button to turn down the volume.

Mute

Press the MUTE button on the remote control to cut off sound. To restore sound to its previous level, press the MUTE button again or press the VOLUME (+/–) button.

Press the Point Right button to turn up the volume, and press the Point Left button to turn down the volume.

Press the Point Left/Right button to cut off sound. Dialog box display is changed to “On” and sound is cut off. To restore sound to its previous level, press the Point Left/Right button again.

Press the Point Down button to move the red frame pointer to the item that you want to select, and then press the SELECT button.

indicates approximate level of volume.

closes the Sound Menu.

Direct Operation

Volume

Mute

indicates approximate level of volume.

Press the MUTE button to set the Mute function On or Off.

The display disappears after 4 seconds.

Sound Menu

Sound Menu icon

No Show Function

P-Timer Function

Sound Adjustment

Menu Operation

black out ➜ the captured image ➜ normal ➜

• • • • •

Basic Operation

Press the MENU button to display the On-Screen Menu (Menu bar). A red frame is a pointer.

Move the pointer (red frame) to the Menu icon that you want to select by pressing the Point Left/Right button.

Adjust the item data by pressing the Point Left/Right button. Refer to the following pages for details of respective adjustments.

Press the Point Down button and move the pointer (red frame or red arrow) to the item that you want to adjust, and then press the SELECT button to show the item data.

You can control and adjust this projector through the On-Screen Menu. Refer to the following pages to operate each adjustment on the On-Screen Menu.

Top Control

Menu bar Pointer

(red frame)

Menu icon

Item data

Press the Point Left/Right buttons to adjust value.

SELECT

button

Pointer (red frame)

Press the Point Down button to move the pointer.

Item

MUTEPAGE

FREEZED.ZOOM NO SHOW


AUTO SET

P-TIMER

AUTO PC ON

OFF

SELECT button

POINT button

Remote Control

MENU button

On-Screen Menu

MENU button

SELECT button

POINT button

(outer ring)

On-Screen Menu

Quit item closes this menu.

To close this menu, select Quit. To clear the On-Screen Menu, press the MENU button on the top control or on the remote control.

▲

SELECT

▲

R-CLICK

Basic Operation

Menu Bar

PC System Menu

Used to select computer system. (p26)

Image Adjust Menu

Used to adjust computer image. [Contrast / Brightness

/ Color

temp. /

White balance (R/G/B) /

Sharpness /

Gamma]

(p31)

Setting Menu

Used to change settings of the projector or reset lamp replace counter. (p39-42)

Sound Menu

Used to adjust volume or mute sound. (p22)

Image Select Menu

Used to select an image level among Standard, Real, and Image 1 ~ 4. (p30)

For computer source

AV System Menu

Used to select system of selected video source. (Refer to p35)

Image Adjust Menu

Used to adjust picture image.

[Contrast / Brightness

/ Color / Tint

Color temp. / White balance (R/G/B) /

Sharpness /

Gamma / Progressive]

(Refer to p37, 38)

For video source

Same function as menu for computer source.

Input Menu

Used to select input source (Video, Computer 1 or Computer 2. (p33, 34)

PC Adjust Menu

Used to adjust parameters to match with input signal format. (p27-29)

Image Select Menu

Used to select an image level among Standard, Cinema, and Image 1 ~ 4. (p36)

Screen Menu

Used to set size of image to Normal or Wide. (p38)

Guide Window

Shows the selected Menu of the OnScreen Menu.

Same function as menu for computer source.

Input Menu

Used to select input source (Computer 1, Computer 2 or Video. (p25)

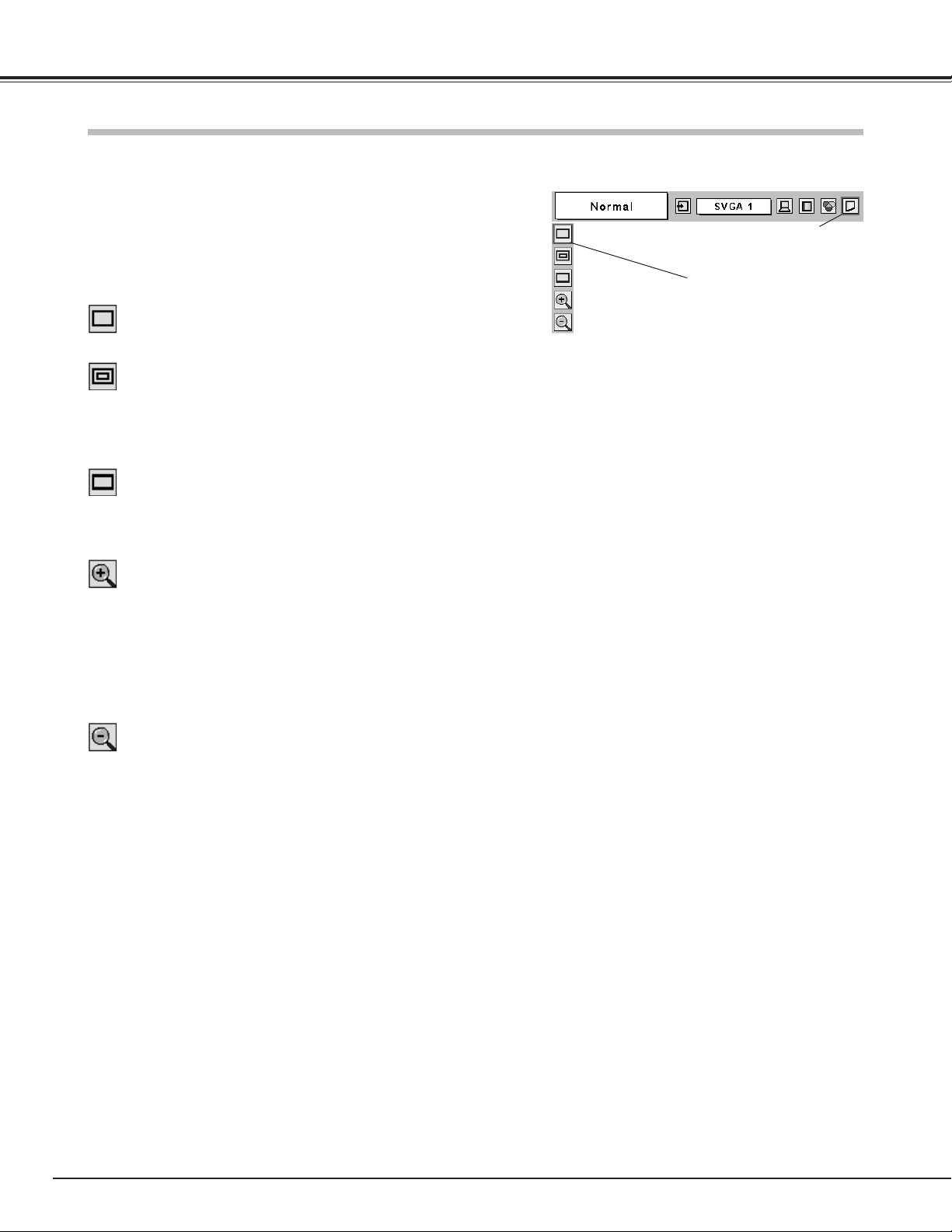

Screen Menu

Used to adjust size of image. [Normal / True / Wide / Digital zoom +/–] (p32)

Choose either Computer 1 or Computer 2 by pressing the INPUT button on the top control or press the COMPUTER 1 or COMPUTER 2 button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Input Menu icon.

Move the pointer (red arrow) to Computer 1 and press the SELECT button.

Computer

Move the pointer to RGB(Analog), RGB (PC Digital), or RGB(AV HDCP) and press the SELECT button.

Source Select Menu

Input Menu

Input Menu icon

Press the Point Down button to move the red arrow pointer to either Computer 1 or Computer 2 (Only the Computer 1 is displayed when Monitor out is selected in the Setting Menu.), and then press the SELECT button. The Source Select Menu will appear.

Move the pointer to the correct input source and then press the SELECT button.

When the input source is digital coming from a computer through the DVI terminal, select RGB (PC Digital)

RGB (PC Digital)

When the input source is analog coming from a computer through the DVI terminal, select RGB (Analog).

RGB (Analog)

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

Computer

Move the pointer to RGB and press the SELECT button.

Source Select Menu

Input Menu

Input Menu icon

Computer 1

Video

Computer 2

COMPUTER 1 or 2 button

Computer 1

Computer 2

When the input source is analog coming from a computer through the COMPUTER IN 2/MONITOR OUT terminal, select RGB.

RGB

INPUT button

Computer 2 is not displayed when the COMPUTER IN 2/MONITOR OUT terminal is used as Monitor out.

✽

Computer 2 is not displayed when the COMPUTER IN 2/MONITOR OUT terminal is used as Monitor out.

✽

Input Source Selection

Direct Operation

Menu Operation

When the input source compatible with HDCP is coming from video equipment through the DVI terminal, select RGB (AV HDCP).

RGB (AV HDCP)

NOTE

● HDCP (High-bandwidth Digital Content Protection) is a system for

protecting digital entertainment content delivered by DVI (Digital Visual Interface) from being copied. The specification of HDCP is decided and controlled by Digital Content Protection, LLC. Should the specification be changed, this projector may not display the digital content protected by HDCP.

Computer Input

This projector can detect most of the current computer systems with the Multi-scan system and the Auto PC adjustment function provided in the projector. When selecting computer input, the projector automatically displays the most proper image for the input signal. One of the following four displays appears on the system menu icon. If the projector does not tune the input signal and the projected image is not displayed properly, or when you wish to adjust it manually, perform manual adjustment as described on page 28 and 29.

When the projector cannot recognize the connected signal as PC system provided in this projector, the Auto PC Adjustment function operates to adjust the projector and the message “Auto” is displayed in the PC System Menu icon. When the image is not provided properly, manual adjustment is required. (p28, 29)

There is no signal input from the connected computer. Check the connection of the computer and see if the projector is set correctly. (See “Troubleshooting” on page 47.)

Auto

– – – –

The Auto PC Adjustment function operates to adjust the projector.

PC System Menu

The PC System Menu icon displays the system being selected.

The systems on this dialog box can be selected.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right buttons to move the red frame pointer to the PC System Menu icon.

Press the Point Down button to move the red arrow pointer to the system that you want to set, and then press the

SELECT

button.

PC System Menu

Custom Mode (1~5) set in the PC Adjust Menu. (p28, 29)

PC system can also be selected manually if some PC systems appear on the On-Screen Menu.

User preset adjustment in Computer Adjustment. Adjustment data can be stored in Mode 1 - 5. (page 28,

29.)

Mode 1

Computer systems provided in the projector. The projector chooses a proper system and displays it.

SVGA 1

*Mode 1 and SVGA 1 are examples.

Computer System Selection

Computer Input

Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal, and Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the PC Adjust Menu icon.

Press the Point Down button to move the red frame pointer to the Auto PC Adj. icon and then press the SELECT button twice. This Auto PC Adjust can also be executed by pressing the AUTO PC button on the top control or on the remote control.

Move the red frame pointer to the Auto PC Adj. icon and press the SELECT button.

PC Adjust Menu

Auto PC Adj.

PC Adjust Menu icon

To store adjustment data

Adjustment parameters from Auto PC Adjustment can be memorized in this projector. Once parameters are memorized, the setting can be done just by selecting Mode in the PC System Menu (p26). See “Store” on page 29.

NOTE

● The PC Adjust Menu cannot be operated when the input signal is digital, a

signal compatible with HDCP, or a memory card is installed into Multi Card Imager.

● The Auto PC Adjust cannot be operated when 480i, 575i, 480p, 575p, 720p,

1035i, or 1080i is selected in the PC System Menu.

Computer Adjustment (Auto)

Automatically adjusts Fine sync, Total dots, Horizontal, and Vertical for the input signal from your computer.

Computer Input

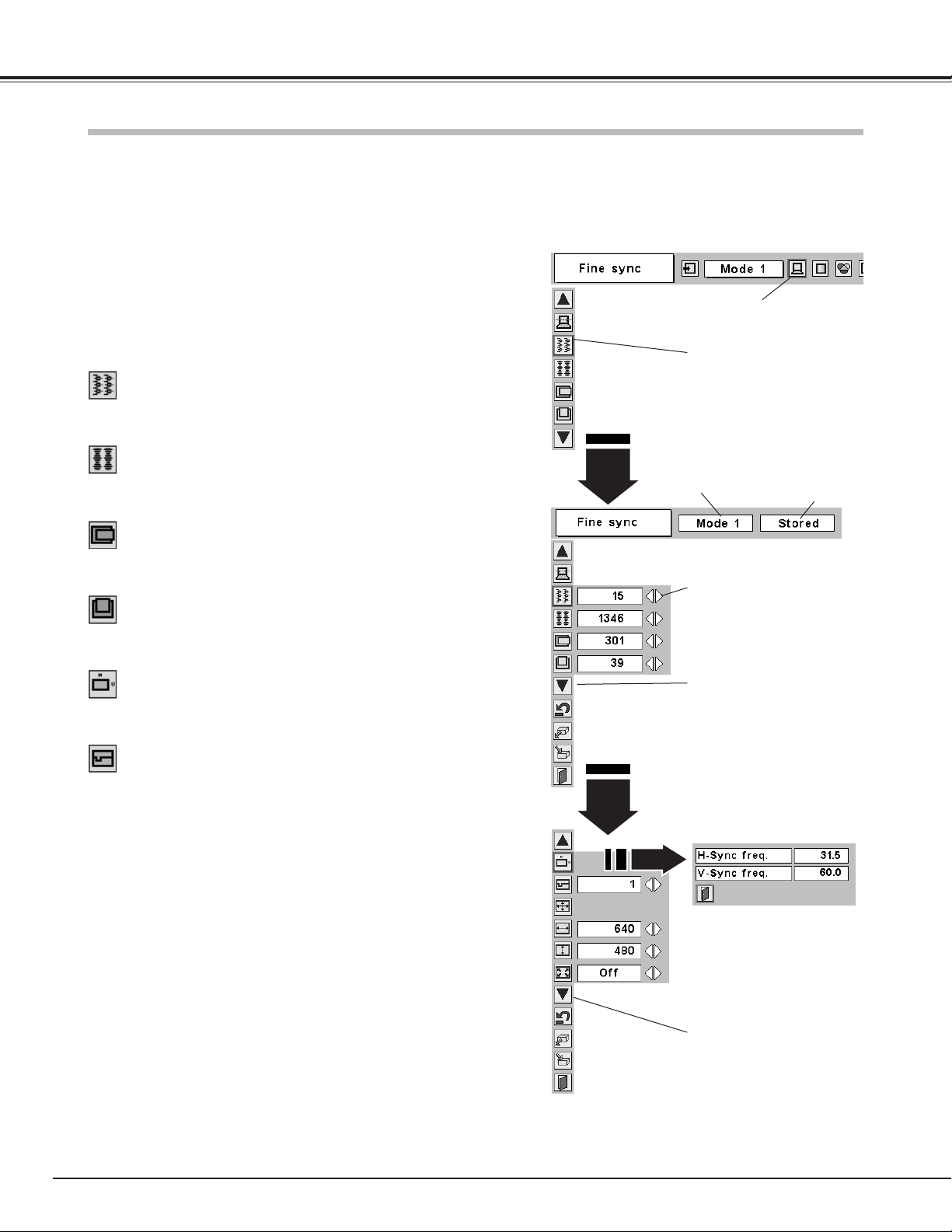

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. This projector has Manual PC Adjustment to enable you to precisely adjust several parameters to match those signal formats. The projector has 5 independent memory areas to memorize those parameters manually adjusted. This enables you to recall the setting for a specific computer whenever you use it.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the PC Adjust Menu icon.

Press the Point Down button to move the red frame pointer to the item that you want to adjust and then press the SELECT button. An adjustment dialog box will appear. Press the Point Left/Right button to adjust value.

Move the red frame pointer to an item and press the SELECT button.

PC Adjust Menu

PC Adjust Menu icon

Adjusts an image as necessary to eliminate flicker from the display. Press the Point Left/Right button to adjust value. (From 0 to 31)

Fine sync

Adjusts the number of total dots in one horizontal period. Press the Point Left/Right button and adjust number to match your PC image.

Total dots

Adjusts horizontal picture position. Press the Point Left/Right button to adjust the position.

Horizontal

Adjusts vertical picture position. Press the Point Left/Right button to adjust the position.

Vertical

Press the SELECT button to show the information of the connected computer.

Current mode

Adjusts clamp level. When the image has dark bars, try this adjustment.

Clamp

Press the SELECT button at this icon to display other items.

Press the Point Left/Right button to adjust the value.

Shows status (Stored / Free) of the selected Mode.

Selected Mode

Press the SELECT button at the Current mode icon to show the information of the connected computer.

Current mode

Computer Adjustment (Manual)

Press the SELECT button at this icon to jump to the top item.

Computer Input

Select the resolution at the Display area dialog box.

Display area

Adjusts the horizontal area displayed by this projector. Press the Point Left/Right button to decrease/increase value and then press the SELECT button.

Display area H

Adjusts the vertical area displayed by this projector. Press the Point Left/Right button to decrease/increase value and then press the SELECT button.

Display area V

When this function is on, SXGA image is fully displayed at 4 : 3 aspect ratio. It is displayed at 5 : 4 aspect ratio with this function off.

Full screen

Reset

Store

Closes the PC Adjust Menu.

Quit

To store adjustment data, move the red frame pointer to the Store icon and then press the SELECT button. Move the red arrow pointer to any of Mode 1 to 5 in which you want to store and then press the SELECT button.

Resets all adjustment to their previous levels.

Mode free

Vacant Mode

shows values of “Total dots,”

“Horizontal,” “Vertical,” “Display area H,” and “Display

area V.”

closes this dialog box.

To store adjustment data

To clear adjustment data

To clear adjustment data previously set, move the red frame pointer to the Mode free icon and then press the SELECT button. Move the red arrow pointer to the Mode that you want to clear and then press the SELECT button.

Display area

Press the SELECT button at the Display area icon and the Display area dialog box appears.

This Mode has parameters being stored.

NOTE

● Auto PC Adjust, Display area, Display area (H/V), and Full screen cannot be

selected when “480i”, “575i”, “480p”, “575p”, “720p”, “1035i”, or “1080i” is selected in the PC System Menu (p26).

Computer Input

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Image Select Menu icon.

Press the Point Down button to move the red frame pointer to the level that you want to set and then press the SELECT button.

Move the red frame pointer to the level and press the SELECT button.

The level being selected.

Image Select Menu

Normal picture level preset on this projector.

Standard

Picture level with improved halftone for graphics.

Real

User preset image in the Image Adjust Menu (p31).

IMAGE 1~4

Image Select Menu icon

Select an image level among Standard, Real, Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the top control or on the remote control.

IMAGE button

Standard

Real

Image 1

Image 2

Image 3

Image 4

Normal picture level preset on this projector.

Picture level with improved halftone for graphics.

User preset image in the Image Adjust Menu (p31).

Standard

Real

IMAGE 1~4

Image Level Selection

Direct Operation

Menu Operation

Computer Input

Press the Point Left/Right button to adjust value.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Image Adjust Menu icon.

Press the Point Down button to move the red frame pointer to the item that you want to adjust, and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point Left/Right button.

Move the red frame pointer to the item to be selected and then press the SELECT button.

Image Adjust Menu

Press the Point Left button to decrease contrast and the Point Right button to increase contrast. (From 0 to 63.)

Press the Point Left button to adjust image darker and the Point Right button to adjust image brighter. (From 0 to 63.)

Contrast

Brightness

Press the Point Left/Right button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Image Level Menu Move the red frame pointer to any of Image 1 to 4 where you want to set and then press the SELECT button.

Store icon Press the SELECT button at this icon to store the adjustment.

Image Adjust Menu icon

Press the Point Left button to lighten red tone and the Point Right button to deepen red tone. (From 0 to 63.)

White balance (Red)

Press the Point Left button to lighten green tone and the Point Right button to deepen green tone. (From 0 to 63.)

White balance (Green)

Press the Point Left button to lighten blue tone and the Point Right button to deepen blue tone. (From 0 to 63.)

White balance (Blue)

Selected Image level

Press the Point Left button or the Point Right button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

Color temp.

Press the Point Left button to soften the image and the Point Right button to sharpen the image. (From 0 to 15.)

Sharpness

Image Level Adjustment

Resets all adjustment to their previous levels.

Reset

Store

Closes the Image Adjust Menu.

Quit

To store the image data adjusted manually, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image 1 to 4 where you want to set and then press the SELECT button.

Computer Input

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Screen Menu icon.

When the Digital zoom + is selected, the On-Screen Menu disappears and the message “D. Zoom +” is displayed. Press the SELECT button to expand the image size. And press the Point Up/Down/Left/Right button to pan the image. The Panning function can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the D.ZOOM

▲

button on the remote control.

To cancel the Digital Zoom +/– mode, press any button except the D.ZOOM

▲/▼, SELECT, R-CLICK, and Point button.

Move the red frame to the function and press the SELECT button.

Press the Point Down button and move the red frame pointer to the function that you want to select and then press the SELECT button.

Wide

Digital zoom +

NOTE

● This Screen Menu cannot be operated when “720p

(HDTV)”, “1035i (HDTV)”, or “ 1080i (HDTV)” is selected in the PC System Menu (p26).

● The True and Digital zoom +/– cannot be selected

when “480i”, “575i”, “480p”, or “575p” is selected in the PC System Menu (p26).

● This projector cannot display any resolution higher

than 1280 X 1024. If your computer’s screen resolution is higher than 1280 X 1024, reset the resolution to the lower before connecting to the projector.

● The image data in other than XGA (1024 x 768 for

PLC-XU60) or SVGA (800 x 600 for PLC-SU60) is modified to fit the screen size in initial mode.

● The panning function may not operate properly if the

computer system prepared in the PC Adjust Menu is used.

Provides image to fit screen size.

Normal

True

Screen Menu

Screen Menu icon

When the Digital zoom – is selected, the On-Screen Menu disappears and the message “D. Zoom –” is displayed. Press the SELECT button to compress the image size. A projected image can be also compressed by pressing the D.ZOOM ▼ button on the remote control.

Digital zoom –

Provides image in its original size. When the original image size is larger than the screen size (1024 x 768 for PLC-XU60, 800 x 600 for PLC-SU60), this projector enters “Digital zoom +” mode automatically.

Provides image to fit wide video aspect ratio (16 : 9) by expanding image width uniformly. This function can be used for providing a squeezed video signal at 16 : 9.

Screen Size Adjustment

Video Input

Choose Video by pressing the INPUT button on the top control or the VIDEO button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Input Menu icon.

Press the Point Down button to move the red arrow pointer to Video and then press the SELECT button. The Source Select Menu will appear.

Move the pointer to Video and press the SELECT button.

VIDEO

Move the pointer to the source that you want to select and press the SELECT button.

Source Select Menu (VIDEO)

Input Menu

Move the pointer to the source that you want to select and then press the SELECT button.

When selecting Auto, the projector automatically detects incoming video signal, and adjusts itself to optimize its performance. The projector selects connection in the following order:

1st Y, Pb/Cb, Pr/Cr 2nd S-Video

3rd Video The Y, Pb/Cb, Pr/Cr jacks has priority over the S-VIDEO jack under the condition of connecting both the Y, Pb/Cb, Pr/Cr jacks and the S-VIDEO jack. The S-VIDEO jack has priority over the VIDEO jack under the condition of connecting both the S-VIDEO jack and the VIDEO jack.

Auto

When video input signal is connected to the VIDEO jack, select Video.

Video

When video input signal is connected to the S-VIDEO jack, select S-Video.

S-Video

INPUT button

Video

Computer 2

Computer 1

VIDEO button

Video

When Monitor out is selected at the Terminal item in the Setting Menu, Computer 2 is not displayed.

✽

When Monitor out is selected at the Terminal item in the Setting Menu, Computer 2 is not displayed.

✽

Input Source Selection {Video, S-Video, (Y, Pb/Cb, Pr/Cr)}

Direct Operation

Menu Operation

NOTE

● See “Computer Input” on page 25 for a signal compatible with HDCP.

Y, Pb/Cb, Pr/Cr

When video input signal is connected to the Y, Pb/Cb, Pr/Cr jacks, select Y, Pb/Cb, Pr/Cr.

Video Input

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Input Menu icon.

Press the Point Down button to move the red arrow pointer to Computer 2 (Only the Computer 1 is displayed when Monitor out is selected in the Setting Menu.), and then press the SELECT button. The Source Select Menu will appear.

Move the pointer to the correct input source and then press the SELECT button.

Move the pointer (red arrow) to Computer 2 and press the SELECT button.

Computer

Move the pointer to Component or RGB (Scart) and press the SELECT button.

Source Select Menu

Input Menu

Input Menu icon

Computer 1

Video

Computer 2

COMPUTER 2 button

Computer 2

INPUT button

Computer 2 is not displayed when the COMPUTER IN 2/MONITOR OUT terminal is used as Monitor out.

✽

Input Source Selection (RGB Scart 21-Pin)

Direct Operation

Menu Operation

When the input source is coming from video equipment connected to the COMPUTER IN 2/MONITOR OUT terminal with a Scart-VGA Cable, select RGB (Scart).

RGB (Scart)

NOTE

● Scart-VGA Cable is optionally supplied. See page 55 for order.

Choose Computer 2 by pressing the INPUT button on the top control or press the COMPUTER 2 button on the remote control. Before using these buttons, correct input source should be selected through menu operation as described below.

Video Input

AV System Menu (Video or S-Video)

AV System Menu (Component)

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the AV System Menu icon.

Press the Point Down button to move the red arrow pointer to the system that you want to select and then press the SELECT button.

If the projector cannot reproduce proper video image, it is necessary to select a specific broadcast signal format among PAL, SECAM, NTSC, NTSC 4.43, PAL-M, and PAL-N.

Move the pointer to a system and press the SELECT button.

PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N

The projector automatically detects incoming video signal, and adjusts itself to optimize its performance.

If the projector cannot reproduce proper video image, it is necessary to select a specific component video signal format among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i.

Auto

COMPONENT VIDEO SIGNAL FORMAT

Video or S-Video

Component

The projector automatically detects incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually.

Auto

AV System Menu icon This box indicates the system being selected.

Move the pointer to a system and press the SELECT button.

AV System Menu icon This box indicates the system being selected.

Video System Selection

NOTE

● The AV System Menu cannot be selected when selecting RGB(Scart).

Video Input

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Image Select Menu icon.

Press the Point Down button to move the red frame pointer to the level that you want to set and then press the SELECT button.

Move the red frame pointer to a level and press the SELECT button.

The level being selected.

Image Select Menu

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset image in the Image Adjust Menu (p37, 38).

IMAGE 1~4

Image Select Menu icon

Select an image level among Standard, Cinema, Image 1, Image 2, Image 3, and Image 4 by pressing the IMAGE button on the top control or on the remote control.

Normal picture level preset on this projector.

Standard

Picture level adjusted for the picture with fine tone.

Cinema

User preset image in the Image Adjust Menu (p37, 38).

IMAGE 1~4

IMAGE button

Standard

Cinema

Image 1

Image 2

Image 3

Image 4

Image Level Selection

Direct Operation

Menu Operation

Video Input

Press the Point Left/Right button to adjust value.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Image Adjust Menu icon.

Press the Point Down button to move the red frame pointer to the item that you want to adjust and then press the SELECT button. The level of each item is displayed. Adjust each level by pressing the Point Left/Right button.

Move the red frame pointer to the item to be selected and then press the SELECT button.

Image Adjust Menu

Press the Point Left button to decrease contrast and the Point Right button to increase contrast. (From 0 to 63.)

Press the Point Left button to adjust image darker and the Point Right button to adjust image brighter. (From 0 to 63.)

Contrast

Brightness

Press the Point Left/Right button to obtain better balance of contrast. (From 0 to 15.)

Gamma

Press the SELECT button at this icon to display other items.

Image Adjust Menu icon

Press the Point Left button to lighten color and the Point Right button to deepen color. (From 0 to 63.)

Press the Point Left/Right button to obtain proper color. (From 0 to

63.)

Color

Tint

Press the Point Left button to soften the image and the Point Right button to sharpen the image. (From 0 to 15.)

Sharpness

Press the Point Left button to lighten red tone and the Point Right button to deepen red tone. (From 0 to 63.)

White balance (Red)

Press the Point Left button to lighten green tone and the Point Right button to deepen green tone. (From 0 to 63.)

White balance (Green)

Press the Point Left button to lighten blue tone and the Point Right button to deepen blue tone. (From 0 to 63.)

White balance (Blue)

Press the SELECT button at this icon to store the value.

Press the SELECT button at this icon to display previous items.

NOTE

● The Tint cannot be adjusted when the video system

is PAL, SECAM, PAL-M, or PAL-N.

● Progressive cannot be selected when 480p, 575p,

720p, 1035i, or 1080i is selected.

Image Level Adjustment

Press the Point Left/Right button for Color temp. level that you want to select. (XLow, Low, Mid, or High)

Color temp.

Interlace video signal can be displayed in a progressive picture.

Off ···· Not activated. L1 ···· Select “L1” for an active picture. L2 ···· Select “L2” for a still picture.

Progressive

Video Input

This projector has a picture screen resize function, which enables you to display the desirable image size.

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Screen Menu icon.

Press the Point Down button and move the red frame pointer to the function that you want to select and then press the SELECT button.

Move the red frame to a function and press the SELECT button.

Screen Menu

Screen Menu icon

Provides image at a wide screen ratio of 16 : 9.

Wide

Provides image at a normal video aspect ratio of 4 : 3.

Normal

To store the adjustment data, move the red frame pointer to the Store icon and press the SELECT button. The Image Level Menu will appear. Move the red frame pointer to the Image Level 1 to 4 and then press the SELECT button.

Image Level Menu Move the red frame pointer to an image icon to be set and then press the SELECT button.

Store icon

Resets all adjustment to their previous figure.

Reset

Store

Closes the Image Adjust Menu.

Quit

Screen Size Adjustment

NOTE

● Screen Menu cannot be operated when “720p”, “1035i”, or “1080i” is

selected in the AV System Menu (p35).

Setting

Keystone

Press the MENU button and the On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Setting Menu icon.

Language

The language used in the On-Screen Menu is available in English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, or Japanese.

Display

This function decides whether to display On-Screen Displays.

On ···· shows all the On-Screen Displays. Off ···· does not show On-Screen Displays except;

● On-Screen Menu

● “Power off?” message

● P-Timer

● “No signal” message

●”Wait a moment!” message

Set the red frame pointer to the item and press the SELECT button.

Press the Point Down button to move the red frame pointer to the item that you want to set and then press the

SELECT

button. The Setting dialog box appears.

Blue back

When this function is “On,” the projector produces a blue image while input signal is not detected.

When pressing the SELECT button at Language, the Language Menu appears.

Setting Menu (Language)

Setting Menu icon

This function corrects distortion of a projected image. Select either Store or Reset with the Point Left/Right button, and then press the Select button.

Store ···· stores the keystone adjustment even if the AC power

cord is disconnected.

Reset ····resets the keystone adjustment when the AC power cord

is disconnected.

When a SELECT button is pressed, the mode changes to keystone adjustment mode. Correct keystone distortion by pressing POINT UP/DOWN/LEFT/RIGHT and SELECT buttons.

Refer to Keystone Adjustment on pages 20 and 21.

Setting

When pressing the SELECT button at Auto set up, the Auto set up Menu appears.

Move the pointer to item and then press POINT LEFT/RIGHT button(s).

Auto set up

Select Auto focus, Auto keystone or Auto PC Adjustments with the Point Up/Down button. Then select setting position with the Point Left/Right button.

The menu is to set up the details on Auto Set Up operation. Select desired operation through the following alternatives for each item to be adjusted.

Auto Focus Adjustment (Off / Quick / Detail) Auto Keystone Adjustment (Off / Quick / Detail) Auto PC Adjustment (Off or On)

On Quick-Speed of the adjustment is prior to its accuracy. On Detail-Accuracy of the adjustment is prior to its speed. It is not allowed to set all the items to OFF.

Refer to Auto Set Up function on page 21.

Auto set up

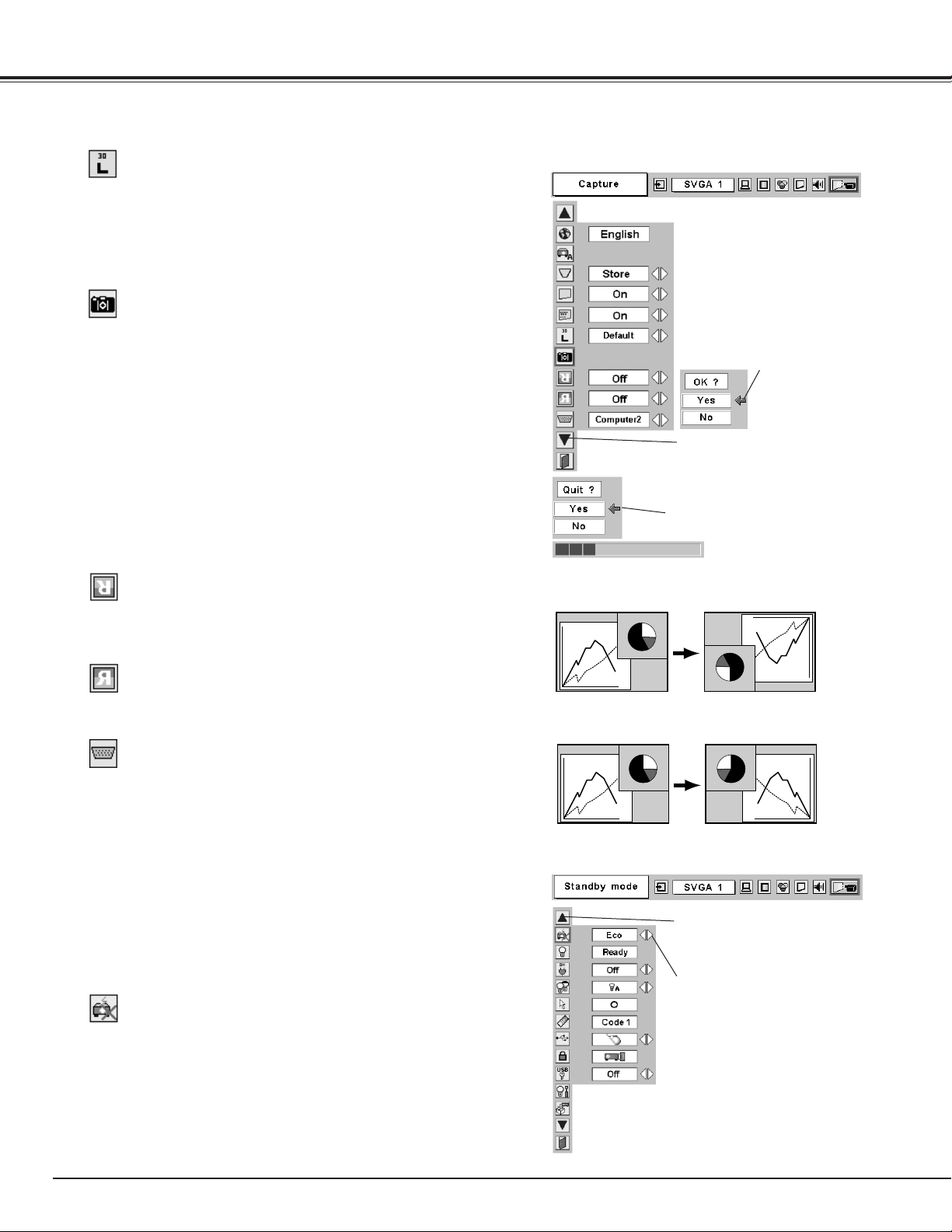

Setting

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector can be used as computer input or monitor output by switching Terminal with the Point Left/Right button. To use the terminal as computer input or RGB Scart 21-Pin Video input, select Computer 2. To use the terminal as monitor out, select Monitor out. Terminal cannot be switched into Monitor out after selecting Computer 2. In this case, select other input source such as Computer 1 or Video, and you will select Terminal.

Standby mode

Ceiling

Rear

Ceiling

When this function is “On,” the picture is top/bottom and left/right reversed. This function is used to project the image from a ceiling mounting the projector.

Rear

When this function is “On,” the picture is left/right reversed. This function is used to project the image to a rear projection screen.

Press the SELECT button at this icon to display previous items.

Standby mode

This function is available when using Multi Card Imager optionally supplied, and it reduces standby energy when selecting Eco.

Eco ···· reduces standby energy. Normal ···· consumes normal standby energy.

Capture

This function is used to capture the image being projected and use it for a starting-up display or interval of presentations. After capturing the projected image, go to the Logo function and set it as “User”. Then the captured image will be displayed when turning on the projector next time or pressing the NO SHOW button. (p22) To capture the image, select [Yes]. To cancel the Capture function, select [No]. Before capturing an image, select Standard in the Image Select Menu to capture a proper image. (See page 30, 36.) A signal from a computer can be captured up to XGA(1024 x 768). A signal from video equipment can be captured except for 720p, 1035i, and 1080i. When capturing the image that has been adjusted by the Keystone function, the adjustment data is automatically reset and the projector captures an image without keystone adjustment.

Select [Yes] to capture the projected image.

Select [Yes] to stop capturing.

Capture

Logo

This function decides what to be displayed when starting up.

User ···· the image you captured Default ···· the factory-set logo Off ···· count-down only

Press the SELECT button at this icon to display other items.

Move the pointer to item and then press POINT LEFT/RIGHT button(s).

Setting

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the input signal is interrupted and no button is pressed for 30 seconds or more.

When the input signal is interrupted and no button is pressed for 30 seconds or more, the timer display with the message "No signal" appears on the screen. The count-down starts for the time to have been set. The count-down time can be set between 1 and 30 minutes.

When the count-down time has elapsed, the lamp will be turned off to cool itself down. The POWER indicator is flashing red during this cooling-off period. The next performance depends on setting as follows.

Ready ······ When the lamp has been fully cooled down, the

POWER indicator changes to green flashing. In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the top control or remote control is pressed.

Shutdown···· When the lamp has been fully cooled down, the

power will be turned off.

Off ···············The Power management function is canceled.

Power management

On start

When this function is “On,” the projector is automatically turned on just by connecting the AC power cord to a wall outlet.

NOTE

● Be sure to turn the projector off properly (see “Turning Off the Projector”

on page 19). If the projector is turned off in the wrong steps, the On start function does not operate properly.

Time left until Lamp

off

Press the SELECT button at Power management and this box appears. Choose one of three settings with the Point Left/Right button, and go to the timer with the Point Up/Down button and set time with the Point Left/Right button.

Power management

Select Spotlight or Pointer with the Point Up/Down button and press the SELECT button. Then select size or pattern with the Point Left/Right button.

Lamp mode

Pointer

You can emphasize a part of the projected image with this function. Choose either Spotlight or Pointer with the Point Up/Down button and press the SELECT button. Then select one of three different sizes (Large, Middle, and Small) of Spotlight or a pointer of three different patterns (Arrow, Finger, and Dot) of Pointer. (See page 13 for operation.)

Pointer

This function allows you to change brightness of the screen.

···· normal brightness

···· the controlled brightness according with input signal

···· lowers brightness and reduces the lamp power

consumption.

Setting

This function is used to reset the lamp replace counter. When replacing the projection lamp, reset the lamp replace counter by using this function. See page 46 for operation.

Lamp counter reset

Remote control

This projector provides eight different remote control codes (Code 1Code 8); the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). This switching function prevents remote control interference when operating several projectors or video equipment at the same time. For example operating the projector in “Code 7”, both the projector and the remote control must be switched to “Code 7”.

To change the code for the projector;

Select a remote control code in this Setting Menu.

To change the code for the remote control;

While holding down the MENU button, press the IMAGE button number of times corresponding to the remote control code for the projector. (See page 14 for details.)

When pressing the SELECT button at Remote control, the remote control code menu appears.

Key lock

This function locks operation of the top control and remote control. It is useful to prevent operation by a third person.

···· not locked.

···· locks operation of the top control. To unlock, use the

remote control.

···· locks operation of the remote control. To unlock, use the top control.

Factory default

This function returns all setting values except for the lamp counter to the factory default settings.

Select Key lock and this box appears. Choose one of these with the Point Up/Down button and select [Yes] to activate it.

If the top control accidentally becomes locked and you do not have the remote control nearby, disconnect the AC power cord to turn off the power, and then while pressing the SELECT button, connect the AC power cord again. This will cancel the top control lock.

Remote control

Key lock

Factory default

Select [Yes] to activate it.

Select Factory default and this box appears. Select [Yes] , and the next box appears.

Projector mode

Select " " when controlling a projector with computer.

NOTE: This is provided not for basic operation but for future use.

This Projector is equipped with USB port for interactive operation between a projector and computer. Set mode following steps below.

Wireless Mouse mode

Select " " when controlling a computer with Remote Control of this projector.

USB

This function is available when using Projector USB Key optionally supplied. See page 57 for operation.

USB key lock

The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance.

WARNING flashing red

TOP CONTROL

Warning Indicator

The projector is shut down and the WARNING indicator is flashing red

When the temperature inside the projector exceeds the normal temperature, the projector is automatically shut down to protect the inside of the projector. The POWER indicator is flashing and the projector is being cooled down. When the temperature inside the projector returns to normal, the POWER indicator lights red and the projector can be turned on.

NOTE

● After the temperature inside the projector returns to normal, the WARNING

indicator still continues to flash. When the projector is turned on again, the WARNING indicator stops flashing.

Then check the items below.

✓ Did you provide appropriate space for the projector to be

ventilated? Check the installing condition to see if ventilation slots are not blocked.

✓ Is the projector not installed near the ventilation duct of air-

conditioning equipment which may be hot? Install the projector away from the ventilation duct of air-conditioning equipment.

✓ Are the air filters clean? Clean the air filters periodically.

WARNING lights red

TOP CONTROL

The projector is shut down and the WARNING indicator lights red

When the projector detects an abnormal condition, it is automatically shut down to protect the inside and the WARNING indicator lights red. In this case, disconnect the AC power cord and reconnect it, and then turn the projector on once again for check. If the projector is still turned off and the WARNING indicator lights red, disconnect the AC power cord and contact the service station for check and repair.

CAUTION

DO NOT LEAVE THE PROJECTOR WITH THE AC POWER CORD CONNECTED UNDER THE ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK.

Maintenance and Cleaning

Disconnect the AC power cord before cleaning.

When the projector is not in use, replace the lens cover.

Follow these steps to clean the projection lens.

Air Filter Pull up and remove.

Turn off the projector, and disconnect the AC power cord from the AC outlet.

Turn the projector upside down and remove the air filters by pulling the latches upward.

Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. Clean the air filters following the steps below.

Clean the air filters with a brush or rinse them softly.

When cleaning the air filters by rinsing, dry them well. Replace the air filters properly. Make sure that the air filters are fully inserted.

CAUTION

Do not operate the projector with the air filters removed. Dust may accumulate on the LCD panel and the projection mirror degrading picture quality. Do not put small parts into the air intake vents. It may result in malfunction of the projector.

RECOMMENDATION

We recommend avoiding dusty/smoky environments when operating the projector. Usage in these environments may cause poor image quality.

When using under dusty or smoky conditions, dust may accumulate on a lens, LCD panels, or optical elements inside the projector. This condition may degrade the quality of a projected image. When the above symptoms are noticed, contact your authorized dealer or service station for proper cleaning.

Cleaning the Air Filters

Cleaning the Projection Lens

Cleaning the Projector Cabinet

Disconnect the AC power cord before cleaning.

Softly wipe the projector body with a soft, dry cleaning cloth. When it is heavily soiled, use a small amount of mild detergent and finish with a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.

Follow these steps to clean the projector cabinet.

When the projector is not in use, put the projector in the carrying case to protect it from dust and scratches.

Softly wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use lens cleaning paper or a commercially available air blower to clean the lens. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents, or other harsh chemicals might scratch the surface.

When the life of the projection lamp of this projector draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the lamp with a new one promptly.

Follow these steps to replace the lamp.

Lamp

Lamp Cover

ORDER REPLACEMENT LAMP

Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer.

● Model No. of your projector : PLC-XU60/PLC-SU60

● Replacement Lamp Type No. : POA-LMP68

(Service Parts No. 610 308 1786)

For continued safety, replace with a lamp of the same type. Do not drop a lamp or touch a glass bulb! The glass can shatter and may cause injury.

Allow a projector to cool, for at least 45 minutes before you open the Lamp cover. The inside of the projector can become very hot.

This indicator lights yellow when the life of the projection lamp draws to an end.

Top Control

CAUTION

Turn off the projector and disconnect the AC plug. Allow the projector to cool for at least 45 minutes.

Loosen 2 screws of the lamp with a screwdriver and pull out the lamp by grasping the handle.

Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is set properly. Replace the lamp cover.

Insert the coin etc. and pushing it, then remove the lamp cover upward.

Connect the AC power cord to the projector and turn on the projector.

Reset the Lamp replace counter.

See “Lamp Replace Counter” on the next page .

Lamp Replacement

Handle

Screw

CAUTION

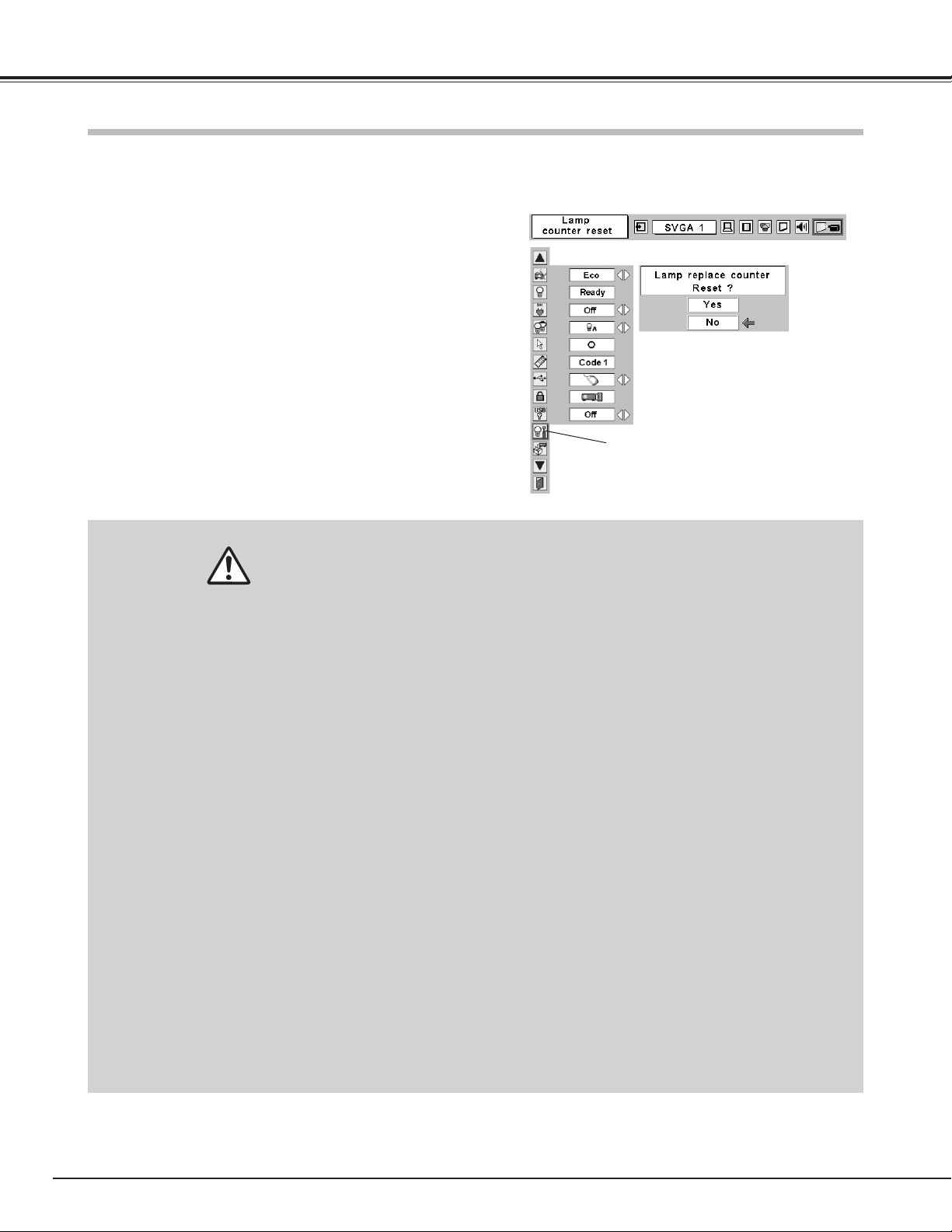

Maintenance and Cleaning

Be sure to reset the lamp replace counter after the lamp is replaced. When the lamp replace counter is reset, the LAMP REPLACE indicator stops lighting.

Turn the projector on, press the MENU button and the OnScreen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Setting Menu icon.

Press the Point Down button to move the red frame pointer to the Lamp counter reset item and then press the SELECT button. The message "Lamp replace counter Reset?" is displayed. Move the pointer to [Yes] and then press the SELECT button.

Another confirmation dialog box appears and select [Yes] to reset the Lamp replace counter.

This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE indicator lights

up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. ( Follow carefully the instructions in the Lamp Replacement section of this manual. ) Continuous use of the lamp with the LAMP REPLACE indicator lighted may increase the risk of lamp explosion.

● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one should check the inside of the projector except those who are authorized trained technicians and who are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass.

LAMP HANDLING PRECAUTIONS

Lamp Replace Counter

NOTE

● Do not reset the Lamp replace counter without implementation of lamp

replacement. Be sure to reset the Lamp replace counter only after replacing the lamp.

Move the pointer to Lamp counter reset and then press the SELECT button. The message “Lamp replace counter Reset?” is displayed.

Troubleshooting

Before calling your dealer or service center for assistance, check the items below once again.

– Make sure you have properly connected the projector to peripheral equipment as described in "Connecting to a Computer"

and “Connecting to Video Equipment” on page17 and 18.

– Make sure all equipment is connected to AC outlet and the power is turned on. – When you operate the projector with a computer and it does not project an image, restart the computer.

No power

– Plug the power cord of the projector into the AC outlet. – See if the POWER indicator lights red. – Wait 90 seconds after the projector is turned OFF when turning the projector back on.

The projector can be turned on after the POWER indicator turns red. (See “Turning Off the Projector” on page 19.)

– Check the WARNING indicator. If the WARNING indicator lights red, the projector cannot

be turned on. (See "Warning Indicator" on page 43.)

– Check the projection lamp. (See page 45.) – Unlock Key lock for the projector in the Setting Menu. (See page 42.)

Image is out of focus.

–

Adjust focus of the projector.

–

Provide proper distance between the projector and the projection screen. (See page 16.)

–

Check the projection lens to see if it needs cleaning. (See page 44.)

–

Moving the projector from a cool temperature location to a warm temperature location may result in moisture condensation on the projection lens. In such an event, leave the projector OFF and wait until condensation disappears.

Image is Left/Right

reversed.

–

Check the Ceiling / Rear item. (See “Setting” on page 40.)

Problem:

–

Try these solutions.

Image is Top/Bottom

reversed.

–

Check the Ceiling item. (See “Setting” on page 40.)

Some displays are not

seen during the

Operation.

–

Check the Display item. (See “Setting” on page 39.)

No image

–

Check the connection between your computer or video equipment and the projector.

–

See if the input signal is correctly output from your computer. Some laptop computers may need changing the setting for monitor output when you are connecting a laptop computer. See your computer’s owner’s manual for setting.

–

It takes about 30 seconds to display an image after turning on the projector.

–

See if the selected system is corresponding with your computer or video equipment.

–

Select correct input source once again through menu operation.

–

Make sure the temperature is not out of the Operating Temperature (5°C ~ 35°C).

No sound

–

Check audio cable connection from audio input source.

–

Adjust the audio source.

–

Press the Volume (+) button.

–

Press the Mute button.

Appendix

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

WARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet.

If problems still persist

after following all operating instructions,

contact the dealer where you purchased the projector or the

service center.

Give the model number and explain about the problem. We will advise you how to obtain service.

The Remote Control

does not work.

–

Check the batteries.

–

Make sure no obstruction is between the projector and remote control.

–

Make sure you are not too far from the projector when using the remote control. Maximum operating range is 16.4’ (5m).

–

Make sure the code of the remote control is conformed to the projector. (See page 14,

42.)

– Unlock Key lock for the remote control in the Setting Menu. (See page 42.)

Problem:

– Try these solutions.

Wireless Mouse function

does not work.

–

Make sure your computer is connected to the projector with a USB cable.

–

Check cable connection between the projector and your computer.

–

Check the mouse setting on your computer.

Computer 2 cannot be

selected.

The Terminal item

cannot be selected.

–

The Terminal item in the Setting Menu cannot be selected after Computer 2 is selected. Select other input source such as Computer 1 or Video with the INPUT button on the top control, the COMPUTER 1 button or the VIDEO button on the remote control so that the Terminal item can be selected.

–

Select Computer 2 at the Terminal item in the Setting Menu. (See “Terminal” on page

40.)

Appendix

Check the indicators for projector condition.

• • • lights green. • • • lights red.

• • • off

• • • flashes green.

✽ When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When this indicator lights

yellow, replace the projection lamp with a new one promptly. Reset the Lamp replace counter after replacement of the lamp. See page 45 and 46.

The projector is OFF. (The AC power cord is unplugged.)

The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed.

The temperature inside the projector is abnormally high. The projector cannot be turned on. When the projector is cooled down enough and the temperature returns to normal, the POWER indicator lights red and the projector can be turned on. (The WARNING indicator keeps flashing.) Check and clean the Air filter.

Projector Condition

The projector is ready to be turned on with the POWER ON-OFF button.

POWER

red/green

Indicators

LAMP

REPLACE

yellow

WARNING

red

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, disconnect the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause electric shock or a fire hazard.

✽

The projector is operating normally.

The projector is in the Power management mode.

✽

The projector has been cooled down enough and the temperature returns to normal. When turning on the projector, the WARNING indicator stops flashing. Check and clean the air filters.

Indicators and Projector Condition

• • • flashes red.

Appendix

Menu Tree

System (1)

MODE 1 MODE 2 SVGA 1

- - - -

Auto PC Adj. Fine sync. Total dots Horizontal Vertical Current mode Clamp Display area

Display area - H Display area - V Full screen Reset Mode free Store

Quit

Standard Real Image 1 Image 2 Image 3 Image 4

Image Adjust

Contrast Brightness Color Temp

Red Green Blue

Gamma

Store

Quit

Normal True Wide Digital zoom + Digital zoom –

0 - 31

On/Off

0 - 63 0 - 63

Input

RGB( Analog )

RGB( PC Digital )

Go to System (1)

Computer 2 RGB

Y, Pb/Cb, Pr/Cr

Go to System (1)

Computer Input

Video Auto

Go to System (2)

Computer 1

Video

S-Video

PC Adjust

640 x 480 720 x 400 800 x 600 1024 x 768 1152 x 864 1280 x 1024 1400 x 1050

Mode 1 Mode 2 Mode 3 Mode 4 Mode 5

Image Select

High

0 - 63 0 - 63 0 - 63

0 - 15

Image 1 Image 2 Image 3 Image 4

Screen

Quit

Yes/No

Quit

✽Systems displayed in the System Menu vary

depending on an input signal.

Mid

Reset

Yes/No

RGB( AV HDCP )

RGB( Scart )

Low

XLow

Sharpness 0 - 15

N/A

Go to System (3)

Go to System (2)

N/A

Computer Input/Video Input

✽N/A - - - not applicable

Appendix

Auto PAL SECAM NTSC NTSC 4.43 PAL-M PAL-N

Video Input

Auto 1080i 1035i 720p 575p 480p 575i 480i

Standard Cinema Image 1 Image 2 Image 3 Image 4

Quit

Normal Wide

0 - 63 0 - 63 0 - 63 0 - 63

Off

Volume Mute Quit

On / Off

Language

Image Select

System (3)

System (2)

Image Adjust

Contrast Brightness Color Tint

Red Green Blue Sharpness

Reset Store

Gamma Progressive

0 - 63 0 - 63 0 - 63 0 - 15 0 - 15

Image 1 Image 2 Image 3 Image 4

Screen

Sound

Setting

English German French Italian Spanish Portuguese Dutch Swedish

Chinese Korean Japanese

Store/Reset

On/Off On/Off

Off

On/Off On/Off

Off

On/Off Normal

Code 1

Yes / No

Keystone

Blue back Display

Logo

Ceiling Rear

Power management

On start Lamp mode

Remote control

Factory default

Yes/No

Quit

Code 2 Code 3 Code 4 Code 5 Code 6 Code 7 Code 8 Quit

Quit

0 - 63

Russian

Computer 2Terminal Monitor out

HighColor Temp Mid Low XLow

Yes/NoCapture

Eco/NormalStandby mode

Ready Shut down

SpotlightPointer Pointer

Auto Eco

Yes / NoLamp counter reset

OffKey lock Projector Remote Control

User Default

L1 L2

1-30 Min Quit

Quit

Auto Set up

Auto focus

Quick/Detail/Off

Auto Keystone

Quick/Detail/Off

Auto PC Adj.

On/Off

H-V

Computer Input/Video Input

USB Key lock

Registration Delete (USB Plugged in) Delete (Another)

Mouse/ProjectorUSB

Quit

Corner

Quit

Off/On1/On2

Appendix

Compatible Computer Specifications

PLC-XU60 can basically accept the signal from all computers with the V, H-Frequency mentioned below and less than 140 MHz of Dot Clock. PLC-SU60 can basically accept the signal from all computers with the V, H-Frequency mentioned below and less than 100 MHz of Dot Clock.

These modes are not available on PLC-SU60.

When an input signal is digital from DVI terminal, refer to the chart below.

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

640 x 480 31.47 59.88 720 x 400 31.47 70.09 640 x 400 31.47 70.09 640 x 480 37.86 74.38 640 x 480 37.86 72.81 640 x 480 37.50 75.00

640 x 480 34.97 66.60 640 x 480 35.00 66.67

MAC 16 832 x 624 49.72 74.55

800 x 600 35.156 56.25

800 x 600 37.88 60.32 SVGA 3 800 x 600 46.875 75.00 SVGA 4 800 x 600 53.674 85.06 SVGA 5 800 x 600 48.08 72.19 SVGA 6 800 x 600 37.90 61.03 SVGA 7 800 x 600 34.50 55.38 SVGA 8 800 x 600 38.00 60.51 SVGA 9 800 x 600 38.60 60.31

SVGA 11 800 x 600 38.00 60.51

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

XGA 8 1024 x 768 XGA 9

1024 x 768

63.48 79.35

36.00

87.17

(Interlace)

XGA 1 1024 x 768 XGA 2 1024 x 768 XGA 3 1024 x 768 XGA 4 1024 x 768

48.36 60.00

68.677 84.997

XGA 6 1024 x 768

60.023 75.03

XGA 7 1024 x 768

56.476 70.07

48.50 60.02

44.00 54.58

XGA 5 1024 x 768 60.31 74.92

640 x 480 43.269 85.00

––––––––

15.734

60.00

(Interlace)

––––––––

15.625

50.00

(Interlace)

SVGA 10 800 x 600 32.70 51.09

XGA 10 1024 x 768

62.04 77.07

MAC 19 1024 x 768 60.24 75.08 MAC 21

1152 x 870

68.68 75.06

1280 x 960

75.00

75.08

1280 x 1024

80.00

75.08

XGA 11 1024 x 768

XGA 12 1024 x 768 XGA 13 1024 x 768 XGA 14 1024 x 768

61.00 75.70

XGA 15 1024 x 768

35.522

86.96

(Interlace)

46.90 58.20

47.00 58.30

58.03 72.00

SXGA 1 1152 x 864 SXGA 2 1280 x 1024

1280 x 1024 1280 x 1024

64.20 70.40

1280 x 1024

62.50 58.60

1280 x 1024

63.90 60.00

1280 x 1024

63.34

59.98

SXGA 8 1280 x 1024

63.74 60.01

SXGA 11 1152 x 900

71.69 67.19

SXGA 12 1152 x 900

81.13 76.107

SXGA 13 1280 x 1024

63.98 60.02

SXGA 14 1280 x 1024

61.20 65.20

71.40 75.60

50.00

86.00

(Interlace)

––––––––

50.00

94.00

(Interlace)

45.00 60.00

SXGA 9 1280 x 1024

SXGA 10 1280 x 960

79.976 75.025

60.00 60.00

1280 x 1024 SXGA 16 1280 x 1024 SXGA 17 1152 x 900 SXGA 18 1280 x 1024

63.37 60.01

76.9 7 72.00

61.85 66.00

46.43

86.70

(Interlace)

SXGA 19 1280 x 1024 63.79 60.18

––––––––

33.75

60.00

(Interlace)

1400 x 1050 63.90 60.00

––––––––

33.75

60.00

(Interlace)

––––––––

28.125

50.00

(Interlace)

––––––––

31.47 59.88

––––––––

31.25

50.00

SVGA 1 SVGA 2

480i

VGA 1 VGA 2 VGA 3 VGA 4 VGA 5 VGA 6

MAC LC13

MAC 13

VGA 7

575i

SXGA 3 SXGA 4 SXGA 5 SXGA 6 SXGA 7

MAC MAC

SXGA 21

SXGA 15

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

640 x 480 31.47 59.94

ON-SCREEN

DISPLAY

RESOLUTION

H-Freq.

(kHz)

V-Freq.

(Hz)

D-VGA

D-SVGA

800 x 600

37.879 60.32

D-XGA 1024 x 768 43.363 60.00

60.276 58.069

31.65 29.80

D-SXGA 2 D-SXGA 3

1280 x 1024 1280 x 1024

D-720p

––––––––

45.00 60.00

D-1035i

––––––––

33.75

60.00

(Interlace)

––––––––

33.75

––––––––

28.125

50.00

(Interlace)

63.98

60.02D-SXGA 1

1280 x 1024

D-480p

––––––––

31.47 59.94

D-575p

––––––––

31.25

50.00

60.00

(Interlace)

480p 575p

720p 1035i

1080i 1080i

D-1080i D-1080i

76.97

PLC-XU60

Appendix

Owner’s Manual AC Power Cord Remote Control and Batteries DVI-VGA Cable USB Cable Protective Dust Cover Lens Cover String for Lens Cover

0.99" TFT Active Matrix type, 3 panels

Multi-media Projector

12.8 lbs (5.8 kg)

15.35" x 4.4" x 10.79" (390mm x 112mm x 274mm)

(not including raised portions)

1,024 x 768 dots

2,359,296 (1,024 x 768 x 3 panels)

PAL, SECAM, NTSC, NTSC4.43, PAL-M, and PAL-N

H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz

Adjustable from 31” to 300”

1 speaker, ø1.1" (28mm)

41 ˚F ~ 95 ˚F (5 ˚C ~ 35 ˚C)

14 ˚F ~ 140 ˚F (-10 ˚C ~ 60 ˚C)

Projector Type

Net Weight

Dimensions

(W x H x D)

Panel Resolution Number of Pixels Color System

Scanning Frequency Projection Image size

(Diagonal)

Built-in Speaker

Operating Temperature Storage Temperature

Accessories

LCD Panel System

● The specifications are subject to change without notice.

F 1.7 ~ 2.1 lens with f 33.6 mm ~ 43.2 mm with manual zoom and focus

4.3’ ~ 33.1’ (1.3 m ~ 10.1 m)

300 W

RCA Type x 3 (Video/Y, Pb/Cb, Pr/Cr) and Mini DIN 4 pin x 1 (S-Video)

Projection Lens Throw Distance Projection Lamp Video Input Jacks

RCA Type x 2 (R and L)

Audio Input Jacks

DVI-I Terminal (Digital/Analog) (HDCP compatible)

Mini Jack (stereo) x 2

Mini DIN 8 pin x 1

Mini Jack (stereo) x 1 (variable with volume)

1.0 W RMS

Computer Input 1 Terminal

Computer Audio Input Jacks (1 and 2) Service Port Connector

Audio Output Jack Internal Audio Amp

0˚ to 10.3˚

Feet Adjustment

Power Source : AA, UM3 or R06 Type x 2 Operating Range : 16.4’ (5m) / ±30˚ Dimensions : 2.0”(W) x 1.0”(H) x 7.1”(D) (50mm x 27mm x 181mm) Net Weight : 0.34 lbs (154 g) (including batteries) Laser Pointer : Class II Laser

(Max. Output : 1mW / Wave length : 640~660nm)

Remote Control

480i, 480p, 575i, 575p, 720p, 1035i, and 1080i

High Definition TV Signal

USB Type A x 1 (for Security) and USB Type B x 1 (for Mouse control)

USB Connector

AC 100 ~ 120 V (5.0 A Max. Ampere), 50 / 60 Hz AC 200 ~ 240 V (2.5 A Max. Ampere), 50 / 60 Hz

Voltage and Power Consumption

Computer Input 2 / Monitor Output Terminal

(VGA) HDB 15 Terminal x 1 (switch to use this terminal)

● LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels.

Technical Specifications

● The On-Screen Menu and figures in this manual may differ slightly from the product.

PLC-SU60

Model No.

800 x 600 dots

1,440,000 (800 x 600 x 3 panels)

H-sync. 15 ~ 80 KHz, V-sync. 50 ~ 100 Hz

Appendix

COMPUTER INPUT/MONITOR OUTPUT TERMINAL (ANALOG)

Terminal : HDB15-PIN

Red Input

Ground (Horiz.sync.)

Green Input

Sense 2

Blue Input

Ground (Red) Ground (Green) Ground (Blue)

6 7 8

+5V Power

Horiz. sync.

Ground (Vert.sync.)

DDC Data

Sense 0

Vert. sync. DDC Clock

14 15

Pin Configuration

Analog Red Input

Analog Ground (R/G/B)

Analog Green Input

Analog Horiz. sync

Analog Blue Input

T.M.D.S. Data2–

No Connect

T.M.D.S. Data2+

No Connect

T.M.D.S. Data2 Shield

DDC Clock DDC Data Analog Vert. sync

6 7 8

T.M.D.S. Data1–

No Connect

T.M.D.S. Data1+

No Connect

T.M.D.S. Data1 Shield

+5V Power Ground (for +5V) Hot Plug Detect

14 15 16

T.M.D.S. Data0–

No Connect

T.M.D.S. Data0+

No Connect

T.M.D.S. Data0 Shield

T.M.D.S. Clock Shield T.M.D.S. Clock+ T.M.D.S. Clock–

22 23 24

Configurations of Terminals

DVI-I TERMINAL (DIGITAL/ANALOG)

Terminal : DVI-I

9 678

Appendix

Terminal : Mini DIN 8-PIN

Pin Configuration

SERVICE PORT CONNECTOR

-----

CLK

DATA

GND

-----

GND

-----

R X D

-----

GND

RTS / CTS

T X D

GND GND

-----

ADB

-----

GND

-----

GND

PS/2 Serial ADB 1 2 3 4 5 6 7 8

Vcc

- Data

+ Data

Ground

1 2 3 4

USB CONNECTOR (Series B)

Pin Configuration

The parts listed below are optionally supplied. When ordering those parts, give the name and Type No. to the sales dealer.

● MAC Adapter Type No. : POA-MACAP

● DVI Cable Type No. : KA-DV20

● Scart-VGA Cable Type No. : POA-CA-SCART

(This cable is used for RGB Scart 21-Pin Video output of video equipment.)

Optional Parts

● Multi Card Imager Box Type No. : POA-BOX20

● Compact Flash Card Type No. : POA-CFC20

● Wired LAN Card Type No. : POA-WDC20

● Wireless LAN Card Type No. : POA-WLC20

When using the Wired or Wireless LAN Card, set the following model name in the PJ Controller operation.

Model Name : 10-1-1

● USB Key (User Key) Type No. : POA-USB01

USB CONNECTOR (Series A)

Pin Configuration

Vcc

- Data

+ Data

Ground

1 2 3 4

8 7 6

Attaching the Lens Cover

When moving this projector or when it is not used for an extended period, replace the lens cover.

Thread the string through the hole on the lens cover and then tie a knot in the string to secure it in place.

Thread the other end of the string through the hole at the bottom of the projector. Then pass the lens cover through the resulting loop of the string. Tie a knot in the string to secure it in place.

Hole

Lens Cover

Hole

Appendix

USB Key Lock Function

(This is optional function. Optionally supplied USB Key needed.)

USB Key lock

Move the pointer to item and then press POINT LEFT/RIGHT button(s). (Off, On1 or On2)

When pressing the SELECT button at USB key lock, the USB key lock Menu appears.

By using optionally supplied Projector USB Key, operation of the projector can be restricted by the projector owner. Once the projector is locked with the USB Key, only the owner who has key can operate the projector.

When the USB KEY LOCK is set, a USB KEY mark will appear on the MENU BAR.

Key registration

Before using the USB key, you must register USB key into the projector. Turn the projector ON and connect the USB Key to the USB terminal located on the rear of the projector. (See Item

u on

page10) A USB key icon (A) will appear on screen and the USB Key connected to the terminal will be automatically registered into the projector. (Do not disconnect the USB Key while the icon is displayed on screen. If you like to have another USB key registered, follow the procedure below:

Deleting key registration

With the USB Key plugged in, select "DELETE (USB plugged in)" from the USB Key registration menu (B) and press the SELECT button. OK icon will appear on screen and the registration will be cleared. If you select "Delete (Another)", the registration of another USB Key which is not connected to the projector will be cleared.

Press the Menu button and On-Screen Menu will appear. Press the Point Left/Right button to move the frame pointer to the Setting menu icon.

Press the Point Down button to move the red frame pointer to the USB Key Lock icon, then press the SELECT button. USB Key Lock menu will appear Press the Point Left/Right button and select one of the following key lock modes.

Projector is not locked with USB Key.

Off

On1

On2

Need the USB Key every time the Projector is turned on.

After having inserted and certified the USB KEY, it can be removed from the projector without interrupting projector operation.

Need the USB Key to turn the Projector on after AC power cord is reconnected to the AC outlet.

Setting Menu icon

(A)

(B)

(C)

(D)

(E)

Connect first key to the USB terminal on the projector.

Press the Menu button and On-Screen Menu will appear. Press the Point Left/Right button to move the red frame pointer to the Setting menu icon.

Press the Point Down button to move the red frame pointer to the USB Key Lock icon, then press the SELECT button. USB Key Lock menu will appear.

Press the SELECT button again and USB Key registration menu (B) will appear.

Select "Registration" with Point Up/Down button and press the SELECT button. A USB key icon (C) will appear. For about 30 seconds while the USB key icon is on screen, remove the first registered USB Key from the projector and connect another USB Key which you wish to register as second key to the projector. After that, OK icon (D) will appear for a little while to make sure the USB Key is registered.

Up to two keys can be registered into the projector. If you attempt to register third key, an X mark (E) will be displayed to prohibit the registration.

To lock the projector with USB key

Note:

When turning the projector ON again with the projector set to USB KEY LOCK On1 or On2 position, a screen indicating USB KEY LOCK will appear after the countdown. At that time, if the registered USB KEY is not inserted within 3 minutes, the automatically turned off.

Appendix

Printed in Japan Part No. 610 312 4803 (1AA6P1P4451-- MF7AA)

SANYO Electric Co., Ltd.

Sanyo PLC-SU60, PLC-XU60 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
