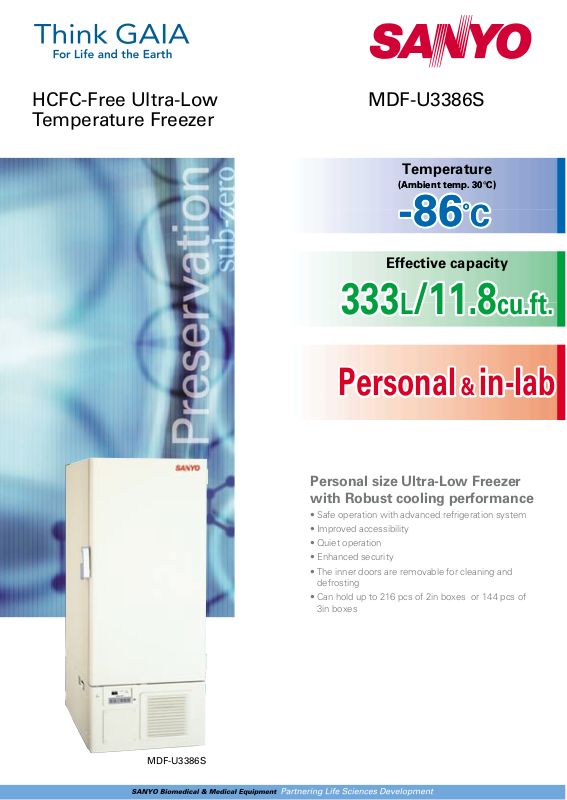

Sanyo MDF-U3386S User Manual

Personal & in-lab

Temperature Freezer

-86˚C

333L/11.8

cu.ft.

MDF-U3386SHCFC-Free Ultra-Low

Temperature

(Ambient temp. 30°C)(Ambient temp. 30°C)

-86˚C

-86˚C-86˚C

Effective capacity

333L/11.8

Personal & in-lab

Personal size Ultra-Low Freezer with Robust cooling performance

• Safe operation with advanced refrigeration system

• Improved accessibility

• Quiet operation

• Enhanced security

• The inner doors are removable for cleaning and defrosting

• Can hold up to 216 pcs of 2in boxes or 144 pcs of 3in boxes

cu.ft.

MDF-U3386S

EVOLUTIONARY DESIGN

• The newly developed refrigeration system and the freezer structure offer a quiet experimental environment.

• Achieves 22% higher energy conservation than previous model.

(230V, 50Hz)

• The newly developed back cover combined with new aerodynamically designed and placed components in the refrigeration compartment provide superior air flow, making it possible to drastically reduce the stress to the freezer and

Front

Compressors

Back cover

contributing to excellent durability.

Rear

• Two independent and insulated inner doors prevent cold air leakage.

ACCESSIBILITY

• A new beak style inner door latch tightly closes the inner door against the freezer frame. It also helps make opening and closing the door smoother.

• The condenser filter is situated at the bottom right side of the front panel to make filter removal and cleaning easier.

SAFETY

• Alarm lamp and buzzer offer secure warning of power failure or abnormal temperature increase.

• High and low temperature warning provides an audible and visual alarm when the temperature deviates more than ±5˚C to ±20˚C (adjustable) from the set point.

• Alarm ring back function ensures that buzzer will resume operation, should alarm conditions continue after it is silenced.

• Microprocessor-controlled filter-clog check function protects the refrigeration circuit.

• New rugged, one-handed outer door latch has a hole to allow a padlock to securely protect valuable samples.

• Control panel with digital display for easy operation.

Performance Data

–20

–40

–60

Temperature (˚C)

–80

–100

Air

–20

–40

–60

Temperature (˚C)

–80

–100

Time (hour)

Dimensions

105 (4.1)

140 (5.5)

(0.4)

1485 (58.5)

Pull-down characteristics

Central air temp. in cabinet Ambient temp. 30˚C, No-load

0 2 4 6 8 10 12 14

Time (hour)

Pull-up characteristics during power failure

0246810

Time (hour)

CO2 backup system operation characteristics

Ambient temp. and maintenance of –70˚C by injection of LCO

105

Ambient temperature (˚C)

875 (34.4)

795 (31.3)

600 (23.6)

(1.5)

2015

(1.9)

130 (5.1)130 (5.1)

1140 (44.9)

(1.3)

2 (30kg)

816 (23.1)

750 (29.5) 490 (19.3)

218 (8.6)

[Unit : mm (inch)]

SpecificationsFeatures

Model Temperature range Maximum cooling

performance Exterior dimensions

(W x D x H) Interior dimensions

(W x D x H) Net weight Effective capacity Shelf

Access port

Compressor

Refrigerant Alarm

Remote alarm contact

Accessories

*Cooling performance is indicated by the temperature reached at

the center of the freezer (at ambient temperature of 30°C with no load). In order to use the freezer at a stable temperature for a long time, it is recommended that the temperature be set to at least 5°C higher than the indicated lowest temperature. In addition, depending on the usage conditions, it may not be possible to reach the indicated lowest temperature.

Caution:

SANYO guarantees the product under certain warranty conditions.

353025

SANYO in no way shall be responsible for any loss of content or damage to content.

•Appearance and specifications are subject to change without notice.

MDF-U3386S

–50˚C to –86˚C (1˚C increment)

–86˚C (Ambient temp. 30˚C)

750 x 875 x 1850mm (29.5” x 34.4” x 72.8”)

490 x 600 x 1140mm (19.3” x 23.6” x 44.9”)

Approx. 255 kg (562 lbs.)

333 L (11.8 cu.ft.)

Stainless steel, Adjustable, 3 shelves, Max. load: 50kg (110 lbs.)/shelf

17mm diameter, 3 locations (back, bottom left/right corner)

Hermetic type, Output: 450W (high stage side), 750W (low stage side)

HFC refrigerant

High/low temperature, Power failure, Filter check, Battery check, Part replacement notification

Allowable contact capacity: DC 30V, 2A

1 set of keys, 1 scraper

Options

(0.7)

1400 (55.1)450 (17.7)

1850 (72.8)

Inventory rack

IR-216U

Circular recorder

MTR-G85

SANYO DAQ (data acquisition) System

MTR-5000/

Ethernet (LAN) Interface or RS232C/RS485 Interface MTR-480

Inventory rack

IR-220U

Strip chart recorder

MTR-85H

Recorder mounting bracket

MDF-S3085

(for MTR-85H)

MTR-L03

Rack Capacity

For 2-inch box

IR-216U IR-220U

For 3-inch box

IR-312UN

LCO2 backup system

CVK-UB2

6 6

SANYO Electric Co., Ltd., Biomedical Division, Gunma is certified for:

Quality management system: ISO9001 / Medical devices quality management system: ISO13485 / Environmental management system: ISO14001

Distributed by:

SANYO Electric Co., Ltd.

Biomedical Division

http://biomedical.sanyo.com/

SHR129
