Page 1
Following checks and confirmations should be taken for safety.
Check the following things by the time of the cabinet assembly after the lens
replacement.
1. Check the lens is securely fixed.
2. Check the proper wiring and the wires are fixed properly.
3. Check each connector is connected properly.
4. Check no wiring is tangled on the gear of lens motor or the other mechanical parts.
5. Check no parts is missing, or no mounting part is loose.

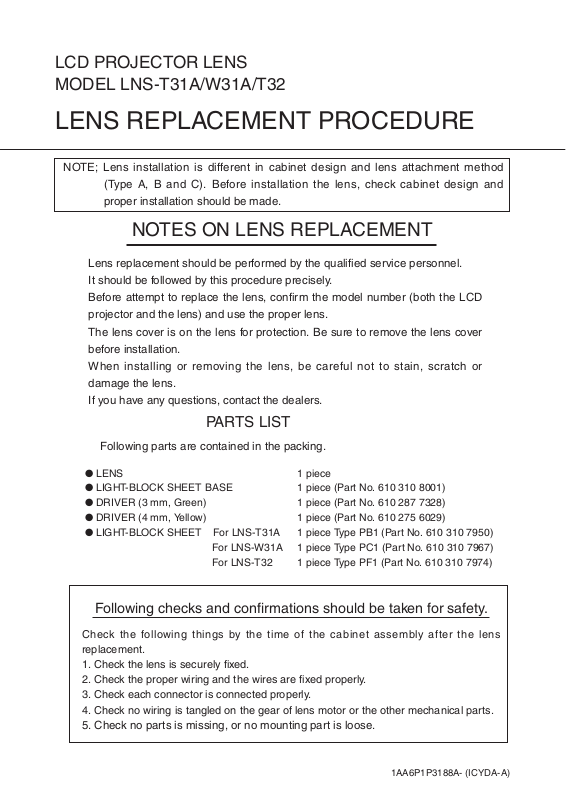

LCD PROJECTOR LENS
MODEL LNS-T31A/W31A/T32
LENS REPLACEMENT PROCEDURE
NOTES ON LENS REPLACEMENT
Lens replacement should be performed by the qualified service personnel.
It should be followed by this procedure precisely.
Before attempt to replace the lens, confirm the model number (both the LCD
projector and the lens) and use the proper lens.
The lens cover is on the lens for protection. Be sure to remove the lens cover
before installation.
When installing or removing the lens, be careful not to stain, scratch or
damage the lens.
If you have any questions, contact the dealers.
Following parts are contained in the packing.
1AA6P1P3188A- (ICYDA-A)
PARTS LIST
● LENS
● LIGHT-BLOCK SHEET BASE
● DRIVER (3 mm, Green)
● DRIVER (4 mm, Yellow)
● LIGHT-BLOCK SHEET For LNS-T31A
For LNS-W31A
For LNS-T32
1 piece
1 piece (Part No. 610 310 8001)
1 piece (Part No. 610 287 7328)
1 piece (Part No. 610 275 6029)
1 piece Type PB1 (Part No. 610 310 7950)
1 piece Type PC1 (Part No. 610 310 7967)
1 piece Type PF1 (Part No. 610 310 7974)
NOTE; Lens installation is different in cabinet design and lens attachment method
(Type A, B and C). Before installation the lens, check cabinet design and
proper installation should be made.
Page 2
LENS REPLACEMENT PROCEDURE (FOR "A" TYPE )
Perform the steps
to
1
for lens replacement.
6
First set the lens at the center position with lens
shift adjustment.
1
REMOVE THE LENS COVER AND LIGHT-
BLOCK SHEET (See Figure-1 and 2)
Remove 2 screws-A.
1.
Press the button (or remove 2 screws-B) on
2.
the lower of the lens cover and remove the
lens cover.
Remove the light-block sheet from the light-
3.
block sheet base.
LIGHT-BLOCK
SHEET BASE
LENS COVER
SCREW "A"
BUTTON
Fig-1

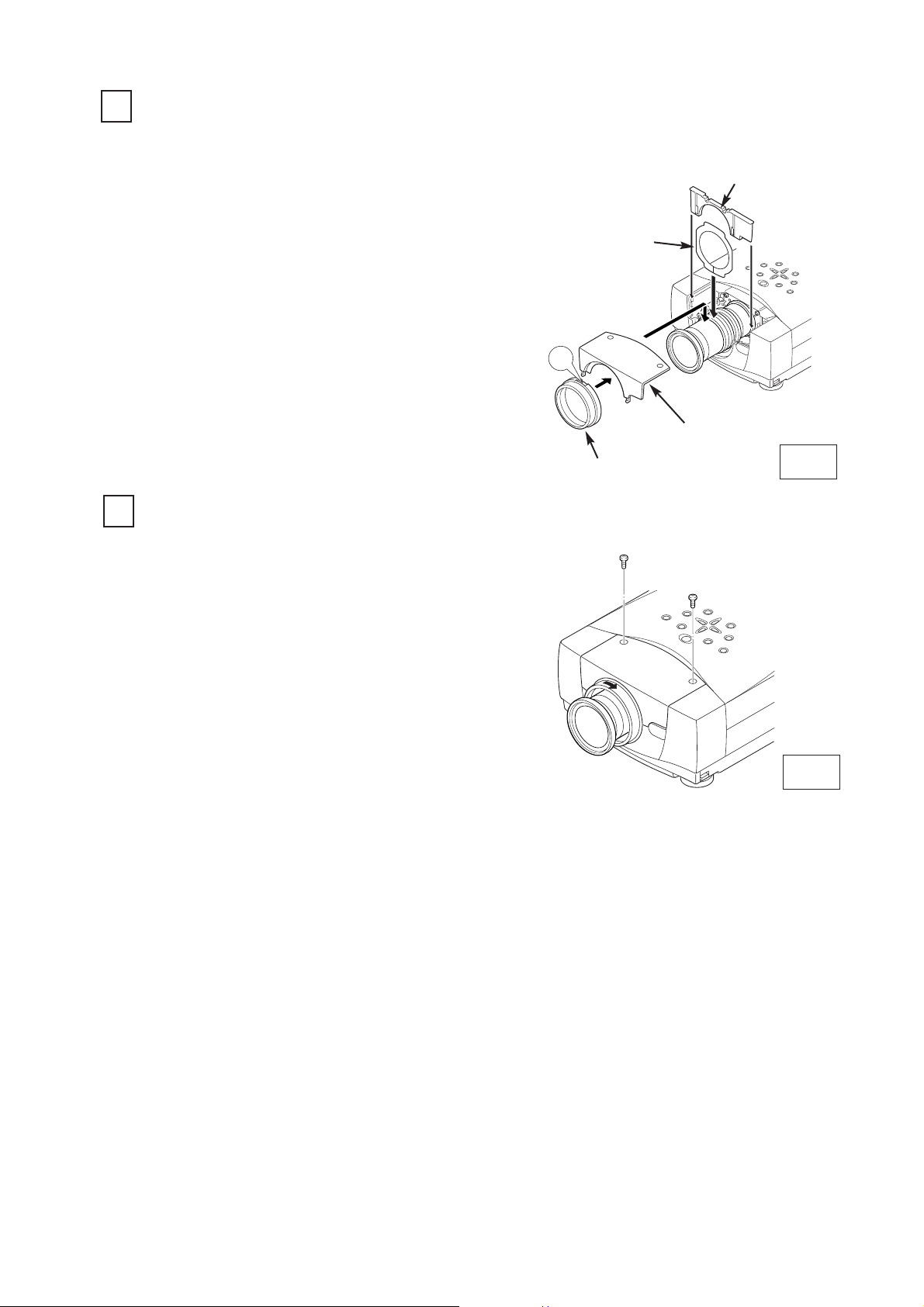

REMOVE THE LIGHT-BLOCK SHEET BASE
2
(See Figure-3 and 4)
1.
Slide the light-block sheet base upward.
Remove the light-block sheet base.
2.
LENS MOTOR PARTS NO.
(LOCATED ON THE LENS)
LIGHT-BLOCK SHEET
SCREW "B" (Some models)
LIGHT-BLOCK
SHEET BASE
Fig-2
Fig-3
-2-
LIGHT-BLOCK
SHEET BASE
Fig-4
Page 3
Fig-6
Fig-7
Fig-8
3
REMOVE THE LENS (See Figure-5 and 6)
Remove the connector "K16J" of the circuit board.
Remove the lens motor lead from lead holder.
Remove screws-C (4 screws) which fastens the
lens and remove the lens. Use the driver (3 mm,
Green) included with the lens to remove the
screws.
1.
2.
DRIVER
IN THE LENS
LENS MOUNTING
BRACKET
4
MOUNT THE LENS (See Figure-5 and 6)
5
MOUNT THE LIGHT-BLOCK SHEET BASE
(See Figure-7)
6
MOUNT THE LIGHT-BLOCK SHEET AND
LENS COVER (See Figure-8)
Be careful not to drop the lens when removing the
screws.
After using, save the driver for latter use.
Remove protective caps (front and back) on the
lens.
Mount the lens on lens mounting bracket with 4
screws. (locate motor on left side).
Use the driver (4 mm, Yellow) included with the
lens to fasten the screws.
1.
2.
After using, save the driver for latter use.
Connect the lens motor lead to the connector
"K16J" of the circuit board.
Connect the lens motor lead to the lead holder.
3.
4.
Mount the light-block sheet base to the projector.
Mount the light-block sheet to the light-block sheet
base as shown in the Figure-8. (In the same
position as the removed sheet has been placed).
Use the sheet included with the lens.
Make sure the part no. and mark (TOP and BACK)
on Light-Block Sheet and set them properly.
Mount the lens cover with the screws.
1.
2.
3.
1.
LENS COVER
LIGHT-BLOCK
SHEET
LIGHT-BLOCK
SHEET BASE
(Part No. 412 062 3705)
LENS
MOTOR
LEAD
HOLDER
CONNECTOR "K16J"
LENS MOTOR LEAD
SCREW "C"
Fig-5
-3-
Page 4
Turn the lens cover to counter-clockwise and
pull it toward front and remove the Lens
Cover.
Remove 2 Screws-A.
Remove the front cabinet
REMOVE THE LENS COVER AND
FRONT CABINET
1
1.
2.
2
REMOVE THE LIGHT-BLOCK SHEET BASE
AND LIGHT-BLOCK SHEET (See Figure-2)
Perform the steps
to
for lens replacement.
1
6
First set the lens at the fully lower position with
lens shift adjustment.
3.
Slide the light-block sheet base upward
and remove it.
Remove the light-block sheet from lens.
1.
2.
Fig-2
LIGHT-BLOCK
SHEET BASE
FRONT
CABINET
LENS COVER
LIGHT-BLOCK
SHEET
LENS REPLACEMENT PROCEDURE (FOR "B" TYPE)
SCREW "A"
SCREW "A"
SCREW "A"
Fig-1-1
Fig-1-2
Fig-1-3
Remove 2 Screws-A.
Remove the front cabinet
See Figure-1-2 and 2.
1.
2.
Pull Lens Cover toward front and remove it.
Remove 2 Screws-A.
Remove the front cabinet
See Figure-1-3 and 2.
1.
2.
3.
LENS COVER
FRONT CABINET
LENS COVER
FRONT CABINET
FRONT CABINET
-4-
See Figure-1-1 and 2.
Page 5

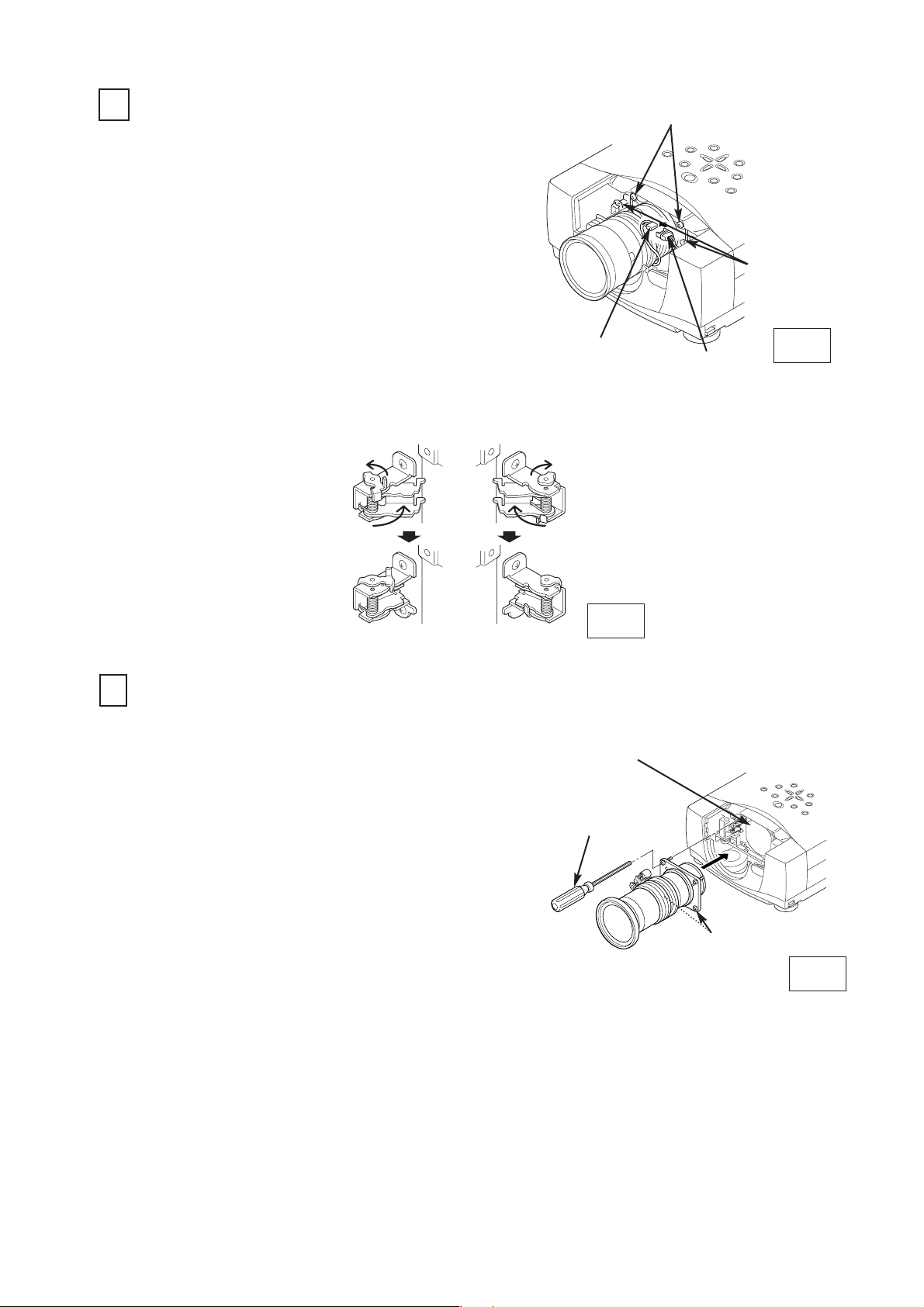

4
MOUNT THE LENS (See Figure-5)
Remove protective caps (front and back) on the
lens.
Mount the lens on lens mounting bracket with
Upper 2 screws. (locate motor on left side).
Use the driver (4 mm, Yellow) included with the
lens to fasten the screws.
Remove the lower 2 screws on the Lens. (Lower 2
screws are not used.)
Slide the lens lock latches to "LOCK" position and
lock the lens. (See Figure-4)
Connect the lens motor connector to terminal.
(See Figure-3)
1.
2.
3.
4.
DRIVER
IN THE LENS
LENS MOUNTING
BRACKET
Fig-5
Fig-3
SCREW "B"
LENS LOCK
LATCHES
CONNECTOR
3
REMOVE THE LENS (See Figure-3 and 4)
Remove the lens motor connector from terminal.
Loosen the screws-B (2 screws) which fastens
the lens. {Use the driver (4 mm, Yellow) included
with the lens to loosen the screws.}
Slide the lens lock latches to "UNLOCK" position
and remove the lens.
1.
2.
Be careful not to drop the lens when removing the
screws. After using, save the driver for latter use.
3.
TERMINAL
LENS LOCK LATCHES
LOCK
POSITION
UNLOCK
POSITION
Fig-4
LOWER SCREWS
-5-
Page 6
5
MOUNT THE LIGHT-BLOCK SHEET AND
LIGHT-BLOCK SHEET BASE (See Figure-6)
6
MOUNT THE FRONT CABINET AND LENS
COVER (See Figure-6 and 7)
Mount the light-block sheet on the lens as shown
in the Figure-6. (In the same position as the
removed sheet has been placed). Use the sheet
included with the lens.
Make sure the part no. and mark (TOP and BACK)
on Light-Block Sheet and set them properly.
Mount the light-block sheet base included with the
lens.
1.
2.
3.
LIGHT-BLOCK
SHEET BASE
FRONT
CABINET
LENS COVER
LIGHT-BLOCK
SHEET
Mount the front cabinet with 2 screws.
Mount the lens cover.
For the cabinet Fig. 1-1, position the marked UP of
Lens Cover on top and push in to the front cabinet
and turn the Lens Cover fully clockwise until it is
properly locked.
For the cabinet Fig. 1-3, push the Lens Cover onto
the cabinet
1.
2.
Fig-7
-6-
Fig-6
UP
Page 7
- 7 -
Turn the lens cover to counter-clockwise and pull it
toward front and remove the Lens Cover.
Remove 2 Screws-A.
Remove the front cabinet
REMOVE THE LENS COVER AND
FRONT CABINET
1
1.
2.
2
REMOVE THE LIGHT-BLOCK SHEET BASE
AND LIGHT-BLOCK SHEET
Perform the steps
to
for lens replacement.
1
6
First set the lens at the fully lower position with lens
shift adjustment.
3.
Slide the light-block sheet base upward and
remove it.
Remove the light-block sheet from lens.
1.
2.
LIGHT-BLOCK
SHEET BASE
FRONT
CABINET
LENS COVER
LIGHT-BLOCK
SHEET
SCREW "A"
LENS COVER
FRONT CABINET
3
REMOVE THE LENS
Grasp the Lens Lock Lever and turn it fully
upward. Remove the Lens into the projector.
Disconnect the lens motor lead connector to the
socket on the lens attachment.
Remove 4 Screws and remove lens attachment.
1.
2.
3.
LENS
ATTACHMENT
SOCKET
CONNECTOR
LENS MOTOR
LEAD
LENS LOCK
LEVER
SCREW
Pull the Lens
Lock Lever
upward
LENS REPLACEMENT PROCEDURE (FOR "C" TYPE )
Page 8
- 8 -
LENS
ATTACHMENT
Part No. (610 275 6029)

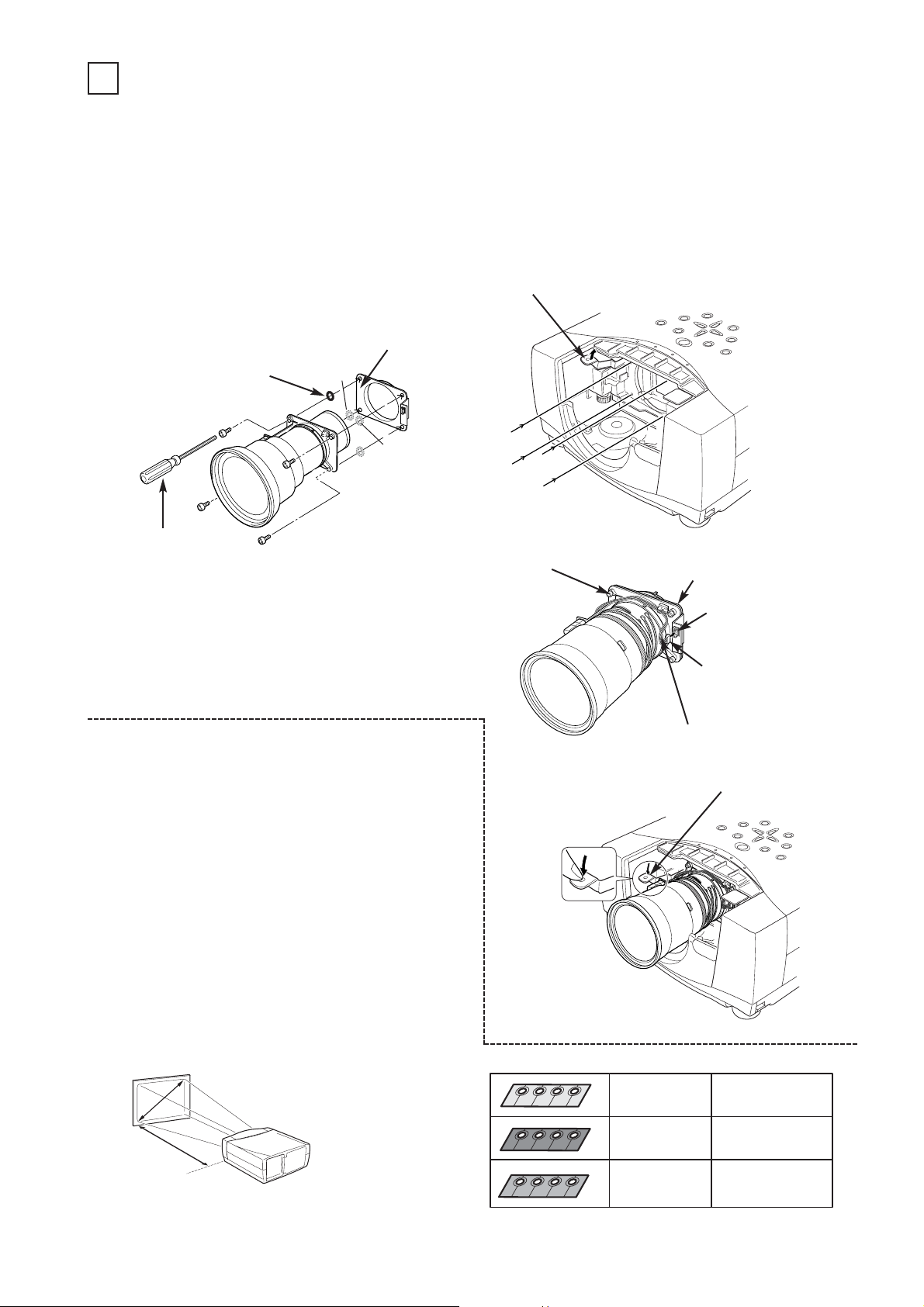

4
MOUNT THE LENS
Remove protective caps (front and back) on the optional lens.
Mount the lens on the lens attachment with 4 Screws.
Connect the lens motor lead connector to the socket on the lens attachment. (Motor Driven
Lens only.)
Grasp the Lens Lock Lever and turn it fully upward. Install the Lens into the projector. Turn
the Lens Lock Lever fully downward until lever is Locked (clicked position) properly.
When installing the Motor Driven Lens, be sure to mount Lens Motor on left-side.
After installing the lens, make sure the Lens is not loose and properly installed.
1.
2.
3.
4.
Push the Lens
Lock Lever fully
downward until it is
locked (clicked).
DRIVER
IN THE LENS
LENS
ATTACHMENT
SOCKET
CONNECTOR
LENS MOTOR
LEAD
LENS LOCK LEVER
LENS LOCK LEVER
SCREW
When the lens is attached to the projector and
images are being projected onto the screen, the
peripheral focus may be out of focus in some
localized areas. If this happens, insert the spacer
in between the lens attachment and the lens to
correct the focus.
Correcting the focus
Spacer "1"
Color; Clear
Thickness; 0.1 mm
40-inch projection
Screen
Inserting the spacers corrects the distance for best
diagonal focus at the screen.
The corrected distance is determined by the
thickness of the spacers that are used. As a guide,
the distance is adjusted by approximately 30 mm
for each 0.1-mm thickness of the spacers.
There are three types of spacers provided, and
there are four of each spacer type. Use these
spacers to correct the distance as required.
C
D
A
B
Distance
Spacer "2"
Color; Black
Thickness; 0.2 mm
Spacer "1"
Color; Cream
Thickness; 0.3 mm
Correction distance
30 mm/for 40-inch
projection
Correction distance
55 mm/for 40-inch
projection
Correction distance
80 mm/for 40-inch
projection
SPACER
A
B
C
D
A~D
Insertion position
of the focus
correction spacers.
Refer to following.
Insert spacers in
the location A~D
(above figure)
corresponding to
the screen location
A~D.
Screen
Page 9
- 9 -
5
MOUNT THE LIGHT-BLOCK SHEET AND
LIGHT-BLOCK SHEET BASE
6
MOUNT THE FRONT CABINET AND LENS
COVER
Mount the light-block sheet on the lens. (In the same
position as the removed sheet has been placed). Use
the sheet included with the lens.
Make sure the mark (TOP and BACK) on Light-Block
Sheet and set them properly.
Mount the light-block sheet base included with the
lens.
1.
2.
LIGHT-BLOCK
SHEET BASE
FRONT
CABINET
LENS COVER
LIGHT-BLOCK
SHEET
Mount the front cabinet with 2 screws.
Mount the lens cover.
Position the marked UP of Lens Cover on top and
push in to the front cabinet and turn the Lens Cover
fully clockwise until it is properly locked.
1.
2.
UP
Loading...
