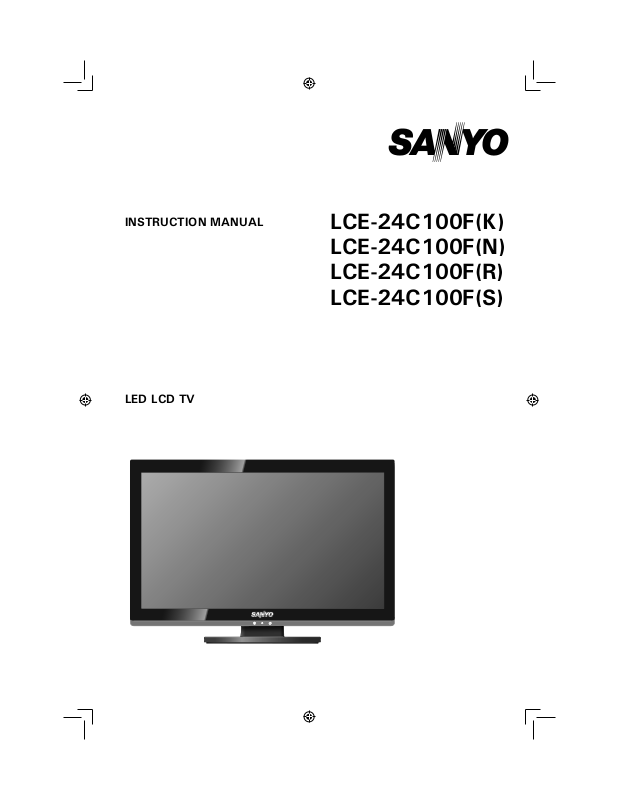

INSTRUCTION MANUAL

LED LCD TV

LCE-24C100F(K)
LCE-24C100F(N)
LCE-24C100F(R)
LCE-24C100F(S)

IMPORTANT INFORMATION

If a television is not positioned in a sufficiently stable location, it can be potentially

hazardous due to falling. Many injuries, particularly to children, can be avoided by

taking simple precautions such as:

● Using cabinets or stands recommended by the manufacturer of the television.

● Only using furniture that can safely support the television.

● Ensuring the television is not overhanging the edge of the supporting furniture.

● Not placing the television on tall furniture (for example, cupboards or

bookcases) without anchoring both the furniture and the television to a suitable

support.

● Not standing the televisions on cloth or other materials placed between the

television and supporting furniture.

● Educating children about the dangers of climbing on furniture to reach the

television or its controls.

Warning:

To prevent the spread of fire, keep candles or other open flames away from
this product at all times.

2

SAFETY INSTRUCTIONS

Before operating this LCD TV, read this manual thoroughly and operate the LCD TV properly. This LCD TV provides many convenient
features and functions. Operating the LCD TV properly enables you to manage those features and maintains it in better condition for a
considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents.
If your LCD TV seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the
“Troubleshooting” section on page 17 of this booklet. If the problem still persists, contact the dealer where you purchased the LCD TV or the
service center.

Safety Precaution

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN

● Install the LCD TV in a proper position. If not, it may result in a fire hazard.

● Provide appropriate space on the top, sides and rear of the LCD TV cabinet for allowing

air circulation and cooling the LCD TV. Minimum clearance must be maintained. If the
LCD TV is to be built into a compartment or similarly enclosed, the minimum distances
must be maintained. Do not cover the ventilation slot on the LCD TV. Heat build-up can
reduce the service life of your LCD TV, and can also be dangerous.

● If the LCD TV is not to be used for an extended time, unplug the LCD TV from the power

outlet.

READ AND KEEP THIS OWNER'S MANUAL FOR LATER USE.

● Handle the

● Locate set away from heat, excessive dust, and direct sunlight.

● For correct installation and mounting it is strongly recommended to use a trained, authorized dealer. Failure to follow correct mounting

procedures could result in damage to the equipment or injury to the installer.

NOTE :

When LCD TV is not used for a long period of time, unlighted dots may be observed. This is caused by characteristic of the LCD TV. If this
occurs, turn the LCD TV on and leave it on about 1 hour. These dots will gradually disappear.

All the safety and operating instructions should be read before the product is operated.
Read all of the instructions given here and retain them for later use. Unplug this LCD TV from AC power supply before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning. Follow all warnings and instructions marked on the LCD TV. For added protection to
the LCD TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will
prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...
Do not use attachments not recommended by the manufacturer as they may cause hazards.

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and
to protect it from overheating. The openings should never be covered with cloth or other materials, and the bottom opening should not
be blocked by placing the LCD TV on a rug, or other similar surface. This LCD TV should never be placed near or over a radiator or heat
register. This LCD TV should not be placed in a built-in installation such as a book case unless proper ventilation is provided. Never push
objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the LCD TV. Do not place items such as vases containing liquid on top of the LCD TV.
Do not install the LCD TV near the ventilation duct of air-conditioning equipment.

This LCD TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power
supplied, consult your authorized dealer or local power company.
Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord.
Do not locate this LCD TV where the cord may be damaged by persons walking on it.
Do not attempt to service this LCD TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
Unplug this LCD TV from wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilLCD into the LCD TV.
c.

If the LCD TV has been exposed to rain or water.

d.

If the LCD TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified

technician to restore the LCD TV to normal operation.
e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.
Upon completion of any service or repairs to this LCD TV, ask the service technician to perform routine safety checks to determine that the
LCD TV is in safe operating condition.

OR MOISTURE.

SIDE and TOP

10 cm

10 cm

carefully when installing it and do not drop.

LCD TV

THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK
IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
OWNER'S MANUAL WITH THIS UNIT.

Do not place this LCD TV on an unstable cart, stand, or table. The LCD TV may fall, causing serious injury to a child or adult,
and serious damage to the LCD TV. Use only with a cart or stand recommended by the manufacturer, or sold with the LCD
TV. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the
manufacturers.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Caution In Installing

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

DISPOSAL PRECAUTIONS

CONTAINS MERCURY
LAMPS, DISPOSE OF
PROPERLY

REAR

10 cm

6 cm

3

TABLE

FEATURE AND DESIGN.......................................4

PREPARATION........................................5

PART NAMES AND FUNCTIONS 5

CONNECTING LCD TV......................6

INSTALLING & UNINSTALLING

STAND BASE 6

CONNECTING AC POWER CORD 6

CONNECTING A COMPUTER 7

CONNECTING VIDEO EQUIPMENT &

AERIAL 7

BASIC OPERATION.............................................8

OPERATION OF REMOTE CONTROL 8

REMOTE CONTROL BATTERIES

INSTALLATION 8

TURNING ON/OFF LCD TV 8

PLUG & PLAY

SELECTING INPUT SOURCE 9

CHANNEL RECALL 9

CHANNEL SELECTION 9

INFO 10

VOLUME CONTROL 10

MUTE 10

STEREO/MONO 10

SOUND MODE 10

TRADEMARKS

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer,Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Each name of corporations or products in the owner's manual is a trademark or a registered trademark of its respective corporation.

9

is registered trademarks of HDMI Licensing, LLC.

PICTURE MODE 10

SPORTS MODE 10

OFF TIMER 10

WIDE 10

MENU OPERATION............................................... 11

CHANNEL


SOUND

TIMER

OSD 13

SETUP 14

SETUP (PC MODE) 14-15

DEALER MODE

APPENDIX..............................................................16

CLEANING LCD TV 16

FUNCTION OF PRODUCT SAFETY FEATURE

TROUBLESHOOTING 17

TECHNICAL SPECIFICATIONS 18

SIGNAL MODE COLUMN (Recommended) 19

12

15-16

Feature and Design

¡ Picture

●

High Definition LCD with LED Backlight Panel

1920 x 1080 pixel FHD LCD LED Backlight Panel with high
contrast ratio and wide viewing angle.

●

VIZON Engine

VIZON Engine, SANYO High Quality Image Processing
Technology reproduces clear, dynamic, natural and realistic
picture along with FHD LCD Panel Technology.

● Dynamic AI

The AI (Automatic Image Control) circuit compensates picture
contrast and brightness level dynamically and reproduces bright
and high-contrast picture.

¡ Sound

● NICAM/A2 Stereo

It's the Stereo Sound PAL Color TV Broadcasting
mono-sound TV service to

● Bass Expander

Bass Expander reinforces bass effect to improve

stereo or dual-language sound.

System upgrading

overall sound quality.

¡ Feature

● Sports Mode

Just by pressing the button, sports mode optimizes
settings suitable for each sports program.

 OFF

Normal setting.

 Football

Use to watch football program, golf program

 Winter Sport

Suitable setting for skiing

 Marine Sport

Suitable setting for swimming, diving

 Indoor Sport

Suitable setting for basketball, badminton program or etc.

4

program or etc.

picture and sound

or etc.

program or etc.

● SHOP Mode

Picture mode will be Dynamic and ECO mode
will be OFF in SHOP

MODE.

¡ Compatibilty

● Full Multi System

PAL, SECAM, NTSC, NTSC 4.43 system can be connected.

● HD-Ready

1080p, 1080i, 720, Full High Definition signals are receivable.

● HDMI

HDMI provides complete transmission of digital
image and sound signals without any quality deterioration.
DVI can be connected to HDMI.

● PC Input

Personal Computer/Laptop can be connected with automatic
resolution adjustment.

● Terminals

HDMI for BluRay Player etc.
D-SUB 15-pin for PC input etc.
Component Video for DVD
Video for VCR/DVD

¡ Others

● Wall Mounting

It's designed for VESA Standard (200 x 200) wall hanging bracket.

● Light Commercial Mode

By entering Dealer mode, Volume Lock, Tuning Lock, Start Mode,
OSD, RC, AC Power Mode, Start Volume Level, Music Mode and
Reset can be selected.
Convenient for placing in Hotel, Hospital, School, Store, Bank etc.

11-12

13

13

16

PART NAMES AND FUNCTIONS

FRONT

PREPARATION

Side Control

Power/Timer

Indicator

CARE FOR USING LCD TV

● Do not bump or scratch the panel surface as this causes flaws on the surface of the screen.

● There may be some tiny black points and/or bright points on the SCREEN. These points are normal.

SIDE CONTROL

Each button on the control
panel has the same function
with its counterpart on the
remote control.

-Used to turn the LCD TV on or off.

-Open or close the On-Screen Menu.

-

Used to select input source: TV/AV1/ AV2(DVD)

-Used to confirm the selected item on On-Screen Menu.

-Used to adjust the volume.

-Used to adjust the value of the selected item on On-Screen Menu.

-Used to execute the selected item on On-Screen Menu.

-Used to Change channels.

-Used to select items on On-Screen Menu.

POWER ON/ OFF button

MENU button

INPUT MODE button

VOLUME

CHANNEL UP/DOWN (▲/▼)

(+/-)

buttons

/HDMI(DVI)/PC.

buttons

BACK TERMINAL

HDMI Input Terminal

Connect video and audio outputs
from video equipment.

PC Input Terminals

Connect computer outputs to these
terminals.

● RGB (D-SUB)

●

AV1 Terminals

Connect video and audio outputs from
video equipment.

● Video (RCA type)

●

Audio L and R (RCA type)

Monitor Output Terminals

Connect a television, video recorder or
external audio amplifier to these jacks.

● Video (RCA type)

●

Audio L and R (RCA type)

Audio (L/R)

Connect video and audio outputs
from

video equipment.

● DVD component (RCA type)

●

Audio L and R (RCA type)

Connect the cable with a plug from
aerial jack to the aerial socket on
the cabinet back.

Panel

Infrared
Remote

Receiver

AV2 Terminals

Aerial Jack

5

CONNECTING LCD TV

INSTALLING & UNINSTALLING STAND BASE

Please according to the following procedure to install stand.

Be careful of the panel. Suggest to put down the panel side on the cushion or other soft material before installing

1

the stand.

To align the corresponding pilot holes and fix the stand by screws.

2

Screws (M4x8) for LCE-24C100F(K)/(N)/(R)/(S): 2 pcs

Screw M4 X 8 :

Model LCE-24C100F(K)/(N)/(R)/(S):

Installing of stand is completed.

3

Screw : M4 X 8

Screw : M4 X 8

CAUTION IN INSTALLING & UNINSTALLING STAND BASE

● Through in installing or uninstalling work, handling with more than two people is recommended.

When holding (moving or lifting) the LCD Display, hold the display's body.

●

otherwise it may result in damage.
Before installing or uninstalling, provide a desk (or a part of it) which is strong enough to support the weight of

●

desk must be larger than the LCD
protecting the screen
Before putting the LCD Display on the desk, make sure there is no object on it. Leaving any object under the screen may cause damage on the

●

screen.

●

The LCD TV with this stand should be installed or uninstalled on
stand. The display may fall,

surface.

Display screen size. The desk's

causing not only serious damage

to the products but serious injury to a person.

Do not handle the LCD

surface must be flat and maintained with

flat and level place. Do not place on such as

TV by holding the attached accessory parts,

the LCD TV and this stand. The

soft material (such as a blanket) for

a non flat, unlevel or unstable cart or

SAFETY NOTE

For correct installing, mounting and uninstalling LCD TV Stand, it is strongly recommended to use a trained, authorized dealer. Failure to follow
correct procedures could result in damage to the equipment or injury to the installer.

CONNECTING AC POWER CORD

This LCD TV uses nominal input voltages of 110-240V
automatically selects the correct input voltage. It is designed to work with single­phase power systems. To reduce risk of electrical shock, do not plug into any
other type of power system. Consult your authorized dealer or service station if
you are not sure of the type of power being supplied.
Connect the LCD TV with all peripheral equipment before turning the LCD TV on.

Note:

AC Power Cord types vary between countries.

CAUTION

For safety, unplug AC power cord when the LCD
TV is not in use.

6

AC. This LCD TV

AC POWER CORD

To the AC Outlet (110 - 240V AC).
Pulls the AC power cord out from

The AC outlet must be

the LCD TV.
near this equipment and must be
easily accessible.
