Sanyo LCD-22VT10DVD User Manual
Contents
Features ................................................................. 2
Accessories ............................................................ 2
Introduction ............................................................. 2
Preparation ............................................................. 2
Safety Precautions .................................................3
Power Source ..................................................... 3
Power Cord ......................................................... 3
Moisture and Water ............................................3
Cleaning..............................................................3
Heat and Flames ................................................3
Lightning ............................................................. 3
Replacement Parts ............................................. 3
Servicing ............................................................. 3
Waste Disposal ................................................... 3
Disconnecting the Device ................................... 3
Headphone Volume ............................................ 3
Installation...........................................................3
LCD Screen ........................................................ 3
Warning ..............................................................4
Overview of the Remote Control ............................5
LCD TV and Operating Buttons .............................. 6
Viewing the Connections- Back Connectors ..........6
Viewing the Connections - Side Connectors .......... 7
Aerial Connection ................................................... 7
Power Connection .................................................. 8
Using Side USB Input ............................................. 8
USB Memory Connection ................................... 8
Connecting the LCD TV to a PC .............................8
Connecting to a DVD Player................................... 8
Using Side AV Connectors .....................................9
Using Other Connectors ......................................... 9
Connecting Other Equipment via Scart .................. 9
Inserting Batteries in the Remote Control Handset 9
Switching the TV On/Off ....................................... 10
To Switch the TV On ......................................... 10
To Switch the TV Off ......................................... 10
Input Selection ...................................................... 10
Basic Operations .................................................. 10
Operation with the Buttons on the TV ...............10
Operation with the Remote Control ..................10

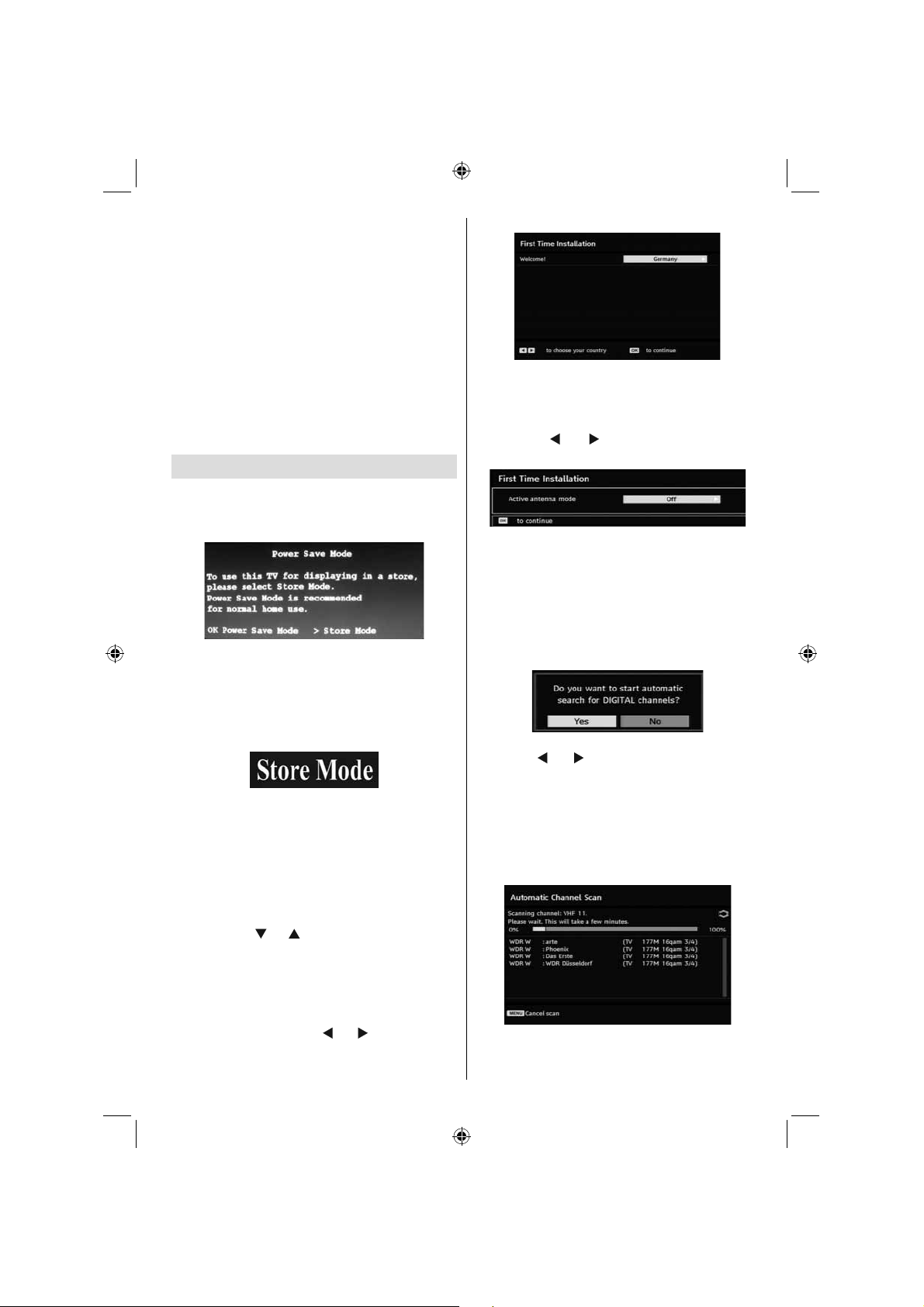

Initial Settings ........................................................11
Information Banner ........................................... 12
Electronic Programme Guide (EPG).................12
Programme Options..........................................13
Analogue Teletext .............................................13
Widescreen ....................................................... 13

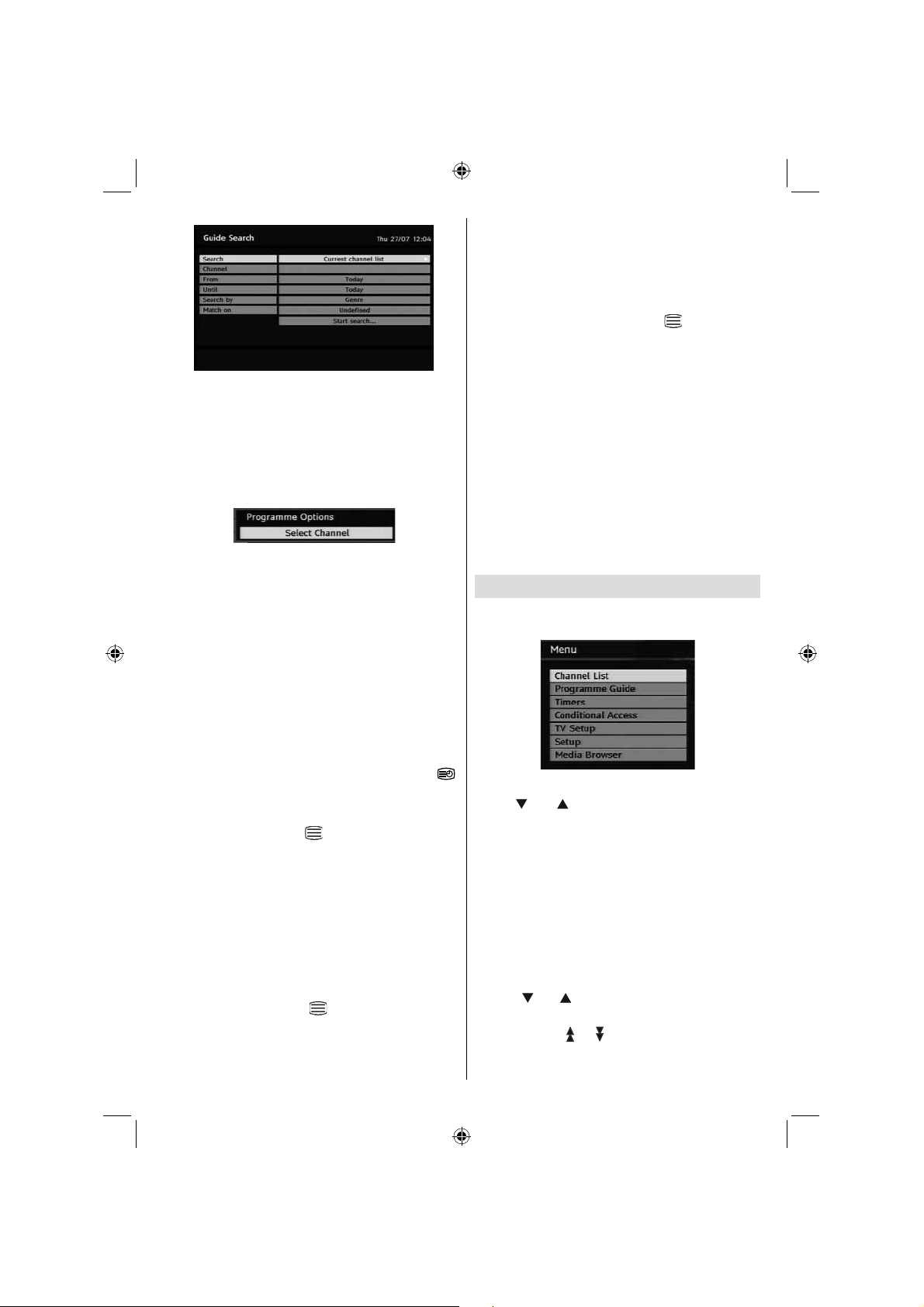

Digital TV Menu System ....................................... 13
Channel List ...................................................... 13
Navigating the Entire Channel List ...................13
Moving the channels in the channel list ............ 14
Deleting the Channels in the Channel List .......14
Renaming channels .......................................... 14
Adding Locks to Channels ................................ 14

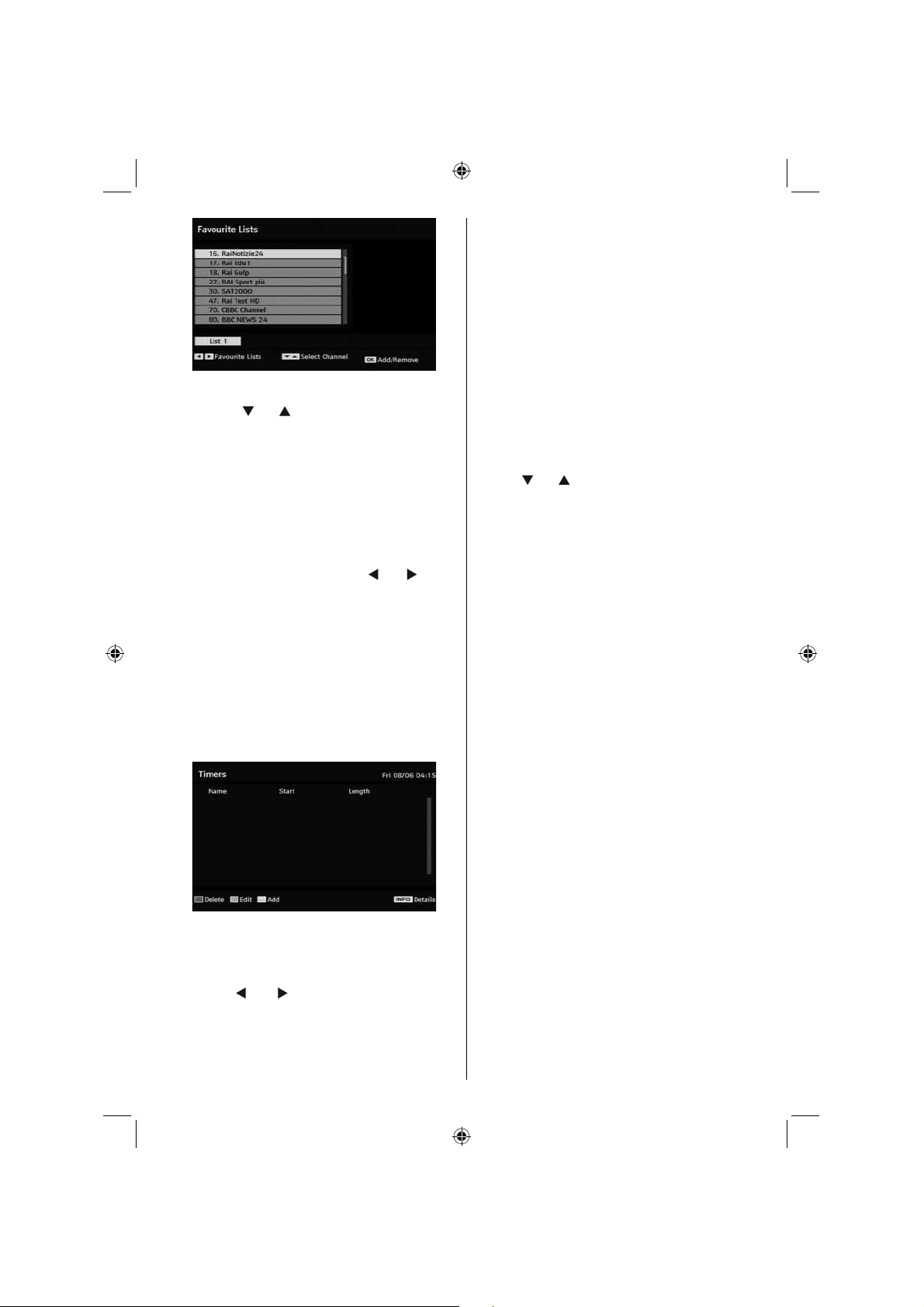

Setting Favourites ............................................. 14

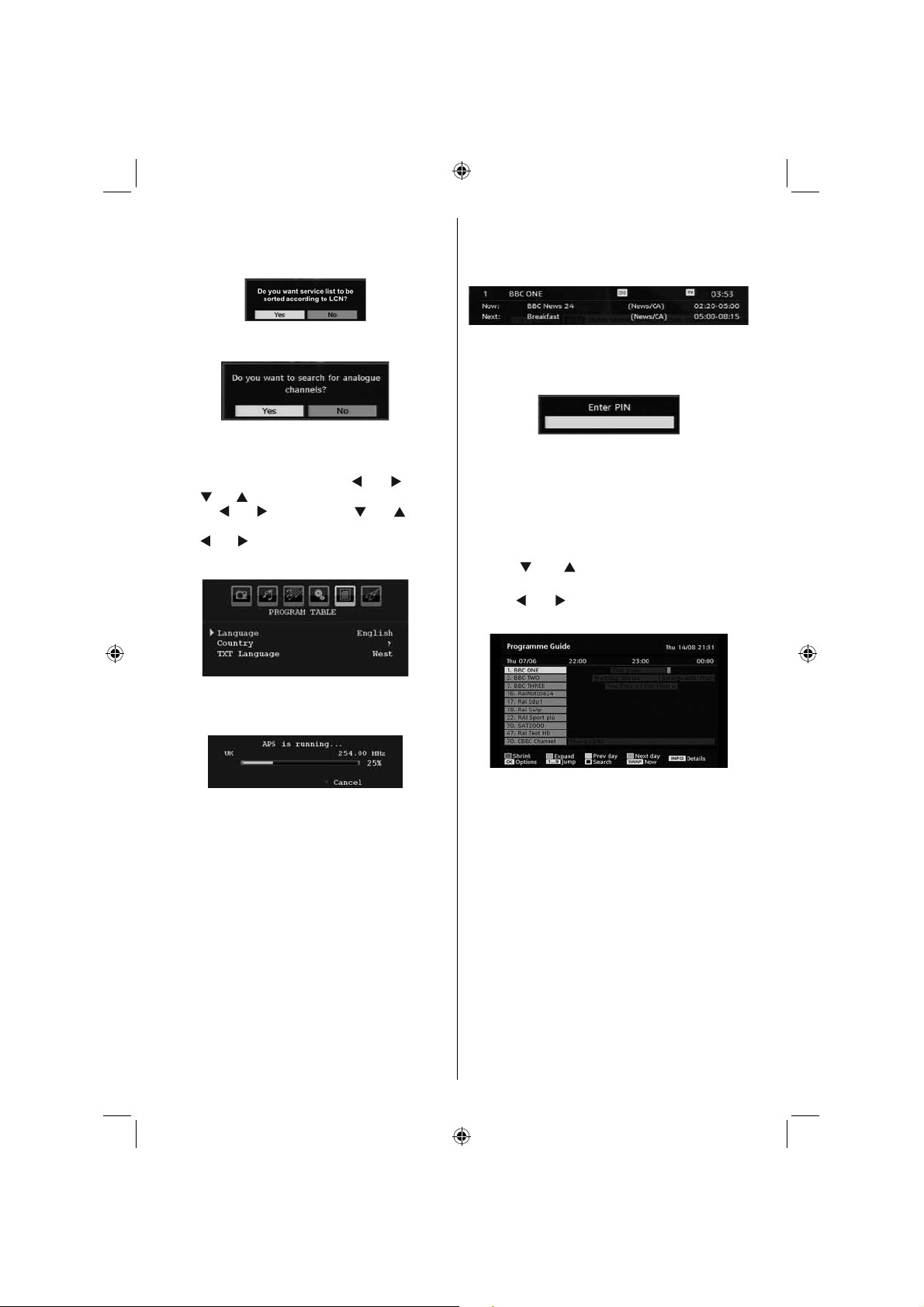

Program Guide .................................................15
Timers ...............................................................15
Common Interface ........................................... 15
TV Setup ........................................................... 15

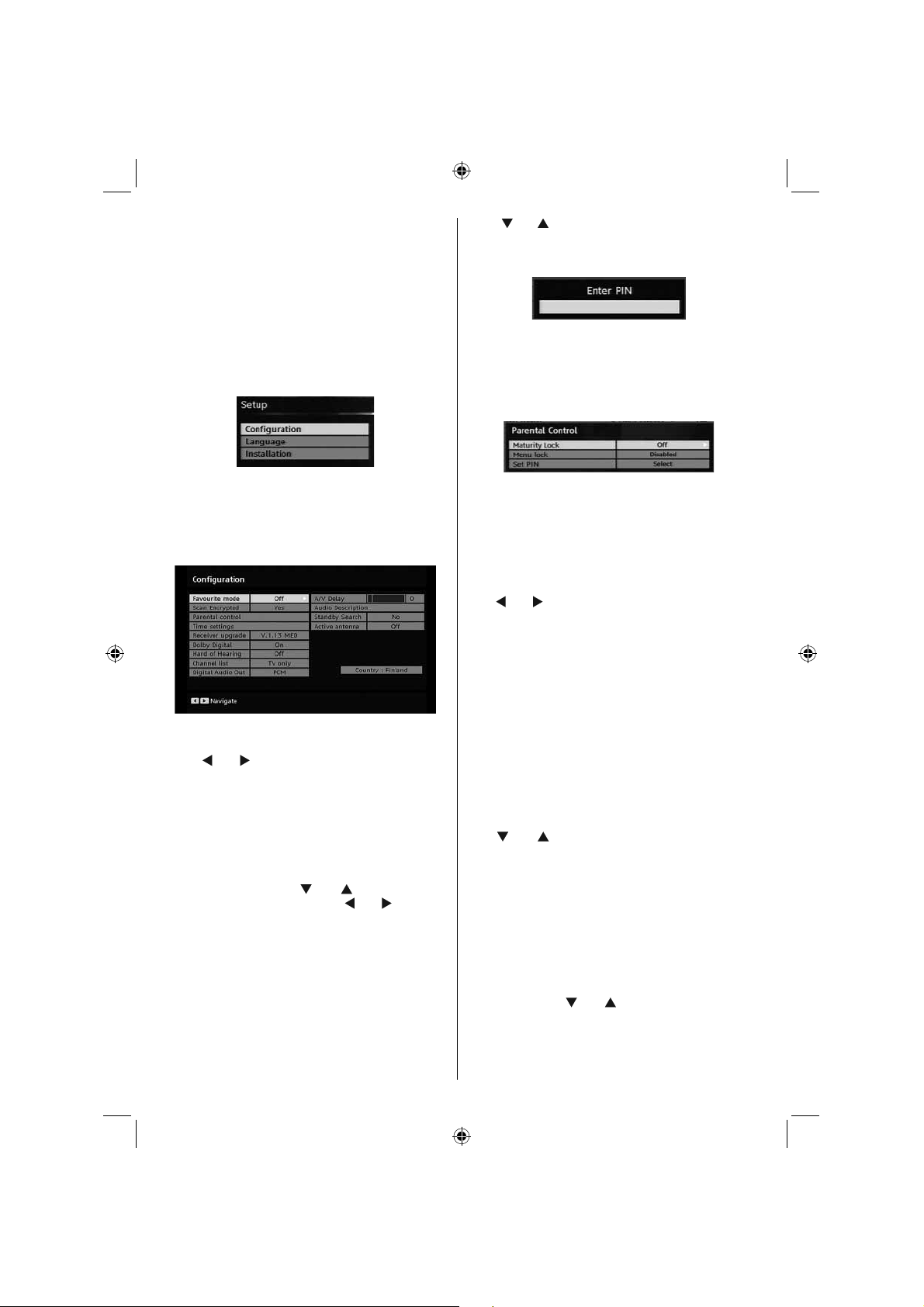

Setup ................................................................ 16
Confi guration ....................................................16

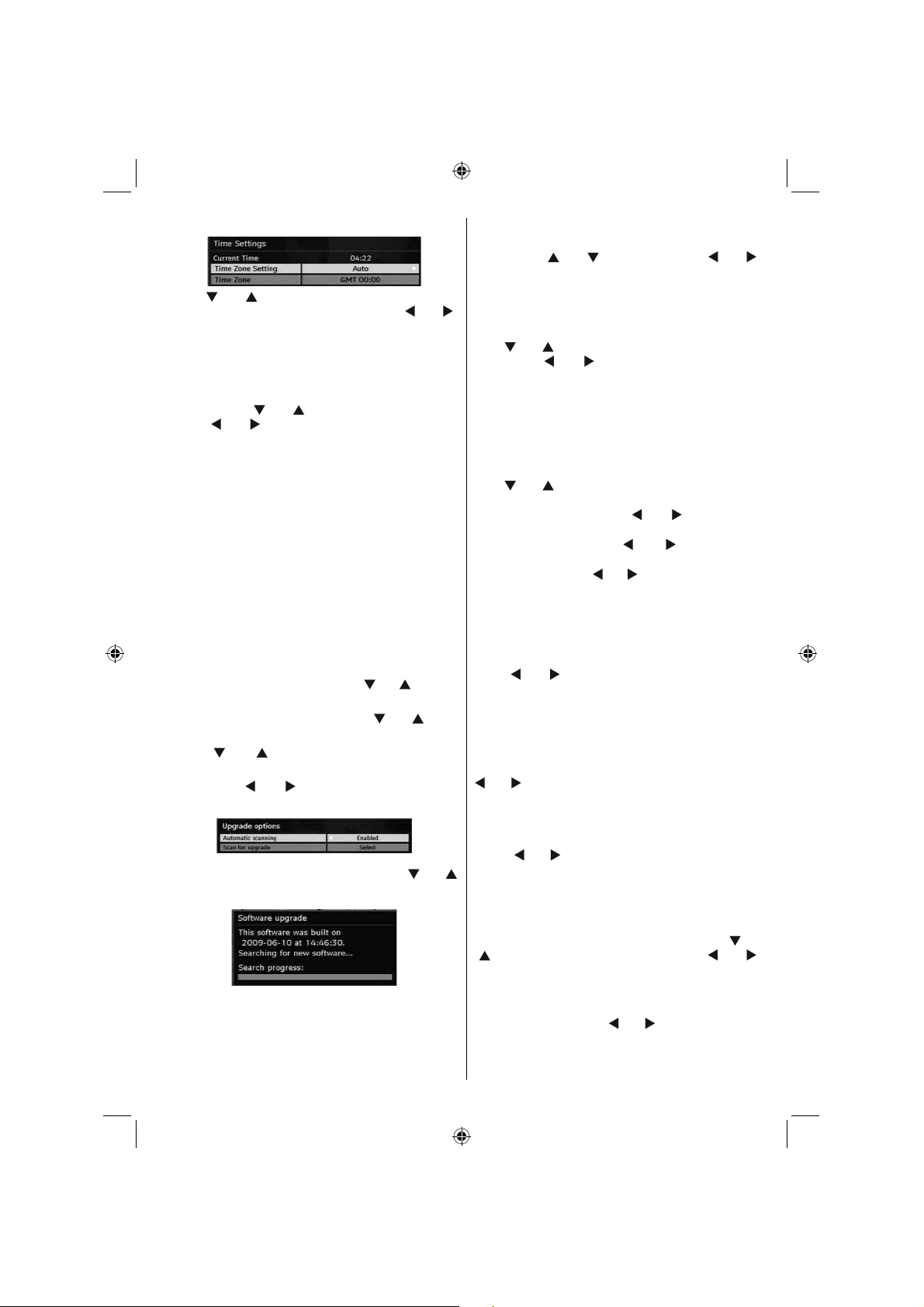

Time Settings(**) ...............................................16

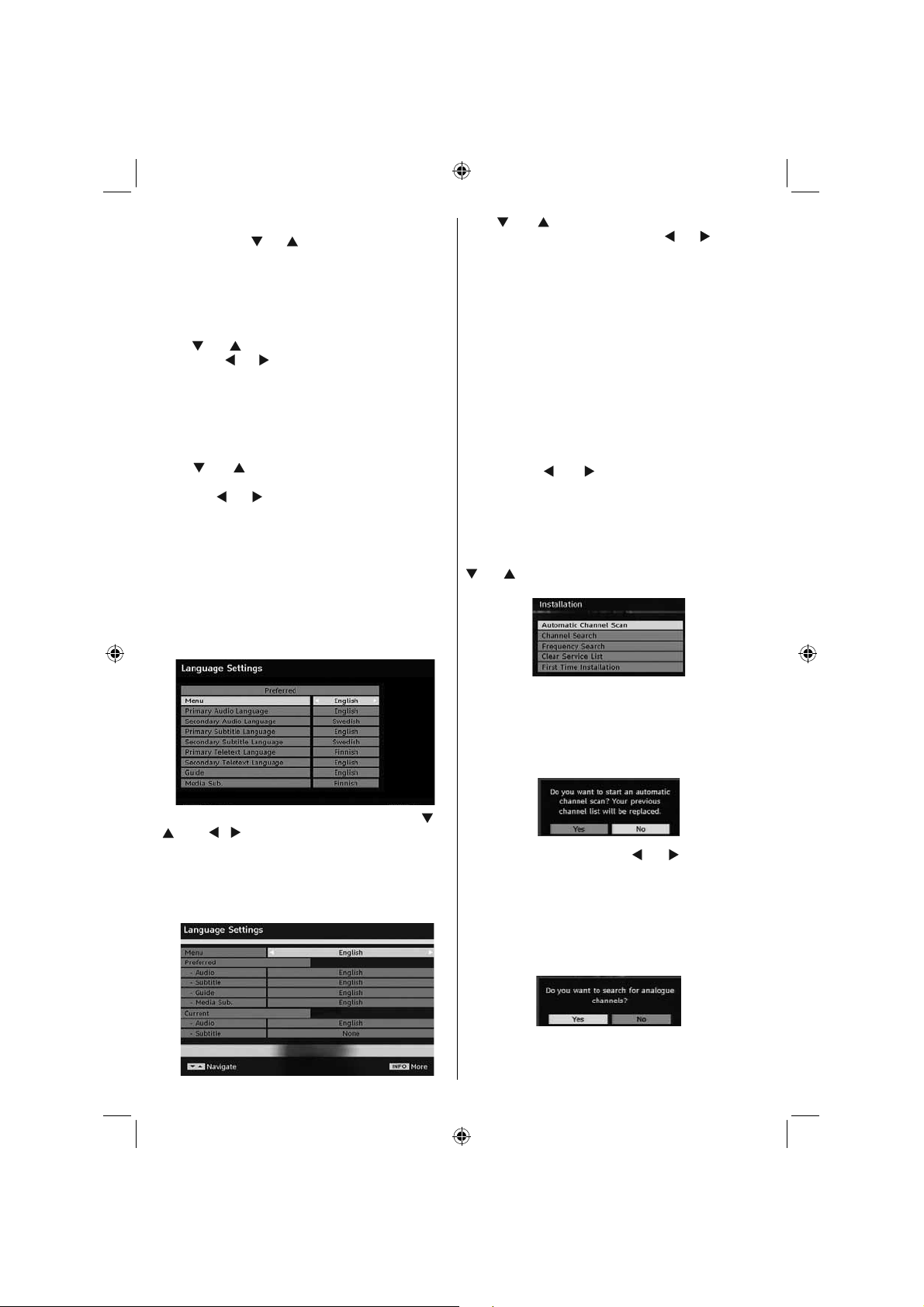

Language Settings ............................................ 18
Language Settings ............................................ 18
Installation.........................................................18

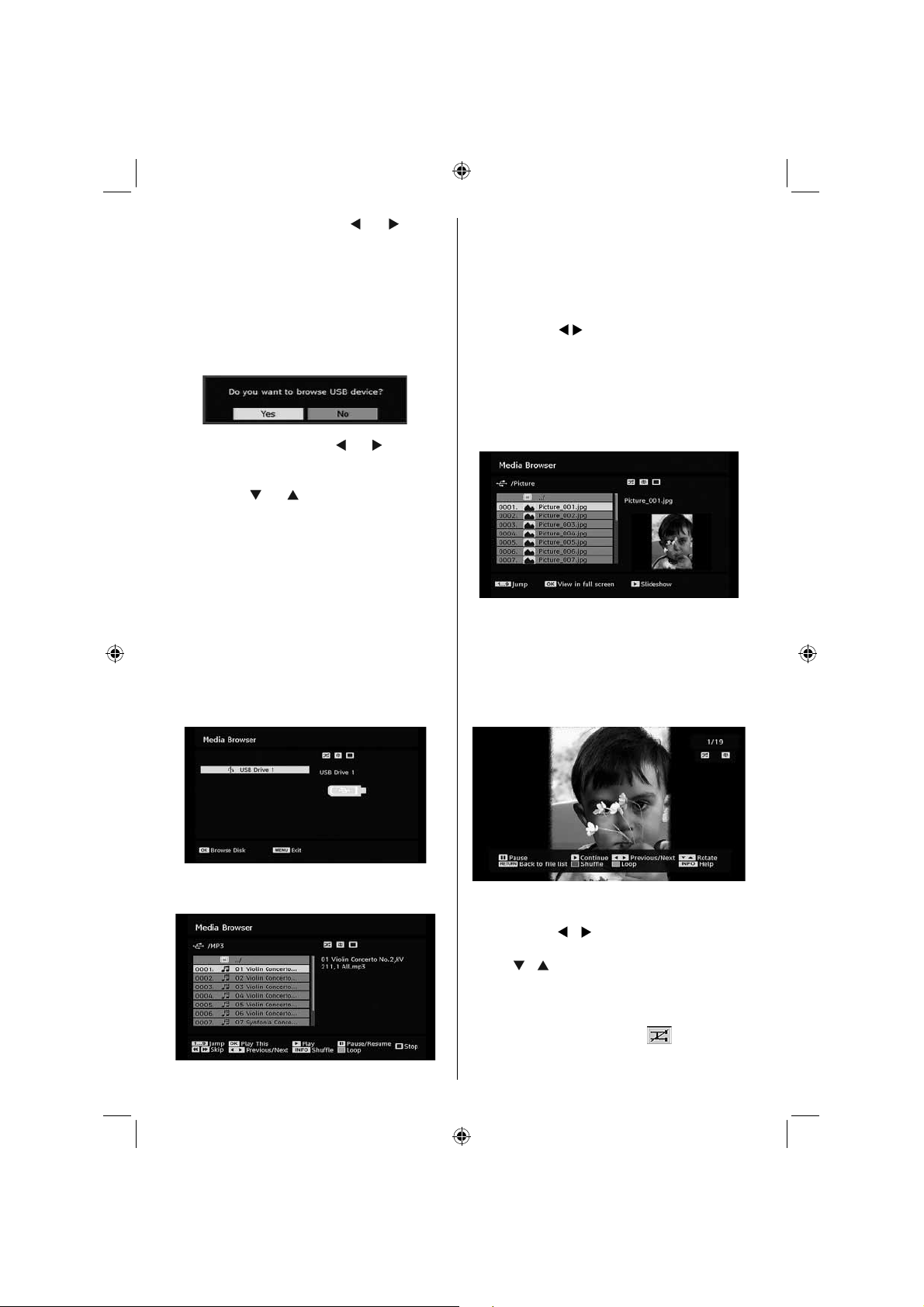

Media Browser (in DTV mode) .........................20
Video Playback ................................................. 21
Analogue TV Menu System .................................. 21
Picture Menu.....................................................21
Sound Menu .....................................................22
Feature Menu ...................................................23
Install Menu ......................................................24
Install Menu in AV Modes .................................24
Program Table ..................................................24
Source Menu ....................................................25
PC Mode Menu System........................................ 25
PC Position Menu ............................................. 25
Displaying TV Information .................................... 26
Mute Function ....................................................... 26
Picture Mode Selection......................................... 26
Freezing Picture ...................................................26

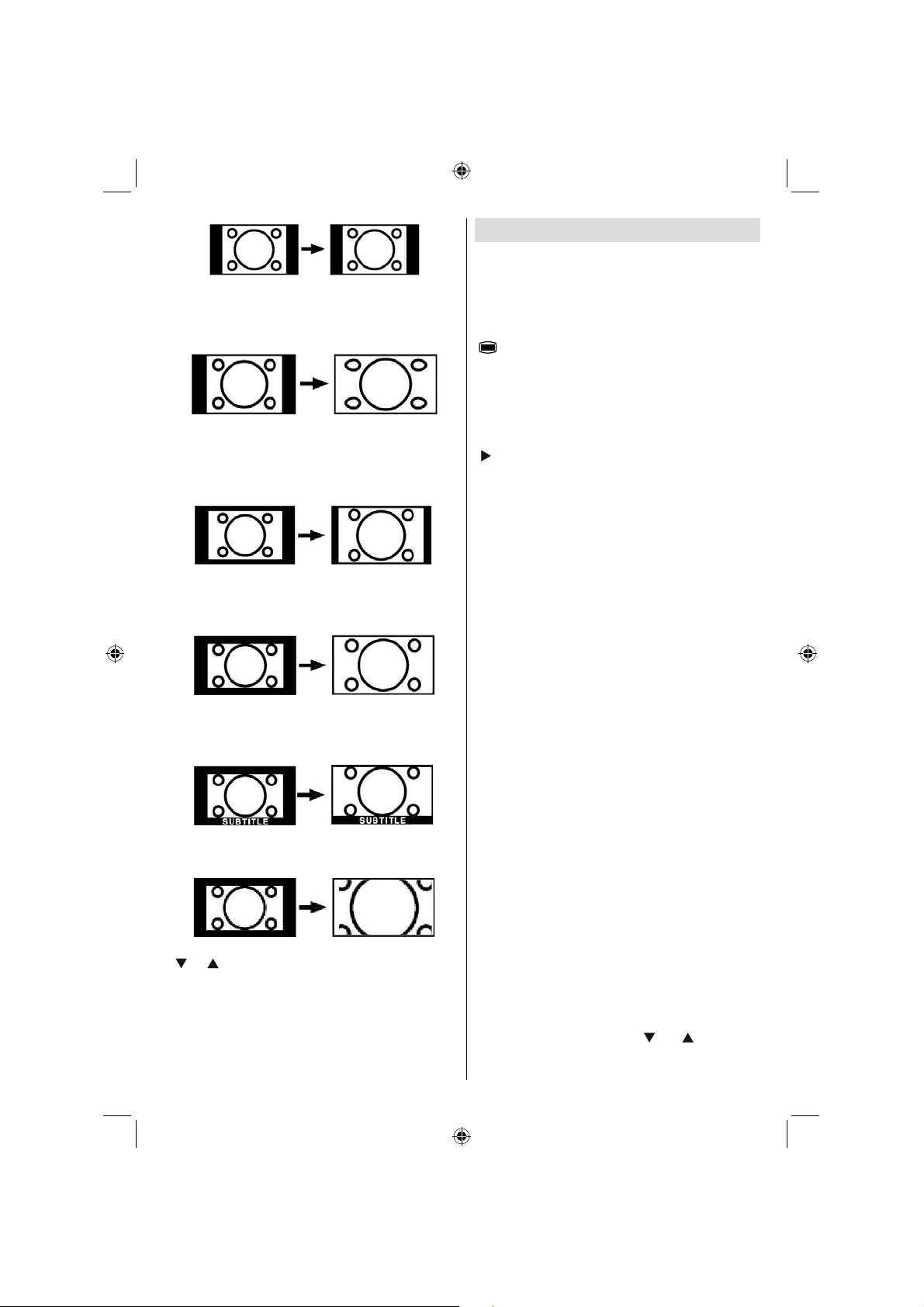

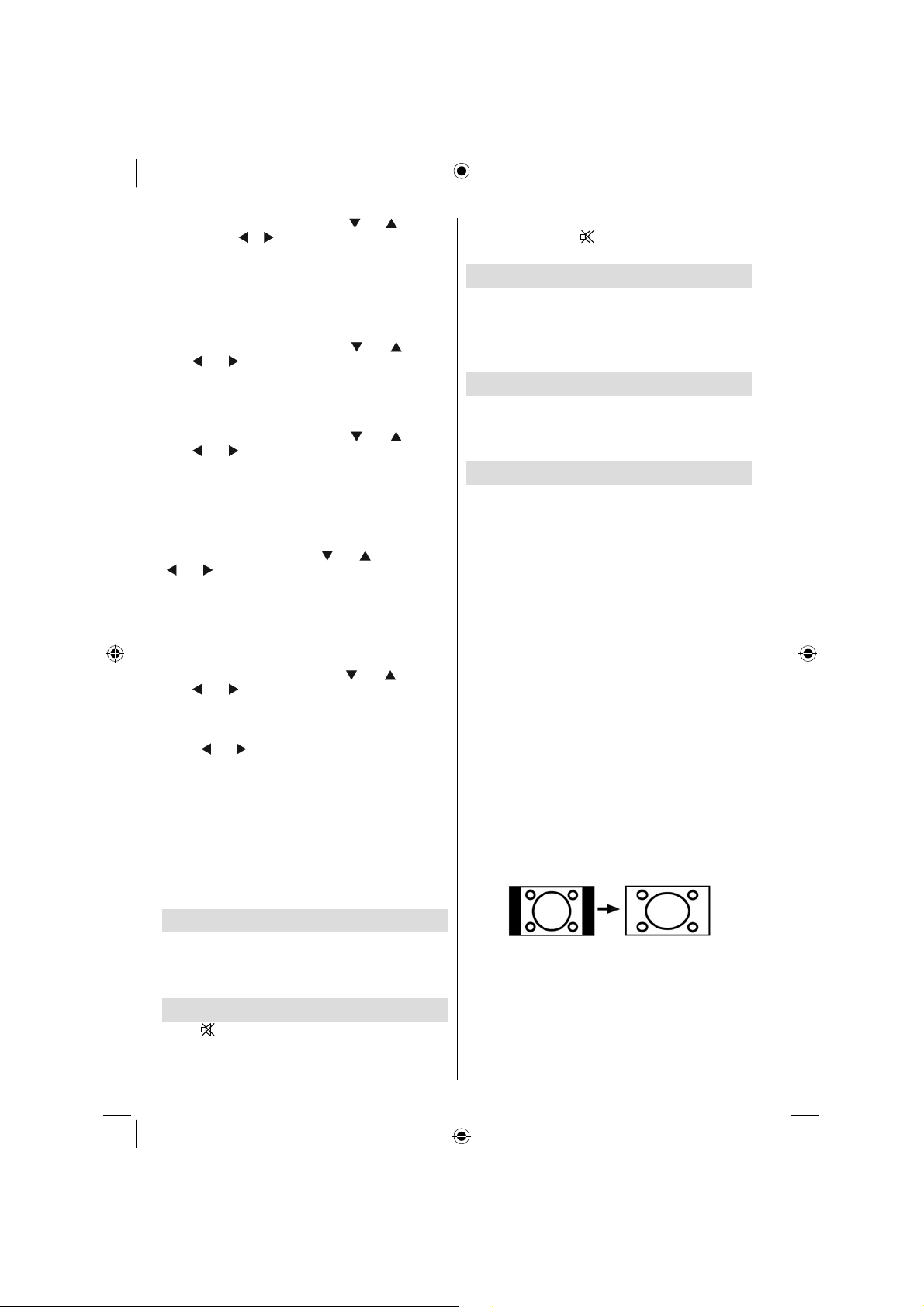

Zoom Modes......................................................... 26
T eletext ................................................................. 27
Tips .......................................................................28
Appendix A: PC Input Typical Display Modes .......29
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types) .............................................. 29
Appendix C: Supported File Formats for USB
Mode..................................................................... 30
Specifi cations .......................................................31
Digital Reception (DVB-T) .................................... 31
English - 1 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 101_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 1 27.02.2010 13:55:4627.02.2010 13:55:46
Features
• Remote controlled colour LCD TV.
• Fully integrated digital TV (DVB-T - MPEG2) (DVB-T MPEG4).
•
HDMI connectors for digital video and audio. This
connection is also designed to accept high defi nition
signals.
• USB input.
• 200 programmes from VHF, UHF(analogue).
•
500 programmes for digital mode (IDTV).
• Integrated tuner TNT HD, MPEG 2 / MPEG 4 compatible.
• OSD menu system.
• Scart socket for external devices (such as video,
video games, audio set, etc.).
• Stereo sound system.
• Teletext, fastext, TOP text.
• Headphone connection.
• Automatic programming system.
• Forward or backward
• Sleep timer.
• Child lock.
• Automatic sound mute when no transmission.
• NTSC playback.
• AVL (Automatic Volume Limiting).
• When no valid signal is detected, after 5 minutes the
TV switches itself automatically to standby mode.
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista.
• Audio line out.
Game Mode
•
manual tuning.
Accessories
INFO
SCREEN
SLEEP
PRESETS
SOURCE
RETURN
MENU
Batteries: 2 X AAA
SUBTITLE
LANG.
FAV
EPG
/
Instruction Book
Remote
Controller
Introduction
Thank you for choosing this product. This manual will
guide you for the proper operation of your TV .
Before operating the TV, please read this
manual thoroughly.
Please do keep this manual in a safe place
for future references.
Preparation
For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top
of the set.
Use this device in moderate climates.
10 cm
10 cm
10 cm
English - 2 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 201_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 2 27.02.2010 13:55:4727.02.2010 13:55:47
Safety Precautions
Please read the following recommended safety
precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240
V AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fi re or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualifi ed
personnel.
Moisture and Water
Do not use this device in a humid
and damp place (avoid the bathroom,
the sink in the kitchen, and near the
washing machine). Do not expose this
device to rain or water, as this may be
dangerous and do not place objects
filled with liquids, such as flower
vases, on top. Avoid from dripping
or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.
Cleaning
Before cleaning, unplug the TV
set from the wall outlet. Do not
use liquid or aerosol cleaners.
Use soft and dry cloth.
Ventilation
The slots and openings on the TV
set are intended for ventilation and to ensure reliable
operation. To prevent overheating, these openings
must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to
open fl ames and sources of intense
heat such as an electric heater.
Ensure that no open fl ame sources,
such as lighted candles, are placed
on top of the TV . Batteries should not
be exposed to excessive heat such
as sunshine, fi re or the like.
English - 3 -
Lightning
In case of storm and lightning or
when going on holiday, disconnect the
power cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.
Servicing
Please refer all servicing to qualifi ed
personnel. Do not remove the cover
yourself as this may result in an
electric shock.
Waste Disposal
Instructions for waste disposal:
• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.
• Batteries, including those which are heavy metalfree, should not be disposed of with household
waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL
contains a small amount of mercury; please follow
the local laws or regulations for
disposal.
Disconnecting the Device
The mains plug is used to disconnect TV set from
the mains and therefore it must remain readily
operable.
Headphone Volume
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Installation
To prevent injury, this device must be
securely attached to the wall in accordance with the
installation instructions when mounted to the wall (if
the option is available).
LCD Screen
The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 301_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 3 27.02.2010 13:55:4927.02.2010 13:55:49
Warning
Do not leave your TV in standby or operating mode
when you leave your house.
When you use the wall mount kit (optional) with
the LCD TV, we would defi nitely recommend to
plug all your cables into the back of the LCD
before mounting to the wall.
English - 4 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 401_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 4 27.02.2010 13:55:4927.02.2010 13:55:49
Overview of the Remote Control
Standby1.
Image size2.
Sleep timer3.
Numeric buttons4.
Return / Exit (in DTV mode) / Index page (in 5.
TXT mode)
Cursor up / Page up (in TXT mode)6.
Cursor left7.
Programme up (Page down in DTV mode)8.
Programme down (Page up in DTV mode)9.
Mono-Stereo / Dual I-II / Current language (in 10.
DTV mode) (*)
Previous Programme / Swap11.
Electronic programme guide (in DTV mode) 12.
Info / Reveal (in TXT mode)13.
Picture mode selection14.
Source selection15.
Red / Sound menu / Change channel list (in 16.
DTV mode)
Green / Picture / Subtitle on-off (in DTV mode) 17.
(*)
Yellow / Feature / Current language (in DTV 18.
mode) (*)
Menu on-off19.
Blue / Install menu / Selects DVB-T or DVB-C 20.
channels (in DTV mode)
OK / Channel list (in DTV mode) / Hold (in TXT 21.
mode)
Cursor right / Subpage (in TXT mode)22.
Cursor down / Page down (in TXT mode)23.
Volume up24.
Volume down25.
Mute26.
Teletext / Mix 27.
Subtitle on-off (in DTV mode) / TXT Subtitle28.
FAV (*) (Favourite Selection) (in DTV mode)29.
Media Browser playback buttons. (in DTV 30.
mode)
29
SLEEP
RETURN
FAV
SCREEN
LANG.
EPG
INFO
SOURCE
MENU
SUBTITLE
/
PRESETS
28
30
(*) Only for EU country options.
Note: Buttons that are not indicated with a
number on the remote control illustration are
not functional in TV mode.
English - 5 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 501_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 5 27.02.2010 13:55:5027.02.2010 13:55:50
LCD TV and Operating Buttons
PCH/
MENU
TV/AV
Viewing the Connections- Back Connectors
Standby button1.
TV/AV button2.
Programme Up/Down buttons3.
Volume Up/Down buttons4.
Note: Press
“ ” / “ ”
buttons at the same time to view
main menu.
SCART socket1. inputs or outputs for external devices.
Connect the SCART cable between SCART socket on TV and SCART socket on your external device
(such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV
mode.
Component Video Inputs (YpBPr)2. are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output.
Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and
the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”,
“Pb”, “Pr” correspond with your device’s connectors.
PC/YPbPr Audio Inputs3. are used for connecting audio signals of a PC or a device that connects to the
TV via YPbPr.
Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to
enable PC audio.
Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to
enable component audio.
English - 6 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 601_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 6 27.02.2010 13:55:5127.02.2010 13:55:51
S/PDIF Out4. outputs digital audio signals of the currently watched source.
Use an S/PDIF coaxial cable to transfer audio signals to a device that has S/PDIF input.
You should
also set SPDIF Out option in the Sound Menu as On.
RF Input5. connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustrationin the following
pages.
Audio Line Outs6. output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.
Note: Line out feature cannot be used while in HDMI source. You can use SPDIF instead.
PC Input7. is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
HDMI 1: 8. HDMI input
HDMI Inputs are for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Defi nition pictures from devices such as a High
Defi nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets
or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p
signals. No sound connection is needed for an HDMI to HDMI connection.
Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.
channels that you subscribe to. For more information, see “Conditional Access”
section.
USB Input 2.
Headphone jack is used for connecting an external headphone to the system. 3.
Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
Video Input is used for connecting video signals of external devices.Connect the 4.
video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on
your device.
Audio Inputs are used for connecting audio signals of external devices. Connect 5.
the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT
jacks on your device.
(functional in DTV mode only)
Note: If you connect a device to the TV via the VIDEO INPUT, you should also
connect your device with an audio cable to the AUDIO INPUTS of the TV to
enable audio.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
English - 7 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 701_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 7 27.02.2010 13:55:5227.02.2010 13:55:52
Anti-theft Protection
Your Tv has an anti-theft lock hole for theft
protection.
You can use an optional lock to physically fi x the TV
when using in a public place or at home.
The anti-theft lock should be purchased separately
if desired. The locking method might be different
depending on the type of the lock purchased. Please
refer to the lock’s instruction manual for proper use.
K
K
Anti-theft lock hole
Power Connection
IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the
ambient room temperature before you connect the
set to the mains.
• Plug the power cable to the mains socket outlet.
Using Side USB Input
• You can connect USB devices to your TV by using
the USB input of the TV. This feature allows you to
display/play JPG, video and MP3 fi les stored in a
USB stick.
• It is possible that certain types of USB devices
MP3 Players) may not be compatible with this TV.
• You may back up your fi les before making any
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any fi le damage or data loss.
• Do not pull out USB module while playing a fi le.
CAUTION: Quickly plugging and unplugging USB
devices, is a very hazardous operation. Especially,
do not repeatedly quickly plug and unplug the
drive. This may cause physical damage to the USB
player and especially the USB device itself.
SIDE VIEW USB MEMORY
(e.g.
English - 8 -
USB Memory Connection
• Plug your USB device to the USB input of the TV.
IMPORTANT: The TV supports only FAT32 disk
formatting. NTFS format is not supported.
Connecting the LCD TV to a PC
For displaying your computer’s screen image on
your LCD TV, you can connect your computer to the
TV set.
• Power off both computer and display before making
any connections.
• Use 15-pin D-sub display cable to connect a PC to
the LCD TV.
• When the connection is made, switch to PC source.
See “Input selection” section.
• Set the resolution that suits your viewing requirements.
Resolution information can be found in the appendix
parts.
PC audio cable
(not supplied)
to AUDIO INPUTS
on the TV
Audio
Inputs
PC Input
PC RGB cable
(not supplied)
to PC input
Connecting to a DVD Player
If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.
Note: Cables shown in the illustration are not
supplied.
• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.
• Most DVD players are connected through
COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio,
use a component audio cable as illustrated below.
When the connection is made, switch to YPbPr
source. See, “Input selection” section.
• You may also connect through the
Use a SCART cable as shown below.
SCART socket.
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 801_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 8 27.02.2010 13:55:5327.02.2010 13:55:53
Note: These three methods of connection perform the
Scart socket
Decoder
DVD Recorder
Video Recorder
same function but in different levels of quality. It is not
necessary to connect by all three methods.
Scart socket
Component
video
inputs
audio
inputs
DVD Player
HDMI
input
Component
Using Side AV Connectors
You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.
• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. Do not connect
the camcoder to VIDEO IN socket at the same time
since it can cause noise in the picture. For selecting
the related source, see the section “Input selection”
in the following parts.
• To listen the TV sound from headphones, connect
to the HEADPHONE jack of theTV.
connection. You should also set SPDIF Out option
in the Sound menu as On.
External Speakers
A device that
supports
SPDIF signal.
Connecting Other Equipment via
Scart
Most devices support SCART connection. You can
connect a; DVD recorder, a VCR or a decoder to your
LCD TV by using the SCART socket. Note that cables
shown in the illustration are not supplied.
Power off both the TV and the devices before making
any connections.
For more information, refer to your device’s own
instruction book.
Headphone
Camcorder
Inserting Batteries in the Remote
Control Handset
Using Other Connectors
You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.
• To connect external speakers, use an audio cable.
Do not reverse the AUDIO LEFT and AUDIO RIGHT
jacks. Turn on the LCD TV and external speaker set
after all connections are made. Refer to your speaker
set’s manual for further queries.
• For connecting a to a device that has SPDIF support,
use an appropriate SPDIF cable to enable sound
English - 9 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 901_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 9 27.02.2010 13:55:5527.02.2010 13:55:55
• Remove the battery cover located on the back of
the handset by gently pulling backwards from the
indicated part.
• Insert two AAA/R3 or equivalent type batteries
inside. Place the batteries in the right directions and
replace the battery cover.
Note: Remove the battery from remote control
handset when it is not to be used for a long period.
Otherwise it can be damaged due to any leakage of
batteries.
Remote range is approximately 7m/23ft.
Switching the TV On/Off
To Switch the TV On
• Connect the power cord to the 220-240V AC 50
Hz.
• To s
witch on the TV from standby mode either:
• Press the “ ” button, P+ / P- or a numeric button
on the remote control.
• Press the -P/CH or P/CH+ button on the TV . The TV
will then switch on.
Note: If you switch on your TV via PROGRAMME
UP/DOWN buttons on the remote control or on the
TV set, the programme that you were watching last
will be reselected.
By either method the TV will switch on.
To Switch the TV Off
• Press the “ ” button on the remote control or
press the STANDBY switch, so the TV will switch
to standby mode.
• To power
power cord from the mains socket.
Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.
down the TV completely, unplug the
Input Selection
Once you have connected external systems to your
TV, you can switch to different input sources.
• Press SOURCE button on your remote control for
directly changing sources.
or,
• Select “Source” option from the main menu
by using “
“ ” button to highlight an input and press “ ” button
to select.
” or “ ” button. Use then “ ” or
Note: You can mark desired source options by
pressing the OK button. Therefore, when SOURCE
button is pressed, only the marked source options will
be available (except for the TV source).
Basic Operations
You can operate your TV using both the remote
control and onset buttons.
Operation with the Buttons on the TV
Volume Setting
• Press “ ” button to decrease volume or
button to increase volume, so a volume level scale
(slider) will be displayed on the screen.
Programme Selection
• Press “P/CH +” button to select the next programme or
“P/CH -” button to select the previous programme.
Viewing Main Menu
• Press “ ” / “ ” buttons at the same time
to view main menu. In the Main menu select submenu using “P/CH -” or “P/CH +” buttons and enter
the sub-menu using “ ” or “ ” buttons.
To learn the usage of the menus, refer to the menu
system sections.
AV Mode
• Press the “SOURCE” button in the control panel on
the TV to switch between AV modes.
Operation with the Remote Control
• The remote control of your TV is designed to control
all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.
• Functions of the menu system are described in the
following sections.
Volume Setting
• Press V+ button to increase the volume. Press V-
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.
English - 10 -
01_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 1001_MB37_[GB]_(01_TV)_22890W_1900UK_IDTV_BRONZE13_10065805_50157832.indd 10 27.02.2010 13:55:5527.02.2010 13:55:55
Loading...
