Sanyo LC75411WS Specifications

Ordering number : ENN6928

62901RM (OT) No. 6928-1/34

Overview

The LC75411ES and 75411WS are electronic volume controllers that enable control of volume, balance, fader, bass/treble, loudness, input switching, and input gain using only a small number of external components.

Functions

• Volume: 0 dB to –79.5 dB in 0.5-dB steps, and –∞ (161

positions) Balance function with separate L/R control

• Fader: rear output or front output can be attenuated across 16 positions (in 1-dB steps from 0 dB to –2 dB, 2-dB steps from –2 dB to 20 dB, 10-dB steps from –20 dB to –30 dB, and –45 dB, –60 dB, –∞)

• Bass/treble: Both bass and treble can be controlled in

1-dB steps from 0 dB to ±6 dB, and in 2-dB steps from ±8 dB to ±12 dB.

• Input gain: 0 dB to +18.75 dB (1.25-dB steps)

amplification is possible for the input signal.

• Input switching: four input signals can be selected for

Left and for Right

• Loudness: A tap is output from the –32 dB position of a

2 dB step volume control resistor ladder. A loudness function can be implemented by connecting an external RC circuit.

Features

• On-chip buffer amplifier cuts down number of external components

• Low switching noise generated by on-chip switch through use of silicon gate CMOS process, for low switching noise when there is no signal

• Low switching noise when there is a signal due to use of on-chip zero-cross switching circuit

• On-chip 1/2 VDD reference voltage circuit

• Controls performed with serial input (CCB)

LC75411ES, 75411WS

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

Electronic Volume Controller

for Car Audio Systems

CMOS IC

Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all SANYO products described or contained herein.

• CCB is a trademark of SANYO ELECTRIC CO., LTD.

• CCB is SANYO’s original bus format and all the bus addresses are controlled by SANYO.

No. 6928-2/33

LC75411ES, 75411WS

Package Dimensions

unit: mm

3148-QIP44MA

unit: mm

3163A-SQFP48

2.8max

0.8

11.6

0.35

10.0

13.2

1.0

1

11

12

22

23

33

34

44

1.0

1.6

0.8

2.5

0.2

0.1

10.0

13.2

1.0

1.6

0.8

SANYO: QIP44MA

[LC75411ES]

0.5

7.0

9.0

0.15

0.180.75 0.5

0.75

0.5

0.75

0.5

0.1

1 12

13

24

25

36

37

48

7.0

9.0

1.7max

SANYO: SQFP48

[LC75411WS]

Pin Assignment

[LC75411ES]

5 4 3 2 1

44

43

42

41

40

39

38

37

36

35

34

24 2526 27 28 29 30 33 32 31 23

16

15

14

13

12

11 10 9 8 7 6

22

21

20

19

18

17

LSELO

L4 L3 L2 L1

LC75411ES

VDD

Vref

R1

R4

R3

R2

RSELO

RVRIN

RCT

RCOM

RVROUT

RTIN

RF1C1

RF1C2

RF1C3

RF3C1

RTOUT

RFIN

RFOUT

RROUT

TIM

TEST

CE

DI

CL

VSS

LROUT

LFOUT

LFIN

LTOUT

LF3C1

LF1C3

LF1C2

LF1C1

LTIN

LVROUT

LCOM

LVRIN

LCT

No. 6928-3/33

LC75411ES, 75411WS

Equivalent Circuit Block Diagram

[LC75411ES]

DI

CE

CL

0.033µF

10µF

PA

L4

LFIN

Microcontroller

RFIN

RFOUT

RROUT

TIM

TEST VDD

CE

DI

CL

LROUT

LFOUT

22

24

23

LOGIC CIRCUIT

ZEROCROSS DET

CCB

INTERFACE

21

20

19

18

17

16

15

14

13

12

PA

VSS

10µF

PA

10µF

PA

25 26 27 28 29

11 10 9 8 7 6

35

36

37

38

39

40

41

42

43

44

L3

L2

L1

LVref

VDD

Vref

RVref

R1

R2

R3

1µF × 4

R4

[TREBLE]

[TREBLE] [BASS fo=100Hz]

0.1µF

2700pF

10µF

LF3C1

LTOUT

LF1C2

LF1C3

LF1C1

LTIN

10µF

CONTROL

CIRCUIT

NO SIGNAL

TIMER

Multiplexer

[BASS fo=100Hz]

0.1µF

2700pF

10µF

RF3C1

RTOUT

RF1C2

RF1C3

RF1C1

RTIN

22µF

30 31 32 33 34

LVROUT

LVref

LCOM

LSELO

LVRIN

LCT

10µF

220pF

1µF

0.1µF

68kΩ

4.7kΩ

LVref

RVref LVref

5 4 3 2 1

RVROUT

RVref

RCOM

RSELO

RVRIN

RCT

10µF

220pF

1µF

0.1µF

68kΩ

4.7kΩ

RVref

0.1µF

No. 6928-4/33

LC75411ES, 75411WS

Sample Application Circuit

[LC75411ES]

0.033µF

5 4 3 2 1

44

43

42

41

40

39

38

37

36

35

34

24 2526 27 28 29 30 33 32 31 23

16

15

14

13

12

11 10 9 8 7 6

22

21

20

19

18

17

4.7kΩ

68kΩ

220pF

2700pF

0.1µF

10µF

Micro-

controller

10µF

1µF

10µF

1µF

LSELO

L4 L3 L2 L1

VDD

LC75411ES

VDD

Vref

R1

R4

R3

R2

RSELO

RVRIN

RCT

RCOM

RVROUT

RTIN

RF1C1

RF1C2

RF1C3

RF3C1

RTOUT

RFIN

RFOUT

RROUT

TIM

TEST

CE

DI

PA

CL

DVSS

LROUT

LFOUT

LFIN

LTOUT

LF3C1

LF1C3

LF1C2

LF1C1

LTIN

LVROUT

LCOM

LVRIN

LCT

1µF

22µF

1µF

1µF 1µF 1µF 1µF

10µF

PA

10µF

PA

10µF

PA

No. 6928-5/33

LC75411ES, 75411WS

Pin Assignment

[LC75411WS]

LC75411WS

48

47

46

45

44

43

42

41

40

39

38

L4 L3 L2 L1

NC

VDD

Vref

NC

R3

R2

R1

5 4 3 2 1 11 10 9 8 7 6

RSELO

RVRIN

RCT

RCOM

RVROUT

RTIN

RF1C1

RF1C2

RF1C3

RF3C1

RTOUT

17

16

15

14

13

23

22

21

20

19

18

RFIN

RFOUT

RROUT

TIM

TEST

CE

DI

CL

VSS

LROUT

LFOUT

26 2728 29 30 31 32 35 34 33 25

NC

LTOUT

LF3C1

LF1C3

LF1C2

LF1C1

LTIN

LVROUT

LCOM

LVRIN

LCT

12

24

36

37

NC

LFIN

LSELO

R4

No. 6928-6/33

LC75411ES, 75411WS

Equivalent Circuit Block Diagram

[LC75411WS]

DI

CE

CL

0.033µF

10µF

PA

L4 LFIN

Microcontroller

RFIN

RFOUT

RROUT

TIM

TEST VDD

CE

DI

CL

LROUT

LFOUT

23

26

24

LOGIC CIRCUIT

ZEROCROSS DET

Multiplexer ZEROCROSS DET

CCB

INTERFACE

22

21

20

19

18

17

16

15

14

13

PA

VSS

10µF

PA

10µF

PA

27 28 29 30 31

11 10 9 8 7 6

37

38

39

40

42

43

45

46

47

48

L3

L2

NC

L1

LVref

VDD

Vref

RVref

R1

R2

R3

1µF × 4

NC

R4

[TREBLE]

[TREBLE] [BASS fo=100Hz]

0.1µF

2700pF

10µF

LF3C1

NC

LTOUT

LF1C2

LF1C3

LF1C1

LTIN

10µF

CONTROL

CIRCUIT

NO SIGNAL

TIMER

Multiplexer

[BASS fo=100Hz]

0.1µF

2700pF

10µF

RF3C1

NC RTOUT

RF1C2

RF1C3

RF1C1

RTIN

22µF

32 33 34 35 36

LVROUT

LVref

LCOM

LSELO

LVRIN

LCT

10µF

220pF

1µF

0.1µF

68kΩ

4.7kΩ

LVref

RVref LVref

5 4 3 2 1

RVROUT

RVref

RCOM

RSELO

RVRIN

RCT

10µF

220pF

1µF

0.1µF

68kΩ

4.7kΩ

RVref

12

44

25

41

No. 6928-7/33

LC75411ES, 75411WS

Sample Application Circuit

[LC75411WS]

5 4 3 2 1

47

48

46

45

44

43

42

41

40

39

38

37

26 2728 29 30 31 32 35 36 34 33 25

17

16

15

14

13

12 11

10 9 8 7 6

24

23

22

21

20

19

18

4.7kΩ

68kΩ

220pF

2700pF

0.1µF

10µF

Micro-

controller

10µF

1µF

10µF

1µF

L3 L2 L1

VDD

LC75411WS

VDD

Vref

R3

NC

R2

R1

RSELO

RVRIN

NC

RCT

RCOM

RVROUT

RTIN

RF1C1

RF1C2

RF1C3

RF3C1

RTOUT

RFIN

RFOUT

RROUT

TIM

TEST

CE

DI

PA

CL

LFIN

VSS

LROUT

LFOUT

NC

LTOUT

LF3C1

LF1C3

LF1C2

LF1C1

LTIN

LVROUT

LCOM

LVRIN

LCT

LSELO

1µF

22µF

1µF 1µF 1µF

10µF

PA

10µF

PA

10µF

PA

L4

1µF

R4

1µF

NC

No. 6928-8/33

LC75411ES, 75411WS

Parameter Symbol Conditions Ratings Unit

Maximum supply voltage V

DD

max V

DD

11 V

Maximum input voltage V

IN

max All input pins VSS– 0.3 to VDD+ 0.3 V

Allowable power dissipation Pd max Ta ≤ 85°C, when mounted on board

LC75411ES 600

mW

LC75411WS 550 Operating temperature Topr –40 to +85 °C Storage temperature Tstg –50 to +125 °C

Specifications

Absolute Maximum Ratings at Ta = 25°C, VSS= 0 V

Parameter Symbol Conditions

Ratings

Unit

min typ max

Supply voltage V

DDVDD

6.0 10.5 V

Input high-level voltage V

IH

CL, DI, CE, TEST 4.0 10.5 V

Input low-level voltage V

IL

CL, DI, CE, TEST V

SS

1.0 V

Input amplitude voltage V

IN

V

SS

V

DD

Vp-p Input pulse width TøW CL 1 µs Setup time Tsetup CL, DI, CE 1 µs Hold time Thold CL, DI, CE 1 µs Operating frequency fopg CL 500 kHz

Allowable Operating Ranges at Ta = 25°C, VSS= 0 V

Parameter Symbol Pin Name Conditions

Ratings

Unit

min typ max

[Input block]

Input resistance Rin L1 to L4, R1 to R4 25 50 100 kΩ Minimum input gain Ginmin L1 to L4, R1 to R4 –1 0 +1 dB Maximum input gain Ginmax +16.5 +18.75 +21 dB Step setting error ATerr ±0.5 dB L/R balance BAL ±0.5 dB

[Volume Block]

Input resistance Rvr LVRIN, RVRIN, loudness off 113 226 452 kΩ Step setting error ATerr ±0.5 dB L/R balance BAL ±0.5 dB

[Tone block]

Step setting error ATerr ±1.0 dB Bass control range Gbass max. boost/cut ±9 ±12 ±15 dB Treble control range Gtre max. boost/cut ±9 ±12 ±15 dB L/R balance BAL ±0.5 dB

Electrical Characteristics at Ta = 25°C, VDD= 9 V, VSS= 0 V

Continued on next page.

No. 6928-9/33

LC75411ES, 75411WS

Parameter Symbol Pin Name Conditions

Ratings

Unit

min typ max

[Fader Block]

Input resistance Rfed LFIN, RFIN 25 50 100 kΩ

0dB to –2dB ±0.5 dB

Step setting error ATerr

–2dB to –20dB ±1 dB –20dB to –30dB ±2 dB –30dB to –60dB ±3 dB

L/R balance BAL ±0.5 dB

[General]

Total harmonic distortion

THD (1) V

IN

= –10dBV, f = 1 kHz 0.004 0.01 %

THD (2) V

IN

= –10dBV, f = 10 kHz 0.006 0.01 %

Input crosstalk CT V

IN

= 1Vrms, f = 1 kHz 80 88 dB

L/R crosstalk CT V

IN

= 1Vrms, f = 1 kHz 80 88 dB

Maximum attenuated output

Vomin (1) V

IN

= 1Vrms, f = 1 kHz 80 88 dB

Vomin (2)

V

IN

= 1Vrms, f = 1 kHz

90 95 dB

INMUTE, fader –∞

Output noise voltage

V

N

(1) Flat overall, IHF-A filter 5 10 µV

V

N

(2) Flat overall, 20 to 20 kHzBPF 7 15 µV

Current drain I

DD

33 40 mA

Input high-level current I

IH

CL, DI, CE, VIN= 9 V 10 µA

Input low-level current I

IL

CL, DI, CE, VIN= 0 V –10 µA

Maximum input voltage V

CL

THD = 1%, RL= 10 kΩ

2.5 2.9 Vrms

flat overall, f

IN

= 1 kHz

Continued from preceding page.

Control Timing and Data Format

To control the LC75411ES and LC75411WS input specified serial data to the CE, CL, and DI pins. The data configuration consists of a total of 52 bits broken down into 8 address bits and 44 data bits.

CE DI

D43 D42 D41 D40 D39 D38 D5 D4 D3 D2 D0 D1 A3 A2 A1 A0 B3 B2 B1 B0

CL

1µs min

1µs min ≤ T

DEST

1µs min

CE

DI

CL

Address code (B0 to A3)

The LC75411ES and 75411WS use 8-bit address code and can be used in common with ICs that support SANYO’s CCB serial bus.

Address Code

(LSB) (81HEX)

Control code allocation

Input Switching Control

No. 6928-10/33

LC75411ES, 75411WS

B0 B1 B2 B3 A0 A1 A2 A3

1 0 0 0 0 0 0 1

D0 D1 D2 Setting Setting

0 0 0 L1 (R1) 1 0 0 L2 (R2) 0 1 0 L3 (R3) 1 1 0 L4 (R4)

0 1 1

For IC testing: Normally not used

1 1 1

D3 Bit for IC testing: Normally set to 0

Input Gain Control

D4 D5 D6 D7 Operation

0 0 0 0 0dB 1 0 0 0 +1.25dB 0 1 0 0 +2.50dB 1 1 0 0 +3.75dB 0 0 1 0 +5.00dB 1 0 1 0 +6.25dB 0 1 1 0 +7.50dB 1 1 1 0 +8.75dB 0 0 0 1 +10.0dB 1 0 0 1 +11.25dB 0 1 0 1 +12.5dB 1 1 0 1 +13.75dB 0 0 1 1 +15.0dB 1 0 1 1 +16.25dB 0 1 1 1 +17.5dB 1 1 1 1 +18.75dB

No. 6928-11/33

LC75411ES, 75411WS

Volume Control (0 to –20.5dB)

D8 D9 D10 D11 D12 D13 D14 D15 Operation

0 0 0 0 0 0 0 0 0dB 0 0 0 0 0 0 0 1 –0.5dB 1 0 0 0 0 0 0 0 –1dB 1 0 0 0 0 0 0 1 –1.5dB 0 1 0 0 0 0 0 0 –2dB 0 1 0 0 0 0 0 1 –2.5dB 1 1 0 0 0 0 0 0 –3dB 1 1 0 0 0 0 0 1 –3.5dB

0 0 1 0 0 0 0 0 –4dB 0 0 1 0 0 0 0 1 –4.5dB 1 0 1 0 0 0 0 0 –5dB 1 0 1 0 0 0 0 1 –5.5dB 0 1 1 0 0 0 0 0 –6dB 0 1 1 0 0 0 0 1 –6.5dB 1 1 1 0 0 0 0 0 –7dB 1 1 1 0 0 0 0 1 –7.5dB 0 0 0 1 0 0 0 0 –8dB 0 0 0 1 0 0 0 1 –8.5dB 1 0 0 1 0 0 0 0 –9dB 1 0 0 1 0 0 0 1 –9.5dB 0 1 0 1 0 0 0 0 –10dB 0 1 0 1 0 0 0 1 –10.5dB 1 1 0 1 0 0 0 0 –11dB 1 1 0 1 0 0 0 1 –11.5dB 0 0 1 1 0 0 0 0 –12dB 0 0 1 1 0 0 0 1 –12.5dB 1 0 1 1 0 0 0 0 –13dB 1 0 1 1 0 0 0 1 –13.5dB 0 1 1 1 0 0 0 0 –14dB 0 1 1 1 0 0 0 1 –14.5dB 1 1 1 1 0 0 0 0 –15dB 1 1 1 1 0 0 0 1 –15.5dB 0 0 0 0 1 0 0 0 –16dB 0 0 0 0 1 0 0 1 –16.5dB 1 0 0 0 1 0 0 0 –17dB 1 0 0 0 1 0 0 1 –17.5dB 0 1 0 0 1 0 0 0 –18dB 0 1 0 0 1 0 0 1 –18.5dB 1 1 0 0 1 0 0 0 –19dB 1 1 0 0 1 0 0 1 –19.5dB 0 0 1 0 1 0 0 0 –20dB 0 0 1 0 1 0 0 1 –20.5dB

No. 6928-12/33

LC75411ES, 75411WS

Volume Control (–21 to –40.5dB)

D8 D9 D10 D11 D12 D13 D14 D15 Operation

1 0 1 0 1 0 0 0 –21dB 1 0 1 0 1 0 0 1 –21.5dB 0 1 1 0 1 0 0 0 –22dB 0 1 1 0 1 0 0 1 –22.5dB 1 1 1 0 1 0 0 0 –23dB 1 1 1 0 1 0 0 1 –23.5dB 0 0 0 1 1 0 0 0 –24dB 0 0 0 1 1 0 0 1 –24.5dB

1 0 0 1 1 0 0 0 –25dB 1 0 0 1 1 0 0 1 –25.5dB 0 1 0 1 1 0 0 0 –26dB 0 1 0 1 1 0 0 1 –26.5dB 1 1 0 1 1 0 0 0 –27dB 1 1 0 1 1 0 0 1 –27.5dB 0 0 1 1 1 0 0 0 –28dB 0 0 1 1 1 0 0 1 –28.5dB 1 0 1 1 1 0 0 0 –29dB 1 0 1 1 1 0 0 1 –29.5dB 0 1 1 1 1 0 0 0 –30dB 0 1 1 1 1 0 0 1 –30.5dB 1 1 1 1 1 0 0 0 –31dB 1 1 1 1 1 0 0 1 –31.5dB 0 0 0 0 0 1 0 0 –32dB 0 0 0 0 0 1 0 1 –32.5dB 1 0 0 0 0 1 0 0 –33dB 1 0 0 0 0 1 0 1 –33.5dB 0 1 0 0 0 1 0 0 –34dB 0 1 0 0 0 1 0 1 –34.5dB 1 1 0 0 0 1 0 0 –35dB 1 1 0 0 0 1 0 1 –35.5dB 0 0 1 0 0 1 0 0 –36dB 0 0 1 0 0 1 0 1 –36.5dB 1 0 1 0 0 1 0 0 –37dB 1 0 1 0 0 1 0 1 –37.5dB 0 1 1 0 0 1 0 0 –38dB 0 1 1 0 0 1 0 1 –38.5dB 1 1 1 0 0 1 0 0 –39dB 1 1 1 0 0 1 0 1 –39.5dB 0 0 0 1 0 1 0 0 –40dB 0 0 0 1 0 1 0 1 –40.5dB

No. 6928-13/33

LC75411ES, 75411WS

Volume Control (–41 to –59.5dB)

D8 D9 D10 D11 D12 D13 D14 D15 Operation

1 0 0 1 0 1 0 0 –41dB 1 0 0 1 0 1 0 1 –41.5dB 0 1 0 1 0 1 0 0 –42dB 0 1 0 1 0 1 0 1 –42.5dB 1 1 0 1 0 1 0 0 –43dB 1 1 0 1 0 1 0 1 –43.5dB 0 0 1 1 0 1 0 0 –44dB 0 0 1 1 0 1 0 1 –44.5dB

1 0 1 1 0 1 0 0 –45dB 1 0 1 1 0 1 0 1 –45.5dB 0 1 1 1 0 1 0 0 –46dB 0 1 1 1 0 1 0 1 –46.5dB 1 1 1 1 0 1 0 0 –47dB 1 1 1 1 0 1 0 1 –47.5dB 0 0 0 0 1 1 0 0 –48dB 0 0 0 0 1 1 0 1 –48.5dB 1 0 0 0 1 1 0 0 –49dB 1 0 0 0 1 1 0 1 –49.5dB 0 1 0 0 1 1 0 0 –50dB 0 1 0 0 1 1 0 1 –50.5dB 1 1 0 0 1 1 0 0 –51dB 1 1 0 0 1 1 0 1 –51.5dB 0 0 1 0 1 1 0 0 –52dB 0 0 1 0 1 1 0 1 –52.5dB 1 0 1 0 1 1 0 0 –53dB 1 0 1 0 1 1 0 1 –53.5dB 0 1 1 0 1 1 0 0 –54dB 0 1 1 0 1 1 0 1 –54.5dB 1 1 1 0 1 1 0 0 –55dB 1 1 1 0 1 1 0 1 –55.5dB 0 0 0 1 1 1 0 0 –56dB 0 0 0 1 1 1 0 1 –56.5dB 1 0 0 1 1 1 0 0 –57dB 1 0 0 1 1 1 0 1 –57.5dB 0 1 0 1 1 1 0 0 –58dB 0 1 0 1 1 1 0 1 –58.5dB 1 1 0 1 1 1 0 0 –59dB 1 1 0 1 1 1 0 1 –59.5dB

No. 6928-14/33

LC75411ES, 75411WS

Volume Control (–60 to –∞)

D8 D9 D10 D11 D12 D13 D14 D15 Operation

0 0 1 1 1 1 0 0 –60dB 0 0 1 1 1 1 0 1 –60.5dB 1 0 1 1 1 1 0 0 –61dB 1 0 1 1 1 1 0 1 –61.5dB 0 1 1 1 1 1 0 0 –62dB 0 1 1 1 1 1 0 1 –62.5dB 1 1 1 1 1 1 0 0 –63dB 1 1 1 1 1 1 0 1 –63.5dB

0 0 0 0 0 0 1 0 –64dB 0 0 0 0 0 0 1 1 –64.5dB 1 0 0 0 0 0 1 0 –65dB 1 0 0 0 0 0 1 1 –65.5dB 0 1 0 0 0 0 1 0 –66dB 0 1 0 0 0 0 1 1 –66.5dB 1 1 0 0 0 0 1 0 –67dB 1 1 0 0 0 0 1 1 –67.5dB 0 0 1 0 0 0 1 0 –68dB 0 0 1 0 0 0 1 1 –68.5dB 1 0 1 0 0 0 1 0 –69dB 1 0 1 0 0 0 1 1 –69.5dB 0 1 1 0 0 0 1 0 –70dB 0 1 1 0 0 0 1 1 –70.5dB 1 1 1 0 0 0 1 0 –71dB 1 1 1 0 0 0 1 1 –71.5dB 0 0 0 1 0 0 1 0 –72dB 0 0 0 1 0 0 1 1 –72.5dB 1 0 0 1 0 0 1 0 –73dB 1 0 0 1 0 0 1 1 –73.5dB 0 1 0 1 0 0 1 0 –74dB 0 1 0 1 0 0 1 1 –74.5dB 1 1 0 1 0 0 1 0 –75dB 1 1 0 1 0 0 1 1 –75.5dB 0 0 1 1 0 0 1 0 –76dB 0 0 1 1 0 0 1 1 –76.5dB 1 0 1 1 0 0 1 0 –77dB 1 0 1 1 0 0 1 1 –77.5dB 0 1 1 1 0 0 1 0 –78dB 0 1 1 1 0 0 1 1 –78.5dB 1 1 1 1 0 0 1 0 –79dB 1 1 1 1 0 0 1 1 –79.5dB 0 1 1 1 1 1 1 0 –∞

No. 6928-15/33

LC75411ES, 75411WS

Tone Control

D16 D17 D18 D19 D40 Bass D24 D25 D26 D27 D42 Treble

0 1 1 0 0 +12dB 1 0 1 0 0 +10dB 0 0 1 0 0 +8dB 1 1 0 0 0 +6dB 1 1 0 0 1 +5dB 0 1 0 0 0 +4dB 0 1 0 0 1 +3dB

1 0 0 0 0 +2dB 1 0 0 0 1 +1dB 0 0 0 0 0 0dB 1 0 0 1 1 –1dB 1 0 0 1 0 –2dB 0 1 0 1 1 –3dB 0 1 0 1 0 –4dB 1 1 0 1 1 –5dB 1 1 0 1 0 –6dB 0 0 1 1 0 –8dB 1 0 1 1 0 –10dB 0 1 1 1 0 –12dB

D20 D21 D22 D23 D41 Setting

0 0 0 0 0 Set to 0

Fader Volume Control

D28 D29 D30 D31 Operation

0 0 0 0 0dB 1 0 0 0 –1dB 0 1 0 0 –2dB 1 1 0 0 –4dB 0 0 1 0 –6dB 1 0 1 0 –8dB 0 1 1 0 –10dB 1 1 1 0 –12dB 0 0 0 1 –14dB 1 0 0 1 –16dB 0 1 0 1 –18dB 1 1 0 1 –20dB 0 0 1 1 –30dB 1 0 1 1 –45dB 0 1 1 1 –60dB 1 1 1 1 –∞

Channel Selection Control

D32 D33 Operation

0 0 Initial setting mode: Rapid charging 1 0 RCH 0 1 LCH 1 1 L/R simultaneously

No. 6928-16/33

LC75411ES, 75411WS

Fader Rear/Front Control

D34 Setting

0 Rear 1 Front

Loudness Control

D35 Setting

0 OFF 1 ON

Test Mode Control

D43 Setting

0 For IC testing. Always set to 0.

Zero-Cross Control

D36 D37 Setting

0 0 Data write through zero-cross detection 1 1 Zero-cross detection stopped (data write at falling edge of CE)

Zero-Cross Signal Detection Block Control

D38 D39 Setting

0 0 Selector 1 0 Volume 0 1 Tone 1 1 Fader

No. 6928-17/33

LC75411ES, 75411WS

Pin Functions

Pin Name

Pin No.

Function Equivalent circuit

LC75411ES LC75411WS

• Single-end input pin

L1 L2 L3 L4 R1 R2 R3 R4

38 37 36 35 41 42 43 44

40 39 38 37 45 46 47 48

VDD

LVref RVref

• Input selector output pins

LSEL0

RSEL0

34

1

36

1

VDD

• 2-dB step volume input pins

• Perform input at low-impedance.

LVRIN RVRIN

33

2

35

2

VDD

LVref RVref

• Loudness pins. Connect high-pass compensation RC between LCT (RCT) and LVRIN (RVRIN), and connect low-pass compensation RC between LCT (RCT) and GND.

LCT

RCT

32

3

34

3

VDD

• 2-dB stop volume output pins.

• Connect these pins to GND through coupling capacitors to reduce switching noise.

LCOM

RCOM

31

4

33

4

VDD

• 0.5-dB step volume output pin

LVROUT

RVROUT

30

5

32

5

VDD

• Equalizer input pin

LTIN RTIN

29

6

31

6

VDD

Lvref RVref

Continued on next page.

No. 6928-18/33

LC75411ES, 75411WS

Pin Name

Pin No.

Function Equivalent circuit

LC75411ES LC75411WS

• Equalizer F1 band filter configuration capacitor connection pins.

Connect capacitor between LF1C1 (RF1C1) and LF1C2 (RF1C2) LF1C2 (RF1C2) and LF1C3 (RF1C3)

LF1C1 LF1C2

LF1C3 RF1C1 RF1C2 RF1C3

28 27 26

7 8 9

30 29 28

7 8 9

Vref

VDD

FnC1

TIN

VDD

FnC3

VDD

FnC2

• Equalizer F3 band circuit filter configuration capacitor connection pins.

Connect high-pass compensation capacitor between LF3C1 (RF3C1) and VSS.

LF3C1

RF3C1

25 10

27 10

C1

VDD

• Equalizer output pins

LTOUT RTOUT

24 11

26 11

VDD

• Fader block input pins

• Drive at low impedance.

LFIN RFIN

23 12

24 13

VDD

• Fader output pins. Attenuation is possible separately for the front end and rear end. The attenuation amount is the same for L and R.

LFOUT LROUT RFOUT

RROUT

22 21 13 14

23 22 14 15

VDD

• Connect a capacitor of a few tens of µF between Vref and VSS as a 0.55 VDD voltage generator, current ripple countermeasure.

Vref 40 43

VDD

LVref RVref

Continued from preceding page.

Continued on next page.

No. 6928-19/33

LC75411ES, 75411WS

Pin Name

Pin No.

Function Equivalent circuit

LC75411ES LC75411WS

• Power supply pinVDD 39 42

• Ground pinVSS 20 21

• Dedicated IC test pin

• Normally this pin is used connected to GND.

TEST 16 17

VDD

• Timer pin when there is no signal in the zero-cross circuit.

Forcibly set data when there is no zero-cross signal, from the time the data is set until the timer ends.

TIM 15 16

VDD

• Input pin for serial data and clock used for control

CL

DI

19 18

20 19

VDD

• Chip enable pin. Data is written to the internal latch and the analog switches are operated when the level changes from High to Low.

Data transfer is enabled when the level is High.

CE 17 18

• No Connect pin. Leave this pin open or connect it to V

SS

.

NC —

12 25 41 44

Continued from preceding page.

Internal Equivalent Circuit Block Diagram

Selector Block Equivalent Circuit Block Diagram

No. 6928-20/33

LC75411ES, 75411WS

Total resistance: 50 kΩ Same for right channel Unit (Resistance: Ω)

1.25dB

2.50dB

3.75dB

5.00dB

6.25dB

7.50dB

8.75dB

LSELO

0dB

50k

LVref

6.702k

5.804k

5.026k

4.352k

3.769k

3.264k

2.826k

2.447k

2.119k

1.835k

1.589k

1.376k

1.192k

1.032k

0.894k

5.774k

LVref

10.0dB

11.25dB

12.5dB

13.75dB

15.0dB

16.25dB

17.5dB

18.75dB

L4

L3

LVref

INMUTE SW

L2

L1

2-dB Volume Block Equivalent Circuit Block Diagram

No. 6928-21/33

LC75411ES, 75411WS

Total resistance of 195 kΩ over tap

Total resistance of

30.847 kΩ under tap

Same for right channel Unit (Resistance: Ω)

To left channel

0.5–dB block

LVref

41.139k

32.678k

25.957k

20.618k

16.378k

–2dB –4dB –6dB

–8dB –10dB –12dB –14dB

0dB

–16dB –18dB –20dB –22dB –24dB –26dB –28dB –30dB –32dB –34dB –36dB –38dB –40dB –42dB –44dB –46dB –48dB –50dB –52dB –54dB –56dB –58dB –60dB –62dB –64dB –66dB –68dB –70dB –72dB –74dB –76dB –78dB –∞dB

13.009k

10.334k

8.208k

6.520k

5.179k

4.114k

3.268k

2.596k

2.062k

1.638k

1.301k

6.344k

5.040k

LCT

5.750k

4.003k

3.180k

2.526k

2.006k

1.594k

1.266k

1.006k

0.799k

0.634k

0.504k

0.400k

0.318k

0.253k

0.201k

0.159k

0.127k

0.101k

0.080k

0.063k

0.050k

0.040k

0.154k

LVRIN

Initial setting switch

0.5-dB Volume Block Equivalent Circuit Block Diagram

No. 6928-22/33

LC75411ES, 75411WS

Initial setting switch

From left channel 2-dB block

Initial setting switch

2.797k

Unit: Ω Total resistance: 50 kΩ

Same for right channel

2.640k

LVROUT

Vref

–1dB

–∞dB

LCOM

0dB

–0.5dB

–1.5dB

2.493k

42.070k

Tone Block Equivalent Circuit Diagram

No. 6928-23/33

LC75411ES, 75411WS

LTOUT

Unit: Ω Total resistance: 38.861 kΩ Same for right channel

SW3

SW4

12dB

10dB

8dB

6dB

5dB

LF3C1

4dB 3dB

2dB

1dB

0dB

SW1

SW2 SW3

SW4

12.840k

3.373k

4.246k

5.346k

3.172k

3.558k

3.993k

4.480k

5.027k

5.640k

50k

LTIN

12dB

10dB

8dB

6dB

5dB

LF1C1

LVref

4dB 3dB

2dB

1dB

0dB

SW1

SW2

3.373k

4.246k

5.346k

3.172k

3.558k

3.993k

4.480k

5.027k

5.640k

0.027k

LF1C2 LF1C3

6.50k

During boost, SW 1 and SW 3 are ON, during cut SW 2 and SW 4 are ON, and when 0 dB, 0 dB SW and SW 2 and SW 3 are ON.

2

1

0

R3R2C1C2

f

π

=

0.1µF

38861×65001002

1

R3R2f02

1

ππ

≅

×

==C

1.223

R3R2

1

R3

R3R2

Q ≅×=

2

Tone Circuit Constant Calculation Example

Bass Band Circuit The equivalent circuit and the formula for calculating the external RC with a mean frequency of 100 Hz are shown below.

• Bass band equivalent circuit block diagram

1. We obtain C from mean frequency f0 = 100 Hz, as follows.

2. We obtain Q as follows.

No. 6928-24/33

LC75411ES, 75411WS

• Calculation example Specification Mean frequency: f0 = 100 Hz Gain during maximum boost: G = 12 dB Let us use R1 = 0, R2 = 38.861 kΩ, R3 = 6.5 kΩ (assuming R1 = 0 during maximum boost) , and C1 = C2 = C.

R1 R2

R3

C2C1

Treble Band Circuit

The shelving characteristics for the treble band can be obtained. The equivalent circuit and the calculation formula during boost are shown below.

No. 6928-25/33

LC75411ES, 75411WS

• Calculation example Specification Setting frequency: f = 26000 Hz Gain during maximum boost: G = 12 dB Let us use R1 = 12.840 kΩ and R2 = 38.861 kΩ The above constants are inserted in the following formula.

R1 R2

C

GLOG

R2

RC

=×

+

20 1

11

10

22

(/ )

ω

C

f

R2

R1

G

=

–

1

2

10 1

20

22

π

()

/

2700(pF)

12840

1981.3

38861

260002

1

2

≅

–

×

=

π

Fader Volume Block Equivalent Circuit Block Diagram

No. 6928-26/33

LC75411ES, 75411WS

LFIN

5.437k

When FADER = "1", S2 and S3 are ON. When FADER = "0", S1 and S4 are ON.

Unit: Ω Total resistance: 50 kΩ

4.846k

8.169k

4.094k

LFOUT

LVref

–1dB

–2dB

0dB

S1

S2

S3

S4

6.489k

5.154k

–6dB

–8dB

–4dB

3.252k

2.583k

2.052k

3.419k

–12dB

–14dB

–10dB

1.630k

1.295k

–18dB

–20dB

–16dB

1.300k

0.231k

–45dB

–60dB

–∞dB

–30dB

0.050k

LROUT

When –∞ data is sent to the main volume 0.5dBSTEP, S1 and S2 become open, and S3 and S4 simultaneously become ON.

Usage Cautions

(1) Data transmission at power ON

• The status of internal analog switches is unstable at power ON. Therefore, perform muting or some other countermeasure until the data has been set.

• At power ON, initial setting data must be sent once in order to stabilize the bias of each block in a short time.

(2) Description of zero-cross switching circuit operation

The LC75411ES and 75411WS have a function to switch zero-cross comparator signal detection locations, enabling the selection of the optimum detection location for blocks whose data is to be updated. Basically, the switching noise can be minimized by inputting the signal immediately following the block whose data is to be updated to the zerocross comparator, so it is necessary to switch the detection location every time.

LC75411ES, 75411WS Zero-Cross Detection Circuit

No. 6928-27/33

LC75411ES, 75411WS

Volume Tone

Switch

Fader

Zero-cross

comparator

Selector

(3) Zero-cross switching control method

The zero-cross switching control method consists of setting the zero-cross control bits to the zero-cross detection mode (D36, D37 = 0), and specifying the detection blocks (D38, D39) before transmitting the data. These control bits are latched immediately following data transfer, that is to say beforehand in sync with the falling edge of CE, so when updating data of volumes, etc., it is possible to perform mode setting and zero-cross switching with one data transfer. An example of control when updating the data of the volume block is shown below.

(4) Zero-cross timer setting

If the input signal becomes lower than the zero-cross comparator detection sensitivity, or if only low-frequency signals are input, zero-cross detection continues to be impossible, and data is not latched during this time. The zero-cross timer can set a time for forcible latch during such a status when zero-cross detection is not possible.

(5) Cautions related to serial data transfer

1. To ensure that the high-frequency digital signals transferred to the CL, DI, and CE pins do not spill over to the analog signal block, either guard these signal lines with a ground pattern, or perform transmission using shielded wires.

2. The data format of the LC75411ES and 75411WS uses 8-bit addresses and 44-bit data. When sending data using multiples of 8 (when sending 48 bits), use the method described in Figure 1.

Method for Receiving Data Using Multiple of 8 of LC75411ES and 75411WS

Figure 1

For example, to set 25 ms, using T = 0.69CR and C = 0.033 µF, we obtain

Normally, a value between 10 ms and 50 ms is set.

Zero-cross detection

mode setting

Volume block

setting

No. 6928-28/33

LC75411ES, 75411WS

D36 D37 D38 D39

0 0 1 0

R=

25 ×10

0.69 × 0.033 × 10

–3

1.1 MΩ

–6

Input switching controlDummy data

D43D42D41D40D39D38D37D36D3D2D1D0XXXX

Test mode control

X : don’t care

No. 6928-29/33

LC75411ES, 75411WS

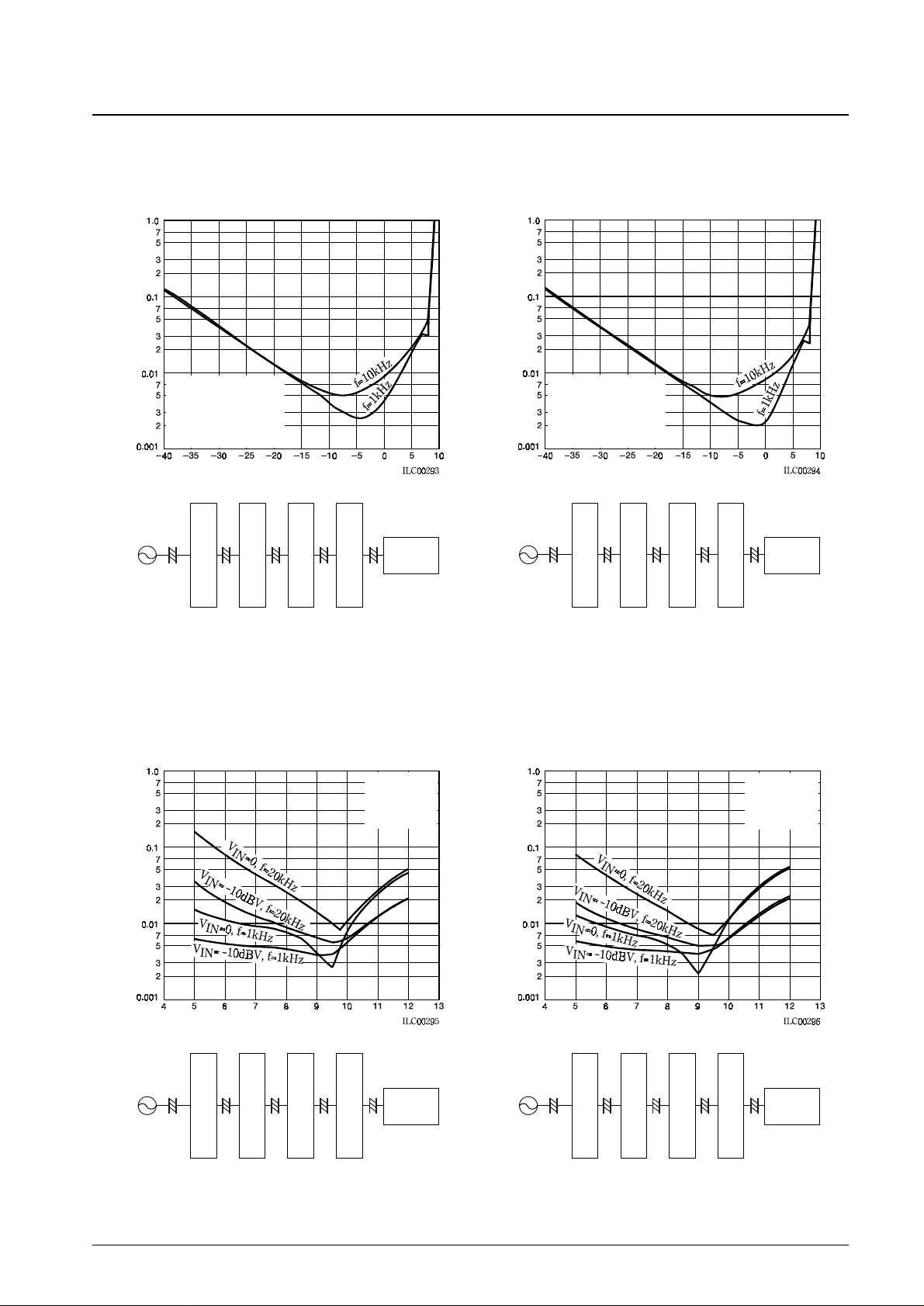

Gain Step Characteristics Gain Step Characteristics

Output level — dB

Step setting — dB Step setting — dB

LC75411ES V

DD

=9V

V

IN

=–30dBV Input L1 Output LFOUT f=1kHz

LC75411WS V

DD

=9V

V

IN

=–30dBV Input L1 Output LFOUT f=1kHz

Attenuation — dB

Step setting — dB Step setting — dB

LC75411ES V

DD

=9V

V

IN

=0 f=1kHz Input L1 Output LFOUT

LC75411WS V

DD

=9V

V

IN

=0 f=1kHz Input L1 Output LFOUT

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

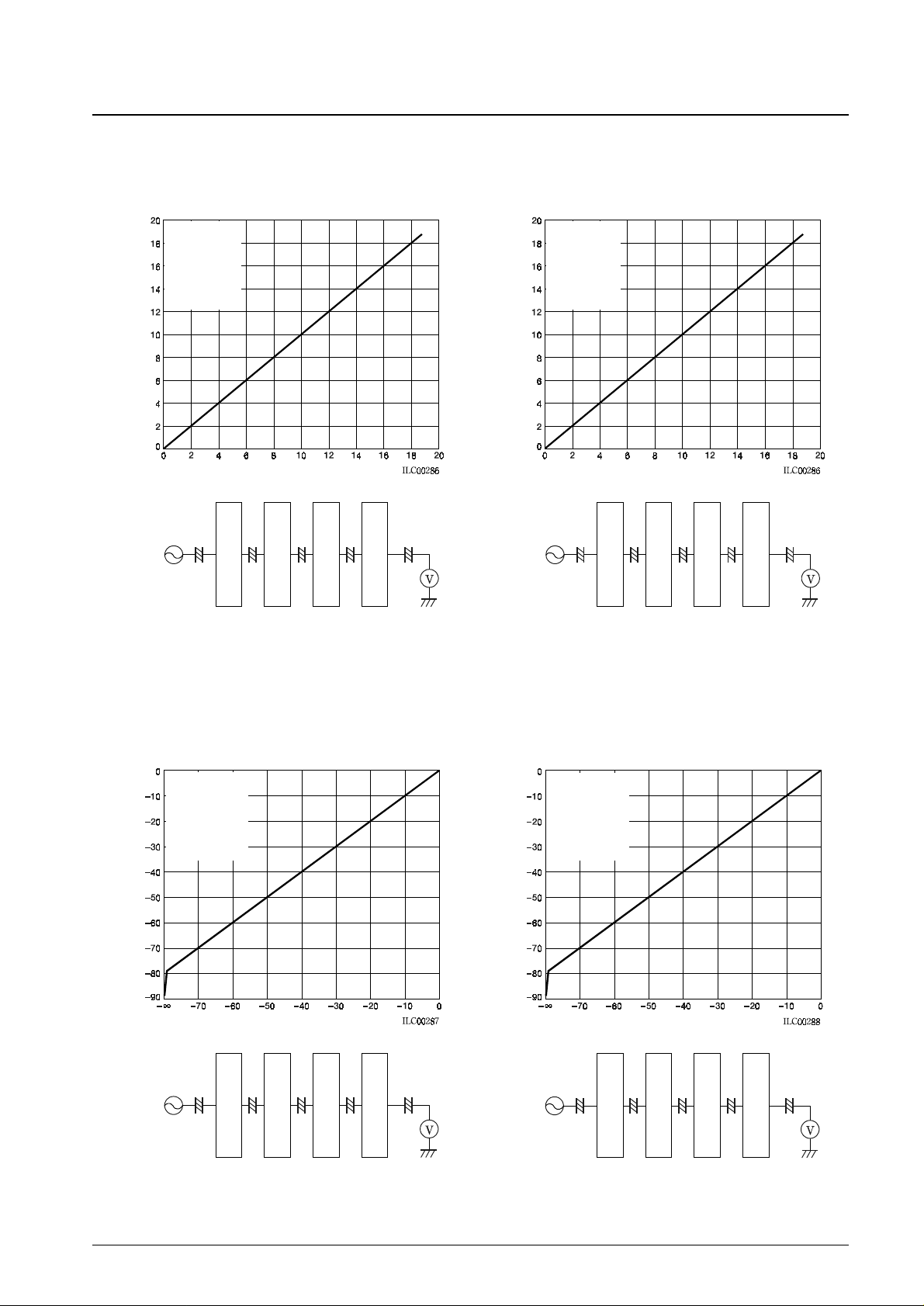

Main Volume Control Step Characteristics Main Volume Control Step Characteristics

No. 6928-30/33

LC75411ES, 75411WS

Fader Volume Control Step Characteristics Fader Volume Control Step Characteristics

Fader Volume Attenuation — dB

THD — Frequency Characteristics THD — Frequency Characteristics

Total harmonic distortion — %

Step setting — dB Step setting — dB

Frequency, f — dB Frequency, f — dB

LC75411ES V

DD

=9V

V

IN

=0dBV Input L1 Output LFOUT f=1kHz

LC75411WS V

DD

=9V

V

IN

=0dBV Input L1 Output LFOUT f=1kHz

LC75411ES V

DD

=9V Input L1 Output LFOUT 80kHz LPF

LC75411WS V

DD

=9V Input L1 Output LFOUT 80kHz LPF

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

THD

METER

THD

METER

No. 6928-31/33

LC75411ES, 75411WS

THD — Input Level Characteristics THD — Input Level Characteristics

Total harmonic distortion, THD — %

Input level, VIN — dBV Input level, VIN — dBV

THD — Supply Voltage Characteristics THD — Supply Voltage Characteristics

Total harmonic distortion, THD — %

Supply voltage — VSupply voltage — V

LC75411ES V

DD

=9V 80kHz LPF Input L1, Output LFOUT With MV=0dB

LC75411ES 80kHz LPF Input L1 Output LFOUT

LC75411WS 80kHz LPF Input L1 Output LFOUT

LC75411WS V

DD

=9V 80kHz LPF Input L1, Output LFOUT With MV=0dB

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

THD

METER

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

THD

METER

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

THD

METER

Input gain block

Main volume block

Graphic equalizer block

Fader block

Input gain block

Main volume block

Graphic equalizer block

Fader block

THD

METER

No. 6928-32/33

LC75411ES, 75411WS

Bass Control Characteristics

Level — dB

Frequency, f — Hz

LC75411ES V

DD

=9V

V

IN

=–20dBV Input L1 Output LFOUT

LC75411ES V

DD

=9V

V

IN

=–20dBV Input L1 Output LFOUT

VDD=9V, VIN=0 MV=0 to –54dB

V

DD

=9V, VIN=0, Input=L1, Output=LFOUT

Loudness On, MV=0 to –54dB

VDD=9V, VIN=0, Input=L1, Output=LFOUT Loudness On, MV=0 to –54dB

V

DD

=9V, VIN=0

MV=0 to –54dB

LC75411WS V

DD

=9V

V

IN

=–20dBV Input L1 Output LFOUT

Bass Control Characteristics

Level — dB

Frequency, f — Hz

Treble Control Characteristics

Level — dB

Frequency, f — Hz

Treble Control Characteristics

Level — dB

Frequency, f — Hz

Output Level Control Characteristics

Level — dB

Frequency, f — Hz

Output Level Control Characteristics

Loudness Control Characteristics Loudness Control Characteristics

Level — dB

Frequency, f — Hz

Frequency, f — Hz Frequency, f — Hz

LC75411WS V

DD

=9V

V

IN

=–20dBV Input L1 Output LFOUT

PS No. 6928-33/33

LC75411ES, 75411WS

This catalog provides information as of June, 2001. Specifications and information herein are subject to change without notice.

Specifications of any and all SANYO products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’s products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with some probability. It is possible that these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products (including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from the authorities concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. When designing equipment, refer to the “Delivery Specification” for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringements of intellectual property rights or other rights of third parties.

Sanyo LC75411WS Specifications

Specifications and Main Features

Frequently Asked Questions

User Manual
