Sanyo FXC-425GD, FXC-415GD, FXR-315GD Service Manual

Download

Page 1

FILE NO. 19-0961

SERVICE MANUAL

FULL PANEL DETACHABLE DIGITAL AM / FM STEREO AUTO REVERSE CASSETTE RECEIVERFXC-425GD FXC-415GD FXR-315GDWITH CD CHANGER CONTROLLER (FXC-425GD•FXC-415GD)(GENERAL)

FXC-425GD

FXC-415GD

FXR-315GD

PRODUCT CODE No. 147 848 06 147 848 08 147 848 07

TAPE SECTION
Wow & Flutter	0.20%
S/N Ratio (Normal)	52dB
	(FXC-415GD•FXR-315GD)
S/N Ratio (with Dolby -B NR)	62dB(FXC-425GD)
Separation	38dB
Frequency Response	50Hz~15kHz

AUDIO SECTION

RMS Power Rating (10% THD)	20W x 4 (FXC-425GD)
	20W x 2 /6.5W x 4
	(FXC-415GD•FXR-315GD)
Maximum Output Power	35W x 4 (FXC-425GD)
	35W x 2 (FXC-415GD)
	30W x 2 (FXR-315GD)
Load Impedance	4 Ω

GENERAL

Operating Voltage ......12V (14.4V Typical) Operating Current Maximum ......10A

SPECIFICATIONS

FM TUNER SECTION

Frequency Range	87.5~108MHz
Usable Sensitivity	17dBf
50dB Quieting Sensitivity	20dBf
Frequency Response (±3dB)	50Hz~12.5kHz
I.F. Rejection	100dB
Image Rejection	65dB
Signal-to-Noise Ratio	60dB
Selectivity	65dB
Stereo Separation	30dB
Capture Ratio	2dB
Antenna Impedance	75.0

AM TUNER SECTION

Frequency Range	531~1,602kH
Usable Sensitivity (S/N 20dB)	25dB
I.F. Rejection	80dB
Image Rejection	50dB
S/N Ratio	50dB
Antenna Impedance	75Ω

Specifications are subject to change without notice

Page 2

* Location of components for alignment are shown in ADJUSTMENT LOCATION.

Alignment of Head Azimuth

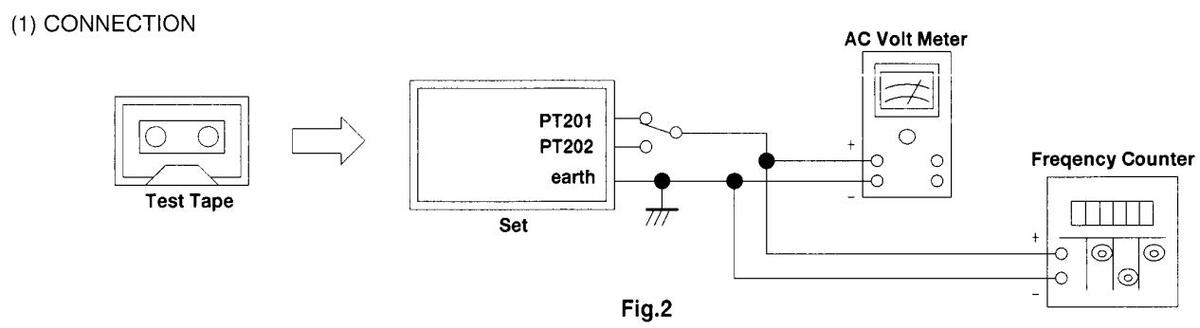

1. Set Up Diagram

2. Alianment
- (1) Insert 14kHz (TCC-154) standard test tape and set the unit to
- (1) Insert 14612 (100 101) states a set of play mode. (2) Tune the azimuth adjusting screw "F" until you obtain maximum reading on the AC voltmeter (V.V (II)) at the forward position.
ALIGNMENT PROCEDURES

(2) SETTING

POWER SWITCH	ON
FADER CONTROL	CENTER POSITION
BALANCE CONTROL	CENTER POSITION

(3) ALIGNMENT

	Items	Test / Tape	Connection	Test Point	Alignment Point	Procedures
1	Head Height	MTT-902 (exccept FXR-315GD) SCC-1659 (FXR-315GD)	Fig. 2	TP201(LEFT) TP202(RIGHT) (Fig. 6)	Head Angle Adjustment Screws (Fig. 3)	Adjust the screws so that the maximum output is obtained in both forward and reverse

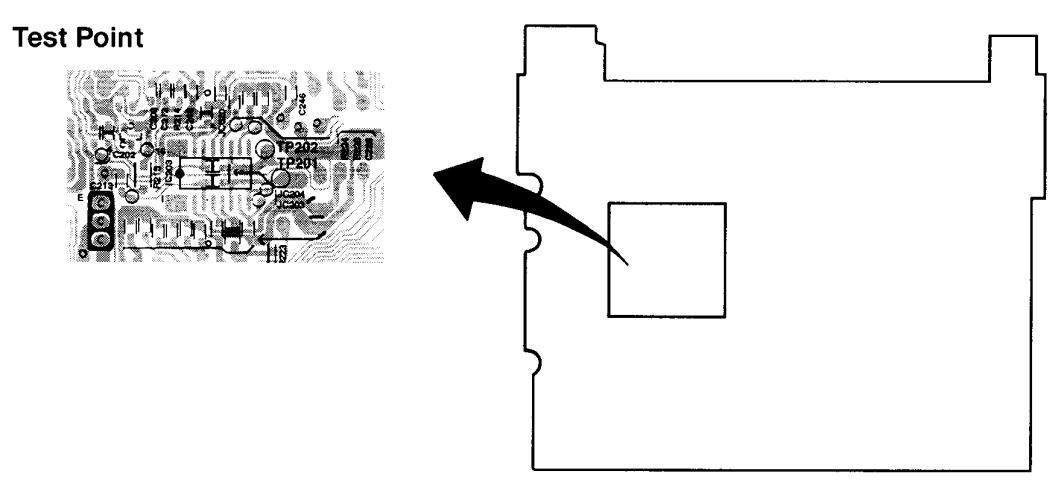

2	Head Azimuth	MTT-114NB (14KHz)	Fig. 2	TP201(LEFT) TP202(RIGHT) (Fig. 6)	Head Azimuth Alignment Screws (Fig. 3)	direction.
3	Dolby Level	A-BEX TCC-130	Fig. 2	TP201(LEFT) TP202(RIGHT) (Fig. 6)	PT201(LEFT) PT202(RIGHT) (Fig. 5)	Adjust PT201/ PT202 so that the output is within the range of 390±20 mVrms.
4	Tape Speed	MTT-111N	Fig. 2	TP201(LEFT) TP202(RIGHT) (Fig. 6)	Tape Speed Alignment Hole (Fig. 4)	Adjust tape speed so that the frequency counter reads 3,000-3,021Hz.

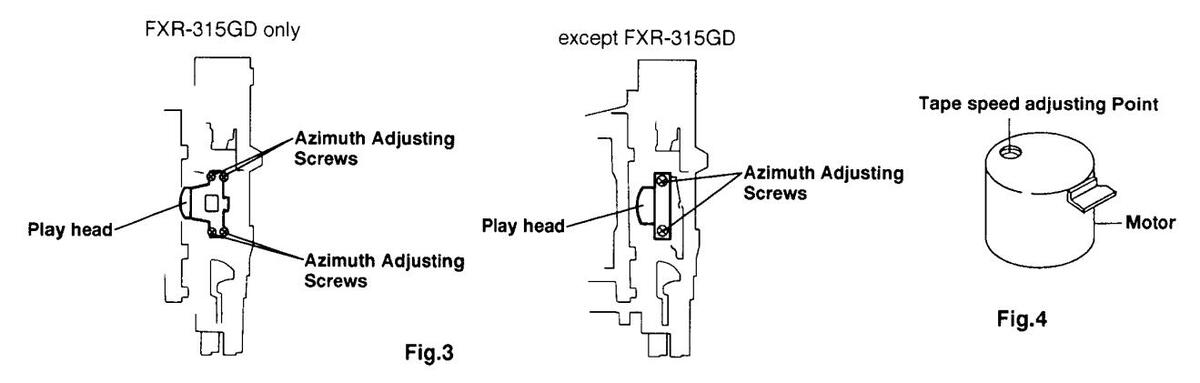

(3) Tune the azimuth adjusting screw "R" until you obtain maximum reading on the AC voltmeter (V.V (I)) at the reverse position.

(4) Repeat the steps 2 and 3 until both position (forward and reverse) is maximum.

Alignment of Dolby reference level (FXC-425GD)

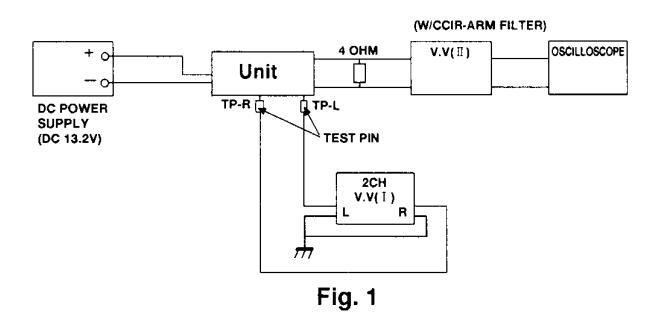

1. Set Up Diagram See Fig. 1.
2. Alignment
- (1) Insert TCC-130 (A-BEX Dolby Test Tape) and set the unit to play mode. (Adjustment should be done in FORWARD PLAY (2) Adjust PT201 until you obtain reading on AC voltmeter (V. V
- (I)) 300mV ±1 dB.

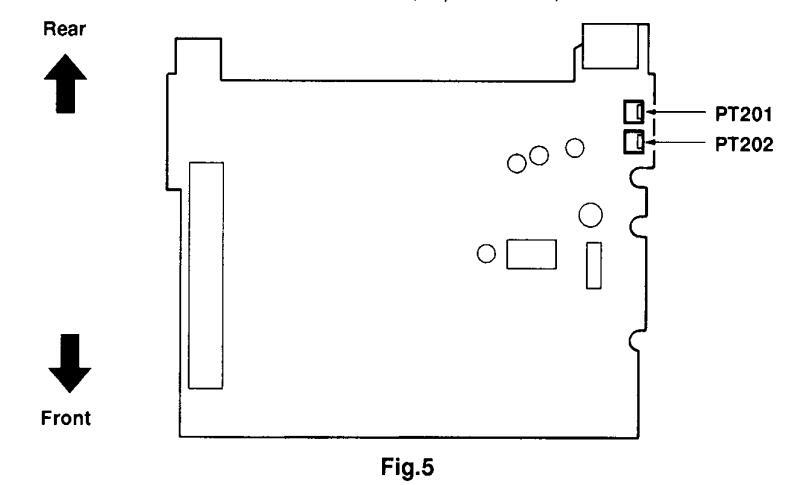

- (3) Adjust PT202 until you obtain reading on AC voltmeter (V. V (1)) 300mV ±1 dB.

Page 3

Adjustment Point

MAIN P.C.B. (Top side view)

Fig.6

Page 4

Page 5

ERROR SIGNS -

(Using CD changer:FXC-425GD/FXC-415GD)

If a problem should occur while operating the CD changer, one of the following error signs may be displayed.

Error Sign	Cause	Remedy
E01	Abnormal disc change function.	Check CD changer mechanism.
E07	The disc was inserted incorrectly.	Insert the disc properly.
	The disc is diry.	Clean the disc.
	The disc is defective.	Use another disc.
		Refer to the instructions supplied with the CD changer.
E30	Excessive temperature has been de- tected in the vehicle.	Allow the car to cool. Then press the magazine eject button on the CD changer unit.
NO CD	The magazine is not fully inserted into the changer. There are no discs in the magazine.	Completely insert the magazine into the changer until it clicks into place. Insert discs into the magazine.
	The connector is detached.	Insert the connector properly.

– Note —

When using the AX-800, "E-07" is not displayed.

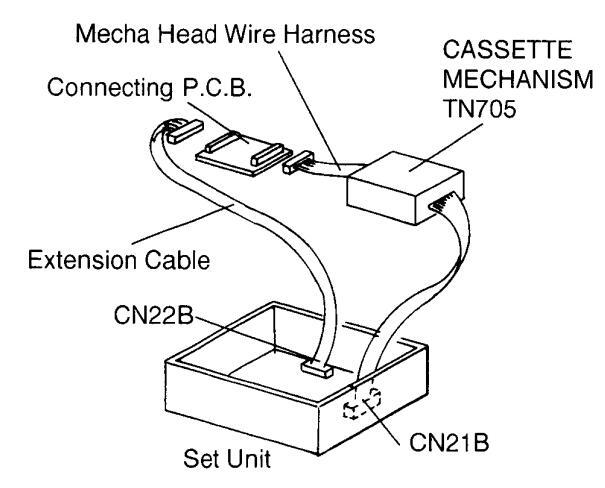

Special service tool

• Service kit (PART No.644 011 1436)

Service kit includes;

① EXTENSION CABLE ......1 pc.
② CONNECTING P.C.B. ......1 pc.
Please use Service kit as illustrated below.

Page 6

Page 7

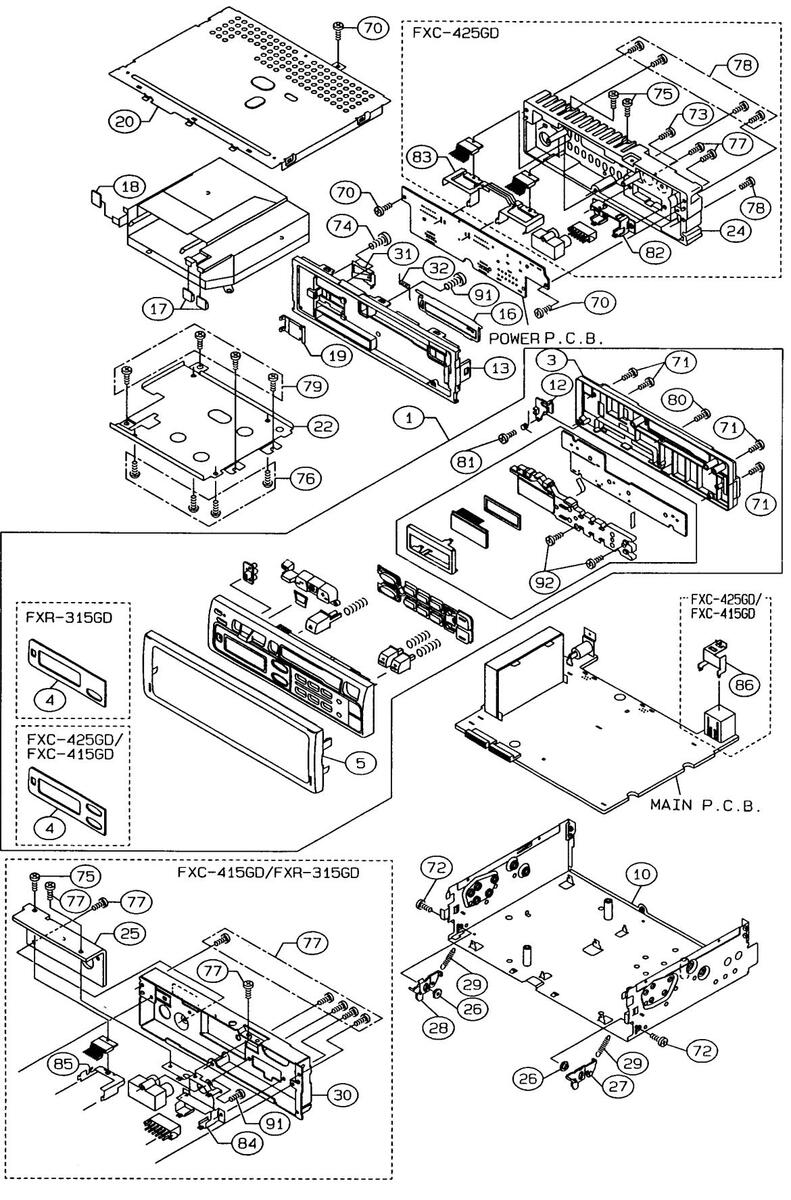

Ref. No.	PART No.	DESCRIPTION	Q'ty		Ref. No.	PART No.	DESCRIPTION	Q'ty
	AC	CESSORIES		19	644 008 7410	HOOK.BASE	1
	411 025 9501	SCR S-TPG PAN 2X8	1	1	20	644 009 0946	PANEL.TOP	1
	412 051 2900	SPECIAL SCREW	1 1		22	644 010 2465	BRACKET-M.MECHA	1
	412 051 3303	SPECIAL SCREW	4		24*	644 009 6016	HEAT SINK	1
	412 051 3808	SPECIAL SCREW	2		25#	644 010 3486	HEAT SINK 2CH	1
	644 008 8882	ASSY, CARRYING CASE BEZEL	1		26	644 005 6911	SPACER,LOCK,CRADLE	2
	644 008 9544	CARRYING CASE	1		27	644 005 6928	ARM,LOCK,CRADLE,R	1
	644 004 9319	CUSHION,CASE	2		28	644 005 6935	ARM,LOCK,CRADLE,L	1
	644 005 2647	PLATE	1		29	644 005 8120	SPRING, TENS, CRADLE	2
	644 001 1286	CAP,REAR	1		30	644 010 3790	COVER,REAR	1
	644 005 8113	LEVER,UNLOCK	2		31	644 008 7373	SPRING, PLATE DETACH	1
	644 003 4797	CRADLE	1		32	644 009 2346	SPRING, WIRE, LID CASSETTE	1
	644 005 8014	POLY COVER 100X080 0	1		70*	411 023 2801	SCR S-TPG PAN 2.6X6	3
	644 010 9778	INSTRUCTION MANUAL	1		70#	411 023 2801	SCR S-TPG PAN 2.6X6	1
	644 008 7595	WIRE,ASSY,12P(USA,EUR-VA)	1		71	411 025 3608	SCR S-TPG BIN 2X10	4
or	644 010 0478	WIRE, ASSY, 12P(US, EUR-ASH)	1		72	411 028 2905	SCR S-TPG PAN 2X4	2
	CABI			1	73	411 026 8008	SCR S-TPG PAN 3X8	1
	CADI				74	411 025 9006	SCR S-TPG PAN 2X4	2
1*	644 010 9600	ASSY, ESCUTCHEON BEZEL	1		\| 75*	411 028 4909	SCR S-TPG PAN 2.6X10	2
1**	644 010 9624	ASSY, ESCUTCHEON BEZEL	\| 1		75#	411 028 4909	SCR S-TPG PAN 2.6X10	\| 1 \|
1***	644 010 9617	ASSY, ESCUTCHEON BEZEL	\| 1		76	411 028 9201	SCR S-TPG PAN 3X4	4
3	644 008 7496	COVER ESCUTCHEON	\| 1		\| 77*	411 028 6200	SCR S-TPG PAN 2.6X6	2
4*	644 010 9631	WINDOW,LCD	\| 1		77#	411 028 6200	SCR S-TPG PAN 2.6X6	7
4**	644 010 9655	WINDOW, LCD	1		78	411 028 6606	SCR S-TPG PAN 2.6X8	5
4***	644 010 9648	WINDOW,LCD	1		79	411 027 1602	SCR S-TPG BIN 2.6X6	4
5	644 008 8042	PANEL,FRONT	1		80	411 170 7605	SCR S-TPG PAN 2X12	1
10	644 010 4889	ASSY,CHASSIS	1		81	412 054 5205	SPECIAL SCREW M1.7X4.0(B)	1
12	644 008 7403	HOOK,DETACH	1		82*	644 009 0977	BRACKET-E,CONNECTOR	1
13	644 010 2434	BASE, ESCUTCHEON	1		83*	644 009 1486	BRACKET-E,IC	1
16*	644 010 9662	LID,CASSETTE FXC-425	1		84#	644 010 3479	BRACKE1-E,RCA
16**	644 010 9686	LID,CASSETTE FXC-415	1		85#	644 010 3493	BRACKET-E,IC-2CH
16**	644 010 9679	LID,CASSETTE FXR-315	\| 1		86###	644 010 5503	BRACKET-E, DIN
17	644 010 2441	BUTTON, FF/REW MECHA	2		91	411 1/3 2409	SCR S-TPG PAN PCS 1.7X3
18	644 010 2458	BUTTON, EJECT MECHA	1		92	411 025 9402	SCH S-TPG PAN 2X8	2

NOTES: 1. Part orders must contain Model Number, Part Number and Description. 2. Ordering quantity of screws and resistors must be multiple of 10 pcs. 3. "*"indicates Parts for FXC-425GD only, "**"indicates Parts for FXC-415GD only, "**"indicates Parts for FXR-315GD only. 4. "#"indicates Parts for all models except FXC-425GD, "##"indicates Parts for all models except FXC-415GD, "###"indicates Parts for all models except FXR-315GD.

Page 8

Page 9

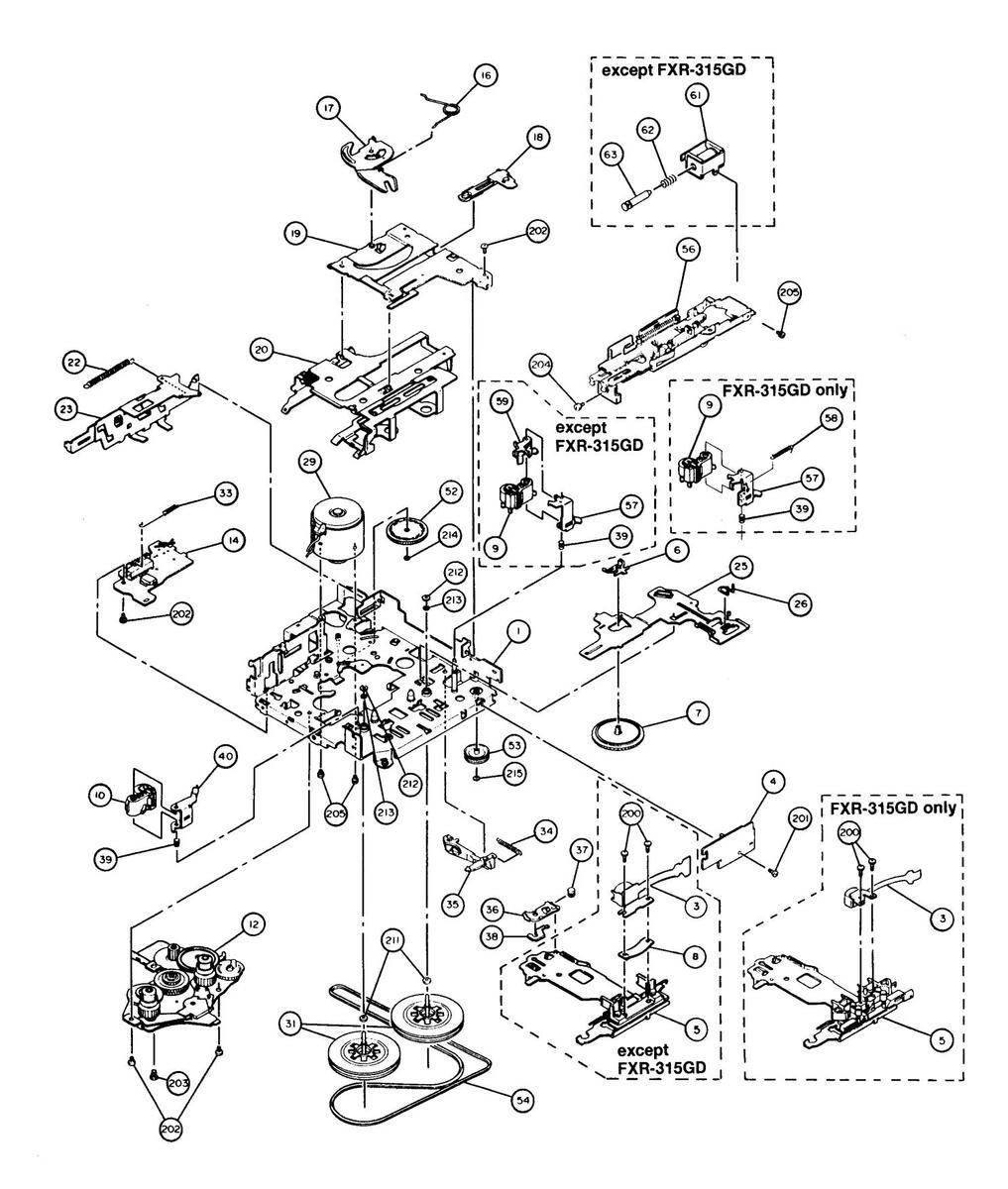

PARTS LIST (CASSETTE MECHANISM) ------------------------------------

Ref. No.	PART No.	DESCRIPTION	Q'ty	Ref. No.	PART No.	DESCRIPTION	Q
	CASSE	TTE MECHANISM		37	644 010 6364	H.P ROLLER	1
	044.040.0450	OUACOLC DIVET ACCY	4	38	644 010 6371	HP PUSH PLATE
	644 010 6159	D HEAD D SEAA SD 0047		39	644 010 6388	P.P SPRING
3	644 010 0009	P HEAD P 3044 30 3547		40*	644 010 6685	HP RETURN ARM A
3	644 010 6517	P HEAD P-//42 00-00/3		40**	644 010 6555	HP RETURN ARM
4	044 010 0010	HEAD OW AGOT(I)		52	644 010 6814	MAIN GEAR V
4	644 010 6524	HEAD SW ASST(D)		53	644 010 6821	MIDDLE PULLEY
5	644 010 6623	HEAD PANEL ASST		54	644 010 6838	MAIN BELT
5	644 010 6531	HEAD PANEL ASSY(D)		56'	644 010 6708	FR LEVER ASSY(TDE)
6	644 010 6166	P.GEAR METAL		56**	644 010 6562	FR LEVER ASSY
7	644 010 6173	P.GEAR		57*	644 010 6715	LOCK PLATE L
8.	644 010 6630	HEAD SP PLATE H	\| ! \|	57**	644 010 6579	LOCK PLATE
9	644 010 6180	PINCH HOLLER ARM(F) ASSY		58**	644 010 6586	LOCK PLATE SPRING
10	644 010 6197	PINCH ROLLER ARM(R) ASSY	111	59*	644 010 6722	LOCK PLATE S
12	644 010 6203	MG PLATE ASSY		61*	644 010 6739	COIL ASSY(T)
14*	644 010 6647	POWER SW ASSY(T)	1	62*	644 010 6746	T PLUNGER SPRING
14**	644 010 6548	POWER SW ASSY	1	63*	644 010 6753	PLUNGER
16	644 010 6210	REVERSE SPRING		200*	644 010 6760	CAP SCREW(+-) SMALL TOOTH 2.0X4
17	644 010 6227	P.S ACTUATOR PLATE B	111	200**	644 010 6593	FIX SCREW
18	644 010 6234	PACK SLIDER B	11	201	644 010 6425	TAMS SCREW S2.0X5
19	644 010 6241	CASE LEFTER B	\| 1 \|	202	644 010 6432	CAMERA SCREW S2.0X3
20	644 010 6258	CASSETTE CASE ASSY	\| 1 \|	203	644 010 6449	CAMERA SCREW $3,2X2
22	644 010 6265	PUSH LEVER SPRING	\| 1 \|	204	644 010 6456	CAMERA SCREW 2.6X4.5	1
23	644 010 6272	PUSH LEVER B RIVET ASSY	11	205*	644 010 6463	TAMS SCREW 2.0X3
25	644 010 6289	MAIN PLATE	11	205**	644 010 6463	TAMS SCREW 2.0X3
26	644 010 6296	H.S SPRING	1	211	644 010 6470	HIME WASHER 1.55X3.8X0.13
29	644 010 6302	MOTOR ASSY MCI-5U3LCA	1	212	644 010 6487	LUMI WASHER 1.25X3.2X0.5
31	644 010 6319	FL CAPSTAN ASSY	2	213	644 010 6494	HIME WASHER 1.55X3X0.2
33	644 010 6326	P,SW SPRING	1	214	644 007 7015	HIW 1 2X3X0 25
34	644 010 6333	TA.SPRING	1	215	644 010 6500	P WASHER 0 85X2 8X0 25	1
35	644 010 6340	TRIGGER ARM	1	213	644 010 4193	WIRE ASSY 5P 100MM SHILD	1
36	644 010 6357	H.P PUSH ARM B	1		644 002 5306	CLAMP WIRE BAND 2.2X80

NOTES: 1. Part orders must contain Model Number, Part Number and Description. 2. Ordering quantity of screws and resistors must be multiple of 10 pcs. 3. ""indicates Parts for all models except FXR-3150D.

DISASSEMBLY INSTRUCTIONS(CASSETTE MECHANISM) -

1 Bomovo Book Slidor (18)
nemove Pack Silder 18. Remove PS Actuator plate 17.
2. Remove PS Actuator plate ...................................
Remove Case Lifter (19) from Cassette Case (20).
5 Bemove Beverse Soring (16) from Push Lever B Rivet Ass'v (23).
6 Bemove Main Belt (54) from Chassis Ass'v.
7. Remove Push Lever Spring (22) from Chassis Ass'v.
Remove Fush Lever Spring (22) Iron Chassis Assigned 8. Remove Lumi Washer (212) and Hime Washer (213).
Remove EL Capstan Ass'y (31) from Chassis Ass'y.
10. Remove FL Pulley, FL Plate and Capstan from FL Capstan Ass'y (3).
11. Remove Power SW Ass'y (14) from Chassis Ass'y.
13. Remove two screws 202 and the screw 203 from MG Plate Ass'y (12).
14. Remove Trigger Arm (35) from Chassis Ass'v.
15. Remove Washer (215) and Middle Pulley (53)
16. Remove Washer (214) and Main Gear V (52).
17. Remove P. Gear (7) and P.Gear Metal (6)
19. Remove screws (204) and (205) from FR Lever Ass'y (56).
20. Remove screw (201) and Head SW Ass'y (4)
21. Remove two screws 200 and Play Head 3
22. Remove Lock Plate Spring (58) from Lock Plate (57) (FXR-315GD only).
23. Remove Pinch Roller Arm(F) Ass'y (9) from Lock Plate (57).
24. Remove Lock Plate S (59) from Pinch Roller Arm(F) Ass'y (9) (except FXR-315GD)
25. Remove Push Lever B Rivet Ass'y (23) from Chassis Ass'y.
26. Remove Head Panel Ass'y (5) from Chassis Ass'y.
27. Remove H.P Push Arm B 36, H.P Roller 37 and H.P Push Plate 38.
29. Remove H.P Spring 26 and P.Gear Metal 6.

Page 10

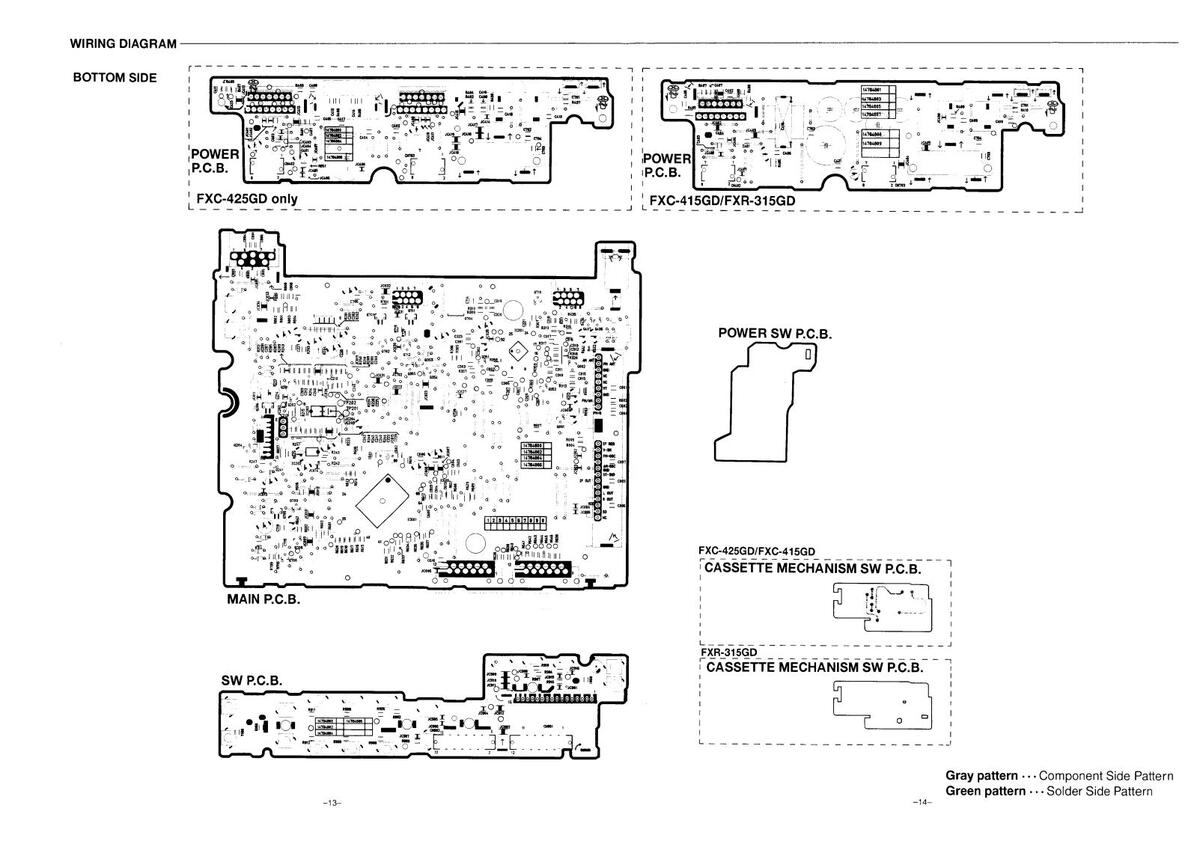

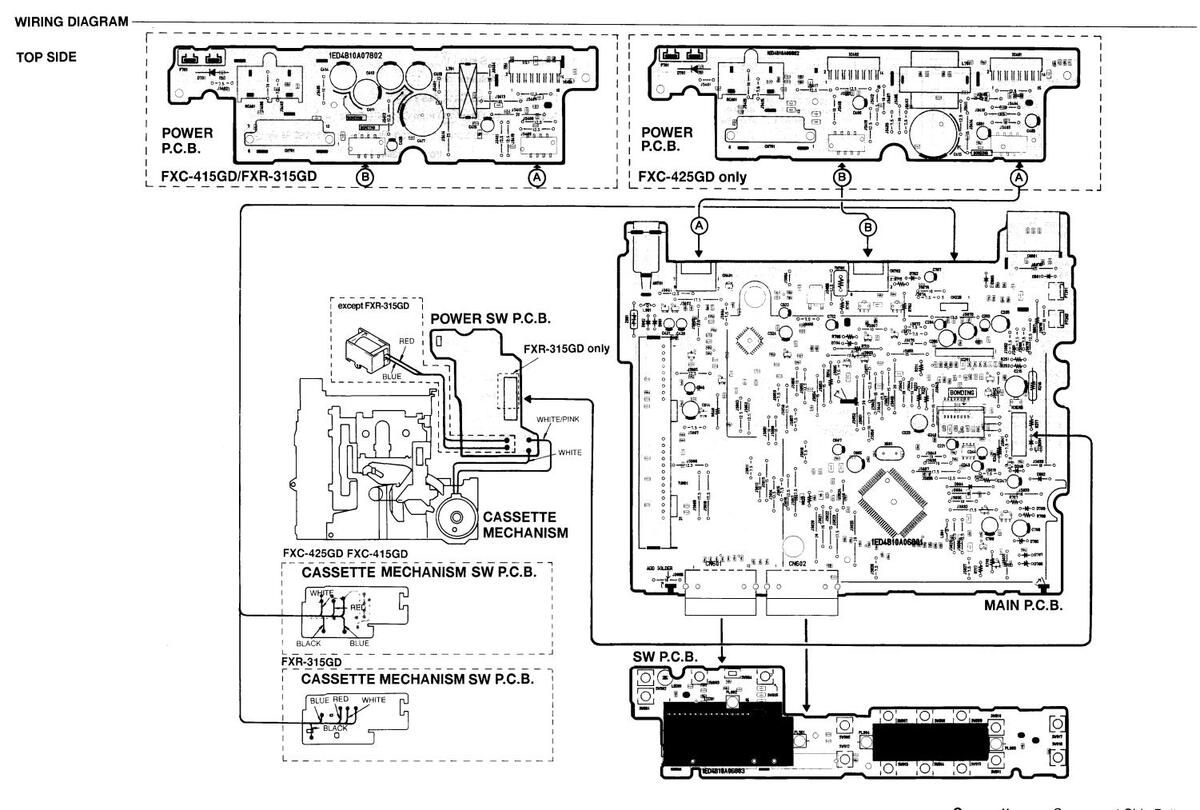

Gray pattern ···· Component Side Pattern Green pattern ···· Solder Side Pattern

Page 11

Page 12


	MAIN P	C.B. ASS	EMBLY		C316###	403 215 8807	CERAMIC	1UZ 16V
Capacitors					or ###	403 185 8708	CERAMIC	1U Z 16V
C001	403 072 1607	CERAMIC	0.022U K 50V	1	C316	403 215 8906	CERAMIC	0.22U Z 25V
C002	403 072 1607	CERAMIC	0.022U K 50V	1	C317###	403 322 2604	CERAMIC	1117 161
C003	403 018 0503	CERAMIC	22P J 50V	1	or ###	403 185 8708	CERAMIC	1UZ 16V
C004	403 072 1607	CERAMIC	0.022U K 50V		C317***	403 215 8906	CEBAMIC	0.22U.7 25V
C006	403 072 1607	CERAMIC	0.022U K 50V		or ***	403 322 2804	CERAMIC	0.22U Z 16V
0008	403 215 8807	CERAMIC	10.2 16V		C318###	403 215 8807	CERAMIC	1UZ 16V
Cong	403 215 8807	CERAMIC	1U Z 16V		or ###	403 185 8708	CERAMIC	1UZ 16V
or	403 185 8708	CERAMIC	1U Z 16V	ii	C318***	403 215 8906	CERAMIC	0.22U Z 25V
C013	403 069 5601	CERAMIC	0.01U K 50V	i	or	403 322 2804	CERAMIC	0.22U Z 16V
C014	403 039 7901	ELECT	100U M 10V	1	0319	403 069 1702	CERAMIC	1000PK 50V
C015	403 069 1702	CERAMIC	1000P K 50V	1	C321###	403 069 1702	CERAMIC	1117 16V
C016	403 049 1708	ELECT	1U M 50V	1	or ###	403 185 8708	CERAMIC	1117 16V
C201	403 069 1702	CERAMIC	1000P K 50V		C321***	403 215 8906	CERAMIC	0.22U Z 25V
0202	403 069 1702	CERAMIC	1000P K 50V		or ***	403 322 2804	CERAMIC	0.22U Z 16V
C203	403 047 1700	ELECT	4.7UM 25V		C322	403 050 7904	ELECT	3.3U M 50V
C204	403 047 1700	ELECT	4.70 M 25V		C323	403 072 5605	CERAMIC	2700P K 50V
C205	403 038 2600	FLECT	100U M 6.3V		C324	403 040 2902	ELECT	22U M 10V
C207	403 072 5902	CERAMIC	0.027U K 50V		C420	403 047 1700	ELECT	4.7UM 25V
C208	403 072 5902	CERAMIC	0.027U K 50V		\| C421	403 047 1700	ELECT	4.7U M 25V
C209	403 215 8807	CERAMIC	1UZ 16V	11	0000	403 022 2609	CERAMIC	30P J 50V
or	403 185 8708	CERAMIC	1UZ 16V		0602	403 018 0503	CERAMIC	1000 P K 50V
C210	403 215 8807	CERAMIC	1UZ 16V	1	C603	403 009 1702	CERAMIC	1000F K 50V
or	403 185 8708	CERAMIC	1UZ 16V		C605	403 038 2600	FLECT	100F 5 50V
C211	403 238 1205	ELECT	100U M 10V		C606	403 069 5601	CEBAMIC	0.0111 K 50V
C212	403 215 8807	CERAMIC	10 Z 16V		C607	403 047 1700	ELECT	4.7U M 25V
CO12	403 185 8708	CERAMIC	10 2 16V		C608	403 069 1702	CERAMIC	1000P K 50V
0213 07	403 215 8807	CERAMIC	1UZ 16V		C609*	403 071 8102	CERAMIC	2200P K 50V
C214	403 215 8807	CERAMIC	1U Z 16V		C613	403 009 5708	CERAMIC	100P J 50V
or	403 185 8708	CERAMIC	1UZ 16V	- Li L	C614	403 009 5708	CERAMIC	100P J 50V
C215	403 234 0400	ELECT	100U M 16V		C615	403 009 5708	CERAMIC	100P J 50V
C220*	403 215 8906	CERAMIC	0.22U Z 25V	1	0706	403 072 1607	CERAMIC	0.0220 K 50V
or *	403 322 2804	CERAMIC	0.22U Z 16V	1	0700	403 049 3001	ELECT	111M 50V
C221*	403 042 0708	ELECT	10U M 16V		C708	403 041 3601	FLECT	47U M 10V
C222*	403 215 8807	CERAMIC	10 Z 16V		C709	403 041 3601	ELECT	47U M 10V
or .	403 185 8708	CERAMIC	10 Z 16V		C710	403 069 5601	CERAMIC	0.01U K 50V
0223	403 236 1205	CERAMIC	0.00117 051		C712	403 042 0708	ELECT	10U M 16V
0220 or*	403 322 2804	CERAMIC	0.2202 250		C714	403 069 5601	CERAMIC	0.01U K 50V
C227	403 073 7301	CERAMIC	470P K 50V		C715	403 069 5601	CERAMIC	0.01U K 50V
C228	403 073 7301	CERAMIC	470P K 50V	- Li L	C801###	403 009 5708	CERAMIC	100P J 50V
C240###	403 192 5905	CERAMIC	0.1U K 25V	1	C802###	403 215 8807	CERAMIC	10 Z 16V
C241###	403 192 5905	CERAMIC	0.1UK 25V	1	01###	403 185 8708	CERAMIC	0.01111 601
C242###	403 192 5905	CERAMIC	0.1U K 25V	1	C904###	403 009 3001	CERAMIC	220 P K 50V
C243###	403 039 6300	ELECT	10U M 10V	1	C805###	403 009 5708	CERAMIC	100P J 50V
C244###	403 050 1506	ELECT	2.2U M 50V		C806###	403 069 5601	CERAMIC	0.01U K 50V
C245###	403 068 3202	CERAMIC	0.033U K 25V		C807###	403 215 8807	CERAMIC	1UZ 16V
0246###	403 068 2007	ELECT	0.0220 K 25V		or###	403 185 8708	CERAMIC	1UZ 16V
C301	403 040 2902	CERAMIC	220 W 10V		C808###	403 069 5601	CERAMIC	0.01U K 50V
0302	403 215 8807	CERAMIC	1117 161		Connectors	S
or	403 185 8708	CERAMIC	1117 16V		CN21B###	644 010 4186	WIRE ASS	V 8P 170MM
C303	403 130 3109	CERAMIC	0.047U K 50V	il	CN218***	644 010 4179	WIRE ASS	Y.6P.170MM
C306	403 130 3109	CERAMIC	0.047U K 50V	1	CN22B	644 008 7700	CONNECT	OR-P,5P(JST)
C307###	403 215 8807	CERAMIC	1UZ 16V	1	CN401	644 009 1400	CONNECT	OR-P,8P(IRS)
or ###	403 185 8708	CERAMIC	1UZ 16V	1	CN601	644 008 8141	CONNECT	OR-S,12P(TAIKC
C308	403 130 3109	CERAMIC	0.047U K 50V	1	CN602	644 008 8141	CONNECT	OR-S,12P(TAIKC
C309	403 215 8807	CERAMIC	1UZ 16V		CN702	644 009 1400	CONNECT	OR-P,8P(IRS)
or	403 185 8708	CERAMIC			CN801###	644 003 4582	SOCKET,8	P
C311	403 192 5905	CERAMIC	0.10 K 25V		Diodes
C312	403 192 5905	CEBAMIC	0.1UK 25V		D001	407 112 4603	DIODE 1SS	S119-T-72
		ou. Junio	2		D002	407 112 4603	DIODE 1SS	S119-T-72
C313	403 192 5905	CERAMIC	0.1UK 25V	1 1

J	1	or ###	402 195 9709	CERAMIC 1117 16V
	1	01 ###	403 103 0/08	CERAMIC 0 00117 051
	1	0317	403 215 8906	CERAMIC 0.00117 161
	1	01	403 322 2604	CEDAMIC U.22U Z 16V
	1	0310###	403 215 8807	CERAMIC 1UZ 16V
	1	01 ###	403 165 8/08	CERAMIC DODL 7 DEV
	1	0318	403 215 8906	CERAMIC 0.22UZ 25V
	1	01	403 322 2804	CEDAMIC 1000D K 501
	1	0319	403 069 1702	CERAMIC 1000PK 50V
ł	1	0320	403 009 1/02	CEDAMIC 1000PK SUV
	1	0321###	403 215 8807	CERAMIC 1UZ 16V
ļ	1	01 ###	403 185 8/08	CERAMIC 102 16V
ļ	1	0321	403 215 8906	CERAMIC 0.22UZ 25V
ļ	1	or	403 322 2804	GEHAMIC U.22U Z 16V
	1	0322	403 050 7904	ELECT 3.3U M 5UV
	1	0323	403 072 5605	GEHAMIC 2700P K 50V
	1	C324	403 040 2902	ELECT 220 M 10V
	1	0420	403 047 1700	ELECT 4.70 M 25V
	1	0421	403 047 1700	ELECT 4./UM 25V
	1	0001	403 022 2609	GEHAMIC 30P J 50V
	1	0602	403 018 0503	GERAMIC 22P J 50V
	1	0603	403 069 1702	GEHAMIG 1000P K 50V
	l i	0604	403 009 5708	CEHAMIC 100PJ 50V
	l i	0605	403 038 2600	ELEGI 1000 M 6.3V
	l i	C606	403 069 5601	CEHAMIC 0.01U K 50V
	l i	C607	403 047 1700	ELECI 4.7U M 25V
	Li.	C608	403 069 1702	CERAMIC 1000P K 50V
	l i	C603.	403 0/1 8102	CEHAMIC 2200P K 50V
	li.	C613	403 009 5708	CERAMIC 100P J 50V
	l i	U614	403 009 5708	CEHAMIC 100P J 50V
	H i	C615	403 009 5708	CEHAMIC 100P J 50V
	L i	C616	403 072 1607	CERAMIC 0.022U K 50V
	li.	C706	403 069 5601	CERAMIC 0.01U K 50V
	L i -	C707	403 049 1906	ELECI 1U M 50V
	L i	C708	403 041 3601	ELECT 47U M 10V
	li.	C709	403 041 3601	ELECT 47U M 10V
	li.	C710	403 069 5601	CERAMIC 0.01U K 50V
	l i	C712	403 042 0708	ELECI 10U M 16V
	Li -	C714	403 069 5601	CERAMIC 0.01U K 50V
	l i -	0715	403 069 5601	CERAMIC 0.01U K 50V
	L i	C801###	403 009 5708	CEHAMIC 100P J 50V
	L i	C802###	403 215 8807	CERAMIC 1U Z 16V
	l i	or###	403 185 8708	CERAMIC 1U Z 16V
	1	C803###	403 069 5601	CERAMIC 0.01U K 50V
		C804###	403 072 8507	CERAMIC 330P K 50V
	i i	C805###	403 009 5708	CERAMIC 100P J 50V
		C806###	403 069 5601	CERAMIC 0.01U K 50V
	1	C807###	403 215 8807	CERAMIC 1U Z 16V
	1	or###	403 185 8708	CERAMIC 1U Z 16V
	1	C808###	403 069 5601	CERAMIC 0.01U K 50V
	1	Connectors			Ĩ
		CN218###	644 010 4196	WIRE ASSY 8P 170MM	-
		CN218***	644 010 4100	WIRE ASSY 6P 170MM
		CN22B	644 008 7700	CONNECTOR D 50/ IST)
	L i	CNI401	644 000 1/00	CONNECTOR P (001)
		CN601	644 009 1400	CONNECTOR $ 12P(TAIKO)
		CNE00	644 000 0141	CONNECTOR $ 12P(TAIKO)
		CN002	644 000 1400	CONNECTOR D 80(IRE)
		CNR01###	644 009 1400	SOCKET 80
		GIN001###	044 003 4582	SUCKET, OF
		Diodes			_
		D001	407 112 4603	DIODE 1SS119-T-72
		D002	407 112 4603	DIODE 1SS119-T-72
		D201###	407 125 7103	DIODE S5688B

Ref. No.	PART No.	DESCRIPTION	Qʻty	Ref. No.	PART No.	DE	SCRIPTION
D240###	407 112 4603	DIODE 1SS119-T-72	1	or	405 123 7309	TR 2SB1386	-R-T100
0702	407 061 1807	DIODE 1SS145-T-72	1	Q240###	405 139 6402	TR 2SA1758	-D
or	407 174 1404	DIODE HSS83-TA		or ###	405 139 6501	TR 2SA1758	i-E
0703	407 112 4603	DIODE 1SS119-T-72	1	or ###	405 139 6600	TR 2SA1758	I-F
0704	407 166 5700	ZD ZENER DIODE HZS9C2L-TA		Q241###	405 015 4201	TR 2SC2712	-GR-TE85R
0705	407 099 5303	ZENER DIODE MTZJ5.6B-T-77		or ###	405 135 1609	TR 2SC2462	2-LD-R
0706	407 063 9207	ZENER DIODE MTZJ7.5B-T-77		or ###	405 011 1006	TR 2SC1623	H-L6
0707	407 061 1807	DIODE 155145-1-72		Q406	405 127 6001	TR RN1444-	B-TE85R
0801###	407 112 4603	DIODE 155119-1-72		Q407	405 127 6001	TR RN1444-	B-TE85R
0802###	407 112 4603	DIODE 1SS119-1-72		Q701	405 139 2503	TR 2SB1386	-Q-T100
0803###	407 112 4603	DIODE 155119-1-72		or	405 123 7309	TR 2SB1386	i-R-T100
0604###	407 112 4603	DIODE 155119-1-72	1	Q702	405 086 8900	TR RN1401-	TE85R
C's				Q704	405 140 1809	TR 2SD1733	F5-Q-TL
C201	409 016 7902	IC LA3161	1	or	405 140 1908	TR 2SD1733	SF5-R-TL
C202###	409 225 6901	IC BA3708F-T1	1	Q705	405 079 6906	TR 2SD1664	-T100-Q
C203*	409 296 4806	IC HA12134AF-ER	1	or	405 079 7002	TR 2SD1664	-T100-R
C301	409 351 8602	IC TDA7342TR		Q706	405 015 4201	TR 2SC2712	-GR-TE85R
C601	409 400 8508	IC LC72338-9313N	l i l	or	405 135 1609	TR 2SC2462	2-LD-R
hin lump	are			or	405 011 1006	TR 2SC1623	3-L6
and tamp				Q708	405 104 8905	TR RN2402-	TE85R
0001	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		Q709	405 128 4303	TR RN2424-	TE85R
0002	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		Q710	405 035 9200	1H RN2404-	1E85R
0003	401 037 5004	MI-GLAZE 0.000 ZA 1/10W		\| Q711	405 139 2503	1H 2SB1386	-Q-T100
C004	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		or	405 123 7309	TR 2SB1386	-R-T100
C005	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	Q712	405 058 5807	TR RN1402-	TE85R
C006	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	Resistors
C007	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B001	401 038 0701	MT-GLAZE	2.2K IA 1/10
0008	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B002	401 037 5608	MT-GLAZE	10K JA 1/10
C009	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B003	401 037 5608	MT-GLAZE	10K IA 1/10
C010	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B004	401 038 2309	MT-GLAZE	270K 14 1/1
C011	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		8005	401 037 9408	MT-GLAZE	180K JA 1/1
C012	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B012	401 038 2101	MT-GLAZE	2 7K 1A 1/10
C013###	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		B013	401 038 0701	MT-GLAZE	2 2K IA 1/10
C014###	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		B014	401 012 5609	CARBON	16 10 1/4/
C015*	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B201	401 038 3702	MT-GLAZE	33K IA 1/10
0019	401 035 4108	MI-GLAZE 0.000 ZA 1/8W		B202	401 038 3702	MT-GLAZE	33K JA 1/1
C020	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		8203	401 038 7502	MT-GLAZE	56 14 1/10
C021###	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B204	401 038 7502	MT-GLAZE	56 JA 1/10
C022	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B205	401 037 5707	MT-GLAZE	100K IA 1/1
C023###	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		B206	401 037 5707	MT-GLAZE	100K IA 1/1
C027###	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		P207*	401 038 7700	MT-GLAZE	5.6K IA 1/1
C028	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	B207#	401 038 7205	MT-GLAZE	5.1K JA 1/10
C030	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	B208	401 038 7200	MT-GLAZE	5.6K IA 1/10
C031	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		8208#	401 038 7205	MT-GLAZE	5.1K IA 1/10
C032	401 035 4108	MT-GLAZE 0.000 ZA 1/8W	1	P200	401 038 7700	MT GLAZE	5.6K IA 1/10
C033###	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	P210	401 038 7700	MT GLAZE	5.6K IA 1/1
C034###	401 035 4108	MT-GLAZE 0.000 ZA 1/8W		8211	401 017 0708	CARBON	270 14 1/4
C035###	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		P212	401 038 6505	MT-GLAZE	47K IA 1/1
C201#	401 037 5004	MT-GLAZE 0.000 ZA 1/10W		P212	401 030 0505	MT GLAZE	47K 1A 1/1
C202#	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	P214	401 037 5707	MT-GLAZE	100K \|A 1/1
C203#	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	P215	401 036 1700	MT GLAZE	226 10 1/9
C204#	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	P016	401 050 1700	OVIDE MT	221 04 10
C702	401 037 5004	MT-GLAZE 0.000 ZA 1/10W	1	D017	401 013 5303	CARRON	1.01/10/10/10
nductors				00011	401 013 5202	CARBON	00K IA 1/4
001	644 004 7124	INDUCTOR 47UH	1	B221#	644 001 5910	WIDE THINK	0 6 P-7 5MM
601	644 004 7124	INDUCTOR 47UH		P222*	401 016 4707	CARRON	0.0 F = 7.5 WIW
	101110011121			B222#	644 001 5819	WIRE THINK	0 6 P-7 5MM
orentionie	lers			P223*	401 038 0800	MT-GLAZE	22K IA 1/1
PT201*	644 004 0873	POTENTIOMETER 47K	1	P224	401 037 0300	MT GLAZE	191/10/10/11/11
T202*	644 004 0873	POTENTIOMETER 47K	1	P228*	401 038 0800	MTGLAZE	226 14 1/1
ransistors	3			D240###	401 037 5608	MT GLAZE	10K IA 1/10
001	405 107 6100	TO DN0407 TERED		D240###	401 037 3008	MT GLAZE	56 IA 1/10
2001	405 12/ 0100	TD 00//202 TA		D241###	401 030 / 502	MT GLAZE	100 14 1/10
2002	405 045 8/05	TD DNI 410 TERED		P242###	401 037 5202	MT CLAZE	47K 1A 1/1
200	405 090 0600	TD DNI 410-TE85H		H243###	401 038 0505	MT GLAZE	4/K JA 1/1
1202	405 090 0600	TR RN1410-1E85H		H244###	401 038 7908	MI-GLAZE	JOUN JA 1/1
2204	405 060 6700	TH HN1406-TE85R		H245###	401 038 9902	MI-GLAZE	750K JA 1/1
1205	1405 139 2503	LLH 2SH1386-O-T100	111	I H246###	1401 019 1802	LCARBON	3 9K JA 1/4

BC Board BARTS LIST

NOTES: 1. Part orders must contain Model Number, Part Number and Description. 2. Ordering quantity of screws and resistors must be multiple of 10 pcs. 3. "indicates Parts for FXC-425GD only.""indicates Parts for FXC-415GD only.""indicates Parts for IT XR-315GD only. 4. "a"indicates Parts for all models except FXC-425GD. "##"indicates Parts for all models except FXC-415GD, "###"indicates Parts for all models except FXR-315GD.

Part orders must contain Model Number, Part Number and Description. Ordering quantity of screws and resistors must be multiple of 10 pcs. ""indicates Parts for FXC-425GD only. ""indicates Parts for FXR-315GD only. ""indicates Parts for FXR-315GD only. "indicates Parts for AII models except FXC-425GD, "##"indicates Parts for AII models except FXC-415GD.

Page 13

P.C.Board PARTS LIST -

R247### 4 R248### 4 R249### 4	401 038 3702		o or in the t	1 22 27 1
R248### 4 R249### 4	401 000 07 021	MT-GLAZE	33K IA 1/10M	1	B706	401.018.2701	CARBON 330 IA 1/4W	1
R249### 4	401 165 7307	OXIDE-MT	180 JA 1/2W		8707	401 019 6104	CARBON 4.7.IA 1/4W
	401 038 7700	MT-GLAZE	5.6K JA 1/10W	1	R708	401 012 6903	CARBON 10K JA 1/4W	1
R250### 4	401 038 7700	MT-GLAZE	5.6K JA 1/10W	1	R709	401 037 5608	MT-GLAZE 10K JA 1/10W	1
R251### 4	401 012 1007	CARBON	1.5 JA 1/4W	1	R710	401 037 5608	MT-GLAZE 10K JA 1/10W	1
R252### 4	401 012 1007	CARBON	1.5 JA 1/4W	1	B711	401 038 0800	MT-GLAZE 22K JA 1/10W	1
R305 4	401 038 0701	MI-GLAZE	2.2K JA 1/10W	1	R715	401 016 3700	CARBON 2.2K JA 1/4W
R306 4	401 038 0701	MT-GLAZE	2.2K JA 1/10W		H/10	401 016 4707	CARBON 22K JA 1/4W
B309*	401 038 6604	MT-GLAZE	470K JA 1/10W		8718	401 012 4404	CARBON 100 IA 1/4W
R309# 4	401 038 2309	MT-GLAZE	270K JA 1/10W	1	B719	401 038 7809	MT-GLAZE 56K JA 1/10W	11
R310* 4	401 038 6604	MT-GLAZE	470K JA 1/10W	1	R720	401 142 9805	MT-GLAZE 1K JA 1/4W	11
R310# 4	401 038 2309	MT-GLAZE	270K JA 1/10W	1	R801###	401 037 7909	MT-GLAZE 1.5K JA 1/10W	1
R311 4	401 038 0701	MT-GLAZE	2.2K JA 1/10W	1	R802###	401 038 3504	MT-GLAZE 330 JA 1/10W	11
R313 4	401 038 0701	MT-GLAZE	2.2K JA 1/10W	1	R803###	401 038 3504	MT-GLAZE 330 JA 1/10W	11
H316 4	401 038 0701	MT-GLAZE	2.2K JA 1/10W	1	H804###	401 037 7909	MT-GLAZE 1.5K JA 1/10W
D310	401 037 5400	MT-GLAZE	FREE IN 1/10W		H805###	401 038 0602	MT-GLAZE 220 JA 1/10W
B320	401 038 7700	MT-GLAZE	5.6K IA 1/10W	1	B807###	401 012 4404	CARBON 100 IA 1/4W
R435	401 037 5400	MT-GLAZE	1K JA 1/10W	1	B808###	401 037 5707	MT-GLAZE 100K JA 1/10W	111
R436 4	401 037 5400	MT-GLAZE	1K JA 1/10W	1	Others
R441 4	401 037 5608	MT-GLAZE	10K JA 1/10W	1	ANITOI	644.007.0470	POCKET ANTENNA	11
R442 4	401 037 5608	MT-GLAZE	10K JA 1/10W	1	THZON	407 164 200	TU DTUELG22AD2D0MT2
R601 4	401 038 6505	MT-GLAZE	47K JA 1/10W	1	TUNO1	644 008 8394	TUNER EMT-B96A-A
R602 4	401 038 6505	MT-GLAZE	47K JA 1/10W	1	X601	644 001 8919	CBYSTAL BSONATOB 4 5M
H603 4	401 036 8501	MT-GLAZE	47K JA 1/8W	1	Z001	644 001 2900	SURGE PROTECTOR,200V
R605### 4	401 036 6505	MT-GLAZE	47K JA 1/10W

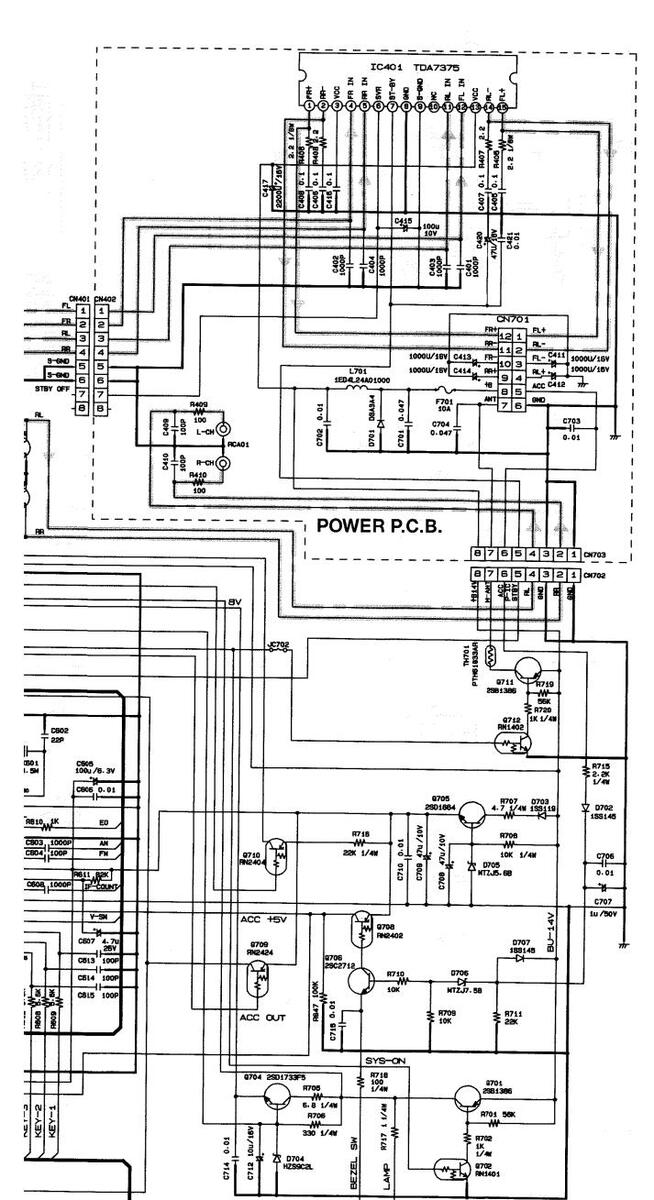

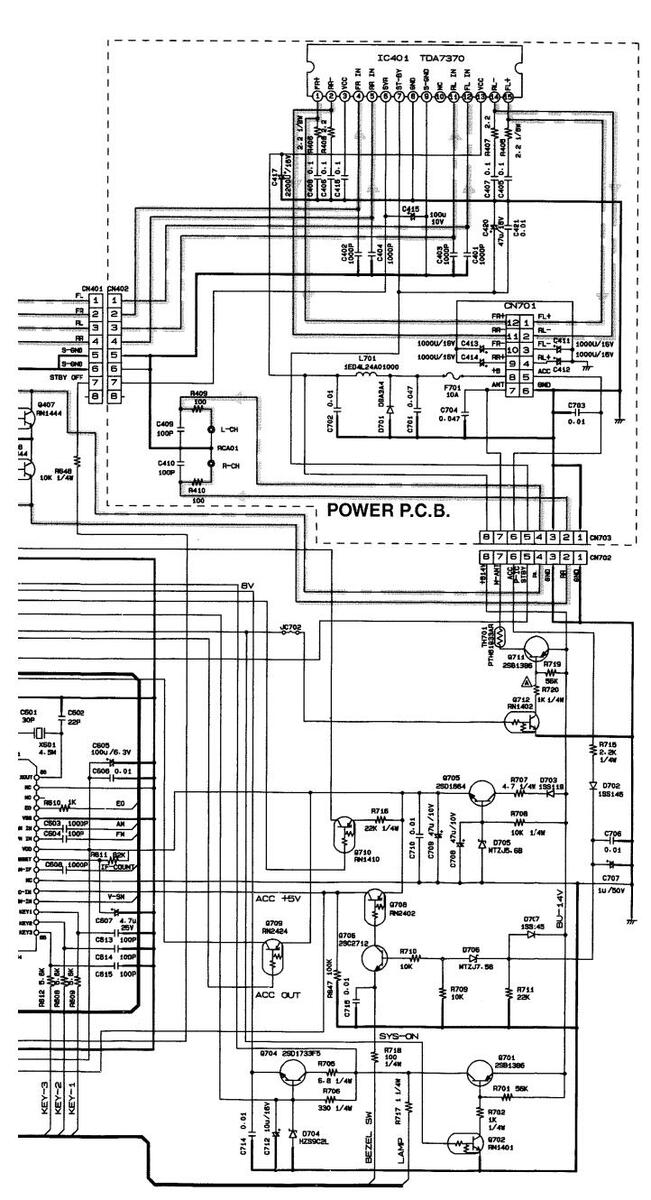

B607	401 037 5608	MT-GLAZE	10K JA 1/10W			POWER	P.C.B. ASSEMBLY
B608	401 038 7700	MT-GLAZE	5.6K JA 1/10W		Ormeriter	FOWER	F.O.D. ASSEMBLT
R609 4	401 038 7700	MT-GLAZE	5.6K JA 1/10W	1	Capacitors
R610 4	401 037 5400	MT-GLAZE	1K JA 1/10W	1	C401	403 069 1702	CERAMIC 1000P K 50V	11
R611 4	401 039 0502	MT-GLAZE	82K JA 1/10W	1	C402	403 069 1702	CERAMIC 1000PK 50V
R612 4	401 038 7700	MT-GLAZE	5.6K JA 1/10W	1	C403	403 069 1702	CERAMIC 1000P K 50V
H613* 4	401 038 6505	MT-GLAZE	47K JA 1/10W		C405*	403 297 2403	ELECT 33U M 10V
R615###	401 038 6505	MT-GLAZE	47K JA 1/10W		C405#	403 192 5905	CERAMIC 0.1U K 25V	11
B616***	401 038 6505	MT-GLAZE	47K JA 1/10W		C406*	403 297 2403	ELECT 33U M 10V	1
R617 4	401 038 6505	MT-GLAZE	47K JA 1/10W	1	C406#	403 192 5905	CERAMIC 0.1U K 25V	1
R620 4	401 038 6505	MT-GLAZE	47K JA 1/10W	1	C407	403 192 5905	CERAMIC 0.1U K 25V
R621 4	401 035 5204	MT-GLAZE	10K JA 1/8W	1	C408	403 192 5905	CERAMIC 0.10 K 25V
R622 4	401 012 6903	CARBON	10K JA 1/4W	1	C409	403 192 5905	CERAMIC 1000 1 50V
R623 4	401 035 5204	MT-GLAZE	10K JA 1/8W	1	C410*	403 192 5905	CERAMIC 0.111K 25V
H627 4	401 036 1601	MT-GLAZE	2.2K JA 1/8W	1	C410#	403 009 5708	CERAMIC 100P J 50V	111
B620	401 038 0701	MT-GLAZE	2.2K JA 1/10W		C411*	403 192 5905	CERAMIC 0.1U K 25V	11
B630	401 038 2101	MT-GLAZE	2.7K JA 1/10W	1	C411#	403 190 3705	ELECT 1000U M 16V	11
R631 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C412*	403 192 5905	CERAMIC 0.1U K 25V	11
R632 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C412#	403 190 3705	ELECI 1000U M 16V
R633 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1 1	C413*	403 192 5905	ELECT 1000LLM 101
R634 4	401 038 3702	MT-GLAZE	33K JA 1/10W	11	C413#	403 190 3705	CERAMIC 0.111K 25V
H635 4	401 038 3702	MT-GLAZE	33K JA 1/10W		C414#	403 190 3705	ELECT 1000U M 16V
0630	401 038 3702	MT CLAZE	33K JA 1/10W		C415	403 313 3308	ELECT 3300U M 16V	1
B638	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C415#	403 190 5105	ELECT 100U M 10V	1
B639	401 038 3702	MT-GLAZE	33K JA 1/10W	1 i l	C416'	403 192 5905	CERAMIC 0.1U K 25V	1
R640 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C416#	403 068 0419	CERAMIC 0.1U Z 25V	11
R641 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C417*	403 192 5905	CERAMIC 0.1U K 25V
R642 4	401 038 3702	MT-GLAZE	33K JA 1/10W	1	C417#	403 230 1807	CERAMIC 100P \| 50V
R643 4	401 038 3702	MT-GLAZE	33K JA 1/10W		C419	403 009 5708	CERAMIC 100P J 50V
H644 4	401 038 3/02	MT-GLAZE	33K JA 1/10W		C420#	403 137 4901	ELECT 47U M 16V
P646	401 036 3702	MT GLAZE	33K JA 1/10W		C421#	403 069 9500	CERAMIC 0.01U Z 50V	11
B647	401 037 5702	MT-GLAZE	100K JA 1/10W		C651*	403 316 3602	ELECT 22U M 10V	1
B648***	401 012 6903	CARBON	10K JA 1/4W	i	C701*	403 069 5601	CERAMIC 0.01U K 50V	1
R701	401 038 7809	MT-GLAZE	56K JA 1/10W	1	C701#	403 074 3104	CERAMIC 0.047U Z 50V	11
R702 4	401 012 5609	CARBON	1K JA 1/4W	1	C702	403 069 5601	CERAMIC 0.01U K 50V
	401.021.7007	CARBON	6.8.JA 1/4W	1 1	0703	1403 069 5601	GERANIC UUTUR SUV	- 1

Part orders must contain Model Number, Part Number and Descr Ordering quantity of screws and resistors must be multiple of 10 3. ""Indicates Parts for FXC-425GD only.""Indicates Parts for FX ""Indicates Parts for all models except FXC-435D. ""ei"Indicates all models except FXC-415GD. "###"Indicates Parts for all models FXR-315GD.

Ref. No. PART No. DESCRIPTION CN902 644 008 8134 CONNECTOR-P,12P(TAIKO) Cbip Jumpers JC801 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC802 401 035 408 MT-GLAZE 0.000 ZA 1/100 JC804 JC804 401 035 5004 MT-GLAZE 0.000 ZA 1/100 JC804 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 037 5004 MT-GLAZE 0.000 ZA 1/100 JC806 401 035 4018 MT-GLAZE 0.000 ZA 1/100 JC806 401 035 4018 MT-GLAZE 0.000 ZA 1/100 JC806 401 035 4018 MT-GLAZE 0.000 ZA 1/100 JC806 401 035 4018 MT-GLAZE 0.000 ZA 1/100 JC806 JC806 401 035 4018 MT-GLAZE 0.000 ZA 1/100 JC806< ____________________________________ IK JA 1/10W 1K JA 1/10W 1.2K JA 1/10V 1.5K JA 1/10V 2.2K JA 1/10V 1.3K JA 1/10V R901 R902 R903 R904 R906 R906 R900 R910 R911 R914 SW901 SW904 SW914 SW9 644 009 5316 INDUCTOR,SK SW P.C.B. ASSEMBLY Connectors 2001 644 008 8134 CONNECTOR-P,125

tain Model Number, Part Number and Description. screws and resistors must be multiple of 10 pcs. FXC-4256D only, """indicates Parts for FXC-415GD arts for FXR-315GD only. r all models except FXC-425GD, "#"indicates Parts f

Page 14

IC BLOCK DIAGRAM / TERMINAL FUNCTION ------------------------------------

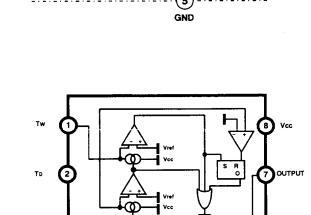

IC201 (LA3161)

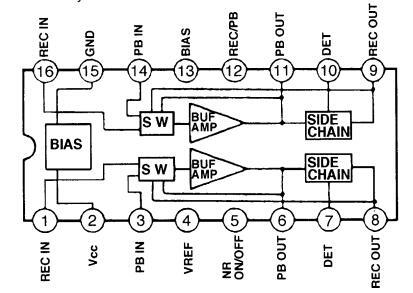

IC203 (HA12134AF-ER FXC-425GD only

Page 15

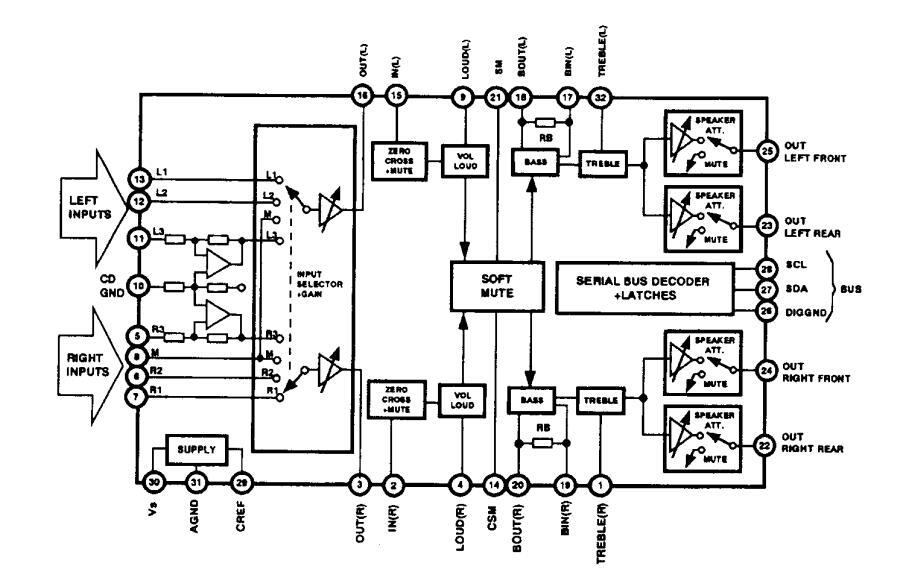

IC301 (TDA7342TR)

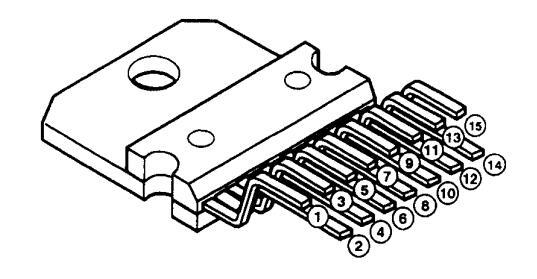

IC401 (TDA7375)	FXC-425GD, FXC-415GD
(TDA7370)	FXR-315GD
IC402 (TDA7375)	FXC-425GD

Page 16

IC601(LC72338N-9313N) NOTE I: Input O: Output

1 X IN 1 Quarts crystal terminal 4.5MHz 40 St6 0 Not used 2 TEST2 - GNO 40 St6 0 Not used 4 PG2 O Peever(S STAD BY L 41 S15 O Not used 5 PG1 O Electron volume control output JT 44 S11 O Not used 7 PC3 O Not used 44 S12 O 9 PC1 O Not used 47 S9 O 10 PC0 O Not used 50 S6 O 11 PB3 O Tage MASS output port 53 S1 O 12 PB2 O Not used 56 COM2	Pin No.	Pin Name	I/O	Function	Active		Pin No.	Pin Name	1/0	Function	Active
2 TEST2 - GND - 4 40 S16 O Not used - 4 PG3 0 Power/C STAND-BY L 44 S15 O Not used - 4 PG2 0 Electron volume control output H 43 S13 O -	1	XIN	1	Quarts crystal terminal 4.5MHz	_		39	PE0	0	Not used	-
A PCR O PowerIC STAND-BY L A1 S15 O Notused 4 POG O Electron volume control output J 42 S14 O Notused 5 POG O MUTE output "U"MUTE L 44 S12 O 6 POC O Not used 44 S12 O	2	TEST2	-	GND	_		40	S16	0	Not used	_
India G District HUTE Image of the second s	3	PG3	0	PowerIC STAND-BY	1		41	S15	0	Not used	_
4 PG2 0 Electron volume control output 43 S13 0 5 PG3 0 Electron volume control output 44 S12 0		100	Ŭ		-		42	S14	Ő	Not used	_
PAC O Description volume control output T 44 St2 O F		PG2			ц		43	S13			_
B PGI O Decommon and operations obtained operatined operatexpowere of theoperatexpowere obtained operations obta	4	PG1	0				14	S12	0		_
b b c c	5						45	01Z 011			_
PCS O Not used 47 S10 O 9 PC1 O Not used 47 S9 O		PGU	0		L		40	S11 S10
B PC2 O Not used 47 SP O		PC3	0	Not used	_		40	510
9 PC1 0 Made in HeL output H 43 S8 0 — — 10 PC0 0 Not used — 50 58 0 — …	8	PC2	0	Not used			47	59
Hith HELUAISO HT During Seek) Hay 57 O Hay S6 O LCD driver output	9	PC1	0		Н		48	58	0
10 PC0 0 Not used				H:IF REQ(Also "H" during seek)			49	57
11 PB3 O Tape AMSS output port H 51 SS O	10	PC0	0	Not used	\|		50	56	0	LCD driver output
Switched to "H" when AMSS is reset 52 54 0 — — 12 PB2 0 Tape moter drive output Tape:"H" H 53 S3 0 — — 13 PB1 0 Not used — 55 S1 0 — — 14 PB0 0 Not used — 55 S1 0 — — 15 PA3 1 Radio SD input port "L'Station present L 56 COM3 0 — 16 PA2 1 GND — 57 COM2 0 — …	11	PB3	0	Tape AMSS output port	н		51	S5	0		-
12 PB2 0 Tape moter drive output Tape."H" H 53 S3 0				Switched to "H" when AMSS is reset			52	S4	0		—
13 PB1 O Not used 54 S2 O 14 PB0 O Not used 55 S1 O	12	PB2	0	Tape moter drive output Tape:"H"	н		53	S3	0		—
14 PB0 O Not used 55 S1 O 15 PA3 I Radio SD input port "L"Station present L 56 COM3 O 16 PA2 I GND 57 COM2 O	13	PB1	0	Not used	\| -		54	S2	0		-
15 PA3 I Radio SD input port "L":Station present L 56 COM3 O	14	PB0	0	Not used	-		55	S1	0		- \|
16 PA2 I GND 57 COM2 O 17 PA1 I Tape AMSS signal input H 58 COMI O 18 PA0 I Initial Doby ON/OFF setting H 60 Vdd1 - Not used 19 PK3 O Radio antenna output port H 62 PJ2 O Not used 20 PK2 O Power output port L 63 PJ1 O CD-CH control output terminal L 21 INT1 I GND noise when power is switched of, 22 INT0 I CD changer BUS input port L noise when power is switched of, 23 PN2 O Not used 66 ADI2 I	15	PA3	Т	Radio SD input port "L":Station present	L		56	СОМЗ	0
17 PA1 I Tape AMSS signal input H 58 COM1 O J — 18 PA0 I Initial Dolby ON/OFF setting H 60 VddI - Not used — 19 PK3 O Radio antenna output port H 62 PJ3 O Only when AM is selected on radio "H" L 19 PK3 O Radio antenna output port H 62 PJ3 O Only when AM is selected on radio "H" L 20 PK2 O Power output port L 63 PJ1 O Switched to "L" 100ms affer power-off L and held at "L" for 1 second to reduce 21 INT0 I GND — — 66 ADI2 I Hen on (signal endless) 23 PN3 O Power circuit control output "H"→ON H 65 ADI3 I Hen on (signal endless) — — 24 PN2 O Not used — 66 ADI2 I Radio "S"meter level input — 25 PN1 O Not used	16	PA2	Т	GND	—		57	COM2	0
18 PA0 1 Initial Dolby ON/OFF setting Initial Dolby ON/OFF setting H 60 Vdd2 - Not used - 19 PK3 O Radio antenna output port Switched to "H" for radio H 62 PJ3 O Only when AM is selected on radio "H" L 20 PK2 O Power output port Switched to "H" for radio L 63 PJ1 O Switched to "L" at ACC ON, POWER ON Switched to "L" at ACC ON, POWER ON - - noise when power is switched off, and held at "L" for 1 second to reduce noise when power is switched off, - 21 INT0 I GD changer BUS input port L 64 ADI0 -	17	PA1	1	Tape AMSS signal input	Н		58	COM1	0		\|
18 PA0 I Initial Dolby ON/OFF setting "H"::ON, "L::OFF H 60 Vdd1 - Not used 19 PK3 O Radio antenna output port Switched to "H" for radio H 62 PJ2 O Not used 20 PK2 O Power output port Switched to "L" at ACC ON, POWER ON Switched to "L" at ACC ON, POWER ON L 64 PJ0 O Switched of "L" 100ms after power-off L and held at "L" for 1 second to reduce noise when power is switched off, then on (signal endless) 23 PN3 O Power circuit control output "H"->ON H 66 ADI3 I 24 PN2 O Not used 66 ADI2 I Acc input "H":ACON 25 PN1 O Not used 67 ADI1 I 26 BEEP O Beep output, 3KHz JIL 68 ADI0 I Radio "S"meter level input 27 PM3 I Tape MUTE input (FF or REW detect) H 72 SNS I SNS input				"H" is input between tunes			59	Vdd2	- \|	Not used	\| -
19 PK3 O Radio antenna output port H 62 PJ3 O Only when AM is selected on radio "H" L 19 PK3 O Radio antenna output port H 62 PJ2 O Not used — 20 PK2 O Power output port L 63 PJ1 O CD-CH control output terminal L 21 INT1 I GND — L 64 PJ0 O Switched to "L" 100ms after power-oft L 23 PN3 O Power output port L L - noise when power is switched off, then on (signal endless) - 23 PN3 O Power circuit control output "H"→ON H 65 ADI3 I - - 24 PN2 O Not used — 66 ADI2 I + - - 25 PN1 O Not used — 67 ADI1 I -	18	PA0	1	Initial Dolby ON/OFF setting	н		60	Vdd1	- \|	Not used	—
19 PK3 O Radio antenna output port Switched to "H" for radio H 62 PJ2 O Not used — 20 PK2 O Power output port Switched to "L" at ACC ON, POWER ON Switched to "L" at ACC ON, POWER ON L 63 PJ1 O Switched to "L" 100ms after power-off and held at "L" for 1 second to reduce noise when power is switched off, then on (signal endiess) 21 INT0 I GND — - 65 ADI3 I -			ļ	"H":ON, "L":OFF			61	PJ3	0	Only when AM is selected on radio "H"	L
20 PK2 O Switched to "H" for radio L 63 PJ1 O CD-CH control output terminal L 21 INT1 I GND — 64 PJ0 O Switched to "L" 100ms after power-off L 21 INT1 I GND — L 64 PJ0 O Switched to "L" 100ms after power-off L 22 INT0 I GD changer BUS input port L - - ind held at "L" for 1 second to reduce noise when power is switched off, then on (signal endless) 23 PN3 O Power circuit control output "H"ON H 65 ADI3 I -	19	РКЗ	0	Radio antenna output port	н		62	PJ2	0	Not used	\| _
20 PK2 0. Power output port Switched to "L" at ACC ON, POWER ON Switched to "L" at ACC ON, POWER ON 21 INT1 1 GND Int1 1 GND Int1 I GND Int1 Int1 GND Int1 For Int1				Switched to "H" for radio		l	63	PJ1	0	CD-CH control output terminal	L
21 INT1 I GND Image: Switched to "L" at ACC ON, POWER ON Image: Switched to "L" at ACC ON, POWER ON Image: Switched to "L" at ACC ON, POWER ON Image: Switched to "L" at ACC ON, POWER ON Image: Switched to "L" at ACC ON, POWER ON Image: Switched off, then on (signal endless)	20	PK2	0	Power output port	L		64	PJ0	0	Switched to "L" 100ms after power-off	L
21 INT1 I GND — I Image: Second Se				Switched to "L" at ACC ON, POWER ON						and held at "L" for 1 second to reduce
22 INT0 I CD changer BUS input port L Image: CD changer BUS input port L Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD changer BUS input port Image: CD ch	21	INT1	1	GND						noise when power is switched off,
23 PN3 O Power circuit control output "H"→ON H 65 ADI3 I	22	INTO		CD changer BUS input port						then on (signal endless)
24 PN2 O Not used 66 ADI2 I Key input 25 PN1 O Not used 67 ADI1 I 26 BEEP O Beep output, 3KHz JUL 68 ADI0 I Radio "S"meter level input 27 PM3 I Tape MUTE input (FF or REW detect) H 70 HCTR I GND 28 PM2 I Play:FWD/REV detect "H" FWD H 72 SNS I SNS input 29 PM1 I Tape detect input "H":Tape IN H 73 Vdd - +5.0V 30 PM0 I GND 74 FMIN I Radio FM station input terminal 31 Vdd - 5.0V 75 AMIN I Radio AM station input terminal 32 PF3 I L 76 Vss GND	23	PN3	0	Power circuit control output "H"→ON	Н		65	ADI3
24 FR2 0 Not used — 67 ADI1 1 Regimeter level input — 25 PN1 0 Not used — 67 ADI1 1 Radio "S"meter level input — 26 BEEP 0 Beep output, 3KHz JIL 68 ADI0 1 Radio "S"meter level input — 27 PM3 1 Tape MUTE input (FF or REW detect) H 70 HCTR 1 GND — 28 PM2 1 Play:FWD/REV detect "H" FWD H 72 SNS 1 SNS input — 29 PM1 1 Tape detect input "H":Tape IN H 73 Vdd - +5.0V — 30 PM0 1 GND — 75 AMIN 1 Radio FM station input terminal — 31 Vdd - 5.0V — 75 AMIN 1 Radio AM station input terminal — 32 PF3 1 L — 76 Vss GND — —	24	PN2		Not used			66	ADI2		Key input
23 FHT 0 Not used 1 Radio "S"meter level input	25	DN1		Not used			67	ADI1			_
20 BEEP 0 Beep output, or right of	20			Boop output 3KHz	l nn		68			Badio "S"meter level input
27PM3ITape MUTE input (FF or REW detect) FF or REW:"H"H70HCTRIGND28PM2IPlay:FWD/REV detect "H" FWDH72SNSISNS input29PM1ITape detect input "H":Tape INH73Vdd-+5.0V30PM0IGND74FMINIRadio FM station input terminal31Vdd-5.0V75AMINIRadio AM station input terminal32PF3IL76Vss-GND33PF2IL77E01OError out output terminalH34PF1I"H":YES "L":NO78E02ONot used35PF0IGND79TEST1-GND36PE3ONot used80X OUTOQuarts crystal terminal 4.5MHz37PE2ONot used6VV38PE1ODolby NR recorder switchH4VUTPUT H:Dolby ON L:OFF4VUTPUT H:Dolby ON L:OFF	20						60	HOLD			н
27 FNS F Fage MOTE injuit (FF of REW detect) F	07			Tapa MLITE input (SE or DEW/ detect)			70	нств		GND
28PM2IPlay:FWD/REV detect "H" FWDH72SNSISNS input—29PM1ITape detect input "H":Tape INH73Vdd-+5.0V—30PM0IGND-74FMINIRadio AM station input terminal—31Vdd-5.0V-75AMINIRadio AM station input terminal—32PF3IL-76Vss-GND—33PF2IL-77E01OError out output terminalH34PF1I"H":YES "L":NO-78E02ONot used-35PF0IGND-79TEST1-GND-36PE3ONot used-80X OUTOQuarts crystal terminal 4.5MHz-38PE1ODolby NR recorder switchHIIII0UTPUT H:Dolby ON L:OFFIIIIIII	21	PIVIS					71			Badio AM IE input terminal IE:450KHz
20 PMI2 1 Play:PWD/HEV detect in PWD H 72 SNS 1 SNS input = 29 PM1 1 Tape detect input "H":Tape IN H 73 Vdd - +5.0V - 30 PM0 1 GND - 74 FMIN 1 Radio FM station input terminal - 31 Vdd - 5.0V - 75 AMIN 1 Radio AM station input terminal - 32 PF3 1 L - 76 Vss - GND - 33 PF2 1 L - 77 E01 O Error out output terminal - 34 PF1 1 "H":YES "L":NO - 78 E02 O Not used - 35 PF0 1 GND - 79 TEST1 - GND - 36 PE3 O Not used - 80 X OUT O Quarts crystal terminal 4.5MHz - 38 PE1					Ц					SNS input
29 PMI 1 Tape detect input "H": Tape IN H 73 Vdd - 45.0V - 30 PM0 1 GND - 74 FMIN 1 Radio FM station input terminal - 31 Vdd - 5.0V - 75 AMIN 1 Radio AM station input terminal - 32 PF3 1 L - 76 Vss - GND - 33 PF2 1 L - 77 E01 O Error out output terminal - 34 PF1 1 "H":YES "L":NO - 78 E02 O Not used - 35 PF0 1 GND - 79 TEST1 - GND - 36 PE3 O Not used - 80 X OUT O Quarts crystal terminal 4.5MHz - 38 PE1 O Dolby NR recorder switch H - 38 PE1 O	28	PM2					72	CNIC \|
30 PMO 1 GND 74 PMIN 1 Hadio PM station input terminal 31 Vdd - 5.0V 75 AMIN 1 Radio PM station input terminal 32 PF3 1 L 76 Vss GND 33 PF2 1 L 77 E01 O Error out output terminal H 34 PF1 1 "H":YES "L":NO 78 E02 O Not used 35 PF0 1 GND 79 TEST1 - GND 36 PE3 O Not used 80 X OUT O Quarts crystal terminal 4.5MHz 37 PE2 O Not used	29				Гч		73		_	Padia EM station input terminal
31 Vod - 5.0V - 75 AMIN 1 Radio AM station input terminal - 32 PF3 1 L - 76 Vss - GND - 33 PF2 1 L - 77 E01 O Error out output terminal H 34 PF1 1 "H":YES "L":NO - 78 E02 O Not used - 35 PF0 1 GND - 79 TEST1 - GND - 36 PE3 O Not used - 80 X OUT O Quarts crystal terminal 4.5MHz - 37 PE2 O Not used - 38 PE1 O Dolby NR recorder switch H - 38 PE1 O Dolby NR recorder switch H -	30				\| -					Padio AM station input terminal
32 PF3 I L 76 Vss GND 33 PF2 I L 77 E01 O Error out output terminal H 34 PF1 I "H":YES "L":NO 78 E02 O Not used 35 PF0 I GND 79 TEST1 - GND 36 PE3 O Not used 80 X OUT O Quarts crystal terminal 4.5MHz 37 PE2 O Not used	31	Vdd		5.UV	\|						\| _
33 PF2 I L — 77 E01 O Error out output terminal H 34 PF1 I "H":YES "L":NO — 78 E02 O Not used — 35 PF0 I GND — 79 TEST1 – GND — 36 PE3 O Not used — 80 X OUT O Quarts crystal terminal 4.5MHz — 37 PE2 O Not used — H	32	PF3			\|		/6	VSS	-
34 PF1 I "H":YES "L":NO — 78 E02 O Not used — 35 PF0 I GND — 79 TEST1 — GND — 36 PE3 O Not used — 80 X OUT O Quarts crystal terminal 4.5MHz — 37 PE2 O Not used — — 80 X OUT O Quarts crystal terminal 4.5MHz — 38 PE1 O Dolby NR recorder switch H	\| 33	\| PF2	\| '					E01		Error out output terminal	Н
35 PF0 I GND — 79 TEST1 – GND — 36 PE3 O Not used — 80 X OUT O Quarts crystal terminal 4.5MHz — 37 PE2 O Not used — 40 A 38 PE1 O Dolby NR recorder switch H A	34	PF1	\| '	\| "H":YES "L":NO	\| -		78	E02	0	Not used
36 PE3 O Not used — 80 X OUT O Quarts crystal terminal 4.5MHz — 37 PE2 O Not used — — 6 X OUT O Quarts crystal terminal 4.5MHz — 38 PE1 O Dolby NR recorder switch H	35	\| PF0		GND	\|		79	TEST1	-	GND	-
37 PE2 O Not used — 38 PE1 O Dolby NR recorder switch H OUTPUT H:Dolby ON L:OFF — —	36	PE3	0	Not used	\| -		80		0	Quarts crystal terminal 4.5MHz	-
38 PE1 O Dolby NR recorder switch H OUTPUT H:Dolby ON L:OFF	37	PE2	0	Not used	\|
OUTPUT H:Dolby ON L:OFF	38	PE1	0	Dolby NR recorder switch	Н				1
				OUTPUT H:Dolby ON L:OFF

Page 17

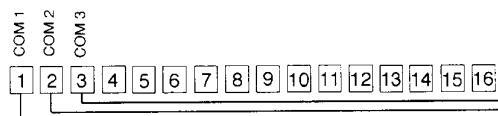

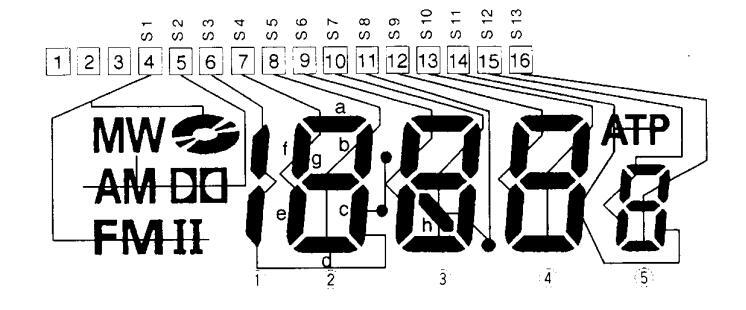

LCD PIN DESIGNATION

SEGMENT


PIN NO.	COM 1	COM 2	COM 2
1	COM-1	_	—
2		COM-2	—
3			COM-3
4	• ;	FMII	FMII
5	מס	АМ	MW
6	1	2-c	:
7	2-a	2-f	2-е
8	2-b	2-g	2-d
9	3-a	3-f	3-е
10	3-b	3-g	3-d
11	•	3-c	3-h
12	4-a	4-f	4-e
13	4-b	4-g	4-d
14	ATP	4-c	5-c
15	5-a	5-f	5-e
16	5-b	5-g	5-d

Page 18

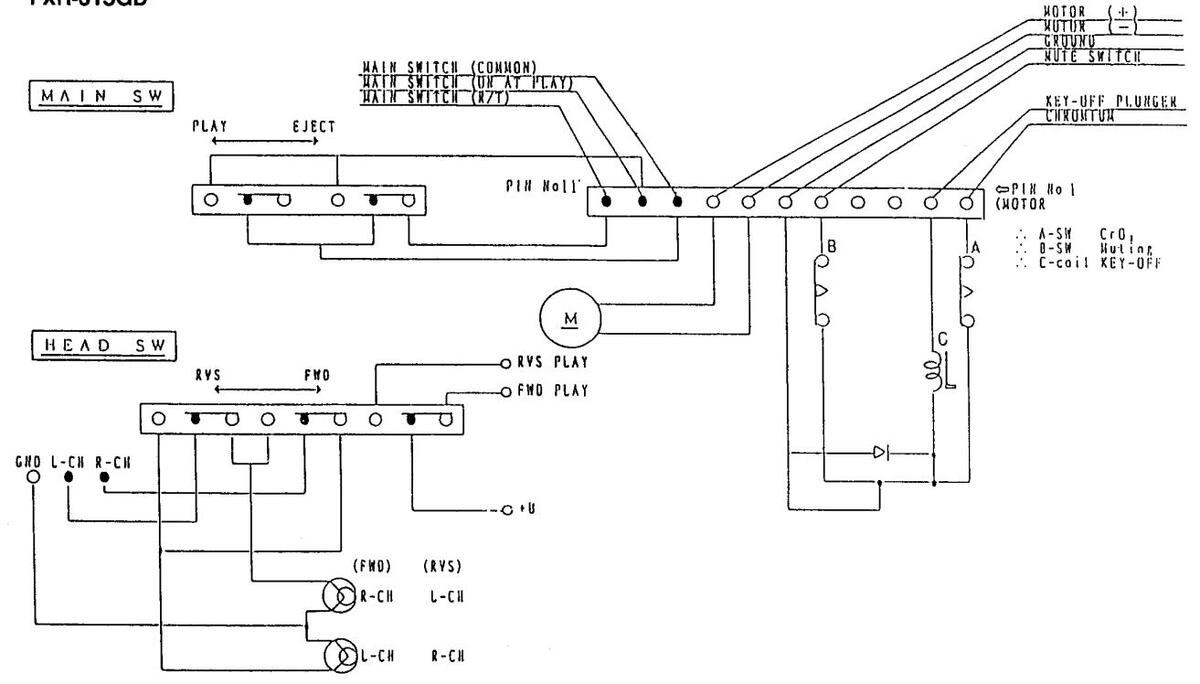

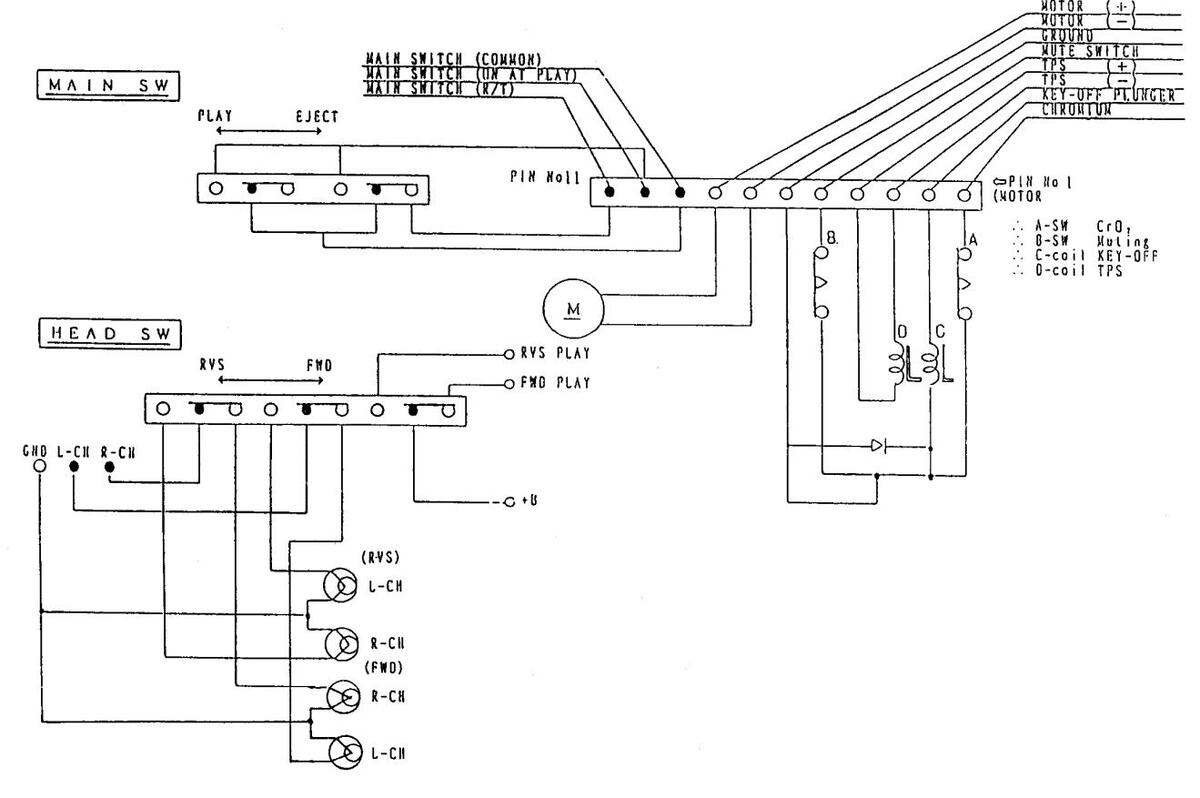

CASSETTE MECHANISM SW P.C.B.

FXC-425GD FXC-415GD

FXR-315GD

-24--

Page 19


No.	CONDITION	Е	C	В	No.	CONDITION	Е	С	В	No.	CONDITION	E	С	в	No.	CONDITION	E	С	в	No.	CONDITION
0001	RADIO FM	8.9	8.9	0.9	0202	DURING SEARCH	0	0	0.9	0240	PLAY	12.6	0	12.3	0407	MUTE ON	0	0	0.8	0704	POWER SW ON
QUUT	RADIO AM	9.1	0	9.1	9202	-	0	0	0	0240	AMSS	0	12.8	0	Q407	MUTE OFF	0	0	0	Q704	POWER SW OFF
0002	RADIO FM 98.1MHz	0	3.3	1.2	0204	TAPE MODE	0	0.1	4.5	0241	PLAY	0	12.3	0	0701	POWER SW ON	12.8	12.8	12.1	0705
QUUL	RADIO AM 999KHz	0	4.7	1.2	GZ 04	RADIO MODE	0	12.3	0	9241	AMSS	0	0	0.7	GIUI	POWER SW OFF	13.2	0	13.1	0105	-
0201	DURING SEARCH	0	0	0.9	0205	TAPE MODE	12.4	12.4	12.2	0406	MUTE ON	0	0,	0.8	0702	POWER SW ON	0	0	4.6	0706	ACC ON
GLUT	-	0	0	0	9200	RADIO MODE	12.8	0.5	12.3		MUTE OFF	0	0	0	0102	POWER SW OFF	0	13.1	0	Q100	ACC OFF

Page 20

RADIO SIGNAL

Lch SIGNAL Rch SIGNAL


E	С	В	No.	CONDITION	Ε	С	В	No.	CONDITION	Е	С	в
9.0	12.0	9.6	0708	ACC ON	4.8	4.8	0.1	0711	POWER SW ON	12.8	12.8	12.
0	0	0	0,000	ACC OFF	4.9	0	4.9	Gern	POWER SW OFF	13.2	0	13.
10	10.0	E A	0709	ACC ON	4.8	4.8	0	0712	POWER SW ON	0	12.1	4.6
4.0	12.0	5.4	Q/05	ACC OFF	4.9	0.6	4.9	GITZ	POWER SW OFF	0	13.1	0
0.1	0	0.7	0710	MUTE ON	1.26	0.8	0
0	4.9	0	Ge/ 10	MUTE OFF	0	0	5.0
	E 9.0 0 4.8 0.1 0	E C 9.0 12.0 0 0 4.8 12.0 0.1 0 0 4.9	E C B 9.0 12.0 9.6 0 4.8 12.0 5.4 0.1 0 0.7 0 4.9 0	E C B No. 9.0 12.0 9.6 Q708 0 Q709 4.8 12.0 5.4 Q709 0.1 0 0.77 Q710	E C B No. CONDITION 9.0 12.0 9.6 Q708 ACC ON 0 ACC ON ACC OFF 4.8 12.0 5.4 Q709 ACC OFF 0.1 0 0.7 Q710 MUTE ON 0 4.9 0 Q710 MUTE OFF	E C B No. CONDITION E 9.0 12.0 9.6 Q708 ACC ON 4.8 0 ACC OFF 4.9 4.8 12.0 5.4 Q709 ACC OFF 4.9 0.1 0 0.7 Q710 MUTE ON 1.26 0 4.9 0 Q710 MUTE OFF 0	E C B No. CONDITION E C 9.0 12.0 9.6 Q708 ACC ON 4.8 4.8 0 Q708 ACC OFF 4.9 0 4.8 12.0 5.4 Q709 ACC OFF 4.9 0.6 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 4.9 0 Q710 MUTE OFF 0 0	E C B No. CONDITION E C B 9.0 12.0 9.6 Q708 ACC ON 4.8 4.8 0.1 0 ACC OFF 4.9 0 4.9 4.8 12.0 5.4 Q709 ACC OFF 4.9 0.6 4.9 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 0 4.9 0 7.10 MUTE OFF 0 0 5.0	E C B No. CONDITION E C B No. 9.0 12.0 9.6 Q708 ACC ON 4.8 4.8 0.1 Q711 0 ACC OFF 4.9 0 4.9 Q711 4.8 12.0 5.4 Q709 ACC OFF 4.9 0.6 4.9 Q712 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 0 4.9 0 7.10 MUTE OFF 0 0 5.0	E C B No. CONDITION E C B No. CONDITION 9.0 12.0 9.6 Q708 ACC ON 4.8 4.8 0.1 Q711 POWER SW ON 0 ACC OFF 4.9 0 4.9 Q711 POWER SW OFF 4.8 12.0 5.4 Q709 ACC OFF 4.9 0.6 4.9 Q712 POWER SW OFF 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 Q712 POWER SW OFF	E C B No. CONDITION E C B No. CONDITION E 9.0 12.0 9.6 Q708 ACC ON 4.8 4.8 0.1 Q711 POWER SW ON 12.8 0 ACC OFF 4.9 0 4.9 Q711 POWER SW OFF 13.2 4.8 12.0 5.4 Q709 ACC ON 4.8 4.8 0 Q712 POWER SW ON 0 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 POWER SW OFF 0 0 4.9 0.5.0 POWER SW OFF 0	E C B No. CONDITION E C B No. CONDITION E C B No. CONDITION E C B No. CONDITION E C B No. CONDITION E C B No. CONDITION E C B No. CONDITION E C 9.0 12.0 9.6 Q708 ACC OFF 4.8 0.4 Q711 POWER SW ON 12.8 12.8 0 4.8 12.0 5.4 Q709 ACC ON 4.8 4.8 0 Q712 POWER SW ON 0 12.1 0.1 0 0.7 Q710 MUTE ON 1.26 0.8 0 13.1 0 4.9 0 Q710 MUTE OFF 0 0 5.0 0 13.1

Pin	VOLTAGE(V)	CONDITION
1	1.3	TAPE MODE
2	0.8	TAPE MODE
3	3.0	TAPE MODE
4	8.2	TAPE MODE
5	0	TAPE MODE
6	3.0	TAPE MODE
7	0.8	TAPE MODE
8	1.3	TAPE MODE

VOLTAGE(V)

10203
Pin	VOLTAGE(V)	CONDITION
1	4.3	-
2	9.0	mos
3	4.6	-
4	4.0	-
5	2.3/0.5	DOLBY ON/DOLBY OFF
6	4.2	-
7	1.6/1.3	DOLBY ON/DOLBY OFF
8	4.3
9	4.3	- **
10	1.6/1.3	DOLBY ON/DOLBY OFF
11	4.3	-
12	0.5
13	0.9	_
14	4.2	/
15	0
16	4.3

IC301
Pin	VOLTAGE(V)	CONDITION
1~13	4.5
14	8.2	-
15~20	4.5	-
01	4.8	NOMAL
21	0	MUTE
22~25	3.8
26	0	·
07	H=5.0
21	L=0	DATAINPUT
	H=5.0
20	L=0	CLOCK INFUT
29	4.9	-
30	8.8
31	0	-
32	4.5	-

Pin	VOLTAGE(V)
1~2	6.4
3	12.8
4~6	0.7
7	4.6
8	0
9~10	0
11~12	0.7
13	12.8
14~15	6.5

Pin VOLTAGE(V) CONDITION 1 2.4 CLOCK 2 0 GND 3 0 - 4 5.0 E-VOL DATA 5 5.0 E-VOL DATA 6 0 AF-MUTE 7 0 NC 8 0 NC 9 H=5.0 IF-REQ(SEEK) 9 L=0 (LOCK) 10 0 NC 11 L=5.0 MS-OUT 12 H=5.0 IF-REQ(SEEK) 11 L=0 MS-OUT 12 H=5.0 MCC 13 L=0 MS-OUT 14 0 NC 15 0 LOCK 16 0 SD-IN(SEEK) 19 0/5.0 P-ANT(TAPE/RADIC 17 0 - 20 L=0 - 21 H=5.0 ACC OF 22		10001
Image: 1 1 2.4 CLOCK 2 0 GND 3 0 - 4 5.0 E-VOL DATA 0 - - 5 0 - 6 0 AF-MUTE 6 0 AF-MUTE 7 0 NC 8 0 NC 9 L=0 I/FREQ(SEEK) 10 0 NC 11 H=5.0 TAPE+B 12 L=0 ML-OUT 13 H=5.0 ML-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 SD-IN(SEEK) 16 0 ST-IN 17 0 - 18 5.0 PANT(TAPE/RADIG) 20 L=0 ACC ON 21 L=0		Pin	VOLTAGE(V)	CONDITION
1 2.0 GND 3 0		1	24	CLOCK
2 0 GNU 3 0 - 4 5.0 E-VOL DATA 0 - - 5 0 - 6 0 AF-MUTE 7 0 NC 8 0 NC 9 L=0 IP-REQ(SEEK) 10 0 NC 11 L=0 MS-OUT 12 L=0 IAPE+B 13 L=0 MCCK) 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 0FF 18 5.0 DOLBY-SW 0FF 18 5.0 CD-IN 22 L=0 - 23 H=5.0 ACC OF 24 0 NC 25 0 NC 26 5.0 SYS-ON 28 0			0	CND
3 4.8 P-IOL STAND BY 4 5.0 E-VOL DATA 5 5.0 E-VOL CLK 5 0			10
0 0 - 4 5.0 E-VOL DATA 5 5.0 E-VOL CLK 5 0 - 6 5.0 NOT MUTE 7 0 NC 8 0 NC 9 H=5.0 IF-REQ(SEEK) 10 0 NC 11 H=5.0 MS-OUT 12 L=0 CCK(X) 13 H=5.0 MT-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 15 0 LOCK 16 0 ST-IN 17 5.0 MS-IN(SEEK) 0FF 18 5.0 DOLBY-SW 0FF 18 5.0 DOLBY-SW 0FF 12 L=0 - 22 L=0 - - 23 GEO OFF 23 24 0		3	4.8	P-IC STAND BY
4 5.0 E-VOL DATA 5 5.0 E-VOL CLK 6 0 AF-MUTE 7 0 NC 8 0 NC 9 H=5.0 IF-REQ(SEEK) 9 L=0 (LOCK) 10 0 NC 11 L=0 MS-OUT 12 L=0 MS-OUT 11 L=0 MS-OUT 12 L=0 MS-OUT 14 0 NC 13 L=0 MTL-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0.0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPERADIC 0FF 20 L=0 - 21 H=5.0 ACC OF 22 0 NC 25 23 H=5.0 SVS-ON			0	-
4 0 - 5 5.0 E-VOL CLK 0 AF-MUTE 7 0 NC 8 0 NC 9 H=5.0 IF-REQ(SEEK) 10 0 NC 11 H=5.0 IF-REQ(SEEK) 12 L=0 (LOCK) 13 L=0 MS-OUT 14 0 NC 13 L=0 MI-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 0FF 19 0/5.0 P-ANT(TAPE/RADIC 19 0/5.0 P-ANT(CD MOD 20 L=6.0 - 21 L=0 - 22 0 NC 23 L=0 - 24 0 NC 25 0 NC			5.0	E-VOL DATA
5 5.0 E-VOL CLK 6 0 AF-MUTE 7 0 NC 10 0 NC 9 H=5.0 IF-REQ(SEEK) 9 L=0 (LOCK) 10 0 NC 11 L=0 MS-OUT ECT 12 L=0 11 L=0 MS-OUT ECT 12 L=0 13 L=0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/ADIC) 12 L=0 - 22 L=0 - 23 H=5.0 CD-IN 24 0 NC 25 0 NC 26 0 S2 27 5.0 FF/REW		4	0	_
5 0.0 L=VOLULE 6 0.0 AF-MUTE 7 0 NC 10 0 NC 11 H=5.0 IF-REQ(SEEK) 12 L=0 (LOCK) 11 H=5.0 MS-OUT 12 L=0 MS-OUT 13 L=0 MS-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 16 0 ST-IN 17 5.0 DOLBY-SW 0FF 19 0/5.0 P-ANT(TAPE/RADIC 18 5.0 DOLBY-SW 0FF 20 L=0 - 21 H=5.0 ACC OF 22 0 NC 2 23 L=0 - 24 0 NC 25 0 NC 26 0 FF/REW 28 5.0 FK/REV	-		5.0	E-VOL CLK
0 AF-MUTE 6 5.0 NOT MUTE 7 0 NC 10 0 NC 9 L=0 IF-REQ(SEEK) 11 H=5.0 IF-REQ(SEEK) 12 L=0 MS-OUT 11 H=5.0 MS-OUT 12 L=0 MS-OUT 13 L=0 MTL-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 ACC ON 21 L=0 - 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 Ff/REW 33 0 AREA CODE		5	0.0	LIVOLOLIK
6 0 AA-MUTE 7 0 NOT MUTE 8 0 NC 9 L=0 IF-REQSEEK) 10 0 NC 11 L=0 IF-REQSEEK) 12 L=0 ICOCK) 11 L=0 MS-OUT IECT 12 L=0 13 L=0 MS-OUT IECT 12 L=0 13 L=0 MIL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 18 5.0 DOLBY-SW 0FF 18 5.0 DOLBY-SW 0FF 18 5.0 CD-IN 20 L=0 - - 21 L=0 - - 22 0 NC 2 23 L=0 - - 24	- 5.		0
0 5.0 NOT MUTE 7 0 NC 7 0 NC 9 L=0 IV 9 L=0 ICOK 10 0 NC 11 L=0 MS-OUT 12 L=5.0 TAPE+B 13 L=0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 0FF 18 5.0 DOLBY-SW 19 0'5.0 P-ANT(TAPE/RADIC) 10 - - 12 L=0 - 18 5.0 DOLBY-SW 19 0'5.0 P-ANT(TAPE/RADIC) 20 L=0 - 21 L=0 - 22 L=0 - 23 L=0 - 24 0 NC 25 0		6	0	AF-MUTE
T 0 NC 8 0 NC 9 L=50 IF-REQ(SEEK) 10 0 NC 11 L=0 ICCK) 12 L=0 TAPE+B 13 L=0 MS-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 ML-OUT 18 5.0 DOLBY-SW 0FF 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 - 21 L=0 - 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 SPS-ON 28 5.0 FF/REW 28 0 FF/REW 29 5.0 SIT 30 0		0	5.0	NOT MUTE
ECT 8 0 NC 9 L=0 IF-REQ(SEEK) 9 L=0 (LOCK) 10 0 NC 11 L=0 MS-OUT ECT 12 H=5.0 TAPE+B 13 H=5.0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPERADIC 20 L=0 - 21 H=5.0 AUX-IN(CD MOD) 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 5.0 AREA CODE 33 0 AREA CODE		7	0	NC
Ect 9 L=0 IF-REQ(SEEK) 9 L=0 (LOCK) 10 0 NC 11 L=0 MS-OUT 12 L=0 TAPE+B 13 L=0 TAPE+B 13 L=0 ML-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 0FF 18 5.0 ACC OFF 20 L=0 ACC OF 21 L=0 - 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 FF/REW 28 5.0 FWD/REV 29 0 TAPE-IN 30 0 METAL-IN 31 5.0 S19 36	TOT	0	0	NIC
9 H=5.0 IP-REG(SEEK) 10 0 NC 11 H=5.0 MS-OUT 12 L=0 TAPE+B 13 L=0 ML-OUT 14 0 NC 15 0 LOCK 16 0 SD-IN(SEEK) 17 5.0 SD-IN(SEEK) 18 5.0 DOLBY-SW 19 0'5.0 P-ANT(TAPE/RADIC 19 0'5.0 P-ANT(CAPERADIC 20 L=0 - 21 L=0 - 22 H=5.0 ACC OF 21 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 FF/REW 28 5.0 FWD/REV 29 0 AREA CODE 33 0 AREA CODE 34	EUT
L CLCCK) 11 H=5.0 MS-OUT 11 H=5.0 MS-OUT 12 H=5.0 TAPE+B 13 L=0 TAPE+B 13 L=0 MTL-OUT 14 0 NC 14 0 SO 15 0 LOCK 16 O ST-IN 17 0 - - 16 O ST-IN 17 0 - - 0 - - 18 5.0 DOLDEY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 H=5.0 ACC OF 20 L=0 - - 23 L=0 - 24 0 NC 21 L=0 - - 24 0 NC 25 0 NC 22 D NC - 30 0 METAL-IN 31 5.0	ECT	9	H=5.0	IF-REQ(SEEK)
10 0 NC 11 H=5.0 MS-OUT 12 L=0 TAPE+B 13 H=5.0 TAPE+B 13 H=5.0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 17 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 - 21 H=5.0 ACC OFF 20 L=0 - 21 H=5.0 GC-IN 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 FF/REW 28 5.0 FWD/REV 29 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0		1000	L=0	LOCK)
I1 H=5.0 L=0 MS-OUT I2 H=5.0 L=0 TAPE+B 13 L=0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC) 20 L=0 ACC ON 21 H=5.0 AUX-IN(CD MODIC) 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 S21 36 0 LEVEL MUTE 37	1.4	10	0	NC
ECT ECT ECT 11 L=0 MS-OUT 12 H=5.0 TAPE+B 13 H=5.0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 18 5.0 DOLBY-SW 0FF 18 5.0 DOLBY-SW 20 L=0 ACC OFF 21 L=0 - 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 FF/REW 28 5.0 FWD/REV 29 0 METAL-IN 30 0 METAL-IN 31 5.0 S19 32 5.0 AREA CODE 33 0 AREA CODE 33 0 S17~S1(LCD DAT			H=5.0
Loi Leo TAPE+B 12 L=0 TAPE+B 13 L=0 MTL-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 ACC OFF 20 L=0 - 21 H=5.0 CD-IN 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 Ff/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 0 S19	ECT	11	L=0	1 MS-001
EUT 12 L=0 TAPE+B 13 L=0 MTL-OUT 14 0 NC 15 0 LOCK 16 0 ST-IN 17 0 - 18 5.0 DOLOK 20 H=5.0 ACC OFF 20 H=5.0 ACC ON 21 L=0 - 22 L=0 ACC ON 21 L=0 - 23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 Ff/REW 28 5.0 FWD/REV 29 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 32 5.0 S19 33 0 AREA CODE 33 0 AREA CODE 33	TOT		H-5.0
LEU L=0 MTL-OUT 13 L=0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 17 0 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 - 21 H=5.0 ACC OFF 22 H=5.0 CD-IN 23 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0	EUI	12	1 0	TAPE+B
13 H=5.0 L=0 MTL-OUT 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 LOCK 16 0 ST-IN 17 5.0 MS-IN 18 5.0 DOLDK'SW 19 0'5.0 P-ANT(TAPE/RADIC 20 L=0 ACC ON 21 H=5.0 AUX-IN(CD MODIC 22 L=0 - 23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVE MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT.	ECT		L=U
13 L=0 MILLON 14 0 NC 15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 17 0 - 18 5.0 DOLBY-SW 0FF 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 ACC OFF 21 H=5.0 ACC OF 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 SYS-ON 24 0 NC 25 0 NC 26 0 FF/REW 28 5.0 FWD/REV 29 0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0		12	H=5.0	MTLOUT
14 0 NC 15 5.0 SD-IN(SEEK) 16 0 LOCK 16 0 ST-IN 17 5.0 MS-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 L=0 ACC ON 21 H=5.0 AUX-IN(CD MOD) 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FK/REW 28 0 FK/REW 28 0 FK/REW 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0		15	L=0	I WITE-001
15 5.0 SD-IN(SEEK) 16 0 ST-IN 17 5.0 MS-IN 17 5.0 MS-IN 17 0 - 18 5.0 DOLBY-SW 20 L=0 ACC OFF 20 L=0 ACC ON 21 H=5.0 AUX-IN(CD MOD) 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 0 Ff/REW 28 0 FWD/REV 29 0.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 S21	\|	14	0	NC
15 0.0 LOCK 16 0 ST-IN 17 0.0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 H=5.0 ACC OFF 20 H=5.0 ACC OFF 21 H=5.0 CD-IN 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 F/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CD-DO 66 32 Vdd 1 61			50	SD-IN(SEEK)
J J LOCK 16 0 STIN 17 5.0 MS-IN 17 0 - 20 L5.0 PANT(TAPE/RADIC 20 L=0 ACC OFF 20 L=0 ACC ON 21 L=0 ACC ON 22 L=0 - 23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FF/REW 29 0 TAPE-IN 30 0 METAL-IN 30 0 METAL-IN 31 5.0 S21 32 5.0 AREA CODE 33 0 AREA CODE 33 0 S12 36 0 S21 36 0 S21 37 0 -<		15	0.0
16 ∪ ST-IN 17 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 H=5.0 ACC OFF 20 H=5.0 AUX-IN(CD MODD 21 L=0 - 22 L=0 - 23 H=5.0 SYS-ON 23 L=0 - 23 H=5.0 SYS-ON 23 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 S19 37			0
17 5.0 MS-IN 0FF 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC 20 H=5.0 ACC OFF 20 L=0 ACC ON 21 H=5.0 AUX-IN(CD MODD 22 L=0 - 23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 S19 0 - - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1		16	0	ST-IN
OFF 1 0 - 18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC) 19 0/5.0 P-ANT(TAPE/RADIC) 10 ACC OFF 20 L=0 ACC OF 10 10 ACC OF 21 L=5.0 ACC OF 10 21 L=0 - - 10 - 10		17	5.0	MS-IN
18 5.0 DOLBY-SW 19 0/5.0 P-ANT(TAPE/RADIC) 20 H=5.0 ACC OFF 20 L=0 ACC ON 21 L=0 ACC ON 22 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 Ff/REW 28 0 FWD/REV 29 0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CM3-COMILCD DAT 56~58 0 CD-DO 63 L=0 STAND BY OFF	OFF	r _ U c i.,	0	-
10<		18	5.0	DOLBY-SW
19 0.5.0 F-MILLAPERADIA 20 H=5.0 ACC OFF 21 H=5.0 AUX-IN(CD MODD) 21 L=0 - 22 L=0 - 23 H=5.0 SYS-ON 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 F/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CD-DO 61 5.0/0 FMAM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF		10	0/5.0
20 H=5.0 ACC OFF 21 L=0 ACC ON 21 L=0 - 22 L=0 - 22 L=0 - 23 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FF/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 S117 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 59 1.6	OFF	19		ACC OFF
Image: bit of the second se		20	H=5.0	AUGUEF
PFF 21 H=5.0 AUX-IN(CD MOD) 22 L=0 - 23 H=5.0 SYS-ON 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FF/REW 28 0 METAL-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT) 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FMAM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM			L=0	ACC ON
21 L=0 - 22 H=5.0 CD-IN 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 S17~S1(LCD DAT) 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 S17~S1(LCD DAT) 59 1.6 Vdd 2 60 3.2	OFF		H=5.0	AUX-IN(CD MODE)
22 H=5.0 CD-IN 23 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 Ff/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 0 C0M3~COMILCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN		21	L=0	andraga j er j
22 L=0 - 23 L=0 - 23 L=0 - 24 0 NC 25 0 NC 26 0.0 FF/REW 27 0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AMS3 35 0 S21 36 0 LEVEL MUTE 37 5.0 S17~S1(LCD DAT, 56~58 0 C0M3~COMILCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FMAM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67			H=5.0	CD-IN
L=0 - 23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 0 F/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 S21 36 0 LEVEL MUTE 36 0 LEVEL MUTE 37 0 - 38 H=5.0 DOLBY ON/OFF 39~55 0 S19 37 0 - 38 H=5.0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CD-DO 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 <		22	1.0	00-114
23 H=5.0 SYS-ON 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 5.0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FMAM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY				-
20 L=0 - 24 0 NC 25 0 NC 26 0 BEEP(3kHz) 27 0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56 5.0 S0 57 0 STAND BY OFF 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM-IN		23	H=5.0	SYS-ON
24 0 NC 25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 0 TAPE-IN 30 0 METAL-IN 31 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT 56~58 0 COM3~COM1(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FMAM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF		20	L=0	-
25 0 NC 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S19 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 5.0 C0M3~C0MI(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FMAM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC		24	0	NC
26 0 Ref 26 5.0 BEEP(3kHz) 27 5.0 FF/REW 28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 0 COM3~COMILCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM-IN 69 4.8 ACC-IN 70 0 NC	ا لت	25	0	NC
26 3.0 BEEP(3kHz) 27 5.0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AREA 35 0 S21 36 0 LEVEL MUTE 37 5.0 S19 0 - - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT, 56~58 0 C0M3~c0M1(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 CDM3~c0M1(LCD DAT, 59 1.6 Vdd 2 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 <		20	50
0 FF/REW 27 0 FF/REW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CD-DO 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72		26	0.0	BEEP(3kHz)
27 5.0 0 FF/REW 28 5.0 0 FWD/REV 29 5.0 0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 AREA CODE 35 0 S21 36 0 LEVEL MUTE 37 5.0 S19 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT 56~58 0 C03~c0M1(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FMAM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM-IN 69 4.8			0
27 0 THALW 28 5.0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AREA CODE 35 0 S21 36 0 LEVEL MUTE 37 5.0 S19 37 5.0 S17 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 5.0 COM3~COM1(LCD DAT 56 5.0 S17~S1(LCD DAT. 56 5.0 CD-DO 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM-IN 69 4.8		07	5.0
28 5.0 0 FWD/REV 29 5.0 0 TAPE-IN 30 0 METAL-IN 31 5.0 32 5.0 0 AREA CODE 32 5.0 33 AREA CODE 33 0 AREA CODE 34 5.0 35 AREA CODE 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 5.0 5.0 S17~S1(LCD DAT, 56~58 0 CD-DO 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72		21	0
28 0 FWD/REV 29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 5.0 S19 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 5.0 C0M3~C0MI(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-*3.3 SM-IN 69 4.8 ACC-IN 70 0 NC			5.0
29 0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AREA CODE 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 CM3~COMILCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET		28	0	FWD/REV
29 5.0 TAPE-IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT, 56~58 0 C0M3~C0MI(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd <			5.0	and the second sec
10 0 IM L IN 30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 H=5.0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT 56~58 0 COM3~COM1(LCD DAT 56 5.0 STAND BY OFF 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-4:3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET		29	5.0	TAPE-IN
30 0 METAL-IN 31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 5.0 S19 0 - - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT, 56~58 0 C0M3~cOM1(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FMAM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET <		20	0
31 5.0 VDD 32 5.0 AREA CODE 33 0 AREA CODE 34 5.0 AREA CODE 34 5.0 AREA CODE 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 5.0 COM3~COM1(LCD DAT. 56~58 0 COM3~COM1(LCD DAT. 56 5.0 S17~S1(LCD DAT. 56 5.0 COM3~COM1(LCD DAT. 56 5.0 COM3~COM1(LCD DAT. 56 0 COM3~COM1(LCD DAT. 56 0 COM3~COM1(LCD DAT. 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY		30	0	METAL-IN
32 5.0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 33 0 AREA CODE 34 5.0 AMEA CODE 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT, 56~58 0 COM3~COM1(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RE		31	5.0	VDD
J2 J30 AREA CODE 33 0 AREA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 56~58 0 COM3~COMI(LCD DAT, 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-*3.3 SM-IN 69 4.8 ACC-IN 70 0 NC		20	5.0	APEACODE
33 0 AHEA CODE 34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 0 COM3~COMILCD DAT. 56~58 0 COM3~COMILCD DAT. 56 5.0 COM3~COMILCD DAT. 56 0 CD-DO 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3		00	5.0	AREACODE
34 5.0 AMSS 35 0 S21 36 0 LEVEL MUTE 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT, 56~58 0 COM3~COM1(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FM/AM TAPE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	_	33	U	AREA CODE
35 0 $$21 36 0 LEVEL MUTE 37 0 - 38 H=5.0 DOLBY ON/OFF 39~55 0 $17~$1(LCD DAT. 56~58 0 COM3~COMILCD DAT. 56~58 0 COM3~COMILCD DAT. 60 3.2 Vdd 1 61 6.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	Ed th	34	5.0	AMSS
36 0 LEVEL MUTE 37 5.0 S19 37 0 - 38 L=0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 0 COM3~COM1(LCD DAT. 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 CD-DO 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		35	0	S21
37 5.0 S19 37 0 - 38 H=5.0 DOLBY ON/OFF 39~55 0 S17~S1(LCD DAT. 56~58 0 COM3~COM1(LCD DAT. 56~58 0 COM3~COM1(LCD DAT. 56 5.0 S17~S1(LCD DAT. 56 0 COM3~COM1(LCD DAT. 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76		36	0	LEVEL MUTE
37 3.9 319 38 H=5.0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT, 56~58 0 S17~S1(LCD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			50	S10
U − 38 H=5.0 L=0 DOLBY ON/OFF 39~55 5.0 S17~S1(LCD DAT. 56~58 5.0 COM3~COM1(LCD DAT. 56~58 0 COM3~COM1(LCD DAT. 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		37	0.0	618
38 H=5.0 L=0 DOLBY ON/OFF 39~55 5.0 $17~$1(LCD DAT, 56~58 0 56~58 0 COM3~COM1[LCD DAT, 59 1.6 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			0	-
39~55 0 S17~S1(LCD DAT, 56~58 0 com3~com1(LcD DAT, 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND		28	H=5.0	DOLBY ON/OFF
39~55 5.0 0 S17~S1(LCD DAT, S17~S1(LCD DAT, 0 56~58 0 COM3~COM1(LCD DAT, 0 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			L=0
39~55 0 S1/~S1(LCD DAT) 56~58 0 COM3~COM1(LCD DAT) 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		00	5.0	017. 01/1 0D DATA
56~58 5.0 COM3~COM1(LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4-+3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		39~55	0	SI/~SI(LCD DATA)
56~58 0 COM3~COM1LCD DAT 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.00 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			50
U 59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		56~58		COM3~COM1(LCD DATA)
59 1.6 Vdd 2 60 3.2 Vdd 1 61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65 67 4.8 KEY1, KEY2, KEY 68 0.4-3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			U
60 3.2 Vdd 1 61 6.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		59	1.6	Vdd 2
61 5.0/0 FM/AM TAPE 62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	2.80	60	3.2	Vdd 1
62 0 MODE CHANGE 63 H=5.0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	1	61	5.0/0	FM/AM TAPE
61 H=5.0 CD-DO 63 L=0 CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		62	0	MODE CHANGE
63 I.I.S.G CD-DO 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			H-5.0
L=0 STAND BY OFF 64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		63	1 - 0.0	CD-DO
64 0 STAND BY OFF 65~67 4.8 KEY1, KEY2, KEY 68 0.4~3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			L=U	OT UND DU OF
65~67 4.8 KEY1, KEY2, KEY 68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		64	0	STAND BY OFF
68 0.4→3.3 SM-IN 69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		65~67	4.8	KEY1, KEY2, KE Y3
69 4.8 ACC-IN 70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		68	0.4→3.3	SM-IN
70 0 NC 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	- 57	69	4.8	ACC-IN
70 0 NO 71 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		70	0	NC
/1 2.4 AM-IF 72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	·		0.1
72 4.8 RESET 73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0			2.4	AM-IF
73 4.8 Vdd 74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		72	4.8	RESET
74 2.3 FM MODE 75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0	1	73	4.8	Vdd
75 2.3 AM MODE 76 0 Vss/GND 77 1.25 E0		74	2.3	EM MODE
75 2.5 Aim MODE 76 0 Vss/GND 77 1.25 E0		75	23
76 0 Vss/GND 77 1.25 E0		10	2.0
77 1.25 E0		/6	U	VSS/GND
		77	1.25	E0
78 0 NC		78	0	NC
79 0 GND		79	0	GND
		80	21	CLOCK
L OU \| 2.4 \| ULUUK		00	۷.4	ULUUN

MEASUREMENT CONDITIONS 1.POWER SUPPLY:13.2V

1.POWER SUPPLY:13.2V 2.MEASUREMENT INSTRUMENT:DC VOLTMETER OSCILLOSCOPE

:SP OUTPUL 0.6w (1.4Vms,4ohms) :TAPE:1KHz,-10dB.TEST TAPE :FM:83MHz,54dB μ V,1KHz30% :AM:999KHz,74dB μ V,400Hz30%

OSCILLOS 3.MEASURE CONDITION:DCV(Vs GND) ·SP OUTPUT 0.6W

Page 21


No.	CONDITION	Е	С	В	No.	CONDITION	Ε	С	В	No.	CONDITION	Е	С	В	No.	CONDITION	E	С	В	No.	CONDITION	Е
0001	RADIO FM	8.9	8.9	0.9	0202	DURING SEARCH	0	0	0.9	0240	PLAY	12.6	0	12.3	0407	MUTE ON	0	0	0.8	0704	POWER SW ON	9.0
0,001	RADIO AM	9.1	0	9.1	9202	-	0	0	0	04240	AMSS	0	12.8	0	0,407	MUTE OFF	0	0	0	0104	POWER SW OFF	0
0002	RADIO FM 98.1MHz	0	3.3	1.2	0204	TAPE MODE	0	0.1	4.5	0241	PLAY	0	12.3	0	0701	POWER SW ON	12.8	12.8	12.1	0705		10
GOOZ	RADIO AM 999KHz	0	4.7	1.2	GIZ04	RADIO MODE	0	12.3	0	QZ-TT	AMSS	0	0	0.7	Groi	POWER SW OFF	13.2	0	13.1	0.705		4.0
0201	DURING SEARCH	0	0	0.9	0205	TAPE MODE	12.4	12.4	12.2	0406	MUTE ON	0	0	0.8	0702	POWER SW ON	0	0	4.6	0706	ACC ON	0.1
0201	-	0	0	0	9200	RADIO MODE	12.8	0.5	12.3	0400	MUTE OFF	0	0	0	0102	POWER SW OFF	0	13.1	0	0,00	ACC OFF	0

Page 22

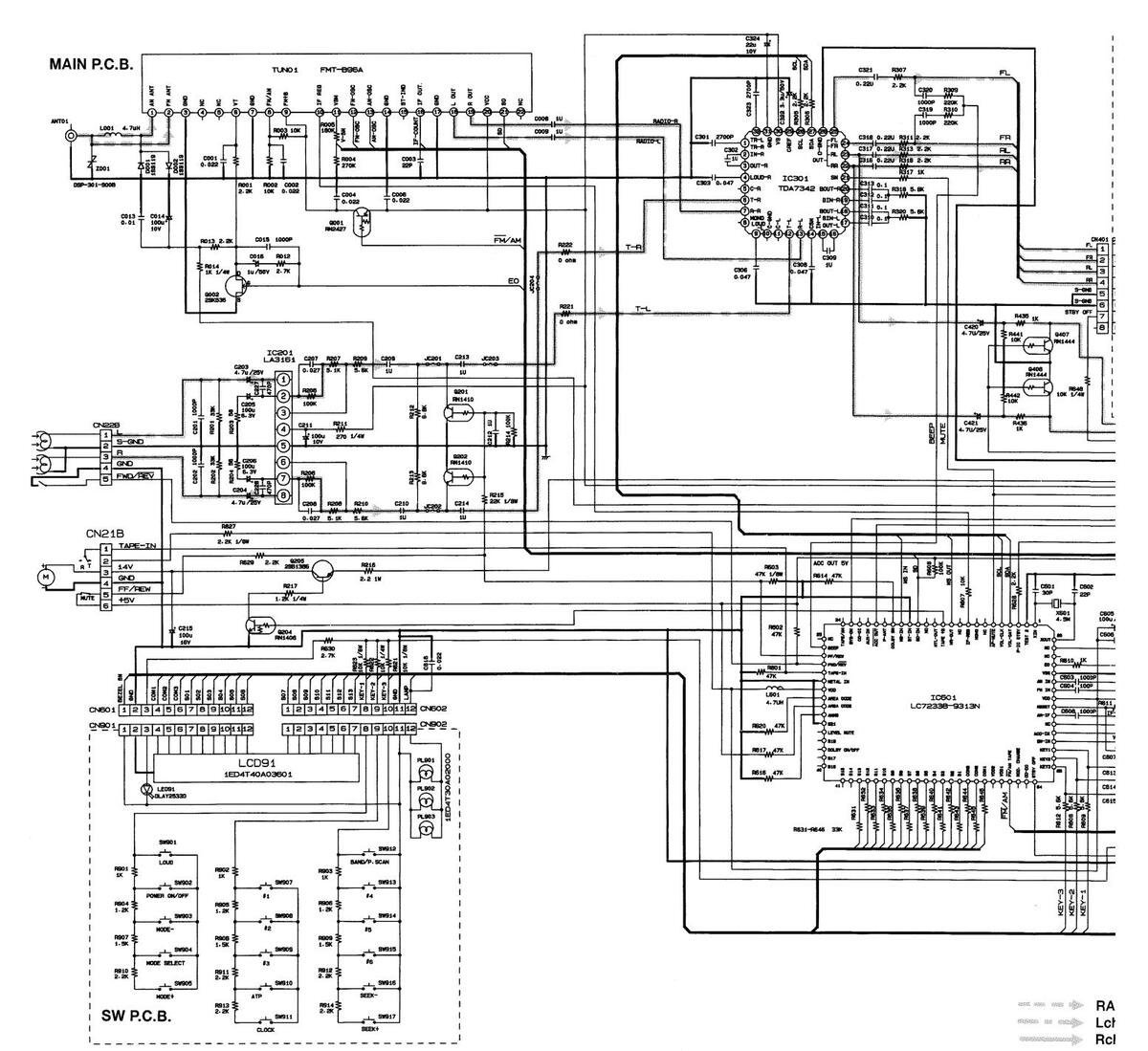

RADIO SIGNAL

Lch SIGNAL

Rch SIGNAL

ITI SV

													(•)
ON	Е	С	В	No.	CONDITION	Е	С	В	No.	CONDITION	E	С	В
N ON	9.0	12.0	9.6	0708	ACC ON	4.8	4.8	0.1	0711	POWER SW ON	12.8	12.8	12.1
VOFF	0	0	0	Q100	ACC OFF	4.9	0	4.9	Grin	POWER SW OFF	13.2	0	13.1
	10	10.0	E 4	0709	ACC ON	4.8	4.8	0	0712	POWER SW ON	0	12.1	4.6
	4.0	12.0	5.4	Q103	ACC OFF	4.9	0.6	4.9	Gr 12	POWER SW OFF	0	13.1	0
N	0.1	0	0.7	0710	MUTE ON	1.26	0.8	0
F	0	4.9	0	Gario	MUTE OFF	0	0	5.0
					and the second	-

Pin	VOLTAGE(V)	CONDITION
1	1.3	TAPE MODE
2	0.8	TAPE MODE
3	3.0	TAPE MODE
4	8.2	TAPE MODE
5	0	TAPE MODE
6	3.0	TAPE MODE
7	0.8	TAPE MODE
8	1.3	TAPE MODE

IC202 VOLTAGE(V) C

IC301
Pin	VOLTAGE(V)	CONDITION
1~13	4.5	_
14	8.2	_
15~20	4.5	60. - - 47.
01	4.8	NOMAL
21	0	MUTE
22~25	3.8	_
26	0
07	H=5.0
21	L=0	DATA INPUT
00	H=5.0
20	L=0	OLOUK INPUT
29	4.9	_
30	8.8	_
31	0
32	4.5	_

GE(V)

1	\| Z	0	GIND \|
		4.8	P-IC STAND BY
1	3	0
1		5.0	E-VOL DATA
1	4	0
		50	EVOLOIK
	5	0.0	L-VOL OLK
1		0
	6	50	AF-IVIOTE
		5.0	NOTMOTE
	- ( · ·	U	NC
	8	0	NC
1	0	H=5.0	IF-REQ(SEEK)
1	9	L=0	(LOCK)
1	10	0	NC
1		H=5.0
1	1 11	L=0	MS-OUT
1		H=5.0
1	12	1=0	TAPE+B
J	-	H-5.0
	\| 13	1-0	MTL-OUT
,	14	0	NC
		5.0
	15	5.0	SD-IN(SEEK)
		0	LOCK
	16	0	S1-IN
7.00	17	5.0	MS-IN
P.	1.02	0	-
124	18	5.0	DOLBY-SW
1 î	19	0/5.0	P-ANT(TAPE/RADIO)
1	20	H=5.0	ACC OFF
	20	L=0	ACC ON
-33-	01	H=5.0	AUX-IN(CD MODE)
	21	L=0	ter en la
		H=5.0	CD-IN
	22	L=0	-
		H=5.0	SYS-ON
	23	1-0
	24	0	NC
	25		NC
	20	5.0
	26	5.0	BEEP(3kHz)

	27	5.0	FF/BEW
		0
	28	5.0	FWD/REV
		0
ege.	20	5.0
	20	0
	30	0	METAL-IN
	31	5.0	VDD
1	32	5.0	AREA CODE
	- 33		AREA CODE
	34	5.0	AMSS
	35	0	S21
	36	0	LEVEL MUTE
		50	$19
	37 .
		H 50
	38	1.0	DOLBY ON/OFF

	39~55	0.0	S17~S1(LCD DATA)
		5.0
	56~58	5.0	COM3~COM1(LCD DATA)
		U
	59	1.6	Vdd 2
	60	3.2	Vdd 1
5	61	5.0/0	FM/AM TAPE
	62	0	MODE CHANGE
	~~	H=5.0
	63	L=0	00-00
	64	0	STAND BY OFF
	65~67	4.8	KEY1, KEY2, KEY3
	68	0.4-+3.3	SM-IN
	69	4.8	ACC-IN
1	70	0	NC
	71	24	AM-IF
	70	4.9	RESET
	70	4.0	Vdd
	13	4.0
	74	2.3
	15	2.3
	16	U
	11	1.25	EU
	/8	U	NC
	79	0	GND
	80	2.4	CLOCK

MEASUREMENT CONDITIONS 1.POWER SUPPLY:13.2V 2.MEASUREMENT INSTRUMENT:DC VOLTMETER, OSCILLOSCOPE

OSCILLOSCOPE 3.MEASURE CONDITION:DCV(Vs GND) :SP OUTPUT 0.6W (1.4Vms,4ohms) :TAPE:1KH2,-10dB.TEST TAPE :FM:83MH2,54dB µ V,1KH230% :AM:999KH2,74dB µ V,400H230%

VOLTAGE(V) CONDITION 1 2.4 CLOCK

Page 23

FXR-315GD

No.	CONDITION	Е	С	В	No.	CONDITION	Е	С	В	No.	CONDITION	Е	С	В	No.	CONDITION	Е	С	в	No.	CONDITION	Т
Q001	RADIO FM	8.9	8.9	0.9	0202	DURING SEARCH	0	0	0.9	0406	MUTE ON	0	0	0.8	0702	POWER SW ON	0	0	4.6	0706	ACC ON	t
	RADIO AM	9.1	0	9.1	QLOL	-	0	0	0	00	MUTE OFF	0	0	0	9/02	POWER SW OFF	0	13.1	0	0/100	ACC OFF	t
Q002	RADIO FM 98.1MHz	0	3.3	1.2	0204	TAPE MODE	0	0.1	4.5	0407	MUTE ON	0	0	0.8	0704	POWER SW ON	9.0	12.0	9.6	0700	ACC ON	t
	RADIO AM 999KHz	0	4.7	1.2		RADIO MODE	0	12.3	0	Q-O1	MUTE OFF	0	0	0	Q704	POWER SW OFF	0	0	0	Q/08	ACC OFF	t.
Q201	DURING SEARCH	0	0	0.9	0205	TAPE MODE	12.4 12.4 12.2 0701	POWER SW ON	12.8	12.8	12.1	2.1 0705	E				0700	ACC ON	t
	-	0	0	0	00	RADIO MODE	12.8	0.5	12.3	3,01	POWER SW OFF	13.2	0	13.1	Q100	-	4.8	12.0	5.4	0,09	ACC OFF	t

Page 24

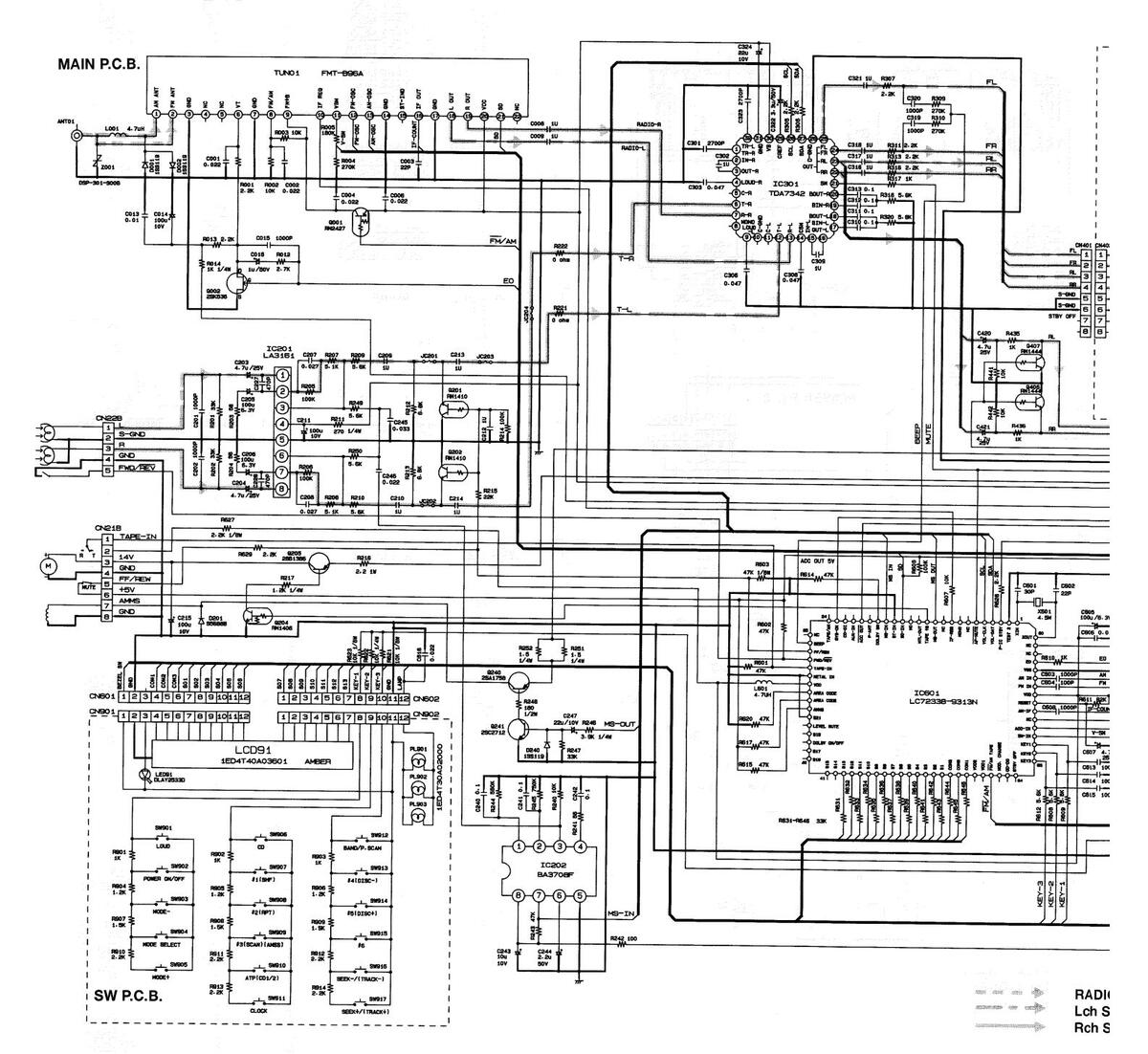

RADIO SIGNAL

Lch SIGNAL

								(v)
DITION	E	С	в	No.	CONDITION	E	С	в
CON	0.1	0	0.7	0710	MUTE ON	1.26	0.8	0
OFF	0	4.9	0	Grio	MUTE OFF	0	0	5.0
CON	4.8	4.8	0.1	0711	POWER SW ON	12.8	12.8	12.1
OFF	4.9	0	4.9	Garri	POWER SW OFF	13.2	0	13.1
CON	4.8	4.8	0	0712	POWER SW ON	0	12.1	4.6
OFF	4.9	0.6	4.9	GUIZ	POWER SW OFF	0	13.1	0

-27-Downloaded from www.Manualslib.com manuals search engine

Pin	VOLTAGE(V)	CONDITION
1	1.3	TAPE MODE
2	0.8	TAPE MODE
3	3.0	TAPE MODE
4	8.2	TAPE MODE
5	0	TAPE MODE
6	3.0	TAPE MODE
7	0.8	TAPE MODE
8	1.3	TAPE MODE

10001
Pin	VOLTAGE(V)	CONDITION
1~13	4.5	-
14	8.2
15~20	4.5	-
01	4.8	NOMAL
21	0	MUTE
22~25	3.8	_
26	0	-
07	H=5.0
21	L=0
00	H=5.0	CLOCK INPUT
28	L=0	CLOCK INPUT
29	4.9	_
30	8.8	-
31	0	-
32	4.5	-

Pin	VOLTAGE(V)
1~2	6.4
3	12.8
4~6	0.7
7	4.6
8	0
9~10	0
11~12	0.7
13	12.8
14~15	6.5

10001
Pin	VOLTAGE(V)	CONDITION

	2.4	LOCK
2	0	GND
	10	DICCTAND
2	4.8	P-IC STAND BY
5	0
	5.0	EVOL DATA
4	5.0	E-VOL DATA
-	0	-
	5.0	E VOL OUK
5	5.0	E-VOL CLK
5	0	-
	0
6	0
0	50	NOT MUTE
		NOTMOTE
1	U	NC
8	0	NC
		NO
	H=5.0	\| IF-REQ(SEEK)
9	1-0	(LOCK)
10	2=0
10	0	NC NC
	H=5.0
11	11=010	H MS-OUT
	L=U
	H=5.0
12		- TAPE+B
	L=0
	H-5.0
13	11=0:0	H MTL-OUT
	L=U
14	0	NC
	E C
15	5.0	SD-IN(SEEK)
1 15	0	LOCK
1 40	č
16	U U	SI-IN
	5.0	MS-IN
\| 17		100-11
		-
18	50	DOLBY-SW
	0/5.0	DANTITADE DIST.
\| 19	0/5.0	P-ANI (TAPE/RADIO)
	H=5.0	ACC OFF
20	10.0	1000011
	L=0	L ACC ON
	H-5.0	ALIX-IN(CD MODE)
21	11=0:0	NON IN(OD NIODE)
	L=0	-
	H-5.0	CD-INI
22	11=010	00 11
	L=0	-
	H=5.0	SYS-ON
23	11=0.0	010-011
	L=0	-
24	0	NC
24	0	INC .
25	0	NC NC
	5.0
26	0.0	BEEP(3kHz)
2.0	0
	5.0
27	0.0	FF/RFW
	0
	5.0
28	0.0	FWD/REV
	0
	5.0
29	0.0	TAPE-IN
	0
30	Ο	METAL-IN

31	5.0	VDD
32	5.0	AREA CODE
	0.0	ANEAGODE
33	0	AREA CODE
34	5.0	AMAGG
	0.0	11100
35	0	S21
26	0
1 30	v	LEVELIVIUIE
	5.0	S19
\| 37	0
	U	-
1	H=5.0	DOI DY CHIEF
38	1.0	UULBY ON/OFF
L	L=U
00 55	5.0	017. 01/1 00 04-01
39~55	C	ງວາ/~ວາ(LCD DATA)\|

50 50	5.0	0010 00110000
56~58	0	LCOM3~COM1(LCD DATA)
	U
59	1.6	Vdd 2
60	3.2	Vdd 1
1 00	v.c	vuu i
61	5.0/0	FM/AM TAPE
62	n	MODECHANGE
- UZ		MODE GRANGE
0	H=5.0
63	1_0
	L=U
64	0	\| STAND BY OFF
656.67	1 9	KEVI KEVO KEVO
00~0/	4.0	NETI, NETZ, KEY3
68	0.4→3.3	I SM-IN
60	1 9
69	4.8	AUU-IN
\| 70	0
7.	01
	2.4	AM-IF
\| 72 \|	4.8	I RESET
70	4.0	1/1-1
13	4.8	vaa
74	2.3	FM MODE
7-
/5	2.3
76	0	Vss/GND
	1.05
	1.25	= E0
78	0	NC
1 70	~
. 70	U	GND
19

MEASUREMENT CONDITIONS

1.POWER SUPPLY:13.2V 2.MEASUREMENT INSTRUMENT:DC VOLTMETER, OSCILLOSCOPE 3.MEASURE CONDITION:DCV(Vs GND) :SP OUTPUT 0.6W (1.4Vms,4ohms) :TAPE:1KHz,-10dB.TEST TAPE :FM:83MHz,54dB µV,1KHz30% :AM:999KHz,74dB µV,400Hz30%

Page 25

SANYO Electric Co., Ltd Osaka, Japan

May '97/1090/MZ Printed in Japan.

Sanyo FXC-425GD, FXC-415GD, FXR-315GD Service Manual

SERVICE MANUAL

FULL PANEL DETACHABLE<br/>DIGITAL AM / FM STEREO<br/>AUTO REVERSE CASSETTE<br/>RECEIVERFXC-425GD<br/>FXC-415GD<br/>FXR-315GDWITH CD CHANGER CONTROLLER<br/>(FXC-425GD•FXC-415GD)(GENERAL)

AUDIO SECTION

GENERAL

FM TUNER SECTION

AM TUNER SECTION

Alignment of Head Azimuth

1. Set Up Diagram

(2) SETTING

(3) ALIGNMENT

(3) Tune the azimuth adjusting screw "R" until you obtain maximum reading on the AC voltmeter (V.V (I)) at the reverse position.

Alignment of Dolby reference level (FXC-425GD)

ERROR SIGNS -

(Using CD changer:FXC-425GD/FXC-415GD)

Special service tool

PARTS LIST (CASSETTE MECHANISM) ------------------------------------

DISASSEMBLY INSTRUCTIONS(CASSETTE MECHANISM) -

P.C.Board PARTS LIST -

IC601(LC72338N-9313N) NOTE I: Input O: Output

LCD PIN DESIGNATION

CASSETTE MECHANISM SW P.C.B.

FXC-425GD FXC-415GD

FXR-315GD

IC202 VOLTAGE(V) C

GE(V)
