Sanyo DC DA2000 XE Service Manual

FILE NO.

Service Manual

CD

TAPE

Micro Component System

DC-DA2000 (XE)

Contents

Laser beam safety precaution .......................................... 1

Tape adjustments ............................................................ 1

Tuner adjustments ........................................................... 2

CD pick-up maintenance .................................................. 2

Exploded view

(Cabinet & Chassis) ...................................................... 3

Parts list

(Cabinet & Chassis) ...................................................... 4

Exploded view & Parts list (Tape mechanism) ................. 7

IC block diagram & description ........................................ 8

LCD display description ................................................... 13

PRODUCT CODE No. 129 662 01

Schematic diagram

(FRONT) ....................................................................... 14

(CD)...............................................................................16

(AMPLIFIER) ................................................................. 20

(TUNER) ....................................................................... 22

Wiring diagram

(FRONT & CD) .............................................................. 18

(AMPLIFIER & TUNER) ................................................ 24

(POWER TRANSFORMER) ......................................... 26

Wiring connection ............................................................ 27

This service manual consists of "DC-DA2000U/XE" (Main unit : 129 661 01) and

"SX-DA2000/XE" (Speaker system : 165 074 01).

REFERENCE No.

SM5810392

LASER BEAM SAFETY PRECAUTION

• Pick-up that emits a laser beam is used in this CD player section.

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE

LASER OUTPUT..........0.6 mW Max. (CW)

WAVELENGTH .............790 nm

CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE FOR STRÅLING. VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG. VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN. VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄ

TEESEEN.

TAPE ADJUSTMENTS

1. Azimuth Adjustment

• Be sure to clean the heads before attempting to make any adjustment.

• Be sure both channels (1 and 2) are the same level. (Using a dual-channel oscilloscope)

• Be sure both channel's waveform are same for the phase matching.

• After completion of the adjustment, use the threadlock (TB-1401B) to secure the azimuth adjustment screws.

1. Remove the cover deck as Fig.1.

2. Load a test tape (VTT-738 etc. : 10kHz) in the Deck.

3. Press the PLAY button. (Normal playback)

4. Use a + tip screwdriver to turn the screw for normal azimuth adjustment so that the left and right outputs are maximized at the same phase during normal playback. See Fig.2.

5. Adjust so that the waveforms for the left and right channels are in alignment.

Fig.1

NORMAL

2. Tape Speed Adjustment

• Connect the Frequency Counter to TAPE OUT.

1. Insert the test tape (MTT-111N, etc.; 3,000Hz) into the DECK.

MOTOR

hole for adjustment

2. Press the PLAY button. .

3. Adjust a hole on the motor bottom so that a frequency counter reading of 3,000 ±5Hz is obtained.See Fig.3.

4. Press the STOP button, and eject the test tape.

3. Torque Measurement

- 1 -

Fig.2

Fig.3

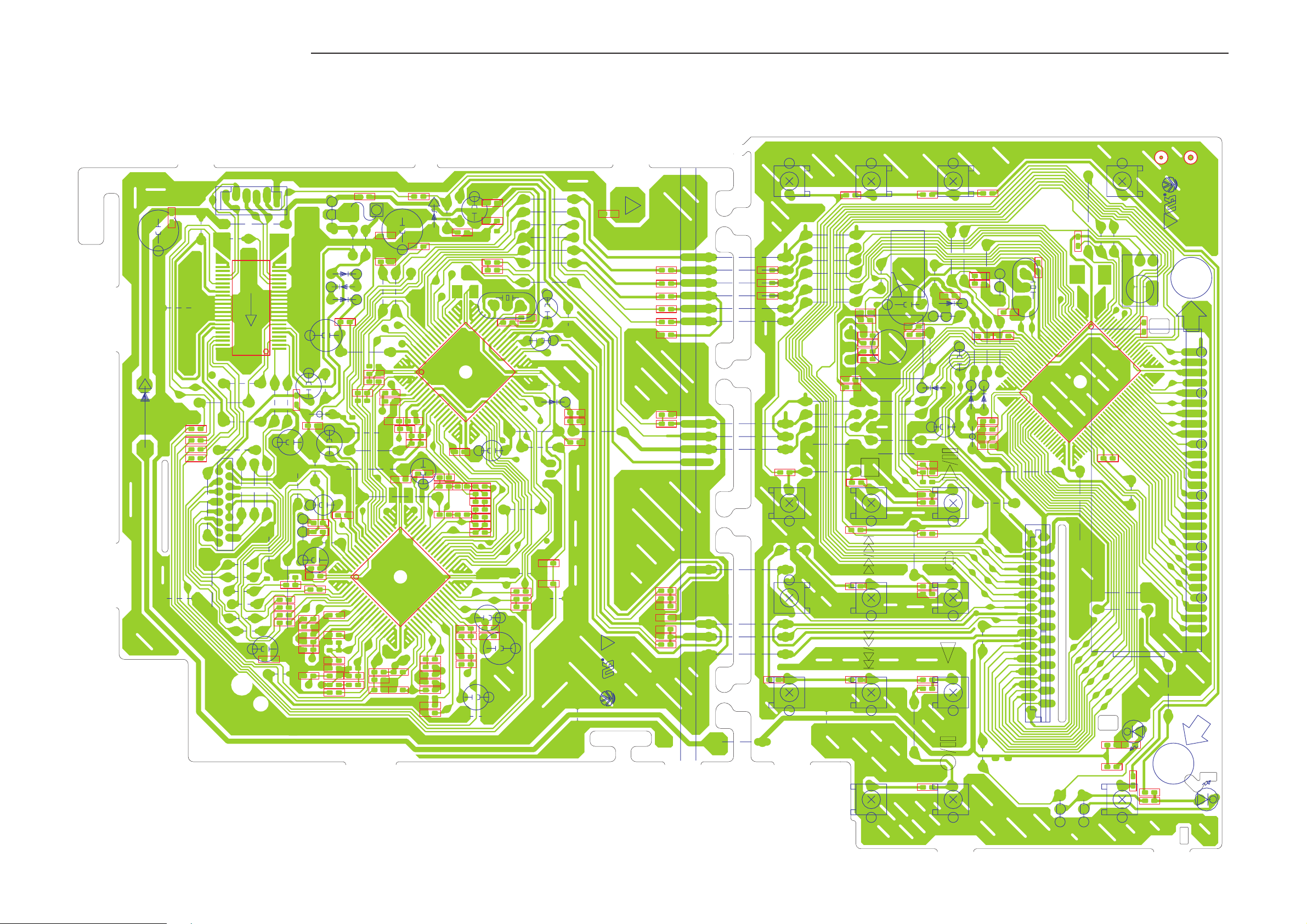

TUNER ADJUSTMENTS

C4997

C2456

R2453

C2141

C2152

R2151

C2304

R2302

C2115

C2323

R2305

R2306

C2319

R2309

C2308

C2310

C2902

R2308

R2312

R2301

C2600

R2106

• Use a plastic screw driver for adjustments. • TUNING

• MODE : TUNER FM : 87.5 - 108MHz

• Speaker impedance : 4 ohm AM : 522 - 1611kHz, 520 - 1610kHz

J4415

R2205

C2203 R2202

J2119

J2602

J4416

J2115

C2313

J2506

E

T2002XF233TP15TP13

J4417

R2201

J2101

J2107

C2109

J2114

J2504

C2303

Frequency

J4418

XF221

R2109

R2105

J2105

J2106

L2103

J2110

J2111

VT

J2117

C2116

C2115

J2121

SG

98MHz

J2113

J2112

R2151

R2110

C2111

J4419

C2114

R2107C2110

C2152

J2505

VT

C2112

D2102

R2106

J2108

D2153

L2151

CT252

1. FM

Step

1

R4942

J4428

J4623

GND

+5.6V

LID_SW

AC_SENSE

MAIN_MUTE

IC446

E

C4993

C4994

D4993

Adjusting

Circuit

IF(0V)

Adjustment

J4425

J4426

C4560

J4617 J4618 J4619 J4620 J4621

J4624

J4119

R4970

J4622

R4560

R4400 R4401

Q4962

E

Q4961

E

Q4410

R4964

R4963

J4412 J4423 J4424

E

Q4963

E

R4402

E

J4122

R4403

Q4960

D4960

J4427

CN400

TU_DI

TU_CE

CD_L

CD_R

ST_BY

TU_DO

D_CLK

+9.0V

VOL_DO

VOL_CE

CD_DGND

CD_AGND

REC_OSC

BEAT_OUT

SURROUND

TCLK

R2463

+5.6V

REC_MUTE

D2451

C4997

J4625

TDI

R2464

T-DOUT

TCE

R2462

R2461

Input Output

FM Antenna SG=66dBuV/EMF

TP14

CN445

REEL

MOTOR

PLUNGER

INITIALIZE

J2125

J2126

J2127

J4420

R4921

J2102

J2103

+9.0V

R2712

R2812

J2118

G_FWD

G_RVES

DECK_PACK

J2600

J2601

C2901

C2457

C2454

X2451

C2453

C2456

L_CH R_CH

GND

R2301

R2311

C2322

D2456

C2306

R2701

J2120

R2801

C2902

J2122

R2453

R2452

C2455

24

1

C2461

J2511

C2305

IC241

C2463

C2464

C2462

J2104

C2301

R2306

C2327

C2328

J2603 J2604 J2605 J2606

C2452

C2321

C2319

13 12

J2502

C2324

C2320

J2509

R2305

C2315

C2316

12 13

R2307

J2510

D2452

D2466

XF233

R2304

C2302

C2309

R2454

D2453

J2500 J2501

IC231

R2312

C2307

R2308

R2309

C2451

J2503

L2451

R2458 R2455

C2308

J2124

1

24

C2317

C2314

R2459

R2460

Q2201

C2318

C2312

C2310

R2303

E

XF222

J2116

C2311

J2123

XF231

R2302

Q2451

R2204

R2203

C2323

T2002

C2304

J2507 J2508

Antenna : 75Ω unbalanced, Modulation : 1 KHz Dev. : ±22.5kHz RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15

Connection

Alignment voltage IC231 Alignment voltage IC231

3-22pin(TP24,25) is 0.0±0.05V 3-22pin is 0.0±0.05V

L2151

L2104

C2101

C2113

IC211

R2108

C2107R2102

D2101

R2103 C2104

R2101

J2109

C2103

L2153

R2131 C2154

R2148

C2151

R2149

C2141

Adjustment

XF233

L2153L2103

CN201

XF211

C2105

1

J2100

D2103

L2102

R2100

CN202

D2151

C2600

S2001

CT252IC231 TP25 TP24 TP11TP12 L2151

Remark

Cover

2

Voltage

L2103 Connect Digital DC voltmeter to 87.5MHz -- - 1.00±0.05V

--- TP11(H), TP12(E). 108.0MHz -- -

5.50±0.50V Check Only

Anntena : IRE Loop(SG), Moduration : 1kHz, 30%

2. AM

Adjusting

Step

Circuit

1

2

3

IF

Adjustment

Cover

Voltage

Tracking

CD PICK-UP MAINTENANCE

About pick-up (Optical lens) Cleaning

Input Output

Loop Ant

--- Connect Digital DC voltmeter to 522kHz

--- TP11(H )and TP12(E).

Loop Ant

Connection

Connect to VTVM

point TP13(L) or TP14(R) and TP15(E).

Connect to VTVM 603kHz L2151 point TP13(L) or TP14(R) and TP15(E).

RF Level : dBuV EMF, Output Level : about 30mV at TP13, TP14, TP15

SG

Frequency

450KHz

at 999kHz

Adjustment

T2002

L2153

1611kHz(XE)

---

1404kHz CT252

Remark

Maximum

1.00±0.05V

7.10±0.50V Check Only

Maximum

Clean a lens with swab of the cotton which moistened it with alcohol, cleaning paper or cleaning disc appointed.

Specified cleaning disc : LC-1 (Part code : 645 026 1961 ..... manufactured by SANYO.)

Show a clean procedure in the following in reference by swab of cotton.

1. Cotton swab is wrapped with Cleaning paper.

2. Add the isopropyl alcohol.

3. Gently move the tip of cotton swab just like a draw a whirlpool from inside to outside on the surface of lens.

- 2 -

EXPLODED VIEW (CABINET & CHASSIS)

16

Y03

Y05

Y01

Y06

Y11

Y9

Y13

Y14

Y15

Y16

Y17

Y18

Y10

Y12

Y03

Y04

Y03

Y02

Y07

Y08

Y07

15

1

2

3

4

5

6

7

10

9

11

71

73

74

72

8

26

27

25

20

18

19

21

22

23

24

12

13

14

15

17

51

53

54

57

56

58

52

55

- 3 -

PARTS LIST

PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE

!!

IEC SYMBOL PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT TO THE CUSTOMER.

CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

N.S.P : Not available as service parts.

!

IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND

!!

!

, USE ONLY THE

Regular type resistors are less than 1/4 W carbon type and 0 ohm chip resistors. Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.

PACKING & ACCESSORIES

REF.NO. PART NO. DESCRIPTION

614 325 8056 CARTON CASE 614 319 7430 CUSHION,REAR 614 319 7447 CUSHION,FRONT 614 325 8094 INSTRUCTION MANUAL 614 325 8421 INSTRUCTION SHEET 645 047 0516 POLY SHEET-0900X0300*NC 645 005 1227 ASSY,ANTENA,LOOP

or 645 046 8322 ASSY,ANTENA,LOOP

614 318 9404 LID,BATTERY,SERVICE 645 057 4696 REMOCON,RB-DA2000 614 325 7875 ASSY,BOX,SPEAKER,SPEAKER(L,R)

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1 614 325 7981 COVER,DECK 2 614 326 3043 DEC,WINDOW,DECK 3 614 320 3520 SPRING,WIRE,DOOR DECK 4 614 319 7096 LID,CASSETTE 5 614 323 2230 PANEL 6 614 325 7967 ASSY,PANEL,FRONT 7 614 319 7072 KNOB,VOLUME 8 614 326 3050 DEC,WINDOW,LCD 9 614 309 7969 ASSY,GEAR,LID,CASSETTE 10 614 303 1277 LATCH,CAM,DECK,DOOR,LOCKING 11 614 323 2162 BUTTON,OPERATION,11 KEYS 12 614 319 6945 BUTTON,RIGHT,4 KEYS 13 614 325 7974 BUTTON,POWER 14 614 325 8025 REFLECTOR,STANDBY,LED 15 614 310 3899 SPACER,MECHA,MTG CD+DA11 16 614 307 2072 COVER,PICK-UP 17 614 319 7119 MOUNTING,CD 18 614 322 2125 ASSY,GEAR,LID CD 19 614 303 0263 LATCH,PUSH,CD DOOR LOCKING 20 614 319 7201 SPRING,WIRE,DOOR CD 21 614 307 8821 PULLEY 22 614 303 0256 LATCH,MAGNET 23 614 319 7102 LID,CD 24 614 325 8230 DEC,WINDOW,CD 25 614 316 1172 STOPPER 26 614 325 7929 ASSY,CABINET,REAR 27 614 325 6014 ASSY,MECHA,DA11T3CN-SASH

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

Y01 411 156 2105 SCR S-TPG BIN 2.3X6,

PANEL+PANEL FRONT

Y02 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+LATCH,CAM

Y03 411 021 3503 SCR S-TPG BIN 3X10,

F-PANEL+DECK MECHA Y04 614 129 9136 LUG,LEAD FIX Y05 411 020 8905 SCR S-TPG BRZ+FLG 3X10,

F-PANEL+ASSY.GEAR,DECK Y06 411 021 3503 SCR S-TPG BIN 3X10,

SWITCH,PWB+MTG CD Y07 411 021 1806 SCR S-TPG BIN 2.6X10,

MTG CD+DA11 Y08 411 092 0906 WASHER Z 2.6X10X0.5,

MTG CD+DA11 Y09 411 020 8905 SCR S-TPG BRZ+FLG 3X10,

F-PANEL+ASSY.GEAR,CD Y10 411 021 4906 SCR S-TPG BIN 3X20,

F-PANEL+MOUNTING,CD Y11 411 021 3503 SCR S-TPG BIN 3X10,

MAIN PCB+MTG CD Y12 411 184 0906 SCR S-TPG BIN 2.3X10,

LID CD+DEC WINDOW CD Y13 412 032 6408 SPECIAL SCREW,REAR+P-TRANS Y14 411 021 3503 SCR S-TPG BIN 3X10,

REAR+STOPPER Y15 411 098 7800 SCR S-TPG FLT 3X12,

REAR+MTG(L/R) Y16 411 021 4906 SCR S-TPG BIN 3X20,

REAR+PANEL,FRONT Y17 411 021 3503 SCR S-TPG BIN 3X10,

REAR+ANT TERMINAL,

REAR+AUDIO TERMINAL Y18 411 021 3503 SCR S-TPG BIN 3X10,

REAR+MTG CD

ELECTRICAL PARTS

REF.NO. PART NO. DESCRIPTION

51 614 322 2279 ASSY,WIRE,AMP-TAPE MECHA 52 614 326 3760 FLEXIBLE FLAT CABLE,

FRONT-AMP

or 614 327 0874 FLEXIBLE FLAT CABLE,

FRONT-AMP

53 614 326 2794 FLEXIBLE FLAT CABLE,

CD-CD MECHA

or 614 327 0836 FLEXIBLE FLAT CABLE,

CD-CD MECHA 54 614 316 8041 ASSY,WIRE,CD-CD MECHA 55 614 274 2013 CORD,ID CONNECTOR,FM ANT 56 423 016 7908 FUSE 250V 2.5A 57 645 050 7373 TRANS,POWER 58 645 016 9939 CORD,POWER-1.74MK

- 4 -

PARTS LIST

FRONT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

71 614 325 7219 ASSY,PWB,FRONT(Only Initial) AC601 614 320 3469 COVER,LED,COVER_LED AH601 614 320 3483 HOLDER,LCD,HOLDER_LCD AS601 614 314 9286 DEC,SHEET,LCD,DEC_SHEET_LCD CN601 645 009 8482 SOCKET,FFC 28P or 645 012 5324 SOCKET,FPC 28P D6010 407 012 4406 DIODE 1SS133 D6110 407 012 4406 DIODE 1SS133 D6111 407 012 4406 DIODE 1SS133 D6112 407 225 7300 LED LT03B3-43-URE1 D6113 407 012 4406 DIODE 1SS133 D6301 408 032 5404 LED SLP-9118C-51H-S-T1,

STAND-BY-LED IC601 410 469 0709 IC LC867232A-51D2 L6010 645 001 5441 INDUCTOR,2.2U K LCD60 645 050 7397 LCD Q6107 405 019 3804 TR 2SC536-G-NP or 405 019 2708 TR 2SC536-F-NP or 405 141 3208 TR KTC3198-Y or 405 141 3307 TR KTC3198-GR Q6108 405 017 9709 TR 2SC3330-U or 405 017 9600 TR 2SC3330-T or 405 011 8609 TR 2SC1740S-S or 405 011 8500 TR 2SC1740S-R or 405 143 8706 TR KTC3199-GR Q6301 405 146 1209 TR KRC104M or 405 000 6104 TR DTC144ES Q6302 405 000 6104 TR DTC144ES or 405 146 1209 TR KRC104M S6001 645 054 1230 SWITCH,ROTARY(ENCODER) S6110 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6111 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6112 614 220 5471 SWITCH,TACT or 614 240 1002 SWITCH,TACT or 645 006 5958 SWITCH,PUSH 1P-1T S6113 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6114 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6115 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6116 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6117 614 240 1002 SWITCH,TACT or 645 006 5958 SWITCH,PUSH 1P-1T or 614 220 5471 SWITCH,TACT S6210 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6211 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6212 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6213 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT or 645 006 5958 SWITCH,PUSH 1P-1T S6214 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6215 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6216 645 006 5958 SWITCH,PUSH 1P-1T

REF.NO. PART NO. DESCRIPTION

or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT S6217 645 006 5958 SWITCH,PUSH 1P-1T or 614 240 1002 SWITCH,TACT or 614 220 5471 SWITCH,TACT SE601 407 217 1101 PHOTO DIODE SPS-442-1G X6102 645 018 6103 OSC,CERAMIC 6.000MHZ or 645 057 1138 OSC,CERAMIC 6.0MHZ

CD P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

72 614 325 7202 ASSY,PWB,CD(Only Initial) CN111 645 059 0498 SOCKET,FPC 16P or 645 026 2470 SOCKET,FFC 16P or 645 033 8168 SOCKET,FPC 16P CN113 614 310 2472 PLUG,6P or 645 005 8127 PLUG,6P D1402 407 099 5204 ZENER DIODE MTZJ5.1B D1403 407 012 4406 DIODE 1SS133 D1404 407 012 4406 DIODE 1SS133 D1405 407 012 4406 DIODE 1SS133 D1410 407 098 3300 DIODE RL153-BF-S2 D1482 407 012 4406 DIODE 1SS133 IC101 409 503 5701 IC LA9242M-MPB IC102 409 539 9704 IC LC78629E IC103 409 486 8706 IC MM1469XH L1451 645 001 4550 INDUCTOR,10U K PR140 645 014 2499 PROTECTOR,0.4A 125V Q1301 405 008 7301 TR 2SB810-F or 405 008 7202 TR 2SB810-E or 405 008 6809 TR 2SB808-F-SPA Q1401 405 009 5207 TR 2SB927-S or 405 009 5306 TR 2SB927-T or 405 141 3604 TR KTA1273-Y X1451 614 231 2667 RESONATOR or 645 057 1145 OSC,CERAMIC 16.93MHZ

AMPLIFIER & TUNER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

73 614 326 2442 ASSY,PWB,AMP-TU C2457 403 259 0508 NP-ELECT 1U M 50(Only Initial) C4601 403 057 3503 POLYESTER 0.1U K 50V C4605 403 061 3605 POLYESTER 0.039U J 50V C4606 403 061 7702 POLYESTER 4700P J 50V C4607 403 059 3204 POLYESTER 2200P J 50V C4608 403 060 2807 POLYESTER 0.027U K 50V C4734 403 058 4608 POLYESTER 0.15U J 50V C4834 403 058 4608 POLYESTER 0.15U J 50V C4913 403 329 5907 ELECT 3300U M 25V CN201 614 221 8273 TERMINAL CN202 645 038 7715 TERMINAL or 645 025 4703 TERMINAL,ANTENNA CN400 645 009 8482 SOCKET,FFC 28P or 645 012 5324 SOCKET,FPC 28P CN401 645 006 1875 PLUG,2P,SPEAKER CN402 645 006 1875 PLUG,2P,SPEAKER CN440 614 310 2472 PLUG,6P or 645 005 8127 PLUG,6P CN441 614 310 2731 PLUG,2P,POWER or 645 004 2881 PLUG,2P,POWER CN442 614 276 6835 SOCKET,JACK CN443 645 011 6384 JACK,PHONE D3.6,HEADPHONE CN445 614 310 2519 PLUG,10P or 645 005 8158 PLUG,10P CT252 645 032 5663 TRIMMER,7PF D2101 407 157 8109 VARACTOR DI SVC211-B D2102 407 157 8109 VARACTOR DI SVC211-B D2103 407 012 4406 DIODE 1SS133

- 5 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION

D2151 407 012 4406 DIODE 1SS133 D2153 407 105 1602 VARACTOR DI SVC342M-V or 407 105 1305 VARACTOR DI SVC342L-V D2451 407 012 4406 DIODE 1SS133 D2452 407 153 7502 ZENER DIODE GZS3.0B D2453 407 012 4406 DIODE 1SS133 D2456 407 012 4406 DIODE 1SS133 D2466 407 012 4406 DIODE 1SS133 D4951 407 099 6102 ZENER DIODE MTZJ10B D4953 407 012 4406 DIODE 1SS133 D4954 407 012 4406 DIODE 1SS133 D4960 407 012 4406 DIODE 1SS133 D4961 407 012 4406 DIODE 1SS133 D4993 407 012 4406 DIODE 1SS133 HS401 614 319 7065 HEAT SINK,HEATSINK IC211 409 016 0200 IC LA1186N-AUDIO IC231 409 474 3201 IC LA1844ML IC241 409 439 4502 IC LC72121M-D IC440 409 451 7406 IC AN7348K IC441 409 474 6103 IC LC75342M IC442 409 295 7402 IC TA8229K IC443 409 189 3404 IC BA7755A IC446 409 039 9204 IC NJM78L05A L2102 645 040 2753 INDUCTOR,AIR — L2103 645 040 2746 COIL,AIR — L2104 645 002 1534 INDUCTOR,8.2U K L2151 645 040 2685 TRANS,ANT,796KHZ L2153 645 040 2708 TRANS,OSC,796KHZ L2451 645 031 7842 INDUCTOR,100U K or 645 001 4581 INDUCTOR,100U K L4600 645 006 1523 INDUCTOR,470U J L4601 645 006 1523 INDUCTOR,470U J L4602 645 037 2858 CORE,PIPE L4603 645 006 1523 INDUCTOR,470U J L4604 645 037 2858 CORE,PIPE L4781 645 002 1459 INDUCTOR,22U K L4782 645 002 1459 INDUCTOR,22U K L4881 645 002 1459 INDUCTOR,22U K L4882 645 002 1459 INDUCTOR,22U K L4981 645 002 1459 INDUCTOR,22U K PR495 645 042 2621 PROTECTOR,1.5A 125V PR496 645 042 2621 PROTECTOR,1.5A 125V Q2201 405 151 4301 TR KTC3195-Y or 405 151 4806 TR KTC3195-O Q2451 405 036 3702 TR 2SA1564 or 405 151 5209 TR KRA107M or 405 000 0904 TR DTA114YS or 405 078 2404 TR BN1A4P Q4410 405 141 3406 TR KTA1266-GR or 405 141 3505 TR KTA1266-Y or 405 004 4502 TR 2SA608-F-NP or 405 004 5004 TR 2SA608-G-NP Q4600 405 155 0002 TR MPSA56 Q4601 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4602 405 019 3804 TR 2SC536-G-NP or 405 019 2708 TR 2SC536-F-NP or 405 141 3307 TR KTC3198-GR or 405 141 3208 TR KTC3198-Y Q4603 405 019 2708 TR 2SC536-F-NP or 405 019 3804 TR 2SC536-G-NP or 405 141 3208 TR KTC3198-Y or 405 141 3307 TR KTC3198-GR Q4700 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4701 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4751 405 151 4400 TR KTD1303 or 405 021 0204 TR 2SD1012-F-SPA or 405 021 0600 TR 2SD1012-G-SPA or 405 033 6706 TR 2SD1468S-R or 405 033 6805 TR 2SD1468S-S Q4800 405 000 3806 TR DTC114YS

or 405 143 0007 TR KRC107M Q4801 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4851 405 033 6706 TR 2SD1468S-R or 405 033 6805 TR 2SD1468S-S or 405 021 0600 TR 2SD1012-G-SPA or 405 021 0204 TR 2SD1012-F-SPA or 405 151 4400 TR KTD1303 Q4930 405 141 3307 TR KTC3198-GR or 405 141 3208 TR KTC3198-Y or 405 019 2708 TR 2SC536-F-NP or 405 019 3804 TR 2SC536-G-NP Q4931 405 000 0508 TR DTA114ES or 405 110 5400 TR KRA102M-A Q4951 405 138 6403 TR KTD2058Y or 405 095 1602 TR 2SD2061-E or 405 095 1701 TR 2SD2061-F Q4960 405 155 0002 TR MPSA56 Q4961 405 155 0002 TR MPSA56 Q4962 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4963 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4992 405 141 3703 TR KTA1271-Y or 405 008 2405 TR 2SB698-F or 405 008 2504 TR 2SB698-G Q4993 405 000 3806 TR DTC114YS or 405 143 0007 TR KRC107M Q4995 405 141 3703 TR KTA1271-Y or 405 008 2405 TR 2SB698-F or 405 008 2504 TR 2SB698-G R4940 402 081 0205 FUSIBLE RES 27 JA 1/4W S2001 645 023 5795 SWITCH,LEVER SA401 411 021 6405 SCR S-TPG BIN 3X8 SA402 411 021 6405 SCR S-TPG BIN 3X8 T2002 645 046 2023 FILTER,450KHZ X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ XF211 645 059 0047 FILTER,BP or 645 026 2975 FILTER,BP 108MHZ or 614 252 1045 FILTER,LC XF221 645 054 1223 CERAMIC FILTER 10.70MHZ or 645 010 7665 CERAMIC FILTER 10.70MHZ or 614 240 2917 FILTER,CERAM XF222 645 054 1223 CERAMIC FILTER 10.70MHZ or 645 010 7665 CERAMIC FILTER 10.70MHZ or 614 240 2917 FILTER,CERAM XF231 645 059 0054 CERAMIC FILTER 450KHZ or 645 041 9324 CERAMIC FILTER 450KHZ XF233 645 039 9923 TRANS,IF 10.7MHZ or 645 040 9981 TRANS,IF 10.7MHZ

POWER TRANSFORMER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

74 614 325 7196 ASSY,PWB,DG(Only Initial) CN420 614 020 1215 SOCKET,2P CN421 614 322 2262 ASSY,WIRE,PT-AMPWIRE CN422 614 017 8203 TERMINAL BOARD CN423 614 017 8203 TERMINAL BOARD D4280 407 098 3300 DIODE RL153-BF-S2 D4281 407 098 3300 DIODE RL153-BF-S2 D4282 407 098 3300 DIODE RL153-BF-S2 D4283 407 098 3300 DIODE RL153-BF-S2 FCL41 645 006 4760 HOLDER,FUSE or 645 031 7903 HOLDER,FUSE FCL42 645 006 4760 HOLDER,FUSE or 645 031 7903 HOLDER,FUSE L4291 645 017 8061 INDUCTOR,181M or 645 038 6053 INDUCTOR,181U or 645 041 3087 INDUCTOR,180U

- 6 -

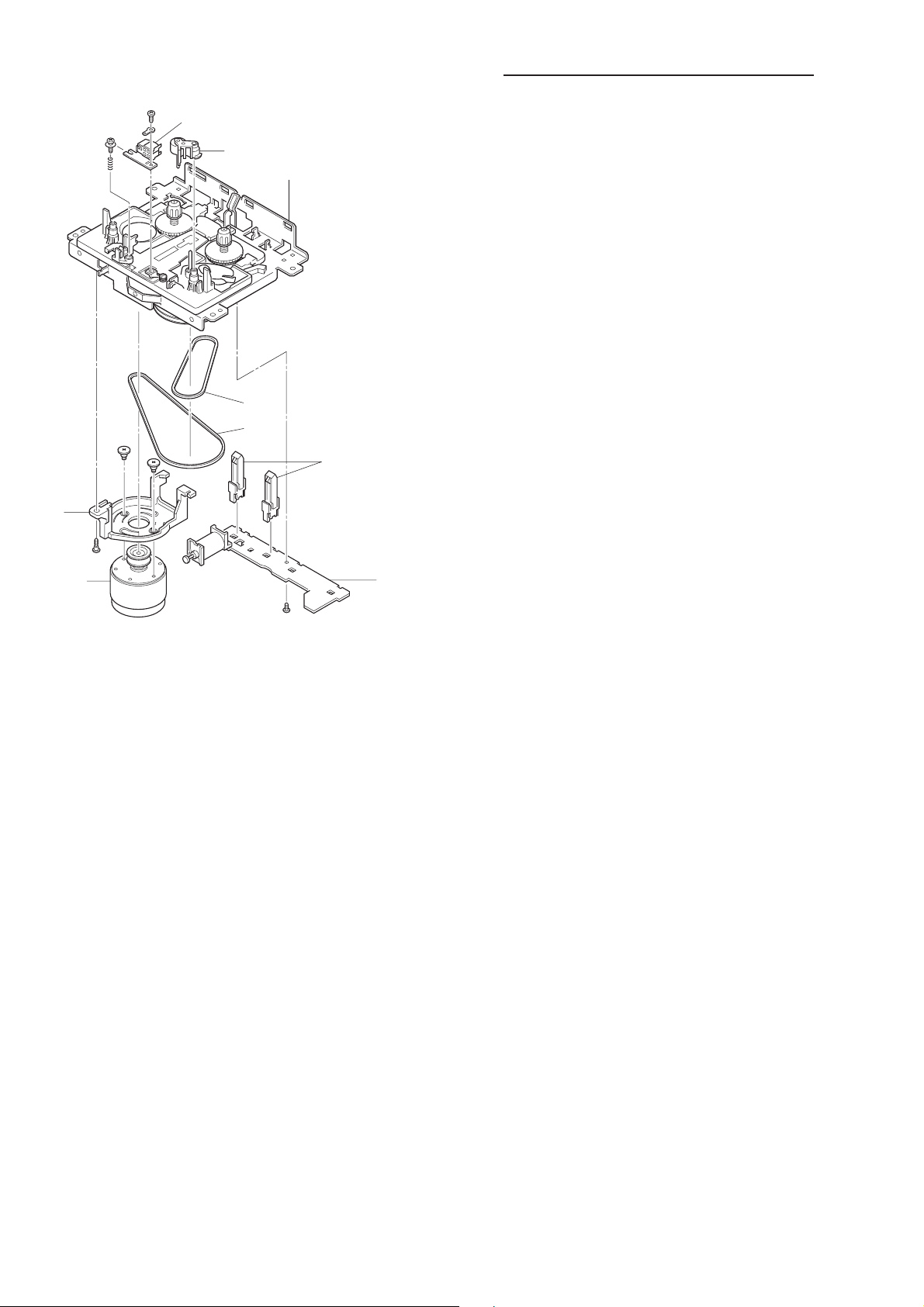

EXPLODED VIEW & PARTS LIST (TAPE MECHANISM)

TM01

TM02

*

TAPE MECHANISM

REF.NO. PART NO. DESCRIPTION

TM01 645 052 2888 RP HEAD C-9142-BD-1025 TM02 645 010 9447 PINCH ROLLER(F) ASSY TM03 645 045 1959 RF BELT TM04 645 052 4158 MAIN BELT TM05 645 045 2048 DETECT SWITCH MXS01190 TM06 645 052 2864 ASSY,MOTOR

N.S.P : Not supplied as service parts.

*

TM03

*

TM04

TM05

614 320 4213 ASSY,MECHA,TM-DA280TN-SH

TM06

*

- 7 -

IC BLOCK DIAGRAM & DESCRIPTION

R

IC101 LA9242M-MPB (Servo Signal Processor)

Vcc1 LDS LDD BH1 PH1 LF2 VR REF1 Vcc2

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

REF

INTER FACE

FIN2

FIN1

TB

TE-

TE

TESI

SCH

TH

APC

1

2

I/V

3

E

BAL

4

F

5

6

7

8

9

10

TE

T.SERVO & T.LOGIC

RF DET

VCA

FSS

DRF CE

DAT CL CLK DEF

RF Amp

SLC

48

NC

TBC

47

46

FSC

DGND

45

SLI

44

43

SLC

RFS-

42

RFSM

41

CV+

40

CV-

39

SLOF

38

HFL

37

11

TA

12

TD-

13

TD

14

JP

15

TO

16

FD

IC442 TA8229K (Power Amplifier)

VCC1VCC2

48

IN-1

NF1

IPPLE

MINAL

IN-2

NF2

11 10

9

12 13

-

Ch-1

+

BIAS CIRCUIT

THERMAL CUT-OFF

PROTECTION

-

Ch-2

+

F.SERVO & F.LOGICK

FA-FAFD-

B.S.1

6

OUT-1

5

POWE

7

GND

3

OUT-2

2

B.S.2

36

SPINDLE SERVO

SLED SERVO

SP

AGND

FE-FE

35

34

33

32313029282726252423222120191817

JP-SL+SL-SLDSLEQSPDSP-SPGSPI

IC446 NJM78L05A (Stabilized Power Supply)

Q4

Q5Q6

Q13

R9

Q7Q8

R8

R13

Q15

Q10

R14

R15

R16

Q11

Q9

R1 R2R3R4

Q1 Q2 Q3

R17

R5

Q12

R11

TES

TOFF

TGL

JP+

R12

Q14

R10

R6

R7

I

V

3

Vo

1

14 15

PRE

GND1

PRE

GND2

- 8 -

GND

2

IC BLOCK DIAGRAM & DESCRIPTION

IC103 MM1469XH (CD Driver)

28 27 26 25 24 23 22 21 20 19 18 17 16 15

Vcc

D.B UFD.B UFD.B UFD.B UF

Level shift

T. S. D

Level shift

1234567 891011121314

IC211 LA1186N-AUDIO (FM Front End)

Vref BUFFER

RF MIX REG OSC

Level shift

DRIVER MUTE

Level shift

D.B UFD.B UFD.B UFD.B UF

1 2 3 4 5 6 7 8 9

RF IN GND IF OUT Vcc

IC231 LA1844ML ( Tuner System)

24 23 22 21 20 19 18 17 16 15 14

ALC

BUFF

LEVEL

DET

FM

IF

1

AM

OSC

S-CURVE

FM

DET

2345678910 11 12

AM

MIX

REG

RF.AMP

AM/FM

IF

BUFF

AM

IF

AGC

COMP

TUNING

DRIVE

GND

AM

DET

P-DET

304kHz

DECODER

ANTI-BIRDIE

VCO

VCC

STEREO

SW

FF

38k

FF

19k

2

PILOT

CANCEL

FF

19k

13

PILOT

DET

- 9 -

IC BLOCK DIAGRAM & DESCRIPTION

IC241 LC72121M-D (Pll Synthesizer)

2

Vssx

XIN

XOUT

FMIN

1

24

17

1/2

REFERENCE

DIVIDER

SWALLOW COUNTER

1/16, 1/17 4bits

PHASE DETECTOR

CHARGE PUMP

UNLOCK

DETECTOR

19

PD

20

AIN

AOUT

21

22

Vssa

AMIN

16

CE

3

DI

CL

DO

V

Vssd

4

5

6

DD

18

15

CCB

I / F

POWER

ON

RESET

IC440 AN7348K ( Play/Rec Pre Amp)

R-PB AMP

L-PB AMP

A/Rec

B

PB Amp(L)

7

BO1BO2 BO3 BO4

L-PB EO

L-PB NF

21222324

12bits PROGRAMMABLE

DIVIDER

DATA SHIFT REGISTER LATCH

9

8

10 11

IO1

ALC

L-PB

AMP OUT

20

ALC

Mute

14

IO2

L-REC IN

1819

UNIVERSAL

L-REC OUT

17

Rec

Amp(L)

COUNTER

ALC

16

R

P

R

HI/LO

15

Nor/Cro

& Hi/Lo

Logic

13

CRO/NOR

IFIN

VCC

1314

A/Rec

1

L-PB AMP

IC443 BA7755A (Head Switch)

1 4 52 3

B

2

R-PB AMP

PB Amp(R)

3

R-PB NF

Mute

4

R-PB EO

Logic

5

R-PB OUT

A/B

6

AB SW

7

R-REC IN

Rec

Amp(R)

Logic

Rec/PB

8

R-REC OUT

R

P

10 1211

9

REC/PB SW

A/B SW

Ripple

Rejection

FILTER

GND

- 10 -

IC BLOCK DIAGRAM & DESCRIPTION

IC441 LC75342M (2 band equalizer)

L4

11

L3

12

L2

13

L1

14

NC

15

NC

16

R1

17

R2

18

R3

19

R4

20

LSELO LIN LTRE LBASS1 LBASS2 LOUT

10 9 7 6 58

21 22 24 25 2623

RSELO RIN RTRE RBASS1 RBASS2 ROUT

CONTROL

CIRCUIT

LOGIC

CIRCUIT

CONTROL

CIRCUIT

LVref

CCB

INTERFACE

RVref

4

TEST

3

SS

V

2

CE

1

DI

30

CL

29

V

DD

28

Vref

27

NC

IC601 LC867232A-51D2 (Micro Processor)

Interrrupt control

Standby control

Base timer

SIO0

SIO1

Timer 0

Timer 1

Real time

service

CF

RC

X'tal

Clock

generator

Bus interface

Port 1

Port 7

Port 8

Port 3

ADC

IR

ROM

ACC

B resister

C resister

PSW

PLA

PC

ALU

ROM 128 byte

LCD display

controller

S0 to S7 (PA)

S8 to S13 (PB)

S16 to S23 (PC)

S24 to S31 (PD)

S32 to S39 (PE)

S40 to S47 (PF)

COM0 to COM(PL)

INT0 to3

Noise rejection

filter

- 11 -

RAR

RAM

Stack pointer

Port 0

Watch dog timer

IC BLOCK DIAGRAM & DESCRIPTION

IC601 LC867232A-51D2 (Micro Processor)

V3/PL6

S47/PF7

S46/PF6

S45/PF5

S44/PF4

S43/PF3

S42/PF2

80

79

78

77

76

75

74

V2/PL5

V1/PL4 COM0/PL0 COM1/PL1 COM2/PL2 COM3/PL3

VSS3 VDD3

P30 P31

P32 P33 P34 P35 P00 P01 P02 P03 P04 P05

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

S41/PF1

S40/PF0

S39/PE7

73

72

71

S38/PE6

S37/PE5

S36/PE4

70

69

68

S35/PE3

S34/PE2

S33/PE1

67

66

65

S32/PE0

S31/PD7

S30/PD6

64

63

62

S29/PD5

S28/PD4

S27/PD3

61

60

59

S26/PD2

VSS2

VDD2

58

57

56

S25/PD1

S24/PD0

S23/PC7

55

54

53

S22/PC6

S21/PC5

52

51

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

S20/PC4 S19/PC3 S18/PC2 S17/PC1 S16/PC0 S15/PB7 S14/PB6 S13/PB5 S12/PB4 S11/PB3 S10/PB2 S9/PB1 S8/PB0 S7/PA7 S6/PA6 S5/PA5 S4/PA4 S3/PA3 S2/PA2 S1/PA1

Pin Name

VSS1 VSS2 VSS3

VDD1 VDD2 VDD3

Port 0

P00 to P07

Port 1

P10 to P17

Port 3 P30 to P35

Port 7

P70

P71 to P73

P74,75

1 2 3 4 5 6 7 8 9

P06

Functioon description

I/O

Negative power supply pin

-

Positive power supply pin

• 8 bits input /output port Data direction can be specified in 4 bits unit

I/O

• HOLD -release input

• Input for port 0 interrupt

• 8 bits input /output port Data direction can be specified for each bit

• Pin function P10 : SIO0 data output

I/O

P11 : SIO0 data input/bus input/output P12 : SIO0 clock input/output P13 : SIO1 data output P14 : SIO1 data input/bus input/output P15 : SIO1 clock input/output P16 : Buzzer output P17 : Timer 1 output (PWM output)

• 6 bits input /output port

I/O

Data direction can be specified for each bit

• 6 bits input port

• Other functions

I/O

P70 : INT0 input/HOLD release input/ Nch-Tr. output for watchdog timer P71 : INT1 input/HOLD release input

I

P72 : INT2 input/timer 0 event input P73 : INT3 input (with noise rejection filter)/ timer 0 event input Interrupt receiver format. vecter address

Rise

INT0

O

INT1

O

INT2

O

INT3

O

P74 : XT1 X'tal oscillation pin

I

P75 : XT2 X'tal oscillation pin

Fall

O O O O

Rise/

Fall

X X O O

H-level

O O X X

P07

PI0/SO0

L-level

P13/SO1

P12/SCK0

P11/SI0/SB0

P14/SI1/SB1

Vecter

O

03H

O

0BH

X

13H

X

1BH

10

P16/BUZ

P15/SCK1

P17/PWM0

11

12

13

RES

XT1/P74

P70/INT0

14

15

16

17

18

CF1

CF2

VSS1

XT2/P75

VDD1

Pin Name

Port 8 P80 to P87

S0/PA0 to S7/PA7

S8/PB0 to S15/PB7

S16/PC0 to S23/PC7

S24/PD0 to S31/PD7

S32/PE0 to S39/PE7

S40/PF0 to S47/PF7

COM0/PL0 to COM3/PL3

V1/PL4 to V3/PL6

RES

XT1/P74

XT2/P75

CF1

CF2

19

20

21

P80/AN0

P81/AN1

P82/AN2

I/O

O

(I)

O

22

23

24

25

26

27

28

29

30

P87/AN7

P71/INT1

P72/INT2/T0IN

S0/PA0

P73/INT3/T0IN

P83/AN3

P84/AN4

P85/AN5

P86/AN6

Functioon description

• 8 bits input port

• Other functions

I

AD input port (eight pins)
