| Name of Sample | Lithium Ion Battery 3LUNA-1-T0636 |
|---|---|
| Consignor | SANYO Energy(Suzhou) CO.,LTD |
| Manufacturer | SANYO Energy(Suzhou) CO.,LTD |
| Test Method | United Nations "Recomenndations on the TRANSPORT OF DANGEROUS GOODS" |
| Criterion | United Nations "Recomenndations on the TRANSPORT OF DANGEROUS GOODS" |
| Appearance | Black rectangular parallelepiped |
| Test Date | 2010/01/26 - 2010/02/03 |
| Sample Number | 24 |
| Test Items | Altitude simulation, Thermal test, Vibration test, Shock test, External short circuit, Overcharged |
| Conclusion | The sample has passed the items of UN38.3. |
| Remark |
Certification by Similar Model: 3LUNA-1-T0636
Ratio of (3LUNA-1-T0636)/(3LUNA-1-T0636) [+]=100%, [-]=100%, [Electrolyte]=100% |
| Consignor Address |
No.86 Sunwu Road, Xukou, Wuzhong District, Suzhou City, Jiangsu Province
215165, China |
Sanyo Energy(Suzou) Co.,Ltd.
7. kmm Approval
a. Tsutsui Check ____
B: Checklist for Judging New Type Battery or not
Confirmation of presence of change in "The element which is given influence" (Change ⇒ O, No change ⇒ −)
When there is no change in all items, it is NOT considered to be a New Type Battery. Model which UN regulation test has completed 3LUNA-1-T0636 Target model which is not a new type 3LUNA-1-T0636
| Test Item (Function) | The element which is given influence |
Presence of
change |
|---|---|---|
|
T1:Altitude Simulation
(Decompression load) |
|
|
|
T2:Thermal Shock
(Repetition of high temp. and low temp.) |
|
_ |
|
T3:Vibration
(Vibration load) |
|
_ |
| T4:Shock(Shock load) |
|
_ |
|
T5:External Short
Circuit(Short current) |
|
- |
| T6(Cell):Impact(Crash load) |
|
_ |
|
T7(Pack):Overcharge(Charge
load) |
|
_ |
| Judgment result | New Type or not | New Not new |
Sanvo Energy(Suzou) Co..Ltd.
1. Kunun a. Tsutsui
approval
Check
Writing
| L1004542 Mal.30.2010 | |||
|---|---|---|---|
|
Certificate of UN test for
Customer Model : AL10A31 Sanyo Model : 3LUNA-1-T0636 Sanyo Product Code : F12431008 |
.ithium ion battery
Sanyo Energy(Suzhou)Co., Ltd. Kura Tatsuya Senior Manager |
||
|
Manual of Tests and Criteria
(38.3 Lithium batteries) No. Test item No. Test item |
Number of test batteries | ||
| T 2 Thermal test Pass First cv | cle First cycle After 50 cycles After 50 cycles | ||
| T 2 Vibration Dasa | arged fully Discharged fully charged fully discharged | ||
| T 4 Shack Page 4 batter | |||
| T 5 Eutomol about alignment de la company de | es 4 batteries | ||
| T 6 Impact Pass Fin 5 c 10 5 c |
St cycle 50% chargedAfter 50 cycles, fully dischargedells for cylindrical cell,
cells for prismatic cell, ells for coin cell.5 cells for cylindrical cell, 10 cells for prismatic cell, 5 cells for coin cell. |
||
| T 7 Overcharge Pass For battery only First cy | cle fully charged 4 batteries After 50 cycles, fully charged 4 batteries | ||
| T 8 Forced discharge - For cell only For cell | only | ||
| Lithium ion battery Spec | fication | ||
| Item Nominal v | lue Note | ||
| Watt-hour rating 25 W | |||
| We declare the above : The test result mentioned above was | checked according to UN test. | ||
| (Manual of Tests and Criteria ST/SG/AC.10/11/Rev.4, Parti | I, sub-section 38.3) | ||
| E1004342 № | ar.30.201 | |||
|---|---|---|---|---|
|
Certi
Customer Model : / Sanyo Model : : Sanyo Product Code : H |
ficate of Packag
AL10A31 BLUNA-1-T0636 F12431008 |

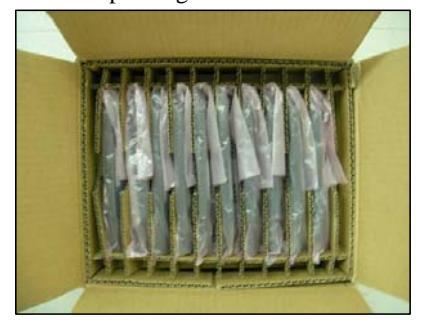

e Drop Test for Lithium ion I | Sanvo Energy(Suzhou)Co, Ltd. | |
| Test item | Test results | Note | ||
| Package Drop Test | Pass |
The package shall be dro
high onto a concrete sur with five orientations ( (1)flat on the bottom,(2 long side, (4)flat on th |
opped from 1.2meter
face ( flat and horizontal drop once a sample); ?)flat on the top,(3)flat on he short side, (5)on a corne |
)
the r |
| Nata | ||||
| ting | NOTE | |||
| watt-nour ra | 25 WN | |||
| Nominal vol | tage | 11.1 V | ||
| Lithium equivalen | tcontent | 1.98 g | ||
| We declare the above | : The test resu | t mentioned above was checke | ed according to UN test. |
(Model Regulations ST/SG/AC.10/1/Rev.15, Special Provision188)
(Model:3LUNA-1-T0636) 2.Test Purpose: This test simulates air transport under low-pressure conditions
Test cells and batteries shall be stored at a pressure of 11.6kPa or less for at least six hours at ambient temperature(20±5°C)
As above.
No mass loss(less than 0.1%),no leakage,no venting,no disassembly,no rupture and no fire,and the voltage
retention is not less than 90%
The requirement relating to voltage is not applicable to test batteries at fully discharged states.
5.Test Date: 2010/1/26
| Battery No. | Mass(g) | Mass loss Volta | ge(V) | Voltage | Other | Result | Indoomont | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Before test | After test |
(%)
(=<0.1%) |
Before test | After test |
Retention(
%)(=>90%) |
event | Result | Judgement | ||
|
At first
cycle,in |
1 | 161.99 | 162.00 | 0.006 | 12.84 | 12.82 | 99.8 | 0 | PASS | |
| 2 | 161.99 | 161.93 | 0.037 | 12.83 | 12.81 | 99.8 | 0 | PASS | ||
| charged | 3 | 161.84 | 161.81 | 0.019 | 12.82 | 12.81 | 99.9 | 0 | PASS | |
| states | 4 | 162.31 | 162.32 | 0.006 | 12.85 | 12.83 | 99.8 | 0 | PASS | |
| At first | 5 | 162.01 | 161.97 | 0.025 | 0 | PASS | ||||
| cycle,in | 6 | 162.01 | 161.98 | 0.019 | PASS | |||||
| discharged | 7 | 161.99 | 161.96 | 0.019 | 0 | PASS | ||||
| states | 8 | 161.93 | 161.92 | 0.006 | 0 | PASS | DACC | |||
| After 50 | 9 | 162.03 | 162.04 | 0.006 | 12.83 | 12.82 | 99.9 | 0 | PASS | PASS |
|
cycles
ending in |
10 | 161.81 | 161.84 | 0.019 | 12.85 | 12.84 | 99.9 | 0 | PASS | |
| fully | 11 | 161.99 | 162.04 | 0.031 | 12.83 | 12.82 | 99.9 | 0 | PASS | |
| states | 12 | 161.87 | 161.90 | 0.019 | 12.82 | 12.81 | 99.9 | 0 | PASS | |
|
After 50
cycles ending in fully |
13 | 162.00 | 162.04 | 0.025 | 0 | PASS | ||||
| 14 | 162.08 | 162.10 | 0.012 | 0 | PASS | |||||
| 15 | 161.73 | 161.77 | 0.025 | 0 | PASS | |||||
| states | 16 | 161.97 | 161.99 | 0.012 | 0 | PASS | ||||
Notes: L-Leakage, V-Venting, D-Disassembly, R-Rupture, F-Fire,
2.Test Purpose: This test assesses cell and battery seal integrity and internal electrical connections. The test is conducted using rapid and extreme temperature changes.
Test cells and batteries are to be stored for at least six hours at a test temperature equal to 75±2°C, followed by storage for at least six hours at a test temperature equal to -40±2°C. The maximum time internal between test temperature extremes is 30 minutes. This procedure is to be repeated 10 times, after which all test cells and batteries are to be stored for 24 hours at ambient temperature (20±5°C). For large cells and batteries the duration of exposure to the test temperature extremes should be at least 12 hours. SANVO Internal Procedure:
As above.
No mass loss(less than 0.1%),no leakage,no venting,no disassembly,no rupture and no fire,and the voltage retention is not less than 90%.
The requirement relating to voltage is not applicable to test batteries at fully discharged states.
5.Test Date: 2010/1/26- 2010/2/2
| Dettern Ne | Mass(g) | Mass loss Volta | ge(V) | Voltage | Other | I. J | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Battery N | 0. | Before test | After test |
(%)
(=<0.1%) |
Before test | After test |
Retention(
%)(=>90%) |
event | Result | Judgement |
| At first | st 1 | 162.00 | 161.95 | 0.031 | 12.82 | 12.62 | 98.4 | 0 | PASS | |
| cycle,in | 2 | 161.93 | 161.92 | 0.006 | 12.81 | 12.61 | 98.4 | 0 | PASS | |
| charged | 3 | 161.81 | 161.77 | 0.025 | 12.81 | 12.60 | 98.4 | 0 | PASS | |
| states | 4 | 162.32 | 162.25 | 0.043 | 12.83 | 12.62 | 98.4 | 0 | PASS | |
| At first | 5 | 161.97 | 161.95 | 0.012 | 0 | PASS | ||||
| cycle,in | 6 | 161.98 | 161.96 | 0.012 | 0 | PASS | ||||
| discharged | 7 | 161.96 | 161.94 | 0.012 | 0 | PASS | ||||
| states | 8 | 161.92 | 161.89 | 0.019 | 0 | PASS | DASS | |||
| After 50 | 9 | 162.04 | 161.96 | 0.049 | 12.82 | 12.64 | 98.6 | 0 | PASS | rass |
| ending in | 10 | 161.84 | 161.76 | 0.049 | 12.84 | 12.66 | 98.6 | 0 | PASS | |
| fully | 11 | 162.04 | 161.95 | 0.056 | 12.82 | 12.65 | 98.7 | 0 | PASS | |
| states | 12 | 161.90 | 161.83 | 0.043 | 12.81 | 12.63 | 98.6 | 0 | PASS | |
|
After 50
cycles ending in fully |
13 | 162.04 | 161.96 | 0.049 | 0 | PASS | ||||
| 14 | 162.10 | 162.03 | 0.043 | 0 | PASS | |||||
| 15 | 161.77 | 161.69 | 0.049 | 0 | PASS | |||||
| states | 16 | 161.99 | 161.91 | 0.049 | 0 | PASS | ||||
Notes: L-Leakage, V-Venting, D-Disassembly, R-Rupture, F-Fire,
2.Test Purpose: This test simulates vibration during transport.
Cells and batteries are firmly secured to the platform of the vibration machine without distorting the cells in such a manner as to faithfully transmit the vibration. The vibration shall be a sinusoidal waveform with a logarithmic sweep between 7 Hz and 200 Hz and back to 7 Hz traversed in 15 minutes. This cycle shall be repeated 12 times for a total of 3 hours for each of three mutually perpendicular mounting positions of the cell. One of the directions of vibration must be perpendicular to the terminal face.
The logarithmic frequency sweep is as follows: from 7 Hz a peak acceleration of 1gn is maintained until 18 Hz is reached. The amplitude is then maintained at 0.8 mm(1.6 mm total excursion) and the frequency increased until a peak acceleration of 8gn occurs (approximately 50Hz). A peak acceleration of 8 gn is then maintained until the frequency is increased to 200Hz
As above.
No mass loss(less than 0.1%),no leakage,no venting,no disassembly,no rupture and no fire,and the voltage retention is not less than 90%
The requirement relating to voltage is not applicable to test batteries at fully discharged states.
5.Test Date: 2010/2/2
6.Test Data
| Mass(g) | Mass loss | Volta | Voltage(V) | Other | ри | T | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| NO. | Before test | After test |
(%)
(=<0.1%) |
Before test | After test |
Retention(
%)(=>90%) |
event | Result | Judgement | |
| At first | 1 | 161.95 | 161.96 | 0.006 | 12.62 | 12.62 | 100.0 | 0 | PASS | |
| cycle,in | 2 | 161.92 | 161.95 | 0.019 | 12.61 | 12.60 | 99.9 | 0 | PASS | |
| charged | 3 | 161.77 | 161.78 | 0.006 | 12.60 | 12.60 | 100.0 | 0 | PASS | |
| states | 4 | 162.25 | 162.25 | 0.000 | 12.62 | 12.62 | 100.0 | 0 | PASS | |
| At first | 5 | 161.95 | 161.95 | 0.000 | 0 | PASS | ||||
| cycle,in | 6 | 161.96 | 161.97 | 0.006 | 0 | PASS | ||||
| discharged | 7 | 161.94 | 161.98 | 0.025 | 0 | PASS | ||||
| states | 8 | 161.89 | 161.91 | 0.012 | 0 | PASS | DACC | |||
| After 50 | 9 | 161.96 | 161.97 | 0.006 | 12.64 | 12.64 | 100.0 | 0 | PASS | PASS |
|
cycles
ending in |
10 | 161.76 | 161.76 | 0.000 | 12.66 | 12.65 | 99.9 | 0 | PASS | |
| fully | 11 | 161.95 | 161.95 | 0.000 | 12.65 | 12.65 | 100.0 | 0 | PASS | |
| states | 12 | 161.83 | 161.86 | 0.019 | 12.63 | 12.63 | 100.0 | 0 | PASS | |
| After 50 | 13 | 161.96 | 161.98 | 0.012 | 0 | PASS | ||||
|
cycles
ending in fully discharged |
14 | 162.03 | 162.04 | 0.006 | 0 | PASS | ||||
| 15 | 161.69 | 161.71 | 0.012 | 0 | PASS | 1 | ||||
| states | 16 | 161.91 | 161.92 | 0.006 | 0 | PASS | 1 | |||
Notes: L-Leakage, V-Venting, D-Disassembly, R-Rupture, F-Fire,
(Model:3LUNA-1-T0636) 2. Test Purnose: This test simulates possible
Test cells and batteries shall be secured to the testing machine by means of a rigid mount which will support all mounting surfaces of each test battery. Each cell or battery shall be subjected to a half-sine shock of pack acceleration of 150 g and pulse duration of 6 milliseconds. Each cell or battery shall be subjected to three shocks in the positive direction followed by three shocks in the negative direction of three mutually perpendicular mounting positions of the cell or battery for a total of 18 shocks
However, large cells and large batteries shall be subjected to a half-sine shock of peak acceleration of 50 gn and pulse duration of 11 milliseconds. Each cell or battery is subjected to three shocks in the positive direction followed by three shocks in the negative direction of each of three mutually perpendicular mounting positions of the cell for a total of 18 shocks
Acabovo
No mass loss(less than 0.1%),no leakage.no venting,no disassembly,no rupture and no fire, and the voltage retention is not less than 90%
The requirement relating to voltage is not applicable to test batteries at fully discharged states
5.Test Date: 2010/2/3
6.Test Data
| Dettern Ne | Mass(g) | Mass loss | Volta | Voltage(V) | Other | Indgement | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Battery N | NO. | Before test | After test |
(%)
(=<0.1%) |
Before test | After test |
Retention(
%)(=>90%) |
event | Result Judgemen | |
| At first | 1 | 161.96 | 161.95 | 0.006 | 12.62 | 12.62 | 100.0 | 0 | PASS | |
| cycle,in | 2 | 161.95 | 161.93 | 0.012 | 12.60 | 12.60 | 100.0 | 0 | PASS | |
| charged | 3 | 161.78 | 161.78 | 0.000 | 12.60 | 12.60 | 100.0 | 0 | PASS | |
| states | 4 | 162.25 | 162.22 | 0.018 | 12.62 | 12.62 | 100.0 | 0 | PASS | |
| At first | 5 | 161.95 | 161.96 | 0.006 | 0 | PASS | ||||
| cycle,in | 6 | 161.97 | 161.95 | 0.012 | 0 | PASS | ||||
| discharged | 7 | 161.98 | 161.97 | 0.006 | 0 | PASS | ||||
| states | 8 | 161.91 | 161.91 | 0.000 | 0 | PASS | DACC | |||
| After 50 | 9 | 161.97 | 161.94 | 0.019 | 12.64 | 12.64 | 100.0 | 0 | PASS | PASS |
|
cycles
ending in |
10 | 161.76 | 161.72 | 0.025 | 12.65 | 12.64 | 99.9 | 0 | PASS | |
| fully | 11 | 161.95 | 161.96 | 0.006 | 12.65 | 12.65 | 100.0 | 0 | PASS | |
| states | 12 | 161.86 | 161.81 | 0.031 | 12.63 | 12.63 | 100.0 | 0 | PASS | |
| After 50 | 13 | 161.98 | 161.97 | 0.006 | 0 | PASS | ||||
|
cycles
ending in fully discharged |
14 | 162.04 | 162.02 | 0.012 | 0 | PASS | ||||
| 15 | 161.71 | 161.68 | 0.019 | 0 | PASS | |||||
| states | 16 | 161.92 | 161.90 | 0.012 | 0 | PASS | ||||
Notes: L-Leakage, V-Venting, D-Disassembly, R-Rupture, F-Fire,
1.Test Item: External short circuit (T5) 2.Test Purpose: This test simulates an external short circuit (T5)
The cell or battery to be tested shall be temperature stabilized so that its external case temperature reaches 55±2°C and then the cell or battery shall be subjected to a short circuit condition with a total external resistance of less than 0.1 ohm at 55±2°C. This short circuit condition is continued for at least one hour after the cell or battery external case temperature has returned to 55±2°C. The cell or battery must be observed for a further six hours for the test to be concluded.
As above.
External temperature of test batteries does not exceed 170°C and there is no disassembly, no rupture and no fire within six hours of this test.
5. Test Date: 2010/2/3-2010/2/3
| Bat | ttery No. | Maximum temperature (°C) |
Other
event |
Result | Judgement |
|---|---|---|---|---|---|
| At first | 1 | 55.1 | 0 | PASS | |
| cycle,in | 2 | 54.9 | 0 | PASS | |
| charged | 3 | 54.5 | 0 | PASS | |
| states | 4 | 54.8 | 0 | PASS | |
| At first | 5 | 54.9 | 0 | PASS | |
| cycle,in | 6 | 54.5 | 0 | PASS | |
| discharged | 7 | 55.1 | 0 | PASS | |
| states | 8 | 54.4 | 0 | PASS | DAGG |
| After 50 | 9 | 54.7 | 0 | PASS | PASS |
|
cycles
ending in |
10 | 54.4 | 0 | PASS | |
| fully | 11 | 55.1 | 0 | PASS | |
| states | 12 | 54.9 | 0 | PASS | |
| After 50 | 13 | 55.1 | 0 | PASS | |
|
cycles
ending in |
14 | 54.5 | 0 | PASS | |
| fully | 15 | 54.5 | 0 | PASS | |
| states | 16 | 54.9 | 0 | PASS |
Notes: D-Disassembly, R-Rupture, F-Fire, 0-No disassembly, no rupture & no fire
P.7/10
2.Test Purpose: This test simulates an impact
The test sample cell or component cell is to be placed on a flat surface. A 15.8mm diameter bar is to be placed across the center of the sample. A 9.1kg mass is to be dropped from a height of 61±2.5cm onto the sample.
(Model:3LUNA-1-T0636
A cylindrical or prismatic cell is to be impacted with its longitudinal axis parallel to the flat surface and perpendicular to
the longitudinal axis of the 15.8mm diameter curved surface lying across the centre of the test sample. A prismatic cell is also to be rotated 90 degrees around its longitudinal axis so that both the wide and narrow sides will be subjected to the impact. Each sample is to be subjected to only a single impact. Separate samples are to be used for each impact. A coin or button cell is to be impacted with the flat surface of the sample parallel to the flat surface and the 15.8mm
diameter curved surface lying across its center.
SANYO Internal Procedure:
As above
External temperature of test batteries does not exceed 170°C and there is no disassembly and no fire within six hours of this test
5 Teet Date: 2009/7/22
| Cell No. | Maximum Temperature(°C) | Other event | Result | Judgement | |
|---|---|---|---|---|---|
| 1 | 146 | 0 | PASS | ||
| 2 | 144 | 0 | PASS | ||
| 3 | 138 | 0 | PASS | ||
| At first | 4 | 138 | 0 | PASS | |
| cycle, 50% | 5 | 140 | 0 | PASS | |
| charged | 6 | ||||
| states | 7 | ||||
| 8 | PASS | ||||
| 9 | |||||
| 10 | |||||
| 11 | 45 | 0 | PASS | ||
| 12 | 61 | 0 | PASS | ||
| After 50 | 13 | 61 | 0 | PASS | |
| cycles | 14 | 61 | 0 | PASS | |
| ending, in | 15 | 69 | 0 | PASS | |
| fully | 16 | ||||
| discharged | 17 | ||||
| 310103 | 18 | ||||
| 19 | |||||
| 20 |
Notes: D-Disassembly, F-Fire, 0-No disassembly & no fire
(a) when the manufacturer's recommended charge voltage is not more than 18V, the minimum voltage of the test shall be the lesser of two times the maximum charge voltage of the battery or 22V.
(b) when the manufacturer's recommended charge voltage is more than 18V, the minimum voltage of the test shall be 1.2 times the maximum charge voltage.
Tests are to be conducted at ambient temperature. The duration of the test shall be 24 hours.
| I . | nai r roceuure: | |
|---|---|---|
| Min.Charge Voltage: | 22V | |
| Charge Current: | 3.52A |
There is no disassembly and no fire within seven days of the test
5.Test Date: 2010/1/26-2010/2/3
6.Test Data
| Battery | Battery No. Event Result | Judgement | ||
|---|---|---|---|---|
| At first | 1 | 0 | PASS | |
| cycle in fully | 2 | 0 | PASS | |
| charged | 3 | 0 | PASS | |
| states | 4 | 0 | PASS | DASS |
| After 50 | 5 | 0 | PASS | rass |
|
cycles
ending in fully |
6 | 0 | PASS | |
| 7 | 0 | PASS | ||
| states | 8 | 0 | PASS | |
| N. D.D. | 1.1 | EE ON I | 11 0 | C. |
Notes: D-Disassembly, F-Fire, 0-No disassembly & no fire
2.Test Purpose: This test simulates the drop of the packaging during transport.
Number of Test Samples (Per design type, Manufacturer ) and Drop Orientation For other than flat drops
the centre of gravity must be vertically over the point of impact. Where more than one orientation is
possible for a given drops, the orientation most likely to result in failure of the packaging must be used.
| Packaging | Number of test | Drop orientation |
|---|---|---|
| samples | ||
| Boxes of natural wood | Five (one for each drop) | First drop: flat on the bottom |
| Plywood boxes | Second drop: flat on the top | |
| Reconstituted wood boxes | Third drop: flat on the long side | |
| Fibreboard boxes | Fourth drop: flat on the short side | |
| Plastic boxes | Fifth drop: on a corner | |
| Steel or aluminum boxes | ||
| Composite Packagings | ||
| which are in the shape of a box. |
Packaging: Fiberboard boxes. Number of test samples: Five(one for each drop). It may do the drop
of five orientations with one sample if the packing does not have the big damage.
Drop orientation: As above.
A Package passes the test if it meets the following criteria:
Each package is capable of withstanding a 1.2 meter drop test in any orientation without damage to cells or batteries contained therein, without shifting of the contents so as to allow battery to battery (or cell to
cell) contact and without release of contents.
after examination
Inside of packing after examination
after examination
| Packaging size: |
|---|
| 384*296*236mm |
| Packaging weight (before): |
| 8.17kg |
| Packaging weight (after): |
.17kg












Loading...
