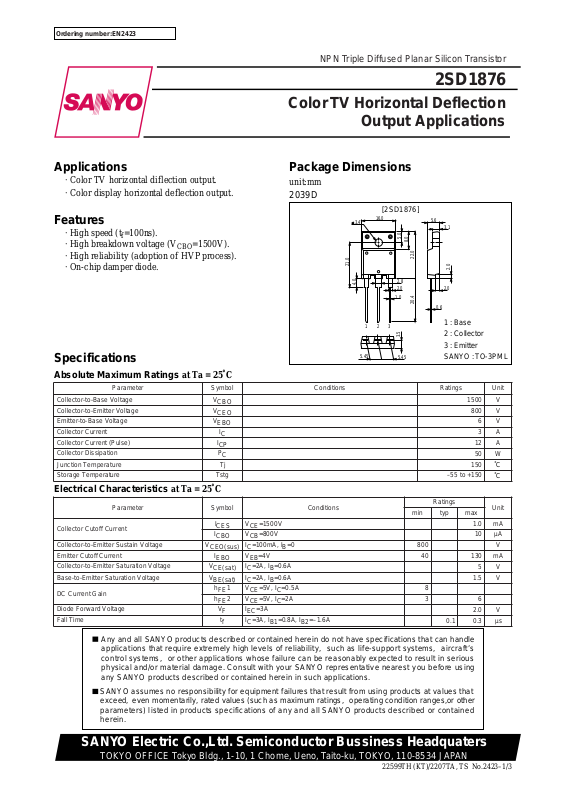

Ordering number:EN2423
|
|
|
|
NPN Triple Diffused Planar Silicon Transistor |
||
|
|
|
|
2SD1876 |
|
|
|
|
|
|
Color TV Horizontal Deflection |
||
|
|
|
|
Output Applications |
||
|
|
|
|
|
|
|
Applications |

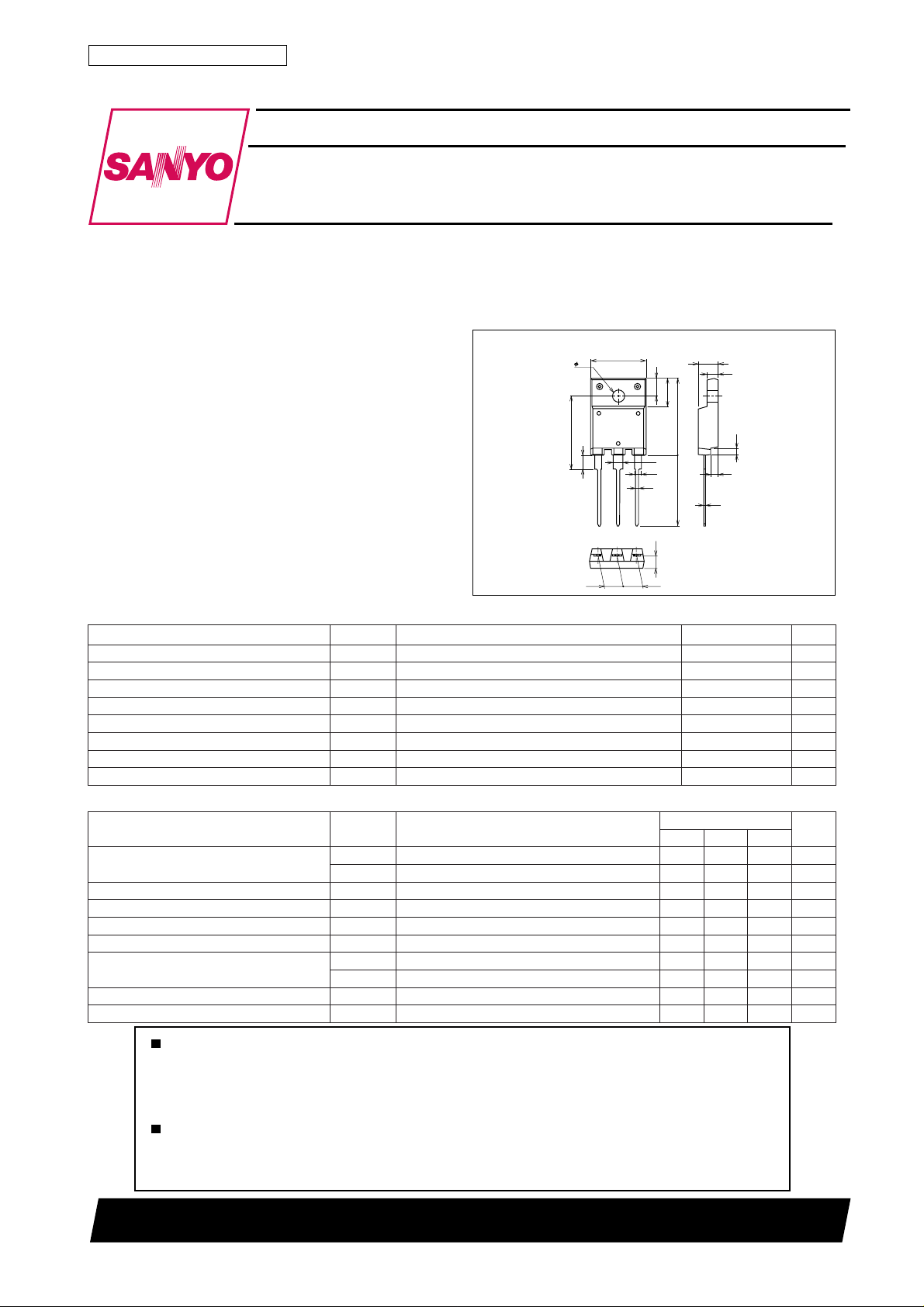

Package Dimensions |
|||||
· Color TV horizontal diflection output. |
unit:mm |
|||||
· Color display horizontal deflection output. |
2039D |
|||||
Features
· High speed (t=100ns). f
· High breakdown voltage (V =1500V).
CBO
·High reliability (adoption of HVP process).
·On-chip damper diode.
Specifications
[2SD1876]
16.0 |
5.6 |
3.4 |
3.1 |
|
|
|
5.0 |
8.0 |
|
|
21.0 |
|
|
22.0 |
2.0 |
|
4.0 |
|
2.8 |
|
|
|
|
|
|
|
|
|
|
|
2.0 |
|
2.0 |
|
|
|
1.0 |
20.4 |
|
|
|
|
|
0.6 |
|
|
|
|
|
|
|
|
1 |
2 |
3 |
|
1 |
: Base |
|
|
|
|||
|
|
3.5 |
|
2 |
: Collector |
|
|
|
|
3 |
: Emitter |
5.45 |
|
5.45 |
SANYO : TO-3PML |
||
Absolute Maximum Ratings at Ta = 25˚C
Parameter |
Symbol |
Conditions |
|
|
Ratings |
|
Unit |
|
|
|
|
|
|
|
|
|
|
Collector-to-Base Voltage |
VCBO |
|
|
|
|
|
1500 |
V |
Collector-to-Emitter Voltage |
VCEO |
|
|
|
|
|
800 |
V |
Emitter-to-Base Voltage |
VEBO |
|
|
|
|
|
6 |
V |
Collector Current |
IC |
|
|
|
|
|
3 |
A |
Collector Current (Pulse) |
ICP |
|
|
|
|
|
12 |
A |
Collector Dissipation |
PC |
|
|
|
|
|
50 |
W |
Junction Temperature |
Tj |
|
|
|
|
|
150 |
˚C |
|
|
|
|
|
|
|
|
|
Storage Temperature |
Tstg |
|
|
|
–55 to +150 |
˚C |
||
|
|
|
|
|
|
|
|
|
Electrical Characteristics at Ta = 25˚C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Parameter |
Symbol |
Conditions |
|
|
Ratings |
|
Unit |
|
|
|
|
|
|
||||
|
|
|
min |
typ |
|
max |
|
|
|
|
|
|
|
|
|
|
|
Collector Cutoff Current |
ICES |
VCE=1500V |
|
|
|
|
1.0 |
mA |
ICBO |
VCB=800V |
|
|
|
|
10 |
µA |
|
|
|
|
|
|
||||
Collector-to-Emitter Sustain Voltage |
VCEO(sus) |
IC=100mA, IB=0 |
800 |
|
|
|
V |
|
Emitter Cutoff Current |
IEBO |
VEB=4V |
40 |
|
|
130 |
mA |
|
Collector-to-Emitter Saturation Voltage |
VCE(sat) |
IC=2A, IB=0.6A |
|
|
|
|
5 |
V |
Base-to-Emitter Saturation Voltage |
VBE(sat) |
IC=2A, IB=0.6A |
|
|
|
|
1.5 |
V |
DC Current Gain |
hFE1 |
VCE=5V, IC=0.5A |
8 |
|
|
|
|
|
hFE2 |
VCE=5V, IC=2A |
3 |
|
|
6 |
|
||
|
|
|
|
|||||
Diode Forward Voltage |
VF |
IEC=3A |
|
|
|
|
2.0 |
V |
Fall Time |
tf |
IC=3A, IB1=0.8A, IB2=–1.6A |
|
|
0.1 |
|
0.3 |
µs |
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other parameters) listed in products specifications of any and all SANYO products described or contained herein.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
22599TH (KT)/2207TA, TS No.2423–1/3
2SD1876

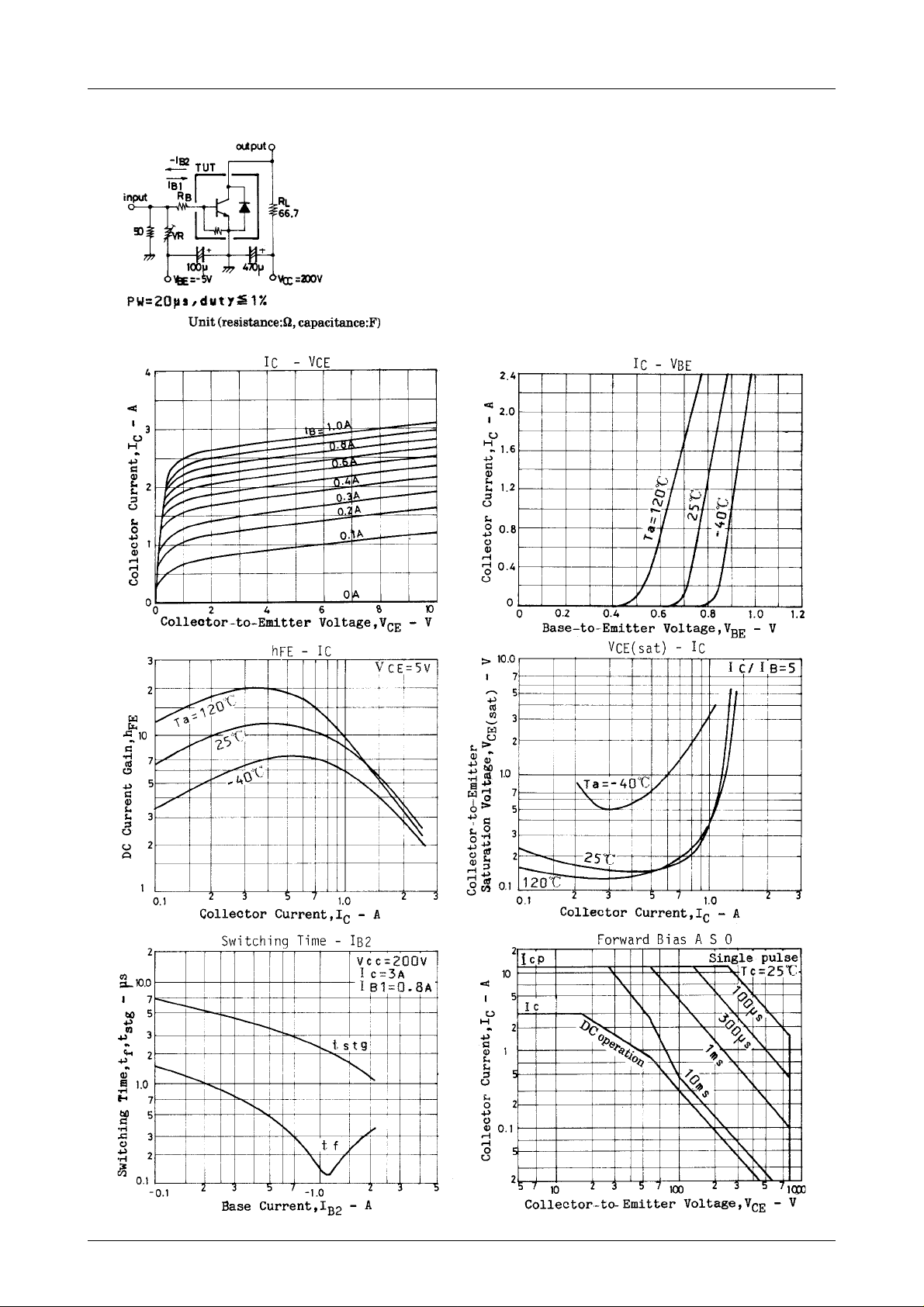

Switching Time Test Circuit
