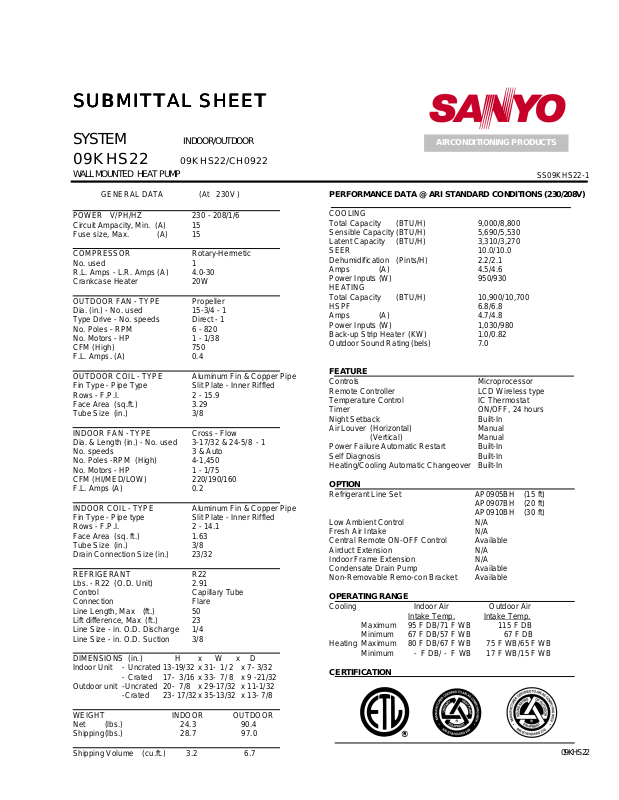

SUBMITTAL SHEET

SUBMITTAL SHEET

SUBMITTAL SHEETSUBMITTAL SHEET

SYSTEM

INDOOR/OUTDOOR

09KHS22 09KHS22/CH0922

WALL MOUNTED HEAT PUMP

GENERAL DATA (At 230V )

POWER V/PH/HZ 230 - 208/1/6
Circuit Ampacity, Min. (A) 15
Fuse size, Max. (A) 15

COMPRESSOR Rotary-Hermetic
No. used 1
R.L. Amps - L.R. Amps (A) 4.0-30
Crankcase Heater 20W

OUTDOOR FAN - TYPE Propeller
Dia. (in.) - No. used 15-3/4 - 1
Type Drive - No. speeds Direct - 1
No. Poles - RPM 6 - 820
No. Motors - HP 1 - 1/38
CFM (High) 750
F.L. Amps. (A) 0.4

OUTDOOR COIL - TYPE Aluminum Fin & Copper Pipe
Fin Type - Pipe Type Slit Plate - Inner Riffled
Rows - F.P.I. 2 - 15.9
Face Area (sq.ft.) 3.29
Tube Size (in.) 3/8

INDOOR FAN - TYPE Cross - Flow
Dia. & Length (in.) - No. used 3-17/32 & 24-5/8 - 1
No. speeds 3 & Auto
No. Poles -RPM (High) 4-1,450
No. Motors - HP 1 - 1/75
CFM (HI/MED/LOW) 220/190/160
F.L. Amps (A) 0.2

INDOOR COIL - TYPE Aluminum Fin & Copper Pipe
Fin Type - Pipe type Slit Plate - Inner Riffled
Rows - F.P.I. 2 - 14.1
Face Area (sq. ft.) 1.63
Tube Size (in.) 3/8
Drain Connection Size (in.) 23/32

REFRIGERANT R22
Lbs. - R22 (O.D. Unit) 2.91
Control Capillary Tube
Connection Flare
Line Length, Max (ft.) 50
Lift difference, Max (ft.) 23
Line Size - in. O.D. Discharge 1/4
Line Size - in. O.D. Suction 3/8

DIMENSIONS (in.) H x W x D
Indoor Unit - Uncrated 13-19/32 x 31- 1/ 2 x 7- 3/32

Outdoor unit -Uncrated 20- 7/8 x 29-17/32 x 11-1/32

- Crated 17- 3/16 x 33- 7/ 8 x 9 -21/32

-Crated 23- 17/32x 35-13/32 x 13- 7/8

AIRCONDITIONING PRODUCTS

SS09KHS22-1

PERFORMANCE DATA @ ARI STANDARD CONDITIONS (230/208V)

COOLING
Total Capacity (BTU/H) 9,000/8,800
Sensible Capacity (BTU/H) 5,690/5,530
Latent Capacity (BTU/H) 3,310/3,270
SEER 10.0/10.0
Dehumidification (Pints/H) 2.2/2.1
Amps (A) 4.5/4.6
Power Inputs (W) 950/930
HEATING
Total Capacity (BTU/H) 10,900/10,700
HSPF 6.8/6.8
Amps (A) 4.7/4.8
Power Inputs (W) 1,030/980
Back-up Strip Heater (KW) 1.0/0.82
Outdoor Sound Rating(bels) 7.0

FEATURE

Controls Microprocessor
Remote Controller LCD Wireless type
Temperature Control IC Thermostat
Timer ON/OFF, 24 hours
Night Setback Built-In
Air Louver (Horizontal) Manual
(Vertical) Manual
Power Failure Automatic Restart Built-In
Self Diagnosis Built-In
Heating/Cooling Automatic Changeover Built-In

OPTION

Refrigerant Line Set AP0905BH (15 ft)

AP0907BH (20 ft)
AP0910BH (30 ft)
Low Ambient Control N/A
Fresh Air Intake N/A
Central Remote ON-OFF Control Available
Airduct Extension N/A
Indoor Frame Extension N/A
Condensate Drain Pump Available
Non-Removable Remo-con Bracket Available

OPERATING RANGE

Cooling Indoor Air Outdoor Air

Intake Temp. Intake Temp.
Maximum 95 F DB/71 F WB 115 F DB
Minimum 67 F DB/57 F WB 67 F DB

Heating Maximum 80 F DB/67 F WB 75 F WB/65 F WB

Minimum - F DB/ - F WB 17 F WB/15 F WB

CERTIFICATION

WEIGHT INDOOR OUTDOOR
Net (lbs.) 24.3 90.4
Shipping(lbs.) 28.7 97.0

Shipping Volume (cu.ft.) 3.2 6.7

09KHS22

DIMENSIONAL DATA

Indoor Unit: KHS0921, KHS0922

Wireless remote
control unit

6-7/64

31-1/2

2-13/64

7-11/64 17-23/32

3-3/4

5-1/2

1-49/64

1-49/64

19/32

Center of
tubing hole

(for right
rear)

Drain hose O.D. 23/32

O.D. 1/4" narrow tubing

O.D. 3/8" wide tubing

Outdoor Unit: CH0921, CH0922

29-17/32

2-1/4

Rear panel
(center point
of gravity)

6-23/32

1-3/16 9-27/32

1-5/8

7-3/32

13-19/32

1-3/8

Check port

1/4" narrow tubing
service valve

3/8" wide tubing
service valve

1-49/64

15/32

20-7/8

21/32

Air intake

4  15/32 dia. hole

Air
intake

10-23/32

Air discharge

23-15/16 2-3/8

WARRANTY

SANYO products are warranted against defects in materials and workmanship for the
period below;

Compressor 30 Days 5 Years
Other Components N/A 1 Year

Because of a policy of continuous product improvements, SANYO reserves the right
to change specifications and design without notice.

LABOR PARTS

2-23/32 2-3/8

11-7/8

Full specific warranty rights, conditions, exclusions and obligations are specified in the
warranty packed with each products.
