STC800
STC800 TRUCK CRANE
80 TONS LIFTING CAPACITY
Quality Changes the World
STC800 TRUCK CRANE
2 3
COMPANY BRIFE INTRODUCTION
SANY Automobile Hoisting Machinery is one of the core business unit of Sany Heavy
Industry, mainly engaged in the research and development of high end, mid to large
tonnage crane series, including mobile crane, crawler crane, tower crane and loader crane.
It has two industrial parks in Ningxiang and Huzhou, since entering the market, the products
of Sany Automobile Hoisting Machinery have received worldwide recognition with advanced
technology, lean manufacturing, high reliability and excellent service.
COMPANY BRIFE INTRODUCTION
STC800 TRUCK CRANE
Quality Changes the World Quality Changes the World
STC800 TRUCK CRANE
4 5
ICON
STC800 TRUCK CRANE
SELLING POINTS
SANY TRUCK CRANe
CONTENT
04 Icon
05 Selling Points
06 Introduction
09 Dimension
10 Technical Parameter
11 Operation Condition
12 Load Chart

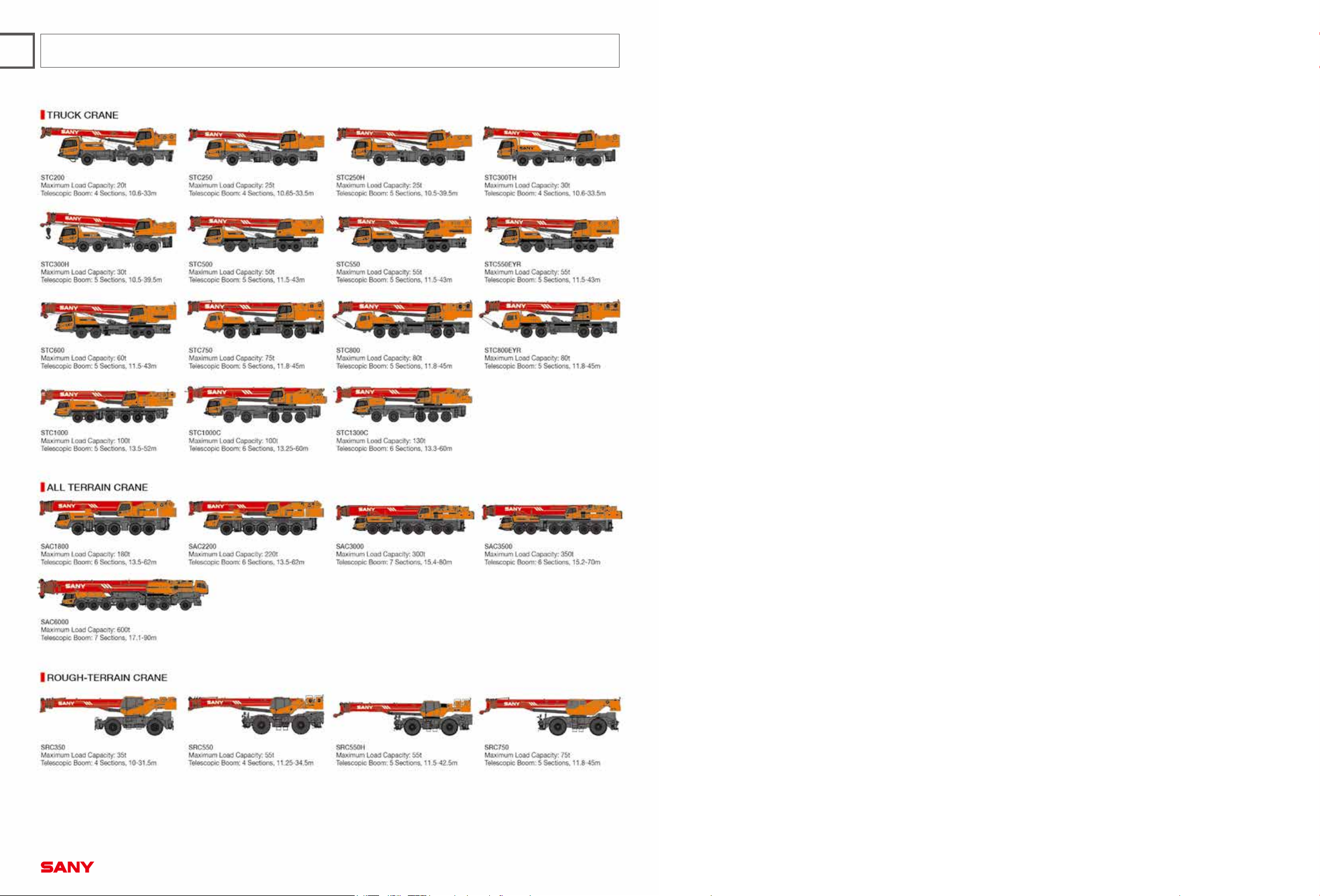

14 Wheel Crane Family Map
Cab
Hydraulic system
Control system
Telescopic system
Luffing system
Slewing
Counterweight
Safety system
Hoist system
Carrier frame
Outriggers
Engine
Transmission system
Drive/Steer
Axles
Tyres
Brakes system
Electrical system
Suspension system
Telescopic boom
Lattice jibs
Superlift devices
Luffing lattice jib
winch mechanism:
Excellent and stable chassis performance /
chassis system
Double-axle drive is used, providing good trafficability and
comfortableness under complex road condition with reliable
traveling performance.
Engine has the multimode power output function, which reduces
power consumption.
The use of tipping over early-warning technology provides high
stability and safety of the overall operation.
Highly efficient, stable, energy-saving and
adjustable hydraulic system
Hydraulic system load feedback and constant power control
is applied to provide strong lifting capacity and good micromobility. Unique steering buffer design is adopted to ensure
stable braking operation.
Super-strong, super-long and sensitive
lifting capacity
Five-section boom of high strength steel structure and optimized
U-shaped section reduces weight significantly with higher safety
rates. Jib mounting angles are 0°, 15° and 30°, which ensures
fast and convenient change-over between different operating
conditions so as to improving working efficiency of the machine.
Safe, stable, advanced and intelligent
electric control system
Self-developed controller SYMC specially for engineering
machinery is configured. The adoption of CAN-bus full-digital
network control technology ensures stable control signal, simple
harness and high reliability. Timely feedback of data information
can achieve the monitoring of the overall working status in realtime. The load moment limiter equipped with the comprehensive
intelligent protection system is used with accuracy within 5%
to provide a comprehensive logic and interlock control, thus
ensuring more safe and reliable operation.
Quality Changes the World Quality Changes the World
STC800 TRUCK CRANE
6 7
INTRODUCTION
STC800 TRUCK CRANE
INTRODUCTION
Cab
Hydraulic system
Control system
Luf ng system
Superstructure
■
It is made of safety glass and anti-corrosion steel plate with ergonomic design such as
full-coverage soften interior, panoramic sunroof and adjustable seats etc., and humanized
design providing more comfortable and relaxing operation experience. The display of load
moment limiter integrates main console and operation display system, which clearly show
the data of all operating superstructure conditions for lifting operation.
■
High-quality key hydraulic components such as main oil pump, rotary pump, main valve,
winch motor and balancing parts etc. are adopted to achieve stable and reliable operation
of the hydraulic system. Superior operation performance is guaranteed by accurate
parameter matching.
■
Through the adoption of load sensitive variable displacement piston pump, pump
displacement can be adjusted in real-time, achieving high-precision fl ow control with no
energy loss during operation.
■
Main valve has flow compensation and load feedback control function, enabling stable
and convenient control of single action and combined action under different operation
conditions.
■
Winch adopts the electronically controlled variable motor to ensure high operation
effi ciency. Max. single line speeds of main and auxiliary winches is up to 130m/min.
■
Slewing system is equipped with the integrated slewing buffer valve, with free slipping
function to ensure more stable starting and control of the slewing operation and excellent
micro-mobility.
■
Hydraulic oil tank capacity: 980L.
■
CAN-bus instrument: CAN-bus instrument with a combined intelligent control electrical
system is used for easy reading of the traveling parameters at any time. The engine fault
warning function is applied to ensure convenient and fast troubleshooting.
■
Automatic outrigger system: Electrically controlled outrigger with automatic leveling and
fault diagnosis warning function is adopted, which is fl exible and fl exible to operate.
■
With fully security protection system, main and auxiliary winches are equipped with overroll out limiter and height limiters to prevent over-rolling out and over-hoisting of steel rope,
including tip-over and limit angle protection.
■
Load moment limiter: The adoption of high intelligent load moment limiter system can
comprehensively protect lifting operation, ensuring accurate, stable and comfort operation.
■
The IO monitoring system can monitoring the input and output situation of the
superstructure electricity system and can detect hydraulic system, chassis (for major safety
failure), engine and gearbox for fault to ensure reliable operation of the crane.
■
Dead-weight luffi ng provides more stable luffi ng operation at low energy loss.
■
Luffi ng angle: -2°~ 80°.
Hoisting system
Safety system
Counterweight
Cab
Superstructure
■
The adoption of pump and motor double variable speed control ensures high effi ciency
and excellent energy saving functionality. With perfect combination of winch balance valve
and unique anti-slip technology, heavy load can be lifted and lowered smoothly. Closed
winch brake and winch balance valve effectively prevent imbalance of the hook.
■
One main hook: 718Kg, one auxiliary hook: 354Kg. Wire rope of main winch: wire rope
20-35W×7-1960USZ 245m.Wire rope of auxiliary winch: wire rope 20-35W×7-1960USZ
145m.
■
Load moment limiter: Load moment limiter calculation system based on lifting load
mechanical model is established using an analytical mechanics method with rated lifting
accuracy up to ±5% through on-line non-load calibration, providing full protection to lifting
operation. In case of overload operation, system will automatically issue an alarm to provide
safety protection for manipulation.
■
Hydraulic system is configured with the balance valve, overflow valve and two-way
hydraulic lock etc. components, thus achieving stable and reliable operation of the
hydraulic system.
■
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out
of wire rope.
■
Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of
wire rope.
■
Boom head is equipped with anemometer to detect whether the high altitude wind speed is
within the allowable working range.
■
Equipped with length sensor, angle sensor and press sensor to indicate the working
condition of whole crane in real-time, giving an alarm and cutting off the dangerous action
automatically.
■
Counterweight is 4000kg,no fl exiable counterweight.
Chassis
■
Cab is made of new steel structure self-developed by SANY, featuring excellent shock
absorption and tightness, which is configured with swing-out doors at both sides,
pneumatically suspended driver’s seat and passenger’s seat, adjustable steering wheel,
large rearview mirror, comfortable driver’s chair with a headrest, anti-fog fan, air conditioner,
stereo radio and complete control instruments and meters, providing more comfortable,
safe and humanized operation experience.
Telescopic system
Slewing system
Quality Changes the World Quality Changes the World
■
Five-section boom is applied with basic boom length of 11.8m, full-extended boom length
of 45m, jib length of 16m and fully extended boom lifting height of 46.4m respectively.
Max. lifting height is 62.2m including jib. It is made of fi ne grain high-strength steel with
U-shaped cross section and with telescopic operation controlled independently by dualcylinder rope.
■
360° rotation can be achieved with Max. slewing speed of 1.8r/min. Hydraulic controlled
proportional speed adjustment is applied to provide stable and reliable operation of the
system. Unique rotary buffer design ensures more stable braking.
Carrier frame
Axles
Engine
■
Designed and manufactured by SANY, anti-torsion box structure is welded by fi ne-grain
high-strength steel plate to provide strong load bearing capacity.
■
Axles 3 and 4 are drive axles and axles 1 and 2 are steering axles, axle and wheel
differentials are installed in axle 3 and wheel differential is installed in axle 4.The use of
welding process for axle housing provides stronger load bearing capacity.
■
Type: Inline six-cylinder, water cooled, supercharged and inter-cooling diesel engine
■
Rated power: 275kw/2100r/min
■
Environment-protection: Emission complies with EuroⅢ standard
■
Capacity of fuel tank: 350L
STC800 TRUCK CRANE
8 9
INTRODUCTION
STC800 TRUCK CRANE

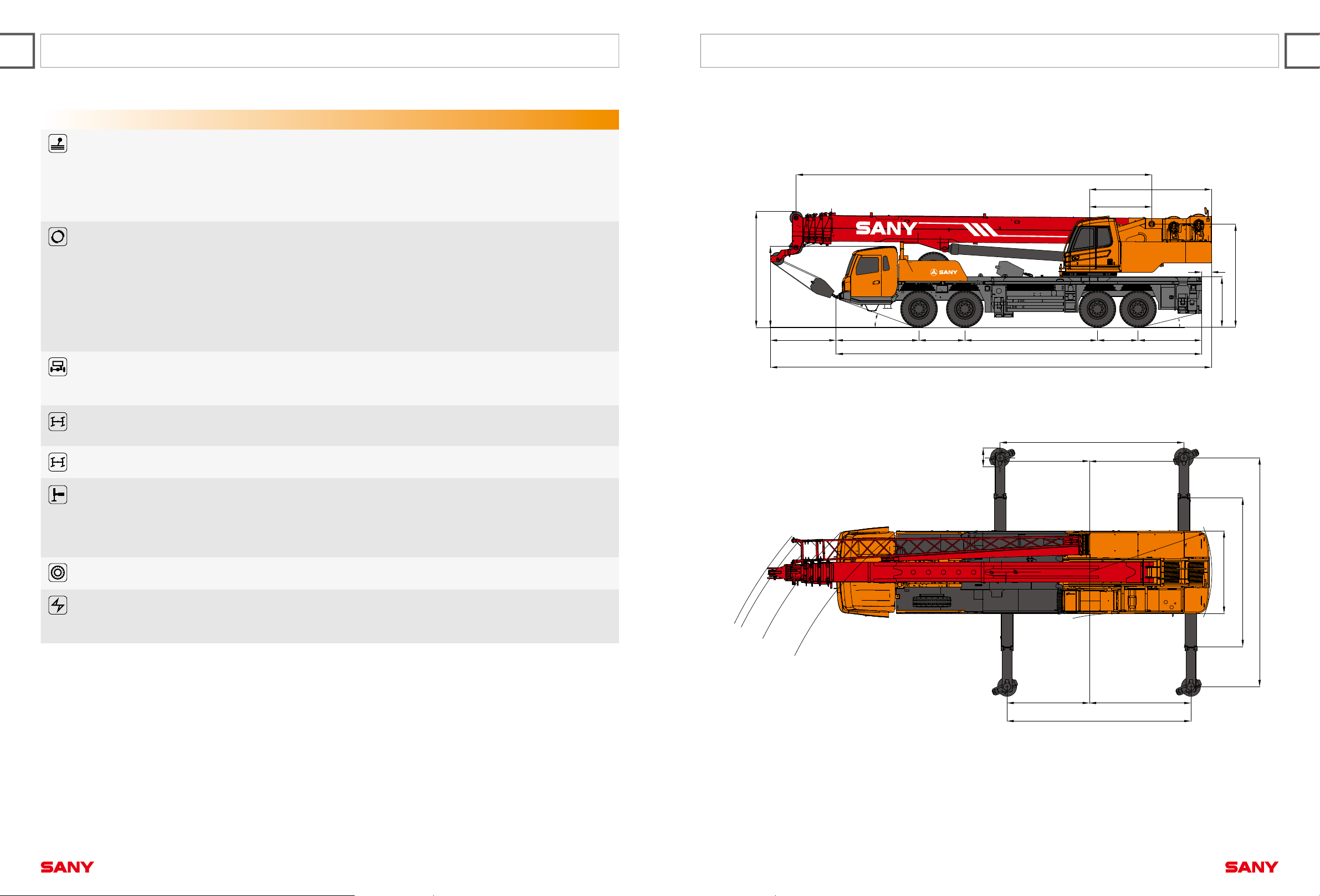

DIMENSION
Chassis
■
Transmission system
Brakes system
Suspension system
Gearbox: Manual gearbox with 9-gear is adopted, 9 forward gears and 1 reverse
gear which is easy to operate, with large speed ratio range applied, which meets the
requirements of low gradeability speed and high traveling speed.
■
Transmission shaft: With optimized arrangement of the transmission shaft, the transmission
is stable and reliable. For most optimized transmission, face-tooth coupling transmission
shaft is used with large transmission torque.
■
Air servo brakes are used for all wheels with dual-circuit brake system applied, engine is
equipped with an exhaust brake.
■
Brakes system includes traveling brake, parking brake, emergency brake and auxiliary
brake.
■
Traveling brake: All wheels use the air servo brakes and dual-circuit brake system.
■
Parking brake: Force driven by accumulator is applied on the third to fourth axle.
■
For emergency brake, accumulator is used not only for cutting-off brake but also for
emergency brake.
■
Auxiliary brake is exhaust brake with brake safety ensured while travelling downhill.
■
All axles adopt the plate spring suspension systems with plate spring passed 100,000
fatigue tests and with optimization of performance parameters of the front and rear plate
springs applied to ensure strength and also to provide comfort ridding.
3850
2695
19°
11800～45000
14635
12135
13554400152027532176
4050
2070
328
3429
1673
12°
2107
Steering system
Drive/Steer
Outriggers
Tyres
Electrical system
■
Hydraulic power mechanical steering system is applied for axle 1 with unloading valve
installed in the steering gear.
■
8 x 4
■
Four-point supporting of the H-shaped outriggers ensures easy operation and strong
stability with Max. span up to 6.1m×7.6m. They are made of fi ne-grain high-strength steel
sheet with full hydraulic transverse telescopic outriggers adopted for first and second
outriggers and with automatic horizontal adjustment applied for outriggers through a
vertical cylinder.
■
12x12.00R24 20PR
■
With 2*12V maintenance-free batteries, the crane power can be cut off manually via
a mechanical master power switch. The use of CAN-bus control system can achieve
information interaction between superstructure and undercarriage.
R=14800
R=14500
R=13100
R=12000
φ480
3095
3005
6100
R=6782
6100
3005
3095
R4116
2750
3675
7600
Quality Changes the World Quality Changes the World
10 11
STC800 TRUCK CRANE

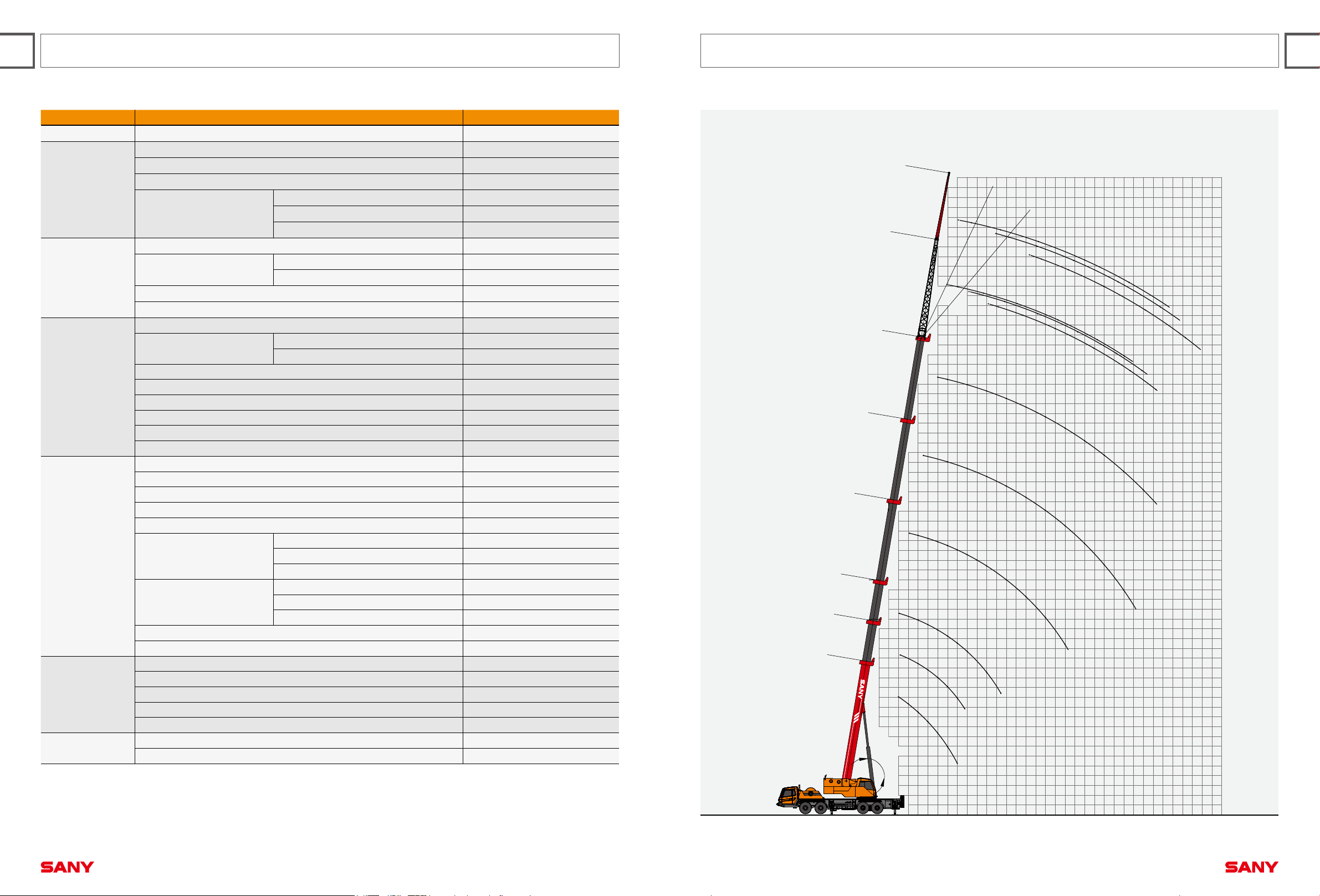

TECHNICAL PARAMETER
OPERATION CONDITION
STC800 TRUCK CRANE
STC800 Working Ranges
Type Item Parameter
Capacity Max. lifting capacity 80 t
Overall length 141000 mm
80°
45.0+9.2m
45.0m
30.0
43.0
51.0
80.0
45.0+16m
16.0
30.0
38.0
33.1
45.0
63.0
51.0
9.5
27.3
24.6
38.0
41.0
2.4
2.8
3.5
3.5
0°
15°
30°
9.5
15.0
22.0
19.2
28.5
23.8
19.5
30.5
24.5
20.0
2.4
9.2
13.9
16.3
15.9
16.0
3.0
2.4
13.9
13.1
1.5
2.0
8.8
12.0
12.0
10.8
2.2
2.0
2.3
7.7
1.45
8.5
9.5
9.0
1.8
2.5
1.1
7.7
7.5
6.8
1.3
1.0
1.8
1.8
1.6
6.0
5.1
6.5
0.95
2.0
1.1
5.2
4.7
3.9
1.5
1.3
4.1
3.7
0.85
1.3
1.5
3.3
2.8
0.95
1.2
0.7
0.95
2.6
2.1
0.95
0.76
0.65
0.55
2.0
60 65(m)
55
0.75
5040 45302520 35
0.65
15
10
32.0
25.0
19.0
5
Dimensions
Weight
Traveling
Main Performance
Data
Working speed
Aircondition
Overall width 2750 mm
Overall height 3850 mm
Axle-1,2 1520 mm
Axle distance
Axle-2,3 4400 mm
Axle-3,4 1355 mm
Overall weight 45800 kg
Axle load
Axle load-1,2 17500 kg
Axle load-3,4 28300 kg
Rated power 275 kW/ 2100 rpm
Rated torque 1500 N·m/1300-1500 rpm
Max.traveling speed 80 km/h
Turning radius
Min.turning radius 12 m
Min.turning radius of boom head 14.5 m
Wheel formula 8 × 4
Min.ground clearance 290 mm
Approach angle 19 °
Departure angle 12 °
Max.gradeability 35%
Fuel consumption per 100km ≤ 56 L
Temperature range – 20 ℃ ~ +40 ℃
Min.rated range 3 m
Tail slewing radius of swingtable 4.1 m
Boom section 5
Boom shape U-shaped
Base boom 2550 kN·m
Max.lifting moment
Full-extend boom 1232 kN·m
Full-extend boom+jib 363 kN·m
Base boom 11.8 m
Boom length
Full-extend boom 45 m
Full-extend boom+jib 61 m
Outrigger span (Longitudinal×Transversal) 6.1 × 7.6 m
Jib oset 0 °,15 °,30 °
Max.single rope lifting speed of main winch (no load) 130 m/min
Max.single rope lifting speed of auxiliary winch (no load) 130 m/min
Full extension/retraction time of boom 120/100 s
Full lifting/descending time of boom 60 / 80 s
Slewing speed 1.8 r/min
Aircondition in up cab Cooling
Aircondition in low cab Cooling/Heating
36.7m
Lifting height (m)
28.4m
20.1m
15.95m
11.8m
302515 201050
Radius (m)
Quality Changes the World Quality Changes the World
35(m)
12 13
STC800 TRUCK CRANE
LOAD CHART
Unit:Kg Unit:Kg
STC800 TRUCK CRANE
LOAD CHART
Prerequisites:
Boom operating conditions(fully extended boom length),min.length is 11.8m and max.length is 45m
①
The span of outriggers is 6.1m×7.6m
②
360°rotation is applied
③
Counterweight is 4T
④
Working range(m)
3 80000 51000
3.5 71000 51000 43000
4 63000 51000 43000
4.5 56000 48000 40500 30000
5 51000 45000 38000 30000
5.5 46000 42000 35400 28500
6 41000 38000 33100 27300
6.5 36000 34000 31000 26000 16000
7 32000 30500 28500 24600 16000
8 25000 24500 23800 22000 15000 9500 8
9 19000 20000 19500 19200 14500 9500 9
10
11
12
14
16
18
20
22
24
26
28
30
32
34
36
Number of lines 12 9 9 6 5 3 Number of lines
Elevation angle of main boom
2nd boom 0% 50% 100% 100% 100% 100% 2nd boom
3rd boom 0% 0% 0% 33% 66% 100% 3rd boom
4th boom 0% 0% 0% 33% 66% 100% 4th boom
Top boom 0% 0% 0% 33% 66% 100% Top boom
1. Values listed in the table refer to rated lifting capacity measured at at and solid gound under the lever state of the crane.
2. Value above heavy line shall be determined by strength of the crane and under this line shall be determined by stability of the crane.
3. Rated load values determined by stability shall comply with ISO 4305.
4. Rated lifting capacity listed in the table included weights of lifting hooks (718kg of main hook and 354kg of auxiliary hook)and hangers.
5. Rated lifting capacity with pulley at boom tip shall not exceed 4000kg and then substracts(2300kg)to gain rated lifting capacity if the boom is
used to lift after the installation of jib.
6. If actual boom length and range are between two values specied in the table, larger value will determine the lifting capacity.
11.8 15.95 20.1 28.4 36.7 45
27.03°~69.8° 32.61°~75.29° 29.61°~78.41° 26.0°~79.79° 31.0°~79.74° 42.24°~79.72°
16000 15900 16300 13900 9200 10
13000 13100 13900 13000 9000 11
10500 10800 12000 12000 8800 12
Main boom
7700 9000 9500 8500 14
5500 6800 7500 7700 16
3800 5100 6000 6500 18
3900 4700 5200 20
2900 3700 4100 22
2100 2800 3300 24
1500 2100 2600 26
1600 2000 28
1200 1600 30
800 1200 32
500 900 34
600 36
Telescoping condition(%)
Working range(m)
Elevation angle of main boom
3
3.5
4
4.5
5
5.5
6
6.5
7
Prerequisites:
Boom operating conditions(fully extended boom length +jib length),max.length is 45m+9.2m
①
The span of outriggers is 6.1m×7.6m
②
360°rotation is applied
③
Counterweight is 4T
④
Main boom angle(°)
80° 3500 2400 2000
78° 3500 2400 2000
77° 3200 2300 1900
75° 3000 2200 1800
73° 2700 2000 1700
71° 2500 1800 1600
68° 2200 1700 1400
66° 2000 1500 1300
63° 1800 1400 1100
61° 1500 1200 950
58° 1100 950 750
56° 700 650 550
Min.elevation angle(°) 55º
0° 15° 30°
Main boom+Jib
Prerequisites:
Boom operating conditions(fully extended boom length +jib length),max.length is 45m+16m
①
The span of outriggers is 6.1m×7.6m
②
360°rotation is applied
③
Counterweight is 4T
④
Main boom angle(°)
80° 2800 1500 1100
78° 2400 1450 1000
77° 2400 1400 1000
75° 2300 1300 950
73° 2000 1200 850
71° 1800 1100 850
68° 1500 1000 800
66° 1300 950 760
63° 1100 850 720
61° 950 750 650
58° 650 600 550
56° 500
Min.elevation angle(°) 55º
0° 15° 30°
Main boom+Jib
Unit:Kg
Quality Changes the World Quality Changes the World
14
STC800 TRUCK CRANE
WHEEL CRANE FAMILY MAP
Quality Changes the World
Quality Changes the World
SANY AUTOMOBILE HOISTING MACHINERY
Address: SANY Industrial Park, Jinzhou Development Zone,
Changsha, Hunan, China.
Service Hotline: 4006098318
Email: crd@sany.com.cn
For more information, please visit: www.sanygroup.com
For our consistent improvement in techonology, speci cations may change without notice.
The machines illustrated may show optional equipment which can be supplied at additional cost.
Distributed By:
Loading...
