Sanus Systems JFBD1 User Manual

Assembly Instructions for Model: JFBD1
Thank you for choosing the Java Furniture Line from Sanus Systems. The JFBD1 joins to Java Furniture Model JFV65 and serves as a backdrop for mounting Sanus Wall Mount models VMPL50, VMPL250, VMPL, VMPL2, or VMPL3.
WARNING
Do not use this product for any purpose that is not explicitly specified by Sanus Systems. Improper installation may cause property damage or personal injury. If you do not understand these directions or have any doubts about the safety of the installation, call a qualified contractor or contact Sanus at 800.359.5520 or www.sanus.com. Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use.
CAUTION
The combined weight of your television and wall mount must not exceed 130 lb (59 kg).
Supplied Parts and Hardware
Sanus Systems makes every effort to assure all necessary hardware is included. Check carefully to make sure that there are no missing or defective parts. Never use defective parts. If hardware is missing or damaged, contact Sanus Systems or consult your local hardware store. Contact Sanus Systems before returning products to the point of purchase. Replacement parts for products purchased through authorized dealers will be shipped directly to you.
Threaded fasteners are shown actual size.
Required Tools: Phillips screwdriver, drill, and a 5/16″ diameter drill bit
NOTE
If you purchased the Java JFV65 Lowboy prior to buying the JFBD1, you may need the Sanus JFRU Update Kit to properly assemble your furniture. Look for two sets of threaded inserts on both sides of the back of the Lowboy as shown in Figure 2. If no inserts are present, contact Sanus Customer Service.
Top Backboard – A
Qty 1
M8 x 40 mm Screw – D
Qty 4
Bottom Backboard – B
Qty 1
¼-20 x 0.5″ Screw – E
Qty 24
Backboard Joining Plate – C
Qty 4
¼″ Lock Washer – F
Qty 24
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 09.27.06 (6901-100104)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Step 1: Attach Backboard Joining Plates to Bottom Backboard
NOTE
Do not fully tighten the ¼-20 x 0.5″ Screws (E) until assembly is complete.
Attach the four Backboard Joining Plates (C) to the Bottom Backboard (B) with eight ¼-20 x 0.5″ Screws (E) and eight ¼″ Lock Washers (F). See Figure 1.
Figure 1
Bottom Backboard (B)
Backboard Joining
Plate (C)
Lock Washer
(F)
Screw (E)
Step 2: Attach Bottom Backboard to JFV65 Lowboy
CAUTION
The Bottom Backboard (B) is heavy. To avoid injury or product damage, two people must lift the Backboard.
Position the Bottom Backboard (B) on the JFV65 as shown in Figure 2. The pre-drilled holes on the long edge of the Backboard should face up.

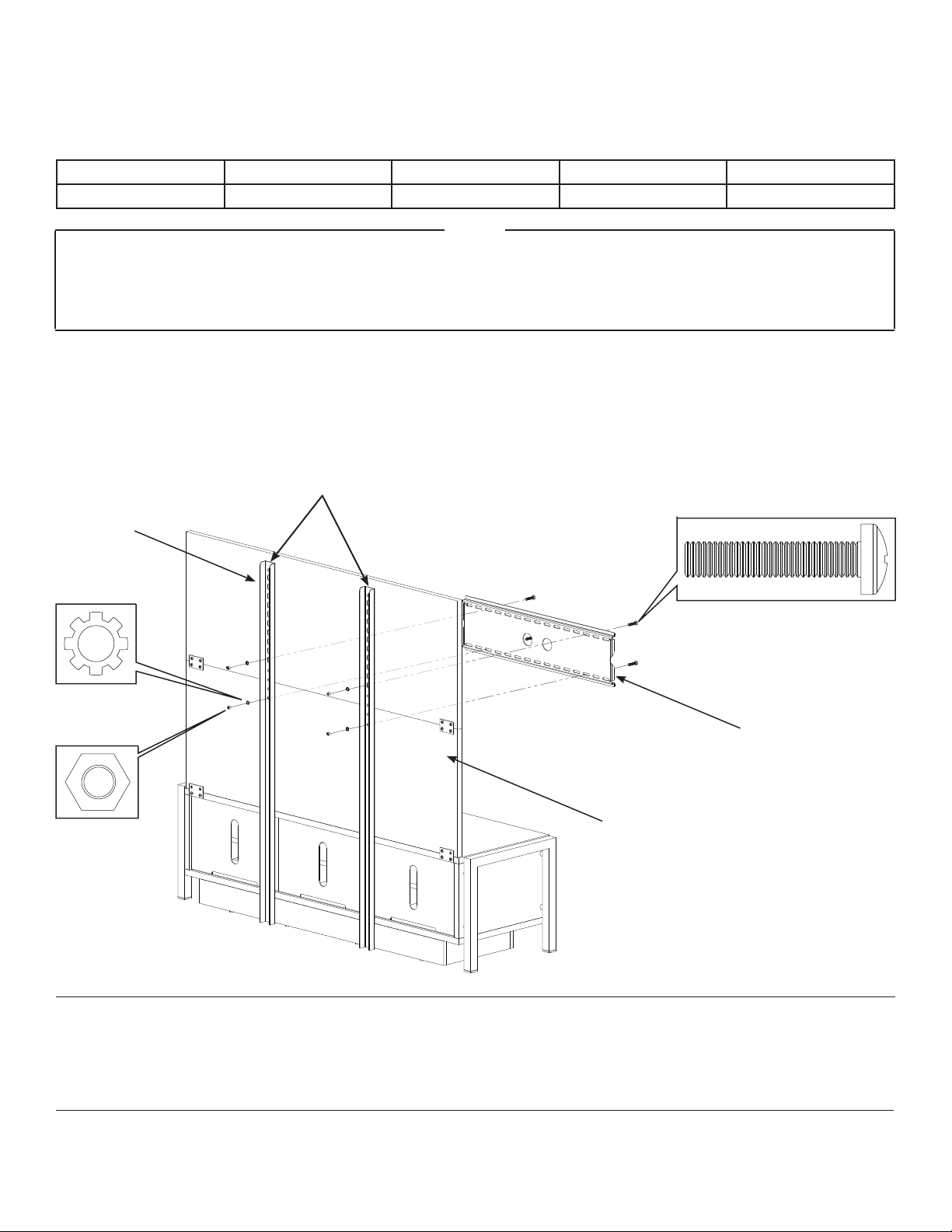

Figure 2
Bottom Backboard (B).
Pre-drilled holes on this edge
Backboard Joining
Plate (C)
NOTE
If these threaded inserts are not present on your furniture, contact Sanus Customer Service for a JFRU Update Kit.
