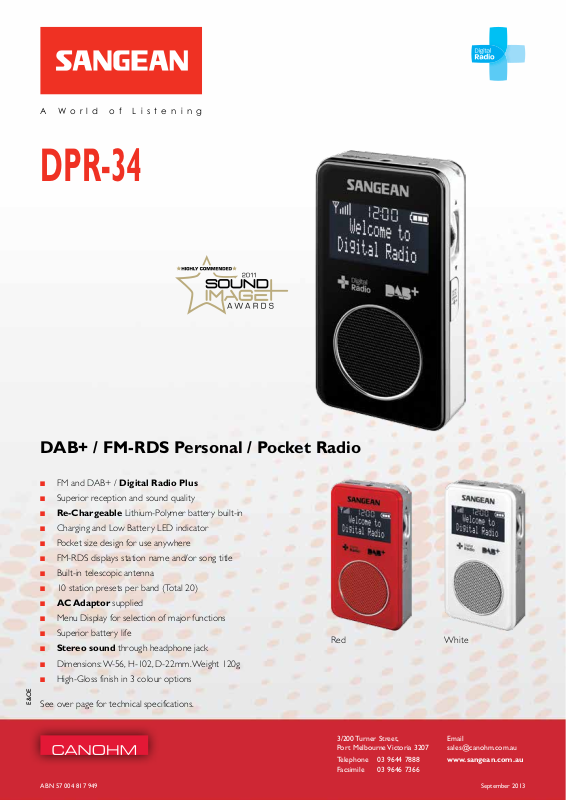

Sangean DPR-34 User Manual
A World of Listening
DPR-34
DAB+ / FM-RDS Personal / Pocket Radio
■ FM and DAB+ / Digital Radio Plus
■ Superior reception and sound quality
■ Re-Chargeable Lithium-Polymer battery built-in
■ Charging and Low Battery LED indicator
■ Pocket size design for use anywhere
■ FM-RDS displays station name and/or song title
■ Built-in telescopic antenna
■ 10 station presets per band (Total 20)
■ AC Adaptor supplied
■ Menu Display for selection of major functions
■ Superior battery life
■ Stereo sound through headphone jack
■ Dimensions: W-56, H-102, D-22mm. Weight 120g
■ High-Gloss finish in 3 colour options
E&OE
See over page for technical specifications.
Red White
ABN 57 004 817 949
3/200 Turner Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
September 2013
A World of Listening
MODEL DPR-34
Tuner DAB+ Band III (174 - 240)
FM Frequency MHz 87.5 - 108
Stereo Earphones
RDS PS/PTY/CT/RT
Presets 10
Clock Real time DAB / RDS
Alarm No
Sleep Yes
Display LCD / VFD LCD
View area (mm) 42.2 x 23.2
Graphic / Character type 16 Characters x 2 Lines
Back light Yes
Audio EQ Tone control No
Treble / Bass control No
EQ (Sound effect selection) No
Amplier Speaker output (TYP) 0.15W
Earphones output 5 + 5 mW
Speaker Size 1.4 inches
Impedance 32 ohms
I/O Sockets AC/DC - in DC
Aux - in No
Line - out No
Earphones Yes – Stereo
Ext. Antenna No
Colour Options High Gloss Black
Red
White
Power Supply AC No
DC 5V / 0.5A
Batteries Built-in lithium-polymer
3.7V / 1800mAH
Accessories AC Adapter
Dimensions W x H x D (mm) 56 x 102 x 22
Weight (g) 120
Warranty 12 months
DPR-34
DPR-34B
DPR-34R
DPR-34W
E&OE
ABN 57 004 817 949
3/200 Turner Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
September 2013
