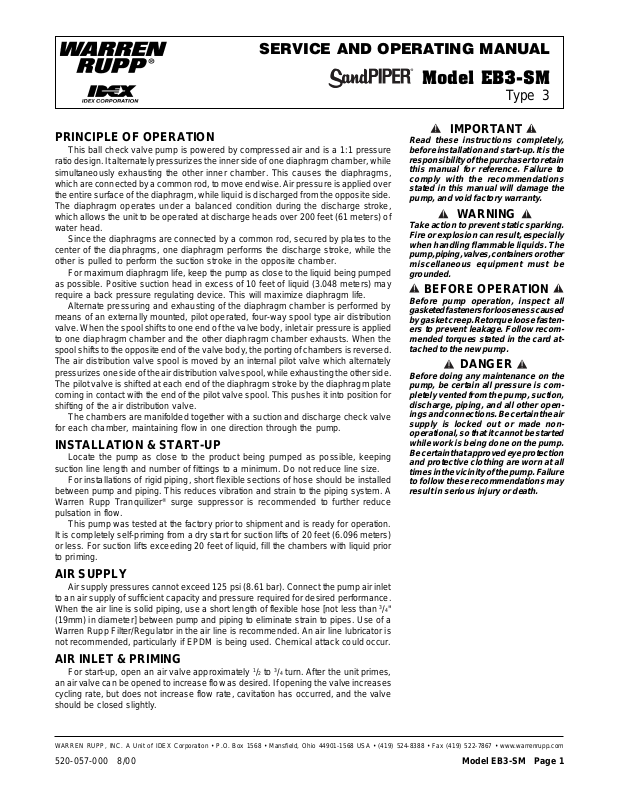

SERVICE AND OPERATING MANUAL
Model EB3-SM
Type 3
PRINCIPLE OF OPERATION
This ball check valve pump is powered by compressed air and is a 1:1 pressure
ratio design. It alternately pressurizes the inner side of one diaphragm chamber, while
simultaneously exhausting the other inner chamber. This causes the diaphragms,
which are connected by a common rod, to move endwise. Air pressure is applied over
the entire surface of the diaphragm, while liquid is discharged from the opposite side.
The diaphragm operates under a balanced condition during the discharge stroke,
which allows the unit to be operated at discharge heads over 200 feet (61 meters) of
water head.
Since the diaphragms are connected by a common rod, secured by plates to the
center of the diaphragms, one diaphragm performs the discharge stroke, while the
other is pulled to perform the suction stroke in the opposite chamber.
For maximum diaphragm life, keep the pump as close to the liquid being pumped
as possible. Positive suction head in excess of 10 feet of liquid (3.048 meters) may
require a back pressure regulating device. This will maximize diaphragm life.
Alternate pressuring and exhausting of the diaphragm chamber is performed by
means of an externally mounted, pilot operated, four-way spool type air distribution
valve. When the spool shifts to one end of the valve body, inlet air pressure is applied
to one diaphragm chamber and the other diaphragm chamber exhausts. When the
spool shifts to the opposite end of the valve body, the porting of chambers is reversed.
The air distribution valve spool is moved by an internal pilot valve which alternately
pressurizes one side of the air distribution valve spool, while exhausting the other side.
The pilot valve is shifted at each end of the diaphragm stroke by the diaphragm plate
coming in contact with the end of the pilot valve spool. This pushes it into position for
shifting of the air distribution valve.
The chambers are manifolded together with a suction and discharge check valve
for each chamber, maintaining flow in one direction through the pump.
INSTALLATION & START-UP
Locate the pump as close to the product being pumped as possible, keeping
suction line length and number of fittings to a minimum. Do not reduce line size.
For installations of rigid piping, short flexible sections of hose should be installed
between pump and piping. This reduces vibration and strain to the piping system. A
Warren Rupp Tranquilizer® surge suppressor is recommended to further reduce
pulsation in flow.
This pump was tested at the factory prior to shipment and is ready for operation.
It is completely self-priming from a dry start for suction lifts of 20 feet (6.096 meters)
or less. For suction lifts exceeding 20 feet of liquid, fill the chambers with liquid prior
to priming.
IMPORTANT
Read these instructions completely,
before installation and start-up. It is the
responsibility of the purchaser to retain
this manual for reference. Failure to
comply with the recommendations
stated in this manual will damage the
pump, and void factory warranty.
WARNING
Take action to prevent static sparking.
Fire or explosion can result, especially
when handling flammable liquids. The
pump, piping, valves, containers or other
miscellaneous equipment must be
grounded.
BEFORE OPERATION
Before pump operation, inspect all
gasketed fasteners for looseness caused
by gasket creep. Retorque loose fasteners to prevent leakage. Follow recommended torques stated in the card attached to the new pump.
DANGER
Before doing any maintenance on the
pump, be certain all pressure is completely vented from the pump, suction,
discharge, piping, and all other openings and connections. Be certain the air
supply is locked out or made nonoperational, so that it cannot be started
while work is being done on the pump.
Be certain that approved eye protection
and protective clothing are worn at all
times in the vicinity of the pump. Failure
to follow these recommendations may
result in serious injury or death.
AIR SUPPLY
Air supply pressures cannot exceed 125 psi (8.61 bar). Connect the pump air inlet
to an air supply of sufficient capacity and pressure required for desired performance.
When the air line is solid piping, use a short length of flexible hose [not less than
(19mm) in diameter] between pump and piping to eliminate strain to pipes. Use of a
Warren Rupp Filter/Regulator in the air line is recommended. An air line lubricator is
not recommended, particularly if EPDM is being used. Chemical attack could occur.
3
/4"
AIR INLET & PRIMING
For start-up, open an air valve approximately 1/2 to 3/4 turn. After the unit primes,
an air valve can be opened to increase flow as desired. If opening the valve increases
cycling rate, but does not increase flow rate, cavitation has occurred, and the valve
should be closed slightly.
WARREN RUPP, INC. A Unit of IDEX Corporation • P.O. Box 1568 • Mansfield, Ohio 44901-1568 USA • (419) 524-8388 • Fax (419) 522-7867 • www.warrenrupp.com
520-057-000 8/00 Model EB3-SM Page 1
For the most efficient use of compressed air and the longest diaphragm life, throttle
the air inlet to the lowest cycling rate that does not reduce flow.
AIR EXHAUST
If a diaphragm fails, the pumped liquid or fumes can enter the air end of the pump,
and be exhausted into the atmosphere. When pumping hazardous or toxic materials,
pipe the exhaust to an appropriate area for safe disposition.
This pump can be submerged if materials of construction are compatible with the
liquid. The air exhaust must be piped above the liquid level. Piping used for the air
exhaust must not be smaller than 1" (2.54 cm). Reducing the pipe size will restrict air
flow and reduce pump performance .When the product source is at a higher level than
the pump (flooded suction), pipe the exhaust higher than the product source to
prevent siphoning spills.
Freezing or icing of the air exhaust can occur under certain temperature and
humidity conditions. Use of an air dryer should eliminate most icing problems.
BETWEEN USES
When used for materials that tend to settle out or transform to solid form, the pump
should be completely flushed after each use, to prevent damage. Product remaining
in the pump between uses could dry out or settle out. This could cause problems with
valves and diaphragms at re-start. In freezing temperatures, the pump must be
drained between uses in all cases.
CHECK VALVE SERVICING
Need for inspection or service of the check valves is usually indicated by poor
priming, unstable cycling, reduced performance or the pump’s cycling but not
pumping.
Inspect the surfaces of both check valve and seat for wear or damage that could
prevent proper sealing. If pump is to prime properly, valves must seat air tight.
DANGER
Before doing any maintenance on the
pump, be certain all pressure is completely vented from the pump, suction,
discharge, piping, and all other openings and connections. Be certain the air
supply is locked out or made nonoperational, so that it cannot be started
while work is being done on the pump.
Be certain that approved eye protection
and protective clothing are worn at all
times in the vicinity of the pump. Failure
to follow these recommendations may
result in serious injury or death.
DIAPHRAGM SERVICING
Remove the twelve bolts (six each side) securing the manifold assemblies to the
outer chambers. Remove the eight bolts securing the outer chamber to the inner
chamber. Remove the diaphragm assembly (outer plate, diaphragm, inner plate) by
turning the assembly counterclockwise using a
plate lugs. To disassemble the diaphragm assemblies, screw into the inner plates two
threaded pins, place the pins in a vice and turn the outer plate counterclockwise using
15
/16" wrench. The interior components consisting of shaft seals, sleeve bearings
the
and bearing retainers are now accessible for service.
15
/16" (2.38 cm) wrench on the outer
REASSEMBLY
Procedures for reassembling the diaphragms are the reverse of the above. The
diaphragms must be installed with their natural bulge to the outside, toward the outer
diaphragm plate. Install the inner plate with the flat face against the diaphragm.
After all components are in position in a vise and hand tight, tighten with a wrench
to approximately 35 ft. lbs. (47.45 Newton meters) torque. After both diaphragm
assemblies have been assembled, thread one assembly into the shaft (hold the shaft
near the middle in a vice with soft jaws, to protect the finish). Install this sub assembly
into the pump and secure by placing the outer chamber on the end with the diaphragm.
This holds the assembly in place while the opposite side is installed. Torque the last
diaphragm to 25 ft. lbs. (33.90 Newton meters). This final torquing will lock the
diaphragm assemblies together. Place the remaining outer chamber on the open end
and loosely tighten the bolts. Replace the manifold assemblies to square the flanges
before final tightening of the remaining bolts. Alternating for progressive tightening,
torque the eight capscrews to 200 in./lbs. (22.60 Newton meters).
A Note about Air Valve Lubrication
The SandPiper pump’s pilot valve and main air valve assemblies are designed to
operate WITHOUT lubrication. This is the preferred mode of operation. There may be
instances of personal preference, or poor quality air supplies when lubrication of the
compressed air supply is required. The pump air system will operate with properly
lubricated compressed air supplies. Proper lubrication of the compressed air supply
Model EB3-SM Page 2 520-057-000 8/00
would entail the use of an air line lubricator (available from Warren Rupp) set to deliver
one drop of 10 wt., non-detergent oil for every 20 SCFM of air the pump consumed
at its point of operation. Consult the pump’s published Performance Curve to
determine this.
It is important to remember to inspect the sleeve and spool set routinely. It should
move back and forth freely. This is most important when the air supply is lubricated.
If a lubricator is used, oil accumulation will, over time, collect any debris from the
compressed air. This can prevent the pump from operating properly.
Water in the compressed air supply can create problems such as icing or freezing
of the exhaust air causing the pump to cycle erratically, or stop operating. This can
be addressed by using a point of use air dryer to supplement a plant’s air drying
equipment. This device will remove excess water from the compressed air supply and
alleviate the icing or freezing problem.
ESADS: Externally Serviceable Air Distribution System
Please refer to the exploded view drawing and parts list in the Service Manual
supplied with your pump. If you need replacement or additional copies, contact your
local Warren Rupp Distributor, or the Warren Rupp factory Literature Department at
the number shown below. To receive the correct manual, you must specify the
MODEL and TYPE information found on the name plate of the pump.
Models with 1" suction/discharge or larger, and METAL center sections:
The main air valve sleeve and spool set is located in the valve body mounted on
the pump with four hex head capscrews. The valve body assembly is removed from
the pump by removing these four hex head capscrews.
With the valve body assembly off the pump, access to the sleeve and spool set
is made by removing four hex head capscrews (each end) on the end caps of the valve
body assembly. With the end caps removed, slide the spool back and forth in the
sleeve. The spool is closely sized to the sleeve and must move freely to allow for
proper pump operation. An accumulation of oil, dirt or other contaminants from the
pump’s air supply, or from a failed diaphragm, may prevent the spool from moving
freely. This can cause the spool to stick in a position that prevents the pump from
operating. If this is the case, the sleeve and spool set should be removed from the
valve body for cleaning and further inspection.
Remove the spool from the sleeve. Using an arbor press or bench vise (with an
improvised mandrel), press the sleeve from the valve body. Take care not to damage
the sleeve. At this point, inspect the o-rings on the sleeve for nicks, tears or abrasions.
Damage of this sort could happen during assembly or servicing. A sheared or cut oring can allow the pump’s compressed air supply to leak or bypass within the air valve
assembly, causing the pump to leak compressed air from the pump air exhaust or not
cycle properly. This is most noticeable at pump dead head or high discharge pressure
conditions. Replace any of these o-rings as required or set up a routine, preventive
maintenance schedule to do so on a regular basis. This practice should include
cleaning the spool and sleeve components with a safety solvent or equivalent,
inspecting for signs of wear or damage, and replacing worn components.
To re-install the sleeve and spool set, lightly lubricate the o-rings on the sleeve with
an o-ring assembly lubricant or lightweight oil (such as 10 wt. air line lubricant). Reinstall one end cap, gasket and bumper on the valve body. Using the arbor press or
bench vise that was used in disassembly,
body, without shearing the o-rings. You may have to clean the surfaces of the valve
body where the end caps mount. Material may remain from the old gasket. Old
material not cleaned from this area may cause air leakage after reassembly. Take
care that the bumper stays in place allowing the sleeve to press in all the way. Reinstall the spool, the opposite end cap, gasket and bumper on the valve body. After
inspecting and cleaning the gasket surfaces on the valve body and intermediate, reinstall the valve body on the pump using new gaskets. Tighten the four hex head
capscrews evenly and in an alternating cross pattern.
carefully press the sleeve back into the valve
CAUTION
In the event of diaphragm rupture,
pumped material may enter the air end
of the pump, and be discharged into the
atmosphere. If pumping a product which
is hazardous or toxic, the air exhaust
must be piped to an appropriate area for
safe disposition.
CAUTION
Before maintenance or repair, shut off
the compressed air line, bleed the pressure, and disconnect the air line from
the pump. The discharge line may be
pressurized and must be bled of its
pressure. When used for toxic or aggressive fluids, the pump should
always be flushed clean prior to
disassembly.
Models with 1" suction/discharge or larger, and NON-METAL center sections:
The main air valve sleeve and spool set is located in the valve body mounted on
the pump with four hex head capscrews. The valve body assembly is removed from
the pump by removing these four hex head capscrews.
With the valve body assembly off the pump, access to the sleeve and spool set
520-057-000 8/00 Model EB3-SM Page 3
is made by removing a retaining ring (each end) securing the end cap on the valve
body assembly. With the end caps removed, slide the spool back and forth in the
sleeve. The spool is closely sized to the sleeve and must move freely to allow for
proper pump operation. An accumulation of oil, dirt or other contaminants from the
pump’s air supply, or from a failed diaphragm, may prevent the spool from moving
freely. This can cause the spool to stick in a position that prevents the pump from
operating. If this is the case, the sleeve and spool set should be removed from the
valve body for cleaning and further inspection.
Remove the spool from the sleeve. Using an arbor press or bench vise (with an
improvised mandrel), press the sleeve from the valve body. Take care not to damage
the sleeve. At this point, inspect the o-rings on the sleeve for nicks, tears or abrasions.
Damage of this sort could happen during assembly or servicing. A sheared or cut oring can allow the pump’s compressed air supply to leak or bypass within the air valve
assembly, causing the pump to leak compressed air from the pump air exhaust or not
cycle properly. This is most noticeable at pump dead head or high discharge pressure
conditions. Replace any of these o-rings as required or set up a routine, preventive
maintenance schedule to do so on a regular basis. This practice should include
cleaning the spool and sleeve components with a safety solvent or equivalent,
inspecting for signs of wear or damage, and replacing worn components.
To re-install the sleeve and spool set, lightly lubricate the o-rings on the sleeve with
an o-ring assembly lubricant or lightweight oil such as 10 wt. air line lubricant). Reinstall one end cap, and retaining ring on the valve body. Using the arbor press or
bench vise that was used in disassembly,
body. Re-install the spool, opposite end cap and retaining ring on the valve body,
without shearing the o-rings. After inspecting and cleaning the gasket surfaces on the
valve body and intermediate, reinstall the valve body on the pump using new gaskets.
Tighten the four hex head capscrews evenly and in an alternating cross pattern, at 150
in./lbs. (16.94 Newton meters).
carefully press the sleeve back into the valve
IMPORTANT
This pump is pressurized internally with
air pressure during operation. Always
make certain that all bolting is in good
condition and that all of the correct
bolting is reinstalled during assembly.
HAZARD WARNING
POSSIBLE EXPLOSION HAZARD can
result if 1, 1, 1-Trichloroethane, Methylene Chloride or other Halogenated
Hydrocarbon solvents are used in
pressurized fluid systems having
Aluminum or Galvanized wetted parts.
Death, serious bodily injury and/or
property damage could result. Consult
with the factory if you have questions
concerning Halogenated Hydrocarbon
solvents.
PILOT VALVE SERVICING
This assembly is reached by removing the air distribution valve body from the
pump and lifting the pilot valve body out of the intermediate housing.
When reinserting an externally serviceable pilot valve, push both plungers out of
the path of the pilot valve so that they and the pilot valve are not damaged.
Service Note: If a problem arises with the pilot valve, it is usually corrected by
replacing only o-rings. Always grease the spool prior to inserting into the sleeve. If the
sleeve is removed from the body, reinsertion must be from the same side it was
removed from, the chamfered side. Again, grease the o-rings so that it slides into the
body. Make sure the retaining ring has securely been inserted around the sleeve.
PILOT VALVE ACTUATOR SERVICING
The bushings for the pilot valve actuators are threaded into the intermediate
bracket from the outside. The plunger may be removed for inspection or replacement
from the inside by removing the air distribution valve body and the pilot valve body from
the pump. The plungers should be visible as you look down into the intermediate from
the top. Depending on their position, it may be necessary to use a fine piece of wire
to pull them out.
Under rare circumstances, it may become necessary to replace the o-ring seal.
The bushing can be turned out through the inner chamber by removing the outer
chamber assembly to reach the bushing.
TROUBLESHOOTING
1. Pump will not cycle
A. Check to make sure the unit has enough pressure to operate and that the air inlet
valve is open.
B. Check the discharge line to insure that the discharge line is neither closed nor
blocked.
C. If the spool in the air distribution valve is not shifting, check the main spool. It must
slide freely.
D. Excessive air leakage in the pump can prevent cycling. This condition will be
evident. Air leakage into the discharge line indicates a ruptured diaphragm. Air
leakage from the exhaust port indicates leakage in the air distribution valve. See
further service instructions.
E. Blockage in the liquid chamber can impede movements of diaphragm.
Model EB3-SM Page 4 520-057-000 8/00
2. Pump cycles but will not pump
A. Suction side of pump pulling in air. Check the suction line for air leaks and be sure
that the end of the suction line is submerged. Check flange bolting. Check valve
flanges and manifold to chamber flange joints.
B. Make certain the suction line or strainer is not plugged. Restriction at the suction
is indicated by a high vacuum reading when a vacuum gauge is installed in the suction
line.
C. Check valves may not be seating properly. To check, remove the suction line and
cover the suction port with your hand. If the unit does not pull a good suction (vacuum),
the check valves should be inspected for proper seating.
D. Static suction lift may be too high. Priming can be improved by elevating the suction
and discharge lines higher than the check valves and pouring liquid into the unit
through the suction inlet. When priming at high suction lifts or with long suction lines
operate the pump at maximum cycle rate.
3. Low performance
A. Capacity is reduced as the discharge pressure increases, as indicated on the
performance curve. Performance capability varies with available inlet air supply.
Check air pressure at the pump inlet when the pump is operating to make certain that
adequate air supply is maintained.
B. Check vacuum at the pump suction. Capacity is reduced as vacuum increases.
Reduced flow rate due to starved suction will be evident when cycle rate can be varied
without change in capacity. This condition will be more prevalent when pumping
viscous liquids. When pumping thick, heavy materials the suction line must be kept
as large in diameter and as short as possible, to keep suction loss minimal.
C. Low flow rate and slow cycling rate indicate restricted flow through the discharge
line. Low flow rate and fast cycling rate indicate restriction in the suction line or air
leakage into suction.
D. Unstable cycling indicates improper check valve seating on one chamber. This
condition is confirmed when unstable cycling repeats consistently on alternate
exhausts. Cycling that is not consistently unstable may indicate partial exhaust
restriction due to freezing and thawing of exhaust air. Use of an anti-freeze lubricant
in an air line lubricator should solve this problem.
For additional information, see the Warren Rupp Troubleshooting Guide.
WARRANTY
This unit is guaranteed for a period of five years against defective material and
workmanship. Failure to comply with the recommendations stated in this manual voids
all factory warranty.
RECOMMENDED WARREN RUPP ACCESSORIES
TO MAXIMIZE PUMP PERFORMANCE:
• Tranquilizer® Surge Suppressor: For nearly pulse-free flow.
• Warren Rupp Filter/Regulator: For modular installation and service
convenience.
• Warren Rupp Speed Control: For manual or programmable process
control. Manual adjustment or 4-20mA reception.
For more detailed information on these accessories,
contact your local Warren Rupp Factory-Authorized Distributor,
or Warren Rupp corporate headquarters.
© 2000 Warren Rupp, Inc. All rights reserved.
® Warren Rupp, SandPIPER, and Tranquilizer are registered tradenames of Warren Rupp, Inc.
® Neverseize is a registered tradename of Loctite.
Printed in U.S.A.
520-057-000 8/00 Model EB3-SM Page 5
REPAIR PARTS LIST and DRAWING
Model EB3-SM
Type 3
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
1 070-006-170 Bearing, Sleeve 2
2 114-002-156 Bracket, Intermediate 1
114-002-010 Bracket, Intermediate 1
3 720-004-360 Seal, U-Cup 2
4 135-008-000 Bushing, Threaded,
w/O-Ring 2
5 620-004-114 Plunger, Actuator 2
6 095-073-000 Pilot Valve Body Assy.* 1
6-A 095-070-551 Pilot Valve Body 1
6-B 755-025-000 Sleeve (w/O-Ring) 1
6-C 560-033-360 O-Ring (Sleeve) 4
6-D 775-026-000 Spool (w/O-Ring) 1
6-E 560-023-360 O-Ring (Spool) 2
6-F 675-037-080 Retaining Ring 1
7 360-041-425 Gasket, Valve Body 1
8 560-001-360 O-Ring 2
9 095-043-156 Body, Valve 1
095-043-010 Body, Valve 1
10 132-014-358 Bumper, Valve Spool 2
11 165-011-157 Cap, End 2
165-011-010 Cap, End 2
12 360-048-425 Gasket, Valve Body 1
13 360-010-425 Gasket, End Cap 2
14 560-020-360 O-Ring 6
15 031-018-000 Sleeve & Spool Set 1
16 170-032-330 Capscrew, Hex Head 8
17 170-045-330 Capscrew, Hex Head 4
18 132-002-360 Bumper, Diaphragm 2
19 196-001-157 Chamber, Inner 2
196-001-010 Chamber, Inner 2
20 286-007-365 Diaphragm 2
286-007-363 Diaphragm 2
286-007-360 Diaphragm 2
286-007-356 Diaphragm 2
286-007-364 Diaphragm 2
21 560-022-360 O-Ring 2
22 685-007-120 Rod, Diaphragm 1
23 170-024-330 Capscrew, Hex Head 8
24 618-003-330 Plug, Pipe (SS Qty. 2) 4
618-003-110 Plug, Pipe 2
25 900-006-330 Washer, Lock 8
26 612-047-330 Plate, Diaphragm 2
27 902-003-000 Stat-O-Seal 2
28 530-008-000 Muffler, Exhaust 1
31 031-021-156 Main Air Valve Assembly
(Inc. Items 9, 10, 11, 13,
14, 15, 16) 1
031-021-010 Main Air Valve Assy. 1
Repair Parts shown in bold face (darker)
type are more likely to need replacement
after extended periods of normal use.
They are readily available from most
Warren Rupp distributors. The pump
owner may prefer to maintain a limited
inventory of these parts in his own stock to
reduce repair downtime to a minimum.
IMPORTANT: When ordering repair parts
always furnish pump model number, serial
number and type number.
MATERIAL CODES
The Last 3 Digits of Part Number
000... Assembly, sub-assembly; and some
purchased items
010... Cast Iron
015... Ductile Iron
025... Music Wire
080... Carbon Steel, AISI B-1112
100... Alloy 20
110... Alloy Type 316 Stainless Steel
112... Alloy “C”
113... Hand Polished 316 Stainless Steel
114... 303 Stainless Steel
115... 301/302/304 Stainless Steel
120... 416 Stainless Steel (Wrought Martensitic)
148... Hardcoat Anodized Aluminum
150... 6061-T6 Aluminum
151... 6063-T6 Aluminum
154... Almag 35 Aluminum
155 or 156...356-T6 Aluminum
157... Die Cast Aluminum Alloy #380
159... Anodized Aluminum
162... Brass, Yellow, Screw Machine Stock
170... Bronze, Bearing Type, Oil Impregnated
180... Copper Alloy
330... Plated Steel
331... Chrome Plated Steel
332... Electroless Nickel Plated
335... Galvanized Steel
354... Injection Molded #203-40 Santoprene —
Duro 40D +/-5; Color: RED
356... Injection Molded Hytrel
357... Rupplon (Urethane Rubber)
358... E.P.D.M. (Food Grade)
359... Polyurethane
360... Buna-N Rubber. Color coded: RED
363... Viton (Fluorel). Color coded: YELLOW
364... E.P.D.M. Rubber. Color coded: BLUE
365... Neoprene Rubber. Color coded: GREEN
366... Food Grade Nitrile. Color coded: WHITE
375... Fluorinated Nitrile
405... Cellulose Fibre
408... Cork and Neoprene
425... Compressed Fibre
440... Vegetable Fibre
500... Delrin 500
501... Delrin 570
520... Injection Molded PVDF, Natural Color,
Food Grade/USDA Acceptable
541... Nylon, Glass Filled
550... Polyethylene
551... Polypropylene
552... Unfilled Polypropylene
555... PVC
570... Rulon II
580... Ryton
590... Valox
600... Teflon (virgin material) Tetrafluoroethylene (TFE)
603... Blue Gylon
604... Teflon — Diaphragm
610... Encapsulated Silicon
611... Teflon Encapsulated Viton
632... Neoprene Rupplon
633... Viton/Teflon
634... E.P.D.M./Teflon
636... White Nitrile/Teflon
Delrin, Teflon, Viton and Hytrel are registered
tradenames of E.I. DuPont.
Gylon is a registered tradename of Garlock, Inc.
Nylatron is a registered tradename of Polymer
Corporation.
Rulon II is a registered tradename of Dixion Industries Corp.
Ryton is a registered tradename of Phillips Chemical
Company.
Valox is a registered tradename of General Electric Company.
Warren Rupp, SandPIPER, Tranquilizer, and Rupplon are
registered tradenames of Warren Rupp, Inc.
WARREN RUPP, INC. A Unit of IDEX Corporation • P.O. Box 1568 • Mansfield, Ohio 44901-1568 USA • (419) 524-8388 • Fax (419) 522-7867 • www.warrenrupp.com
520-057-000 8/00 Model EB3-SM Page 6
ITEM TOTAL
NO. PART NUMBER DESCRIPTION RQD.
33 612-039-157 Plate, Outer Diaphragm Assy. 2
612-039-010 Plate, Outer Diaphragm Assy. 2
612-097-110 Plate, Outer Diaphragm Assy. 2
34 807-026-330 Stud 2
35 722-041-365 Seat, Valve 4
722-041-360 Seat, Valve 4
722-041-363 Seat, Valve 4
722-041-364 Seat, Valve 4
722-041-600 Seat, Valve 4
722-041-080 Seat, Valve ** 2
722-041-110 Seat, Valve ** 2
36 050-014-365 Ball, Check Valve 4
050-014-354 Ball, Check Valve 4
050-014-364 Ball, Check Valve 4
050-014-360 Ball, Check Valve 4
050-015-600 Ball, Check Valve 4
37 518-034-156 Manifold, Suction 1
518-034-010 Manifold, Suction 1
518-034-110 Manifold, Suction 1
38 518-035-156 Manifold, Discharge 1
518-035-010 Manifold, Discharge 1
518-035-110 Manifold, Discharge 1
39 900-003-330 Washer, Lock 16
40 170-055-330 Capscrew, Hex Hd. 12
41 170-034-330 Capscrew, Hex Hd. 4
42 170-058-330 Capscrew, Hex Hd.
(tapped holes) 8
43 196-062-156 Chamber, Outer 2
196-062-010 Chamber, Outer 2
196-062-110 Chamber, Outer 2
44 326-002-080 Mounting Foot 2
45 286-020-604 Overlay Diaphragm 2
46 170-023-330 Capscrew, Hex Hd. 8
47 545-007-330 Hex Nut 8
48 132-022-360 Bumper 2
* Available in kit form. Order P/N 031-055-000 which also includes items
5, 7, 12, & 48.
**Discharge Side only — when pump is used in a filterpress system
requires 4 O-Rings (P/N 560-008-XXX) to be used with seats.
Repair Parts shown in bold face (darker)
type are more likely to need replacement
after extended periods of normal use.
They are readily available from most
Warren Rupp distributors. The pump
owner may prefer to maintain a limited
inventory of these parts in his own stock to
reduce repair downtime to a minimum.
IMPORTANT: When ordering repair parts
always furnish pump model number, serial
number and type number.
MATERIAL CODES
The Last 3 Digits of Part Number
000... Assembly, sub-assembly; and some
purchased items
010... Cast Iron
015... Ductile Iron
025... Music Wire
080... Carbon Steel, AISI B-1112
100... Alloy 20
110... Alloy Type 316 Stainless Steel
112... Alloy “C”
114... 303 Stainless Steel
115... 301/302/304 Stainless Steel
120... 416 Stainless Steel (Wrought Martensitic)
148... Hardcoat Anodized Aluminum
150... 6061-T6 Aluminum
151... 6063-T6 Aluminum
154... Almag 35 Aluminum
155 or 156...356-T6 Aluminum
157... Die Cast Aluminum Alloy #380
159... Anodized Aluminum
162... Brass, Yellow, Screw Machine Stock
170... Bronze, Bearing Type, Oil Impregnated
180... Copper Alloy
330... Plated Steel
331... Chrome Plated Steel
332... Electroless Nickel Plated
335... Galvanized Steel
354... Injection Molded #203-40 Santoprene —
Duro 40D +/-5; Color: RED
356... Injection Molded Hytrel
357... Rupplon (Urethane Rubber)
358... E.P.D.M. (Food Grade)
359... Polyurethane
360... Buna-N Rubber. Color coded: RED
363... Viton (Fluorel). Color coded: YELLOW
364... E.P.D.M. Rubber. Color coded: BLUE
365... Neoprene Rubber. Color coded: GREEN
366... Food Grade Nitrile. Color coded: WHITE
375... Fluorinated Nitrile
405... Cellulose Fibre
408... Cork and Neoprene
425... Compressed Fibre
440... Vegetable Fibre
500... Delrin 500
501... Delrin 570
520... Injection Molded PVDF, Natural Color,
Food Grade/USDA Acceptable
541... Nylon, Glass Filled
550... Polyethylene
551... Polypropylene
552... Unfilled Polypropylene
555... PVC
570... Rulon II
580... Ryton
590... Valox
600... Teflon (virgin material) Tetrafluoroethylene (TFE)
603... Blue Gylon
604... Teflon — Diaphragm
610... Encapsulated Silicon
611... Teflon Encapsulated Viton
632... Neoprene Rupplon
633... Viton/Teflon
634... E.P.D.M./Teflon
636... White Nitrile/Teflon
Delrin, Teflon, Viton and Hytrel are registered
tradenames of E.I. DuPont.
Gylon is a registered tradename of Garlock, Inc.
Nylatron is a registered tradename of Polymer
Corporation.
Rulon II is a registered tradename of Dixion Industries Corp.
Ryton is a registered tradename of Phillips Chemical
Company.
Valox is a registered tradename of General Electric Company.
Warren Rupp, SandPIPER, Tranquilizer and Rupplon are
registered tradenames of Warren Rupp, Inc.
Model EB3-SM Page 7 520-057-000 8/00
© 2000 Warren Rupp, Inc. All rights reserved.
® Warren Rupp and SandPIPER are registered tradenames of Warren
Rupp, Inc.
® Neverseize is a registered tradename of Loctite.
Printed in U.S.A.
WARREN RUPP, INC. A Unit of IDEX Corporation • P.O. Box 1568 • Mansfield, Ohio 44901-1568 USA • (419) 524-8388 • Fax (419) 522-7867 • www.warrenrupp.com
520-057-000 8/00 Model EB3-SM Page 8
Loading...
