SANDPIPER DSB1 User Manual

SERVICE & OPERATING MANUAL

Original Instructions

Certied Quality

Quality System

ISO 9001 Certied

Environmental Management System

ISO 14001 Certied

1: PUMP SPECS2: INSTAL & OP3: EXP VIEW4: AIR END5: WET END6: OPTIONAL7: WARRANTY

Model SSB1 & DSB1

Metallic
Design Level 4

Warren Rupp, Inc.

A Unit of IDEX Corporation

800 N. Main St.,

Manseld, Ohio 44902 USA

Telephone [phone]

Fax [phone]

SANDPIPERPUMP.COM

© Copyright 2014 Warren Rupp, Inc.

All rights reserved

sa nd pi pe rp um p. co m

Safety Information

IMPORTANT

Read the safety warnings and instructions in this manual
before pump installation and start-up. Failure to comply with
the recommendations stated in this manual could damage the
pump and void factory warranty.

When the pump is used for materials that tend to settle out

or solidify, the pump should be ushed after each use to

prevent damage. In freezing temperatures the pump should be
completely drained between uses.

CAUTION

Before pump operation, inspect all fasteners for loosening

caused by gasket creep. Retighten loose fasteners to prevent
leakage. Follow recommended torques stated in this manual.

Nonmetallic pumps and plastic components are not UV
stabilized. Ultraviolet radiation can damage these parts and
negatively affect material properties. Do not expose to UV light
for extended periods of time.

WARNING
Pump not designed, tested or certied to be powered by
compressed natural gas. Powering the pump with natural
gas will void the warranty.

WARNING

When used for toxic or aggressive uids, the pump should
always be ushed clean prior to disassembly.

Before maintenance or repair, shut off the compressed air line,
bleed the pressure, and disconnect the air line from the pump.

Be certain that approved eye protection and protective clothing
are worn at all times. Failure to follow these recommendations
may result in serious injury or death.

Airborne particles and loud noise hazards. Wear eye and ear
protection.

In the event of diaphragm rupture, pumped material may enter
the air end of the pump, and be discharged into the atmosphere.
If pumping a product that is hazardous or toxic, the air exhaust

must be piped to an appropriate area for safe containment.

Take action to prevent static sparking. Fire or explosion can

result, especially when handling ammable liquids. The pump,
piping, valves, containers and other miscellaneous equipment

must be properly grounded.

This pump is pressurized internally with air pressure during
operation. Make certain that all fasteners are in good condition
and are reinstalled properly during reassembly.

kg

Use safe practices when lifting

Grounding the Pump

To be fully groundable, the pumps must be ATEX Compliant. Refer to the nomenclature page for ordering information.

Optional 8 foot long (244 centimeters) Ground Strap is available for easy ground connection.

To reduce the risk of static electrical sparking, this pump must be grounded. Check the local
electrical code for detailed grounding instruction and the type of equipment required.

Refer to nomenclature page for ordering information.

WARNING

Take action to prevent static sparking.

Fire or explosion can result, especially
when handling ammable liquids. The
pump, piping, valves, containers or

other miscellaneous equipment must
be grounded.

Model SB1 & SB25

sa n d pip er pu mp .c om

Table of Contents

SECTION 1: PUMP SPECIFICATIONS ................1

• Explanation of Nomenclature

• Performance

• Materials

• Dimensional Drawings

SECTION 2: INSTALLATION & OPERATION ......4

• Principle of Pump Operation

• Recommended Installation Guide

• Troubleshooting Guide

• Material Codes

SECTION 3: EXPLODED VIEW ...........................8

• Composite Repair Parts Drawing

• Composite Repair Parts List

SECTION 4: AIR END .......................................10

• Air Valve Assembly for Aluminum Center Sections

• Pilot Valve Assembly

SECTION 5: WET END .....................................12

• Diaphragm Drawings

• Diaphragm Servicing

SECTION 7: WARRANTY & CERTIFICATES ....13

• Warranty

• EC Declaration of Conformity - Machinery

• EC Declaration of Conformity - ATEX

• EC Summary of Markings

sa n d pip er pu mp .c om

Model SB1 & SB25

Explanation of Pump Nomenclature

II 2GD T5

II 2GD T5

II 2G Ex ia c IIC T5
II 2D c iaD 20 IP67 T100˚C

Your Model #:

__ __ _____ __ ___ __ __ __

(ll in from pump
nameplate)

1: PUMP SPECS

Pump Pump Pump Size
Series Design and Options Porting

Model #:

XX X XXXXXX, X XX XXX X XX

Pump Series

S SANDPIPER

Pump Design

B Soilid Ball

Pump Size

1 1"
25 1" BSPT (Tapered Thread)

Discharge Porting Position

D Bottom
S Side
T Top
ET Dual Top
ES Dual Side

®

Diaphragm Check Valve Materials

B Nitrile
C FKM with PTFE
F FDA Accepted White Nitrile
GN Neoprene Backup with PTFE Overlay

and PTFE Check Balls
GR Hytrel Backup w/
PTFE Overlay/PTFE Balls
GZ PTFE/Nitrile Bonded
One-Piece/PTFE Balls

H EPDM with PTFE
N Neoprene
R Hytrel
S Santoprene
V FKM

Discharge Diaphragm/ Design

Options

Valve

Your Serial #: (ll in from pump nameplate) _____________________________________

Level

Construction

Design Level

5

Construction

A Aluminum Wetted, Aluminum Air
SI Stainless Steel Wetted, Cast Iron Air
SS Stainless Steel Wetted, Aluminum Air
HC Alloy-C Wetted, Aluminum Air
HI Alloy-C Wetted, Cast Iron Air

Options

P1 Intrinsically Safe ATEX Compliant
Pulse Output

ATEX Detail

(1)

1 • Model SB1 & SB25

II 1G c T5
II 3/1 G c T5
II 1D c T100°C
I M1 c
I M2 c

II 2G c T5
II 3/2 G c T5
II 2D c T100°C

Models equipped with Construction designations
SI or HI. Note: See ATEX Explanation of Type

Certicate

Models equipped with Construction designations A,
SI, SS, HC, or HI.

Type Examination Certicate

Note: See ATEX Explanation of

(2)

II 2G Ex ia c IIC T5
II 3/2 G Ex ia c IIC T5
II 2D Ex c ia 20 IP67
T100°C

Note: Pumps ordered with the options listed in (1) to the left are

ATEX compliant when ordered with kit option P1.

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Performance

10(17)

SSB1 & DSB1

AIR CONSUMPTION

SCFM (M

3

/hr)

MODEL SB1/SB25 Performance Curve

Performance based on the following: elastomer fitted pump, flooded suction,

water at ambient conditions. The use of other materials and varying hydraulic

conditions may result in deviations in excess of 5%.

SUCTION/DISCHARGE PORT SIZE

• 1 ½” (38mm) NPT(F)

CAPACITY

• 0 to 54 gallons per minute
(0 to 204 liters per minute)

AIR DISTRIBUTION VALVE

• No-lube, no-stall design

SOLIDS-HANDLING

• Up to .25 in. (6mm)

HEADS UP TO

• 125 psi or 289 ft. of water

2

(8.8 Kg/cm

or 88 meters)

MAXIMUM OPERATING PRESSURE

• 125 psi (8.6 bar)

DISPLACEMENT/STROKE

• .09 Gallon / .34 liter

SHIPPING WEIGHT

• Aluminum 31 lbs. (14kg)

• Stainless Steel 45 lbs. (20kg)

• Alloy C 45 lbs. (20kg)

• Stainless Steel with Cast Iron Center 65
lbs. (30kg)

• Alloy C with Cast Iron Center 65 lbs.
(30kg)

BAR

7

100

6

5

4

HEAD

3

2

1

0

90

80

70

60

50

40

PSI

100 PSI

80 PSI

60 PSI

40 PSI

AIR CONSUMPTION

SCFM (M

10(17)

15(25.5)

3

/hr)

20(34)

MODEL SB1/SB25 Performance Curve

Performance based on the following: elastomer fitted pump, flooded suction,

water at ambient conditions. The use of other materials and varying hydraulic

25(42.5)

30(51)

conditions may result in deviations in excess of 5%.

35(59.5)

40(68)

45(76.5)

50(85)

30

20

20 PSI Air Inlet Pressure

10

0

0 4

0 50 75 100 125 150

25

8

12

16

20

24

28

32 36

U.S. Gallons per minute

Liters per minute

CAPACITY

1: PUMP SPECS

40

Materials

Material Prole:

CAUTION! Operating temperature limitations are as follows:

Conductive Acetal: Tough, impact resistant, ductile. Good
abrasion resistance and low friction surface. Generally inert, with
good chemical resistance except for strong acids and oxidizing
agents.

EPDM: Shows very good water and chemical resistance. Has
poor resistance to oils and solvents, but is fair in ketones and
alcohols.

FKM: (Fluorocarbon) Shows good resistance to a wide range
of oils and solvents; especially all aliphatic, aromatic and
halogenated hydrocarbons, acids, animal and vegetable oils.
Hot water or hot aqueous solutions (over 70°F(21°C)) will
attack FKM.

Hytrel®: Good on acids, bases, amines and glycols at room
temperatures only.

Neoprene: All purpose. Resistance to vegetable oils. Generally
not affected by moderate chemicals, fats, greases and many
oils and solvents. Generally attacked by strong oxidizing acids,
ketones, esters and nitro hydrocarbons and chlorinated aromatic
hydrocarbons.

Nitrile: General purpose, oil-resistant. Shows good solvent, oil,

water and hydraulic uid resistance. Should not be used with

highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.

Nylon: 6/6 High strength and toughness over a wide
temperature range. Moderate to good resistance to fuels, oils
and chemicals.

Ambient temperature range: -20°C to +40°C
Process temperature range: -20°C to +80°C for models rated as category 1 equipment

-20°C to +100°C for models rated as category 2 equipment
In addition, the ambient temperature range and the process temperature range do not exceed the operating temperature range of the applied non-metallic parts as listed in the manuals of the pumps.

Operating

Temperatures:

Max. Min.

190°F

88°C

280°F
138°C

350°F
177°C

220°F
104°C

200°F

93°C

190°F

88°C

180°F

82°C

-20°F

-29°C

-40°F

-40°C

-40°F

-40°C

-20°F

-29°C

-10°F

-23°C

-10°F

-23°C

32°F

0°C

Polypropylene: A thermoplastic polymer. Moderate tensile

and ex strength. Resists stong acids and alkali. Attacked by

chlorine, fuming nitric acid and other strong oxidizing agents.

PVDF: (Polyvinylidene Fluoride) A durable uoroplastic with

excellent chemical resistance. Excellent for UV applications.
High tensile strength and impact resistance.

Santoprene®: Injection molded thermoplastic elastomer with

no fabric layer. Long mechanical ex life. Excellent abrasion

resistance.

UHMW PE: A thermoplastic that is highly resistant to a broad
range of chemicals. Exhibits outstanding abrasion and impact
resistance, along with environmental stress-cracking resistance.

Urethane: Shows good resistance to abrasives. Has poor
resistance to most solvents and oils.

Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;

molten alkali metals, turbulent liquid or gaseous uorine and
a few uoro-chemicals such as chlorine triuoride or oxygen
diuoride which readily liberate free uorine at elevated

temperatures.

Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.

Metals:

Alloy C: Equal to ASTM494 CW-12M-1 specication for nickel and nickel alloy.

Stainless Steel: Equal to or exceeding ASTM specication A743 CF-8M for corrosion

resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.

For specic applications, always consult the Chemical Resistance Chart.

180°F

82°C

250°F
121°C

275°F
135°C

180°F

82°C

150°F

66°C

220°F
104°C

32°F

0°C

0°F

-18°C

-40°F

-40°C

-35°F

-37°C

32°F

0°C

-35°F

-37°C

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Model SB1 & SB25 • 2

Dimensional Drawings

11.12

SSB1 & DSB1 SANITARY BALL VALVE

1: PUMP SPECS

9.37
238

AIR INLET

1/2" NPT

7.69
195

100

283

2.7570

17.50
445

DISCHARGE PORT

1.50 TRI-CLAMP FITTING

15.68
398

15.90
404

2.3860

SUCTION PORT

5.84
148

1.50 TRI-CLAMP FITTING

4X

.28

MTG HOLE

7

5.86
149

2.4161

3.95

10.00
254

3 • Model SB1 & SB25

7.32
186

SSB1 / DSB1

SANITARY BALL VALVE

DIMENSIONAL TOLERANCE

9.00
229

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

[XX] = MILLIMETERS

.125 [3]

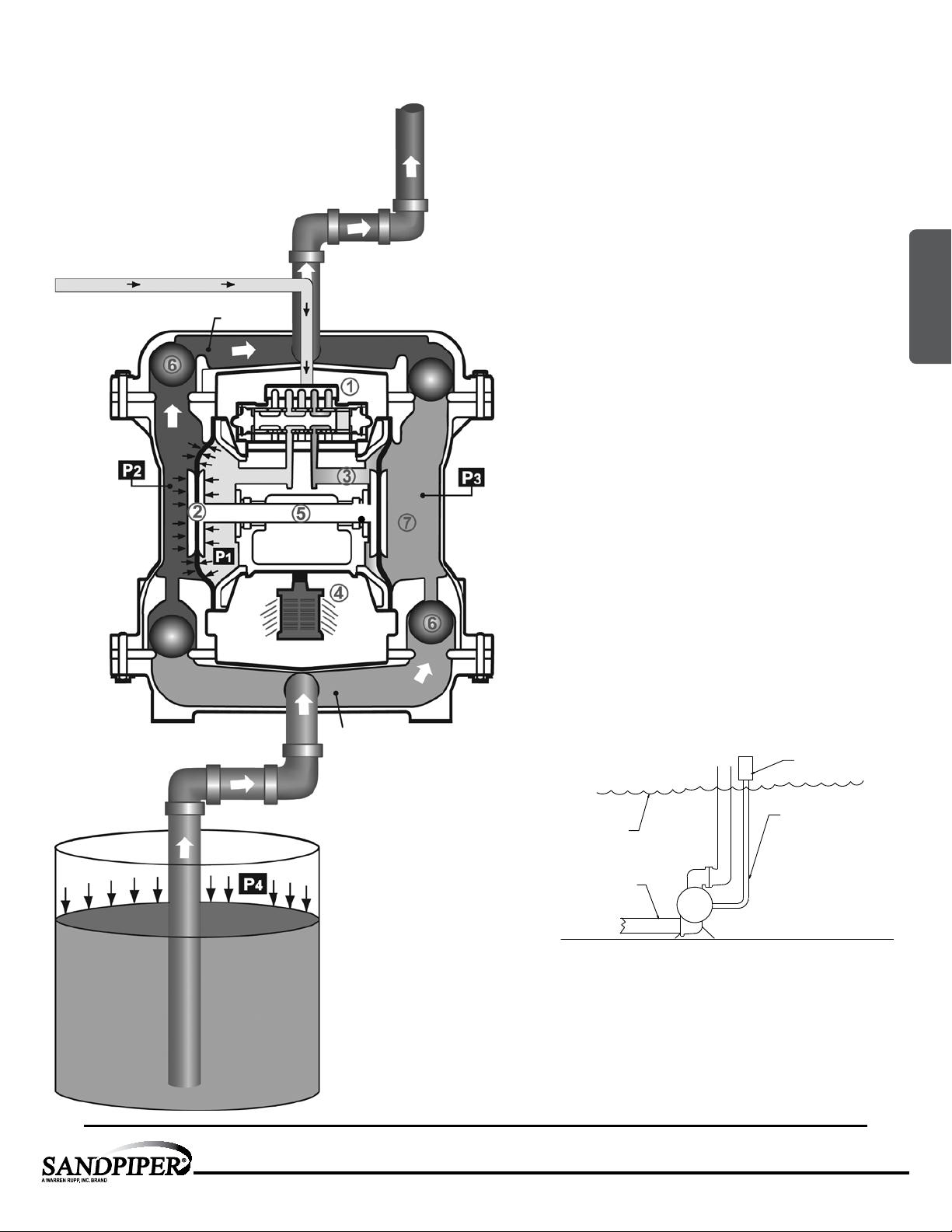

Principle of Pump Operation

SAFE AIR
EXHAUST
DISPOSAL
AREA

MUFFLER

Air-Operated Double Diaphragm (AODD) pumps are powered
by compressed air or nitrogen.

Discharge

Stroke

Air Line

Discharged

Fluid

Suction

Stroke

The main directional (air) control valve
compressed air to an air chamber, exerting uniform pressure
over the inner surface of the diaphragm
the exhausting air
is directed through the air valve assembly(s) to an exhaust
port

.

④

As inner chamber pressure
pressure
together creating discharge on one side and suction on the
opposite side. The discharged and primed liquid’s directions

are controlled by the check valves (ball or ap)

The pump primes as a result of the suction stroke. The
suction stroke lowers the chamber pressure
the chamber volume. This results in a pressure differential
necessary for atmospheric pressure
through the suction piping and across the suction side check

valve and into the outer uid chamber

Suction (side) stroking also initiates the reciprocating
(shifting, stroking or cycling) action of the pump. The suction
diaphragm’s movement is mechanically pulled through its
stroke. The diaphragm’s inner plate makes contact with an
actuator plunger aligned to shift the pilot signaling valve.
Once actuated, the pilot valve sends a pressure signal to the
opposite end of the main directional air valve, redirecting the
compressed air to the opposite inner chamber.

(P2), the rod

from behind the opposite diaphragm

③

(P1) exceeds liquid chamber

connected diaphragms shift

⑤

distributes

①

. At the same time,

②

orientation.

⑥

(P3) increasing

(P4) to push the uid

.

⑦

2: INSTAL & OP

Primed

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Fluid

SUBMERGED ILLUSTRATION

MUFFLER

LIQUID
LEVEL

SUCTION

LINE

Pump can be submerged if the pump materials of construction
are compatible with the liquid being pumped. The air exhaust
must be piped above the liquid level. When the pumped product
source is at a higher level than the pump (ooded suction condi­tion), pipe the exhaust higher than the product source to prevent
siphoning spills.

1" DIAMETER AIR
EXHAUST PIPING

Model SB1 & SB25 • 4

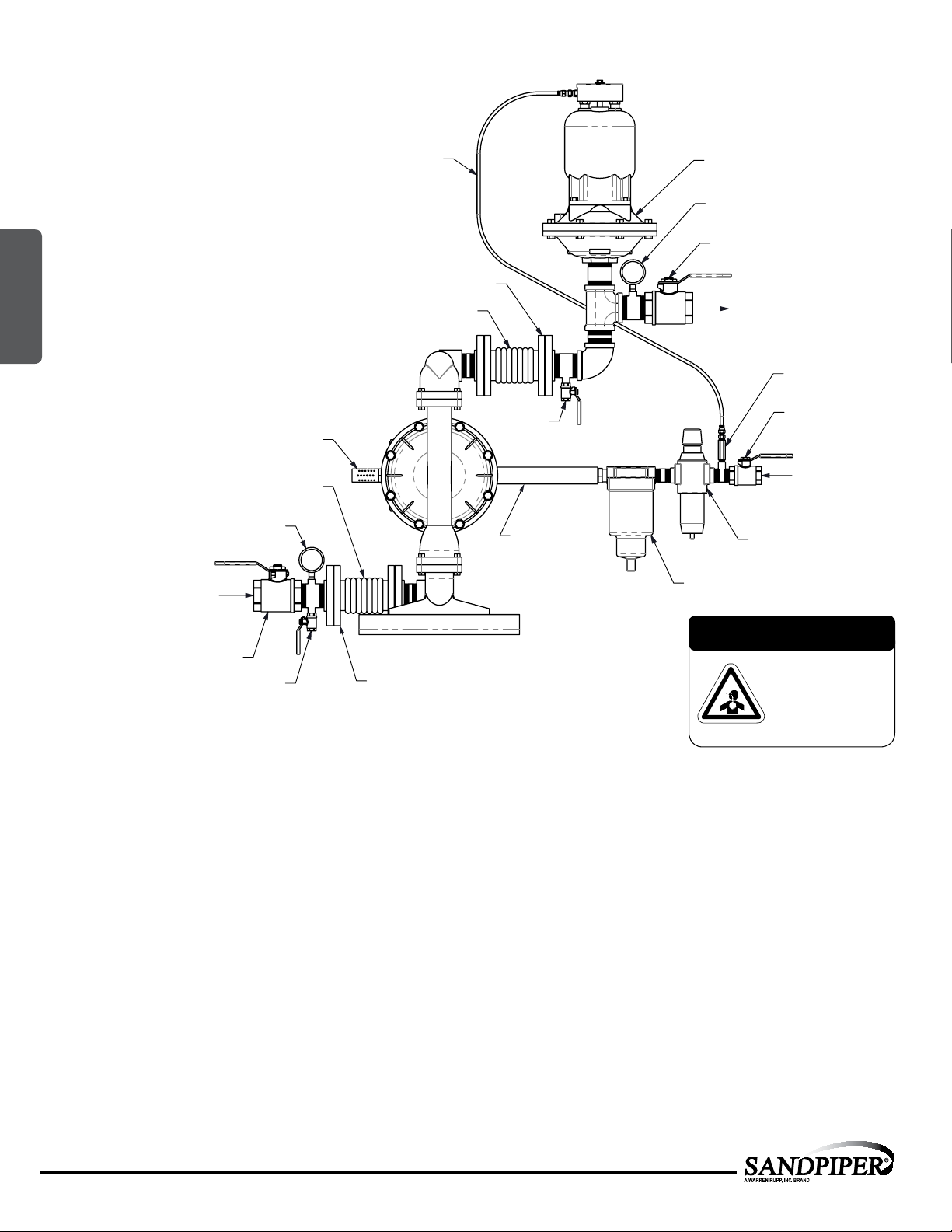

Recommended Installation Guide

Available Accessories:

1. Surge Suppressor

2. Filter/Regulator

3. Air Dryer

Unregulated Air

Supply to Surge

Suppressor

1

Surge Suppressor

Pressure Gauge

Shut-Off Valve

2: INSTAL & OP

Note: Surge Suppressor and
Piping must be supported after

the exible connection

(Optional Piped Exhaust)

Flexible Connector

Vacuum

Gauge

Suction

Shut-Off Valve

Drain Port

Muffler

Pipe Connection

(Style Optional)

Flexible Connector

Pipe Connection
(Style Optional)

Drain Port

Flexible
Connector

Discharge

2

3

Filter Regulator
P/N: 020.V107.000

Air Dryer

Note: Pipe weight should not be supported
by pump connections.

CAUTION

Check
Valve

Shut-Off
Valve

Air Inlet

The air exhaust should
be piped to an area
for safe disposition
of the product being

pumped, in the event of

a diaphragm failure.

Installation And Start-Up

Locate the pump as close to the product being pumped as possible. Keep the suction line length and number of ttings to a minimum. Do not reduce the suction line

diameter.

Air Supply

Connect the pump air inlet to an air supply with sufcient capacity and pressure to achieve desired performance. A pressure regulating valve should be installed to

insure air supply pressure does not exceed recommended limits.

Air Valve Lubrication
The air distribution system is designed to operate WITHOUT lubrication. This is the standard mode of operation. If lubrication is desired, install an air line lubricator
set to deliver one drop of SAE 10 non-detergent oil for every 20 SCFM (9.4 liters/sec.) of air the pump consumes. Consult the Performance Curve to determine air
consumption.

Air Line Moisture
Water in the compressed air supply may cause icing or freezing of the exhaust air, causing the pump to cycle erratically or stop operating. Water in the air supply can
be reduced by using a point-of-use air dryer.

Air Inlet And Priming

To start the pump, slightly open the air shut-off valve. After the pump primes, the air valve can be opened to increase air ow as desired. If opening the valve
increases cycling rate, but does not increase the rate of ow, cavitation has occurred. The valve should be closed slightly to obtain the most efcient air ow to pump
ow ratio.

5 • Model SB1 & SB25

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Symptom: Potential Cause(s): Recommendation(s):

Pump Cycles Once

Pump Will Not Operate
/ Cycle

Pump Cycles and Will
Not Prime or No Flow

Pump Cycles Running
Sluggish / Stalling,
Flow Unsatisfactory

Product Leaking
Through Exhaust

Premature Diaphragm
Failure

Unbalanced Cycling

Deadhead (system pressure meets or exceeds air
supply pressure).

Air valve or intermediate gaskets installed incorrectly. Install gaskets with holes properly aligned.

Bent or missing actuator plunger. Remove pilot valve and inspect actuator plungers.

Pump is over lubricated. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.

Lack of air (line size, PSI, CFM). Check the air line size and length, compressor capacity (HP vs. cfm required).

Check air distribution system. Disassemble and inspect main air distribution valve, pilot valve and pilot valve actuators.

Discharge line is blocked or clogged manifolds. Check for inadvertently closed discharge line valves. Clean discharge manifolds/piping.

Deadhead (system pressure meets or exceeds air
supply pressure).

Blocked air exhaust mufer. Remove mufer screen, clean or de-ice, and re-install.

Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.

Pump chamber is blocked. Disassemble and inspect wetted chambers. Remove or ush any obstructions.

Cavitation on suction side. Check suction condition (move pump closer to product).

Check valve obstructed. Valve ball(s) not seating
properly or sticking.

Valve ball(s) missing (pushed into chamber or
manifold).

Valve ball(s) / seat(s) damaged or attacked by product. Check Chemical Resistance Guide for compatibility.

Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.

Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.

Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.

Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.

Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.

Over lubrication. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.

Icing. Remove mufer screen, de-ice, and re-install. Install a point of use air drier.

Clogged manifolds. Clean manifolds to allow proper air ow.

Deadhead (system pressure meets or exceeds air
supply pressure).

Cavitation on suction side. Check suction (move pump closer to product).

Lack of air (line size, PSI, CFM). Check the air line size, length, compressor capacity.

Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.

Air supply pressure or volume exceeds system hd. Decrease inlet air (press. and vol.) to the pump. Pump is cavitating the uid by fast cycling.

Undersized suction line. Meet or exceed pump connections.

Restrictive or undersized air line. Install a larger air line and connection.

Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.

Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.

Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.

Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.

Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.

Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. Purging the chambers of air can be dangerous.

Diaphragm failure, or diaphragm plates loose. Replace diaphragms, check for damage and ensure diaphragm plates are tight.

Diaphragm stretched around center hole or bolt holes. Check for excessive inlet pressure or air pressure. Consult Chemical Resistance Chart for compatibility

Cavitation. Enlarge pipe diameter on suction side of pump.

Excessive ooded suction pressure. Move pump closer to product. Raise pump/place pump on top of tank to reduce inlet pressure.

Misapplication (chemical/physical incompatibility). Consult Chemical Resistance Chart for compatibility with products, cleaners, temperature limitations

Incorrect diaphragm plates or plates on backwards,
installed incorrectly or worn.

Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.

Undersized suction line. Meet or exceed pump connections.

Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.

Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.

Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.

Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.

Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs.

Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).

Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).

Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Clean out around valve ball cage and valve seat area. Replace valve ball or valve seat if damaged.
Use heavier valve ball material.

Worn valve ball or valve seat. Worn ngers in valve ball cage (replace part). Check Chemical
Resistance Guide for compatibility.

Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).

with products, cleaners, temperature limitations and lubrication.

Install Back pressure device (Tech bulletin 41r). Add accumulation tank or pulsation dampener.

and lubrication.

Check Operating Manual to check for correct part and installation. Ensure outer plates have not been
worn to a sharp edge.

2: INSTAL & OP

For additional troubleshooting tips contact After Sales Support at [e-mail] or 419-524-8388

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Model SB1 & SB25 • 6

Material Codes - The Last 3 Digits of Part Number

13

14

25

31

3

16

47

35

45

49

7

38

20

43

9

40

30

1

24

23

42

37

36

12

50

11

50

15

40

5

4

10

48

44

8

41

39

29

32

19

27

34

21

2

46

17

33

2

46

22

34

26

18

28

32

6

000..... Assembly, sub-assembly;

and some purchased items

010..... Cast Iron

012..... Powered Metal

015..... Ductile Iron

020..... Ferritic Malleable Iron

025..... Music Wire

080..... Carbon Steel, AISI B-1112

100..... Alloy 20

110 ..... Alloy Type 316 Stainless Steel

111 ..... Alloy Type 316 Stainless Steel

(Electro Polished)

112 ..... Alloy C

113 ..... Alloy Type 316 Stainless Steel

(Hand Polished)

114 ..... 303 Stainless Steel

2: INSTAL & OP

115 ..... 302/304 Stainless Steel

117 ..... 440-C Stainless Steel (Martensitic)

120..... 416 Stainless Steel

(Wrought Martensitic)

123..... 410 Stainless Steel

(Wrought Martensitic)

148..... Hardcoat Anodized Aluminum

149..... 2024-T4 Aluminum

150..... 6061-T6 Aluminum

151..... 6063-T6 Aluminum

152..... 2024-T4 Aluminum (2023-T351)

154..... Almag 35 Aluminum

155..... 356-T6 Aluminum

156..... 356-T6 Aluminum

157..... Die Cast Aluminum Alloy #380

158..... Aluminum Alloy SR-319

159..... Anodized Aluminum

162..... Brass, Yellow, Screw Machine Stock

165..... Cast Bronze, 85-5-5-5

166..... Bronze, SAE 660

170..... Bronze, Bearing Type, Oil Impregnated

175..... Die Cast Zinc

180..... Copper Alloy

305..... Carbon Steel, Black Epoxy Coated

306..... Carbon Steel, Black PTFE Coated

307..... Aluminum, Black Epoxy Coated

308..... Stainless Steel, Black PTFE Coated

309..... Aluminum, Black PTFE Coated

310..... PVDF Coated

313..... Aluminum, White Epoxy Coated

330..... Zinc Plated Steel

331..... Chrome Plated Steel

332..... Aluminum, Electroless Nickel Plated

333..... Carbon Steel, Electroless

Nickel Plated

335..... Galvanized Steel

336..... Zinc Plated Yellow Brass

337..... Silver Plated Steel

340..... Nickel Plated

342..... Filled Nylon

351..... Food Grade Santoprene; Color: NATURAL

353..... Geolast; Color: BLACK

354..... Injection Molded #203-40

Santoprene- Duro 40D +/-5; Color: RED

355..... Thermal Plastic

356..... Hytrel; Color: BLUE

357..... Injection Molded Polyurethane;

Color: GREEN

358..... Urethane Rubber; Color: NATURAL

(Some Applications)
(Compression Mold)

359..... Urethane Rubber; Color: NATURAL

360..... Nitrile Rubber; Color Coded: RED

361..... Nitrile

363..... FKM (Fluorocarbon).

Color Coded: YELLOW

364..... E.P.D.M. Rubber. Color Coded: BLUE

365..... Neoprene Rubber;

Color Coded: GREEN

366..... Food Grade Nitrile; Color: WHITE

368..... Food Grade EPDM; Color: GRAY

370..... Butyl Rubber

Color Coded: BROWN

371..... Philthane (Tuftane)

374..... Carboxylated Nitrile

375..... Fluorinated Nitrile

378..... High Density Polypropylene

379..... Conductive Nitrile;

Color Coded: RED & SILVER

384..... Conductive Neoprene;

Color Coded: GREEN & SILVER

405..... Cellulose Fibre

408..... Cork and Neoprene

425..... Compressed Fibre

426..... Blue Gard

440..... Vegetable Fibre

465..... Fibre

500..... Delrin 500

501..... Delrin 570

502..... Conductive Acetal, ESD-800;

........... Color: BLACK

503..... Conductive Acetal, Glass-Filled

........... Color: BLACK; Color Coded: YELLOW

505..... Acrylic Resin Plastic

506..... Delrin 150

520..... Injection Molded PVDF; Color: NATURAL

521..... Injection Molded Conductive PVDF;

Color: BLACK; Color Coded: LIGHT
GREEN

540..... Nylon

541..... Nylon

542..... Nylon

544..... Nylon Injection Molded

550..... Polyethylene

551..... Glass Filled Polypropylene; Color: BLACK

552..... Unlled Polypropylene; Color: NATURAL

555..... Polyvinyl Chloride

556..... Black Vinyl

557..... Conductive Polypropylene;

Color: BLACK; Color Coded: SILVER

558..... Conductive HDPE; Color: BLACK

........... Color Coded: SILVER

559..... Conductive Polypropylene; Color: BLACK

........... Color Coded: SILVER

570..... Rulon II

580..... Ryton

590..... Valox

591..... Nylatron G-S

592..... Nylatron NSB

600..... PTFE (virgin material)

Tetrauorocarbon (TFE)

601..... PTFE (Bronze and moly lled)

602..... Filled PTFE

603..... Blue Gylon

604..... PTFE

606..... PTFE

607..... Envelon

608..... Conductive PTFE; Color: BLACK

610.....

PTFE Encapsulated Silicon

611 ..... PTFE Encapsulated FKM

632..... Neoprene/Hytrel

633..... FKM/PTFE

634..... EPDM/PTFE

635..... Neoprene/PTFE

637..... PTFE , FKM/PTFE

638..... PTFE , Hytrel/PTFE

639..... Nitrile/TFE

643..... Santoprene

644..... Santoprene

®

/EPDM

®

/PTFE

656 ..... Santoprene Diaphragm and

Check Balls/EPDM Seats

661..... EPDM/Santoprene

666..... FDA Nitrile Diaphragm,

PTFE Overlay, Balls, and Seals

668..... PTFE, FDA Santoprene/PTFE

Delrin is a registered
tradename of E.I. DuPont.

Gylon is a registered tradename
of Garlock, Inc.

Nylatron is a registered tradename
of Polymer Corp.

Santoprene is a registered tradename
of Exxon Mobil Corp.

Rulon II is a registered tradename
of Dixion Industries Corp.

Ryton is a registered tradename
of Phillips Chemical Co.

Valox is a registered tradename
of General Electric Co.

PortaPump, Tranquilizer and SludgeMaster are
registered tradenames of Warren Rupp, Inc.

RECYCLING

Many components of SANDPIPER® AODD
pumps are made of recyclable materials.
We encourage pump users to recycle worn
out parts and pumps whenever possible,
after any hazardous pumped fluids are

thoroughly ushed.

7 • Model SB1 & SB25

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

30

25

1

24

4

23

11

50

15

5

40

6

12

42

37

44

3

41

8

40

Service & Repair Kits

36

10

31

16

47

35

45

49

9

43

28

475.283.000 Air End Conversion Kit
(Converts from a Conductive Polypropylene Air
Valve Assembly to the Die Cast Aluminun Air Valve
Assembly) Valve Body Assembly, Gaskets, and
Longer Capscrews

475.284.379 Wet End Conversion Kit

(Converts to Ribbed Check Valve Seats and
Thicker Gaskets) Check Valve Seats, Conductive
Nitrile Gaskets, and Longer Capscrews

14

13

50

48

29

19

7

38

32

27

34

21

20

39

2

46

17

33

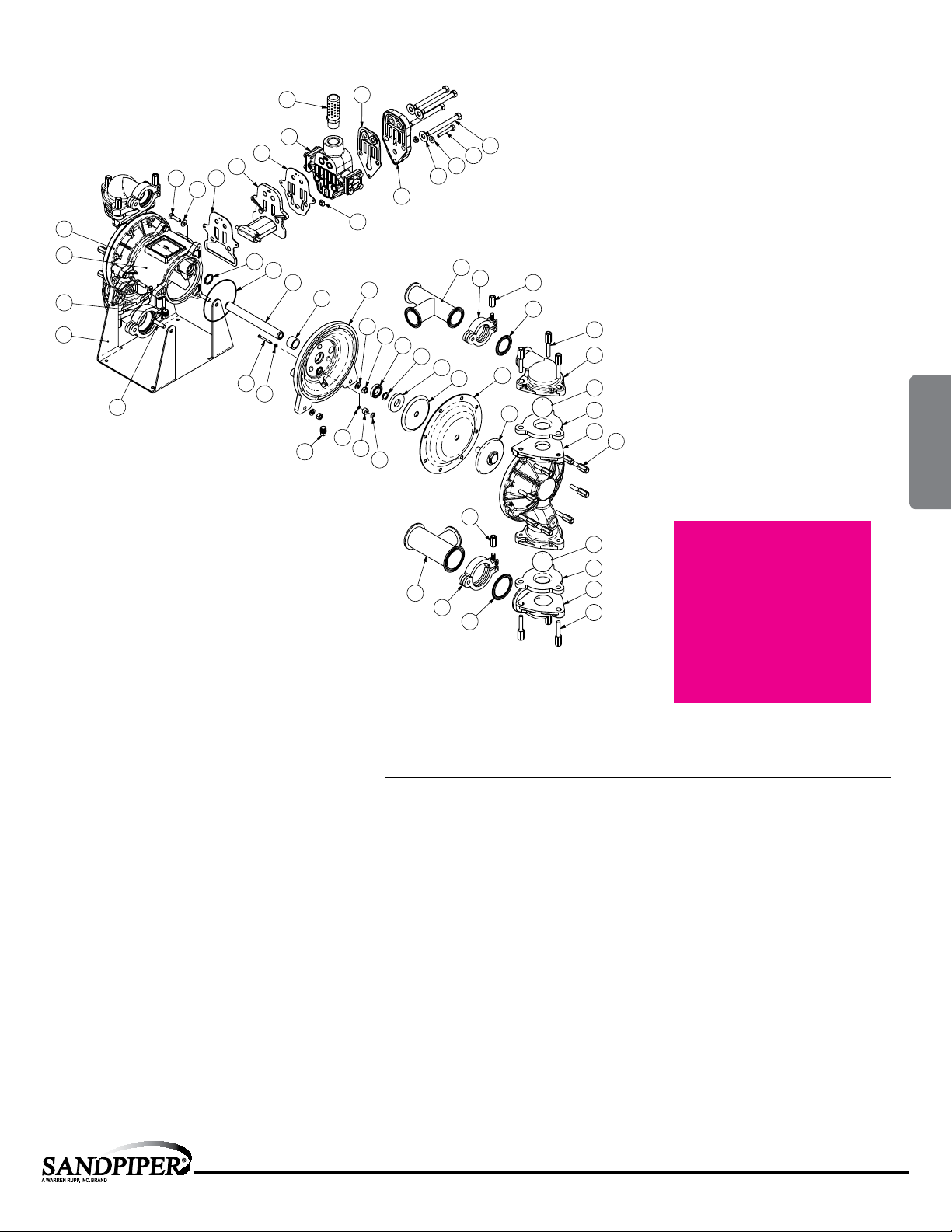

3: EXP VIEW

32

2

46

22

18

26

34

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

MODEL DSB1-3A TYPE TF-4-SS

3-A STANDARD AND USDA ACCEPTED FOR DAIRY APPLICATIONS

Certain wetted components are changed to comply with USDA Dairy Division requirements.

Use of model DSB1-A without an electronic leak detector assembly voids the USDA DAIRY

ACCEPTANCE. Usage of this control device is mandatory for acceptance in USDA
Accepted Dairy Operations.

Change the following:

ITEM 28 CHANGE TO P/N 196-072-113

ITEM 34 CHANGE TO P/N 612-110-113
ITEM 36 CHANGE TO P/N 286-039-366
ITEM 39 CHANGE TO P/N 518-048-113
ITEM 40 CHANGE TO P/N 518-049-113
ITEM 41 CHANGE TO P/N 312-065-113
ITEM 42 CHANGE TO P/N 312-056-113
ITEM 48 CHANGE TO P/N 542-008-000

ELECTRONIC LEAK DETECTOR ASSEMBLY is required to maintain USDA-DAIRY ACCEPTANCE.

Model SB1 & SB25 • 8

Composite Repair Parts List

Item Part Number Description Qty.

1 031.203.332 ASSEMBLY, MAIN AIR VALVE 1
2 050.019.366 BALL, CHECK 4

050.019.368 BALL, CHECK 4
3 070.012.170 BEARING, SLEEVE 2
4 095.074.001 PILOT VALVE ASSEMBLY 1
5 114.011.332 INTERMEDIATE 1
6 115.078.115 BRACKET, FOOT 1
7 132.019.360 BUMPER 2
8 132.022.360 BUMPER, ACTUATOR 2
9 135.034.506 BUSHING, PLUNGER 2
10 165.134.332 CAP, AIR INLET, ASS'Y 1
11 170.032.115 CAPSCREW, HEX HD, 1/4-20 X 1.00 6
12 170.045.115 CAPSCREW, HEX HEAD 5/16-18 X 1 1/4 4
13 170.063.115 CAPSCREW, HEX HD, 1/4-20 X 1.75 1
14 170.083.115 CAPSCREW, HEX HD, 3/8-16 UNC X 3.25 4
15 196.066.332 CHAMBER, INNER 1
16 196.064.332 CHAMBER, INNER 1
17 196.065.111 CHAMBER, OUTER 2

196.072.113 CHAMBER, OUTER (FOR DSB1 ONLY) 2
18 200.033.115 CLAMP, 2" 2
19 200.033.115 CLAMP, 1.5" 2
20 286.008.366 DIAPHRAGM 2

286.008.368 DIAPHRAGM 2
21 312.051.110 ELBOW, DISCHARGE 2

312.056.113 ELBOW, DISCHARGE (FOR DSB1 ONLY) 2
22 312.052.110 ELBOW, SUCTION 2

3: EXP VIEW

312.065.113 ELBOW, SUCTION (FOR DSB1 ONLY) 2
23 360.056.379 GASKET 1
24 360.057.360 GASKET 1
25 360.058.360 GASKET 1
26 361.005.366 GASKET, SPACER 2

361.005.368 GASKET, SPACER 2
27 361.006.366 GASKET, SPACER 2

361.006.368 GASKET, SPACER 2
28 518.048.111 SUCTION MANIFOLD 1

518.048.113 SUCTION MANIFOLD (FOR DSB1 ONLY) 1
29 518.049.111 DISCHARGE MANIFOLD 1

518.049.113
30 530.036.000 MUFFLER 1
31 542.001.330 NUT, SQUARE 1
32 542.002.114 NUT, STUD 4
33 542.003.000 NUT, STUD 16

542.008.000 NUT, STUD (FOR DSB1 ONLY) 16

DISCHARGE MANIFOLD (FOR DSB1 ONLY)

Item Part Number Description Qty.

34 542.004.000 NUT, STUD 12
35 545.004.115 NUT, HEX, 5/16-18 4
36 560.001.360 O-RING 2
37 560.040.360 O-RING 2
38 612.022.330 PLATE, DIAPHRAGM, INNER 2
39 612.101.111 OUTER DIAPHRAGM PLATE ASSEMBLY 2

612.110.113 OUTER DIAPHRAGM PLATE ASSEMBLY 2
(FOR DSB1 ONLY)
40 618.003.330 PLUG, PIPE, 1/4 3
41 620.007.114 PLUNGER, ACTUATOR 2
42 675.040.360 RING, SEALING 2
43 675.042.115 RING, RETAINING 2
44 685.039.120 ROD, DIAPHRAGM 1
45 720.010.375 SEAL, U-CUP 2
46 722.045.366 SEAT, CHECK VALVE 4

722.045.368 SEAT, CHECK VALVE 4
47 900.004.115 WASHER, LOCK - 5/16 4
48 901.005.115 WASHER, FLAT, 3/8 4
49 901.012.180 WASHER, SEALING 2
50 901.035.115 WASHER, FLAT, 1/4 7

1

LEGEND:

= Items contained within Air End Kits
= Items contianed within Wet End Kits

Note: Kits contain components specic to the material codes.

ATEX Compliant

9 • Model SB1 & SB25

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Air Distribution Valve Assembly

With Aluminum Center

1E

1D

1F

1C

1B

1A

1C

1F

1D

1E

1E

1F

1C

1D

Air Distribution Valve Servicing

See repair parts drawing, remove screws.

Step 1: Remove hex capscrews (1E).

Step 2: Remove end cap (1D).

Step 3: Remove spool part of (1A) (caution: do not scratch).

Step 4: Press sleeve (1A) from body (1B).

Step 5: Inspect bumpers (1C) and o-rings (1F).

Step 6: Lightly lubricate O-Rings (1F) on sleeve (1A).

Step 7: Press sleeve (1A) into body (1B).

Step 8: Reassemble in reverse order, starting with step 3.

Note: Sleeve and spool (1A) set is match ground to a specied clearance

sleeve and spools (1A) cannot be interchanged.

ATEX Compliant

4: AIR END

Main Air Valve Assembly Parts List

Item Item Number Description Qty

1 031.203.332 Assembly, Main Air Valve 1
1A 031.039.000 Sleeve & Spool Set 1
1B 095.113.332 Body, Valve 1
1C 132.037.357 Bumper 2
1D 165.129.332 Cap, End 2
1E 170.032.330 1/4-20 X 3/4 Capscrew 8
1F 560.058.360 7/8 ID X 1/16 CS O-Ring 8

LEGEND:

= Items contained within Air End Kits

IMPORTANT

Read these instructions completely, before installation

and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will

damage the pump, and void factory warranty.

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Model SB1 & SB25 • 10

Pilot Valve Assembly

4E

4C

4F

4A

4D

4: AIR END

Pilot Valve Servicing

With Pilot Valve removed from pump.

Step 1: Remove snap ring (4F).

Step 2: Remove sleeve (4B), inspect O-Rings (4C),

replace if required.

Step 3: Remove spool (4D) from sleeve (4B),

inspect O-Rings (4E), replace if required.

Step 4: Lightly lubricate O-Rings (4C) and (4E).

Reassemble in reverse order.

ATEX Compliant

4B

PILOT VALVE ASSEMBLY PARTS LIST

Item Part Number Description Qty

4 095.074.001 Pilot Valve Assembly 1
4A 095.071.557 Pilot Valve Body 1
4B 755.025.162 Pilot Valve sleeve 1
4C 560.033.360 O-Ring 4
4D 775.014.115 Pilot Valve Spool 1
4E 560.023.360 O-Ring 4
4F 675.037.050 Retaining Ring 1

LEGEND:

= Items contained within Air End Kits

11 • Model SB1 & SB25

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

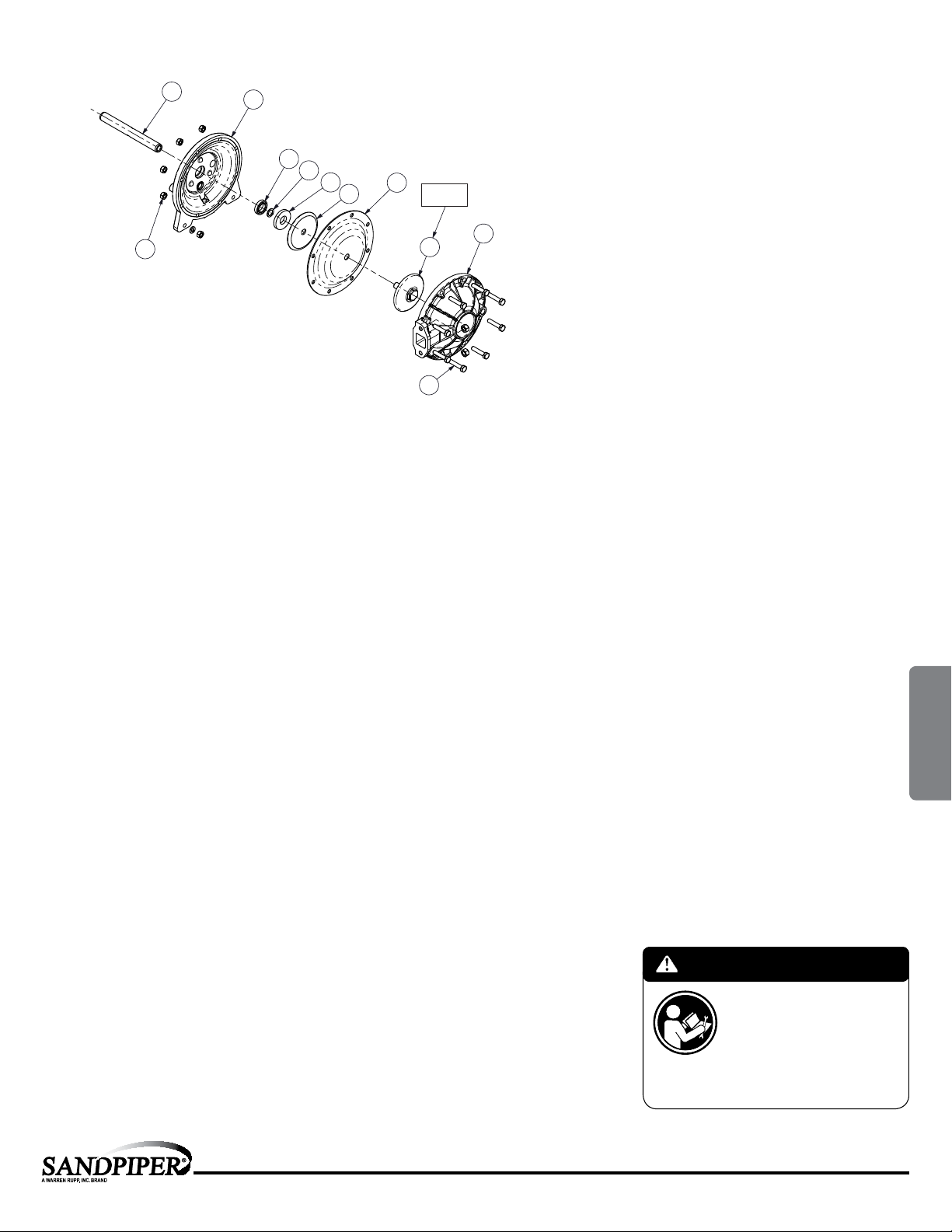

Diaphragm Service Drawing

44

33

20

46

50

7

38

Diaphragm Servicing

Step 1: With manifolds and outer chambers
removed, remove diaphragm assemblies from dia­phragm rod. DO NOT use a pipe wrench or similar
tool to remove assembly from rod. Flaws in the rod
surface may damage bearings and seal. Soft jaws
in a vise are recommended to prevent diaphragm
rod damage.

Step 1.A: NOTE: Not all inner diaphragm plates
are threaded. Some models utilize a through hole in
the inner diaphragm plate. If required to separate dia­phragm assembly, place assembly in a vise, gripping
on the exterior cast diameter of the inner plate. Turn
the outer plate clockwise to separate the assembly.

Outer plate with a threaded stud, diaphragm, and
an inner plate with through hole. Secure threaded
inner plate in a vise. Ensure that the plates are being
installed with the outer radius against the diaphragm.

Step 3: Lightly lubricate, with a compatible material,
the inner faces of both outer and inner diaphragm plates
when using on non Overlay diaphragms (For EPDM
water is recommended). No lubrication is required.

Step 4: Push the threaded outer diaphragm
plate through the center hole of the diaphragm.
Note: Most diaphragms are installed with
the natural bulge out towards the fluid side.

21

Torque:
350 in. lbs.

39

11

18

Step 7: Install diaphragm rod assembly into
pump and secure by installing the outer cham­ber in place and tightening the capscrews.

Step 8: On opposite side of pump, thread the
remaining assembly onto the diaphragm rod. Us­ing a torque wrench, tighten the assembly to the
diaphragm rod. Align diaphragm through bolt holes,
always going forward past the recommended torque.
Torque values are called out on the exploded view.
NEVER reverse to align holes, if alignment cannot
be achieved without damage to diaphragm, loosen
complete assemblies, rotate diaphragm and reas­semble as described above.

Always inspect diaphragms for wear cracks or
chemical attack. Inspect inner and outer plates for
deformities, rust scale and wear. Inspect intermediate
bearings for elongation and wear. Inspect diaphragm
rod for wear or marks.
Clean or repair if appropriate. Replace as required.

Step 2: Reassembly: There are two different types
of diaphragm plate assemblies utilized throughout the
Sandpiper product line: Outer plate with a threaded
stud, diaphragm, and a threaded inner plate.

sa n d pip er pu mp .c om

sb1dl5sm-rev0614

Step 5: Thread or place, outer plate stud into
the inner plate. For threaded inner plates, use a
torque wrench to tighten the assembly together.
Torque values are called out on the exploded view.

Repeat procedure for second side assembly. Allow
a minimum of 15 minutes to elapse after torqu­ing, then re-torque the assembly to compensate
for stress relaxation in the clamped assembly.

Step 6: Thread one assembly onto the diaphragm
rod with sealing washer (when used) and bumper.

5: WET END

IMPORTANT

Read these instructions completely,

before installation and start-up.
It is the responsibility of the
purchaser to retain this manual for
reference. Failure to comply with
the recommendations stated in this

manual will damage the pump, and

void factory warranty.

Model SB1 & SB25 • 12

Written Warranty

5 - YEAR Limited Product Warranty

Quality System ISO 9001 Certied • Environmental Management Systems ISO 14001 Certied

Warren Rupp, Inc. (“Warren Rupp”) warrants to the original end-use purchaser that no product sold by

Warren Rupp that bears a Warren Rupp brand shall fail under normal use and service due to a defect in material

or workmanship within ve years from the date of shipment from Warren Rupp’s factory. Warren Rupp brands

include SANDPIPER®, MARATHON®, PortaPump®, SludgeMaster™ and Tranquilizer®.

~ See complete warranty at sandpiperpump.com/content/warranty-certications ~

Declaration of Conformity

Manufacturer: Warren Rupp, Inc.®, 800 N. Main Street

Mansfield, Ohio, 44902 USA

Certifies that Air-Operated Double Diaphragm Pump Series: HDB, HDF, M Non-Metallic,

S Non-Metallic, M Metallic, S Metallic, T Series, G Series, U Series, EH and SH High Pressure,

RS Series, W Series, SMA and SPA Submersibles, and Tranquilizer Surge Suppressors comply with

the European Community Directive 2006/42/EC on Machinery, according to Annex VIII.

This product has used Harmonized Standard EN809:1998+A1:2009, Pumps and Pump Units

for Liquids - Common Safety Requirements, to verify conformance.

October 20, 2005

Signature of authorized person

David Roseberry
Printed name of authorized person

Revision Level: F

Date of issue

Engineering Manager
Title

August 23, 2012
Date of revision

7: WARRANTY

Declaration of Conformity

Manufacturer:

Warren Rupp, Inc.

Mansfield, Ohio, 44902 USA

certifies that Air-Operated Double Diaphragm Pump Series: HDB, HDF,

M Non-Metallic, S Non-Metallic, M Metallic, S Metallic, T Series, G Series, RS Series

U Series, EH and SH High Pressure, W Series, SMA and SPA Submersibles,

and Tranquilizer Surge Suppressors comply with the European Community

Directive 2006/42/EC on Machinery, according to Annex VIII. This product

has used Harmonized Standard EN809:1998+A1:2009, Pumps and Pump Units

for Liquids - Common Safety Requirements, to verify conformance.

Signature of authorized person

David Roseberry
Printed name of authorized person

Revision Level: F

®

, 800 N. Main Street

October 20, 2005
Date of issue

Engineering Manager
Title

April 19, 2012
Date of revision

EC Declaration of Conformity

In accordance with ATEX Directive 94/9/EC,

Equipment intended for use in potentially explosive environments.

Manufacturer:

Warren Rupp, Inc.
A Unit of IDEX Corportion
800 North Main Street
P.O. Box 1568
Mansfield, OH 44902 USA

EN 60079-25: 2011

For pumps equipped with Pulse Output ATEX Option
Quality B.V. (0344)

AODD Pumps and Surge Suppressors

For Type Examination Designations, see page 2 (back)

AODD (Air-Operated Double Diaphragm) Pumps

EC Type Examination Certificate No. Pumps: KEMA 09ATEX0071 X

DEKRA Certification B.V. (0344)
Meander 1051
6825 MJ Arnhem
The Netherlands

®

Applicable Standard:

EN13463-1: 2009
EN13463-5: 2011

DATE/APPROVAL/TITLE:
14 MAY 2014

David Roseberry, Engineering Manager

EC Declaration of Conformity

ATEX Summary of Markings

Type Marking Listed In

Pump types, S1F, S15, S20,
and S30 provided with the
pulse output option

Pump types, S1F, S15, S20,
and S30 provided with the
integral solenoid option

Pump types, HDB1½, HDB40,
HDB2, HDB50, HDB3, HDF1,
HDF25, HDF2, HDF3M, PB¼,
S05, S1F, S15, S20, S30, SB1,
SB25, ST1½, ST40, G15, G20,
and G30, without the above
listed options, no aluminum
parts

Pump types, DMF2, DMF3,
HDB1½, HDB40, HDB2,
HDB50, HDB3, HDF1, HDF25,
HDF2, HDF3M, PB¼, S05, S1F,
S15, S20, S30, SB1, SB25,
SE½, ST1, ST25, ST1½, ST40,
U1F, G05, G1F, G15, G20, and
G30

Surge Suppressors all types II 2 G T5

EC Type Certificate No. Pumps: KEMA 09ATEX0071 X
Type Certificate No. Pumps: KEMA 09ATEX0072 X
Type Certificate No. Suppressors: KEMA 09ATEX0073

II 2 G Ex ia c IIC T5
II 3/2 G Ex ia c IIC T5
II 2 D

Ex c iaD 20 IP67 T100oC

II 2 G EEx m c II T5
II 3/2 G EEx m c II T5
II 2 D c IP65 T100

II 1 G c T5
II 3/1 G c T5
II 1 D c T100
I M1 c
I M2 c

II 2 G c T5
II 3/2 G c T5
II 2 D c T100

II 3/2 G T5
II 2 D T100

Non-Conductive

Fluids

KEMA 09ATEX0071 X
CE 0344

KEMA 09ATEX0071 X

o

C

o

C

o

C

o

C

CE 0344

KEMA 09ATEX0071 X
KEMA 09ATEX0072 X
CE 0344

KEMA 09ATEX0072 X
CE

KEMA 09ATEX0073
CE

KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X

KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X

KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0071 X
KEMA 09ATEX0072 X

KEMA 09ATEX0072 X
KEMA 09ATEX0072 X
KEMA 09ATEX0072 X

KEMA 09ATEX0073
KEMA 09ATEX0073
KEMA 09ATEX0073

No
Yes
Yes

No
Yes
Yes

No
Yes
Yes

No
Yes

No
Yes
Yes

No
Yes
Yes

Pumps marked with equipment Category II 3/1 G (internal 3 G /
eternal 1 G), 1D, M1 and M2 when used for non-conductive fluids.
The pumps are Category II 2 G when used for conductive fluids.

Pumps and surge suppressors marked with equipment Category II 3/2
(internal 3 G / external 2 G), 2D when used for non-conductive fluids.
The pumps are Category II 2 G when used for conductive fluids.
