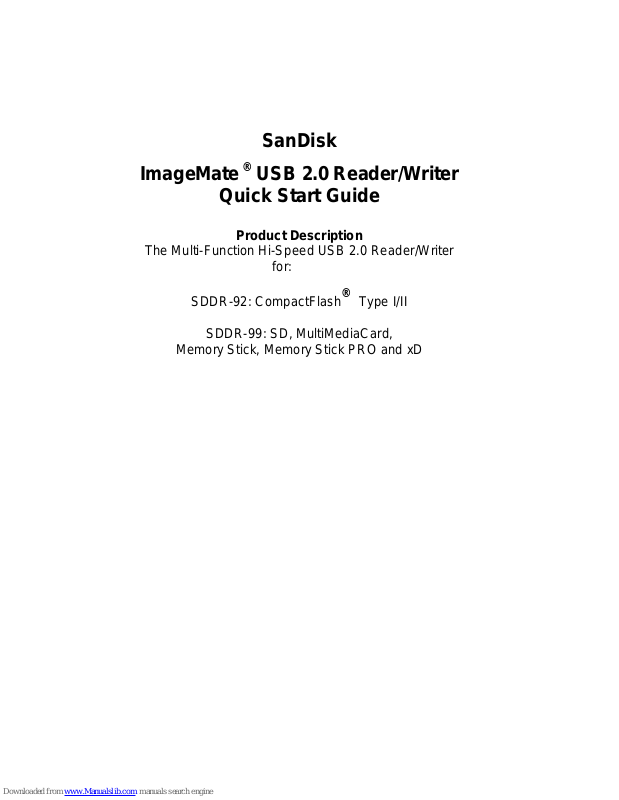

SanDisk
ImageMate
®
USB 2.0 Reader/Writer
Quick Start Guide
Product Description
The Multi-Function Hi-Speed USB 2.0 Reader/Writer
for:
SDDR-92: CompactFlash
®
Type I/II
SDDR-99: SD, MultiMediaCard,
Memory Stick, Memory Stick PRO and xD
System Requirements
Connection
• USB 2.0 port for Hi-Speed data transfer
Minimum Operating System Support
• Windows
o Windows 98SE (driver installation required)
o Windows ME
o Windows 2000
o Windows XP
• Macintosh
o Mac OS 9.2+, 10.1.2+
Unpacking Package Contents
• ImageMate USB 2.0 Reader/Writer (storage media not included)
• Installation CD with Windows 98SE driver and button application (Media Card
Companion)
• USB cable
• Quick Start Guide
Checking
1. Unpack the packaging. Make sure you have everything listed in the PACKAGE
CONTENTS.
2. Check your system requirements. Refer to SYSTEM REQUIREMENTS or the outside
of the packaging.
3. Locate the USB port on your computer. See UNDERSTANDING.
Understanding
What’s a USB port?
The Universal Serial Bus (USB) port is an easy way to connect a new device like the
ImageMate USB 2.0 Reader/Writer to your computer. Connecting a device to the USB
port doesn’t require that you open your computer to install an add-in card or set
complicated switches. You just plug it in and get started.
How do I find the USB port?
The USB ports are often located on the front or back of your PC, or on a USB hub. On a
laptop computer or a Macintosh, the USB port may be located on the side. The USB port
looks like this.
What is the difference between Hi-Speed USB 2.0 and Full Speed USB 1.1?
Hi-Speed USB 2.0 supports the transfer of data up to 480 megabits per second (Mbps),
and Full Speed USB 1.1 supports data transfer up to 12 Mbps. Hi-Speed USB 2.0
provides a dramatic improvement in data transfer performance compared to Full Speed
USB 1.1. USB 2.0 is backward compatible with USB 1.1 ports. The ImageMate USB 2.0
Reader/Writer supports both USB 2.0 and USB 1.1.
Installing
Before connecting the ImageMate USB 2.0 Reader/Writer to your computer, you may
need to install a device driver.
• You can skip this section if your operating system is Windows XP, ME, 2000, Mac
OS 9.2+ or Mac OS 10.1.2+ and proceed to Installing the Button Application
Install the Windows 98SE Driver
1. Insert the CD included with the ImageMate USB 2.0 Reader/Writer device into the
CD-ROM of your computer.
2. Left-click on the START menu and open the RUN menu. Click BROWSE to locate
the drive letter of your CD-ROM.
3. Select the \Win98\setup.exe file and click OK. Follow the on-screen directions.
Installing the Button Application (Media Card Companion)
1. Insert the CD included with the ImageMate USB 2.0 Reader/Writer device into the
CD-ROM of your computer.
2. Left-click on the START menu and open the RUN menu. Click BROWSE to locate
the drive letter of your CD-ROM.
3. Select the \Button Application\setup.exe file and click OK. Follow the on-screen
directions.
Connecting
Connecting the ImageMate USB 2.0 Reader/Writer to the USB port is simple. You don’t
need to turn off or restart your computer when attaching the ImageMate USB 2.0
Reader/Writer. Since the ImageMate USB 2.0 Reader/Writer is powered by the USB
connection, an AC/DC power adapter is not neede d.
• Before connecting the ImageMate USB 2.0 Reader/Writer, complete the device driver
installation. See INSTALLING.
Use the USB cable to connect your ImageMate to the computer directly.
When the ImageMate USB 2.0 Reader/Writer is connected for the first time, your
computer may display a message that the device is being installed (may vary slightly
depending on your operating system).
Windows Disk Icons
When you connect the ImageMate USB 2.0 Reader/Writer on a Windows operating
system, a newly assigned removable disk icon drive letter representing the card slot will
be shown in My Computer.
Macintosh Disk Icons
When you connect the ImageMate USB 2.0 Reader/Writer on a Macintosh operating
system, a removable disk icon labeled “untitled” representing the card slot will show on
the desktop when a card is inserted.
