YP-ST5X

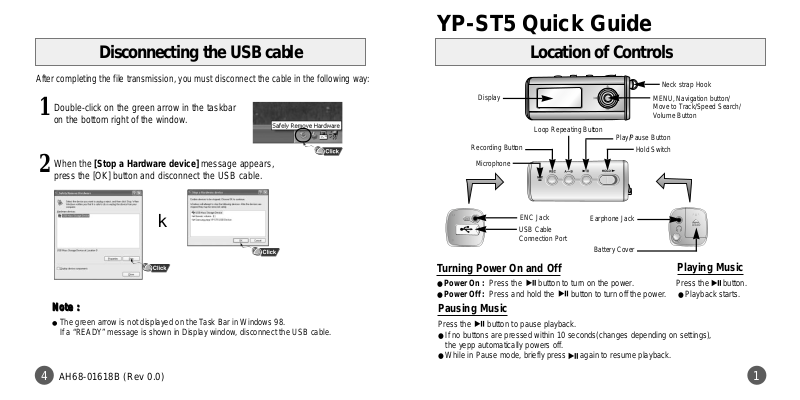

Location of Controls
1
YP-ST5 Quick Guide
Recording Button
Play/Pause Button
Hold Switch
Loop Repeating Button
USB Cable
Connection Port
ENC Jack
Neck strap Hook
MENU, Navigation button/
Move to Track/Speed Search/
Volume Button
Display
Earphone Jack
Battery Cover
Microphone
Turning Power On and Off
Playing Music
Pausing Music
● Power On : Press the button to turn on the power.
● Power Off : Press and hold the button to turn off the power.
Press the button.
● Playback starts.
Press the button to pause playback.
● If no buttons are pressed within 10 seconds(changes depending on settings),
the yepp automatically powers off.
● While in Pause mode, briefly press again to resume playback.
Disconnecting the USB cable
After completing the file transmission, you must disconnect the cable in the following way:
4
AH68-01618B (Rev 0.0)
NNoottee :
:
●
The green arrow is not displayed on the Task Bar in Windows 98.
If a “READY” message is shown in Display window, disconnect the USB cable.
1
Double-click on the green arrow in the taskbar
on the bottom right of the window.
2
When the [Stop a Hardware device] message appears,
press the [OK] button and disconnect the USB cable.
k
