Samsung YP-R1JCS-XAA User Manual

MP3 Player

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

YP-R1

Using this manual

Icons used in this manual

Some of the contents in this manual may differ from your • MP3 player depending on the ﬁrmware installed. Some of the contents may be changed without prior notice.

To view the special features of your MP3 player, see • "Special features of your MP3 player" on page 4.

To view troubleshooting, see "• Troubleshooting" on page 80.

Icon Description

Note

Caution

< >

Notes, usage tips, or additional information

Safety warnings and precautions

Menu names or text on the screen ; for example: <Yes>

Safety information

This manual describes how to properly use your new MP3 player. Read it carefully to avoid damaging the player and injuring yourself. Pay particular attention to the following serious warnings.

PROTECT YOURSELF

Do not disassemble, repair, or modify this product on your own.•

Do not get the product wet or drop it in water. If the product gets wet, do • not switch it on because you could get an electric shock. Instead, contact a Samsung Customer Service Center at 1-800-SAMSUNG.

Do not use the product during a thunderstorm, as it may cause malfunction or • a risk of electric shock.

Do not use the earphones while you are driving a bicycle, automobile or • motorcycle.

It can cause a serious accident, and furthermore, is prohibited by law in some areas. Using the earphones while walking or jogging on a road, in particular, on a crosswalk can lead to a serious accident.

For your safety, make sure the earphone cable does not get in the way of your • arm or other surrounding objects while you are taking exercise or a walk.

Do not place the product in damp, dusty, or sooty areas because these • environments could lead to ﬁ re or electric shock.

Do not use the product if the screen is cracked or broken. Broken glass • or acrylic could cause injury to your hand or face. Bring the product to a Samsung service center to replace the screen. Damage caused by careless handling will void the warranty.

Safety information

PROTECT YOURSELF

Using earphones or headphones for an extended • time may cause serious damage to your hearing.

If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may be (an ordinary conversation is between 50 to 60 db and road noise is approximately 80 db). You are strongly advised to set the volume level to medium (the medium level is usually less than 2/3 of the maximum).

If you feel a ringing in the ear(s), lower the volume • or stop using the earphones or headphones.

Battery shall not be exposed to excessive heat • such as sunshine, ﬁ re or the like.

PROTECT YOUR MP3 PLAYER

Do not leave the player in temperatures above • 95° F (35° C), such as a sauna or a parked car.

Do not cause excessive impact on the player by • dropping it.

Do not place heavy objects on top of the player.•

Prevent any foreign particles or dust from entering • into the product.

Do not place the product near magnetic objects.•

Be sure to backup important data. Samsung is not • responsible for data loss.

Use only accessories provided by or approved by • Samsung.

Do not spray water on the product. Never clean • the product with chemical substances such as benzene or thinner, as it may cause ﬁ re, electric shock or deteriorate the surface.

Failure to follow these instructions may lead to • physical injuries or damage to the player.

When printing this user manual, we recommend • that you print in color and check “Fit to Page” in the print option for better viewing.

Safety information

SAFETY INFORMATION

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including

interference that may cause undesired operation.

Caution: Any changes or modiﬁ cations in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Declaration of Conformity

We, Samsung Electronics Co.,Ltd., declare under our sole responsibility that the product, Trade name Samsung & Model name YP-R1, has been tested according to the part 15 of the FCC Rules.

Party responsible for Product Compliance Samsung Electronics America QA Lab. 18600 Broadwick Street, Rancho Dominguez, CA 90220

Special features of your MP3 player

Listen to true threedimensional sound with the Samsung Digital Natural Sound engine (DNSe™)

Be a cool DJ and mix music with your own beats in Beat DJ

Customize your main menu screen

Add your favorite widgets to the main menu screen

Easily create Bluetooth connections with a single motion

No more complicated buttons! Control your player with one simple touch

Listen to music with the mini player while viewing pictures or documents

Use basic functions

What's included

Your MP3 player

Connect to a PC and charge the

battery

Turn your player on and lock the

touch screen

Use the touch screen

Use the main menu screens

Change the menu style

Select a wallpaper

Organize your favorite menus

Use widgets

Add widgets to a main menu screen

Widget list

Use the quick tray and menu tray

Use the mini player

Enter text

Enter text using the virtual keyboard

Enter text with the smart ﬁ nger

feature

Connect your player to a TV

Manage media ﬁ les

Download media ﬁ les

Supported ﬁ le formats and PC

requirements

Download ﬁ les with EmoDio

Download ﬁ les using your player as a

removable disk

Search for ﬁ les

Delete ﬁ les

Play video and music

Video

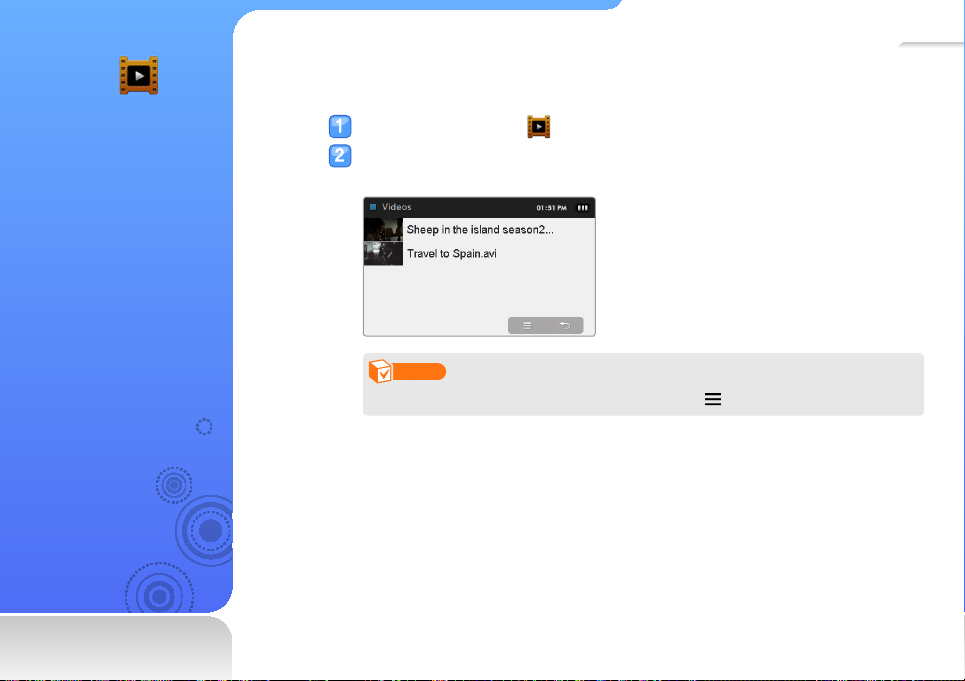

Play video ﬁ les

Use the video options

Music

Listen to music

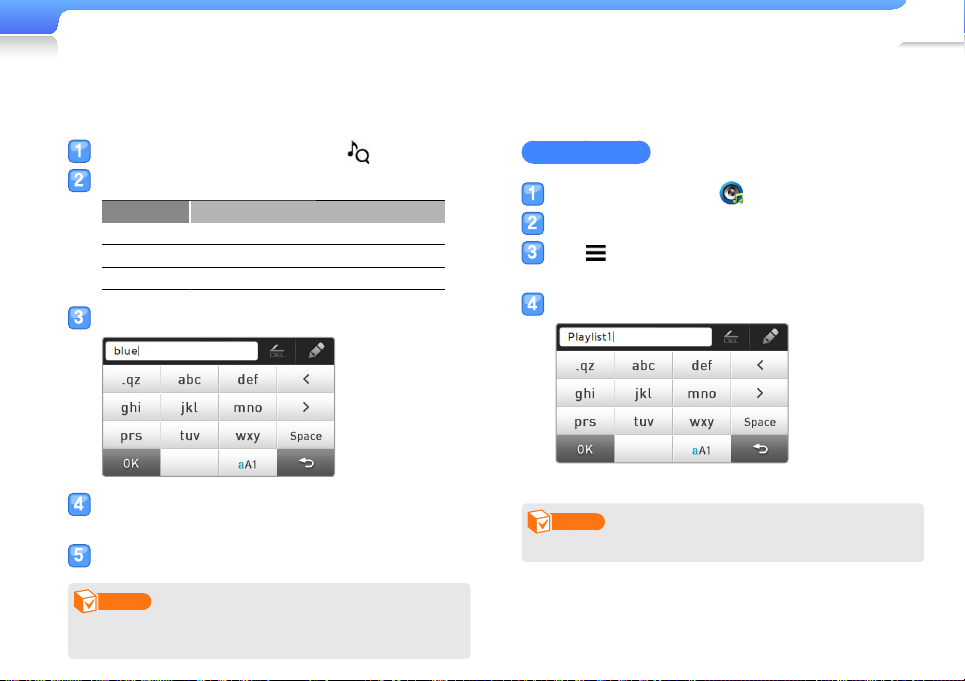

Search for a music ﬁ le

Create playlists

Use the music options

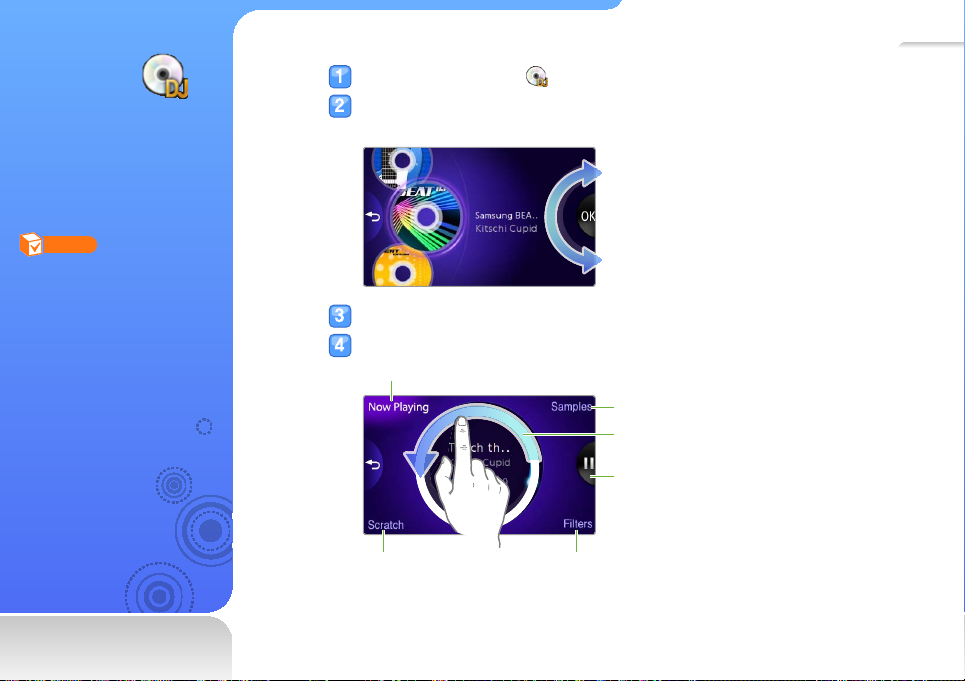

Beat DJ

Contents

Use additional

applications

Pictures

View pictures

Use the picture menus

Texts

View text ﬁ les

Use the text options

FM Radio

Listen to the FM radio

Save radio stations

Use the FM radio options

Flash Player

Games

Bluetooth

Find and register other Bluetooth-

enabled devices

Connect Bluetooth-enabled devices

Use call functions (hands-free)

Transfer ﬁ les

Use the Bluetooth options

Information for using Bluetooth

Datacasts

Voice REC

Address Book

Customize settings

Settings

Sound settings

Display settings

Language settings

Time settings

System settings

Appendix

Firmware upgrade

Maintenance of your player

Troubleshooting

Speciﬁ cations

Warranty

License

Use basic functions

Learn to perform basic operations with your player.

What's included .................................................................8

Your MP3 player .................................................................9

Connect to a PC and charge the battery ...........................10

Turn your player on and lock the touch screen ..................12

Use the touch screen .........................................................13

Use the main menu screens ..............................................15

Use widgets .......................................................................19

Use the quick tray and menu tray ......................................22

Use the mini player .............................................................23

Enter text ............................................................................24

Connect your player to a TV ..............................................26

What's included

Check your product box for the following items:

MP3 player Earphones

GM59-01011A (Black)

Note

The items supplied with your player may appear different from the illustrations in this •

manual.

You can obtain additional accessories from your local Samsung dealer.•

USB cable

GM39-01002A

Your M P 3

player

Reset hole

If your player is frozen or unresponsive, insert a pointed object (such as a toothpick or paper clip) into the reset hole. The system will be initialized.

Volume button (volume down)

Volume button (volume up)

Power/lock button

Touch screen

Accessories hook

Earphones jack

Microphone

USB connection port

Connect to a PC and charge the battery

Connect your player to a PC and charge the battery before you use your player for the ﬁ rst time or when you have not used it for a long time.

Connect the wider end of the USB cable (with the triangle facing up) to the

USB connection port at the bottom of your player.

Connect the thinner end of the USB cable to the USB port of a PC.

< >: Charging

< >: Fully charged

Charging time About 3 hours

When the battery is fully charged, unplug the USB cable from your player

and the PC.

Use basic functions > Connect to a PC and charge the battery

About batteries

Charge and store the battery at 41˚ F ~ 95˚ F (5˚ C ~ 35˚ C).• Do not charge the battery for more than 12 hours or leave the •

battery fully discharged for a long time. Doing so may shorten the battery life.

Depending on how you use your player, actual battery life may • vary and may be shorter than speciﬁ ed.

Note

The charging time may differ depending on your PC’s •

capabilities.

If you want to charge the battery on your laptop, make sure •

that the laptop's battery is full or the laptop is plugged into a power source.

The player can only be charged by connecting to your •

PC with the USB cable. Do not use a separate USB AC Adapter as it may not charge the battery or allow proper operation of the player.

Turn your player on and lock the touch screen

Turn your player on or off

Press and hold to turn your player on or off.

Note

If you do not use your player for 5 minutes, it will automatically turn off.

Lock or unlock the touch screen

Lock the touch screen to prevent any unwanted operations while listening to music or playing videos.

Press to lock or unlock the touch screen.

Note

When the touch screen is •

locked, will appear at the top of the screen.

You can also set your player •

to lock the touch screen and buttons. See page 75.

Use the touch screen

Learn how to use the touch screen and browse or select items.

Your player’s touch screen lets you easily select items or perform functions. Tap the touch screen using your ﬁ ngertip.

CORRECT INCORRECT

Caution

To avoid damaging the touch screen, do not press too hard with your ﬁ ngertips or use pointed objects to touch the screen.

Note

Tap only one area of the touch screen at a time. Your player will not recognize your input •

when you tap two or more areas simultaneously.

Keep the touch screen dry. Humidity and liquids may lower the recognition of the touch •

screen.

For best results, do not use any protective ﬁ lms on the touch screen and do not allow •

accessories to cover the touch screen.

The touch screen may not properly recognize inputs when you tap the screen with gloves, •

dirty ﬁ ngers, ﬁ ngernails, or sharp instruments such as ballpoint pens.

Use basic functions > Use the touch screen

Dragging

To move an item on the screen or browse items, tap and hold your ﬁ nger on the screen and drag your ﬁ nger.

To move to the next screen or ﬂ ip pages, quickly drag your ﬁ nger in the desired direction.

rag an item to

a location you want

Drag from the bottom

o the top to scroll up

on the lis

uickly drag right to

eft to play the next

ﬁ le during playback

Tapping

To select a menu or option, tap the screen once with your ﬁ nger. You can also open the quick tray or menu tray by tapping the screen.

Use the main menu screens

Learn to move between the main menu screens, change the menu style or wallpaper, and organize your favorite menus.

The main menu screens consist of menu icons and widget icons.

Menu icons

Widgets

Note

To return to a main menu screen while using a function, tap and hold at the bottom of the screen.

Use basic functions > Use the main menu screens

Change the menu style

In the main menu, tap at the bottom of the

screen.

Tap <Style> from the menu tray.

Tap < or > to select a style you want.

Tap <OK> to save the style.

Select a wallpaper

In the main menu, tap and hold an empty space.

Tap an image from the ﬁ le list.

Tap <OK> to save the wallpaper image.

Use basic functions > Use the main menu screens

Organize your favorite menus

Your player has three main menu screens by default. You can add two more screens, and add menu icons that you frequently use to a menu screen or delete them from the menu screen.

In the main menu, tap at the bottom of the

screen.

Tap <Icon> from the menu tray.

Add or delete menu icons from the menu list.

When you are ﬁ nished, tap <OK>.

Add a menu icon

Drag a menu icon from the menu list to a main menu screen.

Menu list

Delete a menu icon

Drag a menu icon from a main menu screen to the menu list.

Use basic functions > Use the main menu screens

Relocate a menu icon

Tap <V> to close the menu list and position the menu icon anywhere on the screen.

Note

To move a menu icon to a new main menu screen, drag the icon to the edge of the screen.

Use widgets

You can use functional and decorative widgets. Widgets are user friendly shortcuts to commonly used menus you can add to a main menu screen.

Add widgets to a main menu screen

In the main menu, tap at the bottom of the screen.

Tap <Widget> from the menu tray.

Add or delete widgets from the widget list.

For adding or deleting widgets, see " ■Organize your favorite menus" on page 17.

■

For information about your widgets, see "

When you are ﬁ nished, tap <OK>.

Widget list" on page 20.

Use basic functions > Use widgets

Widget list

Widget Function

View the current time.• Tap • > to set the current date. Drag up or down on each unit.

Analog clock/ Digital clock

Tap to change the clock style

Drag up or down on each unit to set the current time.

Widget Function

View the calendar and scheduled events.• Drag up or down to move by month. • Drag left or right to move by year.

Calendar

ap to change the

calendar style

Note

To view scheduled events in the calendar, download Microsoft Outlook event ﬁ les (.ics) from a PC. Event ﬁ les must be saved in <File Browser> → <My Pack> → <Calendar>.

Tap to view scheduled events for that day

Tap to delete all scheduled events

Use basic functions > Use widgets

Widget Function

View your pictures in a frame.

Picture frame

Brightness

Sleep time

Dual clock

Battery

Mini player

Decoration item

Tap < or > to change the frame style

Tap to select a picture to display

Adjust the brightness of the screen. See page 73.

Set the sleep time. See page 74.

View the current time in another country or city.

Check the remaining battery. Listen to music with the mini player.

A cookie gradually crumbles.

Flower petals ﬂ utter.

A butterﬂ y circles around a ﬂ ower.

A cup of coffee steams.

Use the quick tray and menu tray

Tap the top of the screen to open the quick tray. Tap the empty space of the screen to open the menu tray.

Quick tray

The quick tray provides shortcuts to other functions or allows you to return to a main menu screen.

Icon Function

Return to a main menu screen.

Launch the mini player. See page 23. Rotate the screen 90° clockwise (to the right). This

icon is available on the music playback screen.

Search for music ﬁ les. See page 43.

Turn off the screen and lock the touch screen. See page 75. Connect the Bluetooth stereo headset your player was last connected to. If you connect your player to a Bluetooth-enabled device for the ﬁ rst time, see "Find and register other Bluetooth-enabled devices" on page 61.

Menu tray

The menu tray displays options available in the current menu.

Use the mini player

You can use the mini player to listen to and easily navigate music ﬁ les while viewing pictures or text ﬁ les.

Open the quick tray and tap .

Listen to music with the mini player.

Tap to close the player screen

To Do this

Skip to the previous ﬁ le or the next ﬁ le Tap Search backward or forward in a ﬁ le Tap and hold or

Pause or resume playback

Tap

Enter text

Enter text using the virtual keyboard or with the smart ﬁ nger feature.

Enter text using the virtual keyboard

Tap an appropriate alphanumeric key until the character you want appears

on the screen.

If the smart ﬁ nger screen appears, tap ■ to switch to the virtual keyboard.

Input ﬁ eld Delete

Change the text input mode

• : English (lowercase)

• : English (uppercase)

• : numbers

When you are ﬁ nished, tap <OK>.

Switch the text input method (virtual keyboard ↔ smart ﬁ nger)

Move the cursor to the left

Move the cursor to the right

Insert a space

Back to the previous screen

Use basic functions > Enter text

Enter text with the smart ﬁ nger feature

With the smart ﬁ nger feature, you can write characters anywhere on the screen using your ﬁ nger.

On the virtual keyboard, tap to switch to the

smart ﬁ nger.

Change the text input mode.

Write each character anywhere on the screen.

■

Your handwriting is converted to text.

▼ When entering a keyword in the music search screen

Switch the text input method (virtual keyboard ↔ smart ﬁ nger)

Change the text input mode

•

: English (lowercase or

uppercase)

• : numbers

Back to the previous screen

Delete

When you are ﬁ nished, tap <OK>.

Move the cursor to the left

Move the cursor to the right

C o n n e c t your player to a TV

You can connect your player to a TV with an optional TV-OUT cable and view multimedia ﬁ les, such as pictures and videos, on the TV screen.

Connect your player to a TV using an optional TV-OUT cable.

Audio

Video

Turn on your TV and switch the TV to the appropriate external input mode.

Turn on your player and view a picture or video.

Tap on the playback screen.

Tap <TV Out> from the option list.

Tap <Yes> from the pop-up window.

■

The TV screen displays the picture or video you are viewing on your player.

Control playback using the menu tray of your player.

Tap ■ to end the connection with the TV.

Note

Some features of your player may not be available when your player is connected to a TV. • Some TVs may not be compatible with your player.•

Manage media ﬁ les

Download media ﬁ les to your player, and search for or delete ﬁ les stored in your player.

Download media ﬁ les .........................................................28

Search for ﬁ les ....................................................................32

Delete ﬁ les ..........................................................................33

+ 66 hidden pages
