YP-R1

MP3 Player

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at

www.samsung.com/register

Using this manual

•Some of the contents in this manual may differ from your MP3 player depending on the firmware installed. Some of the contents may be changed without prior notice.

•To view the special features of your MP3 player, see "Special features of your MP3 player."

•To view troubleshooting, see "Troubleshooting."

Icons used in this manual

Icon		Description
		Notes, usage tips, or additional information
	Note	Notes, usage tips, or additional information

		Safety warnings and precautions
	Caution	Safety warnings and precautions

< >		Menu names or text on the screen ;
< >		for example: <Yes>
		for example: <Yes>

This manual describes how to properly use your new MP3 player. Read it carefully to avoid damaging the player and injuring yourself. Pay particular attention to the following serious warnings.

PROTECT YOURSELF

• Do not disassemble, repair, or modify this product on your own.

• Do not get the product wet or drop it in water. If the product gets wet, do not switch it on because you could get an electric shock.

•Do not use the product during a thunderstorm, as it may cause malfunction or a risk of electric shock.

•Do not use the earphones while you are driving a bicycle, automobile or

motorcycle.

It can cause a serious accident, and furthermore, is prohibited by law in some areas.

Using the earphones while walking or jogging on a road, in particular, on a crosswalk can lead to a serious accident.

•For your safety, make sure the earphone cable does not get in the way of your arm or other surrounding objects while you are taking exercise or a walk.

•Do not place the product in damp, dusty, or sooty areas because these

environments could lead to fire or electric shock.

• Do not use the product if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hand or face. Bring the product to a

Samsung service center to replace the screen. Damage caused by careless handling will void the warranty.

Safety information

PROTECT YOURSELF

• Using earphones or headphones for an extended time may cause serious damage to your hearing. If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may be (an ordinary conversation is between 50 to 60 db and road noise is approximately 80 db).

You are strongly advised to set the volume level to medium (the medium level is usually less than 2/3 of the maximum).

•If you feel a ringing in the ear(s), lower the volume or stop using the earphones or headphones.

•Battery shall not be exposed to excessive heat

such as sunshine, fire or the like.

PROTECT YOUR MP3 PLAYER

• Do not leave the player in temperatures above 35° C (95° F), such as a sauna or a parked car.

•Do not cause excessive impact on the player by dropping it.

•Do not place heavy objects on top of the player.

•Prevent any foreign particles or dust from entering into the product.

•Do not place the product near magnetic objects.

• Be sure to backup important data. Samsung is not responsible for data loss.

•Use only accessories provided by or approved by Samsung.

• Do not spray water on the product. Never clean the product with chemical substances such as benzene or thinner, as it may cause fire, electric shock or deteriorate the surface.

•Failure to follow these instructions may lead to physical injuries or damage to the player.

•When printing this user manual, we recommend that you print in color and check “Fit to Page” in the print option for better viewing.

Listen to true threedimensional sound with the Samsung Digital Natural Sound engine (DNSe™)

Be a cool DJ and mix	Customise your main
music with your own	menu screen at your
beats in Beat DJ	fingertip

Add your favourite	No more complicated	Listen to music with the
	buttons! Control your
widgets to the main menu		mini player while viewing
	player with one simple
screen		pictures or documents
	touch

Easily create Bluetooth

connections with a single motion

6	Use basic functions		26	Manage media files
7	What's included	27		Download media files
8	Your MP3 player	27		Supported file formats and PC
9	Charge the battery	28		requirements
				Download files with EmoDio
11	Turn your player on and lock the
		29		Download files using your player as a
12	touch screen			removable disk
	Use the touch screen	31		Search for files
14	Use the main menu screens	32		Delete files
15	Change the menu style
15	Select a wallpaper
16	Organise your favourite menus	33		Play video and music
18	Use widgets
18 Add widgets to a main menu screen
		34		Video
19	Widget list

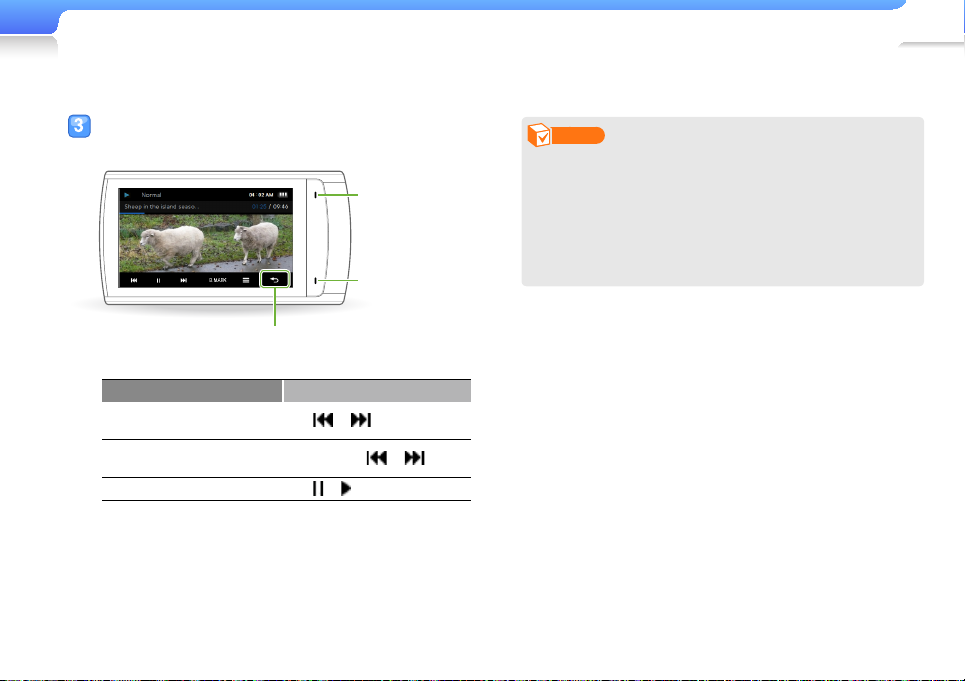

21	Use the quick tray and menu tray	34		Play video files
22	Use the mini player	37		Use the video options
		38		Music
23	Enter text
		38		Listen to music
23	Enter text using the virtual keyboard
		42		Search for a music file
24	Enter text with the smart finger feature

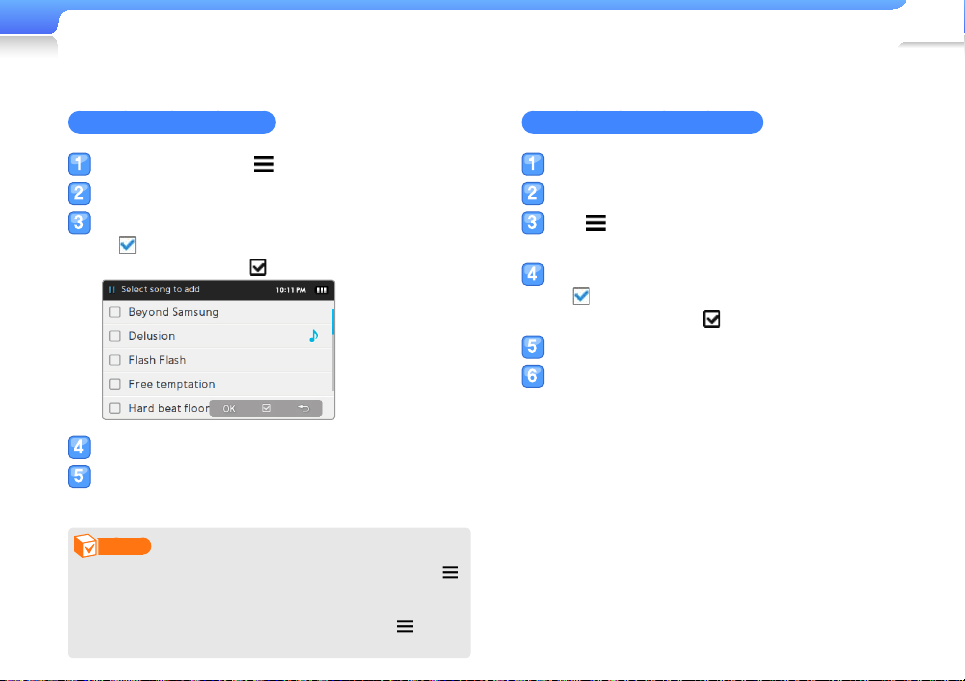

		42		Create playlists
25	Connect your player to a TV
		44		Use the music options

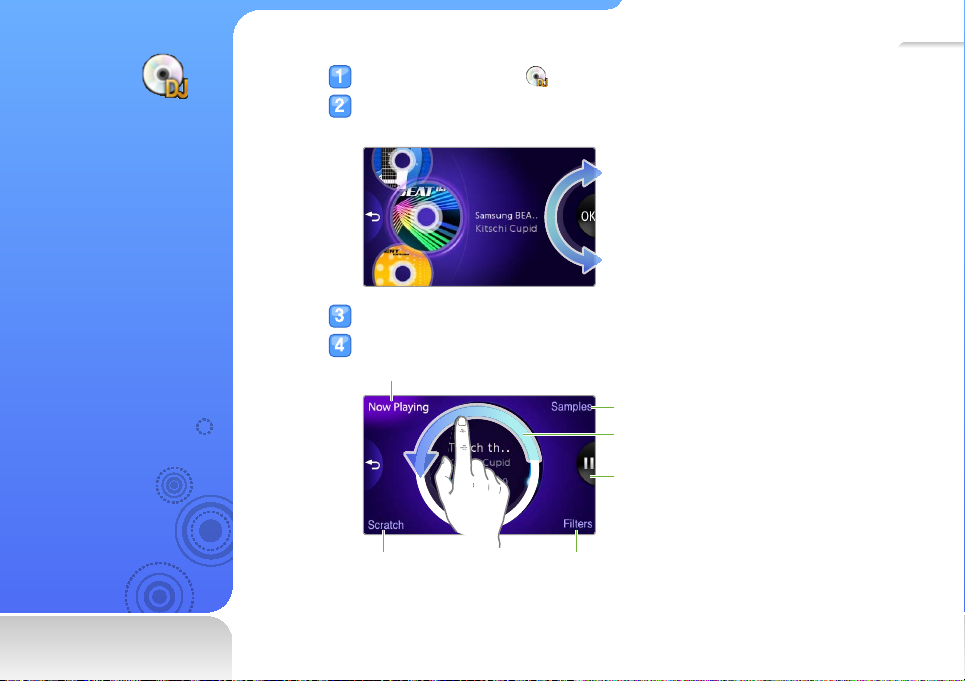

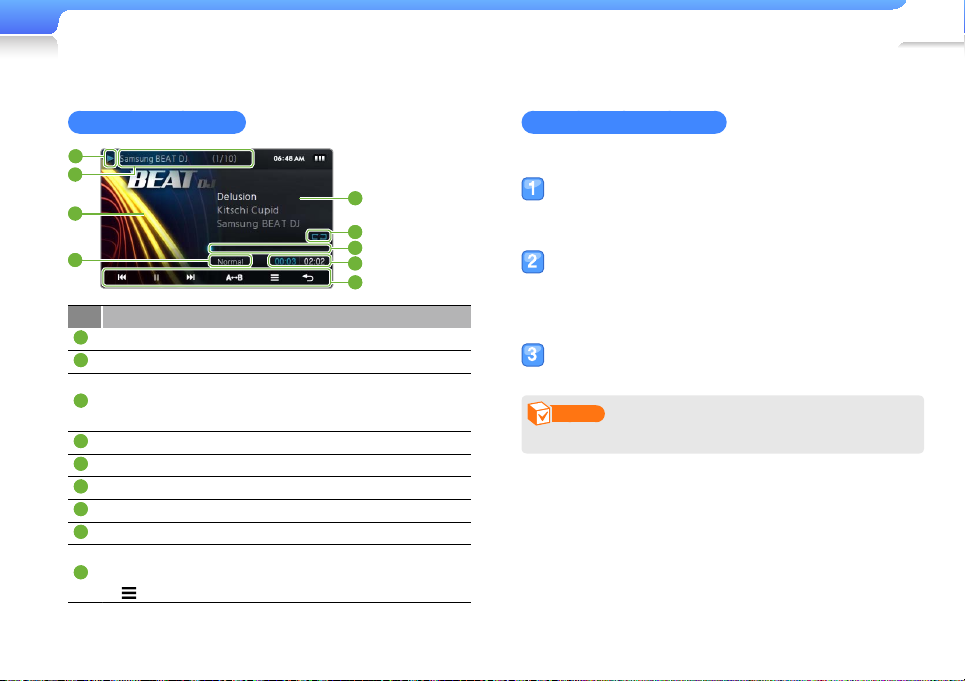

45 Beat DJ

Contents

48 Use additional applications

49 Pictures

49View pictures

50Use the picture menus

51Texts

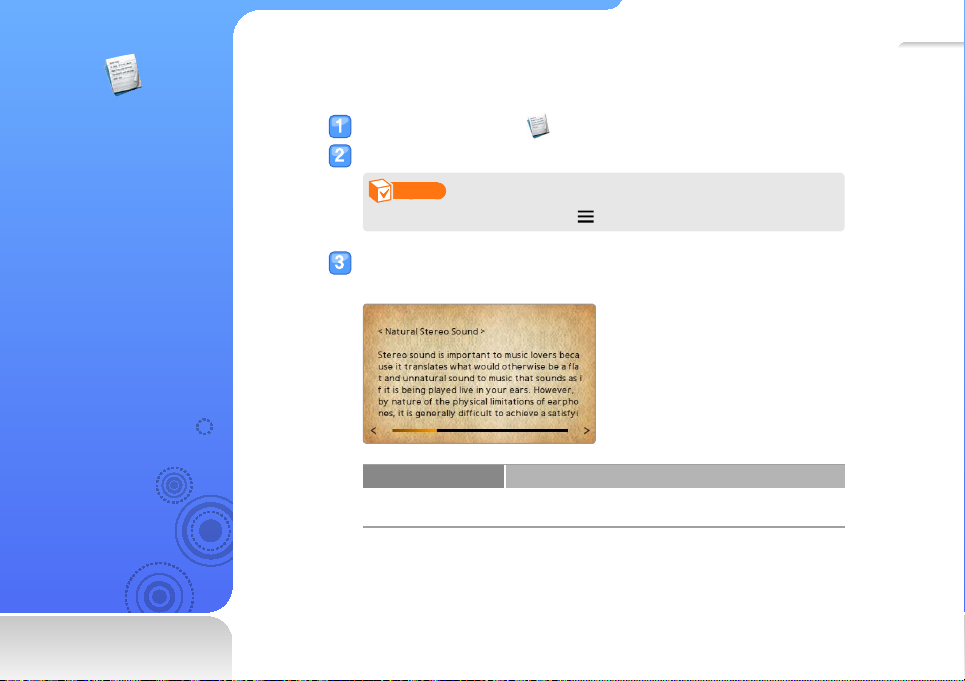

51 View text files

53Use the text options

54FM Radio

54 Listen to the FM radio

56Save radio stations

57Use the FM radio options

58Flash Player

59Games

60Bluetooth

60	Find and register other Bluetooth-
61	enabled devices
61	Connect Bluetooth-enabled devices

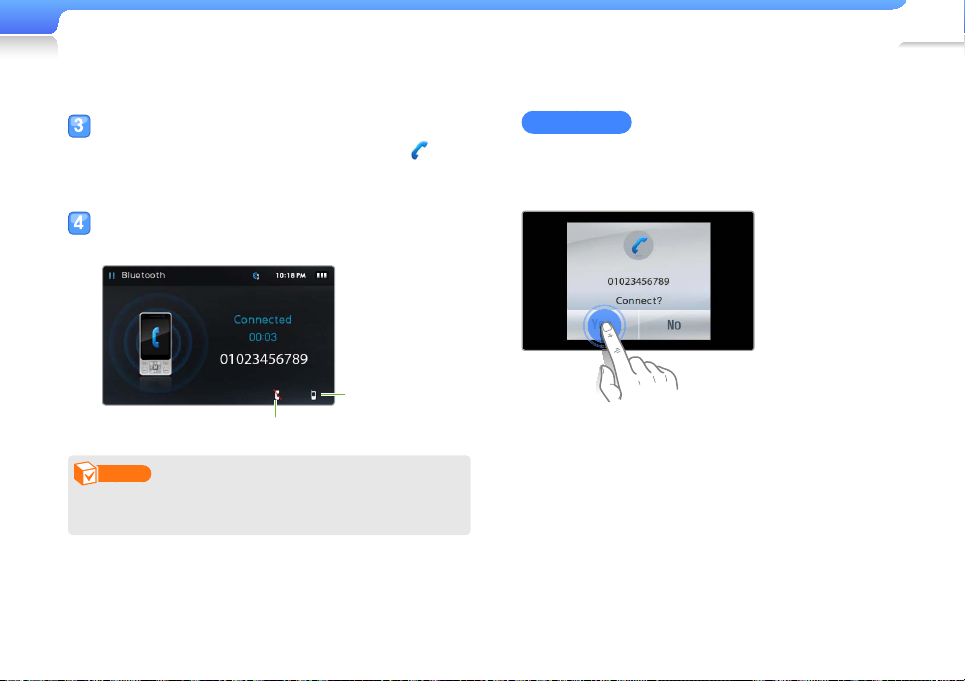

62	Use call functions (hands-free)

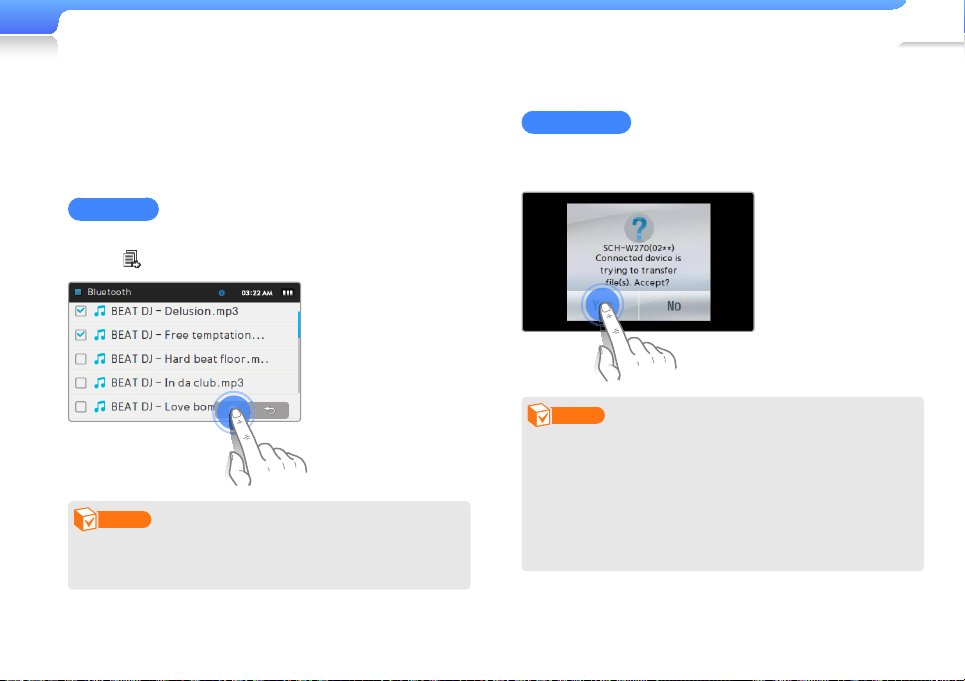

64	Transfer files
65	Use the Bluetooth options
65	Information for using Bluetooth
67	Datacasts
68	Voice REC
69	Address Book

70 Customise settings

71 Settings

72 Sound settings

72Display settings

73Language settings

73	Time settings
73	System settings

76	Appendix
77	Maintenance of your player
78	Troubleshooting
80	Specifications
82	Correct disposal of this product
	(Waste Electrical & Electronic
82	Equipment)
82	Correct disposal of batteries in
83	this product
83	License
84	Contact Samsung World Wide

Use basic functions
Learn to perform basic operations with your player.
What's included .................................................................	7
Your MP3 player.................................................................	8
Charge the battery .............................................................	9
Turn your player on and lock the touch screen..................	11
Use the touch screen.........................................................	12
Use the main menu screens ..............................................	14
Use widgets .......................................................................	18
Use the quick tray and menu tray......................................	21
Use the mini player.............................................................	22
Enter text............................................................................	23
Connect your player to a TV ..............................................	25

Check your product box for the following items:

MP3 player

Earphones

USB cable

Note

•The items supplied with your player may appear different from the illustrations in this manual.

•You can obtain additional accessories from your local Samsung dealer.

Reset hole

If your player is frozen or unresponsive, insert a pointed object (such as the point of a pen) into the reset hole. The system will be initialized.

Power/lock button

Touch screen

Accessories hook

Earphones

jack

Microphone

Volume button USB connection port

(volume up)

Volume button (volume down)

Charge the battery before you use your player for the first time or when you have not used it for a long time.

Caution

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Connect the large end of the USB cable (with the triangle facing up) to the USB connection port at the bottom of your player.

Connect the small end of the USB cable to the USB port of a PC.

<>: Charging

<>: Fully charged

Charging time

About 3 hours

When the battery is fully charged, unplug the USB cable from your player and the PC.

Use basic functions > Charge the battery

About batteries

•Charge and store the battery at 5˚ C~35˚ C (41˚ F~95˚ F).

•Do not charge the battery for more than 12 hours or leave the battery fully discharged for a long time. Doing so may shorten the battery life.

•Depending on how you use your player, actual battery life may vary and may be shorter than specified.

Note

•The charging time may differ depending on your PC’s capabilities.

•If you want to charge the battery on your laptop, make sure that the laptop's battery is full or the laptop is plugged into a power source.

•The player can only be charged by connecting to your PC with the USB cable. Do not use a separate USB AC Adapter as it may not charge the battery or allow proper operation of the player.

Turn your player on or off

Press and hold to turn your player on or off.

Note

If you do not use your player for 5 minutes, it will automatically turn off.

Lock or unlock the touch screen

Lock the touch screen to prevent any unwanted operations while listening to music or playing videos.

Press to lock or unlock the touch screen.

Note

•When the touch screen is locked, will appear at the top of the screen.

•You can also set your player to lock the touch screen and buttons. See page 74.

Learn how to use the touch screen and browse or select items.

Your player’s touch screen lets you easily select items or perform functions. Tap the touch screen using your fingertip.

Caution

To avoid damaging the touch screen, do not press too hard with your fingertips or use pointed objects to touch the screen.

Note

•Tap only one area of the touch screen at a time. Your player will not recognise your input when you tap two or more areas simultaneously.

•Keep the touch screen dry. Humidity and liquids may lower the recognition of the touch screen.

•For best results, do not use any protective films on the touch screen and do not allow accessories to cover the touch screen.

•The touch screen may not properly recognise inputs when you tap the screen with gloves, dirty fingers, fingernails, or sharp instruments such as ballpoint pens.

SAMSUNG YP-R1JCS, YP-R1JEP, YP-R1JNP, YP-R1JEB, YP-R1JNB User Manual

Use basic functions > Use the touch screen

Dragging

To move an item on the screen or browse items, tap and hold your finger on the screen and drag your finger.

To move to the next screen or flip pages, quickly drag your finger

Drag an item to

a location you want

Drag from the bottom to scroll up

Quickly drag right to left to play the next file during playback

Tapping

To select a menu or option, tap the screen once with your finger. You can also open the quick tray or menu tray by tapping the

The main menu screens consist of menu icons and widget icons.

Learn to move between the main menu screens, change the menu style or wallpaper, and organise your favourite menus.

Menu icons

Widgets

Note

To return to a main menu screen while using a function, tap and hold at the bottom of the screen.

Use basic functions > Use the main menu screens

In the main menu, tapat the bottom of the screen.

Tap <Style> from the menu tray.

Tap < or > to select a style you want.

In the main menu, tap and hold an empty space.

Tap an image from the file list.

Tap <OK> to save the wallpaper image.

Tap <OK> to save the style.

Use basic functions > Use the main menu screens

Your player has three main menu screens by default. You can add two more screens, and add menu icons that you frequently use to a menu screen or delete them from the menu screen.

In the main menu, tapat the bottom of the screen.

Tap <Icon> from the menu tray.

Add or delete menu icons from the menu list. When you are finished, tap <OK>.

Add a menu icon

to a main menu screen.

Menu list

Delete a menu icon

Drag a menu icon from a main menu screen to the menu list.

Use basic functions > Use the main menu screens

Relocate a menu icon

Tap <V> to close the menu list and position the menu icon

Note

To move a menu icon to a new main menu screen, drag the icon to the edge of the screen.

You can use functional and decorative widgets. Widgets are user friendly shortcuts to commonly used menus allowing you to add to a main menu screen.

In the main menu, tapat the bottom of the screen.

Tap <Widget> from the menu tray.

Add or delete widgets from the widget list.

■For adding or deleting widgets, see "Organise your favourite menus" on page 16.

■For information about widgets, see "Widget list" on page 19.

When you are finished, tap <OK>.

Use basic functions > Use widgets

Widget

Analogue clock/ Digital clock

Function

•View the current time.

•Tap > to set the current date. Drag up or down on each unit.

Drag up or down on each unit to set the current time

Tap to change the clock style

Widget

Calendar

Function

•View the calendar and scheduled events.

•Drag up or down to move by month. Drag left or right to move by year.

Tap to view scheduled events for that day

Tap to change the	Tap to delete all
calendar style	scheduled events

Note

To view scheduled events in the calendar, download Microsoft Outlook event files (.ics) from a PC. Event files must be saved in <File Browser> → <My Pack> → <Calendar>.

Use basic functions > Use widgets

Widget	Function
	View your pictures in a frame.
Picture		Tap < or > to
Picture		Tap < or > to
frame		change the
		frame style


	Tap to select a picture to display

Create your memos.

Memo

Brightness

Adjust the brightness of the screen.

See page 72.

Sleep time Set the sleep time. See page 73.

Widget Function

Dual clock View the current time in another country or city.

Battery Check the remaining battery.

Mini player Listen to music with the mini player.

Decoration

A cookie gradually crumbles.

item

Decoration

Flower petals flutter.

item

Decoration

A butterfly circles around a flower.

item

Decoration

A cup of coffee steams.

item

Learn to use the quick tray and menu tray. Tap the top of the screen to open the quick tray. Tap the empty space of the screen to open the menu tray.

Quick tray

The quick tray allows you to use other functions or return to a main menu screen.

Icon Function

Return to a main menu screen.

Launch the mini player. See page 22.

Rotate the screen 90° clockwise (to the right).

This icon is available on the music playback screen.

Search for music files. See page 42.

Turn off the screen and lock the touch screen.

See page 74.

Connect the Bluetooth stereo headset your player was last connected to. If you connect your player to a Bluetooth device for the first time, see "Find and register other Bluetooth-enabled devices" on page 60.

Menu tray

The menu tray displays options available in the current menu.

You can listen to music with the mini player while viewing pictures or text files or using other menus which do not have the music play feature.

Open the quick tray and tap .

Listen to music with the mini player.

Tap to close the player screen

To	Do this
Skip to the previous file or the next file	Tap	or

Search backward or forward in a file	Tap and hold		or

Pause or resume playback	Tap	or

Enter text using the virtual keyboard or with the smart finger feature.

Tap an appropriate alphanumeric key until the character you want appears on the screen.

■ If the smart finger screen appears, tap to switch to the virtual keyboard.

Input field

Delete

Switch the text input method (virtual keyboard ↔ smart finger)

Move the cursor to the left

Move the cursor to the right

Space

Back to the previous screen

Change the text input mode

•: English (lowercase)

•: English (uppercase)

•: numbers

When you are finished, tap <OK>.

Use basic functions > Enter text

With the smart finger feature, you can write characters anywhere on the screen using your finger.

On the virtual keyboard, tap to switch to the smart finger.

Change the text input mode.

Write characters anywhere on the screen.

▼ When entering a keyword in the music search screen

Switch the text input method (virtual keyboard ↔ smart finger)

				Change the text input mode
				Change the text input mode
				•		: English (lowercase or
				•		: English (lowercase or
				•	uppercase)
						: numbers
						: numbers
				Back to the previous screen


Delete	Move	the	Move the cursor


	cursor to		to the right
	the left

When you are finished, tap <OK>.

You can connect your player to a TV with an optional TV-OUT cable and view multimedia files, such as pictures and videos, on the TV screen.

Connect your player to a TV using an optional TV-OUT cable.

Video Audio

Turn on your TV and switch the TV to the appropriate external input mode. Turn on your player and view a picture or video.

Tap on the playback screen. Tap <TV Out> from the option list.

Tap <Yes> from the pop-up window.

■ The TV screen displays the picture or video you are viewing on your player.

Control playback using the menu tray of your player.

■ Tap to end the connection with the TV.

Note

•Some features of your player may not be available when your player is connected to a TV.

•Some TVs may not be compatible with your player.

Download media files to your player, and search for or delete files stored in your player.

Download media files.........................................................	27
Search for files....................................................................	31
Delete files ..........................................................................	32

Download media files from a PC to your player.

Caution

To avoid damage to your player and corruption of your files, do not disconnect the USB cable while files are being transferred.

Tap to delete a

Tap to change

Tap to enter a memo; Use the

the memo style

smart finger (See page 24)

Supported file formats

Menu	File formats
Music	MP3, WMA, Ogg, AAC, FLAC, etc.

Videos	AVI, WMV, etc.

Picture	JPG, BMP, etc.

Texts	TXT

Flash Player	SWF

Recommended PC requirements

CPU Pentium 500 MHz or later

Operating System Windows XP Service Pack 2 or higher

• Windows Media Player 11.0 or higher

Others

• Resolution 1024 X 768 or higher

• Internet Explorer 6.0 or higher

• DirectX 9.0 or higher

+ 66 hidden pages
