Samsung Xpress SL-M2880FW, Xpress M2885FW Service Manual

Download

Page 1

MonoLaserMFP

XpressM288Series SL-M2880FW/M2885FW

(Ver1.00)

MANUAL

SERVICE

MonoLaserMFP

1.Precautions

2.Productspecandfeature

3.DisassemblyandReassembly

4.AlignmentandTroubleshooting

5.SystemDiagram

6.ReferenceInformation

Contents

RefertotheservicemanualintheGSPN(seetherearcover)formoreinformation.

Page 2

Contents

1.Precautions......................................................................................................................................1−1

1.1.Safetywarning........................................................................................................................1−1

1.2.Cautionforsafety....................................................................................................................1−2

1.2.1.Toxicmaterial.............................................................................................................1−2

1.2.2.Electricshockandresafetyprecautions.........................................................................1−2

1.2.3.Handlingprecautions...................................................................................................1−4

1.2.4.AssemblyandDisassemblyprecautions...........................................................................1−4

1.2.5.Disregardingthiswarningmaycausebodilyinjury............................................................1−5

1.3.ESDprecautions......................................................................................................................1−6

1.4.CautionforDataLoss...............................................................................................................1−7

2.Productspecandfeature.....................................................................................................................2−1

2.1.ProductSpecications..............................................................................................................2−1

2.1.1.ProductOverview........................................................................................................2−1

2.1.2.Specications.............................................................................................................2−2

2.1.2.1.GeneralPrintEngine......................................................................................2−2

2.1.2.2.Copy...........................................................................................................2−3

2.1.2.3.Scan...........................................................................................................2−4

2.1.2.4.Fax.............................................................................................................2−5

2.1.2.5.ControllerandSoftware..................................................................................2−6

2.1.2.6.PaperHandling.............................................................................................2−7

2.1.2.7.ReliabilityandService...................................................................................2−8

2.1.2.8.Environment................................................................................................2−8

2.1.2.9.Supplies......................................................................................................2−9

2.1.2.10.Maintenanceparts.........................................................................................2−10

2.1.2.11.Options.......................................................................................................2−10

2.1.3.ModelComparison......................................................................................................2−11

2.2.SystemOverview.....................................................................................................................2−13

2.2.1.FrontView.................................................................................................................2−13

2.2.2.RearView..................................................................................................................2−14

2.2.3.PaperPath..................................................................................................................2−15

2.2.4.SystemLayout............................................................................................................2−16

2.2.4.1.FeedingPart.................................................................................................2−17

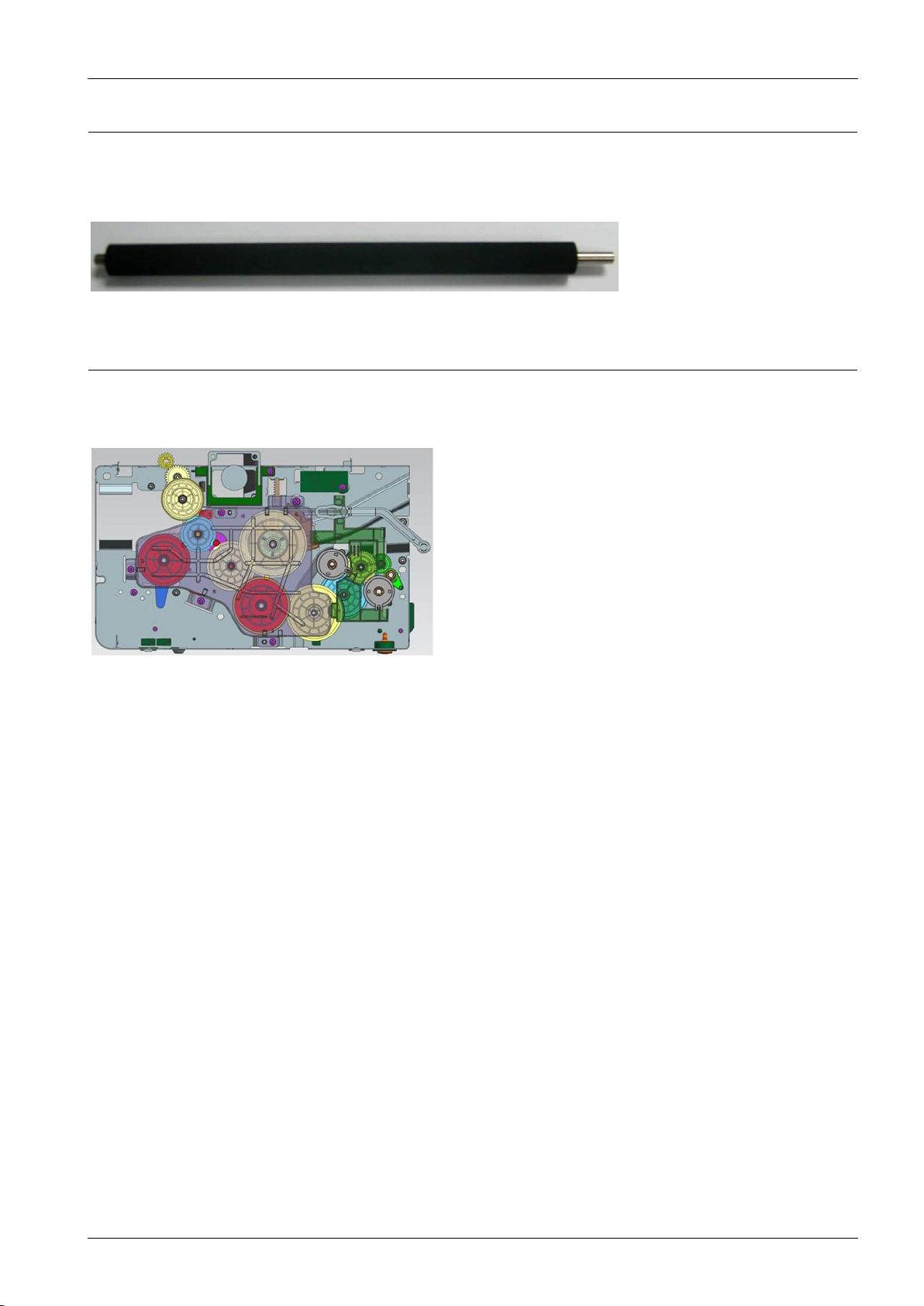

2.2.4.2.TransferRoller.............................................................................................2−19

2.2.4.3.DriveUnit...................................................................................................2−19

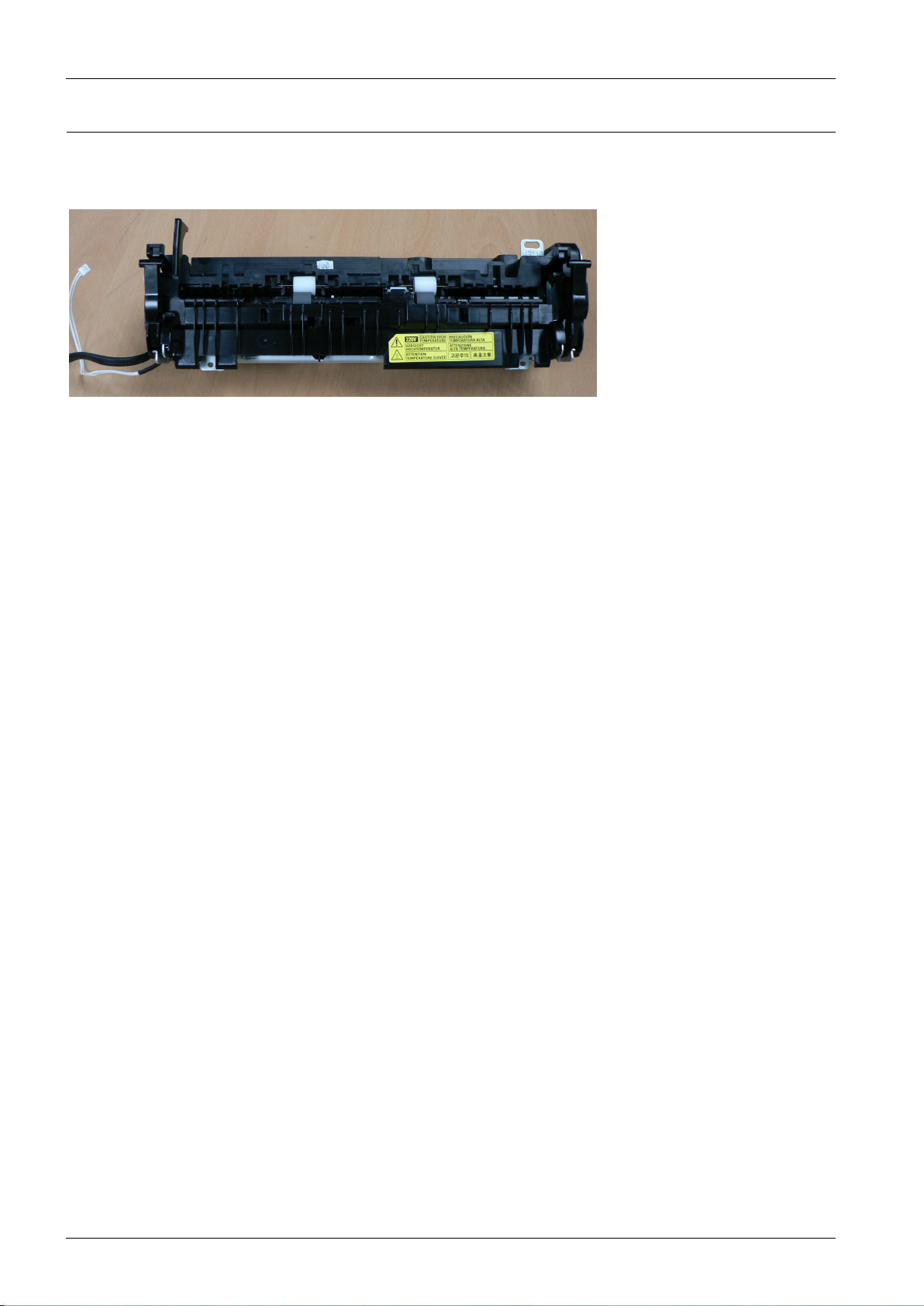

2.2.4.4.Fuser..........................................................................................................2−20

2.2.4.5.LSU(LaserScannerUnit)...............................................................................2−21

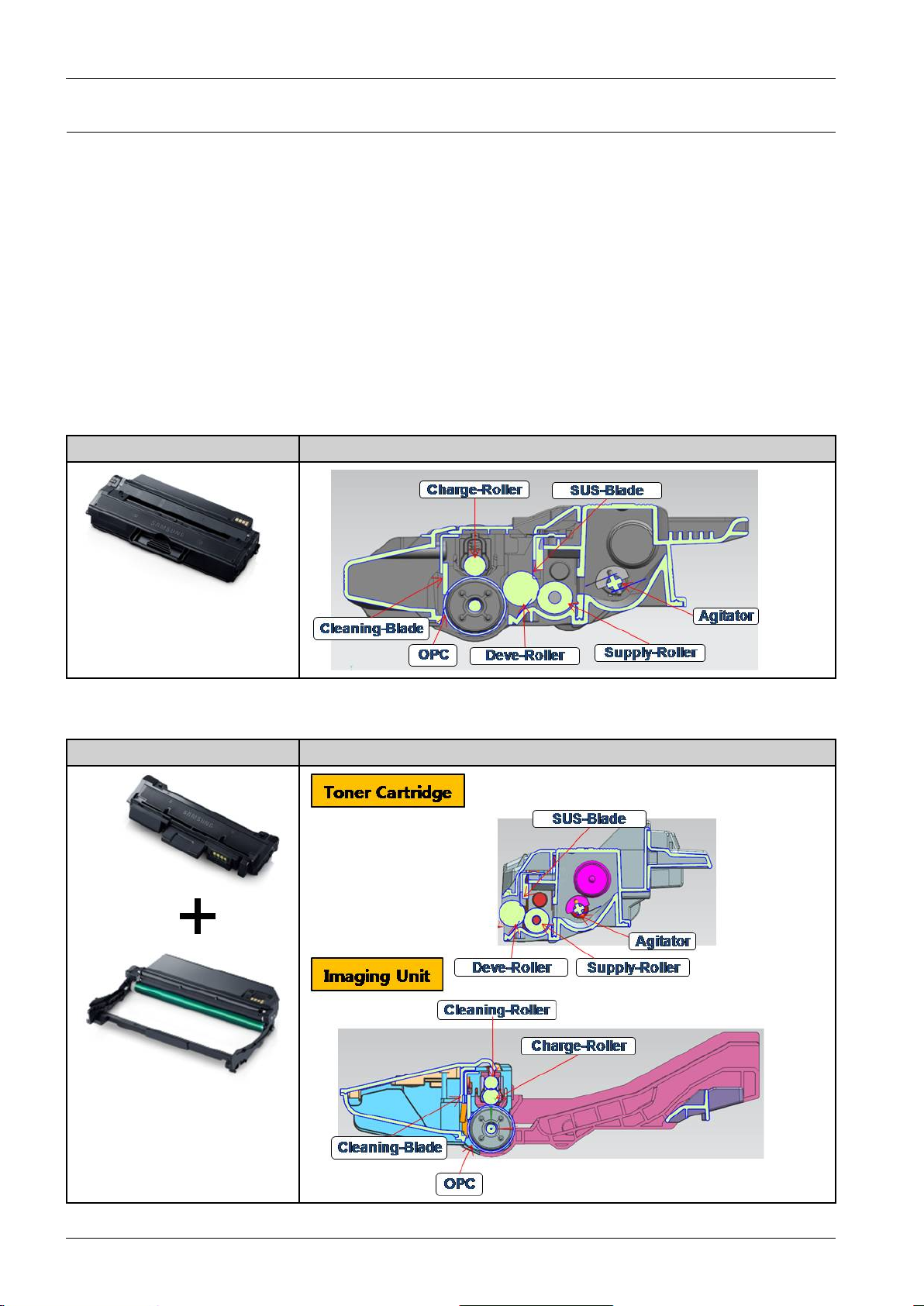

2.2.4.6.TonerSystem...............................................................................................2−22

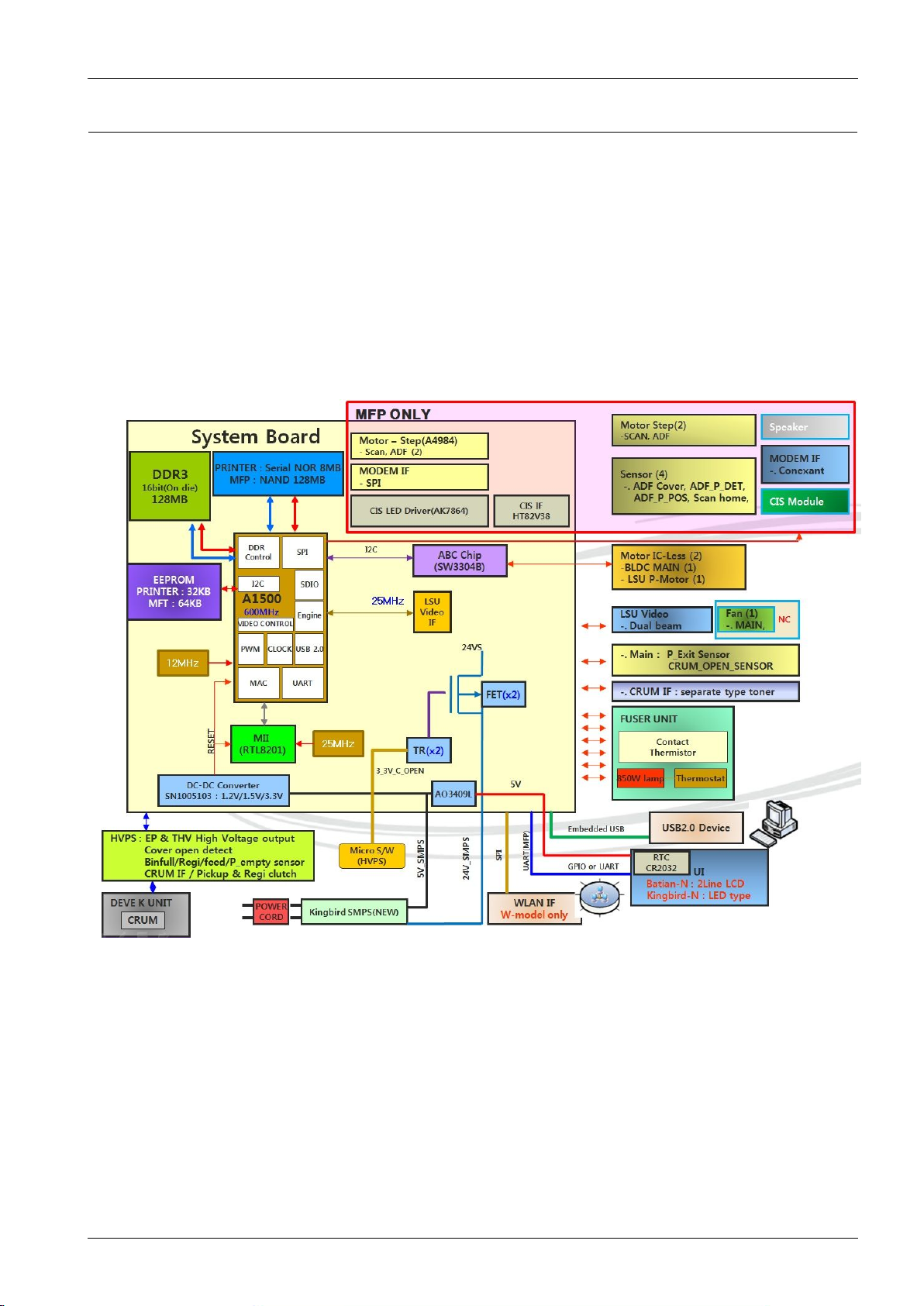

2.2.5.Hardwareconguration................................................................................................2−23

Page 3

Contents

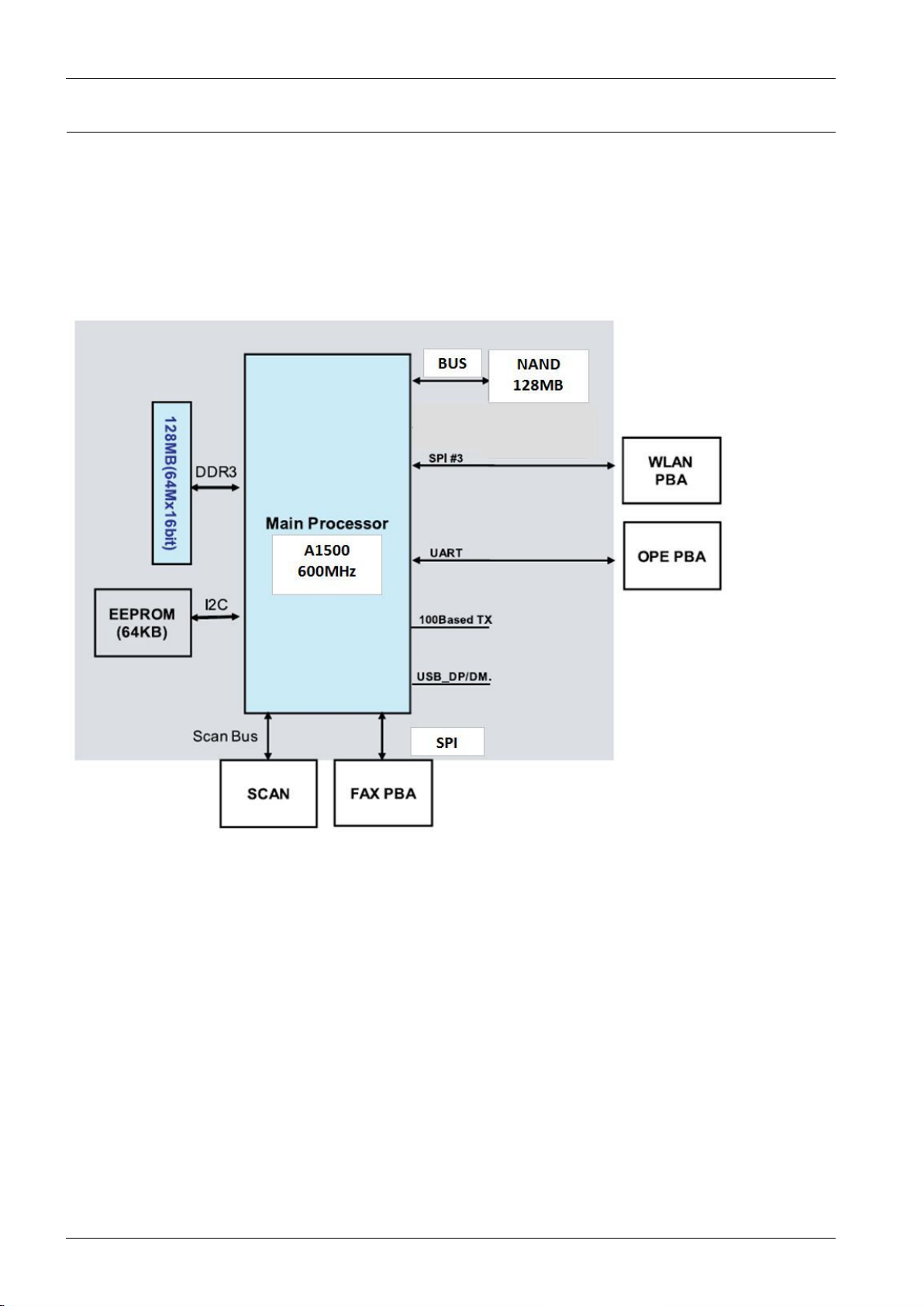

2.2.5.1.Mainboard..................................................................................................2−24

2.2.5.2.OPEboard...................................................................................................2−26

2.2.5.3.WirelessLANboard......................................................................................2−27

2.2.5.4.JointPBA....................................................................................................2−27

2.2.5.5.SMPSBoard................................................................................................2−28

2.2.5.6.HVPSBoard................................................................................................2−30

2.2.5.7.Faxboard....................................................................................................2−31

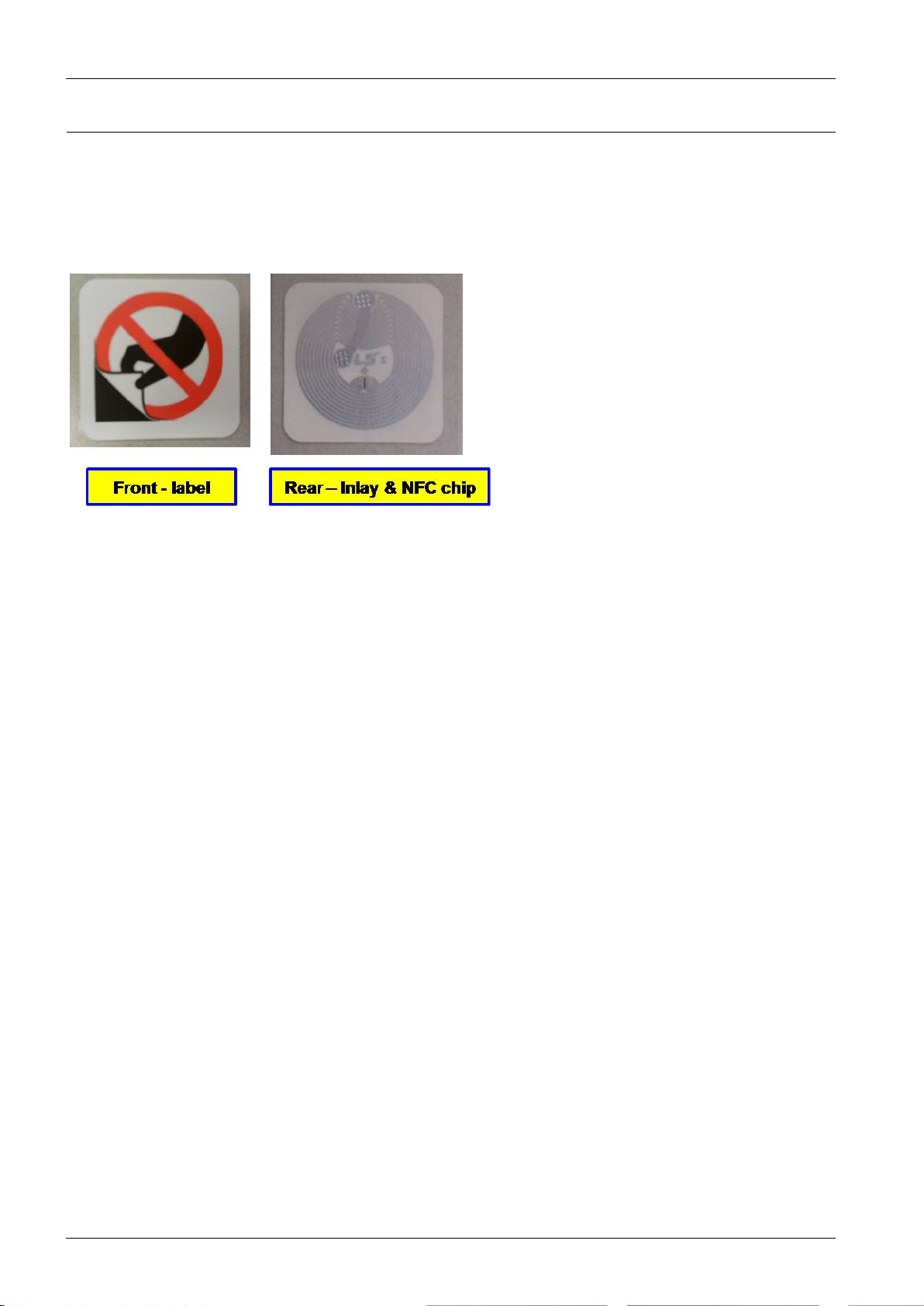

2.2.5.8.NFCT agSticker...........................................................................................2−32

2.2.5.9.ElectricalPartsLocation.................................................................................2−33

2.2.6.EngineF/WControlAlgorithm......................................................................................2−36

2.2.6.1.Feeding.......................................................................................................2−36

2.2.6.2.Transfer.......................................................................................................2−36

2.2.6.3.Fusing.........................................................................................................2−37

2.2.6.4.LSU............................................................................................................2−37

2.2.7.SoftwareDescriptions..................................................................................................2−38

2.2.7.1.Softwaresystemoverview..............................................................................2−38

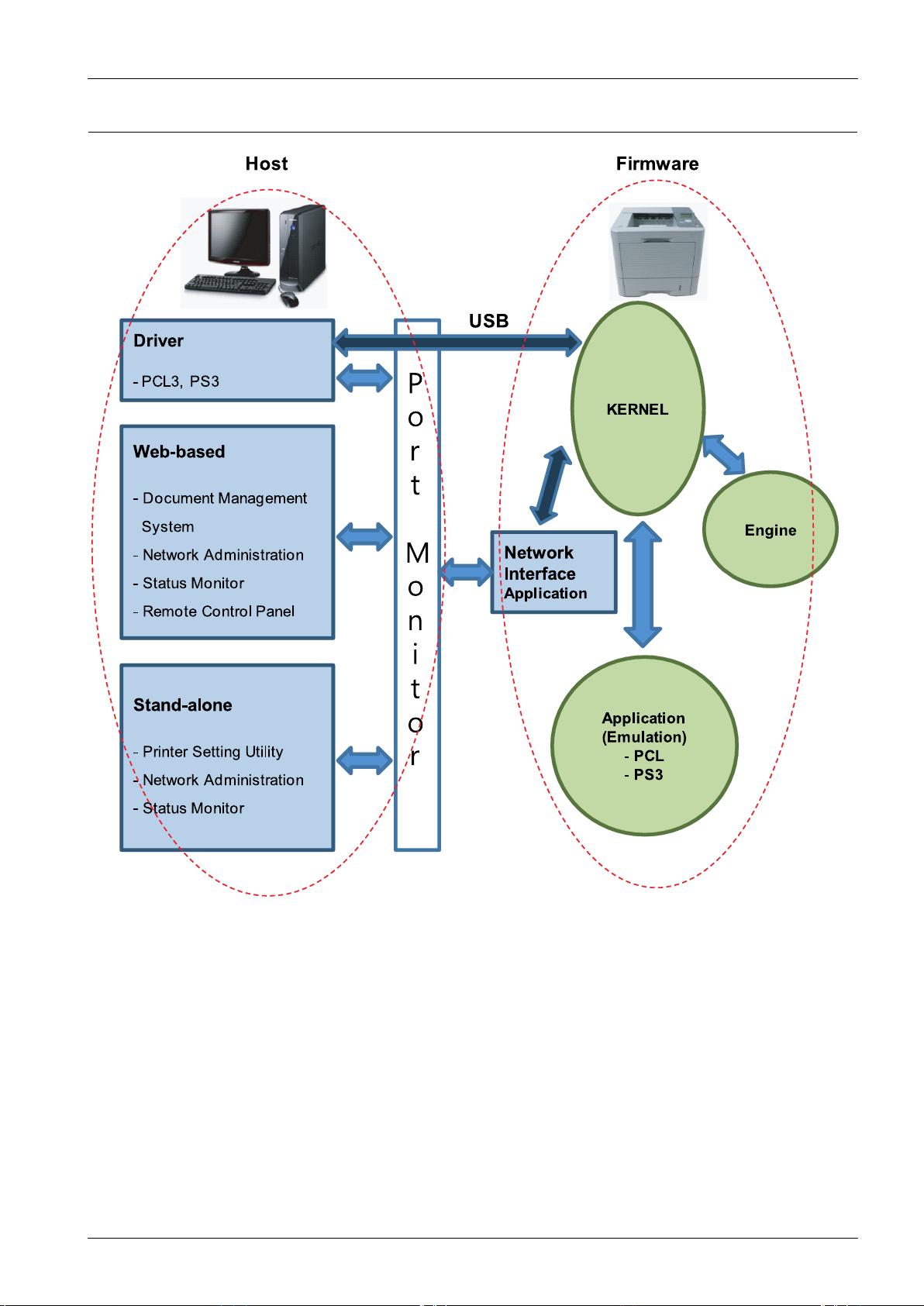

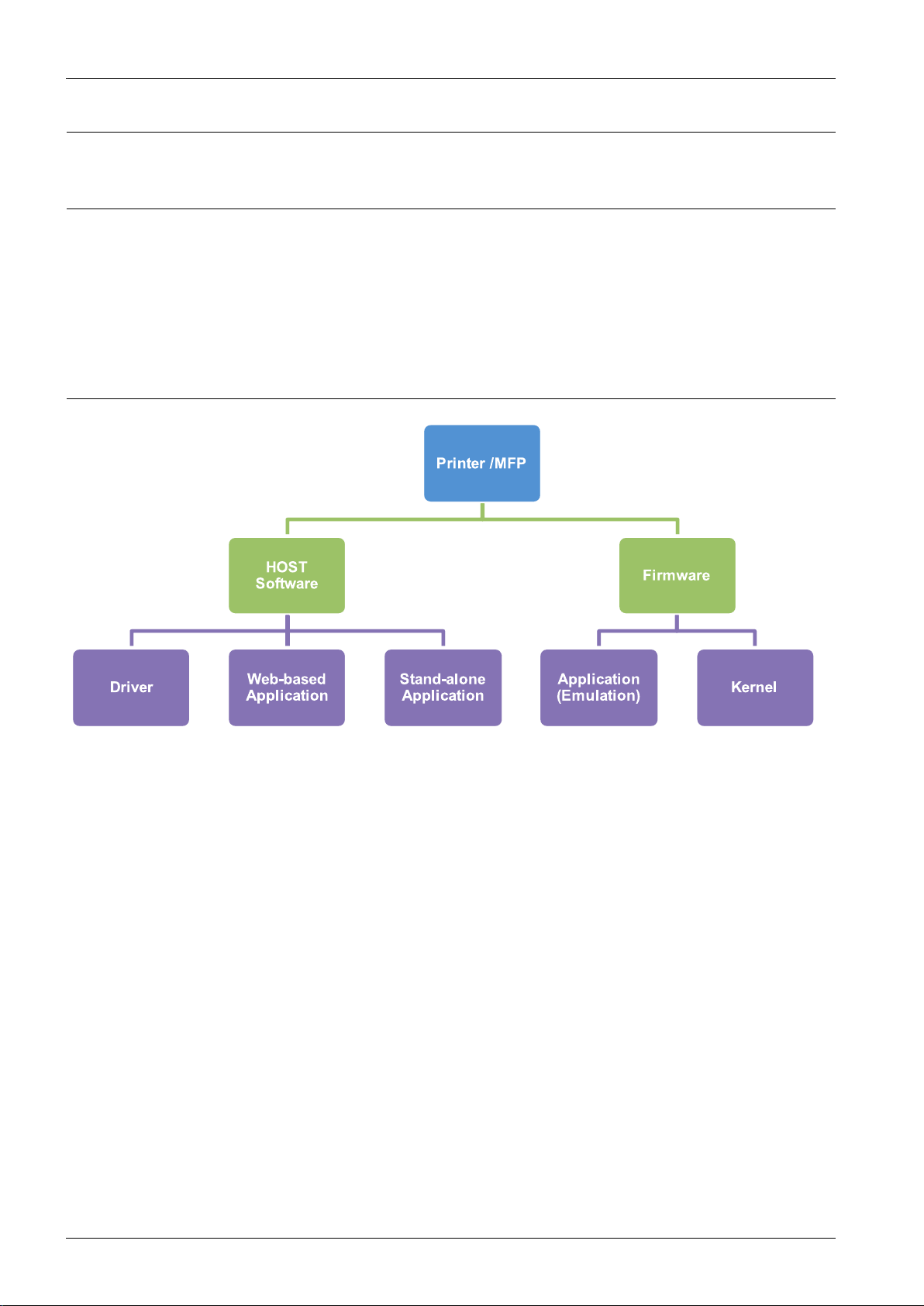

2.2.7.2.Architecture.................................................................................................2−38

2.2.7.3.DataandControlFlow...................................................................................2−39

3.DisassemblyandReassembly..............................................................................................................3−1

3.1.Precautionswhenreplacingparts................................................................................................3−1

3.1.1.Precautionswhenassemblinganddisassembling...............................................................3−1

3.1.2.PreautionswhenhandlingPBA......................................................................................3−1

3.1.3.ReleasingPlasticLatches..............................................................................................3−2

3.2.Screwsusedintheprinter..........................................................................................................3−3

3.3.ReplacingtheMainSVCparts...................................................................................................3−4

3.3.1.SideCover.................................................................................................................3−4

3.3.2.RearCover.................................................................................................................3−5

3.3.3.FrontCover................................................................................................................3−6

3.3.4.ScanUnit...................................................................................................................3−7

3.3.5.OPE..........................................................................................................................3−8

3.3.6.ADF.........................................................................................................................3−9

3.3.7.ADFRoller................................................................................................................3−9

3.3.8.ADFMotor................................................................................................................3−10

3.3.9.ScanMotor................................................................................................................3−11

3.3.10.CISUnit....................................................................................................................3−12

3.3.11.FaxBoard..................................................................................................................3−12

3.3.12.MiddleCover.............................................................................................................3−13

3.3.13.MainBoard................................................................................................................3−14

3.3.14.SMPS........................................................................................................................3−14

3.3.15.HVPS........................................................................................................................3−15

Page 4

Contents

3.3.16.Bin-FullSensor...........................................................................................................3−15

3.3.17.MainDriveunit...........................................................................................................3−16

3.3.18.PickupandRegiClutch...............................................................................................3−16

3.3.19.PickupandForwardroller............................................................................................3−17

3.3.20.RetardRoller..............................................................................................................3−18

3.3.21.DuplexUnit...............................................................................................................3−19

3.3.22.TransferRoller............................................................................................................3−20

3.3.23.LSU..........................................................................................................................3−20

3.3.24.FuserUnit..................................................................................................................3−21

3.3.25.ExitSensor.................................................................................................................3−21

3.3.26.FeedandRegisensorPBA............................................................................................3−22

3.3.27.Motor........................................................................................................................3−23

4.AlignmentandTroubleshooting...........................................................................................................4−1

4.1.AlignmentandAdjustments.......................................................................................................4−1

4.1.1.ControlPanel..............................................................................................................4−1

4.1.2.UnderstandingthestatusLED........................................................................................4−3

4.1.3.JamRemoval..............................................................................................................4−4

4.1.3.1.Clearingoriginaldocumentjams......................................................................4−4

4.1.3.2.Clearingpaperjams.......................................................................................4−7

4.1.4.Usefulmenuitemforservice.........................................................................................4−14

4.1.5.Periodicdefectiveimage...............................................................................................4−16

4.1.6.Usefulmanagementtools..............................................................................................4−17

4.1.6.1.UsingSamsungEasyPrinterManager(WindowsandMacintoshonly)....................4−17

4.1.6.2.UsingSamsungPrinterStatus(Windowsonly)...................................................4−19

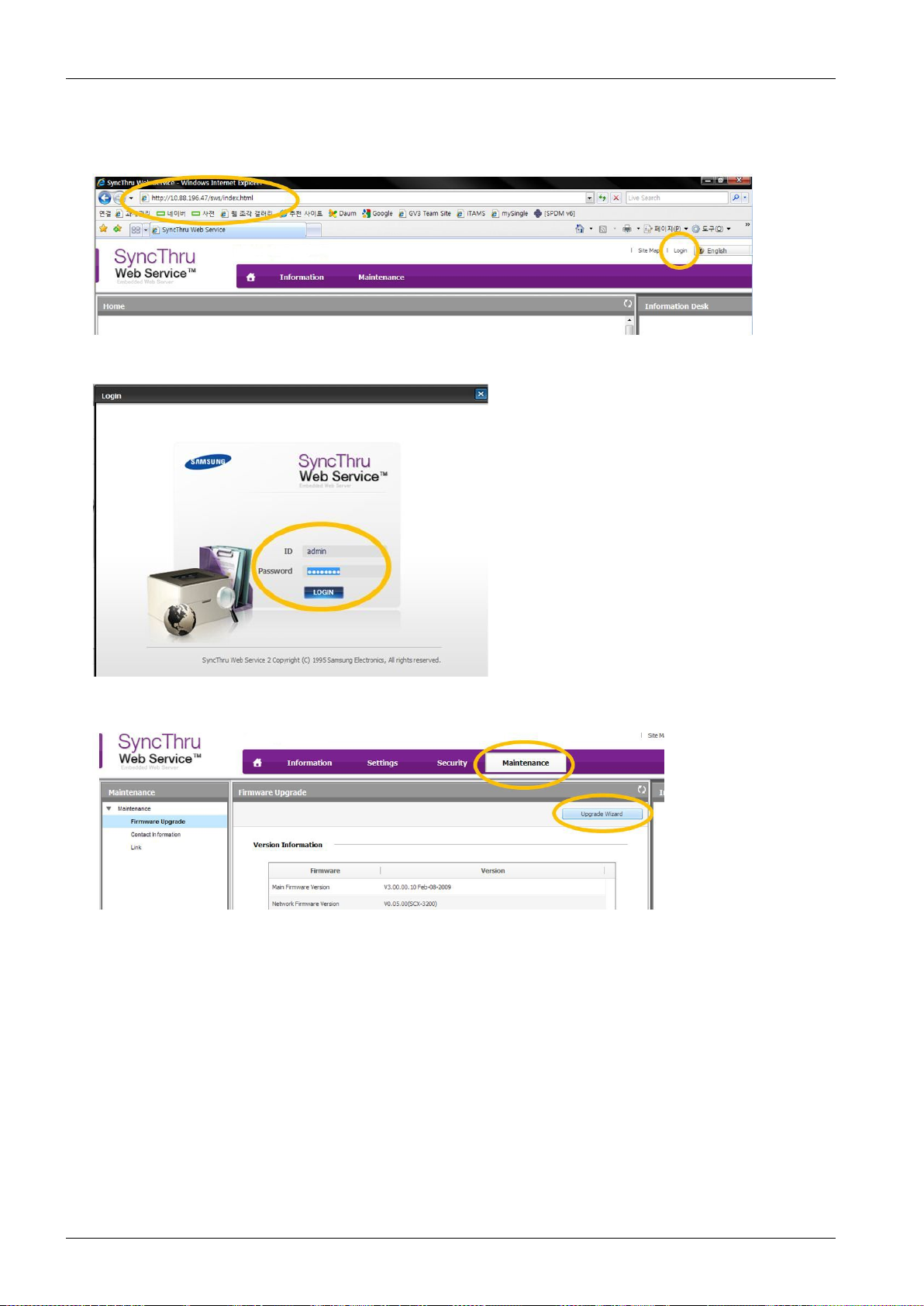

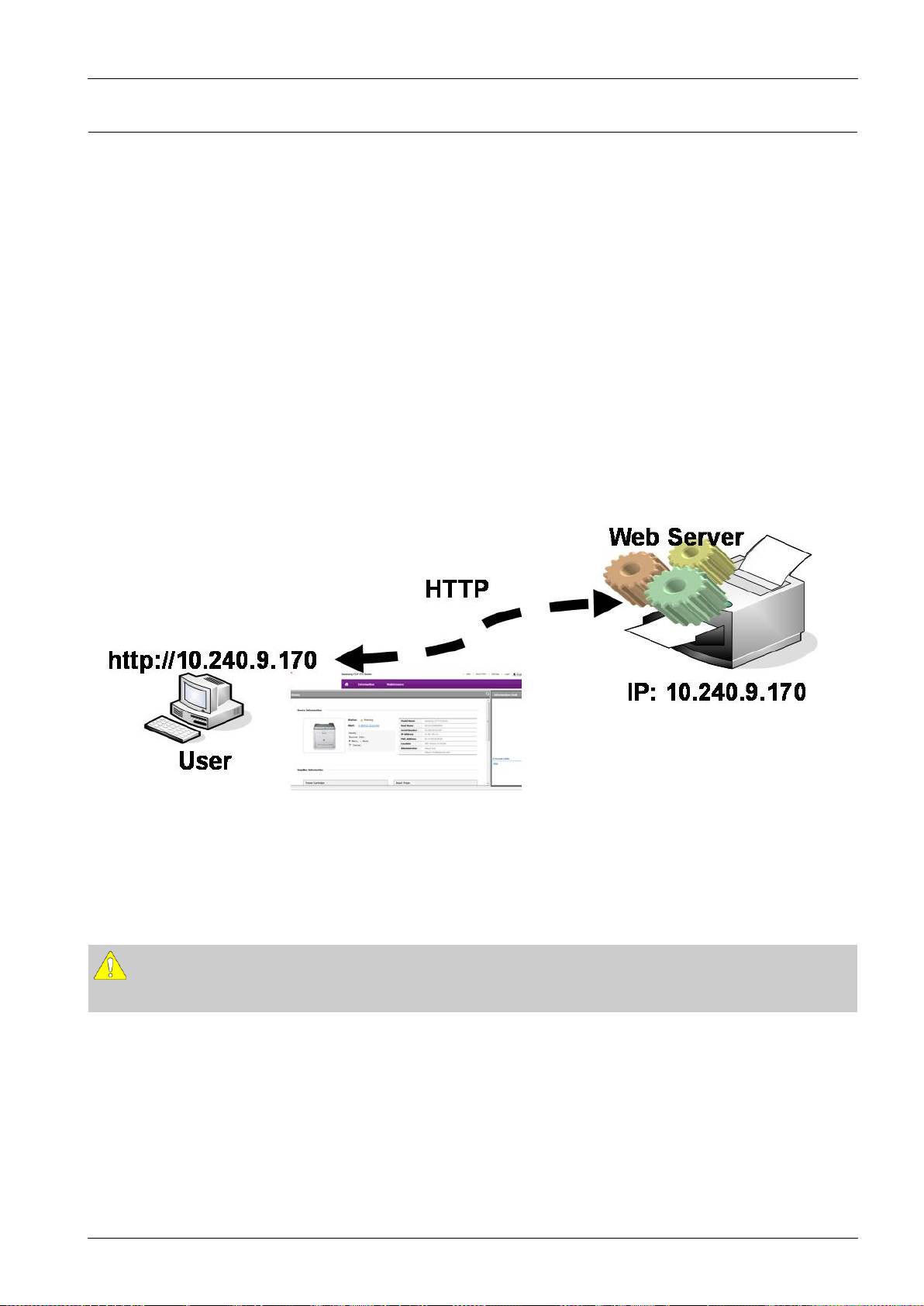

4.1.6.3.UsingSyncThruWebService(SWS)................................................................4−20

4.1.7.UpdatingFirmware......................................................................................................4−22

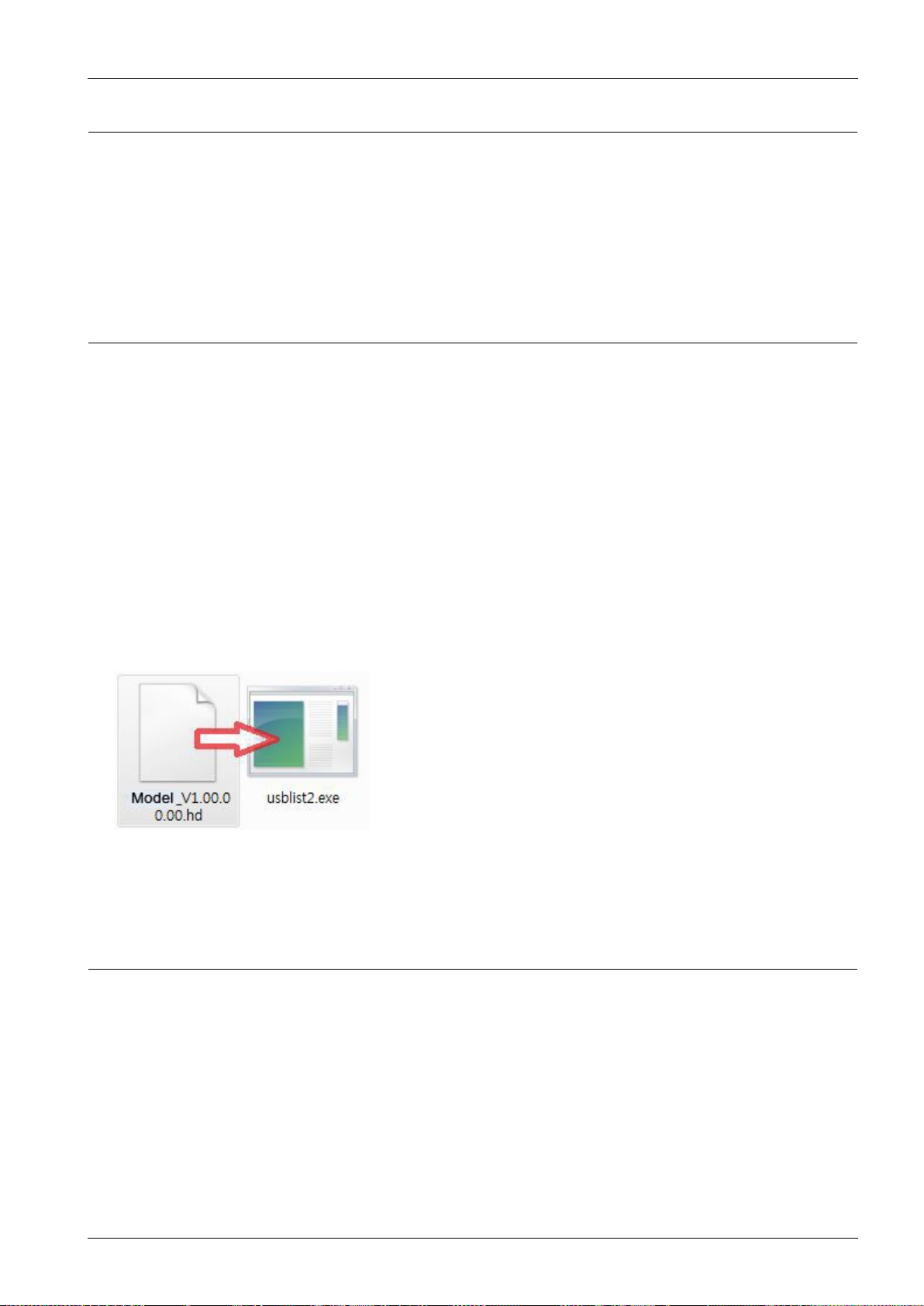

4.1.7.1.UpdatethermwarebyusingtheUSBport........................................................4−22

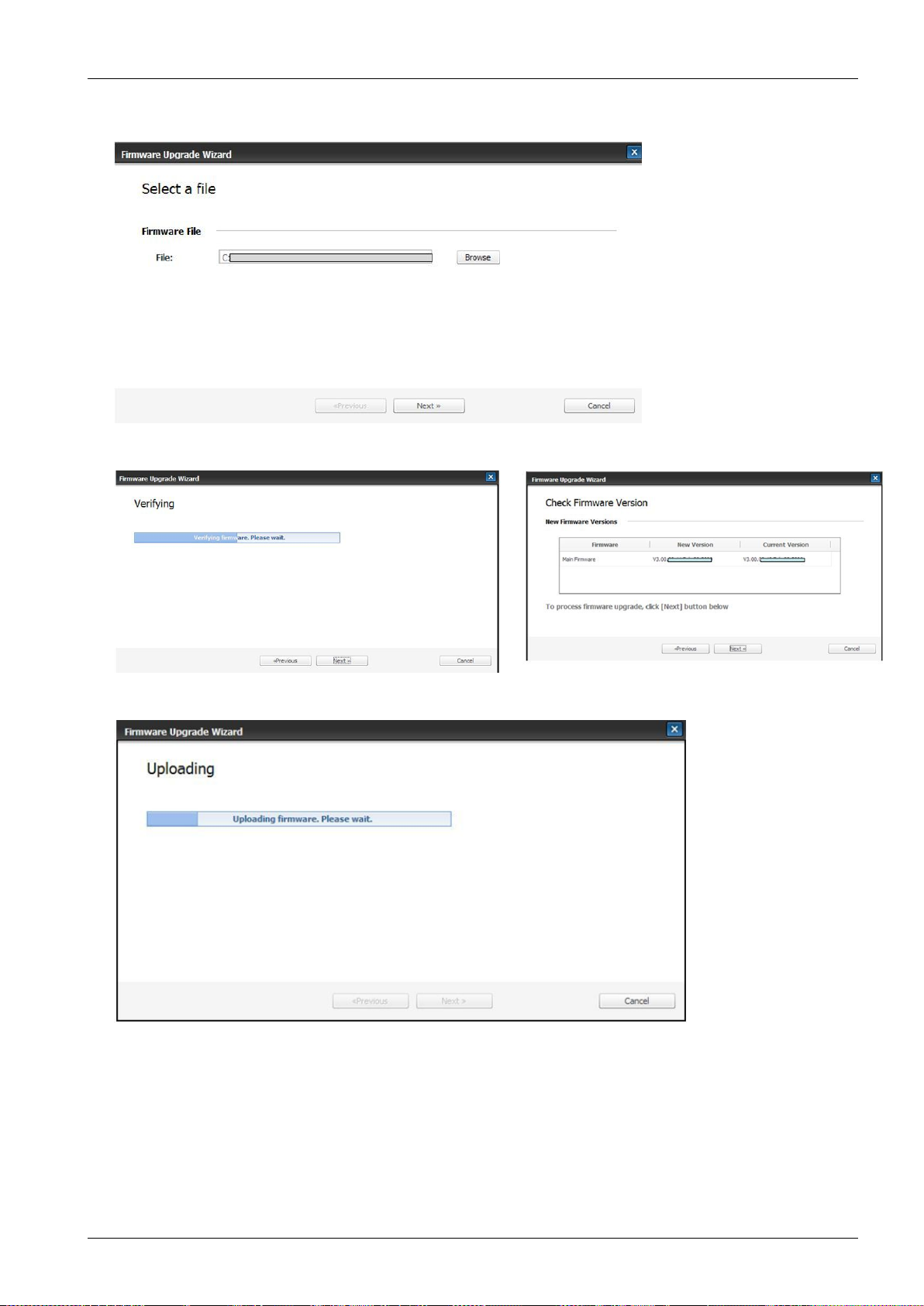

4.1.7.2.Updatethermwarebyusingthenetwork..........................................................4−22

4.1.8.TechMode.................................................................................................................4−25

4.2.Troubleshooting......................................................................................................................4−30

4.2.1.Procedureofcheckingthesymptoms...............................................................................4−30

4.2.1.1.BasicCheckList...........................................................................................4−31

4.2.2.ErrorCodeandTroubleshooting.....................................................................................4−32

4.2.3.Imagequalityproblem..................................................................................................4−48

5.SystemDiagram................................................................................................................................5−1

5.1.BlockDiagram........................................................................................................................5−1

5.2.ConnectionDiagram.................................................................................................................5−2

6.ReferenceInformation........................................................................................................................6−1

6.1.ToolforTroubleshooting...........................................................................................................6−1

6.2.Glossary.................................................................................................................................6−2

Page 5

Contents

6.3.TheSamplePatternfortheTest..................................................................................................6−8

6.4.Selectingalocation..................................................................................................................6−9

6.5.ModelNameandCode.............................................................................................................6−10

6.6.DocumentRevisionList............................................................................................................6−11

Page 6

1.Precautions

Inordertopreventaccidentsanddamagestotheequipmentpleasereadtheprecautionslistedbelowcarefullybefore servicingtheproductandfollowthemclosely.

1.1.Safetywarning

1)Onlytobeservicedbyafactorytrainedservicetechnician.

Highvoltagesandlasersinsidethisproductaredangerous.Thisproductshouldonlybeservicedbyafactorytrained servicetechnician.

2)UseonlySamsungreplacementparts.

Therearenouserserviceablepartsinsidetheproduct.Donotmakeanyunauthorizedchangesoradditionstothe productasthesecouldcausetheproducttomalfunctionsandcreateanelectricshocksorrehazards.

3)LaserSafetyStatement

TheprinteriscertiedintheU.S.toconformtotherequirementsofDHHS21CFR,chapter1SubchapterJfor ClassI(1)laserproducts,andelsewhereiscertiedasaClassIlaserproductconformingtotherequirementsofIEC 60825-1.ClassIlaserproductsarenotconsideredtobehazardous.Thelasersystemandprinteraredesignedso thereisneveranyhumanaccesstolaserradiationaboveaClassIlevelduringnormaloperation,usermaintenance orprescribedservicecondition.

•Wavelength:800nm

•Beamdivergence

-Paraller:11degrees

-Perpendicular:35degrees

•Maximumpowerofenergyoutput:12mW

WARNING

NeveroperateorservicetheproductwiththeprotectivecoverremovedfromLaser/Scannerassembly.Thereected beam,althoughinvisible,candamageyoureyes.

Whenusingthisproduct,thesebasicsafetyprecautionsshouldalwaysbefollowedtoreduceriskofre,electric shock,andpersonalinjury.

4)Lithiumbatterynotreplaceablebyuser

Page 7

1.Precautions

1.2.Cautionforsafety

1.2.1.Toxicmaterial

Thisproductcontainstoxicmaterialsthatcouldcauseillnessifingested.

1)Pleasekeepimagingunitandtonercartridgeawayfromchildren.Thetonerpowdercontainedintheimagingunitand tonercartridgemaybeharmful,andifswallowed,youshouldcontactadoctor.

1.2.2.Electricshockandresafetyprecautions

Failuretofollowthefollowinginstructionscouldcauseelectricshockorpotentiallycauseare.

1)Useonlythecorrectvoltage,failuretodosocoulddamagetheproductandpotentiallycauseareorelectricshock.

2)Useonlythepowercablesuppliedwiththeproduct.Useofanincorrectlyspeciedcablecouldcausethecableto overheatandpotentiallycauseare.

3)Donotoverloadthepowersocket,thiscouldleadtooverheatingofthecablesinsidethewallandcouldleadtoare.

4)Donotallowwaterorotherliquidstospillintotheproduct,thiscancauseelectricshock.Donotallowpaperclips,pins orotherforeignobjectstofallintotheproduct,thesecouldcauseashortcircuitleadingtoanelectricshockorrehazard.

5)Nevertouchtheplugsoneitherendofthepowercablewithwethands,thiscancauseelectricshock.Whenservicing theproduct,removethepowerplugfromthewallsocket.

6)Usecautionwheninsertingorremovingthepowercord.Whenremovingthepowercord,gripitrmlyandpull.The powercordmustbeinsertedcompletely,otherwiseapoorcontactcouldcauseoverheatingleadingtoare.

7)Takecareofthepowercable.Donotallowittobecometwisted,bentsharplyaroundcornersorpowercablemaybe damaged.Donotplaceobjectsontopofthepowercable.Ifthepowercableisdamageditcouldoverheatandcausea re.Exposedcablescouldcauseanelectricshock.Replacethedamagedpowercableimmediately,donotreuseor repairthedamagedcable.Somechemicalscanattackthecoatingonthepowercable,weakeningthecoverorexposing cablescausingreandshockrisks.

Page 8

1.Precautions

8)Ensurethatthepowersocketsandplugsarenotcrackedorbrokeninanyway.Anysuchdefectsshouldberepaired immediately.Takecarenottocutordamagethepowercableorplugswhenmovingthemachine.

9)Usecautionduringthunderorlightningstorms.Samsungrecommendsthatthismachinebedisconnectedfromthe powersourcewhensuchweatherconditionsareexpected.Donottouchthemachineorthepowercordifitisstill connectedtothewallsocketintheseweatherconditions.

10)A voiddampordustyareas,installtheproductinacleanwellventilatedlocation.Donotpositionthemachineneara humidierorinfrontofanairconditioner.Moistureanddustbuiltupinsidethemachinecanleadtooverheatingand causeareorcausepartstorust.

11)Donotpositiontheproductindirectsunlight.Thiswillcausethetemperatureinsidetheproducttorisepossiblyleading totheproductfailingtoworkproperlyandinextremeconditionscouldleadtoare.

12)Donotinsertanymetalobjectsintothemachinethroughtheventilatorfanorotherpartofthecasing,itcouldmake contactwithahighvoltageconductorinsidethemachineandcauseanelectricshock.

13)WhenreplacingtheSMPSboard,pleasewait5minutesafterunpluggingthepowercord,thenreplaceit.Y ou cangetashockbytheelectricdischarge.

Page 9

1.Precautions

1.2.3.Handlingprecautions

Thefollowinginstructionsareforyourownpersonalsafetytoavoidinjuryandsoasnottodamagetheproduct.

1)Ensuretheproductisinstalledonalevelsurface,capableofsupportingitsweight.Failuretodosocouldcause theproducttotiporfall.

2)Theproductcontainsmanyrollers,gearsandfans.Takegreatcaretoensurethatyoudonotcatchyourngers,hairor clothinginanyoftheserotatingdevices.

3)Donotplaceanysmallmetalobjects,containersofwater,chemicalsorotherliquidsclosetotheproductwhichifspilled couldgetintothemachineandcausedamageorashockorrehazard.

4)Donotinstallthemachineinareaswithhighdustormoisturelevels,besideonopenwindoworclosetoahumidieror heater.Damagecouldbecausedtotheproductinsuchareas.

5)Donotplacecandles,burningcigarettes,etcontheproduct,Thesecouldcauseare.

6)Ensurethatthemachineisinstalledandusedinproperareatomeetthetemperatureandhumidityspecications.

•IfthemachineisstoredatbelowzeroCelsiusforalongtime,donotusethemachineinstantlyaftermovement.It canmalfunction.Takecareofthemachinestorage.IfthemachineisstoredatbelowzeroCelsiusforalongtime, keepthemachineatroomtemperatureandinstallit.

1.2.4.AssemblyandDisassemblyprecautions

1)ReplacepartscarefullyandalwaysuseSamsungparts.T akecaretonotetheexactlocationofpartsandalsocable routingbeforedismantlinganypartofthemachine.Ensureallpartsandcablesarereplacedcorrectly.Pleasecarryout thefollowingproceduresbeforedismantlingtheproductorreplacinganyparts.

2)Ensurethatpowerisdisconnectedbeforeservicingorreplacinganyelectricalparts.

3)Disconnectinterfacecablesandpowercables.

4)Onlyuseapprovedspareparts.Ensurethatpartnumber,productname,anyvoltage,currentortemperaturerating arecorrect.

5)Whenremovingorre-ttinganypartsdonotuseexcessiveforce,especiallywhenttingscrewsintoplastic.

6)Takecarenottodropanysmallpartsintothemachine.

7)HandlingoftheOPCDrum

•TheOPCDrumcanbeirreparablydamagedifitexposedtolight.TakecarenottoexposetheOPCDrumeither todirectsunlightortouorescentorincandescentroomlighting.Exposureforaslittleas5minutescandamage thesurfaceofthephotoconductivepropertiesandwillresultinprintqualitydegradation.Takeextracarewhen servicingtheproduct.RemovetheOPCDrumandstoreitinablackbagorotherlightproofcontainer.Take carewhenworkingwiththeCovers(especiallythetopcover)openaslightisadmittedtotheOPCareaandcan damagetheOPCDrum.

•TakecarenottoscratchthegreensurfaceofOPCDrumUnit.IfthegreensurfaceoftheDrumCartridgeis scratchedortouchedtheprintqualitywillbecompromised.

Page 10

1.Precautions

1.2.5.Disregardingthiswarningmaycausebodilyinjury

1)Becarefulwiththehightemperaturepart.

Thefuserunitworksatahightemperature.Usecautionwhenworkingontheprinter.W aitforthefuserunitto cooldownbeforedisassembly.

2)Donotputngersorhairintotherotatingparts.

Whenoperatingaprinter,donotputhandorhairintotherotatingparts(Paperfeedingentrance,motor,fan,etc.). Ifdo,youcangetharm.

3)Whenyoumovetheprinter,usesafeliftingandhandlingtechniques.

Thisprinterisheavy .Usetheliftinghandleslocatedoneachsideofthemachine.Backinjurycouldbecausedif youdonotliftcarefully .

4)Ensuretheprinterisinstalledsafely .

Ensuretheprinterisinstalledonalevelsurface,capableofsupportingitsweight.Failuretodosocouldcausethe printertotiporfallpossiblycausingpersonalinjuryordamagingtheprinter.

5)Donotinstalltheprinteronaslopingorunstablesurface.Afterinstallation,doublecheckthattheprinterisstable.

Page 11

1.Precautions

1.3.ESDprecautions

Certainsemiconductordevicescanbeeasilydamagedbystaticelectricity.Suchcomponentsarecommonlycalled “ElectrostaticallySensitive(ES)Devices”orESDs.ExamplesoftypicalESDsare:integratedcircuits,someeldeffect transistors,andsemiconductor“chip”components.Thetechniquesoutlinedbelowshouldbefollowedtohelpreducethe incidenceofcomponentdamagecausedbystaticelectricity.

CAUTION

Besurenopowerisappliedtothechassisorcircuit,andobserveallothersafetyprecautions.

1)Immediatelybeforehandlingasemiconductorcomponentorsemiconductor-equippedassembly,drainoffany electrostaticchargeonyourbodybytouchingaknownearthground.Alternatively,employacommerciallyavailable wriststrapdevice,whichshouldberemovedforyourpersonalsafetyreasonspriortoapplyingpowertotheunit undertest.

2)AfterremovinganelectricalassemblyequippedwithESDs,placetheassemblyonaconductivesurface,suchas aluminumorcopperfoil,orconductivefoam,topreventelectrostaticchargebuildupinthevicinityoftheassembly.

3)UseonlyagroundedtipsolderingirontosolderordesolderESDs.

4)Useonlyan“anti-static”solderremovaldevice.Somesolderremovaldevicesnotclassiedas“anti-static”can generateelectricalchargessufcienttodamageESDs.

5)DonotuseFreon-propelledchemicals.Whensprayed,thesecangenerateelectricalchargessufcienttodamageESDs.

6)DonotremoveareplacementESDfromitsprotectivepackaginguntilimmediatelybeforeinstallingit.Most replacementESDsarepackagedwithallleadsshortedtogetherbyconductivefoam,aluminumfoil,oracomparable conductivematerial.

7)ImmediatelybeforeremovingtheprotectiveshortingmaterialfromtheleadsofareplacementESD,touchtheprotective materialtothechassisorcircuitassemblyintowhichthedevicewillbeinstalled.

8)MaintaincontinuouselectricalcontactbetweentheESDandtheassemblyintowhichitwillbeinstalled,until completelypluggedorsolderedintothecircuit.

9)MinimizebodilymotionswhenhandlingunpackagedreplacementESDs.Normalmotions,suchasthebrushingtogether ofclothingfabricandliftingone’sfootfromacarpetedoor,cangeneratestaticelectricitysufcienttodamageanESD.

Page 12

1.Precautions

1.4.CautionforDataLoss

TopreventlossofcustomersdatatheSVCengineerprovidesend-userwithrelevantinformationinadvance.

Page 13

2.Productspecandfeature

2.1.ProductSpecications

2.1.1.ProductOverview

[M2880FW]

[M2885FW]

2.Productspecandfeature

1)Speed

•Upto28ppminA4(29ppminLetter)

2)PrintingResolution

•Upto4,800x600dpieffectiveoutput

3)Processor

•600MHz

4)PrinterLanguageEmulation

•SPL/PCL5e/PCL6

5)Memory

•128MB

6)Interface

•HighspeedUSB2.0

•10/100BaseTXnetworkconnector

•802.11b/g/nwirelessLAN

•NFCprintingsupport

7)Tonercartridgeyield

•Initial

•M2880FW:1,500pages(700pagesforonly/XACmodel)

•M2885FW:1,200pages

•Standard/HighYield

•M2880FW:3,000pages

•M2885FW:1,200pages/3,000pages(2types)

Page 14

2.Productspecandfeature

2.1.2.Specications

•ProductSpecicationsaresubjecttochangewithoutnotice.

2.1.2.1.GeneralPrintEngine

ItemSpecication

EngineSpeed

WarmuptimefromsleepLessthan14sec

FPOT

Resolution

SimplexUpto28ppminA4(29ppminLetter)

DuplexUpto14ppminA4(15ppminLetter)

FromReadyLessthan8.5sec

FromSleepLessthan14sec

Optical600x600dpi

Enhanced4,800x600dpieffectiveoutput

Page 15

2.1.2.2.Copy

2.Productspecandfeature

ItemSpecication

SDMC(SingleDocument

CopySpeed

FCOT(Mono)

ZoomRate

MultiCopy1~99

MultipleCopy)

MDMC(Multiple DocumentMultipleCopy)

FromReady

FromSleepLessthan42sec@Platen/ADF

Platen25~400%

ADF25~400%

Text

•Lessthan14sec@Platen

•Lessthan15sec@ADF

•Scan:600x600dpi(Optical300x300dpi),Printing:600x600

dpi@ADF

•Scan:600x600dpi(Optical600x300dpi),Printing:600x600

Upto28cpminA4(29cpminLetter)

Upto20cpminA4(21cpminLetter)

dpi@Platen

•Scan:600x600dpi(Optical300x300dpi),Printing:600x600

Text/Photo

Resolution

(OriginalType)


dpi@ADF

•Scan:600x600dpi(Optical600x300dpi),Printing:600x600

dpi@Platen

•Scan:600x600dpi(Optical600x300dpi),Printing:600x600

dpi@ADF

•Scan:1,200x1,200dpi(Optical600x600dpi),Printing:1,200x

1,200dpi@Platen

MagazineNo

CopiedOriginalNo

MapNo

LightOriginalNo

DarknessControl11levels

N-Up2-Up/4-Up

IDCardCopyYes(PlatenOnly)

PosterCopyNo

CloneCopyNo

Features

BookletNo

CoversNo

TransparenciesNo

BookCopyNo

SavetoFileNo

Page 16

2.Productspecandfeature

2.1.2.3.Scan

ItemSpecication

ScanMethodColorCIS

CompatibilityTWAIN/WIA

ColorModeB/W/Gray/Color

B/W(Lineart,Halftone)17ipm@300dpi(Lessthan15sec)

Gray17ipm@300dpi(Lessthan20sec) ScanSpeed

Color6ipm@300dpi(Lessthan30sec)

•Window:

•8(32/64bit)/7(32/64bit)/Vista(32/64bit)/XP(32/64

bit)/2008ServerR2/2008server(32/64bit)/2003Server (32/64bit)

•Linux:

•RedHatEnterpriseLinuxWS4/5(32/64bit)

•Fedora5~13(32/64bit)

•SuSELinux10.1(32bit)

•OpenSuSE10.2/10.3/11.0/11.1/11.2(32/64bit)

ClientOSSupport

•Mandriva2007/2008/2009/2009.1/2010(32/64bit)

•Ubuntu6.06/6.10/7.04/7.10/8.04/8.10/9.04/9.10/10.04

(32/64bit)

•SuSELinuxEnterpriseDesktop10/11(32/64bit)

•Debian4.0/5.0(32/64bit)

•MacOS:

•X10.5~10.8

•UNIX:

•SunSolaris9/10(x86/SP ARC)

•HP-UNIX11.0/11iv1/11iv2/11iv3(P A-RISC/Itanium)

•IBMAIX5.1/5.2/5.3/5.4

Resolution

ScanSize

Scan-to

FileFormatsJPEG/Single-TIFF/Multi-TIFF/Single-PDF/Multi-PDF

OpticalUpto1,200x1,200dpi

EnhancedUpto4,800x4,800dpi

ADFMax.216x356mm(8.5"x14")*

PlatenMax.210x297mm(8.3"x11.7")*

HDDNo

USBNo

EmailNo

Client(NetScan)No

SMBNo

FTPNo

HTTP(S)No

PCYes

WSDY es

WebDA VNo

Page 17

2.1.2.4.Fax

2.Productspecandfeature

ItemSpecication

CompatibilityITU-TG3/ECM

CommunicationSystemPSTN/P ABX

ModemSpeed33.6Kbps

TXSpeed3sec(Mono/Standard/ECM-MMR/ITU-TG3No.1Chart)

CompressionMH,MR,MMR,JBIG,JPEG(TxOnly)

ColorFaxYes

OnhookDialYes

SearchYes(PhoneBook)

1-TouchDialNo

SpeedDial200locations

TADI/FYes

Telephone

Features

Report&List

Printout

Tone/PulseSelectableinTechModeorUserMenu(Dependsoneachcountry)

PauseYes

AutoRedialYes

LastNumberRedialYes

DistinctiveRingYes

CallerIDYes(Dependsoneachcountry)

ExternalPhoneInterfaceYes

Tx/RxJournalYes

Conrmation2T ypesavailable(withImageTCR,w/oimageTCR)

AutoDialListYes

SystemDataListListallusersetting

FaxMemoryStd/Max8MB(600pages)

FaxForwardtoe-mailNo

FaxtoPCY es

BroadcastingUpto209locations

DelayedfaxYes(TxOnly)

Page 18

2.Productspecandfeature

2.1.2.5.ControllerandSoftware

ItemSpecication

Processor600MHz

Memory

PrinterLanguagesSPL/PCL5e/PCL6

FontsPCL:95ScalableFonts(IncludeOCR-A/OCR-B)/1Bitmap

Std.128MB

Max.(Option)No

DefaultDriverPCL6

Windows8.1/8/7/Vista/XP/2012Server/2008Server R2/2008server/2003Server

Linux

•RedHatEnterpriseLinuxWS4,5,6(32/64bit)

•Fedora5,6,7,8,9,10,11,12,13,14,15(32/64bit)

•OpenSuSE10.2,10.3,11.0,11.1,11.2,11.3,11.4

(32/64bit)

PrintDriver

SupportingOS

•Mandriva2007,2008,2009,2009.1,2010(32/64bit)

•Ubuntu6.06,6.10,7.04,7.10,8.04,8.10,9.04,9.10,

10.04,10.10,11.04(32/64bit)

•SuSELinuxEnterpriseDesktop10,11(32/64bit)

•Debian4.0,5.0,6.0(32/64bit)

MacOSX10.5~10.9

UNIX

•SunSolaris9,10,11(x86,SP ARC)

•HP-UX11.0,11iv1,11iv2,11iv3(PA-RISC,Itanium)

•IBMAIX5.1,5.2,5.3,5.4,6.1,.7.1(PowerPC)

USBHi-speedUSB2.0

Interface

USBHost(DirectUSB)No

WiredLANEthernet10/100BaseTx

WirelessLANWireless802.11b/g/n

•[TCP/IP]

TCP/IPv4/v6/HTTP/SNMPv1/v2c/v3/SMTP/ DNS/WINS/DDNS/DHCP/BOOTP/AutoIP/ StandardTCP/IPPrinting/LPR/WSDPrint/IPP/

NetworkProtocol

UPnP(SSDP)/Bonjour/WSDDiscovery/SLP/SetIP /GoogleCsploudPrint/WSDScan

•[Others]

IPPs/IPSec

Page 19

2.1.2.6.PaperHandling

2.Productspecandfeature

ItemSpecication

StandardCapacity250-sheetCassette@80g/m²,1-sheetMultiPurposeTray

Max.Capacity251-sheet

OutputStackingCapacity

PrintingSize

Standard

CassetteTray

Multi-purpose

tray

•Face-Down:150sheets@80g/m²

•Face-Up:1sheet

Max.Size216x356mm(8.5"x14")

Min.Size76x127mm(3.0"x5.0")

Capacity250-sheetCassette@80g/m²

MediasizesA4,A5,A6,Letter,Legal,Executive,Folio,Ocio,ISOB5,JISB5

MediatypesPlain,Thin,Thick,Cardstock,Recycled,Archive,Bond

Mediaweight16~43lb(60to163g/m²)

•H/WInstallDetect:No

Sensing

Capacity1sheet

Mediasizes

Mediatype

Mediaweight60~220g/m²(16~58lb)

•PaperEmpty:Y es

•PaperTypeDetect:No

•PaperSizeDetect:No

A4,A5,A6,Letter,Legal,Executive,Folio,Ocio,ISOB5,JISB5,Envelope (Monarch/No-10/DL/C5/C6),Custom76x127mm~216x356mm(3"x5"~8.5"x 14")

Plain,Thin,Thick,Thicker,Cardstock,Transparency,Pre-Printed,Recycled,Archive, Bond,Label,Envelope,ThickEnvelope,Cotton,Colored

SensingYes

OptionalCassetteTrayN/A

OutputFullsensingYes

Capacity40-sheet

Duplex Document Scanning

DocumentSize•Width:148~216mm(5.8"~8.5")

ADF

Document Weight

SensingNo

AutoDetected Size

DuplexPrintingMediasizesA4,Letter,Legal,USFolio,Ocio

•Length:148~356mm(5.8"~14")

60~105g/m²(16~28lb)

Page 20

2.Productspecandfeature

2.1.2.7.ReliabilityandService

ItemSpecication

Max.MonthlyDuty12,000pages

2.1.2.8.Environment

ItemSpecication

OperatingEnvironment

AcousticNoiseLevel(Sound Power/Pressure)

PowerConsumption

Dimension(WxDxH)SET401x362x367mm(15.8"x14.3"x14.4")

WeightNet(SETwithoutsupplies)10.4kg(23.0lbs)

Temperature10℃~32℃

Humidity20%~80%

PrintingSimplexLessthan50dBA

CopyingLessthan52dBA@Platen

Lessthan53dBA@ADF

StandbyLessthan26dBA

SleepLessthan26dBA

ReadyLessthan50W

NormaloperationLessthan400W

Max/PeakLessthan450W

SleepLessthan1.6W

(IfWi-direct-onisdisabled,lessthan2.4W)

PowerOffLessthan0.2W

TECLessthan1.4Kwh/week

(IfWi-direct-onisdisabled,lessthan1.25Kwh/week)

Page 21

2.1.2.9.Supplies

[SeparatedT onerSystem]

2.Productspecandfeature

ModelItemAverageYieldModelCode

InitialTonerApprox.1,200pages-

XpressM2885FW

ImagingUnitApprox.9,000pagesMLT-R116

StandardTonerApprox.1,200pagesML T -D116S TonerCartridge

HighY ieldTonerApprox.3,000pagesML T-D116L

[IntegratedT onerSystem]

ModelItemAverageYieldModelCode

Approx.1,500pages

InitialToner

XpressM2880FWLaserTonerCartridge

StandardToner--

HighY ieldTonerApprox.3,000pagesML T-D115L

NOTE

•DeclaredyieldvalueinaccordancewithISO/IEC19752.

•Dependingontheoptionsandjobmodeused,thetonercartridge’slifespanmaydiffer.

•Whenreplacingatonercartridge,checkthemodelnameandsuppliescode.

(Approx.700pagesfor

only/XACmodel)

Page 22

2.Productspecandfeature

2.1.2.10.Maintenanceparts

ItemImagePartCodeLife

•220V

Fuser

TransferRollerJC66-01218A100,000pages

•JC91–01034B

•110V

•JC91–01034A

100,000pages

Pick-Up/Forward RollerAssy

Reverse(Retard) Roller

2.1.2.11.Options

ItemSpecication

MemoryN/A

SecondCassetteN/A

JC93–00405A50,000pages

JC90–01107B50,000pages

HardDiskN/A

Page 23

2.Productspecandfeature

2.1.3.ModelComparison

BrotherMFC-7460DNSamsungXpressM288xFWHPM1536dnf


Max.BlackPrintSpeed

Fax

Copy

BestTransmissionSpeed

Max.AutomaticDocument

Max.BlackCopySpeed

OpticalScanResolution(dpi)600x2400dpiUpto1,200x1,200dpiUpto1200dpi Scan

InputColorScanBitDepth48bit16Bitx324-bit

(ppm)

FirstTimetoPrintLessthan8.5sec.Lessthan8.5sec.Asfastas8.5sec(fromAuto-Off)

(sec)

FaxPageMemory‡Upto400pagesfaxmemoryUpto600pagesfaxmemory(8MB)Upto400pages

FeederCapacity

(A4/Ltr.cpm)

26/27ppm(A4/Ltr.)28/29ppm(A4/Ltr.)25/26ppm(A4/Ltr.)

Approx.7secondsperpage[email protected]3secperpage

35-PageADF40-PageADF35-PageADF

26/27cpmBlack28/29cpmBlack25/26cpmBlack

Page 24

2.Productspecandfeature

BrotherMFC-7460DNSamsungXpressM288xFWHPM1536dnf

Other

CPU(Processor)Speed200MHz600MHz500MHz

PowerConsumption-

Sleep/Ready/Copying

MachineNoise

(Ready/Copying)

CartonDimensions

(W"xD"xH")

1.5W/55W/445W3W/50W/400W0.4W(off),1.6W(Auto-off)/2.2W/440W

30dB/53dB26dB/50dBINA/51dB

405x398.5x316mm(15.9"x15.7"x12.4")401x362x363.2mm(15.8"x14.2"x14.3")441x343x373mm

11.6Kg(25.6lbs.)11.12Kg(24.5lbs.):All-in-One11.7Kg(25.8lbs.)

UnitWeight(lbs)

11.34Kg(25lbs.):Separate

(1)StarterToner(700pages)(1)StarterTonerCartridge(1000pages)

"In-box"Consumables/Yield

(1)DR420(12,000pages)(1)DrumUnit(9,000pages)

SeparateType

(Standard/High)

All-in-OneType

(Standard/High)

1.2K/2.6K1.0K/2.5K

N/A1.5K/3.0K

Page 25

2.2.SystemOverview

2.2.1.FrontView

NOTE

•Thisillustrationmaydifferfromyourmachinedependingonitsmodel.

•Somefeaturesandoptionalgoodsmaynotbeavailabledependingonmodelorcountry.

2.Productspecandfeature

1Documentfeedercover

2Documentfeederguidecover

3Documentfeederoutputtray

4ControlPanel

5FrontCover

6Paperlevelindicator

7Tray

8Manualfeedertray

*HandsetSupportedModelOnly.

9Outputtray

10Outputsupport

11Paperwidthguideonamanualfeedertray

12Scannerlid

13Scannerglass

14Handset*

15PaperwidthguideonaDocumentfeeder

Page 26

2.Productspecandfeature

2.2.2.RearView

NOTE

•Thisillustrationmaydifferfromyourmachinedependingonitsmodel.

•Somefeaturesandoptionalgoodsmaynotbeavailabledependingonmodelorcountry.

1Networkport

2Telephonelinesocket(Line)

3Extensiontelephonesocket(EXT)

4Rearcover

5Powerreceptacle

6Power-switch

7USBport

Page 27

2.2.3.PaperPath

Thefollowingdiagramdisplaysthepaththepaperfollowsduringtheprintingprocess.

[ADF]

[Engine]

2.Productspecandfeature

Page 28

2.Productspecandfeature

2.2.4.SystemLayout

ThismodelconsistsoftheScannerparts,Engineparts,HardwareandFirmware.ThescannerpartsconsistsofADFand platen.TheenginepartsconsistsofthemechanicalpartscomprisingFrame,Duplex,T onercartridge,Driveunit,Transfer roller,Fuser,Cassette.TheHardwarepartconsistsofthemaincontrolboard,powerboard,operationpanel,PCInterface.

1LSU

2TonerCartridge

3RegiRoller

4MPTray

5FeedRoller

6ForwardRoller

7RetardRoller

8PickupRoller

9Cassette

10TransferRoller

11DuplexUnit

12FuserUnit

13ExitRoller1

14ExitRoller2

15TonerCartridgePressureUnit*

16ADF

17ScanUnit

*SeparatedT onerSystemModelonly(XpressM2885FW)

Page 29

2.Productspecandfeature

2.2.4.1.FeedingPart

Itconsistsofacassette,anMPtrayforsupplyingdifferenttypesofmedia(envelope,label,specialpaper)andparts relatedtopapertransferring.

1)Cassette

Thecassettestoresthepaper(Capacity:250sheets(80g/m²paperstandard).Boththesideguideandtherearguidecan beadjustedforvarioustypesofpapersfromA6tolegalsizepaper.Ithasapaperexistencesensingfunction,paper arrangingfunction,varioussizepapersacceptingfunction.

2)Pick-Up/Forward/Retardroller

Whenpickuptakesplace,thepickuprollermovesdowntocomeintocontactwiththesurfaceofthepaper.Thepickuproller movesdownwhenthepickupclutchisactivated.Theforwardrollerandtheretardrollerservetomakesurethatasingle sheetofpaperismovedtothepaperpath,andthepaperismovedasfarastheregistrationrollerbytheworkofthefeedroller.

(A)PickupRoller

(B)RetardRoller

(C)ForwardRoller

Page 30

2.Productspecandfeature

3)Registrationroller

Itisusedasanantiskewdevice,andtosetupproperregistrationtimingwiththatofthetonedimageonthedrum.Italsois usedforjamdetectiontoensurepaperhasleftthepapertray.

4)MP(Multi-Purpose)Tray

Themulti-purposetraycanholdspecialsizesandtypesofprintmaterial,suchaspostcards,notecards,andenvelopes.

Page 31

2.Productspecandfeature

2.2.4.2.TransferRoller

ThetransferrollerdeliversthetoneroftheOPCdrumtothepaper.

•LifeSpan:Printover50,000sheets(in15~30℃)

2.2.4.3.DriveUnit

Inthismodel,thedrivingdeviceconsistsofBLDCmotor,Regi./Pickupclutches,variousgearsforOPC,Fuser,Pickup,Feed,Regi,Exit.

Page 32

2.Productspecandfeature

2.2.4.4.Fuser

ThisunitconsistsofHeatRoller,aThermostat,andThermistors,etc.Itfusesthetonerthatwastransferredbythetransfer rollerontothepaper,byapplyingpressureandhightemperaturetocompletefusingprocess.

1)Thermostat

Whenaheatlampisoverheated,aThermostatcutsoffthemainpowertopreventover-heating.

•ThermostatT ype:Non-ContacttypeThermostat

•ControlT emperature:195℃±5℃

2)Thermistor

Itisatemperaturedetectingsensor .

•TemperatureResistance:7(180℃)

3)Heatroller

Theheatrollertransferstheheatfromthelamptoapplyaheatonthepaper .

ThesurfaceofaheatrolleriscoatedwithTeon,sotonerdoesnotsticktothesurface.

4)Pressureroller

Apressurerollermountedunderaheatrollerismadeofasiliconresin,andthesurfacealsoiscoatedwithTeon.Whena paperpassesbetweenaheatrollerandapressureroller,toneradherestothesurfaceofapaperandispermanentlyfused.

5)HalogenLamp

•V oltage:120V(115±5%)/220V:230±5%

•Capacity:850Watt±42.5W

6)Itemsforsafety

Protectingdeviceforoverheating

•1stprotectiondevice:Hardwarecutsoffwhenoverheated

•2ndprotectiondevice:Softwarecutsoffwhenoverheated

•3rdprotectiondevice:Thermostatcutsoffmainpower.

Safetydevice

•Afuserpoweriscutoffwhenafrontcoverisopened

•Maintainatemperatureoffusercover’ssurfaceunder80℃foruser,andattachacautionlabelatwherecustomer

canseeeasilywhencustomeropenarearcover.

Page 33

2.Productspecandfeature

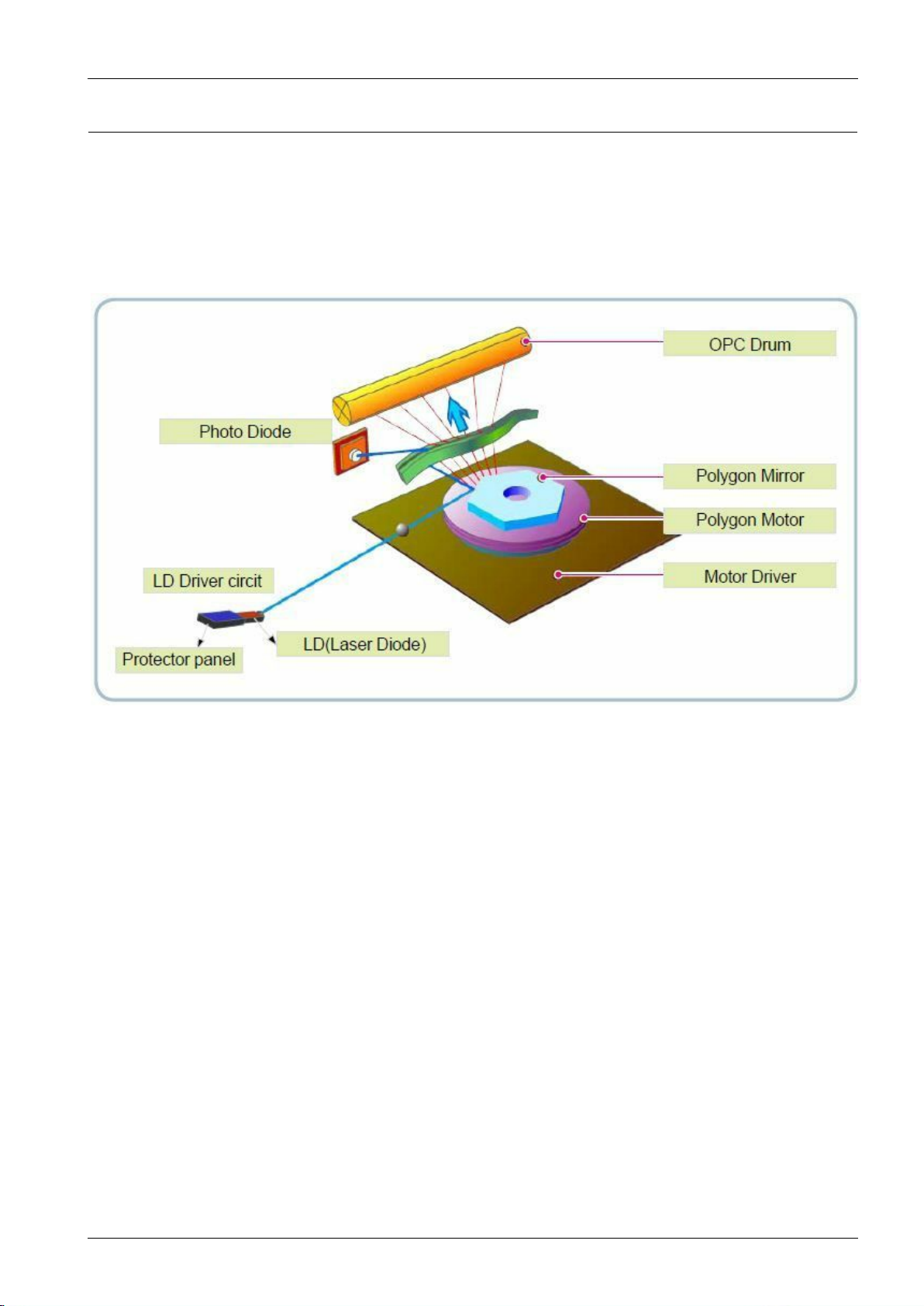

2.2.4.5.LSU(LaserScannerUnit)

ItisthecorepartoftheLBPwhichswitchesfromthevideodatareceivedtothecontrollertotheelectrostaticlatentimage ontheOPCdrumbycontrollinglaserbeam,exposingOPCdrum,andturningprincipleofpolygonmirror.TheOPCdrumis turnedwiththepaperfeedingspeed.TheHSYNCsignaliscreatedwhenthelaserbeamfromLSUreachestheendofthe polygonmirror,andthesignalissenttothecontroller.ThecontrollerdetectstheHSYNCsignaltoadjusttheverticallineof theimageonpaper.Inotherwords,aftertheHSYNCsignalisdetected,theimagedataissenttotheLSUtoadjusttheleft marginonpaper.Theonesideofthepolygonmirrorisonelineforscanning.

Page 34

2.Productspecandfeature

2.2.4.6.T onerSystem

Byusingtheelectronicphotoprocess,itcreatesavisualimage.Inthetonercartridge,theOPCunitandthedeveloping unitareinabody .TheOPCunithasOPCdrumandchargingroller,andthedevelopingunithastoner,supplyroller, developingroller,andblade.

•DevelopingMethod:Nonmagnetic1elementcontactingmethod

•Toner:Nonmagnetic1elementshattertypetoner

•OPCCleaning:Collectthetonerbyusingcleaningblade

•Handlingofwastedtoner:Collectthewastedtonerinthecleaningframebyusingcleaningblade

•Classifyingdevicefortonercartridge:IDisclassiedbyCRUM.

[IntegratedTonerSystem]

ImageLayout

[SeparatedTonerSystem]

ImageLayout

Page 35

2.2.5.Hardwareconguration

XpressM288xSeriesElectricalCircuitSystemconsistsofthefollowing:

•Mainboard(Systemboard)

•OPEboard

•SMPSboard

•HVPSboard

•Faxboard

DiagramElectricalCircuit

2.Productspecandfeature

XpressM288xserieshasasystemboardofintegratedenginecontrollerandvideocontroller.

Theenginecontrollercontrolsallmodulesrequiredtoprint,thatis,LSU,HVPS,SMPS,FAN,Fuser,etc.

ItcommunicateswiththevideocontrolblockinsideCPUforprinting.Andithastheinterfaceforallvideosyncsignal toprintoutthevideodata.

ThevideocontrollerreceivesprintdatafromthehostthroughnetworkorUSBPort.Ittakesthisinformationandgenerates printablevideobitmapdata.

Themainboardadoptsthe600MHzCPU,onboardDDR3memory(128MB)toperformprintingjobssuccessfully.

Page 36

2.Productspecandfeature

2.2.5.1.Mainboard

A1500chipisadoptedasthemainprocessor.Itsprocessspeedis600MHz.Itisintegratedenginecontrollerandvideo controller.

DDR3128MBisadoptedforhighspeeddataprocessing.Boothas8MBSPI.

USBistheembeddedtypeandwirednetworksupports100Mfullduplex.

[Mainboarddiagram]

Page 37

[Mainboardimage]

•Connection

2.Productspecandfeature

1LSUVideoConnector

2LSUMotorConnector

3HVPSInterfaceConnector

4CISInterfaceConnector

5PlatenStepMotorConnector

6OPEConnector

7ScanHomeSensorConnector

8ADFModuleInterfaceConnector

9SMPSInterfaceConnector

•Information

-PartCode:JC92–02716A(forM2885FW)/JC92–02717A(forM2880FW)

-PBAname:PBA-MAIN

10MainBLDCMotorConnector

11FAXBoardInterfaceConnector

12PaperExitSensorConnector

13FuserThermistorInterfaceConnector

14WiredNetworkConnector

15USBDeviceConnector

16WirelessModleInterfaceConnector

Page 38

2.Productspecandfeature

2.2.5.2.OPEboard

TheOPEControlleriscomposedofanOPEMICOM(STM8SP103K3MAFTR),SatusLED,ModeLED,PowerLED,WPS LED.OPEcommunicateswithmaincontrollerviaUART.ThepowerLEDiscontrolledbythemainboard.

[OPEboarddiagram]

[OPEboardimage]

•Information

-PartCode:JC92–02497B

-PBAName:PBAOPE

•Connection

1MAINPBAConnector

2PlatenMotorConnector

3ScanHomeConnector

Page 39

2.2.5.3.WirelessLANboard

TheWirelessLANModulesupports802.11b/g/n.ItcommunicateswithvideocontrollerviaSPI.

[WLANboardimage]

•Information

-PartCode:JC92–02517A

-PBAname:PBA-WNPC

2.Productspecandfeature

•Connection

1INTERFACECONNECTORTOSYSTEMBOARD

(JC39-01992A,FFCCABLE-WLAN)

2.2.5.4.JointPBA

TheJointPBAistheinterfaceconnectionboardforRegi.clutch,Pick-upclutch,Fan.

[JointPBAimage]

•Information

-PartCode:JC92–02406A

-PBAname:JOINTPBA

•Connection

1Regi.Clutch

2Pick-UpClutch

3HVPSI/F

4Fan

Page 40

2.Productspecandfeature

2.2.5.5.SMPSBoard

TheSMPS(SwitchingModePowerSupply)BoardsupplieselectricpowertotheMainBoardandotherboardsthrougha MainController.Thevoltageprovidedincludes+5V ,and+24Vfroma110V/220Vpowerinput.

[SMPSboardimage]

•Specication

GeneralInput/OutputV oltage

-AC110V(90V~135V)

-AC220V(180V~270V)

-InputCurrent:10.0A(110V)/8.0A(220V)

-OutputPower:58W ▪DC5V:10W ▪DC24V:48W

•Information

110V220V

PartCodeJC98–03176AJC98–03175A

PBAnameETC-SMPSV1ETC-SMPSV2

•Connection

1AC_Inlet

2INPUT_ACSwitch

3FUSER_ACOutput

4OUTPUT_DC

Page 41

•Input/Outputconnector

ACInputConnector(CON2)

PinAssignPinNoDescription

2.Productspecandfeature

1AC_L

2AC_N

ACInputConnector(CON4)

PinAssignPinNoDescription

1AC_N

2AC_N

DCOutputConnector(CON3)

PinAssignPinNoDescriptionPinAssignPinNoDescription

1GNDGround85V+5VPower

2GNDGround95V+5VPower

3GNDGround10GNDGround

424V+24VPower1124V_OFFSleepmode

524V+24VPower12RELA YONFuserRelay

624V+24VPower1324V_FPhotoTriacBias

7GNDGround14FuseronFuserOn

ACOutputforHeaterController

ACInputSwitch

Page 42

2.Productspecandfeature

2.2.5.6.HVPSBoard

Thisboardgenerateshigh-voltagechannelswhichincludesMHV ,DEV ,BLADE,SUPPL Y ,THV.

[HVPSboardimage]

•Information

-PartCode:JC44–00205A

-PBAname:HVPS

•Connection

1Charger

2DEV

3SUP

4Blade

5THV

6HVPSI/F

7ClutchI/F

8OutbinFullI/F

9CrumI/F

10F ANSMPSI/F

11Regi,FeedsensorI/F

12EmptysensorI/F

Page 43

2.2.5.7.Faxboard

Faxcontroller(FCON)controlssendingandreceivingfax.

•Information

-PartCode:JC92–02569A

-PBAName:PBALIU

2.Productspecandfeature

•Connection

1MainPBAConnectionFFCCable:JC39–01993A

2SpeackerConnection

Page 44

2.Productspecandfeature

2.2.5.8.NFCTagSticker

Neareldcommunication(NFC)isasetofstandardsforsmartphonesandsimilardevicestoestablishradiocommunication witheachotherbytouchingthemtogetherorbringingthemintocloseproximity,usuallynomorethanafewcentimeters. Presentandanticipatedapplicationsincludecontactlesstransactions,dataexchange,andsimpliedsetupofmorecomplex communicationssuchasWi-Fi.CommunicationisalsopossiblebetweenanNFCdeviceandanunpoweredNFCchip, calleda"tag".NFCtagstickerstoresMac,PIN,MobilePrintAppURLofPrinter/MFP .

•Information

-PartCode:JC68–03012A

-PartName:LABELETC-NFCTECTILESTICKER(25x25mm)

Page 45

2.2.5.9.ElectricalPartsLocation

1)Sensors

2.Productspecandfeature

Ref.DescriptionControllerFunction

S1Photointerrupter(Paperemptysensor)Paperemptysensor

S2Photointerrupter(exitSensor)Paperdetection

S3Photointerrupter(Binfullsensor)BINFULLdetection

S4Photointerrupter(Regisensor)Paperdetection

S5Photointerrupter(feedSensor)Paperdetection

S6SwitchFrontCover

MainBoard

Coveropendetection

Page 46

2.Productspecandfeature

2)Motor,Fan,Clutch

RefDescription

1ADFMotor

2ScanMotor

3Pickupclutch

4Registrationclutch

5MainMotor

Page 47

2.Productspecandfeature

3)Board

RefDescriptionFunction

1HVPSHighV oltageGeneration

2SMPSConstantV oltageGeneration

3MainBoardMainController

4CRUMBoard*TonerCartridgeCheck

5OPEBoardPanelControl/TonerStatus

6WLANBoardWi-Fi,Wireless

7FAXBoardFax

*XpressM2885FWonly

Page 48

2.Productspecandfeature

2.2.6.EngineF/WControlAlgorithm

2.2.6.1.Feeding

Iffeedingfromacassette,thedriveofthepickuprolleriscontrolledbycontrollingthesolenoid.Theon/offofthe solenoidiscontrolledbycontrollingthegeneraloutputportortheexternaloutputport.Whilepapermoves,occurrence ofJamisjudgedasbelow.

ItemDescription

JAM0•Afterpickingup,papercannotbeenteredbecausetopaperisnotfed.

•Afterpickingup,paperenteredbutitcannotreachtothefeedsensorinpredeterminedperiodof

time.duetoslip,etc.

•Afterpickingup,ifthefeedsensorisnoton,re-pickup.Afterre-pickingup,ifthefeedsensoris

notonaftercertaintime,itisJAM0.

•Eventhoughthepaperreachestothefeedsensor,thefeedsensordoesn’tbeON.

JAM1•Aftertheleadingedgeofthepaperpassesthefeedsensor,thetrailingedgeofthepapercannotpass

thefeedsensorafterpredeterminedperiodoftime.

•Aftertheleadingedgeofthepaperpassesthefeedsensor,thepapercannotreachtheexitsensor

afterpredeterminedperiodoftime.

*Thepaperexistsbetweenthefeedsensorandtheexitsensor.

JAM2Afterthetrailingedgeofthepaperpassesthefeedsensor,thepapercannotpasstheexitsensorpredetermined

periodoftime.

2.2.6.2.Transfer

Thechargingvoltage,developingvoltageandthetransfervoltagearecontrolledbyPWM(PulseWidthModulation).The eachoutputvoltageischangeableduetothePWMduty.Thetransfervoltageadmittedwhenthepaperpassesthetransfer rollerisdecidedbyenvironmentconditions.Theresistancevalueofthetransferrollerischangedduetothesurrounding environmentortheenvironmentoftheset,andthevoltagevalue,whichchangesduetotheenvironments,ischanged throughADconverter.Thevoltagevalueforimpressingtothetransferrollerisdecidedbythechangedvalue.

Page 49

2.Productspecandfeature

2.2.6.3.Fusing

Thetemperaturechangeoftheheatroller’ssurfaceischangedtotheresistancevaluethroughtheuseofathermistor. TheMainBoardusestheresistancevalueoftheThermistorandconvertsittoavoltagevaluethroughtheuseofanAD converter,thetemperatureisdecidedbasedonthevoltagevalueread.TheACpoweriscontrolledbycomparingthetarget temperaturetothevaluefromthethermistor.Ifthevaluefromthethermistorisoutofcontrollingrangewhilecontrollingthe fusing,theerrorstatedinthebelowtableoccurs.

•OpenHeatError

Whentheengineoperatesthewarm-upprocess,ifthetemperatureofthexingunitisnothigherthanaspecied temperature,theenginedenesOpenHeatError.Whenthiserrorisdetected,theenginestopsallfunctionsandkeeps theerrorstate.Also,theengineinformstheerrorstatusofthemainsystem,soitcantakeappropriateaction;andthen theerrormessageisdisplayedatLCDwindoworLEDinformingtheerrorstatusoftheuser.

•LowHeatError

Whentheengineisatstand-by,printingorwarm-upmode,ifthetemperatureofthexingunitislowerthanthe speciedtemperatureateachstateandthelowertemperaturestateismaintainedduringthespeciedtime,theengine denesLowHeatError.Whenthiserrorisdetected,theenginestopsallfunctionsandkeepsitattheerrorstate.Also, theengineinformstheerrorstatusofthemainsystem,soitcantakeappropriateaction;andthentheerrormessage isdisplayedatLCDwindoworLEDinformingtheerrorstatusoftheuser.

•OverHeatError

Foroverallenginestate,ifthetemperatureofthexingunitishigherthanthespeciedtemperatureandthetemperature stateisdetectedforaspecicduration,thentheenginedenesOverHeatError.Whenthiserrorisdetected,theengine stopsallfunctionsandkeepsitattheerrorstate.Also,theengineinformstheerrorstatusofthemainsystem,soit cantakeappropriateaction;andthentheerrormessageisdisplayedatLCDwindoworLEDinformingtheerror statusoftheuser .

2.2.6.4.LSU

LSUreceivestheimagedatafromPVCorHPVCandmakethelatentimageonOPCsurface.Itusesthesinglebeam, LD.TheerrorsrelatedtoLSUareasfollows:

•ByLready

Whentheprintingisstarted,theenginedrivesthepolygonmotorofLSU.Afterthespeciedtimeiselapsed,ifthe motorisnotinareadystatus,theenginedetectstheerrorthatthepolygonmotorisnotinareadystatus.Ifthiserror happens,theenginestopsallfunctionsandkeepsitattheerrorstate.Also,theengineinformstheerrorstatusofthe mainsystemandtheerrormessageisdisplayedatLCDwindowtoinformtheerrorstatusoftheuser.

•ByHsync

Whenthepolygonmotorisready,theLSUsendsoutthesignalcalledHsyncandusedtosynchronizewitheachimage line.So,iftheenginedoesnotdetectconsecutivelythesignalforaxedtime,itdenestheHsyncError.Ifthiserror happens,theenginestopsallfunctionsandkeepsitattheerrorstate.Also,theengineinformstheerrorstatusofthe mainsystemandthentheerrormessageisdisplayedatLCDwindowtoinformtheerrorstatusoftheuser .LSUError Recovery:IftheLReadyorHsyncerrorhappens,thepaperisexitedbeforetheerrorcodeisinitiated.Theenginemode ischangedtorecoverymodeandtheengineinformsthemainsystemoftheenginemode.Andtheenginechecksthe LSUerror .Iftheerrordoesn’thappen,theprintingjob.

Page 50

2.Productspecandfeature

P r in te r /MFP

HOS T

S o ftw a r e

Driv e r

Web -b a s e d

App lic atio n

S ta n d -a lo n e

App lic atio n

Fi rm wa re

App lic atio n

(Em ula tio n )

Ker n e l

2.2.7.SoftwareDescriptions

2.2.7.1.Softwaresystemoverview

Thesoftwaresystemofthismodelisconstructedwith

•HostSoftwarepartthattheapplicationsoftwareoperatedinWindowandWebEnvironment

•FirmwarepartsthatisaEmbeddedsoftwarecontrolsprintingjob.

2.2.7.2.Architecture

HostSoftwareismadeupof

1)GraphicUserInterfaceoffersthevariouseditingfunctionstouserinHost.

2)DrivertranslatesthereceiveddocumenttoaPrintingCommandlanguagewhichprintercanunderstandandtransfers datatospooler.

3)Stand-aloneApplicationoffersthevariousprintingapplicationsuchasEasyPrinterManager,PrinterStatusinWindow system.

4)Web-based-ApplicationoffersthesamefunctionsasStand-aloneApplicationinW ebenvironment.

Firmwareismadeupof

1)Application(Emulation)thatisainterpretertranslatesdatareceivedfromHosttoaprintinglanguage(PCL,PS,GDI, etc.)tobeabletomaketheusertotakesameoutputasoriginallyonewhatcomposedinHost.

2)KernelcontrolsandmanagethewholeprocedureincludingControlowandPrintingJobbeforetransferringtoEngine system.

Page 51

2.2.7.3.DataandControlFlow

Drive r

- PCL3, P S 3

Web -b a s e d

- Do c um e nt Manag eme nt

S ys tem

- Netwo rk Administration

- S ta tus Monito r

- Re mo te Co ntro l P a ne l

S t a n d -a lon e

- P rinte r S etting Utility

- Netwo rk Administration

- S ta tus Monito r

Netw o rk

Inte r fac e

App lic atio n

KERNEL

App lic atio n

(Em ula tio n )

- P CL

- P S 3

En g in e

US B

Ho s t Firm wa re

2.Productspecandfeature

TheaboveBlockDiagramisexplainedthat:

HostSideismadeupof

1)DriverthatisWindowsapplicationsoftwaretranslateprinteddatatooneofprinterlanguageandcreatespoolerle.

2)Web-basedApplicationthatofferavariousprinteradditionalfunctions,managementofprintingjob,printer administration,StatusmonitortomonitoringtheprinterstatusbyrealtimeinWeb,independentenvironmentonOS.

3)Stand-aloneApplicationthatisasimilarWindowsoftwareassameasabove2.

4)PortMonitorthatmanagesthenetworkcommunicationbetweenspoolerandNetworkInterfaceCard,orvarious additionalapplicationandNetworkInterfaceCard,(thisis,atrst,makecommunicationlogicalport,managethedata, transferthemfromspoolertonetworkport,andoffertheresultofprinting).

Page 52

2.Productspecandfeature

FirmwareSideismadeupof

1)NetworkInterfaceCardisthatrelaythecommunicationbetweenHostandkernelusingvariousnetworkprotocol.

2)Kernelisthatmanagestheowcontrolofemulationprocedure,receivingdatafromHostorNetworkcardandprinting withengine&renderingjob.

3)Emulationisthatinterpretsthevariousoutputdatafromselectedemulation.

4)Engineisthatprintsrenderedbit-mapdatatopaperwithrequiredsizeandtypebyKernel.

Andthen,forJobSpoolingfunctionforMulti-User,Multi-PrintingthatisoccurredinNetworkprintingandvarious additionalprintingfunctions,thisKernelusemax.10Queuingsystemsinamemory.

InPrinting,thetwoproceduresare

1)CaseofusingUSBPort

•AfteruserstarttoprintthewanteddocumenttoPCLstringorcompressedGDIbit-mapdata,theDrivertranslates theallgraphicdataoftheclientPCandsenddatatohostspooler.Andthenthespoolersendsthedatastreamto theprinterviaUSBport.

•KernelreceivesthisdatafromHost,andthenselectemulationttodataandstartselectedone.Afteremulationjob end,Kernelsendstheoutputbit-mapdatatoEngineusingPrinterVideoController(byclocktypeforLSU).

•Engineprintthereceiveddatatorequiredpaperwiththesequentialdevelopingprocess.

2)CaseofusingNetworkInterfaceCard

•AfteruserstarttoprintthewanteddocumenttoPCLstringorcompressedGDIbit-mapdata,Drivertranslatethe allgraphicdataofitandsenddatatohostspooler.

•Ifso,PortmonitormanagingnetworkportreceivesdatafromspoolerandsendsadatastreamtotheNetwork InterfaceCard.

•NetworkinterfacecardreceivesitandsendtoKernelpart.

•KernelreceivesthisdatafromHost,andthenselectemulationttodataandstartselectedone.Afteremulationjob end,Kernelsendstheoutputbit-mapdatatoEngineusingPrinterVideoController(byclocktypeforLSU).

•Engineprintthereceiveddatatorequiredpaperwiththesequentialdevelopingprocess.

Page 53

3.DisassemblyandReassembly

3.1.Precautionswhenreplacingparts

3.1.1.Precautionswhenassemblinganddisassembling

•UseonlyapprovedSamsungspareparts.Ensurethatpartnumber,productname,anyvoltage,currentortemperature

ratingarecorrect.Failuretodosocouldresultindamagetothemachine,circuitoverload,reorelectricshock.

•Donotmakeanyunauthorizedchangesoradditionstotheprinter,thesecouldcausetheprintertomalfunctionand

createelectricshockorrehazards.

•Takecarewhendismantlingtheunittonotewhereeachscrewgoes.Thereare19differentscrews.Useofthewrong

screwcouldleadtosystemfailure,shortcircuitorelectricshock.

•DonotdisassembletheLSUunit.Onceitisdisassembleddustisadmittedtothemirrorchamberandwillseriously

degradeprintquality .Therearenoserviceablepartsinside.

•Regularlychecktheconditionofthepowercord,plugandsocket.Badcontactscouldleadtooverheatingandrfe.

Damagedcablescouldleadtoelectricshockorunitmalfunction.

3.1.2.PreautionswhenhandlingPBA

StaticelectricitycandamageaPBA,alwaysusedapprovedanti-staticprecautionswhenhandlingorstoringaPBA.

•PrecautionswhenmovingandstoringPBA

1)PleasekeepPBAinaconductivecase,anti-staticbag,orwrappedinaluminumfoil.

2)DonotstoreaPBAwhereitisexposedtodirectsunlight.

•PrecautionswhenreplacingPBA

1)Disconnectpowerconnectorsrst,beforedisconnectingothercables.

2)Donottouchanysolderedconnections,connectorterminalsorotherelectronicpartswhenhandlinginsulatedparts.

•PrecautionswhencheckingPBA

1)BeforetouchingaPBA,pleasetouchothergroundedareasofthechassistodischargeanystaticelectricalcharge onthebody.

2)TakecarenottotouchthePBAwithyourbarehandsormetalobjectsasyoucouldcreateashortcircuitorgetan electricshock.TakeextracarewhenhandlingPBAswithmovingpartsttedsuchassensors,motorsorlampsas theymaygethot.

3)Takecarewhentting,orremoving,screws.Lookoutforhiddenscrews.Alwaysensurethatthecorrectscrewis usedandalwaysensurethatwhentoothedwashersareremovedtheyarerettedintheiroriginalpositions.

Page 54

3.DisassemblyandReassembly

3.1.3.ReleasingPlasticLatches

Manyofthepartsareheldinplacewithplasticlatches.Thelatchesbreakeasily;releasethemcarefully.

Toremovesuchparts,pressthehookendofthelatchawayfromtheparttowhichitislatched.

Page 55

3.DisassemblyandReassembly

3.2.Screwsusedintheprinter

Thescrewslistedinthetablebelowareusedinthisprinter .Pleaseensurethat,whenyoudisassembletheprinter,youkeep anoteofwhichscrewisusedforwhichpartandthat,whenreassemblingtheprinter,thecorrectscrewsareusedinthe appropriateplaces.

PartCodeLocationDescriptionQty

6003-000196SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A2

6003-000269SCREW-T APTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SWRCH18A,-2

6003-000282

6003-000196SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A1

6003-000282

6003-000196SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A22

6003-000269

6003-000196SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A1

6003-000261

6003-000269SCREW-T APTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SWRCH18A,-12

6003-000282

6003-000269SCREW-T APTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SWRCH18A,-6

6003-000282

6003-000196FRAME-P APER_P A THSCREW-TAPTYPE;PWH,+,B,M3,L10,NIPL T,SWRCH18A9

6003-000196

6003-000282LSUSCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SWRCH18A,-5

6003-000196COVER-TOPSCREW-T APTYPE;PWH,+,B,M3,L10,NIPL T ,SWRCH18A4

6003-000196SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A1

6003-000269

FUSER

FUSER-UPPER

FRAMEMAIN

DUPLEX

FRAME MAIN-LEFT

FRAME MAIN-RIGHT

FRAME BASE-PICKUP

MAINLINE

SCREW-T APTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SWRCH18A,-2

SCREW-T APTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SWRCH18A,-26

SCREW-T APTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SWRCH18A,-3

SCREW-T APTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SWRCH18A,-1

SCREW-T APTYPE;PWH,+,B,M3,L10,NIPLT ,SWRCH18A2

SCREW-T APTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SWRCH18A,-13

Page 56

3.DisassemblyandReassembly

3.3.ReplacingtheMainSVCparts

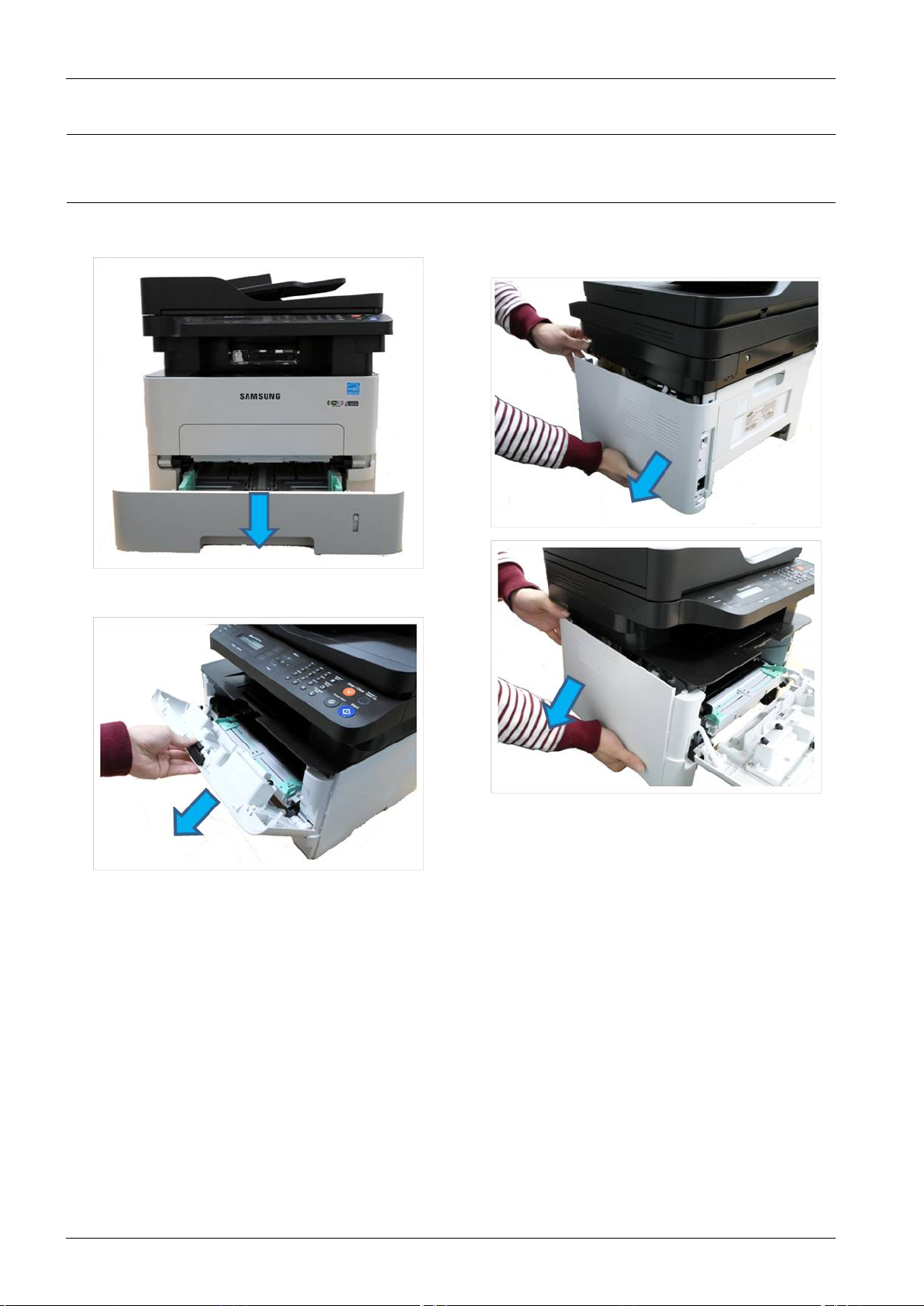

3.3.1.SideCover

1.RemovetheCassettefromPrinter.

2.OpentheFront-Cover,thenpullouttheTonerCartridge.

3.RemovetheLeftCoverandRightCover.*Attentionto

thedirectionofthehooks

Page 57

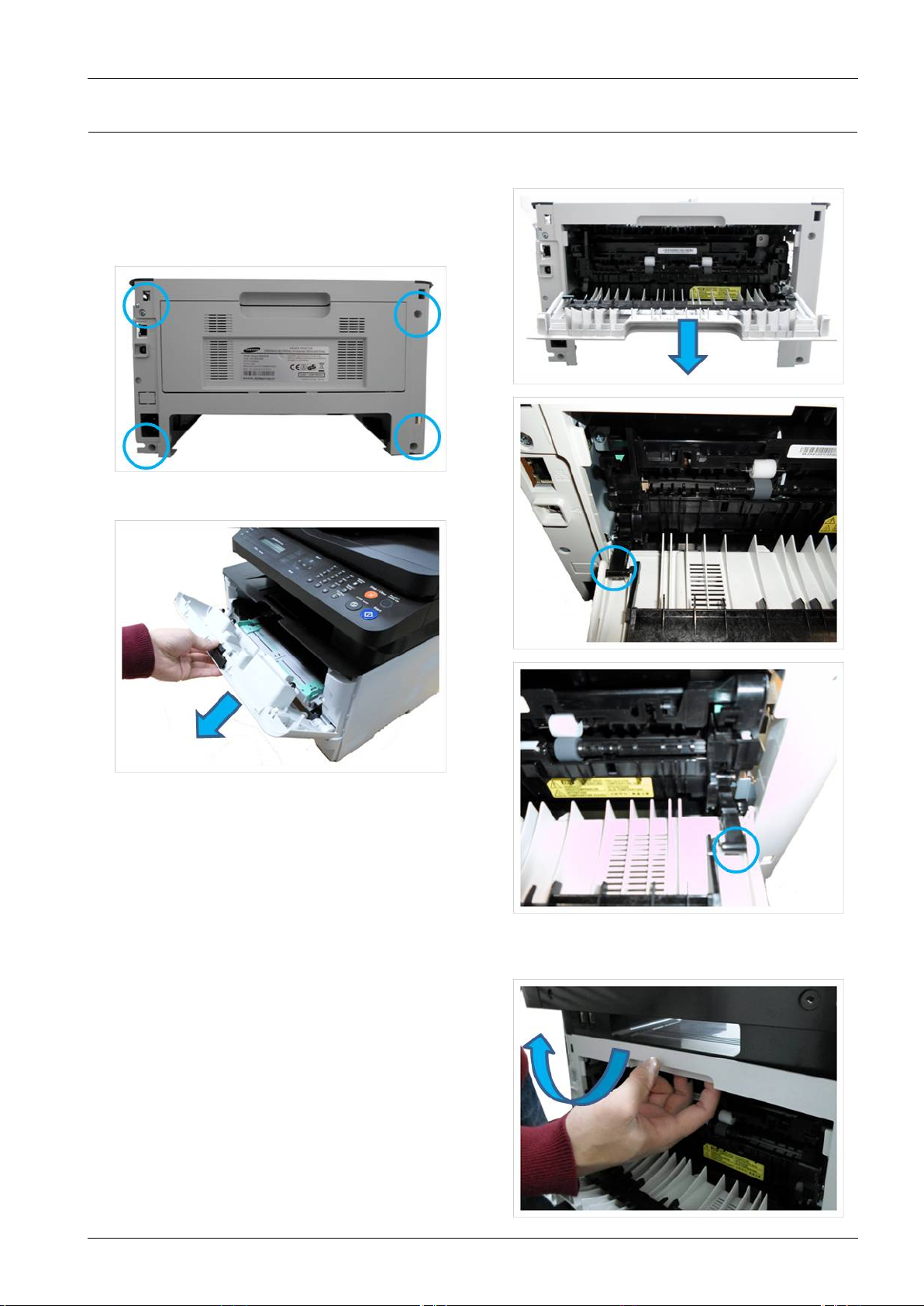

3.3.2.RearCover

3.DisassemblyandReassembly

1.RemovetheSideCovers.

(Referto3.3.1SideCover)

2.Turnthemachineback,thenremove4screwsofthe backsideofthemachine.

3.OpentheLowerRearCover.

4.Remove2hooksateachsideoftheLowerRearcover.

5.TakeofftheRearCover*Attention:where3hooks

are.

Page 58

3.DisassemblyandReassembly

3.3.3.FrontCover

1.RemoveSideCoversandRearCover.

(Referto3.3.1SideCover)

(Referto3.3.2RearCover)

2.RemoveaHarnesscableatrightsideofthemachine.

3.RemoveahookatinsideoftheFrontCover.

4.RemovetheFrontCover.

Page 59

3.3.4.ScanUnit

3.DisassemblyandReassembly

1.RemovetheRightCover.

(Referto3.3.1SideCover)

2.Remove3harnessesontheboard.

3.Turnthemachinetobackward,thenremove2screws.

4.PushtheADFUnittofront.

5.PullouttheADFUnit.

Page 60

3.DisassemblyandReassembly

3.3.5.OPE

1.RemovetheRightCover.

(Referto3.3.1SideCover)

2.RemovetheScanUnit

(Referto3.3.4ScanUnit)

3.TurnuptheADFUnit,thenremove3screws.

4.RemovetheOPEUnit.

5.Remove4screwsand1harnessonthebacksideofthe

OPEBoard.

Page 61

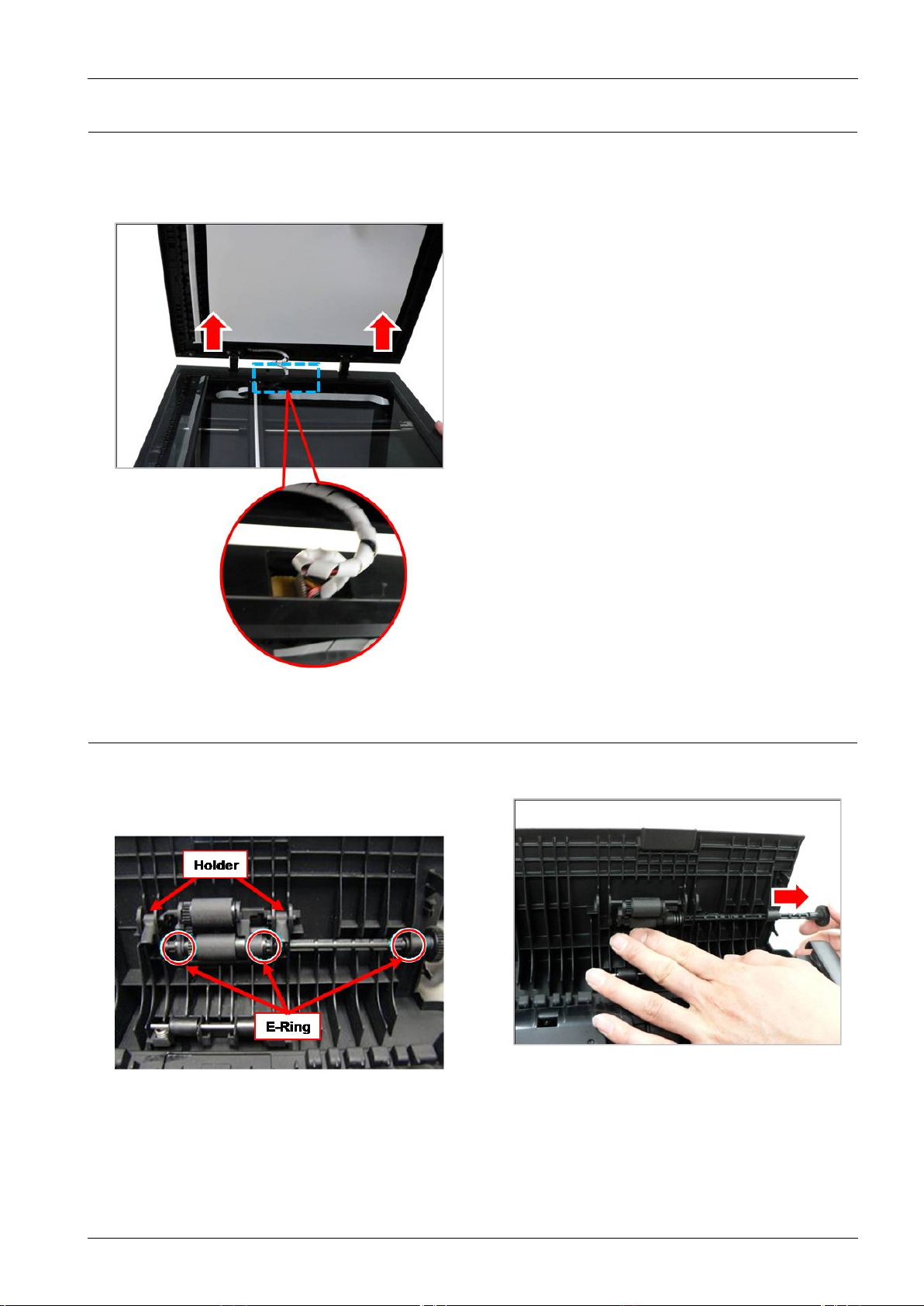

3.3.6.ADF

1.OpentheADF,thenremovetheconnectorcover.

2.Takeofftheconnector,thenremovetheADFtoupward.

3.DisassemblyandReassembly

3.3.7.ADFRoller

1.RemovetheADFcover.

2.Remove2holderand3E-ringontheRollerassembly.

3.TakeofftheADFRollershaft.

Page 62

3.DisassemblyandReassembly

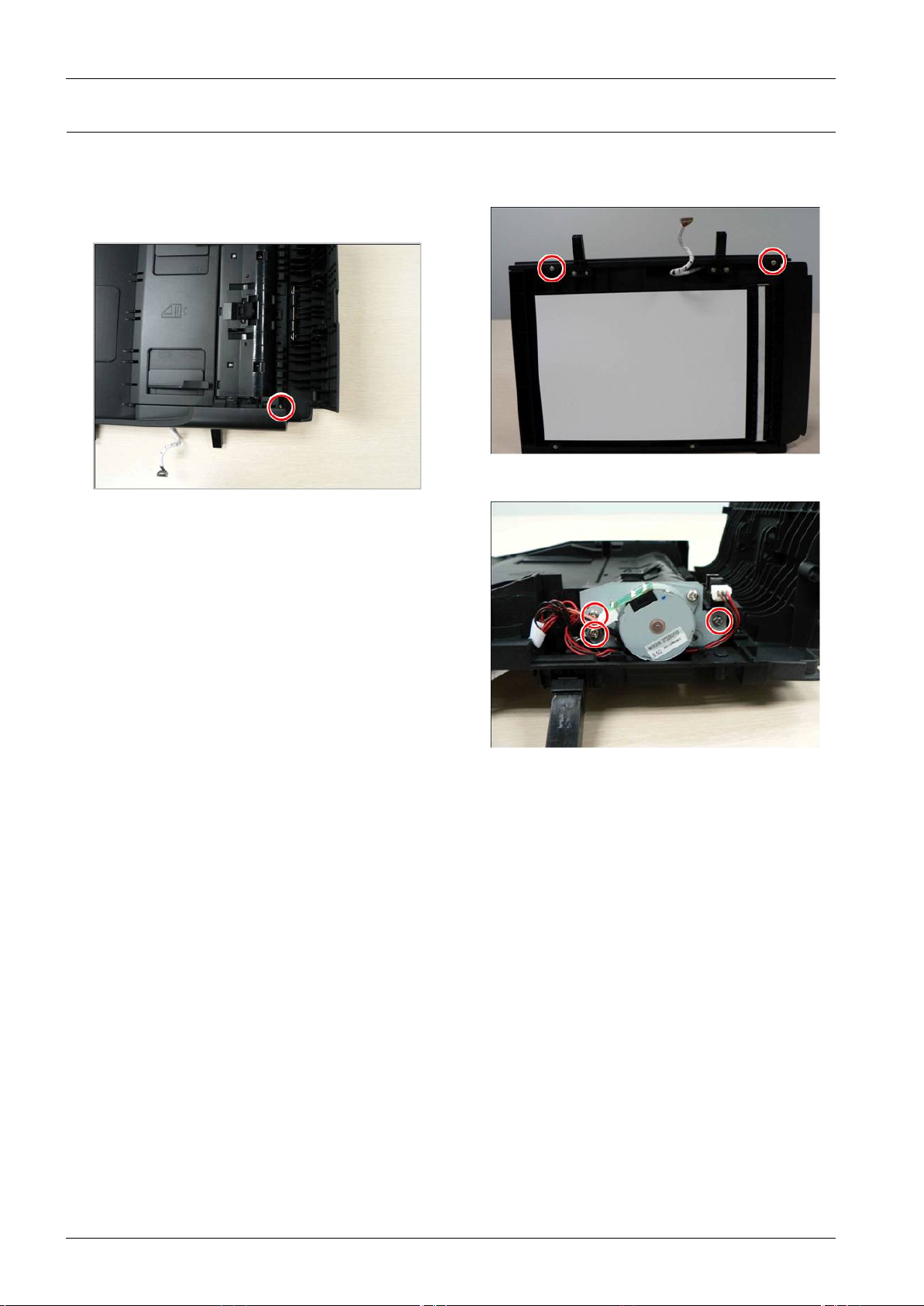

3.3.8.ADFMotor

1.RemovetheADFunit. (Referto3.3.6ADF)

2.OpentheADFCover,thenremoveascrew.

3.Remove2screwsonthebacksideoftheADF,then

removethebackcoveroftheADF.

4.Remove3screws,thentakeofftheADFMotor.

Page 63

3.3.9.ScanMotor

3.DisassemblyandReassembly

1.RemovetheADFUnitandScanUnit.

2.Remove3screwsonthebottomoftheScanUnit.

3.Remove4screws.

4.TakeoffthePlatenGlass.

5.Removetherubberbelt,thentakeoffthemotor.

Page 64

3.DisassemblyandReassembly

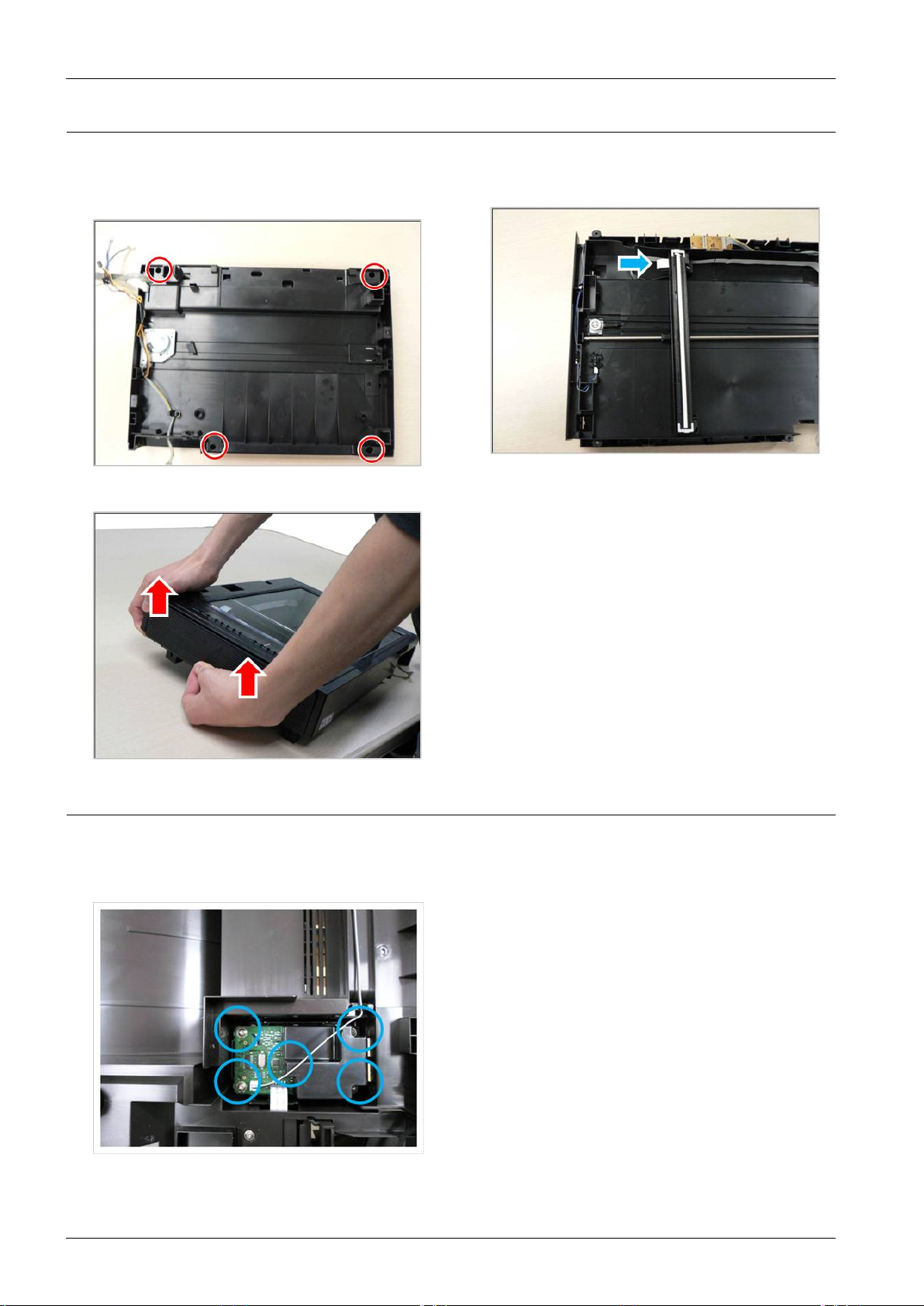

3.3.10.CISUnit

1.RemovetheADFunitandtheScanunit.

2.Removethe4screws.

3.TakeoffthePlatenGlass

4.TakeofftheatcableconnectedwithCISUnit,then

removetheCISUnit.

3.3.11.FaxBoard

1.RemovetheRightCover.

2.Remove4screwsandaconnectorontheFAXBoard.

3.TakeofftheF AXBoard.

Page 65

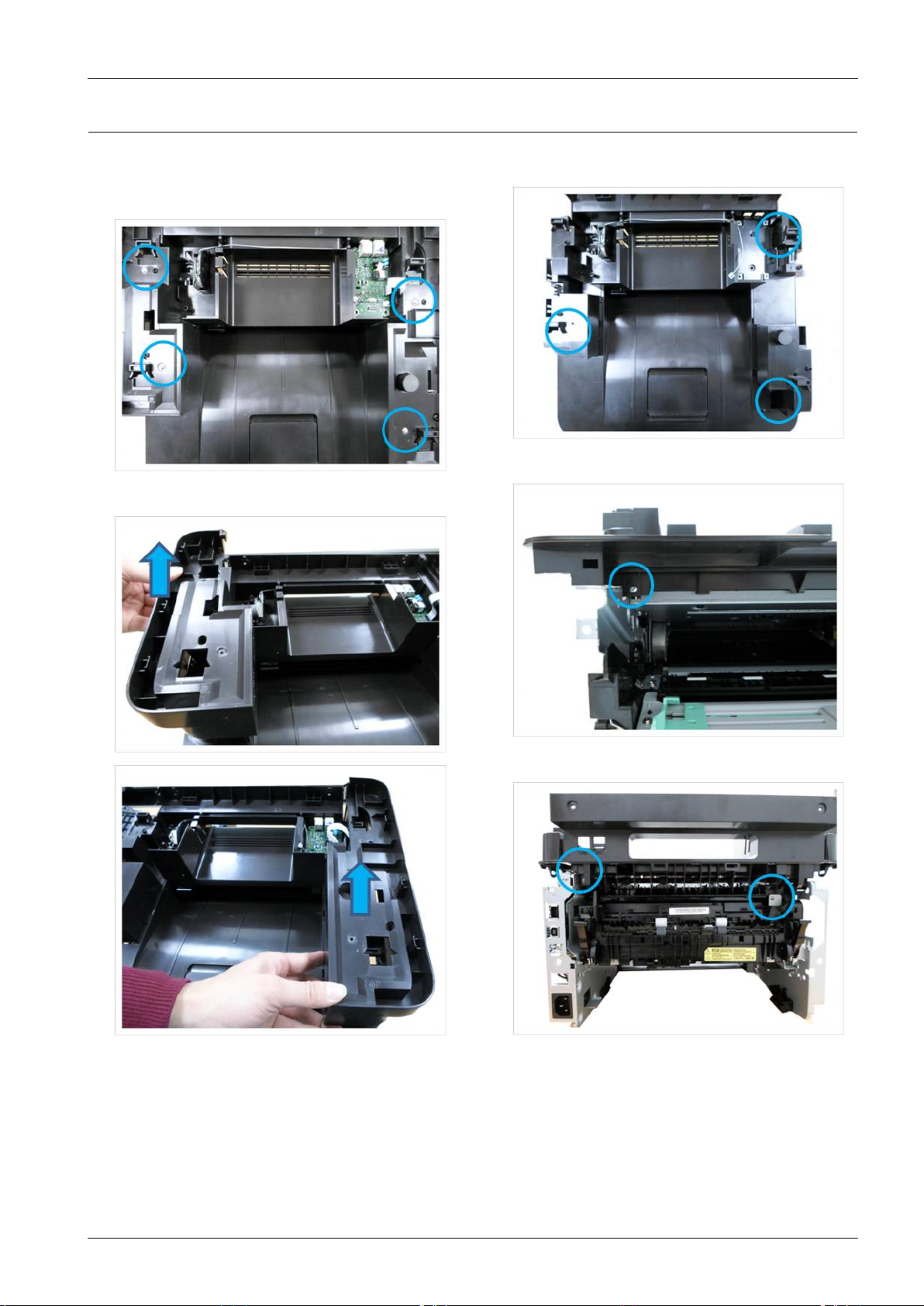

3.3.12.MiddleCover

3.DisassemblyandReassembly

1.RemovetheScanUnit.

2.Remove3screws.

3.Remove2coversattheeachsideoftheMiddleCover.

5.Remove3screws.

6.Removeascrewonthefront.

4.RemovetheFaxBoard.

(Referto3.3.11FaxBoard)

7.Remove2screwsontherear.

8.PullouttheMiddleCover,

Page 66

3.DisassemblyandReassembly

3.3.13.MainBoard

1.RemovetheRightCover.

(Referto3.3.1SideCover)

2.Removeallconnectorsontheboard.

3.Remove4screwsontheboard

3.3.14.SMPS

4.SeparatetheMainBoardfromthemachine.

1.RemovetheRightCover

(Referto3.3.1SideCover)

2.Removeallconnectorsontheboard.

3.Remove6screwsontheboard.

4.SeparatetheSMPSfromthemachine.

Page 67

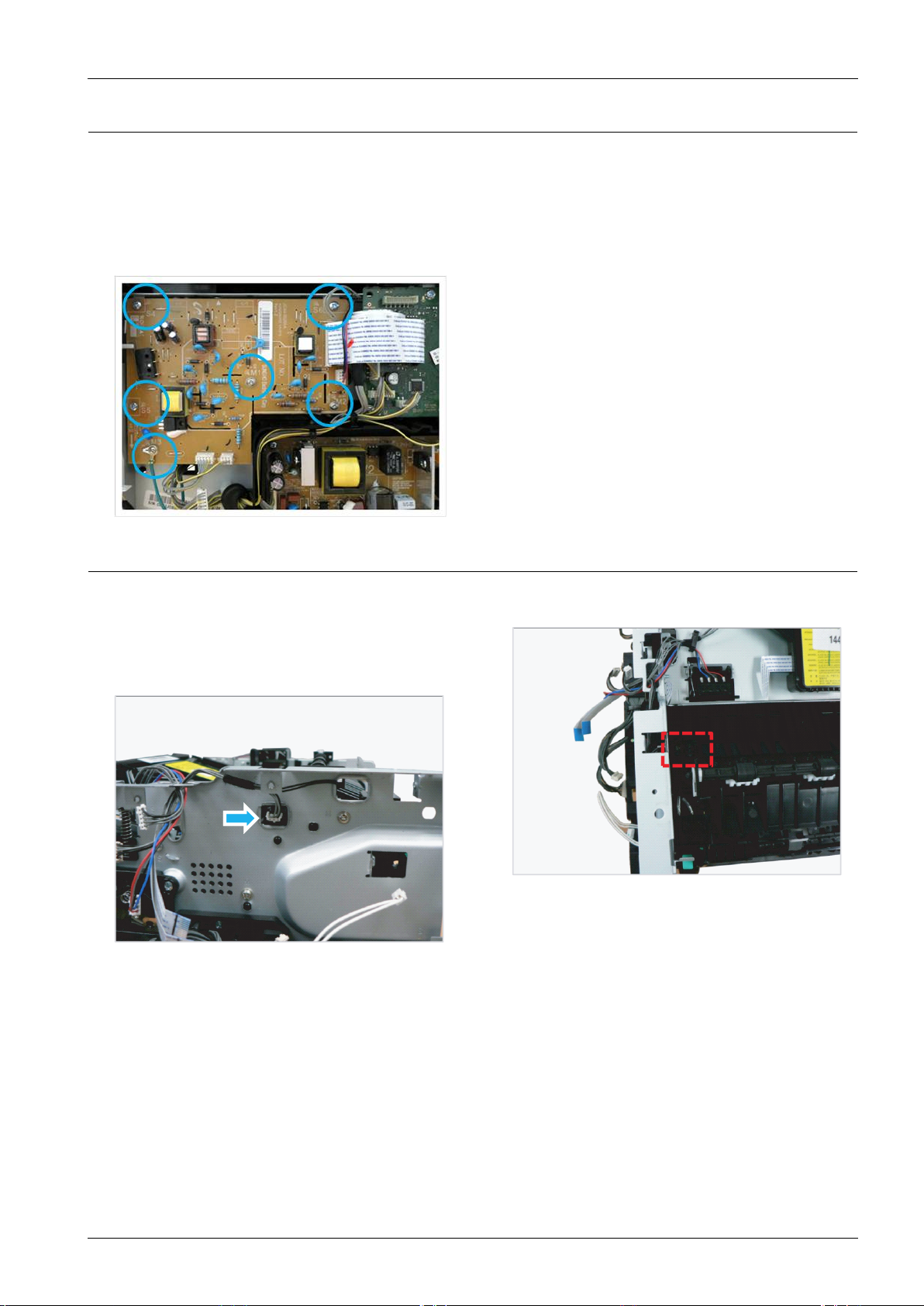

3.3.15.HVPS

3.DisassemblyandReassembly

1.RemovetheRightCover

(Referto3.3.1SideCover)

2.Removeallconnectorsontheboard.

3.Remove6screwsontheboard.

3.3.16.Bin-FullSensor

1.Removetherightcover.

4.SeparatetheHVPSfromthemachine.

4.ReleasetheBin-Fullsensor.

2.Removethemainboard.

3.Unplugthesensorconnector.

Page 68

3.DisassemblyandReassembly

Reg i. Clutc h

Pic k up Clutch

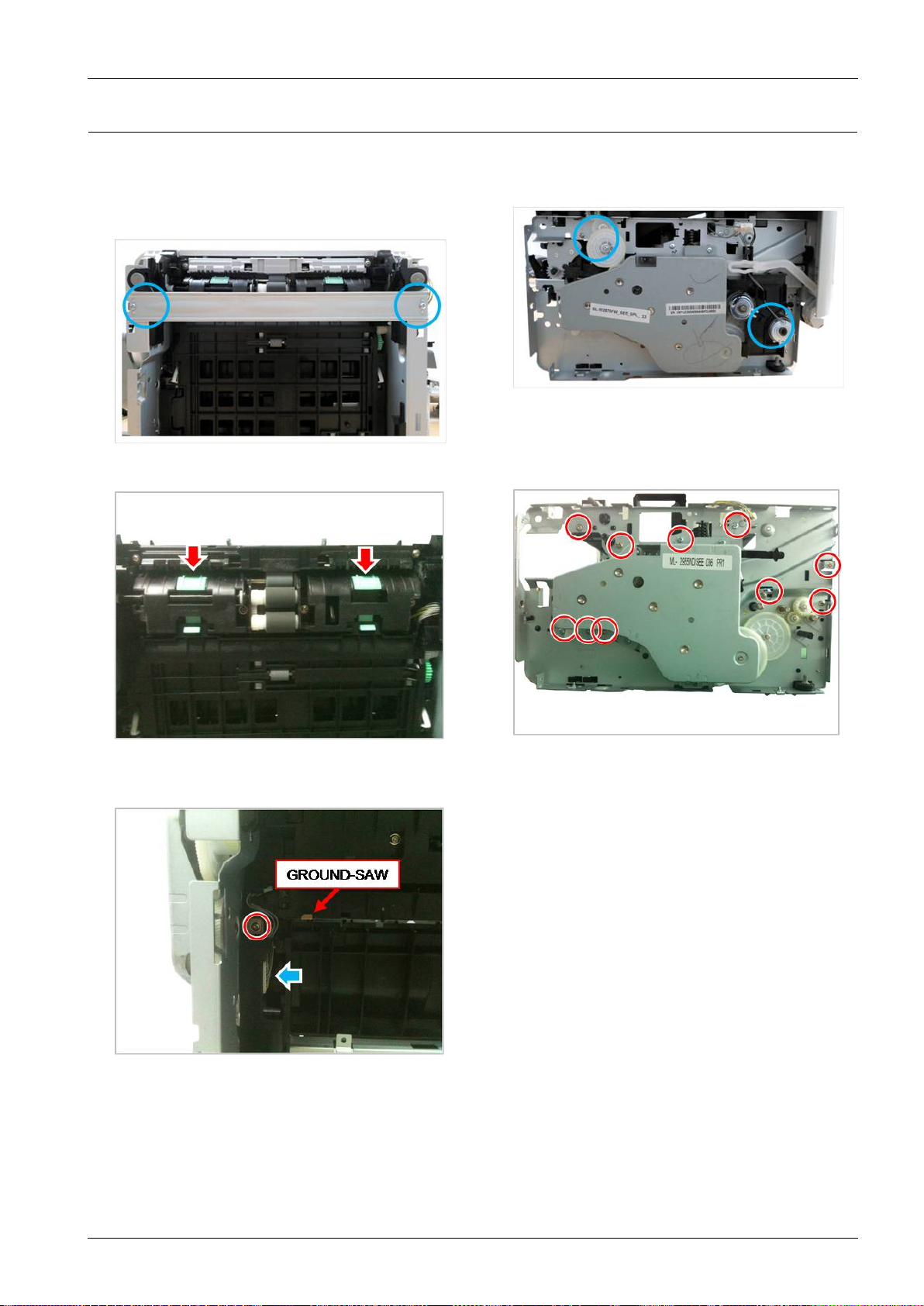

3.3.17.MainDriveunit

1.Removetheleftcover.

2.Remove5screws.

3.Releasethemaindriveunitaftermovingtheholderto

theright.

3.3.18.PickupandRegiClutch

1.Removetheleftcover.2.Removethewashersecuringtheclutch.Unplugthe

connectoronJointPBA.Andreleasetheclutch.

Page 69

3.3.19.PickupandForwardroller

3.DisassemblyandReassembly

1.Removethebottombarafterremoving2screws.

2.Remove2screws.

3.Releasethepick-up/forwardrollerAssy.

Page 70

3.DisassemblyandReassembly

3.3.20.RetardRoller

1.Removethecassette.

2.Opentheretardrollercover.

3.Releasetheretardrollerholder.Thenreleasetheretard

rollerformitsholder.

NOTE

Whenreassemblingtheretardrollerholder,placetwo springsonthebottomhole.

Page 71

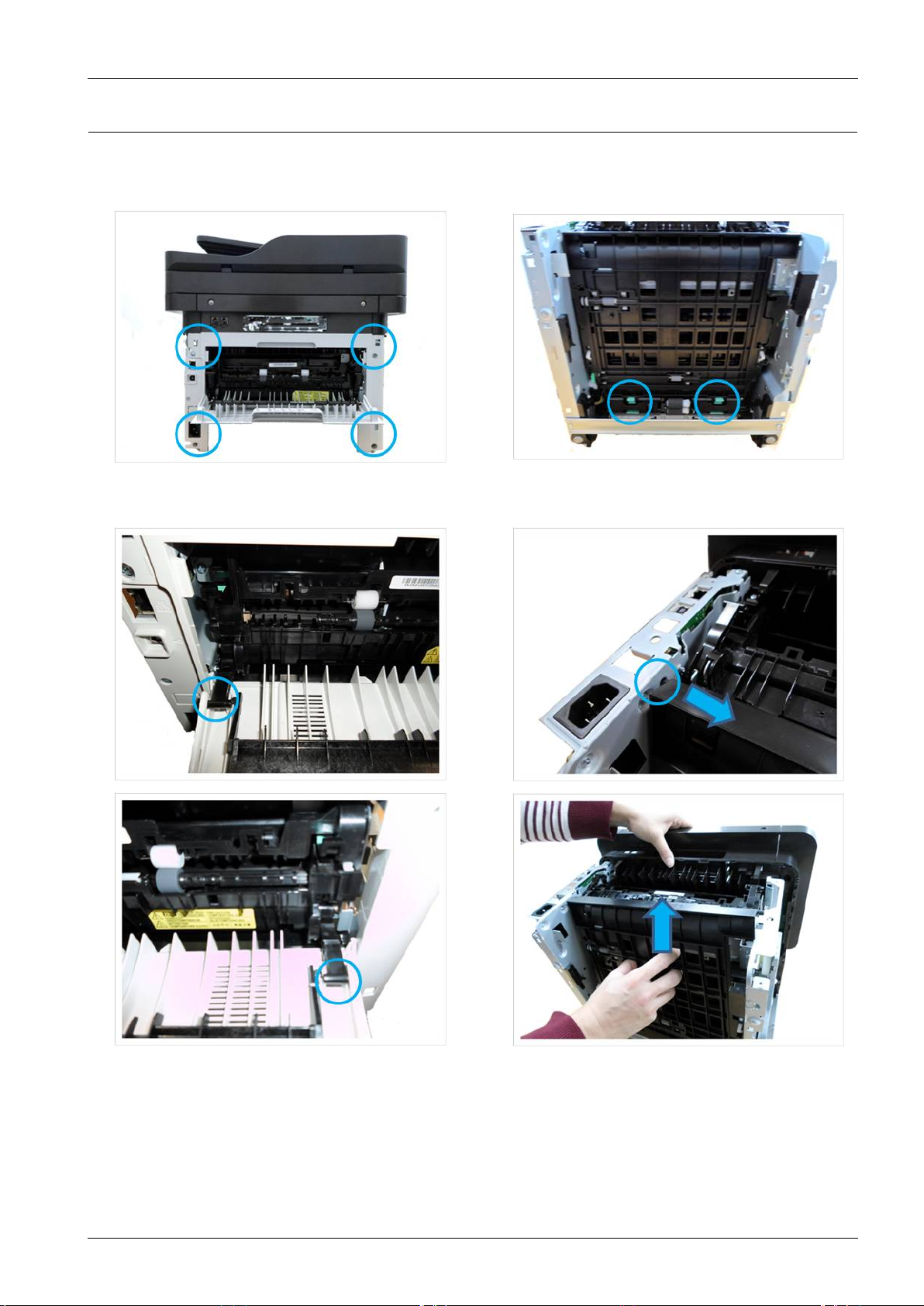

3.3.21.DuplexUnit

3.DisassemblyandReassembly

1.Removethecassette,thenremove4screwsfromthe RearCover.

2.OpentheRearCover.Releasethe2hingesattheeach sideofthecover.Andthenremovetherearcover.

3.Standthemachine.Pushthegreenhandletorelease theduplexunit.

4.Pulloffthehinge,thenremovetheDuplexUnitto upward.

Page 72

3.DisassemblyandReassembly

3.3.22.TransferRoller

1.Openthefrontcover.Removethetonercartridge.

2.Removetheholder.Thenremovethetransferroller.

3.3.23.LSU

1.Removethetopcover.2.Unplug2atcables.Remove3screws.Andrelease theLSU.

Page 73

3.3.24.FuserUnit

3.DisassemblyandReassembly

1.Removetherightandrearcover.

2.Unplug2connectors.(SMPSboardx1,Mainboard

x1)

3.3.25.ExitSensor

3.Removethefuserunitafterremoving4screws.

1.Removethefuserunit.2.Releasetheexitsensorafterunpluggingtheconnector.

Page 74

3.DisassemblyandReassembly

Ho o k

3.3.26.FeedandRegisensorPBA

1.Removetheduplexunit.

2.Remove1screw.

3.Removethesensorcoverwhilepushingthehook.

4.RemovethesensorPBAafterunpluggingtheconnector.

Page 75

3.3.27.Motor

3.DisassemblyandReassembly

1.First,removeallcovers.

2.Seethebottomofthemachine.Remove2screws.And

removePLA TE-BOTTOM.

3.RemovetheDuplexunitwhilepushinggreenbuttons.

5.RemoveGEAR-RDCNEXIT,GEAR-IDLEEXIT,

GEAR-EXT.

6.RemoveClutchesandGEAR-FEEDafterremoving washerssecuringthem.

7.Turnthemachinetobackward.Removing10screws.

4.Remove1screw .RemovetheGROUND-SA W.And

unplugthemotorconnector.

Page 76

4.AlignmentandTroubleshooting

4.1.AlignmentandAdjustments

Thischapterdescribesthemainfunctionsforservice,suchastheproductmaintenancemethod,thetestoutputrelatedto maintenanceandrepair,Jamremovingmethod,andsoon.

Itincludesthecontentsofmanual.

4.1.1.ControlPanel

1DarknessAdjustthebrightnessleveltomakeacopyforeasierreading,whentheoriginal

containsfaintmarkingsanddarkimages.

2IDCopyAllowsyoutocopybothsidesofanIDcardlikeadriver’slicenseonasingle

sideofpaper.

3DisplayscreenShowsthecurrentstatusanddisplayspromptsduringanoperation.

4CopySwitchestoCopymode.

5FaxSwitchestoFaxmode.

6Left/RightArrowsScrollsthroughtheoptionsavailableintheselectedmenuandincreasesor

decreasesvalues.

7MenuOpensMenumodeandscrollsthroughtheavailablemenus.

8OKConrmstheselectiononthescreen.

9NumerickeypadDialsanumberorentersalphanumericcharacters.

10AddressBookAllowsyoutostorefrequentlyusedfaxnumbersorsearchforstoredfaxnumbers.

11Redial/Pause(-)Redialsthelastnumberinreadymode,orinsertsapause(-)intoafaxnumber

ineditmode.

12Stop/ClearStopsanoperationsatanytime.

13Power/W akeupTurnsthepoweronoroff,orwakesupthemachinefromthepowersavemode.If

youneedtoturnthemachineoff,pressthisbuttonformorethanthreeseconds.

14StartStartsajob.

15PowerSaverGoesintopowersavemode.

Page 77

4.AlignmentandTroubleshooting

16OnHookDialWhenyoupressthisbutton,youcanhearadialtone.Thenenterafaxnumber.

Itissimilartomakingacallusingspeakerphone.

17BackSendsyoubacktotheuppermenulevel.

18ScanSwitchestoScanmode.

19StatusLEDIndicatesthestatusofyourmachine.

20EcoTurnonEcomodetoreducetonerconsumptionandpaperusage.

PrintScreenPressthisbuttonandthedisplaywillPrintScreen?onthedisplayscreen.If

youwanttoprintonlytheactivescreen,selecttheActive.Ifyouwanttoprint thewholescreen,selectFull.

NOTE

•PrintScreencanonlybeusedintheWindowsandMacoperatingsystems.

•Y oucanonlyusethisfunctionwithUSBconnectedmachine.

•Whenprintingtheactivewindow/wholemonitorscreenusingtheprint screenbutton,themachinemayusemoretonerdependingonwhatisbeing printed.

•Y oucanonlyusethisfunctionifthemachine’sSamsungEasyPrinter Managerprogramisinstalled.IfyouareaMacOSuser,youneedto enableScreenPrintSettingsfromtheSamsungEasyPrinterManagerto usethePrintScreenfeature.

Reduce/EnlargeYoucanreduceorenlargethesizeofacopiedimagefrom25%to400%when

youcopyoriginaldocumentsfromthescannerglass.

WPSConguresthewirelessnetworkconnectioneasilywithoutacomputer.

Page 78

4.AlignmentandTroubleshooting

4.1.2.UnderstandingthestatusLED

ThecoloroftheLEDindicatesthemachine'scurrentstatus.

NOTE

•SomeLEDsmaynotbeavailabledependingonmodelorcountry.

•T oresolvetheerror,lookattheerrormessageanditsinstructionsfromthetroubleshootingpart.

•Y oualsocanresolvetheerrorwiththeguidelinefromthecomputers’SamsungPrinterStatusorSmartPanelprogram window.

StatusLED

StatusDescription

Status LED

OffThemachineisoff-line.

BlinkingWhenthebacklightblinks,themachineisreceivingorprintingdata. Green

OnThemachineison-lineandcanbeused.

Red

Blinking•Aminorerrorhasoccurredandthemachineiswaitingfortheerrortobecleared.

Checkthedisplaymessage.Whentheproblemiscleared,themachineresumes. Forsomemodelsthatdoesnotsupportthedisplayscreenonthecontrolpanel, thisfeatureisnotapplicable.

•Smallamountoftonerisleftinthecartridge.Theestimatedcartridgelifeof

tonerisclose.Prepareanewcartridgeforreplacement.Youmaytemporarily increasetheprintingqualitybyredistributingthetoner.

On•Atonercartridgehasalmostreacheditsestimatedcartridgelife.Itis

recommendedtoreplacethetonercartridge.

•Thecoverisopened.Closethecover.

•Thereisnopaperinthetray.Loadpaperinthetray

•Themachinehasstoppedduetoamajorerror.

Wireless LED

LED

Eco button

BlueOnWhenthemachineisconnectedtoawirelessnetwork,WirelessLEDlightsonblue.

Blue

Green

OnThemachineisinreadymodeorinpowersavemode. Power

OffThemachine’spowerisoff.

OnEcomodeison.Duplex,2-up,tonersaveon,skipblankpagefeaturewillautomatically

beappliedwhenprinting.

OffEcomodeisoff.

NOTE

Estimatedcartridgelifemeanstheexpectedorestimatedtonercartridgelife,whichindicatestheaveragecapacityofprint-outs andisdesignedpursuanttoISO/IEC19752.Thenumberofpagesmaybeaffectedbyoperatingenvironment,printing interval,graphics,mediaandmediasize.SomeamountoftonermayremaininthecartridgeevenwhenredLEDisonand theprinterstopsprinting.

Page 79

4.1.3.JamRemoval

4.1.3.1.Clearingoriginaldocumentjams

Toavoidtearingthedocument,removethejammed documentslowlyandcarefully .

Originalpaperjaminfrontofscanner

4.AlignmentandTroubleshooting

1)Openthedocumentfeedercover.

2)Gentlyremovethejammedpaperfromthedocument feeder.

3)Closethedocumentfeedercover.

Page 80

4.AlignmentandTroubleshooting

Originalpaperjaminsideofscanner

1)Openthedocumentfeedercover.

2)Gentlyremovethejammedpaperfromthedocument feeder.

3)Openthedocumentfeeder.

4)Graspthemisfeedpaper,andremovethepaperfrom thefeedareabycarefullypullingit.

Ifyouseenopaperinthisarea,gotonextstep.

5)Closethedocumentfeeder.

Page 81

Originalpaperjaminexitareaofscanner

1)Removeanyremainingpagesfromthedocumentfeeder.

2)Gentlyremovethejammedpaperfromthedocument feeder.

4.AlignmentandTroubleshooting

Page 82

4.AlignmentandTroubleshooting

4.1.3.2.Clearingpaperjams

InTray

1)Openandclosethefrontcover.Thejammedpaperisautomaticallyejectedfromthemachine.Ifthepaperdoesnot exit,gotothenextstep.

2)Pullouttray.

3)Removethejammedpaperbygentlypullingitstraightout.

Ifthepaperdoesnotmovewhenyoupull,orifyoudonotseethepaperinthisarea,checkthefuserareaaround thetonercartridge.

4)Inserttraybackintothemachineuntilitsnapsintoplace.Printingautomaticallyresumes.

Page 83

Inthemanualfeeder

1)Ifthepaperisnotfeedingproperly,pullthepaperoutofthemachine.

2)Openandclosethemanualfeeder.

4.AlignmentandTroubleshooting

Page 84

4.AlignmentandTroubleshooting

Insidethemachine

1)Openthefrontcover.

2)RemovetheTonerCartridge.

3)Pullthejamguides,thenremoveajammedpaper .

Page 85

4)Closethejamguide.

5)Installthetonercartridge.

4.AlignmentandTroubleshooting

6)Closethefrontcoverandcheckprintingautomaticallyresumes.

Page 86

4.AlignmentandTroubleshooting

Inexitarea

1)Openandclosethefrontcover.Thejammedpaperisautomaticallyejectedfromthemachine.Ifyoudonotseethe jammedpaper,gotonextstep.

2)Gentlypullthepaperoutoftheoutputtray.

Ifyoudonotseethejammedpaperorifthereisanyresistancewhenyoupull,stopandgotothenextstep.

3)Opentherearcover.

4)OpentheFusercoverwithpushingtheeachsidelevers(GreenColor)

Page 87

5)RemovethejammedpaperintheExitUnit.

6)ClosetheFusercover.

4.AlignmentandTroubleshooting

7)ClosetheRearCoverandcheckprintingautomaticallyresumes.

Page 88

4.AlignmentandTroubleshooting

Intheduplexarea

1)RemovetheRearCover.

2)RemovethejammedpaperintheDuplexUnit.

3)ClosetheRearCoverandcheckprintingautomaticallyresumes.

Page 89

4.AlignmentandTroubleshooting

4.1.4.Usefulmenuitemforservice

a)Monitoringthesupplieslife

Ifyouexperiencefrequentpaperjamsorprintingproblems,checkthenumberofpagesthemachinehasprintedorscanned. Replacethecorrespondingparts,ifnecessary.

NOTE

ItmaybenecessarytopressOKtonavigatetolower-levelmenusforsomemodels.

1)SelectMenu>SystemSetup>MachineSetup>Maintenance>SuppliesLifeonthecontrolpanel.

2)SelecttheoptionyouwantandpressOK.

•SuppliesInfo:Printsthesupplyinformationpage.

•Total:Displaysthetotalnumberofpagesprinted.

•ADFScan:Displaysthenumberofpagesprintedbyusingthedocumentfeeder.P

•PlatenScan:Displaysthenumberofpagesscannedbyusingscannerglass.

3)Press“Stop/Clear”buttontoreturntoreadymode.

b)Checkingthermwareversion

Youcanchecktheproduct’srmwareversion.

•SelectMenu>SystemSetup>MachineSetup>Firmwareversiononthecontrolpanel.

c)Maintenancemenu

Thismenuallowsyoutomaintainyourmachine.

1)SelectMenu>SystemSetup>MachineSetup>Maintenanceonthecontrolpanel.

2)SelecttheoptionyouwantandpressOK.

•CleanDrum:CleanstheOPCdrumofthecartridgebyprintingasheet.

•CleanFuser:Cleansthefuserbyprintingasheet.

•CLREmptyMsg.:Thisoptionappearsonlywhentonercartridgeisempty.

•SuppliesInfo.:Allowsyoutocheckhowmanypagesareprintedandhowmuchtonerisleftinthecartridge.

•TonerLowAlert:Iftonerinthecartridgehasrunout,amessageinformingtheusertochangethetonercartridge appears.Y oucansettheoptionforthismessagetoappearornot.

•PaperStacking:Ifyouuseamachineinahumidarea,oryouareusingthedampprintmediacausedbyahigh humidity,theprintoutsontheoutputtraymaybecurledandmaynotbestackedproperly.Inthiscase,youcansetthe machinetousethisfunctiontoletprint-outsstackedrmly.But,usingthisfunctionwillmaketheprintspeedslow.

Page 90

4.AlignmentandTroubleshooting

1 High 3

2 High 2 3 High 1

4 Nor m al

4,000 m

(13,123 ft)

3,000 m

(9,842 ft)

2,000 m

(6,561 ft)

1,000 m

(3,280 ft)

d)Altitudeadjustment

Printqualityisaffectedbyatmosphericpressure,whichisdeterminedbytheheightofthemachineabovesealevel.The followinginformationwillguideyouonhowtosetyourmachineforthebestprintquality.

Beforeyousetthealtitudevalue,determinethealtitudewhereyouare.

YoucansetthealtitudevaluefromDeviceSettingsorMachinesectioninPrinterSettingsUtilityprogram.

•ForWindowsandMacintosh,opentheSamsungEasyPrinterManagerprogram.

ClickDeviceSettings>LinktoProgrambutton,youcancongurevariousmachinesettings.

•ForLinux,opentheSmartPanelprogram.

ClickPrinterSetting.ClickSetting>AltitudeAdjustment.Selecttheappropriatevaluefromthedrop-downlist,and thenclickApply.

YoucanalsosetthealtitudeinSystemSetupoptiononthemachine’sdisplay.

•Select“Menu>SystemSetup>MachineSetup>AltitudeAdj.onthecontrolpanel.

NOTE

Ifyourmachineisconnectedtothenetwork,youcansetthealtitudeviaSyncThru™WebService.

e)Printingareport

Thisproductprovidesseveralprintablereportsformaintenancepurposes.Thesereportscanbeusedtoaidthediagnosis ofprintqualityproblems.

1)PressMenu>SystemSetup>Reportonthecontrolpanel.

2)SelecttheoptionyouwantandpressOK.

•MenuMap:Printsthemenumapwhichshowsthelayoutandcurrentsettingsofthismachine.

•AllReports:Printsallkindsofreportsthatthismachineprovides.

•Conguration:Printsareportonthemachine'soverallconguration.

•SuppliesInfo.:Printssupplies’informationpage.

•AddressBook:Printsalloftheemailaddressescurrentlystoredinthemachine’smemory .

Page 91

4.AlignmentandTroubleshooting

4.1.5.Periodicdefectiveimage

Ifanimagedefectsappearsatregularintervalsontheprinted-paper,itisduetoafaultyordamagedroller.Refertothetable belowandchecktheconditionoftheappropriateroller.

RollerPeriod(mm)PhenomenonDefectivepart

1PressureRoller75.4mmBackground

2HeatRoller77.6mmBlackspotandimageghost

3ChargingRoller26.7mmBlackSpotandlineandperiodicband

4OPCDrum75.49mmWhiteandBlackSpots

5SupplyRoller63.22mmPeriodicBandbylittledifferenceofdensity

6DevelopingRoller36.75mmWhitespot,Horizontalblackband

7TransferRoller47.12mmGhost,DamagedimagebyabnormaltransferTransferroller

Fuser

TonerCartridge

Page 92

4.AlignmentandTroubleshooting

4.1.6.Usefulmanagementtools

4.1.6.1.UsingSamsungEasyPrinterManager(WindowsandMacintoshonly)

NOTE

•Thisfeaturemaynotbeavailabledependingonmodeloroptionalgoods.

•A vailableforWindowsorMacintoshOSusersonly .

•ForWindows,InternetExplorer6.0orhigheristheminimumrequirementforSamsungEasyPrinterManager.

SamsungEasyPrinterManagerisanapplicationthatcombinesSamsungmachinesettingsintoonelocation.Samsung EasyPrinterManagercombinesdevicesettingsaswellasprintingenvironments,settings/actionsandlaunching.Allof thesefeaturesprovideagatewaytoconvenientlyuseyourSamsungmachine.SamsungEasyPrinterManagerprovidestwo differentuserinterfacesfortheusertochoosefrom:thebasicuserinterfaceandtheadvanceduserinterface.Switching betweenthetwointerfacesiseasy:justclickabutton.

UnderstandingSamsungEasyPrinterManager

Toopentheprogram:

•ForWindows,SelectStart>ProgramsorAllPrograms>SamsungPrinters>SamsungEasyPrinterManager>

SamsungEasyPrinterManager.

•ForMacintosh,OpentheApplicationsfolder>Samsungfolder>SamsungEasyPrinterManager.

TheSamsungEasyPrinterManagerinterfaceiscomprisedofvariousbasicsectionsasdescribedinthetablethatfollows:

NOTE

Thescreenshotmaydifferdependingonoperatingsystemyouareusing.

Page 93

4.AlignmentandTroubleshooting

NoAreaDescription

1PrinterListTheprinterlistdisplaystheinstalledprintericonsonyourcomputer .

2PrinterInformationThisareagivesyougeneralinformationaboutyourmachine.Y oucancheck

information,suchasthemachine’ smodelname,IPaddress(orPortname), andmachinestatus.

NOTE

Troubleshootingbutton:ThisbuttonopensTroubleshootingGuidewhenan erroroccurs.Y oucandirectlyopenthenecessarysectionintheuser’sguide.

3ApplicationInformationIncludeslinksforchangingtotheadvancedsettings,preference,help,and

about.

4QuicklinksDisplaysQuicklinkstomachinespecicfunctions.Thissectionalsoincludes

linkstoapplicationsintheadvancedsettings.

5ContentsAreaDisplaysinformationabouttheselectedmachine,remainingtonerlevel,

andpaper.Theinformationwillvarybasedonthemachineselected.Some machinesdonothavethisfeature.

6OrderSuppliesClickontheOrderbuttonfromthesupplyorderingwindow .Youcanorder

replacementtonercartridge(s)fromonline.

Advancedsettingsuserinterfaceoverview

Theadvanceduserinterfaceisintendedtobeusedbythepersonresponsibleformanagingthenetworkandmachines.

•DeviceSettings

Youcancongurevariousmachinesettingssuchasmachinesetup,paper,layout,emulation,network,andprint information.

•ScantoPCSettings

ThismenuincludessettingstocreateordeletescantoPCproles.

-ScanActivation:Determineswhetherornotscanningisenabledonthedevice.

-Prole:Displaysthescanningprolessavedontheselecteddevice.

-Basictab:Containssettingsrelatedgeneralscananddevicesettings.

-Imagetab:Containssettingsrelatedtoimagealtering.

•FaxtoPCsettings

Thismenuincludessettingsrelatedtothebasicfaxfunctionalityoftheselecteddevice.

-Disable:IfDisableisOn,incomingfaxeswillnotbereceivedonthisdevice.

-EnableFaxReceivingfromDevice:Enablesfaxingonthedeviceandallowmoreoptionstobeset.

•AlertSettings

Thisismenuincludessettingsrelatedtoerroralerting.

-PrinterAlert:Providessettingsrelatedtowhenalertswillbereceived.

-EmailAlert:Providesoptionsrelatingtoreceivingalertsviaemail.

-HistoryAlert:Providesahistoryofdeviceandtonerrelatedalerts.

•JobAccounting

Providesqueryingofquotainformationofthespeciedjobaccountinguser.Thisquotainformationcanbecreatedand appliedtodevicesbyjobaccountingsoftwaresuchasSyncThru™orCounThru™adminsoftware.

Page 94

4.AlignmentandTroubleshooting

4.1.6.2.UsingSamsungPrinterStatus(Windowsonly)

TheSamsungPrinterStatusisaprogramthatmonitorsandinformsyouofthemachinestatus.

NOTE

•TheSamsungPrinterStatuswindowanditscontentsshowninthisuser’sguidemaydifferdependingonthemachine oroperatingsysteminuse.

•Checktheoperatingsystem(s)thatarecompatiblewithyourmachine.

SamsungPrinterStatusoverview

Ifanerroroccurswhileoperating,youcanchecktheerrorfromtheSamsungPrinterStatus.SamsungPrinterStatusis installedautomaticallywhenyouinstallthemachinesoftware.

YoucanalsolaunchSamsungPrinterStatusmanually .GotothePrintingPreferences,clicktheBasictab>Printer Statusbutton.

TheseiconsappearontheWindowstaskbar:

IconMeanDescription

NormalThemachineisinreadymodeandexperiencingnoerrorsorwarnings.

WarningThemachineisinastatewhereasofterrorhasoccurred.Forexample,atonerlowstatus,

whichmayleadtotoneremptystatus.

ErrorThemachinehasatleastoneharderror,suchasoutofpaper,fusererror,etc.Machine

doesnothaveabilitytocometoreadywithoutcustomerintervention.

1T onerLevelYoucanviewtheleveloftonerremainingineachtonercartridge.Themachine

andthenumberoftonercartridge(s)shownintheabovewindowmaydiffer dependingonthemachineinuse.Somemachinesdonothavethisfeature.

2AlertSettingsSelectthesettingsyouwantfromtheoptionswindow.

3OrderSuppliesY oucanorderreplacementtonercartridge(s)fromonline.

4TroubleshootingYoucandirectlyopenthetroubleshootingsectionintheuser’sguide.

5CloseClosethewindow .

Page 95

4.AlignmentandTroubleshooting

4.1.6.3.UsingSyncThruWebService(SWS)

SWSisanembeddedwebserverinthemachine.Thiswebserverinformsyouofmachineconguration,version,statusand allowsyoutocustomizethemachine’ssettings.Y oucancontactthisserverviawiredandwirelessnetworkusingyour webbrowserintheremoteplace.

Connectingpreparations

•WiredorWirelessNetworkconnectionisestablished.

•Browser(Ex>InternetExplorer)ProgramonyourPCnetworkconnected

SWSoverview

SyncThruW ebService(SWS)

•acceptsHTTPrequestviaport80asnormalwebservers.

•providesinterfacetousersinformationofnetworkedprintersandallowtocongurethesettingofprinters.

•isabletoprovidemorecomplicatedoptionsthanLocalUIforprinterconguration.

ConnectionProcedure

1)OpentheWeb-browserandinputIPaddressofmachine.Click“Login”.

2)Log-inAdminMode.(ID:admin,PW:sec00000)

3)Selectpagestocheckthecongurationandcustomizethesettings.

CAUTION

Please,changeSWSDefaultIDandPasswordforsystemsecurityincaseofyourrstconnection.

Page 96

4.AlignmentandTroubleshooting

NOTE

Ifthemachinesupports‘DirectPrint’,youcanenablethisfunctionusingtheSWSmenu.Thedefaultcongurationis ‘Disabled’foryoursecurity .

Firstly,youhavetologintoSWS.

1)Click‘DirectPrintConguration’inthepopupwindowswhenclicking‘DirectPrint’.

2)Inthe‘Services’Menu,check‘DirectPrint’.

Or,

1)Click‘SystemSecurity’inthe‘Security’menu.

2)Select‘FeatureManagement’intheleftframe.

3)Inthe‘Services’Menu,check‘DirectPrint’.

Page 97

4.AlignmentandTroubleshooting

4.1.7.UpdatingFirmware

Thischapterincludesinstructionsforupdatingtheprinterrmware.Y oucanupdatetheprinterrmwarebyusingone ofthefollowingmethods:

•UpdatethermwarebyusingtheUSBport.

•UpdatethermwarebyusingtheNetwork.

4.1.7.1.UpdatethermwarebyusingtheUSBport

Upgradingpreparations

•usblist2.exe:T oolwhichsendsrmwaredatatoprinter.

•Firmwareletoupdate.

UpgradeProcedure

1)Turnthemachineoff.

2)ConnectUSBcabletoprinter .

3)Turnthemachineon.Checkiftheprinteristhereadystatus.

4)DragtheSWUPGRADE_ON.prnleanddropdownontheusblist2.exe.

5)Dragthermwareleanddropdownontheusblist2.exe.

Andthenrmwareupdatewillbestartedautomatically.

6)Whenupgradingiscompleted,machineisautomaticallyre-booting.

4.1.7.2.Updatethermwarebyusingthenetwork

Upgradingpreparations

•WiredorWirelessNetworkconnectionisestablished.

•Firmwareletoupdate

Page 98

4.AlignmentandTroubleshooting

UpgradeProcedure

1)OpentheWeb-browserandinputIPaddressofmachine.Click“Login”.

2)Log-inAdminMode.(ID:admin,PW:sec00000)

3)SelectMaintenancemenuandclick“upgradewizard”

Page 99

4)Selectrmwareleusing“browser”buttonandpressnextbutton.

5)SyncThruwillcheckverifyrmwareleandcompareversionandpressnextbutton.

4.AlignmentandTroubleshooting

6)Machinestartsupgrading.SyncThruwillreturnhomepageafterupgradingiscompleted.

Page 100

4.AlignmentandTroubleshooting

4.1.8.TechMode

Inservice(tech)mode,thetechniciancancheckthemachineandperformvarioustesttoisolatethecauseofamalfunction. WhileinTechmode,themachinestillperformsallnormaloperations.

a)EnteringtheT echMode

Press“Menu>#>1>9>3>4>Menu”onthecontrolpanel.

b)Techmodemenu

Depth1Depth2Depth3Depth4

DataSetup

SendLevel[9-15]12

DTMFLevelHigh[0-15]Low[0-15]

PauseTime[1-9]

DialModeTone,PulseTone

ModemSpeed33.6,28.8,14.4,12.0,9.6,4.833.6

ErrorRate5%,10%10%

ClearAllMem.

TonerLowLevel[1:30]:10

ClearCountEnterPassword[????]

Off* EngineFooter

PlatenScan

ADFScan

TransferRoller

Fuser

PickupRoller

RetardRoller

ForwardRoller

FeedRoller

On DialTone

Off

CallerID

MachineTest

SwitchTest

TestParamSet

ModemTest

DramTest

RomTest

ShadingTest

ScanAging

Off
