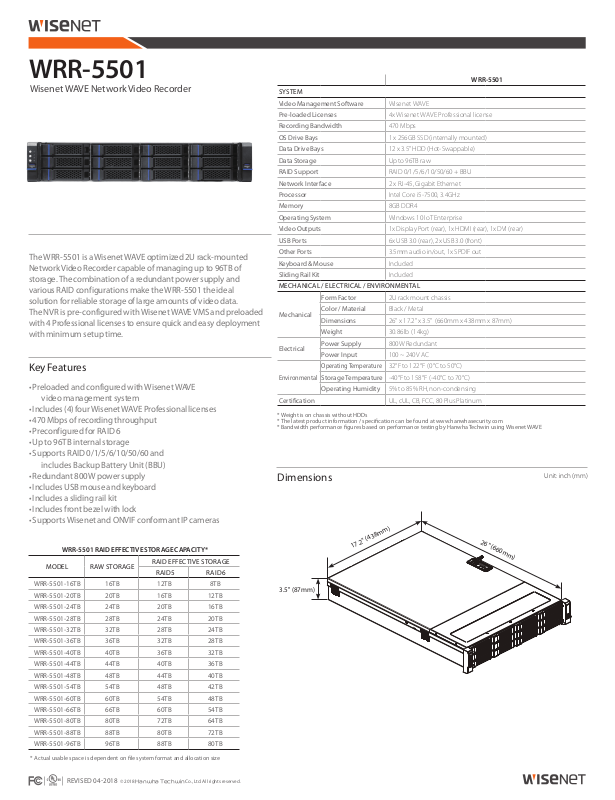

Samsung WRR-5501 Specsheet
WRR-5501
Wisenet WAVE Network Video Recorder
The WRR-5501 is a Wisenet WAVE optimized 2U rack-mounted Network Video Recorder capable of managing up to 96TB of storage.The combination of a redundant power supply and various RAID configurations make the WRR-5501 the ideal solution for reliable storage of large amounts of video data.
The NVR is pre-configured with Wisenet WAVE VMS and preloaded with 4 Professional licenses to ensure quick and easy deployment with minimum setup time.
Key Features
•Preloaded and configured with Wisenet WAVE video management system
•Includes (4) four Wisenet WAVE Professional licenses
•470 Mbps of recording throughput
•Preconfigured for RAID 6
•Up to 96TB internal storage
•Supports RAID 0/1/5/6/10/50/60 and
includes Backup Battery Unit (BBU)
•Redundant 800W power supply
•Includes USB mouse and keyboard
•Includes a sliding rail kit
•Includes front bezel with lock
•Supports Wisenet and ONVIF conformant IP cameras
WRR-5501 RAID EFFECTIVE STORAGE CAPACITY*
MODEL |
RAW STORAGE |
RAID EFFECTIVE STORAGE |
||
RAID5 |
RAID6 |
|||
|
|
|||
WRR-5501-16TB |
16TB |
12TB |
8TB |
|
WRR-5501-20TB |
20TB |
16TB |
12TB |
|
WRR-5501-24TB |
24TB |
20TB |
16TB |
|
WRR-5501-28TB |
28TB |
24TB |
20TB |
|
|
|
|
|
|
WRR-5501-32TB |
32TB |
28TB |
24TB |
|
|
|
|
|
|
WRR-5501-36TB |
36TB |
32TB |
28TB |
|
|
|
|
|
|
WRR-5501-40TB |
40TB |
36TB |
32TB |
|
|
|
|
|
|
WRR-5501-44TB |
44TB |
40TB |
36TB |
|
|
|
|
|
|
WRR-5501-48TB |
48TB |
44TB |
40TB |
|
WRR-5501-54TB |
54TB |
48TB |
42TB |
|
WRR-5501-60TB |
60TB |
54TB |
48TB |
|
WRR-5501-66TB |
66TB |
60TB |
54TB |
|
|
|
|
|
|
WRR-5501-80TB |
80TB |
72TB |
64TB |
|
|
|
|
|
|
WRR-5501-88TB |
88TB |
80TB |
72TB |
|
|
|
|
|
|
WRR-5501-96TB |
96TB |
88TB |
80TB |
|
|
|
|
|
|
* Actual usable space is dependent on file system format and allocation size
|
|
WRR-5501 |
|
SYSTEM |
|
|
|
Video Management Software |
Wisenet WAVE |
||
Pre-loaded Licenses |
4x Wisenet WAVE Professional license |
||
Recording Bandwidth |
470 Mbps |
||
OS Drive Bays |
|
1 x 256GB SSD (internally mounted) |
|
|
|
|
|
Data Drive Bays |
12 x 3.5" HDD (Hot-Swappable) |
||
|
|
|
|
Data Storage |
|
Up to 96TB raw |
|
|
|
|
|
RAID Support |
|
RAID 0/1/5/6/10/50/60 + BBU |
|
|
|
|
|
Network Interface |
2 x RJ-45, Gigabit Ethernet |
||
|
|
|
|
Processor |
|
Intel Core i5-7500, 3.4GHz |
|
Memory |
|
8GB DDR4 |
|
Operating System |
Windows 10 IoT Enterprise |
||
Video Outputs |
|
1x Display Port (rear), 1x HDMI (rear), 1x DVI (rear) |
|
USB Ports |
|
6x USB 3.0 (rear), 2x USB 3.0 (front) |
|
|
|
|
|
Other Ports |
|
3.5mm audio in/out, 1x SPDIF out |
|
|
|
|
|
Keyboard & Mouse |
Included |
||
|
|
|
|
Sliding Rail Kit |
|
Included |
|
MECHANICAL / ELECTRICAL / ENVIRONMENTAL |
|||
|
|
|
|
|
Form Factor |
2U rack mount chassis |
|
Mechanical |
Color / Material |
Black / Metal |
|
Dimensions |
26" x 17.2" x 3.5" (660mm x 438mm x 87mm) |
||
|
|||
|
Weight |
30.86lb (14kg) |
|
|
|
|
|
Electrical |
Power Supply |
800W Redundant |
|
|
|
||
Power Input |
100 ~ 240V AC |
||
|
|||
|
|
|
|
|
Operating Temperature |
32°F to 122°F (0°C to 50°C) |
|
Environmental |
|
|
|
Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
||
|
|
|
|
|
Operating Humidity |
5% to 85% RH, non-condensing |
|
Certification |
|
UL, cUL, CB, FCC, 80 Plus Platinum |
|
*Weight is on chassis without HDDs
*The latest product information / specification can be found at www.hanwhasecurity.com
*Bandwidth performance figures based on performance testing by Hanwha Techwin using Wisenet WAVE
Dimensions |
Unit: inch (mm) |
(438mm) |
26" |
|
17 |
|
|
.2" |
|
(660mm) |
|
|
3.5" (87mm)
REVISED 04-2018 © 2018 Hanwha Techwin Co., Ltd. All rights reserved.
