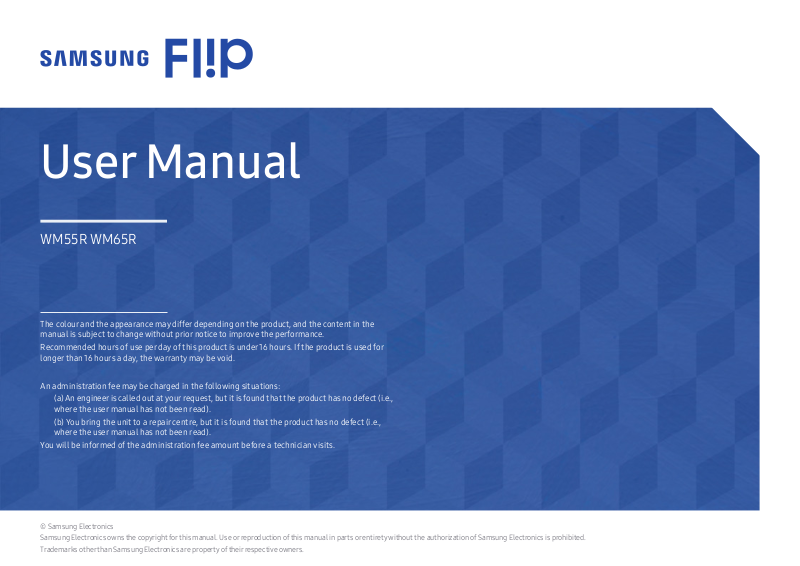

Page 1
User Manual
WM55R WM65R
The colour and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
Recommended hours of use per day of this product is under 16 hours. If the product is used for
longer than 16 hours a day, the warranty may be void.
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Trademarks other than Samsung Electronics are property of their respective owners.
Page 2
Table of contents
Before Using the Product
Safety Precautions 4
Storage 4
Electricity and safety 4
Installation 5
Operation 6
Precautions for Use 8
Preparations
Checking the Components 9
Parts 10
Ports 11
Tray (optional purchase) 12
Before Installing the Product (Installation
Guide) 13
WM55R 13
WM65R
14
Writing
What's a 'Roll'? 21
PEN MODE 22
Screen Elements 22
Drawing 23
Erasing 23
Changing the pen thickness and colour 23
BRUSH MODE 24
Screen Elements 24
Changing the brush mode and colour 25
Managing Rolls 26
ROLL EXPLORER 27
Page Viewer 28
Note On/Off 29
Using the Selection Tools 30
IMPORT
Connecting to a Mobile Device 32
Connecting using Smart View or Screen
Mirroring
Connecting using NFC tagging 32
Connecting to a PC 33
Connecting using a cable 33
Connecting via the WiFi Display function 33
Importing from a USB Device 34
Connecting to Internet 34
Connecting to SAMSUNG WORKSPACE 34
Source Window 35
Document view 36
Image view 37
Video view 38
32
Installing the Wall Mount 15
Installing the Wall Mount 15
Wall Mount Kit Specifications (VESA) 15
Connecting to a network 16
Network Settings (Wired) 16
Network Settings (Wireless) 18
Use WPS 20
2
Page 3
Table of contents
EXPORT
Sending Email 40
Printing 41
Installing Flip Printing Software 41
Setting up the printer 41
Exporting to a USB Device 43
Sharing your screen 44
Exporting from a Network Drive 45
Sending to a mobile device 45
Menu
Connect 46
System 54
Picture 58
Support 60
Troubleshooting Guide
Problems and Solutions 61
Specifications
General 66
Preset Timing Modes 68
Appendix
Responsibility for the Pay Service (Cost to
Customers) 69
Not a product defect 69
A Product damage caused by customer's
fault 69
Others 69
Prevention of Afterimage Burn-in 70
What is afterimage burn-in? 70
Recommended prevention practices 70
Licence 70
3
Page 4
Chapter 01
Before Using the Product
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
Storage
Due to the characteristics of high-glossy products, using a UV humidifier nearby may create
white-colored stains on the product.
"
Contact Customer Service Centre if the inside of the product needs cleaning (service fee
will be charged).
Electricity and safety
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not use multiple products with a single power socket.
Overheated power sockets may cause a fire.
Do not touch the power plug with wet hands. Otherwise, an electric shock may result.
Do not bend or pull the power cord with force. Be careful not to leave the power cord
under a heavy object.
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
A fire or electric shock may result.
4
Page 5
Caution
Insert the power plug all the way in so it is not loose.
An unsecure connection may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated devices only).
An electric shock or injury may result.
Clean any dust around the pins of the power plug or the power socket with a dry cloth.
A fire may result.
Do not disconnect the power cord while the product is being used.
The product may become damaged by an electric shock.
Only use the power cord provided with your product by Samsung. Do not use the power
cord with other products.
A fire or electric shock may result.
Keep the power socket where the power cord is connected unobstructed.
The power cord must be disconnected to cut off power to the product when an issue
occurs.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
Installation
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE
PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
A fire may result.
Do not install the product in poorly ventilated spaces such as a bookcase or closet.
An increased internal temperature may cause a fire.
Do not install the product on an unstable or vibrating surface (insecure shelf, sloped
surface, etc.)
• The product may fall and become damaged and/or cause an injury.
• Using the product in an area with excess vibration may damage the product or
cause a fire.
Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
The product lifespan may be reduced or a fire may result.
Do not install the product within the reach of young children.
• The product may fall and injure children.
• As the front is heavy, install the product on a flat and stable surface.
Edible oil, such as soybean oil, can damage or deform the product. Do not install the
product in a kitchen or near a kitchen counter.
Have a technician install the wall-mount hanger.
• Installation by an unqualified person can result in an injury.
• Only use approved cabinets.
Install the product at least 10 cm away from the wall to allow ventilation.
An increased internal temperature may cause a fire.
5
Page 6
Caution
Keep the plastic packaging out of the reach of children.
Children may suffocate.
Do not install the product in a vehicle or a place exposed to dust, moisture (water drips,
etc.), oil, or smoke.
A fire or electric shock may result.
Do not set down the product on its front.
The screen may become damaged.
Do not drop the product while moving.
Product failure or personal injury may result.
Set down the product gently.
Product failure or personal injury may result.
Installing the product in an unusual place (a place exposed to a lot of ne dust, chemical
substances, extreme temperatures or a signicant presence of moisture, or a place
where the product will operate continuously for an extended period of time) may
seriously affect its performance.
Be sure to consult Samsung Customer Service Centre if you want to install the
product at such a place.
Operation
Warning
There is a high voltage inside the product. Never disassemble, repair or modify the
product yourself.
• A fire or electric shock may result.
• Contact Samsung Customer Service Centre for repairs.
Do not let children hang from the product or climb on top of it.
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power switch and
disconnect the power cord. Then contact Samsung Customer Service Centre.
Continued use can result in a fire or electric shock.
Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the
product.
The product or heavy objects may fall as children try to reach for the toys or sweets
resulting in a serious injury.
Do not move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable.
Do not lift or move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged cable.
Ensure the vents are not blocked by tablecloths or curtains.
An increased internal temperature may cause a fire.
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily
(paper, matches, etc) into the product (via the vent or input/output ports, etc).
• Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Centre.
• Product failure, an electric shock or fire may result.
6
Page 7
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on
top of the product.
• Be sure to power off the product and disconnect the power cord when water
or other foreign substances have entered the product. Then contact Samsung
Customer Service Centre.
• Product failure, an electric shock or fire may result.
Before moving the product, turn off the power switch and disconnect the power cable
and all other connected cables.
Damage to the cord may result in a fire or electric shock.
If the product generates abnormal sounds, a burning smell or smoke, disconnect the
power cord immediately and contact Samsung Customer Service Centre.
An electric shock or fire may result.
During a lightning or thunderstorm, power off the product and remove the power cable.
A fire or electric shock may result.
Do not drop objects on the product or apply impact.
A fire or electric shock may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
Sparks can cause an explosion or fire.
Do not use or keep combustible spray or an inammable substance near the product.
An explosion or fire may result.
Caution
Do not use humidiers or stoves around the product.
A fire or electric shock may result.
Do not touch the screen when the product has been turned on for an extended period of
time as it will become hot.
Do not place heavy objects on the product.
Product failure or personal injury may result.
Leaving the screen xed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
Activate power-saving mode or a moving-picture screen saver if you will not be using
the product for an extended period of time.
Disconnect the power cord from the power socket if you do not plan on using the product
for an extended period of time (vacation, etc).
Dust accumulation combined with heat can cause a fire, electric shock or electric
leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
Looking at the screen too close for an extended period of time can deteriorate your
eyesight.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Store small accessories out of the reach of children.
7
Page 8
Precautions for Use
Be careful that if you use the supplied pen with a load exceeding 2.5 kg, scratches may occur on the
protective glass.
If you use a ballpoint pen other than the supplied pen, be careful that the screen may be stained
with ink or damaged.
Do not use a dirty brush to avoid screen damage.
"
We recommend that you use the supplied pen. Do not use sharp, pointed objects other than
the pen.
"
If dust or dirt from the supplied pen remains on the protective glass, clean it referring to
the instructions below.
Cleaning the exterior and display
Wipe the surface with a slightly wet, soft cloth, and then wipe with a dry cloth.
1 32
8
Page 9
Chapter 02
Preparations
Contact the vendor where you
"
purchased the product if any
components are missing.
The appearance of the components
"
may differ from the images shown.
Refer to the installation guide for the
"
WMR stand or wall amount (available
for optional purchase).
Checking the Components
Quick Setup Guide
Warranty card
(Not available in some locations)
Regulatory guide Power cord
USB cable Touch Pen x 2
Cover Terminal, Screw (M4 x
L10) x 2
Cover Cable, Screw (M4 x L10)
9
Page 10
Parts
"
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Parts Description
Power indicator
Power button
Power button
• Press and hold the button to turn off the product.
• In writing mode, shortly press the Power button to switch to the screen saver mode.
• The pen is magnetic. Keep it by attaching to the marked location.
"
: WM55R, : WM65R
Speaker
10
Page 11
Ports
"
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Ports Description
USB
(1.0A)
LAN
SERVICE
HDMI IN 2
HDMI IN 1
TOUCH
OUT
AUDIO
OUT
USB (1.0A)
LAN
SERVICE
HDMI IN 2
HDMI IN 1
TOUCH OUT
AUDIO OUT
Connect to a USB memory device.
"
The USB ports on the product accept a maximum constant current of 1.0A. If the
maximum value is exceeded, USB ports may not work.
Connects to a network using a LAN cable. (10/100 Mbps)
"
Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair.
Dedicated to service technicians.
"
This port is for servicing only and has no user function. Do not connect a cable to
this port.
Connects to a source device using a HDMI cable.
Allows touch-based control of the PC screen connected through the HDMI IN 1 or HDMI
IN 2 port. Use a USB cable to connect between the TOUCH OUT port on the rear of the
product and the PC.
Outputs sound to an audio device via an audio cable.
11
Page 12
Tray (optional purchase)
"
Trays are sold separately. Contact your vendor for assistance to make a purchase.
"
The colour and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Ports Description
USB
USB IN
USB OUT
TOUCH OUT
HDMI IN 3
SCREEN SHARE
Connect to a USB memory device.
Provides USB connectivity to PC.
Use an USB cable between the USB OUT port on the product and a USB port on a PC
1
to connect them.
Insert an USB storage device to the USB IN port.
2
You can check the USB device connected to the tray from the PC.
3
Allows touch-based control of the PC screen connected through the HDMI IN 3 port.
Use a USB cable to connect between the TOUCH OUT port on the tray and the PC.
An HDMI port for displaying input from an external source.
An HDMI port for connecting to an external display.
• Tag your mobile device to the NFC pad for connection.
"
In writing mode, an NFC tagging can automatically perform Smart View or
Screen Mirroring on your mobile device.
"
This function is supported only on Android 8.0 Oreo version or later of Samsung
mobile devices.
• Tag an NFC card to the NFC pad to enter an email address automatically.
"
While creating an email, an email address is automatically entered if it is read
from the encoded NFC tag.
"
For how to enter an email address in the NFC card, refer to 'Sending Email'.
12
Page 13
Before Installing the Product (Installation Guide)
This product can be wall-mounted. The exclusive Samsung stand (for WM55R) and wall mount
(for WM65R) are available for optional purchase.
"
Do not install or use the product with its front facing up. Touch-based functions may not
work properly.
WM55R
Rotation
"
Contact Samsung Customer Service Centre for further details.
• To use the product in landscape mode, turn it anticlockwise and make sure the power
indicator is on the right after turning.
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A Minimum 15 mm
B Ambient temperature: 35 ℃ or less
"
When installing the product on a perpendicular wall, allow at least 15
mm of space between the product and wall surface for ventilation and
ensure that the ambient temperature is kept below 35 °C.
Installation on an Indented Wall
A Minimum 15 mm
B Minimum 25 mm
C Ambient temperature: 35 ℃ or less
"
When installing the product on an indented wall, allow at least the
space specified above between the product and wall for ventilation and
ensure that the ambient temperature is kept below 35 °C.
A
B
B
A
B
C
13
Page 14
WM65R
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A Minimum 0 mm
B Ambient temperature: 35 ℃ or less
Installation on an Indented Wall
A
B
A Minimum 0 mm
B Minimum 25 mm
C Ambient temperature: 35 ℃ or less
"
When installing the product on an indented wall, allow at least the
space specified above between the product and wall for ventilation and
ensure that the ambient temperature is kept below 35 °C.
B
A
B
C
14
Page 15
Installing the Wall Mount
Installing the Wall Mount
• The wall mount kit allows you to mount the product on the wall.
• For detailed information on installing the wall mount, see the instructions provided with the wall mount.
• We recommend you contact a technician for assistance when installing the wall mount bracket.
• Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to install the wall mount on your own.
Wall Mount Kit Specications (VESA)
"
Install your wall mount on a solid wall perpendicular to the floor.
To install the product on the other wall area, contact the nearest
agency.
If you install the product on a slanted wall, it may fall and result in
severe personal injury.
• Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are
provided.
• Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may
differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to
personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is
used or the consumer fails to follow the product installation instructions.
• Always have at least two people mount the product on a wall.
• Standard dimensions for wall mount kits are shown in the table below.
Model Name
WM55R
WM65R
"
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric
shock.
VESA screw hole specs (A * B) in
millimeters
400 × 400 M8 4
Standard Screw Quantity
15
Page 16
Connecting to a network
Network Settings (Wired)
Connecting to a Wired Network
There are three ways to attach your product to your LAN using cable.
• You can attach your product to your LAN by connecting the LAN port on the back of your
product to an external modem using a LAN cable. See the diagram below.
The Modem Port on the Wall
Modem Cable LAN Cable
External Modem
(ADSL / VDSL)
• You can attach your product to your LAN by connecting the LAN port on the back of your
product to an IP Sharer which is connected to an external modem. Use LAN cable for the
connection. See the diagram below.
The Modem Port on the Wall
External Modem
(ADSL / VDSL)
IP Sharer
(having DHCP server)
LAN
RJ45
LAN
RJ45
• Depending on how your network is configured, you may be able to attach your product to
your LAN by connecting the LAN port on the back of your product directly to a network wall
outlet using a LAN cable.
See the diagram below. Note that the wall outlet is attached to a modem or router
elsewhere in your house.
The Modem Port on the Wall
LAN Cable
LAN
RJ45
If you have a Dynamic Network, you should use an ADSL modem or router that supports
the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS values your product
needs to access the Internet so you do not have to enter them manually. Most home networks
are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you
must enter the IP address, subnet mask, gateway, and DNS values manually on your product
Cable Setup Screen when you set up the network connection. To get the IP address, subnet
mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
"
You can use ADSL modems that support DHCP if your network requires a Static IP address.
"
ADSL modems that support DHCP also let you use Static IP addresses.
Modem Cable LAN Cable LAN Cable
16
Page 17
Set the network connection to use Internet services such as perform software upgrades.
Automatic Open Network Settings (Wired)
Connect to the network using a LAN cable.
Make sure a LAN cable is connected first.
How to set up automatically
Set Network Type to Wired from the Open Network Settings page.
1
The network test screen appears and verifies the network connection.
2
When the connection has been verified, the “Success! Your device is connected to the
Internet. If you have any problems using online services, please contact your Internet
service provider.” message appears.
"
If the connection process fails, check the LAN port connection.
"
If the automatic process cannot find the network connection values or if you want to set the
connection manually, go to the next section(Manual Open Network Settings (Wired)).
Manual Open Network Settings (Wired)
Offices may use static IP addresses.
If this is the case, ask the network administrator for the IP address, subnet mask, gateway and
DNS server address. Enter these values manually.
How to set up manually
Set Network Type to Wired from the Open Network Settings page.
1
The network test screen appears and the verification process starts. Press Cancel. The
2
verification process stops.
Select IP Settings on network connection screen. The IP Settings screen appears.
3
Select the field at the top and then set IP setting to Enter manually Repeat the entry
4
process for each field in the IP Address.
"
Setting IP setting to Enter manually automatically changes DNS setting to Enter
manually.
When done, select OK at the bottom of the page. The network test screen appears and the
5
verification process starts.
When the connection has been verified, the “Success! Your device is connected to the
6
Internet. If you have any problems using online services, please contact your Internet
service provider.” message appears.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these steps.
Right click the Network icon on the bottom right of the screen.
1
In the pop-up menu that appears, click Status.
2
On the dialog that appears, click the Support tab.
3
On the Support Tab, click the Details button. The Network connection values are displayed.
4
17
Page 18
Network Settings (Wireless)
Connecting to a Wireless Network
Wireless IP sharer
(router having DHCP server)
The LAN Port on the Wall
LAN Cable
Samsung recommends using IEEE 802.11n. When you play video over a network connection, the
video may not play smoothly.
"
Select a channel for the wireless IP sharer that is not currently being used. If the channel set
for the wireless IP sharer is currently being used by another device nearby, this will result in
interference and communication failure.
"
Your product supports only the following wireless network security protocols.
If you select the Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is
set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung products
will not support a connection in compliance with new Wi-Fi certification specifications.
"
If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the
network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS
will automatically configure the SSID and WPA key in either mode.
"
Connection Methods: You can setup the wireless network connection in three ways.
Auto Setup (Using the Auto Network Search function), Manual Setup, Use WPS
"
This product supports Enterprise WPA2 (TLS/TTLS/PEAP).
Automatic Network Setup (Wireless)
Most wireless networks have an optional security system that requires devices that access the
network to transmit an encrypted security code called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for your wireless network. If you use
this method of setting up the network connection, and have a Security Key for your wireless
network, you will have to enter the Pass Phrase during the the automatic or manual setup
process.
How to set up automatically
Set Network Type to Wireless from the Open Network Settings page.
1
The Network function searches for available wireless networks. When done, it displays a list
2
of the available networks.
In the list of networks, select a network.
3
"
If the desired wireless router does not appear, select Refresh to search again.
"
If the router cannot be found after retrying, select the Add Network.
If the Enter the password for (AP Name). screen appears, go to step 5. If you select a
4
wireless router that does not have security, go to step 7.
If the router has security, enter the Enter the password for (AP Name). (Security key or PIN).
5
When done, select Done. The network connection screen appears and the verification
6
process starts.
"
A connection with the router is established, but the Internet cannot be accessed. In this
case, contact your Internet service provider.
When the connection has been verified, the “Success! Your device is connected to the
7
Internet. If you have any problems using online services, please contact your Internet
service provider.” message appears.
18
Page 19
Manual Network Setup (Wireless)
Offices may use static IP addresses.
If this is the case, ask the network administrator for the IP address, subnet mask, gateway and
DNS server address. Enter these values manually.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these steps.
Right click the Network icon on the bottom right of the screen.
1
In the pop-up menu that appears, click Status.
2
On the dialog that appears, click the Support tab.
3
On the Support Tab, click the Details button. The Network connection values are displayed.
4
How to set up manually
Set Network Type to Wireless from the Open Network Settings page.
1
The Network function searches for available wireless networks. When done, it displays a list
2
of the available networks.
In the list of networks, select a network.
3
"
If the desired wireless router does not appear, select Refresh to search again.
"
If the router cannot be found after retrying, select the Stop button.
The Add Network button appears.
If the Enter the password for (AP Name). screen appears, go to step 5. If you select a
4
wireless router that does not have security, go to step 7.
If the router has security, enter the Enter the password for (AP Name). (Security key or PIN).
5
When done, select Done. The network connection screen appears and the verification
6
process starts.
Select Cancel while network connections are being attempted. This will stop the
7
connection.
Select IP Settings on network connection screen. The IP Settings screen appears.
8
Select the field at the top and then set IP setting to Enter manually. Repeat the entry
9
process for each field in the IP Address.
"
Setting IP setting to Enter manually automatically changes DNS setting to Enter
manually.
When done, select OK at the bottom of the page. The network test screen appears and the
10
verification process starts.
When the connection has been verified, the “Success! Your device is connected to the
11
Internet. If you have any problems using online services, please contact your Internet
service provider.” message appears.
19
Page 20
Use WPS
How to set up using Use WPS
If your router has a Use WPS button, follow these steps.
Set Network Type to Wireless from the Open Network Settings page.
1
Select Use WPS.
2
Press the WPS or PBC button on your wireless router within the next two minutes. Your
3
product automatically acquires all the network setting values it needs and connects to your
network.
The network connection screen appears, and network setup is done.
4
20
Page 21
Chapter 03
Writing
What's a 'Roll'?
• Files are called 'rolls' in this product. A 'roll' is a file with multiple pages linked together.
• A roll can have up to 20 pages linked together.
BRUSH MODE supports one page only.
"
• Pages are linked horizontally in landscape orientation, and vertically in portrait orientation.
You can open only one roll on one screen. For more information, refer to 'Managing Rolls'.
"
Portrait orientation
Page 1
Landscape orientation
Page 1
Page 2
Page 2
21
Page 22
PEN MODE
Buttons Description
Screen Elements
IMPORT
EXPORT
IMPORT
EXPORT
Page breaking line
View the screen of a mobile device or PC connected to the product, or import data
such as images from a connected USB or network drive.
Share your creations in various ways.
Manage and change the rolls and settings.
Move or edit the created rolls for each page.
Create a layer to write or draw on over the screen which can also be saved the
captured image.
Select and edit / capture / email / print the pen or brush content.
Undo or redo the last action.
• If any page editing actions such as page adding, deleting, and moving are
found,
"
Close the current roll and create a new roll.
See page lines.
is reset.
can be performed up to 20 times for each individual.
Bezel Scroll
Scroll through pages.
Scroll the black area to move the pages.
22
Page 23
Drawing
Changing the pen thickness and colour
You can freely use the supplied pen to write anything you
want.
• Thin Tip ( ): Pen Type
• Thick Tip ( ): Highlighter Type
Erasing
You can use your finger or palm to erase your writing.
You can change the pen colour by touching and holding the screen with the pen.
23
Page 24
BRUSH MODE
Buttons Description
Screen Elements
IMPORT
EXPORT
IMPORT
EXPORT
Changes in the thickness depending on the area touching the screen apply immediately. (max. 3.5 cm)
"
Brush use is recommended.
"
BRUSH MODE supports single touch only.
"
View the screen of a mobile device or PC connected to the product, or import data such as
images from a connected USB or network drive.
Share your creations in various ways.
Manage and change the rolls and settings.
Select and edit / capture / email / print the pen or brush content.
Undo or redo the last action.
• If any page editing actions such as page adding, deleting, and moving are found,
is reset.
"
Close the current roll and create a new roll.
can be performed up to 5 times for each individual.
24
Page 25
Changing the brush mode and colour
Go to ¬ → BRUSH MODE to select between WATER and OIL modes.
1
BRUSH MODE
Choose the painting style
WATER OIL
Touch on the screen.
2
Change or edit colour. Select from / / depending on the task to perform.
3
The screen below is provided when OIL mode is selected.
"
OIL
• : Dry colours to stop blending.
• : Extract the colour from the selected point.
• : Delete the selected area.
25
Page 26
Managing Rolls
Buttons Description
NEW Create a new roll.
SAVE Save the current roll.
ROLL BROWSER Open, delete or export saved rolls.
NEW
SAVE
ROLL BROWSER
BRUSH MODE
FORMS
ROLL LOCK
VOLUME
SETTINGS
HOW TO USE
PEN MODE / BRUSH
Choose a mode.
MODE
FORMS Change the background format.
This menu is only visible in PEN MODE mode.
"
ROLL LOCK /
UNLOCK
• ROLL LOCK: Press a six-digit password to lock the current roll.
• UNLOCK: To unlock a locked roll, press the six-digit password you set when locking the
roll.
Once unlocked, the current roll remains unlocked until it is locked again.
"
VOLUME Adjust the volume.
SETTINGS You can see the configuration menu.
HOW TO USE You can view How To Use.
26
Page 27
ROLL EXPLORER
LOCKED LOCKED LOCKED LOCKED LOCKED LOCKED LOCKED
LOCKED LOCKED LOCKED LOCKED LOCKED LOCKED LOCKED
Deleting / Exporting rolls
→ ROLL BROWSER
Open, browse and manage rolls via the Rolls explorer.
ROLL BROWSER
All Select
Parts Description
All
By name ↔ By date
Select
You can view the list by the mode you want.
• All / Pen Mode / Brush Mode
Set the sort order of files.
Select multiple rolls to export or delete.
By name
By date
→ ROLL BROWSER → Select
You can select multiple rolls to export or delete.
Select
Parts Description
Export
Delete
Cancel
Share the selected rolls any way you like.
• Email( ) / USB( ) / Network Drive( )
Delete the selected rolls.
Deselect the roll.
Export Cancel
Delete
File name
Rolls
To open a locked roll (
"
The rolls are sorted by recent date.
"
Rename the file.
Browse and open a desired roll.
), press the six-digit password.
27
Page 28
Page Viewer
This menu is only visible in PEN MODE mode.
"
Parts Description
You can move or edit the created rolls for each page.
EXPORTIMPORT
04 0501 0302
Page viewer area
Page number
Focus
Displays the page number.
Displays the page you are currently viewing.
• When you tap a page, the focus is moved to it.
Delete the focused page.
Add a new page to the focused position.
You can create up to 20 pages per roll.
"
28
Page 29
Note On/Off
Add a layer over the screen to write or draw on. This can be useful for adding
note to content from an external source.
This menu is only visible in PEN MODE mode.
"
Tap to add a new note layer over the screen.
1
Take note on the layer.
2
Tap and close.
3
• Save / Don't Save / Cancel
29
Page 30
Using the Selection Tools
Rotation
Resize
Move
Select and edit / capture / email / print the pen or brush content. Use to
move, rotate, or resize the selection.
Resize
Capture / email / print
Tap in the screen bottom. A select box appears on the screen.
1
Drag the
"
Select the area and choose from / / options.
2
The product must be connected to a network to use the email or print option.
"
of the select box to adjust the size.
EDIT
Editing pen and brush content
The changes apply to pen and brush content only.
"
Tap in the screen bottom. A select box appears on the screen.
1
Drag the
"
Tap to enable editing for the selected area.
2
Move, rotate or resize the selected area and tap .
3
of the select box to adjust the size.
"
to abort the changes.
Tap
30
Page 31
Chapter 04
IMPORT
You can view the screen of a mobile device or PC connected to the product, or import data such
as images from a connected USB or network drive.
• Touch IMPORT at the top of the screen to select the desired device.
IMPORT
MOBILE PC USB SAMSUNG WORKSPACEINTERNET
EXPORTIMPORT
Icons Description
Displays the screen from a mobile device by using Smart View or Screen
Mirroring function.
Displays your PC screen imported using HDMI connection or WiFi display.
Import videos, images, native FLIP files, or document files from a USB device.
Connect the network to access the Internet from the product like accessing
the Internet from a computer.
Access to remote PC and your work resources with this function.
"
The native FLIP format (.iwb) refers to files that are directly saved from the device and only
supported by FLIP devices.
"
Supported video file formats: avi, mkv, asf, wmv, .mp4, mov, 3gp, vro, mpg, mpeg, ts, tp, trp,
flv, vob, svi, m2ts, mts, .webm, .rmvb
"
Supportable image file formats: JPG, BMP, PNG, MPO
"
Supported document file formats: DOC, PPT, PDF, XLS, XLSX
31
Page 32
Connecting to a Mobile Device
IMPORT → MOBILE
Connecting using Smart View or Screen Mirroring
Smart View
Drag down the top bar on the mobile device screen to start Smart View or Screen Mirroring.
1
Select this product from the list of devices displayed on the screen.
2
– The initial device name is [FLIP] Samsung WMR Series.
"
You can control the mobile device from the product screen.
"
HDCP (High-bandwidth Digital Content Protection) contents will not show on the screen if
PIP Capture is set to On.
Connecting using NFC tagging
"
This feature is only available when the product is equipped with a tray (optional purchase).
"
This function is supported only on Android 8.0 Oreo version or later of Samsung mobile
devices.
"
In writing mode, an NFC tagging can automatically perform Smart View or Screen Mirroring
on your mobile device.
Turn on the NFC feature on a supported mobile device.
1
Tag the mobile device to the NFC pad.
2
"
You can control the mobile device from the product screen.
32
Page 33
Connecting to a PC
HDMI IN
TOUCH OUT
IMPORT → PC
Connecting via the WiFi Display function
"
This function is only available for the PC that support the WiFi Display function.
IMPORT
MOBILE PC USB INTERNET
PC
HDMI 1 HDMI 2 HDMI 3 Wireless
HDMI 3 is available when the product is equipped with a tray (optional purchase).
"
SAMSUNG
WORKSPACE
Connecting using a cable
Connect the product to the PC using an HDMI cable.
1
"
HDCP contents will not show on the screen if PIP Capture is set to On.
Select IMPORT → PC → HDMI from the top of the screen.
2
To control the PC from the product screen, connect the supplied USB cable to the TOUCH
3
OUT port on the product.
"
If used in a multi-screen setup, make sure you have configured FLIP as the main display.
STEP. 02
STEP. 01
Select Action Center or Devices in the taskbar notification area of the PC.
1
Click Connect or Project and select a [Flip] Samsung WMR Series device to complete the
2
connection.
"
The connection procedure may vary depending on the PC.
"
After the WiFi Display connection is made, you can control the PC screen from the product
screen.
"
This function is only supported by Windows 10.
33
Page 34
Importing from a USB Device
Connecting to Internet
IMPORT → USB
MOBILE PC USB INTERNET
USB DISK
USB1 USB2
Connect an external HDD or a USB storage device.
"
Import videos, images, native FLIP files (.iwb), or document files.
IMPORT
SAMSUNG
WORKSPACE
IMPORT → INTERNET
Connect the network to access the Internet from the product like accessing the Internet from a
computer.
Capture, reposition, or see the browser window in full screen view.
Connecting to SAMSUNG WORKSPACE
IMPORT → SAMSUNG WORKSPACE
Access to remote PC and your work resources with this function.
• REMOTE PC: This function allows you to connect your product to a remote PC or a cloud
server.
"
Only PCs or Cloud Servers running on macOS/Windows 7 Pro or newer are supported.
• NETWORK DRIVE: Connect the network drive to bring files.
"
You can register a network drive while the network is connected.
For information about how to connect to a network, see 'Connecting to a network'.
"
You can register a network drive account at
Settings → Network Drive → Add Account.
To register a network drive account, you must enter the Address, Username, and
Password.
To register your network drive account, refer to 'Add Account' for Network Drive.
"
Import videos, images, native FLIP files (.iwb), or document files.
• Office 365: Provides access to Office 365 features from Microsoft.
• VMware: Enterprise customers who won VMware Infrastructure can access VMware.
→ SETTINGS → Connect → Advanced
¬
34
Page 35
Source Window
When you connect a PC or a mobile device to the product, the source window appears.
Parts Description
Device name
Menu bar
Device name
Drag the source window to move to the desired position.
Displays the name of the connected device.
Pause the input screen display.
Capture the source window.
"
This feature is not available when PIP Capture is set to Off.
Rotate the source window.
"
This function is supported only on Android 8.0 Oreo version or later of Samsung
mobile devices.
Change the input screen position or view it on full screen.
• / / / /
"
When the product is in portrait orientation, the full screen mode is supported
only on the Android 8.0 Oreo version or later of Samsung mobile devices.
Close the viewer.
Adjust the size of the source window.
35
Page 36
Document view
Displays the document file you select to import from a USB device or network drive.
"
Supported document file formats: DOC, PPT, PDF, XLS, XLSX
Parts Description
File name
Menu bar
File name
/ / /
Drag the menu bar to move the viewer around.
Name of the currently viewing file.
Capture the viewer screen.
Change the input screen position or view it on full screen.
• / / / /
Close the viewer.
Tap / / / to move between pages.
Adjust size of the viewer.
9/11
36
Page 37
Image view
Select the file to import from the USB device or network drive.
Parts Description
File name
Menu bar
File name
Drag the menu bar to move the viewer around.
Name of the currently viewing file.
Capture the image viewer screen.
Tap to paste the image to the roll.
Rotate the image.
Change the input screen position or view it on full screen.
• / / / /
Close the viewer.
Adjust size of the viewer.
37
Page 38
Video view
File name
Select the video file to import from a USB or network device and display.
"
Supported video file formats: avi, mkv, asf, wmv, .mp4, mov, 3gp, vro, mpg, mpeg, ts, tp, trp, flv, vob, svi, m2ts,
mts, .webm, .rmvb
Parts Description
Menu bar
Drag the menu bar to move the viewer around.
**:**:** **:**:**
File name
Playback slider and
time details
Name of the currently viewing file.
Rotate the video screen.
Change the input screen position or view it on full screen.
• / / / /
Close the viewer.
Play or pause the video.
Navigate through the video and view time details for the file.
Adjust size of the viewer.
38
Page 39
Chapter 05
EXPORT
You can export your created rolls in various ways.
EXPORT
EMAIL PRINT USB SCREEN SHARE NETWORK DRIVE
Icons Description
Send your created rolls via email.
Print your created rolls.
Export your created rolls to a connected USB device.
MOBILE
Share your screen with selected devices.
EXPORTIMPORT
Export your created rolls to a registered and connected network drive.
Send the roll to a mobile device.
39
Page 40
Sending Email
EXPORT → EMAIL
EMAIL
To
*****@***. ***
Subject
[FLIP] Samsung WMR Series ****-**-**, **:**
1 2
Send
To send your created rolls via email, first register your email account.
"
You can register your email account at
"
If you set Sender Authentication to Personal Account at
→ SETTINGS → Connect → Advanced Settings → Email.
¬
→ SETTINGS → Connect → Advanced Settings →
¬
Email, you must authenticate your account each time you send an email. See below.
– You can send emails when Sender Authentication is set to Personal Account as long as you have an account
on that mail server (SMTP Server Name and SMTP Port Number).
Note that it requires the sender to provide the SMTP account ID and password, as well as the sender address
for every email.
– If you set Sender Authentication to Default Account, you can use the SMTP ID and password you saved
to Default Account to send emails. (The sender address is usually identical to the SMTP ID, with some
exceptions depending on the SMTP server.)
– For the SMTP information required to register a mail server, contact your mail server administrator.
"
Files saved as dedicated files are converted to PDF files and sent.
Parts Description
Enter the recipient's email address.
• Press and type text by using the virtual keyboard.
To
"
Press
"
Search recipient in Local Address Book or LDAP server.
"
Equip the product with a tray (optional purchase) to automatically enter the
address by tagging an NFC card or sticker containing the information.
– : Explains where to tag the NFC card.
– Using the NFC Writing App in mobile device or PC, etc, register an email
address with the NDEF Standard <Text> Record Type to an NFC Forum Type 2
Card sold on the market.
on the virtual keyboard to enter text by handwriting.
Subject
Send
The email subject is automatically set to the device name and the current date.
Send the email.
Change the page view mode for the roll to send.
Select the pages to send.
40
Page 41
Printing
To print, you must set up the Print Server and the Clock Set.
To set up the Print Server, the product and the printer you want and your PC must be connected
to the same network.
Flip Printing Software must be also installed on the PC connected.
"
For information about how to connect to a network, see 'Connecting to a network'.
"
You can set up the Print Server at
Server.
"
You can set Clock Set at
"
The Flip Printing Software is available on the website
– http://displaysolutions.samsung.com
– http://www.samsung.com
"
Devices that transfer files, such as virtual printers (PDF, XPS, One note, etc.) or fax
machines, are not supported, but only printers that can print actual paper are supported.
"
For print paper size, only A4 is supported.
→ SETTINGS → System → Time → Clock Set.
¬
→ SETTINGS → Connect → Advanced Settings → Print
¬
Installing Flip Printing Software
Follow the onscreen instructions to install Flip Printing Software.
"
The installation takes about 10 minutes, and the time taken may vary depending on your PC
environment.
PC installation requirements
• Supported operating systems:
Windows 7(32/64 bit), Windows 10(32/64 bit), MAC
"
When installing the software, make sure that critical Windows updates are already
installed. Update Windows to the latest version before beginning the setup.
"
For Windows 7, make sure that Service Pack 1 is already installed.
Setting up the printer
After the Flip Printing Software is installed, make the following settings on the product
onscreen menu.
Setting up automatically
Select ¬ → SETTINGS → Connect → Advanced Settings menu.
1
Select Print Server → Connect to Server → Auto.
2
Setting up manually
Select ¬ → SETTINGS → Connect → Advanced Settings menu.
1
Select Print Server → Connect to Server → Manual, and then enter the Server IP address of
2
the PC where Flip Printing Software is installed.
41
Page 42
EXPORT → PRINT
Parts Description
PRINT
Printer
Copies
1 2
01
Colour Mode
Print
Printer
Copies
Print preview area
Print
Colour Mode
Displays a list of connected printers. Select a printer to print the roll with.
Set the number of prints.
Preview the roll to print.
Start the printing.
Select the colour to print the roll with.
Change the page view mode of the roll to print.
Select the pages to print.
42
Page 43
Exporting to a USB Device
EXPORT → USB
EMAIL PRINT USB NETWORK DRIVESCREEN SHARE
USB DISK
USB1 USB2
EXPORT
Connect an external HDD or a USB storage device.
"
Your device saves files in two versions (IWB and PDF formats).
MOBILE
SAVE
43
Page 44
Sharing your screen
EXPORT → SCREEN SHARE
Share your screen with selected devices.
Connecting with HDMI cables
Use an HDMI cable to connect the PC to the HDMI IN port on the product or tray (optional
1
purchase).
EMAIL PRINT USB NETWORK DRIVESCREEN SHARE
EXPORT
SCREEN SHARE
Wired Wireless
MOBILE
Use an HDMI cable to connect the display to the SCREEN SHARE port.
2
From the top of the screen, select EXPORT → SCREEN SHARE → Wired.
3
"
If the PC is connected to the HDMI IN 3 port on a tray (optional purchase) without
setting it, the PC screen is shared on the display instead.
The screen is shared on the display.
4
"
This option supports UHD (50 Hz / 60 Hz) and FHD (50 Hz / 60 Hz) only.
"
The screen may blink once or twice upon when connecting for the first time or when there
is a change in the WMR product or source state.
Connecting wirelessly
From the top of the screen, select EXPORT → SCREEN SHARE → Wireless and then the device to
share the screen with.
"
SCREEN SHARE feature works best when using FLIP in landscape orientation.
"
Devices must support Screen Mirroring in order to use SCREEN SHARE with.
Buttons Description
Change Device Change devices to share the screen with.
Disconnect Stop sharing.
44
Page 45
Exporting from a Network Drive
Sending to a mobile device
EXPORT → NETWORK DRIVE
EMAIL PRINT USB SCREEN SHARE NETWORK DRIVE MOBILE
NETWORK DRIVE
NETWORK1 NETWORK2 Add
Connect the network drive to save files.
"
You can register a network drive while the network is connected.
For information about how to connect to a network, see 'Connecting to a network'.
"
You can register a network drive account at
Settings → Network Drive → Add Account.
To register a network drive account, you must enter the Address, Username, and Password.
To register your network drive account, refer to 'Add Account' for Network Drive.
"
Your device saves files in two versions (IWB and PDF formats).
EXPORT
→ SETTINGS → Connect → Advanced
¬
EXPORT → MOBILE
View the screen of the product from a mobile device.
"
Sharing is only available for rolls at the moment.
Download Samba client to your mobile device and enter the following information which can
be found on the product screen.
• Wi-Fi Name, Wi-Fi Password, Server IP address
45
Page 46
Chapter 06
Menu
→ SETTINGS
Connect
2nd 3rd Description
Network Configure your device's network.
Network Status View your current network and internet status.
Open Network Settings Configure network settings to connect to an available network.
Reset Network Restore the network settings to the factory default.
External Device Manager Input Device Manager Set up keyboards to use with your Signage. You can add keyboards and configure their settings.
• Bluetooth Device List
• Keyboard Settings
• Mouse Settings
Device Connect Manager Allow devices on your network, like smartphones and tablets, to share content with your Signage.
• Access Notification
• Device List
Anynet+(HDMI-CEC) Activates or deactivates Anynet+ (HDMI-CEC)
• Off ( ) / On ( )
46
Page 47
2nd 3rd Description
Advanced Settings Email Set up an email account for sending emails.
• SMTP Server Name: SMTP server address
• SMTP Port Number: SMTP server port
• SSL/TLS: Enable or disable SSL/TLS
• Sender Authentication: Choose the authentication mode to be used when sending emails
– Personal Account / Default Account
• Default Account: Default SMTP account
• Password: Password for the default SMTP account
• Sender Email: Sender's email address
• Recipient Address: Select from options to manage email contacts after successfully send emails
– Auto Save / Do Not Save / Delete All
• Local Address Book: Import contacts from a USB device or delete them.
– Import / Delete
"
For more information, refer to 'Importing Local Address Book contacts'.
47
Page 48
Importing Local Address Book contacts
Using Local Address Book contacts
To use FLIP Local Address Book, first Import contacts from a CSV file using a USB device.
Use LDAP: Set Don't Use.
1
→ SETTINGS → Connect → Advanced Settings → Enter password → LDAP → Set LDAP
¬
Connection → Use LDAP → Don't Use
Set up details under Email menu.
2
→ SETTINGS → Connect → Advanced Settings → Enter password → Email
¬
Edit and save your Local Address Book to a USB device.
3
Make a list of contacts in the following structure and save it to the root directory as
RecentSearchList.csv.
– RecentSearchList.csv structure (example)
emailid1@samsung.com Name1 Level1 Team1 Company1
emailid2@samsung.com Name2 Level2 Team2 Company2
emailid3@samsung.com Name3 Level3 Team3 Company3
Connect the USB device to FLIP to import contacts.
4
→ SETTINGS → Connect → Advanced Settings → Enter password → Email → Local Address
¬
Book → Import
"
The USB device and its contents may not be detected properly if a USB extension cable
is used. (USB hubs are not supported.)
"
Do not remove the USB device while loading.
"
If more than two USB devices are connected, some of them may not be detected.
"
USB devices that require higher operating power need to be connected to the USB
(1.0A) port on the back.
"
The file system supports FAT, exFAT, and NTFS formats.
Automatically search and suggest from the list of contacts when selecting recipient(s) in
EXPORT → EMAIL.
"
To use this function, complete setting details under Email menu.
Deleting Local Address Book contacts
¬
→ SETTINGS → Connect → Advanced Settings → Enter password → Email → Local Address
Book → Delete
48
Page 49
2nd 3rd Description
Advanced Settings Print Server Set up the Print Server to use the printing function.
"
For more information, refer to 'Printing'.
• Connect to Server
– Auto: View and select one from a list of server IP addresses of the PCs where Flip Printing Software is installed,
available on the network.
– Manual: Enter the Server IP address of the PC where Flip Printing Software is installed.
• Server IP: Enter the Server IP address of the PC where Flip Printing Software is installed.
• Server Port: Enter the Server Port address of the PC where Flip Printing Software is installed.
Network Drive Add or edit network drive accounts. You can only add network drives by using Samba.
• Add Account: Add new network drive accounts. Only Samba can be added to the network drive.
"
SAMBA 2.0 or later is supported. If you cannot connect to the network drive, update SAMBA to the latest version.
"
To register a network drive account, you must enter the Address, Username, and Password.
– Address: //computer IP address/shared folder name
When entering an address, be sure to use / instead
"
of ₩ and \.
For example, if you share a folder named
"sharedfolder" on a PC with IP address of
12.34.56.789, enter "//12.34.56.789/sharedfolder"
as the address.
– Username: A Windows account with permissions to
the shared folder
When entering a domain, be sure to use ₩ or \.
"
For example, DomainName₩WindowsAccount
– Password: The password you set for your Windows
account
• Edit Account: Edit network drive accounts.
Add Account
Address
Username DomainName\WindowsAccount
Password
Save Cancel
//12.34.56.789/sharedfolder
********
49
Page 50
2nd 3rd Description
Advanced Settings LDAP Set LDAP connection or configure connected LDAP queries.
• Set LDAP Connection
Configure a new LDAP connection.
– Use LDAP: Whether or not to use LDAP
– Import Setup Value: Can fetch the following settings from LDAPConnectionConfig.txt stored on the USB(Password
excluded)
For more information, refer to 'How to create a text file for use of LDAP'.
"
– Authentication Type: Kerberos, Anonymous or Basic whichever is supported by the LDAP server
– User ID: DN(Distinguished Name) of the User ID that is used in the LDAP server
The format of User ID complies with the DN format of LDAP.
"
e.g. cn=admin, dc=myldap, dc=com
– Password: Password that is used for authentication of the LDAP server
– Server Address: IP or URL of the LDAP server
– Server Port Number: Port number of the LDAP server
– Base DN: Top DN that is to be used for search in the DIT(Directory Information Tree) when connecting the LDAP
– SSL/TLS: Whether or not to use SSL/TLS
When SSL/TLS is set to be Use, the encrypted data communication is enabled.
"
– Use Untrusted Certificates: Whether or not to allow untrusted certificates
"
The following menu is activated when setting the Authentication Type to Kerberos.
– Kerberos Realm: Kerberos realm data
– KDC Host: KDC Host URL
– KDC Port: KDC Host port number
50
Page 51
2nd 3rd Description
Advanced Settings LDAP • LDAP Query Configuration
Set the query for the connected LDAP.
– UID: Change the user UID that is used in LDAP.
– Email: Change the Email that is used in LDAP.
– Name: Change the user name (common name) that is used in LDAP.
– Last Name: Change the surname of the user that is used in LDAP.
– Position: Change the title that is used in LDAP.
– Company name: Change the company name that is used in LDAP.
– Department: Change the department name that is used in LDAP.
– Use Custom Query: Fetches the user defined query from LDAPQuery.txt (case sensitive) stored on the USB.
For more information, refer to 'How to create a text file for use of LDAP'.
"
"
Press the Reset button to restore the settings to the factory defaults.
"
When the mapping does not match, the search result does not include the attributes.
Server Network Settings Set up your server network connection and related functions.
• Connect to server : Connect to MagicInfo server.
• Server Access : Allow or deny access to MagicInfo server.
• Proxy server : Set up your proxy server connection and related functions.
Certificate Manager Manage the certificate files for this device.
• App Certificate: View and manage the app certificates installed on this device. Connect a USB flash drive that contains
certificates to install them on this device.
• WPA Certificate Manager: Manage the certificates installed on this device.
– Install Certificate: Connect a USB flash drive that contains certificates to install them on this device.
– Delete Certificate: View and manage the certificates installed on this device.
51
Page 52
How to create a text le for use of LDAP
The LDAP configuration basically consists of many long sentences.
During LDAP configuration, FLIP can be fetched using the text file to prevent typos and make a
batch setting.
"
Input of file name and content should be case sensitive for correct operation.
• Format of LDAPConnectionConfig.txt
(1) Example of the text file
User ID=cn=Manager, dc=example, dc=com
Server Address=123.456.789.012
Server Port Number=12345
Base DN=dc=samsung, dc=example, dc=com
SSL/TLS=Don't Use
Use Untrusted Certificates=Don't Use
Authentication Type=Basic
Kerberos Realm=MYLDAP.COM
KDC Host=krb1.myldap.com
KDC Port=88
(2) Allocation of values (VAL) for each key
User ID: Enter the User ID.
Server Address: Enter the IP or URL of the LDAP server.
Server Port Number: Enter the Port of the LDAP server.
SSL/TLS: Enter Use or Don't Use.
Use Untrusted Certificates: Enter Use or Don't Use.
Authentication Type: Enter Basic or Anonymous.
‒ The following three items will be added if you select Kerberos type verification.
Kerberos Realm: Fill in the Kerberos field (Example: MYLDAP.LDAP)
KDC Host: Enter the KDC Host URL (Example: krb1.myldap.com)
KDC Port: Enter the KDC Host Port (Example: 88)
If you select to use Kerberos type verification, use the original Kerberos User ID for
"
a User ID instead of User ID in DN(Distinguished Name) format. (Example: Mirko)
52
Page 53
• Format of LDAPQuery.txt
(1) Example of the text file
UID=uid
Email=mail
Name=cn
Last Name=sn
Position=title
Company Name=o
Department=departmentNumber
Query=(|(mail=*<A>*)(cn=*<A>*))
(2) Allocation of values (VAL) for each key
1) Mapping part (all rows except the last)
‒
Includes all rows except the last, in the order of UID, Email, Name, Last Name,
Position, Company name, and Department.
‒
Values are mapped in the following manner.
On the left of "=" syntax is the name that is seen in the LDAP Query Configuration
menu (also on the left) and mapped to the values on the right side of "=" (the actual
LDAP Server attributes).
‒
You can choose attributes to change values. For instance, you can change the rightside values without changing the left-side values.
2) Query part
‒
<A> is the Keyword that is used for a Search.
‒
The syntax for the Use Custom Query complies with the LDAP Query rule excluding
<A>.
For example, when <A> is included in the mail or cn attribute, you can create it as
follows.
Query=(|(mail=*<A>*)(cn=*<A>*))
53
Page 54
System
2nd 3rd
Language Change your Language settings.
Rolls Auto Save Automatically save all data.
Delete All Delete all data from the device, including locked data.
Period for Delete All Set a regular reset interval at which all data on the internal storage will be deleted.
Time Configure various time-related settings.
Clock Set Set current date and time.
DST Adjust clock for Daylight Saving Time.
Smart Security The security provided to protect your display device and connected storage devices against viruses includes.
Scan Inspect your display device and connected storage devices to check for viruses.
Isolated List Check the list of items that have been isolated they contain viruses.
Change PIN Change your 6-digit Personal Identification Number (PIN).
Description
"
Start Date, End Date and Time Offset are enabled only when DST is set to On.
"
The default PIN number is 000000.
"
Change the PIN to keep your device secure.
54
Page 55
2nd 3rd
Device Name Enter Device Name.
Tap to turn on Turn Tap to Turn On on or off. Enables you to turn on the screen with just a tap.
Sound Output Select speakers for sound output.
Sound Feedback Play a sound when a menu or option is selected.
Description
You can find this name on the device being used over the network.
• Flip Speaker / Audio Out / Screen Share (Wired)
55
Page 56
2nd 3rd
Advanced Settings Configure advanced settings which includes USB Lock, Network Lock, and Delete All Files.
Description
Enter your 6 digit PIN number. The default PIN number is "000000".
"
If you want to change the PIN number, use the Change PIN function.
"
Change the PIN to keep your device secure.
Screen Saver
Touch Control Lock Run Touch Control Lock.
USB Lock Set up a USB Lock. After setting up, the device will be restarted to apply the settings.
Network Lock Set up a Network Lock.
Auto Power Off Choose how long the display will stay on before turning off after no user interaction is detected.
Remote Standby Turn Remote Standby on or off. By activating this feature, the network connection is maintained when the product is turned
PIP Capture Turn PIP Capture on or off.
Power on Source Setting Set the default source when turning on the power. By setting this, either Roll or Source is turned on at power on.
Auto Source Switching Set Auto Source Switching. By activating this feature, newly connected sources are displayed automatically.
PIP Screen Default Size
Set up the sreensaver. The selected image can be used as a custom screensaver.
"
Tap and hold the screen to release Touch Control Lock.
• Off / Read-only / All On
off.
"
HDCP contents will not show on the screen if PIP Capture is set to On.
Set the default size for the PIP screen.
• Full Screen / Partial Screen
56
Page 57
2nd 3rd
Description
Advanced Settings
Clone Product Export this device's settings or import from other devices.
Self Diagnosis
Start Setup
Run self diagnosis on the email, LDAP, or print server. A USB storage device must be connected to run a self diagnosis.
"
You can download a detailed self-diagnosis report including information about emails, LDAP, print servers, and other
information saved to the product to a USB device.
Go through the initial setup steps like you did the first time you used this product.
57
Page 58
2nd 3rd Description
Backlight Adjust backlight brightness to your preference. 100 is the brightest setting.
Colour Temperature It sets colour temperature. The value and temperature increase simultaneously, so the ratio of blue colour rises.
(Range: 2800K - 16000K)
White Balance R-Gain / G-Gain / B-Gain / R-Offset /
G-Offset / B-Offset / Reset
Input Signal Plus Expands the input signal range for HDMI connections.
Adjust the colour temperature of the picture so that white objects appear brighter.
"
Supports resolutions up to 3840 x 2160 @ 60 Hz with Input Signal Plus expansion set to On.
Supports resolutions up to 3840 x 2160 @ 30 Hz with Input Signal Plus expansion set to Off.
Supported Resolutions for UHD Input Signals
Check the supported resolution for UHD input signals.
• Resolution: 3840 x 2160p, 4096 x 2160p
If Input Signal Plus is set to Off
Frame rate (fps) Colour Depth / Chroma Sampling RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit - - - O
If Input Signal Plus is set to On
Frame rate (fps) Colour Depth / Chroma Sampling RGB 4:4:4 YCbCr 4:4:4 YCbCr 4:2:2 YCbCr 4:2:0
50 / 60 8 bit O O O O
10 bit - - O O
12 bit - - O O
58
Page 59
2nd 3rd Description
HDMI Black Level Adjust the black level to optimise the HDMI picture brightness and contrast.
"
This function is available only when the product is connected to a PC using an HDMI cable and the Source window is
turned on.
Screen Share(Wired) Resolution Set the resolution when sharing the screen (wired).
• Auto / FHD / UHD
Reset Picture Restore all picture settings to the factory default.
59
Page 60
Support
2nd 3rd Description
Software Update Update the software installed on your product.
Update now Update software by downloading update files.
– Online update
Requires an internet connection.
"
– Update with a USB device
After downloading the update file from the Samsung website and storing it on a USB device, connect the USB device
to the product to update.
Make sure you saved the update file in a top-level folder.
"
• Current Version: This is the software version already installed in the product.
Auto update Automatically start software updates once your device is powered off.
"
Requires an internet connection.
Contact Samsung Contact information for assistance with your device.
"
Go to Contact Samsung and find the product Model Code and Software Version.
Reset All It initializes all items in the total menu.
60
Page 61
Chapter 07
Troubleshooting Guide
Problems and Solutions
Before calling Samsung Customer
"
Service Centre, test your product
as follows. If the problem persists,
contact Samsung Customer Service
Centre.
If the product is not turned on
"
or off when you operate the
buttons or motion sensor of the
product, you can turn it on or off
with the Samsung remote control
or Samsung remote control
application.
Source window (HDMI) issue
Blank spaces are found on all four sides of the screen when
an HDMI cable is connected to the product and PC.
The images on the screen look distorted.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem,
adjust the screen size in the HDMI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update
the graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to
adjust the screen settings.)
Check the cable connection to the product.
The screen is not clear. The screen is blurry.
The screen appears unstable and shaky.
There are shadows or ghost images left on the screen.
Set the resolution and frequency to the recommended level.
Check that the resolution and frequency of the PC and graphics card are set within a range
compatible with the product. Then, change the screen settings if required by referring to
'Preset Timing Modes'.
61
Page 62
Source window (HDMI) issue
White does not really look white.
The product will turn off automatically.
The screen display does not look normal.
The brightness and colour do not look normal.
The display looks unstable and then freezes.
The screen cannot be displayed in full screen.
Go to Picture and adjust the White Balance settings.
Make sure the power cable is connected properly to the product and power outlet.
Encoded video content may cause the display to appear corrupted in scenes featuring fast
moving objects such as in a sports event or action video.
Low signal level or low picture quality may cause the display to appear corrupted. This does not
mean the product is defective.
A mobile device within a distance of one-meter radius may cause static on analogue and digital
products.
From the menu, select ¬ → SETTINGS → Support → Reset All to try resetting the screen.
The screen may freeze when a resolution other than the recommended resolution is used or
if the signal is not stable. To resolve the issue, change the PC resolution to the recommended
resolution.
If the source window is set to full screen mode while in portrait orientation, a black bar appears
at both the top and bottom.
Change to landscape orientation, and then switch the Source window to full screen mode.
62
Page 63
Sound issue
There is no sound.
The volume is too low.
Video is available but there is no sound.
There is static coming from the speakers.
There is audible sound when the volume is muted.
Check the volume.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC
sound card or software programme.
If an HDMI cable is connected, check the audio output settings on the PC.
If a source device is used
• Check the audio output settings for the source device.
(For example, if your monitor is connected to HDMI, you may need to change the audio
option of your video output device to HDMI.)
Reconnect the power cable to the device and then reboot the device.
Low signal level can cause corrupted sound.
Audio settings for main speakers are separate from the internal speakers on the product.
Changing or muting the volume on the product does not affect an external amplifier(decoder).
63
Page 64
Touch function issues
The icons can be touched but the drawings cannot.
Touching does not work when HDMI connection is used.
I use two pens, but they do not work well.
Touches break, reaction speed gets slow, and so on.
Use the provided product-specific pen.
Check whether the TOUCH OUT port on the product is connected to a USB port on the PC using
a USB cable.
• HDMI IN 1 or HDMI IN 2 → TOUCH OUT on the rear of the product
• HDMI IN 3 → TOUCH OUT on the tray
Make sure that there is enough space between the two pens at multi-touching.
Make sure that there are no foreign substances on the screen surface.
Check whether the screen is broken.
Make sure that the product is not exposed to direct sunlight.
64
Page 65
Other issue
The product smells like plastic.
Small particles are found on the edges of the product.
When I try to change the PC resolution, a message "The
dened resolution is not supported." appears.
There is no sound from the speakers in HDMI mode when a
DVI-HDMI cable is connected.
HDMI Black Level is not functioning properly on an HDMI
device with YCbCr output.
There is no sound in HDMI mode.
The plastic smell is normal and disappears over time.
The particles are part of the product design. The product is not defective.
The message "The defined resolution is not supported." appears if the input source resolution
exceeds the maximum resolution of the product.
To resolve the issue, change the PC resolution to a resolution supported on the product.
DVI cables do not transmit sound data.
This function works only when the HDMI signal of the external device is RGB output.
Displayed picture colours may not look normal. Video or sound may not be available. This can
occur if a source device that only supports an older version of the HDMI standard is connected
to the product.
65
Page 66
Chapter 08
Specications
General
Horizontal Frequency
"
The time required to scan a single
line from the left to the right side
of the screen is called a horizontal
cycle. The reciprocal number of a
horizontal cycle is called horizontal
frequency. Horizontal frequency is
measured in kHz.
Vertical Frequency
"
The product displays a single image
multiple times per second (like a
uorescent light) to display what
the viewer sees. The rate of a single
image being displayed repeatedly per
second is called vertical frequency
or refresh rate. Vertical frequency is
measured in Hz.
Model Name WM55R WM65R
Panel Size
Synchronization Horizontal Frequency
Resolution Optimum resolution
Power Supply
Environmental
considerations
Display area
Vertical Frequency
Maximum resolution
Operating
55 CLASS (54.6 inches / 138.7 cm) 65 CLASS (64.5 inches / 163.9 cm)
1209.6 mm (H) x 680.4 mm (V) 1428.48 mm (H) x 803.52 mm (V)
30 - 90 kHz
24 - 75 Hz
3840 x 2160
AC100-240V~ 50/60Hz
Refer to the label at the back of the product as the standard voltage can vary in different countries.
Temperature : 0 °C – 40 °C (32 °F – 104 °F)
* For installing the enclosure, keep the internal temperature at 40 °C or below.
Humidity : 10% – 80%, non-condensing
Storage
Temperature : -20 °C – 45 °C (-4 °F – 113 °F)
Humidity : 5% – 95%, non-condensing
* Applicable before the product package is unpacked.
66
Page 67
"
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does
not affect product performance.
"
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a
resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution
specified for your product.
"
For detailed device specifications, visit the Samsung Electronics website.
67
Page 68
Preset Timing Modes
The screen will automatically be adjusted if a signal that belongs to the following standard
signal modes is transmitted from your PC. If the signals transmitted from the PC differ from the
standard mode, the screen may not be displayed. In such a case, change the settings as shown
in the following table by referring to the graphics card user manual.
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+ O
MAC, 640 x 480 35.000 66.667 30.240 -/- O
MAC, 832 x 624 49.726 74.551 57.284 -/- O
MAC, 1152 x 870 68.681 75.062 100.000 -/- O
VESA CVT, 3840 x 2160RB 110.500 49.977 442.000 +/- -
VESA CVT, 3840 x 2160RB 133.313 59.99 7 533.250 +/- -
VESA DMT, 640 x 480 31.469 59.940 25.175 -/- O
VESA DMT, 640 x 480 37.861 72.809 31.500 -/- O
VESA DMT, 640 x 480 37.500 75.000 31.500 -/- O
VESA DMT, 800 x 600 37.879 60.317 40.000 +/+ O
VESA DMT, 800 x 600 48.077 72.188 50.000 +/+ O
VESA DMT, 800 x 600 46.875 75.000 49.500 +/+ O
VESA DMT, 1024 x 768 48.363 60.004 65.000 -/- O
VESA DMT, 1024 x 768 56.476 70.069 75.000 -/- O
VESA DMT, 1024 x 768 60.023 75.029 78.750 +/+ O
VESA DMT, 1152 x 864 67.500 75.000 108.000 +/+ O
VESA DMT, 1280 x 720 45.000 60.000 74.250 +/+ O
VESA DMT, 1280 x 800 49.702 59.810 83.500 -/+ O
VESA DMT, 1280 x 1024 63.981 60.020 108.000 +/+ O
VESA DMT, 1280 x 1024 79.976 75.025 135.000 +/+ O
VESA DMT, 1366 x 768
Frequency
(kHz)
47.712 59.790 85.500 +/+ O
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN
Horizontal
Resolution
VESA DMT, 1440 x 900 55.935 59.887 106.500 -/+ O
VESA DMT, 1600 x 900RB 60.000 60.000 108.000 +/+ O
VESA DMT, 1680 x 1050 65.290 59.954 146.250 -/+ O
VESA DMT, 1920 x 1080 67.500 60.000 148.500 +/+ O
VESA DMT, 2560 x 1440RB 88.787 59.951 241.500 +/- O
CTA-861, 720(1440) x 576i 15.625 50.000 27.000 -/- O
CTA-861, 720(1440) x 480i 15.734 59.940 27.000 -/- O
CTA-861, 720 x 576 31.250 50.000 27.000 -/- O
CTA-861, 720 x 480 31.469 59.940 27.000 -/- O
CTA-861, 1280 x 720 37.500 50.000 74.250 +/+ O
CTA-861, 1280 x 720 45.000 60.000 74.250 +/+ O
CTA-861, 1920 x 1080i 28.125 50.000 74.250 +/+ O
CTA-861, 1920 x 1080i 33.750 60.000 74.250 +/+ O
CTA-861, 1920 x 1080 27.000 24.000 74.250 +/+ O
CTA-861, 1920 x 1080 28.125 25.000 74.250 +/+ O
CTA-861, 1920 x 1080 33.750 30.000 74.250 +/+ O
CTA-861, 1920 x 1080 56.250 50.000 148.500 +/+ O
CTA-861, 1920 x 1080 67.500 60.000 148.500 +/+ O
CTA-861, 3840 x 2160 54.000 24.000 297.000 +/+ O
CTA-861, 3840 x 2160 56.250 25.000 297.000 +/+ O
CTA-861, 3840 x 2160
CTA-861, 3840 x 2160 112.500 50.000 594.000 +/+ O
CTA-861, 3840 x 2160 135.000 60.000 594.000 +/+ O
CTA-861, 4096 x 2160 54.000 24.000 297.000 +/+ O
CTA-861, 4096 x 2160 67.500 30.000 297.000 +/+ O
CTA-861, 4096 x 2160 112.500 50.000 594.000 +/+ O
CTA-861, 4096 x 2160 135.000 60.000 594.000 +/+ O
Frequency
(kHz)
67.500 30.000 297.000 +/+ O
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN
68
Page 69
Chapter 09
Appendix
Responsibility for the Pay Service (Cost to Customers)
"
When the service is requested, in spite of in warranty, we may charge you for a visit from a
service technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician is requested to give instructions on how to use product or simply
adjusts options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal,
etc.)
• If a product is reinstalled or devices are connected additionally after installing the
purchased product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company's product.
• If customer requests instructions on how to use the network or another company's
programme.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-
shopping or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of
Samsung Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorized electrical connections.
• Not following the "cautions" in User Manual.
Others
• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head,
Vibrator, Lamp, Filter, Ribbon, etc.)
"
If customer requests a service in case the product has no defect, service fee may be
charged. So please read User Manual first.
69
Page 70
Prevention of Afterimage Burn-in
Licence
What is afterimage burn-in?
Afterimage burn-in should not occur when the panel is operating normally. Normal operation
refers to a continuously changing video pattern. If the panel displays a fixed pattern for an
extended period of time a slight voltage difference may occur between the electrodes in pixels
that control the liquid crystals.
Such a voltage difference between electrodes increases with time and makes the liquid
crystals thinner. When this occurs, a previous image can remain on the screen when the pattern
changes.
This information is a guide to prevent afterimage burn-in. Viewing a fixed screen
for an extended period of time may cause afterimage burn-in. This problem is not
included in warranty.
Recommended prevention practices
Viewing a fixed screen for an extended period of time may cause afterimage burn-ins or
smudges. Turn off the product when it is not used for a long time, activate the Power Saving
mode, or run a moving screen saver.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Open Source Licence Notice
In the case of using open source software, Open Source Licences are available on the
product menu. Open Source Licence Notice is written only English.
For information on the Open Source Licence Notice, contact the Samsung Customer Centre
or send email to oss.request@samsung.com.
70
