Samsung WF1702WSV2 User Manual

Washing Machine

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

This manual is made with 100% recycled paper.

WF1804WS(C/N/Q/S/U/V/W/Y) WF1802WS(C/N/Q/S/U/V/W/Y) WF1804YS(C/N/Q/S/U/V/W/Y) WF1802YS(C/N/Q/S/U/V/W/Y) WF1704WS(C/N/Q/S/U/V/W/Y) WF1702WS(C/N/Q/S/U/V/W/Y) WF1704YS(C/N/Q/S/U/V/W/Y) WF1702YS(C/N/Q/S/U/V/W/Y)

WF1804WS-03042H_EN.indd 1 2011-5-4 9:53:35

2_ features

features of your new samsung washing machine

Your new washing machine will change the way you feel about doing laundry. From its super-size capacity to its energy efﬁciency, the Samsung washing machine has all the features to turn a mundane chore into a pleasure.

• Eco Bubble Wash

Samsung’s effective Eco Bubble delivers improved cleanliness with advanced fabric care. Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.

• Quick Wash

No time to waste! Our 15 minute Quick Wash will allow you to Wash and Run. Our Quick Wash programme can help with your busy life - now you can wash your favourite clothes (up to 2Kg) in just 15 minutes!

• Outdoor Care

Using a Samsung washing machine with Eco Bubble allows you to wash waterproof clothing with greater comfort, in the knowledge that your washer provides excellent care for your outdoor clothes. The Foam Cushion created by Eco Bubble protects against impact and abrasion damage to the water prooﬁng layer, minimizing damage to outdoor clothing, and also protecting other forms of delicate fabrics.

• Baby Care

Your Samsung washing machine includes wash programs that add protection to the clothing of children with sensitive skin. These programs reduce skin irritation in children by minimizing detergent residue. In addition, these programs classify laundry into various types and the wash is performed according to the laundry characteristics so that children’s clothes feel refreshingly clean whenever they are put on.

• Wool Certiﬁed

The machine has been tested and passed the required Woolmark Company speciﬁcation formachine washable wool products. This mark is the upgraded certiﬁcation better than the existing Woolmark, which guarantees not only washing performance but also fabric care for wool products. Fabrics should be washed according to the instructions on the garment label as speciﬁed byWoolmark and Samsung.

• Hand Wash

Special care can be determined by the appropriate temperature, the gentle wash action and the appropriate amount of water.

WF1804WS-03042H_EN.indd 2 2011-5-4 9:53:35

features _3

• Eco Drum Clean

Using Eco Drum Clean helps to keep washing machine clean even without any chemical detergent or bleach. Keep your drum clean and odorless with specialized cleaning program.

• Child Lock

The Child Lock function ensures that curious little hands are kept out of your washing machine. This safety feature stops your children from playing with the operation of the washing machine, and alerts you when it is activated.

• Delay End

Delay a cycle for up to 19 hours in one-hour increments and increase the convenience of using your washing machine especially when you have to go out.

• Digital Graphic Display

The Digital Graphic Display control panel is clear and easy to use for minimum fuss and hassle. And while it is easy to operate, the Digital Graphic Display enables you to make quick and accurate adjustments to your wash for excellent washing results.

• Wide door

Extra wide door aperture for convenient viewing! Easily add and remove laundry, especially for large sized laundry items such as bedding, towels etc.

• Aqua Hose & Leakage Sensor (Selected models)

The smartly designed water safety system for Samsung washing machines includes an intelligent hose for stopping water leaks at the source and leakage sensor at the bottom. If the hose breaks or if water leaks are detected, an internal sponge will expand to block water from the spigot.

• Ceramic Heater for Durability & Energy Saving (selected models)

Our truly innovative Ceramic Heater is twice as durable as regular heaters. That saves you money on repairs. Plus, it eliminates the scale of hard water and save energy.

This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions. The “Troubleshooting and information codes” section on page 36 tells you what to do if something goes wrong with your new washing machine.

WF1804WS-03042H_EN.indd 3 2011-5-4 9:53:35

4_ safety information

safety information

Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many beneﬁts and features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to safely and efﬁciently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer. Because these following operating instructions cover various models, the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or ﬁnd help and information online at www.samsung.com.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.

CAUTION

Hazards or unsafe practices that may result in

personal injury and/or

property damage

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service centre for help.

Note

These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

Read all instructions before using the appliance. As with any equipment using electricity and moving parts, potential hazards exist. To safely

operate this appliance, become familiar with its operation and exercise care when using it.

WF1804WS-03042H_EN.indd 4 2011-5-4 9:53:37

safety information _5

Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualiﬁed person in order to avoid a hazard. This appliance should be positioned to be accessible to the power plug, the water supply tabs and the

drain pipes. For washing machines with ventilation openings in the base, ensure that the opening is not obstructed

by carpet or any other obstacles. Use the new hose-sets and old hose-sets should not be reused.

INSTRUCTION ABOUT THE WEEE MARK

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

WARNING

WF1804WS-03042H_EN.indd 5 2011-5-4 9:53:37

6_ safety information

SEVERE WARNING SIGNS FOR INSTALLATION

The installation of this appliance must be performed by a qualiﬁed technician or service company.

- Failure to do so may result in electric shock, ﬁre, an explosion, problems with the product, or injury.

The appliance is heavy, take care upon lifting it

Plug the power cord into an AC 220V~240V/50Hz/15A wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord.

- Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or ﬁre.

- Ensure that the power voltage, frequency and current are the same as those of the product speciﬁcations. Failure to do so may result in electric shock or ﬁre. Failure Plug the power plug into the wall socket ﬁrmly.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

- Unplug the power plug and clean it with a dry cloth.

- Failure to do so may result in electric shock or ﬁre.

Plug the power plug into the wall socket in the right direction so that the cord runs towards the ﬂoor.

- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or ﬁre.

Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

- If a child places a bag over its head, it may result in suffocation.

When the appliance or power plug or power cord is damaged, contact your nearest service centre.

This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

- This may result in electric shock, ﬁre, an explosion, or problems with the product

- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

Do not install this appliance near a heater, inﬂammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).

Do not install this appliance in a location of low temperature

- Frost may cause tubes to burst

Do not install this appliance in a location where gas may leak.

- This may result in electric shock or ﬁre.

Do not use an electric transformer.

- It may result in electric shock or ﬁre.

Do not use a damaged power plug, damaged power cord or loose wall socket.

- This may result in electric shock or ﬁre.

Do not pull or excessively bend the power cord. Do not twist or tie the power cord.

safety information

WARNING

WF1804WS-03042H_EN.indd 6 2011-5-4 9:53:38

safety information _7

Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- This may result in electric shock or ﬁre. Do not pull the power cord, when unplugging the power plug.

- Unplug the power plug by holding the plug.

- Failure to do so may result in electric shock or ﬁre. Do not lay the power cord and tubes where you may fall over them.

CAUTION SIGNS FOR INSTALLATION

This appliance should be positioned in such a way that it is accessible to the power plug.

- Failure to do so may result in electric shock or ﬁre due to electric leakage. Install your appliance on a level and hard ﬂoor that can support its weight.

- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the product.

SEVERE WARNING SIGNS FOR USING

If the appliance is ﬂooded, cut the water supply and power immediately and contact your nearest service centre.

- Do not tough the power plug with wet hands

- Failure to do so may cause electric shock

If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre.

- Failure to do so may result in electric shock or ﬁre.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in an explosion or ﬁre.

Do not let children play in or on the washer. In addition, when disposing of the appliance, remove the washer door lever.

- If trapped inside, the child may become trapped and suffocate to death.

Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.

WARNING

CAUTION

WF1804WS-03042H_EN.indd 7 2011-5-4 9:53:38

8_ safety information

Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other ﬂammable or explosive substances.

- This may result in electric shock, ﬁre or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/

drying/spinning).

- Water ﬂowing out of the washer may result in burns or cause the ﬂoor to be slippery. This may result in injury.

- Opening the door by force may result in damage to the product or injury. Do not insert your hand under the washer.

- This may result in injury. Do not touch the power plug with wet hands.

- This may result in electric shock. Do not turn the appliance off by unplugging the power plug while an operation is in

progress.

- Plugging the power plug into the wall socket again may cause a spark and result in electric shock or ﬁre.

Do not let children or inﬁrm persons use this washer unsupervised. Do not let children climb in the appliance

- Failure to do so may result in electric shock, burns or injury.

Do not insert your hand or a metal object under the washer while it is operating.

- This may result in injury.

Do not unplug the appliance by pulling at the power cord, always grip plug ﬁrmly and pull straight out from the outlet.

- Damage to the cord may cause short-circuit, ﬁre and/or electric shock

Do not attempt to repair, disassemble, or modify the appliance yourself.

- Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.

- When repairing or reinstalling the appliance is required, contact your nearest service centre.

- Failure to do so may result in electric shock, ﬁre, problems with the product, or injury.

If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.

- Failure to do so may result in electric shock or ﬁre.

When the water supply hose comes loose from the faucet and ﬂoods the appliance, unplug the power plug.

- Failure to do so may result in electric shock or ﬁre.

Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm.

- Failure to do so may result in electric shock or ﬁre.

safety information

WF1804WS-03042H_EN.indd 8 2011-5-4 9:53:38

safety information _9

CAUTION SIGNS FOR USING

When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.

- Failure to do so may result in discoloration, deformation, damage or rust. The front glass may be broken by a strong impact. Take care when using the washer.

- When the glass is broken, it may result in injury. After a water supply failure or when reconnecting the water supply hose, open the faucet

slowly. Open the faucet slowly after a long period of non-use.

- The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

If a drain error occurs during an operation, check if there is a draining problem.

- If the washer is used when it is ﬂooded because of a draining problem, it may result in electric shock or ﬁre due to electric leakage.

Insert the laundry into the washer completely so that laundry does not get caught in the door.

- If laundry gets caught in the door, it may result in damage to the laundry or the washer, or result in water leakage.

Ensure that the faucet is turned off when the washer is not being used.

- Ensure that the screw on the water supply hose connector is properly tightened.

- Failure to do so may result in property damage or injury.

Check if the rubber seal is not contaminated by foreign substances (waste, thread, etc).

- If the door is not closed completely, it may result in water leakage.

Open the faucet and check if the water supply hose connector is ﬁrmly tightened and that there is no water leaking before using the product.

- If the screws or the water supply hose connector are loose, it may result in water leakage.

To reduce the risk of ﬁre or explosion:

- Under certain conditions, hydrogen gas may be produced in a hot water system such as your hot water heater that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or more, turn on all hot water taps in your home, and let the water ﬂow for several minutes before using your washing machine. This will release any hydrogen gas build–up. Since hydrogen gas is ﬂammable, do not smoke or light an open ﬂame during this time. Ventilate immediately without touching the power plug if there is a gas leak.

CAUTION

WF1804WS-03042H_EN.indd 9 2011-5-4 9:53:38

10_ safety information

Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, ﬁre, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, ﬁre or problems with the product.

Do not place an object that generates a electromagnetic ﬁeld near the washer.

- This may result in injury due to a malfunction.

Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water.

- This may result in burns or injury.

Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a special program for washing these items.

- Do not wash thick, hard mats even if the washer mark is on the care label.

- This may result in injury or damage to the washer, walls, ﬂoor or clothing due to abnormal vibrations.

* Woollen bedding, rain covers, ﬁshing vests, ski pants, sleeping bags, diaper covers,

sweat suits, and bicycle, motor cycle, car covers, etc.

Do not operate the washer when the detergent box is removed.

- This may result in electric shock or injury due to water leakage.

Do not touch the inside of the tub during or just after drying as it is hot.

- This may result in burns.

Do not insert your hand into the detergent box after opening it.

- This may result in injury as your hand may be caught by the detergent input device.Do not place any objects (such as shoes, food waste, animals) other than laundry into the washer.

- This may result in damage to the washer, or injury and death in the case of pets due to the abnormal vibrations.

Do not press the buttons using sharp objects such as pins, knifes, ﬁngernails, etc.

- This may result in electric shock or injury.

Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage clinics.

- This may result in the rubber seal becoming deformed and water leakage.

Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long periods of time.

- This may cause the tub to rust.

- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the surface and use a sponge to clean it. Never use a metal brush.

Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent.

- This may result in spontaneous combustion or ignition due to the heat of the oxidation of the oil.

Do not use hot water from water cooling/heating devices.

- This may result in problems with the washer.

safety information

WF1804WS-03042H_EN.indd 10 2011-5-4 9:53:38

safety information _11

Do not use natural hand-washing soap for the washer.

- If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors.

Do not wash large laundry items such as bedding in the washing net.

- Place socks and brassieres into the washing net and wash them with the other laundry.

- Failure to do so may result in injury due to abnormal vibrations.

Do not use hardened detergent.

- If it accumulates inside the washer, it may result in water leakage.

For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles.

Make sure that the pockets of all clothing to be washed are empty.

- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance.

Do not wash clothing with large buckles, buttons, or other heavy metal.

SEVERE WARNING SIGNS FOR CLEANING

Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock or ﬁre.

Before cleaning or performing maintenance, unplug the appliance from the wall socket.

- Failure to do so may result in electric shock or ﬁre.

WARNING

WF1804WS-03042H_EN.indd 11 2011-5-4 9:53:38

12_ contents

contents

SETTING UP YOUR WASHING

MACHINE

13 Checking the parts 14 Meeting installation requirements

14 Electrical supply and grounding 14 Water Supply 15 Drain 15 Flooring 15 Surrounding temperature 15 Alcove or closet installation

15 Installing your washing machine

WASHING A LOAD OF LAUNDRY

21 Washing for the ﬁrst time 21 Basic instructions 22 Using the control panel

25 Child lock 25 Sound off 25 Delay end 26 Eco Bubble 27 Washing clothes using the cycle selector 28 Washing clothes manually

29 Detergent and additives information

29 Which detergent to use 30 Detergent drawer 30 Liquid Detergent (Selected models)

CLEANING AND MAINTAINING YOUR

WASHING MACHINE

31 Eco Drum Clean 32 Draining the washing machine in an emergency 33 Cleaning the detergent drawer and drawer

recess

34 Cleaning the debris ﬁlter 34 Cleaning the exterior 35 Cleaning the water hose mesh ﬁlter 35 Repairing a frozen washing machine 35 Storing your washing machine

TROUBLESHOOTING AND

INFORMATION CODES

36 Check these points if your washing machine... 37 Information codes

CYCLE CHART

38 Cycle chart

APPENDIX

39 Fabric care chart 39 Protecting the environment 39 Declaration of conformity 40 Speciﬁcations

WF1804WS-03042H_EN.indd 12 2011-5-4 9:53:38

setting up your new washing machine _13

01 SETTING UP

setting up your washing machine

Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you’re not at risk of injury when doing laundry.

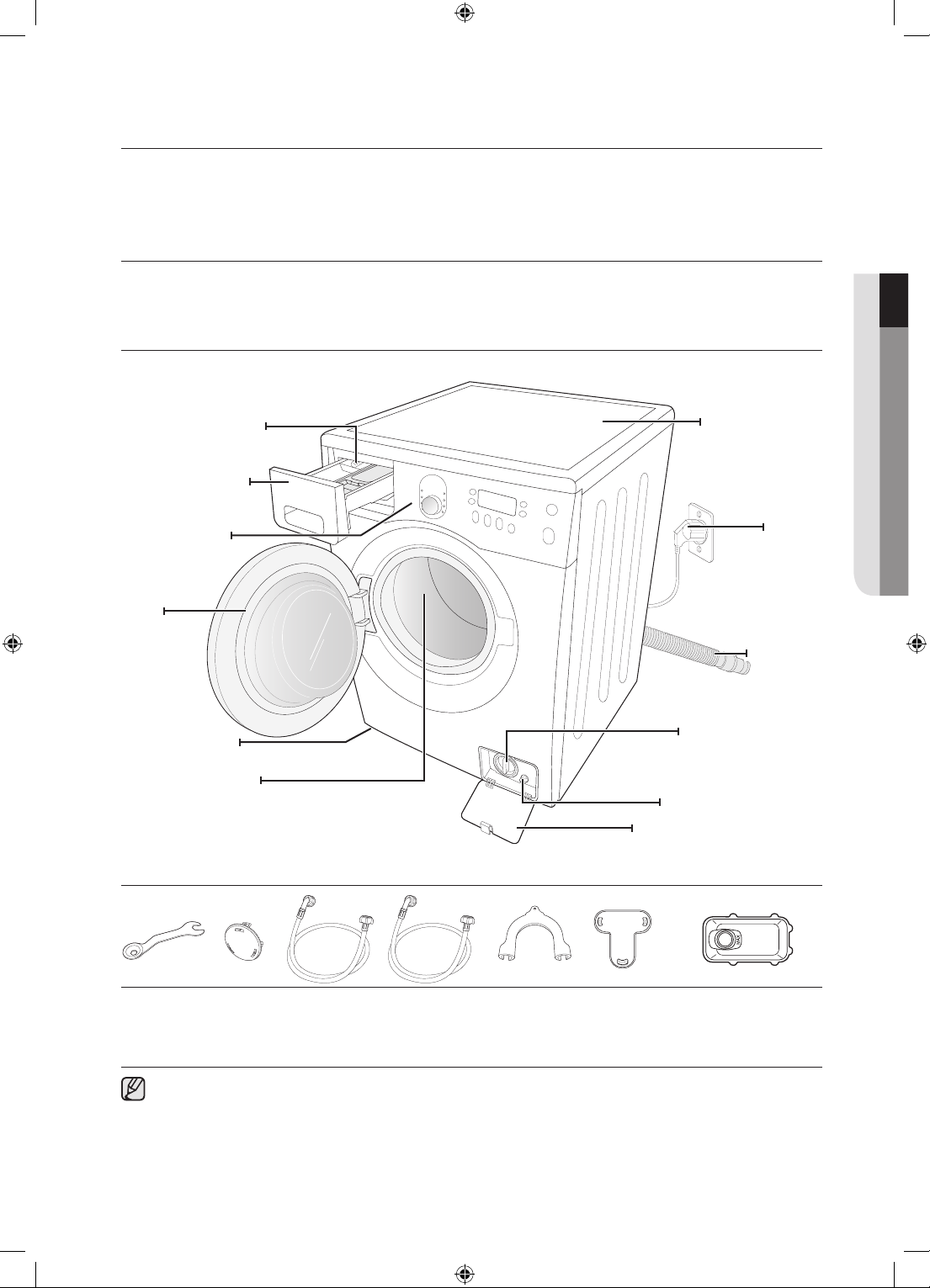

CHECKING THE PARTS

Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer.

Spanner

* Bolt hole

covers

Cold Hot (Selected model)

Hose guide

Cap

Fixer

Liquid

detergent

box(Selected

model)

Water supply hose

* Bolt hole covers : The number of bolt hole covers depends on the model (3~5 covers).

Detergent drawer

Control panel

Door

Adjustable feet

Work top

Plug

Drain hose

Debris ﬁlter

Emergency drain tube

Filter Cover

Tub

Release lever

WF1804WS-03042H_EN.indd 13 2011-5-4 9:53:40

14_ setting up your new washing machine

setting up your washing machine

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

To prevent unnecessary risk of ﬁre, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

Never use an extension cord. Use only the power cord that comes with your washing machine.

When preparing for installation, ensure that your power supply offers:

• 220V~240V 50Hz 15 AMP fuse or circuit breaker

• Individual branch circuit serving only your washing machine

Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. Your washing machine comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

Improperly connecting the equipment-grounding conductor can result electrical shock. Check with a qualiﬁed electrician or serviceman if you are unsure if the washing machine is properly grounded. Do not modify the plug provided with the washing machine. If it does not ﬁt the outlet, have a proper outlet installed by a qualiﬁed electrician.

Water Supply

Your washing machine will ﬁll properly when your water pressure is 50 kPa ~ 800 kPa. Water pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut off completely. Or, it may take the washing machine longer to ﬁll than what the controls allow, resulting in your washing machine turning off. (A ﬁll-time limit, designed to prevent overﬂows/ ﬂooding if an internal hose becomes loose, is built into the controls.)

The water taps must be within 4 feet (122cm) of the back of your washing machine for the provided inlet hoses provided to reach your washing machine.

Most plumbing supply stores sell inlet hoses of various lengths up to 10 feet (305cm) long. You can reduce the risk of leaks and water damage by:

• Making water taps easily accessible.

• Turning off taps when the washing machine is not in use.

• Periodically checking for leaks at water inlet hose ﬁttings. Before using your washing machine for the ﬁrst time, check all connections at the water

valve and taps for leaks.

WARNING

WF1804WS-03042H_EN.indd 14 2011-5-4 9:53:41

setting up your new washing machine _15

01 SETTING UP

Drain

Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.

Flooring

For best performance, your washing machine must be installed on a solidly constructed ﬂoor. Wood ﬂoors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are contributing factors to vibrations and the tendency for your washing machine to move slightly during the spin cycle.

Never install your washing machine on a platform or poorly supported structure.

Surrounding temperature

Do not install your washing machine in areas where water may freeze, since your washing machine always retains some water in its water valve, pump, and hose areas. Frozen water in the lines can cause damage to belts, the pump, and other components.

Alcove or closet installation

To operate safely and properly, your new washing machine requires minimum clearances of:

Sides – 25 mm Rear – 51 mm Top – 25 mm Front – 465 mm

If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 mm unobstructed air opening. Your washing machine alone does not require a speciﬁc air opening.

INSTALLING YOUR WASHING MACHINE

STEP 1

Selecting a location

Before you install the washing machine, make sure the location:

• Has a hard, level surface without carpeting or ﬂooring that may obstruct ventilation

• Is away from direct sunlight

• Has adequate ventilation

• Will not be freezing (below 32 ˚F or 0 ˚C)

• Is away from heat sources such as oil or gas

• Has enough space so that the washing machine doesn’t stand on its power cord

WF1804WS-03042H_EN.indd 15 2011-5-4 9:53:41

16_ setting up your new washing machine

STEP 2

Removing the shipping bolts

Before installing the washing machine, you must remove the ﬁve shipping bolts from the back of the unit.

1. Loosen all the bolts with the supplied wrench.

2. Hold the bolt with the spanner and pull it through the wide

section of the hole. Repeat for each bolt.

3. Fill the holes with the supplied plastic covers.

4. Store the shipping bolts away safely in case you have to move the washing machine in the

future.

Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children.

Insert the cap ﬁxer, (one of the accessories in the vinyl pack), into the hole from which you removed the power cord at the back of the product.

setting up your washing machine

WARNING

Option

WF1804WS-03042H_EN.indd 16 2011-5-4 9:53:42

setting up your new washing machine _17

01 SETTING UP

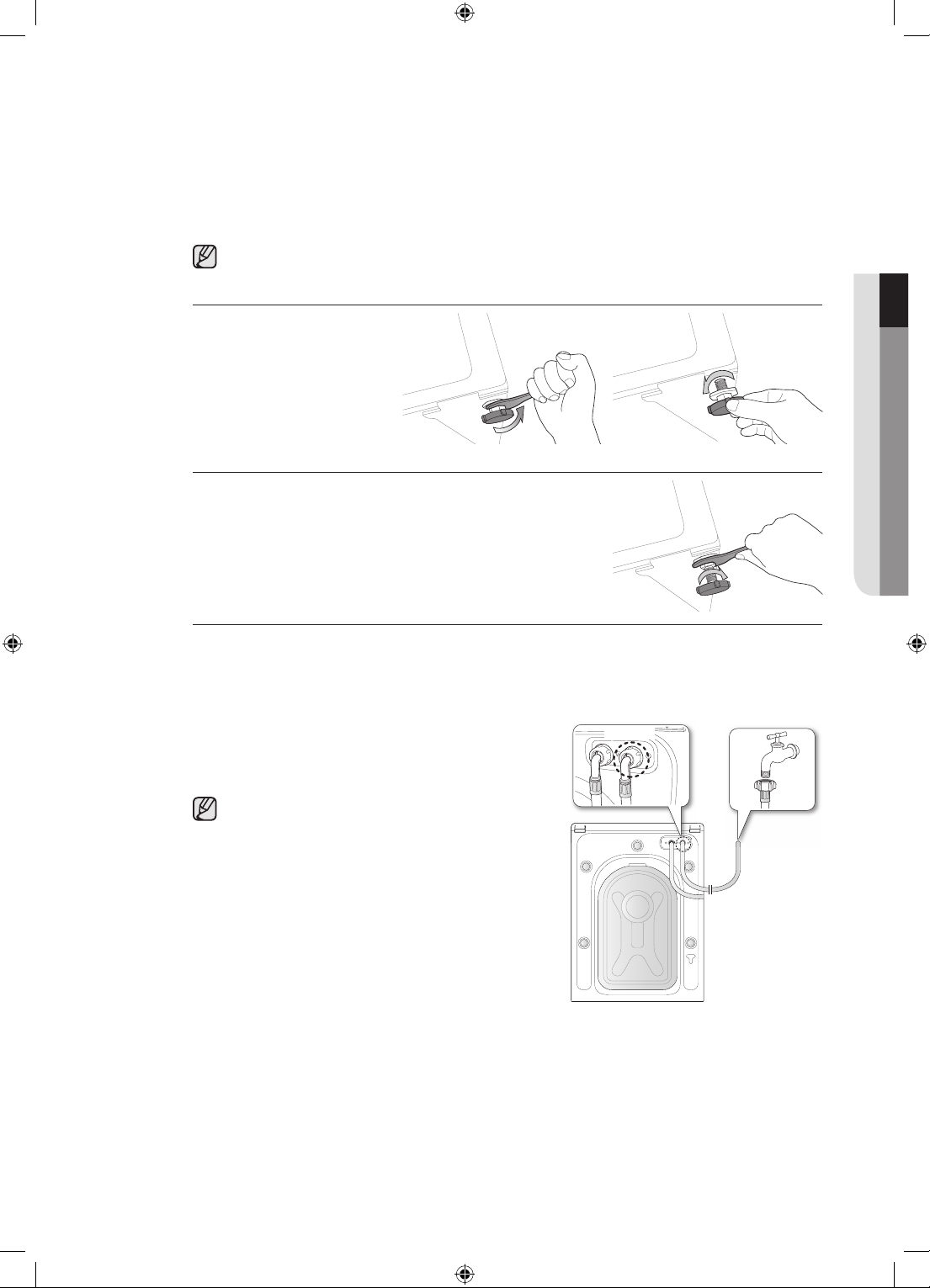

STEP 3

Adjusting the levelling feet

When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible.

1. Slide the washing machine into position.

2. Level your washing

machine by turning the leveling feet in and out as necessary by hand.

3. When your washing machine is level, tighten the nuts using

the wrench supplied with your washing machine.

STEP 4

Connecting the water and drain

Connecting the water supply hose

1. Take the L-shaped arm ﬁtting for the cold water

supply hose and connect it to the cold water supply intake on the back of the machine. Tighten by hand.

The water supply hose must be connected to the washing machine at one end and to the water tap at the other. Do not stretch the water supply hose. If the hose is too short, replace the hose with a longer, high pressure hose.

2. Connect the other end of the cold water supply hose

to your sink’s cold water tap and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the ﬁtting, rotating the hose, and retightening the ﬁtting.

For selected models with an additional hot water intake:

1. Take the red L-shaped arm ﬁtting for the hot water supply hose and connect it to the hot

water supply intake on the back of the machine. Tighten by hand.

2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten

it by hand.

3. Use a Y-piece if you only want to use cold water.

Option

WF1804WS-03042H_EN.indd 17 2011-5-4 9:53:43

18_ setting up your new washing machine

Connecting the water supply hose (selected models)

1. Remove the adaptor from the water supply hose.

2. First, using a ‘+’ type screwdriver, loosen the four screws

on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.

3. Connect the adaptor to the water tap by tightening the

screws ﬁrmly while lifting the adaptor upwards. Turn part (2) following the arrow and connect (1) and (2).

4. Connect the water supply hose to the adaptor.

When you release part (3), the hose automatically connects to the adaptor making a ‘click’ sound.

After you have connected the water supply hose to the adaptor, ensure that it is connected correctly by pulling the water supply hose downwards.

5. Connect the other end of the water supply hose to the inlet

water valve at the rear of the washing machine. Screw the hose clockwise all the way in.

setting up your washing machine

Adaptor

Water supply hose

1 2

5 mm

Water tap

Option

WF1804WS-03042H_EN.indd 18 2011-5-4 9:53:46

setting up your new washing machine _19

01 SETTING UP

6. Turn on the water supply and ensure that no water leaks

from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps.

Do not use your washing machine if there is a water leak. This may cause electric shock or injury.

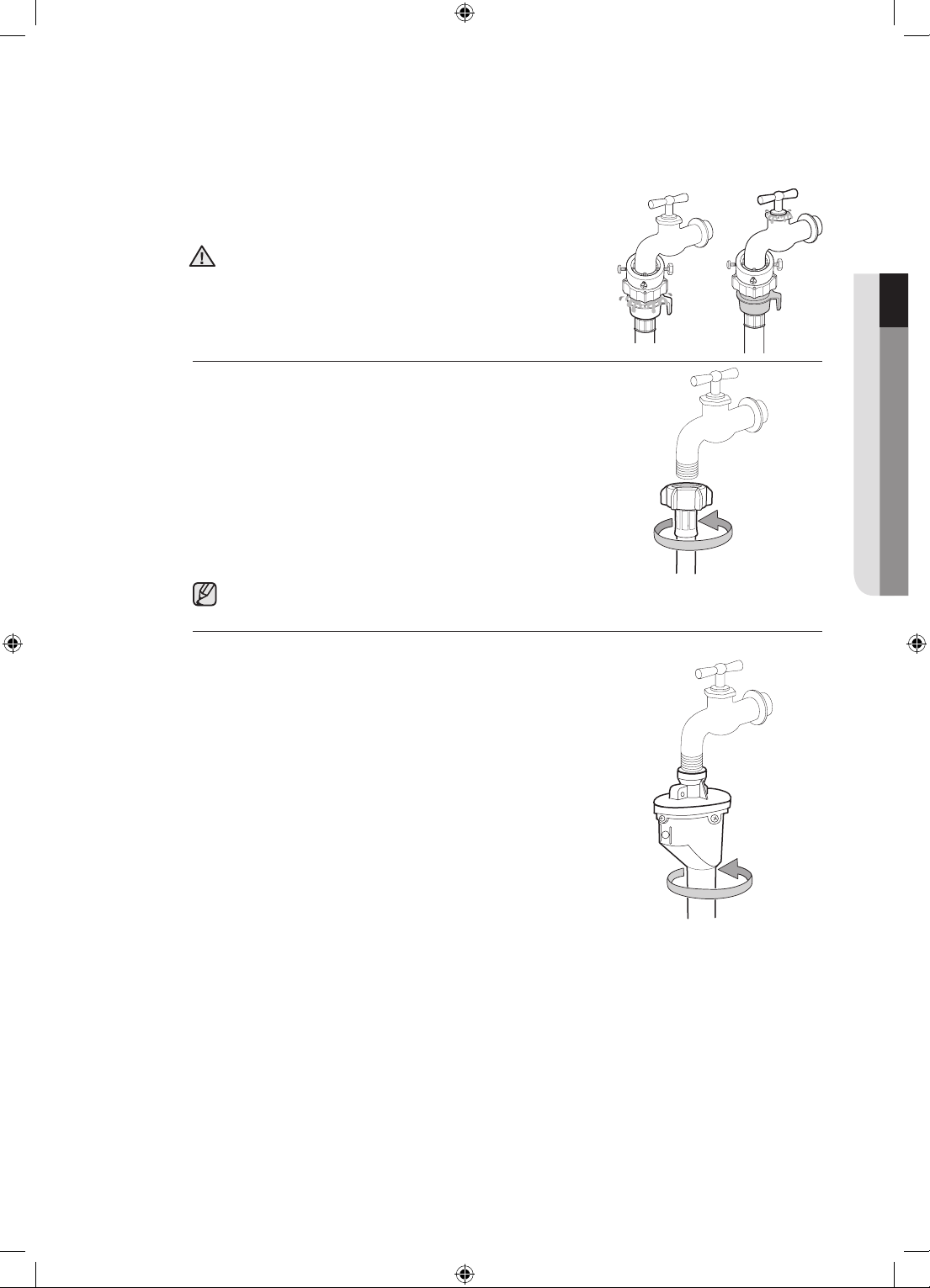

• If the water tap has a screw type tap, connect the water

supply hose to the tap as shown.

Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor.

Connecting the Aqua Hose (Selected models)

The Aqua Hose was invented for perfect leakage protection.It is attached to the water supply hose and automatically cuts off the water ﬂow if the hose is damaged. It also displays a warning indicator.

• Connect the water supply hose to the tap as shown.

✗

WARNING

WF1804WS-03042H_EN.indd 19 2011-5-4 9:53:47

20_ setting up your new washing machine

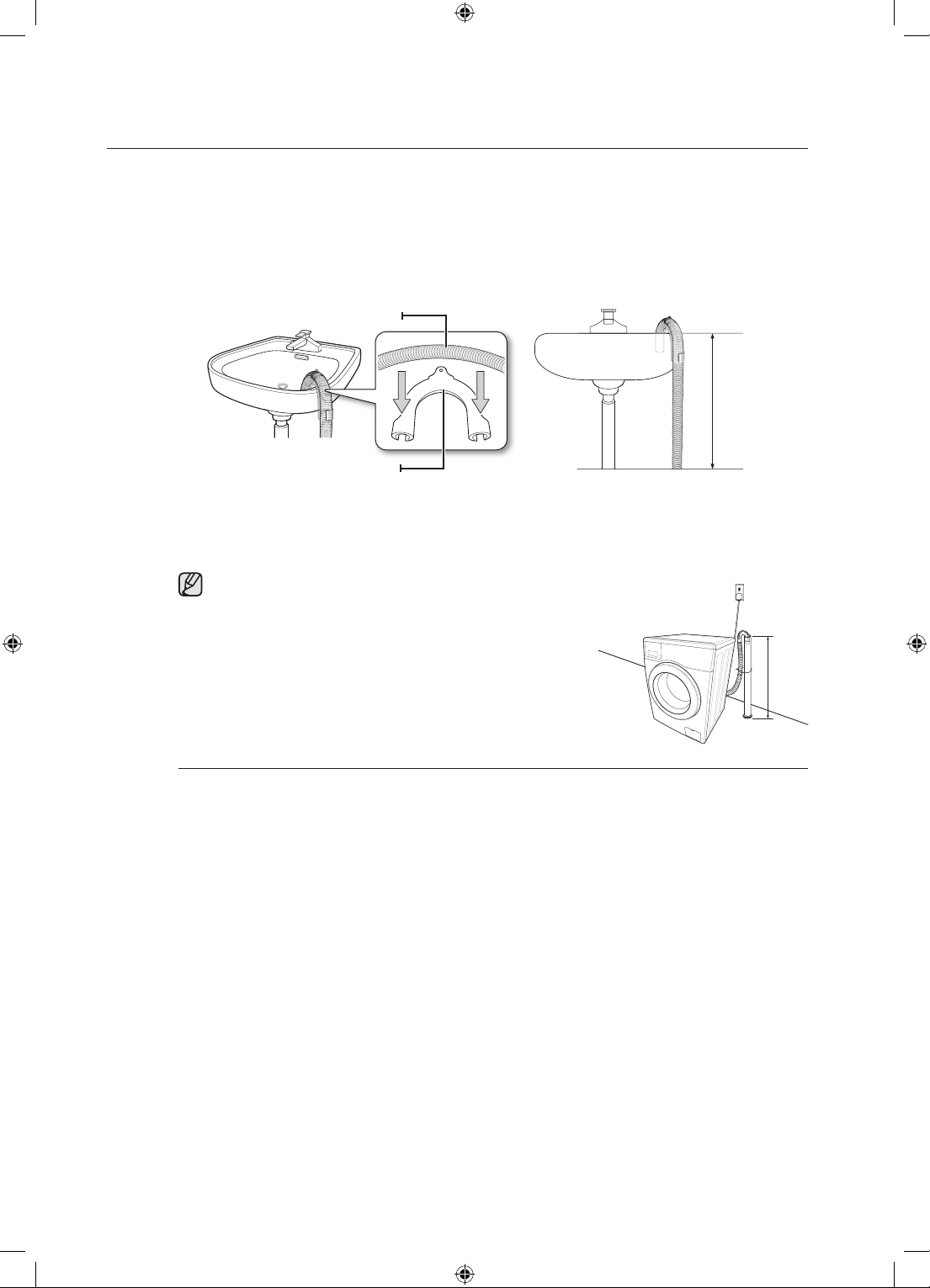

Connecting the drain hose

The end of the drain hose can be positioned in three ways:

1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60

and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.

2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that

the end of the hose is at least 60 cm above the ground.

3. ln a drain pipe: We recommend using a 65 cm high vertical pipe; it must be no shorter than

60 cm and no longer than 90 cm.

The standpipe drain requires;

• minimum diameter 5 cm.

• minimum carry-away capacity 60 liter per minute.

STEP 5

Powering your washing machine

Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet protected by a fuse or circuit breaker. (For more information on electrical and grounding requirements, see page 14.)

setting up your washing machine

Drain hose

Hose guide

60 ~ 90 cm

WF1804WS-03042H_EN.indd 20 2011-5-4 9:53:49

washing a load of laundry _21

02 WASHING A LOAD OF LAUNDRY

washing a load of laundry

With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash ﬁrst.

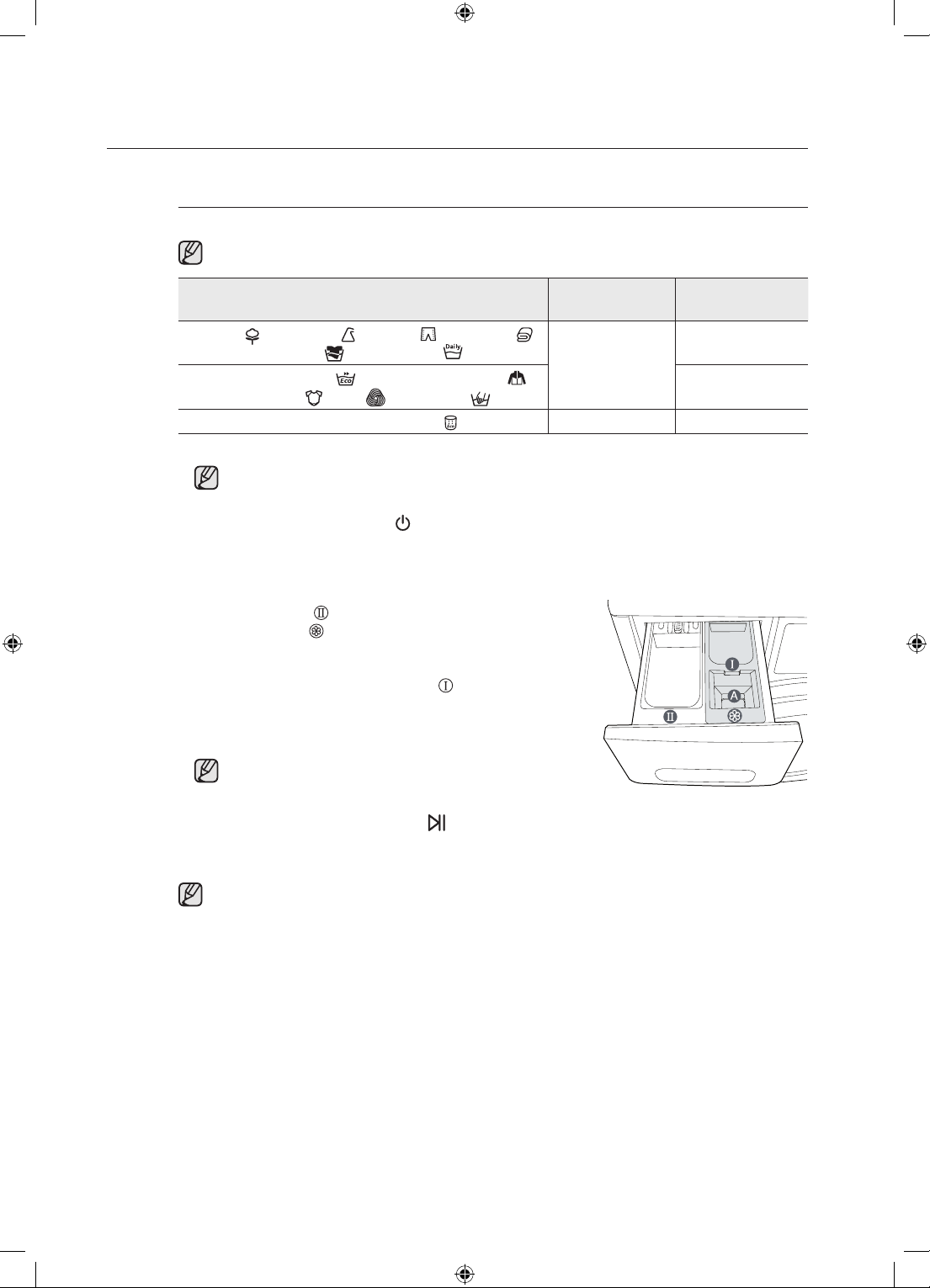

WASHING FOR THE FIRST TIME

Before washing laundry for the ﬁrst time, you must run a complete empty cycle (i.e. no laundry).

1. Press the Power button.

2. Add a little detergent to the detergent compartment in

the detergent drawer.

3. Turn on the water supply to the washing machine.

4. Press the Start/Pause button.

This will remove any water that might be left over in the machine from the manufacturer’s test run.

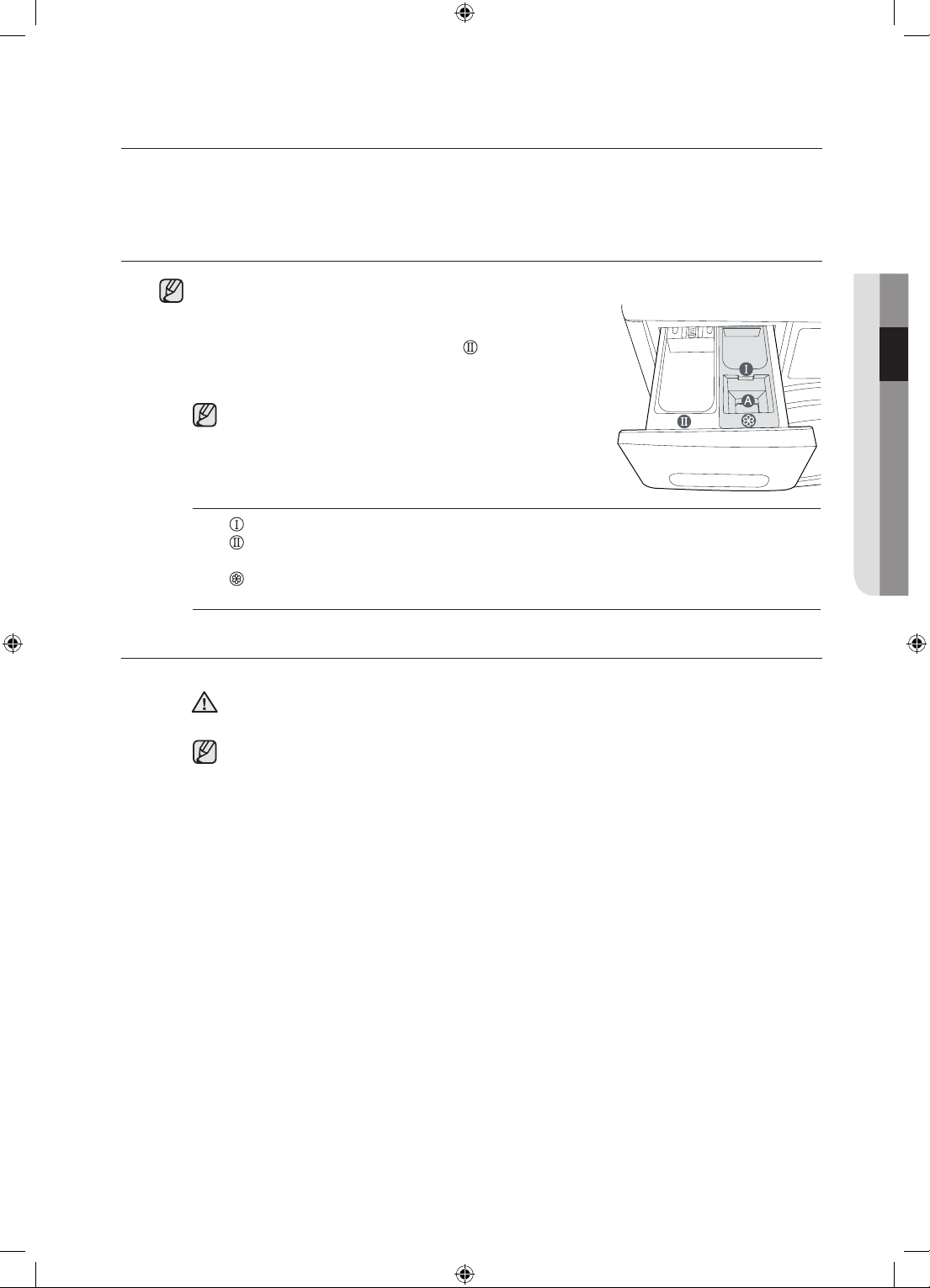

Compartment : Detergent for prewash, or starch. Compartment : Detergent for the main wash, water softener, pre-soaking agent, bleach and

stain removal product.

Compartment : Additives, e.g. fabric softener or former (ﬁll no higher than lower edge (MAX)

of “A”)

BASIC INSTRUCTIONS

1. Load your laundry into the washing machine.

Do not overload the washing machine. To determine the load capacity for each type of laundry, refer to the chart on page 29.

• Make sure that laundry is not caught in the door, as this may cause a water leak.

• Washing detergent may remain in the front rubber part of the washer after a wash cycle. Remove any remaining detergent, as they may cause a water leak.

• Do not wash water-proofed items.

2. Close the door until it latches.

3. Turn the power on.

4. Add detergent and additives to the dispenser drawer.

5. Select the appropriate cycle and options for the load.

The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.

6. Press the Start/Pause button.

WARNING

WF1804WS-03042H_EN.indd 21 2011-5-4 9:53:54

22_ washing a load of laundry

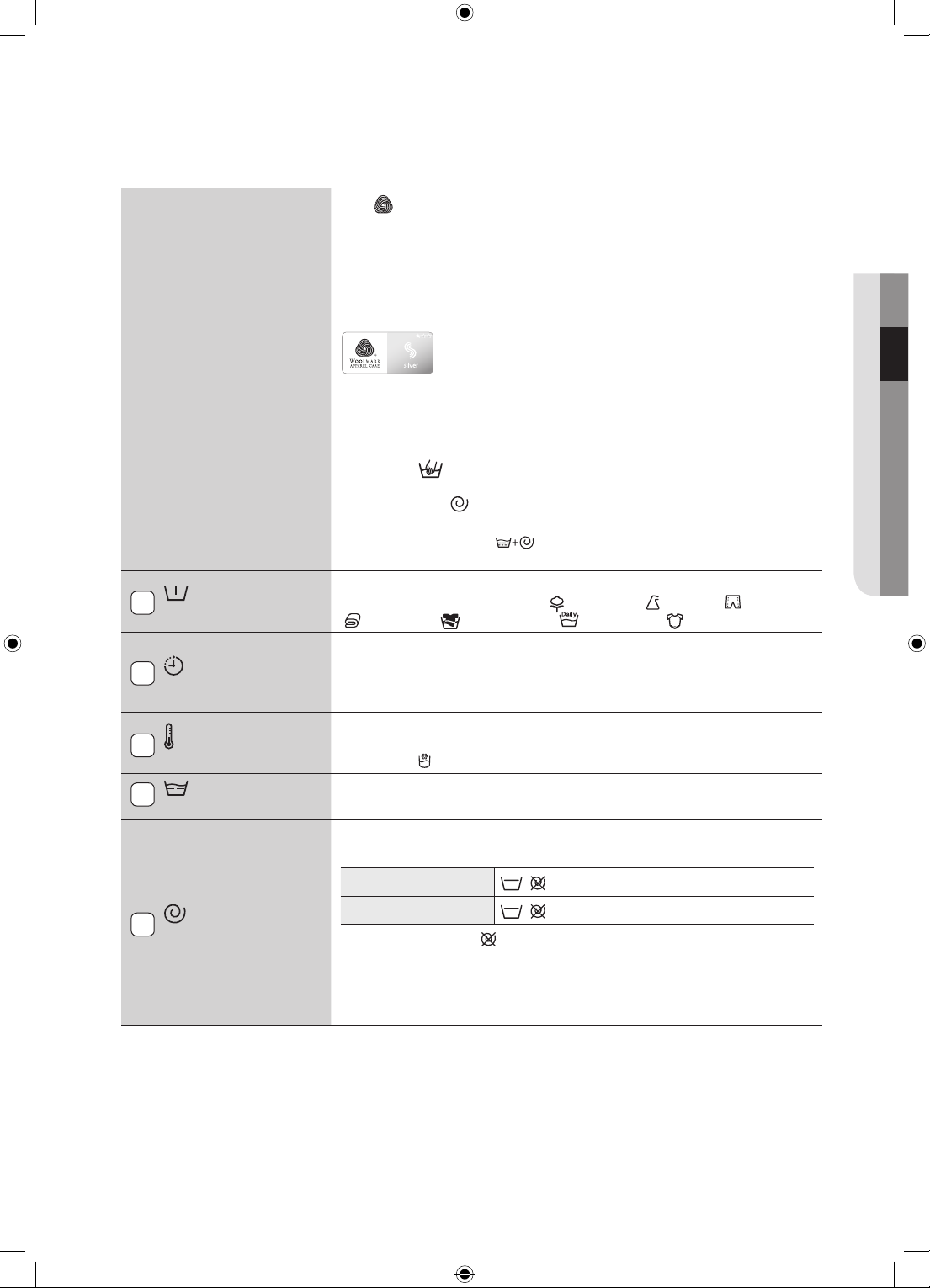

USING THE CONTROL PANEL

DIGITAL GRAPHIC DISPLAY

Displays the remaining wash cycle time, all cycle information, and error messages.

CYCLE SELECTOR

Select the tumble pattern and spin speed for the cycle.

For detailed information, refer to “Washing clothes using the cycle selector” (see page 27).

Cotton( ) - For averagely or lightly soiled cotton, bed linen, table linen, underwear, towels, shirts, etc. Synthetics( ) - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends. Denim( ) - A higher water level in the main wash and extra rinse ensure that no washing powder remains that may mark your clothing. Bedding( ) - For bed spread, bed sheet, duvet cover etc.

Wash under 2kg and only 1 kind of bedding to achieve the best

result. Dark Garment( ) - Additional rinses and reduced spinning ensure that your favourite dark clothes are washed gently and rinsed thoroughly.

Daily Wash(

) - Use for everyday items such as underwear and shirts.

Eco Drum Clean( ) - Use for drum cleaning. It cleanses dirt and

bacteria of drum. Regular use (after every 40 washes) is recommended. No detergent or bleach needed.

Super Eco Wash(

) - Low temperature Eco Bubble ensures that you

achieve perfect wash results while allowing effective energy saving.

Outdoor Care(

) - Use for outdoor wear such as mountain clothes,

skiwear, and sports wear. Fabrics include functional technology ﬁnishes and ﬁbers such as spandex, stretch, and micro-ﬁber.

Baby Care(

) - High temperature wash and extra rinses ensure that no

washing powder remains to mark your thin clothes.

Wool(

) - Only for machine-washable wool. A load should be less than

2.0 kg.

• T

he wool course washes the laundry using gentle cradling actions. During the wash, the gentle cradling and soaking actions are continued to protect the wool ﬁbers from shrinkage / distortion and for a super gentle clean. This stop operation is not a problem.

• Neutral detergent is recommended for wool course, for improved washing

results and for improved care of the wool ﬁbers.

washing a load of laundry

WF1804WS-03042H_EN.indd 22 2011-5-4 9:53:56

washing a load of laundry _23

02 WASHING A LOAD OF LAUNDRY

The wool wash cycle of this machine has been approved by Woolmark for the washing of machine-washable Woolmark products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine, M0814 for WF18***** series, M0815 for WF17***** series. (Certiﬁcate Number issued by IWS NOM INEE Co., Ltd.)

Hand Wash(

) - A very light wash cycle as gentle as a hand wash. Spin( ) - Performs an additional spin cycle to remove more water. Rinse + Spin( ) - Use for a load that needs rinsing only or to add

rinse-added fabric softener to a load.

PREWASH

SELECTION BUTTON

Press this button to select pre-wash. Pre-wash is only available with: Cotton( ), Synthetics( ), Denim( ), Bedding( ), Dark Garment( ), Daily Wash( ), Baby Care( ).

DELAY END

SELECTION BUTTON

Press this button repeatedly to cycle through the available Delay End options (from 3 hours to 19 hours in one hour increments).The hour displayed indicates the time when the wash cycle will be ﬁnished.

TEMPERATURE

SELECTION BUTTON

Press this button repeatedly to cycle through the available water temperature options: (Cold Water

, 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).

RINSE

SELECTION BUTTON

Press this button to add additional rinse cycles. The maximum number of rinse cycles is ﬁve.

SPIN SELECTION

BUTTON

Press the button repeatedly to cycle through the available speeds for the spin cycle.

WF1804/WF1704

, , 400, 800, 1200, 1400 rpm

WF1802/WF1702

, , 400, 800, 1000, 1200 rpm

“No spin ” - The laundry remains in the drum and no spin cycle is performed after the ﬁnal drain. “Rinse Hold

(All Lamps Turn Off)

” -The laundry remains soaking in the ﬁnal rinse water. Before the laundry can be unloaded, either a Drain or Spin cycle must be performed.

WASH OPTION

SELECTION BUTTON

Press this button repeatedly to cycle through the wash options: Soak  Intensive  Easy Iron  Soak + Intensive  Soak

+ Easy Iron

 Intensive

+ Easy Iron

 Soak +

Intensive

+ Easy Iron

 off

“Intensive ”: Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time is increased for each cycle.“Soak ”: Use this option to effectively remove stains from your laundry by soaking your laundry.

• The Soak function is performed 13 minutes into the wash cycle.

• The Soak function continues for 30 minutes with six cycles, where

one cycle is a soak cycle that spins for 1 minute and stands still for 4 minutes.

• The Soak function is only available for the following wash programs:

Cotton( ), Synthetics( ), Denim( ), Bedding( ), Baby care( ), Daily wash( ).

“Easy Iron

”: Use this option to prepare your laundry so that it can be

easily ironed.

WF1804WS-03042H_EN.indd 23 2011-5-4 9:54:02

24_ washing a load of laundry

ECO BUBBLE

SELECTION BUTTON

Eco Bubble selection is turned on as a default. Press the Eco Bubble option button once to deselect and the Bubble Generator OFF (shown on the panel), press it again to turn the function back ON.

•

Some wash cycles must have Eco Bubble option ON (will show on the panel, and the Generator will turn on automatically).

•

Other wash cycles do not need this option and automatically turn the Generator OFF.

•

On many cycles, you can manually adjust this option, which will visibly affect wash time on the panel to achieve results (please see page 26 for more information).

QUICK WASH

SELECTION BUTTON

For lightly soiled garments and less than 2kg laundry that you require quickly. It takes about minimum 15 minute, but can vary from the indicated values depending on water pressure, water hardness, water inlet temperature, room temperature, type and amount of washing and degree of soiling, utilized detergent unbalaced load, ﬂuctuation in the electricity supply and extra options selected.

• P

ress this button repeatedly to choose cycle time: 15min  20min  30min  40min  50min  60min  70min  80min  90min  Off

Powdered/Liquid detergent should be under 20g(for 2kg load) or detergent may remain on the clothes.

START/PAUSE

SELECTION BUTTON

Press to pause and restart a cycle.

POWER BUTTON

Press it once to turn your washing machine on, press it again to turn your washing machine off. If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.

washing a load of laundry

WARNING

WF1804WS-03042H_EN.indd 24 2011-5-4 9:54:03

washing a load of laundry _25

02 WASHING A LOAD OF LAUNDRY

Child lock

The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed.

Activating/Deactivating

If you want to activate or deactivate the Child Lock function, press the

Temp.( ) and Rinse( ) buttons at the same time

for 3 seconds. “Child Lock ” will be lit when this feature is activated.

When the Child Lock function is activated, only the Power

button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord.

Sound off

The Sound Off function can be selected during all courses. When this function is selected, sound is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is retained.

Activating/Deactivating

If you want to activate or deactivate the Sound Off function, press the

Spin( ) and Option( ) button at the same time

for 3 seconds. The “Sound Off ”will be lit when this feature is activated.

Delay end

You can set the washing machine to ﬁ nish your wash automatically at a later time, choosing a delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time at which the wash will be ﬁ nished.

1. Manually or automatically set your washing machine according to the type of laundry you are

washing.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay End ” indicator will be lit, and the clock will

begin counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing

machine on again.

3 SEC.

WF1804WS-03042H_EN.indd 25 2011-5-4 9:54:05

26_ washing a load of laundry

Eco Bubble

Eco Bubble allows detergent to distribute evenly and penetrate fabrics faster and deeper.

The bubble function is available in all courses except for Eco Drum Clean course and the function availability is as follows.

Course Bubble function Canceling the bubble function

Cotton( ), Synthetics( ), Denim( ),

Bedding( ), Dark Garment( ),

Daily Wash(

)

Available

Super Eco Wash(

Outdoor Care(

), Baby Care( ),

Wool( ), Hand Wash( )

Not available

Eco Drum Clean( )

Not available -

• A different bubble function may be applied depending the course. Eco Bubble selection is default. Press it once to deselect bubble option, press it again to select bubble option.

1. Open the door, place the laundry inside the wash tub and close the door.

2. Press the Power button.

3. Select a function.

4. Place the appropriate amount of detergent and fabric softener into the corresponding

compartments depending on the amount of laundry and close the detergent drawer.

• Add the appropriate amount of detergent into the detergent compartment , and add the fabric softener to softener compartment

just under the ﬁber softener

base line (MAX) of “A”)

• When the Prewash course is selected, add detergent into the prewash compartment as well.

• To use liquid detergent, leave the liquid detergent box in the drawer(refer to “Liquid Detergent” section on page

30). Do not add powdered detergent into the liquid

detergent box.

5. Press the Start/Pause button.

• Press the Start/Pause button to start the wash.

• The amount of the laundry is automatically detected and the laundry is washed.

• Once a washing machine operation begins, you cannot add or select the bubble function.

• Enough bubbles are generated with the speciﬁed amount of detergent.

• Please clean the Debris ﬁlter frequently. Periodic cleaning helps generate sufﬁcient

bubbles.

• Depending on the detergent and the laundry, the bubbles may be absorbed and seem

like a small quantity.

• Although bubbles are generated once the wash begins, it may take several minutes for

users to see them.

washing a load of laundry

WF1804WS-03042H_EN.indd 26 2011-5-4 9:54:11

washing a load of laundry _27

02 WASHING A LOAD OF LAUNDRY

Washing clothes using the cycle selector

Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

1. Turn on your sink’s water tap.

2. Press the Power button.

3. Open the door.

4. Load the articles one at a time loosely into the drum, without overﬁlling it.

5. Close the door.

6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate

compartments.

Pre-wash is only available when selecting the Cotton(

), Synthetics( ), Denim( ), Bedding( ), Dark Garment( ), Daily Wash( ) and Baby Care( ) cycles. It is only necessary if your clothing is heavily soiled.

7. Use the Cycle Selector to select the appropriate cycle according to the type of material:

Cotton( ), Synthetics( ), Denim( ), Bedding( ), Dark Garment( ), Daily Wash( ), Eco Drum Clean( ), Super Eco Wash( ), Outdoor Care( ), Baby Care( ), Wool( ), Hand Wash(

). The relevant indicators will illuminate on the control panel.

8. At this time, you can control the wash temperature, the amount of rinses, the spinning

speed, and the delay time by pressing the appropriate option button.

9. Press the Start/Pause button and the wash will begin. The process indicator will light up

and the remaining time for the cycle will appear in the display.

Pause Option

Within 5 minutes of starting a wash, it is possible to add/remove laundry items.

1. Press the Start/Pause button to unlock the door.

The door cannot be opened when the water is too HOT or the water level is too HIGH.

2. After closing the door, press the Start/Pause button to restart the wash.

When the cycle is ﬁnished:

After the total cycle has ﬁnished, the display will show “End” for 5 minutes, and then the powerturns off automatically.

1. Open the door.

2. Remove laundry.

WF1804WS-03042H_EN.indd 27 2011-5-4 9:54:12

28_ washing a load of laundry

Washing clothes manually

You can wash clothes manually without using the Cycle Selector.

1. Turn the water supply on.

2. Press the Power( ) button on the washing machine.

3. Open the door.

4. Load the articles loosely into the drum one at a time, without overﬁlling it.

5. Close the door.

6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate

compartments.

7. Press the Temp.( ) button to select the temperature. (Cold water, 30 ˚C, 40 ˚C, 60 ˚C, 95 ˚C)

8. Press the Rinse( ) button to select the required number of rinse cycles.

The maximum number of rinse cycles is ﬁve. The wash duration is increased accordingly.

9. Press the Spin( ) button to select the spin speed.

The rinse hold function allows you to remove items that are still wet from the washing machine. (

: No Spin, All Lamps Turn Off: Rinse Hold)

10. Press the Delay End( ) button repeatedly to cycle through the available Delay End options

(from 3 hour to 19 hours in one hour increments). The hour displayed indicates the time at which the wash will be ﬁnished.

11. Press the Start/Pause( ) button and the machine will begin the cycle.

LAUNDRY GUIDELINES

Follow these simple guidelines for the cleanest laundry and the most efﬁcient wash.

Always check the Care label on clothing before washing.

Sort and wash your laundry according to the following criteria:

• Care Label: Sort laundry into cotton, mixed ﬁbres, synthetics, silks, wool and rayons.

• Colour: Divide whites and colours. Wash new colour items separately.

• Size: Placing items of different sizes in the same load will improve the wash action.

• Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new

woollen items, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix.

Emptying pockets

Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash clothing with large buckles, buttons, or other heavy metal objects. Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and embroidered clothes inside out before washing them. If zips of pants and jackets are open while washing, the spin basket may be damaged. Zips should be closed and ﬁxed with a string before washing. Clothing with long strings may become entangled with other clothes damaging them. Be sure to ﬁx the strings before starting the wash.

Prewashing cotton

Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent.

washing a load of laundry

WF1804WS-03042H_EN.indd 28 2011-5-4 9:54:13

washing a load of laundry _29

02 WASHING A LOAD OF LAUNDRY

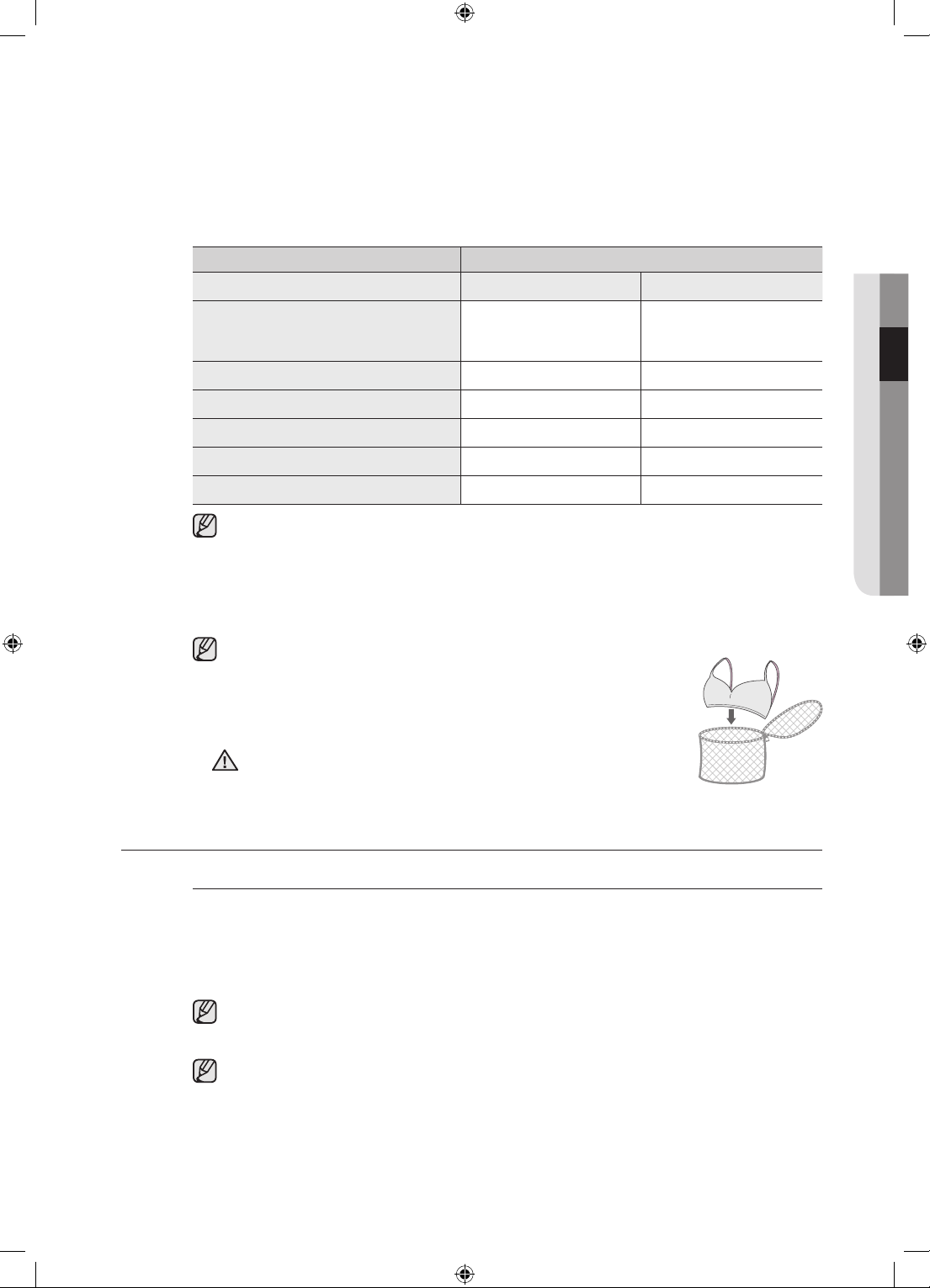

Determining the load capacity

Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing.

Fabric Type Load Capacity

Model

WF1804 / WF1802 WF1704 / WF1702

Cotton

- average/lightly soiled

- heavily soiled

8.0 kg 7.0 kg

Synthetics 3.0 kg 3.0 kg Denim 3.0 kg 3.0 kg Bedding 2.0 kg 2.0 kg Outdoor Care

2.0 kg 2.0 kg

Wool

2.0 kg 2.0 kg

• When the laundry is unbalanced (“

UE” lights up on the display), redistribute the load.

If the laundry is unbalanced, the spin efﬁciency may be degraded.

• When washing Bedding or Duvets, the wash time may be lengthened or the spin

efﬁciency may be degraded.

• For Bedding or Duvets, the recommended load capacity is 2.0(kg) or less.

Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally).

• The metal parts of the brassieres may break through the material and damage the

laundry. Therefore make sure to place them inside a ﬁne laundry net.

• Small, light clothing such as socks, gloves, stockings and

handkerchiefs may become caught around the door. Place them inside a ﬁne laundry net.

Do not wash the laundry net by itself without other laundry. This may

cause abnormal vibrations that could move the washing machine and cause an accident resulting in injury.

DETERGENT AND ADDITIVES INFORMATION

Which detergent to use

The type of detergent you should use is based on the type of fabric (cotton, synthetics, items, Hand Wash For Wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, enquire at your local water authority.

Do not use detergent that has hardended or solidiﬁed as the detergent may remain in the rinse cycle. It may cause your washing machine to not rinse properly or result in the overﬂow becoming blocked.

Please note the following when using the Wool course.

• Use a neutral liquid detergent for wool only.

• When using a powder detergent, it may remain on the laundry and cause damage to the

material (wool).

CAUTION

WF1804WS-03042H_EN.indd 29 2011-5-4 9:54:14

30_ washing a load of laundry

washing a load of laundry

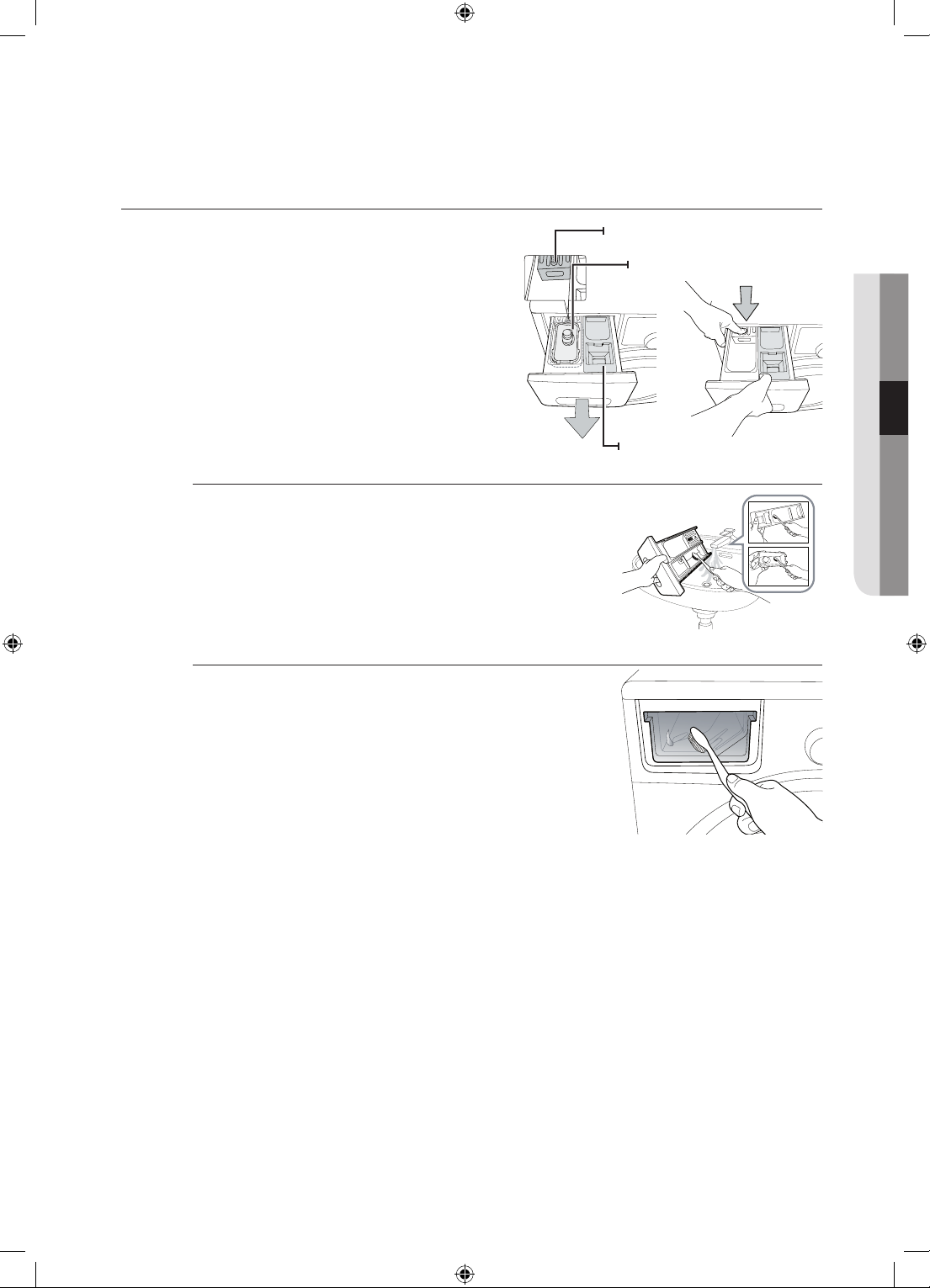

Detergent drawer

Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine.

Do NOT open the detergent drawer when your washing machine is running.

1. Pull out the detergent drawer on the left side of the control panel.

2. Add the recommended amount of laundry detergent

directly into the detergent compartment before starting your washing machine.

3. Add the recommended amount of fabric softener into the

softener compartment if required.

Do NOT add any powder/liquid detergent to the softener compartment ().

4. When using the Prewash option, add the recommended

amount of laundry detergent into the prewash compartment .

When washing large items do NOT use the following detergent types.

• Tablet and capsule type detergents

• Detergents using a ball and net Concentrated or thick fabric softener and conditioner

must be diluted with a little water before being poured into the dispenser (prevents the overﬂow from becoming blocked.)

Be careful that the fabric softener does not overﬂow, when you close the detergent drawer after adding fabric softener into the rinse detergent compartment.

Liquid Detergent (Selected models)

To use liquid detergent, place the liquid detergent box into the main wash section of the detergent drawer and pour liquid detergent into the liquid detergent box.

• DO NOT ﬁll above the MAX line.

• When using powdered detergent, remove the liquid detergent box from the detergent drawer. Powdered detergent will not dispense with liquid detergent box.

• After a wash, some liquid may remain in the detergent drawer.

CAUTION

Liquid detergent box

MAX

WF1804WS-03042H_EN.indd 30 2011-5-4 9:54:15

+ 190 hidden pages
