Samsung WEP480EB User Manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-25752A
EU D. 02/2010. Rev. 1.0
English ...................................................................................1
Русский ...............................................................................21
Ελληνικά ..............................................................................41
Türkçe ..................................................................................61
Contents
Getting started
Your headset overview ......................................................................... 3
Button functions .................................................................................... 4
Charging the headset ........................................................................... 5
Wearing the headset ............................................................................7
Using your headset
Turning the headset on or off................................................................8
Pairing and connecting the headset ..................................................... 9
Using call functions............................................................................. 11
Appendix
Frequently asked questions................................................................ 13
Warranty and parts replacement ........................................................ 15
Correct disposal of this product .......................................................... 16
Correct disposal of batteries in this product .......................................17
Specications .....................................................................................18
English
1
Take the time to read through this user manual before using WEP480 Bluetooth
Headset.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—
Bluetooth QD ID: B015796
More information about Bluetooth is available at www.bluetooth.com.
Safety precautions
Never disassemble or modify your headset for any reason. Doing this may
•
cause the headset to malfunction or become combustible. Bring the headset to
an authorised service centre to repair it or replace the battery.
When using your headset while driving, follow local regulations in the country or
•
region you are in.
Avoid storage at high temperatures (above 50° C/122° F), such as in a hot
•
vehicle or in direct sunlight, as this can damage performance and reduce
battery life.
Do not expose the headset or any of its supplied parts to rain or other liquids.
•
At very high volumes, prolonged listening to the headset can damage your hearing.
2
Getting started
This section explains the proper use of your Bluetooth headset.
Your headset overview
English
Ear hook
Power switch
Talk button
Microphone
Make sure you have the following items with your headset :
Travel adapter, User manual, Ear hook.
The items supplied with your headset may vary depending on your region.
Charger jack
Indicator light
Earpiece
Volume up
button
Volume down
button
3
Button functions
Button Function
Power Slide the switch to turn the headset on or off.
Press to make or answer a call.
Talk
Volume
•
Press to end a call.
•
Press and hold to enter Pairing mode.
•
Press to adjust the volume.
•
During a call, press and hold to mute the microphone.
•
4

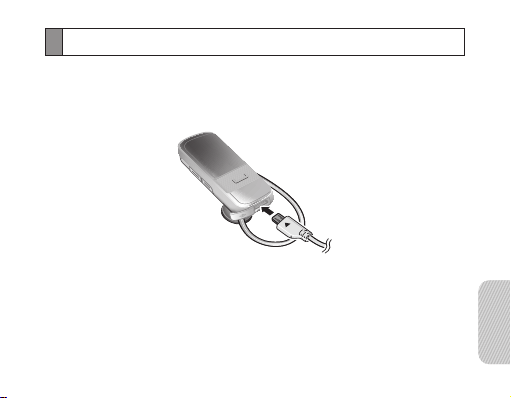

Charging the headset
This headset has a rechargeable internal battery which is non-removable. Ensure
that you fully charge the battery before using the headset for the rst time.

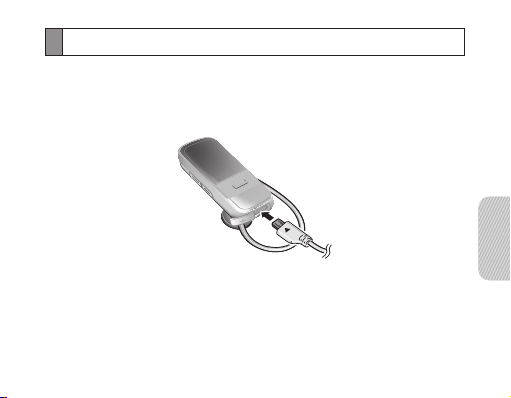

1 Plug the small end of the travel adapter into the charger jack.
2 Plug the large end of the travel adapter into a power outlet.
During charging, the indicator light will turn red. If charging does not begin,
unplug the travel adapter and plug it in again.
3 When the headset is fully charged, the indicator light changes to blue. Unplug
the travel adapter from the power outlet and the headset.
English
5
Use only a Samsung-approved travel adapter. Unauthorised travel adapters may
•
cause an explosion or damage to the headset.
•
When charging the headset in very hot temperatures, the red indicator light ashes
and charging will stop. This is a normal event to protect the headset from damage.
Unplug the travel adapter from the headset.
You can charge the headset normally below 50°C/122°F (±5°C/9°F).
•
The battery will gradually wear out while charging or discharging because it is a
consumable part.
The headset is not able to operate while charging. Try connecting after charging is
•
completed.
Checking the battery level
At the same time, press and hold the Volume down button and the Talk button.
Depending on the battery level, the indicator light ashes 5 times in one of the
following colours:
Battery level Indicator light colour
Above 80% Blue
80 ~20% Violet
Below 20% Red
6
When the battery power is low
The headset beeps and the indicator light ashes red. Recharge the battery. If the
headset powers off during a call, the call will be automatically transferred to the
phone.

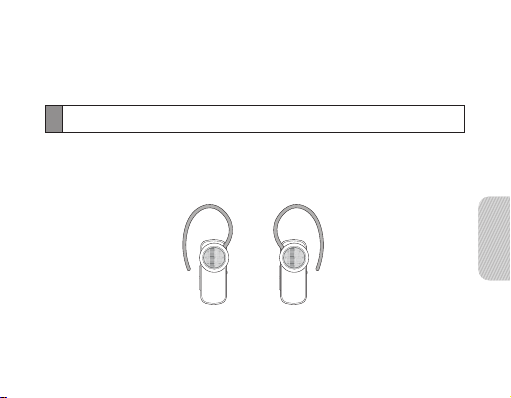

Wearing the headset
Place the headset on your ear.
Depending on what ear you are going to wear the headset, simply adjust the ear
hook accordingly.
English
Left
Right
7
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
Activated functions and features may differ depending on the types of your phone.
•
Some devices, especially those that are not tested or approved by Bluetooth SIG,
•
may be incompatible with your headset.
Turning the headset on or off
Slide the power switch to turn the headset on. The blue indicator light ashes
•
4 times.
Slide the power switch to turn the headset off. Both blue and red indicator
•
lights ash.
8
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetoothenabled devices, such as a Bluetooth phone and your Bluetooth headset.
To use the headset with other Bluetooth devices, the devices must be paired. When
trying to pair the two devices, keep the headset and the phone reasonably close
together. After pairing, you can connect the two devices.
Pairing and connecting the headset with a phone
1 Enter Pairing mode.
With the headset turned on, press and hold the Talk button until the indicator
•
light stays lit.
When you turn on the headset for the rst time, it automatically enters
•
Pairing mode.
2 Activate the Bluetooth feature on your phone and search for the headset (see
your phone’s user manual).
3 Select the headset (WEP480) from the list of devices found by your phone.
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your
phone.
English
9
Your headset supports the Simple Pairing feature which allows the headset to be
paired with a phone without requesting a PIN. This feature is available for phones
that are compliant with Bluetooth version 2.1 or higher.
Disconnecting the headset
To disconnect the headset from your phone,
Turn off the headset
•
Use the Bluetooth menu on your phone
•
Reconnecting the headset
When the headset is paired with a phone, it will attempt to automatically reconnect
each time you turn it on.
If the headset does not automatically attempt to reconnect,
Press the Talk button.
•
Use the Bluetooth menu on your phone
•
10
Using call functions
Making a call
Redialling the last number
Press the Talk button to redial the last number.
For some phones, pressing the Talk button opens the call log list. Press the Talk
button again to dial the selected number.
Dialling a number by voice
Press and hold the Talk button, and then say a name to dial a number by voice.
Answering a call
When you hear incoming call tones, press the Talk button to answer a call.
Ending a call
Press the Talk button to end a call.
Rejecting a call
When a call comes in, press and hold the Talk button to reject a call.
English
11
Using options during a call
You can use the following functions to control your call:
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone is
turned off, the headset beeps at regular intervals. Press and hold the Volume up or
down button again to turn the microphone back on.
Transferring a call from the phone to the headset
Press the Talk button to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold the Talk button to place the current call on hold.
Answering a second call
When you hear call waiting tones, press the Talk button to end the rst call and
•
answer a second call.
When you hear waiting tones, press and hold the Talk button to place the rst
•
call on hold and answer a second call.
To switch between the current call and a held call, press and hold the Talk
•
button.
12
Appendix
Frequently asked questions
English
Will my headset work with
laptops, PCs, and PDAs?
Why do I hear static or
interference while on a
call?
Will my headset interfere
with my car’s electronics,
radio, or computer?
Your headset will work with devices that support
the same Bluetooth version and proles. For
specications, see page 18.
Appliances such as cordless phones and wireless
networking equipment may cause interference,
which usually sounds like static. To reduce any
interference, keep the headset away from other
devices that use or produce radio waves.
Your headset emits signals that are in compliance
with the international Bluetooth standard.
Therefore, you should not expect any interference
with standard, consumer-grade electronic
equipment.
13
Can other Bluetooth
phone users hear my
conversation?
Why do I hear an echo
while on a call?
How do I clean my
headset?
The headset does not fully
charge.
14
When you pair your headset to your Bluetooth
phone, you are creating a private link between
only these two Bluetooth devices. The wireless
Bluetooth technology used in your headset is
not easily monitored by third parties because
Bluetooth wireless signals are signicantly lower
in radio frequency power than those produced by
a typical mobile phone.
Adjust the headset volume, or move to another
area and try again.
Wipe it with a soft dry cloth.
The headset and the travel adapter may not have
been connected properly.
Separate the headset from the travel adapter,
reconnect, and charge the headset.
Warranty and parts replacement
Samsung warrants this product as free of defects in material, design
and workmanship for the period of one year from the original date of
purchase.(Depending on your country, the length of warranty may vary.)
If during the period of warranty this product proves defective under normal use and
service you should return the product to the retailer from whom it was originally
purchased or qualied service centre. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or replacement of the unit
under warranty.
The warranty is limited to the original purchaser
•
A copy of your receipt or other proof of purchase is required for a proper
•
warranty service
The warranty is void if the serial number, date code label or product label
•
is removed, or if the product has been subject to physical abuse, improper
installation, modication, or repair by unauthorised third parties
Specically exempt from any warranty are limited-life consumable components
•
such as batteries and other accessories
Samsung will not assume any responsibility for any loss or damage incurred
•
in shipping. All repair work on Samsung products by unauthorised third parties
voids any warranty
15
English
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable)
should not be disposed of with other household waste at the end of their
working life
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and recycle
them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government ofce, for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
This EEE is compliant with RoHS.
16
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with
separate battery return systems.)
This marking on the battery, manual or packaging indicates that the
batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical symbols Hg,
Cd or Pb indicate that the battery contains mercury, cadmium or lead above the
reference levels in EC Directive 2006/66. If batteries are not properly disposed of,
these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
The rechargeable battery incorporated in this product is not user replaceable. For
information on its replacement, please contact your service provider.
17
English
Specications
Item Specications and description
Bluetooth version 2.1+EDR
Support Prole Headset Prole, Hands-Free Prole
Operating range Up to 33 feet (10 metres)
Standby time Up to 180 hours*
Talk time Up to 6 hours*
Charging time Approximately 2 hours*
* Depending on the phone type and usage, the actual time may vary.
18
Declaration of Conformity (R&TTE)
We, Samsung Electronics
declare under our sole responsibility that the product
Bluetooth Headset : WEP480
to which t his dec laration relates, is in confor mity w ith the follo wing st andards and/or other
normative documents.
SAFETY EN 60950- 1 : 2001+A11:2004
EMC EN 301 489- 01 V1.6.1 (09-2005)
EN 301 489- 17 V1.2.1 (08-2002)
RADIO EN 300 328 V1.7.1 (10-2006)
We hereby declare that [all essential radio test suites have been carried out and that] the above
named product is in conformity to all the essential requirements of Directive 1999/5/EC.
which will be made available upon request.
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK*
2009.09.02 Yong-Sang Park / S. Manager
(place and date of issue) (name and signature of authorised person)
* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung
Service Centre, see the warranty card or contact the retailer where you purchased your product.
English
19
20
Содержание
Подготовка к работе
Внешний вид гарнитуры ................................................................... 23
Функции кнопок .................................................................................24
Зарядка гарнитуры ...........................................................................24
Ношение гарнитуры .......................................................................... 27
Использование гарнитуры
Включение и выключение гарнитуры .............................................. 28
Создание подключения и соединение гарнитуры .......................... 29
Функции вызова ................................................................................31
Приложение
Вопросы и ответы ............................................................................. 33
Гарантия и замена деталей .............................................................35
Правильная утилизация изделия .................................................... 36
Правильная утилизация аккумуляторов для этого продукта ........37
Технические характеристики............................................................ 38
21
Русский
Русский
Ознакомьтесь с данной инструкцией до начала использования гарнитуры
WEP480.
Bluetooth® является зарегистрированным во всем мире товарным знаком
Bluetooth SIG, Inc. Идентификатор Bluetooth QD: B015796
Дополнительную информацию о Bluetooth см. на веб-сайте www.bluetooth.com.
Меры предосторожности
Запрещается разбирать гарнитуру и вносить любые изменения в ее
•
конструкцию. Это может привести к неполадкам или воспламенению
гарнитуры. Для ремонта гарнитуры или замены аккумулятора обращайтесь
в авторизованные сервисные центры.
Соблюдайте все требования местного законодательства относительно
•
использования гарнитуры во время вождения.
Не храните гарнитуру при температуре выше 50 °C/122 °F, например
•
в нагретом салоне автомобиля или в зоне действия прямых солнечных
лучей, так как это может привести к ухудшению работы гарнитуры и
сократить срок службы аккумулятора.
•
Не подвергайте гарнитуру и любые ее компоненты воздействию воды
или других жидкостей.
Длительное использование гарнитуры при очень высокой громкости может
привести к нарушениям слуха.
22
Loading...
