LED TV
Chassis : U74I
Model : UN60EH6003F
SERVICE
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UN60EH6003F
Page 2
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-2. Servicing Precautions ..........................................................................................................1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product Information .............................................................................................................2-1
2-2. Detail Factory Option ...........................................................................................................2-4
2-3. Accessories .........................................................................................................................2-5
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ...................................................................................................................4-1
4-2. How to Check Fault Symptom .............................................................................................4-3
4-3. Factory Mode Adjustments ................................................................................................4-15
4-4. White Balance ...................................................................................................................4-24
4-5. White Ratio (Balance) Adjustment .....................................................................................4-27
4-6. RS-232C ............................................................................................................................ 4-28
4-7. AV Control Tabe .................................................................................................................4-29
4-8. Software Upgrade ..............................................................................................................4-35
4-9. Cover-Middle Rear Dimension ..........................................................................................4-37
5. Wiring Diagram .............................................................................................................5-1
5-1. Wiring Diagram .................................................................................................................... 5-1
A. Exploded View & Part List [UN60EH6003FXZA] .......................................................A-1
A-1. Exploded View ................................................................................................................... A-1
A-2. Electrical Parts List ............................................................................................................. A-2
Page 3
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2012 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Page 4
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 5
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
on schematics and parts lists. A substitute
Page 6
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 7
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 8
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
Page 9
2. Product Specications
2-1. Product Information
2-1-1. Model Comparison
Model UN60EH6003F
2. Product specications
W
Front View
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
Weight
Panel Type Anti Glare
Internal Memory None
Set with Stand 54.16 x 33.96 x 12.98 inch / 1375.6 x 565.1 x 94.4 mm
Set without Stand 54.16 x 22.25 x 3.72 inch / 1375.6 x 862.5 x 329.7 mm
Set with Stand 59.97 lbs / 27.2 Kg
Set without Stand 50.71 lbs / 23.0 Kg
* W : Width H : High D : Depth
H
DDR 128 Mbtye
Feature Media Play(Movie)
2-1
Page 10
2-2
2. Product specications
2-1-2. Feature & Specications
Model UN60EH6003F
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-USB2.0•
Brightness : 300 cd/m•
High Contrast Ratio : 1,200 : 1•
Response Time : 8 ms•
CMR : 240•
Item Description
LCD Panel 60 inch FHD 120 Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
2
Specications
Vertical : 47 Hz ~ 63 Hz (Automatic)
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
52.33 (H) X 19.43 (V) inches / 1329.1 (H) X 747.63 (V) inches
AC Power Voltage & Frequency AC 110V ~ 120 V, 60 Hz
Power Consumption 108 W (Under 0.5 W, Stand by)
Dimensions Set (W x H x D)*
* Width x High x Depth
Set with Stand 54.16 x 33.96 x 12.98 inch / 1375.6 x 565.1 x 94.4 mm
Set without Stand 54.16 x 22.25 x 3.72 inch / 1375.6 x 862.5 x 329.7 mm
Weight Set with Stand 59.97 lbs / 27.2 Kg
Set without Stand 50.71 lbs / 23.0 Kg
TV System Tunning Frequency Synthesize (Refer to detailed Frequency Table)
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital +
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 20% ~ 90%
Storage Temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Dolby Digital Plus/Pulse, SRS TheaterSound, USB2.0, Film mode
Page 11
2-3
2. Product specications
2-1-3. Specication Comparison to Old Models
Model UE6Q(UN60EH6003F) UD4N(UN32D4003BD)
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1920 x 1080 1366 x 768
LCD Panel TFT LCD Panel 120 Hz TFT LCD Panel 120Hz
Screen Size 65" 32"
Picture ratio 16 : 9 16 : 9
Power Consumption 60" 108 W (Under 0.5 W, Standby) 32" 70 W (Under 0.3 W, Standby)
Brightness 300 cd/m
2
250 cd/m
2
Contrast 1200 : 1 MEGA
Picture Enhancer HyperReal Engine (X9R) HyperReal Engine (Saturn4)
Equalizer 5 Band 5 Band
Auto Volume Control O O
Surround Sound SRS TheaterSound SRS TruSurround HD
Function Jog Function Touch Function
Speaker Output 10 W + 10 W 5 W + 5 W
Subtitle O O
PIP X X
Network X X
Antenna DTV 1 (Cable/Air) DTV 1 (Cable/Air)
Page 12
2-4
2. Product specications
2-2. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type" and "Front Color".
Model Name UN60EH6003F
Vendor SHARP
Panel
SMPS
MAIN Assy
Byte Item
0 Factory Reset -
1 Type 60H1AF0D
2 Model UEH6003
3 SVC Model 6003
4 Local Set US
5 Tuner SI_ATC2
6 Ch Table NONE
7 Front Color U-S-C-5K
Code BN95-00831A
Spec. DE600CGS-V2
Vendor SEM
Code BN44-00500B
Spec. PD60GV1_CSM
Chassis Ass'y BN91-10122A
PBA Ass'y code BN94-06143A
Page 13
2-5
2. Product specications
2-3. Accessories
Product Description Code. No Remark
Remote Control AA59-00666A
Batteries (AAA x 2) 4301-000121
Power Cord 3903-000599
Samsung Electronics
Service center
Warranty Card
Safety Guide Manual
Owners Manual
Holder-Wire Stand BN61-05491A
BP68-00263E
AA68-03242L
BN68-04674A
Page 14
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING
3-1. Disassembly and Reassembly
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
CAUTION
Place TV face down on cushioned table.
If there is no additional coment, it is same for all inches.3.
Description Picture Description Screws
1
Remove 4 screws from the Stand.
2
Remove Stand.
3
6003-001782
3-1
Page 15
3-2
3. Disassembly and Reassemble
Description Picture Description Screws
Remove 14 screws of Cover-Middle.
4
Remove the Cover-Middle.
5
6003-001782
6003-002755
Disconnect the Function Assy Cable.
6
Remove the 17 screws of Rear-Cover.
7
Remove the Rear-Cover.
8
Page 16
3-3
3. Disassembly and Reassemble
Description Picture Description Screws
Remove the screws of Main Board and
9
SMPS Board and Panel.
Remove the Speakers and Power Cables.
10
6001-002756
Remove the LVDS Cable and Panel Drive
11
Cable.
Completed disassembly.
12
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 17
3. Disassembly and Reassemble
Screw Size
Code No. COLOR A (mm) B (mm) C (mm) Q'ty
6003-001782 BLACK 7.80~8.30 11.20~12.00 3.81~3.91 -
6001-002755 BLACK 7.1~7.5 5.7~6.0 2.98~3.02 -
6001-002756 WHITE 7.1~7.5 5.7~6.0 2.98~3.02 -
3-4
Page 18
4. Troubleshooting
4-1. Troubleshooting
Previous Check
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. -
Check to see if there is a disconnected or loose cable connection. -
Check to see if the cables are connected according to the connection diagram. -
Check the power input to the Main Board.2.
Main Ass’y
4. Troubleshooting
Power Ass’y
14P Cable
LVDS Cable
Speaker
CN201 (to Powr board)
1 B5.3V 8 GND
2 SW_PW 9 B13VS_AMP
3 B5.3V 10 SW_INV
4 A5.3V 11 B13VS_PW
5 GND 12 B13VS_PW
6 GND 13 B13VS_PW
7 B13VS_AMP 14 PWM_DIM
Check the power in & output between IP & Main Board, Main Board & Panel, IP & Panel.3.
CNM803 (to Main board)
1 B13V 8 GND
2 PWM_DIM 9 GND
3 B13V 10 GND
4 B13V 11 B5V
5 Vamp 12 A5V
6 BLU_On/Off 13 B5V
7 Vamp 14 Power on
4-1
Page 19
4-2
4. Troubleshooting

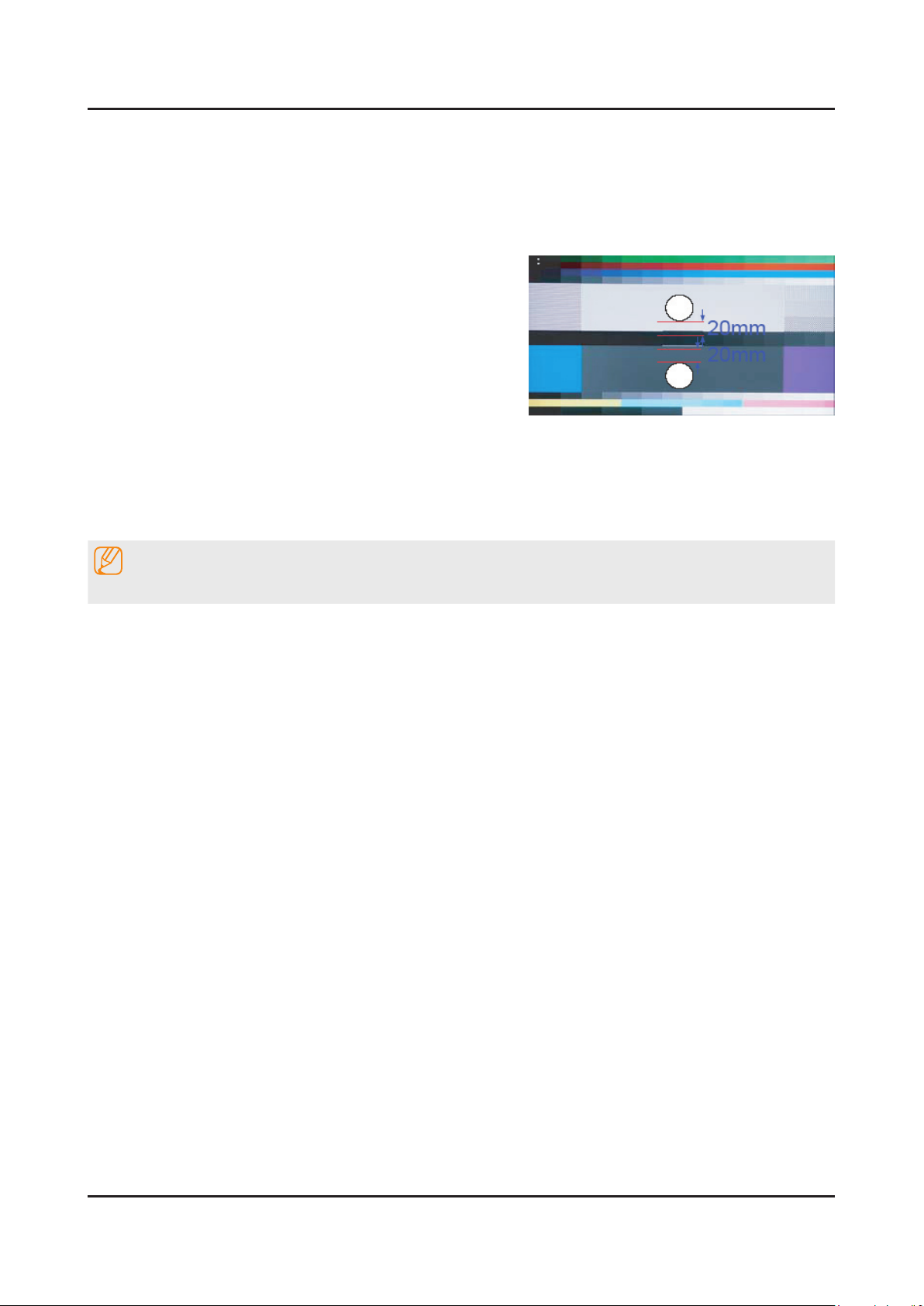

How to know it is from Main Board or T-CON when some problems happen
No Video•
If the problem is No Video but BLU is on and Indication LED is blinking repeatedly and faster than nomal booting, replace
the T-CON board.
Distorted Picture•
Check the inner patterns.

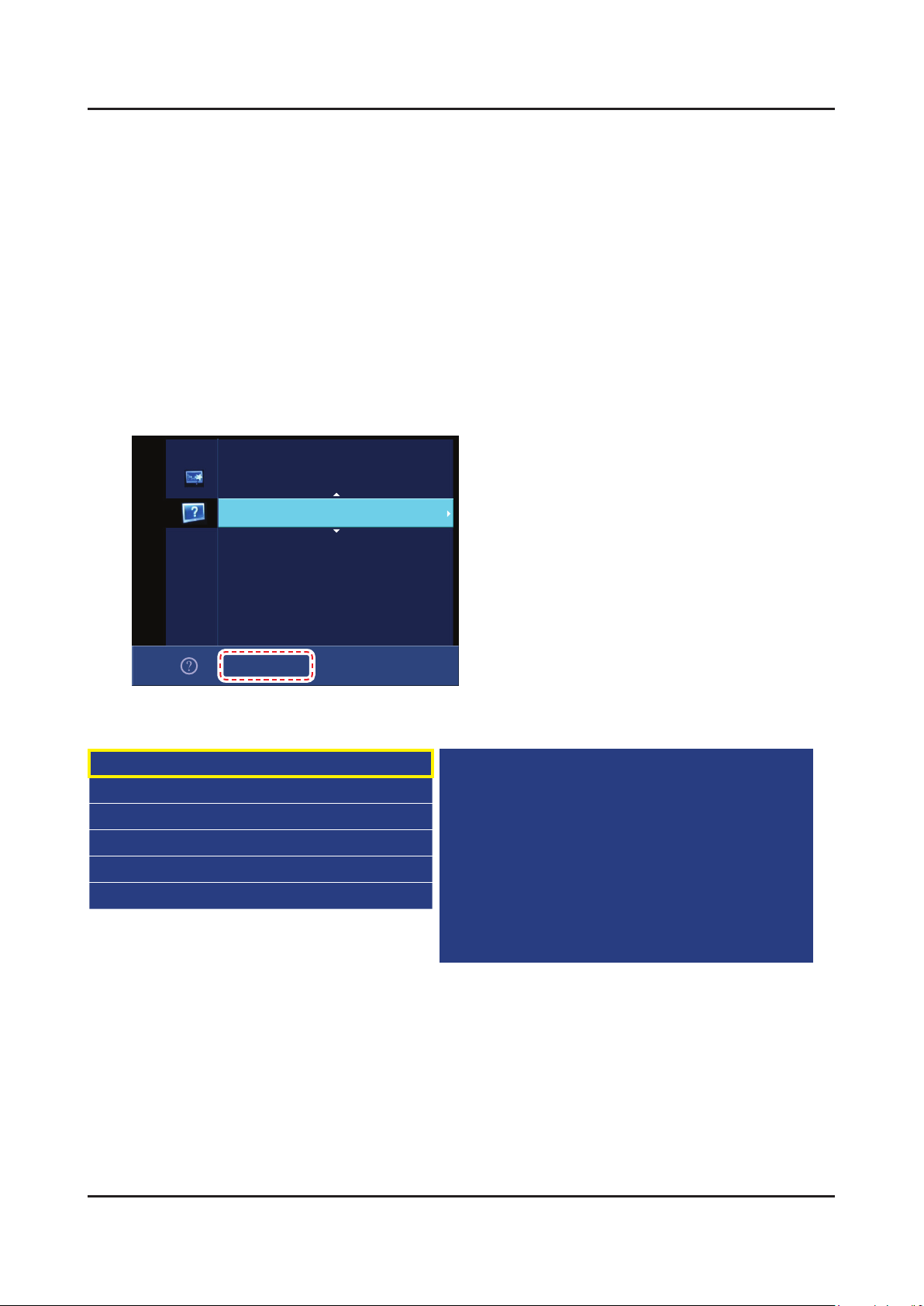

Enter the service mode 1. ⇢ Choose ‘SVC’ ⇢ Check the ‘internal pattern.’
Enter ‘Service Mode.’2.
If you do not have Factory remote control -
Power OFF MENU 1 8 2 Power On
If you have Factory remote control -
INFO Factory
Choose ‘SVC.’3.
Choose ‘Test pattern.’4.
Select the each pattern and then check all pattern is ok or not.5.
Option
Control
SVC
Expert
ADC/WB
Advanced
Picture Problem Solution
OK Main Board Change the Main Board
NG Panel and T-CON Board Change the Panel or T-CON

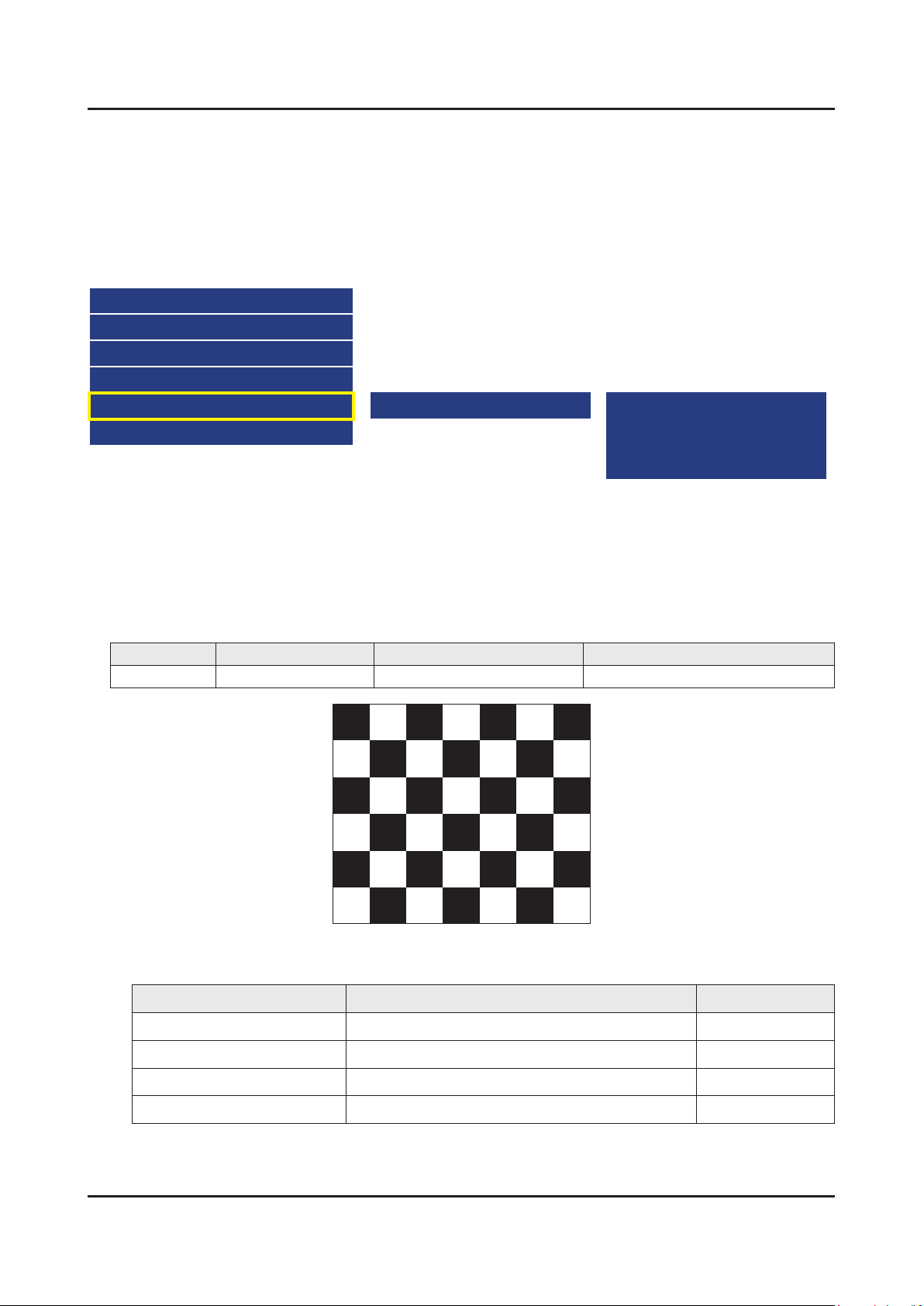

Test Pattern Mstar Test Pattern
Page 20
4-2. How to Check Fault Symptom
4-3
4. Troubleshooting
NO Power and No Video
The LEDs on The front panel do not work when connecting The power cord.•
Symptom
Major
checkpoints
The SMPS relay does not work when connecting The power cord.•
The units appears to be dead.•
The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
Check the internal cable connection status inside the unit.•
Check the fuses of each part.•
Check the output voltage of SMPS.•
Replace the Main Board.•
Diagnostics
Power cord on.
Yes
Check ‘Stand-By A5.3V’ 5.3V appear at
BD210?
0V to 5.3V (CN201 #4)
Yes
Check ‘SW_POWER’ more than 3.3V
appear at CN201(#2) ?
0V to 3.3V↑ (CN201 #2)
Yes
Check ‘Power input of Main Ass’y’ ?
DC B13V, B5.3V appear at BD212,
BD213 : B13V BD210 : B5.3V
Yes
Check ‘Power of main IC(B1.2V/B2.5V)’
Check ‘Power of DDR IC(B1.5V)’ appear
at IC206 : B1.2V / IC204 : B1.5V IC202
: 2.5V
Yes
No
No
No
No
No
Check a connetion power code.
Change 14p cable.
Change Main Power Assy.
Change the Main Assy.
Change 14p cable.
Change SMPS Ass’y.
Change the Main Assy.
Check ‘Power of LVDS (13V)’ appear at
TP-PANEL_VCC?
Yes
Please, Contact tech support.
Caution Make sure to disconnect the power before working on the IP board.
No
Change the Main Assy.
Page 21
4-4
4. Troubleshooting

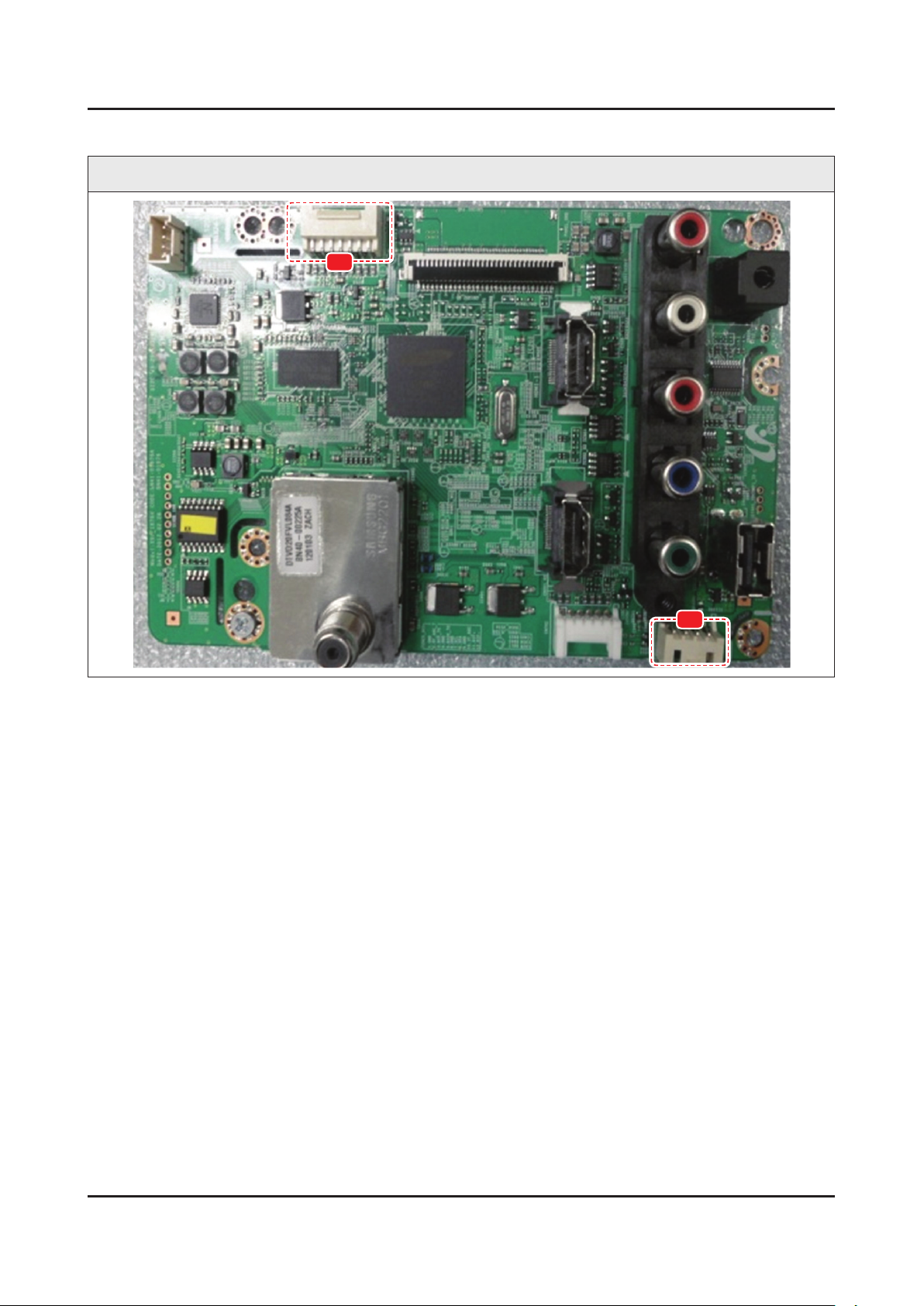

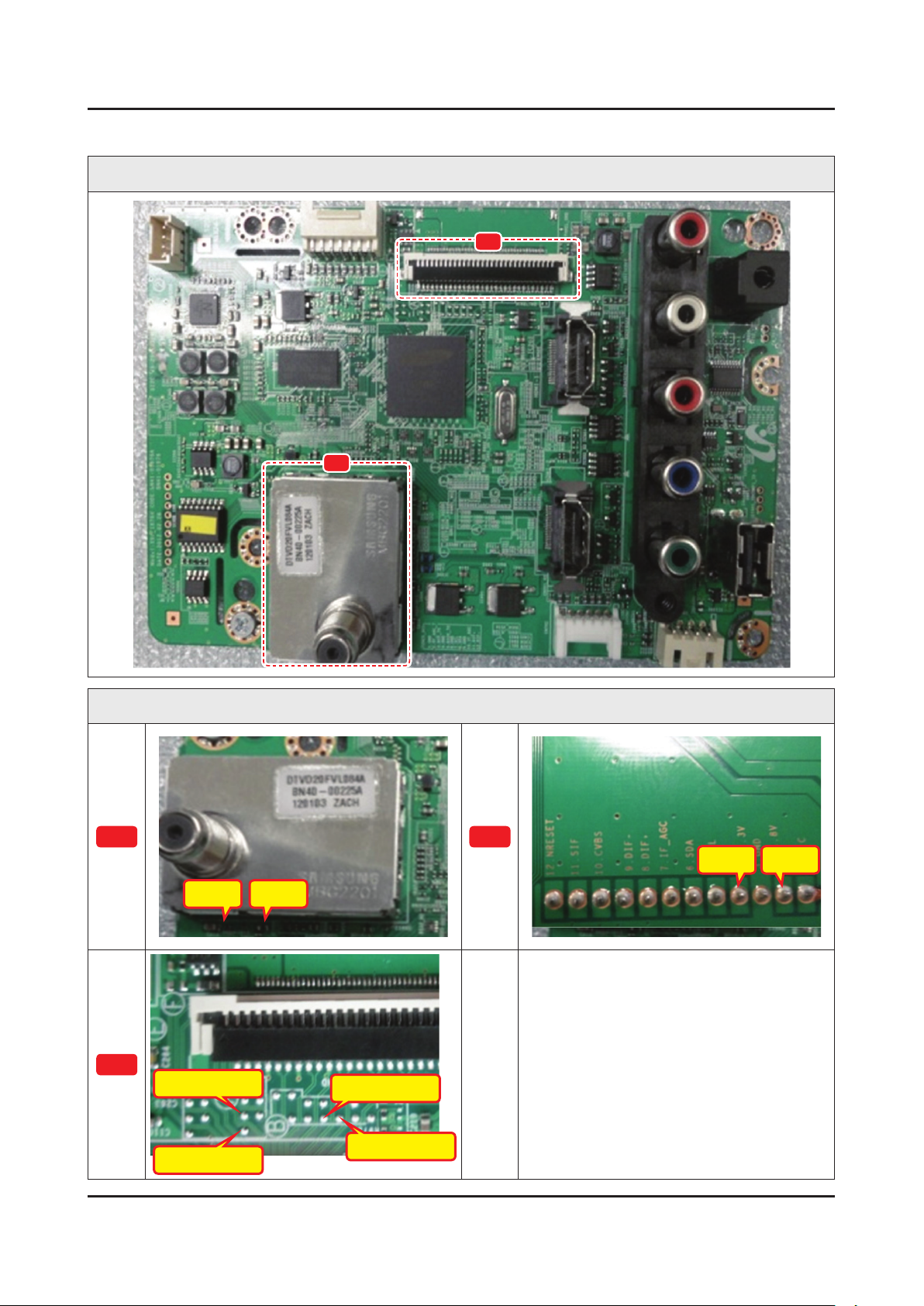

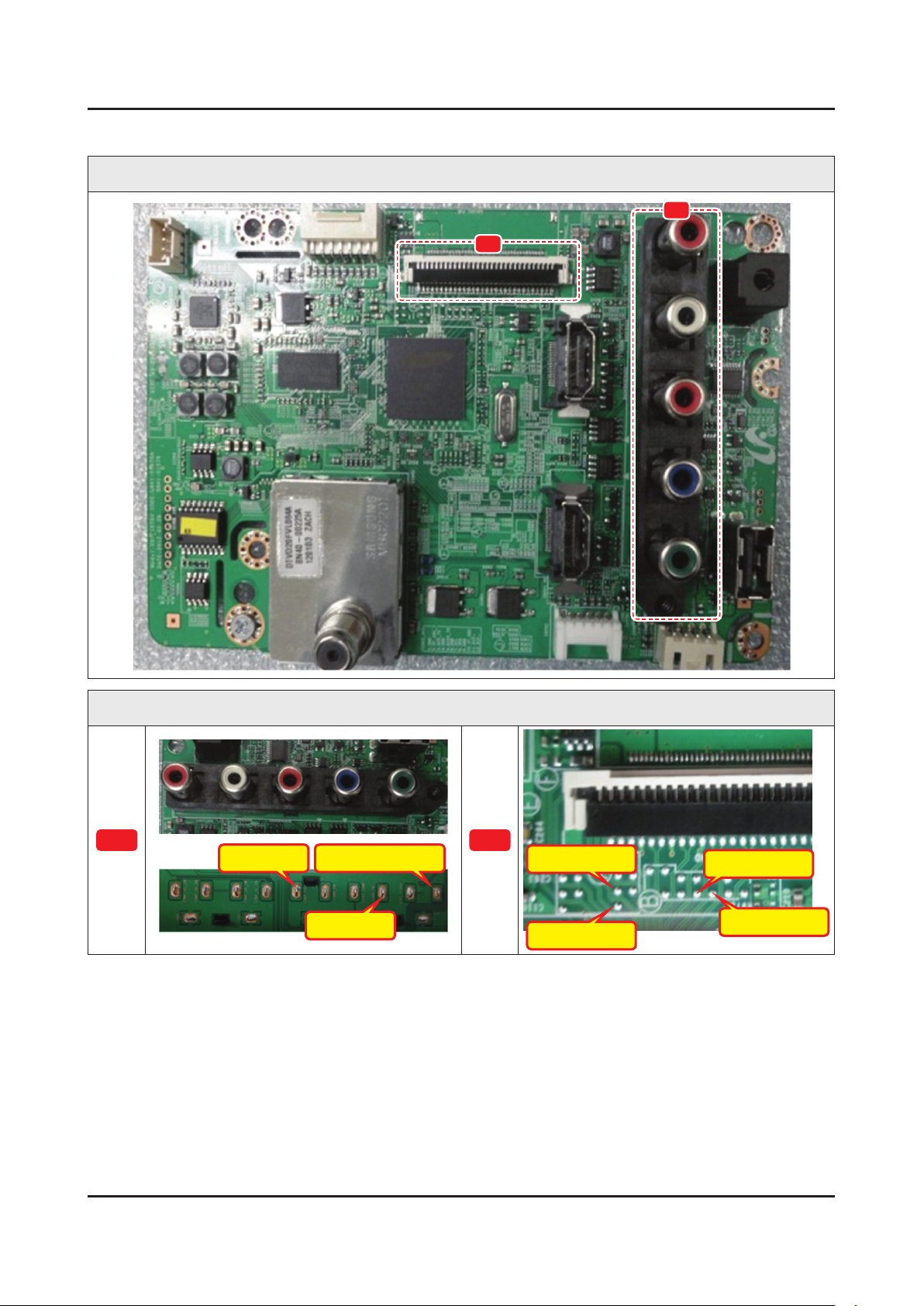

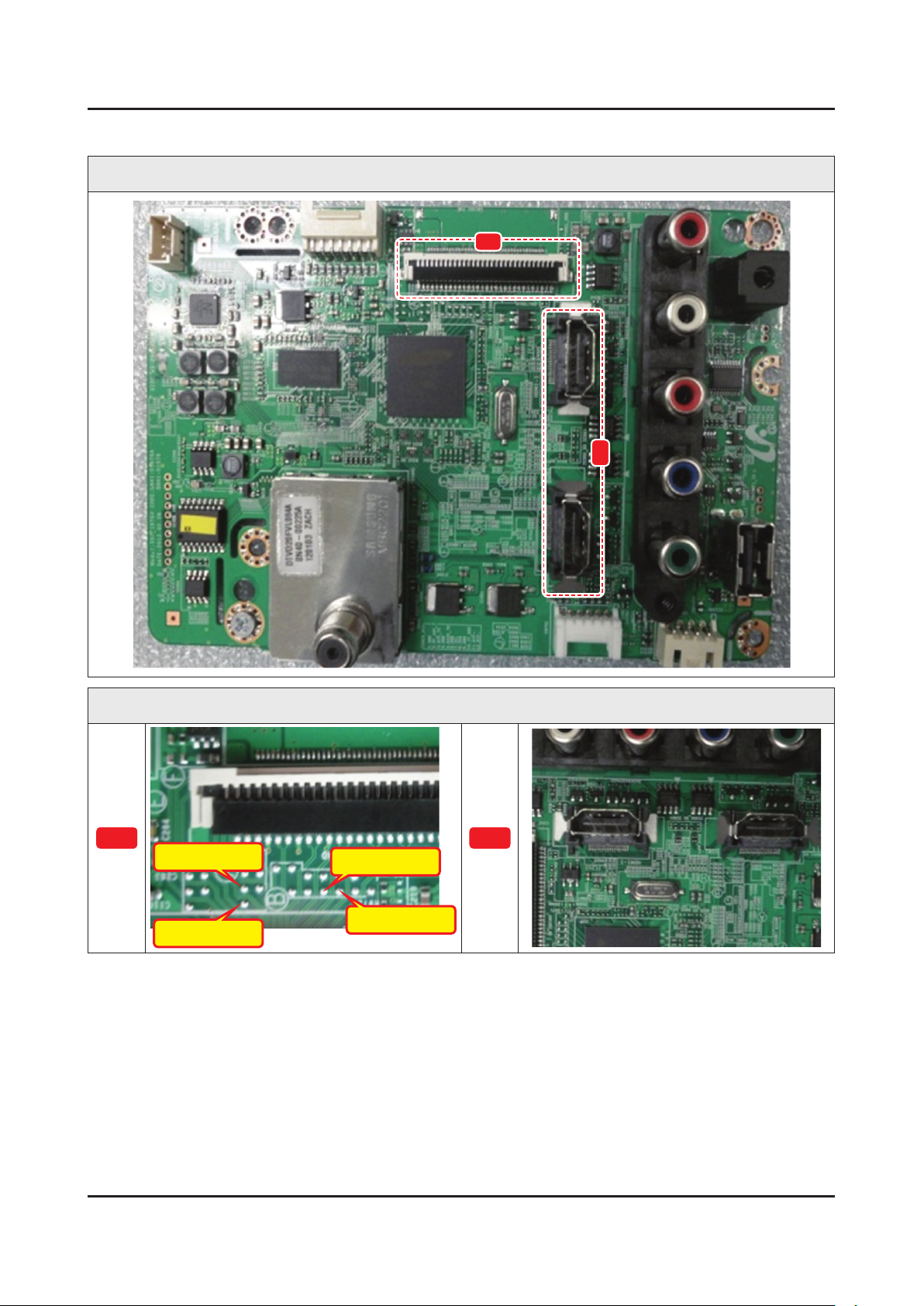

Location of Parts
Main Board_Front
A
B
C-2
C-1
Detail
BD212, BD213
B13V
A
C-3
PANEL_VCC
B
BD210 B5.3V
C-2 - IC204 #2
C
C-1 - IC206 #8
C-3 - IC202 #5
Page 22

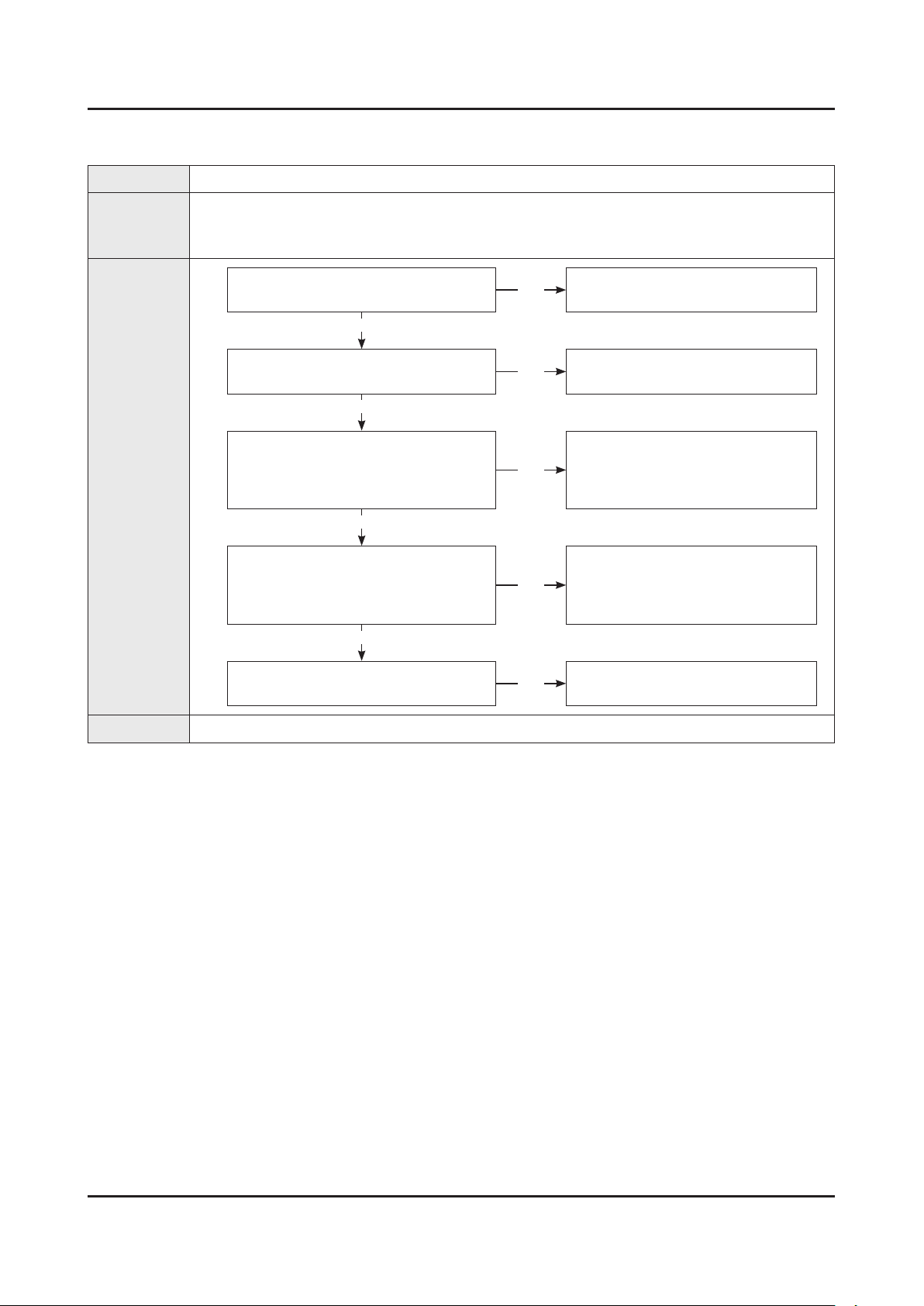

No Video (HDMI 1, 2 - Digital Signal)
4-5
4. Troubleshooting
Symptom Audio is normal but no picture is displayed on the screen.•
Major
checkpoints
Check the HDMI source.•
Check the HDMI switch.•
This may happen when the LVDS cable connecting the Main Board and the Panel is •
disconnected.
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the HDMI source and check the
connection of HDMI cable ?
Yes
Check the signal at Input of Main board ?
Diagnostics
1
2
Caution Make sure to disconnect the power before working on the IP board.
(Pin#12,10, #1#3, #4#6, #7#9 )
Check the LVDS clk signal at output of
ODD_TXCLK- / ODD_TXCLK+
EVEN_TXCLK- / EVEN_TXCLK+
Replace the T-con / LCD panel?
CN501 CN502
(HDMI RX_Clk, RX_Data)
Yes
Main board.
Yes
Check the LVDS cable?
No
No
No
No
No
Check a set in the ‘Stand-by mode’.
Input the HDMI signal properly.
Check CN501~2.
Check HDMI cable.
Change the Main Assy.
Change the Main Assy.
Please, Contact tech support.
Page 23
4-6
4. Troubleshooting
Location of Parts
Main Board_Front
A
B
Detail
A
ODD_TXCLK+
ODD_TXCLK-
EVEN_TXCLK-
EVEN_TXCLK+
B
Page 24
No Video (Tuner_CVBS)
4-7
4. Troubleshooting
Symptom Audio is normal but no picture is displayed on the screen.•
Major
checkpoints
Check the Tuner CVBS source.•
Check the Tuner.•
This may happen when the LVDS cable connecting the Main Board and the Panel is •
disconnected.
Diagnostics
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and check the
connection of RF cable.
Yes
Check the Power of Tuner ?
1
Check the CVBS data out of #10 Pin of
2
Check the DTV data out of #8,9 Pin of
Check the LVDS clk signal at output of
2
Pin #4 of Tuner : B3.3V
Pin #2 of Tuner : B1.8V
Yes
Tuner ?
Tuner?
Yes
Main board ?
ODD_TXCLK- / ODD_TXCLK+
EVEN_TXCLK- / EVEN_TXCLK+
No
No
No
No
No
Check a set in the ‘Stand-by mode’.
Input the RF source properly.
Change the Main Assy.
Change the Main Assy.
Change the Main Assy.
Yes
Check the LVDS cable?
Replace the T-con / LCD panel?
Caution Make sure to disconnect the power before working on the IP board.
No
Please, Contact tech support.
Page 25
4-8
4. Troubleshooting
Location of Parts
Main Board_Front
B
A
Detail
A
Pin #2 Pin #4
B
ODD_TXCLK+
ODD_TXCLK-
EVEN_TXCLK-
EVEN_TXCLK+
A
Pin #4 Pin #2
Page 26
No Vido (Tuner DTV)
4-9
4. Troubleshooting
Symptom Audio is normal but no picture is displayed on the screen.•
Major
checkpoints
Check the DTV source.•
Check the Tuner.•
This may happen when the LVDS cable connecting the Main Board and the Panel is •
disconnected.
Diagnostics
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and check the
connection of RF cable.
Yes
1
2
2
Check the ‘signal strength’ in Self
Diagnosis menu Strength is enough ?
Yes
Check the Power of Tuner ?
Pin #4 of Tuner : B3.3V_Tuner
Pin #2 of Tuner : B1.8V_Tuner
Yes
Check the LVDS clk signal at output of
Main board ?
ODD_TXCLK- / ODD_TXCLK+
EVEN_TXCLK- / EVEN_TXCLK+
Yes
No
No
No
No
No
Check a set in the ‘Stand-by mode’.
Input the RF source properly.
Check the D-TV source.
Change the Main Assy.
Change the Main Assy.
Check the LVDS cable?
Replace the T-con / LCD panel?
Caution Make sure to disconnect the power before working on the IP board.
No
Please, Contact tech support.
Page 27
4-10
4. Troubleshooting
Location of Parts
Main Board_Front
B
A
Detail
A
Pin #2 Pin #4
B
ODD_TXCLK+
ODD_TXCLK-
EVEN_TXCLK-
EVEN_TXCLK+
A
Pin #4 Pin #2
Page 28
No Video (Video CVBS, COMPONENT)
4-11
4. Troubleshooting
Symptom Audio is normal but no picture is displayed on the screen.•
Major
checkpoints
Diagnostics
Check the Video CVBS source•
This may happen when the LVDS cable connecting the Main Board and the Panel is •
disconnected.
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the video source and check the
connection of video cable?
Yes
Check the input date ?
2
2
CN403 #2(COMP1_Y_CVBS1)
CN403 #8(COMP1_PR)
CN403 #5(COMP2_PB)
Yes
Check the LVDS clk signal at output of
Main board ?
ODD_TXCLK- / ODD_TXCLK+
EVEN_TXCLK- / EVEN_TXCLK+
Yes
No
No
No
No
Check a set in the ‘Stand-by mode’.
Input the video source properly.
Check the CN403.
Change the Main Assy.
Change the Main Assy.
Check the LVDS cable?
Replace the T-con / LCD panel?
Caution Make sure to disconnect the power before working on the IP board.
No
Please, Contact tech support.
Page 29
4-12
4. Troubleshooting
Location of Parts
Main Board_Front
A
B
Detail
A
COMP1_PR COMP1_Y_CVBS1
COMP1_PB
B
ODD_TXCLK+
ODD_TXCLK-
EVEN_TXCLK-
EVEN_TXCLK+
Page 30
No Sound
4-13
4. Troubleshooting
Symptom Video is normal but there is no sound.•
Major
checkpoints
Diagnostics
When the speaker connectors are disconnected or damaged.•
When the sound processing part of the Main Board is not functioning.•
Speaker defect.•
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the source and check the
connection of sound component cable?
Y, Pb, Pr
Yes
1
2
2
Check the sound date at ?
AV1, COMP1
Yes
Check the DC B13VS at ?
BD211, BD214
Yes
Sound data at ?
- L-, L+, R-, R+.
No
No
No
No
No
Check a set in the ‘Stand-by mode’.
Input the sound source properly.
Check the Component Gender.
Change the Main Assy.
Change the Main Assy.
Change the Main Assy.
Yes
Check the LVDS cable?
Replace the T-con / LCD panel?
Caution Make sure to disconnect the power before working on the IP board.
No
Please, Contact tech support.
Page 31
4-14
4. Troubleshooting
Location of Parts
Main Board_Front
B
A
Page 32
4-3. Factory Mode Adjustments
4-15
4. Troubleshooting
4-3-1. Entering Factory Mode
To enter ‘Service Mode’ Press the remote -control keys in this sequence :
If you do not have Factory remote control•
Power OFF MENU 1 8 2 Power On
If you have Factory remote control•
INFO Factory
If you don’t have Factory remote control, can’t control some menus. (Expert, Advanced menu)•
Option
Control
SVC
Expert
ADC/WB
Advanced
How to enter the hidden factory mode.•
Into the factory mode.1.
Move the tap to Advanced.2.
Key input : 0 + 0 + 0 + 0.3.
NOTE
hidden menu : Advanced
T-M9RFAUSC-xxxx
DTP-LP3-0093
DTP-LP3-App-0095
OPTION : 60H1AF0D, US, 6003, NONE
FactoryCS : 2011110080
ADC : HDMI / COMP / PC / AV
EDID SUCCESS
HDCP SUCCESS
BuildDate : **-**-****
Date of purchase : mm/dd/yyyy
Page 33
4-16
4. Troubleshooting
4-3-2. Factory Data
Note
Version of the software is written in 0002.•
Black• : I should not be possible to adjust or change that does not require a change item
Blue : Adjustment Services for the corresponding
Red : Items that are secured
Option
Factory Menu Name Data Range Remark Key
Factory Reset - -
Type 60H1AF0D use to change panel
Model UE6003 E4000/E5000/E6000/E420/
SVC Model 60003
Local Set Other
Tuner SI_ATSC2
Ch Table NONE
Front Color U-S-C-5K NONE/S-C-BLK/S-R-BLK/S-
E4080/E5080
do not change
BLK/T-R-BLK/T-C-BLK/S-B-
BLK
Control
Factory Menu Name Data Range Remark Key
EDID
EDID ON/OFF Off On/Off
EDID WRITE ALL Success/Failure
EDID WRITE PC Success/Failure
EDID WRITE DVI Success/Failure
EDID WRITE HDMI1 Success/Failure
use to write the EDID
EDID WRITE HDMI2 Success/Failure
EDID WRITE HDMI3 Success/Failure
EDID WRITE HDMI4 Success/Failure
EDID VERSION HDMI 1.3/HDMI1/2
Sub Option
Mute Time(VIDEO) 4 0~10
ready Off On/Off
HotPlug On
Hotplugcontrol On
Spread Spectrum
Page 34
4-17
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Spread Spectrum On On/Off
Period 60K 40K/50K/60K
Amplitude 2 0/0.5/1/1.5/2
DDR Spread 2% Off/1%/2%
Auto Power On
Mirror ON ON/ OFF
HDMI EQ1 Middle Low/Middle/High/Strong
HDMI EQ2 Middle Low/Middle/High/Strong
HDMI EQ3 Middle Low/Middle/High/Strong
HDMI EQ4 Middle Low/Middle/High/Strong
EER Count -
WM Calib
Panel Enter Key
Panel Display Time 9Hr
Checksum XXXX
View Log
Font Data Viewer
Dimm Type EXT
Carrier Mute Off On/Off
Anynet+ Off On/Off
HPD Polarity
High Devi Off On/Off
Hot Plug Delay 12 0~63
HP Ident High High/Low
use to solve HDMI
Noise
PC Ident On On/Off
Watchdog On On/Off
FRC LVDS Order DCAB
FRC Auto Recovery Off
LVDS Format JEIDA JEIDA / VESA
OSD Resolution 1366*768
Bus Stop
OTA Code
OTA Duration Test
Alternate Del
Ignore VCT Version On On/Off
Change OSD Language KOR KOR/ENG
VCR Mode On On/Off
Page 35
4-18
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Watch Dog Count 0 -
E-POP Default ON ON/OFF
Energy Star Logo 0 -
PDP Option
Hotel Option
Shop Option
Shop Mode ON/OFF
USB DEMO ON(SEC)
USB DEMO OFF(SEC)
Exhibition Mode ON/OFF
Sound
Audio Amp NTP7412s NTP7412s/NTP7411s
Volume Curve NT NT/EU/EA
A2K Prescale 20 0~40
BTSC Mono Prescale 25 0~40
BTSC streo Prescale 47 0~40
SAP Prescale 43 0~40
BTSC M2S Threshold 0x20 0xA0~0x9F
BTSC S2M Threshold 0x15 0xA0~0x9F
BTSC Stereo On Thr 0x20 0xA0~0x9F
BTSC Stereo Off Thr 0x26 0xA0~0x9F
SAP Amp On Thr 0x56 0xA0~0x9F
SAP Amp Off Thr 0x48 0xA0~0x9F
SAP NSR On Thr 0x35 0xA0~0x9F
SAP NSR Off Thr 0x7F 0xA0~0x9F
Carrier NSR On Thr 0x20 0xA0~0x9F
Carrier NSR Off Thr 0x29 0xA0~0x9F
MP3 Level -6dB -12dB~0dB
do not change
do not change
Audio Delay 20ms 0~150ms
Main Amp Master Vol 199
Center Amp Master Vol
Main Amp PWM Mod 142
Center Amp PWM Mod 103
Woofer Amp PWM Mod 103
Woofer Type
Main Speaker EQ On
Center Speaker EQ
Page 36
4-19
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Main EQ CheckSum -
Center EQ CheckSum -
Woofer EQ CheckSum -
Center EQ CS -
Woofer EQ CS -
Cong Option
Num of AV 1 0~3
Num of PC 0 1~3
Num of Comp 1 1~3
Num of HDMI 2 0~4
Num of SCART 0
DVI Sound 0 0~1
Number of HeadPhone 0 0~1
Num of USB Port
Num of SPDIF OUT 1 0~1
LNA SUPPORT Off On/Off
Navigation Key Func 0 0 : New function (Navigation
Eco Sensor Support On On/OFF
MFT OFFSET
jog) Key
1 : Old function (Touch) Key
2 : don't work function
SVC
Factory Menu Name Data Range Remark Key
Test pattern
T-CON Download
ADC/WB
Factory Menu Name Data Range Remark Key
ADC
AV Calibration Success Success / Failure
Comp Calibration Success Success / Failure
PC Calibration Success Success / Failure
HDMI Calibration Success Success / Failure
ADC Target
1st_AV_Low 18 0~255
Page 37
4-20
4. Troubleshooting
Factory Menu Name Data Range Remark Key
1st_AV_High 18 0~255
1st_AV_Delta 220 0~255
1st_COMP_Low 1 0~255
1st_COMP_High 16 0~255
1st_COMP_Delta 235 0~255
1st_PC_Low 1 0~255
1st_PC_High 2 0~255
1st_PC_Delta 251 0~255
2nd_Low 1 0~255
2nd_High 1 0~255
2nd_Delta 235 0~255
ADC Result
1st_AV_Gain 116
1st_AV_Offset 153
1st_Comp_Gain 142
1st_Comp_Gain_Cb 142
1st_Comp_Gain_cr 142
1st_Comp_Offset 128
1st_Comp_Offset_Cb 128
1st_Comp_Offset_Cr 128
1st_PC_R_Gain 162
1st_PC_G_Gain 162
1st_PC_B_Gatin 162
1st_PC_R_Offset 128
1st_PC_G_Offset 128
1st_PC_B_Offset 128
2nd_R_Offset 111 0~255
2nd_G_Offset 111 0~255
2nd_B_Offset 111 0~255
2nd_R_Gain 169 0~255
2nd_G_Gain 169 0~255
2nd_B_Gain 169 0~255
WB
Sub Brightness 128 0~255
R_Offset 128 0~255
G_Offset 128 0~255
B_Offset 128 0~255
Page 38
4-21
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Sub Contrast 128 0~255
R_Gain 128 0~255
G_Gain 128 0~255
B_Gain 128 0~255
Movie R Offset 128 0~255
Movie B Offset 142 0~255
Movie R Gain 128 0~255
Movie B Gain 195 0~255
Advanced
Factory Menu Name Data Range Remark Key
PBE
WM Movie
Mode Off On/Off
Color Mode Movie
Color Tone Cool
Msub Brigh 128
Msub Contr 128
W1_RGAIN 138
W1_BGAIN 104
W1_ROFFS 130
W1_BOFFS 127
W2_RGAIN 131
W2_BGAIN 64
W2_ROFFS 133
W2_BOFFS 129
N_RGAIN 3
N_BGAIN -5
N_ROFFS 0
N_BOFFS 0
M_N_RGAIN 0
M_N_BGAIN 0
M_N_ROFFS 0
M_N_BOFFS 0
M_W2_RGAIN 0
M_W2_BGAIN 0
M_W2_ROFFS 0
Page 39
4-22
4. Troubleshooting
Factory Menu Name Data Range Remark Key
M_W2_BOFFS 0
Movie Countr 0
Movie Brigh 0
Movie Color 0
Movie Sharp 0
Movie Tint -50
Movie BkLight 0
M.Gamma Off
M_Sub Gamma 0
EPA Standard Normal
Std Contr 0.93 0~100
Std Bright 45 0~100
Std Sharp 50 0~100
Std Color 50 0~100
Std Tint 50 0~100
Std Backight 8 0~10
ADJUST
Dynamic Dimming Off On/Off
Power Key Protects Off On/Off
UART Select Auto Wall Auto Wall/Debug/MDC/On1/
Debug Mode Debug Off Debug Off/Debug Smart/Debug
Back End Mute
PDP FRC
VisualTEST Plus Disable
Standby Mode Time 45 Min 2 Min/45 Min
Delete alt.ver 1 Flash
OTA conrm Time 90 Min 3 Min/90 Min
OTA limit Time 3 Hour 3 Min/3Hour
Dynamic CE Off On/Off
FWC Off On/Off
On2
RunTime
1080p 48Hz On On/Off
PWM Max 100 1~100
PWM Max2 95 1~100
PWM Mid 10 0~10
PWM Min 0 0~10
COMP PHASW 110
Page 40
4-23
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Quick Start
DTV LNA Auto On/Off
HDCP Download Off On/Off
USB Download Off On/Off
LED Peak OnOFF
COLOR MAPPING
WCE
SHARPNESS
ENHANCE
LNA_Plus
FCC
PC_Picture
FRC
PQ OTHERS
7.5 IRE NTSC OFF ON/OFF
7.5 IRE OFFSET 16 0~60
YC_Delay
PAL BG 1 0~3
PAL DK 1 0~3
PAL I 1 0~3
SECAM BG 4 0~3
SECAM DK 4 0~3
SECAML 4 0~3
NTSC 358 1 0~3
NTSC 443 0 0~3
AV PAL 1 0~3
AV SECAM 4 0~3
AV NT358 1 0~3
AV NT443 1 0~3
AV PAL60 1 0~3
EEPROM RESET
EEPROM RESET OFF ON/OFF
NVR ALL CLEAR OFF ON/OFF
Page 41
4-24
4. Troubleshooting
4-4. White Balance
4-4-1. Calibration
Into the Factory Mode.1.
Select 2. SVC Menu.
Select 3. ADC/WB menu.
Select 4. ADC menu.
Option
Control
SVC
Expert
ADC/WB
Advanced
4-4-2. Service Adjustment
ADC
AV Calibration
Comp Calibration
PC Calibration
HDMI Calibration
You must perform Calibration in the Lattice Pattern before adjusting the White Balance.
Color Calibration
Adjust Specication•
Source Setting Mode Pattern Use Equipment
HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator
(Chess Pattern)
Use other equipment only after comparing the result with that of the Master equipment. -
Input mode Calibration Pattern
CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice
Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice
PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice
HDMI IN Perform in 720p B&W Pattern #24 Lattice
Page 42
4-25
4. Troubleshooting
Method of Color Calibration (AV)
Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.
Press the Source key to switch to “AV1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “AV Calibration” menu.5.
In “AV Calibration Off” status, press the “► ” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “AV Calibration” status from Failure to Success. 8.
Method of Color Calibration (Component)
Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.
Press the Source key to switch to “Component1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “Comp Calibration” menu.5.
In “Comp Calibration Off” status, press the “ ►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “Comp Calibration” status from Failure to Success.8.
Method of Color Calibration (PC)
Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.
Press the Source key to switch to “PC” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “PC Calibration” menu.5.
In “PC Calibration Off” status, press the “ ►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “PC Calibration” status from Failure to Success.8.
Method of Color Calibration (HDMI)
Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.
Press the Source key to switch to “HDMI1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “HDMI Calibration” menu.5.
In “HDMI Calibration Off” status, press the “►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “HDMI Calibration” status from Failure to Success.8.
Page 43
4-26
4. Troubleshooting
4-4-3. Adjustment
Into the Factory Mode.1.
Select 2. SVC Menu.
Select 3. ADC/WB menu.
Select 4. White Balance menu.
Option
Control
SVC
Expert
ADC/WB
Advanced
White Balance
(low light)
Sub Brightness
R offset
G offset
B offset
(hight light)
Sub Contrast
R gain
G gain
B gain
Page 44
4-5. White Ratio (Balance) Adjustment
4-27
4. Troubleshooting
You can adjust the white ratio in factory mode (1:Calibration, 3:White-Balance).1.
Since the adjustment value and the data value vary depending on the input source, you have to adjust these in CVBS, 2.
Component 1 and HDMI 1 modes.
The optimal values for each mode are congured by default. It varies with Panel’s size and Specication.3.
Equipment : CS-210•
Pattern: MIK K-7256 #92 “Flat W/B Pattern" as standard•
Altenate Equipmet : CA200& anyone Master supported •
pattern#92(refer to right photo)
Use other Equipment only after comparing the result •
with that of the Master equipment.
Set Aging time : 60 min•
Calibration and Manual setting for WB adjustment
HDMI : Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (720p)•
COMP: Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (720p)•
CVBS: Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (NTSC)•
Note
If nishing in HDMI mode, adjustment coordinate is almost same in AV/COMP mode.
Page 45
4-28
4. Troubleshooting
4-6. RS-232C

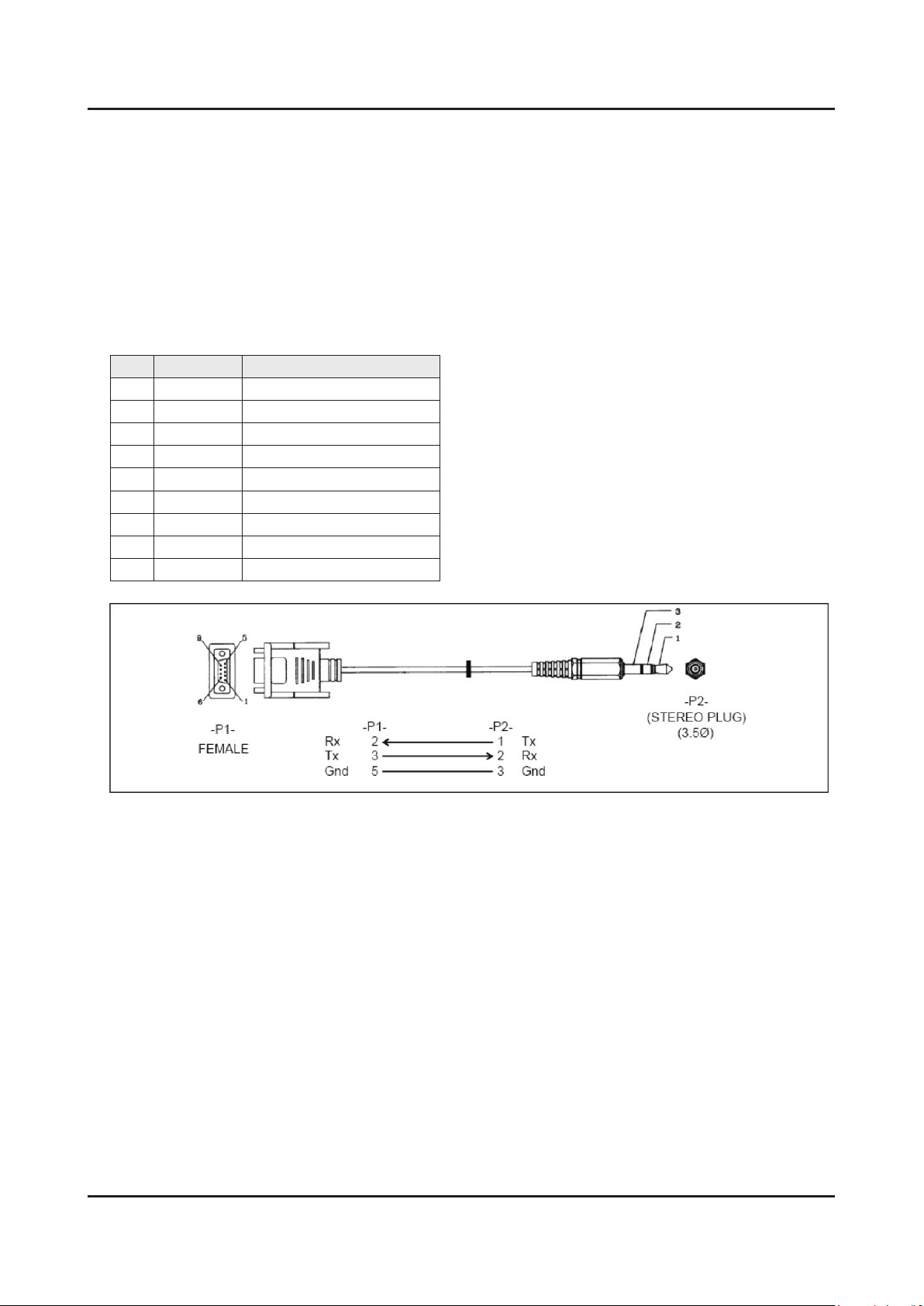

RS232C Control1.
Port : COM#(Serial) -
Bit rate : 115200 -
Data Bit : 8 bit -
Parity : None -
Stop Bits : 1 -
Flow Control : None -
Description of RS232C2.
Pin# Name Full Name
1 CD Carrier Detect
2 RxD Received Data
3 TxD Transmitted Data
4 DTR Data Terminal Ready
5 GND Signal Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicator
Page 46
4-29
4. Troubleshooting
4-7. AV Control Tabe
Control Item Cmd1 Cmd2 Cmd3 Value
General Power Power 0x00 0x00 0x00 0x00
Off 0x01
On 0x02
Volume Direct 0x01 0x00 0x00 (0~100)
Up 0x01 0x00
Down 0x02 0x00
Mute 0x02 0x00 0x00 0x00
Ch. Direct 0x04 -
Continuous Up
0x03 0x00
Down 0x02 0x00
0x01 0x00
Control Item Cmd1 Cmd2 Cmd3 Value
Input Source List TV TV 0x0a 0x00 0x00 0x00
AV AV1 0x01 0x00
AV2 0x01
AV3 0x02
S-Video S-Video1 0x02 0x00
S-Video2 0x01
S-Video3 0x02
Component Component1 0x03 0x00
Component2 0x01
Component3 0x02
PC PC1 0x04 0x00
PC2 0x01
PC3 0x02
HDMI HDMI1 0x05 0x00
HDMI2 0x01
HDMI3 0x02
HDMI4 0x03
DVI DVI1 0x06 0x00
DVI2 0x01
DVI3 0x02
Control Item Cmd1 Cmd2 Cmd3 Value
PICTURE Mode Dynamic(Entertain) 0x0b 0x00 0x00 0x00
Standard 0x01
Movie 0x02
Natural 0x03
Not Support
Page 47
4-30
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
CAL-NIGHT 0x04
CAL-DAY 0x05
BD Wise 0x06
Relax
0x07
BackLight
(CellLight)
0~20 0x01 0x00 (0~20)
Contrast 0~100 0x02 0x00 (0~100)
Brightness 0~100 0x03 0x00 (0~100)
Sharpness 0~100 0x04 0x00 (0~100)
Color 0~10 0x05 0x00 (0~100)
Tint G/R 0x06 0x00 (0~100)
Advanced
Settings
Black Tone
Off 0x07 0x00 0x00
Dark 0x01
Darker 0x02
Darkest 0x03
Dynamic Contrast Off 0x01 0x00
Low 0x01
Medium 0x02
HIgh 0x03
Shadow Detail -2 ~ 2 0x02 (-2~2)
Not Support
only PDP
(2012)
Not Support
Gamma -3 ~ 3 0x03 (-3~3)
RGB Only Mode Off 0x05 0x00
Red 0x01
Green 0x02
Blue 0x03
Color Space Auto 0x06 0x00
Native 0x01
Custom 0x02
White Balance R-Offset(LCD) 0x07 (0~50)
White Balance G-Offset(LCD) 0x08 (0~50)
White Balance B-Offset(LCD) 0x09 (0~50)
White Balance R-Gain(LCD) 0x0a (0~50)
White Balance G-Gain(LCD) 0x0b (0~50)
White Balance B-Gain(LCD) 0x0c (0~50)
White Balance Reset(LCD) 0x0d 0x00
Flesh Tone -15 ~ 15 0x0e (-15~15)
Edge Enhancement Off 0x0f 0x00
Not Support
Page 48
4-31
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
On 0x01
xvYCC Off 0x10 0x00
On 0x01
Motion Lighting Off 0x11 0x00
On 0x01
LED Motion Plus Off 0x0a 0x07 0x00
On(Normal) 0x01
Option
Color Tone
Digital Noise Filter
MPEG Noise Filter
Cinema 0x02
Ticker 0x03
Cool 0x0a 0x00 0x00
Standard 0x01
Warm1 0x02
Warm2 0x03
Off 0x02 0x00
Low 0x01
Medium 0x02
High 0x03
Auto 0x04
Auto
Visualization
Off 0x03 0x00
Low 0x01
Medium 0x02
High 0x03
Not Support
0x05
HDMI Black Level
Film Mode
Auto Motion Plus
Auto 0x04
Normal 0x04 0x00
Low 0x01
Off 0x05 0x00
Auto1 0x01
Auto2 0x02
Cinema
Smooth
Off 0x06 0x00
Clear 0x01
Standard 0x02
Smooth 0x03
Custom 0x04
0x03
Page 49
4-32
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
Demo 0x05
Screen
Adjustment
Reset
3D 3D Mode
Picture Size
Reset Picture
16:9 0x0b 0x0a 0x01 0x00
Zoom1 0x01
Zoom2 0x02
Wide Fit 0x03
4:3 0x04
Screen Fit 0x05
Smart View I 0x06
Smart View II 0x07
Auto Wide 0x08
Wide Zoom 0x09
Zoom 0x0a
0x0b 0x0b 0x00 0x00
Off 0x0b 0x0c 0x00 0x00
2D ⇢ 3D
Side By Side 0x02
Top Bottom 0x03
0x01
Line By Line 0x04
Vertical Line 0x05
Checker BD 0x06
3D ⇢ 2D
3D View Point
Depth
3D Auto View
Frame
Sequence
Off 0x01 0x00
On 0x01
0x02 (-5~5)
0x03 (1~10)
Off 0x05 0x00
Message
Notice
On 0x02
0x07
0x01
Control Item Cmd1 Cmd2 Cmd3 Value
Sound Sound Mode Standard 0x0c 0x00 0x00 0x00
Music 0x01
Movie 0x02
Clear Voice 0x03
Not Support
Amplify 0x04
Equalizer Balance 0x01 0x00 (0~20)
Page 50
4-33
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
100hz 0x01 (0~20)
300hz 0x02 (0~20)
1khz 0x03 (0~20)
3khz 0x04 (0~20)
10khz 0x05 (0~20)
Reset 0x06 0x00
SRS
TruSurround
HD (echo)
Virtual
Surrond
(echo)
SRS
TruDialog
(echo)
Dialog
Clarify (X9)
Preferred
Language
Multi-Track
Sound
Off
On
Off
On
English
Spanish 0x01
French 0x02
Korean 0x03
Japanese 0x04
Mono
Stereo 0x01
SAP 0x02
0x02 0x00 0x00
0x01
0x03 0x00 0x00
0x01
0x04 0x00 0x00
0x05 0x00 0x00
Auto Volume Off 0x06 0x00 0x00
ON 0x01
Night 0x02
Speaker
Select
Sound
Select
Sound
Reset
3D Audio Off 0x0a 0x00 0x00
TV Speaker
External Speaker 0x01
Main
Sub 0x01
Sound Reset
Low 0x01
Medium 0x02
High 0x03
0x07 0x00 0x00
0x08 0x00 0x00
0x09 0x00 0x00
Not Support
add 2012
Page 51
4-34
4. Troubleshooting
Control Item Cmd1 Cmd2 Cmd3 Value
Auto Stereo Manual 0x0b 0x00 0x00
Auto
0x01
Control Item Cmd1 Cmd2 Cmd3 Value
KEY Key Generation
OSD Show/Hide
Control
Show 0x0e 0x00 0x00 0x00
Hide 0x01
0x0d 0x00 0x00
Get Status Power (On/Off) 0xf0 0x00 0x00 0x00
Volume(0~100) 0xf0 0x01 0x00 0x00
Mute (On/Off) 0xf0 0x02 0x00 0x00
Channel Number 0xf0 0x03 0x00 0x00
Source (TV/AV/…/HDMI/…) 0xf0 0x04 0x00 0x00
Picture Size 0xf0 0x05 0x00 0x00
3D (On/Off) 0xf0 0x06 0x00 0x00
Picture Mode 0xf0 0x07 0x00 0x00
Sound Mode 0xf0 0x08 0x00 0x00
refer to
table
Key value Value
Not Support
only KOREA
(2012)
add 2012
Up 96 (0x60)
Down 97 (0x61)
Left 101 (0x65)
Right 98 (0x62)
Menu 26 (0x1A)
Internet 147 (0x93)
Enter(OK) 104 (0x68)
EXIT 45 (0x2D)
Not Support
Page 52
4-35
4. Troubleshooting
4-8. Software Upgrade
Software Upgrade can be performed by downloading the. latest rmware from samsung.com to a USB memory device.
Current Version - The software already installed in the TV.•
Software is represented as ‘Year/Month/Day_Version’.
4-8-1. How to Check the Software Version
Use the Main Menu
Click the "MENU" key in remote controller.1.
Select "Support" menu.2.
Locate the menu cursor "Software Upgrade" menu.3.
Click the "INFO" key.4.
Check the Main SW and Micom version. -
Support
Use the Factory Mode
Option
Control
SVC
Expert
ADC/WB
Advanced
Self Diagram
Software Upgrade
HD Connection Guide
Contact Samsung
T-M9RFAUSC-xxxx 2011/11/10
T-M9RFAUSC-xxxx
DTP-LP3-0093
DTP-LP3-App-0095
OPTION : 60H1AF0D, US, 6003, NONE
FactoryCS : 2011110080
ADC : HDMI / COMP / PC / AV
EDID SUCCESS
HDCP SUCCESS
BuildDate : **-**-****
Date of purchase : mm/dd/yyyy
Page 53
4-36
4. Troubleshooting
4-8-2. How to Upgade Software and Micom

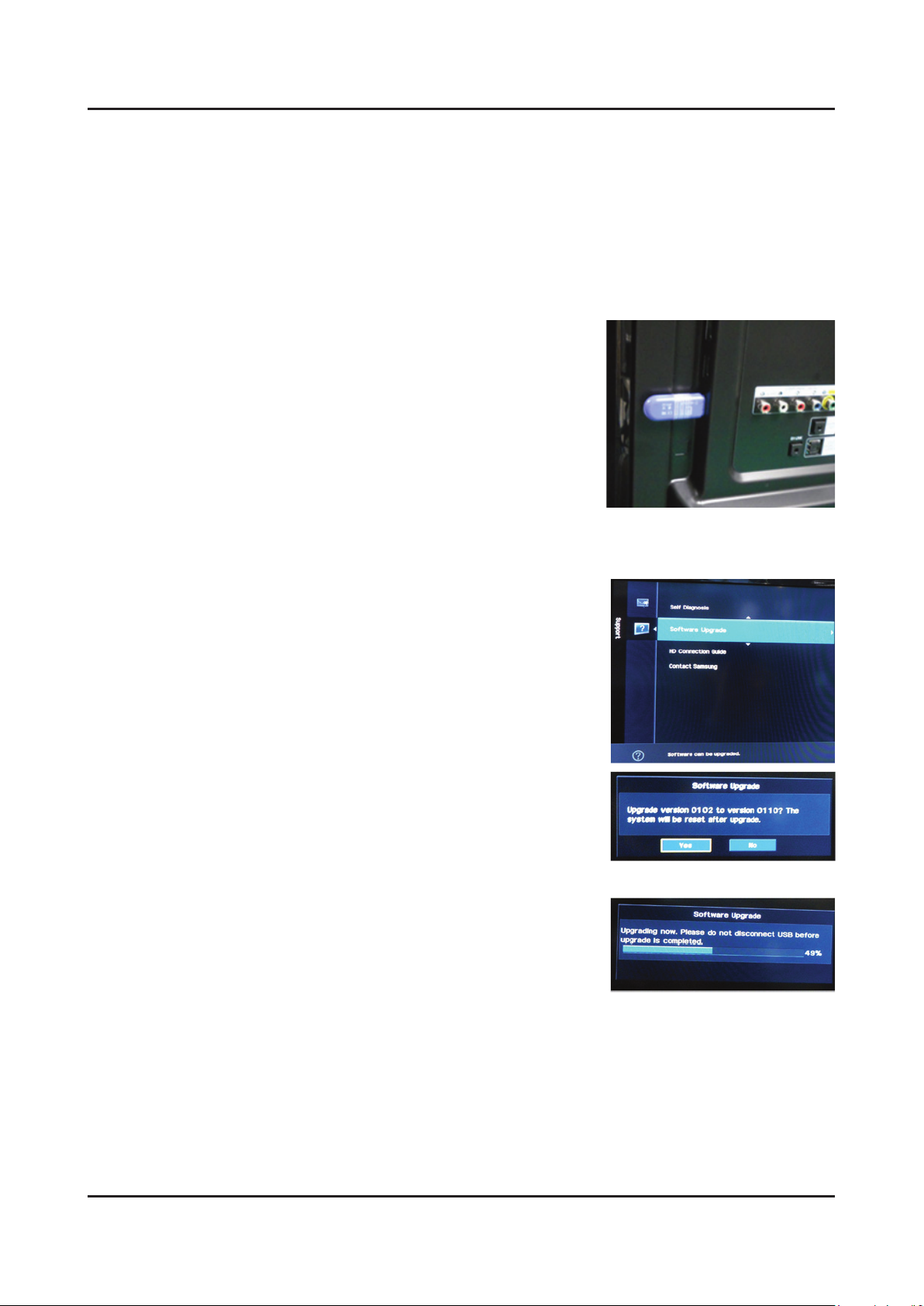

Insert a USB drive containing the rmware upgrade downloaded from samsung.com into the TV. Please be careful not
to disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on
automatically after completing the rmware upgrade. Please check the rmware version after the upgrades are complete
(the new version will have a higher number than the older version). When software is upgraded, video and audio
settings you have made will return to their default (factory) settings. We recommend you write down your settings before
beginning rmware update. After update is completed, restore your previous settings.
Main Software Upgrade
Store the sw program named "T-MX9FMASC(FHD), T-MX9HMAFC(AFRICA)/1.
T-MX9HMASC(ASIA)/T-MX9HMCHC(CHINA)[HD]" in USB memory stick.
Connect the USB. -
Click the "MENU" key in Remote Controler.2.
Select "Support" menu.3.
Locate the menu cursor "Software Upgrade" menu.
Click the "ENTER" key.4.
Click the "ENTER" key.5.
Wait for upgrade complete. -
Check the Software Version. -
Page 54

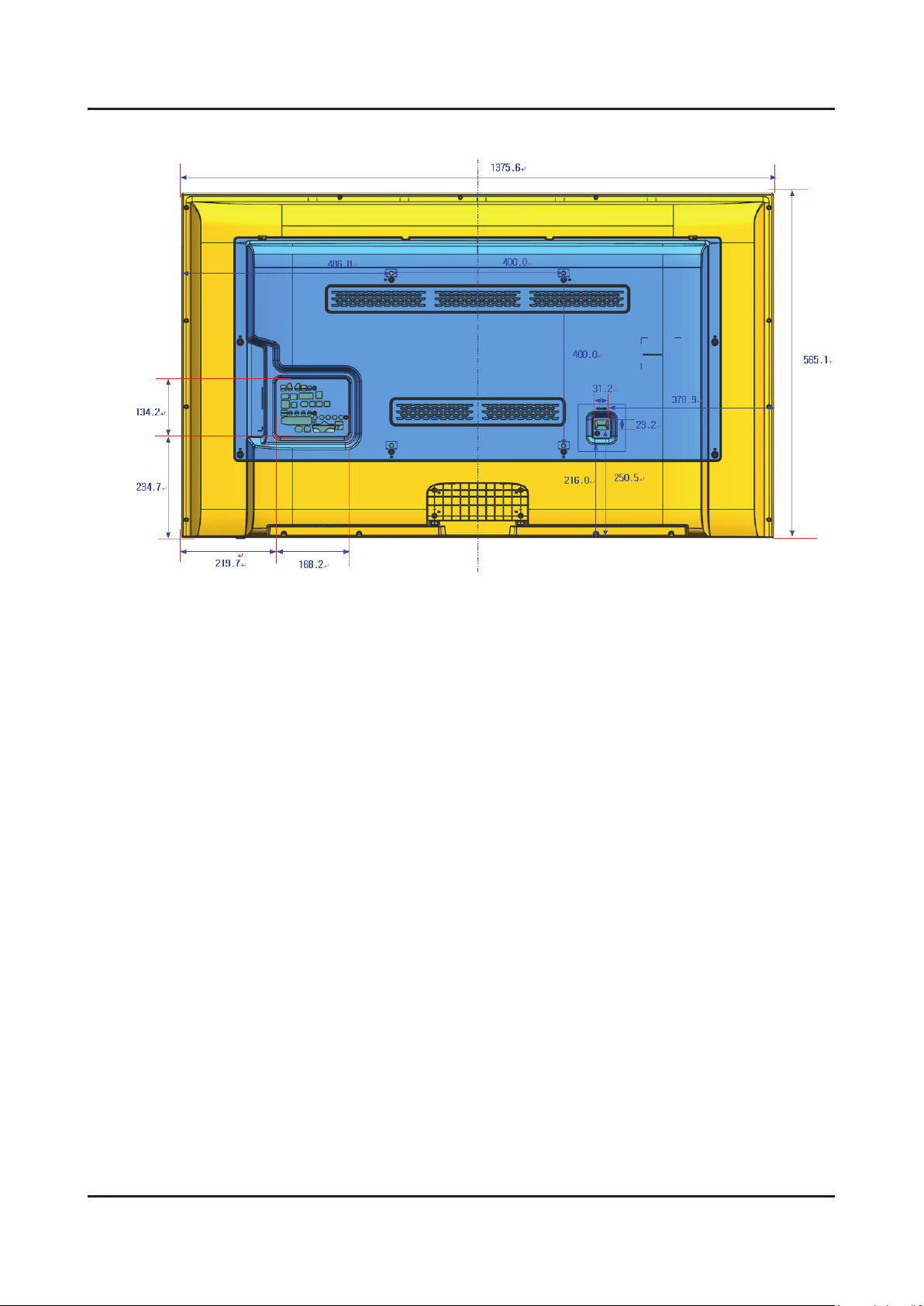

4-9. Cover-Middle Rear Dimension
4-37
4. Troubleshooting
Page 55

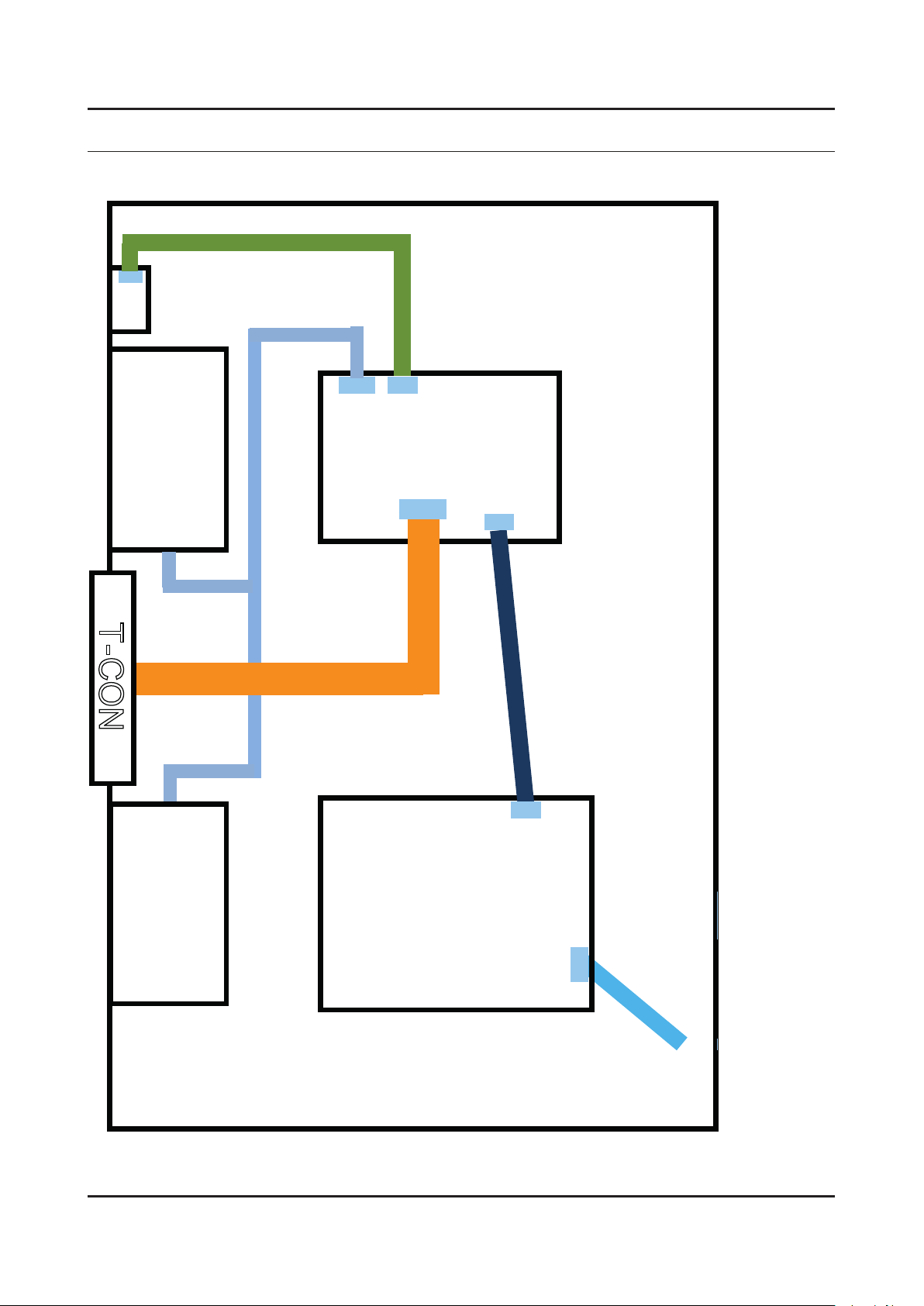

5. Wiring Diagram
Main Board
IP Board
CN201
CN801S
CN1302_HD
CNM803
Function
Speaker
Speaker
7&21
CN702
CN302
5-1. Wiring Diagram
5. Wiring Diagram
5-1
Page 56

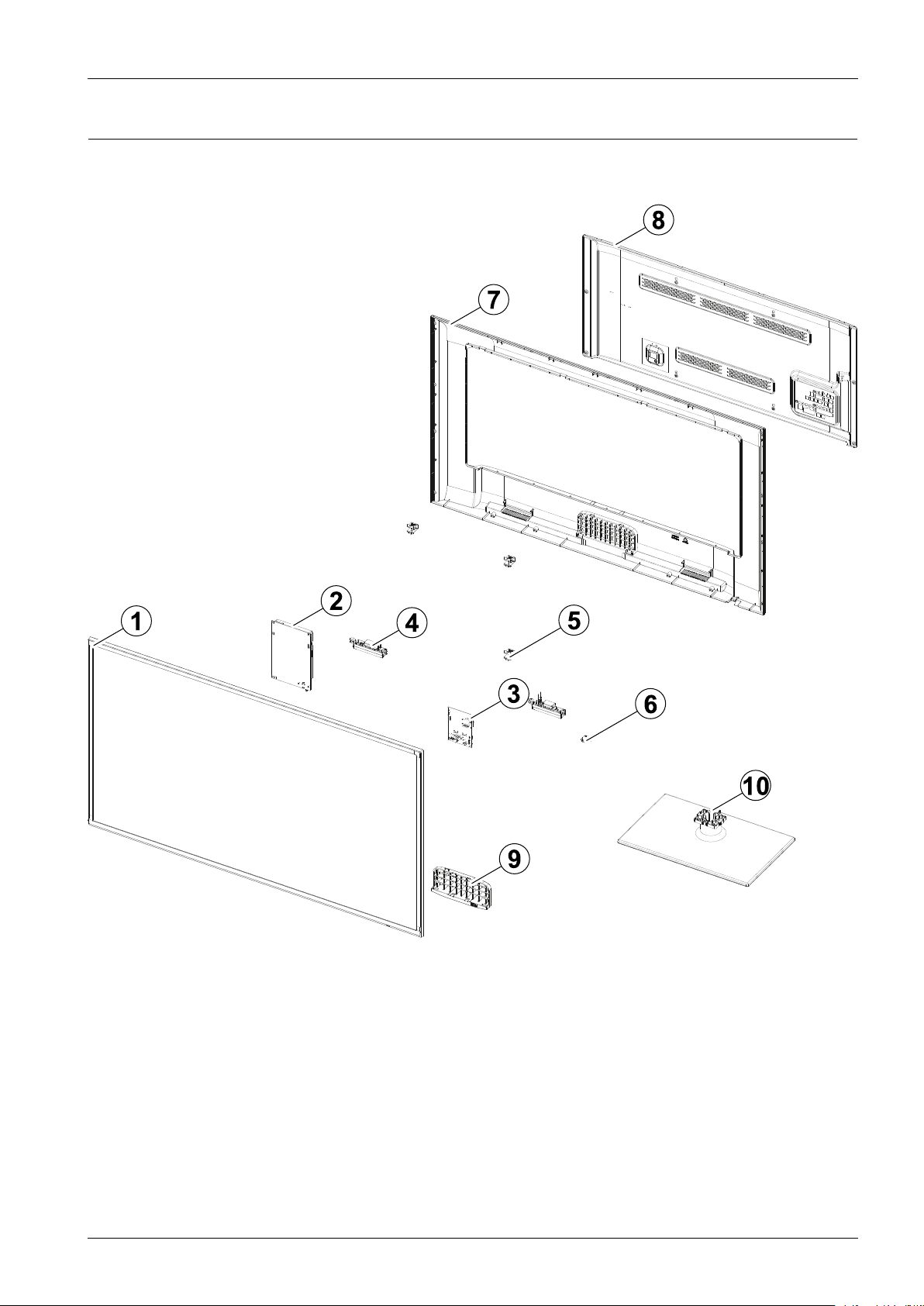

1.ExplodedView&PartList
ExplodedView
ExplodedViewsandPartsList
Copyright©1995-2012SAMSUNG.Allrightsreserved.1
Page 57
ExplodedViewsandPartsList
PartsList
No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.
12BN95-00951APRODUCTLCD;
CY-DE600CGSV3H,10BIT,60INCH,
22BN44-00500BDCVSS-LEDTVPDBD;
PD60GV1_CSM,PSLF131C0
32M0014BN94-06299AASSYPCBMAIN;UN60EH6002FXZASA1
42SP01ABN96-23514CASSYSPEAKERP;6ohm,4pin,10W,600360inchSA1
53CB20BN61-07953ABRACKET -W ALL;UE500046",EGI-SECC
PL,T1.2
62BN96-23845FASSYBOARDP-JOGSWITCH&IR;
UN60EH6003,
72R002ABN63-10106ACOVER-MIDDLE;UE600360",HIPS,STEAM
MOLD
82R001ABN96-21761XASSYCOVERP-REAR;UE6003,60,UO,UNITED
ST
92SG01ABN96-22733AASSYGUIDEP-ST AND;UE6000,60,UO,PC+G/F
2
102SB04ABN96-19948AASSYSTANDP-BASE;PD53059,PMMA+ABS
HB,(
SA1
SA1
SA4
SA1
SA1
SA1
SA1
SA1
2Copyright©1995-2012SAMSUNG.Allrightsreserved.
Page 58
ExplodedViewsandPartsList
2.ElectricalPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
UN60EH6002FXZA(HH01)
1R001ABN90-03828MASSYCOVERREAR;UE6003,60,UNITEDSTA TES1SNA
.2R001ABN96-21761XASSYCOVERP-REAR;UE6003,60,UO,UNITEDST1SA
..3BN60-00162ZSPACER-FOAM;FOAM,50000mm,DARKGRA Y ,0.35T1SNA
..3R001BN63-09087FCOVER-REAR;UE600360",PCM,T0.4,UO1SNA
..3T0071BN64-02175AINLAY-TERMINAL;UE600360",PSSHEET,T0.3,1SNA
1S001ABN90-03852AASSYSTAND;UEH6000,60,UO1SNA
.2SB04ABN96-19948AASSYST ANDP-BASE;PD53059,PMMA+ABSHB,(1SA
..3SCREW6003-001239SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR13SA
..3BN61-04692ABOSS-PRIMER;#94,clear,35cps0SNA
..3AB323BN61-07527ABRACKET -ST AND;59PD530,SECC,T2.01SNA
..3SG01BN61-07528AGUIDE-ST ANDNECK;59PD530,PC,G/F20%1SNA
..3CCM1BN63-02183DCOVER-SHEET;Rhcm,PEVinyl,T0.05,680mm,200SNA
..3SC05BN63-08446ACOVER-STAND;53PD530,ABS+PMMA,HB,BK00071SNA
..3BN68-03616ALABEL-ACCESSORY ;59"/64",Pantone1535C,1SNA
..3M0019BN73-00052CRUBBER-FOOT ;LCDTV,SiliconeRUBBER,T2.06SNA
.2SG01ABN96-22733AASSYGUIDEP-STAND;UE6000,60,UO,PC+G/F21SA
..36902-000110BAGPE;LDPE,T0.05,W250,L400,TRP ,28,2,9.21SNA
..3SG03BN61-08287AGUIDE-ST AND;UE600060/65",PC+GF,G/F20%1SNA
..3BN68-04027AMANUALFLYER-03,ST ANDGUIDE;U4000(32),SA1SNA
..3BN68-04203ALABEL-BASE;A/P100G,0.08,20X,70mm,DarkBl1SNA
..3BN96-12031EASSYACCESSORY -SCREW;10LCD-TV ,6003-00101SNA
...4SCREW6003-001782SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR8SA
...46902-000341BAGPE;LDPE,T0.05,L90,W70,TRP ,,,PEMARK1SNA
1BN90-04353AASSYCOVERMIDDLE;UE6003601SNA
.26001-002755SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH14SA
.2SCREW6003-001782SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR15SA
.2R002ABN63-10106ACOVER-MIDDLE;UE600360",HIPS,STEAMMOLD1SA
1BN91-10123AASSYSHIELD;UN60EH6003FXZA1SNA
.26001-002756SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH17SA
.2BN02-00102BTAPEFILAMENT ;UE7000,#893,0.15,25,50,WHI0SNA
.2EC13BN39-01449ULEADCONNECTOR;UE55EH6000,FaltConnector1SA
.2BN44-00500BDCVSS-LEDTVPDBD;PD60GV1_CSM,PSLF131C01SA
.2BN67-00371BRUBBER-FOOT;UE32EH5000,RUBBER,Sillicone,1SNA
.2SP01ABN96-23514CASSYSPEAKERP;6ohm,4pin,10W ,600360inch1SA
.2BN96-23845FASSYBOARDP-JOGSWITCH&IR;UN60EH6003,1SA
.2FL06BN96-24278DASSYCABLEP-FFC;UN60EH6003FXZA,FFC,469m1SA
1BN91-10486AASSYLCM-SHARP;CY-DE600CGS-V3,BN95-009511SNA
Copyright©1995-2012SAMSUNG.Allrightsreserved.3
Page 59
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
.2BN95-00951APRODUCTLCD;CY -DE600CGSV3H,10BIT,60INCH,1SA
..30203-001602TAPE-OPPMASKING;#232,0.14,15,50000,YEL0SNA
..36001-002756SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH14SA
..36001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH18SA
..3T0527AA68-03539ALABELBARCODE;65X40mm,ARTP APER1SNA
..3BN02-00114ATAPEETC-COF;NNB55",PET,0.07T,20,12,GRE8SNA
..3CB20BN61-07953ABRACKET -W ALL;UE500046",EGI-SECCPL,T1.24SA
..3BN61-07962ABRACKET-STNADLINK;UE600055",SECC,T1.61SNA
..3BN62-00205APADGAP;UN22D5003BFXZA,SILICON+POLYMER,53SNA
..3BN63-00119AGASKET;GH18MS,ConductiveFabric,0.13mm,11SNA
..3BN67-00327RRUBBER-FOOT;RUBBER-FOOT,SILICONE,SQUARE,2SNA
..3BN68-03216ALABEL-STICKER;WW,Y upoPolyester,80X40,A V1SNA
..3BN74-00053ATAPE-PROTECTION;T460BE1-FB,T550BE1-FB,3M1SNA
..3BN82-01228AA/SASSY-FPCCABLE;DFR,59mm,80PFPCCABL2SNA
..3BN90-04335AASSYMISC-BLU;6K,CY -DE600CGSV2V1SNA
...4BN02-00139ATAPEETC-SHEETFIXINGUP;F-LED60,3M1361SNA
...4BN02-00140ATAPEETC-SHEETFIXINGDOWN;F-LED60,3M11SNA
...4BN61-07891ASUPPORT-PLATE;Y12FULLLED,PC,CLEAR8SNA
...4BN61-08124ALGP-DIFFUSESRPLA TE;60"DiffuserPlate,P1SNA
...4BN63-09429ASHEET-REFLECTOR;60inchDLEDUXJP175,SHEE1SNA
...4BN63-10134ASHEET-DIFFUSER;UTE12-10B,60FHD,FLEDV2SNA
...4BN96-21752BASSYMISCP-CHASSISBOTTOM;Y12FULL-LED,1SNA
....5BN02-00094AT APEPET;Y12F-LED,MT-PFR,T0.05,W30,L401SNA
....5BN02-00102BTAPEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA
....5EC13BN39-01624ALEADCONNECTOR;60"Directwire-harness,L1SNA
....5BN61-08161AHOLDER-LED-PCB;Direct-LED,PC,white2SNA
....5CC02BN64-01899BCHASSIS-BOTTOM;Y12FULL-LED,EGI-SECC,T1.1SNA
....5BN96-21489AASSYMISCP-SUBPCB;60"SubPCB,2pin*8ea1SNA
...4BN96-21753AASSYFRAMEP-MOLDMIDDLEU;Y12FullLED1SNA
....5BN61-07880AFRAME-MOLDMIDDLE-U;Y12F-LED60",PC+G/F1SNA
...4BN96-22395AASSYFRAMEP-MOLDMIDDLED;Y12FullLED61SNA
....5BN60-00513ASP ACER-P ANEL(UD);F-LED60,GASKET,MGT -302SNA
....5BN61-07881AFRAME-MOLDMIDDLE-D;Y12F-LED60",PC+G/F1SNA
...4BN96-22396AASSYFRAMEP-MOLDMIDDLESIDE;Y12FullL2SNA
....5BN60-00516ASP ACER-P ANEL(LR);F-LED60,GASKET,MGT -302SNA
....5BN61-07882AFRAME-MOLDMIDDLE-SIDE;F-LED60",PC+G/F12SNA
...4BN96-24613AASSYMISCP-LEDBAR;60"DirectLEDBarS8SNA
...4BN96-24614AASSYMISCP-LEDBAR;60"DirectLEDBarS8SNA
..3TCONBN95-00628CASSYTCON;hsync3,NEWFPGA,158*140*1.2T,1SC
...4T0527BN68-00513ALABEL-E,P ASS;ALLMODEL,YUPO(110G),50X15,1SNA
4Copyright©1995-2012SAMSUNG.Allrightsreserved.
Page 60
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4BN97-06551CASSYSMD;BN95-00628C1SNA
....50202-001477SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A2SNA
....50402-001207DIODE-SCHOTTKY ;UPS5819,40V ,1000mA,DO-2168SA
....50406-001200DIODE-TVS;RCLAMP0504F ,6/-/-V ,150W,SC-701SA
....50406-001438DIODE-TVS;SMCJ14A,15.6/-/17.2V ,1500W,DO-1SA
....50406-001445DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W ,S3SA
....50501-002080TR-SMALLSIGNAL;2SC2412K,NPN,200mW,SC-592SA
....50501-002322TR-SMALLSIGNAL;2SD2150,NPN,500mW,MPT3,T1SA
....50502-001321TR-POWER;STB1188,PNP ,2000mW ,SOT -89,TR,161SA
....50502-001360TR-POWER;STC405D,NPN,15000mW ,TO-2521SA
....50505-000274FET -SILICON;AO4435L,P ,-30V,-11A,0.014ohm1SNA
....50505-001844FET -SILICON;SI4435DDY -T1-GE3,P,-30V ,-11.1SA
....50505-002598FET -SILICON;AP2317GN,P ,-20V,-4.2A,0.052o1SA
....50505-002937FET -SILICON;AO4854L,DUALN,30V ,8A,2W ,SOT1SA
....50801-002294IC-CMOSLOGIC;7SH08,ANDGA TE,SC-70,5P,2x1SA
....50801-003292IC-CMOSLOGIC;7WB66,BusSwitch,MAB08A,8P1SA
....51003-002404IC-LEVELDRIVER;BD8124MUV-E2,48P ,7x7x1m1SA
....51105-002264IC-DDR2SDRAM;K4T51163QJ-BCF8,DDR2,512Mb1SNA
....51201-002312IC-OPAMP;NJM2125F,MTP,TP ,5P ,2.9x1.6mm,S2SA
....51203-004363IC-VOL.DETECTOR;SOT -23,3Z30,2.9x1.6mm,P1SA
....51203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT -82SA
....51203-006138IC-POSI.ADJUSTREG.;AP1117DGZ-13-89,TO-21SA
....51203-006167IC-POSI.FIXEDREG.;S-1172B12-U5T1G,SOT -81SA
....51203-006591IC-SWITCHVOL.REG.;BD9329EFJ,HTSOP-J8,82SNA
....51203-006780IC-VOL.REFERENCE;MAX9697A TI+,TQFN,28P ,51SA
....51203-006806IC-POWERSUPERVISOR;ISL45041IRZ-T,8P,3x31SA
....51203-007216IC-DC/DCCONVERTER;ISL98602IRAAZ,QFN,40P1SA
....51204-003270IC-DECODER;LR388H3,BGA,417P ,19x19x1.46mm1SA
....51204-003304IC-VIDEOPROCESS;SENK81,TFBGA,243Z30,15x1SA
....5IS011209-001761IC-SENSOR;LM75ADP ,TSSOP ,8P ,3.1x3.1mm,PLA1SA
....51301-001998IC-FPGA;iCE65L01,QN,84P ,7x7mm,1.2V,12uA1SNA
....52007-000033R-CHIP;0ohm,5%,1/4W ,TP ,32161SA
....52007-000034R-CHIP;1ohm,5%,1/4W ,TP ,32161SNA
....52007-000039R-CHIP;0ohm,1%,1/10W ,TP ,16083SA
....52007-000052R-CHIP;10Kohm,1%,1/10W ,TP ,16084SA
....52007-000066R-CHIP;20Kohm,1%,1/10W ,TP ,16081SNA
....52007-000070R-CHIP;0ohm,5%,1/10W ,TP ,160832SA
....52007-000079R-CHIP;1.8Kohm,5%,1/10W ,TP ,16081SA
....52007-000113R-CHIP;33ohm,5%,1/10W ,TP ,16081SA
....52007-000137R-CHIP;2Kohm,5%,1/16W ,TP ,100512SNA
Copyright©1995-2012SAMSUNG.Allrightsreserved.5
Page 61
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52007-000138R-CHIP;100ohm,5%,1/16W ,TP ,100539SA
....52007-000140R-CHIP;1Kohm,5%,1/16W ,TP ,10052SA
....52007-000141R-CHIP;2.2Kohm,5%,1/16W ,TP ,10052SA
....52007-000143R-CHIP;4.7Kohm,5%,1/16W ,TP ,100524SA
....52007-000147R-CHIP;8.2Kohm,5%,1/16W ,TP ,10051SA
....52007-000148R-CHIP;10Kohm,5%,1/16W ,TP ,100535SA
....52007-000149R-CHIP;12Kohm,5%,1/16W ,TP ,10051SA
....52007-000162R-CHIP;100Kohm,5%,1/16W ,TP ,10053SA
....52007-000170R-CHIP;1Mohm,5%,1/16W ,TP ,10051SA
....52007-000171R-CHIP;0ohm,5%,1/16W ,TP ,100546SA
....52007-000172R-CHIP;10ohm,5%,1/16W ,TP ,10051SNA
....52007-000173R-CHIP;22ohm,5%,1/16W ,TP ,10052SA
....52007-000303R-CHIP;10Kohm,5%,1/4W ,TP ,32161SA
....52007-000343R-CHIP;120ohm,1%,1/10W ,TP ,16081SNA
....52007-000372R-CHIP;130ohm,5%,1/10W ,TP ,16082SA
....52007-000455R-CHIP;18Kohm,1%,1/10W ,TP ,16081SA
....52007-000496R-CHIP;2.2Kohm,5%,1/4W ,TP ,32161SA
....52007-000536R-CHIP;200ohm,1%,1/10W ,TP ,16081SA
....52007-000618R-CHIP;24ohm,5%,1/10W ,TP ,16081SNA
....52007-000640R-CHIP;270ohm,1%,1/10W ,TP ,16081SA
....52007-000651R-CHIP;27Kohm,1%,1/10W ,TP ,16081SA
....52007-000842R-CHIP;3Kohm,1%,1/10W ,TP ,16082SA
....52007-000883R-CHIP;4.7ohm,5%,1/4W ,TP ,32162SA
....52007-001002R-CHIP;510ohm,5%,1/10W ,TP ,16081SNA
....52007-001139R-CHIP;7.5Kohm,1%,1/10W ,TP ,16082SA
....52007-001284R-CHIP;4.7ohm,5%,1/16W ,TP ,10051SNA
....52007-001292R-CHIP;33ohm,5%,1/16W ,TP ,10052SA
....52007-001335R-CHIP;36Kohm,5%,1/16W ,TP ,10051SA
....52007-002425R-CHIP;1ohm,5%,1/10W ,TP ,16084SNA
....52007-007107R-CHIP;100Kohm,1%,1/16W ,TP ,10051SNA
....52007-007136R-CHIP;4.7Kohm,1%,1/16W ,TP ,10051SNA
....52007-007142R-CHIP;10Kohm,1%,1/16W ,TP ,10055SA
....52007-007156R-CHIP;1ohm,5%,1/16W ,TP ,10052SA
....52007-007306R-CHIP;100ohm,1%,1/16W ,TP ,100512SNA
....52007-007309R-CHIP;12Kohm,1%,1/16W ,TP ,1005,0.352SA
....52007-007318R-CHIP;1Kohm,1%,1/16W ,TP ,10055SA
....52007-007651R-CHIP;9.1Kohm,1%,1/10W ,TP ,16081SA
....52007-007722R-CHIP;43ohm,1%,1/10W ,TP ,16081SA
....52007-007768R-CHIP;13Kohm,1%,1/10W ,TP ,16081SA
....52007-008137R-CHIP;24Kohm,1%,1/16W ,TP ,10051SNA
6Copyright©1995-2012SAMSUNG.Allrightsreserved.
Page 62
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52011-001261R-NETWORK;33ohm,5%,1/16W ,L,CHIP ,8P,TP ,2.1SA
....52011-001262R-NETWORK;22ohm,5%,1/16W ,L,CHIP ,8P,TP ,2.5SA
....52011-001264R-NETWORK;10ohm,5%,1/16W ,L,CHIP ,8P,TP ,2.6SNA
....52011-001344R-NETWORK;100ohm,5%,1/16W ,L,CHIP ,8P,TP ,25SA
....52011-001427R-NETWORK;0ohm,5%,1/16W ,L,CHIP ,8P,TP ,2.05SA
....5AD4802203-000254C-CER,CHIP;10nF ,10%,16V ,X7R,TP,100523SA
....5AD4802203-000438C-CER,CHIP;1nF ,10%,50V ,X7R,TP,10056SA
....5AD4802203-000466C-CER,CHIP;0.001nF ,0.25pF ,50V ,C0G,TP,1001SA
....5AD4802203-000489C-CER,CHIP;2.2nF ,10%,50V ,X7R,TP,10051SA
....5AD4802203-000575C-CER,CHIP;220nF ,10%,25V ,X7R,TP,20121SA
....5AD4802203-000679C-CER,CHIP;0.027nF ,5%,50V ,C0G,TP,10052SA
....5AD4802203-000714C-CER,CHIP;3.3nF ,10%,50V ,X7R,TP,10051SA
....5AD4802203-002285C-CER,CHIP;10nF ,10%,50V ,X7R,TP,100515SNA
....5AD4802203-002711C-CER,CHIP;100nF ,10%,25V ,X7R,TP,160833SA
....5AD4802203-003019C-CER,CHIP;8.2nF ,10%,50V ,X7R,TP,10051SNA
....5AD4802203-005221C-CER,CHIP;15nF ,10%,50V ,X7R,TP,16082SNA
....5AD4802203-005249C-CER,CHIP;100nF ,10%,50V ,X7R,TP,160816SA
....5AD4802203-006048C-CER,CHIP;100nF ,10%,10V ,X7R,TP,100562SA
....5AD4802203-006158C-CER,CHIP;100nF ,10%,16V ,X7R,TP,1005,0.53SA
....5AD4802203-006348C-CER,CHIP;1000nF ,10%,25V ,X5R,TP,1608,0.6SA
....5AD4802203-006361C-CER,CHIP;10000nF ,10%,10V ,X5R,TP,201220SC
....5AD4802203-006377C-CER,CHIP;4700nF ,10%,25V ,X5R,TP,20122SNA
....5AD4802203-006474C-CER,CHIP;22000nF ,20%,6.3V ,X5R,TP,20123SA
....5AD4802203-006562C-CER,CHIP;1000nF ,10%,10V ,X5R,TP,10057SNA
....5AD4802203-006698C-CER,CHIP;1000nF ,10%,25V ,X7R,TP,1608,0.1SA
....5AD4802203-006741C-CER,CHIP;470nF ,10%,25V ,X5R,TP,1608,0.81SNA
....5AD4802203-006890C-CER,CHIP;10000nF ,20%,6.3V ,X5R,TP,160811SNA
....5AD4802203-007176C-CER,CHIP;10000nF ,10%,16V ,X5R,TP,2012,111SNA
....5AD4802203-007233C-CER,CHIP;22000nF ,10%,16V ,X5R,TP,3216,11SA
....5AD4802203-007306C-CER,CHIP;10000nF ,10%,25V ,X5R,TP,2012,116SNA
....5AD4802203-007513C-CER,CHIP;10000nF ,10%,10V ,X5R,TP,1608,06SA
....5AD4802203-008096C-CER,CHIP;2200nF ,10%,50V ,X5R,TP,2012,1.3SA
....52402-001183C-AL,SMD;22UF ,20%,16V ,WT,TP ,5.3X5.3X6MM1SA
....52402-001368C-AL,SMD;47uF ,20%,25V ,TP,6.3x4.9mm4SA
....52503-001051C-NETWORK;100nFx4,20%,16V ,20123SA
....52703-003135INDUCTOR-SMD;4.7uH,20%,6965,0.04ohm,55001SNA
....52703-003488INDUCTOR-SMD;10uH,20%,6965,0.071ohm,35001SA
....52703-003719INDUCTOR-SMD;6.8uH,20%,10x11x3.8mm,.026o1SA
....52703-003930INDUCTOR-SMD;4.7uH,20%,5050,0.072Ohm,2452SA
....52801-003773CR YSTAL-SMD;12MHz,30ppm,28-AAN,20pF,50oh1SA
Copyright©1995-2012SAMSUNG.Allrightsreserved.7
Page 63
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52802-001104RESONA TOR-CERAMIC;27MHZ,0.5%,TP,2.5X2X1.1SA
....53301-000314BEAD-SMD;120ohm,1608,TP ,120ohm/100MHz16SNA
....53301-001404BEAD-SMD;30ohm,2012,TP ,15.9OHM/30MHz,-7SA
....53301-001569BEAD-SMD;600ohm,2012,1000mA,TP ,520ohm/901SNA
....53301-002039BEAD-SMD;26ohm,1608,TP9SA
....53601-001402FUSE;125V ,7A,FASTACTING,CERAMIC,2.69X6.1SNA
....53708-002552CONNECTOR-FPC/FFC/PIC;80P,0.5mm,SMD-A,AU2SA
....5EH013711-005499HEADER-BOARDTOCABLE;BOX,8P ,1R,1.25mm,S3SA
....5EH013711-005601HEADER-BOARDTOCABLE;BOX,8P ,1R,2mm,SMD-1SA
....5EH013711-005925HEADER-BOARDTOCABLE;BOX,51P ,1R,0.5mm,S1SA
....5BN41-01815APCBMAIN;FR-4,4,1.2T,150*158,1,12Y60"11SNA
....5BN68-04746ALABEL-SMD;allmodel,POL Y*,25.4mmx9.53m1SNA
....5BN97-06462AASSYMICOM;T-NT601-001C(I2C),2012.04.271SNA
....5BN97-06559BASSYMICOM;T-BONITO-01,SHARP1202D,BN411SNA
.....61107-001916IC-NORFLASH;W25Q16BVSSIG,16Mbit,2Mbitx81SNA
....5BN97-06902AASSYMICOM;T-ICE65L01,N63A,2012.4.17,W251SNA
.....61107-001938IC-FLASHMEMOR Y ;W25X40BVSSIG,4Mbit,SOP ,81SNA
..3BN96-16436AASSYOPENCELL;LK600D3HA7K,SECVDHQ,SUW1SNA
...4BN81-07532AAS-TFT-POL;PFILV1038TPXZ,Plane,forBiax1SNA
...4BN81-07536AAS-C/FPOL;PFIL V1402TPXZ,ClearLR,forB1SNA
...4BN81-07538AAS-DRIVERIC;VHIS6C277G2-K,miniL VDS,7201SNA
...4BN81-07539AAS-SOURCEPCBLEFTLEFT;RUNTK4967TPZZ,FR1SNA
...4BN81-07540AAS-GA TEIC;VHILH16E001-K,272ch,2pf,for1SNA
...4BN81-07541AAS-SOURCEPCBLEFTRIGHT;RUNTK4966TPZZ,F1SNA
...4BN81-07543AAS-SOURCEPCBRIGHTLEFT;RUNTK4965TPZZ,F1SNA
...4BN81-07545AAS-SOURCEPCBRIGHTRIGHT;RUNTK4964TPZZ,1SNA
..3TC01ABN96-24787AASSYMISCP-CHASSISTOP;F-LED60"_6003,BN1SNA
...4BN60-00512ASPACER-TOP(UD);Full-LED60'',FG200A,L132SNA
...4BN60-00514ASPACER-TOP(LR);Full-LED60'',FG200A,L772SNA
...4BN60-00515BSP ACER-BLOCK;F-LED60'',MTU-R,L666,BLK,T2SNA
...4BN60-00531ASPACER-GASKET;Full-LED,GASKET ,FG200A+DSS6SNA
...4BN63-07229KCOVER-SHEET;rose70",SILICONE,T0.052,W36m3SNA
...4BN63-10182CSHEET -COVER;Y12F-LED,SHEETurethane,0.01SNA
...4AC157BN64-02173ACHASSIS-TOP;F-LED60"VE(2D),PC+ABS+G/F11SNA
1M0017BN91-10551AASSYCHASSIS;UN60EH6002FXZA1SNA
.2M0014BN94-06299AASSYPCBMAIN;UN60EH6002FXZA1SA
..3BN62-00071BHEA TSINK-CERAMIC;22*22*2.6,A6063,T2.6,T1SNA
..3BN97-06220AASSYDRM-KEYCODE-ASS`Y ;COM_002,TV ,-,Gen1SNA
...4BN46-00110GKEYCODE-CER TIFI;HDCP ,TV ,MSTAR,General1SNA
..3BN97-06989AASSYSMD;UN60EH6003FXZA1SNA
8Copyright©1995-2012SAMSUNG.Allrightsreserved.
Page 64
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...40202-001899SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S2SNA
...40403-001783DIODE-ZENER;BZB84-C6V2,5.8/6.6V ,300mW ,SO4SNA
...40403-001785DIODE-ZENER;NZH5V1B,4.94/5.2V ,500mW ,SOD-2SA
...40404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT -23,1SA
...40406-001200DIODE-TVS;RCLAMP0504F,6/-/-V ,150W ,SC-701SA
...4DS01A0407-000114DIODE-SWITCHING;KDS184,80V ,100mA,SOT -23,1SNA
...40501-000445TR-SMALLSIGNAL;KTC3875S-Y,NPN,150mW,SOT6SC
...40505-000110FET-SILICON;2N7002,N,60V ,115mA,7.5ohm,0.2SA
...41006-001509IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP ,201SA
...41103-001310IC-EEPROM;2Kbit,256x8,SOIC,8Z30,5x4mm,2.2SNA
...41103-001506IC-EEPROM;M24512-RMN6TP ,512Kbit,64Kx8,SO1SA
...41105-002227IC-DDR3SDRAM;K4B1G1646G-BCK0,DDR3SDRAM1SA
...41201-003407IC-AUDIOAMP;NTP7402,MLF ,48P ,7x7mm,DUAL,1SA
...41203-004364IC-VOL.DETECTOR;RT9818C-42PV ,SOT-23,3P ,1SA
...41203-006017IC-VOL.DETECTOR;RT9824GJ8,TSOT23,8P ,2.91SA
...41203-006109IC-POSI.FIXEDREG.;S-1206B33-M3T1G,SOT -21SA
...41203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-81SA
...41203-006135IC-POSI.FIXEDREG.;AP1117D-33-GZ-13-89,T1SA
...41203-006136IC-POSI.FIXEDREG.;AP1117D-18-GZ-13-89,T1SA
...41203-006138IC-POSI.ADJUSTREG.;AP1117DGZ-13-89,TO-21SA
...41203-007243IC-POSI.FIXEDREG.;G9001-500T11U,SOT-23-1SA
...41203-007248IC-DC/DCCONVER TER;NCP3170ADR2G,SO-8,8P ,2SNA
...41204-003379IC-DECODER;SEMS28,LFBGA,316P ,17.0x17.0mm1SNA
...41205-004447IC-SWITCH;TPS2051CDBVR,SOT23-5,5P ,3x1.651SA
...41405-001271V ARISTOR;35V ,20Vdc,5A,1.0x0.5x0.6mm,TP,15SA
...42007-000137R-CHIP;2Kohm,5%,1/16W,TP ,10058SNA
...42007-000138R-CHIP;100ohm,5%,1/16W,TP ,100511SA
...42007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10051SA
...42007-000141R-CHIP;2.2Kohm,5%,1/16W,TP ,10051SA
...42007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100524SA
...42007-000148R-CHIP;10Kohm,5%,1/16W,TP ,100519SA
...42007-000152R-CHIP;20Kohm,5%,1/16W,TP ,10051SNA
...42007-000153R-CHIP;22Kohm,5%,1/16W,TP ,10051SNA
...42007-000155R-CHIP;27Kohm,5%,1/16W,TP ,10051SA
...42007-000157R-CHIP;47Kohm,5%,1/16W,TP ,10052SNA
...42007-000162R-CHIP;100Kohm,5%,1/16W,TP ,10053SA
...42007-000168R-CHIP;470Kohm,5%,1/16W,TP ,10051SNA
...42007-000170R-CHIP;1Mohm,5%,1/16W,TP ,10051SA
...42007-000171R-CHIP;0ohm,5%,1/16W,TP ,10058SA
...42007-000172R-CHIP;10ohm,5%,1/16W,TP ,10052SNA
Copyright©1995-2012SAMSUNG.Allrightsreserved.9
Page 65
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...42007-000173R-CHIP;22ohm,5%,1/16W,TP ,10053SA
...42007-000256R-CHIP;1.6Kohm,1%,1/10W,TP ,16081SA
...42007-000695R-CHIP;3.3ohm,5%,1/10W,TP ,16084SNA
...42007-000775R-CHIP;33Kohm,5%,1/16W,TP ,10051SNA
...42007-001285R-CHIP;5.6ohm,5%,1/16W,TP ,10052SA
...42007-001292R-CHIP;33ohm,5%,1/16W,TP ,10057SA
...42007-001301R-CHIP;68ohm,5%,1/16W,TP ,10052SA
...42007-001313R-CHIP;330ohm,5%,1/16W,TP ,10052SNA
...42007-001325R-CHIP;3.3Kohm,5%,1/16W,TP ,10051SNA
...42007-001333R-CHIP;18Kohm,5%,1/16W,TP ,10052SA
...42007-002970R-CHIP;56ohm,5%,1/16W,TP ,10052SA
...42007-007139R-CHIP;47Kohm,1%,1/16W,TP ,10051SA
...42007-007142R-CHIP;10Kohm,1%,1/16W,TP ,10051SA
...42007-007156R-CHIP;1ohm,5%,1/16W,TP ,10055SA
...42007-007316R-CHIP;3.3Kohm,1%,1/16W,TP ,10051SNA
...42007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100513SA
...42007-007463R-CHIP;1.1Kohm,1%,1/16W,TP ,10051SA
...42007-007517R-CHIP;240ohm,1%,1/16W,TP ,10051SNA
...42007-008015R-CHIP;75ohm,1%,1/16W,TP ,10053SA
...42007-008275R-CHIP;30Kohm,1%,1/16W,TP ,10051SNA
...42007-008649R-CHIP;220ohm,1%,1/16W,TP ,10051SNA
...42007-009192R-CHIP;23.7Kohm,1%,1/16W,TP ,10051SA
...42011-001262R-NETWORK;22ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.4SA
...42011-001264R-NETWORK;10ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.4SNA
...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4P ,TP ,10104SA
...42011-001506R-NETWORK;10Kohm,5%,1/16W,L,CHIP ,4P ,TP ,11SA
...42011-001587R-NETWORK;100ohm,5%,1/16W,L,CHIP-V ,4P ,TP1SA
...4AD4802203-000233C-CER,CHIP;0.1nF,5%,50V ,C0G,TP ,10055SA
...4AD4802203-000254C-CER,CHIP;10nF,10%,16V ,X7R,TP ,10052SA
...4AD4802203-000438C-CER,CHIP;1nF,10%,50V ,X7R,TP ,10059SA
...4AD4802203-000489C-CER,CHIP;2.2nF,10%,50V ,X7R,TP ,10051SA
...4AD4802203-000575C-CER,CHIP;220nF,10%,25V ,X7R,TP ,20123SA
...4AD4802203-000679C-CER,CHIP;0.027nF,5%,50V ,C0G,TP ,10052SA
...4AD4802203-000714C-CER,CHIP;3.3nF,10%,50V ,X7R,TP ,10054SA
...4AD4802203-000812C-CER,CHIP;0.033nF,5%,50V ,C0G,TP ,10053SA
...4AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10053SA
...4AD4802203-002285C-CER,CHIP;10nF,10%,50V ,X7R,TP ,100510SNA
...4AD4802203-002525C-CER,CHIP;0.56nF,10%,50V ,X7R,TP ,10052SA
...4AD4802203-002711C-CER,CHIP;100nF,10%,25V ,X7R,TP,16084SA
...4AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,16089SA
10Copyright©1995-2012SAMSUNG.Allrightsreserved.
Page 66
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4AD4802203-005344C-CER,CHIP;22nF,10%,25V ,X7R,TP ,1005,0.5T1SNA
...4AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,100551SA
...4AD4802203-006126C-CER,CHIP;47nF,10%,16V ,X7R,TP ,10056SNA
...4AD4802203-006158C-CER,CHIP;100nF,10%,16V ,X7R,TP ,1005,0.52SA
...4AD4802203-006324C-CER,CHIP;2200nF,10%,10V ,X5R,TP ,16083SA
...4AD4802203-006361C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,20127SC
...4AD4802203-006474C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,201213SA
...4AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,10058SNA
...4AD4802203-006824C-CER,CHIP;4700nF,10%,10V ,X5R,TP ,1608,-1SNA
...4AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,160810SNA
...4AD4802203-007176C-CER,CHIP;10000nF,10%,16V ,X5R,TP ,2012,14SNA
...4AD4802203-007513C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,02SA
...42503-001051C-NETWORK;100nFx4,20%,16V ,20121SA
...42703-002238INDUCTOR-SMD;1uH,5%,2012,2.38Ohm,23,Wire2SNA
...42703-003149INDUCTOR-SMD;2.2uH,20%,5050,0.055Ohm,3002SA
...42703-003930INDUCTOR-SMD;4.7uH,20%,5050,0.072Ohm,2454SA
...42801-003326CRYST AL-SMD;24MHz,30ppm,28-ABX,20pF ,50oh1SA
...43301-002039BEAD-SMD;26ohm,1608,TP28SA
...43701-001831CONNECTOR-HDMI;19P ,2ROW ,FEMALE,SMD-S,AU2SNA
...43708-003073CONNECTOR-FPC/FFC/PIC;51P ,0.5mm,SMD,AU,N1SNA
...43711-007585CONNECTOR-HEADER;BOX,4P ,1R,2.5mm,ANGLE-D1SA
...43711-007741CONNECTOR-HEADER;BOX,14P ,2R,2.0mm,ANGLE,1SA
...4EH013711-008168HEADER-BOARDTOCABLE;BOX,6P ,1R,2.0mm,AN1SNA
...43722-003248JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA1SA
...43722-003439JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,11SA
...43722-003546JACK-PIN;5P+Screwhole,NI+SN,G,Y/BLU/RED1SA
...4ET01BN40-00225ATUNER;DTVD20FVL084A,DTVD20FVL084A,VSBHal1SA
...4BN41-01937APCBMAIN;FR-4,4,1.2T ,96*122,11SNA
...4BN68-04746ALABEL-SMD;allmodel,POL Y*,25.4mmx9.53m1SNA
...4BN97-06987AASSYMICOM;T -M9RF AUSC-1003.1,2012.08.221SNA
....51107-002101IC-NORFLASH;W25Q128BVFIG,128Mbit,128Mx11SNA
....5T0527AA68-03540ALABEL-MICOM;AR TP APE,7X6mm1SNA
1BN92-11598AASSYP/MA TERIAL;UN60EH6003FXZA1SNA
.20203-001269TAPE-OPPMASKING;#301,T0.06,W75,L50000,N1SNA
.26902-000961BAGPE;NITRON,T0.015/T0.5,W1700,L1100,TR1SNA
.26922-000013BANDPP;PP ,W18,L2300/L2900,TRP1SNA
.2T0214AA61-20285CHOLDER-BOX;CORAL,PP ,BLACK,HB,17.5g4SNA
.2BH69-00418ABAGWRAPPING;LDPE,762,1828M,SAMEXFACTOR2SNA
.2BN68-02422BLABEL-W ARNINGSHIPPING;ALLMODEL,A/P1001SNA
.2BN69-00391EP AD-ANGLE;DI19PS,P APER,T5,50,1500,YEL1SNA
Copyright©1995-2012SAMSUNG.Allrightsreserved.11
Page 67
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
.2BN69-08177ACUSHION-SET;UE600360",EPS1SNA
.2BN74-00008DTAPE-OPPMASKING;OPP ,T0.05,W75,L800M,CLR2SNA
1BN92-11599BASSYBOX;UN60EH6002FXZA1SNA
.2T0077BH68-00329DLABELBARCODE-02;NOCE,NOWT`Y,MPRII,LA2SNA
.2BN69-08193CBOX-SET,OUT;60UE6002-GS,CB,C-03,DW3,YEL,1SNA
.2BN69-08194ABOX-SET,IN;60UE6003-SS,CB,C-01,DW1,YEL,W1SNA
1BN92-12136AASSYLABEL;UN60EH6002FXZA1SNA
.20203-001598TAPE-FILAMENT;#8915,0.15,12,55000,CLR0SNA
.2BN68-04708ALEAFLET-STOPGUIDE;ALL,SAMSUNG,ENG,USA,W1SNA
.2BN68-04862VLABEL-STICKER;UE6Q,ZA,PET,T0.1,38,149,En1SNA
.2T0527BP68-00052BLABEL-00,RA TING;FPTV ,PET,T0.05,93,731SNA
1ACCE1BN92-12137AASSYACCESSORY ;UN60EH6002FXZA1SNA
.2BN96-25741AASSYACCESSORY -CM;UN60EH6002FXZA1SNA
..3T02683903-000599CBF-POWERCORD;DT ,UL/CSA,LP-11L,125V ,5A,1SA
..34301-000121BA TTERY-MN;1.5V ,R03,10.5x44.5m,HOLDER,7.2SNA
..36902-000476BAGPE;LDPE,T0.03,W250,L350,TRP ,Recycle,1SNA
..3REMO2AA59-00666AREMOCON;TM1240,44,3V ,TM1240,4003/50031SA
..3AA68-03242LLEAFLET -08,SAFETYGUIDE;comm,Samsung,Eng1SNA
..3BN61-05491AHOLDER-WIRESTAND;UB700046inch,NYRON1SNA
..3T0527BN68-00513ALABEL-E,PASS;ALLMODEL,YUPO(110G),50X15,1SNA
..3BN68-04966AMANUALUSERS;UE6003UE6002,SAMSUNG,Eng,U1SNA
..3BN68-04967ALEAFLET-QSG;UE6003UE6002,SAMSUNG,Eng,UN1SNA
..3BP68-00263ELEAFLET-03,W ARRANTYCARD;comm,Samsung,En1SNA
12Copyright©1995-2012SAMSUNG.Allrightsreserved.
Loading...
