Page 1
LED-TV
Chassis : N91A
Model : UN32C5000QF
UN37C5000QF
UN40C5000QF
UN46C5000QF
HD-Ready
UN32C5000QR
UN37C5000QR
UN40C5000QR
UN46C5000QR
SERVICE
UN32C4000PD
UN32C4000PX
Manual
TFT-LCD TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
UN40C5000QF
Refer to the service manual in the GSPN (see the rear cover) for the more information.
Page 2
Contents
1. Precautions .............................................................................................................. 1-1
1-1. Safety Precautions ......................................................................................................... 1-1
1-2. Servicing Precautions ..................................................................................................... 1-2
1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2
1-4. Installation Precautions .................................................................................................. 1-3
2. Product specications ............................................................................................ 2-1
2-1. Feature & Specications ................................................................................................. 2-1
2-2. New Features explanation ............................................................................................ 2-13

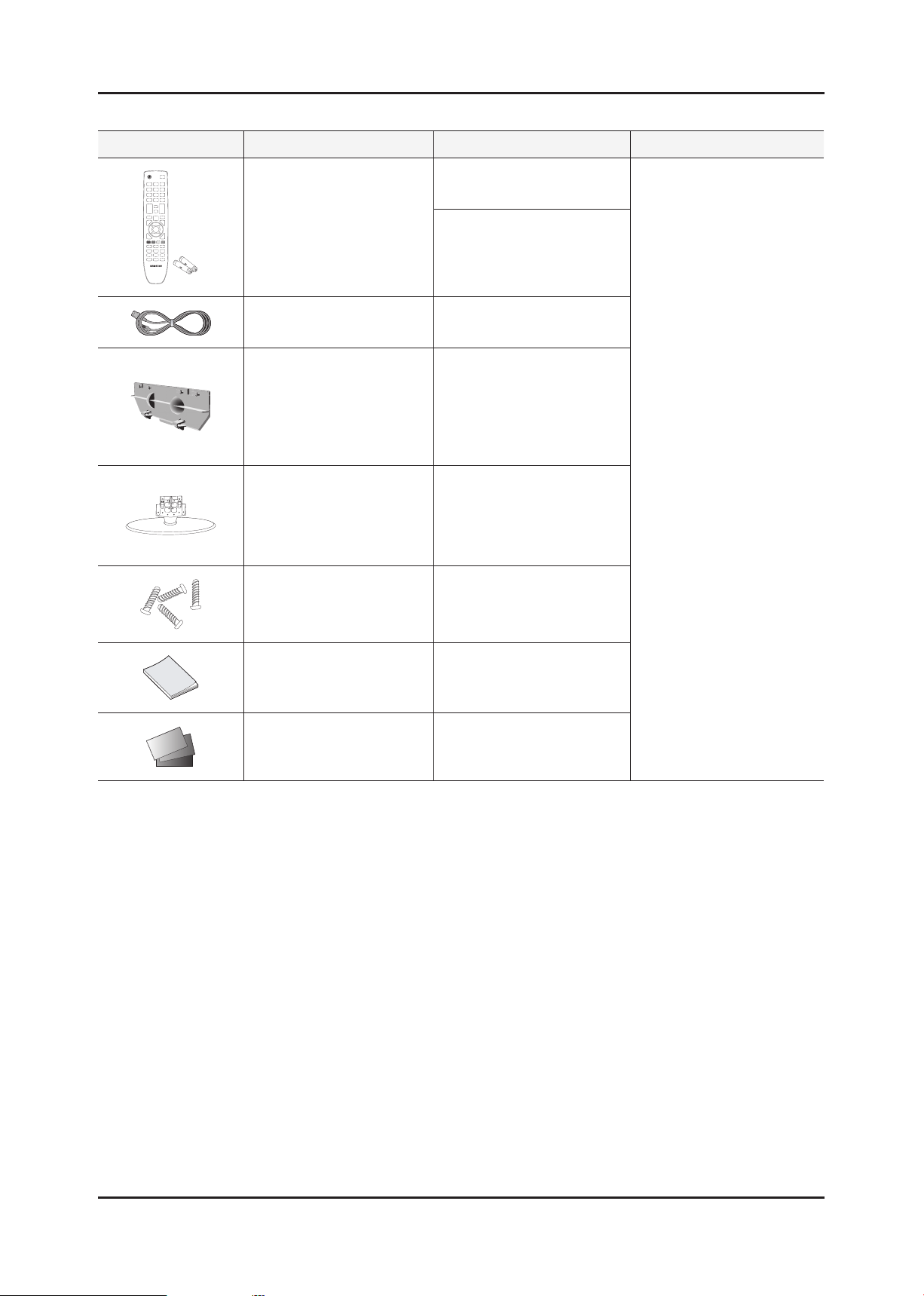

2-3. Accessories .................................................................................................................. 2-14
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly ....................................................................................... 3-1
4. Troubleshooting ...................................................................................................... 4-1
4-1. Troubleshooting .............................................................................................................. 4-1
4-2. Alignments and Adjustments ........................................................................................ 4-49
4-3. Factory Mode Adjustments ........................................................................................... 4-50
4-4. White Balance - Calibration .......................................................................................... 4-77
4-5. White Ratio (Balance) Adjustment ................................................................................4-77
4-6. Servicing Information .................................................................................................... 4-79
5. Exploded View & Part List ...................................................................................... 5-1
5-1. Exploded View ................................................................................................................ 5-1
5-2. Parts List ......................................................................................................................... 5-2
6. Wiring Diagram ........................................................................................................ 6-1
6-1. Wiring Diagram ............................................................................................................... 6-1
6-2. Connector ....................................................................................................................... 6-3
6-3. Connector Functions ...................................................................................................... 6-5
6-4. Cables ............................................................................................................................ 6-5
Page 3
GSPN (Global Service Partner Network)
Area Web Site
North America http://service.samsungportal.com
Latin America http://latin.samsungportal.com
CIS http://cis.samsungportal.com
Europe http://europe.samsungportal.com
China http://china.samsungportal.com
Asia http://asia.samsungportal.com
Mideast & Africa http://mea.samsungportal.com
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
P/N: BN82-00743A-00
Page 4
3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the UN37C5000QF LCD TV.
WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
Description Picture Description Screws
1. To remove the stand.
Place monitor face down on cushioned table.
Remove 5 screws from the stand.
Remove stand.
6003-000133
3-1
Page 5
3-2
3. Disassembly and Reassembly
Description Picture Description Screws
2. 32"/37" C5000 :
Remove the 18 screws of rear-cover.
40"/46" C5000 :
Remove the 19 screws of rear-cover.
Remove the screws of rear-cover.
32"_37"
6003-000133
6003-001003
40"_46"
3. Lift up the rear-cover.
4. Remove the speaker and Wooper.
Page 6
3-3
3. Disassembly and Reassembly
Description Picture Description Screws
5. Lift up the stand link.
Remove the 4 screws of bracket stand link.
6. Remove the 5 screws of main board and
5 screws of IP board.
6003-00133
6001-002283
7. Lift up the panel.
Reassembly procedures are in the reverse order of disassembly procedures. ※
Screw Size
Code No. A (mm) B (mm) C (mm) Q’ty
6003-001003 8.3~8.4 12~ 12.4 4~4.15 ALL : 9EA
6003-000133 8.3~8.4 7.9~8.3 3.70~3.83 32" 37" : 18 EA, 40" 46" : 19EA
6001-002283 6.3~6.5 5.0~5.6 2.87~2.98 ALL : 8EA
6001-000115 5.8~6.3 9.4~10.0 2.87~2.98 ALL : 2EA
6001-000115
Page 7
5. Exploded View & Part List
BA001
M0014
T0175
T0764
T0003
T0176
T0176
PANEL
SB05A
M0590
M0013
M0523
M0027

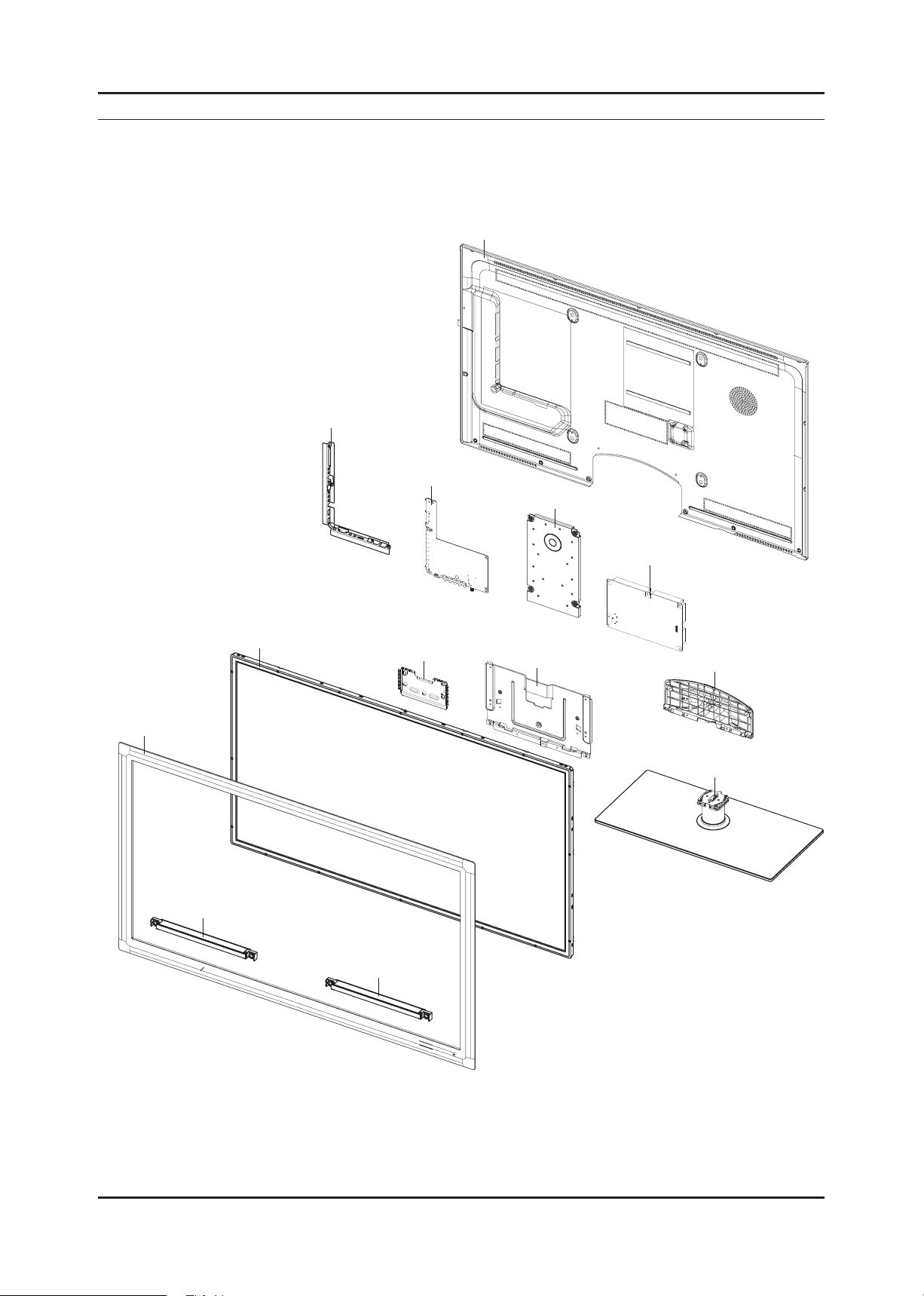

5-1. UN32C5000QF Exploded View
5. Exploded View & Part List
5-1
Page 8
5-2
5. Exploded View & Part List
5-1-1. UN32C5000QF Parts List
Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark
BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
M0013 BN96-12912A ASSY COVER P-REAR;UC6500 32,PCM,CDQ,T0.4 1 SA
M0014 BN94-03318J ASSY PCB MAIN;UN32C5000QFXZA C 1 SNA
M0027 BN96-12761A ASSY STAND P-BASE;32,EXPORT,TEMPERED GLA 1 SA
M0523 BN96-13392D ASSY COVER P-GUIDE STAND;UC4000,PC+ABS G 1 SA
M0590 BN81-04458A A/S-T CON T320FAE1-DB;T320FAE1-DB 1 SA
PANEL BN07-00849A LCD-PANEL;T320FAE1-DB,CLL4BC1,8bits,32,1 1 SA
SB05A BN96-12927B ASSY BRACKET P-STAND LINK;UC4000 32,SECC 1 SNA
T0003 BN96-12885A ASSY COVER P-FRONT;UC5000 32,PMMA(CLR)+P 1 SA
T0175 BN96-12944A ASSY SPEAKER P;4ohm,4pin,10W,R:170,Enclo 1 SA
T0176 BN96-12941A ASSY SPEAKER P;8ohm,4pin,10W,L:220 R:460 1 SA
T0764 BN44-00350A DC VSS-LED TV PD BD;PD37AF0U_ZSM,PSLF101 1 SA
Page 9
5-3
5. Exploded View & Part List
5-2. UN32C5000QF Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.1 BN90-02528A ASSY COVER FRONT;UC5000 32 1 SNA
..2 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..2 T0003 BN96-12885A ASSY COVER P-FRONT;UC5000 32,PMMA(CLR)+P 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 2 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,SECC+SK5,T1.2 8 SNA
...3 BN61-06215A BRACKET-STOPPER PANEL;C8K,SK5,0.5T 1 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 2.4 SNA
...3 CCM1 BN63-05199G COVER-SHEET;AMBER,PE,T0.08,W115mm,200M,C 1 SNA
...3 M0112 BN63-06603A COVER-FRONT;UC5000 32,PMMA(CLR)+PMMA/ABS 1 SNA
...3 T0176 BN96-12941A ASSY SPEAKER P;8ohm,4pin,10W,L:220 R:460 1 SA
...3 BN96-13390A ASSY HOLDER P-BOSS;UC4000 32,ABS,HB 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.5 SNA
....4 BN61-05915A BOSS-TAPE;LB650 65",T1.1,W12.0mm,DARK GR 0.27 SNA
....4 BN61-05915B BOSS-TAPE;LB650 65",3M #4711,T1.1,W6.0mm 0.03 SNA
....4 BN61-06236A HOLDER-BOSS BOTTOM;UC6100 32inch,ABS,HB 1 SNA
...3 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.24 SNA
...3 M0125 BN96-13047B ASSY BOARD P-TOUCH FUNCTION&IR;UC5000,CT 1 SA
...3 CCM1 BN63-05199D COVER-SHEET;AMBER,PE,T0.08,W75mm,200M,CL 0.74 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 1.98 SA
...3 BN61-06630A BOSS-BOND;UC5000,Acrylated, 3276,Clear,A 0.7 SNA
...3 XT01 0201-001578 ADHESIVE-HM;HM-555,WHT,4,000 Cps 1 SNA
0.1 M0002 BN90-02550A ASSY COVER REAR;UC6500 32 1 SNA
..2 M0013 BN96-12912A ASSY COVER P-REAR;UC6500 32,PCM,CDQ,T0.4 1 SA
...3 M0006 BN63-06516A COVER-REAR;UC6500 32inch,PCM,T0.5,BKN-P8 1 SNA
...3 BN68-02543A LABEL-TERMINAL BOTTOM;Rev. 02 UC5000,PET 1 SNA
...3 BN68-02544A LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,U 1 SNA
...3 BN96-12924A ASSY MISC P-INSULATOR;UC6500 32,PC,T0.43 1 SNA
....4 T0278 BN60-00122E SPACER-SPONGE;UC6500,CR,L200,T2.0,W10 2 SNA
....4 BN63-06629A SHEET-INSULATOR SMPS;UC6100 32inch,PC,T0 1 SNA
...3 T0069 AA63-60131R SPACER-FELT;21Z57,FELT,325,T0.35,7 1 SNA
...3 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 0.73 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 7 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 11 SA
0.1 M0216 BN90-02557C ASSY STAND;UC5000 32 1 SNA
..2 M0523 BN96-13392D ASSY COVER P-GUIDE STAND;UC4000,PC+ABS G 1 SA
...3 T0524 6902-001048 BAG PE;LDPE,T0.05,W160,L300,TRP,4g 1 SNA
...3 T0920 BN61-06220A GUIDE-STAND;UC6500 32inch,PC,G/F 20%,V2, 1 SNA
...3 BN68-02824A MANUAL FLYER-01,STAND GUIDE;5 ~ 6 series 1 SNA
...3 BN96-12031C ASSY ACCESSORY-SCREW;09 LEDTV,6003-00013 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215H MANUAL FLYER-STAND GUIDE;B6000 ~ 8000,SA 1 SNA
...3 BN96-12031M ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
....4 BN68-02908A MANUAL FLYER;glass and metal base, 50x50 1 SNA
....4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 1 SNA
...3 BN68-02368E LABEL-ACCESSORY;A/P100G,T0.08,25mmX50mm, 1 SNA
Page 10
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..2 M0027 BN96-12761A ASSY STAND P-BASE;32,EXPORT,TEMPERED GLA 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 3 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731C BOSS-TAPE;AMBER,ACRYL,T1.1,W16.0mm,WHITE 0.29 SNA
...3 BN61-04855A BRACKET-SWIVEL BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 BN61-05254A HOLDER-SWIVEL RING BOTTOM;LB700 40,POM H 1 SNA
...3 BN61-05653A BRACKET-STAND BOTTOM;B650 32,SECC,T2.0 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.4 SNA
...3 CCM1 BN63-04755F COVER-SHEET;PE,T0.05,W410mm,200M,600FE,C 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 M0029 BN96-10690A ASSY STAND P-GUIDE;NECK,PETG,V2,TP0003,3 1 SA
....4 GSN01 BN61-05993A GUIDE-STAND NECK;32,LC650,PETG,V2,TP0003 1 SNA
....4 BN61-06078B GUIDE-NECK-INSERT;LC650 32,PETG HB,TP000 1 SNA
...3 BN63-05530D COVER-STAND GLASS;32,LC650,GLASS,T8.0,2C 1 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.5 SNA
...3 T0056 BN63-06908A COVER-DECORATION;LB700 40,ABS+PMMA,HB,H/ 1 SNA
0.1 BN91-04988A ASSY SHIELD;UN32C5000QFXZA 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 8 SNA
..2 M2893 BN39-01267F LEAD CONNECTOR;LB6T,UL2651#26,18P,350mm, 1 SA
..2 T0764 BN44-00350A DC VSS-LED TV PD BD;PD37AF0U_ZSM,PSLF101 1 SA
..2 CCMM1 BN73-00211B SILICON/RUBBER;UN46B9000XFXZA,SILICON+PO 1 SNA
..2 T0175 BN96-12944A ASSY SPEAKER P;4ohm,4pin,10W,R:170,Enclo 1 SA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 M0230 BN96-13171E ASSY CABLE P-FFC;UN32C5000QFXZA,FFC,0.5m 1 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
..2 SB05A BN96-12927B ASSY BRACKET P-STAND LINK;UC4000 32,SECC 1 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.12 SNA
...3 BN61-02932G BRACKET-STOPPER NUT;LED TV,M4,D6,L6.5,BR 3 SNA
...3 BN61-02932H BRACKET-STOPPER NUT;LED-TV,M4,D6,L5.0,BL 2 SNA
...3 M0115 BN61-06163A BRACKET-STAND LINK;UC6500 32inch,SECC,T2 1 SNA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.16 SNA
0.1 M0017 BN91-04992A ASSY CHASSIS;UN32C5000QFXZA 1 SNA
..2 M0014 BN94-03318J ASSY PCB MAIN;UN32C5000QFXZA C 1 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.125 SNA
...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 3 SNA
...3 JA333 3722-002847 JACK-PIN;5P(ULTRA SLIM),NI,BLACK,ANGLE(S 1 SNA
...3 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
...3 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 SNA
...3 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
...3 CIS3 BN40-00162A TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHz, 1 SA
...3 BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 BN97-04039J ASSY SMD;UN32C5000QFXZA C,BN94-03318J 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 3.355 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 15 SA
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 SA
Page 11
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 11 SNA
....4 0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 6 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 3 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 11 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 7 SA
....4 Q409 0505-002572 FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075o 1 SA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 SA
....4 T0124 1201-002993 IC-POWER AMP;TAS5715,HTQFP,48P,7x7mm,DUA 2 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 1203-006104 IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. 1 SA
....4 1203-006127 IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3x4 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA
....4 1204-003089 IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9x9x0.8 1 SA
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 21 SA
....4 R512 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 SA
....4 ZR24 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 26 SA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 12 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 41 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 4 SA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 7 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 2 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 4 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 18 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 8 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SNA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 5 SNA
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
Page 12
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 8 SNA
....4 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 5 SNA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 1 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 6 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 3 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 35 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007239 R-CHIP;31.6Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 9 SNA
....4 2007-007573 R-CHIP;330Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SNA
....4 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 R54 2007-008426 R-CHIP;12.4Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 SNA
....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 4 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 6 SNA
....4 C24 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
....4 C258 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
....4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 2 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 7 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 2 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 9 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 2 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 11 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 12 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 4 SNA
....4 C33 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 6 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 14 SNA
....4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 1 SNA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 4 SNA
....4 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 SA
Page 13
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 5 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 153 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 2 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 15 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 43 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 15 SA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 17 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 2 SNA
....4 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 T0052 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080 4 SA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 6 SNA
....4 T0568 3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 1 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 2 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 38 SA
....4 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
....4 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 2 SA
....4 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
....4 BN41-01329C PCB MAIN;FR-4,4,1.2T,240*240 1 SNA
....4 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
....4 M0018 BN97-03999A ASSY MICOM;T-TDT5AUSC-1008.0,2010.03.25 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
.....5 BN68-02303A LABEL-IC;9.5MMX8MM,ART PAPER 1 SNA
....4 M0018 BN97-04025A ASSY MICOM;T-TDT5AUSS-6002,2010.03.12 1 SNA
.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA
...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA
0.1 BN91-05200A ASSY LCD;BN07-00849A 1 SNA
..2 PANEL BN07-00849A LCD-PANEL;T320FAE1-DB,CLL4BC1,8bits,32,1 1 SA
...3 M0590 BN81-04458A A/S-T CON T320FAE1-DB;T320FAE1-DB 1 SA
0.1 BN92-05577A ASSY BOX;UC5000 32 1 SNA
..2 BH68-00664A LABEL BOX-00;ALL MODEL,A/P 90G,220,90,WH 1 SNA
..2 BN69-04758B BOX-SET;32UC5000-GS,CB,A-01,SW2,YEL,W978 1 SNA
0.1 BN92-05599A ASSY P/MATERIAL;UC5000 32 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 2.28 SNA
..2 T0524 6902-000358 BAG PE;HDPE/NITRON,T0.015/T0.5,W900,L700 1 SNA
..2 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 0.5 SNA
..2 BH69-00418A BAG WRAPPING;LDPE,762,1828M,SAMEX FACTOR 0.52 SNA
Page 14
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..2 BH69-40321C PACKING INNER-00,PAD;COMM,CB,2030,140,CG 1 SNA
..2 T0246 BN69-04589A CUSHION-SET;UC5000 32inch,EPS,M65 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
0.1 BN92-05745A ASSY LABEL;UN32C5000QFXZA 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
..2 BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 M0045 BN92-05746A ASSY ACCESSORY;UN32C5000QFXZA 1 SNA
..2 BN96-10392A ASSY ACCESSORY-MANUAL;UN32,37,40,46C5000 1 SNA
...3 T0524 6902-000018 BAG PE;LDPE,T0.1,W280,L400,CLEAR,8,2,20. 1 SNA
...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0059 BN68-02178A MANUAL FLYER-CARD;COMM,SAMSUNG,eng/spa/c 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 T0511 BN68-02625A MANUAL USERS-01;U5000,SAMSUNG,Eng,USA,W/ 1 SNA
...3 BN68-02629A MANUAL FLYER-QSG;U5000,SAMSUNG,Eng,USA,W 1 SNA
...3 BN96-10788B ASSY ACCESSORY-PREVENT;B6000,nylon66 + W 1 SNA
...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 BN68-02928A MANUAL FLYER-ECO SENSOR GUIDE;common,SAM 1 SNA
..2 M0045 BN96-10392B ASSY ACCESSORY-CABLE;UN32C5000QFXZX 1 SNA
...3 T0268 3903-000527 CBF-POWER CORD;DT,UL/CSA,EP-2,125V,5A,Bl 1 SA
...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 T0074 BN59-01041A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215K MANUAL FLYER-COVER-BOTTOM GUIDE;COMM,SAM 1 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SNA
....4 BN68-02909A MANUAL FLYER;power clamper cable, 50x50, 1 SNA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 T0531 BN63-06542B COVER-BOTTOM;UC4000 32,HIPS,V0,BK0020 1 SA
5-8
Page 15
5. Exploded View & Part List
BA001
M0014
T0175
T0003
M0215
T0910
M0013
M0523
M0027
TCON
T0764
T0175
T0175
5-1. UN37C5000QF Exploded View
5. Exploded View & Part List
5-1
Page 16
5-2
5. Exploded View & Part List
5-1-1. UN37C5000QF Parts List
Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark
BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
M0013 BN96-12913A ASSY COVER P-REAR;UC6500 37,PCM,CDQ,T0.4 1 SA
M0014 BN94-03318K ASSY PCB MAIN;UN37C5000QFXZA C 1 SNA
M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
M0215 BN07-00880A LCD-PANEL;T370FAE1-DA,CLL5BA1,8bits,37,1 1 SA
M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
T0003 BN96-12886A ASSY COVER P-FRONT;UC5100 37,PMMA(CLR)+P 1 SA
T0175 BN96-12944A ASSY SPEAKER P;4ohm,4pin,10W,R:170,Enclo 1 SA
T0175 BN96-12941B ASSY SPEAKER P;8ohm,4pin,10,L:280 R:630, 1 SA
T0764 BN44-00350A DC VSS-LED TV PD BD;PD37AF0U_ZSM,PSLF101 1 SA
T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
TCON BN81-04428A A/S-T CON T370FAE1-DA;T370FAE1-DA 1 SA
Page 17
5-3
5. Exploded View & Part List
5-2. UN37C5000QF Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.1 BN90-02529A ASSY COVER FRONT;UC5000 37 1 SNA
..2 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..2 T0003 BN96-12886A ASSY COVER P-FRONT;UC5100 37,PMMA(CLR)+P 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 2 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,SECC+SK5,T1.2 8 SNA
...3 BN61-06215A BRACKET-STOPPER PANEL;C8K,SK5,0.5T 1 SNA
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 0.65 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 3 SNA
...3 M0112 BN63-06609A COVER-FRONT;UC5000 37,PMMA(CLR)+PMMA/ABS 1 SNA
...3 BN96-12920A ASSY HOLDER P-BOSS;UC6400 37,ABS V0,BK00 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.5 SNA
....4 BN61-05915A BOSS-TAPE;LB650 65",T1.1,W12.0mm,DARK GR 0.39 SNA
....4 BN61-05915B BOSS-TAPE;LB650 65",3M #4711,T1.1,W6.0mm 0.03 SNA
....4 BN61-06237A HOLDER-BOSS BOTTOM;UC6100 37inch,ABS,HB 1 SNA
...3 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.24 SNA
...3 T0175 BN96-12941B ASSY SPEAKER P;8ohm,4pin,10,L:280 R:630, 1 SA
...3 M0125 BN96-13047C ASSY BOARD P-TOUCH FUNCTION&IR;UC5000,CT 1 SA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 2.46 SA
...3 BN61-06630A BOSS-BOND;UC5000,Acrylated, 3276,Clear,A 0.9 SNA
...3 XT01 0201-001578 ADHESIVE-HM;HM-555,WHT,4,000 Cps 1 SNA
0.1 M0002 BN90-02551A ASSY COVER REAR;UC6500 37 1 SNA
..2 M0013 BN96-12913A ASSY COVER P-REAR;UC6500 37,PCM,CDQ,T0.4 1 SA
...3 M0006 BN63-06517A COVER-REAR;UC6500 37inch,PCM,T0.5,BKN-P8 1 SNA
...3 BN68-02543A LABEL-TERMINAL BOTTOM;Rev. 02 UC5000,PET 1 SNA
...3 BN68-02544A LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,U 1 SNA
...3 BN96-12924B ASSY MISC P-INSULATOR;UC6500 37/40,PC,T0 1 SNA
....4 T0278 BN60-00122E SPACER-SPONGE;UC6500,CR,L200,T2.0,W10 2 SNA
....4 BN63-06630A SHEET-INSULATOR SMPS;UC6100 40inch,PC,T0 1 SNA
...3 T0069 AA63-60131R SPACER-FELT;21Z57,FELT,325,T0.35,7 1 SNA
...3 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 0.85 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 7 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 11 SA
0.1 M0216 BN90-02558C ASSY STAND;UC5000 37 1 SNA
..2 M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
...3 T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
...3 BN68-02824A MANUAL FLYER-01,STAND GUIDE;5 ~ 6 series 1 SNA
...3 BN96-12031C ASSY ACCESSORY-SCREW;09 LEDTV,6003-00013 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215H MANUAL FLYER-STAND GUIDE;B6000 ~ 8000,SA 1 SNA
...3 BN96-12031M ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
....4 BN68-02908A MANUAL FLYER;glass and metal base, 50x50 1 SNA
....4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 1 SNA
...3 BN68-02368D LABEL-ACCESSORY;A/P100G,T0.08,25mmX50mm, 1 SNA
..2 M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
Page 18
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 6 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.29 SNA
...3 BN61-05244A BRACKET-SWIVEL BOTTOM;LB700 46,HGI,T3.0 1 SNA
...3 BN61-05493A HOLDER-SWIVEL RING BOTTOM;LB650 40,Aceta 1 SNA
...3 BN61-05652A BRACKET-STAND BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.4 SNA
...3 CCM1 BN63-04755E COVER-SHEET;PE,T0.05,W455mm,200M,600FE,C 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 M0029 BN96-10689A ASSY STAND P-GUIDE NECK;NECK,PETG,V2,TP0 1 SA
....4 GSN01 BN61-05994A GUIDE-STAND NECK;40,LC650,PETG,V2,TP0003 1 SNA
....4 BN61-06079B GUIDE-NECK-INSERT;LC650 40,PETG HB,TP000 1 SNA
...3 BN63-05781D COVER-STAND GLASS;40,LC650,GLASS,T8.0,2C 1 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.7 SNA
...3 FD01 BN63-06913A COVER-DECORATION;LB7000 46,ABS+PMMA,HB,H 1 SNA
0.1 BN91-04989A ASSY SHIELD;UN37C5000QFXZA 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 8 SNA
..2 M2893 BN39-01267D LEAD CONNECTOR;LE52B530,UL 2651 AWG#26,1 1 SA
..2 T0764 BN44-00350A DC VSS-LED TV PD BD;PD37AF0U_ZSM,PSLF101 1 SA
..2 CCMM1 BN73-00211B SILICON/RUBBER;UN46B9000XFXZA,SILICON+PO 1 SNA
..2 T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
...3 M0115 BN61-06165A BRACKET-STAND LINK;UC6500 40inch,SECC,T2 1 SNA
...3 BN61-02932G BRACKET-STOPPER NUT;LED TV,M4,D6,L6.5,BR 5 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.18 SNA
..2 T0175 BN96-12944A ASSY SPEAKER P;4ohm,4pin,10W,R:170,Enclo 1 SA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 M0230 BN96-13171F ASSY CABLE P-FFC;UN37C5000QFXZA,FFC,0.5m 1 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.16 SNA
0.1 BN91-05163A ASSY LCD-AUO;BN07-00880A 1 SNA
..2 M0215 BN07-00880A LCD-PANEL;T370FAE1-DA,CLL5BA1,8bits,37,1 1 SA
...3 TCON BN81-04428A A/S-T CON T370FAE1-DA;T370FAE1-DA 1 SA
0.1 BN92-05578A ASSY BOX;UC5000 37 1 SNA
..2 BH68-00664A LABEL BOX-00;ALL MODEL,A/P 90G,220,90,WH 1 SNA
..2 BN69-04805B BOX-SET;37UC5000,CB,A-01,DW2,,W1130,D105 1 SNA
0.1 BN92-05600A ASSY P/MATERIAL;UC5000 37 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 2.57 SNA
..2 T0524 6902-001043 BAG PE;HDPE/NITRON,T0.015/T0.5,W1200,L80 1 SNA
..2 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 0.54 SNA
..2 BH69-00418A BAG WRAPPING;LDPE,762,1828M,SAMEX FACTOR 0.81 SNA
..2 BH69-40321C PACKING INNER-00,PAD;COMM,CB,2030,140,CG 1 SNA
..2 T0246 BN69-04591A CUSHION-SET;UC5000 37inch,EPS,M50 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
0.1 BN92-05745A ASSY LABEL;UN32C5000QFXZA 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
..2 BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 M0045 BN92-05746B ASSY ACCESSORY;UN37C5000QFXZA 1 SNA
Page 19
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..2 BN96-10392A ASSY ACCESSORY-MANUAL;UN32,37,40,46C5000 1 SNA
...3 T0524 6902-000018 BAG PE;LDPE,T0.1,W280,L400,CLEAR,8,2,20. 1 SNA
...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0059 BN68-02178A MANUAL FLYER-CARD;COMM,SAMSUNG,eng/spa/c 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 T0511 BN68-02625A MANUAL USERS-01;U5000,SAMSUNG,Eng,USA,W/ 1 SNA
...3 BN68-02629A MANUAL FLYER-QSG;U5000,SAMSUNG,Eng,USA,W 1 SNA
...3 BN96-10788B ASSY ACCESSORY-PREVENT;B6000,nylon66 + W 1 SNA
...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 BN68-02928A MANUAL FLYER-ECO SENSOR GUIDE;common,SAM 1 SNA
..2 M0045 BN96-10392D ASSY ACCESSORY-CABLE;UN37,40,46C5000,510 1 SNA
...3 T0268 3903-000527 CBF-POWER CORD;DT,UL/CSA,EP-2,125V,5A,Bl 1 SA
...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 T0074 BN59-01041A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215K MANUAL FLYER-COVER-BOTTOM GUIDE;COMM,SAM 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SNA
....4 BN68-02909A MANUAL FLYER;power clamper cable, 50x50, 1 SNA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 RB01 BN63-06543B COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 1 SA
0.1 M0017 BN91-04992B ASSY CHASSIS;UA55C7000WFXXY 1 SNA
..2 M0014 BN94-03318K ASSY PCB MAIN;UN37C5000QFXZA C 1 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.125 SNA
...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 3 SNA
...3 JA333 3722-002847 JACK-PIN;5P(ULTRA SLIM),NI,BLACK,ANGLE(S 1 SNA
...3 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
...3 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 SNA
...3 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
...3 CIS3 BN40-00162A TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHz, 1 SA
...3 BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 BN97-04039K ASSY SMD;UN37C5000QFXZA C,BN94-03318J 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 3.355 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 15 SA
Page 20
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 11 SNA
....4 0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 6 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 3 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 11 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 7 SA
....4 Q409 0505-002572 FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075o 1 SA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 SA
....4 T0124 1201-002993 IC-POWER AMP;TAS5715,HTQFP,48P,7x7mm,DUA 2 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 1203-006104 IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. 1 SA
....4 1203-006127 IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3x4 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA
....4 1204-003089 IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9x9x0.8 1 SA
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 21 SA
....4 R512 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 SA
....4 ZR24 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 26 SA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 12 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 41 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 4 SA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 7 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 2 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 4 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 18 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 8 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SNA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 5 SNA
Page 21
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 8 SNA
....4 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 5 SNA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 1 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 6 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 3 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 35 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007239 R-CHIP;31.6Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 9 SNA
....4 2007-007573 R-CHIP;330Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SNA
....4 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 R54 2007-008426 R-CHIP;12.4Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 SNA
....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 4 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 6 SNA
....4 C24 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
....4 C258 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
....4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 2 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 7 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 2 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 9 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 2 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 11 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 12 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 4 SNA
....4 C33 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 6 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 14 SNA
....4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 1 SNA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 4 SNA
Page 22
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 SA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 5 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 153 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 2 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 15 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 43 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 15 SA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 17 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 2 SNA
....4 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 T0052 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080 4 SA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 6 SNA
....4 T0568 3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 1 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 2 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 38 SA
....4 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
....4 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 2 SA
....4 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
....4 BN41-01329C PCB MAIN;FR-4,4,1.2T,240*240 1 SNA
....4 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
....4 M0018 BN97-03999A ASSY MICOM;T-TDT5AUSC-1008.0,2010.03.25 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
.....5 BN68-02303A LABEL-IC;9.5MMX8MM,ART PAPER 1 SNA
....4 M0018 BN97-04025A ASSY MICOM;T-TDT5AUSS-6002,2010.03.12 1 SNA
.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA
...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA
5-8
Page 23
5. Exploded View & Part List
BA001
M0014
T0003
M0215
T0910
M0013
T0175
M0027
M0523
T0176
T0176
TCON
T0764
5-1. UN40C5000QF Exploded View
5. Exploded View & Part List
5-1
Page 24
5-2
5. Exploded View & Part List
5-1-1. UN40C5000QF Parts List
Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark
BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
M0013 BN96-12914A ASSY COVER P-REAR;UC6500 40,PCM,CDQ,T0.4 1 SA
M0014 BN94-03318L ASSY PCB MAIN;UN40C5000QFXZA C 1 SNA
M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
PANEL BN07-00856A LCD-PANEL;T400FAE1-DB,CLL6BC1,8bits,40,1 1 SA
T0003 BN96-12891A ASSY COVER P-FRONT;UC5000 40,PMMA(CLR)+P 1 SA
T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
T0176 BN96-12941C ASSY SPEAKER P;8ohm,4pin,10,L:350 R:700, 1 SA
T0764 BN44-00352B DC VSS-LED TV PD BD;PD46AF0U_ZDY,PD46AF0 1 SA
T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
TCON BN81-04455A A/S-T CON T400FAE1-DB;T400FAE1-DB 1 SA
Page 25
5-3
5. Exploded View & Part List
5-2. UN40C5000QF Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.1 BN90-02530A ASSY COVER FRONT;UC5000 40 1 SNA
..2 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..2 T0003 BN96-12891A ASSY COVER P-FRONT;UC5000 40,PMMA(CLR)+P 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 3 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,SECC+SK5,T1.2 8 SNA
...3 BN61-06215A BRACKET-STOPPER PANEL;C8K,SK5,0.5T 1 SNA
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 0.65 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 3.3 SNA
...3 M0112 BN63-06611A COVER-FRONT;UC5000 40,PMMA(CLR)+PMMA/ABS 1 SNA
...3 BN96-12921A ASSY HOLDER P-BOSS;UC6400 40,ABS V0,BK00 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.001 SNA
....4 BN61-05915A BOSS-TAPE;LB650 65",T1.1,W12.0mm,DARK GR 0.43 SNA
....4 BN61-05915B BOSS-TAPE;LB650 65",3M #4711,T1.1,W6.0mm 0.03 SNA
....4 BN61-06238A HOLDER-BOSS BOTTOM;UC6100 40inch,ABS,HB 1 SNA
...3 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.24 SNA
...3 T0176 BN96-12941C ASSY SPEAKER P;8ohm,4pin,10,L:350 R:700, 1 SA
...3 M0125 BN96-13047D ASSY BOARD P-TOUCH FUNCTION&IR;UC5000,CT 1 SA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 1.76 SA
...3 BN61-06630A BOSS-BOND;UC5000,Acrylated, 3276,Clear,A 1 SNA
...3 BN61-05728C BOSS-TAPE;UB7000,acryl,T0.4,W16,DARK GRA 1 SNA
...3 XT01 0201-001578 ADHESIVE-HM;HM-555,WHT,4,000 Cps 1 SNA
0.1 M0002 BN90-02552A ASSY COVER REAR;UC6500 40 1 SNA
..2 M0013 BN96-12914A ASSY COVER P-REAR;UC6500 40,PCM,CDQ,T0.4 1 SA
...3 M0006 BN63-06518A COVER-REAR;UC6500 40inch,PCM,T0.5,BKN-P8 1 SNA
...3 BN68-02543A LABEL-TERMINAL BOTTOM;Rev. 02 UC5000,PET 1 SNA
...3 BN68-02544A LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,U 1 SNA
...3 BN96-12924B ASSY MISC P-INSULATOR;UC6500 37/40,PC,T0 1 SNA
....4 T0278 BN60-00122E SPACER-SPONGE;UC6500,CR,L200,T2.0,W10 2 SNA
....4 BN63-06630A SHEET-INSULATOR SMPS;UC6100 40inch,PC,T0 1 SNA
...3 T0069 AA63-60131R SPACER-FELT;21Z57,FELT,325,T0.35,7 1 SNA
...3 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 0.92 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 8 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 11 SA
0.1 M0216 BN90-02558C ASSY STAND;UC5000 37 1 SNA
..2 M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
...3 T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
...3 BN68-02824A MANUAL FLYER-01,STAND GUIDE;5 ~ 6 series 1 SNA
...3 BN96-12031C ASSY ACCESSORY-SCREW;09 LEDTV,6003-00013 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215H MANUAL FLYER-STAND GUIDE;B6000 ~ 8000,SA 1 SNA
...3 BN96-12031M ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
....4 BN68-02908A MANUAL FLYER;glass and metal base, 50x50 1 SNA
....4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 1 SNA
...3 BN68-02368D LABEL-ACCESSORY;A/P100G,T0.08,25mmX50mm, 1 SNA
Page 26
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..2 M0027 BN96-12762A ASSY STAND P-BASE;37,40,EXPORT,TEMPERED 1 SA
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 6 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.29 SNA
...3 BN61-05244A BRACKET-SWIVEL BOTTOM;LB700 46,HGI,T3.0 1 SNA
...3 BN61-05493A HOLDER-SWIVEL RING BOTTOM;LB650 40,Aceta 1 SNA
...3 BN61-05652A BRACKET-STAND BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.4 SNA
...3 CCM1 BN63-04755E COVER-SHEET;PE,T0.05,W455mm,200M,600FE,C 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 M0029 BN96-10689A ASSY STAND P-GUIDE NECK;NECK,PETG,V2,TP0 1 SA
....4 GSN01 BN61-05994A GUIDE-STAND NECK;40,LC650,PETG,V2,TP0003 1 SNA
....4 BN61-06079B GUIDE-NECK-INSERT;LC650 40,PETG HB,TP000 1 SNA
...3 BN63-05781D COVER-STAND GLASS;40,LC650,GLASS,T8.0,2C 1 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.7 SNA
...3 FD01 BN63-06913A COVER-DECORATION;LB7000 46,ABS+PMMA,HB,H 1 SNA
0.1 BN91-04990A ASSY SHIELD;UN40C5000QFXZA 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 8 SNA
..2 M2893 BN39-01267C LEAD CONNECTOR;LE37B530,UL 2651 AWG#26,1 1 SA
..2 T0764 BN44-00352B DC VSS-LED TV PD BD;PD46AF0U_ZDY,PD46AF0 1 SA
..2 CCMM1 BN73-00211B SILICON/RUBBER;UN46B9000XFXZA,SILICON+PO 1 SNA
..2 T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
...3 M0115 BN61-06165A BRACKET-STAND LINK;UC6500 40inch,SECC,T2 1 SNA
...3 BN61-02932G BRACKET-STOPPER NUT;LED TV,M4,D6,L6.5,BR 5 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.18 SNA
..2 T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 M0230 BN96-13171G ASSY CABLE P-FFC;UN40C5000QFXZA,FFC,0.5m 1 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.48 SNA
0.1 BN91-05201A ASSY LCD;BN07-00856A 1 SNA
..2 PANEL BN07-00856A LCD-PANEL;T400FAE1-DB,CLL6BC1,8bits,40,1 1 SA
...3 TCON BN81-04455A A/S-T CON T400FAE1-DB;T400FAE1-DB 1 SA
0.1 BN92-05579A ASSY BOX;UC5000 40 1 SNA
..2 BH68-00664A LABEL BOX-00;ALL MODEL,A/P 90G,220,90,WH 1 SNA
..2 BN69-04765B BOX-SET;40UC5000-GS,CB,A-01,DW2,,W1185,D 1 SNA
0.1 BN92-05601A ASSY P/MATERIAL;UC5000 40 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 2.68 SNA
..2 T0524 6902-001043 BAG PE;HDPE/NITRON,T0.015/T0.5,W1200,L80 1 SNA
..2 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 0.55 SNA
..2 BH69-00418A BAG WRAPPING;LDPE,762,1828M,SAMEX FACTOR 0.78 SNA
..2 BH69-40321C PACKING INNER-00,PAD;COMM,CB,2030,140,CG 1 SNA
..2 T0246 BN69-04593A CUSHION-SET;UC5000 40inch,EPS,M65 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
0.1 BN92-05745A ASSY LABEL;UN32C5000QFXZA 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
..2 BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
Page 27
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.1 M0045 BN92-05746B ASSY ACCESSORY;UN37C5000QFXZA 1 SNA
..2 BN96-10392A ASSY ACCESSORY-MANUAL;UN32,37,40,46C5000 1 SNA
...3 T0524 6902-000018 BAG PE;LDPE,T0.1,W280,L400,CLEAR,8,2,20. 1 SNA
...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0059 BN68-02178A MANUAL FLYER-CARD;COMM,SAMSUNG,eng/spa/c 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 T0511 BN68-02625A MANUAL USERS-01;U5000,SAMSUNG,Eng,USA,W/ 1 SNA
...3 BN68-02629A MANUAL FLYER-QSG;U5000,SAMSUNG,Eng,USA,W 1 SNA
...3 BN96-10788B ASSY ACCESSORY-PREVENT;B6000,nylon66 + W 1 SNA
...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 BN68-02928A MANUAL FLYER-ECO SENSOR GUIDE;common,SAM 1 SNA
..2 M0045 BN96-10392D ASSY ACCESSORY-CABLE;UN37,40,46C5000,510 1 SNA
...3 T0268 3903-000527 CBF-POWER CORD;DT,UL/CSA,EP-2,125V,5A,Bl 1 SA
...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 T0074 BN59-01041A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215K MANUAL FLYER-COVER-BOTTOM GUIDE;COMM,SAM 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SNA
....4 BN68-02909A MANUAL FLYER;power clamper cable, 50x50, 1 SNA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 RB01 BN63-06543B COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 1 SA
0.1 M0017 BN91-04992C ASSY CHASSIS;UN40C5000QFXZA 1 SNA
..2 M0014 BN94-03318L ASSY PCB MAIN;UN40C5000QFXZA C 1 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.125 SNA
...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 3 SNA
...3 JA333 3722-002847 JACK-PIN;5P(ULTRA SLIM),NI,BLACK,ANGLE(S 1 SNA
...3 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
...3 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 SNA
...3 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
...3 CIS3 BN40-00162A TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHz, 1 SA
...3 BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 BN97-04039L ASSY SMD;UN40C5000QFXZA C,BN94-03318J 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 3.355 SNA
Page 28
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 15 SA
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 11 SNA
....4 0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 6 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 3 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 11 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 7 SA
....4 Q409 0505-002572 FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075o 1 SA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 SA
....4 T0124 1201-002993 IC-POWER AMP;TAS5715,HTQFP,48P,7x7mm,DUA 2 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 1203-006104 IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. 1 SA
....4 1203-006127 IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3x4 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA
....4 1204-003089 IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9x9x0.8 1 SA
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 21 SA
....4 R512 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 SA
....4 ZR24 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 26 SA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 12 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 41 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 4 SA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 7 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 2 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 4 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 18 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 8 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SNA
Page 29
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 5 SNA
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 8 SNA
....4 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 5 SNA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 1 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 6 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 3 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 35 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007239 R-CHIP;31.6Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 9 SNA
....4 2007-007573 R-CHIP;330Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SNA
....4 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 R54 2007-008426 R-CHIP;12.4Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 SNA
....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 4 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 6 SNA
....4 C24 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
....4 C258 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
....4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 2 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 7 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 2 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 9 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 2 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 11 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 12 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 4 SNA
....4 C33 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 6 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 14 SNA
....4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 1 SNA
Page 30
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 4 SNA
....4 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 SA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 5 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 153 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 2 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 15 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 43 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 15 SA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 17 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 2 SNA
....4 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 T0052 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080 4 SA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 6 SNA
....4 T0568 3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 1 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 2 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 38 SA
....4 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
....4 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 2 SA
....4 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
....4 BN41-01329C PCB MAIN;FR-4,4,1.2T,240*240 1 SNA
....4 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
....4 M0018 BN97-03999A ASSY MICOM;T-TDT5AUSC-1008.0,2010.03.25 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
.....5 BN68-02303A LABEL-IC;9.5MMX8MM,ART PAPER 1 SNA
....4 M0018 BN97-04025A ASSY MICOM;T-TDT5AUSS-6002,2010.03.12 1 SNA
.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA
...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA
5-8
Page 31
5. Exploded View & Part List
BA001
M0014
T0003
M0215
T0910
M0013
T0175
M0027
M0523
M0590
T0764
T0176
T0176
5-1. UN46C5000QF Exploded View
5. Exploded View & Part List
5-1
Page 32
5-2
5. Exploded View & Part List
5-1-1. UN46C5000QF Parts List
Location No. Code No. Description & Specication Q’ty S.A/S.N.A Remark
BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
M0013 BN96-12915A ASSY COVER P-REAR;UC6500 46,PCM,CDQ,T0.4 1 SA
M0014 BN94-03318M ASSY PCB MAIN;UN46C5000QFXZA C 1 SNA
M0027 BN96-12763A ASSY STAND P-BASE;46,EXPORT,TEMPERED GLA 1 SA
M0215 BN07-00853A LCD-PANEL;T460FAE1-DB,CLL7BC1,8bits,46,1 1 SA
M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
M0590 BN81-04453A A/S-T CON;T460FAE1-DB 1 SA
T0003 BN96-12887A ASSY COVER P-FRONT;UC5000 46,PMMA(CLR)+P 1 SA
T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
T0176 BN96-12941D ASSY SPEAKER P;8ohm,4pin,10,L:440 R:810, 1 SA
T0764 BN44-00352A DC VSS-LED TV PD BD;PD46AF0U_ZSM,PSLF121 1 SA
T0910 BN96-12929A ASSY BRACKET P-STAND LINK;UC6500 46,SECC 1 SNA
Page 33
5-3
5. Exploded View & Part List
5-2. UN46C5000QF Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.1 BN90-02531A ASSY COVER FRONT;UC5000 46 1 SNA
..2 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..2 T0003 BN96-12887A ASSY COVER P-FRONT;UC5000 46,PMMA(CLR)+P 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 3 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,SECC+SK5,T1.2 11 SNA
...3 CCM1 BN63-02183G COVER-SHEET;Rhcm,PE Vinyl,T0.05,1100mm,2 0.65 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 3.7 SNA
...3 M0112 BN63-06612A COVER-FRONT;UC5000 46,PMMA(CLR)+PMMA/ABS 1 SNA
...3 BN96-12922A ASSY HOLDER P-BOSS;UC6400 46,ABS V0,BK00 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.001 SNA
....4 BN61-05915A BOSS-TAPE;LB650 65",T1.1,W12.0mm,DARK GR 0.5 SNA
....4 BN61-05915B BOSS-TAPE;LB650 65",3M #4711,T1.1,W6.0mm 0.03 SNA
....4 BN61-06239A HOLDER-BOSS BOTTOM;UC6100 46inch,ABS,HB 1 SNA
...3 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.24 SNA
...3 T0176 BN96-12941D ASSY SPEAKER P;8ohm,4pin,10,L:440 R:810, 1 SA
...3 M0125 BN96-13047E ASSY BOARD P-TOUCH FUNCTION&IR;UC5000,CT 1 SA
...3 CIS1 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0.06 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 3 SA
...3 BN61-06630A BOSS-BOND;UC5000,Acrylated, 3276,Clear,A 1.4 SNA
...3 XT01 0201-001578 ADHESIVE-HM;HM-555,WHT,4,000 Cps 1 SNA
0.1 M0002 BN90-02553A ASSY COVER REAR;UC6500 46 1 SNA
..2 M0013 BN96-12915A ASSY COVER P-REAR;UC6500 46,PCM,CDQ,T0.4 1 SA
...3 M0006 BN63-06519A COVER-REAR;UC6500 46inch,PCM,T0.5,BKN-P8 1 SNA
...3 BN68-02543A LABEL-TERMINAL BOTTOM;Rev. 02 UC5000,PET 1 SNA
...3 BN68-02544A LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,U 1 SNA
...3 T0069 BN60-00121A SPACER-FELT;UB7000,FELT,L380,BLK,T0.35,W 1 SNA
...3 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 1.05 SNA
...3 BN96-13845A ASSY MISC P-INSULATOR;UC6900,PC,T0.43 1 SNA
....4 T0278 BN60-00124A SPACER-SPONGE;UB7000,CR,L310,T2.0,W10 2 SNA
....4 BN63-07083A SHEET-INSULATOR SMPS;UC6900 40/46/55inch 1 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 8 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 15 SA
0.1 M0216 BN90-02559C ASSY STAND;UC5000 46 1 SNA
..2 M0523 BN96-13131D ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
...3 T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
...3 BN68-02824A MANUAL FLYER-01,STAND GUIDE;5 ~ 6 series 1 SNA
...3 BN96-12031C ASSY ACCESSORY-SCREW;09 LEDTV,6003-00013 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215H MANUAL FLYER-STAND GUIDE;B6000 ~ 8000,SA 1 SNA
...3 BN96-12031M ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
....4 BN68-02908A MANUAL FLYER;glass and metal base, 50x50 1 SNA
....4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 1 SNA
...3 BN68-02368D LABEL-ACCESSORY;A/P100G,T0.08,25mmX50mm, 1 SNA
..2 M0027 BN96-12763A ASSY STAND P-BASE;46,EXPORT,TEMPERED GLA 1 SA
Page 34
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...3 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 6 SA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.1 SNA
...3 BN61-04731D BOSS-TAPE;AMBER,ACRYL,T1.1,W20.0mm,WHITE 0.39 SNA
...3 BN61-05244A BRACKET-SWIVEL BOTTOM;LB700 46,HGI,T3.0 1 SNA
...3 BN61-05493A HOLDER-SWIVEL RING BOTTOM;LB650 40,Aceta 1 SNA
...3 BN61-05826A BOSS-BOND;#760,Poly urethane,Black 2.4 SNA
...3 CCM1 BN63-04755E COVER-SHEET;PE,T0.05,W455mm,200M,600FE,C 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00215A RUBBER-FOOT;40LB650,RUBBER,15*25,60,4.0, 4 SNA
...3 M0126 BN73-00217A RUBBER-FOOT;LB650,RUBBER,DIA30,7.5,Dark 4 SNA
...3 M0029 BN96-10689A ASSY STAND P-GUIDE NECK;NECK,PETG,V2,TP0 1 SA
....4 GSN01 BN61-05994A GUIDE-STAND NECK;40,LC650,PETG,V2,TP0003 1 SNA
....4 BN61-06079B GUIDE-NECK-INSERT;LC650 40,PETG HB,TP000 1 SNA
...3 BN63-05227D COVER-STAND GLASS;46,LC650,GLASS,T8.0,2C 1 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.7 SNA
...3 BN61-05652A BRACKET-STAND BOTTOM;B650 40,SECC,T2.0 1 SNA
...3 FD01 BN63-06913A COVER-DECORATION;LB7000 46,ABS+PMMA,HB,H 1 SNA
0.1 BN91-04991A ASSY SHIELD;UN46C5000QFXZA 1 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 8 SNA
..2 M2893 BN39-01267C LEAD CONNECTOR;LE37B530,UL 2651 AWG#26,1 1 SA
..2 T0764 BN44-00352A DC VSS-LED TV PD BD;PD46AF0U_ZSM,PSLF121 1 SA
..2 CCMM1 BN73-00211B SILICON/RUBBER;UN46B9000XFXZA,SILICON+PO 1 SNA
..2 T0910 BN96-12929A ASSY BRACKET P-STAND LINK;UC6500 46,SECC 1 SNA
...3 M0115 BN61-06167A BRACKET-STAND LINK;UC6500 46inch,HGI,T3. 1 SNA
...3 BN61-02932G BRACKET-STOPPER NUT;LED TV,M4,D6,L6.5,BR 5 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.19 SNA
..2 T0175 BN96-12965A ASSY SPEAKER P;4ohm,4pin,20W,R: 680,Encl 1 SA
..2 M0230 BN96-13171H ASSY CABLE P-FFC;UN46C5000QFXZA,FFC,0.5m 1 SA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.32 SNA
0.1 BN91-05202A ASSY LCD;BN07-00853A 1 SNA
..2 M0215 BN07-00853A LCD-PANEL;T460FAE1-DB,CLL7BC1,8bits,46,1 1 SA
...3 M0590 BN81-04453A A/S-T CON;T460FAE1-DB 1 SA
0.1 BN92-05580A ASSY BOX;UC5000 46 1 SNA
..2 BH68-00664A LABEL BOX-00;ALL MODEL,A/P 90G,220,90,WH 1 SNA
..2 BN69-04694B BOX-SET;46UC5000-GS,CB,A-01,DW3,,W1345,D 1 SNA
0.1 BN92-05602A ASSY P/MATERIAL;UC5000 46 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 3 SNA
..2 T0524 6902-000959 BAG PE;NITRON,T0.015/T0.5,W1400,L900,TRP 1 SNA
..2 M040 6922-000013 BAND PP;PP,W18,L2300m,TRP,21000g 0.84 SNA
..2 BH69-00418A BAG WRAPPING;LDPE,762,1828M,SAMEX FACTOR 1.05 SNA
..2 BH69-40321C PACKING INNER-00,PAD;COMM,CB,2030,140,CG 1 SNA
..2 T0246 BN69-04595A CUSHION-SET;46UC5000-GS,EPS,15.4g/l 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
0.1 BN92-05745A ASSY LABEL;UN32C5000QFXZA 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
..2 BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 M0045 BN92-05746B ASSY ACCESSORY;UN37C5000QFXZA 1 SNA
Page 35
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..2 BN96-10392A ASSY ACCESSORY-MANUAL;UN32,37,40,46C5000 1 SNA
...3 T0524 6902-000018 BAG PE;LDPE,T0.1,W280,L400,CLEAR,8,2,20. 1 SNA
...3 AA68-03242L MANUAL FLYER-07,SAFETY GUIDE;comm,Samsun 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0059 BN68-02178A MANUAL FLYER-CARD;COMM,SAMSUNG,eng/spa/c 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 T0511 BN68-02625A MANUAL USERS-01;U5000,SAMSUNG,Eng,USA,W/ 1 SNA
...3 BN68-02629A MANUAL FLYER-QSG;U5000,SAMSUNG,Eng,USA,W 1 SNA
...3 BN96-10788B ASSY ACCESSORY-PREVENT;B6000,nylon66 + W 1 SNA
...3 BP68-00263E MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 BN68-02928A MANUAL FLYER-ECO SENSOR GUIDE;common,SAM 1 SNA
..2 M0045 BN96-10392D ASSY ACCESSORY-CABLE;UN37,40,46C5000,510 1 SNA
...3 T0268 3903-000527 CBF-POWER CORD;DT,UL/CSA,EP-2,125V,5A,Bl 1 SA
...3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
...3 T0524 6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA
...3 T0074 BN59-01041A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215K MANUAL FLYER-COVER-BOTTOM GUIDE;COMM,SAM 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SNA
....4 BN68-02909A MANUAL FLYER;power clamper cable, 50x50, 1 SNA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 RB01 BN63-06543B COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 1 SA
0.1 M0017 BN91-04992D ASSY CHASSIS;UN46C5000QFXZA 1 SNA
..2 M0014 BN94-03318M ASSY PCB MAIN;UN46C5000QFXZA C 1 SNA
...3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.125 SNA
...3 3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA
...3 3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA
...3 JA330 3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 3 SNA
...3 JA333 3722-002847 JACK-PIN;5P(ULTRA SLIM),NI,BLACK,ANGLE(S 1 SNA
...3 3722-002849 JACK-MODULAR;8P/8C(ULTRA SLIM),YES,ANGLE 1 SNA
...3 T0562 6046-001015 STAND OFF;#4-40,L5,Ni PLT,C3601,M3 2 SNA
...3 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
...3 CIS3 BN40-00162A TUNER;DTVS20CVH081A,NTSC,191CH,45.75MHz, 1 SA
...3 BA001 BN61-04923A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, N 1 SNA
...3 T0066 BN62-00040A HEAT SINK-ES;SAPPHIRE,T2.0,36*36*6.6,BLK 1 SNA
...3 BN97-04039M ASSY SMD;UN46C5000QFXZA C,BN94-03318J 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 3.355 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 15 SA
Page 36
5-6
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 SA
....4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 11 SNA
....4 0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA
....4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 6 SA
....4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA
....4 T0139 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 3 SNA
....4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 11 SA
....4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 7 SA
....4 Q409 0505-002572 FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075o 1 SA
....4 T0596 0904-002554 IC-USC;AU6256-JBF,QFN,28P,5x5mm,12MHz,TP 1 SA
....4 IC106 1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA
....4 1006-001266 IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI 1 SA
....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA
....4 IC112 1103-001385 IC-EEPROM;AT24C256,256Kbit,32Kx8,SOP,8P, 1 SA
....4 1105-002058 IC-DDR2 SDRAM;K4T1G164QE-HCF8,DDR2,1Gbit 2 SA
....4 T0085 1201-002849 IC-AUDIO AMP;DRV603,TSSOP,14P,5x4.4mm,DU 1 SA
....4 T0124 1201-002993 IC-POWER AMP;TAS5715,HTQFP,48P,7x7mm,DUA 2 SA
....4 T0087 1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA
....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA
....4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
....4 1203-005559 IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 1 SA
....4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
....4 1203-006104 IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. 1 SA
....4 1203-006127 IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3x4 1 SA
....4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
....4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....4 1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA
....4 1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA
....4 1204-003089 IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9x9x0.8 1 SA
....4 1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA
....4 1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA
....4 1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA
....4 1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9x1.6mm, 1 SA
....4 1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 21 SA
....4 R512 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 SA
....4 ZR24 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
....4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 26 SA
....4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 12 SNA
....4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 41 SNA
....4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA
....4 R102 2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 4 SA
....4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 6 SNA
....4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA
....4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 7 SNA
....4 R123 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 2 SNA
....4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 4 SNA
....4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 18 SNA
....4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 8 SNA
....4 UR23 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 1 SNA
....4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 5 SNA
Page 37
5-7
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 HR3 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SNA
....4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 8 SNA
....4 2007-001237 R-CHIP;910ohm,1%,1/10W,TP,1608 1 SNA
....4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 4 SA
....4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
....4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 5 SNA
....4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 1 SNA
....4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....4 MR316 2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 6 SA
....4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 1 SA
....4 TR30 2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 3 SNA
....4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 35 SNA
....4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 3 SNA
....4 2007-007239 R-CHIP;31.6Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 9 SNA
....4 2007-007573 R-CHIP;330Kohm,1%,1/16W,TP,1005 1 SC
....4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
....4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 1 SNA
....4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SNA
....4 2007-008136 R-CHIP;36Kohm,1%,1/16W,TP,1005 1 SA
....4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
....4 R54 2007-008426 R-CHIP;12.4Kohm,1%,1/10W,TP,1608 1 SNA
....4 2007-008720 R-CHIP;4.7ohm,1%,1/4W,TP,3216 1 SNA
....4 2011-001427 R-NETWORK;0ohm,5%,1/16W,L,CHIP,8P,TP,2.0 4 SA
....4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA
....4 2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 4 SA
....4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 6 SNA
....4 C24 2203-000041 C-CER,CHIP;0.01nF,0.25pF,50V,C0G,1608 2 SNA
....4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
....4 C258 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
....4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 2 SA
....4 MC302 2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 7 SA
....4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 2 SA
....4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
....4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 9 SNA
....4 MC9 2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA
....4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA
....4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,- 2 SA
....4 CK40B 2203-000838 C-CER,CHIP;0.39NF,5%,50V,C0G,TP,1608 1 SNA
....4 KFC6 2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA
....4 DC87 2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA
....4 AD480 2203-001412 C-CER,CHIP;0.03nF,5%,50V,NP0,TP,1005 11 SNA
....4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA
....4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 12 SNA
....4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 4 SNA
....4 C33 2203-002687 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,1005 6 SA
....4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 14 SNA
....4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,- 1 SNA
....4 AD480 2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 4 SNA
Page 38
5. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....4 AD480 2203-006039 C-CER,CHIP;1nF,10%,2000V,X7R,3216 1 SA
....4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,1005 5 SNA
....4 PC11 2203-006141 C-CER,CHIP;1000nF,10%,16V,X5R,1608 1 SNA
....4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,1005 153 SNA
....4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,2012 2 SNA
....4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA
....4 AD480 2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 15 SA
....4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 43 SC
....4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 15 SA
....4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,1005 17 SNA
....4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012 ( 2 SNA
....4 2601-001056 TRANS-SMD,PULSE;350UH,-,1:1,1:1,12.7X6.7 1 SA
....4 T0052 2703-000158 INDUCTOR-SMD;1uH,10%,2012 4 SA
....4 L1103 2703-000403 INDUCTOR-SMD;22uH,10%,3225 1 SA
....4 T0052 2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA
....4 T0052 2703-002268 INDUCTOR-SMD;8.2nH,5%,1005 4 SNA
....4 T0052 2703-002332 INDUCTOR-SMD;330nH,5%,1608 1 SA
....4 T0052 2703-003150 INDUCTOR-SMD;4.7uH,20%,5050 4 SNA
....4 T0052 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080 4 SA
....4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
....4 X202 2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA
....4 X202 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
....4 F103 2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA
....4 DR32 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 6 SNA
....4 T0568 3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 1 SA
....4 T0568 3301-001236 BEAD-SMD;60ohm,1608 2 SNA
....4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 38 SA
....4 3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 4 SA
....4 CN906 3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA
....4 AC510 3708-002797 CONNECTOR-FPC/FFC/PIC;51P,0.50mm,SMD,AU, 1 SA
....4 CON_US 3711-005616 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,SMD 1 SNA
....4 HB01A 3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 2 SA
....4 3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 2 SA
....4 BN41-01329C PCB MAIN;FR-4,4,1.2T,240*240 1 SNA
....4 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
....4 M0018 BN97-03999A ASSY MICOM;T-TDT5AUSC-1008.0,2010.03.25 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
.....5 BN68-02303A LABEL-IC;9.5MMX8MM,ART PAPER 1 SNA
....4 M0018 BN97-04025A ASSY MICOM;T-TDT5AUSS-6002,2010.03.12 1 SNA
.....5 IC115 1107-001580 IC-FLASH MEMORY;MX25L4005,4Mbit,512Kx8,S 1 SNA
...3 T0066 BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA
5-8
Page 39
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.1.
Disconnect the AC power and DC power jack before servicing.2.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. 2.
Check the calibration of this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the LED TV to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the LED TV.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check (Figure 1-1): 3.
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).
(READING SHOULD)
NOT BE ABOVE 0.5mA
DEVICE
UNDER
TEST
2-WIRE CORD
*ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND

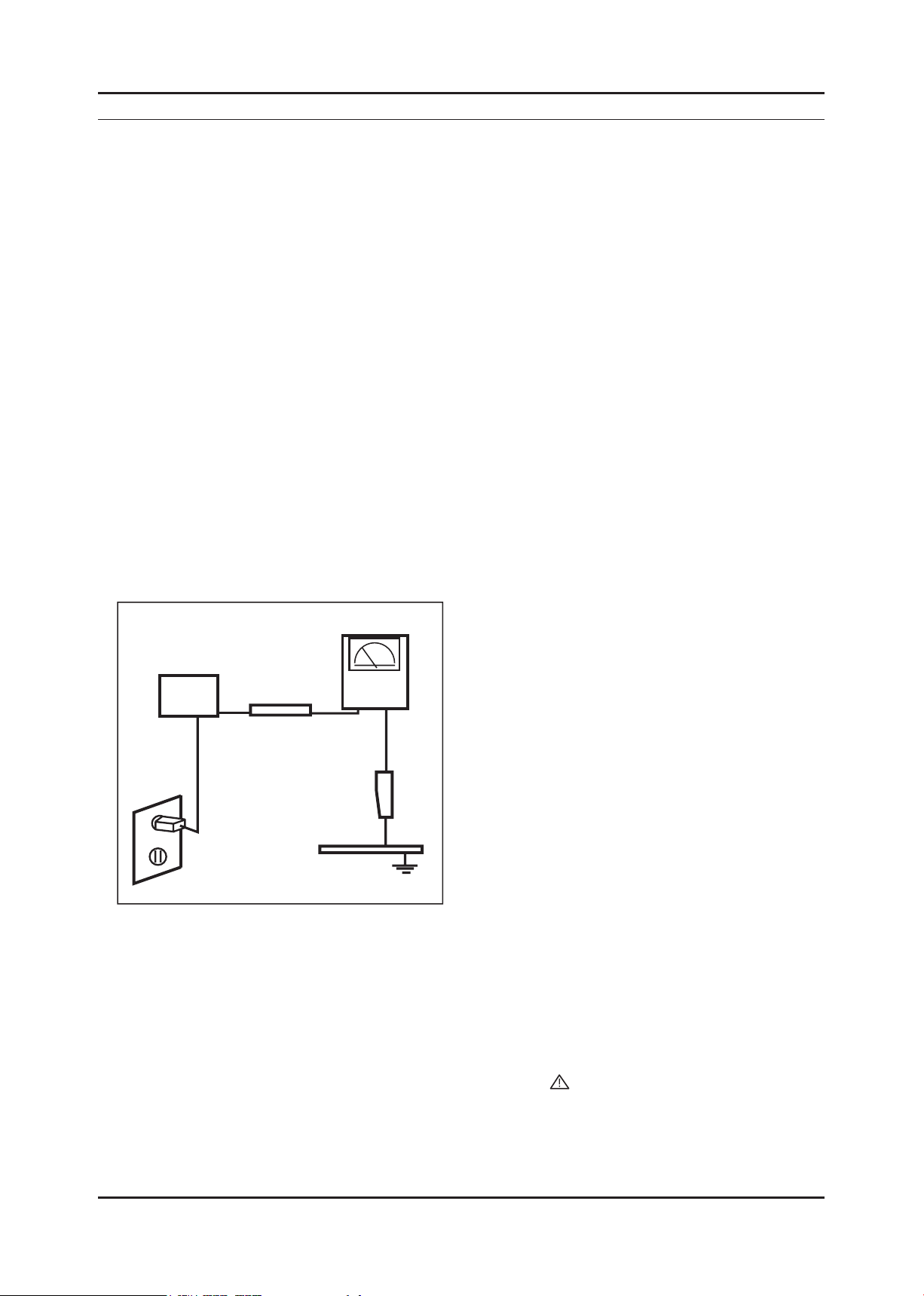

Figure 1-1. Leakage Current Test Circuit
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch 4.
rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,
etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
1-1
Page 40
1-2
1. Precautions
1-2. Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
Note: If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-2-1 General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to:
(a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes 2.
used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such
elements to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, 4.
input terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. 5.
Connect an insulation resistance meter (500 V) to theblades of the AC plug.
The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be
greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
1-3. Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the LED TV.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective 7.
material to the chassis or circuit assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, 8.
or lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 41
1-3
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal 3.
temperature may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
Page 42
2. Product specications
2-1. Feature & Specications
Model UN32C5000QF
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 450 cd/m ሪ
High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ
Response Time : 4.5ms (MARKETING SPEC : 8ms) ሪ
Item Description
LCD Panel 32inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Display Colors 1.07G color
Maximum resolution Horizontal : 1920 Pixels
2
(MARKETING SPEC : 500cd/m2)
Specications
Vertical : 47 Hz ~ 63 Hz (Automatic)
Vertical : 1080 pixels
2. Product specications
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~220V, 60 Hz
Power Consumption Under 110W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
Weight 24.25 Ibs (11kg)_with stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
27.50 x 15.47 inches (698.4(H) x 392.85(V) mm)
30.9 x 9.4 x 21.6 inches (785 x 240 x 550 mm)_with stand
30.9 x 1.2 x 19.3 inches (785 x 29.9 x 491 mm)_without stand
18.08 Ibs (8.2kg)_without stand
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital+
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
2-1
Page 43
2-2
2. Product specications
Model UN37C5000QF
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
(MARKETING SPEC : 500cd/m2)
High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ
Response Time : 4.2 ms (MARKETING SPEC : 8ms) ሪ
Specications
Item Description
LCD Panel 37inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
32.26 x 18.15 inches (819.36(H) x 460.89(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 120W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
35.7 x 10.0 x 24.4 inches (908 x 255 x 621 mm)_with stand
35.7 x 1.2 x 22.1 inches (908 x 29.9 x 561 mm)_without stand
Weight 31.30 Ibs (14.2kg)_with stand
23.37 Ibs (10.6kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital
+
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 44
2-3
2. Product specications
Model UN40C5000QF
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
(MARKETING SPEC : 500cd/m2)
High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ
Response Time : 4.5 ms (MARKETING SPEC : 8ms) ሪ
Specications
Item Description
LCD Panel 40inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
34.87 x 22.55 inches (885.6(H) x 19.61(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 130W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
38.3 x 10.0 x 24.4 inches (972 x 255 x 621 mm)_with stand
38.3 x 1.2 x 23.5 inches (972 x 29.9 x 596 mm)_without stand
Weight 34.61 Ibs (15.7kg)_with stand
26.68 Ibs (12.1kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital
+
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 45
2-4
2. Product specications
Model UN46C5000QF
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
(MARKETING SPEC : 500cd/m2)
High Contrast Ratio : 50,000:1 (MARKETING SPEC : 3,000,000:1) ሪ
Response Time : 4.5 ms (MARKETING SPEC : 8ms) ሪ
Specications
Item Description
LCD Panel 46inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
40.08 x 22.55 inches (1018.08(H) x 572.67(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 130W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
43.6 x 10.8 x 28.8 inches (1107 x 275 x 731 mm)_with stand
43.6 x 1.2 x 26.4 inches (1107 x 29.9 x 671 mm)_without stand
Weight 43.43 Ibs (19.7kg)_with stand
34.61 Ibs (15.7kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital
+
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 46
2-5
2. Product specications
Model UC32C4000PD
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
(MARKETING SPEC : 500cd/m2)
High Contrast Ratio : 40,000:1 (MARKETING SPEC : 2,000,000:1) ሪ
Response Time : 4.5ms (MARKETING SPEC : 8ms) ሪ
Specications
Item Description
LCD Panel 32inch HD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1366 Pixels
Vertical : 768 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
27.47 x 15.44 inches (697.69(H) x 392.26(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 100W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
30.5 x 10.0 x 21.6 inchs (774.6 x 255.0 x 549.1 mm)_with stand
30.5 x 1.2 x 19.4 inchs (774.6 x 29.9 x 491.8 mm)_without stand
Weight 24.9 Ibs (11.3kg)_with stand
20.3 Ibs (9.2kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System ATSC & Clear QAM
Sound NTSC-M, Dolby Digital
+
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 47
2-6
2. Product specications
Model UN32C5000QR(HD-Ready)
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 450 cd/m2 ሪ
High Contrast Ratio : 50,000:1 ሪ
Response Time : 4.5ms ሪ
Specications
Item Description
LCD Panel 32inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 1.07G color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~220V, 60 Hz
Power Consumption Under 110W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
Weight 24.25 Ibs (11kg)_with stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
27.50 x 15.47 inches (698.4(H) x 392.85(V) mm)
30.9 x 9.4 x 21.6 inches (785 x 240 x 550 mm)_with stand
30.9 x 1.2 x 19.3 inches (785 x 29.9 x 491 mm)_without stand
18.08 Ibs (8.2kg)_without stand
System NTSC
Sound NTSC-M
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 48
2-7
2. Product specications
Model UN37C5000QR(HD-Ready)
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
High Contrast Ratio : 50,000:1 ሪ
Response Time : 4.2 ms ሪ
Specications
Item Description
LCD Panel 37inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
32.26 x 18.15 inches (819.36(H) x 460.89(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 120W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
35.7 x 10.0 x 24.4 inches (908 x 255 x 621 mm)_with stand
35.7 x 1.2 x 22.1 inches (908 x 29.9 x 561 mm)_without stand
Weight 31.30 Ibs (14.2kg)_with stand
23.37 Ibs (10.6kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System NTSC
Sound NTSC-M
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 49
2-8
2. Product specications
Model UN40C5000QR(HD-Ready)
Feature
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0, D-SUB ሪ
Brightness : 400 cd/m ሪ
2
High Contrast Ratio : 50,000:1 ሪ
Response Time : 4.5 ms ሪ
Specications
Item Description
LCD Panel 40inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
34.87 x 22.55 inches (885.6(H) x 19.61(V) mm)
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 130W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
38.3 x 10.0 x 24.4 inches (972 x 255 x 621 mm)_with stand
38.3 x 1.2 x 23.5 inches (972 x 29.9 x 596 mm)_without stand
Weight 34.61 Ibs (15.7kg)_with stand
26.68 Ibs (12.1kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System NTSC
Sound NTSC-M
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 50
2-9
2. Product specications
Model UN46C5000QR(HD-Ready)
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ
Brightness : 400 cd/m2 ሪ
High Contrast Ratio : 50,000:1 ሪ
Response Time : 4.5ms ሪ
Specications
Item Description
LCD Panel 46inch FHD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1920 Pixels
Vertical : 1080 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 130W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
Weight 43.43 Ibs (19.7kg)_with stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
40.08 x 22.55 inches (1018.08(H) x 572.67(V) mm)
43.6 x 10.8 x 28.8 inches (1107 x 275 x 731 mm)_with stand
43.6 x 1.2 x 26.4 inches (1107 x 29.9 x 671 mm)_without stand
34.61 Ibs (15.7kg)_without stand
System NTSC
Sound NTSC-M
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: DLNA, Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 51
2-10
2. Product specications
Model UN32C4000PX(HD-Ready)
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, D-SUB ሪ
Brightness : 400 cd/m2 ሪ
High Contrast Ratio : 40,000:1 ሪ
Response Time : 4.5ms ሪ
Specications
Item Description
LCD Panel 32inch HD 60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1366 Pixels
Vertical : 768 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption Under 100W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
Weight 24.9 Ibs (11.3kg)_with stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
27.47 x 15.44 inches (697.69(H) x 392.26(V) mm)
30.5 x 10.0 x 21.6 inchs (774.6 x 255.0 x 549.1 mm)_with stand
30.5 x 1.2 x 19.4 inchs (774.6 x 29.9 x 491.8 mm)_without stand
20.3 Ibs (9.2kg)_without stand
System NTSC
Sound NTSC-M
Operating Humidity : 10% ~ 90%, non-condensing
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity : 10% ~ 90%
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: Dolby Digital +/Pulse, Game Mode, Film Mode, Energy Saving, Anynet+
Page 52
2-11
2. Product specications
CHANNEL FREQUENCY TABLE
OSD CH NO AIR CH NO CH NO CH NO
Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC
1 1 A-8 72. 00 A-8 73. 25
2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25
3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25
4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25
5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25
6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25
7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25
8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25
9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25
10 10 195 193.25 V-H 10 1
93.25 V-H 10 192.00 10 193.25
11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25
12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25
13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25
14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25
15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25
16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25
17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25
18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25
19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25
20 20 509
507.25 UHF G 157.25 MID G 156.00 G 157.25
21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25
22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25
23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25
24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25
25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25
26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25
27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25
28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25
29 29 563 561.25 UHF P 253.25 SUPER P 252.00
P 253.25
30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25
31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25
32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25
33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25
34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25
35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25
36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25
37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25
38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25
39 39 623 62
1.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25
40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25
41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25
42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25
43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25
44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25
45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25
46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25
47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25
48 48
677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25
49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25
50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25
51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25
52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25
53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25
54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25
55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25
56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.2
5
57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25
58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25
59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25
60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25
61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25
62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25
63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25
64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25
65 65 779 777.25 UHF CCC 469.25 ULTRA CCC
468.00 CCC 469.25
66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25
67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25
68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25
69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25
1. OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz
2. TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz
Page 53
2-12
2. Product specications
OSD CH NO AIR CH NO CH NO CH NO
Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC
70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25
71 71 III 505.25 ULTRA III 504.00 III 505.25
72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25
73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25
74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25
75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25
76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25
77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25
78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25
79 79 79 553.25 ULTRA 79 552.00 79 553.25
80 80 80 559.25 ULTRA 80 558.00 80 559.25
81 81 81 565.25 ULTRA 81 564.00 81 565.25
82 82 82 571.25 ULTRA 82 570.00 82 571.25
83 83 83 577.25 ULTRA 83 576.00 83 577.25
84 84 84 583.25 ULTRA 84 582.00 84 583.25
85 85 85 589.25 ULTRA 85 588.00 85 589.25
86 86 86 595.25 ULTRA 86 594.00 86 595.25
87 87 87 601.25 ULTRA 87 600.00 87 601.25
88 88 88 607.25 ULTRA 88 606.00 88 607.25
89 89 89 613.25 ULTRA 89 612.00 89 613.25
90 90 90 619.25 ULTRA 90 618.00 90 619.25
91 91
91 625.25 ULTRA 91 624.00 91 625.25
92 92 92 631.25 ULTRA 92 630.00 92 631.25
93 93 93 637.25 ULTRA 93 636.00 93 637.25
94 94 94 643.25 ULTRA 94 642.00 94 643.25
95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25
96 96 A-4 97.25 FM A-4 96.00 A-4 97.25
97 97 A-3 103.25 FM A-3 102.00 A-3 103.25
98 98 A-2 109.25 MID A-2 108.00 A-2 109.25
99 99 A-1 115.25 MID A-1 114.00 A-1 115.25
100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25
101 101 101 655.25 ULTRA 101 654.00 101 655.25
102 102 102 661.25 ULTRA 102 660.00 102 661
.25
103 103 103 667.25 ULTRA 103 666.00 103 667.25
104 104 104 673.25 ULTRA 104 672.00 104 673.25
105 105 105 679.25 ULTRA 105 678.00 105 679.25
106 106 106 685.25 ULTRA 106 684.00 106 685.25
107 107 107 691.25 ULTRA 107 690.00 107 691.25
108 108 108 697.25 ULTRA 108 696.00 108 697.25
109 109 109 703.25 ULTRA 109 702.00 109 703.25
110 110 110 709.25 ULTRA 110 708.00 110 709.25
111 111 111 715.25 ULTRA 111 714.00 111 715.25
112 112 112 721.25 ULTRA 112 720.00 112 721.25
113 113 113 727.25 UL
TRA 113 726.00 113 727.25
114 114 114 733.25 ULTRA 114 732.00 114 733.25
115 115 115 739.25 ULTRA 115 738.00 115 739.25
116 116 116 745.25 ULTRA 116 744.00 116 745.25
. .
. . .
. . . .
. .
. . .
. . . .
125 125 125 799.25 ULTRA 125 798.00 125 799.25
. . . . . . . . .
Page 54
2-13
2. Product specications
2-2. New Features explanation

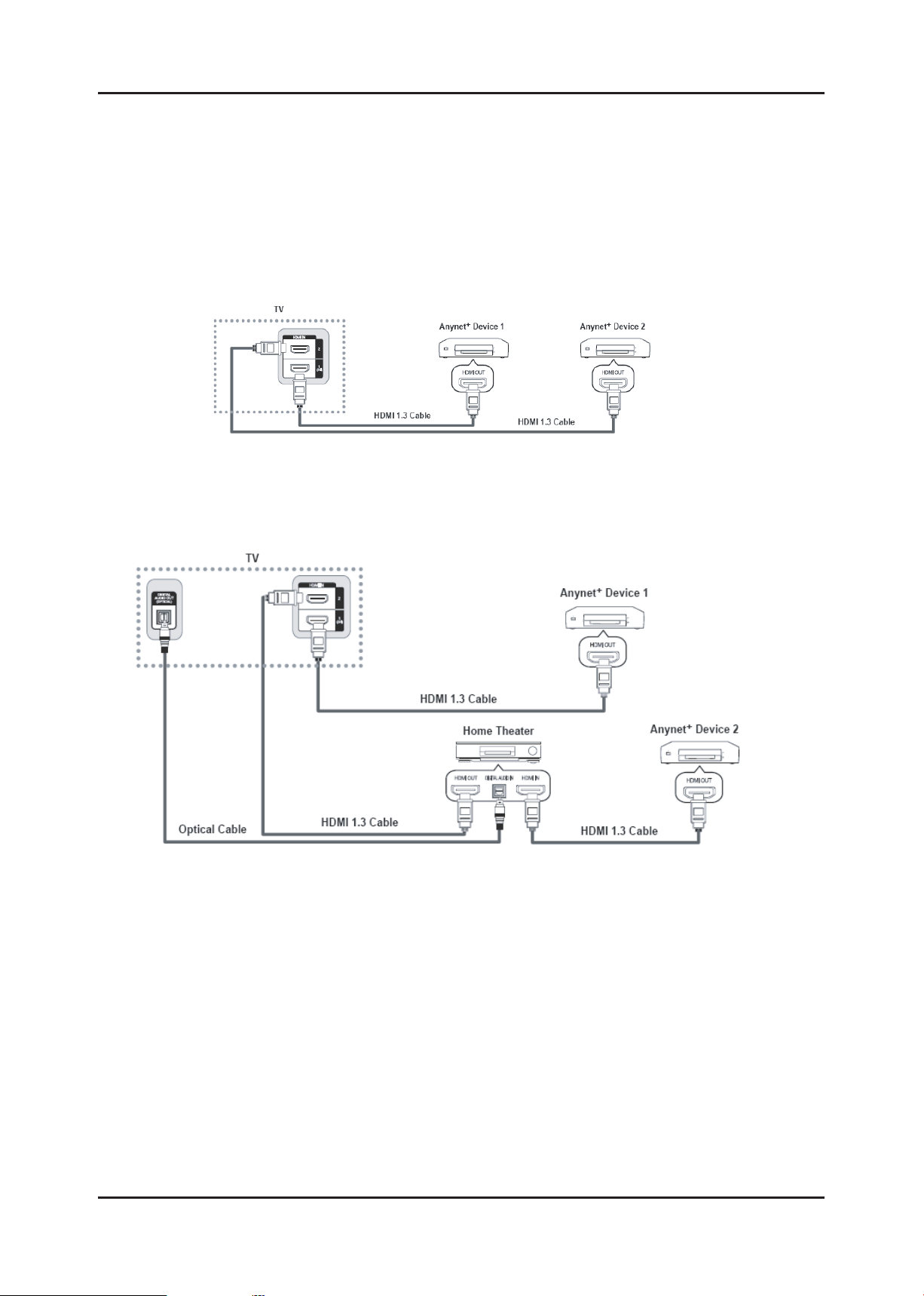

2-2-1. Connecting Anynet+ Devices
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your
Samsung TV’s remote.
The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung
device has this feature, check if there is an Anynet+ logo on it.
To connect to a TV
1. Connect the HDMI IN 1(DVI), 2 jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.
To connect to Home Theater
1. Connect the HDMI IN 1(DVI), 2 jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.
- Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio
Input on the Home Theater.
- When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound
from the Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel
audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (ie Anynet Device 1 or 2)
directly to the Ampli er or Home Theater, not the TV.
- Connect only one Home Theater.
- You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+
functions.
- Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
- Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
Page 55
2. Product specications
2-3. Accessories
Product Description Code. No Remark
Remote Control & Batteries
(AAA x 2)
Power Cord 3903-00467
Cover-Bottom
Stand
C5000 : BN59-01041A
C4000 : BN59-00996A
HD-Ready
C4000 : BN59-01018A
C5000 : BN59-01030A
32" BN63-06542A
37" BN63-06543A
40" BN63-06543A
46" BN63-06543A
32" BN63-06542B
C5000 32" BN96-12930B
37" BN96-12931B
40" BN96-12931B
46" BN96-12932B
C4000 32" BN96-13157A
Samsung Electronics
Service center
Screw
(for the stand - M4, L6)
Owner’s Instructions
Warranty Card / Registration
Card / Safety Guide Manual
(Not available in all locations)
6003-000133
C5000 : BN68-02625A
C4000 : BN68-02651A
2-14
Page 56
4. Troubleshooting
4-1. Troubleshooting
4-1-1. Previous check
Check the various cable connections rst. 1.
• Check to see if any cables are damaged or burnt.
• Check to see if there is a disconnected or loose cable connection.
• Check to see if the cables are connected according to the connection diagram.
Check the power input to the Main Board.2.
4. Troubleshooting
4-1
Page 57
4-2
4. Troubleshooting

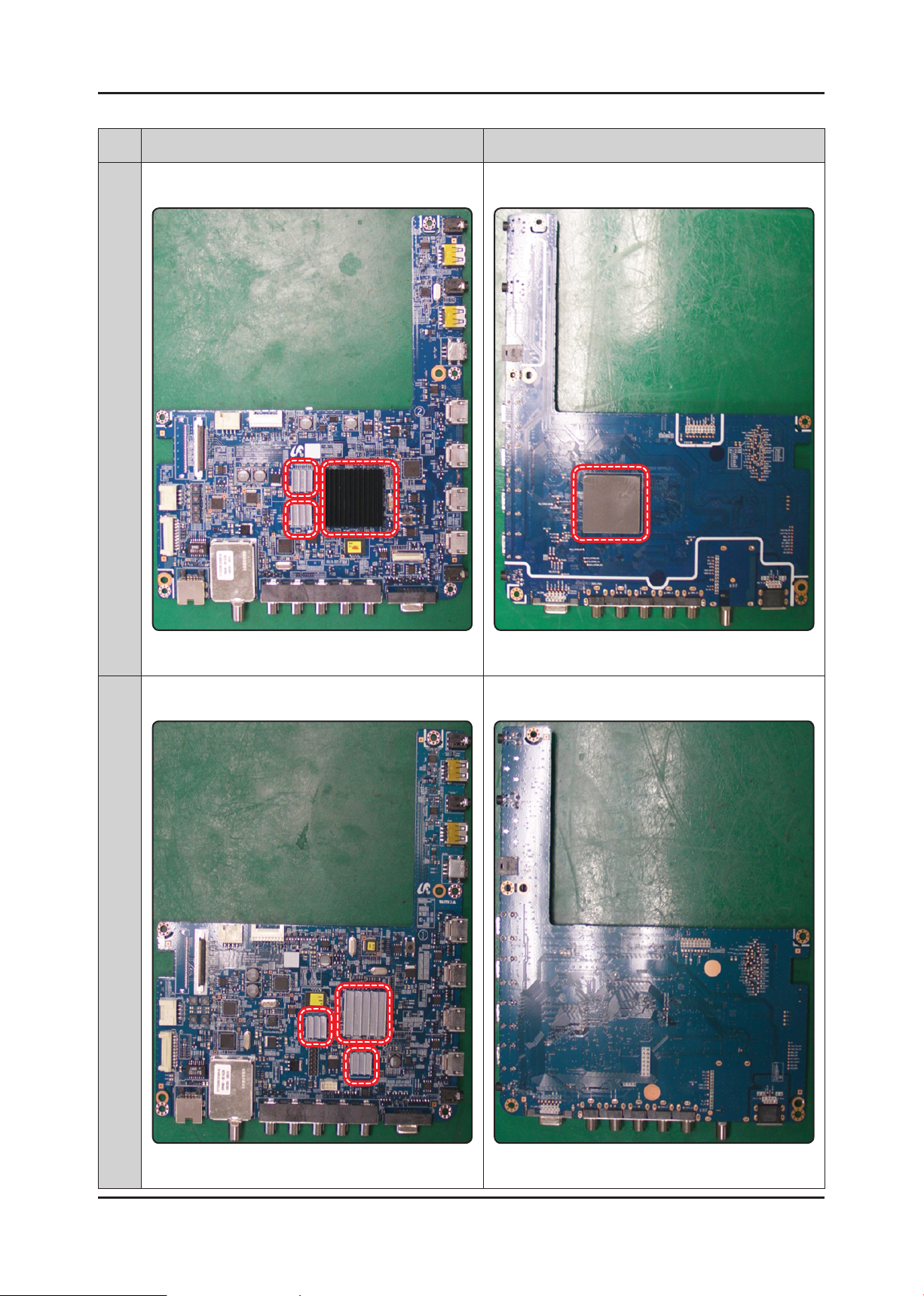

Differential Point View
A
Type
Top Bottom
Type
B
Page 58
4-3
4. Troubleshooting
4-1-2. No Power (A Type)
The LEDs on the front panel do not work when connecting the power cord. -
Symptom
Major
checkpoints
The SMPS relay does not work when connecting the power cord. The units appears to be dead. -
The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
Check the internal cable connection status inside the unit. Check the fuses of each part. Check the output voltage of SMPS. Replace the Main Board. -
Diagnostics
Lamp(Backlight) Off,
power indicator LED on?
Yes
Does proper Stand-By DC A5V
appear at TP - A5V?
Yes
Does proper Main DC B13V, B5V
appear at TP - B13V, B5V?
Yes
Does proper DC A3.3V
appear at TP - A3.3V?
Yes
Does proper B3.3V, B1.8V,
SPI_3.3V appear at BD213 (B3.3V),
BD219 (DDR B1.8V) TP - SPI_3.3V ?
Yes
Does proper DC B13V
appear at LVDS connector
Pin #1~5 of T-con b'd?
No
No
No
No
No
No
Change 18p power cable.
Change the Main Assy.
Change the LVDS cable.
Yes
Does proper DC B12V
appear at F1 of T-con b'd ?
Yes
A power is supplied to set?
Caution Make sure to disconnect the power before working on the IP board.
No
No
Change the T-con b'd.
(except for 4000 series)
Check a other function.
(No picture part)
Replace a LCD Panel.
Page 59
4-4
4. Troubleshooting
BD219
BD213
B13V
B5V
A5V
A3.3V
SPI_3.3V
F1
40” T-Con
Pin #1~5

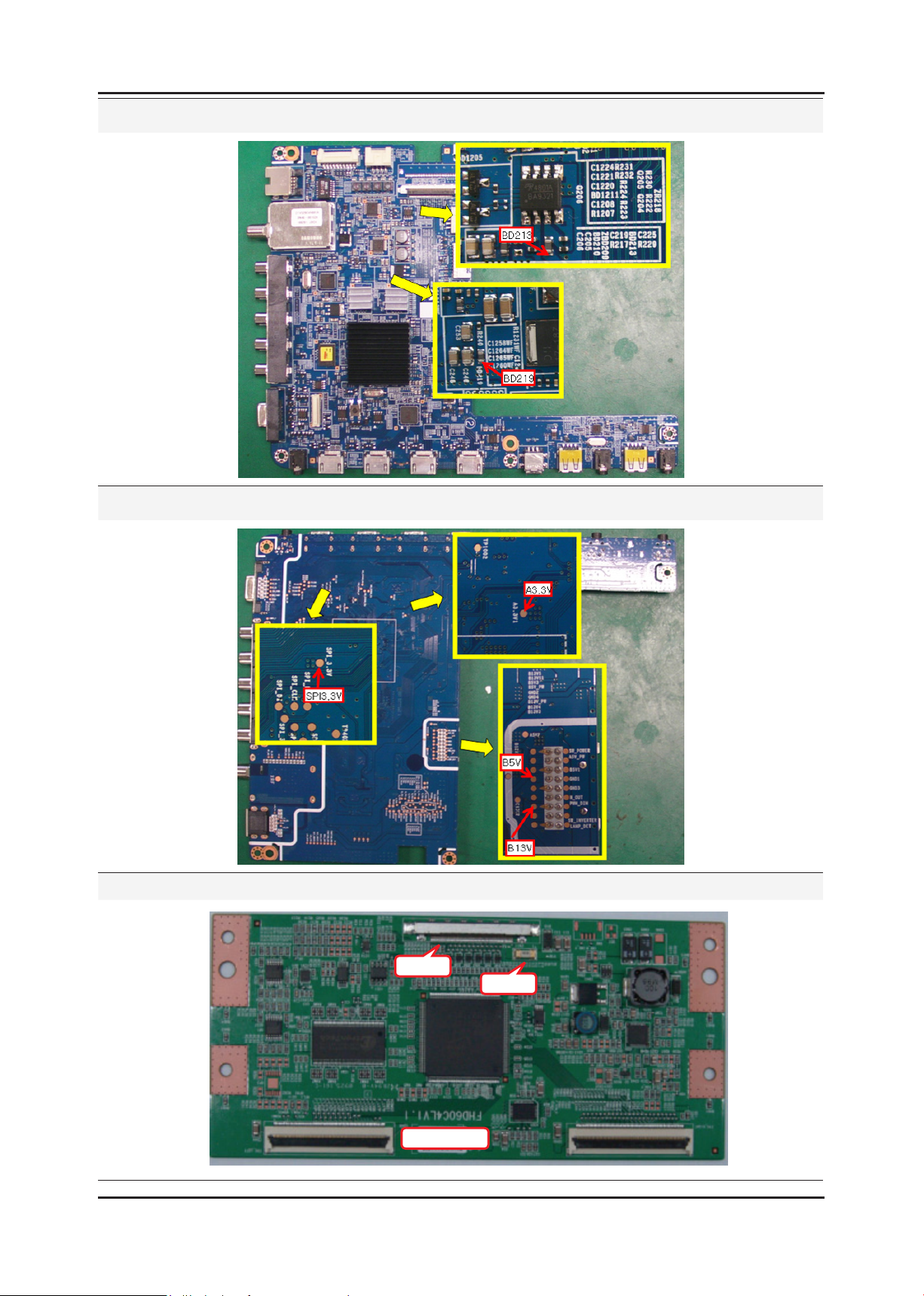

Location (Main) - TOP
Location (Main) - BOTTOM
Location (T-CON)
Page 60
4-5
4. Troubleshooting
4-1-3. No Video_Analog PC signal (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the PC source -
Check the Arsenal, Check the Chelsea. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the PC source and
check the connection of D-SUB ?
Yes
Does the signal appear at
1
TP - PC_R, PC_G, PC_B, PC_HS, PC_VS
(R, G, B, H, V) ?
Yes
Does the digital data appear at
2
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
or 'DPMS mode'.
Input the analog PC signal properly.
Check CN901, PC cable.
Change the Main Assy.
Check IC301 (SX1).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 61
4-6
4. Troubleshooting

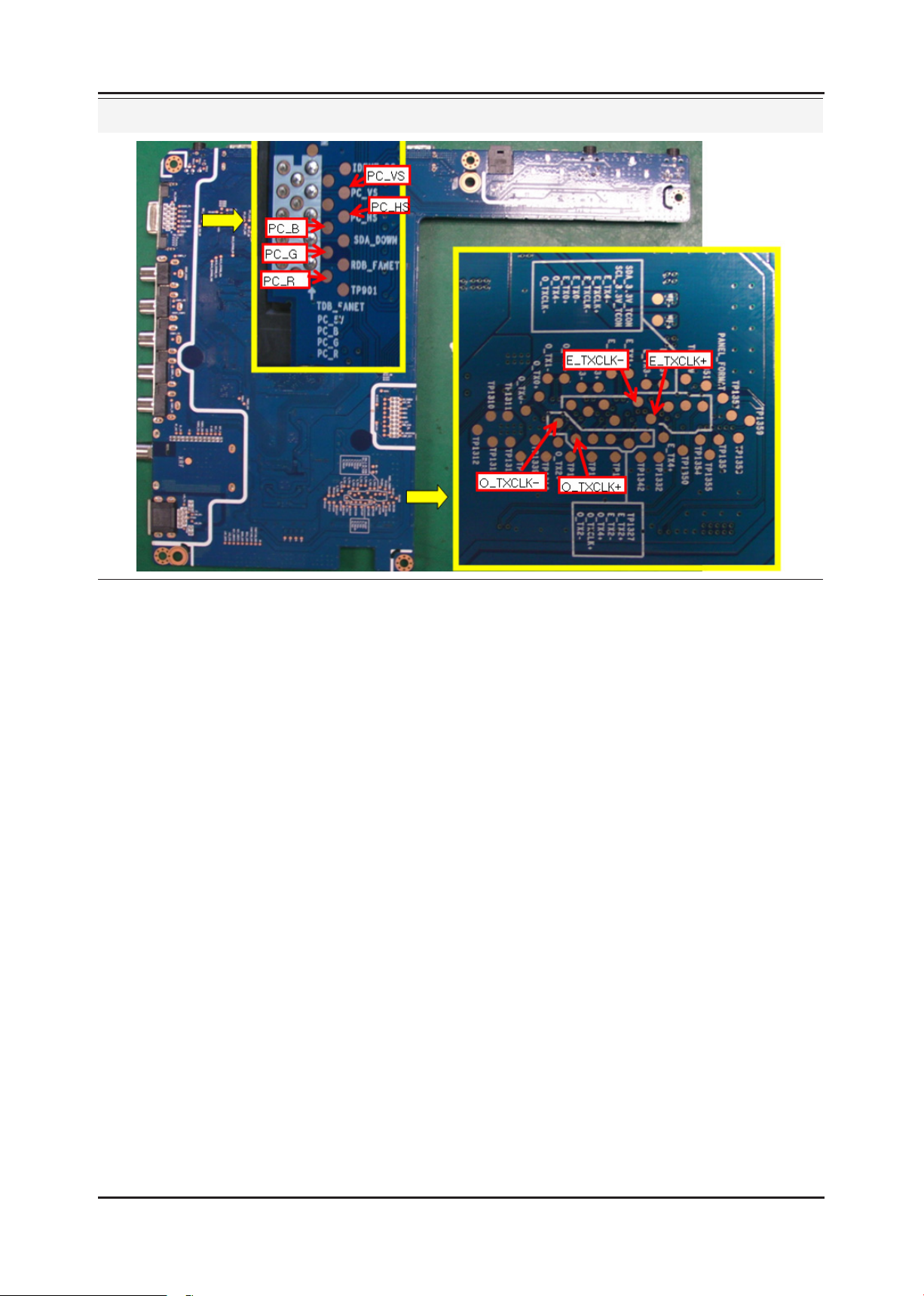

Location (Main) - BOTTOM
Page 62
4-7
4. Troubleshooting
WAVEFORMS
1
2
PC input (V-sink , H-sink , R/G/B)
LVDS output
Page 63
4-8
4. Troubleshooting
4-1-4. No video_HDMI 1, 2, 3, 4 - Digital signal (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the HDMI source. -
Check the HDMI switch, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the HDMI source and
check the connection of HDMI cable ?
Yes
Does the signal appear at
CN1002 (Pin#12 , #7 )(HDMI1)
3
2
CN1003 (Pin#12 , #7 )(HDMI2)
CN1004 (Pin#12 , #7 )(HDMI3)
CN1001 (Pin#12 , #7 )(HDMI4)
(HDMI RX_Clk , RX_Data) ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the HDMI signal properly.
Check CN1001, CN1002.
CN1003, CN1004.
Check HDMI cable.
Change the Main Assy.
Check IC301 (SX1).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 64
4-9
4. Troubleshooting

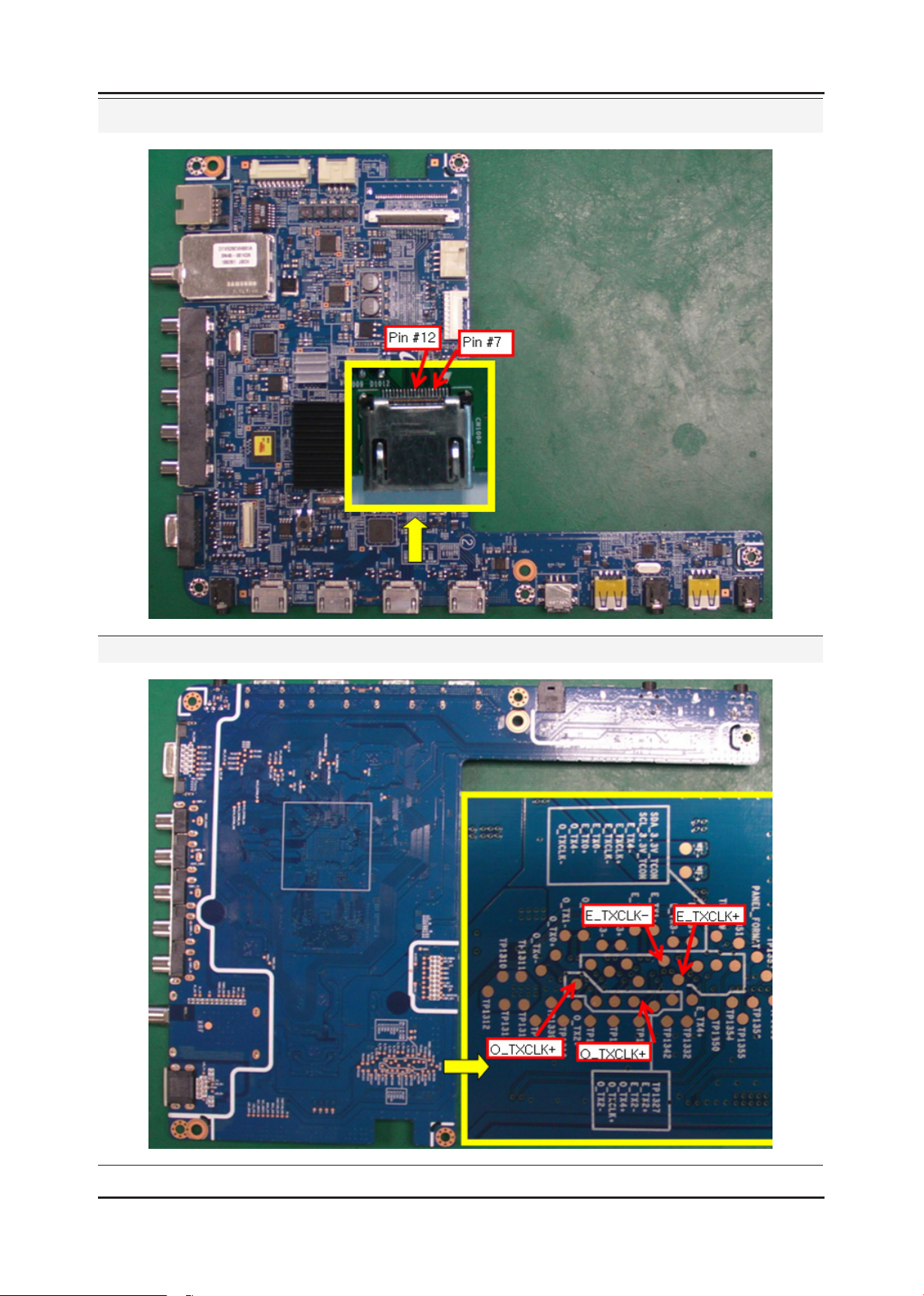

Location (Main) - TOP
Location (Main) - BOTTOM
Page 65
4-10
4. Troubleshooting
WAVEFORMS
3
2
HDMI input (RX_Data, RX_Clk)
LVDS output
Page 66
4-11
4. Troubleshooting
4-1-5. No Video_Tuner CVBS (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
2
Check the Tuner CVBS source. -
Check the Tuner, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and
check the connection of RF cable ?
Yes
Does the DC TU5V_PW, TU33V_PW
appear at TP - TUNER_33V, B 5V
Pin of Tuner ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the RF source properly.
Change the Main Assy.
Check IC301 (SX1).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 67
4-12
4. Troubleshooting
Location (Main) - BOTTOM
Page 68
4-13
4. Troubleshooting
WAVEFORMS
LVDS output
2
Page 69
4-14
4. Troubleshooting
4-1-6. No Video_Tuner DTV (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the DTV source. -
Check the Tuner, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and
check the connection of RF cable ?
Yes
Check the 'signal strength' in Self Diagnosis
menu Strength is enough ?
Yes
Does the DC TU5V_PW, TU33V_PW
appear at TP - TUNER_33V, B 5V
Pin of Tuner ?
Yes
No
No
No
No
Check a set in the 'Stand-by mode'
Input the RF source properly.
Check the D-TV source.
Change the Main Assy.
Diagnostics
2
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
No
Check IC301 (SX1).
Change the Main Assy.
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 70
4-15
4. Troubleshooting

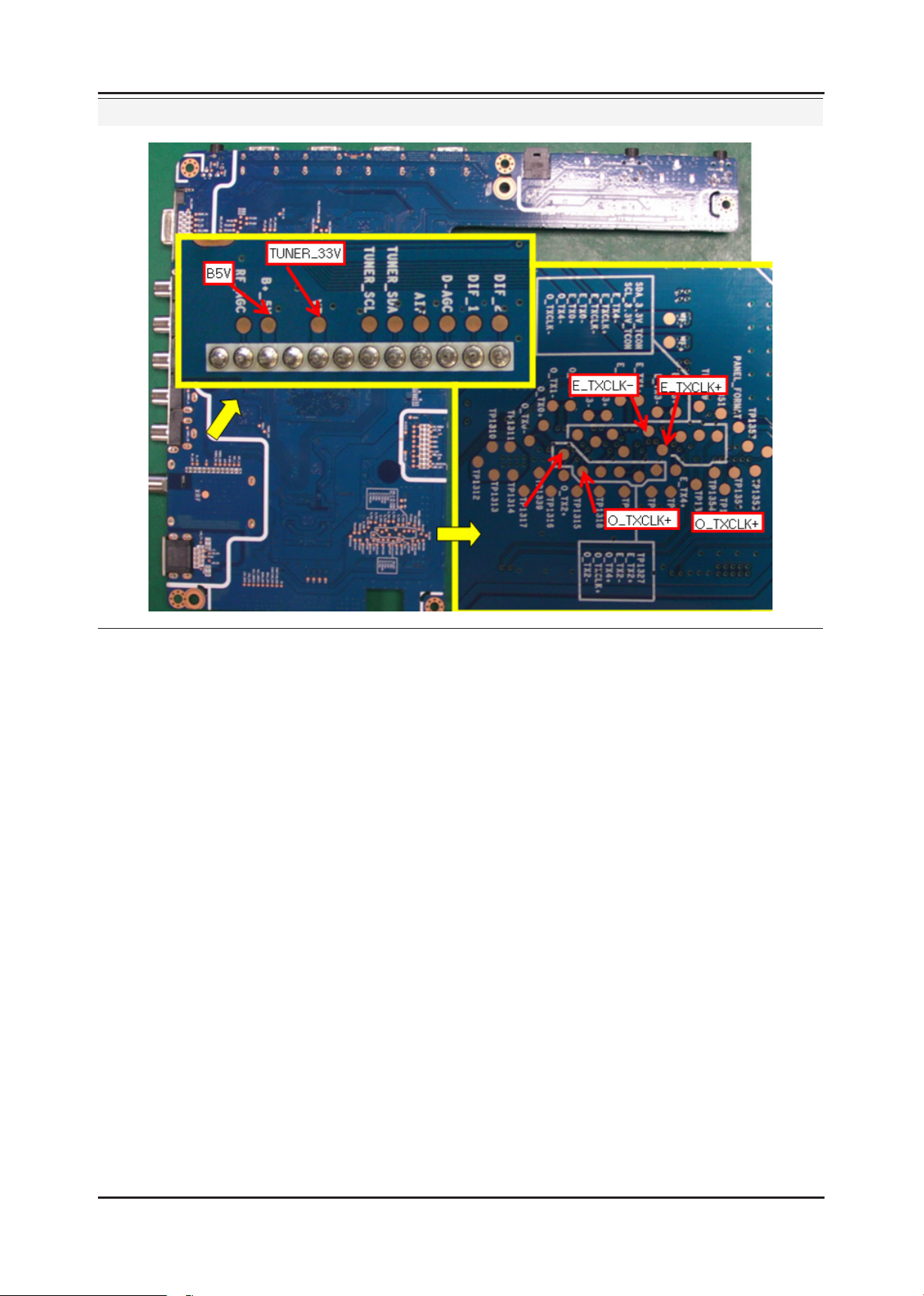

Location (Main) - BOTTOM
Page 71
4-16
4. Troubleshooting

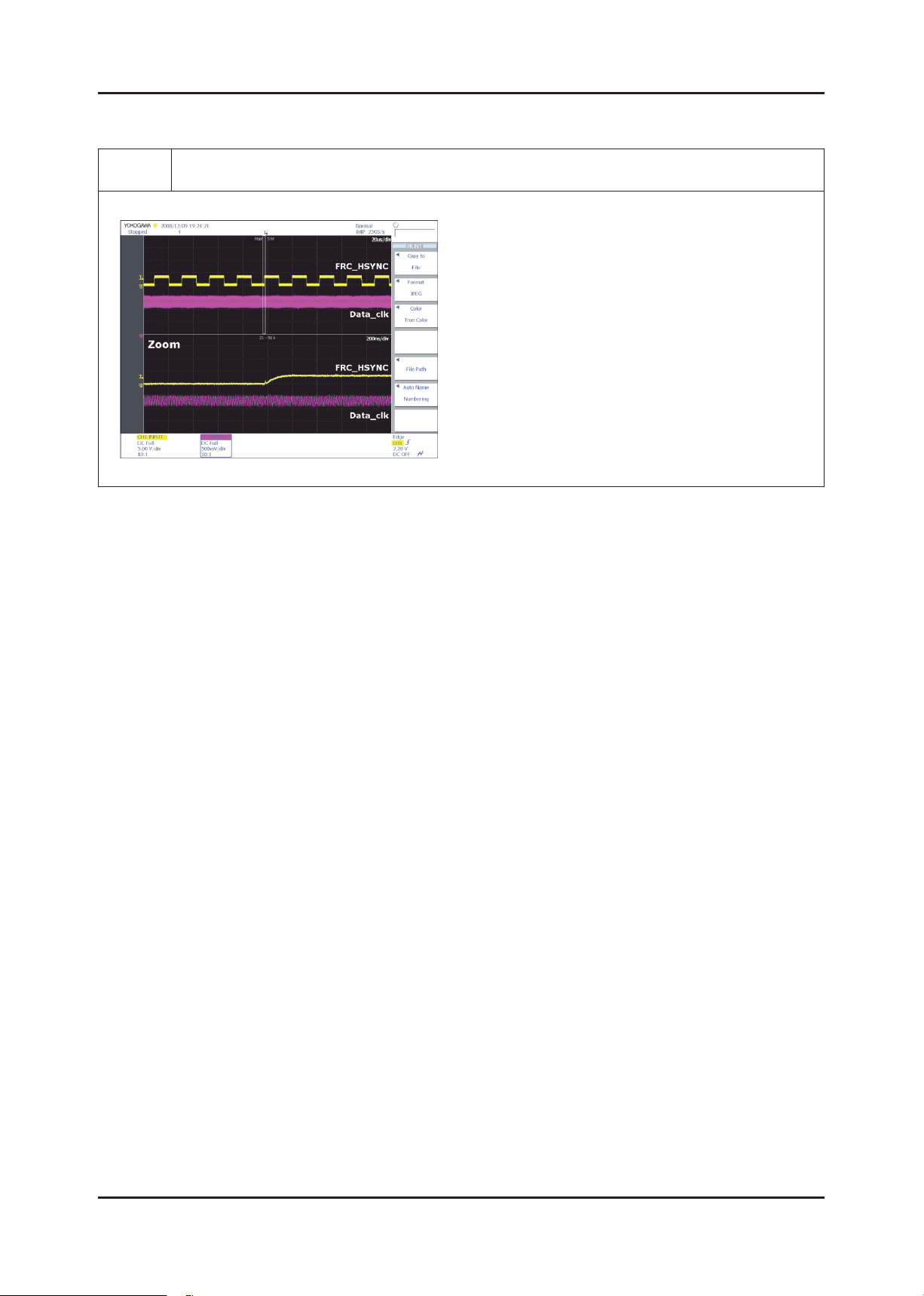

WAVEFORMS
2
LVDS output
Page 72
4-17
4. Troubleshooting
4-1-7. No Video_Video CVBS (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
4
2
Check the Video CVBS source -
Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the video source and
check the connection of video cable?
Yes
Does the CVBS data appear at
TP - COMP1_Y ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'.
Input the video source properly.
Check CN701.
Change the Main Assy.
Check IC301 (SX1).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 73
4-18
4. Troubleshooting

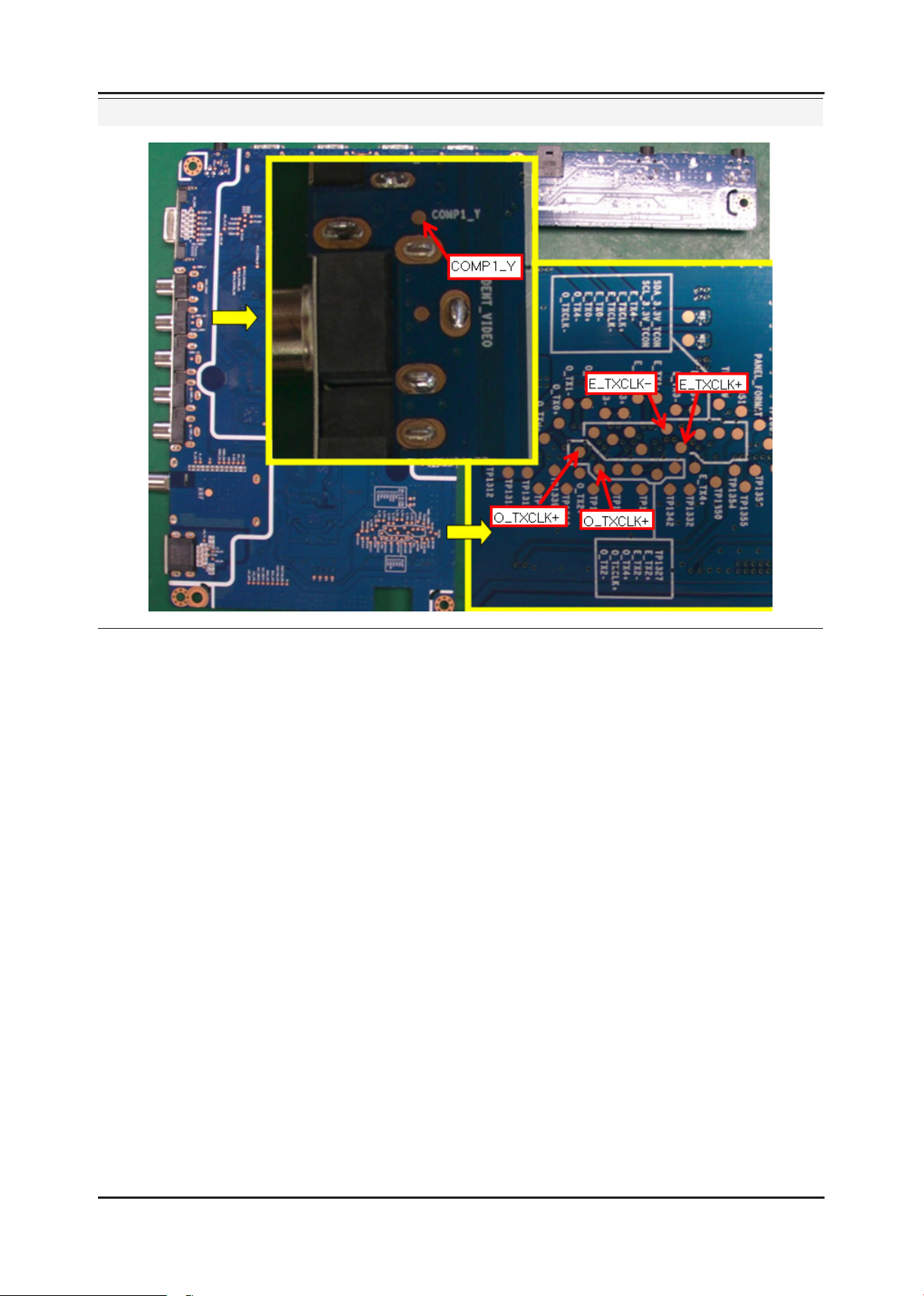

Location (Main) - BOTTOM
Page 74
4-19
4. Troubleshooting
WAVEFORMS
CVBS OUT (Grey Bar)
4
LVDS output
2
Page 75
4-20
4. Troubleshooting
4-1-8. No Video_Component (A Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the Component source -
Check the chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the component source and
check the connection of component
cables(Y,Pb,Pr)?
Yes
Does the component data appear at
5
TP - COMP1_Y, COMP1_PB, COMP1_PR
(Comp / Y, Pb, Pr) ?
Yes
Does the digital data appear at
2
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the component source properly.
Check CN701.
Change the Main Assy.
Check IC301 (SX1).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 76
4-21
4. Troubleshooting

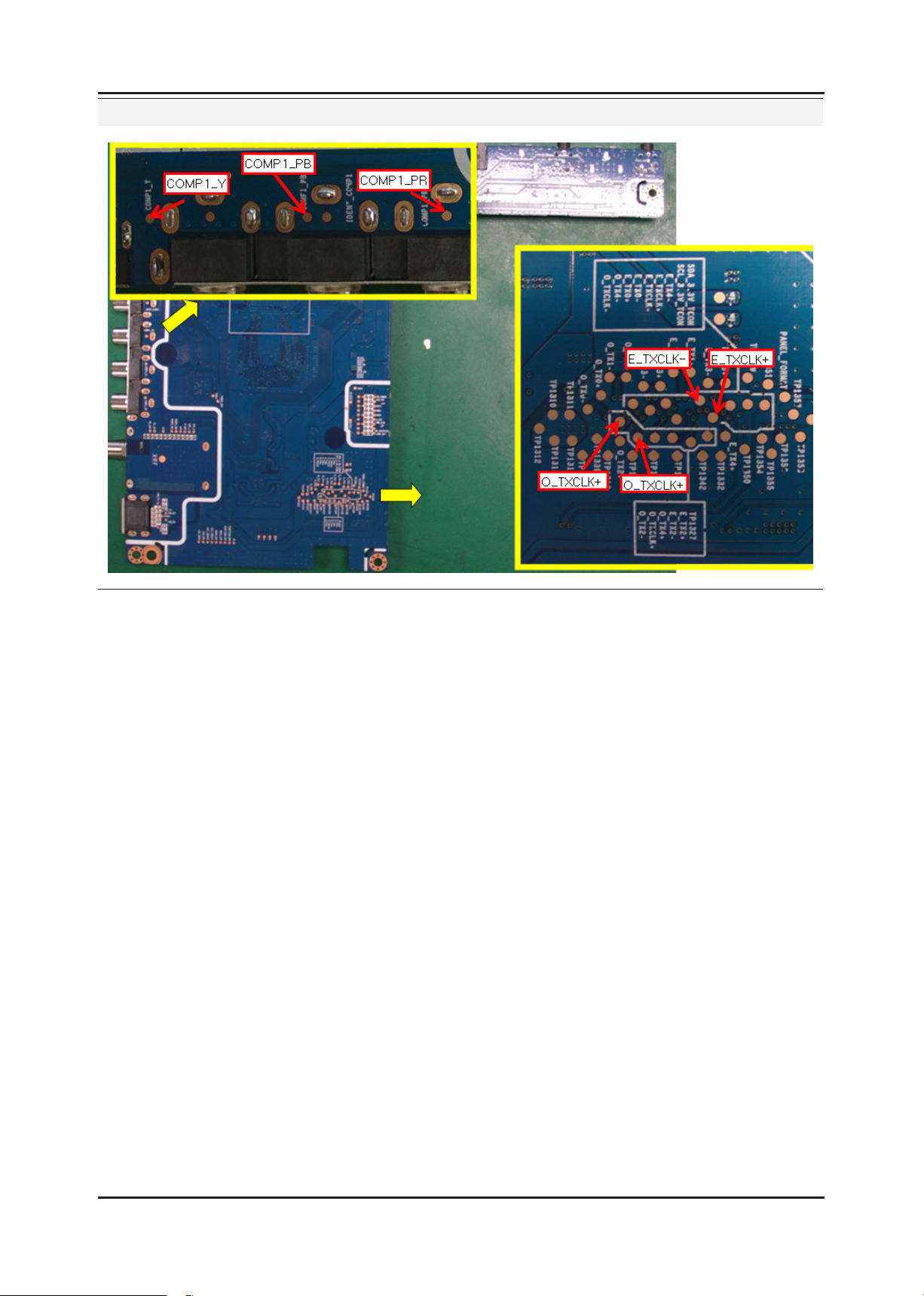

Location (Main) - BOTTOM
Page 77
4-22
4. Troubleshooting

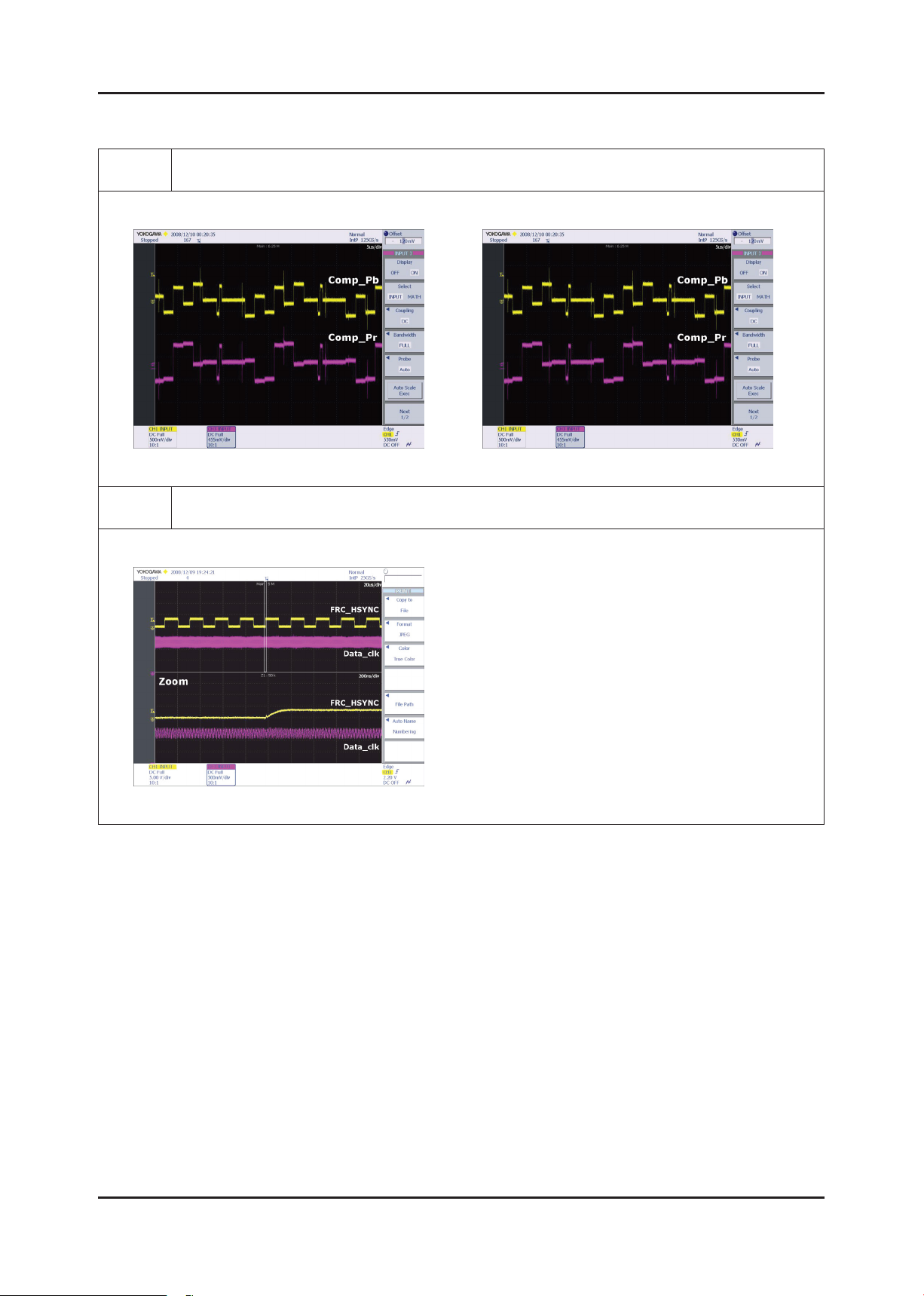

WAVEFORMS
5
2
Compnent_Y (Gray scale) / Pb / Pr (Color bar)
LVDS output
Page 78
4-23
4. Troubleshooting
4-1-9. No Sound (A Type)
Symptom Video is normal but there is no sound.. -
Major
checkpoints
When the speaker connectors are disconnected or damaged. -
When the sound processing part of the Main Board is not functioning. -
Speaker defect.. -
Check the source and
check the connection of sound cable
(Comp/PC/DVI to HDMI) ?
Yes
Does the sound data appear at
TP - COMP1_SR, COMP1_SL (Comp R/L)
TP - 912, 913 (PC/DVI R/L)
TP - MONITOR_R, MONITOR_L
(MONITOR OUT R/L) ?
Yes
Does the DC B3.3V, B12VS
appear at BD213V, TP- B13VS?
Yes
No
No
No
Input the sound source properly.
Check CN701, CN902, CN1201.
Change the Main Assy.
Change the Main Assy.
Diagnostics
7
Does the sound data appear at
TP - L-, L+, R-, R+ ?
Yes
Replace speaker ?
TBD
No
No
Check IC301 (SX1).
Check IC1202 (Sound AMP).
Change the Main Assy.
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 79
4-24
4. Troubleshooting

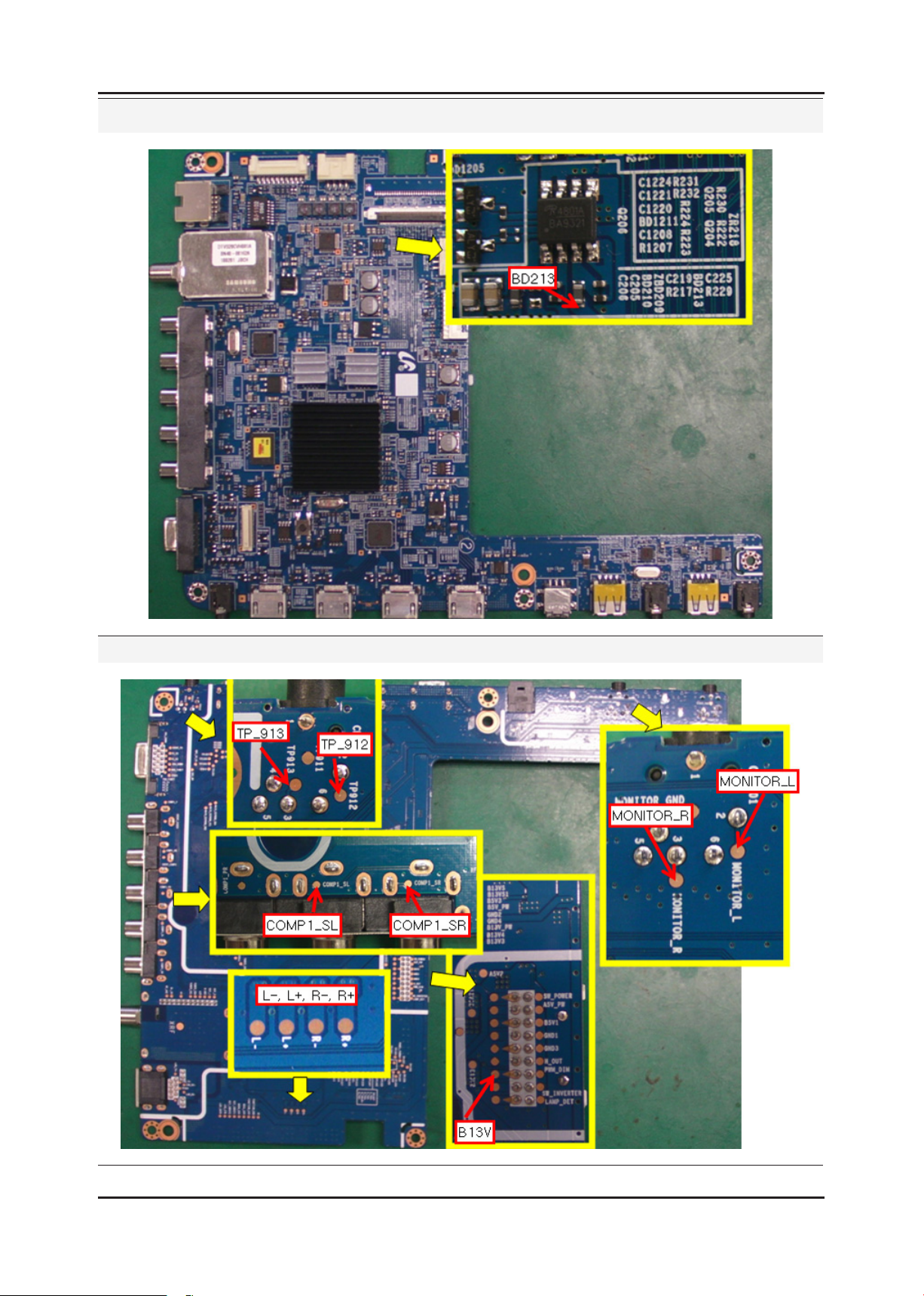

Location (Main) - TOP
Location (Main) - BOTTOM
Page 80
4-25
4. Troubleshooting
WAVEFORMS
Speaker out
7
Page 81
4-26
4. Troubleshooting
4-1-2. No Power (B Type)
The LEDs on the front panel do not work when connecting the power cord. -
Symptom
Major
checkpoints
The SMPS relay does not work when connecting the power cord. The units appears to be dead. -
The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
Check the internal cable connection status inside the unit. Check the fuses of each part. Check the output voltage of SMPS. Replace the Main Board. -
Diagnostics
Lamp(Backlight) Off,
power indicator LED on?
Yes
Does proper Stand-By DC A5V
appear at TP - A5V?
Yes
Does proper Main DC B13V, B5V
appear at TP - B13V, B5V?
Yes
Does proper DC A3.3V
appear at TP - A3.3V?
Yes
Does proper B3.3V, B1.9V
appear at BD202 (B3.3V)
BD2005, BD2011 (DDR B1.9V)?
Yes
Does proper DC B13V
appear at LVDS connector
Pin #1~5 of T-con b'd?
No
No
No
No
No
No
Change 18p power cable.
Change the Main Assy.
Change the LVDS cable.
Yes
Does proper DC B12V
appear at F1 of T-con b'd ?
Yes
A power is supplied to set?
Caution Make sure to disconnect the power before working on the IP board.
No
No
Change the T-con b'd.
(except for 4000 series)
Check a other function.
(No picture part)
Replace a LCD Panel.
Page 82
4-27
4. Troubleshooting
BD219
BD213
B13V
B5V
A5V
A3.3V
SPI_3.3V
F1
40” T-Con
Pin #1~5

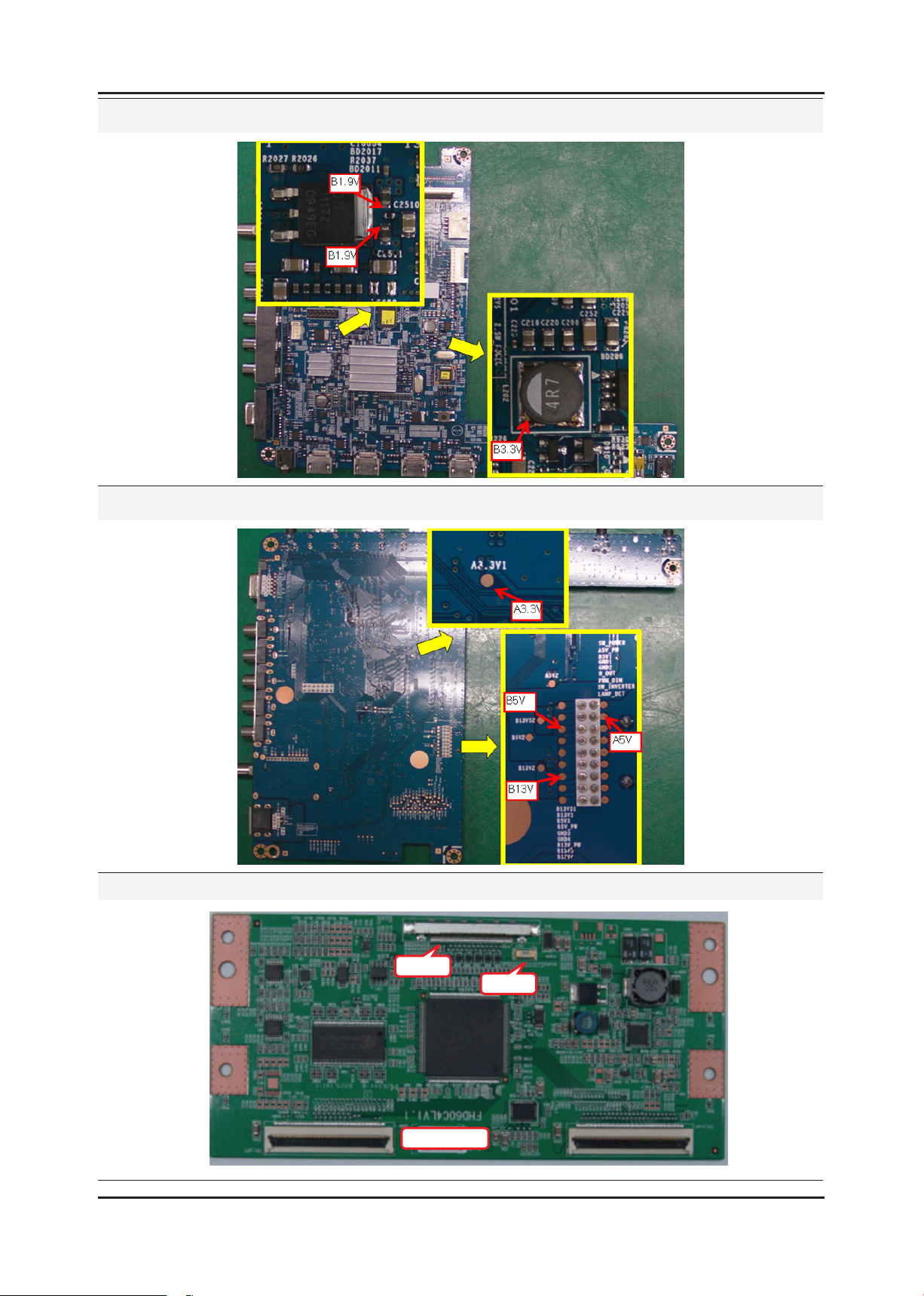

Location (Main) - TOP
Location (Main) - BOTTOM
Location (T-CON)
Page 83
4-28
4. Troubleshooting
4-1-3. No Video_Analog PC signal (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the PC source -
Check the Arsenal, Check the Chelsea. This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the PC source and
check the connection of D-SUB ?
Yes
Does the signal appear at
1
TP - PC_R, PC_G, PC_B, PC_HS, PC_VS
(R, G, B, H, V) ?
Yes
Does the digital data appear at
2
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
or 'DPMS mode'.
Input the analog PC signal properly.
Check CN901, PC cable.
Change the Main Assy.
Check IC3002 (X4).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 84
4-29
4. Troubleshooting

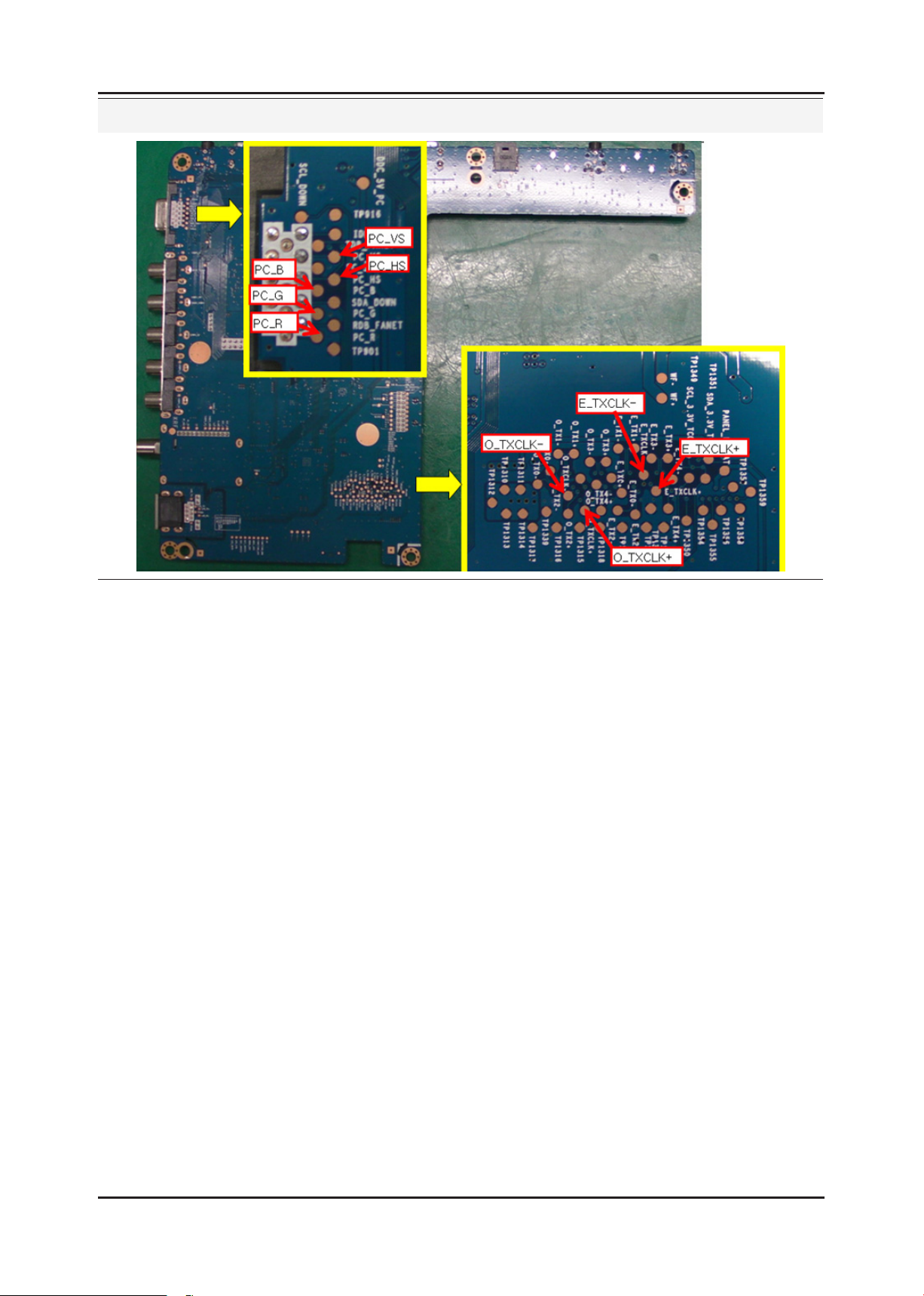

Location (Main) - BOTTOM
Page 85
4-30
4. Troubleshooting

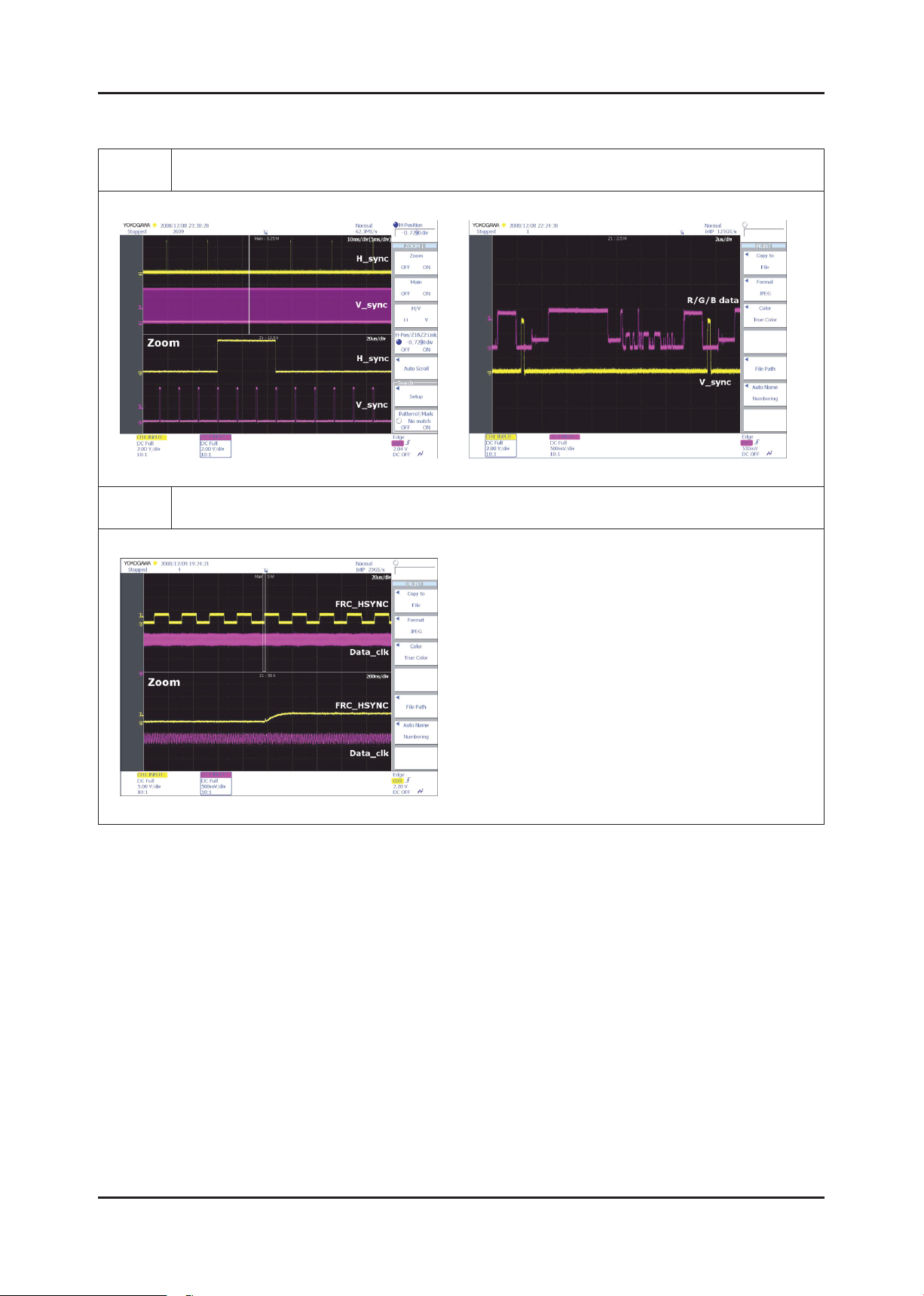

WAVEFORMS
1
2
PC input (V-sink , H-sink , R/G/B)
LVDS output
Page 86
4-31
4. Troubleshooting
4-1-4. No video_HDMI 1, 2, 3, 4 - Digital signal (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the HDMI source. -
Check the HDMI switch, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the HDMI source and
check the connection of HDMI cable ?
Yes
Does the signal appear at
CN1002 (Pin#12 , #7 )(HDMI1)
3
2
CN1003 (Pin#12 , #7 )(HDMI2)
CN1004 (Pin#12 , #7 )(HDMI3)
CN1001 (Pin#12 , #7 )(HDMI4)
(HDMI RX_Clk , RX_Data) ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the HDMI signal properly.
Check CN1001, CN1002.
CN1003, CN1004.
Check HDMI cable.
Change the Main Assy.
Check IC302 (SX4).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 87
4-32
4. Troubleshooting

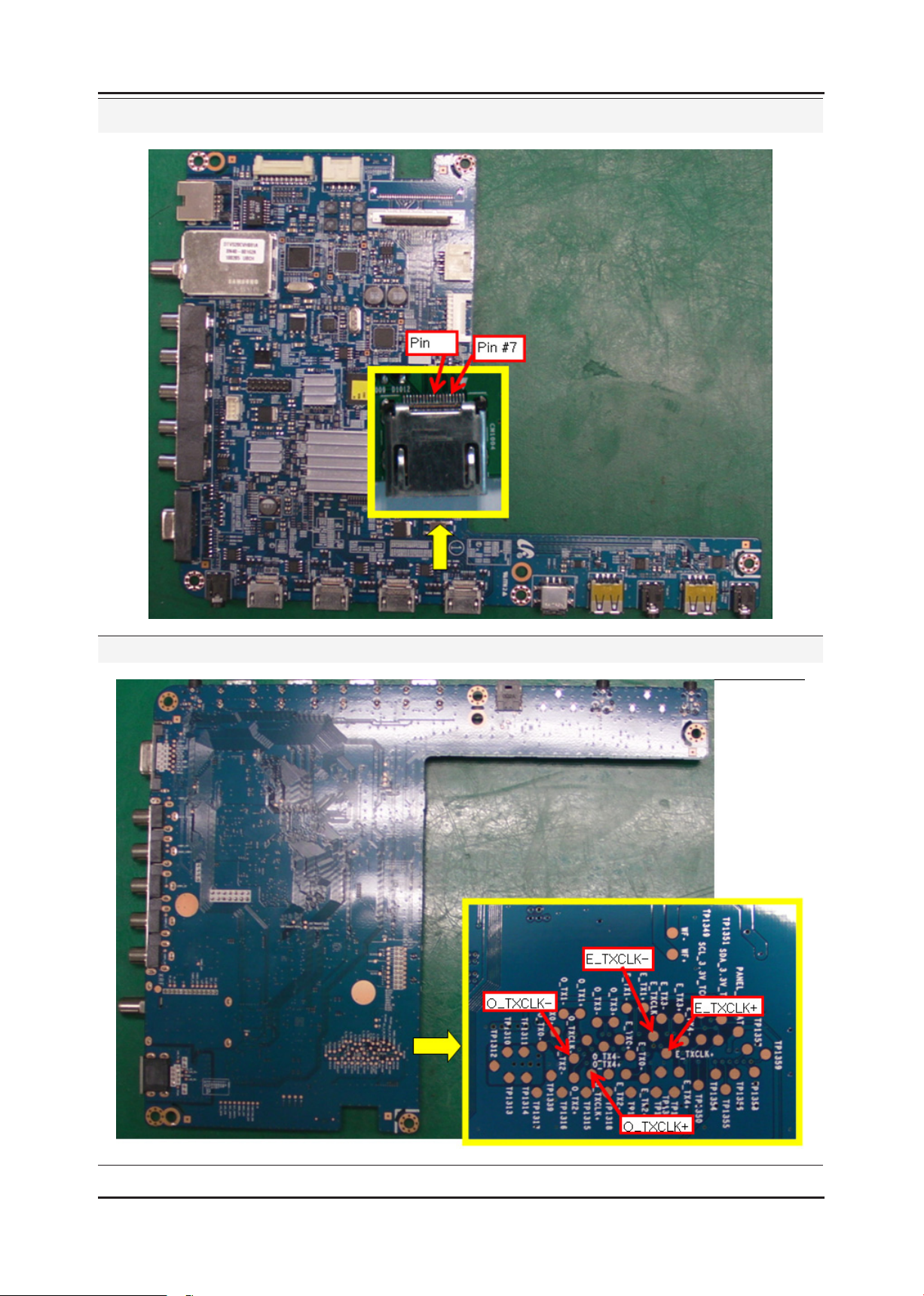

Location (Main) - TOP
Location (Main) - BOTTOM
Page 88
4-33
4. Troubleshooting

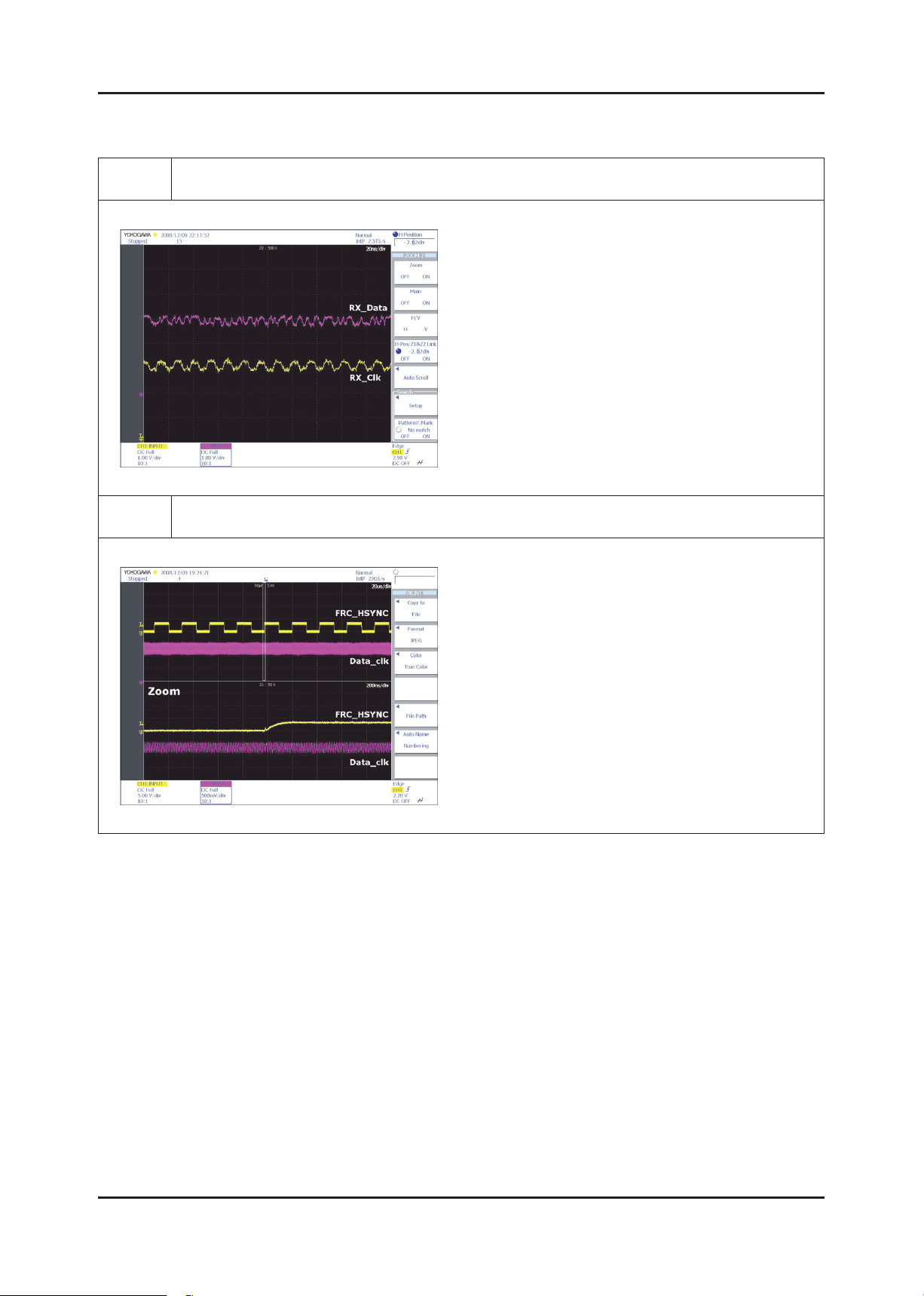

WAVEFORMS
3
2
HDMI input (RX_Data, RX_Clk)
LVDS output
Page 89
4-34
4. Troubleshooting

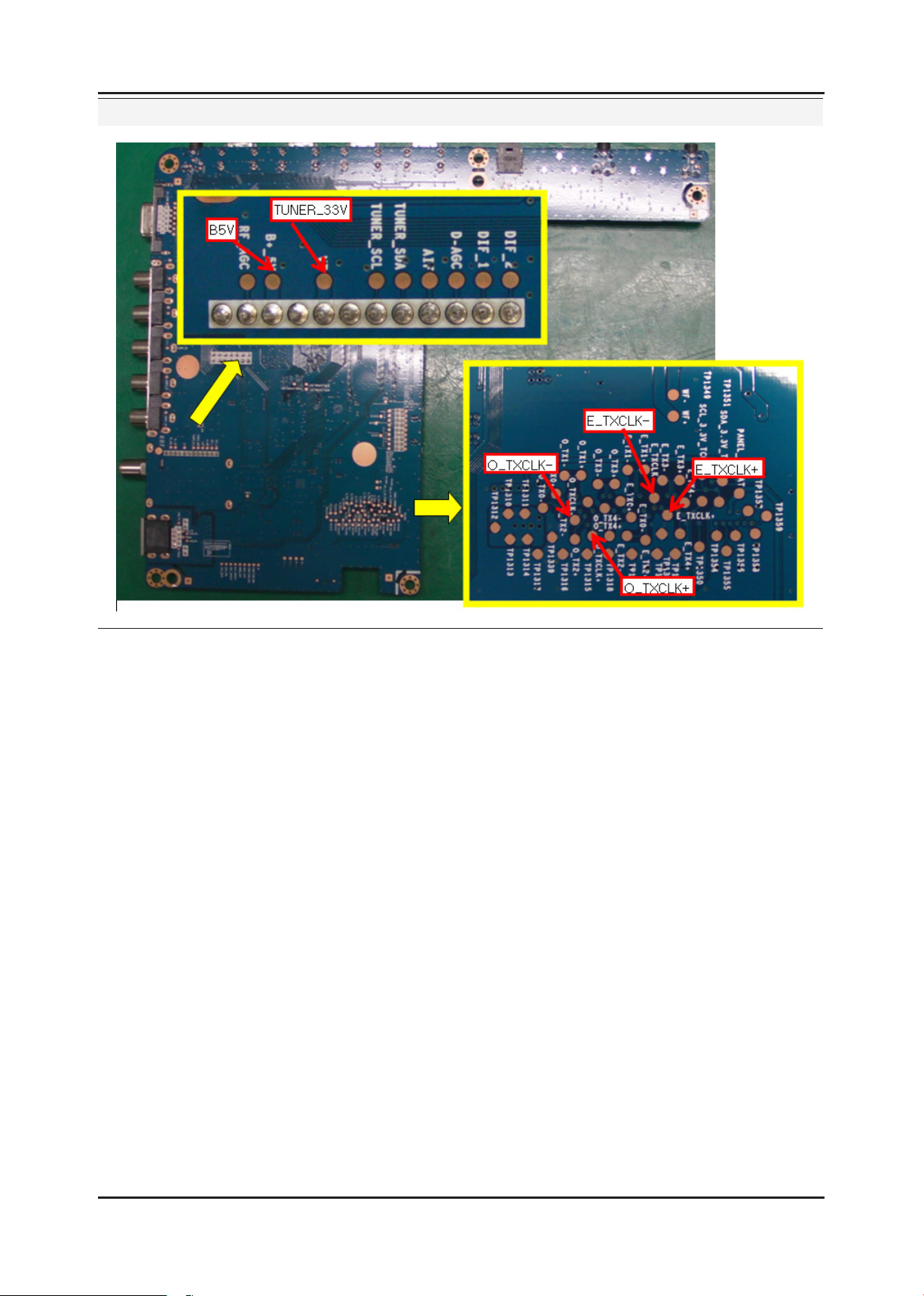

4-1-5. No Video_Tuner CVBS (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
2
Check the Tuner CVBS source. -
Check the Tuner, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and
check the connection of RF cable ?
Yes
Does the DC TU5V_PW, TU33V_PW
appear at TP - TUNER_33V, B 5V
Pin of Tuner ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the RF source properly.
Change the Main Assy.
Check IC302 (SX4).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 90
4-35
4. Troubleshooting
Location (Main) - BOTTOM
Page 91
4-36
4. Troubleshooting
WAVEFORMS
LVDS output
2
Page 92
4-37
4. Troubleshooting
4-1-6. No Video_Tuner DTV (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the DTV source. -
Check the Tuner, Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the RF source and
check the connection of RF cable ?
Yes
Check the 'signal strength' in Self Diagnosis
menu Strength is enough ?
Yes
Does the DC TU5V_PW, TU33V_PW
appear at TP - TUNER_33V, B 5V
Pin of Tuner ?
Yes
No
No
No
No
Check a set in the 'Stand-by mode'
Input the RF source properly.
Check the D-TV source.
Change the Main Assy.
Diagnostics
2
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
No
Check IC302 (SX4).
Change the Main Assy.
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 93
4-38
4. Troubleshooting

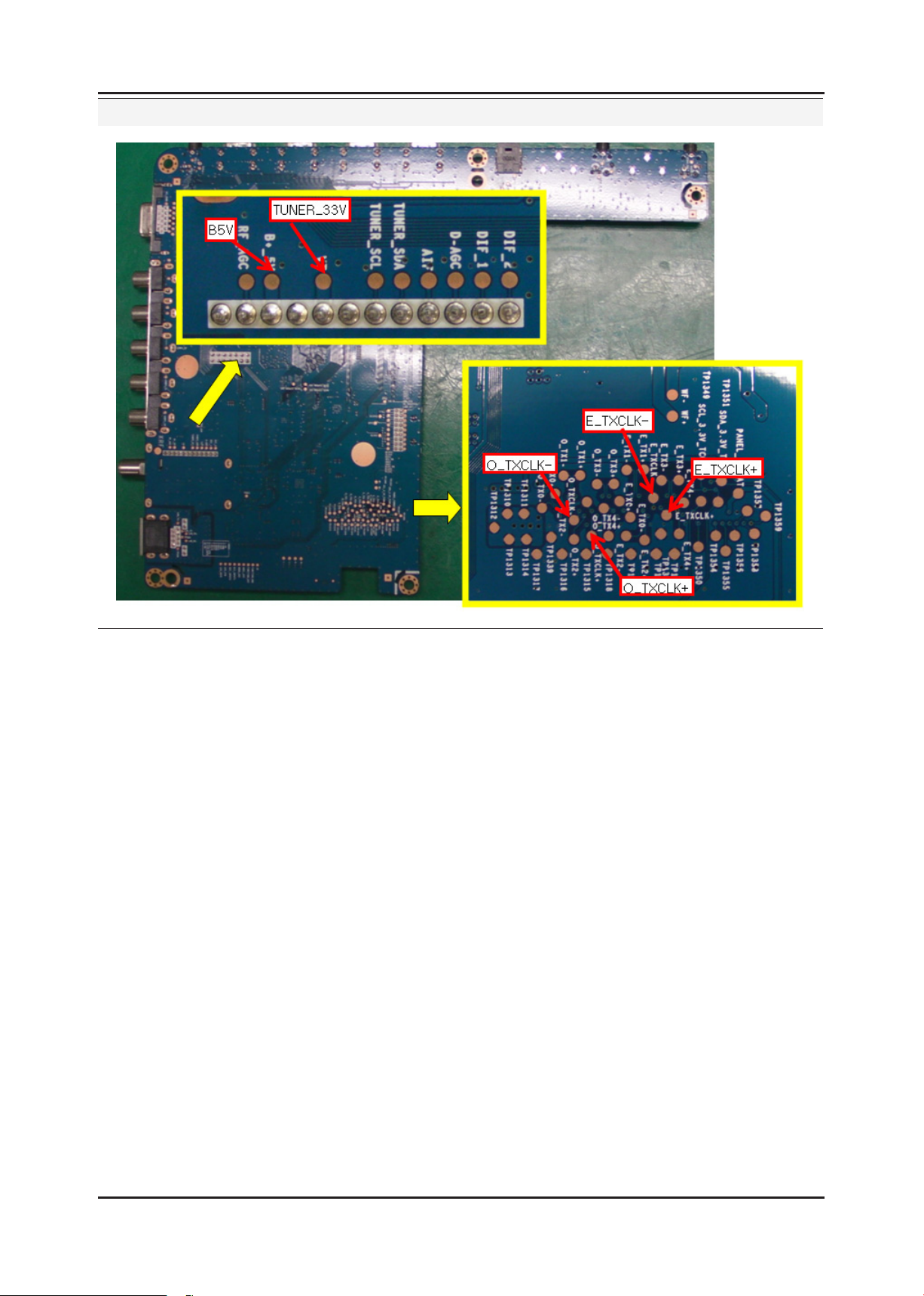

Location (Main) - BOTTOM
Page 94
4-39
4. Troubleshooting
WAVEFORMS
2
LVDS output
Page 95
4-40
4. Troubleshooting
4-1-7. No Video_Video CVBS (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
4
2
Check the Video CVBS source -
Check the Chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the video source and
check the connection of video cable?
Yes
Does the CVBS data appear at
TP - COMP1_Y ?
Yes
Does the digital data appear at
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'.
Input the video source properly.
Check CN701.
Change the Main Assy.
Check IC302 (SX4).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 96
4-41
4. Troubleshooting

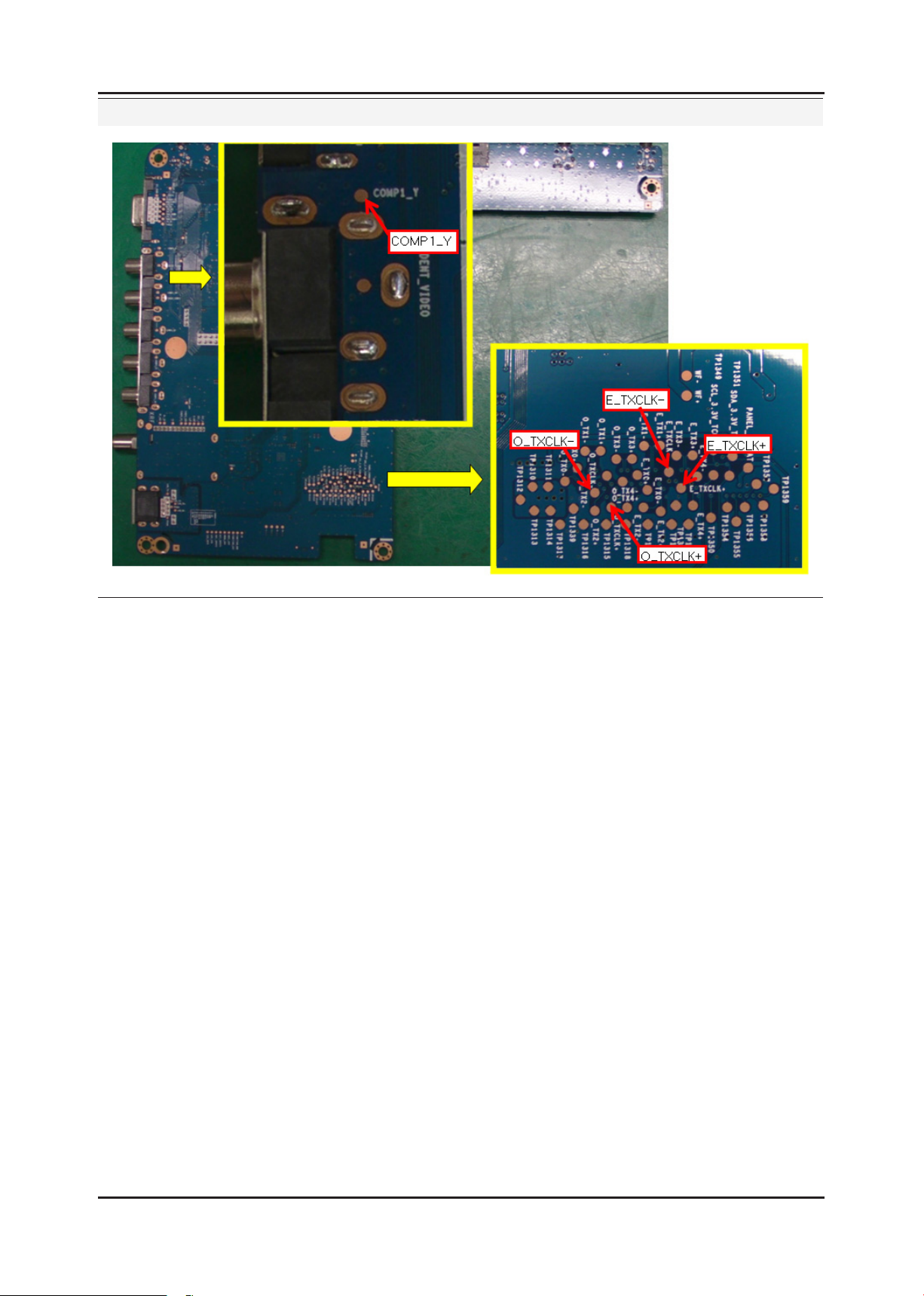

Location (Main) - BOTTOM
Page 97
4-42
4. Troubleshooting

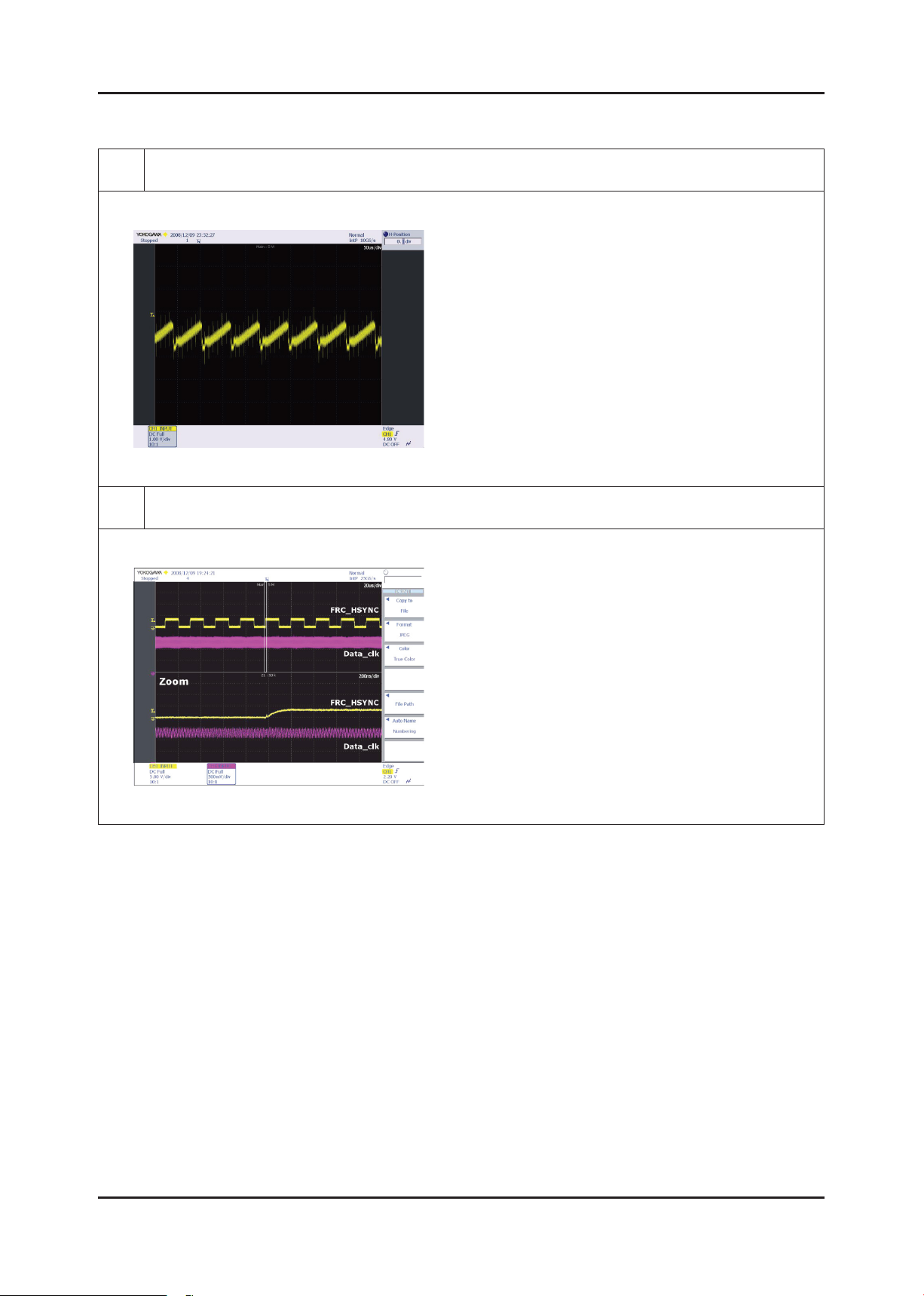

WAVEFORMS
CVBS OUT (Grey Bar)
4
LVDS output
2
Page 98
4-43
4. Troubleshooting
4-1-8. No Video_Component (B Type)
Symptom Audio is normal but no picture is displayed on the screen. -
Major
checkpoints
Check the Component source -
Check the chelsea. -
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -
Power indicator LED is off.
Lamp(Backlight) on, no video ?
Yes
Check the component source and
check the connection of component
cables(Y,Pb,Pr)?
Yes
Does the component data appear at
5
TP - COMP1_Y, COMP1_PB, COMP1_PR
(Comp / Y, Pb, Pr) ?
Yes
Does the digital data appear at
2
TP - O_TXCLK+, O_TXCLK-,
F_TXCLK+, F_TXCLK- ?
No
No
No
No
Check a set in the 'Stand-by mode'
Input the component source properly.
Check CN701.
Change the Main Assy.
Check IC302 (SX4).
Change the Main Assy.
Diagnostics
Yes
Check the LVDS cable?
Check the T-Con B'd?
Replace the LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the IP board.
Page 99
4-44
4. Troubleshooting

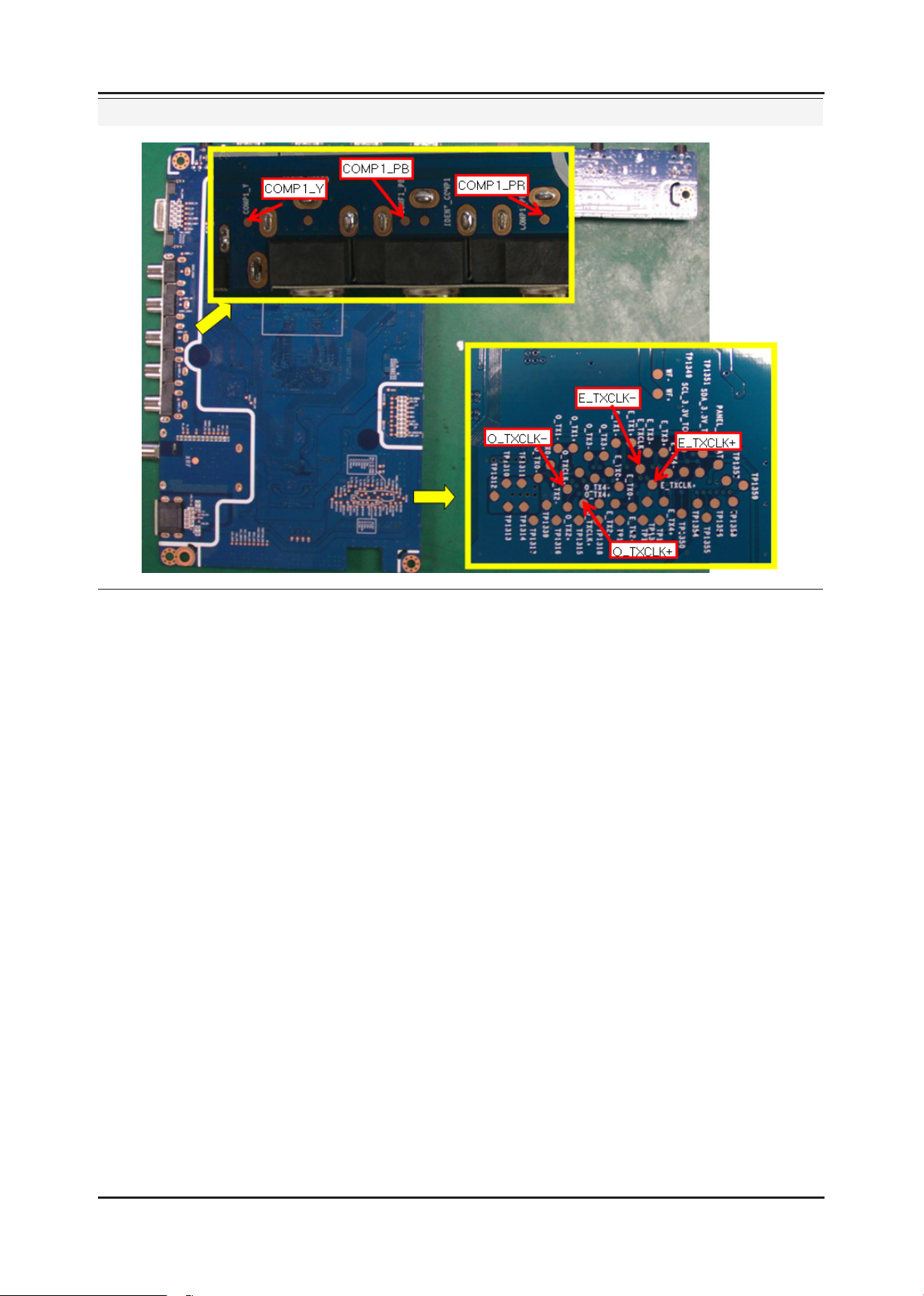

Location (Main) - BOTTOM
Page 100
4-45
4. Troubleshooting
WAVEFORMS
5
2
Compnent_Y (Gray scale) / Pb / Pr (Color bar)
LVDS output
Loading...
