Diagnostic Ultrasound System
Reference Manual
Version 1.00.00
English
Page 4
Page 5
PART 1. OB Reference
OB Reference 4
Gestational aGe Formula and table list 4
ABDOMINAL CIRCUMFERENCE AC
HADLOCK 4
HANSMANN 4
MERZ 4
SHINOZUKA 7
BIPARIETAL DIAMETER BPD
HADLOCK 9
HANSMANN 9
MERZ 10
OSAKA 12
REMPEN 16
SHINOZUKA 17
TOKYO 18
CROWNRUMP LENGTH CRL
HADLOCK 20
HANSMANN 21
OSAKA 22
REMPEN 23
SHINOZUKA 24
TOKYO 25
FEMUR LENGTH FL
HADLOCK 26
HANSMANN 26
MERZ 27
SHINOZUKA 28
GESTATIONAL SAC GS:
HANSMANN 30
REMPEN 30
TOKYO 31
HEAD CIRCUMFERENCE HC:
HADLOCK 32
HANSMANN 32
MERZ 33
Fetal ratio reFerence 36
FEMUR LENGTH/HEAD CIRCUMFERENCE FL/HC
HADLOCK 36
HEAD CIRCUMFERENCE/ABDOMINAL
CIRCUMFERENCEHC/AC
CAMPBELL 36
FEMUR LENGTH/ABDOMINAL CIRCUMFERENCE FL/AC
HADLOCK 37
FEMUR LENGTH/BIPARIETAL DIAMETER FL/BPD
HOHLER 37
Table of Contents
Page 6
Reference Manual 2
estimated Fetal WeiGht Formula/alGorithm 37
Methods using (AC, FL) 37
Methods using (BPD, AC, FL) 38
Methods using (HC, AC, FL) 38
estimated Fetal WeiGht GroWth reFerence 39
ESTIMATED FETAL WEIGHT EFW
BRENNER 39
DOUBILET 39
HADLOCK 39
JOHNSEN 40
JSUM 40
OSAKA 41
SHINOZUKA 43
TOKYO 43
WILLIAMS 45
YARKONI 45
PART 2. Other applications

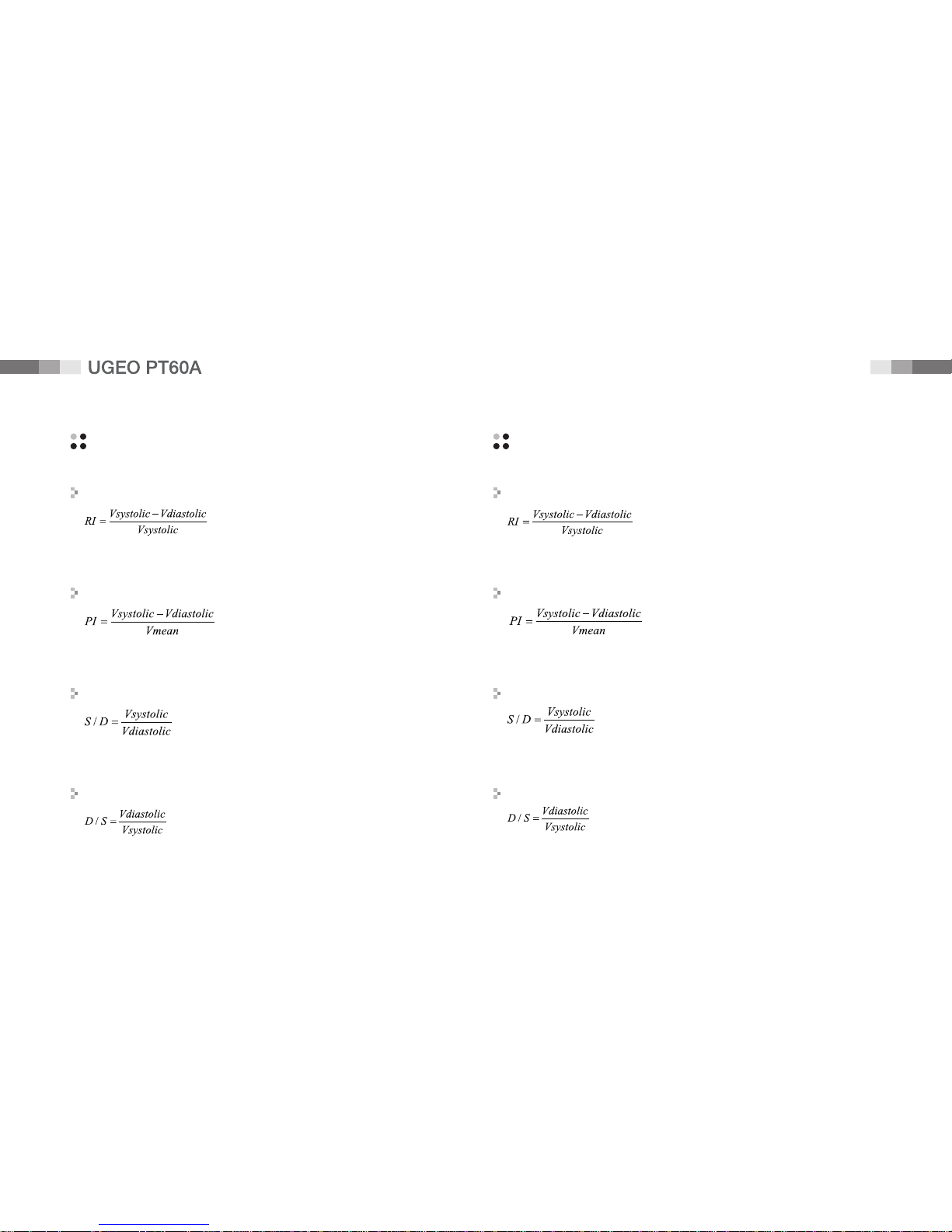

Vascular reFerence 46
Resistivity Index 46
Pulsatility Index 46
S/D (ratio of Systolic to Diastolic Velocity) 46
D/S (ratio of Diastolic to Systolic Velocity) 46
GynecoloGy reFerence 46
Resistivity Index 46
Pulsatility Index 46
S/D (ratio of Systolic to Diastolic Velocity) 46
D/S (ratio of Diastolic to Systolic Velocity) 46

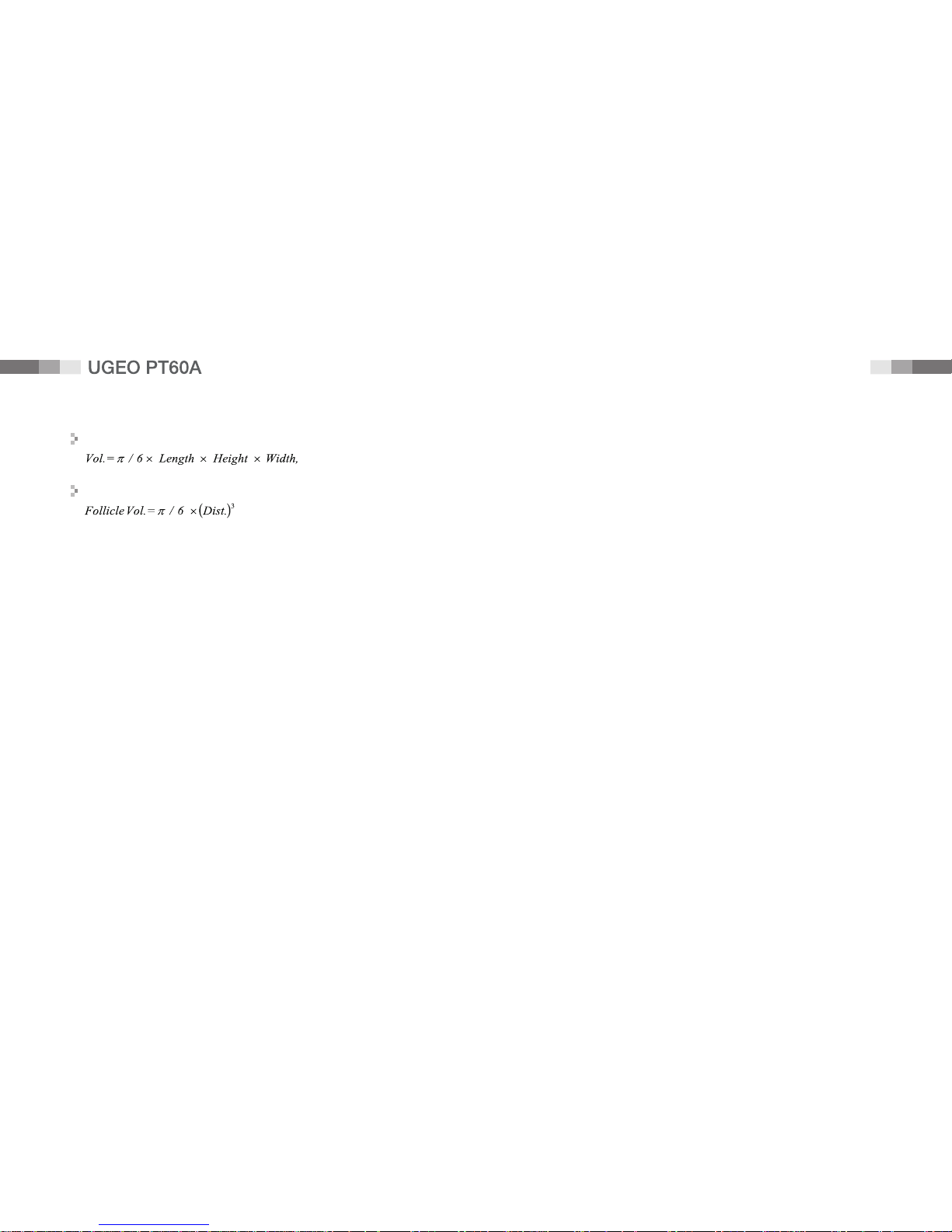

Vol. 47
Follicle Vol. 47
Page 7
Reference Manual 3
PART 3. Acoustic Output Tables
Acoustic Output Tables 48
iec 60601-2-37 tables 48
Symbols and Denitions 48
Explanatory Notes 49
C2-8 50
C2-5 51
LN5-12 53
LS6-15 54
PN2-4 56
Fda tables 58
Symbols and Denitions 58
Explanatory Notes 59
C2-8 60
C2-5 61
LN5-12 63
LS6-15 64
PN2-4 66
Patient-aPPlied Part temPerature table 67
Page 8
Reference Manual 4
OB Reference
Gestational Age Formula and Table List
Abdominal Circumference (AC): HADLOCK
GA Table
"Hadlock,F.P., Deter,R.L., Harrist,R.B., Park,S.K.,” Estimating fetal age: computer-assisted
analysis of multiple fetal growth parameters”, Radiology Vol. 152 No. 2, 1984, pages 497501"
GA = 8.14 + 0.753 × AC + 0.0036 × (AC
2
)
Output Unit: w (weeks)
Input Unit: cm
Min Range: 5cm
Max Range: 38cm
Fetal Growth Table
Hadlock F.P., Deter R.L., Harrist R.B., Park S.K. “Estimating Fetal Age: Computer-Assisted
Analysis of Multiple Fetal Growth Parameters” Radiology 1984; 152: 497-501
AC = –13.3 + 1.61 × {GA} – 0.00998 × {GA}
2
Output Unit: cm
Input Unit: w (week)
Min Range: 12w
Max Range: 40w
Abdominal Circumference (AC): HANSMANN
GA Table
"Hansmann, Hackelöer, Staudach, “Ultrasound Diagnosis in Obstetrics and Gynecology”
Springer-Verlag, New York, 1986, p.431."
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
5.3 84.0 15.5 154.0 24.9 224.0
6.3 91.0 16.5 161.0 25.8 231.0
7.5 98.0 17.3 168.0 26.8 238.0
8.5 105.0 18.3 175.0 27.7 245.0
9.7 112.0 19.1 182.0 28.7 252.0
10.7 119.0 20.2 189.0 29.6 259.0
11.6 126.0 21.1 196.0 30.6 266.0
12.6 133.0 22.2 203.0 31.5 273.0
13.5 140.0 23.0 210.0 32.0 280.0
14.5 147.0 24.0 217.0
Abdominal Circumference (AC): MERZ
GA Table
"E. Merz, W. Goldhofer, E. Timor-Tritsch “Ultrasound in Gynecology and Obstetrics” Text book
and Atlas, 1991 Georg Thieme Verlag, pp.326"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
5.6 76.0 85.0 93.0 20.4 171.0 183.0 195.0
Page 9
Reference Manual 5
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
5.8 78.0 86.0 95.0 20.6 172.0 185.0 197.0
6.0 79.0 88.0 96.0 20.8 174.0 186.0 198.0
6.2 81.0 89.0 97.0 21.0 175.0 188.0 200.0
6.4 82.0 90.0 99.0 21.2 176.0 189.0 201.0
6.6 83.0 92.0 100.0 21.4 177.0 190.0 202.0
6.8 84.0 93.0 102.0 21.6 179.0 191.0 204.0
7.0 85.0 95.0 103.0 21.8 180.0 193.0 205.0
7.2 87.0 95.0 104.0 22.0 181.0 194.0 207.0
7.4 88.0 97.0 106.0 22.2 183.0 195.0 208.0
7.6 90.0 98.0 107.0 22.4 184.0 197.0 209.0
7.8 90.0 99.0 109.0 22.6 185.0 198.0 211.0
8.0 92.0 101.0 110.0 22.8 186.0 200.0 212.0
8.2 93.0 102.0 111.0 23.0 188.0 201.0 214.0
8.4 95.0 104.0 113.0 23.2 189.0 202.0 215.0
8.6 96.0 105.0 114.0 23.4 190.0 203.0 216.0
8.8 97.0 106.0 116.0 23.6 192.0 204.0 218.0
9.0 98.0 108.0 117.0 23.8 193.0 206.0 219.0
9.2 99.0 109.0 118.0 24.0 194.0 207.0 221.0
9.4 101.0 110.0 120.0 24.2 195.0 209.0 222.0
9.6 102.0 111.0 121.0 24.4 197.0 210.0 223.0
9.8 104.0 113.0 123.0 24.6 198.0 211.0 225.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
10.0 104.0 114.0 124.0 24.8 199.0 213.0 226.0
10.2 106.0 116.0 125.0 25.0 200.0 214.0 228.0
10.4 107.0 117.0 127.0 25.2 202.0 216.0 229.0
10.6 109.0 118.0 128.0 25.4 203.0 216.0 230.0
10.8 110.0 120.0 129.0 25.6 204.0 218.0 232.0
11.0 111.0 121.0 130.0 25.8 206.0 219.0 233.0
11.2 112.0 122.0 132.0 26.0 207.0 221.0 235.0
11.4 113.0 123.0 133.0 26.2 208.0 222.0 236.0
11.6 115.0 125.0 134.0 26.4 209.0 223.0 237.0
11.8 116.0 126.0 136.0 26.6 211.0 225.0 239.0
12.0 118.0 127.0 137.0 26.8 212.0 226.0 240.0
12.2 119.0 129.0 139.0 27.0 214.0 228.0 242.0
12.4 120.0 130.0 140.0 27.2 214.0 229.0 243.0
12.6 121.0 132.0 141.0 27.4 216.0 230.0 244.0
12.8 123.0 133.0 143.0 27.6 217.0 231.0 246.0
13.0 124.0 134.0 144.0 27.8 218.0 232.0 247.0
13.2 125.0 135.0 146.0 28.0 220.0 234.0 249.0
13.4 126.0 137.0 147.0 28.2 221.0 235.0 250.0
13.6 127.0 138.0 148.0 28.4 222.0 237.0 251.0
13.8 129.0 139.0 150.0 28.6 223.0 238.0 253.0
14.0 130.0 141.0 151.0 28.8 225.0 239.0 254.0
Page 10
Reference Manual 6
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
14.2 132.0 142.0 153.0 29.0 226.0 241.0 256.0
14.4 133.0 144.0 154.0 29.2 228.0 242.0 257.0
14.6 134.0 145.0 155.0 29.4 228.0 243.0 258.0
14.8 135.0 146.0 157.0 29.6 230.0 244.0 260.0
15.0 137.0 148.0 158.0 29.8 231.0 246.0 260.0
15.2 138.0 148.0 160.0 30.0 232.0 247.0 262.0
15.4 139.0 150.0 161.0 30.2 234.0 249.0 263.0
15.6 141.0 151.0 162.0 30.4 235.0 250.0 265.0
15.8 141.0 153.0 164.0 30.6 236.0 251.0 266.0
16.0 143.0 154.0 165.0 30.8 237.0 253.0 267.0
16.2 144.0 155.0 167.0 31.0 239.0 254.0 269.0
16.4 146.0 157.0 168.0 31.2 240.0 256.0 270.0
16.6 147.0 158.0 169.0 31.4 242.0 256.0 272.0
16.8 148.0 160.0 171.0 31.6 242.0 258.0 273.0
17.0 149.0 161.0 172.0 31.8 244.0 259.0 274.0
17.2 151.0 162.0 174.0 32.0 245.0 260.0 276.0
17.2 151.0 162.0 174.0 32.0 245.0 260.0 276.0
17.4 152.0 163.0 175.0 32.2 246.0 262.0 277.0
17.6 153.0 165.0 176.0 32.4 248.0 263.0 279.0
17.8 155.0 166.0 178.0 32.6 249.0 265.0 280.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
18.0 155.0 167.0 179.0 32.8 250.0 266.0 281.0
18.2 157.0 169.0 181.0 33.0 251.0 267.0 283.0
18.4 158.0 170.0 182.0 33.2 253.0 269.0 284.0
18.6 160.0 172.0 183.0 33.4 254.0 270.0 286.0
18.8 161.0 173.0 185.0 33.6 256.0 271.0 287.0
19.0 162.0 174.0 186.0 33.8 257.0 272.0 288.0
19.2 163.0 175.0 188.0 34.0 258.0 274.0 290.0
19.4 165.0 176.0 189.0 34.2 259.0 275.0 291.0
19.6 166.0 178.0 190.0 34.4 260.0 277.0 293.0
19.8 167.0 179.0 192.0 34.6 262.0 278.0 294.0
20.0 169.0 181.0 193.0 34.8 263.0 279.0 295.0
20.2 170.0 182.0 195.0
Fetal Growth Tabl
Merz E., Wellek S.
“Normal Fetal Development Proles A Model to obtain Standard Development Graphs for
the Head and Abdominal Parameters and the Long Limb Bones”Ultraschall in der Medizin
17 (1996) 153-162
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
88 5.000 6.200 7.400 193 20.200 22.200 24.200
91 5.500 6.700 8.000 196 20.700 22.700 24.700
Page 11
Reference Manual 7
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
95 6.000 7.300 8.500 200 21.200 23.200 25.200
98 6.500 7.800 9.100 203 21.700 23.700 25.700
102 7.100 8.300 9.600 207 22.100 24.200 26.300
105 7.600 8.900 10.200 210 22.600 24.700 26.800
109 8.100 9.400 10.800 214 23.100 25.200 27.300
112 8.600 10.000 11.400 217 23.500 25.700 27.800
116 9.100 10.500 11.900 221 24.000 26.200 28.300
119 9.600 11.100 12.500 224 24.400 26.600 28.800
123 10.200 11.600 13.100 228 24.900 27.100 29.300
126 10.700 12.200 13.600 231 25.300 27.600 29.800
130 11.200 12.700 14.200 235 25.800 28.000 30.300
133 11.700 13.200 14.800 238 26.200 28.500 30.800
137 12.200 13.800 15.300 242 26.600 28.900 31.300
140 12.700 14.300 15.900 245 27.000 29.400 31.700
144 13.300 14.900 16.500 249 27.500 29.800 32.200
147 13.800 15.400 17.000 252 27.900 30.300 32.700
151 14.300 15.900 17.600 256 28.300 30.700 33.100
154 14.800 16.500 18.100 259 28.700 31.100 33.600
158 15.300 17.000 18.700 263 29.000 31.500 34.000
161 15.800 17.500 19.300 266 29.400 31.900 34.400
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
165 16.300 18.100 19.800 270 29.800 32.300 34.800
168 16.800 18.600 20.400 273 30.100 32.700 35.200
172 17.300 19.100 20.900 277 30.500 33.100 35.600
175 17.800 19.600 21.500 280 30.800 33.400 36.000
179 18.300 20.200 22.000 284 31.100 33.800 36.400
182 18.800 20.700 22.600 287 31.400 34.100 36.700
186 19.300 21.200 23.100 291 31.700 34.300 37.000
189 19.800 21.700 23.600
Abdominal Circumference (AC): SHINOZUKA
GA Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, University of Tokyo Faculty of
Medicine,“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
10.0 100.0 108.0 116.0 8.0 22.0 180.0 192.0 204.0 12.0
10.5 104.0 112.0 120.0 8.0 22.5 184.0 196.0 208.0 12.0
11.0 108.0 116.0 124.0 8.0 23.0 188.0 200.0 212.0 12.0
11.5 111.0 119.0 127.0 8.0 23.5 191.0 203.0 215.0 12.0
Page 12
Reference Manual 8
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
12.0 114.0 123.0 132.0 9.0 24.0 194.0 207.0 220.0 13.0
12.5 117.0 126.0 135.0 9.0 24.5 198.0 211.0 224.0 13.0
13.0 121.0 130.0 139.0 9.0 25.0 202.0 215.0 228.0 13.0
13.5 124.0 133.0 142.0 9.0 25.5 206.0 219.0 232.0 13.0
14.0 128.0 137.0 146.0 9.0 26.0 210.0 223.0 236.0 13.0
14.5 131.0 140.0 149.0 9.0 26.5 214.0 227.0 240.0 13.0
15.0 133.0 143.0 153.0 10.0 27.0 219.0 232.0 245.0 13.0
15.5 137.0 147.0 157.0 10.0 27.5 222.0 236.0 250.0 14.0
16.0 140.0 150.0 160.0 10.0 28.0 226.0 240.0 254.0 14.0
16.5 144.0 154.0 164.0 10.0 28.5 231.0 245.0 259.0 14.0
17.0 147.0 157.0 167.0 10.0 29.0 235.0 249.0 263.0 14.0
17.5 150.0 160.0 170.0 10.0 29.5 240.0 254.0 268.0 14.0
18.0 153.0 164.0 175.0 11.0 30.0 245.0 259.0 273.0 14.0
18.5 156.0 167.0 178.0 11.0 30.5 250.0 264.0 278.0 14.0
19.0 160.0 171.0 182.0 11.0 31.0 253.0 268.0 283.0 15.0
19.5 163.0 174.0 185.0 11.0 31.5 258.0 273.0 288.0 15.0
20.0 167.0 178.0 189.0 11.0 32.0 264.0 279.0 294.0 15.0
20.5 170.0 181.0 192.0 11.0 32.5 269.0 284.0 299.0 15.0
21.0 173.0 185.0 197.0 12.0 33.0 274.0 289.0 304.0 15.0
21.5 177.0 189.0 201.0 12.0
Fetal Growth Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, Faculty of Medicine University of Tokyo
“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
16 9.300 10.900 12.500 30 22.000 24.700 27.300
17 10.300 12.000 13.600 31 22.800 25.600 28.300
18 11.200 13.000 14.700 32 23.500 26.500 29.200
19 12.200 14.000 15.800 33 24.300 27.300 30.100
20 13.100 15.100 16.900 34 25.000 28.100 31.000
21 14.000 16.100 18.000 35 25.700 28.900 31.900
22 15.000 17.100 19.100 36 26.400 29.700 32.700
23 15.900 18.100 20.200 37 27.000 30.400 33.500
24 16.800 19.100 21.200 38 27.600 31.100 34.300
25 17.700 20.100 22.300 39 28.200 31.800 35.000
26 18.600 21.000 23.300 40 28.800 32.400 35.700
27 19.500 22.000 24.400 41 29.300 33.000 36.400
28 20.300 22.900 25.400 42 29.700 33.600 37.000
29 21.100 23.800 26.400
Page 13
Reference Manual 9
Biparietal Diameter (BPD): HADLOCK
GA Table
"Hadlock,F.P., Deter,R.L., Harrist,R.B., Park,S.K.,” Estimating fetal age: computer-assisted
analysis of multiple fetal growth parameters”, Radiology Vol. 152 No. 2, 1984, pages 497-
501."
GA = 9.54 + 1.482 × {OB_BPD} + 0.1676 × ({OB_BPD}
2
)
Output Unit: w (weeks)
Input Unit: cm
Min Range: 1.4cm
Max Range: 10.3cm
Fetal Growth Table
Hadlock F.P., Deter R.L.; Harrist R.B., Park S.K.
“Estimating Fetal Age: Computer-Assisted Analysis of Multiple Fetal Growth Parameters”
Radiology 1984; 152: 497-501
AC = –3.08 + 0.41 × {GA} – 0.000061 × {GA}
3
Output Unit: cm
Input Unit: w (week)
Min Range: 12w
Max Range: 40w
Biparietal Diameter (BPD): HANSMANN
GA Table
"Hansmann, Hackeloer, Staudach, Wittmann “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer-Verlag, New York, 1986. p.440-441"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
2.9 86.0 94.0 101.0 6.8 171.0 181.0 191.0
3.0 89.0 96.0 103.0 6.9 174.0 183.0 193.0
3.1 90.0 98.0 106.0 7.0 175.0 185.0 195.0
3.2 93.0 100.0 108.0 7.1 177.0 187.0 199.0
3.3 94.0 102.0 111.0 7.2 179.0 190.0 200.0
3.4 96.0 105.0 114.0 7.3 182.0 192.0 205.0
3.5 99.0 107.0 115.0 7.4 183.0 195.0 207.0
3.6 101.0 109.0 118.0 7.5 185.0 197.0 209.0
3.7 104.0 112.0 120.0 7.6 187.0 200.0 212.0
3.8 105.0 114.0 123.0 7.7 190.0 202.0 215.0
3.9 108.0 116.0 125.0 7.8 191.0 205.0 220.0
4.0 110.0 119.0 127.0 7.9 192.0 208.0 224.0
4.1 112.0 121.0 130.0 8.0 195.0 210.0 225.0
4.2 115.0 123.0 132.0 8.1 198.0 213.0 228.0
4.3 116.0 125.0 134.0 8.2 202.0 217.0 232.0
4.4 118.0 127.0 136.0 8.3 203.0 219.0 236.0
4.5 121.0 130.0 139.0 8.4 206.0 223.0 240.0
4.6 123.0 132.0 141.0 8.5 209.0 226.0 242.0
4.7 125.0 134.0 144.0 8.6 211.0 229.0 246.0
4.8 126.0 136.0 146.0 8.7 212.0 233.0 253.0
4.9 127.0 138.0 148.0 8.8 217.0 236.0 255.0
5.0 130.0 140.0 148.0 8.9 221.0 240.0 259.0
5.1 133.0 143.0 153.0 9.0 224.0 243.0 262.0
5.2 135.0 145.0 155.0 9.1 225.0 246.0 271.0
Page 14
Reference Manual 10
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
5.3 136.0 147.0 158.0 9.2 233.0 251.0 275.0
5.4 140.0 150.0 160.0 9.3 236.0 257.0 278.0
5.5 142.0 152.0 161.0 9.4 243.0 262.0 281.0
5.6 145.0 154.0 163.0 9.5 247.0 269.0 287.0
5.7 147.0 156.0 165.0 9.6 247.0 272.0 290.0
5.8 150.0 159.0 167.0 9.7 251.0 273.0 294.0
5.9 151.0 161.0 171.0 9.8 255.0 275.0 294.0
6.0 153.0 163.0 172.0 9.9 256.0 276.0 298.0
6.1 155.0 165.0 175.0 10.0 257.0 277.0 296.0
6.2 158.0 168.0 178.0 10.1 260.0 278.0 298.0
6.3 160.0 170.0 179.0 10.2 260.0 279.0 296.0
6.4 162.0 172.0 182.0 10.3 261.0 280.0 296.0
6.5 165.0 174.0 184.0 10.4 262.0 281.0 296.0
6.6 167.0 176.0 187.0 10.5 265.0 282.0 296.0
6.7 169.0 178.0 190.0
Fetal Growth Table
Hansmann, Hackelöer, Staudach, (Wittmann) “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer-Verlag, New York, 1986. p.432
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
12 2.000 2.000 2.000 27 6.600 7.100 7.700
13 1.900 2.400 2.900 28 6.800 7.400 8.000
14 2.300 2.800 3.200 29 7.100 7.700 8.300
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
15 2.700 3.200 3.500 30 7.300 8.000 8.600
16 3.100 3.500 3.900 31 7.500 8.200 8.800
17 3.400 3.800 4.200 32 7.800 8.500 9.100
18 3.800 4.200 4.600 33 8.000 8.700 9.300
19 4.100 4.600 5.000 34 8.200 8.900 9.500
20 4.400 4.900 5.300 35 8.400 9.100 9.700
21 4.800 5.200 5.700 36 8.600 9.300 9.900
22 5.100 5.600 6.000 37 8.800 9.500 10.100
23 5.400 5.900 6.400 38 8.900 9.600 10.200
24 5.700 6.200 6.700 39 9.000 9.800 10.400
25 6.000 6.500 7.100 40 9.200 9.900 10.500
26 6.300 6.800 7.400 41 9.300 10.000 10.600
Biparietal Diameter (BPD): MERZ
GA Table
E. Merz, W. Goldhofer, E. Timor-Tritsch “Ultrasound in Gynecology and Obstetrics” Textbook
and Atlas, 1991 Georg Thieme Verlag, pp.326
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
2.1 75.0 85.0 96.0 6.2 155.0 169.0 183.0
2.2 76.0 87.0 97.0 6.3 158.0 172.0 186.0
2.3 78.0 89.0 99.0 6.4 160.0 174.0 188.0
2.4 81.0 91.0 102.0 6.5 162.0 176.0 190.0
Page 15
Reference Manual 11
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
2.5 82.0 92.0 103.0 6.6 165.0 179.0 193.0
2.6 84.0 95.0 105.0 6.7 167.0 181.0 195.0
2.7 85.0 97.0 108.0 6.8 169.0 183.0 198.0
2.8 88.0 99.0 110.0 6.9 171.0 186.0 200.0
2.9 89.0 100.0 111.0 7.0 173.0 188.0 202.0
3.0 91.0 102.0 113.0 7.1 176.0 190.0 205.0
3.1 93.0 104.0 116.0 7.2 179.0 193.0 208.0
3.2 95.0 106.0 118.0 7.3 181.0 195.0 210.0
3.3 97.0 108.0 119.0 7.4 183.0 198.0 213.0
3.4 98.0 110.0 122.0 7.5 186.0 200.0 215.0
3.5 100.0 112.0 124.0 7.6 188.0 203.0 218.0
3.6 102.0 114.0 126.0 7.7 190.0 206.0 221.0
3.7 104.0 116.0 127.0 7.8 193.0 209.0 224.0
3.8 106.0 118.0 130.0 7.9 195.0 211.0 226.0
3.9 108.0 120.0 132.0 8.0 198.0 214.0 229.0
4.0 110.0 122.0 134.0 8.1 201.0 216.0 232.0
4.1 111.0 124.0 137.0 8.2 204.0 219.0 235.0
4.2 113.0 126.0 139.0 8.3 207.0 222.0 237.0
4.3 116.0 128.0 141.0 8.4 209.0 225.0 240.0
4.4 118.0 130.0 143.0 8.5 212.0 228.0 243.0
4.5 120.0 132.0 145.0 8.6 215.0 230.0 246.0
4.6 122.0 134.0 147.0 8.7 217.0 233.0 249.0
4.7 123.0 136.0 148.0 8.8 221.0 237.0 253.0
4.8 125.0 138.0 151.0 8.9 223.0 239.0 256.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
4.9 127.0 140.0 153.0 9.0 226.0 242.0 258.0
5.0 130.0 143.0 155.0 9.1 230.0 246.0 262.0
5.1 132.0 145.0 158.0 9.2 232.0 249.0 265.0
5.2 134.0 147.0 160.0 9.3 235.0 251.0 267.0
5.3 136.0 149.0 162.0 9.4 238.0 255.0 272.0
5.4 138.0 151.0 165.0 9.5 242.0 258.0 275.0
5.5 140.0 153.0 167.0 9.6 244.0 261.0 278.0
5.6 142.0 155.0 169.0 9.7 248.0 265.0 281.0
5.7 144.0 158.0 171.0 9.8 251.0 268.0 285.0
5.8 146.0 160.0 173.0 9.9 255.0 272.0 288.0
5.9 148.0 162.0 176.0 10.0 258.0 275.0 293.0
6.0 151.0 165.0 179.0 10.1 261.0 279.0 296.0
6.1 153.0 167.0 181.0 10.2 265.0 282.0 300.0
Fetal Growth Table
Merz E., Wellek S.
“Normal Fetal Development Proles-A Model to obtain Standard Development Graphs for
the Head and Abdominal Parameters and the Long Limb Bones” Ultraschall in der Medizin
17 (1996) 153-162
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
88 2.100 2.500 2.900 193 6.800 7.300 7.800
91 2.300 2.600 3.000 196 6.900 7.400 7.900
95 2.400 2.800 3.100 200 7.100 7.600 8.100
98 2.500 2.900 3.300 203 7.200 7.700 8.200
Page 16
Reference Manual 12
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
102 2.700 3.100 3.500 207 7.300 7.800 8.400
105 2.800 3.200 3.600 210 7.400 8.000 8.500
109 3.000 3.400 3.800 214 7.600 8.100 8.600
112 3.100 3.500 3.900 217 7.700 8.200 8.800
116 3.300 3.700 4.100 221 7.800 8.300 8.900
119 3.500 3.900 4.300 224 7.900 8.500 9.000
123 3.600 4.000 4.500 228 8.000 8.600 9.100
126 3.800 4.200 4.600 231 8.100 8.700 9.200
130 4.000 4.400 4.800 235 8.200 8.800 9.300
133 4.100 4.600 5.000 238 8.300 8.900 9.500
137 4.300 4.700 5.200 242 8.400 9.000 9.600
140 4.500 4.900 5.300 245 8.500 9.100 9.700
144 4.600 5.100 5.500 249 8.600 9.200 9.700
147 4.800 5.200 5.700 252 8.700 9.200 9.800
151 4.900 5.400 5.900 256 8.700 9.300 9.900
154 5.100 5.600 6.000 259 8.800 9.400 10.000
158 5.300 5.700 6.200 263 8.900 9.500 10.100
161 5.400 5.900 6.400 266 8.900 9.500 10.100
165 5.600 6.100 6.500 270 9.000 9.600 10.200
168 5.700 6.200 6.700 273 9.000 9.600 10.300
172 5.900 6.400 6.900 277 9.100 9.700 10.300
175 6.100 6.500 7.000 280 9.100 9.700 10.300
179 6.200 6.700 7.200 284 9.100 9.700 10.400
182 6.400 6.800 7.300 287 9.100 9.800 10.400
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
186 6.500 7.000 7.500 291 9.200 9.800 10.400
189 6.600 7.100 7.700
Biparietal Diameter (BPD): OSAKA
GA Table
Perinatal care Vol. 9 No. 5
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
1.33 70.0 4.9 141.0 7.78 211.0
1.38 71.0 4.94 142.0 7.81 212.0
1.44 72.0 4.99 143.0 7.85 213.0
1.5 73.0 5.03 144.0 7.88 214.0
1.55 74.0 5.08 145.0 7.92 215.0
1.61 75.0 5.12 146.0 7.95 216.0
1.66 76.0 5.17 147.0 7.98 217.0
1.72 77.0 5.21 148.0 8.02 218.0
1.77 78.0 5.26 149.0 8.05 219.0
1.83 79.0 5.3 150.0 8.08 220.0
1.88 80.0 5.35 151.0 8.12 221.0
1.93 81.0 5.39 152.0 8.15 222.0
1.99 82.0 5.44 153.0 8.18 223.0
2.04 83.0 5.48 154.0 8.21 224.0
Page 17
Reference Manual 13
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
2.09 84.0 5.52 155.0 8.24 225.0
2.15 85.0 5.57 156.0 8.27 226.0
2.2 86.0 5.61 157.0 8.31 227.0
2.25 87.0 5.66 158.0 8.34 228.0
2.31 88.0 5.7 159.0 8.37 229.0
2.36 89.0 5.74 160.0 8.4 230.0
2.41 90.0 5.79 161.0 8.43 231.0
2.46 91.0 5.83 162.0 8.46 232.0
2.52 92.0 5.87 163.0 8.48 233.0
2.57 93.0 5.92 164.0 8.51 234.0
2.62 94.0 5.96 165.0 8.54 235.0
2.67 95.0 6.0 166.0 8.57 236.0
2.72 96.0 6.05 167.0 8.6 237.0
2.77 97.0 6.09 168.0 8.62 238.0
2.82 98.0 6.13 169.0 8.65 239.0
2.87 99.0 6.17 170.0 8.68 240.0
2.93 100.0 6.22 171.0 8.7 241.0
2.98 101.0 6.26 172.0 8.73 242.0
3.03 102.0 6.3 173.0 8.75 243.0
3.08 103.0 6.34 174.0 8.78 244.0
3.13 104.0 6.39 175.0 8.8 245.0
3.18 105.0 6.43 176.0 8.83 246.0
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
3.23 106.0 6.47 177.0 8.85 247.0
3.28 107.0 6.51 178.0 8.87 248.0
3.33 108.0 6.55 179.0 8.9 249.0
3.38 109.0 6.59 180.0 8.92 250.0
3.42 110.0 6.63 181.0 8.94 251.0
3.47 111.0 6.67 182.0 8.96 252.0
3.52 112.0 6.71 183.0 8.98 253.0
3.57 113.0 6.75 184.0 9.0 254.0
3.62 114.0 6.8 185.0 9.02 255.0
3.67 115.0 6.84 186.0 9.04 256.0
3.72 116.0 6.88 187.0 9.06 257.0
3.77 117.0 6.92 188.0 9.08 258.0
3.81 118.0 6.95 189.0 9.1 259.0
3.86 119.0 6.99 190.0 9.12 260.0
3.91 120.0 7.03 191.0 9.14 261.0
3.96 121.0 7.07 192.0 9.15 262.0
4.01 122.0 7.11 193.0 9.17 263.0
4.05 123.0 7.15 194.0 9.18 264.0
4.1 124.0 7.19 195.0 9.2 265.0
4.15 125.0 7.23 196.0 9.21 266.0
4.2 126.0 7.27 197.0 9.23 267.0
4.24 127.0 7.3 198.0 9.24 268.0
Page 18
Reference Manual 14
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
4.29 128.0 7.34 199.0 9.26 269.0
4.34 129.0 7.38 200.0 9.27 270.0
4.39 130.0 7.42 201.0 9.28 271.0
4.43 131.0 7.45 202.0 9.29 272.0
4.48 132.0 7.49 203.0 9.3 273.0
4.53 133.0 7.53 204.0 9.31 274.0
4.57 134.0 7.56 205.0 9.32 275.0
4.62 135.0 7.6 206.0 9.33 276.0
4.67 136.0 7.64 207.0 9.34 277.0
4.71 137.0 7.67 208.0 9.35 278.0
4.76 138.0 7.71 209.0 9.36 279.0
4.85 140.0 7.74 210.0 9.36 280.0
Fetal Growth Table
Perinatal care Vol. 9 No. 5
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
70 1.045 1.330 1.615 176 5.950 6.430 6.910
71 1.095 1.380 1.665 177 5.975 6.470 6.965
72 1.155 1.440 1.725 178 6.015 6.510 7.005
73 1.215 1.500 1.785 179 6.055 6.550 7.045
74 1.265 1.550 1.835 180 6.095 6.590 7.085
75 1.325 1.610 1.895 181 6.135 6.630 7.125
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
76 1.360 1.660 1.960 182 6.175 6.670 7.165
77 1.420 1.720 2.020 183 6.215 6.710 7.205
78 1.470 1.770 2.070 184 6.255 6.750 7.245
79 1.530 1.830 2.130 185 6.305 6.800 7.295
80 1.580 1.880 2.180 186 6.345 6.840 7.335
81 1.630 1.930 2.230 187 6.385 6.880 7.375
82 1.675 1.990 2.305 188 6.410 6.920 7.430
83 1.725 2.040 2.355 189 6.440 6.950 7.460
84 1.775 2.090 2.405 190 6.480 6.990 7.500
85 1.835 2.150 2.465 191 6.520 7.030 7.540
86 1.885 2.200 2.515 192 6.560 7.070 7.580
87 1.935 2.250 2.565 193 6.600 7.110 7.620
88 1.995 2.310 2.625 194 6.640 7.150 7.660
89 2.030 2.360 2.690 195 6.680 7.190 7.700
90 2.080 2.410 2.740 196 6.720 7.230 7.740
91 2.130 2.460 2.790 197 6.760 7.270 7.780
92 2.190 2.520 2.850 198 6.790 7.300 7.810
93 2.240 2.570 2.900 199 6.830 7.340 7.850
94 2.290 2.620 2.950 200 6.855 7.380 7.905
95 2.325 2.670 3.015 201 6.895 7.420 7.945
96 2.375 2.720 3.065 202 6.925 7.450 7.975
97 2.425 2.770 3.115 203 6.965 7.490 8.015
98 2.475 2.820 3.165 204 7.005 7.530 8.055
99 2.525 2.870 3.215 205 7.035 7.560 8.085
Page 19
Reference Manual 15
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
100 2.585 2.930 3.275 206 7.075 7.600 8.125
101 2.635 2.980 3.325 207 7.115 7.640 8.165
102 2.670 3.030 3.390 208 7.145 7.670 8.195
103 2.720 3.080 3.440 209 7.185 7.710 8.235
104 2.770 3.130 3.490 210 7.215 7.740 8.265
105 2.820 3.180 3.540 211 7.255 7.780 8.305
106 2.870 3.230 3.590 212 7.285 7.810 8.335
107 2.920 3.280 3.640 213 7.310 7.850 8.390
108 2.970 3.330 3.690 214 7.340 7.880 8.420
109 3.005 3.380 3.755 215 7.380 7.920 8.460
110 3.045 3.420 3.795 216 7.410 7.950 8.490
111 3.095 3.470 3.845 217 7.440 7.980 8.520
112 3.145 3.520 3.895 218 7.480 8.020 8.560
113 3.195 3.570 3.945 219 7.510 8.050 8.590
114 3.245 3.620 3.995 220 7.540 8.080 8.620
115 3.295 3.670 4.045 221 7.580 8.120 8.660
116 3.345 3.720 4.095 222 7.610 8.150 8.690
117 3.380 3.770 4.160 223 7.640 8.180 8.720
118 3.420 3.810 4.200 224 7.670 8.210 8.750
119 3.470 3.860 4.250 225 7.700 8.240 8.780
120 3.520 3.910 4.300 226 7.730 8.270 8.810
121 3.570 3.960 4.350 227 7.770 8.310 8.850
122 3.620 4.010 4.400 228 7.785 8.340 8.895
123 3.660 4.050 4.440 229 7.815 8.370 8.925
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
124 3.695 4.100 4.505 230 7.845 8.400 8.955
125 3.745 4.150 4.555 231 7.875 8.430 8.985
126 3.795 4.200 4.605 232 7.905 8.460 9.015
127 3.835 4.240 4.645 233 7.925 8.480 9.035
128 3.885 4.290 4.695 234 7.955 8.510 9.065
129 3.935 4.340 4.745 235 7.985 8.540 9.095
130 3.985 4.390 4.795 236 8.015 8.570 9.125
131 4.025 4.430 4.835 237 8.045 8.600 9.155
132 4.060 4.480 4.900 238 8.065 8.620 9.175
133 4.110 4.530 4.950 239 8.095 8.650 9.205
134 4.150 4.570 4.990 240 8.125 8.680 9.235
135 4.200 4.620 5.040 241 8.145 8.700 9.255
136 4.250 4.670 5.090 242 8.175 8.730 9.285
137 4.290 4.710 5.130 243 8.195 8.750 9.305
138 4.340 4.760 5.180 244 8.225 8.780 9.335
139 4.380 4.800 5.220 245 8.245 8.800 9.355
140 4.415 4.850 5.285 246 8.260 8.830 9.400
141 4.465 4.900 5.335 247 8.280 8.850 9.420
142 4.505 4.940 5.375 248 8.300 8.870 9.440
143 4.555 4.990 5.425 249 8.330 8.900 9.470
144 4.595 5.030 5.465 250 8.350 8.920 9.490
145 4.645 5.080 5.515 251 8.370 8.940 9.510
146 4.685 5.120 5.555 252 8.390 8.960 9.530
147 4.735 5.170 5.605 253 8.410 8.980 9.550
Page 20
Reference Manual 16
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
148 4.775 5.210 5.645 254 8.430 9.000 9.570
149 4.810 5.260 5.710 255 8.450 9.020 9.590
150 4.850 5.300 5.750 256 8.470 9.040 9.610
151 4.900 5.350 5.800 257 8.490 9.060 9.630
152 4.940 5.390 5.840 258 8.510 9.080 9.650
153 4.990 5.440 5.890 259 8.530 9.100 9.670
154 5.030 5.480 5.930 260 8.550 9.120 9.690
155 5.070 5.520 5.970 261 8.570 9.140 9.710
156 5.120 5.570 6.020 262 8.580 9.150 9.720
157 5.160 5.610 6.060 263 8.600 9.170 9.740
158 5.195 5.660 6.125 264 8.610 9.180 9.750
159 5.235 5.700 6.165 265 8.630 9.200 9.770
160 5.275 5.740 6.205 266 8.640 9.210 9.780
161 5.325 5.790 6.255 267 8.660 9.230 9.800
162 5.365 5.830 6.295 268 8.670 9.240 9.810
163 5.405 5.870 6.335 269 8.675 9.260 9.845
164 5.455 5.920 6.385 270 8.685 9.270 9.855
165 5.495 5.960 6.425 271 8.695 9.280 9.865
166 5.535 6.000 6.465 272 8.705 9.290 9.875
167 5.570 6.050 6.530 273 8.715 9.300 9.885
168 5.610 6.090 6.570 274 8.725 9.310 9.895
169 5.650 6.130 6.610 275 8.735 9.320 9.905
170 5.690 6.170 6.650 276 8.745 9.330 9.915
171 5.740 6.220 6.700 277 8.755 9.340 9.925
172 5.780 6.260 6.740 278 8.765 9.350 9.935
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
173 5.820 6.300 6.780 279 8.775 9.360 9.945
174 5.860 6.340 6.820 280 8.775 9.360 9.945
175 5.910 6.390 6.870
Biparietal Diameter (BPD): REMPEN
GA Table
"Rempen, A. Chaoui, R. Kozlowski, P. Häusler, M. Terinde, R. Wisse “Standards zur
Ultraschalluntersuchung in der Frühschwangerschaft”; publiziert in: Der Frauenarzt 42
(2001) 327 ."
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
0.3 43.0 48.0 52.0 1.3 62.0 68.0 75.0
0.4 45.0 50.0 55.0 1.4 64.0 70.0 77.0
0.5 47.0 52.0 57.0 1.5 66.0 72.0 79.0
0.6 49.0 54.0 60.0 1.6 67.0 74.0 82.0
0.7 51.0 56.0 62.0 1.7 69.0 76.0 84.0
0.8 53.0 58.0 64.0 1.8 71.0 78.0 86.0
0.9 55.0 60.0 66.0 1.9 73.0 80.0 88.0
1.0 57.0 62.0 68.0 2.0 75.0 82.0 91.0
1.1 58.0 64.0 71.0 2.1 77.0 85.0 93.0
1.2 60.0 66.0 73.0 2.2 79.0 87.0 96.0
Page 21
Reference Manual 17
Biparietal Diameter (BPD): SHINOZUKA
GA Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, University of Tokyo Faculty of Medicine,
“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
1.3 67.0 71.0 75.0 4.0 5.2 146.0 153.0 160.0 7.0
1.4 69.0 73.0 77.0 4.0 5.3 147.0 155.0 163.0 8.0
1.5 71.0 75.0 79.0 4.0 5.4 149.0 157.0 165.0 8.0
1.6 73.0 77.0 81.0 4.0 5.5 151.0 159.0 167.0 8.0
1.7 75.0 79.0 83.0 4.0 5.6 154.0 162.0 170.0 8.0
1.8 77.0 81.0 85.0 4.0 5.7 156.0 164.0 172.0 8.0
1.9 79.0 83.0 87.0 4.0 5.8 158.0 166.0 174.0 8.0
2.0 81.0 85.0 89.0 4.0 5.9 161.0 169.0 177.0 8.0
2.1 83.0 87.0 91.0 4.0 6.0 162.0 171.0 180.0 9.0
2.2 86.0 90.0 94.0 4.0 6.1 164.0 173.0 182.0 9.0
2.3 87.0 92.0 97.0 5.0 6.2 167.0 176.0 185.0 9.0
2.4 89.0 94.0 99.0 5.0 6.3 169.0 178.0 187.0 9.0
2.5 91.0 96.0 101.0 5.0 6.4 171.0 180.0 189.0 9.0
2.6 93.0 98.0 103.0 5.0 6.5 174.0 183.0 192.0 9.0
2.7 95.0 100.0 105.0 5.0 6.6 175.0 185.0 195.0 10.0
2.8 97.0 102.0 107.0 5.0 6.7 178.0 188.0 198.0 10.0
2.9 99.0 104.0 109.0 5.0 6.8 181.0 191.0 201.0 10.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
3.0 101.0 106.0 111.0 5.0 6.9 183.0 193.0 203.0 10.0
3.1 103.0 108.0 113.0 5.0 7.0 186.0 196.0 206.0 10.0
3.2 105.0 110.0 115.0 5.0 7.1 189.0 199.0 209.0 10.0
3.3 107.0 112.0 117.0 5.0 7.2 190.0 201.0 212.0 11.0
3.4 109.0 114.0 119.0 5.0 7.3 193.0 204.0 215.0 11.0
3.5 111.0 116.0 121.0 5.0 7.4 196.0 207.0 218.0 11.0
3.6 112.0 118.0 124.0 6.0 7.5 199.0 210.0 221.0 11.0
3.7 114.0 120.0 126.0 6.0 7.6 202.0 213.0 224.0 11.0
3.8 117.0 123.0 129.0 6.0 7.7 204.0 216.0 228.0 12.0
3.9 119.0 125.0 131.0 6.0 7.8 207.0 219.0 231.0 12.0
4.0 121.0 127.0 133.0 6.0 7.9 210.0 222.0 234.0 12.0
4.1 123.0 129.0 135.0 6.0 8.0 213.0 225.0 237.0 12.0
4.2 125.0 131.0 137.0 6.0 8.1 217.0 229.0 241.0 12.0
4.3 127.0 133.0 139.0 6.0 8.2 219.0 232.0 245.0 13.0
4.4 129.0 135.0 141.0 6.0 8.3 223.0 236.0 249.0 13.0
4.5 131.0 137.0 143.0 6.0 8.4 227.0 240.0 253.0 13.0
4.6 133.0 140.0 147.0 7.0 8.5 231.0 244.0 257.0 13.0
4.7 135.0 142.0 149.0 7.0 8.6 234.0 248.0 262.0 14.0
4.8 137.0 144.0 151.0 7.0 8.7 238.0 252.0 266.0 14.0
4.9 139.0 146.0 153.0 7.0 8.8 243.0 257.0 271.0 14.0
5.0 141.0 148.0 155.0 7.0 8.9 249.0 263.0 277.0 14.0
5.1 143.0 150.0 157.0 7.0 9.0 254.0 269.0 284.0 15.0
Page 22
Reference Manual 18
Fetal Growth Table
Shinozuka N., Masuda H., Kagawa H., Taketani Y. Department of Obstetrics and Gynecology,
Faculty of Medicine, University of Tokyo “Standard Values of Ultrasonographic Fetal
Biometry” Jpn J Med Ultrasonics 23 (12) 877-888; 1996
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
10 1.050 1.430 1.810 27 6.340 6.870 7.410
11 1.370 1.760 2.150 28 6.590 7.140 7.680
12 1.700 2.100 2.500 29 6.830 7.390 7.940
13 2.040 2.440 2.850 30 7.060 7.630 8.190
14 2.370 2.780 3.200 31 7.280 7.850 8.420
15 2.700 3.120 3.550 32 7.480 8.060 8.650
16 3.030 3.460 3.900 33 7.670 8.260 8.850
17 3.350 3.800 4.240 34 7.850 8.450 9.040
18 3.680 4.130 4.580 35 8.010 8.610 9.220
19 4.000 4.460 4.920 36 8.150 8.760 9.380
20 4.320 4.790 5.260 37 8.270 8.900 9.520
21 4.630 5.110 5.590 38 8.380 9.010 9.650
22 4.930 5.420 5.910 39 8.460 9.110 9.750
23 5.230 5.730 6.230 40 8.530 9.180 9.840
24 5.520 6.030 6.530 41 8.580 9.240 9.900
25 5.800 6.320 6.840 42 8.600 9.280 9.950
26 6.080 6.600 7.130
Biparietal Diameter (BPD): TOKYO
GA Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, University of Tokyo Faculty of Medicine,
“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
20.0 79.0 85.0 91.0 6.0 56.0 156.0 162.0 168.0 6.0
21.0 81.0 87.0 93.0 6.0 57.0 158.0 164.0 170.0 6.0
22.0 83.0 89.0 95.0 6.0 58.0 161.0 167.0 173.0 6.0
23.0 86.0 92.0 98.0 6.0 59.0 163.0 169.0 175.0 6.0
24.0 88.0 94.0 100.0 6.0 60.0 165.0 171.0 177.0 6.0
25.0 90.0 96.0 102.0 6.0 61.0 167.0 174.0 181.0 7.0
26.0 92.0 98.0 104.0 6.0 62.0 169.0 176.0 183.0 7.0
27.0 94.0 100.0 106.0 6.0 63.0 172.0 179.0 186.0 7.0
28.0 96.0 102.0 108.0 6.0 64.0 174.0 181.0 188.0 7.0
29.0 96.0 102.0 108.0 6.0 65.0 176.0 183.0 190.0 7.0
30.0 101.0 106.0 111.0 5.0 66.0 179.0 186.0 193.0 7.0
31.0 103.0 108.0 113.0 5.0 67.0 181.0 188.0 195.0 7.0
32.0 105.0 110.0 115.0 5.0 68.0 184.0 191.0 198.0 7.0
33.0 107.0 112.0 117.0 5.0 69.0 187.0 194.0 201.0 7.0
34.0 109.0 114.0 119.0 5.0 70.0 189.0 196.0 203.0 7.0
35.0 111.0 116.0 121.0 5.0 71.0 191.0 199.0 207.0 8.0
36.0 113.0 118.0 123.0 5.0 72.0 193.0 201.0 209.0 8.0
37.0 115.0 120.0 125.0 5.0 73.0 196.0 204.0 212.0 8.0
Page 23
Reference Manual 19
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
38.0 118.0 123.0 128.0 5.0 74.0 199.0 207.0 215.0 8.0
39.0 120.0 125.0 130.0 5.0 75.0 202.0 210.0 218.0 8.0
40.0 122.0 127.0 132.0 5.0 76.0 205.0 213.0 221.0 8.0
41.0 124.0 129.0 134.0 5.0 77.0 208.0 216.0 224.0 8.0
42.0 126.0 131.0 136.0 5.0 78.0 210.0 218.0 226.0 8.0
43.0 128.0 133.0 138.0 5.0 79.0 213.0 221.0 229.0 8.0
44.0 130.0 135.0 140.0 5.0 80.0 217.0 225.0 233.0 8.0
45.0 132.0 138.0 144.0 6.0 81.0 220.0 228.0 236.0 8.0
46.0 134.0 140.0 146.0 6.0 82.0 223.0 231.0 239.0 8.0
47.0 136.0 142.0 148.0 6.0 83.0 225.0 234.0 243.0 9.0
48.0 138.0 144.0 150.0 6.0 84.0 229.0 238.0 247.0 9.0
49.0 140.0 146.0 152.0 6.0 85.0 232.0 241.0 250.0 9.0
50.0 142.0 148.0 154.0 6.0 86.0 236.0 245.0 254.0 9.0
51.0 145.0 151.0 157.0 6.0 87.0 240.0 249.0 258.0 9.0
52.0 147.0 153.0 159.0 6.0 88.0 244.0 253.0 262.0 9.0
53.0 148.0 154.0 160.0 6.0 89.0 249.0 258.0 267.0 9.0
54.0 151.0 157.0 163.0 6.0 90.0 253.0 262.0 271.0 9.0
55.0 154.0 160.0 166.0 6.0
Fetal Growth Table
Norio Shinozuka, Takashi Okai, Masahiko Mizuno Issued by Shindan & Tiryo Sya
Tokyo University, School of Medicine, OB/GYN dept. “How to interpret OB/GYN ultrasound
measurement data”; 80. Fetal Measurement Obstetrics & Gynecology Chapter 56 Separate
volume; 1989, Oct. 27th Publication
Age
(day)
5%
(mm)
50%
(mm)
95%
(mm)
Age
(day)
5%
(mm)
50%
(mm)
95%
(mm)
84 13.880 19.580 24.550 189 60.830 67.420 73.270
91 17.610 22.990 27.600 196 63.260 70.130 76.140
98 21.260 26.410 30.740 203 65.610 72.750 78.900
105 24.830 29.820 33.970 210 67.870 75.270 81.530
112 28.310 33.200 37.270 217 70.050 77.680 84.010
119 31.700 36.540 40.620 224 72.140 79.970 86.350
126 35.000 39.860 43.990 231 74.140 82.140 88.530
133 38.220 43.140 47.380 238 76.050 84.180 90.540
140 41.350 46.370 50.770 245 77.880 86.070 92.370
147 44.390 49.560 54.150 252 79.620 87.820 94.020
154 47.350 52.700 57.490 259 81.270 89.410 95.480
161 50.220 55.780 60.790 266 82.840 90.840 96.750
168 53.000 58.800 64.030 273 84.320 92.080 97.810
175 55.690 61.750 67.200 280 85.720 93.140 98.670
182 58.300 64.630 70.280 287 87.020 94.010 99.310
Page 24
Reference Manual 20
Crown-Rump Length (CRL): HADLOCK
GA Table
"Hadlock F., Shah Y.P, Kanon D.J., Math B., Lindsey J.V., “Fetal Crown-Rump Length:
Reevaluation of Relation to Menstrual Age (5-18 weeks) with High-Resolution Real-Time
Ultrasound.” Radiology, 182:501-505, 1992."
GA= exp(1.684969 + 0.315646 × {OB_CRL} – 0.049306 × ({OB_CRL}
2
) + 0.004057 ×
({OB_CRL}3) – 0.00012046 × ({OB_CRL}4))
Fetal Growth Table
Hadlock F., Shah Y.P, Kanon D.J., Math B., Lindsey J.V., “Fetal Crown-Rump Length:
Reevaluation of Relation to Menstrual Age (5-18 weeks) with High-Resolution Real-Time
Ultrasound.” Radiology, 182:501-505, 1992.
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
35 0.179 0.222 0.265 81 4.108 5.097 6.086
36 0.200 0.248 0.296 82 4.249 5.272 6.294
37 0.223 0.276 0.330 83 4.390 5.447 6.503
38 0.247 0.307 0.366 84 4.531 5.622 6.712
39 0.274 0.340 0.406 85 4.672 5.797 6.921
40 0.304 0.377 0.450 86 4.813 5.971 7.130
41 0.335 0.416 0.497 87 4.953 6.145 7.338
42 0.369 0.458 0.547 88 5.093 6.319 7.545
43 0.406 0.504 0.602 89 5.232 6.491 7.751
44 0.446 0.553 0.660 90 5.370 6.663 7.955
45 0.488 0.605 0.723 91 5.508 6.833 8.159
46 0.533 0.662 0.790 92 5.644 7.002 8.361
47 0.582 0.722 0.862 93 5.779 7.170 8.561
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
48 0.633 0.786 0.938 94 5.913 7.336 8.759
49 0.688 0.853 1.019 95 6.045 7.500 8.955
50 0.746 0.925 1.105 96 6.176 7.663 9.150
51 0.807 1.002 1.196 97 6.306 7.824 9.342
52 0.872 1.082 1.292 98 6.434 7.983 9.532
53 0.940 1.167 1.393 99 6.561 8.140 9.720
54 1.012 1.256 1.500 100 6.686 8.296 9.905
55 1.088 1.350 1.611 101 6.810 8.449 10.088
56 1.167 1.447 1.728 102 6.932 8.601 10.270
57 1.249 1.550 1.851 103 7.053 8.751 10.449
58 1.335 1.657 1.978 104 7.173 8.899 10.625
59 1.425 1.768 2.111 105 7.291 9.045 10.800
60 1.518 1.884 2.249 106 7.407 9.190 10.973
61 1.615 2.003 2.392 107 7.523 9.333 11.144
62 1.715 2.127 2.540 108 7.637 9.475 11.313
63 1.818 2.256 2.693 109 7.750 9.615 11.481
64 1.925 2.388 2.851 110 7.862 9.755 11.647
65 2.035 2.524 3.014 111 7.974 9.893 11.812
66 2.147 2.664 3.181 112 8.084 10.030 11.976
67 2.263 2.808 3.353 113 8.194 10.167 12.139
68 2.382 2.955 3.528 114 8.304 10.303 12.301
69 2.503 3.106 3.708 115 8.413 10.438 12.463
70 2.627 3.259 3.892 116 8.523 10.574 12.625
71 2.753 3.416 4.079 117 8.632 10.710 12.787
Page 25
Reference Manual 21
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
Age
(day)
3%
(cm)
50%
(cm)
97%
(cm)
72 2.882 3.575 4.269 118 8.742 10.846 12.950
73 3.012 3.737 4.462 119 8.852 10.983 13.113
74 3.144 3.901 4.658 120 8.963 11.120 13.278
75 3.278 4.068 4.857 121 9.075 11.259 13.443
76 3.414 4.236 5.058 122 9.188 11.400 13.611
77 3.551 4.406 5.260 123 9.303 11.542 13.781
78 3.689 4.577 5.465 124 9.419 11.686 13.953
79 3.828 4.749 5.671 125 9.537 11.833 14.128
80 3.968 4.923 5.878 126 9.658 11.983 14.307
Crown-Rump Length (CRL): HANSMANN
GA Table
"Hansmann, U.Voigt;H.Schuhmacher;P.Jeanty. “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer-Verlag, New York, 1986, p.439."
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
0.6 36.0 43.0 49.0 5.2 77.0 86.0 95.0
0.7 38.0 44.0 51.0 5.4 77.0 87.0 96.0
0.8 39.0 46.0 52.0 5.6 78.0 88.0 97.0
0.9 41.0 48.0 55.0 5.8 79.0 89.0 98.0
1.0 43.0 49.0 56.0 6.0 80.0 90.0 99.0
1.1 44.0 51.0 57.0 6.3 81.0 91.0 101.0
1.2 45.0 52.0 59.0 6.6 82.0 93.0 103.0
1.3 47.0 53.0 60.0 7.0 84.0 94.0 105.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
1.4 48.0 55.0 62.0 7.3 85.0 96.0 106.0
1.5 49.0 56.0 63.0 7.6 86.0 97.0 108.0
1.6 51.0 58.0 64.0 8.0 88.0 99.0 110.0
1.7 52.0 59.0 65.0 8.3 89.0 100.0 112.0
1.8 53.0 60.0 67.0 8.6 90.0 102.0 114.0
1.9 54.0 61.0 68.0 9.0 92.0 104.0 116.0
2.0 55.0 62.0 69.0 9.3 94.0 106.0 118.0
2.1 56.0 63.0 70.0 9.6 95.0 108.0 120.0
2.2 57.0 64.0 71.0 10.0 97.0 110.0 122.0
2.3 58.0 65.0 72.0 10.3 99.0 112.0 125.0
2.4 59.0 66.0 73.0 10.6 101.0 114.0 127.0
2.6 61.0 68.0 75.0 11.0 103.0 116.0 130.0
2.8 62.0 70.0 78.0 11.3 105.0 119.0 133.0
3.0 64.0 72.0 79.0 11.6 107.0 121.0 135.0
3.2 65.0 73.0 81.0 12.0 109.0 123.0 137.0
3.4 67.0 75.0 82.0 12.3 112.0 126.0 140.0
3.6 68.0 76.0 84.0 12.6 114.0 128.0 143.0
3.8 69.0 78.0 86.0 13.0 117.0 132.0 146.0
4.0 71.0 79.0 87.0 13.3 119.0 134.0 149.0
4.2 72.0 80.0 88.0 13.6 122.0 137.0 153.0
4.4 73.0 81.0 90.0 14.0 125.0 140.0 156.0
4.6 75.0 83.0 91.0 14.3 127.0 143.0 159.0
4.8 76.0 84.0 93.0 14.6 130.0 146.0 162.0
5.0 76.0 85.0 94.0 15.0 133.0 150.0 166.0
Page 26
Reference Manual 22
Fetal Growth Table
Hansmann, Hackelöer, Staudach, (Wittmann). “Ultrasound Diagnosis in Obstetrics and
Gynecology.” Springer-Verlag, New York, 1986, p.438
Age
(day)
-2SD
(cm)
Mean
(cm)
+2SD
(cm)
Age
(day)
-2SD
(cm)
Mean
(cm)
+2SD
(cm)
43 0.230 0.690 1.150 86 4.000 5.560 7.130
44 0.280 0.760 1.250 88 4.320 5.940 7.550
45 0.320 0.830 1.340 90 4.640 6.310 7.980
46 0.360 0.900 1.430 93 5.130 6.880 8.630
47 0.390 0.960 1.520 95 5.560 7.260 9.060
48 0.430 1.020 1.610 97 5.780 7.630 9.480
49 0.470 1.080 1.690 100 6.250 8.180 10.110
50 0.500 1.140 1.780 102 6.560 8.540 10.520
51 0.540 1.210 1.870 104 6.860 8.890 10.920
52 0.580 1.270 1.960 107 7.280 9.390 11.500
53 0.620 1.330 2.050 109 7.550 9.710 11.870
54 0.660 1.400 2.140 111 7.800 10.010 12.220
55 0.700 1.470 2.240 114 8.150 10.440 12.730
56 0.750 1.540 2.340 116 8.360 10.700 13.040
57 0.800 1.620 2.440 118 8.560 10.950 13.340
59 0.910 1.780 2.650 121 8.830 11.300 13.770
61 1.030 1.960 2.880 123 8.990 11.510 14.040
63 1.170 2.150 3.120 125 9.150 11.720 14.290
65 1.330 2.360 3.390 128 9.350 12.000 14.650
67 1.510 2.590 3.660 130 9.480 12.190 14.890
69 1.700 2.830 3.960 132 9.620 12.370 15.120
72 2.030 3.240 4.440 134 9.750 12.550 15.360
Age
(day)
-2SD
(cm)
Mean
(cm)
+2SD
(cm)
Age
(day)
-2SD
(cm)
Mean
(cm)
+2SD
(cm)
74 2.270 3.530 4.790 136 9.890 12.740 15.600
76 2.520 3.830 5.140 138 10.030 12.940 15.850
79 2.930 4.320 5.710 140 10.200 13.160 16.120
81 3.220 4.660 6.130 141 10.290 13.280 16.260
83 3.530 5.020 6.510 142 10.400 13.400 16.410
Crown-Rump Length (CRL): OSAKA
GA Table
Perinatal care Vol. 9 No. 5
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
0.87 49.0 2.04 63.0 4.12 77.0
0.91 50.0 2.16 64.0 4.28 78.0
0.96 51.0 2.29 65.0 4.45 79.0
1.02 52.0 2.43 66.0 4.62 80.0
1.08 53.0 2.57 67.0 4.79 81.0
1.15 54.0 2.71 68.0 4.96 82.0
1.22 55.0 2.85 69.0 5.13 83.0
1.3 56.0 3.0 70.0 5.3 84.0
1.39 57.0 3.15 71.0 5.48 85.0
1.49 58.0 3.31 72.0 5.65 86.0
1.59 59.0 3.47 73.0 5.82 87.0
1.69 60.0 3.63 74.0 5.99 88.0
Page 27
Reference Manual 23
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
1.8 61.0 3.79 75.0 6.16 89.0
1.92 62.0 3.95 76.0 6.32 90.0
Fetal Growth Table
Perinatal care Vol. 9 No. 5
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
49 0.630 0.870 1.110 70 2.280 3.000 3.720
50 0.655 0.910 1.165 71 2.415 3.150 3.885
51 0.675 0.960 1.245 72 2.545 3.310 4.075
52 0.720 1.020 1.320 73 2.690 3.470 4.250
53 0.750 1.080 1.410 74 2.820 3.630 4.440
54 0.805 1.150 1.495 75 2.965 3.790 4.615
55 0.845 1.220 1.595 76 3.095 3.950 4.805
56 0.910 1.300 1.690 77 3.250 4.120 4.990
57 0.970 1.390 1.810 78 3.380 4.280 5.180
58 1.055 1.490 1.925 79 3.535 4.450 5.365
59 1.125 1.590 2.055 80 3.675 4.620 5.565
60 1.210 1.690 2.170 81 3.830 4.790 5.750
61 1.290 1.800 2.310 82 3.970 4.960 5.950
62 1.395 1.920 2.445 83 4.125 5.130 6.135
63 1.485 2.040 2.595 84 4.265 5.300 6.335
64 1.590 2.160 2.730 85 4.430 5.480 6.530
65 1.690 2.290 2.890 86 4.570 5.650 6.730
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
Age
(day)
-1.5SD
(cm)
Mean
(cm)
+1.5SD
(cm)
66 1.815 2.430 3.045 87 4.725 5.820 6.915
67 1.925 2.570 3.215 88 4.865 5.990 7.115
68 2.035 2.710 3.385 89 5.020 6.160 7.300
69 2.160 2.850 3.540 90 5.150 6.320 7.490
Crown-Rump Length (CRL): REMPEN
GA Table
"Rempen A., Chaoui R., Kozlowski P., Terinde R., Wisser J.,Häusler M.: “Standards zur
Ultraschalluntersuchung in der Frühschwangerschaft”.
publiziert in: Der Frauenarzt 42 (2001), 327 ."
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
0.2 37.0 42.0 46.0 3.2 63.0 69.0 74.0
0.3 39.0 43.0 47.0 3.3 64.0 69.0 75.0
0.4 40.0 44.0 49.0 3.4 64.0 70.0 76.0
0.5 41.0 45.0 50.0 3.5 65.0 71.0 77.0
0.6 42.0 46.0 51.0 3.6 66.0 72.0 77.0
0.7 43.0 47.0 52.0 3.7 67.0 72.0 78.0
0.8 44.0 48.0 53.0 3.8 67.0 73.0 79.0
0.9 45.0 49.0 54.0 3.9 68.0 74.0 80.0
1.0 46.0 50.0 55.0 4.0 69.0 75.0 81.0
1.1 46.0 51.0 56.0 4.1 70.0 75.0 81.0
1.2 47.0 52.0 57.0 4.2 70.0 76.0 82.0
Page 28
Reference Manual 24
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
1.3 48.0 53.0 58.0 4.3 71.0 77.0 83.0
1.4 49.0 54.0 59.0 4.4 72.0 78.0 84.0
1.5 50.0 55.0 60.0 4.5 72.0 78.0 84.0
1.6 51.0 56.0 61.0 4.6 73.0 79.0 85.0
1.7 52.0 56.0 62.0 4.7 74.0 80.0 86.0
1.8 52.0 57.0 63.0 4.8 75.0 81.0 87.0
1.9 53.0 58.0 63.0 4.9 75.0 81.0 87.0
2.0 54.0 59.0 64.0 5.0 76.0 82.0 88.0
2.1 55.0 60.0 65.0 5.1 77.0 83.0 89.0
2.2 55.0 61.0 66.0 5.2 77.0 83.0 90.0
2.3 56.0 61.0 67.0 5.3 78.0 84.0 90.0
2.4 57.0 62.0 68.0 5.4 79.0 85.0 91.0
2.5 58.0 63.0 69.0 5.5 79.0 86.0 92.0
2.6 59.0 64.0 69.0 5.6 80.0 86.0 93.0
2.7 59.0 65.0 70.0 5.7 81.0 87.0 94.0
2.8 60.0 65.0 71.0 5.8 82.0 88.0 94.0
2.9 61.0 66.0 72.0 5.9 82.0 89.0 95.0
3.0 62.0 67.0 73.0 6.0 83.0 89.0 96.0
3.1 62.0 68.0 73.0
Crown-Rump Length (CRL): SHINOZUKA
GA Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, University of Tokyo Faculty of Medicine,
“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
0.5 42.0 45.0 48.0 3.0 3.0 65.0 72.0 79.0 7.0
1.0 48.0 52.0 56.0 4.0 3.5 68.0 76.0 84.0 8.0
1.5 52.0 57.0 62.0 5.0 4.0 72.0 80.0 88.0 8.0
2.0 56.0 62.0 68.0 6.0 4.5 74.0 83.0 92.0 9.0
2.5 61.0 67.0 73.0 6.0 5.0 76.0 86.0 96.0 10.0
Fetal Growth Table
Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, Faculty of Medicine, University of Tokyo
“Standard Values of Ultrasonographic Fetal Biometr y” Jpn J Med Ultrasonics 23 (12) 877888; 1996
Age
(day)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
Age
(day)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
49 0.510 0.790 1.070 71 2.090 2.930 3.760
50 0.550 0.860 1.170 72 2.190 3.050 3.910
51 0.600 0.930 1.270 73 2.290 3.180 4.060
52 0.650 1.010 1.370 74 2.400 3.310 4.220
53 0.710 1.090 1.470 75 2.510 3.440 4.380
Page 29
Reference Manual 25
Age
(day)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
Age
(day)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
54 0.760 1.170 1.580 76 2.620 3.580 4.540
55 0.820 1.250 1.690 77 2.730 3.710 4.700
56 0.880 1.340 1.800 78 2.840 3.850 4.860
57 0.950 1.430 1.910 79 2.960 4.000 5.030
58 1.010 1.520 2.030 80 3.080 4.140 5.200
59 1.080 1.610 2.150 81 3.200 4.290 5.370
60 1.150 1.710 2.270 82 3.330 4.440 5.550
61 1.220 1.810 2.390 83 3.450 4.590 5.730
62 1.300 1.910 2.520 84 3.580 4.740 5.910
63 1.380 2.010 2.650 85 3.720 4.900 6.090
64 1.460 2.120 2.780 86 3.850 5.060 6.270
65 1.540 2.230 2.910 87 3.990 5.220 6.460
66 1.630 2.340 3.050 88 4.130 5.390 6.650
67 1.720 2.450 3.180 89 4.270 5.550 6.840
68 1.810 2.570 3.320 90 4.410 5.720 7.030
69 1.900 2.680 3.470 91 4.560 5.890 7.230
70 1.990 2.800 3.610
Crown-Rump Length (CRL): TOKYO
GA Table
Tokyo University Method 1986, 6 by University Tokyo
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
13.0 47.0 55.0 63.0 8.0 32.0 66.0 73.0 80.0 7.0
14.0 47.0 56.0 65.0 9.0 33.0 67.0 74.0 81.0 7.0
15.0 47.0 57.0 67.0 10.0 34.0 67.0 74.0 81.0 7.0
16.0 50.0 58.0 66.0 8.0 35.0 68.0 75.0 82.0 7.0
17.0 50.0 59.0 68.0 9.0 36.0 69.0 76.0 83.0 7.0
18.0 50.0 60.0 70.0 10.0 37.0 70.0 77.0 84.0 7.0
19.0 53.0 61.0 69.0 8.0 38.0 71.0 78.0 85.0 7.0
20.0 53.0 62.0 71.0 9.0 39.0 71.0 78.0 85.0 7.0
21.0 56.0 63.0 70.0 7.0 40.0 72.0 79.0 86.0 7.0
22.0 57.0 64.0 71.0 7.0 41.0 73.0 80.0 87.0 7.0
23.0 58.0 65.0 72.0 7.0 42.0 74.0 81.0 88.0 7.0
24.0 59.0 66.0 73.0 7.0 43.0 74.0 81.0 88.0 7.0
25.0 60.0 67.0 74.0 7.0 44.0 75.0 82.0 89.0 7.0
26.0 61.0 68.0 75.0 7.0 45.0 76.0 83.0 90.0 7.0
27.0 61.0 68.0 75.0 7.0 46.0 77.0 84.0 91.0 7.0
28.0 62.0 69.0 76.0 7.0 47.0 77.0 84.0 91.0 7.0
29.0 63.0 70.0 77.0 7.0 48.0 78.0 85.0 92.0 7.0
30.0 64.0 71.0 78.0 7.0 49.0 79.0 86.0 93.0 7.0
31.0 65.0 72.0 79.0 7.0 50.0 79.0 86.0 93.0 7.0
Page 30
Reference Manual 26
Femur Length (FL): HADLOCK
GA Table
"Hadlock,F.P., Deter,R.L., Harrist,R.B., Park,S.K.,” Estimating fetal age: computer-assisted
analysis of multiple fetal growth parameters”, Radiology Vol. 152 No. 2, 1984, pages 497-
501."
GA= 10.35 + 2.46 × {OB_FL} + 0.17 × ({OB_FL}
2
)
Fetal Growth Table
"Hadlock F.P., Deter R.L.; Harrist R.B., Park S.K.
“Estimating Fetal Age: Computer-Assisted Analysis of Multiple Fetal Growth Parameters”
Radiology 1984; 152: 497-501"
Mean = –3.91 + 0.427 × {GA} – 0.0034 × {GA}
2
Output Unit: cm
Input Unit: w (week)
Min Range: 12w
Max Range: 40w
Femur Length (FL): HANSMANN
GA Table
"Hansmann, Hackeloer, Staudach, Wittmann “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer- Verlag, New York, 1986, p.431."
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
1.0 91.0 3.9 161.0 6.3 231.0
1.2 98.0 4.1 168.0 6.5 238.0
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
1.6 105.0 4.4 175.0 6.7 245.0
1.8 112.0 4.7 182.0 6.9 252.0
2.2 119.0 4.9 189.0 7.1 259.0
2.5 126.0 5.1 196.0 7.3 266.0
2.8 133.0 5.4 203.0 7.4 273.0
3.1 140.0 5.6 210.0 7.5 280.0
3.4 147.0 5.9 217.0
3.6 154.0 6.1 224.0
Fetal Growth Table
Hansmann, Hackelöer, Staudach, (Wittmann)“Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer- Verlag, New York, 1986, p.431.
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
13 1.000 1.000 1.000 27 4.400 4.900 5.500
14 1.200 1.200 1.200 28 4.600 5.100 5.700
15 1.300 1.600 2.100 29 4.900 5.400 5.900
16 1.500 1.800 2.300 30 5.100 5.600 6.200
17 1.800 2.200 2.600 31 5.300 5.900 6.400
18 2.100 2.500 2.900 32 5.500 6.100 6.600
19 2.400 2.800 3.200 33 5.700 6.300 6.800
20 2.700 3.100 3.500 34 5.900 6.500 7.000
21 2.900 3.400 3.800 35 6.100 6.700 7.200
22 3.200 3.600 4.100 36 6.300 6.900 7.400
Page 31
Reference Manual 27
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
23 3.400 3.900 4.400 37 6.500 7.100 7.700
24 3.700 4.100 4.700 38 6.700 7.300 7.900
25 3.900 4.400 4.900 39 6.800 7.400 8.100
26 4.200 4.700 5.200 40 7.000 7.500 8.400
Femur Length (FL): MERZ
GA Table
"E. Merz, W. Goldhofer, E. Timor-Tritsch ""Ultrasound in Gynecology and Obstetrics""
Textbook and Atlas, 1991 Georg Thieme Verlag, pp. 326"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
1.0 78.0 86.0 95.0 4.6 165.0 178.0 190.0
1.1 81.0 89.0 97.0 4.7 168.0 181.0 193.0
1.2 83.0 91.0 99.0 4.8 171.0 183.0 196.0
1.3 85.0 93.0 102.0 4.9 173.0 186.0 198.0
1.4 87.0 96.0 105.0 5.0 176.0 188.0 201.0
1.5 89.0 98.0 107.0 5.1 179.0 191.0 204.0
1.6 92.0 101.0 110.0 5.2 181.0 194.0 207.0
1.7 94.0 103.0 112.0 5.3 183.0 197.0 210.0
1.8 97.0 106.0 115.0 5.4 186.0 200.0 214.0
1.9 99.0 108.0 117.0 5.5 189.0 203.0 217.0
2.0 102.0 111.0 120.0 5.6 192.0 206.0 220.0
2.1 104.0 113.0 122.0 5.7 195.0 209.0 223.0
2.2 106.0 116.0 125.0 5.8 197.0 211.0 225.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
2.3 108.0 118.0 127.0 5.9 200.0 214.0 228.0
2.4 111.0 120.0 130.0 6.0 203.0 217.0 231.0
2.5 113.0 123.0 134.0 6.1 207.0 221.0 235.0
2.6 115.0 125.0 136.0 6.2 209.0 223.0 237.0
2.7 118.0 128.0 139.0 6.3 212.0 226.0 240.0
2.8 120.0 130.0 141.0 6.4 216.0 230.0 244.0
2.9 123.0 133.0 144.0 6.5 218.0 232.0 246.0
3.0 125.0 136.0 146.0 6.6 221.0 235.0 249.0
3.1 127.0 138.0 148.0 6.7 224.0 239.0 253.0
3.2 130.0 141.0 151.0 6.8 227.0 242.0 256.0
3.3 132.0 144.0 155.0 6.9 230.0 245.0 260.0
3.4 134.0 146.0 157.0 7.0 233.0 248.0 263.0
3.5 137.0 148.0 160.0 7.1 237.0 251.0 266.0
3.6 140.0 151.0 162.0 7.2 239.0 254.0 269.0
3.7 142.0 153.0 165.0 7.3 242.0 258.0 273.0
3.8 145.0 156.0 167.0 7.4 246.0 261.0 277.0
3.9 147.0 159.0 171.0 7.5 249.0 264.0 279.0
4.0 150.0 162.0 174.0 7.6 252.0 267.0 283.0
4.1 152.0 164.0 176.0 7.7 256.0 271.0 286.0
4.2 155.0 167.0 179.0 7.8 259.0 274.0 290.0
4.3 158.0 169.0 181.0 7.9 262.0 277.0 293.0
4.4 160.0 172.0 185.0 8.0 265.0 281.0 296.0
4.5 162.0 175.0 188.0
Page 32
Reference Manual 28
Fetal Growth Table
Merz E., Wellek S.
“Normal Fetal Development Proles-A Model to obtain Standard Development Graphs for
the Head and Abdominal Parameters and the Long Limb Bones”
Ultraschall in der Medizin 17 (1996) 153-162
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
88 0.600 0.900 1.200 193 4.800 5.200 5.700
91 0.800 1.100 1.400 196 4.900 5.300 5.800
95 1.000 1.300 1.600 200 5.000 5.500 5.900
98 1.100 1.500 1.800 203 5.100 5.600 6.000
102 1.300 1.600 2.000 207 5.200 5.700 6.100
105 1.500 1.800 2.100 210 5.300 5.800 6.200
109 1.600 2.000 2.300 214 5.400 5.900 6.300
112 1.800 2.100 2.500 217 5.500 6.000 6.400
116 1.900 2.300 2.600 221 5.600 6.100 6.600
119 2.100 2.400 2.800 224 5.700 6.200 6.700
123 2.200 2.600 2.900 228 5.800 6.300 6.800
126 2.400 2.700 3.100 231 5.900 6.400 6.900
130 2.500 2.900 3.200 235 6.000 6.500 7.000
133 2.700 3.000 3.400 238 6.100 6.600 7.100
137 2.800 3.200 3.500 242 6.200 6.700 7.200
140 2.900 3.300 3.700 245 6.300 6.800 7.300
144 3.100 3.500 3.800 249 6.400 6.900 7.400
147 3.200 3.600 4.000 252 6.500 7.000 7.400
151 3.300 3.700 4.100 256 6.600 7.000 7.500
154 3.500 3.900 4.200 259 6.600 7.100 7.600
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
158 3.600 4.000 4.400 263 6.700 7.200 7.700
161 3.700 4.100 4.500 266 6.800 7.300 7.800
165 3.900 4.300 4.600 270 6.900 7.400 7.900
168 4.000 4.400 4.800 273 6.900 7.400 7.900
172 4.100 4.500 4.900 277 7.000 7.500 8.000
175 4.200 4.600 5.000 280 7.100 7.600 8.100
179 4.300 4.800 5.200 284 7.100 7.600 8.100
182 4.500 4.900 5.300 287 7.200 7.700 8.200
186 4.600 5.000 5.400 291 7.200 7.700 8.300
189 4.700 5.100 5.500
Femur Length (FL): SHINOZUKA
GA Table
"Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, University of Tokyo Faculty of Medicine,
“Standard Values of Ultrasonographic Fetal Biometr y”
Jpn J Med Ultrasonics 23 (12) 877-888; 1996"
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
2.0 107.0 113.0 119.0 6.0 4.6 174.0 184.0 194.0 10.0
2.1 109.0 115.0 121.0 6.0 4.7 177.0 187.0 197.0 10.0
2.2 112.0 118.0 124.0 6.0 4.8 181.0 191.0 201.0 10.0
2.3 113.0 120.0 127.0 7.0 4.9 184.0 194.0 204.0 10.0
Page 33
Reference Manual 29
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
2.4 115.0 122.0 129.0 7.0 5.0 188.0 198.0 208.0 10.0
2.5 118.0 125.0 132.0 7.0 5.1 191.0 201.0 211.0 10.0
2.6 120.0 127.0 134.0 7.0 5.2 194.0 205.0 216.0 11.0
2.7 122.0 129.0 136.0 7.0 5.3 197.0 208.0 219.0 11.0
2.8 125.0 132.0 139.0 7.0 5.4 201.0 212.0 223.0 11.0
2.9 127.0 134.0 141.0 7.0 5.5 204.0 215.0 226.0 11.0
3.0 129.0 137.0 145.0 8.0 5.6 208.0 219.0 230.0 11.0
3.1 132.0 140.0 148.0 8.0 5.7 212.0 223.0 234.0 11.0
3.2 134.0 142.0 150.0 8.0 5.8 216.0 227.0 238.0 11.0
3.3 137.0 145.0 153.0 8.0 5.9 219.0 231.0 243.0 12.0
3.4 140.0 148.0 156.0 8.0 6.0 222.0 234.0 246.0 12.0
3.5 142.0 150.0 158.0 8.0 6.1 226.0 238.0 250.0 12.0
3.6 145.0 153.0 161.0 8.0 6.2 230.0 242.0 254.0 12.0
3.7 147.0 156.0 165.0 9.0 6.3 234.0 246.0 258.0 12.0
3.8 150.0 159.0 168.0 9.0 6.4 238.0 250.0 262.0 12.0
3.9 153.0 162.0 171.0 9.0 6.5 242.0 254.0 266.0 12.0
4.0 155.0 164.0 173.0 9.0 6.6 247.0 259.0 271.0 12.0
4.1 159.0 168.0 177.0 9.0 6.7 250.0 263.0 276.0 13.0
4.2 162.0 171.0 180.0 9.0 6.8 254.0 267.0 280.0 13.0
4.3 165.0 174.0 183.0 9.0 6.9 258.0 271.0 284.0 13.0
4.4 169.0 178.0 187.0 9.0 7.0 263.0 276.0 289.0 13.0
4.5 171.0 181.0 191.0 10.0
Fetal Growth Table
Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, Faculty of Medicine, University of Tokyo
“Standard Values of Ultrasonographic Fetal Biometr y” Jpn J Med Ultrasonics 23 (12) 877888; 1996
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
Age
(week)
-1.64SD
(cm)
Mean
(cm)
+1.64SD
(cm)
16 1.710 2.140 2.580 30 4.970 5.480 6.000
17 1.960 2.400 2.840 31 5.160 5.680 6.200
18 2.210 2.650 3.100 32 5.350 5.870 6.400
19 2.460 2.910 3.360 33 5.520 6.050 6.580
20 2.710 3.160 3.620 34 5.690 6.220 6.760
21 2.950 3.410 3.880 35 5.840 6.380 6.920
22 3.190 3.660 4.130 36 5.990 6.530 7.080
23 3.430 3.910 4.380 37 6.120 6.670 7.220
24 3.670 4.150 4.630 38 6.240 6.800 7.360
25 3.900 4.390 4.870 39 6.350 6.910 7.470
26 4.130 4.620 5.110 40 6.440 7.010 7.580
27 4.350 4.840 5.340 41 6.530 7.100 7.670
28 4.560 5.060 5.570 42 6.590 7.170 7.750
29 4.770 5.280 5.790
Page 34
Reference Manual 30
Gestational Sac (GS): HANSMANN
GA Table
"Hansmann M., Hackelöer BJ, Staudach A., “Ultraschalldiagnostik in Geburtshilfe und
Gynäkologie” Spr inger- Verlag, 1986, pp.36"
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
0.7 34.0 1.3 44.0 2.8 58.0
0.9 40.0 1.5 47.0 3.4 63.0
1.0 42.0 2.4 52.0
Gestational Sac (GS): REMPEN
GA Table
Rempen A. “Biometrie in der Frühgravidität (I. Trimenon)” Der Frauenarzt; 32,4/1991
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
0.2 24.0 34.0 44.0 10.0 3.8 54.0 64.0 74.0 10.0
0.3 25.0 35.0 45.0 10.0 3.9 55.0 65.0 75.0 10.0
0.4 26.0 36.0 46.0 10.0 4.0 56.0 66.0 76.0 10.0
0.5 27.0 37.0 47.0 10.0 4.1 57.0 67.0 77.0 10.0
0.6 27.0 37.0 47.0 10.0 4.2 58.0 68.0 78.0 10.0
0.7 28.0 38.0 48.0 10.0 4.3 59.0 69.0 79.0 10.0
0.8 29.0 39.0 49.0 10.0 4.4 59.0 69.0 79.0 10.0
0.9 30.0 40.0 50.0 10.0 4.5 60.0 70.0 80.0 10.0
1.0 30.0 40.0 50.0 10.0 4.6 61.0 71.0 81.0 10.0
1.1 31.0 41.0 51.0 10.0 4.7 62.0 72.0 82.0 10.0
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
1.2 32.0 42.0 52.0 10.0 4.8 63.0 73.0 83.0 10.0
1.3 33.0 43.0 53.0 10.0 4.9 64.0 74.0 84.0 10.0
1.4 34.0 44.0 54.0 10.0 5.0 65.0 75.0 85.0 10.0
1.5 34.0 44.0 54.0 10.0 5.1 66.0 76.0 86.0 10.0
1.6 35.0 45.0 55.0 10.0 5.2 67.0 77.0 87.0 10.0
1.7 36.0 46.0 56.0 10.0 5.3 68.0 78.0 88.0 10.0
1.8 37.0 47.0 57.0 10.0 5.4 69.0 79.0 89.0 10.0
1.9 38.0 48.0 58.0 10.0 5.5 70.0 80.0 90.0 10.0
2.0 38.0 48.0 58.0 10.0 5.6 71.0 81.0 91.0 10.0
2.1 39.0 49.0 59.0 10.0 5.7 72.0 82.0 92.0 10.0
2.2 40.0 50.0 60.0 10.0 5.8 73.0 83.0 93.0 10.0
2.3 41.0 51.0 61.0 10.0 5.9 74.0 84.0 94.0 10.0
2.4 42.0 52.0 62.0 10.0 6.0 75.0 85.0 95.0 10.0
2.5 43.0 53.0 63.0 10.0 6.1 76.0 86.0 96.0 10.0
2.6 43.0 53.0 63.0 10.0 6.2 77.0 87.0 97.0 10.0
2.7 44.0 54.0 64.0 10.0 6.3 78.0 88.0 98.0 10.0
2.8 45.0 55.0 65.0 10.0 6.4 79.0 89.0 99.0 10.0
2.9 46.0 56.0 66.0 10.0 6.5 80.0 90.0 100.0 10.0
3.0 47.0 57.0 67.0 10.0 6.6 81.0 91.0 101.0 10.0
3.1 48.0 58.0 68.0 10.0 6.7 82.0 92.0 102.0 10.0
3.2 49.0 59.0 69.0 10.0 6.8 83.0 93.0 103.0 10.0
3.3 49.0 59.0 69.0 10.0 6.9 84.0 94.0 104.0 10.0
3.4 50.0 60.0 70.0 10.0 7.0 85.0 95.0 105.0 10.0
3.5 51.0 61.0 71.0 10.0 7.1 86.0 96.0 106.0 10.0
Page 35
Reference Manual 31
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
3.6 52.0 62.0 72.0 10.0 7.2 88.0 98.0 108.0 10.0
3.7 53.0 63.0 73.0 10.0 7.3 89.0 99.0 109.0 10.0
Fetal Growth Table
Rempen A. “Biometrie in der Frühgravidität (I. Trimenon)” Der Frauenarzt; 32,4 /1991
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
32 0.000 0.050 1.100 63 2.610 3.660 4.710
33 0.000 0.180 1.230 64 2.710 3.760 4.810
34 0.000 0.320 1.370 65 2.800 3.850 4.900
35 0.000 0.450 1.500 66 2.900 3.950 5.000
36 0.000 0.580 1.630 67 2.990 4.040 5.090
37 0.000 0.710 1.760 68 3.080 4.130 5.180
38 0.000 0.840 1.890 69 3.170 4.220 5.270
39 0.000 0.970 2.020 70 3.260 4.310 5.360
40 0.040 1.090 2.140 71 3.350 4.400 5.450
41 0.170 1.220 2.270 72 3.440 4.490 5.540
42 0.290 1.340 2.390 73 3.520 4.570 5.620
43 0.410 1.460 2.510 74 3.610 4.660 5.710
44 0.540 1.590 2.640 75 3.690 4.740 5.790
45 0.660 1.710 2.760 76 3.770 4.820 5.870
46 0.780 1.830 2.880 77 3.850 4.900 5.950
47 0.890 1.940 2.990 78 3.930 4.980 6.030
48 1.010 2.060 3.110 79 4.010 5.060 6.110
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
49 1.120 2.170 3.220 80 4.090 5.140 6.190
50 1.240 2.290 3.340 81 4.160 5.210 6.260
51 1.350 2.400 3.450 82 4.240 5.290 6.340
52 1.460 2.510 3.560 83 4.310 5.360 6.410
53 1.570 2.620 3.670 84 4.380 5.430 6.480
54 1.680 2.730 3.780 85 4.460 5.510 6.560
55 1.790 2.840 3.890 86 4.530 5.580 6.630
56 1.900 2.950 4.000 87 4.590 5.640 6.690
57 2.000 3.050 4.100 88 4.660 5.710 6.760
58 2.110 3.160 4.210 89 4.730 5.780 6.830
59 2.210 3.260 4.310 90 4.790 5.840 6.890
60 2.310 3.360 4.410 91 4.860 5.910 6.960
61 2.410 3.460 4.510 92 4.920 5.970 7.020
62 2.510 3.560 4.610 93 4.980 6.030 7.080
Gestational Sac (GS): TOKYO
GA Table
Tokyo University Method 1986, 6 by University Tokyo
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
12.0 24.0 31.0 38.0 7.0 32.0 55.0
13.0 25.0 32.0 39.0 7.0 33.0 56.0
14.0 26.0 33.0 40.0 7.0 34.0 57.0
Page 36
Reference Manual 32
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
Meas
(mm)
Lower
(day)
Mean
(day)
Upper
(day)SD(day)
15.0 27.0 34.0 41.0 7.0 35.0 58.0
16.0 29.0 36.0 43.0 7.0 36.0 59.0
17.0 30.0 37.0 44.0 7.0 37.0 60.0
18.0 31.0 38.0 45.0 7.0 38.0 61.0
19.0 33.0 40.0 47.0 7.0 39.0 62.0
20.0 34.0 41.0 48.0 7.0 40.0 63.0
21.0 35.0 42.0 49.0 7.0 41.0 64.0
22.0 36.0 43.0 50.0 7.0 42.0 65.0
23.0 37.0 44.0 51.0 7.0 43.0 65.0
24.0 39.0 46.0 53.0 7.0 44.0 66.0
25.0 40.0 47.0 54.0 7.0 45.0 67.0
26.0 40.0 48.0 56.0 8.0 46.0 68.0
27.0 40.0 49.0 58.0 9.0 47.0 69.0
28.0 40.0 50.0 60.0 10.0 48.0 70.0
29.0 51.0 49.0 71.0
30.0 52.0 50.0 72.0
31.0 53.0
Head Circumference (HC): HADLOCK
GA Table
"Hadlock,F.P., Deter,R.L., Harrist,R.B., Park,S.K.,” Estimating fetal age: computer-assisted
analysis of multiple fetal growth parameters”, Radiology Vol. 152 No. 2, 1984, pages 497-
501."
GA = 8.96 + 0.54 × {OB_HC} + 0.0003 × ({OB_HC}
3
)
Output Unit: w (weeks)
Input Unit: cm
Min Range: 5.5cm
Max Range: 35.7cm
Fetal Growth Table
"Hadlock F.P., Deter R.L.; Harrist R.B., Park S.K.
“Estimating Fetal Age: Computer-Assisted Analysis of Multiple Fetal Growth Parameters”
Radiology 1984; 152: 497-501"
Mean = – 11.48 + 1.56 × {GA} – 0.0002548 × {GA}
3
Output Unit: cm
Input Unit: w (week)
Min Range: 12w
Max Range: 40w
Head Circumference (HC): HANSMANN
GA Table
Hansmann, Hackelöer, Staudach, (Wittmann) “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer- Verlag, New York, 1986, p.431.
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
10.6 98.0 21.5 161.0 31.1 224.0
11.5 105.0 22.6 168.0 31.8 231.0
12.7 112.0 24.0 175.0 32.5 238.0
14.0 119.0 25.1 182.0 33.2 245.0
15.2 126.0 26.3 189.0 33.7 252.0
Page 37
Reference Manual 33
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
Meas
(cm)
Mean
(day)
16.4 133.0 27.4 196.0 34.0 259.0
17.6 140.0 28.4 203.0 34.4 266.0
19.0 147.0 29.3 210.0 34.7 273.0
20.3 154.0 30.3 217.0 34.9 280.0
Fetal Growth Table
Hansmann, Hackelöer, Staudach, (Wittmann) “Ultrasound Diagnosis in Obstetrics and
Gynecology” Springer- Verlag, New York, 1986, p.434.
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
14 10.600 10.600 10.600 28 25.400 27.400 29.000
15 10.300 11.500 12.900 29 26.300 28.400 30.100
16 11.400 12.700 14.100 30 27.300 29.300 31.000
17 12.500 14.000 15.300 31 28.200 30.300 32.000
18 13.800 15.200 16.600 32 29.000 31.100 32.800
19 14.900 16.400 18.000 33 29.700 31.800 33.500
20 16.100 17.600 19.300 34 30.300 32.500 34.300
21 17.300 19.000 20.600 35 31.000 33.200 34.900
22 18.500 20.300 21.900 36 31.500 33.700 35.500
23 19.800 21.500 23.200 37 32.100 34.000 36.000
24 21.000 22.600 24.400 38 32.500 34.400 36.400
25 22.300 24.000 25.700 39 32.900 34.700 36.900
26 23.400 25.100 26.800 40 33.300 34.900 37.200
27 24.400 26.300 28.000
Head Circumference (HC): MERZ
GA Table
E. Merz, W. Goldhofer, E. Timor-Tritsch "Ultrasound in Gynecology and Obstetrics” Text book
and Atlas, 1991 Georg Thieme Verlag, pp. 326
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
7.2 77.0 85.0 92.0 22.0 151.0 163.0 175.0
7.4 78.0 86.0 95.0 22.2 153.0 165.0 176.0
7.6 78.0 87.0 95.0 22.4 153.0 165.0 177.0
7.8 79.0 88.0 96.0 22.6 155.0 167.0 179.0
8.0 81.0 89.0 97.0 22.8 155.0 168.0 181.0
8.2 81.0 90.0 98.0 23.0 157.0 169.0 182.0
8.4 82.0 90.0 99.0 23.2 158.0 171.0 183.0
8.6 83.0 92.0 100.0 23.4 159.0 172.0 184.0
8.8 84.0 92.0 101.0 23.6 160.0 173.0 186.0
9.0 85.0 93.0 102.0 23.8 162.0 174.0 187.0
9.2 86.0 95.0 103.0 24.0 163.0 176.0 188.0
9.4 87.0 95.0 104.0 24.2 165.0 177.0 190.0
9.6 88.0 96.0 104.0 24.4 166.0 179.0 191.0
9.8 89.0 97.0 106.0 24.6 167.0 180.0 193.0
10.0 90.0 98.0 106.0 24.8 169.0 181.0 194.0
10.2 90.0 99.0 109.0 25.0 169.0 182.0 195.0
10.4 91.0 100.0 109.0 25.2 171.0 183.0 196.0
10.6 92.0 101.0 110.0 25.4 172.0 185.0 197.0
10.8 93.0 102.0 111.0 25.6 174.0 186.0 199.0
Page 38
Reference Manual 34
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
11.0 94.0 103.0 112.0 25.8 175.0 188.0 200.0
11.2 95.0 104.0 113.0 26.0 176.0 189.0 202.0
11.4 96.0 105.0 114.0 26.2 178.0 190.0 203.0
11.6 97.0 106.0 115.0 26.4 179.0 192.0 204.0
11.8 98.0 107.0 116.0 26.6 181.0 193.0 206.0
12.0 99.0 108.0 117.0 26.8 182.0 195.0 207.0
12.2 99.0 109.0 119.0 27.0 183.0 197.0 210.0
12.4 100.0 110.0 120.0 27.2 185.0 198.0 211.0
12.6 101.0 111.0 120.0 27.4 186.0 200.0 213.0
12.8 102.0 112.0 122.0 27.6 188.0 201.0 214.0
13.0 103.0 113.0 123.0 27.8 189.0 202.0 216.0
13.2 104.0 114.0 124.0 28.0 190.0 204.0 217.0
13.4 105.0 115.0 125.0 28.2 192.0 205.0 218.0
13.6 106.0 116.0 126.0 28.4 194.0 207.0 221.0
13.8 107.0 117.0 127.0 28.6 195.0 209.0 222.0
14.0 109.0 118.0 128.0 28.8 197.0 210.0 223.0
14.2 109.0 119.0 129.0 29.0 198.0 211.0 225.0
14.4 111.0 120.0 130.0 29.2 200.0 214.0 227.0
14.6 111.0 121.0 131.0 29.4 202.0 215.0 228.0
14.8 112.0 123.0 133.0 29.6 203.0 216.0 230.0
15.0 113.0 123.0 134.0 29.8 204.0 218.0 231.0
15.2 114.0 125.0 135.0 30.0 206.0 220.0 234.0
15.4 115.0 125.0 136.0 30.2 207.0 221.0 235.0
15.6 116.0 127.0 137.0 30.4 209.0 223.0 237.0
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
15.8 117.0 127.0 138.0 30.6 211.0 225.0 239.0
16.0 118.0 129.0 139.0 30.8 212.0 226.0 240.0
16.2 119.0 130.0 140.0 31.0 214.0 228.0 242.0
16.4 120.0 131.0 141.0 31.2 216.0 230.0 244.0
16.6 121.0 132.0 142.0 31.4 218.0 232.0 246.0
16.8 123.0 133.0 144.0 31.6 220.0 234.0 248.0
17.0 123.0 134.0 144.0 31.8 221.0 235.0 249.0
17.2 125.0 135.0 146.0 32.0 223.0 237.0 252.0
17.4 125.0 136.0 146.0 32.2 224.0 239.0 253.0
17.6 126.0 137.0 148.0 32.4 226.0 241.0 256.0
17.8 127.0 139.0 150.0 32.6 228.0 243.0 258.0
18.0 128.0 139.0 151.0 32.8 230.0 244.0 259.0
18.2 130.0 141.0 152.0 33.0 232.0 246.0 261.0
18.4 130.0 141.0 153.0 33.2 233.0 249.0 264.0
18.6 132.0 143.0 154.0 33.4 235.0 251.0 266.0
18.8 133.0 144.0 155.0 33.6 237.0 253.0 268.0
19.0 134.0 145.0 156.0 33.8 239.0 255.0 270.0
19.2 135.0 146.0 158.0 34.0 241.0 256.0 272.0
19.4 137.0 148.0 159.0 34.2 243.0 258.0 274.0
19.6 137.0 148.0 160.0 34.4 245.0 260.0 276.0
19.8 138.0 150.0 161.0 34.6 247.0 263.0 278.0
20.0 139.0 151.0 163.0 34.8 249.0 265.0 281.0
20.2 140.0 152.0 164.0 35.0 251.0 267.0 284.0
20.4 141.0 153.0 165.0 35.2 253.0 270.0 286.0
Page 39
Reference Manual 35
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(day)
5%
(cm)
50%
(cm)
95%
(cm)
20.6 143.0 155.0 167.0 35.4 256.0 272.0 288.0
20.8 144.0 155.0 167.0 35.6 258.0 274.0 290.0
21.0 145.0 157.0 169.0 35.8 260.0 277.0 293.0
21.2 146.0 158.0 170.0 36.0 263.0 279.0 295.0
21.4 147.0 159.0 171.0 36.2 265.0 281.0 297.0
21.6 148.0 160.0 172.0 36.4 267.0 284.0 300.0
21.8 150.0 162.0 174.0
Fetal Growth Table
Merz E., Wellek S.
“Normal Fetal Development Proles-A Model to obtain Standard Development Graphs for
the Head and Abdominal Parameters and the Long Limb Bones” Ultraschall in der Medizin
17 (1996) 153-162
Meas
(day)
Lower
(cm)
Mean
(cm)
Upper
(cm)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
88 8.000 9.200 10.400 193 25.300 26.800 28.400
91 8.400 9.600 10.800 196 25.800 27.300 28.900
95 8.900 10.100 11.300 200 26.300 27.800 29.400
98 9.400 10.600 11.900 203 26.800 28.300 29.900
102 10.000 11.200 12.400 207 27.200 28.800 30.300
105 10.500 11.800 13.000 210 27.700 29.200 30.800
109 11.100 12.400 13.700 214 28.100 29.700 31.300
112 11.700 13.000 14.300 217 28.500 30.100 31.700
116 12.300 13.600 14.900 221 28.900 30.500 32.100
119 13.000 14.300 15.600 224 29.300 30.900 32.500
Meas
(day)
Lower
(cm)
Mean
(cm)
Upper
(cm)
Meas
(cm)
Lower
(day)
Mean
(day)
Upper
(day)
123 13.600 14.900 16.200 228 29.700 31.300 32.900
126 14.200 15.500 16.800 231 30.000 31.600 33.300
130 14.800 16.200 17.500 235 30.300 32.000 33.600
133 15.500 16.800 18.100 238 30.700 32.300 34.000
137 16.100 17.400 18.800 242 31.000 32.600 34.300
140 16.700 18.100 19.400 245 31.300 32.900 34.600
144 17.300 18.700 20.100 249 31.500 33.200 34.900
147 18.000 19.300 20.700 252 31.800 33.500 35.200
151 18.600 20.000 21.400 256 32.000 33.700 35.400
154 19.200 20.600 22.000 259 32.200 33.900 35.600
158 19.800 21.200 22.600 263 32.400 34.100 35.900
161 20.400 21.800 23.200 266 32.600 34.300 36.100
165 21.000 22.400 23.800 270 32.700 34.500 36.200
168 21.600 23.000 24.400 273 32.900 34.600 36.400
172 22.100 23.600 25.000 277 33.000 34.800 36.500
175 22.700 24.100 25.600 280 33.100 34.900 36.600
179 23.200 24.700 26.200 284 33.200 34.900 36.700
182 23.800 25.300 26.700 287 33.200 35.000 36.800
186 24.300 25.800 27.300 291 33.200 35.000 36.900
189 24.800 26.300 27.800
Page 40
Reference Manual 36
Fetal Ratio Reference
Femur Length/Head Circumference (FL/HC): HADLOCK
Fetal Ratio
Hadlock FP, Harrist RB, Shah Y, Park SK. "The Femur Length/Head Circumference Relation in
Obstetric Sonography" Journal of Ultrasound in Medicine, 3(10), October 1984, Pp.439-442
Age
(w)
-1SD
(%)
Mean
(%)
+1SD
(%)
Age
(w)
-1SD
(%)
Mean
(%)
+1SD
(%)
15 15.3 16.2 17.1 29 19.6 20.2 20.8
16 13.3 14.9 16.5 30 19.2 20.3 21.4
17 14.6 16.1 17.6 31 19.3 20.3 21.3
18 15.8 16.9 18.0 32 19.1 20.2 21.3
19 16.1 17.2 18.3 33 19.9 20.7 21.5
20 16.8 18.3 19.8 34 19.4 20.6 21.8
21 15.9 18.1 20.3 35 20.1 21.2 22.3
22 18.4 19.3 20.2 36 20.1 21.1 22.1
23 19.2 20.0 20.8 37 20.8 21.7 22.6
24 18.7 19.8 20.9 38 20.9 21.8 22.7
25 18.7 19.5 20.3 39 20.6 22.0 23.4
26 18.6 19.5 20.4 40 20.7 21.6 22.5
27 18.6 19.5 20.4 41 21.6 22.4 23.2
28 18.8 19.7 20.6 42 20.1 22.0 23.9
Head Circumference/Abdominal Circumference(HC/AC): CAMPBELL
Fetal Ratio
Campbell, s. “Ultrasound Measurement of the Fetal Head to Abdomen Circumference Ratio
in the Assessment of Growth Retardation.” Br J Obstetrics and Gynecology, Vol. 84. 165-174.
March 1977.
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
Age
(week)
5%
(cm)
50%
(cm)
95%
(cm)
13 1.140 1.230 1.310 28 1.050 1.130 1.220
14 1.140 1.230 1.310 29 0.990 1.100 1.210
15 1.050 1.220 1.390 30 0.990 1.100 1.210
16 1.050 1.220 1.390 31 0.960 1.070 1.170
17 1.070 1.180 1.290 32 0.960 1.070 1.170
18 1.070 1.180 1.290 33 0.960 1.040 1.110
19 1.090 1.180 1.260 34 0.960 1.040 1.110
20 1.090 1.180 1.260 35 0.930 1.020 1.110
21 1.060 1.150 1.250 36 0.930 1.020 1.110
22 1.060 1.150 1.250 37 0.920 0.980 1.050
23 1.050 1.130 1.210 38 0.920 0.980 1.050
24 1.050 1.130 1.210 39 0.870 0.970 1.060
25 1.040 1.130 1.220 40 0.870 0.970 1.060
26 1.040 1.130 1.220 41 0.930 0.960 1.000
27 1.050 1.130 1.220 42 0.930 0.960 1.000
Page 41
Reference Manual 37
Femur Length/Abdominal Circumference (FL/AC): HADLOCK
Fetal Ratio
Frank P. Hadlock, Russell L.Deter, Ronald B. Harrist, Ellen Roecker, Seung K. Park. "A DateIndependent Predictor of Intrauterine Growth Retardation: Femur Length/Abdominal
Circumference Ratio" American Journal of Roentgenology, 141:979-984, November 1983
− The normal value (±2SD) for this ratio during the period 14-40 weeks is 22±2%. (20%-24%)
Femur Length/BiParietal Diameter (FL/BPD): HOHLER
Fetal Ratio
Charles W. Hohler, Thomas A. Quetel. "Comparison of Ultrasound Femur Length and
Biparietal Diameter in Late Pregnancy" American Journal of Obstetrics and Gynecology,
141:759-762, 1981
− The normal value (90% Condence Interval) for this ratio during the period 23-40 weeks
is 79±8%. (71%-87%)
Estimated Fetal Weight Formula/Algorithm
Methods using (AC, FL)
HADLOCK 1
[Equation]
10^(1.304 + 0.05281 × AC + 0.1938 × FL – 0.004 × AC × FL)
[Reference]
Frank P. Hadlock, R. B. Harrist, Ralph S. Sharman, Russell L. Deter, Seung K. Park. "Estimation
of fetal weight with the use of head, body, and femur measurement-A prospective study"
American Journal of Obstetrics and Gynecology, Vol 151. No.3:333-337, February 1, 1985
[Summary]
The study population consisted of 109 predominately middle class Caucasian patients.
The majority of patients were examined within 3 days of delivery, and all patients were
examined within at least 1 week of delivery.
− Summary of accuracy of models (Mean deviation = SD(%) )
<1,500g : –3.9±8.3
1,500-2,000g : 0.9±8.5
2,000-2,500g : 1.6±8.5
2,500-3,000g : 0.3±7.6
3,000-3,500g : –1.9±7.2
3,500-4,000g : –0.7±6.8
>4,000g : 5.2±5.2
Page 42
Reference Manual 38
Methods using (BPD, AC, FL)
HADLOCK 2
[Equation]
10^(1.335 – 0.0034 × AC × FL + 0.0316 × BPD + 0.0457 × AC + 0.1623 × FL)
[Reference]
Frank P. Hadlock, R. B. Harrist, Ralph S. Sharman, Russell L. Deter, Seung K. Park. "Estimation
of fetal weight with the use of head, body, and femur measurement-A prospective study"
American Journal of Obstetrics and Gynecology, Vol 151. No.3:333-337, February 1, 1985
[Summary]
The study population consisted of 109 predominately middle class Caucasian patients.
The majority of patients were examined within 3 days of delivery, and all patients were
examined within at least 1 week of delivery.
− Summary of accuracy of models ( Mean deviation = SD(%) )
<1,500g : –5.3±9.0
1,500-2,000g : 2.2±7.0
2,000-2,500g : 3.2±7.6
2,500-3,000g : 1.3±7.7
3,000-3,500g : 0.4±6.0
3,500-4,000g : 1.4±7.1
>4,000g : 4.8±5.1
Methods using (HC, AC, FL)
HADLOCK3
[Equation]
10^(1.326 – 0.00326 × AC × FL + 0.0107 × HC + 0.0438 × AC + 0.158 × FL)
[Reference]
Frank P. Hadlock, R. B. Harrist, Ralph S. Sharman, Russell L. Deter, Seung K. Park. "Estimation
of fetal weight with the use of head, body, and femur measurement-A prospective study"
American Journal of Obstetrics and Gynecology, Vol 151. No.3:333-337, February 1, 1985
[Summary]
The study population consisted of 109 predominately middle class Caucasian patients.
The majority of patients were examined within 3 days of delivery, and all patients were
examined within at least 1 week of delivery.
− Summary of accuracy of models ( Mean deviation = SD(%) )
<1,500g : –4.6±9.7
1,500-2,000g : 2.5±7.4
2,000-2,500g : 4.9±7.3
2,500-3,000g : 1.7±6.6
3,000-3,500g : 0.2±5.9
3,500-4,000g : 3.2±6.9
>4,000g : 6.3±5.1
Page 43
Reference Manual 39
Estimated Fetal Weight Growth Reference
Estimated Fetal Weight (EFW): BRENNER
Fetal Growth Table
Brenner W.E., Edelman D.A., Hendricks C.H.
"A standard of fetal growth for the United States of America"
American Journal of Obstetrics and Gynecology; November 1; 1976; pp. 555-564
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
21 280.0 410.0 860.0 33 1480.0 2010.0 2690.0
22 320.0 480.0 920.0 34 1670.0 2220.0 2880.0
23 370.0 550.0 990.0 35 1870.0 2430.0 3090.0
24 420.0 640.0 1080.0 36 2190.0 2650.0 3290.0
25 490.0 740.0 1180.0 37 2310.0 2870.0 3470.0
26 570.0 860.0 1320.0 38 2510.0 3030.0 3610.0
27 660.0 990.0 1470.0 39 2680.0 3170.0 3750.0
28 770.0 1150.0 1660.0 40 2750.0 3280.0 3870.0
29 890.0 1310.0 1890.0 41 2800.0 3360.0 3980.0
30 1030.0 1460.0 2100.0 42 2830.0 3410.0 4060.0
31 1180.0 1630.0 2290.0 43 2840.0 3420.0 4100.0
32 1310.0 1810.0 2500.0 44 2790.0 3390.0 4110.0
Estimated Fetal Weight (EFW): DOUBILET
Fetal Growth Table
Doubilet, P.M., MD. PhD., Benson, C.B.,MD , Nadel, A.S., MD, Ringer, St. A., MD.
PhD. "Improved birth weight table for neonates developed from gestations dated by early
ultrasonography “J Ultrasound Med; December 4; 1996; 16:241-249
Age
(week)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
95%
(gram)
25 450.000 660.000 968.000 35 1804.000 2383.000 3148.000
26 523.000 760.000 1103.000 36 2006.000 2622.000 3428.000
27 609.000 875.000 1257.000 37 2210.000 2859.000 3698.000
28 707.000 1005.000 1430.000 38 2409.000 3083.000 3947.000
29 820.000 1153.000 1623.000 39 2595.000 3288.000 4164.000
30 947.000 1319.000 1836.000 40 2762.000 3462.000 4340.000
31 1090.000 1502.000 2070.000 41 2900.000 3597.000 4462.000
32 1249.000 1702.000 2321.000 42 3002.000 3685.000 4523.000
33 1422.000 1918.000 2587.000 43 3061.000 3717.000 4515.000
34 1608.000 2146.000 2865.000
Estimated Fetal Weight (EFW): HADLOCK
Fetal Growth Table
Hadlock F.P., Harrist R.B., Martinez-Poyer J.
"In Utero Analysis of Fetal Growth: A Sonographic Weight Standard“
Radiology.1991, 181: 129-133
Page 44
Reference Manual 40
Age
(week)
3%
(gram)
50%
(gram)
97%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
97%
(gram)
10 26.0 35.0 44.0 26 685.0 913.0 1141.0
11 34.0 45.0 56.0 27 791.0 1055.0 1319.0
12 43.0 58.0 73.0 28 908.0 1210.0 1513.0
13 55.0 73.0 91.0 29 1034.0 1379.0 1724.0
14 70.0 93.0 116.0 30 1169.0 1559.0 1949.0
15 88.0 117.0 146.0 31 1313.0 1751.0 2189.0
16 110.0 146.0 183.0 32 1465.0 1953.0 2441.0
17 136.0 181.0 226.0 33 1622.0 2162.0 2703.0
18 167.0 223.0 279.0 34 1783.0 2377.0 2971.0
19 205.0 273.0 341.0 35 1946.0 2595.0 3244.0
20 248.0 331.0 414.0 36 2110.0 2813.0 3516.0
21 299.0 399.0 499.0 37 2271.0 3028.0 3785.0
22 359.0 478.0 598.0 38 2427.0 3236.0 4045.0
23 426.0 568.0 710.0 39 2576.0 3435.0 4294.0
24 503.0 670.0 838.0 40 2714.0 3619.0 4524.0
25 589.0 785.0 981.0
Estimated Fetal Weight (EFW): JOHNSEN
Fetal Growth Table
Johnsen SL, Rasmussen S, Sollien R, Kiserud T, Acta Obstet Gynecol Scand , 2005; 84: 725733
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
20 283.0 340.0 408.0 32 1730.0 1997.0 2304.0
21 350.0 416.0 495.0 33 1900.0 2194.0 2533.0
22 426.0 503.0 595.0 34 2071.0 2393.0 2765.0
23 512.0 602.0 707.0 35 2242.0 2593.0 2998.0
24 610.0 713.0 833.0 36 2411.0 2791.0 3230.0
25 717.0 835.0 972.0 37 2576.0 2984.0 3458.0
26 836.0 970.0 1126.0 38 2734.0 3171.0 3677.0
27 964.0 1116.0 1292.0 39 2883.0 3347.0 3886.0
28 1102.0 1274.0 1472.0 40 3021.0 3511.0 4081.0
29 1249.0 1442.0 1665.0 41 3147.0 3661.0 4258.0
30 1403.0 1619.0 1868.0 42 3258.0 3793.0 4415.0
31 1564.0 1805.0 2082.0
Estimated Fetal Weight (EFW): JSUM
Fetal Growth Table
Takashi Okai, Chairman of JSUM, Ultrasound Diagnostic standard & language committee
Ultrasound Fetal measurement standardization & Japanese standard proposals J Med
Ultrasonics Vol. 28 No.5 (2001)
Age
(week)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(week)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
18 142.0 187.0 232.0 30 1191.0 1470.0 1749.0
19 186.0 247.0 308.0 31 1332.0 1635.0 1938.0
20 236.0 313.0 390.0 32 1477.0 1805.0 2133.0
Page 45
Reference Manual 41
Age
(week)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(week)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
21 293.0 387.0 481.0 33 1626.0 1980.0 2334.0
22 357.0 469.0 581.0 34 1776.0 2156.0 2536.0
23 430.0 560.0 690.0 35 1926.0 2333.0 2740.0
24 511.0 660.0 809.0 36 2072.0 2507.0 2942.0
25 602.0 771.0 940.0 37 2213.0 2676.0 3139.0
26 702.0 892.0 1082.0 38 2346.0 2838.0 3330.0
27 812.0 1023.0 1234.0 39 2467.0 2989.0 3511.0
28 930.0 1163.0 1396.0 40 2572.0 3125.0 3678.0
29 1057.0 1313.0 1569.0 41 2660.0 3244.0 3828.0
Estimated Fetal Weight (EFW): OSAKA
Fetal Growth Table
Perinatal care Vol. 9 No. 5
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
112 94.000 137.000 181.000 197 1038.000 1275.000 1512.000
113 99.000 142.000 186.000 198 1056.000 1296.000 1536.000
114 104.000 147.000 191.000 199 1075.000 1318.000 1561.000
115 110.000 153.000 197.000 200 1094.000 1340.000 1586.000
116 113.000 158.000 203.000 201 1113.000 1363.000 1614.000
117 119.000 164.000 209.000 202 1132.000 1385.000 1639.000
118 125.000 170.000 215.000 203 1151.000 1407.000 1664.000
119 130.000 176.000 223.000 204 1169.000 1430.000 1691.000
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
120 136.000 182.000 229.000 205 1189.000 1453.000 1717.000
121 140.000 188.000 236.000 206 1209.000 1476.000 1743.000
122 146.000 195.000 245.000 207 1228.000 1499.000 1771.000
123 153.000 202.000 252.000 208 1248.000 1522.000 1797.000
124 158.000 209.000 260.000 209 1268.000 1545.000 1823.000
125 164.000 216.000 269.000 210 1286.000 1568.000 1850.000
126 171.000 223.000 276.000 211 1307.000 1592.000 1877.000
127 177.000 231.000 285.000 212 1327.000 1615.000 1903.000
128 183.000 238.000 294.000 213 1347.000 1639.000 1932.000
129 189.000 246.000 303.000 214 1368.000 1663.000 1959.000
130 196.000 254.000 313.000 215 1387.000 1687.000 1987.000
131 203.000 263.000 323.000 216 1408.000 1711.000 2014.000
132 210.000 271.000 333.000 217 1429.000 1735.000 2041.000
133 217.000 280.000 343.000 218 1449.000 1759.000 2070.000
134 225.000 289.000 354.000 219 1470.000 1783.000 2097.000
135 232.000 298.000 364.000 220 1490.000 1808.000 2126.000
136 241.000 308.000 376.000 221 1511.000 1832.000 2153.000
137 248.000 317.000 386.000 222 1532.000 1857.000 2183.000
138 255.000 327.000 399.000 223 1553.000 1881.000 2210.000
139 264.000 337.000 411.000 224 1573.000 1906.000 2239.000
140 272.000 347.000 422.000 225 1594.000 1930.000 2266.000
141 282.000 358.000 435.000 226 1615.000 1955.000 2296.000
142 289.000 368.000 448.000 227 1637.000 1980.000 2324.000
143 298.000 379.000 460.000 228 1657.000 2005.000 2353.000
Page 46
Reference Manual 42
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
144 306.000 390.000 474.000 229 1678.000 2029.000 2380.000
145 316.000 401.000 487.000 230 1699.000 2054.000 2410.000
146 326.000 413.000 500.000 231 1721.000 2079.000 2438.000
147 335.000 425.000 515.000 232 1741.000 2104.000 2467.000
148 345.000 436.000 528.000 233 1763.000 2129.000 2495.000
149 355.000 449.000 544.000 234 1784.000 2154.000 2525.000
150 364.000 461.000 559.000 235 1804.000 2179.000 2554.000
151 375.000 474.000 573.000 236 1826.000 2204.000 2582.000
152 384.000 486.000 588.000 237 1847.000 2229.000 2612.000
153 396.000 499.000 603.000 238 1869.000 2254.000 2640.000
154 407.000 513.000 620.000 239 1889.000 2279.000 2669.000
155 417.000 526.000 636.000 240 1910.000 2304.000 2699.000
156 429.000 540.000 651.000 241 1932.000 2329.000 2727.000
157 439.000 553.000 667.000 242 1952.000 2354.000 2756.000
158 451.000 568.000 685.000 243 1973.000 2379.000 2786.000
159 462.000 582.000 702.000 244 1992.000 2403.000 2814.000
160 475.000 596.000 718.000 245 2014.000 2428.000 2842.000
161 487.000 611.000 736.000 246 2035.000 2453.000 2872.000
162 499.000 626.000 754.000 247 2055.000 2478.000 2901.000
163 511.000 641.000 772.000 248 2075.000 2502.000 2930.000
164 523.000 656.000 790.000 249 2095.000 2527.000 2959.000
165 536.000 672.000 809.000 250 2116.000 2551.000 2986.000
166 550.000 688.000 826.000 251 2137.000 2576.000 3016.000
167 563.000 704.000 845.000 252 2156.000 2600.000 3044.000
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
168 576.000 720.000 864.000 253 2176.000 2624.000 3073.000
169 589.000 736.000 883.000 254 2195.000 2648.000 3101.000
170 603.000 753.000 903.000 255 2215.000 2672.000 3130.000
171 617.000 770.000 923.000 256 2234.000 2696.000 3158.000
172 631.000 787.000 943.000 257 2254.000 2720.000 3187.000
173 645.000 804.000 963.000 258 2273.000 2744.000 3215.000
174 660.000 822.000 984.000 259 2292.000 2767.000 3243.000
175 674.000 839.000 1004.000 260 2311.000 2791.000 3271.000
176 689.000 857.000 1025.000 261 2330.000 2814.000 3299.000
177 704.000 875.000 1046.000 262 2348.000 2837.000 3326.000
178 719.000 893.000 1067.000 263 2367.000 2860.000 3354.000
179 735.000 912.000 1089.000 264 2385.000 2883.000 3381.000
180 750.000 930.000 1110.000 265 2404.000 2906.000 3409.000
181 765.000 949.000 1134.000 266 2420.000 2928.000 3437.000
182 781.000 968.000 1156.000 267 2437.000 2950.000 3463.000
183 797.000 987.000 1178.000 268 2456.000 2973.000 3491.000
184 814.000 1007.000 1201.000 269 2473.000 2995.000 3517.000
185 830.000 1026.000 1223.000 270 2488.000 3016.000 3544.000
186 847.000 1046.000 1246.000 271 2506.000 3038.000 3571.000
187 864.000 1066.000 1269.000 272 2522.000 3059.000 3596.000
188 879.000 1086.000 1293.000 273 2537.000 3080.000 3623.000
189 896.000 1106.000 1316.000 274 2554.000 3101.000 3649.000
190 914.000 1127.000 1340.000 275 2568.000 3121.000 3675.000
191 931.000 1147.000 1363.000 276 2584.000 3142.000 3700.000
Page 47
Reference Manual 43
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
Age
(day)
-1.5SD
(gram)
Mean
(gram)
+1.5SD
(gram)
192 949.000 1168.000 1387.000 277 2598.000 3162.000 3726.000
193 966.000 1189.000 1413.000 278 2614.000 3182.000 3751.000
194 984.000 1210.000 1437.000 279 2627.000 3201.000 3776.000
195 1003.000 1232.000 1462.000 280 2640.000 3220.000 3801.000
196 1021.000 1253.000 1486.000
Estimated Fetal Weight (EFW): SHINOZUKA
Fetal Growth Table
Shinozuka N., Masuda H., Kagawa H., Taketani Y.
Department of Obstetrics and Gynecology, Faculty of Medicine, University of Tokyo
“Standard Values of Ultrasonographic Fetal Biometr y “ Jpn J Med Ultrasonics 23 (12) 877888; 1996
Age
(week)
-1.64SD
(gram)
Mean
(gram)
+1.64SD
(gram)
Age
(week)
-1.64SD
(gram)
Mean
(gram)
+1.64SD
(gram)
18 158.000 216.000 274.000 30 1234.000 1552.000 1870.000
19 204.000 279.000 355.000 31 1375.000 1720.000 2064.000
20 256.000 349.000 442.000 32 1520.000 1892.000 2265.000
21 314.000 427.000 539.000 33 1667.000 2068.000 2469.000
22 381.000 513.000 645.000 34 1814.000 2244.000 2675.000
23 456.000 609.000 761.000 35 1960.000 2420.000 2880.000
24 541.000 714.000 888.000 36 2102.000 2592.000 3083.000
25 634.000 830.000 1026.000 37 2236.000 2758.000 3280.000
26 737.000 956.000 1175.000 38 2360.000 2915.000 3469.000
27 849.000 1092.000 1334.000 39 2471.000 3059.000 3647.000
Age
(week)
-1.64SD
(gram)
Mean
(gram)
+1.64SD
(gram)
Age
(week)
-1.64SD
(gram)
Mean
(gram)
+1.64SD
(gram)
28 970.000 1237.000 1504.000 40 2565.000 3187.000 3809.000
29 1099.000 1391.000 1683.000 41 2639.000 3296.000 3952.000
Estimated Fetal Weight (EFW): TOKYO
Fetal Growth Table
Norio Shinozuk, M.D., Tak ashi Okai, M.D.,Shiro Kohzuma, M.D., Masaaki Mukuba, M.D.,
Chen-Ting Shin, M.D.,Tsugio Maeda, M.D., Yoshinori Kuwabara, M.D. and Masahiko M izuni,
M.D. “Formulas for fetal weight estimation by ultrasound measurements based on neonatal
specic gravities and volumes”; American Journal of Obstetrics and Gynecology, St. Louis;
Vol. 157, No. 5, pp. 1140-1145, Nov., 1987
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
161 284.000 642.000 872.000 225 1298.000 1849.000 2548.000
162 317.000 649.000 879.000 226 1315.000 1877.000 2585.000
163 348.000 656.000 886.000 227 1333.000 1906.000 2622.000
164 379.000 664.000 895.000 228 1351.000 1934.000 2659.000
165 408.000 672.000 904.000 229 1370.000 1963.000 2696.000
166 436.000 681.000 914.000 230 1389.000 1992.000 2732.000
167 463.000 689.000 925.000 231 1409.000 2021.000 2769.000
168 489.000 699.000 937.000 232 1429.000 2050.000 2806.000
169 514.000 708.000 950.000 233 1449.000 2080.000 2842.000
170 538.000 719.000 963.000 234 1470.000 2109.000 2879.000
171 561.000 729.000 977.000 235 1492.000 2138.000 2915.000
172 583.000 740.000 992.000 236 1514.000 2168.000 2951.000
Page 48
Reference Manual 44
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
173 605.000 751.000 1008.000 237 1536.000 2197.000 2988.000
174 625.000 763.000 1025.000 238 1559.000 2226.000 3024.000
175 645.000 775.000 1042.000 239 1582.000 2256.000 3060.000
176 664.000 788.000 1060.000 240 1606.000 2285.000 3095.000
177 682.000 801.000 1079.000 241 1629.000 2314.000 3131.000
178 700.000 814.000 1098.000 242 1654.000 2343.000 3166.000
179 716.000 828.000 1119.000 243 1679.000 2373.000 3201.000
180 733.000 842.000 1139.000 244 1704.000 2402.000 3236.000
181 748.000 857.000 1161.000 245 1729.000 2431.000 3271.000
182 763.000 872.000 1183.000 246 1755.000 2460.000 3305.000
183 778.000 887.000 1206.000 247 1781.000 2488.000 3340.000
184 792.000 903.000 1229.000 248 1807.000 2517.000 3374.000
185 805.000 919.000 1253.000 249 1833.000 2545.000 3407.000
186 818.000 936.000 1278.000 250 1860.000 2574.000 3441.000
187 831.000 953.000 1303.000 251 1887.000 2602.000 3474.000
188 844.000 970.000 1329.000 252 1914.000 2630.000 3506.000
189 856.000 988.000 1355.000 253 1941.000 2657.000 3539.000
190 867.000 1006.000 1382.000 254 1968.000 2685.000 3571.000
191 879.000 1025.000 1409.000 255 1996.000 2712.000 3602.000
192 890.000 1044.000 1437.000 256 2023.000 2739.000 3633.000
193 901.000 1063.000 1465.000 257 2051.000 2765.000 3664.000
194 912.000 1083.000 1494.000 258 2078.000 2792.000 3695.000
195 923.000 1103.000 1523.000 259 2105.000 2817.000 3725.000
196 933.000 1123.000 1553.000 260 2132.000 2843.000 3754.000
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
197 944.000 1144.000 1583.000 261 2159.000 2868.000 3783.000
198 954.000 1165.000 1614.000 262 2186.000 2893.000 3812.000
199 965.000 1187.000 1645.000 263 2213.000 2917.000 3840.000
200 975.000 1209.000 1676.000 264 2239.000 2941.000 3868.000
201 986.000 1231.000 1708.000 265 2265.000 2965.000 3895.000
202 996.000 1253.000 1740.000 266 2291.000 2988.000 3921.000
203 1006.000 1276.000 1773.000 267 2316.000 3010.000 3947.000
204 1017.000 1299.000 1806.000 268 2340.000 3032.000 3973.000
205 1028.000 1323.000 1839.000 269 2364.000 3053.000 3998.000
206 1039.000 1347.000 1872.000 270 2387.000 3074.000 4022.000
207 1050.000 1371.000 1906.000 271 2410.000 3095.000 4046.000
208 1061.000 1395.000 1940.000 272 2432.000 3114.000 4069.000
209 1072.000 1420.000 1974.000 273 2453.000 3133.000 4091.000
210 1084.000 1445.000 2009.000 274 2473.000 3152.000 4113.000
211 1096.000 1470.000 2044.000 275 2493.000 3169.000 4135.000
212 1108.000 1496.000 2079.000 276 2511.000 3186.000 4155.000
213 1121.000 1521.000 2114.000 277 2528.000 3202.000 4175.000
214 1133.000 1547.000 2149.000 278 2544.000 3218.000 4194.000
215 1146.000 1574.000 2185.000 279 2559.000 3232.000 4213.000
216 1160.000 1600.000 2221.000 280 2572.000 3246.000 4230.000
217 1174.000 1627.000 2257.000 281 2584.000 3259.000 4247.000
218 1188.000 1654.000 2293.000 282 2595.000 3271.000 4264.000
219 1202.000 1681.000 2329.000 283 2604.000 3283.000 4279.000
220 1217.000 1709.000 2365.000 284 2611.000 3293.000 4294.000
Page 49
Reference Manual 45
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(day)
5%
(gram)
50%
(gram)
95%
(gram)
221 1232.000 1736.000 2402.000 285 2617.000 3302.000 4308.000
222 1248.000 1764.000 2438.000 286 2620.000 3311.000 4321.000
223 1264.000 1792.000 2475.000 287 2622.000 3318.000 4333.000
224 1281.000 1820.000 2512.000
Estimated Fetal Weight (EFW): WILLIAMS
Fetal Growth Table
Ronald Williams, Robert Creasy, George Cunningham, Warren Hawes, Rank Norris, Michiko
Tashiro "Fetal Growth and Perinatal Viability in California“
Obstetric & Gynecology Vol. 59, NO. 5, May 1982
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
22 320.000 513.000 746.000 36 2224.000 2849.000 3521.000
23 365.000 589.000 861.000 37 2455.000 3052.000 3706.000
24 417.000 675.000 989.000 38 2642.000 3227.000 3867.000
25 477.000 773.000 1132.000 39 2790.000 3364.000 3994.000
26 546.000 882.000 1289.000 40 2881.000 3462.000 4080.000
27 627.000 1005.000 1463.000 41 2946.000 3524.000 4127.000
28 720.000 1143.000 1653.000 42 3011.000 3589.000 4185.000
29 829.000 1298.000 1859.000 43 3044.000 3626.000 4221.000
30 955.000 1484.000 2136.000 44 3043.000 3633.000 4233.000
31 1100.000 1695.000 2402.000 45 3009.000 3611.000 4224.000
32 1284.000 1920.000 2673.000 46 2941.000 3560.000 4191.000
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
Age
(week)
10%
(gram)
50%
(gram)
90%
(gram)
33 1499.000 2155.000 2910.000 47 2844.000 3482.000 4136.000
34 1728.000 2394.000 3132.000 48 2720.000 3377.000 4059.000
35 1974.000 2628.000 3333.000
Estimated Fetal Weight (EFW): YARKONI
Fetal Growth Table
Yarkoni S., Reece EA, Holford T, O'Connor TZ, Hobbins JC: Estimated fetal weight in the
evaluation of growth in twin gestations: a prospective longitudinal study. Obstet. Gynecol.
69:636, 1987
Age
(week)
5%
(gram)
50%
(gram)
95%
(gram)
Age
(week)
5%
(gram)
50%
(gram)
95%
(gram)
16 132.000 154.000 207.000 28 789.000 1244.000 1774.000
17 173.000 215.000 249.000 29 900.000 1395.000 1883.000
18 214.000 276.000 291.000 30 1011.000 1546.000 1992.000
19 223.000 300.000 412.000 31 1198.000 1693.000 2392.000
20 232.000 324.000 534.000 32 1385.000 1840.000 2793.000
21 275.000 432.000 705.000 33 1491.000 2032.000 3000.000
22 319.000 540.000 876.000 34 1597.000 2224.000 3208.000
23 347.000 598.000 880.000 35 1703.000 2427.000 3336.000
24 376.000 656.000 885.000 36 1809.000 2631.000 3465.000
25 549.000 793.000 1118.000 37 2239.000 2824.000 3679.000
26 722.000 931.000 1352.000 38 2669.000 3017.000 3894.000
27 755.000 1087.000 1563.000
Page 50
Reference Manual 46
Vascular Reference
Resistivity Index
Reference: Burns, Peter N., “ The Physical principles of Doppler Spectral Analysis,” Journal of
Clinical Ultrasound, Nov./Dec. 1987, Vol.15, No.9,p.586
Pulsatility Index
Reference: Burns, Peter N., “ The Physical principles of Doppler Spectral Analysis,” Journal of
Clinical Ultrasound, Nov./Dec. 1987, Vol.15, No.9,p.585
S/D (ratio of Systolic to Diastolic Velocity)
Reference: Ameriso S, et al., “Pulseless Transcranial Doppler Finding in Takayasu’s Arteritis,” J
Clin Ultrasound, September 1990; 18:592-6
D/S (ratio of Diastolic to Systolic Velocity)
Gynecology Reference
Resistivity Index
Reference: Burns, Peter N., “ The Physical principles of Doppler Spectral Analysis,” Journal of
Clinical Ultrasound, Nov./Dec. 1987, Vol.15, No.9,p.586
Pulsatility Index
Reference: Burns, Peter N., “ The Physical principles of Doppler Spectral Analysis,” Journal of
Clinical Ultrasound, Nov./Dec. 1987, Vol.15, No.9,p.585
S/D (ratio of Systolic to Diastolic Velocity)
Reference: Ameriso S, et al., “Pulseless Transcranial Doppler Finding in Takayasu’s Arteritis,” J
Clin Ultrasound, September 1990; 18:592-6
D/S (ratio of Diastolic to Systolic Velocity)
Page 51
Reference Manual 47
Vol.
Follicle Vol.
Page 52
Reference Manual 48
Acoustic Output Tables
IEC 60601-2-37 Tables
Symbols and Denitions
Standard 60601-2-37 published by the International Electrotechnical Commission (IEC)
requires the declaration of acoustic output information. The denitions and units of the
symbols in those tables are listed below, and are consistent with IEC 60601-2-37 and IEC
62359. Denitions for CAPITALIZED parameters, if not found here, can be found in the
reference documents.
All table entries have been obtained at the operating conditions that give rise to the
Maximum Index Value (shown in the second row of the table). Due to the complexities
of the system user interface, it may be dicult to exactly replicate the declared condition.
Contact Samsung Medison for further information as needed.
Note that Samsung Medison provides information for both of the TIS non-scanned
columns. The ‘Aaprt≤1’ (cm
2
) column is an ‘at_sur face’ TIS value and the ‘Aaprt>1’ (cm2)
column is a ‘below surface’ TIS value. The tables will provide additional informational ags
(‘**’) in the event that the largest TIS non-scanned value is an ‘at_surface’ value with Aaprt >
1 cm2, or if the largest TIS non-scanned value is a ‘below_sur face’ value with Aaprt ≤ 1 cm2
case (very rare).
A
aprt
the –12 dB OUTPUT BEAM AREA, or transmit aperture area, of the
ultrasonic beam. Derived from the –12 dB OUTPUT BEAM DIMENSIONS.
(centimeters squared)
d
eq
at max. Ipi the EQUIVALENT BEAM DIAMETER at the point where the free¬-
eld (non-attenuated), PULSE INTENSITY INTEGRAL is a maximum
(centimeters).
d
eq(zb)
the EQUIVALENT BEAM DIAMETER at axial distance zb. Equal to [(4/п)
(Pα(zb) / I
ta, α(zb
))]
0.5
. (centimeters)
Dim of A
aprt
the –12 dB OUTPUT BEAM DIMENSIONS. The active apertu-re dimensions
in the azimuthal and elevational directions (cent-imeters). For scanned
modes, the ‘X_dim‘ is the length of the entire scanned aperture.
f
awf
the ACOUSTIC WORKING FREQUENCY. Center frequency. (megahertz)
Focal Length The nominal focal points, azimuthal (FL
x
) and elevational (FLy), for the
operating condition (centimeters).
I
pa, α
at max. MI the ATTENUATED PULSE–AVERAGE INTENSITY at the depth of repor ted
MI, zat_max_Ipi,
α
.
(watts per square centimeter).
I
ta, α
(z) the ATTENUATED TEMPORAL-AVERAGE INTENSITY at axial distance z.
(milliwatts per square centimeter)
MI the displayed parameter representing potential cavitation bio-eects.
(unit-less)
P the time -average ultrasonic OUTPUT POWER radiated by the transducer
for the transmit pattern(s) associated with the report-ed Index. For
TIS_non_scan and TIB_non_scan this is the total acoustic power of
the non-scanned beam(s). For TIC it is the total acoustic power of the
contributing modes (which will be list-ed separately, for the reader to
sum). The reported maximum TIS_scan value may (likely) come from a
combinational mode. In this case, P = P1 + P1x1. P1 is the BOUNDED
OUTPUT POWER (the maximum power emitted from a one cm width
of the active (scanned) transmit aperture of the transducer in the scan
plane direction) of each the scanned transmit modes. For instance in
2D color mode P1_2D and P1_Col will be listed. P1x1 is the ma-ximum
contribution from any one square centimeter of the non-scanned
transmit mode(s) active aperture. (milliwatts).
P
α
(z)
the (ultrasonic) ATTENUATED OUTPUT POWER at axial dist–ance z
s,
for the
non–scanned modes or TRANSMIT PATTERNS. (milliwatts)
P
r, α
the ATTENUATED PEAK-RAREFACTIONAL ACOUSTIC PRESSURE associated
with the transmit pattern giving rise to the reported value of MI.
(megapascals)
Page 53
Reference Manual 49
Pr at max. I
pi
the PEAK–RAREFACTIONAL ACOUSTIC PRESSURE at the point where the
free –eld (non–attenuated), PULSE INTENSITY INTEGRAL is a maximum.
(megapascals)
prr the PULSE REPETITION RATE associated with the transmit pattern giving
rise to the reported value of MI (pulses per second).
TIB the BONE THERMAL INDEX for applications, such as fetal (second and
third trimester) or neonatal cephalic (through the fontanelle), in which
the ultrasound beam passes through soft tissue and a focal region is in
the immediate vicinity of bone. (unit–less)
TIC the CRANIAL BONE THERMAL INDEX.
TIS
scan
the SOFT TISSUE THERMAL INDEX in a scanning mode. (unit–less)
TIS
non–scan
the SOFT TISSUE THERMAL INDEX in a non–auto scanning mode. (unit–
less)
t
d
the PULSE DURATION associated with the TRANSMIT PATTERN giving rise
to the reported value of MI. (microseconds)
z
_at_max_Ipi,
α
the axial distance from the transducer where the ATTENUATED PULSE
INTENSITY INTEGRAL Ipi,
α
is maximum.
z
b
the distance where TIB_non–scan is determined. For non–scanned
modes, Distance along the beam axis to the plane where the product
of the ATTENUATED OUTPUT POWER and ATTENUATED TEMPORALAVERAGE INTENSITY (Pα(z) x I
ta, α
(z)) maximizes. (centimeters)
z
bp
value equal to 1.5 times the EQUIVALENT APERTURE DIAMETER (Deq).
Also equals 1.69 * . (centimeters)
z
s
the distance where TIS_non–scan is determined. The axial distance
corresponding to the location of max[min(Pα(z), I
ta, α
(z)x1 cm2)], where z
>= z
bp.
(centimeters)
Explanatory Notes
(a) This index is not required in this operating mode.
(b) This probe is not intended for adult transcranial or neonatal cephalic applications.
(c) This formulation for TIS is less than that for an alternate formulation in this mode.
(d) The maximum index value is less than 1.0 in all modes.
* If the MI comes from a scanning mode Transmit Pattern (pulse), the ‘prr’ listed is the
average per second for the 'worst case' scan line. ‘prr’ for scanning modes is the product
of the frame rate and the number of pulse per line of the Transmit Pattern.
** The max TIS non-scanned value is an ‘at_sur face‘ value and occurs for aperture > 1.0
cm
2
, OR The max TIS non-scanned value is a ‘below_surface‘ value and occurs for
aperture <= 1.0 cm2.
+ The max TIB for this combinational mode = the at_surface TIS_scanned value. The non-
scanned_TIB value indicated is the below_surface max. A “+“ is used when this TIB value
is less than the TIS_scanned value for the operating condition.
Page 54
Reference Manual 50
C2-8
C2-8: 2D & 2D+M
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.95 0.33 0.12 0.14 0.33 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.59 – – – – –
P
(mW)
– 2D P1:25.1 M P1x1:8.78 – M P:10.6 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 10.4 – –
z
s
(cm)
– – – 4.52 – –
z
bp
(cm)
– – – 3.68 – –
z
b
(cm)
– – – – 4.15 –
z_at_max_Ipi, α
(cm)
4.35 – – – –
d
eq(zb
)
(cm)
– – – 0.32 –
f
awf
(MHz)
2.76 2.72 2.76 2.75 2.78 (b)
Dim of A
aprt
X (cm)
– 4.83 0.86 4.31 1.24 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
t
d
(µsec)
0.82 – – – – –
prr
(pulses/sec)
30.0* – – – – –
P
r
at max. I
pi
(MPa)
2.25 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.30 –
I
pa, α
at max. MI
(W/cm2)
175 – – – – –
Focal Length
FLx (cm)
– – 3.50 17.5 – –
FLy (cm)
– – 6.50 6.50 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D (Harmonic) Mode, 2D: 2.6MHz, Focus: 5.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.6MHz, Focus: 8.5cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 3.5cm, FR: 26.3Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 17.5cm, FR: 7.81Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 5.0cm, FR: 26.3Hz
C2-8: 2D+Color, Triple, CPA &Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.86 0.42 0.30** 0.34 1.08 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.57 – – – – –
P
(mW)
–
2D P1:2.93
Col P1:27.9
PD P1x1:22.5 – PD P:32.8 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 25.4 – –
z
s
(cm)
– – – 4.32 – –
z
bp
(cm)
– – – 3.88 – –
z
b
(cm)
– – – – 4.76 –
z_at_max_Ipi, α
(cm)
2.51 – – – – –
d
eq(zb
)
(cm)
– – – – 0.27 –
f
awf
(MHz)
3.36
2D:3.19
Col:2.85
2.82 2.79 2.82 (b)
Dim of A
aprt
X (cm)
–
2D:6.12
Col:5.23
1.15 4.79 1.63 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
t
d
(µsec)
0.35 – – – – –
prr
(pulses/sec)
20.0* – – – – –
P
r
at max. I
pi
(MPa)
1.98 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.26 –
I
pa, α
at max. MI
(W/cm2)
97.1 – – – – –
Focal Length
FLx (cm)
– – 3.50 14.5 – –
FLy (cm)
– – 6.50 6.50 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color Mode, 2D: 4.1MHz, Col: 2.8MHz, Focus: 3.5cm, FR: 20.0Hz
Control 2: 2D+Color Mode, 2D: 4.7MHz, Col: 2.8MHz, Focus: 8.5cm, FR: 9.35Hz
Control 3: Triple Mode, 2D: 4.1MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 3.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple Mode, 2D: 6.8MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 14.5cm, FR: 2.38Hz, PD Scale: 1.0kHz, SV Size: Default
Control 5: Triple Mode, 2D: 4.1MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 5.0cm, FR: 2.97Hz, PD Scale: 1.25kHz, SV Size: Default
Page 55
Reference Manual 51
C2-8: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.74 0.33 0.46** 0.55 1.76 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.24 – – – – –
P
(mW)
–
2D P1:1.76
PD P1x1:22.5
PD P1x1:34.2 – PD P:53.0 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 40.8 – –
z
s
(cm)
– – – 3.68 – –
z
bp
(cm)
– – – 3.39 – –
z
b
(cm)
– – – – 4.76 –
z_at_max_Ipi, α
(cm)
4.96 – – – – –
d
eq(zb
)
(cm)
– – – – 0.27 –
f
awf
(MHz)
2.82
2D:3.75
PD:2.82
2.82 2.81 2.83 (b)
Dim of A
aprt
X (cm)
–
2D:6.12
PD:1.15
1.15 3.64 1.63 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
t
d
(µsec)
1.26 – – – – –
prr
(pulses/sec)
1250 – – – – –
P
r
at max. I
pi
(MPa)
2.01 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.26 –
I
pa, α
at max. MI
(W/cm2)
145 – – – – –
Focal Length
FLx (cm)
– – 3.50 11.0 – –
FLy (cm)
– – 6.50 6.50 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Pulsed Doppler Mode, 2D: 4.1MHz, PD: 2.8MHz, Focus: 5.0cm, FR: 19.5Hz, PD Scale: 1.25kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 4.7MHz, PD: 2.8MHz, Focus: 3.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 3.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 11.0cm, PD Scale: 2.0kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 5.0cm, PD Scale: 2.75kHz, SV Size: Default
C2-5
C2-5: 2D & 2D+M
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.44 0.59 0.16** 0.27 0.82 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
2.13 – – – – –
P
(mW)
– 2D P1:57.0 M P1x1:14.9 – M P:19.5 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 25.7 – –
z
s
(cm)
– – – 3.51 – –
z
bp
(cm)
– – – 2.92 –
z
b
(cm)
– – – – 3.46 –
z_at_max_Ipi, α
(cm)
1.49 – – – – –
d
eq(zb
)
(cm)
– – – – 0.32 –
f
awf
(MHz)
2.20 2.17 2.20 2.17 2.16 (b)
Dim of A
aprt
X (cm)
– 4.77 0.90 2.29 1.31 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
t
d
(µsec)
0.96 – – – – –
prr
(pulses/sec)
30.0* – – – – –
P
r
at max. I
pi
(MPa)
2.38 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.31
I
pa, α
at max. MI
(W/cm2)
221 – – – – –
Focal Length
FLx (cm)
– – 2.00 17.5 – –
FLy (cm)
– – 6.00 6.00 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D (Harmonic) Mode, 2D: 2.13MHz, Focus: 2.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.13MHz, Focus: 17.5cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 2.0cm, FR: 26.3Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 17.5cm, FR: 7.81Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 3.5cm, FR: 26.3Hz
Page 56
Reference Manual 52
C2-5: 2D + Color, Triple, CPA &Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.44 0.66 0.36** 0.55 1.67 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
2.13 – – – – –
P
(mW)
–
2D P1:6.43
Col P1:56.4
PD P1x1:35.4 – PD P:46.8 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 54.5 – –
z
s
(cm)
– – – 4.72 – –
z
bp
(cm)
– – – 4.02 – –
z
b
(cm)
– – – – 3.85 –
z_at_max_Ipi, α
(cm)
1.49 – – – – –
d
eq(zb
)
(cm)
– – – – 0.36
f
awf
(MHz)
2.20
2D:2.51
Col:2.16
2.14 2.11 2.14 (b)
Dim of A
aprt
X (cm)
–
2D:5.24
Col:3.38
0.82 4.34 1.23 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
t
d
(µsec)
0.96 – – – – –
prr
(pulses/sec)
22.3* – – – – –
P
r
at max. I
pi
(MPa)
2.38 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.34 –
I
pa, α
at max. MI
(W/cm2)
221 – – – – –
Focal Length
FLx (cm)
– – 3.50 17.5 – –
FLy (cm)
– – 6.00 6.00 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, Focus: 2.0cm, FR: 22.3Hz
Control 2: 2D+Color Mode, 2D: 2.62MHz, Col: 2.1MHz, Focus: 5.0cm, FR: 16.3Hz
Control 3: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 3.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 17.5cm, FR: 2.38Hz, PD Scale: 1.0kHz, SV Size: Default
Control 5: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 5.0cm, FR: 2.97Hz, PD Scale: 1.25kHz, SV Size: Default
C2-5: Pulsed Doppler & 2D + Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.93 0.42 0.78** 0.98 2.61 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.38 – – – – –
P
(mW)
–
2D P1:4.59
PD P1x1:35.4
PD P1x1:76.7 – PD P:116 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 96.4 – –
z
s
(cm)
– – – 3.72 – –
z
bp
(cm)
– – – 3.66 – –
z
b
(cm)
– – – – 6.16 –
z_at_max_Ipi, α
(cm)
1.49 – – – – –
d
eq(zb
)
(cm)
– – – – 0.40 –
f
awf
(MHz)
2.21
2D:2.56
PD:2.14
2.14 2.13 2.14 (b)
Dim of A
aprt
X (cm)
–
2D:5.24
PD:0.82
0.82 3.60 2.05 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
t
d
(µsec)
0.96 – – – – –
prr
(pulses/sec)
13.7* – – – – –
P
r
at max. I
pi
(MPa)
1.55 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.36 –
I
pa, α
at max. MI
(W/cm2)
83.0 – – – – –
Focal Length
FLx (cm)
– – 3.50 14.5 – –
FLy (cm)
– – 6.00 6.00 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Pulsed Doppler (Harmonic) Mode, 2D: 2.13MHz, PD: 2.1MHz, Focus: 2.0cm, FR: 13.7Hz, PD Scale: 1.75kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 2.62MHz, PD: 2.1MHz, Focus: 3.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 3.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 14.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 8.5cm, PD Scale: 4.5kHz, SV Size: Default
–
Page 57
Reference Manual 53
LN5-12
LN5-12: 2D& 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.10 0.43 0.17 0.08** 0.14+ (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
3.07 – – – – –
P
(mW)
–
2D P1:8.00
M P1x1:5.24
M P1x1:5.24 – M P:1.13 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 2.51 – –
z
s
(cm)
– – – 1.57 – –
z
bp
(cm)
– – – 1.57 – –
z
b
(cm)
– – – – 0.97 –
z_at_max_Ipi, α
(cm)
1.08 – – – – –
d
eq(zb
)
(cm)
– – – – 0.12 –
f
awf
(MHz)
7.78 6.76 6.76 6.76 6.73 (b)
Dim of A
aprt
X (cm)
–
2D:3.84
M:2.16
2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
t
d
(µsec)
0.18 – – – – –
prr
(pulses/sec)
30.0* – – – – –
P
r
at max. I
pi
(MPa)
3.92 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.11 –
I
pa, α
at max. MI
(W/cm2)
513 – – – – –
Focal Length
FLx (cm)
– – 6.50 6.50 – –
FLy (cm)
– – 1.80 1.80 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U TIS_bs
Control 3
TIB_bs
Control 1: 2D Mode, 2D: 8.8MHz, Focus: 1.5cm, FR: 30.0Hz
Control 2: 2D+M Mode, 2D: 6.8MHz, M: 6.8MHz, Focus: 6.5cm, FR: 22.7Hz
Control 3: 2D+M Mode, 2D: 6.8MHz, M: 6.8MHz, Focus: 1.5cm, FR: 26.3Hz
LN5-12: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.10 0.48 0.36 0.20** 0.88 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
3.07 – – – – –
P
(mW)
–
2D P1:0.85
Col P1:3.66
PD P1x1:14.6
PD P1x1:14.6 – PD P:7.01 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 8.36 – –
z
s
(cm)
– – – 1.57 – –
z
bp
(cm)
– – – 1.57 – –
z
b
(cm)
– – – – 1.00 –
z_at_max_Ipi, α
(cm)
1.08 – – – – –
d
eq(zb
)
(cm)
– – – – 0.13 –
f
awf
(MHz)
7.78
2D:6.94
Col:5.20
PD:5.13
5.13 5.13 5.16 (b)
Dim of A
aprt
X (cm)
–
2D:3.84
Col:3.62
PD:2.16
2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
t
d
(µsec)
0.18 – – – – –
prr
(pulses/sec)
7.13* – – – – –
P
r
at max. I
pi
(MPa)
3.92 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.13 –
I
pa, α
at max. MI
(W/cm2)
513 – – – – –
Focal Length
FLx (cm)
– – 6.50 6.50 – –
FLy (cm)
– – 1.80 1.80 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U TIS_bs
Control 3
TIB_bs
Control 1: Triple Mode, 2D: 8.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 7.13Hz, PD Scale: 3.0kHz, SV Size: Default
Control 2: Triple Mode, 2D: 8.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 6.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Triple Mode, 2D: 6.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 7.13Hz, PD Scale: 3.0kHz, SV Size: Default
Page 58
Reference Manual 54
LN5-12: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.07 0.48 0.51 0.29** 1.00 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
2.79 – – – – –
P
(mW)
–
2D P1:5.74
PD P1x1:11.6
PD P1x1:20.9 – PD P:8.04 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 12.0 – –
z
s
(cm)
– – – 1.57 – –
z
bp
(cm)
– – – 1.57 – –
z
b
(cm)
– – – – 1.00 –
z_at_max_Ipi, α
(cm)
1.09 – – – – –
d
eq(zb
)
(cm)
– – – – 0.13 –
f
awf
(MHz)
6.72
2D:7.12
PD:5.14
5.15 5.15 5.18 (b)
Dim of A
aprt
X (cm)
–
2D:3.84
PD:2.16
2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
t
d
(µsec)
0.21 – – – – –
prr
(pulses/sec)
23.4* – – – – –
P
r
at max. I
pi
(MPa)
3.59 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.13 –
I
pa, α
at max. MI
(W/cm2)
565 – – – – –
Focal Length
FLx (cm)
– – 6.50 6.50 – –
FLy (cm)
– – 1.80 1.80 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U TIS_bs
Control 4
TIB_bs
Control 1: 2D+Pulsed Doppler Mode, 2D: 6.8MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 23.4Hz, PD Scale: 3.0kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 8.8MHz, PD: 5.1MHz, Focus: 6.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 5.1MHz, Focus: 6.5cm, PD Scale: 3.5kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 5.1MHz, Focus: 1.5cm, PD Scale: 13.5kHz, SV Size: Default
LS6-15
LS6-15: 2D& 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.48 0.50 0.18 0.08** 0.13+ (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
3.93 – – – – –
P
(mW)
–
2D P1:8.38
M P1x1:4.63
M P1x1:4.63 – M P:1.68 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 2.32 – –
z
s
(cm)
– – – 1.47 – –
z
bp
(cm)
– – – 1.47 – –
z
b
(cm)
– – – – 0.85
z_at_max_Ipi, α
(cm)
0.93 – – – – –
d
eq(zb
)
(cm)
– – – – 0.19 –
f
awf
(MHz)
6.99 8.02 8.02 7.31 7.06 (b)
Dim of A
aprt
X (cm)
–
2D:2.56
M:2.16
2.16 2.16 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
t
d
(µsec)
0.18 – – – – –
prr
(pulses/sec)
30.0* – – – – –
P
r
at max. I
pi
(MPa)
4.61 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.19 ––
I
pa, α
at max. MI
(W/cm2)
748 – – – – –
Focal Length
FLx (cm)
– – 6.50 6.50 – –
FLy (cm)
– – 1.20 1.20 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U
Control 3
TIS_bs
Control 4
TIB_bs
Control 1: 2D Mode, 2D: 7.62MHz, Focus: 1.5cm, FR: 30.0Hz
Control 2: 2D+M Mode, 2D: 10.0MHz, M: 10.0MHz, Focus: 6.5cm, FR: 25.0Hz
Control 3: 2D+M Mode, 2D: 7.62MHz, M: 7.62MHz, Focus: 6.5cm, FR: 25.0Hz
Control 4: 2D+M Mode, 2D: 7.62MHz, M: 7.62MHz, Focus: 2.2cm, FR: 25.0Hz
Page 59
Reference Manual 55
LS6-15: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.43 0.64 0.43 0.25** 0.86 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
3.92 – – – – –
P
(mW)
–
2D P1:0.21
Col P1:7.57
PD P1x1:13.6
PD P1x1:14.4 – PD P:10.6 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 8.44 – –
z
s
(cm)
– – – 1.10 – –
z
bp
(cm)
– – – 1.10 – –
z
b
(cm)
– – – – 0.85 –
z_at_max_Ipi, α
(cm)
0.69 – – – – –
d
eq(zb
)
(cm)
– – – – 0.19 –
f
awf
(MHz)
7.49
2D:8.60
Col:6.29
PD:6.29
6.27 6.29 6.24 (b)
Dim of A
aprt
X (cm)
–
2D:2.56
Col:2.16
PD:1.20
2.16 1.20 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
t
d
(µsec)
0.18 – – – – –
prr
(pulses/sec)
41.1* – – – – –
P
r
at max. I
pi
(MPa)
4.69 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.16
I
pa, α
at max. MI
(W/cm2)
815 – – – – –
Focal Length
FLx (cm)
– – 6.50 3.70 – –
FLy (cm)
– – 1.20 1.20 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color Mode, 2D: 7.62MHz, Col: 6.15MHz, Focus: 1.0cm, FR: 41.1Hz
Control 2: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 3.7cm, FR: 5.63Hz, PD Scale: 1.75kHz, SV Size: Default
Control 3: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 6.5cm, FR: 4.82Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple Mode, 2D: 7.62MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 3.7cm, FR: 5.63Hz, PD Scale: 1.75kHz, SV Size: Default
Control 5: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 2.2cm, FR: 8.04Hz, PD Scale: 2.5kHz, SV Size: Default
LS6-15: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.34 0.58 0.78 0.41** 1.22 (b)
Associated
Acoustic
Parameters
P
r, α
(MPa)
3.35 – – – – –
P
(mW)
–
2D P1:2.03
PD P1x1:16.2
PD P1x1:26.1 – PD P:14.5 (b)
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 13.8 – –
z
s
(cm)
– – – 1.47 – –
z
bp
(cm)
– – – 1.47 – –
z
b
(cm)
– – – – 0.85 –
z_at_max_Ipi, α
(cm)
0.62 – – – – –
d
eq(zb
)
(cm)
– – – – 0.19 –
f
awf
(MHz)
6.28
2D:9.86
PD:6.26
6.27 6.27 6.22 (b)
Dim of A
aprt
X (cm)
–
2D:2.56
PD:2.16
2.16 2.16 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
t
d
(µsec)
0.59 – – – – –
prr
(pulses/sec)
1000 – – – – –
P
r
at max. I
pi
(MPa)
3.83 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.16 –
I
pa, α
at max. MI
(W/cm2)
659 – – – – –
Focal Length
FLx (cm)
– – 6.50 6.50 – –
FLy (cm)
– – 1.20 1.20 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U TIS_bs
Control 4
TIB_bs
Control 1: Pulsed Doppler Mode, 2D: 6.15MHz, Focus: 1.0cm, PD Scale: 1.0kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 12.32MHz, PD: 6.15MHz, Focus: 6.5cm, FR: 31.3Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 6.15MHz, Focus: 6.5cm, PD Scale: 3.5kHz, SV Size: Default
Control 4: 2D+Pulsed Doppler Mode, 2D: 12.32MHz, PD: 6.15MHz, Focus: 2.2cm, FR: 26.0Hz, PD Scale: 2.5kHz, SV Size: Default
Page 60
Reference Manual 56
PN2-4
EVN4-9: 2D& 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–
scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.05 0.54 0.11** 0.18 0.61 1.52
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.51 – – – – –
P
(mW)
– 2D P1:55.5 M P1x1:11.3 – M P:22.4
2D P:80.9
M P:27.8
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 18.4 – –
z
s
(cm)
– – – 2.88 – –
z
bp
(cm)
– – – 2.67 – –
z
b
(cm)
– – – 5.25 –
z_at_max_Ipi, α
(cm)
1.69 – – – – –
d
eq(zb
)
(cm)
– – – 0.39 –
f
awf
(MHz)
2.07 2.06 2.07 2.06 2.07 2.05
Dim of A
aprt
X (cm)
– 1.92 0.78 1.92 1.56 1.92
Y (cm)
– 1.30 1.30 1.30 1.30 1.30
Other
Information
t
d
(µsec)
0.74 – – – – –
prr
(pulses/sec)
30.0* – – – – –
P
r
at max. I
pi
(MPa)
1.42 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.38 –
I
pa, α
at max. MI
(W/cm2)
98.8 – – – – –
Focal Length
FLx (cm)
– – 4.00 10.0 – –
FLy (cm)
– – 7.00 7.00 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D (Harmonic) Mode, 2D: 2.05MHz, Focus: 4.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.05MHz, Focus: 10.0cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 4.0cm, FR: 22.7Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 10.0cm, FR: 22.7Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 8.0cm, FR: 22.7Hz
Control 6: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 12.0cm, FR: 22.7Hz
PN2-4: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–
scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.90 0.84 0.31** 0.29 0.88 1.80
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.30 – – – – –
P
(mW)
–
2D P1:14.6
Col P1:58.5
PD P1x1:27.3 – PD P:33.7
2D P:9.09
Col P:46.4
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 26.0 – –
z
s
(cm)
– – – 3.28 – –
z
bp
(cm)
– – – 2.67 – –
z
b
(cm)
– – – – 4.45 –
z_at_max_Ipi, α
(cm)
1.49 – – – – –
d
eq(zb
)
(cm)
– – – – 0.42
f
awf
(MHz)
2.08
2D:2.53
Col:2.37
2.37 2.37 2.37
2D:2.16
Col:2.38
Dim of A
aprt
X (cm)
– 0.78 0.78 1.92 1.20 0.36
Y (cm)
– 1.30 1.30 1.30 1.30 1.30
Other
Information
t
d
(µsec)
0.76 – – – – –
prr
(pulses/sec)
33.2* – – – – –
P
r
at max. I
pi
(MPa)
1.25 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.39 –
I
pa, α
at max. MI
(W/cm2)
64.8 – – – – –
Focal Length
FLx (cm)
– – 4.00 10.0 – –
FLy (cm)
– – 7.00 7.00 –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D + Color (Harmonic) Mode, 2D: 2.05MHz, Col: 2.36MHz, Focus: 4.0cm, FR: 33.2Hz
Control 2: CPA Mode, 2D: 2.68Mz, Col: 2.36MHz, Focus: 4.0cm, FR: 14.5Hz
Control 3: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 4.0cm, FR: 8.33Hz, PD Scale: 1.50kHz, SV Size: Default
Control 4: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 10.0cm, FR: 5.56Hz, PD Scale: 1.00kHz, SV Size: Default
Control 5: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 6.0cm, FR: 6.94Hz, PD Scale: 1.25kHz, SV Size: Default
Control 6: 2D + Color Mode, 2D: 2.19MHz, Col: 2.36MHz, Focus: 2.0cm, FR: 50.2Hz
Page 61
Reference Manual 57
PN2-4: Pulsed Doppler &2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.71 0.45 0.79** 0.71 2.28 1.77
Associated
Acoustic
Parameters
P
r, α
(MPa)
1.10 – – – – –
P
(mW)
–
2D P1:11.3
PD P1x1:27.3
PD P1x1:70.0 – PD P:95.4
PD
P:54.6
Min. of
[P
α(zs), Ita, α
(zs)x1cm2]
(mW)
– – – 63.1 – –
z
s
(cm)
– – – 3.28 – –
z
bp
(cm)
– – – 2.67 – –
z
b
(cm)
– – – – 5.25 –
z_at_max_Ipi, α
(cm)
4.45 – – – – –
d
eq(zb
)
(cm)
– – – – 0.40 –
f
awf
(MHz)
2.37
2D:2.56
PD:2.37
2.37 2.37 2.38 2.38
Dim of A
aprt
X (cm)
– 0.78 0.78 1.92 1.56 0.36
Y (cm)
– 1.30 1.30 1.30 1.30 1.30
Other
Information
t
d
(µsec)
1.58 – – – – –
prr
(pulses/sec)
1250 – – – – –
P
r
at max. I
pi
(MPa)
1.30 – – – – –
d
eq
at max. I
pi
(cm)
– – – – 0.35
I
pa, α
at max. MI
(W/cm2)
59.7 – – – – –
Focal Length
FLx (cm)
– – 4.00 12.0 – –
FLy (cm)
– – 7.00 7.00 – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D+Pulsed Doppler Mode, 2D: 2.19MHz, PD: 2.36MHz, Focus: 6.0cm, FR: 39.1Hz, PD Scale: 1.25kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 2.68MHz, PD: 2.36MHz, Focus: 4.0cm, FR: 46.9Hz, PD Scale: 1.50kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 4.0cm, PD Scale: 6.00kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 12.0cm, PD Scale: 5.50kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 8.0cm, PD Scale: 4.50kHz, SV Size: Default
Control 6: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 2.0cm, PD Scale: 7.50kHz, SV Size: Default
Page 62
Reference Manual 58
FDA Tables
Symbols and Denitions
All table entries have been obtained at the same operating conditions that give rise to
the maximum Index Value in the second row. Due to the complexities of the system user
interface, it may be dicult to exactly replicate the declared condition. Contact Samsung
Medison for further information.
Symbols used in the table are described below.
MI the Mechanical Index.
TIS
scan
the Soft Tissue Thermal Index in an auto scanning mode.
TIS
non–scan
the Soft Tissue Thermal Index in a non auto scanning mode.
TIB the Bone Thermal Index.
TIC the Cranial Thermal Index.
A
aprt
the area of the active aperture (square centimeters).
p
r.3
the derated peak rarefactional pressure associated with the transmit pattern
giving rise to the value reported under MI (meg zapascals).
W
o
For TIB and TIC: time average acoustic power at the source, in milliwatts. (Also
see the denitions for W01 and W
01x1
that follow.)
For TIS scan, W
o =
W
o1 +
W
o1x1
For TIS non–scan, W
o
=
W
o1x1
W
o1:
For scanning modes and/or scanning components of combinational modes:
time average acoustic power at the source, per cm, in milliwatts. This is the
acoustic power emitted from the central 1–cm length, in the scan direction, of
the aperture corresponding to the scanned pulses.
W
o1x1:
For non–scanning modes and/or non–scanning components of combinational
modes: time average acoustic power at the source, per cm2, in milliwatts.
This is the acoustic power emitted from the central 1 cm2 of the active
non–scanned aperture through which the highest acoustic power is being
transmitted.
W
.3(z1
) the derated ultrasonic power at axial distance z1 (milliwatts).
I
TA.3(z1
) the derated spatial peak, temporal average intensity at axial distance z1
(milliwatts per square centimeter).
z
1
the axial distance corresponding to the location of max[min( W.3(z), I
TA.3
(z) x 1
cm2)], where z = zbp (centimeters).
z
bp
(centimeters).
z
sp
For MI, the axial distance at which p
r.3
is measured for TIB, the axial distance at
which TIB is a maximum (i.e., zsp = z
B.3
) (centimeters).
d
eq
(z) the equivalent beam diameter as a function of axial distance z, and is equal to
[(4/3.14)(Wo/ITA(z))]
0.5
where ITA(z) is the temporal average intensity as a function
of z (centimeters).
f
c
is the center frequency (MHz). For MI, fc is the center frequency associated
with the transmit pattern giving rise to the maximum reported value of MI.
For TI, for combined modes involving transmit patterns of unequal center
frequency, fc is dened as the overall range of center frequencies of the
respective transmit patterns.
Dim. of A
aprt
the active aperture dimensions for the azimuthal and elevational planes
(centimeters).
PD the pulse duration (microseconds) associated with the transmit pattern giving
rise to the reported value of MI.
PRF the pulse repetition frequency associated with the transmit pattern giving rise
to the reported value of MI (Hz).
p
r
@PII
max
the peak rarefactional pressure at the point where the free-eld, spatial peak
pulse intensity integral is a maximum (megapascals). See Section 6.2.4.1 of the
Output Display Standard, entitled "Measurement Methodology for Mechanical
and Thermal Indices".
d
eq
@PII
max
the equivalent beam diameter at the point where the free-eld, spatial peak
pulse intensity integral is a maximum (centimeters). See Section 6.2.5.1 of the
Output Display Standard, entitled "Measurement Methodology for Mechanical
and Thermal Indices".
Page 63
Reference Manual 59
FL the focal length, or azimuthal and elevational lengths, if dierent (centimeters).
I
PA.3
@MI
max
the derated pulse average intensity at the point of maximum reported MI
(Watts per square centimeter).
The Acoustic Measurement Precision and Acoustic Measurement Uncertainty are
summarized below.
Quantity Precision Total Uncertainty
PII.3 (derated pulse intensity
integral)
3.2% + 21% to - 24%
Wo (acoustic power) 6.2% +/- 19%
Pr.3 (derated rarefaction
pressure)
5.4% +/- 15%
Fc (center frequency) < 1% +/- 4.5%
Explanatory Notes
(a) This index is not required to this operating mode.
(b) This probe is not intended for adult transcranial uses.
(c) This formulation for TIS is less than that for an alternate formulation in this mode.
(d) The maximum index value is less than 1.0
* If the MI comes from a scanning mode Transmit Pattern (pulse), the ‘prr’ listed is the
average per second for the ‘worst case’ scan line. ‘prr ’ for scanning modes is the product
of the frame rate and the number of pulse per line of the Transmit Pattern.
**
The max TIS unscanned value is an ‘at_surface’ value and occurs for aperture > 1.0 cm2,
OR The max TIS unscanned value is a ‘below_surface’ value and occurs for aperture <=
1.0 cm2.
+ The max TIB for this combinational mode = the at_surface TIS_scanned value. The non-
scanned_TIB value indicated is the below_surface max. A “+” is used when the TIB value
is less than the TIS_scanned value for the operating condition.
Page 64
Reference Manual 60
C2-8
C2-8: 2D & 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.95 0.33 0.12 0.14 0.33 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.59 – – – – –
W
0
(mW)
–
2D W01: 10.5
M W01x1: 6.00
M W01x1: 6.00 – M W0: 8.81 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 10.4 – –
z
1
(cm)
– – – 4.52 – –
Z
bp
(cm)
– – – 3.68 – –
Z
sp
(cm)
– – – – 4.15 –
z@PII.
3max
(cm)
4.35 – – – – –
d
eq
(z)
(cm)
– – – – 0.32 –
fc
(MHz)
2.76 2.72 2.76 2.75 2.78 (b)
Dim. of A
aprt
X (cm)
– 4.83 0.86 4.31 1.24 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
PD
(µsec)
0.82 – – – – –
PRF
(Hz)
30.0* – – – – –
P
r
@PII
max
(MPa)
2.25 – – – – –
d
eq
@PII
max
(cm)
– – – 0.30 –
Focal Length
FLx (cm)
– 8.50 3.50 17.5 – (b)
FLy (cm)
– 6.50 6.50 6.50 – (b)
I
PA.3
@MI
max
(W/cm2)
175 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D (Harmonic) Mode, 2D: 2.6MHz, Focus: 5.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.6MHz, Focus: 8.5cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 3.5cm, FR: 26.3Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 17.5cm, FR: 7.81Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.6MHz, M: 2.6MHz, Focus: 5.0cm, FR: 26.3Hz
C2-8: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.86 0.42 0.30** 0.34 1.08 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.57 – – – – –
W
0
(mW)
–
2D W01:2.93
Col W01:27.9
PD
W01x1:22.5
– PD W0:32.8 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 25.4 – –
z
1
(cm)
– – – 4.32 – –
Z
bp
(cm)
– – – 3.88 – –
Z
sp
(cm)
– – – – 4.76 –
z@PII.
3max
(cm)
2.51 – – – – –
d
eq
(z)
(cm)
– – – – 0.27 –
fc
(MHz)
3.36
2D:3.19
Col:2.85
2.82 2.79 2.82 (b)
Dim. of A
aprt
X (cm)
–
2D:6.12
Col:5.23
1.15 4.79 1.63 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
PD
(µsec)
0.35 – – – – –
PRF
(Hz)
20.0* – – – – –
P
r
@PII
max
(MPa)
1.98 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.26 –
Focal Length
FLx (cm)
– 8.50 3.50 14.5 – (b)
FLy (cm)
– 6.50 6.50 6.50 – (b)
I
PA.3
@MI
max
(W/cm2)
97.1 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color Mode, 2D: 4.1MHz, Col: 2.8MHz, Focus: 3.5cm, FR: 20.0Hz
Control 2: 2D+Color Mode, 2D: 4.7MHz, Col: 2.8MHz, Focus: 8.5cm, FR: 9.35Hz
Control 3: Triple Mode, 2D: 4.1MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 3.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple Mode, 2D: 6.8MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 14.5cm, FR: 2.38Hz, PD Scale: 1.0kHz, SV Size: Default
Control 5: Triple Mode, 2D: 4.1MHz, Col: 2.8MHz, PD: 2.8MHz, Focus: 5.0cm, FR: 2.97Hz, PD Scale: 1.25kHz, SV Size: Default
Page 65
Reference Manual 61
C2-8: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.74 0.33 0.46** 0.55 1.76 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.24 – – – – –
W
0
(mW)
–
2D W01:1.76
PD
W01x1:22.5
PD
W01x1:34.2
– PD W0:53.0 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 40.8 – –
z
1
(cm)
– – – 3.68 – –
Z
bp
(cm)
– – – 3.39 – –
Z
sp
(cm)
– – – – 4.76 –
z@PII.
3max
(cm)
4.96 – – – – –
d
eq
(z)
(cm)
– – – – 0.27 –
fc
(MHz)
2.82
2D:3.75
PD:2.82
2.82 2.81 2.83 (b)
Dim. of A
aprt
X (cm)
–
2D:6.12
PD:1.15
1.15 3.64 1.63 (b)
Y (cm)
– 1.10 1.10 1.10 1.10 (b)
Other
Information
PD
(µsec)
1.26 – – – – –
PRF
(Hz)
1250 – – – – –
P
r
@PII
max
(MPa)
2.01 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.26 –
Focal Length
FLx (cm)
– 3.50 3.50 11.0 – (b)
FLy (cm)
– 6.50 6.50 6.50 – (b)
I
PA.3
@MI
max
(W/cm2)
145 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Pulsed Doppler Mode, 2D: 4.1MHz, PD: 2.8MHz, Focus: 5.0cm, FR: 19.5Hz, PD Scale: 1.25kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 4.7MHz, PD: 2.8MHz, Focus: 3.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 3.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 11.0cm, PD Scale: 2.0kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.8MHz, Focus: 5.0cm, PD Scale: 2.75kHz, SV Size: Default
C2-5
C2-5: 2D & 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.44 0.59 0.16** 0.27 0.82 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
2.13 – – – – –
W
0
(mW)
– 2D W01:57.0 M W01x1:14.9 – M W0:19.5 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 25.7 – –
z
1
(cm)
– – – 3.51 – –
Z
bp
(cm)
– – – 2.92 – –
Z
sp
(cm)
– – – – 3.46 –
z@PII.
3max
(cm)
1.49 – – – – –
d
eq
(z)
(cm)
– – – – 0.32 –
fc
(MHz)
2.20 2.17 2.20 2.17 2.16 (b)
Dim. of A
aprt
X (cm)
– 4.77 0.90 2.29 1.31 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
PD
(µsec)
0.96 – – – – –
PRF
(Hz)
30.0* – – – – –
P
r
@PII
max
(MPa)
2.38 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.31 –
Focal Length
FLx (cm)
– 17.5 2.00 17.5 – (b)
FLy (cm)
– 6.00 6.00 6.00 – (b)
I
PA.3
@MI
max
(W/cm2)
221 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D (Harmonic) Mode, 2D: 2.13MHz, Focus: 2.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.13MHz, Focus: 17.5cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 2.0cm, FR: 26.3Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 17.5cm, FR: 7.81Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.13MHz, M: 2.13MHz, Focus: 3.5cm, FR: 26.3Hz
Page 66
Reference Manual 62
C2-5: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.44 0.66 0.36** 0.55 1.67 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
2.13 – – – – –
W
0
(mW)
–
2D W01:6.43
Col W01:56.4
PD
W01x1:35.4
– PD W0:46.8 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 54.5 – –
z
1
(cm)
– – – 4.72 – –
Z
bp
(cm)
– – – 4.02 – –
Z
sp
(cm)
– – – – 3.85 –
z@PII.
3max
(cm)
1.49 – – – – –
d
eq
(z)
(cm)
– – – – 0.36 –
fc
(MHz)
2.20
2D:2.51
Col:2.16
2.14 2.11 2.14 (b)
Dim. of A
aprt
X (cm)
–
2D:5.24
Col:3.38
0.82 4.34 1.23 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
PD
(µsec)
0.96 – – – – –
PRF
(Hz)
22.3* – – – – –
P
r
@PII
max
(MPa)
2.38 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.34 –
Focal Length
FLx (cm)
– 5.00 3.50 17.5 – (b)
FLy (cm)
– 6.00 6.00 6.00 – (b)
I
PA.3
@MI
max
(W/cm2)
221 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, Focus: 2.0cm, FR: 22.3Hz
Control 2: 2D+Color Mode, 2D: 2.62MHz, Col: 2.1MHz, Focus: 5.0cm, FR: 16.3Hz
Control 3: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 3.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 17.5cm, FR: 2.38Hz, PD Scale: 1.0kHz, SV Size: Default
Control 5: Triple (Harmonic) Mode, 2D: 2.13MHz, Col: 2.1MHz, PD: 2.1MHz, Focus: 5.0cm, FR: 2.97Hz, PD Scale: 1.25kHz, SV Size: Default
C2-5: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.93 0.42 0.78** 0.98 2.61 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.38 – – – – –
W
0
(mW)
–
2D W01:4.59
PD
W01x1:35.4
PD
W01x1:76.7
– PD W0:116 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 96.4 – –
z
1
(cm)
– – – 3.72 – –
Z
bp
(cm)
– – – 3.66 – –
Z
sp
(cm)
– – – – 6.16 –
z@PII.
3max
(cm)
1.49 – – – – –
d
eq
(z)
(cm)
– – – – 0.40 –
fc
(MHz)
2.21
2D:2.56
PD:2.14
2.14 2.13 2.14 (b)
Dim. of A
aprt
X (cm)
–
2D:5.24
PD:0.82
0.82 3.60 2.05 (b)
Y (cm)
– 1.30 1.30 1.30 1.30 (b)
Other
Information
PD
(µsec)
0.96 – – – – –
PRF
(Hz)
13.7* – – – – –
P
r
@PII
max
(MPa)
1.55 – – – – –
d
eq
@PII
max
(cm)
– – – 0.36 –
Focal Length
FLx (cm)
– 3.50 3.50 14.5 – (b)
FLy (cm)
– 6.00 6.00 6.00 – (b)
I
PA.3
@MI
max
(W/cm2)
83.0 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Pulsed Doppler (Harmonic) Mode, 2D: 2.13MHz, PD: 2.1MHz, Focus: 2.0cm, FR: 13.7Hz, PD Scale: 1.75kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 2.62MHz, PD: 2.1MHz, Focus: 3.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 3.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 14.5cm, PD Scale: 3.25kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.1MHz, Focus: 8.5cm, PD Scale: 4.5kHz, SV Size: Default
Page 67
Reference Manual 63
LN5-12
LN5-12: 2D & 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.10 0.43 0.17 0.08** 0.14+ (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
3.07 – – – – –
W
0
(mW)
–
2D W01:8.00
M W01x1:5.24
M W01x1:5.24 – M W0:1.13 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 2.51 – –
z
1
(cm)
– – – 1.57 – –
Z
bp
(cm)
– – – 1.57 – –
Z
sp
(cm)
– – – – 0.97 –
z@PII.
3max
(cm)
1.08 – – – – –
d
eq
(z)
(cm)
– – – – 0.12 –
fc
(MHz)
7.78 6.76 6.76 6.76 6.73 (b)
Dim. of A
aprt
X (cm)
–
2D:3.84
M:2.16
2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
PD
(µsec)
0.18 – – – – –
PRF
(Hz)
30.0* – – – – –
P
r
@PII
max
(MPa)
3.92 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.11 –
Focal Length
FLx (cm)
– 6.50 6.50 6.50 – (b)
FLy (cm)
– 1.80 1.80 1.80 – (b)
I
PA.3
@MI
max
(W/cm2)
513 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U TIS_bs
Control 3
TIB_bs
Control 1: 2D Mode, 2D: 8.8MHz, Focus: 1.5cm, FR: 30.0Hz
Control 2: 2D+M Mode, 2D: 6.8MHz, M: 6.8MHz, Focus: 6.5cm, FR: 22.7Hz
Control 3: 2D+M Mode, 2D: 6.8MHz, M: 6.8MHz, Focus: 1.5cm, FR: 26.3Hz
LN5-12: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.10 0.48 0.36 0.20** 0.88 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
3.07 – – – – –
W
0
(mW)
–
2D W01:0.85
Col W01:3.66
PD W01x1:14.6
PD
W01x1:14.6
– PD W0:7.01 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 8.36 – –
z
1
(cm)
– – – 1.57 – –
Z
bp
(cm)
– – – 1.57 – –
Z
sp
(cm)
– – – – 1.00 –
z@PII.
3max
(cm)
1.08 – – – – –
d
eq
(z)
(cm)
– – – – 0.13 –
fc
(MHz)
7.78
2D:6.94
Col:5.20
PD:5.13
5.13 5.13 5.16 (b)
Dim. of A
aprt
X (cm)
–
2D:3.84
Col:3.62
PD:2.16
2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
PD
(µsec)
0.18 – – – – –
PRF
(Hz)
7.13* – – – – –
P
r
@PII
max
(MPa)
3.92 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.13 –
Focal Length
FLx (cm)
– 6.50 6.50 6.50 – (b)
FLy (cm)
– 1.80 1.80 1.80 – (b)
I
PA.3
@MI
max
(W/cm2)
513 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U TIS_bs
Control 3
TIB_bs
Control 1: Triple Mode, 2D: 8.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 7.13Hz, PD Scale: 3.0kHz, SV Size: Default
Control 2: Triple Mode, 2D: 8.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 6.5cm, FR: 3.56Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Triple Mode, 2D: 6.8MHz, Col: 5.1MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 7.13Hz, PD Scale: 3.0kHz, SV Size: Default
Page 68
Reference Manual 64
LN5-12: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.07 0.48 0.51 0.29** 1.00 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
2.79 – – – – –
W
0
(mW)
–
2D W01:5.74
PD W01x1:11.6
PD
W01x1:20.9
– PD W0:8.04 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 12.0 – –
z
1
(cm)
– – – 1.57 – –
Z
bp
(cm)
– – – 1.57 – –
Z
sp
(cm)
– – – – 1.00 –
z@PII.
3max
(cm)
1.09 – – – – –
d
eq
(z)
(cm)
– – – – 0.13 –
fc
(MHz)
6.72 2D:7.12 PD:5.14 5.15 5.15 5.18 (b)
Dim. of A
aprt
X (cm)
– 2D:3.84 PD:2.16 2.16 2.16 0.48 (b)
Y (cm)
– 0.40 0.40 0.40 0.40 (b)
Other
Information
PD
(µsec)
0.21 – – – – –
PRF
(Hz)
23.4* – – – – –
P
r
@PII
max
(MPa)
3.59 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.13 –
Focal Length
FLx (cm)
– 6.50 6.50 6.50 – (b)
FLy (cm)
– 1.80 1.80 1.80 – (b)
I
PA.3
@MI
max
(W/cm2)
565 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U TIS_bs
Control 4
TIB_bs
Control 1: 2D+Pulsed Doppler Mode, 2D: 6.8MHz, PD: 5.1MHz, Focus: 1.5cm, FR: 23.4Hz, PD Scale: 3.0kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 8.8MHz, PD: 5.1MHz, Focus: 6.5cm, FR: 23.4Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 5.1MHz, Focus: 6.5cm, PD Scale: 3.5kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 5.1MHz, Focus: 1.5cm, PD Scale: 13.5kHz, SV Size: Default
LS6-15
LS6-15: 2D & 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.48 0.50 0.18 0.08** 0.13+ (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
3.93 – – – – –
W
0
(mW)
–
2D W01:8.38
M W01x1:4.63
M W01x1:4.63 – M W0:1.68 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 2.32 – –
z
1
(cm)
– – – 1.47 – –
Z
bp
(cm)
– – – 1.47 – –
Z
sp
(cm)
– – – – 0.85 –
z@PII.
3max
(cm)
0.93 – – – – –
d
eq
(z)
(cm)
– – – – 0.19 –
fc
(MHz)
6.99 8.02 8.02 7.31 7.06 (b)
Dim. of A
aprt
X (cm)
–
2D:2.56
M:2.16
2.16 2.16 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
PD
(µsec)
0.18 – – – – –
PRF
(Hz)
30.0* – – – – –
P
r
@PII
max
(MPa)
4.61 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.19 –
Focal Length
FLx (cm)
– 6.50 6.50 6.50 – (b)
FLy (cm)
– 1.20 1.20 1.20 – (b)
I
PA.3
@MI
max
(W/cm2)
748 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as TIS_as_U
Control 3
TIS_bs
Control 4
TIB_bs
Control 1: 2D Mode, 2D: 7.62MHz, Focus: 1.5cm, FR: 30.0Hz
Control 2: 2D+M Mode, 2D: 10.0MHz, M: 10.0MHz, Focus: 6.5cm, FR: 25.0Hz
Control 3: 2D+M Mode, 2D: 7.62MHz, M: 7.62MHz, Focus: 6.5cm, FR: 25.0Hz
Control 4: 2D+M Mode, 2D: 7.62MHz, M: 7.62MHz, Focus: 2.2cm, FR: 25.0Hz
Page 69
Reference Manual 65
LS6-15: Pulsed Doppler & 2D+Pulsed Doppler
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.34 0.58 0.78 0.41** 1.22 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
3.35 – – – – –
W
0
(mW)
–
2D W01:2.03
PD W01x1:16.2
PD
W01x1:26.1
– PD W0:14.5 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 13.8 – –
z
1
(cm)
– – – 1.47 – –
Z
bp
(cm)
– – – 1.47 – –
Z
sp
(cm)
– – – – 0.85 –
z@PII.
3max
(cm)
0.62 – – – – –
d
eq
(z)
(cm)
– – – – 0.19 –
fc
(MHz)
6.28 2D:9.86 PD:6.26 6.27 6.27 6.22 (b)
Dim. of A
aprt
X (cm)
– 2D:2.56 PD:2.16 2.16 2.16 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
PD
(µsec)
0.59 – – – – –
PRF
(Hz)
1000 – – – – –
P
r
@PII
max
(MPa)
3.83 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.16 –
Focal Length
FLx (cm)
– 6.50 6.50 6.50 – (b)
FLy (cm)
– 1.20 1.20 1.20 – (b)
I
PA.3
@MI
max
(W/cm2)
659 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U TIS_bs
Control 4
TIB_bs
Control 1: Pulsed Doppler Mode, 2D: 6.15MHz, Focus: 1.0cm, PD Scale: 1.0kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 12.32MHz, PD: 6.15MHz, Focus: 6.5cm, FR: 31.3Hz, PD Scale: 1.5kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 6.15MHz, Focus: 6.5cm, PD Scale: 3.5kHz, SV Size: Default
Control 4: 2D+Pulsed Doppler Mode, 2D: 12.32MHz, PD: 6.15MHz, Focus: 2.2cm, FR: 26.0Hz, PD Scale: 2.5kHz, SV Size: Default
LS6-15: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.43 0.64 0.43 0.25** 0.86 (b)
Associated
Acoustic
Parameters
P
r.3
(MPa)
3.92 – – – – –
W
0
(mW)
–
2D W01:0.21
Col W01:7.57
PD W01x1:13.6
PD
W01x1:14.4
– PD W0:10.6 (b)
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 8.44 – –
z
1
(cm)
– – – 1.10 – –
Z
bp
(cm)
– – – 1.10 – –
Z
sp
(cm)
– – – – 0.85 –
z@PII.
3max
(cm)
0.69 – – – – –
d
eq
(z)
(cm)
– – – – 0.19 –
fc
(MHz)
7.49
2D:8.60
Col:6.29
PD:6.29
6.27 6.29 6.24 (b)
Dim. of A
aprt
X (cm)
–
2D:2.56
Col:2.16
PD:1.20
2.16 1.20 0.72 (b)
Y (cm)
– 0.35 0.35 0.35 0.35 (b)
Other
Information
PD
(µsec)
0.18 – – – – –
PRF
(Hz)
41.1* – – – – –
P
r
@PII
max
(MPa)
4.69 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.16 –
Focal Length
FLx (cm)
– 3.70 6.50 6.50 – (b)
FLy (cm)
– 1.20 1.20 1.20 – (b)
I
PA.3
@MI
max
(W/cm2)
815 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 1: 2D+Color Mode, 2D: 7.62MHz, Col: 6.15MHz, Focus: 1.0cm, FR: 41.1Hz
Control 2: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 3.7cm, FR: 5.63Hz, PD Scale: 1.75kHz, SV Size: Default
Control 3: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 6.5cm, FR: 4.82Hz, PD Scale: 1.5kHz, SV Size: Default
Control 4: Triple Mode, 2D: 7.62MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 3.7cm, FR: 5.63Hz, PD Scale: 1.75kHz, SV Size: Default
Control 5: Triple Mode, 2D: 10.0MHz, Col: 6.15MHz, PD: 6.15MHz, Focus: 2.2cm, FR: 8.04Hz, PD Scale: 2.5kHz, SV Size: Default
Page 70
Reference Manual 66
PN2-4
PN2-4: 2D & 2D+M mode
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
1.05 0.54 0.11** 0.18 0.61 1.52
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.51 – – – – –
W
0
(mW)
–
2D
W01:55.5M W01x1:11.3
– M W0:22.4
2D W0:80.9
M W0:27.8
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 18.4 – –
z
1
(cm)
– – – 2.88 – –
Z
bp
(cm)
– – – 2.67 – –
Z
sp
(cm)
– – – – 5.25
z@PII.
3max
(cm)
1.69 – – – – –
d
eq
(z)
(cm)
– – – – 0.39 –
fc
(MHz)
2.07 2.06 2.07 2.06 2.07 2.05
Dim. of A
aprt
X (cm)
– 1.92 0.78 1.92 1.56 1.92
Y (cm)
– 1.30 1.30 1.30 1.30 1.30
Other
Information
PD
(µsec)
0.74 – – – – –
PRF
(Hz)
30.0* – – – – –
P
r
@PII
max
(MPa)
1.42 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.38 –
Focal Length
FLx (cm)
– 10.0 4.00 10.0 – 12.0
FLy (cm)
– 7.00 7.00 7.00 – 7.00
I
PA.3
@MI
max
(W/cm2)
98.8 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D (Harmonic) Mode, 2D: 2.05MHz, Focus: 4.0cm, FR: 30.0Hz
Control 2: 2D (Harmonic) Mode, 2D: 2.05MHz, Focus: 10.0cm, FR: 30.0Hz
Control 3: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 4.0cm, FR: 22.7Hz
Control 4: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 10.0cm, FR: 22.7Hz
Control 5: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 8.0cm, FR: 22.7Hz
Control 6: 2D+M (Harmonic) Mode, 2D: 2.05MHz, M: 2.05MHz, Focus: 12.0cm, FR: 22.7Hz
PN2-4: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.90 0.84 0.31** 0.29 0.88 1.80
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.30 – – – – –
W
0
(mW)
–
2D W01:14.6
Col W01:58.5
PD
W01x1:27.3
– PD W0:33.7
2D W0:9.09
Col W0:46.4
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 26.0 – –
z
1
(cm)
– – – 3.28 – –
Z
bp
(cm)
– – 2.67 – –
Z
sp
(cm)
– – – – 4.45 –
z@PII.
3max
(cm)
1.49 – – – – –
d
eq
(z)
(cm)
– – – – 0.42 –
fc
(MHz)
2.08
2D:2.53
Col:2.37
2.37 2.37 2.37
2D:2.16
Col:2.38
Dim. of A
aprt
X (cm)
– 0.78 0.78 1.92 1.20 0.36
Y (cm)
– 1.30 1.30 1.30 1.30 1.30
Other
Information
PD
(µsec)
0.76 – – – – –
PRF
(Hz)
33.2* – – – – –
P
r
@PII
max
(MPa)
1.25 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.39 –
Focal Length
FLx (cm)
– 4.00 4.00 10.0 – 2.00
FLy (cm)
– 7.00 7.00 7.00 – 7.00
I
PA.3
@MI
max
(W/cm2)
64.8 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D + Color (Harmonic) Mode, 2D: 2.05MHz, Col: 2.36MHz, Focus: 4.0cm, FR: 33.2Hz
Control 2: CPA Mode, 2D: 2.68Mz, Col: 2.36MHz, Focus: 4.0cm, FR: 14.5Hz
Control 3: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 4.0cm, FR: 8.33Hz, PD Scale: 1.50kHz, SV Size: Default
Control 4: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 10.0cm, FR: 5.56Hz, PD Scale: 1.00kHz, SV Size: Default
Control 5: Triple (Harmonic) Mode, 2D: 2.05 MHz, Col: 2.36MHz, PD: 2.36MHz, Focus: 6.0cm, FR: 6.94Hz, PD Scale: 1.25kHz, SV Size: Default
Control 6: 2D + Color Mode, 2D: 2.19MHz, Col: 2.36MHz, Focus: 2.0cm, FR: 50.2Hz
Page 71
Reference Manual 67
PN2-4: 2D+Color, Triple, CPA & Triple CPA
Index Label M.I.
TIS TIB
TIC
scan
non–scan
non–scan
A
aprt
≤1 A
aprt
>1
Maximum Index Value
0.71 0.45 0.79** 0.71 2.28 1.77
Associated
Acoustic
Parameters
P
r.3
(MPa)
1.10 – – – – –
W
0
(mW)
–
2D W01:11.3
PD
W01x1:27.3
PD
W01x1:70.0
– PD W0:95.4 PD W0:54.6
min of [W
.3(z1
),
I
TA.3(z1
)]
(mW)
– – – 63.1 – –
z
1
(cm)
– – – 3.28 – –
Z
bp
(cm)
– – – 2.67 –
Z
sp
(cm)
– – – – 5.25 –
z@PII.
3max
(cm)
4.45 – – – – –
d
eq
(z)
(cm)
– – – – 0.40 –
fc
(MHz)
2.37
2D:2.56
PD:2.37
2.37 2.37 2.38 2.38
Dim. of A
aprt
X (cm)
0.78 0.78 1.92 1.56 0.36
Y (cm)
1.30 1.30 1.30 1.30 1.30
Other
Information
PD
(µsec)
1.58 – – – – –
PRF
(Hz)
1250 – – – – –
P
r
@PII
max
(MPa)
1.30 – – – – –
d
eq
@PII
max
(cm)
– – – – 0.35 –
Focal Length
FLx (cm)
– 4.00 4.00 12.0 – 2.00
FLy (cm)
– 7.00 7.00 7.00 – 7.00
I
PA.3
@MI
max
(W/cm2)
59.7 – – – – –
Operating
Control
Conditions
Control 1
MI
Control 2
TIS_as
Control 3
TIS_as_U
Control 4
TIS_bs
Control 5
TIB_bs
Control 6
TIC_as
Control 1: 2D+Pulsed Doppler Mode, 2D: 2.19MHz, PD: 2.36MHz, Focus: 6.0cm, FR: 39.1Hz, PD Scale: 1.25kHz, SV Size: Default
Control 2: 2D+Pulsed Doppler Mode, 2D: 2.68MHz, PD: 2.36MHz, Focus: 4.0cm, FR: 46.9Hz, PD Scale: 1.50kHz, SV Size: Default
Control 3: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 4.0cm, PD Scale: 6.00kHz, SV Size: Default
Control 4: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 12.0cm, PD Scale: 5.50kHz, SV Size: Default
Control 5: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 8.0cm, PD Scale: 4.50kHz, SV Size: Default
Control 6: Pulsed Doppler Mode, PD: 2.36MHz, Focus: 2.0cm, PD Scale: 7.50kHz, SV Size: Default
Patient-Applied Part Temperature Table
Transducer
Surface Temperature In-Air (°C)
Surface Temperature Simulated-Use (°C)
C2-8 46.2 <41
C2-5 44.5 <41
LN5-12 41.2 <41
LS6-15 45.4 <41
PN2-4 43.7 <41
Loading...
