Samsung UE55JU6000K Schematic

UHD TV

Chassis : UWJ52

Model : UE40JU6000K

UE48JU6000K

UE55JU6000K

SERVICE Manual

UHD TV		Contents

1. Precautions

2. Product specifications

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

UE**JU6000K

		Contents
1. Precautions....................................................................................................................			1-1
1-1.	Safety Precautions...............................................................................................................		1-1
	1-1-1. Warnings...................................................................................................................		1-1
	1-1-2. Servicing the LED TV................................................................................................		1-1
	1-1-3.	Fire and Shock Hazard..............................................................................................	1-1
	1-1-4.	Product Safety Notices..............................................................................................	1-2
1-2.	Servicing Precautions..........................................................................................................		1-3
	1-2-1.	General Servicing Precautions..................................................................................	1-3
1-3.	Static Electricity Precautions................................................................................................		1-4
1-4.	Installation Precautions........................................................................................................		1-5

2. Product Specifications.................................................................................................			2-1
2-1. Product information..............................................................................................................			2-1
2-2. Product specification ...........................................................................................................			2-2
	2-2-1. Feature & Specifications...........................................................................................		2-2
	2-2-2. Detailed Specifications..............................................................................................		2-3
2-3. Accessories........................................................................................................................			2-15

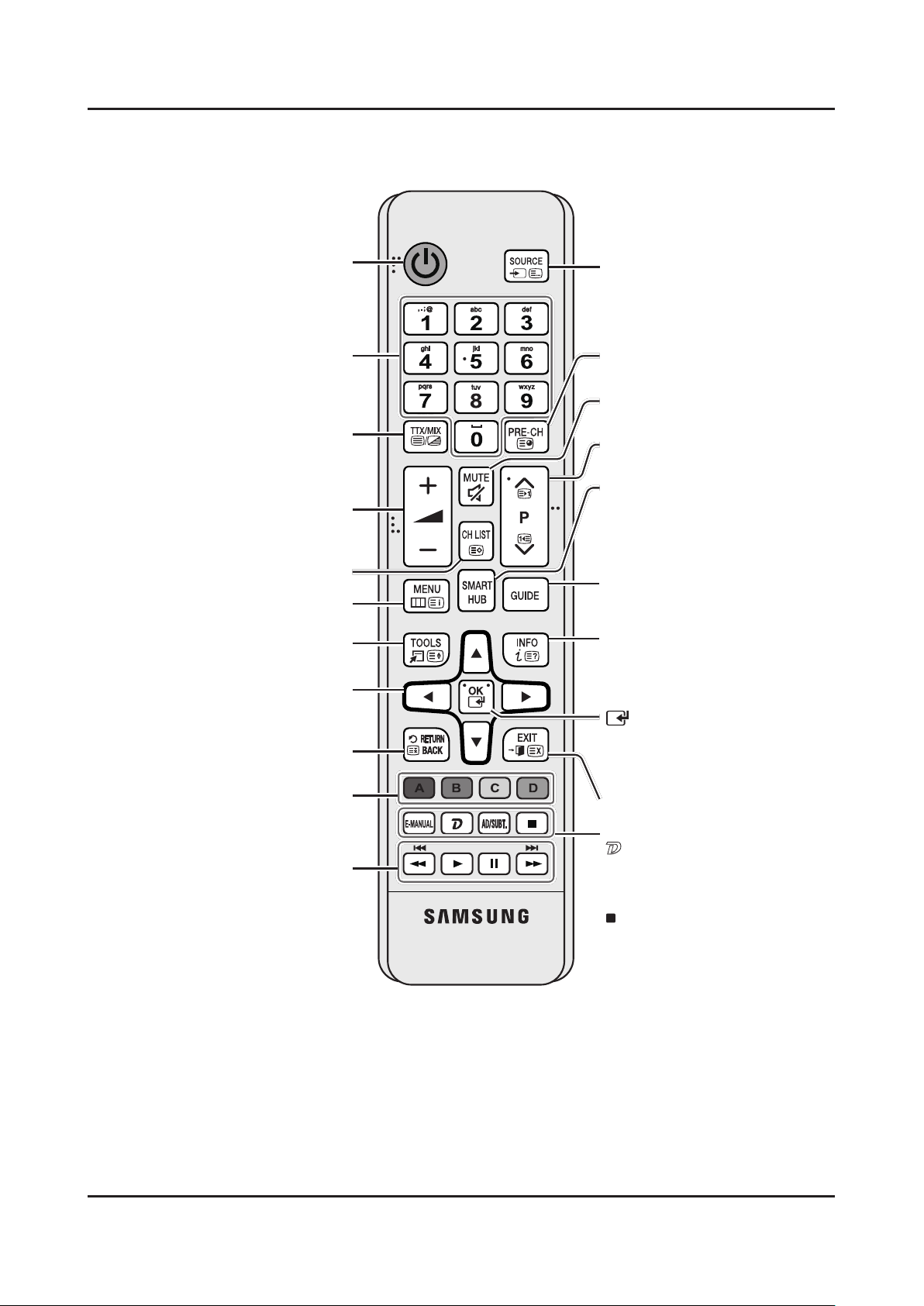

2-4.	Viewing the Functions........................................................................................................		2-16

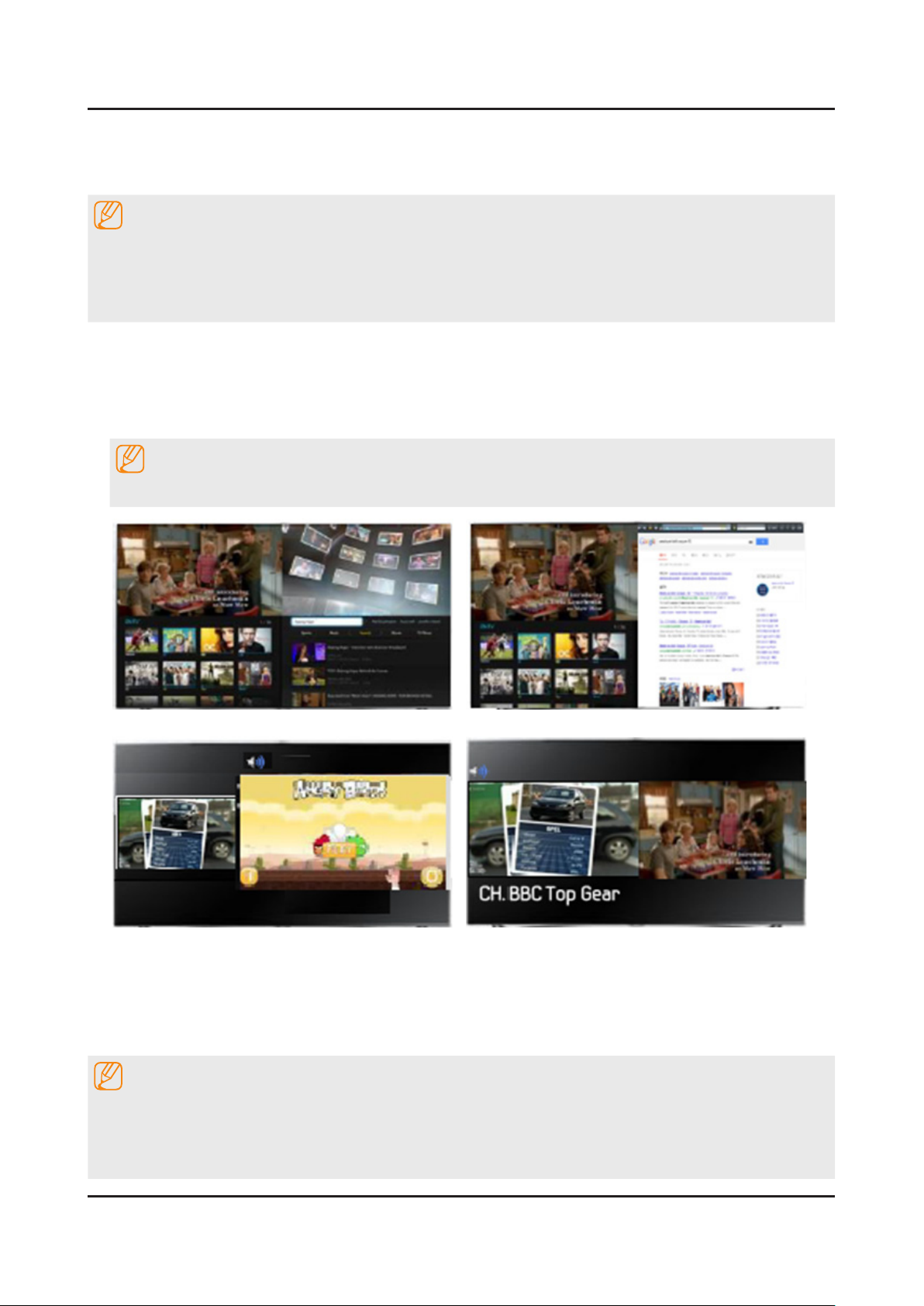

2-5.	NEW Key Features............................................................................................................		2-17

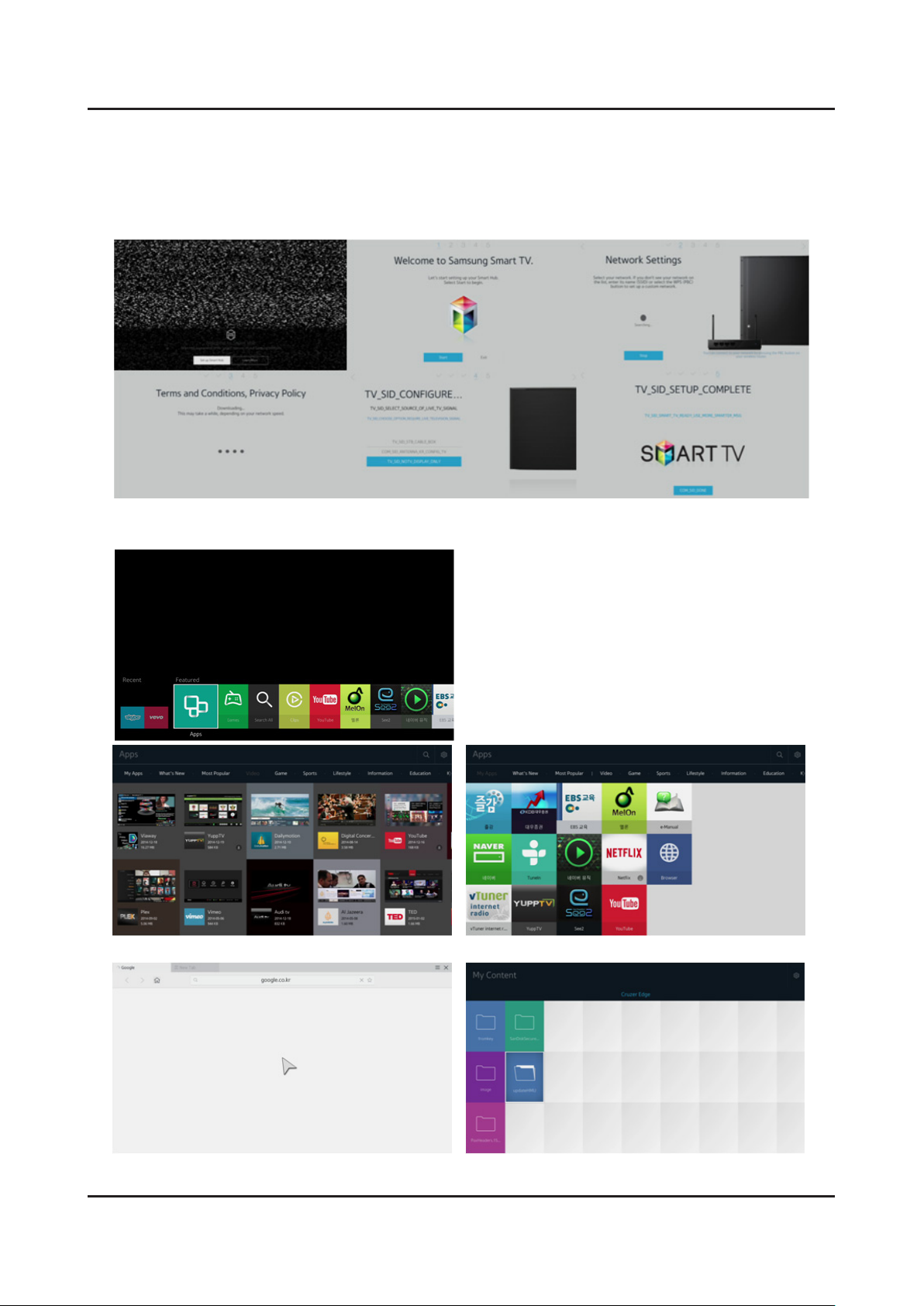

	2-5-1.	15" New UI..............................................................................................................	2-17
	2-5-2.	Multi Screen............................................................................................................	2-18

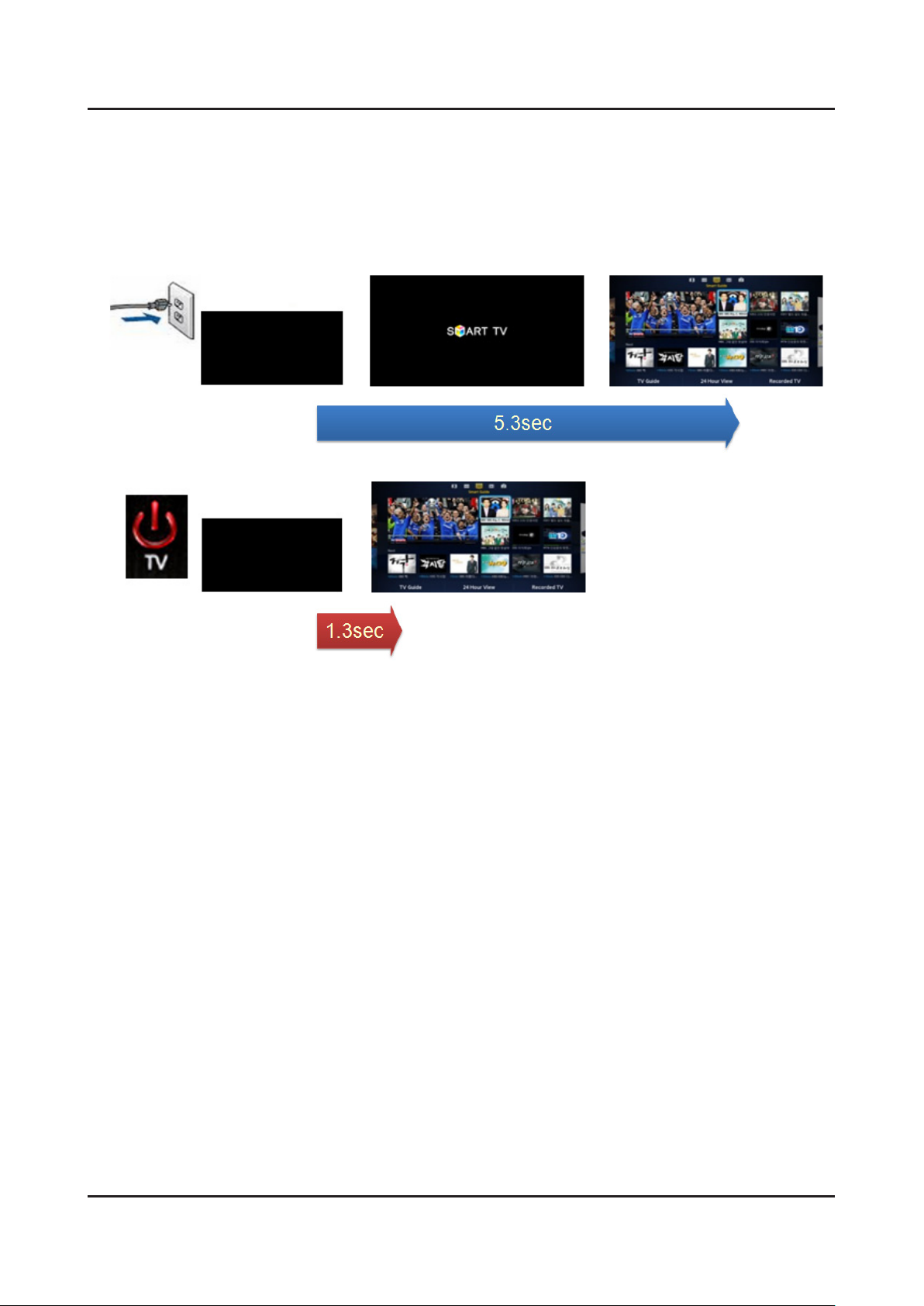

	2-5-3.	Instant On................................................................................................................	2-19
2-6.	HDMI 60P Mode.................................................................................................................		2-20
2-7.	Supported Formats............................................................................................................		2-21

3. Disassembly and Reassembly.....................................................................................	3-1
3-1. Disassembly and Reassembly.............................................................................................	3-1

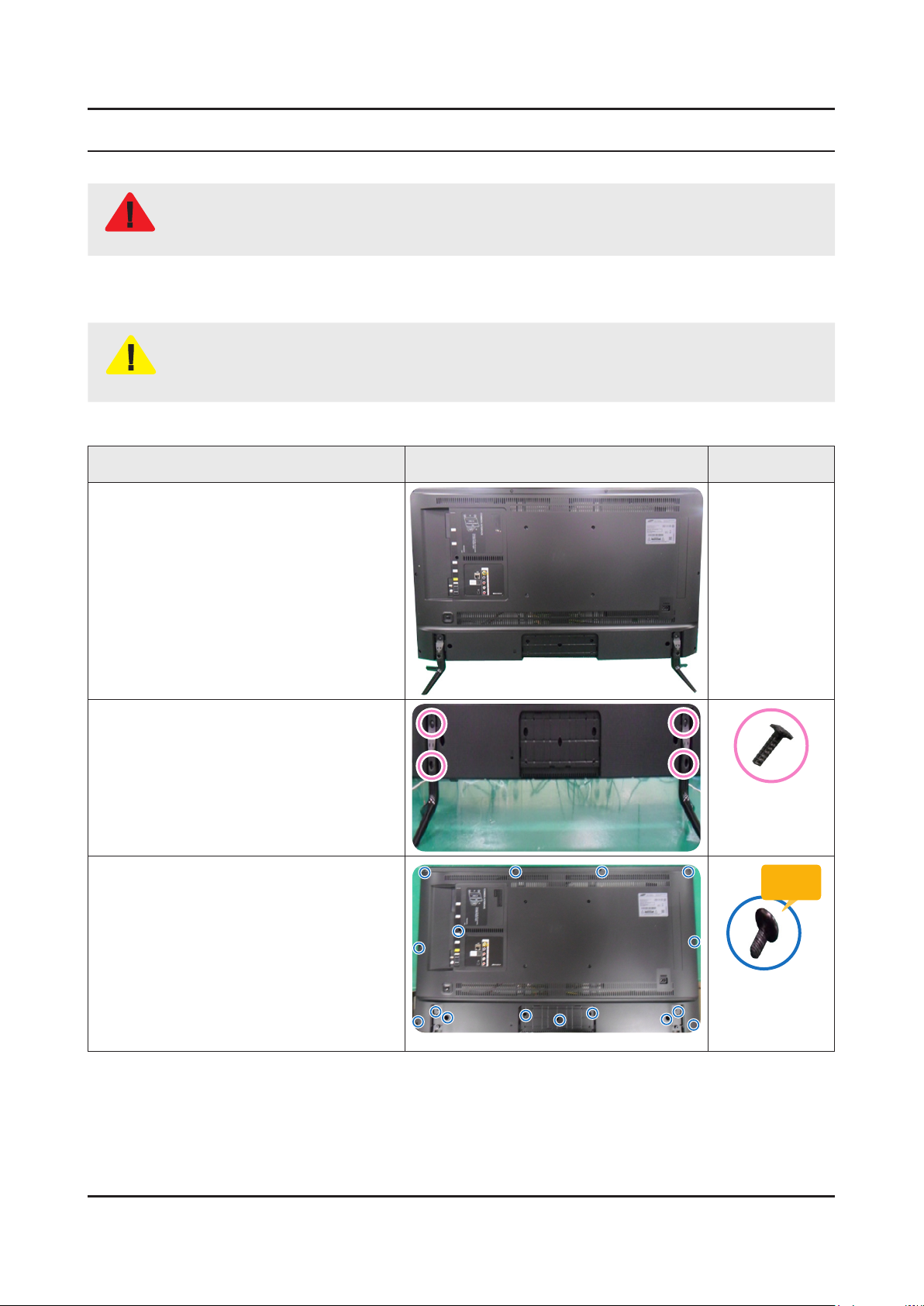

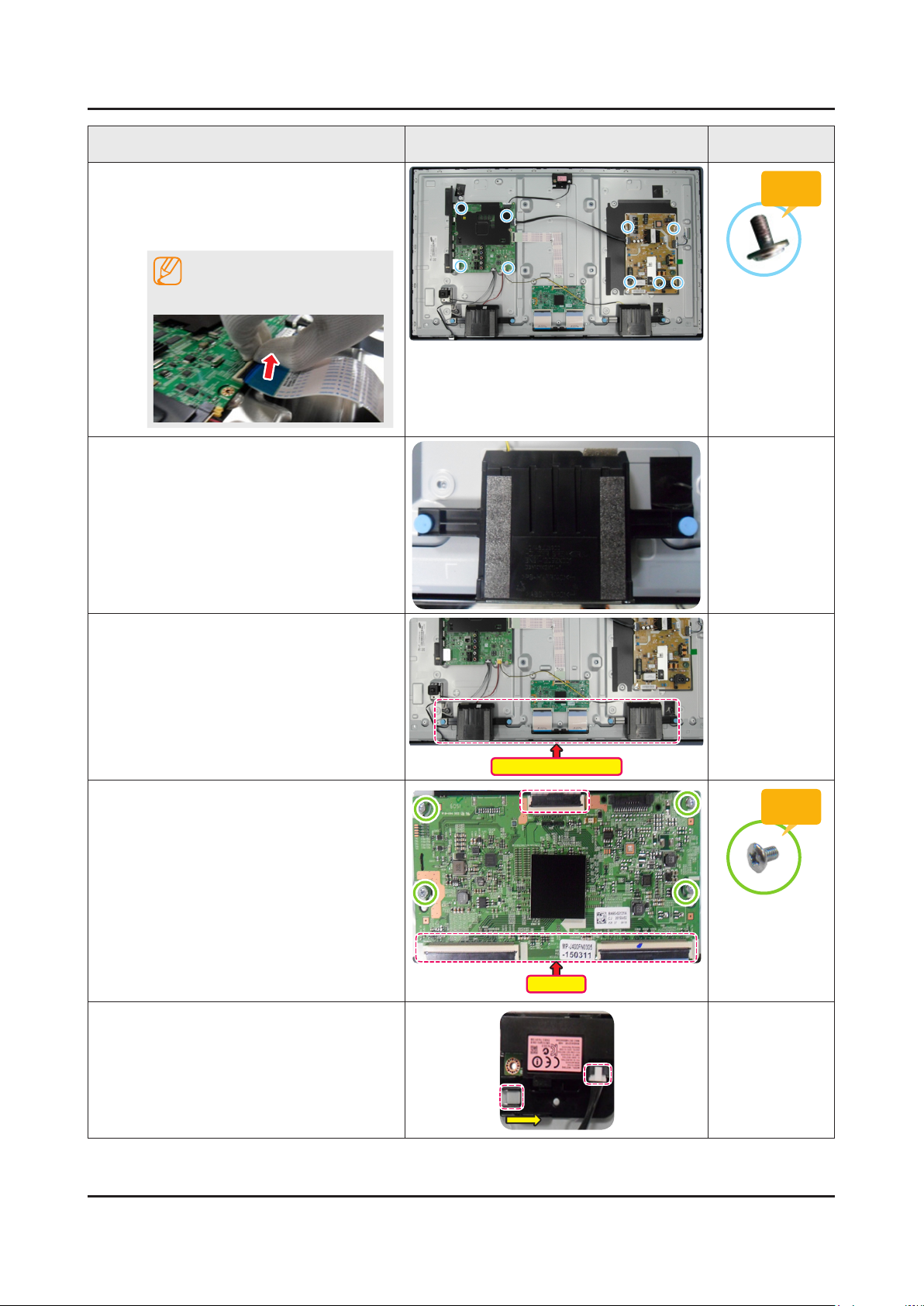

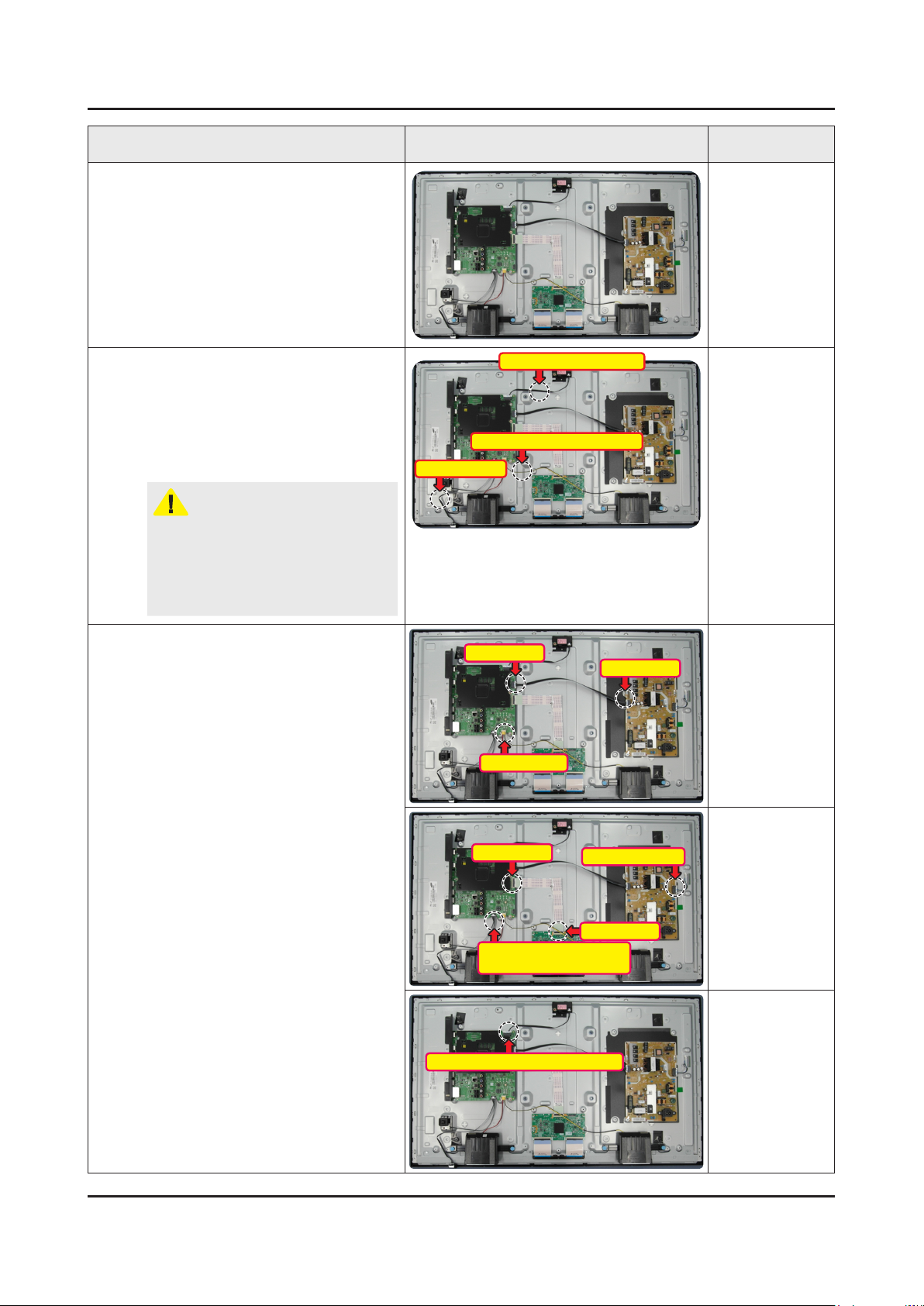

3-1-1. TV Disassembly........................................................................................................	3-1
4. Troubleshooting............................................................................................................	4-1
4-1. Troubleshooting....................................................................................................................	4-1
4-1-1. Previous Check.........................................................................................................	4-1
4-2. How to Check Fault Symptom..............................................................................................	4-2
4-2-1. Video.........................................................................................................................	4-2

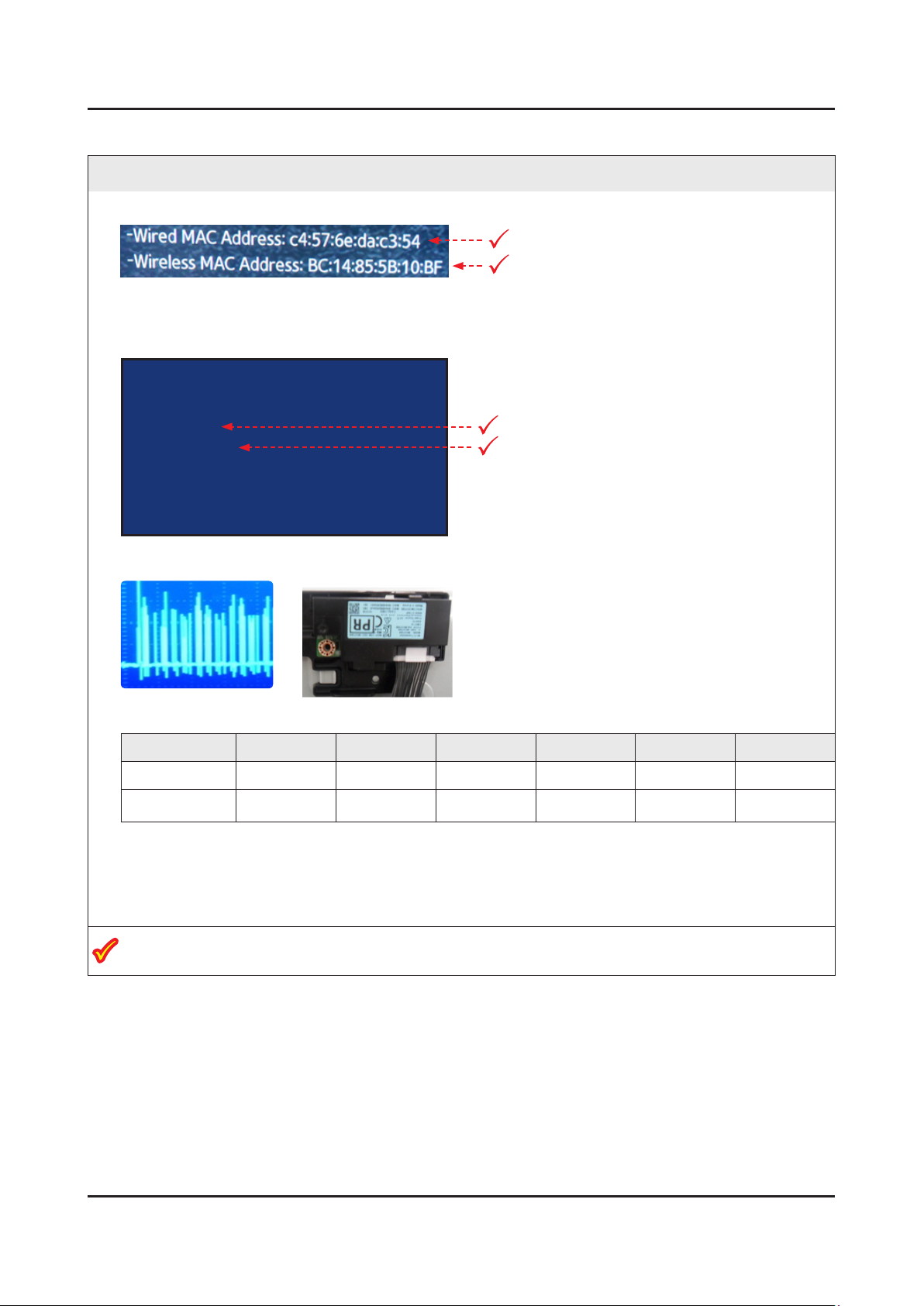

4-2-2. WIFI Module..............................................................................................................	4-4
4-2-3. Apps / Photos, Videos & Music.................................................................................	4-7
4-3. Factory Mode Adjustments...................................................................................................	4-8
4-3-1. Detail Factory Option ................................................................................................	4-8
4-3-2. Entering Factory Mode..............................................................................................	4-9
4-3-3. Factory Data............................................................................................................	4-10
4-4. White Balance....................................................................................................................	4-18
4-4-1. Calibration...............................................................................................................	4-18
4-4-2. Service Adjustment..................................................................................................	4-18
4-4-3. Adjustment...............................................................................................................	4-20

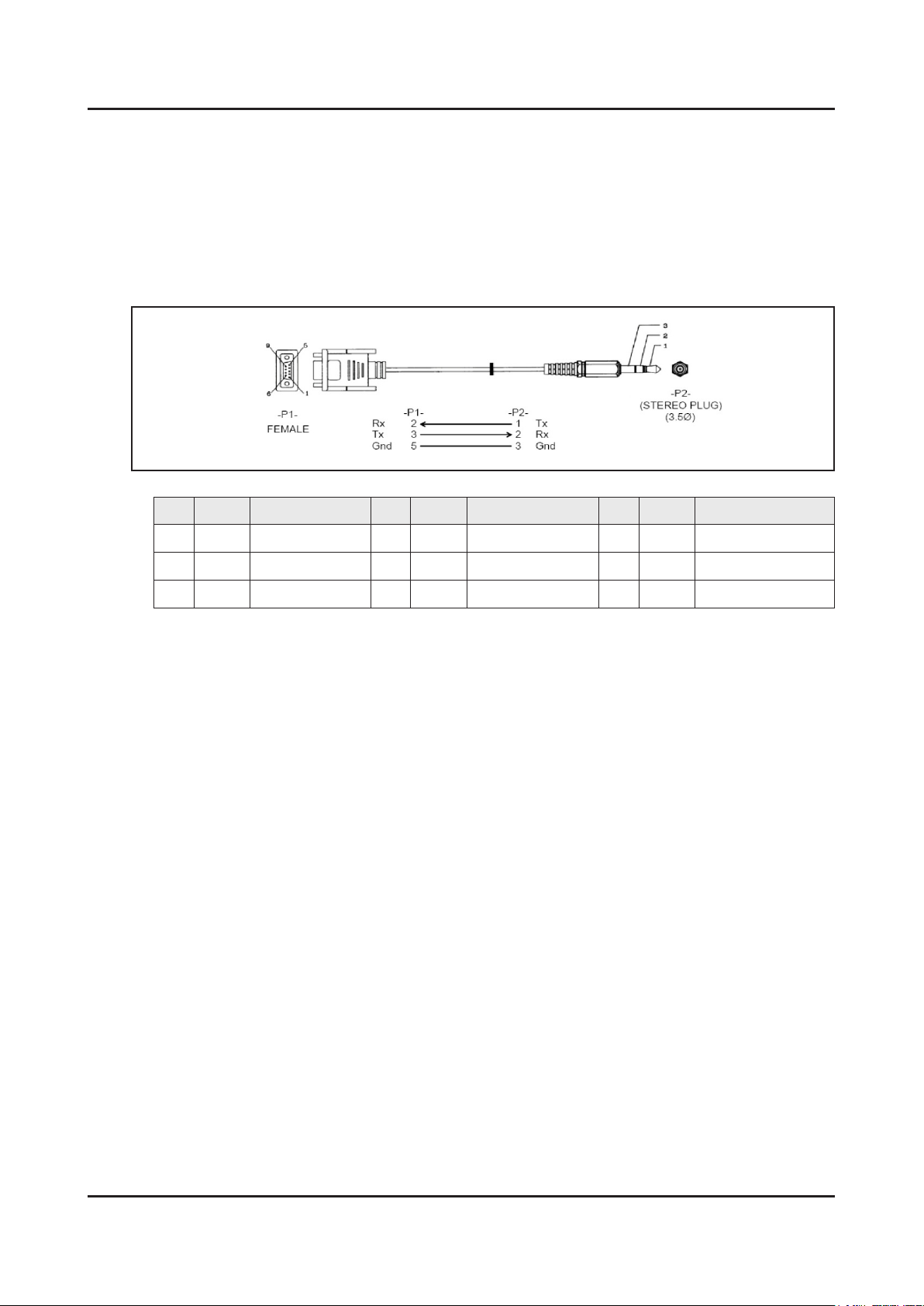

4-5. RS-232C............................................................................................................................	4-21
4-6. AV Control Tabe.................................................................................................................	4-22
4-7. Updating the TV’s Software...............................................................................................	4-28

5. Wiring Diagram..............................................................................................................		5-1

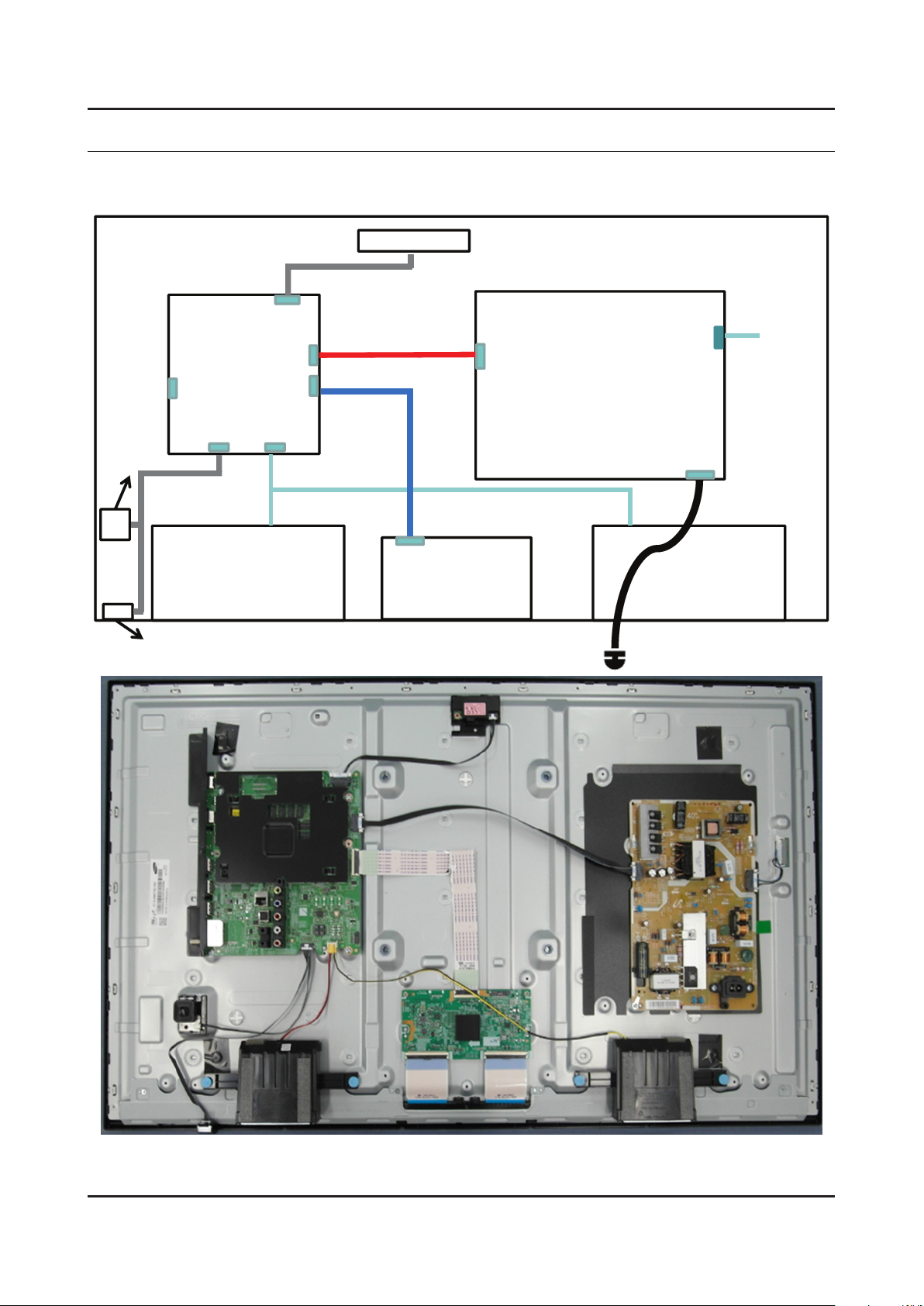

5-1. Wiring Diagram....................................................................................................................		5-1
5-2. Connector.............................................................................................................................		5-2
ANNEX. Exploded View & Part List [UE40JU6000KXZF TH01]..........................		ANNEX-1
1-1. Exploded View..........................................................................................................		ANNEX-1
	1-1-1. Parts List........................................................................................................	ANNEX-2
2-1. Electrical Parts List....................................................................................................		ANNEX-3
ANNEX. Exploded View & Part List [UE48JU6000KXZF TD01]..........................		ANNEX-1
1-1.	Exploded View..........................................................................................................	ANNEX-1
	1-1-1. Parts List........................................................................................................	ANNEX-2
2-1.	Electrical Parts List....................................................................................................	ANNEX-3
ANNEX. Exploded View & Part List [UE55JU6000KXZF ED01]..........................		ANNEX-1
1-1.	Exploded View..........................................................................................................	ANNEX-1
	1-1-1. Parts List........................................................................................................	ANNEX-2
2-1.	Electrical Parts List....................................................................................................	ANNEX-3

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING	Disconnect the AC power and DC power jack before servicing.

1-1-2. Servicing the LED TV

1.When servicing the LED TV, Disconnect the AC line cord from the AC outlet.

2.It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.

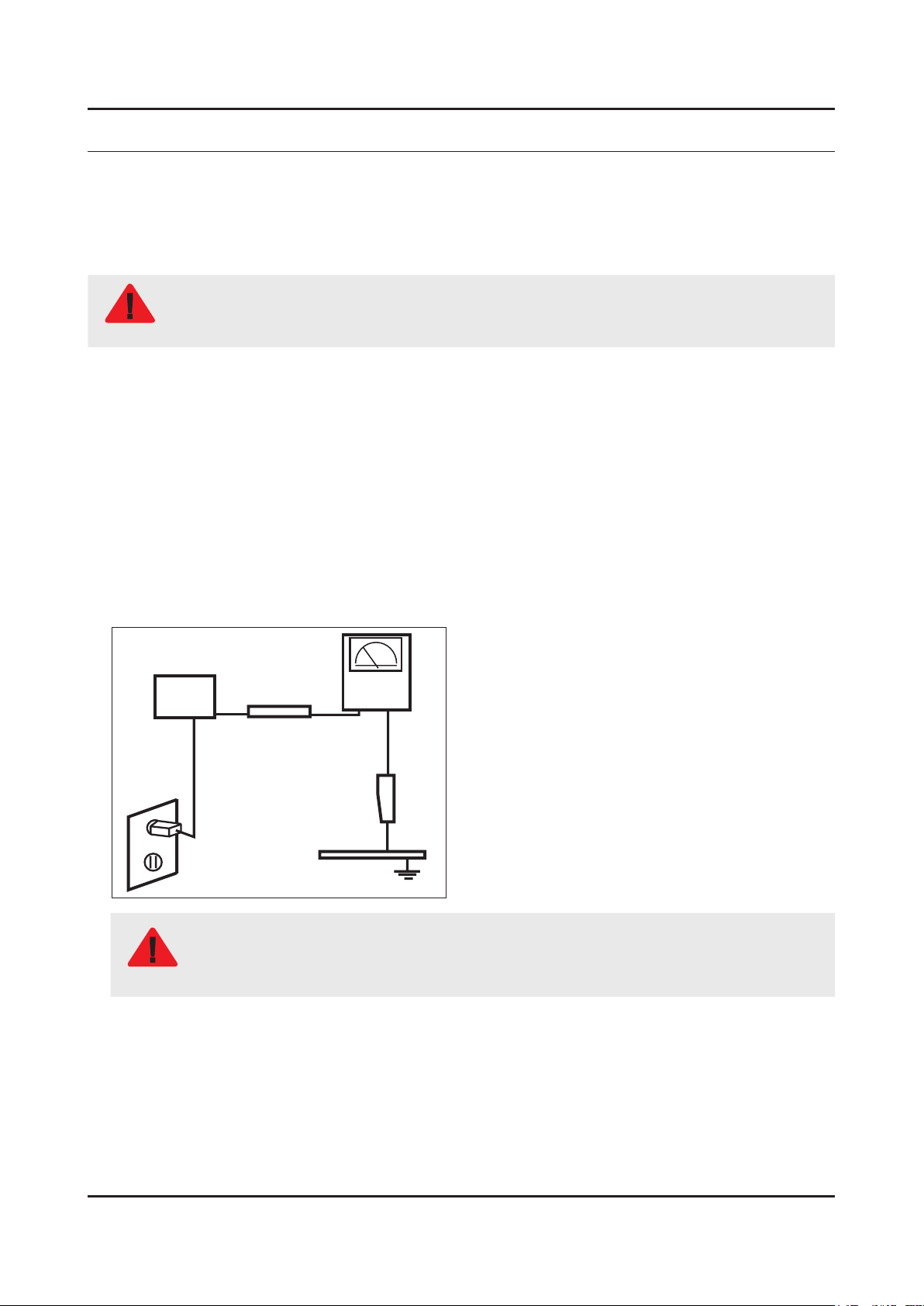

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

1.Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2.Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

3.Leakage Current Hot Check:

	(READING SHOULD)
	NOT BE ABOVE 0.5mA	LEAKAGE
	DEVICE
		CURRENT
	UNDER
		TESTER
	TEST
	TEST ALL
	EXPOSED METAL
	SURFACES
	2-WIRE CORD
	ALSO TEST WITH
	PLUG REVERSED	EARTH
	(USING AC ADAPTER
	PLUG AS REQUIRED)	GROUND

Do not use an isolation transformer during this test.

		Use a leakage current tester or a metering system that complies with American National Standards
	WARNING	Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
		Publication UL1410, 59.7).

4.With the unit completely reassembled, plug theAC line cord directly into a 120VAC outlet. With the unit’sAC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.

The current measured should not exceed 0.5 milliamp.

Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

1-2

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

this manual.

CAUTION

If unforeseen circumstances create conflict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

NOTE

1-2-1. General Servicing Precautions

1.Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

2.Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

3.After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

4.Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

5.Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

6.Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

1-3

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1.Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.

2.After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

3.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.

4.Use only a grounded-tip soldering iron to solder or desolder ESDs.

5.Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

6.Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

7.Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

8.Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

1-4

1. Precautions

1-4. Installation Precautions

1.For safety reasons, more than a people are required for carrying the product.

2.Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3.Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4.Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.

5.Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6.Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock.

7.When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.

Arise in temperature within the product may cause fire.

8.If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an explosion (for example, with some lithium batteries), the following applies:

•Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble or overheat the batteries.

CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

•Do not be exposed to excessive heat such as sunshine, fire or the like.

1-5

2. Product specifications

2. Product Specifications

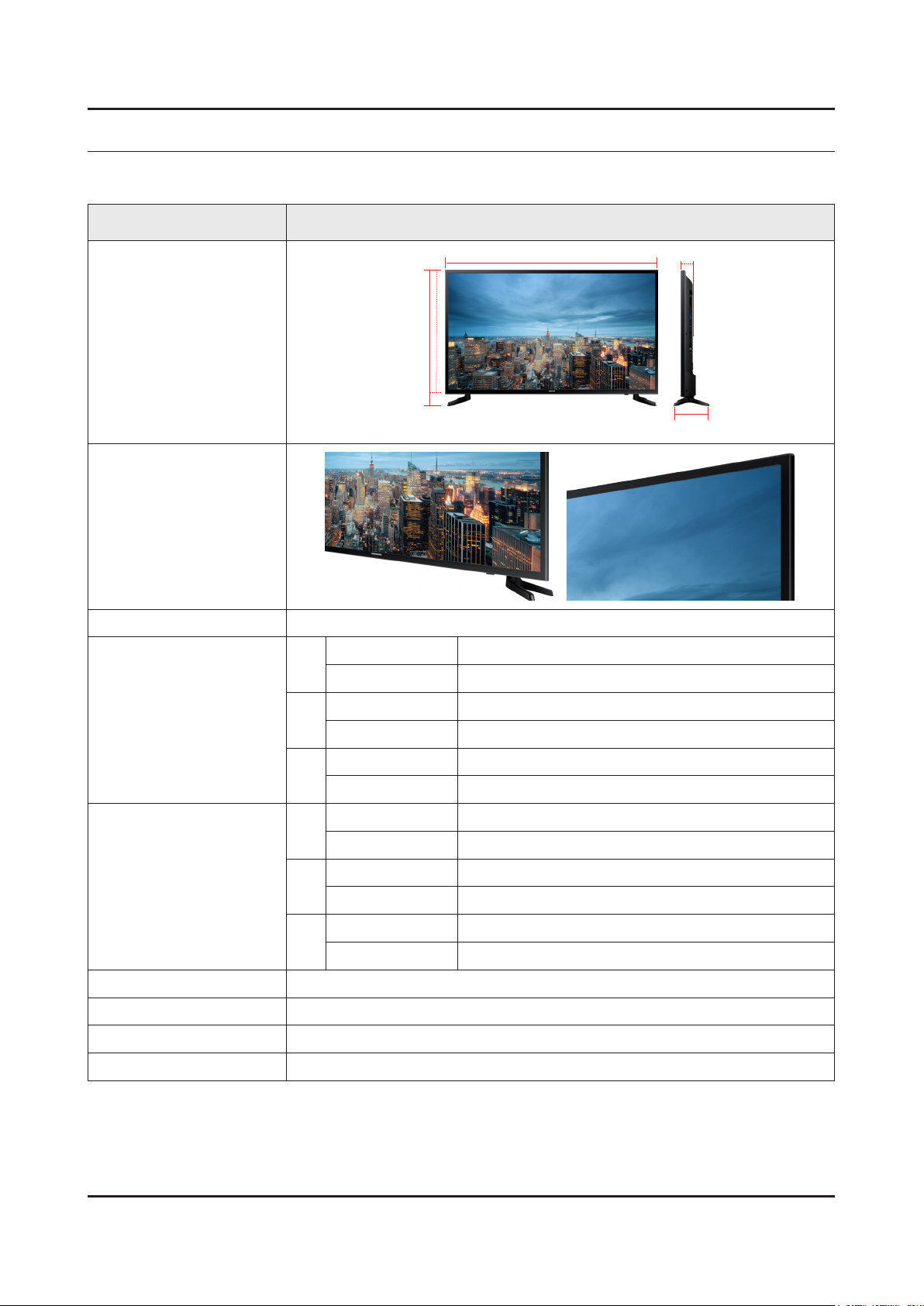

2-1. Product information

Model

UE**JU6000K

W

Front View

H

* W : Width H : High D : Depth	D

Detail View

	Front Color			Black
		40"	Body	917.7 X 535.7 X 62.6 mm
			With stand	931.2 X 596.1 X 201.4 mm
	Dimensions	48"	Body	1087.1 X 630.9 X 63.3 mm
	(W x H x D)		With stand	1087.1 X 700.5 X 277.8 mm
		55"	Body	1242.6 X 718.5 X 63.2 mm
			With stand	1242.6 X 787.5 X 277.8 mm
		40"	Body	7.8 Kg
			With stand	8.0 Kg
	Weight	48"	Body	11.0 Kg
			With stand	11.3 Kg
		55"	Body	15.9 Kg
			With stand	16.2 Kg
	Panel Type			Ultra Clear
	Internal Memory			4GB
	DDR			2GB
	Feature			Media Play (Movie, Photo, Music)

2-1

2. Product specifications

2-2. Product specification

2-2-1. Feature & Specifications

Feature

•UHD TV, RF, 3-HDMI, 1-COMPONENT, 1-A/B(COMMON USE FOR COMPONENTY), 1-USB2.0, 1-USB3.0, HEADPHONE

Specifications

Model			UE**JU6000K
Item			Description
Screen Size (Diagonal)	40 inches		48 inches		55 inches
LCD Panel			UHD 60 Hz
Scanning Frequency		Horizontal : 60 kHz ~ 73 kHz (Automatic)
		Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors			16.7M color
Display Resolution			3840 X 2160
Input Signal	Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal			H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate			74.25MHz
AC Power Voltage & Frequency			AC220-240V 50/60Hz
Environmental Considerations	Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
	Operating Humidity : 10% ~ 80%, non-condensing
	Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
	Storage Humidity : 5% ~ 95%, non-condensing
Sound (Output)			20 W (10 W X 2)

Note : Dolby Digital Plus/Pulse, USB2.0/3.0, Film mode, Energy Saving

2-2

2. Product specifications

2-2-2. Detailed Specifications

NOTE

Design and specifications are subject to change without prior notice.

	Item	UE40JU6000KXZF
General Information	Product	UHD
	Series	6
	Country	FRANCE
Display	Inch	40"
	Resolution	3,840 x 2,160
	Ultra Clear Panel	Ultra Clear
Video	Picture Engine	UHD Up-scaling
	PQI (Picture Quality Index)	800
	Dynamic Contrast Ratio	Mega Contrast
	Micro Dimming	Micro Dimming Pro
	Precision Black (Local Dimming)	N/A
	Nano Crystal Color	N/A
	Wide Color Enhancer (Plus)	Yes
	PurColor	N/A
	Auto Depth Enhancer	N/A
	Contrast Enhancer	Yes
	Auto Motion Plus	N/A
	Film Mode	Yes
	Natural Mode Support	Yes
	Peak Illuminator	N/A
Audio	Dolby Digital Plus	Yes
	Virtual Surround	DTS Studio Sound
	DTS Codec	DTS Premium Sound 5.1
	3D Sound	N/A
	Sound Customizer	N/A
	Sound Output (RMS)	20W(L:10W, R:10W)
	Speaker Type	2CH(Down Firing + Bass Reflex)
	Woofer	N/A
	HD Audio	Yes
	Wallmount Sound Mode	Yes
	Multiroom Link	Yes
	TV SoundConnect	N/A
Smart TV	Samsung SMART TV	Yes
	Apps	Yes

2-3

2. Product specifications

	Item	UE40JU6000KXZF
Smart TV		Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
	Game	E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
		,HU,AT,CH,GR,RO,BG)
	Multi-Link Screen	N/A
	ACR (Advertisement)	N/A
	Info Widget	N/A
	Vertical Enhancement	N/A
	Connected EPG	N/A
Smart Interaction	Voice Interaction	N/A
	Voice Control	N/A
	Face recognition	N/A
	Motion control	N/A
Convergence	TV to Mobile - Mirroring	Yes
	Mobile to TV - Mirroring, DLNA	Yes
	RVU	N/A
	Samsung SMART View	Yes
	Wireless TV On - Samsung WOL	N/A
	Notification - BLE	N/A
	Briefing On TV	N/A
	WiDi	N/A
	WiFi Direct	Yes
Tuner/Broadcasting	Digital Broadcasting	DVB-T2/C
	2 Tuner	N/A
	CI/CI+/2CI+	CI+ (1.3)
	Analog Tuner	Yes
	MHP / MHEG / HbbTV / ACAP / GINGA / OHTV	HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
		DE,AT,SZ)
Connectivity	HDMI	3
	USB	2
	Component In (Y/Pb/Pr)	1
	Composite In (AV)	1 (Common Use for Component Y)
	Ethernet (LAN)	1
	Headphone	1
	Audio Out (Mini Jack)	N/A
	Digital Audio Out (Optical)	1
	RF In (Terrestrial / Cable input / Satellite input)	1/1(Common Use for Terrestrial)/0
	Ex-Link ( RS-232C )	N/A
	IR Out	N/A
	CI Slot	1

2-4

		2. Product specifications
	Item	UE40JU6000KXZF
Connectivity	Scart	N/A
	MHL	Yes
	HDMI 3D Auto Setting	N/A
	HDMI A / Return Ch. Support	Yes
	HDMI Quick Switch	N/A
	Wireless LAN Adapter Support	N/A
	Wireless LAN Built-in	Yes
	Anynet+ (HDMI-CEC)	Yes
Design	Design	U6400 design (Deco Mold)
	Bezel Type	VNB
	Slim Type	Slim
	Front Color	Black
	Light Effect (Deco)	N/A
	Stand Type	Y-Feet
	Swivel (Left/Right)	N/A
Additional Feature	Samsung 3D	N/A
	3D Converter	N/A
	Camera Built-in	N/A
	Instant On	Yes
	Processor	Quad-Core
	21:9 Immersive Picture Mode	N/A
	SCSA Support	N/A
	Accessibility	Voice guide(EU 17 countries)/ Enlarge/
		High contrast
	Digital Clean View	Yes
	One Connect (Jack)	N/A
	Auto Channel Search	Yes
	Auto Power Off	Yes
	BD Wise Plus	Yes
	Caption (Subtitle)	Yes
	Channel List USB-Clone	Yes
	Connect Share™ (HDD)	Yes
	ConnectShare™ (USB 2.0)	Yes
	Sports Mode	Advanced
	Embeded POP	Yes
	EPG	Yes
	Extended PVR	Yes
	Game Mode	Yes
	OSD Language	27 European Languages

2-5

2. Product specifications

	Item	UE40JU6000KXZF
Additional Feature	Picture-In-Picture	Yes
	BT HID Built-in	N/A
	USB HID Support	Yes
	Smart Evolution Support	N/A
	Teletext (TTXT)	Yes
	Time Shift	Yes
	Ultra Clean View	Yes
Eco Feature	Eco Mark	N/A
	Eco Label	N/A
	Eco Sensor	Yes
	Energy Efficiency Class	A
Accessory	3D Active Glasses (Included)	N/A
	Remote Controller Model	TM1240A
	Batteries (for Remote Control)	Yes
	Samsung Smart Touch Control (Included)	N/A
	Ultra Slim Wall Mount Supported	N/A
	Mini Wall Mount Supported	Yes
	Vesa Wall Mount Supported	Yes
	Floor Stand Support	Yes
	TV Camera (Included)	N/A
	IR Extender Cable (Included)	N/A
	Wireless Keyboard (Included)	N/A
	Composite to Scart Gender (Included)	N/A
	User Manual	Yes
	E-Manual	Yes
	ANT-Cable	N/A
	Power Cable	Yes
	Slim Gender Cable	N/A

2-6

		2. Product specifications
	Item	UE48JU6000KXZF
General Information	Product	UHD
	Series	6
	Country	FRANCE
Display	Inch	48"
	Resolution	3,840 x 2,160
	Ultra Clear Panel	Ultra Clear
Video	Picture Engine	UHD Up-scaling
	PQI (Picture Quality Index)	800
	Dynamic Contrast Ratio	Mega Contrast
	Micro Dimming	Micro Dimming Pro
	Precision Black (Local Dimming)	N/A
	Nano Crystal Color	N/A
	Wide Color Enhancer (Plus)	Yes
	PurColor	N/A
	Auto Depth Enhancer	N/A
	Contrast Enhancer	Yes
	Auto Motion Plus	N/A
	Film Mode	Yes
	Natural Mode Support	Yes
	Peak Illuminator	N/A
Audio	Dolby Digital Plus	Yes
	Virtual Surround	DTS Studio Sound
	DTS Codec	DTS Premium Sound 5.1
	3D Sound	N/A
	Sound Customizer	N/A
	Sound Output (RMS)	20W(L:10W, R:10W)
	Speaker Type	2CH(Down Firing + Bass Reflex)
	Woofer	N/A
	HD Audio	Yes
	Wallmount Sound Mode	Yes
	Multiroom Link	Yes
	TV SoundConnect	N/A
Smart TV	Samsung SMART TV	Yes
	Apps	Yes
		Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
	Game	E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
		,HU,AT,CH,GR,RO,BG)
	Multi-Link Screen	N/A
	ACR (Advertisement)	N/A

2-7

2. Product specifications

	Item	UE48JU6000KXZF
Smart TV	Info Widget	N/A
	Vertical Enhancement	N/A
	Connected EPG	N/A
Smart Interaction	Voice Interaction	N/A
	Voice Control	N/A
	Face recognition	N/A
	Motion control	N/A
Convergence	TV to Mobile - Mirroring	Yes
	Mobile to TV - Mirroring, DLNA	Yes
	RVU	N/A
	Samsung SMART View	Yes
	Wireless TV On - Samsung WOL	N/A
	Notification - BLE	N/A
	Briefing On TV	N/A
	WiDi	N/A
	WiFi Direct	Yes
Tuner/Broadcasting	Digital Broadcasting	DVB-T2/C
	2 Tuner	N/A
	CI/CI+/2CI+	CI+ (1.3)
	Analog Tuner	Yes
	MHP / MHEG / HbbTV / ACAP / GINGA / OHTV	HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
		DE,AT,SZ)
Connectivity	HDMI	3
	USB	2
	Component In (Y/Pb/Pr)	1
	Composite In (AV)	1 (Common Use for Component Y)
	Ethernet (LAN)	1
	Headphone	1
	Audio Out (Mini Jack)	N/A
	Digital Audio Out (Optical)	1
	RF In (Terrestrial / Cable input / Satellite input)	1/1(Common Use for Terrestrial)/0
	Ex-Link ( RS-232C )	N/A
	IR Out	N/A
	CI Slot	1
	Scart	N/A
	MHL	Yes
	HDMI 3D Auto Setting	N/A
	HDMI A / Return Ch. Support	Yes
	HDMI Quick Switch	N/A

2-8

		2. Product specifications
	Item	UE48JU6000KXZF
Connectivity	Wireless LAN Adapter Support	N/A
	Wireless LAN Built-in	Yes
	Anynet+ (HDMI-CEC)	Yes
Design	Design	U6400 design (Deco Mold)
	Bezel Type	VNB
	Slim Type	Slim
	Front Color	Black
	Light Effect (Deco)	N/A
	Stand Type	Y-Feet
	Swivel (Left/Right)	N/A
Additional Feature	Samsung 3D	N/A
	3D Converter	N/A
	Camera Built-in	N/A
	Instant On	Yes
	Processor	Quad-Core
	21:9 Immersive Picture Mode	N/A
	SCSA Support	N/A
	Accessibility	Voice guide(EU 17 countries)/ Enlarge/
		High contrast
	Digital Clean View	Yes
	One Connect (Jack)	N/A
	Auto Channel Search	Yes
	Auto Power Off	Yes
	BD Wise Plus	Yes
	Caption (Subtitle)	Yes
	Channel List USB-Clone	Yes
	Connect Share™ (HDD)	Yes
	ConnectShare™ (USB 2.0)	Yes
	Sports Mode	Advanced
	Embeded POP	Yes
	EPG	Yes
	Extended PVR	Yes
	Game Mode	Yes
	OSD Language	27 European Languages
	Picture-In-Picture	Yes
	BT HID Built-in	N/A
	USB HID Support	Yes
	Smart Evolution Support	N/A
	Teletext (TTXT)	Yes

2-9

2. Product specifications

	Item	UE48JU6000KXZF
Additional Feature	Time Shift	Yes
	Ultra Clean View	Yes
Eco Feature	Eco Mark	N/A
	Eco Label	N/A
	Eco Sensor	Yes
	Energy Efficiency Class	A+
Accessory	3D Active Glasses (Included)	N/A
	Remote Controller Model	TM1240A
	Batteries (for Remote Control)	Yes
	Samsung Smart Touch Control (Included)	N/A
	Ultra Slim Wall Mount Supported	N/A
	Mini Wall Mount Supported	Yes
	Vesa Wall Mount Supported	Yes
	Floor Stand Support	Yes
	TV Camera (Included)	N/A
	IR Extender Cable (Included)	N/A
	Wireless Keyboard (Included)	N/A
	Composite to Scart Gender (Included)	N/A
	User Manual	Yes
	E-Manual	Yes
	ANT-Cable	N/A
	Power Cable	Yes
	Slim Gender Cable	N/A

2-10

		2. Product specifications
	Item	UE55JU6000KXZF
General Information	Product	UHD
	Series	6
	Country	FRANCE
Display	Inch	55"
	Resolution	3,840 x 2,160
	Ultra Clear Panel	Ultra Clear
Video	Picture Engine	UHD Up-scaling
	PQI (Picture Quality Index)	800
	Dynamic Contrast Ratio	Mega Contrast
	Micro Dimming	Micro Dimming Pro
	Precision Black (Local Dimming)	N/A
	Nano Crystal Color	N/A
	Wide Color Enhancer (Plus)	Yes
	PurColor	N/A
	Auto Depth Enhancer	N/A
	Contrast Enhancer	Yes
	Auto Motion Plus	N/A
	Film Mode	Yes
	Natural Mode Support	Yes
	Peak Illuminator	N/A
Audio	Dolby Digital Plus	Yes
	Virtual Surround	DTS Studio Sound
	DTS Codec	DTS Premium Sound 5.1
	3D Sound	N/A
	Sound Customizer	N/A
	Sound Output (RMS)	20W(L:10W, R:10W)
	Speaker Type	2CH(Down Firing + Bass Reflex)
	Woofer	N/A
	HD Audio	Yes
	Wallmount Sound Mode	Yes
	Multiroom Link	Yes
	TV SoundConnect	N/A
Smart TV	Samsung SMART TV	Yes
	Apps	Yes
		Yes (GB,GG,IM,JE,IE,FR,DE,IT,ES,NL,B
	Game	E,LU,SE,FI,AX,NO,DK,GL,FO,PL,CZ,SK
		,HU,AT,CH,GR,RO,BG)
	Multi-Link Screen	N/A
	ACR (Advertisement)	N/A

2-11

2. Product specifications

	Item	UE55JU6000KXZF
Smart TV	Info Widget	N/A
	Vertical Enhancement	N/A
	Connected EPG	N/A
Smart Interaction	Voice Interaction	N/A
	Voice Control	N/A
	Face recognition	N/A
	Motion control	N/A
Convergence	TV to Mobile - Mirroring	Yes
	Mobile to TV - Mirroring, DLNA	Yes
	RVU	N/A
	Samsung SMART View	Yes
	Wireless TV On - Samsung WOL	N/A
	Notification - BLE	N/A
	Briefing On TV	N/A
	WiDi	N/A
	WiFi Direct	Yes
Tuner/Broadcasting	Digital Broadcasting	DVB-T2/C
	2 Tuner	N/A
	CI/CI+/2CI+	CI+ (1.3)
	Analog Tuner	Yes
	MHP / MHEG / HbbTV / ACAP / GINGA / OHTV	HbbTV 1.5(FR) / HbbTV1.0(ES,PT,
		DE,AT,SZ)
Connectivity	HDMI	3
	USB	2
	Component In (Y/Pb/Pr)	1
	Composite In (AV)	1 (Common Use for Component Y)
	Ethernet (LAN)	1
	Headphone	1
	Audio Out (Mini Jack)	N/A
	Digital Audio Out (Optical)	1
	RF In (Terrestrial / Cable input / Satellite input)	1/1(Common Use for Terrestrial)/0
	Ex-Link ( RS-232C )	N/A
	IR Out	N/A
	CI Slot	1
	Scart	N/A
	MHL	Yes
	HDMI 3D Auto Setting	N/A
	HDMI A / Return Ch. Support	Yes
	HDMI Quick Switch	N/A

2-12

		2. Product specifications
	Item	UE55JU6000KXZF
Connectivity	Wireless LAN Adapter Support	N/A
	Wireless LAN Built-in	Yes
	Anynet+ (HDMI-CEC)	Yes
Design	Design	U6400 design (Deco Mold)
	Bezel Type	VNB
	Slim Type	Slim
	Front Color	Black
	Light Effect (Deco)	N/A
	Stand Type	Y-Feet
	Swivel (Left/Right)	N/A
Additional Feature	Samsung 3D	N/A
	3D Converter	N/A
	Camera Built-in	N/A
	Instant On	Yes
	Processor	Quad-Core
	21:9 Immersive Picture Mode	N/A
	SCSA Support	N/A
	Accessibility	Voice guide(EU 17 countries)/ Enlarge/
		High contrast
	Digital Clean View	Yes
	One Connect (Jack)	N/A
	Auto Channel Search	Yes
	Auto Power Off	Yes
	BD Wise Plus	Yes
	Caption (Subtitle)	Yes
	Channel List USB-Clone	Yes
	Connect Share™ (HDD)	Yes
	ConnectShare™ (USB 2.0)	Yes
	Sports Mode	Advanced
	Embeded POP	Yes
	EPG	Yes
	Extended PVR	Yes
	Game Mode	Yes
	OSD Language	27 European Languages
	Picture-In-Picture	Yes
	BT HID Built-in	N/A
	USB HID Support	Yes
	Smart Evolution Support	N/A
	Teletext (TTXT)	Yes

2-13
