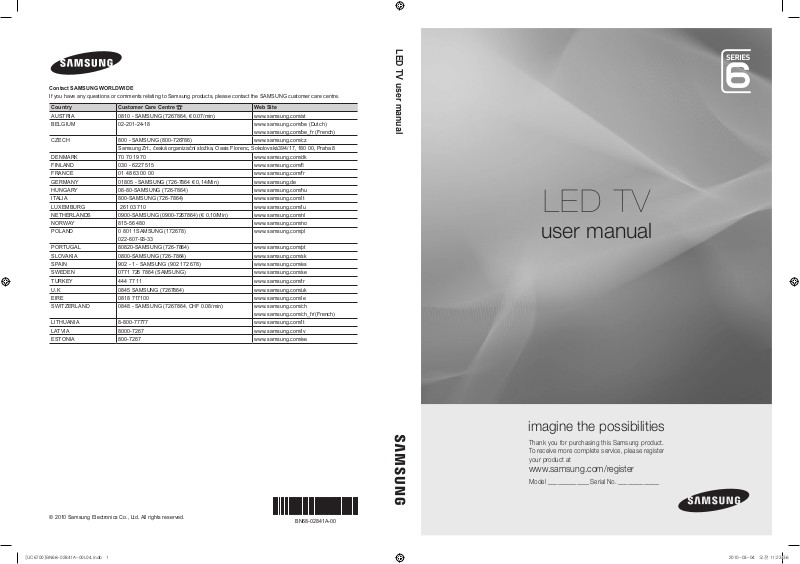

LED TV user manual

LED TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-02841A-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconﬁguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

10 cm

English

10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

10 cm

Contents

Getting Started

Connections

Basic Features

Advanced Features

4 Accessories 5 Viewing the Control Panel 6 Viewing the Remote Control 7 Connecting to an Antenna 7 Plug & Play (Initial Setup)

8 Connecting to an AV Device 10 Connecting to an Audio Device 11 Changing the Input Source

12 How to Navigate Menus 12 Using the INFO button (Now & Next guide) 12 Planning Your Viewing 14 Channel Menu 17 Picture Menu 20 Sound Menu 22 Setup Menu 26 Support Menu

27 Connecting to a PC 28 Network Connection 35 Media Play 42 Anynet+ 46 Internet@TV 49 AllShare

ENGLISH

Other Information



TOOLS

This function can be used by

pressing the TOOLS button on the

remote control.

51 Analogue Channel Teletext Feature 52 Assembling the Cables 53 Installing the Wall Mount 55 Anti-theft Kensington Lock 55 Securing the TV to the wall 56 Troubleshooting 60 Speciﬁcations 61 Index

Check the Symbol!

Note One-Touch Button

English

Getting Started

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET



y Remote Control & Batteries (AAA x 2) y Warranty Card / Safety Guide (Not available in some locations)

(M4 X L8)

y Blanking Bracket & Screw (X1) y Holder-Ring (4ea) y Holder-Wire stand

y Cable Tie y Holder-Wire (3ea) y Power Cord Clamp

y Cleaning Cloth y Owner’s Instructions

y Component Adapter y AV Adapter y SCART Adapter

UE32C6700 / UE37C6700 / UE40C6700 / UE46C6700 / UE55C6700

See separate guide for installing the stand.

y Stand (1EA) y Guide Stand (1EA) y Screws (10EA)

UE32/37/40/46/55C6710, UE32/37/40/46/55C6730, UE32/37/40/46/55C6740

See separate guide for installing the stand.

y Stand (1EA) y Guide Stand (1EA) y Screws (9 EA)

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Maximum thickness - 0.55 inches (14mm)

(M4 X L12)

(M4 X L8)

English

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Power Indicator Remote control sensor

Speakers

Power Indicator Blinks and turns off when the power is on and lights up in standby mode. Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE









(Power)



Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Displays an on-screen menu, the OSD (on screen display), of your TV’s features. Adjusts the volume. In the OSD, use the

and ► buttons on the remote control. Changes the channels. In the OSD, use the

▼ and ▲ buttons on the remote control. Turns the TV on or off.



buttons as you would use the ◄



buttons as you would use the

01 Getting Started

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

English

Getting Started

Viewing the Remote Control

Turns the TV on and off.

Displays and selects the available video

sources (p. 11).

Have direct access to channels.

Alternately selects Teletext, Double or

Mix.

Adjusts the volume.

Opens the OSD.

Displays the Content View, which

includes Channel List, Internet@TV,

Media Play, and AllShare.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

POWER

TTX/MIX

CONTENT

TOOLS

RETURN

SOURCE

MUTE

CH LIST

ON/OFF

PRE-CH

GUIDE

INFO

EXIT

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen (p. 14).

Displays the EPG (Electronic Programme Guide) (p. 12).

Displays information on the TV screen.

Exits the menu.

These buttons are for the Channel

Manager, Internet@TV, Media Play

Use these buttons in Media Play and

Anynet+ (HDMI-CEC) modes



: Controls recording for Samsung

(

recorders that have the Anynet+ feature)

menu, etc.

(p. 35, 42).

Installing batteries (Battery size: AAA)

English

A B C D

MEDIA.P

✎

@ T V

INTERNET

P.SIZE

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote control.

f-g

DUAL

SUBT.

Avoid using nearby special fluorescent light or neon signs. The colour and shape may vary depending on the model.

MEDIA.P: Displays Media Play (p. 35). INTERNET@TV: Link to various internet

services (p. 46).

DUAL

-

(p. 22).

AD: Turns the audio description on and

off (p. 20). This is not available in some locations.

P.SIZE: Selects the picture size (p. 19). SUBT.: Displays digital subtitles (p. 24).

: Sound effect selection

Connecting to an Antenna

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

Satellite Antenna

VHF/UHF Antenna

Cable

Power Input

ANT OUT

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting a language

Selecting Store Demo or Home Use

Selecting a country

Selecting an antenna

Selecting a channel

Setting the Clock Mode Set the Clock Mode automatically or manually.

Time Zone

Viewing the

HD Connection Guide.

Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTER button. Select the desired OSD (On Screen Display) language.

Press the ◄ or ► button, then press the ENTER button.

• Select the Home Use mode. Store Demo Mode is for retail environments.

• To return the unit’s settings from Store Demo to Home Use (standard): Press the volume button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec.

Press the ▲ or ▼ button, then press the ENTER button. Select the appropriate country.

After selecting the country in the Country menu, some models may proceed with an additional option to setup

✎

the pin number. When you input the PIN number, 0-0-0-0 is not available.

✎

Press the ▲ or ▼ button, then press the ENTER Select Air, Cable or Satellite.

Press the ▲ or ▼ button, then press the ENTER button. Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Store (p. 14).

When Air or Cable is selected ﬁrst: After all Air or Cable channels are stored, the step for storing Satellite

✎

channels is displayed. When Satellite is selected ﬁrst: After all Satellite channels are stored, the step for storing Air or Cable

✎

channels is displayed. Press the ENTER button at any time to interrupt the memorization process.

✎

Press the ▲ or ▼ button to select Auto, then press the ENTER Press the ▲ or ▼ button to select the your time zone, then press the ENTER

country)

The connection method for the best HD screen quality is displayed.

Press the ENTER



button.



button.



button.



button. (depending on the

POWER

01 Getting Started

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English

Connections

R-AUDIO-L

PC IN

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver (STB)

DVD /

HDMI OUT

Blu-ray player

DVI OUT

DVD /

PC IN

Red White

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

AUDIO OUT

Blu-ray player

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the

PC/DVI AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

English

Using a Component (up to 1080p) or Audio/Video (480i only) Cable and Scart Cable

Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver

02 Connections

DVD /

Blu-ray player

COMPONENT OUT

PRPBY

VCR / DVD

EXT

Red

White

YellowRed Blue Green

RGB

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

W R

AUDIO OUT

R-AUDIO-L

VCR

WRWR

VIDEO OUTAUDIO OUT

Red

White

English

Connections

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analogue) Cable or Headphone Connections

Available devices: digital audio system, ampliﬁer, DVD home theatre

OPTICAL

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones : You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theatre.

When connecting, use the appropriate connector.

When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust

the volume level with the amplifier’s volume control.

digital audio system

English

CONNECTIONS COMMON INTERFACE Slot

SOURCE

To watch paid channels, the “CI or CI+ CARD” must be inserted.

y If you don’t insert the “CI or CI+ CARD,” some channels will

display the message “Scrambled Signal”.

y The pairing information containing a telephone number, the “CI or

CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

y When the conﬁguration of channel information has ﬁnished, the

message “Updating Completed” is displayed, indicating the channel list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may

cause damage to it. Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be

seen. When you are watching the satellite TV, remove the “CI or CI+ CARD” of terrestrial and cable. The screen will be

distorted or will not be seen.

02 Connections

Changing the Input Source

Source List

Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV.

■ TV / Ext. / PC / AV / Component

/ HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

✎

In the Source List, connected inputs will be highlighted.

✎

Ext. and PC always stay activated.

Edit Name

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

English

Basic Features

H LIS

MUTE

POWE

OURCE

PRE-CH

TOOLS

INFO

TTX/MIX

ON/OFF

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

NTEN

UIDE

RETURN

EXIT

1 ENTER / Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu. 3 MENU button: Displays the main on-screen menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.



The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

▲ / ▼ Select an icon with the ▲ or ▼

2 3 4 5

ENTER

▲ / ▼

◄ / ►

button.



Press ENTER to access the sub-menu.

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.



Press ENTER to complete the conﬁguration.

Press EXIT.

ENTER

EXIT



Using the INFO button (Now & Next guide)

The display identiﬁes the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

y Scroll ◄, ► to view information for a

desired programme while watching the current channel.

y Scroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press the ENTER

DEF

DTV Air



button.

Unclass ified

No Det aild Inform ation

Life On Venus Avenu e

18:00 ~ 6:00

INFO

18:11 Thu 6 Jan

Watch

Information

Planning Your Viewing

Guide

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the speciﬁed time. Programme entries may appear blank or out of date depending on a channel status.

Using Channel View

Guide

18:00 - 19:00 19:00 - 20:00

American Chopper

Programmes resume at 06:00 Home and... No Information QVC Selection No Information

)

Family Affairs

800 ﬁve

Channel View - TV

Today

Discovery

DiscoveryH&L

800

five

price-drop.tv

QVC

R4DTT

DTV Air 800 five

Home and Away 18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

View Mode +24 Hours Ch. Mode Information  Page

1 2 3 4 5 6

Tine Team

Fiv...

)

GUIDE

2:10 Tue 1 Jun

Dark Angel



Watch

English

Using Scheduled View

Guide

Family Affairs

) )

Dark Angel

View Mode Information

1 4 6



800 800

button again and

DTV Air 800 five

Family Affairs 18:00 - 18:30

Drama

800 ﬁve

Scheduled View

18:30

Today

19:15

Today

1

Red (View Mode): View the list of programmes that

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

are playing now or coming up.

2

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

3

Blue (Ch. Mode): Select the type of channels you

want to display on the Channel View window.

– The Ch. Mode differs according to the antenna

source.

4 Information: Displays details of the selected

programme.

5



(Page): Move to next or previous page.

6 ENTER



button

– When selecting the current programme, you can

watch the selected programme.

– When selecting the future programme, you can

reserve to watch the selected programme. To cancel the schedule, press the ENTER select Cancel Schedules.

2:10 Tue 1 Jun

five five



Cancel

■ Channels: Shows the channel list according to channel type.



My Channels: Shows the group of the channel.

■

Satellite: Shows the channel list according to

satellite signal.

■

Scheduled: Shows all the currently reserved

programmes.

✎

Using the colour buttons with the Channel Manager

Red (Antenna): Toggle among Air, Cable or

Satellite.

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Select desired channels and press

the Yellow button to set all the selected channels at the same time. The  mark appears to the left of the selected channels.

Blue (Sort): Change the list ordered by channel

name or channel number.



(Page): Move to next or previous page.



(Tools): Displays the Channel Manager option

menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations

An analogue channel.



A channel selected.



A channel set as a Favourite.



A programme currently being broadcast.



A locked channel.



A reserved programme.



03 Basic Features

Channel Manager

Delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the Channels, My Channels, Satellite or Scheduled screen.

Channels

All

TV Radio Data/Other Free Scrambled Searched

Satellite Antenna B Zoom Select Sort  Page

c 1 1futech c 2 * 24ore.tv

15 abc1

3 BBC World 23 bid-up.tv 33 Boonerang 32 Cartoon Nwk

5 Class News 4 Coming Soon 27 Discovery



Tools

English

Basic Features

 Using Favourite Channels



My Channels

(in Channel Manager) Shows all favourite channels.

■ Edit My Channels

channels to desired my channels group.

✎

The “” symbol will be displayed and the channel will be set as a my channel.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4.

One or more groups can be selected.

3. After you have changed the settings, the channel list

for each group can be viewed in my channels.

Channels

Satellite Antenna B Zoom Select Sort  Page



All

TV Radio Data/Other Free Scrambled Searched

: You can set the selected

c 1 1futech c 2 * 24ore.tv

15 abc1

Edit My Channels Lock

3 BBC World

Timer Viewing

23 bid-up.tv

Edit Channel Number

33 Boonerang

Delete

32 Cartoon Nwk

Deselect All

5 Class News 4 Coming Soon 27 Discovery





Tools

Channel List

You can see all the channels searched.

CH LIST

Channel Menu

 Returning Channels

Antenna (Air / Cable / Satellite)

Before your television can begin memorising the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air, Cable or Satellite system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

■ Digital Channel: Change the country for digital channels.

■ Analogue Channel: Change the country for analogue channels.

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

■ Antenna Source (Air / Cable / Satellite): Select the antenna source to memorise.

When Antenna Source is set to Air or Cable:

■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise.

When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

✎

If you select Quick, you can set up the Network,

Network ID, Frequency, Modulation, and Symbol Rate manually by press the button on the

remote control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel.

(differs in each country)

Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates.

English

When Antenna Source is set to Satellite:

■ Channel Type (All / TV / Radio): Select the Channel

type to memorise.

■ Satellite: Selects the satellite to scan.

■ Scan Mode (All Channels / Free Channels Only):

Selects the scanning mode of the selected satellite.

Manual Store

Scans for a channel manually and stores in the TV.

✎

If a channel is locked using the Child Lock function, the PIN input window appears.

When Antenna Source is set to Air or Cable:

■ Digital Channel: When scanning has ﬁnished, channels

are updated in the channel list.

✎

When selecting Antenna → Air: Channel,

Frequency, Bandwidth

✎

When selecting Antenna → Cable: Frequency,

Modulation, Symbol Rate

■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal

sound or no sound, reselect the sound standard required.

✎

Channel mode

P (programme mode): When tuning is complete,

the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

C (aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

When Antenna Source is set to Satellite:

■ Satellite: Selects the satellite using the up/down buttons.

■ Transponder: Selects the transponder using the up/ down buttons.

■ Scan Mode (All Channels / Free Channels Only): Selects either free or all channels to store.

■ Network Search (Disable / Enable): Enable / Disable network search using the up/down buttons.

■ Signal Quality: Display the current status of broadcasting signal.

✎

Information on a satellite and its transponder is subject to change depending on the broadcasting conditions.

✎

When setting is completed, move to Search and press the ENTER button. Channel scan is started.

Satellite System Setup

The PIN input screen appears. Enter your 4 digit PIN number.

Satellite System Setup is available when Antenna is set to Satellite. Before running Auto Store, set Satellite System Setup. Then channel scan is run normally.

■ Satellite Selection: You can choose the satellites for

this TV.

■ LNB Power (Off / On): Enables or disables the power

supply for the LNB.

■ LNB Settings: Conﬁgures the outdoor equipment.

■ Satellite: Selects the satellite for receiving digital

broadcasts. Transponder: Selects a transponder from the list or

adds a new transponder. DiSEqC Mode: Selects DiSEqC mode for the selected

LNB. Lower LNB Oscillators: Sets the LNB oscillators to a

lower frequency. Upper LNB Oscillators: Sets the LNB oscillators to a

higher frequency. Tone 22 kHz (Off / On / Auto): Selects the Tone 22

kHz depending on the LNB type. For a universal LNB it should be Auto.

Signal Quality: Display the current status of broadcasting signal.

■ Positioner Settings: Conﬁgures the antenna positioner. Positioner (On / Off): Enables or disables the positioned

control. Positioner Type (USALS / DiSEqC 1.2): Sets

the positioned type between DiSEqC 1.2 and USALS(Universal Satellite Automatic Location System).

– My Longitude: Sets the longitude for my location. – My Latitude: Sets the latitude for my location. – Satellite Longitude Settings: Sets the longitude of

user deﬁned satellites.

User Mode: Sets the position of satellite antenna according to each satellite. If you store the current position of satellite antenna according to a certain satellite, when the signal of that satellite is needed, the satellite antenna can be moved to pre-populated position.

– Satellite: Selects the satellite to set the position for. – Transponder: Selects a transponder from the list for

signal reception.

– Moving Mode: Selects the movement mode between

discrete and continuous movement.

– Step Size: Adjusts the step size degrees for the

antenna rotation. Step Size is available when Moving Mode is set to Step.

03 Basic Features

English

Basic Features

– Go to Stored Position: Rotates the antenna to the

stored satellite position.

– Antenna Position: Adjusts and stores the antenna

position for the selected satellite.

– Store Current Position: Stores current position as

the selected positioner limit.

– Signal Quality: Display the current status of

broadcasting signal.

Installer Mode: Sets limits to the scope of movement of satellite antenna or reset the position. Generally, installation guide uses this function.

– Limit Position (East / West): Selects the direction of

the positioner Limit.

– Antenna Position: Adjusts and stores the antenna

position for the selected satellite.

– Store Current Position: Stores the current position

as the selected positioner Limit.

– Go to Zero: Moves the antenna to the reference

position.

– Reset Positioner Limit: Allows the antenna to rotate

over the full arc.

■ Reset All Setting (OK / Cancel): All satellite settings will

be reset to the initial values.

 Editing Channels

Channel Manager Option Menu (in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu.

■ Edit Channel Name (analogue channels only): Assign

your own channel name.

■ Edit Channel Number (digital channels only): Edit the

number by pressing the number buttons desired.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Recording, Timer Viewing, Sort, Reorder, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock: Lock a channel so that the channel

cannot be selected and viewed.

✎

NOTE

This function is available only when the

Child Lock is set to On. The PIN input screen appears. Enter your

4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

■ Timer Viewing: You can set a desired channel to be

displayed automatically at the reserved time. Set the current time ﬁrst to use this function.

✎

When a digital channel is selected in Channel Manager, press the ► button to view the digital Programme.

■ Sort (analogue channels only): This operation allows

you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

■ Reorder (when the Antenna was set to Satellite):

Rearrange the channel manager in numerical order.

■ Delete: You can delete a channel to display the channels

you want.

■ Select All / Deselect All: Select all the channels

or deselect all the selected channels in the channel manager.

 Other Features

Cable Search Option

(depending on the country) Sets additional search options such as the frequency and

symbol rate for a cable network search.

■ Freq.Start / Freq.Stop: Set the start or stop frequency

(differs in each country)

■ Symbol Rate: Displays available symbol rates.

■ Modulation: Displays available modulation values.

English

Scheduled

(in Channel Manager) You can view, modify or delete a show you have reserved to

watch.

■ Change Info: Change a show you have reserved to

watch.

■ Cancel Schedules: Cancel a show you have reserved

to watch.

■ Information: Display a show you have reserved

to watch. (You can also change the reservation information.)

■ Select All / Deselect All: Select or deselect all reserved

programmes.

 Adjusting Picture Settings

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue TV, Ext., AV modes of the PAL system,

the Tint (G/R) function is not available. In PC mode, you can only make changes to

Backlight, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV.

03 Basic Features

Channel List Transfer

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■ Import from USB: Import channel list from USB.

■ Export to USB: Export channel list to USB. this function

is available when USB is connected.

Fine Tune

(analogue channels only) If the signal is weak or distorted, ﬁne tune the channel

manually.

✎

Fine tuned channels are marked with an asterisk “*”.

✎

To reset the fine-tuning, select Reset.

Picture Menu

 Changing the Preset Picture Mode

Mode

Select your preferred picture type.



■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Natural: Suitable for reducing eye strain.

✎

Natural is not available in PC mode.

■ Movie: Suitable for watching movies in a dark room.

 Economical Solutions

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto)

of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen.

■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

✎

If you adjust the Backlight, the Eco Sensor will be set to Off.

Min Backlight: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

✎

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■ No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it’s not receiving a signal.

✎

Disabled when the PC is in power saving mode.



: Adjust the brightness

English

Basic Features

 Changing the Picture Options

Advanced Settings

(available in Standard / Movie mode) You can adjust the detailed setting for the screen including

colour and contrast.

✎

In PC mode, you can only make changes to

Dynamic Contrast, Gamma, White Balance and LED Motion Plus.

Advanced Settings

Black Tone : Off ► Dynamic Contrast : Medium Shadow Detail : -2 Gamma : 0

Expert Pattern : Off

RGB Only Mode : Off Colour Space : Native ▼



Move



Enter



Return

■ Black Tone (Off / Dark / Darker / Darkest): Select the

black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust

the screen contrast.

■ Shadow Detail (-2~+2): Increase the brightness of dark

images.

■ Gamma: Adjust the primary colour intensity.

■ Expert Pattern (Off / Pattern1 / Pattern2): By running the Expert Pattern function, the picture can be calibrated without a generator or ﬁlter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.

✎

While the Expert Pattern is running, sound is not outputted.

✎

Only enabled in DTV, Component and HDMI modes.

■ RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

■ Colour Space (Auto / Native / Custom): Adjust the

range of colours available to create the image. To adjust

Colour, Red, Green, Blue and Reset, set Colour Space to Custom.

■ White Balance: Adjust the colour temperature for a

more natural picture. R-Offset / G-Offset / B-Offset: Adjust each colour’s

(red, green, blue) darkness. R-Gain / G-Gain / B-Gain : Adjust each colour’s (red,

green, blue) brightness. Reset: Resets the White Balance to it’s default settings.

■ 10p White Balance (Off / On): Controls the white

balance in 10 point interval by adjusting the red, green, and blue brightness.

✎

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

✎

Some external devices may not support this function.

Interval: Select interval to adjust. Red: Adjust the red level. Green: Adjust the green level. Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default

settings.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object

boundaries.

■ xvYCC (Off / On): Setting the xvYCC mode on

increases detail and colour space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks.

✎

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

✎

Some external devices may not support this function.

■ LED Motion Plus (Off / On): Removes drag from fast

scenes with a lot of movement to provide a clear picture.

English

Picture Options

✎

In PC mode, you can only make changes to the Colour Tone, Size and Auto Protection Time.

Picture Options

Colour Tone : Normal ► Size : Auto Wide Screen Mode : 16:9 Digital Noise Filter : Auto MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off ▼



Move



Enter



■ Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the TV.

■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magniﬁes the picture size more than 4:3.

✎

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

✎

Adjusts the Position or Size by using ▲, ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Return

P.SIZE

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

✎

NOTE

Depending on the input source, the picture size

options may vary. The available items may differ depending on the

selected mode. In PC mode, only 16:9 and 4:3 modes can be

adjusted. Settings can be adjusted and stored for each

external device connected to an input of the TV. After selecting Screen Fit in HDMI (1080i / 1080p)

or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◄, ► button.

If you use the Screen Fit function with HDMI 720p

input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

✎

Not available in PC, Component or HDMI mode.

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and deﬁnes the screen noise ﬁlter.

✎

Only available for analogue channels.

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process ﬁlm signals from all sources and adjust the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

03 Basic Features

English

Basic Features

■ 100Hz Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo): Removes drag from fast scenes with

a lot of movement to provide a clearer picture.

✎

If noise occurs on the screen, please set up the 100Hz Motion Plus to Off. If 100Hz Motion Plus is Custom, you can set up the Blur Reduction, Judder Reduction or Reset manually.

✎

If 100Hz Motion Plus is Demo, you can compare the difference of on and off modes.

Blur Reduction: Adjusts the blur reduction level from video sources.

Judder Reduction: Adjusts the judder reduction level from video sources when playing ﬁlms.

Reset: Reset the custom settings.

■ Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): If the screen remains idle with a still image for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

 Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.



Screen

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◄ / ►).

■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card,

the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1920 X

1080 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Sound Menu

 Changing the Preset Sound Mode

SRS TheaterSound

■ Standard: Selects the normal sound mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for movies.

■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound

to allow a better listening experience for the hearing impaired.



 Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and

left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth

Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

■ Reset: Resets the equalizer to its default settings.

English

 Sound Systems, Etc.

SRS TruSurround HD (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.



SRS TruDialog (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

Audio Language

(digital channels only) Change the default value for audio languages.

✎

The available language may differ depending on the broadcast.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

03 Basic Features

Audio Format

(digital channels only) When sound is emitted from both the main speaker and the

audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

✎

Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

Audio Description

(not available in all locations) (digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

■ Audio Description (Off / On): Turn

the audio description function on or off.

■ Volume: Adjust the audio description volume.

Additional Setting

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

✎

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

✎

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your interactive 3D sound experience.

Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

English

Basic Features

f-g

■ Dolby Digital Comp (Line / RF): This function minimizes

signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

 Selecting the Sound Mode

When you set to Dual -, the current sound mode is displayed on the screen.

Audio

Type

Stereo

NICAM

Stereo

✎

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

✎

Only activated in stereo sound signal.

✎

Only available when the Input source is set to TV.

Mono Mono

Stereo

Dual

Mono Mono

Stereo

Dual

Dual -



Stereo ↔ Mono

Dual



↔ Dual

Mono ↔ Stereo Mono ↔ Dual

 Dual  





DUAL

Default

Automatic

change

Dual 

Automatic

change

Dual

Setup Menu

 Setting the Time

Time

■ Clock: Setting the clock is for using various timer features of the TV.



The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

✎

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

✎

The antenna must be connected in order to set the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

✎

Available only when Clock Mode is set to

Manual.

Time Zone (depending on the country): Select your time

zone.

✎

When Country is set to Others, you can use this function.

✎

This function is only available when the

Clock Mode is set to Auto.

 Using the Sleep Timer



■ Sleep Timer after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes).

✎



To cancel Sleep Timer, select Off.

: Automatically shuts off the TV

English

 Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3: Three different on / off

timer settings can be made. You must set the clock ﬁrst.

On Time

▲

Inactivate

▼

Off Time

Inactivate

Volume

10 TV ATV 1

Repeat

Once

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or DTV.

Channel (when the Source is set to TV): Select the

desired channel. Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB

device, the Slide Show will not play. If a folder name is too long, the folder cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Timer 1

00 00

Source Antenna Channel

Sun Mon Tue Wed Thu Fri Sat



Move



Adjust



Enter



Return

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The  mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

 Locking Programmes

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV.

■ Parental Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-deﬁned 4-digit PIN code. If selected channel is locked, the “ be displayed.

Allow All: Unlock All TV ratings (Not supported in France).

✎

When Parental Lock is set to 18, the PIN input screen appears before changing the channels (France only).

■ Change PIN: Change your personal ID number required to set up the TV.

✎

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).



” symbol will

03 Basic Features

English

Basic Features

 Other Features

Language

■ Menu Language: Set the menu language.

■ Teletext Language: Set a desired language for teletext.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

■ Preference (Primary Audio Language /

Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select a language, which will be the default

language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

■ Subtitle (Off / On): Switches subtitles

on or off.

■ Mode (Normal / Hearing Impaired):

Sets the subtitle mode.

■ Subtitle Language: Sets the subtitle

language.

✎

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

✎

English is the default in cases where the selected language is unavailable in the broadcast.

SUBT.

Network (Network Type / Network Setup / Network Test / SWL(Samsung Wireless Link) / SWL connect)

For details on set up options, refer to the “Network Connection” instructions (p. 28).

General

■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

is set to TV or PC. After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

If Game Mode is On:

– Picture mode is set to Standard and Sound mode

is set to Movie.

– Equalizer is not available.

Digital Text (Disable / Enable)

(UK only) If the programme broadcasts with digital text, this feature is

enabled.

English

■ BD Wise (Off / On): Provides the optimal picture quality

for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

✎

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Se t the

Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a

melody plays when the TV is turned on or off.

 Common Interface

■ CI Menu: This enables the user to select from the CAM-

provided menu. Select the CI Menu based on the menu PC Card.

■ Application Info: View information on the CAM inserted

into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel.

Wireless Remote Control

Turn wireless remote controls on or off or give permission to wireless remote controls.

 Picture In Picture (PIP)



PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE

For PIP sound, refer to the Sound Select

instructions. If you turn the TV off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While Internet@TV is in operation, the PIP function

cannot be used. PIP settings

Main picture Sub picture Component, HDMI1/DVI,

HDMI2, HDMI3, HDMI4, PCTV

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Channel: Select the channel for the sub-screen.



■ Size (

■ Position ( sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ ): Select a size for the sub-picture.



/  /  / ): Select a position for the

03 Basic Features

English

Basic Features

Support Menu

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■ Picture Test (Yes / No): Use to check for picture

problems.

■ Sound Test (Yes / No): Use the built-in melody sound to

check for sound problems.

✎

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

✎

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■ Signal Information: (digital channels only) HDTV

channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Troubleshooting: If the TV seems to have a problem,

refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

Software Upgrade

Software Upgrade can be performed via a broadcasting

signal or by network connection or downloading the latest ﬁrmware from “www.samsung.com,” to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Software Upgrade

Current Version 2010/01/18_000001

By USB ► By Online By Channel Standby Mode Upgrade : 2 Hours Later

Alternative Software 2010/01/15_00000



Move



Enter



Return

Installing the Latest Version

■ By USB: Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from “www.samsung. com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■ By Online: Upgrade the software using the Internet.

✎

First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions.

✎

If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

✎

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

✎

The time required to download the software is determined by the signal status.

■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LED product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

■ Alternative Software (backup): Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

TV Rear Panel

(HDD)

USB Drive

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

English

Advanced Features

Using an HDMI/DVI Cable / a D-sub Cable

Connecting to a PC

04 Advanced Features

AUDIO OUT

PC OUT

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT / DTV CEA

640 x 350 720 x 400

640 x 480 832 x 624

1152 x 870

720 x 576 1152 x 864 1280 x 720 1280 x 960

640 x 480

800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864

1280 x 1024 1280 x 1024

1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900

1600 x 1200 1680 x 1050

1280 x 720

1280 x 1024

1920 x 1080p 67.500 60.000 148.500 +/+

Horizontal Frequency

(KHz)

31.469

35.000

49.726

68.681

35.910

53.783

56.456

75.231

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

45.000

49.702

62.795

60.000

47.712

55.935

70.635

75.000

65.290

52.500

74.620

PC IN

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.950

59.959

74.777

74.857

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

60.000

59.810

74.934

60.000

60.015

59.887

74.984

60.000

59.954

70.000

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

32.750

81.750

95.750

130.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

74.250

83.500

106.500

108.000

85.500

106.500

136.750

162.000

146.250

89.040

128.943

DVI OUT

AUDIO OUT

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+ +/+ +/+

-/+

-/+ +/+ +/+

-/+

-/+ +/+

-/+

-/-

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English

Advanced Features

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

(

SATELLITE

)

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

(

SATELLITE

)

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

ANT 2 IN

(

SATELLITE

)

ANT 1 IN

(

AIR / CABLE

)

(

SATELLITE

)

(

AIR / CABLE

)

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

 Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways:

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat

5 cable. See the diagram below.

TV Rear Panel

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

Modem Cable

LAN Cable

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected

to an external modem. Use Cat 5 cable for the connection. See the diagram below.

The LAN Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer

(having DHCP server)

LAN Cable LAN Cable

TV Rear Panel

y Depending on how your network is conﬁgured, you may be able to attach your TV to your LAN by connecting the LAN

port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

TV Rear Panel

The Modem Port on the Wall

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Conﬁguration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

✎

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

English

Network Setup (Auto)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER Network screen appears.

Network Type : Wired ► Network Setup Network Test

SWL(Samsung Wireless Link) : Off SWL connect

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

appears.

Internet Protocol Setup : Auto ►

IP Address : Subnet Mask : Gateway :

DNS : Auto

DNS Server :



button.

Network



Move

Network Setup



button. The



Enter



Return

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the

screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up

automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the ﬁrst

entry ﬁeld.

4. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move from one entry ﬁeld to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

04 Advanced Features



Move



Enter



Return

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

automatically.

9 When done, press the RETURN button on your remote.

10. Select Network Test to check the Internet connectivity.

11. If the Network Function has not acquired the network

connection values, go to the directions for Manual.

English

Advanced Features

 Connecting to a Wireless Network

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN), which you connect to your TV’s back or side panel USB jack. See the illustration below.

To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

✎

TV Rear Panel

LAN Cable

Wireless IP sharer

(HDD)

Samsung Wireless

LAN Adapter

The LAN Port on the Wall

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts. com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play the video over a IEEE 802.11B/G connection, the video may not play smoothly.

✎

NOTE

You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN) to use a wireless network.

Samsung’s Wireless LAN adapter is sold separately. The WIS09ABGN Wireless LAN adapter is offered by select

retailers, Ecommerce sites and Samsungparts.com. To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports

DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communication failure. If you apply a security system other than the systems listed blow, it will not work with the TV.

If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP-

AES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.”

Connection Methods: You can setup the wireless network connection six ways.

– Samsung Auto Conﬁguration – PBC (WPS) – Auto Setup (Using the Auto Network Search function) – Manual Setup – SWL(Samsung Wireless Link) – Ad-Hoc

All of Samsung Wireless LAN Adapter should be connected directly to the TV’s USB port. USB HUB are not

supported.

English

+ 211 hidden pages
